Boston Amplifier 1900603-BDA Booster/Bi-Directional Amplifier User Manual BDA 603 User Guide pub

Boston Amplifier, Inc Booster/Bi-Directional Amplifier BDA 603 User Guide pub

User Manual

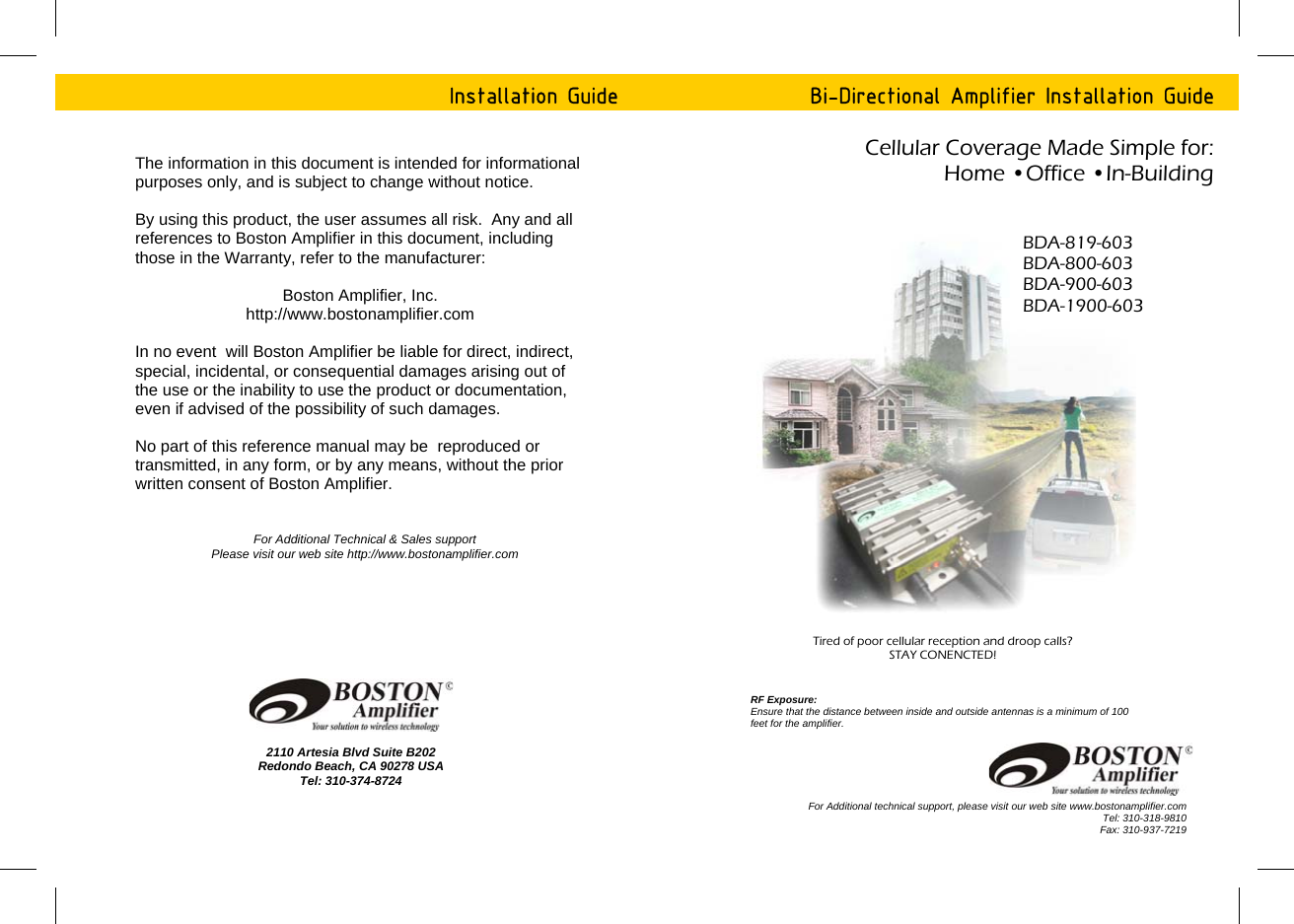

Installation Guide 2110 Artesia Blvd Suite B202 Redondo Beach, CA 90278 USA Tel: 310-374-8724 The information in this document is intended for informational purposes only, and is subject to change without notice. By using this product, the user assumes all risk. Any and all references to Boston Amplifier in this document, including those in the Warranty, refer to the manufacturer: Boston Amplifier, Inc. http://www.bostonamplifier.com In no event will Boston Amplifier be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or the inability to use the product or documentation, even if advised of the possibility of such damages. No part of this reference manual may be reproduced or transmitted, in any form, or by any means, without the prior written consent of Boston Amplifier. For Additional Technical & Sales support Please visit our web site http://www.bostonamplifier.com Cellular Coverage Made Simple for: Home •Office •In-Building Bi-Directional Amplifier Installation Guide BDA-819-603 BDA-800-603 BDA-900-603 BDA-1900-603 For Additional technical support, please visit our web site www.bostonamplifier.com Tel: 310-318-9810 Fax: 310-937-7219 Tired of poor cellular reception and droop calls? STAY CONENCTED! RF Exposure: Ensure that the distance between inside and outside antennas is a minimum of 100 feet for the amplifier.

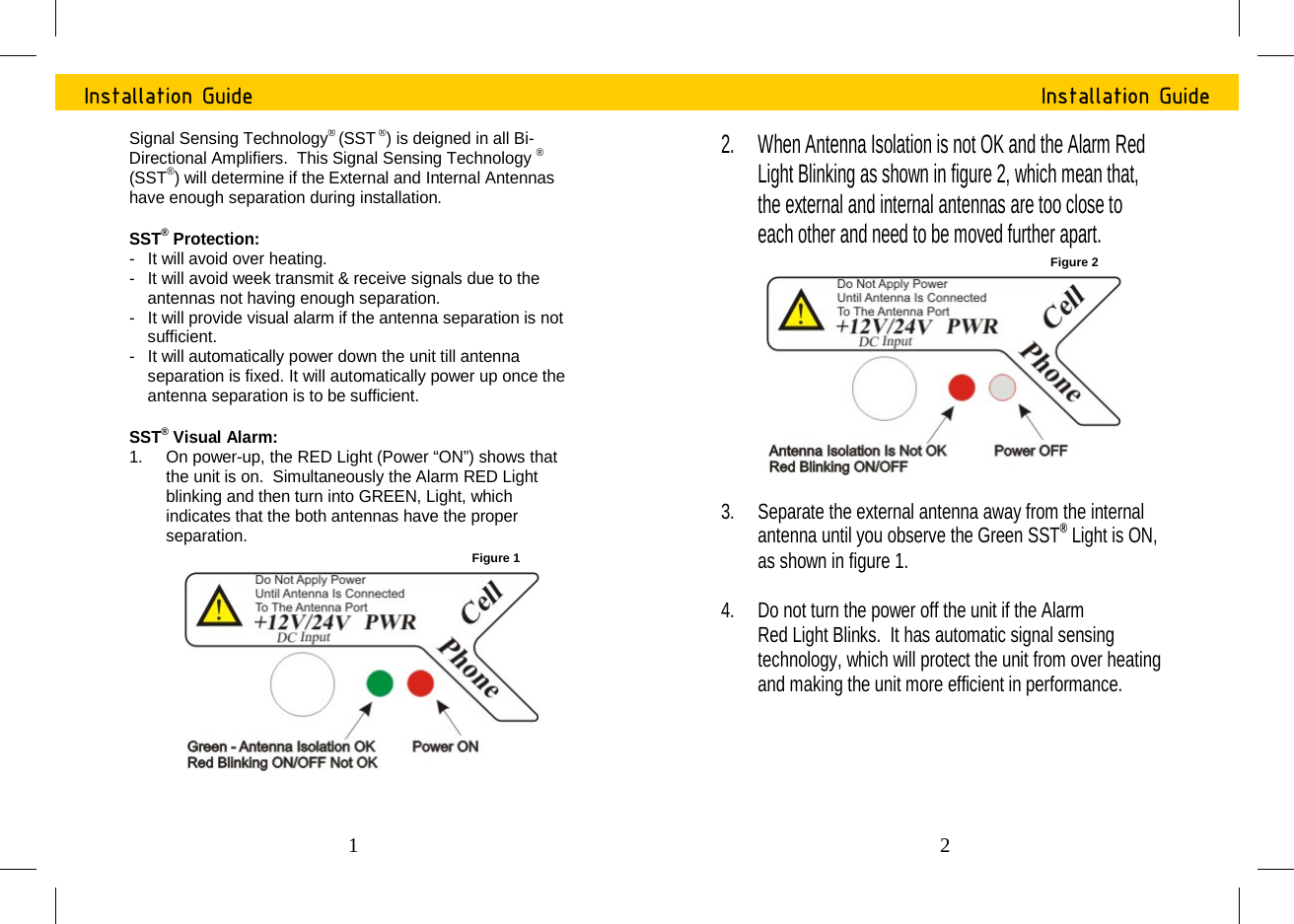

Installation Guide Signal Sensing Technology® (SST®) is deigned in all Bi-Directional Amplifiers. This Signal Sensing Technology ® (SST®) will determine if the External and Internal Antennas have enough separation during installation. SST® Protection: - It will avoid over heating. - It will avoid week transmit & receive signals due to the antennas not having enough separation. - It will provide visual alarm if the antenna separation is not sufficient. - It will automatically power down the unit till antenna separation is fixed. It will automatically power up once the antenna separation is to be sufficient. SST® Visual Alarm: 1. On power-up, the RED Light (Power “ON”) shows that the unit is on. Simultaneously the Alarm RED Light blinking and then turn into GREEN, Light, which indicates that the both antennas have the proper separation. Figure 1 1 Installation Guide 2. When Antenna Isolation is not OK and the Alarm Red Light Blinking as shown in figure 2, which mean that, the external and internal antennas are too close to each other and need to be moved further apart. 3. Separate the external antenna away from the internal antenna until you observe the Green SST® Light is ON, as shown in figure 1. 4. Do not turn the power off the unit if the Alarm Red Light Blinks. It has automatic signal sensing technology, which will protect the unit from over heating and making the unit more efficient in performance. Figure 2 2

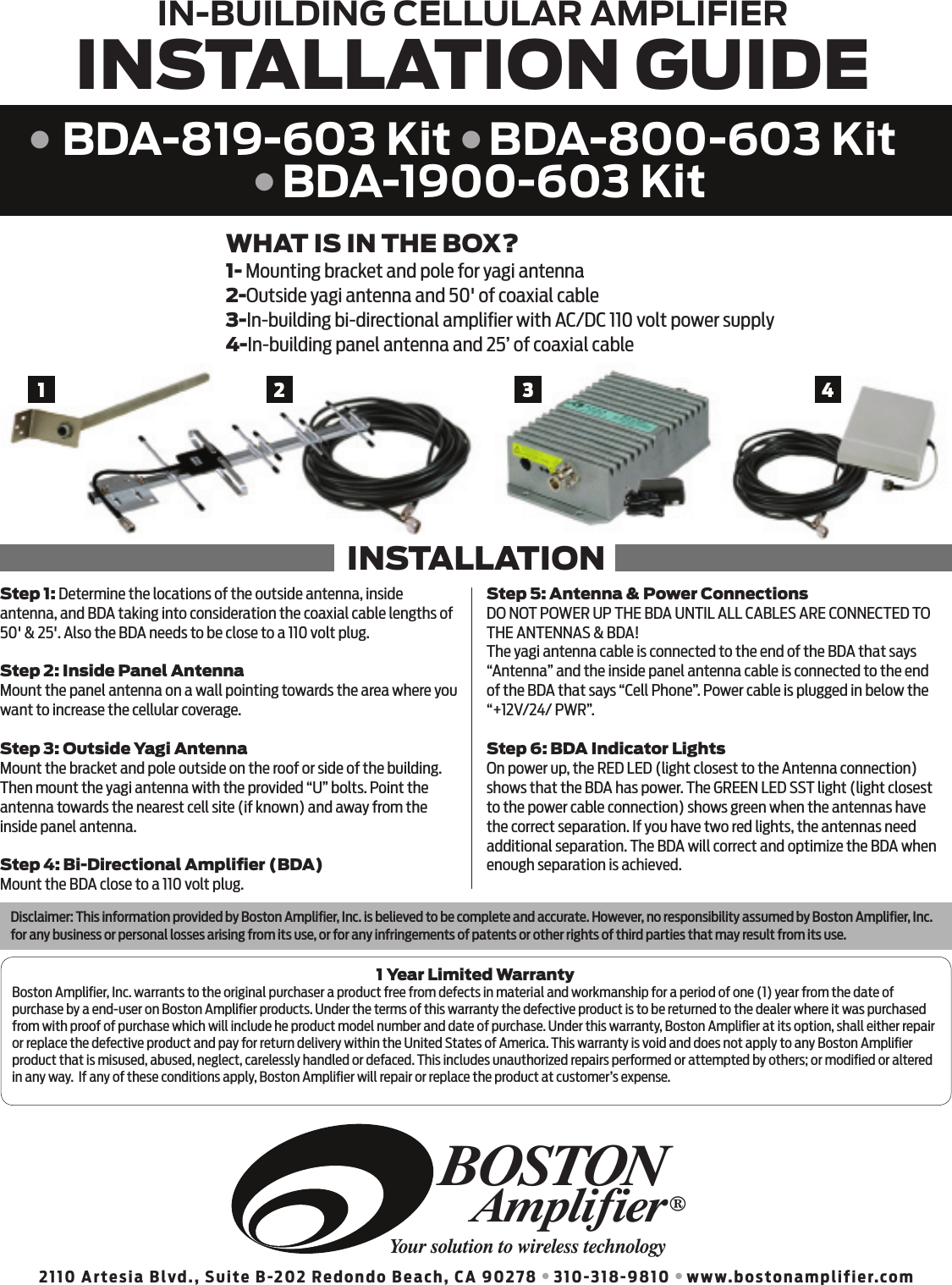

Step 1: Determine the locations of the outside antenna, inside antenna, and BDA taking into consideration the coaxial cable lengths of 50' & 25'. Also the BDA needs to be close to a 110 volt plug.Step 2: Inside Panel AntennaMount the panel antenna on a wall pointing towards the area where you want to increase the cellular coverage.Step 3: Outside Yagi AntennaMount the bracket and pole outside on the roof or side of the building. Then mount the yagi antenna with the provided “U” bolts. Point the antenna towards the nearest cell site (if known) and away from the inside panel antenna. Step 4: Bi-Directional Amplifier (BDA)Mount the BDA close to a 110 volt plug. WHAT IS IN THE BOX?1- Mounting bracket and pole for yagi antenna2-Outside yagi antenna and 50' of coaxial cable3-In-building bi-directional amplifier with AC/DC 110 volt power supply4-In-building panel antenna and 25’ of coaxial cableIN-BUILDING CELLULAR AMPLIFIERINSTALLATION GUIDE● BDA-819-603 Kit ● BDA-800-603 Kit ● BDA-1900-603 Kit 1 2 3 4INSTALLATIONStep 5: Antenna & Power ConnectionsDO NOT POWER UP THE BDA UNTIL ALL CABLES ARE CONNECTED TO THE ANTENNAS & BDA!The yagi antenna cable is connected to the end of the BDA that says “Antenna” and the inside panel antenna cable is connected to the end of the BDA that says “Cell Phone”. Power cable is plugged in below the “+12V/24/ PWR”.Step 6: BDA Indicator LightsOn power up, the RED LED (light closest to the Antenna connection) shows that the BDA has power. The GREEN LED SST light (light closest to the power cable connection) shows green when the antennas have the correct separation. If you have two red lights, the antennas need additional separation. The BDA will correct and optimize the BDA when enough separation is achieved.Disclaimer: This information provided by Boston Amplifier, Inc. is believed to be complete and accurate. However, no responsibility assumed by Boston Amplifier, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.1 Year Limited WarrantyBoston Amplifier, Inc. warrants to the original purchaser a product free from defects in material and workmanship for a period of one (1) year from the date of purchase by a end-user on Boston Amplifier products. Under the terms of this warranty the defective product is to be returned to the dealer where it was purchased from with proof of purchase which will include he product model number and date of purchase. Under this warranty, Boston Amplifier at its option, shall either repair or replace the defective product and pay for return delivery within the United States of America. This warranty is void and does not apply to any Boston Amplifier product that is misused, abused, neglect, carelessly handled or defaced. This includes unauthorized repairs performed or attempted by others; or modified or altered in any way. If any of these conditions apply, Boston Amplifier will repair or replace the product at customer’s expense.BOSTONAmplifierYour solution to wireless technology®2110 Artesia Blvd., Suite B-202 Redondo Beach, CA 90278 ● 310-318-9810 ● www.bostonamplifier.com
