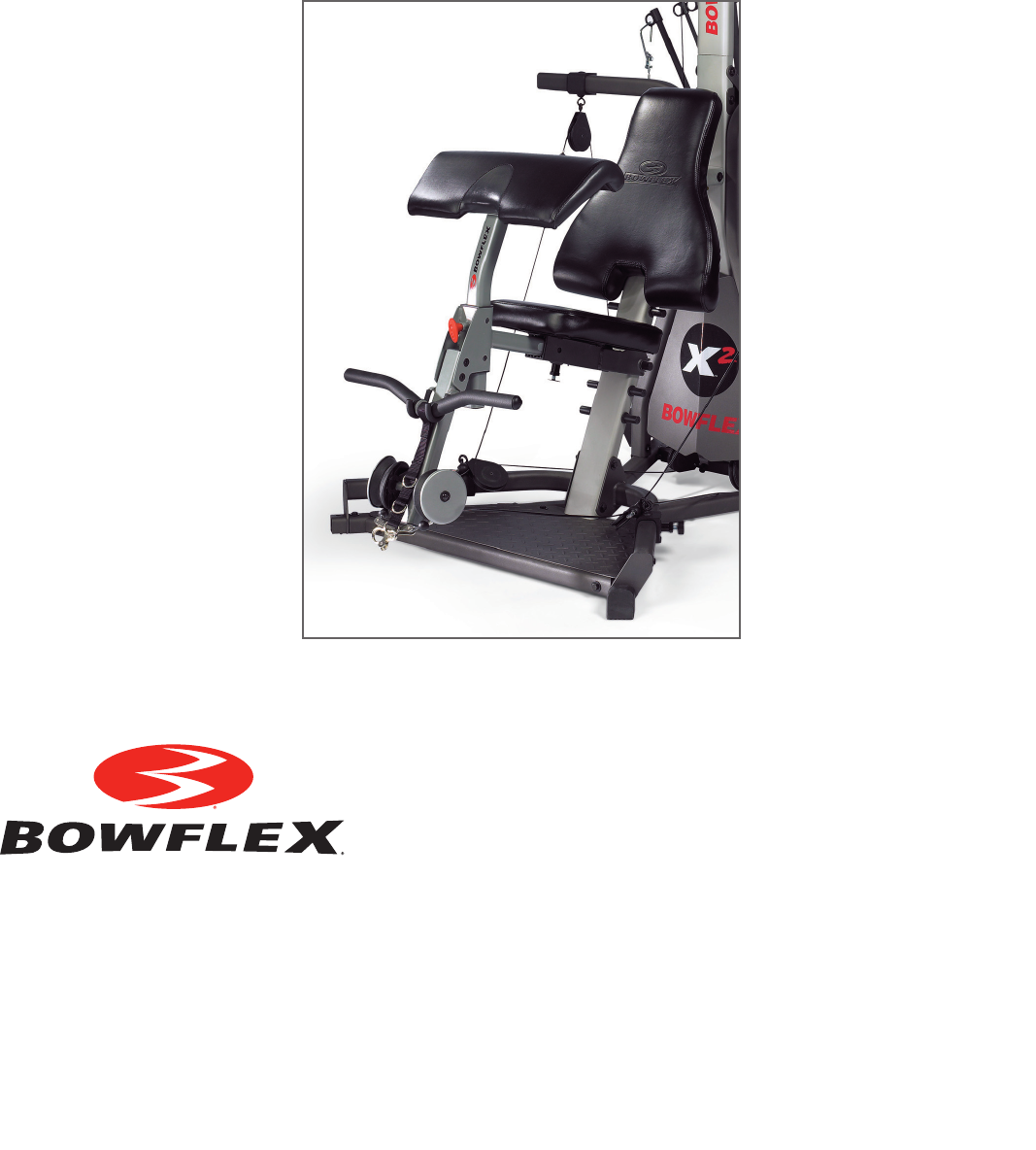

Preacher Curl Attachment

Owner’s / Assembly Manual

P/N: 001-7015.061512.B

Important Safety Precautions .........................3

Before You Assemble ...............................4

Hardware and Tool Guide ...........................4

Parts Guide ..........................................5

Assembly Instructions ................................6

Maintenance ......................................13

How to Use Your Preacher Curl Attachment ..........15

Exercise ..........................................16

Muscle Chart ......................................17

Limited Warranty ..................................19

Contacts ..........................................20

Table of Contents

Congratulations on your commitment to ﬁtness and your purchase of the Bowflex®

Preacher Curl attachment Before assembling your Bowflex® Preacher Curl attachment,

please read the Owner’s/Assembly Manual and follow the Important Safety Precautions.

To validate warranty support, keep the original proof of purchase and record the following

information:

Serial Number __________________________ Date of Purchase ____________________

To register your product warranty, go to: www.bowﬂex.com/register

Or call 1 (800) 605–3369.

If you have questions or problems with your product, please call 1 (800) NAUTILUS

(628–8458).

Important Safety Precautions

Obey the following warnings:

IMPORTANT SAFETY INSTRUCTIONS

There are no warning labels on the Preacher Curl attachment itself. Once the Preacher Curl attachment

is installed, pay attention to the warning labels located on the Bowflex® home gym. Please read all safety

precautions and warning information prior to using your product. Be sure to replace any warning label if damaged,

illegible, or missing. If you need replacement labels, please call a Bowﬂex® Representative at 1-800-605-3369.

Safety Warning Labels

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Read and understand all Warnings on this machine.

Carefully read and understand the complete manual for this accessory equipment.

• Refer to your original Owner’s Manual for your Bowex® home gym for a list of general warnings. If you do not have the Owner’s

Manual, please contact Nautilus, Inc. at 1-800-605-3369 for a replacement copy.

• Keep bystanders and children away from the product you are assembling at all times.

• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous to children.

• Not intended for use by anyone under 14 years of age.

• Maximum user weight: 300 lbs. (136 kg). Do not use if you are over this weight.

• Keep the Power Rod® resistance rods bound when they are not in use to immobilize the machine.

• This product, its packaging, and components contain chemicals known to the State of California to cause cancer, birth defects, or repro-

ductive harm. This Notice is provided in accordance with California’s Proposition 65. If you would like additional information, please refer

to our website at www.nautilus.com/prop65.

Hardware and Tool Guide

Tools Required:

• 9/16” Wrench or socket wrench

• 1/2” Wrench (for older Xtreme® 2 model only)

• 7/32” Allen Wrench (provided)

• 3/16” Allen Wrench (provided)

Before You Assemble

Please take the time to read all assembly instructions

before attempting to assemble your Bowflex®

Preacher Curl accessory.

Please note that the procedure for installing the

Preacher Curl attachment is slightly different for

a Bowflex Xtreme®, Bowflex Xtreme® 2, Bowflex

Xtreme® SE or Bowflex Xceed™ home gym. Most of

these models will require the seat to be stabilized

with the Seat Locking Pin in the Preacher Curl kit.

However, some Bowflex® home gym models are

already equipped with a Seat Locking Pin.

Basic Assembly Principles

Here are a few basic tips that will make your assembly of the

Bowflex® Preacher Curl attachment quick and easy. By using

these principles, you can simplify each process and save

yourself extra time and effort.

1. To make the assembly process go faster, gather the pieces

you need for each step and thoroughly read the assembly

instructions for that step prior to starting assembly for the

step.

2. When tightening a locknut on a bolt, use a combination

wrench to grip the locknut and ensure that it is fastened

securely.

3. When attaching two pieces, gently lift and look through the

bolt holes to help guide the bolt through the holes.

4. As a general rule, and for all bolts and nuts on your Bowflex®

Preacher Curl attachment, turn bolts or nuts toward the right

(clockwise) to tighten and left (counterclockwise) to loosen.

Or you can remember the mnemonic: “Righty tighty, lefty

loosey.”

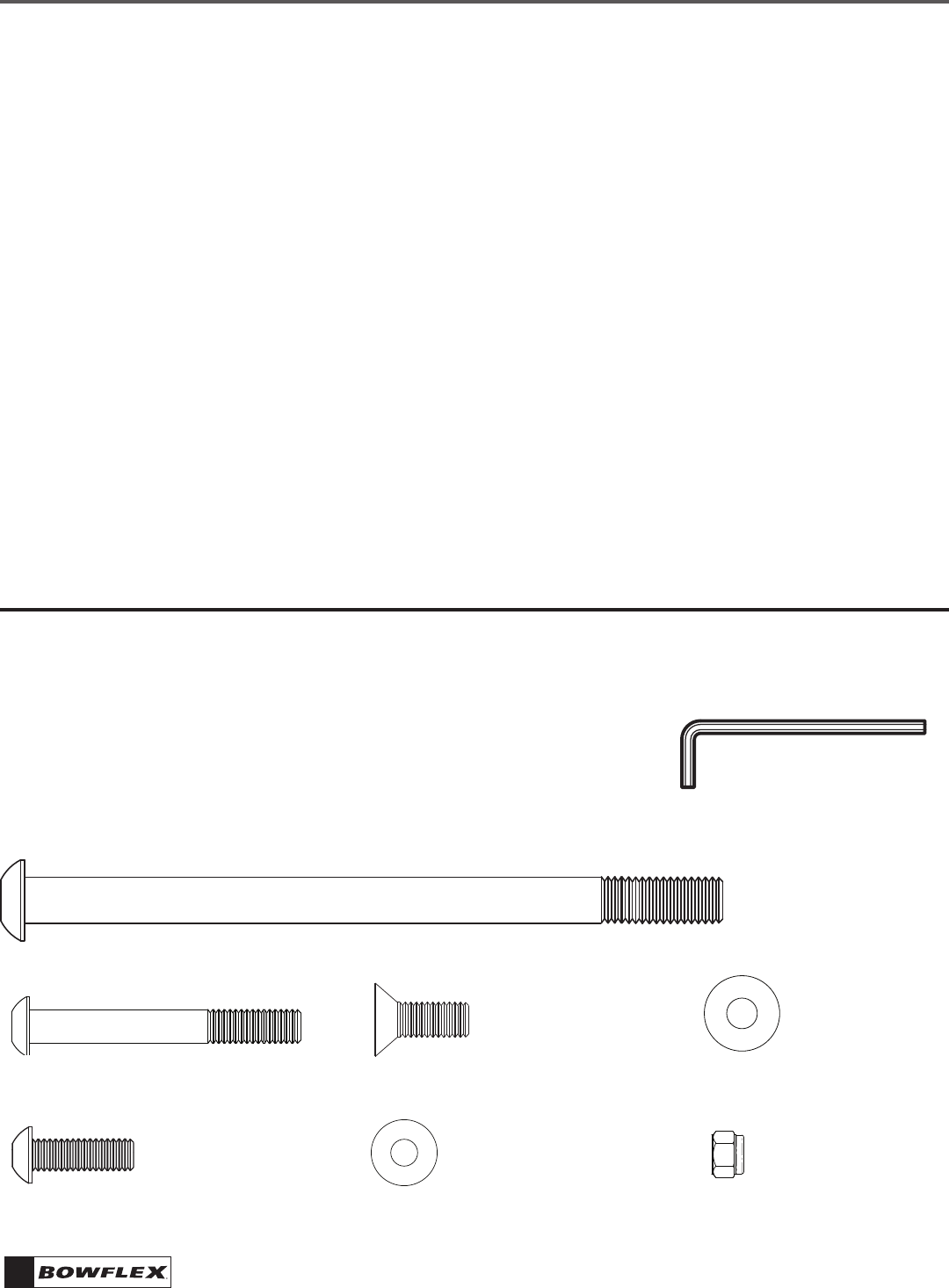

Descr: Allen Bolt - 3/8” x 2-3/4”

Qty: 2

Descr: Lock Nut 3/8”

Qty: 1

Descr: Flat Washer 3/8”

Qty: 4

Hardware: NOTE: Illustrations not to scale.

Descr: Flat Washer 5/16”

Qty: 4

Descr: Allen Bolt - 5/16” x 1”

Qty: 4

Descr: Flathead Bolt - 3/8” x 1”

Qty: 4

Descr: Allen Bolt - 3/8” x 5-3/4”

Qty: 1

Parts Guide

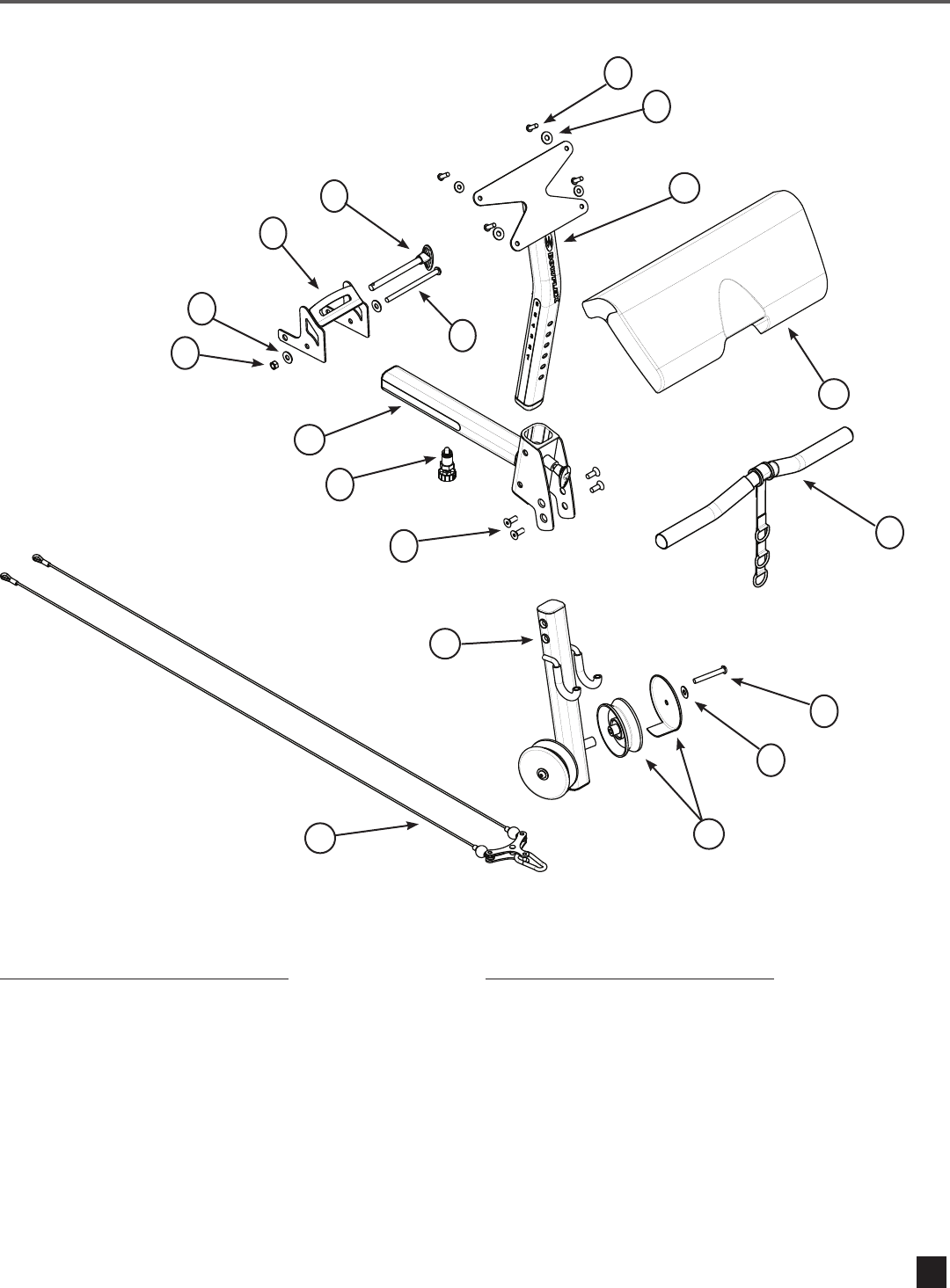

Item #: Qty: Description:

1 1 FRONT ASSEMBLY

2 1 BACKBONE ASSEMBLY

3 2 V-PULLEY ASSEMBLY

4 1 CABLE ASSEMBLY

5 1 PREACHER CURL BAR

6 1 SEAT POST

7 1 PREACHER CURL PAD

8 1 SUPPORT BRACKET

9 1 SEAT LOCKING PIN

Item #: Qty: Description:

10 1 Allen Bolt 3/8” X 5-3/4”

11 4 Flathead Bolt 3/8” X 1”

12 2 Allen Bolt 3/8” X 2-3/4”

13 4 Allen Bolt 5/16” X 1”

14 4 Flat Washer 3/8”

15 4 Flat Washer 5/16”

16 1 Hex Nut 3/8”

17 1 LOCKING KNOB

Assembly Instructions

STEP 1: Secure the Seat Assembly

Parts:

• Seat Assembly on home gym

• (1) Support Bracket - Item 8

• (1) Seat Locking Pin - Item 9

Hardware:

• (4) Bolts under Seat at mounting bracket

• (1) 3/8” X 5-3/4 Allen Bolt - Item 10

• (2) 3/8” Washers - Item 14

• (1) 3/8” Nut - Item 16

Tools:

• 7/32” Hex Wrench

• 3/16” Hex Wrench (for seat bolts)

• 1/2” Hex Wrench (for seat bolts on older

Bowex Xtreme® 2 model)

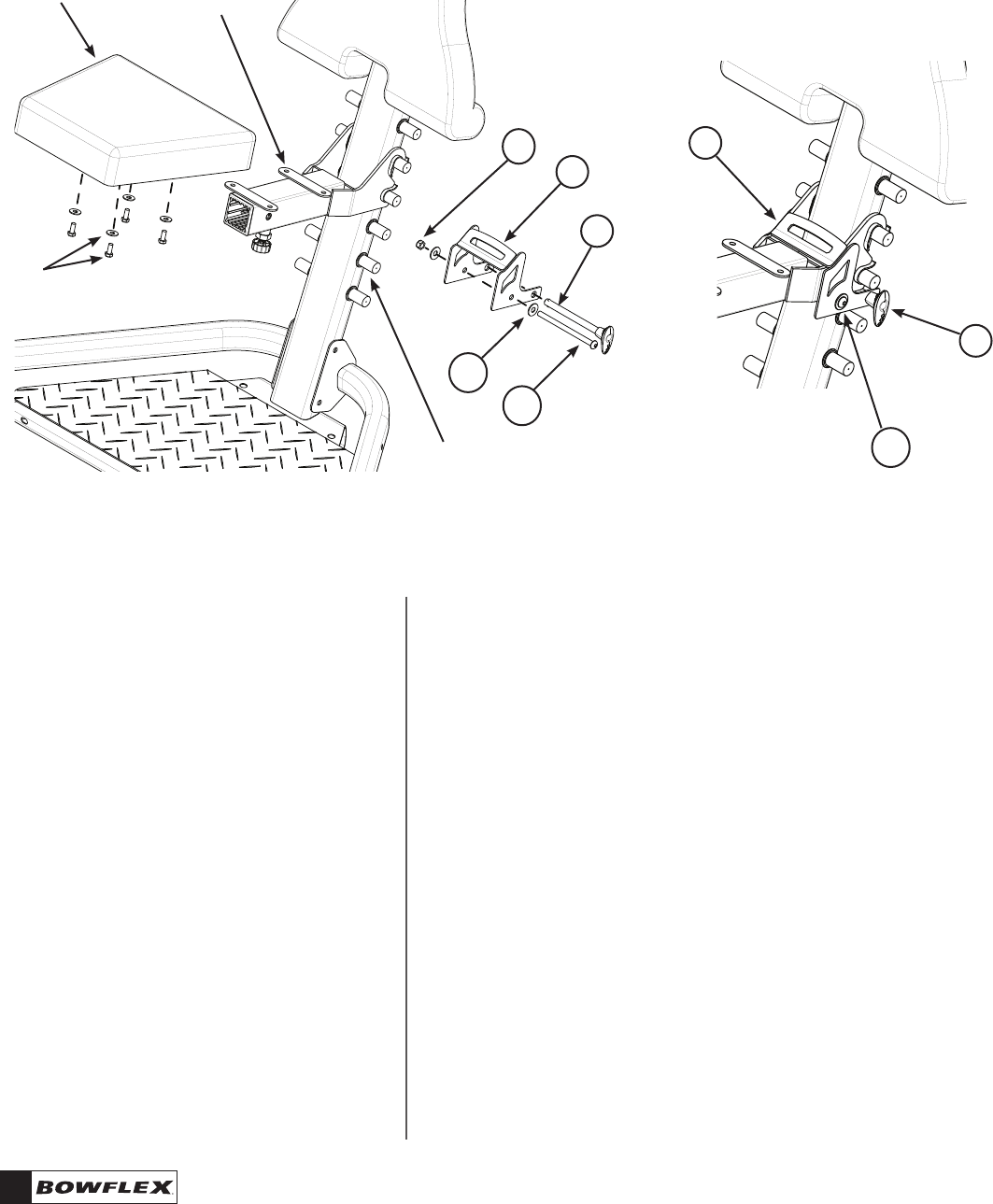

Figure 1a - Remove seat pad to install

support bracket

Figure 1b - Installed support bracket

(seat pad not shown for clarity)

Assembly Steps:

1-1 If your home gym is equipped with a Leg Extension

attachment, make sure that the Leg Extension is not

installed under the seat.

1-2 If your home gym seat is equipped with a Seat Locking Pin

(9), secure the Seat Assembly on the Seat Support Rail with

the Seat Locking Pin. Go to Step 2.

If your home gym is not equipped with a Seat Locking

Pin, detach the Seat Pad from the Seat Backbone by

unscrewing the 4 seat bolts in the seat mounting bracket.

1-3 Slip the Support Bracket (8) onto the Seat Backbone and

secure with the Allen Bolt (10), Washers (14) and Nut (16).

See Figure 1a and 1b. Reattach the Seat Pad to the Seat

Backbone with the 4 seat bolts and washers.

1-4 Secure the Seat Assembly and Support Bracket on the Seat

Support Rail with the Seat Locking Pin. See Figure 1b.

Seat Pad Seat backbone

Seat support

rail

Seat

bolt &

washer

STEP 2: Preacher Curl Sub-assembly

Parts:

• (1) Front Assembly - Item 1

• (1) Backbone Assembly - Item 2

Hardware:

• (4) 3/8” X1” Flathead Screws - Item 11

Tools:

• 7/32” Hex Wrench

Assembly Steps:

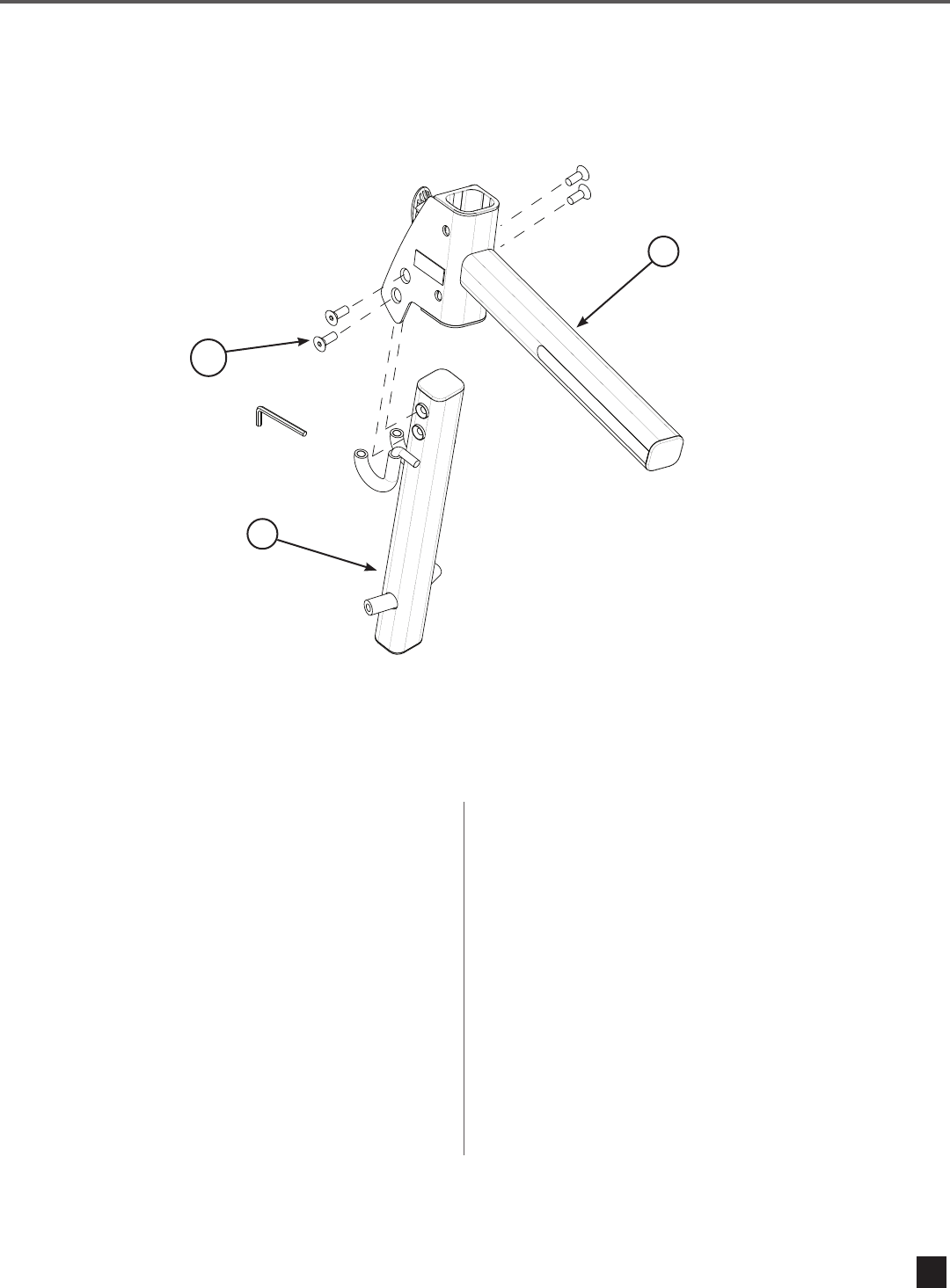

2-1 Attach the Front Assembly (1) to the Backbone

Assembly (2) using the hardware shown. See

Figure 2.

2-2 Tighten hardware.

Figure 2

Assembly Instructions

STEP 3: Install Preacher Curl Sub-assembly

Figure 3a

Leg extension mount

Parts:

• Preacher Curl Sub-assembly from Step 2

• (1) Locking Knob - Item 17 (for the Bowex

Xtreme® home gym without Leg Extension)

Tools:

• 7/32” Hex Wrench

Figure 3b - view from below seat

Leg extension

mount

Assembly Steps:

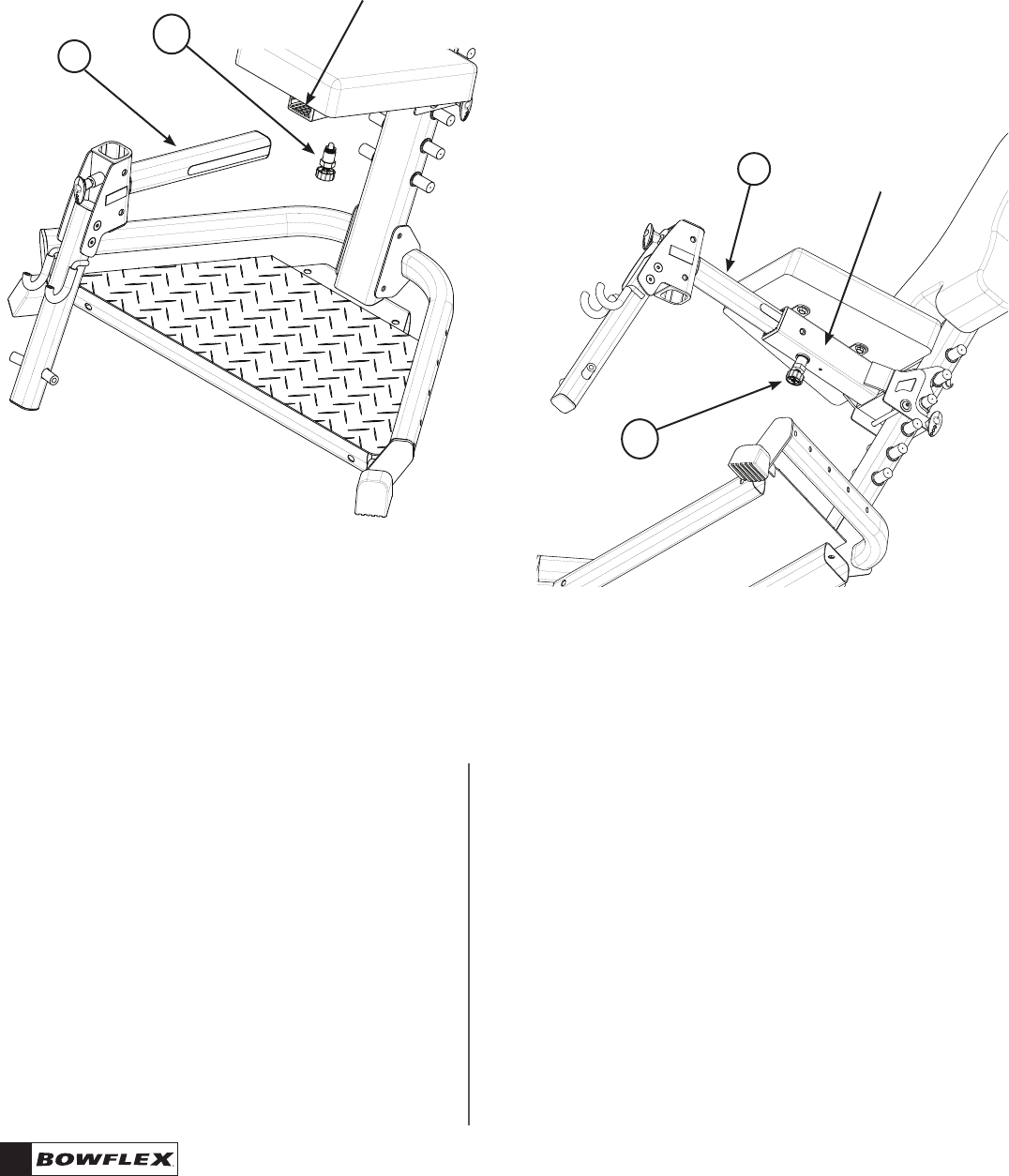

3-1 Slide the Backbone Assembly (2) into the Leg

Extension mount under the seat.

3-2 If your home gym is already equipped with a

Locking Knob under the seat, lock the Preacher

Curl Sub-assembly in position.

If your home gym’s seat assembly is not

equipped with a Locking Knob, secure the

Preacher Curl Sub-assembly with the Locking

Knob (17).

Parts:

• Preacher Curl Sub-assembly from Step 3

• (2) V-Pulley Assembly - Item 3

• (1) Cable Assembly - Item 4

Hardware:

• (2) 3/8” X 2-3/4” Bolts - Item 12

• (2) 3/8” Washers - Item 14

Tools:

• 7/32” Hex Wrench

Assembly Steps:

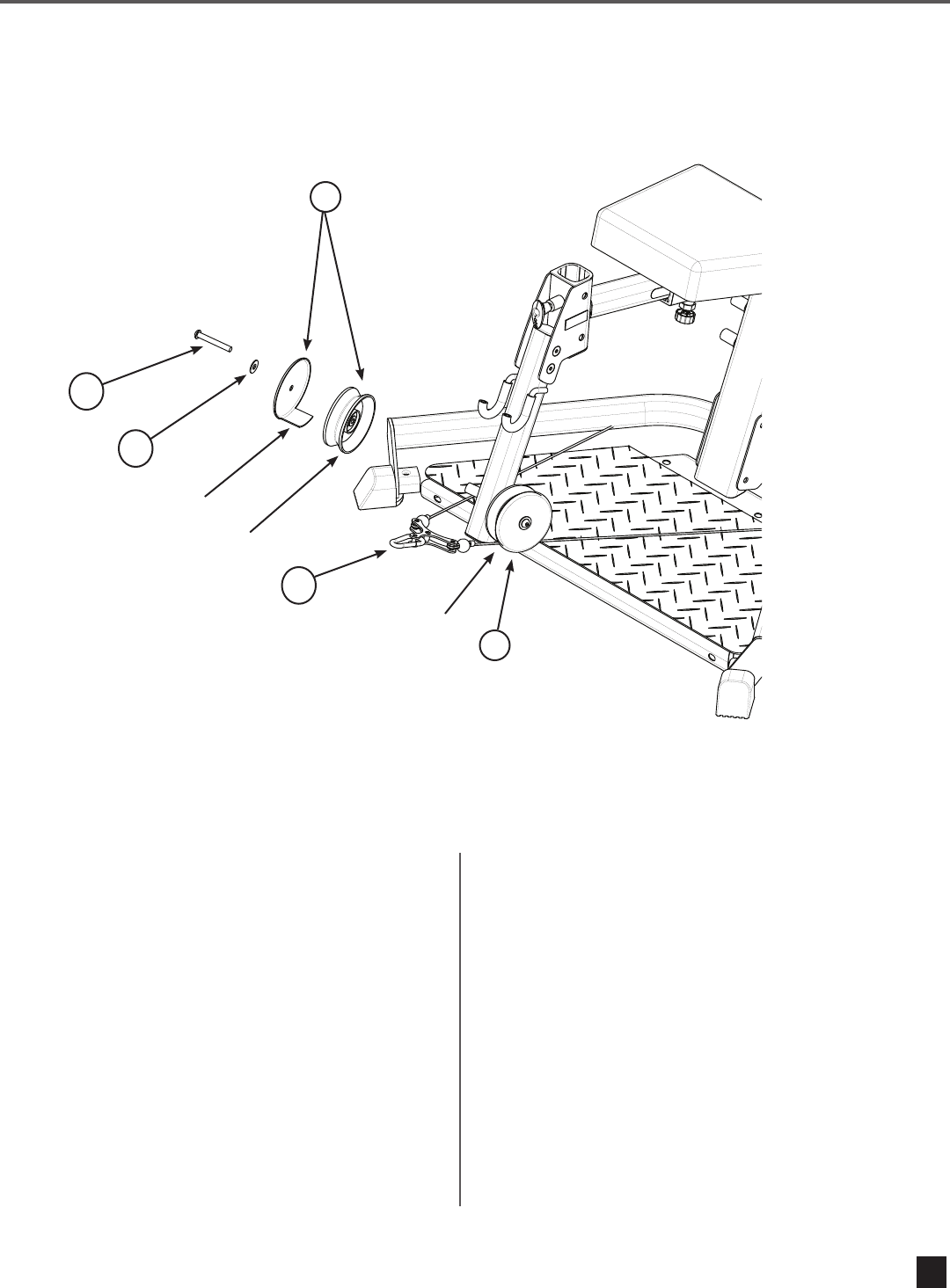

4-1 Mount one V-Pulley (3) on the Front Assembly (1)

using the hardware shown. See Figure 4. Tighten

the Bolt only halfway.

4-2 Route one Cable (4) through the opening between

the pulley groove and cable plate. Tighten the

pulley Bolt.

4-3 Repeat for the second V-Pulley Assembly.

STEP 4: Install V-Pulley Assembly

Assembly Instructions

Figure 4 - V-pulley assembly (squat pulleys not shown)

Cable plate

Pulley

Cable route

Assembly Instructions

Assembly Steps:

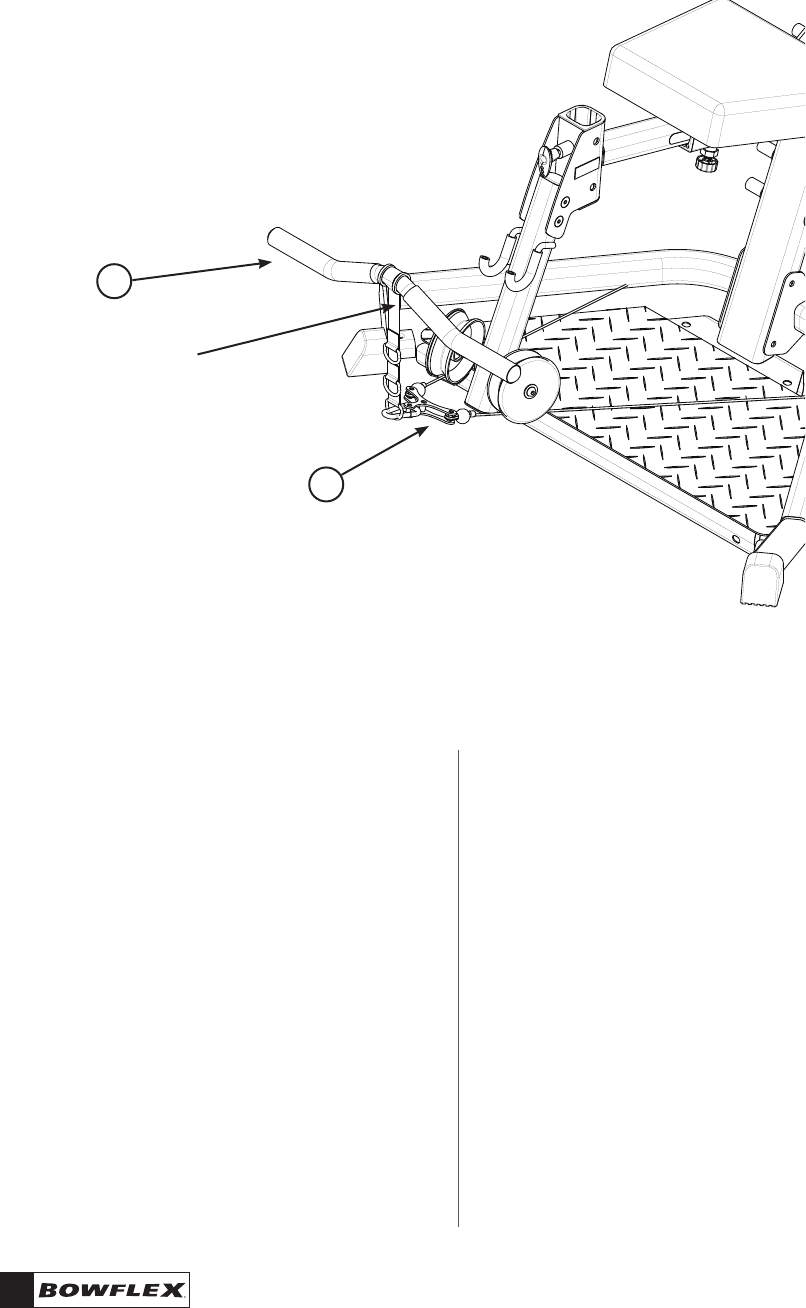

5-1 Attach the snap hook on the yoke of the Cable Assembly

(4) to the D-ring strap on the Preacher Curl Bar (5). See

Figure 5.

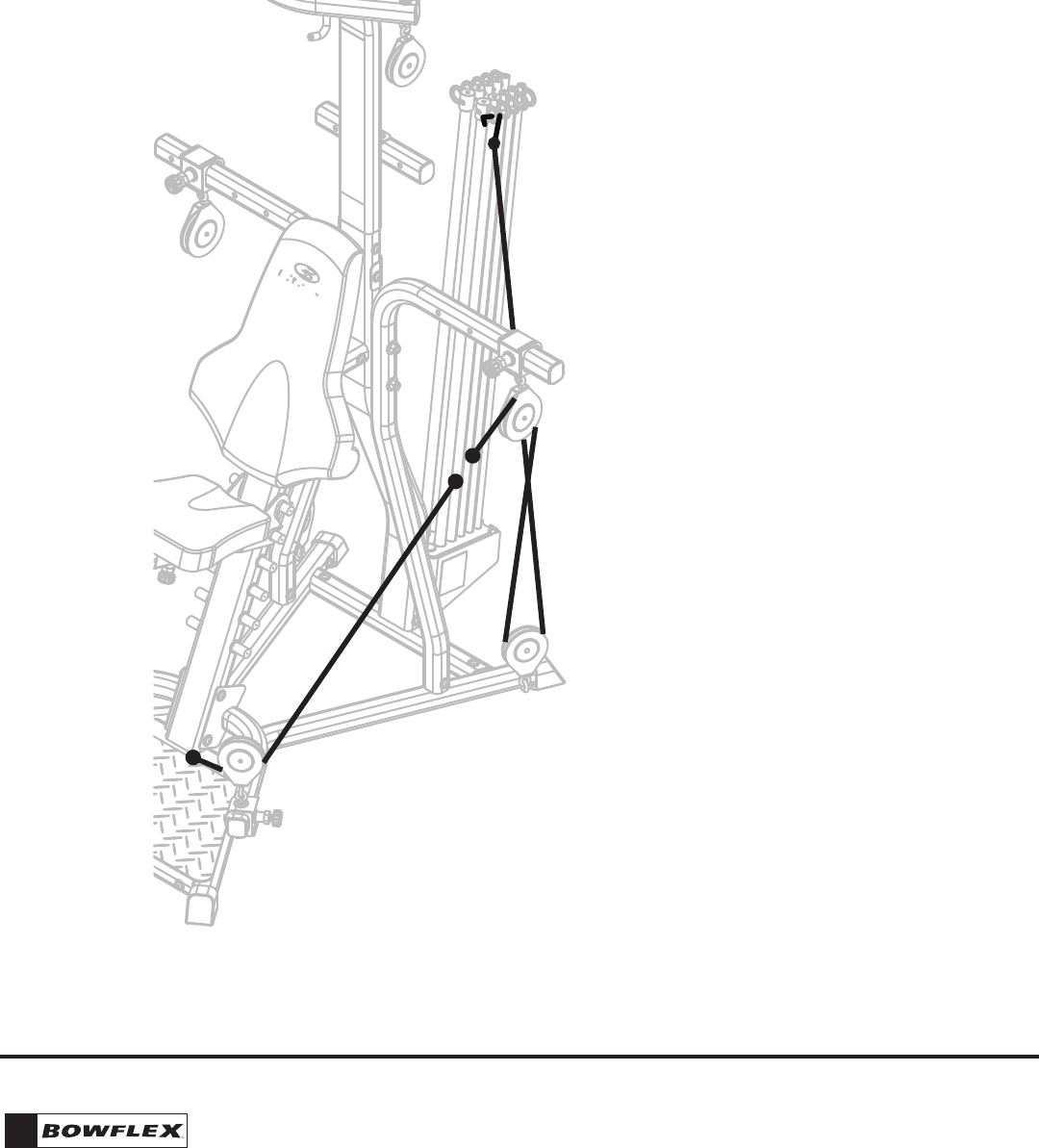

5-2 Route the other end of each Cable (4) through the squat

pulley on the same side of the machine, then up to the

chest bar pulley. Connect the Cable to the cable in the

chest bar pulley.

Note: To route the Cables for the Bowex Xtreme® 2 unit,

thread each Cable between the squat pulley cable and

the pulley groove in the squat pulley.

5-3 Place the squat pulleys in the #1 position (closest to the

Power Rod® unit).

STEP 5: Attach Cables to Preacher Curl Bar

Figure 5 - Attach cable assembly to D-ring strap

(squat pulleys not shown)

D-ring strap

Parts:

• Preacher Curl Sub-assembly from Step 4

• Squat pulleys and cables on home gym

• (1) Cable Assembly - Item 4

• (1) Preacher Curl Bar - Item 5

Assembly Instructions

Figure 6

STEP 6: Bicep Curl Pad Assembly

Parts:

• (1) Seat Post - Item 6

• (1) Pad - Item 7

Hardware:

• (4) 5/16” X 1” Hex Bolts - Item 13

• (4) 5/16” Washers - Item 15

Tools:

• 3/16” Hex Wrench

Assembly Steps:

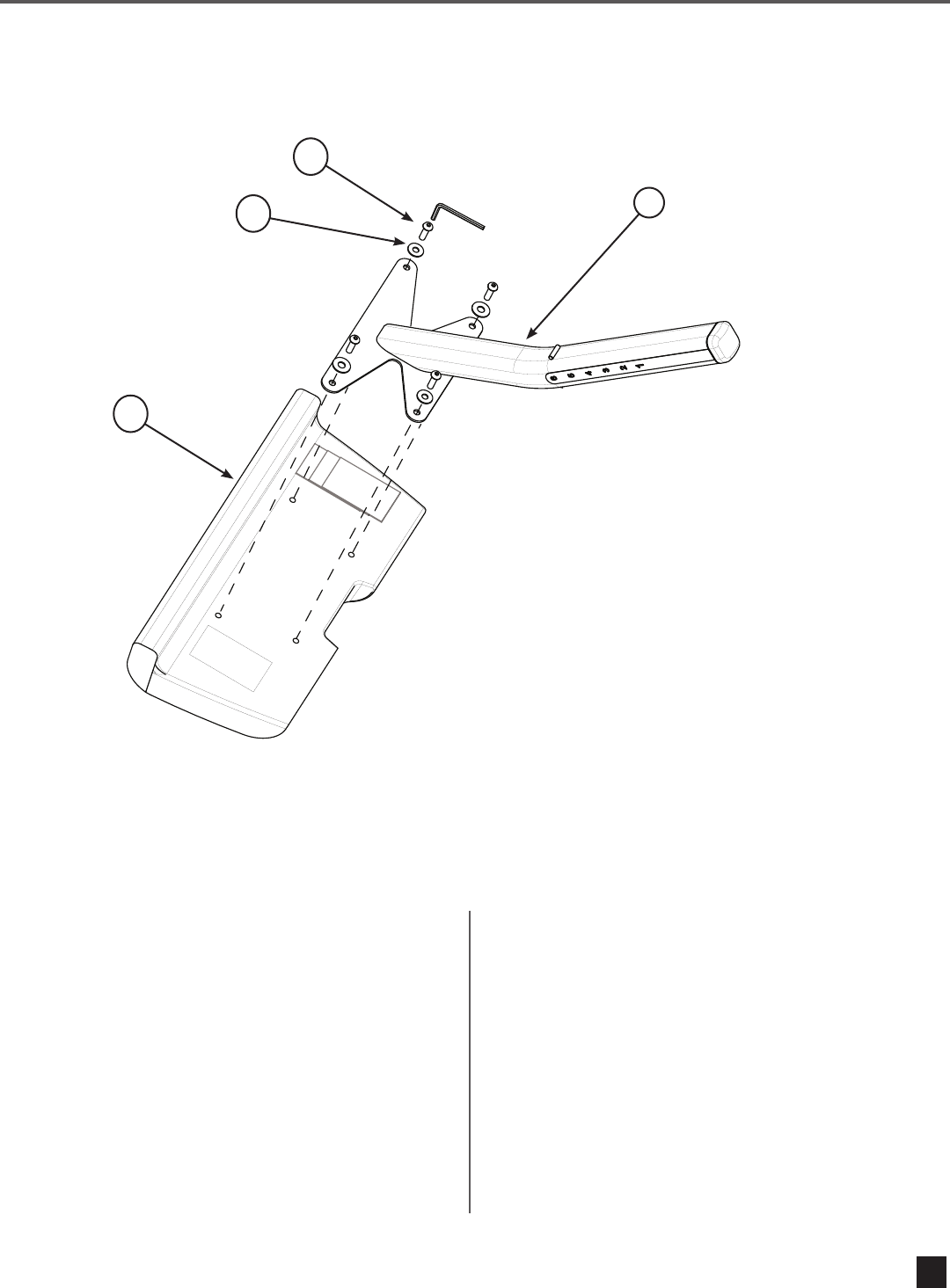

6-1 Attach the Pad (7) to the Seat Post (6) using the

hardware shown. See Figure 6.

6-2 Tighten hardware.

Assembly Instructions

Parts:

• Bicep Curl Pad Assembly from Step 6

• Preacher Curl Sub-assembly from Step 5

Assembly Steps:

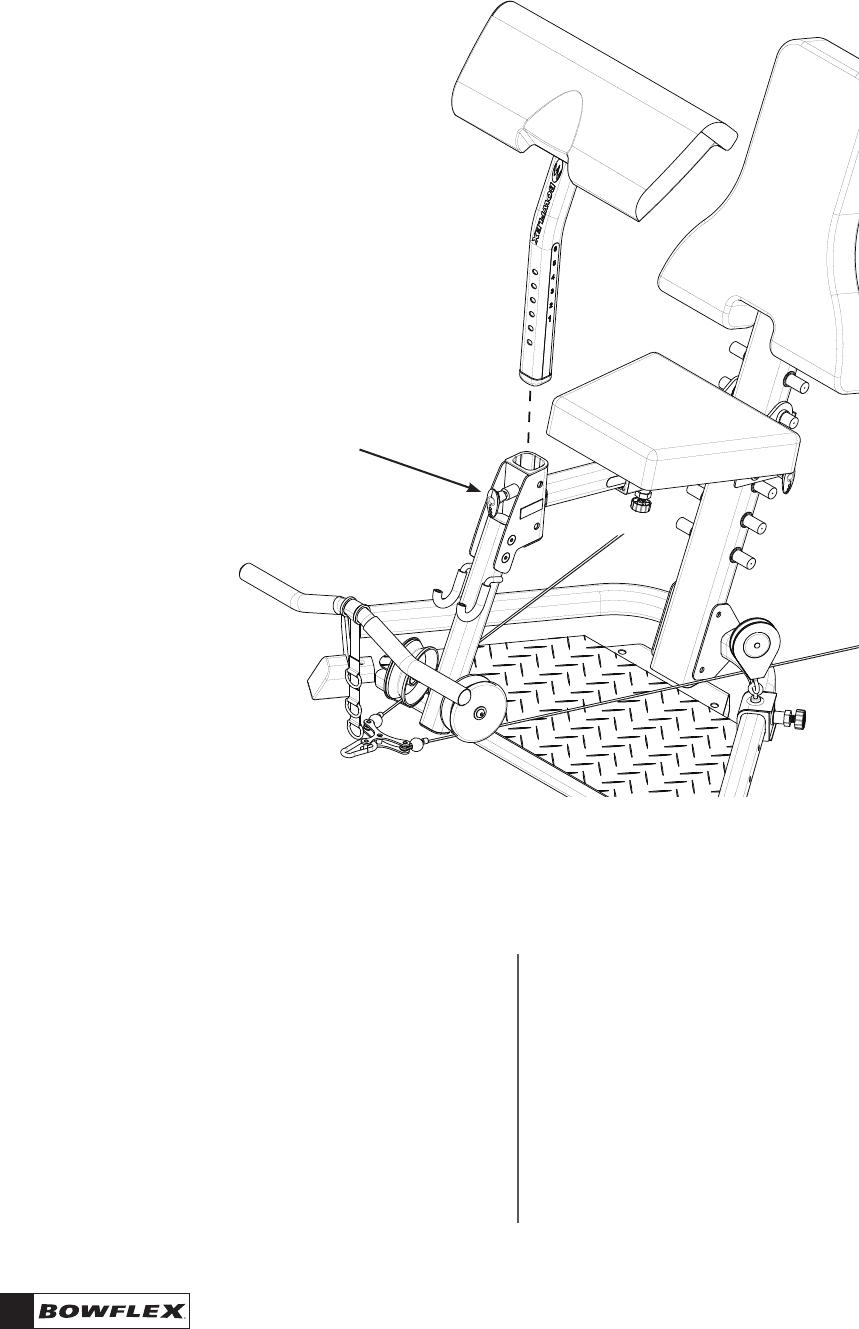

7-1 Insert the Bicep Curl Pad Assembly in the mount

on the Preacher Curl Sub-assembly, as shown in

Figure 7.

7-2 Adjust the Bicep Curl Pad Assembly to the desired

height and secure with the pop pin.

STEP 7: Mount Bicep Curl Pad on Lower Sub-assembly

Figure 7 - (only one squat pulley shown)

Pop pin

Assembly Instructions

STEP 8: Final Inspection

Please inspect your exercise equipment

to ensure that all fasteners are tight and

components are properly assembled. Review

all warnings affixed to machine.

Congratulations! You have successfully

completed assembly and installation of your

Bowflex® Preacher Curl attachment!

Failure to visually check and test assembly

before use can cause damage to the

Bowﬂex® Preacher Curl Attachment and

Home Gym, and serious injury to users and

bystanders, and can also compromise the

effectiveness of your exercise program.

WARNING

ATTENTION

DANGER

IMMEDIATE ACTION REQUIRED

CAUTION

Maintenance

Daily

After each use, wipe the equipment free of sweat with a clean, dry cloth. Upholstery can be cleaned with

a mild detergent or spray cleaner.

Weekly

If used often, your accessory should be thoroughly cleaned using a clean cloth and an ammonia based

cleanser. Wipe the unit down completely and be sure to touch up any scratches with touch up paint to

prevent rusting.

Monthly

Check the frame of the unit for any sign of cracking or permanent bending. If you nd this situation, do

not use the accessory and contact Bowﬂex Service immediately.

How to Use Your Preacher Curl

Active pulleys are on the squat station and center cross bar.

(Bowﬂex Xtreme® SE model shown)

Pulley Position and Cable Routing

When using the Preacher Curl attachment, attach the cables to the squat pulley cables. The squat

pullleys are placed in the #1 position (closest to the Power Rod® unit).

Refer to the illustration below for proper cable routing.

E-Z Curl Bar

The E-Z Curl Bar is available separately as an

accessory for your Bowflex® home gym.

The E-Z Curl Bar allows variations on the Preacher

Curl exercise by increasing the number of possible

hand/arm positions.

Unhook the preacher curl bar from the cables,

and set it safely aside. Attach the E-Z Curl Bar

chain to the cables, and place it on the hooked

bar holders above the V-pulleys. Use a length

of chain that allows a full range of motion

without bottoming out the rods.

Adjust the height of the bicep curl pad as

needed for a comfortable exercise position.

This optimum position will be different for each

person.

Check out the E-Z Curl Bar and a wide selection of other great products available at www.bowﬂex.com

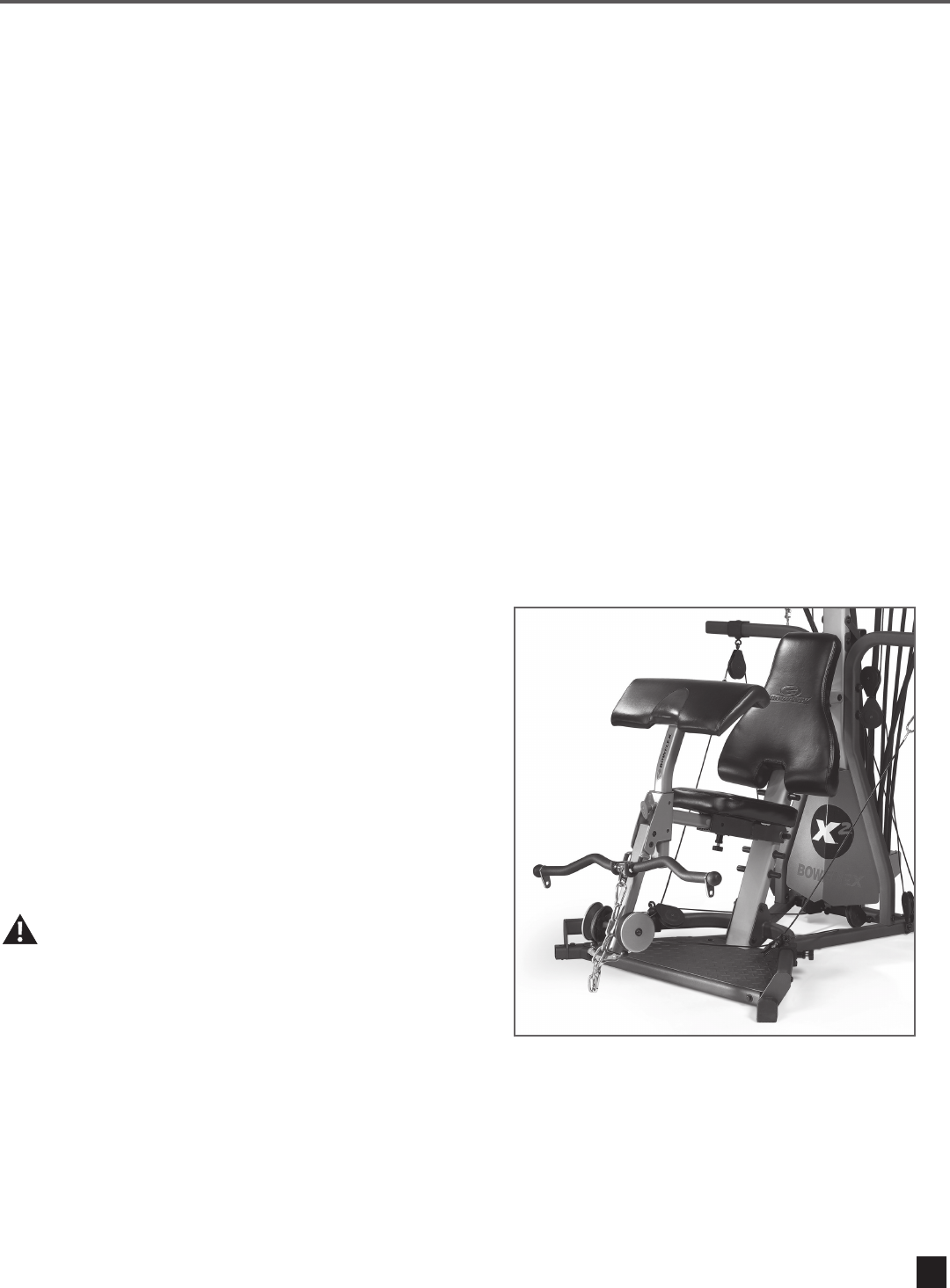

The Bowflex® Preacher Curl attachment is

specifically designed to give added support for

working the biceps. The attachment is installed at

the Leg Extension mount under the seat, and serves

to stabilize the arms to create a more effective

exercise. Before you connect the Preacher Curl

cables, unhook the cables on the home gym from the

Power Rod® unit.

Attach the snap hook on the Preacher Curl cable

assembly to the D-ring strap on the Preacher Curl

Bar. Adjust the height of the bicep curl pad as

needed for a comfortable exercise position. This

optimum position will be different for each person.

Connect the Preacher Curl cables to the pulley

cables as shown in the preceding cable routing

illustration.

Adjust the D-ring strap to the correct length for

your arms’ reach.

Safety:

• Make sure the attachment is locked in position

and that the seat has been stabilized with the seat

locking pin before sitting on it or adding weight to

the cables.

• Before using the attachment, make sure all

fasteners are in place and tightened.

• Always check fasteners, snap hooks, cables and

pulleys before each workout to ensure proper

functioning.

Consult a physician before you start an exercise

program. Stop exercising if you feel pain or

tightness in your chest, become short of breath, or

feel faint. Contact your doctor before you use the

machine again. Use the values calculated or

measured by the machine’s computer for

reference purposes only.

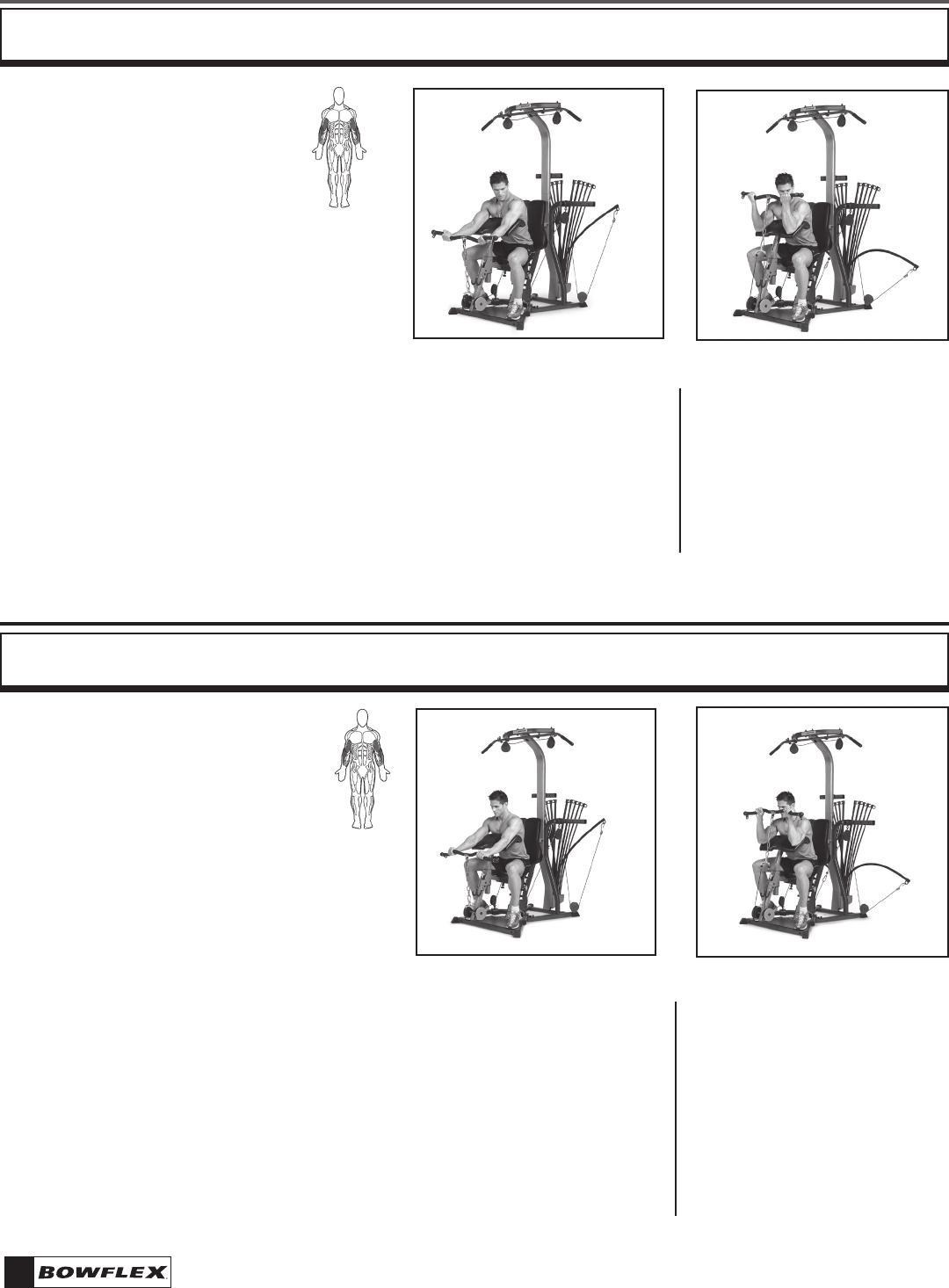

How to Use Your Preacher Curl

Preacher Curl – Elbow Flexion (in supination)

Muscles worked:

Biceps; Brachialis; Brachioradialis

Position:

Seated – facing outward

Accessory:

Preacher Curl Attachment,

E-Z Curl Bar (optional - shown in exer-

cise photos)

Pulleys:

Squat station

Key Points:

• Keep wrists straight.

• Keep chest lifted, abs tight and maintain

a very slight arch in your lower back.

• Seated, facing away from the

Power Rod® unit.

• Rest your elbows on the pad and

grasp the handles of the preacher

curl bar with an underhand grip.

• Your knees should be bent and feet

ﬂat on the ﬂoor.

• Slowly curl the handles in an arc

toward your head while keeping

your elbows and upper arms

completely still.

• Slowly lower to the starting posi-

tion.

START ACTION

Exercises

Reverse Curl

Muscles worked:

Biceps, brachioradialis

Position:

Seated – facing outward

Accessory:

Preacher Curl Attachment,

E-Z Curl Bar (optional - shown in exercise

photos)

Pulleys:

Squat station

Key Points:

• Keep wrists straight.

• Keep trunk muscles tight and maintain a

very slight arch in the low back.

• Seated, facing away from the Power

Rod® unit.

• Rest your elbows on the pad and

grasp the handles of the preacher

curl bar with palms facing down.

Your hands should be turned in

slightly.

• Your knees should be bent and feet

ﬂat on the ﬂoor.

• Curl the bar upward toward your

shoulders, keeping upper arms

completely still.

• Slowly lower to the starting position

by performing the same arching

motion.

• Keep tension on the muscles

throughout the exercise.

START ACTION

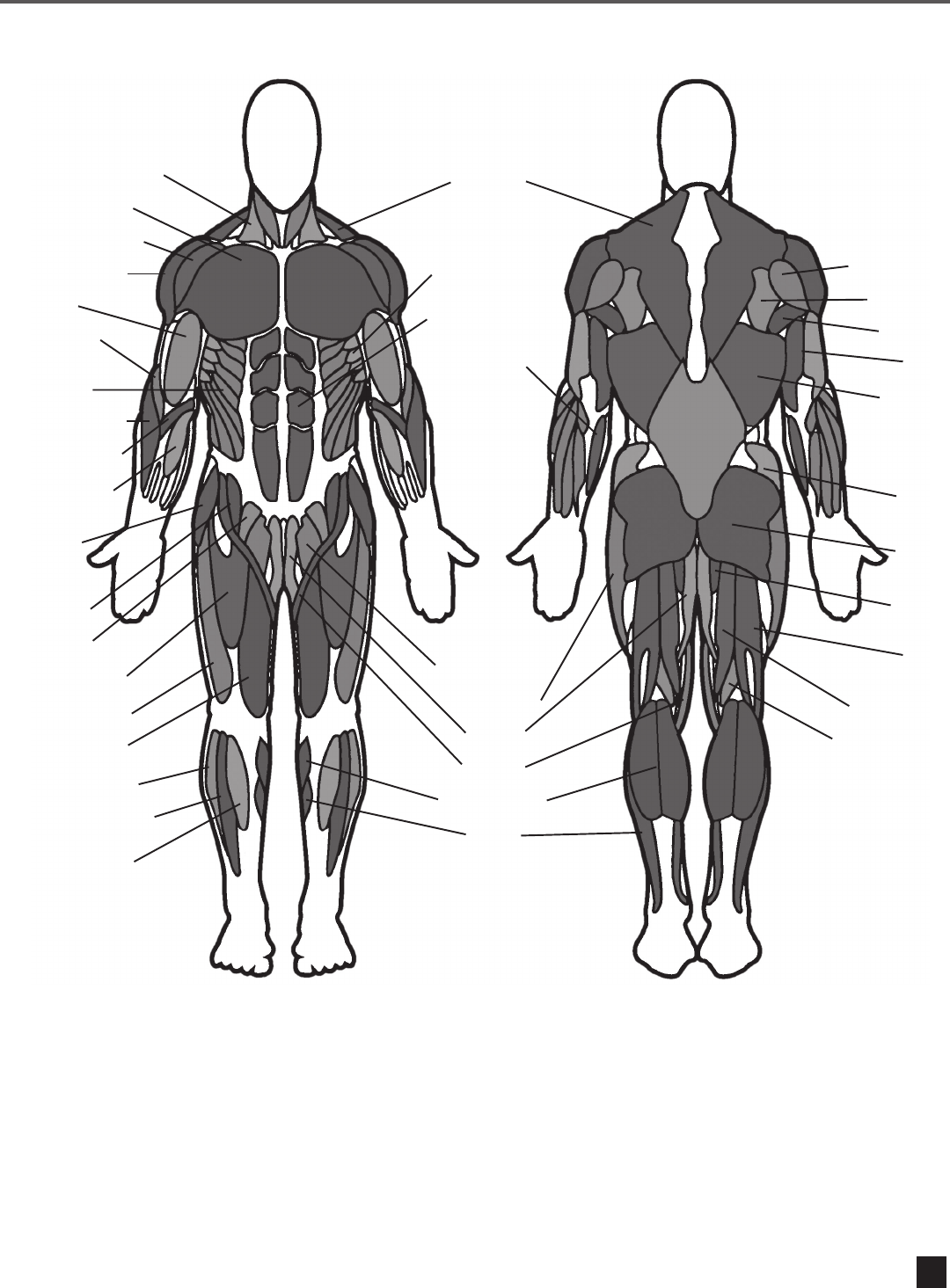

Muscle Chart

Sternocleidomastoid

Pectoralis Major

Anterior Deltoid

Medial Deltoid

Biceps

Brachialis

External

Obliques

Brachioradialis

Pronator Teres

Flexor Carpi

Radialis

Tensor

Fasciae

Latae

Iliopsoas

Pectineus

Rectus Femoris

Vastus Lateralis

Vastus Medialis

Peroneus Longus

Extensor Digitorum

Longus

Tibialis Anterior

Posterior Deltoid

Infraspinatus

Teres Major

Triceps

Latissimus

Dorsi

Gluteus

Medius

Gluteus

Maximus

Adductor

Magnus

Biceps

Femoris

Semitendinosus

Semimembranosus

Trapezius

Serratus Anterior

Rectus Abdominus

Flexor Digitorum

Superficialis

Adductor Longus

Iliotibial Tract

Gracilis

Sartorius

Gastrocnemius

Soleus

Limited Warranty

Who Is Covered

This warranty is valid only to the original purchaser and is not transferable or applicable to any other person(s).

What Is Covered

Nautilus, Inc. warrants that this product is free from defects in materials and workmanship, when used for the purpose intended, under normal conditions, and provided it receives

proper care and maintenance as described in the Product’s Assembly and Owner’s manual. This warranty is good only for authentic, original, legitimate machines manufactured

by Nautilus, Inc. and sold through an authorized agent and used in the United States or Canada.

Terms

• Parts 6 weeks

How Nautilus Will Support the Warranty

Throughout and as set forth under the terms of the Warranty, Nautilus, Inc. will provide a replacement for any component or part that proves to be defective in materials or

workmanship. Nautilus, Inc. reserves the right to substitute material of equal or better quality if identical materials are not available under this warranty.

In the event that replacement parts or components do not correct the issue, Nautilus, Inc, reserves the right to replace the product or apply a limited credit reimbursement toward

another Nautilus Inc. brand product, at our discretion. Reasonable substitution may be required depending upon Product availability. Any replacement of the Product under the

terms of the Warranty in no way extends the original Warranty period. THESE REMEDIES ARE THE EXCLUSIVE AND SOLE REMEDIES FOR ANY BREACH OF WARRANTY.

What You Must Do

• Retain appropriate and acceptable Proof of Purchase.

• Operate, maintain, and inspect the product as specied in the Product Documentation (Assembly, Owner’s Manuals, etc.).

• Product must be used exclusively for the purpose intended.

• Notify Nautilus within 30 days after detecting an issue with the product.

• Install replacement parts or components in accordance with any Nautilus instructions.

• Perform diagnostic procedures with a trained Nautilus, Inc representative if requested.

• This warranty does not cover in home repair costs (labor, etc) or related charges.

What Is Not Covered

• Damage due to abuse, tampering or modication of the Product, failure to properly follow assembly instructions, maintenance instructions, or safety warnings as stated

in the Product Documentation (Assembly, Owner’s Manuals, etc), damage due to improper storage or the effect of environmental conditions such as moisture or weather,

misuse, mishandling, accident, natural disasters, power surges.

• A machine placed or used in a commercial or institutional setting. This includes gyms, corporations, work places, clubs, tness centers and any public or private entity that

has a machine for use by its members, customers, employees or afﬁliates.

• Damage caused by exceeding maximum user weights as dened in Products Owner’s Manual or on the warning label.

• Damage due to normal usage and wear and tear.

• This warranty does not extend to any territories or countries outside the United States and Canada.

How to Obtain Warranty Support

For Products purchased directly from Nautilus, Inc. contact the Nautilus ofce listed on the Contacts page of the Product’s Owner’s manual. You may be required to return the

defective component to a specied address for repair or inspection, at your expense. Standard ground shipping of any warranty replacement parts will be paid by Nautilus, Inc. For

products purchased from a retail outlet, you may be asked to contact your retailer for warranty support.

Exclusions

The preceding warranties are the sole and exclusive express warranties made by Nautilus, Inc. They supersede any prior, contrary or additional representations, whether oral or

written. No agent, representative, dealer, person or employee has the authority to alter or increase the obligations or limitations of this warranty. Any implied warranties, including

the WARRANTY OF MERCHANTABILITY and any WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the term of the applicable express warranty

provided above, whichever is longer. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Limitation of Remedies

EXCEPT AS OTHERWISE REQUIRED BY APPLICABLE LAW, THE PURCHASER’S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF ANY COMPONENT DEEMED BY

NAUTILUS, INC. TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS STATED HEREIN. IN NO EVENT WILL NAUTILUS, INC. BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL,

INCIDENTAL, INDIRECT OR ECONOMIC DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING, WITHOUT LIMITATION, PRODUCT LIABILITY, NEGLIGENCE OR

OTHER TORT) OR FOR ANY LOST REVENUE, PROFIT, DATA, PRIVACY OR FOR ANY PUNITIVE DAMAGES ARISING OUT OF OR RELATED TO THE USE OF THE FITNESS MACHINE

EVEN IF NAUTILUS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION AND LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS

ESSENTIAL PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR INCIDENTAL TYPE DAMAGES SO THE ABOVE LIMITATION MAY

NOT APPLY TO YOU.

State Laws

This warranty gives you specic legal rights. You may also have other rights, which vary from state to state.

Expirations

If the warranty has expired, Nautilus, Inc. may assist with replacements or repairs to parts and labor, but there will be a charge for these services. Contact a Nautilus® ofﬁce for

information on post-warranty parts and services. Nautilus® does not guarantee availability of spare parts after expiration of warranty period.

International Purchases

If you purchased your machine outside of the United States consult your local distributor or dealer for warranty coverage.

Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369,

Bowflex BFX_SelectTech 5.1 Bench AM Rev B Assembly & Owner's Manual BFX.preacher C.AM.OM.WARR.EN

Assembly & Owner's Manual BFX.preacherC.AM.OM.WARR.EN Bowflex Product Manuals | Bowflex

Navigation menu

Versions of this User Manual:

Views

Navigation
