Assembly Manual

®®

Bowflex Xtreme® 2 SE Home Gym

Important Safety Instructions .........................1

Before Assembly ...................................1

Parts ................................................2

Hardware ..........................................4

Assembly Guide .....................................5

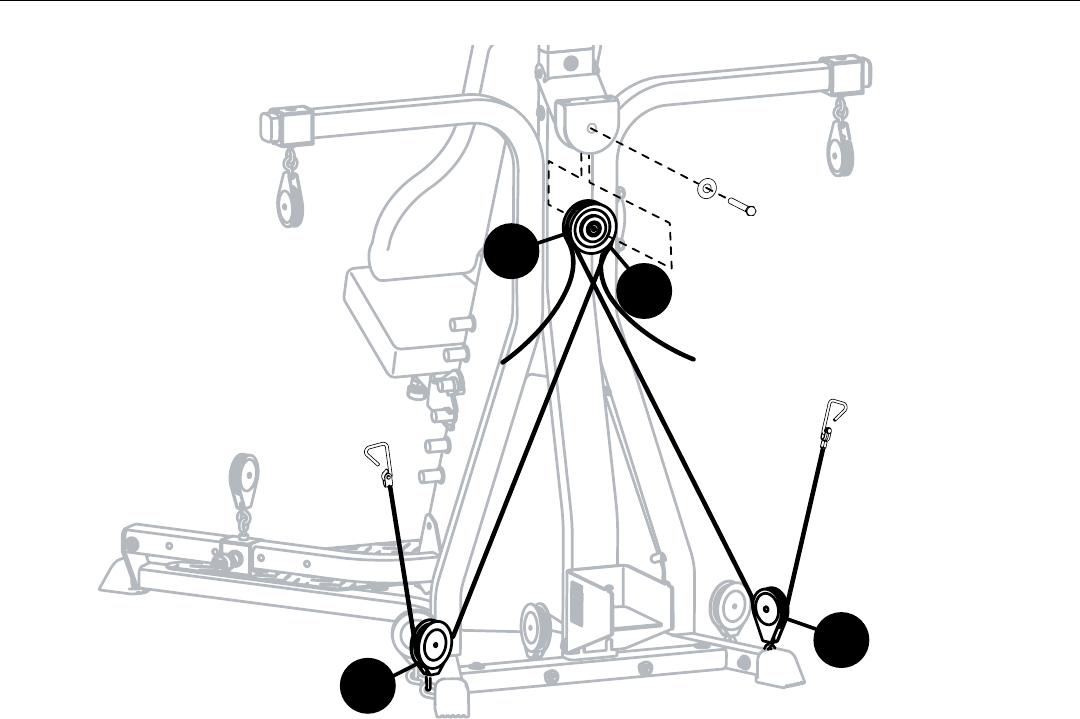

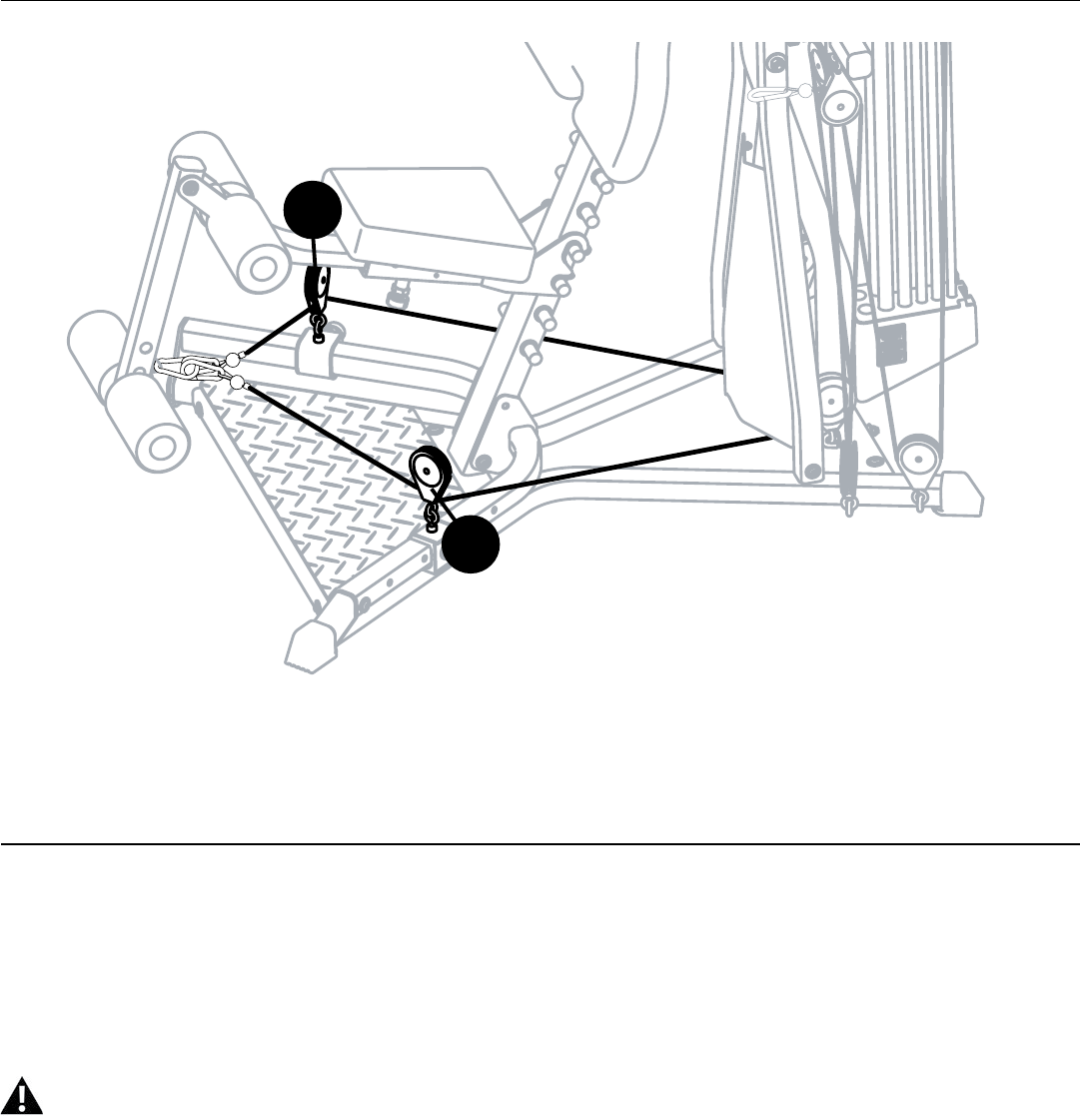

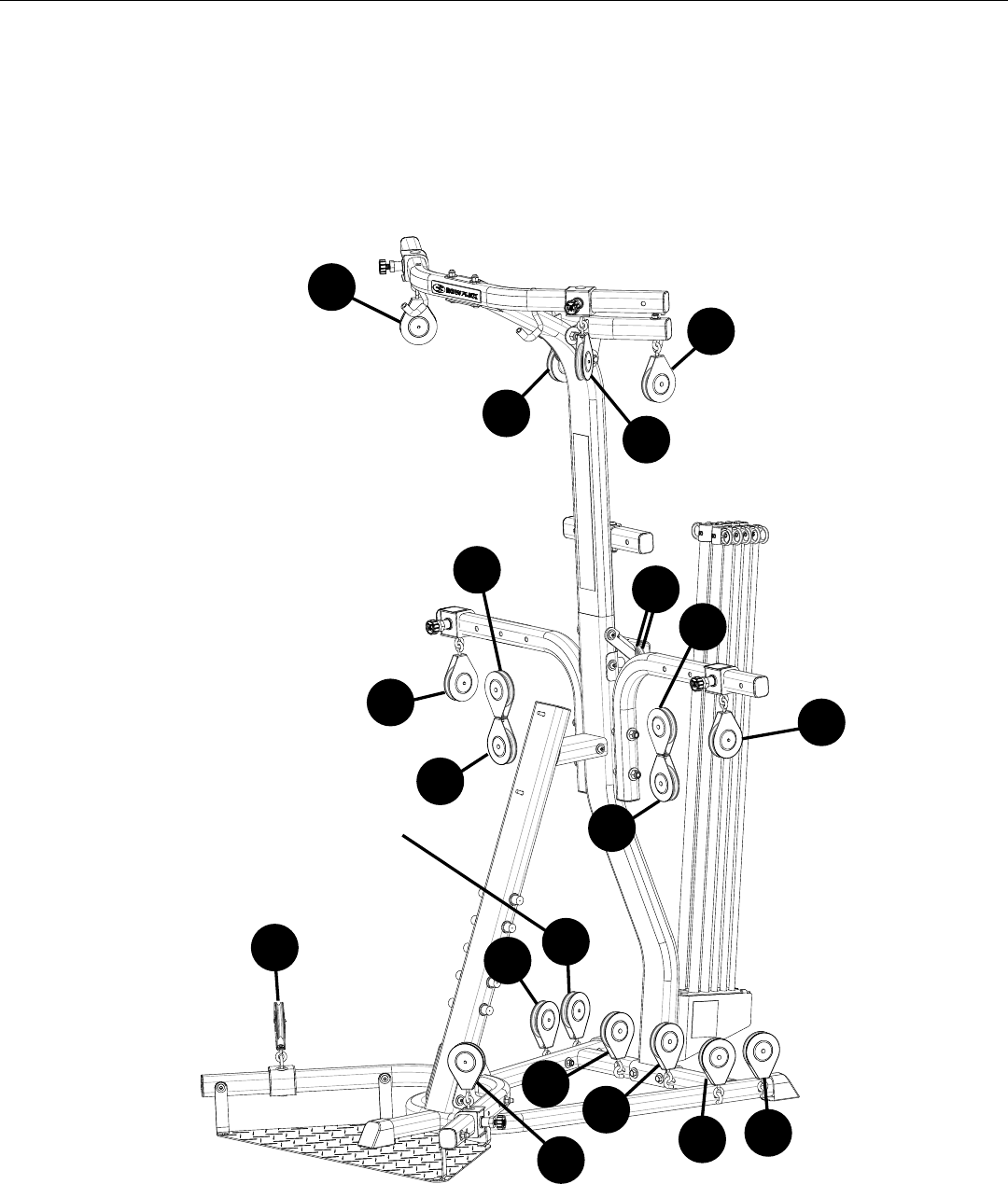

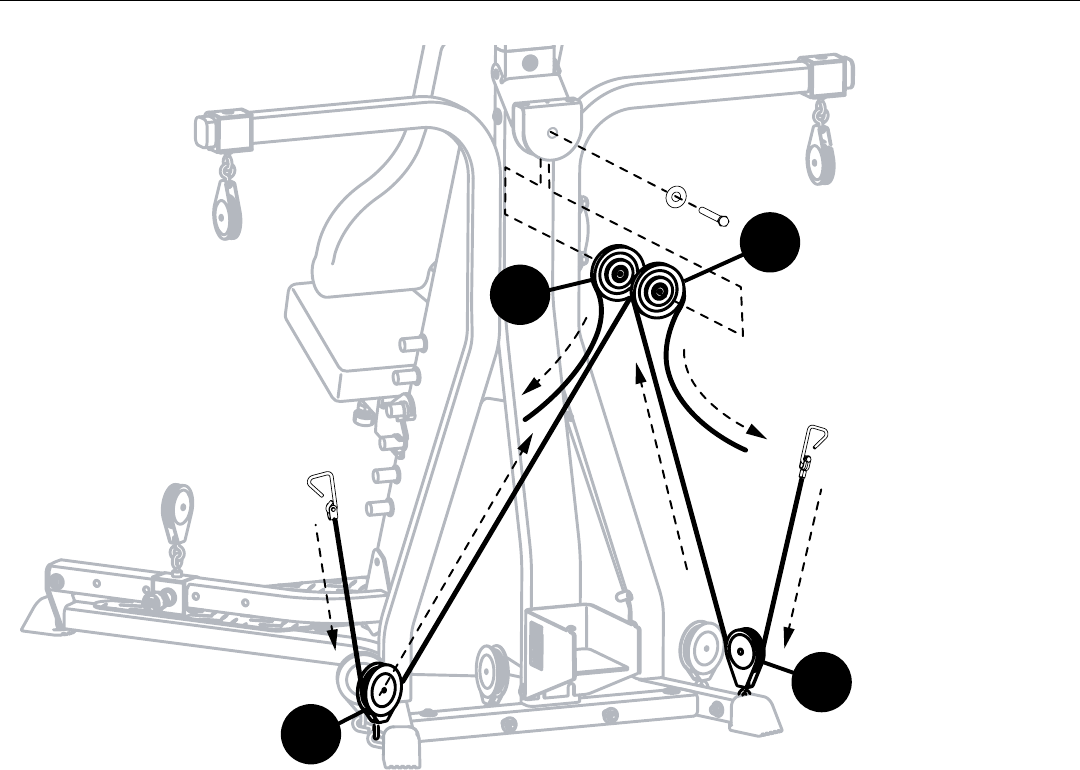

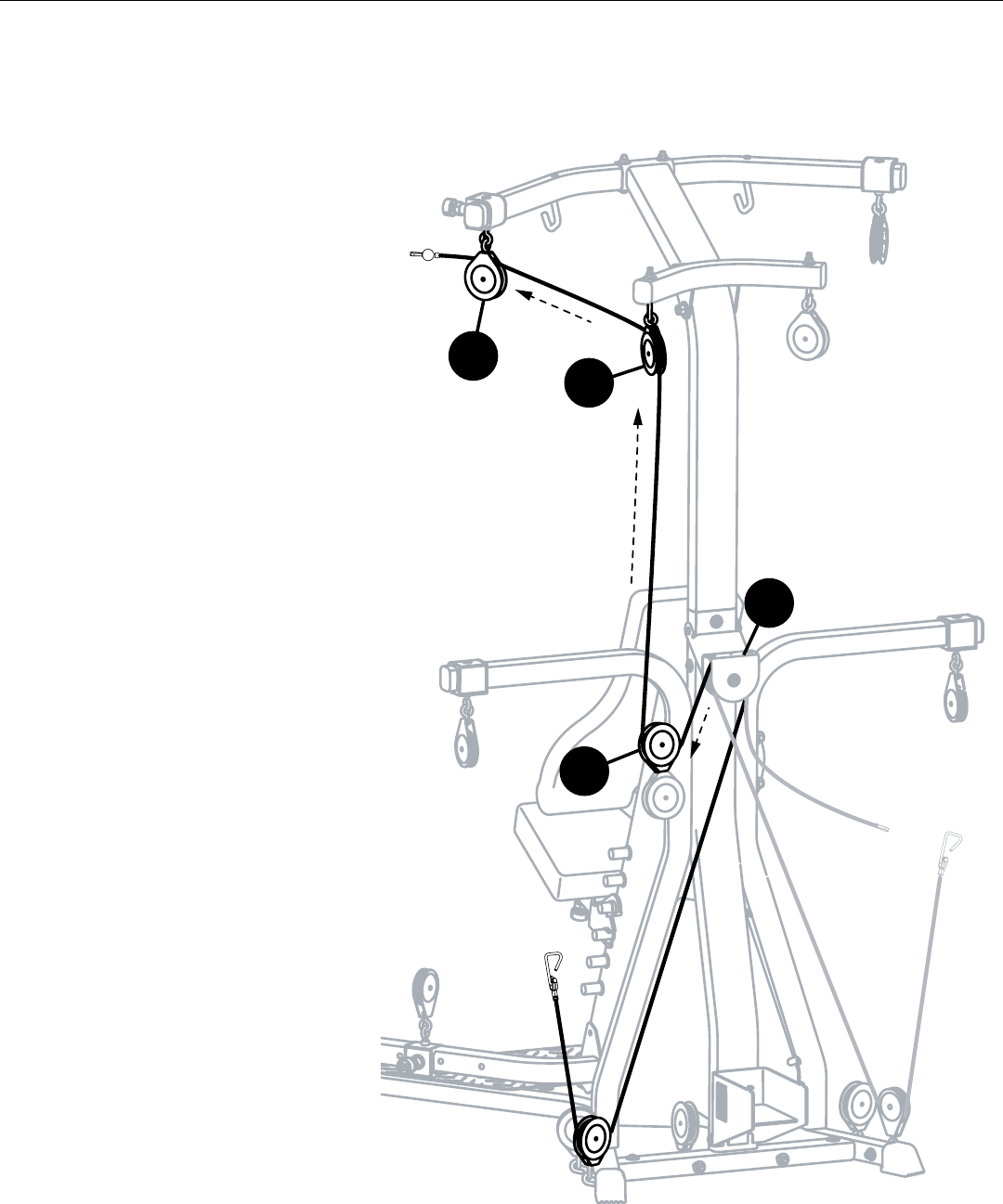

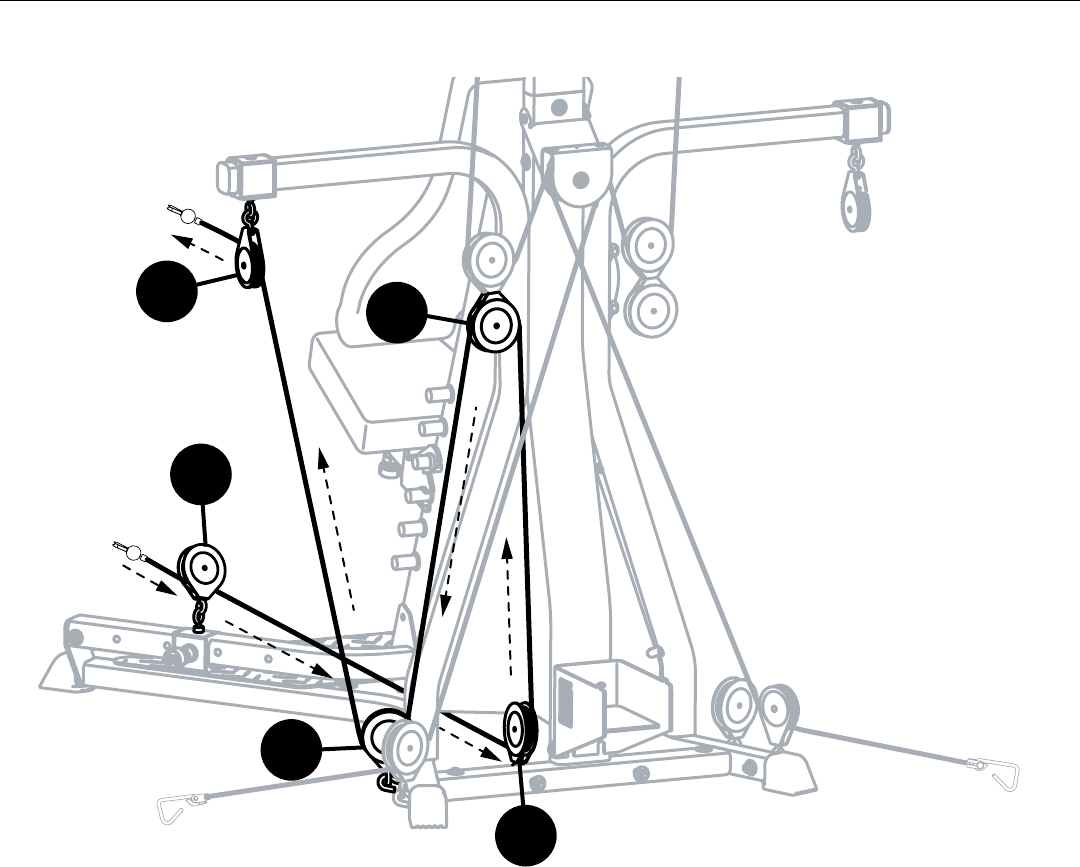

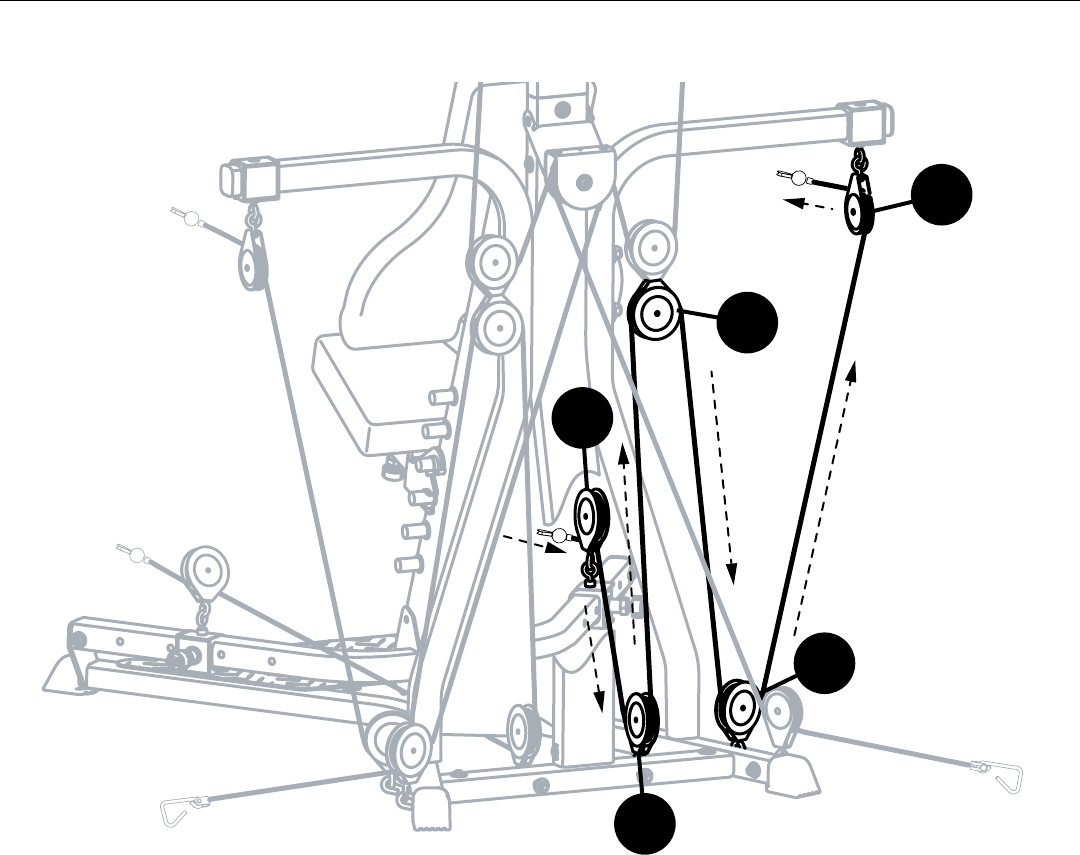

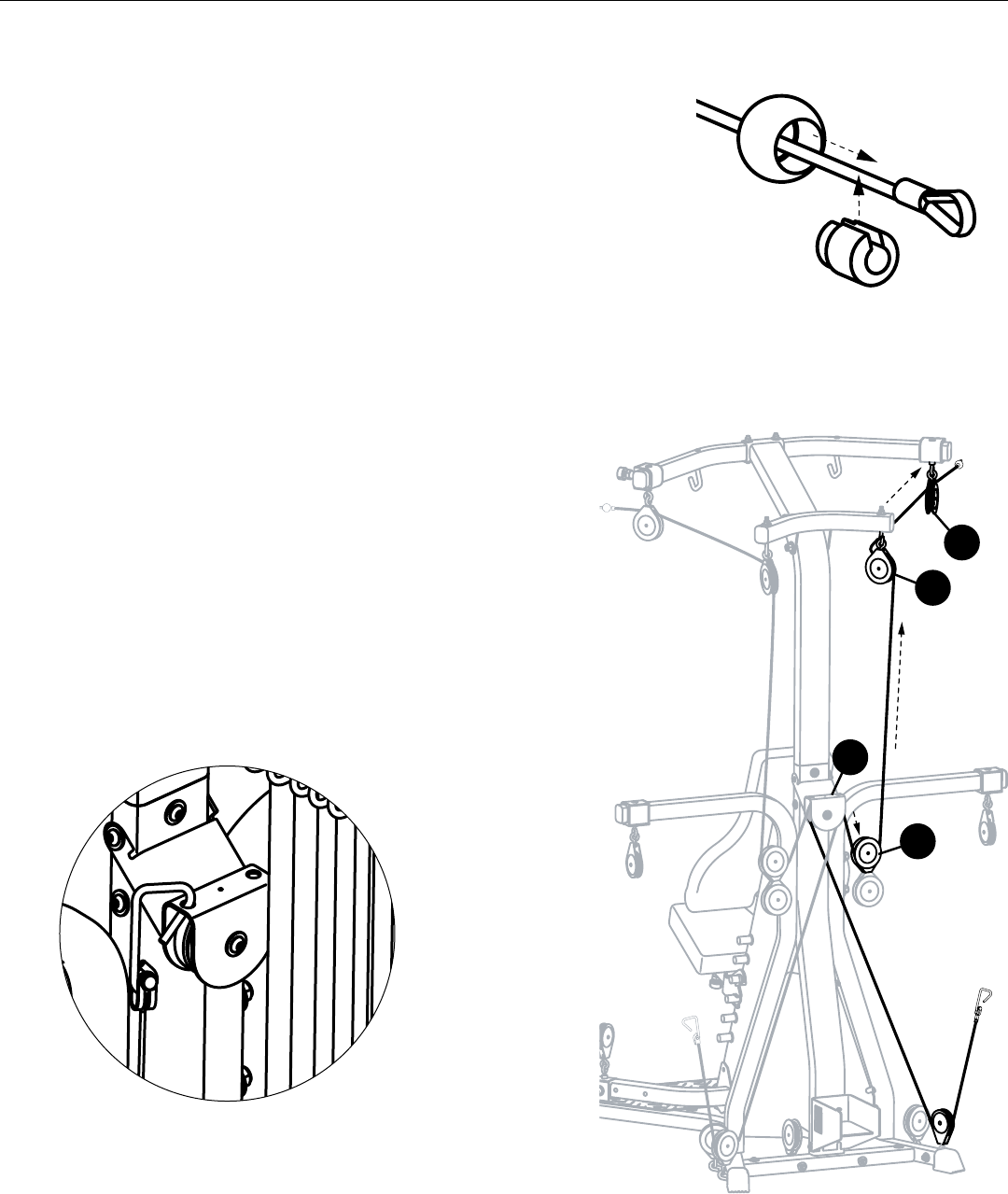

Cable & Pulley Routing ............................15

Table of Contents

Congratulations on your commitment to ﬁtness and your purchase of the Bowﬂex Xtreme® 2 SE home

gym. Before assembling your Bowﬂex Xtreme® 2 SE home gym please read the Assembly Manual and

follow the Important Safety Precautions. For information on how to use your Bowﬂex Xtreme® 2 SE home

gym, refer to the Bowﬂex Xtreme® 2 SE Owner’s Manual.

Bowﬂex Xtreme® 2 SE Assembly Manual 1

Important Safety Instructions

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Read and understand all warnings on this machine.

Carefully read and understand the Assembly Manual.

Before using this equipment, obey the following warnings:

• Keep bystanders and children away from the product you are assembling at all times.

• Do not assemble this machine outdoors or in a wet or moist location.

• Make sure assembly is done in an appropriate work space away from foot traffic and exposure to bystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly

steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this

machine and will void the warranty.

• If replacement parts are necessary use only genuine replacement parts and hardware supplied by Nautilus.

Failure to use genuine replacement parts can cause a risk to users, keep the machine from operating correctly

and void the warranty.

• Do not use until the machine has been fully assembled and inspected for correct performance in accordance

with the Owner’s Manual.

• Read and understand the complete Owner’s Manual supplied with this machine before first use. Keep the

Owner’s and Assembly Manuals for future reference.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must

be on a hard, level surface.

Select a workout area that provides a minimum clearance behind the rod box of 0.5 ft (15 cm) and a total width of

6.5 ft (2.0 m). Allow a minimum of 3.0 ft (0.9 m) free space in front of the machine.

Basic Assembly Tips

Follow these basic points when you assemble your machine:

1. To make the assembly process go faster, gather the pieces you need for each step and thoroughly read the assembly

instructions for that step before starting assembly for the step.

2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and make sure that it is fastened

securely.

3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt through the holes.

4. As a general rule, and for all bolts and nuts on your Bowflex Xtreme® 2 SE home gym, turn bolts or nuts toward the

right (clockwise) to tighten and left (counterclockwise) to loosen.

2Bowﬂex Xtreme® 2 SE Assembly Manual

IMPORTANT: LEAVE ALL CABLES COILED AND WRAPPED UNTIL YOUR

BOWFLEX XTREME® 2 SE HOME GYM IS FULLY ASSEMBLED.

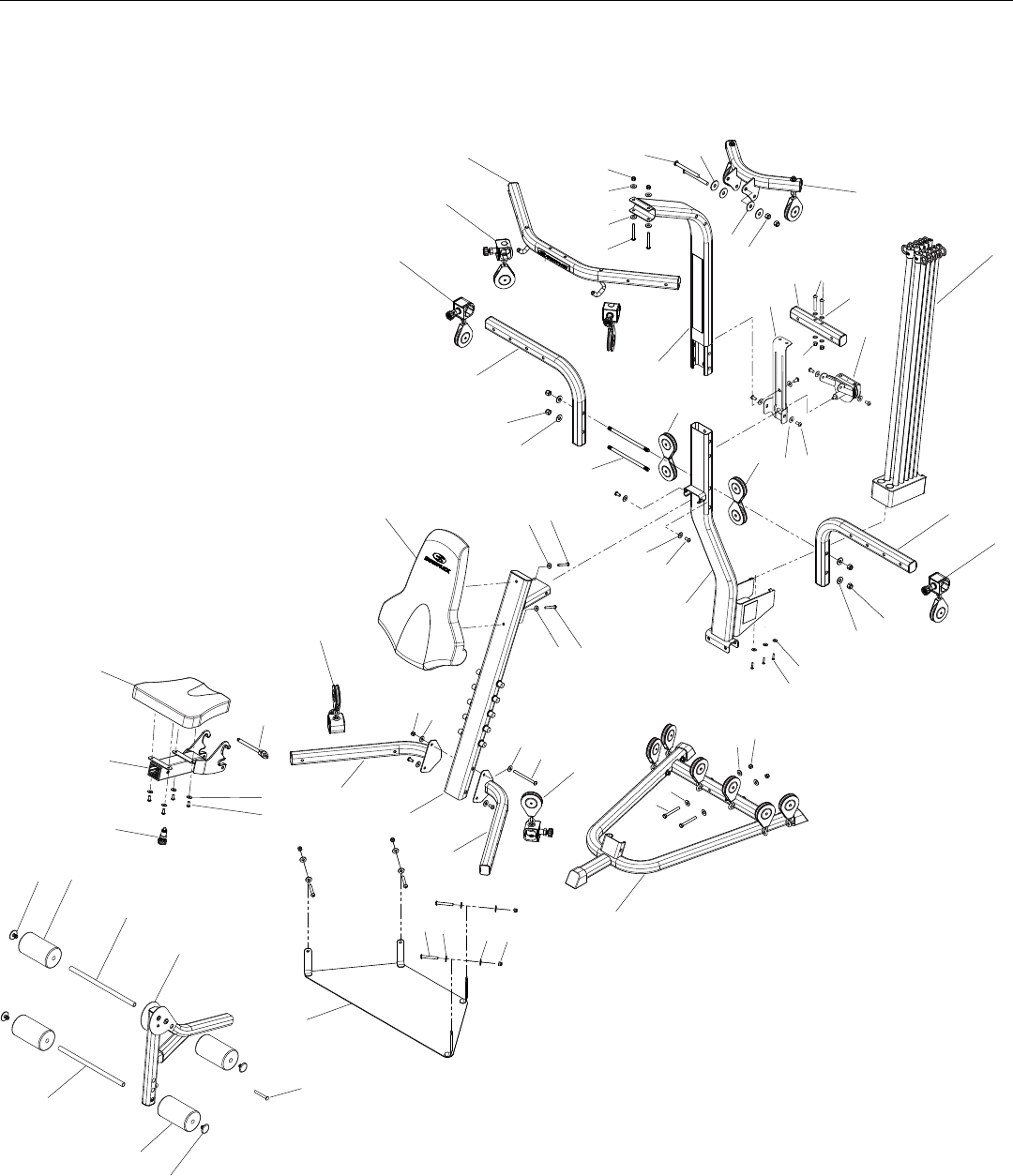

Parts

27 26

QBBO

Note: Cables are not shown for clarity.

Bowﬂex Xtreme® 2 SE Assembly Manual 3

Parts

Tools

Included Not Included (recommended)

• 7/16" Combination Wrench

• 9/16" Combination Wrench

• Adjustable Wrench

• Socket Wrench Set

• Phillips Screw Driver

• Flat Blade Screw Driver

• Rubber Mallet

• Utility Knife

• Scissors

Item Qty Description Item Qty Description

11Base Frame Assembly 16 1Lock Knob

21Bfx Rod Pack 210# 17 1Seat Backbone Assembly

31Lower Lat Tower 18 1Seat Bottom

41Seat Support Rail 19 1Ab Crunch Crossbar

51Squat Frame Left 20 1Ab Crunch Bracket

61Squat Frame Right 21 2Pulley, Pair Floating

71Squat Platform 22 1Lat Double Pulley / Housing

84Pulley Slider, 4” w/o Decal 23 1Leg Extension Backbone

91Rear Lat Crossmember 24 1Leg Extension Pin

10 1Lat Cross Bar Assembly 25 2Tube, Foam Roller

11 1Upper Lat Tower Tube 26 4Pad, Foam Roller

12 1Pulley Arm Assembly, Right 27 4End Cap 3/4”

13 1Pulley Arm Assembly, Left 28 1Rod Cables Assembly, Pair

14 2Pulley Slider, 4” w/ Decal 29 1Squat Cables Assembly, Pair

15 1Seat Back Pad

3/16”

7/32”

5/16”

4Bowﬂex Xtreme® 2 SE Assembly Manual

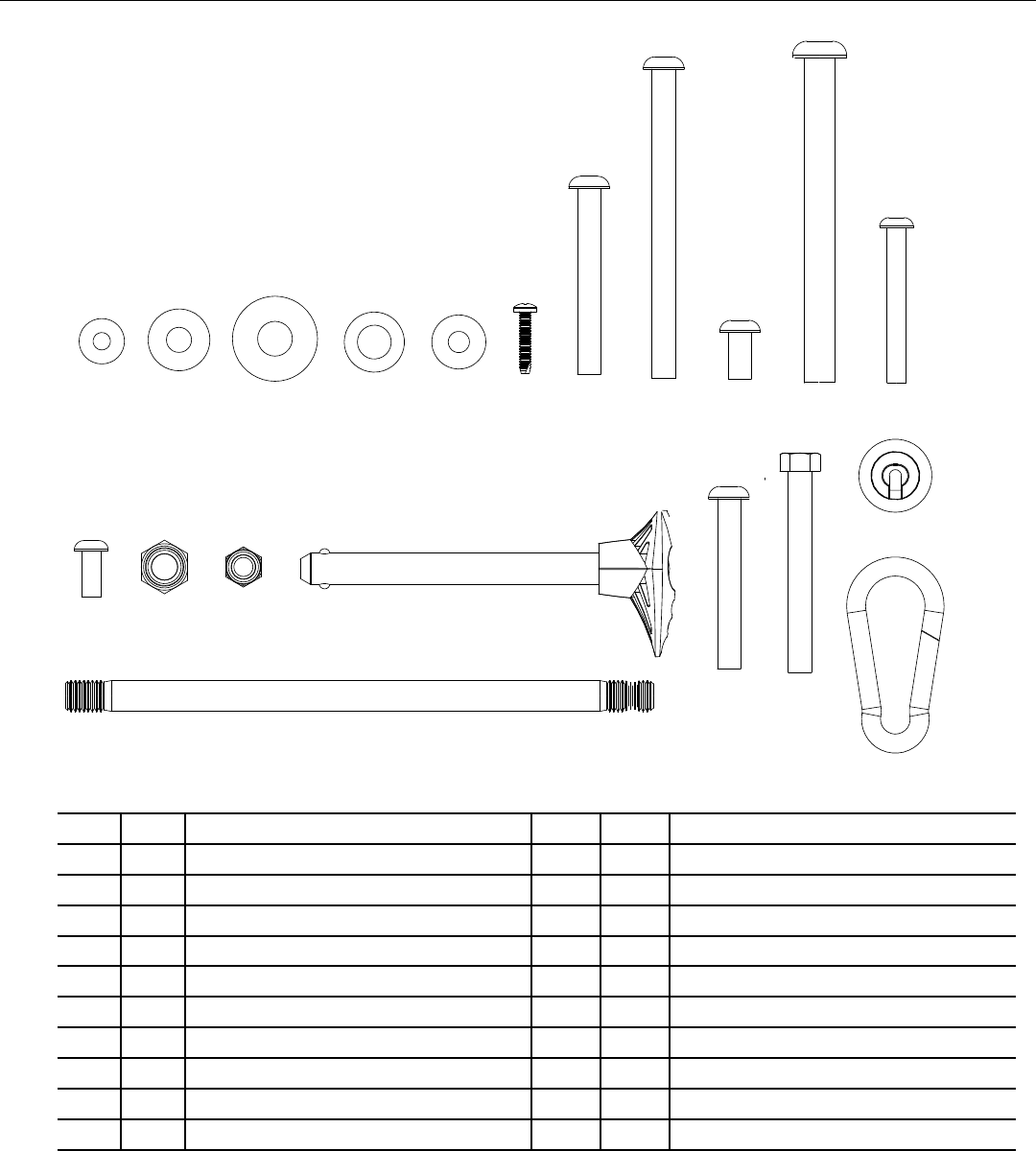

Hardware

(NOTE: Drawings not to scale.)

EIH

KG J

C D

L O

FA B

Item Qty Description Item Qty Description

A3Flat Washer 1/4” Regular K2Button Head Screw 5/16” X 2 1/2”

B31 Flat Washer 3/8” Regular L 4 Button Head Screw 5/16” X 3/4”

C 4 Flat Washer 1/2” Wide M 2 Threaded Stud 1/2” X 9 1/2”

D4Flat Washer 1/2” Regular N 6 Nylock Nut 1/2”

E 6 Flat Washer 5/16” Regular O11 Nylock Nut 3/8”

F3Phillips Screw #10-16 X 1” P 1 Seat Locking Pin

G 2 Button Head Screw 3/8” X 3” Q 6 Button Head Screw 3/8” X 2 3/4”

H1Button Head Screw 3/8” X 5” R 2 Hex Head Bolt 3/8” X 3 1/4”

I9Button Head Screw 3/8” X 3/4” S 4 Cable End Stop Ball

J 2 Button Head Screw 1/2” X 5 1/4” T6Snaphook

Bowﬂex Xtreme® 2 SE Assembly Manual 5

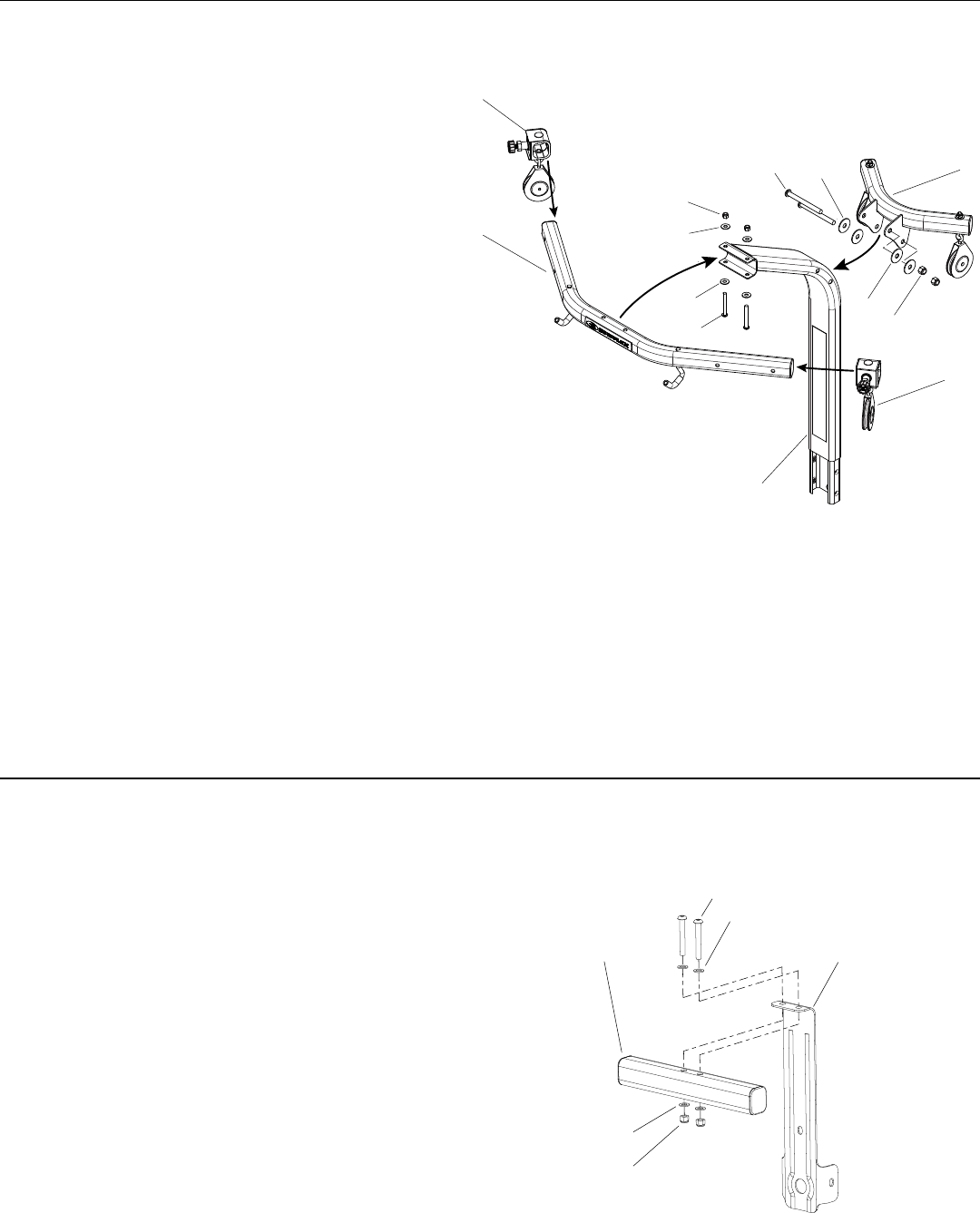

Assembly Guide

Step 2 Install Lower Lat Tower Assembly

Parts:

• Lower Lat Tower Assembly

• Base Frame Assembly (1)

Hardware:

• 2 Hex Head Bolts 3/8” X 3 1/4” (R)

• 4 Flat Washers 3/8” (B)

• 2 Nylock Nuts 3/8” (O)

Tool: 7/32” Hex Wrench

2-1 Align the Lower Lat Tower Assembly

over the Base Frame.

2-2 Secure Lower Lat Tower Assembly

using screws and washers as shown.

Finger tighten screws at this time.

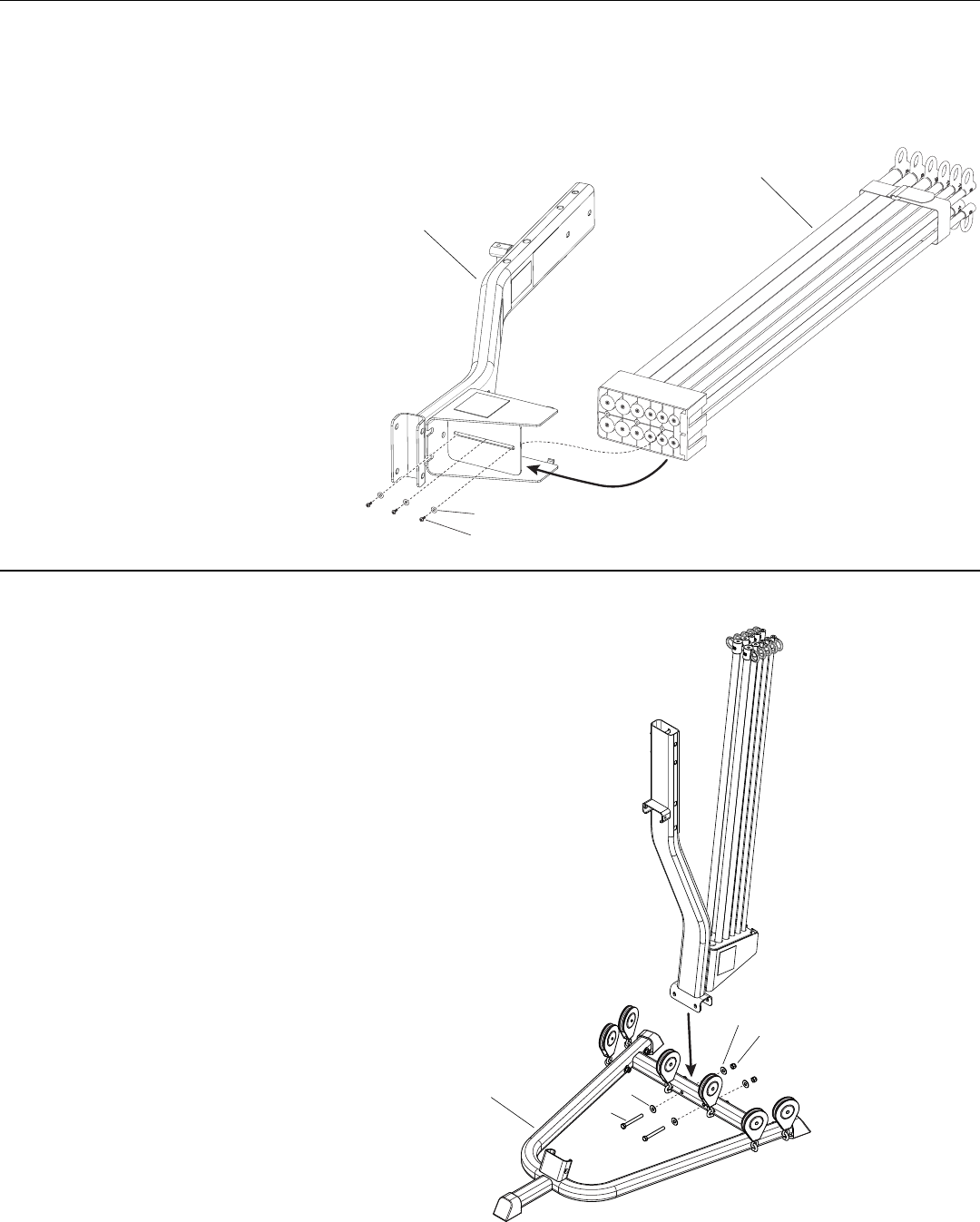

Step 1 Install Power Rod® Pack to Lower Lat Tower Assembly

Parts:

• Lower Lat Tower (3)

• Rod Box with Power Rod® Pack (2)

Hardware:

• 3 Phillips Screws #10 X 1” (F)

• 3 Flat Washers 1/4”(A)

Tool: Phillips Screw Driver

1-1 Lay parts on floor as shown. Firmly slide

Rod Box into Lower Lat Tower frame.

1-2 Fasten the Rod Box to the

Lower Lat Tower frame as shown.

Tighten screws until snug.

6Bowﬂex Xtreme® 2 SE Assembly Manual

Assembly Guide

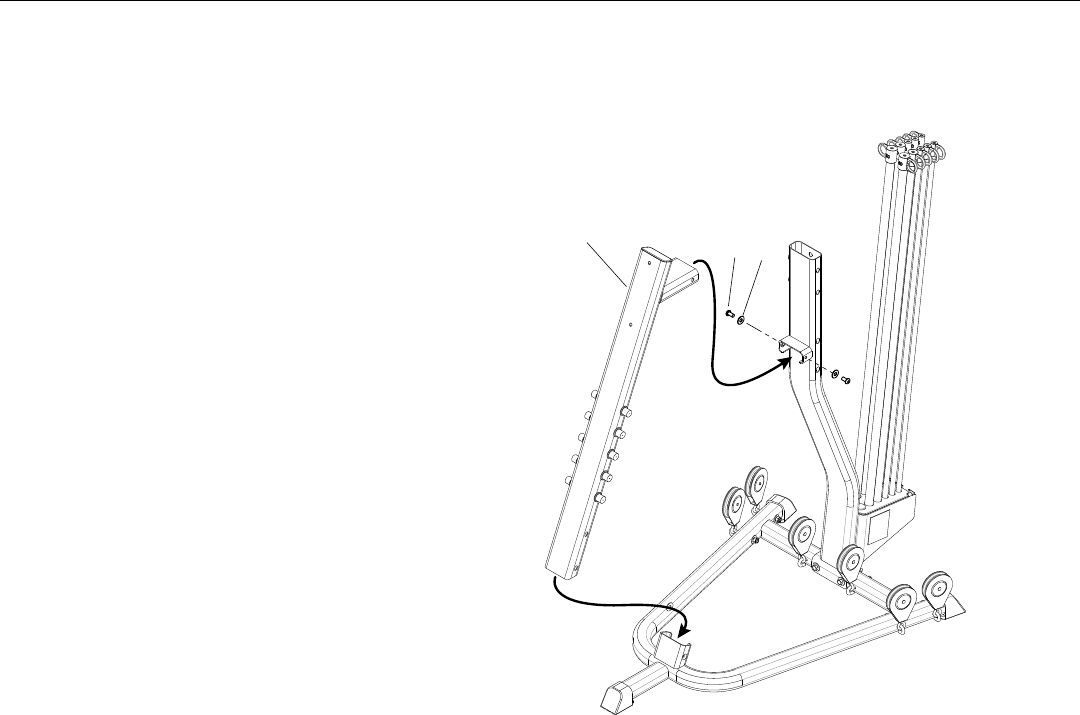

Step 3 Install Seat Support Rail

Parts:

• Seat Support Rail (4)

• Base Frame Assembly

Hardware:

• 2 Button Head Screws 3/8” X 3/4” (I)

• 2 Flat Washers 3/8” (B)

Tool: 7/32” Hex Wrench

3-1 Slide the bottom of the Seat Support Rail onto

the Base Frame connector as shown.

3-2 Slide the top of the Seat Support Rail onto

the Lower Lat Tower Assembly connector as

shown. Secure using screws and washers as

shown.

Finger tighten screws at this time.

Bowﬂex Xtreme® 2 SE Assembly Manual 7

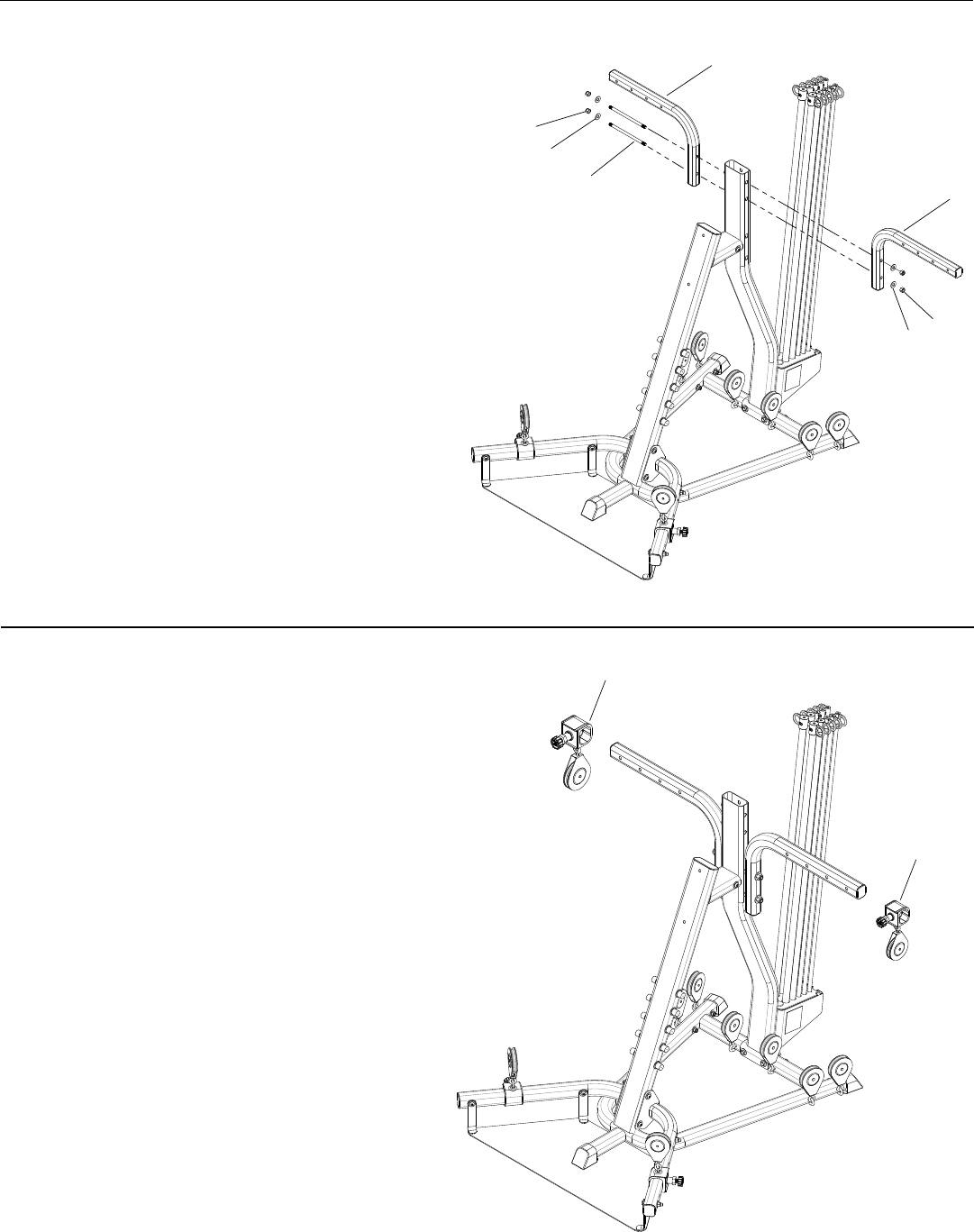

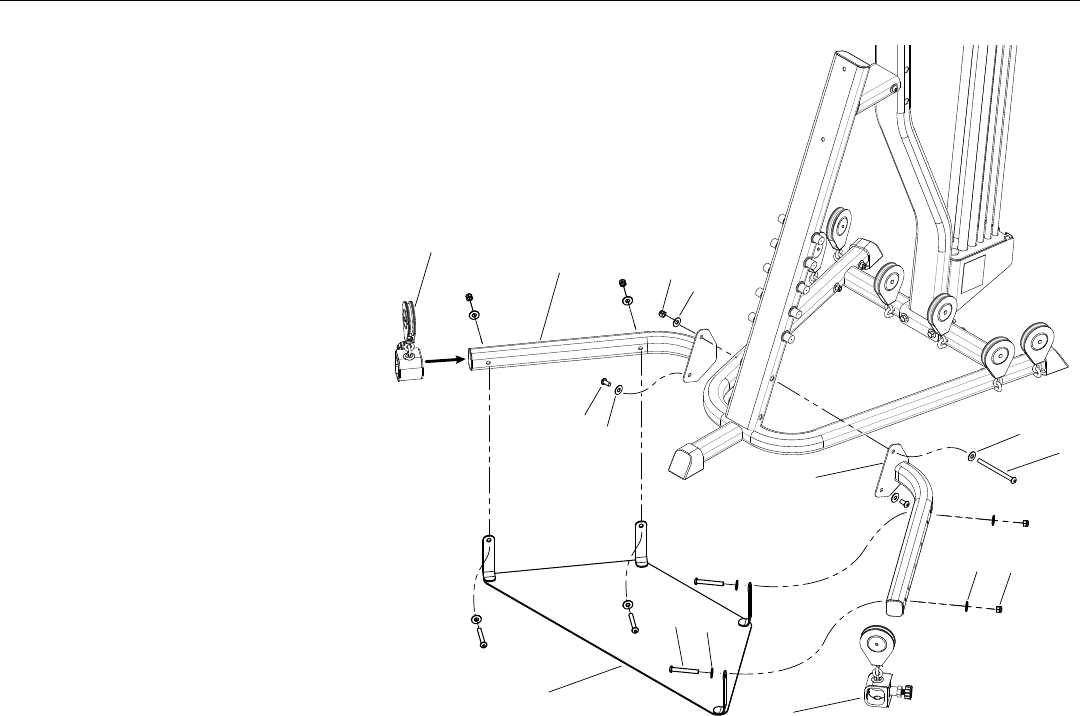

Step 4 Install Squat Pulley Frame

Parts:

• Left Squat Pulley Frame (5)

• Right Squat Pulley Frame (6)

• Main Assembly

• 2 Slider Pulleys w/o Decal (8)

• Squat Platform (7)

Hardware:

• 1 Button Head Screw 3/8" X 5" (H)

• 5 Nylock Nut 3/8" (O)

• 2 Button Head Screws 3/8" X 3/4" (I)

• 12 Washers 3/8" (B)

• 4 Button Head Screws 3/8” X 2 3/4” (Q)

Tools: 7/32" Hex Wrench, Adjustable

or Socket Wrench

4-1 Place one Squat Pulley Frame on each side

of the Seat Support Rail as shown, and align

the top screw holes. Secure using a 3/8" X

5" screw, washer and nut in the top hole as

shown.

4-2 Install screws and washers through the

bottom holes of each Squat Pulley Frame into

the Support Rail as shown.

4-3 Put the Squat Platform in position under the

front foot of the Base Frame Assembly. Align

the screw holes in the Squat Platform brackets

with the screw holes on the inner side of each

Squat Pulley Frame.

4-4 Slide one Slider Pulley onto the free end of the

Left Squat Pulley Frame as shown.

Note: Be sure the Slider Pulley knob points

away from the Squat Platform.

Lock the pulley in position near the Seat

Support Rail.

4-5 Install the hardware to attach the Squat

Platform to the Left Squat Pulley Frame.

4-6 Repeat Steps 4-3 through 4-5 for the Right

Squat Pulley Frame.

Assembly Guide

8Bowﬂex Xtreme® 2 SE Assembly Manual

Step 6 Install Slider Pulleys

Parts:

• 2 Slider Pulleys w/ Decal (14)

• Main Assembly

Tools: 3/16 Hex Wrench

6-1

Install a Slider Pulley onto each Pulley Arm as

shown.

6-2 Choose any of the four holes to secure.

Assembly Guide

Step 5 Install Pulley Arms

Parts:

• Right Pulley Arm (12)

• Left Pulley Arm (13)

• Main Assembly

Hardware:

 2 Threaded Studs 1/2" X 9 1/2" (M)

• 4 Nylock Nuts 1/2" (N)

• 4 Washers 1/2" (D)

Tools: 7/32" Hex Wrench, Rubber Mallet

5-1 Align the two holes in the Pulley Arms

with those in the Lower Lat Tower

Assembly and secure using threaded

studs, 1/2” washers and nuts as shown.

Bowﬂex Xtreme® 2 SE Assembly Manual 9

Step 8 Leg Extension Assembly

Parts:

• Leg Extension Backbone (23)

• 2 Chrome Tubes (25)

• 4 Foam Rollers (26)

• 4 End Caps (27)

Tool : Rubber Mallet

8-1 Insert Chrome Tubes through the

upper hole and one of the lower

holes in the Leg Extension. (Select

hole for your comfort level.)

8-2 Slide Foam Rollers onto the

Chrome Tubes and secure with

end caps. A rubber mallet may be

needed to secure the end caps.

Note: The Leg Extension may be adjusted

during workout to best suit your height

and personal preferences.

Step 7 Seat Assembly

Parts:

• Seat Backbone (17)

• Seat Bottom (18)

Hardware:

• 4 Button Head Screws 5/16" X 3/4" (L)

• 4 Washers 5/16" (E)

Tool: 3/16" Hex Wrench

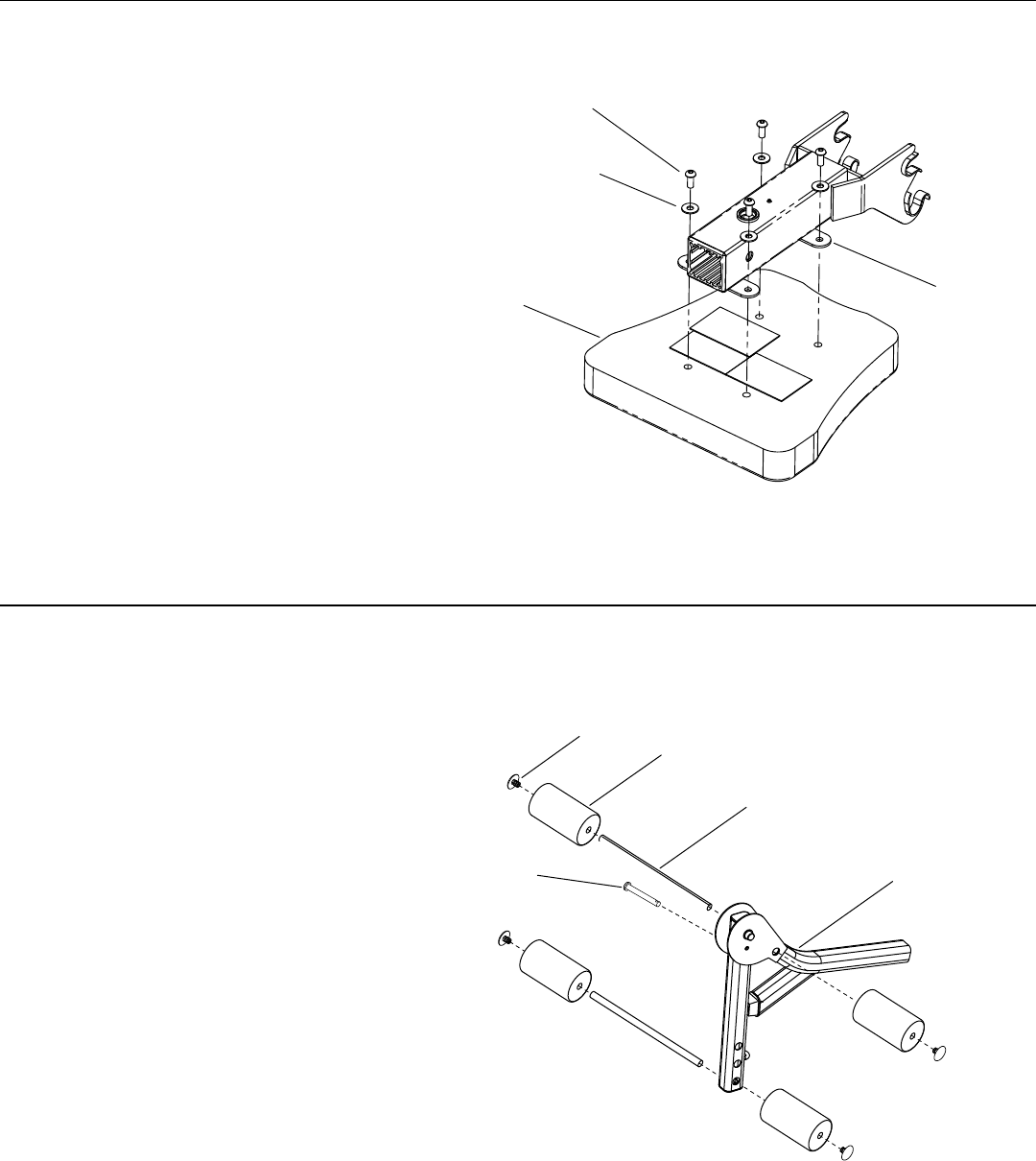

7-1 Install the Seat Backbone to the

underside of the Seat Pad using screws

and washers as shown.

Assembly Guide

18 17

27 26

10 Bowﬂex Xtreme® 2 SE Assembly Manual

Step 9 Install Leg Extension

Assembly

Parts:

• Leg Extension Assembly

• Lock Knob (16)

• Seat Assembly

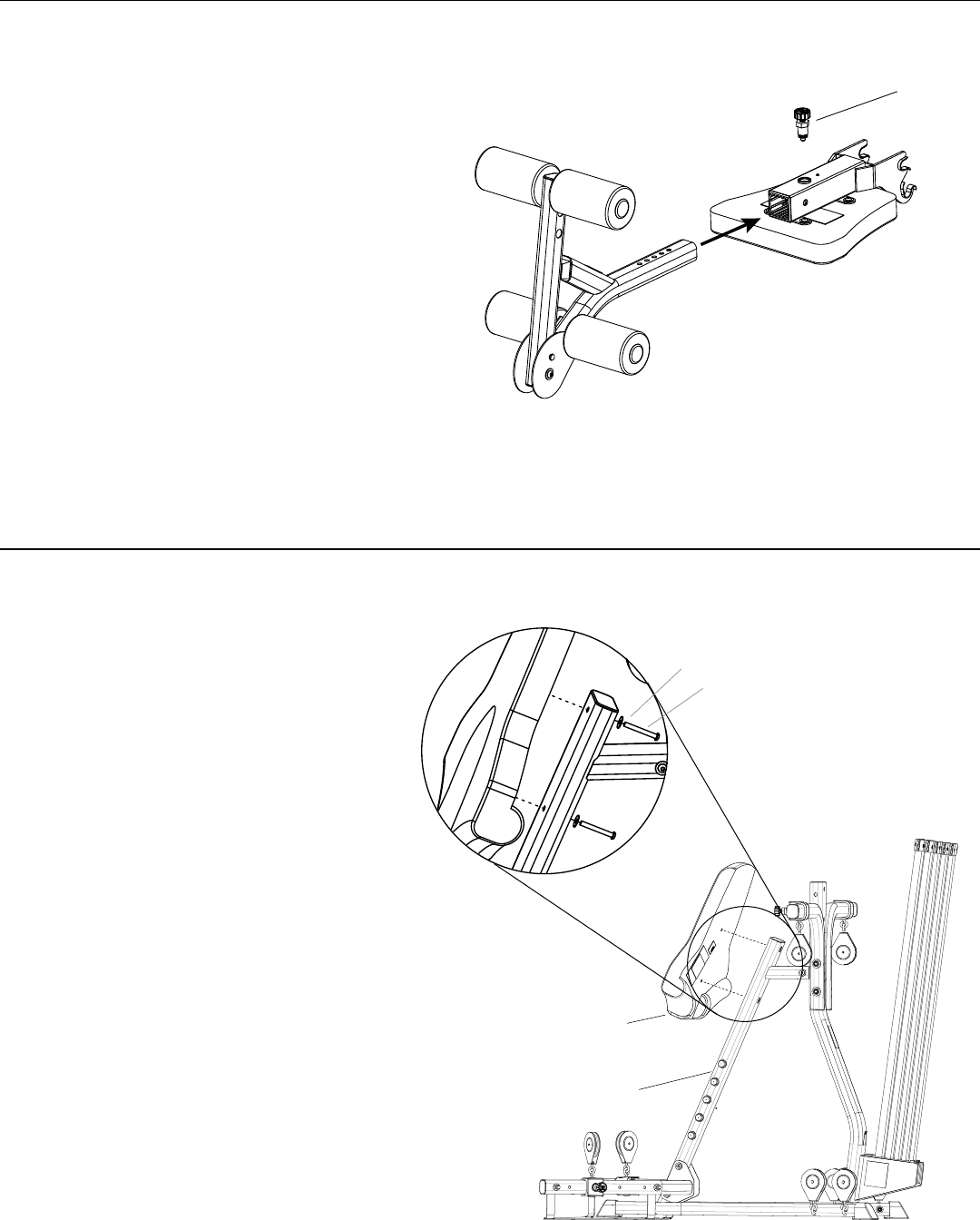

9-1 Insert Leg Extension Backbone

into open end of Seat Backbone

as shown.

9-2 Align one hole of the Leg

Extension with the hole in the

Seat Backbone to fit your height

and secure with the Lock Knob as

shown.

Assembly Guide

Step 10 Install Seat Back Pad

Parts:

• Seat Back Pad (15)

• Main Assembly

Hardware:

• 2 Button Head Screws 5/16" X 2 1/2" (K)

• 2 Washers 5/16" (E)

Tool: 3/16" Hex Wrench

10 -1 Align the screw holes on the Seat Back

Pad with the screw holes on the Seat

Support Rail.

10-2 Install the Seat Back Pad to the Seat

Support Rail using screws and

washers as shown.

Bowﬂex Xtreme® 2 SE Assembly Manual 11

Step 11 Install Seat Assembly

Parts:

• Seat Assembly

• Seat Locking Pin (P)

• Main Assembly

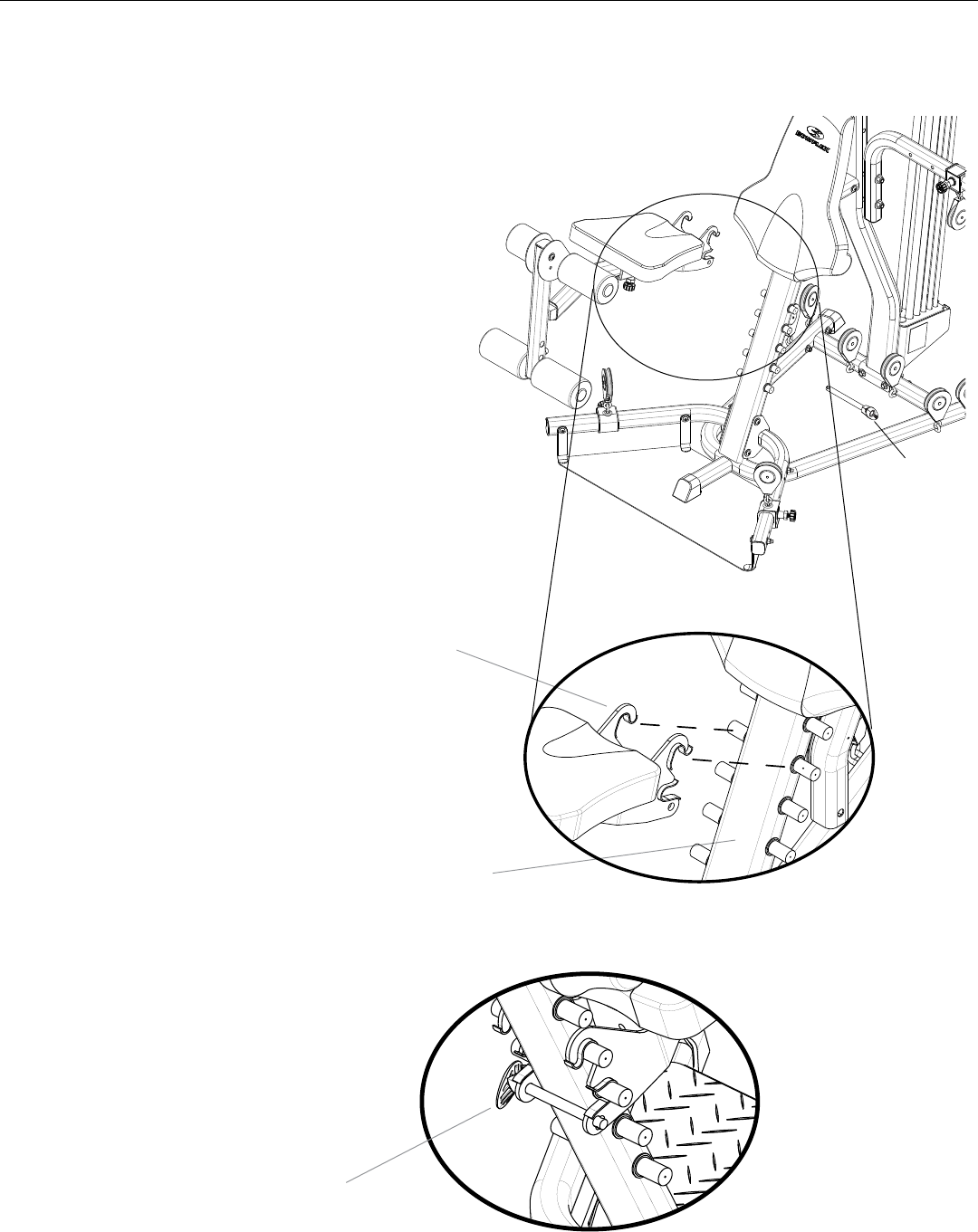

11-1 Align the top two hooks on the Seat

Backbone (17) with one of the pairs of

pins on the Seat Support Rail (4), as

shown in Detail 11a.

11-2 Tip seat front up and slide

hooks onto pins. Rotate seat down and back

to use.

11- 3 Slide the Seat Locking Pin through the holes

in the Seat Backbone hooks to secure the

seat assembly on the Seat Support Rail as

shown in Figure 11b.

Note: Reverse procedure to remove seat.

Assembly Guide

Detail 11b - Back View

Detail 11a

12 Bowﬂex Xtreme® 2 SE Assembly Manual

Step 13 Ab Crunch Station Assembly

Parts:

• Ab Crunch Bracket (20)

• Ab Crunch Crossbar (19)

Hardware:

• 2 Button Head Screws 3/8" X 2 3/4" (Q)

• 4 Washers 3/8" (B)

• 2 Nylock Nuts 3/8 (O)

Tool: 7/32" Hex Wrench

13-1 Attach the Ab Crunch Crossbar to the Ab

Crunch Bracket as shown. Tighten all hardware.

from this step.

Assembly Guide

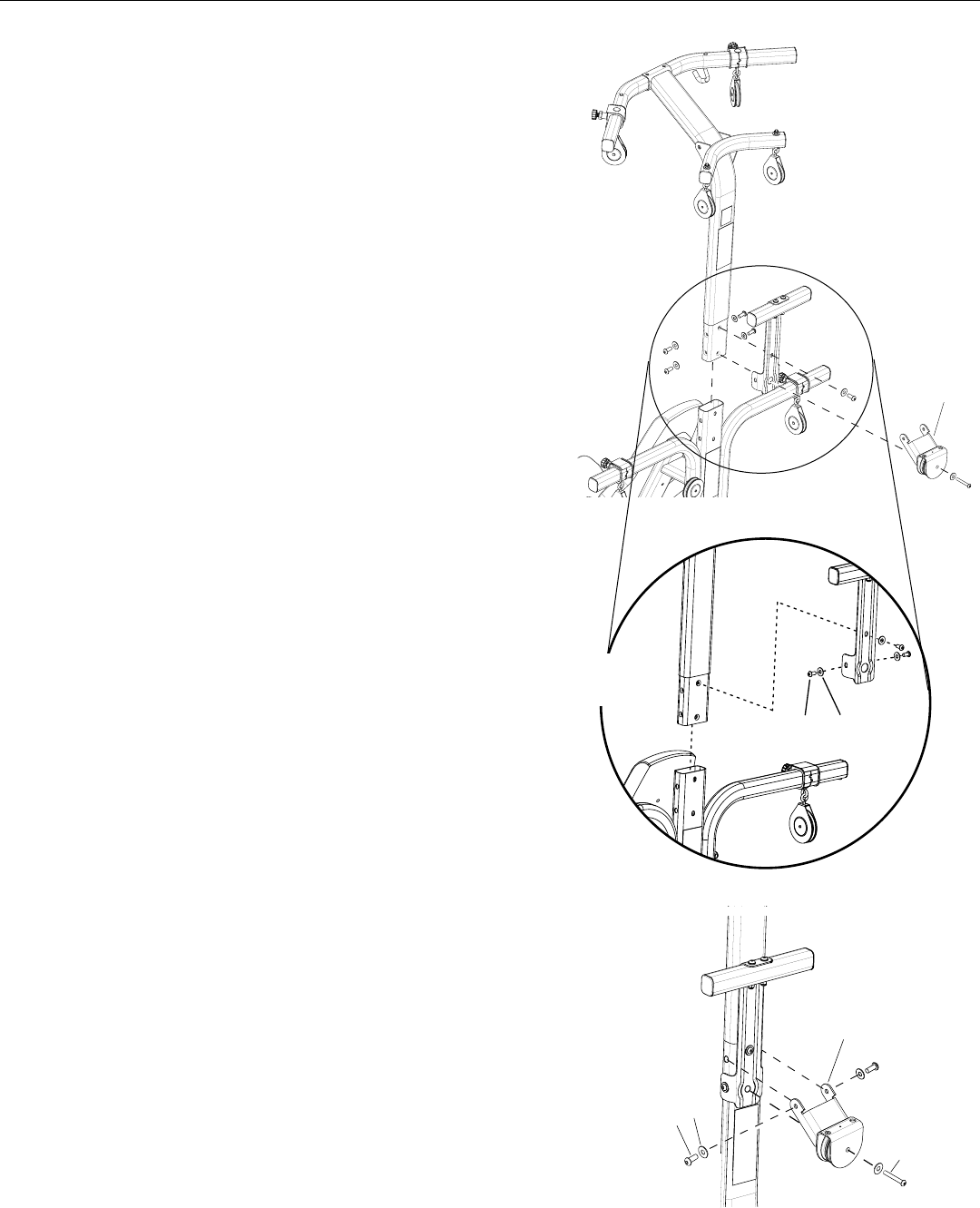

Step 12 Upper Lat Tower Assembly

Parts:

• Upper Lat Tower (11)

• Lat Cross Bar (10)

• Rear Lat Crossmember (9)

Hardware:

• 2 Button Head Screws 3/8" X 3" (G)

• 4 Washers 3/8" (B)

• 2 Nylock Nuts 3/8” (O)

• 2 Button Head Screws 1/2" X 5 1/4" (J)

• 4 Wide Washers 1/2" (C)

• 2 Nylock Nuts 1/2” (N)

Tool: 7/32" Hex Wrench and Adjustable Wrench

12-1 Align the two holes on the Lat Cross Bar with those

on the Upper Lat Tower as shown.

12-2 Attach using 3/8” screws, washers and nuts as

shown.

Note: Do not tighten hardware at this time.

12-3 Align the bracket on the Rear Lat Crossmember with

the bolt on the Upper Lat Tower as shown.

12- 4 Attach using 1/2” screws, washers and nuts as

shown.

12-5 Tighten all hardware from this step.

Bowﬂex Xtreme® 2 SE Assembly Manual 13

Step 14 Install Upper Lat Tower Assembly, Ab

Crunch Station and Lat Pulley

Parts:

• Upper Lat Tower Assembly

• Ab Crunch Station

• Lat Pulley Housing (22)

• Main Assembly

Hardware:

• 5 Button Head Screws 3/8" X 3/4" (I)

• 5 Flat Washers 3/8" (B)

Tool: 7/32" Hex Wrench

14 -1 Slide the Upper Lat Tower Assembly onto the Lower

Lat Tower as shown.

14-2 Place the Ab Crunch Bracket against back of the

Lat Tower Assembly. Align the bolt holes on the Ab

Crunch Bracket’s side flaps with the lower bolt holes

on the sides of the Lat Tower.

14-3 To attach the Ab Crunch Station to the Lat Tower,

install a 3/4” screw and washer through the upper bolt

hole on the Ab Crunch Station into the back of the Lat

Tower as shown in Detail 14a. Secure the Ab Crunch

Station to the sides of the Lat Tower with 2 screws

and washers as shown in Detail 14a.

14-4 Remove the plastic cap from the end of the the long

bolt (*) already installed in the back of the Lat Pulley/

Housing. Finger tighten the bolt–it will be removed

and reinstalled during Step 16 and 17.

14-5 Position the Lat Pulley Housing bracket against the

Lat Tower, over the Ab Crunch Station. Align the bolt

holes as shown in Figure 14b.

14-6 Place one washer over the end of each screw. Attach

the Lat Pulley Housing to the Lat Tower by installing

the screws loosely into the aligned holes as shown in

Figure 14b.

Do not tighten hardware at this time.

Assembly Guide

Detail

14a

Figure 14b

Figure 14a

14 Bowﬂex Xtreme® 2 SE Assembly Manual

Assembly Guide

Step 15 Cable and Pulley Routing – Overview

The gure below shows all Pulleys on the Bowex Xtreme 2 SE home gym. Subsequent images show how to

connect and route each of the Cables through the Pulleys. (The Ab Crunch Station is not shown for clarity.)

Connecting the Cables is much easier with a second persn assisting you.

Note: All references to the right or left of the machine are from the viewpoint of standing in front of the machine

facing the seat. Your machine may not match the image. For reference only.

SQUAT/ARM

LEFT CABLE

(Cable wrapped

around 6 Pulley)

RIGHT ROD

CABLE

(Cable wrapped

around 1 Pulley)

SQUAT/ARM

RIGHT CABLE

(Cable wrapped

around 6 Pulley)

LEFT ROD

CABLE

(Cable wrapped

around 1 Pulley)

Bowﬂex Xtreme® 2 SE Assembly Manual 15

Assembly Guide

Step 16 Cable and Pulley Routing – Prepare Cables to be installed to the Lat Pulley Housing

Locate the following items on the Lat Pulley Housing assembly:

• (2) Pulleys – already installed, labeled as item 2 in figure

• 3/8” X 4 1/2” Hex Head Bolt – installed

• 3/8” Washer – already installed

Note: Connecting the Cables is much easier with a second person assisting you.

16 -1 Remove the 4 1/2” Bolt and Washer from the back of the Lat Pulley Housing, and set safely aside for Step 18.

16-2 The 2 Pulleys will slide down and out of the housing without the hex bolt holding them in place.

Unwrap the Right Pulley Cable on the Right Frame Rail. Thread the cable beneath and then over one Lat Pulley (2),

following the arrows shown in Figure 16 and holding the cable tightly where indicated.

16-3 Repeat for the Left Pulley Cable (on the Left Frame Rail), without loosening your grip on the Right Pulley Cable.

16 Bowﬂex Xtreme® 2 SE Assembly Manual

Assembly Guide

Step 17 Cable and Pulley Routing – Connect Pulleys and Cables to the Lat Pulley

Housing

Locate the following items for the Lat Pulley Housing assembly:

• (2) Pulleys from step 16

• 3/8” X 4 1/2” Hex Head Bolt – uninstalled in Step 16

• 3/8” Washer – uninstalled in Step 16

Note: Connecting the Cables is much easier with a second persn assisting you.

17-1 Holding both Cables from Step 16 in place, align the 2 Lat Pulleys as shown in Figure 17. Slide the Pulleys

back into the Lat Pulley Housing, lining up the bolt holes in the Pulleys and Lat Pulley Housing.

17-2 Place the Washer over the 4 1/2” Bolt from Step 16. Slide the Bolt through the aligned holes in the Lat Pulley

Housing and Lat Pulleys as shown in Figure 17.

Tighten all hardware.

Note: You will probably need to push the Power Rod® unit out of the way for this step. The Power Rod® unit is

not pictured for the sake of clarity.

Bowﬂex Xtreme® 2 SE Assembly Manual 17

Assembly Guide

Step 18 Cable and Pulley

Routing – Connect Rod Cables

through the Right Floating and

Lat Tower Pulleys

Locate the following items for the Lat

Pulley Housing assembly:

• 3 & 8 Floating Pulleys (connected

unit)

• (2) Cable End Stop Balls with Core

(see Detail)

18-1 Locate the Right Rod Cable that

you ran through the Lat Pulley

Housing. Thread the Cable

through the (3) Floating Pulley,

as shown.

18-2 Continue to guide the Cable

through the (4) Pulley on the

Rear Lat Cross Bar, and then

through the (5) Pulley on the

Front Lat Cross Bar as shown.

18-3 Insert the Cable End through

the Cable End Stop Ball, and

attach the Cable Core to keep

the Cable from slipping back

through the Pulleys. See

Figure 18b.

Note: The Cable End Stop Ball Core

should fit over the Ferrue

when installed correctly.

Rotate the Core to align it

with the groove in the Ball.

18 Bowﬂex Xtreme® 2 SE Assembly Manual

Assembly Guide

Figure 18b - Detail

Step 18b Cable and Pulley Routing –

Connect Cable End Stop Ball with Core

Step 18c Cable and Pulley Routing –

Connect Rod Cables through Left (3) Floating

and Lat Tower Pulleys

18-4 Repeat with Left Rod Cable and (3) and (8)

Floating Pulleys, as shown in Figure 18c.

Note: Once the Cable End Stop Balls are attached,

hook each Rod Hook onto the Lat Pulley

Housing as shown in Figure 18d.

Figure 18d - Rod Hooks Storage on Lat Pulley

Housing

Figure 18c

Bowﬂex Xtreme® 2 SE Assembly Manual 19

Assembly Guide

Step 19 Cable and Pulley Routing –

Connect Right Squat Cable through the Floating and Main Assembly Pulleys

Slide the Right Squat Frame Pulley (6) to the furthest back hole, as indicated in Figure 19.

Unwrap the Right Squat Cable from the (6) Pulley and guide the Cable, threading under and through the Rear Cross Bar

Pulley (7), and up through the Floating (8) Pulley. Follow the arrows as indicated in Figure 19.

Continue to guide the Cable down through the Inner Right Frame Rail Pulley (9), up through the Right Pulley Arm Pulley (10), as

shown in Figure 19.

Finally, insert the Cable End through the Cable End Stop Ball and attach the Cable Core, as completed during Step 18.

20 Bowﬂex Xtreme® 2 SE Assembly Manual

Step 19b Cable and Pulley Routing –

Connect Left Squat Cable through the Floating and Main Assembly Pulleys

Repeat the same procedure completed during Step 19 for the Left Squat Cable.

Assembly Guide

Bowﬂex Xtreme® 2 SE Assembly Manual 21

Step 20 Cable & Pulley Routing

Attach the hooks on the ends of the Left and Right Squat Cables to the Hook installed onto the Leg Extension,

as shown in Figure 20.

Assembly Guide

Step 21 Final Inspection

Inspect your machine to ensure that all fasteners are tight and components are properly assembled. Review all

warnings affixed to machine.

Be sure to record the serial number in the field provided at the front of the Owner’s Manual. Refer to the Safety

Warning Labels and Serial Number section of the Owner’s Manual.

Failure to visually check and test assembly before use can cause damage to the equipment. It can also cause

serious injury to users and bystanders.

Nautilus® Bowflex® Schwinn® Fitness Universal®

8001515.010913.B

Bowflex Xtreme 2 Se 2013 Owner S Manual BFX_XtremeSE_AM_RevB_100506

Navigation menu

Versions of this User Manual:

Views

Navigation
