ELECTRIC REPLACEMENT PARTS LIST
Residential Energy Saver (M1,2) Utility Models
Commercial Energy Saver (LD) Utility Models
Effective: March, 2012
ECO 7496
NOTE: BOTH MODEL AND SERIAL
NUMBERS ARE REQUIRED FOR
ORDERING REPLACEMENT PARTS
Dimensions and specifications
subject to change without notice.
Parts Book #238-44518-00E
![](asset-2.png)

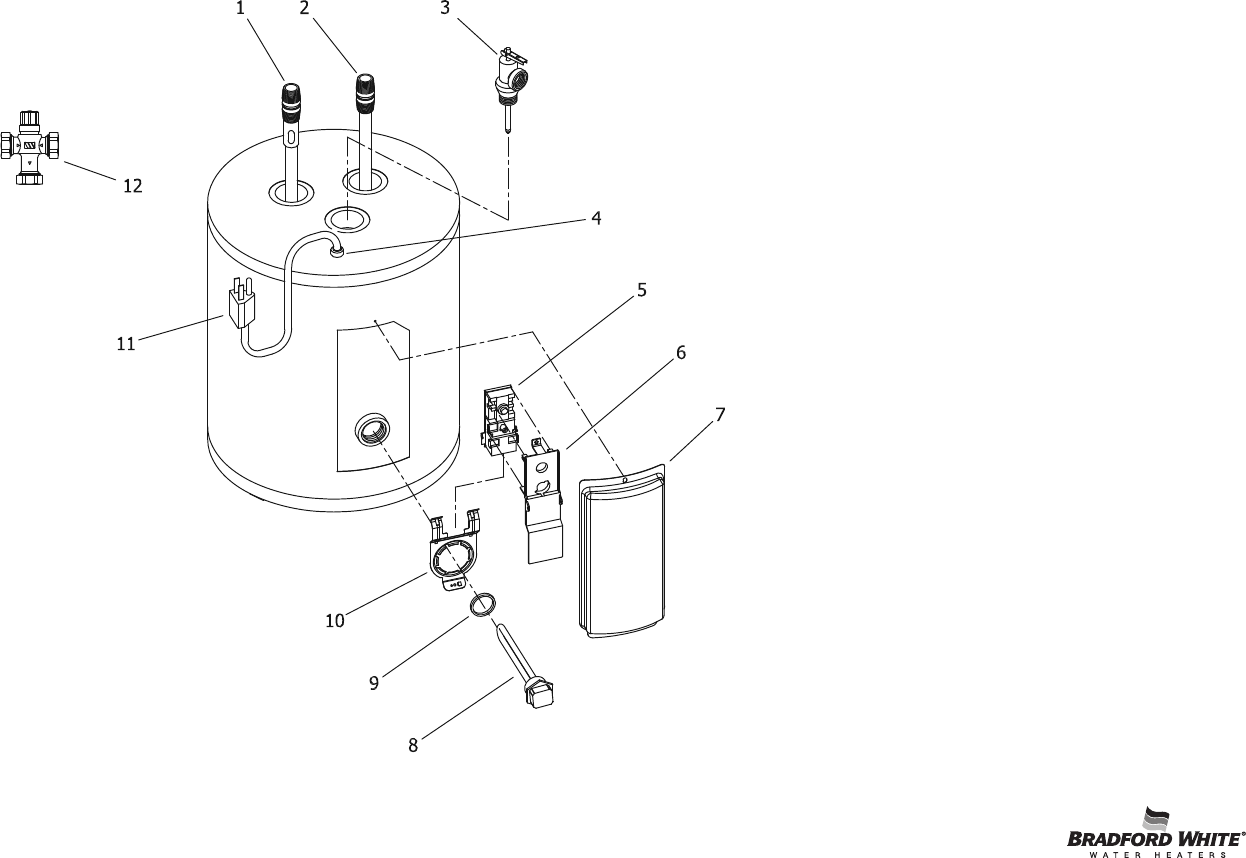

Page 2
![](asset-3.png)
Item Description Model
M1-2U*SS
1 Hot Water Outlet Anode (Magnesium) 224-47776-20
Hot Water Outlet/Anode (Aluminum) 224-47778-20
Hot Water Outlet/Anode (A420)# 224-49560-08
2 Cold Water Inlet Dip Tube (PPDTA) 229-32730-67
Cold Water Inlet Dip Tube (PSDTA) (NC Code) 229-34189-46
3 T&P Relief Valve 265-32920-01
4 Strain Relief Bushing 239-80372-00
5 Thermostat 219-40360-00
6 Thermostat Cover 223-40399-00
7 Hand Hole Cover 239-44929-00
8 Heating Element 265-42540-02
9 Element Gasket 223-34019-00
10 Thermostat Bracket 239-44479-00
11 Power Cord 239-38846-00
12 ASSE Approved Mixing Valve (Optional) 239-43740-01
Page 3
*Applies to all warranties
# A420 Anode may need to be cut to length
![](asset-4.png)
Page 4
![](asset-5.png)
Item Description ModelModelModelModelModel
M16U*SS M112U*SS M112UT*SS M120U*SS M230U*SS
1Junction Box Cover 243-39452-00 243-39452-00 243-39452-00 243-39452-00 243-39452-00
2 Bracket-Grounding/Conduit 243-39451-00 243-39451-00 243-39451-00 243-39451-00 243-39451-00
3Junction Box Extender --- --- --- --- ---
4Terminal Block 4-Pole--- --- --- --- ---
5Ser
vice Replacement Dip Tube (Polypropylene) 243-44520-01 243-44520-01 243-44520-02 --- ---
Service Replacement Dip Tube (Polysulfone) (NC Code) 243-44521-01 243-44521-01 243-44521-02 --- ---
6Pipe Plug 3/4 NPT 239-11638-00 239-11638-00 239-11638-00 --- ---
7 Anode Rod Plug Type (Magnesium) 224-47782-01 224-47782-01 224-47782-01 --- 224-47782-03
Anode Rod Plug Type (Aluminum) 224-47783-01 224-47783-01 224-47783-02 --- 224-47783-02
Anode Rod Plug Type (A420) #224-49559-04 224-49559-04 224-49559-04 --- 224-49559-04
8Hole Closure 239-31547-02 239-31547-02 239-31547-02 --- 239-31547-02
9 Escutcheon 239-41336-00 239-41336-00 239-41336-00 239-41336-00 239-41337-00
10 Hot Water outlet Anode (Magnesium) --- --- --- 224-47776-14 ---
Hot Water outlet Anode (Aluminum) --- --- --- 224-32999-33 ---
Hot Water outlet Anode (A420 Aluminum) #--- --- --- 224-49560-08 ---
11 Inlet/Outlet Nipple 229-32762-03 229-32762-03 229-32762-03 229-32762-03 229-32762-03
12 T&P Relief Valve 265-32920-01 265-32920-01 265-32920-01 265-32920-01 230-40594-02
13 Thermostat Bracket 239-44479-00 239-44479-00 239-44479-00 239-44479-00 239-44479-00
14 Element Gasket 223-34019-00 223-34019-00 223-34019-00 223-34019-00 223-34019-00
15 Heating Element 1500W, 120V Copper** 265-42540-02 265-42540-02 265-42540-02 265-42540-02 265-42540-02
Heating Element 1500W, 120V Incoloy** 265-42541-02 265-42541-02 265-42541-02 265-42541-02 265-42541-02
16 Thermostat 265-40694-00 265-40694-00 265-40694-00 265-40694-00 265-40694-00
17 Thermostat Cover 223-40399-00 223-40399-00 223-40399-00 223-40399-00 223-40399-00
18 Hand Hole Cover 243-36618-02 243-36618-02 243-36618-02 243-36618-02 243-36618-02
19 ASSE Approved Mixing Valve (Optional) 239-43740-01 239-43740-01 239-43740-01 239-43740-01 239-43740-01
Page 5
*Applies to all warranties
**For other wattages/voltages, consult Residential Heating Element Replacement Parts List.
#A420 Anode may need to be cut to length
![](asset-6.png)
Page 6
![](asset-7.png)

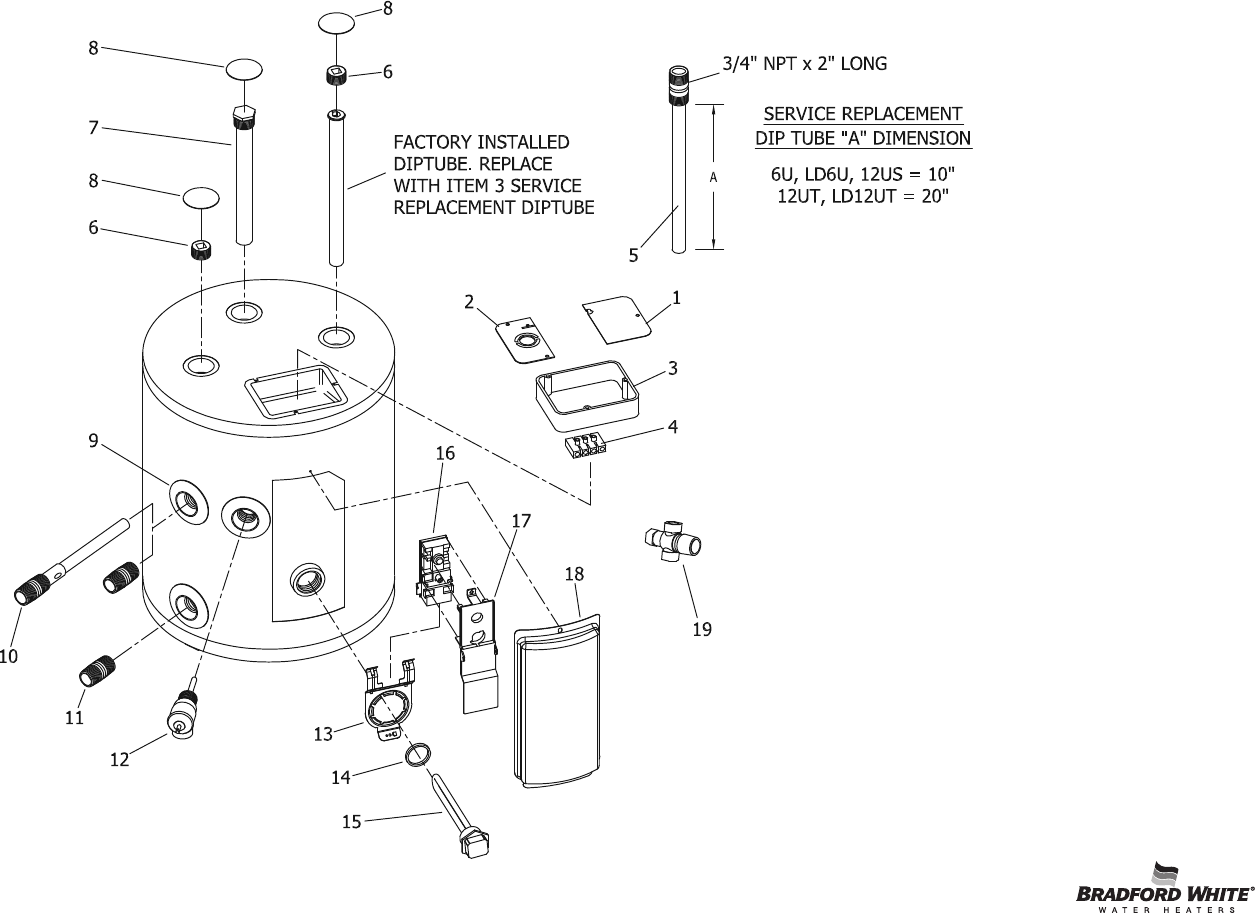

Item Description
1Junction Box Cover
2 Bracket-Grounding/Conduit
3Junction Box Extender
4Terminal Block 4-Pole
5Service Replacement Dip Tube (Polypropylene)
Service Replacement Dip Tube (Polysulfone) (NC Code)
6Pipe Plug 3/4 NPT
7 Anode Rod Plug Type (Magnesium)
Anode Rod Plug Type (Aluminum)
Anode Rod Plug Type (A420) #
8Hole Closure
9 Escutcheon
10 Hot Water outlet Anode (Magnesium)
Hot Water outlet Anode (Aluminum)
Hot Water outlet Anode (A420 Aluminum) #
11 Inlet/Outlet Nipple
12 T&P Relief Valve
13 Thermostat Bracket
14 Element Gasket
15 Heating Element 1500W, 120V Copper**
Heating Element 1500W, 120V Incoloy**
16 Thermostat
17 Thermostat Cover
18 Hand Hole Cover
19 ASSE Approved Mixing Valve (Optional)
ModelModelModelModel
LD6U* LD12UT* LD20U* LD30U*
243-39452-00 243-39452-00 243-39452-00 243-39452-00
243-39451-00 243-39451-00 243-39451-00 243-39451-00
239-40587-00 239-40587-00 239-40587-00 239-40587-00
239-47294-00 239-47294-00 239-47294-00 239-47294-00
243-44520-01 243-44520-02 --- ---
243-44521-01 243-44521-02 --- ---
239-11638-00 239-11638-00 --- ---
224-47782-01 224-47782-01 --- 224-47782-03
224-47783-01 224-47783-02 --- 224-47783-02
224-49559-04 224-49559-04 --- 224-49559-04
239-31547-02 239-31547-02 --- 239-31547-02
239-41336-00 239-41336-00 239-41336-00 239-41337-00
--- --- 224-47776-14 ---
--- --- 224-32999-33 ---
--- --- 224-49560-08 ---
229-32762-03 229-32762-03 229-32762-03 229-32762-03
230-32920-01 230-32920-01 230-32920-01 230-40594-02
239-44479-00 239-44479-00 239-44479-00 239-44479-00
223-34019-00 223-34019-00 223-34019-00 223-34019-00
265-42540-02 265-42540-02 265-42540-02 265-42540-02
265-42541-02 265-42541-02 265-42541-02 265-42541-02
265-40694-00 265-40694-00 265-40694-00 265-40694-00
223-40399-00 223-40399-00 223-40399-00 223-40399-00
243-36618-02 243-36618-02 243-36618-02 243-36618-02
239-43740-01 239-43740-01 239-43740-01 239-43740-01
Page 7
*Applies to all warranties
**For other wattages/voltages, consult Residential Heating Element Replacement Parts List.
#A420 Anode may need to be cut to length
![](asset-8.png)

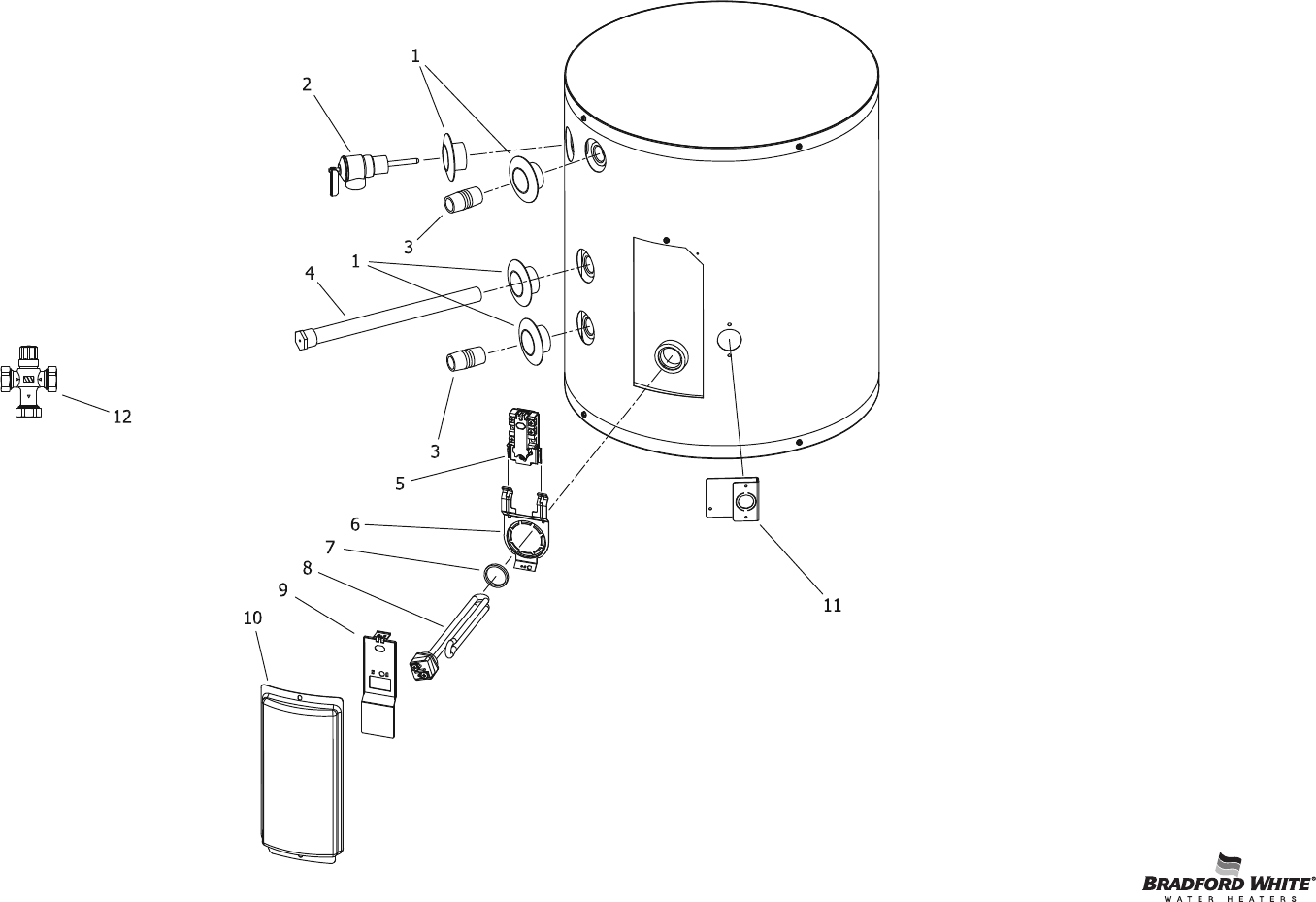

Page 8
![](asset-9.png)
Item Description ModelModel
M110U*SS, LD10U* M115U*SS, LD15U*
1 Escutcheon 239-41336-00 239-41336-00
2T&P Relief Valve 230-32920-01 230-32920-01
3Inlet/Outlet Nipple 229-32762-03 229-32762-03
4Anode Rod Plug Type (Magnesium) 224-47782-01 224-47782-01
Anode Rod Plug Type (Aluminum) 224-47783-01 224-47783-01
Anode Rod Plug Type (A420)# 224-49559-04224-49559-04
5 Thermostat 265-40694-00 265-40694-00
6 Thermostat Bracket 239-44479-00 239-44479-00
7Element Gasket 223-34019-00 223-34019-00
8 Heating Element 1500W, 120V Copper** 265-42540-02 265-42540-02
Heating Element 1500W, 120V Incoloy** 265-42541-02 265-42541-02
9 Thermostat Cover 223-40399-00 223-40399-00
10 Hand Hole Cover 243-36618-02 243-36618-02
11 Bracket-Grounding/Conduit 239-46167-00 239-46167-00
12 ASSE Approved Mixing Valve (Optional) 239-43740-01 239-43740-01
Page 9
*Applies to all warranties
**For other wattages/voltages, consult Residential Heating Element Replacement Parts List.
#A420 Anodes may need to be cut to length
![](asset-a.png)
![](asset-b.png)
![](asset-c.png)
