POWER PLATE WATER HEATING SYSTEM

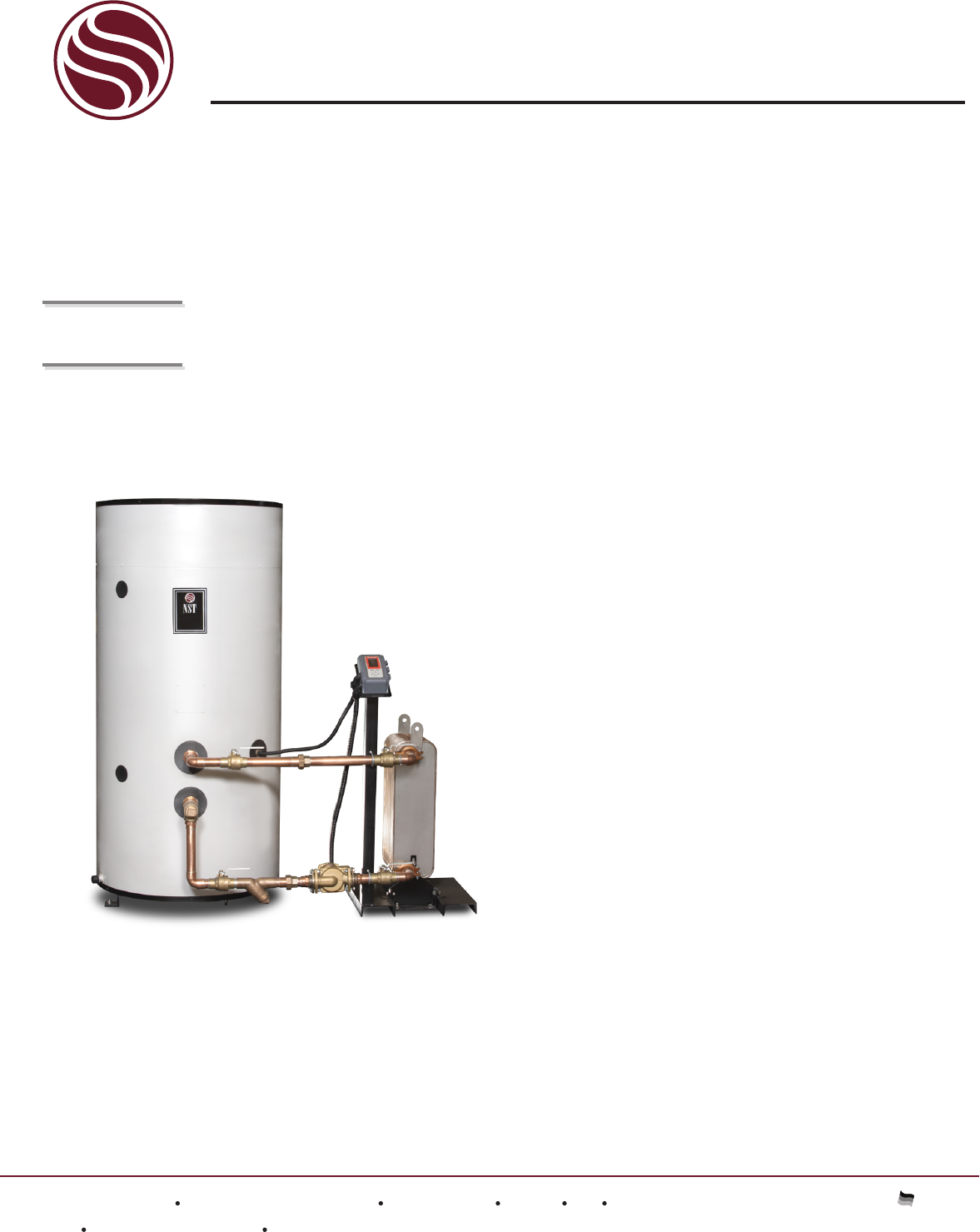

The Niles Power Plates water heating system is a performance driven

water heating package that comes with your choice of water storage

tanks up to 2,500 gallons. The unique Power Plate heat exchanger

design provides high rates of heat transfer requiring less surface area

than conventional shell and tube heat exchangers. Couple that

performance with our Ultonium lined or stainless steel alloy storage

tanks for the ultimate heating domestic water delivery package.

UL, CRN, ASME Sec VIII Div 1 “U” Stamp,

ASME Sec III “N” Stamp,

Pressure Equipment Directive (97/23EC),

China ML, Korean KGS, Brazilian NR-13.

Storage tanks up to 2,500 gallons **

Power Plate up to 300 GPM and 1,100 Sq. Ft. of heating surface.

Grooved connections for easy boiler hook-up come standard.

Heat Exchanger:

- Single wall or double wall designs.

Double Wall Protection - The Power Plate heat exchanger oers

the highest level of leak protection, safety, thermal eciency

and durability in a compact, low cost design.

True double-wall construction, including port regions

Double-wall plate design with unique air vent leak paths.

Complete peripheral braze for additional strength

Four dedicated leak ports for quick and easy leak detection

Excellent performance for domestic water applications.

Dependable protection of fresh water streams from cross contamination.

Performance -

Construction Codes (Heat Exchanger) -

Capacity -

Connections -

Conguration -

- ASME Sec IV part HLW (Standard)

- Jacketed and Insulated

- 125 PSI (Standard)

- Vertical

- Horizontal

- Ultonium Glass Lined

- Double Ultonium Glass Lined with 10 yr warranty

- Niles Defender Epoxy

- 316L Passivated Stainless Steel

- Passivated Duplex Stainless Steel

-Topcoat Spray-on Insulation

Storage Tanks Standard:

A SUBSIDIARY OF

BRADFORD WHITE

C O R P O R A T I O N

NILES STEEL TANK 1701 TERMINAL ROAD PO BOX 728 NILES MI 49120

PHONE 269-683-1910 FAX 269-683-1953 WWW.nilesst.com

- Heat Exchanger and Piping Insulated (optional)

Options:

Heat Exchanger Data (Standard Design)

117.5

103.8

90.0

76.3

60.7

54.8

47.0

40.0

35.2

25.4

180.2

135.1

160.5

133.2

103.8

90.0

76.3

62.5

48.9

33.2

17.2

12.6

15.2

12.4

9.4

8.0

6.6

5.2

3.8

2.2

10.4

9.4

8.0

6.6

5.0

4.4

3.6

2.9

2.4

1.4

Double

Wall

Single

Wall

Double

Wall

Single

Wall

INCHES

FF

ED

Single Wall

Cold Water Boiler Water 180°F

Flow (GPM) Flow (GPH)

Temperature

In/Out Delta P (psi) Flow(GPM)

Boiler Return

Temperature Delta P (psi)

PPS-300 5 300 40-140°F 0.63 5 79 0.91

PPS-600 10 600 40-140°F 0.9 10 79 1.12

PPS-900 15 900 40-140°F 1.37 15 79 1.4

PPS-1200 20 1200 40-140°F 1.38 20 79 1.59

PPS-1500 25 1500 40-140°F 1.4 25 79 1.57

PPS-1800 30 1800 40-140°F 1.53 30 79 1.7

PPS-2400 40 2400 40-140°F 1.55 40 79 1.67

PPS-3000 50 3000 40-140°F 1.66 50 79 1.77

PPS-3600 60 3600 40-140°F 1.77 60 79 1.87

PPS-4200 70 4200 40-140°F 1.88 70 79 1.97

Model

0.3 5 0.35

0.33 10 0.36

0.38 15 0.39

0.41 20 0.42

0.44 25 0.44

0.47 30 0.47

0.51 40 0.51

0.58 50 0.58

1.04 65 1.19

0.92 72 0.96

Double Wall

Cold Water Boiler Water 180°F

Flow (GPM) Flow (GPH)

Temperature

In/Out Delta P (psi) Flow(GPM)

Boiler Return

Temperature Delta P (psi)

PPD-300 5 300 40-140°F 79

PPD-600 10 600 40-140°F 79

PPD-900 15 900 40-140°F 79

PPD-1200 20 1200 40-140°F 79

PPD-1500 25 1500 40-140°F 79

PPD-1800 30 1800 40-140°F 79

PPD-2400 40 2400 40-140°F 79

PPD-3000 50 3000 40-140°F 79

PPD-3600 60 3600 40-140°F 87

PPD-4200 70 4200 40-140°F 82

Model

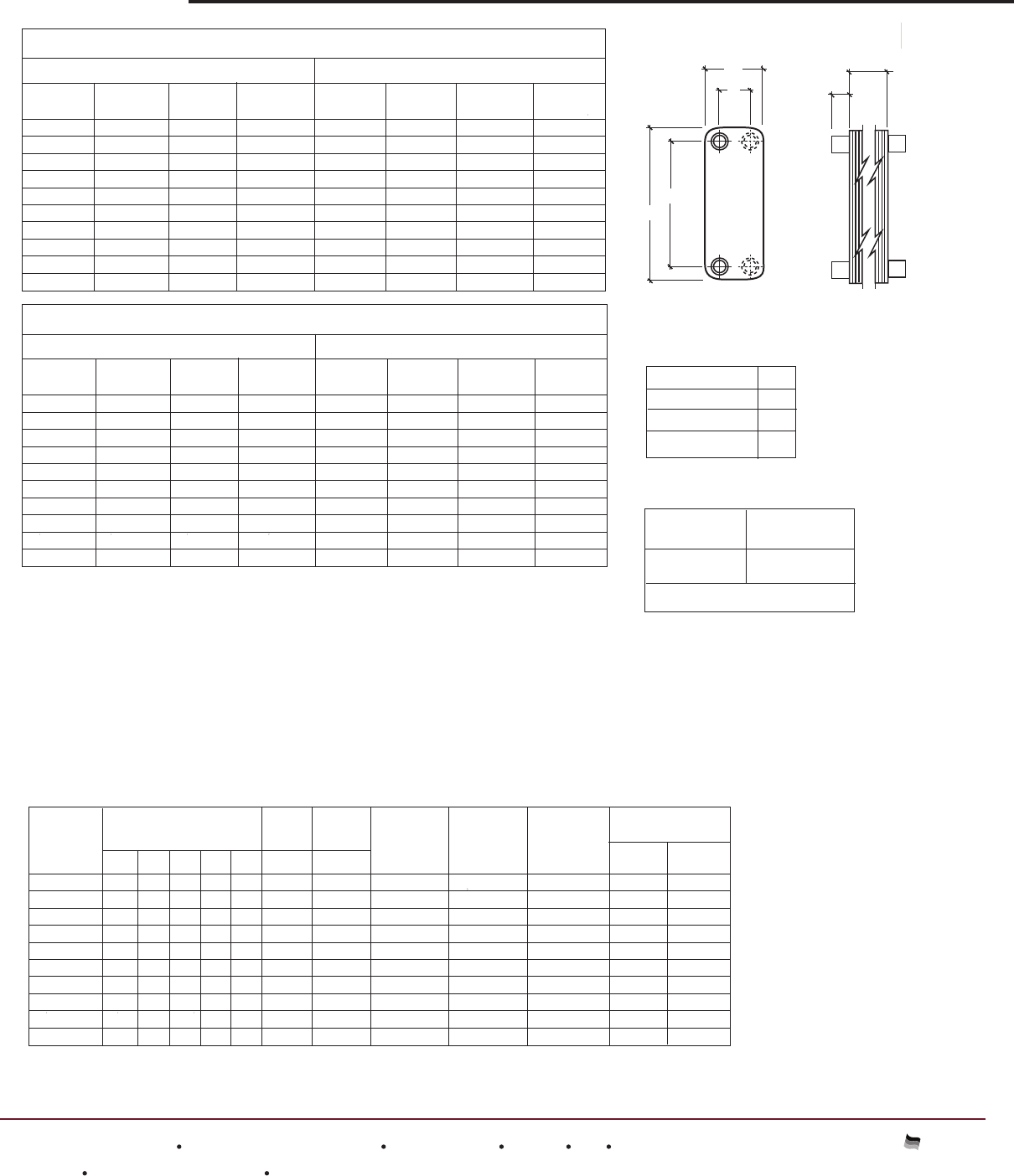

POWER PLATE PERFORMANCE DATE

Standard Materials:

Cover Plates - 316L Stainless Steel

Channel Plates - 316L Stainless Steel

Brazing Material - Copper

Connection - From 1/2” to 4” 316L Stainless Steel

Capacity - Up to 300 GPM

Construction Codes - UL, CRN, ASME

F1

F4

F1

F2

F3

F2

F3

F4

A

B

C

D

E

(n *F)+ 0.4

{(n *F)+ 1}

Boiler Supply

Boiler Return

Cold Inlet

Cold Outlet

F1

F2

F3

F4

Steam to Liquid

Typical Connec�on Loca�ons:

MNPT

Connection

Volume

Gal/ Channel

Surface Area

per plate

sq. ft.

Shipping Weight

Lbs

DIMENSIONS

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

20.4 24.3 3.6 7.5 1.9

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

2” Grooved 0.07 1.06

PPD-300

PPD-600

PPD-900

PPD-1200

PPD-1500

PPD-1800

PPD-2400

PPD-3000

PPD-3600

PPD-4200

Model ABC

Design Pressure

(All Models)

Design Teperature

(All Models)

435 PSIG -310 F min

450 F max

A SUBSIDIARY OF

BRADFORD WHITE

C O R P O R A T I O N

NILES STEEL TANK 1701 TERMINAL ROAD PO BOX 728 NILES MI 49120

PHONE 269-683-1910 FAX 269-683-1953 WWW.nilesst.com

Package Rated for 125 PSI
