WATER SUPPLY
HOT WATER
TEMPERATURE
AND PRESSURE
RELIEF VALVE
FLOOR DRAIN
DISCHARGE TUBE
UNION
SHUT OFF VALVE
UNION
EXPANSION TANK*
SHUT OFF VALVE
BACK-FLOW
PREVENTER
CIRCULATION
PUMP
BACK-FLOW
PREVENTER
SHUT OFF VALVE
SYSTEM
RETURN

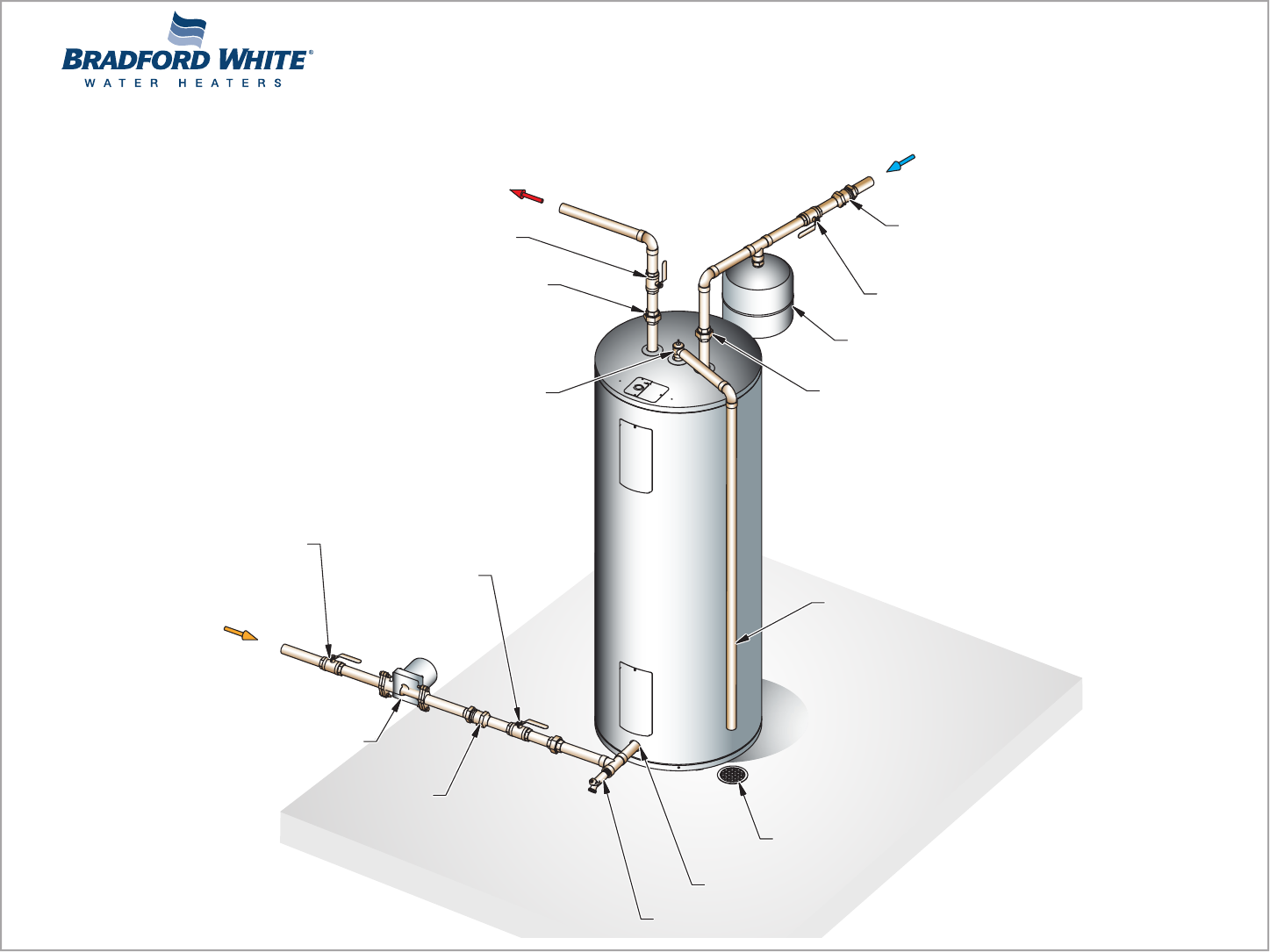

ONE RESIDENTIAL/LD ELECTRIC MODEL WITH RETURN
CIRCULATION THROUGH DRAIN VALVE
DRAIN VALVE LOCATION
DRAIN VALVE
SHUT OFF
VALVE
THIS DRAWING SHOWS A SUGGESTED PIPING
CONFIGURATION AND OTHER DEVICES; CHECK WITH
LOCAL CODES AND ORDINANCES FOR ADDITIONAL
REQUIREMENTS.
*EXPANSION TANK RECOMMENDED TO MINIMIZE
ANY PRESSURE BUILD UP IF THE WATER SUPPLY
PIPING HAS A BACK-FLOW PREVENTER, CHECK
VALVE OR WATER METER WITH A CHECK VALVE.
