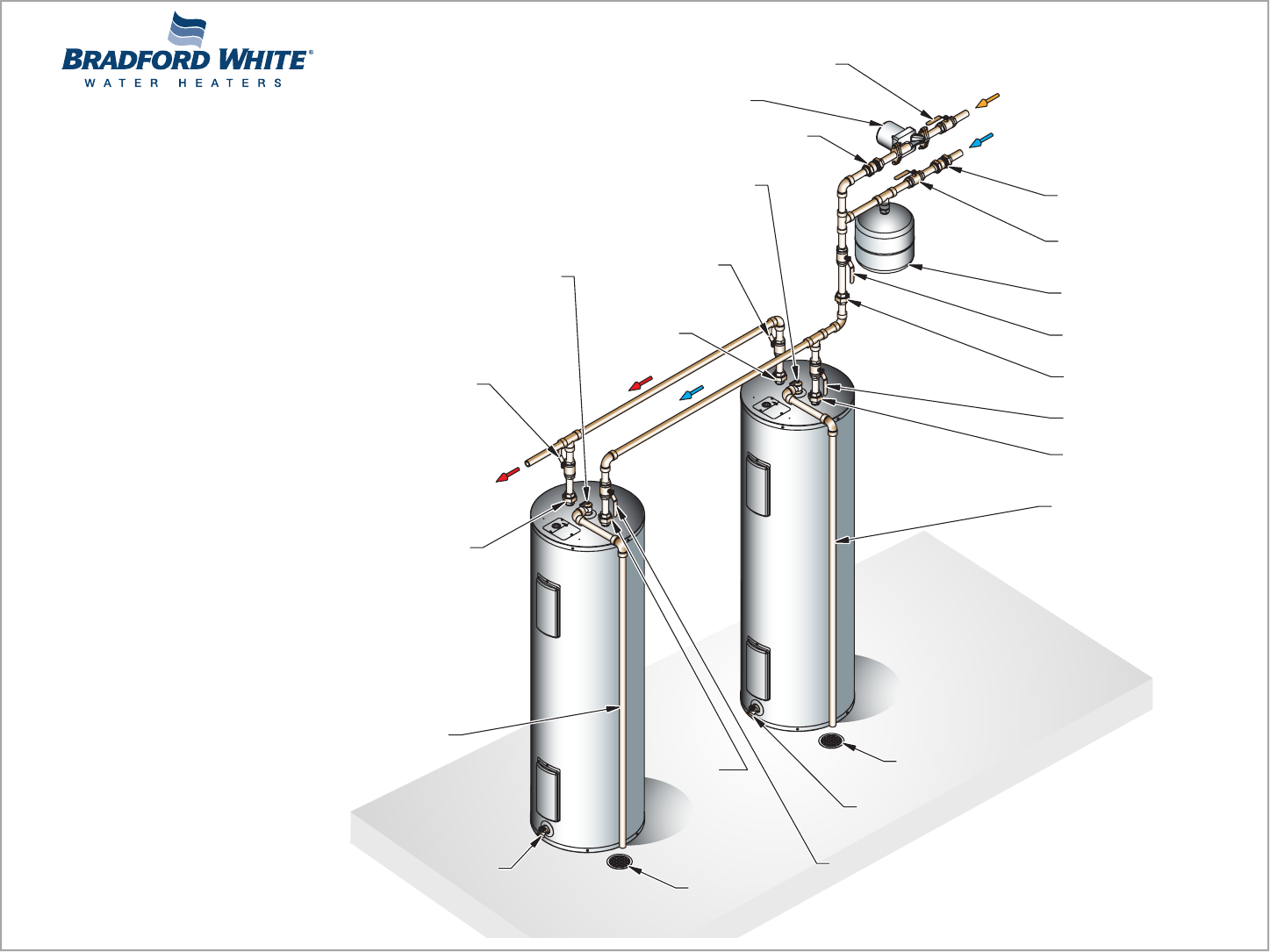

WATER SUPPLY
TWO RESIDENTIAL/LD ELECTRIC
MODELS WITH RETURN CIRCULATION
HOT WATER
TEMPERATURE
AND PRESSURE
RELIEF VALVE
SYSTEM RETURN
SHUT OFF VALVE
CIRCULATOR
BACK-FLOW PREVENTER
BACK-FLOW PREVENTER
SHUT OFF VALVE
EXPANSION TANK*
SHUT OFF VALVE
UNION
SHUT OFF VALVE
UNION
DISCHARGE TUBE
DRAIN
DRAIN OUTLET
SHUT OFF
VALVE
UNION
SHUT OFF VALVE
UNION
DRAIN
DISCHARGE TUBE
DRAIN OUTLET
UNION
SHUT OFF VALVE
TEMPERATURE
AND PRESSURE
RELIEF VALVE
THIS DRAWING SHOWS A SUGGESTED PIPING
CONFIGURATION AND OTHER DEVICES; CHECK WITH
LOCAL CODES AND ORDINANCES FOR ADDITIONAL
REQUIREMENTS.
*EXPANSION TANK RECOMMENDED TO MINIMIZE
ANY PRESSURE BUILD UP IF THE WATER SUPPLY
PIPING HAS A BACK-FLOW PREVENTER, CHECK
VALVE OR WATER METER WITH A CHECK VALVE.
