BES860 Fresca Espresso Machina™
Programmable Espresso Machine with Grinder
Getting to Know your Machine
2
INTRODUCING THE BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
The quality of freshly ground coffee used in
espresso is one of the four most important
factors in the preparation of coffee. This
attribute is often referred as one of the ‘four
hands’ in espresso preparation. The others
are the grinder, the espresso machine and
the barista.
While the degree and the selection of roast
is a personal preference, correctly roasted
and rested coffee beans produce espresso
with much more taste, flavour and body than
coffee that is pre-ground.
Pre-ground coffee deteriorates rapidly and
over time produces thin flat coffee that has
a light and small amount of crema.
Jason Chan
Melbourne Barista of the Year 2005
With this in mind the Breville Fresca Espresso
Machina™ was developed with an integrated,
dosing grinder. By dosing only the required
amount of coffee, instantly after being ground,
the Fresca Espresso Machina™ ensures
all grounds are fresh, for a richer, creamier
espresso.
3
5 Breville Recommends Safety First
7 Features of your Breville Professional 800 Collection™
Fresca Espresso Machina™
12 Know your Breville Professional 800 Collection™
Fresca Espresso Machina™
15 Before First Use
16 Assembling your Breville Professional 800 Collection™
Fresca Espresso Machina™
18 Coffees to Try
22 Recipe Inspirations
CONTENTS
Congratulations on the purchase of your new Breville
Professional 800 Collection™ Fresca Espresso Machina™
Getting to Know your Machine
4
At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in mind. In
addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
The appliance is not intended to be operated
by means of an external timer or separate
remote control system.
Do not use attachments other than those
provided with the Breville Professional 800
Collection™ Fresca Espresso Machina™.
Do not attempt to operate the Breville
Professional 800 Collection™ Fresca Espresso
Machina™ by any method other than those
described in this book.
Do not operate the grinder without the hopper
lid in position. Keep fingers, hands, hair,
clothing and utensils away from the hopper
during operation.
Use only cold, tap water in the water tank. Do
no use any other liquid.
Never use the Breville Professional 800
Collection™ Fresca Espresso Machina™
without water in the water tank.
Ensure the portafilter is firmly inserted and
secured into the brewing head before using
the machine.
Never remove the portafilter during the
brewing operation as the machine is under
pressure.
•
•
•
•
•
•
•
•
Do not move the Breville Professional 800
Collection™ Fresca Espresso Machina™
whilst in operation.
Do not leave the Breville Professional 800
Collection™ Fresca Espresso Machina™
unattended when in use.
Do not touch hot surfaces. Allow the Breville
Professional 800 Collection™ Fresca
Espresso Machina™ to cool down before
moving or cleaning any parts.
Do not place anything, other than cups for
warming, on top of the Breville Professional
800 Collection™ Fresca Espresso Machina™.
Always switch off the Breville Professional 800
Collection™ Fresca Espresso Machina™ by
pressing the POWER button to ‘Off’, switch
off at the power outlet and unplug if appliance
is to be left unattended, if not in use, before
cleaning, before attempting to move the
appliance, disassembling, assembling and
when storing the appliance.
Keep the appliance and accessories clean.
Follow the cleaning instructions provided in
this book.
•
•
•
•
•
•
Carefully read all instructions before operating
and save for future reference.
Remove safely discard any packaging material
and promotional labels or stickers before using
the Breville Professional 800 Collection™
Fresca Espresso Machina™ for the first time.
To eliminate a choking hazard for young
children, remove and safely discard the
protective cover fitted to the power plug of this
appliance.
Do not place the Breville Professional 800
Collection™ Fresca Espresso Machina™ near
the edge of a bench or table during operation.
Ensure the surface is level, clean and free of
water and other substances.
Do not use the Breville Professional 800
Collection™ Fresca Espresso Machina™ on a
sink drain board.
Do not place the Breville Professional 800
Collection™ Fresca Espresso Machina™ on
or near a hot gas or electric burner, or where it
could touch a heated oven.
Always ensure the Breville Professional 800
Collection™ Fresca Espresso Machina™
is properly assembled before connecting
to power outlet and operating. Follow the
instructions provided in this book.
•
•
•
•
•
•
•
BREVILLE RECOMMENDS SAFETY FIRST
IMPORTANT SAFEGUARDS FOR YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
5
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES
BREVILLE RECOMMENDS SAFETY FIRST (continued)
WARNING: UNWIND THE CORD FULLY
BEFORE USE.
Unwind the power cord fully before use.
Do not let the power cord hang over the edge
of a bench or table, touch hot surfaces, or
become knotted.
To protect against electric shock do not
immerse power cord, power plug or
appliance in water or any other substance.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience or knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure they
do not play with the appliance.
It is recommended to regularly inspect the
appliance. Do not use the appliance if power
cord, power plug or appliance becomes
damaged in anyway. Return the entire
appliance to the nearest authorised Breville
Service Centre for examination and/or repair.
Any maintenance other than cleaning should
be performed at an authorised Breville
Service Centre.
•
•
•
•
•
•
•
This appliance is recommended for
household use only. Do not use this appliance
for anything other than its intended use. Do
not use in moving vehicles or boats. Do not
use outdoors. Misuse may cause injury.
The installation of a residual current device
(safety switch) is recommended to provide
additional safety protection when using
electrical appliances. It is advisable that a
safety switch with a rated residual operating
current not exceeding 30mA be installed in
the electrical circuit supplying the appliance.
See your electrician for professional advice.
•
•
6
INTEGRATED CONICAL BURR GRINDER
The integrated conical burr grinder allows
each espresso produced from the Fresca
Espresso Machina™ to be created using freshly
ground beans - the key to achieving your ideal
espresso.
The grinder has been specially designed to
combine with the other key features of the
Fresca Espresso Machina™.
ADJUSTABLE GRIND SIZE
The GRIND SIZE selector allows the fineness/
coarseness of the coffee grind to be accurately
adjusted for optimal espresso extraction.
The GRIND SIZE selector adjusts the grinding
burrs to either move closer together for a finer
grind or further apart for a coarser grind.
Refer to ‘A LIFETIME OF EXPERIMENTATION’
on page 34.
PRESET GRIND DOSING – SINGLE OR
DOUBLE CUP DOSE
The preset grind dosing feature automatically
dispenses the required amount of ground coffee
for either a single or double dose. Accurately
adjust the dose quantity to suit the fineness or
coarseness of the grind.
The single or double grind doses can be easily
increased or decreased by the user to suit
personal preference.
Refer to ‘A LIFETIME OF EXPERIMENTATION’
on page 34.
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
7
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)

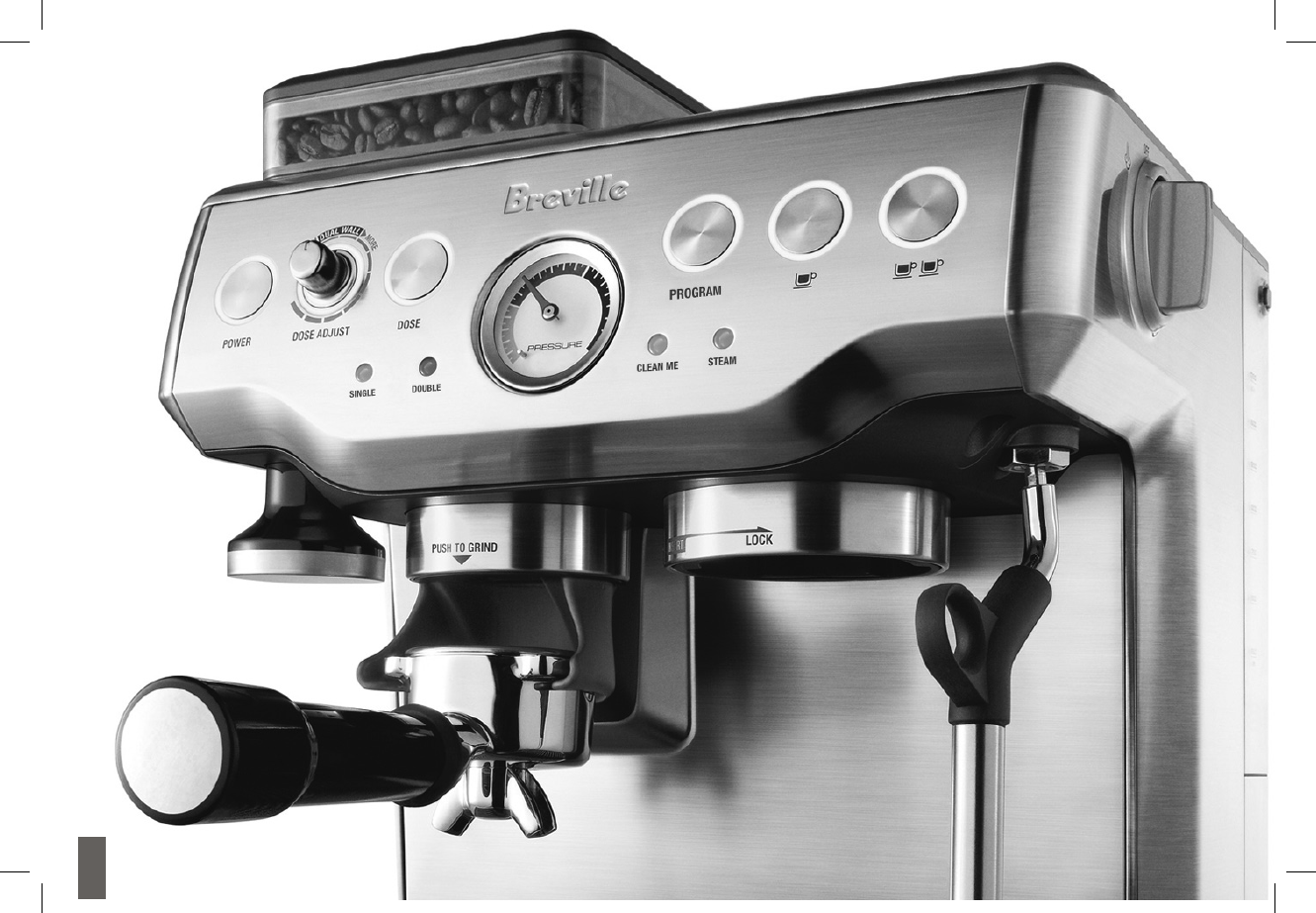

HANDS FREE, DIRECT GRINDING TO
PORTAFILTER
The Fresca Espresso Machina™ features an
integrated grinding cradle which fully supports
the portafilter located below the integrated
conical burr grinder. The ‘hands free’ grinding
feature allows you to continue with other
preparations while the portafilter is being evenly
filled with the selected dose of freshly ground
coffee.
An integrated micro switch allows the start and
stop of the grind function with a simple push on
the portafilter.
Place the portafilter into the cradle and simply
push the portafilter toward the machine lightly to
activate the grind function.
TAMPER ‘ON BOARD’
The ‘on board’ tamper assists the user to evenly
and accurately tamp freshly ground coffee into
the filter basket. The tamper is conveniently
located ‘on board’ the machine and can be
used both in the ‘on board’ position or whilst
removed depending on your preference.
Portafilter inserted into grinding cradle Tamper on board Tamper on its own
8
PROGRAMMABLE FUNCTION
This espresso machine offers a convenient
choice between the Manual Operation or the
intelligent Programmable Function that can be
personalised with the user’s favourite espresso
setting.
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)
ESPRESSO PRESSURE GAUGE
The espresso pressure gauge assists in
obtaining the most favourable extraction
pressure, guiding the user to create their ideal
espresso. This is achieved by measuring the
pressure at which the water is being forced
through the ground coffee in the portafilter.
IDEAL ESPRESSO ZONE
The gauge needle, when positioned within the
middle zone during pouring, indicates that the
espresso will be produced at the ideal pressure.
The brewed espresso should have a generous
layer of fine textured and evenly coloured,
golden crema.
ACCURATE TEMPERATURE CONTROL
Breville digital technology provides accurate
temperature control for a full flavoured espresso.
DRY PUCK FEATURE
The ‘Dry Puck’ feature uses an electronic
valve to remove excess water from the ground
coffee in the filter basket. This takes place after
espresso extraction, whilst the Portafilter is
locked into the group head. This results in a
desirable ‘dry coffee puck’ which can then be
disposed of easily and cleanly.
9
COMMERCIAL STYLE STEAM WAND
The swivel-action steam wand with stainless
steel frothing attachment, easily adjusts to the
perfect position for texturing milk. The wand has
a commercial style 360° ball joint.
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)
OVER EXTRACTED ZONE
The gauge needle when positioned within
the upper zone during pouring will indicate
that the espresso will be produced with too
much pressure resulting in an ‘over extracted’
espresso. This occurs when the water flow
through the ground coffee in the filter is too
slow. As a result the coffee will be very dark
and bitter, with a mottled and uneven crema on
top. Possible other causes for over extraction
are: ground coffee is too fine and/or too much
ground coffee in filter and/or over tamping.
UNDER EXTRACTED ZONE
The gauge needle when positioned within the
lower zone during pouring indicates that the
espresso will be produced with insufficient
pressure resulting in an ‘under extracted’
espresso. This occurs when the water flow
through the ground coffee in the filter is too
fast. As a result the optimal flavour will not be
extracted and the coffee will be watery and lack
thick crema on the top. Possible other causes
for under extraction are: coffee grind is too
coarse and/or insufficient coffee in filter and/or
under tamping.
10
ADVANCED DUAL WALL CREMA SYSTEM
FILTERS - ‘A MINUTE TO LEARN’
Advanced Dual Wall Crema System Filter
Baskets (one and two cup) are supplied with
the Breville Professional 800 Collection™
Fresca Espresso Machina™. The Advanced
Dual Wall Crema System Filters are designed
to intentionally slow the water flow rate during
brewing, allowing you to easily extract your
espresso at the ideal pressure, for the enhanced
crema. The filters are suited to both pre-ground
vacuum packed coffee and freshly ground
coffee on the DUAL WALL setting.
ENERGY SAVING FEATURES
The Breville Professional 800 Collection™
Fresca Espresso Machina™ will enter the
‘Power Save Mode’ if not used for 30 minutes,
and will automatically switch off if not used for a
further two hours. The ‘Power Save Mode’ uses
50% less power than when the machine is in
‘Stand by’ Mode.
During ‘Power Save Mode’ only the POWER
button surround will flash slowly. All other button
light surrounds will not be illuminated.
To re-activate the machine during ‘Power Save
Mode’ simply press any button except POWER.
The POWER button surround will then illuminate
and flash while the machine quickly reheats
to operational temperature. When the correct
temperature has been reached, all the button
surrounds on the control panel will illuminate.
To switch off the espresso machine whilst it is in
‘Power Save Mode’, simply press the POWER
button once.
SINGLE WALL FILTERS – ‘A LIFETIME OF
EXPERIMENTATION’
Single Wall Filters (one and two cup) are
supplied with the Breville Professional 800
Collection™ Fresca Espresso Machina™.
The single wall filter baskets are designed to
be used with freshly ground coffee only. These
filters provide no additional slowing of the water
flow rate, hence experimentation with the grind
size and volume, along with the tamp force, is
required to achieve the desired results.
Once the use of these filter baskets has
been mastered, they offer a ‘A LIFETIME OF
EXPERIMENTATION’ with different grind size,
dose amounts and tamping forces to create a
variety of espresso styles.
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)
11
KNOW YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
Cup warming tray
POWER button
surround illuminates when the button is
pressed to ‘On’
STEAM light
illuminates to indicate that the steam
function is selected
Extra-tall cup height for
coffee mugs
Removable Wet and Dry Coffee
Separator Drip Tray
Drip tray full indicator
Group head
for easy fitment of the portafilter
DOSE ADJUST dial
control the amount of fresh ground coffee
dosed into the filter basket
DOSE button
select between SINGLE or DOUBLE dose cup
Grinding Cradle
push portafilter into cradle for direct ground
coffee fill into filter and grind on demand
Integrated / Removable TAMPER
for expert tamping control
CLEAN ME light
indicates when a cleaning cycle
is required
GRIND SIZE selector
choose from fine for single wall filter baskets to
coarse coffee grind for dual wall filter baskets
Single and Double dose lights
illuminates to indicate whether a single
or double dose is selected
12
KNOW YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)
Swivel steam wand and stainless
steel frothing attachment
easily adjusts to perfect positioning for
steaming and frothing milk
Espresso pressure gauge
monitors extraction pressure, guiding
you towards the ideal espresso
Programmable feature
1 cup button and 2 cup button
NOT SHOWN
Cord storage
located under the water tank
Storage tray
located behind the drip tray for storage
of accessories
Water filter
located in the water tank
Removable 2 litre water tank
filled from the top of the water tank
Program button
intelligent programmable function that
can be personalised with your favourite
espresso setting
Integrated conical burr grinder
adjustable to achieve your perfect grind
Bean Hopper: 230g capacity
hopper locking system allows removal of
hopper without removing beans
Forged portafilter
commercial style with extended outlets
Steam Dial
selector control for steam
FEATURES
Custom designed accessories:
Stainless Steel frothing jug
Measuring / tamping spoon
Quick Start Guide
Single wall filter baskets
for ‘a lifetime of experimentation’
Advanced dual wall crema system
for ‘a minute to learn’ and enhanced crema
Cleaning accessories:
Cleaning tool / brush
2 Cleaning tablets
Cleaning cycle disk
Allen key
Cleaning Guide
13
Pre-brew function
for optimal extraction and distribution of
water through the coffee puck
Auto purge function
for optimal coffee extraction temperature
Accurate temperature control
Breville digital technology provides accurate
temperature control for a full flavoured espresso
Thermocoil heating system with
integrated stainless steel water coil
ensures accurately controlled water temperature
Flat shower head
for even distribution of water through the
coffee puck
Control Dry Puck feature
removes excess water from the filter basket
after coffee extraction
ADDITIONAL FEATURES
15 bar pump
Italian-designed and made
KNOW YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)
14
BEFORE FIRST USE
Your Breville Professional 800 Collection™
Fresca Espresso Machina™ has the drip tray,
water tank and storage tray in place when you
unpack it from the box. The drip tray is located
in the base of the machine towards the front of
the machine. The water tank is located in the
back of the machine. The water filter is located
inside the water tank. It needs to be removed
before washing the water tank. The storage tray
is located at the base of the machine behind the
drip tray. The drip tray, water tank and storage
tray slide in and out for easy access.
The bean hopper is located on top of the drip
tray when the machine is first unpacked.
Ensure you have removed all parts and
accessories before discarding the packaging.
Remove the water tank and wash in warm,
soapy water using a non-abrasive washing
liquid. Rinse and dry thoroughly.
Wipe the outer housing, bean hopper and drip
tray with a soft damp cloth and dry thoroughly.
Do not immerse the outer housing, power cord
or power plug in water or any other liquid.
NOTE: Do not clean any of the parts or
accessories in the dishwasher.
15
ASSEMBLING YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
STEP 1
Insert the storage tray into the base of the
machine and slide towards the back wall. The
storage tray conveniently stores the cleaning
tool, cleaning brush, allen key, two cleaning
tablets, stainless steel filters, measuring/tamping
spoon, Cleaning Guide and Quick Start Guide
when not in use, so they are not misplaced.
STEP 2
Insert the ‘Empty Me!’ full indicator into the
drip tray and place the drip tray cover on top.
Then place grill on top. Slide the drip tray into
position in the base of the machine in front of
the storage tray.
STEP 3
Before installing the water filter, remove the filter
from the plastic bag, and soak in a cup of water
for 5 minutes.
Rinse the filter under cold running water for 5
seconds.
Wash the stainless steel mesh in the plastic filter
compartment with water and assemble.
Set the date dial to 2 months ahead.
Insert the filter into the empty water tank and
push to lock into place.
NOTE: Please refer to Care and Cleaning
on page 45, ‘Installing the Filter in
the Water Tank’
16
ASSEMBLING YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™ (continued)
NOTE: Before each use it is recommended
to complete a water flushing
operation, without ground coffee,
to ensure that the machine has
been preheated. Refer to Step 5 of
‘A MINUTE TO LEARN’ on page 31
STEP 4
Insert the Hopper into position and turn the
hopper dial clockwise 90° to lock.
17
Coffees
COFFEES TO TRY
ESPRESSO
Intense and aromatic, an espresso or short
black as it’s also known uses about 8g of
ground coffee. It is served in a small cup or
glass to a level of approximately 30ml.
LONG BLACK
A long black is generally a single or double shot
of espresso with hot water added to taste.
FLAT WHITE
A single dose of espresso in a cup filled with
steamed milk and topped with a skin of silky
smooth foam.
19
COFFEES TO TRY (continued)
CLASSIC CAFÉ LATTÉ
Traditionally the morning coffee of Italy and
France, taken with pain au chocolate or sweet
biscotti. This blend of 1⁄3 espresso to 2⁄3 milk is
made with a single shot of espresso. Top with
steamed milk, poured down the inside rim of the
glass to give a creamy consistency and perfect
layer of froth.
CAPPUCCINO
The real thing is served very light and luke warm
with 1⁄3 espresso to 1⁄3 steamed milk and a
generous final 1⁄3 of creamy froth.
For added finesse, hold a piece of card over
one half of the cappuccino before dusting with
chocolate.
MACCHIATO
A shot of espresso served short in a 70ml
demitasse and stained with a dash of finely
textured milk.
20
COFFEES TO TRY (continued)
CAFÉ MOCHA
A glass of textured milk laced with melted cocoa
or chocolate syrup and an espresso shot. Top
sprinkled with dark chocolate shavings.
ESPRESSO AFFOGATO
Totally irresistible, this sweet temptation is
simply a single scoop of premium vanilla bean
ice cream, drenched in espresso and if desired,
your favourite liqueur. To create a sense of
occasion, serve ice cream in a martini glass with
shots on the side.
CON PANNA
Meaning ‘with cream’ this heart warmer is a
chic variation on old-fashioned Vienna Coffee.
In a 90-120ml cup, dress a double shot of
espresso with a dollop of fresh cream, whipped
until glossy. Dust with cinnamon and serve
immediately.
21
Recipes
DESSERTS
BAKED CUSTARDS WITH FRESH RASPBERRY AND COFFEE
FLOAT
Serves 6
750ml cream
3⁄4 cup caster sugar
2 vanilla beans, cut lengthways
1 tablespoon gelatine
1 punnet fresh raspberries
1 tablespoon caster sugar, extra
3⁄4 cup strong espresso coffee, cooled
1. Combine the cream, caster sugar and vanilla beans in a saucepan. Stir
over medium heat until just boiling. Remove the vanilla beans.
2. Add the gelatine and stir constantly with a wooden spoon until
dissolved. Remove from heat. Allow the custard to cool.
3. Pour custard evenly into 6x150ml glasses. Refrigerate for minimum 3
hours or until set.
4. Place the raspberries into a medium sized bowl, sprinkle with sugar and
crush lightly with a fork.
5. Fold the cooled coffee through the crushed raspberries. Cover and chill
in the refrigerator.
6. To serve, top the custards, when set, with the raspberries and coffee
mixture.
7. Serve immediately with freshly brewed coffee.
TIRAMISU
Makes 4
11⁄2 cups mascarpone
11⁄4 cups cream
21⁄2 tablespoons icing sugar
1⁄2 cup strong espresso coffee, cooled
1⁄2 cup Tia Maria or coffee liqueur
16 sponge fingers
Cocoa powder, for dusting
1. Combine mascarpone, cream and icing sugar in a large bowl. Whisk
lightly until soft peaks form. Set aside.
2. Combine coffee and liqueur in bowl. Dip the sponge fingers into the
coffee mixture a few at a time. Ensure all the coffee mixture is absorbed
evenly by the sponge fingers.
3. Layer half the sponge fingers evenly into the base of 4 dessert bowls or
glasses. Spread the layered sponge fingers with half of the cream
mixture. Repeat the layers with remaining sponge fingers and cream
mixture.
4. Dust evenly with cocoa powder and refrigerate until required.
5. Serve with fresh fruits and freshly brewed espresso coffee.
23
COFFEE, CINNAMON AND WALNUT MUFFINS
Makes 12
21⁄2 cups/375g plain flour
2 teaspoons baking powder
1 teaspoon ground cinnamon
3⁄4 cup caster sugar
1 cup sour cream
2 x 60g eggs
1 teaspoon finely grated lemon rind
1⁄3 cup olive oil
3⁄4 cup strong espresso coffee, cooled
1 cup roughly chopped walnuts
1. Sift flour, baking powder and cinnamon into a large bowl and stir in
sugar.
2. Place sour cream, eggs, lemon rind, oil and espresso coffee into a
medium bowl, stir until well combined.
3. Fold creamed mixture and walnuts into the sifted ingredients, do not
over mix.
4. Spoon the mixture evenly into 12 lightly greased and base lined muffin
pans until two-thirds full.
5. Place into a preheated oven 180°C for 12-15 minutes or until cooked
when tested.
8. Serve warm, or cooled and spread with Rich Coffee Icing. Delicious with
a Cappuccino or Café Latté.
RICH COFFEE ICING
2 cups icing sugar, sifted
1 tablespoon butter, softened
1⁄4 cup strong espresso coffee, warm
1. Combine icing sugar, butter and half the coffee in a bowl, stir well and
gradually add remaining coffee until a spreadable consistency is
achieved.
DESSERTS (continued)
24
Using Your Machine
BES860 Fresca Espresso Machina™
Programmable Espresso Machine with Grinder
26
At Breville, we know that coffee lovers
will go to great lengths to refine the art
of making coffee. They will experiment
with flavours and adjust the grind of the
beans and the tamp in search for the
perfect espresso. And now with the Fresca
Espresso Machina™ and its integrated
coffee grinder, making that perfect fresh
espresso has never been simpler.
Why is freshly ground coffee best? It’s all
about the flavour. Once ground, coffee
remains fresh for only a few short minutes
and is therefore best to grind just before
extracting. With the Fresca Espresso
Machina™ you can be the barista and
explore the art of espresso at home.
Enjoy!
INTRODUCING THE BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
27
CONTENTS
Operating your Breville Professional 800 Collection™
Fresca Espresso Machina™
30 A minute to learn
34 A lifetime of experimentation
41 The Art of Texturing Milk
43 Coffee Making Tips
44 Care and Cleaning
51 Storage
52 Troubleshooting
Please refer to pages 5 and 6 for full safety instructions
Using Your Machine
28
Operating
A MINUTE TO LEARN
The Fresca Espresso Machina™ is supplied with single cup and double cup dual wall filter baskets. These filter baskets are designed to intentionally slow
the water flow rate during brewing, resulting in an espresso that has been extracted at the correct pressure, and leading to a rich, golden crema. Dual
wall filters are suited to both pre-ground vacuum packed coffee and freshly ground coffee. The inclusion of these filter baskets allow the user to quickly
and easily achieve great espresso results with minimum effort.
Wash Water Tank
Before
First
Use
1
Soak 5 Minutes
2
Install
Water
Filter
REPLACEMENT DUE
Rinse Filter & Mesh Assemble Set Date + 2 Months
Install Filter in Tank Fill Water Tank Place Water Tank
3
Install
Bean
Hopper
Place Hopper Lock Hopper Fill Hopper with Beans
40oC
EMPTY
1750
MAX
1500
1250
1000
750
500
MIN
250
EMPTY
UNLOCK
LOCK
POWER DOSE
DOSE ADJUST
O
P
T
I
COFFEE
BEANS
2000
MAX
1500
125 0
30
A MINUTE TO LEARN (continued)
Check
Before
Each
Use
4
45 SEC
POWER DOSE
DOSE ADJUST
POWER
2000
MAX
1500
125 0
Hopper Full? Water Tank Full? Power On Heat Up
Set Dose Adjust Select Dose Tamp Coffee to Line Wipe Excess GrindsSet to Dual Wall Auto Start/Stop
Making
Coffee
6
DOSE ADJUST
M
O
R
E
L
E
S
S
D
U
A
L
W
A
L
L
COARSEFINE
GRIND SIZE
D
U
A
L
W
A
L
L
SINGLE
DOSE
DOUBLE
CLICK!
Prepare
The
Machine
5
D
U
A
L
W
A
L
L
D
U
A
L
W
A
L
L
LOCK
INSERT
LOCK
INSERT
Choose 1 Cup or 2 Cup Filter Basket Place into Portafilter Lock into Machine Run Hot Water to Heat Portafilter
31
A MINUTE TO LEARN (continued)
LOCK
INSERT
LOCK
INSERT
Insert Portafilter Place 1 Cup to Extract 1 Cup of Espresso Your Espresso is Done!or Place 2 Cups to Extract 2 Cups of Espresso
Frothing
Milk
7
4
o
C
½
Install Attachment Half Fill Jug Set Jug
LOCK
INSERT
Making
Coffee
(continued)
6
OFF
Switch Steam Off
OFF
Switch Steam On Stop When Hot
Ouch!
65oC
Wipe Clean Pour Carefully
32
A MINUTE TO LEARN (continued)
Coffee Too Weak? Still Too Weak?
If your coffee is too
weak, try the 2 Cup
filter to extract a
single cup.
Our friendly Breville
Customer Service
Centre is always
there to help.
More
Trouble
Shooting
If your coffee is still
too weak, turn the
Dose Adjust to get
MORE grind.
DOSE ADJUST
M
O
R
E
L
E
S
S
D
U
A
L
W
A
L
L
+
D
U
A
L
W
A
L
L
Customer Service Centre
Australia
1300 139 798
HELP!
New Zealand
0800 273 845
Not Hot Enough?
If your coffee is not
hot enough, try
heating the cups
first, or heating the
milk longer.
If coffee does not
come out, go to the
Cleaning Guide or
Instruction Book for
tips to get it working.
Trouble
Shooting
No Coffee?
LOCK
INSERT
? ?
33
The Fresca Espresso Machina™ is supplied
with single cup and double cup ‘single wall’
filter baskets. These filter baskets provide no
additional slowing to the water flow rate during
brewing hence experimentation with the grind
size and volume, along with the tamp force, is
required to achieve the desired results. Single
wall filters are suited to freshly ground coffee
only and once the use of these filters has been
mastered, they expose the user to a ‘lifetime of
experimentation’ with different grind settings,
tamping forces and coffee styles.
A great coffee is a balance of main flavour
elements: Acidity, aroma, bitterness, body,
nuttiness, and sharpness. By using the Single
Wall Filters you are free to explore the world of
espresso by to adjusting grind, dose and tamp
to extract a rich variety of flavours.
STEP 1 – FILLING THE WATER TANK STEP 2 - PRE-WARMING THE CUPS
This will help maintain the coffee’s optimal
temperature when brewed into the cups.
The Cup Warming Plate will start to warm as
the machine heats.
Run hot water from the group head without
the portafilter inserted by holding down the
one cup button and place the cups on the
warming tray.
•
•
NOTE: Check the water level before use
and replace the water daily. The
water tank should be refilled with
fresh, cold tap water before each
use. Do not use mineral or distilled
water or any other liquid.
A LIFETIME OF EXPERIMENTATION
Ensure the water filter is securely fitted inside
the tank. Refer to ‘Care and Cleaning’ for
more details on page 45.
Fill the water tank with cold, tap water to
the maximum mark on the side of the tank
and slide the water tank carefully back into
position at the back of the machine.
Plug the power cord into a 230/240V power
outlet and switch on at power point.
Press the POWER button to ‘On’, the
POWER button surround will flash while
the machine is heating. When the correct
temperature has been reached, all the button
surrounds on the control panel will illuminate.
•
•
•
•
MEDIUM 8g PER CUP 10-15kg 20-30 SEC
BALANCED
GRIND DOSE TAMP FLOW
TOO FINE TOO MUCH TOO HEAVY OVER 30 SEC
OVER EXTRACTED
BITTER
•
ASTRINGENT
TOO COARSE TOO LITTLE TOO LIGHT UNDER 20 SEC
WEAK
•
WATERY
UNDER EXTRACTED
34
STEP 3 – PREPARING THE SINGLE WALL
FILTER BASKETS
Place the one or two cup SINGLE WALL filter
baskets into the portafilter (use the smaller
filter for 1 cup and the larger filter for 2 cups).
When brewing for a mug of coffee always use
the 2 cup filter and only extract 60ml. If you
require a larger coffee, add the hot water first
and then extract the coffee.
Preheat the portafilter by placing underneath
the group head. Rinse with hot water from the
group head using the manual pour function.
Dry the portafilter thoroughly before use.
•
•
STEP 4 – GRINDING THE COFFEE
A LIFETIME OF EXPERIMENTATION (continued)
Place the portafilter into the grinding cradle
Fill the hopper with fresh coffee beans
Press the DOSE button to select your desired
grind dose (single or double)
For a single or double grind dose - Push the
portafilter in once to activate the grinding
switch, then allow the portafilter to be filled
with fresh ground coffee.
For manual grind dosing – Push and hold the
micro switch down until the desired amount
of ground coffee has been delivered.
•
•
•
•
•
NOTE: To stop the grinding function during
a single or double dose, simply
either press the grind micro switch
again, or press the ‘grind mode’
button. To stop the function during
a manual grind function simply pull
the portafilter. This will release the
activation switch to stop the grind
function.
35
STEP 4 – SETTING THE RIGHT GRIND
When setting the grind it should be fine but not
too fine or powdery. The grind will effect the rate
at which the water flows through the coffee in
the filter and therefore the taste of the coffee.
If the grind is too fine (looks like powder and
feels like flour when rubbed between fingers),
the water will not flow through the coffee even
when under pressure. The resulting coffee will
be over extracted, too dark and bitter, with a
mottled and uneven crema on top.
STEP 5 – ADJUSTING THE DOSE
When dosing for single wall filter baskets using
a finer coffee grind, you will need to increase the
dose to ensure the filter baskets are correctly
filled.
To increase the dose amount, turn the DOSE
ADJUST dial beyond the DUAL WALL setting to
obtain the correct amount of ground coffee.
If the grind is too coarse the water will flow
through the coffee too quickly. This will result
in an under-extracted coffee lacking in flavour
and without the thick crema on the top layer of
coffee.
A LIFETIME OF EXPERIMENTATION (continued)
NOTE: You may need to try this a few
times slightly adjusting the DOSE
ADJUST dial each time until you
reach the correct amount.
36
STEP 6 - TAMPING THE GROUND COFFEE
For ease of use, the Breville Professional 800
Collection™ Fresca Espresso Machina™
provides two handy ways to tamper your coffee:
Tamper on Board:
The tamper device is held in place, on the
machine, allowing for convenient tamping.
Once the grind function has been completed,
remove the Portafilter from the grinding cradle
and tap to collapse the grind.
With the tamper fitted into place, lift the
Portafilter towards the tamper base
1.
a.
b.
Push the portafilter upward firmly, applying
even pressure to tamp the coffee
Release the portafilter from the tamper, and
clean any excess ground coffee from the rim
of the portafilter to ensure a correct fit into the
group head.
c.
d.
Tamping Control:
The tamper device is removable for hand
tamping.
Remove the tamper from the machine
Once the grind function has been completed,
remove the Portafilter from the grinding cradle
and tap to collapse the grind.
Use one hand to grip the tamper and the
other hand to hold the Portafilter handle
Apply even pressure down on the tamper
and press firmly in order to level and pack the
coffee grounds
Lift the tamper from the portafilter, and clean
any excess ground coffee from the rim of the
portafilter to ensure a correct fit into the group
head.
Refer to ‘Coffee Making Tips’, page 43
2.
a.
b.
c.
d.
e.
A LIFETIME OF EXPERIMENTATION (continued)
Tamp Coffee to Line
37
STEP 6 - INSERTING THE PORTAFILTER
Place the portafilter underneath the group head
so that the handle is aligned with the insert
graphic.
STEP 7 – EXTRACTING THE ESPRESSO
Ensure all the button surrounds on the control
panel are illuminated, indicating the machine
has reached the correct temperature for
brewing, and is ready for use.
Ensure the drip tray and portafilter are in
place.
Place one or two pre-warmed cups beneath
the portafilter outlet.
•
•
•
PRE-PROGRAMMED DOSE – ONE CUP
A LIFETIME OF EXPERIMENTATION (continued)
NOTE: When using a 1 cup filter, for
optimal flavour, you should only
extract approximately 30ml. When
using a 2 cup filter, for optimal
flavour, you should only extract
approximately 60ml.
Press the one cup button once. A preset
dose of approximately 30mls will be delivered.
A pumping noise will be heard in this operation.
The machine will automatically stop once the
preset pour has been delivered.
NOTE: PRE-BREW FUNCTION When a
single or double coffee is selected,
the machine will pump water
momentarily, followed by a pause
then continues to pump the water
through to the ground coffee in
the portafilter. The ground coffee
is moistened by a small amount
of water before full extraction
then expands resulting in greater
pressure build-up to extract all the
oils and full flavour from the ground
coffee.
Insert the portafilter up into the group head and
rotate the handle to the right until resistance is
felt, this will be at an approximate 90° angle to
the machine.
NOTE: The amount of espresso extracted
in the cup will vary depending on
your grind and dose amounts.
38
PRE-PROGRAMMED DOSE– DOUBLE CUP
NOTE: Pressing the one cup or two cup
buttons during a programmed
espresso will immediately stop the
pour.
PROGRAMMING SINGLE ESPRESSO
Prepare to make a single cup of espresso
by following steps 2 to 6 in ‘A MINUTE TO
LEARN’ on pages 30-31
Place your cup underneath the group head.
To begin programming, press the
‘PROGRAM’ button once. The machine will
beep once and the program button will begin
to flash. This indicates the machine is in
programming mode.
Press the one cup button once. The
machine will commence normal pour
function, and the one cup button surround
will begin to flash.
When the desired amount of espresso has
poured into the cup, press the one cup
button to stop the pour. The machine
will beep twice, indicating it has saved
your measured pour quantity and exited
programming mode.
1.
2.
3.
4.
5.
PROGRAMMING DOUBLE ESPRESSO
Prepare to make a two cup of espresso
by following steps 2 to 6 in ‘A MINUTE TO
LEARN’ on pages 30-31
Place your cup underneath the group head.
To begin programming, press the
‘PROGRAM’ button once. The machine will
beep once and the program button will begin
to flash. This indicates the machine is in
programming mode.
Press the two cup button once.
The machine will commence normal pour
function, and the two cup button surround
will begin to flash.
When the desired amount of espresso has
poured into the cup, press the two cup
button to stop the pour. The machine
will beep twice, indicating it has saved and
exited programming mode.
1.
2.
3.
4.
5.
Press the two cup button once. A preset
dose of approx 60mls will be delivered. A
pumping noise will be heard in this operation.
The machine will automatically stop once the
preset pour has been delivered.
A LIFETIME OF EXPERIMENTATION (continued)
39
NOTE: Default settings: one cup pour is
approximately 30ml. Two cups
is approximately 60ml.
WARNING: THE METAL PARTS OF THE
PORTAFILTER WILL BE VERY HOT.
RESETTING DEFAULT VOLUMES
To reset the machine to the default one and two
cup pour quantities, press and hold the program
button, until the machine beeps three times.
Release button. This indicates the machine has
returned to its original default settings.
MANUAL ESPRESSO
Press and hold the one cup or two cup
button. Release the button once sufficient
coffee has flowed into the cup.
STEP 9 – EMPTYING THE PORTAFILTER
Remove the portafilter from the group head
by rotating the portafilter to the left until it
releases.
To empty the used coffee grounds, turn the
portafilter upside down in a bin and gently
knock out the coffee (used coffee grounds
should be thrown away with domestic waste
and not down the sink which may block
drains).
With the filter basket still locked in place, hold
the portafilter underneath the group head,
press and hold down the one cup button
to release hot water. Rinse the portafilter until
water runs clear.
Insert the portafilter back into the group head
to dry out and keep warm.
•
•
•
•
A LIFETIME OF EXPERIMENTATION (continued)
NOTE: When using the manual function
refer to the Espresso Pressure
Gauge section on pages 9 and 10 to
ensure ideal extraction is obtained.
40
The Breville Professional 800 Collection™
Fresca Espresso Machina™ comes complete
with a Commercial Style Swivel Steam Wand
and Stainless Steel Frothing Attachment. When
using the frothing attachment on the steam
wand a large amount of froth is easily created.
If less froth is required, remove the frothing
attachment from the steam wand before
texturing. To remove the frothing attachment,
ensure it is cool then simply pull down and
remove. The frothing attachment can be stored
in the storage tray inside the machine if not
used regularly.
To refit the frothing attachment ensure it is
securely attached to the steam wand by
inserting it, from either end, onto the steam
wand and pushing firmly upwards onto the
rubber surround.
Fill the stainless steel frothing jug
maximum 1⁄2 full with cold, fresh milk.
Turn the Steam selector dial to the ‘Steam’
position. The red steam light will start to flash
indicating that the machine is heating to
create steam.
When the steam light stops flashing it is ready
to use.
Before inserting the wand into the milk, pause
the steam by returning the dial back to the
‘OFF’ position. This will avoid splashing the
milk out of the jug [this pause function lasts
for 6 seconds before exiting steam mode.].
Insert the wand into the milk and heat.
To stop, return the steam dial to the ‘OFF’
position and remove the jug.
•
•
•
•
•
•
NOTE: When the espresso machine
creates steam, a pumping noise
can be heard. This is the normal
operation of the 15 Bar pump.
WARNING: MILK SHOULD NOT BE ALLOWED TO RUN OVER THE TOP OF THE FROTHING
ATTACHMENT, OTHERWISE IT WILL NOT FUNCTION PROPERLY. TO AVOID
SPLATTERING OF HOT MILK, DO NOT LIFT THE END OF THE FROTHING ATTACHMENT
ABOVE THE SURFACE OF THE MILK WHILE FROTHING. ENSURE THE STEAM DIAL IS IN
THE ‘OFF’ POSITION BEFORE REMOVING THE FROTHING JUG.
NOTE: After 5 minutes of continuous
steaming, the machine will
automatically disable the steam
function. The steam light will flash.
When this occurs return the steam
dial to the ‘OFF’ position.
THE ART OF TEXTURING MILK
41
THE ART OF TEXTURING MILK
There are two phases to texture milk:
Stretching the milk to aerate it and swirling
the milk to make it silky smooth and the right
temperature.
In practice these two operations should blend
into one.
NOTE: For extracting more espresso
immediately after using the steam
function, this machine features an
auto-purge function. This ensures
the ground coffee will not be burnt
by the initial water flow from the
thermocoil being too hot. Instead
this water is automatically released
internally into the drip tray ensuring
that the internal thermostat is at
optimal temperature for extracting
coffee. Your coffee will always
be extracted at this optimal
temperature ensuring only the best
flavoured coffee is achieved.
NOTE: Always ensure that the frothing
attachment has been firmly pushed
onto the steam wand and connects
with the rubber surround. For best
results use cold fresh milk. Always
clean the steam wand and frothing
attachment after every use. Refer
to ‘Care and Cleaning’, page 49
NOTE: If stretching makes a loud
screeching sound, the chances are
you have lowered the wand into the
milk too early.
STEP 2 - SWIRLING THE MILK
After a short while you will have aerated
sufficiently. At this point, adjust the jug so the
steam wand is off-centre and create a spinning
motion in the milk. Compensate for the angle of
the steam wand by slightly tilting the jug away
from you, or to one side and at the same time
lower the nozzle further into the body of the
milk.
Continue swirling until milk is at desired
temperature [between 55 and 65 degrees].
Without a thermometer you’ll know the milk
is ready when the jug base is ‘just too hot’ to
touch.
When you get the balance right the milk should
end up forming a ‘meringue-like’ consistency
that has a glassy sheen to it. Remove any
excess air bubbles by gently knocking the jug
against a hard flat surface and pour the milk
down the inside of your chosen cup or glass to
make your desired coffee.
Lastly, don’t forget to give your steam wand a
good wipe down with a damp cloth.
STEP 1 - STRETCHING THE MILK
Hold the jug so the tip of the steam wand is
just below the surface of the milk and with your
free hand engage the steam. Every so often
lower the jug so the steam wand just breaks the
surface of the milk and makes a ‘hissing’ sound.
Stretching the milk will increase the volume, so
lower the jug as the milk rises to ensure the tip
remains just above the surface of the milk.
42
WARMING YOUR CUP OR GLASS
A warm cup will help maintain the coffee’s
optimal temperature.
Preheat your cup by holding down the one cup
button and running hot water into the cups from
the group head without the portafilter inserted
and place the cups on the warming tray.
WARMING THE FILTER HOLDER
A cold filter holder can drop the extraction
temperature enough to significantly affect
the quality of your coffee. Always ensure the
filter holder is preheated by running hot water
through it before preparing the coffee.
COFFEE MAKING TIPS
USING PRE-GROUND COFFEE
If using a pre-ground coffee, ensure an espresso
grind suitable for espresso/cappuccino
machines is purchased.
THE RIGHT MEASUREMENT
It is important to use the correct filter for the
amount of coffee. A single espresso is made
with 1⁄3 ounce or 8g of coffee. A level measure
of the tamp/spoon is the correct amount
of coffee for a single espresso and 2 level
measures for a double espresso.
TAMPING CORRECTLY
Level the desired amount of coffee by gently
tapping the side of the filter holder before
pressing down firmly with the tamper. When
packing for a double espresso it is important
only to tamp after the second measure.
Tamping between measures will create a layer in
the coffee that can impede full extraction.
PURGE THE GROUP HEAD
Before inserting the filter holder, run some water
through the group head. It will ensure that your
machine has a last minute ‘clean through’ and
stabilises the temperature prior to extracting.
BREWING YOUR ESPRESSO
The most common mistake in brewing is to over
extract from your ground coffee. This results in
a bitter beverage with visibly bleached crema.
Crema is the caramel coloured layer that floats
on top of the coffee following extraction.
NOTE: Always wipe the filter and filter
holder dry before preparing the
coffee as moisture can encourage
‘drilling’ - this is when water
bypasses the ground coffee during
extraction.
NOTE: Make sure to wipe off any excess
coffee from the rim of the filter to
ensure a proper seal is achieved
under the group head.
NOTE: The taste of your coffee will,
of course, depend on personal
preference and on many other
factors such as the type of coffee
bean used, the coarseness or
fineness of the grind and the
tamping pressure. We recommend
experimenting by varying these
factors to achieve the coffee taste
of your preference.
43
Care & Cleaning
Remove the filter from the plastic bag, and
soak in a cup of water for 5 minutes
Rinse the filter under cold running water for 5
seconds
Wash the stainless steel mesh in the plastic
filter compartment with water and assemble
Set the date dial to 2 months ahead
To install, push down to lock into place
•
•
•
•
•
INSTALLING / REPLACING THE FILTER IN THE WATER TANK
CARE AND CLEANING YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ FRESCA ESPRESSO MACHINA™
PORTAFILTER CLEANING
Periodically run water through the machine with
the portafilter in place, but without any ground
coffee, to rinse out any residual coffee particles.
Soak 5 Minutes
REPLACEMENT DUE
Rinse Filter & Mesh Assemble Set Date + 2 Months Install Filter in Tank Fill Water Tank Place Water Tank
EMPTY
2000
MAX
1500
1250
1000
750
500
MIN
250
EMPTY
2000
MAX
1500
125 0
The Water Filter provided with the Fresca
Espresso Machina™ can significantly reduce
substances that affect the smell and taste of
water such as free chlorine, certain pesticides
and organic impurities as well as traces of heavy
metals. The Water Filter can be removed from
the water tank during operation if not required.
45
CARE AND CLEANING (continued)
CLEANING CYCLE
The Fresca Espresso Machina™ features an inbuilt cleaning cycle which should be carried out periodically. The CLEAN ME light will automatically
illuminate to indicate to the user when a cleaning cycle is required.
For any inquiries on the cleaning tablets, please contact:
Freecall Aus 1300 737 538 NZ 0800 772 227 Sing 800 616 3122 US 877 263 2567 or 877-COF-CLNR
7
Wait 5 minutes to finish Still No Coffee? Call for Filter Parts
(A) Press 1 Cup & 2 Cup, (B) Press Power
89 10
B
HOLD TOGETHER 3 SEC
POWER
LOCK
INSERT
? ?
Australia
1300 139 798
FILTER!
New Zealand
0800 273 845
A
6
Turn Machine Off
POWER
12 3 4 5
Cleaning Required Place into Portafilter Pop Tablet on TopCleaning Disc into Filter Lock into Machine
ESPRESSO
MACHINE
CLEANING
TABLETS
LOCK
INSERT
Cleaning
Cycle
5 MIN
46
WARNING: DO NOT IMMERSE POWER CORD,
POWER PLUG OR APPLIANCE IN
WATER OR ANY OTHER LIQUID.
THE WATER TANK SHOULD NEVER
BE REMOVED OR COMPLETELY
EMPTIED DURING DECALCIFYING.
DECALCIFYING
After regular use, hard water can cause mineral
build up in and on many of the inner functioning
components, reducing the brewing flow, power
of the machine, and affecting the quality of
coffee.
We advise decalcifying the machine on a regular
basis (every 2-3 months) using a mixture of
white vinegar and water.
Follow the instructions provided, or use the
following as a guide:
Diluted solution (for softer water)
1 part white vinegar
2 parts cold tap water
Concentrated solution (for harder water)
1 part white vinegar
1 part cold tap water
•
•
•
•
CARE AND CLEANING (continued)
DECALCIFYING THE MACHINE
Remove the portafilter and frothing
attachment. Pour the mixture of white vinegar
and water into the water tank.
Plug the machine into the power outlet and
switch on.
Press the POWER button to the ‘On’ position.
Place a large container under the group head
and steam wand.
When the brewing temperature has been
reached all the button surrounds on the
Control Panel will illuminate. Press and hold
the one cup or two cup button to
commence manual pour. Release the button
once half the mixture of white vinegar and
water has run through the group head.
Set the steam dial to the ‘STEAM’ position
and allow steam to run through the Steam
Wand for approximately 2 minutes. Return
the steam dial back to the ‘OFF’ position.
After decalcifying, remove the water tank
and rinse thoroughly then refill with fresh cold
water. To rinse the machine, repeat previous
steps.
•
•
•
•
•
•
•
CLEANING CYCLE PROCESS GUIDE
If cleaning is required, simply follow the steps
below and refer to the Machine Cleaning Cycle
Guide.
Use a cleaning tablet.
Insert the cleaning disk into the one or two
cup filter basket.
Place the filter basket into the portafilter.
Pop 1 cleaning tablet into the filter.
Lock the portafilter into the group head.
Turn the machine ‘OFF’.
Simultaneously press and hold the one
cup, two cup and the POWER button for 3
seconds.
The cleaning cycle will commence and last
for approximately 5 minutes. Once complete,
3 beeps will sound. Remove the portafilter
and ensure the tablet has completely
dissolved.
If the tablet has not dissolved, repeat steps 5 to
7 until tablet has dissolved.
1.
2.
3.
4.
5.
6.
7.
8.
47
CLEANING THE CONICAL BURR GRINDER
CARE AND CLEANING (continued)
This grinder cleaning cycle removes oil build-up on burr heads which can impede performance.
Lock Top Burr.
Turn handle clockwise
Replace Hopper Lock Hopper
L
O
C
K
A
L
I
G
N
UNLOCK
LOCK
Unlock the Hopper
4
UNLOCK
LOCK
1 32
Unlock Top Burr. Grip
the handle and turn
anti-clockwise
Remove Top Burr
Remove the Hopper
L
O
C
K
A
L
I
G
N
68 9 10
7
POWER DOSE
DOSE ADJUST
O
P
T
POWER DOSE
DOSE ADJUST
O
P
T
Replace Top Burr
Cleaning
the Conical
Burr Grinder
5
11
Fill with Beans
COFFEE
BEANS
Clean the Burr with
cleaning brush provided
Clean Chute with Brush
and ensure no coffee
particles remain.
48
CLEANING THE STEAM WAND AND FROTHING ATTACHMENT
Ensure the steam dial is in the ‘OFF’ position.
Press the POWER button to off and allow the
machine to cool.
If the steam wand remains blocked, use the
pin on the cleaning tool to clear the opening.
If the steam wand continues to be blocked,
the tip of the steam wand can be removed by
using the fitting in the middle of the cleaning
tool.
•
•
•
CARE AND CLEANING (continued)
Remove Wand Tip Replace TipSoak Tip OvernightRemove Attachment Clean Hole with Pin
1132 2
Cleaning
the
Steam
Wand
Tough
Build
Ups?
Unscrew the top with the cleaning tool.
Soak the tip in hot water before using the pin
on the cleaning tool to unblock. Replace the
tip back onto the steam wand and secure
with the cleaning tool.
•
•
The steam wand and frothing attachment
should always be cleaned after frothing milk.
Remove the frothing attachment and rinse in
warm tap water.
Wipe the steam wand with a damp cloth,
and then with the steam wand directed back
into the drip tray, briefly set the steam dial
to the ‘STEAM’ position. This will clear any
remaining milk from inside the steam wand.
•
•
•
49
Should the fine holes in the filters become
blocked follow the following steps:
Place the filter into the portafilter. Run water
through the machine with the filter and
portafilter, without any ground coffee, in
place.
The fine pin on the cleaning tool can be used
to clear the filter basket holes.
1
2
CLEANING / UNBLOCKING THE FILTERS, PORTAFILTER AND GROUP HEAD
Periodically run water through the machine with the portafilter in place, but without any ground
coffee, to rinse out any residual coffee particles.
CARE AND CLEANING (continued)
To clean the single wall filters simply run
water through the portafilter using the
manual pour function by holding down the
one cup button.
For a thorough clean of the filters, run a
cleaning cycle of the machine with the
portafilter and filter in place
3
4
CLEANING THE OUTER HOUSING / CUP
WARMING PLATE
The outer housing and cup warming plate can
be cleaned with a soft, damp cloth. Then polish
with a soft, dry cloth. Do not use abrasive
cleansers, pads or cloths which can scratch the
surface.
2 3 41
Clean Filter Basket Place into Portafilter Clean Hole With Pin
Flush Water
D
U
A
L
W
A
L
L
50
CLEANING THE DRIP TRAY
The drip tray should be removed, emptied and
cleaned at regular intervals, particularly when
the drip tray full indicator is showing ‘Empty
Me!’.
Remove grid, compartments and ‘Empty Me!’
indicator from the drip tray. Dispose of the
grounds from the dry compartment into the
bin. Wash the drip tray with warm soapy water,
using a non-abrasive washing liquid, rinse
and dry thoroughly. The ‘Empty Me!’ indicator
can be removed from the drip tray by pulling
upwards to release the side latches.
The drip tray base and cover are dishwasher
safe.
CLEANING THE STORAGE TRAY
The storage tray can be removed after the drip
tray is removed then cleaned with a soft, damp
cloth (do not use abrasive cleansers, pads or
cloths which can scratch the surface).
WARNING: DO NOT IMMERSE POWER CORD,
POWER PLUG OR APPLIANCE IN
WATER OR ANY OTHER LIQUID.
THE WATER TANK SHOULD
NEVER BE REMOVED OR
COMPLETELY EMPTIED DURING
DECALCIFYING.
CARE AND CLEANING (continued)
STORING YOUR MACHINE
Before storing, press the POWER button to
‘OFF’, turn the steam dial to ‘OFF’, switch off at
the power outlet and unplug.
Remove unused beans from the hopper, empty
the water tank and the drip tray.
Ensure the machine is cool, clean and dry. Insert
all accessories into position or into the storage
tray.
Store upright. Do not place anything on top.
51
TROUBLE SHOOTING GUIDE
PROBLEM POSSIBLE CAUSES WHAT TO DO
When the machine is switched on,
the steam and hot water lights are
flashing.
Steam dial is not in ‘OFF’ position Turn the Steam dial to ‘OFF’ position. Machine will
commence normal heat up procedure.
Coffee does not run through Machine is not turned on or plugged in Ensure the machine is plugged in, switched on at the power
outlet and the POWER button is pressed to ‘on’.
Water tank is empty Refer to ‘Filling The Water Tank’, page 34.
Coffee grind is too fine Ensure you use a suitable espresso grind. Refer to ‘Setting
the Right Grind’ on page 36.
Too much coffee in the filter Refer to ‘Adjusting the Dose’, page 36.
Coffee tamped too firmly Refer to ‘Tamping The Ground Coffee’, page 37.
The filter is blocked Clean the filters. Refer to ‘Cleaning The Filters’, page 50.
Coffee runs out too quickly The coffee grind is too coarse Ensure you use a suitable espresso grind. Refer to ‘Setting
the Right Grind’ on page 36.
Not enough ground coffee in the filter Refer to ‘Adjusting the Dose’, page 36.
Ground coffee not tamped firmly enough Refer to ‘Tamping the Ground Coffee’, page 37.
Coffee is too cold Cups not preheated Preheat cups. Refer to ‘Pre-Warming The Cups’, page 34.
Milk not heated enough (if making a
cappuccino or latté)
When the base of the jug becomes too hot to touch this is
when the milk is heated at the correct temperature. Refer to
‘The Art of Texturing Milk’, page 41.
52
PROBLEM POSSIBLE CAUSES WHAT TO DO
No crema Coffee is not tamped firmly enough Refer to ‘Tamping The Ground Coffee’, page 37.
Coffee grind is too coarse Ensure you use a suitable espresso grind. Refer to ‘Setting
The Right Grind’ on page 36.
Ground coffee is not fresh Change old beans with fresh roasted or pre-ground.
Ground coffee should not be kept for longer than a week.
Filter holes are blocked Use the fine pin on the cleaning tool to clear the holes.
Refer to ‘Cleaning The Filters’, page 50.
Machine is making pulsing/pumping
sound while extracting coffee or
steaming milk
The machine is carrying out the normal
operation of the 15 bar pump
No action require as this is the normal operation of the
machine.
Coffee runs out around the edge of
the filter holder
Filter holder is not inserted in the group
head properly
Refer to ‘Inserting The Portafilter’, page 38.
There are coffee grounds around the filter
rim
Clean any excess ground coffee from the rim of the filter
holder to ensure a proper fit into the brew head.
Too much ground coffee in the filter Refer to ‘Adjusting the Dose’, page 36.
Ground coffee has been tamped too firmly Refer to ‘Tamping The Ground Coffee’, page 37.
Incorrect filter for amount of ground coffee
used
Ensure you use the small filter for 1 cup of coffee and the
larger filter for 2 cups of coffee.
Coffee extracts as drops from the
portafilter
The water tank is empty or low Refer to step 1 – ‘Filling The Water Tank’, page 34.
Coffee grind is too fine Ensure you use a suitable espresso grind. Refer to ‘Setting
The Right Grind’ on page 36.
Machine is blocked by mineral deposits Decalcify the machine. Refer to ‘Decalcifying’, page 47.
TROUBLE SHOOTING GUIDE (continued)
53
PROBLEM POSSIBLE CAUSES WHAT TO DO
Machine is making a loud and
continuous pumping noise
Water tank is empty Refer to step 1 – ‘Filling The Water Tank’, page 34 .
Water tank is not securely in place Refer to step 1 – ‘Filling The Water Tank’, page 34 .
No steam is generated Machine is not turned on Ensure the machine is plugged in, switched on at the power
outlet and the POWER button is pressed to ‘on’.
Water tank is empty Refer to step 1 – ‘Filling The Water Tank’, page 34.
Steam Dial is not in ‘Steam’ position Turn the steam dial to the ‘Steam’ position.
Steam Wand is blocked Use the pin on the cleaning tool to clear the opening. If the
steam wand continues to be blocked remove the tip of the
steam wand using the fitting in the middle of the cleaning
tool. Refer to ‘Care and Cleaning’, page 49.
Milk is not foamy after texturing Not enough steam Steam wand may be blocked. Refer to ‘Care and
Cleaning’, page 49.
Milk is not fresh and cold Use cold fresh milk. Refer to ‘The Art of Texturing Milk’,
page 41.
Machine is not working The unit appears to be ‘on’ but the
machine ceases to operate
The safety thermal-cut may have activated due to the pump
or grinder overheating. Turn the machine off and allow it to
cool for about 30-60 minutes.
No ground coffee coming from grinder No coffee beans in hopper Fill hopper
TROUBLE SHOOTING GUIDE (continued)
54
PROBLEM POSSIBLE CAUSES WHAT TO DO
Grinder does not start when micro
switch is pressed.
‘Dose’ lights are cycling through
single and double.
Bean Hopper safety interlock is open (hopper
is not correctly in place)
Remove hopper, check for any then debris replace the
hopper into the correct location
Too much/too little ground coffee is
being delivered to the filter basket
Grind dose settings are incorrect for particular
grind size
Use the dose adjust dial to increase or decrease the
grind dose.
Too much/too little espresso is being
delivered to the cup
Grind dose settings and or grind size require
changing
Reset the machine to defaults or re-program new coffee
dose settings
TROUBLE SHOOTING GUIDE (continued)
55
BES860
Issue 01/09
Australian Customers
Mail: Breville Customer
Service Centre
PO Box 22
Botany
NSW 2019
AUSTRALIA
Phone: Customer Service:
1300 139 798
Fax: (02) 9384 9601
Email: Customer Service
askus@breville.com.au
New Zealand Customers
Mail: Breville Customer
Service Centre
Private Bag 94411
Greenmount
Auckland
New Zealand
Phone: Customer Service:
09 271 3980
Fax: 0800 288 513
Email: Customer Service
askus@breville.com.au
Breville Customer Service Centre
www.breville.com.au
Breville is a registered trademark of Breville Pty Ltd. A.B.N. 98 000 092 928
Professional Collection is a trademark of Breville Pty Ltd
Head Office Building 2, Port Air Industrial Estate,
1A Hale Street, Botany, NSW, 2019 Australia Tel 1300 139 798
20 Mono Place, Ellerslie, Auckland, New Zealand
Private Bag 94411, Greenmount, Auckland Tel 09 271 3980
Due to continued product improvement, the products illustrated/photographed in this
brochure may vary slightly from the actual product.
