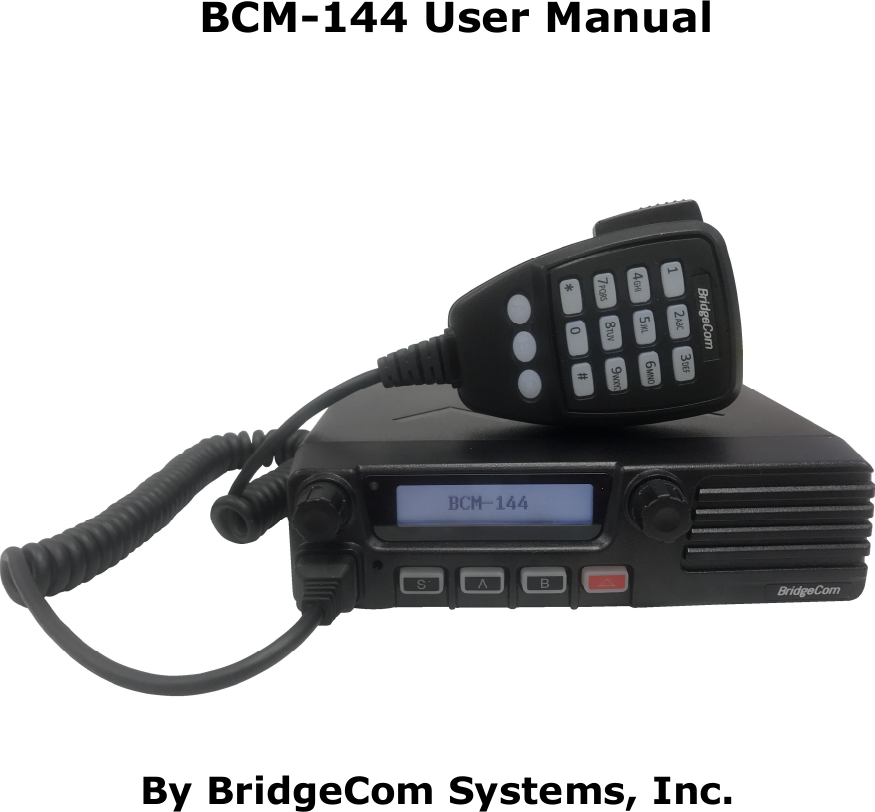

BridgeIP BCM-144 VHF/2M MOBILE RADIO FOR AMATEUR USE User Manual

BridgeCom Systems, Inc. VHF/2M MOBILE RADIO FOR AMATEUR USE Users Manual

Users Manual

BCM-144 User Manual By BridgeCom Systems, Inc.

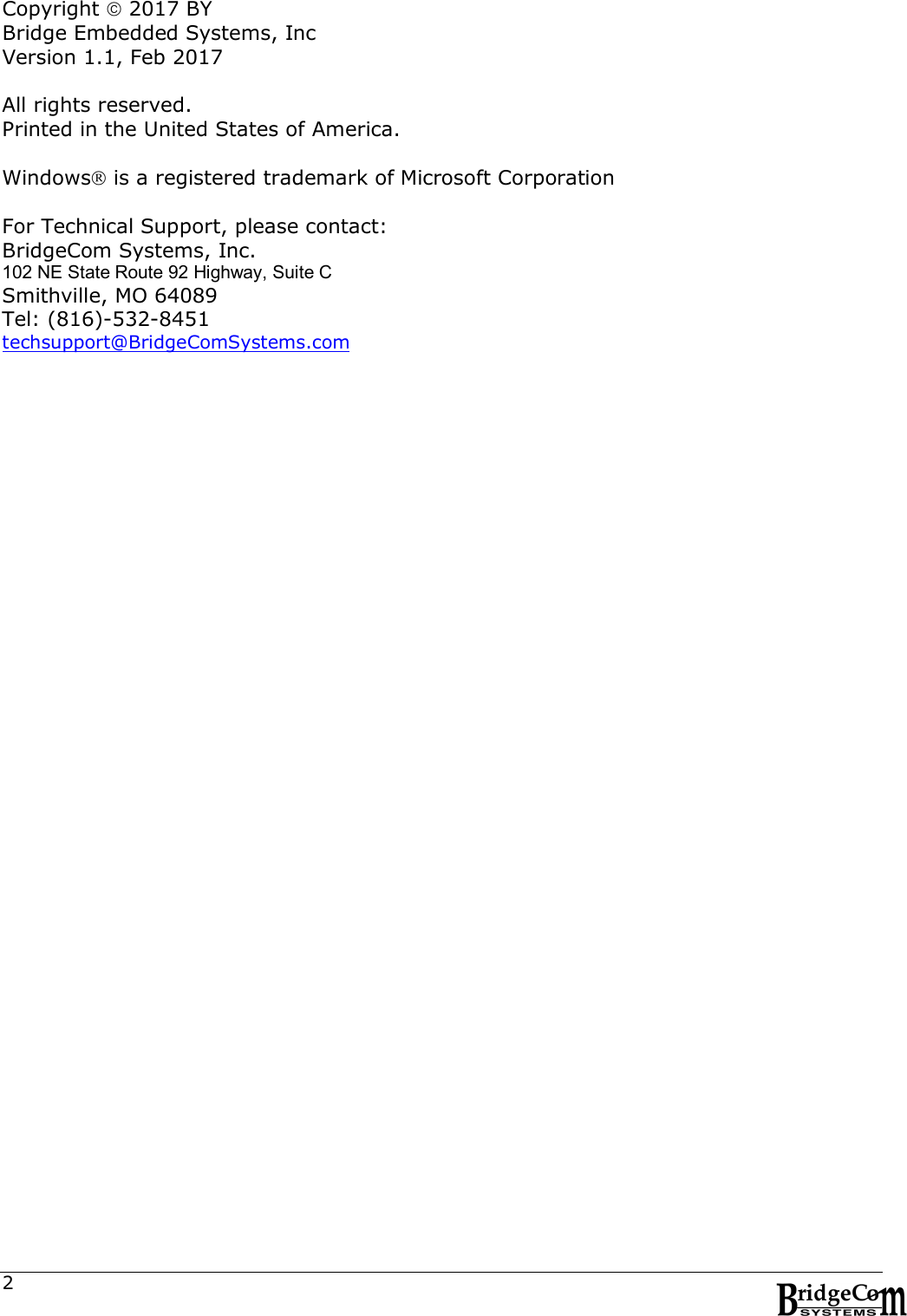

2 Copyright  2017 BY Bridge Embedded Systems, Inc Version 1.1, Feb 2017 All rights reserved. Printed in the United States of America. Windows is a registered trademark of Microsoft Corporation For Technical Support, please contact: BridgeCom Systems, Inc. 102 NE State Route 92 Highway, Suite C Smithville, MO 64089 Tel: (816)-532-8451 techsupport@BridgeComSystems.com

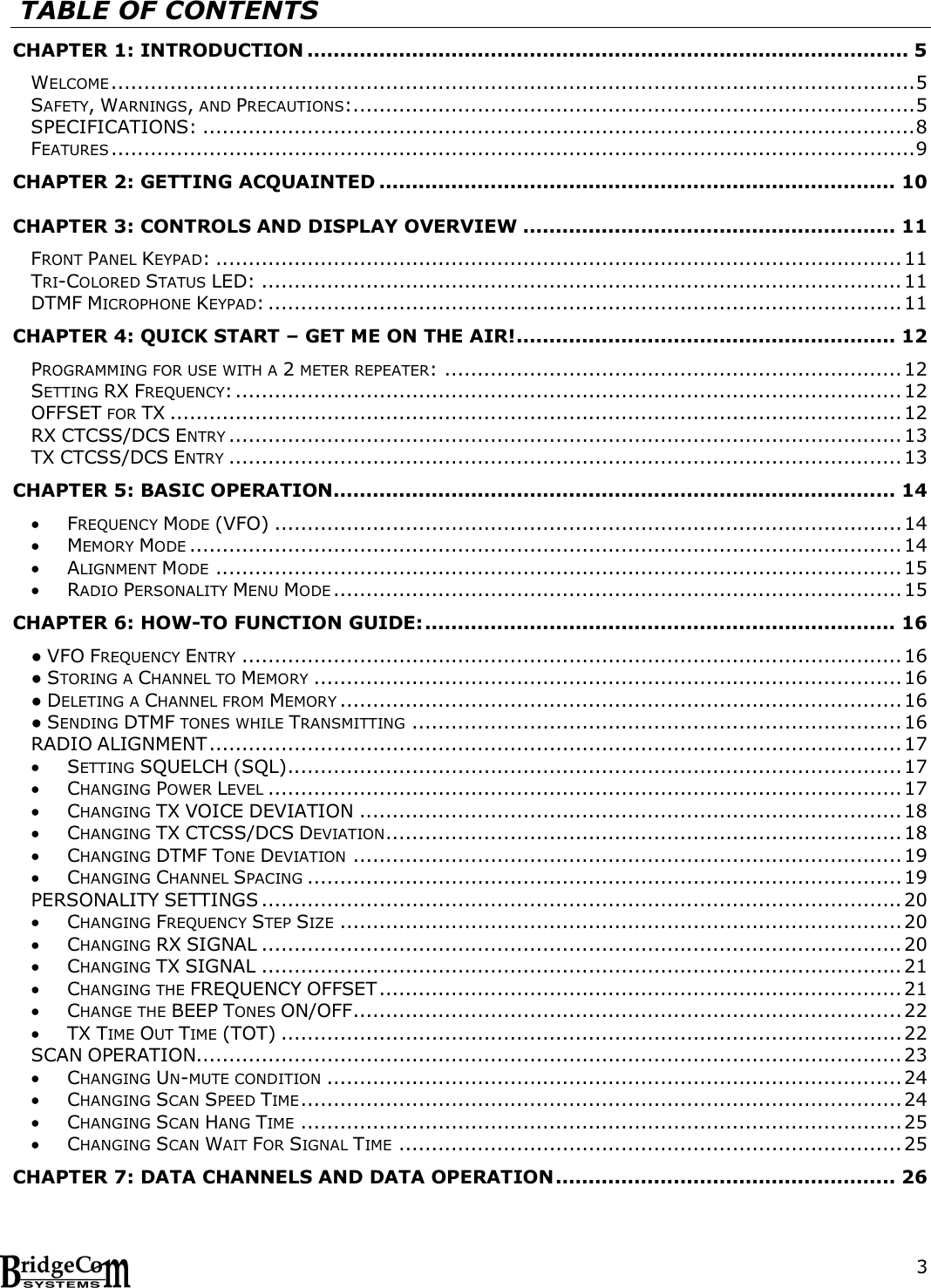

3 TABLE OF CONTENTS CHAPTER 1: INTRODUCTION ............................................................................................ 5 WELCOME ........................................................................................................................... 5 SAFETY, WARNINGS, AND PRECAUTIONS:...................................................................................... 5 SPECIFICATIONS: ............................................................................................................. 8 FEATURES ........................................................................................................................... 9 CHAPTER 2: GETTING ACQUAINTED ............................................................................... 10 CHAPTER 3: CONTROLS AND DISPLAY OVERVIEW ......................................................... 11 FRONT PANEL KEYPAD: ......................................................................................................... 11 TRI-COLORED STATUS LED: .................................................................................................. 11 DTMF MICROPHONE KEYPAD: ................................................................................................. 11 CHAPTER 4: QUICK START – GET ME ON THE AIR! .......................................................... 12 PROGRAMMING FOR USE WITH A 2 METER REPEATER: ...................................................................... 12 SETTING RX FREQUENCY: ...................................................................................................... 12 OFFSET FOR TX ................................................................................................................ 12 RX CTCSS/DCS ENTRY ....................................................................................................... 13 TX CTCSS/DCS ENTRY ....................................................................................................... 13 CHAPTER 5: BASIC OPERATION ...................................................................................... 14  FREQUENCY MODE (VFO) ................................................................................................ 14  MEMORY MODE ............................................................................................................. 14  ALIGNMENT MODE ......................................................................................................... 15  RADIO PERSONALITY MENU MODE ....................................................................................... 15 CHAPTER 6: HOW-TO FUNCTION GUIDE: ........................................................................ 16 ● VFO FREQUENCY ENTRY ..................................................................................................... 16 ● STORING A CHANNEL TO MEMORY .......................................................................................... 16 ● DELETING A CHANNEL FROM MEMORY ...................................................................................... 16 ● SENDING DTMF TONES WHILE TRANSMITTING ........................................................................... 16 RADIO ALIGNMENT .......................................................................................................... 17  SETTING SQUELCH (SQL) .............................................................................................. 17  CHANGING POWER LEVEL ................................................................................................. 17  CHANGING TX VOICE DEVIATION ................................................................................... 18  CHANGING TX CTCSS/DCS DEVIATION............................................................................... 18  CHANGING DTMF TONE DEVIATION .................................................................................... 19  CHANGING CHANNEL SPACING ........................................................................................... 19 PERSONALITY SETTINGS .................................................................................................. 20  CHANGING FREQUENCY STEP SIZE ...................................................................................... 20  CHANGING RX SIGNAL .................................................................................................. 20  CHANGING TX SIGNAL .................................................................................................. 21  CHANGING THE FREQUENCY OFFSET ................................................................................ 21  CHANGE THE BEEP TONES ON/OFF .................................................................................... 22  TX TIME OUT TIME (TOT) ............................................................................................... 22 SCAN OPERATION............................................................................................................ 23  CHANGING UN-MUTE CONDITION ........................................................................................ 24  CHANGING SCAN SPEED TIME ............................................................................................ 24  CHANGING SCAN HANG TIME ............................................................................................ 25  CHANGING SCAN WAIT FOR SIGNAL TIME ............................................................................. 25 CHAPTER 7: DATA CHANNELS AND DATA OPERATION .................................................... 26
4 APPENDIX A: TERMINAL DESCRIPTION .......................................................................... 27 APPENDIX B: CTCSS/DCS TABLES .................................................................................. 28 AVAILABLE CTCSS TONES ..................................................................................................... 28 WARRANTY AND SERVICE .............................................................................................. 29 FCC STATEMENTS ........................................................................................................... 30

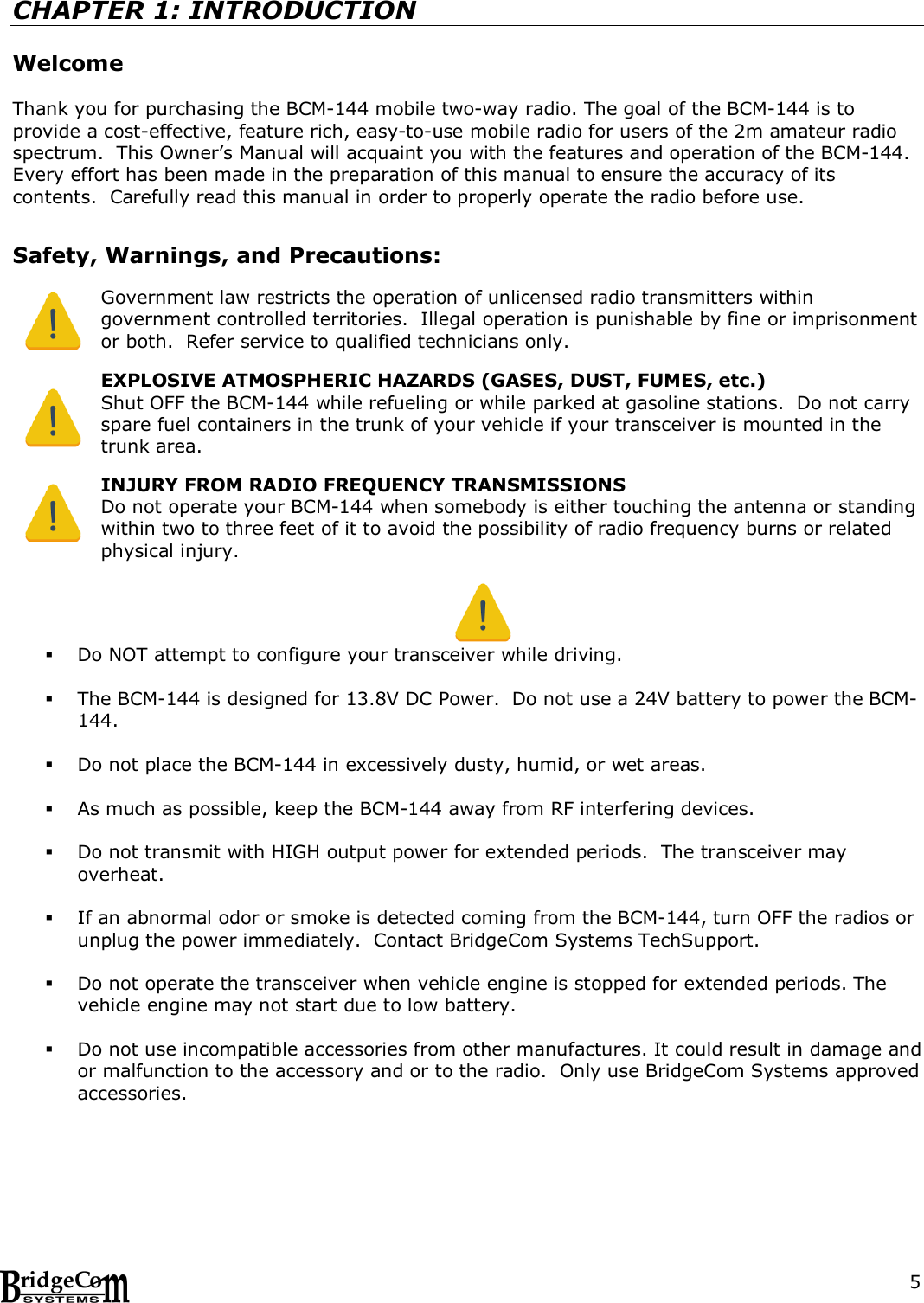

5 CHAPTER 1: INTRODUCTION Welcome Thank you for purchasing the BCM-144 mobile two-way radio. The goal of the BCM-144 is to provide a cost-effective, feature rich, easy-to-use mobile radio for users of the 2m amateur radio spectrum. This Owner’s Manual will acquaint you with the features and operation of the BCM-144. Every effort has been made in the preparation of this manual to ensure the accuracy of its contents. Carefully read this manual in order to properly operate the radio before use. Safety, Warnings, and Precautions: Government law restricts the operation of unlicensed radio transmitters within government controlled territories. Illegal operation is punishable by fine or imprisonment or both. Refer service to qualified technicians only. EXPLOSIVE ATMOSPHERIC HAZARDS (GASES, DUST, FUMES, etc.) Shut OFF the BCM-144 while refueling or while parked at gasoline stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your BCM-144 when somebody is either touching the antenna or standing within two to three feet of it to avoid the possibility of radio frequency burns or related physical injury.  Do NOT attempt to configure your transceiver while driving.  The BCM-144 is designed for 13.8V DC Power. Do not use a 24V battery to power the BCM-144.  Do not place the BCM-144 in excessively dusty, humid, or wet areas.  As much as possible, keep the BCM-144 away from RF interfering devices.  Do not transmit with HIGH output power for extended periods. The transceiver may overheat.  If an abnormal odor or smoke is detected coming from the BCM-144, turn OFF the radios or unplug the power immediately. Contact BridgeCom Systems TechSupport.  Do not operate the transceiver when vehicle engine is stopped for extended periods. The vehicle engine may not start due to low battery.  Do not use incompatible accessories from other manufactures. It could result in damage and or malfunction to the accessory and or to the radio. Only use BridgeCom Systems approved accessories.

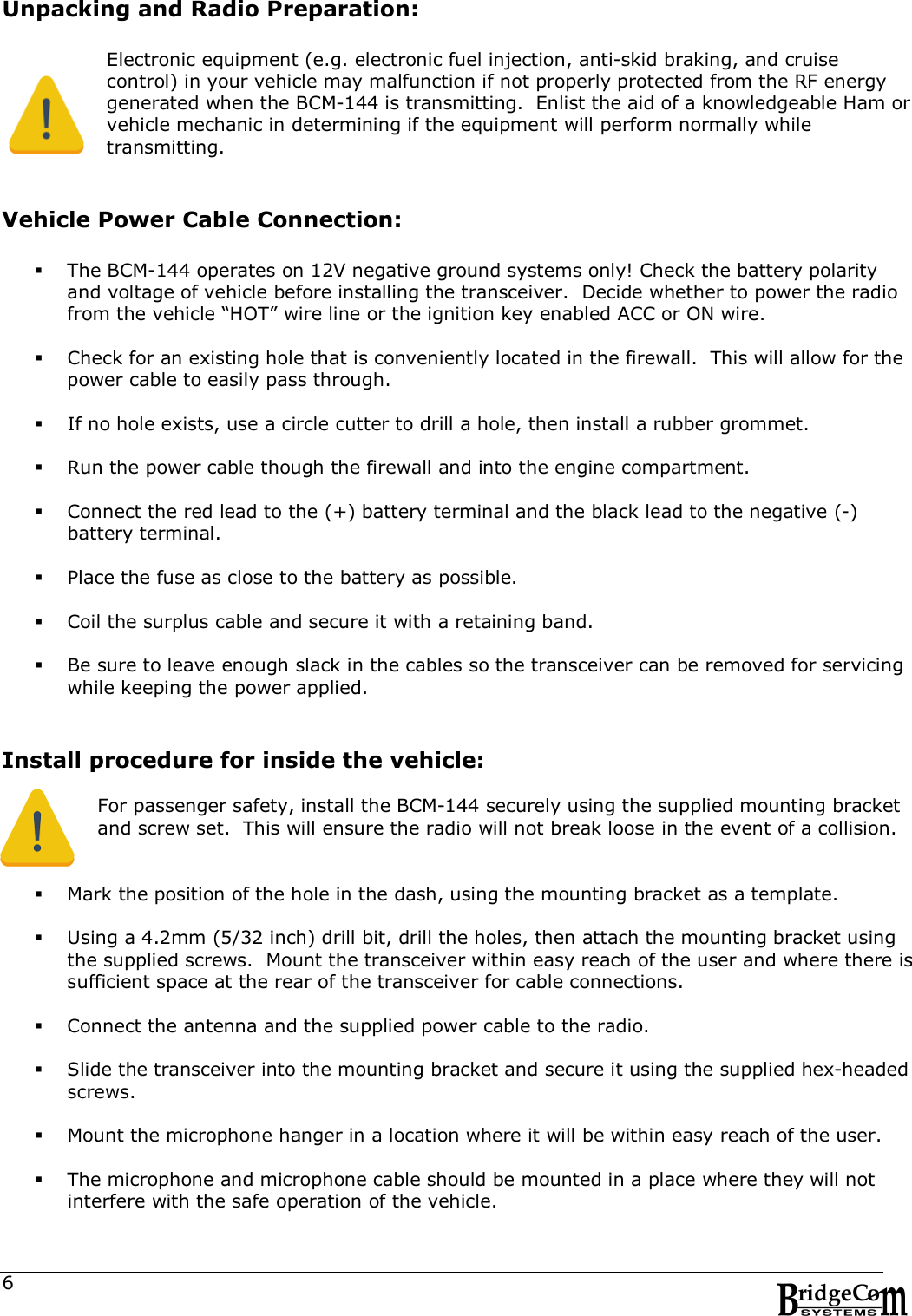

6 Unpacking and Radio Preparation: Electronic equipment (e.g. electronic fuel injection, anti-skid braking, and cruise control) in your vehicle may malfunction if not properly protected from the RF energy generated when the BCM-144 is transmitting. Enlist the aid of a knowledgeable Ham or vehicle mechanic in determining if the equipment will perform normally while transmitting. Vehicle Power Cable Connection:  The BCM-144 operates on 12V negative ground systems only! Check the battery polarity and voltage of vehicle before installing the transceiver. Decide whether to power the radio from the vehicle “HOT” wire line or the ignition key enabled ACC or ON wire.  Check for an existing hole that is conveniently located in the firewall. This will allow for the power cable to easily pass through.  If no hole exists, use a circle cutter to drill a hole, then install a rubber grommet.  Run the power cable though the firewall and into the engine compartment.  Connect the red lead to the (+) battery terminal and the black lead to the negative (-) battery terminal.  Place the fuse as close to the battery as possible.  Coil the surplus cable and secure it with a retaining band.  Be sure to leave enough slack in the cables so the transceiver can be removed for servicing while keeping the power applied. Install procedure for inside the vehicle: For passenger safety, install the BCM-144 securely using the supplied mounting bracket and screw set. This will ensure the radio will not break loose in the event of a collision.  Mark the position of the hole in the dash, using the mounting bracket as a template.  Using a 4.2mm (5/32 inch) drill bit, drill the holes, then attach the mounting bracket using the supplied screws. Mount the transceiver within easy reach of the user and where there is sufficient space at the rear of the transceiver for cable connections.  Connect the antenna and the supplied power cable to the radio.  Slide the transceiver into the mounting bracket and secure it using the supplied hex-headed screws.  Mount the microphone hanger in a location where it will be within easy reach of the user.  The microphone and microphone cable should be mounted in a place where they will not interfere with the safe operation of the vehicle.

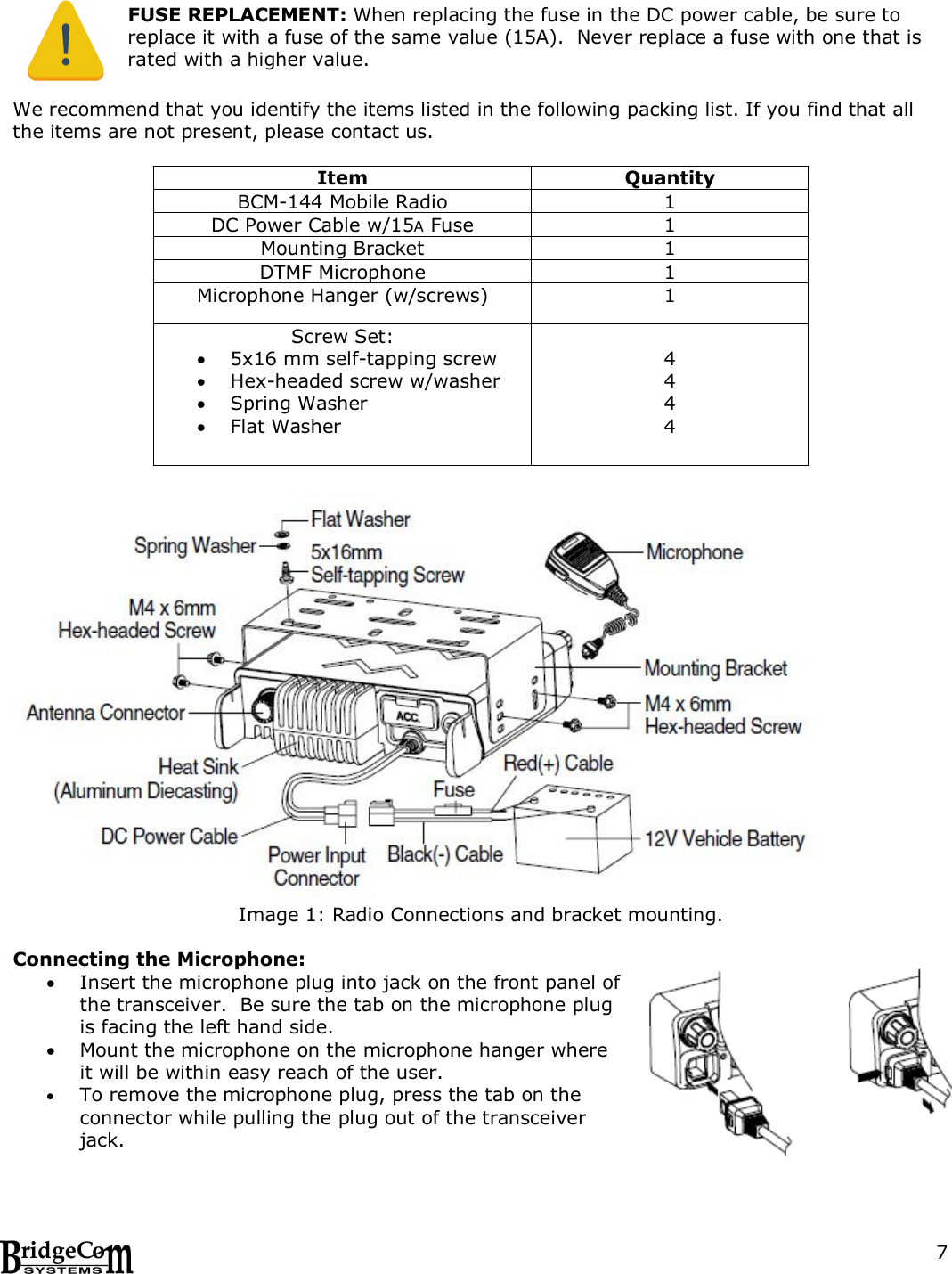

7 FUSE REPLACEMENT: When replacing the fuse in the DC power cable, be sure to replace it with a fuse of the same value (15A). Never replace a fuse with one that is rated with a higher value. We recommend that you identify the items listed in the following packing list. If you find that all the items are not present, please contact us. Item Quantity BCM-144 Mobile Radio 1 DC Power Cable w/15A Fuse 1 Mounting Bracket 1 DTMF Microphone 1 Microphone Hanger (w/screws) 1 Screw Set:  5x16 mm self-tapping screw  Hex-headed screw w/washer  Spring Washer  Flat Washer 4 4 4 4 Image 1: Radio Connections and bracket mounting. Connecting the Microphone:  Insert the microphone plug into jack on the front panel of the transceiver. Be sure the tab on the microphone plug is facing the left hand side.  Mount the microphone on the microphone hanger where it will be within easy reach of the user.  To remove the microphone plug, press the tab on the connector while pulling the plug out of the transceiver jack.

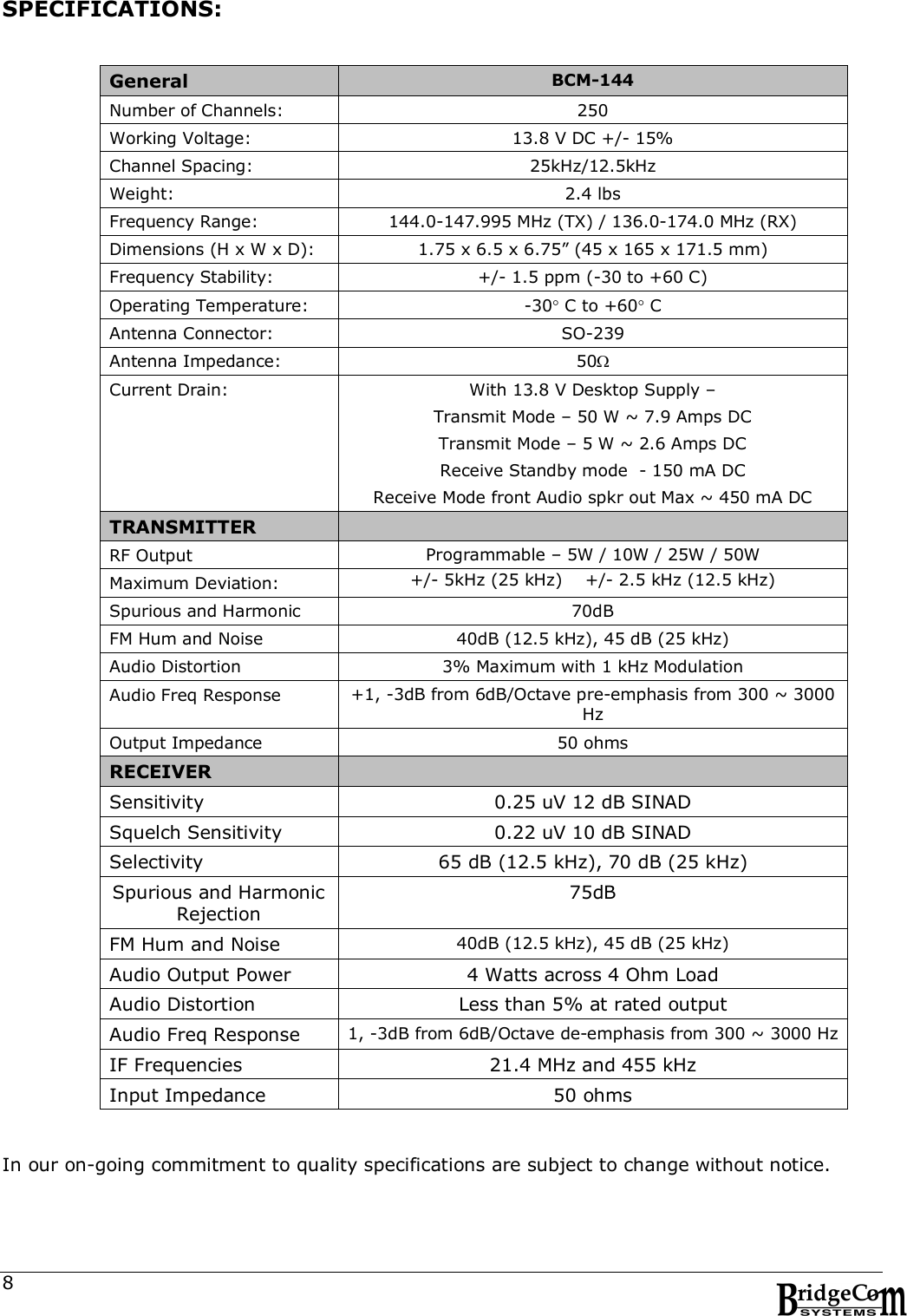

8 SPECIFICATIONS: General BCM-144 Number of Channels: 250 Working Voltage: 13.8 V DC +/- 15% Channel Spacing: 25kHz/12.5kHz Weight: 2.4 lbs Frequency Range: 144.0-147.995 MHz (TX) / 136.0-174.0 MHz (RX) Dimensions (H x W x D): 1.75 x 6.5 x 6.75” (45 x 165 x 171.5 mm) Frequency Stability: +/- 1.5 ppm (-30 to +60 C) Operating Temperature: -30 C to +60 C Antenna Connector: SO-239 Antenna Impedance: 50 Current Drain: With 13.8 V Desktop Supply – Transmit Mode – 50 W ~ 7.9 Amps DC Transmit Mode – 5 W ~ 2.6 Amps DC Receive Standby mode - 150 mA DC Receive Mode front Audio spkr out Max ~ 450 mA DC TRANSMITTER RF Output Programmable – 5W / 10W / 25W / 50W Maximum Deviation: +/- 5kHz (25 kHz) +/- 2.5 kHz (12.5 kHz) Spurious and Harmonic 70dB FM Hum and Noise 40dB (12.5 kHz), 45 dB (25 kHz) Audio Distortion 3% Maximum with 1 kHz Modulation Audio Freq Response +1, -3dB from 6dB/Octave pre-emphasis from 300 ~ 3000 Hz Output Impedance 50 ohms RECEIVER Sensitivity 0.25 uV 12 dB SINAD Squelch Sensitivity 0.22 uV 10 dB SINAD Selectivity 65 dB (12.5 kHz), 70 dB (25 kHz) Spurious and Harmonic Rejection 75dB FM Hum and Noise 40dB (12.5 kHz), 45 dB (25 kHz) Audio Output Power 4 Watts across 4 Ohm Load Audio Distortion Less than 5% at rated output Audio Freq Response 1, -3dB from 6dB/Octave de-emphasis from 300 ~ 3000 Hz IF Frequencies 21.4 MHz and 455 kHz Input Impedance 50 ohms In our on-going commitment to quality specifications are subject to change without notice.

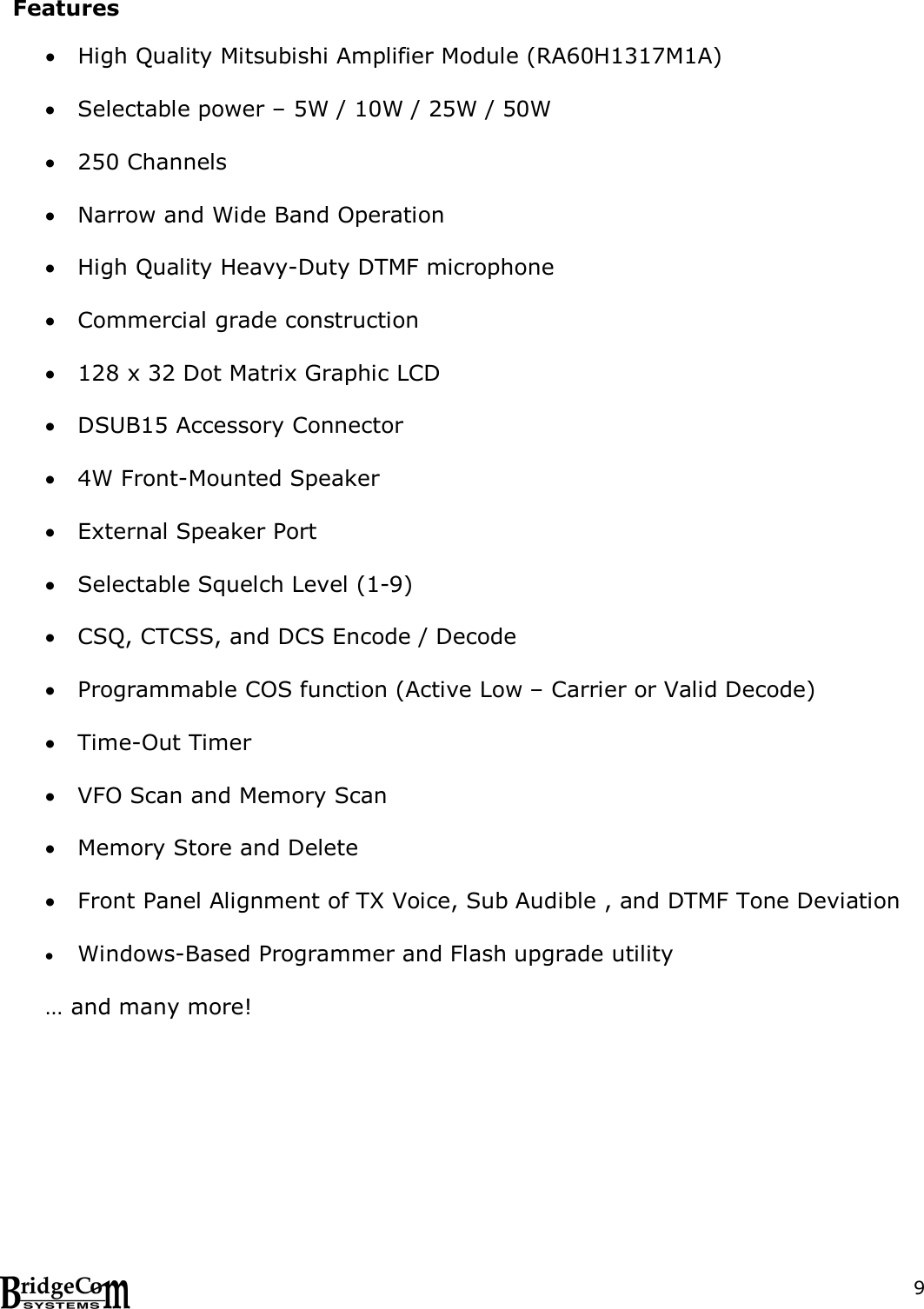

9 Features  High Quality Mitsubishi Amplifier Module (RA60H1317M1A)  Selectable power – 5W / 10W / 25W / 50W  250 Channels  Narrow and Wide Band Operation  High Quality Heavy-Duty DTMF microphone  Commercial grade construction  128 x 32 Dot Matrix Graphic LCD  DSUB15 Accessory Connector  4W Front-Mounted Speaker  External Speaker Port  Selectable Squelch Level (1-9)  CSQ, CTCSS, and DCS Encode / Decode  Programmable COS function (Active Low – Carrier or Valid Decode)  Time-Out Timer  VFO Scan and Memory Scan  Memory Store and Delete  Front Panel Alignment of TX Voice, Sub Audible , and DTMF Tone Deviation  Windows-Based Programmer and Flash upgrade utility … and many more!

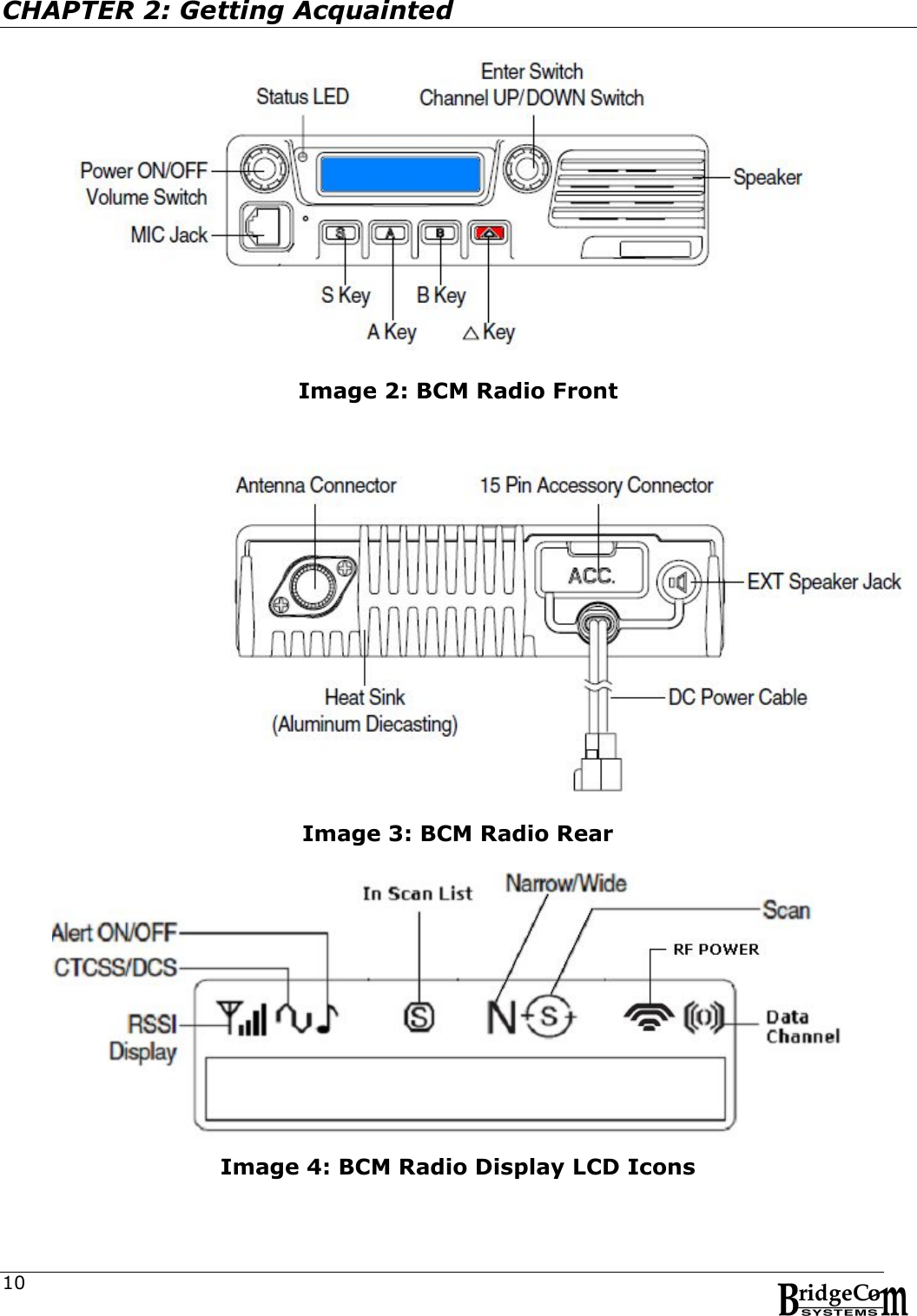

10CHAPTER 2: Getting Acquainted Image 2: BCM Radio Front Image 3: BCM Radio Rear Image 4: BCM Radio Display LCD Icons

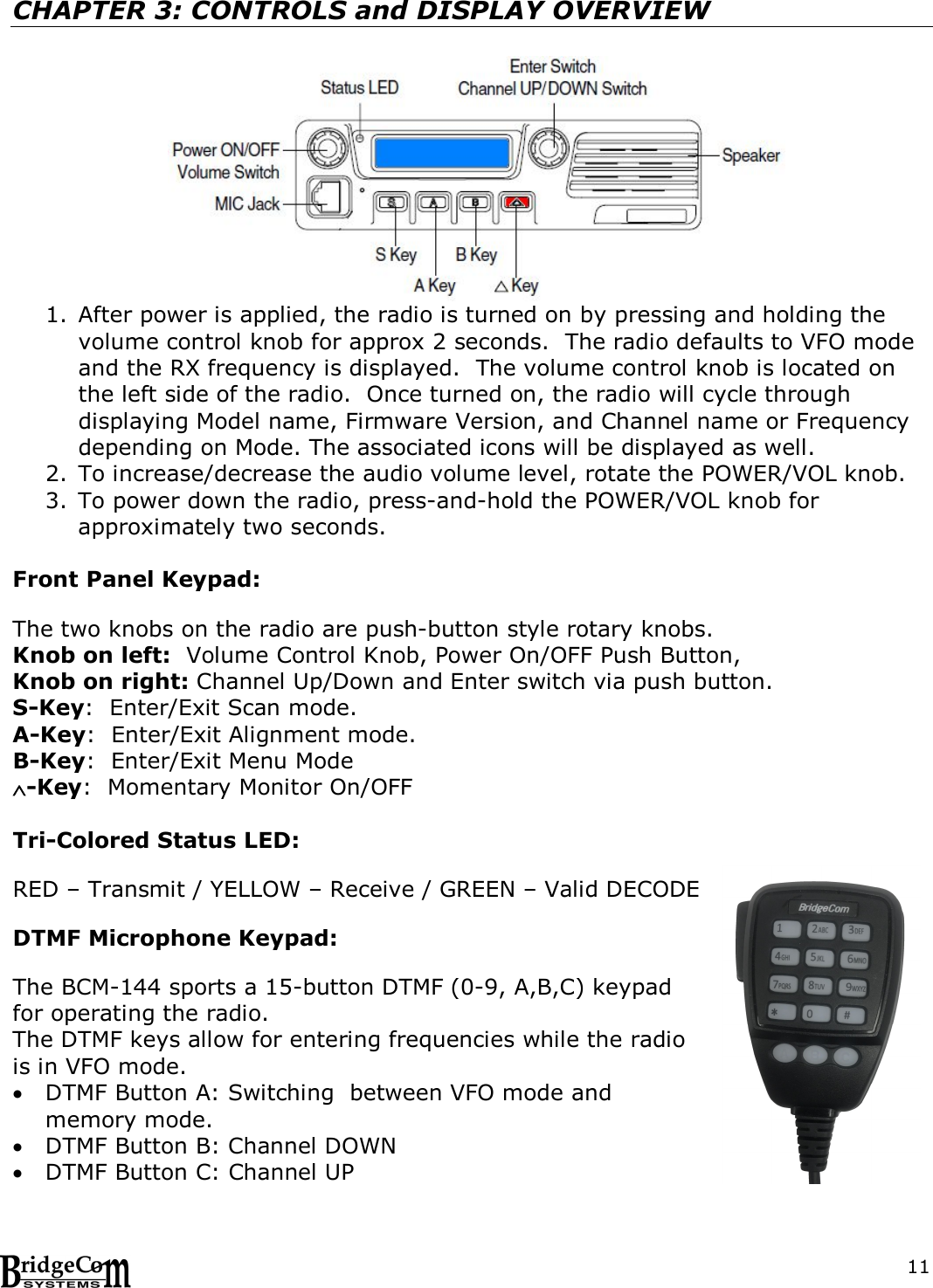

11 CHAPTER 3: CONTROLS and DISPLAY OVERVIEW 1. After power is applied, the radio is turned on by pressing and holding the volume control knob for approx 2 seconds. The radio defaults to VFO mode and the RX frequency is displayed. The volume control knob is located on the left side of the radio. Once turned on, the radio will cycle through displaying Model name, Firmware Version, and Channel name or Frequency depending on Mode. The associated icons will be displayed as well. 2. To increase/decrease the audio volume level, rotate the POWER/VOL knob. 3. To power down the radio, press-and-hold the POWER/VOL knob for approximately two seconds. Front Panel Keypad: The two knobs on the radio are push-button style rotary knobs. Knob on left: Volume Control Knob, Power On/OFF Push Button, Knob on right: Channel Up/Down and Enter switch via push button. S-Key: Enter/Exit Scan mode. A-Key: Enter/Exit Alignment mode. B-Key: Enter/Exit Menu Mode -Key: Momentary Monitor On/OFF Tri-Colored Status LED: RED – Transmit / YELLOW – Receive / GREEN – Valid DECODE DTMF Microphone Keypad: The BCM-144 sports a 15-button DTMF (0-9, A,B,C) keypad for operating the radio. The DTMF keys allow for entering frequencies while the radio is in VFO mode.  DTMF Button A: Switching between VFO mode and memory mode.  DTMF Button B: Channel DOWN  DTMF Button C: Channel UP

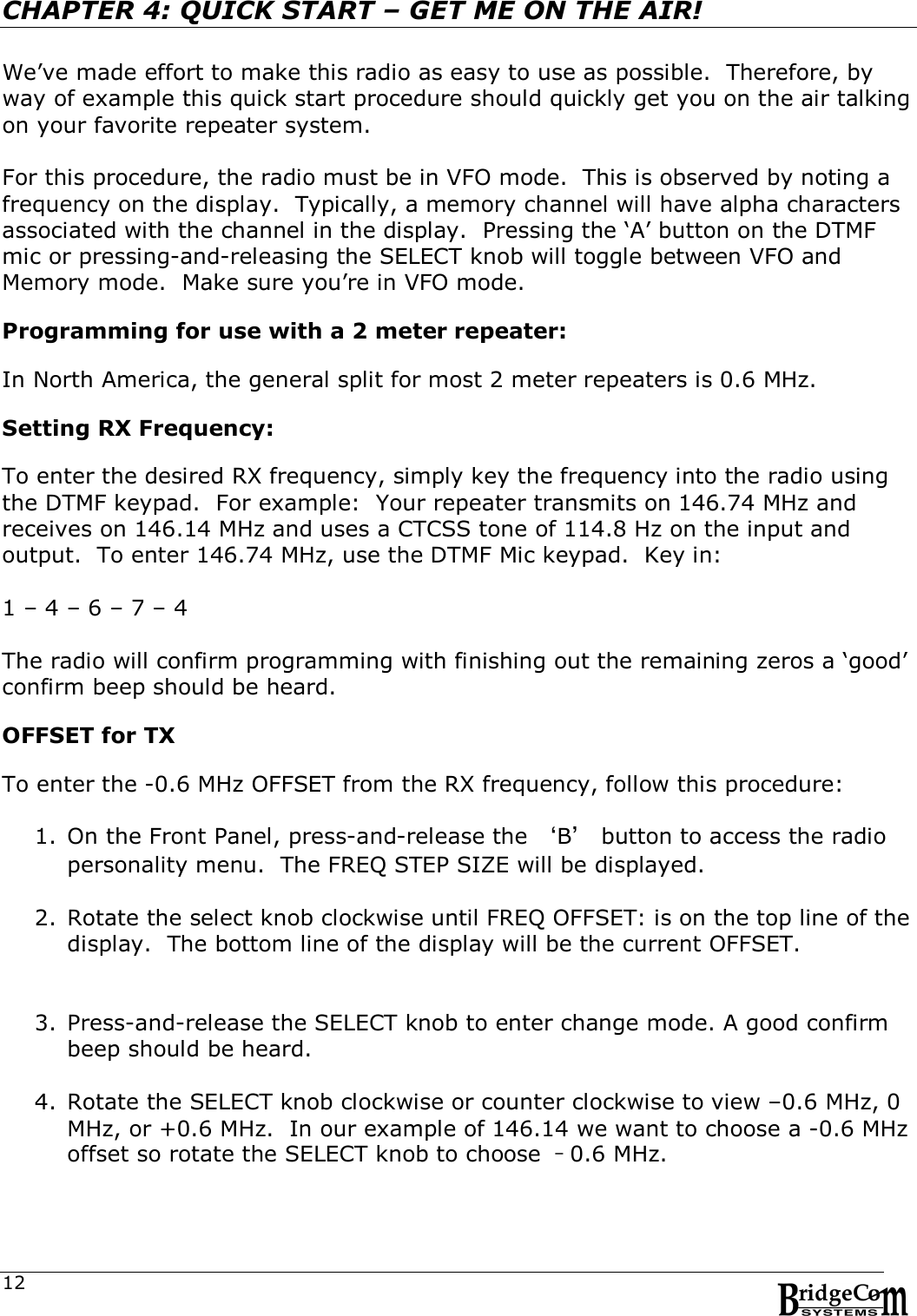

12CHAPTER 4: QUICK START – GET ME ON THE AIR! We’ve made effort to make this radio as easy to use as possible. Therefore, by way of example this quick start procedure should quickly get you on the air talking on your favorite repeater system. For this procedure, the radio must be in VFO mode. This is observed by noting a frequency on the display. Typically, a memory channel will have alpha characters associated with the channel in the display. Pressing the ‘A’ button on the DTMF mic or pressing-and-releasing the SELECT knob will toggle between VFO and Memory mode. Make sure you’re in VFO mode. Programming for use with a 2 meter repeater: In North America, the general split for most 2 meter repeaters is 0.6 MHz. Setting RX Frequency: To enter the desired RX frequency, simply key the frequency into the radio using the DTMF keypad. For example: Your repeater transmits on 146.74 MHz and receives on 146.14 MHz and uses a CTCSS tone of 114.8 Hz on the input and output. To enter 146.74 MHz, use the DTMF Mic keypad. Key in: 1 – 4 – 6 – 7 – 4 The radio will confirm programming with finishing out the remaining zeros a ‘good’ confirm beep should be heard. OFFSET for TX To enter the -0.6 MHz OFFSET from the RX frequency, follow this procedure: 1. On the Front Panel, press-and-release the ‘B’ button to access the radio personality menu. The FREQ STEP SIZE will be displayed. 2. Rotate the select knob clockwise until FREQ OFFSET: is on the top line of the display. The bottom line of the display will be the current OFFSET. 3. Press-and-release the SELECT knob to enter change mode. A good confirm beep should be heard. 4. Rotate the SELECT knob clockwise or counter clockwise to view –0.6 MHz, 0 MHz, or +0.6 MHz. In our example of 146.14 we want to choose a -0.6 MHz offset so rotate the SELECT knob to choose –0.6 MHz.

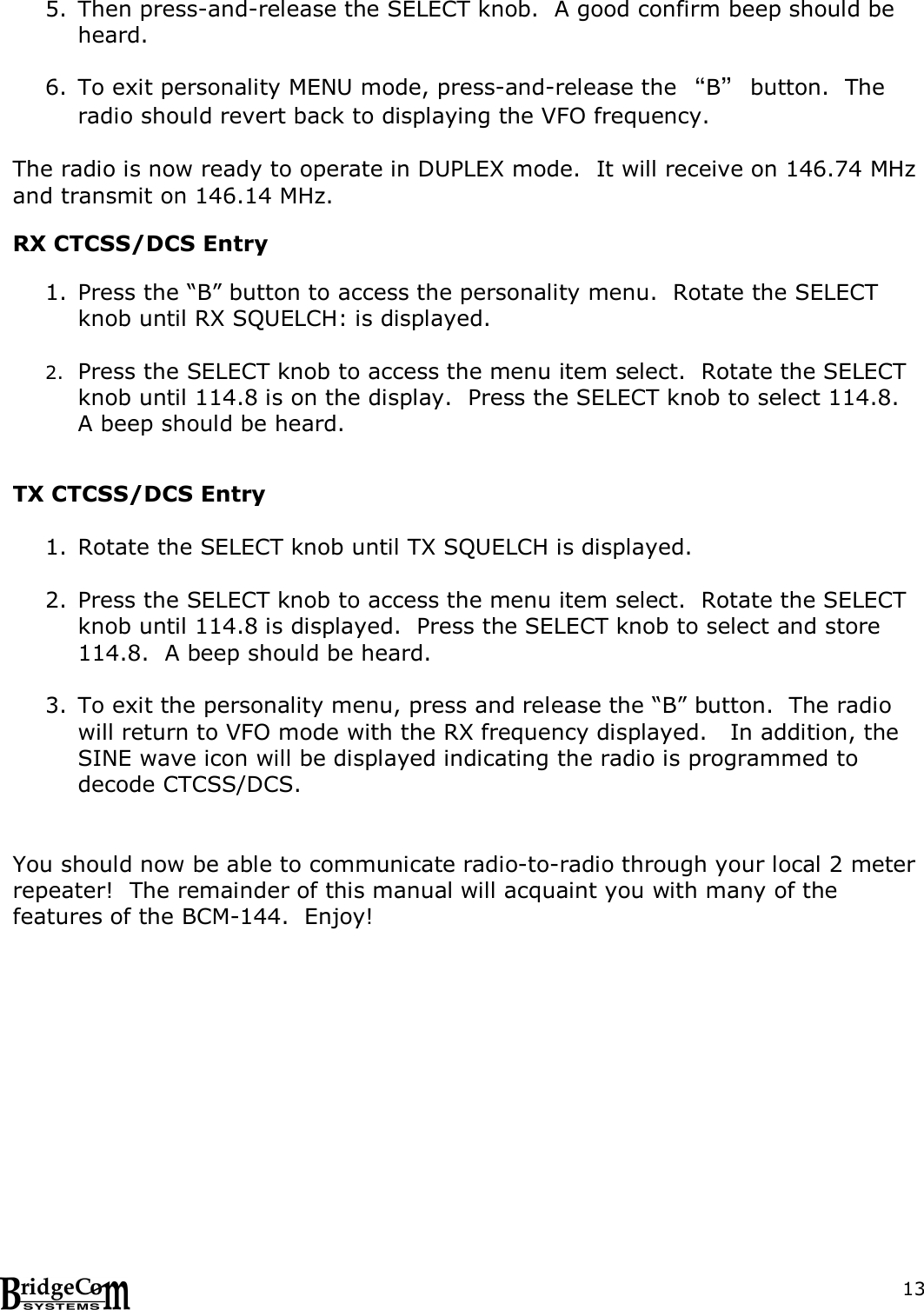

135. Then press-and-release the SELECT knob. A good confirm beep should be heard. 6. To exit personality MENU mode, press-and-release the “B” button. The radio should revert back to displaying the VFO frequency. The radio is now ready to operate in DUPLEX mode. It will receive on 146.74 MHz and transmit on 146.14 MHz. RX CTCSS/DCS Entry 1. Press the “B” button to access the personality menu. Rotate the SELECT knob until RX SQUELCH: is displayed. 2. Press the SELECT knob to access the menu item select. Rotate the SELECT knob until 114.8 is on the display. Press the SELECT knob to select 114.8. A beep should be heard. TX CTCSS/DCS Entry 1. Rotate the SELECT knob until TX SQUELCH is displayed. 2. Press the SELECT knob to access the menu item select. Rotate the SELECT knob until 114.8 is displayed. Press the SELECT knob to select and store 114.8. A beep should be heard. 3. To exit the personality menu, press and release the “B” button. The radio will return to VFO mode with the RX frequency displayed. In addition, the SINE wave icon will be displayed indicating the radio is programmed to decode CTCSS/DCS. You should now be able to communicate radio-to-radio through your local 2 meter repeater! The remainder of this manual will acquaint you with many of the features of the BCM-144. Enjoy!

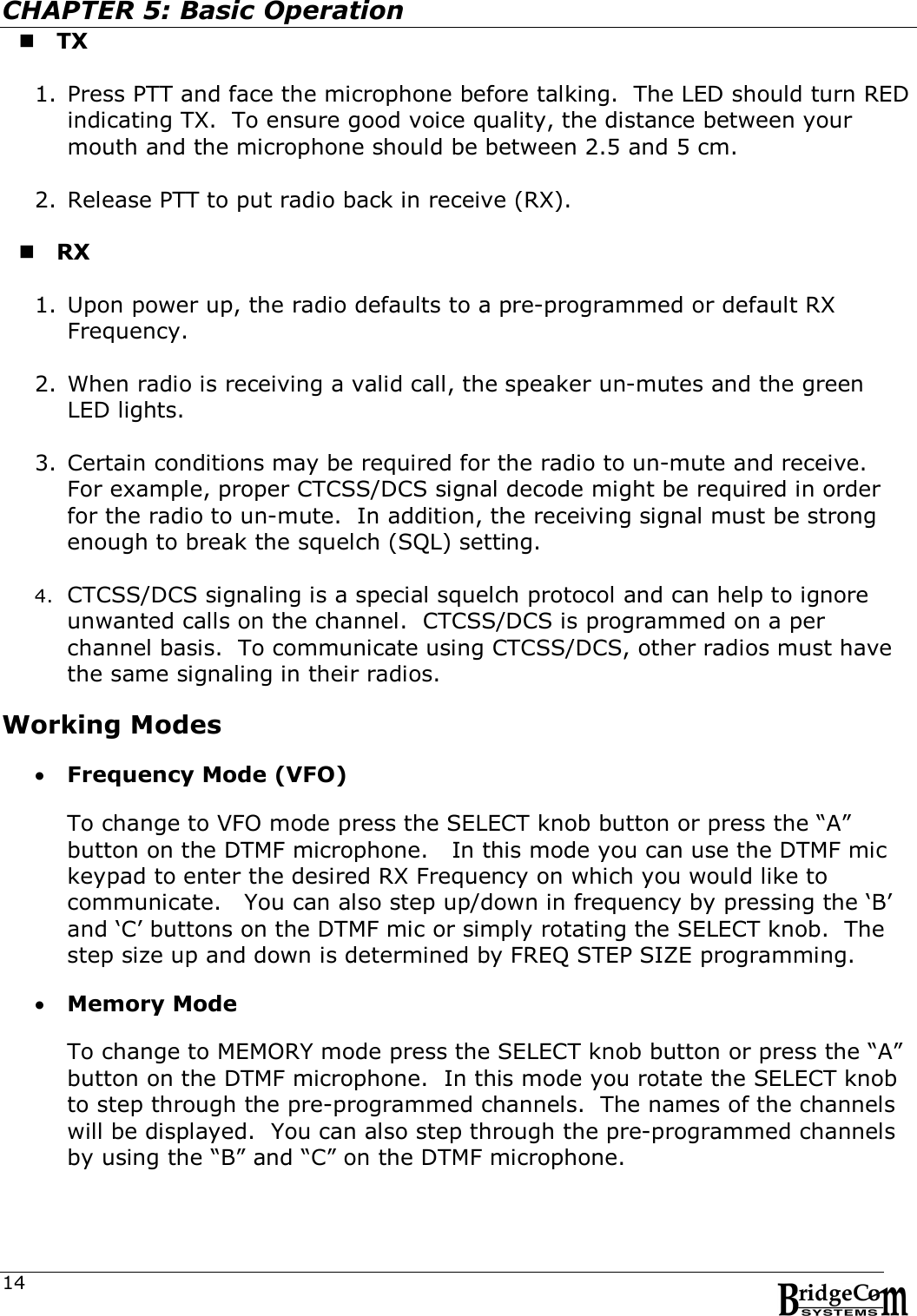

14CHAPTER 5: Basic Operation  TX 1. Press PTT and face the microphone before talking. The LED should turn RED indicating TX. To ensure good voice quality, the distance between your mouth and the microphone should be between 2.5 and 5 cm. 2. Release PTT to put radio back in receive (RX).  RX 1. Upon power up, the radio defaults to a pre-programmed or default RX Frequency. 2. When radio is receiving a valid call, the speaker un-mutes and the green LED lights. 3. Certain conditions may be required for the radio to un-mute and receive. For example, proper CTCSS/DCS signal decode might be required in order for the radio to un-mute. In addition, the receiving signal must be strong enough to break the squelch (SQL) setting. 4. CTCSS/DCS signaling is a special squelch protocol and can help to ignore unwanted calls on the channel. CTCSS/DCS is programmed on a per channel basis. To communicate using CTCSS/DCS, other radios must have the same signaling in their radios. Working Modes  Frequency Mode (VFO) To change to VFO mode press the SELECT knob button or press the “A” button on the DTMF microphone. In this mode you can use the DTMF mic keypad to enter the desired RX Frequency on which you would like to communicate. You can also step up/down in frequency by pressing the ‘B’ and ‘C’ buttons on the DTMF mic or simply rotating the SELECT knob. The step size up and down is determined by FREQ STEP SIZE programming.  Memory Mode To change to MEMORY mode press the SELECT knob button or press the “A” button on the DTMF microphone. In this mode you rotate the SELECT knob to step through the pre-programmed channels. The names of the channels will be displayed. You can also step through the pre-programmed channels by using the “B” and “C” on the DTMF microphone.

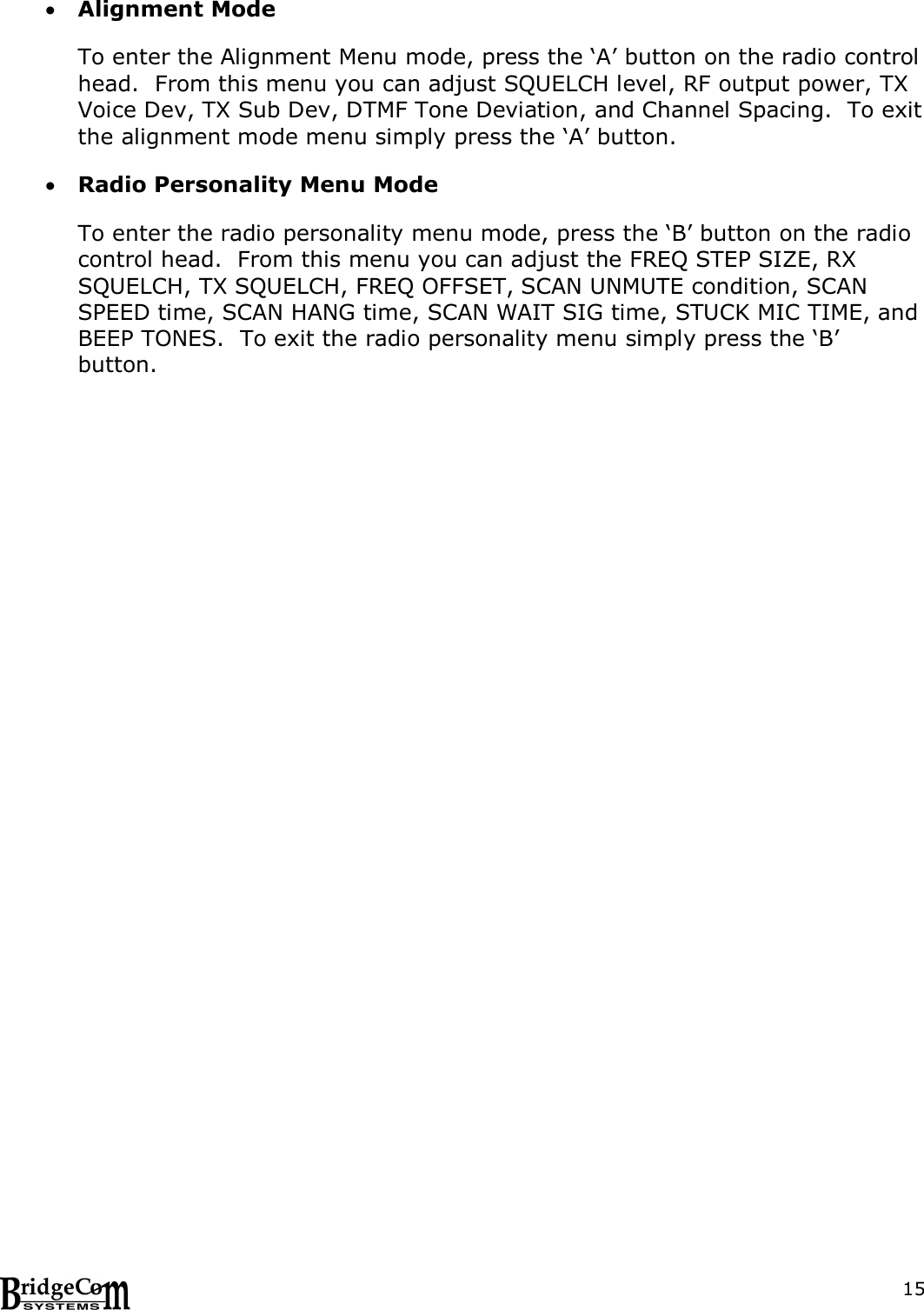

15 Alignment Mode To enter the Alignment Menu mode, press the ‘A’ button on the radio control head. From this menu you can adjust SQUELCH level, RF output power, TX Voice Dev, TX Sub Dev, DTMF Tone Deviation, and Channel Spacing. To exit the alignment mode menu simply press the ‘A’ button.  Radio Personality Menu Mode To enter the radio personality menu mode, press the ‘B’ button on the radio control head. From this menu you can adjust the FREQ STEP SIZE, RX SQUELCH, TX SQUELCH, FREQ OFFSET, SCAN UNMUTE condition, SCAN SPEED time, SCAN HANG time, SCAN WAIT SIG time, STUCK MIC TIME, and BEEP TONES. To exit the radio personality menu simply press the ‘B’ button.

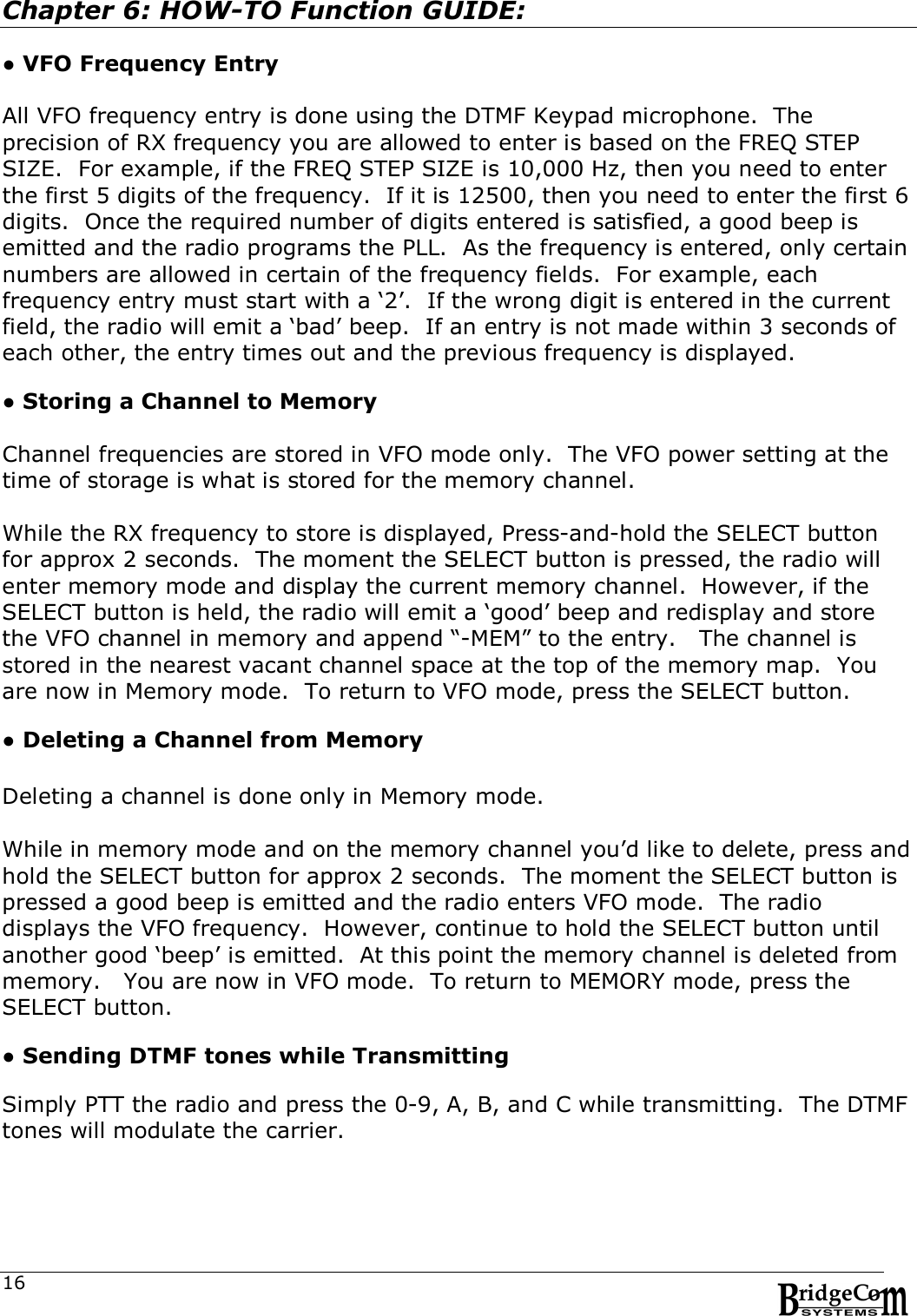

16Chapter 6: HOW-TO Function GUIDE: ● VFO Frequency Entry All VFO frequency entry is done using the DTMF Keypad microphone. The precision of RX frequency you are allowed to enter is based on the FREQ STEP SIZE. For example, if the FREQ STEP SIZE is 10,000 Hz, then you need to enter the first 5 digits of the frequency. If it is 12500, then you need to enter the first 6 digits. Once the required number of digits entered is satisfied, a good beep is emitted and the radio programs the PLL. As the frequency is entered, only certain numbers are allowed in certain of the frequency fields. For example, each frequency entry must start with a ‘2’. If the wrong digit is entered in the current field, the radio will emit a ‘bad’ beep. If an entry is not made within 3 seconds of each other, the entry times out and the previous frequency is displayed. ● Storing a Channel to Memory Channel frequencies are stored in VFO mode only. The VFO power setting at the time of storage is what is stored for the memory channel. While the RX frequency to store is displayed, Press-and-hold the SELECT button for approx 2 seconds. The moment the SELECT button is pressed, the radio will enter memory mode and display the current memory channel. However, if the SELECT button is held, the radio will emit a ‘good’ beep and redisplay and store the VFO channel in memory and append “-MEM” to the entry. The channel is stored in the nearest vacant channel space at the top of the memory map. You are now in Memory mode. To return to VFO mode, press the SELECT button. ● Deleting a Channel from Memory Deleting a channel is done only in Memory mode. While in memory mode and on the memory channel you’d like to delete, press and hold the SELECT button for approx 2 seconds. The moment the SELECT button is pressed a good beep is emitted and the radio enters VFO mode. The radio displays the VFO frequency. However, continue to hold the SELECT button until another good ‘beep’ is emitted. At this point the memory channel is deleted from memory. You are now in VFO mode. To return to MEMORY mode, press the SELECT button. ● Sending DTMF tones while Transmitting Simply PTT the radio and press the 0-9, A, B, and C while transmitting. The DTMF tones will modulate the carrier.

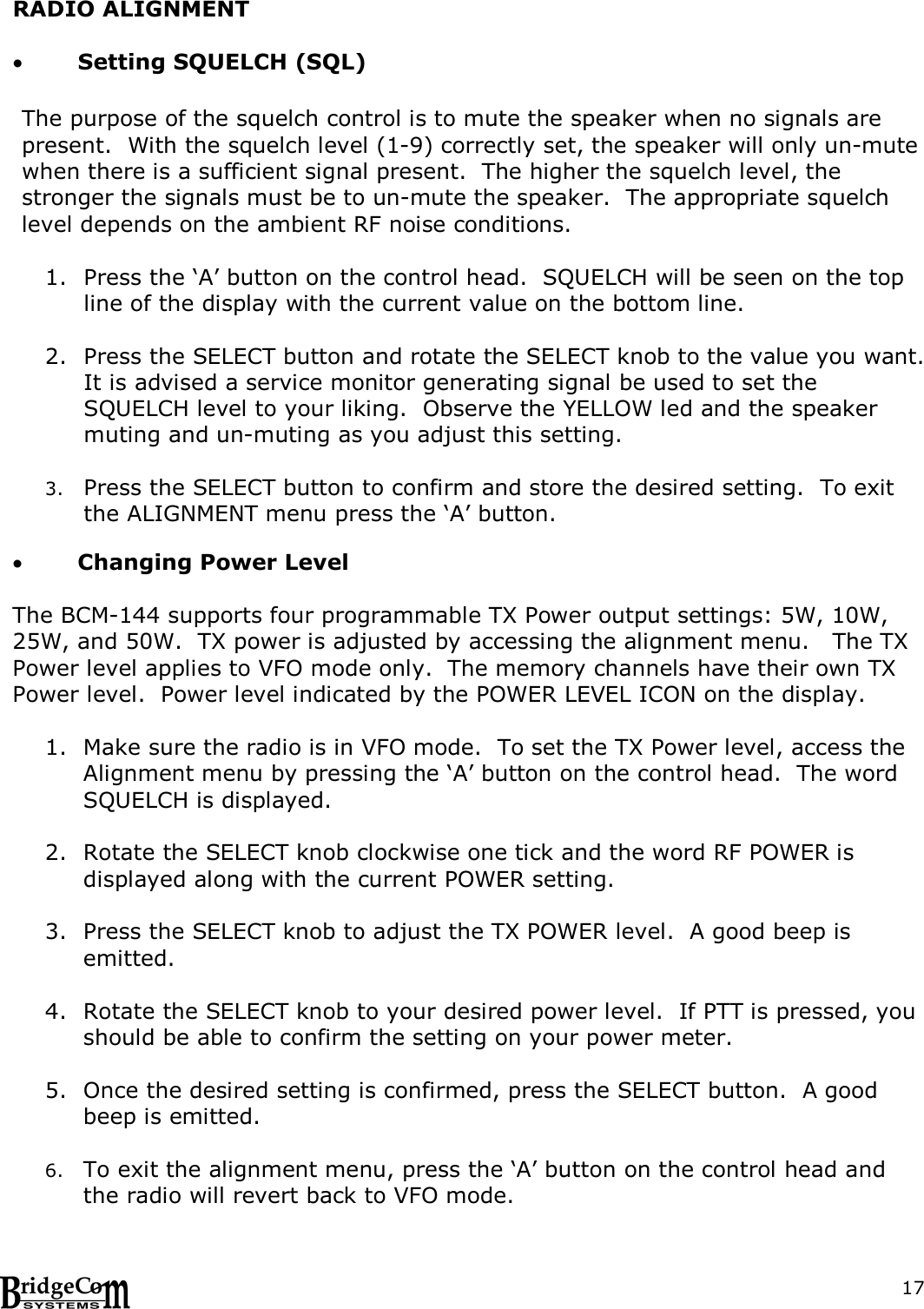

17RADIO ALIGNMENT  Setting SQUELCH (SQL) The purpose of the squelch control is to mute the speaker when no signals are present. With the squelch level (1-9) correctly set, the speaker will only un-mute when there is a sufficient signal present. The higher the squelch level, the stronger the signals must be to un-mute the speaker. The appropriate squelch level depends on the ambient RF noise conditions. 1. Press the ‘A’ button on the control head. SQUELCH will be seen on the top line of the display with the current value on the bottom line. 2. Press the SELECT button and rotate the SELECT knob to the value you want. It is advised a service monitor generating signal be used to set the SQUELCH level to your liking. Observe the YELLOW led and the speaker muting and un-muting as you adjust this setting. 3. Press the SELECT button to confirm and store the desired setting. To exit the ALIGNMENT menu press the ‘A’ button.  Changing Power Level The BCM-144 supports four programmable TX Power output settings: 5W, 10W, 25W, and 50W. TX power is adjusted by accessing the alignment menu. The TX Power level applies to VFO mode only. The memory channels have their own TX Power level. Power level indicated by the POWER LEVEL ICON on the display. 1. Make sure the radio is in VFO mode. To set the TX Power level, access the Alignment menu by pressing the ‘A’ button on the control head. The word SQUELCH is displayed. 2. Rotate the SELECT knob clockwise one tick and the word RF POWER is displayed along with the current POWER setting. 3. Press the SELECT knob to adjust the TX POWER level. A good beep is emitted. 4. Rotate the SELECT knob to your desired power level. If PTT is pressed, you should be able to confirm the setting on your power meter. 5. Once the desired setting is confirmed, press the SELECT button. A good beep is emitted. 6. To exit the alignment menu, press the ‘A’ button on the control head and the radio will revert back to VFO mode.

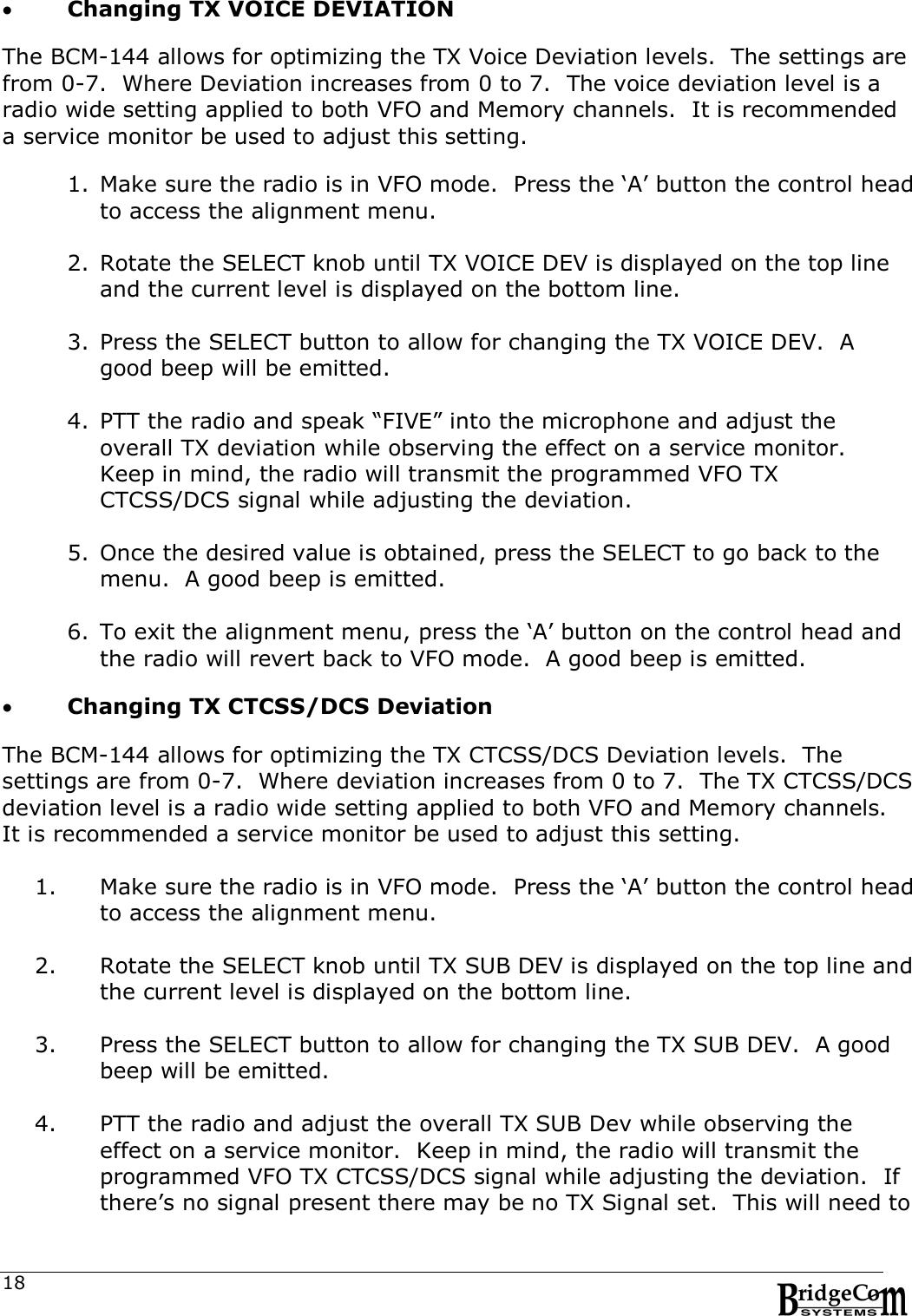

18 Changing TX VOICE DEVIATION The BCM-144 allows for optimizing the TX Voice Deviation levels. The settings are from 0-7. Where Deviation increases from 0 to 7. The voice deviation level is a radio wide setting applied to both VFO and Memory channels. It is recommended a service monitor be used to adjust this setting. 1. Make sure the radio is in VFO mode. Press the ‘A’ button the control head to access the alignment menu. 2. Rotate the SELECT knob until TX VOICE DEV is displayed on the top line and the current level is displayed on the bottom line. 3. Press the SELECT button to allow for changing the TX VOICE DEV. A good beep will be emitted. 4. PTT the radio and speak “FIVE” into the microphone and adjust the overall TX deviation while observing the effect on a service monitor. Keep in mind, the radio will transmit the programmed VFO TX CTCSS/DCS signal while adjusting the deviation. 5. Once the desired value is obtained, press the SELECT to go back to the menu. A good beep is emitted. 6. To exit the alignment menu, press the ‘A’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing TX CTCSS/DCS Deviation The BCM-144 allows for optimizing the TX CTCSS/DCS Deviation levels. The settings are from 0-7. Where deviation increases from 0 to 7. The TX CTCSS/DCS deviation level is a radio wide setting applied to both VFO and Memory channels. It is recommended a service monitor be used to adjust this setting. 1. Make sure the radio is in VFO mode. Press the ‘A’ button the control head to access the alignment menu. 2. Rotate the SELECT knob until TX SUB DEV is displayed on the top line and the current level is displayed on the bottom line. 3. Press the SELECT button to allow for changing the TX SUB DEV. A good beep will be emitted. 4. PTT the radio and adjust the overall TX SUB Dev while observing the effect on a service monitor. Keep in mind, the radio will transmit the programmed VFO TX CTCSS/DCS signal while adjusting the deviation. If there’s no signal present there may be no TX Signal set. This will need to

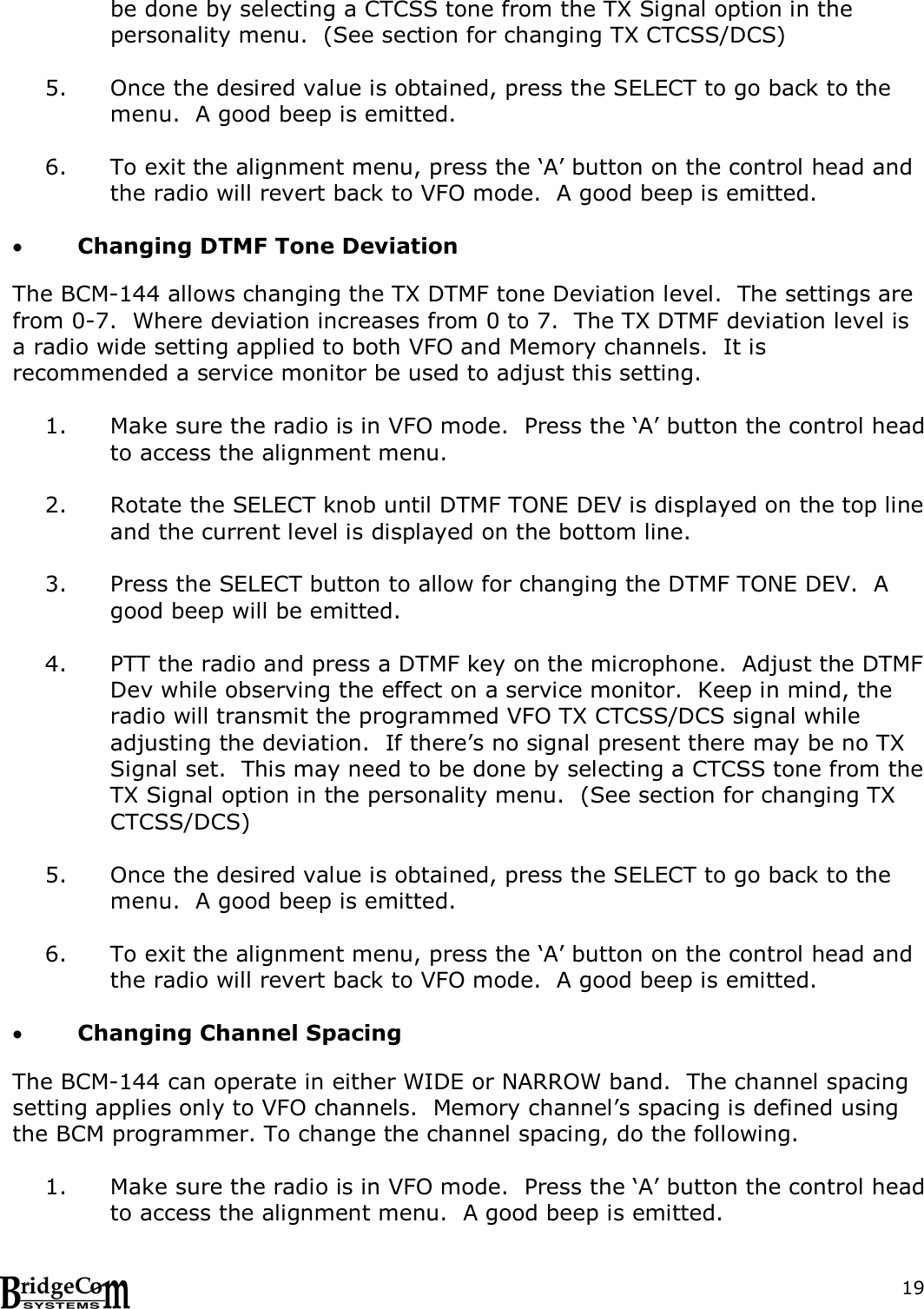

19be done by selecting a CTCSS tone from the TX Signal option in the personality menu. (See section for changing TX CTCSS/DCS) 5. Once the desired value is obtained, press the SELECT to go back to the menu. A good beep is emitted. 6. To exit the alignment menu, press the ‘A’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing DTMF Tone Deviation The BCM-144 allows changing the TX DTMF tone Deviation level. The settings are from 0-7. Where deviation increases from 0 to 7. The TX DTMF deviation level is a radio wide setting applied to both VFO and Memory channels. It is recommended a service monitor be used to adjust this setting. 1. Make sure the radio is in VFO mode. Press the ‘A’ button the control head to access the alignment menu. 2. Rotate the SELECT knob until DTMF TONE DEV is displayed on the top line and the current level is displayed on the bottom line. 3. Press the SELECT button to allow for changing the DTMF TONE DEV. A good beep will be emitted. 4. PTT the radio and press a DTMF key on the microphone. Adjust the DTMF Dev while observing the effect on a service monitor. Keep in mind, the radio will transmit the programmed VFO TX CTCSS/DCS signal while adjusting the deviation. If there’s no signal present there may be no TX Signal set. This may need to be done by selecting a CTCSS tone from the TX Signal option in the personality menu. (See section for changing TX CTCSS/DCS) 5. Once the desired value is obtained, press the SELECT to go back to the menu. A good beep is emitted. 6. To exit the alignment menu, press the ‘A’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing Channel Spacing The BCM-144 can operate in either WIDE or NARROW band. The channel spacing setting applies only to VFO channels. Memory channel’s spacing is defined using the BCM programmer. To change the channel spacing, do the following. 1. Make sure the radio is in VFO mode. Press the ‘A’ button the control head to access the alignment menu. A good beep is emitted.

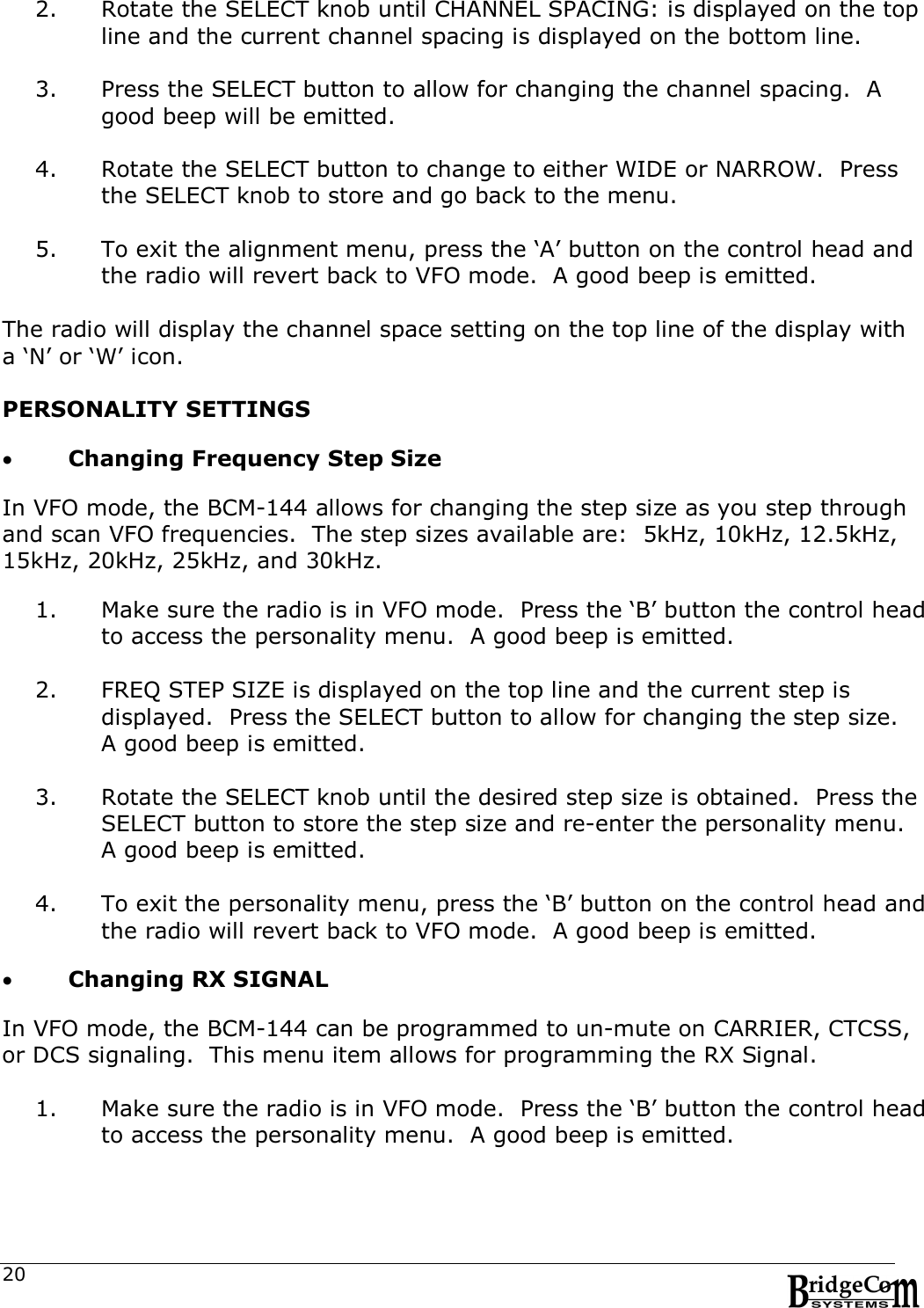

20 2. Rotate the SELECT knob until CHANNEL SPACING: is displayed on the top line and the current channel spacing is displayed on the bottom line. 3. Press the SELECT button to allow for changing the channel spacing. A good beep will be emitted. 4. Rotate the SELECT button to change to either WIDE or NARROW. Press the SELECT knob to store and go back to the menu. 5. To exit the alignment menu, press the ‘A’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted. The radio will display the channel space setting on the top line of the display with a ‘N’ or ‘W’ icon. PERSONALITY SETTINGS  Changing Frequency Step Size In VFO mode, the BCM-144 allows for changing the step size as you step through and scan VFO frequencies. The step sizes available are: 5kHz, 10kHz, 12.5kHz, 15kHz, 20kHz, 25kHz, and 30kHz. 1. Make sure the radio is in VFO mode. Press the ‘B’ button the control head to access the personality menu. A good beep is emitted. 2. FREQ STEP SIZE is displayed on the top line and the current step is displayed. Press the SELECT button to allow for changing the step size. A good beep is emitted. 3. Rotate the SELECT knob until the desired step size is obtained. Press the SELECT button to store the step size and re-enter the personality menu. A good beep is emitted. 4. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing RX SIGNAL In VFO mode, the BCM-144 can be programmed to un-mute on CARRIER, CTCSS, or DCS signaling. This menu item allows for programming the RX Signal. 1. Make sure the radio is in VFO mode. Press the ‘B’ button the control head to access the personality menu. A good beep is emitted.

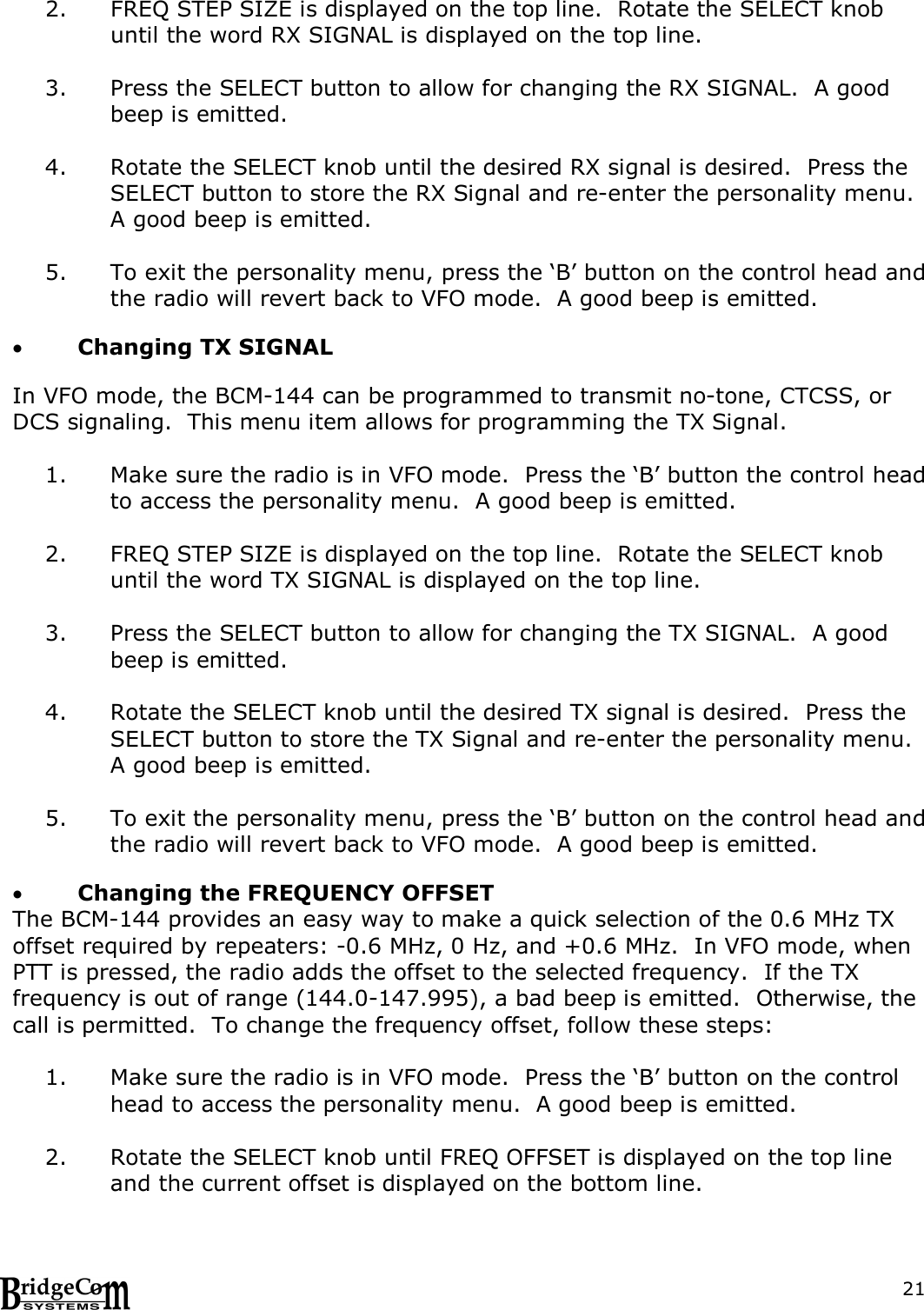

212. FREQ STEP SIZE is displayed on the top line. Rotate the SELECT knob until the word RX SIGNAL is displayed on the top line. 3. Press the SELECT button to allow for changing the RX SIGNAL. A good beep is emitted. 4. Rotate the SELECT knob until the desired RX signal is desired. Press the SELECT button to store the RX Signal and re-enter the personality menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing TX SIGNAL In VFO mode, the BCM-144 can be programmed to transmit no-tone, CTCSS, or DCS signaling. This menu item allows for programming the TX Signal. 1. Make sure the radio is in VFO mode. Press the ‘B’ button the control head to access the personality menu. A good beep is emitted. 2. FREQ STEP SIZE is displayed on the top line. Rotate the SELECT knob until the word TX SIGNAL is displayed on the top line. 3. Press the SELECT button to allow for changing the TX SIGNAL. A good beep is emitted. 4. Rotate the SELECT knob until the desired TX signal is desired. Press the SELECT button to store the TX Signal and re-enter the personality menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing the FREQUENCY OFFSET The BCM-144 provides an easy way to make a quick selection of the 0.6 MHz TX offset required by repeaters: -0.6 MHz, 0 Hz, and +0.6 MHz. In VFO mode, when PTT is pressed, the radio adds the offset to the selected frequency. If the TX frequency is out of range (144.0-147.995), a bad beep is emitted. Otherwise, the call is permitted. To change the frequency offset, follow these steps: 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. A good beep is emitted. 2. Rotate the SELECT knob until FREQ OFFSET is displayed on the top line and the current offset is displayed on the bottom line.

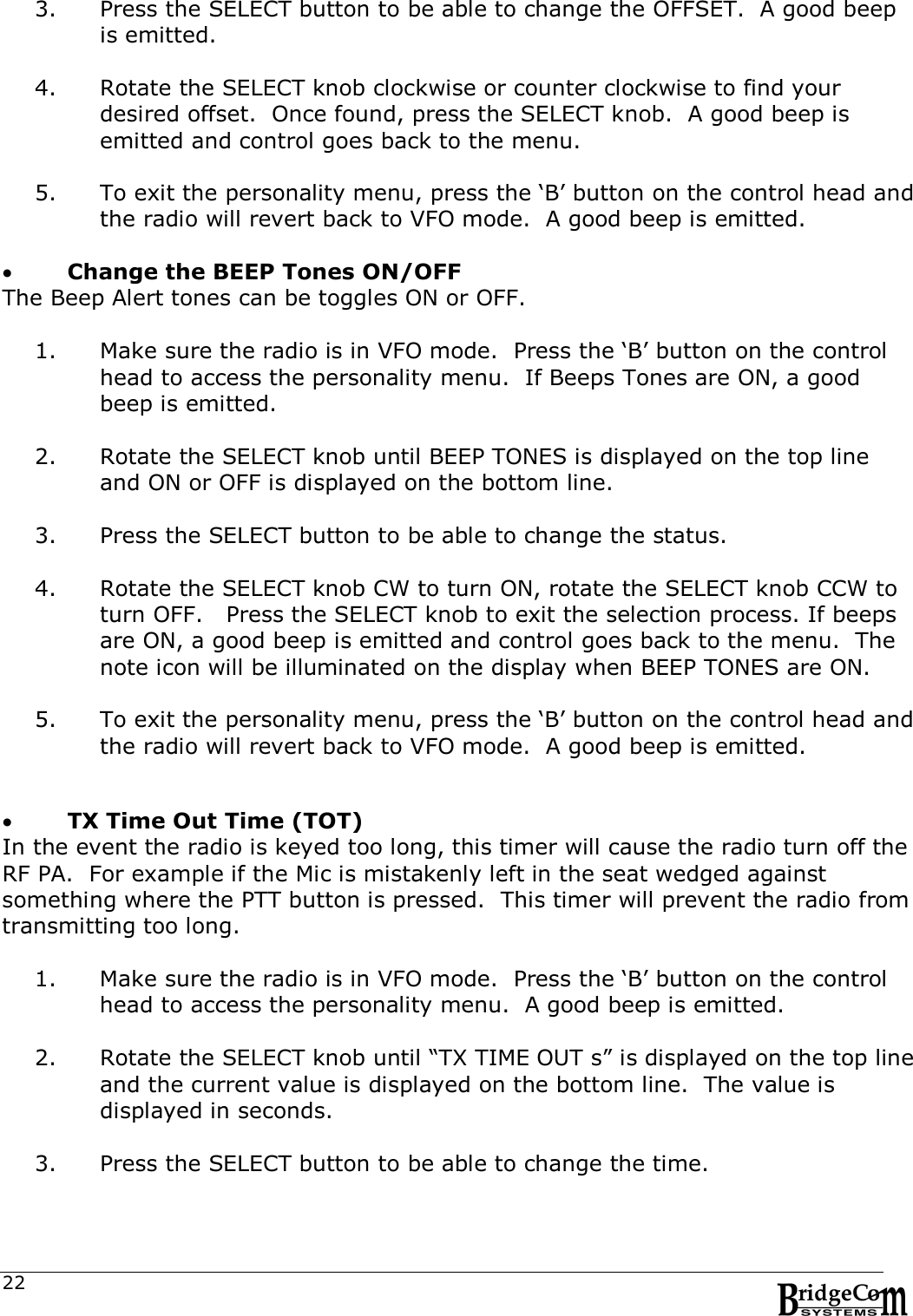

223. Press the SELECT button to be able to change the OFFSET. A good beep is emitted. 4. Rotate the SELECT knob clockwise or counter clockwise to find your desired offset. Once found, press the SELECT knob. A good beep is emitted and control goes back to the menu. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Change the BEEP Tones ON/OFF The Beep Alert tones can be toggles ON or OFF. 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. If Beeps Tones are ON, a good beep is emitted. 2. Rotate the SELECT knob until BEEP TONES is displayed on the top line and ON or OFF is displayed on the bottom line. 3. Press the SELECT button to be able to change the status. 4. Rotate the SELECT knob CW to turn ON, rotate the SELECT knob CCW to turn OFF. Press the SELECT knob to exit the selection process. If beeps are ON, a good beep is emitted and control goes back to the menu. The note icon will be illuminated on the display when BEEP TONES are ON. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  TX Time Out Time (TOT) In the event the radio is keyed too long, this timer will cause the radio turn off the RF PA. For example if the Mic is mistakenly left in the seat wedged against something where the PTT button is pressed. This timer will prevent the radio from transmitting too long. 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. A good beep is emitted. 2. Rotate the SELECT knob until “TX TIME OUT s” is displayed on the top line and the current value is displayed on the bottom line. The value is displayed in seconds. 3. Press the SELECT button to be able to change the time.

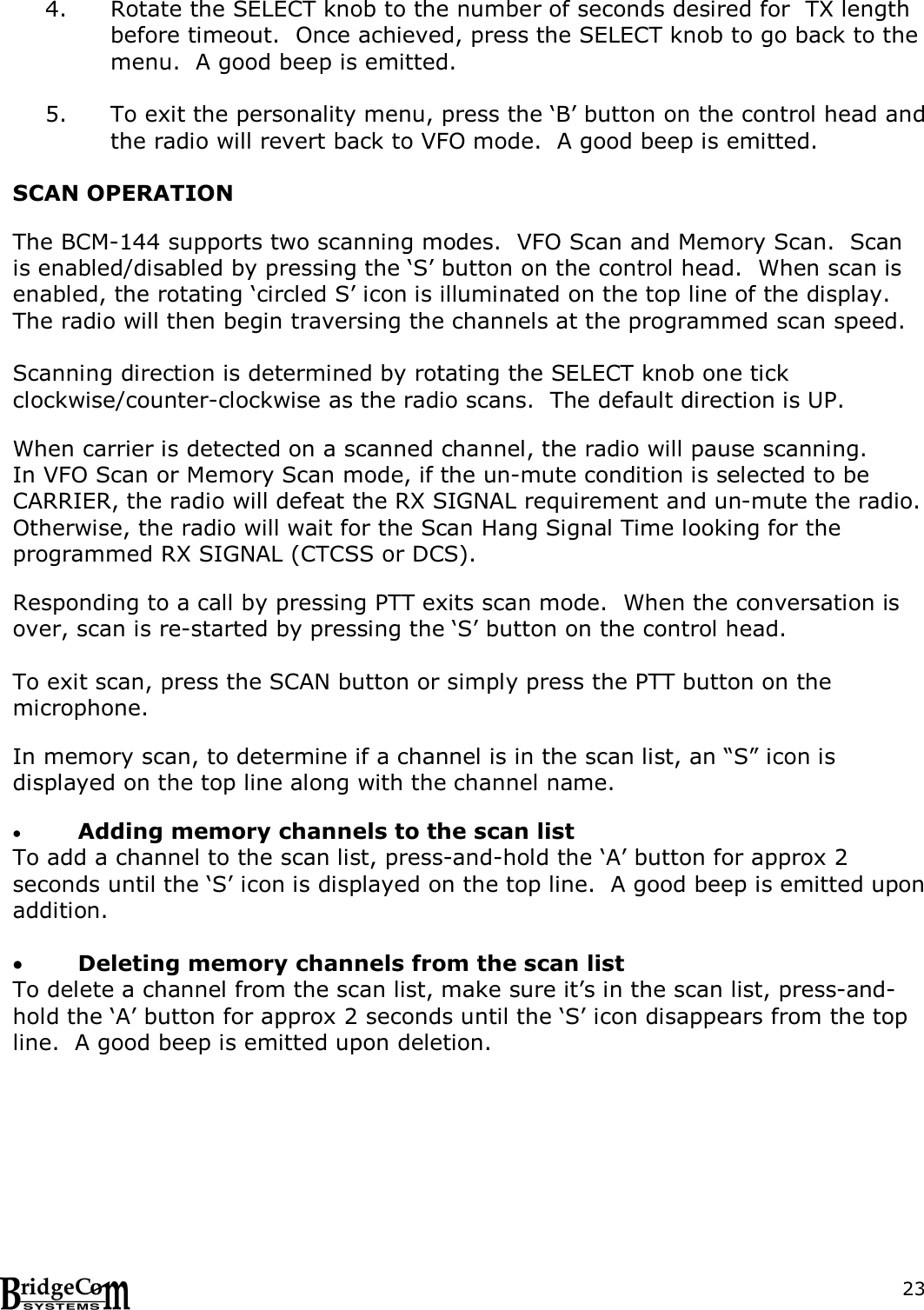

234. Rotate the SELECT knob to the number of seconds desired for TX length before timeout. Once achieved, press the SELECT knob to go back to the menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted. SCAN OPERATION The BCM-144 supports two scanning modes. VFO Scan and Memory Scan. Scan is enabled/disabled by pressing the ‘S’ button on the control head. When scan is enabled, the rotating ‘circled S’ icon is illuminated on the top line of the display. The radio will then begin traversing the channels at the programmed scan speed. Scanning direction is determined by rotating the SELECT knob one tick clockwise/counter-clockwise as the radio scans. The default direction is UP. When carrier is detected on a scanned channel, the radio will pause scanning. In VFO Scan or Memory Scan mode, if the un-mute condition is selected to be CARRIER, the radio will defeat the RX SIGNAL requirement and un-mute the radio. Otherwise, the radio will wait for the Scan Hang Signal Time looking for the programmed RX SIGNAL (CTCSS or DCS). Responding to a call by pressing PTT exits scan mode. When the conversation is over, scan is re-started by pressing the ‘S’ button on the control head. To exit scan, press the SCAN button or simply press the PTT button on the microphone. In memory scan, to determine if a channel is in the scan list, an “S” icon is displayed on the top line along with the channel name.  Adding memory channels to the scan list To add a channel to the scan list, press-and-hold the ‘A’ button for approx 2 seconds until the ‘S’ icon is displayed on the top line. A good beep is emitted upon addition.  Deleting memory channels from the scan list To delete a channel from the scan list, make sure it’s in the scan list, press-and-hold the ‘A’ button for approx 2 seconds until the ‘S’ icon disappears from the top line. A good beep is emitted upon deletion.

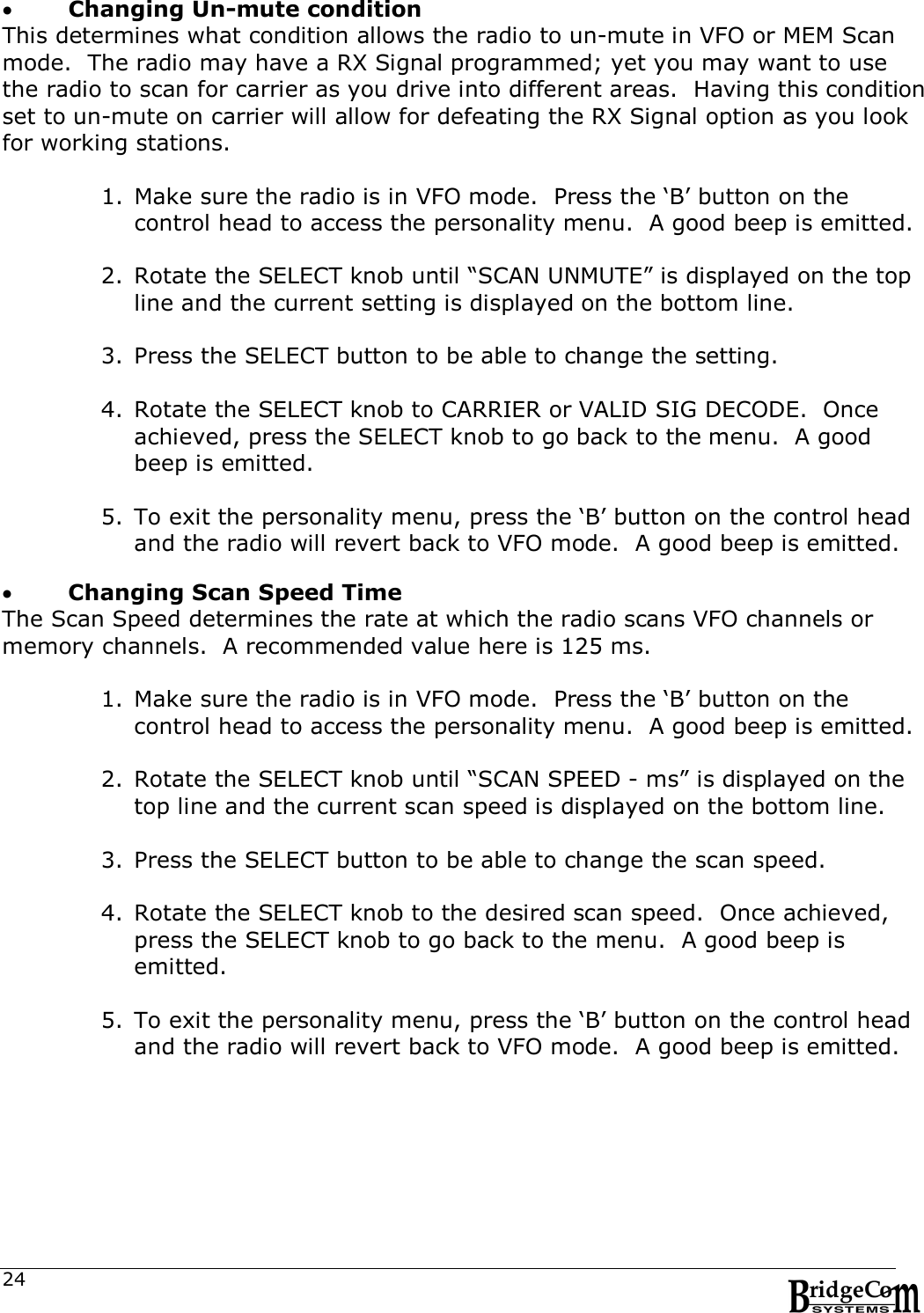

24  Changing Un-mute condition This determines what condition allows the radio to un-mute in VFO or MEM Scan mode. The radio may have a RX Signal programmed; yet you may want to use the radio to scan for carrier as you drive into different areas. Having this condition set to un-mute on carrier will allow for defeating the RX Signal option as you look for working stations. 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. A good beep is emitted. 2. Rotate the SELECT knob until “SCAN UNMUTE” is displayed on the top line and the current setting is displayed on the bottom line. 3. Press the SELECT button to be able to change the setting. 4. Rotate the SELECT knob to CARRIER or VALID SIG DECODE. Once achieved, press the SELECT knob to go back to the menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing Scan Speed Time The Scan Speed determines the rate at which the radio scans VFO channels or memory channels. A recommended value here is 125 ms. 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. A good beep is emitted. 2. Rotate the SELECT knob until “SCAN SPEED - ms” is displayed on the top line and the current scan speed is displayed on the bottom line. 3. Press the SELECT button to be able to change the scan speed. 4. Rotate the SELECT knob to the desired scan speed. Once achieved, press the SELECT knob to go back to the menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.

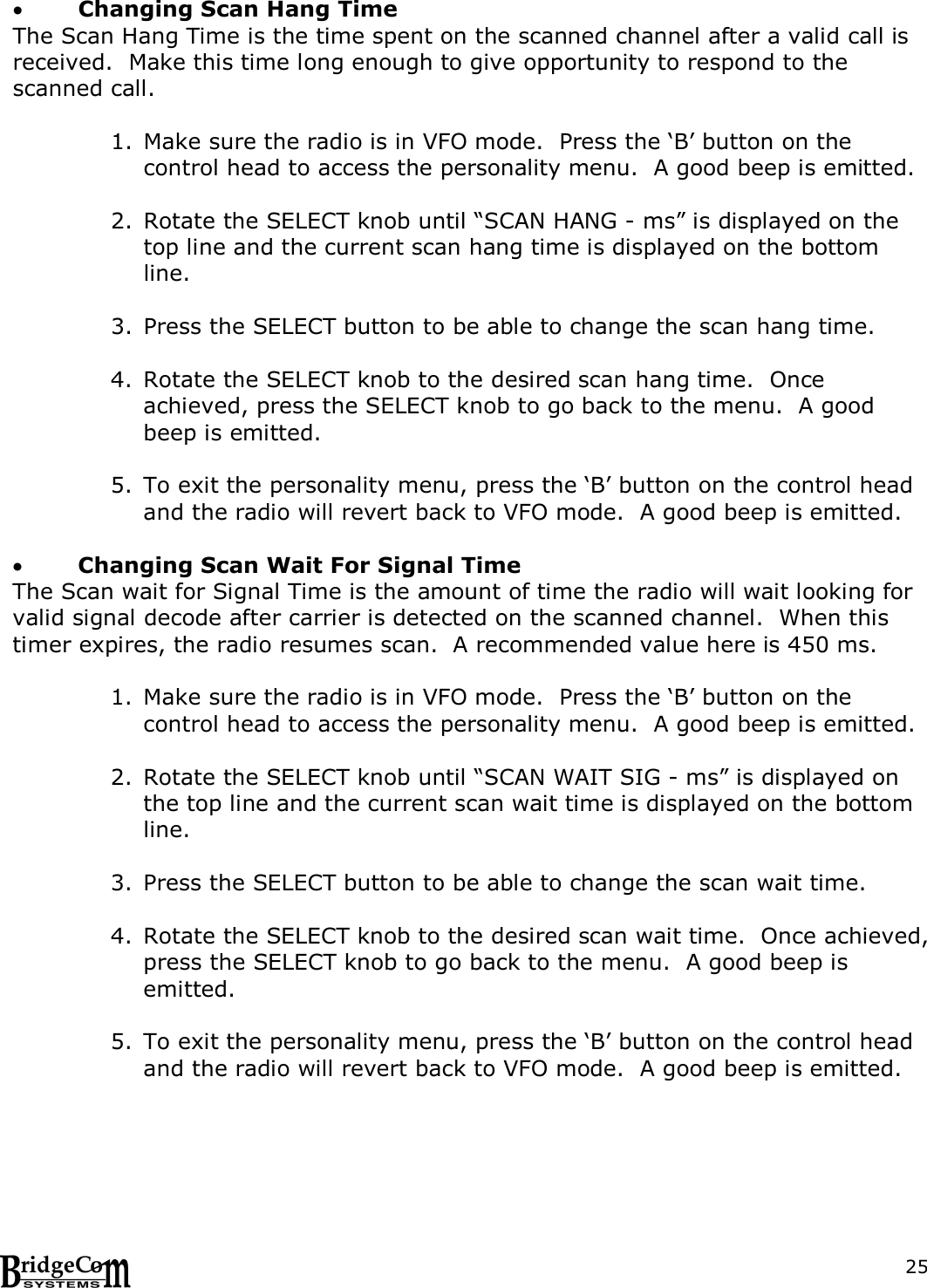

25  Changing Scan Hang Time The Scan Hang Time is the time spent on the scanned channel after a valid call is received. Make this time long enough to give opportunity to respond to the scanned call. 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. A good beep is emitted. 2. Rotate the SELECT knob until “SCAN HANG - ms” is displayed on the top line and the current scan hang time is displayed on the bottom line. 3. Press the SELECT button to be able to change the scan hang time. 4. Rotate the SELECT knob to the desired scan hang time. Once achieved, press the SELECT knob to go back to the menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.  Changing Scan Wait For Signal Time The Scan wait for Signal Time is the amount of time the radio will wait looking for valid signal decode after carrier is detected on the scanned channel. When this timer expires, the radio resumes scan. A recommended value here is 450 ms. 1. Make sure the radio is in VFO mode. Press the ‘B’ button on the control head to access the personality menu. A good beep is emitted. 2. Rotate the SELECT knob until “SCAN WAIT SIG - ms” is displayed on the top line and the current scan wait time is displayed on the bottom line. 3. Press the SELECT button to be able to change the scan wait time. 4. Rotate the SELECT knob to the desired scan wait time. Once achieved, press the SELECT knob to go back to the menu. A good beep is emitted. 5. To exit the personality menu, press the ‘B’ button on the control head and the radio will revert back to VFO mode. A good beep is emitted.

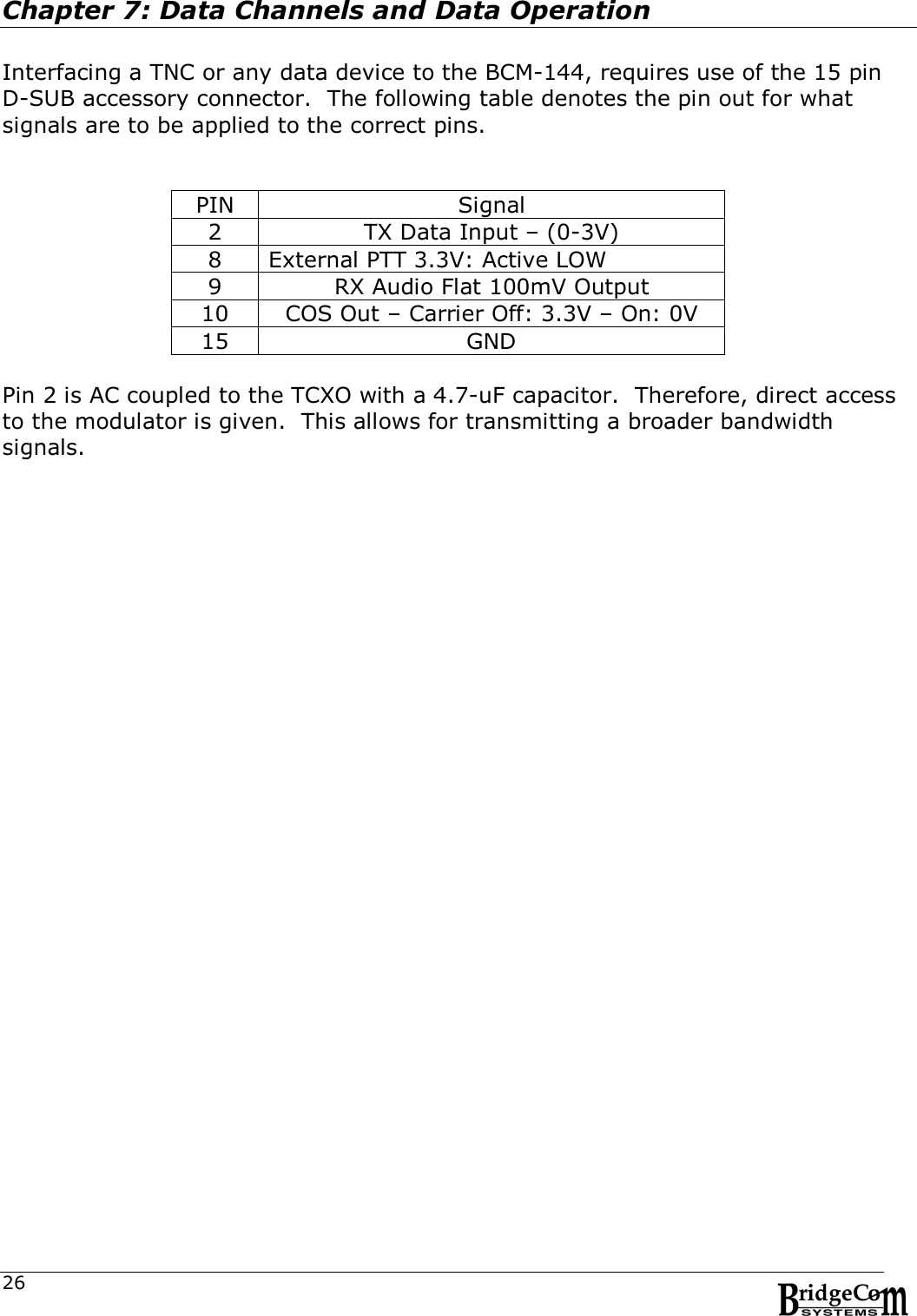

26Chapter 7: Data Channels and Data Operation Interfacing a TNC or any data device to the BCM-144, requires use of the 15 pin D-SUB accessory connector. The following table denotes the pin out for what signals are to be applied to the correct pins. PIN Signal 2 TX Data Input – (0-3V) 8 External PTT 3.3V: Active LOW 9 RX Audio Flat 100mV Output 10 COS Out – Carrier Off: 3.3V – On: 0V 15 GND Pin 2 is AC coupled to the TCXO with a 4.7-uF capacitor. Therefore, direct access to the modulator is given. This allows for transmitting a broader bandwidth signals.

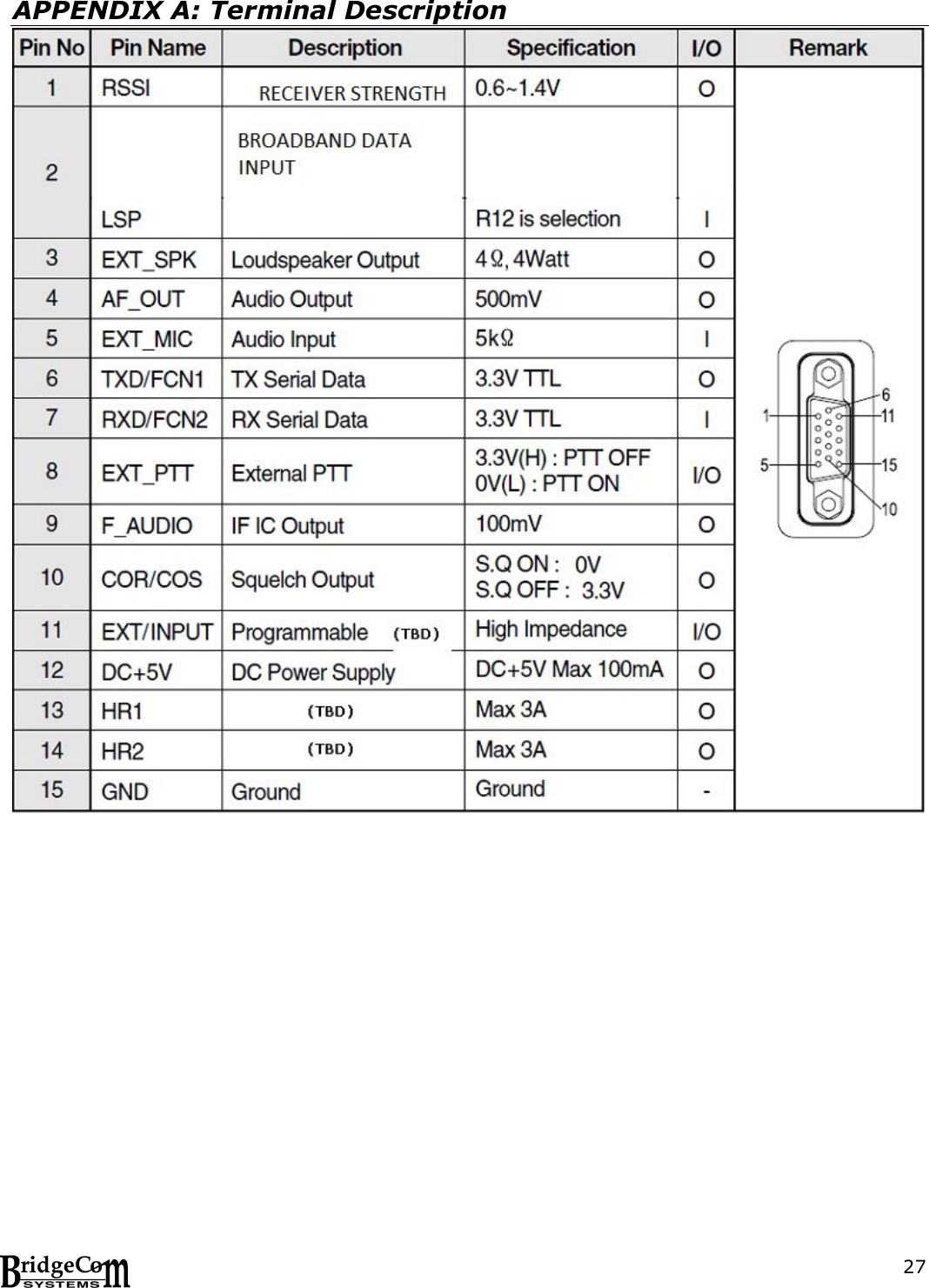

27 APPENDIX A: Terminal Description

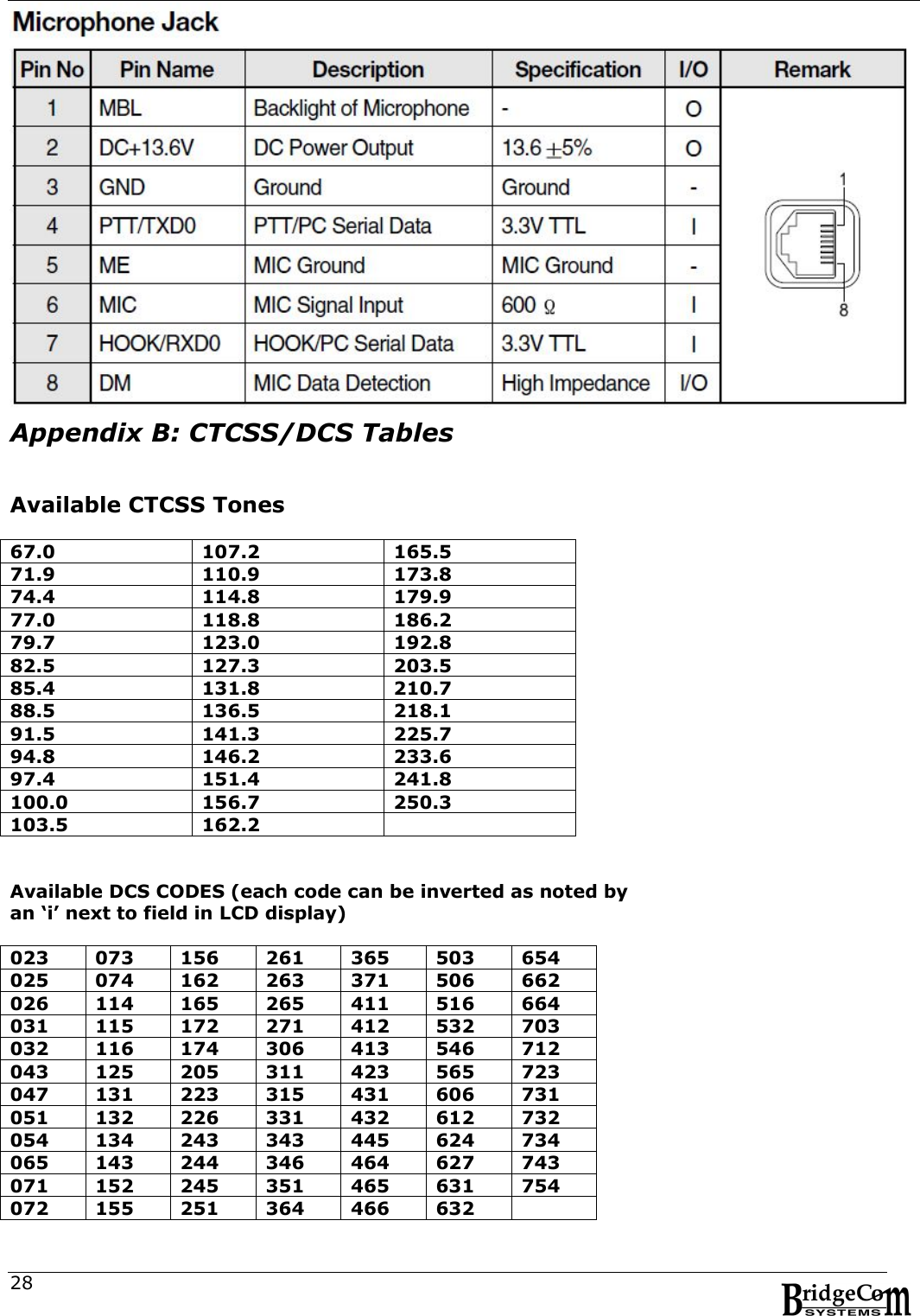

28 Appendix B: CTCSS/DCS Tables Available CTCSS Tones 67.0 107.2 165.5 71.9 110.9 173.8 74.4 114.8 179.9 77.0 118.8 186.2 79.7 123.0 192.8 82.5 127.3 203.5 85.4 131.8 210.7 88.5 136.5 218.1 91.5 141.3 225.7 94.8 146.2 233.6 97.4 151.4 241.8 100.0 156.7 250.3 103.5 162.2 Available DCS CODES (each code can be inverted as noted by an ‘i’ next to field in LCD display) 023 073 156 261 365 503 654 025 074 162 263 371 506 662 026 114 165 265 411 516 664 031 115 172 271 412 532 703 032 116 174 306 413 546 712 043 125 205 311 423 565 723 047 131 223 315 431 606 731 051 132 226 331 432 612 732 054 134 243 343 445 624 734 065 143 244 346 464 627 743 071 152 245 351 465 631 754 072 155 251 364 466 632

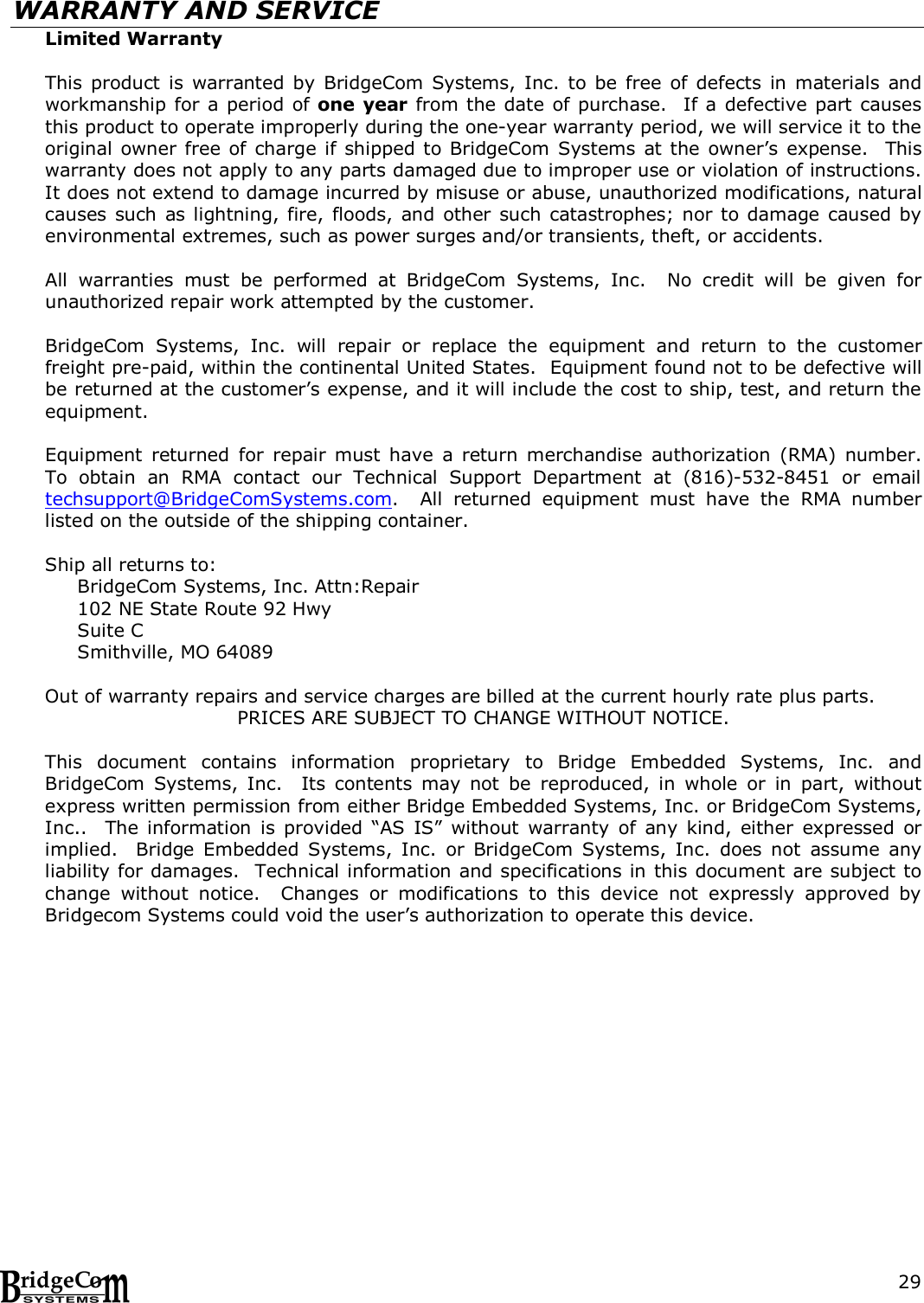

29WARRANTY AND SERVICE Limited Warranty This product is warranted by BridgeCom Systems, Inc. to be free of defects in materials and workmanship for a period of one year from the date of purchase. If a defective part causes this product to operate improperly during the one-year warranty period, we will service it to the original owner free of charge if shipped to BridgeCom Systems at the owner’s expense. This warranty does not apply to any parts damaged due to improper use or violation of instructions. It does not extend to damage incurred by misuse or abuse, unauthorized modifications, natural causes such as lightning, fire, floods, and other such catastrophes; nor to damage caused by environmental extremes, such as power surges and/or transients, theft, or accidents. All warranties must be performed at BridgeCom Systems, Inc. No credit will be given for unauthorized repair work attempted by the customer. BridgeCom Systems, Inc. will repair or replace the equipment and return to the customer freight pre-paid, within the continental United States. Equipment found not to be defective will be returned at the customer’s expense, and it will include the cost to ship, test, and return the equipment. Equipment returned for repair must have a return merchandise authorization (RMA) number. To obtain an RMA contact our Technical Support Department at (816)-532-8451 or email techsupport@BridgeComSystems.com. All returned equipment must have the RMA number listed on the outside of the shipping container. Ship all returns to: BridgeCom Systems, Inc. Attn:Repair 102 NE State Route 92 Hwy Suite C Smithville, MO 64089 Out of warranty repairs and service charges are billed at the current hourly rate plus parts. PRICES ARE SUBJECT TO CHANGE WITHOUT NOTICE. This document contains information proprietary to Bridge Embedded Systems, Inc. and BridgeCom Systems, Inc. Its contents may not be reproduced, in whole or in part, without express written permission from either Bridge Embedded Systems, Inc. or BridgeCom Systems, Inc.. The information is provided “AS IS” without warranty of any kind, either expressed or implied. Bridge Embedded Systems, Inc. or BridgeCom Systems, Inc. does not assume any liability for damages. Technical information and specifications in this document are subject to change without notice. Changes or modifications to this device not expressly approved by Bridgecom Systems could void the user’s authorization to operate this device.

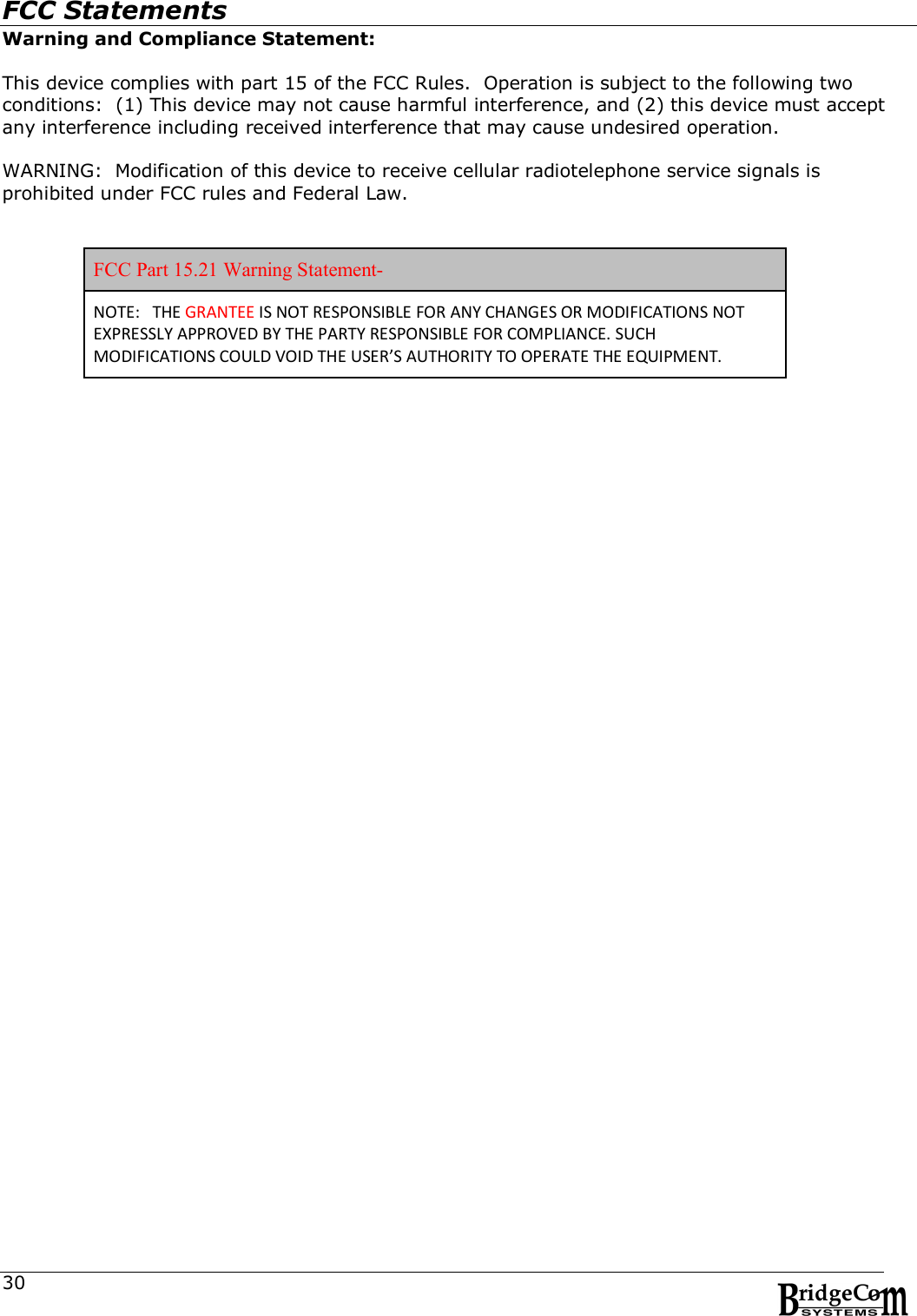

30FCC Statements Warning and Compliance Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference including received interference that may cause undesired operation. WARNING: Modification of this device to receive cellular radiotelephone service signals is prohibited under FCC rules and Federal Law. FCC Part 15.21 Warning Statement- NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

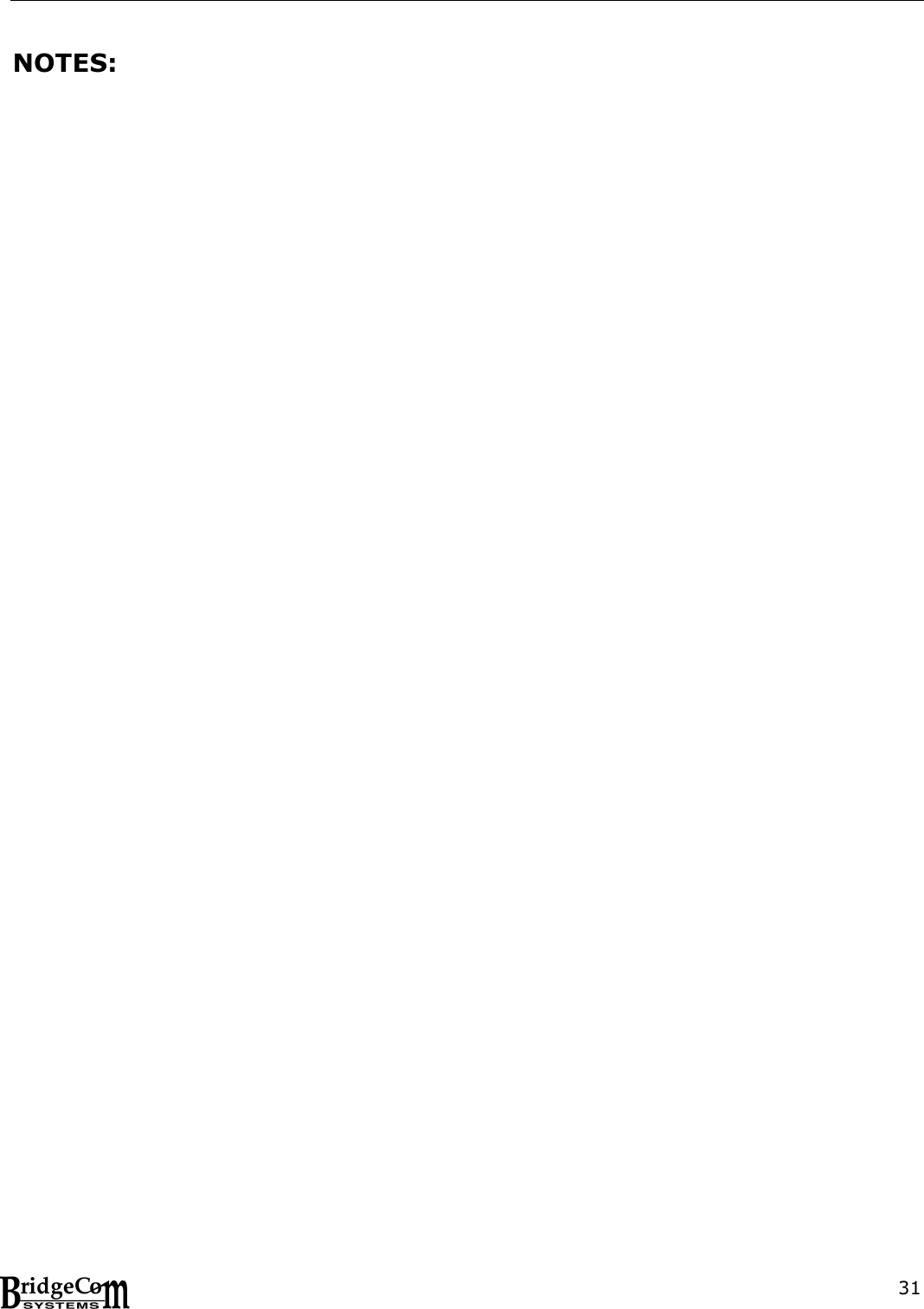

31 NOTES:

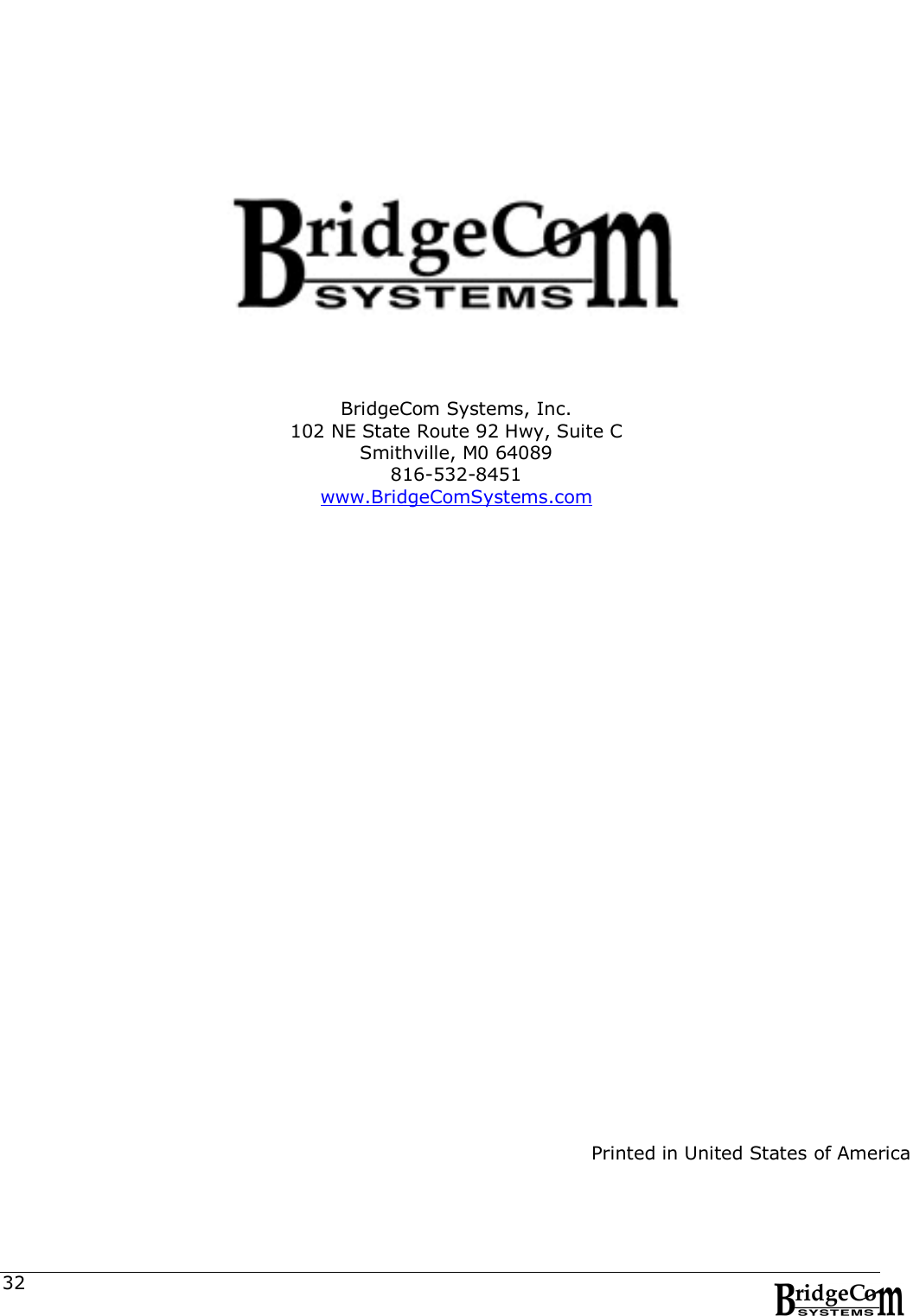

32 BridgeCom Systems, Inc. 102 NE State Route 92 Hwy, Suite C Smithville, M0 64089 816-532-8451 www.BridgeComSystems.com Printed in United States of America
