BridgeWave Communications GE60X Microwave Link User Manual GE60X 050601

BridgeWave Communications, Inc. Microwave Link GE60X 050601

Contents

Product Spec GE60X

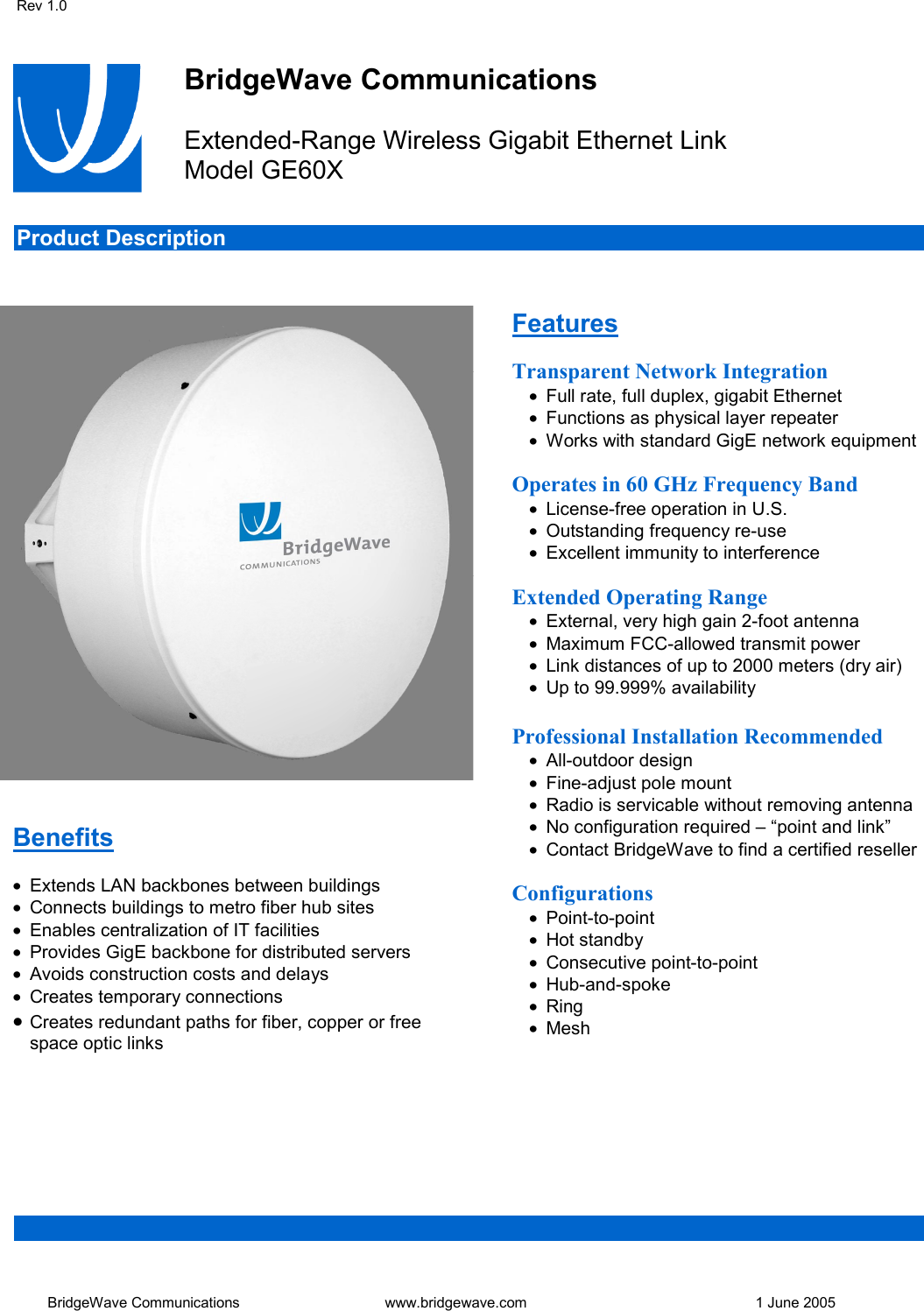

Rev 1.0 BridgeWave Communications www.bridgewave.com 1 June 2005 BridgeWave Communications Extended-Range Wireless Gigabit Ethernet Link Model GE60X Product Description Benefits • Extends LAN backbones between buildings • Connects buildings to metro fiber hub sites • Enables centralization of IT facilities • Provides GigE backbone for distributed servers • Avoids construction costs and delays • Creates temporary connections • Creates redundant paths for fiber, copper or free space optic links Features Transparent Network Integration • Full rate, full duplex, gigabit Ethernet • Functions as physical layer repeater • Works with standard GigE network equipment Operates in 60 GHz Frequency Band • License-free operation in U.S. • Outstanding frequency re-use • Excellent immunity to interference Extended Operating Range • External, very high gain 2-foot antenna • Maximum FCC-allowed transmit power • Link distances of up to 2000 meters (dry air) • Up to 99.999% availability Professional Installation Recommended • All-outdoor design • Fine-adjust pole mount • Radio is servicable without removing antenna • No configuration required – “point and link” • Contact BridgeWave to find a certified reseller Configurations • Point-to-point • Hot standby • Consecutive point-to-point • Hub-and-spoke • Ring • Mesh

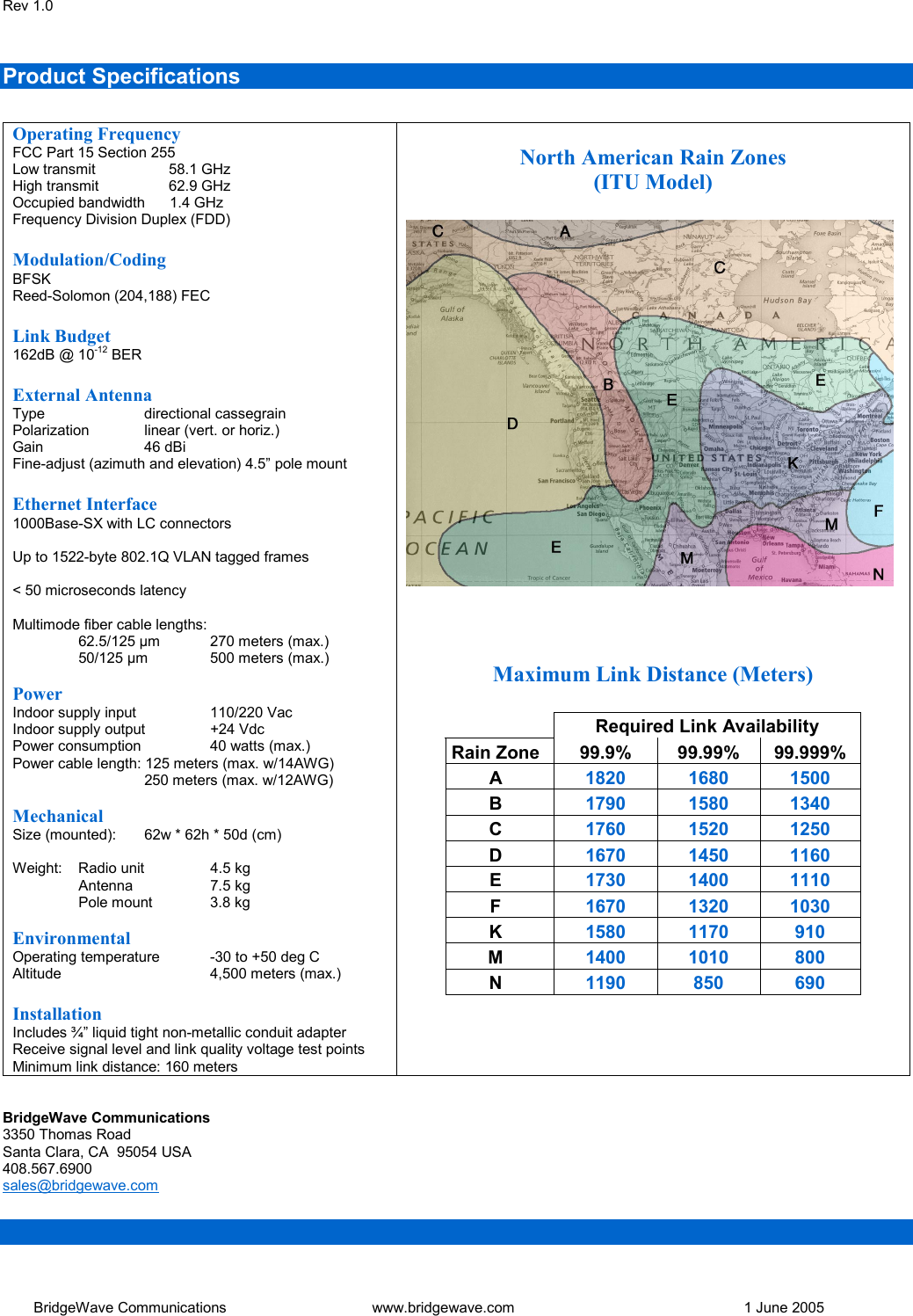

Rev 1.0 BridgeWave Communications www.bridgewave.com 1 June 2005 Product Specifications Operating Frequency FCC Part 15 Section 255 Low transmit 58.1 GHz High transmit 62.9 GHz Occupied bandwidth 1.4 GHz Frequency Division Duplex (FDD) Modulation/Coding BFSK Reed-Solomon (204,188) FEC Link Budget 162dB @ 10-12 BER External Antenna Type directional cassegrain Polarization linear (vert. or horiz.) Gain 46 dBi Fine-adjust (azimuth and elevation) 4.5” pole mount Ethernet Interface 1000Base-SX with LC connectors Up to 1522-byte 802.1Q VLAN tagged frames < 50 microseconds latency Multimode fiber cable lengths: 62.5/125 µm 270 meters (max.) 50/125 µm 500 meters (max.) Power Indoor supply input 110/220 Vac Indoor supply output +24 Vdc Power consumption 40 watts (max.) Power cable length: 125 meters (max. w/14AWG) 250 meters (max. w/12AWG) Mechanical Size (mounted): 62w * 62h * 50d (cm) Weight: Radio unit 4.5 kg Antenna 7.5 kg Pole mount 3.8 kg Environmental Operating temperature -30 to +50 deg C Altitude 4,500 meters (max.) Installation Includes ¾” liquid tight non-metallic conduit adapter Receive signal level and link quality voltage test points Minimum link distance: 160 meters North American Rain Zones (ITU Model) Maximum Link Distance (Meters) Required Link Availability Rain Zone 99.9% 99.99% 99.999% A 1820 1680 1500 B 1790 1580 1340 C 1760 1520 1250 D 1670 1450 1160 E 1730 1400 1110 F 1670 1320 1030 K 1580 1170 910 M 1400 1010 800 N 1190 850 690 BridgeWave Communications 3350 Thomas Road Santa Clara, CA 95054 USA 408.567.6900 sales@bridgewave.com
