Brightstar AGT860 GSM device User Manual
Brightstar Corporation GSM device
User Manual
User Manual
GT860
GSM device
1
PREFACE
WELCOME
Congratulations on the purchase of your GT860 product!
Please retain your original dated sales receipt for your
records.
For warranty service of your GT860 product, you will
need to provide a copy of your dated sales receipt to
confirm warranty status.
Thank you for choosing Avvio product.
Please read important safety instructions
before use.
Read and understand all instructions before
use.
Please retain this guide for future reference.
The information contained in the GT860 user guide is
believed to be correct at the time of printing.
Certain features may not be activated by your service
provider, and/or their network settings may limit the
feature’s functionality. Additionally, certain features may
require a subscription.
Your service provider may have requested that certain
2
features will not appear on your device menu. Your
device may also have customized items such as menu
names, menu order and icons.
Contact your service provider for details.
3
CONTENTS
SAFETY PRECAUTIONS 4
PRECAUTIONS
SAFETY INFORMATION
PACKAGE CONTENTS 10
ABOUT YOUR DEVICES 11
DEVICE OVERVIEW
INSTALLATION
KEY FUNCTION
DISPLAY ICONS
BASIC FUNCTION 14
BASIC OPERATION
USING DEVICE MENUS
MAIN MENU 15
OVERVIEW OF MENU
REFERENCE INFORMATION 16
TECHNICAL INFORMATION
REGULATORY
FCC NOTICE TO USERS
4
SAFETY PRECAUTIONS
PRECAUTIONS
1. Keep the device away from water and damp
areas.
Water or other liquids may cause overheating,
electrical leakage, and failure of the device.
2. Do not try to disassemble the device.
This can cause electric shock and failure of the device.
Tampering will also void the device’s warranty.
3. Put the device in a safe and stable place.
4. Keep away from dust and heat radiation (i.e.
microwaves, stoves, etc.)
5. Try to use the device away from ordinary
teledevices, television sets, radios, and automated
office equipment to avoid interference between the
devices.
6. Use clean soft dry cloth to wipe the device. Do
not use any chemical agents.
7. Do not put the device near explosive or
inflammable materials.
5
8. Use the device only within the temperature
range of -20ºC ~ 40ºC and humidity range of
0%~90%.
9. Keep all accessories or batteries out of the
reach of small children or babies.
Please instruct children the proper ways of handling
device during usage.
Shock circuit or breakdown may occur and may cause
severe danger to user due to improper usage.
6
SAFETY INFORMATION
1. EXPOSURE TO RADIO FREQUENCY (RF)
ENERGY
Your device contains a transmitter and a receiver.
When it is ON, it receives and also sends out radio
frequency (RF) signals. When you communicate with
your device, the system controls the power level at
which your device transmits.
Your device is designed to comply with local
regulatory requirements in your country concerning
exposure of human beings to RF energy.
2. OPERATIONAL PRECAUTIONS
To assure optimal device performance and make sure
human exposure to RF energy is within the guidelines
set forth in the relevant standards; always adhere to
the following procedures.
3. EXTERNAL ANTENNA CARE
Use only the supplied Avvio approved antenna.
Unauthorized antennas, modifications, or attachments
could damage the device.
Do NOT hold the antenna when the device is IN USE.
Holding the antenna affects communication quality
7
and may cause the device to operate at a higher
power level than needed. In addition, use of
unauthorized antennas may result in non-compliance
with the local regulatory requirements in your country.
4. DEVICE OPERATION
To maintain compliance with RF energy exposure
guidelines, ensure the device antenna is at least 1.5
centimeters from your body when transmitting.
5. APPROVED ACCESSORIES
Use of accessories not approved by Avvio, including
but not limited to batteries and antennas, may cause
your device to exceed RF energy exposure guidelines.
6. RF ENERGY INTERFERENCE/
COMPATIBILITIES
Nearly every electronic device is susceptible to RF
energy interference from external sources if
inadequately shielded, designed, or otherwise
configured for RF energy compatibility. In some
circumstances your device may cause interference.
7. MEDICAL DEVICES
1) Pacemakers
Pacemaker manufacturers recommend that a
minimum separation of 10 inches (25centimeters) be
8
maintained between the fixed wireless device and a
pacemaker.
Persons with pacemakers should:
Always keep the device more than 10 inches (25
centimeters) from your pacemaker when the device is
turned ON. Turn OFF the device immediately if you
have any reason to suspect that interference is taking
place.
2) Other Medical Devices
If you use any other personal medical device, consult
the manufacturer of your device to determine if it is
adequately shielded from RF energy. Your physician
may be able to assist you in obtaining this information.
8. BATTERIES
Batteries can cause property damage and / or bodily
injury such as burns if a conductive material such as
jewelry, keys, or beaded chains touches exposed
terminals. The conductive material may complete an
electrical circuit (short circuit) and become quite hot.
Exercise care in handling any charged battery,
particularly when placing it inside a pocket, purse or
other container with metal objects. Use only original
batteries and chargers.
9
Please don’t use any damaged battery or charger and
use the battery only for its intended purpose.
Don’t apply extreme shock to the battery. It’s
dangerous to disassemble a battery or to apply
extreme shock to the battery via nail or heavy metal
objects.
Keep the charger or batteries out of reach of small
children or babies.
Always try to keep the battery between -10 ~ 55
Celsius.
Use only manufacturer approved rechargeable
batteries and charger designated for this devise.
Caution
Risk of explosion if battery replaced aced by an
incorrect type.
Dispose of used batteries according to the
instructions.
10
9. Seizures / Blackouts
Some people may be susceptible to epileptic seizures
or blackouts when exposed to flashing lights, such as
when watching television or playing video games.
These seizures or blackouts may occur even if a
person never had a previous seizure or blackout.
If you experienced seizures or blackouts, or if you
have a family history of such occurrences, please
consult with your doctor.
11
PACKAGE CONTENTS
Transceiver User Manual
Adapter / Charger Battery 1ea
The appearance of the parts in your package
may be different from those in this Manual.
Package contents may vary by market. Please
check with your service provider.
12
ABOUT YOUR DEVICE

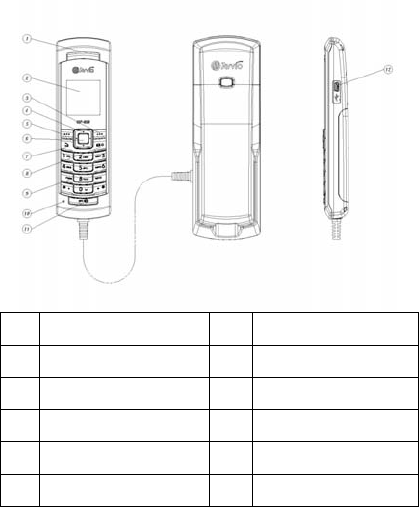

DEVICE OVERVIEW
1 OK key ( upper ) 2 LCD
3 Menu key 4 Left / Right soft key
5 Scroll key 6 OK key ( main )
7 End / Power key 8 Digit key
9 Charging I/O 10 Extra I/O 1
11 Extra I/O 2
13
INSTALLATION

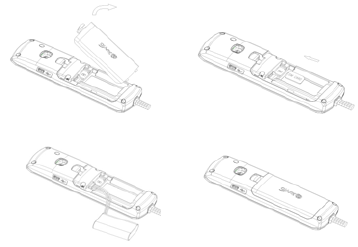

SIM Card and battery installation in the
handset
1. Remove the battery cover.
2. Insert SIM card into the SIM slot in the
right direction
3. Put the rechargeable battery pack to
connector
4. Replace the battery door.
Plugging AC/DC Adapter in device
Connect the adaptor to device
Plugging AC/DC Adapter
Connect the adaptor to AC Wall outlet.
14
Turning Device’s Power On/Off
Press the power key which is on the right of
the front panel for about 3 seconds, the
device will then automatically test whether the
SIM Card is inserted and valid. Wait for the
antenna icon to display indicator bars before
you use.
KEY FUNCTION
[ 1 ] Left / Right Soft Key
Press the left soft or right soft key to perform the
function indicated by the text on the screen
above the key.
[ 2 ] OK key
Confirmation key.
[ 3 ] End key
Press once to exit a function and return to
the idle screen.
[ 4 ] Scroll keys
Press Scroll up key to scroll up.
Press Scroll down key to scroll down.
15

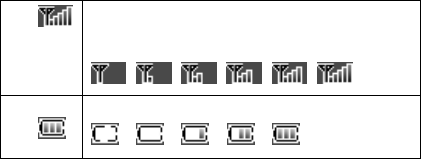

DISPLAY ICONS
The display indicators and icons provide information
about the operation of the device.
The start screen is displayed when the device is
turned ON. Several features can be used only when
the device is at the start screen.
Signal Strength Indicator
Indicate the strength of the network signal
Battery Level indicator
BASIC FUNCTION
BASIC OPERATION
Switching the device ON and OFF
1) To turn on your device, press and hold “End
key” for a few seconds or until the display turns
on.
2) To turn off your device, press and hold “End
key” for a few seconds.
16
MAIN MENU
OVERVIEW OF MENU TREE
Your device’s menu may differ from the following list,
depending on the Network services to which you have
subscribed and the accessories you are using.
If you have any questions, please call your service pr
ovider.
Recharging prepaid SIM and check remain amount.
The recharging will be done by USSD command of
GT860 device.
The USD command will be customized by operator of
local area.
Target mobile phone number +USSD command +
operator`s specific code will be sent to USSD server
of operator.
And server will handle the USSD command from GT8
60 device.
The main key have two function:
1. Sales
A. Sale 20 unit
i. * 118 * 4 * <PIN> * <MSISDN> * 1 * 1 * 1 # SEND
17
B. Sale 30 unit
i. * 118 * 4 * <PIN> * <MSISDN> * 1 * 2 * 1 # SEND
C. Sale 50 unit
i. * 118 * 4 * <PIN> * <MSISDN> * 1 * 3 * 1 # SEND
D. Sale 100 unit
i. * 118 * 4 * <PIN> * <MSISDN> * 1 * 4 * 1 # SEND
2. Check balance
A. Check balance
i. * 118 * 1 * <PIN> # SEND
! Notice
<PIN> 4 digits password (seller password)
18
.REFERENCE INFORMATION
TECHNICAL INFORMATION
Technical Specification
Weight 420 g
Size (W)80.4mm x (L)188mm x
(D)49mm
Wireless Network GSM850/900/DCS/PCS
Frequency range 824~960MHz,
1710~1990MHz
Battery Lithium-ion
Antenna External
LCD 2.2 inch QCIF TFT LCD
Adaptor AC 100V ~ 240V , 5V
* Above technical specification maybe changed
without any notice
19
REGULATORY
Brightstar Corp. hereby declares this unit to be in
compliance with the relevant
Provisions of the Low Voltage Directive 2006/95/EEC
and the EMC Directive 2004/ 108 / EEC.
Brightstar Corp. hereby declares this unit to be in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EEC.
The FCC certification is applicable only for GT860.
20
FCC NOTICE TO USERS
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
21
interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This device meets the government’s requirements for
exposure to radio waves.
This device is designed and manufactured not to
exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal
Communications Commission of the U.S.
Government.
The exposure standard for wireless device employs a
unit of measurement known as the Specific
22
Absorption Rate, or SAR. The SAR limit set by the
FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC
with the device transmitting at its highest certified
power level in all tested frequency bands. Although
the SAR is determined at the highest certified power
level, the actual SAR level of the device while
operating can be well below the maximum value.
This is because the phone is designed to operate at
multiple power levels so as to use only the power
required to reach the network. In general, the closer
you are to a wireless base station, the lower the
power output.
The highest SAR value for the device as reported to
the FCC when tested for use at worn on the body, as
described in this user guide, is 1.190W/kg (Body-worn
measurements differ among device models,
depending upon available enhancements and FCC
requirements.)
While there may be differences between the SAR
levels of various devices and at various positions,
23
they all meet the government requirement.
The FCC has granted an Equipment Authorization for
this model phone with all reported SAR levels evaluat
ed as in compliance with the FCC RF exposure guidel
ines. SAR information on this model phone is on file
with the FCC and can be found under the Display
Grant section of http://www.fcc.gov/oet/fccid after
searching on FCC ID: WVBAGT860.
For body worn operation, this phone has been tested
and meets the FCC RF exposure guidelines for use
with an accessory that contains no metal and the
positions the handset a minimum of 1.5 cm from the
body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines. If you
do not use a body-worn accessory and are not
holding the phone at the ear, position the handset a
minimum of 1.5 cm from your body when the phone is
switched on.
24
CE NOTICE TO USERS
Users have to use the connection to USB interfaces
with USB 2.0 version or higher for charging.
The device could be used with a separation distance
of 1.5cm to the human body.
The adapter shall be installed near the equipment and
shall be easily accessible.
Only can use adapter as below:
Adapter mfg: GUANG MING TONG
Adapter model: TR68-7
I/P:100-240V,50/60Hz,0.2A,O/P 5V,0.5A
The plug considered as disconnect device of adapter
Assessment of compliance of the product with the
requirements relating to the Radio and
Telecommunication Terminal Equipment Directive
(EC Directive 1999/5/EC) was performed by
PHOENIX TESTLAB (Notified Body No.0700), based
on the following standards:
1. Health
Applied Standard(s):
25
EN 62311: 2008/ EN 62209-2:2010
2. Safety
Applied Standard(s):
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
3. Electromagnetic compatibility
Applied Standard(s):
EN 301 489-1 V1.9.2/-7 V1.3.1
4. Radio frequency spectrum usage
Applied Standard(s):
EN 301 511 V9.0.2
User Manual of GT860 version 1.0 [ENG] 10/10/2012
Copyright 2012, Brightstar Corp., All rights reserved
