Brightstar AH268 Mobile User Manual H268
Brightstar Corporation Mobile H268
User Manual
![](/img.php?id=1578586&img=bg1.png)
-1-
Content
1General Information ............................................................................................................................................. 3
1.1Profile .......................................................................................................... .................................................... 3
1.2Safety Information .......................................................................................................................................... 4
1.3Safety warning and Attentions ........................................................................................................................ 4
2Your phone ............................................................................................................................................................. 7
2.1Phone overview ............................................................................................................................................... 7
2.2Functions of Keys ........................................................................................................................................... 7
2.3Technical specifications .................................................................................................................................. 9
3Getting started ....................................................................................................................................................... 9
3.1Installing the SIM Cards and the Battery ........................................................................................................ 9

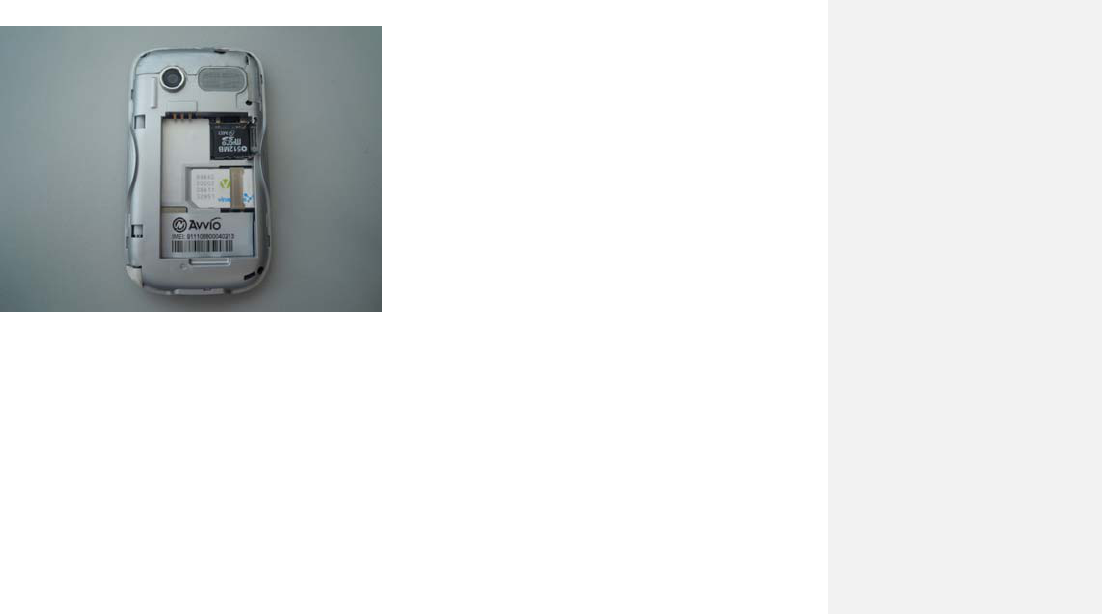

3.2Installing T-Flash Card see picture below: .................................................................................................... 14
3.3Charging the Battery ..................................................................................................................................... 17
3.4Powering On/Off the Mobile Phone ............................................................................................................. 19
3.5Linking to the Network ................................................................................................................................. 19
3.6Dialing Calls ................................................................................................................................................. 20
3.7Using the Headset ......................................................................................................................................... 21
![](/img.php?id=1578586&img=bg2.png)
-2-
4Input method ........................................................................................................................................................21
4.1Icons for Input Methods ................................................................................................................................ 21
4.2To Shift Entry Methods ................................................................................................................................. 21
4.3Numeric Input ............................................................................................................................................... 22
4.4English input and numeric input: .................................................................................................................. 22
4.5Inserting a Symbol ........................................................................................................................................ 23
5Using the Menu .....................................................................................................................................................23
5.1Messages ....................................................................................................................................................... 23
5.2Vive tu SIM ................................................................................................................................................... 26
5.3Contacts ........................................................................................................................................................ 27
5.4Call Center .................................................................................................................................................... 28
5.5Files ............................................................................................................. .................................................. 30
5.6Profiles .......................................................................................................................................................... 31
5.7Camera .......................................................................................................................................................... 32
5.8Multimedia .................................................................................................................................................... 32
5.9Services ......................................................................................................................................................... 33
5.10Settings ........................................................................................................ .................................................. 34
5.11Calendar ........................................................................................................................................................ 36
![](/img.php?id=1578586&img=bg3.png)
-3-
5.12Games ........................................................................................................................................................... 37
5.13Tools ............................................................................. ................................................................................. 37
5.14Bluetooth ....................................................................................................................................................... 38
5.15Music ............................................................................................................................................................ 39
5.16Mobile TV ..................................................................................................................................................... 39
5.17FM radio ....................................................................................................................................................... 39
5.18Java ............................................................................................................................................................... 39
6FCC Regulations: .................................................................................................................................................40
7RF Exposure Information (SAR) ........................................................................................................................41
8Appendix ................ .................. ................... ............... .................. .................. .......................................................42
1 General Information
1.1 Profile
Please read this pamphlet carefully in order to make your phone in perfect condition.
Our company may change this mobile phone without prior written notice and reserves the final right to
interpret the performance of this mobile phone.
Due to different software and network operators, display on your phone may be different, refer to your phone
for details.
![](/img.php?id=1578586&img=bg4.png)
-4-
1.2 Safety Information
If your phone has lost or been stolen, notify the telecommunication office the SIM card is disabled (network
support is required). This can avoid economic loss caused by unauthorized use.
Please take measures as following to avoid your phone being unauthorized use:
· Set PIN code of SIM card
· Set phone password
1.3 Safety warning and Attentions
Safety warning
ROAD SAFETY COMES FIRST
Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving.
In some countries, dialing or receiving calls while driving is illegal!
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. Using a mobile phone in flight is illegal and risky.
Please make sure that your mobile phone is powered off in flight.
SWITCH OFF BEFORE ENTERING RISKY AREAS
Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off
your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical
plant or a place where a blasting process is under way.
OBSERVE ALL SPECIAL REGULATIONS
Follow any special regulations in force in any area such as hospitals and always switch off your phone
whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile
![](/img.php?id=1578586&img=bg5.png)
-5-
phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices,
as it may cause interference to such apparatuses.
INTERFERENCE
The conversation quality of any mobile phone may be affected by radio interference. An antenna is built
inside the mobile phone and located below the microphone. Do not touch the antenna area during a
conversation, lest that the conversation quality deteriorate.
QUALIFIED SERVICE
Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on
your own may bring great danger and violates the warranty rules.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries.
USE SENSIBLY
Use only in a normal and proper manner.
EMERGENCY CALLS
Ensure the phone is switched on and in service, enter the emergency number, e.g. 112, then press the Dial key.
Give your location and state your situation briefly. Do not end the call until told to do so.
Note: Just like all other mobile phones, this mobile phone does not necessarily support all the features
described in this manual due to network or radio transmission problems. Some networks even do not support
the emergency call service. Therefore, do not rely solely on the mobile phone for critical communications
such as first aid. Please consult the local network operator.
Precautions
![](/img.php?id=1578586&img=bg6.png)
-6-
This mobile phone is well designed with fine art. Please exercise special care when using it. The following
suggestions will help your mobile phone survive the warranty period and extend its service life:
Keep the mobile phone and all its fittings beyond children's reach.
Keep the mobile phone dry. Keep away from rain, moisture, liquid or other substances that may corrode
electronic circuits.
Do not use or store the mobile phone in dusty places, lest that active parts of the mobile phone be damaged.
Do not store the mobile phone in a high-temperature place. High temperature will shorten the life of
electronic circuits and damage the battery and some plastic parts.
Do not store the mobile phone in a chilly place. Otherwise, moistures will be formed inside the mobile
phone to damage electronic circuits when the mobile phone is moved to a constant temperature place.
Do not throw, knock or shock the mobile phone, as that will destroy the internal circuits and high-precision
components of the mobile phone.
The operating temperature range is -10~55°C
![](/img.php?id=1578586&img=bg7.png)
-7-
2 Your phone
2.1 Phone overview
2.2 Functions of Keys
The mobile phone provides the following keys:
Dial key
Press it to originate a call by entering the called number or selecting a contact from the phonebook; or
press it to receive an incoming call; or press it in standby state to show the latest call
批注 [JC1]: Pending add pictures or
phone description
![](/img.php?id=1578586&img=bg8.png)
-8-
End key
Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and return to the
standby state; or hold it for two or three seconds to power on or off the mobile phone.
Direction key
Press them to scroll the options when browsing a function list. In edit state, press direction keys to
navigate. In conversation status, you can press up or down direction key to tune volume.
OK key
Press it to confirm your selection.
Left and right soft key
The bottom line on the screen displays the functions of the Left and Right soft key.
Space key
Press it in the edit interface to get a blank. In idle screen, you can press right soft key then space key to
lock keypad. When the keypad is locked, you can press right soft key then space key to unlock it.
Del key
Press it to delete a character before cursor.
Linefeed
In idle screen, this key helps to switch to another line.
Sym key
Press it in the edit interface to input a symbol.
Shift key
Press it to switch between input methods.
Alt
In edit interface, press it to input an alternative symbol or number.
![](/img.php?id=1578586&img=bg9.png)
-9-
Number keys, letter keys
Press number keys 0 through 9 in input or edit state to input numbers and characters; Press letter keys
A through Z in input or edit state to input letters and characters;
2.3 Technical specifications
Phone AVVIO H268
Dimensions (55mm×13.5mm×99mm):
Weight:77.5G
Lithium battery
Rated capacity: 4C 800mAh
Continuous standby duration: (Relates to network status)
Continuous conversation duration: (Relates to network status)
Please refer to their labels for other data related to the battery and the charger.
3 Getting started
3.1 Installing the SIM Cards and the Battery

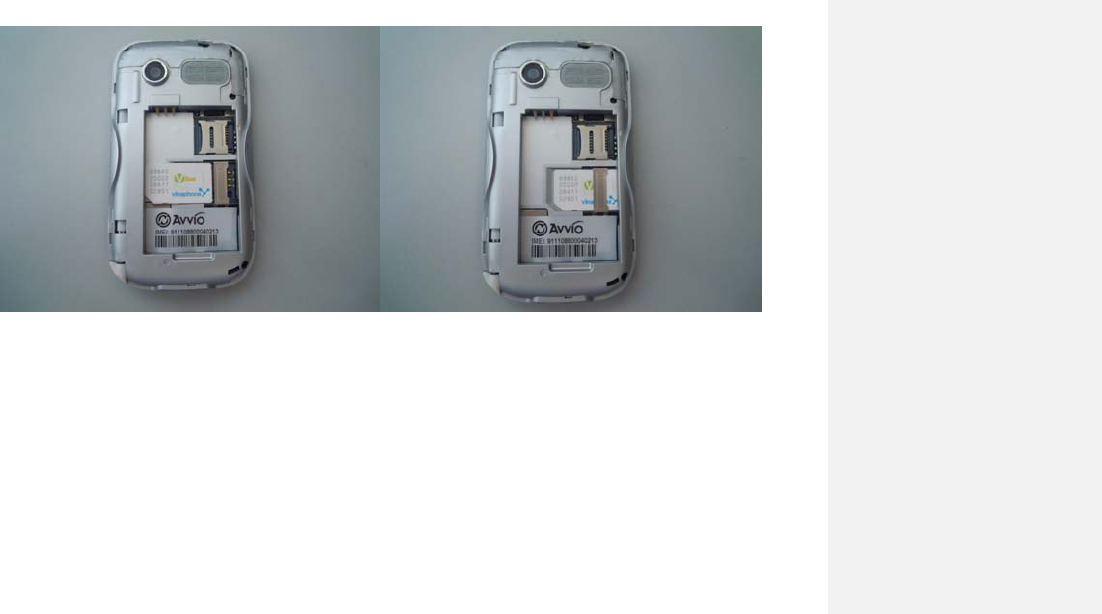

Please insert SIM card as below instruction:
批注 [JC2]: Pending add information
批注 [JC3]: Pending add pictures
![](/img.php?id=1578586&img=bga.png)
-10-

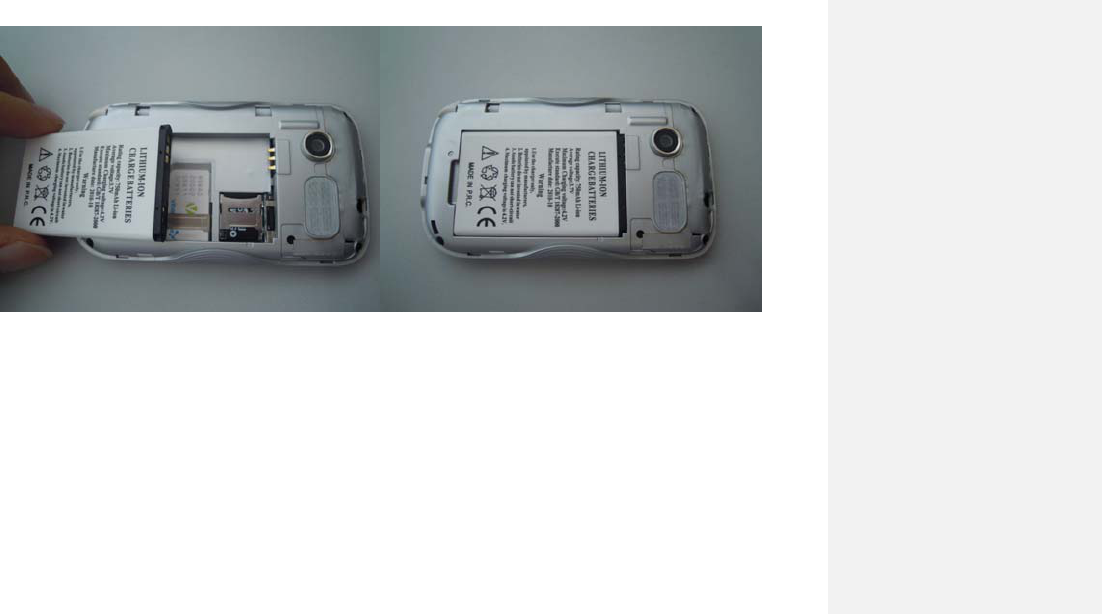

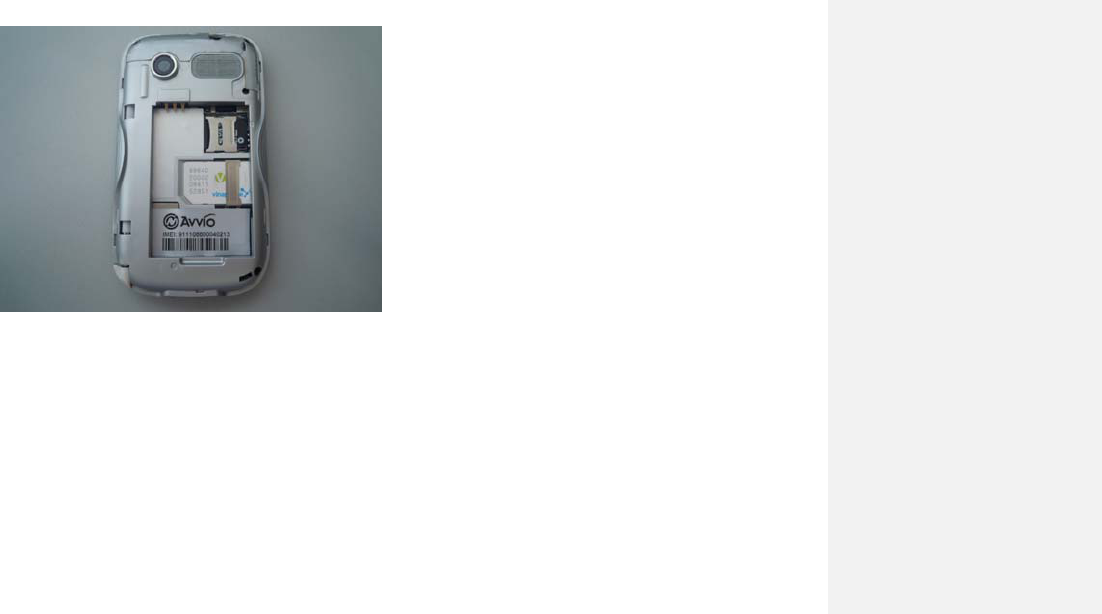

Please put the battery in as below pictures:
![](/img.php?id=1578586&img=bgb.png)
-11-
An SIM card carries useful information, including your mobile phone number, PIN (Personal Identification
Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI (International Mobile
Subscriber Identity), network information, contacts data, and short messages data.
Note:
After powering off your mobile phone, wait for a few seconds before removing or inserting an SIM card.
Exercise caution when operating an SIM card, as friction or bending will damage the SIM card.
Properly keep the mobile phone and its fittings such as the SIM cards beyond children's reach.
Installation
Hold the End key for a while to power off the mobile phone
Push the back cover above the battery and remove it.
![](/img.php?id=1578586&img=bgc.png)
-12-
Pull the left battery buckle outward and then lift the battery away.
Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the
notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further
pushed in.
With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the
battery down until it locks into place.
Using code
The mobile phone and the SIM cards support sorts of passwords, in order to prevent the phone and the SIM
cards from being misused. When you are prompted to input any of the codes mentioned below, just input the
correct code and then press the OK key.
Phone lock code
The phone lock code may be set to prevent your mobile phone from being misused. In general, this code is
provided along with the mobile phone by the manufacturer. The initial phone lock code is set to 0000 by the
manufacturer. If the phone lock code is set, you need to input the phone lock code when powering on the
mobile phone.
PIN
The PIN (Personal identification number, 4 to 8 digits) code prevents your SIM card from being used by
unauthorized people. In general, the PIN is supplied with SIM card by the network operator. If PIN check is
enabled, you need to input the PIN each time when you power on your mobile phone. The SIM card will be
locked if you input wrong PIN code for three times.
Unlocking methods as follows:
-Input the correct PUK according to the screen tips to unlock the SIM card.
![](/img.php?id=1578586&img=bgd.png)
-13-
-Then input the new PIN and press the OK key.
-Input the new PIN again and then press the OK key.
-If the input PUK is correct, the SIM card will be unlocked and the PIN will be reset.
Note: The SIM card will be locked if you input wrong PIN code for three times. To unlock the SIM card,
you need to input the PUK. In general, the PUK can be obtained from the network operator.
PUK
The PUK code (Personal Unlocking Key) is required to change a blocked PIN. It is supplied with SIM card.
If not, contact your network operator. If you input wrong PUK code for 10 times, SIM card will be invalid.
Please contact the network operator to replace the SIM card.
Barring code
A barring code is required for setting the call barring function. You can obtain this code from the network
operator to set the call barring function.
![](/img.php?id=1578586&img=bge.png)
-14-
3.2 Installing T-Flash Card see picture below:
To install the T-Flash card, open its latch.
批注 [JC4]: Pending add pictures
![](/img.php?id=1578586&img=bgf.png)
-15-
Place its indented side downward, insert the card into the card slot.
![](/img.php?id=1578586&img=bg10.png)
-16-
Then close the latch.
The T-Flash card is a pluggable mobile storage card inside the mobile phone.
To remove the T-flash card, open its latch and slightly take the card out. And then close the latch.
Note:
1. The mobile phone cannot automatically identify the T-flash card being inserted when the mobile
phone is powered on. You must power off the mobile phone and then power it on, so that the phone can
identify the T-Flash card.
2. The T-Flash card is a miniature object. Keep it out of the reach of children for fear that children
swallow it!
![](/img.php?id=1578586&img=bg11.png)
-17-
3.3 Charging the Battery
The lithium battery delivered with the mobile phone can be put into use immediately after being
unpacked.
Battery level indication:
Your mobile phone can monitor and display the battery state.
Normally the remaining energy of the battery is indicated by the battery level icon at the upper right
corner of the display screen.
When the battery energy is insufficient, the mobile phone prompts "Battery low". If you have set an
alert tone, an alert tone will be given off when the battery level is too low.
A charging animation appears when the battery is being charged. When the charging is complete, the
animation disappears.
Using a travel adapter:
Install the battery into the mobile phone before charging the battery.
Connect the adapter of the travel charger with the charging slot in the mobile phone. Ensure that the
adapter is fully inserted.
Insert the plug of the travel charger to an appropriate power outlet.
During the charging, the battery level grids in the battery icon keep flickering till the battery is fully
charged.
It is normal when the battery is become hot during the charging period.
The battery icon does no longer flicker when the charging process ends.
The USB cable should shielded with four cores.
![](/img.php?id=1578586&img=bg12.png)
-18-
Note:
Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB cable are inserted
in the right direction. Inserting them in a wrong direction may cause charging failure or other problems.
Before the charging, ensure that the standard voltage and frequency of the local mains supply match the
rated voltage and power of the travel charger.
Using the Battery
The performance of a battery is subject to multiple factors: radio network configuration, signal strength,
ambient temperature, chosen functions or settings, phone fittings, and the voice, data or other application
mode you choose to use.
To guarantee the optimal performance of your battery, please stick to the following rules:
Use only the battery provided by the vendor. Otherwise, damages or even injuries could be caused
during the charging.
Power off the mobile phone before removing the battery.
The charging process lasts a longer time for a new battery or a battery not in use for long. If the battery
voltage is too low to enable the mobile phone to be powered on, charge the battery for a longer time. In
this case, the battery icon does not flicker until a long time after the battery enters the charge status.
During the charging, ensure the battery is placed in a room temperature environment or in an
environment close to room temperature.
Immediately stop using the battery if the battery produces odor, overheats, cracks, distorts or has other
damage, or if the electrolyte leaks.
The battery wears out with use. A longer charging time is required as the battery is put into use for a
long time. If the total conversation duration decreases but the charging time increases even though the
![](/img.php?id=1578586&img=bg13.png)
-19-
battery is properly charged, purchase a standard battery from the OEM or use a battery approved by
our company. Using any poor-quality fittings will cause harm to your mobile phone or even incur
danger!
Note: To guarantee your personal safety and protect the environment, do not litter the battery! Return the old
battery to the mobile phone manufacturer or place it in specified battery reclamation areas. Do not litter any
battery with other rubbish.
Warning: Short-circuits of the battery may cause explosion, fire, personal injury or other severe
consequences!
3.4 Powering On/Off the Mobile Phone
Hold the End key for a while to power on the mobile phone. A power-on animation appears on the display
screen.
Input the phone lock code and press the OK key if the mobile phone prompts you to input the phone lock
code. The original code is 0000.
Input the PIN and press the OK key if the mobile phone prompts you to input the PIN. The PIN is provided
by the network operator for new opening SIM card.
Enter the standby interface.
To power off the mobile phone, hold the End key for a while.
3.5 Linking to the Network
After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches
for an available network. After finding a network, the mobile phone enters the standby state. When the
mobile phone is registered in the network, the name of the network operator is displayed on the screen. Then
![](/img.php?id=1578586&img=bg14.png)
-20-
you can dial or receive a call.
3.6 Dialing Calls
In the standby interface, press number keys to input the area code and the telephone number, and then press
the Dial key to dial a call. To end the call, press the End key.
Dialing a call to a number in the phonebook
Enter the phonebook and use the up or down direction keys to find the telephone number you want to call.
Press the Dial key. The mobile phone automatically dials the chosen telephone number.
Redialing the last number
In the standby interface, press the dial key to show the dialed calls.
Press the up or down direction keys to select a number you want to dial and then press the Dial key.
Adapting volume
During a call, you can press up or down direction key to tune volume.
Answering incoming calls
Press the Dial key or the Left soft key to answer an incoming call.
Press the End key to end the current conversation.
To reject an incoming call, press the End key or the Right soft key.
Note: If the caller can be identified, the mobile phone will present the calling number. If the calling number
exists in the phonebook, the mobile phone will present both the name and the phone number of the caller. If
the caller cannot be identified, the mobile phone will present the calling number only. You can answer an
incoming call when using a function list or browsing the phonebook.
Using options during a conversation
![](/img.php?id=1578586&img=bg15.png)
-21-
Select Options during a conversation to pause, end the ongoing call, originate a new call, browse the
phonebook, view information, set the mute, set the DTMF, or perform other operations. For details, refer to
the menu guide.
3.7 Using the Headset
It would enter headset mode automatically when you insert headset to the slot. Make sure of inserting it at the
bottom of the slot, or you can’t use it normally.
4 Input method
This mobile phone provides English and numeric input method. You can use these input methods when
editing the phonebook, short messages, files and greeting text.
4.1 Icons for Input Methods
After you enter an edit window such as a window for editing the phonebook or short messages, an icon is
displayed to indicate the current input method:
Numeric input:“123”
English input in upper case:“ABC”
English input in lower case:“abc”
4.2 To Shift Entry Methods
Press shift key to switch between input methods.
![](/img.php?id=1578586&img=bg16.png)
-22-
4.3 Numeric Input
You can input numbers with the numeric input method. Press a number key to input the corresponding
number.
4.4 English input and numeric input:
The keyboards for English input and numeric input are defined in the following table:
Key Character or Function Remarks
Number key 1 W1
Number key 2 E2
Number key 3 R3
Number key 4 S4
Number key 5 D5
Number key 6 F6
Number key 7 Z7
Number key 8 X8
Number key 9 C9
Number key 0 0
* key *A
# key #Q
English input:
![](/img.php?id=1578586&img=bg17.png)
-23-
To input a blank, press Space.
To clear wrong inputs, press the Del key.
4.5 Inserting a Symbol
Press the sym key to enter the Select symbol interface and select a symbol you want.
5 Using the Menu
5.1 Messages
If the short message memory is full, a blinking SMS icon appears on the top of the screen. To normally
receive short messages, you need to delete some of the existing short messages.
Write message
Access this menu to create a text message
Inbox
Received messages are listed in this menu.
Drafts
From the main menu select “Messages” to create text message. You can type a message, and you're also able
to insert a pre-defined message from “Templates”. While writing a message, select “Options” to access all
the messaging options. You can save your messages that you send often to “Drafts”.
![](/img.php?id=1578586&img=bg18.png)
-24-
Outbox
The messages which are sent failed are stored in the Outbox.
Templates
Users are able to define some templates, or they can select templates from the default ones.
SMS Settings
This function enables you to set the default features about the SMS.
Profile settings: Save or modify the short message service center number required for short message
transmission, or obtain it from the network operator.
Voicemail server: Edit: Edit or delete your voice mailbox number; or select OK to save the number.
Call voicemail: Dial the voice mailbox number stored in the voice mailbox number list. Note: In the
standby interface, you can press number 1 key to call the voice mailbox after setting the voice mailbox
number.
Common settings: Set the message delivery report and the reply path. After Delivery report is set to
On, the short message service center will send a status report indicating whether the short message you
sent has been successfully delivered. This function requires the network operator's support.
Memory status: View the percentage of the memory seized by the short messages in the SIM card to the
total SIM card capacity and the percentage of the memory seized by the short messages in the phone to
the total phone capacity.
Preferred storage: Select the default storage path of short messages, i.e. whether to save short messages
to the mobile phone or the SIM cards.
![](/img.php?id=1578586&img=bg19.png)
-25-
MMS
Your phone can send and receive MMS which enables you to send message containing picture, ring and
text.
When sending a MMS, your message can be viewed with ensuring the addressee owe a phone supporting
MMS.
5.1.1.1 Write message
a. Choose a new message and input corresponding content
* Addressee: To set phone number of the addressee
* Make a copy: To set phone number to make a copy
* Confidential letter: To set phone number of directory of sending as confidential letter.
* Theme: To set MMS theme
* Contents: To edit MMS content. User can add words, pictures, sounds and enclosure.
b. After entering corresponding content, return to the list of addressees interface, enter theme options
interface
* Edit: To edit the current contents
* Send only: To send the message you have edited
* Save and send: To save the message while you send it.
* Save to draft: To save to the draft and send it later
* Send options: To set sending options of the message
* Exit: To exit editing of message, user will be asked whether to save or not at the same time.
5.1.1.2 Inbox
Received MMS are listed in this menu.
![](/img.php?id=1578586&img=bg1a.png)
-26-
5.1.1.3 Outbox
All MMS that have been sent failed are stored in the Outbox.
5.1.1.4 Drafts
Drafts MMS are listed in this menu.
5.1.1.5 Templates
One template is embedded in the phone. It can be used to create a new MMS.
5.1.1.6 MMS settings
This function enables you to set the configuration information of sending and receiving MMS.
Broadcast Message
This network service enables you to receive a variety of text messages, such as broadcast messages about
weather forecast or road conditions. At present, few networks provide this service. Please consult the network
operator.
Receive mode: Set it to On to enable or Off to disable cell broadcast service.
Read message: View cell broadcast messages. You can press the Up and Down direction keys to view
these messages.
Languages: Select the language in which cell broadcast messages are displayed. The selected language,
however, may not be supported by the network operator.
Channel settings: Select receiving some types of cell broadcast messages or edit/delete some channel
numbers.
5.2 Vive tu SIM
STK service is the tool kit of SIM card. This phone supports the service function .The specific items are
![](/img.php?id=1578586&img=bg1b.png)
-27-
depended by SIM card and network. Service menu will be auto added to the phone menu when supported by
network and SIM card.
5.3 Contacts
The mobile phone can store up to 500 telephone numbers. The number of telephone numbers that an SIM
card can store depends on the storage capacity of the SIM card. The telephone numbers stored in the mobile
phone and in the SIM cards form a phonebook.
After selecting a telephone number in the phonebook, select Options to perform the following operations:
View: View the content of the telephone number.
Sent text message: sent text message to this number.
Sent multimedia message: sent multimedia message to this number.
Call: call the current number of the SIM.
Edit: Edit the telephone number and name.
Delete: Delete the telephone number from the phonebook.
Copy: Duplicate the telephone number from the mobile phone to the SIM card or from the SIM card to
the mobile phone.
Move: Move the telephone number from the mobile phone to the SIM card or from the SIM card to the
mobile phone
Send contact: To send the record through message or multimedia message.
Add to blacklist: Add the selected number to blacklist.
Mark several: To mark several phone number so that you can perform the same operation on them.
Caller groups: You can assign contacts to the five default caller groups. For each group, you can edit
![](/img.php?id=1578586&img=bg1c.png)
-28-
group name, set caller alert, call ringtone or caller picture.
Phonebook setting: To set some parameters of phonebook.
5.4 Call Center
Call history
5.4.1.1 Missed Calls
You can view a list of the latest missed calls.
Note: When the mobile phone indicates that some calls are missed, you can select Read to enter the missed
calls list. Navigate to a missed call and then press the Dial key to dial the number that originated that call.
5.4.1.2 Dialed Calls
You can view the latest dialed calls. Choose dialed calls and then select a dialed call to delete, save, dial, or
edit (or send a short message to it).
5.4.1.3 Received Calls
You can view the latest received calls. Choose received calls and then select a received call to delete, save,
dial, or edit (or send a short message to it).
5.4.1.4 Delete all
You can delete the latest call records. Choose Delete call and then select to delete all the numbers in the call
history, or delete only the numbers in the missed calls list, the dialed calls list or the received calls list.
5.4.1.5 Call Timers
Choose call timer to view the last call time, the total time of all dialed calls and the total time of all received
calls, and/or to reset all the time.
![](/img.php?id=1578586&img=bg1d.png)
-29-
5.4.1.6 Text msg. counter
Choose text msg. counter to set the number of short messages sent and the number of short messages
received.
Note: This function does not relate to the SIM card. The number of short messages sent and the number of
short messages received do not change even after the SIM card is replaced.
5.4.1.7 GPRS counter
Access this menu to view the sent/received GPRS rate or to reset counter.
Call Settings
Caller ID: You can select the ID set by the network, hide the ID, or send the ID. By default, the ID set
by the network is chosen.
Note: This function relates to the network. If you select Hide ID, dialing may fail. Therefore, make sure that
calls can be normally dialed before you choose Hide ID.
Call waiting: After you choose Activate, the mobile phone will contact the network. A moment later, the
network will make a response and send a message to acknowledge your operation. If the call waiting
function is activated, the network will alert you and the mobile phone screen will display the incoming
call number if others are calling you while you are already in a conversation.
Call divert: this network function enables you to forward incoming calls to another number you have
previously specified.
Call barring: The call barring function enables you to bar calls as needed. When setting this function,
you need to use a network barring code, which can be obtained from the network operator. If the code is
wrong, an error message will be prompted on the screen. After selecting a call barring option, continue to
![](/img.php?id=1578586&img=bg1e.png)
-30-
select Activate or Deactivate. The mobile phone will prompt you to input the call barring code and then
contact the network. A moment later, the network will make a response and send the operation results to
the mobile phone.
Closed user group: This function requires network support. For details, consult the local network
operator.
Note: SIM on service is required.
Advanced settings
Blacklist: access this menu to set blacklist status and its members.
Auto redial: Set it to On or Off to enable or disable auto redial. If you set Auto redial to On, the mobile
phone will automatically redial the number a moment later if the called party does not reply. The number
of auto redial times can be set to a maximum of 10. In the auto redial period, you cannot dial other
numbers. To end the auto redial process, press the End key.
Call time display: To display call time or not in a call.
Call time reminder: To set single or circle tone in a call to make you know the time.
5.5 Files
The phone provides a certain space for users to manage files and supports the T-Flash card. The capacity of
the T-Flash card is selectable. You can use the file manager to conveniently manage various directories and
files on the phone and the T-Flash card.
Open
Choose File manager to enter the root directory of the memory. The root directory will list the default
folders, new folders and user files. When the mobile phone is powered on for the first time or when you have
![](/img.php?id=1578586&img=bg1f.png)
-31-
not changed the directory, the root directory contains the default folders only.
Format
You can use this function to format all the data in the memory. The system will re-create a default folder. The
formatted data cannot be recovered. Therefore, think twice before using the formatting function.
5.6 Profiles
The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the
specific events and environments.
Customize the user profiles according to your preference and then activate the user profiles. The user profiles
fall into seven scenarios: General, Meeting, Outdoor, Indoor, Silent, Headset and Bluetooth.
When you insert an earpiece to the mobile phone, the mobile phone automatically enters the Headset mode.
There is no option for activating the Headset mode on the screen. For details on operation, refer to General.
If you set Headset > Customize > Answer mode to Auto, incoming calls will be automatically answered.
Activate
Select Activate to activate the selected mode.
Customize
After choosing one of the above seven modes, select Customize to edit the following items:
Tone settings: Set the incoming call tone, power-on prompt tone, power-off prompt tone, message tone,
and keypad tone.
Volume: Set the volume of the conversation tone, the ring tone, the keypad tone.
![](/img.php?id=1578586&img=bg20.png)
-32-
Alert type: Select ring, vibrate, ring and vibrate, or ring after vibrate mode.
Ring type: Set the ring type to Single, Repeat or Ascending.
Extra tone: Activate or deactivate the warning tone, error tone, network connection tone, and
conversation start tone.
Answer mode: Set whether to answer incoming calls by pressing any key.
Note: The mobile phone automatically enters the Headset mode when you insert the earpiece.
5.7 Camera
Use this function to capture pictures. In the capture interface, you can press left or right direction key to
adjust exposure value; up or down direction key to zoom in or zoom out; OK key to capture photos; left soft
key to access Options; right soft key to exit capture interface.
5.8 Multimedia
Sound recorder
The phone support WAV and AMR. The AMR takes the compression algorithm. So in the same memory
condition, it has longer recording time than WAV.
After accessing the sound recorder, you can press left soft key to perform the following operations:
New record: select this function to record a new file.
List: recorded files are listed in this menu.
Settings: Through this function, you can set storage position and format for record files.
Video recorder
This function enables you to record dynamic pictures. you can press left or right direction key to adjust
![](/img.php?id=1578586&img=bg21.png)
-33-
exposure value; OK key to capture videos clip; left soft key to access Options; right soft key to exit capture
interface.
Video player
Use this function to play video files. By pressing the direction key can you control the playing process of
video player: play/pause(OK key), fast forward (press and hold right direction key) and rewind (press and
hold left direction key). In video player interface, you can press I/- or O/+ key to tune volume, * key to
switch to full screen play.
Image viewer
You can view the pictures or images through this function.
Melody composer
You can press number key to compose melody. After finishing composing, you can play the melody, set play
speed and select different instrument to play the melody.
5.9 Services
Browser
This function enables you to view the internet. Your phone will ask you with existed way. You can start to
view only by starting corresponding way.
Homepage: indicates the default website of the internet
Bookmarks: used to save most commonly-used websites
Recent Pages: browse the record of the recently browsed web pages
![](/img.php?id=1578586&img=bg22.png)
-34-
Input Address: input the website to be searched and press finish button to access to the network directly
Service Inbox: save the short messages sent from the website
Settings: set up WAP-related service
Note: Consulting the local network operator for related fee and specific setup.
Data account
Access this menu to set GPRS-related parameters.
5.10 Settings
SIM setting
Only SIM open: Only SIM card can be identified if you set this option.
Flight mode: when this function is engaged, it will suspend many of the device's signal transmitting
functions – thereby disabling the device's capacity to place or receive calls or text messages– while still
permitting use of other functions that do not require signal transmission (e.g., games, built-in camera,
MP3 player.)
Network Settings
Contact the network operator to obtain the following network services:
Network selection: Set Network selection mode to Automatic or Manual. Automatic is recommended.
When Network selection mode is set to Automatic, the mobile phone will prefer the network where the
SIM card is registered. When Network selection mode is set to Manual, you need to select the network
operator's network where the SIM card is registered.
Preferred networks: Select the preferred networks. By default, the network where the current SIM card
![](/img.php?id=1578586&img=bg23.png)
-35-
is registered will be displayed.
Security settings
This function provides you with related settings about safety use
SIM lock: To set the SIM lock, you need to input the PIN. You can set the SIM lock only after inputting
the correct PIN. If you set SIM lock to On, you need to input the PIN each time you power on the mobile
phone. In the case you input a wrong PIN for three consecutive times, you need to input the PIN
Unblocking Key (PUK). The PUK is used to unlock and change the locked PIN. To obtain the PUK,
contact the network operator.
Fixed dial: This function requires the SIM card's support and the network operator's support. When the
fixed dial function is activated, you can dial only the numbers in the fixed dial list. To activate the fixed
dial function, you need to input the PIN2.
Barred dial: Activate or deactivate the barring of some or all calls. This function requires the SIM card's
support.
Change password: To change PIN code of SIM card.
Phone lock: The function enables you to lock/unlock the phone. Entering password to switch on or off
the phone. Password is required when the phone is locked. The password is 4 to 8 digits.
Auto keypad lock: The function enables you to lock/unlock the keypad. Setting the auto locking time
that 5s, 30s, 1min or 5mins is available. The keypad will be auto locked with no operation during the
period.
Change password: to change phone password
![](/img.php?id=1578586&img=bg24.png)
-36-
Phone Settings
Time and date: set the date format, the time format, and detail time of the location.
Note: If you remove the battery from the mobile phone or if the battery energy was exhausted a long time ago,
you may need to reset the date and time when re-inserting the battery or powering on the mobile phone after
recharging.
Schedule power on/off: Set the time when the mobile phone will be automatically powered on or off.
Alert: Before entering an area where the use of mobile phones is forbidden, make sure that the scheduled
power-on function is deactivated to avoid accidents.
Language: Select the display language for the mobile phone.
Pref. input method: Select preferred input method as needed.
Display: Users can access this item to set wallpaper, screen saver, power on/off display, etc.
Greeting text: Access this menu to set greeting text and its content.
Dedicated key: Customize the shortcut functions of the Up, Down, Left, and Right direction keys. In the
standby interface, you can press a direction key to directly enter the function menu corresponding to that
direction key.
Auto update time and date: Turn on/off this function as per your need.
Misc. settings: Set brightness and duration of LCD backlight.
Restore Factory Settings
Use this function to restore factory settings. The preset password is 0000.
5.11 Calendar
Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments,
![](/img.php?id=1578586&img=bg25.png)
-37-
etc. Days with events entered will be marked.
5.12 Games
Two games are embedded in this menu. For specific operation, please refer to ‘help’ option of each game.
5.13 Tools
Bluetooth
With Bluetooth, you can make a wireless connection to other compatible devices, such as mobile phones,
computers, headsets and car kits. You can use the Bluetooth to send images, video clips, music, sound clips
and notes, and transfer files from your compatible pc.
Alarm
Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as needed.
For each alarm clock, the ringing date and the ringing time can be set.
Calculator
The calculator can add, subtract, multiply and divide. To use the calculator:
Press the up, down, left and right key to select +, -, ×, ÷, = respectively.
Press right soft key to delete the figure.
Tasks
Choosing date, call or anniversary to create new memo, which you can view, add, edit, delete, delete overdue
task, delete all, jump to date, send route and saved as file. If you have set the alarm for the memo, alarm will
sound when time is up, the content of memo will display at the same time.
![](/img.php?id=1578586&img=bg26.png)
-38-
E-book reader
E-book reader enables you to read TXT file. Through the USB connecting line putting files to E-book folder
of phone or T-Flash card. After finishing downloading, you can find the folder and open the E-book to read
text directly.
Unit converter
To exchange between Kg and Pound, Km and Mile.
Stopwatch
Stopwatch is simple application for measuring time with possibility to register several results and
suspend/resume measurement.
Currency converter
By entering current exchange rate, you can do currency conversion between domestic and foreign.
World clock
Access this menu to view time of main cities in various time zones.
5.14 Bluetooth
With Bluetooth, you can make a wireless connection to other compatible devices, such as mobile phones,
computers, headsets and car kits. You can use the Bluetooth to send images, video clips, music, sound clips
and notes, and transfer files from your compatible pc.
![](/img.php?id=1578586&img=bg27.png)
-39-
5.15 Music
Use this function to play audio files. By pressing the direction key can you control the playing process of
audio player: play/pause(up direction key), stop (down direction key), switch to last song/next song (press
left or right direction key), fast forward (press and hold right direction key) and rewind (press and hold left
direction key). In audio player interface, you can press I/- or O/+ key to tune volume.
5.16 Mobile TV
You are able to access this menu to watch mobile TV programs and add the programs you like to channel list.
Before you watch TV programs, you’d better select the right area. Then you can search available channels
and select channel to play. In TV player interface, you can press number key 1 to enable auto search; I/- or
O/+ key to tune volume, number key 4 key to switch to full screen play.
5.17 FM radio
You can use the application as a traditional FM radio with automatic tuning and saved channels. In FM radio
interface, you can press I/- or O/+ key to tune volume, left or right direction key to search channels manually,
down direction key to play/pause the playing process of the current channel, up direction key to enable auto
search (once this is enabled, you can press left or right direction key to search channels automatically).
5.18 Java
Java is a folder where downloaded games and applications are stored.
Java settings: You can set the java audio (1-7 or off), Java backlight (on/off), Java vibration (on/off),
Java network, Heap size.
Java default security: Set Java default security related parameters as needed.
![](/img.php?id=1578586&img=bg28.png)
-40-
6 FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to
operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
![](/img.php?id=1578586&img=bg29.png)
-41-
7 RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating
positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because the phone is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.700 W/kg and
when worn on the body, as described in this user guide, is 0.647 W/kg (Body-worn measurements differ among phone
models, depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of various phones and at various positions, they all meet the
government requirement.
![](/img.php?id=1578586&img=bg2a.png)
-42-
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and
can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: WVBAH268.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines. If you do not use a body-worn accessory
and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is
switched on.
8 Appendix
Appendix 1:Troubleshooting
If you find exceptions when operating the mobile phone, restore the factory settings and then refer to the
following table to solve the problem. If the problem persists, contact the distributor or service provider.
Fault Cause Solution
SIM card error
The SIM card
is damaged. Contact your network service provider
The SIM card
is not in
position.
Check the SIM card
![](/img.php?id=1578586&img=bg2b.png)
-43-
The metal
face of the
SIM card is
polluted.
Clean the SIM card with a clean cloth
Poor received
signal quality
Signals are
obstructed.
For instance,
radio waves
cannot be
effectively
transmitted
nearby a high
building or in
a basement.
Move to a place where signals can be effectively transmitted
Line
congestions
occur when
you use the
mobile phone
in high-traffic
hours
Avoid using the mobile phone in high-traffic hours
![](/img.php?id=1578586&img=bg2c.png)
-44-
The mobile
phone cannot
be powered on
The battery
energy is
exhausted.
Charge the battery
Calls cannot be
dialed
Call barring is
activated Cancel call barring
The mobile
phone cannot
connect the
network
The SIM card
is invalid Contact your network service provider
![](/img.php?id=1578586&img=bg2d.png)
-45-
The mobile
phone is not
in a service
area of the
GSM network
Move to the network operator's service area
The signal is
weak Move to a place where the signal quality is high
The battery
cannot be
charged
The charging
voltage does
not match the
voltage range
indicated on
the charger
Ensure the charging voltage matches the voltage range
indicated on the charger
An improper
charger is
used
Use the charger specially designed for the mobile phone
Poor contact Ensure the charger plug is in good contact with the mobile
phone
