User manual

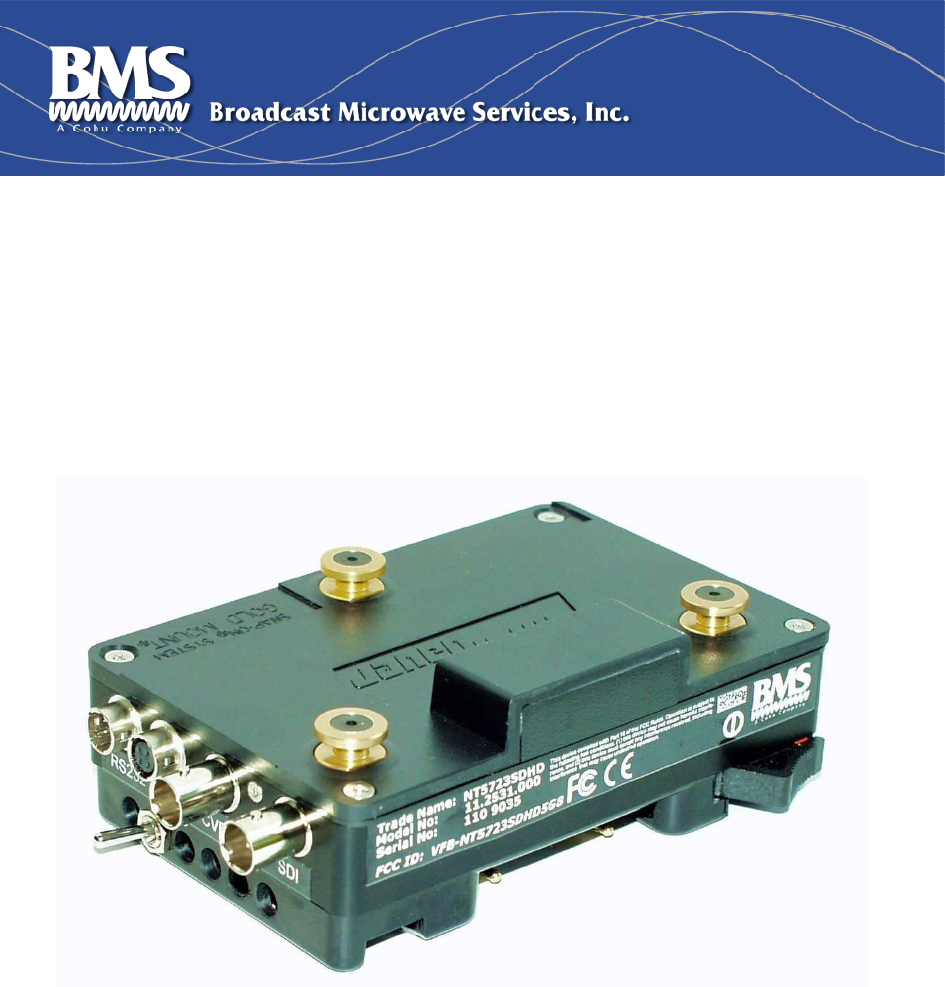

NT5723SDHD CAMERA-BACK TRANSMITTER
Operation Manual
Doc. No. 605 Rev. – 2.0
Broadcast Microwave Services, Inc. ▪ 12367 Crosthwaite Circle, Dock 10 ▪ Poway, CA 92064 ▪ USA
Tel: +1 (858) 391-3050 ▪ Toll-free (US): 800-669-9667 ▪ Fax: +1 (858) 391-3049 ▪ support@bms-inc.com ▪ www.bms-inc.com
Broadcast Microwave Services Europe GmbH ▪ Schwalbacher Str. 12 ▪ 65321 Heidenrod Germany
Tel: +49-6124-72 39-00 ▪ Fax: +49-6124-72 39-29
2010 Broadcast Microwave Services. All rights reserved.
This document and the information contained in it is the property of Broadcast Microwaves Services, Inc. and may be the subject
of patents pending and granted. It must not be used for commercial purposes nor copied, disclosed, reproduced, stored in a
retrieval system or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise),
whether in whole or in part, without BMS prior written agreement.
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services i
Document Revision History
Initial release March 2011 Rev. -
Pin assignement for data interface added August 2011 Rev.
2.0
Conventions Used in This Manual
NOTE: Notes provide supplementary information. They are highlighted for emphasis, as in this
example, and are placed immediately after the relevant text.
CAUTION: Cautions give information which, if strictly followed, will prevent damage to equipment
or other goods. They are boxed for emphasis, as in this example, and are placed immediately
preceding the point at which the reader requires them.
WARNING: Warnings give information which, if strictly observed, will prevent personal injury or
death, or damage to personal property or the environment. They are boxed and shaded for
emphasis, as in this example, and are placed immediately preceding the point at which the reader
requires them.
ATTENTION!
DO NOT use right-angle connectors or adapters on the RF Power Out cable assemblies. Right-
angle connectors may have significant RF power loss at the operating frequencies of this system.
FOR ALL BMS TRANSMITTERS – Operation of a BMS transmitter product generally requires a
license. It is the responsibility of the user to obtain all required operating licenses.
ONLY FOR PRODUCTS AWAITING FCC CERTIFICATION – This device has not been authorized as
required by the rules of the US Federal Communications Commission. This device is not, and may
not be, offered for sale or lease, or sold or leased, in the US until authorization is obtained.
Acceptance Test Procedure (ATP) test data results by product serial number are typically shipped
with all units and indicate the equipment to be operating within advertised specifications. Contact
BMS to request this data.
Read and Follow Instructions! All safety and operating instructions should be read before this
product is operated. All operating and use instructions should be followed. This manual should be
retained for future reference.
EMC Compliance – This equipment is certified to the EMC requirements detailed in the technical
specifications. To maintain this certification, only use the cables supplied or if in doubt contact
BMS Customer Service.
Compliance – This device complies with several standards. Please refer to the chapter 1.5
Specifications, in this manual for a complete list of standards.
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services ii

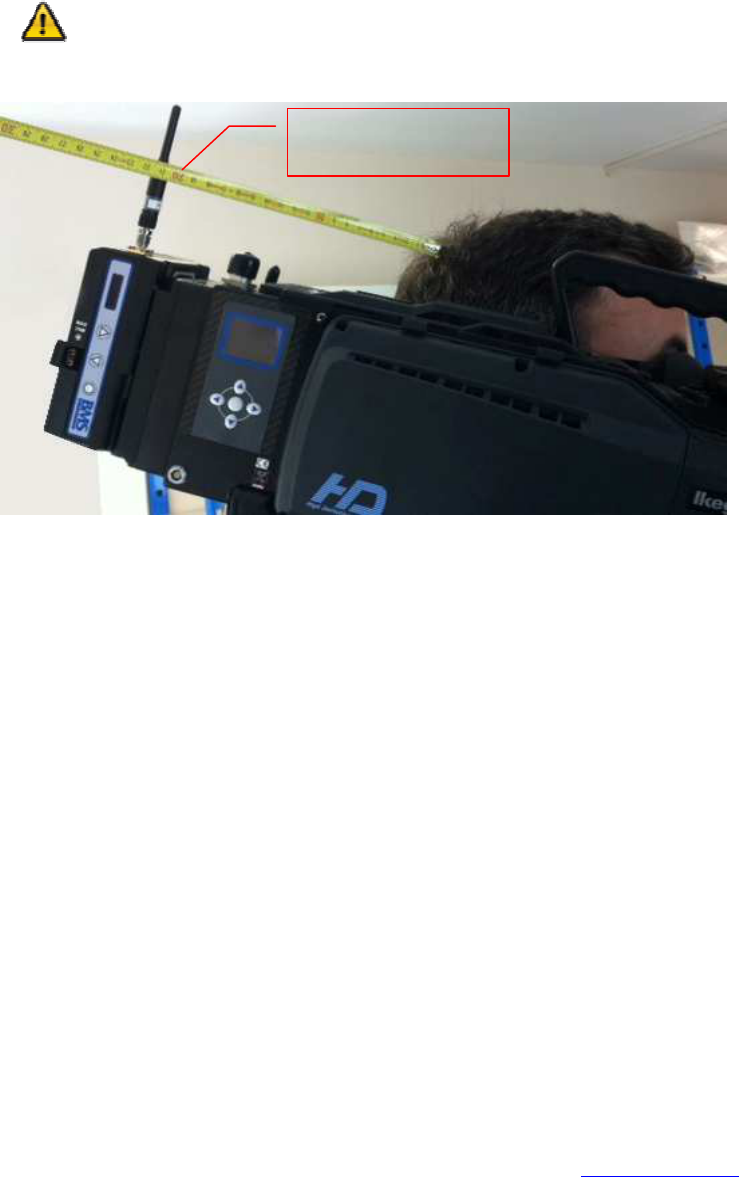

This device is designed to be used in mobile configurations only. It must be used only when the
distance between antenna and body/head is at least 20 cm (see picture 1).
Registered and General Trademarks
Best endeavours have been made to acknowledge registered trademarks and trademarks used
throughout this Reference Guide. Any notified omissions will be rectified in the next issue of this
Reference Guide. Some trademarks may be registered in some countries, but not in others.
Registered trademarks and trademarks used are acknowledged below and marked with their
respective symbols. They are not referenced within the text of this Reference Guide.
• AC-3®, Dolby Digital® and Pro Logic® are registered trademarks of Dolby Laboratories Licensing
Corporation.
• Musicam® is a registered trademark of Thomson and Télédiffusion de France (TDF), Europe, and
is a registered trademark of CCS (now Musicam USA Incorporated), USA.
• Ethernet® is a registered trademark of Xerox Corporation.
• XILINX® is a registered trademark of Xilinx Inc.
• Pozidriv™ is a trademark of European Industrial Services.
• Windows NT®, Windows XP, Windows 7 are registered trademarks of Microsoft Corporation.
• NDS™ is a trademark of NDS Limited.
About This Manual
This product manual provides instructions and information on the installation and operation of the
indicated BMS product.
The manual should be stored in a safe place and remain readily available during the operational
lifetime of the unit. It is not intended for this manual to be revised by issuing and replacing individual
pages. Any revision will be done by a complete reissue. Additional copies of this manual can be
ordered from BMS. The equipment should only be passed on to a third party together with the relevant
documentation. For further information please visit our website at www.bms-inc.com.
Minimum 20cm
Picture 1
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services iii
Contents
1
INTRODUCTION ..............................................................................................................................................1
1.1
Display and Control buttons .....................................................................................................................1
1.2
Using the transmitter ................................................................................................................................1
1.3
Configuring the transmitter .......................................................................................................................2
1.4
Inputs and outputs....................................................................................................................................3
1.5
Specifications ...........................................................................................................................................4
2
PREVENTIVE MAINTENANCE........................................................................................................................6
3
REPAIR SERVICE/WARRANTY INFORMATION............................................................................................7
3.1
Customer Service Contact Information.....................................................................................................8
4.................................................................................................................................................................................8
List of Figures
Figure 1. Transmitter control panel ............................................................................................................................1
Figure 2. Menu structure............................................................................................................................................2
Figure 3. Waking up the unit’s display .......................................................................................................................3
Figure 4. BMS product label ......................................................................................................................................7
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 1
1 INTRODUCTION
The NT5723SDHD is BMS’ COFDM camera-back transmitter for a wide range of sporting events and
news broadcast applications. It features low power consumption, one frame latency and 200 mW
output power.
1.1 Display and Control buttons
The transmitter uses a side-mounted control panel, shown below. The control buttons are capacitive
type buttons and a light pressure is needed to operate them.

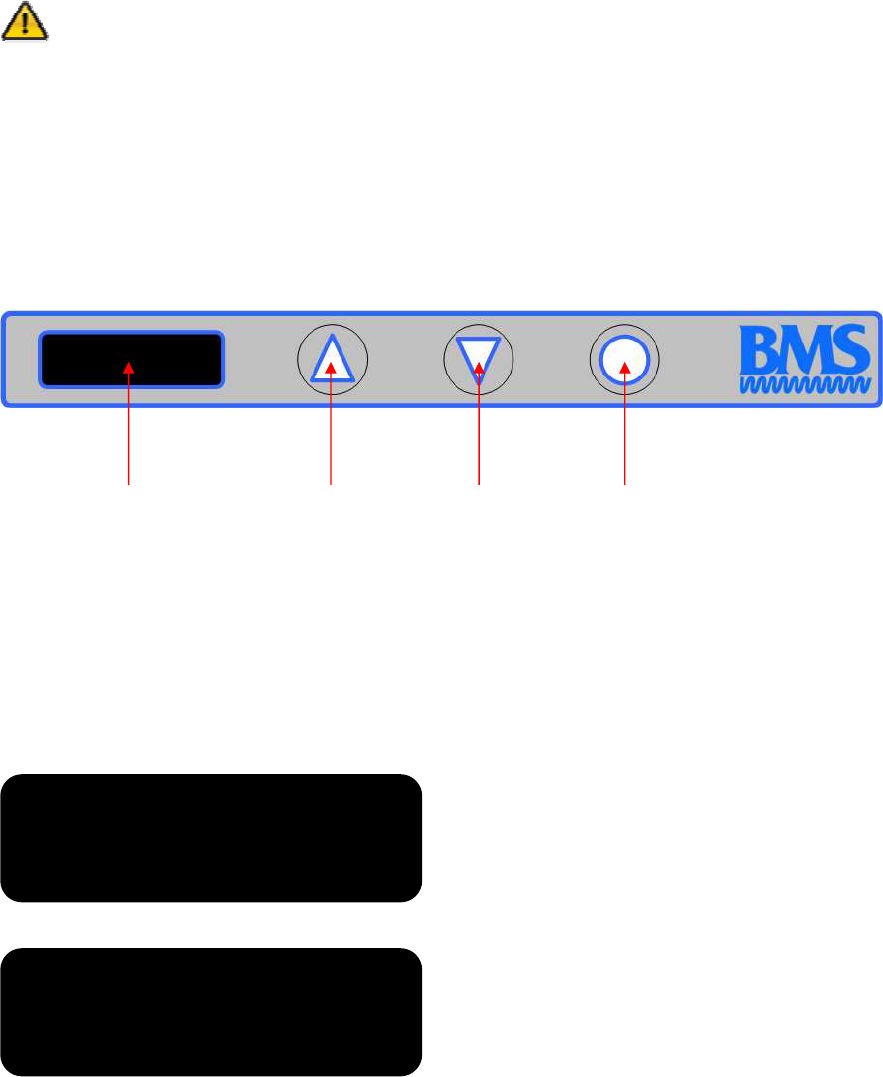

Figure 1. Transmitter control panel
1.2 Using the transmitter
When the transmitter is powered on, the display will show the letters, BMS; then, once the bootup is
completed, the frequency and current channel will appear.
BMS
CH 1 MHz
2350.000
(2) Down Button (3) Select Button (1) Up Button
Display
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 2
1.3 Configuring the transmitter
To change the transmitter’s settings, touch the Select Button for about 3 seconds to enter the menu.
NOTE: If the menu is already activated and does not allow any further commands from any of the
control buttons, the display change back to the start screen after about one minute.

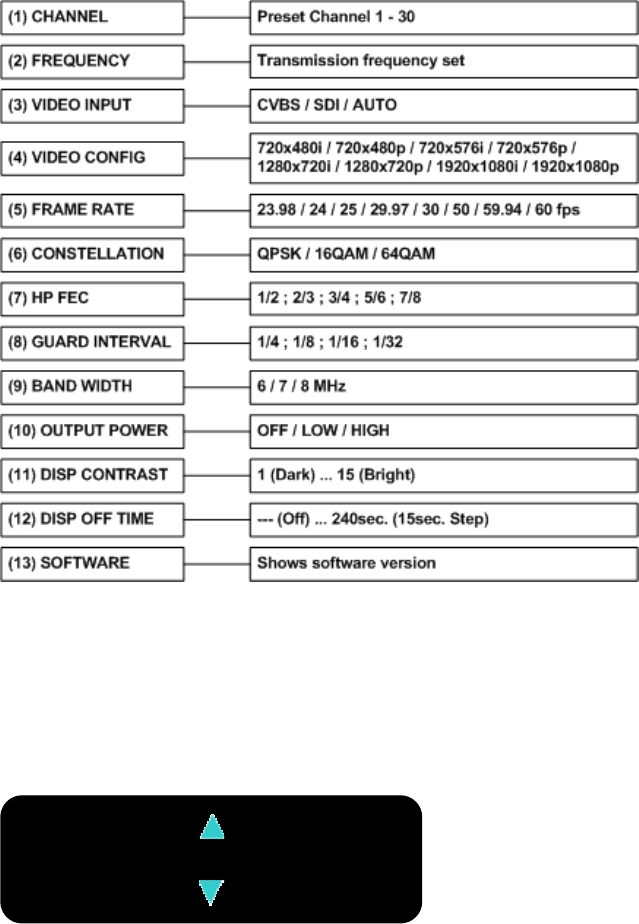

Figure 2. Menu structure
To change any of the settings, enter the associated menu by touching the select button. Use the up or
down arrow buttons to navigate through the menus.
If you are in a submenu the display will appear as below. Two arrows are shown with the different
values which can be set.
If the display OFF time is set to a value between 15 seconds and 240 seconds, the display will turn off
after that time. To “wake up” the display you must slide your finger from the display to the BMS logo,
pressing all three buttons along the way.
SDI
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 3
Figure 3. Waking up the unit’s display
1.4 Inputs and outputs
BNC (f) Video in SDI; HD-SDI 75 Ω
BNC (f) Video in CVBS 75 Ω
4pol Hirose (f)
Audio in
1: GND
2: Audio R+
3: Audio L+
4: n.c.
2x Analog audio in
Line or Mic Level
4pol Hirose (m)
Data
1: Data in
2: Data TX
3: Data RX
4: GND
RS232
SMA (f) RF out 200mW 50 Ω
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 4
1.5 Specifications
Frequency 5.725 to 5.850 GHz
Channel Bandwidth 8 MHz
RF Output Power max. 200 mW (Adjustable via PC: Low - High)
Modulation COFDM, ETS 300744, 2k carriers
QPSK,16 QAM,64 QAM
MPEG-2 Encoding MPEG-2 SP@ML
MPEG-2 MP@ML
MPEG-2 SP@HL(HD)
MPEG-2 422 in SD and HD
Video 1920x1080i (HD)
23.98/24/25/29.97/30 fps
1280x720p (HD) and 720x576i
23.98/24/25/29.97/30/50/59.94/60 fps
Power Input 12 to 17.5 VDC
Consumption approx. <16 W
Temperature - 10°C to + 50°C (-4°F to +122°F)
Relative Humidity 5 % to 95 %
Dimensions (W x D x H) NT5723SDHD without brackets: 158 x 80 x 46 mm
(6.22“x3.14“x1.81“)
Weight 390g (0.86 lbs)
1.5.1 CE Marking
The CE mark is affixed to indicate compliance with the following directives:
89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
73/23/EEC of 19 February 1973 on the harmonisation of the laws of the Member States
relating to electrical equipment designed for use within certain voltage limits.
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 5
1.5.2 FCC Marking
FCC ID: VFB-NT5723SDHD5G8 for P/N 11.2531.000
Radio Frequency Interference (FCC 15.105)
This equipment has been tested and found to comply with the limits for Class B digital devices pursuant
to Part 15 of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy,
and if not installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Labeling Requirements (FCC 15.19)
This equipment complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including
interference that may cause undesired operation.
Modifications (FCC 15.21)
Changes or modifications to this equipment not expressly approved by BMS may void the user’s
authority to operate this equipment.
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 6
2 PREVENTIVE MAINTENANCE
There are no preventive maintenance procedures for this product.
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 7
3 REPAIR SERVICE/WARRANTY INFORMATION
Repair service is available from the factory for repair or replacement within 14 days after receipt of a
malfunctioning unit. Warranty position will be established upon receipt of inoperative equipment. If
equipment is confirmed defective and is BMS’ responsibility, repair action will be initiated immediately.
When the malfunction is determined to be user responsibility, repair will be initiated after confirmation
with the user’s buying authority.
BMS warrants that, at time of delivery, the product will be free from defects in materials and
workmanship provided the equipment or system is installed, operated and maintained in accordance
with the Operation and Maintenance manual or such other BMS documentation as may be applicable.
Any such defect reported to BMS within two years, BMS will take reasonable and prompt action to
repair or replace such equipment. Should any of the components be defective, please contact BMS
immediately. Please have the following information available so we can best serve you. Much of this
information can be found on the unit’s BMS product label (Fehler! Verweisquelle konnte nicht
gefunden werden.).
• Customer and contact person names, with address, phone, and e-mail address;
• BMS model number;
• Product serial number;
• Detailed description of problem;
• Return information.

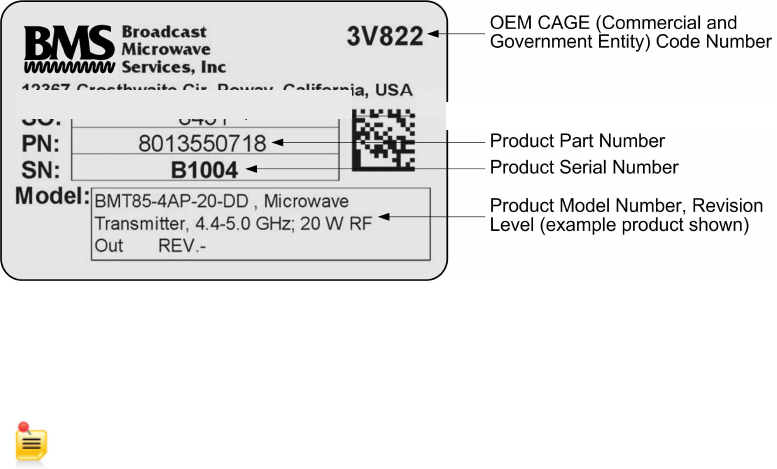

Figure 4. BMS product label
Defective components under BMS warranty will be repaired/replaced promptly at the discretion of BMS.
Items no longer under warranty will require a PO before repairs can proceed.
NOTE: All goods returned for service require an RMA number. Any goods received without an RMA
number may not be processed in a timely manner. Please contact BMS for an RMA number.
NTxx23SDHD Camera-back Transmitter Operation Manual
Broadcast Microwave Services 8
3.1 Customer Service Contact Information
Broadcast Microwave Services, Inc.
12367 Crosthwaite Circle, Dock 10
Poway, CA 92064 U.S.A.
Tel: +1-858-391-3050 • Toll Free (U.S.): 866-489-4267 • Fax: +1-858-391-3049
Web: www.broadcastmicrowave.com
E-mail: sales@bms-inc.com
Broadcast Microwave Services Europe GmbH
Schwalbacher Str. 12
65321 Heidenrod Germany
Tel: +49-6124-72 39-00 • Fax: +49-6124-72 39-29
Web: www.broadcastmicrowave.com
E-mail: saleseurope@bms-inc.com
Please send feedback on this and other BMS manuals to techpubs@bms-inc.com.
Register for BMS customer portal at www.broadcastmicrowave.com/support/index.php?action=user.
