Technical manual
WARNING
This transmitter should never be operated without a suitable antenna or test dum-
my load! Failure to observe this requirement may result in damage to the transmit-
ter that is not covered by the warranty.
IMPORTANT
This transmitter has been shipped with the internal stereo generator enabled. The
internal jumper J1 (MPX loop-through) is set to ON.
If you intend to connect a MPX signal to the MPX input BNC connector you will
need to move J1 (MPX loop-through) to the OFF position.
Examples of congurations requiring setting J1 to OFF include:
Routing the internal MPX signal through an external RDS encoder.
Connecting an external audio processor or stereo generator to the
transmitter.
Connecting a re-broadcast or STL receiver to the transmitter.
Consult the manual for further information on the transmitter’s jumpers and con-
nections.
●
●
●
BW Broadcast technical manual Page 3
CONTENTS
1. Introduction
1.1 TX FM Transmitter
1.2 Safety
1.3 Quick setups

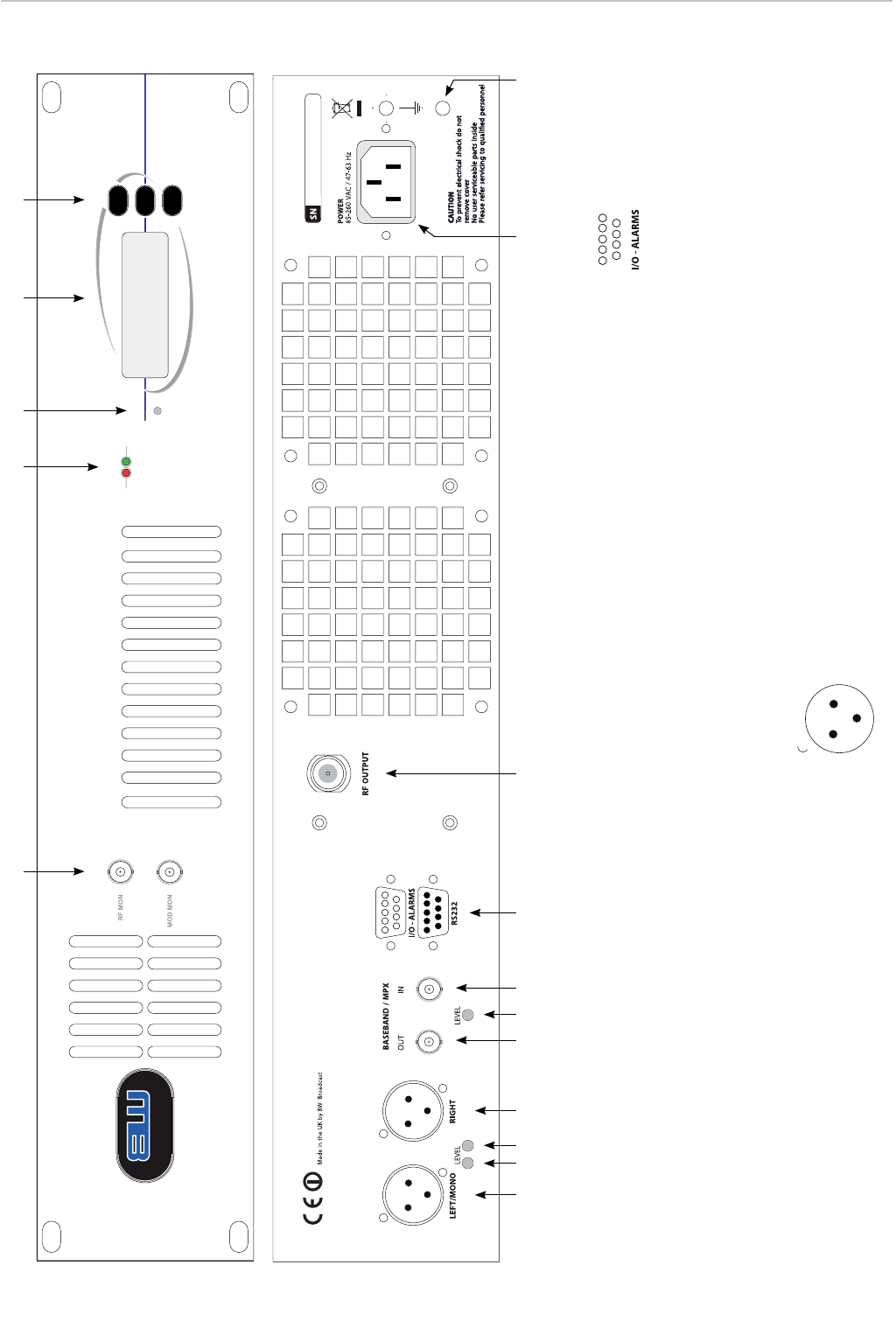

1.4 Front And Rear Panels
1.5 Control And Monitor LCD
2. Installation And Setup
2.1 Frequency Setup
2.2 R.F. Power Setup
2.3 Alarms
2.4 RS232 Control & Monitoring
2.41 Windows remote control application
2.42 Terminal control of the transmitter
2.5 Modes Of Operation
2.51 A guide to the jumpers
2.52 Multiplex / Broadband Input
2.53 Stereo With Limiters
2.54 Stereo With Limiters Disabled
2.55 Mono From Two Channels
2.56 Mono From One Channel
2.6 Other Setup Considerations
3. Technical data
3.1 Specifications
3.2 Circuit Description
3.21 Combo board
3.22 LCD control board
3.23 Power amplifier board
3.3 Block Diagram

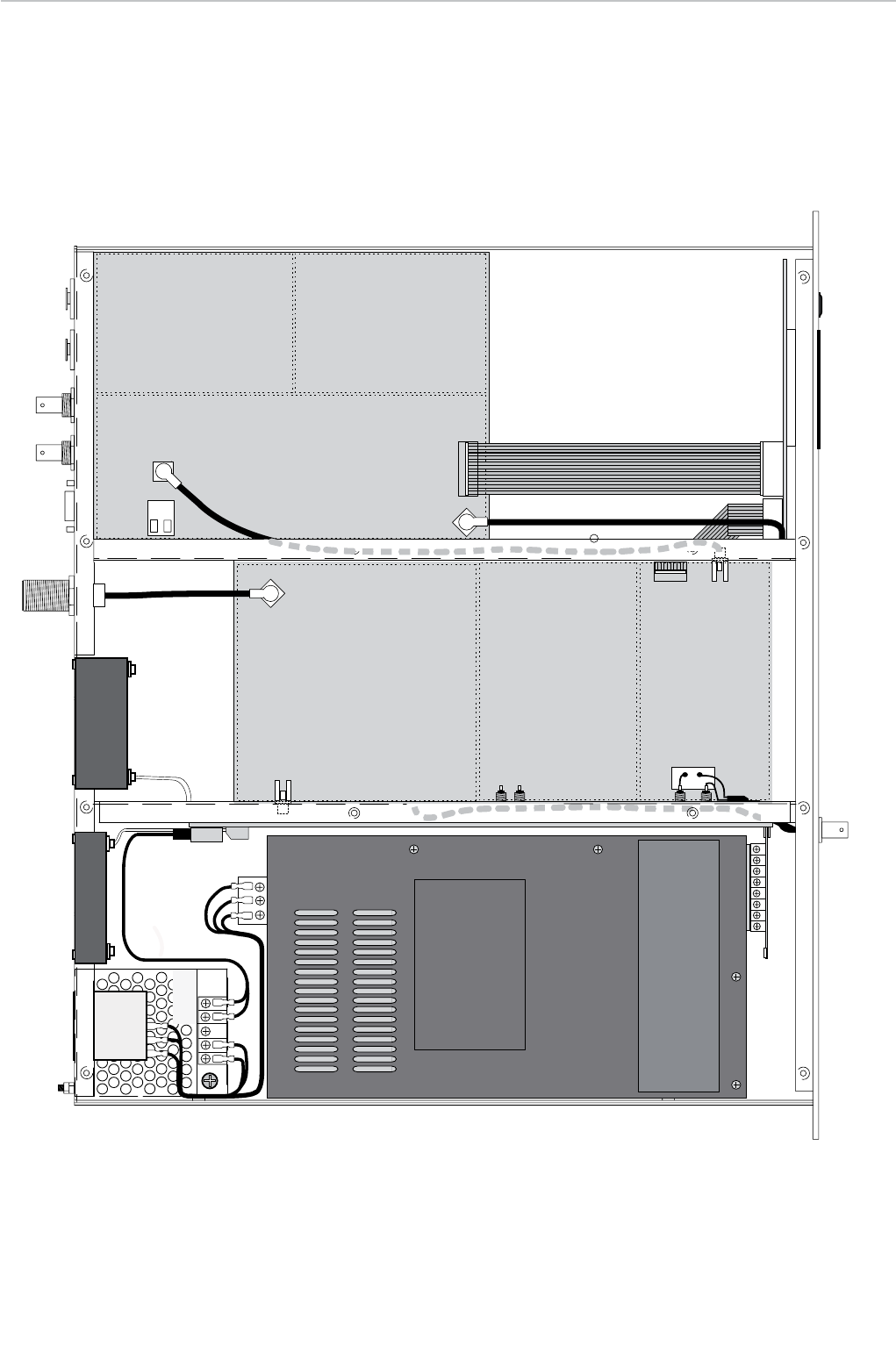

3.4 Internal Wiring / Case Overview

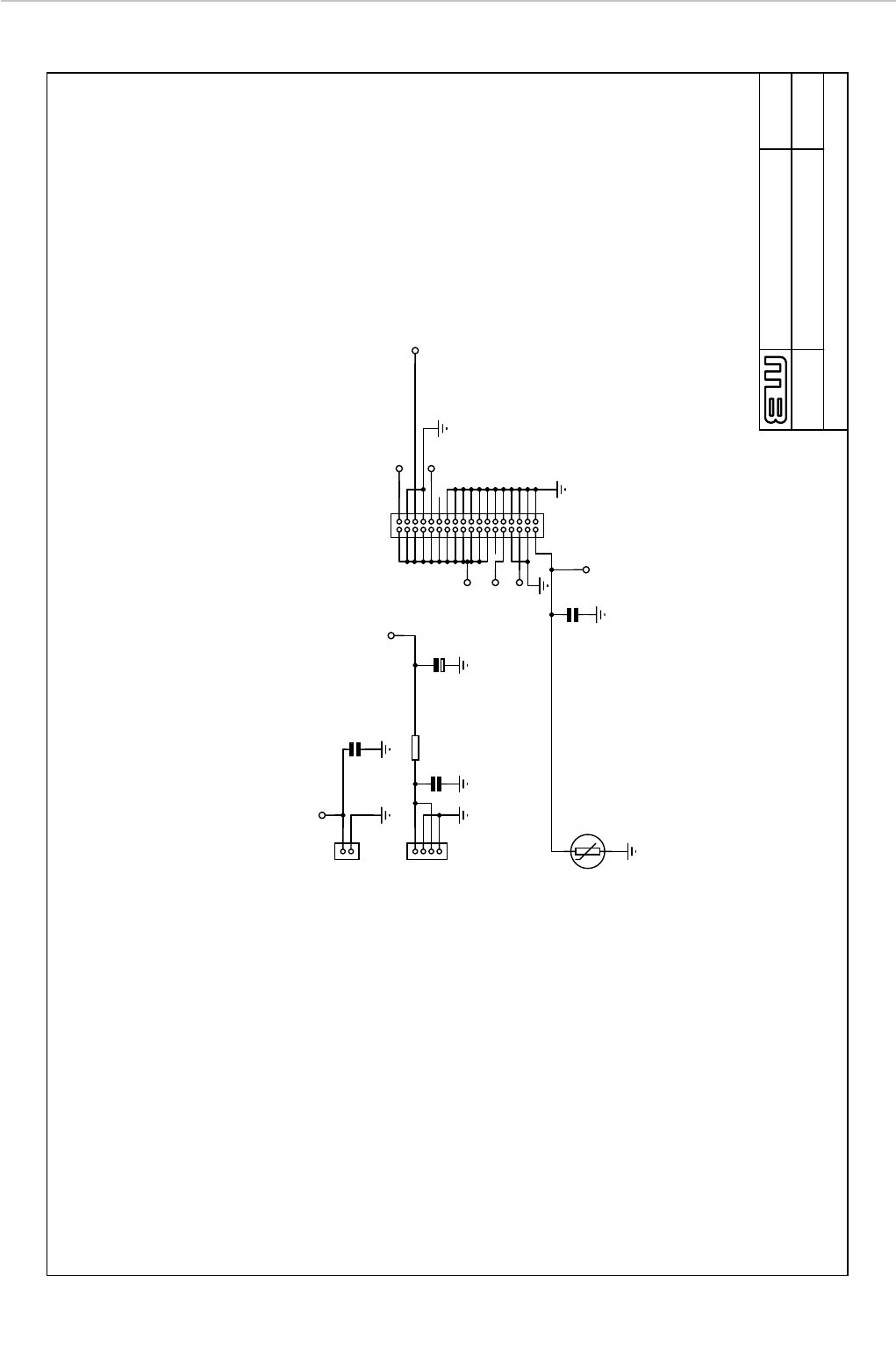

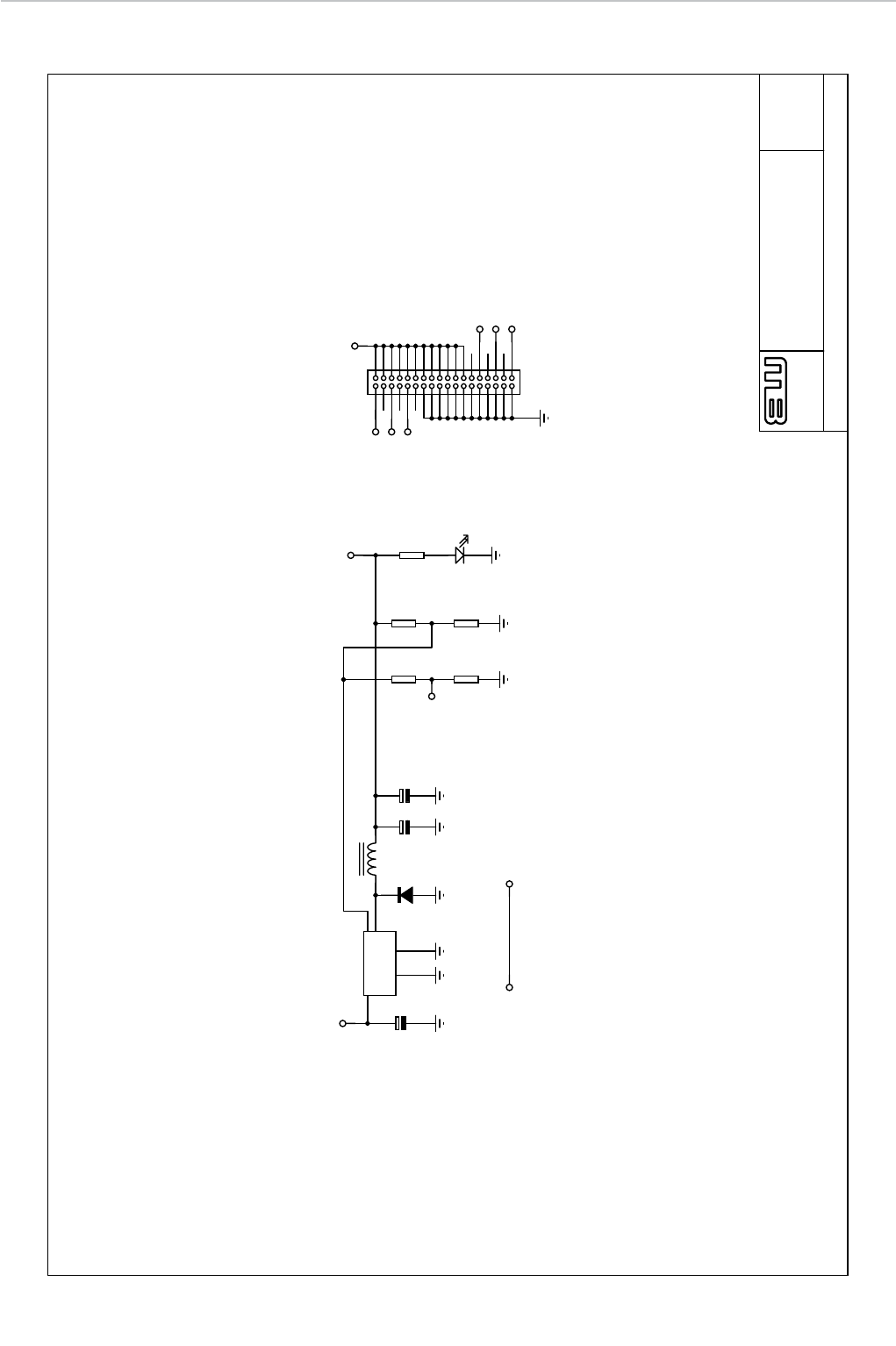

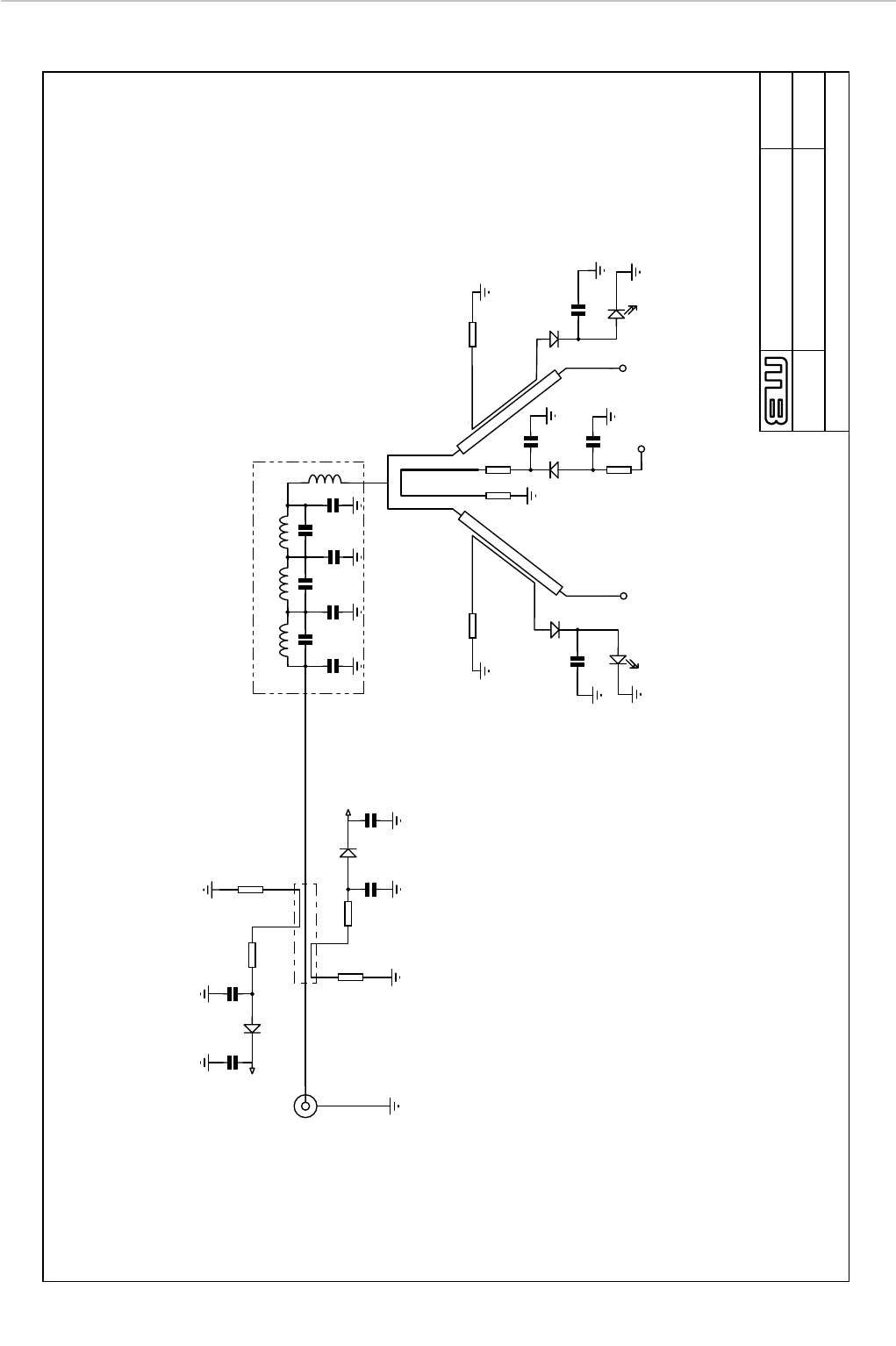

3.5 Schematics
3.51 Combo section
3.511 Limiter section
3.512 Coder section
3.513 Exciter section
3.52 LCD control section
3.53 Power amplifier section
3.531 PSU interface
3.532 Bus bar
3.533 Controller board
3.534 15W driver board
3.535 Double pallet
3.536 Output combiner
3.6 Parts List
3.61 Combo board parts list
3.62 LCD control board parts list
3.63 Power amplifier board parts list
3.631 PSU interface
3.632 Bus bar
3.633 Controller board
3.634 15W driver board
3.635 Double pallet
3.636 Output combiner
BW Broadcast technical manual Page 4
Introduction
1.1 TX 600 FM TRANSMITTER
The BW Broadcast TX 600 is a high specification FM broadcast transmitter. Its broadband “no-tune” design allows
87.5-108 MHz operation from internal direct reading rotary switches or the front panel LCD frequency control sys-
tem if enabled. Digital PWM techniques provide an easily adjustable and accurate automatic level controlled R.F.
output of the MOS-FET power amplifier stage.
RF, audio and other parameters are shown on the LCD graphics display. This display offers a very easy method
of transmitter parameter monitoring and a new level of ease for setup and installation, with metering accuracy
normally only found on expensive test equipment. Local and remote personal computer control and metering are
achievable via RS232 interface and there's an alarm I/O as well.
The FM modulator section employs a dual speed “virtual VFO” system for extremely low audio distortion and
excellent stereo performance.
A built in high specification stereo encoder provides crystal clear stereo sound and combined with the internal lim-
iter a fully compliant “plug and play” all in one low power broadcast transmitter.
For future compatibility all settings are switchable with on board jumpers. The stereo and/or limiter settings can be
switched in and out to suit the requirements of any external broadcast equipment you may have now and in the
future.
The lightweight universal mains input design ensures a high reliability efficient design compatabile with any mains
system in the world.
BW Broadcast technical manual Page 5
Introduction
1.2 SAFETY
MAINS VOLTAGE
This equipment operates from an AC power source of between 90 and 265 volts. There are hazardous
voltages present internally. PLEASE OBSERVE CAUTION WITH THE COVER REMOVED.
SWITCHED MODE POWER SUPPLY HAZARD
Please note that the power supply units in this equipment is of the switched mode variety and have lethal
voltages present internally. The switched mode supplies are universal input fully approved type. They are
non serviceable modules and should be fully replaced should they fail.
FUSES
Only use fuses with the specified voltage and current ratings as stated on the back panel. Failure to do so
may increase the risk of equipment failure, shock and fire hazard.
R.F.
The N type R.F. power output socket contains R.F. voltages which may burn or present a shock. Please
make sure that the equipment is connected to an adequately rated load or antenna system while in opera-
tion.
TOXIC HAZARD
This equipment includes R.F. components that may contain Beryllium oxide which is a highly toxic sub-
stance that could be hazardous to health if inhaled or ingested. Care should be taken when replacing or
discarding such devices. Seek expert advice from the manufacturer should you physically damage a device
that contains Berillyium Oxide. The main R.F. output power transistor contains Beryllium oxide.
OTHER SAFETY CONSIDERATIONS
Do not operate this equipment in the presence of flammable gases, fumes or liquids
Do not expose this equipment to rain or water.
CE CONFORMANCE
This device complies with the requirements of the 1995/5/EC Radio and Telecommuni-
cations Terminal Equipment (R&TTE). The equipment will meet or exceed the following
standards: EN 60215:1996 (Safety Requirements for Radio Transmitting Equipment),
EN 301 489-11 (ERM/EMC for Radio Equipment, Part 11 Specific Conditions for FM
Transmitters), EN 302 018-2 ERM (Transmitting Equipment for FM Radio Broadcasting
service)
The operating frequencies of this transmitter may not be harmonised in the intended
countries of use. The user must obtain a license before using the product in the intend-
ed country of use. Ensure respective country licensing requirements are complied with.
Limitations of use can apply in respect of operating frequency, transmitter power and/or
channel spacing.
WEEE COMPLIANCE
BW Broadcast Ltd is registered with Northern Compliance PCS number WEE/P3438PR/
SCH and has been issued with WEE/FA0268RX as its unique producer ID by the appro-
priate environment agency. BW Broadcast Ltd full comply with it explicit responsibilities,
subject to WEEE Collections Policy outlined in their General Terms and conditions of
Sale, when it sells Electrical and Electronic Equipment (EEE) to B2B customers in the
UK and EU.
This appliance has been designed and manufactured with high quality materials and components that can
be recycled and reused. Electronic appliances are liable to contain parts that are necessary in order for the
system to work properly but which can become a health and environmental hazard if they are not handled
and disposed of in the proper way. Consequently, please do not throw your inoperative appliance with the
household waste. Having purchased this appliance it is your responsibility to dispose of this equipment
appropriately.
BW Broadcast technical manual Page 6
Introduction
1.3 Quick set-up guide
Using a transmitter stand-alone (without RDS encoder)
This set-up uses the built-in audio limiter and stereo generator. The transmitter as shipped from factory is already
configured for this set-up, so there are no internal changes to be made.
Place a transmitter in a well ventilated space. If it's rack-mounted, leave at least 1U free above and be-
low it for adequate cooling.
Connect the antenna to the RF output N-connector on the back of the transmitter.
Connect the left and right program audio signals to the XLR input connectors on the back of the transmit-
ter.
Plug in the power cord to the transmitter.
Once the transmitter is operating, set the correct carrier frequency from the front panel (this can also be
locked and set internally).
Adjust the desired power output level using front panel. Check reflected power is OK.
Check the gain reduction of the built-in limiter - it should be doing a couple of dB with normal program
level. If necessary adjust the audio input level trimmers on the back of the transmitter.
That finishes the set-up. A much more detailed explanation is available in the appropriate sections of this manual as
well as additional options. You should read through it!
1.
2.
3.
4.
5.
6.
7.
BW Broadcast technical manual Page 7
Introduction
1.3 Quick set-up guide
Using a transmitter stand-alone with RDS encoder
This set-up uses the built-in audio limiter and stereo generator.
Remove the screws that hold the lid of the transmitter and remove the lid.
Locate the main board on the right side of the transmitter. Locate jumper J1 right behind the BNC con-
nectors. Move it to down position (Loop-through off).
Reassemble the lid back on.
Place a transmitter in a well ventilated space. If it's rack-mounted, leave at least 1U free above and be-
low it for adequate cooling.
Connect the antenna to the RF output N-connector on the back of the
transmitter.
Connect the left and right program audio signals to the XLR input con-
nectors on the back of the transmitter.
Connect the Baseband/MPX output on the back of the transmitter to
the MPX input of the RDS encoder.
Connect the MPX output of the RDS encoder to the MPX input on the
back of the transmitter.
Plug in the power cord to the transmitter.
Once the transmitter is operating, set the correct carrier frequency
from the front panel (this can also be locked and set internally).
Adjust the desired power output level using front panel. Check reflected
power is OK.
Check the gain reduction of the built-in limiter - it should be doing a couple of dB with normal program
level. If necessary adjust the audio input level trimmers on the back of the transmitter.
Check the documentation that came with your RDS encoder on how to set/check the proper RDS injec-
tion level.
That finishes the set-up. A much more detailed explanation is available in the appropriate sections of this manual as
well as additional options. You should read through it!
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

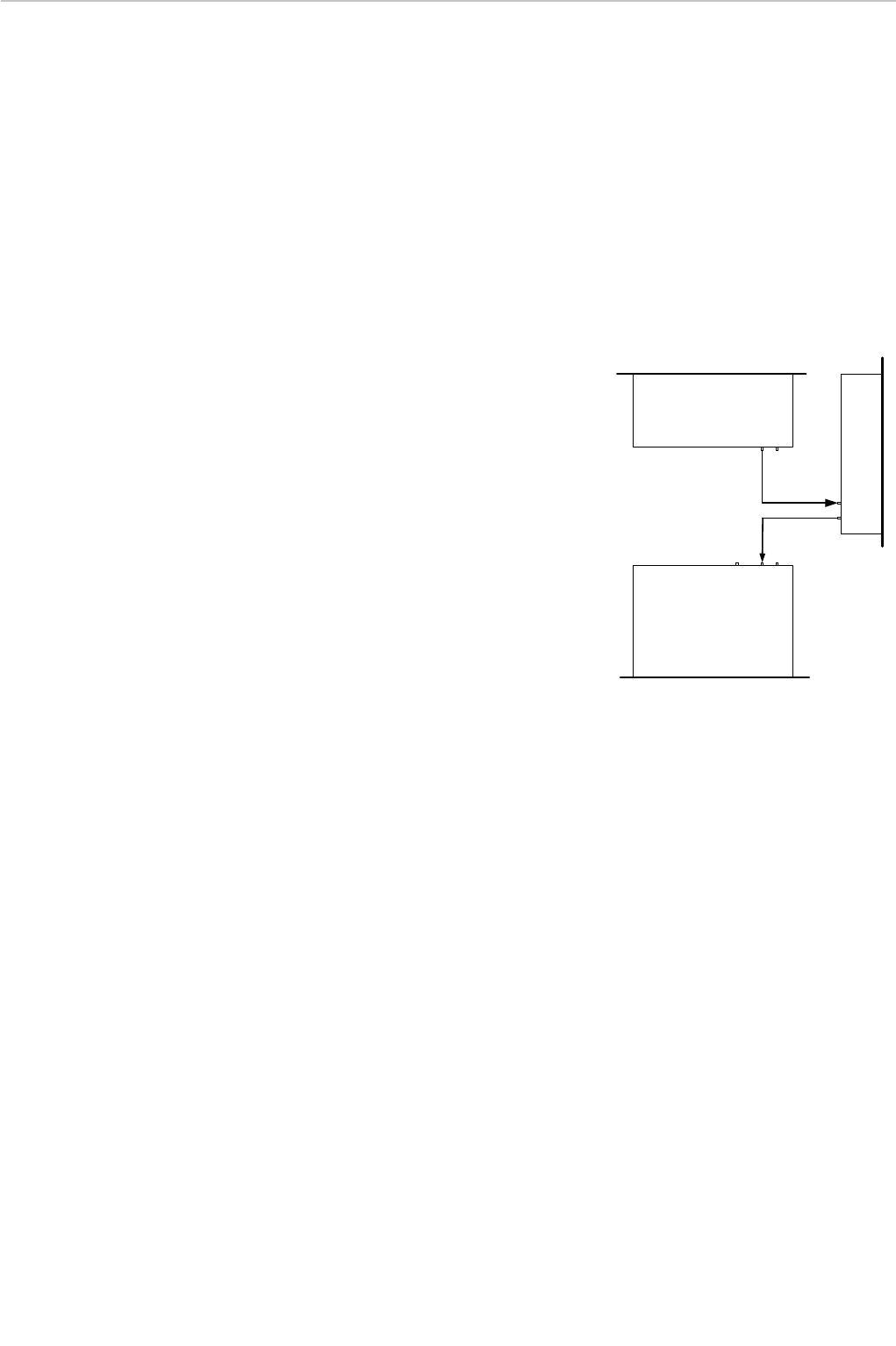

Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
MP X
Audio processor
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
RDS
PIL OT
OUTIN
SCA PILOT
OUT
MPX
RDS encoder
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX

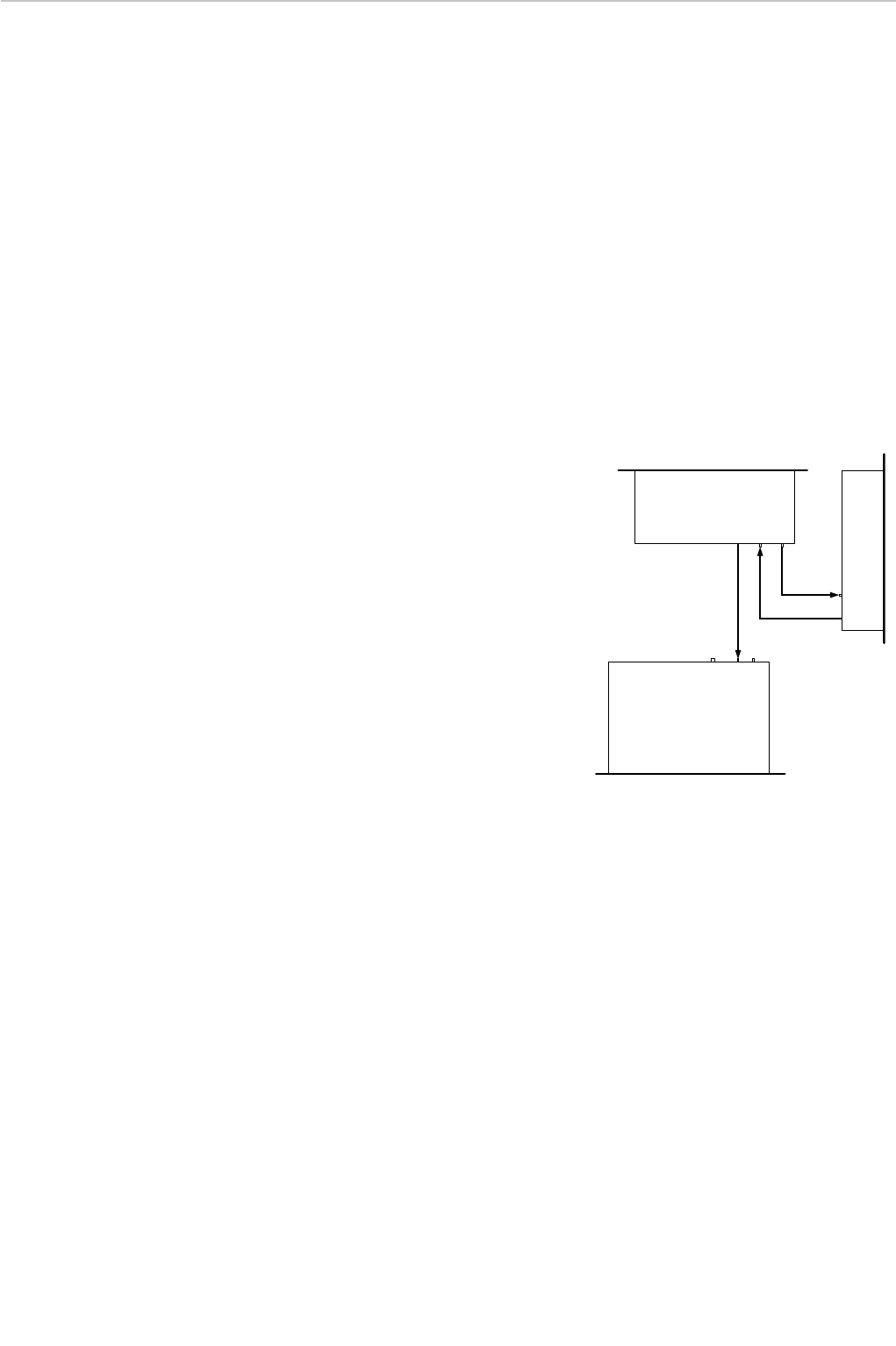

MPX connections
BW Broadcast technical manual Page 8
Introduction
1.3 Quick set-up guide
Using a transmitter with external audio processor/stereo generator
but without RDS encoder
Remove the screws that hold the lid of the transmitter and remove the lid.
Locate the main board on the right side of the transmitter. Locate jumper J1 right behind the BNC con-
nectors. Move it to down position (Loop-through off).
Reassemble the lid back on.
Place a transmitter in a well ventilated space. If it's rack-mounted, leave at least 1U free above and be-
low it for adequate cooling.
Connect the antenna to the RF output N-connector on the back of the
transmitter.
Connect the MPX output of your audio processor (or stereo generator)
to the MPX input on the back of the transmitter.
Plug in the power cord to the transmitter.
Once the transmitter is operating, set the correct carrier frequency
from the front panel (this can also be locked and set internally).
Adjust the desired power output level using front panel. Check reflect-
ed power is OK.
Check the modulation level - if the modulation level is low, adjust the
MPX output level on your audio processor (or stereo generator) and/or the
MPX input level on the back of the transmitter. The maximum modulation should not exceed 75kHz.
Check the documentation that came with your audio processor on how to set/check the proper pilot
injection level.
That finishes the set-up. A much more detailed explanation is available in the appropriate sections of this manual as
well as additional options. You should read through it!
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
MP X
Audio processor
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
RDS
PIL OT
OUTIN
SCA PILOT
OUT
MPX
RDS encoder
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
MPX connections
BW Broadcast technical manual Page 9
Introduction
1.3 Quick set-up guide
Using a transmitter with external audio processor/stereo generator
and with RDS encoder (in-line connection)
Remove the screws that hold the lid of the transmitter and remove the lid.
Locate the main board on the right side of the transmitter. Locate jumper J1 right behind the BNC con-
nectors. Move it to down position (Loop-through off).
Reassemble the lid back on.
Place a transmitter in a well ventilated space. If it's rack-mounted,
leave at least 1U free above and below it for adequate cooling.
Connect the antenna to the RF output N-connector on the back of
the transmitter.
Connect the MPX output of your audio processor (or stereo gen-
erator) to the MPX input of your RDS encoder.
Connect the MPX output of your RDS encoder to the MPX input
on the back of the transmitter.
Plug in the power cord to the transmitter.
Once the transmitter is operating, set the correct carrier frequency from
the front panel (this can also be locked and set internally).
Adjust the desired power output level using front panel. Check reflected power is OK.
Check the modulation level - if the modulation level is low, adjust the MPX output level on your audio
processor (or stereo generator), RDS encoder and/or the MPX input level on the back of the transmitter.
The maximum modulation should not exceed 75kHz.
Check the documentation that came with your audio processor on how to set/check the proper pilot
injection level.
Check the documentation that came with your RDS encoder on how to set/check the proper RDS injec-
tion level.
That finishes the set-up. A much more detailed explanation is available in the appropriate sections of this manual as
well as additional options. You should read through it!
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
MP X
Audio processor
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
RDS
PIL OT
OUTIN
SCA PILOT
OUT
MPX
RDS encoder
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
MPX connections
BW Broadcast technical manual Page 10
Introduction
1.3 Quick set-up guide
Using a transmitter with external audio processor/stereo generator
and with RDS encoder (sidechain connection)
This is the best connection in terms of pilot and RDS subcarrier phase syncronization and MPX spectrum cleanli-
ness.
Remove the screws that hold the lid of the transmitter and remove the lid.
Locate the main board on the right side of the transmitter. Locate jumper J1 right behind the BNC con-
nectors. Move it to down position (Loop-through off).
Reassemble the lid back on.
Place a transmitter in a well ventilated space. If it's rack-
mounted, leave at least 1U free above and below it for
adequate cooling.
Connect the antenna to the RF output N-connector on the
back of the transmitter.
Connect the MPX output of your audio processor (or stereo
generator) to the MPX input on the back of the transmitter.
Connect the Pilot output of your audio processor (or stereo
generator) to the Reference input on your RDS encoder.
Connect the MPX output of your RDS encoder to the SCA
input on your audio processor.
Plug in the power cord to the transmitter.
Once the transmitter is operating, set the correct carrier frequency from the front panel (this can also be
locked and set internally).
Adjust the desired power output level using front panel. Check reflected power is OK.
Check the modulation level - if the modulation level is low, adjust the MPX output level on your audio
processor (or stereo generator) and/or the MPX input level on the back of the transmitter. The maximum
modulation should not exceed 75kHz.
Check the documentation that came with your audio processor on how to set/check the proper pilot
injection level.
Check the documentation that came with your RDS encoder on how to set/check the proper RDS injec-
tion level.
That finishes the set-up. A much more detailed explanation is available in the appropriate sections of this manual as
well as additional options. You should read through it!
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
Audio processor
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
MP X
Audio processor
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
RDS encoder
IN OUT
RDS
PIL OT
OUTIN
SCA PILOT
OUT
MPX
RDS encoder
INOUT
MPX
BW Broadcast
Transmitter
RF OUT IN OUT
MPX
MPX connections
BW Broadcast technical manual Page 11
Introduction
1.3 FRONT AND REAR PANELS
1. Left audio input
2. Left Input gain
3. Right input gain
4. Right audio input
5. MPX output
6. MPX level control
7. MPX Input
8. I/O + Alarms
9. RS232
10. R.F. output
11. Power socket
12. Chassis ground post
13. RF monitor output -50dBc (not suitable for
harmonic measurements)
I/O - Alarms D-type connector pinout:
Pin 1 +18V DC 200mA
Pin 2 RF Mute
Pin 3 RF failure alarm (TTL)
Pin 4 PLL failure alarm (TTL)
Pin 5 MOD failure alarm (TTL
Pin 6 GND
Pin 7 RF failure alarm (OC)
Pin 8 PLL failure alarm (OC)
Pin 9 MOD failure alarm (OC)
XLR Audio input connectors
B W - T X 6 0 0
FAULT
VSWR TEMP
17 18
12
12 3 4 5 6 7 8, 9 10 11
13, 14 15 16
14. Modulation monitor output (buffered multiplex,
nominally 3V peak-to-peak for 75kHz)
15. VSWR and temperature fault LEDs
16. Maximum forward power adjust
17. LCD display
18. Up / Down frequency buttons
PIN1 GND
PIN2 Hot (+)
PIN3 Cold (-)
1
2
3
1 2 3 4 5
6 7 8 9
FCC ID: TUO TX600
BW Broadcast technical manual Page 12
Installation and setup
2.1 FREQUENCY SETUP
The Frequency can be set on the transmitter in one of two ways:
1. From internal direct reading decimal switches on the main board
2. From the front panel LCD display and front panel buttons.
Many radio regulatory bodies stipulate that the transmitters parameters including the frequency must not be easily
changed from the front panel. To meet this requirement you will need to set the frequency internally with the dial
switches.
The switches have a silkscreen diagram next to them on the board (see diagram below) clearly indicating what
each switch represents.
The top dial switch represents the value selected x 10 Mhz with the exception of ‘0’ which represents 10 so when
selected would equal 100 Mhz.
The second dial switch represents the value selected x 1 Mhz.
The third dial switch represent the value selected x .1 Mhz (100 kHz)
The bottom switch represents the value selected x .0125 Mhz (12.5 kHz)
For example:
FREQ SWITCHES (MHz)
X10 X1 X.1 X.0125
87.90 ‘8’ ‘7’ ‘9’ ‘0’
98.75 ‘9’ ‘8’ ‘7’ ‘4’
100.00 ‘0’ ‘0’ ‘0’ ‘0’
104.225 ‘0’ ‘4’ ‘2’ ‘2’
108.00 ‘0’ ‘8’ ‘0’ ‘0’
As you can see, the switches directly read the frequency with the
exception of frequencies above 100 Mhz, where the top switch being set at ‘0’
represents ‘10’. The X0.125 ‘offset’ switch is only used when you want to pro-
vide a shift to the carrier of between 12.5 kHz and 112.5 kHz. Note that setting
the switch on 8 or 9 will have the same effect as setting the previous switch
(100 kHz) 1 position higher, as 8 represents 100 kHz on the 12.5 kHz switch.
8 x 0.125MHz = 0.1MHz = 100kHz
The LCD display on the front panel will display the frequency that you have set on the internal switches. If you try
to adjust the frequency with the front panel up / down buttons you will get a ‘ NOT ALLOWED ‘ message appear-
ing on the LCD display. This protects against unauthorized front panel frequency changes when the frequency
has been set internally with the dial switches.
The TX will load the switch values at power up. You will need to remove the mains power to the transmitter
and then reapply it if you want to change the frequency by using the direct reading switches
LCD front panel frequency selection.
If you want to control the frequency from the front panel LCD con-
trol system you will need to set the internal switches to 4440. The
transmitter will pass frequency control to the LCD control system
and the frequency can be moved up and down by pressing the
NEXT button until the frequency menu is displayed. The other two
buttons control the UP and DOWN frequency selection. PLL lock
status is also displayed on this screen.
The LCD readout will only display frequencies in 100Khz steps. Any frequency offsets derived from the
internal 12.5kHz offset switch will not show on the LCD. Consult a frequency counter if using offsets.
Note that some pcb’s have “set to 4444 for
front panel LCD control”. This is an error that
will cause a +50kHz offset to the frequency set
on the LCD screen. Please set to 4440 unless
you specifically want the offset.

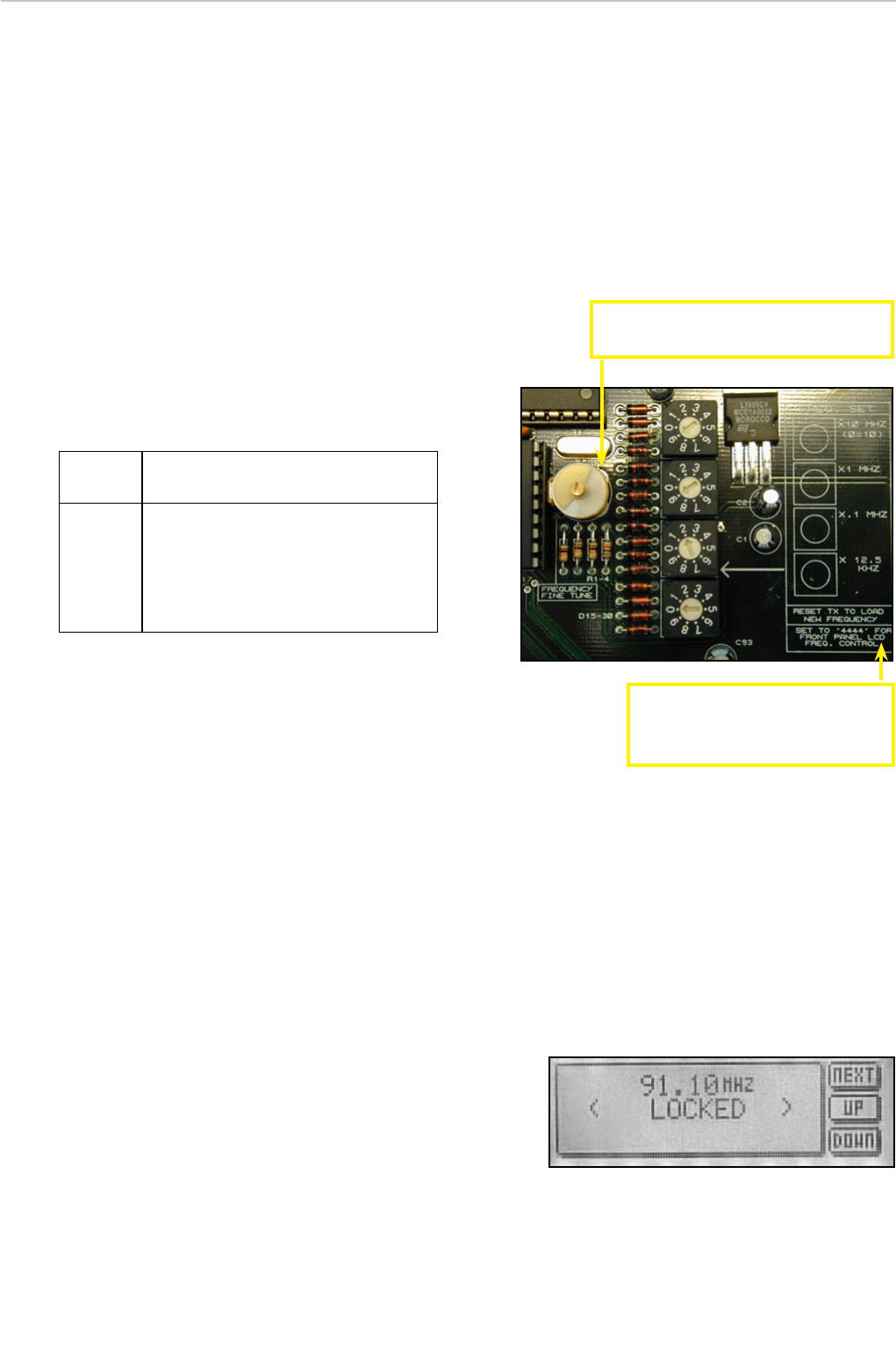

Frequency selection switches on main board
Fine frequency control. Do not adjust unless you
know what you are doing. Consult advanced setup
section of manual for more information.
BW Broadcast technical manual Page 13
Installation and setup

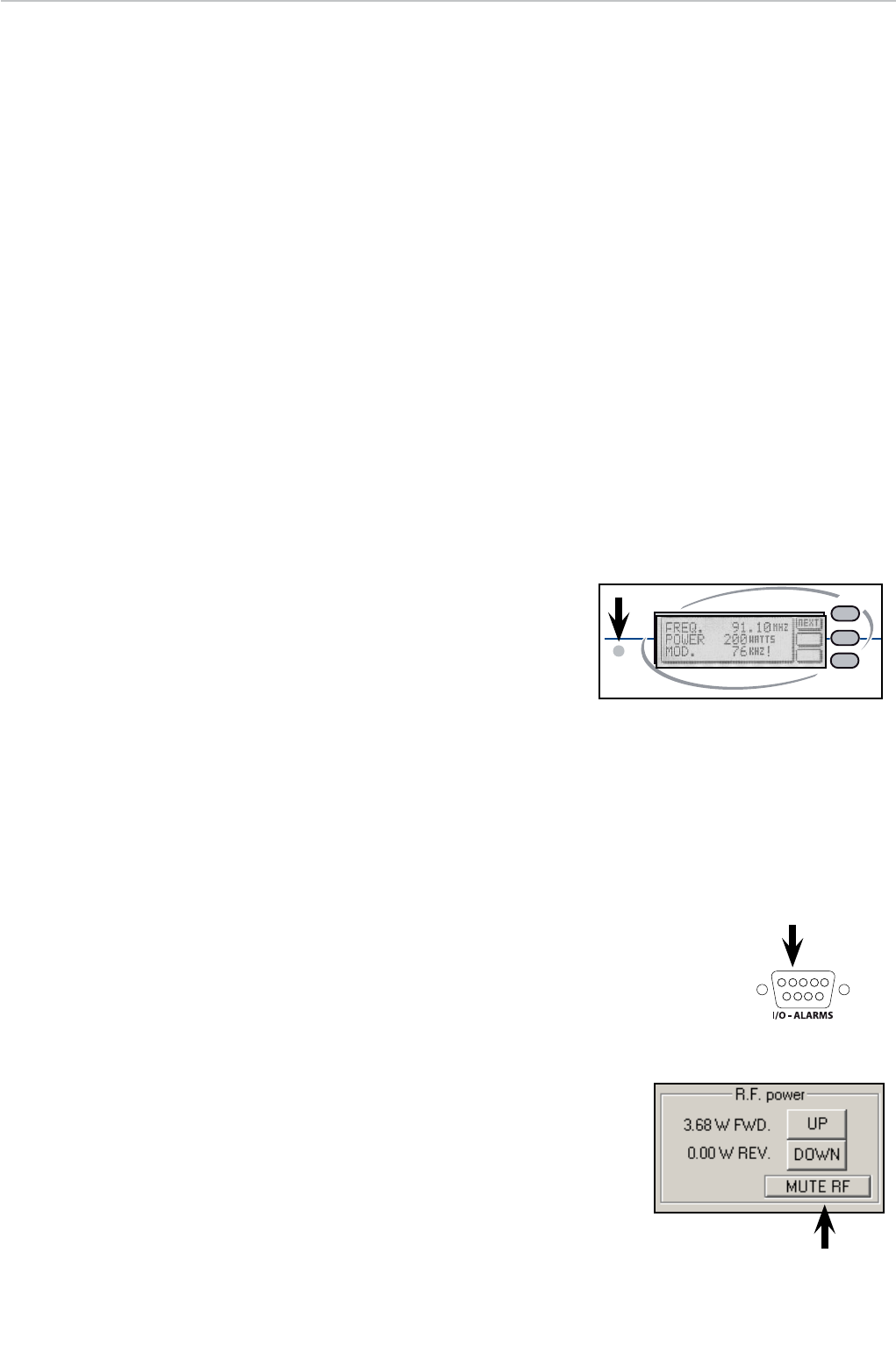

2.2 R.F. POWER SETUP
The R.F. power output from the transmitter can be controlled by an analogue potentiometer (POT) or from the
front panel LCD screen or a combination of both.
ANALOGUE POWER CONTROL
If the frequency is set internally with the dial switches you will not be able to adjust the power from the LCD
screen. This is to comply with regulatory body’s that stipulate that the transmitter is not to have it’s parameters
adjustable from the front panel. In this case you must use the maximum power set control to set the transmitters
power. This control will give the full power range adjustment.
If the transmitter has been internally set to 4440 with the dial switches then you can also control the power from
the LCD screen’s R.F. power menu’s up and down buttons. A “not allowed” message will be displayed to the user
if the dial switches are not set to 4440
RS232 power control will over-ride the power control restrictions caused by having the frequency set
internally (not set to 4440).
DIGITAL POWER CONTROL
When the power is to be controlled from the front panel the max power set POT takes on a new role of setting the
maximum power of the transmitter. If you want the LCD screen to have full power range control of the transmitter
you will need to ensure that the max power set control is at maximum power. Otherwise your control range may
be limited. This feature enables you to limit the transmitters maximum power to a fixed level but to still allow the
LCD screen to provide adjustment of the R.F. power down from that maximum power set point. This can be desir-
able in transmitter hire situations where you wish to govern the maximum
output to a fixed level but to allow the customer (hirer of the transmitter)
to run the power of the transmitter at a lower level if they so decide.
The maximum power set is positioned to the lower left of the LCD screen
on some models, other models may not have the hole in the front panel
and you will need to remove the lid of the transmitter to access the adjust-
ment which will be in the same position but on the other side of the PCB. You will need a small ‘tweaker style’ flat-
head screwdriver to adjust the pot. This control is quite delicate so try to not be too heavy handed in it’s adjust-
ment.
Please note that the VSWR and temperature protection circuitry will turn back the R.F. power if a fault con-
dition exists. Make sure that you have a good VSWR (low reverse power reading) before setting the R.F.
power as the removal of a fault condition may cause the R.F. power to increase.
RF POWER MUTE (analogue)
There is a pin (2) on the back panel I/O D-type that can be pulled low to mute the trans-
mitters RF power.
RF POWER MUTE (digital/RS232)
The transmitters RF power output can be muted via the RS232 control system.
Terminal software can mute/unmute the RF power with the ‘o’ and ‘f’ commands
respectively.
The windows application has a button that can toggle the RF output of the trans-
mitter.
Please consult the RS232 section of this manual for more information on
controlling the transmitter remotely.
FUSE
123456 7 8 911 13
12
10
TX150/300 FM TRANSMITTER
FUSE
123456 7 8 9 11 131210
TX25/50 FM TRANSMITTER
FUSE
123456 7 8 9 11 131210
TX1 FM TRANSMITTER
B W - T X 6 0 0
FAULT
VSWR TEMP
1 2 3 4 5
6 7 8 9
BW Broadcast technical manual Page 14
Installation and setup
2.3 ALARMS
The transmitter has three alarms that can alert the broadcaster if one of the following fails:
R.F. POWER, PLL LOCK, MODULATION
The alarms when set are available on the back panel 9-pin D-type. Each alarm has an open collector (OC) and
a TTL level contact on the D-type. The alarm induced active open collectors can pull down any external signals
and the TTL outputs will provide a 5 Volt indication. The alarm is also visible if any RS232 monitoring (through
Windows Remote Control application or terminal software) is employed.
For the alarms to function correctly the transmitter must be left on the default menu screen. This is the screen that
displays frequency, R.F. power and peak deviation. To ensure that the alarm system functions correctly the trans-
mitter will return to the default menu screen if the LCD is left on another menu screen for more than 5 minutes.
R.F. POWER.
The R.F. power alarm will be set if the R.F. power falls below a threshold level during normal operation.
This threshold is set below the normal operating lowest wattage available from the transmitter. If you
require a different setting for the alarm, contact our tech dept. The alarm will only be set if the fault condi-
tion exists for sixty seconds or more. You will need to reset the transmitter to clear the alarm/s or you can
do it via RS232 connection.
PLL LOCK.
The PLL lock alarm will be set if the transmitters falls out of frequency lock during normal operation. The
alarm will only be set if the fault condition exists for sixty seconds or more. You will need to reset the trans-
mitter to clear the alarm/s or you can do it via RS232 connection.
MODULATION FAILURE.
The Modulation failure alarm will be set if during normal operation the peak deviation of the transmitter
drops and remains below 16 kHz. The 16 kHz alarm level allows the alarm to be set if the audio feed to
the transmitter fails even if the stereo pilot internal to the transmitter is still modulating the transmitter. The
alarm will only be set if the fault condition exists for sixty seconds or more. You will need to reset the trans-
mitter to clear the alarm/s or you can do it via RS232 connection.
MORE INFO ON ALARMS
The three alarms are available on the back panel D-type connector. The pin-outs are shown on the rear
panel diagram. The three alarms are available as TTL level and as open collector outputs. The TTL level
outputs are active high in the event of an alarm. The open collector outputs are ON in the event of an alarm
and will pull down any external levels. The open collectors can sink 100 mA MAX with an absolute maxi-
mum switched voltage of 25 volts.
The D-type connector can also supply 18 volts at 200 mA that can be used for pull-ups on the open collec-
tor alarm outputs and for your own external switching circuitry.
The RS232 interface provides the ability to reset the alarms either through Windows Remote Control appli-
cation or terminal software. More info is found in the following pages of the manual.
BW Broadcast can also customise the alarm / fault software to meet the requirements of major broadcast-
ers and networks or supply N+1 solutions. More information on this and other custom features can be
obtained from our technical department.
BW Broadcast technical manual Page 15
Installation and setup
2.4 RS232 CONTROL AND MONITORING
The TX range of transmitters can be monitored or controlled from a personal computer either locally or remotely.
The Transmitters can “chat” either by a windows application or via a standard serial terminal program. The win-
dows application is the more versatile option and is to be preferred but the ability to use a terminal program can
prove useful in the absence of the windows application or a computer that runs windows.
2.42 Windows application
The latest version of Windows Remote Control application can be downloaded from:
http://www.bwbroadcast.com
Installation
After downloading just click on the .msi file to run the set up program. The set up will place icons in both the
Windows start menu and on your desktop. Simply run the program by clicking on icon from either location.
Running the application

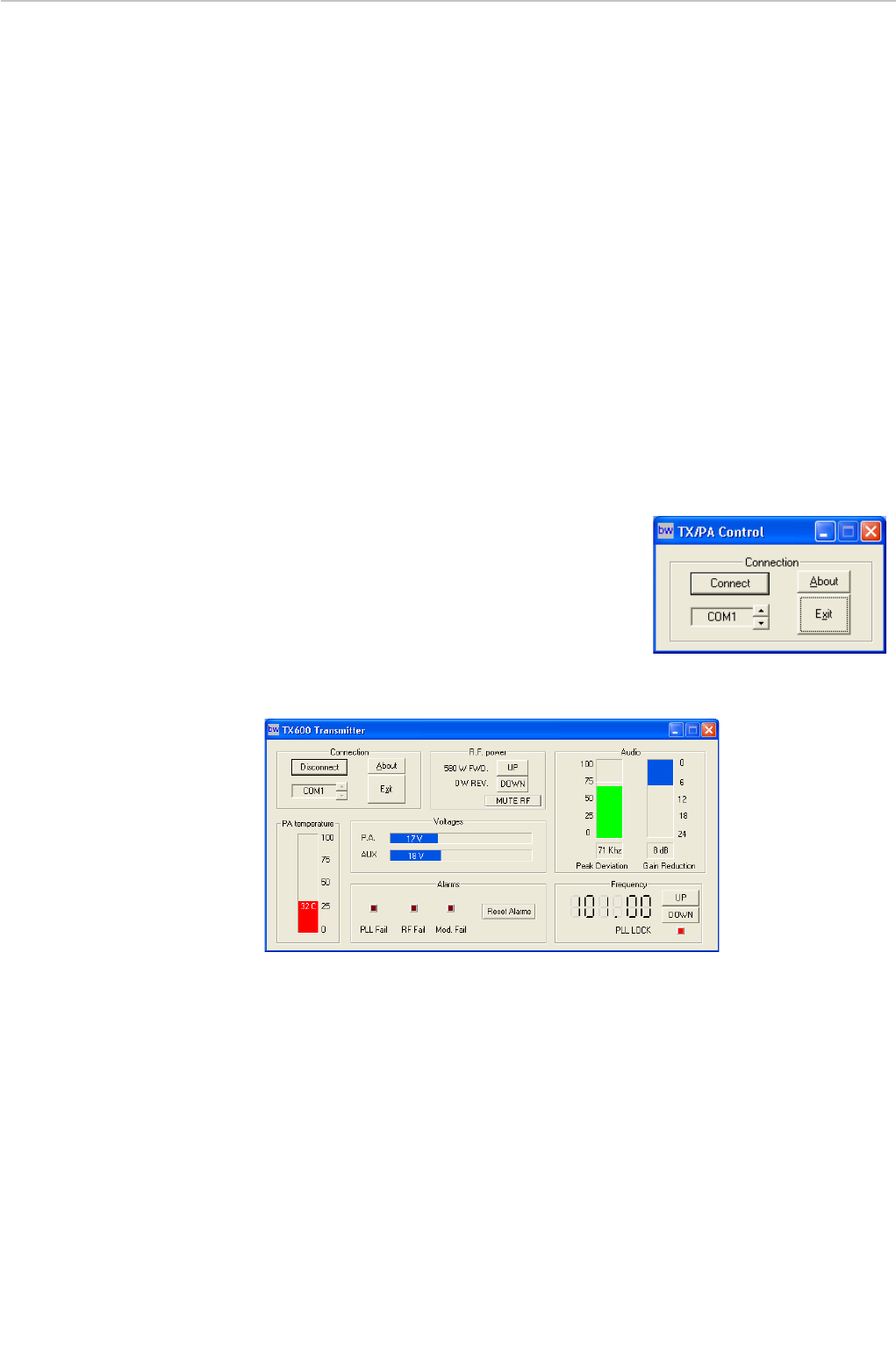

When started the application will resemble the picture to the right.
The application can connect to any COM port currently available on your com-
puter that is running the application. Connect a serial cable between the RS232
connector on the rear of the transmitter and one of your computers COM ports. If
you are using a codec or other STL device then you may be able to connect that
device in line to act as part of the serial link.
Selected the COM port you want to use and then click the Connect button.
If the application is able to connect to the transmitter then you will be presented with a screen similar to the one
above. Once connected you should be able to monitor all the parameters of the transmitter as well as being able
to mute the R.F., change the frequency, change the R.F. power and reset any alarm flags that have been set.
2.43 Terminal control of the transmitter
Installation
Please see the instructions for your terminal software package to find out how to connect to a remote serial
device. The transmitter is internally set to communicate at 9600 bps, no parity with 1 stop bit and hardware flow
control. This is commonly known as 9600 8N1. If your using Windows then you can use the pre-bundled terminal
program “Hyper-terminal”. This is located in the Programs -> Accessories -> Communications folder accessible

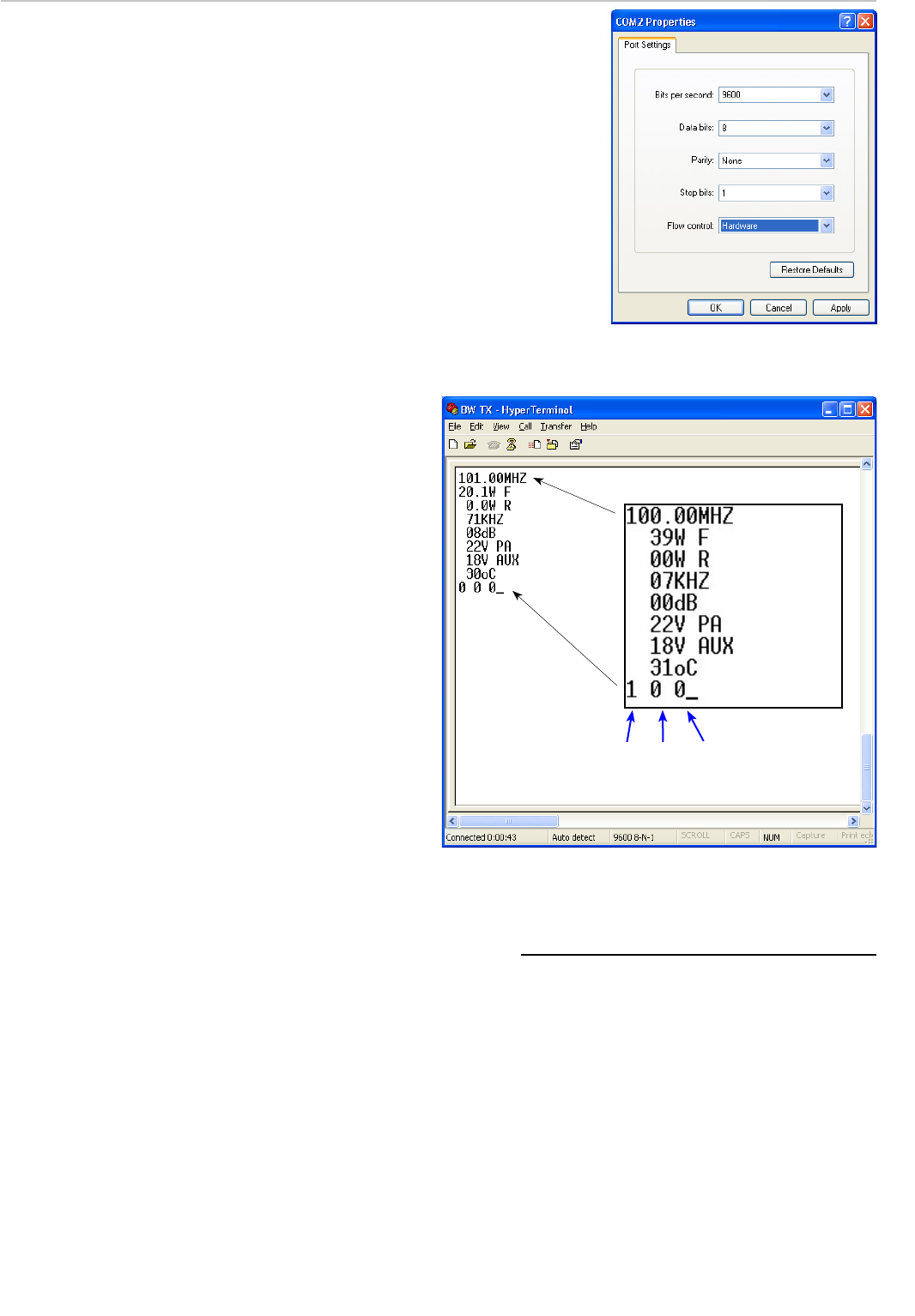

Remote Control Applictiona startup screen
Remote Control Application
BW Broadcast technical manual Page 16
Installation and setup
from the Start menu. Select direct to COM port x where x is the com port
that the transmitter is connected to. You will be presented with a dialog box
like the one shown to the right. Select 9600, 8, none ,1 with hardware flow
control and then click OK.
If you are using another terminal program then you may need to consult the
documentation for that software, but it should be pretty much straight for-
ward.
Operation
The transmitter will respond to certain key presses and each one has a
certain function. See the list below for details of what key to press for each
function.
The most important key press is the ‘Enter’ key. This will need to be pushed
as soon as you connect to the transmitter so you can get the transmitter to
refresh your terminal window with the transmitters sta-
tus and parameters.
The transmitter won’t respond to any of the other key
presses until it detects the ‘Enter’ key is pressed. Once
the Enter key is pressed the transmitter will listen out
for other key presses for 60 seconds. This Initial ‘Enter’
key validation and time window is a safety feature to
prevent the transmitter from detecting an erroneous
key press such as R.F. mute and causing a service
affecting problem.
After performing a function you may need to press
the ‘Enter’ key to see a response to your function. For
example, If you pressed ‘o’ for R.F. Mute you would
not see the effect of the R.F. power change until you
refreshed the screen again because the terminal win-
dow would still be showing the transmitters R.F. power
from the previous ‘Enter’ (screen refresh) command,
prior to you performing the R.F. mute command.
The frequency change key’s will perform an auto-
matic screen refresh on there execution but the other
keys will require a refresh command to be sent to the
transmitter for you to visibly be able to see the effect of
your command. In some circumstances you may need to press
the refresh screen key several times in order to see what’s hap-
pening. Take the R.F. mute function again as an example. You
press the R.F. mute key (‘o’) and then press refresh screen key
(‘ENTER’) to get a status update. The transmitters power con-
trol circuitry may not have had time to turn the R.F. power down
into full R.F. mute by the time it has sent back to you the status
requested by the refresh screen command. It does no harm to
wait a second or two before asking for a refresh screen or by ask-
ing for several refresh screens by pressing the 'Enter’ key a few
times in succession.
Hyper Terminal connection
Hyper Terminal window
KEY COMMAND
1 Frequency up
2 Frequency down
3 R.F. power up
4 R.F. power down
5 reserved
6 Reset alarms (all to 0 / off)
o Mute R.F.
f Unmute R.F.
ENTER Refresh screen
FREQUENCY
FWD R.F. PWR
REV R.F. PWR
PEAK MOD
LIMITER G.R.
P.A. VOLTS
AUX VOLTS
P.A. TEMP
ALARMS
R.F. FAIL PLL FAIL MOD FAIL
1=alarm, 0=no alarm
BW Broadcast technical manual Page 17
Installation and setup

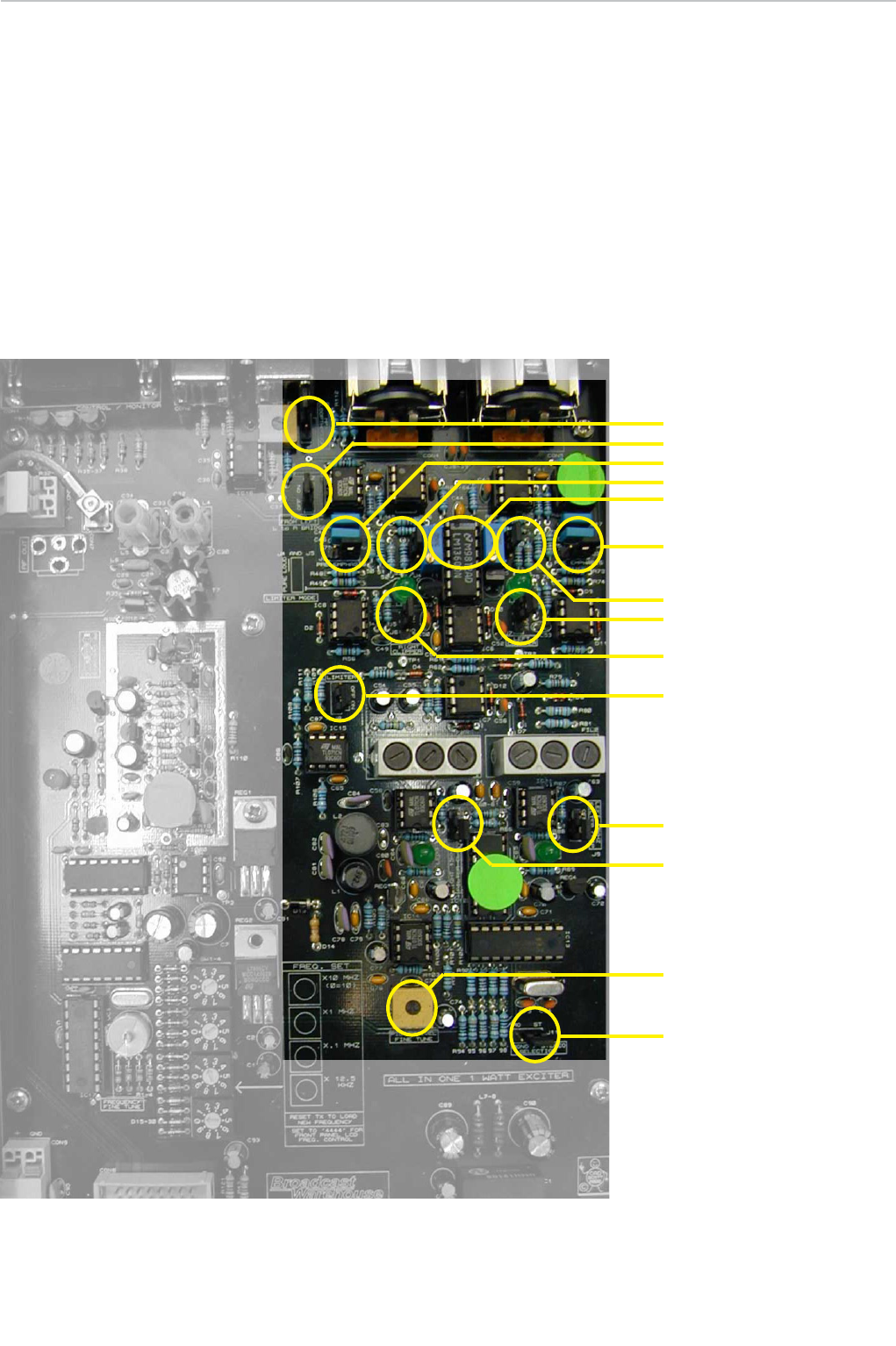

J1 MPX loopthrough
J12 Mono from left
J2 Right pre-emphasis
J4 Right Loud/Clarity
VR3-4 Limiter offset trim
J3 Left Pre-emphasis
J5 Left Loud/Clarity
J7 Left Lim. Clipper
J6 Right Lim. Clipper
J8 Limiter On/Off
J9 Left filter Clipper
J10 Right filter Clipper
VR6 Pilot level control
J11 Pilot On/Off (stereo)
2.5 MODES OF OPERATION
The transmitter is fully configurable and can be set up to support various modes of operation. The mode of opera-
tion is set by the configuration of the internal jumpers.
This chapter provides a guide to the various jumpers, followed by a brief description of the main modes of opera-
tion. The advanced setup procedure pages that follow provide a little more information on each mode as well as
providing some information on setting the equipment up accurately if you have access to some test equipment.
2.51 A guide to the jumpers
Main combo board
BW Broadcast technical manual Page 18
Installation and setup
There are altogether twelve jumpers on the board which can be set - at the time of installation - to establish the way
the board operates.
The board leaves the factory with default settings which should be suitable for most locations and requirements.
Nevertheless, it is worth familiarizing yourself with all the options available, and checking that the settings are appro-
priate, as part of the installation process.
Jumper 1: MPX loopthrough
The default position is ON.
This is where you want the audio left and right XLR sockets on the back of the board to be the signal source,
duly limited and stereo coded internally. Only when you want to use the rear BNC socket for a complete
multiplex (MPX) input for the broadcast should you change the position of this link.
If the link is in the OFF position, only signals from an external encoder or processor will be accepted, unless
the internal coder has been ‘loop-throughed’ (see later).
Jumpers 2 and 3: Pre-emphasis 0 / 50 / 75 µs
The default position is 50 µs (75 µs/Japan).
What is pre-emphasis?
Pre-emphasis is the treble boost that must be applied to all FM broadcasts to compensate for the treble cut
(de-emphasis) present in every receiver. The aim of this process is to reduce noise in the broadcast path
without degrading the audio.
The precise nature of the treble boost is defined by a time-constant in microseconds, which describes the
resistor/capacitor network that will produce the appropriate 6dB per octave treble boost curve.
There are two different standards in use worldwide.
In Europe and Africa, the standard is normally 50 µs. This represents a lift of about 3dB at 3 kHz, and
10dB at 10 kHz. In the Americas, and in Japan, more boost is in use with a network of 75 µs, about 3dB
up at 2 kHz.
Jumpers 2 & 3 may either link the 50 µs pins, the 75 µs pins, or not link any pins, but be fixed to just one of
them for safekeeping, producing no pre-emphasis - ‘0’.
The effects of pre-emphasis
The absence of any pre-emphasis will result in a broadcast sounding noticeably lacking in treble. Applying
50 µs pre-emphasis will correct the situation in European receivers (75 µs in Μs/Japan). If you apply 75 µs
pre-emphasis when 50 is called for, the received sound will have some 3dB shelved treble boost above 3kHz.
This is undesirable. Conversely, if you only apply 50 where 75 is required, there will be 3dB treble loss, which
is also undesirable. You should not have to change the pre-emphasis setting from 50 to 75 or back unless
you are relocating the installation abroad where the standard is different.
However, whenever pre-emphasis is deliberately applied to your audio at some point before it enters the XLR
sockets on the back of the board, by an external processor for example, then you must set the pre-emphasis
to ‘0’, because pre-emphasis must only be applied once. Double pre-emphasis must be avoided because it
will make a signal sound far too bright and toppy.
Both Jumper 2 and Jumper 3 should be in the same position at all times because both left and right audio
channels should have the same treatment. These jumpers do not affect the operation of the board when
external MPX is used with Jumper 1 off.
Jumpers 4 and 5: Limiter loud/pure
The default position is ‘Loud’ (hard limiting).
BW Broadcast technical manual Page 19
Installation and setup
This option affects the character of the sound passing through the limiters inside the board. The sound can
be either (a) processed to be competitively loud, with some sacrifice in fidelity (hard limiting, the Loud position)
or (b) treated more gently, with high fidelity, but some loss in volume (soft limiting, the Pure position).
It’s instructive to listen to and compare the options while passing a representative selection of typical pro-
gramme material through the board. This will help you establish which sound you prefer.
As before, both jumpers 4 and 5 should always be in the same position. These jumpers, like all the following
ones, do not affect the operation of the board when external MPX is used with Jumper 1 off.
Jumpers 6 and 7: Limiter clippers on/off
The default position for these jumpers is ON.
If they are to be switched off when external audio processing is used, careful monitoring of deviation is recom-
mended. The 15 kHz post-filter clippers must be switched off at the same time (J9/10).
These jumpers control the clippers applied to the signal after the limiter but before the 15kHz low-pass fil-
ters on the way into the stereo coder. Again, these jumpers work as a pair and do not affect external MPX
inputs.
Jumper 8: Limiter on/off
The default position for this jumper is ON, i.e. limiter active.
If you are using a pre-processed and limited signal and do not want the additional protection of the internal
limiters, their action can be disabled by putting Jumper 8 in the OFF position. This one jumper controls both
channels, because the gain-reduction control voltage (which this jumper disables) is common to left and
right.
Even with the limiter disabled you may still wish to use the pre-filter clippers (J6/7) and post-filter clippers
(see below, J9/10) for protection. Always observe the deviation produced very carefully for excesses above
75 kHz if you ever remove the action of the limiter or clippers.
Jumpers 9 and 10: 15kHz filter clippers on/off
The default position for these clippers, placed after the 15kHz filters on the input to the coder, is ON.
These clippers protect against over-deviation caused by signals which ‘ring’ in the 15kHz filter, even after
having been caught by the clipper before the filter. With certain pre-processed and filtered inputs, however,
they may be switched out of circuit. But keep a close eye on the deviation.
Don’t have these clippers switched on unless you also have the limiter clippers active. Otherwise, your signal
could go out of specification.
These jumpers work as a pair and don’t affect external MPX drives.
Jumper 11: Mono / Stereo
The default position is STEREO, pilot tone on.
This option allows you to remove or restore the stereo pilot tone, at a frequency of 19 kHz, normally sitting at
a level between 8 and 10% of total deviation.
It is this tone which alerts stereo FM receivers to the need to switch on their stereo decoders. The presence
of a pilot tone is all that is required for the ‘stereo’ beacon to light on a receiver. If no 19kHz tone is received,
the receiver will operate in mono. It will not decode any L-R information modulated on the 38 kHz subcarrier,
even when it is still present.
BW Broadcast technical manual Page 20
Installation and setup
To make sure that no 38 kHz energy is generated during mono operation even from stereo inputs, operate
jumper 12, the ‘bridge’ link (see below). This jumper does not affect the mono/stereo status of externally-
coded MPX inputs (J1 off).
Jumper 12: Mono bridge
The default position is OFF.
When the board is operating in mono, the bridge should be set to ON. This ensures that when the board is
operating in mono, no stereo information is broadcast, and that a mono drive to either left or right inputs, or
a stereo input applied simultaneously to L and R inputs, will produce proper summed mono operation and no
spurious 38kHz signals.
Modes of operation
Multiplex / broadband input.
The Internal stereo encoder and audio limiter are not used. Wideband modulation is fed into the rear panel
BNC multiplex input socket. Allows external processors, encoders and rebroadcast receivers to be plugged
straight into the transmitter.
JUMPERS. J1 (OFF), J2-12 (N/A)
Stereo with internal limiter. ( factory setting )
Left and Right audio are fed to the back panel balanced inputs and are pre-emphasized, peak limited, fil-
tered and then fed to the internal stereo encoder for multiplex generation. The multiplex signal is then fed
through to the exciter module and to the back panel multiplex output BNC socket. See loopthrough mode
below *
JUMPERS. J1 (ON), J2-3 (50 or 75), J4-5 (LOUD or CLARITY), J6-7 (ON), J8 (ON), J9-10 (ON), J11 (ST),
J12 (OFF)
Stereo with internal limiter disabled.
As the above stereo with limiter mode except the limiter section is disabled. This mode can be used when
you want an external limiter / processor to provide all the peak limiting and protection. Clippers at the out-
put of the limiter module can be left in or out subject to your requirements. See loopthrough below *
JUMPERS. J1 (ON), J2-3 (0 or 50 or 75), J4-5 (LOUD or CLARITY), J6-7 (ON or OFF), J8 (OFF), J9-10
(ON or OFF), J11 (ST), J12 (OFF)
Mono from two independent channels.
Essentially the same as the stereo with limiter mode except the stereo pilot is disabled which will enable
receivers to receive you in mono. See loopthrough mode below *
JUMPERS. J1 (ON), J2-3 (50 or 75), J4-5 (LOUD or CLARITY), J6-7 (ON), J8 (ON), J9-10 (ON), J11 (MO),
J12 (OFF)
Mono from one channel input.
You can provide one audio feed to the transmitter via the left balanced input. Setting the internal bridge
jumper J12 to ON will join the left and right audio signals internally to maintain the same volume from the
transmitter and forces the stereo encoder section to replicate true mono. See loopthrough mode below *
JUMPERS. J1 (ON), J2-3 (50 or 75), J4-5 (LOUD or CLARITY), J6-7 (ON), J8 (ON), J9-10 (ON), J11 (MO),
J12 (ON)
BW Broadcast technical manual Page 21
Installation and setup
Other configurations
Other configurations can be set by setting the jumpers in certain ways. For example: Mono with limiter off.
We have illustrated what we feel to be the most popular options.
JUMPERS. To suit application
* Loopthrough mode
The transmitter has been provided with a multiplex output socket to present the output of the internal
audio stages to the outside world. This allows you to connect the signal from the internal limiter and stereo
encoder to an external piece of equipment before being reinjected back into the transmitter via the multiplex
input socket.
The most common application is for RDS encoders which nearly always have a loopthrough connection for
this purpose. Other applications include SCA generators and composite clippers. You will need to set the
internal jumper to off for external loopthrough. This is to stop the internal stereo encoder’s multiplex output
signal from being fed to the exciter section internally.
More information on loopthrough setup is provided at the end of the advanced setup procedure section
BW Broadcast technical manual Page 22
Installation and setup
ADVANCED SETUP PROCEDURE
The front panel LCD metering is accurate enough to set up the transmitter in the absence of external test equip-
ment. If you have access to a modulation meter and RF power meter then substitute those for references to the
relevant LCD display menu.
You will most likely need the following pieces of test equipment:
Audio signal generator capable of -10dbu to +10dbu
Voltmeter
2.52 Multiplex input only.
Open the lid of the transmitter and make sure that jumper J1 on the main board is configured so that MPX
Loopthrough is OFF. This makes sure that the internal stereo encoder is not connected through to the modula-
tor. Connect your wideband audio source (processor, coder or rebroadcast receiver) to the multiplex input on the
back panel. Setup your external equipment for its correct output level making sure that it falls into the range of -6
to +10 dbu. Adjust the multiplex input level control on the back panel for a peak deviation of +/- 75kHz. The peak
deviation can be shown on the LCD system.
The factory setting for the multiplex input level is +6dBu. This corresponds to the output level of our internal ster-
eo encoder module. We recommend feeding this level input to the multiplex input socket if it is available from the
external equipment.
2.53 Stereo with internal limiters.
The transmitter will come set to this mode from factory with the following settings. Input Gain at maximum, limiter
active and in loud mode, limiter clippers on and 15 kHz filter clippers on. This provides the loudest, most competi-
tive settings available with the transmitter without using an external multiband processor to significantly boost
loudness.
The gain controls on the back panel control the input drive to the limiter module and can be set so that limiting
occurs for a given input level. Factory setting is at maximum to enable maximum compression / limiting so that a
loud commercial sound is obtained. You can reduce your input level to suit the amount of compression required.
The Limiter ON jumper is set so that the limiter is enabled. The limiter clippers are on to define the maximum out-
put from the limiter under any conditions. The Limiter has two modes of limiting, Loud and Clarity. Loud will give a
more processed brighter sound and Clarity will retain a sound more true to the original audio input. If you want a
more punchy commercial sound leave the limiter in Loud mode. The 15 kHz filters have overshoot clippers after
them. These if activated remove any overshoots caused by ringing in the filters. These are best left active if you
want the loudest sound for a peak deviation of +/- 75 kHz. (See note on 15 kHz filters at the end of the section)
Advanced setup procedure.
1. Firstly make sure that the exciter is set to your chosen operating frequency. If you have not already done so
then remove the top cover from the transmitter.
2. Connect the transmitter to a dummy load.
3. Turn on the transmitter and within 15 seconds it should lock to frequency.
4. Set the internal limiter to OFF with jumper J8. Set the limiter clippers to ON with jumpers J6 and J7. Set the 15
kHz filter clipper jumpers J9 and J10 to ON. Remove the pre-emphasis jumpers from J2 and J3 completely for
now. Make sure the loopthrough jumper J1 is switched to LOOPTHROUGH and the MONO FROM LEFT jumper
J12 is set to the OFF position. Disable the stereo pilot by setting jumper J11 to MONO. Set the limiter mode jump-
er J4 and J5 to LOUD.
These settings will allow any audio straight through the limiter and into the limiter clippers that set our final peak
level.
5. We should check that any offsets internal to the limiter are nulled out to keep distortion to a minimum. Connect
BW Broadcast technical manual Page 23
Installation and setup
a multimeter set to millivolts to testpoint TP1 which is located next to the right clipper jumper. You will also need
an earth point for the meter. The bolt on REG2 is a good earth. The case of the transmitter is not a good earth
due to the allo-chrome finish on the case. Adjust the blue multiturn pot VR3 in the center of the limiter section for
the minimum voltage reading on the meter. Aim for below 10 millivolts. Repeat for the left channel with VR4 and
by taking the reading from test point TP2.
6. Connect an audio source to both channels and apply a 400hz tone with a level of +6 dbu. Make sure the gain
controls are set to maximum (Fully clockwise). These are multiturn so make sure you hear / feel the pots click
indicating end of travel.
7. Work out the the pilot level you intend to use. It is usually between 8 and 10 percent of the modulation with 9
percent being standard in most countries. 9 percent corresponds to 6.75 kHz deviation so for a total peak devia-
tion of 75 kHz (the industry standard for 100 percent modulation) we need to adjust the multiplex level for a peak
deviation of 68.25 kHz (91 percent modulation). This corresponds to the total minus the intended pilot level that
we will re-introduce in a moment. We recommend further backing off the deviation by 4 % which equates to 3
kHz deviation. This 4 % acts as a guard-band for any small overshoots that may occur in the limiter and the ster-
eo encoder filters. You should at this point with your tones applied have a peak deviation of 75 kHz - 6.75kHz (or
intended pilot level) - 3 kHz = 65.25kHz. If you have not already done so, adjust the multiplex input level on the
back panel to this level. If you are using the LCD display metering then 65 kHz would be an acceptable setting.
8. Reinstate the pilot by setting jumper J11 to stereo. Now adjust the pilot level control VR6 for a peak deviation of
The previous setting plus the intended pilot level. In our example this would mean setting the deviation at 72kHz.
This equates to our modulation and pilot leaving 3 kHz for our guard-band.
9. Set the limiter to ON with jumper J8. Decide on Clarity or Loud mode for the limiter and set jumpers J4 and J5
accordingly.
The transmitter should now have the multiplex and pilot setup at the correct level. All that is left to do is to set the
input gain controls to your desired settings. For most applications where you require a compressed loud competi-
tive sound we recommend setting the gain controls at maximum. But if you are supplying a very high level feed
you may have to turn the gain controls down to stop internal clipping occurring prior to the limiter. (Please see
note on pre-emphasis at the end of the section). You may also wish the limiter to start to limit for a given level of
input. To set the limiters input controls up for a given input level consult step 10. Otherwise leave the input gain
controls at maximum and skip to step 12.
10. Apply your audio feed to the left channel input socket on the rear panel at the desired level you want limit-
ing to commence. This will need to be a minimum of 0dbu. The limiter inputs will need at least a 0dbu input to
achieve limiting even with the rear panel gain controls set at maximum. Read the pre-emphasis note at the end of
the section for more info on input level restrictions.
Set the LCD display to limiter gain reduction and with audio applied to the left channel reduce the left channel
input gain control until the display flickers from 0dB to 2dB gain reduction.This is the onset of limiting.
11. Remove the left channel audio and repeat the procedure for the right channel. This procedure also ensures
that both inputs to the internal limiter are driven equally.
12. Set the pre-emphasis jumpers J2 and J3 to the correct setting for your region, 75µs for the Americas and
Japan and 50µs for the rest of the world. If your audio feed has gone through an external processor prior to this
transmitter then check to see if that unit has pre-emphasis capability and if it is switched on. If it has pre-empha-
sis and it is enabled then you should remove the pre-emphasis jumpers J2 and J3 to ensure that only one set of
pre-emphasis has been applied throughout the broadcast chain.
13. Connect your studio feed to the transmitter. Turn the power off to the transmitter, connect your external
antenna, reconnect the power and you’re on the air!
14. Monitor your total peak deviation with your real world audio material and check with the deviation display that
your peak deviation does not exceed 75 kHz. If you have set up the transmitter as per the instructions in this sec-
tion then you should be within 1 kHz or so of this figure. If your deviation does exceed 75 kHz then adjust the
back panel multiplex control to keep your maximum deviation at 75 kHz.
BW Broadcast technical manual Page 24
Installation and setup
2.54 Stereo with internal limiters disabled.
The limiter can be disabled internally if you do not require it. This effectively allows any audio input signals
straight through to the stereo encoder unaltered. You may wish to disable the limiter when you have an external
processor or limiter that may be of a higher performance than the internal limiter in this transmitter. You can still
have the limiter active even with external limiters in operation, as the limiter will not discolor the sound when fed
with pre-processed audio. We leave that up to you. For safety purposes you may wish to leave the clippers on the
limiter and the 15 kHz filters in to provide extra protection when you are unsure of the peak output characteristics
of the external piece of equipment. When you know that the piece of audio processing equipment is band-limited
to 15 kHz and peak limited you can leave out the clippers safe in the assumption that the external processor will
be able to handle the level control completely.
Advanced setup procedure.
1. Firstly make sure that the exciter is set to your chosen operating frequency. If you have not already done so
then remove the top cover from the transmitter.
2. Connect the transmitter to a dummy load.
3. Turn on the transmitter and within 15 seconds it should lock to frequency.
4. Set the internal limiter to OFF with jumper J8. Set the limiter clippers to ON with jumpers J6 and J7. Set the 15
kHz filter clipper jumpers J9 and J10 to ON. Remove the pre-emphasis jumpers from J2 and J3 completely for
now. Make sure the loopthrough jumper J1 is switched to loopthrough and the mono from left jumper J12 is set to
the OFF position. Disable the stereo pilot by setting jumper J11 to mono. Set the limiter mode jumper J4 and J5 to
CLARITY
These settings will allow any audio straight through the limiter and into the stereo encoder without any form of
level control apart from the peak level clippers, so we can set the system internal levels correctly.
5. We should check that any offsets internal to the limiter are nulled out to keep distortion to a minimum. Connect
a multimeter set to millivolts to testpoint TP1 which is located next to the right clipper jumper. You will also need
an earth point for the meter. The bolt on REG2 is a good earth. The case of the transmitter is not a good earth
due to the allo-chrome finish on the case. Adjust the blue multiturn pot VR3 in the center of the limiter section for
the minimum voltage reading on the meter. Aim for below 10 millivolts. Repeat for the left channel with VR4 and
by taking the reading from test point TP2.
6. Connect an audio source to both channels and apply a 400Hz tone with a level of +6dBu. Make sure the gain
controls are set to maximum (Fully clockwise). These are multi-turn so make sure you hear / feel the pots click
indicating end of travel.
7. Work out the the pilot level you intend to use. It is usually between 8 and 10 percent of the modulation with 9
percent being standard in most countries. 9 percent corresponds to 6.75 kHz deviation so for a total peak devia-
tion of 75 kHz (the industry standard for 100 percent modulation) we need to adjust the multiplex level for a peak
deviation of 68.25 kHz (91 percent modulation). This corresponds to the total minus the intended pilot level that
we will re-introduce in a moment. We recommend further backing off the deviation by 4 % which equates to 3
kHz deviation. This 4 % acts as a guard-band for any small overshoots that may occur in the limiter and the ster-
eo encoder filters. You should at this point with your tones applied have a peak deviation of 75 kHz - 6.75kHz (or
intended pilot level) - 3 kHz = 65.25kHz. If you have not already done so, adjust the multiplex input level on the
back panel to this level. If you are using the LCD display metering then 65 kHz would be an acceptable setting.
8. Re-instate the pilot by setting jumper J11 to STEREO. Now adjust the pilot level control VR6 for a peak devia-
tion of 75kHz peak deviation (100 percent modulation)
The transmitter should now have the total multiplex and the pilot setup at the correct level. All that is left to do is
to set the input gain controls to suit your external equipment.
9. Set the limiter clippers J6 and J7 to OFF and set the filter clippers J10 and J11 to OFF.
10. Connect a 400 Hz tone at your desired level to the left channel and adjust the left channel gain control on the
BW Broadcast technical manual Page 25
Installation and setup
rear panel for a peak deviation of 75 kHz. Remove the left channel audio lead.
11. Connect a 400 Hz tone at your desired level to the right channel and adjust the right channel gain control on
the rear panel for a peak deviation of 75 kHz.
It is a good idea to check that both of the audio input gain controls are set to provide equal gain to both chan-
nels. To do this connect an oscilloscope to the multiplex output socket. Connect an identical 400Hz tone to both
audio inputs and set the pilot to off by setting J11 to MONO. Adjust one of the audio input gain controls slightly to
minimize any distortion of the 400Hz tone observed on the scope. The distortion is 38 kHz switching information
superimposed onto the sine wave. When you have adjusted the input gain control to provide the same gain as
the other channel you will observe a pure sine wave with no switching information present. This is because if R=L
then L-R=0 and the subcarrier is L-R, so no gain difference between R and L equates to no 38 kHz subcarrier.
Reinstate the Pilot by setting jumper J11 to STEREO.
You can set the limiter clippers and the 15 kHz filter clippers back to ON if you require. These will prevent over-
modulation no matter what input level you apply.
12. If you wish to employ pre-emphasis within the transmitter then you will need to setup the transmitter for a
peak deviation of 75kHz with 15 kHz tones instead of 400Hz. This is to prevent overmodulation of the transmitter
from high frequencies, which would be the case if we set the transmitter up for 75kHz peak deviation at 400Hz.
The pre-emphasis filter can put the 15 kHz audio 17db higher than 400Hz. We strongly advise you to ensure pre-
emphasis is built into any external equipment if you decide not to use the internal limiter. If you do need to use the
internal pre-emphasis then you can set the pre-emphasis jumpers J2 and J3 to the correct setting for your region:
75µs for the Americas and Japan and 50µs for the rest of the world.
13. Connect your studio feed to the transmitter. Turn the power off to the transmitter, connect your external
antenna, reconnect the power and your on the air!
14. Monitor your total peak deviation with your real world audio material and check with the deviation display that
your peak deviation does not exceed 75 kHz. If you have set up the transmitter as per the instructions in this sec-
tion then you should be within 1 kHz or so of this figure. If your deviation does exceed 75 kHz then adjust the
back panel multiplex control to keep your maximum deviation at 75 kHz.
2.55 Mono from two independent channels.
This is essentially the same as the stereo with limiter mode except the stereo pilot is disabled which will enable
receivers to receive you in mono. A stereo feed can be supplied to the transmitter’s left and right inputs. These
will be mixed in the stereo encoder as normal to produce a multiplex signal. The absence of the pilot will force
tuners to decode the broadcast in mono. If both the right and left channels have the same content then no stereo
subcarrier will be created and the multiplex signal will resemble true mono. However we recommend mono from
one channel input mode if both channels are identical to ensure that the subcarrier content is kept to a minimum.
This mode is for when you want to broadcast in mono but have a stereo sound source that can’t be supplied as a
single mono feed, such as a stereo mixer with no mono button.
Advanced setup procedure.
1. Firstly make sure that the exciter is set to your chosen operating frequency. If you have not already done so
then remove the top cover from the transmitter.
2. Connect the transmitter to a dummy load.
3. Turn on the transmitter and within 10 seconds it should lock to frequency.
4. Set the internal limiter to OFF with jumper J8. Set the limiter clippers to ON with jumpers J6 and J7. Set the 15
kHz filter clipper jumpers J10 and J11 to ON. Remove the pre-emphasis jumpers from J2 and J3 completely for
now. Make sure the loopthrough jumper J1 is switched to LOOPTHROUGH and the MONO FROM LEFT jumper
J12 is set to the OFF position. Disable the stereo pilot by setting jumper J11 to MONO. Set the limiter mode jump-
er J4 and J5 to LOUD.
These settings will allow any audio straight through the limiter and into the limiter clippers that set our final peak
level.
BW Broadcast technical manual Page 26
Installation and setup
5. We should check that any offsets internal to the limiter are nulled out to keep distortion to a minimum. Connect
a multimeter set to millivolts to testpoint TP1 which is located next to the right clipper jumper. You
will also need an earth point for the meter. The bolt on REG2 is a good earth. The case of the transmitter is not a
good earth due to the allo-chrome finish on the case. Adjust the blue multiturn pot VR3 in the center of the limiter
section for the minimum voltage reading on the meter. Aim for below 10 millivolts. Repeat for the left channel with
VR4 and by taking the reading from test point TP2.
6. Connect an audio source to both channels and apply a 400Hz tone with a level of +6 dbu Make sure the gain
controls are set to maximum (Fully clockwise). These are multiturn so make sure you hear / feel the pots click
indicating end of travel.
7. Adjust the multiplex gain control on the back panel for a peak deviation of 72 kHz. This allows a 3 kHz guard-
band for slight overshoots that may occur in limiter and filters inside the system.
8. Set the limiter to ON with jumper J8. Decide on Clarity or loud mode for the limiter and set Jumpers Jx and Jx
accordingly.
All that is left to do is to set the input gain controls to your desired settings. For most applications where you
require a loud competitive sound we recommend setting the gain controls at maximum, however if you are supply-
ing a very high level feed you may have to turn the gain controls down to stop internal clipping occurring prior to
the limiter. (Please see note on pre-emphasis at the end of the section). You may also wish the limiter to start to
limit for a given level of input. To set the limiters input controls up for a given input level consult step 9. Otherwise
leave the input gain controls at maximum and skip to step 11.
9. Apply your audio feed to the left channel input socket on the rear panel at the desired level you want limiting to
commence. This will need to be a minimum of 0dbu. The limiters inputs will need at least a 0dbu input to achieve
limiting even with the rear panel gain controls set at maximum. Read the pre-emphasis note at the end of the sec-
tion for more info on input level restrictions.
Set the LCD display to limiter gain reduction and with audio applied to the left channel reduce the left channel
input gain control until the display flickers from 0dB to 2dB gain reduction.This is the onset of limiting.
10. Remove the left channel audio and repeat the procedure for the right channel. This procedure also ensures
that both inputs to the internal limiter are driven equally.
11. Set the pre-emphasis jumpers J2 and J3 to the correct setting for your region, 75µs for the Americas and
Japan and 50µs for the rest of the world. If your audio feed has gone through an external processor prior to this
transmitter then check to see if that unit has pre-emphasis capability and if it is switched on. If it has pre-empha-
sis and it is enabled then you should remove the pre-emphasis jumpers J2 and J3 to ensure that only one set of
pre-emphasis has been applied throughout the broadcast chain.
12. Connect as before. Turn the power off to the transmitter, connect your external antenna , reconnect your
power and your on the air!
13. Monitor your total peak deviation with your real world audio material and check with the deviation display that
your peak deviation does not exceed 75 kHz. If you have set up the transmitter as per the instructions in this sec-
tion then you should be within 1 kHz or so of this figure. If your deviation does exceed 75 kHz then adjust the
back panel multiplex control to keep your maximum deviation at 75 kHz.
2.56 Mono from one channel input.
You can provide one audio feed to the transmitter via the left balanced input. This has the advantage of supplying
two exact audio signals to the stereo encoder section that will in turn cancel the stereo subcarrier leaving only a
pure mono signal with content falling to zero above 15 kHz.
Advanced setup procedure.
1. Follow the advanced setup procedure for the ‘mono from two independent channels’ mode completely as if
you would be using that mode. Set all the jumpers and levels correctly as if you would be using that mode. Both
BW Broadcast technical manual Page 27
Installation and setup
input gain controls must be set equally and correctly for the this mode to work correctly and create a true mono
signal. Any gain difference would create L-R subcarrier information which is not neccessary and wastes band-
width. Following the ‘mono from two independent channels’ advanced setup procedure should have you set up
the two channels input gain controls at the same level.
2. Set the MONO FROM LEFT bridge jumper J12 to ON. this disconnects the right channel socket internally and
feeds the left information to the internal right channel circuitry.
3. Apply your audio feed to the left channel input.
4. Connect your studio feed to the transmitter. Turn the power off to the transmitter, connect your external anten-
na, reconnect your power and your on the air!
5. Monitor your total peak deviation with your real world audio material and check with the deviation display that
your peak deviation does not exceed 75 kHz. If you have set up the transmitter as per the instructions in this sec-
tion then you should be within 1 kHz or so of this figure. If your deviation does exceed 75 kHz then adjust the
back panel multiplex control to keep your maximum deviation at 75 kHz.
2.6 OTHER SETUP CONSIDERATIONS
PRE EMPHASIS
Pre-emphasis note: with pre-emphasis active the input level required to achieve limiting is frequency dependent
due to the characteristics of the pre-emphasis curve. There is 17dB more gain into the limiter with a 15 kHz input
signal compared to a frequency which is below the start point of the pre-emphasis curve. The pre-emphasis curve
provides a 6db per octave boost from the 50 or 75 µs breakpoint. For this reason we have used 400Hz for our
tests because it is below the pre-emphasis filter curve. With pre-emphasis active the maximum usable input level
to the limiter is 10dBu when the gain controls are at maximum. Anything above this may cause high frequency
content to hit the internal supply rails, clipping the audio and introducing distortion. To ensure you can reduce
your input level or reduce the rear panel gain controls.
15 kHz FILTER CLIPPERS
PLEASE NOTE: In some situations clipping after 15 kHz filters can cause degradation of the pilot and stereo sub-
carrier. Our tests have concluded that when the limiter and limiter clippers are active any overshoots caused by
ringing in the filters when clipped will not contribute any significant harmonics to make the transmitter non com-
pliant. The 15 kHz clippers are set to clip at the same amplitude as the limiter clippers. In effect the 15 kHz filter
clippers are out of circuit except for instances where the 15 kHz filters overshoot caused by ringing in the filters.
The overshoots from the filters will increase the amplitude of the audio material past that of the limiter clippers clip
point and the 15 kHz clippers will clip them back down to almost the same amplitude. This setup only allows a
small amount of clipping to be applied to post 15 kHz filtered audio keeping the spectral output to an acceptable
level.
You can safely use the clippers and still conform to the FM broadcast specifications set out by the FCC and CCIT.
This is not an issue if you are using an external processor that has band-limited (15 kHz) processed audio as the
filters will not overshoot.
We don’t advise ever to use the 15 kHz clippers without the limiter clippers.
LOOPTHROUGH
The rear panel BNC sockets provide an easy interface to the multiplex path. You can insert an external piece of
equipment between the multiplex output of the internal stereo encoder and the modulator section.
To connect an external piece of equipment consult the external equipments documentation. It should be as easy
as configuring the transmitter as per normal and then simply setting the internal Loopthrough jumper to OFF and
taking the multiplex output to the input of the external equipment and the output of the external equipment back
into the multiplex input socket. If the external equipment is not unity gain you may have to readjust the multiplex
input gain slightly to take account for any gain differences. Most loopthrough designed equipment is unity gain to
make setup and use as simple as possible.
BW Broadcast technical manual Page 28
Installation and setup
FREQUENCY FINE TUNE ( WARNING, ADVANCED TECHNICIANS ONLY)
While the frequency is controlled by the phase locked loop system, the stability is governed by the stability of the
reference. A quartz crystal is used for the reference for its high stability however component ageing can affect the
frequency slightly over time. The frequency can be finely adjusted via VC2. This provides a small adjustment of
the VCO frequency when locked. This will have been adjusted at factory to the correct setting and the transmit-
ter should remain within 1kHz of the channel required. If however the frequency does move off slightly due to
component ageing then you can adjust VC2 to trim the unmodulated carrier back onto channel. You will need a
frequency counter to monitor the output frequency of the un modulated transmitter when adjusting VC2.
LCD SYSTEM METERING ACCURACY
DISPLAY Measurement Accuracy
POWER SUPPLY Volts +/-1 Volt
TEMPERATURE Degrees Centigrade +/-1 Degree
PEAK DEVIATION kHz +/-1 kHz
LIMITER GAIN REDUCTION Decibels +/-1 dB
RF POWER Watts 5 %
BW Broadcast technical manual Page 29
Technical data
RF
Power
Connector
Harmonics
Spurious
Frequency range
Frequency steps
Frequency selection
Frequency control type
Frequency stability
MPX input
MPX input level
MPX input response
Modulation
STEREO
Subcarrier generation
Pilot
Pilot generation
Output level (BNC)
15 kHz filtering
15 kHz overshoot filter clipping
Spurious
> 80 kHz
>160 kHz
Stereo separation
LIMITER
Audio input levels
Audio input connectors
Input cmrr
Audio distortion
Tone
Program material
Frequency response
Limiter control range
Input impedance
Pre-emphasis
Process modes
Clipping
OTHER
Control system
External control/monitor
Size
Weight
Voltage input
Current input
Power connector
Switched mode approvals
10W - 600W
N-type 50 Ohm
better than 88 dBc
better than 90 dBc
87.5 - 108 MHz
100 kHz from LCD or 12.5 kHz from internal switches
Internal switches or LCD system
Dual speed phase locked loop
< +/- 500 Hz (fine adjustment available)
BNC
MPX input level -10 dB to +10 dB (adjustable)
MPX input response +/- 0.3 dB, 5 Hz to 100 kHz
Direct frequency modulation
Microprocessor generated 8x over-sampled
19 kHz +/- 1 Hz (adjustable)
Microprocessor generated 16x over-sampled
(BNC) 0dB
> 40dB at 19 kHz
On or off
> -60dBr
> -80dBr
> 55dB (20Hz-15kHz)
-10dB - +18dB for limiting
XLR balanced (RF shielded)
> 60dB
<.1% at limiting 1 KHz (clarity mode)
Program dependent
20 Hz to 20 kHz +/- 0.5dB (pre-emphasis off)
Limiter control range >24dB (pre-emphasis off)
10 kOhm
50 µs,75 µs and 0 µs (off)
Clarity and loud
On or off
3 buttons, 122x32 graphics display
I/O Alarms D9-type Male; RS232 D9-Type Female
482mm x89mm x 422mm
11.4 kg
85 - 260 VAC
110V - 4A / 220V - 2A
IEC, FUSED and switchable
UL / TUV / CE
3.1 SPECIFICATIONS
BW Broadcast technical manual Page 30
Technical data
3.2 CIRCUIT DESCRIPTION
The transmitter consists of three circuit boards, two power supply modules and the associated wiring and connec-
tors. Both of the power supplies are fully approved bought in modules and won’t be discussed electrically except
for the connections to the other boards where appropriate.
The three PCB’s previously mentioned are the combo board, the power amplifier board and the control / LCD
board. The wiring and connection between the boards can be seen in the internal case diagram.
The combo board contains
1. Audio limiter with pre-emphasis capability
2. High spec over-sampled digital stereo encoder
3. High spec low distortion PLL exciter
4. Power supply circuitry to supply various voltages to the different sections
5. A logic / control section to interface to external equipment
6. Control connections to the LCD control board

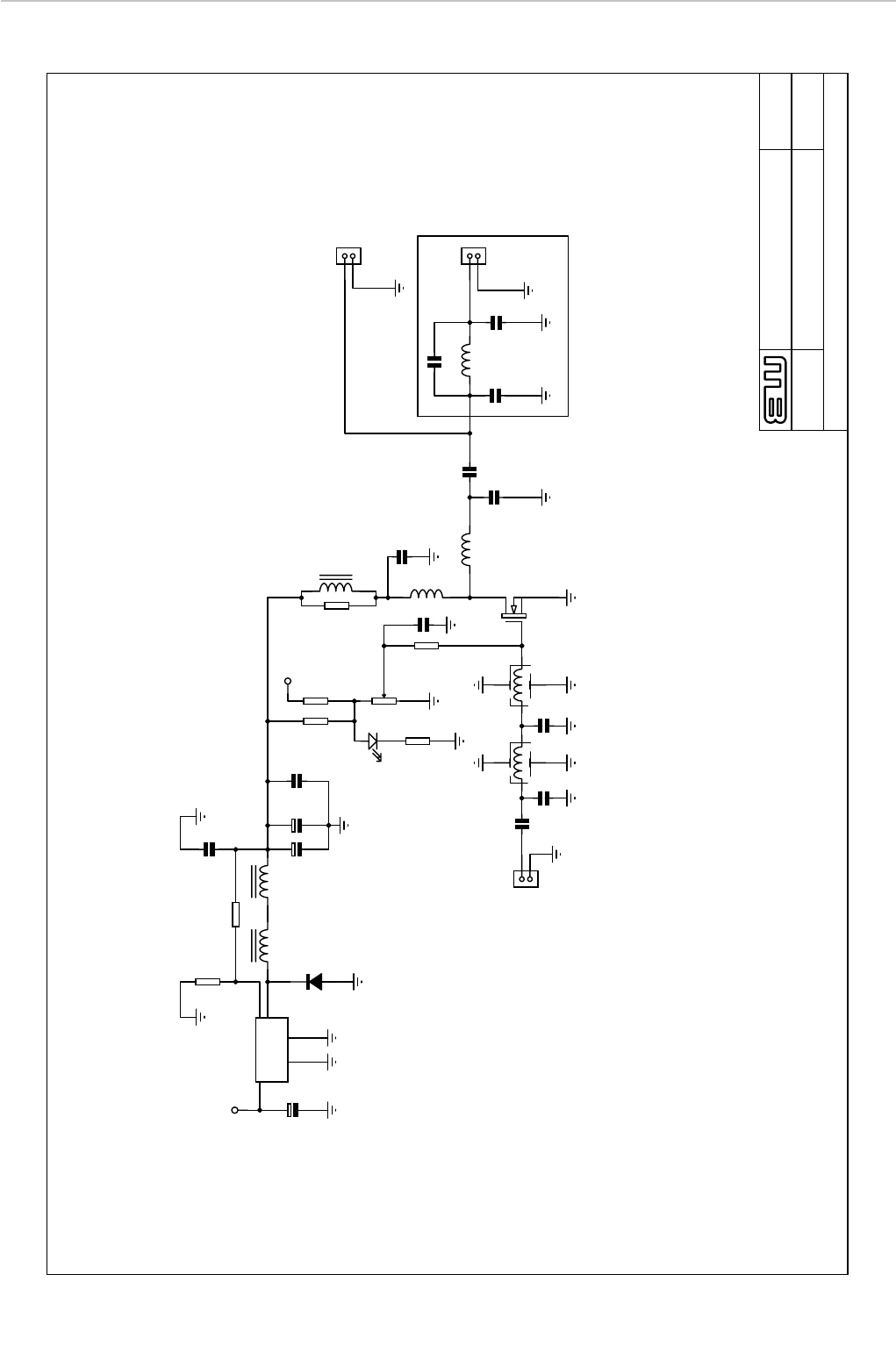

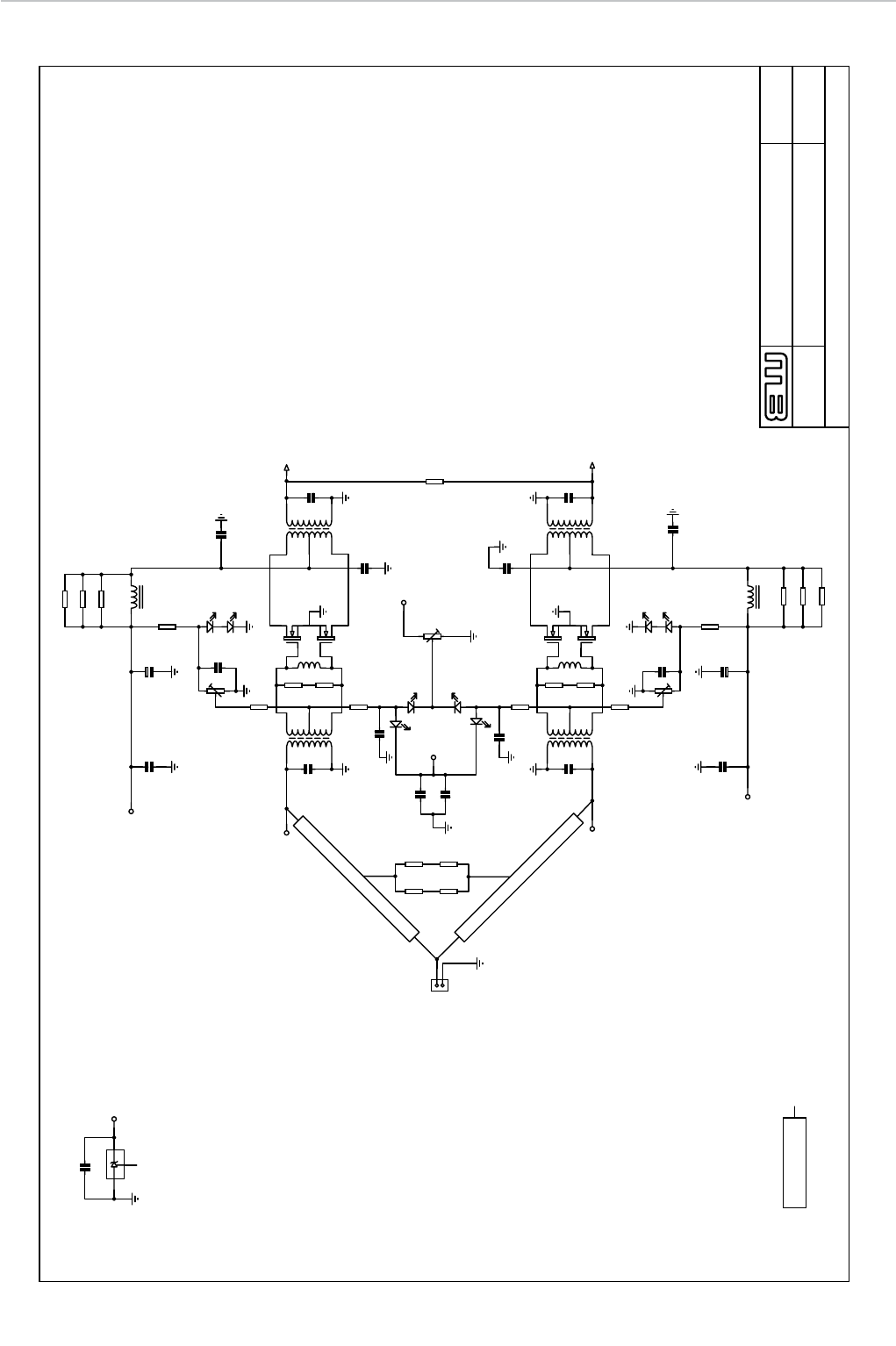

The Power amplifier board contains
1. A 2 stage 150/300 Watt FM amplifier
2. Low pass harmonic filter
3. VSWR bridge / coupler and power sniff circuitry
4. Temperature sensing circuitry
The Control / LCD board contains
1. A 122x32 LCD graphics display
2. Three front panel buttons for LCD control
3. Power control adjustment and transmitter fault / protection circuitry
4. An 8 bit microcontroller to control all the LCD functions, metering and alarm monitoring

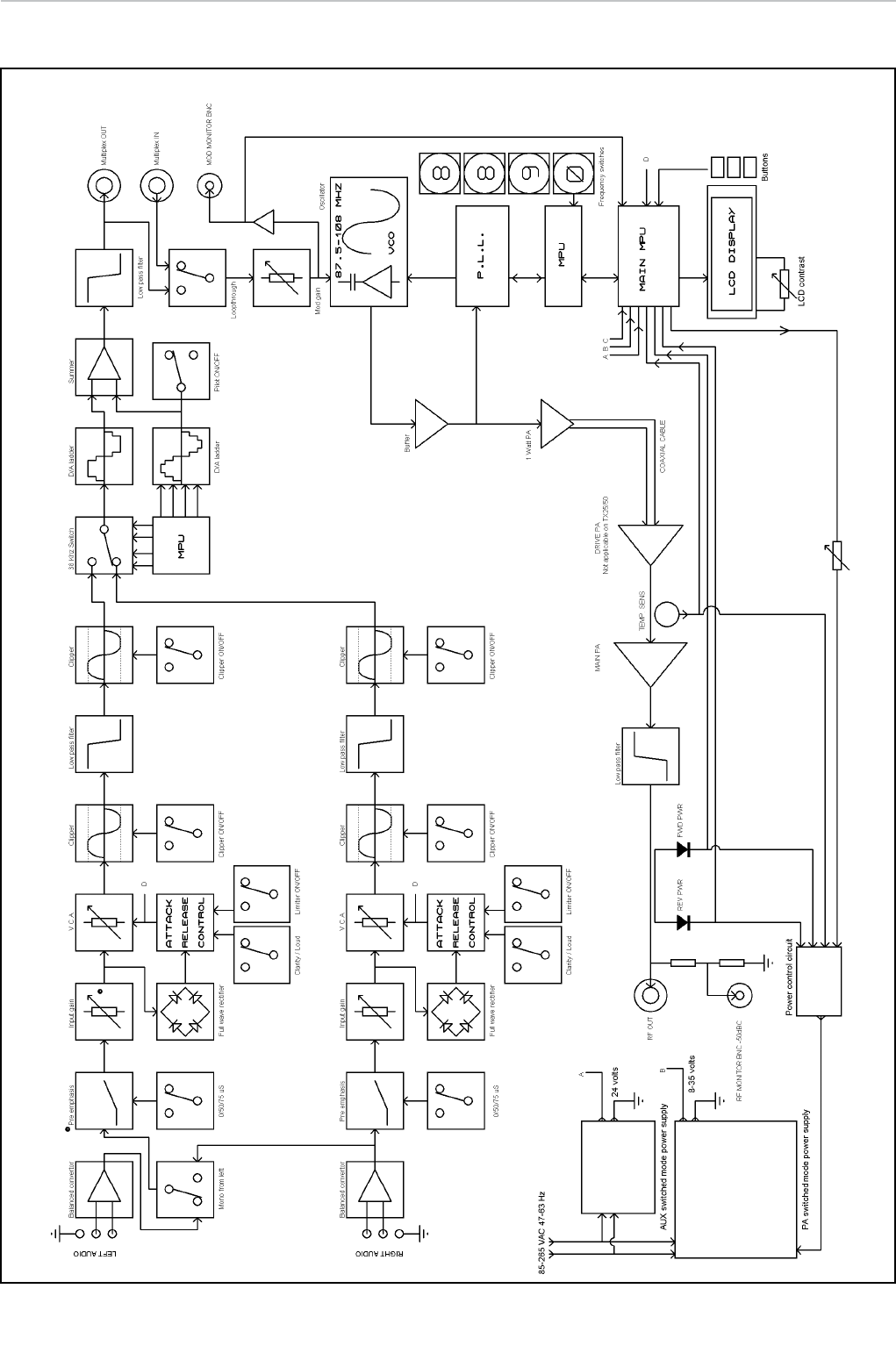

We will describe the electrical workings of the transmitter from the audio input through to the RF output and will
attempt to explain how the three boards tie together and form the complete unit.
We will start at the audio input sockets on the back panel which are part of the combo board.
3.21 COMBO BOARD
The description of the circuitry describes the right channel path where stereo sections are mentioned. The compo-
nent for the left channel is bracketed next to the right channel component.

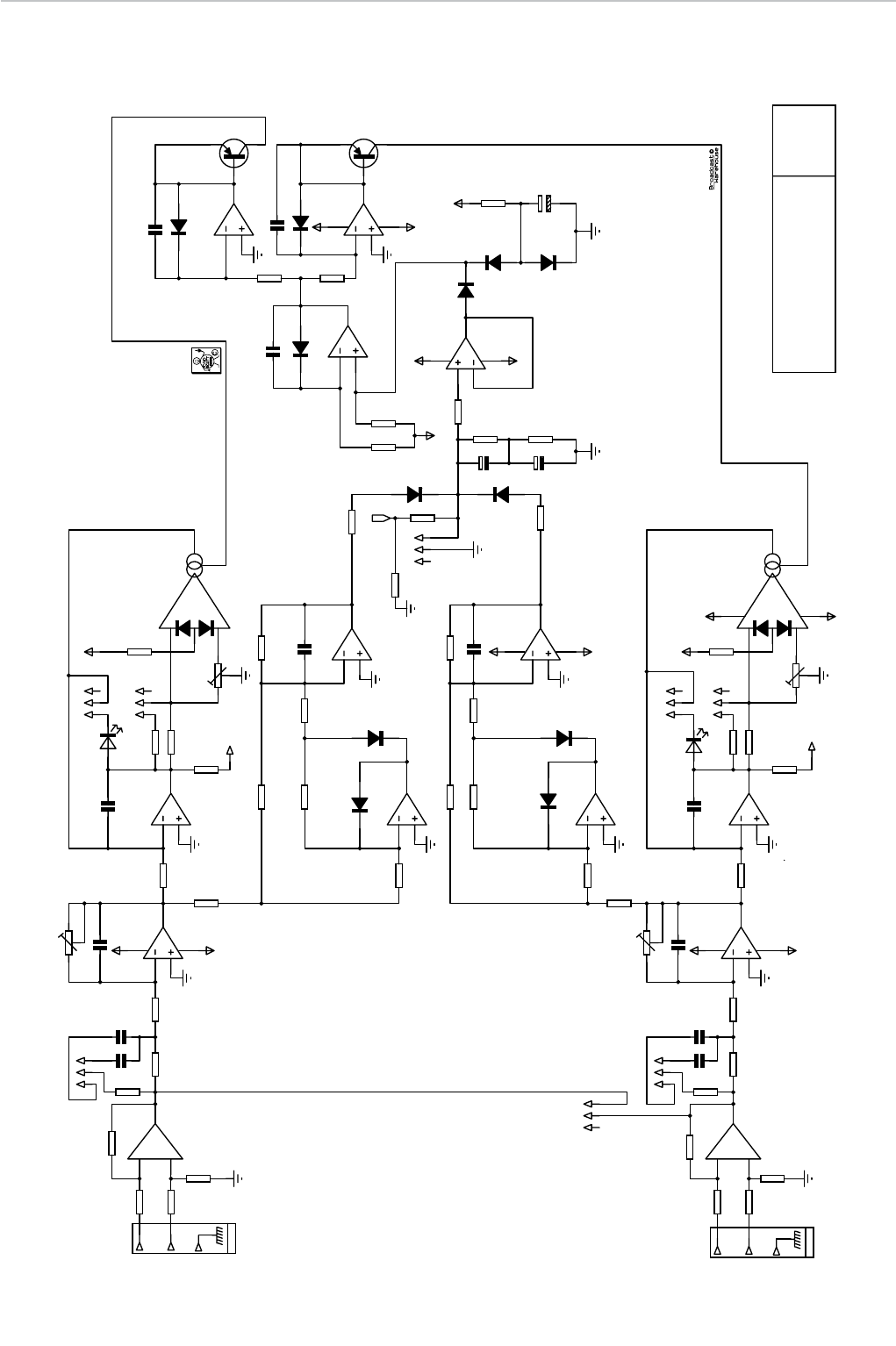

Audio limiter description
Left and right audio signals are applied to balanced input XLR sockets on the back panel. The balanced audio
signals are fed to IC1(IC4) which are configured as differential amplifiers to convert the balanced inputs to unbal-
anced for the rest of the limiters circuitry. The output from the differential op-amps feed a pre-emphasis filter
which can be switched in or out of circuit via the on board jumpers J2(J3). The audio is then fed from the pre-
emphasis filters to one half of dual op-amps IC2(IC3) where input gain can be adjusted through the rear panel
input gain control VR1(VR2) which forms the feedback path for the op-amp. The audio is then fed into the other
half of IC2(IC3). These dual op-amps are also the limiter gain control and output for the limiter.
The output of the input gain op-amps also feed the full wave rectifier circuitry which provides a DC representa-
tion of the audio signal. This DC voltage is applied to a time constant circuit which provides the attack and release
parameters for the limiter. The time constant capacitors C54 and C55 together with R58 and R59 provide a pro-
gramme dependent interactive time constant for clear punchy sound at all levels of limiting. After passing through
the time constant filter the DC signal is buffered by IC7 and then fed to IC6 which drives PNP transistors T1(T2)
which controls the current passing through the gain control element, transconductance amplifier IC5.
Transconductance amplifier IC5 is configured as a variable resistor which is placed in the feedback path of the
gain control op-amps. IC5 varys its resistance in accordance with the level of audio drive so that the output of the
gain control op-amps is fixed at 0dB. LED1(LED2) provide clipping of any overshoots that get through the limiter.
This clipper can be switched in and out of circuit by jumper J6(J7). This provides significantly more loudness than
can be obtained by making the attack time quicker to catch the overshoots. The amount of clipping can be con-
trolled by J4(J5). These provide more drive to the gain control op-amps by putting resistor R53(R69) in parallel
BW Broadcast technical manual Page 31
Technical data
with R47(R68) . This has the effect of a more “commercial loud sound” when in loud mode compared to a more
true to the original sound when in clarity mode due to less clipping taking place. VR3(VR4) is connected across
the inputs of the transconductance amplifier and provide offset adjustment to null any distortions introduced by
offsets inherent in the op-amps

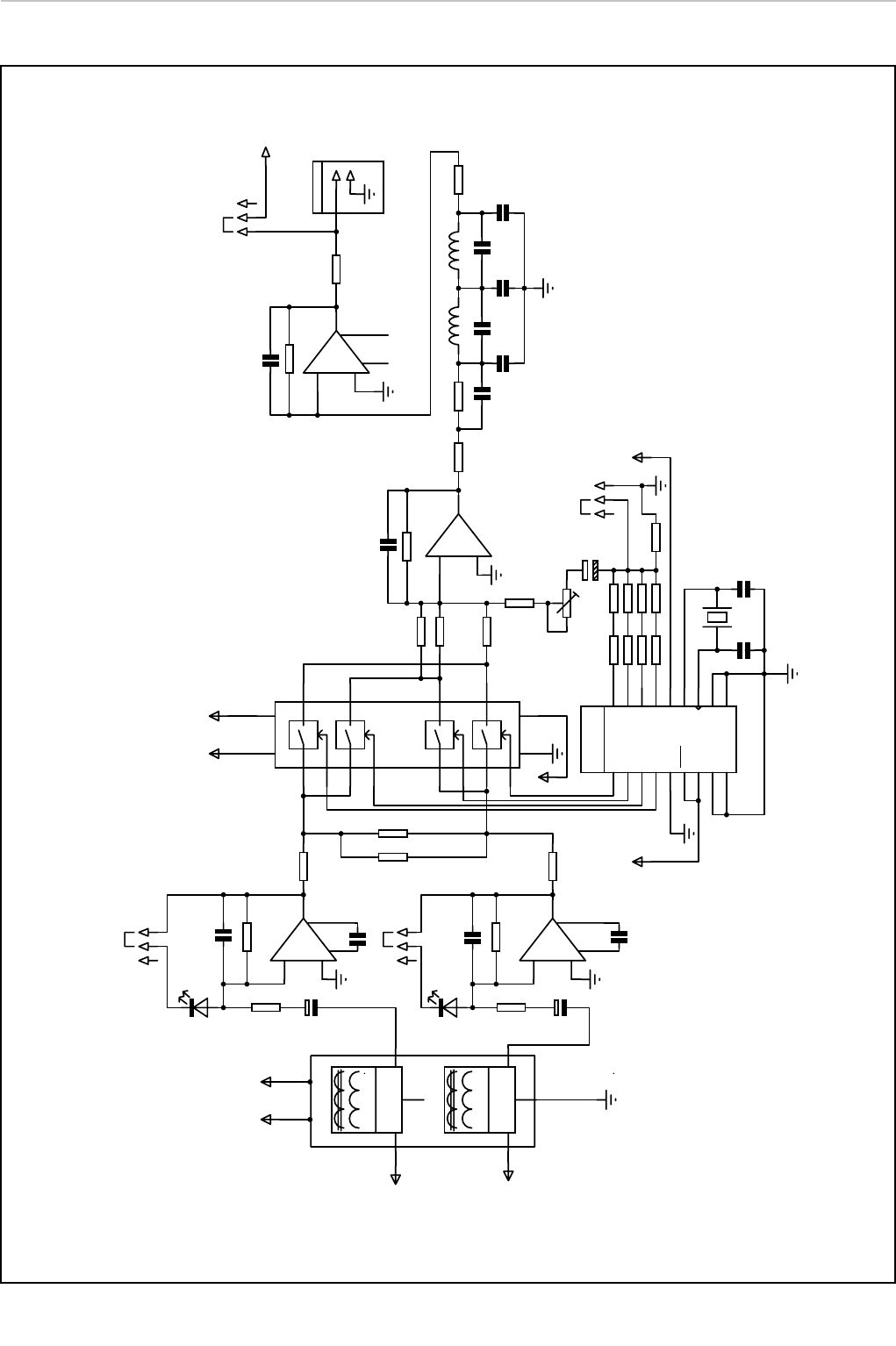

Stereo encoder description
The stereo encoder section is based around a high speed switch which is used to generate the multiplex at 38
kHz. The switch is controlled by microcontroller IC13 which supplies the timing signals to the switch at 304 kHz.
The high speed enables an over-sampled 38KHz subcarrier to be generated that is rock steady and spectrally
clean. As the signal is generated digitally no adjustments or setups are required for the encoder. The only adjust-
ments on the encoder section are the stereo/mono control and the level of the stereo subcarrier. The 19KHz pilot
tone is also generated by the microcontroller and because of this the stereo separation is excellent due to the per-
fect timing between the pilot and the subcarrier. The 19 kHz pilot is also generated by over-sampling techniques
to produce a very low distortion pilot tone.
The audio path through the encoder starts at 15 kHz brickwall filter FIL1(FIL2). These provide over 40 dB of pro-
tection by 17 kHz, 50 dB by 20 kHz as well as a notch at 19 kHz to protect the pilot signal even further. The out-
put from the filters are buffered by op-amp IC10(IC11). These buffer op-amps can also be used as clippers, which
can be used to remove any overshoots introduced by ringing in the 15 kHz filters. The buffer op-amps drive into
the analogue switches. The switches are controlled by the microcontroller IC17 and the output from the switches
feed into three resistors R100,101,102 to provide a D/A type function producing the multiplex signal. The resistors
are carefully chosen to provide sine weighting for the reconstruction, which keeps the lower order harmonic con-
tent down to almost zero. These three resistors are combined in virtual earth mixer op-amp IC14. The stereo pilot
tone emerges from the microcontroller as a 4 bit word which has sine weighting applied to it by resistors R93 to
R98. At this point, apart from 19 kHz, the pilot has no significant energy below 304 kHz. The pilot is fed through
VR6 for adjustment of the pilot level before being combined with the subcarrier at the virtual earth mixer op-amp
IC14. The complete stereo multiplex signal emerges from IC14 and is fed into a low-pass filter formed by L1,L2
and C78 to C84. This filter removes any high frequency products due to the sample rate. The filter is buffered by
output op-amp IC15 which also provides a fixed output level of +6dBu, which is fed to the multiplex output BNC
socket on the back panel, as well as to one side of the loopthrough jumper J1.

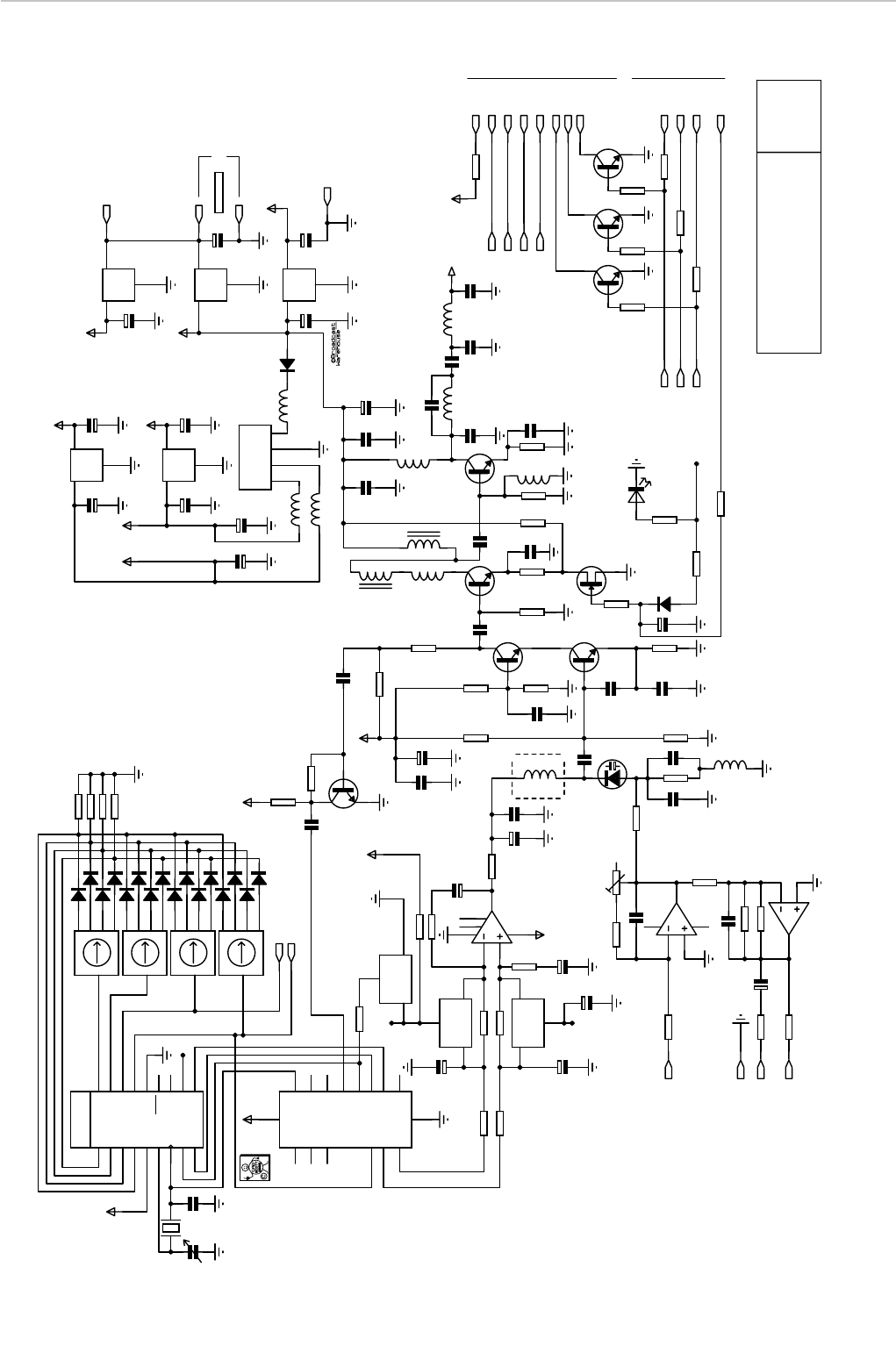

Exciter description
The frequency determining elements are inductor L3 and varicap diode VD1 together with capacitors C20 - C23.
These components, together with transistors T4 and T5, form a cascade oscillator whose output is then buffered
by RF transistor T6. The RF output from T6 is impedance matched to the base of P.A. transistor T7 by RFT1, a
4 to 1 matching transformer. The one watt power output from P.A. transistor T7 is impedance matched by coils L4
and L5 and associated capacitors C30-34 to the 50 ohm output socket CON7. These components also provide
harmonic filtering. A coaxial cable carries the RF output from this socket to the RF input connector on the main
power amplifier PCB.
The PLL circuit is primarily IC18 which is a serially programmable PLL chip. The microcontroller IC17 reads
the dial switches at power up and outputs a serial code to the PLL chip in a format that determines the output
frequency that the PLL will lock the transmitter to. If the microcontroller IC17 detects that the switches are set
to 4440 then the microcontroller IC17 will talk to the microcontroller on the control / LCD board to request the
LCD display control system stored frequency. The PLL chip delivers raw control pulses to the loop filter built
around op-amp IC20. The loop filter is a low-pass filter that takes the raw rectangular differential outputs from the
PLL chip and creates a DC voltage to apply to the frequency determining component, varicap diode VD1. The
main time constant in the loop filter is formed by resistor R6 driving C8 and R5 driving C9. The high resistance of
R5 and R6 allows slow charging of C9 and C6 from the PLL chip. The DC voltage derived from the output of the
op-amp will be slow to change in response to the raw PLL pulses due to the slow charging of those capacitors.
This slow DC voltage change is converted to slow frequency change by the varicap diode. IC19 is an analogue
switch that shorts out the two high resistance resistors in the loop filter to allow faster charging of C9 and C6, and
so, a faster change of the output DC voltage from the filter. This faster changing voltage can allow the transmitter
to get on frequency faster. When the transmitter is on frequency the analogue switch stops shorting out the high
resistance resistors and the slow loop takes control, which greatly improves the audio response of the transmit-
ter. The microcontroller IC17 determines when to switch the analog switch in and out by reading the lock detect
signals from the PLL chip. The microcontroller can also use this information to switch off transistor T6 with open
collector configured T11 which mutes the RF output when the transmitter is out of lock. LED5 provides visual indi-
BW Broadcast technical manual Page 32
Technical data
cation of the PLL locked condition. The front panel control system will also display the locked condition when in
the frequency display screen.

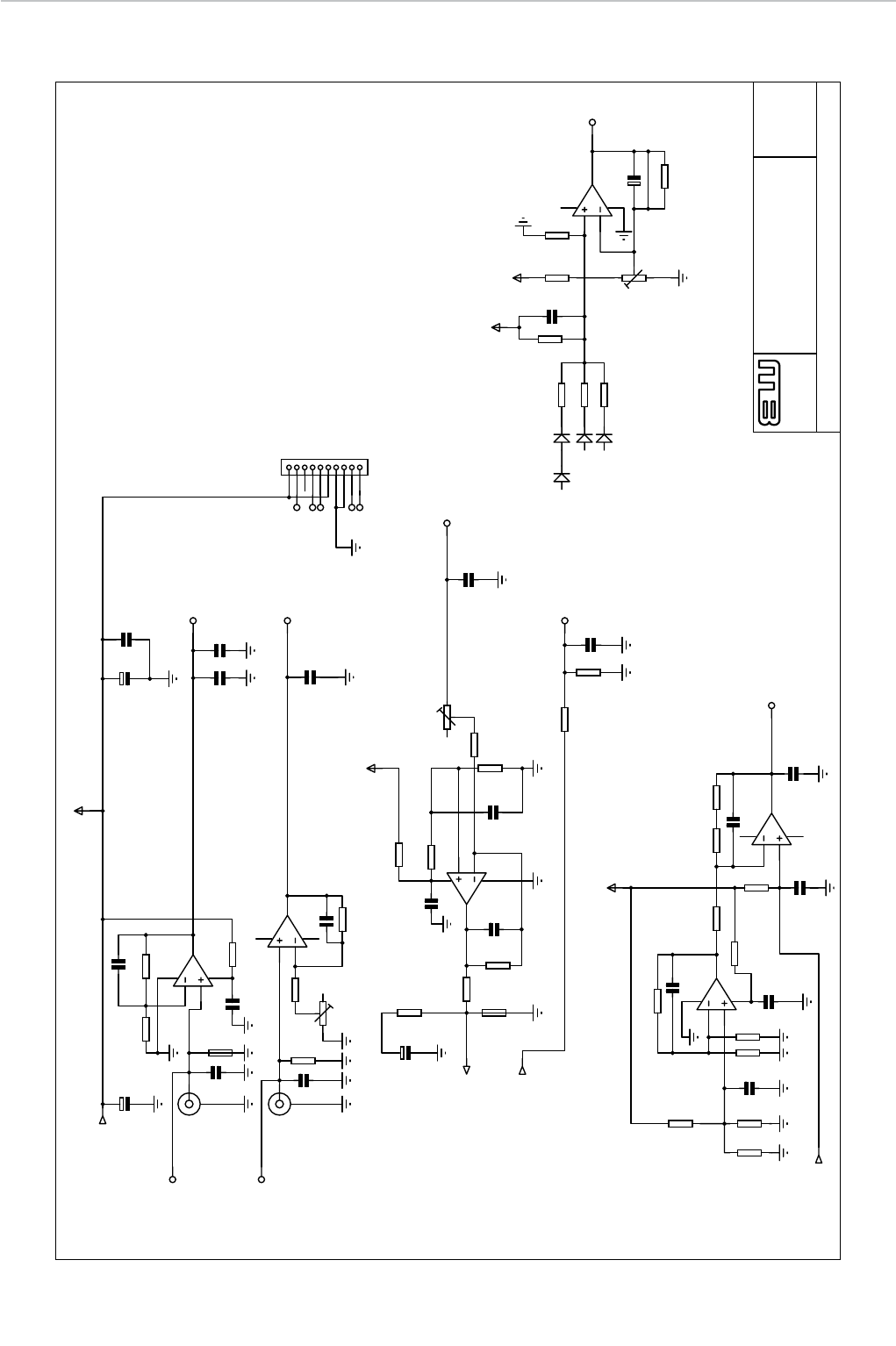

Audio is fed into the modulation input of the exciter from external multiplex input connector CON2 which is a BNC
type or from the internal stereo encoder section by having jumper J1 set to loopthrough. The modulation level can
be adjusted from the back panel by the adjustment of variable resistor VR5 which is in the feedback loop of op-
amp IC18. The output of the op-amp feeds the modulation element, varicap diode VD1, via potential divider R31
and R18.
CON8 provides an interface to the control / LCD board. This ribbon cable interface provides connections for the
alarm signals to the back panel D-type from the microcontroller on the LCD board together with connections for
the modulation, the limiter gain reduction level and a serial interface which provides frequency and status informa-
tion between the PLL microcontroller on the combo board and the main system microcontroller on the LCD board.

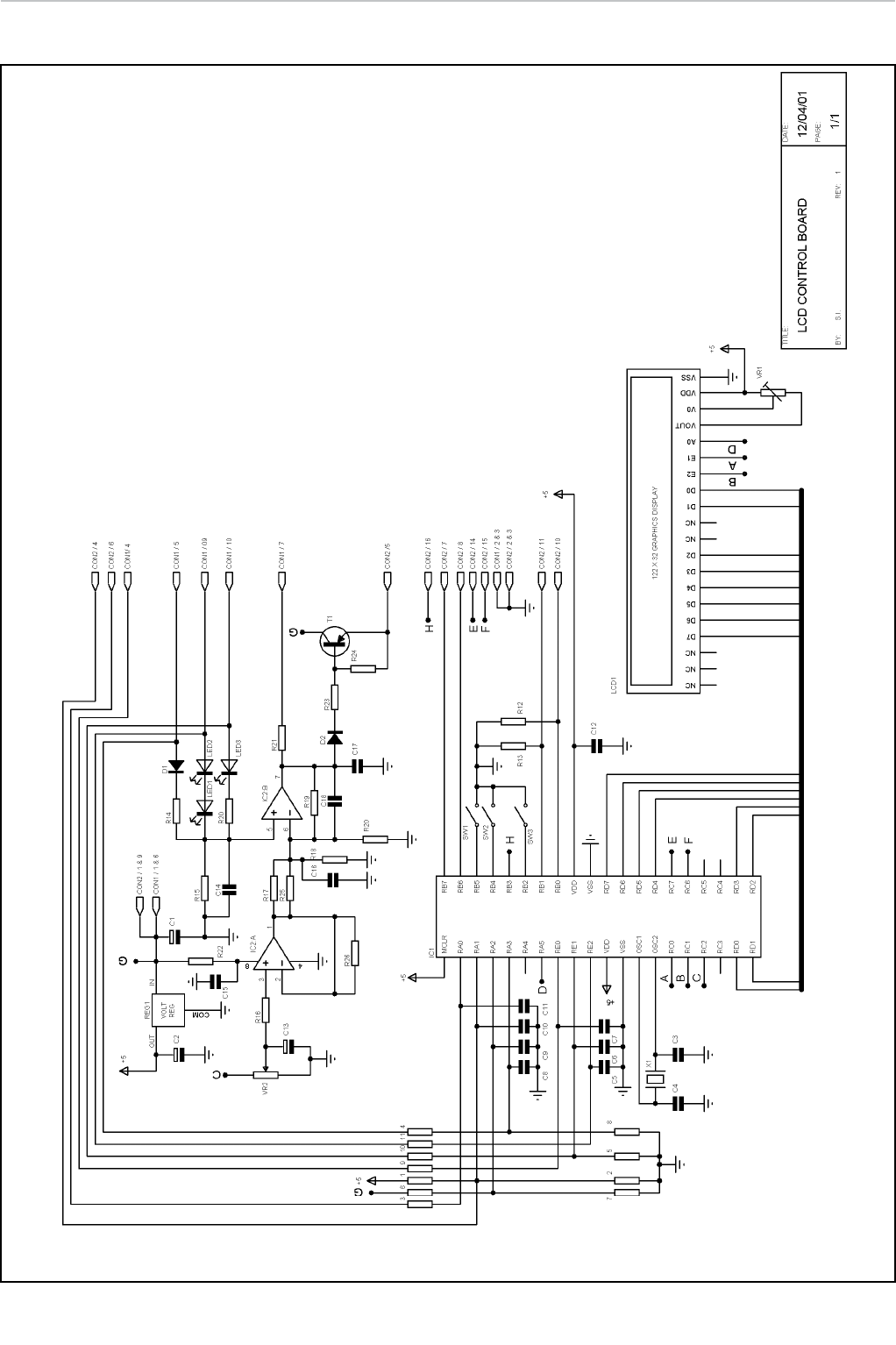

3.22 LCD CONTROL BOARD
The LCD control board is the heart of the transmitter. The board contains an eight bit microcontroller, LCD display,
a voltage regulator and a dual op-amp together with a few passive components.
CON1 provides a 10 way interface to the power amplifier board and its sensors. Some of the connections of
CON1 are routed around to the power supply modules. CON2 provides a 16 way interface to the combo board
providing power to the combo board as well as routing signals to the back panel D-type sockets for alarms/RS232
and returning modulation and limiter gain reduction signals to the main microcontroller.
The voltage regulator REG1 and decoupling capacitors C1 and C2 takes the 18 volt auxillary supply from CON1
and regulate it down to 5 volts for the microcontroller and LCD circuitry. The microcontroller is a 40 pin 8 bit type
running at 8 MHz. The microcontroller has several ports that have various functions and connect to external com-
ponents.
PORTA (6 bits) is primarily used for the analogue voltage inputs. Bit 0 is the limiter gain reduction, Bit 1 the modu-
lation, Bit 2 the AUX volts and Bit 3 the Fwd RF power. Bit 4 is not used and bit 5 of PORTA has a control con-
nection to the LCD display.
PORTB (8 bits) has a few different functions. Bits 7,6 and 3 of the port are the alarm signal outputs and are rout-
ed off via CON2 to the D-type on the back of the combo board. Bit's 5,4 and 2 are connected to the front panel
buttons to allow navigation of the LCD functions. Bits 1 and 0 provide a 2 wire interface to the PLL microcontroller
on the combo board.
PORTC (8 bits) bits 0 and 1 are used to write information to the LCD display. Bit 2 is the pulse width modulator
output (PWM) and connects into unity gain DC amplifier op-amp IC2A. The voltage generated by the PWM is set
by the software in the microcontroller. This PWM level is then fed through potentiometer VR2 and smoothed by
C13 before being buffered by the aforementioned op-amp. PORTC bits 3-5 are not used. Bit’s 6 and 7 of PORTC
are used by the UART inside the microcontroller. These pins are RXD and TXD for the RS232 interface. They are
routed via CON2 to the back panel D-type.
PORTD's 8 bit's are interfaced to the 8 bit data bus of the LCD display. The data byte on PORTD can be latched
into the LCD display by the LCD control bits on PORTC.
PORTE (3 bits) has the remaining A/D inputs. Bit 0 is the PA volts, Bit 1 is the Rev RF power and bit 2 is for the
PA temperature.
The microcontrollers software reads all the analogue voltages, converts and displays them where neccessary and
outputs alarm signals in the event of a transmitter error. There are various passive components associated with
IC1. Each A/D port has input current limiting resistors R1-11 and decoupling capacitors C5-11. X1, C3 and C4
provide the 8 MHz signal for the clock of the microcontroller. R12 and R13 provide pull downs for correct opera-
tion of the internal processor communications channel. C12 provides supply decoupling for the microcontroller
and VR1 sets the contrast of the LCD display.
BW Broadcast technical manual Page 33
Technical data
IC2 is a dual op-amp whose purpose is to control the output power of the transmitter. Side A of the op-amp is con-
figured as a unity gain buffer for the PWM and was described previously. VR2 provides an adjustable DC level to
side B of the op-amp. Side B is configured as a DC amplifier with the gain set by R17, R18, R19, R20 and R25.
The larger the DC signal provided by side A and the larger the DC signal at the output of Side B. This DC signal
is used to turn down the output of the Power amplifiers power supply and with it the RF power output level.
LED3 and R20 provide a connection from the reverse RF power sensor into the input the non inverting input of
side B of the op-amp. LED3 only allows DC through above a certain level. Any DC above this level will increase
the output voltage from the op-amp and the RF power level will decrease. This forms the VSWR protection for
the transmitter. LED1 and LED2 also provide the same function but with the DC level this time being supplied
by the temperature sensor on the PA board. Too high a temperature will cause the DC level to exceed the turn
on point of the two diodes and voltage will once again turn up the op-amps voltage and turn down the RF power
level which should lower the temperature of the transmitter. The output from side B is fed to the switched mode
power supply of the power amplifier via R21 and CON1. R22 and C15 provide supply decoupling for the op-amp.
C14,15,16,17,18 provide further decoupling and feedback for the power control feedback loop formed around side
B of the op-amp.
BW Broadcast technical manual Page 34
Technical data
3.23 POWER AMPLIFIER BOARD
PSU interface
The voltage from the PSU arrives at input of REG1 thorugh 36-pin EDGE connector. REG1 is a switching regula-
tor. The 52kHz output signal from REG1 is half rectified by D1 and smoothed out through L1, C2 and C3. The
resulting DC voltage is used to drive the transmitter fans. R1 which is in the feedback loop of REG1, adjusts the
maximum voltage to accommodate different fan types. Also part of the feedback loop is a temperature sensor
(placed on the bus bar board), making the amount of airflow in the transmitter temperature dependent. LED D2
indicates there is an output voltage present.
Bus bar board
A bus bar board accommodates the mentioned temperature sensor R1 which is extrudes into the main heatsink,
provides further voltage smoothing for fans and routes the supply voltages from CON1 to appropriate sections of
the power amplifier.
Controller board
The controller board controls the power output of an output amplifier based on forward VSWR detection, reverse
VSWR detection, forward power signal form the LCD board and temperature. All op-amps are supplied with +18V
from the AUX power supply line, buffered by the capacitors C1, C2, C8 and C15.
Detected reverse VSWR (sniffed of the power amplifier's main RF output line) arrives through CON2 and input
filter C5-R7 to the IC2A. The gain of the op-amp is set by R22 and R23. Amplified signal is smoothed by C13 and
C14 and fed to the OR-ing circuit on the input of IC1B.
Detected forward VSWR (sniffed of the power amplifier's main RF output line) arrives through CON1 and input fil-
ter C7-R24 to the IC2B. The gain of the op-amp is set by R9, R10 and VR2. Amplified signal is smoothed by C12
and fed to the OR-ing circuit on the input of IC1B.
Forward power control signal comes from the micro controller on the LCD board to the inverting input of IC1A
through R4 and C10. A voltage divider R12 and R13 sets the voltage reference to the non-inverting input to be
half of the AUX power supply rail. The gain of the op-amp is set by R4 and R5. Output signal is fed directly to the
IC1B.
IC1B includes an OR-ing circuit on the input and a summer (R32-R34) to combine the reverse VSWR, forward
VSWR and PA control signals together. Output of IC1B is then a final control signal that controls the output of the
power amplifier by controlling it's power supply voltage. R27 and VR3 set the voltage reference to the inverting
input of IC1B.
A temperature sensor circuit is located close to the main RF transistors. This temperature sensor is mounted into
the heatsink and consists of the sensor itself which is located under the board and an op-amp circuit for level
adjustment. The op-amp IC3A provides a suitable voltage reference while IC3B and associated components con-
vert the output signal from the temperature sensor to a level more suitable for the micro controller and protection
circuitry on the LCD board.
15W driver board
The RF signal from the exciter section of the combo board arrives at the MCX RF input connector CON1 via a
coaxial cable. From here the 50 ohm input impedance is matched to the gate of the FET transistor T1 by the
impedance matching network formed by C8, C3, L2, C9 and L3. R3, D2, R9, R5 and VR2 provide bias control
to the gate of T1 from the output of REG1 which is a switching regulator. PLL signal coming through R6 from the
exciter section, can pull the T1 bias voltage low, effectively reducing the power output of T1.
BW Broadcast technical manual Page 35
Technical data
R4, FB1, L5 and C5 provide supply voltage to T1’s drain as well as providing some impedance matching to the
output of T1. Further impedance matching from T1’s drain is composed of L4, C6 and C10.
Switching regulator REG1 generates 50 kHz signal from the +50V main power supply line, which is rectified by
commutating diode D1, low pass filtered by L6, L1, R1, R2, C4 and decoupled by capacitors C1 and C4 to pro-
duce +25V DC voltage for the T1.
Double pallet
The RF signal from the 15W driver board arrives at the input connector CON1. From here the 50 ohm input
impedance is distributed to two branches via a bridge consisting of two quarter-length 70 Ohm lines. In each
branch a RTF3 (RTF4) impedance matching balun provides an unbalanced to balanced connection to the two
gates of gemini packaged FET transistor T1 (T2). Transistors are biased through R9 (R17), VR1 (VR2), R1, R2,
R5 and R6. In case of excessive VSWR, a sniffed signal from the output combiner coming through VR3 will turn
the diodes D5 and D6 on, and negatively bias transistors T1 and T2 off.
The drain outputs of T1 (T2) are connected to another balun transformer RFT1 (RTF2) which provides impedance
step up as well as proving a DC feed to the transistors drains via a center tapped winding. The DC power applied
to the center of balun comes from the main adjustable power supply module which can control the RF power
output by having it’s output voltage adjusted. C6-7 (C12-13), FB1 (FB2), R10-11 (R14-15), and C7 (C12) provide
filtering and RF decoupling to the power feed into the center tap of balun RFT1 (RTF2).
Output combiner
Two output signals from RTF1 and RTF2 are combined together via a bridge consisting of two quarter-length 70
Ohm lines. On each line there is a sniffed signal that drives LEDs D5 and D7 in case of excessive VSWR and/or
bridge unbalance. Another RF sense circuit consisting of R1, R2, C1, C2, D1 and R3 produces a negative voltage
in the event of excessive VSWR on the combined output which shuts transistors T1 and T2 on the double pallet
off.
The output of the bridge is fed into a low pass output filter. These components reduce the level of any harmonic
products generated by the power amplifier. The output of the low pass filter is sniffed by VSWR sensors R4, R5,
C3, D2, C4 and R6, R7, C5, D3, C6 which generate forward and reverse RF power measurements for metering
and for VSWR fault protection and alarms.
BW Broadcast technical manual Page 36
Technical data
3.3 BLOCK DIAGRAM
BW Broadcast technical manual Page 37
Technical data
3.4 WIRING AND INTERNAL OVERVIEW
COMBO BOARD
PA BOARD
LCD board
Filtered IEC
mains socket
10 WY RIBBON
RF & MOD
MON BNC’s
24 V AUX
power supply
16 WY RIBBON
RG316
BNC BNC
XLR XLR
9-pin D-Types
(Alarms & RS232)
N-type socket
EARTH
RG316
RG316
Fan
CONTROL / POWER / EXCITER SECTION
AUDIO INPUT / LIMITER SECTION
STEREO ENCODER SECTION
Fan
PSU interface board
Bus bar
Filtered IEC
mains socket
18V
regulator
OUTPUT COMBINER
DOUBLE PALLET
CONTROL PCB
48V 800W
POWER SUPPLY
BW Broadcast technical manual Page 38
Technical data
3.51 COMBO BOARD SCHEMATICS
3.511 Limiter section
TITLE:
BY:
DATE:
PAGE:
LIMITER SECTION 18/04/08
S.I. 1/1
REV: 1
R68
VR2
VR4
LEFT IN
HOT
COLD
GND
CON5
R66
R72
C48
C47
R65
3
2
1
8 4
IC3:A
C39
R67
R71
5
6
7
IC3:B
R69
C43
R70
R75
R73
5
6
7
IC9:B
5
6
7
IC9:B
D9
D11
R74 R76 C53
R77
R78
D6
R64
15
14
13
16
11
IC5:B
R53
R48
5
6
7
IC8:B
3
2
1
8 4
IC8:A
D1
D2
R49 R54 C49
R56
R57
D4
R47
VR1
VR3
LEFT IN
HOT
COLD
GND
CON4
R44
R50
C46C45
R45
3
2
1
8 4
IC2:A
C38
R46
R51
5
6
7
IC2:B
R53
C42
R52
R63
2
3
4
1
6
5
12
IC5:A
C55
C54
R59
R58
R60 3
2
1
84
IC7:1
D5
D7
5
6
7
IC7:B
D12
C56
5
6
7
IC6:B
3
2
1
8 4
IC6:A
R62
R61
D3
D10
C52
C50
T2
T1
R80 R81
C57
R79
LED2
LED1
LEFT AUDIO TO
RIGHT AUDIO TO
PROCESS
CLIP
PROCESS
CLIP
PRE EMPHASIS INPUT LEVEL
50 75
50 75
PRE EMPHASIS INPUT LEVEL
-15
+15
BRIDGE
MONO FROM LEFT
J3
J12
J2
J7
J5
D8
+15
+15
-15
+15
+15
+15
-15
-15V
+15V
-15
-15
J6
J4
CODER SECTION
CODER SECTION
LIMITER
J8
R109
CON8 / 3LIM G/R OUT
ON OFF
R117
R118
+
3
-
2
6
IC4
R116
R119
+
3
-
2
6
IC1
R112
R113
R114
R115
51K RETROFIT
BW Broadcast technical manual Page 39
Technical data
15KHZ LPF
IN OUT
FIL2
R87
R88
C65
LED4
R89
+
3
-
2
6
1
8
IC11
C59
VCC+ 13
GND
5
VCC- VD+ 12
2
1
7
8
10
9
15
16
3
6
11
14
IC12
C63
15KHZ LPF
IN OUT
FIL1
R83
C64
LED3
R84
+
3
-
2
6
1
8
IC10
C58
C62
R86
8 BIT PIC
MICRO
RTCC
3
RA0 17
RA1 18
RA2
1
RA3
2
RB0
6
RB1
7
RB2
8
RB3
9
RB4 11
RB5 10
RB7 13
MCLR
4
OSC1 16
RB6 12
GND
5VCC+ 14
OSC2 15
IC13
R90
R98
R91
R92
R93
VR6
R102
R101
+
3
-
2
6
IC14
R103
C75
R104 R105
C79
C78
C80
C81-82
C83
L1 L2
C84
+
3
-
2
6
1
8
IC15
R107
C86
R106
R108
MPX OUTPUT
X1
C73
+5V +5V
-12V
+5V+12V
15 KHZ CLIP JUMPER
15 KHZ CLIP JUMPER
STEREO/MONO
R82
CON3
LEFT INPUT FROM
LIMITER SECTION
RIGHT INPUT FROM
LIMITER SECTION
R85
J9
J10
R97
R96
R95
R94
R99
R100
C74
PILOT FINE TUNE
J11
MPX LOOPTHROUGH
J1
TO EXCITER
C94
15kHz Filter Block
+5V+12V
3.512 Stereo encoder section
BW Broadcast technical manual Page 40
Technical data
3.513 PLL exciter section
B
B
AA
TITLE:
BY:
DATE:
PAGE:
EXCITER / PSU / CONTROL 17/04/08
S.I. 1/1
REV: 1
T5
T4
R22
R23
R21
R25
C24
C23
R27
R19
R20
C21
VD1
L3
C14
R18 C20
T6
C27
R110
T7
R30
R28 C25
L5
C29
R31
L4 L5
C30 C32
C33
C34
C31
C28 C19
C22
3
2
6
7 4
1
5
IC20
R17
R16
R15
R7
R8
X1
Y
2
C13
IC1:A
X11
Y
10
C
12
IC19:B
R5
R6
16
12
f R
9
V
15
R
14
PD
13
OSC in 1
OSC out 2
REF out 3
F in 4
D in 5
ENB 6
CLK 7
D out 8
f V
10
LD
11
IC18
8 BIT PIC
MICRO
RTCC 3
RA0
17
RA1
18 RA2 1
RA3 2
RB0 6
RB1 7
RB2 8
RB3 9
RB4
11
RB5
10
RB7
13
MCLR 4
OSC1
16
RB6
12
GND 5
VCC+
14
OSC2
15
IC17
C1
X2
C4
D15-30
VC1
C15
R24
C16
5V
RF OUTPUT
+15 VDC
5V
R13
R29
D23
+15 VDC
R31
X
1Y2
C13
IC19:A
R9
10V
+10 VDC
5V
C12
C6C9
C8
C17
C18
C13
0
9
8
4
1
3
2
5
6
7
SW1
0
9
8
4
1
3
2
5
6
7
SW2
0
9
8
4
1
3
2
5
6
7
SW3
C7
RFT1
R12
LED5
VOLT
REG
OUT
COM
IN
REG3
3
2
1
8 4
IC18:A
5
6
7
IC18:B
R40
C35
R39
VR5
R42
R41
C37
CON7
T3
R11
R10
C10
5V
12
CON2
13
12
CON8
MULTIPLEX INPUT / BNC
CON8
BUFFERED MOD.
IN
OUT+
GND
OUT-
DC1
VOLT
REG
OUT
COM
IN
U1
D13
L7
L8
C89
C1
C91 C4
-16VDC +16VDC VOLT
REG
OUT
COM
IN
U2
+5 VDC
C2
CON618 VDC IN
2
3
10
11
9
1
10
11
12
13
4
T9
T8 T10
5
6
7
R32 R34
R35
R36
R37
R33
1
9
2
RS232 / CONTROL
CON1
8
CON8
R38
RF MUTE
O / C SIGNALS
TTL SIGS
CON8
8 AND 16
6 AND 7
CON8
CON8
VOLT
REG
OUT
COM
IN
REG4
VOLT
REG
OUT
COM
IN
REG5
C67
C70
C72
C90
C77
-12 VDC
+12 VDC
0
9
8
4
1
3
2
5
6
7
SW4
R1
R3
R2
R4
C5
R111
R43
R121
C43
+
-
CON9
FRONT PANEL MOD MON
15
R120
+18
R126
C97
C3
L11
L9
R14
T11
L1
BW Broadcast technical manual Page 41
Technical data
3.52 LCD CONTROL BOARD
BW Broadcast technical manual Page 42
Technical data
3.531 PSU Interface
VI
1VO 2
GND
3/6
FeedBack 4
ON-OFF
5
REG1
C1
L1
C3
R2
R1
1
2
D1
VIN
VOUT
R4
TEMP
R3
C2
PSU_CTRL PSU_CTRL
1
2
3
4
34
33
32
31
5
30
6
29
7
28
8
27
9
26
10
25
11
24
12
23
13
22
14
21
15
20
16
19
17
18
36
35
EDGE
VIN
R5
TEMP
AK
D2
PSU_CTRL
PSU_CTRL
VOUT
VOUT
TEMP
DESIGN TITLE:
DRAWN BY:
CREATED:
PAGE:
TX600 PSU Interface Board
28/05/08
1
/1
.
H
.
G
REV:
1.0
:
D
E
I
F
IDO
M
:E
LTITT
E
E
H
S
02/22/99
FILENAME:
BW Broadcast technical manual Page 43
Technical data
3.532 Bus Bar
1
2
3
4
34
33
32
31
5
30
6
29
7
28
8
27
9
26
10
25
11
24
12
23
13
22
14
21
15
20
16
19
17
18
36
35
CON1
1/8
2/7
3/6
4/5
CON3
1
2/3
CON2
T
R1
TEMP
TEMP
V_PA
V_FAN
CTRL
CTRL
V_AUX
C1
R2
C5
C6
V_FAN
V_FAN
C4
DESIGN TITLE:
DRAWN BY:
CREATED:
PAGE:
TX600 BusBar
27/05/08
1
/1
.
H
.
G
REV:
1.0
:
D
E
I
F
IDO
M
:E
LTITT
E
E
H
S
02/22/99
FILENAME:
BW Broadcast technical manual Page 44
Technical data
3.533 Controller PCB
AUX V+
C1 C8 C15
3
2
1
8 4
IC2:A
5
6
7
84
IC2:B
R8
C3
5
1/2/3/4
CON2
C5
R7
R23 R22
5
1/2/3/4
CON1
C7
R24
3 2
1
VR2
R9
R10
C13
C14
C12
3
2
1
84
IC1:A
5
6
7
84
IC1:B
R6
R13
R12
R3
R11 R5
C2
PA CTRL
3 2
1
VR1
R4 C10
PA V+
3
2
1
8 4
IC3:A
5
6
7
8 4
IC3:B
C11
C4
R16
R14
R18
R25 R15
R17
R19 R20 R21
TEMP V+
R1
R2 C9
C6
C16
C17
FWD
REV
AUX
AUX
AUX 1
2
3
4
5
6
7
8
9
10
CON3
REV
FWD
REV
FWD
TEMP
TEMP
PACNT
PAV+
PACNT
PAV+
C18
C19
C20 C21
C22
R26
R27
R28
C23
AUX
R32
R33
R34
D5
D6
D7
AUX
PACNT
R29
C24
R30
C25
REV SWR IN
FWD SWR IN
3 2
1
VR3
R31
R35
DESIGN TITLE:
DRAWN BY:
CREATED:
PAGE:
22/04/08
1/1
REV:
:D
E
IFIDOM:ELTITTEE
H
S
26/09/05
FILENAME:
Controller PCB
BW Broadcast technical manual Page 45
Technical data
3.534 15W Driver Board
LM2575HV-ADJ
VI
1VO 2
GND
3/6
FeedBack 4
ON-OFF
5
REG1
C7
L1
C1
R1
R2
1
2
D1
VIN
C2
C4
R9
AK
D2
31
2
VR1
R5
R4
C6
5
1/2/3/4
CON2
5
1/2/3/4
CON1
C3
C8
C9
L2 L3 T1
L5
L4
R3
C5
C10
C11
C12
L6
L7
C13 C14
C15
R6
PLL LOCK
5
1/2/3/4
CON2
Optional filter stage
FB1
DESIGN TITLE:
DRAWN BY:
CREATED:
PAGE:
600W Amp Driver Board
28/05/08
1/1
.I
.
S
REV:
1.4
:
D
EIFI
DO
M:E
L
T
I
T
TEE
HS
02/22/99
FILENAME:
BW Broadcast technical manual Page 46
Technical data
3.535 Double Pallet
DESIGN TITLE:
DRAWN BY:
CREATED:
PAGE:
P
27/05/08
1/1
REV:
:DEIF
I
DO
M:ELT
IT
TE
E
H
S
14/09/05
FILENAME:
R.K
Double Pallet
1
3
5
2
4
T1
RFT3 RFT1
PCB1
PCB
R1
R2
32
1
VR1
C1
C8
FB1
C10
1
2
D1
12
D2
C5
R9
RF OUT1
C7 C6
R3
R4
C15
1
3
5
2
4
T2
RFT4 RFT2
PCB2
PCB
R6
R5
3
2
1
VR2
C4
C11
FB2
C9
12
D3
12
D4
C14
R17
RF OUT2
C12 C13
R7
R8
C18
R18 R19
R20 R21
5
1/2/3/4
CON1
R13
1
2
D5
12
D6
3
2
1VR3
Passive VSWR 1
PWR +50V
PWR +50V
RF IN2
RF IN1
12
D7
12
D8
C16
C17 Passive VSWR 2
R10
R11
R12
R16
R15
R14
V-
3V+ 2
ADJ
1
TEMP
C19
Temp Signal
PCB and Assembly Components GND 1
PCB3
C7
C12
70 Ohm
70 Ohm
BW Broadcast technical manual Page 47
Technical data
3.536 Output Combiner
A K
D1
C1
R2
R3
C2
AK
D2
C3
R5
C4
R4
A
K
D3 C5
R7
C6
R6
VSWR PROTECTION
REV VSWR DETECTION
FWD VSWR DETECTION
R1
VSWR Return
AK
D4
R8
C8
AK
D6
R9
C10
VSWR LED INDICATOR
VSWR LED INDICATOR
1 2
D5
1
2
D7
RF Output
RF INPUT
RF INPUT
DESIGN TITLE:
DRAWN BY:
CREATED:
PAGE:
27/05/08
1/1
REV:
:D
EI
F
IDOM
:
E
LTI
T
T
EEHS
12/10/06
FILENAME:
RF Sense
RF Sense RF Sense
OUTPUT FILTER
RF Sense
1
2
7/16
R.K
Output Combiner
70 Ohm
70 Ohm
BW Broadcast technical manual Page 48
Technical data
3.6 PARTS LIST
3.61 Combo board
Qty Reference Value Description
10 C1, C2, C5, C8, C9, C13, C72, C74,
C77, C91 2.2uF 50V Miniature Radial Electrolytic - 4-5mm Dia, 2mm Pitch, Tolerance
+- 20%
1 C7 470uF 16V Non-Polarized Electrolytic Capacitor
1 C27 82pF Ceramic Plate 2.5mm pitch (680 Series)
3 C17, C18, C96 100uF 16V Miniature Radial Electrolytic - 6mm Dia, 2.5mm Pitch, Tolerance
+- 20%
3 C25, C29, C33 1n General Purpose Ceramic Disc 2.5mm pitch
2 C97, C14 2n2 Ceramic Plate 2.5mm pitch (629 Series)
1 C15 220pF Low K Ceramic capacitor
1 C95 220pF General Purpose Ceramic Disc 2.5mm pitch
1 C21 3p9 General Purpose Ceramic plate 2.5mm pitch
6 C22, C30, C49, C53, C58, C59 27pF Ceramic Plate 2.5mm pitch (680 Series)
1 C32 68pF Ceramic Plate 2.5mm pitch (680 Series)
1 C23 39pF Ceramic Plate 2.5mm pitch (680 Series)
2 C10, C24 2n2 Ceramic Plate 2.5mm pitch (680 Series)
21
C3, C11, C16, C19, C26, C28, C36,
C40, C41, C44, C51, C60, C61, C66,
C68, C69, C71, C76, C85, C87, C92
100n Y5V Radial Multilayer Ceramic 2.5mm pitch - Y5V Dielectric
5 C99, C100, C101, C102, C103 1uF Y5V Radial Multilayer Ceramic 2.5mm pitch - Y5V Dielectric
2 C79, C98 100nF Miniature Polyester Capacitor 5mm pitch (Dubilier DMP5 Series)
1 C31 15pF Ceramic Plate 2.5mm pitch (680 Series)
2 C75, C86 12pF Ceramic Plate 2.5mm pitch (680 Series)
8C4, C38, C39, C42, C43, C50, C52,
C56 47pF General Purpose Ceramic Disc 2.5mm pitch
2 C73, C94 33pF General Purpose Ceramic Disc 2.5mm pitch
2 C34, C20 47pF Ceramic Plate 2.5mm pitch (680 Series)
2 C46, C47 6n8 Polyester 5mm pitch 250V DC
2 C45, C48 4n7 Polyester 5mm pitch 250V DC
7 C54, C57, C62, C63, C67, C70, C88 47uF 16V Miniature Radial Electrolytic - 5mm Dia, 2mm Pitch, Tolerance +-
20%
3 C55, C93, C12 10uF 16V Miniature Radial Electrolytic - 4-5mm Dia, 2mm Pitch, Tolerance
+- 20%
3 C6, C89, C90 470uF 16V Radial Electrolytic - 8mm Dia, 3.5mm Pitch, Tolerance +- 20%
(Forever RB Series)
6 C64, C65, C78, C81, C82, C84 330pF Ceramic Plate 2.5mm pitch Capacitor
1 C80 100pF General Purpose Ceramic Disc 2.5mm pitch
1 C104 120pF Ceramic Plate 2.5mm pitch
1 VC1 5-65pF Variable Capacitor - 100V DC, Dia 10.5mm, Pitch 7.62x5.08mm-
(BC 808 Series)
N.F C35, C37, C83 n/a Not fitted
1 D13 1N4001 Axial 1 Amp Silicon Rectifier Diode - DO41 Packate 0.8mm leads
29 D1-D12,D15-D30, D31 1N4148 Glass Axial General Purpose Diode - DO-35 Package
4 LED1-4 GREEN Bi Directional 5mm Green LED - Vf 2.2V - (Kingbright L-57D Series)
1 LED5 RED 5mm Pitch Standard Red LED (eg Kingbright L-53 Series)
1 VD1 BB809 ** VHF Varicap Diode
1 L1 3.9mH Radial Inductor (Toko 8RBS) #181LY-392J
1 L2 4.7mH Radial Inductor (Toko 10RB) #181LY-472J
1 L3 MC100 075 Screened Variable Inductor (MC120) #E526HNA-100075
1 L4 MC100 112 Screened Variable Inductor (MC120) - #E526HNA-100112
1 L5 MC120 073 Screened Variable Inductor - (MC120) #E526HNA-100073
1 L6 0.33uH Axial Inductor Body 7mm, Dia 2.8mm
BW Broadcast technical manual Page 49
Technical data
2 L9, L10 0.15uH Axial Inductor Body 7mm, Dia 2.8mm - Sigma Inductors (C30
Series 0.25W)
2 L7,L8 220uH Axial Inductor Body 9.2mm, Dia 4.0mm - Epcos Inductors (B78108S
Series RF Inductors)
1 L11 MC141- 100 110 Screened Variable Inductor - (MC141) #NE547SNAS-100110
1 CON1 15 Way D Right Angled Female Dual Double Height D-Type PCB-Mount
Connector
2 CON2, CON3 R/A BNC Right Angled BNC PCB-Mount Connectors
2 CON4, CON5 R/A XLR Right Angled XLR PCB-Mount Connectors (F3FRAF)
0 CON6 2 Term 2 Way Screwless Terminal (Mask off, & do not fit)
3 CON7, CON9, CON13 MCX MCX PCB Mount Socket
1 CON8 16 way Straight IDC Header
3 CON10, CON11, CON12 4-way 4 Pin Jumber Header
1 DC1 B31215S Bothand 2W Dual Output DC Converter
1 FB n/a Radial Axial Ferrite Bead
1 FIL1-2 5085 15kHz Block Filter- Separate board
1 Heatsink TO5 T05 Heatsink - Height 12.7mm (Aavid Thermalloy 5F)
1 IC Holders (14 pin) IC19, 14 pin IC Holder - Dual wipe contacts - eg Eurocon TS1001-xx
4IC Holders (16 pin) IC18, IC12, IC5,
IC21 16 pin IC Holder - Dual wipe contacts - eg Eurocon TS1001-xx
2 IC Holders (18 pin) IC13, IC17 18 pin IC Holder - Dual wipe contacts - eg Eurocon TS1001-xx
14
IC Holders (8 pin) IC1, IC2, IC3, IC4,
IC6, IC7, IC8, IC9, IC10, IC11, IC14,
IC15, IC16, IC20
8 pin IC Holder - Dual wipe contacts - eg Eurocon TS1001-xx
12 J1-12 3 pin 3 Pin Jumper Header - (2.54mm 3-Way Row)
12 J1-12 LINKS n/a Jumper Link 2.54mm - Protech ‘Easy Pull’ Style
1 RFT1 1 Turn 1 Complete Turn Ferrite Core
4 SW1-4 Dec Rota Decimal Rotary PCB Switches
1 X1 4.864Mhz HC49 Micro Crystal
1 X2 8.000MHz HC49 Micro Crystal
1 RFT1 Wire 28Gauge Twist Approx 3cm lengh per coil- 28 Guage Self fluxing wire
1 R126 330uH Axial Inductor
7 R1, R2, R3, R4, R5, R6, R9 10K 1/8 Watt Carbon Film - Tolerance +- 5%
1 R10 470R 1/8 Watt Carbon Film - Tolerance +- 5%
1 R100 1M 1/4 Watt Metal Oxide - Tolerance +- 1%
10 R101, R110, R112, R113, R114,
R115, R116, R117, R118, R119 10K 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R103, R47, R68 5K1 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R106 3K6 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R107 12K 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R11 33K 1/8 Watt Carbon Film - Tolerance +- 5%
9R12, R13, R17, R32, R33, R34, R35,
R36, R37 1K2 1/8 Watt Carbon Film - Tolerance +- 5%
2 R22, R23 1K2 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R15, R16 680R 1/8 Watt Carbon Film - Tolerance +- 5%
1 R18 100R 0.4 Watt Carbon Film - Tolerance Low Noise
1 R105 100R 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R19 12K 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R20, R26, R29 4K7 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R21, R57, R78 220R 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R30 220R 1/8 Watt Carbon Film - Tolerance +- 5%
1 R24 68R 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R25 300R 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R28, R132 22R 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R31 4R7 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R39 2k2 1/4 Watt Metal Oxide - Tolerance +- 1%
BW Broadcast technical manual Page 50
Technical data
8R40, R45, R51, R65, R71, R94, R98,
R125 1k 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R41 560R 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R42 820R 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R43, R108, R121 75R 1/4 Watt Metal Oxide - Tolerance +- 1%
9R44, R54, R60, R66, R76, R79, R86,
R91, R96 12K 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R61, R62 7K5 1/4 Watt Metal Oxide - Tolerance +- 1%
10 R48, R49, R55, R56, R58, R73, R74,
R75, R77, R102 24K 1/4 Watt Metal Oxide - Tolerance +- 1%
4 R27, R50, R85, R72 470R 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R59, R97, R104 3K3 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R52, R70 WLNK - 0/Ohms WLNK - Wire Link across pads (use other resistor legs)
2 R53, R69 100K 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R63, R64 16K 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R7, R8, R14 330K 1/8 Watt Carbon Film - Tolerance +- 5%
2 R80, R81 470K 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R83, R88, R99 6K8 1/4 Watt Metal Oxide - Tolerance +- 1%
5 R38, R84, R89, R120, R131 10R 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R82, R87 13K 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R90 5K6 1/4 Watt Metal Oxide - Tolerance +- 1%
4 R92, R111, R46, R67 47K 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R93, R109 120K 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R95 4K3 1/4 Watt Metal Oxide - Tolerance +- 1%
1 R128 51R 1/4 Watt Metal Oxide - Tolerance +- 1%
2 R129, R130 4k7 1/4 Watt Metal Oxide - Tolerance +- 1%
3 R133, R134 470R 0.6 Watt Metal Oxide - Tolerance +- 1%
3 VR1,VR2,VR5 10K Horizontal Multiturn (Bourns 3006P Series)
2 VR3,VR4 1K Vertical Multiturn (Bourns 3296W Series - Top screw adjustment)
1 VR6 10K Vertical 5mm Pitch (Spectrol 63M Series - Top screw adjustment)
1 VR7 200R Vertical 5mm Pitch 63M - Top screw adjustment)
2 R122, R123 1k 1/8 Watt Carbon Film - Tolerance +- 5%
1 R127 180R 1/8 Watt Carbon Film - Tolerance +- 5%
1 R124 1K3 1/4 Watt Metal Oxide - Tolerance +- 1%
6 IC1, IC4, IC10, IC11, IC14, IC15 TL071 Low Noise Op Amp
1 IC12 DG201-HS (HI3)
HI3-0201HS-5Z Analog Switch
1 IC13 PIC16C620A-
04P 8 Bit Microcontroller
1 IC17 PIC16CE624-
20P 8 Bit Microcontroller
1 IC18 MC145170-P ** PLL Synthesiser
1 IC19 4066 Analog Switch
7 IC2, IC3, IC6, IC7, IC8, IC9, IC16 TL072 Low Noise Dual Op Amp
1 IC20 LF351 Bi-FET Op Amp
1 IC5 LM13700N Transconductance Amplifier
1 IC21 ST232CN ST232CN RS232 TRANSCIEVER
1 REG1 7815 1A TO220 15V Linear Regulator
1 REG2 7805 1A TO220 5V Linear Regulator
2 T1,T2 BC327 (C3271) BC327-16 TO92 50V PNP GP TRANSIST
4 T3,T4,T5,T6 MPSH10 High Speed Switching Transistor
1 T11 ZVN4306A Zetec Transistor
1 T7 2N4427 High Speed Switching Transistor APT
3 T8,T9,T10 BC337 (C3371) C337-16 TO92 50V NPN GP TRANS
BW Broadcast technical manual Page 51
Technical data
3.62 LCD control board
Qty Reference Value Description
4C1, C2, C13, C18 2.2uF 63V Electrolytic Cap
2C12, C15 100n 2.5mm Pitch Radial Multilayer Ceramic ( Y5V )
2C3, C4 33pF 33pF Ceramic 2.5mm Pitch
10 C5, C6, C7, C8, C9, C10, C11, C14, C16, C17 560pF 560pF Ceramic
1D1 1N4148 1N4148
1LED1 3mm Mini 3mm Green LED - L-7104GD
1LED2 3mm Mini 3mm Red LED - L-7104GD
3R1, R2, R16 33k 1/8 W Metal Film 1% - CR12
3R12, R13, R14 1k8 1/8 W Metal Film 1% - CR12
4R15, R18, R20, R22 100R 1/8 W Metal Film 1% - CR12
1R17 560R 1/8 W Metal Film 1% - CR12
1R19 100k 1/8 W Metal Film 1% - CR12
6R3, R7, R8, R9, R10, R11 820R 1/8 W Metal Film 1% - CR12
2 R4, R5 390R 1/8 W Metal Film 1% - CR12
1R6 10k 1/8 W Metal Film 1% - CR12
1R21 4k7 1/8 W Metal Film 1% - CR12
1R23, R24 4R7 1/8 W Metal Film 1% - CR12
1R25 1K 1/8 W Metal Film 1% - CR12
1VR3 200R Bourns 3296 W 3/8in
1VR1 500R Bourns Minipot
1VR2 100k Minipot Spectrol 63M
1Reg1 7805 7805CV 1A VOLTAGE REGULATOR
1IC1 40 Pin 40 Pin PIC16F877-20P (NOT FITTED)
1IC2 CA3240EZ CA3240 Op Amp
0IC3 TBA NOT FITTED
3SW1-3 9.5mm 9mm Tactile Switch
1X1 8MHz 8MHz Crystal
1Connector 20-Way Header Strip (20-Way)
1LCD Screen LCD Blue LCD Display
1IC1 40-Pin 40 Pin IC Socket
2IC2,IC3 8-Pin 8-Pin IC Socket
3Panel Buttons n/a Molded Cap for Switch (NOT FITTED)
1Con1 10-Way 10 Way Boxed Header
1Con2 16-Way 16 Way Boxed Header
BW Broadcast technical manual Page 52
Technical data
3.631 PSU Interface
Qty Reference Value Description
1 R1 3k3 1/4W Metal Film Resistor
1 R2 22R 1/8W Carbon Film Resistor
0 R3 N/A NOT FITTED
1 R4 1k2 1/4W Metal Film Resistor
1 R5 15k 1/4W Metal Film Resistor
1 C1 100uF 5mm Pitch Electrolytic Capacitor
2 C2,C3 470uF 5mm Pitch Electrolytic Capacitor
1 D1 UF5401 3A Ultrafast rectifier diodes
1 D2 LED 3mm Green LED
1 L1 100uH DVE SRL 104
1 LM2575HVT-ADJ LM2575HVT-ADJ/NOPB Regulator
3.632 Bus Bar
Qty Reference Value Description
1 R1 5k Minature Disc Thermistor
1 R2 1R 3W Wirewound Resistor
2 C1,C4 100uF 35V Radial electrolytic capacitor
2 C5,C6 10pF Ceramic disc capacitor
1 CON1 CONN-DIL36 36 Way card edge connector
1 CON2 CONN-SIL2 2.1mm DC Power socket
1 CON3 CONN-SIL4 4 Way, 45° screwless terminal
3.633 Controller PCB
Qty Reference Value Description
1 R1 22k 2512 0.05% Resistor
1 R2 1k8 0805 5% Resistor
3 R3,R8,R14 33R 0805 5% Resistor
2 R4,R11 5k1 0805 5% Resistor
8 R5,R6,R12,R13,R16,R17,R19,R30 10k 0805 5% Resistor
R23 18k 0805 5% Resistor
2 R7,R24 1M 0805 5% Resistor
2 R10,R22 100k 0805 5% Resistor
2 R15,R21 22k 0805 5% Resistor
2 R18,R25 NOTUSED 0805 1% Resistor
1 R20 6k2 0805 1% Resistor
6 R26-R28,R32-R34 NOTUSED 0805 5% Resistor
1 R29 680R 0805 5% Resistor
1 R31 4k7 0805 5% Resistor
1 R35 5k6 0805 5% Resistor
1 R9 15k 0805 5% Resistor
1 VR1 0R 1206 0 Ohm Link
1 VR2 10k 10k 20% 4mm 3314G SMT Cermet Trimmer
1 VR3 NOTUSED SMT Cermet Trimmer Resistor
1 C1 NOTUSED SMT Capacitor (4X5.4mm)
15 C2-C4,C6,C9-C16,C18-C21 100nF 100N 0805 50V Y5V Capacitor
1 C16 1uF 0805 SMT Capacitor
2 C5,C7 1nF 0805 SMT Capacitor
1 C8 10uF SMT Capacitor (4X5.4mm)
BW Broadcast technical manual Page 53
Technical data
1 C17 NOTUSED 0805 SMT Capacitor
1 C22 NOTUSED 0805 SMT Capacitor
1 C23 NOTUSED 0805 SMT Capacitor
1 C24 47uF SMT Electrolytic Capacitor
1 C25 2n2 0805 SMT Capacitor
3 D5-D7 NOTUSED SMT Diode
3 IC1-IC3 CA3240EZ DUAL BIMOS Op-Amp
2 CON1,CON2 NOTUSED
1 CON3 CONN-H10 10 WAY Straight boxed header
3.634 15W Driver
Qty Reference Value Description
1 R1 43k 1/4W Metal film resistor
1 R2 2k2 1/4W Metal film resistor
1 R3 3k3 1/4W Metal film resistor
1 R4 10R 1/4W Metal film resistor
1 R5, R9 75R 1/4W Metal film resistor
1 R6 100R 1/4W Metal film resistor
1 VR1 1k 6mm Cermet trimmer potentiometer
2 C1,C2 470uF Radial electrolytic capacitors
1 C3 27pF Low K ceramic plate capacitor
2 C4,C12 10nF Ceramic disc capacitors
2 C5,C10 560pF Ceramic disc capacitors
1 C6 39pF Low K ceramic plate capacitor
1 C7 100uF 63V Radial electrolytic capacitor
1 C8 47pF Ceramic disc capacitor
1 C9 82pF Low K ceramic plate capacitor
1 C11 220nF Polyester Capacitor
0 C13-C15 Not fitted Ceramic disc capacitor
1 FB1 Axial Bead inductor
1 L1 330uH Choke Inductor
1 L2 1.5t S18 Toko Inductor
1 L3 Loop Wire Loop Inductor
1 L4 2.5t S18 Toko Inductor
1 L5 3.5t S18 Toko Inductor
1 L6 330uH Choke Inductor
0 L7 Not fitted S18 Toko Inductor
1 D1 UF5401 300A, 100V Fast diode
1 D2 GREEN 5mm Greem LED
1 T1 IRL510 IRL510PBF
0 CON1 MCX MCX PCB Socket N.F
1 CON2 CONN-H2 MCX PCB Socket
1 REG1 LM2575HV-ADJ Step down switch regulator
3.635 Double Pallet
Qty Reference Value Description
2 R1,R6 5k1 SMT 1/8W Resistor
2 R2,R5 100R SMT 1/8W Resistor
4 R3,R4,R7,R8 3R3 SMT 1W Resistor
2 R9,R17 22K SMT 1W Resistor
6 R10-R12,R14-R16 12R SMT 1W Resistor
1 R13 100R 400W Power Resistor
BW Broadcast technical manual Page 54
Technical data
4 R18-R21 100R SMT 1W Resistor
3 VR1-VR3 10k SMT 10k Variable Resistor
2 C1,C4 82pF SMT 100nF Capacitor
4 C5,C14,C15,C18 100nF SMT 100nF Capacitor
2 C6,C13 100uF 100uF 63V Electrolytic Capacitor
2 C7,C12 15nF SMT 100V Capacitor
2 C8,C11 1nF Polyester Capacitor
2 C9,C10 3p3 Metal clad capacitor
2 C16,C17 Not fitted SMT 100nF Capacitor
1 C19 100nF SMT Capacitor
2 FB1,FB2 1H SMT Ferrite Bead, 11.4 x 6.5mm
6 D1-D6 BLU-LED SMT Blue LED
2 D7,D8 Not fitted SMT Blue LED
2 T1,T2 BLF278 BLF278 Transistor
1 CON1 CONN-H2 MCX Connector
2 PCB1,PCB2 PCB PCB Feedback Inductor
1 PCB3 PCB
2 RFT1,RFT2 4-1 SemiRigid Coax CCW
2 RFT3,RFT4 PCB PCB Transformer
1 TEMP LM335Z
3.636 Output Combiner
Qty Reference Value Description
1 R1 47R 1W Resistor
1 R2 120R 1W Resistor
3 R3,R4,R5,R6,R7 120R 1W Resistor
2 R8,R9 68R 1W Resistor
2 LINKS 18k Bridge points
3 C1,C3,C5 27pF
3 C2,C8,C10 1nF
2 C4,C6 2n2
5 D1-D4,D6 BAT42 DIODE
2 D5,D7 LED
4 L1-L4 2.5T
www.bwbroadcast.com
