Parker User Manual

www.dell.com | support.dell.com
Dell™ Latitude™ XT User’s Guide
Model PP12S
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your Tablet-PC.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data
and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury,
or death.
____________________
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell, the DELL logo, Inspiron,Dell Precision,Dimension,OptiPlex,
Latitude, PowerEdge, PowerVault, PowerApp, TravelLite, Wi-Fi Catcher, ExpressCharge, and Dell
OpenManage are trademarks of Dell Inc.; Intel,Pentium, and Celeron are registered trademarks of
Intel Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by
Dell under license; TouchStrip is a trademark of UPEK, Inc.; Blu-ray Disc is a trademark of the Blu-
ray Disc Association; Microsoft,Windows, Windows Server, MS-DOS, Aero, and Windows Vista are
either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other
countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Model PP12S
June 2007 P/N PU189 Rev. A00
Contents 3
Contents
1 Resources . . . . . . . . . . . . . . . . . . . . . . . . 13
Finding Information . . . . . . . . . . . . . . . . . . . 13
Getting Help . . . . . . . . . . . . . . . . . . . . . . . 20
Obtaining Assistance . . . . . . . . . . . . . . . 20
Dell Support Service . . . . . . . . . . . . . . . . 21
Problems With Your Order . . . . . . . . . . . . . 23
Product Information . . . . . . . . . . . . . . . . 23
Returning Items for Warranty Repair or Credit . . 23
Before You Call . . . . . . . . . . . . . . . . . . . 24
Contacting Dell . . . . . . . . . . . . . . . . . . . 26
2 About Your Tablet-PC . . . . . . . . . . . . . . . 27

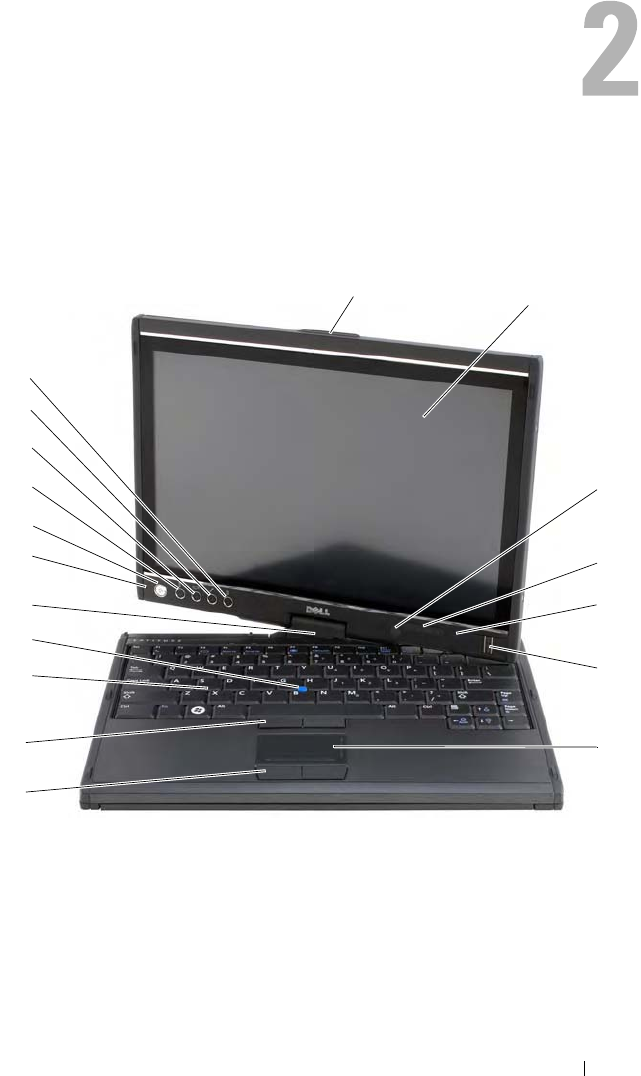

Front View . . . . . . . . . . . . . . . . . . . . . . . . 27

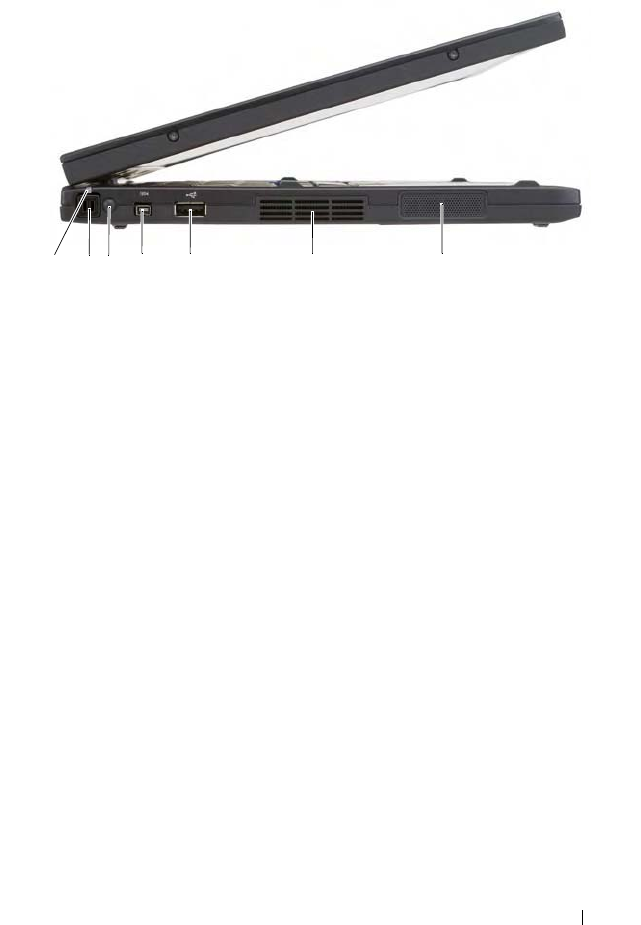

Left Side View . . . . . . . . . . . . . . . . . . . . . . 32
Right Side View . . . . . . . . . . . . . . . . . . . . . 34

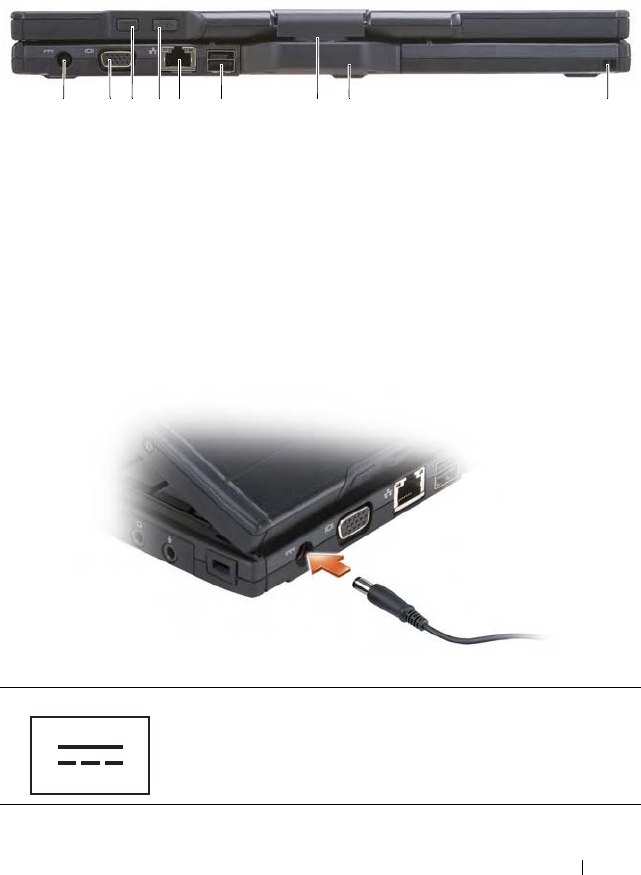

Back View . . . . . . . . . . . . . . . . . . . . . . . . 36
Top View . . . . . . . . . . . . . . . . . . . . . . . . . 38

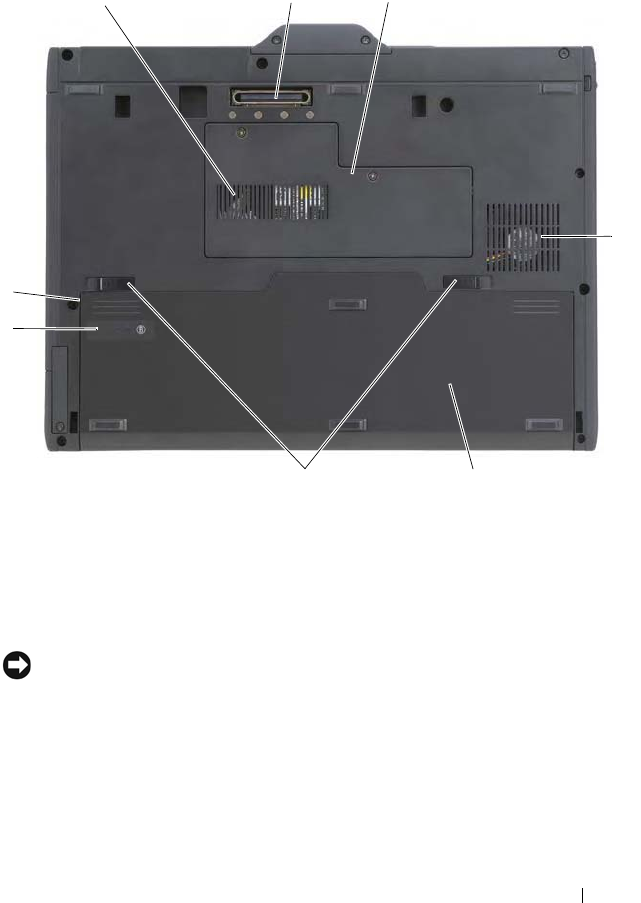

Bottom View . . . . . . . . . . . . . . . . . . . . . . . 39
Specifications . . . . . . . . . . . . . . . . . . . . . . 40
Contents 4
3 Setting Up and Using Your Tablet-PC . . . 49
Transferring Information to a New Tablet-PC . . . . . 49
Using Notebook Mode . . . . . . . . . . . . . . . . . 49
Using Tablet Mode . . . . . . . . . . . . . . . . . . . 50

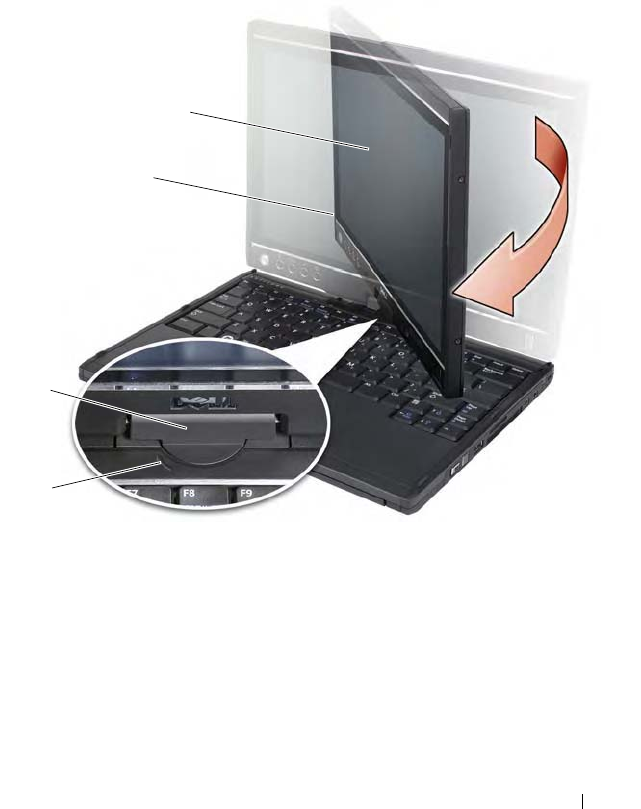

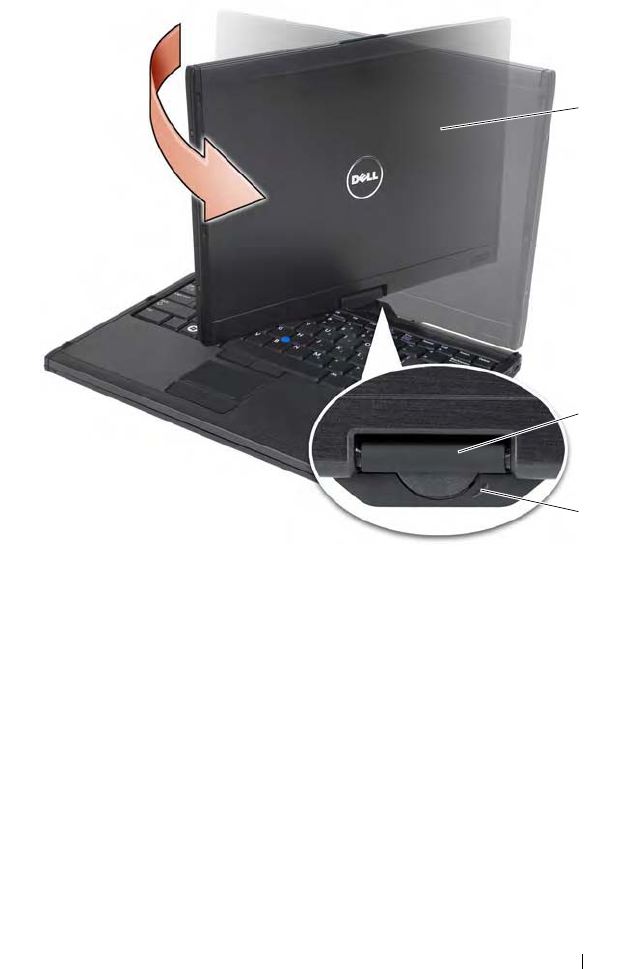

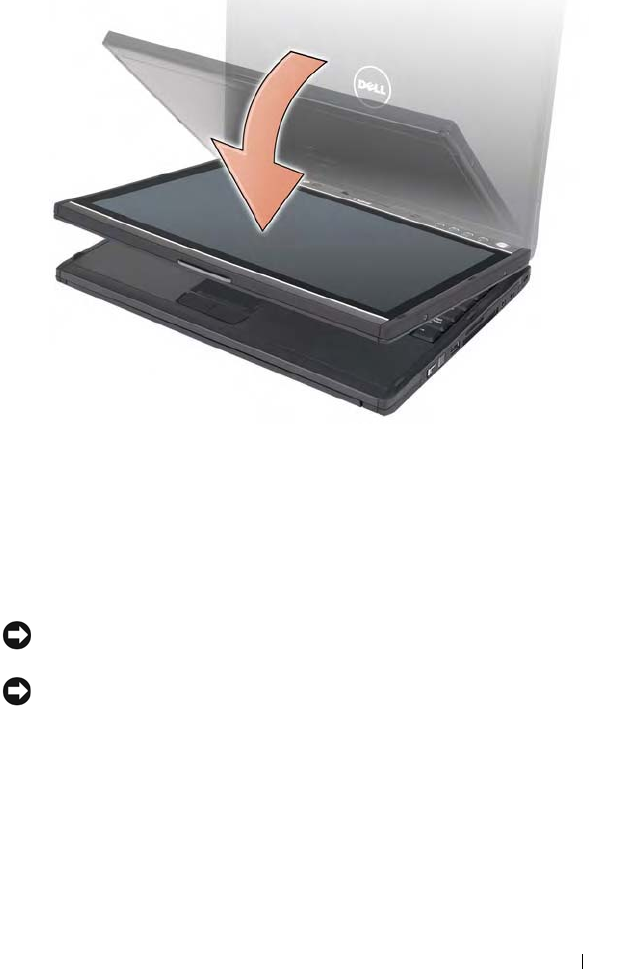

Converting Your Tablet-PC Between Notebook and Tablet Modes
50
Right- and Left-handed Use . . . . . . . . . . . . 54
Screen Orientation . . . . . . . . . . . . . . . . . 56
Controlling Your Tablet-PC in Tablet Mode . . . . 57

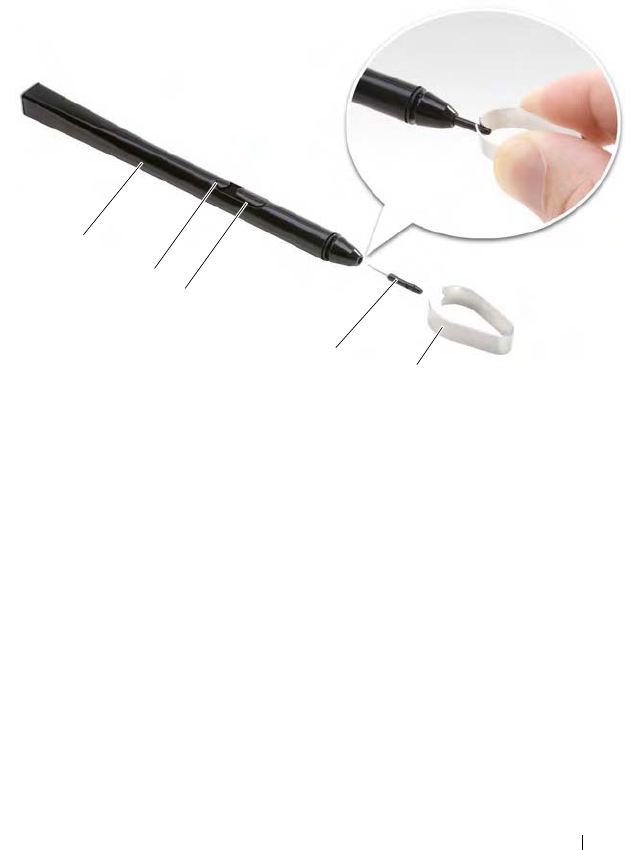

Using the Pen . . . . . . . . . . . . . . . . . . . 60
Using Touch . . . . . . . . . . . . . . . . . . . . 64
Using QuickSet . . . . . . . . . . . . . . . . . . . . . 65
Clicking the QuickSet Icon . . . . . . . . . . . . . 65
Double-Clicking the QuickSet Icon . . . . . . . . 66
Right-Clicking the QuickSet Icon . . . . . . . . . 66
Windows Mobility Center . . . . . . . . . . . . . . . . 66
Using a Battery . . . . . . . . . . . . . . . . . . . . . 67
Battery Performance . . . . . . . . . . . . . . . . 67
Checking the Battery Charge . . . . . . . . . . . 68
Microsoft® Windows® Vista™ Power Meter . . . 69
Conserving Battery Power . . . . . . . . . . . . . 70
Power Management Modes . . . . . . . . . . . . 71
Configuring Power Management Settings . . . . . 72
Charging the Main Battery . . . . . . . . . . . . . 73
Removing the Main Battery . . . . . . . . . . . . 73
Installing the Main Battery . . . . . . . . . . . . . 74
Storing a Battery . . . . . . . . . . . . . . . . . . 75
Using a Keyboard . . . . . . . . . . . . . . . . . . . . 75

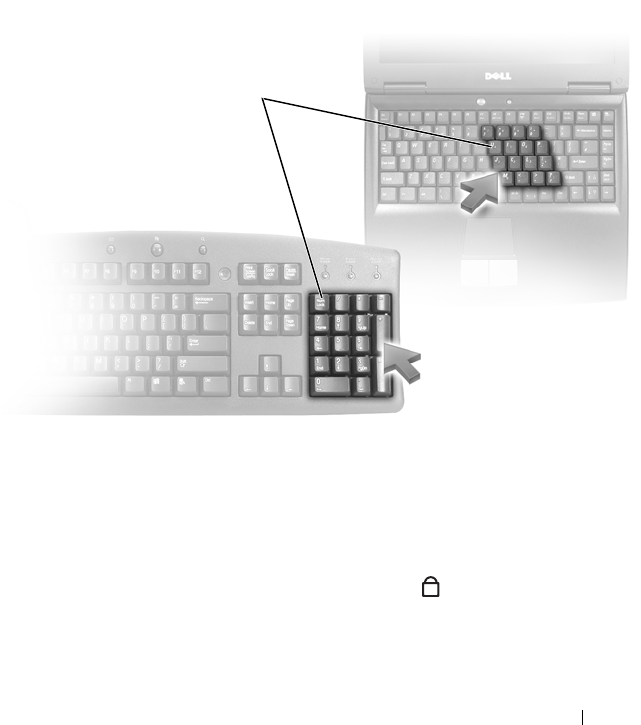

Numeric Keypad . . . . . . . . . . . . . . . . . . 75
Contents 5
Key Combinations . . . . . . . . . . . . . . . . . 76
Touch Pad . . . . . . . . . . . . . . . . . . . . . 78

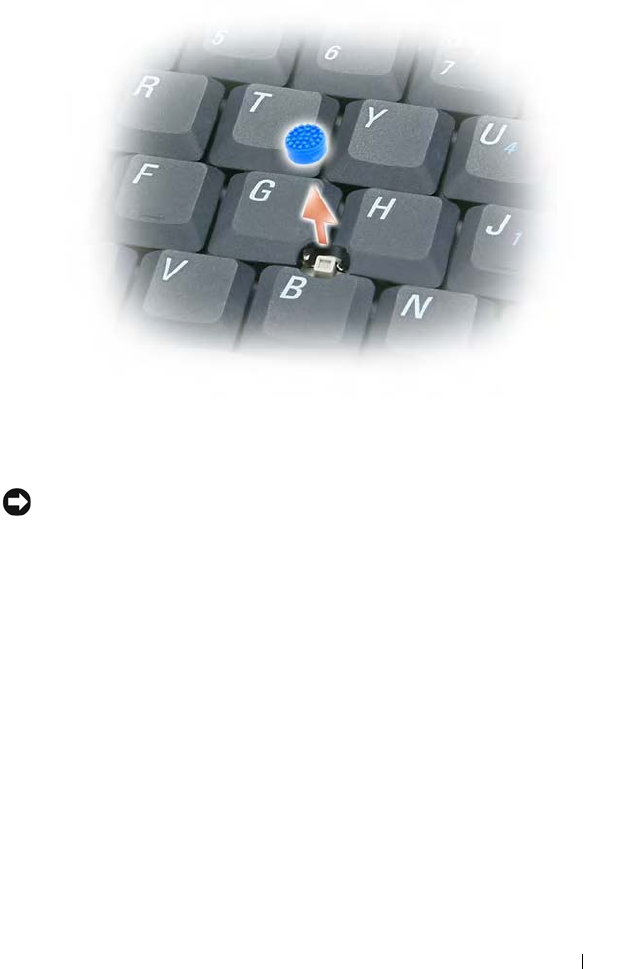

Changing the Track Stick Cap . . . . . . . . . . . 79
Using the Display . . . . . . . . . . . . . . . . . . . . 80
Adjusting Brightness on the LED Backlit Thin-and-Light LCD 81
Adjusting Brightness on the Dual-bulb (CCFL) LCD 81
Using Cards . . . . . . . . . . . . . . . . . . . . . . . 82

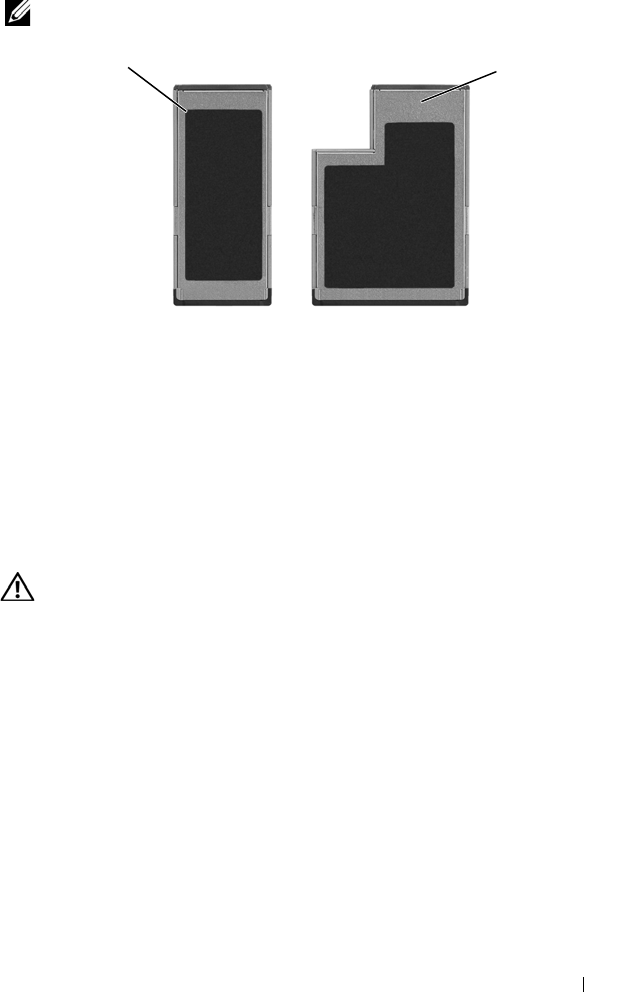

ExpressCards . . . . . . . . . . . . . . . . . . . . 82

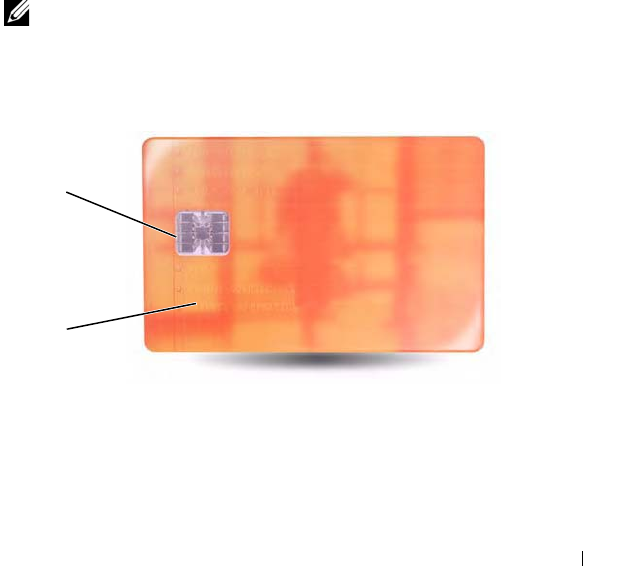

Smart Cards . . . . . . . . . . . . . . . . . . . . 84
Secure Digital (SD) Cards . . . . . . . . . . . . . 86
4 Setting Up and Using Networks . . . . . . . 87

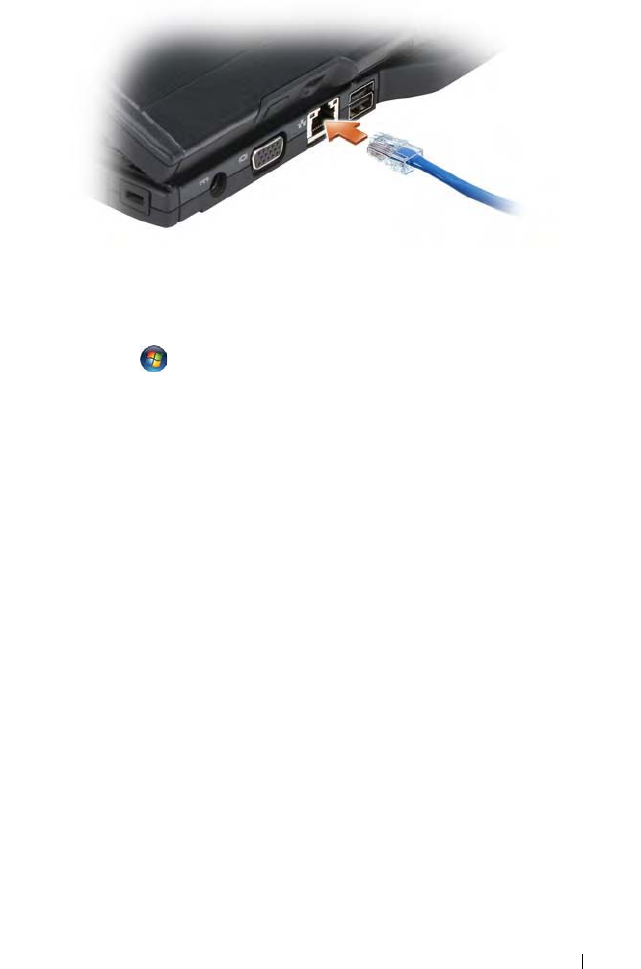

Connecting a Network or Broadband Modem . . . . . 87
Network Setup Wizard . . . . . . . . . . . . . . . . . 88
Wireless Local Area Network (WLAN) . . . . . . . . . 88
What You Need to Establish a WLAN Connection . 88
Checking Your Wireless Network Adapter . . . . 89
Setting Up a New WLAN Using a Wireless Router and a
Broadband Modem . . . . . . . . . . . . . . . . . 89
Connecting to a WLAN . . . . . . . . . . . . . . . 91
Mobile Broadband/Wireless Wide Area Network (WWAN) 93
What You Need to Establish a Mobile Broadband Network
Connection . . . . . . . . . . . . . . . . . . . . . 93
Checking Your Dell Mobile Broadband Card . . . . 94
Connecting to a Mobile Broadband Network . . . 95
Enabling/Disabling the Dell Mobile Broadband Card 96
Managing Your Network Settings Through the Dell QuickSet
Location Profiler . . . . . . . . . . . . . . . . . . 96
Dell Wi-Fi Catcher™ Network Locator . . . . . . . . . 96
Contents 6
Microsoft® Windows® Firewall . . . . . . . . . . . . 97
5 Securing Your Tablet-PC . . . . . . . . . . . . . 99

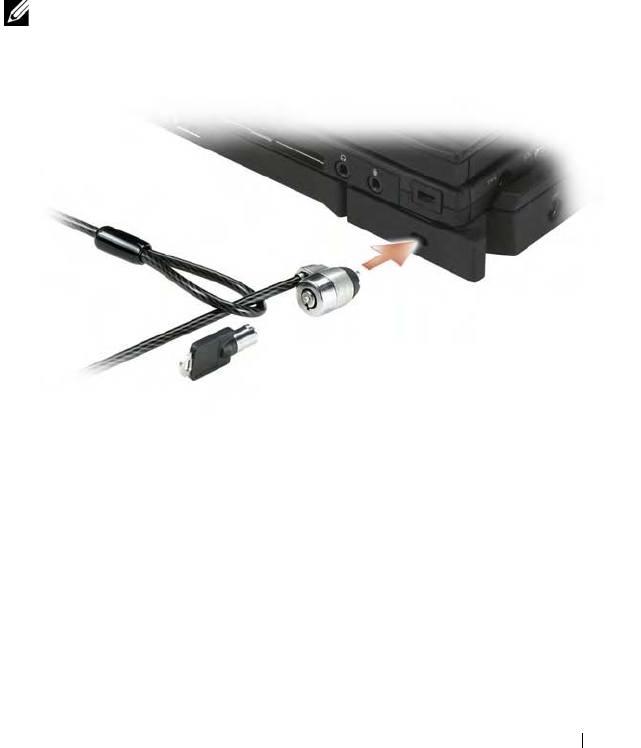

Security Cable Lock . . . . . . . . . . . . . . . . . . . 99
Smart Cards and Biometric Readers . . . . . . . . . . 99
Passwords . . . . . . . . . . . . . . . . . . . . . . . . 100
About Passwords . . . . . . . . . . . . . . . . . 100
Using a Primary (or System) Password . . . . . . 101
Using an Administrator Password . . . . . . . . . 102
Using a Hard Drive Password . . . . . . . . . . . 102
Trusted Platform Module (TPM) . . . . . . . . . . . . . 103
Enabling the TPM Feature . . . . . . . . . . . . . 103
Security Management Software . . . . . . . . . . . . 104
Activating the Security Management Software . . 104
Using the Security Management Software . . . . 105
Computer Tracking Software . . . . . . . . . . . . . . 105
If Your Tablet-PC Is Lost or Stolen . . . . . . . . . . . 105
6 Cleaning Your Tablet-PC . . . . . . . . . . . . 107
Tablet-PC, Keyboard, and Display . . . . . . . . . . . 107
Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . 107
Optical Drives and Optical Drive Media . . . . . . . . 108
Contents 7
7 Troubleshooting . . . . . . . . . . . . . . . . . . 109
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . 109
When to Use the Dell Diagnostics . . . . . . . . . 109
Starting the Dell Diagnostics From Your Hard Drive 109
Starting the Dell Diagnostics From the Drivers and Utilities Media
111
Dell Diagnostics Main Menu . . . . . . . . . . . . 111
Dell Support Utility . . . . . . . . . . . . . . . . . . . 113
Accessing the Dell Support Utility . . . . . . . . . 113
Clicking the Dell Support Icon . . . . . . . . . . . 114
Windows Hardware Troubleshooter . . . . . . . . . . 114
Solving Problems . . . . . . . . . . . . . . . . . . . . 114
Hard Drive Problems . . . . . . . . . . . . . . . . 115
Optical Drive Problems . . . . . . . . . . . . . . . 115
E-Mail and Internet Problems . . . . . . . . . . . 116
Error Messages . . . . . . . . . . . . . . . . . . 117
IEEE 1394 Device Problems . . . . . . . . . . . . 117
Lockups and Software Problems . . . . . . . . . 118
Memory Problems . . . . . . . . . . . . . . . . . 119
Network Problems . . . . . . . . . . . . . . . . . 120
Power Problems . . . . . . . . . . . . . . . . . . 120
Printer Problems . . . . . . . . . . . . . . . . . . 121
Scanner Problems . . . . . . . . . . . . . . . . . 122
Sound and Speaker Problems . . . . . . . . . . . 122
Touch Pad or Mouse Problems . . . . . . . . . . 124
Pen Problems . . . . . . . . . . . . . . . . . . . 124
Display Problems . . . . . . . . . . . . . . . . . . 125
Power Lights . . . . . . . . . . . . . . . . . . . . . . 125
Contents 8
8 Using the System Setup Program . . . . . 127
Overview . . . . . . . . . . . . . . . . . . . . . . . . 127
System Setup Screens . . . . . . . . . . . . . . . . . . 128
Viewing the System Setup Screens . . . . . . . . 128
Commonly Used Options . . . . . . . . . . . . . . . . 128
Changing the Boot Sequence . . . . . . . . . . . 128
9 Reinstalling Software . . . . . . . . . . . . . . 131
Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . 131
What Is a Driver? . . . . . . . . . . . . . . . . . . 131
Identifying Drivers . . . . . . . . . . . . . . . . . 131
Reinstalling Drivers and Utilities . . . . . . . . . . 132
Restoring Your Operating System . . . . . . . . . . . . 134
Using Microsoft Windows System Restore . . . . 134
Using Dell Factory Image Restore . . . . . . . . . 135
Using the Operating System Media . . . . . . . . 137
10 Adding and Replacing Parts . . . . . . . . . 139
Before You Begin . . . . . . . . . . . . . . . . . . . . 139
Recommended Tools . . . . . . . . . . . . . . . . 139

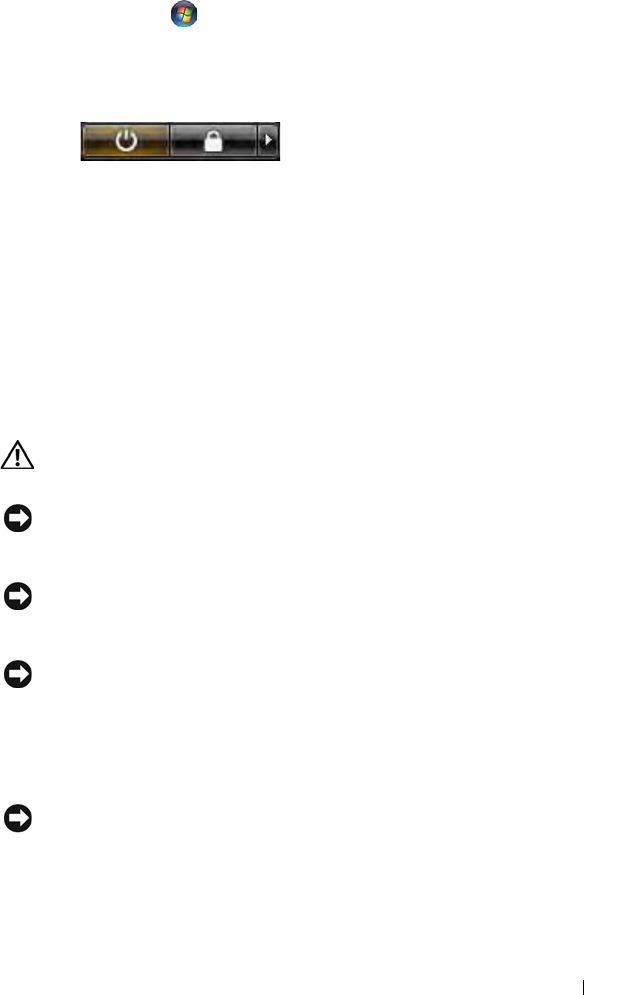

Turning Off Your Tablet-PC . . . . . . . . . . . . . 139
Before Working Inside Your Tablet-PC . . . . . . . 140
Main Battery . . . . . . . . . . . . . . . . . . . . . . . 143

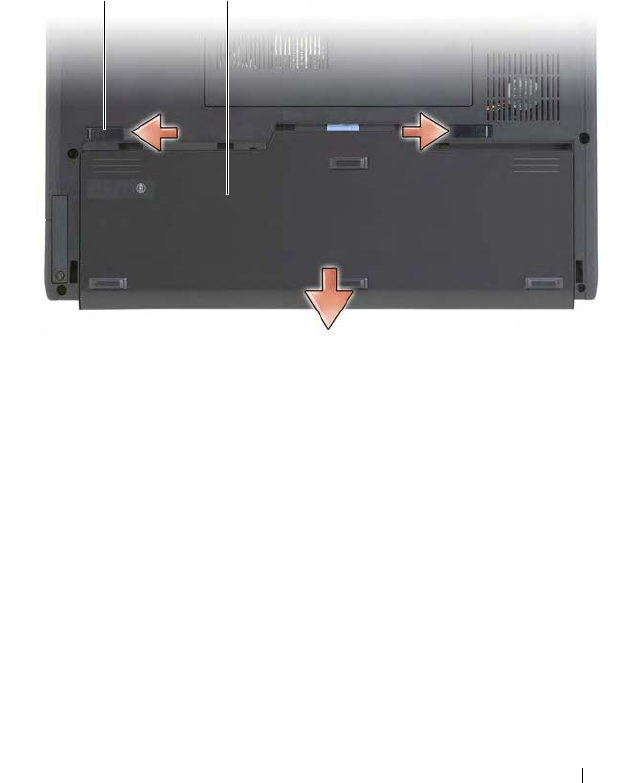

Removing the Main Battery . . . . . . . . . . . . 143
Installing the Main Battery . . . . . . . . . . . . . 144
Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . 144
Contents 9
Removing the Hard Drive . . . . . . . . . . . . . 145
Installing the Hard Drive . . . . . . . . . . . . . . 146
Subscriber Identity Module (SIM) Card . . . . . . . . 147
Removing the SIM Card . . . . . . . . . . . . . . 147
Installing the SIM Card . . . . . . . . . . . . . . . 148
Internal Card With Bluetooth® Wireless Technology . 148
Removing a Bluetooth Card . . . . . . . . . . . . 149
Installing a Bluetooth Card . . . . . . . . . . . . . 150
Memory and Mini-card Cover . . . . . . . . . . . . . . 150
Removing the Memory and Mini-card Cover . . . 150
Installing the Memory and Mini-card Cover . . . . 151
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 151
Removing a Memory Module . . . . . . . . . . . 151

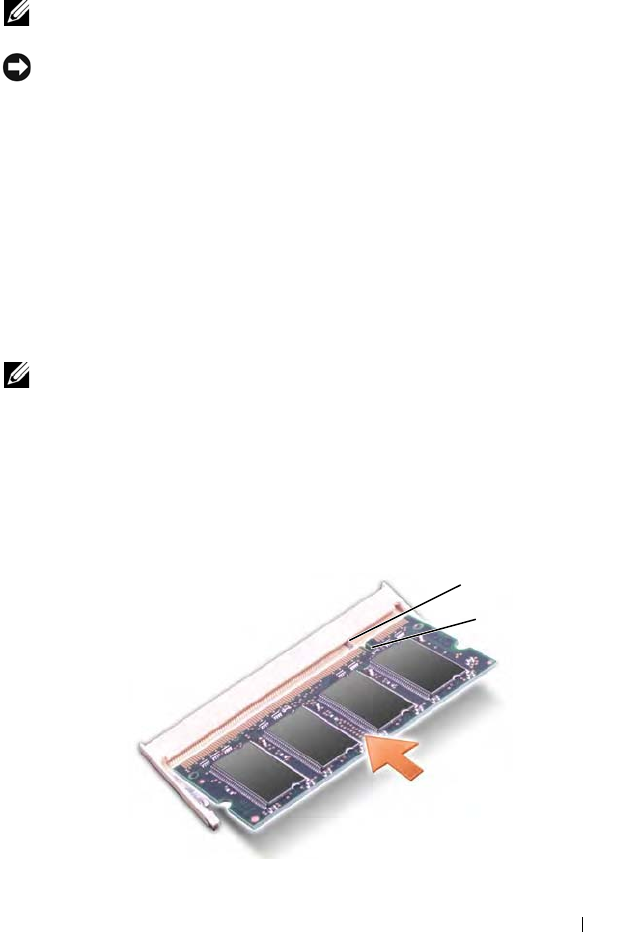

Installing a Memory Module . . . . . . . . . . . . 152

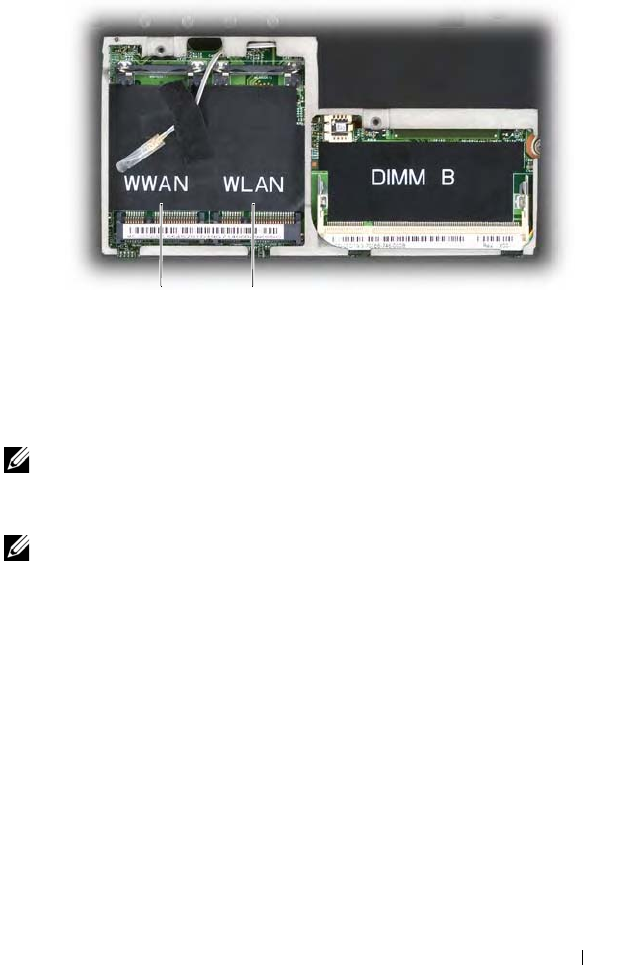

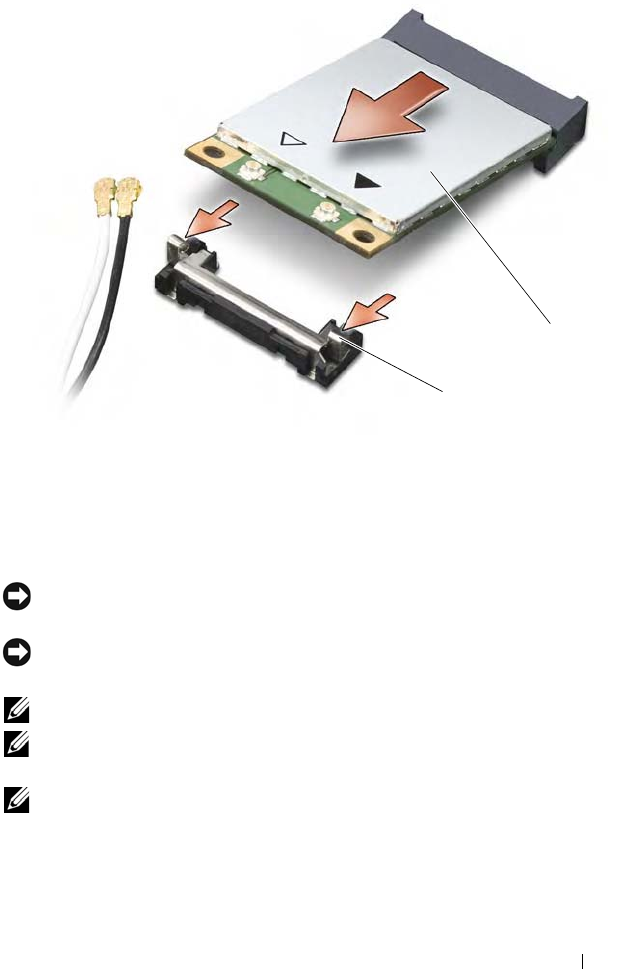

Mini Card . . . . . . . . . . . . . . . . . . . . . . . . 153

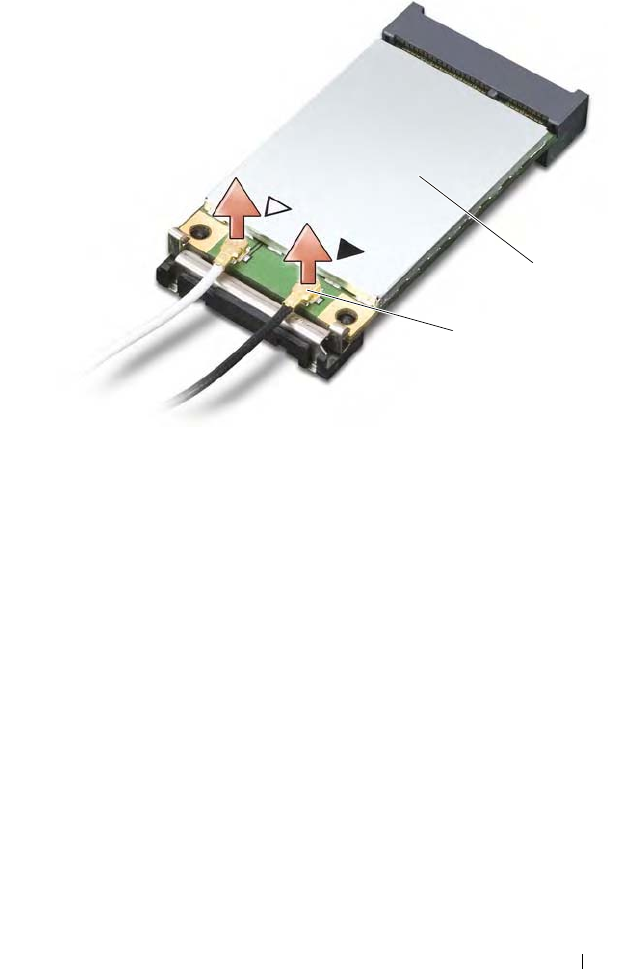

Removing a Mini Card . . . . . . . . . . . . . . . 153
Installing a Mini Card . . . . . . . . . . . . . . . 156

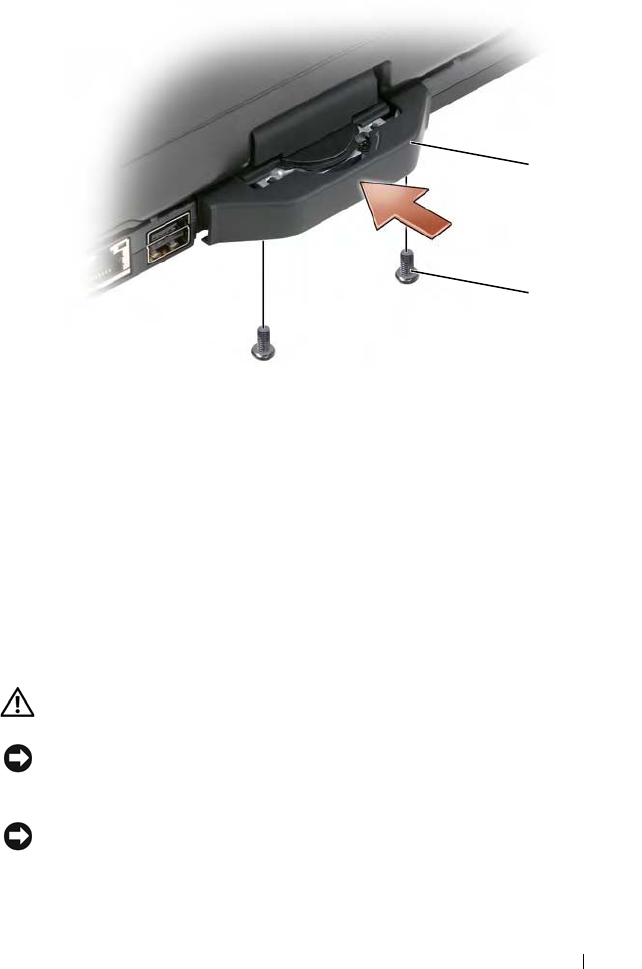

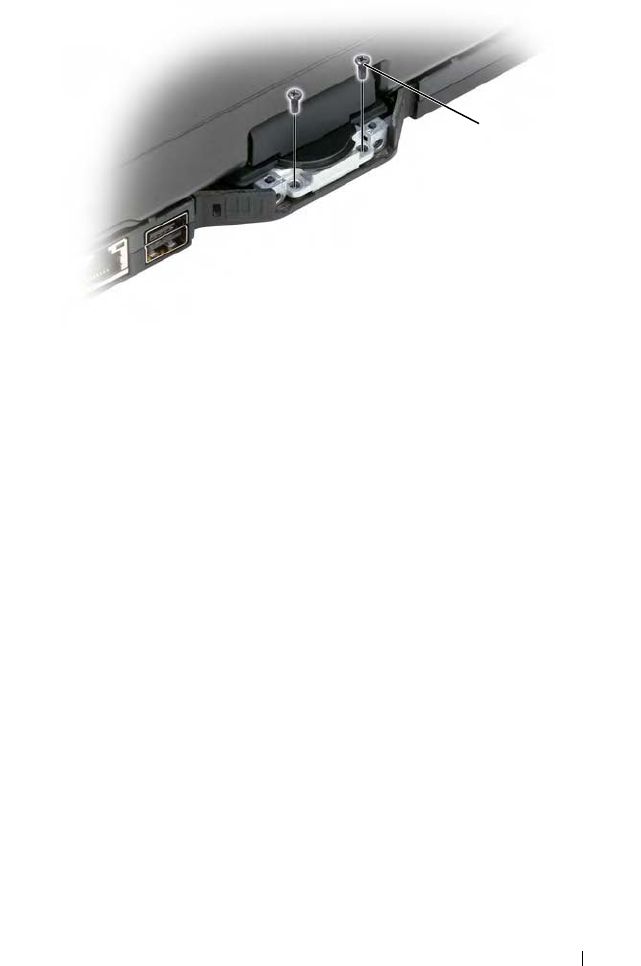

Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . 157

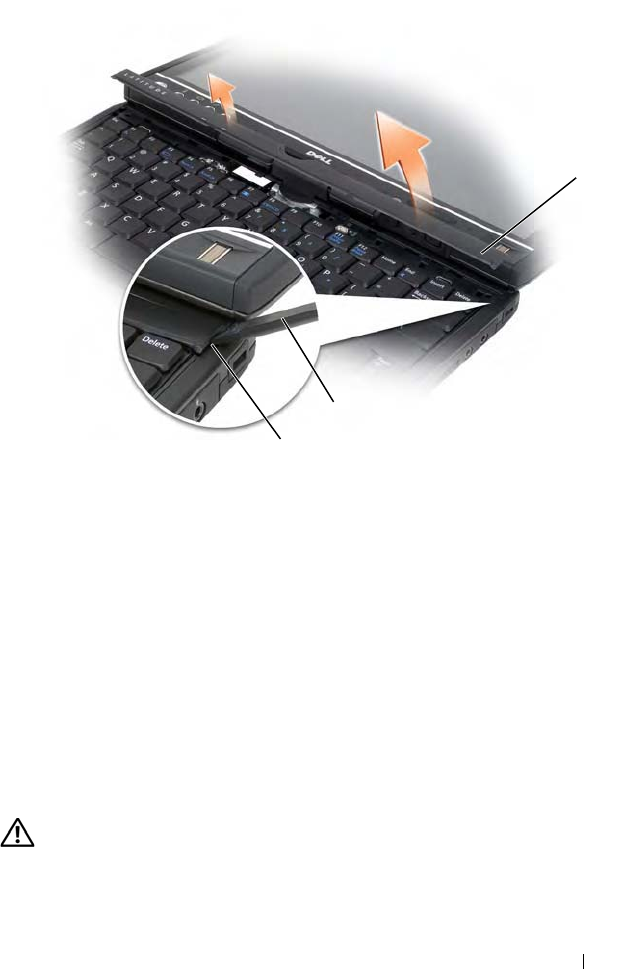

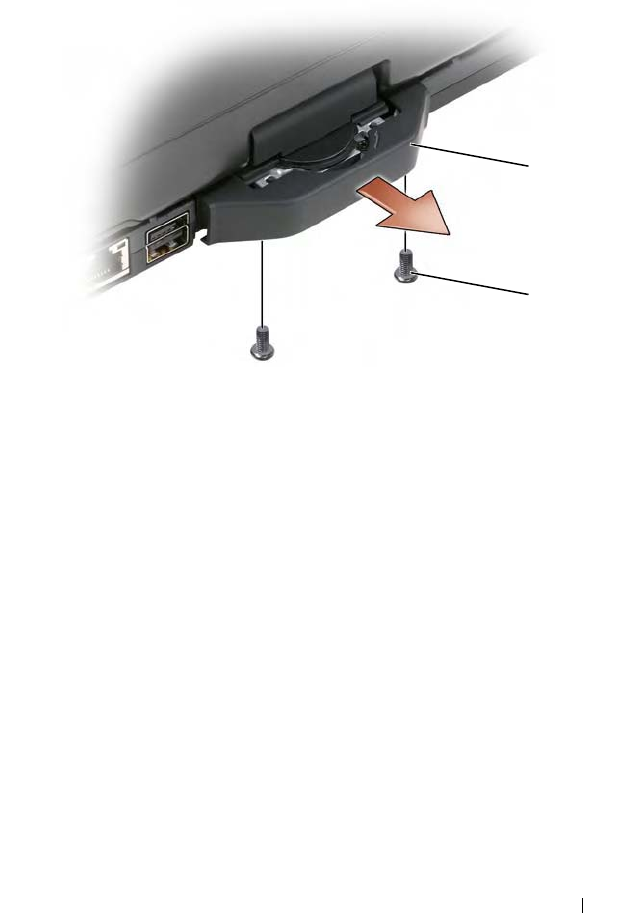

Removing the Hinge Cover . . . . . . . . . . . . . 157
Installing the Hinge Cover . . . . . . . . . . . . . 158
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 158

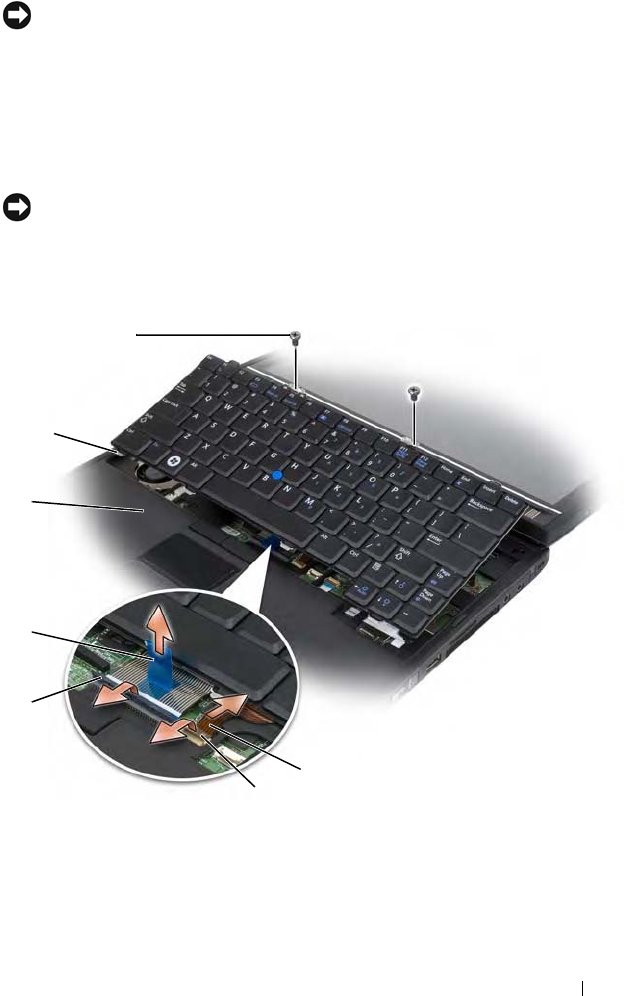

Removing the Keyboard . . . . . . . . . . . . . . 159
Installing the Keyboard . . . . . . . . . . . . . . 160
Coin-Cell Battery . . . . . . . . . . . . . . . . . . . . 160

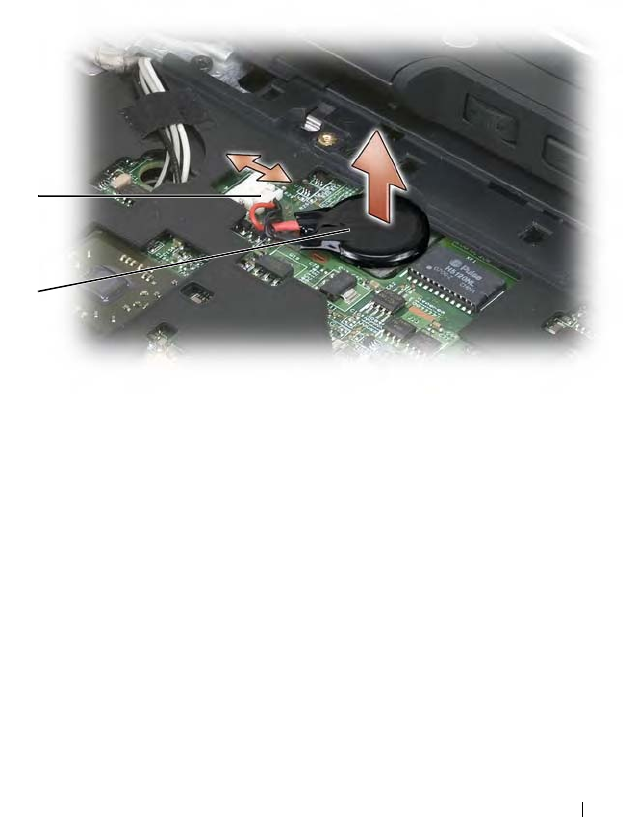

Removing the Coin-cell Battery . . . . . . . . . . 160
Installing the Coin-cell Battery . . . . . . . . . . . 161

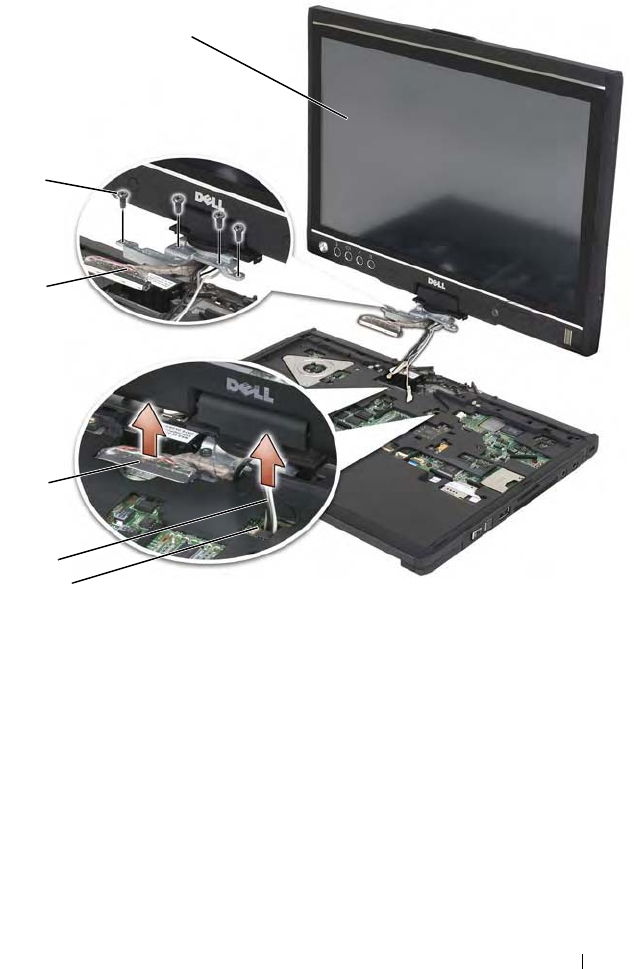

Display Assembly . . . . . . . . . . . . . . . . . . . . 162
Contents 10
Removing the Display Assembly . . . . . . . . . . 162
Installing the Display Assembly . . . . . . . . . . 165
Palm Rest . . . . . . . . . . . . . . . . . . . . . . . . 168
Removing the Palm Rest . . . . . . . . . . . . . . 169
Installing the Palm Rest . . . . . . . . . . . . . . 171
System Board . . . . . . . . . . . . . . . . . . . . . . 171
Removing the System Board . . . . . . . . . . . . 171
Installing the System Board . . . . . . . . . . . . 173

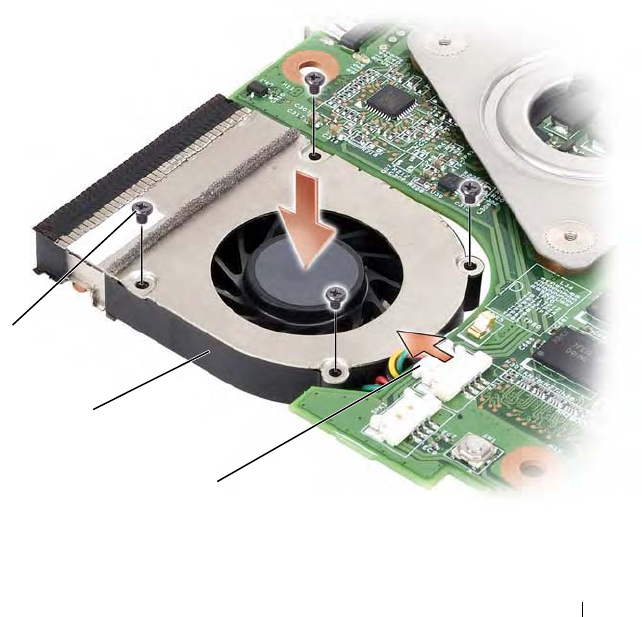

Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Removing the Fan . . . . . . . . . . . . . . . . . 173
Installing the Fan . . . . . . . . . . . . . . . . . . 175

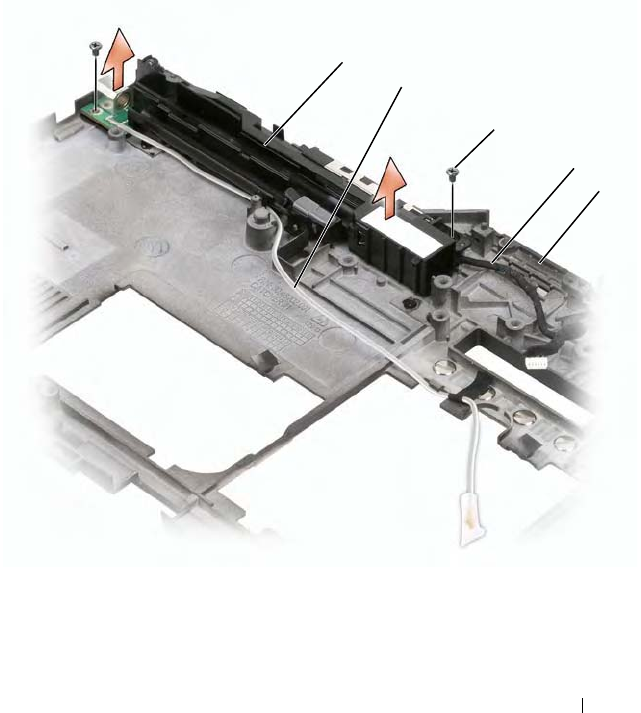

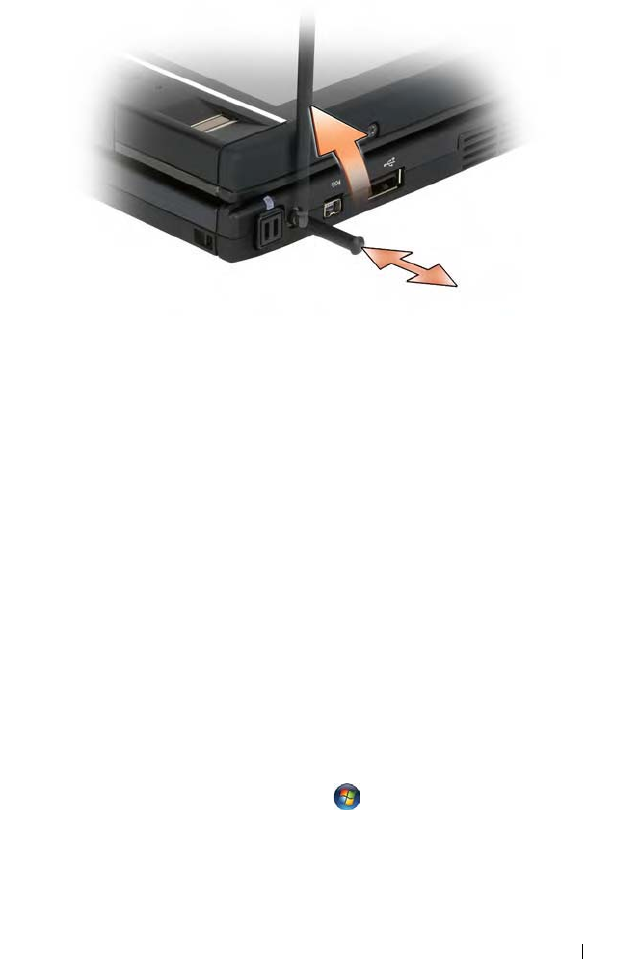

Pen and Whip Antenna Assembly . . . . . . . . . . . 175
Removing the Pen and Whip Antenna Assembly . 175
Installing the Pen and Whip Antenna Assembly . . 177
Wireless Switch . . . . . . . . . . . . . . . . . . . . . 177
Removing the Wireless Switch . . . . . . . . . . 177
Installing the Wireless Switch . . . . . . . . . . . 178

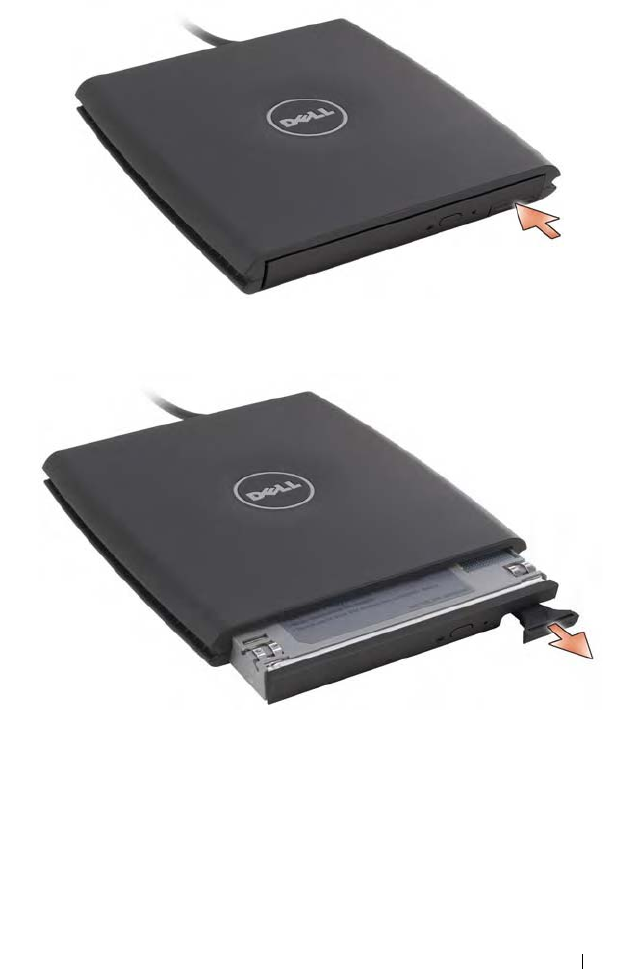

11 Dell™ D/Bay . . . . . . . . . . . . . . . . . . . . . 181
About the Dell D/Bay . . . . . . . . . . . . . . . . . . 181
Setting Up and Using the D/Bay . . . . . . . . . . . . . 181
Removing and Installing Devices When the Tablet-PC is Turned Off
182
Removing and Installing Devices While the Tablet-PC Is Running
183
Contents 11

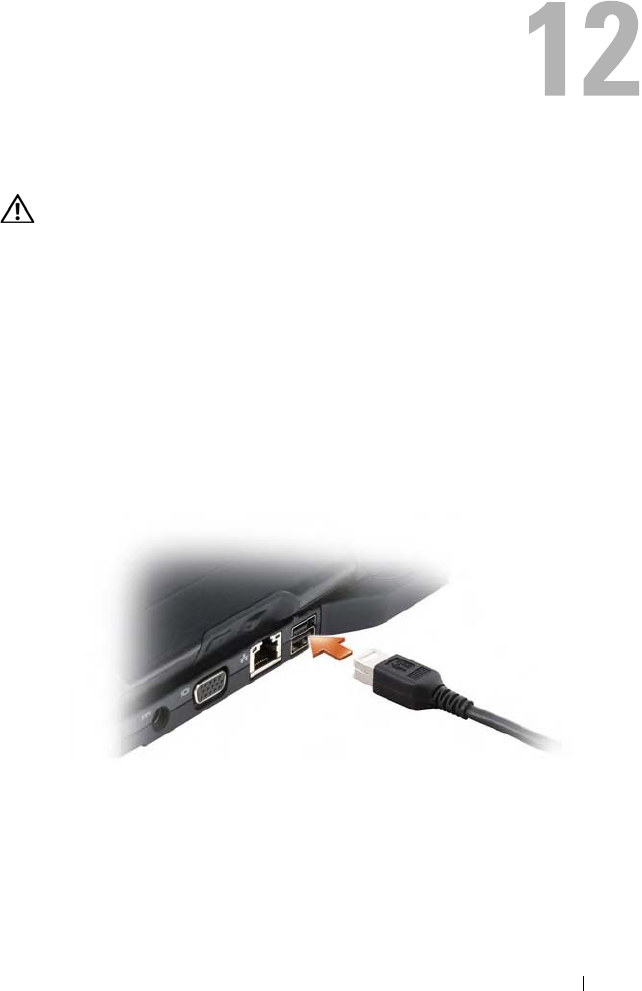

12 Media Base (Optional) . . . . . . . . . . . . . 185

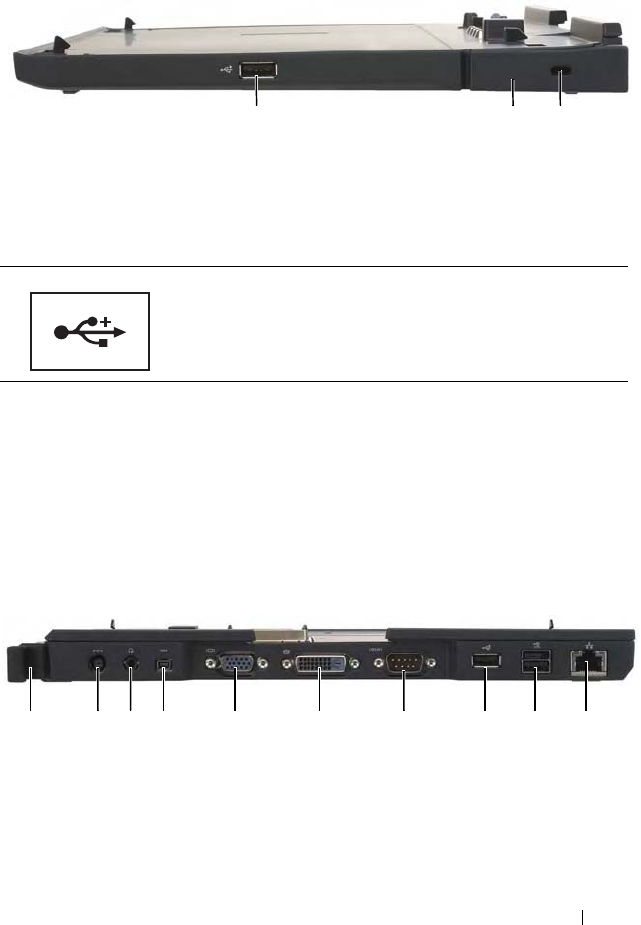

Left View . . . . . . . . . . . . . . . . . . . . . . . . . 185
Right View . . . . . . . . . . . . . . . . . . . . . . . . 186
Back View . . . . . . . . . . . . . . . . . . . . . . . . 186
Top View . . . . . . . . . . . . . . . . . . . . . . . . . 190
Setting Up Your Media Base . . . . . . . . . . . . . . 191
Securing the Media Base . . . . . . . . . . . . . . . . 192
Docking Your Tablet-PC to the Media Base . . . . . . 193
Undocking Your Tablet-PC From the Media Base . . . 194
Installing the Optical Drive Into the Media Base . . . . 195

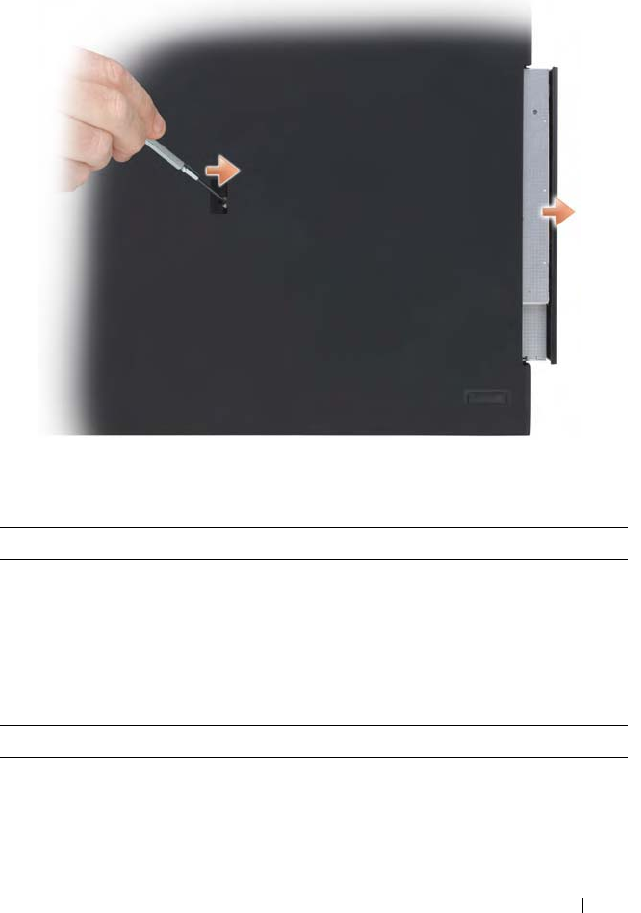

Removing the Optical Drive From the Media Base . . . 195
Media Base Specifications . . . . . . . . . . . . . . . 196
13 Battery Slice (Optional) . . . . . . . . . . . . 199
Top View . . . . . . . . . . . . . . . . . . . . . . . . . 199

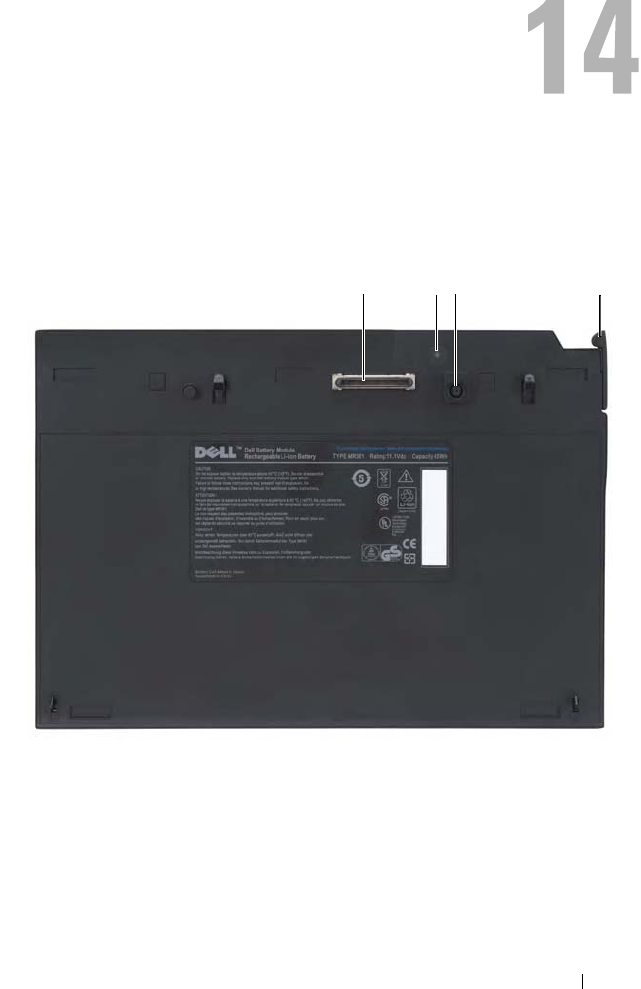

Bottom View . . . . . . . . . . . . . . . . . . . . . . . 200
Setting Up Your Battery Slice . . . . . . . . . . . . . . 200

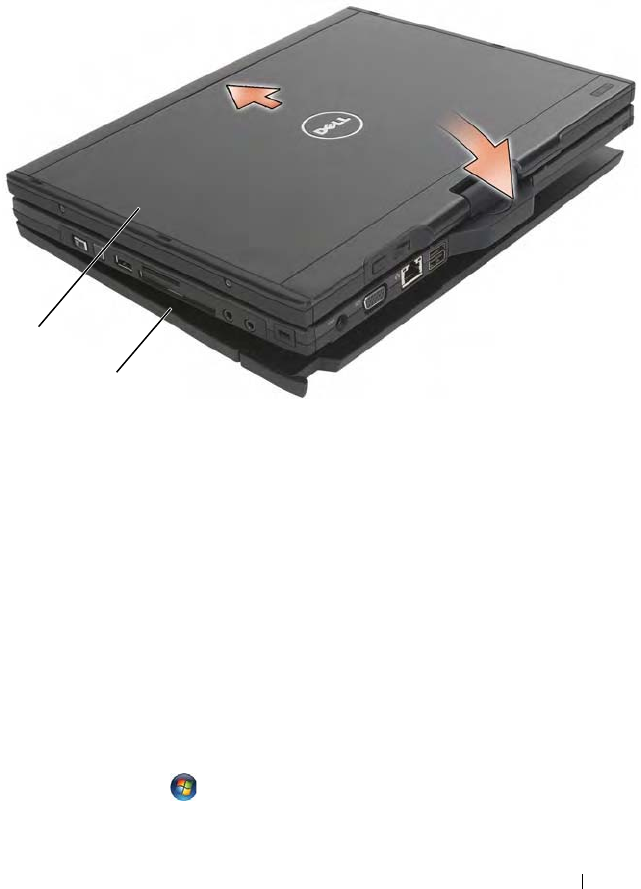

Docking Your Tablet-PC to the Battery Slice . . . . . . 201
Undocking Your Tablet-PC From the Battery Slice . . . 202
Charging Your Battery Slice . . . . . . . . . . . . . . 203

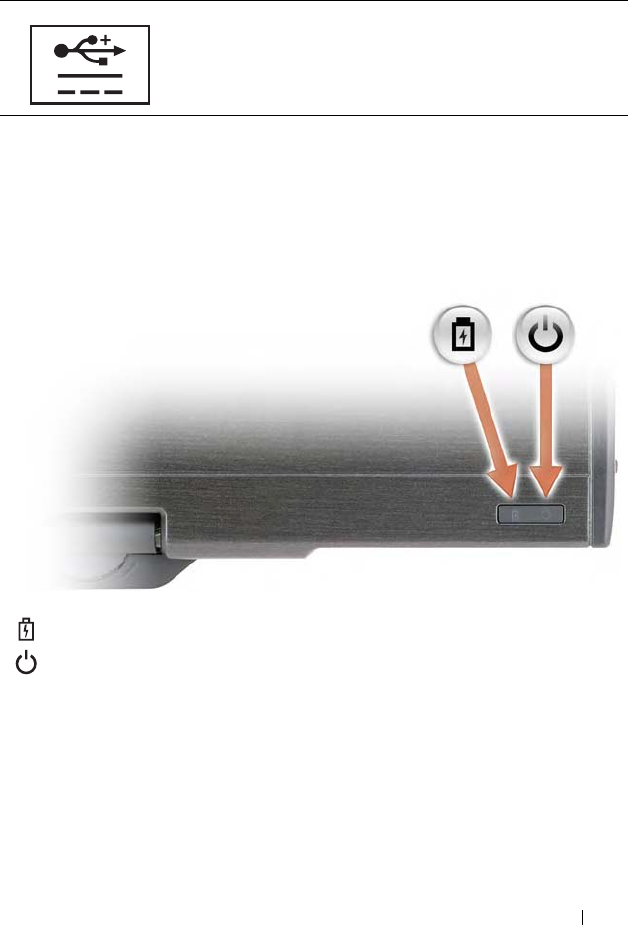

Battery Slice Power Status LED . . . . . . . . . . . . 204
Contents 12
Battery Slice Specifications . . . . . . . . . . . . . . 204
14 Traveling With Your Tablet-PC . . . . . . . 207
Identifying Your Tablet-PC . . . . . . . . . . . . . . . 207
Packing the Tablet-PC . . . . . . . . . . . . . . . . . . 207
Travel Tips . . . . . . . . . . . . . . . . . . . . . . . . 208
Traveling by Air . . . . . . . . . . . . . . . . . . . . . 209
15 Appendix . . . . . . . . . . . . . . . . . . . . . . . . 229
FCC Notice (U.S. Only) . . . . . . . . . . . . . . . . . . 229
FCC Class B . . . . . . . . . . . . . . . . . . . . . 229
Macrovision Product Notice . . . . . . . . . . . . . . 230
Resources 13
Resources
Finding Information
NOTE: Some features or media may be optional and may not ship with your Tablet-
PC. Some features or media may not be available in certain countries.
NOTE: Additional information may ship with your Tablet-PC.
What Are You Looking For? Find It Here
• A diagnostic program for my Tablet-PC
• Drivers for my Tablet-PC
• My device documentation
Drivers and Utilities Media
NOTE: The Drivers and Utilities media may
be optional and may not ship with your
Tablet-PC.
Resources 14
• Notebook System Software (NSS)
Documentation and drivers are already
installed on your Tablet-PC. You can use
the Drivers and Utilities media to reinstall
drivers (see "Reinstalling Drivers and
Utilities" on page 132) or to run the Dell
Diagnostics (see "Dell Diagnostics" on
page 109).
Readme files may be included on your
media to provide last-minute updates
about technical changes to your Tablet-
PC or advanced technical-reference
material for technicians or experienced
users.
NOTE: Drivers and documentation updates
can be found at support.dell.com.
What Are You Looking For? Find It Here
Resources 15
• How to set up my Tablet-PC
• Basic troubleshooting information
• How to run the Dell Diagnostics
Quick Reference Guide
NOTE: This document may be optional and
may not ship with your Tablet-PC.
NOTE: This document is available as a PDF
at support.dell.com.
• Warranty information
• Terms and Conditions (U.S. only)
• Safety instructions
• Regulatory information
• Ergonomics information
• End User License Agreement
Dell™ Product Information Guide
What Are You Looking For? Find It Here
Resources 16
• How to set up my Tablet-PC
• Summary of your Tablet-PC features
• Available accessories for your Tablet-PC
Quick Reference Card
What Are You Looking For? Find It Here
Resources 17

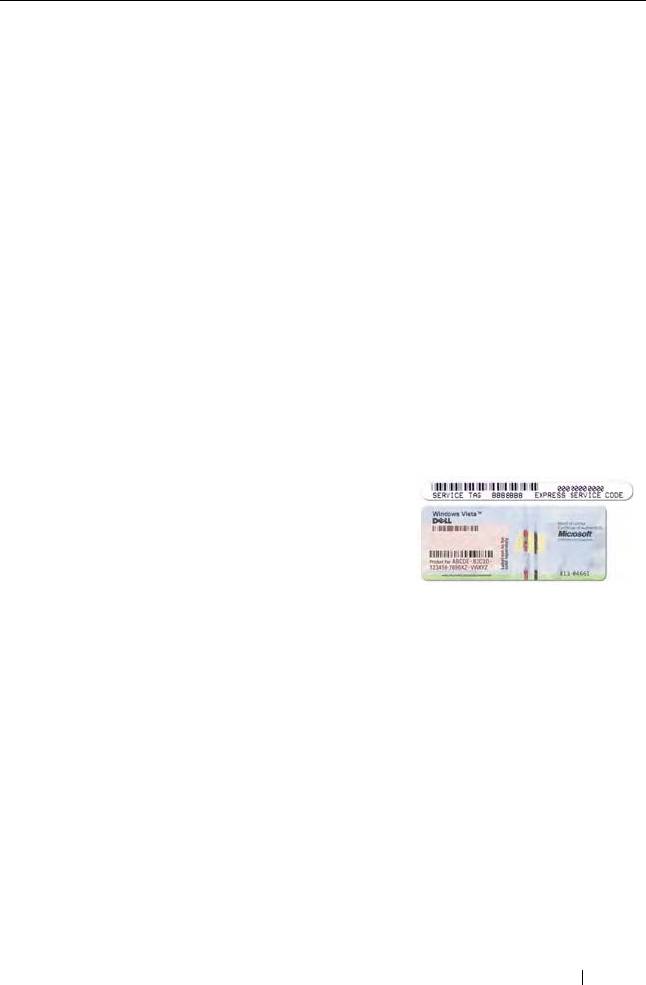

• Service Tag and Express Service Code
•Microsoft
®
Windows
®
License Label
Service Tag and Microsoft
®
Windows
®
License
NOTE: Your Tablet-PC’s Service Tag label is
located on the bottom of your Tablet-PC
near the memory and mini-card cover (see
"Bottom View" on page 39).
NOTE: You can also find your Service Tag
information through the System Setup
program. See "System Setup Screens" on
page 128.
Your Tablet-PC’s Service Tag contains
both a Service Tag number and an Express
Service Code.
• Use the Service Tag to identify your
Tablet-PC when you use
support.dell.com
or contact support.
• Enter the Express Service Code to direct
your call when contacting support.
NOTE: Your Tablet-PC’s Microsoft®
Windows® License label is located under
the main battery in the battery bay of your
Tablet-PC (see "Removing the Main Battery"
on page 143).
• Use the product key on the license label
if you need to reinstall your operating
system.
NOTE: As an increased security measure,
the newly designed Microsoft Windows
license label incorporates a missing portion
or "hole" to discourage removal of the label.
What Are You Looking For? Find It Here
Resources 18
• Solutions — Troubleshooting hints and
tips, articles from technicians, and
online courses, frequently asked
questions
• Community — Online discussion with
other Dell customers
• Upgrades — Upgrade information for
components, such as memory, the hard
drive, and the operating system
• Customer Care — Contact information,
service call and order status, warranty,
and repair information
• Service and Support — Service call
status and support history, service
contract, online discussions with
technical support
• Dell Technical Update Service —
Proactive e-mail notification of software
and hardware updates for my Tablet-PC
• Reference — Tablet-PC documentation,
details on my Tablet-PC configuration,
product specifications, and white papers
• Downloads — Certified drivers, patches,
and software updates
Dell Support Website — support.dell.com
NOTE: Select your region or business
segment to view the appropriate support
site.
• Notebook System Software (NSS) — If
you reinstall the operating system for
your Tablet-PC, you should also reinstall
the NSS utility. NSS provides critical
updates for your operating system and
support for processors, optical drives,
USB devices, and so on. NSS is necessary
for correct operation of your Dell Tablet-
PC. The software automatically detects
your Tablet-PC and operating system,
and installs the updates appropriate for
your configuration.
To download Notebook System Software:
1
Go to
support.dell.com
and click
Drivers & Downloads.
2
Enter your Service Tag or Product Type
and Product Model, and click
Go
.
3
Scroll to
System and Configuration
Utilities
→
Dell Notebook System
Software
and click
Download Now
.
4
Select
Drivers & Downloads
and click
Go
.
NOTE: The support.dell.com user interface
may vary depending on your selections.
What Are You Looking For? Find It Here
Resources 19
• Software upgrades and troubleshooting
hints — Frequently asked questions, hot
topics, and general health of your
computing environment
Dell Support Utility
The Dell Support Utility is an automated
upgrade and notification system installed
on your Tablet-PC. This support provides
real-time health scans of your computing
environment, software updates, and
relevant self-support information. Access
the Dell Support Utility from the
icon in the taskbar. For more information,
see "Dell Support Utility" on page 113.
• How to find information about your
Tablet-PC and its components
• How to connect to the Internet
• How to add user accounts for different
people
• How to transfer files and settings from
another Tablet-PC
Windows Welcome Center
The Windows Welcome Center
automatically appears when you use the
Tablet-PC for the first time. You can
choose to have it appear every time you
start your Tablet-PC, or turn it off. Once
turned off, to access the Welcome Center
click Start → Help and Support.
• How to use Microsoft Windows Vista™
• How to work with programs and files
• How to personalize my desktop
Windows Help and Support
1
Click
Start
→
Help and Support
.
2
In
Search Help
, type a word or phrase that
describes your problem, and then press
<Enter> or click the magnifying glass.
3
Click the topic that describes your
problem.
4
Follow the instructions on the screen.
• Information on tablet features and
functionality, network activity, the Power
Management Wizard, hotkeys, and
other items controlled by Dell QuickSet.
Dell QuickSet Help
To view
Dell QuickSet Help

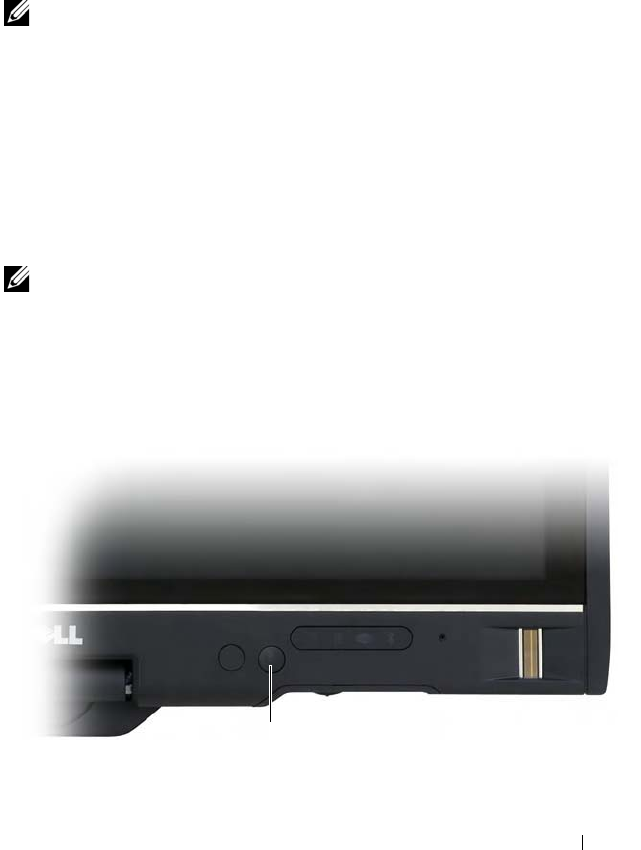

, press the
QuickSet tablet settings button (see "Front
View" on page 27), or
right-click the
QuickSet icon in the Microsoft®
Windows® taskbar, and select Help. The
taskbar is located in the lower-right corner
of your screen.
• How to reinstall my operating system
Operating System Media
What Are You Looking For? Find It Here
Resources 20
Getting Help
Obtaining Assistance
CAUTION: Before working inside your Tablet-PC, follow the safety instructions
located in the Product Information Guide.
If you experience a problem with your Tablet-PC, complete the following steps
to troubleshoot and diagnose the problem:
1
See "Troubleshooting" on page 109 for information and procedures that
pertain to the problem your Tablet-PC is experiencing.
The operating system is already installed
on your Tablet-PC. To reinstall your
operating system, use the Operating
System media. See "Reinstalling Windows
Vista" on page 137.
After you reinstall your operating system,
use the Drivers and Utilities media to
reinstall drivers for the devices that came
with your Tablet-PC.
Your operating system product key is on
the Microsoft® Windows® License Label
located in your Tablet-PC’s main battery
bay (see "Removing the Main Battery" on
page 143).
NOTE: The color of your media varies
based on the operating system you ordered.
What Are You Looking For? Find It Here
Resources 21
2
Run Dell Diagnostics. See "Dell Diagnostics" on page 109.
3
Fill out the "Diagnostics Checklist" on page 25. This checklist helps you to
organize information Dell’s support services will need to troubleshoot your
Tablet-PC.
4
Use Dell's extensive suite of online services available at Dell Support
(
support.dell.com
) for help with installation and troubleshooting
procedures. See "Online Services" on page 22 for a more extensive list of
Dell Support online services and features.
5
If the preceding steps have not resolved the problem, see "Contacting
Dell" on page 26.
NOTE: Call Dell Support from a telephone at or near the Tablet-PC so that the
support staff can assist you with any necessary procedures.
NOTE: Dell's Express Service Code system may not be available in all countries.
When prompted by Dell's automated telephone system, enter your
Express Service Code to route the call directly to the proper support
personnel. If you do not have an Express Service Code, open the
Dell
Accessories
folder, double-click the
Express Service Code
icon, and follow
the directions.
For instructions on using the Dell Support, see "Technical Support and
Customer Service" on page 21.
Dell Support Service
NOTE: Some of the following services are not always available in all locations
outside the continental U.S. Call your local Dell representative for information on
availability.
Technical Support and Customer Service
Dell's support service is available to answer your questions about Dell™
hardware. Our support staff uses Tablet-PC-based diagnostics to provide fast,
accurate answers.
To contact Dell's support service, see "Before You Call" on page 24, and then see
the contact information for your region or go to
support.dell.com
.
Resources 22
DellConnect
DellConnect is a simple online access tool that allows a Dell service and support
associate to access your Tablet-PC through a broadband connection, diagnose
your problem and repair it all under your supervision. For more information, go
to
support.dell.com
and click DellConnect.
Online Services
You can learn about Dell products and services on the following websites:
www.dell.com
www.dell.com/ap
(Asian/Pacific countries only)
www.dell.com/jp
(Japan only)
www.euro.dell.com
(Europe only)
www.dell.com/la
(Latin American and Caribbean countries)
www.dell.ca
(Canada only)
You can access Dell Support through the following websites and e-mail
addresses:
• Dell Support websites
support.dell.com
support.jp.dell.com
(Japan only)
support.euro.dell.com
(Europe only)
• Dell Support e-mail addresses
mobile_support@us.dell.com
support@us.dell.com
la-techsupport@dell.com (Latin America and Caribbean countries only)
apsupport@dell.com
(Asian/Pacific countries only)
• Dell Marketing and Sales e-mail addresses
apmarketing@dell.com
(Asian/Pacific countries only)
sales_canada@dell.com (Canada only)
• Anonymous file transfer protocol (FTP)
Resources 23
ftp.dell.com
Log in as user:
anonymous
, and use your e-mail address as your password.
AutoTech Service
Dell's automated support service—AutoTech—provides recorded answers to the
questions most frequently asked by Dell customers about their portable and
desktop computers.
When you call AutoTech, use your touch-tone telephone to select the subjects
that correspond to your questions. For the telephone number to call for your
region, see "Contacting Dell" on page 26.
Automated Order-Status Service
To check on the status of any Dell products that you have ordered, you can go to
support.dell.com
,
or you can call the automated order-status service. A
recording prompts you for the information needed to locate and report on your
order. For the telephone number to call for your region, see "Contacting Dell" on
page 26.
Problems With Your Order
If you have a problem with your order, such as missing parts, wrong parts, or
incorrect billing, contact Dell for customer assistance. Have your invoice or
packing slip handy when you call. For the telephone number to call for your
region, see "Contacting Dell" on page 26.
Product Information
If you need information about additional products available from Dell, or if you
would like to place an order, visit the Dell website at
www.dell.com
. For the
telephone number to call for your region or to speak to a sales specialist, see
"Contacting Dell" on page 26.
Returning Items for Warranty Repair or Credit
Prepare all items being returned, whether for repair or credit, as follows:
1
Call Dell to obtain a Return Material Authorization Number, and write it
clearly and prominently on the outside of the box.
Resources 24
For the telephone number to call for your region, see "Contacting Dell" on
page 26.
2
Include a copy of the invoice and a letter describing the reason for the
return.
3
Include a copy of the Diagnostics Checklist (see "Diagnostics Checklist"
on page 25), indicating the tests that you have run and any error messages
reported by the Dell Diagnostics (see "Dell Diagnostics" on page 109).
4
Include any accessories that belong with the item(s) being returned
(power cables, software, guides, and so on) if the return is for credit.
5
Pack the equipment to be returned in the original (or equivalent) packing
materials.
You are responsible for paying shipping expenses. You are also responsible for
insuring any product returned, and you assume the risk of loss during shipment
to Dell. Collect On Delivery (C.O.D.) packages are not accepted.
Returns that are missing any of the preceding requirements will be refused at
Dell’s receiving dock and returned to you.
Before You Call
NOTE: Have your Express Service Code ready when you call. The code helps Dell’s
automated-support telephone system direct your call more efficiently. You may also
be asked for your Service Tag (located in the battery bay of your Tablet-PC).
Remember to fill out the Diagnostics Checklist (see "Diagnostics Checklist" on
page 25). If possible, turn on your Tablet-PC before you call Dell for assistance
and call from a telephone at or near the Tablet-PC. You may be asked to type
some commands at the keyboard, relay detailed information during operations,
or try other troubleshooting steps possible only at the Tablet-PC itself. Ensure
that the Tablet-PC documentation is available.
CAUTION: Before working inside your Tablet-PC, follow the safety instructions in
your Product Information Guide.
Resources 25
Diagnostics Checklist
Name:
Date:
Address:
Phone number:
Service Tag (bar code in the battery bay of the Tablet-PC):
Express Service Code:
Return Material Authorization Number (if provided by Dell support technician):
Operating system and version:
Devices:
Expansion cards:
Are you connected to a network? Yes No
Network, version, and network adapter:
Programs and versions:
See your operating system documentation to determine the contents of the
system’s start-up files. If the Tablet-PC is connected to a printer, print each file.
Otherwise, record the contents of each file before calling Dell.
Error message, beep code, or diagnostic code:
Description of problem and troubleshooting procedures you performed:
Resources 26
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active Internet connection, you can find contact
information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options.
Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or
customer service issues:
1
Visit
support.dell.com
.
2
Verify your country or region in the
Choose A Country/Region
drop-down
menu at the bottom of the page.
3
Click
Contact Us
on the left side of the page.
4Select the appropriate service or support link based on your need.
5
Choose the method of contacting Dell that is convenient for you.
About Your Tablet-PC 27
About Your Tablet-PC

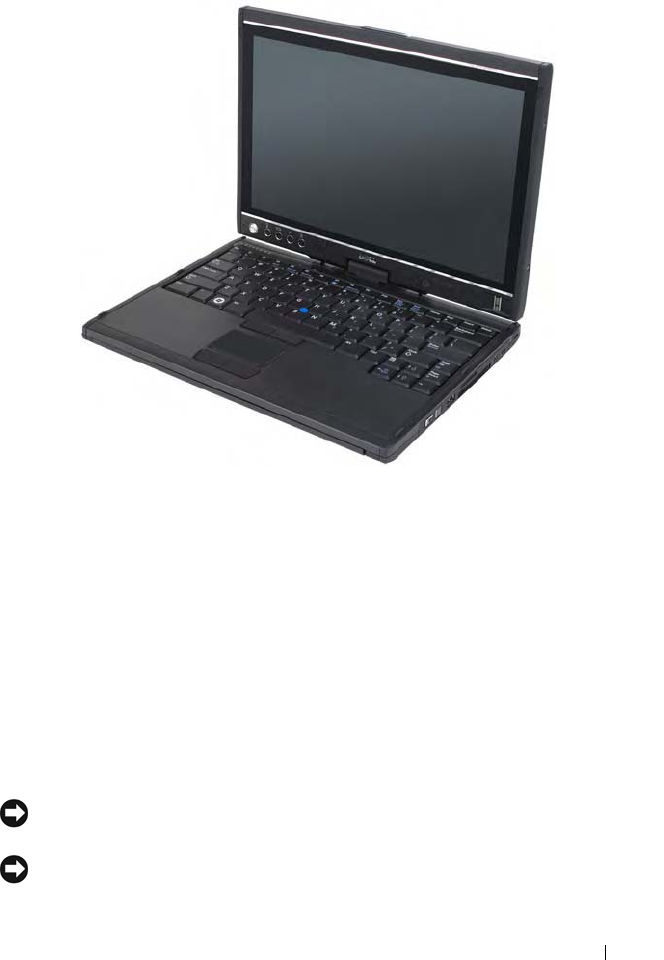

Front View
1 display latch 2 display
3 ambient light sensor (with Dual-bulb
CCFL LCD option only)
4 device status lights
5 digital array microphone 6 biometric reader
7 touch pad 8 touch pad buttons
9 track stick buttons 10 keyboard
2
3
13
1
4
12
9
11
6
7
10
15
16
17
18
14
5
8
About Your Tablet-PC 28
DISPLAY LATCH —Use to open the display.
DISPLAY —For more information about your display, see "Using the Display" on
page 80.
AMBIENT LIGHT SENSOR —Depending on the display option you chose when
ordering your Tablet-PC, your Tablet-PC may or may not have an ambient light sensor.
The ambient light sensor detects available environmental light and automatically
increases or decreases the display backlighting to compensate for low-light and high-
light environments. Press <Fn> and the left-arrow key to enable or disable the sensor
(see "Adjusting Brightness on the Dual-bulb (CCFL) LCD" on page 81).
DEVICE STATUS LIGHTS

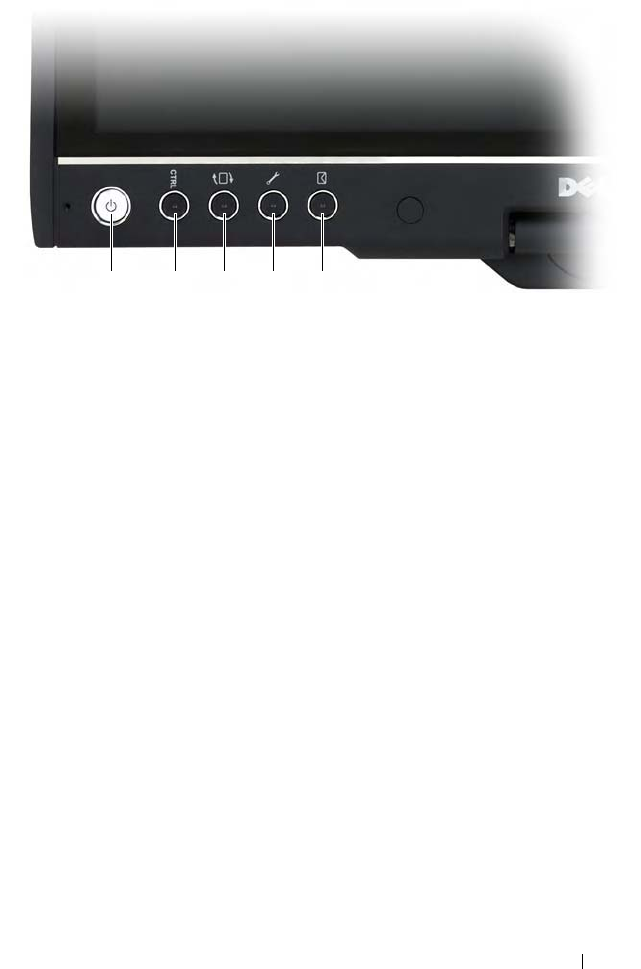

11 track stick 12 rotating hinge
13 digital array microphone 14 power button
15 <Ctrl><Alt><Del> button 16 screen rotate button
17 QuickSet tablet settings button 18 email application shortcut button
About Your Tablet-PC 29
If the Tablet-PC is connected to an electrical outlet, the light operates as follows:
– Solid blue: The battery is charging.
– Flashing blue: The battery is charged and in maintenance charge mode.
– Off: The battery is adequately charged (or external power is not available to charge
the battery).
If the Tablet-PC is running on a battery, the light operates as follows:
– Off: The battery is adequately charged (or the Tablet-PC is turned off).
– Flashing amber: The battery charge is low.
– Solid amber: The battery charge is critically low.
DIGITAL ARRAY MICROPHONE —PDigital directional microphones for conferencing
and chat.
BIOMETRIC READER —Helps to keep your Dell™ Tablet-PC secure. When you slide
your finger over the reader, it uses your unique fingerprint to authenticate your user
identity. For information on how to activate and use the security management
software that controls the biometric reader, see "Security Management Software" on
page 104.

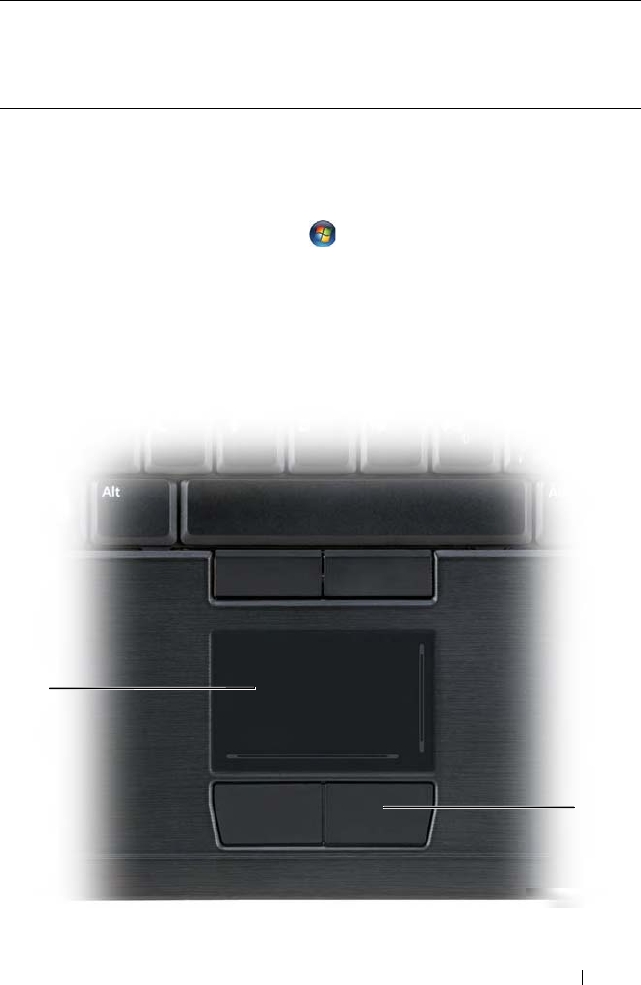

TOUCH PAD —Provides the functionality of a mouse (see "Touch Pad" on page 78).
TOUCH PAD BUTTONS/TRACK STICK BUTTONS —When you use the touch pad and
track stick, use these buttons to move the cursor on the display (see "Customizing the
Touch Pad and Track Stick" on page 79).
KEYBOARD —The keyboard includes a numeric keypad as well as the Windows logo
key. For information on supported keyboard shortcuts, see "Using a Keyboard" on
Turns on when the Tablet-PC reads or writes data.
NOTICE: To avoid loss of data, never turn off the Tablet-PC while the
light is flashing.
Turns on steadily or blinks to indicate battery charge status.

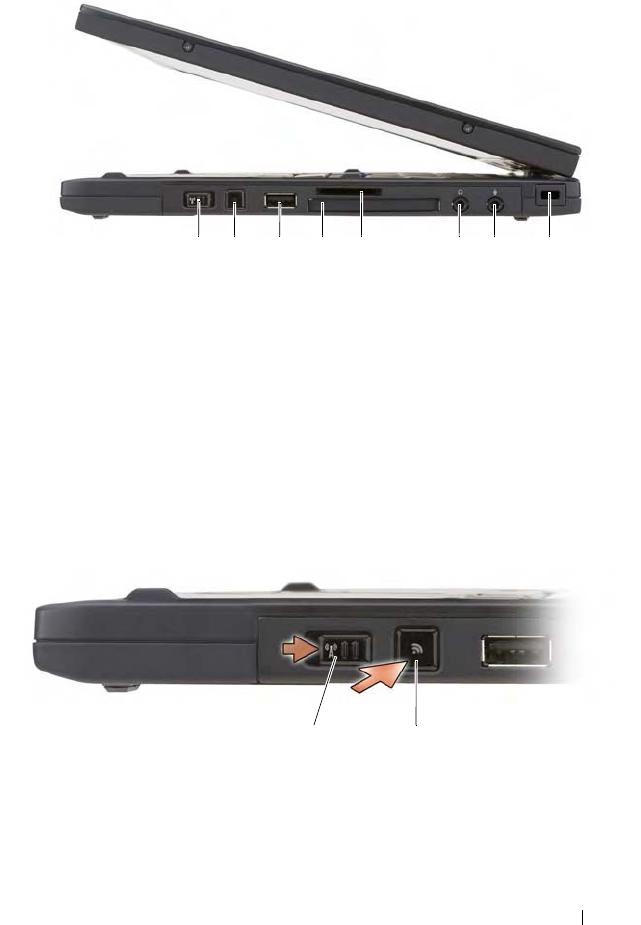

Turns on when wireless devices are enabled.
Turns on when Bluetooth® wireless technology is enabled. To enable or
disable Bluetooth wireless technology, move the wireless switch to the "on"
position (see "Dell Wi-Fi Catcher™ Network Locator" on page 96 for
more information).
NOTE: Bluetooth wireless technology is an optional feature on your Tablet-
PC, so the icon turns on only if you ordered Bluetooth wireless
technology with your Tablet-PC. For more information, see the
documentation that came with your Bluetooth wireless device.
About Your Tablet-PC 30
page 75.
TRACK STICK —Provides the functionality of a mouse (see "Customizing the Touch
Pad and Track Stick" on page 79).
ROTATING HINGE —Rotate the hinge to transform the PC into tablet mode. See
"Using Tablet Mode" on page 50.
POWER BUTTON —Press the power button to turn on the Tablet-PC or exit a power
management mode (see "Power Management Modes" on page 71).
NOTICE: To avoid losing data, turn off your Tablet-PC by performing a Microsoft®
Windows® operating system shutdown rather than by pressing the power button.
See "Turning Off Your Tablet-PC" on page 139 for instructions on performing an
operating system shutdown.
If the Tablet-PC stops responding, press and hold the power button until the Tablet-
PC turns off completely (which may take several seconds).
The power button is surrounded by a backlit ring which is illuminated blue when you
turn on the Tablet-PC, and blinks when the Tablet-PC is in a power-management
mode.
<CTRL><ALT><DEL> BUTTON —.If you are using your Tablet-PC in tablet mode,
you can press the <Ctrl><Alt><Del> button to access the Windows Task Manager
dialog box or a login screen, the same way you use the <Ctrl><Alt><Del> key
sequence in notebook mode. See "Using Tablet Buttons" on page 57 for more
information.
SCREEN ROTATE BUTTON —.While the Tablet-PC is in tablet mode, you can use the
screen rotate button to change the display orientation from portrait to landscape
mode. See "Using Tablet Buttons" on page 57 for more information.
QUICKSET TABLET SETTING BUTTON —.Access Dell QuickSet to view and configure
options for your Tablet-PC and pen. See "Using Tablet Buttons" on page 57 for more
information.
EMAIL APPLICATION SHORTCUT BUTTON —.Launches your email application. See
"Using Tablet Buttons" on page 57 for more information.
About Your Tablet-PC 31

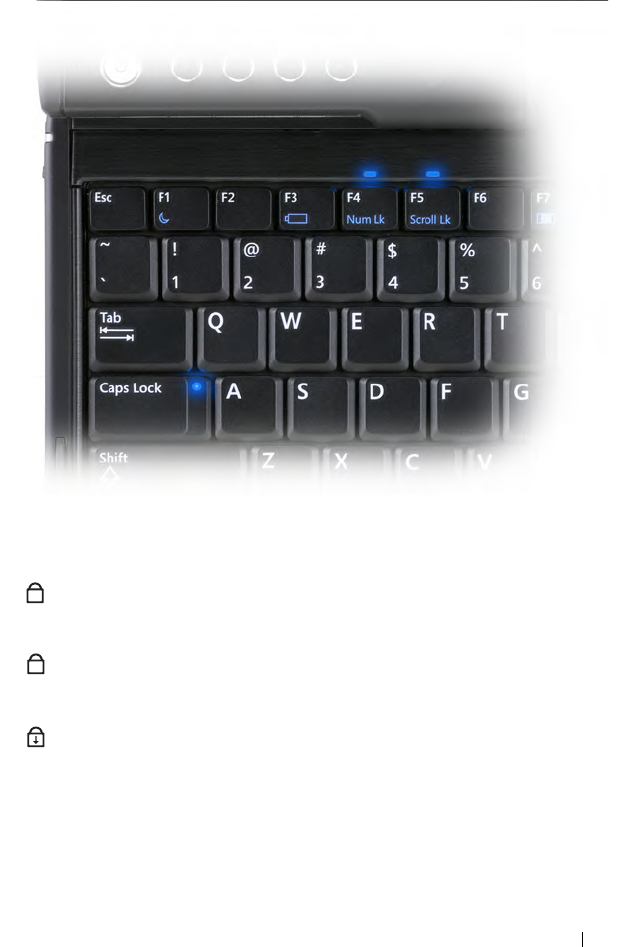

KEYBOARD STATUS LIGHTS
There are three keyboard status lights on your Tablet-PC, with the following functions:
Turns on when the numeric keypad is enabled. Located above the
upper edge of the keyboard.
Turns on when the uppercase letter function is enabled. Located on the
<Caps Lock> key.
Turns on when the scroll lock function is enabled. Located above the
upper edge of the keyboard.
9
A
About Your Tablet-PC 32
Left Side View

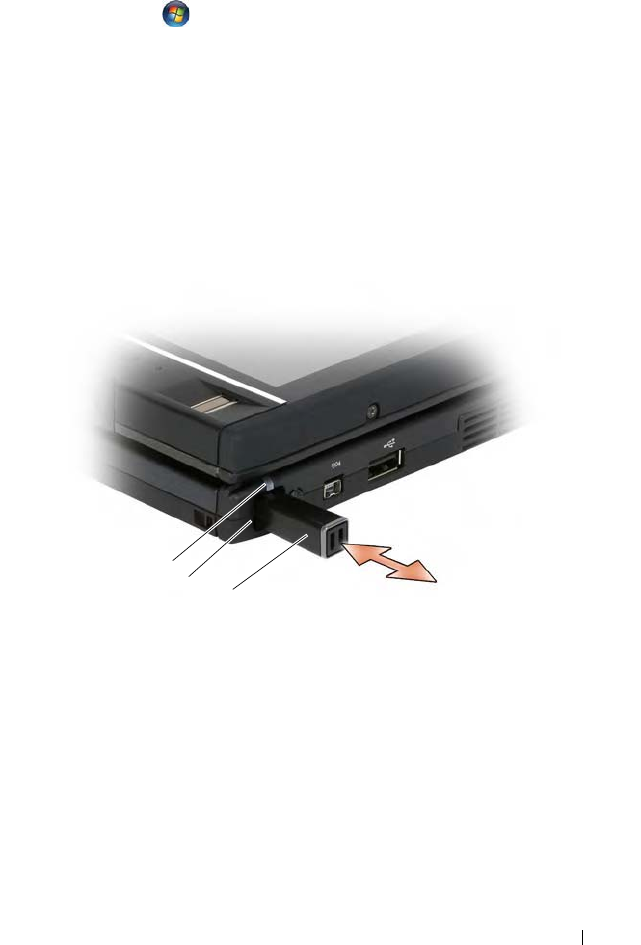

PEN —To eject the pen from the compartment, press and release the end of the pen.
PEN INDICATOR LED — Indicates pen status. See "Ejecting and Storing the Pen" on
page 60.
EXTERNAL WIRELESS WAN ANTENNA —If your Tablet-PC supports wireless wide
area network (WWAN) connectivity, you must extend and orient the external WWAN
antenna for optimal signal strength.
1 pen indicator LED 2 pen
3 external wireless WAN antenna 4 IEEE 1394 connector
5 USB connector 6 air vent
7 speaker
4675
321
About Your Tablet-PC 33
IEEE 1394 CONNECTOR
USB CONNECTOR
AIR VENTS —The Tablet-PC uses an internal fan to create airflow through the vents,
which prevents the Tablet-PC from overheating.
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Tablet-PC in a low-airflow environment, such as a closed
briefcase, while it is running. Restricting the airflow can damage the Tablet-PC or
cause a fire. The Tablet-PC turns on the fan when the Tablet-PC gets hot. Fan noise
is normal and does not indicate a problem with the fan or the Tablet-PC.
SPEAKER —To adjust the volume of the integrated speaker, use the volume-control
keyboard shortcuts (see "Key Combinations" on page 76).
Connect FireWire devices, such as a camera, external hard
drive, or external CD-ROM drive. Supports hot swapping,
multiple speeds on the same bus, and time-based data
transfer. This provides bandwidth for multimedia
operations.
Connect USB devices, such as a mouse, keyboard, or
printer.
About Your Tablet-PC 34
Right Side View
WIRELESS RADIO ON/OFF SWITCH —When enabled through Dell QuickSet, this
switch can scan for a Wireless Local Area Network (WLAN) in your vicinity. You can
also use it to rapidly turn off or on any wireless devices such as WLAN cards and
internal cards with Bluetooth wireless technology (see "Dell Wi-Fi Catcher™ Network
Locator" on page 96). When moved toward the front of the Tablet-PC, the switch is
off; when moved toward the back of the Tablet-PC, the switch is on.
BACKLIT WI-FI CATCHER™ BUTTON —Scans for WLAN networks (see "Dell Wi-Fi
Catcher™ Network Locator" on page 96). The light operates as follows:
1 wireless radio on/off switch 2 Wi-Fi Catcher™ button
3 USB connector 4 ExpressCard slot
5 Secure Digital (SD) card slot 6 headphones connector
7 microphone connector 8 security cable slot
1 wireless radio on/off switch 2 Wi-Fi Catcher button
1 4 5 82 3 76
1 2
About Your Tablet-PC 35
– Flashing blue: Searching for networks
– Solid blue: Strong network found
– Solid yellow:
Weak network found
– Flashing yellow: Error
– Off: No signal found
USB CONNECTOR
EXPRESSCARD SLOT —Supports one ExpressCard, such as the optional smart card
reader. For more information, see "Using Cards" on page 82.
SECURE DIGITAL (SD) SLOT —Supports one Secure Digital memory card, a storage
device used in portable devices such as digital cameras, handheld computers, PDAs
and GPS units.

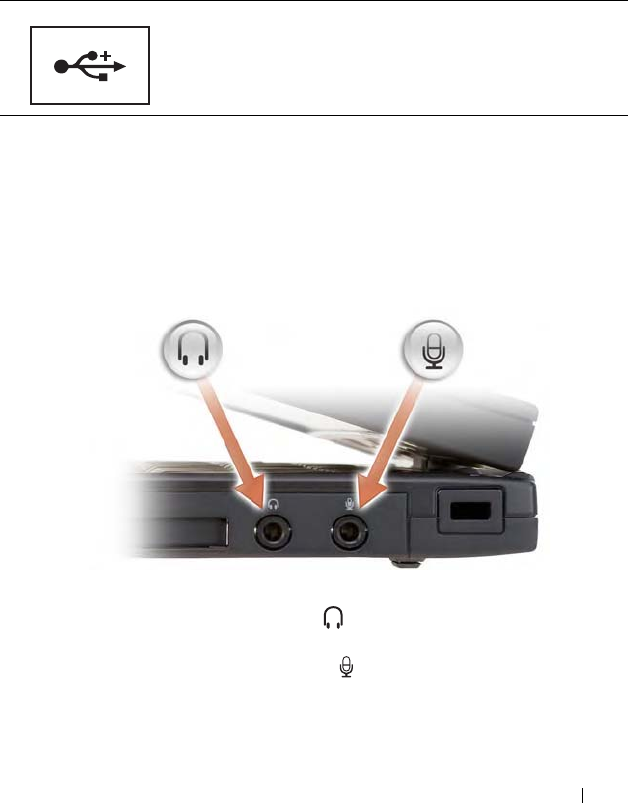

AUDIO CONNECTORS
SECURITY CABLE SLOT —Lets you attach a commercially available antitheft device
Connect USB devices, such as a mouse, keyboard, or
printer.
Attach headphones to the connector.
Attach a microphone to the connector.
About Your Tablet-PC 36
to the Tablet-PC (see "Security Cable Lock" on page 99).
Back View
AC ADAPTER CONNECTOR
1 AC adapter connector 2 video connector
3 tablet back button 4 scroll control button
5 network connector 6 powered USB connector
7 rotating hinge 8 tablet grip
9 pen tether slot
Connects an AC adapter to the Tablet-PC.
1 2 5
34 6 97 8
About Your Tablet-PC 37

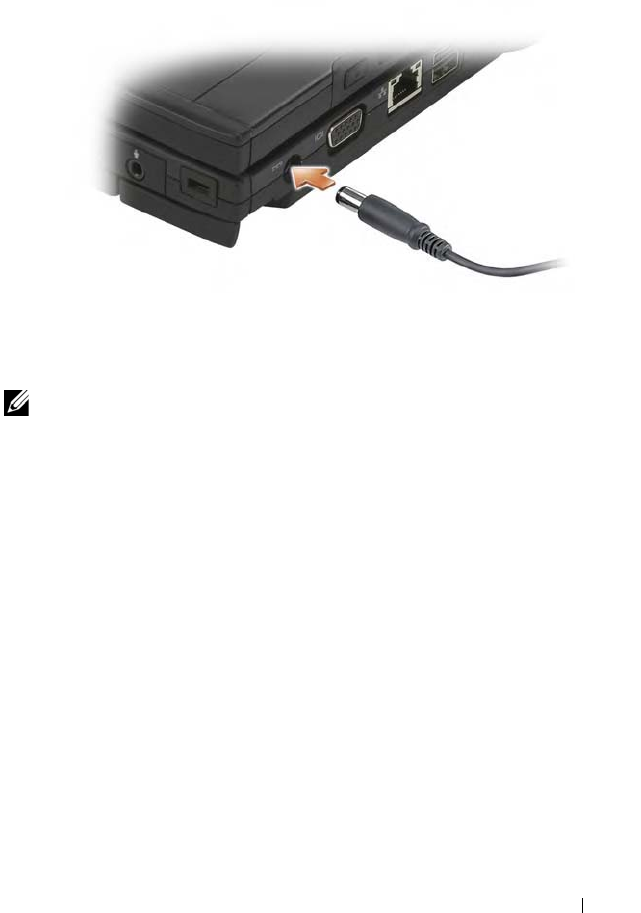

The AC adapter converts AC power to the DC power required by the Tablet-PC. You
can connect the AC adapter with your Tablet-PC turned either on or off.
CAUTION: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible
cable or improperly connecting the cable to the power strip or electrical outlet
may cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter cable from the Tablet-PC, grasp the
connector, not the cable itself, and pull firmly but gently to avoid damaging the
cable. When you wrap the AC adapter cable, ensure that you follow the angle of the
connector on the AC adapter to avoid damaging the cable.
VIDEO CONNECTOR
TABLET BACK BUTTON —Use to navigate while in tablet mode. See "Using the Back
Button" on page 57
SCROLL CONTROL BUTTON —Use to navigate while in tablet mode. See "Using the
Scroll Control" on page 57.
NETWORK CONNECTOR (RJ-45)
NOTICE: To avoid damaging the Tablet-PC, do not plug a telephone line into the
network connector or USB connectors
Connects video devices, such as a monitor.
Connects the Tablet-PC to a network. The two lights next
to the connector indicate status and activity for wired
network connections.
About Your Tablet-PC 38
ROTATING HINGE —Converts Tablet-PC between notebook and tablet modes.
PEN TETHER SLOT —Use to connect a tether between the Tablet-PC and the pen.
Top View
POWERED USB CONNECTOR
Connect optional external D/Bay device, or standard USB
devices, such as a mouse, keyboard, or printer.
Turns on steadily or blinks to indicate battery charge status.
Turns on when you turn on the Tablet-PC and blinks when the Tablet-PC is
in a power management mode.
About Your Tablet-PC 39
Bottom View
NOTE: Your Tablet-PC’s Microsoft® Windows® License label is located under the
main battery in the battery bay of your Tablet-PC (see "Removing the Main Battery"
on page 143).
AIR VENTS —The Tablet-PC uses an internal fan to create airflow through the vents,
which prevents the Tablet-PC from overheating.
1 air vent 2 docking-device connector
3 memory module and mini-card cover 4 fan
5 main battery 6 battery-bay latch releases (2)
7 battery charge gauge/health gauge 8 battery bay (beneath main battery)
2 3
6
4
7
5
1
8
About Your Tablet-PC 40
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Tablet-PC in a low-airflow environment, such as a closed
briefcase, while it is running. Restricting the airflow can damage the Tablet-PC or
cause a fire.The Tablet-PC turns on the fan when the Tablet-PC gets hot. Fan noise
is normal and does not indicate a problem with the fan or the Tablet-PC.

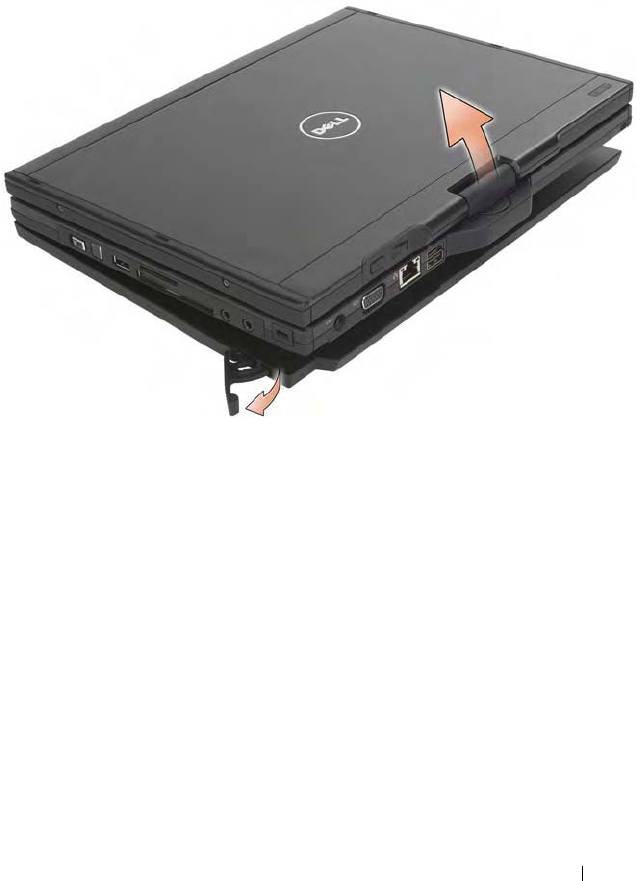

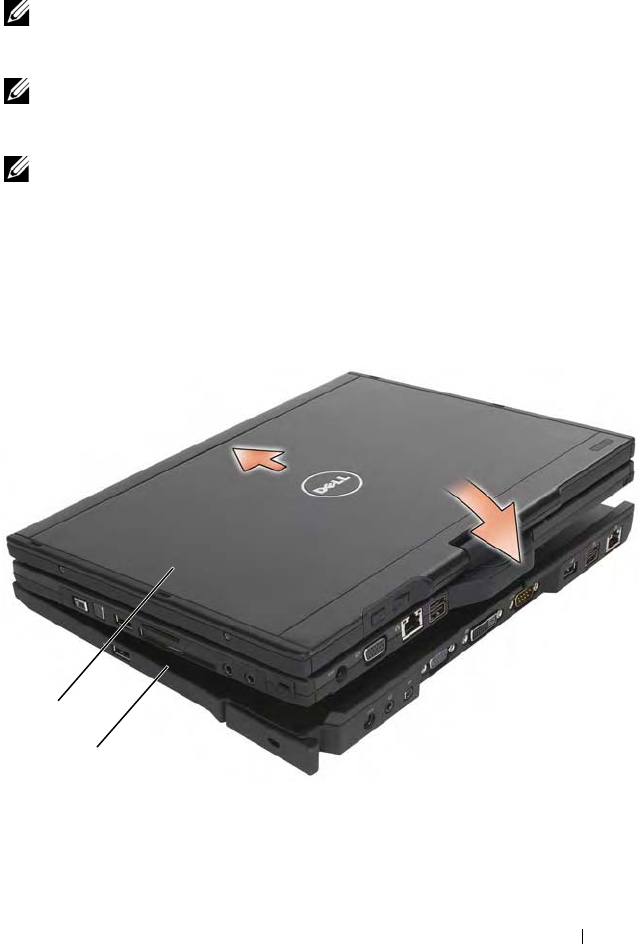

DOCKING-DEVICE CONNECTOR —Lets you attach your Tablet-PC to a media base or
battery slice. See "Docking Your Tablet-PC to the Media Base" on page 193 and
"Docking Your Tablet-PC to the Battery Slice" on page 201 for more information.

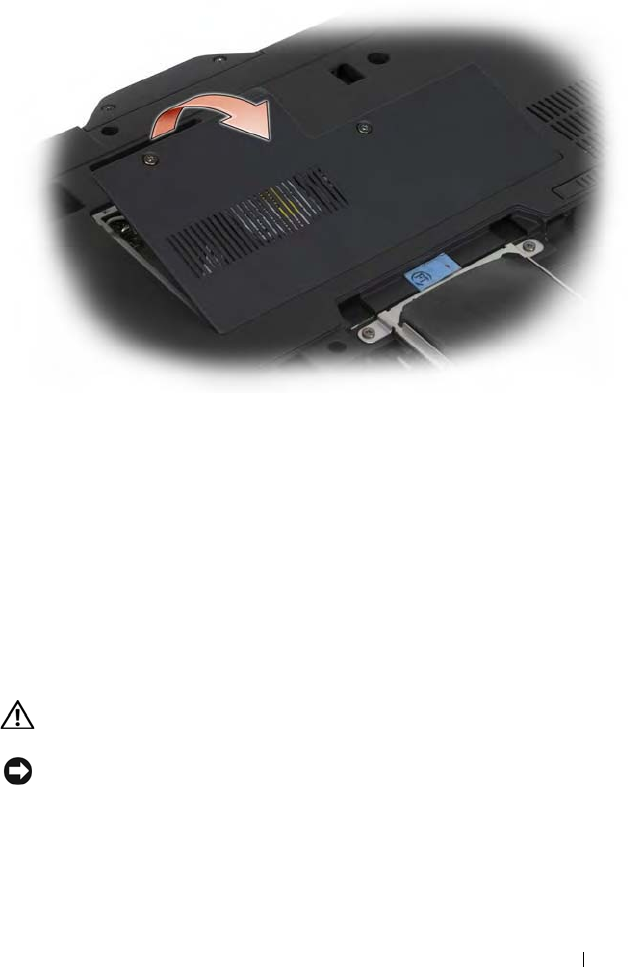

MEMORY MODULE AND MINI-CARD COVER —Covers the compartment that contains
the memory module and any mini cards installed on your Tablet-PC (see "Memory" on
page 41 and "Communications" on page 42).
BATTERY CHARGE GAUGE/HEALTH GAUGE —Provides information on the battery
charge (see "Checking the Battery Charge" on page 68).
MAIN BATTERY —When a charged battery is installed in the main battery bay, you
can use the Tablet-PC without connecting the Tablet-PC to an electrical outlet (see
"Using a Battery" on page 67).
BATTERY-BAY LATCH RELEASES —Release the battery (see "Before Working Inside
Your Tablet-PC" on page 140
for instructions).
Specifications
NOTE: Offerings may vary by region. For more information regarding the
configuration of your Tablet-PC, click Start
,
then click Help and Support and
select the option to view information about your Tablet-PC.
Processor
Processor type Intel® Merom Dual-Core or Yonah Single-
Core
L1 cache 32 KB (internal)
L2 cache 1 MB
External bus frequency 533 MHz or 666 MHz
System Information
System chipset AMD RS600ME/SB600
Data bus width 64 bits
DRAM bus width 64 bits
About Your Tablet-PC 41
Processor address bus width 32 bits
Flash EPROM 1 MB
Graphics bus 64 bits
PCI bus 32 bits
Memory
Integrated memory on system board 1 GB
Optional memory:
Memory module connector
one user-accessible SODIMM socket
Memory module capacities
1 and 2 GB
Maximum system memory capacity 3 GB
Memory type 3.3-V SODIMM
Storage
Internal hard drive:
Form factor
1.8" PATA HDD
Speed
4200-rpm
5400-rpm (when available)
Max size
80 GB (4200-rpm)
100 GB (5400-rpm)
Form factor
optional 1.8" PATA Solid State HDD
Max size
32 GB

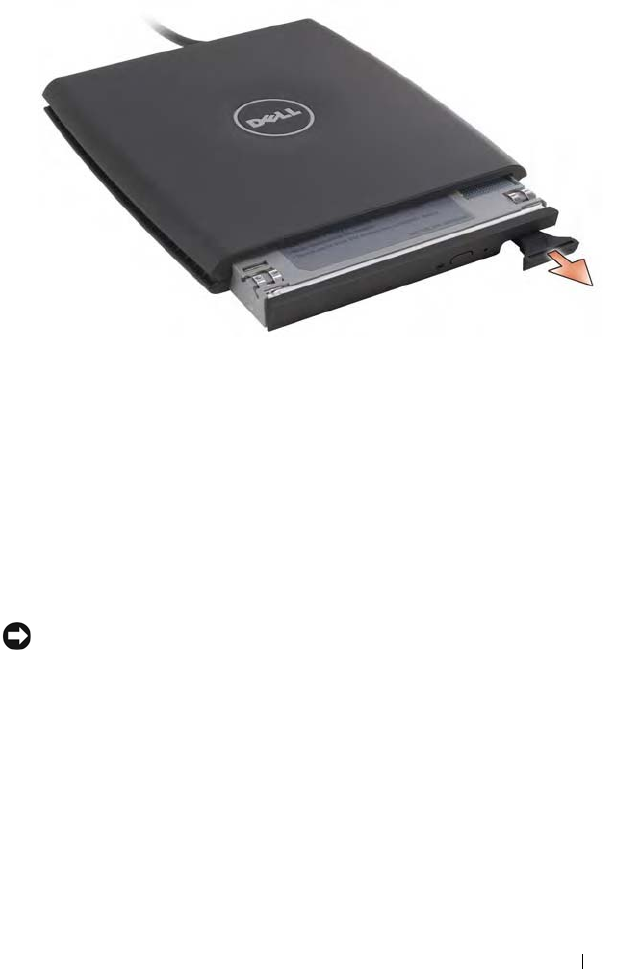

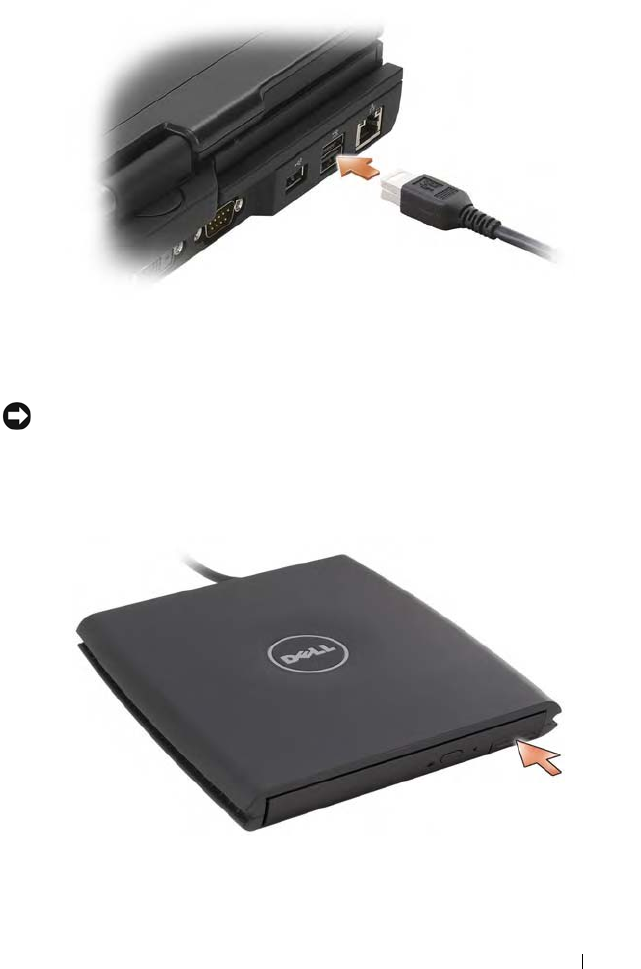

Dell D/Bay (external):
Power requirement
powered USB port
Optical drive support
DVD+/-RW, DVD-ROM
Ports and Connectors
Audio microphone connector, stereo
headphone/speakers connector
System Information (continued)
About Your Tablet-PC 42
IEEE 1394 4-pin serial connector
Mini PCI Type IIIA Mini PCI card slot
Network adapter RJ-45 port
USB two 4-pin USB 2.0-compliant connectors
Powered USB 5-pin power supply and 4-pin USB
2.0-compliant connector
Video 15-hole connector
Communications
Network adapter 10/100/1000 Ethernet LAN with ASF 2.0
support on system board
Wireless internal WLAN, WWAN (with optional
mini card), and Bluetooth® wireless support
Video
Video type integrated on system board, 128-bit
hardware accelerated
Data bus integrated video
Video controller integrated graphics (UMA) AMD RS600
Video memory up to 256 MB shared Video Memory (512
MB + system memory)
LCD interface LVDS
Audio
Audio type two-channel high definition audio (Azalia)
Audio controller IDT STAC9205 Codec
Stereo conversion 24-bit (analog-to-digital and digital-to-
analog)
Interfaces:
Internal
high definition audio (Azalia)
Ports and Connectors (continued)
About Your Tablet-PC 43
External
microphone-in connector, stereo
headphones/speakers connector
Speaker one 4-ohm speakers
Internal speaker amplifier 2-W channel into 4 ohms
Volume controls keyboard shortcuts, program menus
Stereo Digital Microphone Array
Vista
Windows XP
supports Vista native microphone processing
includes Knowles Intellisonic microphone
processing
Display
Both LED backlit thin-and-light
LCD and Dual-bulb (CCFL) LCD
options:
Panel design
12.1 inches WXGA
Display area
261.12 mm (H) X 163.20 mm (V)
12.1 inches diagonal
Aspect ratio
16:10
Number of pixels
1280 X 3 (RGB) X 800 dots
Pixel pitch
0.204 X 0.204 nominal
Display mode
normally white
Viewing angles:
Horizontal
+/- 70 degrees
Vertical
+/- 70 degrees
LED backlit thin-and-light LCD
option:
Luminescence
220 nits Typ
Dual-bulb (CCFL) LCD option:
Luminescence
400 nits Typ
Audio (continued)
About Your Tablet-PC 44
Tablet Input Devices
Digitizer
Interface
capacitive touch
Input resolution
1000 dpi
Position report rate
133 PPS
Coordinate accuracy (avg)
+/- 0.4 mm
Coordinate jitter (max)
+/- 0.4 mm
Pen
Dimensions:
Length
133 mm (5.2 inches)
Diameter
9 mm (0.35 inches)
Ty p e
two-button, battery-less
Notebook Input Devices
Keyboard:
Number of keys
87 (U.S. and Canada); 88 (Europe); 91
(Japan
Layout
QWERTY/AZERTY/Kanji
Touch Pad:
X/Y position resolution (graphics
table mode)
240 cpi
Size:
Width
58 mm (2.28 inches) sensor-active area
Height
38 mm (1.50 inches) rectangle
Track Stick:
X/Y position resolution (graphics
table mode)
250 count/sec @ 100 gf
Size
protrudes 0.5 mm higher than surrounding
keycaps
About Your Tablet-PC 45
Biometric Reader
Type UPEK TCS3 TouchStrip™ strip sensor with
CMOS active capacitive pixel-sensing
technology
Power Supply 2.7 V to approx. 3.6 V
Connector 48-ball BGA
Array Size 248 x 2 pixels
Battery
Type 4-cell "smart" lithium ion (29 WHr)
6-cell "smart" lithium ion (45 WHr)
Dimensions:
Depth
88.5 mm (3.48 inches)
Height
21.5 mm (0.83 inch)
Width
139.0 mm (5.47 inches)
Weight 0.25 kg (0.55 lb) (4-cell)
0.33 kg (0.73 lb) (6-cell)
Voltage 11.1 VDC
Charge time (approximate):4 hours (with computer off)
Operating time Battery operating time varies depending on
operating conditions and can be significantly
reduced under certain power-intensive
conditions
See "Using a Battery" on page 67 for more
information on battery life.
Life span (approximate) 300 discharge/charge cycles
Temperature range:
Operating
0° to 35°C (32° to 95°F)
Storage
–40° to 65°C (–40° to 149°F)
About Your Tablet-PC 46
AC Adapter
Input voltage 90–264 VAC
Input current (maximum) 1.1 A
Input frequency 47–63 Hz
Output current 3.3 A (maximum at 4-second pulse);
2.3 A (continuous)
Output power 45 W, 65 W (optional), or Auto Air 65 W
(optional)
Rated output voltage 19.5 VDC
Dimensions:
Height
16.0 mm (0.63 inches)
Width
63.0 mm (2.48 inches)
Depth
88.0 mm (3.46 inches)
Weight (with cables) 0.195 kg (0.43 lb)
Temperature range:
Operating
0° to 40°C (32° to 104°F)
Storage
–10° to 70°C (–50° to 158°F)
Physical
Height:
With LED backlit thin-and-light
LCD
With Dual Bulb CCFL LCD
25.4 mm (1.0 inches)
30.4 mm (1.2 inches)
Width 297.0 mm (11.7 inches)
Depth 218.6 mm (8.6 inches)
Weight 1.6 kg (3.5 lb) (with 4-cell battery)
1.6 kg (3.5 lb) (with 6-cell battery)
Environmental
Temperature range:
About Your Tablet-PC 47
Operating
0° to 35°C (32° to 95°F)
Storage
–40° to 65°C (–40° to 149°F)
Relative humidity (maximum):
Operating
10% to 90% (non condensing)
Storage
5% to 95% (non condensing)
Maximum vibration (using a
random-vibration spectrum that
simulates user environment):
Operating
0.9 GRMS
Storage
1.3 GRMS
Maximum shock (measured with
hard drive in head-parked position
and a 2-ms half-sine pulse):
Operating
122 G
Storage
163 G
Altitude (maximum):
Operating
–15.2 to 3048 m (–50 to 10,000 ft)
Storage
–15.2 to 10,668 m (–50 to 35,000 ft)
Environmental (continued)
About Your Tablet-PC 48
Setting Up and Using Your Tablet-PC 49
Setting Up and Using Your Tablet-
PC
Transferring Information to a New Tablet-PC
You can use the Windows® Easy Transfer Wizard to help you transfer files
and other data from one Dell™ computer to another—for example, from an
old computer or Tablet-PC to a new computer or Tablet-PC.
1
Click
Start
, and then click
Transfer files and settings
→
Start
Windows Easy Transfer.
2
In the
User Account Control
dialog box, click
Continue
.
3
Click
Start a new transfer
or
Continue a transfer in progress
.
Follow the instructions provided on the screen by the Windows Easy Transfer
wizard.
Using Notebook Mode
Your Tablet-PC can be used either in notebook mode or tablet mode. To use
your Tablet-PC in notebook mode, open the display until it reaches a
comfortable viewing angle, and use the keyboard and display as you would
those of any other notebook computer.
Setting Up and Using Your Tablet-PC 50
You can use all the pen and touch screen input methods (see "Controlling
Your Tablet-PC in Tablet Mode" on page 57) while in notebook mode except
for the scroll control and back button, which are not accessible with the
display in this configuration.
Using Tablet Mode
Your Tablet-PC converts from notebook mode to tablet mode with a 180-
degree clockwise twist of the display’s rotating hinge.
Converting Your Tablet-PC Between Notebook and Tablet Modes
To convert your Tablet-PC to tablet mode:
NOTICE: Forcing the hinge beyond the 180-degree point will damage your Tablet-
PC.
NOTICE: Ensure that the display does not scrape the keycaps as you rotate the
display, or you may cause damage to your keyboard.
Setting Up and Using Your Tablet-PC 51
1
Open the display of the Tablet-PC until it reaches a 90-degree angle,
perpendicular to the base.
2
Brace the base with one hand on the palm rest, grasp the top of the display
with the other hand, and, following the directional arrow inscribed on the
hinge cover, turn the rotating hinge clockwise 180 degrees until you feel
the display engage securely.
3
Lay the display assembly on the base with the display facing upwards.
1 display 2 display assembly
3 rotating hinge 4 directional arrow
4
3
1
2
Setting Up and Using Your Tablet-PC 52
When you convert your Tablet-PC between notebook and tablet modes, the
screen orientation of your Tablet-PC will automatically change according to
the settings you have established in the Dell QuickSet application or the
Windows Vista Pen and Tablet settings application, most commonly from
landscape (notebook mode) to portrait (tablet mode). See "Using QuickSet"
on page 65 for more information on customizing your Tablet-PC settings.
To convert your Tablet-PC from tablet mode to notebook mode:
NOTICE: Forcing the hinge beyond the 180-degree point will damage your Tablet-
PC.
NOTICE: Ensure that the display assembly does not scrape the keycaps as you
rotate the display, or you may cause damage to your keyboard.
1
Lift the display until it reaches a 90-degree angle, perpendicular to the
base.
Setting Up and Using Your Tablet-PC 53
2
Brace the base with one hand on the palm rest, grasp the top of the display
with the other hand, and, following the directional arrow inscribed on the
grip, turn the rotating hinge counter-clockwise 180-degrees until you feel
the display assembly engage securely in the notebook mode configuration.
Setting Up and Using Your Tablet-PC 54
3
Adjust the display to a comfortable viewing angle.
Right- and Left-handed Use
Your Tablet-PC can be adjusted for either right- or left-handed use. There are
several settings within the Windows Vista operating system which you can
use to customize the Tablet-PC depending on whether you are right- or left-
handed.
• Right-handed use:
Hold the Tablet-PC on your left forearm with your left hand on the grip,
and the scroll control and back button within reach of your fingers. You
1 display assembly 2 rotating hinge
3 directional arrow on grip
3
2
1
Setting Up and Using Your Tablet-PC 55
can hold the pen in your right hand or use a finger to operate the tablet
buttons and display.
• Left-handed use:
Hold the Tablet-PC on your right forearm with your right hand on the grip.
You can hold the pen in your right hand, manipulate the scroll control and
back buttons with your left hand, or use a finger to operate the tablet
buttons and display.
Setting Up and Using Your Tablet-PC 56
Screen Orientation
You can change the display orientation of your Tablet-PC from portrait to
landscape in several different ways:
• Press the Screen Rotate tablet button to rotate the screen 90-degrees
clockwise.
• Right-click the QuickSet icon in the system tray, click Tablet-PC choose
the orientation you want from the
Screen Orientation
pull-down menu.
•Click
Start
→
Control Panel
→
Mobile PC
→
Tablet PC Settings.
• Press the
Windows Logo
key and <X> to open
Windows Mobility
Center
, then click the button in the
Screen Orientation
window until the
display is in the desired orientation.
Setting Up and Using Your Tablet-PC 57
To change your Tablet-PC’s default screen orientation, click Start →
Control Panel→ Mobile PC→ Tablet PC Settings.
Controlling Your Tablet-PC in Tablet Mode
In tablet mode, you can control your Tablet-PC using the following methods:
• Using the scroll control
• Using the back button
• Using the tablet buttons
• Using the pen
• Using touch
Using the Scroll Control
• To scroll through a list of items or a set of pages one at a time, shift the
scroll control up or down and release. The control automatically returns to
the center/neutral position when released.
• To rapidly scroll through a list of items or a set of pages, shift the control
up or down and hold it, releasing it when you wish to stop scrolling.
• To select objects, press and release the scroll control when it is in the
center/neutral position.
• To launch context sensitive menus, press and hold the scroll control until a
complete circle is drawn on the display, and then release. This is equivalent
to clicking the right mouse button on a notebook computer.
Using the Back Button
Use the back button, located adjacent to the scroll control, to move backward
in applications that support navigation, such as web browsers and Windows
Explorer, and to close the active window.
• To move backward, press and release the back button.
• To close the active window, press and hold the back button.
• To customize the back button behavior, use the
Tablet and Pen Settings
in
Windows Vista.
Using Tablet Buttons
Your Tablet-PC has four tablet buttons located beside the power button.
Setting Up and Using Your Tablet-PC 58
1 power button 2 <Ctrl><Alt><Del> button
3 screen rotate button 4 QuickSet tablet settings button
5 email application shortcut button
1 2 3 4 5
Setting Up and Using Your Tablet-PC 59
<CTRL><ALT><DEL> BUTTON
SCREEN ROTATE BUTTON
QUICKSET TABLET SETTINGS BUTTON
EMAIL APPLICATION SHORTCUT BUTTON
Disabling and Enabling Tablet Buttons
You can disable and enable the tablet buttons using the Dell QuickSet
application. To access QuickSet, click the QuickSet icon in the system tray, or
press the QuickSet tablet settings button.
If you are using your Tablet-PC in tablet mode, you can
press the <Ctrl><Alt><Del> button to access the
Windows Task Manager dialog box or a login screen, the
same way you use the <Ctrl><Alt><Del> key sequence
in notebook mode.
While the Tablet-PC is in tablet mode, you can use the
screen rotate button to change the display orientation from
portrait to landscape mode:
• Each time you press and release the screen rotate button,
the screen image rotates clockwise 90 degrees.
• If you press and hold the screen rotate button, the display
switches off. The computer will not recognize input until
you press and hold the screen rotate button a second time,
or use the pen to wake the Tablet-PC. This feature
provides a convenient way to prevent inadvertent input
while carrying your Tablet-PC.
Press this button to view and configure options for the
Tablet-PC and the pen through Dell QuickSet. You can
configure this button to perform a different action using
Windows Vista Tablet PC Settings.
Launches either Microsoft Outlook or Outlook Express if
you have one of these applications installed on your Tablet-
PC. You can configure this button using Windows Vista
Tablet PC Settings to run an application of your choice.
Setting Up and Using Your Tablet-PC 60
You can change the actions assigned to the back button, the tablet settings
button, the QuickSet application button, and the email application shortcut
button. Click Start → Control Panel→ Mobile PC→ Tab let PC
Settings→ Set tablet buttons to perform certain tasks to access the settings
for the buttons.
Using the Pen
Ejecting and Storing the Pen
Press and release the pen to eject it from the pen compartment. To protect
the pen when you are not using it, insert the pen, tip first, into the pen
compartment on the Tablet-PC. Press to engage the pen in its compartment.
When you remove the pen from the pen compartment, the pen indicator
LED blinks quickly to indicate that the pen has been removed.
If the pen is not in its compartment when the Tablet-PC shuts down or enters
sleep or hibernate mode, the pen indicator LED blinks slowly to remind you
to replace the pen in the compartment. The behavior of the pen indicator
1 pen indicator LED 2 pen compartment
3pen
3
12
Setting Up and Using Your Tablet-PC 61
LED can be enabled or disabled through the QuickSet tablet settings
application (see "Dell QuickSet Help" on page 19 for instructions on
accessing QuickSet).
Replacing the Pen Tip
Your Tablet-PC ships with several of each of two types of pen tips: hard
(simulates the feel of a ballpoint pen) and soft (simulates the feel of a felt-tip
pen). To replace a pen tip,
1
Use the pen tip remover tool to grasp the pen tip, then firmly pull the tip
from the pen.
2
With your fingers, place a new tip into the pen, and insert the tip until it is
fully seated in the pen.
1 pen 2 eraser pen button
3 right-click pen button 4 pen tip
5 pen tip remover tool
1
3
45
2
Setting Up and Using Your Tablet-PC 62
Calibrating the Pen
The pen can function at the default calibration or at a calibration set by you
or by another user. Dell recommends that you use the pen only while it is
calibrated to your personal calibration settings. Calibration optimizes pen
performance for each user.
To calibrate the pen:
1
Press the QuickSet tablet settings button, click
Control Tablet PC
Settings
→
Pen and Input Settings
.
2
At the bottom of the General tab, tap the
Calibrate
button.
3
Follow the instructions on the screen. The calibration markers are
displayed on the screen as plus signs (+). Tap the pen in the exact center
of each of the calibration markers.
NOTE: Be sure to calibrate the pen for use in both portrait and landscape display
orientations.
Using the Pen Like a Mouse
You can use the pen with your Tablet-PC the same way you use a mouse or
touch pad with a notebook computer. When you hold the pen near the
display, you see a small cursor. Moving the pen moves the cursor.
• To click, tap once.
• To double-click, tap the display twice.
• To open a menu, tap the menu name, and then the menu item.
• To drag an item, such as a file or icon, touch the pen to the item and drag
it to another destination on the display.
• There are two ways to right-click (to open a context-sensitive menu):
– Hold down the right-click pen button and then tap the display. When
you hold down the right-click pen button, the cursor is surrounded
with a circle.
– Touch the pen on the screen and hold it in place momentarily until
Windows draws a complete circle around the cursor. When the circle
is complete, lift the pen to display the context menu. If you move or
lift the pen before the circle is complete, the right-click action is
cancelled.
Setting Up and Using Your Tablet-PC 63
You can get help and practice using the pen as a mouse by clicking Start
→
All Programs
→
Tablet PC
→
Tablet PC Pen Training, and then clicking
Using a pen instead of a mouse.
Entering, Editing, and Erasing Text with the Pen
The Windows Vista handwriting recognition software makes it easy to enter
text into your applications with the pen. Some applications, such as Windows
Journal, allow you to write with the pen directly into the application window.
When an application does not directly support pen input, you can use the
Tablet PC Input Panel to enter text into your application. If you tap in an
editable area, the Tablet PC Input Panel icon appears. Tap the icon and the
Input Panel slides out from the edge of the display. You can also open the
Input Panel by tapping the Input Panel tab, which is docked at the edge of
the screen when the Input Panel is hidden.
The Input Panel allows you to enter and edit text in different modes. You can
write words just like you write on paper, you can write one character at a time,
or you can "type" by tapping the pen on the keys of an image of a keyboard. To
change the input mode, right-click the QuickSet icon in the system tray, click
Pen and Input Settings → Input Mode, and then select the desired input
mode.
Edit text in the Input Panel using gestures, such as lining through text you
want to delete, or tapping buttons.
Erase text in the Input Panel using the erase pen button, or by lining through
text you want to delete.
You can get help and practice writing and editing with Input Panel by clicking
Start
→
All Programs
→
Tab let PC
→
Tablet PC Pen Training, and
tapping each of the Input Panel topics.
Using Pen Flicks
Pen flicks enable you to use the pen to perform actions that normally require
a keyboard, such as pressing <Page Up> or using the directional arrow keys.
Pen flicks are quick, directional gestures; you quickly draw a short line in one
of eight directions. When a pen flick is recognized, the Tablet-PC performs
the action assigned.
Setting Up and Using Your Tablet-PC 64
The horizontal and vertical pen flicks are, by default, assigned to navigational
actions, corresponding to the keys <Left-Arrow>, <Right-Arrow>,
<Page Up>, and <Page Down>. The default assignments for the diagonal
pen flicks are editing actions: delete, copy, paste, and undo.
To customize pen flicks, click Start → Control Panel→ Pen and Input
Devices and click the Flicks tab. You can choose to turn pen flicks off, use the
navigational pen flicks only, or use the navigational and editing pen flicks. You
can also assign a new action to any of the eight pen flicks and adjust how
easily your pen flicks are recognized.
To learn more about pen flicks and practice using them, click Start → All
Programs→ Ta blet P C→ Pen Flicks Training.
Setting Pen Preferences
You can customize several pen behaviors in the operating system to help make
using your Tablet-PC more comfortable. For example, if your double-taps are
sometimes not recognized because you do not tap them fast enough, you can
set a slower speed so that you have more time to tap. You can customize the
visual feedback that displays for each type of tap, and you can customize the
actions assigned to pen flicks.
To access pen preferences and options, click Start
→
Control Panel
→
Mobile PC
→
Pen and Input Devices.
The preferences and options you set in the Tablet PC Settings and the Pen
and Input Devices window are specific to the pen and the Tablet-PC.
Pointing device preferences, such as pointer speed, click speed, and mouse
trails, are set in the Mouse Properties window. These preferences apply to any
pointing device in the system. To access pointing device preferences, select
Start
→
Control Panel
→
Hardware and Sound
→
Mouse.
Using Touch
Your Tablet-PC is able to distinguish between the pen and your fingertip
(touch mode). When you use touch mode, a translucent image of a computer
mouse, called the touch pointer, floats beneath your finger. The touch pointer
has left and right mouse buttons that you can tap with your finger. You use
the area beneath the buttons to drag the touch pointer.
Your Tablet-PC ships with a digitizer utility which you can use to set one of
four modes for using touch:
Setting Up and Using Your Tablet-PC 65
• Pen only — Touch mode is disabled.
• Touch only — Pen input is disabled.
• Auto mode — If the pen is close to the display, pen mode is active. If the
pen is not within range, double-tap the display with your finger to enter
touch mode. Touch mode remains active until the pen is in range again.
• Dual mode — Microsoft Vista switches automatically between the pen
and touch modes, based on its internal algorithms.
To access the digitizer utility and set the input mode, right-click in the
taskbar, select Properties, and then the Digitizer Options tab. Click the radio
button for the input mode you want to set, and click Apply.
To learn more about touch mode and practice using it, click Start
→
All
Programs
→
Tab let PC
→
Tablet PC Touch Training.
Using QuickSet
NOTICE: If you uninstall QuickSet from your Tablet-PC you will also delete the
tablet button drivers. To reinstall QuickSet and the tablet button drivers, go to
support.dell.com.
You can access Dell QuickSet from the QuickSet icon in the taskbar or
through the Windows Mobility Center.
Depending on what you want to do, you can start QuickSet by either clicking,
double-clicking, or right-clicking the QuickSet icon in the Windows taskbar.
The taskbar is located in the lower-right corner of your screen.
Clicking the QuickSet Icon
NOTE: The following features may not be available on certain computers.
Click the QuickSet icon to:
• Control
internal network card
activity.
• Manage hot key pop-ups:
• Enable or disable the appearance of the
Brightness Meter
on your
screen.
• Enable or disable the appearance of the
Volume Meter
on your
screen.
• Turn
the Wireless Activity
Indicator on or off.
Setting Up and Using Your Tablet-PC 66
• Enable or disable hardware buttons on tablet PCs.
Double-Clicking the QuickSet Icon
Double-click the QuickSet icon to launch QuickSet and access the QuickSet
launch panel. The main menu provides you with links to QuickSet features
that help you
configure settings for
:
• Network connectivity
• Display settings
• System settings
Right-Clicking the QuickSet Icon
Right-click the QuickSet icon to:
• Select
Open
to launch QuickSet.
• View the Dell QuickSet Help file.
• View the version and copyright date of the QuickSet application program
installed on your computer.
• Control Tablet-PC settings.
Windows Mobility Center
The Windows Mobility Center contains a set of tiles through which you can
configure settings on your computer. There are additional tiles that have been
customized by Dell.
You can access the Windows Mobility Center using any of the following
methods:
• Double-click the QuickSet icon in the taskbar and click
Mobility Center
.
•Click the
Start
button and point to the
Mobility Center
.
•Click
Start
→
All Programs
→
Accessories
, and point to
Mobility Center
.
• Right-click the battery icon in the taskbar, and point to
Mobility Center
.
• Double-click the
Mobility Center
icon in the
Control Panel
.
Setting Up and Using Your Tablet-PC 67
You can access the QuickSet categories through the Mobility Center. Click
one of the tiles, such as Networking, Display Settings, or System
Configuration, in the Customized by Dell, Inc. section, and the QuickSet
application launches with the corresponding category open.
Using a Battery
Battery Performance
NOTE: For information about the Dell warranty for your Tablet-PC, see the Product
Information Guide or separate paper warranty document that shipped with your
Tablet-PC.
For optimal Tablet-PC performance and to help preserve BIOS settings,
operate your Dell™ Tablet-PC with the main battery installed at all times.
One battery is supplied as standard equipment in the battery bay.
NOTE: Because the battery may not be fully charged, use the AC adapter to
connect your new Tablet-PC to an electrical outlet the first time you use the Tablet-
PC. For best results, operate the Tablet-PC with the AC adapter until the battery is
fully charged. To view battery charge status, check the Power Meter in Power
Options (see "Accessing Power Options Properties" on page 72).
Battery operating time varies depending on operating conditions. You can use

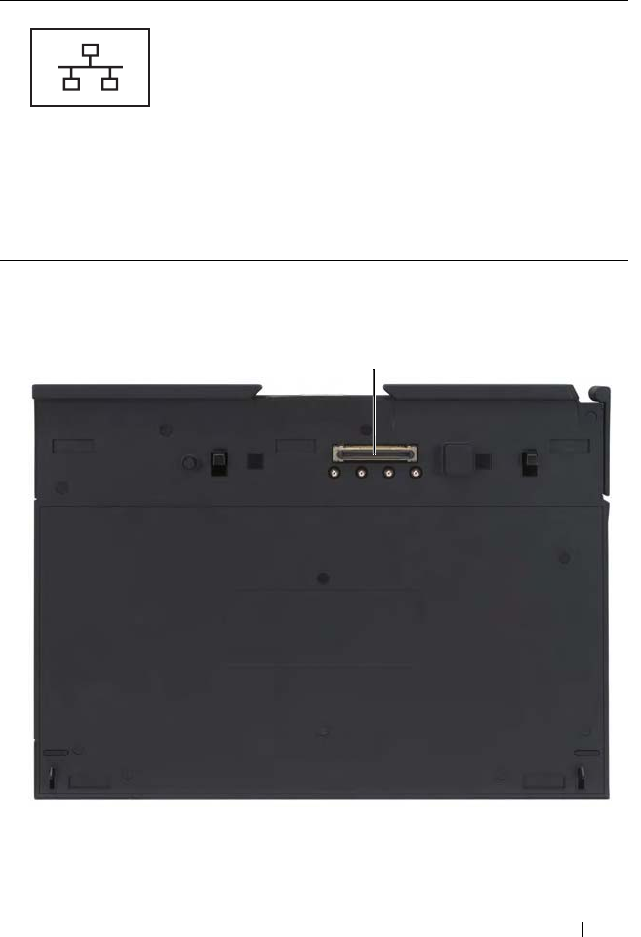

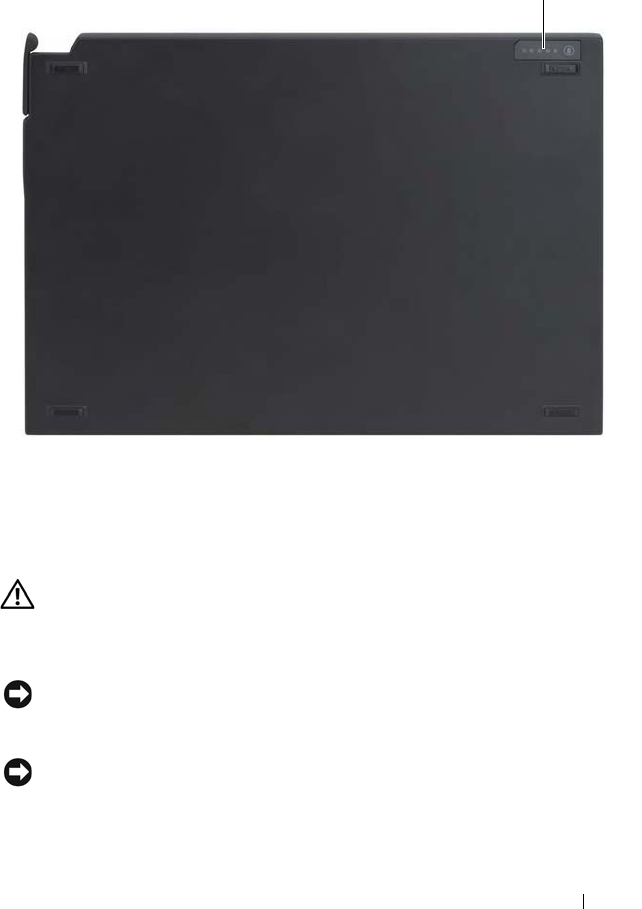

an optional battery slice (see "Battery Slice (Optional)" on page 199) to
significantly increase operating time.
NOTE: Battery operating time (the time the battery can hold a charge) decreases
over time. Depending on how often the battery is used and the conditions under
which it is used, you may need to purchase a new battery during the life of your
Tablet-PC.
NOTE: It is recommended that you connect your Tablet-PC to an electrical outlet
when writing to a CD or DVD.
Operating time is significantly reduced when you perform operations
including, but not limited to, the following:
• Using optical drives.
• Using wireless communications devices, ExpressCards, media memory
cards, or USB devices.
• Using high-brightness display settings, 3D screen savers, or other power-
intensive programs such as complex 3D graphics applications.
Setting Up and Using Your Tablet-PC 68
• Running the Tablet-PC in maximum performance mode. See "Configuring
Power Management Settings" on page 72 for information about accessing
Windows Power Options Properties or Dell QuickSet, which you can use
to configure power management settings.
You can check the battery charge before you insert the battery into the Tablet-
PC. You can also set power management options to alert you when the battery
charge is low.
CAUTION: Using an incompatible battery may increase the risk of fire or
explosion. Replace the battery only with a compatible battery purchased from
Dell. The battery is designed to work with your Dell Tablet-PC. Do not use a battery
from other Tablet-PCs with your Tablet-PC.
CAUTION: Do not dispose of batteries with household waste. When your battery
no longer holds a charge, call your local waste disposal or environmental agency
for advice on disposing of a lithium-ion battery. See "Battery Disposal" in the
Product Information Guide.
CAUTION: Misuse of the battery may increase the risk of fire or chemical burn.
Do not puncture, incinerate, disassemble, or expose the battery to temperatures
above 65°C (149°F). Keep the battery away from children. Handle damaged or
leaking batteries with extreme care. Damaged batteries may leak and cause
personal injury or equipment damage.
Checking the Battery Charge
The Dell QuickSet Battery Meter, the Microsoft Windows Power Meter
window and icon, the battery charge gauge and health gauge, and the low-
battery warning provide information on the battery charge.
Dell™ QuickSet Battery Meter
If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet
Battery Meter. The Battery Meter displays status, battery health, charge level,
and charge completion time for the battery in your Tablet-PC.
For more information about QuickSet, right-click the QuickSet icon in the
taskbar, and click Help.
Setting Up and Using Your Tablet-PC 69
Microsoft® Windows® Vista™ Power Meter
The Windows Vista Power Meter indicates the remaining battery charge. To
check the Power Meter, move your cursor over the Power icon in the
Notification area to display the Power icon flyout.
If the computer is connected to an electrical outlet, the Power icon flyout
displays the (plugged in charging) message.
Charge Gauge
By either pressing once or pressing and holding the status button on the
charge gauge on the battery, you can check:
• Battery charge (check by pressing and
releasing
the status button)
• Battery health (check by pressing and
holding
the status button)
The battery operating time is largely determined by the number of times it is
charged. After hundreds of charge and discharge cycles, batteries lose some
charge capacity—or battery health. That is, a battery can show a status of
"charged" but maintain a reduced charge capacity (health).
Check the Battery Charge
To check the battery charge, press and release the status button on the battery
charge gauge to illuminate the charge-level lights. Each light represents
approximately 20 percent of the total battery charge. For example, if the
battery has 80 percent of its charge remaining, four of the lights are on. If no
lights appear, the battery has no charge.
Check the Battery Health
NOTE: You can check battery health in one of two ways: by using the charge gauge
on the battery as described below and by using the Battery Meter in Dell QuickSet.
For information about QuickSet, right-click the icon in the taskbar, and click Help.
To check the battery health using the charge gauge, press and hold the status
button on the battery charge gauge for at least 3 seconds. If no lights appear,
the battery is in good condition, and more than 80 percent of its original
charge capacity remains. Each light represents incremental degradation. If
five lights appear, less than 60 percent of the charge capacity remains, and you
should consider replacing the battery.
Setting Up and Using Your Tablet-PC 70
Low-Battery Warning
NOTICE: To avoid losing or corrupting data, save your work immediately after a
low-battery warning. Then connect the Tablet-PC to an electrical outlet, or dock the
Tablet-PC onto an optional battery slice. If the battery runs completely out of power,
hibernate mode begins automatically.
A pop-up window warns you when the battery charge is approximately 90
percent depleted. If both the main battery and the battery slice are installed,
the low-battery warning means that the combined charge of both batteries is
approximately 90 percent depleted. The Tablet-PC enters hibernate mode
when the battery charge is at a critically low level.
You can change the settings for the battery alarms in QuickSet or the Power
Options Properties window. See "Configuring Power Management Settings"
on page 72 for information about accessing QuickSet or the Power Options
Properties window.
Conserving Battery Power
Perform the following actions to conserve battery power:
• Connect the Tablet-PC to an electrical outlet when possible because
battery life is largely determined by the number of times the battery is
used and recharged.
• Place the Tablet-PC in sleep mode or hibernate mode when you leave the
Tablet-PC unattended for long periods of time. See "Power Management
Modes" on page 71.
• Use the Power Management Wizard or the
Power Options Properties
window to select options to optimize your computer’s power usage. These
options can also be set to change when you press the power button, close
the display, or press <Fn><Esc>.
NOTE: See "Configuring Power Management Settings" on page 72 for information
on conserving battery power.
Setting Up and Using Your Tablet-PC 71
Power Management Modes
Sleep Mode
Sleep mode conserves power by turning off the display and the hard drive
after a predetermined period of inactivity (a time-out). When the Tablet-PC
exits sleep mode, it returns to the same operating state it was in before
entering sleep mode.
NOTICE: If your Tablet-PC loses AC and battery power while in sleep mode, it may
lose data.
To enter sleep mode in Windows Vista, click the Windows Vista Start button,
, and move your mouse over the right triangle beside the lock option to
open the Power Options Properties window, and then click Sleep.
Depending on how you set the power management options in the Power
Options Properties window or the QuickSet Power Management Wizard, you
may also use one of the following methods:
• Press the power button
• Close the display
• Press <Fn><Esc>
To exit sleep mode, press the power button or open the display, depending on
how you set the power management options. You cannot make the Tablet-PC
exit sleep mode by pressing a key or touching the touch pad or track stick.
Hibernate Mode
Hibernate mode conserves power by copying system data to a reserved area on
the hard drive and then completely turning off the Tablet-PC. When the
Tablet-PC exits hibernate mode, it returns to the same operating state it was
in before entering hibernate mode.
NOTICE: You cannot remove devices or undock your Tablet-PC while your Tablet-
PC is in hibernate mode.
Your Tablet-PC enters hibernate mode if the battery charge level becomes
critically low.
To manually enter hibernate mode in Windows Vista, click the Windows
Vista Start button , and move your mouse over the right triangle beside
the Lock icon to open the Power Options Properties window, and then click
Hibernate.
Setting Up and Using Your Tablet-PC 72
NOTE: If your Tablet-PC has Hybrid Sleep enabled, then Hybrid will not be
displayed.
Depending on how you set the power management options in the Power
Options Properties window or the QuickSet Power Management Wizard, you
may also use one of the following methods to enter hibernate mode:
• Press the power button
• Close the display
• Press <Fn><Esc>
NOTE: Some ExpressCards may not operate correctly after the Tablet-PC exits
hibernate mode. Remove and reinsert the card (see "Removing an ExpressCard" on
page 84), or simply restart (reboot) your Tablet-PC.
To exit hibernate mode, press the power button. The Tablet-PC may take a
short time to exit hibernate mode. You cannot make the Tablet-PC exit
hibernate mode by pressing a key or touching the touch pad or track stick. For
more information on hibernate mode, see the documentation that came with
your operating system.
Configuring Power Management Settings
You can use the QuickSet Power Management Wizard or Windows Power
Options Properties to configure the power management settings on your
Tablet-PC. For more information about QuickSet, right-click the QuickSet
icon in the taskbar and click Help.
Accessing Power Options Properties
• Click the Windows Vista Start button , then click the Windows
Power
icon
in the Notification area to display the
Power
icon flyout window.
• Select one of the following from the
Select a Power Plan
section.
• Dell Recommended
• Power Saver
• High Performance
• Any custom power plan you have created.
• To access additional power options, click
More Power Options
at the
bottom of the flyout.
Setting Up and Using Your Tablet-PC 73
Charging the Main Battery
When you connect the Tablet-PC to an electrical outlet or install a battery
while the Tablet-PC is connected to an electrical outlet, the Tablet-PC checks
the battery charge and temperature. If necessary, the AC adapter then charges
the battery and maintains the battery charge.
NOTE: With Dell™ ExpressCharge™, when the Tablet-PC is turned off, the AC
adapter charges a completely discharged battery to 80 percent in about 1 hour and
to 100 percent in approximately 2 hours. Charge time is longer with the Tablet-PC
turned on. You can leave the battery in the Tablet-PC for as long as you like. The
battery’s internal circuitry prevents the battery from overcharging.
If the battery is hot from being used in your Tablet-PC or being in a hot
environment, the battery may not charge when you connect the Tablet-PC to
an electrical outlet.
The battery is too hot to start charging if the light flashes alternately
green and orange. Disconnect the Tablet-PC from the electrical outlet and
allow the Tablet-PC and the battery to cool to room temperature. Then
connect the Tablet-PC to an electrical outlet to continue charging the battery.
For information about resolving problems with a battery, see "Power
Problems" on page 120.
Removing the Main Battery
CAUTION: Using an incompatible battery may increase the risk of fire or
explosion. Replace the battery only with a compatible battery purchased from
Dell. The battery is designed to work with your Dell™ Tablet-PC. Do not use a
battery from other Tablet-PCs or computers with your Tablet-PC.
CAUTION: Before performing these procedures, turn off the Tablet-PC, disconnect
the AC adapter from the electrical outlet and the Tablet-PC, disconnect any modem
from the wall connector and Tablet-PC, and remove any other external cables from
the Tablet-PC.
NOTICE: You must remove all external cables from the Tablet-PC to avoid possible
connector damage.
NOTICE: If you choose to replace the battery with the Tablet-PC in sleep mode, you
have up to 1 minute to complete the battery replacement before the Tablet-PC shuts
down and loses any unsaved data.
To remove the battery:
Setting Up and Using Your Tablet-PC 74
1
If the Tablet-PC is connected to a docking device (docked), undock it. See
the documentation that came with your docking device for instructions.
2
Ensure that the Tablet-PC is turned off or suspended in a power
management mode.
3
Slide the battery-bay latch releases on the bottom of the Tablet-PC, and
then remove the battery from the bay.
Installing the Main Battery
1
If the Tablet-PC is connected to a docking device such as the optional
battery slice or the optional media base (docked), undock it. See "Battery
Slice (Optional)" on page 199 and "Media Base (Optional)" on page 185
for instructions.
2
Turn the Tablet-PC upside-down.
3
Align the battery with the battery bay sides, then slide the battery into the
bay and ensure that the two latch releases engage.
1battery release latches (2) 2 battery
1 2
Setting Up and Using Your Tablet-PC 75
Storing a Battery
Remove the battery when you store your Tablet-PC for an extended period of
time. A battery discharges during prolonged storage. After a long storage
period, recharge the battery fully (see "Charging the Main Battery" on
page 73) before you use it.
Using a Keyboard
Numeric Keypad
The numeric keypad functions like the numeric keypad on an external
keyboard. Each key on the keypad has multiple functions. The keypad
numbers and symbols are marked in blue on the right of the keypad keys. To
type a number or symbol, hold down <Fn> and press the desired key.
• To enable the keypad, press <Num Lk>. The light indicates that the
keypad is active.
• To disable the keypad, press <Num Lk> again.
numeric keypad
9
Setting Up and Using Your Tablet-PC 76
Key Combinations
System Functions
Battery
Display Functions
Power Management
<Ctrl><Shift><Esc> Opens the Task Manager window.
<Fn><F3> Displays the Dell™ QuickSet Battery Meter.
<Fn><F8> Switches the video image to the next display
option. The options include the integrated display,
an external monitor, and both displays
simultaneously.
<Fn><F7> Scales between wide-screen and standard aspect
ratio video resolutions.
<Fn> and left-arrow key Activates the ambient light sensor, which controls
brightness of the display based on light level in the
current environment.
<Fn> and up-arrow key Increases brightness on the integrated display only
(not on an external monitor).
<Fn> and down-arrow key Decreases brightness on the integrated display
only (not on an external monitor).
<Fn><Esc> Activates a power management mode. You can
reprogram this keyboard shortcut to activate a
different power management mode using the
Advanced tab in the Power Options Properties
window.
<Fn><F1> Puts the Tablet-PC into hibernate mode. Dell
QuickSet is required (see "Using QuickSet" on
page 65).
Setting Up and Using Your Tablet-PC 77
Speaker Functions
Microsoft® Windows® Logo Key Functions
<Fn><Insert> Increases the volume of the integrated speakers
and external speakers, if attached.
<Fn><End> Decreases the volume of the integrated speakers
and external speakers, if attached.
<Fn><Delete> Enables and disables the integrated speakers and
external speakers, if attached.
Windows logo key and <TAB> Cycle through programs on the taskbar by using
Windows Flip 3-D (only if using the Aero™
interface).
CTRL+Windows logo key and
<TAB>
Use the arrow keys to cycle through programs on
the taskbar by using Windows Flip 3-D (only if
using the Aero™ interface).
Windows logo key and
<SPACEBAR>
Bring all gadgets to the front and select Windows
Sidebar (if using Windows Sidebar).
Windows logo key and <g> Cycles through Windows Sidebar gadgets (if using
Windows Sidebar).
Windows logo key and <u> Opens the Ease of Access Center.
Windows logo key and <x> Opens the Windows Mobility Center.
Windows logo key and any
number key
Opens the Quick Launch shortcut that is in the
position that corresponds to the number. For
example, use the Windows logo key and <1> to
launch the first shortcut in the Quick Launch
menu.
Windows logo key and <m> Minimizes all open windows.
Windows logo key and
<Shift><m>
Restores all minimized windows. This key
combination functions as a toggle to restore
minimized windows following the use of the
Windows logo key and <m> key combination.
Windows logo key and <e> Runs Windows Explorer.
Windows logo key and <r> Opens the Run dialog box.
Windows logo key and <f> Opens the Search Results dialog box.
Setting Up and Using Your Tablet-PC 78
To adjust keyboard operation, such as the character repeat rate, open the
Control Panel, click Hardware and Sound, and either click Keyboard or click
one of the two options under the Keyboard link. For information about the
Control Panel, see the Windows Help and Support Center. To access the
Help and Support Center, click Start → Help and Support.
Touch Pad
The touch pad detects the pressure and movement of your finger to allow you
to move the cursor on the display. Use the touch pad and touch pad buttons
as you would use a mouse.
Windows logo key and
<Ctrl><f>
Opens the Search Results-Computer dialog box (if
the Tablet-PC is connected to a network).
Windows logo key and
<Fn><F12>
Opens the System Properties dialog box.
1
2
Setting Up and Using Your Tablet-PC 79
• To move the cursor, lightly slide your finger over the touch pad.
• To select an object, lightly tap once on the surface of the touch pad or use
your thumb to press the left touch-pad button.
• To select and move (or drag) an object, position the cursor on the object
and tap twice on the touch pad. On the second tap, leave your finger on
the touch pad and move the selected object by sliding your finger over the
surface.
• To double-click an object, position the cursor on the object and tap twice
on the touch pad or use your thumb to press the left touch-pad button
twice.
You can also use the track stick to move the cursor. Press the track stick left,
right, up, or down to change the direction of the cursor on the display. Use the
track stick and track stick buttons as you would use a mouse.
Customizing the Touch Pad and Track Stick
You can use the Mouse Properties window to disable the touch pad and track
stick or adjust their settings.
1
Open the Control Panel, and then click
Mouse
. For information about the
Control Panel, see Windows Help and Support. To access Help and
Support, click
Start
→
Help and Support
.
2
In the
Mouse Properties
window:
•Click the
Device Select
tab to disable the touch pad and track stick.
•Click the
Touch Pad
tab to adjust touch pad and track stick settings.
3
Click
OK
to save the settings and close the window.
Changing the Track Stick Cap
You can replace your track stick cap if it wears down from prolonged use or if
you prefer a different color. You can purchase additional caps by visiting the
Dell website at dell.com.
1touch pad 2 touch pad buttons
Setting Up and Using Your Tablet-PC 80
1
Pull the cap off the track stick.
2
Align the new cap over the square track-stick post and gently press the cap
down onto the post.
NOTICE: The track stick can damage the display if the track stick cap is not
properly seated on the post.
3
Test the track stick to ensure that the cap is seated properly.
Using the Display
Your Tablet-PC has two display options available:
• LED backlit thin-and-light LCD (optimized for indoor viewing)
• Dual-bulb (CCFL) LCD (optimized for outdoor viewing)
Depending on which display option you selected, how you adjust the
brightness on your display will differ.
Setting Up and Using Your Tablet-PC 81
Adjusting Brightness on the LED Backlit Thin-and-Light LCD
When a Dell Tablet-PC equipped with the LED backlit thin-and-light LCD
display is running on battery power, you can conserve power by setting the
display brightness to the lowest comfortable setting by pressing <Fn> and
the up- or down-arrow key on the keyboard.
NOTE: Brightness key combinations only affect the display on your Tablet-PC, not
monitors or projectors that you attach to your Tablet-PC or docking device. If your
Tablet-PC is connected to an external monitor and you try to change the brightness
level, the Brightness Meter may appear, but the brightness level on the external
device does not change.
You can press the following keys to adjust display brightness:
• Press <Fn> and the up-arrow key to increase brightness on the integrated
display only (not on an external monitor).
• Press <Fn> and the down-arrow key to decrease brightness on the
integrated display only (not on an external monitor).
NOTE: If your operating system display default is set to a specific value, you may
have to reset your manual selections after using Sleep/Standby mode.
Adjusting Brightness on the Dual-bulb (CCFL) LCD
The Dual-bulb LCD includes an integrated ambient light sensor (see "Front
View" on page 27).
1ambient light sensor
1
Setting Up and Using Your Tablet-PC 82
The ambient light sensor is located on the front of the Tablet-PC display. The
sensor detects available environmental light and automatically increases or
decreases the display backlighting to compensate for low-light and high-light
environments.
You can enable or disable the ambient light sensor feature by pressing the
<Fn> and left-arrow key combination.
NOTE: Do not cover the ambient light sensor with any adhesive labels. If covered
up, the sensor—when enabled—automatically sets the display brightness to the
minimum level.
The ambient light sensor is disabled when your Tablet-PC is shipped to you.
If you enable the sensor and then use any of the display brightness key
combinations, the sensor is disabled and the display brightness is increased or
decreased accordingly.
Dell QuickSet allows you to enable or disable the ambient light sensor
feature. You can also adjust maximum and minimum brightness settings that
are activated when you enable the ambient light sensor feature. For more
information about QuickSet, right-click the QuickSet icon in the taskbar, and
click Help.
NOTE: Rebooting the Tablet-PC returns the ambient light sensor to the setting it
was before it was adjusted.
NOTE: The ambient light sensor adjusts the display backlighting on your Tablet-PC
display only. It does not control the brightness on any external monitors or
projectors.
Using Cards
ExpressCards
ExpressCards provide additional memory, wired and wireless
communications, multimedia, and security features. ExpressCards support
two form factors:
• ExpressCard/34 (34 mm wide)
• ExpressCard/54 (54 mm wide in an L-shape with a 34 mm connector)
The 34 mm card fits into both the 34 mm and 54 mm card slots. The 54 mm
card only fits into a 54 mm card slot.
Setting Up and Using Your Tablet-PC 83
NOTE: An ExpressCard is not a bootable device.
Installing an ExpressCard
You can install an ExpressCard while the Tablet-PC is running. The Tablet-
PC automatically detects the card.
ExpressCards are generally marked with a symbol (such as a triangle or an
arrow) or a label to indicate which end to insert into the slot. The cards are
keyed to prevent incorrect insertion. If card orientation is not clear, see the
documentation that came with the card.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
To install an ExpressCard:
1
Hold the card with the top side of the card facing up.
2
Slide the card into the slot until the card is completely seated in its
connector.
If you encounter too much resistance, do not force the card. Check the
card orientation and try again.
1 ExpressCard/34 2 ExpressCard/54
12
Setting Up and Using Your Tablet-PC 84
The Tablet-PC recognizes the ExpressCard and automatically loads the
appropriate device driver. If the configuration program tells you to load the
manufacturer's drivers, use the CD that came with the ExpressCard.
Removing an ExpressCard
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
Press the card into the slot to eject the card.
Smart Cards
NOTE: You can use smart cards with your Tablet-PC only if you have also
purchased the optional smart card reader that installs into the ExpressCard slot.
Setting Up and Using Your Tablet-PC 85
About Smart Cards
Smart cards are portable credit-card shaped devices with internal integrated
circuits. The top surface of the smart card usually contains an embedded
processor under the gold contact pad. The combination of the small size and
integrated circuits make smart cards valuable tools for security, data storage,
and special programs. Using smart cards can improve system security by
combining something a user has (the smart card) with something only the
user should know (a PIN) to provide more secure user-authentication than
passwords alone.
For more information about how to secure your Tablet-PC, see "Securing Your
Tablet-PC" on page 99.
Installing a Smart Card
You can install a smart card in the Tablet-PC while the Tablet-PC is running.
The Tablet-PC automatically detects the card.
To install a smart card:
NOTE: You can use smart cards with your Tablet-PC only if you have also
purchased the optional smart card reader that installs into the ExpressCard slot.
1
Hold the card so that the gold contact pad is facing upward and pointing
toward the smart card reader’s slot.
1gold contact pad 2smart card (top)
1
2
Setting Up and Using Your Tablet-PC 86
2
Slide the smart card into the smart card slot until the card is completely
seated in its connector. The smart card will protrude approximately 1/2
inch from the slot.
If you encounter too much resistance, do not force the card. Check the card
orientation and try again.
Secure Digital (SD) Cards
Secure Digital (SD) cards are storage media used in portable devices such as
digital cameras, handheld computers, PDAs, and GPS units.
Installing an SD Card
1
Hold the card so that the gold contact pad is facing upward and pointing
toward the SD card slot. The SD card slot is located above the
ExpressCard slot.
2
Slide the SD card into the SD card slot until the card is completely seated
in its connector. The SD card will protrude approximately 1/2 inch from
the slot.
If you encounter too much resistance, do not force the card. Check the card
orientation and try again.
Setting Up and Using Networks 87
Setting Up and Using Networks
Setting up a computer network provides connectivity between your Tablet-
PC and the Internet, another computer, or a network. For example, with a
network set up in a home or small office you can print to a shared printer,
access drives and files on another computer, browse other networks, or access
the Internet. You can set up a local area network (LAN) using a network or
broadband modem cable or set up a wireless LAN (WLAN).
The Microsoft Windows Vista™ operating system provides a wizard to help
guide you through the process of networking computers. For more
information about networking, see the Windows Help and Support Center
(see "Windows Help and Support" on page 19).
Connecting a Network or Broadband Modem
Before you connect your Tablet-PC to a network, the Tablet-PC must have a
network adapter installed and a network cable connected to it.
1
Connect the network cable to the network adapter connector on the back
of your Tablet-PC.
NOTE: Insert the cable connector until it clicks into place, and then gently
pull the cable to ensure that it is securely attached.
2
Connect the other end of the network cable to a network connection
device or a network wall connector.
NOTE: Do not use a network cable with a telephone wall connector.
Setting Up and Using Networks 88
Network Setup Wizard
1
Click
Start
,
,
and then click
Connect To
→
Set up a connection or
network
.
2
Select an option under
Choose a connection option
.
3
Click
Next
, and then follow the instructions in the wizard.
Wireless Local Area Network (WLAN)
A WLAN is a series of interconnected computers that communicate with
each other over the air waves rather than through a network cable connected
to each computer. In a WLAN, a radio communications device called an
access point or wireless router connects network computers and provides
Internet, or network, access. The access point or wireless router and the
wireless network card in the computer or Tablet-PC communicate by
broadcasting data from their antennas over the air waves.
What You Need to Establish a WLAN Connection
Before you can set up a WLAN, you need:
• High-speed (broadband) Internet access (such as cable or DSL)
• A broadband modem that is connected and working
• A wireless router or access point
Setting Up and Using Networks 89
• A wireless network adapter for each computer or Tablet-PC that you want
to connect to your WLAN
• A network cable with a network (RJ-45) connector
Checking Your Wireless Network Adapter
Depending on what you selected when you purchased your Tablet-PC, the
Tablet-PC has a variety of configurations. To confirm that your Tablet-PC has
a wireless network card and to determine the type of card, use one of the
following:
• The Windows Vista™ Start button and the
Connect To
option
• The order confirmation for your Tablet-PC
Start Button and Connect To Option
Click Start → Connect To→ View network computers and devices.
If Wireless Network Connection does not appear, you may not have a wireless
network adapter.
If Wireless Network Connection appears, you have a wireless network adapter.
To view detailed information about the wireless network adapter:
1
Right-click
Wireless Network Connection
.
2
Click
Properties
.
The
Wireless Network Connection Properties
window appears. The
wireless network adapter’s name and model number are listed on the
General
tab.
The Order Confirmation for Your Tablet-PC
The order confirmation that you received when you ordered your Tablet-PC
lists the hardware and software that shipped with your Tablet-PC.
Setting Up a New WLAN Using a Wireless Router and a Broadband
Modem
1
Contact your Internet service provider (ISP) to obtain specific information
about the connection requirements for your broadband modem.
Setting Up and Using Networks 90
2
Ensure that you have wired Internet access through your broadband
modem before you attempt to set up a wireless Internet connection (see
"Connecting a Network or Broadband Modem" on page 87).
3
Install any software required for your wireless router. Your wireless router
may have been shipped with an installation media. Installation media
usually contains installation and troubleshooting information. Install the
required software according to the instructions provided by the router
manufacturer.
4
Shut down your Tablet-PC and any other wireless-enabled computers in
the vicinity through the Windows Vista™ Start menu.
5
Disconnect your broadband modem power cable from the electrical outlet.
6
Disconnect the network cable from the Tablet-PC and the broadband
modem.
7
Disconnect the AC adapter cable from your wireless router to ensure that
there is no power connected to the router.
NOTE: Wait for a minimum of 5 minutes after disconnecting your broadband
modem before you continue with the network setup.
8
Insert a network cable into the network (RJ-45) connector on the
unpowered broadband modem.
9
Connect the other end of the network cable into the Internet network (RJ-
45) connector on the unpowered wireless router.
10
Ensure that no network or USB cables, other than the network cable
connecting the broadband modem and the wireless router, are connected
to the broadband modem.
NOTE: Restart your wireless equipment in the order described below to prevent a
potential connection failure.
11
Tu r n on
only
your broadband modem and wait for at least 2 minutes for
the broadband modem to stabilize. After 2 minutes, proceed to step 12.
12
Turn on your wireless router and wait for at least 2 minutes for the wireless
router to stabilize. After 2 minutes, proceed to the step 13.
13
Start your Tablet-PC and wait until the boot process completes.
14
See the documentation that came with your wireless router to do the
following in order to set up the wireless router:
Setting Up and Using Networks 91
• Establish communication between your Tablet-PC and your wireless
router.
• Configure your wireless router to communicate with your broadband
router.
• Find out your wireless router’s broadcast name. The technical term for
the name of your router’s broadcast name is Service Set Identifier
(SSID) or network name.
15
If necessary, configure your wireless network card to connect to the wireless
network (see "Connecting to a WLAN" on page 91).
Connecting to a WLAN
NOTE: Before you connect to a WLAN, ensure that you have followed the
instructions in "Wireless Local Area Network (WLAN)" on page 88.
NOTE: The following networking instructions do not apply to internal cards with
Bluetooth® wireless technology or cellular products.
This section provides general procedures for connecting to a network using
wireless technology. Specific network names and configuration details vary.
See "Wireless Local Area Network (WLAN)" on page 88 for more information
about how to prepare for connecting your Tablet-PC to a WLAN.
Your wireless network card requires specific software and drivers for
connecting to a network. The software is already installed.
NOTE: If the software is removed or corrupted, follow the instructions in the user
documentation for your wireless network card. Verify the type of wireless network
card installed in your Tablet-PC and then search for that name on the Dell™ Support
website at support.dell.com. For information on the type of wireless network card
that is installed in your Tablet-PC, see "Checking Your Wireless Network Adapter"
on page 89.
Determining the Wireless Network Device Manager
Depending on the software installed on your Tablet-PC, different wireless
configuration utilities may manage your network devices:
• Your wireless network card’s client utility
• The Windows Vista operating system
To determine which wireless configuration utility is managing your wireless
network card in Windows Vista:
Setting Up and Using Networks 92
1
Click
→
Connect To→ Manage wireless networks.
2
Double-click a profile to open the wireless network properties screen.
For specific information about the wireless configuration utility installed on
your Tablet-PC, see your wireless network documentation in the Windows
Help and Support Center (see "Windows Help and Support" on page 19).
Completing the Connection to the WLAN
When you turn on your Tablet-PC and a network (for which your Tablet-PC
is not configured) is detected, a pop-up appears in the lower-right corner of
the Windows desktop.
Follow any instructions that appear on your screen.
Once you have configured your Tablet-PC for the wireless network that you
selected, another pop-up notifies you that your Tablet-PC is connected to
that network.
Thereafter, whenever you log on to your Tablet-PC within the range of the
wireless network that you selected, the same pop-up notifies you of the
wireless network connection.
NOTE: If you select a secure network, you must enter a WEP or WPA key when
prompted. Network security settings are unique to your network. Dell cannot
provide this information.
NOTE: Your Tablet-PC can take up to 1 minute to connect to the network.
Monitoring the Status of the Wireless Network Card Through Dell QuickSet
The wireless activity indicator provides you with an easy way to monitor the
status of your Tablet-PC’s wireless devices. To turn the wireless activity
indicator on or off, click the QuickSet icon in the taskbar and select Hotkey
Popups. If Wireless Activity Indicator Off is not checked, the indicator is on.
If Wireless Activity Indicator Off is checked, the indicator is off.
The wireless activity indicator displays whether your Tablet-PC’s integrated
wireless devices are enabled or disabled. When you turn the wireless
networking function on or off, the wireless activity indicator changes to
display the status.
For more information about the Dell QuickSet wireless activity indicator,
right-click the QuickSet icon in the taskbar and select Help.
Setting Up and Using Networks 93
Mobile Broadband/Wireless Wide Area Network
(WWAN)
A Mobile Broadband network, also known as a Wireless Wide Area Network
(WWAN), is a high-speed digital cellular network that provides Internet
access over a much wider geographical area than a WLAN, which typically
covers only from 100 to 1000 feet. Your Tablet-PC can maintain Mobile
Broadband network access as long as the Tablet-PC is within a cellular-data
coverage zone. Contact your service provider for coverage of a high-speed
digital cellular network.
NOTE: Even if you are able to make a call from your cellular phone in a specific
geographical location, that location may not necessarily be within a cellular-data
coverage zone.
What You Need to Establish a Mobile Broadband Network Connection
NOTE: Depending on your Tablet-PC, you can use either a Mobile Broadband
ExpressCard or mini card, but not both, to establish a Mobile Broadband network
connection.
To set up a Mobile Broadband network connection, you need:
• A Mobile Broadband ExpressCard or mini card (depending on your Tablet-
PC’s configuration)
NOTE: For instructions on using ExpressCards, see "ExpressCards" on
page 82
• An activated Mobile Broadband ExpressCard or activated Subscriber
Identity Module (SIM) for your service provider
• An extended whip antenna.
Setting Up and Using Networks 94
• The Dell Mobile Broadband Card Utility (already installed on your Tablet-
PC if you purchased the card when you purchased your Tablet-PC, or on
the CD that accompanied your card if purchased separately from your
Tablet-PC)
If the utility is corrupted or deleted from your Tablet-PC, see the Dell
Mobile Broadband Card Utility user’s guide for instructions. The user’s
guide is available through the Windows Help and Support Center (see
"Windows Help and Support" on page 19
) or on the CD that
accompanied your card if you purchased it separately from your Tablet-PC.
Checking Your Dell Mobile Broadband Card
Depending on what you selected when you purchased your Tablet-PC, the
Tablet-PC has a variety of configurations. To determine the type of Mobile
Broadband card installed on your Tablet-PC, see one of the following:
• Your order confirmation
• Microsoft Windows Help and Support
To check your Mobile Broadband card in Windows Help and Support:
1
Click Windows Vista™ Start button
→
Help and Support
→
Use Tools
to view your computer information and diagnose problems
.
2
Under
Tools
, click
My Computer Information
→
Find information about
the hardware installed on this computer.
Setting Up and Using Networks 95
On the My Computer Information - Hardware screen, you can view the type
of Mobile Broadband card installed in your Tablet-PC as well as other
hardware components.
NOTE: The Mobile Broadband card is listed under Modems.
Connecting to a Mobile Broadband Network
NOTE: These instructions only apply to Mobile Broadband ExpressCards or Mini-
Cards. They do not apply to internal cards with wireless technology.
NOTE: Before you connect to the Internet, you must activate Mobile Broadband
service through your cellular service provider. For instructions and for additional
information about using the Dell Mobile Broadband Card Utility, see the user's guide
available through the Windows Help and Support Center (see "Windows Help and
Support" on page 19). The user's guide is also available on the Dell Support website
at support.dell.com and on the CD included with your Mobile Broadband card, if you
purchased the card separately from your Tablet-PC.
Use the Dell Mobile Broadband Card Utility to establish and manage a
Mobile Broadband network connection to the Internet:
1
Click the
Dell Mobile Broadband Card Utility icon
on the Windows
desktop, to run the utility.
2
Click
Connect
.
NOTE: The Connect button changes to the Disconnect button.
3
Extend the external whip antenna and adjust orientation to achieve
optimal signal strength.
4
Follow the instructions on the screen to manage the network connection
with the utility.
Or
1
Click Windows Vista™ Start button
→
All Programs
→
Dell Wireless
.
2
Click
Dell Wireless Broadband
and follow the instructions on the screen.
3
Extend the external whip antenna and adjust orientation to achieve
optimal signal strength.
Setting Up and Using Networks 96
Enabling/Disabling the Dell Mobile Broadband Card
NOTE: If you are unable to connect to a Mobile Broadband network, ensure that
you have all the components for establishing a Mobile Broadband connection (see
"What You Need to Establish a Mobile Broadband Network Connection" on page 93),
and then verify that your Mobile Broadband card is enabled by verifying the setting
of the wireless switch.
You can turn your Tablet-PC’s wireless devices on and off with the wireless
switch on the left side of the Tablet-PC (see "Left Side View" on page 32).
If the switch is in the "on" position, move the switch to the "off" position to
disable the switch and the Mobile Broadband card. If the switch is in the "off"
position, move the switch to the "on" position to enable the switch and the
Dell Mobile Broadband card. For information about the wireless switch
positions, see "Dell Wi-Fi Catcher™ Network Locator" on page 96.
To monitor the status of your wireless device, see "Monitoring the Status of
the Wireless Network Card Through Dell QuickSet" on page 92.
Managing Your Network Settings Through the Dell QuickSet Location
Profiler
The Dell QuickSet Location Profiler helps you manage network settings that
correspond to your Tablet-PC’s physical location. It includes two categories of
profile settings:
• Location Profile Settings
• General Mobility Settings
You can use Location Profile Settings to create profiles for accessing the
Internet with your Tablet-PC in your office, home, or other public places with
Internet services. General Mobility Settings allows you to change the way
network connections are handled. The profiles consist of different network
settings and equipment that you need when using your Tablet-PC in different
locations.
For more information about Dell QuickSet, right-click the QuickSet icon in
the taskbar and select Help.
Dell Wi-Fi Catcher™ Network Locator
The wireless switch on your Dell Tablet-PC uses the Dell Wi-Fi Catcher
Network Locator to scan specifically for WiFi WLAN in your vicinity.
Setting Up and Using Networks 97
To scan for WiFi WLAN, slide and hold the switch in the "momentary"
position for a few seconds. The Wi-Fi Catcher Network Locator functions
regardless of whether your Tablet-PC is turned on or off, in hibernate mode,
or in sleep mode, as long as the switch is configured through Dell QuickSet or
the BIOS (system setup program) to control WiFi network connections.
Because the Wi-Fi Catcher Network Locator is disabled and not configured
for use when your Tablet-PC is shipped to you, you must first use Dell
QuickSet to enable and configure the switch to control WiFi network
connections.
For more information on the Wi-Fi Catcher Network Locator and to enable
the feature through Dell QuickSet, right-click the QuickSet icon in the
taskbar and select Help.
Microsoft® Windows® Firewall
Windows Firewall provides basic protection from unauthorized access to your
Tablet-PC while it is connected to the Internet. Windows Firewall is
automatically enabled when you run the Network Setup Wizard.
When Windows Firewall is enabled for a network connection, the firewall
icon appears with a red background in the Network Connections section of
the Control Panel.
NOTE: Enabling Windows Firewall does not reduce the need for virus-checking
software.
For more information, click
Windows Vista™ Start button
→
Control
Panel
→
Security
→
Windows Firewall
, or see "Windows Help and Support" on
page 19.
Setting Up and Using Networks 98
Securing Your Tablet-PC 99
Securing Your Tablet-PC
Security Cable Lock
NOTICE: Before you buy an antitheft device, ensure that it will work with the
security cable slot on your Tablet-PC.
NOTE: Your Tablet-PC does not ship with a security cable lock.
A security cable lock is a commercially available antitheft device. To use the
lock, attach it to the security cable slot on your Tablet-PC. For more
information, see the instructions included with the device.
Smart Cards and Biometric Readers
NOTE: For information on how to secure your Tablet-PC while traveling, see
"Traveling With Your Tablet-PC" on page 207.
Securing Your Tablet-PC 100
Smart cards are portable credit-card shaped devices with internal integrated
circuits. Using smart cards can improve system security by combining
something a user has (the smart card) with something only the user should
know (a PIN) to provide more secure user-authentication than passwords
alone. See "Smart Cards" on page 84 for more information.
A biometric reader is a strip sensor located on your Tablet-PC’s display. When
you slide your finger over the reader, it uses your unique fingerprint to
authenticate your user identity and help keep your Tablet-PC secure.
Passwords
About Passwords
NOTE: Passwords are disabled when you receive your Tablet-PC.
A primary (or system) password, an administrator password, and a hard drive
password all prevent unauthorized access to your Tablet-PC in different ways.
The following table identifies types and features of passwords available on
your Tablet-PC.
NOTE: Some hard drives do not support hard drive passwords.
Type of Password Features
Primary (or system)
• Protects the Tablet-PC from unauthorized
access
Administrator
• Gives system administrators or service
technicians access to Tablet-PCs for repair or
reconfiguration
• Allows you to restrict access to system setup in
the same way a primary password restricts access
to the Tablet-PC
• Can be used instead of the primary password
Hard drive
• Helps protect the data on your hard drive or
external hard drive (if one is being used) from
unauthorized access
Securing Your Tablet-PC 101
NOTICE: Passwords provide a high level of security for data in your Tablet-PC or
hard drive. However, they are not foolproof. If you require more security, obtain and
use additional forms of protection, such as smart cards, data encryption programs,
or PC Cards with encryption features.
When using passwords, observe the following guidelines:
• Choose passwords that you can remember, but not ones that are easy to
guess. For example, do not use the names of family members or pets for
passwords.
• It is recommended that you do not write down passwords. If you do write it
down, however, ensure that the password is stored in a secure place.
• Do not share passwords with other people.
• Ensure that people are not watching you when you type your password.
If you forget any of your passwords, contact Dell (see "Contacting Dell" on
page 26). For your protection, Dell technical support staff will ask you for
proof of your identity to ensure that only an authorized person can use the
Tabl et-P C.
Using a Primary (or System) Password
The primary password allows you to protect the Tablet-PC from unauthorized
access.
When you first start your Tablet-PC, you must assign a primary password at
the prompt.
If you do not enter a password within 2 minutes, the Tablet-PC returns to its
previous operating state.
NOTICE: If you disable the administrator password, the primary password is also
disabled.
To add or change passwords, access User Accounts from the Control Panel.
If you have assigned an administrator password, you can use it instead of the
primary password. The Tablet-PC does not specifically prompt you for the
administrator password.
Securing Your Tablet-PC 102
Using an Administrator Password
The administrator password is designed to give system administrators or
service technicians access to computers for repair or reconfiguration. The
administrators or technicians can assign identical administrator passwords to
groups of computers, allowing you to assign a unique primary password.
To set or change administrator passwords, access User Accounts from the
Control Panel.
When you set an administrator password, the Configure Setup option
becomes available in system setup. The Configure Setup option allows you to
restrict access to system setup in the same way that a primary password
restricts access to the Tablet-PC.
The administrator password can be used instead of the primary password.
Whenever you are prompted to enter the primary password, you can enter the
administrator password.
NOTICE: If you disable the administrator password, the primary password is also
disabled.
NOTE: The administrator password provides access to the Tablet-PC, but it does
not provide access to the hard drive when a hard drive password is assigned.
If you forget the primary password and do not have an administrator password
assigned, or if you have both a primary and an administrator password
assigned but forget them both, contact your system administrator or contact
Dell (see "Contacting Dell" on page 26).
Using a Hard Drive Password
The hard drive password helps protect the data on your hard drive from
unauthorized access. You can also assign a password for an external hard drive
(if one is being used) that can be the same as or different from the password
for the primary hard drive.
To assign or change a hard drive password, enter system setup (see "Using the
System Setup Program" on page 127).
After assigning a hard drive password, you must enter it each time you turn on
the Tablet-PC and each time you restore the Tablet-PC to normal operation
from sleep mode.
If the hard drive password is enabled, you must enter it each time you turn on
the Tablet-PC: A message appears asking for the hard drive password.
Securing Your Tablet-PC 103
To continue, enter your password (with no more than eight characters) and
press <Enter>.
If you do not enter a password within 2 minutes, the Tablet-PC returns to its
previous operating state.
If you enter the wrong password, a message tells you that the password is
invalid. Press <Enter> to try again.
If you do not enter the correct password in three attempts, the Tablet-PC tries
to start from another bootable device if the Boot First Device option in
system setup is set to allow start-up from another device. If the Boot First
Device option is not set to allow the Tablet-PC to start from another device,
the Tablet-PC returns to the operating state it was in when you turned it on.
If the hard drive password, the external hard-drive password, and the primary
password are the same, the Tablet-PC prompts you only for the primary
password. If the hard drive password is different from the primary password,
the Tablet-PC prompts you for both. Two different passwords provide greater
security.
NOTE: The administrator password provides access to the Tablet-PC, but it does
not provide access to the hard drive when a hard drive password is assigned.
Trusted Platform Module (TPM)
NOTE: The TPM feature supports encryption only if the operating system supports
TPM. For more information, see the TPM software documentation and the help files
that came with the software.
TPM is a hardware-based security feature that can be used to create and
manage computer-generated encryption keys. When combined with security
software, the TPM enhances existing network and computer security by
enabling features such as file protection capabilities and protected e-mail.
The TPM feature is enabled through a system setup option.
NOTICE: To secure your TPM data and encryption keys, follow the backup
procedures documented in the Broadcom Secure Foundation Getting Started
Guide. In the event of these backups being incomplete, lost, or damaged, Dell will
be unable to assist in the recovery of encrypted data.
Enabling the TPM Feature
1
Enable the TPM software:
Securing Your Tablet-PC 104
a
Restart the Tablet-PC and press <F2> during the Power On Self Test
to enter the system setup program.
b
Select
Security
→
TPM Security
and press <Enter>.
c
Under
TPM Security
, select
On
.
d
Press <Esc> to exit the setup program.
e
If prompted, click
Save/Exit
.
2
Activate the TPM setup program:
a
Restart the Tablet-PC and press <F2> during the Power On Self Test
to enter the system setup program.
b
Select
Security
→
TPM Activation
and press <Enter>.
c
Under
TPM Activation
, select
Activate
and press <Enter>.
NOTE: You only need to activate the program once.
d
Once the process is complete, the Tablet-PC either restarts
automatically or prompts you to restart your Tablet-PC.
Security Management Software
The security management software is designed to use four different features
to help you secure your Tablet-PC:
• Log-in management
• Pre-boot authentication (using a biometric reader, smart card, or password)
• Encryption
• Private information management
Activating the Security Management Software
NOTE: You must first enable the TPM in order for the security management
software to have full functionality.
1
Enable the TPM feature (see "Enabling the TPM Feature" on page 103).
2
Load the security management software:
a
Turn on (or restart) your Tablet-PC.
Securing Your Tablet-PC 105
b
When the DELL™ logo appears, press <F2> immediately. If you wait
too long and the Windows logo appears, continue to wait until you see
the Windows desktop. Then shut down your Tablet-PC and try again.
c
In the drop-down menu, select
Wave EMBASSY Trust Suite
and press
<Enter> to create the icons for the software components on the
Tablet-PC desktop.
d
Press <Esc> to exit the setup program.
e
If prompted, click
Save/Exit
.
Using the Security Management Software
For information about how to use the software and the different security
features, see the Getting Started Guide for the software:
Click
Windows Vista™ Start button
→
All Programs
→
Wave EMBASSY
Trust Suite
→
Getting Started Guide
.
Computer Tracking Software
Computer tracking software may enable you to locate your Tablet-PC if it is
lost or stolen. The software is optional and may be purchased when you order
your Dell™ Tablet-PC, or you can contact your Dell sales representative for
information about this security feature.
NOTE: Computer tracking software may not be available in certain countries.
NOTE: If you have computer tracking software and your Tablet-PC is lost or stolen,
you must contact the company that provides the tracking service to report the
missing Tablet-PC.
If Your Tablet-PC Is Lost or Stolen
• Call a law enforcement agency to report the lost or stolen Tablet-PC.
Include the Service Tag in your description of the Tablet-PC. Ask that a
case number be assigned and write down the number, along with the
name, address, and phone number of the law enforcement agency. If
possible, obtain the name of the investigating officer.
NOTE: If you know where the Tablet-PC was lost or stolen, call a law enforcement
agency in that area. If you do not know, call a law enforcement agency where you
live.
Securing Your Tablet-PC 106
• If the Tablet-PC belongs to a company, notify the security office of the
company.
• Contact Dell customer service to report the missing Tablet-PC. Provide
the Tablet-PC Service Tag, the case number, and the name, address, and
phone number of the law enforcement agency to which you reported the
missing Tablet-PC. If possible, give the name of the investigating officer.
The Dell customer service representative will log your report under the
Tablet-PC Service Tag and record the Tablet-PC as missing or stolen. If
someone calls Dell for technical assistance and gives your Service Tag, the
Tablet-PC is identified automatically as missing or stolen. The representative
will attempt to get the phone number and address of the caller. Dell will then
contact the law enforcement agency to which you reported the missing
Tabl et-P C.
Cleaning Your Tablet-PC 107
Cleaning Your Tablet-PC
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
Tablet-PC, Keyboard, and Display
CAUTION: Before you clean your Tablet-PC, disconnect the Tablet-PC from the
electrical outlet and, if necessary, the optional media base or battery slice.
Remove any installed batteries. Clean your Tablet-PC with a soft cloth dampened
with water. Do not use liquid or aerosol cleaners, which may contain flammable
substances.
• Use a can of compressed air to remove dust from between the keys on the
keyboard.
NOTICE: To avoid damaging the Tablet-PC or display, do not spray cleaning solution
directly onto the display. Only use products specifically designed for cleaning
displays, and follow the instructions that are included with the product.
• Moisten a soft, lint-free cloth with either water or a display cleaner, and
wipe the display until it is clean.
• Moisten a soft, lint-free cloth with water and wipe the Tablet-PC and
keyboard. Do not allow water from the cloth to seep between the touch
pad and the surrounding palm rest.
Touch Pad
1
Shut down and turn off your Tablet-PC.
2
Disconnect any attached devices from the Tablet-PC and from their
electrical outlets.
3
If applicable, undock your Tablet-PC from the optional media base or
battery slice.
4
Remove any installed batteries (see "Removing the Main Battery" on
page 143).
Cleaning Your Tablet-PC 108
5
Moisten a soft, lint-free cloth with water, and wipe it gently across the
surface of the touch pad. Do not allow water from the cloth to seep
between the touch pad and the surrounding palm rest.
Optical Drives and Optical Drive Media
NOTICE: Always use compressed air to clean the lens in an optical drive, and
follow the instructions that come with the compressed-air product. Never touch the
lens in the drive.
NOTE: Unless you purchased either an optional external D/bay or an optional
media base with your Tablet-PC, you may not be able to use optical drives or optical
drive media with your Tablet-PC.
If you notice problems, such as skipping, with the playback quality of your
optical media, try cleaning the disc.
1
Hold the disc by its outer edge. You can also touch the inside edge of the
center hole.
NOTICE: To avoid damaging the surface, do not wipe in a circular motion around
the disc.
2
With a soft, lint-free cloth, gently wipe the bottom of the disc (the
unlabeled side) in a straight line from the center to the outer edge of the
disc.
For stubborn dirt, try using water or a diluted solution of water and mild
soap. You can also purchase commercial products that clean discs and
provide some protection from dust, fingerprints, and scratches. Cleaning
products for CDs are also safe to use on DVDs.
Troubleshooting 109
Troubleshooting
Some of the tools you may be using as you troubleshoot problems on your
Tablet-PC include:
• Dell Diagnostics
• Dell Support Utility
• Windows Hardware Troubleshooter
Dell Diagnostics
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: The Dell Diagnostics works only on Dell™ computers.
When to Use the Dell Diagnostics
If you experience a problem with your Tablet-PC, perform the checks in
Lockups and Software Problems (see "Lockups and Software Problems" on
page 118), and run the Dell Diagnostics before you contact Dell for technical
assistance.
It is recommended that you print these procedures before you begin.
See "Using the System Setup Program" on page 127 to review your Tablet-
PC’s configuration information, and ensure that the device that you want to
test displays in the system setup program and is active.
Start the Dell Diagnostics from your hard drive or from the Drivers and
Utilities media.
NOTE: The Drivers and Utilities media is optional and may not ship with your Tablet-
PC.
Starting the Dell Diagnostics From Your Hard Drive
The Dell Diagnostics is located on a hidden diagnostic utility partition on
your hard drive.
Troubleshooting 110
NOTE: If your Tablet-PC does not display a screen image, contact Dell (see
"Contacting Dell" on page 26).
NOTE: If the Tablet-PC is connected to a docking device (docked), undock it. See
"Undocking Your Tablet-PC From the Media Base" on page 194 and "Undocking Your
Tablet-PC From the Battery Slice" on page 202 for instructions if applicable.
1
Ensure that the Tablet-PC is connected to an electrical outlet that is
known to be working properly.
2
Turn on (or restart) your Tablet-PC.
3
Start the Dell Diagnostics in one of the following two ways:
NOTE: If you wait too long and the operating system logo appears, continue
to wait until you see the Microsoft® Windows® desktop; then, shut down your
Tablet-PC and try again.
– When the DELL™ logo appears, press <F12> immediately. Select
Diagnostics
from the boot menu and press <Enter>.
NOTE: Before attempting the following option, the Tablet-PC must be
powered down completely.
– Press and hold the <Fn> key while powering the Tablet-PC on.
NOTE: If you see a message stating that no diagnostics utility partition has
been found, run the Dell Diagnostics from the Drivers and Utilities media.
The Tablet-PC runs the Pre-boot System Assessment (PSA), a series of
initial tests of your system board, keyboard, display, memory, hard drive,
etc.
• During the assessment, answer any questions that appear.
• If failures are detected during the Pre-boot System Assessment,
write down the error code(s) and contact Dell (see "Contacting
Dell" on page 26).
If the Pre-boot System Assessment completes successfully, the following
message appears: "
Booting Dell Diagnostic Utility
Partition.Press any key to continue
."
4
Press any key to start the Dell Diagnostics from the diagnostics utility
partition on your hard drive.
5
When the Dell Diagnostics Main Menu appears, select the test you want
to run. See "Dell Diagnostics Main Menu" on page 111.
Troubleshooting 111
Starting the Dell Diagnostics From the Drivers and Utilities Media
1
Insert the
Drivers and Utilities
media
.
2
Shut down and restart the Tablet-PC.
When the DELL logo appears, press <F12> immediately.
NOTE: If you wait too long and the operating system logo appears, continue
to wait until you see the Microsoft® Windows® desktop; then, shut down your
Tablet-PC and try again.
NOTE: The next steps change the boot sequence for one time only. On the
next start-up, the Tablet-PC boots according to the devices specified in the
system setup program.
3
When the boot device list appears, highlight
CD/DVD/CD-RW
and press
<Enter>.
4
Select the
Boot from CD-ROM
option from the menu that appears and
press <Enter>.
5
Ty p e
1
to start the CD menu and press <Enter> to proceed.
6
Select
Run the 32 Bit Dell Diagnostics
from the numbered list. If
multiple versions are listed, select the version appropriate for your Tablet-
PC.
7
When the Dell Diagnostics
Main Menu
appears, select the test you want
to run.
Dell Diagnostics Main Menu
1
After the Dell Diagnostics loads and the
Main
Menu
appears, click the
button for the option you want.
NOTE: It is recommended that you select Test System to run a complete test on
your Tablet-PC.
Option Function
Test Memory Run the stand-alone memory test
Test System Run System Diagnostics
Exit Exit the Diagnostics
Troubleshooting 112
2
After you have selected the
Test System
option from the main menu, the
following menu appears:
NOTE: It is recommended that you select Extended Test from the menu below to
run a more thorough check of devices in the Tablet-PC.
3
If a problem is encountered during a test, a message appears with an error
code and a description of the problem. Write down the error code and
problem description and contact Dell (see "Contacting Dell" on page 26).
NOTE: The Service Tag for your Tablet-PC is located at the top of each test
screen. If you contact Dell, technical support will ask for your Service Tag.
4
If you run a test from the
Custom Test or Symptom Tree
option, click the
applicable tab described in the following table for more information.
Option Function
Express Test Performs a quick test of devices in the
system. This typically can take 10 to 20
minutes.
Extended Test Performs a thorough check of devices in
the system. This typically can take an
hour or more.
Custom Test Use to test a specific device or
customize the tests to be run.
Symptom Tree This option allows you to select tests
based on a symptom of the problem you
are having. This option lists the most
common symptoms.
Tab Function
Results Displays the results of the test and any
error conditions encountered.
Errors Displays error conditions encountered,
error codes, and the problem
description.
Help Describes the test and may indicate
requirements for running the test.
Troubleshooting 113
5
When the tests are complete, close the test screen to return to the
Main
Menu
screen. To exit the Dell Diagnostics and restart the Tablet-PC, close
the
Main
Menu
screen.
6
Remove the Dell
Drivers and Utilities
media
(if applicable).
Dell Support Utility
The Dell Support Utility, installed on your Tablet-PC, provides self-support
information, software updates, and health scans of your computing
environment.
Access the Dell Support Utility from the icon on the taskbar or from the
Windows Vista™ Start button
menu.
Accessing the Dell Support Utility
If the Dell Support icon does not appear in your taskbar:
1
Click Windows Vista™ Start button
→
All Programs
→
Dell Support
→
Dell Support Settings
.
2
Ensure that the
Show icon on the taskbar
option is checked.
NOTE: If the Dell Support Utility is not available from the Windows Vista™ Start
button menu, go to support.dell.com and download the software.
Configuration Displays your hardware configuration
for the selected device.
The Dell Diagnostics obtains
configuration information for all
devices from system setup, memory, and
various internal tests, and it displays
the information in the device list in
the left pane of the screen. The device
list may not display the names of all
the components installed on your
Tablet-PC or all devices attached to
your Tablet-PC.
Parameters Allows you to customize the test by
changing the test settings.
Tab Function
(continued)
Troubleshooting 114
The Dell Support Utility is customized for your computing environment.
The icon in the taskbar functions differently when you click, double-
click, or right-click the icon.
Clicking the Dell Support Icon
Click or right-click the icon to perform the following tasks:
• Check your computing environment
• View the Dell Support Utility settings
• Access the help file for the Dell Support Utility
• View frequently asked questions
• Learn more about the Dell Support Utility
• Turn the Dell Support Utility off
Windows Hardware Troubleshooter
If a device is either not detected during the operating system setup or is
detected but incorrectly configured, you can use the Hardware
Troubleshooter to resolve the incompatibility.
To start the Hardware Troubleshooter:
1
Click
Start
,
and click
Help and Support.
2
Ty p e
hardware troubleshooter
in the search field and press
<Enter> to start the search.
3
In the search results, select the option that best describes the problem and
follow the remaining troubleshooting steps.
Solving Problems
Follow these tips when you troubleshoot your Tablet-PC:
• If you added or removed a part before the problem started, review the
installation procedures and ensure that the part is correctly installed.
• If a peripheral device does not work, ensure that the device is properly
connected.
• If an error message appears on the screen, write down the exact message.
This message may help support personnel diagnose and fix the problem.
Troubleshooting 115
• If an error message occurs in a program, see the program’s documentation.
NOTE: The procedures in this document were written for the Windows default
view, so they may not apply if you set your Dell™ Tablet-PC to the Windows Classic
view.
Hard Drive Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
ENSURE THAT MICROSOFT® WINDOWS® RECOGNIZES THE DRIVE —
•Click
Start
and click
Computer
.
If the drive is not listed, perform a full scan with your antivirus software to check for
and remove viruses. Viruses can sometimes prevent Windows from recognizing the
drive.
RUN CHECK DISK —
1
Click Windows Vista™ Start
→
Computer
.
2
Right-click
Local Disk C:
.
3
Click
Properties
→
Tools
→
Check Now
.
The
User Account Control
window may appear. If you are an administrator on the
Tablet-PC, click
Continue
; otherwise, contact your administrator to continue the
desired action.
4
Follow the instructions on the screen.
TEST THE DRIVE —
• Insert another drive to eliminate the possibility that the original
drive is defective.
RUN THE WINDOWS HARDWARE TROUBLESHOOTER —See "Windows Hardware
Troubleshooter" on page 114.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 109.
Optical Drive Problems
NOTE: Unless you purchased either an optional external D-bay or an optional
media base with your Tablet-PC, you may not be able to use optical drives or optical
drive media with your Tablet-PC.
NOTE: High-speed optical drive vibration is normal and may cause noise, which
does not indicate a defect in the drive or the media.
NOTE: Because of different regions worldwide and different disc formats, not all
DVD titles work in all DVD drives.
Troubleshooting 116
CLEAN THE OPTICAL DRIVE OR OPTICAL DRIVE MEDIA —See "Optical Drives and
Optical Drive Media" on page 108.
CHECK THE CABLE CONNECTIONS
ADJUST THE WINDOWS VOLUME CONTROL —
• Click the speaker icon in the lower-right corner of your screen.
• Ensure that the volume is turned up by clicking the slidebar and dragging it up.
• Ensure that the sound is not muted by clicking any boxes that are checked.
RUN THE WINDOWS HARDWARE TROUBLESHOOTER —See "Windows Hardware
Troubleshooter" on page 114.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 109.
Problems writing to an optical drive
NOTE: Unless you purchased either an optional external D-bay or an optional
media base with your Tablet-PC, you may not be able to use optical drives or optical
drive media with your Tablet-PC.
CLOSE OTHER PROGRAMS —The optical drive must receive a steady stream of data
during the writing process. If the stream is interrupted, an error occurs. Try closing all
programs before you write to the optical.
TURN OFF SLEEP MODE IN WINDOWS BEFORE WRITING TO A DISC —See
"Configuring Power Management Settings" on page 72 or search for the keyword sleep
in Windows Help and Support for information on power management modes.
E-Mail and Internet Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: Do not plug a telephone cable into the network adapter connector (see
"Back View" on page 36).
CHECK THE MICROSOFT OUTLOOK® EXPRESS SECURITY SETTINGS —If you cannot
open your e-mail attachments:
1
In Outlook Express, click
Tools
→
Options
→
Security
.
2
Click
Do not allow attachments
to remove the checkmark, as needed.
ENSURE THAT YOU ARE CONNECTED TO THE INTERNET —Ensure that you have
subscribed to an Internet provider. With the Outlook Express e-mail program open,
click File. If Work Offline has a checkmark next to it, click the checkmark to remove it
and connect to the Internet. For help, contact your Internet service provider.
Troubleshooting 117
Error Messages
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
If the error message is not listed, see the documentation for the operating
system or the program that was running when the message appeared.
A FILENAME CANNOT CONTAIN ANY OF THE FOLLOWING CHARACTERS: \ / : * ? “ <
> | — Do not use these characters in filenames.
A REQUIRED .DLL FILE WAS NOT FOUND —The program that you are trying to open
is missing an essential file. To remove and then reinstall the program:
1
Click Windows Vista™ Start button
→
Control Panel
→
Programs
→
Programs
and Features
.
2
Select the program you want to remove.
3
Click
Uninstall
.
4
See the program documentation for installation instructions.
drive letter :\ IS NOT ACCESSIBLE. THE DEVICE IS NOT READY —The drive
cannot read the disk. Insert a disk into the drive and try again.
INSERT BOOTABLE MEDIA —Insert a bootable CD or DVD into the optional
external D-bay or the optional media base.
NOT ENOUGH MEMORY OR RESOURCES. CLOSE SOME PROGRAMS AND TRY
AGAIN —Close all windows and open the program that you want to use. In some
cases, you may have to restart your Tablet-PC to restore Tablet-PC resources. If so, run
the program that you want to use first.
OPERATING SYSTEM NOT FOUND —Contact Dell (see "Contacting Dell" on
page 26).
IEEE 1394 Device Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: Your Tablet-PC supports only IEEE 1394a standard.
ENSURE THAT THE CABLE FOR THE IEEE 1394 DEVICE IS PROPERLY INSERTED INTO
THE DEVICE AND INTO THE CONNECTOR ON THE TABLET-PC
ENSURE THAT THE IEEE 1394 DEVICE IS ENABLED IN SYSTEM SETUP —See
"System Setup Screens" on page 128.
ENSURE THAT THE IEEE 1394 DEVICE IS RECOGNIZED BY WINDOWS —
1
Click Windows Vista™ Start button
→
Control Panel
→
Hardware and Sound
.
Troubleshooting 118
2
Click
Device Manager.
If your IEEE 1394 device is listed, Windows recognizes the device.
IF YOU HAVE PROBLEMS WITH A DELL IEEE 1394 DEVICE —Contact Dell (see
"Contacting Dell" on page 26).
IF YOU HAVE PROBLEMS WITH AN IEEE 1394 DEVICE NOT PROVIDED BY DELL —
Contact the IEEE 1394 device manufacturer.
Lockups and Software Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
The Tablet-PC does not start up
ENSURE THAT THE POWER CABLE IS FIRMLY CONNECTED TO THE TABLET-PC AND
TO THE ELECTRICAL OUTLET
The Tablet-PC stops responding
NOTICE: You may lose data if you are unable to perform an operating system
shutdown.
TURN THE TABLET-PC OFF —If you are unable to get a response by pressing a key on
your keyboard or touching your display with the pen or your finger, press and hold the
power button for at least 8 to 10 seconds (until the Tablet-PC turns off), and then
restart your Tablet-PC.
A program stops responding
END THE PROGRAM —
1
Press <Ctrl><Shift><Esc> simultaneously to access the Task Manager.
2
Click the
Applications
tab.
3
Click to select the program that is no longer responding.
4
Click
End Task
.
A program crashes repeatedly
NOTE: Most software includes installation instructions in its documentation, or on
a CD or DVD.
CHECK THE SOFTWARE DOCUMENTATION —If necessary, uninstall and then reinstall
the program.
Troubleshooting 119
A program is designed for an earlier Windows operating system
RUN THE PROGRAM COMPATIBILITY WIZARD —
The Program Compatibility Wizard configures a program so that it runs in an
environment similar to non-Windows Vista operating system environments.
1
Click Windows Vista™ Start button
→
Control Panel
→
Programs
→
Use an
older program with this version of Windows.
2
In the welcome screen, click
Next
.
3
Follow the instructions on the screen.
A solid blue screen appears
TURN THE TABLET-PC OFF —If you are unable to get a response by pressing a key on
your keyboard or touching your display with the pen or your finger, press and hold the
power button for at least 8 to 10 seconds (until the Tablet-PC turns off), and then
restart your Tablet-PC.
Other software problems
CHECK THE SOFTWARE DOCUMENTATION OR CONTACT THE SOFTWARE
MANUFACTURER FOR TROUBLESHOOTING INFORMATION —
• Ensure that the program is compatible with the operating system installed on your
Tablet-PC.
• Ensure that your Tablet-PC meets the minimum hardware requirements needed to
run the software. See the software documentation for information.
• Ensure that the program is installed and configured properly.
• Verify that the device drivers do not conflict with the program.
• If necessary, uninstall and then reinstall the program.
BACK UP YOUR FILES IMMEDIATELY
USE A VIRUS-SCANNING PROGRAM TO CHECK THE HARD DRIVE, CDS, OR DVDS
SAVE AND CLOSE ANY OPEN FILES OR PROGRAMS AND SHUT DOWN YOUR TABLET-
PC THROUGH THE START MENU
Memory Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
IF YOU RECEIVE AN INSUFFICIENT MEMORY MESSAGE —
Troubleshooting 120
• Save and close any open files and exit any open programs you are not using to see if
that resolves the problem.
• See the software documentation for minimum memory requirements. If necessary,
install additional memory (see "Installing a Memory Module" on page 152).
• Reseat the memory modules (see "Memory" on page 151) to ensure that your Tablet-
PC is successfully communicating with the memory.
• Run the Dell Diagnostics (see "Dell Diagnostics" on page 109).
IF YOU EXPERIENCE OTHER MEMORY PROBLEMS —
• Reseat the memory modules (see "Memory" on page 151) to ensure that your Tablet-
PC is successfully communicating with the memory.
• Ensure that you are following the memory installation guidelines (see "Installing a
Memory Module" on page 152).
• Ensure that the memory you are using is supported by your Tablet-PC. For more
information about the type of memory supported by your Tablet-PC, see "Memory" on
page 151.
• Run the Dell Diagnostics (see "Dell Diagnostics" on page 109).
Network Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CHECK THE NETWORK CABLE CONNECTOR —Ensure that the network cable is firmly
inserted into the network connector on the back of the Tablet-PC and the network
jack.
CHECK THE NETWORK LIGHTS ON THE BACK OF THE TABLET-PC — If the link
integrity light is off, no network communication is occurring. Replace the network
cable.
RESTART THE TABLET-PC AND LOG ON TO THE NETWORK AGAIN
CHECK YOUR NETWORK SETTINGS —Contact your network administrator or the
person who set up your network to verify that your network settings are correct and
that the network is functioning.
RUN THE HARDWARE TROUBLESHOOTER —See "Windows Hardware
Troubleshooter" on page 114.
Power Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
Troubleshooting 121
IF THE POWER LIGHT IS BLINKING BLUE —The computer is in sleep mode. Press a
key on the keyboard, move the mouse, or press the power button to resume normal
operation.
IF THE POWER LIGHT IS OFF —The computer is either turned off or is not receiving
power.
• Reseat the power cable in the power connector on the back of the computer and the
electrical outlet.
• Bypass power strips, power extension cables, and other power protection devices to
verify that the computer turns on properly.
• Ensure that any power strips being used are plugged into an electrical outlet and are
turned on.
• Ensure that the electrical outlet is working by testing it with another device, such as a
lamp.
IF THE POWER LIGHT IS STEADY AMBER —A device may be malfunctioning or
incorrectly installed.
• Remove and then reinstall all memory modules (see "Memory" on page 151).
ELIMINATE INTERFERENCE —Some possible causes of interference are:
• Power, keyboard, and mouse extension cables
• Too many devices connected to the same power strip
• Multiple power strips connected to the same electrical outlet
Printer Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: If you need technical assistance for your printer, contact the printer’s
manufacturer.
CHECK THE PRINTER DOCUMENTATION —See the printer documentation for setup
and troubleshooting information.
ENSURE THAT THE PRINTER IS TURNED ON
CHECK THE PRINTER CABLE CONNECTIONS —
• See the printer documentation for cable connection information.
• Ensure that the printer cables are securely connected to the printer and the Tablet-
PC.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by
testing it with another device, such as a lamp.
Troubleshooting 122
VERIFY THAT THE PRINTER IS RECOGNIZED BY WINDOWS —
1
Click Windows Vista™ Start button
→
Control Panel
→
Hardware and Sound
→
Printer
.
2
If the printer is listed, right-click the printer icon.
3
Click
Properties and click Ports
.
4
Adjust the settings, as needed.
REINSTALL THE PRINTER DRIVER —See the printer documentation for information
on reinstalling the printer driver.
Scanner Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTE: If you need technical assistance for your scanner, contact the scanner’s
manufacturer.
CHECK THE SCANNER DOCUMENTATION —See the scanner documentation for setup
and troubleshooting information.
UNLOCK THE SCANNER —Ensure that your scanner is unlocked (if the scanner has a
locking tab or button).
RESTART THE TABLET-PC AND TRY THE SCANNER AGAIN
CHECK THE CABLE CONNECTIONS —
• See the scanner documentation for information on cable connections.
• Ensure that the scanner cables are securely connected to the scanner and the Tablet-
PC.
VERIFY THAT THE SCANNER IS RECOGNIZED BY MICROSOFT WINDOWS —
1
Click Windows Vista™ Start button
→
Control Panel
→
Hardware and Sound
→
Scanners and Cameras
.
2
If the scanner is listed, Windows recognizes the scanner.
REINSTALL THE SCANNER DRIVER —See the scanner documentation for
instructions.
Sound and Speaker Problems
NOTE: The volume control in MP3 and other media players may override the
Windows volume setting. Always check to ensure that the volume on the media
player(s) has not been turned down or off.
Troubleshooting 123
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
No sound from integrated speakers
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon
in the lower-right corner of your screen. Ensure that the volume is turned up and that
the sound is not muted.
REINSTALL THE SOUND DRIVER —See "Using the Drivers and Utilities Media" on
page 132.
No sound from external speakers
ENSURE THAT THE SUBWOOFER AND THE SPEAKERS ARE TURNED ON —See the
setup diagram supplied with the speakers. If your speakers have volume controls,
adjust the volume, bass, or treble to eliminate distortion.
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon
in the lower-right corner of your screen. Ensure that the volume is turned up and that
the sound is not muted.
DISCONNECT HEADPHONES FROM THE HEADPHONE CONNECTOR —Sound from the
speaker is automatically disabled when headphones are connected to the Tablet-PC
headphone connector.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by
testing it with another device, such as a lamp.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, or
halogen lamps to check for interference.
RUN THE SPEAKER DIAGNOSTICS
REINSTALL THE AUDIO DRIVER —See "Reinstalling Drivers and Utilities" on
page 132.
RUN THE HARDWARE TROUBLESHOOTER —See "Windows Hardware
Troubleshooter" on page 114.
No sound from headphones
CHECK THE HEADPHONE CABLE CONNECTION —Ensure that the headphone cable is
securely inserted into the headphone connector (see "Right Side View" on page 34).
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon
in the lower-right corner of your screen. Ensure that the volume is turned up and that
the sound is not muted.
Troubleshooting 124
Touch Pad or Mouse Problems
CHECK THE TOUCH PAD SETTINGS —
1
Click Windows Vista™ Start button
→
Control Panel
→
Printers and
Other Hardware
→
Mouse
.
2
Try adjusting the settings.
CHECK THE MOUSE CABLE —Shut down the Tablet-PC. Disconnect the mouse
cable, check it for damage, and firmly reconnect the cable.
If you are using a mouse extension cable, disconnect it and connect the
mouse directly to the Tablet-PC.
TO VERIFY THAT THE PROBLEM IS WITH THE MOUSE, CHECK THE TOUCH PAD —
1
Shut down the Tablet-PC.
2
Disconnect the mouse.
3
Turn on the Tablet-PC.
4
At the Windows
desktop, use the touch pad to move the cursor around,
select an icon, and open it.
If the touch pad operates correctly, the mouse may be defective.
CHECK THE SYSTEM SETUP PROGRAM SETTINGS —Verify that the system setup
program lists the correct device for the pointing device option. (The Tablet-PC
automatically recognizes a USB mouse without making any setting adjustments.) For
more information on using the system setup program, see "Using the System Setup
Program" on page 127.
TEST THE MOUSE CONTROLLER —To test the mouse controller (which affects
pointer movement) and the operation of the touch pad or mouse buttons, run the
Mouse test in the Pointing Devices test group in the Dell Diagnostics (see "Dell
Diagnostics" on page 109).
REINSTALL THE TOUCH PAD DRIVER —See "Reinstalling Drivers and Utilities" on
page 132.
Pen Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
The pen stops working
CHECK TIP INSTALLATION —
Troubleshooting 125
• Replace the pen tip. See "Replacing the Pen Tip" on page 61.
• If this does not solve the problem, contact Dell. See "Contacting Dell" on page 26.
Display Problems
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
The screen is difficult to read
ROTATE THE DISPLAY TO ELIMINATE SUNLIGHT GLARE AND POSSIBLE
INTERFERENCE
ADJUST THE WINDOWS DISPLAY SETTINGS —
1
Click Windows Vista™ Start button
→
Control Panel
→
Hardware and Sound
→
Personalization
→
Display Settings
.
2
Adjust
Resolution
and
Colors settings,
as needed.
If only part of the display is readable
CONNECT AN EXTERNAL MONITOR —
1
Shut down your Tablet-PC and connect an external monitor to the Tablet-
PC.
2
Turn on the Tablet-PC and the monitor and adjust the monitor brightness
and contrast controls.
If the external monitor works, the Tablet-PC display or video controller may be
defective.
Contact Dell (see
"Contacting Dell" on page 26
).
Power Lights
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
The power button LED ring located on the Tablet-PC display illuminates and
blinks or remains solid to indicate different states:
• If the power light is blinking blue, the computer is in sleep mode. Press a
key on the keyboard, move the mouse, or press the power button to resume
normal operation.
• If the power light is off, the computer is either turned off or is not
receiving power.
Troubleshooting 126
– Reseat the power cable into both the power connector on the back of
the computer and the electrical outlet
– If the computer is plugged into a power strip, ensure that the power
strip is plugged into an electrical outlet and that the power strip is
turned on
– Bypass power protection devices, power strips, and power extension
cables to verify that the computer turns on properly
– Ensure that the electrical outlet is working by testing it with another
device, such as a lamp
• If the power light is blinking blue, the computer is receiving electrical
power, but an internal power problem might exist.
• If the power light is steady amber, a device may be malfunctioning or
incorrectly installed.
– Remove and then reinstall the memory modules (see "Memory" on
page 151)
• Eliminate interference. Some possible causes of interference are:
– Power, keyboard, and mouse extension cables
– Too many devices on a power strip
– Multiple power strips connected to the same electrical outlet
Using the System Setup Program 127
Using the System Setup Program
Overview
NOTE: Your operating system may automatically configure most of the options
available in the system setup program, thus overriding options that you set through
the system setup program. (An exception is the External Hot Key option, which you
can disable or enable only through the system setup program.) For more information
on configuring features for your operating system, access the Help and Support
Center. To access the Help and Support Center, click Start → Help and Support.
You can use the system setup program as follows:
• To set or change user-selectable features—for example, your Tablet-PC
password
• To verify information about the Tablet-PC's current configuration, for
example, the amount of system memory
After you set up the Tablet-PC, run the system setup program to familiarize
yourself with your system configuration information and optional settings.
You may want to write down the information for future reference.
The system setup screens display the current setup information and settings
for your Tablet-PC, such as:
• System configuration
• Boot order
• Boot (start-up) configuration and docking-device configuration settings
• Basic device-configuration settings
• System security and hard-drive password settings
NOTE: Unless you are an expert computer user or are directed to do so by Dell
technical support, do not change the system setup settings. Certain changes might
make your Tablet-PC work incorrectly.
Using the System Setup Program 128
System Setup Screens
Viewing the System Setup Screens
1
Turn on (or restart) your Tablet-PC.
2
When the DELL™ logo appears, press <F2> immediately. If you wait too
long and the Microsoft
®
Windows
®
logo appears, continue to wait until
you see the Windows desktop. Then shut down your Tablet-PC and try
again.
NOTE: For information about a specific item on a system setup screen, highlight the
item and see the Help area on the screen.
On each screen, the system setup options are listed at the left. To the right of
each option is the setting or value for that option. You can change settings
that appear as white type on the screen. Options or values that you cannot
change (because they are determined by the Tablet-PC) appear less bright.
The upper-right corner of the screen displays help information for the
currently highlighted option; the lower-right corner displays information
about the Tablet-PC. System-setup key functions are listed across the bottom
of the screen.
Commonly Used Options
Certain options require that you reboot the Tablet-PC for new settings to take
effect.
Changing the Boot Sequence
The boot sequence, or boot order, tells the Tablet-PC where to look to find the
software needed to start the operating system. You can control the boot
sequence and enable or disable devices using the Boot Order page of the
system setup program.
NOTE: To change the boot sequence on a one-time-only basis, see "Performing a
One-Time Boot" on page 129.
The Boot Order page displays a general list of the bootable devices that may
be installed in your Tablet-PC, including but not limited to the following:
•
Modular Bay HDD
•
Internal HDD
Using the System Setup Program 129
•
Optical Drive
During the boot routine, the Tablet-PC starts at the top of the list and scans
each enabled device for the operating system start-up files. When the Tablet-
PC finds the files, it stops searching and starts the operating system.
To control the boot devices, select (highlight) a device by pressing the down-
arrow or up-arrow key, and then enable or disable the device or change its
order in the list.
• To enable or disable a device, highlight the item and press the space bar.
Enabled items appear as white and display a small triangle to the left;
disabled items appear blue or dimmed without a triangle.
• To reorder a device in the list, highlight the device and then press <u> or
<d> (not case-sensitive) to move the highlighted device up or down.
Boot sequence changes take effect as soon as you save the changes and exit
the system setup program.
Performing a One-Time Boot
You can set a one-time-only boot sequence without entering the system setup
program. (You can also use this procedure to boot the Dell Diagnostics on the
diagnostics utility partition on your hard drive.)
1
Shut down the Tablet-PC through the Windows Vista™ Start button
menu.
2
If the Tablet-PC is connected to a docking device (docked), undock it. See
the documentation that came with your docking device for instructions.
3
Connect the Tablet-PC to an electrical outlet.
4
Turn on the Tablet-PC. When the DELL logo appears, press <F12>
immediately.
If you wait too long and the Windows logo appears, continue to wait until
you see the Windows desktop. Then shut down your Tablet-PC and try
again.
5
When the boot device list appears, highlight the device from which you
want to boot and press <Enter>.
The Tablet-PC boots to the selected device.
The next time you reboot the Tablet-PC, the previous boot order is restored.
Using the System Setup Program 130
Reinstalling Software 131
Reinstalling Software
Drivers
What Is a Driver?
A driver is a program that controls a device such as a printer, mouse, or
keyboard. All devices require a driver program.
A driver acts like a translator between the device and any other programs that
use the device. Each device has its own set of specialized commands that only
its driver recognizes.
Dell ships your Tablet-PC to you with required drivers already installed—no
further installation or configuration is needed.
NOTICE: The Drivers and Utilities media may contain drivers for operating systems
that are not on your Tablet-PC. Ensure that you are installing software appropriate
for your operating system.
Many drivers, such as the keyboard driver, come with your Microsoft
Windows operating system. You may need to install drivers if you:
• Upgrade your operating system.
• Reinstall your operating system.
• Connect or install a new device.
Identifying Drivers
If you experience a problem with any device, identify whether the driver is the
source of your problem and, if necessary, update the driver.
1
Click
Start
,
and right-click
Computer
.
2
Click
Properties
→
Device Manager
.
Reinstalling Software 132
NOTE: The User Account Control window may appear. If you are an
administrator on the Tablet-PC, click Continue; otherwise, contact your
administrator to continue.
Scroll down the list to see if any device has an exclamation point (a yellow
circle with a [!]) on the device icon.
If an exclamation point is next to the device name, you may need to reinstall
the driver or install a new driver (see "Reinstalling Drivers and Utilities" on
page 132).
Reinstalling Drivers and Utilities
NOTICE: The Dell Support website at support.dell.com and your Drivers and
Utilities media provide approved drivers for Dell™ computers. If you install drivers
obtained from other sources, your Tablet-PC might not work correctly.
Using Windows Device Driver Rollback
If a problem occurs on your Tablet-PC after you install or update a driver, use
Windows Device Driver Rollback to replace the driver with the previously
installed version.
1
Click
Start
,
and right-click
Computer
.
2
Click
Properties
→
Device Manager
.
NOTE: The User Account Control window may appear. If you are an
administrator on the Tablet-PC, click Continue; otherwise, contact your
administrator to enter the Device Manager.
3
Right-click the device for which the new driver was installed and click
Properties
.
4
Click the
Drivers
tab
→
Roll Back Driver
.
If Device Driver Rollback does not resolve the problem, then use System
Restore (see "Restoring Your Operating System" on page 134) to return your
Tablet-PC to the operating state that existed before you installed the new
driver.
Using the Drivers and Utilities Media
If using Device Driver Rollback or System Restore (see "Restoring Your
Operating System" on page 134) does not resolve the problem, then reinstall
the driver from the Drivers and Utilities media.
Reinstalling Software 133
1
Save and close any open files, and exit any open programs.
2
Insert the
Drivers and Utilities
media.
In most cases, the CD/DVD starts running automatically. If it does not,
start Windows Explorer, click your CD/DVD drive directory to display the
CD/DVD contents, and then double-click the
autorcd.exe
file. The first
time that you run the CD/DVD, it might prompt you to install setup files.
Click
OK
, and follow the instructions on the screen to continue.
3
From the
Language
drop-down menu in the toolbar, select your preferred
language for the driver or utility (if available).
4
At the welcome screen, click
Next
and wait for the CD/DVD to complete
the hardware scan
5
To detect other drivers and utilities, under
Search Criteria
, select the
appropriate categories from the
System Model
,
Operating System
, and
Topic
drop-down menus.
A link or links appear(s) for the specific drivers and utilities used by your
Tablet-PC.
6
Click the link of a specific driver or utility to display information about the
driver or utility that you want to install.
7
Click the
Install
button (if present) to begin installing the driver or utility.
At the welcome screen, follow the screen prompts to complete the
installation.
If no
Install
button is present, automatic installation is not an option. For
installation instructions, either see the appropriate instructions in the
following subsections, or click
Extract
, follow the extracting instructions,
and then read the readme file.
If instructed to navigate to the driver files, click the CD/DVD directory on
the driver information window to display the files associated with that
driver.
Manually Reinstalling Drivers
After extracting the driver files to your hard drive as described in the previous
section:
1
Click
Start
,
and right-click
Computer
.
2
Click
Properties
→
Device Manager
.
Reinstalling Software 134
NOTE: The User Account Control window may appear. If you are an
administrator on the Tablet-PC, click Continue; otherwise, contact your
administrator to enter the Device Manager.
3
Double-click the type of device for which you are installing the driver (for
example,
Audio
or
Video
).
4
Double-click the name of the device for which you are installing the driver.
5
Click
Driver
→
Update Driver
→
Browse my computer for driver software
.
6
Click
Browse
and browse to the location to which you previously copied
the driver files.
7
When the name of the appropriate driver appears, click the name of the
driver
→
OK
→
Next
.
8
Click
Finish
and restart your Tablet-PC.
Restoring Your Operating System
You can restore your operating system in the following ways:
• System Restore returns your Tablet-PC to an earlier operating state
without affecting data files. Use System Restore as the first solution for
restoring your operating system and preserving data files.
• Dell Factory Image Restore returns your hard drive to the operating state it
was in when you purchased the Tablet-PC. All data on the hard drive and
any programs installed after you received the Tablet-PC are permanently
deleted. Use Dell Factory Image Restore only if System Restore did not
resolve your operating system problem.
• If you received an
Operating System
disc with your Tablet-PC, you can use
it to restore your operating system. However, using the
Operating System
disc also deletes all data on the hard drive. Use the disc
only
if System
Restore did not resolve your operating system problem.
Using Microsoft Windows System Restore
The Windows operating systems provide a System Restore option which
allows you to return your Tablet-PC to an earlier operating state (without
affecting data files) if changes to the hardware, software, or other system
Reinstalling Software 135
settings have left the Tablet-PC in an undesirable operating state. Any
changes that System Restore makes to your Tablet-PC are completely
reversible.
NOTICE: Make regular backups of your data files. System Restore does not
monitor your data files or recover them.
NOTE: The procedures in this document were written for the Windows default
view, so they may not apply if you set your Dell™ Tablet-PC to the Windows Classic
view.
Starting System Restore
1
Click
Start
.
2
In the
Start Search
box, type
System Restore
and press <Enter>.
NOTE: The User Account Control window may appear. If you are an
administrator on the Tablet-PC, click Continue; otherwise, contact your
administrator to continue the desired action.
3
Click
Next
and follow the remaining prompts on the screen.
In the event that System Restore did not resolve the issue, you may undo the
last system restore.
Undoing the Last System Restore
NOTICE: Before you undo the last system restore, save and close all open files and
exit any open programs. Do not alter, open, or delete any files or programs until the
system restoration is complete.
1
Click
Windows Vista™ Start button
.
2
In the
Start Search
box, type
System Restore
and press <Enter>.
3
Click
Undo my last restoration
and click
Next
.
Using Dell Factory Image Restore
NOTICE: Using Dell Factory Image Restore permanently deletes all data on the
hard drive and removes any programs or drivers installed after you received your
Tablet-PC. If possible, back up the data before using this option. Use Dell Factory
Image Restore only if System Restore did not resolve your operating system
problem.
NOTE: Dell Factory Image Restore may not be available in certain countries or on
certain computers.
Reinstalling Software 136
Use Dell Factory Image Restore only as the last method to restore your
operating system. These options restore your hard drive to the operating state
it was in when you purchased the Tablet-PC. Any programs or files added
since you received your Tablet-PC—including data files—are permanently
deleted from the hard drive. Data files include documents, spreadsheets, e-
mail messages, digital photos, music files, and so on. If possible, back up all
data before using Dell Factory Image Restore.
1
Turn on the Tablet-PC. When the Dell logo appears, press <F8> several
times to access the Vista Advanced Boot Options Window.
2
Select
Repair Your Computer
.
The System Recovery Options window appears.
3
Select a keyboard layout and click
Next
.
4
To access the recovery options, log on as a local user. To access the
command prompt, type
administrator
in the User name field, then
click
OK
.
5
Click
Dell Factory Image Restore
.
NOTE: Depending upon your configuration, you may need to select Dell
Factory Tools, then Dell Factory Image Restore.
The Dell Factory Image Restore welcome screen appears.
6
Click
Next.
The Confirm Data Deletion screen appears.
NOTICE: If you do not want to proceed with Dell Factory Image Restore, click
Cancel.
7
Click the checkbox to confirm that you want to continue reformatting the
hard drive and restoring the system software to the factory condition, then
click
Next
.
The restore process begins and may take five or more minutes to complete.
A message appears when the operating system and factory-installed
applications have been restored to factory condition.
8
Click
Finish
to reboot the system.
Reinstalling Software 137
Using the Operating System Media
Before you Begin
If you are considering reinstalling the Windows operating system to correct a
problem with a newly installed driver, first try using Windows Device Driver
Rollback. See "Using Windows Device Driver Rollback" on page 132. If
Device Driver Rollback does not resolve the problem, then use System
Restore to return your operating system to the operating state it was in before
you installed the new device driver. See "Using Microsoft Windows System
Restore" on page 134.
NOTICE: Before performing the installation, back up all data files on your primary
hard drive. For conventional hard drive configurations, the primary hard drive is the
first drive detected by the Tablet-PC.
To reinstall Windows, you need the following items:
•Dell™
Operating System
media
•Dell
Drivers and Utilities
media
NOTE: The Dell Drivers and Utilities media contains drivers that were installed
during the assembly of the Tablet-PC. Use the Dell Drivers and Utilities media to
load any required drivers. Depending on the region from which you ordered your
Tablet-PC, or whether you requested the media, the Dell Drivers and Utilities media
and Operating System media may not ship with your Tablet-PC.
Reinstalling Windows Vista
The reinstallation process can take 1 to 2 hours to complete. After you
reinstall the operating system, you must also reinstall the device drivers, virus
protection program, and other software.
1
Save and close any open files and exit any open programs.
2
Insert the
Operating System
disc.
3
Click
Exit
if the
Install Windows
message appears.
4
Restart the Tablet-PC.
When the DELL logo appears, press <F12> immediately.
NOTE: If you wait too long and the operating system logo appears, continue
to wait until you see the Microsoft® Windows® desktop; then, shut down your
Tablet-PC and try again.
Reinstalling Software 138
NOTE: The next steps change the boot sequence for one time only. On the
next start-up, the Tablet-PC boots according to the devices specified in the
system setup program.
5
When the boot device list appears, highlight
CD/DVD/CD-RW Drive
and press <Enter>.
6
Press any key to
Boot from CD-ROM
.
7
Follow the instructions on the screen to complete the installation.
Adding and Replacing Parts 139
Adding and Replacing Parts
Before You Begin
This chapter provides procedures for removing and installing the components
in your Tablet-PC. Unless otherwise noted, each procedure assumes that the
following conditions exist:
• You have performed the steps in "Turning Off Your Tablet-PC" on page 139
and "Before Working Inside Your Tablet-PC" on page 140.
• You have read the safety information in the Dell™
Product Information
Guide.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
• #0 Phillips screwdriver
• #1 Phillips screwdriver
• Small plastic scribe
• Flash BIOS update program CD
Turning Off Your Tablet-PC
NOTICE: To avoid losing data, save and close all open files and exit all open
programs before you turn off your Tablet-PC.
NOTE: By default, the power button is configured to initiate the sleep state rather
than the shut down state. Follow the procedure below to shut down your Tablet-PC.
1
Shut down the operating system:
a
Save and close all open files and exit all open programs.
Adding and Replacing Parts 140
b
C
lick
Start
,
then click the arrow in the lower-right corner of the
Start
menu as shown below, and then click
Shut Down
.
The Tablet-PC turns off after the operating system shutdown process is
complete.
2
Ensure that the Tablet-PC and all attached devices are turned off. If your
Tablet-PC and attached devices did not automatically turn off when you
shut down your operating system, press and hold the power button for
about 4 seconds to turn them off.
Before Working Inside Your Tablet-PC
Use the following safety guidelines to help protect your Tablet-PC from
potential damage and to help to ensure your own personal safety.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: Handle components and cards with care. Do not touch the components
or contacts on a card. Hold a card by its edges or by its metal mounting bracket.
Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your Tablet-
PC. Damage due to servicing that is not authorized by Dell is not covered by your
warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not
on the cable itself. Some cables have connectors with locking tabs; if you are
disconnecting this type of cable, press in on the locking tabs before you disconnect
the cable. As you pull connectors apart, keep them evenly aligned to avoid bending
any connector pins. Also, before you connect a cable, ensure that both connectors
are correctly oriented and aligned.
NOTICE: To avoid damaging the Tablet-PC, perform the following steps before you
begin working inside the Tablet-PC.
1
Ensure that the work surface is flat and clean to prevent the Tablet-PC
cover from being scratched.
2
Turn off your Tablet-PC (see "Turning Off Your Tablet-PC" on page 139).
Adding and Replacing Parts 141
3
If the Tablet-PC is connected to a docking device (docked), undock it. See
"Undocking Your Tablet-PC From the Media Base" on page 194, or
"Undocking Your Tablet-PC From the Battery Slice" on page 202.
NOTICE: To disconnect a network cable, first unplug the cable from your Tablet-PC
and then unplug the cable from the network device.
4
Disconnect all network cables from the Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you service the Tablet-PC.
5
Disconnect your Tablet-PC and all attached devices from their electrical
outlets.
6
Close the display and turn the Tablet-PC upside-down on a flat work
surface.
7
Remove the main battery (see "Removing the Main Battery" on page 143).
8
Turn the Tablet-PC top-side up.
9
Open the display.
10
Press the power button to ground the system board.
CAUTION: To guard against electrical shock, always unplug your Tablet-PC from
the electrical outlet before opening the display.
NOTICE: Before touching anything inside your Tablet-PC, ground yourself by
touching an unpainted metal surface, such as the metal at the back of the Tablet-
PC. While you work, periodically touch an unpainted metal surface to dissipate
static electricity, which could harm internal components.
11
Remove any installed ExpressCards or Smart Cards from the appropriate
slots (see "Removing an ExpressCard" on page 84).
12
Remove the hard drive (see "Removing the Hard Drive" on page 145).
Adding and Replacing Parts 142
143
Main Battery
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: Only a certified service technician should perform repairs on your Tablet-
PC. Damage due to servicing that is not authorized by Dell is not covered by your
warranty.
NOTE: Your Tablet-PC’s Service Tag and Microsoft® Windows® License labels are
located under the main battery in the battery bay of your Tablet-PC
Removing the Main Battery
1
Follow the procedures in "Before You Begin" on page 139.
2
Turn off your Tablet-PC (see "Turning Off Your Tablet-PC" on page 139).
3
If the Tablet-PC is connected to a docking device such as the optional
Media Base or Battery Slice (docked), undock it. See "Undocking Your
Tablet-PC From the Media Base" on page 194, or "Undocking Your Tablet-
PC From the Battery Slice" on page 202.
NOTICE: To disconnect a network cable, first unplug the cable from your Tablet-PC
and then unplug the cable from the network device.
4
Disconnect all network cables from the Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you service the Tablet-PC.
5
Close the display and turn the Tablet-PC upside-down on a flat work
surface.
6
Slide the two battery-bay latch releases on the bottom of the Tablet-PC
outward to each side.
7
Slide the main battery from the battery bay.
144
Installing the Main Battery
1
Align the main battery with the sides of the battery bay.
2
Slide the main battery into the battery bay until you feel a click, ensuring
that the battery is firmly and properly seated.
3
Turn the Tablet-PC top-side up on a flat work surface and open the display.
4
Connect any network cables.
5
Turn on your Tablet-PC by pressing the power button.
Hard Drive
CAUTION: If you remove the hard drive from the Tablet-PC when the drive is hot,
do not touch the metal housing of the hard drive.
CAUTION: Before working inside your Tablet-PC, follow the safety instructions
located in the Product Information Guide.
1battery release latches (2) 2 battery
3battery bay
1 2 3
145
NOTICE: To prevent data loss, turn off your Tablet-PC (see "Turning Off Your Tablet-
PC" on page 139) before removing the hard drive. Do not remove the hard drive
while the Tablet-PC is on, in sleep mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the
drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives
from sources other than Dell.
Removing the Hard Drive
1
Follow the procedures in "Before You Begin" on page 139.
2
Turn the Tablet-PC over, and loosen the two captive screws on the metal
bracket that holds the hard drive.
NOTICE: When the hard drive is not in the Tablet-PC, store it in protective antistatic
packaging. See "Protecting Against Electrostatic Discharge" in the Product
Information Guide.
1
2
34
146
3
Holding the metal bracket by the sides, slide the bracket toward the back
of the Tablet-PC to dislodge the bracket from the two metal clips and set
the bracket aside.
4
Use the pull-tab to disconnect the hard drive cable from the system board
connector and remove the hard drive from the Tablet-PC.
Installing the Hard Drive
1
Follow the procedures in "Before You Begin" on page 139.

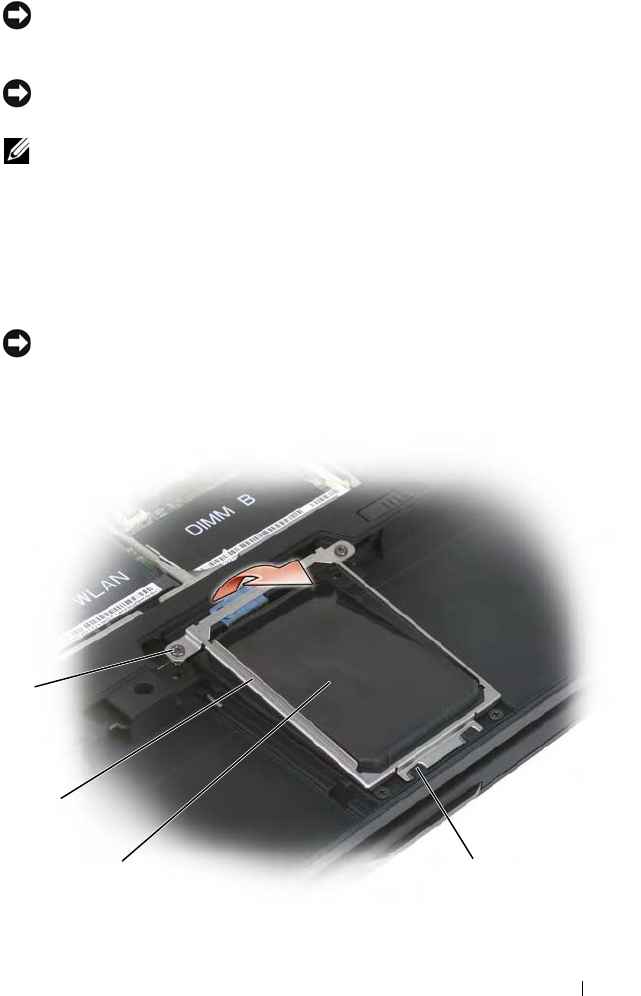

1 captive screws (2) 2 metal bracket
3 hard drive 4 securing tabs (2)
1 pull tab 2 hard drive
3 alignment ribs
1
2
3
147
NOTICE: When the hard drive is not in the Tablet-PC, store it in protective antistatic
packaging. See "Protecting Against Electrostatic Discharge" in the Product
Information Guide.
2
Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
NOTICE: Use firm and even pressure to slide the drive into place. If you use
excessive force, you may damage the connector.
3
Place the hard drive into the hard drive bay, seating it firmly between the
hard drive alignment ribs in the base.
4
Connect the hard drive cable to the system board connector.
5
Insert the two metal tabs of the metal bracket under the metal clips in the
hard drive bay, then lower the bracket down over the hard drive.
6
Tighten the two captive screws on the metal bracket.
7
Use the
Operating System
CD to install the operating system for your
Tablet-PC. (See "Using the Operating System Media" on page 137.)
8
Use the
Drivers and Utilities
CD to install the drivers and utilities for your
Tablet-PC. (See "Using the Drivers and Utilities Media" on page 132).
Subscriber Identity Module (SIM) Card
NOTICE: To protect the SIM card from electrostatic discharge (ESD), do not touch
the SIM card connector. Also, take care when removing the card to slide the card
completely out of the metal tabs before lifting the card out of the slot. The card is
brittle and may easily break.
NOTE: The SIM card is located in the battery bay. You must remove the main
battery before you can access the SIM card.
Removing the SIM Card
1
Follow the procedures in "Before You Begin" on page 139.
2
Push in the SIM card, then release the card.
3
Pull the SIM card from the SIM card slot and place it to one side.
148
NOTE: When you replace the SIM card, ensure that you insert the SIM card into
the SIM card slot with the cut-off corner of the card facing toward the front of the
Tablet-PC.
Installing the SIM Card
1
Insert the SIM card with the cut-off corner of the card facing toward the
front of the Tablet-PC.
2
Push the card in until it is firmly seated into the connector.
Internal Card With Bluetooth® Wireless
Technology
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.

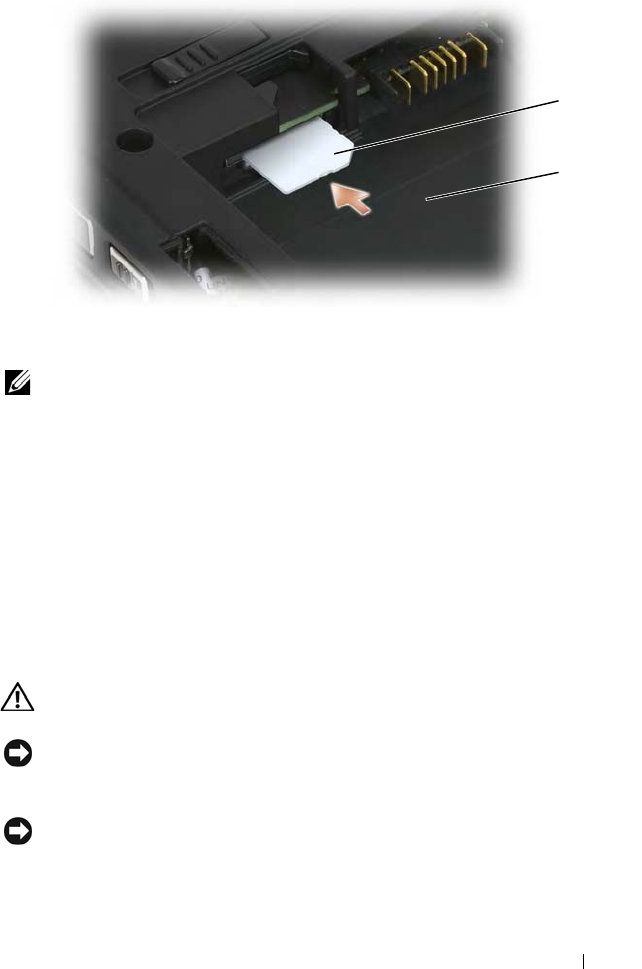

1 SIM card 2 battery bay
2
1
149
If you ordered an internal card with Bluetooth wireless technology with your
Tablet-PC, it is already installed.
Removing a Bluetooth Card
1
Follow the procedures in "Before You Begin" on page 139.
2
Loosen the captive screw and, lifting the end with the captive screw first
and ensuring that you do not pull on the card cable with excessive force,
remove the Bluetooth card and card cover from the Tablet-PC.
3
Disconnect the card cable from the Bluetooth card.

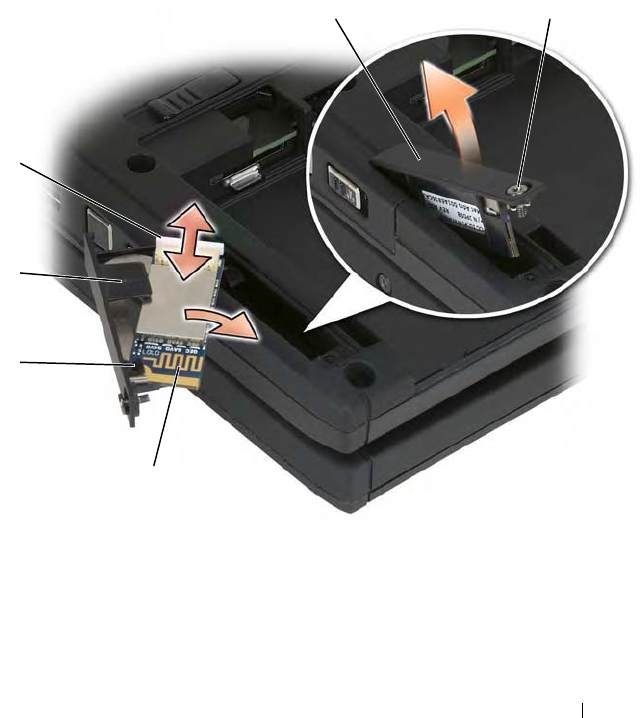

1 captive screw 2 card caddy
3 cable connector 4 plastic securing tab
5 plastic securing tab 6 Bluetooth card
2
3
4
5
6
1
150
NOTICE: Be careful when removing the card to avoid damaging the card, card
cable, or surrounding components.
4
Slide the card from the card clip on the card cover and set the card and
cover aside.
Installing a Bluetooth Card
1
Seat the Bluetooth card into the card door, sliding the corner under the
plastic clip.
2
Connect the Bluetooth card cable to the card.
3
Insert the end of the card cover without the captive screw and card into the
base, then lower the screw end of the cover into the base.
4
Tighten the captive screw.
Memory and Mini-card Cover
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions located in the Product Information Guide.
NOTICE: To prevent damage to the system board, remove the main battery before
you service the Tablet-PC.
Removing the Memory and Mini-card Cover
1
Follow the procedures in "Before You Begin" on page 139.
2
Turn the Tablet-PC upside-down, loosen the two captive screws on the
memory and mini-card cover, and remove the cover.
151
Installing the Memory and Mini-card Cover
1
Follow the procedures in "Before You Begin" on page 139.
2
Turn the Tablet-PC upside-down, fit the cover into place, and tighten the
two captive screws on the memory and mini-card cover.
Memory
You can increase your Tablet-PC memory by installing memory modules on
the system board. See "Specifications" on page 40 for information on the
memory supported by your Tablet-PC. Install only memory modules that are
intended for your Tablet-PC.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions located in the Product Information Guide.
NOTICE: To prevent damage to the system board, remove the main battery before
you service the Tablet-PC.
Removing a Memory Module
1
Follow the procedures in "Before You Begin" on page 139.
152
2
Remove the memory and mini-card cover. See "Removing the Memory and
Mini-card Cover" on page 150.
NOTE: Memory modules purchased from Dell are covered under your Tablet-PC
warranty.
NOTICE: To prevent damage to the memory module connector, do not use tools to
spread the memory-module securing clips.
3
Ground yourself by touching one of the metal connectors on the back of
the Tablet-PC.
4
Use your fingertips to carefully spread apart the securing clips on each end
of the memory module connector until the module pops up.
5
Remove the module from the connector and set aside.
Installing a Memory Module
1
Ground yourself by touching one of the metal connectors on the back of
the Tablet-PC.
NOTE: If the memory module is not installed properly, the Tablet-PC may not boot
properly. No error message indicates this failure.
2
Align the notch in the module edge connector with the tab in the
connector slot.
3
Slide the module firmly into the slot at a 45-degree angle, and rotate the
module down until it clicks into place. If you do not feel the click, remove
the module and reinstall it.
1
2
153
4
Replace the memory and mini-card cover, and tighten the two captive
screws (see "Installing the Memory and Mini-card Cover" on page 151).
NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing
the cover to close may damage your Tablet-PC.
5
Insert the battery into the battery bay, or connect the AC adapter to your
Tablet-PC and an electrical outlet.
6
Turn on the Tablet-PC.
As the Tablet-PC boots, it detects the additional memory and automatically
updates the system configuration information.
To confirm the amount of memory installed in the Tablet-PC, click Start ,
and right-click Computer→ Properties.
Mini Card
Your Tablet-PC supports a Wireless Wide Area Network (WWAN) card and a
Wireless Local Area Network (WLAN) card; both mini cards are installed the
same way, although they have different connectors on the system board. If
you ordered a mini card with your Tablet-PC, the card is already installed.
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions located in the Product Information Guide.
NOTICE: To prevent damage to the system board, remove the main battery before
you service the Tablet-PC.
Removing a Mini Card
1
Follow the procedures in "Before You Begin" on page 139.
2
Remove the memory and mini-card cover. See "Removing the Memory and
Mini-card Cover" on page 150.
1tab 2notch
154
3
Ground yourself by touching one of the metal connectors on the back of
the Tablet-PC.
NOTE: If you leave the area, ground yourself again when you return to the Tablet-
PC.
4
Disconnect the cables from the card.
NOTE: Depending on the type of mini card you have, not all cables may be in use.
1WWAN slot 2WLAN slot
1 2
155
5
Release the card by pushing the metal securing tab away from the card
until the card pops up slightly.
1antenna cable connectors (2) 2mini card
1
2
156
6
Slide the card at a 45-degree angle out of its connector.
Installing a Mini Card
NOTICE: To avoid damaging the mini card, never place cables on top of or under
the card.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors and realign the card.
NOTE: Depending on the type of mini card you have, not all cables may be in use.
NOTE: Do not insert a Mobile Broadband (WWAN) network card into the WLAN
card connector, or vice-versa.
NOTE: The mini card may have two or three connectors, depending on the type of
card you ordered.
1
Move any cables out of the way to make space for the mini card.
1metal securing tabs (2) 2mini card
1
2
157
2
Align the card with the connector at a 45-degree angle, and press the card
into the connector until it clicks.
NOTE: For more specific information about which cable to connect to which
connector, see the documentation that came with your mini card.
3
Connect the cables to the mini card, ensuring that you route the cables
correctly.
4
Replace the memory and mini-card cover, and tighten the two captive
screws. See "Installing the Memory and Mini-card Cover" on page 151.
Hinge Cover
CAUTION: Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the Tablet-PC).
NOTICE: The hinge cover is fragile and can be damaged if extreme force is used.
Be careful when removing the hinge cover.
Removing the Hinge Cover
1
Follow the procedures in "Before You Begin" on page 139.
2
Turn the Tablet-PC top-side up, and then open the display all the way (180
degrees) so that the display rests on your work surface.
NOTICE: To avoid damaging the hinge cover, do not lift the cover on both sides
simultaneously. Removing the hinge cover in a different way than described may
cause the plastic to break.
158
3
Starting on the right side of the Tablet-PC, use a plastic scribe to pry up
the hinge cover. Lift the cover away from the Tablet-PC going from the
right toward the left, and lay the cover aside.
Installing the Hinge Cover
1
Insert the left edge of the cover into place.
2
Press from left to right until the cover snaps into place.
Keyboard
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
1 hinge cover 2 plastic scribe
3 indent
1
2
3
159
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as the
back panel) on the Tablet-PC.
Removing the Keyboard
1
Follow the instructions in "Before You Begin" on page 139.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-
consuming to replace. Be careful when removing and handling the keyboard.
3
Remove the two M2 x 3-mm screws to either side of the rotating hinge at
the top of the keyboard.
1 screws (2) 2 keyboard tabs (4)
3 palm rest 4 keyboard-cable pull-tab
5 keyboard-cable locking arm 6 keyboard-cable locking arm
7 keyboard cable
2
1
3
4
5
6
7
160
NOTE: Lift the keyboard carefully in step 4 to ensure that you do not pull on the
keyboard cable.
4
Rotate the keyboard up 45-degrees to gain access to the keyboard
connector.
5
Pull up on the pull-tab to disconnect the keyboard cable from the keyboard
connector on the system board.
6
Pull the track stick cable from the track stick connector on the system
board.
7
Lift the keyboard from the system and place to one side.
Installing the Keyboard
NOTE: When you replace the keyboard, ensure that the keyboard tabs are
completely in place to avoid scratching the palm rest.
1
Slip the track stick cable into the track stick cable connector on the system
board and press the connector clip down to hold the cable in place.
2
Insert the keyboard cable into the keyboard cable connector on the system
board and press the connector clip down to hold the cable in place.
3
Holding the keyboard at a slight angle, insert the four metal tabs of the
keyboard into the four metal slots of the palm rest.
4
Tighten the two M2 x 3-mm screws at the top of the keyboard.
5
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
Coin-Cell Battery
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the Coin-cell Battery
1
Follow the procedures in "Before You Begin" on page 139.
161
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
3
Remove the keyboard (see "Removing the Keyboard" on page 159).
4
Remove the coin-cell battery connector from the connector on the system
board.
5
Using your fingers, pry the coin-cell battery from the system base.
Installing the Coin-cell Battery
1
Place the battery into position, pressing firmly to affix the battery to the
sticky tape on the base.
2
Connect the coin-cell battery connector to the connector on the system
board.
3
Install the keyboard (see "Installing the Keyboard" on page 160).
4
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
1 coin-cell battery connector 2 coin-cell battery
1
2
162
Display Assembly
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the Display Assembly
1
Follow the procedures in "Before You Begin" on page 139.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
3
Remove the keyboard (see "Removing the Keyboard" on page 159).
4
Remove any installed mini cards (see "Removing a Mini Card" on
page 153).
5
Use the pull tab to disconnect the display cable from the system board.
163
6
Feed the mini-card antenna cables from the bottom through the cable
channel to the top of the system.
7
Loosen the five M2.5 x 5-mm screws.
8
Turn the system upside-down and remove the base grip:
a
Remove the two M2.5 x 5-mm screws.
1 display 2 M2.5 x 5-mm screws (5)
3 display connector pull tab 4 display cable connector
5 antenna cables (3) 6 antenna channel
4
1
5
6
2
3
164
b
Pry the base grip from the back of the rotating hinge and set the base
grip aside.
9
Turn the system top-side up, and remove the two M2.5 x 5-mm screws
from the top of the rotating hinge.
1 base grip 2 M2.5 x 5-mm screws (2)
1
2
165
10
Lift the display assembly from the base, and place the display assembly to
one side.
Installing the Display Assembly
1
Place the display assembly on the base.
2
Feed the mini-card antenna cables from the top through the antenna
channel to the bottom of the system
1 M2.5 x 5-mm screws (2)
1
166
3
Tighten the five M2.5 x 5-mm screws.
4
Close the Tablet-PC and turn it around so that you can access the back of
the rotating hinge.
5
Tighten the two M2.5 x 5-mm screws on the top of the rotating hinge.
1 display 2 M2.5 x 5-mm screws (5)
3 display connector pull tab 4 display cable connector
5 antenna cables (3) 6 antenna channel
4
1
5
6
2
3
167
6
Turn the Tablet-PC upside-down and install the base grip:
a
Clip the base grip onto the back of the rotating hinge.
b
Tighten the two M2.5 x 5-mm screws.
1 M2.5 x 5-mm screws (2)
1
168
7
Turn the Table-PC around and open the display.
8
Connect the display cable to the system board.
9
Install any applicable mini cards (see "Installing a Mini Card" on
page 156).
10
Install the keyboard (see "Installing the Keyboard" on page 160).
11
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
Palm Rest
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
1 base grip 2 M2.5 x 5-mm screws (2)
1
2
169
Removing the Palm Rest
1
Follow the procedures in "Before You Begin" on page 139.
2
Remove the hard drive (see "Removing the Hard Drive" on page 145).
3
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
4
Remove the display assembly (see "Removing the Display Assembly" on
page 162).
5
Remove the keyboard (see "Removing the Keyboard" on page 159).
6
Remove any installed mini cards (see "Removing a Mini Card" on
page 153).
7
Disconnect the touch pad cable.
8

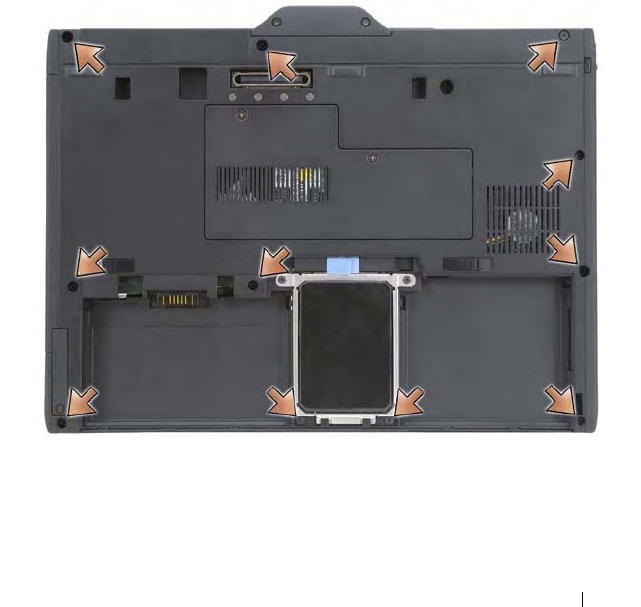

Turn the Tablet-PC upside down and remove the eleven M2.5 x 5-mm
screws.
9
From the top side of the Tablet-PC, remove the four M2.5 x 5-mm screws
labeled with a "P".
170
10
Disengage the five snaps at the front of the system by using your fingers to
pry the edge of the base away from the palm rest.
11
Turn the Tablet-PC top-side up and, lifting the front end slightly upward
and moving in a clock-wise manner, disengage the snaps at the sides and
back of the system.

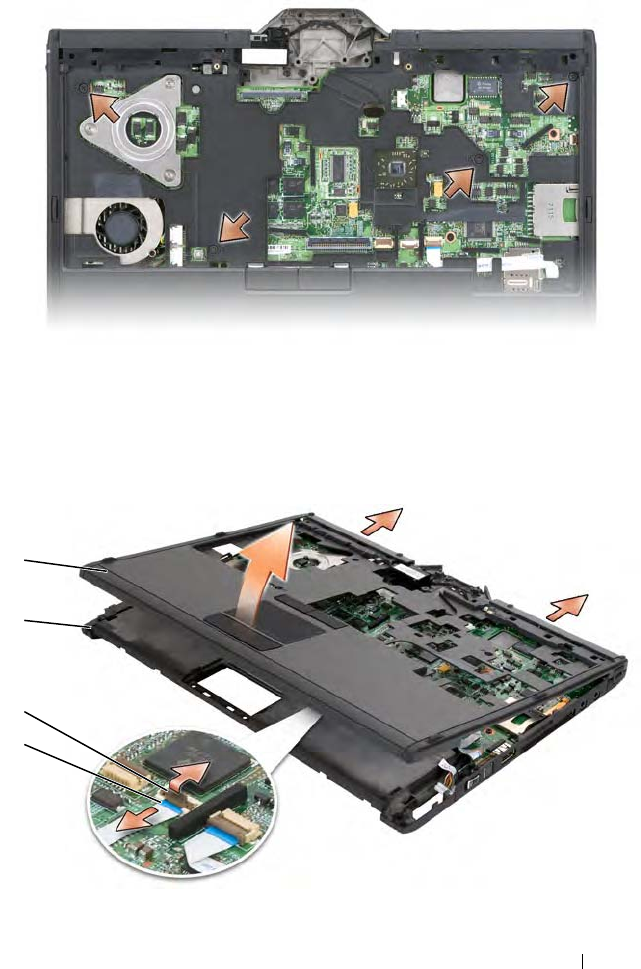

1
2
3
4
171
Installing the Palm Rest
1
Place the palm rest on top of the base, and engage the snaps around the
palm rest edges by pressing with your fingers in a counter-clockwise
manner.
2
Turn the Tablet-PC upside down and tighten the eleven M2.5 x 5-mm
bottom screws.
3
Turn the Tablet-PC top-side up and tighten the five M2.5 x 5-mm screws
labeled with a "P".
4
Connect the touch pad cable to the system board connector.
5
Install any mini cards (see "Installing a Mini Card" on page 156).
6
Install the keyboard (see "Installing the Keyboard" on page 160).
7
Install the display assembly (see "Installing the Display Assembly" on
page 165).
8
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
9
Install the hard drive (see "Installing the Hard Drive" on page 146).
System Board
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the System Board
1
Follow the procedures in "Before You Begin" on page 139.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
1 palm rest 2 base
3 touch pad cable locking arm 4 touch pad cable
172
3
Remove the display assembly (see "Removing the Display Assembly" on
page 162).
4
Remove the keyboard (see "Removing the Keyboard" on page 159).
5
Remove any installed mini cards (see "Removing a Mini Card" on
page 153).
6
Remove the palm rest (see "Removing the Palm Rest" on page 169).
7
Remove the speaker from the base:
a
Disconnect the speaker cable from the speaker system board
connector.
b
Lift the speaker from the base and set the speaker aside.
8
Disconnect the wireless switch cable from the system board.
1 system board 2 M2.5 x 5 screw
3 pen indicator cable 4 base
5 wireless switch cable locking arm 6 wireless switch cable
1 2 3
5
6
4
173
9
Disconnect the pen indicator cable from the system board.
10
Remove the M2.5 x 5-mm screw marked with a silver triangle.
11
Remove the system board from the base, lifting from right to left, and set
the system board aside.
Installing the System Board
1
Seat the system board into the base from left to right.
2
Tighten the M2.5 x 5-mm screw into the screw hole marked with a silver
triangle on the system board.
3
Connect the pen indicator cable to the system board.
4
Connect the wireless switch cable to the system board.
5
Replace the speaker module:
a
Lower the speaker into the base.
b
Connect the speaker cable to the speaker system board connector.
6
Install the palm rest (see "Installing the Palm Rest" on page 171).
7
Install any mini cards (see "Installing a Mini Card" on page 156).
8
Install the keyboard (see "Installing the Keyboard" on page 160).
9
Install the display assembly (see "Installing the Display Assembly" on
page 165).
10
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
Fan
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the Fan
1
Follow the procedures in "Before You Begin" on page 139.
174
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
3
Remove the display assembly (see "Removing the Display Assembly" on
page 162).
4
Remove the keyboard (see "Removing the Keyboard" on page 159).
5
Remove any installed mini cards (see "Removing a Mini Card" on
page 153).
6
Remove the palm rest (see "Removing the Palm Rest" on page 169).
7
Remove the system board (see "Removing the System Board" on
page 171), and place it upside-down on a clean work surface.
8
Disconnect the fan cable from the system board.
9
Using a #0 Phillips screwdriver, remove the four M2 x 3-mm screws, and
lift the fan from the system board.
2
1
3
175
Installing the Fan
1
Seat the fan into the system board, and tighten the four M2 x 3-mm screw
using a #0 Phillips screwdriver.
2
Connect the fan cable to the system board.
3
Install the system board (see "Installing the System Board" on page 173).
4
Install the palm rest (see "Installing the Palm Rest" on page 171).
5
Install the keyboard (see "Installing the Keyboard" on page 160).
6
Install the display assembly (see "Installing the Display Assembly" on
page 165).
7
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
8
Install any mini cards (see "Installing a Mini Card" on page 156).
Pen and Whip Antenna Assembly
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the Pen and Whip Antenna Assembly
1
Follow the procedures in "Before You Begin" on page 139.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
3
Remove the display assembly (see "Removing the Display Assembly" on
page 162).
4
Remove the keyboard (see "Removing the Keyboard" on page 159).
1 M2 x 3-mm screws (4) 2 fan
3 fan cable connector
176
5
Remove any installed mini cards (see "Removing a Mini Card" on
page 153).
6
Remove the palm rest (see "Removing the Palm Rest" on page 169).
7
Remove the system board (see "Removing the System Board" on
page 171).
8
Remove the two M2 x 3-mm screws.
9
Remove the pen missing cable and whip antenna cable from their routing
channels, then lift the pen assembly and whip antenna assembly from the
base.
1
3
5
2
4
177
Installing the Pen and Whip Antenna Assembly
1
Seat the pen missing cable and whip antenna cable into their routing
channels.
2
Tighten the two M2 x 3-mm screws.
3
Install the system board (see "Installing the System Board" on page 173).
4
Install the palm rest (see "Installing the Palm Rest" on page 171).
5
Install the keyboard (see "Installing the Keyboard" on page 160).
6
Install the display assembly (see "Installing the Display Assembly" on
page 165).
7
Install any mini cards (see "Installing a Mini Card" on page 156).
8
Install the keyboard (see "Installing the Keyboard" on page 160).
9
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
Wireless Switch
CAUTION: Before performing the following procedures, follow the safety
instructions in your Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching a connector on the back panel of the
Tablet-PC.
NOTICE: To avoid damaging the system board, you must remove the main battery
before you begin working inside the Tablet-PC.
Removing the Wireless Switch
1
Follow the procedures in "Before You Begin" on page 139.
2
Remove the hinge cover (see "Removing the Hinge Cover" on page 157).
3
Remove the display assembly (see "Removing the Display Assembly" on
page 162).
1 pen and whip antenna assembly 2 pen missing cable
3 M2 x 3-mm screws (2) 4 whip antenna cable
5base
178
4
Remove the keyboard (see "Removing the Keyboard" on page 159).
5
Remove any installed mini cards (see "Removing a Mini Card" on
page 153).
6
Remove the palm rest (see "Removing the Palm Rest" on page 169).
7
Remove the system board (see "Removing the System Board" on page 171.
8
Remove the M2.5 x 5-mm screw.
9
Lift the wireless switch from the base, and set the switch aside.
Installing the Wireless Switch
1
Set the wireless switch into the base.
1 base 2 M2.5 x 5-mm screw
1
2
179
2
Tighten the M2.5 x 5-mm screw.
3
Install any mini cards (see "Installing a Mini Card" on page 156).
4
Install the keyboard (see "Installing the Keyboard" on page 160).
5
Install the display assembly (see "Installing the Display Assembly" on
page 165).
6
Install the hinge cover (see "Installing the Hinge Cover" on page 158).
180
Dell™ D/Bay 181
Dell™ D/Bay
CAUTION: Before performing any of the procedures in this section, follow the
safety instructions in your Product Information Guide.
About the Dell D/Bay
You can install Dell Latitude™ D-Family devices such as a floppy drive, hard
drive, or optical drive using the Dell D/Bay.
Setting Up and Using the D/Bay
Connect the D/Bay cable to the powered USB connector on your Tablet-PC
or optional media base.
Dell™ D/Bay 182
Removing and Installing Devices When the
Tablet-PC is Turned Off
NOTICE: To prevent damage to devices, place them in a safe, dry place when they
are not installed in the computer. Avoid pressing down on them or placing heavy
objects on top of them.
1
Press the device latch release so that the latch release pops out.
2
Pull the device by the latch release to remove the device from the D/Bay.
Dell™ D/Bay 183
3
Insert the new device into the bay, push the device until you feel a click,
and push the device latch release in so that it is flush with the bay.
4
Connect the D/Bay cable to the powered USB connector on your Tablet-
PC or media base.
Removing and Installing Devices While the
Tablet-PC Is Running
1
Double-click the
Safely Remove Hardware
icon on the taskbar.
2
Click the device you want to eject.
NOTICE: To prevent damage to devices, place them in a safe, dry place when they
are not installed in the computer. Avoid pressing down on them or placing heavy
objects on top of them.
3
Press the device latch release so that the latch release pops out.
Dell™ D/Bay 184
4Pull the device by the latch release to remove the device from the D/Bay.
5Insert the new device into the bay, push the device until you feel a click,
and push the device latch release in so that it is flush with the bay.
Windows Vista automatically recognizes the new device.
6
If necessary, enter your password to unlock your drive.
Media Base (Optional) 185
Media Base (Optional)
Left View
USB CONNECTOR
OPTICAL DRIVE —Allows you to use CD and DVD media.
1 USB connector 2 optical drive
The USB 2.0-compliant connector allows you to connect
USB devices, such as a mouse, keyboard, or printer.
1 2
Media Base (Optional) 186
Right View
USB CONNECTOR
TABLET-PC RELEASE LEVER —Releases the Tablet-PC from the media base if the
media base is not secured by an antitheft device.
SECURITY CABLE SLOT —Lets you attach a commercially available antitheft device
to the media base. Instructions for installing antitheft devices are usually included
with the device. For more information, see "Securing the Media Base" on page 192.
Back View
1 USB connector 2 Tablet-PC release lever
3 security cable slot
The USB 2.0-compliant connector allows you to connect
USB devices, such as a mouse, keyboard, or printer.
1 2 3
1 2 3 4 5 6 97 108
Media Base (Optional) 187
TABLET-PC RELEASE LEVER —Lets you undock the Tablet-PC from the media base
(see "Undocking Your Tablet-PC From the Media Base" on page 194).
AC ADAPTER CONNECTOR
1 Tablet-PC release lever 2 AC adapter connector
3 audio connector 4 IEEE 1394
5 VGA video connector 6 digital video interface (DVI) connector
7 serial connector 8 USB connector
9 powered USB connector 10 network connector
Connects an AC adapter to the media base and to AC power
to convert AC power to the DC power required by the media
base. You can connect the AC adapter with your media base
either turned on or off. For more information, see "Setting
Up Your Media Base" on page 191.
CAUTION: If you are using a multiple-outlet power
strip, use caution when you plug the AC adapter power
cable into the power strip. Some power strips may
allow you to insert the connector incorrectly. Incorrect
insertion of the power connector could result in
permanent damage to your media base as well as
electric shock and/or fire. Ensure that you insert the
ground prong of the power plug into the mating ground
contact of the power strip.
NOTICE: When you disconnect the AC adapter from the
media base, hold the adapter cable connector, not the
cable itself, and pull firmly to avoid damaging the cable.
Media Base (Optional) 188
AUDIO CONNECTOR
IEEE 1394 CONNECTOR
VGA VIDEO CONNECTOR
DIGITAL-VIDEO INTERFACE (DVI) CONNECTOR
Connect headphones or speakers. The connector is a stereo
output connector.
Connect FireWire devices such as a camera, external hard
drive, or external CD-ROM drive. Supports hot swapping,
multiple speeds on the same bus, and time-based data
transfer, providing bandwidth for multimedia operation.
Connects an external VGA monitor.
NOTE: When your Tablet-PC is docked, use the video
connector on the media base.
Connects an external DVI-compatible monitor, such as a
flat-panel monitor. With an adapter cable, you can also
connect an external VGA-compatible monitor to the DVI
connector.
Media Base (Optional) 189
SERIAL CONNECTOR
USB CONNECTOR
POWERED USB CONNECTOR
Connects a serial device, such as a serial mouse or a
handheld device.
Connect USB devices, such as a mouse, keyboard, or
printer.
Connect optional external D/Bay device, or standard USB
devices, such as a mouse, keyboard, or printer.
Media Base (Optional) 190
NETWORK CONNECTOR
Top View
Connects the computer to a network. The solid light on
the connector provides link status information. Off
indicates no link, green indicates a 10-Mb/sec link, orange
indicates a 100-Mb/sec link, and yellow indicates a 1000-
Mb/sec link. The blinking yellow light on the connector
indicates activity on the wired network connection.
For information on using the network adapter, see the
network adapter documentation supplied with your
computer under Windows Help and Support. To access
Help and Support, see "Windows Help and Support" on
page 19.
1 docking connector
1
Media Base (Optional) 191
DOCKING CONNECTOR —Allows you to dock your Tablet-PC to the media base
(see"Docking Your Tablet-PC to the Media Base" on page 193 and "Undocking Your
Tablet-PC From the Media Base" on page 194).
Setting Up Your Media Base
CAUTION: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible
cable or improperly connecting the cable to the power strip or electrical outlet
may cause fire or equipment damage.
NOTICE: Always use the Dell AC adapter that came with the media base. If you use
any other commercially available AC adapter—or the AC adapter from earlier
models of Dell computers—you may damage the media base or the Tablet-PC.
NOTICE: When you disconnect the Dell AC adapter cable from the Tablet-PC or
media base, grasp the connector, not the cable itself, and pull firmly but gently to
avoid damaging the cable. When you wrap the AC adapter cable, ensure that you
follow the angle of the connector on the AC adapter to avoid damaging the cable.
1
Connect the AC adapter to the AC adapter connector on the media base
and to an electrical outlet.
2
Before you dock your Tablet-PC to the media base for the first time, the
Tablet-PC operating system must have completed its setup process. Do
the following:
Media Base (Optional) 192
a
Ensure that the Tablet-PC is
not
connected to the media base or to
the battery slice (docked).
b
Turn on the Tablet-PC.
c
Verify that the Microsoft
®
Windows
®
desktop appears.
d
Shut down the Tablet-PC (see "Turning Off Your Tablet-PC" on
page 139).
Securing the Media Base
NOTE: If the Tablet-PC is docked to the media base and an antitheft device is
attached to the security cable slot on the media base, you cannot undock the
Tablet-PC without first removing the antitheft device.
Attach a commercially available antitheft device to the security cable slot on
the media base.
Antitheft devices usually include a segment of metal-stranded cable with an
attached locking device and associated key. For instructions on installing this
kind of antitheft device, see the documentation that accompanied the device.
Media Base (Optional) 193
Docking Your Tablet-PC to the Media Base
NOTE: If you are docking your Tablet-PC for the first time and have not completed
the steps in "Setting Up Your Media Base" on page 191, complete them before
proceeding to the next step.
NOTE: After docking the Tablet-PC for the first time, the Tablet-PC battery or the
Tablet-PC AC adapter connection can power the media base if the media base is
not connected to an AC adapter.
NOTE: Your Tablet-PC should be turned off when you dock it to the media base for
the first time.
1
Ensure that your Tablet-PC is turned off if this is the first time it is being
docked to the media base.
2
Align the back of the Tablet-PC with the back of the media base at an
approximately 30-degree angle, and lower the front of the Tablet-PC onto
the media base.
1 Tablet-PC 2 media base
1
2
Media Base (Optional) 194
3
Press the Tablet-PC onto the media base until it clicks and the Tablet-PC
is firmly seated.
4
Turn on the Tablet-PC.
The operating system recognizes the media base.
Undocking Your Tablet-PC From the Media Base
NOTICE: Never undock the Tablet-PC without first preparing the Tablet-PC for
undocking. If you undock before preparing the Tablet-PC, you will lose data and the
Tablet-PC may not recover normal operation for several minutes, if at all.
1
Before you undock your Tablet-PC, save and close any open files, and exit
any open programs.
2
Set your Tablet-PC power management settings so that the Tablet-PC
does not enter sleep or hibernate mode when you close (lower) the display:
a
Click
Start
→
Control Panel
→
Mobile PC
→
Power Options
→
Change what closing the lid does
.
b
Under the
When I close the lid
drop-down menu, select
Do nothing.
NOTICE: If the Tablet-PC does not have a charged battery in the battery bay, you
must shut down the Tablet-PC before undocking. If you undock the Tablet-PC
without a battery before shutting it down, you will lose data and the Tablet-PC may
not recover normal operation for several minutes, if at all.
3
Prepare your Tablet-PC by doing one of the following:
• If your Tablet-PC does not have a charged battery in the battery bay,
shut down the Tablet-PC through the Windows
Start
menu.
• If your Tablet-PC has a charged battery in the battery bay, click
Start
→
Undock Computer
.
4
If your media base is secured, remove the lock.
5
Remove the AC adapter connector from the media base
6
Pull the Tablet-PC release lever forward (see "Right View" on page 186) to
release the Tablet-PC from the media base.
Media Base (Optional) 195
7
Lift the back of the Tablet-PC up and slide the Tablet-PC out towards the
back of the media base.
Installing the Optical Drive Into the Media Base
1
Save and close any open files or programs, and turn off the Tablet-PC (see
"Turning Off Your Tablet-PC" on page 139).
2
Insert the optical drive into the bay on the media base. (See "Left View" on
page 185.)
3
Insert the securing screw that holds the optical drive in place.
4
Turn on the Tablet-PC.
The operating system recognizes the new drive.
Removing the Optical Drive From the Media Base
1
Save and close any open files or programs, and turn off the Tablet-PC (see
"Turning Off Your Tablet-PC" on page 139).
Media Base (Optional) 196
2
Remove the securing screw that secures the optical drive and use your
screwdriver to slide the drive out of the module bay.
Media Base Specifications
Physical
Height 12.8 mm (0.50 inches)
Width 295.31 mm (11.63 inches)
Depth 222.56 mm (8.76 inches)
Weight (without a drive in the
module bay)
0.47 kg (1.0 lb)
Storage
DVD-ROM (optional)
DVD+RW (optional)
Media Base (Optional) 197
Ports and Connectors
Network connector RJ-45 port for 10/100/1000 Mbits/second
Ethernet
USB three 4-pin USB-2.0 compliant connectors
Powered USB one 9-pin USB-2.0 compliant connector
Video 15-pin VGA connector
DVI connector 24-hole connector
Serial 9-pin connector; 16550C-compatible UART
with 16-byte buffer
Audio headphone/speaker (line-out) mini
connector
IEEE 1394a 4-pin serial connector
Docking 100-pin connector
Media Base (Optional) 198
Battery Slice (Optional) 199
Battery Slice (Optional)
Top View
1 docking connector 2 power status light
3 AC adapter connector 4 release lever
1 3
2
4
Battery Slice (Optional) 200
Bottom View
Setting Up Your Battery Slice
CAUTION: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible
cable or improperly connecting the cable to the power strip or electrical outlet
may cause fire or equipment damage.
NOTICE: Always use the Dell AC adapter that came with your Tablet-PC. If you use
any other commercially available AC adapter—or the AC adapter from earlier
models of Dell computers—you may damage the battery slice or the Tablet-PC.
NOTICE: When you disconnect the Dell AC adapter cable from the Tablet-PC,
grasp the connector, not the cable itself, and pull firmly but gently to avoid
damaging the cable. When you wrap the AC adapter cable, ensure that you follow
the angle of the connector on the AC adapter to avoid damaging the cable.
1 battery slice status LED
Battery Slice (Optional) 201
Connect the AC adapter to the AC adapter connector on your Tablet-PC and
to an electrical outlet.
Docking Your Tablet-PC to the Battery Slice
NOTE: After docking the Tablet-PC for the first time, the Tablet-PC battery or the
Tablet-PC AC adapter connection can power the battery slice.
Battery Slice (Optional) 202
1
Align the back of the Tablet-PC with the back of the battery slice at
approximately a 30-degree angle, and lower the front of the Tablet-PC
onto the
battery slice
.
2
Press the Tablet-PC onto the
battery slice
until you feel a click and the
Tablet-PC is firmly seated.
3
Turn on the Tablet-PC.
The operating system recognizes the
battery slice
.
Undocking Your Tablet-PC From the Battery Slice
1
Before you undock your Tablet-PC from the battery slice, save and close
any open files, and exit any open programs.
2
Set your Tablet-PC power management settings so that the Tablet-PC
does not enter sleep or hibernate mode when you close (lower) the display:
a
Click
Start
→
Control Panel
→
Mobile PC
→
Power Options
→
Change what closing the lid does
.
1 Tablet-PC 2 battery slice
2
1
Battery Slice (Optional) 203
b
Under the
When I close the lid
drop-down menu, select
Do nothing.
3
Pull the Tablet-PC release lever forward (see "Bottom View" on page 200)
to release the Tablet-PC from the battery slice.
4
Lift the back of the Tablet-PC up and slide the Tablet-PC out towards the
back of the battery slice.
Charging Your Battery Slice
You can recharge your battery slice independent of the Tablet-PC using the
AC adapter that shipped with your Tablet-PC. Your battery slice will also
recharge whenever it is docked to the Tablet-PC and the Tablet-PC is
attached to the electrical outlet using the AC adapter. See "Battery Slice
Power Status LED Codes" on page 204 for more information on the battery
slice power status codes.
Battery Slice (Optional) 204
Battery Slice Power Status LED
Your battery slice includes a power status LED that can indicate the following
states:
Battery Slice Power Status LED Codes
Battery Slice Specifications
Blinking amber, off, blue, off,
amber, off, blue, off
You are trying to use an unsupported, non-Dell AC
adapter to power your tablet-PC.
Blinking amber, off, amber, off,
amber, off, amber, off, long blue,
long off
Temporary battery failure with AC adapter
present.
Blinking amber, off, amber, off,
amber, off, amber, off
Fatal battery failure with AC adapter present.
LED off Battery in full charge mode with AC adapter
present.
Steady blue light Battery in charge mode with AC adapter present.
Physical
Height 8.5 mm (0.33 inches)
Width 295.32 mm (11.63 inches)
Depth 213.32 mm (8.4 inches)
Weight 0.61 kg (1.35 lb)
AC Adapter
Input voltage 100–240 VAC
Input current (maximum) 1.5 A
Input frequency 50–60 Hz
Output current (maximum) 3.34 A
Output power 65 W
Rated output voltage 19.5 VDC
Battery Slice (Optional) 205
Dimensions and weight:
Height
28.3 mm (1.11 inches)
Width
57.8 mm (2.28 inches)
Depth
137.2 mm (5.40 inches)
Weight (with cables) 0.36 kg (.79 lb)
Ports and Connectors
Docking 100-pin connector
AC Adapter
Battery Slice (Optional) 206
Traveling With Your Tablet-PC 207
Traveling With Your Tablet-PC
NOTICE: To avoid damaging your display, ensure that your Tablet-PC is in notebook
mode and that the display is closed when you travel.
Identifying Your Tablet-PC
• Attach a name tag or business card to the Tablet-PC.
• Write down your Service Tag and store it in a safe place away from the
Tablet-PC or carrying case. Use the Service Tag if you need to report a loss
or theft to law enforcement officials and to Dell.
• Create a file on the Microsoft
®
Windows
®
desktop called
if_found
. Place
information such as your name, address, and phone number in this file.
• Contact your credit card company and ask if it offers coded identification
tags.
Packing the Tablet-PC
• Remove any external devices attached to the Tablet-PC and store them in
a safe place.
• To make the Tablet-PC as light as possible, replace any devices installed in
the module bay with the Dell TravelLite™ module.
• Fully charge the main battery and any spare batteries that you plan to carry
with you.
• Shut down the Tablet-PC.
• Disconnect the AC adapter.
NOTICE: When the display is closed, extraneous items on the keyboard or palm
rest could damage the display.
• Remove any extraneous items, such as paper clips, pens, and paper, from
the keyboard and palm rest and close the display.
Traveling With Your Tablet-PC 208
• Use the optional Dell™ carrying case to pack the Tablet-PC and its
accessories together safely.
• Avoid packing the Tablet-PC with items such as shaving cream, colognes,
perfumes, or food.
NOTICE: If the Tablet-PC has been exposed to extreme temperatures, allow it to
acclimate to room temperature for 1 hour before turning it on.
• Protect the Tablet-PC, the batteries, and the hard drive from hazards such
as extreme temperatures and overexposure to sunlight, dirt, dust, or
liquids.
• Pack the Tablet-PC so that it does not slide around in the trunk of your car
or in an overhead storage compartment.
Travel Tips
NOTICE: Do not move the Tablet-PC while using the optical drive to prevent loss of
data.
NOTICE: Do not check the Tablet-PC as baggage.
• Consider disabling wireless activity on your Tablet-PC to maximize battery
operating time.
To disable wireless activity, use the wireless switch (see
"Enabling/Disabling the Dell Mobile Broadband Card" on page 96).
• Consider changing your power management options to maximize battery
operating time (see "Configuring Power Management Settings" on
page 72).
• If you are traveling internationally, carry proof of ownership—or of your
right to use the Tablet-PC if it is company-owned—to speed your passage
through customs. Investigate the customs regulations of the countries you
plan to visit, and consider acquiring an international carnet (also known as
a
merchandise passport
) from your government.
• Find out what type of electrical outlets are used in the countries you will
visit, and have appropriate power adapters.
• Check with your credit card company for information about the kinds of
emergency travel assistance it offers to users of portable computers.
Traveling With Your Tablet-PC 209
Traveling by Air
NOTICE: Do not walk the Tablet-PC through a metal detector. Send the Tablet-PC
through an X-ray machine or have it hand-inspected.
• Ensure that you have a charged battery available in case you are asked to
turn on the Tablet-PC.
• Prior to entering the airplane, verify that using a Tablet-PC is permitted.
Some airlines forbid the use of electronic devices during flight. All airlines
forbid the use of electronic devices during takeoff and landing.
Traveling With Your Tablet-PC 210
211
Glossary
Terms in this Glossary are provided for informational purposes only and may
or may not describe features included with your particular Tablet-PC.
A
AC — alternating current — The form of electricity that powers your computer when
you plug the AC adapter power cable in to an electrical outlet.
ACPI — advanced configuration and power interface — A power management
specification that enables Microsoft® Windows® operating systems to put a computer
in sleep or hibernate mode to conserve the amount of electrical power allocated to
each device attached to the computer.
AGP — accelerated graphics port — A dedicated graphics port that allows system
memory to be used for video-related tasks. AGP delivers a smooth, true-color video
image because of the faster interface between the video circuitry and the computer
memory.
AHCI — Advanced Host Controller Interface — An interface for a SATA hard drive
Host Controller which allows the storage driver to enable technologies such as Native
Command Queuing (NCQ) and hot plug.
ambient light sensor — A feature that helps to control display brightness.
antivirus software — A program designed to identify, quarantine, and/or delete viruses
from your computer.
ASF — alert standards format — A standard to define a mechanism for reporting
hardware and software alerts to a management console. ASF is designed to be
platform- and operating system-independent.
B
battery life span — The length of time (years) during which a portable computer
battery is able to be depleted and recharged.
212
battery operating time — The length of time (minutes or hours) that a portable
computer battery powers the computer.
biometric reader — A strip sensor that uses your unique fingerprint to authenticate
your user identity to help secure your computer.
BIOS — basic input/output system — A program (or utility) that serves as an
interface between the computer hardware and the operating system. Unless you
understand what effect these settings have on the computer, do not change them. Also
referred to as system setup.
bit — The smallest unit of data interpreted by your computer.
Blu-ray Disc™ (BD)— An optical storage technology offering storage capacity of up
to 50 GB, full 1080p video resolution (HDTV required), and as many as 7.1 channels
of native, uncompressed surround sound.
Bluetooth® wireless technology — A wireless technology standard for short-range (9
m [29 feet]) networking devices that allows for enabled devices to automatically
recognize each other.
boot sequence — Specifies the order of the devices from which the computer
attempts to boot.
bootable media — A CD or DVD that you can use to start your computer. In case your
hard drive is damaged or your computer has a virus, ensure that you always have a
bootable CD or DVD available. Your Drivers and Utilities media is an example of
bootable media.
bps — bits per second — The standard unit for measuring data transmission speed.
BTU — British thermal unit — A measurement of heat output.
bus — A communication pathway between the components in your computer.
bus speed — The speed, given in MHz, that indicates how fast a bus can transfer
information.
byte — The basic data unit used by your computer. A byte is usually equal to 8 bits.
C
C — Celsius — A temperature measurement scale where 0° is the freezing point and
100° is the boiling point of water.
cache — A special high-speed storage mechanism which can be either a reserved
section of main memory or an independent high-speed storage device. The cache
enhances the efficiency of many processor operations.
L1 cache — Primary cache stored inside the processor.
213
L2 cache — Secondary cache which can either be external to the processor or
incorporated into the processor architecture.
carnet — An international customs document that facilitates temporary imports into
foreign countries. Also known as a merchandise passport.
CD-R — CD recordable — A recordable version of a CD. Data can be recorded only
once onto a CD-R. Once recorded, the data cannot be erased or written over.
CD-RW — CD rewritable — A rewritable version of a CD. Data can be written to a
CD-RW disc, and then erased and written over (rewritten).
CD-RW drive — A drive that can read CDs and write to CD-RW (rewritable CDs)
and CD-R (recordable CDs) discs. You can write to CD-RW discs multiple times, but
you can write to CD-R discs only once.
CD-RW/DVD drive — A drive, sometimes referred to as a combo drive, that can read
CDs and DVDs and write to CD-RW (rewritable CDs) and CD-R (recordable CDs)
discs. You can write to CD-RW discs multiple times, but you can write to CD-R discs
only once.
clock speed — The speed, given in MHz, that indicates how fast computer
components that are connected to the system bus operate.
CMOS — A type of electronic circuit. Computers use a small amount of battery-
powered CMOS memory to hold date, time, and system setup options.
COA — Certificate of Authenticity — The Windows alpha-numeric code located on a
sticker on your computer. Also referred to as the Product Key or Product ID.
Control Panel — A Windows utility that allows you to modify operating system and
hardware settings, such as display settings.
controller — A chip that controls the transfer of data between the processor and
memory or between the processor and devices.
CRIMM — continuity rambus in-line memory module — A special module that has
no memory chips and is used to fill unused RIMM slots.
cursor — The marker on a display or screen that shows where the next keyboard, touch
pad, or mouse action will occur. It often is a blinking solid line, an underline character,
or a small arrow.
D
DDR SDRAM — double-data-rate SDRAM — A type of SDRAM that doubles the
data burst cycle, improving system performance.
DDR2 SDRAM — double-data-rate 2 SDRAM — A type of DDR SDRAM that uses a
4-bit prefetch and other architectural changes to boost memory speed to over 400
214
MHz.
device — Hardware such as a disk drive, printer, or keyboard that is installed in or
connected to your computer.
device driver — See driver.
DIMM — dual in-line memory module — A circuit board with memory chips that
connects to a memory module on the system board.
DIN connector — A round, six-pin connector that conforms to DIN (Deutsche
Industrie-Norm) standards; it is typically used to connect PS/2 keyboard or mouse
cable connectors.
disk striping — A technique for spreading data over multiple disk drives. Disk striping
can speed up operations that retrieve data from disk storage. Computers that use disk
striping generally allow the user to select the data unit size or stripe width.
DMA — direct memory access — A channel that allows certain types of data transfer
between RAM and a device to bypass the processor.
docking device — provides port replication, cable management, and security features
to adapt your notebook to a desktop workspace.
DMTF — Distributed Management Task Force — A consortium of hardware and
software companies who develop management standards for distributed desktop,
network, enterprise, and Internet environments.
domain — A group of computers, programs, and devices on a network that are
administered as a unit with common rules and procedures for use by a specific group
of users. A user logs on to the domain to gain access to the resources.
DRAM — dynamic random-access memory — Memory that stores information in
integrated circuits containing capacitors.
driver — Software that allows the operating system to control a device such as a
printer. Many devices do not work properly if the correct driver is not installed in the
computer.
DSL — Digital Subscriber Line — A technology that provides a constant, high-speed
Internet connection through an analog telephone line.
dual-core — A technology in which two physical computational units exist inside a
single processor package, thereby increasing computing efficiency and multi-tasking
ability.
dual display mode — A display setting that allows you to use a second monitor as an
extension of your display. Also referred to as extended display mode.
DVD-R — DVD recordable — A recordable version of a DVD. Data can be recorded
only once onto a DVD-R. Once recorded, the data cannot be erased or written over.
215
DVD+RW — DVD rewritable — A rewritable version of a DVD. Data can be written
to a DVD+RW disc, and then erased and written over (rewritten). (DVD+RW
technology is different from DVD-RW technology.)
DVD+RW drive — drive that can read DVDs and most CD media and write to
DVD+RW (rewritable DVDs) discs.
DVI — digital video interface — A standard for digital transmission between a
computer and a digital video display.
E
ECC — error checking and correction — A type of memory that includes special
circuitry for testing the accuracy of data as it passes in and out of memory.
ECP — extended capabilities port — A parallel connector design that provides
improved bidirectional data transmission. Similar to EPP, ECP uses direct memory
access to transfer data and often improves performance.
EIDE — enhanced integrated device electronics — An improved version of the IDE
interface for hard drives and CD drives.
EMI — electromagnetic interference — Electrical interference caused by
electromagnetic radiation.
ENERGY STAR® — Environmental Protection Agency requirements that decrease
the overall consumption of electricity.
EPP — enhanced parallel port — A parallel connector design that provides
bidirectional data transmission.
ESD — electrostatic discharge — A rapid discharge of static electricity. ESD can
damage integrated circuits found in computer and communications equipment.
expansion card — A circuit board that installs in an expansion slot on the system
board in some computers, expanding the capabilities of the computer. Examples
include video, modem, and sound cards.
expansion slot — A connector on the system board (in some computers) where you
insert an expansion card, connecting it to the system bus.
ExpressCard — A removable I/O card adhering to the PCMCIA standard. Modems
and network adapters are common types of ExpressCards. ExpressCards support both
the PCI Express and USB 2.0 standard.
Express Service Code — A numeric code located on a sticker on your Dell™
computer. Use the Express Service Code when contacting Dell for assistance. Express
Service Code service may not be available in some countries.
extended display mode — A display setting that allows you to use a second monitor as
216
an extension of your display. Also referred to as dual display mode.
extended PC Card — A PC Card that extends beyond the edge of the PC Card slot
when installed.
F
Fahrenheit — A temperature measurement scale where 32° is the freezing point and
212° is the boiling point of water.
FBD — fully-buffered DIMM — A DIMM with DDR2 DRAM chips and an
Advanced Memory Buffer (AMB) that speeds communication between the DDR2
SDRAM chips and the system.
FCC — Federal Communications Commission — A U.S. agency responsible for
enforcing communications-related regulations that state how much radiation
computers and other electronic equipment can emit.
folder — A term used to describe space on a disk or drive where files are organized and
grouped. Files in a folder can be viewed and ordered in various ways, such as
alphabetically, by date, and by size.
format — The process that prepares a drive or disk for file storage. When a drive or
disk is formatted, the existing information on it is lost.
FSB — front side bus — The data path and physical interface between the processor
and RAM.
FTP — file transfer protocol — A standard Internet protocol used to exchange files
between computers connected to the Internet.
G
G — gravity — A measurement of weight and force.
GB — gigabyte — A measurement of data storage that equals 1024 MB
(1,073,741,824 bytes). When used to refer to hard drive storage, the term is often
rounded to 1,000,000,000 bytes.
GHz — gigahertz — A measurement of frequency that equals one thousand million
Hz, or one thousand MHz. The speeds for computer processors, buses, and interfaces
are often measured in GHz.
graphics mode — A video mode that can be defined as x horizontal pixels by y vertical
pixels by z colors. Graphics modes can display an unlimited variety of shapes and
fonts.
GUI — graphical user interface — Software that interacts with the user by means of
menus, windows, and icons. Most programs that operate on the Windows operating
217
systems are GUIs.
H
hard drive — A drive that reads and writes data on a hard disk. The terms hard drive
and hard disk are often used interchangeably.
heat sink — A metal plate on some processors that helps dissipate heat.
hibernate mode — A power management mode that saves everything in memory to a
reserved space on the hard drive and then turns off the computer. When you restart
the computer, the memory information that was saved to the hard drive is
automatically restored.
HTTP — hypertext transfer protocol — A protocol for exchanging files between
computers connected to the Internet.
Hyper-Threading — Hyper-Threading is an Intel technology that can enhance overall
computer performance by allowing one physical processor to function as two logical
processors, capable of performing certain tasks simultaneously.
Hz — hertz — A unit of frequency measurement that equals 1 cycle per second.
Computers and electronic devices are often measured in kilohertz (kHz), megahertz
(MHz), gigahertz (GHz), or terahertz (THz).
I
IC — integrated circuit — A semiconductor wafer, or chip, on which thousands or
millions of tiny electronic components are fabricated for use in computer, audio, and
video equipment.
IDE — integrated device electronics — An interface for mass storage devices in which
the controller is integrated into the hard drive or CD drive.
IEEE 1394 — Institute of Electrical and Electronics Engineers, Inc. — A high-
performance serial bus used to connect IEEE 1394-compatible devices, such as digital
cameras and DVD players, to the computer.
infrared sensor — A port that allows you to transfer data between the computer and
infrared-compatible devices without using a cable connection.
integrated — Usually refers to components that are physically located on the
computer’s system board. Also referred to as built-in.
I/O — input/output — An operation or device that enters and extracts data from your
computer. Keyboards and printers are I/O devices.
I/O address — An address in RAM that is associated with a specific device (such as a
serial connector, parallel connector, or expansion slot) and allows the processor to
218
communicate with that device.
IrDA — Infrared Data Association — The organization that creates international
standards for infrared communications.
IRQ — interrupt request — An electronic pathway assigned to a specific device so
that the device can communicate with the processor. Each device connection must be
assigned an IRQ. Although two devices can share the same IRQ assignment, you
cannot operate both devices simultaneously.
ISP — Internet service provider — A company that allows you to access its host server
to connect directly to the Internet, send and receive e-mail, and access websites. The
ISP typically provides you with a software package, user name, and access phone
numbers for a fee.
K
Kb — kilobit — A unit of data that equals 1024 bits. A measurement of the capacity of
memory integrated circuits.
KB — kilobyte — A unit of data that equals 1024 bytes but is often referred to as 1000
bytes.
key combination — A command requiring you to press multiple keys at the same
time.
kHz — kilohertz — A measurement of frequency that equals 1000 Hz.
L
LAN — local area network — A computer network covering a small area. A LAN
usually is confined to a building or a few nearby buildings. A LAN can be connected to
another LAN over any distance through telephone lines and radio waves to form a
wide area network (WAN).
LCD — liquid crystal display — The technology used by portable computer and flat-
panel displays.
LED — light-emitting diode — An electronic component that emits light to indicate
the status of the computer.
local bus — A data bus that provides a fast throughput for devices to the processor.
LPT — line print terminal — The designation for a parallel connection to a printer or
other parallel device.
219
M
Mb — megabit — A measurement of memory chip capacity that equals 1024 Kb.
Mbps — megabits per second — One million bits per second. This measurement is
typically used for transmission speeds for networks and modems.
MB — megabyte — A measurement of data storage that equals 1,048,576 bytes. 1 MB
equals 1024 KB. When used to refer to hard drive storage, the term is often rounded to
1,000,000 bytes.
MB/sec — megabytes per second — One million bytes per second. This measurement
is typically used for data transfer ratings.
media bay — A bay that supports devices such as optical drives, a second battery, or a
Dell TravelLite™ module.
memory — A temporary data storage area inside your computer. Because the data in
memory is not permanent, it is recommended that you frequently save your files while
you are working on them, and always save your files before you shut down the
computer. Your computer can contain several different forms of memory, such as
RAM, ROM, and video memory. Frequently, the word memory is used as a synonym
for RAM.
memory address — A specific location where data is temporarily stored in RAM.
memory mapping — The process by which the computer assigns memory addresses to
physical locations at start-up. Devices and software can then identify information that
the processor can access.
memory module — A small circuit board containing memory chips, which connects to
the system board.
MHz — megahertz — A measure of frequency that equals 1 million cycles per second.
The speeds for computer processors, buses, and interfaces are often measured in MHz.
Mini PCI — A standard for integrated peripheral devices with an emphasis on
communications such as modems and NICs. A Mini PCI card is a small external card
that is functionally equivalent to a standard PCI expansion card.
mini card — A small card designed for integrated peripherals, such as communication
NICs. The mini card is functionally equivalent to a standard PCI expansion card.
modem — A device that allows your computer to communicate with other computers
over analog telephone lines. Three types of modems include: external, PC Card, and
internal. You typically use your modem to connect to the Internet and exchange e-
mail.
module bay — See media bay.
MP — megapixel — A measure of image resolution used for digital cameras.
220
ms — millisecond — A measure of time that equals one thousandth of a second.
Access times of storage devices are often measured in ms.
N
network adapter — A chip that provides network capabilities. A computer may
include a network adapter on its system board, or it may contain a PC Card with an
adapter on it. A network adapter is also referred to as a NIC (network interface
controller).
NIC — See network adapter.
notification area — The section of the Windows taskbar that contains icons for
providing quick access to programs and computer functions, such as the clock, volume
control, and print status. Also referred to as system tray.
ns — nanosecond — A measure of time that equals one billionth of a second.
NVRAM — nonvolatile random access memory — A type of memory that stores data
when the computer is turned off or loses its external power source. NVRAM is used for
maintaining computer configuration information such as date, time, and other system
setup options that you can set.
O
optical drive — A drive that uses optical technology to read or write data from CDs,
DVDs, or DVD+RWs. Example of optical drives include CD drives, DVD drives, CD-
RW drives, and CD-RW/DVD combo drives.
P
parallel connector — An I/O port often used to connect a parallel printer to your
computer. Also referred to as an LPT port.
partition — A physical storage area on a hard drive that is assigned to one or more
logical storage areas known as logical drives. Each partition can contain multiple
logical drives.
PC Card — A removable I/O card adhering to the PCMCIA standard. Modems and
network adapters are common types of PC Cards.
PCI — peripheral component interconnect — PCI is a local bus that supports 32-and
64-bit data paths, providing a high-speed data path between the processor and devices
such as video, drives, and networks.
PCI Express — A modification to the PCI interface that boosts the data transfer rate
221
between the processor and the devices attached to it. PCI Express can transfer data at
speeds from 250 MB/sec to 4 GB/sec. If the PCI Express chip set and the device are
capable of different speeds, they will operate at the slower speed.
PCMCIA — Personal Computer Memory Card International Association — The
organization that establishes standards for PC Cards.
pen — Input device used to enter data into a Tablet-PC or other slate device.
PIO — programmed input/output — A method of transferring data between two
devices through the processor as part of the data path.
pixel — A single point on a display screen. Pixels are arranged in rows and columns to
create an image. A video resolution, such as 800 x 600, is expressed as the number of
pixels across by the number of pixels up and down.
Plug-and-Play — The ability of the computer to automatically configure devices. Plug
and Play provides automatic installation, configuration, and compatibility with
existing hardware if the BIOS, operating system, and all devices are Plug and Play
compliant.
POST — power-on self-test — Diagnostics programs, loaded automatically by the
BIOS, that perform basic tests on the major computer components, such as memory,
hard drives, and video. If no problems are detected during POST, the computer
continues the start-up.
processor — A computer chip that interprets and executes program instructions.
Sometimes the processor is referred to as the CPU (central processing unit).
PS/2 — personal system/2 — A type of connector for attaching a PS/2-compatible
keyboard, mouse, or keypad.
PXE — pre-boot execution environment — A WfM (Wired for Management)
standard that allows networked computers that do not have an operating system to be
configured and started remotely.
R
RAID — redundant array of independent disks — A method of providing data
redundancy. Some common implementations of RAID include RAID 0, RAID 1,
RAID 5, RAID 10, and RAID 50.
RAM — random-access memory — The primary temporary storage area for program
instructions and data. Any information stored in RAM is lost when you shut down your
computer.
readme file — A text file included with a software package or hardware product.
Typically, readme files provide installation information and describe new product
enhancements or corrections that have not yet been documented.
222
read-only — Data and/or files you can view but cannot edit or delete. A file can have
read-only status if:
• It resides on a physically write-protected CD or DVD.
• It is located on a network in a directory and the system administrator has assigned
rights only to specific individuals.
refresh rate — The frequency, measured in Hz, at which your screen's horizontal lines
are recharged (sometimes also referred to as its vertical frequency). The higher the
refresh rate, the less video flicker can be seen by the human eye.
resolution — The sharpness and clarity of an image produced by a printer or displayed
on a monitor. The higher the resolution, the sharper the image.
RFI — radio frequency interference — Interference that is generated at typical radio
frequencies, in the range of 10 kHz to 100,000 MHz. Radio frequencies are at the
lower end of the electromagnetic frequency spectrum and are more likely to have
interference than the higher frequency radiations, such as infrared and light.
ROM — read-only memory — Memory that stores data and programs that cannot be
deleted or written to by the computer. ROM, unlike RAM, retains its contents after
you shut down your computer. Some programs essential to the operation of your
computer reside in ROM.
RPM — revolutions per minute — The number of rotations that occur per minute.
Hard drive speed is often measured in rpm.
RTC — real time clock — Battery-powered clock on the system board that keeps the
date and time after you shut down the computer.
RTCRST — real-time clock reset — A jumper on the system board of some computers
that can often be used for troubleshooting problems.
S
SAS — serial attached SCSI — A faster, serial version of the SCSI interface (as
opposed to the original SCSI parallel architecture).
SATA — serial ATA — A faster, serial version of the ATA (IDE) interface.
ScanDisk — A Microsoft utility that checks files, folders, and the hard disk’s surface
for errors. ScanDisk often runs when you restart the computer after it has stopped
responding.
SCSI — small computer system interface — A high-speed interface used to connect
devices to a computer, such as hard drives, CD drives, printers, and scanners. The
SCSI can connect many devices using a single controller. Each device is accessed by an
individual identification number on the SCSI controller bus.
223
SDRAM — synchronous dynamic random-access memory — A type of DRAM that is
synchronized with the optimal clock speed of the processor.
serial connector — An I/O port often used to connect devices such as a handheld
digital device or digital camera to your computer.
Service Tag — A bar code label on your computer that identifies your computer when
you access Dell Support at support.dell.com or when you call Dell for customer service
or technical support.
setup program — A program that is used to install and configure hardware and
software. The setup.exe or install.exe program comes with most Windows software
packages. Setup program differs from system setup.
shortcut — An icon that provides quick access to frequently used programs, files,
folders, and drives. When you place a shortcut on your Windows desktop and double-
click the icon, you can open its corresponding folder or file without having to find it
first. Shortcut icons do not change the location of files. If you delete a shortcut, the
original file is not affected. Also, you can rename a shortcut icon.
SIM — Subscriber Identity Module — A SIM card contains a microchip that encrypts
voice and data transmissions. SIM cards can be used in phones or portable computers.
smart card — A card that is embedded with a processor and a memory chip. Smart
cards can be used to authenticate a user on computers equipped for smart cards.
S/PDIF — Sony/Philips Digital Interface — An audio transfer file format that allows
the transfer of audio from one file to another without converting it to and from an
analog format, which could degrade the quality of the file.
sleep mode — A power management mode that shuts down all unnecessary computer
operations to save energy.
Strike Zone™ — Reinforced area of the platform base that protects the hard drive by
acting as a dampening device when a computer experiences resonating shock or is
dropped (whether the computer is on or off).
surge protectors — Prevent voltage spikes, such as those that may occur during an
electrical storm, from entering the computer through the electrical outlet. Surge
protectors do not protect against lightning strikes or against brownouts, which occur
when the voltage drops more than 20 percent below the normal AC-line voltage level.
Network connections cannot be protected by surge protectors. Always disconnect the
network cable from the network connector during electrical storms.
SVGA — super-video graphics array — A video standard for video cards and
controllers. Typical SVGA resolutions are 800 x 600 and 1024 x 768.
The number of colors and resolution that a program displays depends on the
capabilities of the monitor, the video controller and its drivers, and the amount of
224
video memory installed in the computer.
S-video TV-out — A connector used to attach a TV or digital audio device to the
computer.
SXGA — super-extended graphics array — A video standard for video cards and
controllers that supports resolutions up to 1280 x 1024.
SXGA+ — super-extended graphics array plus — A video standard for video cards and
controllers that supports resolutions up to 1400 x 1050.
system board — The main circuit board in your computer. Also known as the
motherboard.
system setup — A utility that serves as an interface between the computer hardware
and the operating system. System setup allows you to configure user-selectable options
in the BIOS, such as date and time or system password. Unless you understand what
effect the settings have on the computer, do not change the settings for this program.
T
TAPI — telephony application programming interface — Enables Windows programs
to operate with a wide variety of telephony devices, including voice, data, fax, and
video.
text editor — A program used to create and edit files that contain only text; for
example, Windows Notepad uses a text editor. Text editors do not usually provide
word wrap or formatting functionality (the option to underline, change fonts, and so
on).
TPM — trusted platform module — A hardware-based security feature that when
combined with security software enhances network and computer security by enabling
features such as file and e-mail protection.
travel module — A plastic device designed to fit inside the module bay of a portable
computer to reduce the weight of the computer.
U
UAC — user account control— Microsoft Windows Vista™ security feature that,
when enabled, provides an added layer of security between user accounts and access to
operating system settings.
UMA — unified memory allocation — System memory dynamically allocated to
video.
UPS — uninterruptible power supply — A backup power source used when the
electrical power fails or drops to an unacceptable voltage level. A UPS keeps a
225
computer running for a limited amount of time when there is no electrical power. UPS
systems typically provide surge suppression and may also provide voltage regulation.
Small UPS systems provide battery power for a few minutes to enable you to shut
down your computer.
USB — universal serial bus — A hardware interface for a low-speed device such as a
USB-compatible keyboard, mouse, joystick, scanner, set of speakers, printer,
broadband devices (DSL and cable modems), imaging devices, or storage devices.
Devices are plugged directly in to a 4-pin socket on your computer or in to a multi-port
hub that plugs in to your computer. USB devices can be connected and disconnected
while the computer is turned on, and they can also be daisy-chained together.
UTP — unshielded twisted pair — Describes a type of cable used in most telephone
networks and some computer networks. Pairs of unshielded wires are twisted to protect
against electromagnetic interference, rather than relying on a metal sheath around
each pair of wires to protect against interference.
UXGA — ultra extended graphics array — A video standard for video cards and
controllers that supports resolutions up to 1600 x 1200.
V
video controller — The circuitry on a video card or on the system board (in computers
with an integrated video controller) that provides the video capabilities—in
combination with the monitor—for your computer.
video memory — Memory that consists of memory chips dedicated to video functions.
Video memory is usually faster than system memory. The amount of video memory
installed primarily influences the number of colors that a program can display.
video mode — A mode that describes how text and graphics are displayed on a
monitor. Graphics-based software, such as Windows operating systems, displays in
video modes that can be defined as x horizontal pixels by y vertical pixels by z colors.
Character-based software, such as text editors, displays in video modes that can be
defined as x columns by y rows of characters.
video resolution — See resolution.
virus — A program that is designed to inconvenience you or to destroy data stored on
your computer. A virus program moves from one computer to another through an
infected disk, software downloaded from the Internet, or e-mail attachments. When
an infected program starts, its embedded virus also starts.
A common type of virus is a boot virus, which is stored in the boot sectors of bootable
media. If the bootable media is left in the drive when the computer is shut down and
then turned on, the computer is infected when it reads the boot sectors of the
bootable media expecting to find the operating system. If the computer is infected,
226
the boot virus may replicate itself onto all the bootable media that are read or written
in that computer until the virus is eradicated.
V — volt — The measurement of electric potential or electromotive force. One V
appears across a resistance of 1 ohm when a current of 1 ampere flows through that
resistance.
W
W — watt — The measurement of electrical power. One W is 1 ampere of current
flowing at 1 volt.
WHr — watt-hour — A unit of measure commonly used to indicate the approximate
capacity of a battery. For example, a 66-WHr battery can supply 66 W of power for 1
hour or 33 W for 2 hours.
wallpaper — The background pattern or picture on the Windows desktop. Change
your wallpaper through the Windows Control Panel. You can also scan in your favorite
picture and make it wallpaper.
WLAN — wireless local area network. A series of interconnected computers that
communicate with each other over the air waves using access points or wireless routers
to provide Internet access.
write-protected — Files or media that cannot be changed. Use write-protection when
you want to protect data from being changed or destroyed.
WWAN — wireless wide area network. A wireless high-speed data network using
cellular technology and covering a much larger geographic area than WLAN.
WXGA — wide-aspect extended graphics array — A video standard for video cards
and controllers that supports resolutions up to 1280 x 800.
X
XGA — extended graphics array — A video standard for video cards and controllers
that supports resolutions up to 1024 x 768.
Z
ZIF — zero insertion force — A type of socket or connector that allows a computer
chip to be installed or removed with no stress applied to either the chip or its socket.
Zip — A popular data compression format. Files that have been compressed with the
Zip format are called Zip files and usually have a filename extension of .zip. A special
kind of zipped file is a self-extracting file, which has a filename extension of .exe. You
227
can unzip a self-extracting file by double-clicking it.
Zip drive — A high-capacity floppy drive developed by Iomega Corporation that uses
3.5-inch removable disks called Zip disks. Zip disks are slightly larger than regular
floppy disks, about twice as thick, and hold up to 100 MB of data.
228
Appendix 229
Appendix
FCC Notice (U.S. Only)
FCC Class B
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the manufacturer’s instruction
manual, may cause interference with radio and television reception. This
equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1
This device may not cause harmful interference.
2
This device must accept any interference received, including interference
that may cause undesired operation.
NOTICE: The FCC regulations provide that changes or modifications not expressly
approved by Dell Inc. could void your authority to operate this equipment.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference with radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try
to correct the interference by one or more of the following measures:
• Reorient the receiving antenna.
• Relocate the system with respect to the receiver.
• Move the system away from the receiver.
• Plug the system into a different outlet so that the system and the receiver
are on different branch circuits.
If necessary, consult a representative of Dell Inc. or an experienced
radio/television technician for additional suggestions.
Appendix 230
The following information is provided on the device or devices covered in this
document in compliance with the FCC regulations:
• Product name: Dell™ Latitude™ XT
• Model number: PP12S
• Company name:
Dell Inc.
Worldwide Regulatory Compliance & Environmental Affairs
One Dell Way
Round Rock, TX 78682 USA
512-338-4400
NOTE: For further regulatory information, see your Product Information Guide.
Macrovision Product Notice
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
