Congratulations, you and your MacBook
were made for each other.
Contents
5
Contents
Chapter 1: Ready, Set Up, Go
9
Whats in the Box
9
Setting Up Your MacBook
15
Putting Your MacBook to Sleep or Shutting It Down
Chapter 2: Life with Your MacBook
18
Basic Features of Your MacBook
20
Keyboard Features of Your MacBook
22
Ports on Your MacBook
24
Using the Multi-Touch Trackpad
28
Using the MacBook Battery
29
Getting Answers
Chapter 3: Boost Your MacBook
34
Removing and Replacing the Battery
38
Replacing the Hard Disk Drive
42
Installing Additional Memory
Chapter 4: Problem, Meet Solution
52
Problems That Prevent You from Using Your MacBook
6
Contents
56
Using Apple Hardware Test
57
Problems with Your Internet Connection
60
Problems with AirPort Extreme Wireless Communication
61
Keeping Your Software Up to Date
61
Reinstalling the Software That Came with Your MacBook
63
Learning More, Service, and Support
65
Locating Your Product Serial Number
Chapter 5: Last, but Not Least
68
Important Safety Information
71
Important Handling Information
73
Understanding Ergonomics
75
Apple and the Environment
76

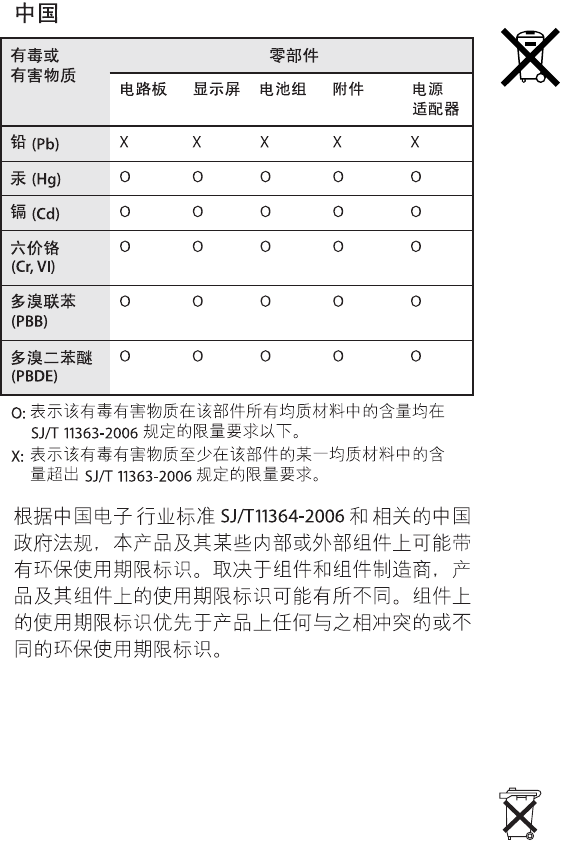

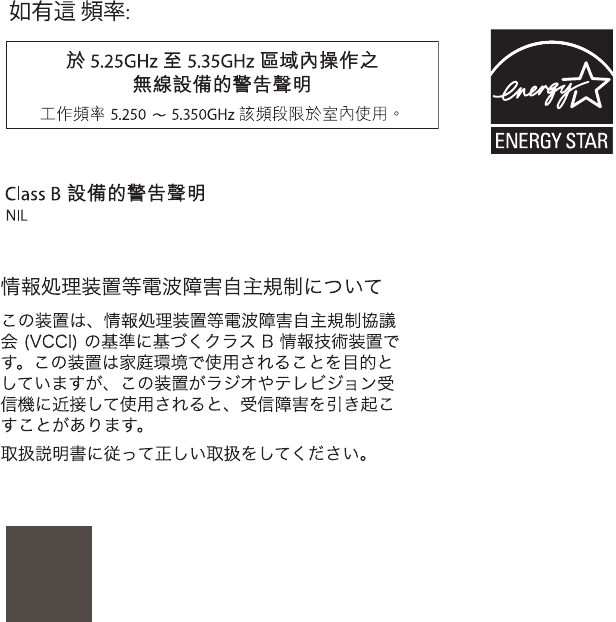

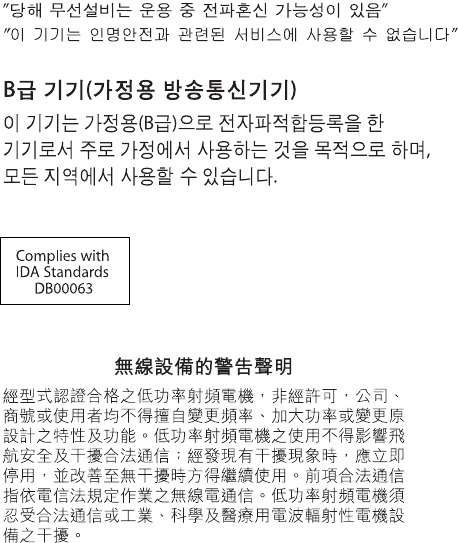

Regulatory Compliance Information
Looking for Something?
82
Index
1
1
Ready, Set Up, Go
8 Chapter 1
Ready, Set Up, Go
Your MacBook is designed so that you can set it up quickly and start using it right
away. If you have never used a MacBook or are new to Macintosh computers, read this
chapter for help getting started.
Important:
Read all the installation instructions (and the safety information starting on
page 67) carefully before you first use your computer.
If you are an experienced user, you may already know enough to get started.
Make sure you look over the information in Chapter 2, “Life with Your MacBook,”
to find out about the new features of this MacBook.
Many answers to questions can be found on your computer in Mac Help. For
information about getting Mac Help, see “Getting Answers on page 29. Apple may
release new versions and updates to its system software, so the images shown in this
book may be slightly different from what you see onscreen.
Chapter 1
Ready, Set Up, Go
9
What’s in the Box
Setting Up Your MacBook
Your MacBook is designed so that you can set it up quickly and start using it right
away. The following pages take you through the setup process, including these tasks:
Â
Plugging in the 60W MagSafe Power Adapter
Â
Connecting cables and accessing a network
Â
Turning on your MacBook and using the trackpad
Â
Configuring a user account and other settings using Setup Assistant
Â
Setting up the Mac OS X desktop and preferences
10 Chapter 1
Ready, Set Up, Go
Important:
Remove the protective film around the 60W MagSafe Power Adapter before
setting up your MacBook.
Step 1: Plug in the 60W MagSafe Power Adapter to provide power to the MacBook
and charge the battery.
Make sure the AC plug is fully inserted into the power adapter and the electrical
prongs on your AC plug are in their completely extended position. Insert the AC plug
of your power adapter into a power outlet and the MagSafe connector into the
MagSafe power port. As the MagSafe connector gets close to the port, you’ll feel a
magnetic pull drawing it in.
To extend the reach of your power adapter, replace the AC plug with the AC power
cord. First pull the AC plug up to remove it from the adapter, and then attach the
included AC power cord to the adapter, making sure it is seated firmly.
When disconnecting the power adapter from an outlet or from the computer, pull the
plug, not the cord.
Chapter 1
Ready, Set Up, Go
11
Note:
When you first connect the power adapter to your MacBook, an indicator light
on the MagSafe connector starts to glow. An amber light indicates that the battery is
charging. A green light indicates that the battery is fully charged. If you don’t see a
light, make sure the connector is seated properly and the power adapter is plugged in.
Step 2: Connect to a wireless or wired network.
Â
To use a wireless network with the built-in AirPort Extreme technology, make sure the
wireless base station is turned on and that you know the name of the network. After
you turn on your MacBook, Setup Assistant guides you through the connection
process. For troubleshooting tips, see page 60.
Â
To use a wired connection, connect one end of an Ethernet cable to your MacBook
and the other end to a cable modem, DSL modem, or network.
12 Chapter 1
Ready, Set Up, Go
Â
To use a dial-up connection, you need the external Apple USB Modem, available from
the online Apple Store at www.apple.com/store or from an Apple Authorized Reseller.
Plug the Apple USB Modem into a USB port on your MacBook, and then connect a
phone cord (not included) from the modem into a phone wall jack.
Step 3: Press the power (®
) button briefly to turn on your MacBook.
You hear a tone when you turn on the computer.
It takes the computer a few moments to start up. After it starts up, Setup Assistant
opens automatically.
If your computer doesn’t turn on, see “If your MacBook doesn’t turn on or start up on
page 54.
Chapter 1
Ready, Set Up, Go
13
Step 4: Configure your MacBook with Setup Assistant.
The first time you turn on your MacBook, Setup Assistant starts. Setup Assistant helps
you enter your Internet and email information and set up a user account on your
MacBook. If you already have a Mac, Setup Assistant can help you automatically
transfer files, applications, and other information from your previous Mac using an
Ethernet or a wireless connection.
If you don’t intend to keep or use your other Mac, its best to deauthorize it from
playing music, videos, or audiobooks that you’ve purchased from the iTunes Store.
Deauthorizing a computer prevents any songs, videos, or audiobooks you’ve purchased
from being played by someone else and frees up another authorization for use.
For information about deauthorizing, in iTunes, open Help > iTunes Help.
If you don’t use Setup Assistant to transfer information when you first start up, you can
do it later using Migration Assistant. Go to the Applications folder, open Utilities, and
double-click Migration Assistant.
14 Chapter 1
Ready, Set Up, Go
Step 5: Customize the Mac OS X desktop and set preferences.
Menu bar
System Preferences icon
Dock
Spotlight search iconHelp menu
Finder icon
Chapter 1
Ready, Set Up, Go
15
You can quickly customize the desktop using System Preferences. Choose Apple (
) >
System Preferences from the menu bar or click the System Preferences icon in the
Dock. System Preferences is your command center for most settings on your MacBook.
For more information, open Mac Help and search for “System Preferences” or for the
specific preference you want to change.
Putting Your MacBook to Sleep or Shutting It Down
When you finish working with your MacBook, you can put it to sleep or shut it down.
Putting Your MacBook to Sleep
If you’ll be away from your MacBook for only a short time, put it to sleep. When the
computer is in sleep, you can quickly wake it and bypass the startup process.
To put your MacBook to sleep, do one of the following:
Â
Close the display.
Â
Choose Apple (
) > Sleep from the menu bar.
Â
Press the power (®
) button and click Sleep in the dialog that appears.
Â
Choose Apple (
) > System Preferences, click Energy Saver, and set a sleep timer.
NOTICE:
Wait a few seconds until the sleep indicator light starts pulsing (indicating
that the computer is in sleep and the hard disk has stopped spinning) before you
move your MacBook. Moving your computer while the hard disk is spinning can
damage it, causing loss of data or the inability to start up from the hard disk.
16 Chapter 1
Ready, Set Up, Go
To wake your MacBook:
Â
If the display is closed,
simply open it to wake your MacBook.
Â
If the display is already open,
press the power (®
) button or any key on the keyboard.
When your MacBook wakes from sleep, your applications, documents, and computer
settings are exactly as you left them.
Shutting Down Your MacBook
If you arent going to use your MacBook for a couple of days or longer, it’s best to shut
it down. The sleep indicator light goes on briefly during the shutdown process.
To shut down your MacBook, do one of the following:
Â
Choose Apple (
) > Shut Down from the menu bar.
Â
Press the power (®
) button and click Shut Down in the dialog that appears.
If you plan to store your MacBook for an extended period of time, see “Important
Handling Information on page 71 for information about how to prevent your battery
from draining completely.
2
2
Life with Your MacBook
18 Chapter 2
Life with Your MacBook
Basic Features of Your MacBook
Chapter 2
Life with Your MacBook
19
Built-in iSight camera and camera indicator light
Videoconference with others using iChat, take pictures with Photo Booth, or capture
video with iMovie. The indicator light glows when the iSight camera is operating.
Built-in microphone
Capture sounds with the microphone (located above the Esc key on your keyboard) or
talk with friends live over broadband using the included iChat application.
Built-in stereo speakers
Listen to music, movies, games, and multimedia files.
Battery and battery indicator lights
Use battery power when youre away from a power outlet. Press the battery button to
activate indicator lights that show the remaining battery charge.
Trackpad
Click or double-click anywhere on the trackpad. Touch the trackpad with one or more
fingers to move the pointer and use Multi-Touch gestures (described on page 24).
Sleep indicator light
A white light pulses when the MacBook is in sleep.
Infrared (IR) receiver
Use an optional Apple Remote (available separately) with the IR receiver to control Front
Row and Keynote on your MacBook from up to 30 feet (9.1 meters) away.
Slot-loading optical drive
This optical drive reads and writes to standard-size CDs and DVDs.
®
Power button
Turn your MacBook on or off, or put it to sleep.
20 Chapter 2
Life with Your MacBook
Keyboard Features of Your MacBook
Chapter 2
Life with Your MacBook
21
Function (fn) key
Hold down this key to activate customized actions assigned to the function keys
(F1 to F12). To learn how to customize function keys, choose Help > Mac Help from the
menu bar and search for “function keys.”
Brightness keys (F1, F2)
Increase ( ) or decrease ( ) the brightness of the screen.
Exposé All Windows key (F3)
Open Exposé for quick access to all your open windows.
Dashboard key (F4)
Open Dashboard to access your widgets.
o
Keyboard illumination keys (F5, F6)
Increase (o
) or decrease (ø
) the brightness of the keyboard illumination. Available on
select models.
Media keys (F7, F8, F9)
Rewind (]
), play or pause (
), or fast-forward (
) a song, movie, or slideshow.
Mute key (F10)
Mute the sound coming from the built-in speakers and headphone port.
-
Volume keys (F11, F12)
Increase (-
) or decrease (
) the volume of the sound coming from the built-in speakers
or headphone port.
CMedia Eject key
Hold down this key to eject a disc thats not in use. You can also eject a disc by dragging
its desktop icon to the Trash.
22 Chapter 2 Life with Your MacBook
Ports on Your MacBook
Chapter 2 Life with Your MacBook 23
Note: Adapters and other accessories are sold separately at www.apple.com/store.
¯MagSafe power port
Plug in the included 60W MagSafe Power Adapter to recharge the MacBook battery.
GGigabit Ethernet port (10/100/1000Base-T)
Connect to a high-speed Ethernet network, a DSL or cable modem, or another computer.
The Ethernet port automatically detects Ethernet devices and doesnt require an
Ethernet crossover cable.
dTwo USB (Universal Serial Bus) 2.0 ports
Connect an iPod, iPhone, mouse, keyboard, printer, digital camera, modem, and more to
your MacBook. You can connect one high-powered external USB device. You can also
connect USB 1.1 devices.
£Mini DisplayPort (video out)
Connect to an external display or projection system that uses a DVI or VGA connector.
You can purchase adapters for supported video formats.
,Audio in/optical digital audio in port
Connect your MacBook to a line-level microphone or digital audio equipment.
fHeadphone out/optical digital audio out port
Connect external speakers, headphones (including iPhone), or digital audio equipment.
Security slot
Attach a lock and cable (available separately) to prevent theft.
24 Chapter 2 Life with Your MacBook
Using the Multi-Touch Trackpad
Use the trackpad to move the cursor and to perform a variety of Multi-Touch gestures.
Unlike typical trackpads, the entire MacBook trackpad is a button, and you can click
anywhere on the trackpad. To enable gestures and set other trackpad options, choose
Apple () > System Preferences, and then click Trackpad.
Here are ways to use your MacBook trackpad:
ÂTwo-finger scrolling lets you drag to scroll quickly up, down, or sideways in the active
window. This option is on by default.
Chapter 2 Life with Your MacBook 25
ÂSecondary clicking or “right-clicking” lets you access shortcut menu commands.
ÂTo set up a one-finger secondary-click zone in the bottom left or right corner of the
trackpad, select Secondary Click under the One Finger option in Trackpad
preferences.
ÂTo set up two-finger secondary-clicking anywhere on the trackpad, select
Secondary Click under the Two Fingers option in Trackpad preferences.
Note: You can also secondary click by holding down the Control key while you click.
Secondary click zone
26 Chapter 2 Life with Your MacBook
The following trackpad gestures work in certain applications. When you perform these
gestures, slide your fingers lightly on the surface of the trackpad. For more information,
see Trackpad preferences or choose Help > Mac Help and search for “trackpad.”
ÂTwo-finger pinching lets you zoom in or out on PDFs, images, photos, and more.
ÂTwo-finger rotating lets you rotate photos, pages, and more.
Chapter 2 Life with Your MacBook 27
ÂThree-finger swipe lets you rapidly page through documents, move to the previous or
next photo, and more.
ÂFour-finger swipe works in the Finder and all applications. Swiping four fingers to the
left or right activates Application Switcher so you can cycle through open
applications. Swiping four fingers up or down causes Exposé to show the desktop or
display all open windows.
28 Chapter 2 Life with Your MacBook
Using the MacBook Battery
When the MagSafe power adapter isnt connected, your MacBook draws power from its
battery. The length of time that you can run your MacBook varies, depending on the
applications you use and the external devices connected to your MacBook. Turning off
features such as AirPort Extreme or Bluetooth® wireless technology and reducing
screen brightness can help conserve battery charge, for example, when you’re traveling
by air. Many of your system preferences are automatically set to optimize battery life.
You can determine the charge remaining in the battery by looking at the eight battery
level indicator lights on the left side of your MacBook. Press the button next to the
lights, and the lights glow briefly to show how much charge remains in the battery.
Important: If only one indicator light is on, very little charge is left. If no lights
illuminate, the battery is completely drained and the MacBook won’t start up unless
the power adapter is connected. Plug in the power adapter to let the battery recharge,
or replace the drained battery with a fully charged battery (see page 34). For more
information about battery indicator lights, see page 56.
You can also check the amount of battery charge remaining by viewing the
Battery ( ) status icon in the menu bar. The battery charge level displayed is based
on the amount of power left in the battery with the applications, peripheral devices,
and system settings you are currently using. To conserve battery power, close
applications and disconnect peripheral devices not in use, and adjust your Energy
Saver settings. For more information about battery conservation and performance tips,
go to www.apple.com/batteries/notebooks.html.
Chapter 2 Life with Your MacBook 29
Charging the Battery
When the power adapter that came with your MacBook is connected, the battery
recharges whether the computer is on, off, or in sleep. The battery recharges more
quickly, however, when the computer is off or in sleep.
Getting Answers
Much more information about using your MacBook is available in Mac Help on your
computer and on the Internet at www.apple.com/support/macbook.
To get Mac Help:
1Click the Finder icon in the Dock (the bar of icons along the edge of the screen).
2Click the Help menu in the menu bar and do one of the following:
aType a question or term in the Search field, and select a topic from the list of results
or select Show All Results to see all topics.
bChoose Mac Help to open the Mac Help window, where you can click links or type a
search question.
30 Chapter 2 Life with Your MacBook
More Information
For more information about using your MacBook, see the following:
To learn about See
Installing memory Chapter 3, “Boost Your MacBook,” on page 33.
Troubleshooting your
MacBook if you have a
problem
Chapter 4, “Problem, Meet Solution,” on page 51.
Finding service and support
for your MacBook
“Learning More, Service, and Support on page 63. Or see the
Apple Support website at www.apple.com/support/macbook.
Using Mac OS X The Mac OS X website at www.apple.com/macosx. Or search for
“Mac OS X” in Mac Help.
Moving from a PC to a Mac “How to move to Mac” at www.apple.com/getamac/movetomac.
Using iLife applications The iLife website at www.apple.com/ilife. Or open an iLife
application, open Help for the application, and then type a
question in the search field.
Changing system preferences System Preferences by choosing Apple (K) > System
Preferences. Or search for system preferences” in Mac Help.
Using the trackpad Mac Help and search for “trackpad.” Or open System Preferences
and click Trackpad.
Using the keyboard Mac Help and search for “keyboard.”
Using the iSight camera Mac Help and search for “iSight.”
Using AirPort Extreme wireless
technology
The AirPort Support page at www.apple.com/support/airport.
Chapter 2 Life with Your MacBook 31
Using Bluetooth wireless
technology
The Bluetooth Support page at www.apple.com/support/
bluetooth. Or open the Bluetooth File Exchange application,
located in the Utilities folder within the Applications folder,
and choose Help > Bluetooth Help.
Caring for the battery Mac Help and search for “battery.”
Connecting a printer Mac Help and search for “printing.”
USB connections Mac Help and search for “USB.”
Connecting to the Internet Mac Help and search for “Internet.”
Connecting an external display Mac Help and search for displayport.”
Apple Remote Mac Help and search for “remote.”
Front Row Mac Help and search for “Front Row.”
Burning a CD or DVD Mac Help and search for “burn disc.”
Specifications The Specifications page at www.apple.com/support/specs.
Or open System Profiler by choosing Apple (K) > About This
Mac from the menu bar, and then click More Info.
Apple news, free downloads,
and online catalogs of
software and hardware
The Apple website at www.apple.com.
Instructions, technical support,
and manuals for Apple
products
The Apple Support website at www.apple.com/support.
To learn about See
3
3 Boost Your MacBook
34 Chapter 3 Boost Your MacBook
This chapter provides information and instructions for replacing the battery, upgrading
the hard disk drive, and installing additional memory in your MacBook.
Removing and Replacing the Battery
You can replace your battery if you need a new one. You also need to know how to
remove the battery if you want to replace the hard disk drive or install memory.
To remove and replace the battery:
1Shut down your MacBook. Disconnect the power adapter, Ethernet cable, security lock,
and any other cords connected to the MacBook to prevent damaging the computer.
WARNING: Apple recommends that you have an Apple-certified technician install
replacement drives and memory. Consult the service and support information that
came with your computer for information about how to contact Apple for service. If
you attempt to install a replacement drive or memory and damage your equipment,
such damage is not covered by the limited warranty on your computer.
WARNING: The internal components of your MacBook can be warm. If you have been
using your MacBook, wait 10 minutes after shutting down to let the internal
components cool before continuing. Use care when handling the battery. See the
battery safety information on page 70.
Chapter 3 Boost Your MacBook 35
2Turn over your MacBook and locate the latch. Push down to release the latch,
and remove the access door that covers the battery and hard disk drive.
Note: The latch must be in its released, open position to remove and replace the
battery and access door.
36 Chapter 3 Boost Your MacBook
3With the latch still in its open position, gently pull up on the battery tab to remove the
battery.
You now have access to the serial number, the hard disk drive, and other components
of your MacBook.
4To replace the battery, make sure the latch is in its open position. Hold the battery at
an angle and slide the lipped edge of the battery below the brackets on the outside
edge of the battery bay. Gently press the battery down.
Chapter 3 Boost Your MacBook 37
5Replace the access door, making sure it is level with the bottom case of your MacBook,
and press the latch into place. Reconnect the power adapter and any other cables that
were attached.
38 Chapter 3 Boost Your MacBook
Replacing the Hard Disk Drive
You can upgrade the hard disk drive in your MacBook. The hard disk drive is located to
the left of the battery when you open the back of your MacBook. The replacement
drive must be a 2.5-inch drive with a Serial ATA (SATA) connector.
To replace the hard disk drive in your MacBook:
1Follow the instructions for removing the battery on page 34.
2Touch a metal surface inside the computer to discharge any static electricity from
your body.
Chapter 3 Boost Your MacBook 39
3Locate the bracket at the top of the drive. Use a Phillips-head screwdriver to loosen the
captive screw that holds the bracket in place.
4Using the pull tab, gently lift the drive out of the bay.
The bracket detaches from the drive. Put it aside in a safe place.
40 Chapter 3 Boost Your MacBook
5Hold the drive by its sides while you gently pull the connector on the left side of the
drive to disconnect it.
The connector is attached to a cable and remains in the hard disk drive bay.
Important: There are four (4) mounting screws on the sides of your hard disk drive.
If your replacement drive doesnt include these mounting screws, remove the ones
from your old drive and mount them on the replacement drive before you install it.
6Attach the connector to the left side of the replacement drive.
Chapter 3 Boost Your MacBook 41
7Insert the replacement drive at an angle, making sure the mounting screws are seated
properly.
8Replace the bracket and tighten the screw.
9Follow the instructions for replacing the battery on page 36.
For information about installing Mac OS X and bundled applications, see “Reinstalling
the Software That Came with Your MacBook on page 61.
42 Chapter 3 Boost Your MacBook
Installing Additional Memory
Your computer has two memory slots that you access by removing the battery and
bottom case. Your MacBook comes with a minimum of 2 gigabytes (GB) of 1066 MHz
Double Data Rate (DDR3) Synchronous Dynamic Random-Access Memory (SDRAM)
installed. Each memory slot can accept an SDRAM module that meets the following
specifications:
ÂDouble Data Rate Small Outline Dual Inline Memory Module (DDR3) format
Â1.25 inch (3.18 cm)
Â1 GB or 2 GB
Â200-pin
ÂPC3-8500 DDR3 1066 MHz Type RAM
You can add two 2 GB memory modules for a maximum of 4 GB of memory. For best
performance, fill both memory slots and install an identical memory module in each
slot.
To install memory in your MacBook:
1Follow the instructions for removing the battery on page 34.
2Remove the eight (8) screws that secure the bottom case of your MacBook, and then
remove the bottom case.
Chapter 3 Boost Your MacBook 43
Important: Because the screws are different lengths, note the screw lengths and
locations so you can replace the screws correctly. Put them aside in a safe place.
44 Chapter 3 Boost Your MacBook
Important: When you remove the bottom case, you expose sensitive internal
components. Avoid touching anything other than the memory assembly when you
remove and replace memory.
3Touch a metal surface inside the computer to discharge any static electricity from
your body.
Chapter 3 Boost Your MacBook 45
4Push the ejection levers on the sides of the memory module in an outward direction to
release the module from the memory card slot.
The memory pops up at an angle. Before removing it, make sure you see the half-circle
notches. If you don’t, try pressing the ejection levers outward again.
5Hold the memory module by its notches and remove it from the slot.
6Remove the other memory module.
Important: Hold the memory modules by their edges, and do not touch the gold
connectors.
46 Chapter 3 Boost Your MacBook
7Insert the new memory module in the slot:
aAlign the notch on the gold edge of the module with the notch in the lower memory
slot.
bTilt the card and push the memory into the slot.
cUse two fingers with firm, even pressure to push down on the memory module.
You should hear a click when the memory is inserted correctly.
dRepeat to install an additional memory module in the top slot. Press down on the
module to make sure it is level.
Chapter 3 Boost Your MacBook 47
48 Chapter 3 Boost Your MacBook
8Replace the bottom case. Replace and tighten the eight screws, making sure to put the
different length screws in their proper locations.
9Follow the instructions for replacing the battery on page 36.
Chapter 3 Boost Your MacBook 49
Making Sure Your MacBook Recognizes the New Memory
After installing additional memory in your MacBook, check whether the computer
recognizes the new memory.
To check the computer’s memory:
1Start up your MacBook.
2When you see the Mac OS X desktop, choose Apple () > About This Mac.
For a detailed breakdown of the memory installed in your computer, open System
Profiler by clicking More Info and then Memory.
If your MacBook doesn’t recognize the memory or doesn’t start up correctly, confirm
that the memory you installed is compatible with your MacBook and that it is installed
correctly.
4
4 Problem, Meet Solution
52 Chapter 4 Problem, Meet Solution
Occasionally you may have problems while working with your MacBook. Read on for
troubleshooting tips to try when you have a problem. You can also find more
troubleshooting information in Mac Help and on the MacBook Support website at
www.apple.com/support/macbook.
If you experience a problem with your MacBook, there is usually a simple and quick
solution. Think about the conditions that led up to the problem. Making a note of
things you did before the problem occurred will help you narrow down possible causes
and find the answers you need. Things to note include:
ÂThe applications you were using when the problem occurred. Problems that occur
only with a specific application might indicate that the application is not compatible
with the version of the Mac OS installed on your computer.
ÂAny new software that you installed, especially software that added items to the
System folder.
ÂAny hardware that you installed, such as additional memory or a peripheral.
Problems That Prevent You from Using Your MacBook
If your MacBook doesn’t respond or the pointer doesn’t move
On rare occasions, an application might “freeze on the screen. Mac OS X provides a
way to quit a frozen application without restarting your computer.
To force an application to quit:
1Press Command (x)-Option-Esc or choose Apple () > Force Quit from the menu bar.
The Force Quit Applications dialog appears with the application selected.
Chapter 4 Problem, Meet Solution 53
2Click Force Quit.
The application quits, leaving all other applications open.
If you need to, you can also restart the Finder from this dialog.
Next, save your work in any open applications and restart the computer to make sure
the problem is entirely cleared up.
If the problem occurs frequently, choose Help > Mac Help from the menu bar at the
top of the screen. Search for the word “freeze to get help for times when the computer
freezes or doesn’t respond.
If the problem occurs only when you use a particular application, check with the
applications manufacturer to see if it is compatible with your computer. To get support
and contact information for the software that came with your MacBook, go to
www.apple.com/guide.
If you know an application is compatible, you might need to reinstall your computers
system software. See “Reinstalling the Software That Came with Your MacBook on
page 61.
If your MacBook freezes during startup, or you see a flashing question mark, or the
screen is dark and the sleep indicator light is glowing steadily (not in sleep)
The flashing question mark usually means that the computer can’t find the system
software on the hard disk or any disks attached to the computer.
54 Chapter 4 Problem, Meet Solution
ÂWait a few seconds. If the computer doesn’t soon start up, shut it down by holding
down the power (®) button for about 8 to 10 seconds. Disconnect all external
peripherals and try restarting by pressing the power (®) button while holding down
the Option key. When your computer starts up, click the hard disk icon, and then click
the right arrow. After the computer starts up, open System Preferences and click
Startup Disk. Select a local Mac OS X System folder.
ÂIf that doesn’t work, try using Disk Utility to repair the disk:
ÂInsert the Mac OS X Install DVD into your computer.
ÂRestart your computer and hold down the C key as it starts up.
ÂChoose Installer > Open Disk Utility. When Disk Utility opens, follow the instructions
in the First Aid pane to see if Disk Utility can repair the disk.
If using Disk Utility doesn’t help, you might need to reinstall your computer’s system
software. See “Reinstalling the Software That Came with Your MacBook on page 61.
If your MacBook doesn’t turn on or start up
Try the following suggestions in order until your computer turns on:
ÂMake sure the power adapter is plugged into the computer and into a functioning
power outlet. Be sure to use the 60W MagSafe Power Adapter that came with your
MacBook. If the power adapter stops charging and you don’t see the indicator light
on the power adapter turn on when you plug in the power cord, try unplugging and
replugging the power cord to reseat it.
ÂCheck whether the battery needs to be recharged. Press the small button on the left
side of your computer. You should see one to eight lights indicating the batterys
level of charge. If a single indicator light is on, connect your power adapter to
recharge. For more information about battery indicator lights, see page 56.
Chapter 4 Problem, Meet Solution 55
ÂIf the problem persists, return the computer to its factory settings by disconnecting
the power adapter, removing the battery, and holding down the power (®) button
for at least 5 seconds.
ÂIf you recently installed additional memory, make sure that it is correctly installed and
is compatible with your computer. See whether removing it and reinstalling the old
memory allows the computer to start up (see page 42).
ÂPress the power (®) button and immediately hold down the Command (x), Option,
P, and R keys simultaneously until you hear the startup sound a second time. This
resets the parameter RAM (PRAM).
ÂIf you still can’t start up your MacBook, see “Learning More, Service, and Support on
page 63 for information about contacting Apple for service.
If the screen suddenly goes black or your MacBook freezes
Try restarting your MacBook.
1Unplug any devices that are connected to your MacBook, except the power adapter.
2Press the power (®) button to restart the system.
3Let the battery charge to at least 10 percent before plugging in any external devices
and resuming your work.
To see how much the battery has charged, look at the Battery ( ) status icon in the
menu bar.
The screen might also darken if you have energy saver features set for the battery.
56 Chapter 4 Problem, Meet Solution
If you press the battery button, and all battery indicator lights flash five times
quickly
Your battery needs to be replaced. Contact an Apple Retail Store or an Apple
Authorized Service Provider (AASP).
If you press the battery button, and the battery indicator lights flash from left to
right and then from right to left, five times in a row
Your battery is not recognized. Check that your battery is installed properly in your
computer.
If you forget your password
You can reset your administrator password and passwords for all other accounts.
1Insert the Mac OS X Install DVD. Then restart your computer and hold down the C key as
it starts up.
2Choose Utilities > Reset Password from the menu bar. Follow the onscreen instructions.
If you have trouble ejecting a disc
Quit any applications that might be using the disc and try again. If that doesn’t work,
restart the computer and then immediately press and hold the trackpad button.
Using Apple Hardware Test
If you suspect a problem with the MacBook hardware, you can use the Apple Hardware
Test application to help determine if there is a problem with one of the computers
components, such as the memory or processor.
Chapter 4 Problem, Meet Solution 57
To use Apple Hardware Test:
1Disconnect all external devices from your computer except the power adapter.
If you have an Ethernet cable connected, disconnect it.
2Restart your MacBook while holding down the D key.
3When the Apple Hardware Test chooser screen appears, select the language you want
to use.
4Press the Return key or click the right arrow button.
5When the Apple Hardware Test main screen appears (after about 45 seconds), follow
the onscreen instructions.
6If Apple Hardware Test detects a problem, it displays an error code. Make a note of the
error code before pursuing support options. If Apple Hardware Test doesn’t detect a
hardware failure, the problem may be software related.
If this procedure doesn’t work, you can insert the Applications Install DVD to use Apple
Hardware Test. For more information, see the Apple Hardware Test Read Me file on the
Applications Install DVD that came with your computer.
Problems with Your Internet Connection
Your MacBook has the Network Setup Assistant application to help walk you through
setting up an Internet connection. Open System Preferences and click Network.
Click the Assist me button to open Network Setup Assistant.
If you have trouble with your Internet connection, you can try the steps in this section
starting with Network Diagnostics.
58 Chapter 4 Problem, Meet Solution
To use Network Diagnostics:
1Choose Apple () > System Preferences.
2Click Network and then click Assist me.”
3Click Diagnostics to open Network Diagnostics.
4Follow the onscreen instructions.
If Network Diagnostics can’t resolve the problem, there may be a problem with the
Internet service provider (ISP) you are trying to connect to, with an external device you
are using to connect to your ISP, or with the server you are trying to access. You can try
the following steps.
Cable Modem, DSL, and LAN Internet Connections
Make sure all modem cables are fully plugged in. Check the modem power cord,
the cable from the modem to the computer, and the cable from the modem to the
wall jack. Also check the cables and power supplies for Ethernet hubs and routers.
Turn the modem off and on to reset the modem hardware
Turn off your DSL or cable modem for a few minutes, and then turn it back on.
Some ISPs recommend that you unplug the modems power cord. If your modem has a
reset button, you can press it either before or after you turn the power off and on.
Important: Instructions that refer to modems do not apply to LAN users. LAN users
might have hubs, switches, routers, or connection pods that DSL and cable modem
users do not have. LAN users should contact their network administrator rather than
an ISP.
Chapter 4 Problem, Meet Solution 59
PPPoE Connections
If you are unable to connect to your Internet service provider using PPPoE (Point to
Point Protocol over Ethernet), make sure you have entered the correct information in
Network preferences.
To check PPPoE settings:
1Choose Apple () > System Preferences.
2Click Network.
3Click Add (+) at the bottom of the network connection services list, and choose PPPoE
from the Interface pop-up menu.
4Choose an interface for the PPPoE service from the Ethernet pop-up menu. Choose
Ethernet if you are connecting to a wired network, or AirPort if you are connecting to a
wireless network.
5Enter the information you received from your service provider, such as the account
name, password, and PPPoE service name (if your service provider requires it).
6Click Apply to make the settings active.
Network Connections
Make sure the Ethernet cable is plugged into your MacBook and into the network.
Check the cables and power supplies to your Ethernet hubs and routers.
If you have two or more computers sharing an Internet connection, be sure that your
network is set up properly. You need to know if your ISP provides only one IP address
or if it provides multiple IP addresses, one for each computer.
60 Chapter 4 Problem, Meet Solution
If only one IP address is provided, then you must have a router capable of sharing the
connection, also known as network address translation (NAT) or “IP masquerading.”
For setup information, check the documentation provided with your router or ask the
person who set up your network. You can use an AirPort Base Station to share one
IP address among multiple computers. For information about using an AirPort Base
Station, check Mac Help or go to the Apple AirPort website at
www.apple.com/support/airport.
If you cannot resolve the issue using these steps, contact your ISP or network
administrator.
Problems with AirPort Extreme Wireless Communication
If you have trouble using AirPort Extreme wireless communication:
ÂMake sure the computer or network you are trying to connect to is running and has a
wireless access point.
ÂMake sure you have properly configured the software according to the instructions
that came with your base station or access point.
ÂMake sure you are within antenna range of the other computer or the network’s
access point. Nearby electronic devices or metal structures can interfere with wireless
communication and reduce this range. Repositioning or rotating the computer might
improve reception.
ÂCheck the AirPort (Z) status icon in the menu bar. Up to four bars appear, indicating
signal strength. If the signal strength is weak, try changing your location.
Chapter 4 Problem, Meet Solution 61
ÂSee AirPort Help (choose Help > Mac Help, and then choose Library > AirPort Help
from the menu bar). Also see the instructions that came with the wireless device for
more information.
Keeping Your Software Up to Date
You can connect to the Internet and automatically download and install the latest free
software versions, drivers, and other enhancements from Apple.
When you are connected to the Internet, Software Update checks to see if any updates
are available for your computer. You can set your MacBook to check for updates
periodically, and then you can download and install updated software.
To check for updated software:
1Open System Preferences.
2Click the Software Update icon and follow the onscreen instructions.
ÂFor more information, search for “Software Update in Mac Help.
ÂFor the latest information about Mac OS X, go to www.apple.com/macosx.
Reinstalling the Software That Came with Your MacBook
You can use the software installation discs that came with your computer to reinstall
Mac OS X and any applications that came with your computer. You can choose Archive
and Install,” which saves your existing files and settings, or “Erase and Install,” which
erases all your data.
62 Chapter 4 Problem, Meet Solution
Important: Apple recommends that you back up the data on your hard disk before
restoring software. Because the “Erase and Install” option erases your hard disk, you
should back up your essential files before installing Mac OS X and other applications.
Apple is not responsible for any lost data.
Installing Mac OS X
To install Mac OS X:
1Back up your essential files.
2Make sure your power adapter is connected and plugged in.
3Insert the Mac OS X Install DVD that came with your computer.
4Double-click Install Mac OS X.
5Follow the onscreen instructions.
Note: To restore Mac OS X on your computer to the original factory settings, click
Options in the “Select a Destination pane of the Installer, and then select “Erase and
Install.” If you choose “Erase and Install,” you’ll see a message reminding you to use the
Applications Install DVD to reinstall the bundled applications that came with your
computer.
6When the installation is complete, click Restart to restart your computer.
7Follow the prompts in the Setup Assistant to set up your user account.
Installing Applications
If you reinstall Mac OS X on your computer and select the “Erase and Install” option,
you must reinstall the applications that came with your computer, such as the iLife
applications.
Chapter 4 Problem, Meet Solution 63
To install the applications that came with your computer:
1Make sure your power adapter is connected and plugged in.
2Insert the Applications Install DVD that came with your computer.
3Double-click Install Bundled Software.
4Follow the onscreen instructions.
5When the installation is complete, click Close.
Learning More, Service, and Support
Your MacBook does not have any user-serviceable parts, except the hard drive and the
memory. If you need service, contact Apple or take your MacBook to an Apple
Authorized Service Provider. You can find more information about the MacBook
through online resources, onscreen help, System Profiler, or Apple Hardware Test.
Online Resources
For online service and support information, go to www.apple.com/support. Choose
your country from the pop-up menu. You can search the AppleCare Knowledge Base,
check for software updates, or get help from Apple’s discussion forums.
Onscreen Help
You can look for answers to your questions, as well as instructions and troubleshooting
information, in Mac Help. Choose Help > Mac Help.
64 Chapter 4 Problem, Meet Solution
System Profiler
To get information about your MacBook, use System Profiler. It shows you what
hardware and software is installed, the serial number and operating system
version, how much memory is installed, and more. To open System Profiler,
choose Apple () > About This Mac from the menu bar and then click More Info.
AppleCare Service and Support
Your MacBook comes with 90 days of technical support and one year of hardware
repair warranty coverage at an Apple Store retail location or an Apple-authorized
repair center, such as an Apple Authorized Service Provider (AASP). You can extend
your coverage by purchasing the AppleCare Protection Plan. For information, go to
www.apple.com/support/products or the website for your country listed below.
If you need assistance, AppleCare telephone support representatives can help you with
installing and opening applications, and basic troubleshooting. Call the support center
number nearest you (the first 90 days are complimentary). Have the purchase date and
your MacBook serial number ready when you call.
Note: Your 90 days of complimentary telephone support begins on the date of
purchase. Telephone fees may apply.
Country Phone Website
United States 1-800-275-2273 www.apple.com/support
Australia (61) 1-300-321-456 www.apple.com/au/support
Canada (English)
(French)
1-800-263-3394 www.apple.com/ca/support
www.apple.com/ca/fr/support
Ireland (353) 1850 946 191 www.apple.com/ie/support
Chapter 4 Problem, Meet Solution 65
Telephone numbers are subject to change, and local and national telephone rates may
apply. A complete list is available on the web:
Locating Your Product Serial Number
Use one of these methods to find your computers serial number:
ÂChoose Apple () > About This Mac, and then click the version number beneath the
words “Mac OS X” to cycle through the Mac OS X version number, the build version,
and the serial number.
ÂOpen System Profiler (in /Applications/Utilities/) and click Hardware.
ÂRemove the battery and view the serial number for your MacBook on the front wall
of the battery bay. For information about removing the battery, see page 34.
New Zealand 00800-7666-7666 www.apple.com/nz/support
United Kingdom (44) 0870 876 0753 www.apple.com/uk/support
Country Phone Website
5
5 Last, but Not Least
68 Chapter 5 Last, but Not Least
For your safety and that of your equipment, follow these rules for handling and
cleaning your MacBook and for working more comfortably. Keep these instructions
handy for reference by you and others.
Important Safety Information
Proper handling Set up your MacBook on a stable work surface that allows for
adequate air circulation under and around the computer. Do not operate your
MacBook on a pillow or other soft material, as the material can block the airflow vents.
Never place anything over the keyboard when operating your MacBook. Never push
objects into the ventilation openings.
The bottom of your MacBook may become very warm during normal use. If your
MacBook is on your lap and gets uncomfortably warm, remove it from your lap and
place it on a stable work surface.
Water and wet locations Keep your MacBook away from sources of liquid, such as
drinks, washbasins, bathtubs, shower stalls, and so on. Protect your MacBook from
dampness or wet weather, such as rain, snow, and fog.
WARNING: Failure to follow these safety instructions could result in fire, electric
shock, or other injury or damage.
Chapter 5 Last, but Not Least 69
60W MagSafe Power Adapter Make sure the AC plug or AC power cord is fully
inserted into the power adapter before plugging the adapter into a power outlet. Use
only the power adapter that came with your MacBook, or an Apple-authorized power
adapter that is compatible with this product. The power adapter may become very
warm during normal use. Always put the power adapter directly into a power outlet, or
place it on the floor in a well-ventilated location.
Disconnect the power adapter, remove the battery, and disconnect any other cables if
any of the following conditions exists:
ÂYou want to add memory or upgrade the hard disk drive.
ÂYou want to clean the case (use only the recommended procedure described on
page 72).
ÂThe power cord or plug becomes frayed or otherwise damaged.
ÂYour MacBook or power adapter is exposed to rain, excessive moisture, or liquid
spilled into the case.
ÂYour MacBook or power adapter has been dropped, the case has been damaged,
or you suspect that service or repair is required.
The MagSafe power port contains a magnet that can erase data on a credit card, iPod,
or other device. To preserve your data, do not place these or other magnetically
sensitive material or devices within 1 inch (25 mm) of this port.
If debris gets into the MagSafe power port, remove it gently with a dry cotton swab.
70 Chapter 5 Last, but Not Least
Battery Do not disassemble, drop, crush, or expose the battery to fire or temperatures
above 212° F (100° C). Stop using the battery if it appears damaged in any way. Replace
the battery only with an Apple-authorized battery for this product. Dispose of used
batteries promptly according to your local environmental guidelines.
Hearing damage Permanent hearing loss may occur if earbuds or headphones are
used at high volume. You can adapt over time to a higher volume of sound that may
sound normal but can be damaging to your hearing. If you experience ringing in your
ears or muffled speech, stop listening and have your hearing checked. The louder the
volume, the less time is required before your hearing could be affected. Hearing
experts suggest that to protect your hearing:
ÂLimit the amount of time you use earbuds or headphones at high volume.
ÂAvoid turning up the volume to block out noisy surroundings.
ÂTurn the volume down if you cant hear people speaking near you.
High-risk activities This computer is not intended for use in the operation of nuclear
facilities, aircraft navigation or communications systems, air traffic control systems, or
for any other uses where the failure of the computer could lead to death, personal
injury, or severe environmental damage.
Chapter 5 Last, but Not Least 71
Laser Information for Optical Disc Drives
The optical disc drive in your computer contains a laser that is safe in normal use but
that may be harmful to your eyes if disassembled. For your safety, have this equipment
serviced only by an Apple Authorized Service Provider.
Important Handling Information
Turning on your MacBook Never turn on your MacBook unless all of its internal and
external parts are in place. Operating the computer when parts are missing may be
dangerous and may damage your computer.
Carrying your MacBook If you carry your MacBook in a bag or briefcase, make sure
that there are no loose items (such as paper clips or coins) that could accidentally get
inside the computer through vent openings or the optical drive slot or get stuck inside
a port. Also, keep magnetically sensitive items away from the MagSafe power port.
Using connectors and ports Never force a connector into a port. When connecting a
device, make sure the port is free of debris, that the connector matches the port, and
that you have positioned the connector correctly in relation to the port.
WARNING: Making adjustments or performing procedures other than those specified
in your equipment’s manual may result in hazardous radiation exposure.
NOTICE: Failure to follow these handling instructions could result in damage to your
MacBook or other property.
72 Chapter 5 Last, but Not Least
Using the optical drive The optical drive in your MacBook supports standard 12 cm
(4.7 inch) discs. Irregularly shaped discs or discs smaller than 12 cm (4.7 inches) are not
supported and can become lodged in the drive.
Handling glass parts Your MacBook contains glass components, including the display
and trackpad. If they are damaged, don't use your MacBook until it has been repaired
by an Apple Authorized Service Provider.
Storing your MacBook If you are going to store your MacBook for an extended
period of time, keep it in a cool location (ideally, 71° F or 22° C) and discharge the
battery to 50 percent. When storing your computer for longer than five months,
discharge the battery to approximately 50 percent and then remove it from your
MacBook. To maintain the capacity of the battery, recharge the battery to 50 percent
every six months or so.
Cleaning your MacBook When cleaning the outside of your MacBook and its
components, first shut down your MacBook, unplug the power adapter, and remove
the battery. Then use a damp, soft, lint-free cloth to clean the computers exterior.
Avoid getting moisture in any openings. Do not spray liquid directly on the computer.
Do not use aerosol sprays, solvents, or abrasives that might damage the finish.
Cleaning the MacBook screen To clean the MacBook screen, first shut down your
MacBook, unplug the power adapter, and remove the battery. Then use the included
cleaning cloth to wipe the screen. Dampen the cloth with water if necessary. Do not
spray liquid directly on the screen.
Chapter 5 Last, but Not Least 73
Understanding Ergonomics
Here are some tips for setting up a healthy work environment.
Keyboard and Trackpad
When you use the keyboard and trackpad, your shoulders should be relaxed. Your
upper arm and forearm should form an angle that is slightly greater than a right angle,
with your wrist and hand in roughly a straight line.
74 Chapter 5 Last, but Not Least
Use a light touch when typing or using the trackpad and keep your hands and fingers
relaxed. Avoid rolling your thumbs under your palms.
Change hand positions often to avoid fatigue. Some computer users might develop
discomfort in their hands, wrists, or arms after intensive work without breaks. If you
begin to develop chronic pain or discomfort in your hands, wrists, or arms, consult a
qualified health specialist.
External Mouse
If you use an external mouse, position the mouse at the same height as the keyboard
and within comfortable reach.
Chair
An adjustable chair that provides firm, comfortable support is best. Adjust the height
of the chair so your thighs are horizontal and your feet are flat on the floor. The back of
the chair should support your lower back (lumbar region). Follow the manufacturers
instructions for adjusting the backrest to fit your body properly.
Chapter 5 Last, but Not Least 75
You might have to raise your chair so that your forearms and hands are at the proper
angle to the keyboard. If this makes it impossible to rest your feet flat on the floor,
you can use a footrest with adjustable height and tilt to make up for any gap between
the floor and your feet. Or you can lower the desktop to eliminate the need for a
footrest. Another option is to use a desk with a keyboard tray thats lower than the
regular work surface.
Built-in Display
Adjust the angle of the display to minimize glare and reflections from overhead lights
and windows. Do not force the display if you meet resistance. The display is not meant
to open past 130 degrees.
You can adjust the brightness of the screen when you take the computer from one
work location to another, or if the lighting in your work area changes.
More information about ergonomics is available on the web:
Apple and the Environment
Apple Inc. recognizes its responsibility to minimize the environmental impacts of its
operations and products.
More information is available on the web:
76
Regulatory Compliance Information
FCC Compliance Statement
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation. See instructions if interference to radio or
television reception is suspected.
L‘utilisation de ce dispositif est autorisée seulement aux
conditions suivantes: (1) il ne doit pas produire de
brouillage et (2) l’utilisateur du dispositif doit étre prêt à
accepter tout brouillage radioélectrique reçu, même si
ce brouillage est susceptible de compromettre le
fonctionnement du dispositif.
Radio and Television Interference
This computer equipment generates, uses, and can
radiate radio-frequency energy. If it is not installed and
used properly—that is, in strict accordance with Apple’s
instructions—it may cause interference with radio and
television reception.
This equipment has been tested and found to comply
with the limits for a Class B digital device in accordance
with the specifications in Part 15 of FCC rules. These
specifications are designed to provide reasonable
protection against such interference in a residential
installation. However, there is no guarantee that
interference will not occur in a particular installation.
You can determine whether your computer system is
causing interference by turning it off. If the interference
stops, it was probably caused by the computer or one of
the peripheral devices.
If your computer system does cause interference to
radio or television reception, try to correct the
interference by using one or more of the following
measures:
ÂTurn the television or radio antenna until the
interference stops.
ÂMove the computer to one side or the other of the
television or radio.
ÂMove the computer farther away from the television
or radio.
ÂPlug the computer in to an outlet that is on a different
circuit from the television or radio. (That is, make
certain the computer and the television or radio are on
circuits controlled by different circuit breakers or
fuses.)
If necessary, consult an Apple Authorized Service
Provider or Apple. See the service and support
information that came with your Apple product.
Or, consult an experienced radio/television technician
for additional suggestions.
Important: Changes or modifications to this product
not authorized by Apple Inc., could void the EMC
compliance and negate your authority to operate the
product.
This product has demonstrated EMC compliance under
conditions that included the use of compliant peripheral
devices and shielded cables (including Ethernet network
cables) between system components. It is important
that you use compliant peripheral devices and shielded
cables between system components to reduce the
possibility of causing interference to radios, television
sets, and other electronic devices.
77
Responsible party (contact for FCC matters only):
Apple Inc. Corporate Compliance
1 Infinite Loop, M/S 26-A
Cupertino, CA 95014-2084
Wireless Radio Use
This device is restricted to indoor use when operating in
the 5.15 to 5.25 GHz frequency band.
Cet appareil doit être utilisé à l’intérieur.
Exposure to Radio Frequency Energy
The radiated output power of the AirPort Extreme
technology is below the FCC radio frequency exposure
limits. Nevertheless, it is advised to use the wireless
equipment in such a manner that the potential for
human contact during normal operation is minimized.
FCC Bluetooth Wireless Compliance
The antenna used with this transmitter must not be
colocated or operated in conjunction with any other
antenna or transmitter subject to the conditions of the
FCC Grant.
Bluetooth Industry Canada Statement
This Class B device meets all requirements of the
Canadian interference-causing equipment regulations.
Cet appareil numérique de la Class B respecte toutes les
exigences du Règlement sur le matériel brouilleur
du Canada.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B
specifications. Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada. This device
complies with RSS 210 of Industry Canada.
Bluetooth Europe—EU Declaration of
Conformity
This wireless device complies with the R&TTE Directive.
Europe—EU Declaration of Conformity
The equipment complies with the RF Exposure
Requirement 1999/519/EC, Council Recommendation of
12 July 1999 on the limitation of exposure of the general
public to electromagnetic fields (0 Hz to 300 GHz).
Hereby, Apple Inc. declares that this 802.11a/b/g/n
Mini-PCIe card is in compliance with the R&TTE
Directive.
Complies with European Low Voltage and EMC
Directives.
See: www.apple.com/euro/compliance
Korea Warning Statements
Singapore Wireless Certification
Taiwan Wireless Statements
78
Taiwan Class B Statement
VCCI Class B Statement
Russia
External USB Modem Information
When connecting your MacBook to the phone line
using an external USB modem, refer to the
telecommunications agency information in the
documentation that came with your modem.
ENERGY STAR® Compliance
As an ENERGY STAR® partner, Apple has determined
that standard configurations of this product meet the
ENERGY STAR® guidelines for energy efficiency. The
ENERGY STAR® program is a partnership with electronic
equipment manufacturers to promote energy-efficient
products. Reducing energy consumption of products
saves money and helps conserve valuable resources.
This computer is shipped with power management
enabled with the computer set to sleep after 10 minutes
of user inactivity. To wake your computer, click the
mouse or trackpad button or press any key on the
keyboard.
For more information about ENERGY STAR®, visit:
www.energystar.gov
79
Disposal and Recycling Information
This symbol indicates that your product must be
disposed of properly according to local laws and
regulations. When your product reaches its end of life,
contact Apple or your local authorities to learn about
recycling options.
For information about Apples recycling program, go to
www.apple.com/environment/recycling.
Battery Disposal Information
Dispose of batteries according to your local
environmental laws and guidelines.
California: The coin cell battery in the optional Apple
Remote contains perchlorates. Special handling and
disposal may apply. Refer to:
www.dtsc.ca.gov/hazardouswaste/perchlorate
Deutschland: Das Gerät enthält Batterien. Diese
gehören nicht in den Hausmüll. Sie können verbrauchte
Batterien beim Handel oder bei den Kommunen
unentgeltlich abgeben. Um Kurzschlüsse zu vermeiden,
kleben Sie die Pole der Batterien vorsorglich mit einem
Klebestreifen ab.
Nederlands: Gebruikte batterijen kunnen worden
ingeleverd bij de chemokar of in een speciale
batterijcontainer voor klein chemisch afval (kca) worden
gedeponeerd.
80
Taiwan:
European Union—Disposal Information:
The symbol above means that according to local laws
and regulations your product should be disposed of
separately from household waste. When this product
reaches its end of life, take it to a collection point
designated by local authorities. Some collection points
accept products for free. The separate collection and
recycling of your product at the time of disposal will
help conserve natural resources and ensure that it is
recycled in a manner that protects human health and
the environment.
Looking for Something?
82 Looking for Something?
Index
A
AC plug 10
AC power adapter. See power
adapter
AC power cord 10
adapter, power. See power
adapter
AirPort Extreme
connecting wirelessly 11
troubleshooting 60
using 30
AppleCare 64
Apple Hardware Test 56
Apple Remote 19, 31
application freeze 52
applications
Front Row 19, 31
iChat 19
iLife 30
Keynote 19
Photo Booth 19
audio in port 23
B
battery
disposal 79
general information 28
indicator lights 28
location 19
performance 28
removing 34
replacing 36
storing 72
battery indicator lights 28, 56
blinking question mark 53
brightness keys 21
built-in speakers 19
button, power 12, 19
C
cable modem 11
camera. See iSight video
camera
carrying your computer 71
changing
the desktop 15
password 56
System Preferences 15
checking memory 49
cleaning
the screen 72
your computer 72
computer
disposal 79
freezes 53
inventory 9
putting to sleep 15
shutting down 16
turning on 12
won’t turn on 54
connecting to a network 11
Control-click 25
controls. See keys
cord, AC power 10
D
Dashboard 21
desktop, customizing 15
discs
ejecting 56
software installation 61
supported 72
display
external 23
See also screen
disposing of your computer 79
Dock 29
downloading software 61
drive, optical 19
DSL modem 11
Looking for Something? 83
E
ejecting a disc 56
Energy Saver preferences 28
environmental impact 75
ergonomics 73
Ethernet
connecting to 11
port 23
Exposé All Windows key 21
external display port 23
external modem 12
F
F1 to F12 function keys 21
factory settings 62
Fast-forward key 21
flashing question mark 53
Force Quit 52
forward delete 25
four-finger swiping 27
Front Row application 19, 31
frozen application 52
function (fn) key 21
H
hand positions 73
headphone port 23
Help, finding answers 29
high-speed USB 23
I
iChat application 19
iLife applications 30
infrared receiver (IR) 19
installation instructions
memory 42
overview 8
Internet
connecting to 11
connection problems 60
inventory of items 9
iSight video camera 19
K
keyboard
ergonomics 73
features 20
illumination keys 21
media keys 21
shortcuts 25
See also keys
Keynote application 19
keys
brightness 21
Dashboard 21
Exposé 21
function (fn) 21
keyboard illumination 21
media 21
Media Eject 21
mute 21
volume 21
L
lights
battery 28, 56
sleep indicator 19
M
Mac Help 29
Mac OS X
reinstalling 62
website 30
MagSafe power adapter. See
power adapter
MagSafe power port 23
Media Eject key 21
media keys 21
memory
checking 49
installing 42
microphone 19
Mini DisplayPort 23
modem 11
mouse 23, 74
See also trackpad
Multi-Touch gestures 19
mute key 21
N
network connections 59
Network Diagnostics 57
Network Setup Assistant 57
number, serial 65
84 Looking for Something?
O
online resources 63
optical digital audio ports 23
optical drive
about 19
supported disc size 72
P
paging through documents
using trackpad 27
password, resetting 56
Photo Booth 19
pinching to zoom 26
Play/pause key 21
plug, AC 10
ports
Mini DisplayPort 23
on MacBook 23
power adapter
plugging in 69
port 23
using 10
power button 12, 19
problems
computer freezes 53
computer won’t turn on 54
pointer won’t move 52
screen goes black 55
trouble ejecting a disc 56
trouble using AirPort 60
putting your computer to
sleep 15
Q
question mark, flashing 53
R
RAM. See memory
reinstalling Mac OS X 62
removing the battery 34
replacing the battery 36
resetting your password 56
Rewind key 21
right click 25
rotating objects using
trackpad 26
S
safety
general safety
instructions 68
power adapter 69
screen
cleaning 72
goes black 55
setting brightness 21
scrolling with two fingers 24
SDRAM specifications 42
secondary click 25
secondary click zone 25
security slot 23
Serial ATA (SATA) hard drive 38
serial number, locating 65
service and support 64
Setup Assistant 13
shutting down 16
sleep mode
indicator light 19
putting computer to
sleep 15
software
installation discs 61
updating 61
Software Update
preferences 61
speakers 19
specifications 31
stopping
an application 52
the computer 16
storing your computer 72
SuperDrive
about 19
SuperDrive, supported disc
sizes 72
support 64
swiping to move quickly
through documents 27
System Preferences
customizing the desktop 15
Energy Saver 15
Software Update 61
System Profiler 64
Looking for Something? 85
T
three-finger swiping 27
trackpad
location 19
shortcuts 25
trackpad gestures 19
troubleshooting
AirPort 60
AppleCare 64
battery indicator lights 56
computer freezes 53
computer won’t turn on 54
ejecting a disc 56
hardware problems 56
pointer won’t move 52
screen goes black 55
service and support 63
using Mac Help 63
See also problems
turning on your MacBook 12
two-finger pinching 26
two-finger rotating 26
typing position 73
U
updating software 61
USB
connections 31
ports 23
V
video
camera indicator light 19
Mini DisplayPort 23
volume keys 21
W
waking your computer 16
Z
zooming using the trackpad 26
K Apple Inc.
© 2008 Apple Inc. All rights reserved.
Under the copyright laws, this manual may not be
copied, in whole or in part, without the written consent
of Apple.
Every effort has been made to ensure that the
information in this manual is accurate. Apple is not
responsible for printing or clerical errors.
Apple
1 Infinite Loop
Cupertino, CA 95014-2084
408-996-1010
www.apple.com
Apple, the Apple logo, AirPort, AirPort Extreme, Cover
Flow, Exposé, FileVault, GarageBand, iCal, iChat, iLife,
iMovie, iPhoto, iPod, iSight, iTunes, Keynote, Mac,
MacBook, Macintosh, Mac OS, MagSafe, Photo Booth,
Safari, Spaces, and SuperDrive are trademarks of
Apple Inc., registered in the U.S. and other countries.
Finder, iPhone, iWeb, Multi-Touch, Spotlight,
and Time Machine are trademarks of Apple Inc.
AppleCare, Apple Store, and iTunes Store are service
marks of Apple Inc., registered in the U.S. and other
countries.
ENERGY STAR® is a U.S. registered trademark.
Intel, Intel Core, and Xeon are trademarks of Intel Corp.
in the U.S. and other countries.
The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any
use of such marks by Apple Inc. is under license.
Other company and product names mentioned herein
are trademarks of their respective companies. Mention
of third-party products is for informational purposes
only and constitutes neither an endorsement nor a
recommendation. Apple assumes no responsibility with
regard to the performance or use of these products.
Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are
trademarks of Dolby Laboratories. Confidential
Unpublished Works, © 1992–1997 Dolby Laboratories,
Inc. All rights reserved.
The product described in this manual incorporates
copyright protection technology that is protected by
method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be authorized by
Macrovision Corporation and is intended for home and
other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216,
4,819,098 and 4,907,093 licensed for limited viewing
uses only.
Simultaneously published in the United States and
Canada.

Navigation menu
