Broadcom Corporation 802.11agn WLAN + Bluetooth PCI-E Minicard MacBook Pro 15
Broadcom >
Contents
A1286UG
Congratulations, you and your MacBook Pro
were made for each other.
Say hello to your MacBook Pro.
www.apple.com/macbookpro
finder

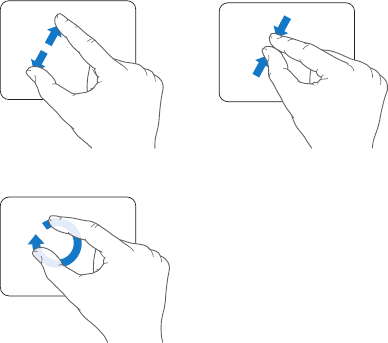

Pinch and
zoom Rotate
Scroll Swipe
Multi-Touch trackpad
Scroll through files, adjust
images, and enlarge text
using just your fingers.
Mac Help
Finder
Browse your files
like you browse
your music with
Cover Flow.
Mac Help
camera
trackpad
Click anywhere
Built-in FaceTime HD camera
Make video calls to any iPhone 4,
new iPod touch, or Mac.
Mac Help
MacBook Pro
Time Machine
Automatically
back up and
restore your files.
Mac Help
Spotlight
Find anything
on your Mac.
Mac Help
time machine
spotlight
Safari
Experience the web
with the fastest
browser in the world.
Mac Help
safari
Quick Look
Instantly preview
your files.
Mac Help
quick look
Mac OS X Snow Leopard
www.apple.com/macosx
iLife ’11
www.apple.com/ilife
iPhoto
Turn your
photos into
something
amazing.
iPhoto Help
photos
iMovie
Make a great-
looking movie
in minutes.
iMovie Help
movie
GarageBand
Create a great-
sounding song
with ease.
GarageBand Help
record
5Contents
Contents
Chapter 1: Ready, Set Up, Go
9 What’sintheBox
9 SettingUpYourMacBookPro
16 PuttingYourMacBookProtoSleeporShuttingItDown
Chapter 2: Life with Your MacBook Pro
20 BasicFeaturesofYourMacBookPro
22 KeyboardFeaturesofYourMacBookPro
24 PortsonYourMacBookPro

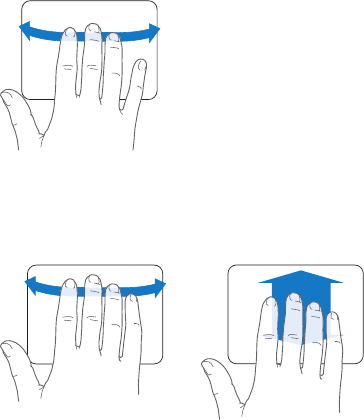

26 UsingtheMulti-TouchTrackpad
30 UsingtheMacBookProBattery
31 GettingAnswers
Chapter 3: Boost Your MacBook Pro

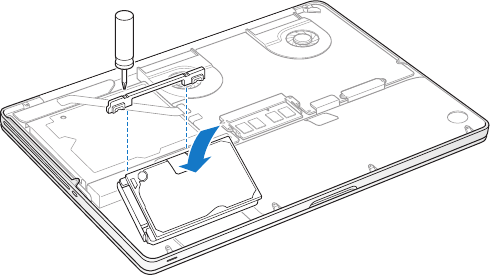

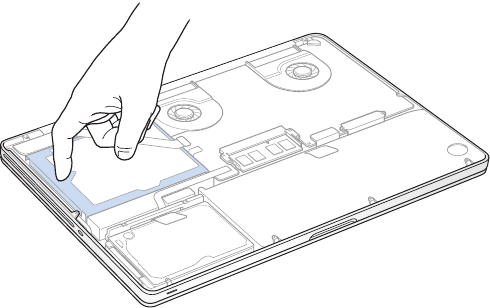

37 ReplacingtheHardDiskDrive
44 InstallingAdditionalMemory
Chapter 4: Problem, Meet Solution
51 ProblemsThatPreventYoufromUsingYourMacBookPro
55 UsingAppleHardwareTest
6Contents
56 ProblemswithYourInternetConnection
58 ProblemswithAirPortExtremeWirelessCommunication
59 KeepingYourSoftwareUptoDate
60 ReinstallingtheSoftwareThatCamewithYourMacBookPro
61 UsingDiskUtility
62 LearningMore,Service,andSupport
64 LocatingYourProductSerialNumber
Chapter 5: Last, but Not Least
66 ImportantSafetyInformation
71 ImportantHandlingInformation
73 UnderstandingErgonomics
75 AppleandtheEnvironment
76 RegulatoryComplianceInformation
Looking for Something?
82 Index
Mac Help Migration Assistant
www.apple.com/macbookpro
Ready, Set Up, Go
1
8 Chapter 1 Ready, Set Up, Go
YourMacBookProisdesignedsothatyoucansetitupquicklyandstartusingitright
away.IfyouhaveneverusedaMacBookProorarenewtoMaccomputers,readthis
chapterforhelpgettingstarted.
Important: Readalltheinstallationinstructions(andthesafetyinformationstartingon
page72)carefullybeforeyourstuseyourcomputer.
Ifyou’reanexperienceduser,youmayalreadyknowenoughtogetstarted.Makesure
youlookovertheinformationinChapter2,“LifewithYourMacBookPro,”tondout
aboutthenewfeaturesofthisMacBookPro.
ManyanswerstoquestionscanbefoundonyourcomputerinMacHelp.For
informationaboutusingMacHelp,see“GettingAnswers”onpage31.Thelatest
informationaboutyourMacBookProisavailableontheAppleSupportwebsiteat
www.apple.com/support/macbookpro.Applemayreleasenewversionsandupdates
toitssystemsoftware,sotheimagesshowninthisbookmaybeslightlydierentfrom
whatyouseeonscreen.
9Chapter 1 Ready, Set Up, Go

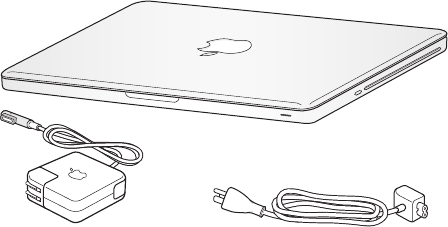

What’s in the Box
AC power cord
85W MagSafe Power Adapter
®
Setting Up Your MacBook Pro
YourMacBookProisdesignedsothatyoucansetitupquicklyandstartusingitright
away.Thefollowingpagestakeyouthroughthesetupprocess,includingthesetasks:
ÂPlugginginthe85WMagSafePowerAdapter
ÂConnectingcablesandaccessinganetwork
ÂTurningonyourMacBookPro
ÂConguringauseraccountandothersettingsusingSetupAssistant
ÂSettinguptheMacOSXdesktopandpreferences
10 Chapter 1 Ready, Set Up, Go
Important: Removetheprotectivelmaroundthe85WMagSafePowerAdapter
beforesettingupyourMacBookPro.
Step 1: Plug in the 85W MagSafe Power Adapter to provide power to the
MacBook Pro and charge the battery.
MakesuretheACplugisfullyinsertedintothepoweradapterandtheelectrical
prongsonyourACplugareintheircompletelyextendedposition.InserttheAC
plugofyourpoweradapterintoapoweroutletandtheMagSafeconnectorintothe
MagSafepowerport.AstheMagSafeconnectorgetsclosetotheport,you’llfeela
magneticpulldrawingitin.
MagSafe connector
AC power cord
AC plug ¯ MagSafe power port
Toextendthereachofyourpoweradapter,replacetheACplugwiththeACpower
cord.FirstpulltheACpluguptoremoveitfromtheadapter,andthenattachthe
includedACpowercordtotheadapter,makingsureit’sseatedrmly.
Whendisconnectingthepoweradapterfromanoutletorfromthecomputer,pullthe
plug,notthecord.
11Chapter 1 Ready, Set Up, Go
WhenyourstconnectthepoweradaptertoyourMacBookPro,anindicatorlighton
theMagSafeconnectorstartstoglow.Anamberlightindicatesthebatteryischarging.
Agreenlightindicatesthatthebatteryisfullycharged.Ifyoudon’tseealight,make
suretheconnectorisseatedproperlyandthepoweradapterispluggedin.
Step 2: Connect to a wireless or wired network.
ÂTouseawirelessnetworkwiththebuilt-inAirPortExtremetechnology,makesurethe
wirelessbasestationisturnedonandthatyouknowthenameofthenetwork.After
youturnonyourMacBookPro,SetupAssistantguidesyouthroughtheconnection
process.Fortroubleshootingtips,seepage58.
ÂTouseawiredconnection,connectoneendofanEthernetcabletoyour
MacBookProandtheotherendtoacablemodem,DSLmodem,ornetwork.
®
Gigabit Ethernet port
(10/100/1000Base-T)
G
Ethernet
cable
12 Chapter 1 Ready, Set Up, Go

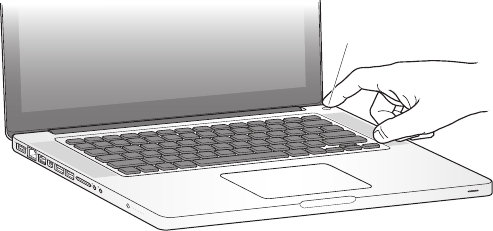

Step 3: Press the power (®) button briey to turn on your MacBook Pro.
Youhearatonewhenyouturnonthecomputer.
®
® Power button
IttakestheMacBookProafewmomentstostartup.Afteritstartsup,SetupAssistant
opensautomatically.
IfyourMacBookProdoesn’tturnon,see“IfyourMacBookProdoesn’tturnonorstart
up”onpage53.
13Chapter 1 Ready, Set Up, Go
Step 4: Congure your MacBook Pro with Setup Assistant.
ThersttimeyouturnonyourMacBookPro,SetupAssistantstarts.SetupAssistant
helpsyouenteryourInternetandemailinformationandsetupauseraccountonyour
MacBookPro.IfyoualreadyhaveaMac,SetupAssistantcanhelpyouautomatically
transferles,applications,andotherinformationfromyourpreviousMacusingan
Ethernetorwirelessconnection.Seethenextsection,“MigratingInformationtoYour
MacBookPro,”formoreinformation.
Ifyoudon’tintendtokeeporuseyourotherMac,it’sbesttodeauthorizeitfrom
playingmusic,videos,oraudiobooksthatyou’vepurchasedfromtheiTunesStore.
Deauthorizingacomputerpreventsanysongs,videos,oraudiobooksyou’vepurchased
frombeingplayedbysomeoneelseandfreesupanotherauthorizationforuse.For
informationaboutdeauthorizing,iniTunes,openHelp>iTunesHelp.
14 Chapter 1 Ready, Set Up, Go
Migrating Information to Your MacBook Pro
YoucanfollowthepromptsinSetupAssistanttomigrateexistinguseraccounts,les,
applications,andotherinformationfromanotherMaccomputer.Youcandothiswith
oneofthefollowingmethods:
ÂUsingaFireWirecabletoconnectthetwocomputerstogetherandtransferthe
information
ÂUsinganEthernetcableconnecteddirectlybetweenthetwocomputers,or
connectingbothcomputerstothesamenetwork
ÂWirelessly—directlybetweenthetwocomputers,orwithbothcomputersonthe
samewirelessnetwork
Beforemigrating,useSoftwareUpdateonyourotherMac.TheotherMacshould
haveoneoftheseversionsofMacOSXsoftware—eitherMacOSXv10.4.11or
MacOSXv10.5.6(orlater).
Youcanchoosetheitems(useraccounts,documents,movies,music,photos,andsoon)
thatyouwanttomigratetoyourMacBookPro.
Important: Don’tusetheotherMacforanythingelseuntilthemigrationiscomplete.
Ifyoudon’tuseSetupAssistanttotransferinformationwhenyourststartupyour
computer,youcandoitlaterusingMigrationAssistant.Iftheconnectionisterminated
duringmigration,youcanresumethemigrationatalatertimeusingMigration
AssistantonyourMacBookProandyourotherMac.GototheApplicationsfolder,open
Utilities,anddouble-clickMigrationAssistant.
15Chapter 1 Ready, Set Up, Go

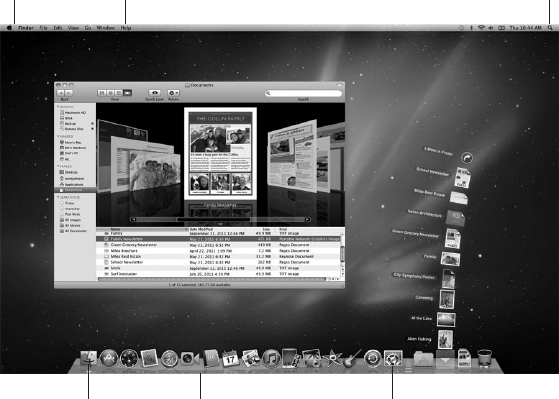

Step 5: Customize the Mac OS X desktop and set preferences.
Menubar
HelpmenuSpotlightsearchicon
Findericon
Dock
Systempreferencesicon
16 Chapter 1 Ready, Set Up, Go
YoucanquicklycustomizethedesktopusingSystemPreferences.ChooseApple()>
SystemPreferencesfromthemenubarorclicktheSystemPreferencesiconin
theDock.SystemPreferencesisyourcommandcenterformostsettingsonyour
MacBookPro.Formoreinformation,openMacHelpandsearchfor“SystemPreferences”
orforthespecicpreferenceyouwanttochange.
Putting Your MacBook Pro to Sleep or Shutting It Down
WhenyounishworkingwithyourMacBookPro,youcanputittosleeporshutitdown.
Putting Your MacBook Pro to Sleep
Ifyou’llbeawayfromyourMacBookProforonlyashorttime,putittosleep.Whenthe
computerisinsleep,youcanquicklywakeitandbypassthestartupprocess.
To put your MacBook Pro to sleep, do one of the following:
ÂClosethedisplay.
ÂChooseApple()>Sleepfromthemenubar.
ÂPressthepower(®)buttonandclickSleepinthedialogthatappears.
ÂChooseApple()>SystemPreferences,clickEnergySaver,andsetasleeptimer.
NOTICE: Waitafewsecondsuntilthesleepindicatorlightstartspulsing(indicating
thatthecomputerisinsleepandtheharddiskhasstoppedspinning)beforemoving
yourMacBookPro.Movingyourcomputerwhilethediskisspinningcandamagethe
harddisk,causinglossofdataortheinabilitytostartupfromtheharddisk.
17Chapter 1 Ready, Set Up, Go
To wake your MacBook Pro:
ÂIf the display is closed,simplyopenittowakeupyourMacBookPro.
ÂIf the display is already open,pressthepower(®)buttonoranykeyonthekeyboard.
WhenyourMacBookProwakesfromsleep,yourapplications,documents,and
computersettingsareexactlyasyouleftthem.
Shutting Down Your MacBook Pro
Ifyouaren’tgoingtouseyourMacBookProforacoupleofdaysorlonger,it’sbestto
shutitdown.Thesleepindicatorlightgoesonbrieyduringtheshutdownprocess.
To shut down your MacBook Pro, do one of the following:
mChooseApple()>ShutDownfromthemenubar.
mPressthepower(®)buttonandclickShutDowninthedialogthatappears.
IfyouplantostoreyourMacBookProforanextendedperiodoftime,seepage72for
informationabouthowtopreventthebatteryfromdrainingcompletely.
www.apple.com/macosx
Mac Help Mac OS X
Life with Your MacBook Pro
2
20 Chapter 2 Life with Your MacBook Pro

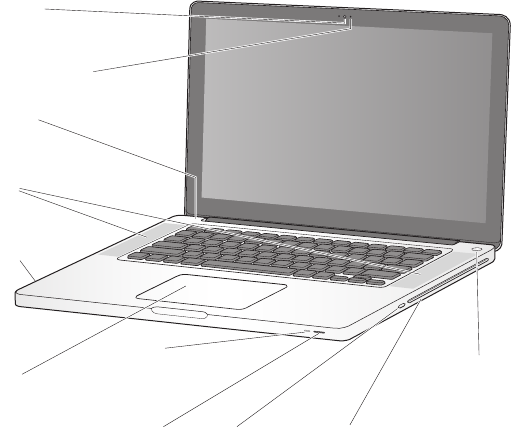

Basic Features of Your MacBook Pro
®
® Power button
Camera indicator light
FaceTime HD
camera
Built-in stereo
speakers
Battery indicator
lights (side)
Microphone
Sleep
indicator light
Infrared (IR)
receiver
Trackpad
Slot-loading
SuperDrive
Security slot
21Chapter 2 Life with Your MacBook Pro
Built-in FaceTime HD camera and camera indicator light
UsetheincludedFaceTimeapplicationtomakevideocallstootherFaceTimeusers(on
anyiPhone4,newiPodtouch,orMacwithFaceTime),takepictureswithPhotoBooth,
orcapturevideowithiMovie.TheindicatorlightglowswhentheFaceTimeHDcamera
isoperating.
Built-in stereo speakers
Listentomusic,movies,games,andothermultimediales.
Built-in microphone
CapturesoundswiththemicrophoneortalkwithfriendsliveovertheInternetusing
FaceTimeoriChat.
Built-in battery and battery indicator lights
Usebatterypowerwhenyouareawayfromapoweroutlet.Pressthebatterybuttonto
activateindicatorlightsthatshowtheremainingbatterycharge.
Trackpad
Clickordouble-clickanywhereonthetrackpad.Touchthetrackpadwithoneormore
ngerstomovethepointeranduseMulti-Touchgestures(describedonpage26).
Sleep indicator light
AwhitelightpulseswhentheMacBookProisinsleep.
Infrared (IR) receiver
UseanoptionalAppleRemote(availableseparately)withtheIRreceivertocontrol
FrontRowandKeynoteonyourMacBookProfromupto30feet(9.1meters)away.
Security slot
Attachalockandcable(availableseparately)topreventtheft.
Slot-loading SuperDrive
Thisopticaldrivereadsandwritesstandard-sizeCDsandDVDs.
®Power button
TurnyourMacBookProonoro,orputittosleep.
22 Chapter 2 Life with Your MacBook Pro

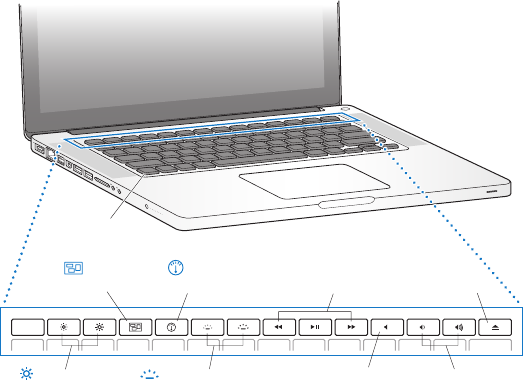

Keyboard Features of Your MacBook Pro
®
Function (fn) key
esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
—
C
-Volume
keys
Brightness
keys
Media
Eject key
Mute
key
Exposé
key
Dashboard
key
Media
keys
Keyboard illumination
keys
’
23Chapter 2 Life with Your MacBook Pro
Function (fn) key
Pressandholdthiskeytoactivatecustomizedactionsassignedtothefunctionkeys
(F1toF12).Tolearnhowtocustomizefunctionkeys,chooseHelp>MacHelpfromthe
menubarandsearchfor“functionkeys.”
Brightness keys (F1, F2)
Increase( )ordecrease( )thebrightnessofyourMacBookProdisplay.
Exposé key (F3)
OpenExposéforquickaccesstoallyouropenwindows.
Dashboard key (F4)
OpenDashboardtoaccessyourwidgets.
oKeyboard illumination keys (F5, F6)
Increase(o)ordecrease(ø)thebrightnessofthekeyboardillumination.
’Media keys (F7, F8, F9)
Rewind( ),playorpause(’),orfast-forward( )asong,movie,orslideshow.
—Mute key (F10)
Mutethesoundcomingfromthebuilt-inspeakersandaudiooutport.
-Volume keys (F11, F12)
Increase(-)ordecrease(–)thevolumeofsoundcomingfromthebuilt-inspeakersand
audiooutport.
CMedia Eject key
Pressandholdthiskeytoejectadiscthat’snotinuse.Youcanalsoejectadiscby
draggingitsdesktopicontotheTrash.
24 Chapter 2 Life with Your MacBook Pro

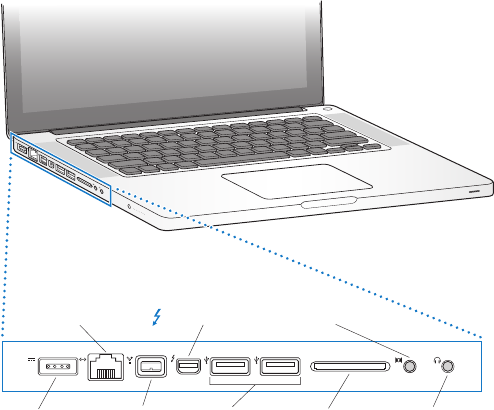

Ports on Your MacBook Pro
®
¯
Gigabit
Ethernet port
G
Audio
out port
f
Audio
in port
,
USB 2.0
ports
d
MagSafe
power port
FireWire
800 port
HSDXC card slot
Thunderbolt port
25Chapter 2 Life with Your MacBook Pro
¯MagSafe power port
Plugintheincluded85WMagSafePowerAdaptertorechargetheMacBookProbattery.
GGigabit Ethernet port
Connecttoahigh-speedEthernetnetwork,aDSLorcablemodem,oranothercomputer.
TheEthernetportautomaticallydetectsEthernetdevicesanddoesn’trequirean
Ethernetcrossovercable.
HFireWire 800 port
Connectexternaldevices,suchasdigitalvideocamerasandstoragedevices.
Thunderbolt port (high-speed data, video, and audio)
ConnectThunderbolt-compatibledevicesforhigh-speeddatatransfer,orconnect
anexternaldisplaythatusesMiniDisplayPort.Youcanpurchaseadapterstoconnect
displaysthatuseDVI,HDMI,orVGA.
dTwo high-speed USB (Universal Serial Bus) 2.0 ports
ConnectaniPod,iPhone,mouse,keyboard,printer,diskdrive,digitalcamera,joystick,
modem,andmoretoyourMacBookPro.YoucanalsoconnectUSB1.1devices.
,Audio in port
ConnectyourMacBookProtoaline-levelmicrophoneordigitalaudioequipment.
fAudio out port
Connectexternalspeakers,headphones(includingiPhone),ordigitalaudioequipment.
SDXC card slot
Easilytransferphotos,videos,anddatatoandfromyourMacBookProwithanSDor
SDXCcard.
Note: Adaptersandotheraccessoriesaresoldseparatelyatwww.apple.com/storeor
yourlocalAppleRetailStore.
26 Chapter 2 Life with Your MacBook Pro
Using the Multi-Touch Trackpad
UsethetrackpadtomovethecursorandtoperformavarietyofMulti-Touchgestures.
Unliketypicaltrackpads,theentireMacBookProtrackpadisabutton,andyoucanclick
anywhereonthetrackpad.ToenableMulti-Touchgestures,viewinstructionalvideosof
thegestures,andsetothertrackpadoptions,chooseApple()>SystemPreferences,
andthenclickTrackpad.
HerearewaystouseyourMacBookProtrackpad:
ÂTwo-nger scrollingletsyoudragtoscrollquicklyup,down,orsidewaysintheactive
window.Thisoptionisonbydefault.Youcanalsosettheoptiontoscrollwithor
withoutinertia.Ifyouscrollwithinertia,thescreencontinuestoscrollalittlelonger
afteryouliftyourngersfromthetrackpad,whichishelpfulfornavigatinglong
documentsandlists.
27Chapter 2 Life with Your MacBook Pro

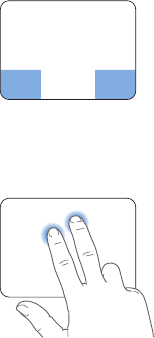

ÂSecondary clickingor“right-clicking”letsyouaccessshortcutmenucommands.
• Tosetupaone-ngersecondary-clickzoneinthebottomleftorrightcorner
ofthetrackpad,selectSecondaryClickundertheOneFingeroptioninTrackpad
preferences.
Secondaryclickzone
• Tosetuptwo-ngersecondary-clickinganywhereonthetrackpad,select
SecondaryClickundertheTwoFingersoptioninTrackpadpreferences.
Note: YoucanalsosecondaryclickbyholdingdowntheControlkeywhileyouclick.
28 Chapter 2 Life with Your MacBook Pro
Thefollowingtrackpadgesturesworkincertainapplications.Whenyouperformthese
gestures,slideyourngerslightlyonthesurfaceofthetrackpad.Formoreinformation,
seeTrackpadpreferencesorchooseHelp>MacHelpandsearchfor“trackpad.”
ÂTwo-nger pinchingletsyouzoominoroutonPDFs,images,photos,andmore.
ÂTwo-nger rotatingletsyourotatephotos,pages,andmore.
29Chapter 2 Life with Your MacBook Pro
ÂThree-nger swipingletsyourapidlypagethroughdocuments,movetotheprevious
ornextphoto,andmore.
ÂFour-nger swipingworksintheFinderandallapplications.Swipingfourngers
totheleftorrightactivatesApplicationSwitchersoyoucancyclethroughopen
applications.SwipingfourngersupordowncausesExposétoshowthedesktop
ordisplayallopenwindows.
Toenableordisableanyofthegestures,chooseApple()>SystemPreferences,and
thenclickTrackpad.Clickthecheckboxestoturnthegesturesonoro.
30 Chapter 2 Life with Your MacBook Pro
Using the MacBook Pro Battery
WhentheMagSafepoweradapterisn’tconnected,yourMacBookProdrawspower
fromitsbuilt-inbattery.ThelengthoftimethatyoucanrunyourMacBookProvaries,
dependingontheapplicationsyouuseandtheexternaldevicesconnectedtoyour
MacBookPro.
TurningofeaturessuchasAirPortExtremeorBluetooth®wirelesstechnologyand
reducingscreenbrightnesscanhelpconservebatterycharge,forexample,whenyou’re
travelingbyair.Manyofyoursystempreferencesareautomaticallysettooptimize
batterylife.
Youcandeterminethechargeremaininginthebatterybylookingattheeightbattery
levelindicatorlightsontheleftsideofyourMacBookPro.Pressthebuttonnexttothe
lights,andthelightsglowbrieytoshowhowmuchchargeremainsinthebattery.
Important: Ifonlyoneindicatorlightison,verylittlechargeisleft.Ifnolightsareon,
thebatteryiscompletelydrainedandtheMacBookProwon’tstartupunlessthepower
adapterisconnected.Pluginthepoweradaptertoletthebatteryrecharge.Formore
informationaboutbatteryindicatorlights,seepage54.
YoucanalsochecktheamountofbatterychargeremainingbyviewingtheBattery
()statusiconinthemenubar.Thebatterychargeleveldisplayedisbasedonthe
amountofpowerleftinthebatterywiththeapplications,peripheraldevices,and
systemsettingsyou’recurrentlyusing.Toconservebatterypower,closeapplications
anddisconnectperipheraldevicesnotinuse,andadjustyourEnergySaversettings.
Formoreinformationaboutbatteryconservationandperformancetips,goto
www.apple.com/batteries/notebooks.html.
31Chapter 2 Life with Your MacBook Pro
Charging the Battery
WhenthepoweradapterthatcamewithyourMacBookProisconnected,thebattery
chargeswhetherthecomputerison,o,orinsleep.Thebatterychargesmorequickly,
however,ifthecomputerisoorinsleep.
ThebatteryinyourMacBookProcanbereplacedonlybyanAppleAuthorizedService
ProvideroranAppleRetailStore.
Getting Answers
MuchmoreinformationaboutusingyourMacBookProisavailableinMacHelponyour
computerandontheInternetatwww.apple.com/support/macbookpro.
To get Mac Help:
1 ClicktheFindericonintheDock(thebaroficonsalongtheedgeofthescreen).
2 ClicktheHelpmenuinthemenubaranddooneofthefollowing:
a TypeaquestionortermintheSearcheld,andselectatopicfromthelistofresults
orselectShowAllResultstoseealltopics.
b ChooseMacHelptoopentheMacHelpwindow,whereyoucanclicklinksortype
asearchquestion.
32 Chapter 2 Life with Your MacBook Pro
More Information
FormoreinformationaboutusingyourMacBookPro,seethefollowing:
To learn about See
Installingmemory Chapter3,“BoostYourMacBookPro”onpage35.
Troubleshootingyour
MacBookProifyouhave
aproblem
Chapter4,“Problem,MeetSolution”onpage49.
Findingserviceandsupport
foryourMacBookPro
“LearningMore,Service,andSupport”onpage62.Orgotothe
AppleSupportsiteatwww.apple.com/support/macbookpro.
UsingMacOSX TheMacOSXwebsiteatwww.apple.com/macosx.Orsearchfor
“MacOSX”inMacHelp.
MovingfromaPCtoaMac “Whyyou’llloveaMac”atwww.apple.com/getamac/whymac.
UsingiLifeapplications TheiLifewebsiteatwww.apple.com/ilife.OropenaniLife
application,openHelpfortheapplication,andthentypea
questioninthesearcheld.
Changingsystempreferences SystemPreferencesbychoosingApple(K)>SystemPreferences.
Orsearchfor“systempreferences”inMacHelp.
Usingthetrackpad MacHelpandsearchfor“trackpad.”OropenSystemPreferences
andclickTrackpad.
UsingtheFaceTimeHDcamera MacHelpandsearchfor“camera.”
Usingthekeyboard MacHelpandsearchfor“keyboard.”
UsingAirPortExtremewireless
technology
TheAirPortSupportpageatwww.apple.com/support/airport.
OropenMacHelpandsearchfor“AirPort.”
33Chapter 2 Life with Your MacBook Pro
To learn about See
UsingBluetoothwireless
technology
TheBluetoothSupportpageatwww.apple.com/support/
bluetooth.OropentheBluetoothFileExchangeapplication,
locatedintheUtilitiesfolderwithintheApplicationsfolder,
andchooseHelp>BluetoothHelp.
Caringforthebattery MacHelpandsearchfor“battery.”
Connectingaprinter MacHelpandsearchfor“printing.”
FireWireandUSBconnections MacHelpandsearchfor“FireWire”or“USB”.
ConnectingtotheInternet MacHelpandsearchfor“Internet.”
UsingtheThunderboltport MacHelpandsearchfor“Thunderbolt.”
Connectinganexternaldisplay MacHelpandsearchfor“displayport.”
FrontRow MacHelpandsearchfor“FrontRow.”
BurningaCDorDVD MacHelpandsearchfor“burndisc.”
Specications TheSpecicationspageatsupport.apple.com/specs.
OropenSystemProlerbychoosingApple(K)>AboutThis
Macfromthemenubar,andthenclickMoreInfo.
Applenews TheApplewebsiteatwww.apple.com.
Softwaredownloads TheMacAppStore(availableinMacOSXv10.6.6orlater).
Instructions,technicalsupport,
andmanualsforApple
products
TheAppleSupportwebsiteatwww.apple.com/support.
Mac Help RAM
www.apple.com/store
Boost Your MacBook Pro
3
36 Chapter 3 Boost Your MacBook Pro
Thischapterprovidesinformationandinstructionsforupgradingtheharddiskdrive
andinstallingadditionalmemoryinyourMacBookPro.
WARNING: ApplerecommendsthatyouhaveanApple-certiedtechnicianinstall
replacementdrivesandmemory.Consulttheserviceandsupportinformationthat
camewithyourcomputerforinformationabouthowtocontactAppleforservice.If
youattempttoinstallareplacementdriveormemoryanddamageyourequipment,
suchdamageisnotcoveredbythelimitedwarrantyonyourcomputer.
ThebatteryinyourMacBookProisnotuser-replaceable.Ifyouthinkyourbatteryneeds
tobereplaced,contactanAppleRetailStoreoranAppleAuthorizedServiceProvider.
37Chapter 3 Boost Your MacBook Pro
Replacing the Hard Disk Drive
YoucanupgradetheharddiskdriveinyourMacBookPro.Whenyouopentheback
ofyourMacBookPro,theharddiskdriveislocatednexttothebuilt-inbattery.The
replacementdrivemustbea2.5-inchdrivewithaSerialATA(SATA)connector.
Important: Applerecommendsthatyoubackupthedataonyourharddiskdrive
beforeremovingandreplacingit.Appleisnotresponsibleforanylostdata.
To replace the hard disk drive in your MacBook Pro:
1 ShutdownyourMacBookPro.Disconnectthepoweradapter,Ethernetcable,USB
cables,securitylock,andanyothercablesconnectedtotheMacBookProtoprevent
damagingthecomputer.
WARNING: TheinternalcomponentsofyourMacBookProcanbewarm.Ifyouhave
beenusingyourMacBookPro,wait10minutesaftershuttingdowntolettheinternal
componentscoolbeforecontinuing.
2 TurnoveryourMacBookProandremovetheten(10)screwsthatsecurethebottom
case.Removetheshorterscrewsattheanglesshownintheillustration.Liftothecase
andplaceittotheside.
38 Chapter 3 Boost Your MacBook Pro
Important: Becausethescrewsaredierentlengths,notethescrewlengthsand
locationssoyoucanreplacethescrewscorrectly.Putthemasideinasafeplace.
Short
Long
39Chapter 3 Boost Your MacBook Pro
Important: Whenyouremovethebottomcase,youexposesensitiveinternal
components,whichcanbeaectedbystaticelectricity.
3 Beforetouchingtheharddriveassembly,dischargeanystaticelectricityfromyour
bodybytouchingametalsurfaceinsidethecomputer.
40 Chapter 3 Boost Your MacBook Pro
4 Locatethebracketatthetopofthedrive.UseaPhillipsscrewdrivertoloosenthetwo
captivescrewsthatholdthebracketinplace.Putthebracketasideinasafeplace.
5 Usingthepulltab,gentlytiltupthedrive.
Pull tab
Bracket
41Chapter 3 Boost Your MacBook Pro
6 Holdthedrivebyitssideswhileyougentlypulltheconnectorontheleftsideofthe
drivetodisconnectit.Don’tpressthedrivebetweenyourngers,andavoidtouching
thecircuitryontheundersideofthedrive.
Theconnectorisattachedtoacableandremainsintheharddiskdrivebay.
Important: Therearefour(4)mountingscrewsonthesidesofyourharddiskdrive.
Ifyourreplacementdrivedoesn’tincludemountingscrews,removetheonesfromyour
olddriveandmountthemonthereplacementdrivebeforeyouinstallit.
Mounting screws
7 Attachtheconnectortotheleftsideofthereplacementdrive.
42 Chapter 3 Boost Your MacBook Pro
8 Insertthereplacementdriveatanangle,makingsurethemountingscrewsareseated
properly.
9 Replacethebracketandtightenthescrews.
43Chapter 3 Boost Your MacBook Pro
10 Replacethebottomcase.Replaceandtightenthetenscrewsyouremovedinstep2in
theirproperlocations,makingsuretoinserttheshorterscrewsattheanglesshownin
theillustration.
Short
Long
ForinformationaboutinstallingMacOSXandbundledapplications,see“Reinstalling
theSoftwareThatCamewithYourMacBookPro”onpage60.
44 Chapter 3 Boost Your MacBook Pro
Installing Additional Memory
Yourcomputerhastwomemoryslotsthatyouaccessbyremovingthebottom
case.YourMacBookProcomeswithaminimumof4gigabytes(GB)of1333MHz
DoubleDataRate(DDR3)SynchronousDynamicRandom-AccessMemory(SDRAM)
installed.EachmemoryslotcanacceptanSDRAMmodulethatmeetsthefollowing
specications:
ÂDoubleDataRateSmallOutlineDualInlineMemoryModule(DDR3)format
Â30mm(1.18inches)
Â204-pin
Â2GBor4GB
ÂPC3-10600SDDR31333MHzTypeRAM
Youcanaddtwo4GBmemorymodulesforamaximumof8GBofmemory.For
bestperformance,llbothmemoryslotsandinstallanidenticalmemorymodule
ineachslot.
To install memory in your MacBook Pro:
1 Followsteps1and2beginningonpage37toremovethebottomcase.
Important: Whenyouremovethebottomcase,youexposesensitiveinternal
components,whichcanbeaectedbystaticelectricity.
2 Beforetouchingthememoryassembly,dischargeanystaticelectricityfromyourbody
bytouchingametalsurfaceinsidethecomputer.
45Chapter 3 Boost Your MacBook Pro
3 Pushtheleversonthesidesofthememorymoduleoutwardtoreleasethemodule
fromthememorycardslot.
Thememorypopsupatanangle.Beforeremovingit,makesureyouseethehalf-circle
notches.Ifyoudon’t,trypushingtheleversoutwardagain.
Notches
46 Chapter 3 Boost Your MacBook Pro
4 Holdthememorymodulebyitsnotchesandremoveitfromtheslot.
5 Removetheothermemorymodule.
Important: Holdthememorymodulesbytheiredges,anddonottouchthegold
connectors.
6 Insertthenewmemorymoduleintheslot:
a Alignthenotchonthegoldedgeofthemodulewiththenotchinthelower
memoryslot.
b Tiltthecardandpushthememoryintotheslot.
c Usetwongerswithrm,evenpressuretopushdownonthememorymodule.
Youshouldhearaclickwhenthememoryisinsertedcorrectly.
d Repeattoinstallanadditionalmemorymoduleinthetopslot.Pressdownonthe
moduletomakesureitislevel.
48 Chapter 3 Boost Your MacBook Pro
Making Sure Your MacBook Pro Recognizes the New Memory
AfterinstallingadditionalmemoryinyourMacBookPro,checkwhetherthecomputer
recognizesthenewmemory.
To check the computer’s memory:
1 StartupyourMacBookPro.
2 WhenyouseetheMacOSXdesktop,chooseApple()fromthemenubarandthen
chooseAboutThisMac.
Foradetailedbreakdownoftheamountofmemoryinstalledinyourcomputer,open
SystemProlerbyclickingMoreInfo,andthenclickMemory.
IfyourMacBookProdoesn’trecognizethememoryordoesn’tstartupcorrectly,conrm
thatthememoryyouinstallediscompatiblewithyour.andthatit’sinstalledcorrectly.
Mac Help help
www.apple.com/support
Problem, Meet Solution
4
50 Chapter 4 Problem, Meet Solution
Occasionally,youmayhaveproblemswhileworkingwithyourMacBookPro.Read
onfortroubleshootingtipstotrywhenyouhaveaproblem.Youcanalsondmore
troubleshootinginformationinMacHelpandontheMacBookProSupportwebsiteat
www.apple.com/support/macbookpro.
WhenyouexperienceaproblemworkingwithyourMacBookPro,there’susually
asimpleandquicksolution.Thinkabouttheconditionsthatleduptotheproblem.
Makinganoteofthingsyoudidbeforetheproblemoccurredwillhelpyounarrow
downpossiblecausesandndtheanswersyouneed.Thingstonoteinclude:
ÂTheapplicationsyouwereusingwhentheproblemoccurred.Problemsthatoccur
onlywithaspecicapplicationmightindicatethattheapplicationisnotcompatible
withtheversionoftheMacOSinstalledonyourcomputer.
ÂAnynewsoftwarethatyouinstalled,especiallysoftwarethataddeditemstothe
Systemfolder.
ÂAnynewhardwarethatyouinstalled,suchasadditionalmemoryoraperipheral.
51Chapter 4 Problem, Meet Solution
Problems That Prevent You from Using Your MacBook Pro
If your MacBook Pro doesn’t respond or the pointer doesn’t move
Onrareoccasions,anapplicationmay“freeze”onthescreen.MacOSXprovidesaway
toquitafrozenapplicationwithoutrestartingyourcomputer.
To force an application to quit:
1 PressCommand(x)-Option-EscorchooseApple()>ForceQuitfromthemenubar.
TheForceQuitApplicationsdialogappearswiththeapplicationselected.
2 ClickForceQuit.
Theapplicationquits,leavingallotherapplicationsopen.
Ifyouneedto,youcanalsorestarttheFinderfromthisdialog.
Next,saveyourworkinanyopenapplicationsandrestartthecomputertomakesure
theproblemisentirelyclearedup.
Iftheproblemoccursfrequently,chooseHelp>MacHelpfromthemenubaratthe
topofthescreen.Searchfortheword“freeze”togethelpfortimeswhenthecomputer
freezesordoesn’trespond.
Iftheproblemoccursonlywhenyouuseaparticularapplication,checkwiththe
application’smanufacturertoseeifit’scompatiblewithyourcomputer.Togetsupport
andcontactinformationforthesoftwarethatcomeswithyourMacBookPro,goto
www.apple.com/guide.
Ifyouknowanapplicationiscompatible,youmightneedtoreinstallyourcomputer’s
systemsoftware.See“ReinstallingtheSoftwareThatCamewithYourMacBookPro”on
page60.
52 Chapter 4 Problem, Meet Solution
If your MacBook Pro freezes during startup, or you see a ashing question mark,
or the display is dark and the sleep indicator light is glowing steadily (not in sleep)
Theashingquestionmarkusuallymeansthatthecomputercan’tndthesystem
softwareontheharddiskoranydisksattachedtothecomputer.
ÂWaitafewseconds.Ifthecomputerdoesn’tsoonstartup,shutitdownbypressing
andholdingthepower(®)buttonforabout8to10seconds.Disconnectallexternal
peripheralsandtryrestartingbypressingthepower(®)buttonwhileholdingdown
theOptionkey.Whenyourcomputerstartsup,clicktheharddiskicon,andthen
clicktherightarrow.Afterthecomputerstartsup,openSystemPreferencesandclick
StartupDisk.SelectalocalMacOSXSystemfolder.
ÂIfthatdoesn’twork,tryusingDiskUtilitytorepairthedisk:
• InserttheMac OS X Install DVDintoyourcomputer.
• RestartyourcomputerandholddowntheCkeyasitstartsup.
• Whenprompted,chooseyourpreferredlanguage.
• Whenthenextscreenappears,chooseDiskUtilityfromtheUtilitiesmenuinthe
menubar.WhenDiskUtilityopens,followtheinstructionsintheFirstAidpaneto
seeifDiskUtilitycanrepairthedisk.
IfusingDiskUtilitydoesn’thelp,youmightneedtoreinstallyourcomputer’ssystem
software.See“ReinstallingtheSoftwareThatCamewithYourMacBookPro”onpage60.
53Chapter 4 Problem, Meet Solution
If your MacBook Pro doesn’t turn on or start up
Trythefollowingsuggestionsinorderuntilyourcomputerturnson:
ÂMakesurethepoweradapterispluggedintothecomputerandintoafunctioning
poweroutlet.Besuretousethe85WMagSafePowerAdapterthatcamewithyour
MacBookPro.Ifthepoweradapterstopschargingandyoudon’tseetheindicator
lightontheMagSafeconnectorturnonwhenyoupluginthepowercord,try
unpluggingandrepluggingthepowercordtoreseatit,ortryanotherpoweroutlet.
ÂCheckwhetherthebatteryneedstoberecharged.Pressthesmallbuttonontheleft
sideofyourcomputer.Youshouldseeonetoeightlightsindicatingthebattery’s
levelofcharge.Ifasingleindicatorlightison,connectyourpoweradapterto
recharge.Formoreinformationaboutbatteryindicatorlights,seepage54.
ÂIftheproblempersists,resettheMacBookPropowermanagerbydisconnectingthe
poweradapterandholdingdownthepower(®)buttonforatleast5seconds.
ÂIfyourecentlyinstalledadditionalmemory,makesurethatitiscorrectlyinstalledand
iscompatiblewithyourcomputer.Seewhetherremovingandreinstallingtheold
memoryallowsthecomputertostartup(seepage44).
ÂPressthepower(®)buttonandimmediatelyholddowntheCommand(x),Option,
P,andRkeyssimultaneouslyuntilyouhearthestartupsoundasecondtimetoreset
theparameterRAM(PRAM).
ÂIfyoustillcan’tstartupyourMacBookPro,see“LearningMore,Service,andSupport”
onpage62forinformationaboutcontactingAppleforservice.
54 Chapter 4 Problem, Meet Solution
If the display suddenly goes black or your MacBook Pro freezes
TryrestartingyourMacBookPro.
1 UnpluganydevicesthatareconnectedtoyourMacBookPro,exceptthepoweradapter.
2 Pressthepower(®)buttontorestartthesystem.
3 Letthebatterychargetoatleast10percentbeforeplugginginanyexternaldevices
andresumingyourwork.
Toseehowmuchthebatteryhascharged,clicktheBattery( )statusiconinthe
menubar.
Thedisplaymightalsodarkenifyouhaveenergysaverfeaturessetforthebattery.
If you press the battery button, and all battery indicator lights ash ve times quickly
Yourbatteryneedstobereplaced.ContactanAppleRetailStoreoranApple
AuthorizedServiceProvider(AASP).
If you press the battery button, and the battery indicator lights ash from left to
right and then from right to left, ve times in a row
Yourbatteryisnotrecognized.ContactanAppleRetailStoreoranAppleAuthorized
ServiceProvider.
If you forget your password
Youcanresetyouradministratorpasswordandpasswordsforallotheraccounts.
1 InserttheMac OS X Install DVD.ThenrestartyourcomputerandholddowntheCkeyas
itstartsup.
2 Whenprompted,chooseyourpreferredlanguage.
3 Whenthenextscreenappears,chooseResetPasswordfromtheUtilitiesmenuinthe
menubar.Followtheonscreeninstructions.
55Chapter 4 Problem, Meet Solution
If you have trouble ejecting a disc
Quitanyapplicationsthatmightbeusingthediscandtryagain.Ifthatdoesn’twork,
restartthecomputerandthenimmediatelypressandholdthetrackpadbutton.
Using Apple Hardware Test
IfyoususpectaproblemwiththeMacBookProhardware,youcanusetheApple
HardwareTestapplicationtohelpdetermineifthereisaproblemwithoneofthe
computer’scomponents,suchasthememoryorprocessor.
To use Apple Hardware Test:
1 Disconnectallexternaldevicesfromyourcomputerexceptthepoweradapter.
IfyouhaveanEthernetcableconnected,disconnectit.
2 RestartyourcomputerandholddowntheDkeyasitstartsup.
3 WhentheAppleHardwareTestchooserscreenappears,selectthelanguagefor
yourlocation.
4 PresstheReturnkeyorclicktherightarrowbutton.
5 WhentheAppleHardwareTestmainscreenappears(afterabout45seconds),follow
theonscreeninstructions.
6 IfAppleHardwareTestdetectsaproblem,itdisplaysanerrorcode.Makeanoteof
theerrorcodebeforepursuingsupportoptions.IfAppleHardwareTestdoesn’tdetect
ahardwarefailure,theproblemmightbesoftwarerelated.
Ifthisproceduredoesn’twork,youcaninserttheApplications Install DVDandhold
downtheDkeytouseAppleHardwareTest.
56 Chapter 4 Problem, Meet Solution
Problems with Your Internet Connection
YourMacBookProhastheNetworkSetupAssistantapplicationtohelpwalkyou
throughsettingupanInternetconnection.OpenSystemPreferencesandclick
Network.Clickthe“Assistme”buttontoopenNetworkSetupAssistant.
IfyouhavetroublewithyourInternetconnection,youcantrythestepsinthissection
foryourtypeofconnectionoryoucanuseNetworkDiagnostics.
To use Network Diagnostics:
1 ChooseApple()>SystemPreferences.
2 ClickNetworkandthenclick“Assistme.”
3 ClickDiagnosticstoopenNetworkDiagnostics.
4 Followtheonscreeninstructions.
IfNetworkDiagnosticscan’tresolvetheproblem,theremaybeaproblemwiththe
Internetserviceprovider(ISP)youaretryingtoconnectto,withanexternaldeviceyou
areusingtoconnecttoyourISP,orwiththeserveryouaretryingtoaccess.Youcantry
thefollowingsteps.
Cable Modem, DSL Modem, and LAN Internet Connections
Makesureallmodemcablesarermlypluggedin,includingthemodempowercord,
thecablefromthemodemtothecomputer,andthecablefromthemodemtothewall
jack.AlsocheckthecablesandpowersuppliestoEthernethubsandrouters.
Turn the modem o and on and reset the modem hardware
TurnoyourDSLorcablemodemforafewminutes,andthenturnitbackon.Some
ISPsrecommendthatyouunplugthemodem’spowercord.Ifyourmodemhasareset
button,youcanpressiteitherbeforeorafteryouturnthepoweroandon.
57Chapter 4 Problem, Meet Solution
Important: InstructionsthatrefertomodemsdonotapplytoLANusers.LANusers
mighthavehubs,switches,routers,orconnectionpodsthatDSLandcablemodem
usersdonothave.LANusersshouldcontacttheirnetworkadministratorratherthan
anISP.
PPPoE Connections
IfyouareunabletoconnecttoyourInternetserviceproviderusingPPPoE(Pointto
PointProtocoloverEthernet),makesureyouhaveenteredthecorrectinformationin
Networkpreferences.
To check your Network preference settings:
1 ChooseApple()>SystemPreferences.
2 ClickNetwork.
3 ClickAdd(+)atthebottomofthenetworkconnectionserviceslist,andchoosePPPoE
fromtheInterfacepop-upmenu.
4 ChooseanInterfaceforthePPPoEservicefromtheEthernetpop-upmenu.Choose
EthernetifyouareconnectingtoawirednetworkorAirPortifyouareconnectingto
awirelessnetwork.
5 Entertheinformationyoureceivedfromyourserviceprovider,suchasaccountname,
password,andthePPPoEservicename(ifyourserviceproviderrequiresit).
6 ClickApplytomakethesettingsactive.
58 Chapter 4 Problem, Meet Solution
Network Connections
MakesuretheEthernetcableisconnectedtoyourMacBookProandtothenetwork.
CheckthecablesandpowersuppliestoyourEthernethubsandrouters.
IfyouhavetwoormorecomputersattemptingtoshareanInternetconnection,be
surethatyournetworkissetupproperly.YouneedtoknowwhetheryourISPprovides
onlyoneIPaddressormultipleIPaddresses,oneforeachcomputer.
IfonlyoneIPaddressisprovided,thenyoumusthavearoutercapableofsharingthe
connection,alsoknownasnetworkaddresstranslation(NAT)or“IPmasquerading.”
Forsetupinformation,checkthedocumentationprovidedwithyourrouterorask
thepersonwhosetupyournetwork.TheAirPortbasestationcanbeusedtoshare
oneIPaddressamongmultiplecomputers.ForinformationaboutusinganAirPort
basestation,checkMacHelporgototheAirPortSupportwebsiteat
www.apple.com/support/airport.
Ifyoucan’tresolvetheissueusingthesesteps,contactyourISPornetworkadministrator.
Problems with AirPort Extreme Wireless Communication
If you have trouble using AirPort Extreme wireless communication
ÂMakesurethecomputerornetworkyouaretryingtoconnecttoisrunningandhas
awirelessaccesspoint.
ÂMakesureyouhaveproperlyconguredthesoftwareaccordingtotheinstructions
thatcamewithyourbasestationoraccesspoint.
59Chapter 4 Problem, Meet Solution
ÂMakesureyourMacBookProiswithinrangeoftheothercomputerorthenetwork’s
accesspoint.Nearbyelectronicdevicesormetalstructurescaninterferewithwireless
communicationandreducethisrange.Repositioningorrotatingthecomputermight
improvereception.
ÂChecktheAirPort(Z)statusiconinthemenubar.Uptofourbarsappear,indicating
signalstrength.Ifyoudon’tseethebars,trychangingyourlocation.
ÂSeeAirPortHelp(chooseHelp>MacHelp,andthenchooseLibrary>AirPortHelp
fromthemenubar).Alsoseetheinstructionsthatcamewiththewirelessdevicefor
moreinformation.
Keeping Your Software Up to Date
YoucanconnecttotheInternetandautomaticallydownloadandinstallthelatestfree
softwareversions,drivers,andotherenhancementsfromApple.
WhenyouareconnectedtotheInternet,SoftwareUpdatecheckstoseeifanyupdates
areavailableforyourcomputer.YoucansetyourMacBookProtocheckforupdates
periodically,andthenyoucandownloadandinstallupdatedsoftware.
To check for updated software:
1 ChooseApple()>SystemPreferences.
2 ClicktheSoftwareUpdateiconandfollowtheinstructionsonthescreen.
• Formoreinformation,searchfor“SoftwareUpdate”inMacHelp.
• ForthelatestinformationaboutMacOSX,gotowww.apple.com/macosx.
60 Chapter 4 Problem, Meet Solution
Reinstalling the Software That Came with Your MacBook Pro
UsethesoftwareinstallationdiscsthatcamewithyourMacBookProtoreinstall
MacOSXandanyapplicationsthatcamewithyourcomputer.Don’tattempttoinstall
anearlierversionofMacOSXonyourcomputer.
YoucaninstallMacOSXwithouterasingthetargetvolume,whichsavesyourexisting
lesandsettings,oryoucanerasethevolumerst,whicherasesallyourdataand
leavesthecomputerreadyforyoutoreinstallMacOSXandapplications.
Important: Applerecommendsthatyoubackupthedataonyourharddiskbefore
restoringsoftware.Appleisnotresponsibleforanylostdata.
Installing Mac OS X
To install Mac OS X:
1 Backupyourimportantles.
2 InserttheMac OS X Install DVDthatcamewithyourcomputer.
3 Double-clickInstallMacOSX.
4 Followtheonscreeninstructions.
Note: TorestoreMacOSXonyourMacBookPrototheoriginalfactorysettings,
youmustrsterasethevolumeyouwanttoinstallon.Youcandothisduring
installationusingDiskUtility.Forinstructions,seetheKnowledgeBasearticleat
support.apple.com/kb/ht3910.
5 Whentheinstallationiscomplete,clickRestarttorestartyourcomputer.
6 FollowthepromptsinSetupAssistanttosetupyouruseraccount.
Ifyoueraseyourharddiskduringinstallation,youneedtoreinstallyourapplications;
seethefollowingsection.
61Chapter 4 Problem, Meet Solution
Reinstalling Applications
IfyouerasedyourharddiskaspartofreinstallingMacOSX,youmustreinstallthe
applicationsthatcamewithyourMacBookPro,suchastheiLifeapplications.
To install the applications that came with your MacBook Pro:
1 Backupyourimportantles.
2 InserttheApplications Install DVDthatcamewithyourMacBookPro.
3 Double-clickInstallBundledSoftware.
4 Followtheonscreeninstructions.
5 Whentheinstallationiscomplete,clickClose.
Using Disk Utility
YoucanuseDiskUtilitytorepair,verify,orerasetheMacBookProharddisk.
To use Disk Utility:
1 InserttheMac OS X Install DVDthatcamewithyourcomputer.
2 Double-clickInstallMacOSX.
3 Afterselectingyourlanguage,chooseUtilities>OpenDiskUtilityandthenfollowthe
instructionsintheFirstAidpanetoseeifDiskUtilitycanrepairthedisk.
4 QuitMacOSXInstaller.
IfusingDiskUtilitydoesn’thelp,tryreinstallingtheMacBookProsystemsoftware.See
“ReinstallingtheSoftwareThatCamewithYourMacBookPro”onpage60.
62 Chapter 4 Problem, Meet Solution
Learning More, Service, and Support
YourMacBookProdoesnothaveanyuser-serviceableparts,excepttheharddriveand
thememory.Ifyouneedservice,contactAppleortakeyourMacBookProtoanApple
AuthorizedServiceProvider.YoucanndmoreinformationabouttheMacBookPro
throughonlineresources,onscreenhelp,SystemProler,orAppleHardwareTest.
Online Resources
Foronlineserviceandsupportinformation,gotowww.apple.com/support.Choose
yourcountryfromthepop-upmenu.YoucansearchtheAppleCareKnowledgeBase,
checkforsoftwareupdates,orgethelpfromApple’sdiscussionforums.Thelatest
productspecicinformationcanbefoundatwww.apple.com/support/macbookpro.
Onscreen Help
Youcanlookforanswerstoyourquestions,aswellasinstructionsandtroubleshooting
information,inMacHelp.ChooseHelp>MacHelp.
System Proler
TogetinformationaboutyourMacBookPro,useSystemProler.Itshowsyouwhat
hardwareandsoftwareisinstalled,theserialnumberandoperatingsystemversion,
howmuchmemoryisinstalled,andmore.ToopenSystemProler,chooseApple()>
AboutThisMacfromthemenubarandthenclickMoreInfo.
AppleCare Service and Support
YourMacBookProcomeswith90daysoftechnicalsupportandoneyearofhardware
repairwarrantycoverageatanAppleRetailStoreoranApple-authorizedrepair
center,suchasanAppleAuthorizedServiceProvider(AASP).Youcanextendyour
coveragebypurchasingtheAppleCareProtectionPlan.Forinformation,goto
www.apple.com/support/productsorthewebsiteforyourcountrylistedbelow.
63Chapter 4 Problem, Meet Solution
Ifyouneedassistance,AppleCaretelephonesupportrepresentativescanhelpyou
withinstallingandopeningapplications,andbasictroubleshooting.Callthesupport
centernumbernearestyou(therst90daysarecomplimentary).Havethepurchase
dateandyourMacBookProserialnumberreadywhenyoucall.
Note: Your90daysofcomplimentarytelephonesupportbeginsonthedateof
purchase.Telephonefeesmayapply.
Country Phone Website
UnitedStates 1-800-275-2273 www.apple.com/support
Australia (61)1-300-321-456 www.apple.com/au/support
Canada(English)
(French)
1-800-263-3394 www.apple.com/ca/support
www.apple.com/ca/fr/support
Ireland (353)1850946191 www.apple.com/ie/support
NewZealand 00800-7666-7666 www.apple.com/nz/support
UnitedKingdom (44)08442090611 www.apple.com/uk/support
Telephonenumbersaresubjecttochange,andlocalandnationaltelephoneratesmay
apply.Acompletelistisavailableontheweb:
www.apple.com/support/contact/phone_contacts.html
64 Chapter 4 Problem, Meet Solution
Locating Your Product Serial Number
Useoneofthesemethodstondyourcomputer’sserialnumber:
ÂTurnoveryourMacBookPro.Theserialnumberisetchedintothecasenearthehinge.
Serial number
ÂChooseApple()>AboutThisMac.Clicktheversionnumberbeneaththewords
“MacOSX”tocyclethroughtheMacOSXversionnumber,thebuildversion,andthe
serialnumber.
ÂClicktheFindericonandopen/Applications/Utilities/SystemProler.ClickHardware
intheContentspane.
Mac Help ergonomics
www.apple.com/environment
Last, but Not Least
5
66 Chapter 5 Last, but Not Least
Foryoursafetyandthatofyourequipment,followtheserulesforhandlingand
cleaningyourMacBookProandforworkingmorecomfortably.Keeptheseinstructions
handyforreferencebyyouandothers.
NOTICE: Incorrectstorageoruseofyourcomputermayvoidthemanufacturer’s
warranty.
Important Safety Information
WARNING: Failuretofollowthesesafetyinstructionscouldresultinre,electric
shock,orotherinjuryordamage.
Built-in batteryDonotremovethebatteryfromyourMacBookPro.Thebattery
shouldbereplacedonlybyanAppleAuthorizedServiceProvider.Discontinueuseof
yourMacBookProifitisdroppedorappearscrushed,bent,deformed,ordamaged.Do
notexposeyourMacBookProtoextremeheatsources,suchasradiatorsorreplaces,
wheretemperaturesmightexceed212°For100°C.
Proper handlingThebottomofyourMacBookPromaybecomeverywarmduring
normaluse.TheMacBookProcomplieswiththeuser-accessiblesurfacetemperature
limitsdenedbytheInternationalStandardforSafetyofInformationTechnology
Equipment(IEC60950-1).
67Chapter 5 Last, but Not Least
Tooperatethecomputersafelyandreducethepossibilityofheat-relatedinjuries,
followtheseguidelines:
ÂSetupyourMacBookProonastableworksurfacethatallowsforadequateair
circulationunderandaroundthecomputer.
ÂDonotoperateyourMacBookProonapillow,blanket,orothersoftmaterial,because
thematerialcanblocktheairowvents.
ÂNeverplaceanythingoverthekeyboardwhenoperatingyourMacBookPro.
ÂDonotpushobjectsintotheventilationopenings.
ÂIfyourMacBookProisonyourlapandgetsuncomfortablywarm,removeitfrom
yourlapandplaceitonastableworksurface.
Water and wet locationsKeepyourMacBookProawayfromsourcesofliquid,suchas
drinks,washbasins,bathtubs,showerstalls,andsoon.ProtectyourMacBookProfrom
dampnessorwetweather,suchasrain,snow,andfog.
85W MagSafe Power AdapterUseonlythepoweradapterthatcamewithyour
MacBookPro,oranApple-authorizedpoweradapterthatiscompatiblewiththis
product.MakesuretheACplugorACpowercordisfullyinsertedintothepower
adapterbeforepluggingtheadapterintoapoweroutlet.
Thepoweradaptermaybecomeverywarmduringnormaluse.TheMagSafePower
Adaptercomplieswiththeuser-accessiblesurfacetemperaturelimitsdenedbythe
InternationalStandardforSafetyofInformationTechnologyEquipment(IEC60950-1).
68 Chapter 5 Last, but Not Least
Toreducethepossibilityofoverheatingthepoweradapterorofheat-relatedinjuries,
dooneofthefollowing:
ÂPlugthepoweradapterdirectlyintoapoweroutlet.
MagSafe connector
AC plug
MagSafe Power Adapter
ÂIfyou’reusingtheACpowercord,placethepoweradapteronadesk,table,oronthe
oorinawell-ventilatedlocation.
MagSafe connector
MagSafe Power Adapter
AC power cord
69Chapter 5 Last, but Not Least
Disconnectthepoweradapteranddisconnectanyothercablesifanyofthefollowing
conditionsexists:
ÂYouwanttoaddmemoryorupgradetheharddiskdrive.
ÂYouwanttocleanthecase(useonlytherecommendedproceduredescribedon
page72).
ÂThepowercordorplugbecomesfrayedorotherwisedamaged.
ÂYourMacBookProorpoweradapterisexposedtorain,excessivemoisture,orliquid
spilledintothecase.
ÂYourMacBookProorpoweradapterhasbeendropped,thecasehasbeendamaged,
oryoususpectthatserviceorrepairisrequired.
TheMagSafepowerportcontainsamagnetthatcanerasedataonacreditcard,
iPod,orotherdevice.Topreserveyourdata,donotplacetheseorothermagnetically
sensitivematerialordeviceswithin1inch(25mm)ofthisport.
IfdebrisgetsintotheMagSafepowerport,removeitgentlywithadrycottonswab.
MagSafe power specications:
ÂFrequency:50to60Hz,singlephase
ÂLine Voltage:100to240V
ÂOutput Voltage:18.5VDC,4.6A
70 Chapter 5 Last, but Not Least
Hearing damagePermanenthearinglossmayoccurifearbudsorheadphonesare
usedathighvolume.Youcanadaptovertimetoahighervolumeofsoundthatmay
soundnormalbutcanbedamagingtoyourhearing.Ifyouexperienceringinginyour
earsormuedspeech,stoplisteningandhaveyourhearingchecked.Thelouderthe
volume,thelesstimeisrequiredbeforeyourhearingcouldbeaected.Hearingexperts
suggestthattoprotectyourhearing:
ÂLimittheamountoftimeyouuseearbudsorheadphonesathighvolume.
ÂAvoidturningupthevolumetoblockoutnoisysurroundings.
ÂTurnthevolumedownifyoucan’thearpeoplespeakingnearyou.
High-risk activitiesThiscomputerisnotintendedforuseintheoperationofnuclear
facilities,aircraftnavigationorcommunicationssystems,airtraccontrolsystems,or
foranyotheruseswherethefailureofthecomputercouldleadtodeath,personal
injury,orsevereenvironmentaldamage.
Laser Information for Optical Disc Drives
WARNING: Makingadjustmentsorperformingproceduresotherthanthose
speciedinyourequipment’smanualmayresultinhazardousradiationexposure.
Theopticaldiscdriveinyourcomputercontainsalaserthatissafeinnormalusebut
thatmaybeharmfultoyoureyesifdisassembled.Foryoursafety,havethisequipment
servicedonlybyanAppleAuthorizedServiceProvider.
71Chapter 5 Last, but Not Least
Important Handling Information
NOTICE: Failuretofollowthesehandlinginstructionscouldresultindamagetoyour
MacBookProorotherproperty.
Operating environmentOperatingyourMacBookProoutsidetheserangesmay
aectperformance:
ÂOperating temperature:50°to95°F(10°to35°C)
ÂStorage temperature:-4°to113°F(-20°to45°C)
ÂRelative humidity:5%to90%(noncondensing)
ÂOperating altitude:0to10,000feet(0to3048meters)
Turning on your MacBook ProNeverturnonyourMacBookProunlessallofits
internalandexternalpartsareinplace.Operatingthecomputerwhenpartsare
missingmaybedangerousandmaydamageyourcomputer.
Carrying your MacBook ProIfyoucarryyourMacBookProinabagorbriefcase,
makesurethattherearenolooseitems(suchaspaperclipsorcoins)thatcould
accidentallygetinsidethecomputerthroughventopeningsortheopticaldriveslot
orgetstuckinsideaport.Also,keepmagneticallysensitiveitemsawayfromthe
MagSafepowerport.
Using connectors and portsNeverforceaconnectorintoaport.Whenconnectinga
device,makesuretheportisfreeofdebris,thattheconnectormatchestheport,and
thatyouhavepositionedtheconnectorcorrectlyinrelationtotheport.
72 Chapter 5 Last, but Not Least
Using the optical driveTheSuperDriveinyourMacBookProsupportsstandard12cm
(4.7inch)discs.Irregularlyshapeddiscsordiscssmallerthan12cm(4.7inches)arenot
supportedandcanbecomelodgedinthedrive.
Handling glass partsYourMacBookProcontainsglasscomponents,includingthe
displayandtrackpad.Iftheyaredamaged,don’tuseyourMacBookPrountilithasbeen
repairedbyanAppleAuthorizedServiceProvider.
Storing your MacBook ProIfyouaregoingtostoreyourMacBookProforanextended
periodoftime,keepitinacoollocation(ideally,71°For22°C)anddischargethe
batteryto50percentorless.WhenstoringyourMacBookProforlongerthanve
months,dischargethebatterytoapproximately50percent.Tomaintainthecapacityof
thebattery,rechargethebatteryto50percenteverysixmonthsorso.
Cleaning your MacBook ProWhencleaningtheoutsideofyourMacBookProandits
components,rstshutdownyourMacBookProandunplugthepoweradapter.Then
useadamp,soft,lint-freeclothtocleanthecomputer’sexterior.Avoidgettingmoisture
inanyopenings.Donotsprayliquiddirectlyonthecomputer.Donotuseaerosol
sprays,solvents,orabrasivesthatmightdamagethenish.
Cleaning the MacBook Pro screenTocleantheMacBookProscreen,rstshutdown
yourMacBookProandunplugthepoweradapter.Thendampentheincludedcleaning
clothwithjustwaterandwipethescreen.Donotsprayliquiddirectlyonthescreen.
73Chapter 5 Last, but Not Least
Understanding Ergonomics
Herearesometipsforsettingupahealthyworkenvironment.
Keyboard and Trackpad
Whenyouusethekeyboardandtrackpad,yourshouldersshouldberelaxed.Your
upperarmandforearmshouldformananglethatisslightlygreaterthanarightangle,
withyourwristandhandinroughlyastraightline.
Not this
This
74 Chapter 5 Last, but Not Least
Usealighttouchwhentypingorusingthetrackpadandkeepyourhandsandngers
relaxed.Avoidrollingyourthumbsunderyourpalms.
Not this
This
Changehandpositionsoftentoavoidfatigue.Somecomputerusersmightdevelop
discomfortintheirhands,wrists,orarmsafterintensiveworkwithoutbreaks.Ifyou
begintodevelopchronicpainordiscomfortinyourhands,wrists,orarms,consulta
qualiedhealthspecialist.
External Mouse
Ifyouuseanexternalmouse,positionthemouseatthesameheightasthekeyboard
andwithincomfortablereach.
Chair
Anadjustablechairthatprovidesrm,comfortablesupportisbest.Adjusttheheight
ofthechairsoyourthighsarehorizontalandyourfeetareatontheoor.Thebackof
thechairshouldsupportyourlowerback(lumbarregion).Followthemanufacturer’s
instructionsforadjustingthebackresttotyourbodyproperly.
75Chapter 5 Last, but Not Least
Youmighthavetoraiseyourchairsothatyourforearmsandhandsareattheproper
angletothekeyboard.Ifthismakesitimpossibletorestyourfeetatontheoor,you
canuseafootrestwithadjustableheightandtilttomakeupforanygapbetweenthe
oorandyourfeet.Oryoucanlowerthedesktoptoeliminatetheneedforafootrest.
Anotheroptionistouseadeskwithakeyboardtraythat’slowerthantheregular
worksurface.
Built-in Display
Adjusttheangleofthedisplaytooptimizeviewinginyourenvironment.Donotforce
thedisplayifyoumeetresistance.Thedisplayisnotmeanttoopenpast130degrees.
Youcanadjustthebrightnessofthescreenwhenyoutakethecomputerfromone
worklocationtoanother,orifthelightinginyourworkareachanges.
Moreinformationaboutergonomicsisavailableontheweb:
www.apple.com/about/ergonomics
Apple and the Environment
AppleInc.recognizesitsresponsibilitytominimizetheenvironmentalimpactsofits
operationsandproducts.
Moreinformationisavailableontheweb:
www.apple.com/environment
76
Regulatory Compliance InformationRegulatory Compliance Information
FCC Compliance Statement
Thisdevicecomplieswithpart15oftheFCCrules.Operation
issubjecttothefollowingtwoconditions:(1)Thisdevicemay
notcauseharmfulinterference,and(2)thisdevicemustaccept
anyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.Seeinstructionsifinterferencetoradioor
televisionreceptionissuspected.
L‘utilisationdecedispositifestautoriséeseulementaux
conditionssuivantes:(1)ilnedoitpasproduiredebrouillageet(2)
l’utilisateurdudispositifdoitétreprêtàacceptertoutbrouillage
radioélectriquereçu,mêmesicebrouillageestsusceptiblede
compromettrelefonctionnementdudispositif.
Radio and Television Interference
Thiscomputerequipmentgenerates,uses,andcanradiateradio-
frequencyenergy.Ifitisnotinstalledandusedproperly—that
is,instrictaccordancewithApple’sinstructions—itmaycause
interferencewithradioandtelevisionreception.
Thisequipmenthasbeentestedandfoundtocomplywith
thelimitsforaClassBdigitaldeviceinaccordancewiththe
specicationsinPart15ofFCCrules.Thesespecications
aredesignedtoprovidereasonableprotectionagainstsuch
interferenceinaresidentialinstallation.However,thereis
noguaranteethatinterferencewillnotoccurinaparticular
installation.
Youcandeterminewhetheryourcomputersystemiscausing
interferencebyturningito.Iftheinterferencestops,itwas
probablycausedbythecomputeroroneoftheperipheraldevices.
Ifyourcomputersystemdoescauseinterferencetoradioor
televisionreception,trytocorrecttheinterferencebyusingoneor
moreofthefollowingmeasures:
• Turnthetelevisionorradioantennauntiltheinterferencestops.
• Movethecomputertoonesideortheotherofthetelevision
orradio.
• Movethecomputerfartherawayfromthetelevisionorradio.
• Plugthecomputerintoanoutletthatisonadierentcircuit
fromthetelevisionorradio.(Thatis,makecertainthecomputer
andthetelevisionorradioareoncircuitscontrolledbydierent
circuitbreakersorfuses.)
Ifnecessary,consultanAppleAuthorizedServiceProvideror
Apple.Seetheserviceandsupportinformationthatcamewith
yourAppleproduct.Orconsultanexperiencedradio/television
technicianforadditionalsuggestions.
Important: Changesormodicationstothisproductnot
authorizedbyAppleInc.couldvoidtheEMCcomplianceand
negateyourauthoritytooperatetheproduct.
ThisproducthasdemonstratedEMCcomplianceunderconditions
thatincludedtheuseofcompliantperipheraldevicesandshielded
cables(includingEthernetnetworkcables)betweensystem
components.Itisimportantthatyouusecompliantperipheral
devicesandshieldedcablesbetweensystemcomponentsto
reducethepossibilityofcausinginterferencetoradios,television
sets,andotherelectronicdevices.
Responsible party (contact for FCC matters only):
AppleInc.CorporateCompliance
1InniteLoop,MS26-A
Cupertino,CA95014
Wireless Radio Use
Thisdeviceisrestrictedtoindoorusewhenoperatinginthe5.15to
5.25GHzfrequencyband.
Cetappareildoitêtreutiliséàl’intérieur.
Exposure to Radio Frequency Energy
TheradiatedoutputpoweroftheAirPortExtremetechnology
isbelowtheFCCandEUradiofrequencyexposurelimits.
Nevertheless,itisadvisedtousethewirelessequipmentinsuch
amannerthatthepotentialforhumancontactduringnormal
operationisminimized.
FCC Bluetooth Wireless Compliance
Theantennausedwiththistransmittermustnotbecolocatedor
operatedinconjunctionwithanyotherantennaortransmitter
subjecttotheconditionsoftheFCCGrant.
77
Bluetooth Industry Canada Statement
ThisClassBdevicemeetsallrequirementsoftheCanadian
interference-causingequipmentregulations.
CetappareilnumériquedelaClassBrespectetouteslesexigences
duRèglementsurlematérielbrouilleurduCanada.
Industry Canada Statement
ComplieswiththeCanadianICES-003ClassBspecications.
CetappareilnumériquedelaclasseBestconformeàlanorme
NMB-003duCanada.ThisdevicecomplieswithRSS210ofIndustry
Canada.
Bluetooth Europe—EU Declaration of Conformity
ThiswirelessdevicecomplieswiththeR&TTEDirective.
Europe—EU Declaration of Conformity
TheequipmentcomplieswiththeRFExposureRequirement
1999/519/EC,CouncilRecommendationof12July1999onthe
limitationofexposureofthegeneralpublictoelectromagnetic
elds(0Hzto300GHz).
Hereby,AppleInc.declaresthatthis802.11a/b/g/nMini-PCIecardis
incompliancewiththeR&TTEDirective.
ComplieswithEuropeanLowVoltageandEMCDirectives.
See:www.apple.com/euro/compliance
Korea Warning Statements
Singapore Wireless Certication
Taiwan Wireless Statements
Taiwan Class B Statement
Japan VCCI Class B Statement
78
External USB Modem Information
WhenconnectingyourMacBookProtothephonelineusingan
externalUSBmodem,refertothetelecommunicationsagency
informationinthedocumentationthatcamewithyourmodem.
ENERGY STAR® Compliance
AsanENERGYSTAR®partner,Applehasdeterminedthatstandard
congurationsofthisproductmeettheENERGYSTAR®guidelines
forenergyeciency.TheENERGYSTAR®programisapartnership
withelectronicequipmentmanufacturerstopromoteenergy-
ecientproducts.Reducingenergyconsumptionofproducts
savesmoneyandhelpsconservevaluableresources.
Thiscomputerisshippedwithpowermanagementenabledwith
thecomputersettosleepafter10minutesofuserinactivity.To
wakeyourcomputer,clickthemouseortrackpadorpressanykey
onthekeyboard.
FormoreinformationaboutENERGYSTAR®,visit:
www.energystar.gov
Disposal and Recycling Information
Thissymbolindicatesthatyourproductmustbedisposedof
properlyaccordingtolocallawsandregulations.Whenyour
productreachesitsendoflife,contactAppleoryourlocal
authoritiestolearnaboutrecyclingoptions.
ForinformationaboutApple’srecyclingprogram,goto
www.apple.com/environment/recycling.
European Union—Disposal Information
Thesymbolabovemeansthataccordingtolocallawsand
regulationsyourproductshouldbedisposedofseparatelyfrom
householdwaste.Whenthisproductreachesitsendoflife,take
ittoacollectionpointdesignatedbylocalauthorities.Some
collectionpointsacceptproductsforfree.Theseparatecollection
andrecyclingofyourproductatthetimeofdisposalwillhelp
conservenaturalresourcesandensurethatitisrecycledina
mannerthatprotectshumanhealthandtheenvironment.
Türkiye
Brasil: Informações sobre descarte e reciclagem
Osímboloindicaqueesteprodutoe/ousuabaterianãodevem
serdescartadasnolixodoméstico.Quandodecidirdescartar
esteprodutoe/ousuabateria,faça-odeacordocomasleise
diretrizesambientaislocais.Parainformaçõessobreoprogramade
reciclagemdaApple,pontosdecoletaetelefonedeinformações,
visitewww.apple.com/br/environment.
Battery Disposal Information
Disposeofbatteriesaccordingtoyourlocalenvironmentallaws
andguidelines.
Deutschland: DiesesGerätenthältBatterien.Bittenichtinden
Hausmüllwerfen.EntsorgenSiediesesGerätamEndeseines
Lebenszyklusentsprechenddermaßgeblichengesetzlichen
Regelungen.
Nederlands: Gebruiktebatterijenkunnenwordeningeleverdbijde
chemokarofineenspecialebatterijcontainervoorkleinchemisch
afval(kca)wordengedeponeerd.
79
Looking for Something?
82 Looking for Something?
Index
A
ACplug 10
ACpoweradapter.Seepower
adapter
ACpowercord 10
adapter,power.Seepower
adapter
AirPortExtreme
connectingwirelessly 11
problems 58
using 32
AppleCare 62
AppleHardwareTest 55
AppleRemote 21
applicationfreeze 51
applications
FaceTime 21
FrontRow 33
iChat 21
iLife 32,61
PhotoBooth 21
reinstalling 61
audioinport 25
audiooutport 25
B
battery
disposal 78
generalinformation 30
indicatorlights 21,30,54
performance 30
storing 72
blinkingquestionmark 52
brightnesskeys 23
built-inspeakers 21
button,power 12,21
C
cablemodem 11
camera 21
cameraindicatorlight 21
carryingyourcomputer 71
changing
password 54
SystemPreferences 16
thedesktop 16
checkingmemory 48
cleaning
thescreen 72
yourcomputer 72
computer
disposal 78
freezes 52
inventory 9
puttingtosleep 16
shuttingdown 17
turningon 12
won’tturnon 53
connectingtoanetwork 11
conservingbatterypower 30
Control-click 27
controls.Seekeys
cord,power 10
D
Dashboard 23
datatransfer 25
desktop,customizing 16
discs
ejecting 55
softwareinstallation 60
supportedtypes 72
DiskUtility 61
display,external 25
Seealsoscreen
disposingofbatteries 78
disposingofyourcomputer 78
Dock 31
downloadingsoftware 59
drive,optical 21
DSLmodem 11
83Looking for Something?
E
ejectingadisc 55
EnergySaverpreferences 30
environmentalimpact 75
ergonomics 73
Ethernet
connectingto 11
port 25
Exposékey 23
F
F1toF12functionkeys 23
FaceTimeapplication 21
FaceTimeHDcamera 21
factorysettings 60
FireWire
connections 33
port 25
ashingquestionmark 52
ForceQuit 51
four-ngerswiping 29
FrontRowapplication 33
frozenapplication 51
Function(fn)key 23
G
gestures,trackpad 26
H
handpositions 73
harddiskdrive 37
headphoneport 25
help,ndinganswers 31
high-speeddatatransfer 25
high-speedUSB 25
I
iChatapplication 21
iLifeapplications 32,61
infrared(IR)receiver 21
installationinstructions
memory 44
overview 8
installing
applications 61
MacOSX 60
Internet
connectingto 11
connectionproblems 56
inventoryofitems 9
IPaddress,sharing 58
IPmasquerading 58
K
keyboard
ergonomics 73
illuminationkeys 23
mediakeys 23
shortcuts 27
Seealsokeys
Keynoteapplication 21
keys
brightness 23
Dashboard 23
Exposé 23
function 23
keyboardillumination 23
media 23
MediaEject 23
mute 23
volume 23
L
lights
battery 30,54
sleepindicator 21
M
MacAppStore 33
MacHelp 31
MacOSX
reinstalling 60
website 32
MagSafepoweradapter.
Seepoweradapter
MediaEjectkey 23
mediakeys 23
memory
checking 48
installing 44
specications 44
microphone 21
migratinginformation 14
MigrationAssistant 14
MiniDisplayPort
technology 25
84 Looking for Something?
modem 11
mouse
connecttoUSBport 25
ergonomics 74
Seealsotrackpad
Multi-Touchgestures 26
mutekey 23
N
networkaddresstranslation
(NAT) 58
networkconnections 58
NetworkDiagnostics 56
NetworkSetupAssistant 56
number,serial 64
O
onlineresources 62
opticaldrive
about 21
supporteddiscsize 72
P
pagingthroughdocuments
usingtrackpad 29
password,resetting 54
PhotoBoothapplication 21
pinchingtozoom 28
Play/Pausekey 23
portsonMacBookPro 25
poweradapter
port 25
safetytips 67
using 10
powerbutton 12,21
powercord 10
PPPoEconnections 57
preferences.SeeSystem
Preferences
problems.Seetroubleshooting
puttingyourMacBookProto
sleep 16
Q
questionmark,ashing 52
R
RAM.Seememory
reinstallingsoftware 60
resettingyourpassword 54
Rewindkey 23
rightclick 27
rotatingobjectsusing
trackpad 28
S
safety
generalinstructions 66
handlinginformation 71
poweradapter 67
screen
cleaning 72
goesblack 52
scrollingwithtwo-ngers 26
SDRAMspecications 44
secondaryclicking 27
securityslot 21
SerialATA(SATA)harddrive 37
serialnumber,nding 64
serviceandsupport 62
SetupAssistant 13,14
shuttingdown 17
sleep
indicatorlight 16
mode 16
slot-loadingopticaldrive 21
software
reinstalling 60
updating 59
SoftwareUpdate 59
speakers 21
specications 33
StartupDiskpreferences 52
stopping
anapplication 51
yourcomputer 17
storingthecomputer 72
SuperDrive
about 21
supporteddiscsizes 72
support 62
swipingtomovequickly
throughdocuments 29
SystemPreferences
customizingthedesktop 15
EnergySaver 16
85Looking for Something?
SoftwareUpdate 59
StartupDisk 52
SystemProler 62
T
three-ngerswiping 29
Thunderboltport 25
trackpad
about 21
shortcuts 27
troubleshooting
AirPortissues 58
AppleCare 63
batteryindicatorlights 54
computerfreezes 52
computerwon’trespond 53
computerwon’tturnon 51
ejectingadisc 55
hardwareproblems 55
Internetconnection 56
pointerwon’tmove 51
PPPoEconnections 57
reinstallingsoftware 60
screengoesblack 54
serviceandsupport 62
usingDiskUtility 61
usingMacHelp 62
turningonyourMacBook
Pro 12
two-ngerpinching 28
two-ngerrotating 28
two-ngerscrolling 26
typingposition 73
U
updatingsoftware 59
USB
connections 33
ports 25
V
videocamera 21
videocameraindicator
light 21
videoport 25
volumekeys 23
W
wakingyourMacBookPro 17
Z
zoomingusingthe
trackpad 28
K AppleInc.
©2011AppleInc.Allrightsreserved.
Underthecopyrightlaws,thismanualmaynotbecopied,inwhole
orinpart,withoutthewrittenconsentofApple.
Everyeorthasbeenmadetoensurethattheinformationin
thismanualisaccurate.Appleisnotresponsibleforprintingor
clericalerrors.
Apple
1InniteLoop
Cupertino,CA95014
408-996-1010
www.apple.com
TheApplelogoisatrademarkofAppleInc.,registeredintheU.S.
andothercountries.Useofthe“keyboard”Applelogo(Option-
Shift-K)forcommercialpurposeswithoutthepriorwrittenconsent
ofApplemayconstitutetrademarkinfringementandunfair
competitioninviolationoffederalandstatelaws.
Apple,theApplelogo,AirPort,AirPortExtreme,CoverFlow,
Exposé,FaceTime,FileVault,FireWire,GarageBand,iCal,iChat,iLife,
iMovie,iPhone,iPhoto,iPod,iPodtouch,iTunes,Keynote,Mac,
MacBook,MacOS,MagSafe,PhotoBooth,Safari,SnowLeopard,
Spaces,Spotlight,SuperDrive,andTimeMachinearetrademarks
ofAppleInc.,registeredintheU.S.andothercountries.
Finder,theFireWirelogo,andMulti-Toucharetrademarksof
AppleInc.
AppleCare,AppleStore,andiTunesStoreareservicemarksof
AppleInc.,registeredintheU.S.andothercountries.
AppStoreisaservicemarkofAppleInc.
ENERGYSTAR®isaU.S.registeredtrademark.
Intel,IntelCore,andXeonaretrademarksofIntelCorp.inthe
UnitedStatesandothercountries.
TheBluetooth®wordmarkandlogosareregisteredtrademarks
ownedbyBluetoothSIG,Inc.andanyuseofsuchmarksby
AppleInc.isunderlicense.
Othercompanyandproductnamesmentionedhereinare
trademarksoftheirrespectivecompanies.Mentionofthird-party
productsisforinformationalpurposesonlyandconstitutes
neitheranendorsementnorarecommendation.Appleassumes
noresponsibilitywithregardtotheperformanceoruseofthese
products.
ManufacturedunderlicensefromDolbyLaboratories.“Dolby,”
“ProLogic,”andthedouble-DsymbolaretrademarksofDolby
Laboratories.CondentialUnpublishedWorks,©1992–1997Dolby
Laboratories,Inc.Allrightsreserved.
SimultaneouslypublishedintheUnitedStatesandCanada.
