USERS MANUAL 2 OF 2
User Guide
© Copyright 2014 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel is a
trademark of Intel Corporation in the U.S.
and other countries. Microsoft and Windows
are U.S. registered trademarks of the
Microsoft group of companies.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: May 2014
Document Part Number: 763382-001
Product notice
This guide describes features that are
common to most models. Some features
may not be available on your computer.
Not all features are available in all editions
of Windows. This computer may require
upgraded and/or separately purchased
hardware, drivers and/or software to take
full advantage of Windows functionality. Go
to http://www.microsoft.com for details.
To access the latest user guide, go to
http://www.hp.com/support, and select your
country. Select Drivers & Downloads, and
then follow the on-screen instructions.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a full refund subject to the refund
policy of your seller.
For any further information or to request a
full refund of the price of the computer,
please contact your seller.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation.
The computer and the AC adapter comply with the user-accessible surface temperature limits defined
by the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Starting right ...................................................................................................................................................... 1
Visit the HP Apps Store ........................................................................................................................ 1
Best practices ....................................................................................................................................... 1
Fun things to do .................................................................................................................................... 1
More HP resources .............................................................................................................................. 3
2 Getting to know your computer ......................................................................................................................... 5
Finding your hardware and software information ................................................................................. 5
Locating hardware ............................................................................................................... 5
Locating software ................................................................................................................. 5
Tablet edge components ...................................................................................................................... 6
Display .................................................................................................................................................. 9
Keyboard dock ................................................................................................................................... 11
Top ..................................................................................................................................... 11
TouchPad .......................................................................................................................... 12
Lights ................................................................................................................................. 13
Keys ................................................................................................................................... 15
Front .................................................................................................................................. 17
Right side ........................................................................................................................... 18
Rear side ........................................................................................................................... 19

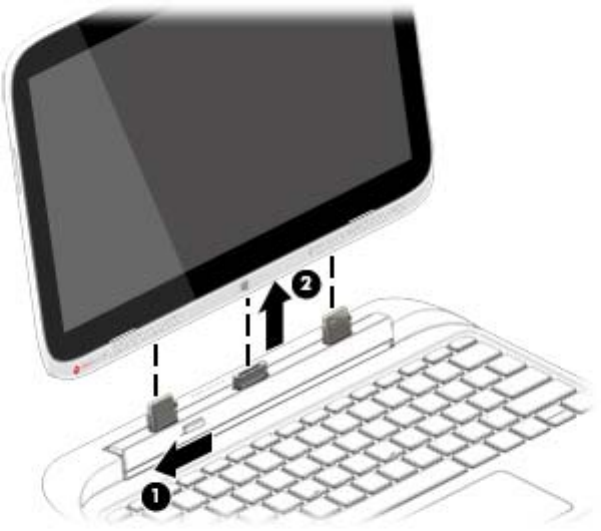

Releasing the tablet from the keyboard dock .................................................................... 20
Locating system information ............................................................................................................... 20
Changing your tablet's settings .......................................................................................................... 20
Changing your tablet's view ............................................................................................... 20
Turning your tablet's autorotate lock on or off ................................................... 21
Adjusting your tablet's screen brightness .......................................................... 21

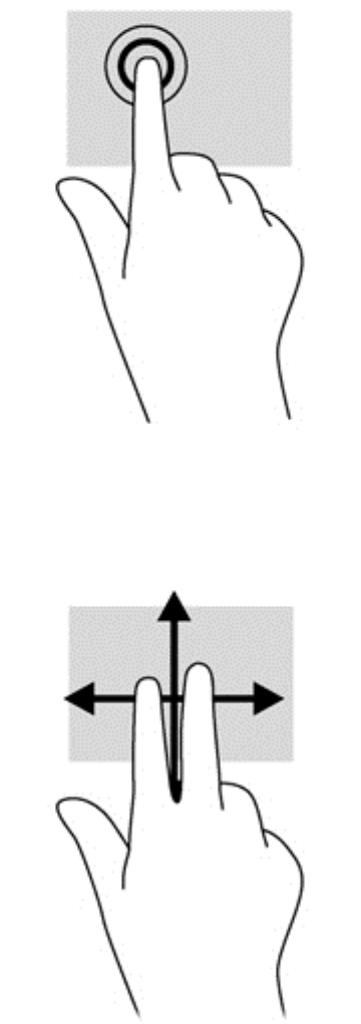

Using touch screen gestures (select models only) ............................................................................. 21
One-finger slide ................................................................................................................. 21

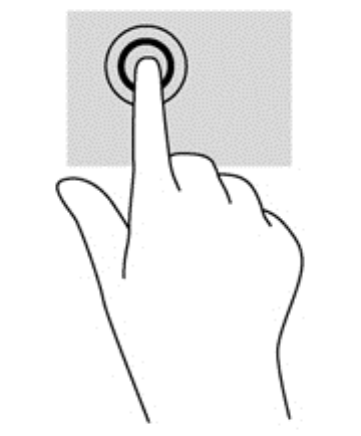

Tapping .............................................................................................................................. 23
Scrolling ............................................................................................................................. 23

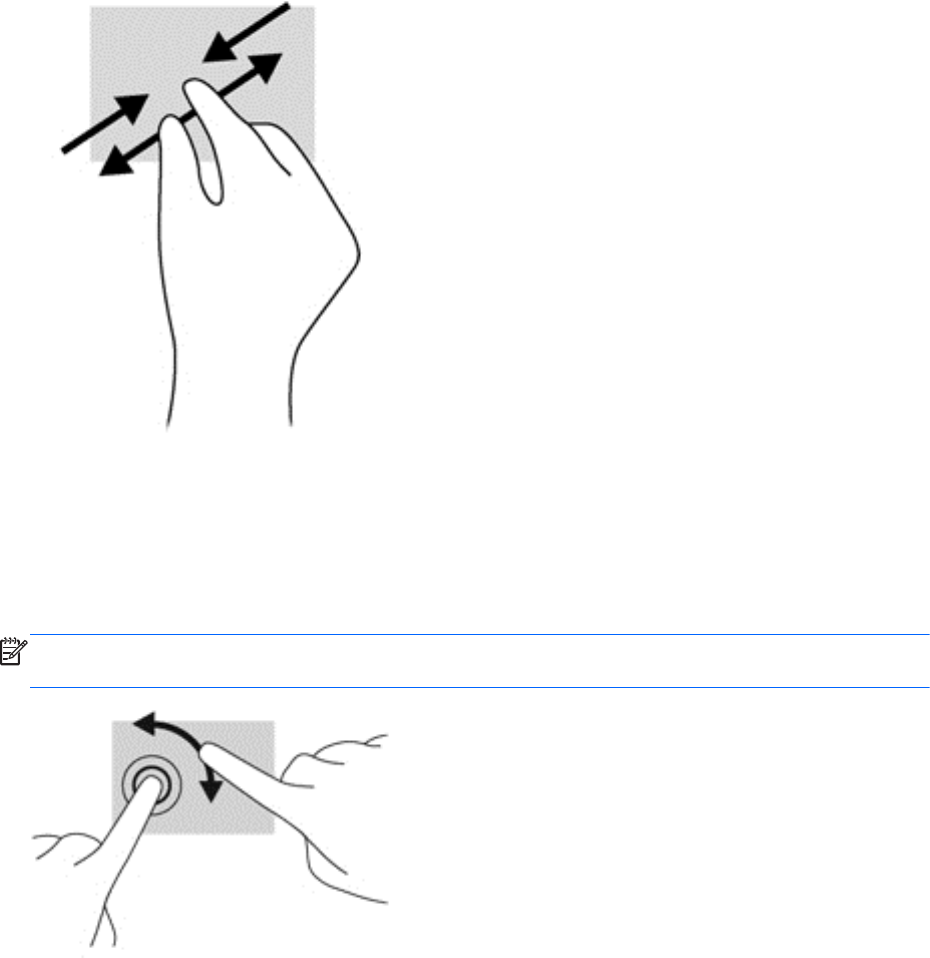

2-finger pinch zoom ........................................................................................................... 24
Rotating (select models only) ............................................................................................ 24

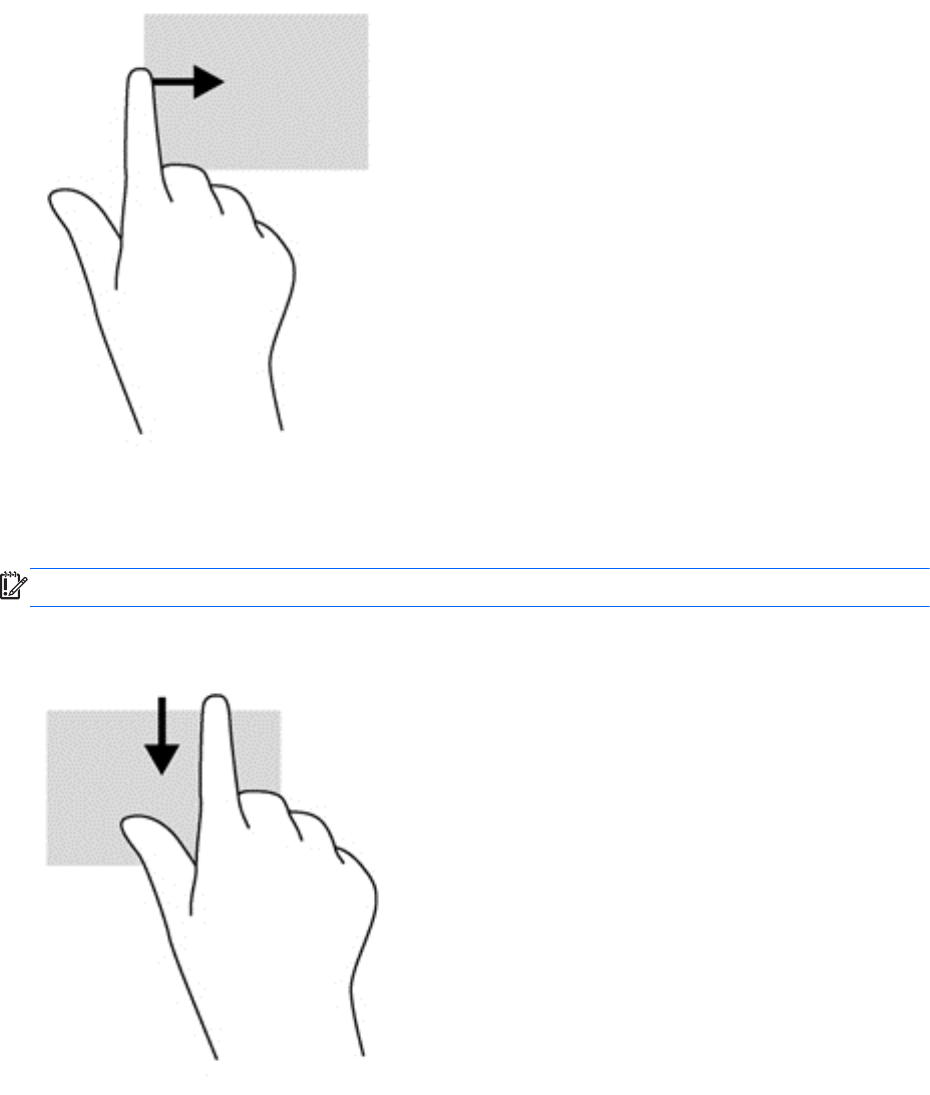

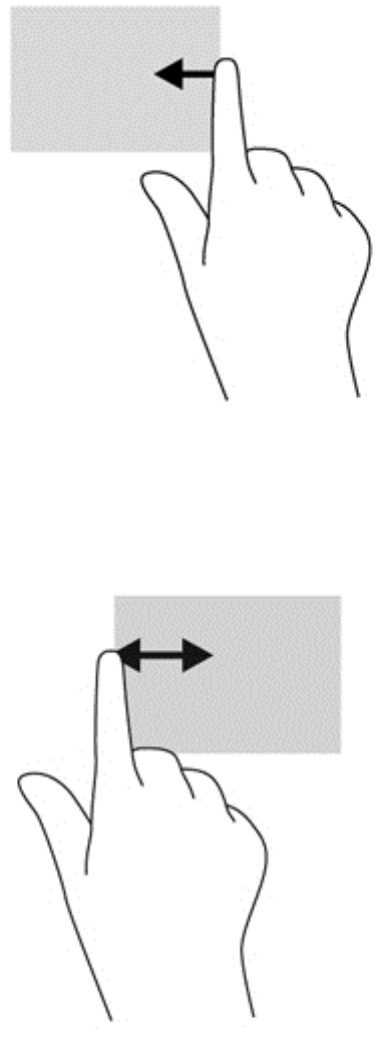

Edge swipes ...................................................................................................................... 25
Right-edge swipe .............................................................................................. 25
Left-edge swipe ................................................................................................. 25
Top-edge swipe and bottom-edge swipe .......................................................... 26
v
Setting touch screen preferences ....................................................................................................... 26
Using the on-screen keyboard ........................................................................................................... 26
3 Connecting to a network ................................................................................................................................. 28
Connecting to a wireless network ....................................................................................................... 28
Using the wireless controls ................................................................................................ 28
Using the wireless button .................................................................................. 28
Using operating system controls ....................................................................... 28
Sharing data and drives and accessing software .............................................................. 29
Using a WLAN ................................................................................................................... 29
Using an Internet service provider .................................................................... 29
Setting up a WLAN ............................................................................................ 30
Configuring a wireless router ............................................................................ 30
Protecting your WLAN ....................................................................................... 30
Connecting to a WLAN ...................................................................................... 31
Using Bluetooth wireless devices (select models only) ..................................................... 31
4 Enjoying entertainment features ..................................................................................................................... 33
Multimedia features ............................................................................................................................ 33
Using the webcams ............................................................................................................................ 36
Using audio ........................................................................................................................................ 36
Connecting speakers ......................................................................................................... 36
Connecting headphones and microphones ....................................................................... 36
Using Beats Audio ............................................................................................................. 36
Accessing Beats Audio Control Panel ............................................................... 37
Enabling and disabling Beats Audio .................................................................. 37
Testing your audio features ............................................................................................... 37
Using video ......................................................................................................................................... 38
Connecting video devices using an HDMI cable ............................................................... 39
Setting up HDMI audio ...................................................................................... 40
5 Navigating the screen ..................................................................................................................................... 41
Using the TouchPad and gestures ..................................................................................................... 41
Tapping .............................................................................................................................. 42
Scrolling ............................................................................................................................. 43
2-finger pinch zoom ........................................................................................................... 43
2-finger click ....................................................................................................................... 44
Rotating (select models only) ............................................................................................ 44
Flicking (select models only) .............................................................................................. 45
Edge swipes ...................................................................................................................... 45
vi
Right-edge swipe .............................................................................................. 45
Left-edge swipe ................................................................................................. 46
Top-edge swipe ................................................................................................. 46
Using the keyboard and mouse .......................................................................................................... 47
Using the keys ................................................................................................................... 47
Using the action keys ........................................................................................ 47
Using Windows shortcut keys ........................................................................... 48
Using the hot keys ............................................................................................. 48
6 Managing power ............................................................................................................................................. 49
Initiating Sleep and Hibernation ......................................................................................................... 49
Manually initiating and exiting Sleep .................................................................................. 50
Manually initiating and exiting Hibernation (select models only) ....................................... 50
Setting password protection on wakeup ............................................................................ 50
Using the power meter and power settings ........................................................................................ 51
Running on battery power .................................................................................................................. 51
Factory-sealed battery ....................................................................................................... 51
Finding battery information ................................................................................................ 51
Conserving battery power .................................................................................................. 52
Identifying low battery levels .............................................................................................. 52
Resolving a low battery level ............................................................................................. 52
Resolving a low battery level when external power is available ........................ 52
Resolving a low battery level when no power source is available ..................... 52
Resolving a low battery level when the computer cannot exit Hibernation ....... 52
Running on external AC power .......................................................................................................... 53
Troubleshooting power problems ...................................................................................... 53
Refreshing your software content with Intel Smart Connect Technology (select models only) .......... 54
Shutting down (turning off) the computer ........................................................................................... 54
7 Maintaining your computer .............................................................................................................................. 56
Improving performance ...................................................................................................................... 56
Handling drives .................................................................................................................. 56
Using Disk Defragmenter ................................................................................................... 56
Using Disk Cleanup ........................................................................................................... 57
Updating programs and drivers .......................................................................................................... 57
Cleaning your computer ..................................................................................................................... 57
Cleaning procedures .......................................................................................................... 58
Cleaning the display (All-in-Ones or Notebooks) .............................................. 58
Cleaning the sides or cover ............................................................................... 58
Cleaning the TouchPad, keyboard, or mouse ................................................... 58
Traveling with or shipping your computer ........................................................................................... 58
vii
8 Securing your computer and information ........................................................................................................ 60
Using passwords ................................................................................................................................ 60
Setting Windows passwords .............................................................................................. 61
Setting Setup Utility (BIOS) passwords ............................................................................. 61
TPM Embedded Security device (select models only) ....................................................................... 61
Using Internet security software ......................................................................................................... 62
Using antivirus software ..................................................................................................... 62
Using firewall software ....................................................................................................... 63
Installing software updates ................................................................................................................. 63
Installing critical security updates ...................................................................................... 63
Installing HP and third-party software updates .................................................................. 63
Securing your wireless network .......................................................................................................... 63
Backing up your software applications and information ..................................................................... 63
9 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) ............................................................ 64
Starting Setup Utility (BIOS) ............................................................................................................... 64
Updating the BIOS ............................................................................................................................. 64
Determining the BIOS version ........................................................................................... 64
Downloading a BIOS update ............................................................................................. 65
Using HP PC Hardware Diagnostics (UEFI) ...................................................................................... 65
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 66
10 Backing up, restoring, and recovering .......................................................................................................... 67
Creating recovery media and backups ............................................................................................... 67
Creating HP Recovery media ............................................................................................ 67
Restore and recovery ......................................................................................................................... 68
Recovering using HP Recovery Manager .......................................................................... 69
What you need to know ..................................................................................... 69
Using the HP Recovery partition (select models only) ...................................... 69
Using HP Recovery media to recover ............................................................... 70
Changing the computer boot order ................................................................... 70
Removing the HP Recovery partition (select models only) ................................................ 70
11 Specifications ................................................................................................................................................ 71
Input power ......................................................................................................................................... 71
Operating environment ....................................................................................................................... 71
12 Electrostatic Discharge ................................................................................................................................. 72
viii
x
1 Starting right
This computer is a powerful tool designed to enhance your work and entertainment. Read this
chapter to learn about best practices after you set up your computer, fun things to do with your
computer, and where to find additional HP resources.
Visit the HP Apps Store
The HP Apps Store offers a wide choice of popular games, entertainment and music apps,
productivity apps, and apps exclusive to HP that you can download to the Start screen. The selection
is updated regularly and includes regional content and country-specific offers. Be sure to check the
HP Apps Store frequently for new and updated features.
IMPORTANT: You must be connected to the Internet to access the HP Apps Store.
To view and download an app:
1. From the Start screen, select the Store app.
2. Select HP picks to view all the available apps.
3. Select the app you want to download, and then follow the on-screen instructions. When the
download is complete, the app appears on the All apps screen.
Best practices
After you set up and register the computer, we recommend the following steps to get the most out of
your smart investment:
●If you haven’t already done so, connect to a wired or wireless network. See details in Connecting
to a network on page 28.
●Become familiar with the computer hardware and software. For more information, see Getting to
know your computer on page 5 and Enjoying entertainment features on page 33.
●Update or purchase antivirus software. See Using antivirus software on page 62.
●Back up your hard drive by creating recovery discs or a recovery flash drive. See Backing up,
restoring, and recovering on page 67.
Fun things to do
●You know that you can watch a YouTube video on the computer. But did you know that you can
also connect your computer to a TV or gaming console? For more information, see Connecting
video devices using an HDMI cable on page 39.
●You know that you can listen to music on the computer. But did you know that you can also
stream live radio to the computer and listen to music or talk radio from all over the world? See
Using audio on page 36.
Visit the HP Apps Store 1
●Experience music the way the artist intended, with deep controlled bass and clear, pure sound.
See Using Beats Audio on page 36.
●Use the TouchPad and the new Windows touch gestures for smooth control of images and
pages of text. See Using the TouchPad and gestures on page 41.
2 Chapter 1 Starting right
More HP resources
You have already used
Setup Instructions
to turn on the computer and locate this guide. To locate
resources that provide product details, how-to information, and more, use this table.
Resource Contents
Setup Instructions
●Overview of computer setup and features
Help and Support
To access Help and Support, from the Start screen,
type help, and then from the Search window, select
Help and Support. For U.S. support, go to
http://www.hp.com/go/contactHP. For worldwide
support, go to http://welcome.hp.com/country/us/en/
wwcontact_us.html.
●A broad range of how-to information and troubleshooting tips
Worldwide support
To get support in your language, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.
●Online chat with an HP technician
●Support telephone numbers
●HP service center locations
Safety & Comfort Guide
To access this guide:
1. From the Start screen, type support, and then
select the HP Support Assistant app.
2. Select My computer, and then select User
guides.
‒ or –
Go to http://www.hp.com/ergo.
●Proper workstation setup
●Guidelines for posture and work habits that increase your
comfort and decrease your risk of injury
●Electrical and mechanical safety information
Regulatory, Safety and Environmental Notices
To access this guide:
▲From the Start screen, type support, and then
select the HP Support Assistant app.
●Important regulatory notices, including proper battery disposal
information
Limited Warranty
*
To access this guide:
1. From the Start screen, type support, and then
select the HP Support Assistant app.
2. Select My computer, and then select Warranty
and services.
– or –
Go to http://www.hp.com/go/orderdocuments.
●Specific warranty information about this computer
*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For countries/regions where the warranty is not provided in printed format, you may request a printed
copy from http://www.hp.com/go/orderdocuments or write to:
●North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd., Boise, ID 83714, USA
●Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
More HP resources 3
Resource Contents
When you request a printed copy of your warranty, please include your product number, warranty period (found on your
service label), name, and postal address.
IMPORTANT: Do NOT return your HP product to the addresses above. For U.S. support, go to http://www.hp.com/go/
contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
4 Chapter 1 Starting right
2 Getting to know your computer
Finding your hardware and software information
Locating hardware
To find out what hardware is installed on your computer:
1. From the Start screen, type control panel, and then select Control Panel.
2. Select System and Security, select System, and then click Device Manager in the left column. A
list displays all the devices installed on your computer.
To find out information about system hardware components and the system BIOS version number,
press fn+esc.
Locating software
To find out what software is installed on your computer:
Mode Steps
1. From the Start screen, right-click using the mouse.
– or –
Swipe from the top of the TouchPad to reveal all apps.
2. Select the All apps icon.
1. From the Start screen, gently swipe your finger from the top edge or the bottom edge of the display bezel
onto the screen.
2. Tap All apps.
Finding your hardware and software information 5
Tablet edge components
Components Description
(1) Power connector Connects an AC adapter.
(2) Micro SIM slot (select models only) Supports a wireless subscriber identity module (SIM).
(3) Alignment post connectors (2) Align and attach the tablet to the keyboard dock.
(4) Docking port/power connector Connects the tablet to the keyboard dock and connects an
AC adapter.
(5) Micro memory card reader Reads optional micro memory cards that store, manage,
share, or access information.
●To insert a card, hold the card label-side up, with
connectors facing the slot. Insert the card into the slot,
and then push in on the card until it is firmly seated.
●To remove a card, press in on the card until it pops out.
(6) Audio-out (headphone)/Audio-in
(microphone) combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before using headphones, earbuds, or a headset.
For additional safety information, see the
Regulatory, Safety
and Environmental Notices
. To access this guide, from the
Start screen, type support, select the HP Support Assistant
app, select My computer, and then select User guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
6 Chapter 2 Getting to know your computer
Components Description
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
(7) Power button ●When the computer is off, press the button to turn on
the tablet.
●When the computer is on, press the button briefly to
initiate Sleep.
●When the computer is in the Sleep state, press the
button briefly to exit Sleep.
CAUTION: Pressing and holding down the power button
will result in the loss of unsaved information.
If the computer has stopped responding and Windows
shutdown procedures are ineffective, press and hold the
power button down for at least 5 seconds to turn off the
tablet.
To learn more about your power settings, see your power
options. Swipe from the right edge of the
TouchPad or touch screen to display the charms, tap
Search, and then tap the search box. In the search box, type
power, select Settings, and then select Power options, or
see Managing power on page 49.
– or –
On the Start screen, type power, select Power
and sleep settings, and then select Power and sleep, or see
Managing power on page 49.
(8) Webcam (rear) (select models only) Records video, captures still photographs, and allows video
conferences and online chat by means of streaming video.
Swipe from the right edge of the TouchPad or
touch screen to display the charms, tap Search, and then tap
the search box. type c, and then select CyberLink YouCam
from the list of applications.
– or –
From the Start screen, type c, and then select
CyberLink YouCam from the list of applications.
(9) Volume up/down button Controls speaker volume on the tablet.
●To increase speaker volume, press the + edge of the
button.
●To decrease speaker volume, press the – edge of the
button.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. For wireless regulatory notices, see the section of the
Regulatory, Safety, and
Tablet edge components 7
Components Description
Environmental Notices
that applies to your country or region. To access this guide, from the Start screen, type support,
select the HP Support Assistant app, select My computer, and then select User guides.
8 Chapter 2 Getting to know your computer
Display
Component Description
(1) WLAN antennas (2)* Send and receive wireless signals to communicate with
wireless local area networks (WLANs).
(2) WWAN antennas (2) (select models only) Sends and receives wireless signals to communicate with
wireless world wide networks (WWAN).
(3) Internal microphones (2) Record sound.
(4) Webcam light (front) On: The webcam is in use.
(5) Webcam (front) Records video, captures still photographs, and allows you to
video conference and chat online using streaming video.
Swipe from the right edge of the TouchPad or
touch screen to display the charms, tap Search, and then tap
the search box. type c, and then select CyberLink YouCam
from the list of applications.
– or –
From the Start screen, type c, and then select
CyberLink YouCam from the list of applications.
(6) Speakers (2) Produce sound.
Display 9
Component Description
(7) Windows button Returns you to the Start screen from any app or window.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. For wireless regulatory notices, see the section of the
Regulatory, Safety, and
Environmental Notices
that applies to your country or region. To access this guide, from the Start screen, type support,
select the HP Support Assistant app, select My computer, and then select User guides.
10 Chapter 2 Getting to know your computer
Keyboard dock
Top
Component Description
(1) Alignment posts Align and attach the tablet to the keyboard dock.
(2) Release latch Releases the tablet from the keyboard dock. To release the tablet,
slide the release latch to the left.
(3) Docking connector Connects the tablet to the keyboard dock.
Keyboard dock 11
TouchPad
Component Description
(1) TouchPad zone Reads your finger gestures to move the pointer or activate items
on the screen.
NOTE: The TouchPad also supports edge-swipe gestures. For
more information, see Edge swipes on page 45.
(2) Left TouchPad button Functions like the left button of an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.
12 Chapter 2 Getting to know your computer
Lights
NOTE: Refer to the image that most closely matches your keyboard.
Component Description
(1) Caps lock light ●White: Caps lock is on.
●Off: Caps lock is off.
(2) Mute light ●Amber: Computer sound is off.
Keyboard dock 13
Component Description
●Off: Computer sound is on.
14 Chapter 2 Getting to know your computer
Keys
NOTE: Refer to the image that most closely matches your keyboard.
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key (select models only).
(2) fn key Executes frequently used system functions when pressed in
combination with the b key or the esc key (select models only).
(3) Windows key Returns you to the Start screen from an open app or the Windows
desktop.
NOTE: Pressing the Windows key again will return you to the
previous screen.
(4) Action keys Execute frequently used system functions.
Keyboard dock 15
Component Description
NOTE: Action keys do not display or function on the on-screen
keyboard of the tablet.
16 Chapter 2 Getting to know your computer
Front
Component Description
Power button ●When the computer is off, press the button to turn on the
computer.
●When the computer is on, press the button briefly to initiate
Sleep.
●When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●When the computer is in Hibernation, press the button
briefly to exit Hibernation.
CAUTION: Pressing and holding down the power button will
result in the loss of unsaved information.
If the computer has stopped responding and Windows shutdown
procedures are ineffective, press and hold the power button
down for at least 5 seconds to turn off the computer.
To learn more about your power settings, see your power
options. From the Start screen, type power, select Power and
sleep settings, and then select Power and sleep from the list of
applications.
Keyboard dock 17
Right side
Component Description
Memory card reader Connects optional memory cards that store, manage, share, or
access information.
●To insert the memory card, hold the card, label side up with
connectors facing the slot and push in the card until it is
firmly seated.
●To remove the memory card, press in on the card and
quickly release it until it pops out.
18 Chapter 2 Getting to know your computer
Rear side
Component Description
(1) AC adapter/battery light ●White: The AC adapter is connected and the battery is
charged.
●Blinking white: The battery has reached a low battery level.
●Amber: The AC adapter is connected and the battery is
charging.
●Off: The computer is using battery power.
(2) Power connector Connects an AC adapter.
(3) HDMI port Connects an optional video or audio device, such as a high-
definition television, any compatible digital or audio component,
or a high-speed HDMI device.
(4) USB 3.0 ports (2) Each USB 3.0 port connects an optional USB device, such as a
keyboard, mouse, external drive, printer, scanner or USB hub.
(5) Audio-out (headphone)/Audio-in
(microphone) combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects
an optional headset microphone. This jack does not support
optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before using headphones, earbuds, or a headset. For
additional safety information, see the
Regulatory, Safety and
Environmental Notices
. To access this guide, from the Start
screen, type support, select the HP Support Assistant app,
select My computer, and then select User guides.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and audio-
in (microphone).
Keyboard dock 19
Releasing the tablet from the keyboard dock
To release the tablet from the keyboard dock, follow these steps:
1. Slide the release latch on the keyboard dock to the left (1).
2. Lift and remove the tablet (2).
Locating system information
Important system information is located on the bottom edge of the tablet or on the keyboard base.
You may need the information when travelling internationally or when you contact support:
●Serial number
●Product number
●Warranty period
●Regulatory and wireless certification information
Using Windows, briefly press the fn+esc key combination (select models only) to display the System
Information screen, which provides the product name and serial number of your computer, as well as
information about the memory, processor, BIOS, and keyboard.
Changing your tablet's settings
You can change view and screen brightness.
Changing your tablet's view
Your tablet's orientation, or view, changes automatically from landscape to portrait view, or from
portrait to landscape view.
To change the view of your tablet from landscape view to portrait view:
20 Chapter 2 Getting to know your computer
▲Hold the tablet horizontally, and then turn it 90 degrees to the right (in a clockwise direction).
To change the view of your tablet from portrait view to landscape view:
▲Hold the tablet vertically, and then turn it 90 degrees to the left (in a counter-clockwise direction).
Turning your tablet's autorotate lock on or off
Autorotate automatically changes the orientation of the tablet screen depending on which way you
are holding the tablet. You can lock the screen orientation in place so that it does not automatically
rotate.
To turn your tablet's autorotate lock on or off:
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, and then tap
Settings.
2. Tap the Screen icon at the bottom right. Tap the autorotate lock icon to lock your current tablet
screen in place and to prevent rotation. The icon displays a lock symbol when autorotate lock is
active. To turn off the autorotate lock, tap the autorotate lock icon again.
Adjusting your tablet's screen brightness
To adjust the screen brightness:
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, and then tap
Settings.
2. Tap the Screen icon at the bottom right. A vertical slider displays that controls the screen
brightness.
NOTE: From the Windows desktop, you can also tap the Power Meter icon in the notification area at
the far right of the taskbar, tap Adjust screen brightness, and then move the slider next to Screen
brightness at the bottom of the screen.
Using touch screen gestures (select models only)
A touch screen computer allows you to control items on the screen directly with your fingers.
TIP: On touch screen computers, you can perform the gestures on the screen or on the TouchPad.
You can also perform on-screen actions with the keyboard and mouse.
One-finger slide
The one-finger slide is mostly used to pan or scroll through lists and pages, but you can use it for
other interactions, too, such as moving an object.
●To scroll across the screen, lightly slide one finger across the screen in the direction you want to
move.
NOTE: When many apps are displayed on the Start screen, you can slide your finger to move
the screen left or right.
●To drag, press and hold an object, and then drag the object to move it.
Using touch screen gestures (select models only) 21
22 Chapter 2 Getting to know your computer
Tapping
To make an on-screen selection, use the tap function.
●Use one finger to tap an object on the screen to make a selection. Double-tap an item to open it.
Scrolling
Scrolling is useful for moving the pointer up, down, left, or right on a page or image.
●Place two fingers on the screen and then drag them in an up, down, left, or right motion.
Using touch screen gestures (select models only) 23
2-finger pinch zoom
2-finger pinch zoom allows you to zoom out or in on images or text.
●Zoom out by placing two fingers apart on the screen and then moving your fingers together.
●Zoom in by placing two fingers together on the screen and then moving your fingers apart.
Rotating (select models only)
Rotating allows you to turn items such as photos.
●Anchor the forefinger of your left hand on the object you want to rotate. Using your right hand,
slide your forefinger around in a sweeping motion from 12 o’clock to 3 o’clock. To reverse the
rotation, move your forefinger from 3 o’clock to 12 o’clock.
NOTE: Rotate is intended for specific apps where you can manipulate an object or image. Rotate
may not be functional for all apps.
24 Chapter 2 Getting to know your computer
Edge swipes
With edge swipes you can perform tasks such as changing settings and finding or using apps.
Right-edge swipe
The right-edge swipe reveals the charms, which let you search, share, start apps, access devices, or
change settings.
●Gently swipe your finger inward from the right edge of the display onto the screen to reveal the
charms.
Left-edge swipe
The left-edge swipe reveals your open apps so that you can switch to them quickly.
●Gently swipe your finger inward from the left edge of the display to switch between apps.
Without lifting your finger, swipe back toward the left edge to reveal all open apps.
Using touch screen gestures (select models only) 25
Top-edge swipe and bottom-edge swipe
The top-edge swipe or bottom-edge swipe displays app command options that allow you to customize
apps.
IMPORTANT: When an app is open, the top-edge gesture varies depending on the app.
●Gently swipe your finger from the top edge or the bottom edge to reveal the app command
options.
Setting touch screen preferences
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap
Search, and then tap the search box.
2. Type c, tap Control Panel, tap Hardware and Sound, tap Pen and Touch, and then follow
the on-screen instructions.
1. On the Start screen, type c, and then select Control Panel.
2. Select Hardware and Sound, select Pen and Touch, and then follow the on-screen
instructions.
These preferences are specific to the touch screen and the computer.
Using the on-screen keyboard
You may want to enter data into a data field. This may be required when you set up a wireless
network configuration or a weather reporting location, or when you access user accounts on Internet
sites. The computer has an on-screen keyboard that is displayed when you need to enter such
information.
26 Chapter 2 Getting to know your computer
1. To display the keyboard, tap in the first data field. Tap the small keyboard icon that is displayed.
– or –
Tap the keyboard icon on the right side of the notification area.
2. To enlarge the size of the on-screen keyboard, tap the lower-right corner and drag it to the
desired size.
3. Tap each character, continuing until you have spelled out the name or word that you are
entering into the data field.
NOTE: Action keys do not display or function on the on-screen keyboard.
NOTE: Suggested words may be displayed at the top of the on-screen keyboard. If an
appropriate word is displayed, tap it to select it.
4. Tap enter on the keyboard.
Using the on-screen keyboard 27
3 Connecting to a network
Your computer can travel with you wherever you go. But even at home, you can explore the globe
and access information from millions of websites using your computer and a wired or wireless
network connection. This chapter will help you get connected to that world.
Connecting to a wireless network
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
●Wireless local area network (WLAN) device—Connects the computer to wireless local area
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate
offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and
universities. In a WLAN, the mobile wireless device in your computer communicates with a
wireless router or a wireless access point.
●Bluetooth device (select models only)—Creates a personal area network (PAN) to connect to
other Bluetooth-enabled devices such as computers, phones, printers, headsets, speakers, and
cameras. In a PAN, each device communicates directly with other devices, and devices must be
relatively close together—typically within 10 meters (approximately 33 feet) of each other.
For more information about wireless technology, see the information and website links provided in
Help and Support. From the Start screen, type help, and then select Help and Support.
Using the wireless controls
You can control the wireless devices in your computer using these features:
●Wireless button, wireless switch, wireless key, or airplane mode key (referred to in this chapter
as the wireless button) (select models only)
●Operating system controls
Using the wireless button
The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All the wireless devices on your computer are enabled at the factory, so the
wireless light is on (white) when you turn on the computer.
The wireless light indicates the overall power state of your wireless devices, not the status of
individual devices. If the wireless light is white, at least one wireless device is on. If the wireless light
is off, all wireless devices are off.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously.
Using operating system controls
The Network and Sharing Center allows you to set up a connection or network, connect to a network,
and diagnose and repair network problems.
28 Chapter 3 Connecting to a network
To use operating system controls:
1. From the Start screen, type control panel, and then select Control Panel.
2. Select Network and Internet, and then select Network and Sharing Center.
For more information, from the Start screen, type help, and then select Help and Support.
Sharing data and drives and accessing software
When your computer is part of a network, you are not limited to using only the information that is
stored in your computer. Network computers can exchange software and data with each other.
NOTE: When a disc like a DVD movie or game is copy-protected, it cannot be shared.
To share folders or content on the same network:
1. From the Windows desktop, open File Explorer.
2. From This PC, click a folder with content you want to share. Select Share from the navigation
bar at the top of the window, and then click Specific people.
3. Type a name in the File Sharing box, and then click Add.
4. Click Share and then follow the on-screen instructions.
To share drives on the same network:
1. From the Windows desktop, right-click the network status icon in the notification area, at the far
right of the taskbar.
2. Select Open Network and Sharing Center.
3. Under View your active networks, select an active network.
4. Select Change advanced sharing settings to set sharing options for privacy, network discovery,
file and printer sharing or other network options.
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of
other computers and accessories that are linked by a wireless router or a wireless access point.
NOTE: The terms
wireless router
and
wireless access point
are often used interchangeably.
●A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
that can accommodate a large number of computers and accessories and can separate critical
network functions.
●A home or small office WLAN typically uses a wireless router, which allows several wireless and
wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided
through a service provider or a public or corporate network).
Using an Internet service provider
When you are setting up Internet access in your home, you must establish an account with an
Internet service provider (ISP). To purchase Internet service and a modem, contact a local ISP. The
Connecting to a wireless network 29
ISP will help set up the modem, install a network cable to connect your wireless router to the modem,
and test the Internet service.
NOTE: Your ISP will give you a user ID and a password to use for Internet access. Record this
information and store it in a safe place.
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
●A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from
an Internet service provider
●A wireless router (2) (purchased separately)
●A wireless computer (3)
NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type
of modem you have.
The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.
For help in setting up your WLAN, see the information provided by your router manufacturer or your
ISP.
Configuring a wireless router
For help in configuring a wireless router, see the information provided by your router manufacturer or
your ISP.
NOTE: It is recommended that you initially connect your new wireless computer to the router by
using the network cable provided with the router. When the computer successfully connects to the
Internet, disconnect the cable, and access the Internet through your wireless network.
Protecting your WLAN
When you set up a WLAN or access an existing WLAN, always enable security features to protect
your network from unauthorized access. WLANs in public areas (hotspots) like coffee shops and
airports may not provide any security. If you are concerned about the security of your computer when
connected to a hotspot, limit your network activities to email that is not confidential and basic Internet
surfing.
Wireless radio signals travel outside the network, so other WLAN devices can pick up unprotected
signals. Take the following precautions to protect your WLAN:
●Use a firewall.
30 Chapter 3 Connecting to a network
A firewall checks information and requests that are sent to your network, and discards any
suspicious items. Firewalls are available in both software and hardware. Some networks use a
combination of both types.
●Use wireless encryption.
Wireless encryption uses security settings to encrypt and decrypt data that is transmitted over
the network. For more information, from the Start screen, type help, and then select Help and
Support.
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1. Be sure that the WLAN device is on. If the device is on, the wireless light is white. If the wireless
light is off, press the wireless button.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
2. From the Start screen, point to the far-right upper or lower corner of the screen to display the
charms.
3. Select Settings, and then click the network status icon.
4. Select your WLAN from the list.
5. Click Connect.
If the WLAN is a security-enabled WLAN, you are prompted to enter a security code. Type the
code, and then click Sign in to complete the connection.
NOTE: If no WLANs are listed, you may be out of range of a wireless router or access point.
NOTE: If you do not see the WLAN you want to connect to, from the Windows desktop, right-
click the network status icon, and then select Open Network and Sharing Center. Click Set up a
new connection or network. A list of options is displayed, allowing you to manually search for
and connect to a network or to create a new network connection.
6. Follow the on-screen instructions to complete the connection.
After the connection is made, place the mouse pointer over the network status icon in the notification
area, at the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN
implementation, router manufacturer, and interference from other electronic devices or structural
barriers such as walls and floors.
Using Bluetooth wireless devices (select models only)
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:
●Computers (desktop, notebook, PDA)
●Phones (cellular, cordless, smart phone)
●Imaging devices (printer, camera)
●Audio devices (headset, speakers)
●Mouse
Connecting to a wireless network 31
Bluetooth devices provide peer-to-peer capability that allows you to set up a PAN of Bluetooth
devices. For information about configuring and using Bluetooth devices, see the Bluetooth software
Help.
32 Chapter 3 Connecting to a network
4 Enjoying entertainment features
Use your HP computer as an entertainment hub to socialize via the webcam, enjoy and manage your
music, and download and watch movies. Or, to make your computer an even more powerful
entertainment center, connect external devices like a monitor, projector, or TV, or speakers and
headphones.
Multimedia features
Here are some of the entertainment features on your computer.
Component Description
(1) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust
the volume before using headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety and Environmental Notices
. To access
this guide, from the Start screen, type support, select the
HP Support Assistant app, select My computer, and then
select User guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
(2) Volume button Controls speaker volume.
●To increase speaker volume, press the + edge of the
button.
Multimedia features 33
Component Description
●To decrease speaker volume, press the – edge of the
button.
(3) Webcam (rear) (select models only) Records video, captures still photographs, and allows video
conferences and online chat by means of streaming video.
Swipe from the right edge of the TouchPad or
touch screen to display the charms, tap Search, and then
tap the search box. type c, and then select CyberLink
YouCam from the list of applications.
– or –
From the Start screen, type c, and then select
CyberLink YouCam from the list of applications.
34 Chapter 4 Enjoying entertainment features
Component Description
(1) Internal microphones (2) Record sound.
(2) Webcam light On: The webcam is in use.
(3) Webcam (front) Records video, captures still photographs, allows you to
video conference and chat online using streaming video.
Swipe from the right edge of the TouchPad or
touch screen to display the charms, tap Search, and then tap
the search box. type c, and then select CyberLink YouCam
from the list of applications.
– or –
From the Start screen, type c, and then select
CyberLink YouCam from the list of applications.
(4) Speakers (2) Produce sound.
(5) Memory card reader Connects optional memory cards that store, manage, share,
or access information.
●To insert the memory card, hold the card, label side up
with connectors facing the slot and push in the card until
it is firmly seated.
●To remove the memory card, press in on the card and
quickly release it until it pops out.
NOTE: The following three multimedia features are located on the rear side of the keyboard dock as illustrated above.
(6) HDMI port Connects an optional video or audio device, such as a high-
definition television, any compatible digital or audio
component, or a high-speed HDMI device.
(7) USB 3.0 ports (2) Connect optional USB devices, such as a keyboard, mouse,
external drive, printer, scanner or USB hub.
(8) Audio-out (headphone)/Audio-in
(microphone) combo jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before using headphones, earbuds, or a headset.
For additional safety information, see the
Regulatory, Safety
and Environmental Notices
. To access this guide, from the
Start screen, type support, select the HP Support Assistant
app, select My computer, and then select User guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
Multimedia features 35
Using the webcams
Your computer has one or two integrated webcams, a powerful social networking tool that allow you
to communicate up close with friends and colleagues, whether they are next door or on the other side
of the world. With the webcams, you can stream video with your instant messaging software, capture
and share video, and take photos.
To start the webcams, follow these steps:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search, and
then tap the search box.
2. Type c, and then select CyberLink YouCam from the list of applications.
From the Start screen, type c, and then select CyberLink YouCam from the list of applications.
For details about using the webcams, refer to the software Help for the app.
Using audio
On your computer, you can play music CDs (with an optional external optical drive), download and
listen to music, stream audio content from the web (including radio), record audio, or mix audio and
video to create multimedia. To enhance your listening enjoyment, attach external audio devices such
as speakers or headphones.
Connecting speakers
You can attach wired speakers to your computer by connecting them to a USB port or to the audio-
out (headphone) jack on your computer or on a docking station.
To connect
wireless
speakers to your computer, follow the device manufacturer's instructions. To
connect high-definition speakers to the computer, see Setting up HDMI audio on page 40. Before
connecting speakers, lower the volume setting.
Connecting headphones and microphones
You can connect wired headphones or headsets to the audio-out (headphone)/audio-in (microphone)
jack on your computer. Many headsets with integrated microphones are commercially available.
To connect
wireless
headphones or headsets to your computer, follow the device manufacturer's
instructions.
WARNING! To reduce the risk of personal injury, lower the volume setting before putting on
headphones, earbuds, or a headset. For additional safety information, see the
Regulatory, Safety and
Environmental Notices
. To access this guide, from the Start screen, type support, select the HP
Support Assistant app, select My computer, and then select User guides.
Using Beats Audio
Beats Audio is an enhanced audio feature that provides a deep, controlled bass while maintaining a
clear sound. You can experience Beats Audio through the computer's internal speakers, through
36 Chapter 4 Enjoying entertainment features
external speakers connected to a USB port, or through Beats Audio headphones connected to the
headphone jack.
Accessing Beats Audio Control Panel
Use Beats Audio Control Panel to view and manually control audio and bass settings.
To open Beats Audio Control Panel, follow these steps:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search,
and then tap the search box.
2. Type c, select Control Panel, select Hardware and Sound, and then select Beats Audio Control
Panel.
From the Start screen, type c, select Control Panel, select Hardware and Sound, and then select
Beats Audio Control Panel.
Enabling and disabling Beats Audio
To enable or disable Beats Audio, follow these steps:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search,
and then tap the search box.
2. Type c, select Control Panel, select Hardware and Sound, and then select Beats Audio Control
Panel.
3. Follow the on-screen instructions
1. From the Start screen, type c, select Control Panel, select Hardware and Sound, and then select
Beats Audio Control Panel.
2. Follow the on-screen instructions
Testing your audio features
To check the audio function on your computer, follow these steps:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search,
and then tap the search box.
2. Type c, tap Control Panel, tap Hardware and Sound, and then tap Sound.
3. When the Sound window opens, tap the Sounds tab. Under Program Events, tap any sound
event, such as a beep or alarm, and then tap Test.
1. On the Start screen, type c, and then select Control Panel from the list of applications.
2. Select Hardware and Sound, and then select Sound.
3. When the Sound window opens, select the Sounds tab. Under Program Events, select any sound
event, such as a beep or alarm, and then click Test.
Using audio 37
Mode Steps
You should hear sound through the speakers or through connected headphones.
To check the recording functions on your computer, follow these steps:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search,
and then tap the search box.
2. Type s, and then select Sound Recorder.
3. Click Start Recording and speak into the microphone. Save the file to your desktop.
4. Open a multimedia program and play the recording.
1. From the Start screen, type s, and then select Sound Recorder.
2. Click Start Recording and speak into the microphone. Save the file to your desktop.
3. Open a multimedia program and play the recording.
To confirm or change the audio settings on your computer:
Mode Steps
1. Swipe from the right edge of the TouchPad or touch screen to display the charms, tap Search,
and then tap the search box.
2. Type c, and then select Control Panel from the list of applications.
3. Select Hardware and Sound, and then select Sound.
1. From the Start screen, type c, and then select Control Panel from the list of applications.
2. Select Hardware and Sound, and then select Sound.
Using video
Your computer is a powerful video device that enables you to watch streaming video from your
favorite websites and download video and movies to watch on your computer when you are not
connected to a network.
To enhance your viewing enjoyment, use one of the video ports on the keyboard dock to connect an
external monitor, projector, or TV. Your computer has a high-definition multimedia interface (HDMI)
port, which allows you to connect a high-definition monitor or TV.
IMPORTANT: Be sure that the external device is connected to the correct port on the computer,
using the correct cable. Check the device manufacturer's instructions.
38 Chapter 4 Enjoying entertainment features
Connecting video devices using an HDMI cable
NOTE: To connect an HDMI device to your keyboard dock, you need an HDMI cable, sold
separately.
To see the computer screen image on a high-definition TV or monitor, connect the high-definition
device according to the following instructions.
1. Connect one end of the HDMI cable to the HDMI port on the computer.
2. Connect the other end of the cable to the high-definition TV or monitor.
3. Press f4 to alternate the computer screen image between 4 display states:
●PC screen only: View the screen image on the computer only.
●Duplicate: View the screen image simultaneously on
both
the computer and the external
device.
●Extend: View the screen image extended across
both
the computer and the external
device.
●Second screen only: View the screen image on the external device only.
Each time you press f4, the display state changes.
NOTE: For best results, especially if you choose the “Extend” option, adjust the screen
resolution of the external device, as follows. From the Start screen, type c, and then select
Control Panel from the list of applications. Select Appearance and Personalization. Under
Display, select Adjust screen resolution.
Using video 39
Setting up HDMI audio
HDMI is the only video interface that supports high-definition video
and
audio. After you connect an
HDMI TV to the computer, you can then turn on HDMI audio by following these steps:
1. From the Windows desktop, right-click the Speakers icon in the notification area, at the far right
of the taskbar, and then select Playback devices.
2. On the Playback tab, select the name of the digital output device.
3. Click Set Default, and then click OK.
To return the audio stream to the computer speakers:
1. From the Windows desktop, right-click the Speakers icon in the notification area, at the far right
of the taskbar, and then click Playback devices.
2. On the Playback tab, click Speakers / HP.
3. Click Set Default, and then click OK.
40 Chapter 4 Enjoying entertainment features
5 Navigating the screen
You can navigate the computer screen in the following ways:
●Touch gestures
●Keyboard and mouse
Touch gestures can be used on your computer's TouchPad or on a touch screen (select models
only).
NOTE: An external USB mouse (purchased separately) can be connected to one of the USB ports
on the keyboard dock.
Select computer models have special action keys or hot key functions on the keyboard to perform
routine tasks.
Some computer models may also have an integrated numeric keypad.
Using the TouchPad and gestures
The TouchPad allows you to navigate the computer screen and control the pointer by using simple
finger movements. You can customize the touch gestures by changing settings, button configurations,
click speed, and pointer options. You can also view demonstrations of TouchPad gestures.
From the Start screen, type control panel, select Control Panel, and then select Hardware and
Sound. Under Devices and Printers, select Mouse.
TIP: Use the left and right buttons on the TouchPad as you would use the corresponding buttons on
an external mouse.
NOTE: TouchPad gestures are not supported in all apps.
Using the TouchPad and gestures 41
Tapping
To make an on-screen selection, use the tap function on the TouchPad.
●Point to an item on the screen, and then tap one finger on the TouchPad zone to make a
selection. Double-tap an item to open it.
42 Chapter 5 Navigating the screen
Scrolling
Scrolling is useful for moving up, down, or sideways on a page or image.
●Place two fingers slightly apart on the TouchPad zone and then drag them up, down, left, or
right.
2-finger pinch zoom
2-finger pinch zoom allows you to zoom out or in on images or text.
●Zoom out by placing two fingers apart on the TouchPad zone and then moving your fingers
together.
●Zoom in by placing two fingers together on the TouchPad zone and then moving your fingers
apart.
Using the TouchPad and gestures 43
2-finger click
2-finger click allows you to make menu selections for an object on the screen.
NOTE: Using 2-finger click is the same action as using right-click with the mouse.
●Place two fingers on the TouchPad zone and press down to open the options menu for the
selected object.
Rotating (select models only)
Rotating allows you to turn items such as photos.
●Point to an object, and then anchor the forefinger of your left hand in the TouchPad zone. Using
your right hand, slide your forefinger in a sweeping motion from 12 o’clock to 3 o’clock. To
reverse the rotation, move your forefinger from 3 o’clock to 12 o’clock.
NOTE: Rotate is intended for specific apps where you can manipulate an object or image. Rotate
may not be functional for all apps.
44 Chapter 5 Navigating the screen
Flicking (select models only)
Flicking allows you to navigate through screens or quickly scroll through documents.
●Place three fingers on the TouchPad zone and flick your fingers in a light, quick motion up,
down, left or right.
Edge swipes
Edge swipes allow you to perform tasks such as changing settings and finding or using apps.
Right-edge swipe
The right-edge swipe reveals the charms, which let you search, share, start apps, access devices, or
change settings.
●Swipe your finger gently from the right edge to reveal the charms.
Using the TouchPad and gestures 45
Left-edge swipe
The left-edge swipe accesses your recently opened apps so that you can switch between them
quickly.
●Swipe your finger gently from the left edge of the TouchPad.
Top-edge swipe
The top-edge swipe displays app command options that allow you to customize apps.
IMPORTANT: When an app is active, the top-edge gesture varies depending on the app.
●Gently swipe your finger from the top edge to reveal the app command options.
46 Chapter 5 Navigating the screen
Using the keyboard and mouse
The keyboard and mouse allow you to type, select items, scroll and to perform the same functions as
you do using touch gestures. The keyboard dock also allows you to use action keys and hot keys to
perform specific functions.
NOTE: Action keys do not display or function on the on-screen keyboard of the tablet.
TIP: The Windows key on the keyboard allows you to quickly return to the Start screen from
an open app or the Windows desktop. Pressing the Windows key again will return you to the previous
screen.
NOTE: Depending on the country or region, your keyboard may have different keys and keyboard
functions than those discussed in this section.
Using the keys
You can quickly access information or perform functions by using certain keys and key combinations.
Using the action keys
NOTE: Action keys do not display or function on the on-screen keyboard of the tablet.
An action key on the keyboard dock performs an assigned function. The icon on each of the f1
through f4 and f6 through f12 keys illustrates the assigned function for that key.
To use an action key function, press and hold the key.
CAUTION: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the
computer from operating properly.
The keyboard dock action key feature is enabled at the factory. You can disable this feature in Setup
Utility (BIOS). See Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) on page 64
for instructions on opening Setup Utility (BIOS), and then follow the instructions at the bottom of the
screen.
After you have disabled the action key feature on the keyboard dock, you can still perform each
function by pressing the fn key in combination with the appropriate action key.
Icon Key Description
f1 Opens Help and Support, which provides tutorials, information about the Windows
operating system and your computer, answers to questions, and updates to your
computer.
Help and Support also provides automated troubleshooting tools and access to
support.
f2 Decreases the screen brightness incrementally as long as you hold down the key.
f3 Increases the screen brightness incrementally as long as you hold down the key.
f4 Switches the screen image between display devices connected to the system. For
example, if a monitor is connected to the computer, repeatedly pressing this key
alternates the screen image from the computer display to the monitor display to a
simultaneous display on both the computer and the monitor.
Using the keyboard and mouse 47
Icon Key Description
f6 Mutes or restores speaker sound.
f7 Decreases speaker volume incrementally as long as you hold down the key.
f8 Increases speaker volume incrementally as long as you hold down the key.
f9 Plays the previous track of an audio CD or the previous section of a DVD or a BD.
f10 Begins, pauses, or resumes playback of an audio CD, a DVD, or a BD.
f11 Plays the next track of an audio CD or the next section of a DVD or a BD.
f12 Turns the airplane mode and wireless feature on or off.
NOTE: A wireless network must be set up before a wireless connection is possible.
Using Windows shortcut keys
Windows provides shortcuts so that you can perform actions quickly. Press the Windows key
alone or in combination with a specific key to perform a designated action.
Using the hot keys
A hot key is a combination of the fn key and the esc key, the b key, or the spacebar.
To use a hot key:
▲Briefly press the fn key, and then briefly press the second key of the combination.
48 Chapter 5 Navigating the screen
6 Managing power
Your computer can operate on either battery power or external power. When the computer is running
on battery power only and an AC power source is not available to charge the battery, it is important to
monitor and conserve the battery charge. Your computer supports an optimal power plan to manage
how your computer uses and conserves power so that computer performance is balanced with power
conservation.
Initiating Sleep and Hibernation
Microsoft® Windows has two power-saving states, Sleep and Hibernation.
●Sleep—The Sleep state is automatically initiated after a period of inactivity when running on
battery power or on external power. Your work is saved to memory, allowing you to resume your
work very quickly. You can also initiate Sleep manually. For more information, see Manually
initiating and exiting Sleep on page 50.
●Hibernation—The Hibernation state is automatically initiated if the battery reaches a critical level.
In the Hibernation state, your work is saved to a hibernation file and the computer powers down.
NOTE: You can manually initiate Hibernation. See Manually initiating and exiting Sleep
on page 50 and Manually initiating and exiting Hibernation (select models only) on page 50.
CAUTION: To reduce the risk of possible audio and video degradation, loss of audio or video
playback functionality, or loss of information, do not initiate Sleep while reading from or writing to a
disc or an external media card.
NOTE: You cannot initiate any type of networking connection or perform any computer functions
while the computer is in the Sleep state or in Hibernation.
Initiating Sleep and Hibernation 49
Manually initiating and exiting Sleep
You can initiate Sleep in any of the following ways:
●Close the display.
●From the Start screen, point to the upper-right or lower-right corner of the screen to reveal the
charms. Click Settings, click the Power icon, and then click Sleep.
To exit Sleep:
●Briefly press the power button.
●If the display is closed, and the tablet is connected to the keyboard dock, open the display.
●Press a key on the keyboard.
●Tap or swipe the TouchPad.
When the computer exits Sleep, the power lights turn on and your work returns to the screen.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before the computer will return to the screen.
Manually initiating and exiting Hibernation (select models only)
You can enable user-initiated Hibernation and change other power settings and timeouts using Power
Options.
1. From the Start screen, type power options, then select Power options.
2. In the left pane, click Choose what the power button does.
3. Click Change Settings that are currently unavailable.
4. In the When I press the power button area, select Hibernate.
5. Click Save changes.
When the computer exits Hibernation, the power lights turn on and your work returns to the screen.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before your work will return to the screen.
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1. From the Start screen, type power options, then select Power options.
2. In the left pane, click Require a password on wakeup.
3. Click Change Settings that are currently unavailable.
4. Click Require a password (recommended).
NOTE: If you need to create a user account password or change your current user account
password, click Create or change your user account password, and then follow the on-screen
instructions. If you do not need to create or change a user account password, go to step 5.
5. Click Save changes.
50 Chapter 6 Managing power
Using the power meter and power settings
The power meter is located on the Windows desktop. The power meter allows you to quickly access
power settings and view the remaining battery charge.
●To reveal the percentage of remaining battery charge and the current power plan, on the
Windows desktop, point over the power meter icon.
●To use Power Options, click the power meter icon and select an item from the list. From the
Start screen, you can also type power options, and then select Power Options.
Different power meter icons indicate whether the computer is running on battery or external power.
The icon also reveals a message if the battery has reached a low or critical battery level.
Running on battery power
When a charged battery is in the tablet and the tablet is not plugged into external power, the tablet
runs on battery power. If the tablet has a charged battery installed and the AC adapter is
disconnected from the tablet, the tablet automatically switches to battery power and the screen
brightness decreases to conserve battery life. The battery in the tablet slowly discharges when the
tablet is off and unplugged from external power. When the tablet is attached to the keyboard dock,
the system is powered by the keyboard dock’s battery until the battery reaches a critical level in the
keyboard dock. At that time, the system switches to the tablet’s battery.
Computer battery life varies, depending on power management settings, programs running on the
computer, screen brightness, external devices connected to the computer, and other factors.
NOTE: There is a secondary battery in the keyboard dock. When the tablet is attached to the
keyboard dock, the system is powered by the keyboard dock’s battery.
Factory-sealed battery
To monitor the status of your battery, or if the battery is no longer holding a charge, run Battery Check
in Help and Support. To access battery information, from the Start screen, type support, select the
HP Support Assistant app, and then select Battery and performance. If Battery Check indicates that
your battery should be replaced, contact support.
The battery(ies) in this product cannot be easily replaced by users themselves. Removing or
replacing the battery could affect your warranty coverage. If a battery is no longer holding a charge,
contact support.
When a battery has reached the end of its useful life, do not dispose of the battery in general
household waste. Follow the local laws and regulations in your area for battery disposal.
Finding battery information
To monitor the status of your battery, or if the battery is no longer holding a charge, run Battery Check
in HP Support Assistant. To access battery information, from the Start screen, type support, select
the HP Support Assistant app, and then select Battery and performance.
HP Support Assistant provides the following tools and information about the battery:
●Battery test
●Information about battery types, specifications, life cycles, and capacity
Using the power meter and power settings 51
Conserving battery power
Tips for conserving battery power and maximizing battery life:
●Lower the brightness on the display.
●Select the Power saver setting in Power Options.
●Remove a user-replaceable battery from the computer if it will not be used or charged for more
than 2 weeks.
●Turn off wireless devices when you are not using them.
●Disconnect unused external devices that are not plugged into an external power source, such as
an external hard drive connected to a USB port.
●Stop, disable, or remove any external media cards that you are not using.
●Before you leave your work, initiate Sleep or shut down the computer.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low or critical battery level,
the following behavior occurs:
●The battery light (select models only) indicates a low or critical battery level.
– or –
●The power meter icon on the Windows desktop shows a low or critical battery notification.
NOTE: For additional information about the power meter, see Using the power meter and
power settings on page 51.
The computer takes the following actions for a critical battery level:
●If Hibernation is disabled and the computer is on or in the Sleep state, the computer remains
briefly in the Sleep state, and then shuts down and loses any unsaved information.
●If Hibernation is enabled and the computer is on or in the Sleep state, the computer initiates
Hibernation.
Resolving a low battery level
Resolving a low battery level when external power is available
●Connect an AC adapter.
●Connect an optional docking or expansion device.
●Connect an optional power adapter purchased as an accessory from HP.
Resolving a low battery level when no power source is available
Save your work and shut down the computer.
Resolving a low battery level when the computer cannot exit Hibernation
When the computer lacks sufficient power to exit Hibernation, follow these steps:
1. Connect the AC adapter to the computer and to external power.
2. Exit Hibernation by pressing the power button.
52 Chapter 6 Managing power
Running on external AC power
For information about connecting to AC power, refer to the
Setup Instructions
poster provided in the
computer box.
The computer does not use battery power when the computer is connected to AC external power with
an approved AC adapter or an optional docking/expansion device.
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.
Connect the computer to external AC power under any of the following conditions:
WARNING! Do not charge the computer battery while you are onboard aircraft.
●When charging or calibrating a battery
●When installing or modifying system software
●When writing information to a disc (select models only)
●When running Disk Defragmenter on computers with internal hard drives
●When performing a backup or recovery
When you connect the computer to external AC power:
●The battery begins to charge.
●The screen brightness increases.
●The power meter icon on the Windows desktop changes appearance.
When you disconnect external AC power, the following events occur:
●The computer switches to battery power.
●The screen brightness automatically decreases to save battery life.
●The power meter icon on the Windows desktop changes appearance.
Troubleshooting power problems
Test the AC adapter if the computer exhibits any of the following symptoms when it is connected to
AC power:
●The computer does not turn on.
●The display does not turn on.
●The power lights are off.
To test the AC adapter:
1. Shut down the computer.
2. Connect the AC adapter to the computer, and then plug it into an AC outlet.
3. Turn on the computer.
Running on external AC power 53
●If the power lights turn
on
, the AC adapter is working properly.
●If the power lights remain
off
, check the connection from the AC adapter to the computer
and the connection from the AC adapter to the AC outlet to be sure that the connections
are secure.
●If the connections are secure and the power lights remain
off
, the AC adapter is not
functioning and should be replaced.
Contact support for information about obtaining a replacement AC power adapter.
Refreshing your software content with Intel Smart Connect
Technology (select models only)
When the computer is in the Sleep state, Intel® Smart Connect Technology periodically causes the
computer to exit Sleep. If a network connection is available, Smart Connect updates open apps such
as your email inboxes, social network sites, and news pages and then returns the computer to the
Sleep state. Smart Connect also syncs content that you have created offline, such as emails. When
the computer exits Sleep, you have immediate access to your updated information.
▲To enable this feature or manually adjust the settings, from the Start screen, type smart, and
then select Intel® Smart Connect Technology.
Shutting down (turning off) the computer
CAUTION: Unsaved information is lost when the computer shuts down. Be sure to save your work
before shutting down the computer.
The Shut down command closes all open programs, including the operating system, and then turns
off the display and computer.
Shut down the computer under any of the following conditions:
●When you are connecting an external hardware device that does not connect to a USB or video
port
●When the computer will be unused and disconnected from external power for an extended
period
To shut down the tablet when it is not connected to the keyboard dock:
●Press the Windows key and the power button at the same time, and then tap Shut Down.
Although you can turn off the computer with the power button, the recommended procedure is to use
the Windows Shut down command:
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or
Hibernation before shutdown is possible by briefly pressing the power button.
1. Save your work and close all open programs.
2. From the Start screen, point to the upper-right or lower-right corner of the screen to reveal the
charms.
3. Click Settings, click the Power icon, and then click Shut down.
– or –
Right-click the Start button in the lower-left corner of the screen, select Shut down, and then
select Shut down.
54 Chapter 6 Managing power
If the computer is unresponsive and you are unable to use the preceding shutdown procedures, try
the following emergency procedures in the sequence provided:
To shut down the unresponsive tablet:
●Press both the Windows key and the power button at the same time.
To shut down the unresponsive tablet when it is connected to the keyboard dock:
●Press ctrl+alt+delete, click the Power icon, and then select Shut Down.
●Press and hold the power button for at least 5 seconds.
●Disconnect the computer from external power.
Shutting down (turning off) the computer 55
7 Maintaining your computer
It is important to perform regular maintenance to keep your computer in optimal condition. This
chapter provides information about improving the performance of your computer by running tools
such as Disk Defragmenter and Disk Cleanup. It also provides information about updating your
programs and drivers, instructions for cleaning your computer, and tips for traveling with your
computer.
Improving performance
Everyone wants a fast computer and you can drastically improve the performance of your computer
by performing regular maintenance tasks with tools such as Disk Defragmenter and Disk Cleanup.
Also, as your computer gets older, you might consider installing larger drives and adding more
memory.
Handling drives
Observe these precautions when handling drives:
●Before removing or installing a drive, shut down the computer. If you are unsure whether the
computer is off, in the Sleep state, or in Hibernation, turn the computer on, and then shut it
down.
●Before handling a drive, discharge static electricity by touching a grounded surface.
●Do not touch the connector pins on a removable drive or on the computer.
●Do not use excessive force when inserting a drive into a drive bay.
●If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “FRAGILE.”
●Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport
walk-through devices and security wands. Airport conveyer belts and similar security devices
that check carry-on baggage use X-rays instead of magnetism and do not damage drives.
●Remove media from a drive before removing the drive from the drive bay, or traveling with,
shipping, or storing a drive.
●Do not type on the keyboard or move the computer while an optical drive is writing to a disc. The
write process is sensitive to vibration.
●Before you move a computer that is connected to an external hard drive, initiate Sleep and allow
the screen to clear, or properly disconnect the external hard drive.
Using Disk Defragmenter
As you use your computer over time, the files on the hard drive become fragmented. A fragmented
drive means data on your drive is not contiguous (sequential) and, because of this, the hard drive
works harder to locate files, thus slowing down the computer. Disk Defragmenter consolidates (or
physically reorganizes) the fragmented files and folders on the hard drive so that the system can run
more efficiently.
NOTE: It is not necessary to run Disk Defragmenter on solid-state drives.
56 Chapter 7 Maintaining your computer
After you start Disk Defragmenter, it works without supervision. However, depending on the size of
your hard drive and the number of fragmented files, Disk Defragmenter may take more than an hour
to complete.
HP recommends defragmenting your hard drive at least once a month. You may set Disk
Defragmenter to run on a monthly schedule, but you can defragment your computer manually at any
time.
To run Disk Defragmenter:
1. Connect the computer to AC power.
2. From the Start screen, type disk.
3. Follow the on-screen instructions.
For additional information, access the Disk Defragmenter software Help.
Using Disk Cleanup
Disk Cleanup searches the hard drive for unnecessary files that you can safely delete to free up disk
space and help the computer run more efficiently.
To run Disk Cleanup:
1. From the Start screen, type disk, and then select Uninstall apps to free up disk space.
2. Follow the on-screen instructions.
Updating programs and drivers
HP recommends that you update your programs and drivers on a regular basis to the latest versions.
Updates can resolve issues and bring new features and options to your computer. Technology is
always changing, and updating programs and drivers allows your computer to run the latest
technology available. For example, older graphics components might not work well with the most
recent gaming software. Without the latest driver, you would not be getting the most out of your
equipment.
Go to http://www.hp.com/support to download the latest versions of HP programs and drivers. In
addition, register to receive automatic update notifications when they become available.
Cleaning your computer
Use the following products to safely clean your computer:
●Dimethyl benzyl ammonium chloride 0.3 percent maximum concentration (for example,
disposable wipes, which come in a variety of brands).
●Alcohol-free glass-cleaning fluid
●Water with mild soap solution
●Dry microfiber cleaning cloth or a chamois (static-free cloth without oil)
●Static-free cloth wipes
CAUTION: Avoid strong cleaning solvents that can permanently damage your computer. If you are
not sure that a cleaning product is safe for your computer, check the product contents to make sure
that ingredients such as alcohol, acetone, ammonium chloride, methylene chloride, and hydrocarbons
are not included in the product.
Updating programs and drivers 57
Fibrous materials, such as paper towels, can scratch the computer. Over time, dirt particles and
cleaning agents can get trapped in the scratches.
Cleaning procedures
Follow the procedures in this section to safely clean your computer.
WARNING! To prevent electric shock or damage to components, do not attempt to clean your
computer while it is turned on.
●Turn off the computer.
●Disconnect AC power.
●Disconnect all powered external devices.
CAUTION: To prevent damage to internal components, do not spray cleaning agents or liquids
directly on any computer surface. Liquids dripped on the surface can permanently damage internal
components.
Cleaning the display (All-in-Ones or Notebooks)
Gently wipe the display using a soft, lint-free cloth moistened with an alcohol-free glass cleaner. Be
sure that the display is dry before closing the display.
Cleaning the sides or cover
To clean the sides or cover, use a soft microfiber cloth or chamois moistened with one of the cleaning
solutions listed previously or use an acceptable disposable wipe.
NOTE: When cleaning the cover of the computer, use a circular motion to aid in removing dirt and
debris.
Cleaning the TouchPad, keyboard, or mouse
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris
on the keyboard surface.
CAUTION: To prevent damage to internal components, do not allow liquids to drip between the
keys.
●To clean the TouchPad, keyboard, or mouse, use a soft microfiber cloth or a chamois moistened
with one of the cleaning solutions listed previously or use an acceptable disposable wipe.
●To prevent keys from sticking and to remove dust, lint, and particles from the keyboard, use a
can of compressed air with a straw extension.
Traveling with or shipping your computer
If you have to travel with or ship your computer, here are some tips to keep in mind to keep your
equipment safe.
●Prepare the computer for traveling or shipping:
◦Attach the tablet to the keyboard dock to protect the tablet screen.
◦Back up your information to an external drive.
◦Remove all discs and all external media cards, such as memory cards.
58 Chapter 7 Maintaining your computer
◦Turn off and then disconnect all external devices.
◦Shut down the computer.
●Take along a backup of your information. Keep the backup separate from the computer.
●When traveling by air, carry the computer as hand luggage; do not check it in with the rest of
your luggage.
CAUTION: Avoid exposing a drive to magnetic fields. Security devices with magnetic fields
include airport walk-through devices and security wands. Airport conveyer belts and similar
security devices that check carry-on baggage use X-rays instead of magnetism and do not
damage drives.
●If you plan to use the computer during a flight, listen for the in-flight announcement that tells you
when you are allowed to use your computer. In-flight computer use is at the discretion of the
airline.
●If you are shipping the computer or a drive, use suitable protective packaging and label the
package “FRAGILE.”
●If the computer has a wireless device installed, the use of these devices may be restricted in
some environments. Such restrictions may apply aboard aircraft, in hospitals, near explosives,
and in hazardous locations. If you are uncertain of the policy that applies to the use of a
particular device, ask for authorization to use your computer before you turn it on.
●If you are traveling internationally, follow these suggestions:
◦Check the computer-related customs regulations for each country or region on your
itinerary.
◦Check the power cord and adapter requirements for each location in which you plan to use
the computer. Voltage, frequency, and plug configurations vary.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not
attempt to power the computer with a voltage converter kit sold for appliances.
Traveling with or shipping your computer 59
8 Securing your computer and information
Computer security is essential for protecting the confidentiality, integrity, and availability of your
information. Standard security solutions provided by the Windows operating system, HP applications,
the non-Windows Setup Utility (BIOS), and other third-party software can help protect your computer
from a variety of risks, such as viruses, worms, and other types of malicious code.
IMPORTANT: Some security features listed in this chapter may not be available on your computer.
Computer risk Security feature
Unauthorized use of the computer Power-on password
Computer viruses Antivirus software
Unauthorized access to data Firewall software
Unauthorized access to Setup Utility (BIOS) settings and
other system identification information
Administrator password
Ongoing or future threats to the computer Software updates
Unauthorized access to a Windows user account User password
Unauthorized removal of the computer Security cable lock
Using passwords
A password is a group of characters that you choose to secure your computer information and to
protect online transactions. Several types of passwords can be set. For example, when you set up
your computer for the first time, you were asked to create a user password to secure your computer.
Additional passwords can be set in Windows or in the HP Setup Utility (BIOS) that is preinstalled on
your computer.
You may find it helpful to use the same password for a Setup Utility (BIOS) feature and for a Windows
security feature.
Use the following tips for creating and saving passwords:
●To reduce the risk of being locked out of the computer, record each password and store it in a
secure place away from the computer. Do not store passwords in a file on the computer.
●When creating passwords, follow requirements set by the program.
●Change your passwords at least every three months.
●An ideal password is long and has letters, punctuation, symbols, and numbers.
●Before you send your computer for service, back up your files, delete confidential files, and then
remove all password settings.
For additional information about Windows passwords, such as screen-saver passwords, from the
Start screen, type support, and then select the HP Support Assistant app.
60 Chapter 8 Securing your computer and information
Setting Windows passwords
Password Function
User password Protects access to a Windows user account.
Administrator password Protects administrator-level access to computer contents.
NOTE: This password cannot be used to access Setup
Utility (BIOS) contents.
Setting Setup Utility (BIOS) passwords
Password Function
Administrator password ●Must be entered each time you access Setup Utility
(BIOS).
●If you forget your administrator password, you cannot
access Setup Utility (BIOS).
NOTE: The administrator password can be used in place of
the power-on password.
NOTE: Your administrator password is not interchangeable
with an administrator password set in Windows, nor is it
revealed as it is set, entered, changed, or deleted.
NOTE: If you enter the power-on password at the first
password check, you must enter the administrator password
to access Setup Utility (BIOS).
Power-on password ●Must be entered each time you turn on or restart the
computer.
●If you forget your power-on password, you cannot turn
on or restart the computer.
NOTE: The administrator password can be used in place of
the power-on password.
NOTE: A power-on password is not revealed as it is set,
entered, changed, or deleted.
To set, change, or delete an administrator or power-on password in Setup Utility (BIOS):
1. To start Setup Utility (BIOS), turn on or restart the computer, quickly press esc, and then press
f10.
2. Use the arrow keys to select Security, and then follow the on-screen instructions.
Your changes take effect when the computer restarts.
TPM Embedded Security device (select models only)
TPM (Trusted Platform Module) provides additional security for your computer. You can modify the
TPM settings in Setup Utility. For information on changing Setup Utility settings, see Using Setup
Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) on page 64.
The following table describes the TPM settings in Setup Utility.
TPM Embedded Security device (select models only) 61
Settings Function
TPM Embedded Security Device Available/Hidden
●If the administrator password is set, you can select Available.
●If you select Hidden, the TPM device is not visible in the operating
system.
TPM Status Enabled/Disabled
●If the administrator password is not set, or if TPM Security Device is set
to Hidden, this entry is hidden.
●This value reflects the current physical state for the TPM. The state is
enabled or disabled by the Embedded Security State setting.
Embedded Security State No Operation/Disabled/Enabled
●If the administrator password is not set, or if TPM Security Device is set
to Hidden, this entry is hidden.
●You can enable or disable the TPM function.
●The next time the computer is restarted after the TPM function is set, this
value is set to No Operation.
TPM Set to Factory Defaults No/Yes
●If the administrator password is not set, or if the TPM Security Device is
set to Hidden, this entry is hidden.
●If the Embedded Security State is set to Enabled, select Yes to reset the
TPM to factory settings, and then press f10 to save and exit. A
confirmation message is displayed to Clear the TPM. Press f1 to reset
the TPM, or press f2 to cancel the action.
Using Internet security software
When you use your computer to access email, a network, or the Internet, you potentially expose your
computer to computer viruses, spyware, and other online threats. To help protect your computer,
Internet security software that includes antivirus and firewall features may be preinstalled on your
computer as a trial offer. To provide ongoing protection against newly discovered viruses and other
security risks, security software must be kept up to date. It is strongly recommended that you upgrade
the security software trial offer or purchase the software of your choice in order to fully protect your
computer.
Using antivirus software
Computer viruses can disable programs, utilities, or the operating system, or cause them to function
abnormally. Antivirus software can detect most viruses, destroy them, and in most cases, repair any
damage they have caused.
To provide ongoing protection against newly discovered viruses, antivirus software must be kept up to
date.
An antivirus program may be preinstalled on your computer. It is strongly recommended that you use
the antivirus program of your choice in order to fully protect your computer.
For more information about computer viruses, from the Start screen, type support, and then select
the HP Support Assistant app.
62 Chapter 8 Securing your computer and information
Using firewall software
Firewalls are designed to prevent unauthorized access to a system or network. A firewall can be
software you install on your computer and/or network, or it can be a combination of both hardware
and software.
There are two types of firewalls to consider:
●Host-based firewalls—Software that protects only the computer it is installed on.
●Network-based firewalls—Installed between your DSL or cable modem and your home network
to protect all the computers on the network.
When a firewall is installed on a system, all data sent to and from the system is monitored and
compared with a set of user-defined security criteria. Any data that does not meet those criteria is
blocked.
Installing software updates
HP, Microsoft Windows, and third-party software installed on your computer should be regularly
updated to correct security problems and improve software performance. For more information, see
Updating programs and drivers on page 57.
Installing critical security updates
CAUTION: Microsoft® sends out alerts regarding critical updates. To protect the computer from
security breaches and computer viruses, install all critical updates from Microsoft as soon as you
receive an alert.
You can choose whether updates are installed automatically. To change the settings, from the Start
screen, type c, and then select Control Panel. Select System and Security, select Windows Update,
select Change settings, and then follow the on-screen instructions.
Installing HP and third-party software updates
HP recommends that you regularly update the software and drivers that were originally installed on
your computer. To download the latest versions, go to http://www.hp.com/support. At this location,
you can also register to receive automatic update notifications when they become available.
If you have installed third-party software after you purchased your computer, regularly update the
software. Software companies provide software updates to their products to correct security problems
and improve functionality of the software.
Securing your wireless network
When you set up your wireless network, always enable security features. For more information, see
Protecting your WLAN on page 30.
Backing up your software applications and information
Regularly back up your software applications and information to protect them from being permanently
lost or damaged through a virus attack or a software or hardware failure. For more information, see
Backing up, restoring, and recovering on page 67.
Installing software updates 63
9 Using Setup Utility (BIOS) and HP PC
Hardware Diagnostics (UEFI)
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup
Utility (BIOS) includes settings for the types of devices installed, the startup sequence of the
computer, and the amount of system and extended memory.
Starting Setup Utility (BIOS)
To start Setup Utility (BIOS), turn on or restart the computer, quickly press esc, and then press f10.
NOTE: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the
computer from operating properly.
Updating the BIOS
Updated versions of the BIOS may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed files called
SoftPaqs
.
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.
Determining the BIOS version
To determine whether available BIOS updates contain later BIOS versions than those currently
installed on the computer, you need to know the version of the system BIOS currently installed.
BIOS version information (also known as
ROM date
and
System BIOS
) can be revealed by pressing
fn+esc (if you are already in Windows) or by using Setup Utility (BIOS).
1. Start Setup Utility (BIOS) (see Starting Setup Utility (BIOS) on page 64).
2. Use the arrow keys to select Main.
3. To exit Setup Utility (BIOS) without saving your changes, use the arrow keys to select Exit,
select Exit Discarding Changes, and then press enter.
4. Select Yes.
64 Chapter 9 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI)
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download
and install a BIOS update only when the computer is connected to reliable external power using the
AC adapter. Do not download or install a BIOS update while the computer is running on battery
power, docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
1. From the Start screen, type support, and then select the HP Support Assistant app.
2. Click Updates and tune-ups, and then click Check for HP updates now.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed
on your computer. If the update is more recent than your BIOS, make a note of the date,
name, or other identifier. You may need this information to locate the update later, after it
has been downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
If the update is more recent than your BIOS, make a note of the path to the location on your
hard drive where the BIOS update is downloaded. You will need to access this path when
you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before
installing any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are revealed on the screen after the
download is complete. If no instructions are revealed, follow these steps:
1. From the Start screen, type file, and then select File Explorer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains
the update.
4. Double-click the file that has an .exe extension (for example,
filename
.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the
downloaded file from your hard drive.
Using HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run
diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs
outside the operating system so that it can isolate hardware failures from issues that are caused by
the operating system or other software components.
Using HP PC Hardware Diagnostics (UEFI) 65
To start HP PC Hardware Diagnostics UEFI:
1. Turn on or restart the computer, quickly press esc, and then press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device on page 66.
b. Hard drive
c. BIOS
2. When the diagnostic tool opens, use the keyboard arrow keys to select the type of diagnostic
test you want to run, and then follow the on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: Instructions for downloading HP PC Hardware Diagnostics (UEFI) are provided in English
only.
1. Go to http://www.hp.com.
2. Point to Support, located at the top of the page, and then click Download Drivers.
3. In the text box, enter the product name, and then click Go.
– or –
Click Find Now to let HP automatically detect your product.
4. Select your computer model, and then select your operating system.
5. In the Diagnostic section, click HP UEFI Support Environment.
– or –
Click Download, and then select Run.
66 Chapter 9 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI)
10 Backing up, restoring, and recovering
This chapter provides information about the following processes:
●Creating recovery media and backups
●Restoring and recovering your system
Creating recovery media and backups
1. After you successfully set up the computer, create HP Recovery media. This step creates a
backup of the HP Recovery partition on the computer. The backup can be used to reinstall the
original operating system in cases where the hard drive is corrupted or has been replaced.
HP Recovery media you create will provide the following recovery options:
●System Recovery—Reinstalls the original operating system and the programs that were
installed at the factory.
●Minimized Image Recovery—Reinstalls the operating system and all hardware-related
drivers and software, but not other software applications.
●Factory Reset—Restores the computer to its original factory state by deleting all
information from the hard drive and re-creating the partitions. Then it reinstalls the
operating system and the software that was installed at the factory.
See Creating HP Recovery media on page 67.
2. Use the Windows tools to create system restore points and create backups of personal
information. For more information and steps, see Help and Support. From the Start screen, type
help, and then select Help and Support.
Creating HP Recovery media
HP Recovery Manager is a software program that offers a way to create recovery media after you
successfully set up the computer. HP Recovery media can be used to perform system recovery if the
hard drive becomes corrupted. System recovery reinstalls the original operating system and the
software programs installed at the factory, and then configures the settings for the programs. HP
Recovery media can also be used to customize the system or restore the factory image if you replace
the hard drive.
●Only one set of HP Recovery media can be created. Handle these recovery tools carefully, and
keep them in a safe place.
●HP Recovery Manager examines the computer and determines the required storage capacity for
the blank USB flash drive or the number of blank DVD discs that will be required.
●To create recovery discs, your computer must have an optical drive with DVD writer capability,
and you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do
not use rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE
(rewritable Blu-ray) discs; they are not compatible with HP Recovery Manager software. Or
instead you can use a high-quality blank USB flash drive.
●If your computer does not include an integrated optical drive with DVD writer capability, but you
would like to create DVD recovery media, you can use an external optical drive (purchased
Creating recovery media and backups 67
separately) to create recovery discs, or you can obtain recovery discs for your computer from
support. See the
Worldwide Telephone Numbers
booklet included with the computer. You can
also find contact information from the HP website. Go to http://www.hp.com/support, select your
country or region, and follow the on-screen instructions. If you use an external optical drive, it
must be connected directly to a USB port on the computer; the drive cannot be connected to a
USB port on an external device, such as a USB hub.
●Be sure that the computer is connected to AC power before you begin creating the recovery
media.
●The creation process can take up to an hour or more. Do not interrupt the creation process.
●If necessary, you can exit the program before you have finished creating all of the recovery
DVDs. HP Recovery Manager will finish burning the current DVD. The next time you start HP
Recovery Manager, you will be prompted to continue, and the remaining discs will be burned.
To create HP Recovery media:
IMPORTANT: For tablets, connect to the keyboard dock before beginning these steps (select
models only).
1. From the Start screen, type recovery, and then select HP Recovery Manager.
2. Select Recovery Media Creation, and then follow the on-screen instructions.
If you ever need to recover the system, see Recovering using HP Recovery Manager on page 69.
Restore and recovery
There are several options for recovering your system. Choose the method that best matches your
situation and level of expertise:
●Windows offers several options for restoring from backup, refreshing the computer, and resetting
the computer to its original state. For more information and steps, see Help and Support. From
the Start screen, type help, and then select Help and Support.
●If you need to correct a problem with a preinstalled application or driver, use the Drivers and
Applications Reinstall option of HP Recovery Manager to reinstall the individual application or
driver.
From the Start screen, type recovery, select HP Recovery Manager, select Drivers and
Applications Reinstall, and then follow the on-screen instructions.
●If you want to reset your computer using a minimized image, you can choose the HP Minimized
Image Recovery option from the HP Recovery partition (select models only) or HP Recovery
media. Minimized Image Recovery installs only drivers and hardware-enabling applications.
Other applications included in the image continue to be available for installation through the
Drivers and Applications Reinstall option in HP Recovery Manager.
For more information, see Recovering using HP Recovery Manager on page 69.
●If you want to recover the computer's original factory partitioning and content, you can choose
the System Recovery option from the HP Recovery partition (select models only) or use the HP
Recovery media that you have created. For more information, see Recovering using HP
Recovery Manager on page 69. If you have not already created recovery media, see Creating
HP Recovery media on page 67.
68 Chapter 10 Backing up, restoring, and recovering
●If you have replaced the hard drive, you can use the Factory Reset option of HP Recovery
media to restore the factory image to the replacement drive. For more information, see
Recovering using HP Recovery Manager on page 69.
●If you wish to remove the recovery partition to reclaim hard drive space, HP Recovery Manager
offers the Remove Recovery Partition option.
For more information, see Removing the HP Recovery partition (select models only)
on page 70.
Recovering using HP Recovery Manager
HP Recovery Manager software allows you to recover the computer to its original factory state by
using the HP Recovery media that you created or by using the HP Recovery partition (select models
only). If you have not already created recovery media, see Creating HP Recovery media on page 67.
Using HP Recovery media, you can choose from one of the following recovery options:
●System Recovery—Reinstalls the original operating system, and then configures the settings for
the programs that were installed at the factory.
●Minimized Image Recovery (select models only)—Reinstalls the operating system and all
hardware-related drivers and software, but not other software applications.
●Factory Reset—Restores the computer to its original factory state by deleting all information
from the hard drive and re-creating the partitions. Then it reinstalls the operating system and the
software that was installed at the factory.
The HP Recovery partition (select models only) allows System Recovery and Minimized Image
Recovery.
What you need to know
●HP Recovery Manager recovers only software that was installed at the factory. For software not
provided with this computer, you must either download the software from the manufacturer's
website or reinstall the software from the media provided by the manufacturer.
●Recovery through HP Recovery Manager should be used as a final attempt to correct computer
issues.
●HP Recovery media must be used if the computer hard drive fails. If you have not already
created recovery media, see Creating HP Recovery media on page 67.
●To use the Factory Reset option, you must use HP Recovery media. If you have not already
created recovery media, see Creating HP Recovery media on page 67.
●If the HP Recovery media does not work, you can obtain recovery media for your system from
support. See the
Worldwide Telephone Numbers
booklet included with the computer. You can
also find contact information from the HP website. Go to http://www.hp.com/support, select your
country or region, and follow the on-screen instructions.
IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal
data. Before beginning recovery, back up any personal data you wish to retain.
Using the HP Recovery partition (select models only)
The HP Recovery partition (select models only) allows you to perform a system recovery or
minimized image recovery without the need for recovery discs or a recovery USB flash drive. This
type of recovery can only be used if the hard drive is still working.
Restore and recovery 69
To start HP Recovery Manager from the HP Recovery partition:
IMPORTANT: For tablets, connect to the keyboard dock before beginning these steps (select
models only).
1. Press f11 while the computer boots.
– or –
Press and hold f11 as you press the power button.
2. Select Troubleshoot from the boot options menu.
3. Select Recovery Manager, and then follow the on-screen instructions.
Using HP Recovery media to recover
You can use HP Recovery media to recover the original system. This method can be used if your
system does not have an HP Recovery partition or if the hard drive is not working properly.
1. If possible, back up all personal files.
2. Insert the HP Recovery media that you created, and then restart the computer.
NOTE: If the computer does not automatically restart in HP Recovery Manager, change the
computer boot order. See Changing the computer boot order on page 70.
3. Follow the on-screen instructions.
Changing the computer boot order
If computer does not restart in HP Recovery Manager, you can change the computer boot order,
which is the order of devices listed in BIOS where the computer looks for startup information. You can
change the selection for an optical drive or a USB flash drive.
To change the boot order:
1. Insert the HP Recovery media you created.
2. Restart the computer, quickly press esc, and then press f9 for boot options.
3. Select the optical drive or USB flash drive you want to boot from.
4. Follow the on-screen instructions.
Removing the HP Recovery partition (select models only)
HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive
space.
IMPORTANT: After you remove the HP Recovery partition, you can no longer use the Windows
Refresh option or the Windows option to remove everything and reinstall Windows. In addition, you
will not be able to perform System Recovery or Minimized Image Recovery from the HP Recovery
partition. So before you remove the Recovery partition, create HP Recovery media; see Creating HP
Recovery media on page 67.
Follow these steps to remove the HP Recovery partition:
1. From the Start screen, type recovery, and then select HP Recovery Manager.
2. Select Remove Recovery Partition, and then follow the on-screen instructions.
70 Chapter 10 Backing up, restoring, and recovering
11 Specifications
Input power
The power information in this section may be helpful if you plan to travel internationally with the
computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. The
AC power source must be rated at 100–240 V, 50–60 Hz. Although the computer can be powered
from a standalone DC power source, it should be powered only with an AC adapter or a DC power
source supplied and approved by HP for use with this computer.
The computer can operate on DC power within the following specifications. Operating voltage and
current varies by platform.
Input power Rating
Operating voltage and current 19.5 V dc @ 2.31 A – 45 W
19.5 V dc @ 3.33 A – 65W
DC plug of external HP power supply
NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not
exceeding 240 V rms.
NOTE: The computer operating voltage and current can be found on the system regulatory label.
Operating environment
Factor Metric U.S.
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90% 10% to 90%
Nonoperating 5% to 95% 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
Input power 71
12 Electrostatic Discharge
Electrostatic discharge is the release of static electricity when two objects come into contact—for
example, the shock you receive when you walk across the carpet and touch a metal door knob.
A discharge of static electricity from fingers or other electrostatic conductors may damage electronic
components. To prevent damage to the computer, damage to a drive, or loss of information, observe
these precautions:
●If removal or installation instructions direct you to unplug the computer, first be sure that it is
properly grounded, and then remove the cover.
●Keep components in their electrostatic-safe containers until you are ready to install them.
●Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
●Use nonmagnetic tools.
●Before handling components, discharge static electricity by touching an unpainted metal surface
of the component.
●If you remove a component, place it in an electrostatic-safe container.
72 Chapter 12 Electrostatic Discharge
Index
Symbols/Numerics
2-finger pinch zoom TouchPad
gesture 24, 43
A
AC adapter light, identifying 19
AC adapter, testing 53
action keys
decrease screen brightness
47
Help and Support 47
identifying 15
increase screen brightness 47
next track or section 48
play, pause, resume 48
previous track or section 48
switch screen image 47
volume down 48
volume mute 48
volume up 48
wireless 48
airport security devices 56
alignment post connectors,
identifying 6
alignment posts, identifying 11
antivirus software, using 62
audio functions, checking 37
audio-in (microphone) jacks 6,
19, 33, 35
audio-out (headphone) jacks 6,
19, 33, 35
autorotate lock 21
B
backing up software and
information 63
backups 67
battery
discharging 52
factory-sealed 51
low battery levels 52
battery information, finding 51
battery power 51
Beats Audio 36
Beats Audio Control Panel 37
Beats Audio hot key 37
BIOS
determining version 64
downloading an update 65
updating 64
Bluetooth device 28, 31
boot order
changing HP Recovery
Manager 70
buttons
left TouchPad 12
power 7, 17
right TouchPad 12
Windows 10
C
caps lock light, identifying 13
caring for your computer 57
checking audio functions 37
cleaning your computer 57
components
display 9
front 17
rear-side 19
right-side 18
top 11
configuring audio for HDMI 40
connecting to a WLAN 31
corporate WLAN connection 31
critical battery level 52
critical security updates,
installing 63
D
deleted files
restoring 68
Disk Cleanup software 57
Disk Defragmenter software 56
docking connector, identifying 11
docking port/power connector,
identifying 6
E
edge swipe gestures 25
edge—swipe gestures
top-edge swipe 26
electrostatic discharge 72
esc key, identifying 15
external AC power, using 53
F
factory-sealed battery 51
firewall software 63
fn key, identifying 15, 48
Fun things to do 1
H
HDMI port
connecting 39
identifying 19, 35
HDMI, configuring audio 40
headphones, connecting 36
Hibernation
exiting 50
initiated during critical battery
level 52
initiating 50
high-definition devices,
connecting 39
hot keys
description 48
using 48
HP and third-party software
updates, installing 63
HP PC Hardware Diagnostics
(UEFI)
downloading 66
using 65
HP Recovery Manager
correcting boot problems 70
starting 70
HP Recovery media
creating 67
recovery 70
HP Recovery partition
recovery 69
removing 70
Index 73
I
input power 71
installing
critical security updates 63
Internet connection setup 30
Internet security software, using
62
J
jacks
audio-in (microphone) 6, 19,
33, 35
audio-out (headphone) 6, 19,
33, 35
K
keyboard hot keys, identifying 48
keys
action 15
esc 15
fn 15
Windows key 15
L
labels, serial number 20
left-edge swipe 25
lights
AC adapter 19
caps lock 13
mute 13
webcam 9, 35
low battery level 52
M
maintenance
Disk Cleanup 57
Disk Defragmenter 56
memory card reader, identifying
6, 18, 35
microphone, connecting 36
microphones, identifying 9, 35
minimized image
creating 69
minimized image recovery 69
mouse, external
setting preferences 41
mute light, identifying 13
O
operating environment 71
original system recovery 69
P
passwords
Setup Utility (BIOS) 61
Windows 61
ports
docking 6
HDMI 19, 35, 39
USB 3.0 19, 35
power
battery 51
power button, identifying 7, 17
power connector, identifying 6,
19
product name and number,
computer 20
public WLAN connection 31
R
recovery
discs 67, 70
HP Recovery Manager 69
media 70
options 68
starting 70
supported discs 67
system 69
USB flash drive 70
using HP Recovery media 68
recovery media
creating 67
creating using HP Recovery
Manager 68
recovery partition
removing 70
regulatory information 20
releasing the tablet 20
restore
Windows File History 68
right-edge swipe 25
rotating TouchPad gesture 44
S
scrolling TouchPad gesture 43
security, wireless 30
serial number 20
serial number, computer 20
setting password protection on
wakeup 50
setup of WLAN 30
Setup Utility (BIOS) passwords
61
shipping the computer 58
shutdown 54
SIM slot, identifying 6
Sleep
exiting 50
initiating 50
slots
memory card reader 6, 18, 35
SIM 6
software
Disk Cleanup 57
Disk Defragmenter 56
software updates, installing 63
speakers
connecting 36
identifying 9, 35
supported discs
recovery 67
system recovery 69
system restore point
creating 67
T
tablet release latch, identifying
11
tablet screen brightness 21
tablet settings, changing 20
tablet view, changing 20
testing an AC adapter 53
Touch screen
using 21
Touch screen gestures 25, 26
edge–swipe gestures 25
one-finger slide 21
rotating 24
scrolling 23
tapping 23
TouchPad
buttons 12
identifying 12
TouchPad gestures
2-finger pinch zoom 24, 43
rotating 44
scrolling 43
TouchPad zone, identifying 12
TPM Embedded Security 61
traveling with the computer 58
turning off the computer 54
74 Index
U
unresponsive system 54
USB 3.0 port, identifying 19
USB 3.0 ports, identifying 35
using external AC power 53
using passwords 60
V
video 38
volume button, identifying 7, 33
W
warranty period 20
webcam 36
webcam light, identifying 9, 35
webcam, identifying 7, 9, 34, 35
Windows
File History 68
restoring files 68
system restore point 67
Windows button, identifying 10
Windows key, identifying 15
Windows passwords 61
Wireless Assistant software 28
wireless button 28
wireless certification information
20
wireless controls
button 28
operating system 28
Wireless Assistant software
28
wireless light 28
wireless network (WLAN)
connecting 31
corporate WLAN connection
31
equipment needed 30
functional range 31
public WLAN connection 31
security 30
using 29
wireless network, securing 63
WLAN antennas, identifying 9
WLAN device 29
Index 75
