54Mbps Wireless LAN Card
User’s Manual
2003 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any
purpose, without the express written permission of the seller.
Disclaimer
Information in this document is subject to change without notice. The material contained herein is supplied without representation or warranty of any
kind. The seller therefore assumes no responsibility and shall have no liability of any kind arising from the supply or use of this document or the
material contained herein.
Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks mentioned in this document are the property of their
respective owners.
Rev: SAVD-UM-WLCLH3010-V40
Mini-PCI
MAC: 00:90:96:3D:B3:EC
Driver: 3.30.15.0
Version: 2.1.6.4
August, 2003
About This Manual
This manual was written for the following types of wireless adapter:
• 32-bit CardBus Adapter
• PCI Adapter
• Mini-PCI Adapter
For brevity, throughout this manual Wireless LAN Card is used to indicate all the types. Also, the following terms/abbreviations are used
interchangeably:
• Access Point – AP
• Peer-to-Peer – Ad Hoc
• Wireless LAN – WLAN
This User’s Manual contains information on how to install and configure your Wireless LAN Card. From now on, we will guide you through the
correct configuration steps to get your device up and run.
I
Contents
Chapter 1 Introduction............................................................................................................................................... 1
Wireless LAN Basics ................................................................................................................................................... 2
Local Area Network (LAN)........................................................................................................................................................2
Ad Hoc Mode.............................................................................................................................................................................2
Infrastructure Mode ..................................................................................................................................................................3
Roaming ....................................................................................................................................................................................4
Chapter 2 Installing the Wireless LAN Card............................................................................................................ 5
System Requirements................................................................................................................................................. 6
Installing Wireless LAN Driver and Software .............................................................................................................. 7
Basic Installation Procedures ...................................................................................................................................................7
General Guidelines for OS-Specific Situations .......................................................................................................................10
Chapter 3 Using Wireless LAN Utility .................................................................................................................... 13
Accessing Vendor’s Wireless LAN Utility.................................................................................................................. 14

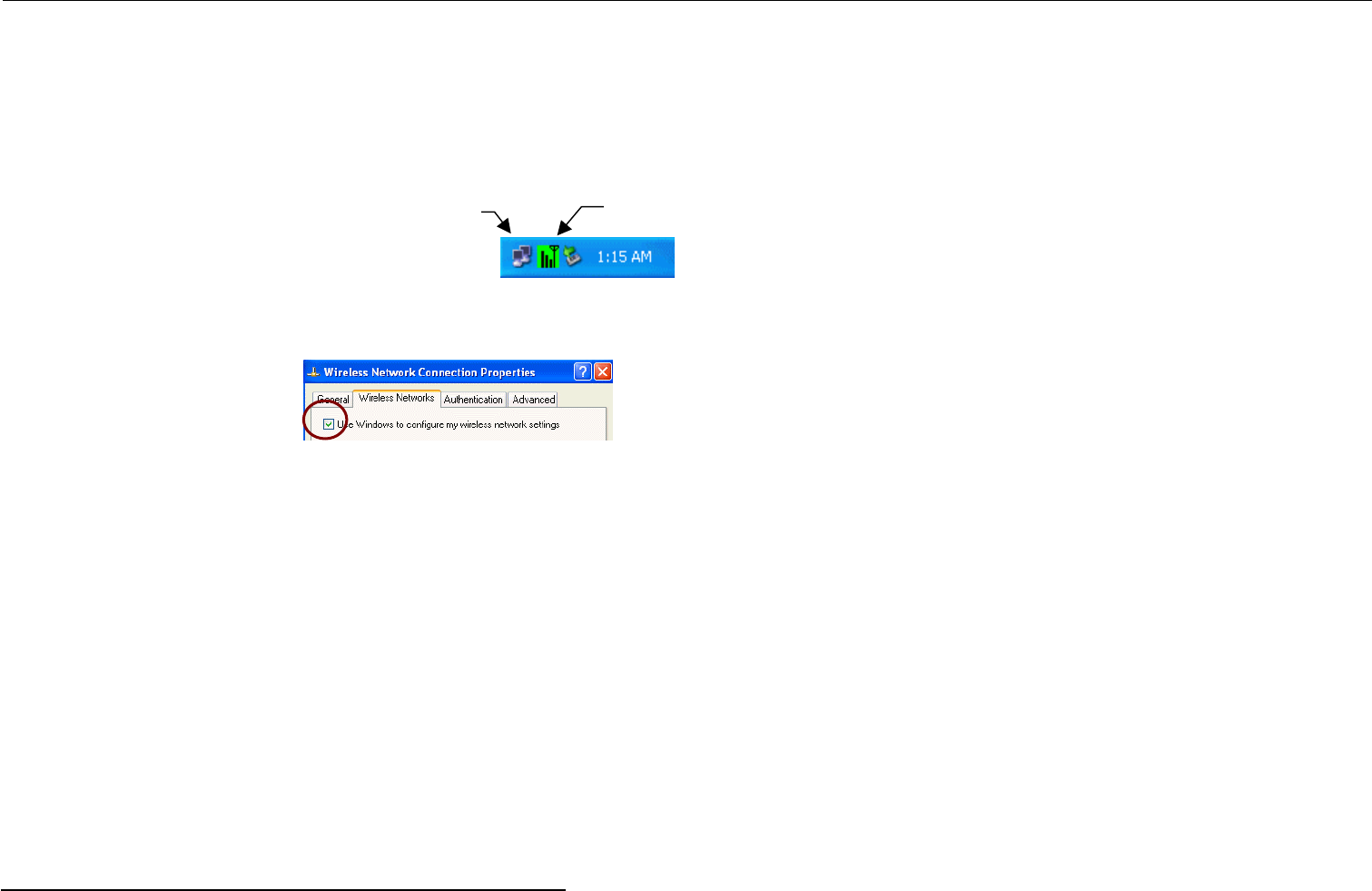

Notice When Assessing Wireless LAN Utility under Windows XP ..........................................................................................14
Link Status Tab ......................................................................................................................................................... 17
Configuration Tab...................................................................................................................................................... 19
Encryption Tab .......................................................................................................................................................... 22
Site Monitor Tab ........................................................................................................................................................ 23

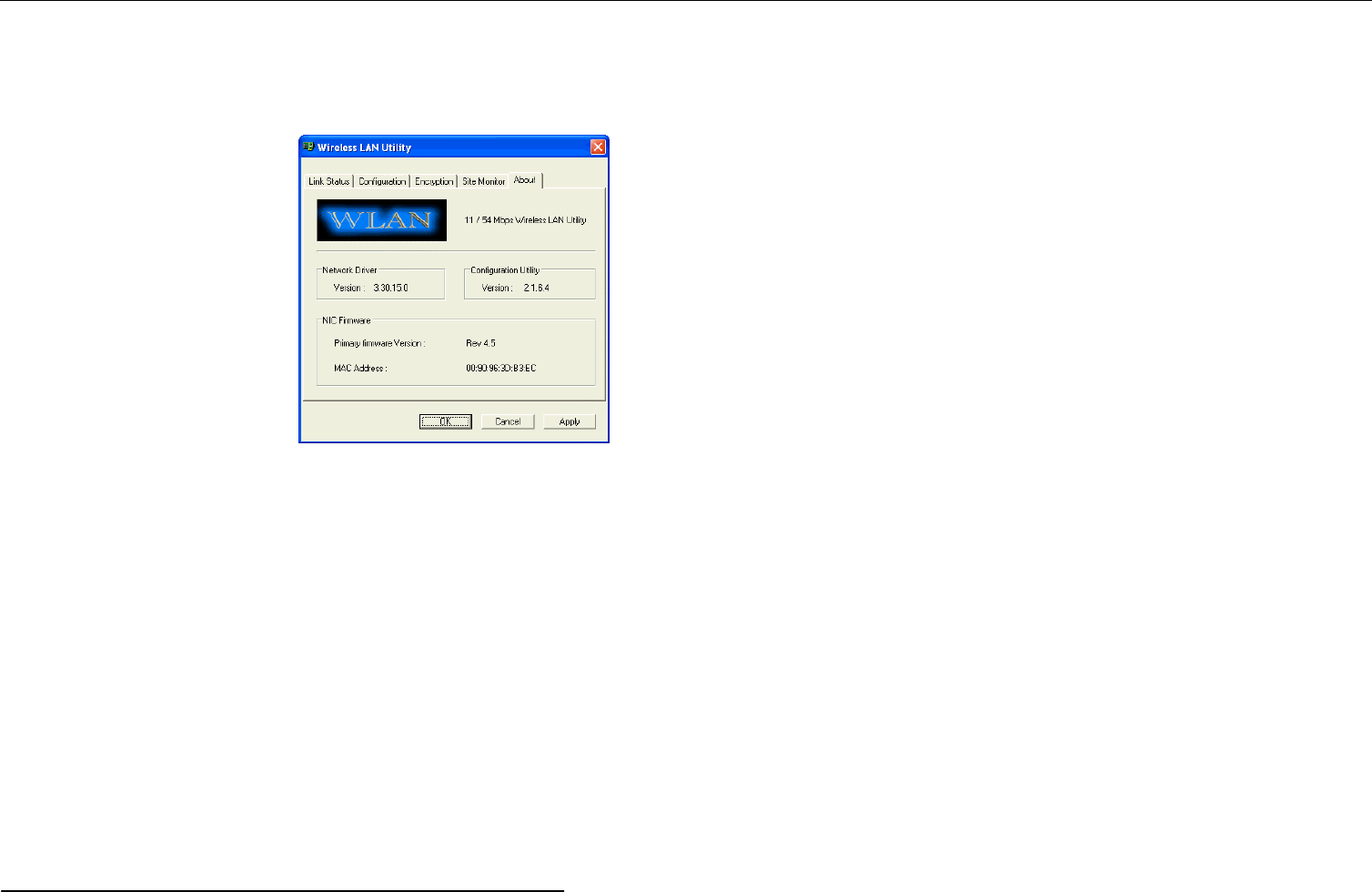

About Tab.................................................................................................................................................................. 26

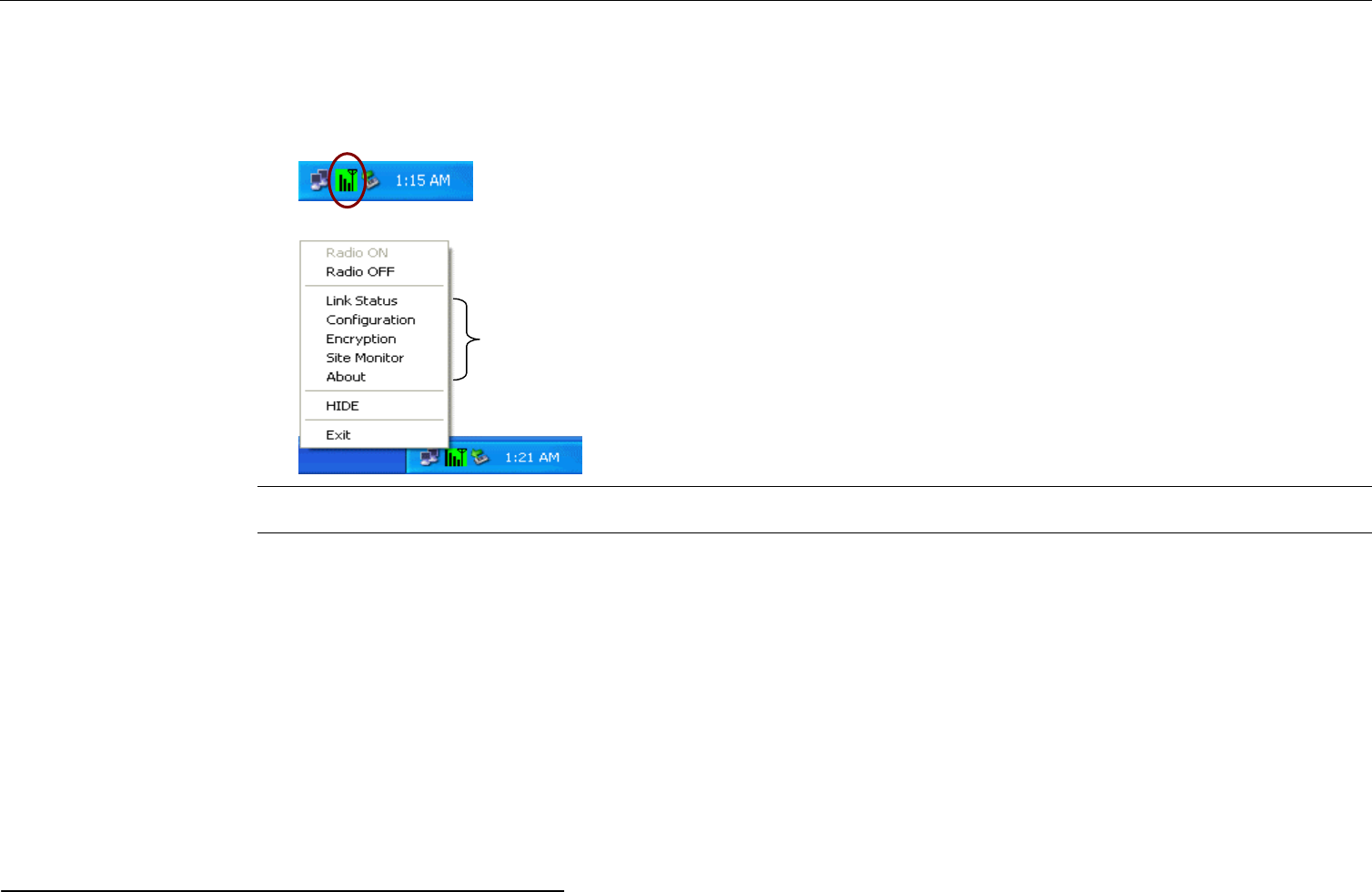

Chapter 4 Using Wireless Tray Icon Functions .................................................................................................... 27
Viewing Signal Strength and Speed.......................................................................................................................... 27

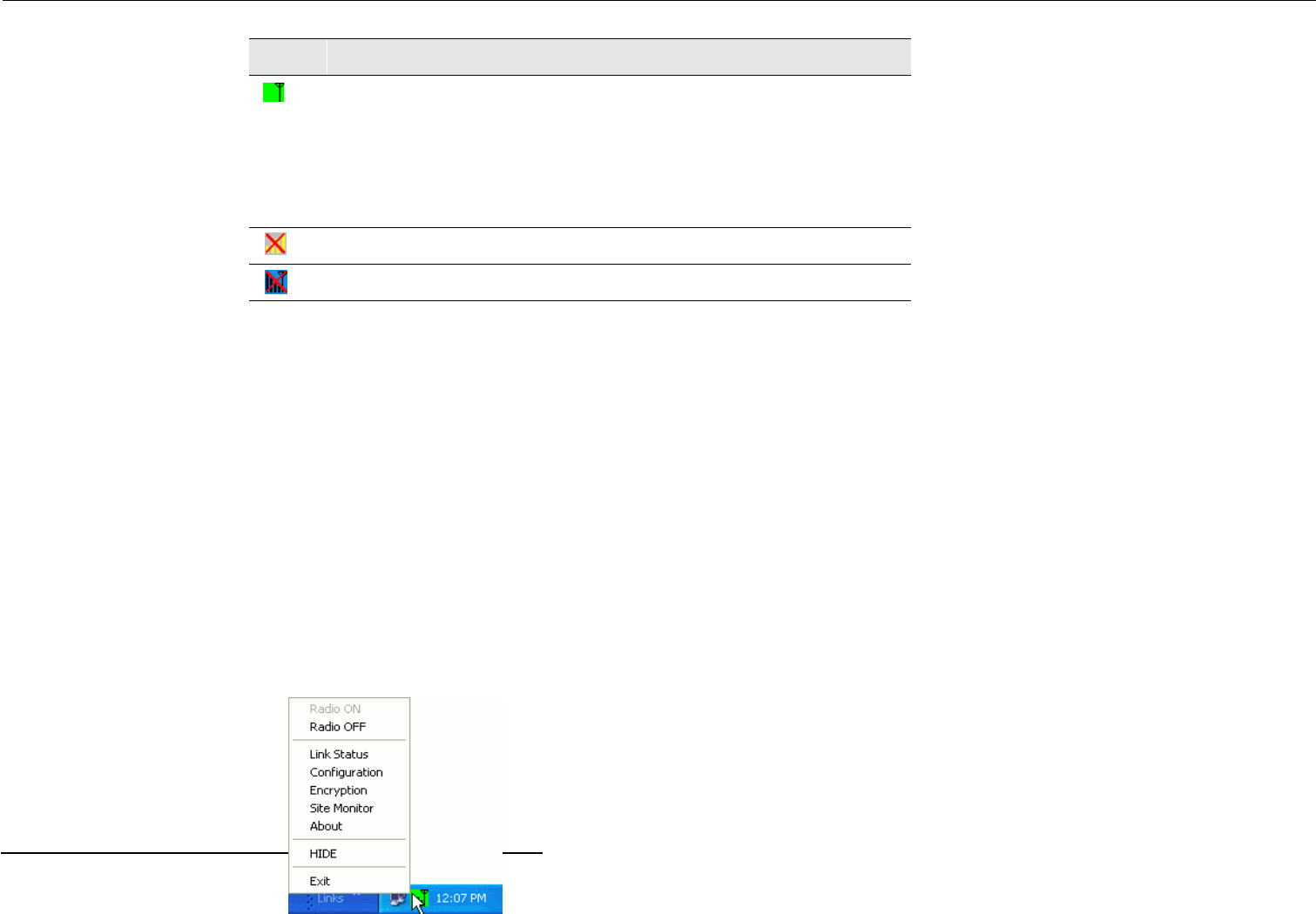

Tray Icon Graphic Indication ..................................................................................................................................... 28
Other Functions......................................................................................................................................................... 29
Chapter 5 Windows XP Wireless Zero Configuration Utility ............................................................................... 31
Connecting to an Access Point or Wireless LAN Card ............................................................................................. 31
Viewing Wireless Connection Status ........................................................................................................................ 32
Configuring Your Wireless Properties....................................................................................................................... 33
Chapter 6 Uninstalling the Wireless LAN Card ..................................................................................................... 37

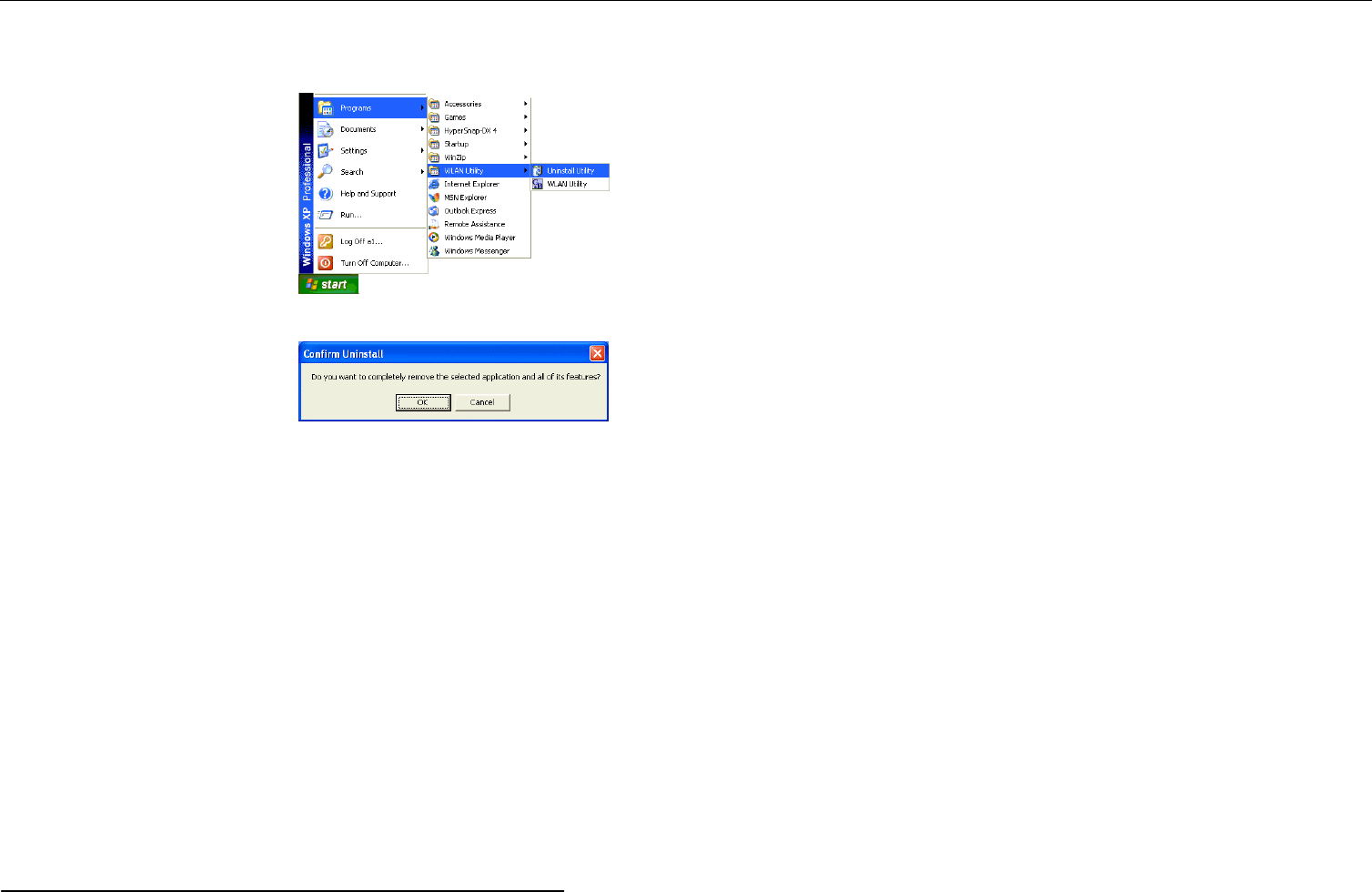

Uninstalling the Wireless LAN Card Software........................................................................................................... 37
Removing the Wireless LAN Card (For CardBus Adapter)....................................................................................... 39
54Mbps Wireless LAN Card User's Manual
II
Chapter 7 Troubleshooting ..................................................................................................................................... 41
Appendix A Limited Warranty................................................................................................................................. 45
Wireless LAN Hardware............................................................................................................................................ 45
Wireless LAN Software ............................................................................................................................................. 46
Appendix B Regulatory Compliance...................................................................................................................... 47
FCC Part 15 Declaration of Conformity (DoC).......................................................................................................... 47
FCC Rules and Regulations - Part 15....................................................................................................................... 48
FCC Radiation Exposure Statement ......................................................................................................................... 48
Appendix C Setting Up TCP/IP................................................................................................................................ 49
For Windows 98/ME.................................................................................................................................................. 49
For Windows 2000/XP .............................................................................................................................................. 51
Appendix D Specifications ........................................................................................................................................ 53
Glossary....................................................................................................................................................................... 55
Contents
III
List of Figures
Figure 1-1 Ad Hoc Mode .......................................................................................................................................3
Figure 1-2 Infrastructure Mode..............................................................................................................................3
Figure 1-3 Roaming Across Multiple Access Points .............................................................................................4

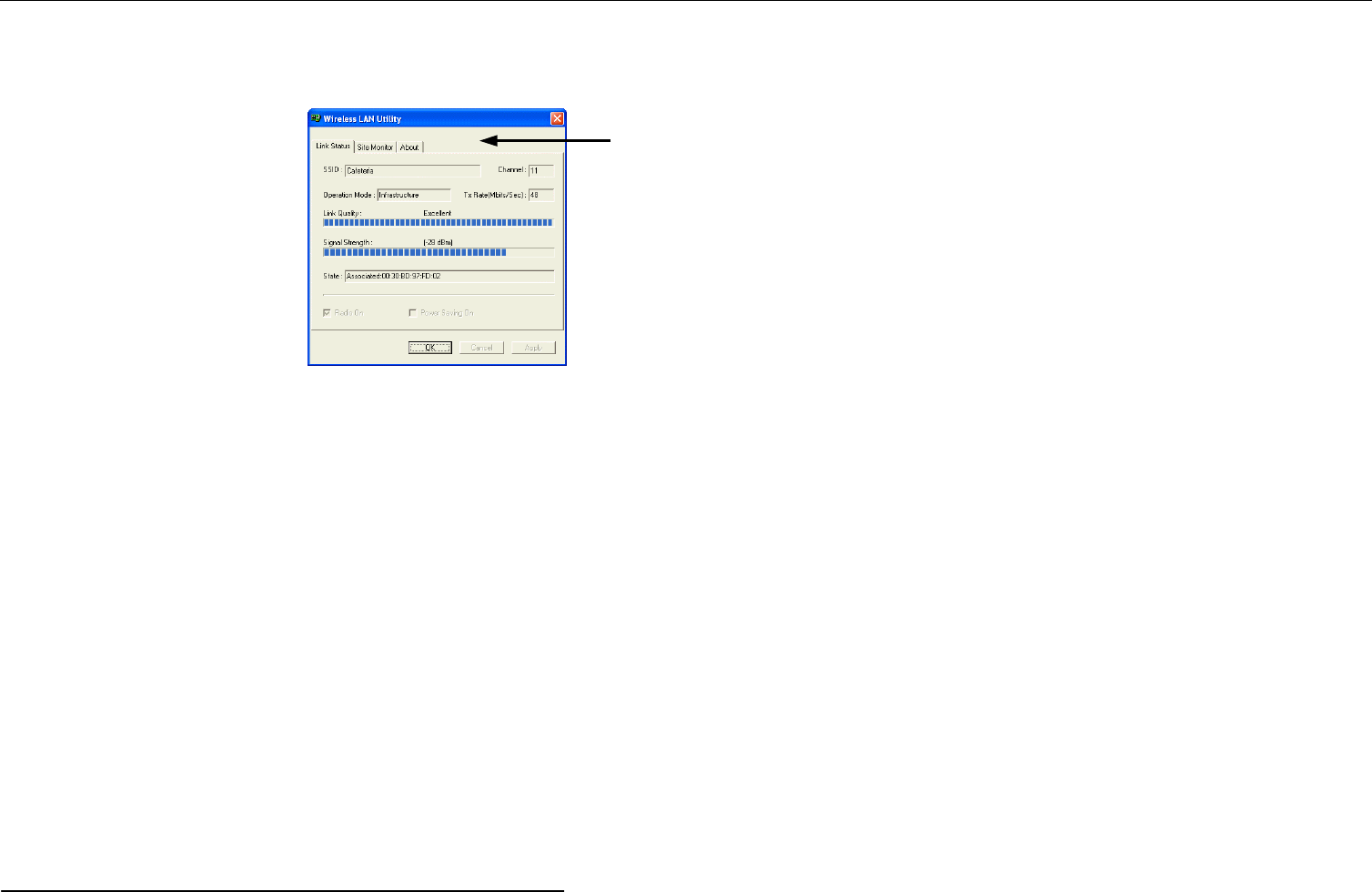

Figure 3-1 Link Status Tab ..................................................................................................................................18

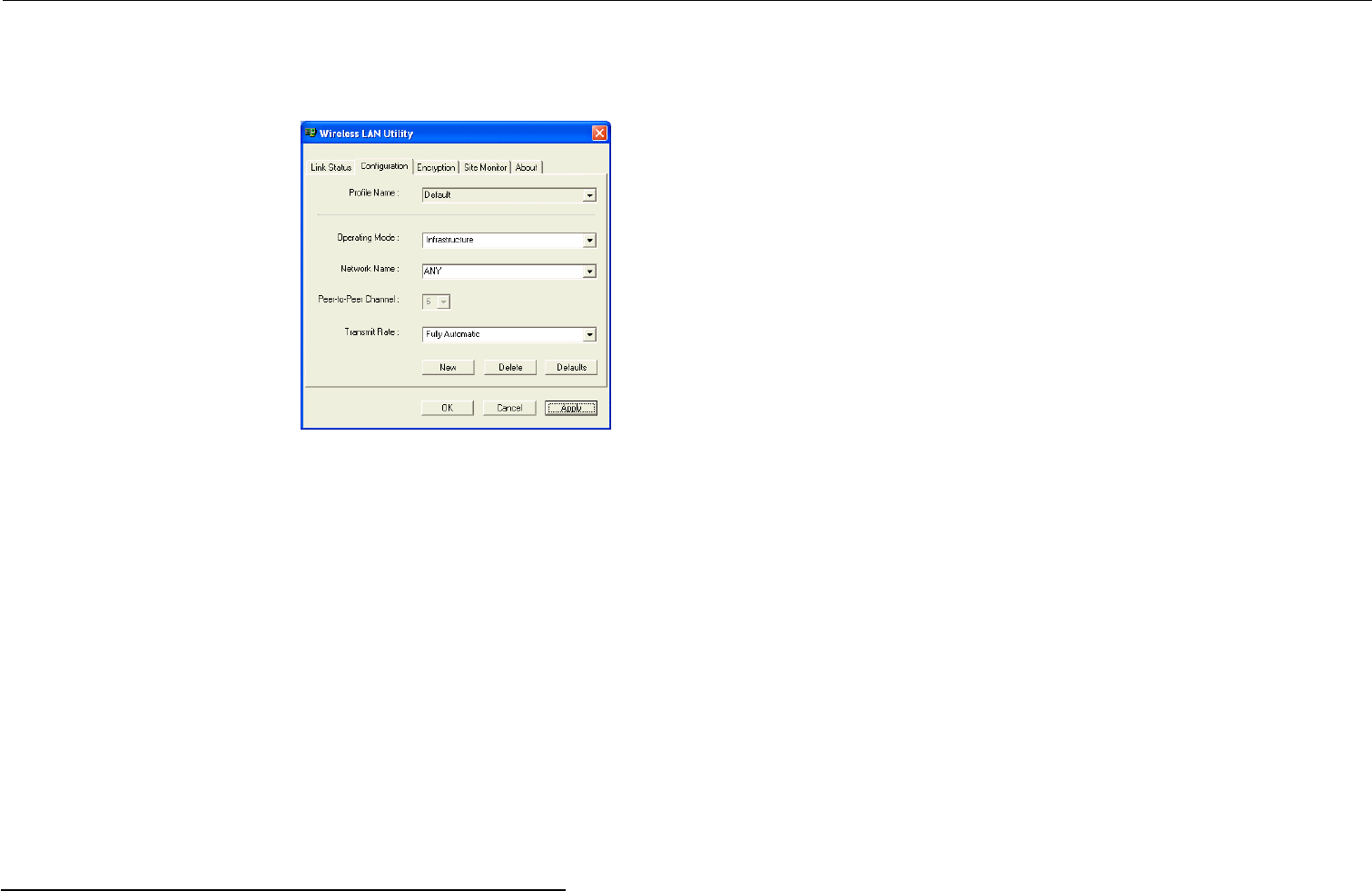

Figure 3-2 Configuration Tab...............................................................................................................................21

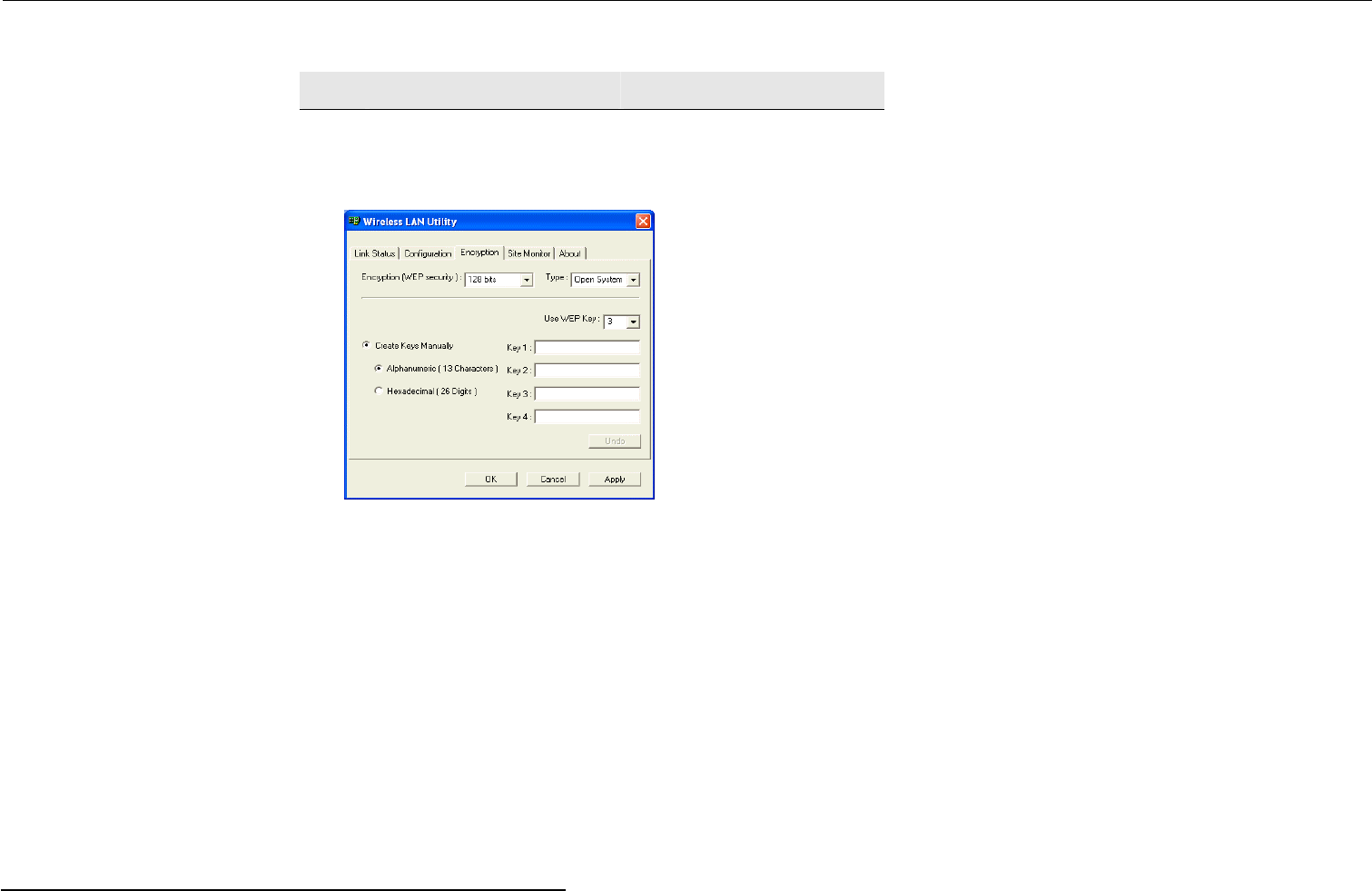

Figure 3-3 Encryption Tab ...................................................................................................................................23
Figure 3-5 Site Monitor Tab.................................................................................................................................25
Figure 3-6 About Tab...........................................................................................................................................26

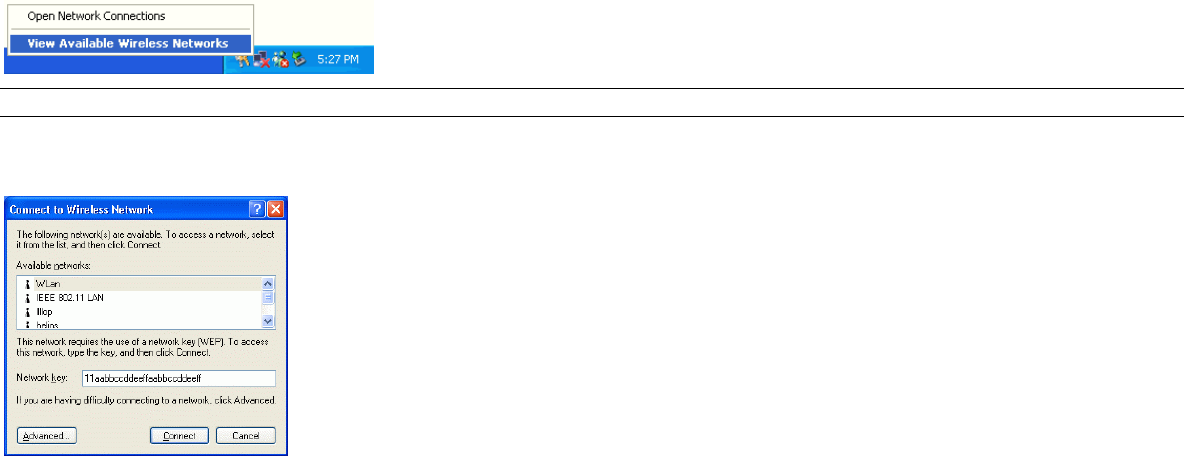

Figure 5-1 Windows XP Configuration Utility-Connect to Wireless Network ......................................................31

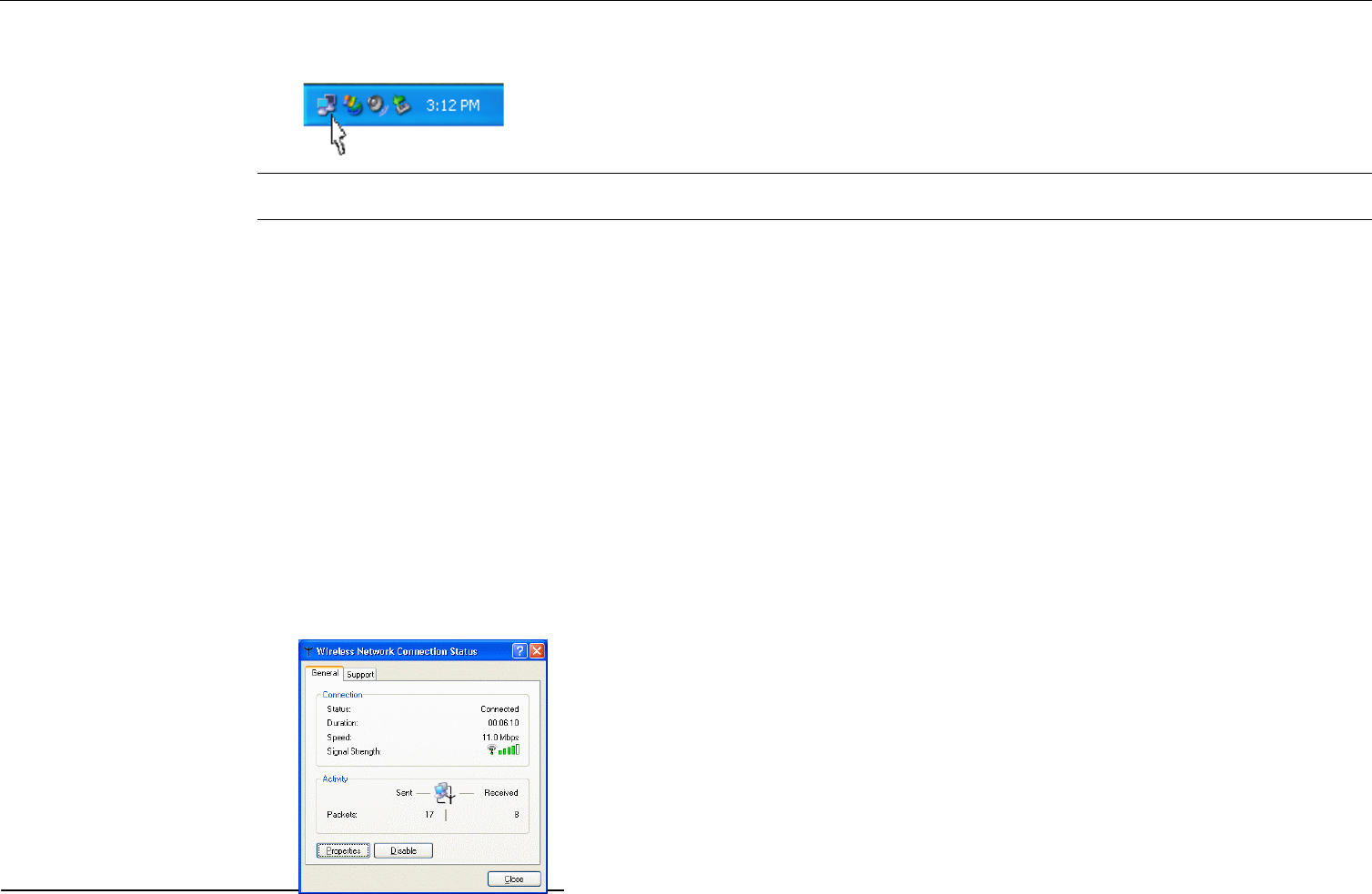

Figure 5-2 Windows XP- Connection Status .......................................................................................................32

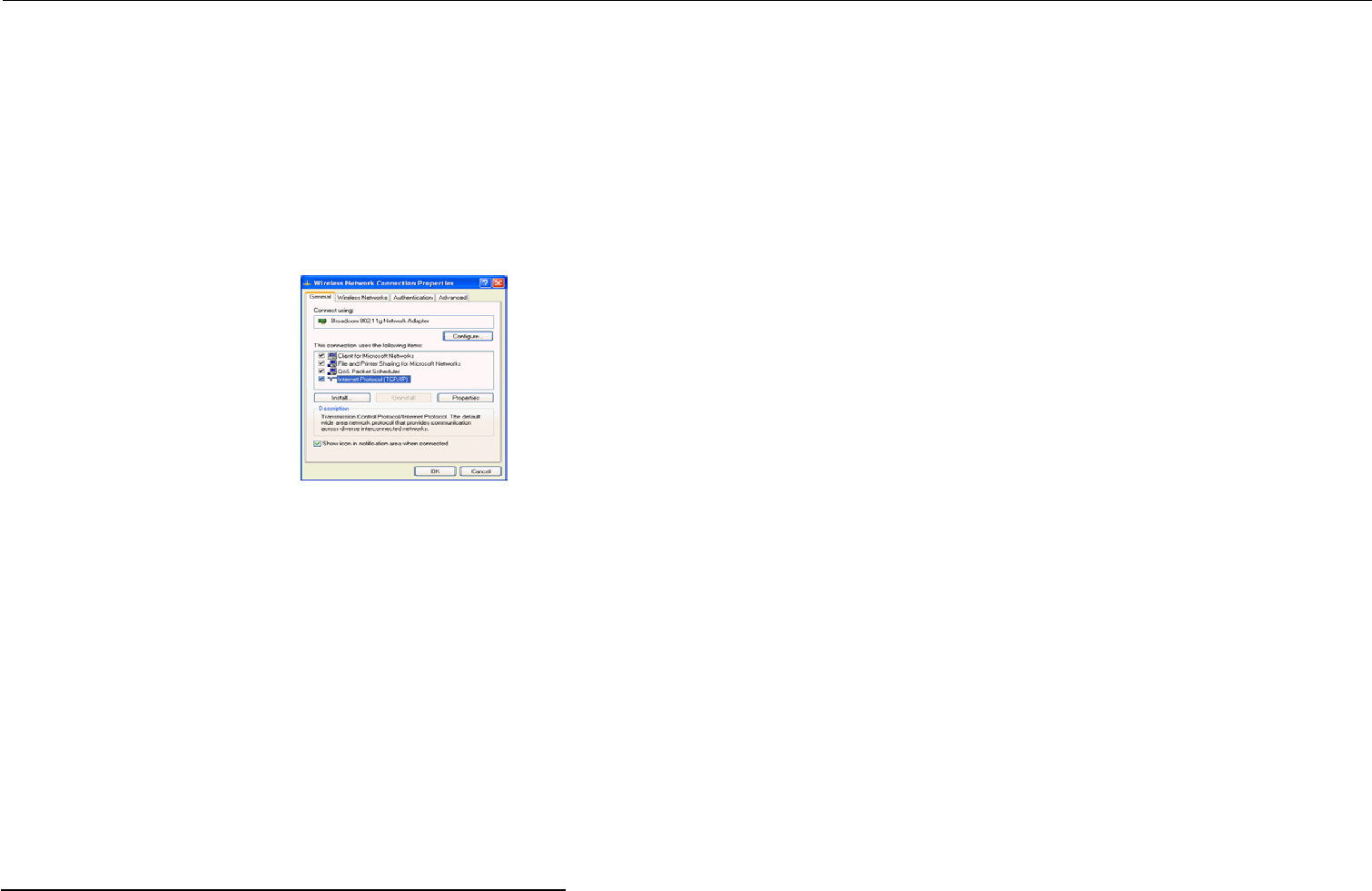

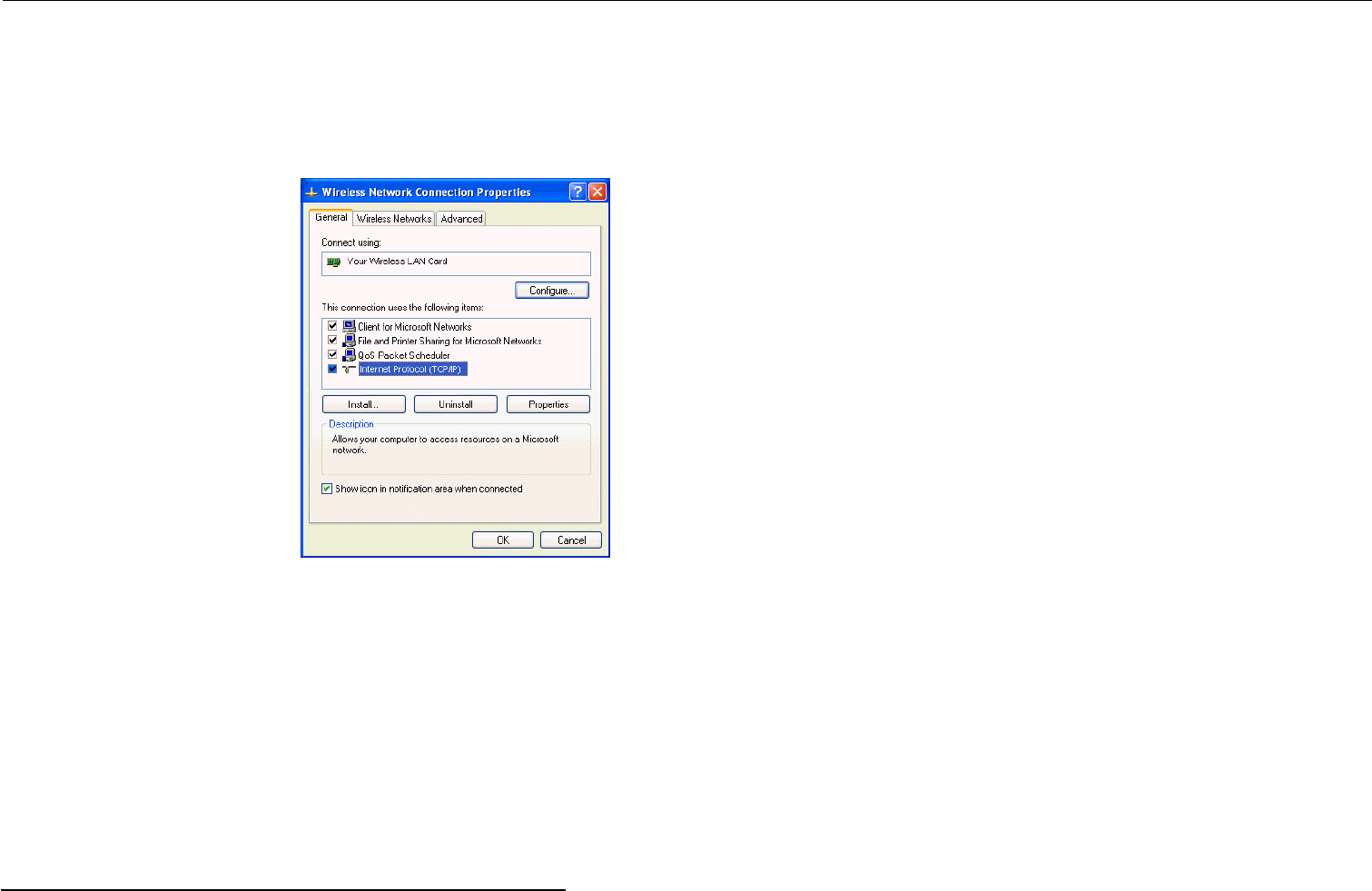

Figure 5-3 Windows XP Connection Properties -General...................................................................................33
Figure 5-4 Windows XP Connection Properties-Wireless Networks...................................................................34
Figure 5-5 Windows XP-Add Preferred Networks...............................................................................................34
Figure 5-6 Windows XP Configuration Utility-Defining Network Mode ...............................................................35

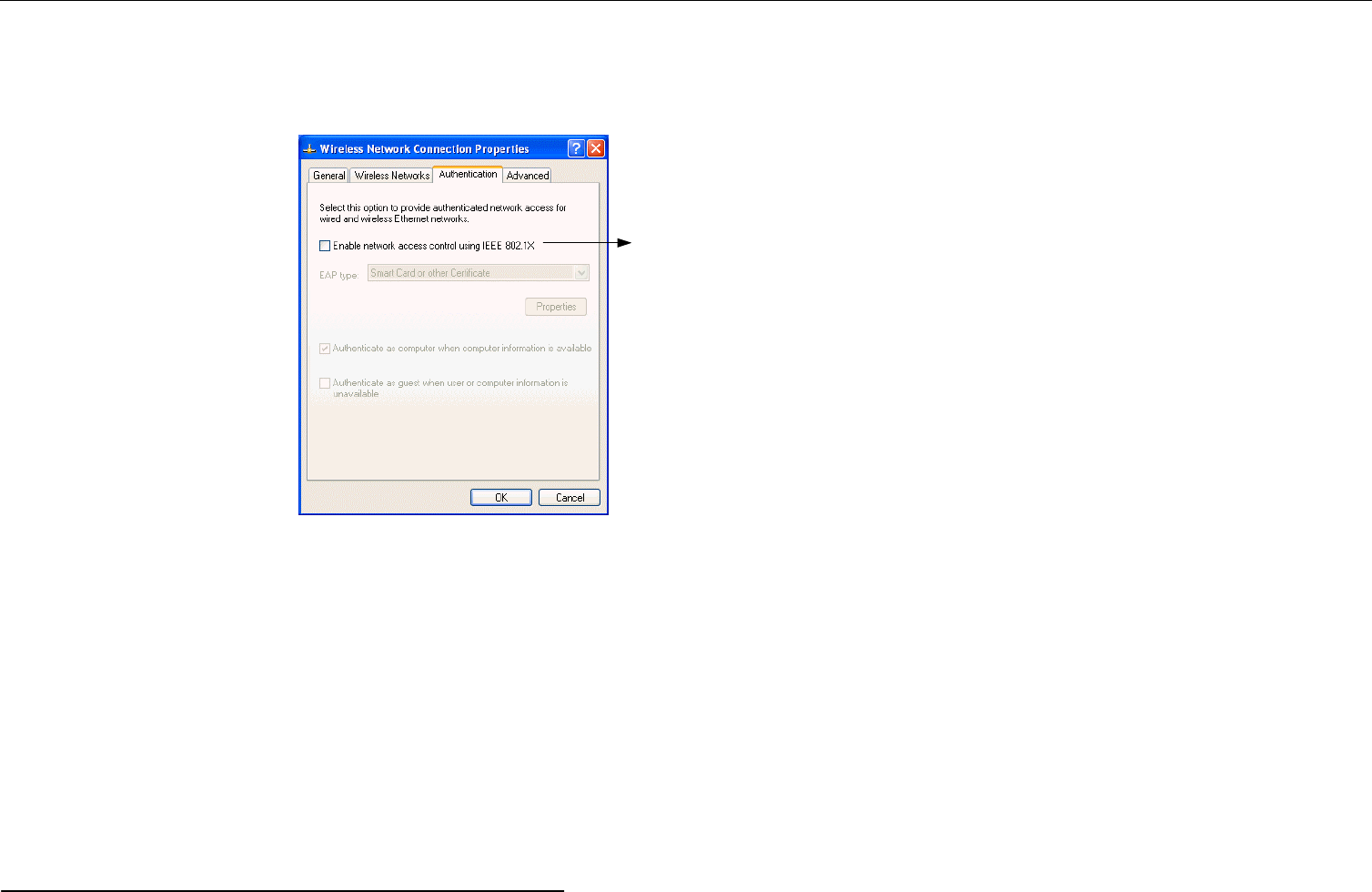

Figure 5-7 Windows XP Connection Properties – Authentication.......................................................................36
1
Chapter 1 Introduction
This Wireless LAN Card is an IEEE 802.11g wireless LAN adapter. 802.11g is the latest in the series of 802.11 specifications for wireless local area
networks (WLANs) and provides data transfer of up to 54 Mbps. Since 802.11g standard operates on the same frequency of 2.4 GHz as 802.11b, so it is
backwards compatible with existing Wi-Fi devices!
It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires.
Operating in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the Wireless LAN Card transfers data at speeds up to 54Mbps. Both
Ad hoc and Infrastructure mode are supported. For network security concern, 64/128-bits Wired Equivalent Privacy (WEP) encryption is used. In
addition, its standard compliance ensures that it can communicate with any 802.11b/g networks.
54Mbps Wireless LAN Card User's Manual
2
Wireless LAN Basics
This section contains some Wireless LAN basics to help you better understand how the product work together to create a wireless network.
Local Area Network (LAN)
Simply put, a LAN is a network that exists in a relatively limited area. A network is two or more computers connected together sharing files and
peripheral devices such as printers.
The Wireless LAN Card allows you to interact with other computers without having to run cables normally associated with networks. This lets you
move your computer around while staying connected to your network.
There are two ways to use the Wireless LAN Card. One way is to connect directly to one or more Wireless LAN Card equipped computers, forming an
Ad hoc wireless network. The second way is to connect to an Access Point that gives you access to an existing wired LAN, forming an Infrastructure
wireless network.
Ad Hoc Mode
The Ad hoc group offers peer-to-peer connections between workstations, allowing communication between computers within range that have a
Wireless LAN Card installed. A wireless Ad hoc network can also access a wired LAN’s TCP/IP service (such as e-mail and the Internet) by using a
TCP/IP software router on an Ethernet equipped PowerBook or notebook.
Note: Using the 802.11g card in Ad hoc mode, your target peer can be 802.11b or 802.11g compatible wireless station. But you cannot connect to an
802.11a wireless station since 802.11a devices are not compatible with 802.11b/g devices.
Chapter 1 Introduction
3

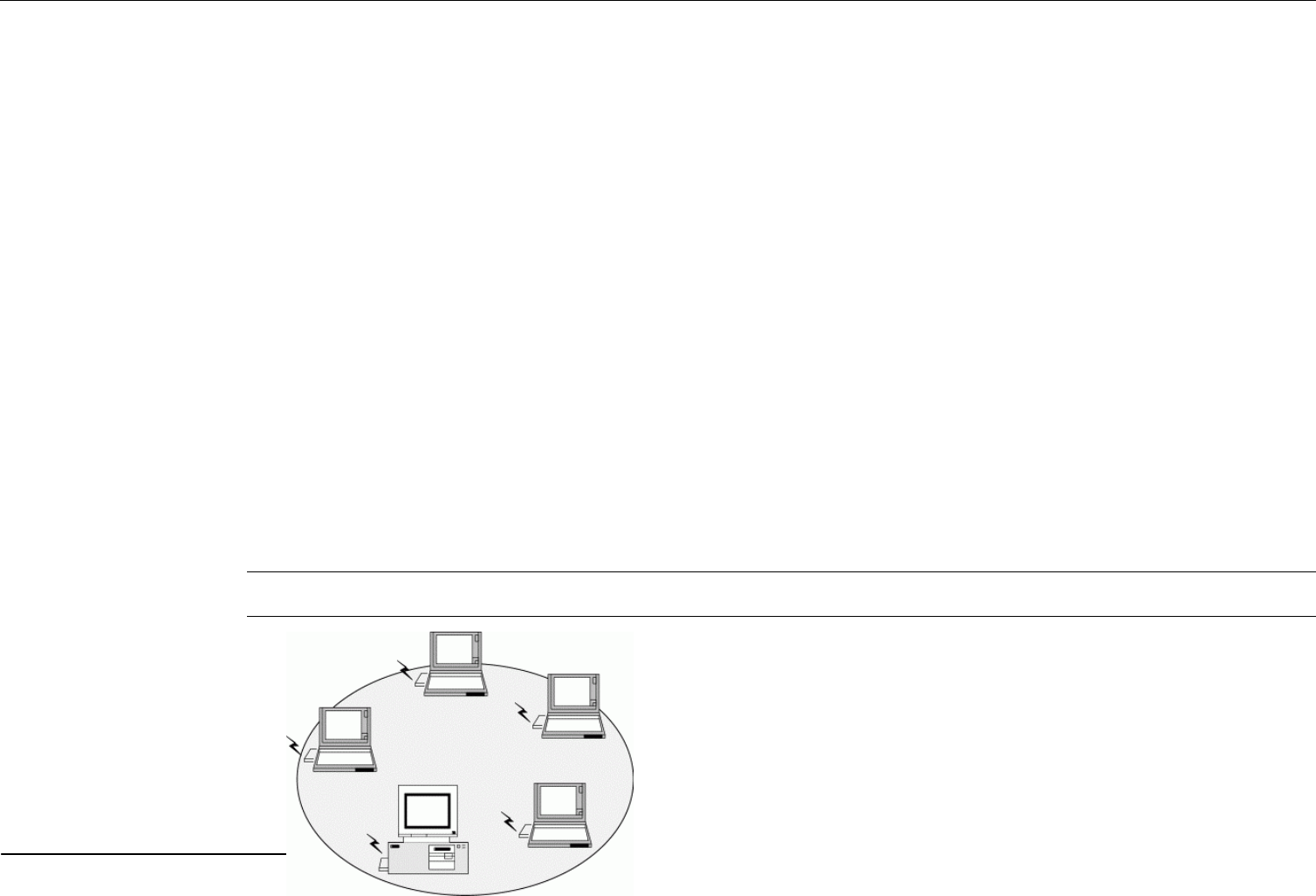

Figure 1-1 Ad Hoc Mode
Infrastructure Mode
The Infrastructure network uses an AP or several APs as a gateway, linking the wireless network to a wired LAN. As a result, portable workstations or
desktops on your wireless network have access to all of the features of your wired LAN including e-mail, Internet access, network printers and file
server.
Note: Using 802.11g card, you can connect to 802.11b or 802.11g compatible Access Point. But you cannot connect to an 802.11a Access Point since
802.11a devices are not compatible with 802.11b/g devices.

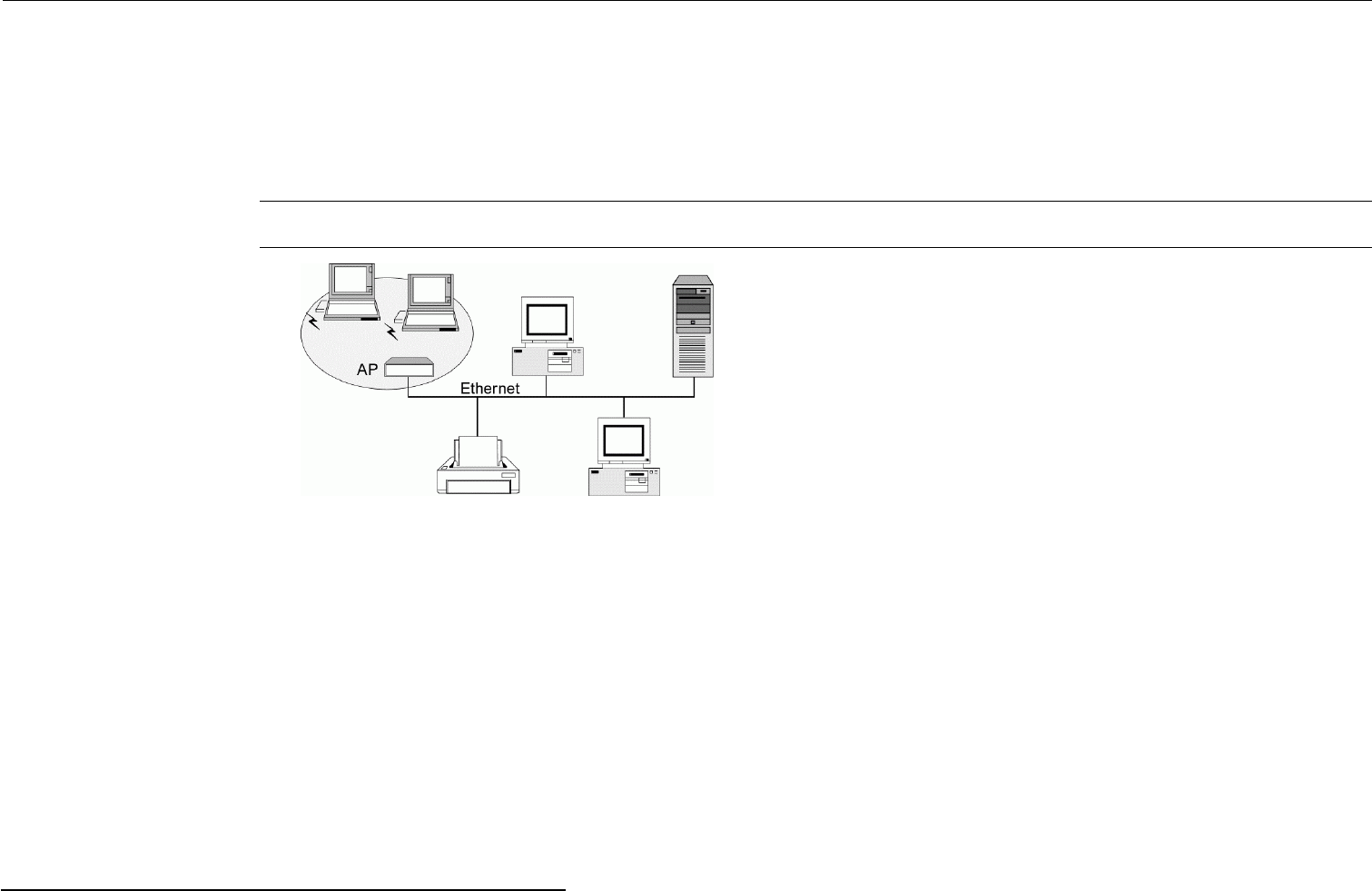

Figure 1-2 Infrastructure Mode
54Mbps Wireless LAN Card User's Manual
4
Roaming
Multiple Access Points can be installed to extend the wireless service coverage area for seamless wireless access. Within an extended service area, all
Access Points and wireless clients must have the same Service Set Identity (SSID). Roaming among different Access Points is controlled automatically
to maintain the wireless connectivity at all times.

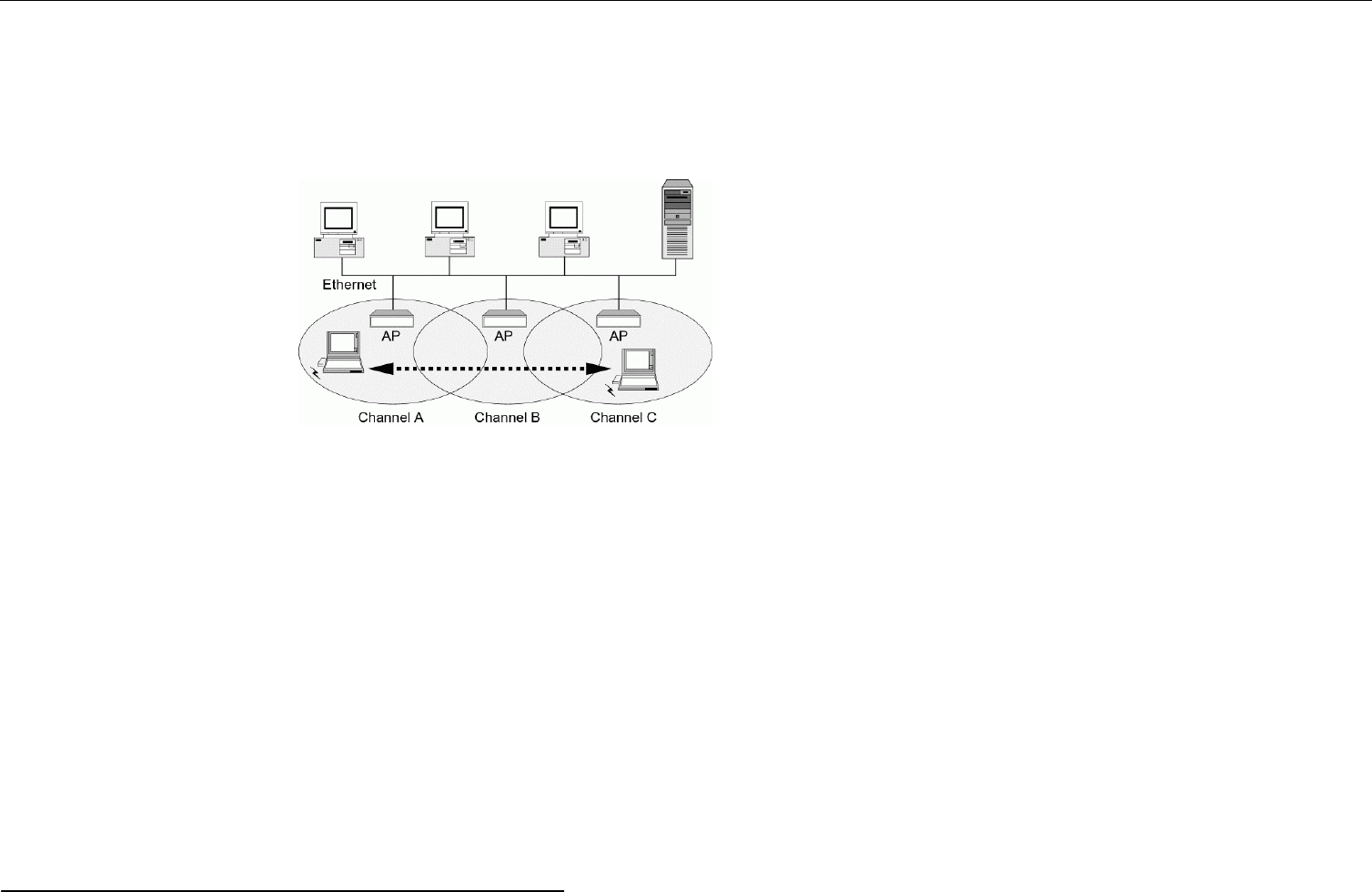

Figure 1-3 Roaming Across Multiple Access Points
5
Chapter 2 Installing the Wireless LAN Card
This chapter describes the installation process of the driver and software for the Wireless LAN Card. Proper driver installation is to allow the device to
operate on your host computer while the utility software, Wireless LAN Utility, is to help you configure and monitor your Wireless LAN Card.
If you are using an embedded wireless solution, such as the Mini PCI wireless adapter, your notebook is probably shipped with its driver and software
properly installed. If this is the case, just ignore this chapter and proceed with the configuration steps in next chapter.
In case you need to install the driver and software for any reason, follow the instructions described in this chapter.
54Mbps Wireless LAN Card User's Manual
6
System Requirements
To use the Wireless LAN Card, your computer must meet the following minimum requirements:
Pentium-class PC, 300MHz or better recommended
64 MB of RAM, additional memory recommended
Hard disk space at least 30 Mbytes
Windows 98(SE)/Me/2000/XP
UL listed I.T.E. computers
For CardBus wireless adapter: 32-bit CardBus expansion slot
For PCI wireless adapter: One available PCI slot *
*WARNING: THE OPERATING VOLTAGE OF PCI ADAPTER IS 3.3V. IF YOU INSTALL THE PCI ADAPTER IN MOTHERBOARDS THAT SUPPORT ONLY 5V PCI
ADPTER, YOUR COMPUTER WILL NOT WORK PROPERLY.
Chapter 2 Installing the Wireless LAN Card
7
Installing Wireless LAN Driver and Software
This section describes how to install the Wireless LAN Card driver and software.
Basic Installation Procedures
Windows 98, Me, 2000 and XP use the same setup program; however, operation system-specific situation may occur during or after the installation
process. The following only describes the overall installation procedures. In OS-specific situations, you should follow the on-screen instructions to
proceed. You can refer to the general guidelines provided in next section for further information.
Cautions:
For CardBus adapter: Do not insert the wireless adapter to your computer before installing its driver. If this happens, the Windows PnP function will
detect the wireless adapter and issue a dialog box requesting for its driver. Click Cancel to quit the wizard and remove the Wireless LAN Card from
your computer.
For PCI/MiniPCI adapter: If your system has not been installed with the driver, the Windows PnP function will detect the wireless adapter and issue
a dialog box requesting for its driver. Click Cancel to quit the wizard at this point.
Follow these steps to install the Wireless LAN Card driver and software.
1. Close all Windows programs that are running.
2. Insert the provided Software Utility CD into your CD-ROM drive and select Utility&Driver. Or, run Setup.exe from D:\Utility&Driver of the
Software Utility CD where D is the drive letter.

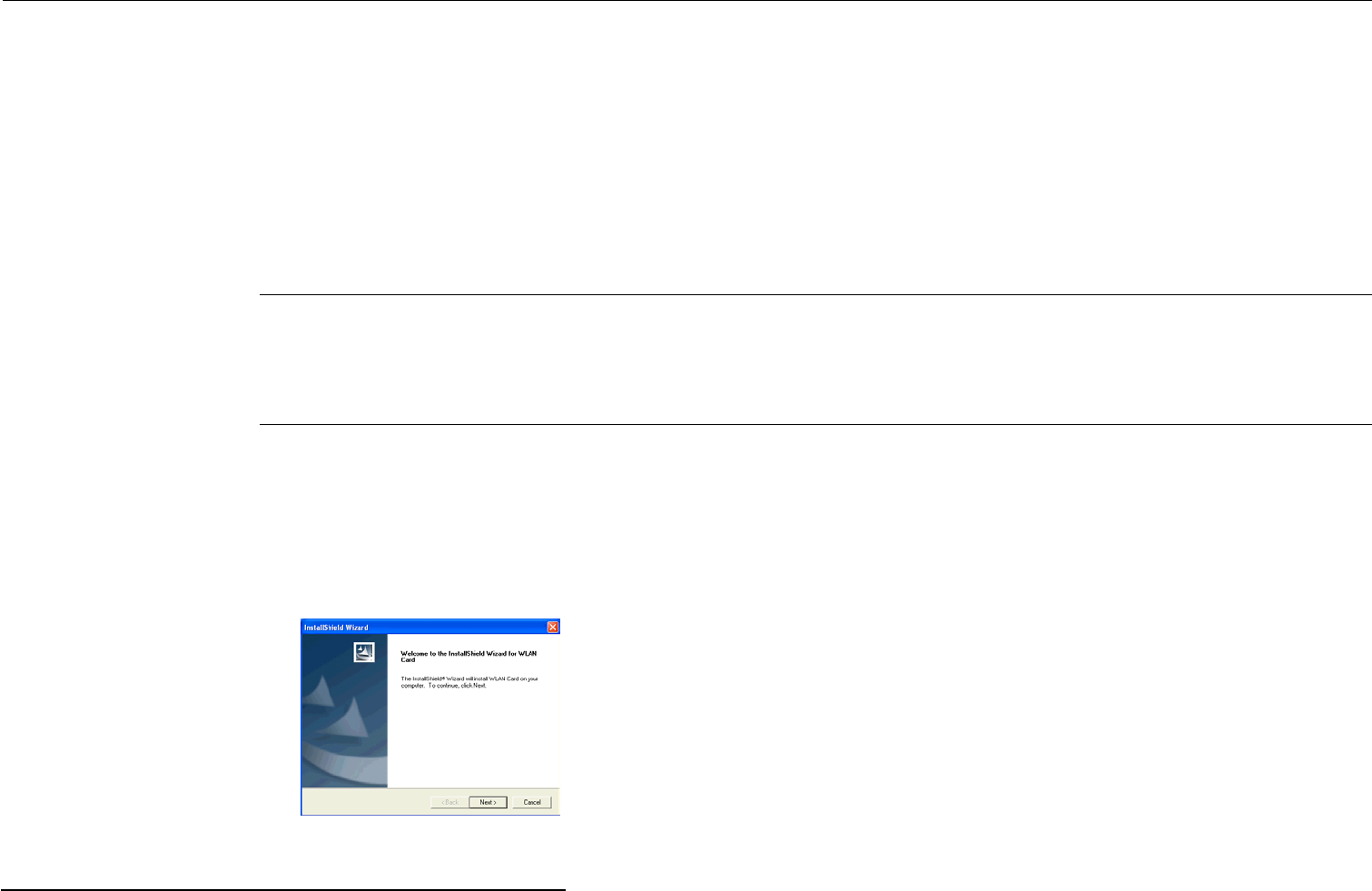

3. When the welcome screen pops up, click Next.

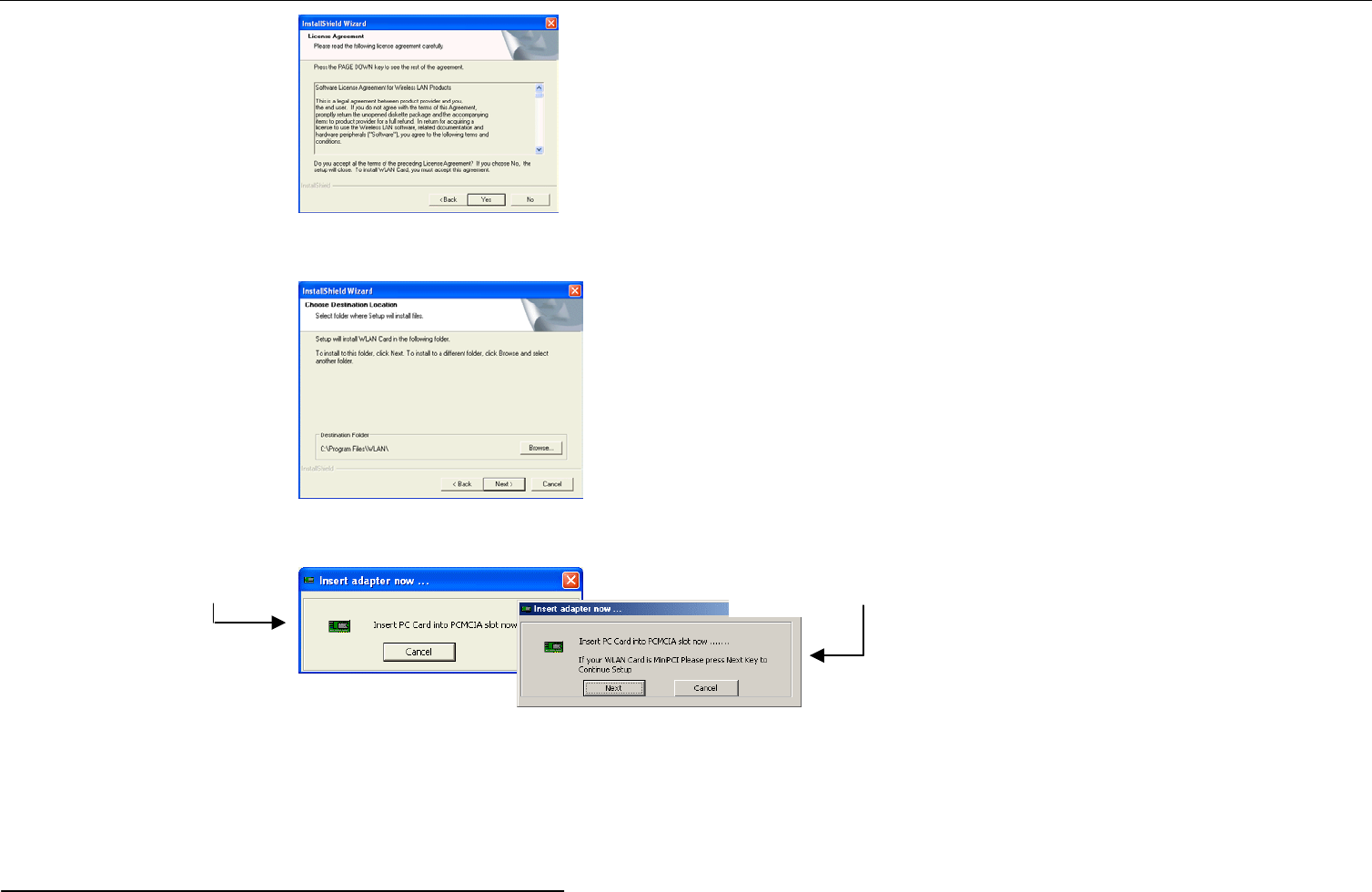

4. When the License Agreement screen appears, click Yes.
54Mbps Wireless LAN Card User's Manual
8
5. To install the software to the default destination folder, click Next. If you are to install the software to a different folder, click Browse to select
another folder, and then click Next.
6. For CardBus/Mini-PCI wireless adapter only. For CardBus user, insert your wireless adapter into the PCMCIA slot of your computer when the
following screen appears. For Mini-PCI users, do as the dialog request.
For Mini-PCI user. If prompted
with this screen, click Cancel.
For Mini-PCI user.
If prompted with this screen,
click
Next
.
Chapter 2 Installing the Wireless LAN Card
9

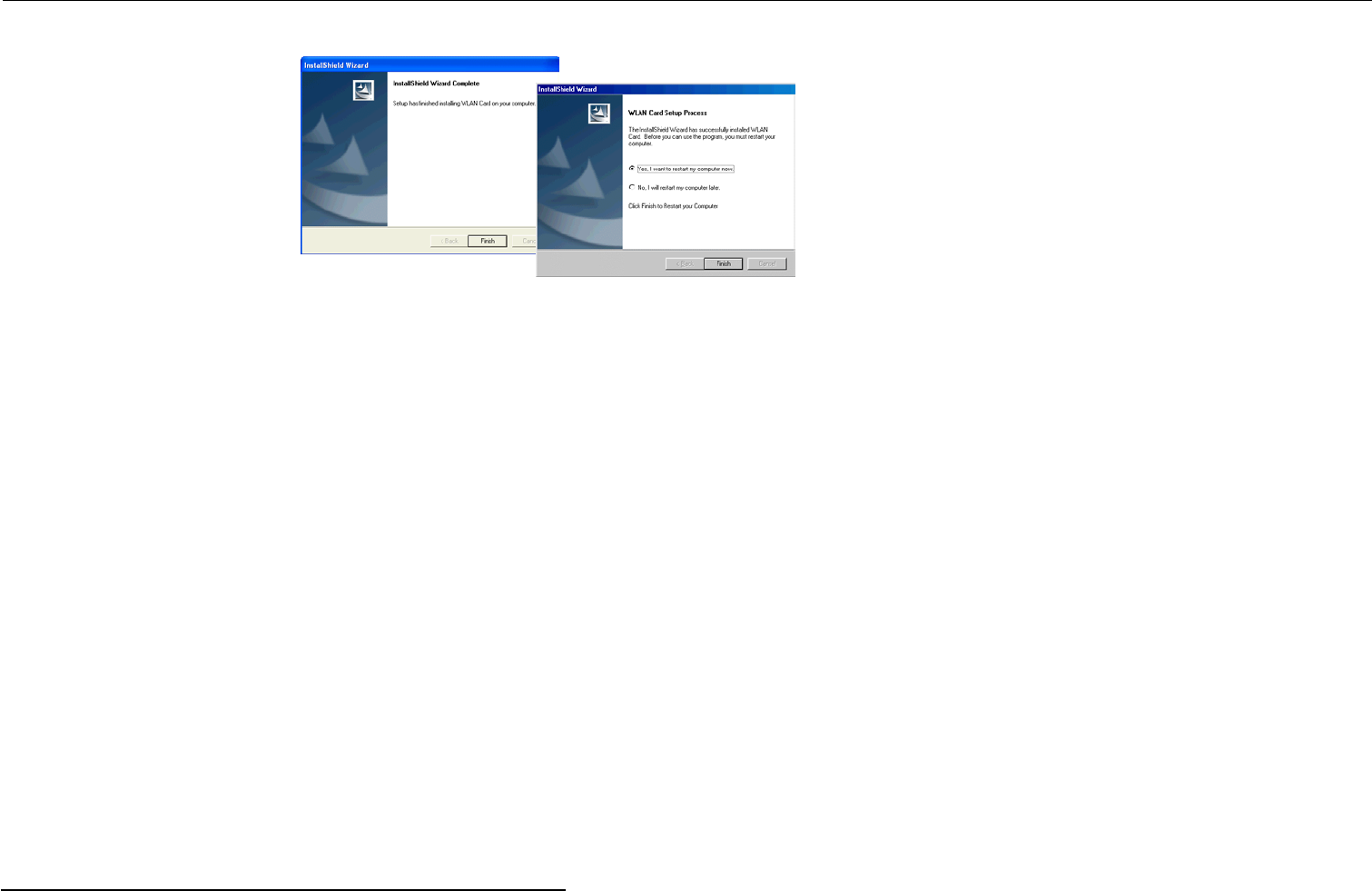

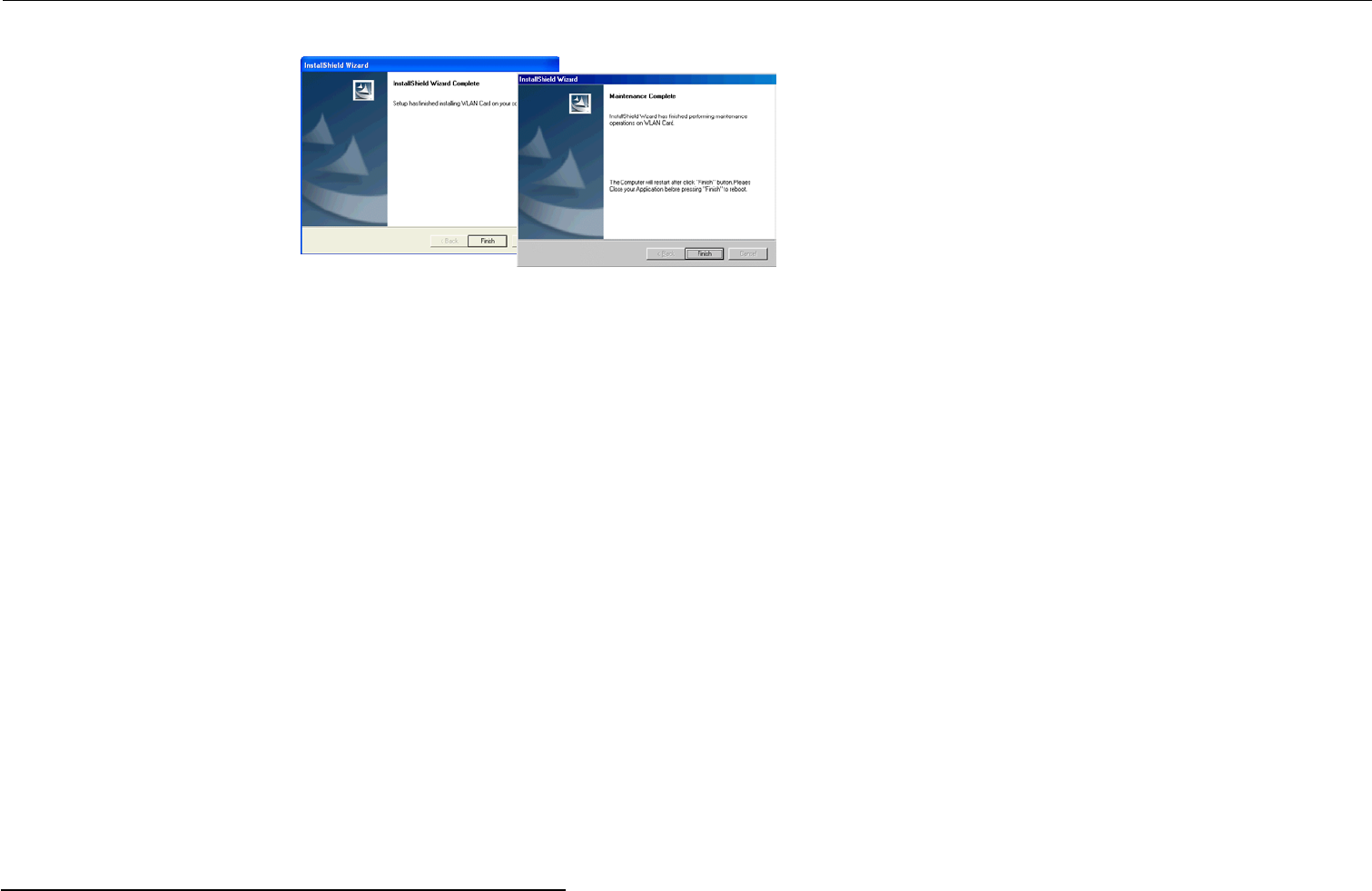

8. Click Finish when the following screen appears. Subject to the type of your Wireless LAN Card, the Windows may reboot.
54Mbps Wireless LAN Card User's Manual
10
General Guidelines for OS-Specific Situations
Subject to your Windows OS and Wireless LAN Card, different situations will occur during or after the software installation. Follow these instructions
to complete the installation.
For Windows 98(SE)
When prompted for Windows 98(SE) CD-ROM, click OK. Then enter the path to your Windows 98(SE) original files, and click OK.
If Windows 98(SE) original files are not on your computer, you will need to remove the Software Installation CD and then insert your Windows
98(SE) installation CD. Otherwise just locate the Windows 98 CAB files on your computer.
When prompted to restart your computer click Yes.
For Windows Me
If prompted to restart your PC, click Yes.
For Windows 2000
If you are prompted with the Digital Signature not Found alarm message, click Yes.
Chapter 2 Installing the Wireless LAN Card
11
For Windows XP
If Windows logo compatibility message appears, click Continue Anyway.
When Windows OS pops up a dialog box requesting for driver, select Install the software automatically and click Next.
Now you are done with the installation procedure. After software installation, you should be able to find the wireless monitor icon located on the
system tray. Your Wireless LAN Card is ready to use. Proceed to next chapter to configure or fine-tune your Wireless LAN Card settings.
Note: If you need to set up the TCP/IP address or the subnet mask, refer to “Appendix C Setting Up TCP/IP” for details.
13
Chapter 3 Using Wireless LAN Utility
Once your wireless adapter software is properly installed, the provided Wireless LAN Utility is ready for use. The utility comes with five tabs. The

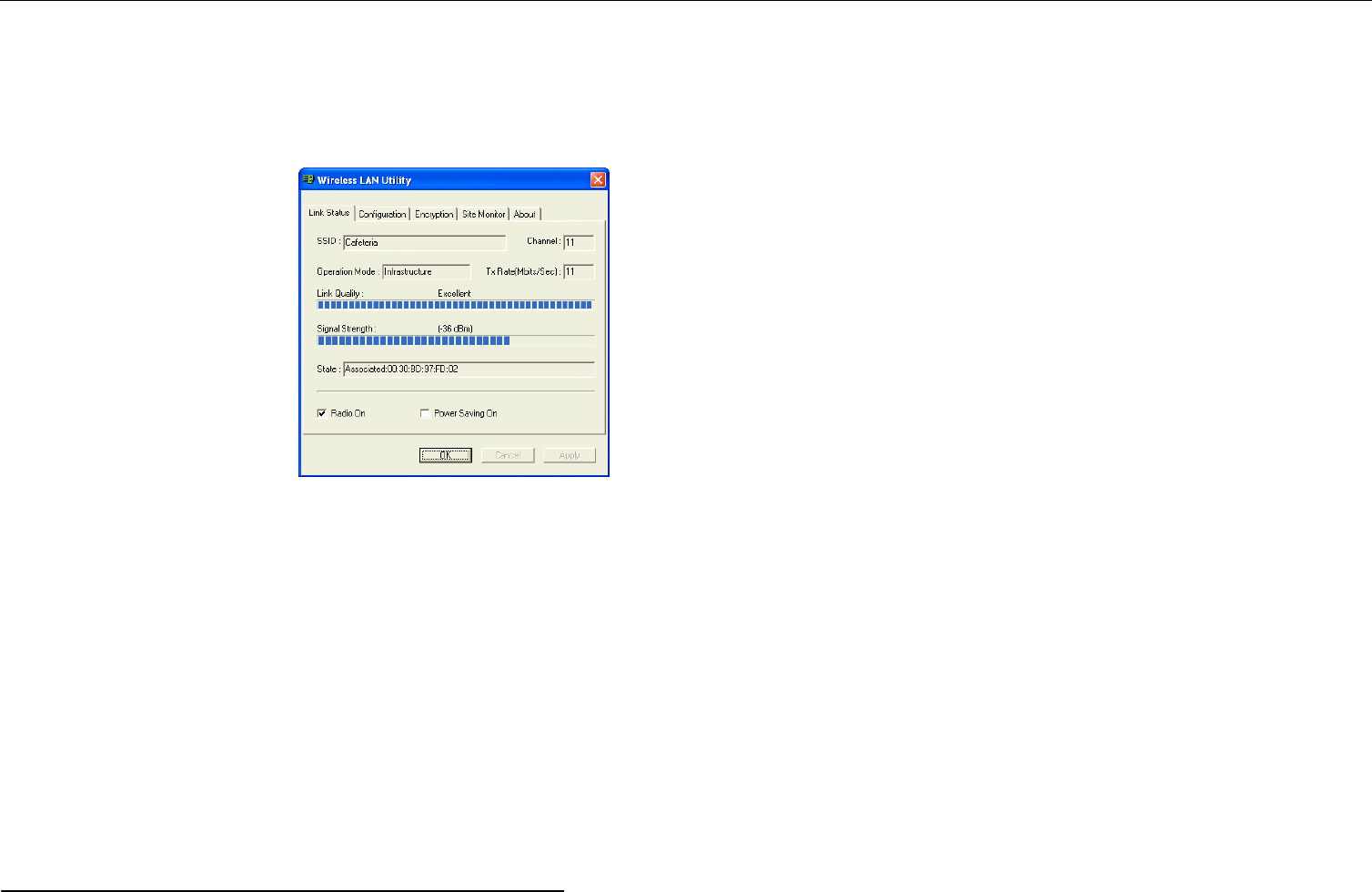

Link Status tab displays the current link status. The Configuration tab allows configuring your wireless connection. The Encryption tab allows

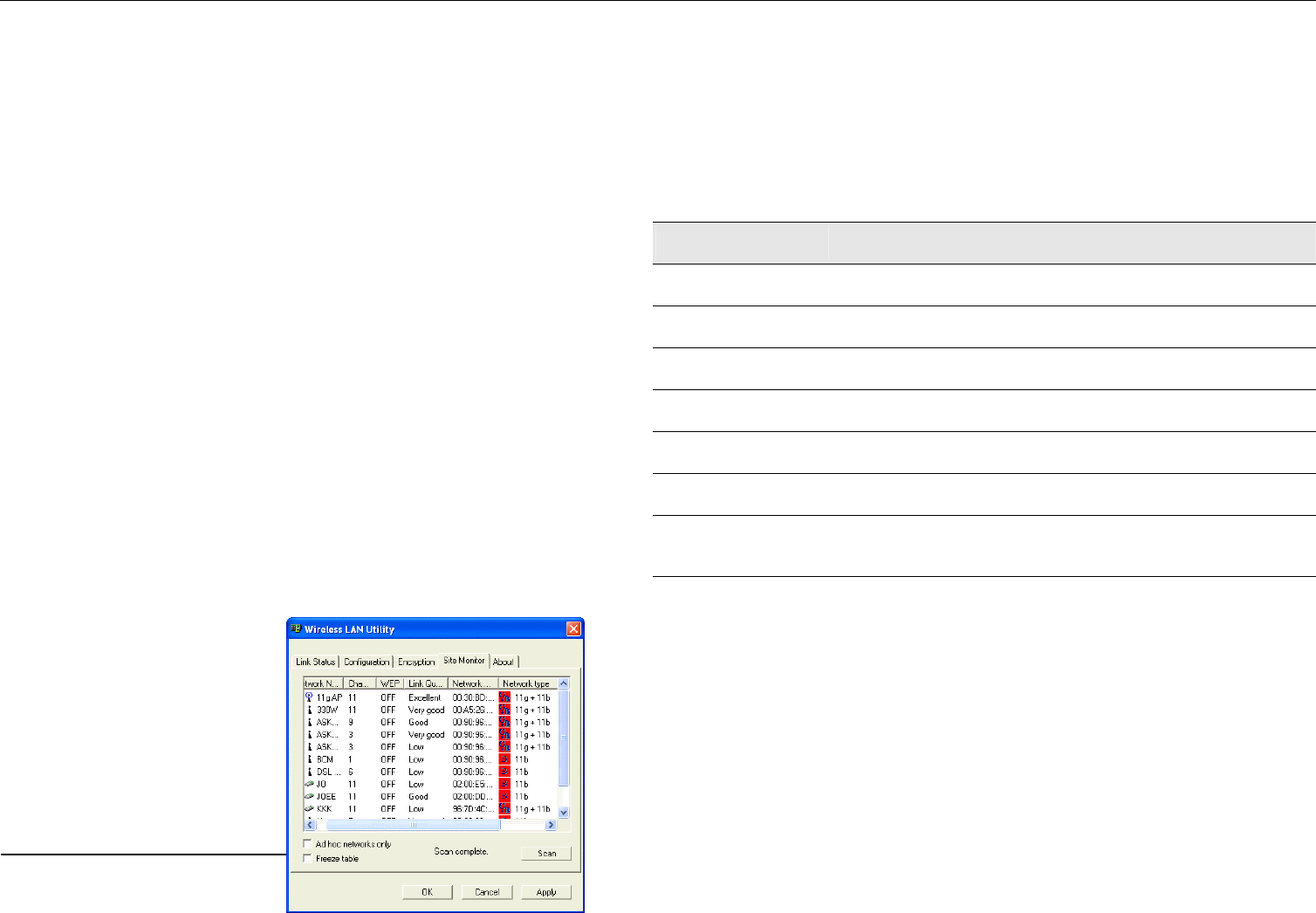

securing wireless transmission. The Site Monitor tab allows to monitor available networks and the About tab displays utility information. See the
ensuing subsections for instructions to launch the utility and descriptions of each tab.
54Mbps Wireless LAN Card User's Manual
14
Accessing Vendor’s Wireless LAN Utility
You can access the vendor-provided Wireless LAN Utility by any of the following methods:
Double-click the wireless tray icon on the system tray.
Right-click the wireless tray icon and select one of the five tab’s name from the context menu.
Note: If the wireless tray icon is not launched, you can manually start the Wireless LAN Utility by selecting Start > Programs > WLAN Utility>
WLAN Utility.
The Wireless LAN Utility screen pops up with five available tabs: Link Status, Configuration, Encryption, Site Monitor and About. See appropriate
section, which describes each tab item.
Notice When Assessing Wireless LAN Utility under Windows XP
Aside from using the vendor’s WLAN utility for configuration, Windows XP includes a Wireless Zero Configuration Utility for you to configure
your wireless adapter. You can optionally choose to configure your wireless adapter via either the vendor’s Wireless LAN Utility or Windows
XP-included wireless utility.
By default, your wireless adapter is managed by the vendor-provided wireless utility. If you want to enable the Windows XP-included wireless utility,
refer to next section for instructions. For information on using Windows XP Wireless Zero Configuration Utility, please refer to Chapter 5
Windows XP Wireless Zero Configuration Utility
Tabs inside Wireless LAN Utility
Chapter 3 Using Wireless LAN Utility
15
Using Windows XP’s Wireless LAN Utility
To use Windows XP WLAN utility for configuration purposes, you should take these steps:
1. Double-click the Windows XP wireless tray icon (not the vendor’s WLAN utility icon) and then click Properties (or Advanced). Then select
Wireless Networks tab.
2. On the Wireless Networks tab, check the Use Windows to configure my wireless network settings box and click OK.
To revert back to vendor-provided wireless utility, just return to this screen and uncheck this check box.
Windows XP wireless icon Vendor’s wireless icon
54Mbps Wireless LAN Card User's Manual
16
If your wireless adapter is managed by Windows XP-included wireless utility, in vendor-provided wireless utility, you can only access the Link
Status, Statistics and About screens. The Configuration and the Encryption screens are not accessible.
You can choose to configure your Wireless LAN Card via either the vendor’s wireless LAN utility or Windows XP-included wireless utility.
Configuration/Encryption tab is
not visible when Windows XP
overrides the management of your
wireless adapter.
Chapter 3 Using Wireless LAN Utility
17
Link Status Tab
The Link Status tab contains general information about the connection and activity of your current link. The following table describes the items found
on the Link Status screen.
Screen Item Description
SSID Displays the name of the wireless network your station is currently
connected to.
Operation Mode Displays the current connection mode: Infrastructure or Ad Hoc.
Channel Shows which channel is current in use.
TxRate (Mbits/Sec) Transmission rate at which data is transferred.
Link Quality Measures quality of the link.
Signal Strength Displays the signal strength in dBm and by graphic.
State Displays current status such as scanning or successful association.
54Mbps Wireless LAN Card User's Manual
18
In addition, you can find two checkboxes at the button on this tab which perform the self-explanatory tasks:
Radio On: Uncheck it if you wish to turn off the RF signal.
Power Saving On: Check it if you with to reduce the power consumption by the Wireless LAN Card to extend the battery life of your laptop.
Figure 3-1 Link Status Tab
Chapter 3 Using Wireless LAN Utility
19
Configuration Tab
This section allows you to add a new profile or edit an existing profile. If you wish to add a new profile click on the New button. To delete an existing
profile, from the Profile Name drop-down menu select the target profile and click the Delete button. The Defaults button sets Default profile to
connect with any compatible and “open” AP.
The items on the Configuration tab are described in the table below:
Screen Item Description
Profile Name Name of your current settings.
Operating Mode Infrastructure or Ad Hoc (peer-to-peer).
Network Name Specifies the name of the WLAN group you want to participate in.
For Ad Hoc mode: A network name is mandatory. The SSID for
all stations in a single Ad Hoc network must be same.
For Infrastructure mode: If using the special SSID “ANY”(case
sensitive), your Wireless LAN Card will connect to the first
compatible and “open” AP with the best signal strength within the
connection range.
54Mbps Wireless LAN Card User's Manual
20
Screen Item Description
Peer-to-Peer Channel Select the channel for your wireless network (Ad Hoc mode ONLY).
Note that the available channels are different according to your
geographic location. Make sure to select the legal frequency
channels allowed in your regulatory domain.
1-11 channels for US, Canada (FCC)
1-14 channels for Japan (TELEC)
1-13 channels for Europe (ETSI)
10-13 channels for France
Transmit Rate Decides the speed of the data transmission. The default setting
(Fully Automatic) allows the wireless adapter adaptively adjust its
data rate as the signal strength warrants. Note that the available rates
vary according to the supported rates of the associated AP or
wireless client:
For 802.11b AP or wireless client: 1, 2, 5.5 and 11 Mbps are
supported.
For 802.11g AP or wireless client: 1, 2, 5.5, 6, 9,11, 12, 18, 24, 36,
48 and 54Mbps are supported.
Chapter 3 Using Wireless LAN Utility
21
Figure 3-2 Configuration Tab
Once the configuration you made is complete, click the Apply button. The Wireless LAN Utility will switch to the Link Status to display whether the
connection has been established or not.
54Mbps Wireless LAN Card User's Manual
22
Encryption Tab
This section allows you to enable secure data transmission by using WEP (Wired Equivalent Privacy). If encryption is not necessary, just select Disable
from the Encryption (WEP security) drop down menu. If your target network is WEP protected, you also have to enable WEP and enter the correct
keys in order to establish the connection. To enable WEP, take the steps below:
1. Select 64 bits or 128 bits as the WEP key length from the Encryption (WEP security) drop-down menu.
2. From the Type list, select the required authentication type. (You should use the same authentication method as used by your target wireless
network.)
• Open System: If your target wireless network uses Open System, your authentication request will be always accepted.
• Shared Key: If your target wireless network uses Shared Key, your wireless adapter must be set to use correct WEP to pass the
authentication. If selected, your wireless adapter must use identical WEP keys as the target wireless network.
Chapter 3 Using Wireless LAN Utility
23
3. Choose Alphanumeric or Hexadecimal as the key format and then enter up to four keys in the provide fields. When using Hexadecimal format,
only digits 0-9 and letters a-f, A-F are allowed. Make sure to enter the character matching the required key format and length as below:
ASCII characters Hexadecimal digits
64 bits 5 alphanumeric characters 10 hexadecimal digits
128 bits 13 alphanumeric characters 26 hexadecimal digits
Figure 3-3 Encryption Tab
4. From the Use WEP Key list select which key you want to use to encrypt your transmitting data.
5. After you finished all the encryption settings, click Apply to activate the changes.
When configuring WEP settings, please note the following:
Your authentication type and WEP key table must be identical to those used by your target wireless network.
When selecting a key to transmit your outgoing data, you may optionally use a key different from the target AP’s or wireless client. But it must be
one of the defined keys.
Site Monitor Tab
The Site Monitor tab displays the general information of the wireless networks available in the air and you can select the network you want to connect
with by double-clicking on the network’s name. In addition, you can use the Site Monitor feature to display the communications quality of your
computer with multiple APs or clients in its vicinity. The Site Monitor allows you to:
Connect to a wireless network by double-clicking on it.
Determine the overall wireless coverage of your wireless network.
54Mbps Wireless LAN Card User's Manual
24
Optimize placement of the Access Point(s), to provide seamless connectivity to mobile stations.
Roam throughout the wireless network environment with your station, you will be able to identify areas that may not have adequate coverage, or
that suffer from interference by other (wireless) equipment such as microwave ovens.
The list will update automatically to display all visible networks. Click Freeze table checkbox to freeze the list box so that you can calmly read the
information inside it. In addition, it will stop the search for available network. To display only the Ad hoc network, enable the Ad hoc networks only
checkbox.
For each network, the following information will be displayed:
Field Description
Network Name Displays the name of the wireless network.
Channel The channel used by the AP or wireless station.
WEP Displays whether WEP is ON or OFF.
Signal (dBm) Displays the signal strength in dBm.
Link Quality Measures the signal level.
Network Address The MAC address of the AP or wireless client.
Network Type Displays whether the AP or wireless client supports 802.11b & 11g
or only 802.11b.
Chapter 3 Using Wireless LAN Utility
25
Figure 3-5 Site Monitor Tab
If you are unsure whether the target network is Ad hoc or Infrastructure, check the table below.
Icon Description
Access Point (Infrastructure mode).
Wireless station (Ad hoc mode).
54Mbps Wireless LAN Card User's Manual
26
About Tab
The About tab displays information about the device, including the Utility, Driver and Firmware details.
Figure 3-6 About Tab
27
Chapter 4 Using Wireless Tray Icon Functions
Viewing Signal Strength and Speed
Whenever you start Windows, you should be able to find the wireless monitor icon loaded in the system tray, located near the clock on the task bar.
While connected, you can place your cursor over the icon to see the pop-up text that gives link information about the connection and signal strength.
54Mbps Wireless LAN Card User's Manual
28
Tray Icon Graphic Indication
The graphic of the wireless icon changes to indicate your wireless connection quality. Possible radio connection quality and procedures to take are
described in the table below:
Graphic Radio Connection Quality
Very good.
Your Wireless LAN Card has an excellent radio connection with the network,
allowing excellent network communication at the highest transmit rate.
Good radio connection
Your Wireless LAN Card has a good radio connection with the network, allowing
normal network communication.
Low radio connection
The radio signal is low. You can move your device closer to your target Access
Point or wireless station for better signal strength.
Poor radio connection.
The radio signal is very weak. You can move your device closer to your target
Access Point or wireless station for better signal strength.
Chapter 4 Using Wireless Tray Icon Functions
29
Graphic Radio Connection Quality
No signal.
It may due to you are out of range of the wireless network or configuration errors
(such as the SSID or WEP encryption doesn’t match your target AP/wireless
station).
Move your device closer to your target Access Point/wireless station or verify
your SSID or WEP settings.
Radio if OFF. You manually disable the RF signal.
Disconnect. Wireless connection unavailable
Other Functions
Right-click the icon displays the menu as shown below:
54Mbps Wireless LAN Card User's Manual
30
Each item on the context menu is described as below:
Radio ON/Radio OFF: Enable or disable the RF signal
Link Status/Configuration/Encryption/Site Monitor/About: Pop up the Wireless LAN Utility.
HIDE: Close the menu.
Exit: Shut down the Wireless LAN Utility
31
Chapter 5 Windows XP Wireless Zero Configuration Utility
Windows XP provides built-in Wireless Zero Configuration utility for wireless configuration and monitoring. You can choose to configure your
wireless network via either the wireless LAN utility as described in preceding section, or to use the Windows XP Wireless Zero Configuration utility.
This section only provides the essential instructions on using Windows XP wireless utility to get your wireless network established. For more
information please refer to Windows XP on-line help.
Connecting to an Access Point or Wireless LAN Card
To connect to an existing Access Point/Wireless LAN Card, take out the following steps:
1. Right-click the Wireless Connection icon on the system tray and select View Available Wireless Networks from the context menu.
Note: Depending on whether your wireless network is established, the context menu may come with different items.
2. When the Connect to Wireless Network window pops up, you will see all the Access Points or Wireless LAN Cards that are available in the air.
Select the wireless network you want to connect to .
Figure 5-1 Windows XP Configuration Utility-Connect to Wireless Network
3. If the target Access Point/Wireless LAN Card has been set with WEP key, you must enter the same WEP key in the Network key field. Otherwise,
leave it blank.
54Mbps Wireless LAN Card User's Manual
32
4. Click Connect, then you will join the target network and this dialog window will disappear. When your wireless connection is established, the
connection icon appears as below:
Note: If the wireless connection can’t be established, double-click the connection icon and then click Properties. Go to Authentication tab first to
make sure that you use the correct authentication type for the Wireless LAN Card. For more information, refer to “Authentication” on page 35.
Viewing Wireless Connection Status
After you successfully connect to the Access Point or Wireless LAN Card, double-click the icon in the system tray again. This will open the Wireless
Network Connection Status window where you can see the general data of the Wireless LAN Card, such as Status, Duration, Speed, Signal Strength,
etc.
Figure 5-2 Windows XP- Connection Status
Chapter 5 Windows XP Wireless Zero Configuration Utility
33

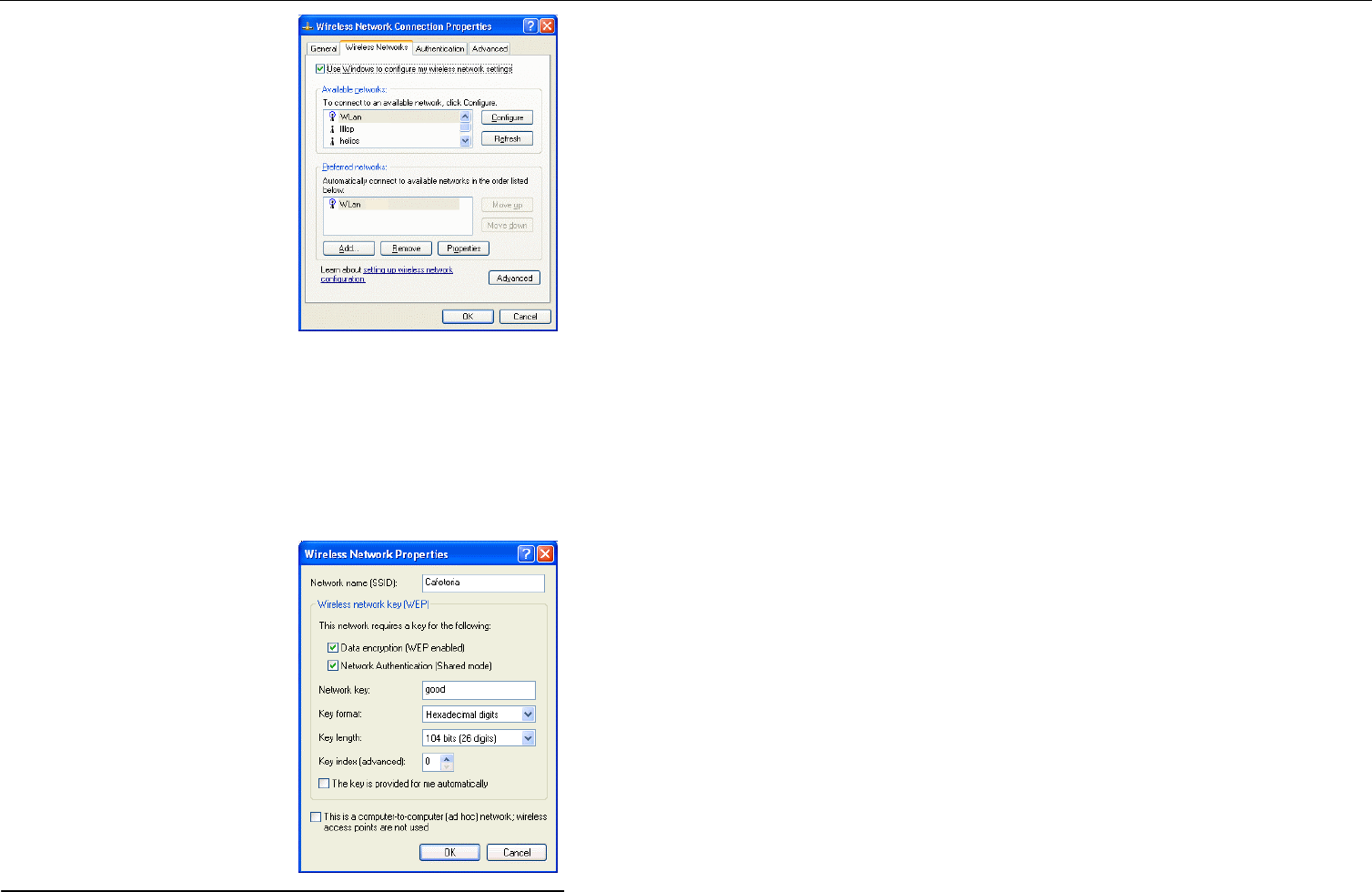

Configuring Your Wireless Properties
To configure your wireless properties, open the Wireless Network Connection Status window as described above, and then click the Properties
button. This will open the Wireless Network Connection Properties window which allows you to configure more detailed items of the Wireless LAN
Card. The following describes each tab of the properties window to help you do more settings of the Wireless LAN Card.
General
This tab allows you to specify the network methods to be used with your Wireless LAN Card. The network policy depends on your wireless network.
For TCP/IP protocol, you should configure its properties as instructed by your network administrator. For more information on TCP/IP setting, please
refer to “Appendix C Setting Up TCP/IP” on page 49.
Figure 5-3 Windows XP Connection Properties -General
Wireless Networks
This tab contains two sections: Available networks and Preferred networks described as below.
Under Available networks section, you can also see all the Access Points and Wireless LAN Cards available in the air. Click Refresh to update the list
of Access Points and Wireless LAN Cards.
54Mbps Wireless LAN Card User's Manual
34
Figure 5-4 Windows XP Connection Properties-Wireless Networks
Under Preferred networks section, you can add any wireless networks that you wish to connect to. To do this, just click Add to add more Access
Points or Wireless LAN Cards to the list.
After you click the Add button, the Wireless Network Properties window pops up. Type your network name (SSID) and, if needed, the wireless
network WEP settings. Once the Access Point or Wireless LAN Card that you want to connect to has been set with WEP key, you must type the same
WEP key as the Access Point’s or Wireless LAN Card’s.
Figure 5-5 Windows XP-Add Preferred Networks
Chapter 5 Windows XP Wireless Zero Configuration Utility
35
After you add several profiles into Preferred networks, you can change the order in which connection attempts to preferred networks are made. Just
select the target wireless network and click Move up or Move down to move it to a desired position.
To Access Certain Wireless Network Only
If you just want to access certain wireless network type, click the Advanced button on the Wireless Networks tab to open the Advanced window. You
can choose to connect to the following networks:
• Any available network (access point preferred)
• Access point (infrastructure)
• Computer-to-computer (Peer-to-Peer Group)
The default network type is Any available network (access point preferred). In this network type, your device will connect to any Access Points or
Wireless LAN Cards available in the air but Access Point always demands higher connection attempt priority.
Once you finish the advanced setting, your wireless station will then connect to your desired network and the connected network will be listed under
Available networks.

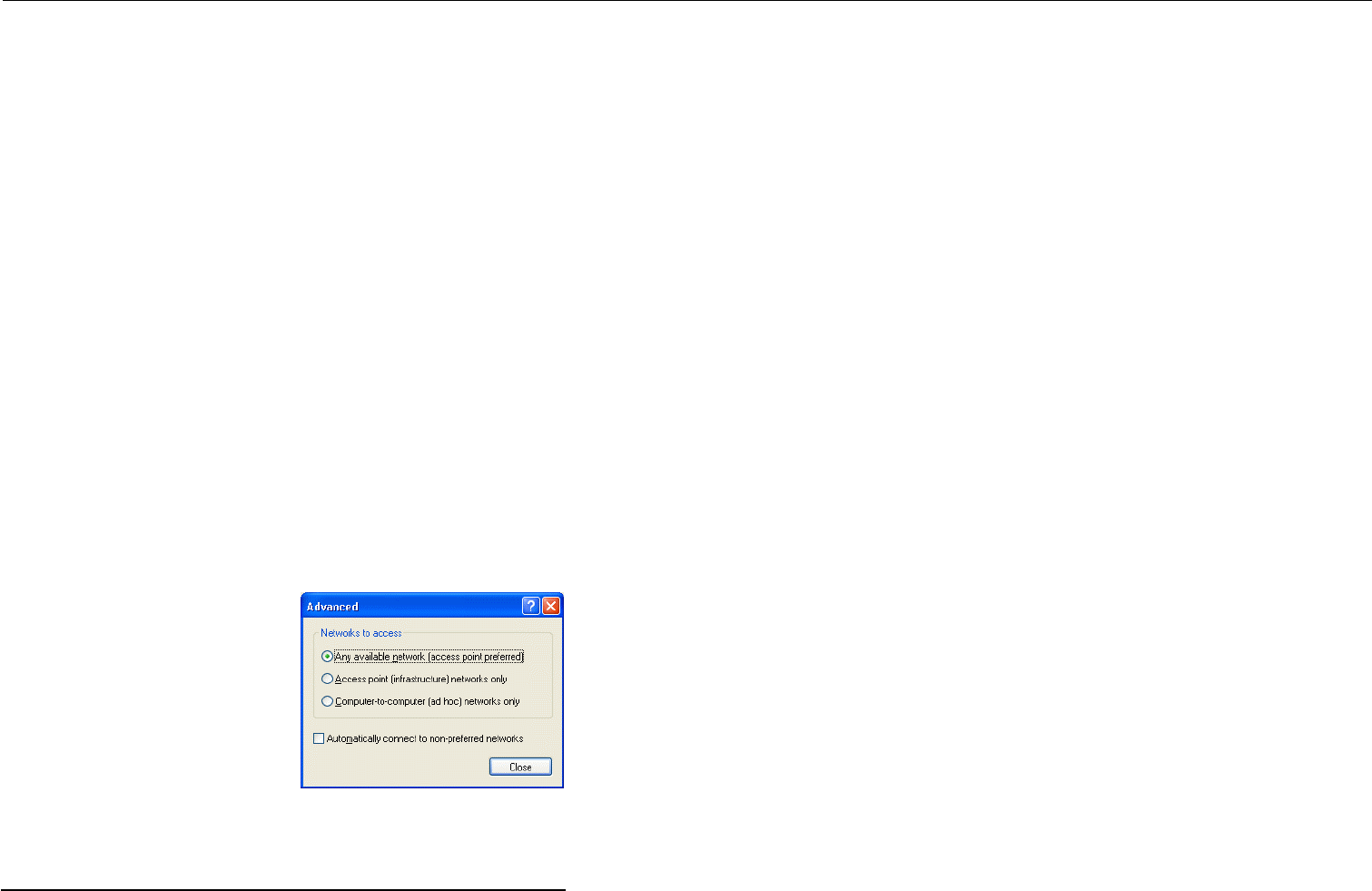

Figure 5-6 Windows XP Configuration Utility-Defining Network Mode
Authentication
This tab allows you to configure the authentication settings of your Wireless LAN Card. The most important setting for the Wireless LAN Card is to
disable Enable network access control using IEEE802.1X to ensure successful connection between the Wireless LAN Cards and Access Points or
54Mbps Wireless LAN Card User's Manual
36
other Wireless LAN Cards. You must disable this function for any reason. Otherwise, there may be some problems happening during connection. For
other settings, we recommend you keep the default settings to minimize the problems during connection.
Figure 5-7 Windows XP Connection Properties – Authentication
Make sure to disable Enable
network access control
using IEEE 802.1X.
37
Chapter 6 Uninstalling the Wireless LAN Card
Should you need to uninstall the Wireless LAN Card and application software for any reason,, you should uninstall the associated software and then
remove the hardware from your computer. Please proceed as follows.
Uninstalling the Wireless LAN Card Software
Note: Before uninstalling the Wireless LAN Card software, please disable the utility by right-clicking the utility tray icon and select Exit from the
context menu. The icon will disappear to indicate that the utility is not in operation.
54Mbps Wireless LAN Card User's Manual
38
1. Close all programs that are currently running.
2. Click the Windows Start button, point to Programs, WLAN Utility and then click Uninstall Utility.
3. Click OK to proceed with the software removal procedure.
Chapter 6 Uninstalling the Wireless LAN Card
39
4. Click Finish to complete the software uninstallation. Subject to your Wireless LAN Card, the Windows OS may reboot to enable the changes.
Removing the Wireless LAN Card (For CardBus Adapter)
To permanently remove the CardBus adapter from your computer, make sure that you have removed the software before you proceed to remove the
hardware.
The Wireless LAN Card complies with the PCMCIA standard that allows devices to be inserted into and removed from the computer’s PCMCIA slot
when the computer is powered on. For a PCMCIA device, it is recommended that you follow the standard Windows procedure for disconnecting a
PCMCIA device from your computer. The following steps assume a Windows 98 environment:
1. On the system tray, right-click the PCMCIA icon, and then click Adjust PC Card Properties.
2. Select the Wireless LAN Card that you want to remove, click Stop.
3. When the message appears that tells you it is safe to remove device, click OK and remove the Wireless LAN Card from the computer.
4. Click OK to exit the PC Card (PCMCIA) Properties window.
41
Chapter 7 Troubleshooting
Verify the Wireless LAN Card is functioning properly.
After installation you can verify whether you wireless adapter is properly installed and functioning by take out these steps:
1. Launch the Device Manager as below:
• For Windows 98/Me: Under Control Panel, click System > Device Manager.
• For Windows 2000/XP: Under Control Panel, click System > Hardware > Device Manager.
2. In the Device Manager window, double-click Network adapters to display your wireless adapter.
3. Without an exclamation mark next to the wireless adapter, your wireless device is working properly; otherwise you will need to remove and
re-install the WLAN card’s software.
Cannot Install under Windows 2000
When I installing the software under Windows 2000, I received the error message: “1608: Unable to create InstallDriver instance” and the program
stopped installing.
This error occurs when the Microsoft Network Client is not installed under Windows 2000. To install this network component:
1. Go to Control Panel and double-click the Network and Dial-up Connections icon. Right-click on the Local Area Connection, then select
Properties.
2. Click Install > Client > Add > Client for Microsoft Networks > OK.
3. The Microsoft Network Client is now installed. Manually restart your computer to enable the changes.
4. Then re-try to install the software as described in this manual.
Radio Interference
You may be able to attenuate any interference by trying the following:
• Reseat the Wireless LAN Card.
• Increase the distance between the wireless computers and the device causing the radio interference.
54Mbps Wireless LAN Card User's Manual
42
• Plug the computer equipped with the Wireless LAN Card into an outlet on a different branch circuit from that used by the affecting device.
• Consult the dealer or an experienced radio technician for help.
• Keep the computer with the Wireless LAN Card away from the microwave oven and large metal objects.
Card Not Detected / Computer does not Boot Correctly
If the Wireless LAN Card is not detected by Windows, try the following:
• Make sure the Wireless LAN Card is properly inserted in the computer.
• For CardBus wireless adapter, make sure you are using 32-bit CardBus expansion slot and the slot is working.
• Contact your dealer for additional testing if there is a hardware problem with the Wireless LAN Card.
• For PCI wireless adapter. The operating voltage of the WLAN card is 3.3V, if your motherboard’s PCI slots only support 5V, your computer
will not work properly.
Cannot Connect to Another Wireless LAN Card
If you cannot make a connection to another Wireless LAN Card from your computer, it could be due to one of the following reasons:
• Incorrect SSID. Make sure the SSID is the same for all computers that have a Wireless LAN Card.
• Your computer is not recognizing changes. Restart your computer.
• If in Ad hoc mode, make sure the Log on to Windows NT domain check box is not selected in the Client for Microsoft Networks
Properties dialog box in the Network Configuration tab.
• Incorrect IP Address or Subnet Mask. Check these settings in the TCP/IP Properties dialog box in the Network Configuration tab.
• Make sure you are not trying to connect to an 802.11a wireless adapter. 802.11a and 802.11b/g standards are not interoperable.
• If more than one wireless adapter is installed in the same computer, this could cause the driver conflict and thus the wireless adapter cannot
function properly. In this situation, the client should remove all the drivers and re-install the dedicated wireless adapter.
Poor Link Quality
If the Link Quality display stays in the poor range, it could be due to one of the following reasons:
• Radio/object interference. To minimize this problem, move the devices within the line of sight.
• Distance between Wireless LAN Card and the target Access Point or wireless client is too far. Decrease the distance between the Wireless
LAN Card and Access Point or wireless client.
• When operating in Ad hoc mode, change the utilizing channel if it is used by another Access Point or another Ad hoc mode wireless network
nearby. This helps to prevent the turbulence on the same channel.
Chapter 7 Troubleshooting
43
Cannot Connect to Access Point
If you cannot make a connection to the Access Point, it could be due to one of the following reasons:
• Make sure the Access Point have no physical connection problems.
• Make sure the SSID for the Wireless LAN Card is the same as the Access Point.
• Make sure the security settings are the same as that of Access Point.
• Make sure your Wireless LAN Card operation mode is set to Infrastructure.
• Make sure you are not trying to connect to an 802.11a Access Point. 802.11a and 802.11b/g standards are not interoperable.
• The Access Point has reached its maximum number of supported clients.
• If MAC address access control is enabled on the Access Point, make sure the MAC address of your Wireless LAN Card is not among the
deny access list.
45
Appendix A Limited Warranty
Wireless LAN Hardware
The seller warrants to the end user (“Customer”) that this hardware product will be free from defects in workmanship and materials, under normal use
and service, for 1 year from the date of purchase from the seller or its authorized reseller. The seller’s sole obligation under this express warranty shall
be, at the seller’s option and expense, to repair the defective product or part, deliver to Customer an equivalent product or part to replace the defective
item, or if neither of the two foregoing options is reasonably available, The seller may, in its sole discretion, refund to the Customer the purchase price
paid for the defective product. All products that are replaced will become the property of the seller. Replacement products may be new or
reconditioned.
54Mbps Wireless LAN Card User's Manual
46
Wireless LAN Software
The seller warrants to Customer that each software program licensed from it , except as noted below, will perform in substantial conformance to its
program specifications, for a period of 1 year from the date of purchase from the seller or its authorized reseller. The seller warrants the media
containing software against failure during the warranty period. No updates are provided. The seller’s sole obligation under this express warranty shall
be, at the seller’s option and expense, to refund the purchase price paid by Customer for any defective software product, or to replace any defective
media with software which substantially conforms to applicable seller published specifications. Customer assumes responsibility for the selection of the
appropriate application programs and associated reference materials. The seller makes no warranty or representation that its software products will meet
Customer’s requirements or work in combination with any hardware or software applications products provided by third parties, that the operation of
the software products will be uninterrupted or error free, or that all defects in the software products will be corrected. For any third party products listed
in the seller software product documentation or specifications as being compatible, the seller will make reasonable efforts to provide compatibility,
except where the non-compatibility is caused by a defect in the third party’s product or from use of the software product not in accordance with the
seller’s published specifications or user manual.
47
Appendix B Regulatory Compliance
FCC Part 15 Declaration of Conformity (DoC)
The following equipment:
Product Name: Wireless LAN Card
is herewith confirmed to comply with the requirements of FCC Part 15 rules. The operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
54Mbps Wireless LAN Card User's Manual
48
FCC Rules and Regulations - Part 15
Warning: This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the Federal Communications Commissions
Rules and Regulation. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following
measures:
• Relocate your WLAN equipped laptop computer.
• Increase the separation between the WLAN equipped laptop computer and other electronics.
• Connect the WLAN equipped laptop computer into an outlet on a circuit different from that of other electronics.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.
This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2)
SAR compliance has been achieved and applies to laptops with double PCMCIA slots which located at left side of laptop PC.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Broadxent Pte Ltd. declare that CW2220-1 (Wireless 54Mbps Notebook Adapter) is limited in CH1~CH11 by specified firmware controlled in USA.
Appendix C Setting Up TCP/IP
49
Appendix C Setting Up TCP/IP
This section contains instructions for configuring the TCP/IP protocol of the Wireless LAN Card. The IP address policy depends on your wireless
network. You should configure your TCP/IP protocol as instructed by your network administrator.
For Windows 98/ME
1. Double-click the Network icon on the Control Panel.
2. Click the Configuration tab of the Network dialog box.
54Mbps Wireless LAN Card User's Manual
50
3. In the network components list, select the TCP/IP protocol of your Wireless LAN Card, e.g., TCP/IP ->Your Wireless LAN Card and then click
Properties.
4. On the IP Address tab, choose one of the methods as required:
Option A: Click Specify an IP address.
In the IP Address box, enter a valid four-component IP address, either a public or private one as required.
In the Subnet Mask box, enter a valid four-component IP address.
Then select the Gateway tab and enter your gateway information.
Option B: Select Obtain an IP address automatically.
Then an IP address will be automatically assigned to your computer.
5. Click OK to return to Network dialog box and click OK again to finish configuration. If your TCP/IP properties have been modified, you will be
prompted to restart your computer. Click Yes to have new settings take effect.
Appendix C Setting Up TCP/IP
51
For Windows 2000/XP
1. Double-click Network Dial-up Connections (Windows 2000) or Network Connections (Windows XP) on Control Panel, then Network
Connections.
2. Right-click the Local Area Connection icon corresponding to your wireless adapter and click Properties.
54Mbps Wireless LAN Card User's Manual
52
3. On the General tab, highlight Internet Protocol (TCP/IP) and then click Properties.
Option A: Use fixed IP address.
Enable the Use the following IP Address option. Enter the IP address, Subnet Mask and Default gateway. Then click OK.
Option B: Use dynamic IP address
Select Obtain an IP address automatically.
4. Close the Local Area Connection Properties window. For Windows 2000, if prompted, click Yes to restart your computer.
53
Appendix D Specifications
Specifications are subject to change without notice
Host Interfaces Mini PCI / CardBus / PCI Spec. V2.2
Form factor Type III B / 32bit CardBus / Low profile PCI
Chipset Broadcom BCM 4306 & BCM 2050
Operation Voltage * 3.3VDC
Network Standards IEEE 802.11b (Wi-Fi™) standard and IEEE 802.11g standard
Modulation Techniques DBPSK,DQPSK,CCK,16QAM,64QAM
Modulation Technology OFDM, DSSS
Data Rate
802.11b: 11, 5.5, 2, 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Network Architectures Infrastructure and Ad hoc
Operating Frequencies 2.4-2.497 GHz
Operating Channels
802.11b: 11 for North America, 14 for Japan, 13 for Europe (ETSI)
802.11g: 13 for North America, 13 for Europe (ETSI), 13 for Japan
RF Output Power 15 dBm maximum output power (14 dBm nominal ± 1 dBm over operating
temperature
Receiver sensitivity
(PER <10%)
-80dBm @ 6Mbps
Antenna Type Hardware diversity support: transmit and receive on Main and Auxiliary antenna
connectors.
Range 802.11b: 11 Mbps up to 180m LOS, 60m indoors; 1 Mbps up to 570m LOS,
125m indoors
54Mbps Wireless LAN Card User's Manual
54
802.11g: 54 Mbps up to 50m LOS, 20m indoors; 18 Mbps up to 150m LOS, 75m
indoors
Power Consumption
Tx peak: 550 ma @ 3.3VDC; Rx peak: 350 ma @ 3.3VDC;
Idle: 225mA @ 3.3VDC
Security **
Hardware 64/128-bit WEP engine; WEP weak-key avoidance, TKIP, hardware
AES engine supporting CCM and OCB, 802.1x, SSN
Delay Tolerance 802.11b: Multipath R.M.S Delay Spread @ 1% FER: 11 Mbps > 250 nsec; 5.5
Mbps > 300 nsec
Client Utility Automatic location profile, site monitor, current link status, and diagnostics
Software Support Microsoft WHQL certified for Windows XP.
LED Indicators WLAN Activity Monitor, WLAN Radio Status Indicators
Switch Manual radio on/off disables transmit and receive to comply with
aviation in-flight restrictions
Temperatures
Operates from 0 to 70 ℃
Storage from -40 to 90 ℃
Humidity (non-condensing) 5 to 95%
Certifications
FCC Part 15
CE
TELEC
JATE
* For PCI adapter user, if you install the PCI adapter in motherboards that support only 5V PCI adpter, your computer will not work properly. The operating voltage of
Mini-PCI, CardBus, and PCI model is 3.3V.
** The current sofware version only supports WEP encryption.
55
Glossary
802.11 802.11 refers to a family of specifications developed by the IEEE for wireless LAN
technology. 802.11 specifies an over-the-air interface between a wireless client and a
base station or between two wireless clients.
Access Point An internetworking device that seamlessly connects wired and wireless networks.
Access Points combined with a distributed system support the creation of multiple radio
cells that enable roaming throughout a facility.
Ad Hoc
(Peer-to-Peer)
An 802.11 networking framework in which devices or stations communicate directly
with each other, without the use of an Access Point (AP). Ad Hoc mode is useful for
establishing a network where wireless infrastructure does not exist or where wired
network services are not required. Ad Hoc mode is also referred to as peer-to-
p
eer mode
or an Independent Basic Service Set (IBSS).
Bit A bit (short for binary digit) is the smallest unit of data in a computer. A bit has a single
binary, either 0 or 1.
BSS Basic Service Set. In a network where an AP is connected to wired network and is
associates with a set of wireless stations, it is referred to as a BSS.
ESS Extended Service Set. An Extended Service Set (ESS) is a set of two or more BSSs that
form a single network. It’s basically a roaming wireless network.
Default Gateway The address used to forward all traffic that is not addressed to a station within a local
subnet.
Encryption The translation of data into a secret code. Encryption is the most effective way to
achieve data security. To read an encrypted file, you must have access to a secret key or
password that enables you to decrypt it.
Ethernet The most widely used medium access method, which is defined by the IEEE 802.3
standard. Ethernet is normally a shared media LAN; i.e., all the devices on the network
segment share total bandwidth. Ethernet networks operate at 10Mbps using CSMA/CD
to run over 10BaseT cables.
Gateway A network component that interconnects networks with different, incompatible
communications protocols.
IEEE Abbreviation of Institute of Electrical and Electronics Engineers, pronounced I-triple-E.
Founded in 1884 as the AIEE, the IEEE was formed in 1963 when AIEE merged with
54Mbps Wireless LAN Card User's Manual
56
IRE. IEEE is an organization composed of engineers, scientists, and students. The IEEE
is best known for developing standards for the computer and electronics industry.
Infrastructure An 802.11 networking framework in which devices communicate with each other by
first going through an Access Point (AP). In Infrastructure mode, wireless devices can
communicate with each other or can communicate with a wired network.
IP Internet Protocol. The standard protocol within TCP/IP that defines the basic unit of
information passed across an Internet connection by breaking down data messages into
packets, routing and transporting the packets over network connections, then
reassembling the packets at their destination. IP corresponds to the network layer in the
ISO/OSI model.
IP Address An IP Address is a 32-bit number that identifies each sender or receiver of information
sent across the Internet. An IP address has two parts: the identifier of a particular
network on the Internet and an identifier of the particular device (which can be a server
or a workstation) within that network.
LAN Local Area Network. A communication network that serves users within a defined
geographical area. The benefits include the sharing of Internet access, files, and
equipment, such as printers and storage devices. Special network cabling (such as
10BaseT) is often used to connect the PCs together.
MAC Address The MAC (Media Access Control) Address is a 12 digit Hexadecimal number that
uniquely identify your network adapter on the network.
Media The materials used to connect network devices, such as twisted-
p
air wire, coaxial cables,
or fiber optic cables. Some networks do not use physical connecting media;
communications are achieved via radio waves instead.
Mbps Stands for millions of bits per second or megabits per second and is a measurement for
data transmission
Protocol The rules and encoding specifications for sending data.
RF Radio Frequency, any frequency within the electromagnetic spectrum associated with
radio wave propagation. When an RF current is supplied to an antenna, an
electromagnetic field is created that then is able to propagate through space.
Roaming In an Infrastructure mode wireless network, roaming refers to the ability to move from
one AP coverage area to another without interruption in service or loss in connectivity.
SSID Service Set Identifier, up to 32-character unique identifier attached to the header of
p
ackets sent over a WLAN that acts as a password when a mobile device tries to connect
to the BSS. The SSID differentiates one WLAN from another; so all access points and
all devices attempting to connect to a specific WLAN must use the same SSID. A device
will not be permitted to join the BSS unless it can provide the unique SSID. An SSID is
Glossary
57
also referred to as a Network Name because essentially it is a name that identifies a
wireless network
Subnet Mask A value that defines whether your computer communicates only within your LAN or
communicates outside of your LAN, where it is routed out to the rest of the Internet. A
Subnet Mask that has the same first three components (for example, 255.255.255.0) is
the routing pattern for a Class C address.
TCP Transmission Control Protocol. The standard transport level protocol that provides the
full duplex, stream service on which many applications’ protocols depend. TCP allows a
process on one machine to send a stream of data to a process on another. Software
implementing TCP usually resides in the operating system and uses the IP to transmit
information across the network.
Topology The geometric arrangement of devices on a network. For example, devices can be
arranged in a ring, bus or star.
54Mbps Wireless LAN Card User's Manual
58
WEP Wired Equivalent Privacy, a security protocol for wireless local area networks defined in
the 802.11b standard. WEP is designed to provide the same level of security as that of a
wired LAN. LANs are more secure than WLANs because LANs are somewhat
physically protected by their structure, having some or all part of the network inside a
building protected from unauthorized access. WLANs, which are over radio waves, do
not have the same physical structure and therefore are more vulnerable to tampering.
WEP aims to provide security by encrypting data over radio waves so that it is protected
as it is transmitted from one end point to another.
WLAN Wireless Local Area Network. A group of computers and devices that communicates
with each other wirelessly.
