Broadxent VF0180 Wireless AP User Manual
Broadxent Pte Ltd. Wireless AP Users Manual
Manual
How to use this manual
This document has been designed to provide you with complete product knowledge. You can resize the
document window or print this document, access linked web sites and get information from specially
prepared graphics.
zTo jump to a linked topic or a web site, click the underlined blue text, or the hand symbol
whenever it appears.
zTo show a short description (tooltip) of an object, move your mouse cursor over it. A tooltip appears
after a few seconds.
You can choose to print portions of this document:
1. On the Contents tabbed page to your left, click a topic heading.
2. On the menu, click the Print button.
3. In the dialog box that appears, click the option to print one topic only, or all topics under a heading.
第 1 頁，共 1 頁How to use this manual
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/How_t...
Introduction
Congratulations on purchasing Creative Live! Wireless. Your easy-to-install and simple-to-use Internet
camera is the perfect solution for streaming video over a LAN or WAN network. Whether for remote
monitoring, live image broadcasting or security surveillance, your Internet camera will provide high-quality,
digital images to make your broadband experience a truly multimedia one.
Your Live! Wireless comes with the following software:
zCreative Internet Camera Center
zCreative Internet Camera Setup Wizard
zCreative Internet Camera Diagnostics
For more information, see Creative Live! Wireless applications.
第 1 頁，共 1 頁Introduction
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Introd...
Package Contents
The package contains the following:
zCreative Wireless Server
zCreative WebCam Live! with USB cable attached
zCreative Live! Wireless Installation CD
zEthernet network cable
zWall mount bracket
zPower adapter
zQuick Start Guide
Note
zContents may vary depending on product model and region of purchase.
第 1 頁，共 1 頁Package Contents
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Packa...
README file
The README file on the CD-ROM contains late-breaking or other information that supplements the
product documentation. Read the file before you begin installing your Internet camera.
第 1 頁，共 1 頁README file
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/READ...
Minimum System Requirements
zIntel® Pentium® III or AMD® (or equivalent) processor running at 700 MHz (Pentium 4 2 GHz
recommended)
zMicrosoft® Windows® XP, Windows 2000, Windows Millennium Edition (Me) or Windows 98 Second
Edition (SE)
zMicrosoft Internet Explorer or other standard web browser
zCD-ROM or DVD-ROM drive
z128 MB RAM (256 MB recommended)
zAvailable Ethernet port, 802.11b or 802.11g wireless interface
zRouter (wireless router recommended)
第 1 頁，共 1 頁Minimum System Requirements
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Minim...
About Creative Live! Wireless
The sections below highlight the features of Creative Live! Wireless:
zWireless Server
zWebCam Live!
第 1 頁，共 1 頁About Creative Live! Wireless
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/About...

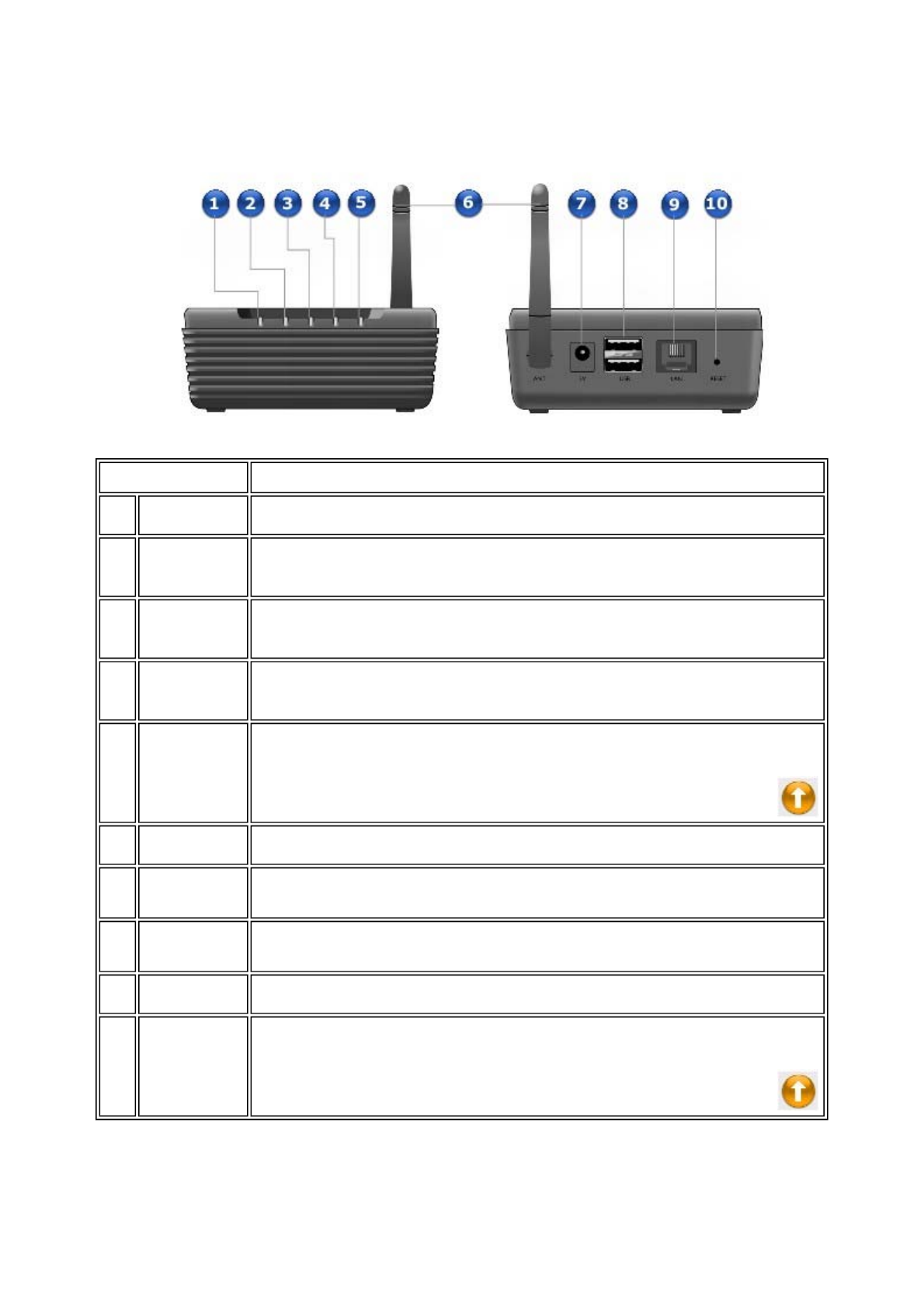

Wireless Server
Warning!
zResetting your Wireless Server will erase any settings assigned with Creative Internet Camera
Setup Wizard. Do not reset your camera if you want to retain your settings.
Component Usage
1. Power LED Lights up when your Wireless Server is connected to a power source.
2. LAN LED Lights up when your Wireless Server is connected to a wired network, and blinks
during data transfer
3. USB 1 LED Lights up when your webcam or USB Storage Device is connected to your USB 1
port.
4. USB 2 LED Lights up when your webcam or USB Storage Device is connected to your USB 2
port.
5. Wireless LED
Lights up when your Wireless Server is connected to a wireless network, and
blinks during data transfer.
6. Antenna Transmits data wirelessly.
7. Power
connector Connect the power adapter to this connector.
8. USB 1 & USB 2
ports Connect your webcam or USB Storage Device to either port.
9. LAN port Connect the supplied Ethernet network cable to this port.
10. Reset button
Resets your Wireless Server to original factory settings. Press and hold the
button using a thin object like a paper clip until all the LEDs start blinking.
第 1 頁，共 2 頁Wireless Server
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Wirele...
Tip
zThe USB ports on your Wireless Server can be used as a USB hub. You can connect a USB
Storage Device, such as a Creative Zen Nano Plus player or a Creative MuVo® Micro N200 player,
to an unused USB port.
第 2 頁，共 2 頁Wireless Server
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Wirele...

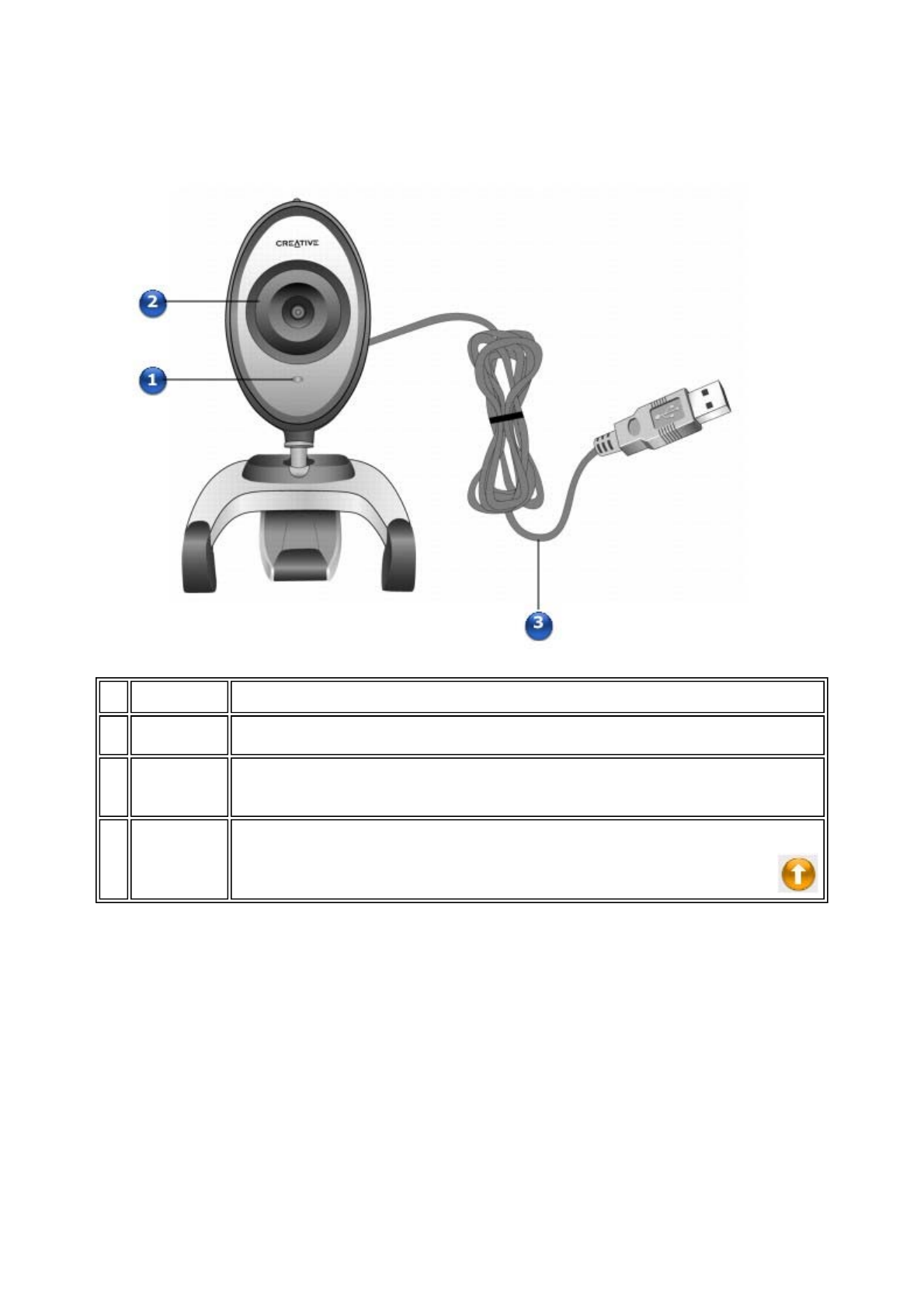

WebCam Live!
Component Description
1. Power LED Lights up when your webcam is connected to your Wireless Server's USB port.
2. Focus ring Adjusts the view focus. Point the lens toward your subject and then rotate the ring
clockwise or counterclockwise until the image is in focus.
3. USB cable Connect it to your Wireless Server's USB port.
第 1 頁，共 1 頁WebCam Live!
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Wirele...
Installing Your Creative Live! Wireless
You need to install applications before using your Live! Wireless.
1. Insert the Installation CD into your CD-ROM drive. Your CD should start automatically. If it does not,
follow the steps below:
i. Double-click the My Computer icon.
Alternatively, click Start My Computer.
ii. Right-click the CD-ROM/DVD-ROM drive icon, and then click AutoPlay.

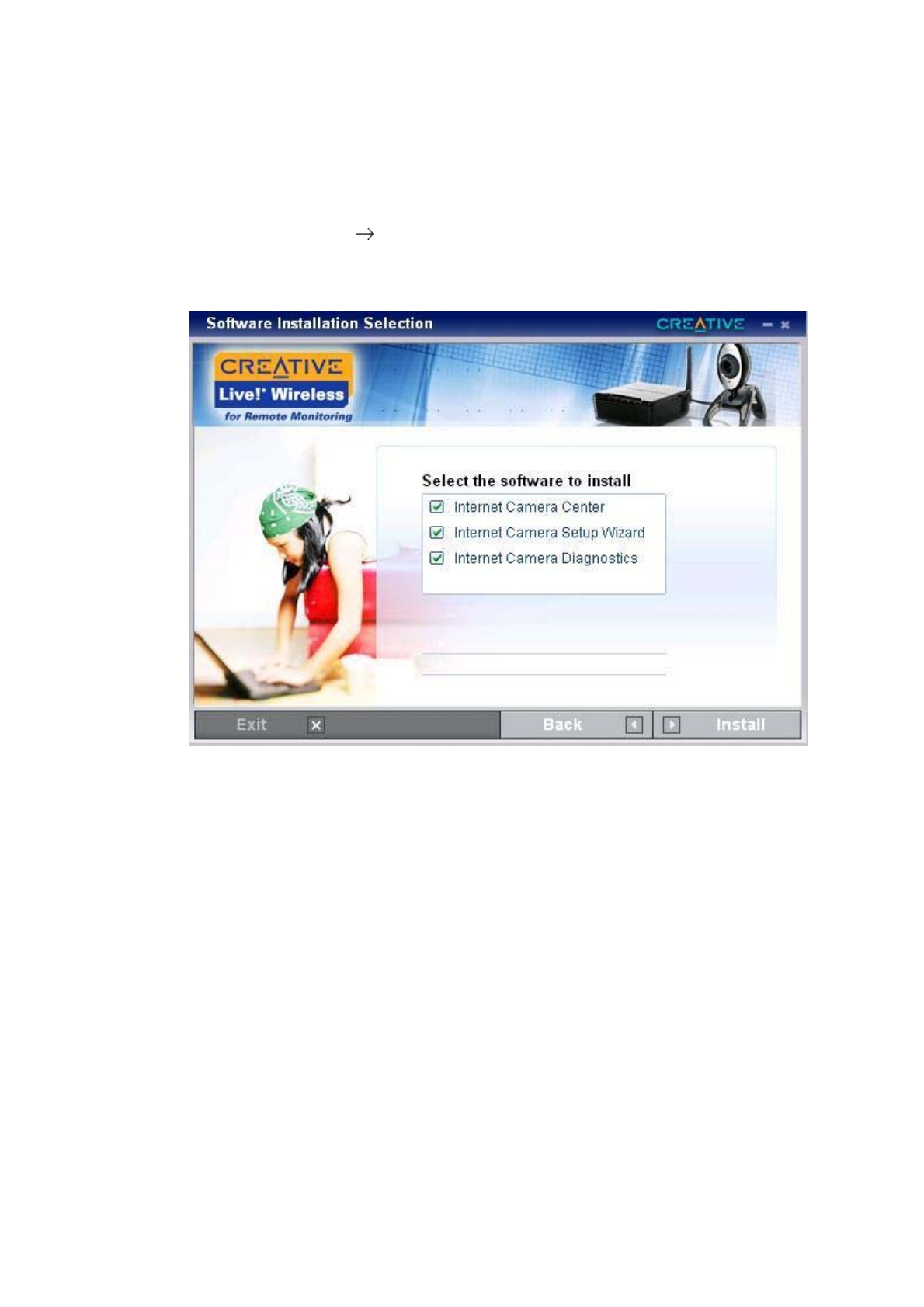

The Software Installation Selection dialog box appears.
2. Click the application(s) you want to install, and then click the Install button.
3. Follow the instructions on screen to complete the installation. You may be asked, after the drivers
have been successfully installed, if you want to restart your computer. Select No until all of your
selected applications are installed.
4. Restart your computer after all of your selected applications have been installed.
第 1 頁，共 1 頁Installing Your Creative Live! Wireless
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Install...
Setting up your Live! Wireless
Your Live! Wireless comes with an easy-to-use setup wizard that guides you through the setup process for
a wired connection, a secured wireless connection, or an unsecured wireless connection. The wizard also
guides you through setting up your Wireless Server so that you can view images and streaming video from
a remote location.
1. If you chose to install the Internet Camera Setup Wizard application, the wizard launches after
your computer has restarted.
Alternatively, double-click the Internet Camera Setup Wizard icon on your desktop.

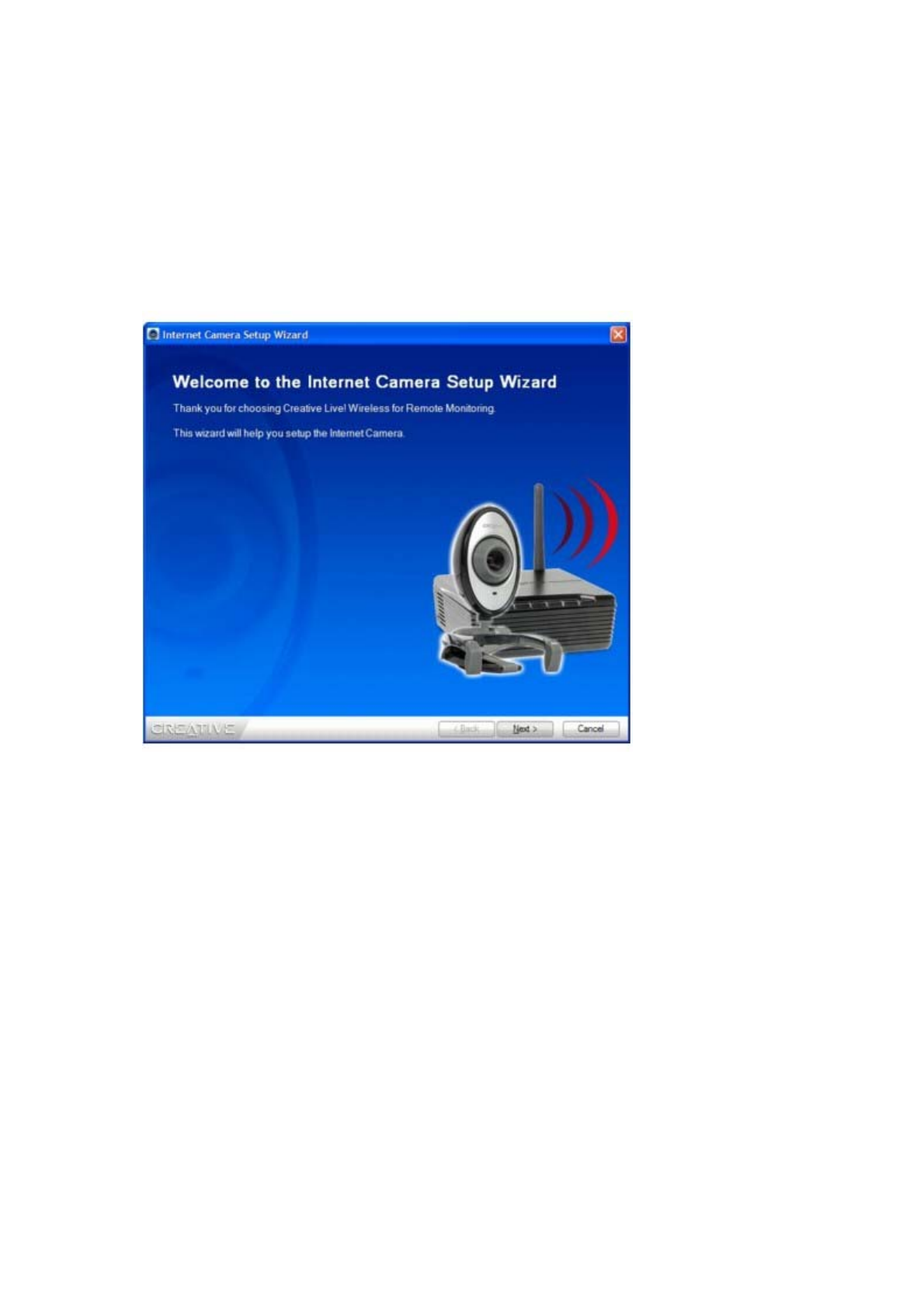

The Internet Camera Setup Wizard dialog box appears.
2. Click the Next button.

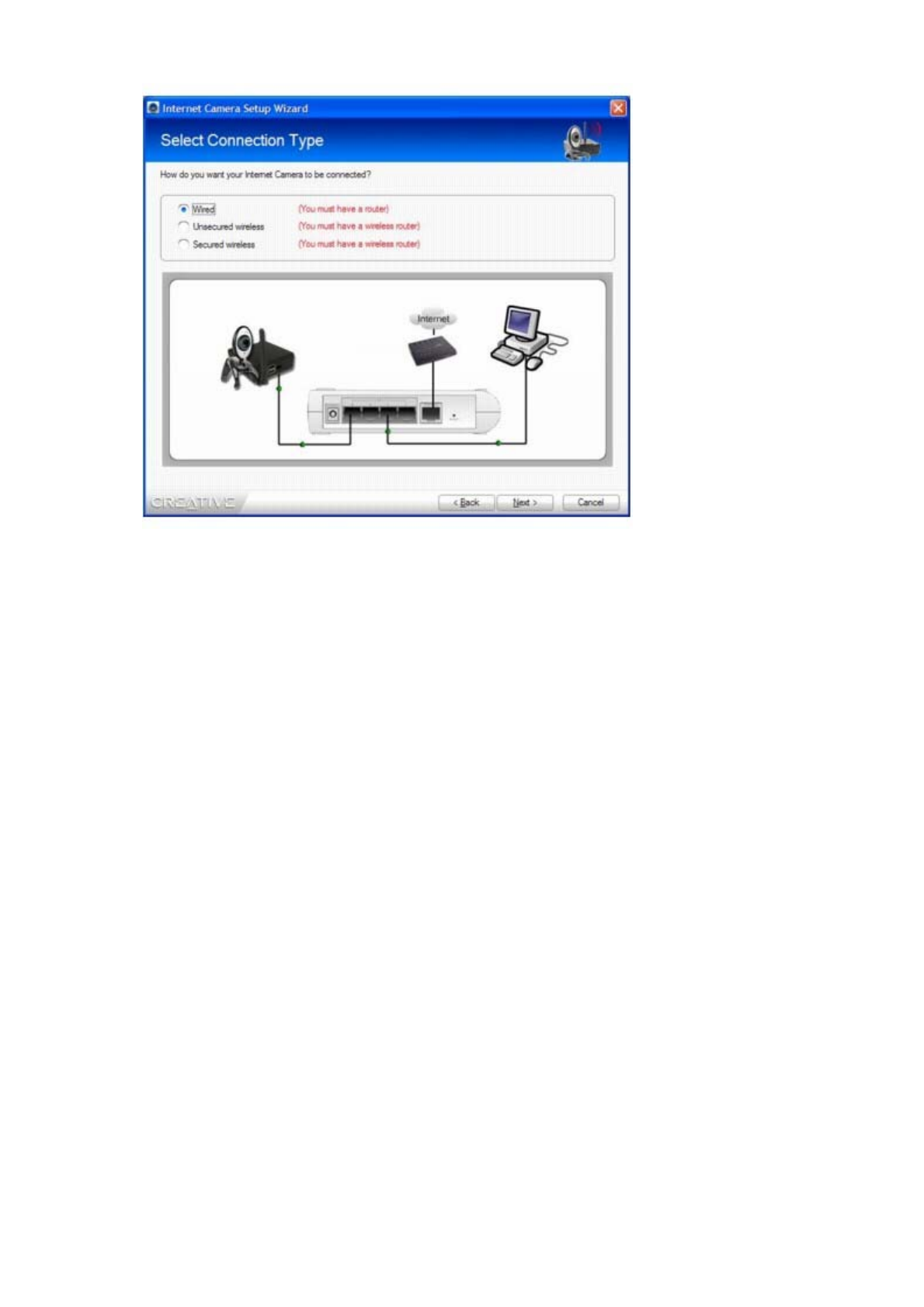

The Select Connection Type dialog box appears.
第 1 頁，共 3 頁Setting up your Live! Wireless
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Settin...
3. Select from one of the following connection types:
{Wired
Select this option if you access the Internet through a wired router instead of a wireless
router.
{Secured wireless
Select this option if you access the Internet through a wireless router with Wireless
Equivalent Privacy (WEP) / Wi-Fi Protected Access-Pre-Shared Key (WPA-PSK) enabled.
{Unsecured wireless
Select this option if you access the Internet through a wireless router that does not have
WEP/WPA-PSK enabled, or that has DHCP enabled.
4. Connect your Wireless Server as shown in the dialog box, for your connection type.
5. Click the Next button.
A webcam dialog box appears.
6. You can change any of the following Internet camera parameters:
{Webcam Name - You can monitor up to four Internet cameras. Rename each camera to
identify its location or purpose to help you remember which camera you are monitoring at
any given time.
{IP Address - You can manually assign a static IP address for your Internet camera.
{Time Zone - You can specify a time zone for each Internet camera. This is useful when you
are monitoring different cameras in different time zones.
{Time - You can choose between autosync and manual time input. Autosync matches the
Internet camera time to your computer's system clock.
{Username and Password - It is strongly recommended that you change the default
username and password during initial setup.
7. Click the Next button to confirm any parameter changes that you have made.

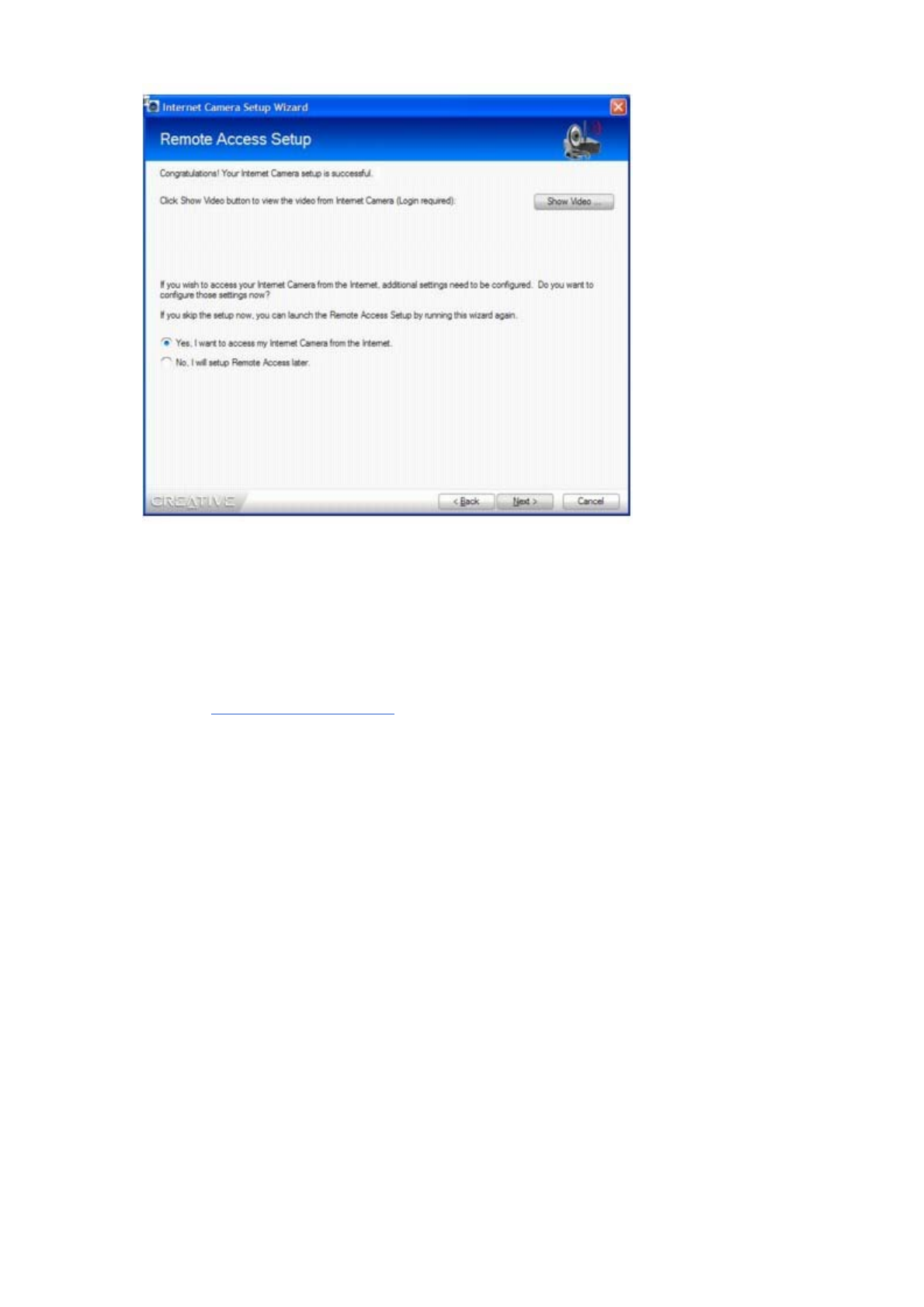

The Remote Access Setup dialog box appears.
第 2 頁，共 3 頁Setting up your Live! Wireless
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Settin...
8. To test your Internet camera's video setup, click the Show Video button, and enter your Username
and Password.
9. If you do not want to set up your Internet Camera for remote access, select the No, I will set up
Remote Access later option, and then click the Next button.
On the summary dialog box that appears, check that the information for your Internet Camera setup
is correct, and then click the Finish button.
10. If you want to set up your Internet Camera for remote access, select the Yes, I want to access my
Internet Camera from the Internet option and click the Next button. Proceed to set up remote
access in Setting up Remote Access.
第 3 頁，共 3 頁Setting up your Live! Wireless
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Settin...
Setting up Remote Access
In order to view or record video with your Internet Camera from a remote location over the Internet, you
need to set up remote access. Make sure you are connected to the Internet before setting up remote
access.
1. Complete the steps in Setting up your Live! Wireless.

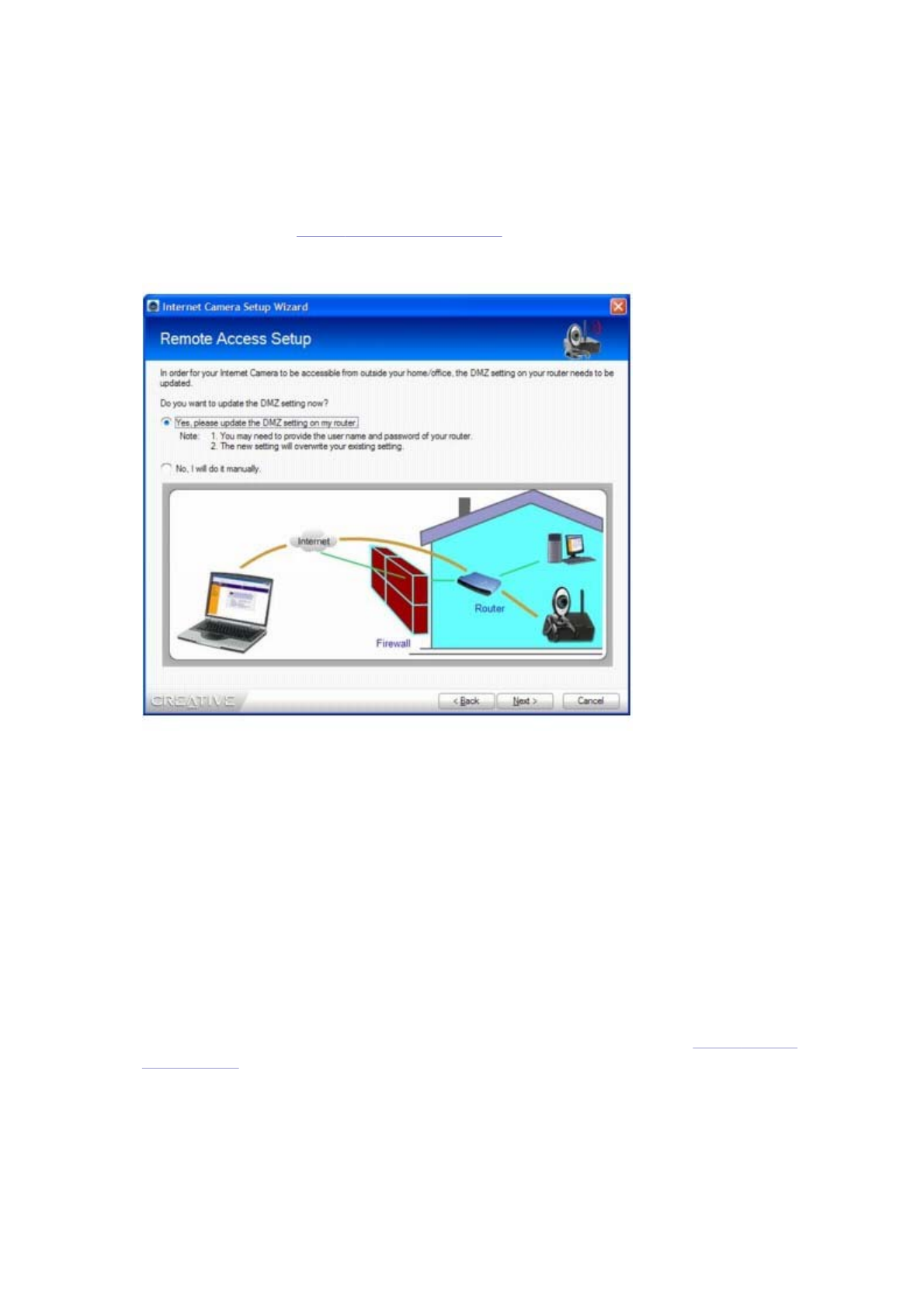

2. On the Remote Access Setup dialog box, select the Yes, I want to access my Internet Camera
from the Internet option, and then click the Next button.
3. Select the Yes, please update the DMZ setting on my router option, and then click the Next
button.
4. Select whether you want to create a Dynamic Domain Name Service (DDNS) account.
A DDNS account allows you to access your Wireless Server by entering a URL in your web browser
instead of an IP address.
5. Click the Next button.
A summary dialog box appears.
6. Check that the information for your Internet camera remote access setup is correct, and then click
the Finish button to complete the setup.
After your Internet Camera is set up, you can use the setup wizard again to set up a new Internet Camera,
change Internet Camera settings, or set up remote access.
Note
zThe setup wizard detects only one Internet Camera at a time. To set up more than one Internet
Camera you need to run the Creative Internet Camera Setup Wizard again (see Setting up your
Live! Wireless).
zThe default username and password is admin. If you change your username and password, you
will be prompted to enter them.
zThe wizard restarts your Internet Camera for any new settings to take effect.
第 1 頁，共 1 頁Setting up Remote Access
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Settin...
Creative Live! Wireless applications
The following applications are designed to help you access the full range of features available with your
Internet camera.
For more information on each application, refer to its online help.
The Installation CD includes the following:
zCreative Internet Camera Center
zCreative Live! Wireless web-based utility
zCreative Internet Camera Diagnostics
第 1 頁，共 1 頁Creative Live! Wireless applications
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Creati...

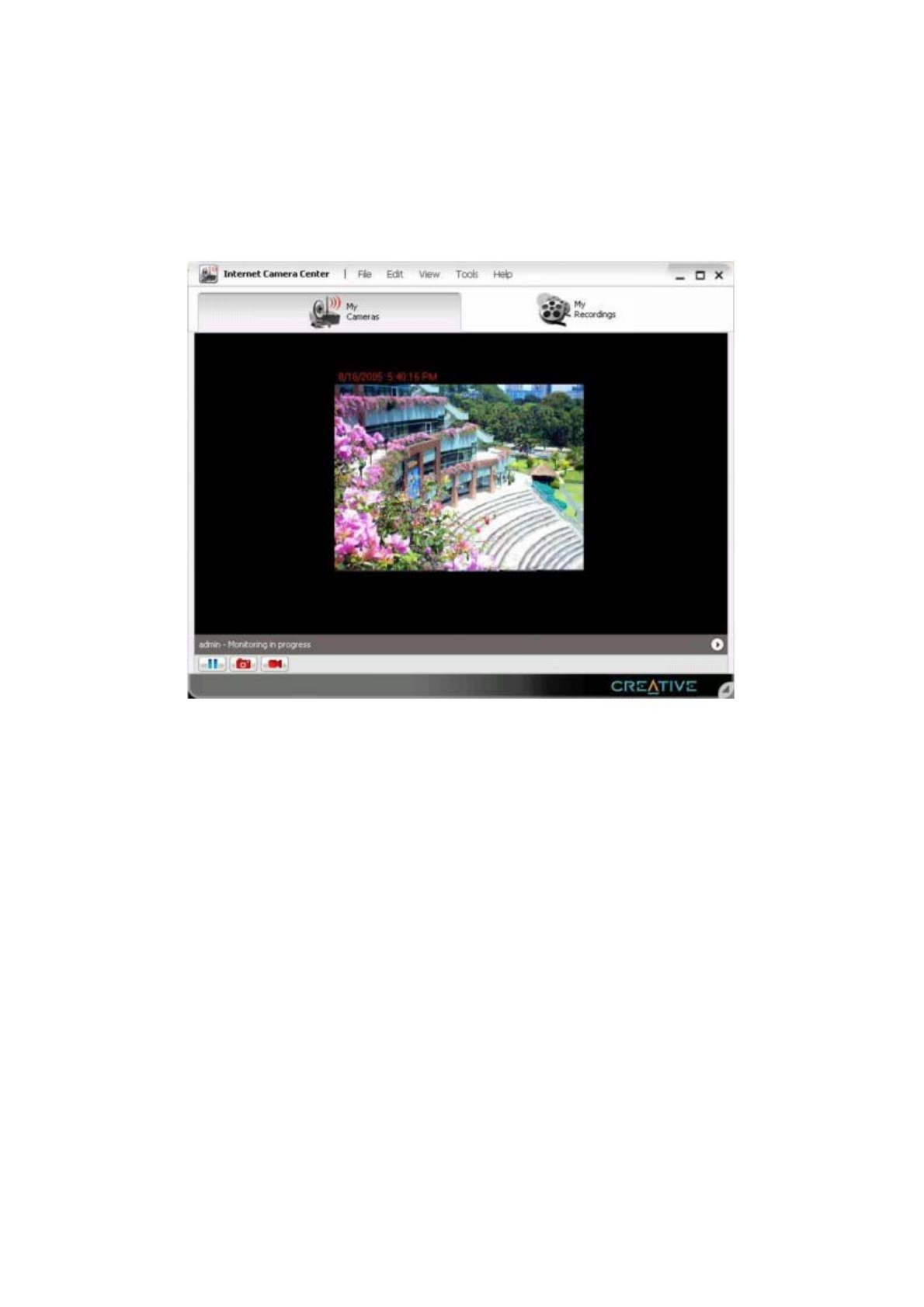

Creative Internet Camera Center
With Creative Internet Camera Center you can monitor real-time based video from up to four Internet
cameras. You can record your remote monitoring or surveillance sessions and store them in media folders
on your local computer.
For additional information and usage instructions, see the application's Help.
第 1 頁，共 1 頁Creative Internet Camera Center
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Creati...
Creative Live! Wireless web-based utility
Creative Live! Wireless web-based utility allows you to access your Internet cameras from a location
outside the LAN. This web-based utility is available when you create a DDNS for your Internet camera. For
more information on creating a DDNS, see Setting up Remote Access.
To access your Internet camera's web-based utility:
1. Launch your browser.
2. In the Address box, type your Internet camera's IP address, or registered domain name if you are
using remote access.
3. In the Login screen that appears, type in your username and password and click the OK button.
Your Internet camera video appears.
4. To configure your Internet camera's settings, refer to instructions on the left pane of the
configuration web page.
Note
zCreative Live! Wireless web-based utility supports WAN monitoring on Mac® OS X 10.4, Mac OS
9.1, Red Hat® 9.0.
zIf your Web browser does not support ActiveX components, you can monitor your Internet camera's
activity using Creative Internet Camera Center.
zYou can verify your Internet camera's IP address in the Camera List window of Creative Internet
Camera Center.
第 1 頁，共 1 頁Creative Live! Wireless web-based utility
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Creati...

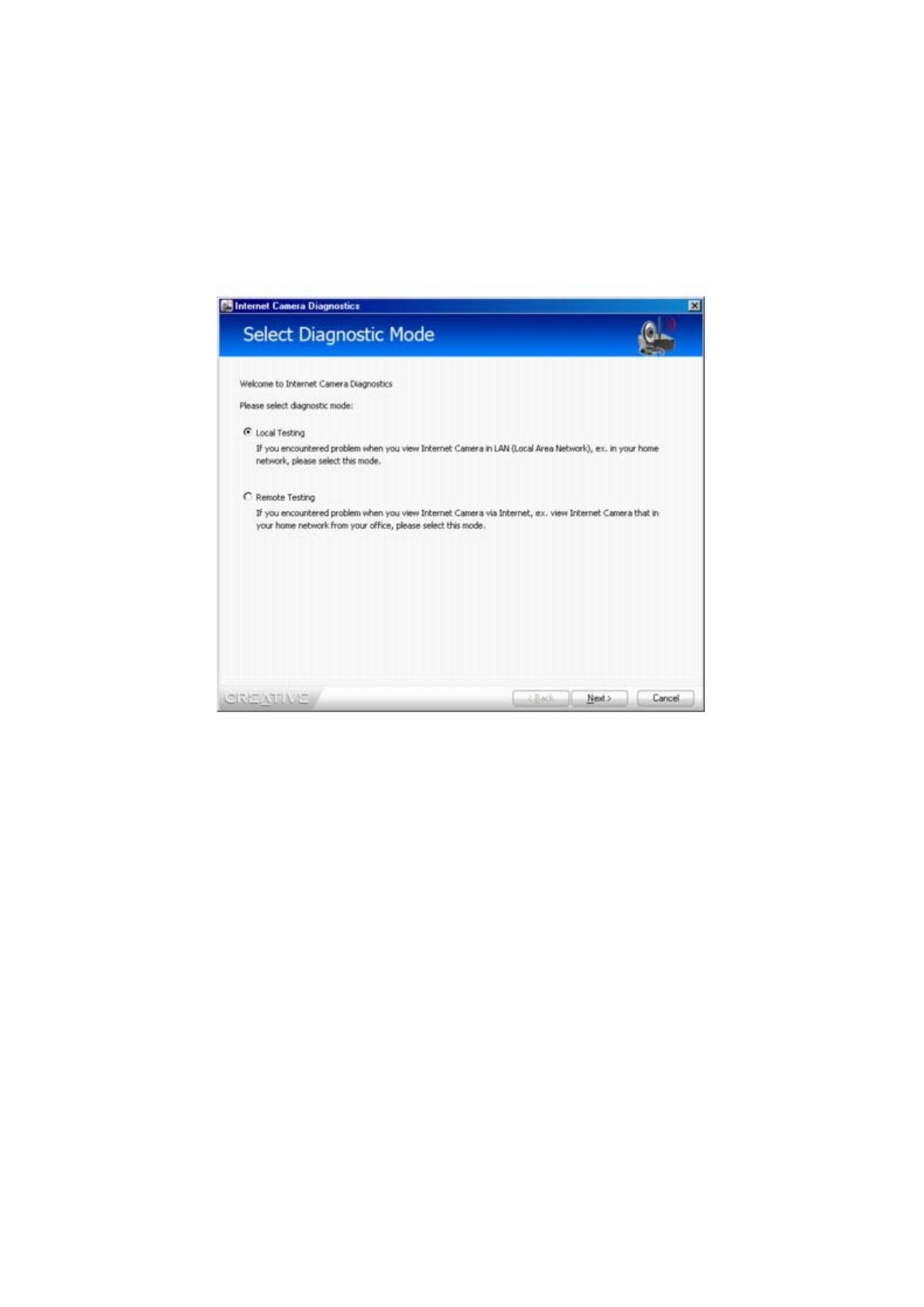

Creative Internet Camera Diagnostics
This utility is a useful program for diagnosing and fixing any problems that you may have with your Internet
camera. The utility helps you check that
{The hardware is detected
{The Wireless Server is properly connected to the Internet
{The LAN or WAN parameters are correct.
If the tests detect problems, the utility suggests solutions.
第 1 頁，共 1 頁Creative Internet Camera Diagnostics
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Creati...
Frequently Asked Questions
This section covers questions you might have while using your camera. If you have more questions about
this product, consult our online self-help tool. To access the Knowledge Base, go to www.creative.com,
select your region and then select Support.
I have a modem at home, but do not have a switch or router. Can I configure and view my Internet
camera via the Internet?
No, you need a router in order to configure and view your Internet camera via the Internet.
I want to move my Wireless Server to another monitoring location, how do I monitor my Internet
camera's activity?
If you are moving to another location within the same network, you can still monitor your Wireless Server's
activity using Creative Internet Camera Center.
If you are moving to a location with a different network, you need to reset your Internet camera and set it
up at your new monitoring location (see Setting up your Live! Wireless).
Why can't I monitor or configure my Internet camera via the Internet through a router?
The firewall for your computer, ISP or corporate Internet server may be set to block the port used for
webpage viewing or streaming. Try the following:
zIf you are accessing your Internet camera within the LAN, configure your computer's firewall to
include your Internet camera's port for video streaming.
zIf you are accessing your Internet camera through the Internet, contact your ISP or administrator to
include your Internet camera's port for webpage viewing or video streaming.
zRun the Creative Internet Camera Diagnostics to help diagnose the problem and find a solution.
I can't locate my Wireless Server from the LAN. What can I do?
Make sure that the power adapter is plugged in securely to both your Wireless Server and your router, and
that the power is turned on. If the power to both is turned on, your computer's firewall settings may be
blocking communication between your computer and your Wireless Server.
Where do I find my Wireless Server's IP address?
An IP address is assigned to your Wireless Server when you run the Creative Internet Camera Setup
Wizard. Run the setup wizard again and check the IP address (see Setting up your Live! Wireless).
Why can't I access my Wireless Server from a remote location?
Your router's DMZ settings or your DDNS account may not be correctly configured. Try one of the
following:
zMake sure that you enabled your router's DMZ option. For more information on your router's
options, refer to the User's Guide for your router.
zMake sure that you correctly entered the IP address in the DMZ IP address field (see Setting up
Remote Access).
zIf this is correct, run the Creative Internet Camera Diagnostics to check whether the host name is
valid or if the DDNS is down.
Can I stream video from more than one Internet camera using Creative Internet Camera Center?
Yes. You can stream video from up to four Internet cameras at the same time.
Will wireless autoscan detect my Wireless Server?
If your computer does not have wireless security set up, you can use the wireless autoscan feature to
detect your Wireless Server. However, if you have several wireless access points near your Wireless
Server, it could take up to five minutes to detect it.
Can I use my Wireless Server outdoors?
No. Your Wireless Server is not waterproof and is not designed for outdoor usage.
Can I connect a USB storage device to an unused USB port of the Wireless Server?
Yes, your Wireless Server can serve as a USB hub. You can connect a USB mass storage device with
FAT or FAT32 file system.
第 1 頁，共 2 頁Frequently Asked Questions
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Frequ...
Why isn't my USB storage device recognized when I connect it to the Wireless Server?
Your USB storage device should be recognized when you connect it to the Wireless Server. Make sure
that your device is not locked.
Can I use the webcam provided for instant messaging on my computer?
Yes, you can use the webcam by installing the driver provided on the Installation CD. For more information
on using your Creative WebCam Live! as a webcam, you can download the User's Guide from
www.creative.com.
第 2 頁，共 2 頁Frequently Asked Questions
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Frequ...
Hardware Features
Power source
z5VDC 2.4A, power adapter for indoor use
Resolution
zDisplay resolution up to 640 x 480 pixels
zFrame rate up to 15 frames/sec.
Video formats
zMotion JPEG (MJPG) for real-time view
zJPEG for interval view
Exposure control
zAutomatic
White balance
zAutomatic
Network interface
zOne RJ-45, Ethernet 10/100 Mbps
zIEEE 802.11g wireless compatible with 802.11b/g AP
Antenna
zExternal single-pole antenna
LED
zPower
zLAN
zUSB1
zUSB 2
zWireless
Operating conditions
zTemperature: 5-50°C (41-122°F)
zHumidity: 5-95%
第 1 頁，共 1 頁Hardware Features
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Hardw...
Software Features
Network protocol
zTCP/IP, SMTP client, ARP, RTP, RTCP, RTSP, FTP, HTTP
zDHCP client, DDNS supported
Email notification
zSMTP email notification protocols supported
zSoftware-triggered event delivery supported
zUser-configurable thresholds for number of e-mails sent and duration supported
zUp to 4 image attachments supported
Security
zUser/password authentication for remote access
zSoftware-controlled video capture supported
z802.11g WEP & WPA-PSK supported
zSystem event log
zVideo motion detection supported
zSoftware-controlled motion detection supported
Local/Remote management
zPassword authentication
zHTTP server using standard web browser interface
zAutomatic or user controlled AP site survey and activation
zHTTP refresh for WAN access behind corporate firewall
zLocal video transmission using RTP/RTSP/RTCP supported
zMonitoring through standard web browser with plug-in supported
zMultiple users with single camera in LAN supported
zMultiple camera monitoring in LAN supported
zDDNS naming conversion for DHCP broadband subscribers supported
zDHCP client supported
zSystem default recovery
zFirmware download/upgrade supported
第 1 頁，共 1 頁Software Features
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Softw...
General Safety
To avoid the risk of fire, electric shock or personal injury, note the following precautions when using the
product:
zDo not expose the product to direct sunlight or excessive heat.
zDo not place the product in surroundings that exceed 40°C (104°F).
zAvoid humid conditions. Do not place the product near a water source or outlet.
zDo not clean the product with a damp cloth or liquid cleaner.
zDo not put any weight on the product.
zAllow only qualified personnel to service or repair the product, if such is necessary.
第 1 頁，共 1 頁General Safety
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Gener...
Exposure to Radio Frequency Caution
zThe radiated output power of this device is far below the FCC radio frequency exposure limits.
Nevertheless, the device shall be used in such a manner that the potential for human contact during
normal operation is minimized.
zThe product and any attached external antenna, if supported, shall be placed in such a manner to
minimize the potential for human contact during normal operation.
zThe indoor antenna must be totally isolated and does not have a line of sight to an external GPS
antenna, to avoid feedback reflected RF signal.
第 1 頁，共 1 頁Exposure to Radio Frequency Caution
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Expos...
Power Adapter Safety Notice
Power Source
This product is specially designed for operation within the electrical range(s) specified on the provided
power adapter. Any usage outside of these ranges is at your own risk.
If you are not sure of the type of power supply to your home, consult your product dealer or local Power
Company.
Cleaning
Unplug the product from the power source before cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
Damage Requiring Servicing
Unplug the power adapter from the wall outlet or other power source and refer servicing to qualified
service personnel under the following conditions:
zwhen the power supply cord or plug is damaged;
zif liquid has been spilled, or objects have fallen into the product;
zif the product has been exposed to rain or water;
zif the product does not perform normally when following the operating instructions or exhibits a
distinct change in performance;
zif the product has been dropped or damaged in any way.
Servicing
Do not attempt to service the product on your own. Refer all servicing to qualified service personnel.
第 1 頁，共 1 頁Power Adapter Safety Notice
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Power...
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
VF0180 is to be limited in Ch1~Ch11 for 2.4GHz by specified firmware controlled in U.S.A.
INFORMATION TO USER:
The users manual or instruction manual for an intentional or unintentional radiator shall caution the user
that changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
第 1 頁，共 1 頁Federal Communication Commission Interference Statement
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Federa...
License and Copyright
Information in this document is subject to change without notice and does not represent a commitment on the part of Creative
Technology Ltd. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical,
including photocopying and recording, for any purpose without the written permission of Creative Technology Ltd.
Copyright © 2005 Creative Technology Ltd. All rights reserved. The Creative logo is a trademark or registered trademarks of
Creative Technology Ltd. in the United States and /or other countries. Microsoft, Windows and the Windows logo are registered
trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Mac is a registered
trademark of Apple Computers Inc.. Red Hat is a registered trademark of Red Hat, Inc. All other products are trademarks or
registered trademarks of their respective owners and are hereby recognized as such.
Version 1.0
September 2005
第 1 頁，共 1 頁License and Copyright
2005/9/9mk:@MSITStore:C:\DOCUME~1\Zoe\LOCALS~1\Temp\notesEA312D\manual.chm::/Licens...
