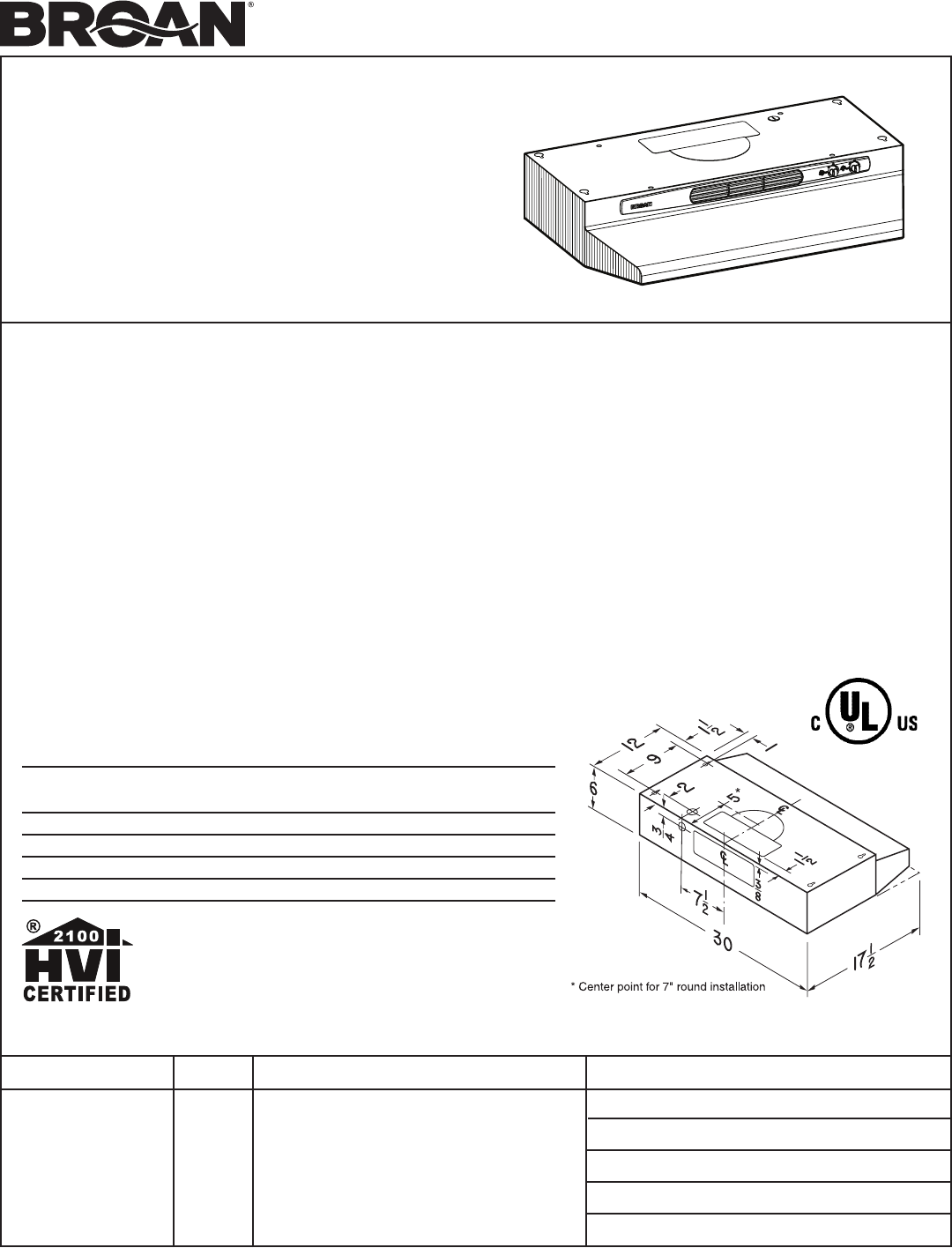

SPECIFICATION SHEET

70F 99044082A

SPECIFICATIONS

VOLTS AMPS CFM SONES DUCT

HIGH NORMAL HIGH NORMAL

120 1.9 190 100 6.0 2.0 3¼" X 10" (H)

120 1.9 190 130 6.0 2.0 3¼" X 10" (V)

120 1.9 230 150 6.0 2.0 7" Round (V)

120 1.9 -- -- -- -- Non-Ducted

QL1 SERIES

4-WAY

CONVERTIBLE

RANGE HOOD

HVI-2100 CERTIFIED RATINGS comply with new testing

technologies and procedures prescribed by the Home

Ventilating Institute, for off-the-shelf products, as they are

available to consumers. Product performance is rated at 0.1 in.

static pressure, based on tests conducted in a state-of-the-art

test laboratory. Sones are a measure of humanly-perceived

loudness, based on laboratory measurements.

Deluxe features in our smaller shell - offers the

most hood for the money.

FEATURES

• 2-speed fan control

• Polymeric blade and light lens (accepts two 60W bulbs)

•  Washablealuminumlter

• Converts to non-ducted by removing cover plate from

controlpanelandinstallingthenon-ductedlterBPQTF

(purchase separately)

• 3¼" x 10" damper/duct connector included

• 7" round duct adapter plate included

• Mitered sides and hemmed bottom for safety,

cleanability and good looks

• ContemporarystylinginWhiteandBiscuit

• Available in 30" width only

Broan-NuToneLLCHartford,Wisconsinwww.broan.com800-558-1711

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

TYPICAL SPECIFICATION

RangehoodshallbeBroanQL1Series.

Unit shall be convertible between ducted (using a washable

aluminum lter) and non-ducted (using non-ducted lter

BPQTF).

Motor to be permanently lubricated.

Unit shall have a 2-speed fan control with separate 2-level

light switch.

Sides shall be mitered and bottom edge hemmed with no

sharp edges.

Air delivery shall be no less and sound levels no greater than

shown.AllairandsoundratingsshallbecertiedbyHVI.

UnitshallbeU.L.listed.
