Brookstone Purchasing AR127A1XXA Panda True Wireless Stereo Earbuds with Bluetooth User Manual
Brookstone Purchasing, Inc. Panda True Wireless Stereo Earbuds with Bluetooth
User Manual
BC
AR127A1WHA
1
2
3
PANDA TWS
PANDA TWS

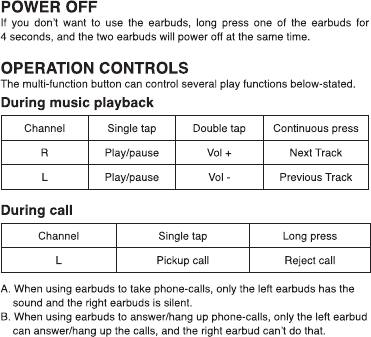

POWER OFF
If you don’t want to use the earbuds, long press one of the earbuds for
4 seconds, and the two earbuds will power off at the same time.
OPERATION CONTROLS
The multi-function button can control several play functions below-stated.
During music playback
Channel Single tap Double tap Continuous press
R Play/pause Vol + Next Track
L Play/pause Vol - Previous Track
During call
Channel Single tap Long press
L Pickup call Reject call
A. When using earbuds to take phone-calls, only the left earbuds has the
sound and the right earbuds is silent.
B. When using earbuds to answer/hang up phone-calls, only the left earbud
can answer/hang up the calls, and the right earbud can’t do that.
4

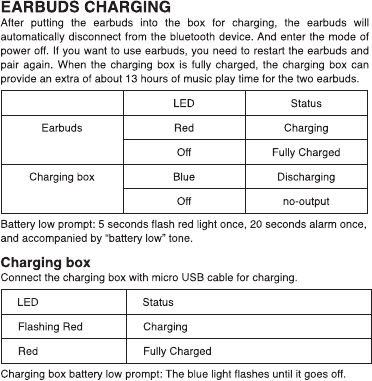

EARBUDS CHARGING
After putting the earbuds into the box for charging, the earbuds will
automatically disconnect from the bluetooth device. And enter the mode of
power off. If you want to use earbuds, you need to restart the earbuds and
pair again. When the charging box is fully charged, the charging box can
provide an extra of about 13 hours of music play time for the two earbuds.
LED Status
Earbuds Red Charging
Off Fully Charged
Charging box Blue Discharging
Off no-output
Battery low prompt: 5 seconds ash red light once, 20 seconds alarm once,
and accompanied by “battery low” tone.
Charging box
Connect the charging box with micro USB cable for charging.
LED Status
Flashing Red Charging
Red Fully Charged
Charging box battery low prompt: The blue light ashes until it goes off.
5
6
(Don't support Low Energy mode)
7
RF warning statement:
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Brookstone 2017
