BASIC USER’S GUIDE DCP-7055 DCP-7060D

BASIC USER’S GUIDE

DCP-7055

DCP-7060D

Version A

CHN-ENG

To create a better environment

Please cooperate

Firstly, thank you very much indeed for using our Brother products!

Brother focuses on the earth environment concerned. And make a basic policy which is to concern

about the earth environment, including any workflow from product development to discard. The

local citizen should be responsible for local society and its environment during these environment

protection activities.

Therefore, we hope you'll take part in this environment plan, and pay attention to environment

protection points as below while discarding used consumables.

1 Please deliver the used package materials to relevant waste disposaloffice for recycle.

2 When you discard used consumables, please follow and carry on relevant local regulations

properly.

3 When the machine need replacing parts for the maintenance and repair, please discard used

circuit boards, used electrical parts and products as disposed electrical materials.

4 The power consumption is 0 W after you turn off the machine and unplug it from the AC outlet.

5 Some parts in the machine can be used on the same series model machines which produced

by the same factory.

Note: If you want to replace the parts, please contact your local Brother repair station.

User’s Guides and where do I find it?

Which manual? What’s in it? Where is it?

Safety and Legal Read this Guide first. Please read the Safety

Instructions before you set up your machine.

See this Guide for trademarks and legal

limitations.

For Chinese: Printed / In the box

For Chinese English: PDF file /

Documentation CD-ROM /

In the box

Quick Setup Guide Follow the instructions for setting up your

machine and installing the drivers and software

for the operating system and connection type

you are using.

Basic User's Guide Learn the basic Copy and Scan operations and

how to replace consumables. See

troubleshooting tips.

Advanced User's

Guide

Learn more advanced operations: Copy,

printing reports, and performing routine

maintenance.

PDF file /

Documentation CD-ROM /

In the Box

Software User's

Guide

Follow these instructions for Printing and

Scanning. Instructions are included for using

the Brother ControlCenter utility.

Table of Contents

(BASIC USER'S GUIDE)

1 General information 1

Using the documentation .......................................................................................1

Symbols and conventions used in the documentation ....................................1

Accessing the Advanced User’s Guide, Software

User’s Guide and Network User’s Guide............................................................1

Viewing Documentation...................................................................................1

Accessing Brother Support (Windows®)................................................................3

Accessing Brother Support (Macintosh) ................................................................3

Control panel overview ..........................................................................................4

Changing LCD language .......................................................................................6

2 Loading paper 7

Loading paper and print media ..............................................................................7

Loading paper in the standard paper tray........................................................7

Loading paper in the manual feed slot ............................................................9

Unscannable and unprintable areas..............................................................13

Paper settings......................................................................................................14

Paper Type ....................................................................................................14

Paper Size .....................................................................................................14

Acceptable paper and other print media..............................................................15

Recommended paper and print media ..........................................................15

Type and size of paper ..................................................................................15

Handling and using special paper .................................................................16

3 Loading documents 19

How to load documents .......................................................................................19

Using the scanner glass ................................................................................19

4 Making copies 20

How to copy .........................................................................................................20

Stop copying..................................................................................................20

Copy settings.................................................................................................20

5 How to print from a computer 21

Printing a document.............................................................................................21

6 How to scan to a computer 22

Scanning a document as PDF file using ControlCenter4 (Windows®) ................22

Changing the SCAN key settings ........................................................................25

Before scanning.............................................................................................25

SCAN key settings.........................................................................................25

Scanning using the SCAN key ......................................................................27

iii

A Routine maintenance 28

Replacing the consumable items.........................................................................28

Replacing the toner cartridge ........................................................................29

Replacing the drum unit.................................................................................35

Cleaning the machine..........................................................................................40

Cleaning the outside of the machine .............................................................40

Cleaning the scanner glass ...........................................................................41

Cleaning the corona wire...............................................................................42

Cleaning the drum unit ..................................................................................43

Cleaning the paper pick-up rollers.................................................................48

B Troubleshooting 49

Error and maintenance messages.......................................................................49

Paper Jams..........................................................................................................52

Paper is jammed in the standard paper tray..................................................52

Paper is jammed at the back of the machine ................................................53

Paper is jammed inside the machine.............................................................55

Paper is jammed in the Duplex Tray .............................................................59

If you are having difficulty with your machine ......................................................61

Improving the print quality....................................................................................64

Machine Information ............................................................................................74

Checking the Serial Number..........................................................................74

Reset functions..............................................................................................74

How to reset the machine..............................................................................74

C Menu and features 75

On-screen programming......................................................................................75

Menu table.....................................................................................................75

How to access the menu mode .....................................................................75

Menu keys ...........................................................................................................76

Menu table...........................................................................................................77

D Specifications 80

General................................................................................................................80

Document Size ....................................................................................................83

Print media...........................................................................................................84

Copy ....................................................................................................................85

Scanner ...............................................................................................................86

Printer ..................................................................................................................87

Interfaces.............................................................................................................88

Computer requirements.......................................................................................89

Consumable items...............................................................................................91

E Index 92

Table of Contents

(ADVANCED USER’S GUIDE)

The Advanced User's Guide explains the following features and operations. You can view the

Advanced User's Guide on the Documentation CD-ROM.

1 General Setup

Memory storage

Ecology features

Toner Settings

LCD Contrast

User Settings Report

Scanning using a scanner driver

2 Making copies

Copy settings

Duplex Copying (1-sided to 2-sided)

(For DCP-7060D)

A Routine maintenance

Cleaning the machine

Checking the machine

Packing and shipping the machine

B Glossary

CIndex

Using the

documentation 1

Thank you for buying a Brother machine!

Reading the documentation will help you

make the most of your machine.

Symbols and conventions

used in the documentation 1

The following symbols and conventions are

used throughout the documentation.

Accessing the

Advanced User’s

Guide, Software User’s

Guide and Network

User’s Guide 1

This Basic User's Guide does not contain all

the information about the machine such as

how to use the advanced features Copy,

Printer and Scanner. When you are ready to

learn detailed information about these

operations, read the Advanced User's

Guide and Software User's Guide that are

on the Documentation CD-ROM.

Viewing Documentation 1

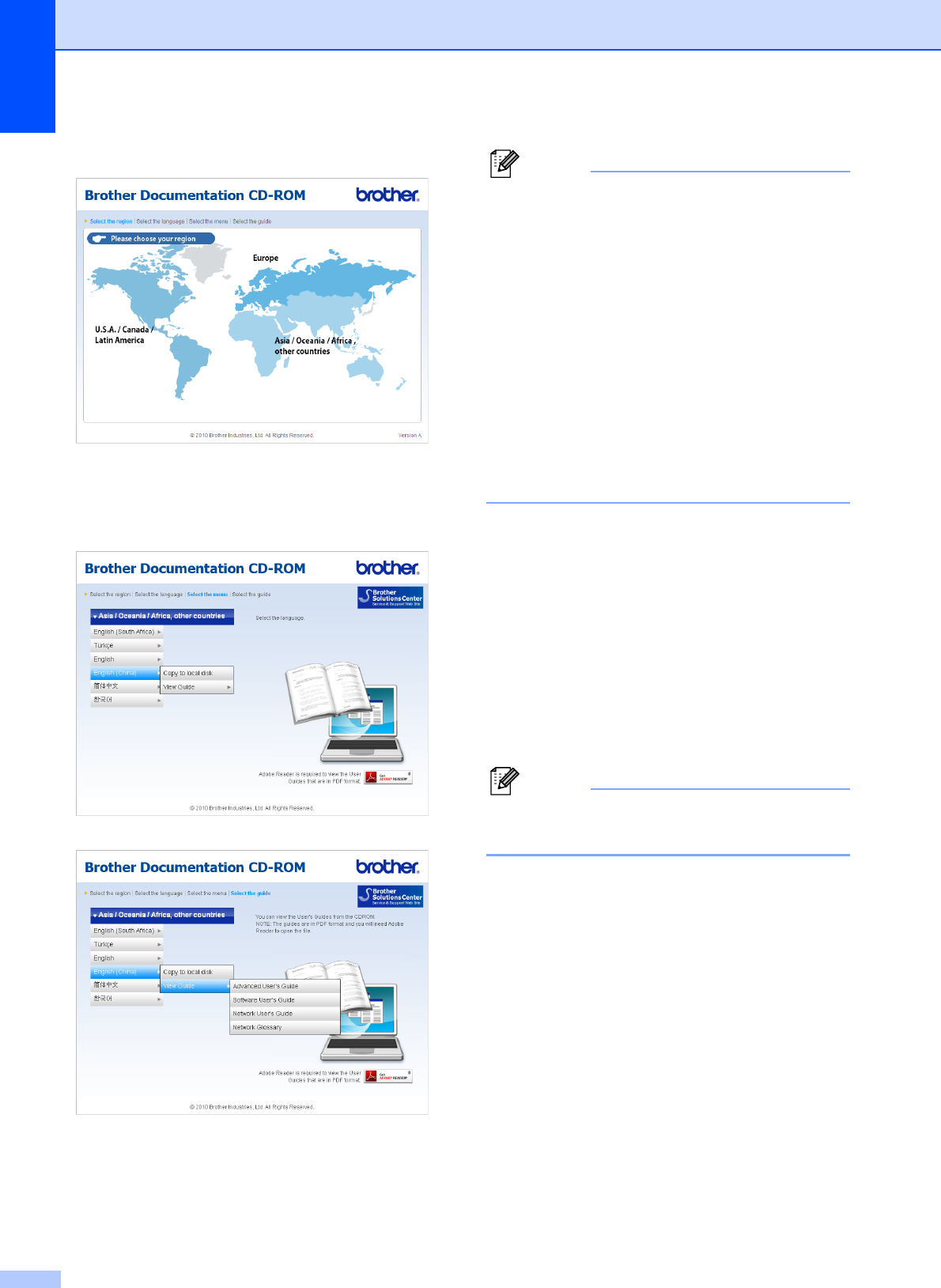

aTurn on your computer. Insert the

Documentation CD-ROM into your

CD-ROM drive.

Note

(Windows® users) If the screen does not

appear automatically, go to My Computer

(Computer), double-click the CD-ROM

icon, and then double-click index.html.

b(Macintosh users) Double-click the

Documentation CD-ROM icon, and then

double-click index.html.

General information 1

Bold Bold style identifies keys on the

machine control panel or

computer screen.

Italics Italicized style emphasizes an

important point or refers you to

a related topic.

Courier

New

Courier New font identifies the

messages shown on the LCD

of the machine.

WARNING indicates a potentially

hazardous situation which, if not avoided,

could result in death or serious injuries.

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injuries.

IMPORTANT indicates a potentially

hazardous situation which, if not avoided,

may result in damage to property or loss of

product function.

Electrical Hazard icons alert you to a

possible electrical shock.

Hot Surface icons warn you not to

touch machine parts that are hot.

Notes tell you how you should

respond to a situation that may arise

or give tips about how the current

operation works with other features.

WARNING

CAUTION

IMPORTANT

Chapter 1

cClick your country.

dPoint to your language, point to View

Guide, and then click the guide you

want to read.

Note

• (Windows® users only) Your web browser

may display a yellow bar at the top of the

page that contains a security warning

about Active X controls. For the page to

display correctly you must click on Allow

Blocked Content, then click Yes in the

Security Warning dialog box.

• (Windows® users only) 1 For faster

access, you can copy all user

documentation in PDF format to a local

folder on your computer. Point to your

language, then click Copy to local disk.

1Microsoft® Internet Explorer® 6.0 or greater.

How to find Scanning instructions 1

There are several ways you can scan

documents. You can find the instructions as

follows:

Software User's Guide

Scanning

ControlCenter

Presto! PageManager User’s Guide

Note

Presto! PageManager must be

downloaded and installed before use.

Instructions for scanning directly from

Presto! PageManager. The complete

Presto! PageManager User’s Guide can

be viewed from the Help section in the

Presto! PageManager application.

General information

Accessing Brother

Support (Windows®)1

You can find all the contacts you will need,

such as Web support (Brother Solutions

Center) on the Installation CD-ROM.

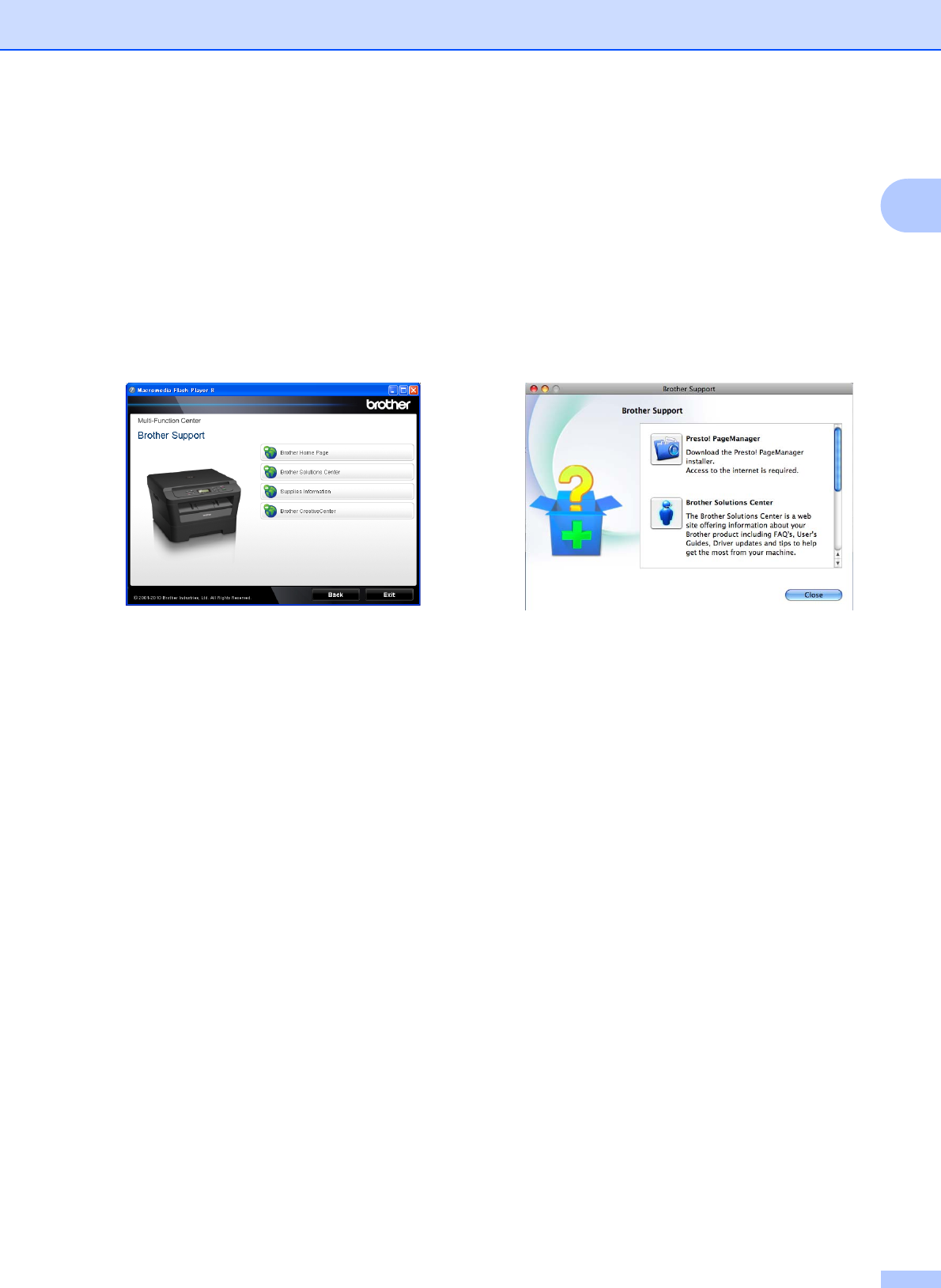

Click Brother Support on the main menu.

The following screen will appear:

To access our website, click Brother

Home Page.

For the latest news and product support

information, click Brother Solutions

Center.

To visit our website for original Brother

Supplies, click Supplies Information.



To access the Brother CreativeCenter for

FREE photo projects and printable

downloads, click

Brother CreativeCenter

To return to the main page, click Back or

if you have finished, click Exit.

Accessing Brother

Support (Macintosh) 1

You can find all the contacts you will need,

such as Web support (Brother Solutions

Center) on the Installation CD-ROM.

Double-click the Brother Support icon.

The following screen will appear:

To download and install Presto!

PageManager, click Presto!

PageManager.

For the latest news and product support

information, click Brother Solutions

Center.

To visit our website for original

Brother Supplies, click Supplies

Information.

Chapter 1

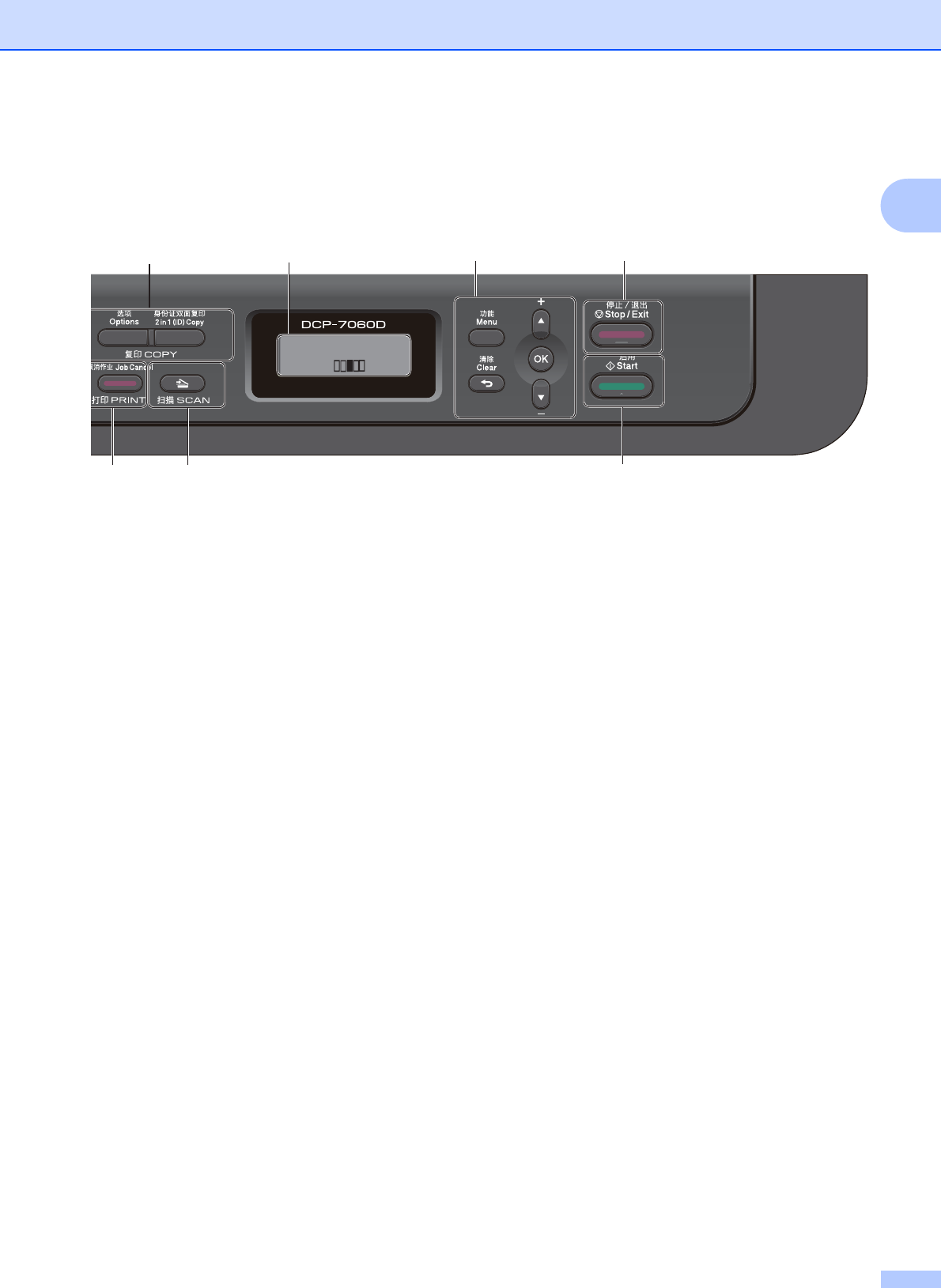

Control panel overview 1

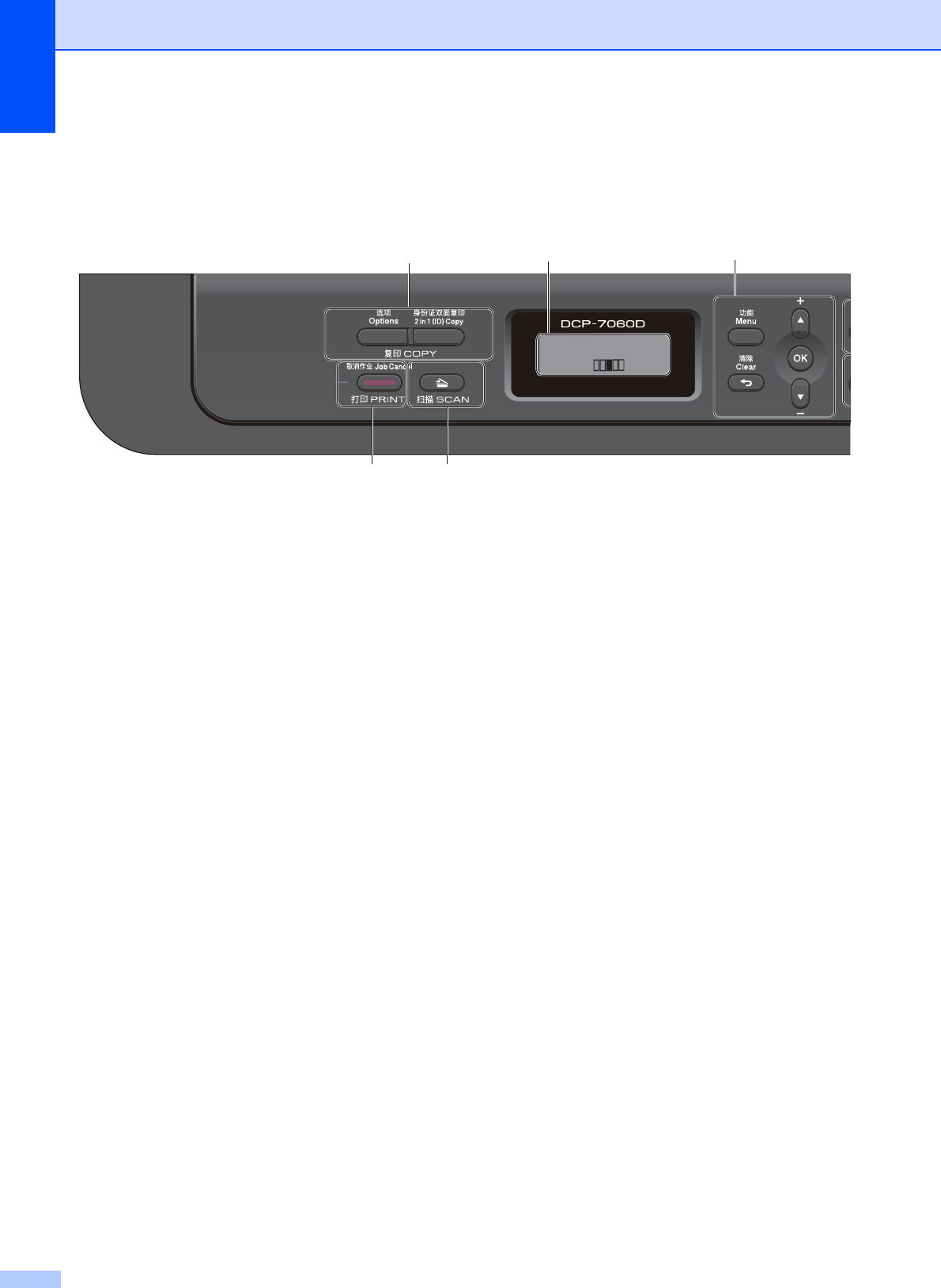

1 COPY keys:

Options

You can quickly and easily choose temporary

settings for copying. These settings include:

Quality

Brightness

Contrast

Enlarge/Reduce

Page Layout

2 in 1 (ID) Copy

You can copy your Identification card both

sides onto one page with the original size.

2 PRINT key:

Job Cancel

Cancels a print job and clears it from the

machine’s memory. To cancel multiple print

jobs, hold down this key until the LCD shows

Job Cancel (All).

3 SCAN key

Puts the machine in Scan mode.

Stack Copies:01

100% Auto

General information

4LCD

Displays messages to help you set up and use

your machine.

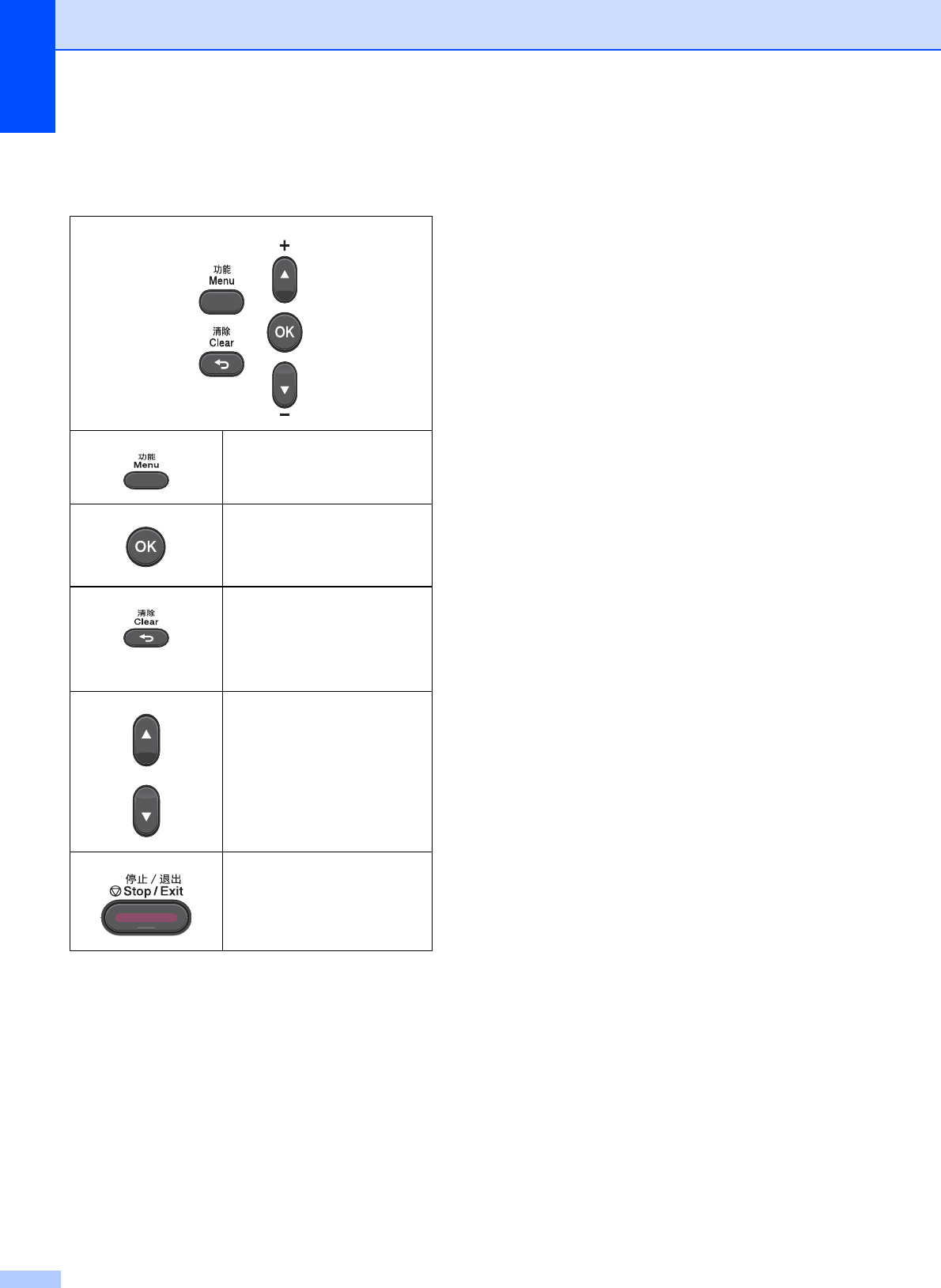

5 Menu keys:

Lets you access the Menu to program your

settings in this machine.

Clear

Deletes entered data or lets you cancel the

current setting.

a + or b -

Press to scroll through the menus and options.

Lets you store your settings in the machine.

6Stop/Exit

Stops an operation or exits from a menu.

7Start

Lets you start making copies or scanning.

456

Stack Copies:01

100% Auto

Chapter 1

Changing LCD

language 1

You can change the LCD language.

aPress Menu.

bPress a or b to choose 1.General

Setup.

Press OK.

cPress a or b to choose 0.Local

Language.

Press OK.

dPress a or b to choose your language.

Press OK.

ePress Stop/Exit.

Loading paper and

print media 2

The machine can feed paper from the

standard paper tray or manual feed slot.

When you put paper into the paper tray, note

the following:

If your application software supports

paper size selection on the print menu,

you can select it through the software. If

your application software does not

support it, you can set the paper size in

the printer driver or by using the control

panel buttons.

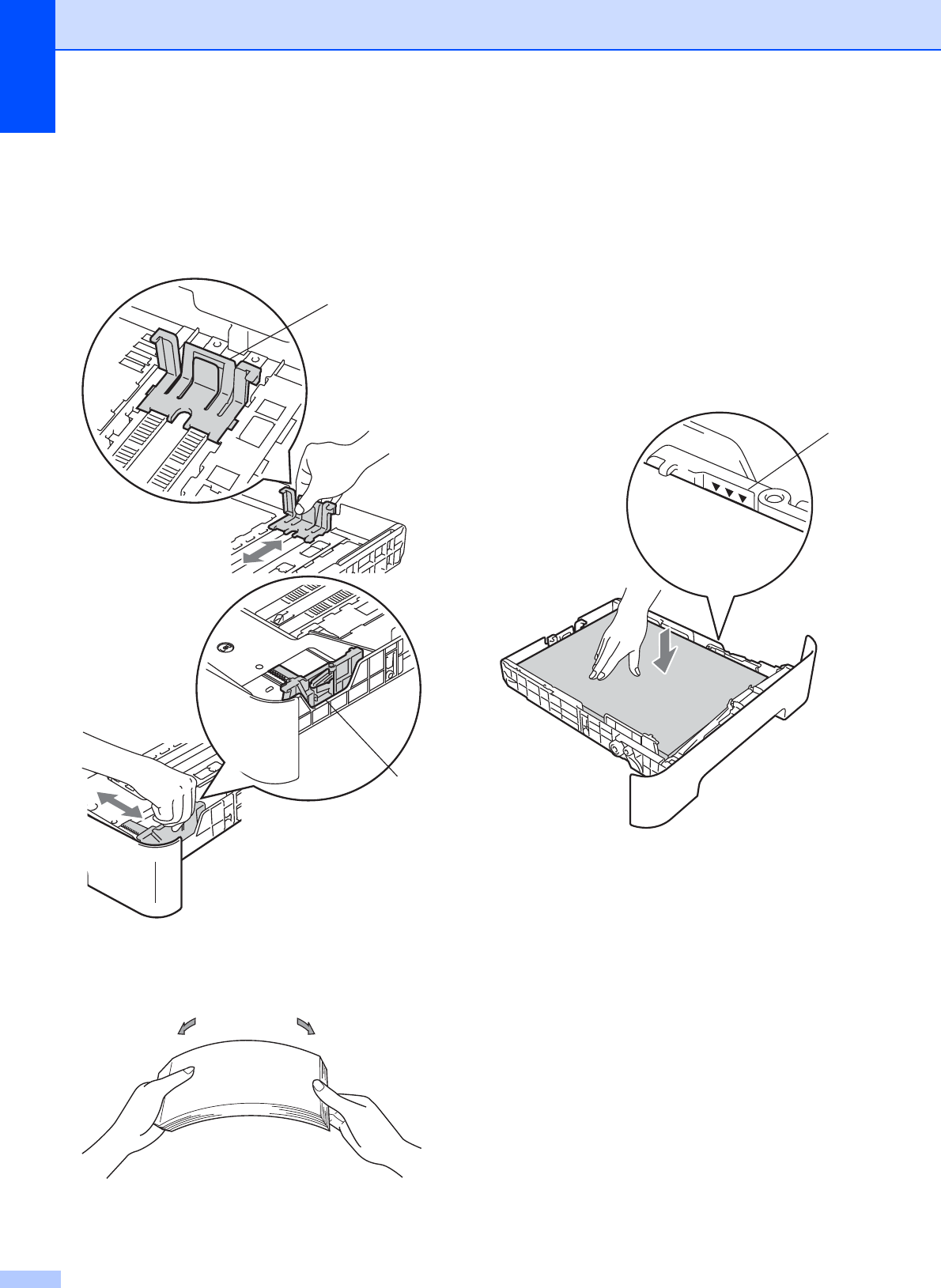

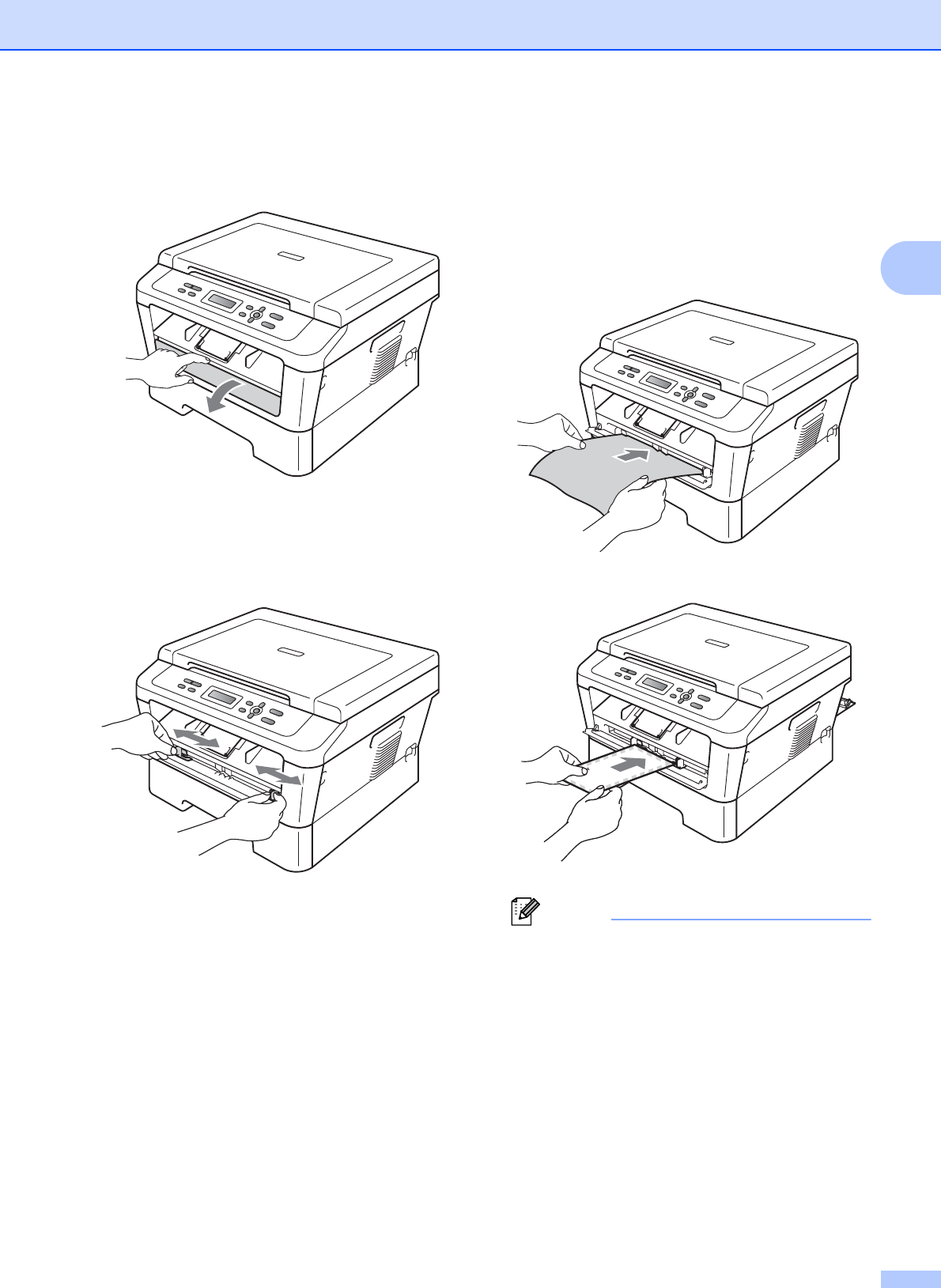

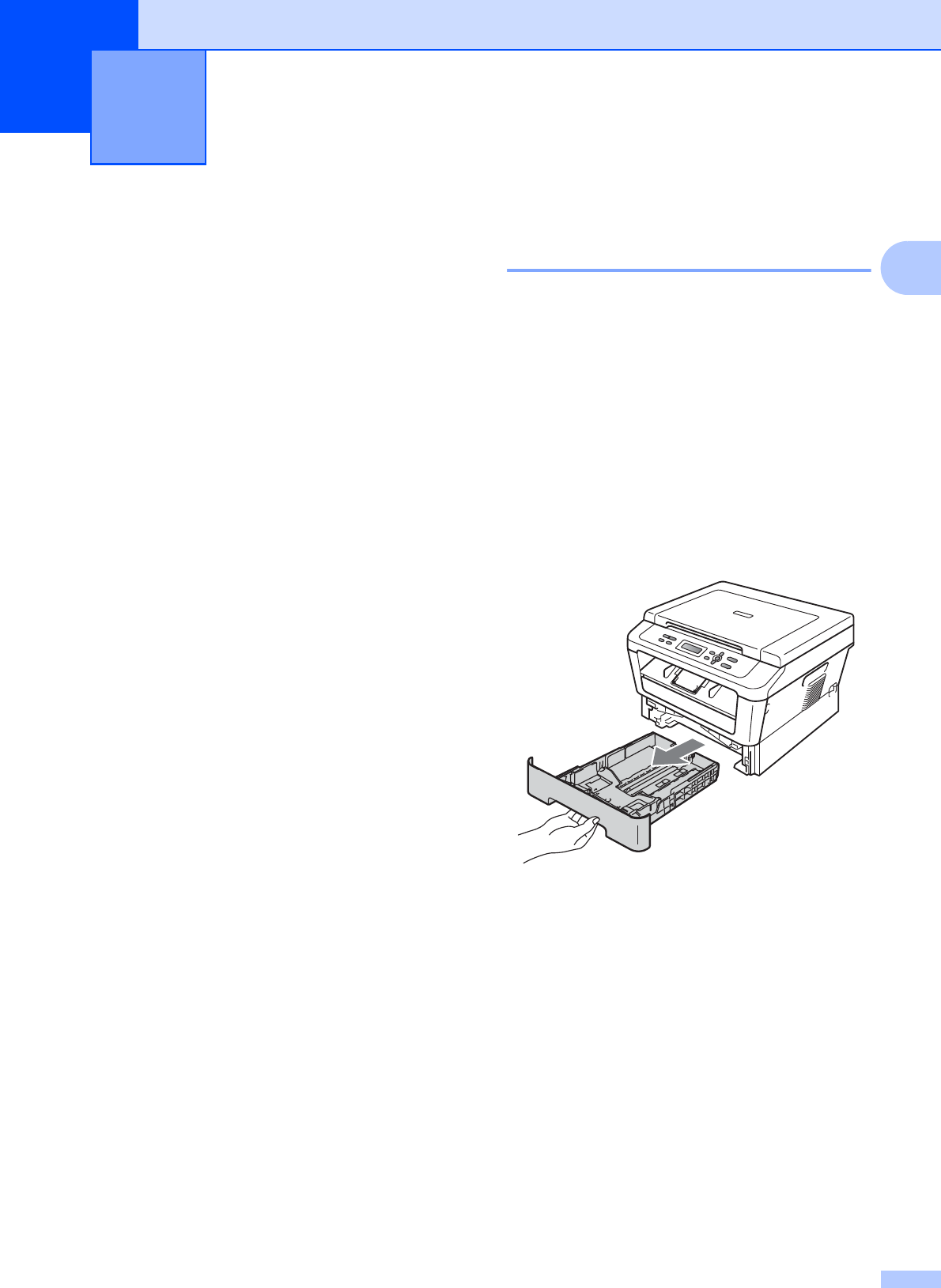

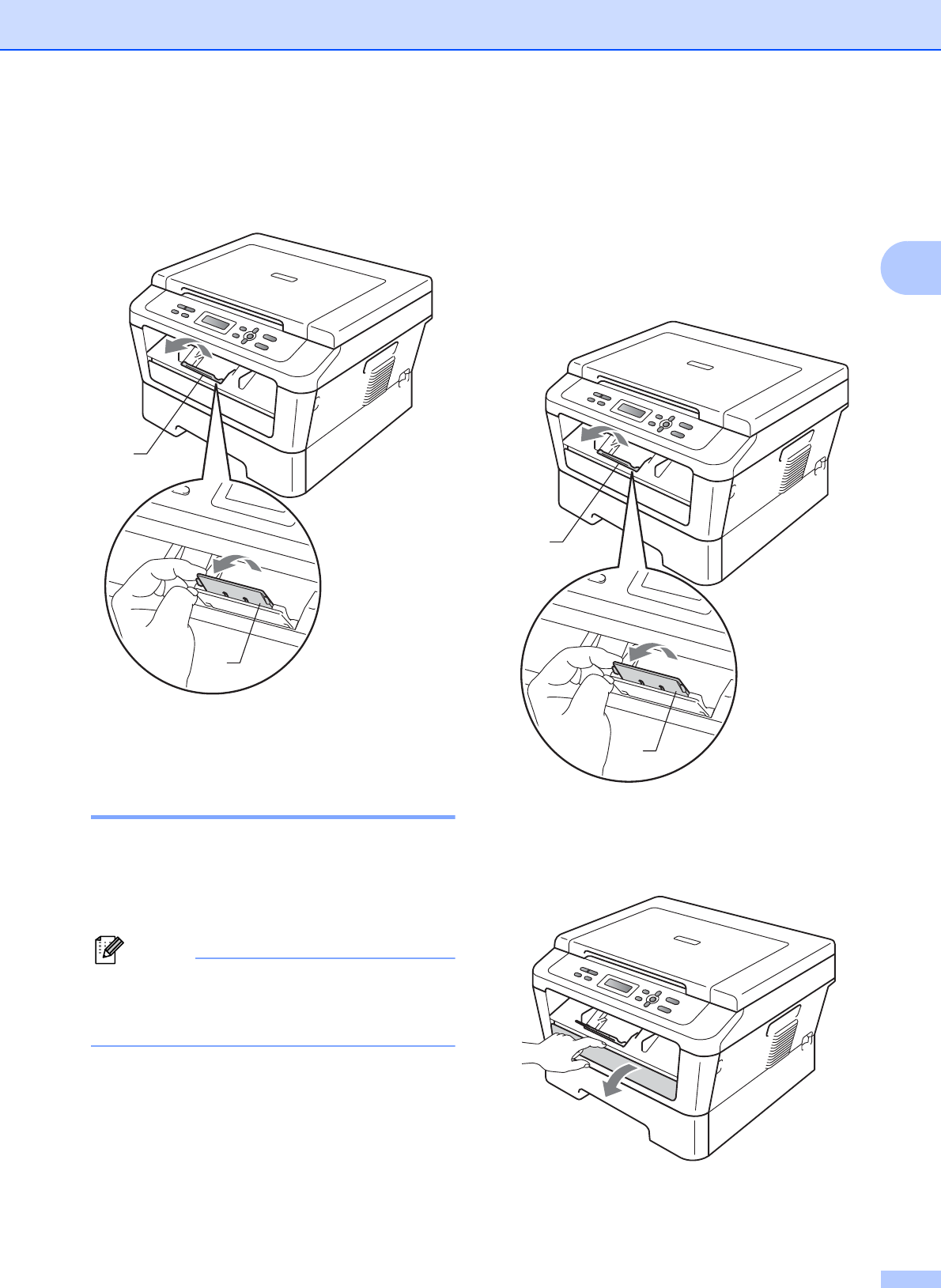

Loading paper in the standard

paper tray 2

You can load up to 250 sheets. Paper can be

loaded up to the maximum paper mark (b b b)

on the sliding paper width guide. (For

Recommended paper specifications 2

The following paper specifications are suitable for this machine.

Use paper made for plain paper copying.

Use paper that is 70 to 90 g/m2.

Use long grain paper with a neutral Ph value, and a moisture content of approx. 5%.

This machine can use recycled paper that meets DIN 19309 specifications.

Handling and using special

paper 2

The machine is designed to work well with

most types of xerographic and bond paper.

However, some paper variables may have an

effect on print quality or handling reliability.

Always test samples of paper before

purchasing to ensure desirable performance.

Store paper in its original packaging and keep

it sealed. Keep the paper flat and away from

moisture, direct sunlight and heat.

Some important guidelines when selecting

paper are:

DO NOT use inkjet paper because it may

cause a paper jam or damage your

machine.

Preprinted paper must use ink that can

withstand the temperature of the

machine’s fusing process 392 degrees

Fahrenheit (200 degrees centigrade).

If you use bond paper, paper that has a

rough surface or paper that is wrinkled or

creased, the paper may exhibit degraded

performance.

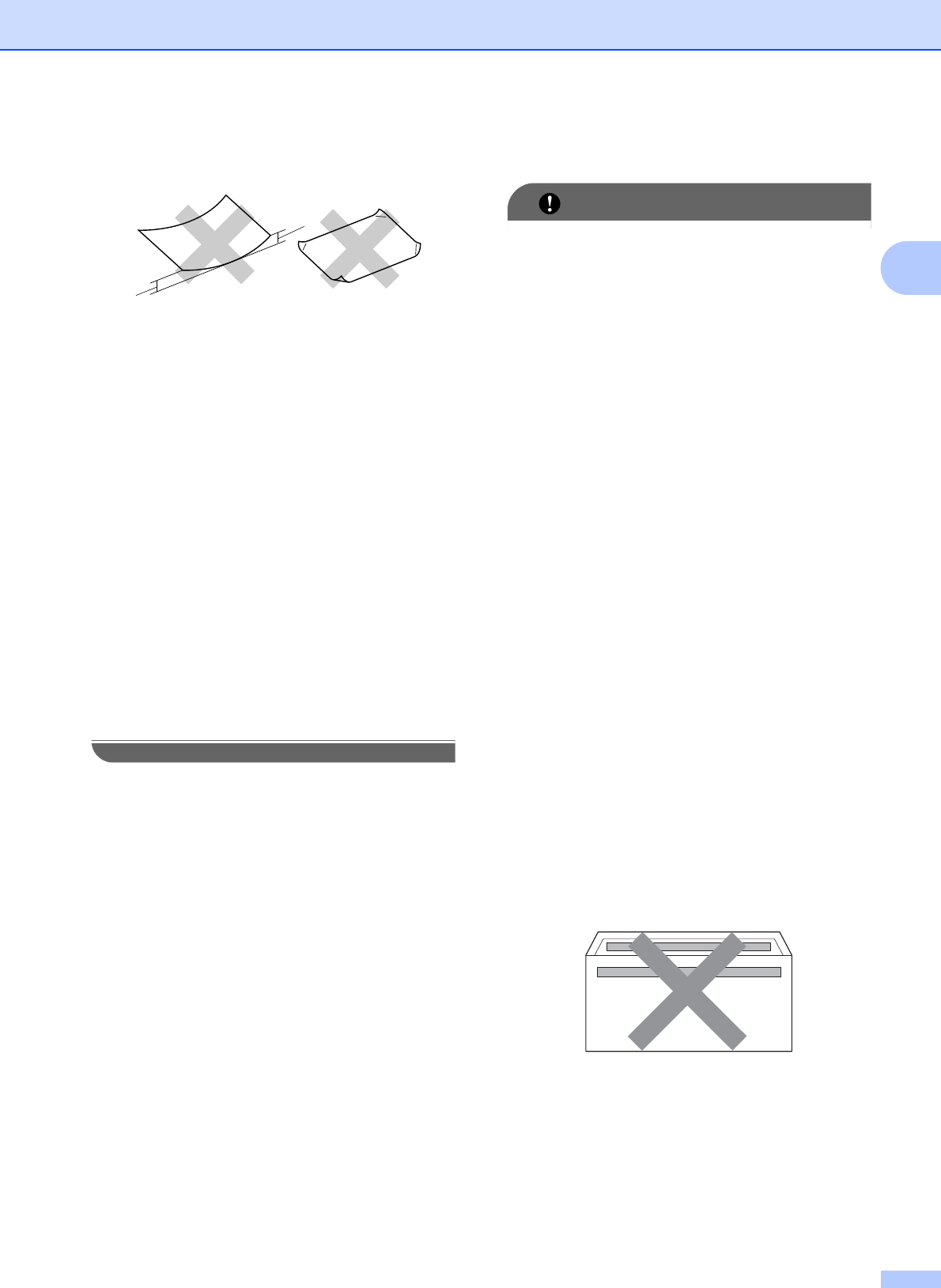

Types of paper to avoid 2

IMPORTANT

Some types of paper may not perform well

or may cause damage to your machine.

DO NOT use paper:

• that is highly textured

• that is extremely smooth or shiny

Basis weight 70-90 g/m2

Thickness 80-110 m

Roughness Higher than 20 sec.

Stiffness 90-150 cm3/100

Grain direction Long grain

Volume resistivity 10e9-10e11 ohm

Surface resistivity 10e9-10e12 ohm-cm

Filler CaCO3 (Neutral)

Ash content Below 23 wt%

Brightness Higher than 80%

Opacity Higher than 85%

Loading paper

• that is curled or warped

1 A curl of 2 mm or greater may cause

jams to occur.

• that is coated or has a chemical finish

• that is damaged, creased or folded

• that exceeds the recommended weight

specification in this guide

• with tabs and staples

• with letterheads using low temperature

dyes or thermography

• that is multipart or carbonless

• that is designed for inkjet printing

If you use any of the types of paper listed,

they may damage your machine. This

damage is not covered under any Brother

warranty or service agreement.

Envelopes 2

Most envelopes designed for laser printers

will be suitable for your machine. However,

some envelopes may have feed and print-

quality problems because of the way they

have been made. A suitable envelope should

have edges with straight, well-creased folds.

The envelope should lie flat and not be of

baggy or flimsy construction. You should buy

quality envelopes from a supplier who

understands that you will be using the

envelopes in a laser machine.

Envelopes can be fed from manual feed slot

one at a time. We recommend that you print

a test envelope to make sure the print results

are what you want before you print or

purchase a large quantity of envelopes.

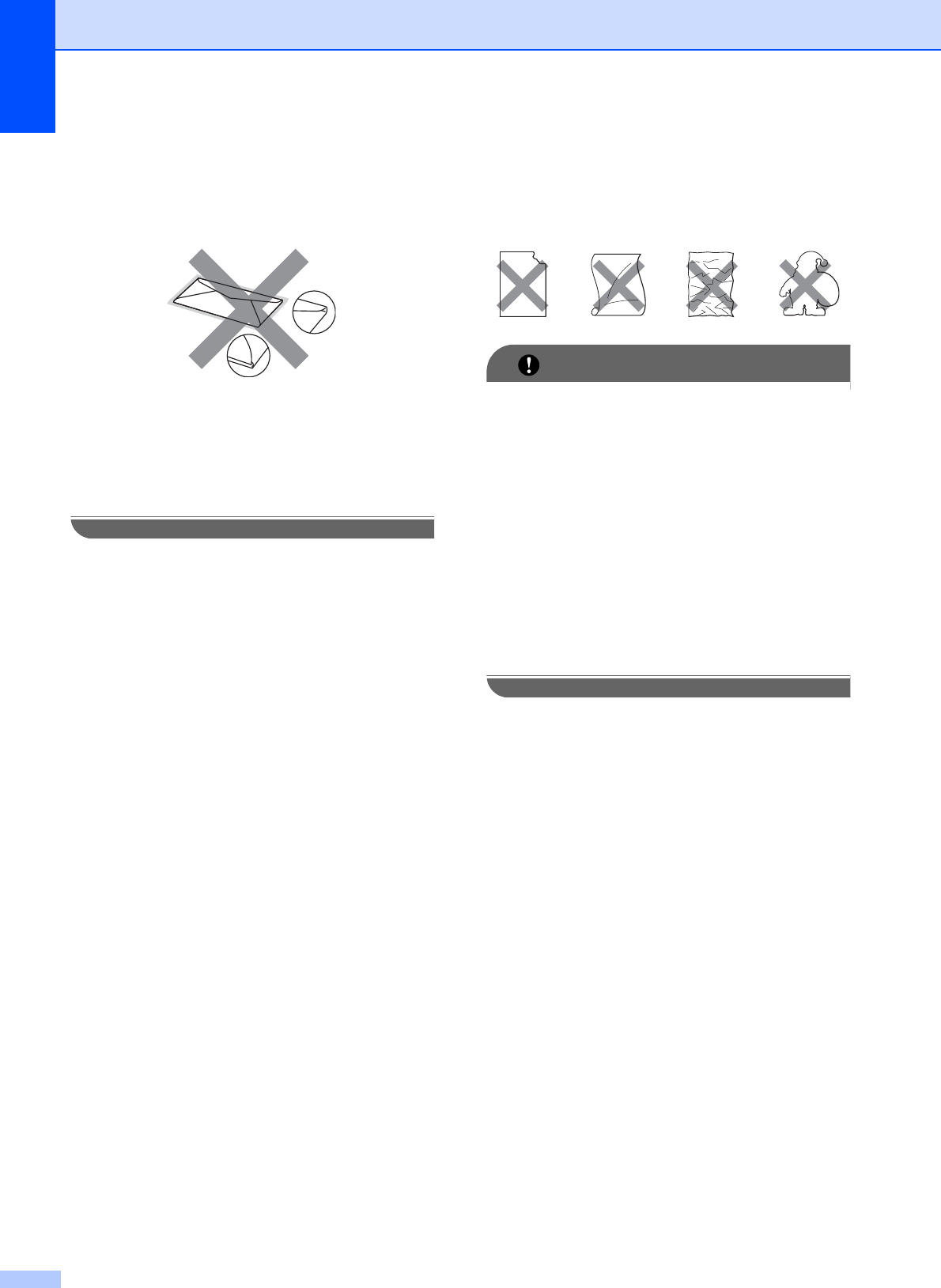

Types of envelopes to avoid 2

IMPORTANT

DO NOT use envelopes:

• that are damaged, curled, wrinkled or

an unusual shape

• that are extremely shiny or textured

• with clasps, staples, snaps or tie

strings

• with self-adhesive closures

• that are of a baggy construction

• that are not sharply creased

• that are embossed (have raised writing

on them)

• that were previously printed by a laser

machine

• that are pre-printed on the inside

• that cannot be arranged neatly when

stacked

• that are made of paper that weighs

more than the paper weight

specifications for the machine

• with edges that are not straight or

consistently square

• with windows, holes, cut-outs or

perforations

• with glue on surface as shown in figure

below

Chapter 2

• with double flaps

• with each side folded as shown in

figure below

If you use any of the types of envelopes

listed above, they may damage your

machine. This damage may not be

covered under any Brother warranty or

service agreement.

Labels 2

The machine will print on most types of labels

designed for use with a laser machine. Labels

should have an adhesive that is acrylic-based

since this material is more stable at the high

temperatures in the fuser unit. Adhesives

should not come in contact with any part of

the machine, because the label stock may

stick to the drum unit or rollers and cause

jams and print quality problems. No adhesive

should be exposed between the labels.

Labels should be arranged so that they cover

the entire length and width of the sheet. Using

labels with spaces may result in labels

peeling off and causing serious jams or print

problems.

All labels used in this machine must be able

to withstand a temperature of 392 degrees

Fahrenheit (200 degrees centigrade) for a

period of 0.1 seconds.

Do not feed a label sheet through the

machine more than one time.

Types of labels to avoid 2

Do not use labels that are damaged, curled,

wrinkled or an unusual shape.

IMPORTANT

•DO NOT feed part used label sheets. The

exposed carrier sheet will damage your

machine.

• Label sheets should not exceed the paper

weight specifications described in this

User’s Guide. Labels exceeding this

specification may not feed or print

correctly and may cause damage to your

machine.

• DO NOT insert labels that have previously

been used, or have any labels missing

from the sheet.

How to load

documents 3

You can make copies and scan from the

scanner glass.

Using the scanner glass 3

You can use the scanner glass to copy or

scan pages of a book one page at a time.

Document Sizes Supported 3

How to load documents 3

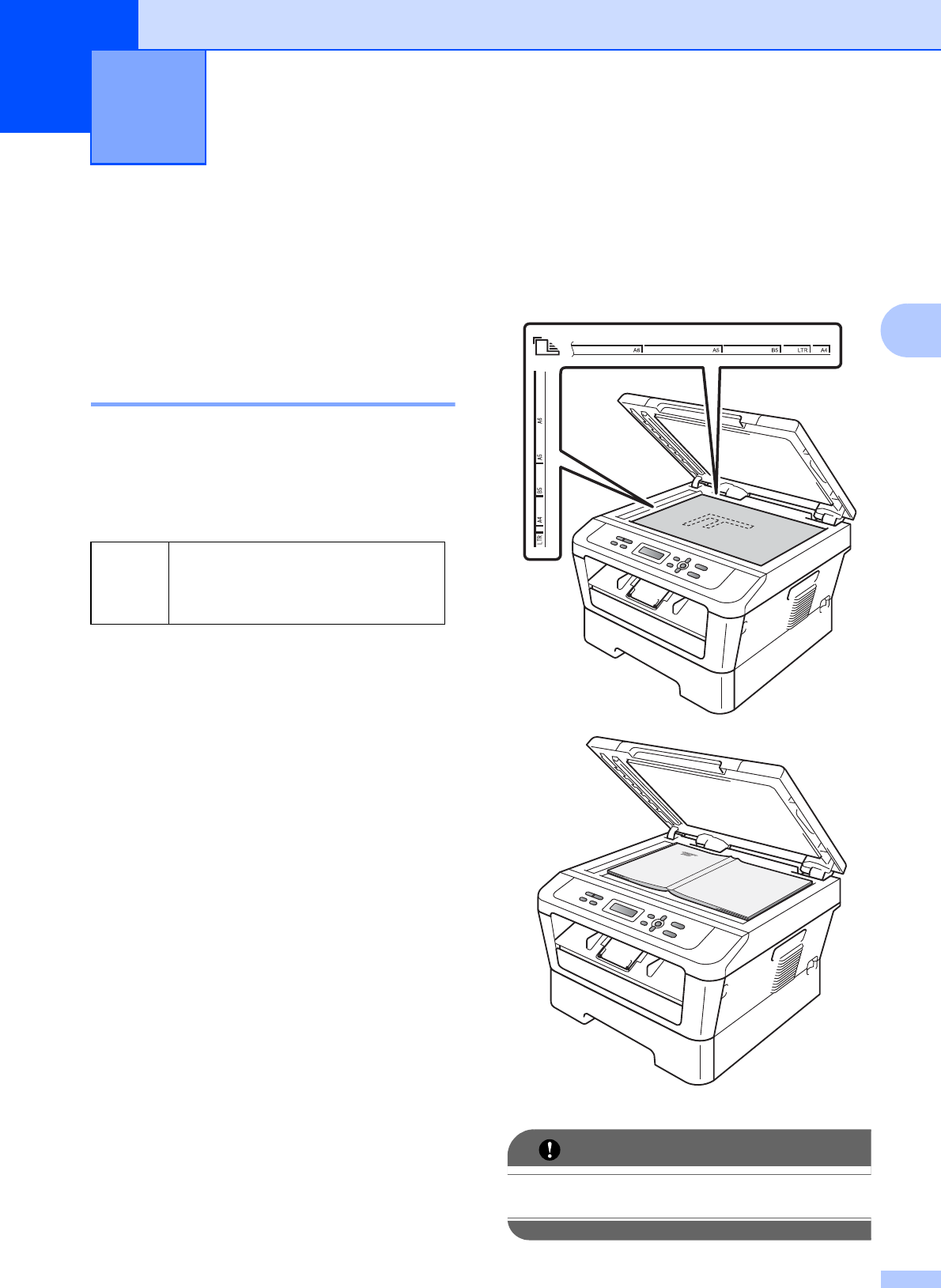

aLift the document cover.

bUsing the document guidelines on the

left and top, place the document

face down in the upper left corner of the

scanner glass.

cClose the document cover.

IMPORTANT

If the document is a book or is thick, do not

slam or press on the cover.

Loading documents 3

Length: Up to 297.0 mm

Width: Up to 215.9 mm

Weight: Up to 2.0 kg

How to copy 4

The following steps show the basic copy

operation. For details about each option, see

the Advanced User's Guide on the CD-ROM.

aLoad your document face down on the

scanner glass. (See Using the scanner

glass on page 19.)

bIf you make a single copy, press Start.

If you make multiple copies, do the

following:

Press or hold a or b to increase or

decrease the number of copies and

press Start.

Stop copying 4

To stop copying, press Stop/Exit.

Copy settings 4

You can change the following copy settings:

Press Menu, Options or 2 in 1 (ID) Copy and

then press a or b to scroll through the copy

settings. When the setting you want is

displayed, press OK.

For details about changing the copy settings,

see Copy settings in Chapter 2 of the

Advanced User's Guide.

You can change the following copy settings:

Text & Graph

Enlarge/Reduce

Quality

Brightness

Contrast

Page Layout

Duplex 1

1For DCP-7060D

Making copies 4

Stack Copies:01

100% Auto

Printing a document 5

The machine can receive data from your

computer and print it. To print from a

computer, install the printer driver. (See

Printing for Windows® or Printing and Faxing

for Macintosh in the Software User's Guide

for the details about the print settings.)

aInstall the Brother printer driver on the

Installation CD-ROM. (See the Quick

Setup Guide.)

bFrom your application, choose the Print

command.

cChoose the name of your machine in the

Print dialog box and click Properties.

dChoose the settings you want in the

Properties dialog box.

Paper Size

Orientation

Copies

Media Type

Resolution

Print Settings

Multiple Page

Duplex / Booklet 1

Paper Source

1For DCP-7060D

eClick OK to begin printing.

How to print from a computer 5

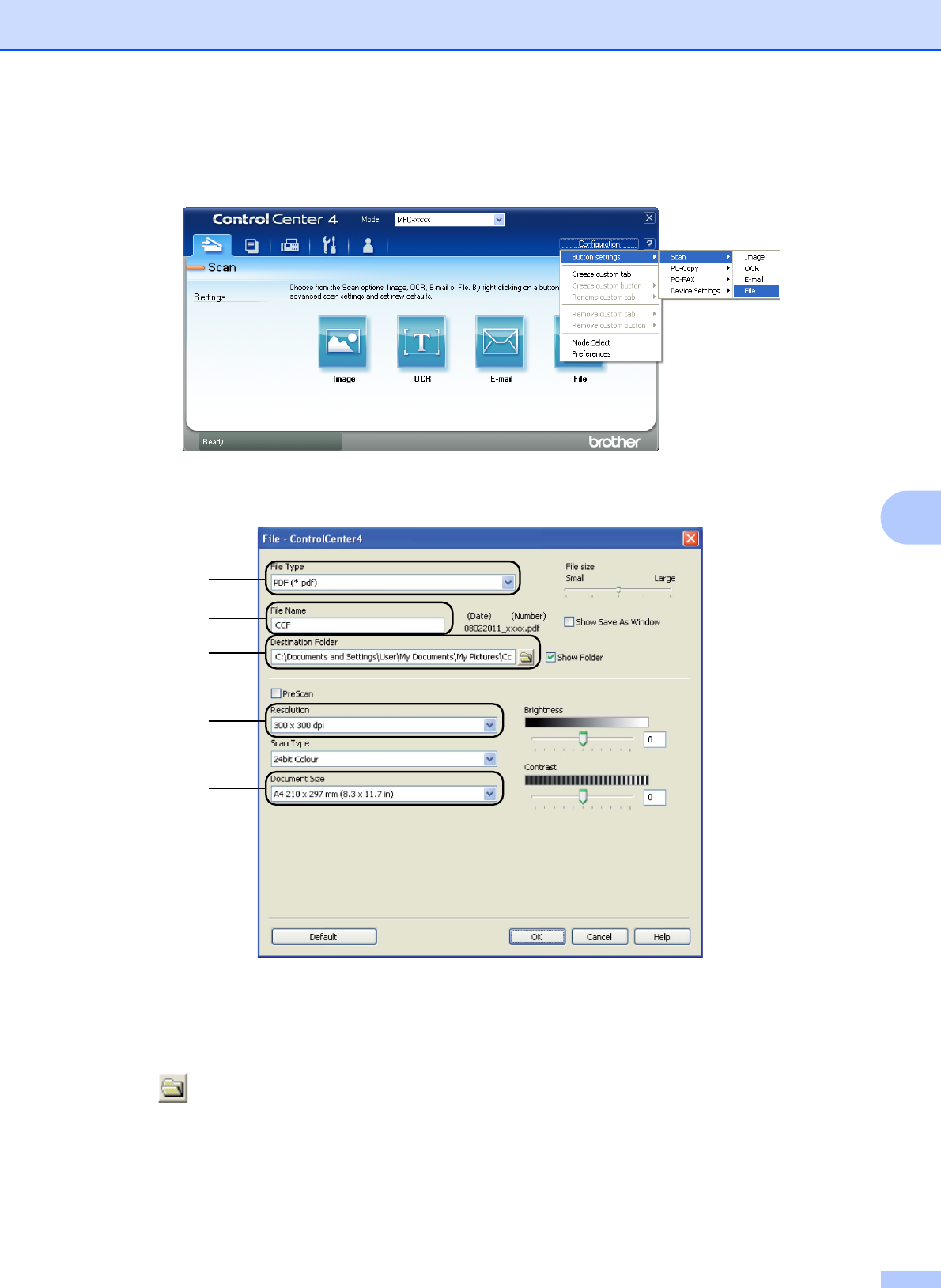

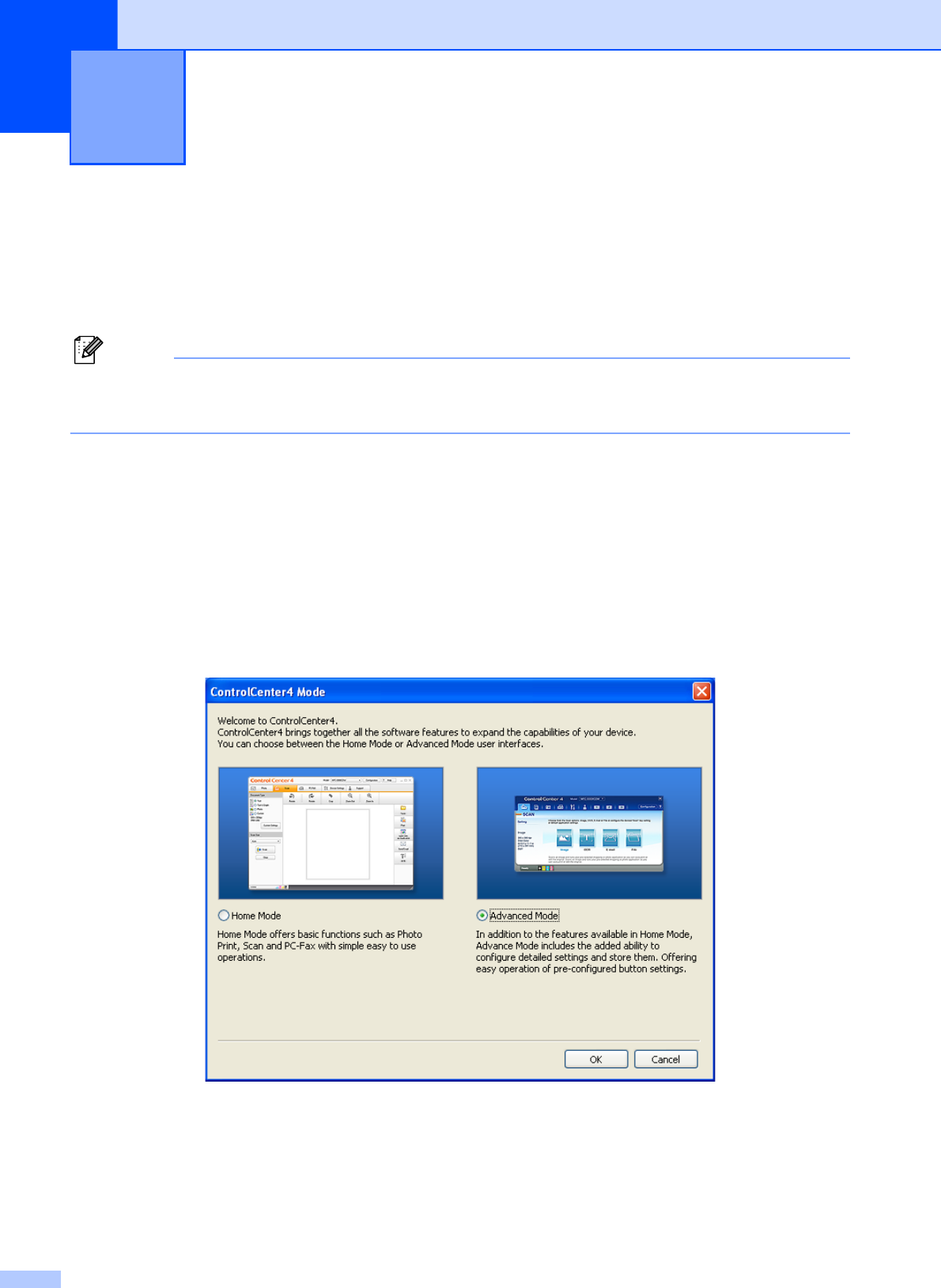

Scanning a document as PDF file using

ControlCenter4 (Windows®)6

(For Macintosh users) See Scanning in the Software User's Guide.

Note

• The screens on your PC may vary depending on your model.

• The illustrations in this chapter are based on "Advanced Mode" interface.

ControlCenter4 is a software utility that lets you quickly and easily access the applications you use

most often. Using ControlCenter4 eliminates the need to manually launch specific applications.

You can use ControlCenter4 on your computer.

aLoad your document. (See How to load documents on page 19.)

bOpen ControlCenter4 by clicking start/All Programs/Brother/XXX-XXXX (where

XXX-XXXX is your model name)/ControlCenter4. The ControlCenter4 application will open.

cChoose Home Mode or Advanced Mode before you use ControlCenter4.

dMake sure the machine you want to use is selected from the Model pull-down list.

How to scan to a computer 6

How to scan to a computer

eSet the file type for saving to a folder. By default, the scanned data is saved as JPEG (*.jpg).

Click Configuration, and then select Button settings, Scan and File.

The configuration dialog box appears. You can change the default settings.

1 Choose PDF (*.pdf) from the File Type pull-down list.

2 You can enter the file name you want to use for the document.

3 You can save the file to the default folder, or choose your preferred folder by clicking the

Browse button.

4 You can choose a scanning resolution from the Resolution pull-down list.

5 You can choose the document size from the pull-down list.

fClick OK.

Chapter 6

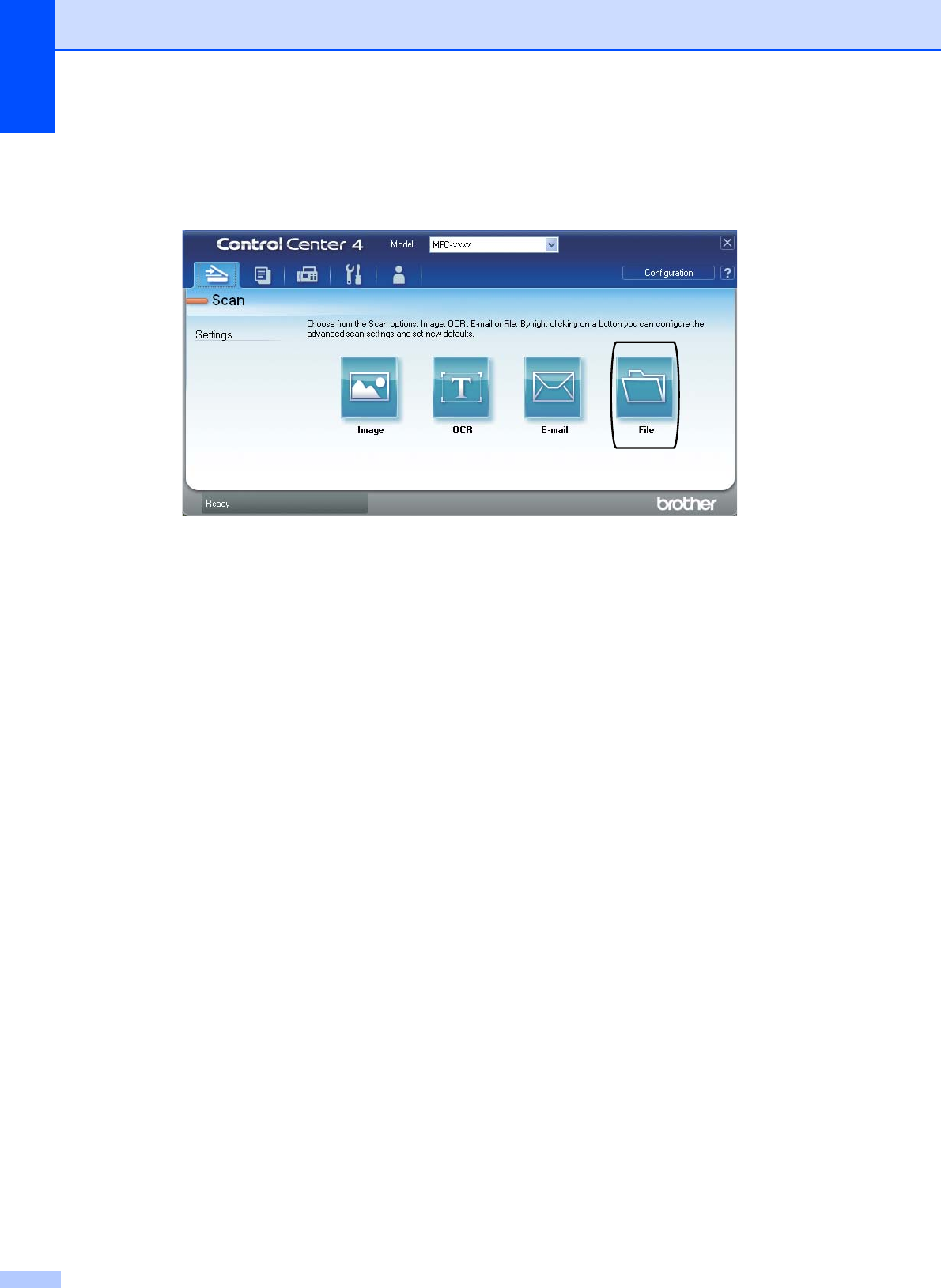

gClick File.

The machine starts the scanning process. The folder where the scanned data is saved will

open automatically.

How to scan to a computer

Changing the SCAN key settings 6

Before scanning 6

To use the machine as a scanner, install a scanner driver. If the machine is on a network,

configure it with a TCP/IP address.

Install the MFL-Pro Suit (including scanner drivers) on the Installation CD-ROM. (See the

Quick Setup Guide.)

Configure the machine with a TCP/IP address if network scanning does not work. (See

Configuring Network Scanning in the Software User's Guide.)

SCAN key settings 6

You can change your machine’s SCAN key settings using ControlCenter4.

aOpen ControlCenter4 by clicking start/All Programs/Brother/XXX-XXXX (where

XXX-XXXX is your model name)/ControlCenter4. The ControlCenter4 application will open.

bMake sure the machine you want to use is selected from the Model pull-down list.

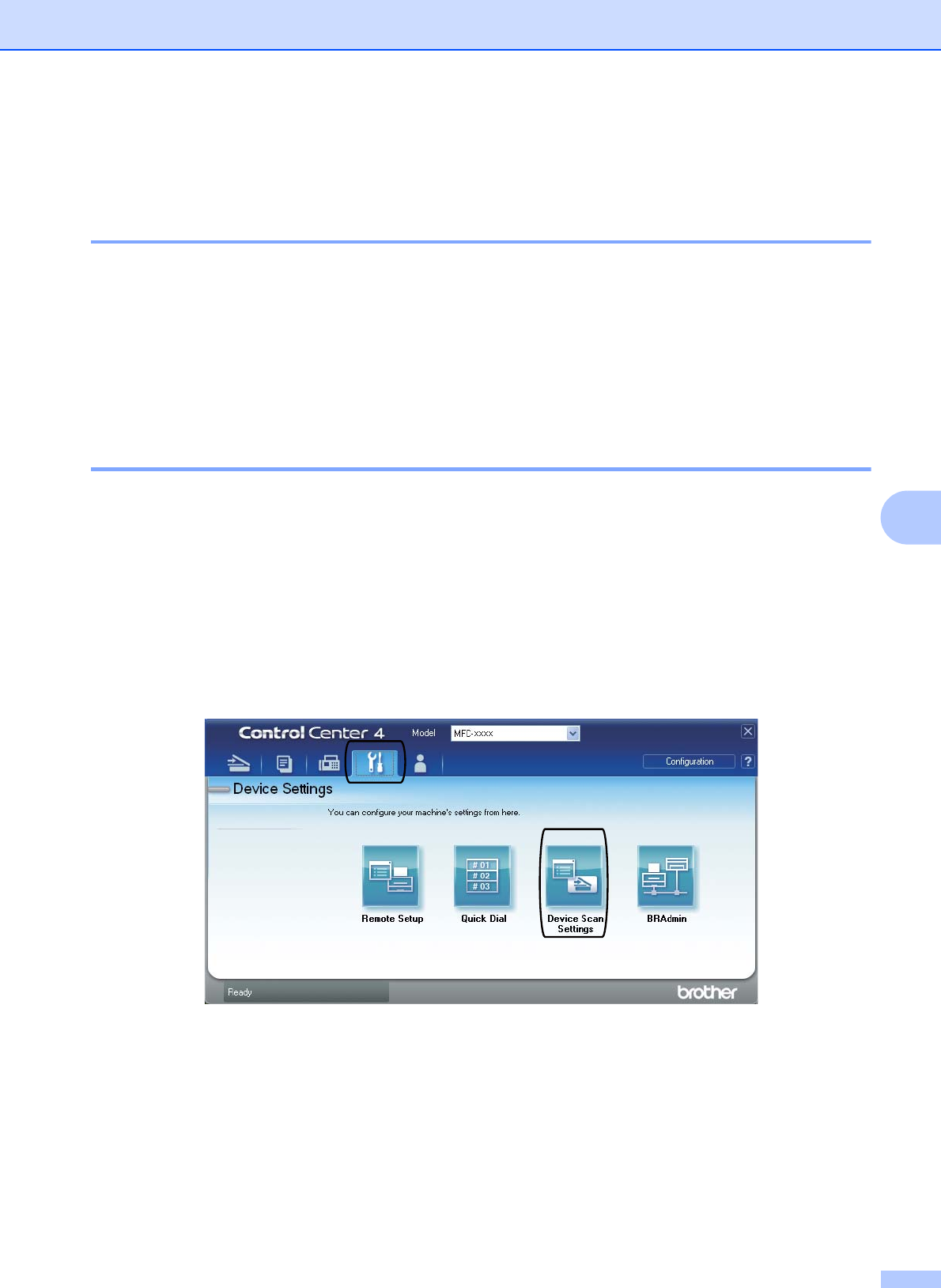

cClick the Device Settings tab.

dClick Device Scan Settings.

Chapter 6

eChoose the File tab. You can change the default settings.

1 You can choose the file type from the pull-down list.

2 You can enter the file name you want to use for the document.

3 You can save the file to the default folder, or choose your preferred folder by clicking the

Browse button.

4 You can choose a scanning resolution from the Resolution pull-down list.

5 You can choose the document size from the pull-down list.

fClick OK.

How to scan to a computer

Scanning using the SCAN key 6

aLoad your document. (See How to load documents on page 19.)

bPress (SCAN).

cPress a or b to choose scan to PC.

Press OK.

dPress a or b to choose File.

Press OK.

e(For Network users)

Press a or b to choose the destination computer you want to send to.

Press OK.

If the LCD prompts you to enter a PIN number, enter the 4-digit PIN number for the

destination computer using the dial pad on the control panel.

Press OK.

fPress Start.

The machine starts the scanning process.

Note

Choose the scan mode you want.

Scan to:

•E-mail (Scan to PC)

•Image (Scan to PC)

•OCR (Scan to PC)

•File (Scan to PC)

Replacing the consumable items A

The machine will indicate when it is time to replace the consumable items. (See Replacing the

toner cartridge on page 29 and Replacing the drum unit on page 35.) To avoid any inconvenience,

you may want to buy spare consumable items before the machine stops printing.

Note

• Discard used consumable items according to local regulations, keeping it separate from

domestic waste. If you have questions, call your local waste disposal office. Be sure to reseal

the consumable items tightly so that the material inside does not spill.

• We recommend placing used consumable items on a piece of paper to prevent accidentally

spilling or scattering the material inside.

• If you use paper that is not a direct equivalent for the recommended paper, the life of

consumable items and machine parts may be reduced.

• The projected life of the toner cartridges is based on ISO/IEC 19752. Frequency of

replacement will vary depending on the complexity of printed pages, percentage of coverage

and type of media used.

Routine maintenance A

Consumable Items Model Name Applicable

Models

Toner cartridge

See Replacing the

toner cartridge

on page 29.

TN-2015 DCP-7055

TN-2215 DCP-7060D

TN-2225 DCP-7060D

Drum unit

See Replacing the

drum unit

on page 35.

DR-2245 DCP-7055

DR-2250 DCP-7060D

Routine maintenance

Replacing the toner cartridge A

Model Name: For the model name of toner

cartridges, see Replacing the consumable

items on page 28.

The Standard toner cartridge can print

approximately 700 pages (TN-2015) or 1,200

pages (TN-2215) 1. The High Yield toner

cartridge (For DCP-7060D) can print

approximately 2,600 pages 1. Actual page

count will vary depending on your average

type of document. When a toner cartridge is

running low, the LCD shows Toner Low.

The toner cartridge that comes supplied with

the machine is a Standard toner cartridge.

1Approx. cartridge yield is declared in accordance

with ISO/IEC 19752.

IMPORTANT

Brother machines are designed to work

with toner of a particular specification and

will work to a level of optimum

performance when used with genuine

Brother Original toner cartridges. Brother

cannot guarantee this optimum

performance if toner or toner cartridges of

other specifications are used. Brother

does not therefore recommend the use of

cartridges other than genuine Brother

Original cartridges with this machine, or

the refilling of empty cartridges with toner

from other sources. If damage is caused

to the drum unit or other part of this

machine as a result of the use of toner or

toner cartridges other than genuine

Brother Original products due to the

incompatibility or lack of suitability of those

products with this machine, any repairs

required as a result may not be covered by

the warranty.

Note

• It is a good idea to keep a new toner

cartridge ready for use when you see the

Toner Low warning.

• To ensure high quality printing, we

recommend that you use only Brother

Original toner cartridges. When you want

to buy toner cartridges, please call your

Brother dealer.

• We recommend that you clean the

machine when you replace the toner

cartridge. See Cleaning the machine

on page 40.

• If you change the print density setting for

lighter or darker printing, the amount of

toner used will change.

• Wait to unpack the toner cartridge until

immediately before you put it into the

machine.

Toner Low A

Toner Low

If the LCD shows Toner Low, buy a new

toner cartridge and have it ready before you

get a Replace Toner message.

Replace Toner A

When the following message appears on the

LCD, you need to replace the toner cartridge:

Replace Toner

The machine will stop printing until you

replace the toner cartridge. A new and

unused original Brother toner cartridge will

reset the Replace Toner mode.

Note

To force the machine to continue printing

after the LCD shows Replace Toner,

set the machine to Continue mode (Press

Menu, press a or b to choose 1.General

Setup and press OK, press a or b to

choose 4.Replace Toner and press

OK, press a or b to choose Continue and

press OK.) The machine will continue

printing until the LCD shows Toner

Ended. (For details about the Toner

settings, see Toner Settings in Chapter 1

of the Advanced User's Guide.)

Toner Ended A

Toner Ended

The machine stops printing until you replace

the toner cartridge with a new one. (See

Replacing the toner cartridge on page 30.)

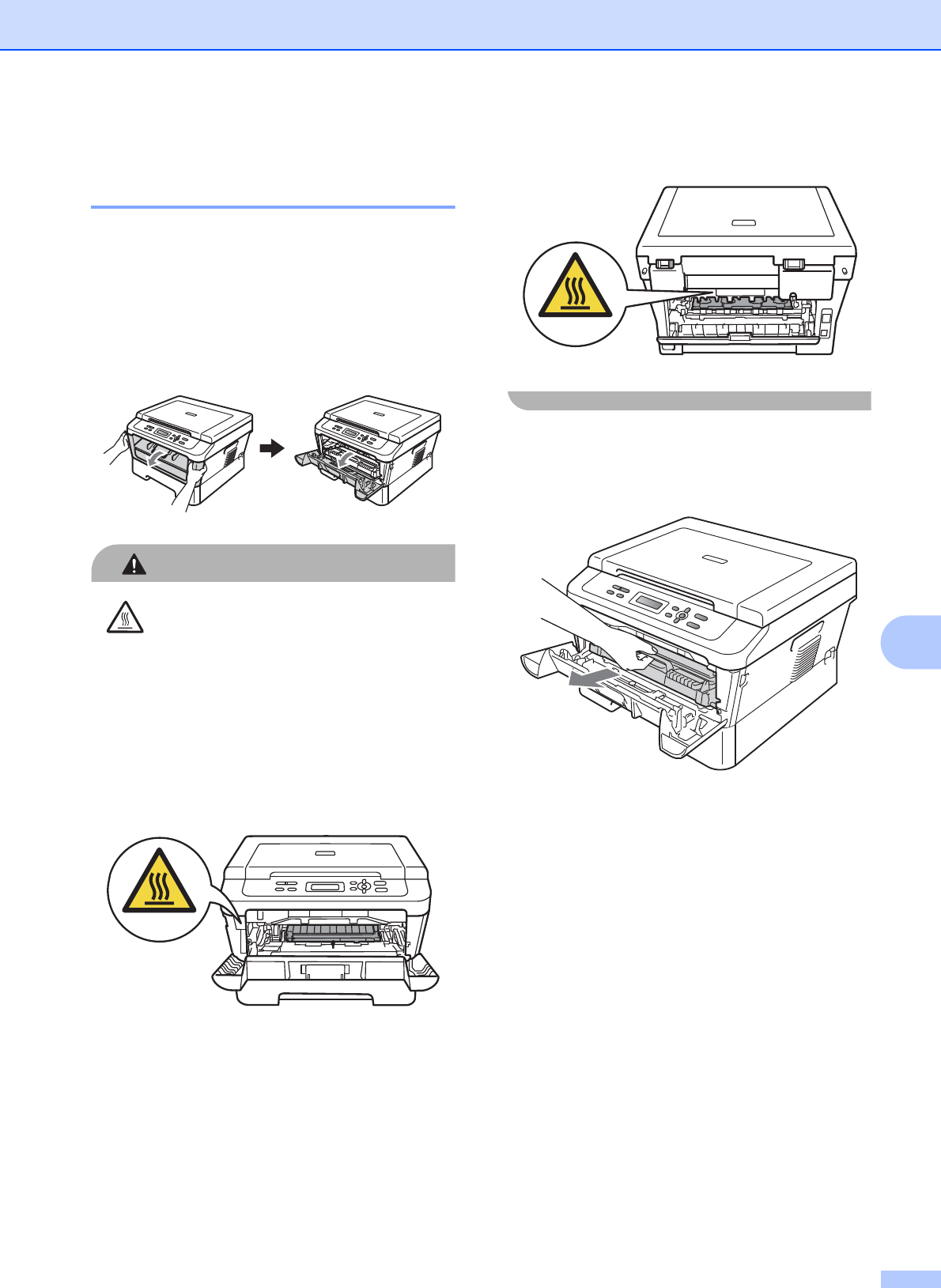

Replacing the toner cartridge A

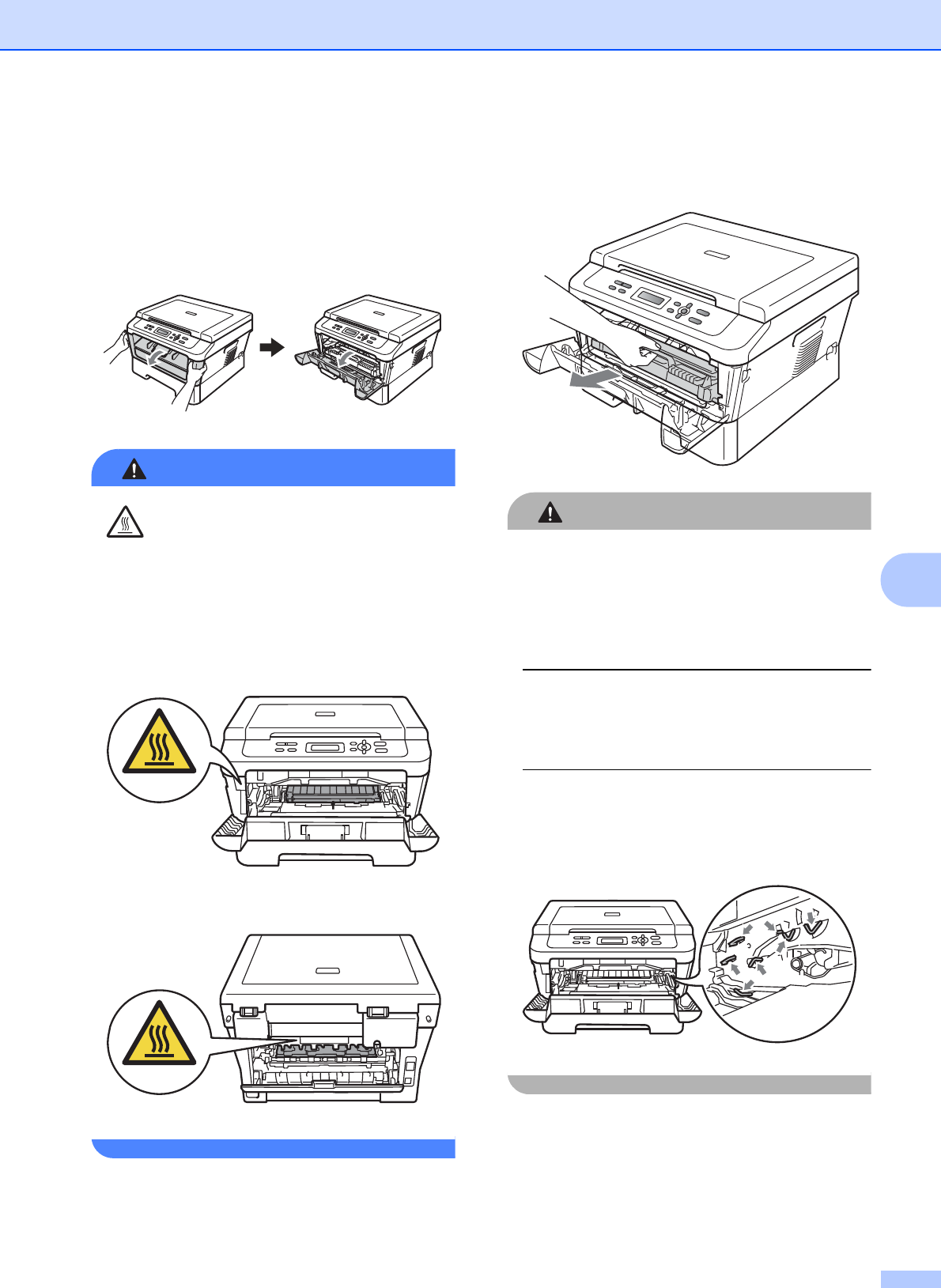

aMake sure that the machine is turned

on.

bOpen the front cover and leave the

machine turned on for 10 minutes to

cool down.

Routine maintenance

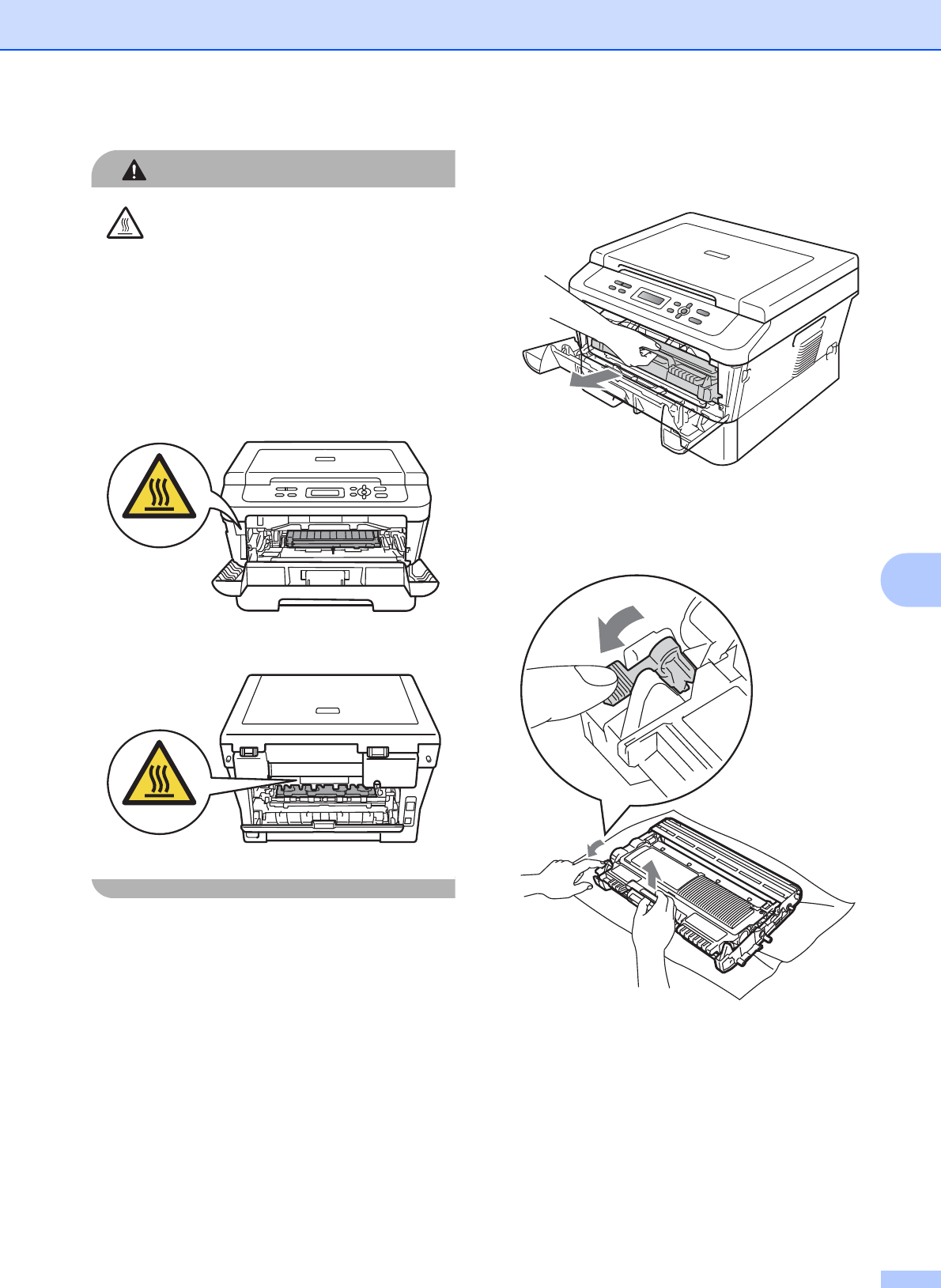

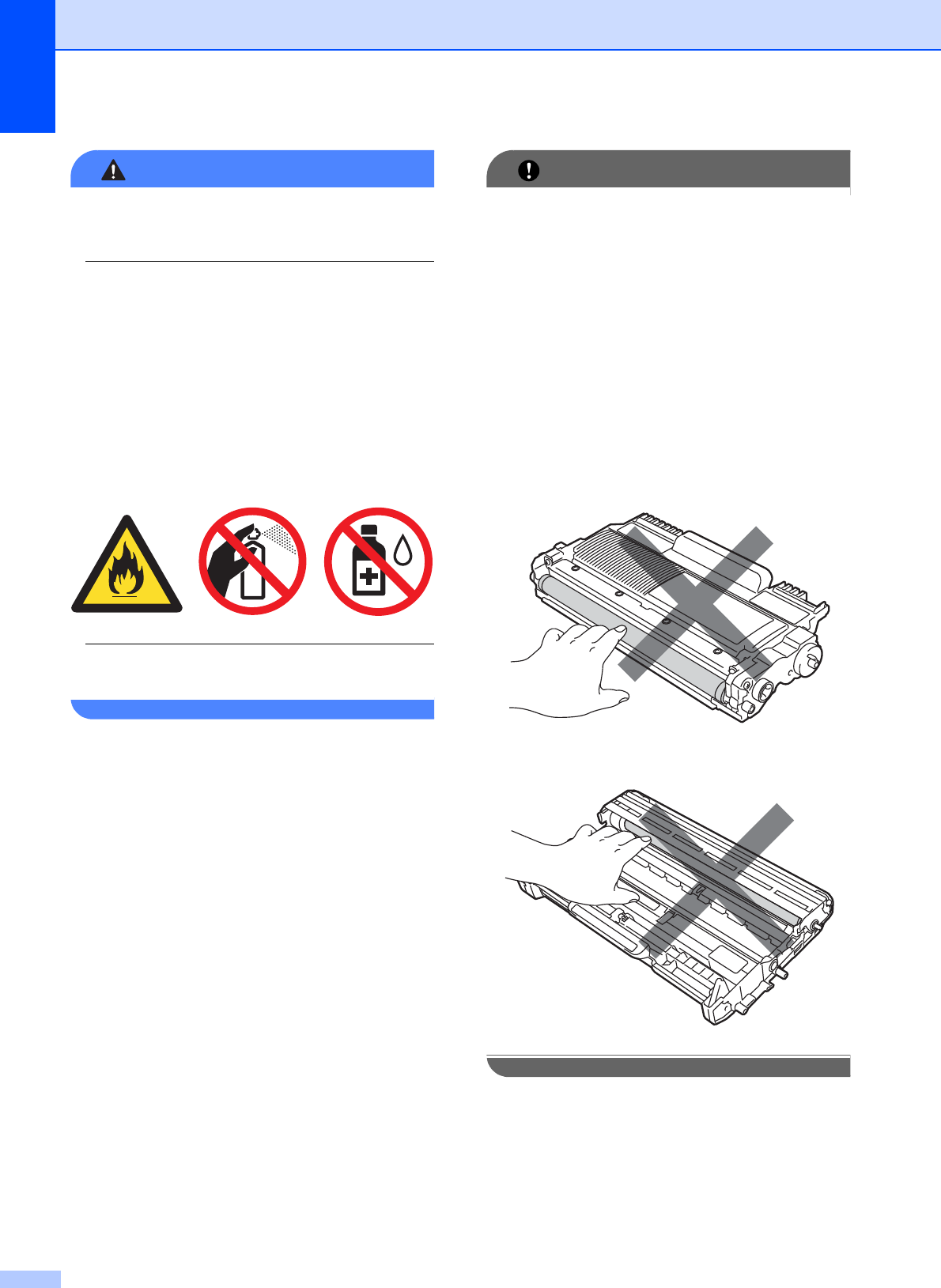

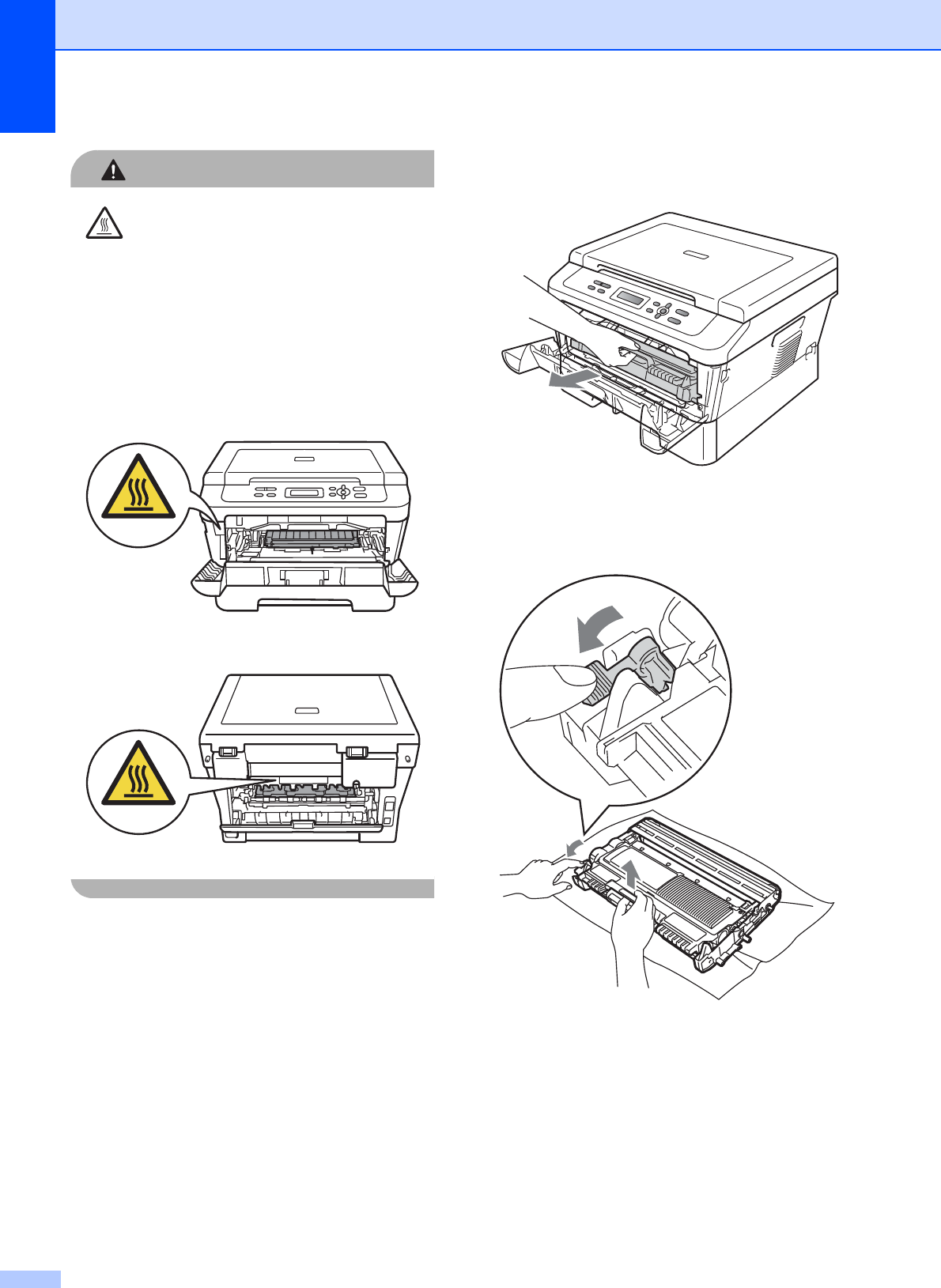

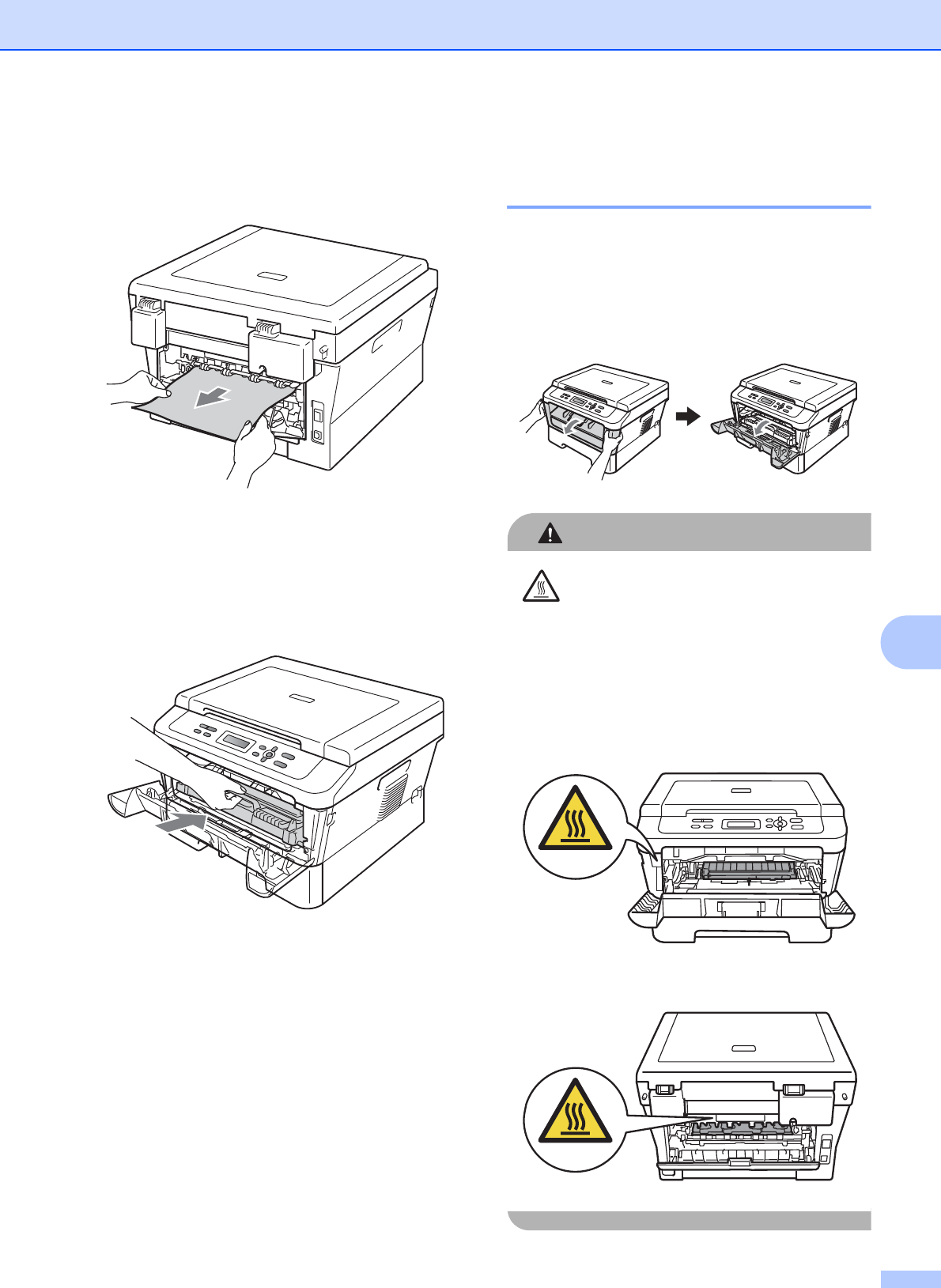

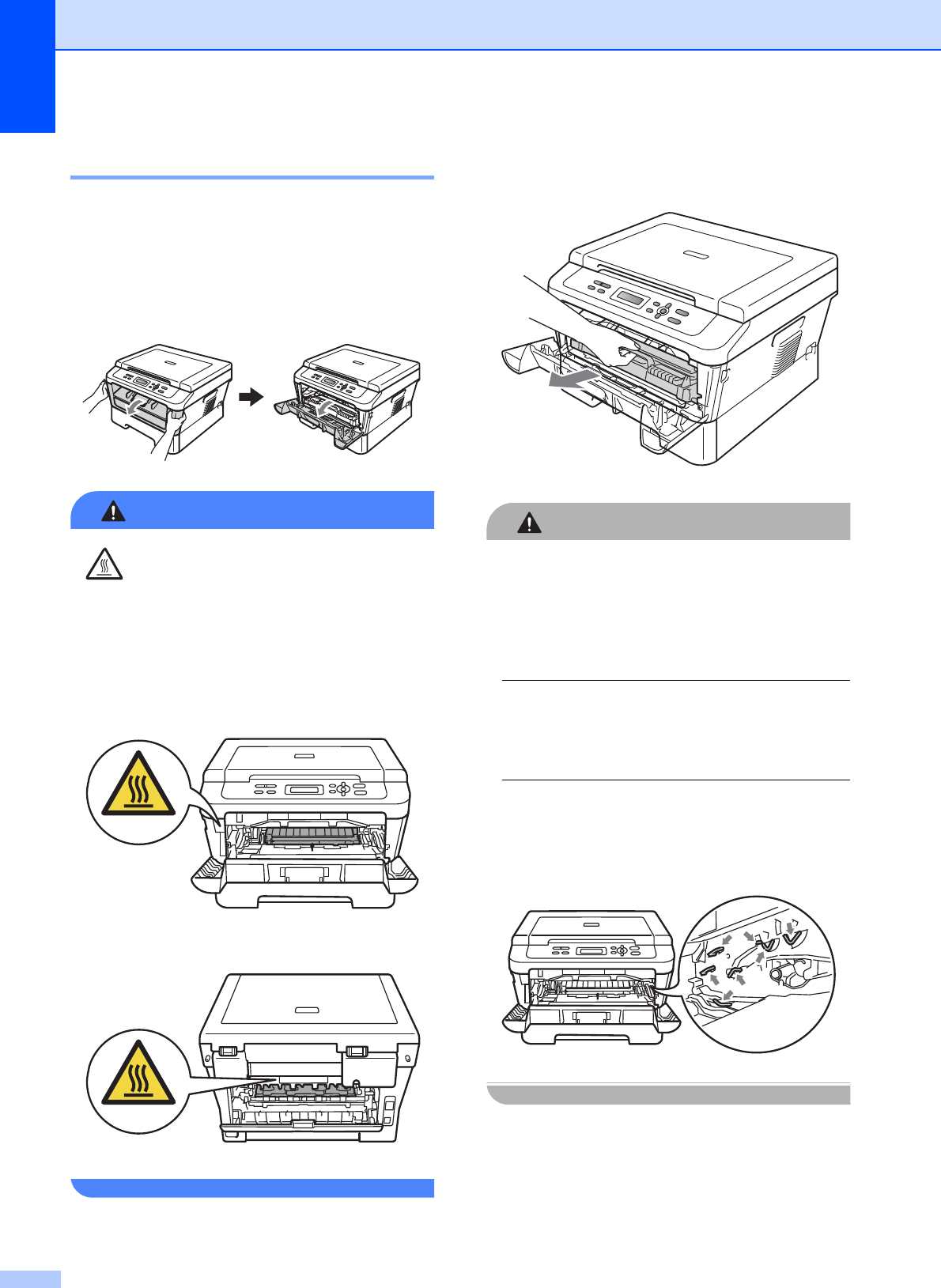

CAUTION

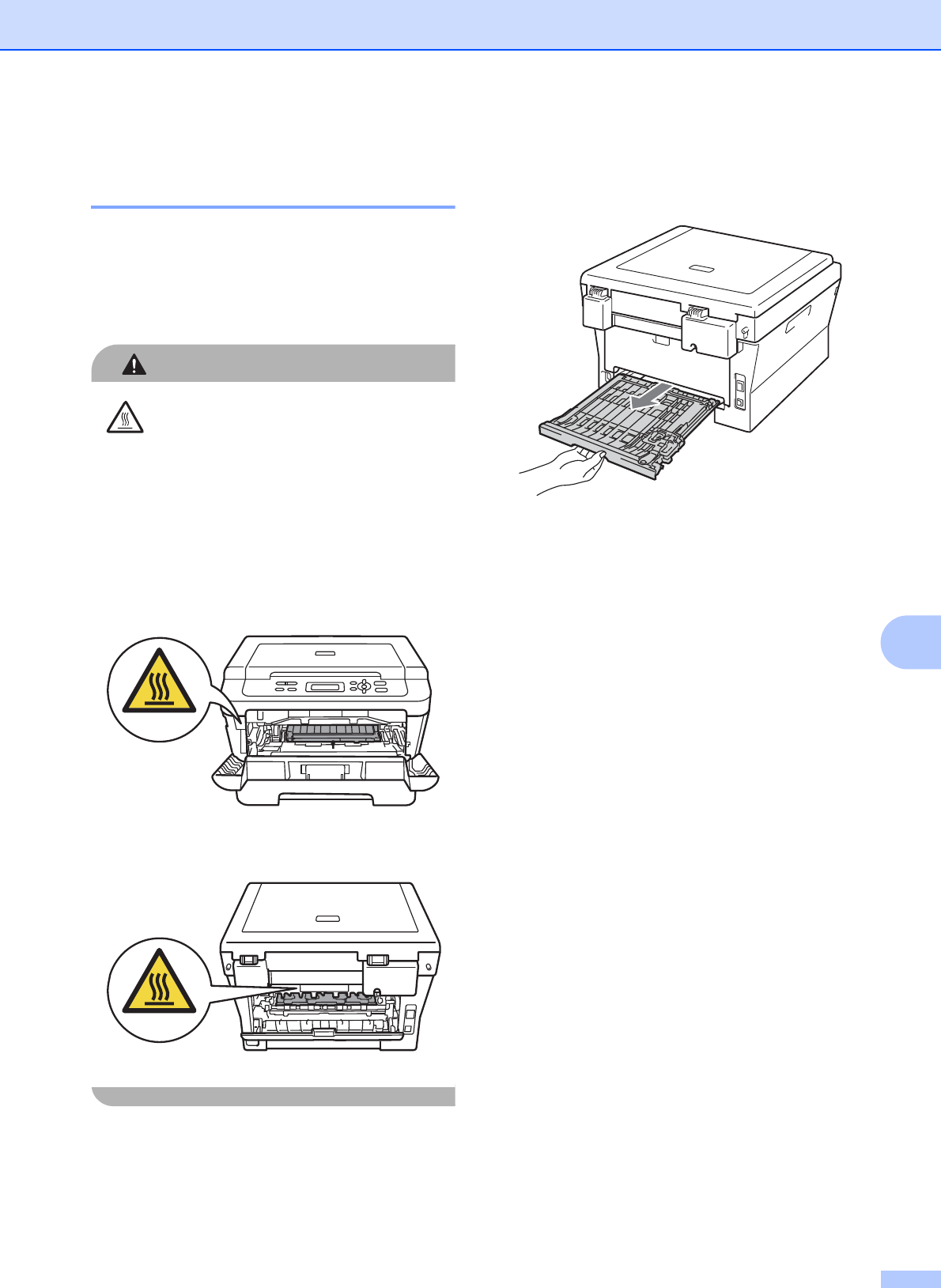

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be

extremely hot. When you open the front or

back cover (back output tray) of the

machine, DO NOT touch the shaded parts

shown in the illustration. If you do this, you

may burn yourself.

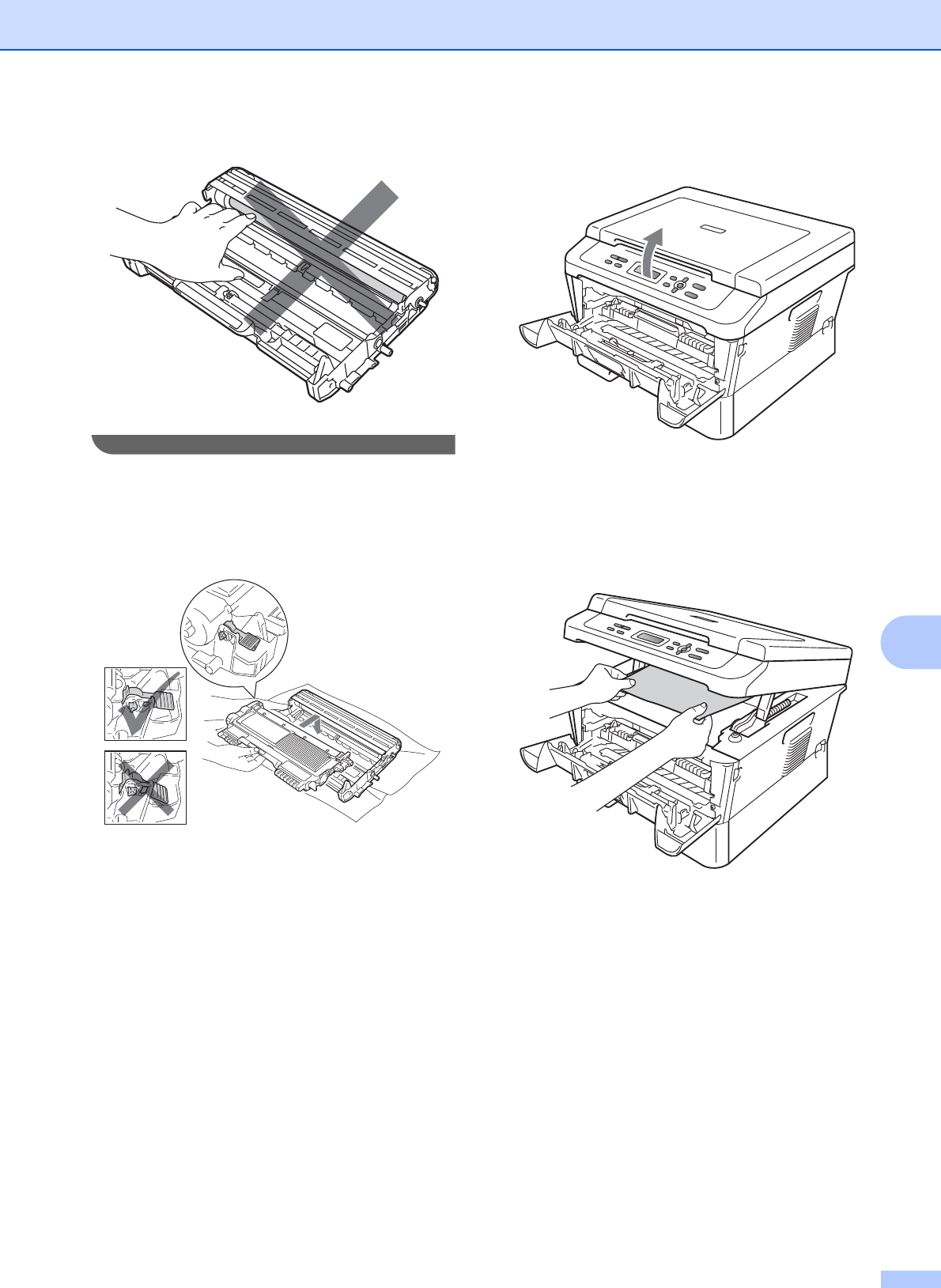

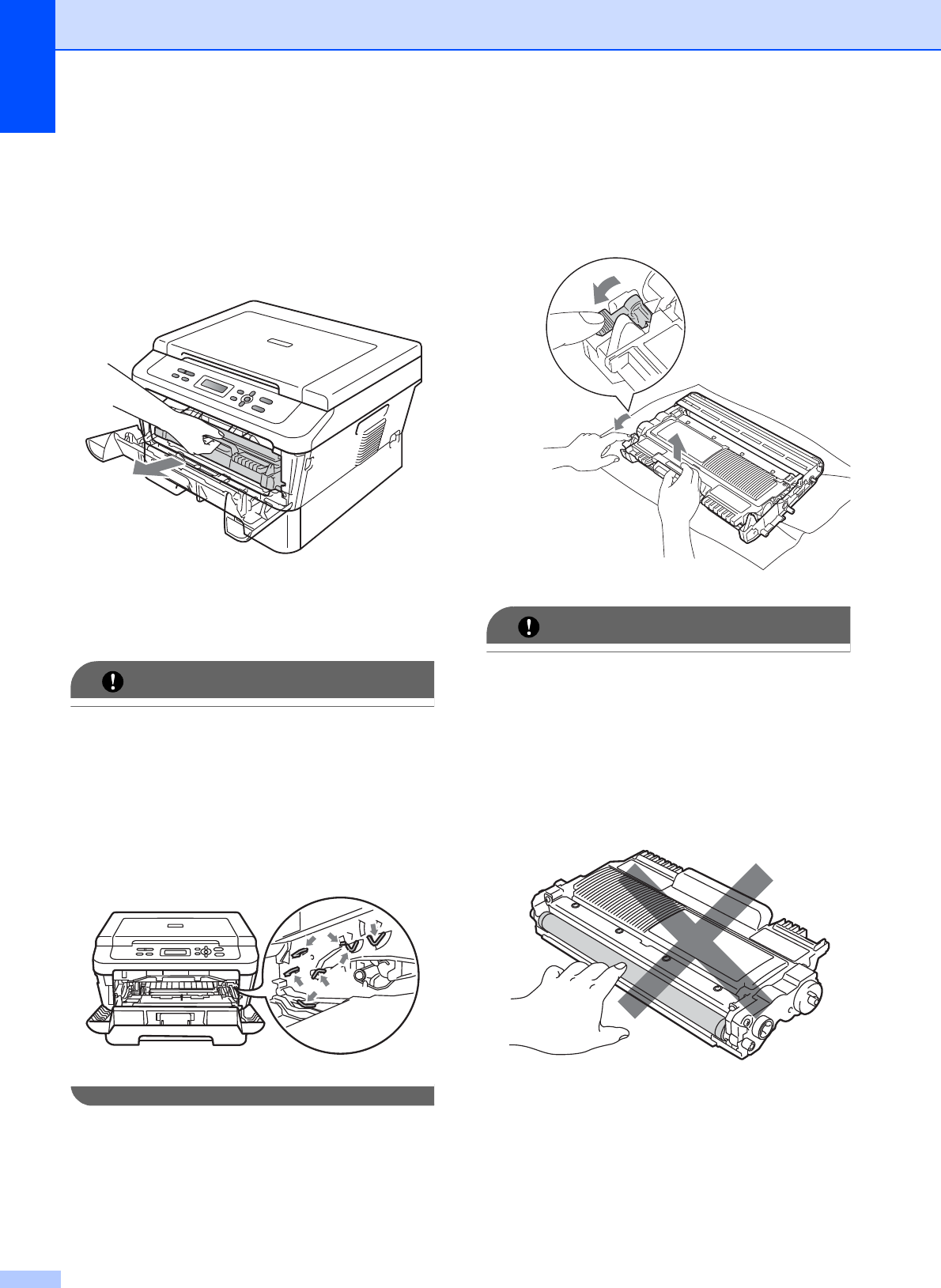

cTake out the drum unit and toner

cartridge assembly.

dPush down the green lock lever and take

the toner cartridge out of the drum unit.

WARNING

DO NOT put a toner cartridge into a fire. It

could explode, resulting in injuries.

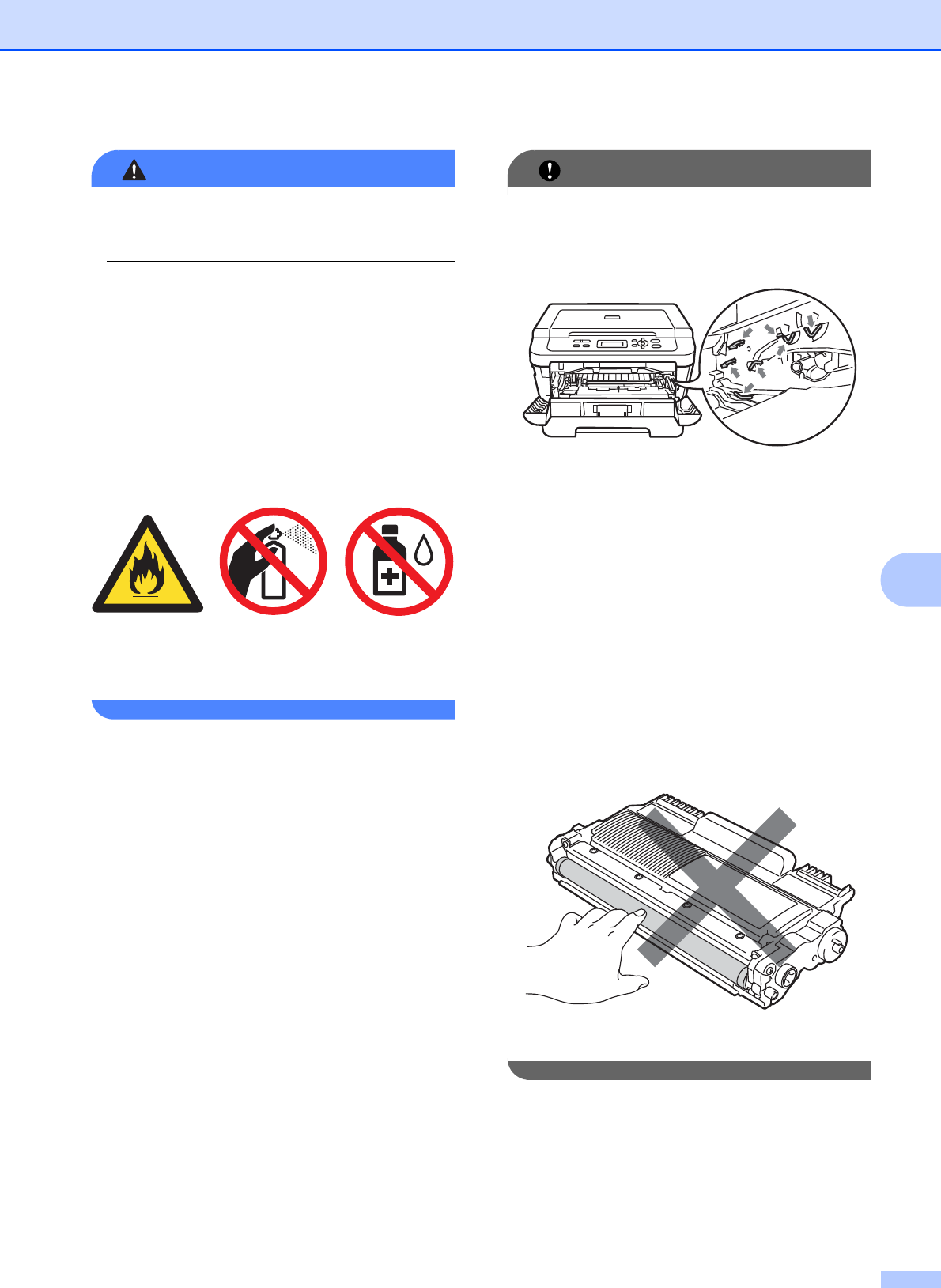

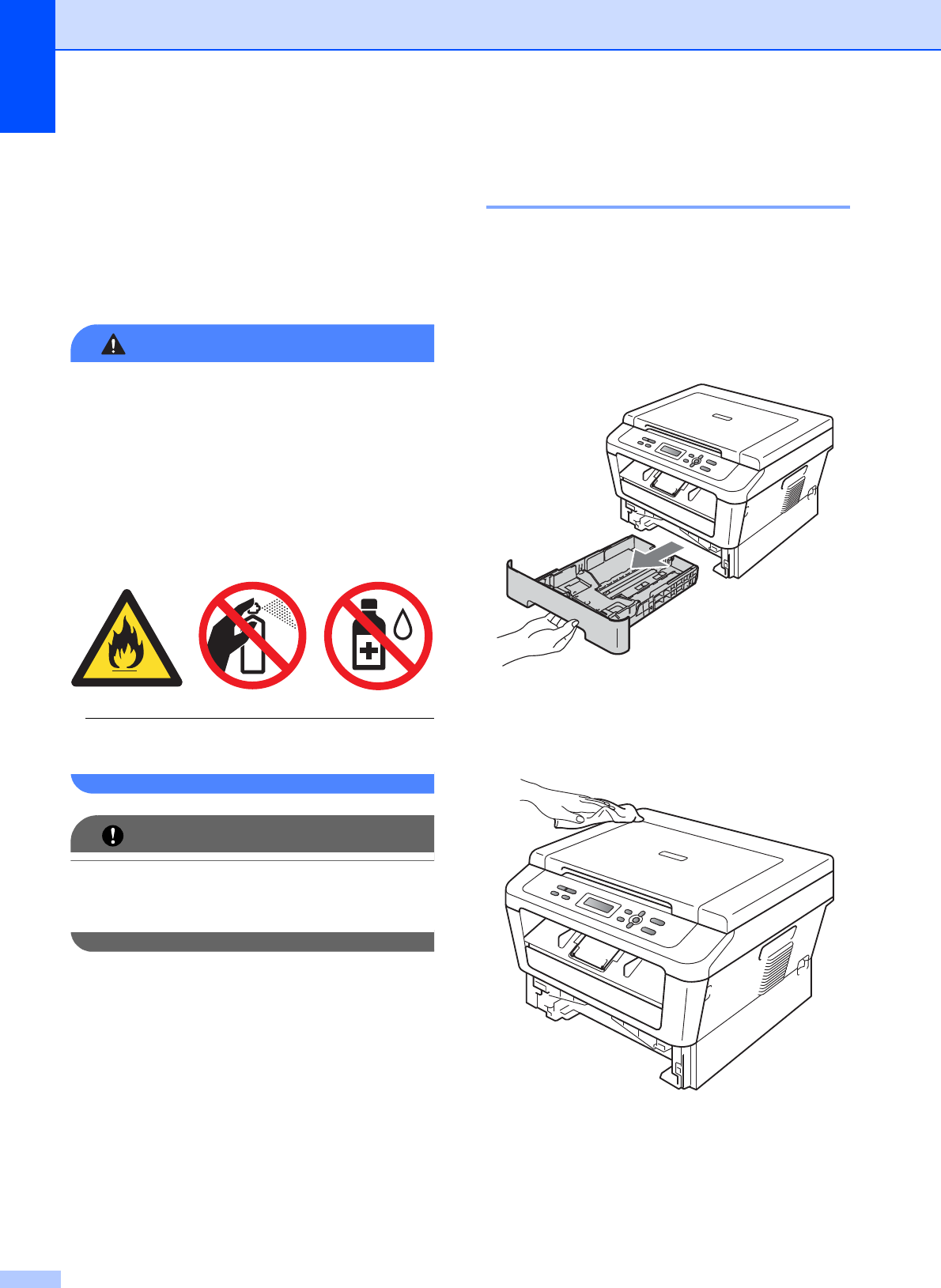

DO NOT use cleaning materials that

contain ammonia, alcohol, any type of

spray or any type of flammable substance

to clean the inside or outside of the

machine. Doing this may cause a fire or

electrical shock.

See To use the product safely in the Safety

and Legal booklet for how to clean the

machine.

Be careful not to inhale toner.

IMPORTANT

• We recommend that you place the drum

unit and/or the toner cartridge on a clean,

flat, level, stable surface with a sheet of

disposable paper or cloth underneath it in

case you accidentally spill or scatter toner.

• Handle the toner cartridge carefully. If

toner scatters on your hands or clothes,

immediately wipe or wash it off with cold

water.

• To avoid print quality problems, DO NOT

touch the shaded parts shown in the

illustration.

Routine maintenance

Note

• Be sure to seal up the toner cartridge

tightly in a suitable bag so that toner

powder does not spill out of the cartridge.

• Discard the used consumable according

to local regulations, keeping it separate

from domestic waste. If you have

questions, call your local waste disposal

office. Be sure to reseal the consumable

items tightly so that the material inside

does not spill.

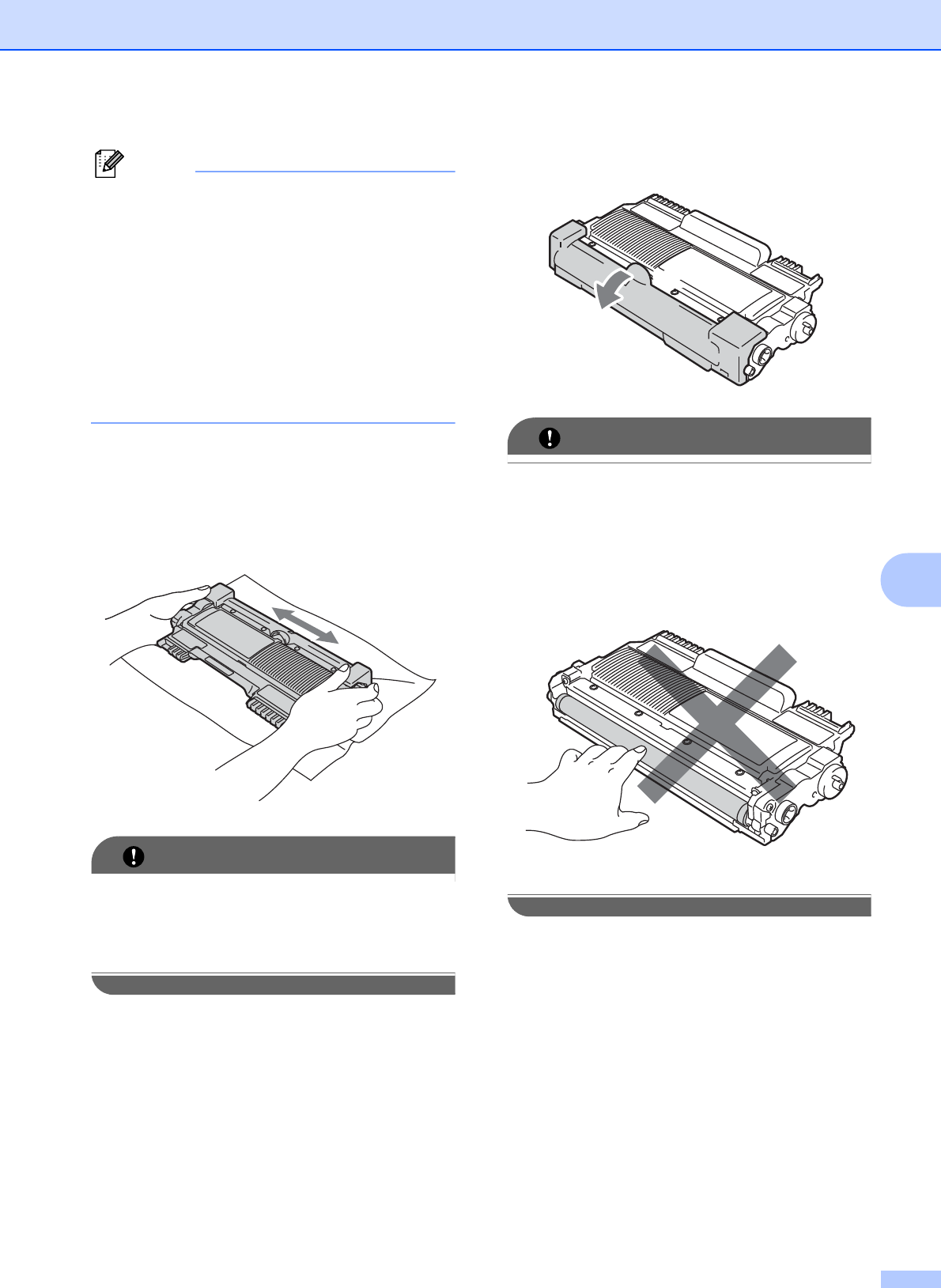

eUnpack the new toner cartridge. Hold

the cartridge level with both hands and

gently shake it from side to side several

times to spread the toner evenly inside

the cartridge.

IMPORTANT

Unpack the toner cartridge just before you

put it in the machine. If a toner cartridge is

left unpacked for a long time, the toner life

will be shortened.

fPull off the protective cover.

IMPORTANT

Put the toner cartridge in the drum unit

immediately after you have removed the

protective cover. To prevent any

degradation to the print quality, DO NOT

touch the shaded parts shown in the

illustrations.

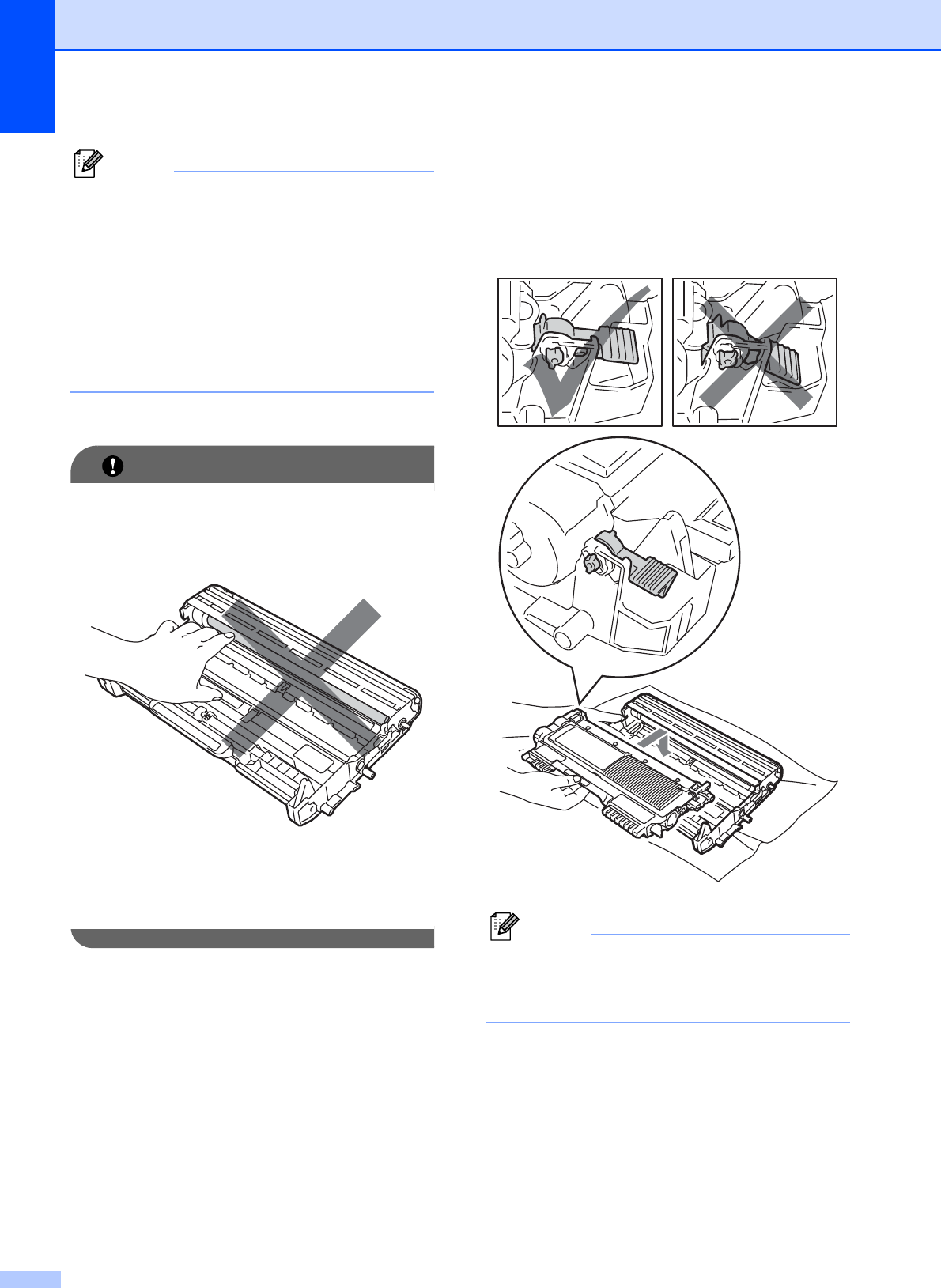

gPut the new toner cartridge firmly into

the drum unit so that it locks into place.

If you put it in correctly, the green lock

lever will lift automatically.

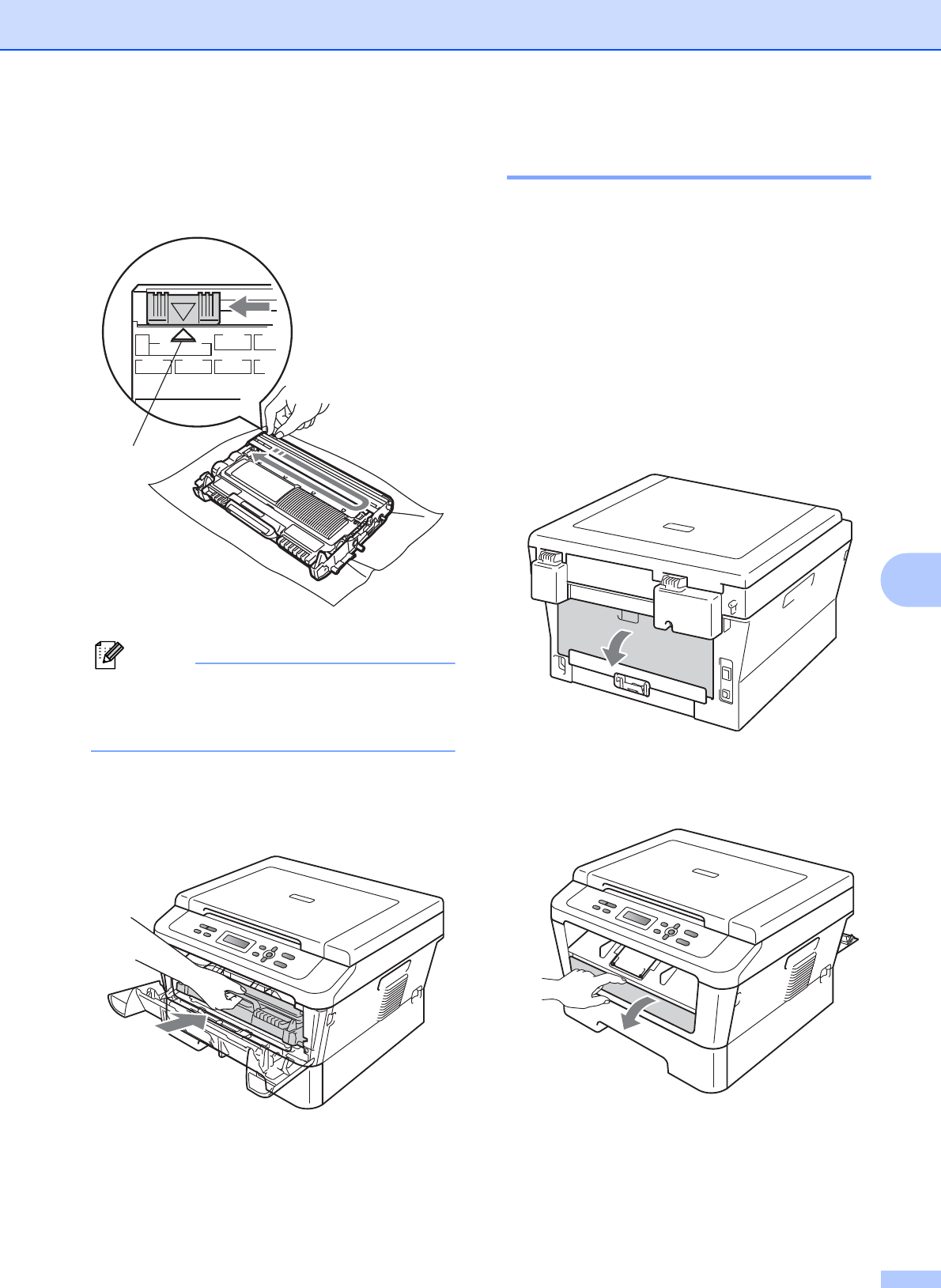

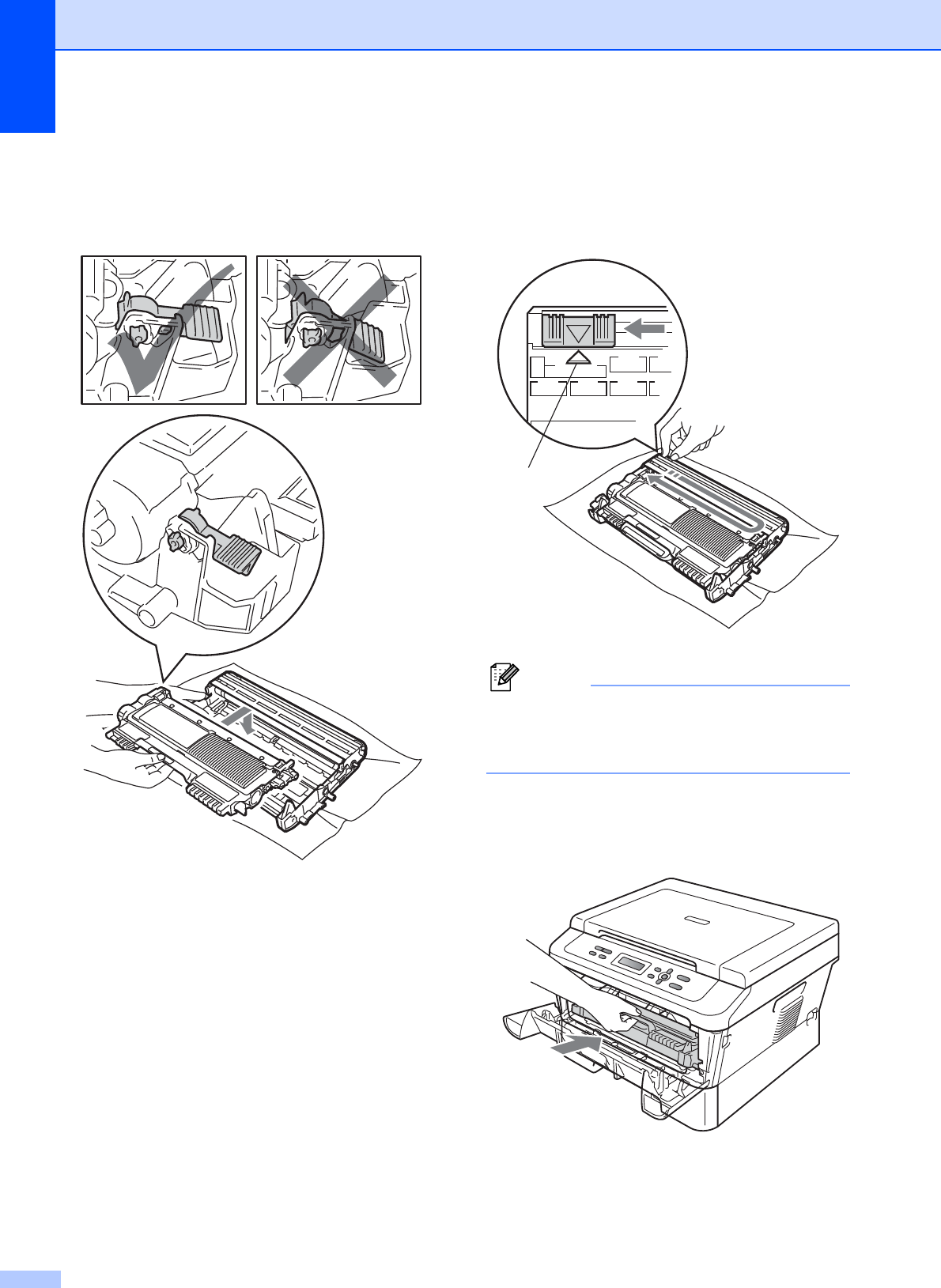

hClean the primary corona wire inside the

drum unit by gently sliding the green tab

from left to right and right to left several

times.

Note

Be sure to return the tab to the home

position (a) (1). If you do not, printed

pages may have a vertical stripe.

iPut the drum unit and toner cartridge

assembly back into the machine. Close

the front cover.

Routine maintenance

Note

After replacing the toner cartridge, DO

NOT turn off the machine's power switch

or open the front cover until the LCD

returns to Ready mode.

Replacing the drum unit A

Model name:

DR-2245 (For DCP-7055)

DR-2250 (For DCP-7060D)

A new drum unit can print approximately

12,000 A4 or Letter size single-sided pages.

IMPORTANT

For best performance, use only genuine

Brother Original drum unit and genuine

Brother Original toner cartridges. Printing

with a third-party drum unit or toner

cartridge may reduce not only the print

quality but also the quality and life of the

machine itself. Warranty coverage may

not apply to problems caused by the use

of a third-party drum or toner cartridge.

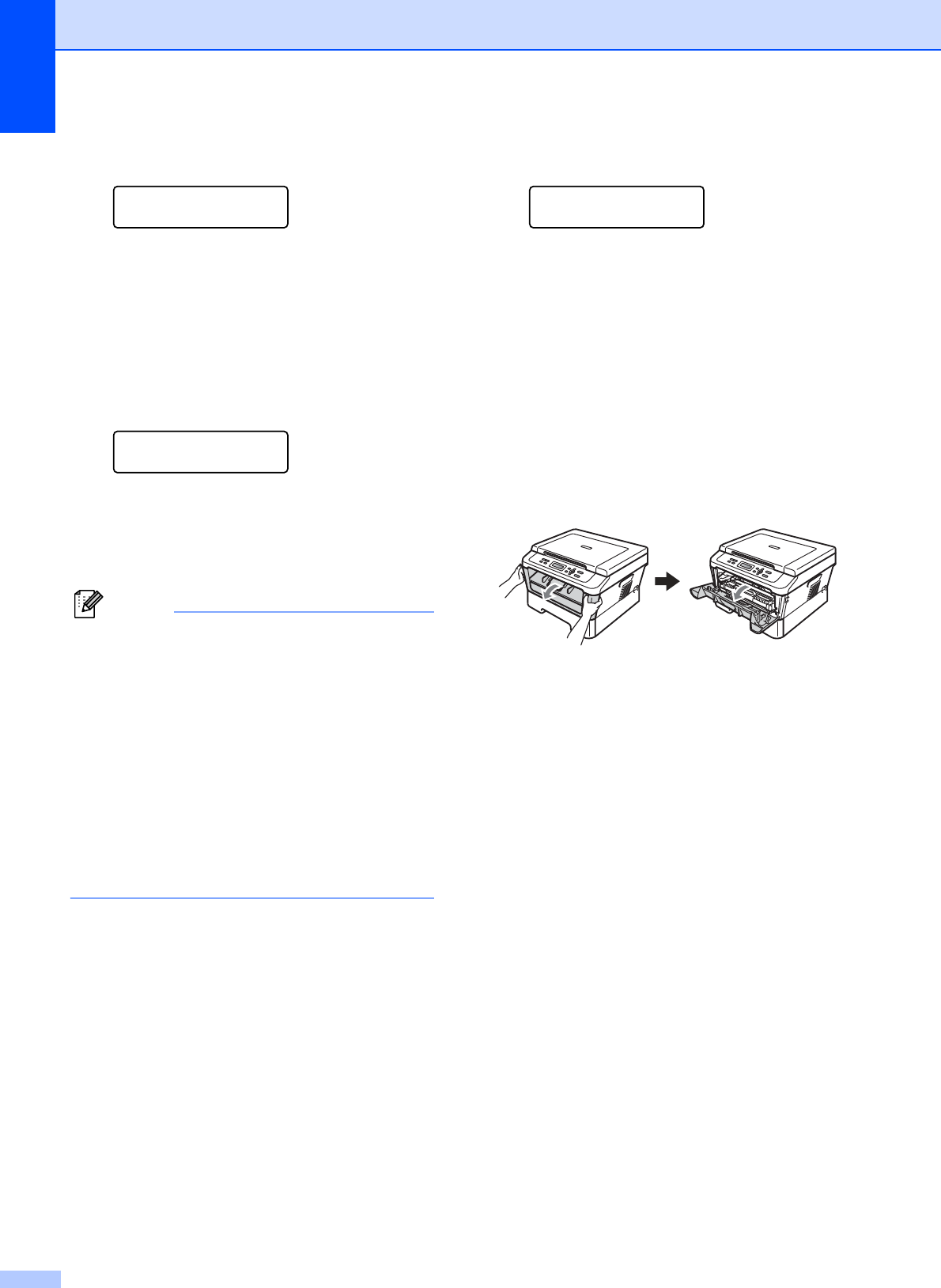

Drum Error A

Drum Error

The corona wire has become dirty. Clean the

corona wire in the drum unit. (See Cleaning

the corona wire on page 42.)

If you cleaned the corona wire and Drum

Error was not cleared, replace the drum unit

with a new one.

Replace Drum A

Replace Drum

Please replace the drum unit with a new one.

We recommend a genuine Brother Original

drum unit be installed at this time.

After replacement, reset the drum counter by

following the instructions included with the

new drum unit.

Drum Stop A

Drum Stop

We cannot guarantee the print quality. Please

replace the drum unit with a new one. We

recommend a genuine Brother Original drum

unit be installed at this time.

After replacement, reset the drum counter by

following the instructions included with the

new drum unit.

Replacing the drum unit A

IMPORTANT

• While removing the drum unit, handle it

carefully because it may contain toner. If

toner scatters on your hands or clothes,

immediately wipe or wash it off with cold

water.

• Every time you replace the drum unit,

clean the inside of the machine. (See

Cleaning the machine on page 40.)

aMake sure that the machine is turned

on.

bOpen the front cover and leave the

machine turned on for 10 minutes to

cool down.

CAUTION

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be

extremely hot. When you open the front or

back cover (back output tray) of the

machine, DO NOT touch the shaded parts

shown in the illustration. If you do this, you

may burn yourself.

cTake out the drum unit and toner

cartridge assembly.

dPush down the green lock lever and take

the toner cartridge out of the drum unit.

Routine maintenance

WARNING

DO NOT put a toner cartridge into a fire. It

could explode, resulting in injuries.

DO NOT use cleaning materials that

contain ammonia, alcohol, any type of

spray, or any type of flammable substance

to clean the outside or inside of the

machine. Doing this may cause a fire or

electrical shock.

See To use the product safely in the Safety

and Legal booklet for how to clean the

machine.

Be careful not to inhale toner.

IMPORTANT

• To prevent damage to the machine from

static electricity, DO NOT touch the

electrodes shown in the illustration.

• Handle the toner cartridge carefully. If

toner scatters on your hands or clothes,

immediately wipe or wash it off with cold

water.

• We recommend that you place the drum

unit and/or the toner cartridge on a clean,

flat surface with a sheet of disposable

paper or cloth underneath it in case you

accidentally spill or scatter toner.

• To avoid print quality problems, DO NOT

touch the shaded parts shown in the

illustrations.

Note

If you choose not to return your used

consumable, please discard the used

consumable according to local

regulations, keeping it separate from

domestic waste. If you have questions,

call your local waste disposal office. Be

sure to reseal the consumable items

tightly so that the material inside does not

spill.

eUnpack the new drum unit.

IMPORTANT

• To avoid print quality problems, DO NOT

touch the shaded parts shown in the

illustrations.

• Unpack the drum unit just before you put it

in the machine. Exposure to direct sunlight

or room light may damage the drum unit.

fPut the toner cartridge firmly into the

new drum unit until you hear it lock into

place. If you put the cartridge in

correctly, the green lock lever will lift

automatically.

Note

Make sure that you put in the toner

cartridge correctly or it may separate from

the drum unit.

Routine maintenance

gClean the corona wire of the drum unit

by gently sliding the green tab from left

to right and right to left several times.

CAUTION

Be sure to return the green tab to the home

position (a) (1). If you do not, printed pages

may have a vertical stripe.

hPut the new drum unit and toner

cartridge assembly in the machine.

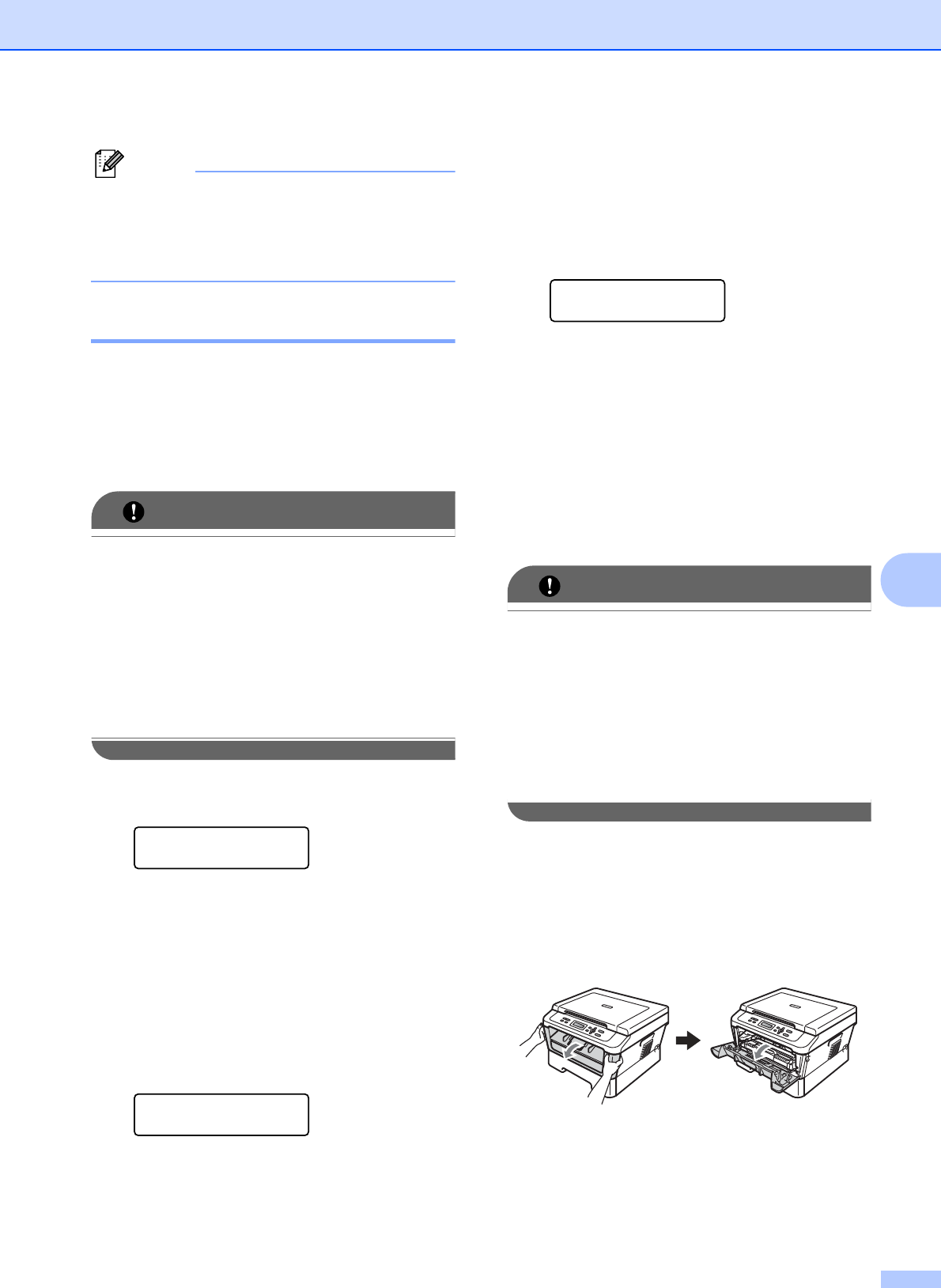

Resetting the drum counter A

When you replace the drum unit with a new

one, you need to reset the drum counter by

completing the following steps:

aOpen the front cover and press Clear.

To confirm you are installing a new

drum, press a.

bWhen the LCD shows Accepted, close

the front cover.

Cleaning the machine A

Clean the outside and inside of the machine

regularly with a dry, lint-free soft cloth. When

you replace the toner cartridge or the drum

unit, make sure that you clean the inside of

the machine.

WARNING

DO NOT use any flammable substances,

spray or organic solvent/liquids containing

alcohol/ammonia to clean the outside or

inside of the machine. Doing this may

cause a fire or electrical shock.

See To use the product safely in the Safety

and Legal booklet for how to clean the

machine.

Be careful not to inhale toner.

IMPORTANT

Use neutral detergents. Cleaning with

volatile liquids such as thinner or benzine

will damage the surface of the machine.

Cleaning the outside of the

machine A

aTurn off the machine. Disconnect all

cables, and then unplug the power cord

from the electrical socket.

bPull the paper tray completely out of the

machine.

cWipe the outside of the machine with a

dry, lint-free soft cloth to remove dust.

dRemove any paper that is in the paper

tray.

Routine maintenance

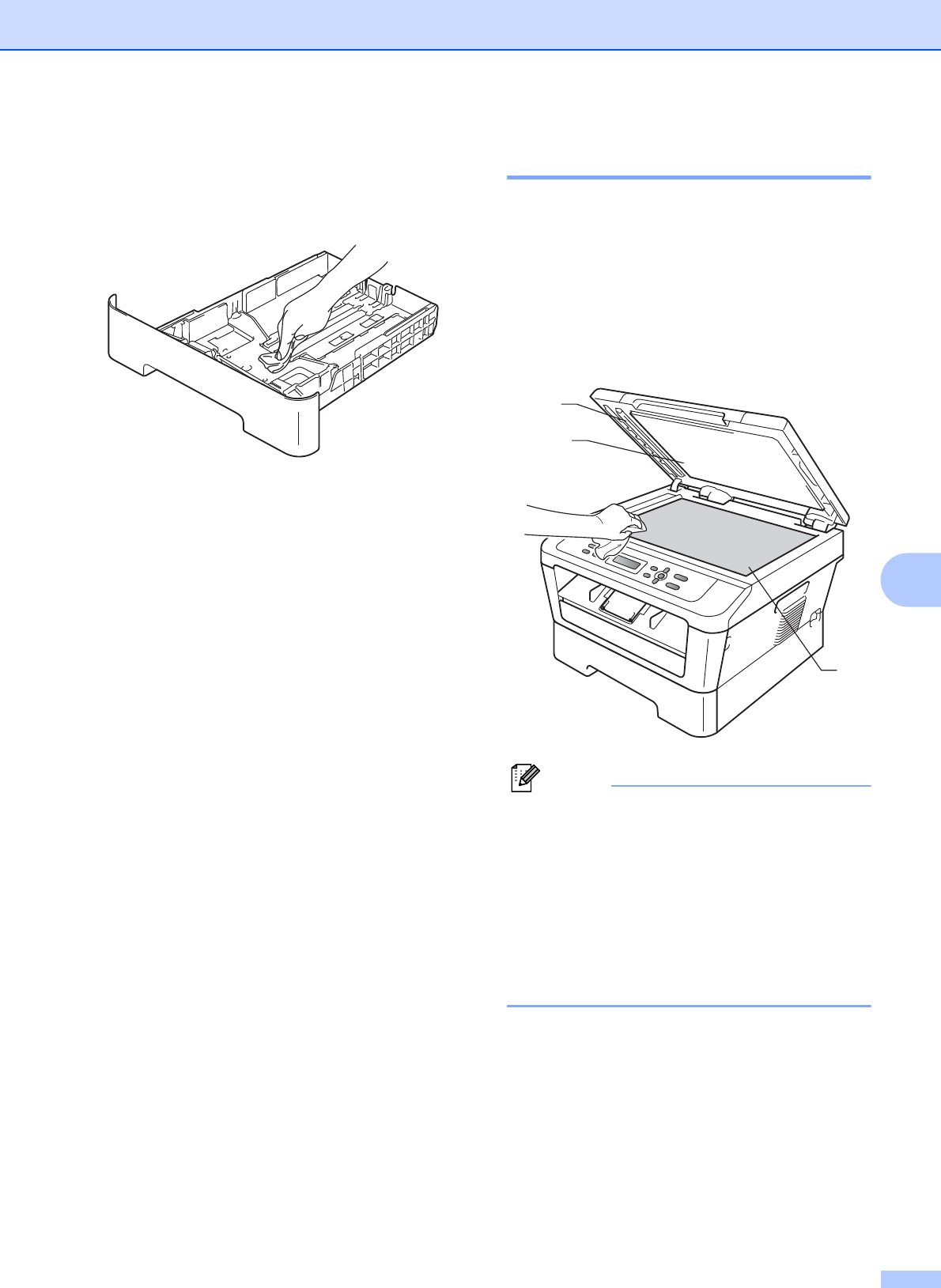

eWipe the inside and the outside of the

paper tray with a dry, lint-free soft cloth

to remove dust.

fRe-load the paper and put the paper tray

firmly back in the machine.

gPlug the machine’s power cord back into

the electrical socket first, connect all

cables. Turn on the machine.

Cleaning the scanner glass A

aTurn off the machine. Disconnect all

cables, and then unplug the power cord

from the electrical socket.

bLift the document cover (1).

Clean the white plastic surface (2) and

scanner glass (3) underneath it with a

soft lint-free cloth moistened with water.

Note

In addition to cleaning the scanner glass

and glass strip with a soft lint-free cloth

moistened with water, run your finger tip

over the glass to see if you can feel

anything on it. If you feel dirt or debris,

clean the glass again concentrating on

that area. You may need to repeat the

cleaning process three or four times. To

test, make a copy after each cleaning.

cPlug the machine’s power cord back into

the electrical socket first, connect all

cables. Turn on the machine.

Cleaning the corona wire A

If you have print quality problems, clean the

corona wire as follows:

aOpen the front cover and leave the

machine turned on for 10 minutes to

cool down.

WARNING

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be

extremely hot. Wait for the machine to cool

down before you touch the internal parts of

the machine.

bSlowly take out the drum unit and toner

cartridge assembly.

CAUTION

We recommend that you place the drum

unit and toner cartridge assembly on a

clean, flat surface with a sheet of

disposable paper or cloth underneath it in

case you accidentally spill or scatter toner.

Handle the toner cartridge carefully. If toner

scatters on your hands or clothes, wipe or

wash it off with cold water at once.

To prevent damage to the machine caused

by static electricity, DO NOT touch the

electrodes shown in the illustration.

Routine maintenance

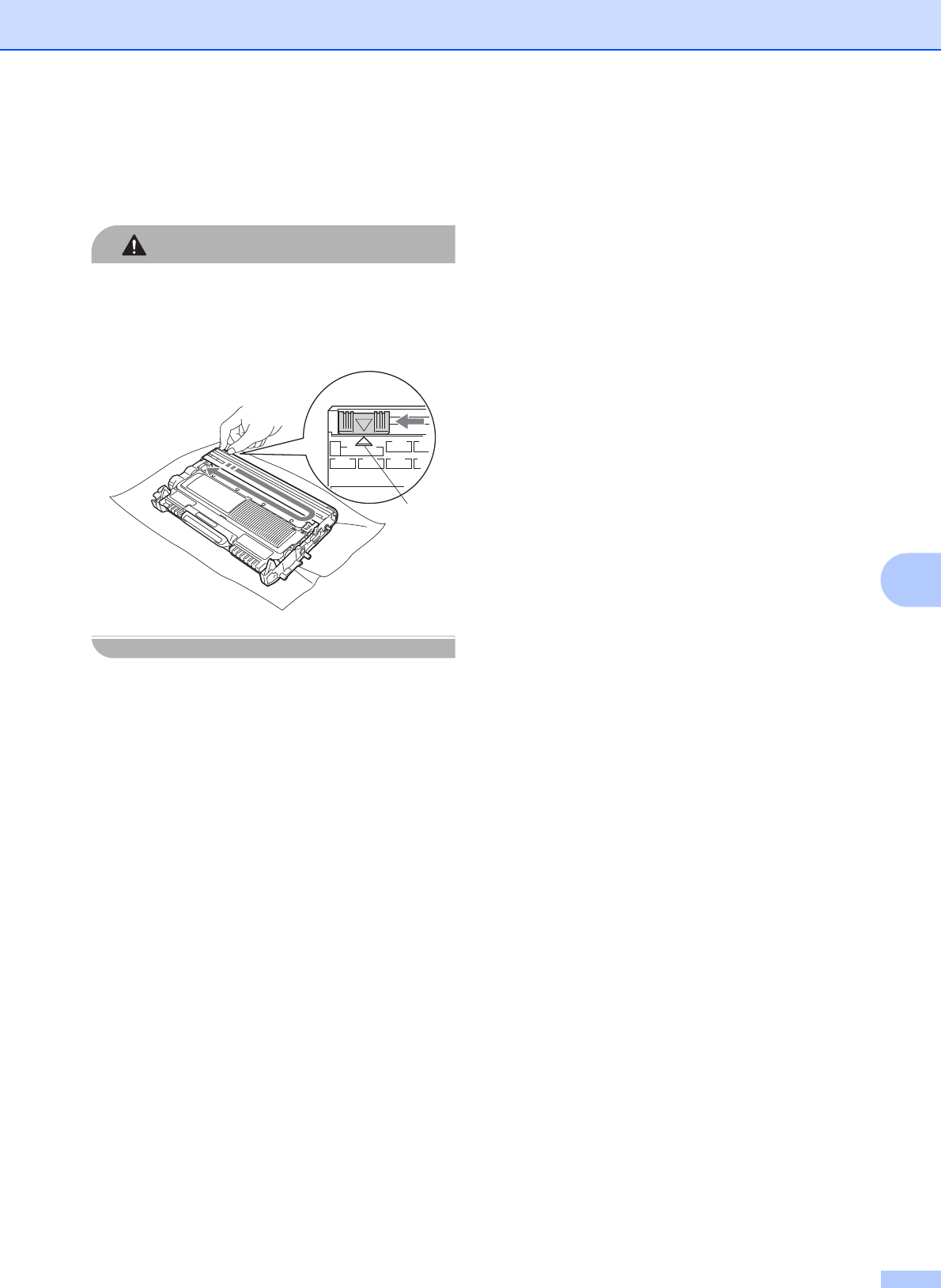

cClean the corona wire inside the drum

unit by gently sliding the green tab from

right to left and left to right several times.

Note

Be sure to return the tab to the home

position (a) (1). If you do not, printed

pages may have a vertical stripe.

dPut the drum unit and toner cartridge

assembly back into the machine. Close

the front cover.

Cleaning the drum unit A

If you have print quality problems, the drum

may have foreign material, such as glue from

a label stuck on the drum surface. Follow the

steps below to solve the problem.

aPrepare blank A4 or Letter size paper.

bMake sure the machine is in Ready

mode.

cOpen the back cover (face-up output

tray).

dOpen the manual feed slot cover.

ePress Clear and Menu at the same

time. The Drum Cleaning message

will appear on the LCD.

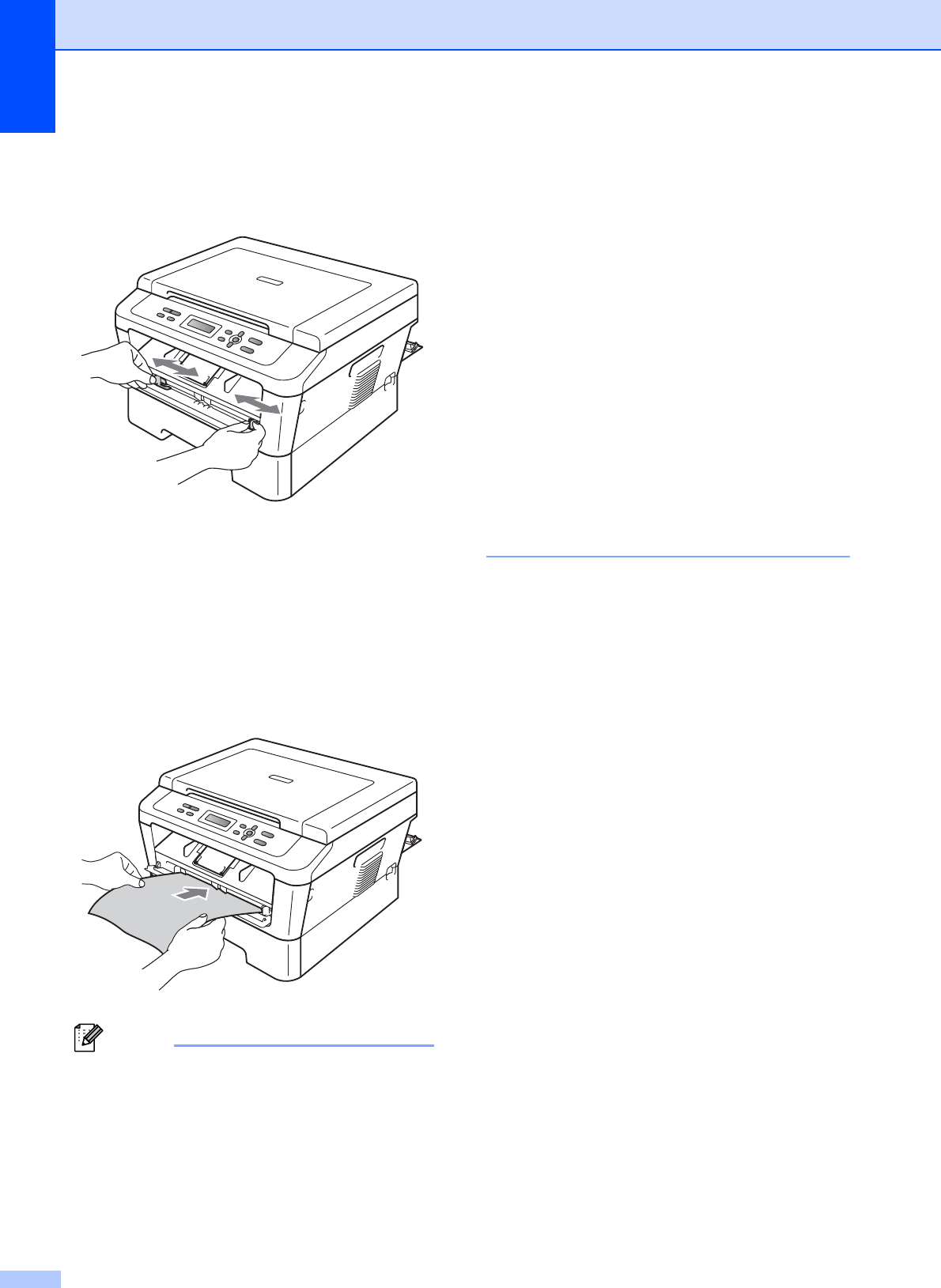

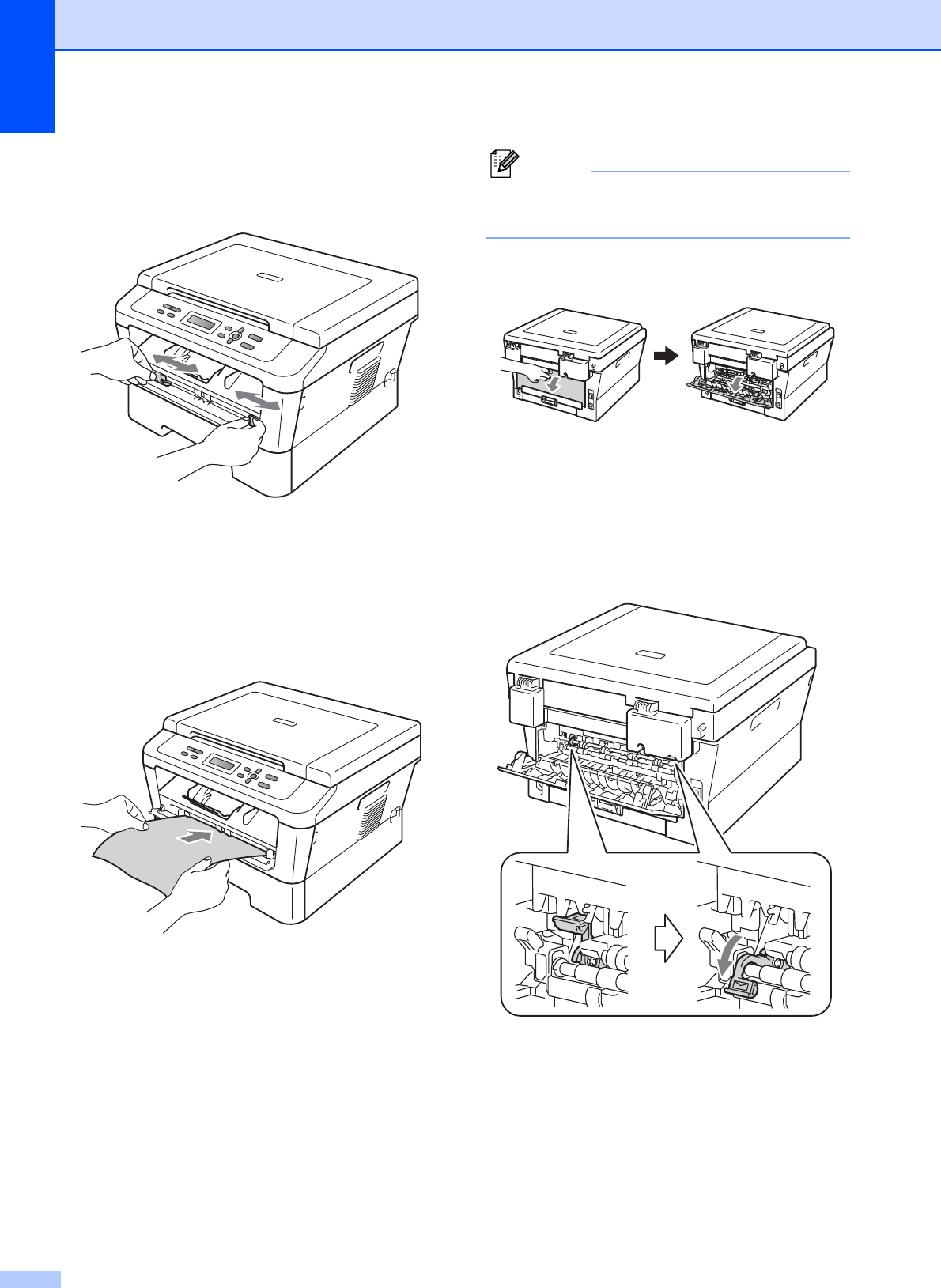

fUsing both hands, slide the manual feed

paper guides to the width of the paper

that you are going to use.

gUsing both hands, put one piece of A4 or

Letter size paper in the manual feed slot

until the top edge of the paper touches

the paper feed roller. When you feel the

machine pull in the paper, let go. The

machine will start the Drum Cleaning

process.

Note

• The machine makes a mechanical noise

during the Drum Cleaning process

because the machine rotates the OPC

drum in reverse. This noise is not due to a

malfunction of the machine.

• DO NOT put more than one sheet of paper

in the manual feed slot at any one time, as

it may cause a jam.

• If the paper in the manual feed slot is other

than A4 or Letter size, the machine will

stop the Drum Cleaning process and eject

the paper.

• Make sure that the paper is straight and in

the correct position in the manual feed

slot. If it is not, it may not be fed correctly,

resulting in a paper jam.

• DO NOT close the back cover (face-up

output tray) during the Drum Cleaning

process. The machine will stop the Drum

Cleaning process and eject the paper. It

may cause a jam.

• If the machine receives a print job before

you put one piece of paper in the manual

feed slot, the machine stops the Drum

Cleaning process and print the print job.

hWhen the machine has finished

cleaning, the machine returns to the

Ready mode.

iRepeat steps e to h two more times

using a new blank sheet of paper each

time. Upon completion please discard

the used paper.

Routine maintenance

If the problem is not solved yet, follow the

steps below.

aOpen the front cover and leave the

machine turned on for 10 minutes to

cool down.

WARNING

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be

extremely hot. Wait for the machine to cool

down before you touch the internal parts of

the machine.

bSlowly take out the drum unit and toner

cartridge assembly.

CAUTION

We recommend that you put the drum unit

and toner cartridge assembly on a clean,

flat surface with a sheet of disposable

paper or cloth underneath it in case you

accidentally spill or scatter toner.

Handle the toner cartridge carefully. If toner

scatters on your hands or clothes, wipe or

wash it off with cold water at once.

To prevent damage to the machine caused

by static electricity, DO NOT touch the

electrodes shown in the illustration.

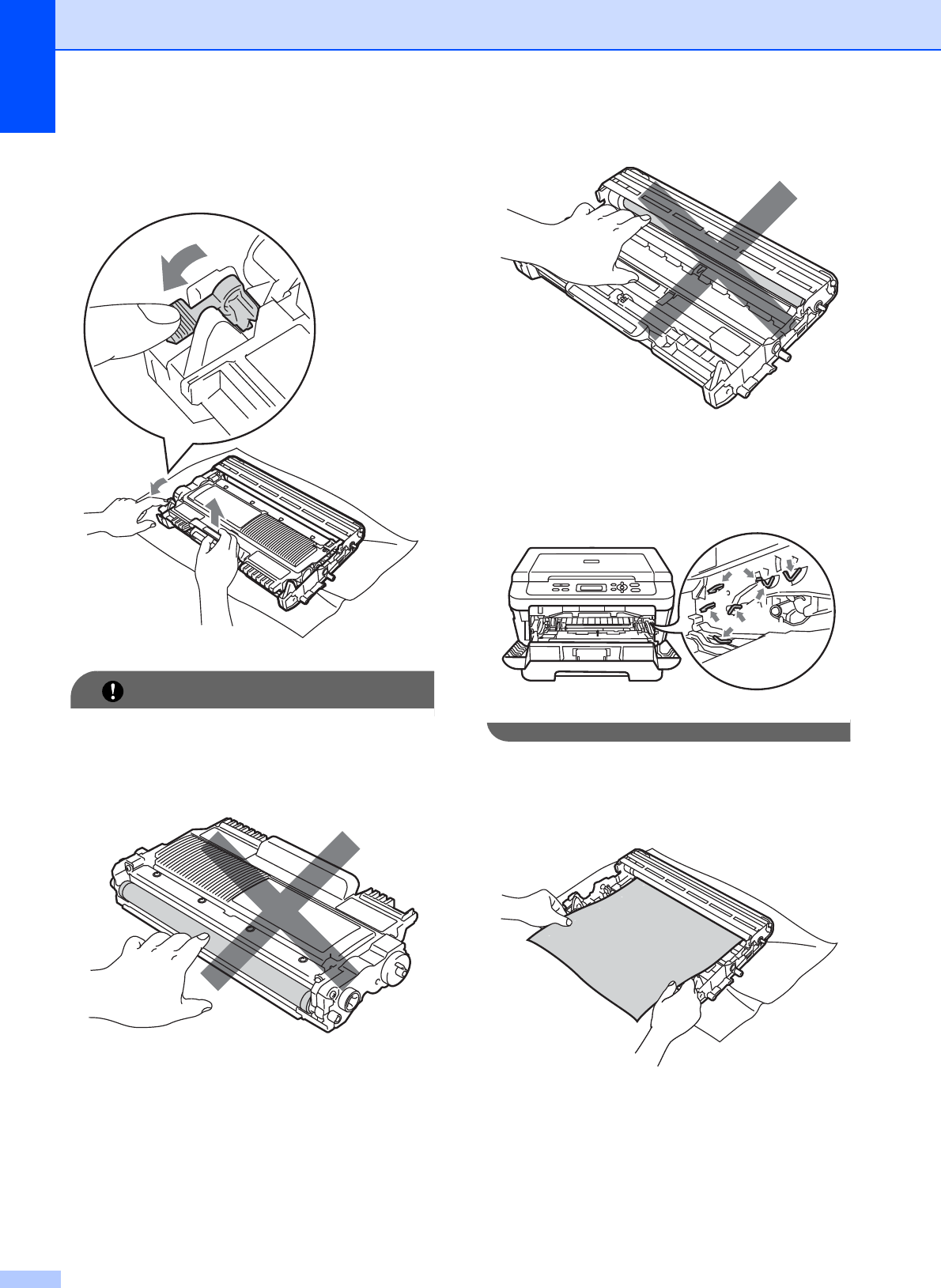

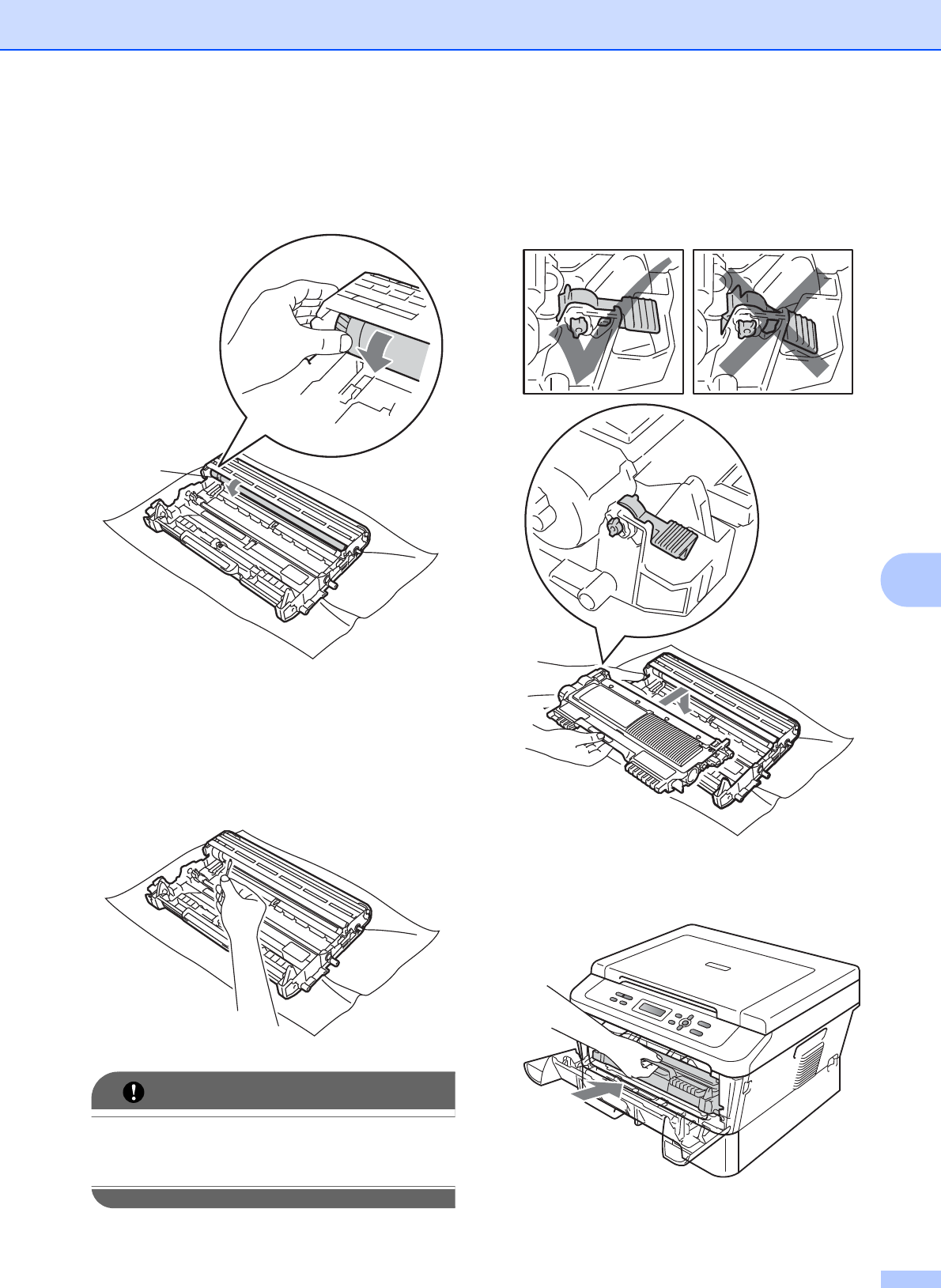

cPush down the green lock lever and take

the toner cartridge out of the drum unit.

IMPORTANT

• To avoid print quality problems, DO NOT

touch the shaded parts shown in the

illustrations below.

• To prevent damage to the machine from

static electricity, DO NOT touch the

electrodes shown in the illustration.

dPut the print sample in front of the drum

unit, and find the exact position of the

poor print.

Routine maintenance

eTurn the drum unit gear by hand while

looking at the surface of the OPC

drum (1).

fWhen you have found the mark on the

drum that matches the print sample,

wipe the surface of the OPC drum with a

dry cotton swab until the dust or glue on

the surface comes off.

IMPORTANT

DO NOT clean the surface of the

photosensitive drum with a sharp object or

any liquids.

gPut the toner cartridge back into the

drum unit until you hear it lock into place.

If you put the cartridge in correctly, the

green lock lever will lift automatically.

hPut the drum unit and toner cartridge

assembly back in the machine.

iClose the front cover.

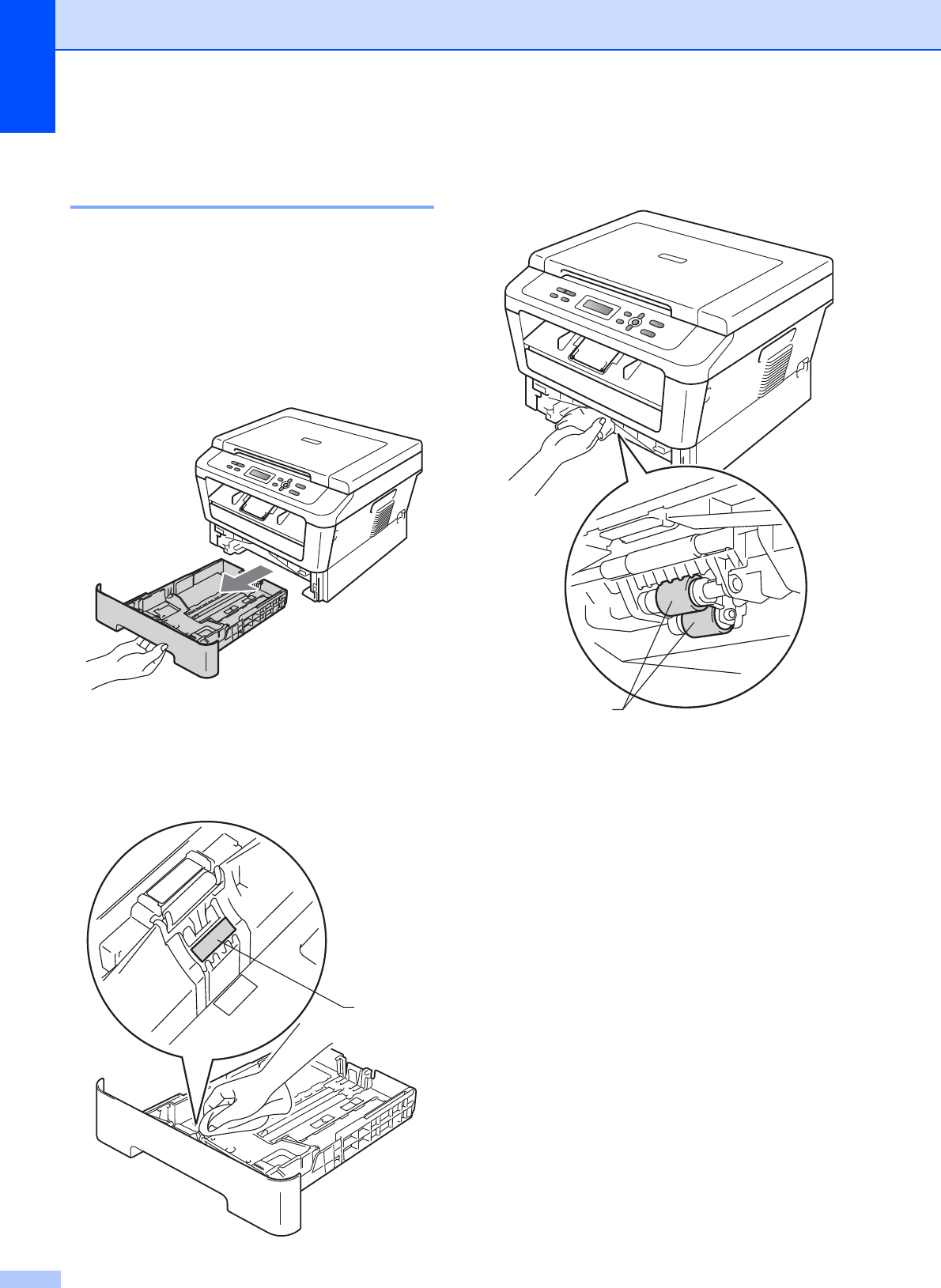

Cleaning the paper pick-up

rollers A

If you have paper feed problems, clean the

pick-up rollers as follows:

aTurn off the machine. Unplug the power

cord from the electrical socket.

bPull the paper tray completely out of the

machine.

cTightly wring out a lint-free cloth soaked

in lukewarm water, and then wipe the

separator pad (1) of the paper tray with

it to remove dust.

dWipe the two pick-up rollers (1) inside of

the machine to remove dust.

ePut the paper tray back in the machine.

fPlug the machine’s power cord back into

the electrical socket. Turn on the

machine.

Error and maintenance messages B

As with any sophisticated office product, errors may occur and consumable items may need to be

replaced. If this happens, your machine identifies the error or required routine maintenance and

shows the appropriate message. The most common error and maintenance messages are shown

below.

You can clear most errors and perform routine maintenance messages by yourself. If you need

more help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips:

Visit us at http://solutions.brother.com/.

Troubleshooting B

Error Message Cause Action

Cartridge Error The toner cartridge is not installed

correctly.

Pull out the drum unit and remove the toner

cartridge, then re-install the toner cartridge

in the drum unit.

Cooling Down

Wait for a while

The temperature of the drum unit

or toner cartridge is too hot. The

machine will pause its current

print job and go into cooling down

mode. During the cooling down

mode, you will hear the cooling

fan running while the LCD shows

Cooling Down, and Wait for

a while.

Make sure that you can hear the fan in the

machine spinning and that the exhaust

outlet is not blocked by something.

If the fan is spinning, remove any obstacles

that surround the exhaust outlet, and then

leave the machine turned on but do not use

it for several minutes.

If the fan is not spinning, disconnect the

machine from the power for several minutes

then reconnect it.

Cover is Open The front cover is not completely

closed.

Close the front cover of the machine.

Cover is Open The fuser cover is not completely

closed or paper was jammed in

the back of the machine when

you turned on the power.

Close the fuser cover of the machine.

Make sure paper is not jammed inside

the back of the machine, and then close

the fuser cover and press Start.

Drum Error The corona wire on the drum unit

needs to be cleaned.

Clean the corona wire on the drum unit.

(See Cleaning the corona wire on page 42.)

Drum Stop It is time to replace the drum unit. Replace the drum unit. (See Replacing the

drum unit on page 35.)

Duplex Disabled The duplex tray is removed or is

not correctly installed.

Carefully put the duplex tray into the

machine until it clicks into place.

The back of the machine is not

closed completely.

Close the back cover of the machine.

EL Error The machine has a mechanical

problem.

Open the front cover and close it again.

Fuser Error The temperature of the fuser unit

does not rise to a specified

temperature within the specified

time.

Turn the power switch off, wait a few

seconds, and then turn it on again. Leave

the machine for 15 minutes with the power

turned on.

The fuser unit is too hot.

Init Unable XX

(XX = Error Code)

The machine has a mechanical

problem.

Disconnect the machine from the power

for several minutes and then reconnect

it.

If the problem continues, call your

Brother dealer.

Jam Duplex The paper is jammed in the

duplex tray at the back of the

machine.

(See Paper is jammed in the Duplex Tray

on page 59.)

Jam Inside The paper is jammed inside the

machine.

(See Paper is jammed inside the machine

on page 55.)

Jam Rear The paper is jammed in the back

of the machine.

(See Paper is jammed at the back of the

machine on page 53.)

Jam Tray The paper is jammed in the paper

tray of the machine.

(See Paper is jammed in the standard paper

tray on page 52.)

No Paper The machine is out of paper or

paper is not correctly loaded in

the paper tray.

Do one of the following:

Refill the paper in the paper tray and

press Start.

Remove the paper and load it again.

Then press Start.

If the problem is not resolved, the paper

pick-up roller may need to be cleaned.

Clean the paper pick-up roller. (See

Cleaning the paper pick-up rollers

on page 48.)

Manual Feed Manual feed was selected as the

paper source when there was no

paper in the manual feed slot.

Place a sheet of paper in the manual feed

slot. (See Loading paper in the manual feed

slot on page 9.)

No Toner The toner cartridge is not installed

correctly.

Pull out the drum unit. Take out the toner

cartridge and then put it back into the drum

unit.

Out of Memory The machine’s memory is full. Do one of the following:

Press Start to copy the scanned pages.

(Copy operation in progress)

Press Stop/Exit and wait until the other

operations in progress finish, and then

try again.

Reduce print resolution. (See the Basic

tab in the Software User's Guide.)

Error Message Cause Action

Troubleshooting

Print Unable XX

(XX = Error Code)

The machine has a mechanical

problem.

Do one of the following:

Disconnect the machine from the AC

power outlet for several minutes, then

reconnect it.

If the problem continues, call your

Brother dealer.

Replace Drum It is time to replace the drum unit. Replace the drum unit.

(See Replacing the drum unit on page 35.)

The drum unit counter was not

reset when a new drum was

installed.

Reset the drum unit counter.

(See Resetting the drum counter

on page 39.)

Replace Toner The machine will stop printing

until you replace the toner

cartridge.

If you have set the Toner setting to Stop,

replace the toner cartridge with a new and

unused original Brother toner cartridge. This

will reset the Replace Toner mode. (See

Replacing the toner cartridge on page 29.)

If you have set the Toner setting to

Continue, the machine will continue to

print data until the LCD shows Toner

Ended. For how to operate the machine in

Continue mode, see Toner Settings in

Chapter 1 of the Advanced User's Guide.

Size Error DX The paper in the tray is not a

suitable size for automatic duplex

printing.

Load A4 paper for automatic duplex printing,

and then press Start. (See Print media

on page 84.)

Toner Ended It is time to replace the toner

cartridge.

Replace the toner cartridge with a new one.

(See Replacing the toner cartridge

on page 29.)

Toner Low You will need to replace the toner

cartridge soon.

Buy a new toner cartridge before you get a

Replace Toner message.

Error Message Cause Action

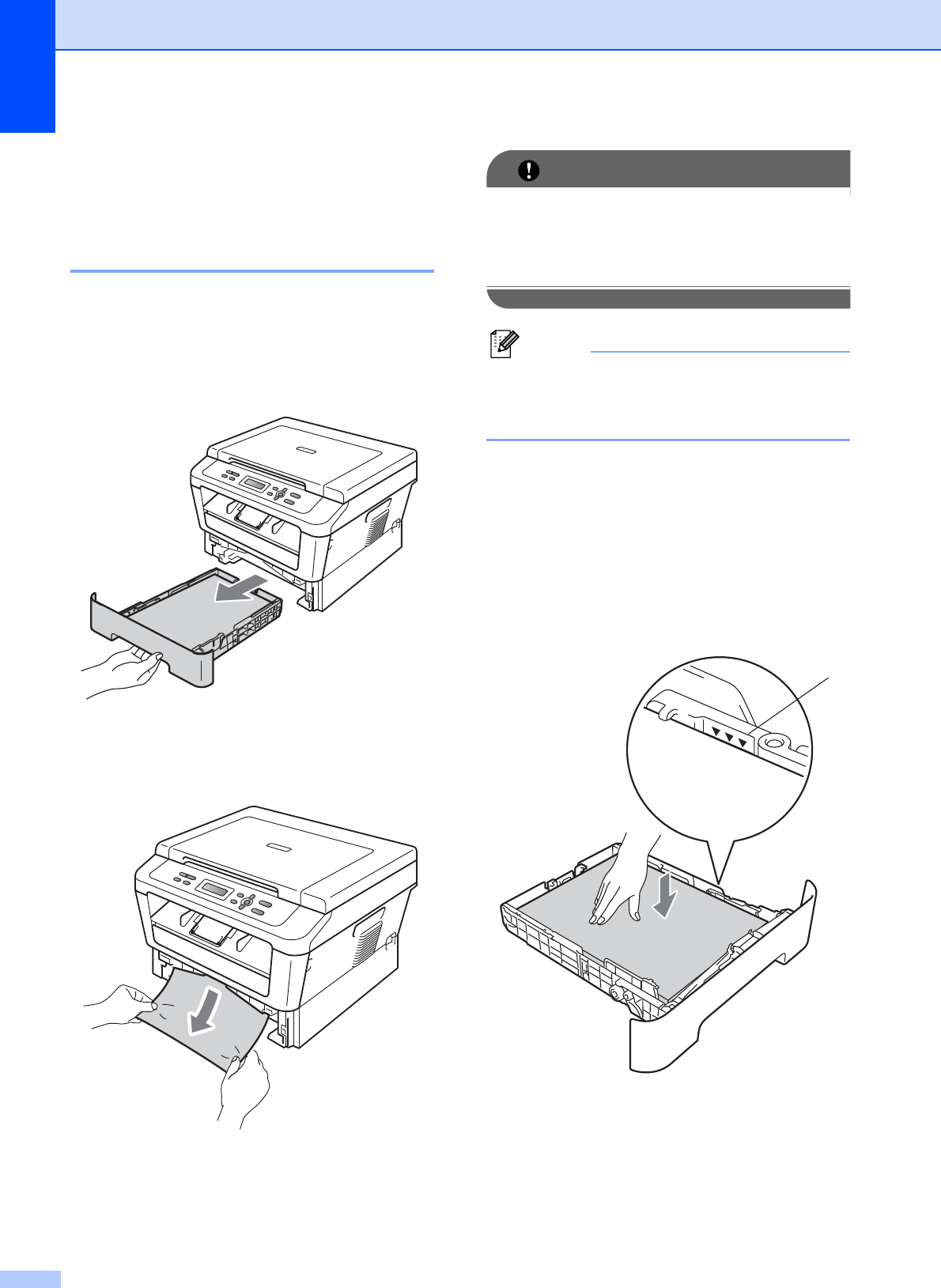

Paper Jams B

Paper is jammed in the

standard paper tray B

If the LCD shows Jam Tray, follow these

steps:

aPull the paper tray completely out of the

machine.

bUse both hands to slowly pull out the

jammed paper.

IMPORTANT

If the paper cannot easily be removed in

this direction, stop and follow the

instructions for Paper is jammed inside the

machine on page 55.

Note

Pulling out the jammed paper downwards

allows you to remove the paper more

easily.

cMake sure the paper is below the

maximum paper mark (b b b) (1) of the

paper tray. While pressing the green

paper-guide release lever, slide the

paper guides to fit the paper size. Make

sure that the guides are firmly in the

slots. (See Loading paper in the

standard paper tray on page 7.)

dPut the paper tray firmly back in the

machine.

Troubleshooting

Paper is jammed at the back

of the machine B

If the LCD shows Jam Rear, a paper jam

occurred behind the back cover. Follow these

steps:

aOpen the front cover. Leave the

machine turned on for 10 minutes to

cool down.

CAUTION

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be

extremely hot. When you open the front or

back cover (back output tray) of the

machine, DO NOT touch the shaded parts

shown in the illustration. If you do this, you

may burn yourself.

bSlowly take out the drum unit and toner

cartridge assembly.

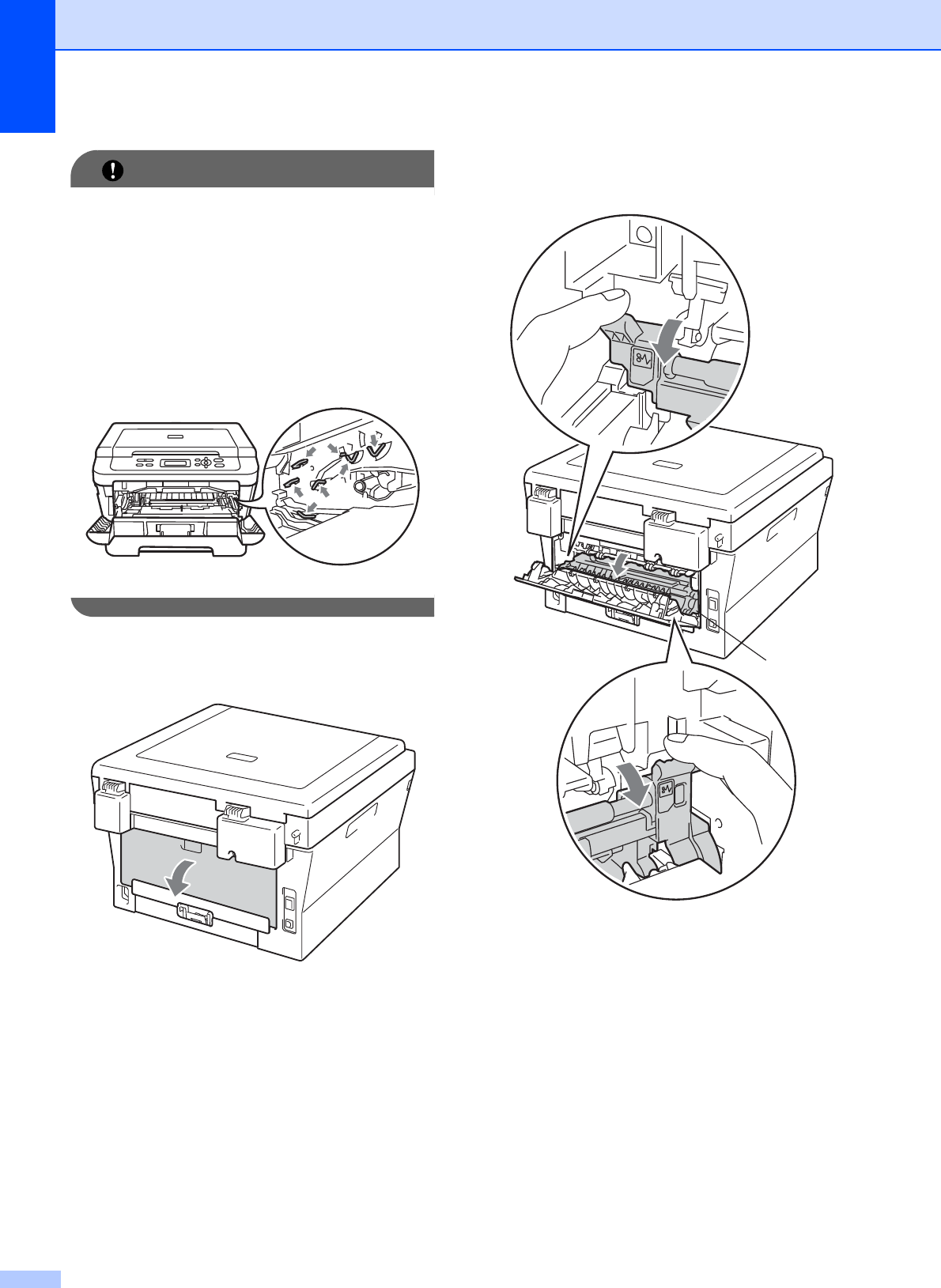

IMPORTANT

• We recommend that you place the drum

unit and the toner cartridges on a clean,

flat surface with a sheet of disposable

paper or cloth underneath it in case you

accidentally spill or scatter toner.

• To prevent damage to the machine

caused by static electricity, DO NOT touch

the electrodes shown in the illustration.

cOpen the back cover (face-up output

tray).

dPull down the tabs at the left and right

hand sides to open the fuser cover (1).

Troubleshooting

eUsing both hands, gently pull the

jammed paper out of the fuser unit.

fClose the fuser cover and the back

cover (face-up output tray).

gPut the drum unit and toner cartridge

assembly back into the machine.

hClose the front cover. If the machine

does not start printing automatically,

press Start.

Paper is jammed inside the

machine B

If the LCD shows

Jam Inside

, follow these steps:

aLeave the machine turned on for 10

minutes to cool down.

bOpen the front cover.

CAUTION

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be extremely

hot. When you open the front or back cover

(back output tray) of the machine, DO NOT

touch the shaded parts shown in the illustration.

If you do this, you may burn yourself.

cSlowly take out the drum unit and toner

cartridge assembly. The jammed paper

may be pulled out with the drum unit and

toner cartridge assembly, or this may

release the paper so you can pull it out

of the inside of the machine.

If you cannot remove the drum unit and

toner cartridge assembly easily, do not

use extra force. Instead, go to step g.

IMPORTANT

• We recommend that you put the drum unit

and toner cartridge assembly on a piece of

disposable paper or cloth in case you

accidentally spill or scatter toner.

• To prevent damage to the machine from

static electricity, DO NOT touch the

electrodes shown in the illustration.

dPush down the green lock lever and take

the toner cartridge out of the drum unit.

Clear the jammed paper if there is any

inside the drum unit.

IMPORTANT

• Handle the toner cartridge carefully. If

toner scatters on your hands or clothes,

immediately wipe or wash it off with cold

water.

• To avoid print quality problems, DO NOT

touch the shaded parts shown in the

illustrations.

Troubleshooting

ePut the toner cartridge back into the

drum unit until you hear it lock into place.

If you put the cartridge in correctly, the

green lock lever will lift automatically.

fIf you were able to remove the drum unit

and toner cartridge assembly and the

jammed paper, you have cleared the

paper jam.

Put the drum unit and toner cartridge

assembly back into the machine and

close the front cover. If the machine

does not start printing automatically,

press Start.

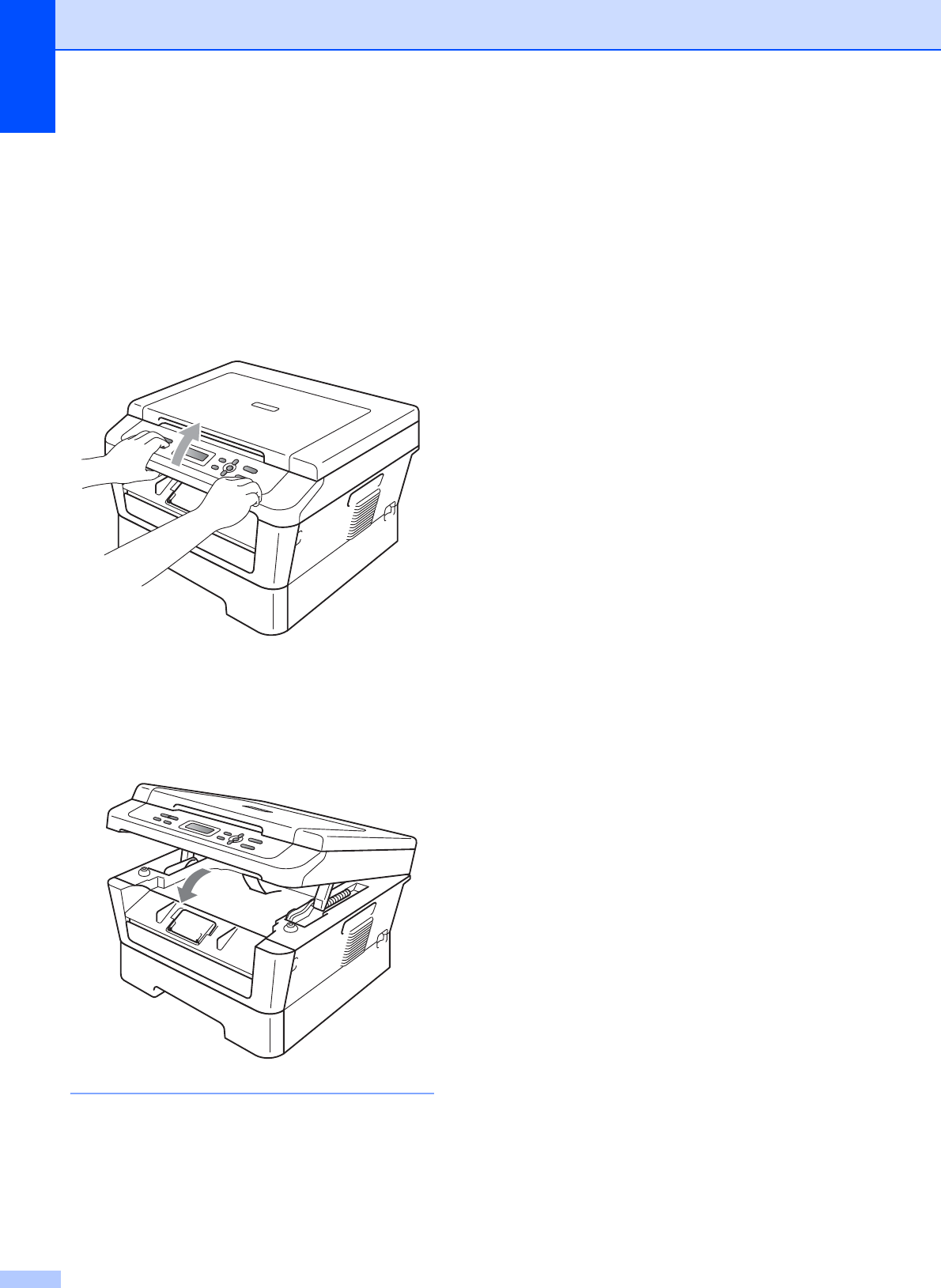

gLift the scanner cover.

Use both hands to carefully pull the

jammed paper up and out of the output

tray opening.

hClose the scanner cover.

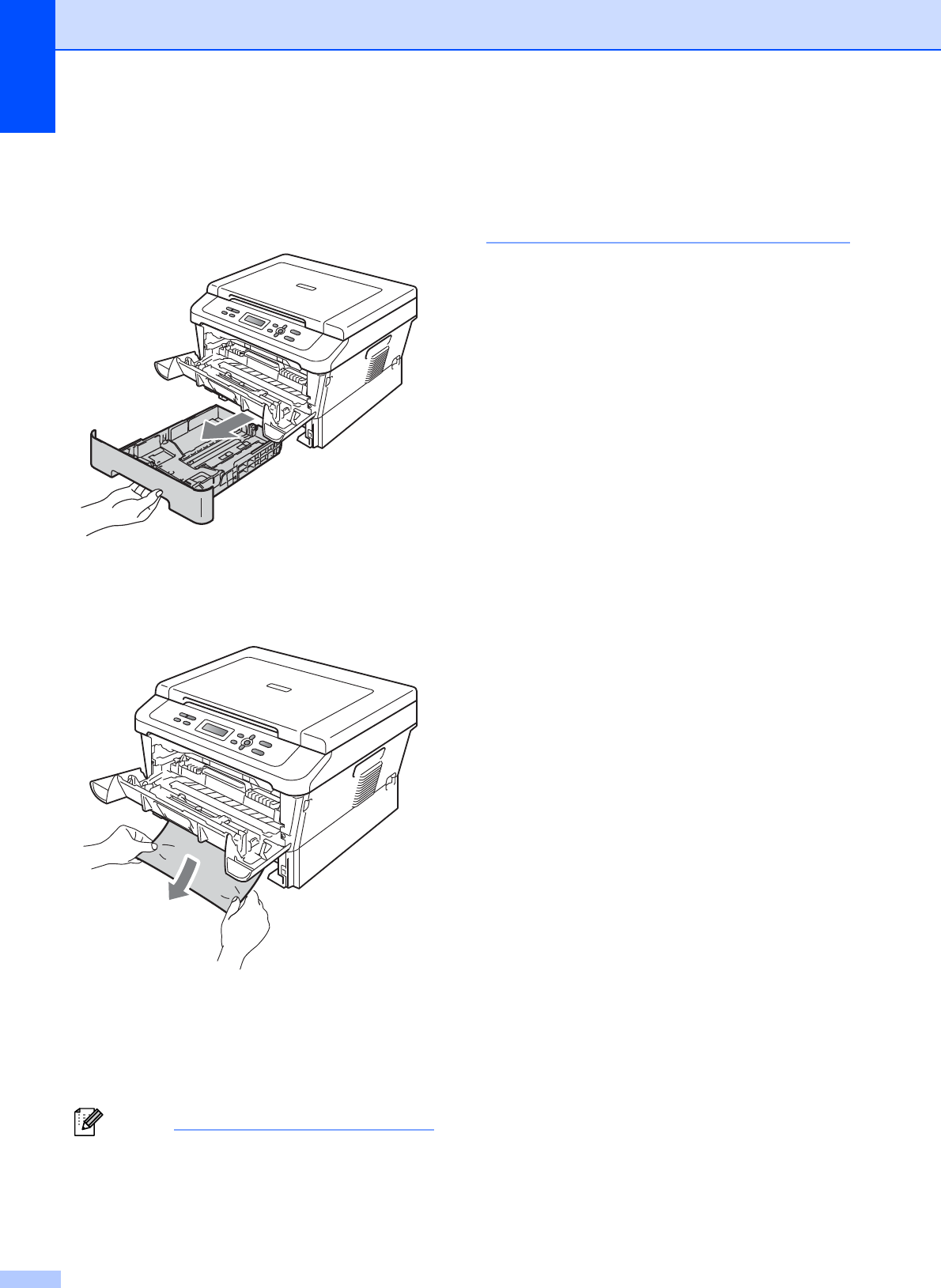

iIf you could not pull the jammed paper

out of the output tray opening as shown

in step g, take the paper tray

completely out of the machine.

jPull the jammed paper out of the paper

tray opening.

kPut the paper tray back into the

machine. If you have removed the

jammed paper, you have cleared the

paper jam.

Note

• If the LCD shows a Jam Inside

message, check if there is a torn piece of

paper inside the machine and drum unit by

following the instructions in steps c to f.

• If you turn off the machine while the LCD

shows a Jam Inside message, the

machine will print incomplete data from

your computer.

Troubleshooting

Paper is jammed in the Duplex

Tray B

If the LCD shows Jam Duplex, follow these

steps:

aLeave the machine turned on for 10

minutes to cool down.

CAUTION

HOT SURFACE

After you have just used the machine, some

internal parts of the machine will be

extremely hot. When you open the front or

back cover (back output tray) of the

machine, DO NOT touch the shaded parts

shown in the illustration. If you do this, you

may burn yourself.

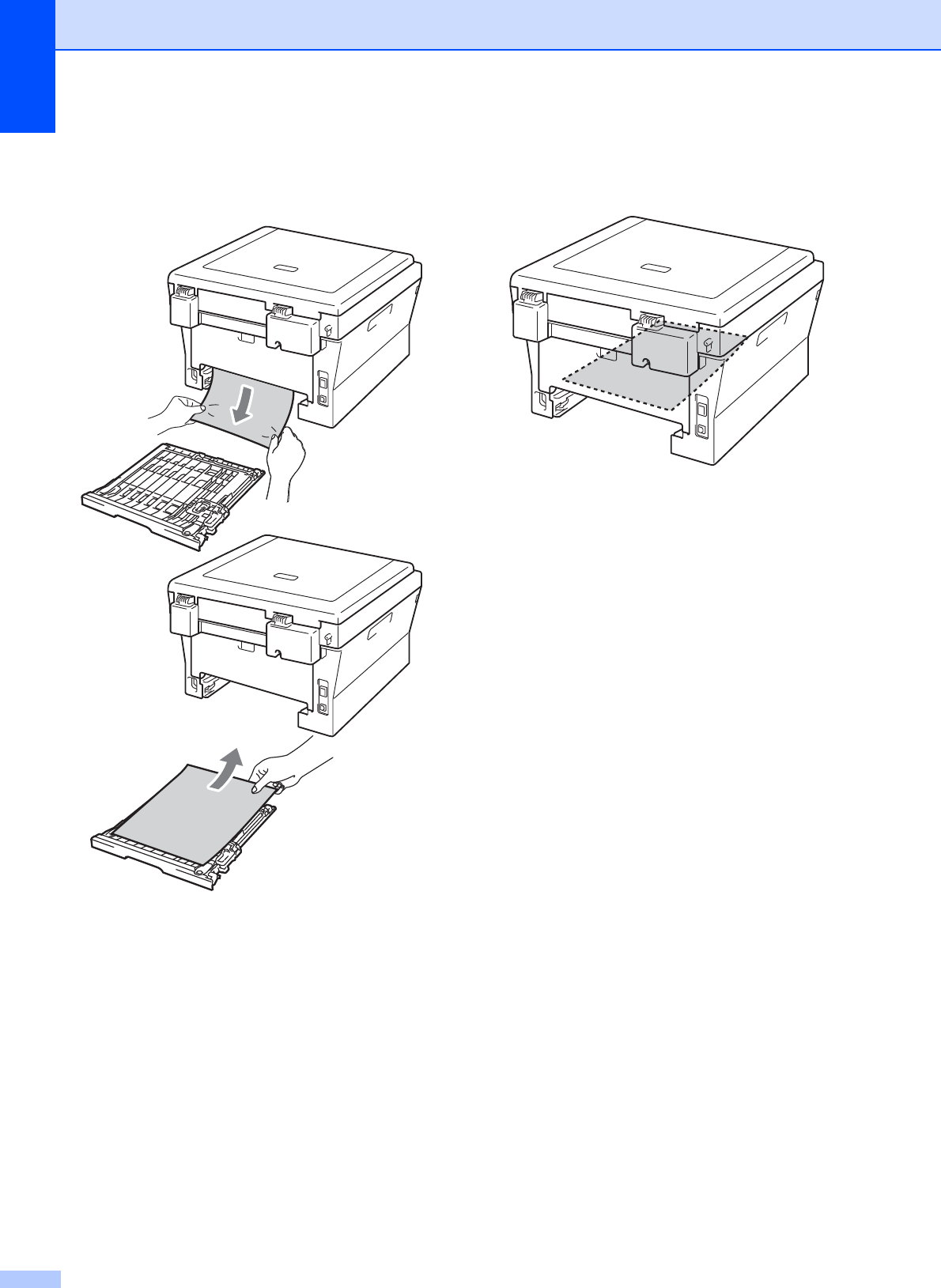

bPull the duplex tray completely out of the

machine.

cPull the jammed paper out of the

machine or the duplex tray.

dMake sure that no paper remains under

the machine.

ePut the duplex tray back in the machine.

Troubleshooting

If you are having difficulty with your machine B

If you think there is a problem with your machine, check the chart below and follow the

troubleshooting tips.

Most problems can be easily resolved by yourself. If you need additional help, the Brother

Solutions Center offers the latest FAQs and troubleshooting tips.

Visit us at http://solutions.brother.com/.

Check the chart below and follow the troubleshooting tips.

Copy difficulties

Difficulties Suggestions

Vertical black line appears in

copies.

Black vertical lines on copies are typically caused by dirt or correction fluid on the

glass strip, or the corona wire is dirty. (See Cleaning the scanner glass on page 41

and Cleaning the corona wire on page 42.)

Copies are blank. Make sure you are loading the document correctly. (See Using the scanner glass

on page 19.)

Printing difficulties

Difficulties Suggestions

Poor print quality See Improving the print quality on page 64.

No printout. Check that the machine is plugged in and the power switch is turned on.

Check that the toner cartridge and drum unit are installed correctly. (See

Replacing the drum unit on page 35.)

Check the interface cable connection on both the machine and your computer.

(See the Quick Setup Guide.)

Check that the correct printer driver has been installed and chosen.

Check to see if the LCD is showing an error message. (See Error and

maintenance messages on page 49.)

Check the machine is online:

(Windows®7 and Windows Server®2008 R2) Click the Start button and

Devices and Printers. Right-click Brother DCP-XXXX Printer. Make sure

that Use Printer Offline is unchecked.

(Windows Vista®) Click the Start button, Control Panel, Hardware and

Sound, and then Printers. Right-click Brother DCP-XXXX Printer. Make

sure that Use Printer Offline is unchecked.

(Windows®XP and Windows Server®2003/2008) Click the Start button and

choose Printers and Faxes. Right-click Brother DCP-XXXX Printer. Make

sure that Use Printer Offline is unchecked.

(Windows®2000) Click the Start button and choose Settings and then

Printers. Right-click Brother DCP-XXXX Printer. Make sure that Use Printer

Offline is unchecked.

The machine prints unexpectedly

or it prints garbage.

Press Job Cancel to cancel print jobs.

Check the settings in your application to make sure it is set up to work with

your machine.

Pull out the paper tray and wait until the machine stops printing. Then turn off

the machine’s power switch and disconnect from the power for several

minutes.

The machine prints the first couple

of pages correctly, then some

pages have text missing.

Check the settings in your application to make sure that it is set up to work with

your machine.

Your computer is not recognising the machine’s input buffer’s full signal. Make

sure that you connected the interface cable correctly. (See the Quick Setup

Guide.)

The headers or footers appear

when the document displays on the

screen but they do not show up

when it is printed.

There is an unprintable area on the top and bottom of the page. Adjust the top and

bottom margins in your document to allow for this. (See Unscannable and

unprintable areas on page 13.)

The machine does not print on both

sides of the paper even though the

printer driver setting is Duplex.

Check the paper size setting in the printer driver. You need to choose A4 [60 to

105 g/m2].

The machine is not printing or has

stopped printing.

Press Job Cancel.

As the machine cancels the job and clears it from the memory it may produce an

incomplete printout.

Scanning difficulties

Difficulties Suggestions

TWAIN errors appear while

scanning.

Make sure that the Brother TWAIN driver is chosen as the primary source. In

Presto! PageManager, click File, Select source and choose the Brother TWAIN

driver.

OCR does not work. Try increasing the scanning resolution.

(Macintosh users)

Presto! PageManager must be downloaded and installed before use. See

Accessing Brother Support (Macintosh) on page 3 for further instructions.

Software difficulties

Difficulties Suggestions

Cannot install software or print. Run the Repair MFL-Pro Suite program on the CD-ROM. This program will repair

and reinstall the software.

Cannot perform ‘2 in 1’ or ‘4 in 1’

printing.

Check that the paper size setting in the application and in the printer driver are the

same.

The machine does not print from

Adobe® Illustrator®.

Try to reduce the print resolution. (See Advanced tab in the Software User's

Guide.)

Printing difficulties (continued)

Difficulties Suggestions

Troubleshooting

Paper handling difficulties

Difficulties Suggestions

The machine does not feed paper.

The LCD shows No Paper or a

Paper Jam message.

If there is no paper, load a new stack of paper into the paper tray.

If there is paper in the paper tray, make sure it is straight. If the paper is curled,

you should straighten it. Sometimes it is helpful to remove the paper, turn the

stack over and put it back into the paper tray.

Reduce the amount of paper in the paper tray, and then try again.

Make sure that manual feed mode is not chosen in the printer driver.

Clean the paper pick-up roller. See Cleaning the paper pick-up rollers

on page 48.

If the LCD shows the Paper Jam message and you still have a problem, see

Error and maintenance messages on page 49.

How do I print on envelopes? You can load envelopes from the manual feed slot. Your application must be set

up to print the envelope size you are using. This is usually done in the Page Setup

or Document Setup menu of your application.

What paper can I use? You can use thin paper, plain paper, thick paper, bond paper, recycled paper,

envelopes and labels that are made for laser machines. (For details, see

Acceptable paper and other print media on page 15.)

You can load envelopes from the manual feed slot.

There is a paper jam. Clear the jammed paper. (See Paper Jams on page 52.)

Print quality difficulties

Difficulties Suggestions

Printed pages are curled. Low quality thin or thick paper or not printing on the recommended side of the

paper could cause this problem. Try turning over the stack of paper in the

paper tray.

Make sure that you choose the Paper Type that suits the print media type you

are using. (See Acceptable paper and other print media on page 15.)

Printed pages are smeared. The Paper Type setting may be incorrect for the type of print media you are using,

or the print media may be too thick or have a rough surface. (See Acceptable

paper and other print media on page 15 and Basic tab in the Software User's

Guide.)

Printouts are too light. If this problem occurs when making copies or printing, set Toner Save mode

to Off in the machine menu settings. (See Toner Save in Chapter 1 of the

Advanced User's Guide.)

Set Toner Save mode to Off in the Advanced tab in the printer driver. (See

Advanced tab in the Software User's Guide.)

Other

Difficulties Suggestions

The machine will not turn on. Adverse conditions on the power connection (such as lightning or a power surge)

may have triggered the machine’s internal safety mechanisms. Turn the machine

off and unplug the power cord. Wait for ten minutes, then plug in the power cord

and turn the machine on.

If the problem is not solved, turn off the machine. Plug the power cord into a

different known working outlet and turn on the machine.

Improving the print quality B

If you have a print quality problem, make a copy first (put a document on the scanner glass and

press Start). If the printout looks good, the problem is probably not the machine. Check the

interface cable connections or try printing a different document. If the printout or test page printed

from the machine has a quality problem, check the following steps first. And then, if you still have

a print quality problem, check the chart below and follow the recommendations.

Note

Brother does not recommend the use of cartridges other than Brother Original cartridges or the

refilling of used cartridges with toner from other sources.

aTo get the best print quality, we suggest using the recommended paper. Check that you use

paper that meets our specifications. (See Acceptable paper and other print media

on page 15.)

bCheck that the drum unit and toner cartridge assembly are installed correctly.

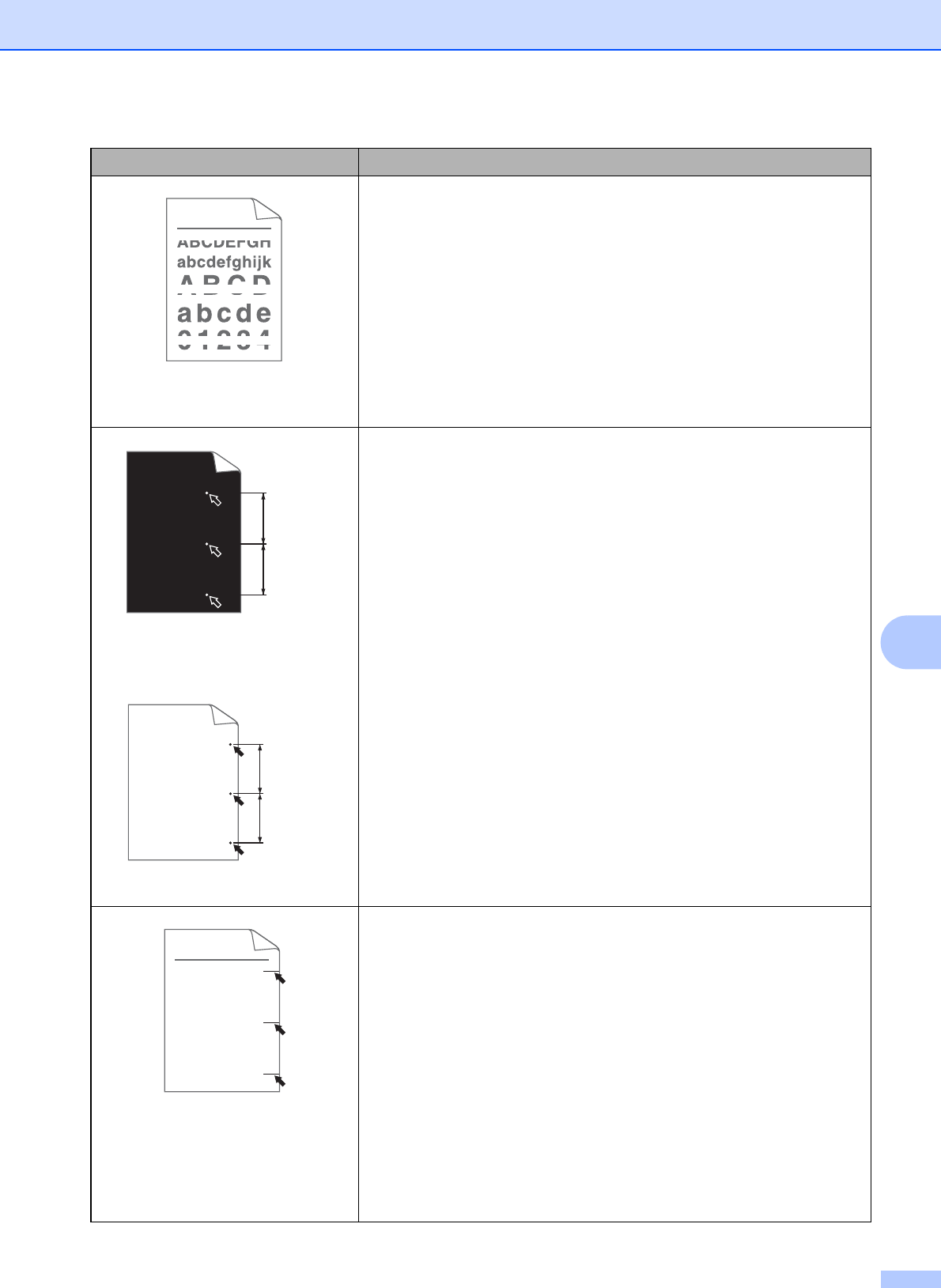

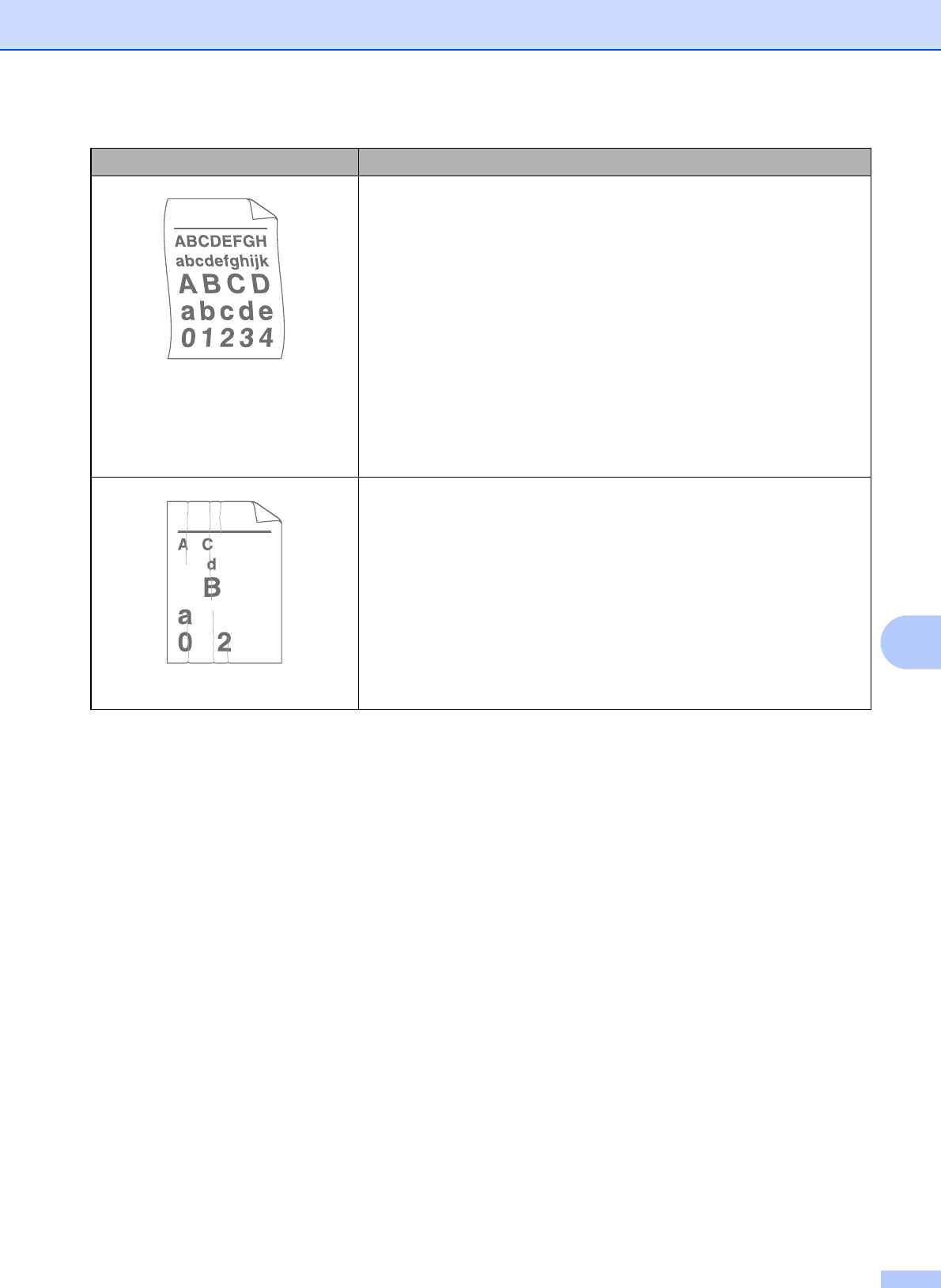

Examples of poor print quality Recommendation

Faint

Take out the drum unit and toner cartridge assembly. Hold the

assembly level with both hands and gently shake it from side to

side several times to spread the toner evenly inside the cartridge.

Check if the Toner Setting in Replace Toner is set to

Continue (Continue mode). See Toner settings in Chapter 1 of

the Advanced User's Guide.

Check the machine’s environment. Conditions such as humidity,

high temperatures, and so on, may cause this print fault. See the

Safety and Legal booklet.

If the whole page is too light, Toner Save mode may be on. Turn

off Toner Save mode in the machine menu settings or Toner

Save mode in the printer Properties of the driver. See Toner save

in Chapter 1 of the Advanced User's Guide or Advanced tab in

Chapter 2 of the Software User's Guide.

Clean the corona wire of the drum unit. See Cleaning the corona

wire on page 42.

Put in a new toner cartridge. See Replacing the toner cartridge

on page 29.

Put in a new drum unit. See Replacing the drum unit on page 35.

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

Troubleshooting

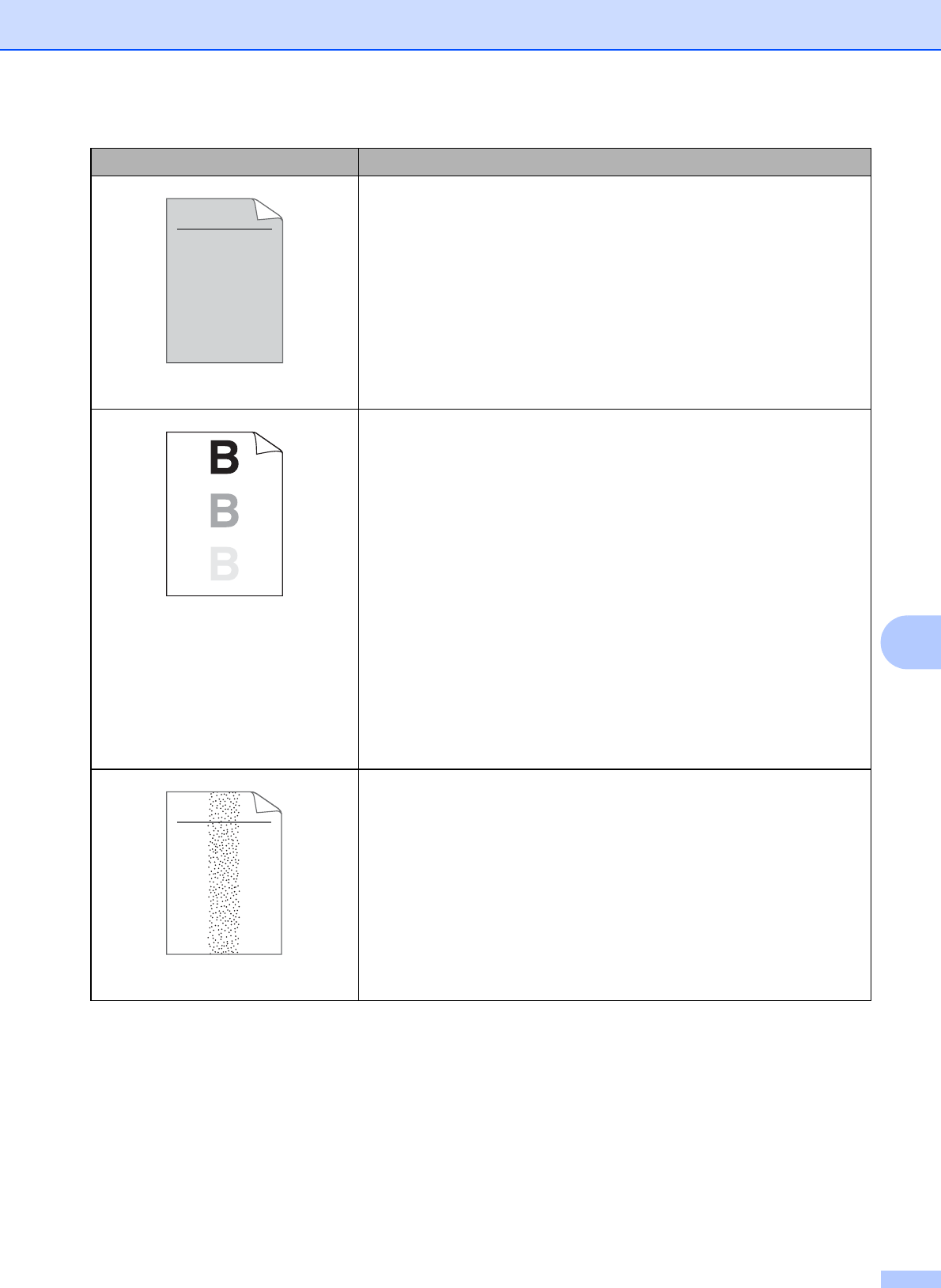

Grey background

Make sure that you use paper that meets our specifications. See

Acceptable paper and other print media on page 15.

Check the machine’s environment. Conditions such as high

temperatures and high humidity can increase the amount of

background shading. See the Safety and Legal booklet.

Put in a new toner cartridge. See Replacing the toner cartridge

on page 29.

Put in a new drum unit. See Replacing the drum unit on page 35.

Ghost

Make sure that you use paper that meets our specifications.

Rough-surfaced paper or thick print media may cause this

problem. See Acceptable paper and other print media

on page 15.

Make sure that you choose the correct media type in the printer

driver or in the machine’s Paper Type menu setting. See

Acceptable paper and other print media on page 15 and Basic tab

in Chapter 2 of the Software User's Guide.

Choose Reduce Ghosting mode in the printer driver. See Ghost

Reduction Setting in Chapter 2 (for Windows®) or Chapter 8 (for

Macintosh) of the Software User's Guide.

Put in a new toner cartridge. See Replacing the toner cartridge

on page 29.

Put in a new drum unit. See Replacing the drum unit on page 35.

The fuser unit may be contaminated. Call your Brother dealer.

Toner specks

Make sure that you use paper that meets our specifications.

Rough-surfaced paper may cause the problem. See Acceptable

paper and other print media on page 15.

Clean the corona wire and the drum unit. See Cleaning the corona

wire on page 42 and Cleaning the drum unit on page 43.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

The fuser unit may be contaminated. Call your Brother dealer.

Examples of poor print quality Recommendation

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

Hollow print

Make sure that you use paper that meets our specifications. See

Acceptable paper and other print media on page 15.

Choose Thick Paper mode in the printer driver, choose Thick in

the machine’s Paper Type menu setting or use thinner paper than

you are currently using. See Paper Type on page 14 and Basic

tab in the Software User's Guide.

Check the machine’s environment. Conditions such as high

humidity can cause hollow print. See the Safety and Legal

booklet.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

All black

Clean the corona wire inside the drum unit by sliding the green tab

from left to right and right to left several times. Be sure to return

the green tab to the home position (a). See Cleaning the corona

wire on page 42.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

The fuser unit may be contaminated. Call your Brother dealer.

White lines across the page

Make sure that you use paper that meets our specifications. A

rough surfaced paper or thick print media can cause problems.

Make sure that you choose the appropriate media type in the

printer driver or in the machine’s Paper Type menu setting. See

Acceptable paper and other print media on page 15 and Basic tab

in the Software User's Guide.

The problem may disappear by itself. Print multiple pages to clear

this problem, especially if the machine has not been used for a

long time.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

Lines across the page

Clean the corona wire of the drum unit. See Cleaning the corona

wire on page 42.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

Examples of poor print quality Recommendation

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

Troubleshooting

White lines, bands or ribbing

across the page

Check the machine's environment. Conditions such as high

humidity and high temperatures may cause this print quality

problem.

If the problem is not solved after printing a few pages, put in a new

drum unit. (See Replacing the drum unit on page 35.)

White Spots on black text and

graphics at 94 mm intervals

Black Spots at 94 mm intervals

Make ten copies of a blank, white sheet of paper. See How to

copy on page 20. If the problem is not solved, the drum unit may

have glue from a label stuck on the OPC drum surface. Clean the

drum unit. See Cleaning the drum unit on page 43.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

Black toner marks across the

page

Make sure that you use paper that meets our specifications. See

Acceptable paper and other print media on page 15.

If you use label sheets for laser printers, the glue from the sheets

may sometimes stick to the OPC drum surface. Clean the drum

unit. See Cleaning the drum unit on page 43.

Do not use paper that has clips or staples because they will

scratch the surface of the drum.

If the unpacked drum unit is in direct sunlight or room light, the unit

may be damaged.

The toner cartridge may be damaged. Put in a new toner

cartridge. See Replacing the toner cartridge on page 29.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

Examples of poor print quality Recommendation

94 mm

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

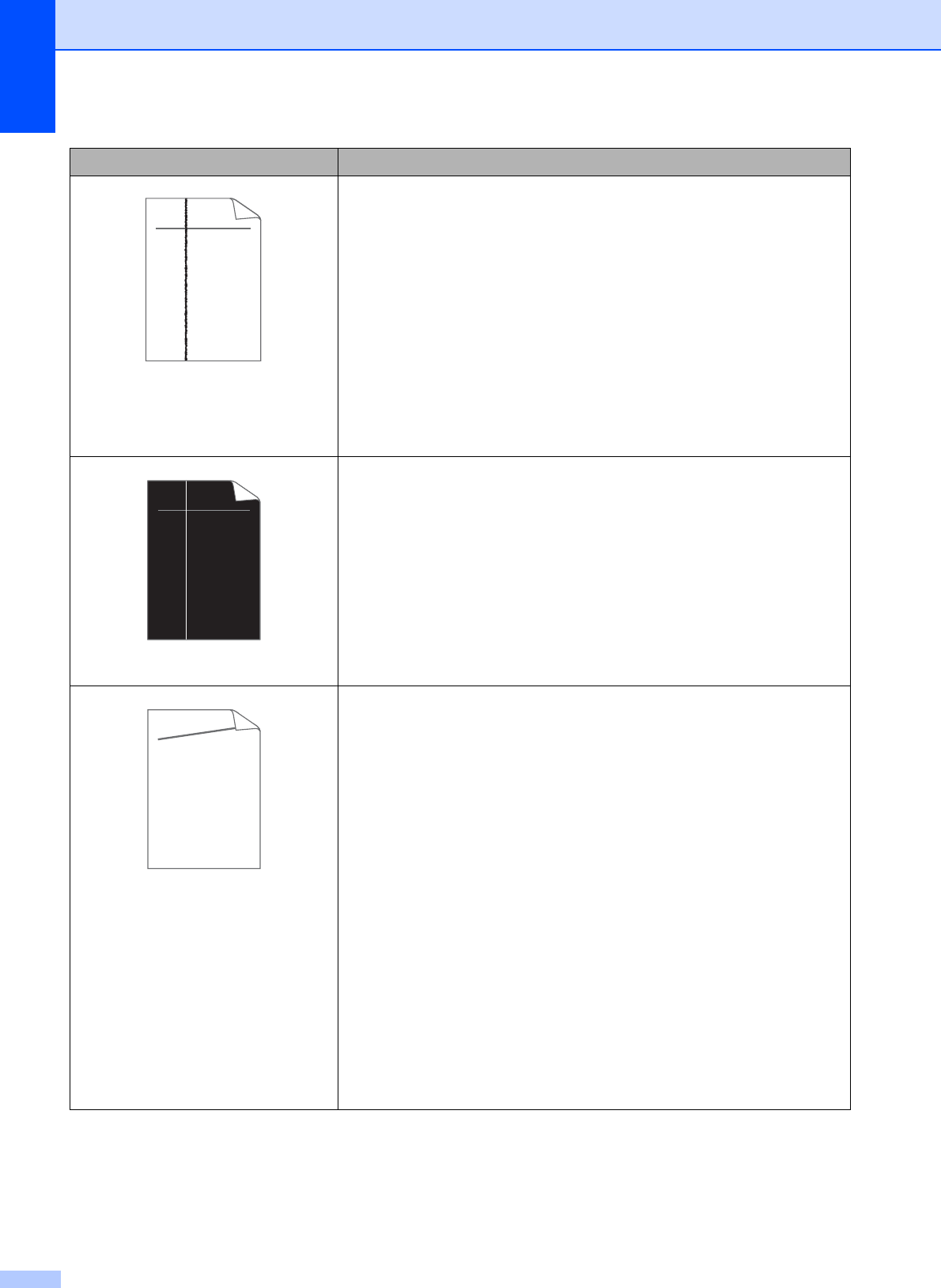

Black lines down the page

Printed pages have toner stains

down the page.

Clean the corona wire inside the drum unit by sliding the green

tab. See Cleaning the corona wire on page 42.

Make sure the green tab of the corona wire is at the home

position (a).

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

The toner cartridge may be damaged. Put in a new toner

cartridge. See Replacing the toner cartridge on page 29.

The fuser unit may be contaminated. Call your Brother dealer.

White lines down the page

The toner cartridge may be damaged. Put in a new toner

cartridge. See Replacing the toner cartridge on page 29.

The drum unit may be damaged. Put in a new drum unit. See

Replacing the drum unit on page 35.

Check if the Toner Setting in Replace Toner is set to

Continue (Continue mode). See Toner settings in Chapter 1 of

the Advanced User's Guide.

Make sure that a torn piece of paper is not stuck inside the

machine blocking the scanner.

Page skewed

Make sure that the paper or other print media is loaded correctly

in the paper tray and that the guides are not too tight or too loose

against the paper stack.

Set the paper guides correctly. See Loading paper on page 7.

If you are using the manual feed slot, see Loading paper in the

manual feed slot on page 9.

The paper tray may be too full. See Loading paper on page 7.

Check the paper type and quality. See Acceptable paper and

other print media on page 15.

Check for loose objects such as torn paper inside the machine.

Verify that the two green envelope levers inside the back cover

are set to the same position.

Verify that the two grey Anti-Curl Levers inside the back cover are

set to the same position.

If the problem only occurs during duplex printing, check for torn

paper in the duplex tray, verify that the duplex tray is inserted

completely, and verify that the back cover is closed completely.

Examples of poor print quality Recommendation

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

ABCDEFGH

abcdefghijk

ABCD

abcde

01234

Troubleshooting

Curled or wavy

Check the paper type and quality. High temperatures and high

humidity will cause paper to curl. See Acceptable paper and other

print media on page 15.

If you do not use the machine often, the paper may have been in

the paper tray too long. Turn over the stack of paper in the paper

tray. Also, fan the paper stack and then rotate the paper 180 in

the paper tray.

Open the back cover (face-up output tray) for the machine to eject

printed pages onto the face-up output tray.

Choose Reduce Paper Curl mode in the printer driver when you

do not use our recommended paper. See Other Print Options (for

Windows®) or Print Settings (For Macintosh) in the Software

User's Guide.

Wrinkles or creases

Make sure that the paper is loaded correctly. See Loading paper

on page 7.

Check the paper type and quality. See Acceptable paper and

other print media on page 15.

Turn over the stack of paper in the tray or try rotating the paper

180 in the input tray.

Examples of poor print quality Recommendation

B DEFGH

abc efghijk

ACD

bcde

134

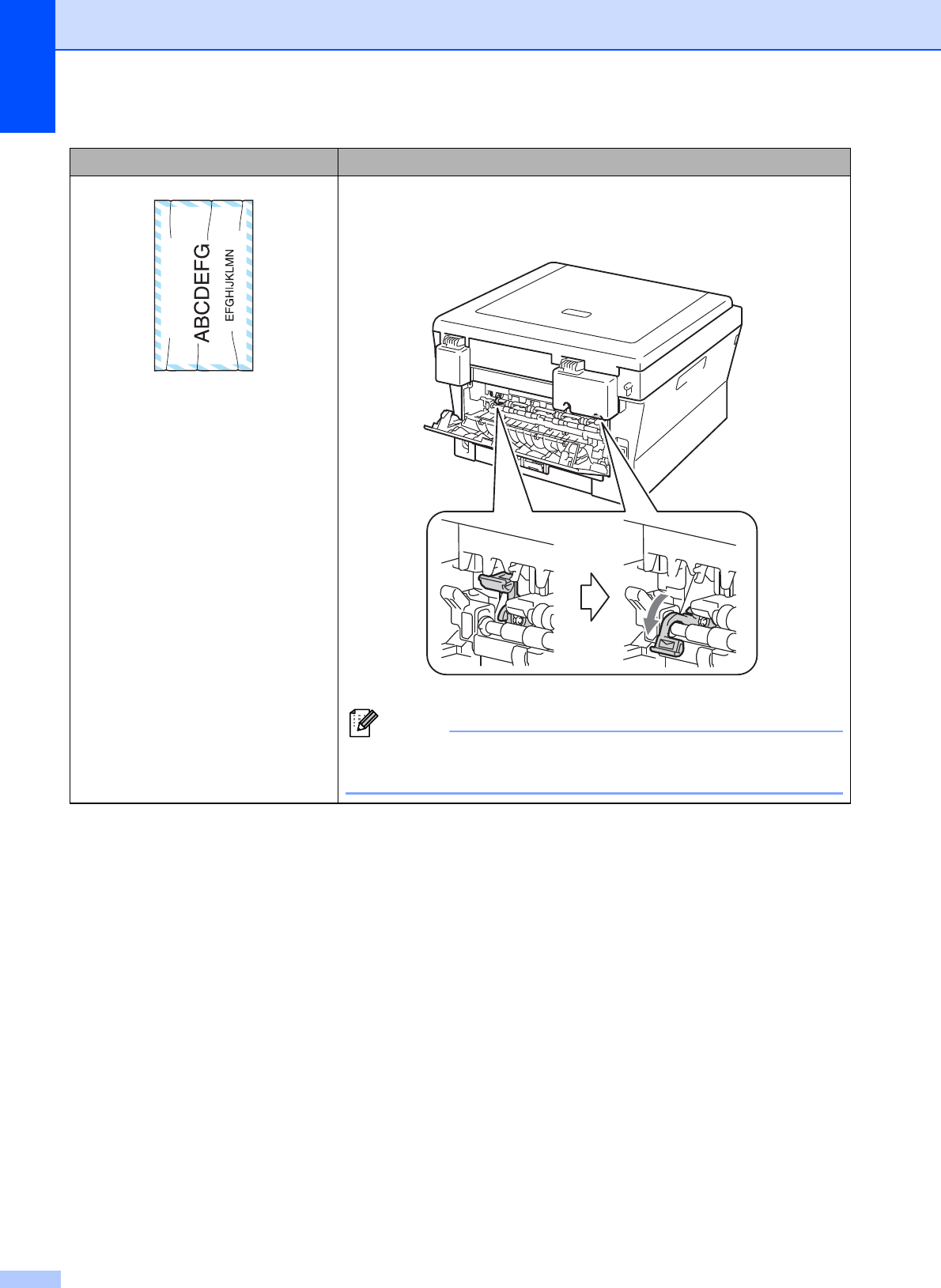

Envelope creases

Make sure that the two green envelope levers inside the back

cover are pulled down when you print the envelope.

Note

When you have finished printing, open the back cover and reset

the two green levers back to their original position.

Examples of poor print quality Recommendation

Troubleshooting

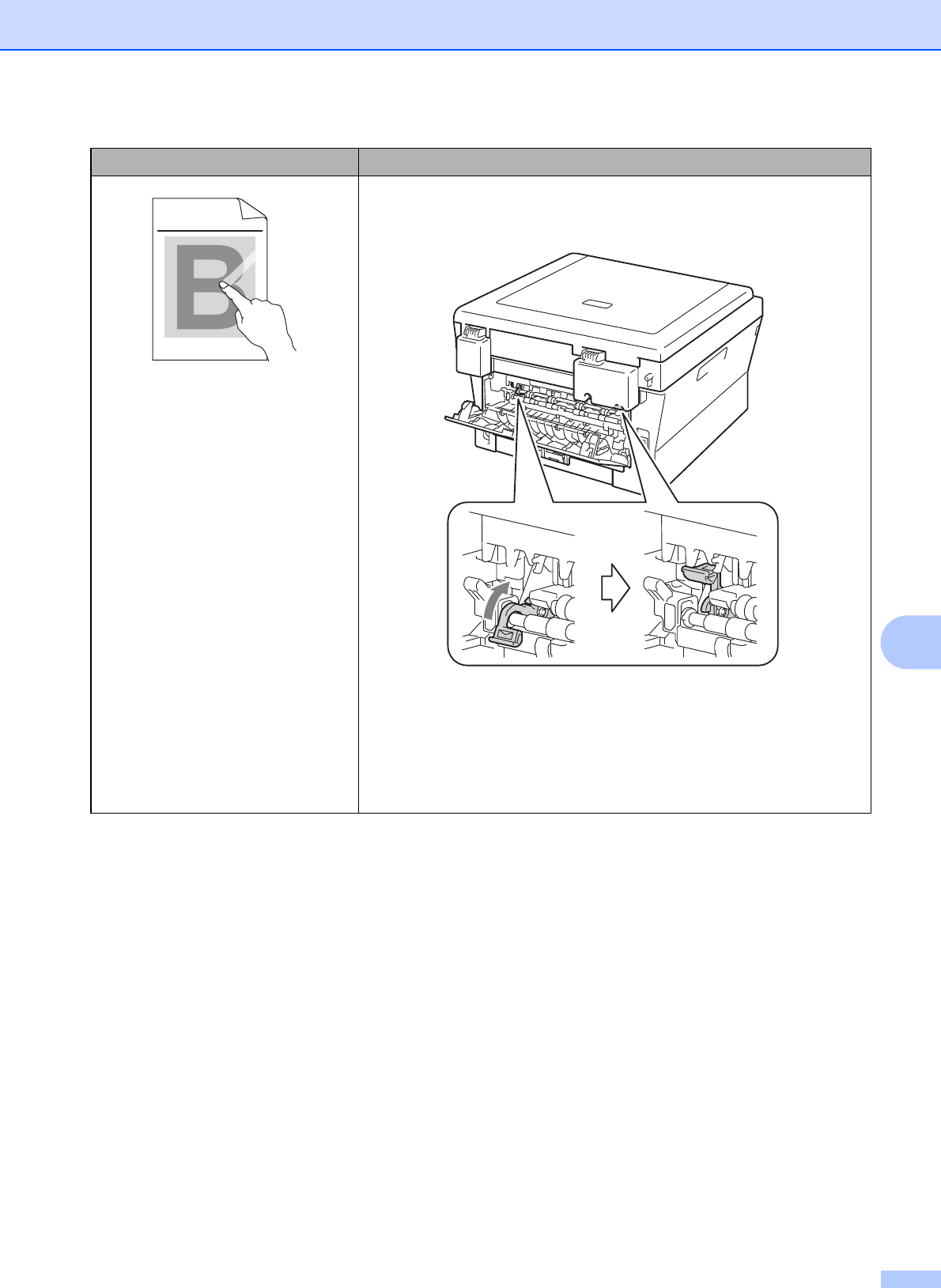

Poor fixing

Open the back cover and make sure that the two green envelope

levers on the left and right hand sides are in the up position.

Choose Improve Toner Fixing mode in the printer driver. See

Other Print Options (for Windows®) or Print Settings (For

Macintosh) in the Software User's Guide.

If this selection does not provide enough improvement, select

Thicker Paper in Media Type settings.

Examples of poor print quality Recommendation

ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.

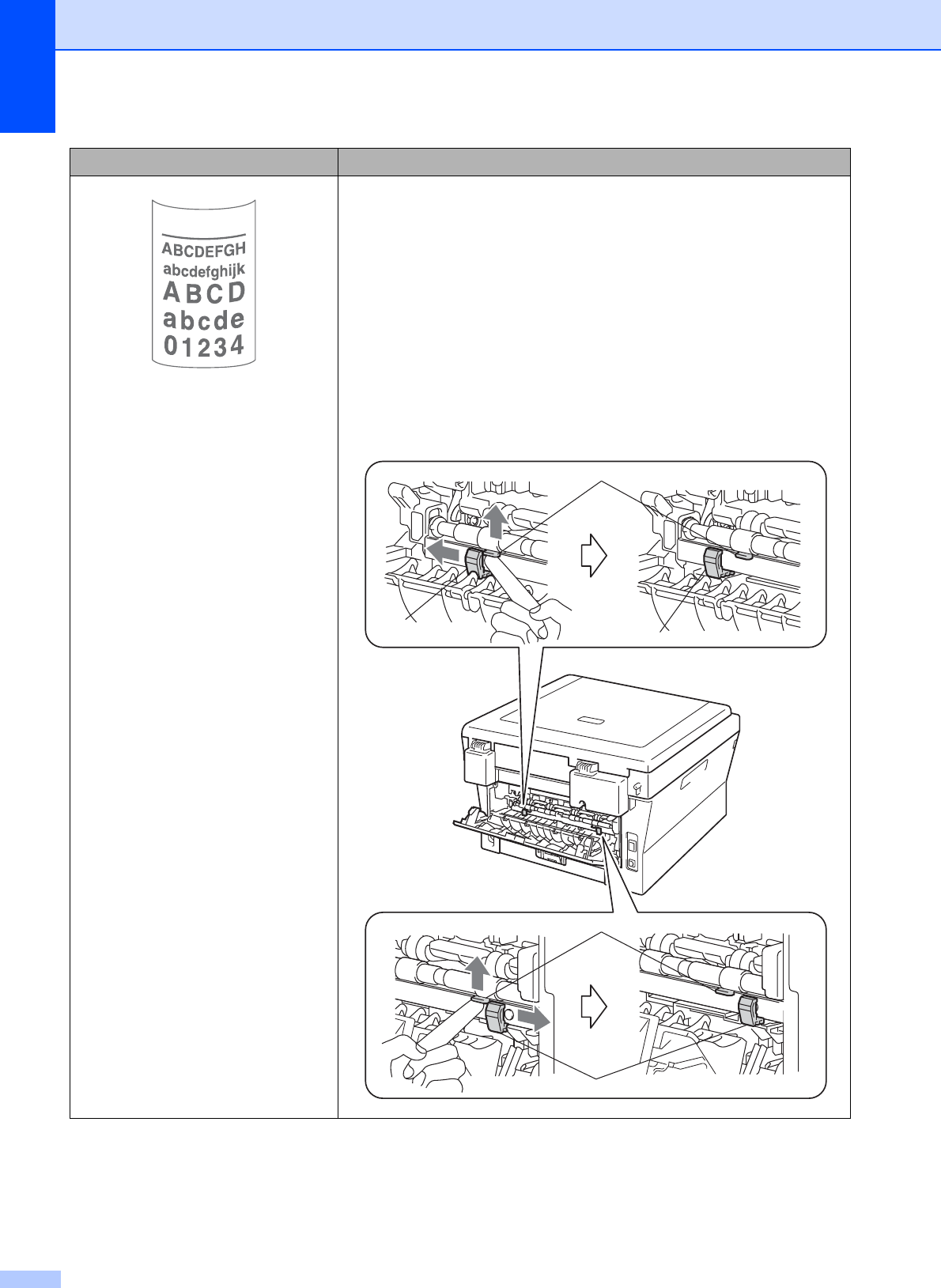

Curled

Choose Reduce Paper Curl mode in the printer driver when you

do not use our recommended paper. See Other Print Options (for

Windows®) or Print Settings (For Macintosh) in the Software

User's Guide.

Turn the paper over in the paper tray, and print again. (Excluding

letterhead paper) If the problems remains, switch the Anti-Curl

Levers as follows:

aOpen the back cover.

bLift the lever (1) and slide the two grey levers (2) in the

direction of the arrow.

Examples of poor print quality Recommendation

Troubleshooting

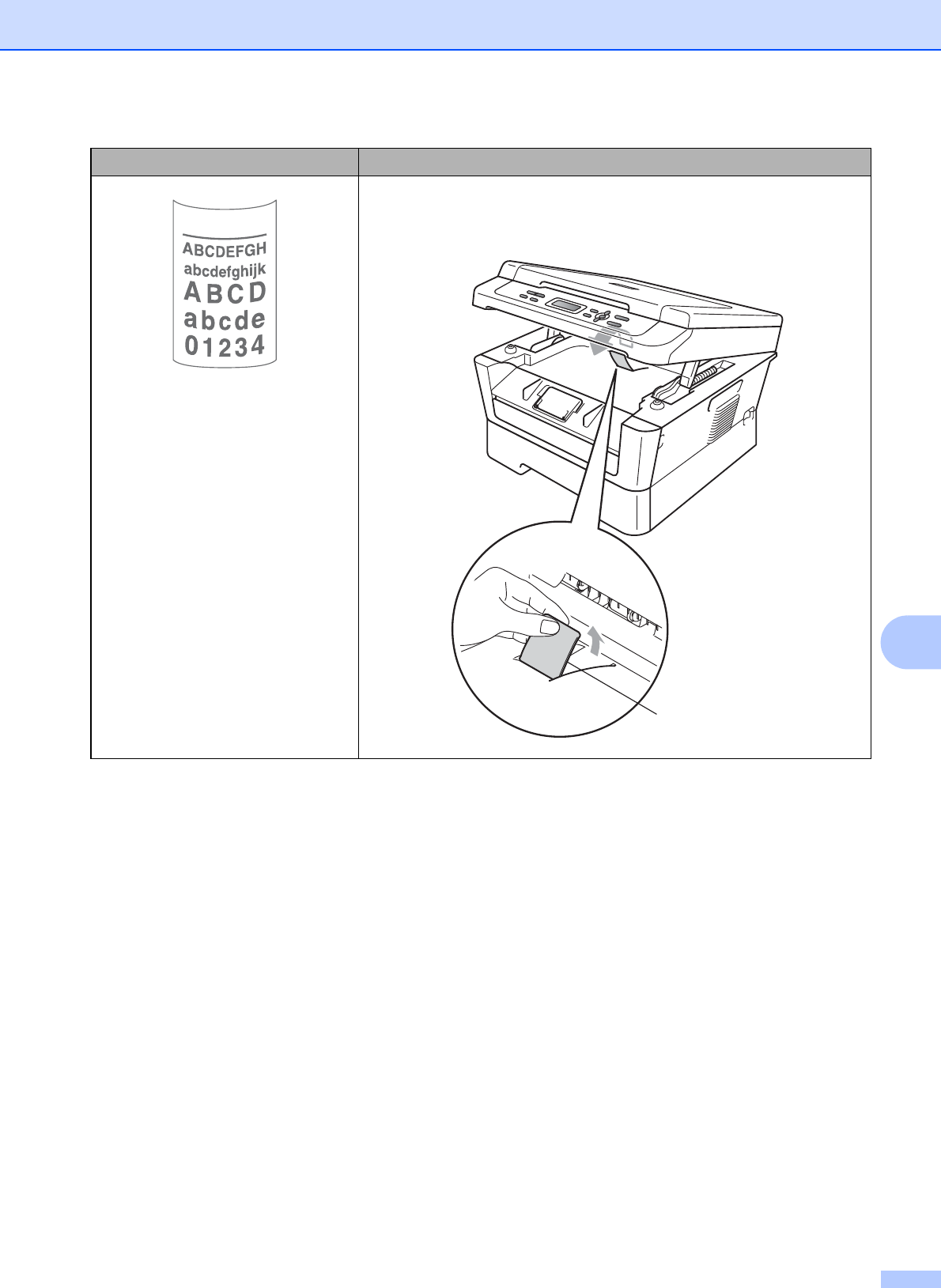

Curled

Lift up the output tray support flap (1).

Examples of poor print quality Recommendation

Machine Information B

Checking the Serial Number B

You can see the machine’s Serial Number on

the LCD.

aPress Menu.

bPress a or b to choose 3.Machine

Info..

Press OK.

cPress a or b to choose 1.Serial No..

Press OK.

dPress Stop/Exit.

Reset functions B

The following reset function is available:

All Settings

You can reset all the machine’s settings back

to its default factory settings.

Brother strongly recommends you perform

this operation when you dispose of the

machine.

Note

Unplug the interface cable before you

choose All Settings.

How to reset the machine B

aPress Menu.

bPress a or b to choose 1.General

Setup.

Press OK.

cPress a or b to choose 5.Reset.

Press OK.

dPress OK.

eDo one of the following:

To reset the settings, press a to

choose Reset. Then go to step f.

To exit without making changes,

press b to choose Exit.

Then go to step g.

fYou will be asked if you want to reboot

the machine. Do one of the following:

To reboot the machine, press a to

choos Yes.

The machine will begin the reset.

To exit without rebooting, press b to

choose No.

Then go to step g.

gPress Stop/Exit.

On-screen

programming C

Your machine has been designed to be easy

to use. The LCD provides on-screen

programming using the menu keys.

We have created step by step on-screen

instructions to help you program your

machine. Simply follow the steps as they

guide you through the menu selections and

programming options.

Menu table C

You can program your machine by using the

Menu table on page 77. These pages list the

menu selections and options. Press Menu

and then press a or b to access the menus

and program your machine. For example, to

set Copy Quality to Photo Quality

aPress Menu.

bPress a or b to choose 2.Copy.

Press OK.

cPress a or b to choose 1.Quality.

Press OK.

dPress a or b to choose Photo.

Press OK.

ePress Stop/Exit.

How to access the menu

mode C

aPress Menu.

bChoose an option. You can scroll

through each menu level by pressing a

or b for the direction you want.

cPress OK when the option you want

appears on the LCD.

The LCD will then show the next menu

level.

dPress a or b to scroll to your next menu

selection.

ePress OK.

When you have finished setting an

option, the LCD will show Accepted.

fPress Stop/Exit to exit Menu mode.

Menu and features C

Menu keys C

Access the menu.

Go to the next menu

level.

Accept an option.

Exit the menu by

pressing repeatedly.

Go back to the previous

menu level.

Scroll through the

current menu level.

Exit the menu.

Menu and features

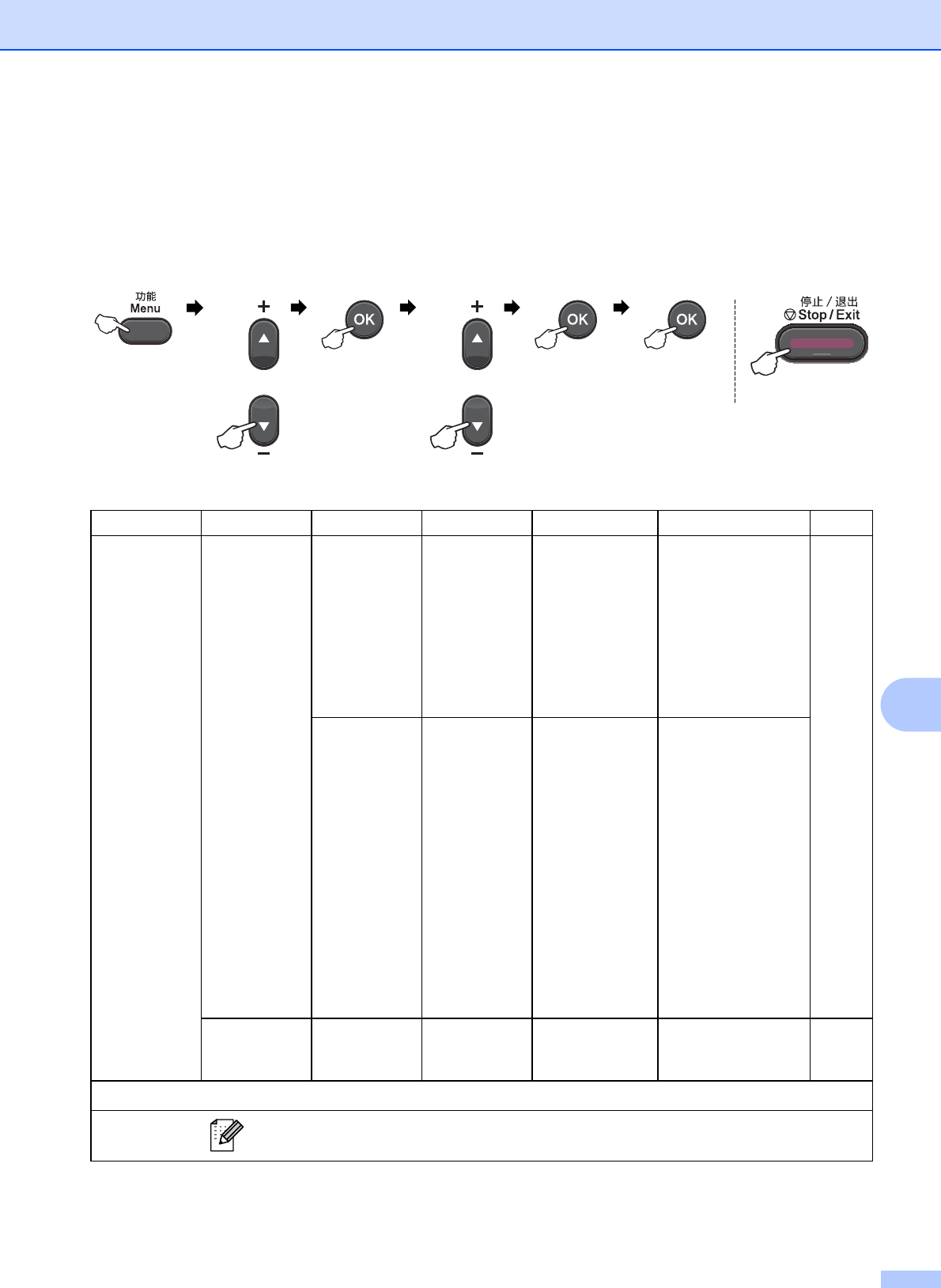

Menu table C

The factory settings are shown in Bold with an asterisk.

Choose & OK Choose & OK to accept to exit

Level 1 Level 2 Level 3 Level 4 Options Descriptions Page

1.General

Setup

1.Paper 1.Paper

Type

—Thin

Plain*

Thick

Thicker

Recycled

Paper

Label

Sets the type of

paper in the paper

tray.

2.Paper

Size

—A4*

Letter

Executive

A5 L

16K(195x270mm)

16K(184x260mm)

16K(197x273mm)

Sets the size of the

paper in the paper

tray.

2.Ecology 1.Toner

Save

—On

Off*

Increases the page

yield of the toner

cartridge.

See 1.

1See Advanced User's Guide.

The factory settings are shown in Bold with an asterisk.

1.General

Setup

(Continued)

2.Ecology

(Continued)

2.Sleep

Time

— Range varies

depending on

models.

003Min*

Conserves power. See 1.

3.LCD

Contrast

——-nnnno+

-nnnon+

-nnonn+*

-nonnn+

-onnnn+

Adjusts the contrast

of the LCD.

4.Replace

Toner

——Continue

Stop*

The machine will

stop printing until you

replace the toner

cartridge.

5.Reset 1.All

Settings

—a Reset

b Exit

Restores the

machine's settings to

the original factory

default settings.

0.Local

Language

— (Choose your

language)

— Allows you to change

the LCD language for

your country.

Level 1 Level 2 Level 3 Level 4 Options Descriptions Page

1See Advanced User's Guide.

The factory settings are shown in Bold with an asterisk.

Menu and features

Level 1 Level 2 Level 3 Options Descriptions Page

2.Copy

(Continued)

1.Quality —Auto*

Text


Graph

You can choose the

Copy resolution for

your type of

document.

See 1.

2.Brightness —-nnnno+

-nnnon+

-nnonn+*

-nonnn+

-onnnn+

Adjust the brightness

for copies.

3.Contrast —-nnnno+

-nnnon+

-nnonn+*

-nonnn+

-onnnn+

Adjusts the contrast

for copies.

1See Advanced User's Guide.

The factory settings are shown in Bold with an asterisk.

Level 1 Level 2 Level 3 Options Descriptions Page

3.Machine Info. 1.Serial No. — — You can check the

serial number of your

machine.

2.Page Counter —Total

List

Copy

You can check the

number of total

pages the machine

has printed during its

life.

See 1.

3.User

Settings

——

4.Drum Life — — You can check the

percentage of a

Drum life that

remains available.

1See Advanced User's Guide.

The factory settings are shown in Bold with an asterisk.

General D

Note

This chapter provides a summary of the machines’ specifications. For additional specifications

visit http://www.brother-cn.net/ for details.

Specifications D

Printer Type Laser

Print Method Electrophotography by semiconductor laser beam scanning

Memory Capacity (For DCP-7055) 16 MB

(For DCP-7060D) 32 MB

LCD (liquid crystal

display)

10 characters  2 lines

Power Source 220 - 240 V AC 50/60Hz

Power Consumption 1Peak: 1080 W

Copying (Average): Approx. 445 W 2 at 25 C (77 F)

Deep Sleep (Average): Approx. 0.9 W

Ready (Average): Approx. 55 W at 25 C (77 F)

1USB connection to PC

2When making a copy from one sheet

Specifications

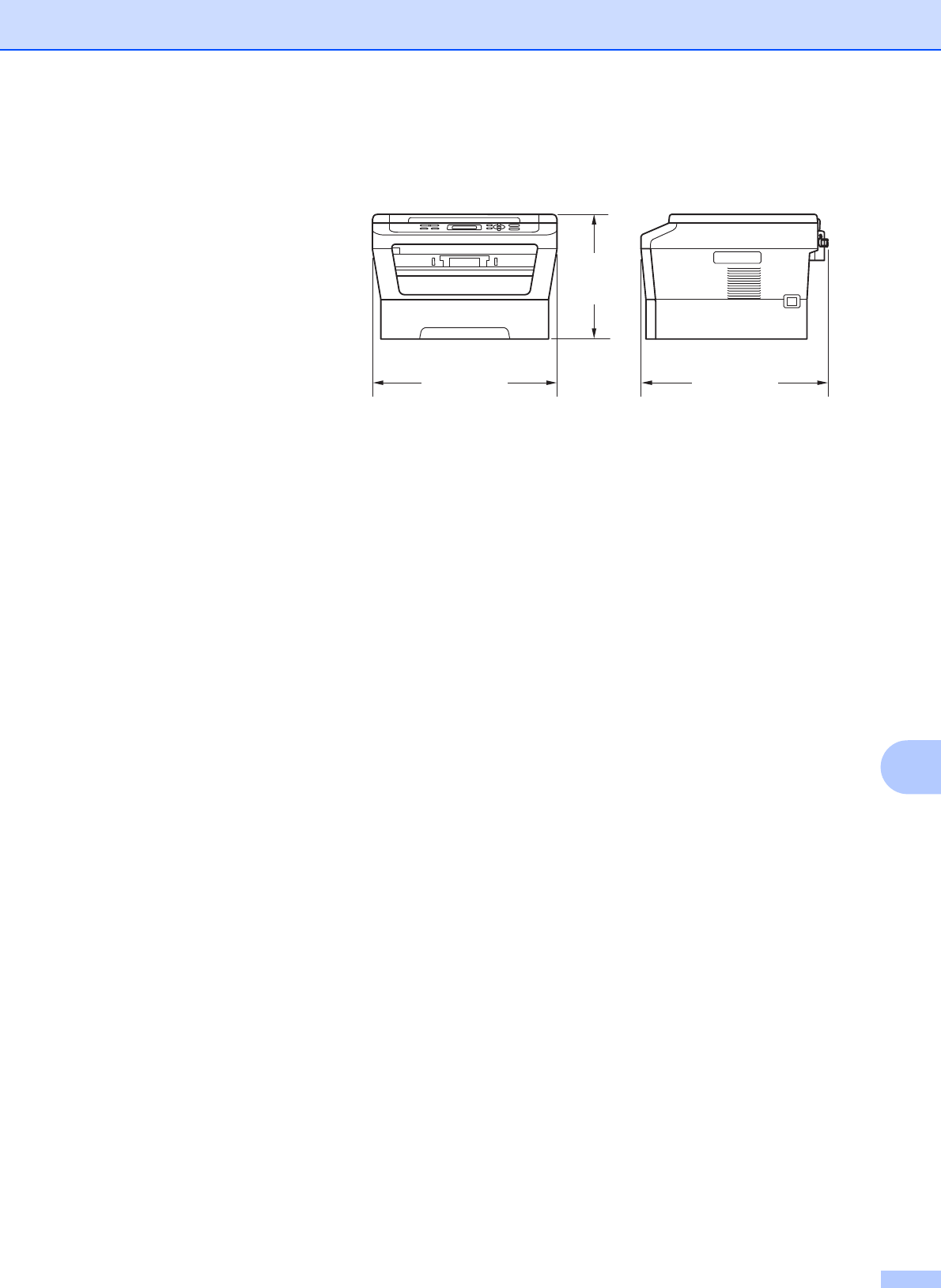

Dimensions D

Weight With Consumables:

(For DCP-7055) 9.8 kg

(For DCP-7060D) 10.1 kg

405 mm 398.5 mm

268 mm

Noise level Sound power 1

Operating (Copying): (For DCP-7055)

LWAd = 6.60 B (A)

(For DCP-7060D)

LWAd=6.74 B (A)

Standby: LWAd = 4.30 B (A)

Sound pressure

Operating (Printing): LPAm = 53 dB (A)

Standby: LPAm = 30 dB (A)

1Measured in accordance with ISO 9296.

Temperature Operating: 10 to 32.5C

Storage: 0 to 40C

Humidity Operating: 20 to 80% (without condensation)

Storage: 10 to 90% (without condensation)

Specifications

Document Size D

Document Size

(Single-sided)

Scanner Glass Width:

Scanner Glass Length:

Max. 215.9 mm

Max. 297 mm

Print media D

1For labels, we recommend removing printed pages from the output paper tray immediately after they exit the machine

to avoid the possibility of smudging.

260 to 105 g/m2 for duplex print.

Paper Input Paper Tray

Paper Type: Plain paper, Thin paper or Recycled paper

Paper Size: Letter, A4, B5 (ISO/JIS), A5,

A5 (Long Edge), B6 (ISO), A6, Executive,

16K(195x270mm), 16K(184x260mm),

16K(197x273mm)

Paper Weight: 60 to 105 g/m2

Maximum Paper Tray

Capacity: Up to 250 sheets of 80 g/m2

Plain paper

Manual Feed Slot (Manual)

Paper Type: Envelopes, Labels 1, Thin paper, Thick

paper, Thicker paper, Recycled paper,

Bond paper or Plain paper

Paper Size: Width: 76.2 to 216 mm

Length: 116 to 406.4 mm

Paper Weight: 60 to 163 g/m22

Maximum Paper Tray

Capacity: One sheet at a time 80 g/m2 Plain paper

Paper Output Face-Down Output Tray Up to 100 sheets (face down print delivery

to the Face down output paper tray)

Face-Up Output Tray One sheet (face up print delivery to the

Face up output paper tray)

Duplex

Printing

(For

DCP-7060D)

Paper Size

(Automatic Duplex):

Paper Weight

(Automatic Duplex):

Paper Type

(Automatic Duplex):

60 to 105 g/m2

Plain paper or Recycled paper

Specifications

Copy D

Color/Monochrome Monochrome

Copy Width Max. 204 mm

Multiple Copies Stacks or Sorts up to 99 pages

Reduce/Enlarge 25% to 400% (in increments of 1%)

Resolution Up to 600  600 dpi

First Copy Out Time (For DCP-7055)

Less than 12 seconds (from the READY mode and standard tray)

(For DCP-7060D)

Less than 11 seconds (from the READY mode and standard tray)

Ready At 25C (77F)

Scanner D

1For the latest driver updates for the Mac OS X you are using, visit us at http://solutions.brother.com/.

2Maximum 1200 1200 dpi scanning with the WIA driver in Windows® XP, Windows Vista® and Windows® 7

(resolution up to 19200 19200 dpi can be chosen by using the scanner utility)

Colour/Black Yes/Yes

TWAIN Compliant Yes (Windows®2000 Professional/Windows®XP/

Windows®XP Professional x64 Edition/Windows Vista®/

Windows®7)

Mac OS X 10.4.11, 10.5.x, 10.6.x 1

WIA Compliant Yes (Windows® XP/Windows Vista®/Windows®7)

Colour Depth 48 bit internal / 24 bit external colour

Resolution Up to 19200  19200 dpi (interpolated) 2

Up to 600  2400 dpi (optical) 2 (from Scanner Glass)

Scanning Width Max. 204 mm

Greyscale 256 levels

Specifications

Printer D

1The print speed may vary depending on the type of document you print.

Automatic 2-sided

(Duplex) Print

(For DCP-7060D)

Yes

Resolution 600 dpi  600 dpi, HQ1200 (2400  600 dpi) quality

Print Speed

(Duplex) Up to 5 pages/minute (A4 size) 1

Print Speed (For DCP-7055)

Up to 20 pages/minute (A4 size) 1

(For DCP-7060D)

Up to 24 pages/minute (A4 size) 1

First Print Out Time (For DCP-7055)

Less than 10.0 seconds (from the READY mode and standard tray)

(For DCP-7060D)

Less than 8.5 seconds (from the READY mode and standard tray)

Interfaces D

1Your machine has a Hi-Speed USB 2.0 interface. The machine can also be connected to a computer that has a

USB 1.1 interface.

2Third-party USB ports are not supported.

USB We recommend to use a USB cable (Type A/B) that is no more than

2 metres long. 12

Specifications

Computer requirements D

Minimum System Requirements and Supported PC Software Functions

Computer Platform &

Operating System

Version

Processor

Minimum

Speed

Minimum

RAM

Recommended

RAM

Hard Disk Space

to install

Supported

Software

Functions

Supported

Interface

For

Drivers

For

Applications

Windows

Operating

System

Windows

2000

Professional

Intel®

Pentium® II

or equivalent

64 MB 256 MB 150 MB 500 MB Printing,

Scanning

USB

Windows

Home

Windows

Professional

128 MB

Windows

Professional

x64

Edition

64-bit

(Intel®64 or

AMD64)

supported

CPU

256 MB 512 MB

Windows

Vista®24

Intel®

Pentium® 4

or equivalent

64-bit

(Intel®64 or

AMD64)

supported

CPU

512 MB 1 GB 500 MB 1.2 GB

Windows

724

Intel®

Pentium® 4

or equivalent

64-bit

(Intel®64 or

AMD64)

supported

CPU

1 GB

(32-bit)

2 GB

(64-bit)

1 GB

(32-bit)

2 GB

(64-bit)

650 MB

1Internet Explorer® 6.0 or greater.

2For WIA, 1200 x 1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi.

3Third-party USB ports are not supported.

4Presto! PageManager on the CD-ROM supports Microsoft® Windows® 2000, Windows® XP, Windows Vista® and

Windows® 7.

For the latest driver updates, visit http://solutions.brother.com/.

All trademarks, brand and product names are property of their respective companies.

Windows

Operating

System

Windows

Server®

2003

(print only

via

network)

Intel®

Pentium® III

or equivalent

256 MB 512 MB 50 MB N/A Printing

Windows

Server®

2003 x64

Edition

(print only

via

network)

64-bit

(Intel®64 or

AMD64)

supported

CPU

Windows

Server®

2008

(print only

via

network)

Intel®

Pentium® 4

or equivalent

64-bit

(Intel®64 or

AMD64)

supported

CPU

512 MB 2 GB

Windows

Server®

2008 R2

(print only

via

network)

64-bit

(Intel®64 or

AMD64)

supported

CPU

Macintosh

Operating

System

Mac OS X

10.4.11

10.5.x

PowerPC

G4/G5

Intel® Core™

Processor

512 MB 1 GB 80 MB 400 MB Printing,

Scanning

USB

Mac OS X

10.6.x

Intel® Core™

Processor

1 GB 2 GB

Minimum System Requirements and Supported PC Software Functions

Computer Platform &

Operating System

Version

Processor

Minimum

Speed

Minimum

RAM

Recommended

RAM

Hard Disk Space

to install

Supported

Software

Functions

Supported

Interface

For

Drivers

For

Applications

Specifications

Consumable items D

1Approx. cartridge yield is declared in accordance with ISO/IEC 19752.

2Drum yield is approximate, and may vary by type of use.

Note

• Brother does not recommend the use of consumables other than genuine Brother

consumables.

• Your machine warranty may not cover any damage arising from the use of non genuine Brother

consumables.

Toner Cartridge Standard Toner Cartridge:

TN-2015 (For DCP-7055) Approx. 700 pages (A4) 1

TN-2215 (For DCP-7060D) Approx. 1,200 pages (A4) 1

High-Yield Toner Cartridge: Approx. 2,600 pages (A4) 1

TN-2225 (For DCP-7060D)

Drum Unit DR-2245 (For DCP-7055)

DR-2250 (For DCP-7060D) Approx. 12,000 pages (A4) 2

Index

Cleaning

Cleaning:paper pick-up rollers ..............48

corona wire ...........................................42

drum unit ...............................................43

scanner .................................................41

Consumable items ...................................28

disposal .................................................33

replacing ...............................................49

Control panel overview ..............................4

Copy .........................................................20

keys .........................................................4

Document

how to load ............................................19

Drum unit

cleaning .......................................... 42, 43

replacing ...............................................35

Duplex

paper jam ..............................................59

printing ..................................................84

troubleshooting ........................49, 50, 62

Envelopes ...................................10, 15, 17

Error messages on LCD ..........................49

Drum Error ............................................35

Drum Stop .............................................35

Duplex Disabled ....................................49

Init Unable XX .......................................50

Jam Duplex ...........................................50

No Paper ...............................................50

Out of Memory ......................................50

Print Unable XX ....................................51

Replace Drum .......................................35

Replace Toner ......................................30

Toner Ended .........................................30

Toner Low .............................................30

Greyscale .................................................86

HELP

LCD messages ..................................... 75

Menu Table .......................................... 77

Jams

paper .................................................... 52

Labels ..................................... 9, 10, 15, 18

LCD (liquid crystal display) ..................5, 75

Machine information

how to reset the machine ..................... 74

reset functions ...................................... 74

serial number ........................................ 74

Maintenance, routine ............................... 40

replacing

drum unit ........................................... 35

toner cartridge ................................... 29

Menu Table ............................................. 77

Mode, entering

copy ...................................................... 20

OPC drum ............................................... 67

Out of Memory message ......................... 50

Paper ................................................ 15, 84

how to load .............................................7

in manual feed slot ...............................9

in paper tray .........................................7

jams ............................................... 50, 52

recommended .......................................16

size ................................................ 14, 15

tray capacity ..........................................15

type ................................................ 14, 15

difficulties ..............................................61

emulation ..............................................87

quality ...................................................63

resolution ..............................................87

specifications ........................................87

Print quality ..............................................64

Programming your machine .....................75

Quality

printing ..................................................63

Replacing

drum unit ...............................................35

toner cartridge .......................................29

Resolution

copy ......................................................85

print .......................................................87

scan ......................................................86

Safety Instructions ...................................... i

Scan ...........................................................4

Scanner glass

using .....................................................19

Toner cartridge

replacing ............................................... 29

Troubleshooting ....................................... 49

error messages on LCD ....................... 49

if you are having difficulty

copy quality ....................................... 61

paper handling .................................. 63

print quality ........................................ 63

printing .............................................. 61

scanning ............................................ 62

software ............................................. 62

maintenance messages on LCD .......... 49

paper jam .......................... 52, 53, 55, 59

These machines are approved for use in the country of purchase only. Local Brother companies

or their dealers will only support machines purchased in their own countries.

Brother Dcp 7055 Users Manual

DCP-7055 to the manual eca82284-bcc6-465d-a888-bc8e1003604f

Navigation menu

Versions of this User Manual:

Views

Navigation
