GT-3 Series INSTRUCTION MANUAL

Please read this manual before using the printer.

Please keep this manual within easy reach for quick reference.

GARMENT PRINTER

GT Series US support homepage http://www.brother-usa.com/Garmentprinters/

GT-3 Series

MEMO

Note based on California law (USA) on the use and handling of Perchlorate

This product contains a CR Coin Lithium Battery which contains

Perchlorate Material – special handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate.

Thank you very much for buying a BROTHER printer. Before using your new printer, please read the safety instructions below

and the explanations given in the instruction manual.

SAFETY INSTRUCTIONS

[1] Safety indications and their meanings

This instruction manual and the indications and symbols that are used on the printer itself are provided in order to ensure safe

operation of this printer and to prevent accidents and injury to yourself or other people. The meanings of these indications and

symbols are given below.

Indications

DANGER The instructions which follow this term indicate situations where failure to follow the

instructions will result in death or serious injury.

WARNING The instructions which follow this term indicate situations where failure to follow the

instructions could result in death or serious injury.

CAUTION The instructions which follow this term indicate situations where failure to follow the

instructions may result in minor or moderate injury.

Symbols

· · · · · This symbol ( ) indicates something that you should be careful of. The picture inside the triangle

indicates the nature of the caution that must be taken.

(For example, the symbol at left means “beware of injury”.)

· · · · · This symbol ( ) indicates something that you must not do.

· · · · · This symbol ( ) indicates something that you must do. The picture inside the circle indicates the

nature of the thing that must be done.

(For example, the symbol at left means “you must make the ground connection”.)

[2] Notes on safety

DANGER

Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet

before opening the right side cover. Do not touch the high-voltage area in the control box as high voltage can result

in severe injury.

WARNING

Basic precautions

To prevent accidents and problems, do not modify

the machine yourself.

Brother will not be held responsible for any accidents

or problems resulting from modifications made to the

machine.

Do not handle the power cord with wet hands,

otherwise it may cause electric shocks.

GT-3 Series i

GT-3 Series

WARNING

Installation

Do not set up the printer in a dusty environment. If

dust collects inside the printer, it may cause fire or

electric shocks or problems with correct operation.

Be sure to connect the ground. If the ground

connection is not secure, you run a high risk of

receiving a serious electric shock, and problems with

correct operation may also occur.

Do not bend the cords excessively or fasten them

too hard with staples or anything similar to secure

cords, otherwise there is the danger that fire or

electric shocks could occur.

Printing

If a foreign object gets inside the printer, immediately

turn off the power switch and disconnect the power

cord, and arrange for a service call to resolve.

If you continue to use the printer while there is a

foreign object inside, it may result in fire or electric

shocks or problems with correct operation.

Do not allow the printer to come into contact with

liquids, otherwise it may cause fire or electric shocks

or problems with correct operation.

If any liquid gets inside the printer, immediately turn

off the power switch and disconnect the power cord.

Contact Brother to arrange a service call to resolve.

Do not use the printer when smoke or a bad odor

coming from the printer, otherwise it may cause fire

or electric shocks or problems with correct

operation.

Immediately turn off the power switch and

disconnect the power cord, and arrange for a

service call to resolve.

CAUTION

Environmental requirements

Use the printer in an area which is free from

sources of strong electrical noise such as electrical

line noise or static electric noise.

Sources of strong electrical noise may cause

problems with correct operation.

Any fluctuations in the power supply voltage should

be within ±10% of the rated voltage for the printer.

Voltage fluctuations which are greater than this

may cause problems with correct operation.

The power supply capacity should be greater than

the requirements for the printer’s power

consumption.

Insufficient power supply capacity may cause

problems with correct operation.

The ambient temperature should be within the

range of 18°C to 30°C during use.

Temperatures which are lower or higher than this

may cause problems with correct operation.

The relative humidity should be within the range of

35% to 85% during use, and no dew formation

should occur in any devices.

Excessively dry or humid environments and dew

formation may cause problems with correct

operation.

Use the printer in a place which is adequately

ventilated.

A slight odor is generated when the printed articles

are being fixed by heat.

In the event of an electrical storm, turn off the

power and disconnect the power cord from the wall

outlet.

Lightning may cause problems with correct

operation.

CAUTION

Installation

Setting up and moving of the printer should only be

carried out by a qualified technician.

The printer machine weighs approximately 111 kg

(245 lb). Transporting and setting up of the printer

should be held in proper way.

The machine may fall down and cause injury.

The printer must be used on a suitable stable

surface, otherwise it may tip over or fall down and

cause injury.

Furthermore, the table that supports the printer

should be at least 137 cm (53.9 inch) in width and

104.5 cm (41.1 inch) in depth, and should be able to

bear a weight of 150 kg (330 lb) or more.

Do not set up the printer in a place where it will be

affected by vibration. It may become unbalanced

and fall down, which cause injury or damage to the

printer.

Do not connect the power cord until setup is

complete, otherwise the printer may operate if the

power switch is turned on by mistake, which could

result in injury.

Do not climb onto the printer or place heavy objects

on top of it, otherwise it may become unbalanced

and tip over or fall down and cause injury.

Printing

This printer should only be used by operators who

are appropriately trained in its operation.

Ensure there is adequate space left for safe working.

The Platen moves forward while operating and it

may be injured.

Do not handle the platen while printing. If your hand

gets caught between the platen or the T-shirt tray

and the covers, it may be injured.

Do not move the Platen by hand.

The Printer may be mechanically and electrically

damaged.

Do not put your hands inside the covers while the

printer’s power is turned on, otherwise your hands

may touch against moving parts and this may result

in injury.

When a problem occurs with the operation of the

printer, contact the place of purchase or a qualified

technician.

Maintenance

Wait at least 1 minute after turning off the power

switch before opening the front cover.

Do not touch the head heat sink as it may be HOT

and may cause a burn.

Be careful not to get your fingers caught when

closing the front cover, otherwise it may result in

injury to your fingers.

Do not move the Platen by hand.

The Printer may be mechanically and electrically

damaged.

Do not disassemble the ink cartridge.

Take care not to let the liquids: Ink, Wash Liquid,

Maintenance Solution, Pretreatment or waste liquid

come into contact with your eyes or onto your skin,

otherwise inflammation can result. In case of contact

with eyes, do not rub but immediately rinse the eyes

with water.

Furthermore, do not drink the liquids: Ink, Wash

Liquid, Maintenance Solution, Pretreatment or waste

liquid under any circumstances, as they can cause

vomiting and diarrhea.

Keep the liquids out of the reach of children.

Be sure to wear protective goggles and gloves when

handling the grease, so that they do not get into

your eyes or onto your skin. If the grease get into

your eyes or onto your skin, inflammation can result.

Furthermore, do not drink or eat the grease. They

may cause diarrhea or vomiting.

Keep the grease out of the reach of children.

When replacing parts and installing optional

accessories, be sure to use only genuine Brother

parts.

Brother will not be held responsible for any

accidents or problems resulting from the use of

non-genuine parts.

GT-3 Series iii

[3] Warning labels

The following warning labels appear on the printer.

Please follow the instructions on the labels at all times when using the printer. If the labels have been removed or are

difficult to read, please contact your nearest Brother dealer.

GT-3 Series

5 6

10 Watch your fingers, or you may be

injured.

11 High temperature warning display

12 Be sure to connect the ground. If

the ground connection is not

secure, you run a high risk of

receiving a serious electric shock,

and problems with correct

operation may also occur.

Wash Li

uid

Grease

Ink Cartridge Maintenance Solution (5kg)

Pretreatment (20kg)

Waste Ink Tank

0085Y

GT-3 Series v

GT-3 Series

CONTENTS

1. Read This First ..............................................................................................................................................................1

1-1. Precautions............................................................................................................................................................1

1-2. Unpacking Your Printer .........................................................................................................................................5

1-3. Required Condition................................................................................................................................................5

1-3-1. Environment...................................................................................................................................................5

1-3-2. Electrical Requirements.................................................................................................................................6

1-3-3. Software Information......................................................................................................................................6

1-3-4. Other Requirements......................................................................................................................................6

1-3-5. Consumable Requirements and Options ....................................................................................................7

2. Identifying Your Printer’s Parts......................................................................................................................................8

2-1. Front .......................................................................................................................................................................8

2-2. Right .......................................................................................................................................................................9

2-3. Rear........................................................................................................................................................................9

2-4. Inside of the Front Cover.......................................................................................................................................10

2-5. Upper part of the Maintenance Unit .....................................................................................................................11

2-6. Under the Platen....................................................................................................................................................12

2-7. Control Panel .........................................................................................................................................................13

2-7-1. Display............................................................................................................................................................14

2-7-2. Menu List........................................................................................................................................................15

3. Getting Started...............................................................................................................................................................17

3-1. Placing Your Printer...............................................................................................................................................18

3-2. Turning On/Off Your Printer...................................................................................................................................19

3-2-1. Turning On Your Printer.................................................................................................................................19

3-2-2. Turning Off Your Printer .................................................................................................................................20

3-3. Preparing Your PC.................................................................................................................................................21

3-3-1. When you already have GT-541/GT-782 ....................................................................................................21

3-3-2. PC preparation: For Windows XP (32 bit)....................................................................................................21

3-3-3. Connection with USB 2.0 Cable: for Windows XP......................................................................................22

3-3-4. Installation of PC for Windows Vista / Windows 7 (32 bit / 64 bit)...............................................................24

3-3-5. Connection with USB 2.0 Cable: for Windows Vista / Windows 7.............................................................25

3-3-6. Opening the installed manuals .....................................................................................................................25

3-3-7. Opening the Useful Tools..............................................................................................................................26

3-3-8. How to use Firmware Update Tools .............................................................................................................27

3-4. Setting Up Your Printer..........................................................................................................................................28

3-4-1. Adjusting the Display Contrast ......................................................................................................................28

3-4-2. Adjusting the Speaker Volume......................................................................................................................28

3-4-3. Temperature...................................................................................................................................................28

3-4-4. Language .......................................................................................................................................................28

4. Printing Directly from Applications................................................................................................................................29

4-1. Basic Printing Procedure ......................................................................................................................................30

4-2. Setting the Applications’ Print Condition...............................................................................................................30

4-2-1. Common Notice for All Applications .............................................................................................................30

4-2-2. Settings for CorelDRAW ...............................................................................................................................32

4-2-3. Settings for Adobe Photoshop ......................................................................................................................38

4-2-4. Settings for Adobe Illustrator .........................................................................................................................44

4-2-5. Settings for Adobe Photoshop Elements .....................................................................................................49

4-2-6. Settings for Paint Shop Photo Pro................................................................................................................50

4-2-7. Printing From Other Applications..................................................................................................................50

4-3. Setting the Printer Driver Condition......................................................................................................................51

GT-3 Series

4-3-1. Selecting Machine Mode...............................................................................................................................52

4-3-2. Entering the Job Comment...........................................................................................................................53

4-3-3. Selecting the Platen Size ..............................................................................................................................53

4-3-4. Setting the Ink.................................................................................................................................................53

4-3-5. Setting the Resolution....................................................................................................................................53

4-3-6. White Settings................................................................................................................................................54

4-3-7. Print with Black Ink on black garment...........................................................................................................55

4-3-8. Making Gray with CMY Inks .........................................................................................................................55

4-3-9. Color Multiple Pass Printing ..........................................................................................................................56

4-3-10. Settings for Color Inks .................................................................................................................................56

4-3-11. Settings for White Ink...................................................................................................................................57

4-3-12. Selecting the Color Processing for increasing the Vividness ...................................................................57

4-3-13. Printing the image file on Transparent Layer .............................................................................................58

4-3-14. Setting Print Direction as Uni-Directional ...................................................................................................63

4-3-15. Printing Color Chart .....................................................................................................................................64

4-4. Uninstalling / Installing the Platen .........................................................................................................................65

4-4-1. Uninstalling the Platen...................................................................................................................................65

4-4-2. Installing the Platen........................................................................................................................................66

4-4-3. Lowering the Platen height............................................................................................................................67

4-5. Placing the T-shirt on the Platen...........................................................................................................................69

4-6. Printing ...................................................................................................................................................................72

4-6-1. Applying the Pretreatment.............................................................................................................................72

4-6-2. Making One Print...........................................................................................................................................75

4-6-3. Printing More than One Print Using the Same Print Data ..........................................................................75

4-7. Removing the T-shirt from the Platen...................................................................................................................76

4-8. Curing the Ink onto the T-shirt...............................................................................................................................76

5. Printing AR3 Files..........................................................................................................................................................77

5-1. Making Print Data in AR3 File...............................................................................................................................77

5-2. Reading AR3 Files Saved in a USB flash drive ..................................................................................................79

5-3. Sending AR3 Files from GT-3 File Viewer to your Printer ..................................................................................80

6. Maintenance..................................................................................................................................................................83

6-1. Replacing Consumables ......................................................................................................................................84

6-1-1. Replacing the Ink Cartridge...........................................................................................................................84

6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers.................................................................86

6-1-3. Replacing Flushing Plate Sponge and Flushing Plate Felt.........................................................................89

6-1-4. Replacing the Fan Filter ................................................................................................................................89

6-1-5. Replacing the Roller Felts .............................................................................................................................91

6-1-6. Cleaning the inside of the printer and restart................................................................................................91

6-1-7. Cleaning the Encoder Strip ...........................................................................................................................92

6-2. Regular Maintenance............................................................................................................................................95

6-2-1. Daily Cleaning White for replacing dull White Ink (Once a day, before printing) .......................................95

6-2-2. White Tube Cleaning (once a week) ............................................................................................................95

6-2-3. Waste Ink Disposal........................................................................................................................................97

6-2-4. Replacing the Platen Sheet ..........................................................................................................................98

6-2-5. Required Maintenance for the Long Storage...............................................................................................99

7. Troubleshooting.............................................................................................................................................................101

7-1. Solving Printer Problems ......................................................................................................................................102

7-2. Solving Print Quality Problems .............................................................................................................................104

7-2-1. Procedure for Solving the Print Quality Problems .......................................................................................106

7-2-2. Cleaning the Print Heads ..............................................................................................................................108

7-2-3. Checking Print Quality with Nozzle Check Pattern .....................................................................................108

GT-3 Series

7-2-4. Changing the Print Direction .........................................................................................................................111

7-2-5. Changing the Auto Cleaning Setting ............................................................................................................111

7-2-6. Cleaning the Print Head Nozzles..................................................................................................................112

7-2-7. Replacing the Print Head ..............................................................................................................................114

7-2-8. Adjustment after the Print Head has been replaced....................................................................................123

7-2-9. Adjusting the CR Speed ................................................................................................................................124

7-2-10. Adjusting the Flushing Interval ....................................................................................................................124

7-2-11. Adjusting the Flushing Volume....................................................................................................................125

7-2-12. Adjusting the amount of White Ink in Daily Cleaning White......................................................................126

7-2-13. Copy Log file to USB flash drive.................................................................................................................127

7-3. Solving Application Problems ...............................................................................................................................128

7-4. Error Messages .....................................................................................................................................................129

8. Specifications.................................................................................................................................................................137

8-1. Mechanical Specification.......................................................................................................................................137

8-2. Software Specification...........................................................................................................................................137

GT-3 Series

1. Read This First

1-1. Precautions

Please observe the following precautions before using your printer.

z GT-3 represents the common specifications of GT-381, GT-361 and GT-341 models. The individual specifications

are described with each model name.

z Please advise the following to your customers who buy your printed materials:

z Printed colors may transfer when a printed surface rubs on a white or light-colored synthetic leather made of

PVC (polyvinyl chloride). When printing CMYK-only garments, the CMYK ink may transfer to the White-only

printed garment when they rub against each other. In those cases, clean the stains with a soft cloth or

toothbrush with a household cleaner or alcohol.

z Wash away the pretreatment halo marks.

z The printer is designed to be used within the temperature and humidity levels below. Less humidity may cause ink

clogging in Print Head nozzles and higher temperature may cause splashy print result. Use the printer within the

range of our recommendation for the best print result.

Temperature Humidity

Keeping your printer 32 °F to 104 °F

(0 °C to 40 °C)

20 % to 85 %

(no condensation)

Operating your printer 50 °F to 95 °F

(10 °C to 35 °C)

For the best print result 64 °F to 86 °F

(18 °C to 30 °C)

35 % to 85 %

(no condensation)

z Do not pull out Ink Cartridge(s) during the operation; it may result in poor print quality or cause damage to your

printer.

z Do not turn off your printer, or open the Front Cover during the operation; otherwise the printer may be damaged or

spoil the print job.

z Be careful in handling a printed T-shirt that has not yet fixed by heat. Ink is difficult to wash from stained clothes.

z Clean the Caps and Wipers, replace the Wiper Cleaners, Fan Filter, Roller Felts (4), Flushing Plate Sponge (top)

and Flushing Plate Felt (bottom) according to our maintenance schedule to maintain good print quality. Those

Maintenance Parts are packed together in White, Cyan and Magenta (except 180 cc) ink Cartons. Replace them

when you open the new ink cartridge or you see the warning indicated on the display. Print quality may be

damaged by insufficient cleaning, e.g. dirty printed materials, mis-firing.

z Never use alcohol when you clean Head Caps and Wiper Blade; it will cause damage to the Print Heads. Use

Wash Liquid when you clean around the Print Heads.

z Install the Ink Cartridges in the correct positions as shown. Confirm both the colors of labels on your printer and the

Ink Cartridges.

z The printer indicates empty status "Empty XXXX (color)" when the ink cartridge is used up. Replace with a new Ink

Cartridge. Make a new Ink Cartridge available when the icon on the Operation Panel starts blinking. A small amount

of ink remains to avoid damage to your printer.

z New consumables should be stored away from direct sunlight until they are required. Use up the Ink Cartridges,

Pretreatment and Maintenance Solution before the expired date, and CMYK inks should be used up within six

months after opening the new one.

GT-3 Series

1. Read This First

z Never refill ink, never reconstruct ink cartridges; ink may cohere inside the cartridge bag, tube or even Print Head

and may cause serious damage to your printer. We assume no responsibility for any problem caused by using

them. Only genuine new ink cartridges should be used.

z The ink cartridges should always be installed; otherwise the needles may stopped up with ink and your printer may

be damaged.

z Tubes and Print Heads for White must be cleaned with Maintenance Solution once a week by the menu Tube

Cleaning. The Warning "Clean Tube W*" is indicated on the display of the Control Panel after a week passes since

the last Tube Cleaning.

z If the printer is unused for a period of time there is a possibility that Print Heads and Maintenance Unit may become

clogged as ink dries. To avoid this, we recommend that the printer should be turned on at least once a week and

press the Head Cleaning Button to clean the Print Head. If you are planning not to use your printer for more than

two weeks, follow “6-2-5. Required Maintenance for the Long Storage" to keep printer in good condition.

z Shake the White Ink Cartridges once a day before you start printing (30 seconds to 1 minute for each, 1-2 minutes

for new one). Hold the cartridge upside down to agitate the pigment in the bottom and shake it horizontally.

z If CMYK inks are printed on a Pretreatment applied T-shirt, ink may wash off. Do not apply Pretreatment when you

print without using White ink.

z The clearance between the Clearance Sensor and the surface of the Print Heads should be app. 2 mm. If the

clearance is wider, the ink mist will spread inside the printer and the printing material, and may damage the sensors

inside. If you print with wider clearance (more than 2 mm) then check the inside of the printer and keep it clean by

referring to "6-1-6. Cleaning the inside of the printer and restart" and "6-1-7. Cleaning the Encoder Strip".

z Pretreatment mist may spread out when you use a spray and/or pretreatment applicator. Ventilate your room in

operation. Wear a face mask or goggles as necessary.

z Pre-treatment on some T-shirts may be seen after applied and cured, wash lightly with water to remove mark.

Some dyes may be decolorized by Pretreatment; we recommend you test the garment before printing.

z Dispose the used waste ink, pretreatment, maintenance solution (all water-based) or other wastes in accordance

with your local regulations. Or make contact to your dealer.

z The pretreated area may turn yellow when you apply Pretreatment on a white or light-colored garment. Keep the

pretreated garment away from the sunlight and wash the printed T-shirt soon.

<Note> Only for the use in the United States

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

GT-3 Series

1. Read This First

<Note>

Product names used in this manual are, in general, trademarks or registered trademarks of their respective developer or

manufacture. However, in this manual, the ® marks or TM marks are not used.

Brother logo is registered trademark of Brother Industries, Ltd.

Microsoft and Windows are either registered trademarks of Microsoft Corporation in the United States and/or other countries.

Corel, CorelDRAW and Paint Shop Pro are registered trademarks of Corel Corporation.

Adobe, Adobe Photoshop, Adobe Illustrator and Adobe Photoshop Elements are either registered trademarks of Adobe

Systems Incorporated in the United States and/or other countries.

Other product and company names mentioned herein may be the trademarks or registered trademarks of their respective

owners.

Screen shots used in this document are in accordance with the guidelines of Microsoft Corporation.

GT-3 Series

1. Read This First

This unit uses software.

Agree with the license agreement to use the software.

Software License Agreement

The customer may download and use this software after agreeing with the various terms stipulated in the

Software License Agreement (herein referred to as the "Agreement").

This software cannot be used if the customer disagrees with this agreement.

1. Ownership

The ownership of this software and any reproductions belongs to Brother Industries (herein referred to as

"Company") or its supplier, Wind River KK. This agreement does not transfer this company's software

2. License Agreement

2-1. This company hereby grants the customer non-exclusive rights to use this software.

2-2. The customer may not conduct the following.

(1) Modify this software in whole or in part

(2) Duplicate this software for purposes other for backup purposes

(3) Reverse engineering, reverse assemble, or reverse compile this software

(4) Rent or lease this software

(5) Leave a computer in a public location where this software can be downloaded

3. No Warranty

Except for the expressed and implied warranties set forth herein, this company disclaim all other warranties.

This company cannot ensure that this software is not defective, not compatible with specific applications,

and the use of this software does not infringe upon third party rights.

4. Restriction of Liability

This company shall not be held responsible for any damage, directly or indirectly, caused by problems or

any related problems with this software.

5. Third Party Beneficiary

Wind River KK. and its suppliers (herein collectively referred to as "supplier") are third party beneficiaries of

this software in this Agreement and may have enforceable rights of the various terms in this Agreement.

6. License Termination

If the customer violates the conditions stipulated in this Agreement, this company may terminate this

Agreement without prior notice.

7. Governing Law

This Agreement shall conform to and be interpreted according to Japanese Law.

8. Separate Terms

Regarding the use of this software by customers not under this Agreement, this company or the supplier of

this software shall provide the customer with separate terms (herein referred to as "separate terms"). If the

customer agrees to these

separate terms, these terms shall take priority over any terms not covered or infringing upon the provisions

within the License Agreement.

Agree to abide by the aforementioned terms.

GT-3 Series

1. Read This First

1-2. Unpacking Your Printer

<Note>

Your printer must be unpacked by a Brother representative or a Brother authorized shipping company.

After unpacking, check that the following parts are included.

Contact Brother Customer Service Hot Line if any of these is missing.

z GT-3 Printer

z Install CD

z AC cord

z Nozzle Cleaning Kit: 2 for GT-381 and GT-361, 1 for GT-341

z Print Heads: 8 for GT-381, 6 for GT-361, 4 for GT-341

z One Waste Ink Tank

z One Encoder Cleaner

z One Maintenance Cartridge for GT-381, GT-361

z One Tube Cleaning Bottle for GT-381, GT-361

z Flushing Plate (including Flushing Plate Felt and Flushing Plate Sponge)

z Print Head Protection Film: 8 for GT-381, 6 for GT-361, 4 for GT-341

z Basic Operation Manual

z "How to uncrate" Manual

<Note>

Filter Cartridges (8 for GT-381, 6 for GT-361, 4 for GT-341)are installed in both Ink Cartridge Slots. Keep them since they

should be used for maintenance & transport operations.

1-3. Required Condition

Please use your printer under the conditions described in this section.

1-3-1. Environment

Temperature Humidity

Keeping your printer 32 °F to 104 °F

(0 °C to 40 °C)

20 % to 85 %

(no condensation)

Operating your printer 50 °F to 95 °F

(10 °C to 35 °C)

For the best print result 64 °F to 86 °F

(18 °C to 30 °C)

35 % to 85 %

(no condensation)

If your room is dry, we recommend using a humidifier to avoid Print Heads from clogging with dried ink.

GT-3 Series

1. Read This First

1-3-2. Electrical Requirements

Power:

Single-phase 100-240 V, 50/60 Hz

Power Consumptions:

0.4 A (average)

1-3-3. Software Information

Supported OS:

Latest Windows XP (32 bit), Windows Vista (32 bit / 64 bit), Windows 7 (32 bit / 64 bit)

Supported Interface:

USB 2.0

Minimum System Requirements:

256 MB RAM (512 MB or more is recommended),

128 MB free disk space (256 MB or more is recommended),

1 GHz CPU (2 GHz or more is recommended.)

Recommended Applications for precise output:

Adobe Photoshop, Adobe Photoshop Elements, Paint Shop Photo Pro (for BMP editing)

Adobe Illustrator, CorelDRAW (for Vector Data editing)

1-3-4. Other Requirements

When purchasing optional tools and devices, choose one that meets the following requirements.

USB cable:

USB 2.0-compliant device cable (A/B)

<Note>

Using other USB 2.0-compliant device cable may result in improper connection.

USB flash memory:

Capacity under 32 GB, FAT 32 formatted,

Heat Press:

Must be able to handle the area of Platen 14 x 16 (355.6 mm x 406.4 mm) and maintain heat production of 356 °F (180 °C)

for 35 seconds. Pretreatment must be cured with the heat press instead of oven to keep the surface flat and smooth.

<Note>

When you print with White ink, we recommend using oven instead of heat press. (320°F (160 °C), 3 and half minutes with the

tunnel 2.4 meter long as a rough indication)

Separator sheet:

When you cure Pretreatment and ink, be sure to use this to make the surface smooth and flat. When you cure printed ink, use

this for separation.

GT-3 Series

1. Read This First

Urethane mat (continuous foam):

When you cure Pretreatment, use this to release the hot air quickly.

T-shirt:

Made with 100 % cotton, 50 % cotton and 50 % polyester (light-colored are recommended)

<Note>

z Pretreatment on some T-shirts may be seen after applied and cured. In that case, wash lightly with water to remove mark.

Some dyes may be decolorized by Pretreatment, especially "dye migration" will occur on Polyester garment. Be sure to

test before your production.

z Some manufacturing brands may not work as good as 100% cotton garment.

You need to test prior to your production, especially when you print on something new and unknown materials.

1-3-5. Consumable Requirements and Options

For ordering new or replacement items please use the codes below.

Consumables Parts Code

Black Ink Cartridge 180 cc

380 cc

GC-30K18

GC-30K38

Magenta Ink Cartridge 180 cc

380 cc

GC-30M18

GC-30M38

Cyan Ink Cartridge 180 cc

380 cc

GC-30C18

GC-30C38

Yellow Ink Cartridge 180 cc

380 cc

GC-30Y18

GC-30Y38

White Ink Cartridge 380 cc x 2 GC-30W38

Maintenance Solution (5 kg) GC-50S5K

Pretreatment 20 kg GC-51P2L

Wash Liquid SA6248

Maintenance Cleaning Kit SB3168

Nozzle Cleaning Kit SB3082

Platen Sheet PLTN 14x16 SB3035

Platen Sheet S PLTN 10x12 SA6401

Platen Sheet SS PLTN 7x8 SA8211

Print Head SB3184

Pretreatment Roller SB1290

Capping Cartridge W SB3047

Wiper Cleaner SB3101

Grease SB3229

Waste Ink Tank SB2582

Maintenance Cartridge W SB3264

Maintenance Cartridge (Color) SB3265

Filter Cartridge W SB2512

Filter Cartridge (Color) SB2508

GT-3 Series

2. Identifying Your Printer’s Parts

2-1. Front

0043Y

No. Name Description

1 Platen Holds the T-shirt to be printed.

2 Platen Sheet Prevents a T-shirt from slipping so that an image is printed on your desired position.

3 T-shirt Tray Keeps parts of T-shirt hanging from the Platen (e.g. sleeves) on this T-shirt Tray.

4 Front Cover Open this to work on the inside of your printer, after you turn OFF the printer. (If you

open the Front Cover while operating, the power automatically turns off.)

5 Stop Lever Unlocks the lock of the Front Cover. Keep pushing it to release the lock when you

close the Front Cover.

6 Control Panel Indicates the status of the printer. Use this to operate your printer.

See “2-7. Control Panel” for the details.

7 Power Switch Turns on/off your printer.

8 Shoulder Bar Adjusts the T-shirt position.

9 USB flash drive Slot Inserts USB flash drive.

10 Ink Cartridge Slots Load the Ink Cartridges of the appropriate color: from the left side W1, W2, W3, W4,

Black(K), Magenta (M), Cyan (C), Yellow (Y).

11 Ink Cartridge Storage Stores the new Ink Cartridges.

12 Guard Bar Keeps the loading space of the Platens.

13 Clearance Sensor

(Obstruction Sensor)

Cancels an operation for safety, if it detects obstructions on the Platen. When you

lower the platen for printing thicker materials, use Platen Button on the Control Panel

and check the movement if the material does not hit the flap of the Clearance Sensor.

The sensor will not work when the clearance between the print head and the material

is too wide (the platen is too low). Confirm the platen height by referring "4-5. Placing

the T-shirt on the Platen".

14 Model Plate Indicates the serial number of the product.

GT-3 Series

2. Identifying Your Printer’s Parts

2-2. Right

0044Y

No. Name Description

1 Exhaust slot The outlet of the Exhaust Fan. Do not cover; Leave the space of 20 cm or

more to release the exhaust air.

2-3. Rear

0045Y

No. Name Description

1 AC cord socket Inserts AC cord.

2 USB port Inserts USB cable to PC.

3 LAN port Inserts LAN cable to PC.

4 Rear Cover Covers the Platen moving area.

5 Waste Ink Tube Drains the waste ink.

6 Waste Ink Tank Holds the waste ink. Be aware of the room.

GT-3 Series

2. Identifying Your Printer’s Parts

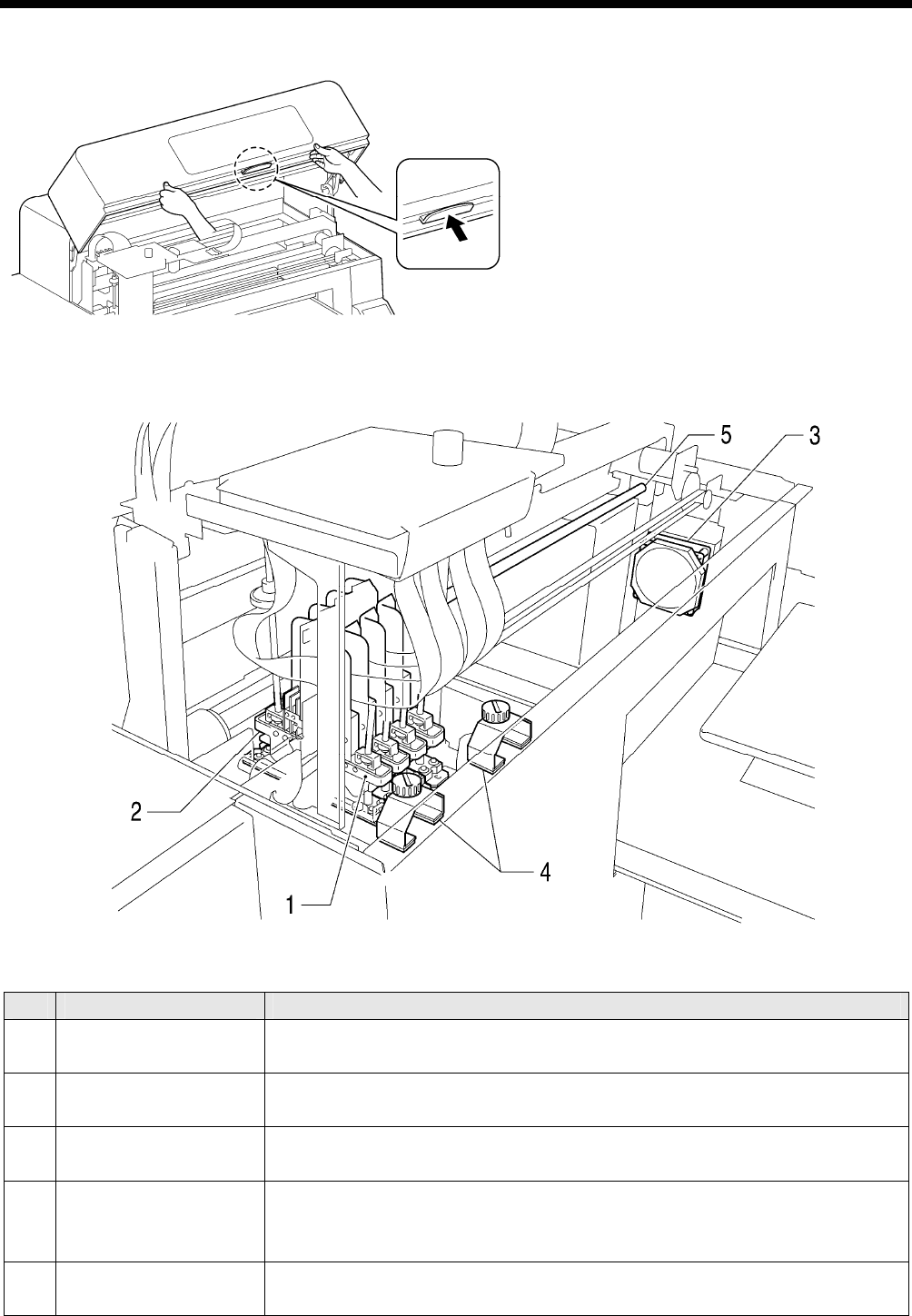

2-4. Inside of the Front Cover

Cancel any operation, restore the Platens and turn off

your printer before opening the Front Cover.

Lift the Front Cover with both hands until the lock is

set when opening. Keep pushing the Stop Lever to

release the lock and close the Front Cover with both

hands.

<Note> If you open the Front Cover while

operating, the power automatically turns off.

0047Y

No. Name Description

1 Print Heads (Front) Jets the Color Ink to the platen.

From the left black, magenta, cyan, and yellow.

2 Print Heads (Back) Jets the White Ink to the platen.

From the left W1, W2, W3 and W4.

3 Filter Cover, Fan Filter,

Exhaust Fan

Absorbs ink mist inside the printer. Exchange the Fan Filter inside the Filter Cover at

the timing when you exchange Wiper Cleaner. See "6-1-4. Replacing the Fan Filter".

4 Roller Felts Protects the roller by wiping off the surface. Exchange the Fan Filter inside the Filter

Cover at the timing when you exchange Wiper Cleaner. See "6-1-5. Replacing the

Roller Felts".

5 Carriage Guide Shaft This may be covered with ink mist and dust. Keep Clean to move the Carriage

smoothly. See "6-1-6. Cleaning the inside of the printer and restart ".

0046

GT-3 Series

2. Identifying Your Printer’s Parts

2-5. Upper part of the Maintenance Unit

0048Y

No. Name Description

1 Caps (Front: Color side) Cover the surface of the Print Heads and absorb ink in head cleaning.

From the left black, magenta, cyan, and yellow.

2 Caps (Back: White side) Cover the surface of the Print Heads and absorb ink in head cleaning.

From the left W1, W2, W3, and W4.

3 Wipers (Color / White) Wipe off the waste ink on the surface of Print Heads. Keep them clean for print quality

at the timing when you exchange Wiper Cleaner. See "6-1-2. Replacing the Wiper

Cleaner and Cleaning the Caps / Wipers".

4 Wiper Cleaner

(Front: Color side)

5 Wiper Cleaner

(Back: White side)

Removes the waste ink on the Wiper. Exchange regularly and keep them clean for

print quality, at the timing when you open the new ink cartridge or when you see the

warning on the display of Control Panel. Remove the projections of both sides and lift it

up. See "6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers".

6 Flushing Plate Sponge

Flushing Plate Felt

Hold the flushed ink for keeping print quality. Exchange them at the timing when you

exchange Wiper Cleaner. See "6-1-3. Replacing the Flushing Plate Sponge and

Flushing Plate Felt".

GT-3 Series

2. Identifying Your Printer’s Parts

2-6. Under the Platen

0049Y

No. Name Description

1 Platen Fixing Lever Fixes the Platen.

Tighten/Loosen this lever to install/uninstall the Platen and to adjust the Platen height.

Move the Platen Height Adjustment Lever (2) to the A position in the right image

and loose the Platen Fixing Lever (1). When you pull out the Lever (1), you can turn

it with no load so that move the Lever (1) to easy-to-operate position. Then tighten

the Lever (1) to fix the Platen.

2 Platen Height

Adjustment Lever

Adjusts the Platen height.

Left most position "A" is the normal T-shirt position.

Check the exact height with Platen Button on Control Panel when you print on thicker

material. The adequate clearance between the Flap Sensor and the printed material is

app. 2 mm. See "4-5. Placing the T-shirt on the Platen".

Ink mist may spreads inside the printer If you print with wider clearance, the ink mist will

spread inside the printer and the printing material, and may damage the sensors.

3 Bush Platen Shaft

4 Platen Positioning Plate

Fixes and holds the Platen.

<Note>

You can use Lower-the-Platen Assy (option) when you regularly print thicker material, which can lower the platen by 13 mm

than the standard height. See "4-4-3. Lowering the Platen height"

GT-3 Series

2. Identifying Your Printer’s Parts

2-7. Control Panel

0050Y

No. Name Description

1 Error Lamp OFF: no errors

ON: one or more errors have been detected. See "7-4. Error messages".

2 Power Lamp ON: shows the power is ON.

3 Head Cleaning

Button

Cleans all the Print Heads with normal cleaning. (the number of cleaning depends on the

model).

4 Platen Button Loads / Ejects the Platen. Press this button when you check the adequate height of the

Platen after you change the height. See "4-5. Placing the T-shirt on the Platen"

5 Stop Button Cancels printing or Print Head cleaning.

Returns to Standby mode.

6 Up Button Selects the previous (upper) item. Increases a numeric value. Opens the Menu display.

7 Down Button Selects the next (lower) item. Decreases a numeric value. Opens the Menu display.

8 OK Button Executes the selected command. Opens the Menu display. Clears the error status.

9 Back Button Returns to the previous display. Opens the Menu display.

10 Display Displays the Job Comment of the print data received, the status of the printer, and the

menu items for various settings.

11 Print Button Indicates the print data status and starts the print.

OFF: No print data has been received

Flashing: Receiving a print data

ON: Print data is ready to print.

<Note>

On machine initialization these lamps have a 30-second self check time.

GT-3 Series

2. Identifying Your Printer’s Parts

2-7-1. Display

The following image indicates that GT-3 has received a print data and ready to print. The Display indicates Job, printer status

and the information needed for printing operations.

01e0026Y

No. Item Shown Description

1 Job Name Shows the indentified name of the print data, which is automatically set by Printer Driver.

2 Job Comment Shows the 30 characters of the Job Comment set by the operator with Printer Driver.

3 Amount of Ink

Required

Shows how much ink (cc) is required for making one print of the received data.

Shows warning message(s) if necessary.

4 Platen Size Shows Platen Size set by Printer Driver.

5 Number of Platen

Move Shows the number of the Platen Move (loading/unloading) in printing one print data.

6 Number of Print Shows the number of prints completed of the print data.

7 Printer Status Shows the printer status.

8 Amount of Ink

Remained

Shows amount of ink remained in each cartridge, from the left, W1, W2, W3, W4 , Black

(K), Magenta (M), Cyan (C) and Yellow (Y).

It flashes when ink is low. Prepare the new cartridge(s).

9 Uni-Directional Print

Icon Shows when the printer or the print data is set to uni-directional printing.

10 Number of White

Print Head Icon Shows how many White Print Heads are used in printing one print data.

11 Resolution Icon Shows the resolution of the print data.

<Note> When one or more errors are detected, error message(s) will be displayed instead.

GT-3 Series

2. Identifying Your Printer’s Parts

2-7-2. Menu List

Push either one of the OK Button, Up Button, Down Button and Back Button to go into the Menu.

Menu Content

Head Cleaning

Executes Head Cleaning of either one by one or of all four Print Heads.

See "7-2-2. Cleaning the Print Heads"

Normal: normal mis-firing

Powerful: After cleaning the Print Head nozzles, when normal head cleaning does not work.

Test Print

Prints to check mis-firing and print quality.

Nozzle Check CMYK / W: shows mis-firing

Standard Check CMYK / W: shows general print quality

Whiteness: confirms the white quality

Head Test CMYK / W: confirms which print head is broken

Daily Cleaning White Flushes the " thinner and white-less" dull White Ink caused by sinking white pigment. See

"6-2-1. Daily Cleaning White for replacing dull White Ink".

Print Data Load Reads a print data (AR3 file) in USB flash drive. The inside folder shows with [...].

Print Direction

Sets the print direction. This setting is prior to Printer Driver setting.

Auto： Default Bi-directional, Printer Driver setting is available.

Always Uni-Directional: always prints uni-directionally.

Always Bi-Directional: always prints bi-directionally. See "7-2-4. Changing the Print

Direction".

Maintenance

Goes into the Maintenance submenu.

White Tube Cleaning： Cleans the pigment in White Print Heads and Tubes.

See "6-2-2. White Tube Cleaning."

Load White： Loads White Ink into the Tubes filled with Maintenance Solution

after White Tube Cleaning. See "6-2-2. White Tube Cleaning"

Initial Cleaning： Loads ink into the empty new Tubes and Print Heads. CMYK ink

is loaded directly into Tubes. Maintenance Solution is

required before White ink.

Maintenance Parts Exchange: See "6-1-2" to "6-1-7".

Nozzle Cleaning: Select this menu when you cannot solve mis-firing. See

"7-2-6. Cleaning the Print Head Nozzles"

CR Encoder Strip Cleaning: See "6-1-7. Cleaning the Encoder Strip".

Head Replacement: See "7-2-7. Replacing the Print Head"

Color Tube Cleaning: See "7-2-7. Replacing the Print Head"

Log Copy to USB: See "7-2-13. Copy Log file to USB flash drive"

Printer Setting

Goes into the Printer Setting.

LCD Contrast: Adjusts the Display contrast. See "3-4-1. Adjusting the Display Contrast"

Speaker Volume: Adjusts the speaker volume. See "3-4-2. Adjusting the Speaker Volume".

Temperature: Sets Fahrenheit / Centigrade. See "3-4-3. Temperature".

Auto Cleaning Interval: See "7-2-5. Changing the Auto Cleaning Setting ".

CR Speed Adjustment: Adjusts the increase/decrease of the Carriage speed. See

"7-2-9. Adjusting the CR Speed".

Flushing Interval: Adjusts the number of lines (interval) to flush ink in printing. See

"7-2-10. Adjusting the Flushing Interval".

Flushing Volume: Adjusts the ink volume in flushing. See "7-2-11. Adjusting the Flushing

Volume".

(Continued on the next page)

GT-3 Series

2. Identifying Your Printer’s Parts

Menu Content

Printer Setting

Daily Cleaning W Setting: Adjusts the amount of White Ink that is flushed in Daily

Cleaning White. See "7-2-12. Adjusting the amount of White Ink in Daily

Cleaning White".

Auto Job Delete: Deletes the print data automatically after the print number which

is set with Printer Driver is finished. Default is OFF.

GT-341 mode (No White): Sets the printer to stop all the operation of White Heads.

See "6-2-５. Required Maintenance for the Long Storage".

Total Print Shows the number of prints.

Platen Reset Restores the Platen.

Language Sets the language shown on the display. See "3-4-4. Language".

Version Shows versions of the firmware.

GT-3 Series

3. Getting Started

Before using your printer, it needs to be correctly setup as described in this chapter.

WARNING

Do not handle the power cord with wet hands, otherwise it may cause electric shocks.

Do not set up the printer in a dusty environment. If dust collects inside the printer, it may cause fire or

electric shocks or problems with correct operation.

Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving

a serious electric shock, and problems with correct operation may also occur.

Do not bend the cords excessively or fasten them too hard with staples or anything similar to secure

cords, otherwise there is the danger that fire or electric shocks could occur.

CAUTION

Setting up and moving of the printer should only be carried out by a qualified technician.

The printer machine weighs approximately 111 kg (245 lb). Transporting and setting up of the printer

should be held in proper way. The machine may fall down and cause injury.

The printer must be used on a suitable stable surface, otherwise it may tip over or fall down and cause

injury.

Furthermore, the table that supports the printer should be at least 137 cm (53.9 inch) in width and

104.5 cm (41.1 inch) in depth, and should be able to bear a weight of 150 kg (330 lb) or more.

Do not set up the printer in a place where it will be affected by vibration. It may become unbalanced

and fall down, which cause injury or damage to the printer.

Do not connect the power cord until setup is complete, otherwise the printer may operate if the power

switch is turned on by mistake, which could result in injury.

Do not climb onto the printer or place heavy objects on top of it, otherwise it may become unbalanced

and tip over or fall down and cause injury.

GT-3 Series

3. Getting Started

3-1. Placing Your Printer

Uncrate and Setting the printer by following the steps in Uncrate Manual , which is packed with the printer. Locate your printer

taking the following into account

z Environmental conditions are suitable.

z Avoid direct sunlight, dust and extremes of humidity.

z Never use an extension cable.

z A working space must be left around the printer.

Minimum space of 100 cm (39.4 inch) on the front and the right. Keep away from the right side of the Exhaust Fan

at least by 20 cm (7.9 inch).

z Body size is app. 137 cm (53.9 inch) x 104.5 cm (41.1 inch) x 66 cm (26.0 inch) and weighs app. 111 kg (245 lb).

z The table that supports the printer should be at least 137 cm (53.9 inch) in width and 104.5 cm (41.1 inch) in depth,

and should be able to bear a weight of 150 kg (330 lb) or more. Its tabletop must be level.

Unit:cm

0051Y

GT-3 Series

3. Getting Started

3-2. Turning On/Off Your Printer

<Note>

Before you connect the power cord, make sure:

z The Ink Cartridges, Wiper Cleaners and Flushing Sponge et al. are adequately installed.

z Waste ink tube is properly set the Waste Ink Tank*.

(* See "1-3-5. Consumable Requirements and Options" for part code.)

z The Rear Cover is mounted.

z Keep the front space approximately 30 cm (12 inches) on the front as the Platen slides out when operating, and the

right space at least 20 cm (7.9 inch) for exhausting air from the Exhaust Fan for exhausting air.

3-2-1. Turning On Your Printer

(1) Hold the White Ink Cartridges upside down from the inserting position and shake them back and forth beforehand

(30 seconds to 1 minute for each).

(2) Connect the power cord (included) to the AC cord socket of your printer.

(3) Connect the power plug to the power outlet.

Ensue the printer is connected to a suitable earth point

(4) Press the Power Switch to turn ON your printer.

Your printer turns on, lights up the Error Lamp and the Print Button while initializing.

The initialization requires approx. 40 seconds. When it finishes, the machine goes to [standby] mode.

GT-3 Series

3. Getting Started

3-2-2. Turning Off Your Printer

When you have finished using your printer, follow the instructions below to turn it off.

(1) Make sure that your printer is [standby] or [ready] mode.

(2) Select [Platen Reset] in Menu to store the Platen in the printer.

(3) Press Power Switch to turn OFF your printer.

(4) If you are planning not to use your printer for over-two-week periods of time, disconnect the power plug from the power

outlet.

<Note>

z As for GT-381 and GT-361, do not leave the White ink inside the printer. White pigment precipitates and may cause

serious damage to your printer. Before you start your job, shake the cartridges for 30 seconds to 1 minutes and execute

[Daily Cleaning White] to flush the white-less White Ink. Clean the tubes once a week with Maintenance Solution.

Follow the steps of "6-2-1. Daily Cleaning White for replacing dull White Ink" and “6-2-2. White Tube Cleaning ".

z Do not turn off your printer when it is operating. It may cause serious damage to your printer. If you turn off your printer

accidentally during the operation, immediately restart it, and then turn it off correctly following the steps described in this

section. If the power supply stops in printing by accident and will not recover soon, then turn OFF the printer and apply

the Print Head Protection Films packed in the Print Head to cover the nozzles of the Print Heads so that the Films

should protect the nozzles from drying. Wash the surface of the Print Head Protection Films with either the

Maintenance Solution or Wash Liquid to protect the Print Head Nozzles from dust. After the power supply is available,

remove the Print Head Protection Films and turn ON the printer for initialization and do Head Cleaning.

0052Y

z If the printer is unused for a long time we recommend turning on your printer once a week and press the Head Cleaning

Button to protect the Print Heads and Maintenance Unit from drying and clogging. This ensures the ink is kept free

flowing. As for White Print Heads, do the powerful cleaning with maintenance solution.

If you are planning not to use your printer for more than two weeks, follow “6-2-5. Required Maintenance for the Long

Storage" to prevent ink clogging.

GT-3 Series

3. Getting Started

3-3. Preparing Your PC

This section describes how to install the GT-3 Printer Driver (FileOutput), manuals (Basic Operation Manual/ Instruction

Manual), Brother GT-3 File Viewer, and other tools. Make sure the steps because there are some different dialogs shown

between Windows XP and Vista / Windows 7.

After those installations are over, install GT-3 Printer Driver (USB) by connecting USB 2.0 cable.

3-3-1. When you already have GT-541/GT-782

You cannot print GT-3 print data (*.ar3) with GT-541/GT-782; the inside format has been changed. Likewise you

cannot print GT-541/GT-782 print data (*.arp) with GT-3.

3-3-2. PC preparation: For Windows XP (32 bit)

Install File Output Printer Driver "Brother GT-3 FileOutput" first to your PC.

Do not connect the printer to the PC at this stage.

<Note>

You must be logged on with Administrator rights on the PC.

(1) Turn on your PC.

(2) Close all open applications

(3) Insert the Install CD (included) to your PC.

Open the CD-ROM drive and double-click "Setup.exe".

(4) The Installer starts installation. Follow the indications of the dialogs.

<Note>

When you install to the PC that the printer drivers and tools are already installed, e.g. updating, the message to confirm

uninstallation appears. If you click "Yes", uninstallation starts to uninstall the necessary tools but Printer Driver(s) is/are

not uninstalled. If uninstallation fails, a dialog box appears “Uninstallation of the former version failed. Do you want to

continue installing the new version?”. Click [ No ] and quit the installer. Open "Add or Remove Programs" of Control

Panel and remove "Brother GT-3 Tools". Then start the installation from the beginning.

(5) During the installation, the following warning appears. Click "Continue Anyway" and continue.

Windows XP

(6) After installation, your PC will need to restart. Restart your PC. If you are going to use your printer without connecting it to your PC,

this will be the end of PC preparation.

GT-3 Series

3. Getting Started

3-3-3. Connection with USB 2.0 Cable: for Windows XP

(1) Connect the USB 2.0 cable to your printer (power OFF).

<Note>

We do not recommend connection via a USB hub to the printer.

(2) Connect the other end of the USB 2.0 Cable to your PC.

(3) Turn on your GT-3 printer. The following window appears. Select "No, not this time”, and then click “Next”.

(4) Insert the Install CD. The following window appears.

GT-3 Series

3. Getting Started

(5) Select “Install the software automatically (Recommended)”, and the click “Next”.

The installation starts. When "Hardware installation" dialog (not passed Windows Logo testing, see 3-3-2. (5)) appears

during installation, Click "Continue Anyway". The installation continues.

<Note>

z If you connect the USB 2.0 cable anyway, the dialog to insert the install CD appears. Confirm that the Install CD is

inserted properly, and then click “OK”.

z If install CD is not in drive [D:], the following window appears. Click “Browse…” to select the CD drive, select

GT-3.gpd in [ 32bit_OS ] the folder and then click “OK”. The installation continues.

(6) Click "Finish" when "Completing the Found New Hardware Wizard" dialog.

(7) Open "Printers and Faxes" in "Control Panel".

(8) Click either "Brother GT-3" "Brother GT-3 FileOutput" icon and select "Set as Default Printer" on “File” menu. “Brother

GT-782” icon is checked and Brother GT-782 is set as the default printer. This will help to do the layout with your

application software.

The PC setup is now completed.

<Note> for installations of more than one GT-3 printer.

To connect another GT-3 to the PC, repeat the steps of 3-3-3. Connection with USB 2.0 Cable: for Windows XP. From

the second GT-541, the printer names automatically become “GT-3 (copy X)”. You can change the names as " GT-3 xxx"

(e.g. "GT-3 #2") in the “Printer and Faxes” in the “Control Panel” for your workability.

GT-3 Series

3. Getting Started

3-3-4. Installation of PC for Windows Vista / Windows 7 (32 bit / 64 bit)

Refer first to "3-3-2. PC preparation: For Windows XP (32 bit)" and confirm the process. Install the file Output Printer Driver

"Brother GT-3 FileOutput" first to your PC. Tools and manuals are installed together from Install CD, and PC must be restarted.

Then PC is connected to USB 2.0 cable, the printer turned ON, and USB 2.0 cable connected to the printer.

Install File Output Printer Driver "Brother GT-3 FileOutput" first to your PC

Do not connect the printer to the PC at this stage.

<Note>

You must be logged on with Administrator rights on the PC.

(1) Turn on your PC.

(2) Close all open applications

(3) Insert the Install CD (included) to your PC.

Open the CD-ROM drive and double-click "Setup.exe".

(4) The monitor turns dark and the following dialog appears when User Account Control is ON. Select "Continue".

(5) The Installer starts installation. Follow the indications of the dialogs.

GT-3 Series

3. Getting Started

(6) During the installation, the following warning appears. Click "Install this driver software anyway" and continue.

(7) After installation, your PC will need to restart. Remove your Install CD and restart your PC. If you are going to use your printer

without connecting it to your PC, this will be the end of PC preparation.

3-3-5. Connection with USB 2.0 Cable: for Windows Vista / Windows 7

(1) Connect the USB 2.0 cable to your printer (power OFF).

(2) Connect the other end of the USB 2.0 Cable to your PC.

(3) Turn ON your GT-3 printer. Installation starts automatically. The information appears at the right bottom of the PC monitor.

(4) After installation, open "Printers" in "Control Panel" of PC.

(5) Click either "Brother GT-3" or Brother GT-3 FileOutput icon and select "Set as Default Printer" on “File” menu. “Brother

GT-782” icon is checked and Brother GT-782 is set as the default printer. This will help to do the layout with your

application software. The PC setup is now completed.

3-3-6. Opening the installed manuals

(1) Click “All Programs” on “Start” menu.

(2) Select "Manuals“ in "Brother GT-3 Tools”.

(3) Click the manual you want to open. The language is the same that is selected in installation.

<Note>

Only manuals with selected language are installed to your PC. Others PDF files are in the folder "Manual" on Install CD..

GT-3 Series

3. Getting Started

3-3-7. Opening the Useful Tools

Useful Tools are installed in "Useful Tools“ in "Brother GT-3 Tools”.

Color Palettes for Adobe Photoshop, Illustrator and CorelDRAW

Color Palettes "GT_Colors_T.aco" for Adobe Photoshop, "GT_Colors_T.ai" for Illustrator, "GT_Colors.cpl" and

"GT_Tshirts.cpl" for CorelDRAW are available. The colors are the same in GT Color Chart "ColorChart_1200.ar3" and

"ColorChart_600.ar3" in "Test Data“ in "Brother GT-3 Tools". Print Color Chart to check the colors that your Printer actually

provides as color formula guide. (CorelDRAW does not allow to put the same colors in one color palette so we provide two

different color palettes.)

(1) Select [All Programs] on [Start] menu of your PC..

(2) Select "Useful Tools“ in "Brother GT-3 Tools”.

(3) Click the files you want to download as indicated.

(4) To use Color Palettes in the applications, see "4-2. Setting the Applications’ Print Condition " or refer to the Help of the

applications.

Printing Grid data on the Platen Sheet

(1) Select "Useful Tools“ in "Brother GT-3 Tools”.

(2) Double-click the Grid print data that fits the Platen size (e.g. Grid14x16.ar3) and send it to the printer.

(3) Print the data on the Platen directly, with no T-shirt on. Touch the surface with paper or cloth to dry the ink after printing.

<Note>

Print on a new Platen Sheet when you exchange to a new one.

Photoshop Action Files

There are two Action Files available: "SolidWhite.atn" (see "4-2-3. Settings for Adobe Photoshop") to change RGB=255 white

to RGB=254 white, and "TransLayer.atn" (see "4-3-13. Printing the image file on Transparent Layer" to get the Transparent

Info from the image. These action file s will save your time. See the Photoshop Help for further information.

Color Lists (PDF)

Color Lists are available as the image data (PDF) along with the print data "ColorChart_1200.ar3" and "ColorChart_600.ar3".

Blues, Greens, Oranges, Reds and Color Chart image data are in Useful Tools. You can change the printer driver menus to

see how the colors change with the settings. Use PLTN 14x16.

(1) Select "Useful Tools“ in "Brother GT-3 Tools”.

(2) Open or save the files "GT_Blues.pdf"(blue-violet), "GT_Greens.pdf"(green-yellow), "GT_Oranges.pdf"(orange),

"GT_Reds.pdf"(red-purple) or "GT_ColorChart.pdf".

GT-3 Series

3. Getting Started

3-3-8. How to use Firmware Update Tools

Download the new Firmware program from the Web site when informed. Read the Firmware program with GT-3 Firmware

Update Tool in "Brother GT-3 Tools" and update the Firmware program inside the printer.

(1) Select "All Programs" on "Start" menu of your PC.

(2) Select "GT-3 Firmware Update" in "Brother GT-3 Tools".

(3) Read the update program (*.bwf).

(4) Update the Firmware program by following the wizard dialog, connecting PC to the printer with USB 2.0 cable.

GT-3 Series

3. Getting Started

3-4. Setting Up Your Printer

Adjust the display contrast and the speaker volume as required.

3-4-1. Adjusting the Display Contrast

(1) Press the OK Button on your printer’s Control Panel and go to the Menu.

(2) Use the Up/Down Button to select [ Printer Setting ] > [ LCD Contrast ] and then press the OK Button.

The following display appears.

02e0027Y

(3) Use the Up/Down Button to select your desired contrast from 0 to 7, and then press the OK Button.

3-4-2. Adjusting the Speaker Volume

(1) Press the OK Button on your printer’s Control Panel and go to the Menu.

(2) Use the Up/Down Button to select [ Printer Setting ] > [ Speaker Volume ] and then press the OK Button.

The following display appears.

03e0028Y

(3) Use the Up/Down Button to select your desired volume from 0 (silent) to 7, and then press the OK Button.

3-4-3. Temperature

(1) Press the OK Button on your printer’s Control Panel and go to the Menu.

(2) Use the Up/Down Button to select [ Printer Setting ] > [ Temperature ] and then press the OK Button.

(3) Use the Up/Down Button to select from Fahrenheit / Centigrade and then press the OK button.

3-4-4. Language

(1) Press the OK Button on your printer’s Control Panel and go to the Menu.

(2) Use the Up/Down Button to select “Language”, and then press the OK Button.

(3) Use the Up/Down Button to select your desired language from English / Español / Français / Deutsch / Italiano /

Japanese and then press the OK button.

GT-3 Series

4. Printing Directly from Applications

WARNING

If a foreign object gets inside the printer, immediately turn off the power switch and disconnect the

power cord, and arrange for a service call to resolve.

If you continue to use the printer while there is a foreign object inside, it may result in fire or electric shocks or

problems with correct operation.

Do not allow the printer to come into contact with liquids, otherwise it may cause fire or electric shocks or

problems with correct operation.

If any liquid gets inside the printer, immediately turn off the power switch and disconnect the power cord. Contact

Brother to arrange a service call to resolve.

Do not use the printer when smoke or a bad odor coming from the printer, otherwise it may cause fire or electric

shocks or problems with correct operation. Immediately turn off the power switch and disconnect the power cord,

and arrange for a service call to resolve.

CAUTION

This printer should only be used by operators who are appropriately trained in its operation.

Do not move the Platen by hand.

The Printer may be seriously damaged by this.

When a problem occurs with the operation of the printer, contact the place of purchase or a qualified

technician.

GT-3 Series

4. Printing Directly from Applications

4-1. Basic Printing Procedure

(1) Set the proper color settings and print conditions of the application. For precise editing and output, applications such as

Adobe Photoshop, Illustrator, CorelDRAW, Paint Shop Photo Pro are recommended, e.g. to deal with higher resolution

images (200 dpi or higher).

See “4-2. Setting the Applications’ Print Condition” for further details.

(2) Create the artwork using a suitable graphic application. Use RGB=254 (=254, 254, 254) white for white color. RGB=255

(=255, 255, 255) white (paper color) is transparent color with no ink printed.

(3) Select [ File ] > [ Print ] menu of your application an set Printer Driver conditions.

See “4-3. Setting the Printer Driver Condition”.

(4) Turn on your printer:

See “3-2-1. Turning On Your Printer”.

(5) Execute [ Daily Cleaning White ] to keep the whiteness of White Ink. See "6-2-1. Daily Cleaning White for replacing dull

White Ink". Test print for both CMYK and White and check the print quality. See "7-2-3. Checking Print Quality with

Nozzle Check Pattern".

(6) Send data to your Printer. Select Printer Driver: either GT-3 Printer Driver (USB 2.0 Cable) for direct print or GT-3

FileOutput Printer Driver to make print data file (.ar3).

As for sending .ar3 file to your Printer, see "5. Printing AR3 Files".

(7) Install the Platen of the size you have selected in step (3) "4-3. Setting the Printer Driver Condition".

See “4-4. Uninstalling / Installing the Platen”.

(8) Set the T-shirt (as for dark garments, pretreated. See "4-6-1. Applying the Pretreatment") on the Platen and adjust the

Platen height. The operation on the both platens (Left/Right) is the same. See “4-5. Placing the T-shirt on the Platen”.

(9) Press the Print Button on the Control Panel to start printing. See "4-6-2. Making One Print.".

(10) Remove the "printed" T-shirt from the Platen.

See “4-7. Removing the T-shirt from the Platen”.

(11) Fix the ink with heat onto the T-shirt.

Use a conveyer oven or a heat press to fix the ink onto the T-shirt. See “4-8. Curing the Ink onto the T-shirt”.

(12) Repeat (8) to (11) until all the prints are finished.

(13) See the Chapter 6 for necessary maintenance and for regularly and more-than-2-week storage.

(14) Turn off your printer. See “3-2-2. Turning Off Your Printer”.

4-2. Setting the Applications’ Print Condition

This section describes the settings for correct printing of garments.

4-2-1. Common Notice for All Applications

Color Mode / Color Space:

GT-3 Printer is RGB (Red Green Blue) printer. If you use Adobe, Corel applications, please note that some colors in CMYK

(Cyan Magenta Yellow Black) mode cannot be printed as expected because of the color matching process. We strongly

recommend that the artwork should be made in RGB mode and working space should be always "sRGB IEC61966-2.1".

GT-3 Series

4. Printing Directly from Applications

Print Layout:

Your printer has a large print area 14x 16 inches (35 x 40 cm), Any application has a rule to do the layout in printing, e.g.

Microsoft Internet Explore sets the artwork at the center top, Microsoft Power Point does at the center middle. The GT-3

Printer does not have Letter or A4 paper size. To avoid this issue, please set the paper size as 14x 16 inches (35 x 40 cm) and

do the layout manually by yourself. Use GT-3 FileOutput Printer Driver to see the final layout with GT File Viewer.

We recommend that GT-3 Printer should be your PC's default printer. See the last section of "3-3-3. Connection with USB 2.0

Cable: for Windows XP" or "3-3-5. Connection with USB 2.0 Cable: for Windows Vista / Windows 7".

How to make White data:

Printer Driver makes either White-only print data or Color-on-White-mask (under base) print data from one image data. When

you print colorful image by selecting "White-only", then the output is monochrome. Set RGB=254 white for white image.

RGB-255 (paper color) is transparent with no ink printed. When there are some spots in RGB=255 color in a photo, e.g. those

spots will never be printed. Use GT-3 FileOutput Printer Driver to see the final layout with GT File Viewer. As for the operations

for each application, refer to the following pages or application help.

Print Cancel:

Your printer does not start printing until you press the Print Button; The printer memory only holds one print job data at any

time.

<Important!>

Do not use canceling command from “Printer and Faxes (for Windows XP)” / “Printers (for Windows Vista)” / "Devices and

Printers (for Windows 7)" in “Control Panel”. Doing so causes an error and you may have to restart your printer.

Print AR3 files:

Use “GT-3 FileOutput” Printer Driver, which saves print data in AR3 format. With this you can see the detailed print conditions

and estimated ink cost. See “5. Printing AR3 Files.” for the details.

<Important!>

Do not use “Print to File” command in the applications’ Print window. File extension may be different.

<Note>

z You cannot print GT-541/GT-782 print data (ARP files) with GT-3.

z The settings of printer driver may be applied for one print; it depends on the application.

z The settings made with Control Panel of your PC sometimes may not be applied to the application. If so, make the

settings again in the menu of printer driver; these are applied to the actual settings.

GT-3 Series

4. Printing Directly from Applications

4-2-2. Settings for CorelDRAW

Color settings:

(1) Select [ Tools ] > [ Color Management ]

(2) CorelDRAW 10/11/12: Select “Color Management off” as the style.

CorelDRAW X3/X4: Select RGB radio button. Check the left top menu: it changes [default settings] to [ Custom (Current

settings not saved)]. Also click the orange arrow from [ Generic CMYK printer profile ] to [ Generic Profile ]

CorelDRAW 10/11/12

CorelDRAW X3/X4

GT-3 Series

4. Printing Directly from Applications

CorelDRAW X5: Select the menu as shown in the below and click OK.

Default color settings

Color Profiles: RGB: sRGB IEC61966-2.1

CMYK: U.S. Web. Coated (SWOP) v2

Primary color mode: RGB

Rendering intent: Relative colorimetric

CorelDRAW X5

GT-3 Series

4. Printing Directly from Applications

Print Area:

CorelDRAW 10/11/12/X13/X14

(1) Select [ File ] > [ Print Setup ] menu.

(2) Select “Brother GT-3” or "Brother GT-3 FileOutput" for the printer to be used. Select either one of those as your PC's

default printer then the settings will be easier.

(3) Select [ Layout ] > [ Page Setup ] menu.

<Note> These steps can be applied to set an accurate layout for already existing files.

(4) Click "Set From Printer" to preview the created image in the Platen size (14x16 inches, 355.6 x 406.4 mm).

CorelDRAW X5

The dialog window is slightly changed, but follow the settings above.

Use Color Palettes in Useful Tools:

(1) See "3-3-7. Opening the Useful Tools " and download CorelDRAW Color Palettes "GT_Colors.cpl," "GT_Tshirts.cpl".

(2) Select the [ Window ] > [ Color Palette ] > [ Open palette ] menu.

(3) Select "GT_Colors.cpl," "GT_Tshirts.cpl". Use them with the Color Chart "ColorChart_1200.ar3" or ColorChart_600.ar3".

See "4-3-15. Printing Color Chart".

<Important!>

Do not use HKS, Pantone and other licensed palettes. Those spot Colors are treated "special" for screen-printing Color

separation (remember you can print each Color by print menu). GT-3 Printer Driver cannot deal with these information in

Color matching.

GT-3 Series

4. Printing Directly from Applications

Print:

(1) Select [ File ] > [ Print ] menu.

Click "Properties" to do Printer Driver settings.

CorelDRAW X5

Open the [Color] tab and make the settings below:

Select the radio button "use document color settings"

Color conversions performed by: "Brother GT-3 File Output" or "Brother GT-3"

Correct colors using color profile: " RGB IEC61966-2.1

Rendering intent: Relative colorimetric

<Important!>

Do not check “Print to File" on Print window to make print files. Use GT-3 FileOutput Printer Driver.

GT-3 Series

4. Printing Directly from Applications

Convert to Bitmap:

(1) Select [ Bitmaps ] > [ Convert to Bitmap... ] menu.

(2) CorelDRAW 10/11/12: Make sure that "Color" is RGB and "Apply ICC Profile" is OFF. 200 - 400 dpi is enough for solid

clipart.

CorelDRAW X3/X4: Make sure that "Color mode" is RGB and "Apply ICC Profile" is ON.

CorelDRAW X5: Make sure that "Color mode" as RGB.

CorelDRAW 10/11/12

CorelDRAW X3/X4

If you print the image with White Ink

then make the Anti-aliasing OFF.

CorelDRAW X5

If you print the image with White Ink

then make the Anti-aliasing OFF.

GT-3 Series

4. Printing Directly from Applications

<Important!>

z The platen size may become 14x16 inches when pressing Set From Printer, even after setting the size of 10x12 inches at

"Document Properties" dialog box of Printer Driver. To make print data in platen size of 10x12 inches, set Width : 254 mm

(10 inch), Height : 304.8 mm (12 inch).

z If the print data file is not saved from the printer driver menu but application menu, the extension of the print data is

automatically ".prn" although you added ".ar3". Before you use GT-3 File Viewer to print, change the extension to ".ar3"

manually.

z There are some cases reported in CorelDRAW 11/12 that outline Colors of curved texts (often by Envelop Effects) are not

fully printed. In those cases, convert the text object into Bitmap before you print or check "Rasterize entire page (DPI)"

checkbox in [ Misc ] tag of [ Print ] menu. Select the resolution by the type of image and file size.

Change RGB=255 bitmap white to RGB=254:

RGB=255 (paper color) white is always transparent with no ink printed. When you print an image like photo, there may be

RGB=255 white spots and they will be ink holes. Follow the steps below to change RGB=255 white to RGB=254 white.

(1) Select [ Effect ("Image" for CorelDRAW 12 or under)] > [ Adjust ] > [ Replace Colors ] menu.

(2) Set RGB=255 white to [ Old color ] and RGB=254 to [ New color ]. Set [ Range ] to [ 1 ] and click "OK".

CorelDRAW X3

(3) RGB=255 white are replaced to RGB=254 white.

<Note>

Vector objects should be filled with RGB=254.

RGB=254

RGB=25

GT-3 Series

4. Printing Directly from Applications

4-2-3. Settings for Adobe Photoshop

Color settings:

(1) Select [ Edit ] > [ Color Settings ] menu. The Color Settings window appears.

(2) Make Color settings as follows, and then click “OK".

Advanced Mode: Check

Working Spaces: RGB: sRGB IEC61966-2.1

CMYK: U.S. Web Coated (SWOP) v2 / Europe ISO Coated FOGRA27

Conversion Options/ Intent: Relative Colorimetric

<Important!>

GT-3 is an RGB printer. Make the artwork in RGB mode because CMYK artwork is printed, colors e.g. black, yellow and

purple turn vague and dull. Convert to RGB in sRGB IEC61966-2.1 profile Color space and improve the Color saturation:

select [ Image ] > [ Arrangements ] to select the proper menu. Or use Color Processing in Printer Driver (see "4-3-12.

Selecting the Color Processing for increasing the vividness").

Photoshop CS, the dialog is not exactly equal with CS2/CS3/CS4/CS5 but the settings are the same.

GT-3 Series

4. Printing Directly from Applications

Print:

(1) Select [ File ] > [ Print with Preview Alt + Ctrl + P ] menu (depends on versions).

When the default printer of the PC used is set either "Brother GT-3” or "Brother GT-3 FileOutput", the layout is set in this

window.

(2) Settings are different from the versions.

Photoshop 6/7/CS:

Make print options as follows, go to "Page Setup..." to do Printer Driver settings, and then click “Print”.

Show More Options: Check

Pull-down menu: Color Management

Source Space/ Document: sRGB IEC61966-2.1 or Untagged RGB

Print Space/ Profile: Printer Color Management

Photoshop CS

(Continued on the next page)

GT-3 Series

4. Printing Directly from Applications

Photoshop CS2/CS3

Make print options as follows, go to [Page Setup...] to do Printer Driver settings, and then click “Print”.

More Options: click

Pull-down menu: Color Management

Print: Document: Profile: sRGB IEC IEC61966-2.1 or untagged

Options: Color Handing: Let Printer Determine Colors

Photoshop CS2

(Continued on the next page)

GT-3 Series

4. Printing Directly from Applications

Photoshop CS4/CS5

Make print options as follows, go to [Page Setup...] > [Printer Settings] to do Printer Driver settings, and then click “Print”.

Color Management: Document

Color Handling: Printer Manages Colors

Rendering Intent: Relative Colorimetric

Photoshop CS4/CS5

< Note>

z Do not check “Print to File" on Print window to make print files. Use GT-3 FileOutput Printer Driver.

z Photoshop CS2 and CS3 use lots of PC memories in executing and it may take more time to make print data compared

with the former versions. Check your PC specifications.

GT-3 Series

4. Printing Directly from Applications

Color Swatch in Useful Tools:

(1) See "3-3-7. Opening the Useful Tools" and download Photoshop Color Swatch (called palette in CorelDRAW)

"GT_Colors_T.aco".

(2) Select [ Window ] and check [ Swatches ] to show. Click the little triangle at the right top of the window (in the orange

circle below) to show the submenu.

Photoshop CS2

(3) Select [ Replace Swatches... ] and select file "GT_Colors_T.aco".

The swatch replaced. Use them with the Color Chart "ColorChart_1200.ar3" or "ColorChart_600.ar3". See "4-3-15.

Printing Color Chart".

<Important!>

Do not use HKS, Pantone and other licensed palettes. Those spot Colors are treated "special" for screen-printing Color

separation (remember you can print each Color by print menu). GT-3 Printer Driver cannot deal with these information in color

matching.

RGB=254 white

GT-3 Series

4. Printing Directly from Applications

Change RGB=255 bitmap white to RGB=254:

RGB=255 (paper color) white is always transparent with no ink printed. When you print an image like photo, there may be

RGB=255 white spots and they will be ink holes. Normally you can select RGB=255 white directly with the menu in select and

replace to RGB=254 white. If you can not select directly RGB=255 in the image, follow the steps below to change RGB=255

white to RGB=254 white.

(1) Select [ Layer ] > [ New Adjustment Layer ] > [ Selective Color ... ] menu and make a new adjustment layer. Set [Opacity ]

as [ 20% ] and click "OK".

Photoshop 7

(2) In Selective Color Options dialog, change [ Colors ] to [ Whites ], move [ Black ] slider to [ 1% ] , make [ Method ] to

[ Absolute ] and then click "OK".

<Note>

Photoshop Action file to change RGB=255 to RGB=254 is available in Useful Tools. (See "3-3-7. Opening the Useful

Tools"). For further information, refer to the Photoshop help.

GT-3 Series

4. Printing Directly from Applications

4-2-4. Settings for Adobe Illustrator

<Important!>

z Set either "Brother GT-3" or "Brother GT-3 FileOutput" as the default printer before you go on to the following steps,

otherwise, an image may be printed incorrectly. Check the print data by the preview by using "Brother GT-3 FileOutput".

z GT-3 is an RGB printer. Make the print data in RGB Color mode to get the best Color accuracy. In CMYK color mode

artwork may be printed dark and unclear. Transforming it to RGB (“Document Color Mode” on “File” menu) may improve

the result, but black, yellow, and purple cannot be printed accurately. We recommend you edit the artwork or use Color

Processing (see "4-3-12. Selecting the Color Processing for increasing the vividness").

Color settings:

(1) Select [ Edit ] > [ Color Settings ] menu. The Color Settings window appears.

(2) Make Color settings as follows, and then click “OK".

Advanced Mode: Check

Working Spaces: RGB: sRGB IEC61966-2.1

CMYK: U.S. Web Coated (SWOP) v2 / Europe ISO Coated FOGRA27

Conversion Options/ Intent: Relative Colorimetric (No settings for CS4/C5)

Illustrator CS2

GT-3 Series

4. Printing Directly from Applications

Opening the new file:

Set the New Document settings as follows:

Width: 14 in (355.6 mm)

Height: 16 in (406.4 mm)

Orientation: Portrait

Color Mode: RGB Color

Printing:

(1) Click [ File ] > [ Print ] menu.

(2) Illustrator 10/CS: Make sure the following settings.

Source Space is either "sRGB IEC61966-2.1" or "Untagged RGB".

Print Space/ Profile: Same As Source

Click "Properties" (Illustrator 10) or "Setup" (Illustrator CS) to do Printer Driver Settings.

Illustrator CS

Illustrator CS2

GT-3 Series

4. Printing Directly from Applications

Illustrator CS2/CS3/CS4/CS5: Make sure the following settings.

Document Profile and Printer Profile are either "sRGB IEC61966-2.1" or "Untagged RGB".

Color Handling: Let Illustrator determine Colors

Rendering Intent: Relative Colorimetric

Click "Setup" to do Printer Driver Settings.

Illustrator CS2/CS3/CS4/CS5

GT-3 Series

4. Printing Directly from Applications

Color Swatch in Useful Tools:

(1) See "3-3-7. Opening the Useful Tools" and download Illustrator Color swatch "GT_Colors_T.ai".

(2) Select [ Window ] and check [ Swatches ] to show. Click the little triangle at the right top of the window (in the orange

circle below) to show the submenu. Select [ Open Swatch Library ] and [ Other Library ... ] at the bottom.

Illustrator CS

(3) Select "GT_Colors_T.ai".

The swatch replaced. Use them with the Color Chart "ColorChart_1200.ar3" or "ColorChart_600.ar3". See "4-3-15.

Printing Color Chart".

<Important!>

z In Illustrator 10, if “Use Print Setup” is selected as the Artboard and “Single Full Page” is selected as the View in

“Document Setup” window, proper print image will not be sent to your printer. If you want to use “Use Print Setup”, apply

“Tile Full Pages” or “Tile Imageable Areas” as the View, and then select “Use Print Setup”.

z The tile print is not available; only the last-received image will be printed.

z When printing a small image (especially an image smaller than 14 x 16 inches), the Platen Size may be set to Platen 10 x

12 automatically. Confirm the Platen Size in the Printer Driver window before you print.

z Do not check “Print to File” on Print window to make print files. Use "Brother GT-3 FileOutput" printer driver.

(Continued on the next page)

RGB=254 white

GT-3 Series

4. Printing Directly from Applications

z An image that is smaller than 14 x 16 inches (e.g. a letter-size image) may not be printed on proper positions, or

may result in errors. If this happens follow the steps below to correct.

(1) Open "Document Setup" on "File" menu.

(2) Select "Artboard".

(3) Check "Use Print Setup", and then click "Print Setup…".

The Print Setup window appears.

If "Platen 14x16" is selected for "Size", temporally change it to "Platen 10x12", and then click “OK”.

If "Platen 10x12" is selected for "Size”, temporally change it to "Platen 14x16", and then click “OK”.

(4) Click “OK” on the Document Setup window.

(5) Open "Document Setup" in "File" menu again, and select "Artboard".

(6) Click "Print Setup…" to open the Print Setup window.

(7) Change "Size" back to the original setting, and then click "OK".

(8) Click “OK” on the Document Setup window.

z Landscape images may not be printed properly. Check the preview on Print window, and if it is not correct, follow

the procedure below to solve the problem.

(1) Confirm the Media Size in Print window is “Defined by Driver (it is set as default; do not change it)”.

(2) Change the Orientation to portrait.

To change the Platen Size, go on to the next step. If not, skip to step (6).

(3) Click “Setup…”. Click “Continue” when the warning window appears.

(4) Another Print window appears. Click “Preferences”.

(5) Change the Platen Size on Printer Driver window, and then click “OK”.

(6) Confirm the preview on the original Print window, and then click “Print”.

GT-3 Series

4. Printing Directly from Applications

4-2-5. Settings for Adobe Photoshop Elements

Color settings and print settings are required before printing. After the printer driver is installed, set the Colors before editing the

document.

Color settings:

(1) Select "Color Settings..." on "Edit" menu.

The Color Settings window appears.

(2) Select "Limited Color management" or "Always Optimize Colors for Computer Screens" and then click “OK”.

Photoshop Elements 3 (English Version)

Photoshop Elements 9

GT-3 Series

4. Printing Directly from Applications

Printing

Refer to Photoshop page in "4-2-3. Settings for Adobe Photoshop".

(1) Select [ File ] > [ Print... ] menu.

The Print Preview window appears.

(2) Do the settings as follows:

Show More Options: Check

Print Space/ Profile: Printer Color Management

(3) Click "Properties" on Print dialog to do Printer Driver settings.

Color Palette (swatch) in install CD:

Color Palette GT_Colors_T.aco is available for Photoshop Element. See "4-2-3 Settings for Adobe Photoshop".

4-2-6. Settings for Paint Shop Photo Pro

Color settings:

(1) Select [ File ] > [ Preferences ] and [ Color Management]( some versions [ Edit ] > [ Color Management] ).

(2) Uncheck "Enable Color Management", and then click “OK”.

Paint Shop Pro 9 (English Version)

Printing:

Select [ File ] > [ Print ] menu. Click [ Properties ] to do Printer Driver Settings.

<Important!>

z Leaving the Job Comment blank displays Windows files system name called "PSP PRINT" or "blank" which indicates the

application name on your printer’s display. If you have entered the Job Comment, it will be displayed.

z Do not check “Print to File” on Print window to make print files. Use "Brother GT-3 FileOutput" printer driver.

4-2-7. Printing From Other Applications

If the application does not have Color Settings, the Color space is sRGB (Windows standard). Just select [ File ] > [ Print ]

menu to print.

<Important!>

Adjust the Paper size / Page size to the Platen size you are going to use before you go to the Print menu.

GT-3 Series

4. Printing Directly from Applications

4-3. Setting the Printer Driver Condition

<Important!>

RGB-255 (paper color) is transparent with no ink printed. When there are some spots in RGB=255 color in a photo, e.g. those

spots will never be printed. Set RGB=254 white for white image. As for the operations for each application, see "4-2. Setting

the Applications’ Print Condition" or application help.

Set the printer driver condition following the procedure below.

(1) Select [ File ] > [ Print ] menu of the graphic application.

The Print window appears.

(2) Select "Brother GT-3 " or "Brother GT-3 FileOutput" for the printer, and then click "Properties ... ".

The following window appears: make the necessary settings, and then click “OK”.

The following items can be set in this window.

"Rollover help" indicates in the bottom of the dialog. Move the pointer on the menu. The information can be seen with GT

File Viewer when you use Brother GT-3 FileOutput Printer Driver to make AR3 file. See the following pages for details.

GT-3 Series

4. Printing Directly from Applications

(3) Click "Advanced" button and open the Advanced Menu. Here you can arrange [ White Ink Settings ] [ Color Processing ]

[ Transparent Layer Settings ] and [ Uni-Directional Printing ]. See the following sections as for the details.

4-3-1. Selecting Machine Mode

GT-3 Printer Driver is common for GT-381 (four White), GT-361 (two White) and GT-341 (no White). Select the Machine

Mode first for the printer to be used. The default is GT-381.

<Note>

z When you sent a print data made for GT-361(Machine Mode: GT-361) to GT-381, then GT-381 prints the print data with

two White Print Heads are used.

z PC Data Error occurs when you send a GT-381 print data with White Ink data to GT-361, or a GT-381/GT-361 print data

with White Ink data to GT-341. Any GT-3 can print a " Color Only" print data.

<Note>

z If you have GT-341/GT-361 user, preset the Printer Driver settings. Close the application (e.g. Photoshop), open the

[ Printers and Faxes (Windows XP)]., [ Printers (Windows Vista)] or [ Devices and Printers (Windows 7)] and select the

printer and right-click to select [ Property ]. Change the Machine Mode to either GT-361 or GT-341 and click [ OK ] button.

Restart the application. This change is available after you execute the application.

GT-3 Series

4. Printing Directly from Applications

4-3-2. Entering the Job Comment

You can enter a comment (max 30 characters) to display on your printer’s Control Panel. It is used to advise the operator.

4-3-3. Selecting the Platen Size

Select the appropriate Platen size from the pull-down menu. The Print Size: standard Platen （14x16）: 355.6 mm x 406.4 mm

Baby Platen (7 x 8) : 177.8 mm x 203.2 mm, Youth Platen (10 x 12): 254 mm x 304.8 mm. Baby and Youth Platens are

option.

4-3-4. Setting the Ink

Select the combination of CMYK Color or White inks.

[ Color + White ] prints CMYK Color Inks on the mask White. White Ink Volume is controllable. [ White Only ] prints with no

Color inks. A colorful image is printed as monochrome. [ Color Only ] prints with no White ink but CMYK Color inks only.

GT-341 is available for [ Color Only ].

When you print on a black T-shirt, you can check OFF [ Print with Black ink ] not to use Black ink but express the black with

the body color. In this case both RGB=255 and RGB=0 black are transparent.

<Note>

z When [ Print with Black ink ] is OFF, you can select the way to print R=G=B grays: with CMY ink composite or only with

White ink. Select [ CMY Gray ] check box. Refer to the following page.

z PC Data Error occurs when you send a GT-381 print data with White Ink data to GT-361, or a GT-381/GT-361 print data

with White Ink data to GT-341. Any GT-3 can print a " Color Only" print data.

4-3-5. Setting the Resolution

Select the resolution in printing, either [ 1200 dpi x 1200 dpi ] or[ 600 dpi x 600 dpi ].

<Note>

z The volume of White Ink printed varies by the settings. The print time of 1200 dpi x 1200 dpi is twice as long as 600 dpi x

600 dpi.

GT-3 Series

4. Printing Directly from Applications

4-3-6. White Settings

The following menu appears on when either [ Color + White ] or [ White Only ] is selected. Adjust the volume of White Ink for

Highlight (White Ink volume for whitish colors) and Mask (underbase White Ink to cover the print media for CMYK Inks).

Highlight

Adjusts the RGB=254 White and whitish colors. GT-381/GT-361 print more than one layer when the White Ink is used more

than the volume that is available in one layer. Adjust the White Ink Volume by referring the Print Time and Ink Volume (%), to

meet the variation of print media. Color Multiple Pass Printing is ON automatically when more-than-one-layer White Ink is

printed.

Mask

Adjusts the area of underbase White Ink to cover the color of the T-shirts.

[ 3 ] makes the smoothest gradation. When you print on a vivid and deep color T-shirt, adjust the mask to [ 4 ] or [ 5 ]. When

you print on a light color T-shirt, select either [ 1 ] or [ 2 ] to make the mask thinner. When [ Print with Black Ink ] is OFF, select

[ 3 ] for smooth and accurate colorization. If you make the print image more vivid and bright rather than accurate, select [ 4 ] or

[ 5 ].

<Note>

z [ Print Time ] and [ Whiteness ]

[ Print Time ] and [ Whiteness ] vary when you select [ Machine Mode ], [Highlight ] and/or [ Color Multiple Pass Printing ].

"x1" of [ Print Time ] expresses the time when GT-381 prints one pass in 600 dpi x 600 dpi and "x Number" expresses

how many times the print time is. For example, "x4" is four times longer than the print in one-pass 600 dpi x 600 dpi. The

100% expresses the whiteness that one White Print Head prints when the resolution is 600 dpi x 600 dpi.

(Continued on the next page)

GT-3 Series

4. Printing Directly from Applications

z Print "WhiteVolume_1200.ar3" or "WhiteVolume_600.ar3" to find out the optimal Highlight / Mask. Those data are in [ All

Program ] > [ Brother GT-3 Tools ] > [ Test Data ].

How to open the WhiteVolume_600.ar3 and WhiteVolume_1200.ar3

Image of WhiteVolume_1200.ar3 printed on Lavender T-shirt (R=174, G=111, B=255)

4-3-7. Print with Black Ink on black garment

You do not have to print for black color on a black T-shirt. When [ Print with Black ink ] is OFF, RGB=0 black is transparent and

other dark colors are expressed with the background T-shirt body color.

4-3-8. Making Gray with CMY Inks

This menu is valid when [ Print with Black Ink ] is OFF. The monochrome grays are printed only with "less" White Ink when this

menu is OFF and grays are printed with CMY composite grays when this menu is ON. Select [ ON ] when you need as much

as the same colors with/without Black ink. Select [ OFF ] when you need "clear color" and "White-Ink-Only gradation" on the

black T-shirt.

GT-3 Series

4. Printing Directly from Applications

4-3-9. Color Multiple Pass Printing

Make this menu ON when you see some thin white lines (clearance between the printed lines) with all Print Head Nozzles are

firing properly. Multiple Pass Printing is to move the Platen Feed by half for more precise printing so that the print time is

doubled but the "regular" clearance will not be seen easily. Color Multiple Pass Printing is ON automatically when

more-than-one-layer White Ink is printed.

<Note>

You do not have to select Color Multiple Pass Printing simply because White Ink is automatically Multiple Pass Printing when

the print data has more than one White layer.

4-3-10. Settings for Color Inks

The [ Ink Volume ] in [ Color Settings ] appears on when [ Color Only ] is selected. This function is the same as

GT-541/GT-782.

Ink Volume

To get the best print result, you may need to adjust the amount of ink depending on the fabric of the T-shirt to prevent

ink-spreading (blurring). Print “InkVolume_1200.ar3" or “InkVolume_600.ar3" first and select the best ink volume by sliding the

Ink Volume tab. It is in [ All Program ] > [ Brother GT-3 Tools ] > [ Test Data ].

Example 1 (50% cotton 50% polyester thin T-shirt)

"7" is the best by the print result of "InkVolume_600.ar3"

Example 2 (100% polyester synthetic leather fabric)

"3" is the best by the print result of "InkVolume_600.ar3"

<Note>

The menu "Double Printing" and "Yellow/Black Printing" are eliminated by the improvement of Print Heads.

The following pages indicate the [ Advanced ] menu. See the dialog image in Step 3 (4) in "4-3-13 Printing the image file on

Transparent Layer".

GT-3 Series

4. Printing Directly from Applications

4-3-11. Settings for White Ink

This menu is available only for White ink ([ Color + White ] and [ White Only ]). RGB=255 white (paper color) is always

transparent with no ink printed. RGB=0 black is transparent too when [ Print with Black ink ] is checked OFF, when black color

is expressed with the background T-shirt body color.

Transparent Color

You can select one transparent RGB color so that you can use red T-shirt color in the print data by changing R=255 GB=0 red

as transparent, instead of printing red colors with Magenta and Yellow ink combination.

(1) Check [ Transparent Color ] checkbox then the pull-down menu in the right will be available.

(2) Select one color from the pull-down menu (T-shirt simulation colors) or click [ Custom Color ] button and input RGB

values.

<Note>

Only one Custom Color is available at a time. This RGB values will not be added to the list.

Tolerance

Select the range from the transparent color to the normally-masked color. The gradation range becomes wider when the

value is bigger.

<Note>

Smooth gradation depends on the original image data. Better to do test print in advance.

Choke Width

Sometimes the mask White ink can be shown, which depends on the thickness of the T-shirt, humidity of the room, etc. You

can choke (cut out) the outline by one dot (1/600 dpi). Select the value. (The "double" dots are cut out when the resolution is

1200 dpi x 1200 dpi.)

<Note>

If the value is bigger, some thin lines (in the letters, photos, etc) might disappear. Better to do test print in advance.

4-3-12. Selecting the Color Processing for increasing the Vividness

When the image data is well-contrasted, adjust mainly with Saturation. When the image data is plain and dull, adjust mainly

with Contrast.

[ 0 ] no additional processing

around [10 ] no change in tone, a little brighter, good for photos

around [20 ] more vivid, for dull photo or RGB images

around [30 ] for light CMYK images

[40 ] maximum adjustment, for dull and plain CMYK images

The bigger value, more adjustment. When the image data is in CMYK mode, change the RGB mode and print with both

Saturation and Contrast around [ 30 ]. Sometimes the fine design may be flat with bigger [ Contrast ]. Better to do test print in

advance because sometimes the print data is unexpectedly changed.

<Note>

This menu is the same as GT-782, advanced Vivid Processing of GT-541. You can arrange the saturation (the strength of the

colors) and the contrast separately. GT-541 Vivid Processing is equal to GT-3 Contrast and you can adjust more precisely by

0-40. Vivid Processing 1 is identical to Contrast 10.

GT-3 Series

4. Printing Directly from Applications

4-3-13. Printing the image file on Transparent Layer

This menu can handle the image on the transparent layer, which was impossible on previous GT models.

The image format TIFF, PNG, PSD (Photoshop) can have a information of transparent info as well as RGB info. GT-782

cannot identify and deal with this information but GT-3 can with some additional steps. Use both Photoshop and Microsoft

Paint applications and follow the steps below:

Step 1: Save the file with transparent info as PNG format file.

Step 2: Open the PNG file with transparent info with Microsoft Paint (Windows XP and Vista) and save only with RGB info.

Open the PNG file with transparent info with Photoshop and extract only the transparent info and save as another

PNG file.

Step 3: Execute Brother GT-3 FileOutput Printer Driver and read the PNG file with transparent info in [ Transparent Layer ] >

[ Create ARTR File ] to create ARTR file.

Step 4: Open the PNG file with RGB info made by Microsoft Paint and print with Brother GT-3 FileOutput Printer Driver, by

importing the transparent layer info file (ARTR) with [ Transparent Layer ] > [ Import ARTR File ]. The ar3 file is

created with RGB values and transparent info included.

The following process are the details of each Step.

Step 1: Saves the file with transparent info as PNG format file

(1) Open the image with transparent info with Photoshop and check the resolution of the file.

(2) Save the PNG format file with [ File ] > [ Save As ... ]. Select [ Interlace : None ] in PNG Option dialog and click [ OK ].

Original image to print the image with transparent info, white and color

gradation included. The original file name is "Test.PNG".

Select [ Image ] > [ Image Size ] and make the memo of

the resolution. (the left image shows "200" dpi.)

GT-3 Series

4. Printing Directly from Applications

Step 2: Save the RGB info and transparent info to different PNG files.

(1) Open the PNG file with Microsoft Paint (Windows XP and Vista) and then the transparent info will be ignored. Save as

another PNG file with [ File ] > [ Save as ... ].

<Note>

z Do not use Photoshop to extract RGB info. Open the PNG file with Microsoft Paint (Windows XP and Vista).

z Microsoft Paint on Windows 7 can deal with transparent info like Photoshop so use other application to do this step.

(2) Open the test.PNG with Photoshop again and execute [ Select ] > [ Load Selection ... ]. The image will be selected as

follows (marked with dots).

(3) Next, select [ Select ] > [ Save Selection... ] .

(4) Open the channel window by selecting [ Window ] > [ Channels ] . There the channel named “test” is available in the

(2) and (3) in the previous page.

Transparent info is ignored and the image is

indicated as shown in the left.

Save as "test_RGB.PNG".

Input the file name to be saved as “test”.

Channel Window

GT-3 Series

4. Printing Directly from Applications

(5) Delete the Red, Green and Blue Channels in the Channels. Right-click the channel to be deleted and select [ Delete

Channel ] .

(6) The dialog box “Flatten layers?” appears. Click [ OK ].

(7) The only “test” channel is left after you delete the Red, Green and Blue channels.

(8) Change the image to grayscale by selecting the menu [ Image ] > [ Mode ] > [ Grayscale ] in the Tool Bar.

(9) Select [ Image ] > [ Mode ] > [ RGB Color ] in the Tool Bar and change the transparent info to RGB values. The image

shows the transparent info as black, opaque info as white.

<Note>

The Photoshop action file “TransLayer.atn” including the (2) to (9) of Step 2 is available in the Useful Tools. (see “3-3-7.

Opening the Useful Tools"）. See the Photoshop help for the details of action file.

(10) Save the file including transparent info as RGB values as PNG file. Select [ File ] > [ Save As ...] and name it as

“test_TR.PNG".

Click the "Red" Channel and right-click to select

[ Delete Channel ].

GT-3 Series

4. Printing Directly from Applications

Step 3: Import the PNG file with transparent info to GT-3 File Output Printer Driver and create ARTR file.

(1) Open "test_TR.PNG" file with Photoshop. (successive operation from (10) of Step 2 in the previous page)

(2) Select [ File ] > [ Print ] and execute Brother GT-3 FileOutput. Adjust the settings of the print position and the size, and

click [ Page Setup ...] (some versions: Properties) to open the Printer Driver settings.

(3) Click [ Advance ] Button in the main setting of the Brother GT-3 FileOutput Printer Driver.

(4) Check the Transparent Layer Checkbox and click the radio button [ Create ARTR File ].

(5) Click [ OK ] Button here and in the Main Setting too and print.

(Continued on the next page)

GT-3 Series

4. Printing Directly from Applications

(6) The following dialog appears to save ARTR file. Input the file name (as "test.artr")

Step 4: Apply RGB-info PNG file to transparent-info ARTR file in printing.

(1) Open test_RGB.PNG" with Photoshop, made in (1) of Step 1.

(2) Microsoft Paint automatically changes the resolution of "test_RGB.PNG" as 72 dpi. Select [ Image ] > [ Image Size ] and

check off the [ Resample Image ] and change the resolution to the previous value that you made memo in (2) of Step 1.

(3) Select [ File ] > [ Print ] and select Brother GT-3 FileOutput and print "test_RGB.PNG". Align the print position exactly the

same as the ARTR file in (2) of Step 3.. Select [ Page Setup ...] (some versions: Properties) and open the Printer Driver

settings.

(Continued on the next page)

Saved as "test.artr"

1. Check-OFF

2. apply the original resolution (e.g. 200)

GT-3 Series

4. Printing Directly from Applications

(4) Check the Transparent Layer Checkbox and click the radio button [ Import ARTR File ]. Select the ARTR file "test.ARTR"

with transparent info that was made in (6) of Step 3.

(5) Click [ OK ] Button here and in the Main Setting too and print. The AR3 file, the combination of RGB info and transparent

info included, is saved.

4-3-14. Setting Print Direction as Uni-Directional

This settings is available only When GT-3 printer's [ Print Direction ] menu is [ Auto]. You can set the Print Direction when you

make print data so that mis-print may be decreased in print operation.

<Note>

If the printer's setting is [ Always Bi- ], the printer does bi-directional print even if the Printer Driver sets in Uni-Directional

printing. The printer's setting is prior to the Printer Driver's.

Select "test.artr".

The final

review with File Viewer

GT-3 Series

4. Printing Directly from Applications

4-3-15. Printing Color Chart

For your information, GT-782 Color Chart "ColorChart_1200.ar3" and "ColorChart_600.ar3" are available to understand Color

gamut. Print the T-shirt and Color Chart will work something like Pantone's Color Formula Guide. It is in [ All Program ] >

[ Brother GT-3 Tools ] > [ Test Data ].

The colors in this chart corresponds to the Color Palettes (Swatches) for CorelDRAW, Adobe Photoshop and Illustrator. See

"3-3-7. Opening the Useful Tools".

<Note>

The image data (PDF) is in Useful Tools. Print the image data when you want to know how the Printer Driver changes the

colors with the settings. See "3-3-7. Opening the Useful Tools".

GT-3 Series

4. Printing Directly from Applications

4-4. Uninstalling / Installing the Platen

Replace the Platen for your print material. When the option Platen e.g. Youth Platen is used, be sure to set "Platen Size" in

Printer Driver menu (see "4-3-3. Selecting the Platen Size").

4-4-1. Uninstalling the Platen

(1) Press the Platen Button to eject the Platen.

(2) Set the Platen Height Adjustment Lever at the "A" position.

(3) Loosen the Platen Fixing Lever underneath the Platen by 1 to 1.5 turns.

(4) Uninstall the Platen by lifting it up straight.

Platen Fixing Lever

GT-3 Series

4. Printing Directly from Applications

4-4-2. Installing the Platen

(1) Place the Platen.

(2) Tighten the Platen Fixing Lever securely.

<Note>

Adjust the Platen Height (see "4-5. Placing the T-shirt on the Platen ").

Platen Fixing Lever

GT-3 Series

4. Printing Directly from Applications

4-4-3. Lowering the Platen height

The Platen height can be lowered by 13 mm by replacing the Bush Platen Shaft and the Platen Positioning Plate to "Platen

Lowering Set" (option). Prepare a hexagon wrench (3 mm).

The adjustable height of the Platen (from the left most position "A" of the original to the bottom)

Original parts: 1 - 12 mm

Platen Lowering Set (option): 13 - 25 mm

0053Y

(1) Remove the Platen Fixing Lever and uninstall the Platen by lifting it up straight.

(2) Loosen the two hexagon head screws that fix Bush Platen Shaft.

Platen

Positioning Plate

Platen Lowering

Hexagon head screws

GT-3 Series

4. Printing Directly from Applications

(3) Replace the Bush Platen Shaft with Platen Height Adjustment Lever assembled and the Platen Positioning Plate to the

"Platen Lowering Set" (option).

<Note>

Fix the Platen Positioning Plate by pushing it to the machined surface while the positioning jig is inserted into the Platen

Arm.

(4) Install the Platen as it is and fix it. The Platen Height Adjustment Lever is in the lower hole.

Positioning jig

Machined surface

Platen hei

ht ad

ustment leve

Bush

laten shaf

Platen

ositionin

lat

Original position

After replacing to Platen Lowering Set,

the Platen height is lowered by 13 mm.

GT-3 Series

4. Printing Directly from Applications

4-5. Placing the T-shirt on the Platen

CAUTION

Ensure there is adequate space left for safe working. The Platen moves forward while operating.

Do not handle the platen while printing. If your hand gets caught between the platen or the T-shirt tray and the

covers, it may be injured.

Do not move the Platen by hand.

The Printer may be mechanically and electrically damaged.

To get the optimum quality print result, you need to adjust the Platen height depending on the thickness of the T-shirt.

<Note>

z The clearance between the Clearance Sensor and the surface of the Print Heads should be app. 2 mm. If the clearance is

wider, the ink mist will spread inside the printer and the printing material, and may damage the sensors inside. If you print

with wider clearance (more than 2 mm) then check the inside of the printer and keep it clean. Replace the Maintenance

Parts by referring to "6-1. Replacing Consumables" and clean by "6-1-6. Cleaning the inside of the printer and restart" and

"6-1-7. Cleaning the Encoder Strip".

z If Platen height is too low, the result may be poor quality (e.g. a straight line becomes double). Adjust it properly by test

moving the platen in with Platen Button on the Control Panel. When you have to lower the Platen to avoid any material

which is thicker i.e. hems the hems, use Uni-Directional print (see "7-2-4. Changing the Print Direction"). You can set a

print data as Uni-Directional by the Printer Driver. See "4-3-14. Setting Print Direction as Uni-Directional".

z The Platen height can be lower by 13 mm by replacing the Bush Platen Shaft with Platen Height Adjustment Lever

assembled and the Platen Positioning Plate to "Platen Lowering Set" (option). See "4-4-3. Lowering the Platen height".

(1) If the Platen is not ejected, press the Platen Button to eject it.

(2) Loose the Platen Fix Lever and adjust the Platen Height to "A" position (leftmost) for T-shirt. Set it to the "C" position when

you print on a sweater or a towel. If the Platen height is too low, the print quality turns worse. Keep the clearance between

the Clearance Sensor and the surface of the Print Heads should be app. 2 mm.

<Note> Do not use force when you adjust the levers.

(3) Tighten the Platen Fixing Lever securely.

Platen height adjustment lever

Platen fixing lever

GT-3 Series

4. Printing Directly from Applications

(4) Place the T-shirt, with its print side on the top of Platen and the other side underneath the Platen, as shown below. The

Pretreatment must be applied first when you print on dark-colored T-shirts with White ink. (See "4-6-1. Applying the

Pretreatment".)

<Note>

z Pay attention to the hems; neck, arm holes, tags, and the bottom.

The side edges may raise and hit the Print Head during printing operation. It is important to ensure the t shirt surface

is flat and smooth.

z To align a T-shirt easily, you can print a grid on the Platen Sheet. It is in [ All Program ] > [ Brother GT-3 Tools ] >

[ Useful Tools ]. Grid14x16.ar3 is for the standard Platen 14x16. (See "3-3-7. Opening the Useful Tools".)

(5) Smooth the surface to remove wrinkles and threads with your hands. Move your hands smoothly and softly from the

center to the edges, to fix the T-shirt and the Platen Sheet together.

<Note>

z If the surface of T-shirt is not smooth enough, Clearance Sensor may be activated

z If you stretch the T-shirt by force , the ink may move and/or shrink the fibers while printing and the position of white

ink and colors may be shifted and you will see white lines around the color print. Do not pull, especially thinner

materials in setting on the Platen.

z When placing a thick fabric such as a sweatshirt, keep its surface as flat as possible.

(6) Keep the sleeves and overflows on the T-shirt Tray to avoid jamming.

Print side

shirt tra

GT-3 Series

4. Printing Directly from Applications

(7) Press the Platen Button to insert the Platen, and check the clearance between the flap of the Clearance Sensor and the

T-shirt. If the Platen height is appropriate, the space is around 2.0 mm, to avoid the fuzzy fibers on the surface. Adjust the

Platen Height by moving Platen Height Adjustment Lever.

<Note>

z Make sure you check the space when the Platen is moving, so that Clearance Sensor works properly. While the

platen stops, it is in upper position.

z When the surface/back of the Clearance Sensor is dirty, it may damage the printing material when loading. Wipe off

the dirt with a soft wet cloth with water. (See “6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers”.)

z If the Platen height is too high, the T-shirt, Print Head, or both of them may be damaged when printing.

(8) Press the Platen Button to eject the Platen. Adjust the height by repeating the following steps (9)-(12). If the Platen height

is appropriate, you can go to “4-6. Printing” to start printing.

If not, go on to the following steps.

(9) Loosen the Platen Fixing Lever.

(10) Adjust the Platen height by turning the Platen Height Adjustment Lever. The alphabets are the guide scales.

(11) Tighten the Platen Fixing Lever securely.

(12) Confirm the height by moving Platen with Platen Button. Repeat steps until the Plate height becomes appropriate.

Clearance sensor

The clearance should be around 2.0 mm

T-shirt

GT-3 Series

4. Printing Directly from Applications

4-6. Printing

CAUTION

Ensure there is adequate space left for safe working. The Platen moves forward while operating.

Do not handle the platen while printing. If your hand gets caught between the platen or the T-shirt tray and the

covers, injury may result.

Do not move the Platen by hand.

The Printer may be mechanically and electrically damaged.

Do not put your hands inside the covers while the printer’s power is turned on, otherwise your hands may touch

against moving parts and this may result in injury.

Take care not to let the liquids: Ink, Wash Liquid, Maintenance Solution, Pretreatment or waste liquid come into

contact with your eyes or onto your skin, otherwise inflammation can result. In case of contact with eyes, do not

rub but immediately rinse the eyes with water.

Furthermore, do not drink the liquids: Ink, Wash Liquid, Maintenance Solution, Pretreatment or waste liquid under

any circumstances, as they can cause vomiting and diarrhea.

Keep the liquids out of the reach of children.

4-6-1. Applying the Pretreatment

Pretreatment must be applied on a T-shirts to keep the White ink on the surface of a T-shirt. Wear gloves to keep

Pretreatment from the skin.

<Note>

z Use a heat press and "thin and flat" glass cloth sheet or fluorine coated sheet (Teflon Sheet) to cure the Pretreatment.

The surface must be as flat as possible in curing. If you use an oven, the fibers may not lay down flat causing low print

quality.

z Place glass cloth sheet or fluorine coated sheet (Teflon Sheet) to cover the pressed surface so that the T-shirt can be flat

and even.

z Water drops on the Pretreatment-cured surface turn stains, because the white ink can sink into the T-shirt fibers. Do not

wet the cured surface. Do not leave a Pretreatment-cured T-shirt in a humid space.

z Be aware of the temperature of the heat press in curing the Pretreatment. Temperature easily drops by continual curing.

If the temperature is low, the Pretreatment can not make ink barrier on the surface of the T-shirt and the White ink may

easily sink into the fibers and can not produce enough white.

z Better to use an Urethane mat (continuous foam) to release more steam while curing.

z If CMYK inks are printed on a Pre-treatment applied T-shirt, ink may washed off. Do not apply Pretreatment when you

print without using White ink.

z Pretreatment on some T-shirts may be seen easier after applied and cured. Wash lightly with water. Some dyes may be

decolorized by Pretreatment, we recommend you test the garment before printing.

z Pretreatment mist may spread out when you use a spray and/or pretreatment applicator. Ventilate your room in operation.

Wear a face mask or goggles as necessary.

GT-3 Series

4. Printing Directly from Applications

How to dilute Pretreatment :

You can have some margins to dilute Pretreatment. Select the ratio for your material and purpose.

Standard: Pretreatment 1 L + Distilled Water 2 L ( 1:2 volume ratio)

thinner mix: Pretreatment 1 kg + Distilled Water 2 kg ( 1:2 weight ratio)

rich mix: Pretreatment 1 L + Distilled Water 1 L( 1:1 volume ratio)

<Note>

When you dilute Pretreatment in rich condition, white is whiter but halo mark around the pretreated area may be seen easily

and the washability may be worse. On the other hand, when you dilute in thinner mix, the halo mark may be improved but the

print may be less white, and the of the diluted Pretreatment may not be stable.

How much Pretreatment to be applied by the area on thick black T-shirt:

Area The amount of Pretreatment

14x16 30g

10x12 16g

7x8 8g

Letter / A4 15g

Pocket （10 x 10 cm) 3g

How to apply with the spray:

(1) Put the Pretreatment into the spray. Use an spray which can produce fine mists.

(2) Put a T-shirt flat and apply by spraying the Pretreatment. Insert some plate so that the Pretreatment will not go into the

back side. Weight the T-shirt before / after then you can see the amount of applied Pretreatment to help you acquaint.

How to spray the Pretreatment

<Note>

Pretreatment mist may spread out when you use a spray and/or pretreatment applicator. Ventilate your room in operation.

Wear a face mask or goggles as necessary.

(3) Roll a roller on the surface so that the Pretreatment can sink equally.

(4) Put the T-shirt on the heat press. Keep the surface flat without wrinkles. Use glass cloth sheet or fluorine coated sheet

(Teflon Sheet) and press with high pressure. Curing condition is the same as ink: 180°C (356°F) in 35 seconds.

(5) Remove the T-shirt from the heat press and cool.

GT-3 Series

4. Printing Directly from Applications

How to apply with the roller:

(1) Pour the Pretreatment onto the tray. Place the roller into pretreatment and make it absorb enough pretreatment. Our

option Roller is recommended to apply even and smooth.

(2) Draw the roller softly and remove unnecessary pretreatment. Roll back and forth smoothly and slowly. Weight the T-shirt

before / after then you can see the amount of applied Pretreatment to help you acquaint.

(3) Put the T-shirt on the heat press. Keep the surface flat without wrinkles. Use glass cloth sheet or fluorine coated sheet

(Teflon Sheet) and press with high pressure. Curing condition is the same as ink: 180°C (356°F) in 35 seconds.

(4) Remove the T-shirt from the heat press and cool.

GT-3 Series

4. Printing Directly from Applications

4-6-2. Making One Print

GT-3 receives the next print data from PC in printing. Just before you press the Print Button, confirm the Job Comment (or file

name) and the counter on the display of the Control Panel.

(1) Make sure the Print Button has been turned on, which indicates your printer has received the print data successfully.

(2) Make sure that the Platen is ejected and the printed material is set properly. If not, press the Platen Button.

(3) Make sure the Platen Height, The clearance between the Clearance Sensor and the surface of the Print Heads should

be app. 2 mm. Before / after you print on thicker material, use Platen Button to move the Platen to confirm the clearance.

(4) Confirm the Job Comment on the Display shows the correct print job details. Check the counter whether it is 000 (new) or

not (previous).

(5) Press the Print Button to start printing operation.

When the printing is completed, the Platen is ejected and an audible indication is given.

If printing is to be stopped before it is finished, press Stop Button to stop the operation. Then press Platen Button to eject

the Platen.

<Note>

z By pressing the Print Button, your printer automatically starts cleaning the Print Head every 24 prints (default) or every

numbers of prints you have set (see "7-2-5. Changing the Auto Head Cleaning Setting”), or after your printer has not

been used for

more than two hours. In this case, wait until the cleaning completes (takes about 20 seconds), and

then printing will automatically start.

z Keep away from the moving platen.

z If the Platen is not at the appropriate position when the Print Button is pressed, it automatically adjusts the position to

start printing. Press the Print Button again to start printing after the Platen is available

z Do not open unlock or open the Cover during printing. If you do the power is turned off for safety reasons.

4-6-3. Printing More than One Print Using the Same Print Data

After making one print following the procedure in “4-6-2. Making One Print”, you can continue making more prints using the

same print data.

(1) Confirm the Platen height and the Print Direction.

(2) Press the Print Button to start printing. The counter indicates how many images are printed.

GT-3 Series

4. Printing Directly from Applications

4-7. Removing the T-shirt from the Platen

(1) Hold the shirt slightly to allow are to get between the shirt and the platen.

(2) Hold both shoulders of the T-shirt, and then pull it out straight from the Platen. Hold the T-shirt by the printed area on your

side, which is easier to deal with the wet T-shirt safe.

<Note>

Be careful not to get "wet" ink on your hands or printed material. Wash your hands or clothes with soap if stained. You

cannot wash away the stained ink on the material because the ink may be absorbed into the fiber.

4-8. Curing the Ink onto the T-shirt

To cure the ink onto the T-shirt, a heat press is handy and convenient in time and temperature control. The condition to cure

ink is 180°C (356°F) in 35 seconds. When you print with White ink, use release paper. Use conveyor oven (tunnel) for mass

production; it takes longer but the washability is a little improved, and the feel of the surface is softer than cured by a heat

press. The condition is 160°C (320°F) at the printed surface in 3 minutes and 30 seconds by the conveyor oven shown

below. Follow the instruction manual that comes with your Heat Press and conveyor oven, and be sure to confirm the actual

conditions (temperature inside and the actual curing test) before you start production.

<Note>

z The actual conditions of the heat press and conveyor oven may be far from your expectations. The temperature in the

tunnel part may not be even. To keep the washability, calibrate your conveyor oven and do test print.

z The colors may be faded by washing and rubbing when the curing conditions is not appropriate.

z The hat press and the oven should be used in a well ventilated environment. When curing the White ink, better to use an

oven with much ink on the surface. The surface of an T-shirt by an oven feels more natural and by an heat press more flat

and glittering.

z After using the Heat Press, always confirm if the ink is completely dry and cured.

z Make sure the surface of the Heat Press and glass cloth sheet or fluorine coated sheet (Teflon Sheet) are clean before

and after curing the T-shirts.

z Depending on the material, curing conduction may vary, be sure to test new materials before you use. Pretreated garment

is easier to be burnt than the normal garment.

z Printed colors may transfer when a printed surface rubs on a white or light-colored synthetic leather made of PVC

(polyvinyl chloride). When printing CMYK-only garments, the CMYK ink may transfer to the White-only printed garment

when they rub against each other. In those cases, clean the stains with a soft cloth or toothbrush with a household cleaner

or alcohol.

GT-3 Series

5. Printing AR3 Files

When saving a print data in AR3 format file, you can select the printing procedure by either of these two methods

z Print an AR3 file with GT-3 File Viewer. You can check the detailed print conditions and ink cost before sending a print

data to your printer.

z Save AR3 files in a CompactFlash. You can print with Stand-alone printer without using PC.

The procedure of printing AR3 files:

(1) Use GT-3 FileOutput Printer Driver and save the print data in AR3 file format.

See “5-1. Making Print Data in AR3 File”.

(2) Send the AR3 file to your printer using GT-3 File Viewer or a USB flash drive.

See “5-2. Reading AR3 Files Saved in a USB flash drive” or “5-3. Sending AR3 Files from GT-3 File Viewer to your

Printer”.

(3) Place the T-shirt on the Platen, adjust the Platen height and then print.

See “4-5. Placing the T-shirt on the Platen”, "4-6. Printing", "4-7. Removing the T-shirt from the Platen" and "4-8. Curing

the Ink onto the T-shirt".

5-1. Making Print Data in AR3 File

GT-3 cannot print GT-541 / GT-782 print data (*.arp).

<Note>

You cannot edit AR3 files; we recommend you save the data in the original format as well.

(1) Create the artwork using a graphic application. See “4-2. Setting the Applications’ Print Condition” for proper settings.

(2) Select [ Print ]on [ File ] menu of the application.

Print dialog box appears.

(3) Select “Brother GT-3 FileOutput " Printer Driver and click "Properties" or "Preferences" for Printer Driver settings. (See

"4-3. Setting the Printer Driver Condition ".)

GT-3 Series

5. Printing AR3 Files

(4) Print with the application's print menu. Wait for a while until the following preview window appears. Click [ Save ] button.

<Important!>

Depending on the application, the image size, resolution and PC spec, it may take a few minutes to open the Preview

window after clicking “OK” or “Print”. Do not click “Print” or “OK” again.

A print data example with White data

(5) "Save As" dialog appears. Select where to save the data, enter the file name, select “GT Print File (*.ar3)” as the file type,

and then click “Save”.

The AR3 file is created and saved in the selected location.

GT-3 Series

5. Printing AR3 Files

5-2. Reading AR3 Files Saved in a USB flash drive

<Note>

z Use a USB flash drive: the capacity under 32 GB, FAT 32 formatted.

z Your printer can only read AR3 files from a USB flash drive.

(1) Insert the USB flash drive into the Slot in front of the Operation Panel.

<Note> Do not insert the USB flash drive by force; it may destroy the saved data.

(2) Select [ Print Data Load ] from the menu and press OK button. The information (Job Name or Job Comment, Ink

Consumption, Platen Sizes, etc.) of the AR3 file in the USB flash drive is displayed. The folders in the USB flash drive are

indicated with [ ].

(3) Select the file to be printed, and then press the OK Button.

Your printer starts reading the USB flash drive and the Print Button on your printer’s Control Panel starts flashing.

When the AR3 file finished reading, the printer bells and the Print Button turns on.

<Note>

If a file name of the data saved in a USB flash drive cannot read properly, see “7-1. Solving Printer Problems".

Do not touch the USB flash drive while the Print Button is flashing; it may destroy the saved data.

Reading the USB flash drive may take more than two minutes depending on the stored data sizes.

(4) Pull out the USB flash drive when you have finished printing the data.

USB flash drive Slot

GT-3 Series

5. Printing AR3 Files

5-3. Sending AR3 Files from GT-3 File Viewer to your Printer

(1) Double-click the AR3 file directly or select the GT-3 File Viewer in your PC's [ All Program ] > [ Brother GT-3 Tools] and

click [ Browse… ] to open the AR3 file.

(2) The file’s print condition by the Printer Driver and the preview (layout) appear in the following window. The information in

the Advanced Menu of the printer driver can be indicated by clicking the [ Details... ] button. When the White data is

included ("Color + White" or "White Only"), the background indicates either black or "Transparent Color". If no White data

is included, the background indicates white.

A print data example with White data

A print data example only with Color data

GT-3 Series

5. Printing AR3 Files

(3) When the White data is included, you can simulate the print by changing the background color. Click [ Change ] button

and select the color. When [ Show White Image ] is checked, White data under the Color data is indicated.

Input the RGB values directly

(Continued on the next page)

GT-3 Series

5. Printing AR3 Files

Simulation with the brown background (R=128, G=64, B=64)

(4) Select the print data of the Present Layer so that you can check the individual image of the print data when the print data

have multiple loading/unloading of the Platen. [ Total ] shows the preview of all combined print data. Check [ White Data ]

then only the White data without Color data is indicated.

(5) Confirm the print conditions and layout, then click “Send to GT Printer”. Also confirm that your printer is connected to PC

with USB 2.0 Cable.

The AR3 file has been sent to your printer.

<Note>

If more than one GT-3 are installed in your PC, the Select Printer dialog appears.

Select the one to send the data to, and then click OK. PC starts sending the print data.

GT-3 Series

6. Maintenance

For optimum product performance regular maintenance is required.

DANGER

Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the

wall outlet before opening the right-side cover of the control unit. Do not touch as high voltage can

result in severe injury.

CAUTION

Wait at least 1 minute after turning off the power switch before opening the front cover.

Do not touch the head heat sink as it may be HOT and may cause a bum.

Be careful not to get your fingers caught when closing the front cover, otherwise it may result in injury

to your fingers.

Do not move the Platen by hand.

The Printer may be seriously damaged by this.

Do not disassemble the ink cartridge.

Take care not to let the liquids: Ink, Wash Liquid, Maintenance Solution, Pretreatment or waste liquid

come into contact with your eyes or onto your skin, otherwise inflammation can result. In case of

contact with eyes, do not rub but immediately rinse the eyes with water.

Furthermore, do not drink the liquids: Ink, Wash Liquid, Maintenance Solution, Pretreatment or waste

liquid under any circumstances, as they can cause vomiting and diarrhea.

Keep the liquids out of the reach of children.

Be sure to wear protective goggles and gloves when handling the grease, so that they do not get into

your eyes or onto your skin. If the grease get into your eyes or onto your skin, inflammation can result.

Furthermore, do not drink or eat the grease. They may cause diarrhea or vomiting.

Keep the grease out of the reach of children.

When replacing parts and installing optional accessories, be sure to use only genuine Brother parts.

Brother will not be held responsible for any accidents or problems resulting from the use of

non-genuine parts.

GT-3 Series

6. Maintenance

6-1. Replacing Consumables

This section describes how to replace the consumables and the maintenance of the printer.

6-1-1. Replacing the Ink Cartridge

The ink indicator on the Display flashes when the Ink Cartridge is getting low. Prepare the new Ink Cartridge (option*), and

replace it when “Empty XXXX (color)” is displayed. （* See "1-3-5. Consumable Requirements and Options" for part code.)

<Note>

z Use the Ink Cartridges described in “1-3-5. Consumable Requirements and Options”.

z Be careful not to get ink on your hands or clothing. Wash with soap if stained with ink. You cannot wash away the stained

ink on the material because the ink may be absorbed into the fiber.

z Do not replace cartridges while printing or head cleaning; is in operation it may cause damage to your printer.

z Do not disassemble the Ink Cartridge.

z Replace the Maintenance Parts packed together with Cyan Ink Cartridge (380 cc /180 cc), Magenta Ink Cartridge (380

cc)and White Ink Cartridge (380 cc) when you open the new one. Clean the Caps and Wipers, replace the Wiper

Cleaners, Fan Filter, Roller Felts (4), Flushing Plate Sponge (top) and Flushing Plate Felt (bottom) according to our

maintenance schedule to maintain good print quality. Replace them when you see the warning indicated on the display

too. Print quality may be reduced by insufficient cleaning, e.g. dirty printed materials, mis-firing. See "6-1-2. Replacing the

Wiper Cleaner and Cleaning the Caps / Wipers", "6-1-3. Replacing Flushing Plate Sponge and Flushing Plate Felt", "6-1-4.

Replacing the Fan Filter", "6-1-5. Replacing the Roller Felts" and "6-1-7. Cleaning the Encoder Strip".

z To keep the best print result, your printer will show empty status for the color cartridge that is empty. To keep print quality, a

small amount of ink remains to avoid damage to your printer.

(1) Open the new Ink Cartridge.

<Note>

Pigments in the White Ink are sinking little by little all the time. Hold the cartridge with both hands, upside down from the

mounted position, and shake it in 1-2 minutes so that the pigments inside can be mixed enough. Do it one by one.

0054Y

GT-3 Series

6. Maintenance

(2) Remove the used Ink Cartridge from the slot of the printer. Put your finger to the handle and pull out the Ink Cartridge.

<Note>

Leave the used Ink Cartridge installed until just before the replacement. Leaving your printer with no Ink Cartridge

installed may cause ink leakage or other serious damages.

Handle

0055Y

(3) Confirm the direction and the color of the new Ink Cartridge and put the bottom edge on the base and slide it to the back

of the slot.

0056Y.0057Y

<Note>

Confirm the color of the ink cartridge. Loading a wrong color causes serious damage to print quality, and could damage

to the Print Heads. If you have installed a wrong color, immediately contact Brother or your dealer for a service call.

(4) When you have replaced either one of the White, Cyan or Magenta Ink Cartridge, replace the Maintenance Parts packed

together in the Carton. Clean the Caps and Wipers, replace the Wiper Cleaners, Fan Filter, Roller Felts (4), Flushing

Plate Sponge (top) and Flushing Plate Felt (bottom) according to our maintenance schedule to maintain good print quality.

See “6-1-2.” and the following pages. This is really important to keep your printer in good condition.

<Note>

z Do not repeat unnecessary uninstalling / installing the Ink Cartridge.

z Dispose the used Ink Cartridge in compliance with your local regulations.

GT-3 Series

6. Maintenance

6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers

The Wiper Cleaner needs to be replaced regularly. Keep the Print Head Cap and Wiper Blade clean when replacing the

Wiper Cleaner. If not, the waste ink may drop on a T-shirt in printing or mis-firing may not be easily improved.

(1) Select [ Maintenance ] from the menu by pressing Up/Down Buttons and press OK Button.

(2) Select [ Maintenance Parts Exchange ] and press OK Button. The Platen will be loaded and the Wipers will be moved to

the cleaning position. Follow the message and turn off the printer.

(3) Open the Front Cover with both hands until it is locked with the stopper.

0046Y

(4) Cover your right hand with a plastic bag so that you can hold the used Wiper Cleaner safe and clean. Pick the right edge

of the Wiper Cleaner and move slightly to the right (1-2 mm) by your right hand, the claw in the right will be released.

0058Y

(5) Move the Wiper Cleaner slightly to the left (1-2 mm) to release the claw in the left. Pay attention not to tilt the Wiper

Cleaner or the waste ink may drop. Keep flat and move slowly.

<Note>

Do not tilt the Wiper Cleaner, ink may get on your hands or clothing.

0059Y

GT-3 Series

6. Maintenance

(6) Pick the plastic bag on your right hand with your left hand, and wrap the Wiper Cleaner with the plastic bag.

0060Y

(7) Remove the wrapped Wiper Cleaner carefully, not to drop waste ink and dispose of in accordance with local regulations.

0061Y

<Note>

Pay attention not to soil the Timing Belt and the other parts with waste ink.

(8) Prepare the Wiper Cleaner, which is in the carton of White, Cyan and Magenta (380 cc only) Ink Cartridge or in the

Maintenance Cleaning Kit (option*). ( * See "1-3-5. Consumable Requirements and Options" to get the Code Number.)

0062Y

(9) Wear the gloves, and wet both sides of a Clean Stick (green grip) with the Wash Liquid.

<Note>

Use only the Wash Liquid included to wet the Clean Stick; using other liquid will cause damage to the Print Heads.

GT-3 Series

6. Maintenance

(10) Use the one side of wet Clean Stick to clean the front side of the Wiper Blade.

(11) Use the other side of the wet Clean Stick to clean the rear of the Wiper Blade. Do not wipe the White / Color with the

same Clean Stick.

0063Y

0064Y

(12) Wet other two Clean Sticks and use them to remove ink or dust from the Print Head Caps.

Use one side of the Clean Stick to clean one Print Head Cap.

<Note>

Do not use dry Clean Stick; it cannot clean ink or dust. It may damage the Print Head Caps. Wipe off the dirty ink of

Clean Sticks with soft cloth if it is too dirty and wet with Wash Liquid.

0065Y

(13) Mount the new Wiper Cleaner by following (6) to (4) in the previous pages.

<Note>

Do not give stress to the Timing Belt in mounting the Wiper Cleaner.

If your printer turns on with no errors, replacement of the Wiper Cleaner has been completed successfully.

If something irregular occurs, e.g. abnormal noise or error "No Wiper Cleaner (CMYK/White)", turn off your printer, and

check if the Wiper Cleaner is correctly mounted.

0066Y

GT-3 Series

6. Maintenance

6-1-3. Replacing Flushing Plate Sponge and Flushing Plate Felt

(1) After replacing the Wiper Cleaner, replace the Flushing Plate Sponge and Flushing Plate Felt. Remove the Flushing

Plate from the printer by lifting up the right side slightly and pull up to the right direction.

(2) Remove the used Flushing Plate Sponge and Flushing Plate Felt from the Flushing Plate and remove the waste ink

inside. Put the new Flushing Plate Sponge (bottom) and Flushing Plate Felt (top) into the Flushing Plate and mount the

Flushing Plate as it is to the printer.

<Note>

z Keep clean the top edge of the Flushing Plate; if it is covered with dust and clogged ink, the Print Heads may touch

the surface and mis-firing may occur.

z Dispose the used Waste Ink in accordance with your local regulations. Or make contact to your dealer.

Flushing Plate Sponge

Felt

0067Y

6-1-4. Replacing the Fan Filter

(1) Put the gloves on your both hands, and put your left hand from the space before the Timing Belt to reach the Filter Cover.

(2) Lift up the Lock (1) of the Filter Cover with your left hand and move the Filter Cover to the opposite direction of the Fan

and pull out the Filter Cover by removing the Guide Holes from the projections.

(1)

0068Y

<Note>

Pay attention not to hit the Filter Cover to the Timing Belt.

GT-3 Series

6. Maintenance

(3) Pick up the edge of the used Fan Filter mounted in the Filter Cover, and remove the Fan Filter from the Filter Cover. Put it

in the plastic bag and dispose of it in accordance with local regulations.

0069Y

(4) Align the new Fan Filter to the shape of Filter Cover and mount it in by pushing by hand, with the "rough" surface to the

outside and the "fine" surface to the Exhaust Fan.

“Fi

ne” surface

“Rough” surfac

Filter Cover

Fan Filter

0070Y

<Note>

Check the surface of the Fan Filter, the rough side faces to the Platen to catch mist, and the fine side faces to the Fan

side.

(5) Move the Filter Cover from the front side of the Timing Belt, insert the Guide Holes to the projections and cover the Fan

with the Filter Cover by pushing until the Lock hold the Fan.

<Note>

Check if the Fan Filter can fix properly by pulling out to the Platen side.

GT-3 Series

6. Maintenance

6-1-5. Replacing the Roller Felts

(1) Unscrew two screws and remove the Felt Support.

0071Y

(2) Remove the used Felt.

(3) Apply the new Felt to the Felt Support. Pay attention not to give damage to the Felt Support.

(4) Position the edge of the Felt Support "A" by putting the edge to the Carriage "B" and tighten the screw with a coin. After

fixing, check if the Felt Support is aligned straight.

<Note>

Wipe off the ink mist on the surface where the Carriage Rollers move on, with a clean and soft cloth soaked with alcohol.

(5) After all the Maintenance Parts are replaced, See "6-1-6. Cleaning the inside of the printer and restart" and then clean

and confirm the inside of the printer. Push the Stop Lever to release the lock when you close the Front Cover with both

hands and then turn ON the printer.

6-1-6. Cleaning the inside of the printer and restart

(1) Wipe off the front/back of the Clearance Sensor and around the Platen with a soft wet cloth with water. Use Wash Liquid

to remove the clogged ink.

<Note>

The dirt of the Clearance Sensor may stain the T-shirt in loading.

(2) Wipe off the dust on the T-shirt Tray with wet cloth.

(3) Wipe off the ink mist on the surface e.g. where the Carriage Rollers move on, with a clean and soft cloth soaked with

alcohol.

(4) Wipe off the ink mist on the Carriage Guide Shaft with a clean and soft cloth soaked with alcohol. Put some specified

grease (option) on a soft cloth and apply the Carriage Guide Shaft. After cleaning, adjust the Carriage Speed from the

menu. See "7-2-9. Adjusting the CR Speed".

(5) Push the Stop Lever to release the lock when you close the Front Cover with both hands and then turn ON the printer. If

something irregular occurs, e.g. abnormal noise or error "No Wiper Cleaner (CMYK/White)", turn off your printer, and

check if the Wiper Cleaner is correctly mounted, etc.

Fel

Felt Support

Fel

GT-3 Series

6. Maintenance

6-1-7. Cleaning the Encoder Strip

There must be some dust and mist covering the Encoder Strip to cause reading error when some error occurs during the

printing operation. Clean the Encoder Strip with the attached tool.

(1) Prepare the Encoder Cleaner and ethanol of 95% or higher purity.

(2) Select [ Maintenance ] of the menu and press OK Button.

(3) Select [CR Encoder Strip Cleaning ] of the menu and press OK Button. The Platen will be loaded and the Caps move

down. Follow the message and turn off the printer.

(4) Open the Front Cover with both hands until it is locked with the stopper.

(5) Move the Carriage slowly to the rightmost position by hand.

<Note>

Ink may stain the Platen and other places while moving the Carriage, the bottom surface may be wet and dirty with ink.

(6) Loosen the four thumbscrews with a coin as shown below.

Encoder Cover F

Thumb screws

0072Y

(7) Hold the Encoder Cover F with both hands and lift it up by pulling out to your side. Remove the Encoder Cover F from the

printer.

<Note>

Pay attention not to give damage to the Carriage Guide Shaft. Tubes, Harnesses of solenoids and Carriage Motor. Keep

the Encoder Cover F in a flat position.

GT-3 Series

6. Maintenance

(8) Apply ethanol to the Felt fully, app. 2 ml, of the Encoder Cleaner.

Ethanol

0073Y

<Note>

Use ethanol of 95% or higher purity.

(9) Push the position [A] shown below with your finger to give space between the felts.

0074Y

(10) Put the Encoder to the Encoder Strip so that the Encoder Strip should run between the felts straightly, and the bottom part

of the felt should touch the inside of the Encoder Cover. The felts catch the Encoder Strip when you release your finger.

Encoder St

rip

Inside of the Encoder Cover

0075Y

(11) Wipe the Encoder Cleaner two or three times from the leftmost position to the right. After wiping, push the position [A] of

the Encoder Cleaner to release it from the Encoder Strip.

<Note>

Keep the level of the Encoder Cleaner in wiping.

GT-3 Series

6. Maintenance

(12) Move the Carriage slowly to the leftmost position by hand

<Note>

Ink may stain the Platen and other places while moving the Carriage, the bottom surface may be wet and dirty with ink.

(13) Wipe the Encoder Cleaner two or three times from the rightmost position to the left, by following the former steps (10) and

(11), where the Encoder Cleaner did not reach.

(14) After wiping, push the position (1) of the Encoder Cleaner to release it from the Encoder Strip.

(15) Again, move the Carriage to the rightmost position by hand.

<Note>

Ink may stain the Platen and other places while moving the Carriage, the bottom surface may be wet and dirty with ink.

(16) Hold the Encoder Cover F with both hands, avoid the Tubes and insert it to the notch holes on the printer, align the screw

positions to the U flutes on the Encoder Cover F and slide it to the back end horizontally. make sure that the projection on

the printer should fit the holes on the Encoder Cover F.

(17) Tighten the four thumbscrews.

<Note>

Confirm the Encoder Cover F should lock properly by pulling slightly to your side.

(18) Push the Stop Lever to release the lock when you close the Front Cover with both hands. Watch your fingers not caught

in the Front Cover. Turn ON the printer. The cleaning is success when the initialization of the printer is done with no errors

indicated.

GT-3 Series

6. Maintenance

6-2. Regular Maintenance

Do not leave the White ink inside the printer. White pigment precipitates and may cause serious damage to your printer. This

section describes how to maintain the White Ink. Execute the following menu to keep your printer and print result in good

conditions.

Menu Timing Details

Daily Cleaning White Before printing

(once a day) Replaces the white-less White Ink caused by settled pigments.

White Tube Cleaning Once a week Prevents the Tubes from choking with pigments.

<Note>

Confirm if there is enough room in Waste Ink Tank before executing the maintenance.

6-2-1. Daily Cleaning White for replacing dull White Ink (Once a day, before printing)

(1) Shake the White Ink Cartridge one by one to keep the whiteness of the White Ink. Pull out one of the White Ink Cartridge,

hold the cartridge with both hands, upside down from the mounted position, and shake by moving back and forth to

mix up the pigment in the bottom and shake it horizontally, in 30 seconds to 1 minute. (See "6-1-1. Replacing the

Ink Cartridge".)

(2) Select [ Daily Cleaning White ] from the menu and press the OK Button. Select "All White" to do in one time or select the

each Print Head to do one by one. Press OK button to continue.

(3) After replacing the White Ink, print Nozzle Check Pattern from [ Test Print ] menu to check the print quality. Also print

Whiteness pattern on the pretreated material so that you can see the whiteness.

6-2-2. White Tube Cleaning (once a week)

This menu washes away the pigments inside the Tubes and Print Heads. When you execute this menu all-in-one time,

GT-381 for four Tubes, GT-361 for two Tubes, you can retrieve the White Ink before Tube Cleaning. It takes time but you can

save the cost. If you select the Tube one by one then the White Ink will not be retrieved. Follow the indications on the Display

and operate with Maintenance Cartridge.

<Note>

If you leave GT-3 printer unused for more than two weeks, execute White Tube Cleaning for storage. Insert Capping

Cartridges (option) in place of White Ink Cartridge. See "6-2-5. Required Maintenance for the Long Storage".

Contiguous All Whites

The following image show the steps:

<Note>

If you execute Tube Cleaning one by one, then the first "Retrieving White Ink" is skipped.

Insert Capping Cartridges (option) in place of White Ink Cartridge when you leave the GT-3 printer unused for more than two

weeks.

Set Maintenance Cartridge Tube Cleaning

All Whites:

Retrieving White Ink

Insert White Ink Cartridge

or Capping Cartridge

Load

Maintenance

Solution

Repeats the steps four times for GT-381(W1-W4), two times for GT-361 (W1, W2)

Tube Cleaning

GT-3 Series

6. Maintenance

(1) Fill the bottle with Maintenance Solution. Confirm that at least more than 250 ml per one Print Head is in the bottle.

(2) Confirm in advance the amount of the Waste Ink in the Waste Ink Tank (more than 500 ml).

(3) Confirm that the printer is either [ Standby ] or [ Ready ].

(4) Select [ Maintenance ] > [ White Tube Cleaning ] from the menu and press OK Button.

(5) Select [ All Whites ] then White Ink retrieval starts and the countdown is indicated on the Display. Please wait until the

retrieval finishes (4 minutes).

(6) When White Ink retrieval is finished, the message [ Set Maintenance Cartridge ] is indicated on the Display. Remove the

White Ink Cartridge of W1 and insert the Maintenance Cartridge to W1 slot. and press OK Button. Confirm that the tube

of the Maintenance Cartridge reaches to the bottom of the bottle.

0076Y

(7) [ Close Air-in Cap ] is indicated. Confirm that the Air-in Cap is capped (closed) and press OK Button. The pump starts

turning. After 30 seconds, when the peep sounds ring, the message [ Open Air-in Cap ] is indicated on the Display Uncap

(open) the air-in cap and press OK button. The air goes into the tube and wash away the remained White Ink.

(8) After washing with air bubbles, when the peep sounds ring, the message [ Close Air-in Cap ] is indicated on the Display,

which is to remove the air bubbles with Maintenance Solution Close the Air-in Cap again and press OK button. It takes

about * minutes to refill the Maintenance Solution.

(9) After refilling the Maintenance Solution, the message to go to W2 is indicated on the Display. Remove the Maintenance

Cartridge from W1 slot and mount the Maintenance Cartridge to W2 slot, and install the well-shaken White Ink Cartridge

to W1. Tube Cleaning W1 is finished successfully. Repeat the steps for other White Print Head(s).

<Note>

Insert White Capping Cartridges (option) in place of White Ink Cartridge when you leave the GT-3 printer unused for

more than two weeks. See "6-2-5. Required Maintenance for the Long Storage" and "1-3-5. Consumable Requirements

and Options" for Part Code.

GT-3 Series

6. Maintenance

Loading White Ink after Tube Cleaning

(1) Load the White Ink with full of Maintenance Solution in the Tube, the step (9) in the previous page. Insert the White Ink

Cartridge and select [ Maintenance ] > [ Load White ] from the menu and press OK.

(2) Select [ All Whites ] or one from W1-W4 and press OK. White Ink starts loading.

<Note>

The menu [ Initial Cleaning ] of the White Ink starts from loading Maintenance Solution, to load White Ink into the Tube

smoothly. After Tube Cleaning, when the Tubes are filled with Maintenance Solution, select [ Load White ] to load White

Ink.

One-by-one Tube Cleaning

(1) Fill the bottle with Maintenance Solution. Confirm that at least more than 250 ml per one Print Head is in the bottle.

(2) Confirm in advance the amount of the Waste Ink in the Waste Ink Tank (more than 500 ml).

(3) Confirm that the printer is either [ Standby ] or [ Ready ].

(4) Select [ Maintenance ] > [ White Tube Cleaning ] from the menu and press OK Button.

(5) Select [ White-1 (or White-2 to White-4) ] then the message [ Set Maintenance Cartridge ] is indicated. Remove the White

Ink Cartridge of W1 and insert the Maintenance Cartridge to W1 slot. and press OK Button. Confirm that the tube of the

Maintenance Cartridge reaches to the bottom of the bottle. [ Close Air-in Cap ] is indicated. Confirm that the Air-in Cap is

capped (closed) and press OK Button.

<Note>

White Ink is retrieved only when [ All Whites ] is selected.

(6) The pump starts turning. After 30 seconds, when the peep sounds ring, the message [ Open Air-in Cap ] is indicated on

the Control Panel. Uncap (open) the air-in cap and press OK button. The air goes into the tube and wash away the

remained White Ink. It takes about 10 minutes to wash one tube.

(7) After washing with air bubbles, when the peep sounds ring, the message [ Close Air-in Cap ] is indicated on the Control

Panel, which is to remove the air bubbles with Maintenance Solution Close the Air-in Cap again and press OK button.

(8) After refilling the Maintenance Solution, the message of selecting Print Head menu is indicated. Remove the

Maintenance Cartridge from W1 slot and insert well-shaken White Ink Cartridge. Tube Cleaning W1 is finished

successfully.

6-2-3. Waste Ink Disposal

Use a polyethylene tank for additional Waste Ink Tank. Confirm in advance the amount of the Waste Ink when you do the

maintenance, especially when you execute the maintenance menu of Initial Cleaning and White Tube Cleaning. Deal with

care because it is heavy.

(1) Prepare a new polyethylene tank.

(2) Pull off the Waste Ink Tube carefully and insert it to the new Waste Ink Tank.

<Note>

Make sure that the Waste Ink should flow in the tube without bend.

(3) Remove the full Waste Ink Tank and cap tightly and carefully.

(4) Install the new Waste Ink Tank in a proper position.

<Note>

Dispose the used waste ink, pretreatment, maintenance solution (all water-based) or other wastes in accordance with your

local regulations. Or make contact to your dealer.

GT-3 Series

6. Maintenance

6-2-4. Replacing the Platen Sheet

The Platen Sheet gets dirty in operation. Please replace the Platen Sheet to avoid making smudges on a T-shirt. To help align

a T-shirt, you can print a grid on the Platen Sheet. It is in [ All Program ] > [ Brother GT-3 Tools ] > [ Useful Tools ].

Grid14x16.ar3 is for the standard Platen 14x16. (See "3-3-7. Opening the Useful Tools".)

(1) Press the Platen Button to eject the Platen.

(2) Remove slowly the Platen Sheet and the adhesive tape from the Platen. If you have difficulty, remove the Platen from the

printer for operation.

0077Y

(3) Clean the surface of the Platen using a soft cloth damped with mild detergent, and then wipe it using a soft and dry cloth.

If you have difficulty, remove the Platen from the printer for operation.

(4) Make sure the surface of the Platen is completely dry, and then put the new Platen Sheet on the Platen. Peel off the

smaller part of the coated paper. Position the Platen Sheet on the Platen without sticking to it. Apply the back position of

the Platen Sheet to the Platen and go on little by little by peeling off the bigger part of the coated paper.

<Note>

Put the Platen Sheet straight against the Platen without making creases.

0078Y

GT-3 Series

6. Maintenance

6-2-5. Required Maintenance for the Long Storage

The maintenance is different from Color and White when you will leave GT-3 printer unused for more than 2 weeks. Clean the

Caps and Wipers for both side, as for Color pour Wash Liquid into the Caps to prevent ink clogging inside the Maintenance

Unit. As for White, execute Tube Cleaning and insert Capping Cartridges (four for GT-381, two for GT-361) with Maintenance

Solution filled.

<Note>

z Do not run the printer when you mount Capping Cartridge. The Print Heads may seriously damaged.

z Use Wash Liquid for cleaning GT-3. You can use the one in the Nozzle Cleaning Kit, the Maintenance Cleaning Kit, or

you can purchase one. It is recommended to have one with you.

0079Y

In case you do not run the printer at all:

(1) Execute White Tube Cleaning by referring to "6-2-2. White Tube Cleaning". Select [ All Whites ] and wash away the

pigments inside the Tubes and Print Heads. Insert Capping Cartridge (option) to the Ink Cartridge Slots with full of

Maintenance Solution.

(2) Next, clean the Caps, Wipers and around the Maintenance Unit. Select [ Maintenance ] > [ Maintenance Parts

Exchange ] and press OK Button. The Platen is loaded and the Caps move down. Follow the message and turn off the

printer, and open the Front Cover with both hands until it is locked with the stopper.

(3) Clean the Caps and Wipers by referring "6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers". Replace

to new Wiper Cleaners if necessary.

(4) Pour 7 and 8 drops of Wash Liquid to the Print Head Caps of Color side to prevent from ink clogging inside of the

Maintenance Unit.

0080Y

<Note>

Be careful not to spill the Wash Liquid around the Print Head Caps.

(5) Push the Stop Lever to release the lock when you close the Front Cover with both hands and turn ON the printer.

GT-3 Series

6. Maintenance

100

(6) After the initialization is finished successfully, turn OFF the printer and store.

<Note>

Check the printer once in two weeks. Execute White Tube Cleaning when you find the Tubes look white. Keep the White

Tubes full of Maintenance Solution. As for Color side, refer to the step (4) in the previous page and pour 7 and 8 drops of

Wash Liquid to the Print Head Caps of Color side to prevent from ink clogging inside of the Maintenance Unit..

Restart after storage:

(1) Turn ON the printer and mount the White Ink Cartridges instead of either the Maintenance Cartridge or Maintenance

Solution-mixed White Ink Cartridge. If the Tubes are filled with Maintenance Solution without air inside, then mount the

White Ink Cartridges and load White Ink by referring "Loading White Ink after Tube Cleaning" in "6-2-2. White Tube

Cleaning". If some air can be found in the Tubes, insert the Maintenance Cartridge with Maintenance Solution in the

bottle (more than 250 ml per Print Head) and select [ Maintenance ] > [ Initial Cleaning ] and load the Maintenance

Solution first. Follow the indications on the Display and load the White Ink by replacing to the White Ink Cartridge.

(2) After loading the White Ink, print Nozzle Check Pattern for both Color and White in [ Test Print ] menu to find out the print

quality. If the print quality is not good enough, especially Color side, clean the surface of the Print Heads by referring

"7-2-6. Cleaning the Print Head Nozzles".

<Note>

The Auto Cleaning of Color side will be Powerful Cleaning after you leave the printer unused for more than two weeks.

GT-3 Series

7. Troubleshooting

101

7. Troubleshooting

CAUTION

Ensure there is adequate space left for safe working. The Platen moves forward while operating and it may be

injured.

Do not handle the platen while printing. If your hand gets caught between the platen or the T-shirt tray and the

covers, it may be injured.

Do not move the Platen by hand.

The Printer may be seriously damaged by this.

Do not put your hands inside the covers while the printer’s power is turned on, otherwise your hands may touch

against moving parts and this may result in injury.

Wait at least 1 minute after turning off the power switch before opening the front cover.

Do not touch the head heat sink as it may be HOT and may cause a bum.

Be careful not to get your fingers caught when closing the front cover, otherwise it may result in injury to your

fingers.

Do not disassemble the ink cartridge.

Take care not to let the liquids: Ink, Wash Liquid, Maintenance Solution, Pretreatment or waste liquid come into

contact with your eyes or onto your skin, otherwise inflammation can result. In case of contact with eyes, do not

rub but immediately rinse the eyes with water.

Furthermore, do not drink the liquids: Ink, Wash Liquid, Maintenance Solution, Pretreatment or waste liquid under

any circumstances, as they can cause vomiting and diarrhea.

Keep the liquids out of the reach of children.

GT-3 Series

7. Troubleshooting

102

7-1. Solving Printer Problems

Use the table below to help solve printer problems.

Problem Cause Solution

Cannot send print data from the

PC. You have selected the wrong

printer. Confirm the selected printer, and select the correct

one.

USB cable not connected Disconnect and re-connect the USB 2.0 cable

Your PC and OS do not satisfy

the requirements of GT-782. See “1-3-3. Software Information" and check your PC

properties.

Using an USB cable that does

not meet the requirement. Use the USB cable that meets the requirement.

See “1-3-4. Other Requirements".

The USB hub is not working

properly. Connect GT-3 directly to PC with USB 2.0 cable. USB

hub is not operationally approved.

Noise is disturbing the

communication between GT-3

and the PC.

Disconnect the USB 2.0 cable once, and wait for 5

seconds and connect it again.

If this does not solve the problem, turn off GT-3 wait

for 5 seconds and restart.

The PC is not working properly. Restart the PC.

Try another inlet of USB port.

Other USB device is connected

with your PC. Remove the other USB device and restart your PC,

and check if GT-3 works properly.

Something is wrong with the

USB cable. Try other or shorter USB 2.0 cables.

Pressing the Print Button does

not start printing. GT-782 is indicating an error Solve the cause of the error, and try again.

"Ready" is not indicated on the

Display, or some operation is

working.

Wait till the operation is over.

Auto Head Cleaning is in

process. Wait until the Head Cleaning finishes.

The room temperature does not

meet the requirements. Adjust the room temperature.

See “1-3-1 Environment”.

The printer has not received /

read a data, or is now receiving /

reading the data.(Print Button is

not ON.)

Machine will not print until print job has been received.

The Print Heads are overheated

and the message "** Head

Temp Rising" appears.

FFC (flat cable) of the Print Head may not be

connected firmly and this may cause the rise of Print

Head temperature. Turn OFF the printer and confirm

the connection of FFC. Wait until the heads cool

down.

GT-3 Series

7. Troubleshooting

103

Problem Cause Solution

GT-3 does not turn on. There is no power. Check the power cable connections.

The Front Cover is open or not

closed properly.

Close the Front Cover properly.

An error occurred just after

turning on GT-3.

An error occurred. Check the error code with "7-4. Error Messages" and

restart GT-3. If the error is not cleared, please contact

Brother or your dealer.

GT-3 cannot read data from

USB flash drive.

No USB flash drive is inserted

in the slot, or it is not inserted

properly.

Insert USB flash drive properly.

ARP files are saved. GT-3 cannot print GT-541/GT-782 print data. Make AR3

print data with Brother GT-3 File Output printer driver.

That USB flash drive does not

match the specification.

Use a USB flash drive that is FAT32 formatted and its

capacity is under 32 GB

The USB flash drive has poor

quality.

Confirm that USB flash drive with your PC.

Cannot do Uni-Directional /

Bi-Directional Printing.

The setting between the

Printer Driver and the Printer

does not match.

The printer setting is prior to the Printer Driver.

Uni-Directional setting in the Printer Driver is only

available when the printer setting is [Auto].

GT-3 Series

7. Troubleshooting

104

7-2. Solving Print Quality Problems

Use the table below to solve print quality problems.

Problem Cause Solution

The graphic applications’

settings are not appropriate.

Maybe CYMK mode is being

used for data.

See “4-2 Setting the Applications’ Print Condition" and

modify the artwork.

The print condition is not

appropriate. (less saturation)

See “4-3. Setting the Printer Driver Condition” and

select proper Color Processing to adjust saturation

and contrast. Select the resolution 1200 x 1200 dpi

and increase the ink amount.

Print is faded.

Ink in the Ink Cartridge may be

getting low.

See “6-1-1. Replacing the Ink Cartridge”.

Mis-firing of nozzles: Confirm by

printing Nozzle Check Pattern.

by referring "7-2-3. Checking

Print Quality with Nozzle Check

Pattern ". The Print Heads need

to be cleaned.

Press the Head Cleaning Button to clean the Print

Heads. Or select "Head Cleaning" menu. After

Head Cleaning, check the nozzles with "Nozzle

Check Pattern. If repeating this 5 times does not

solve the problem, see “7-2-2. Cleaning the Print

Heads”.

Some colors are easy to be

seen.

Select "Color Multiple Pass Printing" in the Printer

Driver. See "4-3-9. Color Multiple Pass Printing".

Printing on very high absorbent

material.

Select "uni-directional" of Print Direction. See

“

7-2-4.

Changing the Print Direction”.

The Platen is too low. Printing by

wider gaps between Print Heads

and printed medium.

Adjust the Platen height to make the clearance

between the Clearance Sensor and the surface of the

Print Heads app. 2 mm. See "4-5. Placing the T-shirt

on the Platen". When "Platen Lowering Set (option)"

is used, put them back to the original parts or lay

something on the Platen.

Your print has horizontal stripes

(banding).

Firing Adjustment is not

adjusted.

Firing Adjustment is necessary after Print Head is

replaced or the Platen is replaced. See "7-2-8.

Adjustment after the Print Head has been replaced."

The ink runs and blurs on the

edge.

Too much ink is used.

Using a thin T-shirt that is not

made with 100% cotton.

Adjust the Ink Volume. See “4-3-10. Settings for Color

Inks".

Something is printed but no data

is in the print data.

Waste ink is overflowed from

Wiper Cleaner and Print Head

Caps and stains around the Print

Heads.

Some thread or dust attached

on the Print Head nozzles.

Clean around the Print Heads and replace Wiper

Cleaners. See "6-1-2. Replacing the Wiper Cleaner

and Cleaning the Caps / Wipers".

GT-3 Series

7. Troubleshooting

105

Problem Cause Solution

The outlines of printed image

are not clear, or texts and

outlines are printed doubled.

The Platen height may be wrong

with a too large gap. Adjust the Platen height to make the clearance

between the Clearance Sensor and the surface of the

Print Heads app. 2 mm. See "4-5. Placing the T-shirt

on the Platen". When "Platen Lowering Set (option)"

is used, put them back to the original parts or lay

something on the Platen.

Print Heads hit the garment

Keep the surface flat and adjust the height. (esp. both

edges). See "4-5. Placing the T-shirt on the Platen".

Flushing Plate Sponge is full of

waste ink. Replace the Flushing Plate Sponge and Flushing

Plate Felt. See "6-1-3. Replacing Flushing Plate

Sponge and Flushing Plate Felt".

Clearance Sensor is stained. Wipe off the both sides of Clearance Sensor. See

“6-1-6. Cleaning the inside of the printer and restart".

T-shirt is smudged with ink.

The Platen Sheet needs to be

replaced and is dirty. See “6-2-4. Replacing the Platen Sheet".

Pale colors are getting

disappeared while printing. The nozzles f the Print Heads

are getting dried under the

humid high-temperature

condition.

See “7-2-10. Adjusting the Flushing Interval”, "7-2-11.

Adjusting the Flushing Volume".

Pretreatment was not applied

enough or done unevenly. Apply evenly. See "4-6-1. Applying the Pretreatment”.White is uneven.

Water drops on the

Pretreatment-cured surface

cause stains.

Do not wet the cured surface. See "4-6-1. Applying

the Pretreatment”.

Pretreatment was not applied

enough. See "4-6-1. Applying the Pretreatment”.

Poor curing: Temperature was

too low and/or the pressure is

too low.

Confirm the temperature and increase the pressure of

heat press. See "4-6-1. Applying the Pretreatment”.

Mis-firing of nozzles: Confirm by

printing Nozzle Check Pattern.

by referring "7-2-3. Checking

Print Quality with Nozzle Check

Pattern ". The Print Heads need

to be cleaned.

Press the Head Cleaning Button to clean the Print

Heads. Or select "Head Cleaning" menu. After

Head Cleaning, check the nozzles with "Nozzle

Check Pattern. If repeating this 5 times does not

solve the problem, see “7-2-2. Cleaning the Print

Heads”.

White is not white enough.

Daily Cleaning White is not

done. White Ink Cartridges were

not shaken enough.

Do the steps in "6-2-1. Daily Cleaning White for

replacing dull White Ink". Shake the White Ink

Cartridges well.

GT-3 Series

7. Troubleshooting

106

7-2-1. Procedure for Solving the Print Quality Problems

Follow the procedure (Step 1 to 7) below until the print quality problem is solved.

<Note>

The following steps are shown with CMYK Print Heads and do the same in case of White Print Heads.

Step 1: Confirm the amount of remaining Ink in the Ink Cartridge and execute Normal Cleaning.

Head Cleaning, with flushing fresh ink, can solve most of print quality problems. Check the nozzles by test printing of Nozzle

Check Pattern (see "7-2-3. Checking Print Quality with Nozzle Check Pattern ") first and execute Normal Cleaning to the Print

Head concerned (see “7-2-2. Cleaning the Print Heads / Using the Head Cleaning Button”) Repeat the Normal Cleaning a

few times. and check again by printing Nozzle Check Pattern. If the problem is not solved, go on to the next step.

<Note>

z It is very important the machine is used in an environment as specified. Use a humidifier to keep the humidity up to 35% to

keep print quality.

z Your printer automatically cleans its Print Heads every 24 prints; however more frequent Print Heads cleaning may need

to be done depending on the environment. In this case, change the Auto Head Cleaning frequency (see “7-2-5. Changing

the Auto Cleaning Setting”).

Step 2: Replace Wiper Cleaners and clean around the Print Heads.

The Wiper Cleaner absorbs waste ink carried by the Wiper Blade. If Wiper Cleaner cannot absorb waste ink any more, the

dirty Wiper Blade wipes the Print Head Nozzles again and this causes misfiring or damage the Print Head. Replace the Wiper

Cleaner regularly and clean the Wiper Blades and caps. Check if it is too dirty to wipe off the waste ink when you cannot solve

mis-firing by Nozzle Cleaning.

How to Check:

(1) See "6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers" and select [ Maintenance ] > [ Maintenance

Parts Exchange ] of the menu.

(2) Replace Wiper Cleaners as well as cleaning Wiper Blades and Caps. replace Flushing Plate Sponge and Flushing Plate

Felt too because the dirty surface of the Flushing Plate felt may give dame to the Print Head Nozzles. See "6-1-3.

Replacing Flushing Plate Sponge and Flushing Plate Felt".

(3) Confirm the inside of the printer and clean if necessary. See "Cleaning the inside of the printer and restart".

<Note>

Do not tilt the Wiper Cleaner Cassette; ink may get on your hands or clothing.

(4) Check the Wiper Cleaner, and if it is heavily soiled, replace it using the Cap Cleaning Kit (see “6-1-2. Replacing the Wiper

Cleaner and Cleaning the Caps / Wipers”). If the Wiper Cleaner is not heavily soiled, go on to the next step.

Step 3: Check the ink tubes and execute Powerful Cleaning.

Open the Front Cover with both hands until it is locked with the stopper and check the ink tube inside if there is any "empty" air

space longer than 5 mm. If so, push the Stop Lever to release the lock when you close the Front Cover with both hands and

turn ON the printer, execute Powerful Cleaning to fill the tube with ink. Confirm by turning OFF the printer and open the Front

Cover. If not enough or the "empty" air is large, execute Initial Cleaning in [ Maintenance ] menu. to replace the old ink.

<Note>

As for White Ink, you do not have to load Maintenance Solution, go on the Initial Cleaning with White Ink Cartridge with

"Maintenance Cartridge" is indicated on the Display, and press the Stop Button to discontinue the operation after 10 seconds.

If the problem is not solved, proceed to the next step.

GT-3 Series

7. Troubleshooting

107

Step 4: Confirm the "conditions" of mis-firing.

(1) Print the Nozzle Check Pattern, and check which Print Head has the problem (see "7-2-3. Checking Print Quality with

Nozzle Check Pattern ").

(2) If the missing positions (nozzles) are fixed, then go to Step 5. If the missing position shift every time you print Nozzle

Check Pattern, then maybe some tiny air bubbles are in the Print Head Nozzles. Execute Powerful Cleaning and confirm

with Nozzle Check Pattern. (See “7-2-2. Cleaning the Print Heads”).

<Note>

If you have time, leave the printer unused for 15- 20 minutes then the tiny air may be settled.

If you find mis-firing when you print rather large image though Nozzle Check Pattern is OK after Normal Cleaning, go to

Step 6.

Step 5: Clean the Print Head Nozzles.

(1) Clean the Print Head Nozzle using the Nozzle Cleaning Kit (see “7-2-6. Cleaning the Print Head Nozzles”).

<Note> Use new Clean Applicators to clean the Nozzles.

(2) Execute Powerful Cleaning to remove air bubbles inside the Nozzles. Print Nozzle Check Pattern to confirm the print

quality. If the problem is not solved after Head Cleaning and print test, go to Step 6.

<Note>

Make sure to execute Powerful (or Initial) Cleaning after Nozzle Cleaning.

If the problem is not solved, go to the next step.

Step 6: Contact Brother Customer Service or your dealer.

Please tell your service how the issue has started, the present conditions, the troubleshooting that you have done, etc. If you

are asked to replace the Print Head by yourself, see “7-2-7. Replacing the Print Head” for the procedure.

GT-3 Series

7. Troubleshooting

108

7-2-2. Cleaning the Print Heads

Your printer automatically cleans its Print Heads every 24 prints (you can change the frequency; see “7-2-5. Changing the

Auto Cleaning Setting”), or when your printer has not been used for more than two hours. The auto-cleaning starts when you

press the Print Button in these situations. However, the auto-cleaning may not be enough and cannot solve print quality

problems (e.g. stripes/ banding appears on the printed image). Please do the "manual" head cleaning.

Using the Head Cleaning Button

(1) Make sure your printer is either [ Standby ] or [ Ready ] mode.

(2) Press the Head Cleaning Button.

(3) Select either [ All Colors ], [ All Whites ] or [ All Print Heads ] from the menu by Up / Down Button and press the OK

Button. The message [ Head Cleaning…] appears and your printer starts "Normal" Head Cleaning. Press the Stop

Button to cancel.

The message returns to either [ Stand By ] or [ Ready ] when the Head Cleaning is finished.

Normal / Powerful Cleaning

(1) Make sure your printer is either [ Standby ] or [ Ready ] mode.

(2) Select [ Head Cleaning ] from the menu and press the OK Button.

(3) Press the Up/Down Button to select “Head Cleaning”, and then press the OK Button. Select either [ Normal Cleaning ] or

[ Powerful Cleaning ] by Up/Down Button and press the OK Button. Refer to the steps in "7-2-1. Procedure for Solving

the Print Quality Problems". After a long storage, or when you find ink tubes have "empty air" space inside, execute

"Initial" Head Cleaning in [ Maintenance ] menu first to replace all the ink inside the tube. Select "Initial Cleaning" in

"Maintenance" menu and execute Initial Head Cleaning.

04e0029Y

(4) Press the Up/Down Button to select which Print Head (color) to clean (can select “All Colors” for Normal mode), and then

press the OK Button. Select either [ All Colors ] or [ All Whites ] if more than two Print Heads of either CMYK or Whites

have mis-firing at the same time.

The message “Head Cleaning…” appears and your printer starts cleaning the Print Heads.

The message changes to Print Head Selection menu when the head cleaning has been completed.

<Note>

Confirm the space in Waste Ink Tank before you execute Initial Cleaning. See “6-2-3. Waste Ink Disposal.”

7-2-3. Checking Print Quality with Nozzle Check Pattern

You can identify which Print Head has the problem by using the Nozzle Check Pattern. Print it when some "white" blank lines

can be seen in the print data or white is not white enough.

<Note>

z When "Platen Lowering Set (option)" is used, put them back to the original parts or lay something on the Platen.

z When you check the White print quality, use colored paper, clear plastic plate, etc.

(1) Install the Platen 14 x 16 (see “4-4. Uninstalling / Installing the Platen”).

(2) Set the Platen height to the “A” position (see “4-5. Placing the T-shirt on the Platen”).

GT-3 Series

7. Troubleshooting

109

(3) Place a sheet of paper (A4 or letter size) at the right corner of the Platen as shown below. Use adhesive tape to make the

paper flat. You can use a T-shirt instead of paper.

Paper of A4/ Letter size

0081Y

(4) Select [ Test Print ] with the Up/Down Button from the menu and then press the OK Button.

(5) Press the Up/Down Button to select either “Nozzle Check CMYK”, or "Nozzle Check White" and then press the OK

Button. The following message appears.

05e0030Y

(6) Press the OK Button to start printing the Nozzle Check Pattern.

(7) Check the printed pattern to identify which Print Head has the problem.

CMYK:

If there is stripes (arrow 1) or line breaks (arrow 2), the Print Head of the color (in the following example: Magenta) has the

problem. The Print Heads need to be cleaned (see “7-2-2. Cleaning the Print Heads”).

(Continued on the next page)

GT-3 Series

7. Troubleshooting

110

White:

Like CMYK shown in the previous page, the Print Heads of W1 W2 (GT-381: one in W1, two in W2) have the problem.

The Print Heads need to be cleaned (better to execute [ All Whites] , see “7-2-2. Cleaning the Print Heads”).

<Note>

GT-3 has multiple White Heads (4 on GT-381, 2 on GT-361) and mis-firing is not so severe compared with the one

with CMYK Print Heads. See the left print result on paper and some of the nozzles are not fired, but the actual print

quality on the right print on pretreated T-shirt is enough.

One or two Mis-firing with each Print Head (left) but the normal print (right) is OK.

Execute Head Cleaning if you have the print as shown in the below:

Left: Several continuous nozzles are missing like a "band" with GT-381.

Right: The same position in the multiple Print Heads are missing (W1 and W3) with GT-381.

GT-3 Series

7. Troubleshooting

111

7-2-4. Changing the Print Direction

When there are large gaps between the Print Heads and printed medium, or when printing on very high absorbent material,

horizontal stripes and color graining can appear on the printed image. You can solve this problem using one-way

"Uni-Directional " print. If you adjust to a larger gap then we recommend this mode is used. Keep the clearance between the

Clearance Sensor and the surface of the Print Heads should be app. 2 mm by adjusting the Platen Height.

If you already know that a print data will be printed in uni-directional printing before you print, you can set with the Printer Driver.

This setting is available when the printer’s setting is [ Auto ]. See “4-3. Setting the Printer Driver Condition” and “4-3-14. Setting

Print Direction as Uni-Directional”.

(1) Select [ Print Direction ] with Up/Down Button from the menu and press the OK Button.

(2) Select [ Always Uni- ] when you print one-way "Uni-Directional" printing. Select [ Always Bi- ] when you print by-directional

even if the Printer Driver setting is Uni-Directional Printing with Up/Down Button and then press OK Button. This setting is

always available until you change the setting.

06e0031Y

<Note>

z Uni-Direction Icon is on the Display of the Control Panel.

z The default setting is "Auto", which follows the Printer Driver setting. (Check-OFF Uni-Directional Printing)

z The printer setting is prior to the Printer Driver setting. Even if the checkbox "Uni-Directional Printing" is checked, when the

printer setting is " Always Bi-" then the print is Bi-Directional.

7-2-5. Changing the Auto Cleaning Setting

GT-3 automatically cleans its Print Heads every 24 prints. However more frequent Print Heads cleaning needs to be done

depending on the environment. In this case, change the Auto Head Cleaning frequency as follows.

<Note>

This setting is available with Color / White separately.

(1) Select [ Printer Setting ] with Up/Down Button from the menu and press the OK Button.

(2) Select [ Auto Cleaning ] and press the OK Button.

The following display appears.

07e0032Y

(3) Press the Up/Down Button to select the frequency from 1 to 24, and then press the OK Button.

The Auto Cleaning will be executed at every number of prints you have set.

<Note>

Cleaning the Print Heads frequently may hasten the Wiper Cleaner consumption.

GT-3 Series

7. Troubleshooting

112

7-2-6. Cleaning the Print Head Nozzles

Use the Nozzle Cleaning Kit to clean the Head Nozzles (in the red square in the photo below).

<Note>

Pay careful attention in cleaning the clean Print Head Nozzles, which are both delicate and expensive. The Print Head Nozzle

should be cleaned only when it is needed as follows in “7-2-1. Procedure for Solving the Print Quality Problems”.

(1) Make sure your printer is in either [ Standby ] or [ Ready ] mode.

(2) Select [ Maintenance ] from the menu and press the OK Button.

(3) Select [ Nozzle Cleaning ] with the Up/Down Button from the menu and press the OK Button. The Platen will be loaded

and the Carriage and the Wipers will be moved to the cleaning position. The following message appears.

08e0033Y

(4) Turn off your printer.

(5) Open the Front Cover with both hands until it is locked with the stopper.

(6) Open the Nozzle cleaning Kit. Put on the gloves and wet a Clean Applicator (white grip with round form) with full of Wash

Liquid.

<Note>

z Nozzle Cleaning Kit is available for CMYK / White inks.

z Use Clean Applicators in Nozzle Cleaning Kit (white grip with round form), not in Maintenance Cleaning Kit (green grip

with flat form).

z Wet a Clean Applicator only with Wash Liquid, do not rub the Print Head with other liquid (e.g. water). Print Head may

be seriously damaged.

fully wet with Wash Liquid

GT-3 Series

7. Troubleshooting

113

(7) Wet the surface (nozzle plate) of the Print Head with Wash Liquid. Then rub softly the nozzle plate to remove ink and

debris (clogged ink) from the nozzle plate until the nozzle plate is clean. Use a soft, clean and lint-free cloth to loosen and

remove the dirty ink and debris from the Clean Applicator to keep its surface clean and wet again with Wash Liquid. Use

one Clean Applicator for each color.

<Note>

The W3 and W4 Nozzles Plates of GT-381 are hard to be seen from the stop position. Move the Carriage to the left by

your hand to the position where you can clean the Nozzles easily.

<Note>

Pay attention not to touch or stain the Clearance Sensor in cleaning.

Clearance Sensor

W3 and W4

(8) Check and clean around the Caps and Wipers. You can use both Clean Applicator (round form with white grip) and

Clean Stick (flag form with green grip). (See "6-1-2. Replacing the Wiper Cleaner and Cleaning the Caps / Wipers"). Wipe

off the front/back of the Clearance Sensor and around the Platen with a soft wet cloth with water.

(9) Push the Stop Lever to release the lock when you close the Front Cover with both hands.

(10) Turn ON the printer, and initialization will start and the Carriage will move to the original position (on the Maintenance

Unit).

GT-3 Series

7. Troubleshooting

114

(11) Execute Powerful Cleaning of all the Print Heads to remove the air bubbles in the nozzles. Print Nozzle Check Pattern to

confirm the print quality. (See "7-2-3. Checking Print Quality with Nozzle Check Pattern"). Execute Head Cleaning if

necessary.

7-2-7. Replacing the Print Head

The print heads can be replaced the following steps. Please make contact to your dealer or Brother. for further information.

<Note>

Color Maintenance Cartridge (option) is necessary to clean the Tubes with Maintenance Solution.

CMYK Print Head:

(1) Make sure your printer is in either [ Standby ] or [ Ready ] mode.

(2) Prepare Color Filter Cartridge*, Color Maintenance Cartridge (option*) and Maintenance Solution*. Confirm the room of

the Waste Ink Tank (200 ml or more). (* See "1-3-5. Consumable Requirements and Options" for part code.)

(3) Remove the Ink Cartridge whose Print Head will be replaced and insert Color Filter Cartridge. Select [ Maintenance ] and

[ Color Tube Cleaning ], select the Print Head to be replaced and press the OK Button.

(4) Clean the Tube and the Print Head. Remove the Color Filter Cartridge and insert Color Maintenance Cartridge. Fill the

Bottle with the Maintenance Solution of 250 ml or more and insert the Tube to the bottom of the Bottle.

0082Y

(Continued on the next page)

GT-3 Series

7. Troubleshooting

115

(5) Select [ Maintenance ] > [ Color Tube Cleaning ] from the menu and select the Print Head to be replaced and press the

OK Button. Color Tube Cleaning then starts.

<Note>

The Color Maintenance Cartridge will not produce air bubbles.

(6) After Color Tube Cleaning is finished, with Maintenance Solution filled, select [ Maintenance ] > [ Head Replacement ]

and press the OK Button.

(7) Select the Print Head to be replaced and press the OK Button. The following message will be on the Display (ex. Black).

Replace to the Filter Cartridge and wash away the Maintenance Solution inside the Tube.

09e0034Y

(8) After washing out the Maintenance Solution, follow the indications on the Display and press the OK Button. The Carriage

will move to the Flushing Plate position. follow the indications on the Display and turn OFF the printer.

(9) Open the Front Cover with both hands until it is locked with the stopper.

(10) Open the new Print Head. Put the gloves on your hands not to touch the electronic parts and remove the fitting and the

cover. The fitting on the Print Head (see the arrow below) will be used during the operation.

(11) T ate static electricity (e.g. Covers). Better to put on the Wrist

Strap.

ake off the gloves and touch some metallic part to dissip

Fitting

GT-3 Series

7. Troubleshooting

116

(12) Remove the plastic cover on the Carriage PCB. Disconnect the white cable (left) and remove the four claws on the both

edges (right).

(13) Remove the silicone tubes that are attached the screws under the Carriage PCB (left), and remove the holes of the cover

(right), and remove the plastic cover.

(14) Pull out the black tabs at the both edges of Flat Cable of the Print Head to the front side of the printer, and remove the Flat

Cable (the following example: Magenta).

GT-3 Series

7. Troubleshooting

117

(15) Put on the gloves again. Rotate the Tube Connector (the white part over the Print Head) by 90 degrees (left), lift it straight

up slowly and remove the Tube from the Print Head (right). Connect the fitting that you removed in step (10) to the Tube.

Do not force to pull out the Tube from the Print Head, or the junction may be damaged. Rotate the Tube little by little and

move it straight up slowly.

(16) Rotate the Lever to your side that fixes the Print Head.

(17) Lean the Print Head backward to the inside of the Carriage (left), hold the Knob and pull up the Print Head and remove it

from the printer (right). Keep the surface of the Print Head (Nozzles) safe, do not touch to other parts or the Print Head

may be seriously damaged.

(18) Mount the new Print Head on the printer. Fit the V-shaped groove to the Positioning Pin (right).

Fitting

Tube Connecto

Lever

sha

roov

Surface of Print Head (Nozzl

Positioning Pin

es)

GT-3 Series

7. Troubleshooting

118

(19) Hold the knob of the Print Head (left) and push it downward so that the V-shaped groove can fit the Positioning Pin. Push

down the Print Head to fix the corner of the Print Head by the Flat Spring (right).

(20) Rotate the Lever to fix the Print Head.

(21) Remove the protection film.

(22) Remove the Fitting that inserted in the step (15), connect the Tube to the Print Head and fix the Tube by rotating the Tube

Connector by 90 degrees.

(23) Take off the gloves and connect the Flat Cable to the Carriage PCB. Put the Flat Cable with the terminal (metal) side on

the top (left), insert straight into the connector and fix it by pushing the tabs of both sides (right).

<Important!>

Do not insert the Flat Cable at an angle. The electric current may not be stable and increase the Print Head temperature.

which causes machine errors, mis-firing, and give serious damage to the Print Head. Do not repeat the insertion, or the

terminal (metal) may be damaged and cause serious mis-firing.

Positioning Pin Flat Spring

Positioning Pin

Flat Spring

Print Head

Slide the Print Head into the Fl

Spring from the right to the left.

GT-3 Series

7. Troubleshooting

119

(24) Mount the Plastic Cover over the Carriage PCB. Put it on the Carriage PCB in curl (left), and make the Condenser (big

black part on the Carriage PCB) go through the hole of the Plastic Cover (right).

(25) Put the Plastic Cover so that the fold at the back should cover the metal plate under the Carriage PCB.

(26) Put the two screws through the holes on the front side of the Plastic Cover (left), and apply the silicone tubes to the

screws that were removed in the step (13).

(27) Pu and connect the Harness.

(28) Push the Stop Lever to release the lock when you close the Front Cover with both hands.

(29) Turn ON the printer.

(30) Remove the Filter Cartridge and insert the Ink Cartridge.

(31) Select [ Maintenance ] > [ Initial Cleaning ] from the menu and load the ink.

(32) Execute the Normal Cleaning for all the Print Heads so that the surface of the Print Head may be dried.

(33) Print Nozzle Check Pattern to confirm if the replaced Print Head works OK. (See "7-2-3. Checking Print Quality with

Nozzle Check Pattern").

silicone tubes

t the claws on the Plastic Cover that were removed in the step (12) (left),

GT-3 Series

7. Troubleshooting

120

(34) Print the Standard Check Pattern to check the alignment if the Print Head is placed properly.

<Note>

If the Print Heads do not align properly, the printer cannot make correct r colors. See the example below: Cyan Print

Head does not align (shifted forward). Check (17) and (18) in former page.

Cyan moves up and Yellow and

Magenta seems to move down.

(35) If the quality is OK go on to the next section "7-2-8. Adjustment after the Print Head has been replaced" to complete the

adjustment after the Print Head replacement.

ance.

0083Y

(1) Make sure your printer is in either [ Standby ] or [ Ready ] mode.

(2) Prepare White Filter Cartridge*, White Maintenance Cartridge (option*) and Maintenance Solution*. Confirm the room of

the Waste Ink Tank (500 ml or more). (* See "1-3-5. Required Consumables and the Options" for part code.)

(3) Remove the Ink Cartridge whose Print Head will be replaced and insert White Filter Cartridge. Execute White Tube

Cleaning by referring "6-2-2. White Tube Cleaning".

(4) the Carriage PCB by referring the steps (6) to (13) in

(5) he back side of the printer, and remove the

If you still see the problem in print quality, contact your Brother dealer for assist

White Print Head:

After White Tube Cleaning is finished, re

Color Print Head operations.

Pull out the black tabs at the both

Flat Cable (the following example: W2).

move the Plastic Cover on

edges of Flat Cable of the Print Head to t

<Important!>

White Print Heads are in the backside, the

opposite side of CMYK Print Heads, confirm

the operation by looking form the left side of

the printer. Pay attention to the surface of the

Print Head (Nozzles) not to hit the other parts

in removing / mounting or the Print Head may

be seriously damaged.

GT-3 Series

7. Troubleshooting

121

(6) Put on the gloves again. Rotate the Tube Connector (the white part over the Print Head) by 90 degrees (left), lift it straight

up slowly and remove the Tube from the Print Head (right). Connect the fitting to the Tube, that you removed in step (10)

in Color Print Head operations. Do not force to pull out the Tube from the Print Head, or the junction may be damaged.

Rotate the Tube little by little and move it straight up slowly.

(7) Rotate the Lever to your side that fixes the Print Head. Rotate to the direction of the arrow below.

(8) Lean the Print Head forward to the inside of the Carriage (left), hold the Knob and pull up the Print Head and remove it

from the printer (right). Keep the surface of the Print Head (Nozzles) safe, do not touch to other parts or the Print Head

may be seriously damaged.

(9) Mount the new Print Head to the printer. Hold the knob of the Print Head with one hand (left), hold the Tube with the other

hand (middle) and move the Print Head to the mount position (right). Fix the Print Head by following the steps (18) to (20)

in Color Print Head operations.

z Move the Print Head by its upper part go through the Tube. It is easier to fix the Print Head on the Carriage by

leaning the Print Head backward and moving it from the upper left. Do not hit the surface of the Print Head to the

other parts or it may be seriously damaged.

z Do not break or bend the Tubes.

Tube Connector Fitting

Lever

<Note>

GT-3 Series

7. Troubleshooting

122

(10) Rotate the Lever to fix the Print Head when you fix it as shown below.

(11) Following the steps (18) to (20) in Color Print Head operations to remove the protection film of the Print Head, connect the

Flat Cable to the Carriage PCB and cover the Carriage PCB with the Plastic Cover.

<Important!>

Do not insert the Flat Cable at an angle. The electric current may not be stable and increase the Print Head temperature.

which causes machine errors, mis-firing, and give serious damage to the Print Head. Do not repeat the insertion, or the

terminal (metal) may be damaged and cause serious mis-firing.

(12) Push the Stop Lever to release the lock when you close the Front Cover with both hands.

(13) Turn ON the printer.

(14) Keep the Maintenance Cartridge as inserted and confirm the amount of the Maintenance Solution is left more than 250

ml in the bottle.

(15) Select [ Maintenance ] > [ Initial Cleaning ] from the menu and select the Print Head.

(16) Load the Maintenance Solution first. Replace the Maintenance Cartridge to the well-shaken White Ink Cartridge and then

load the White Ink.

(17) Execute the Normal Cleaning for all the Print Heads so that the surface of the Print Head may be dried.

(18) Print Nozzle Check Pattern to confirm if the replaced Print Head works OK. (See "7-2-3. Checking Print Quality with

Nozzle Check Pattern").

(19) Print the Standard Check Pattern to check the alignment if the Print Head is placed properly. If the Print Heads are not

aligned, then you can see the white ink printed around the color print because the white print area should be printed wider

than the color area. Confirm the position of four (GT-381) or two (GT-361) White Print Heads.

If not aligned, the white print should be

printed wider than the original print data.

(the sample is printed by CMYK ink)

(20) If the quality is OK go on to the next section "7-2-8. Adjustment after the Print Head has been replaced" to complete the

adjustment after the Print Head replacement.

If you still see the problem in print quality, contact your Brother dealer for assistance.

GT-3 Series

7. Troubleshooting

123

7-2-8. Adjustment after the Print Head has been replaced

If the printed image is unclear (double lines, grained image, etc.) then the print head timing may need to be adjusted. Not only

after the Print Head is replaced, but also after exchanging the Platen Sheet, mounting the modified Platen and so on.

(1) Make sure your printer is connected to your PC with USB 2.0 cable.

(2) Prepare some sheets of paper (white and colored paper, or clear plastic plate to confirm the print quality) and tapes to fix

on the Platen and a dark-colored T-shirt (better to be pretreated).

(3) Execute [ GT-3 Maintenance ] in [ Brother GT-3 GT-Tools ].

(4) Select [ Firing Adjustment ] and click [ Next ]. Follow the steps indicated in the dialog. After adjustment, select

[ White/Color Alignment ] to confirm the alignment.

(5) The dialog goes back to the main menu shown above. Click [ Close ] button to finish.

GT-3 Series

7. Troubleshooting

124

7-2-9. Adjusting the CR Speed

Execute this menu after you clean the Carriage Shaft, or you are asked from the technical support. See "6-1-6. Cleaning the

inside of the printer and restart".

(1) Press either one of the Up / Down / Back / OK Button to enter the Menu.

(2) Select [ Printer Setting ] > [ CR Speed Adjustment ] with the Up / Down Button and press the OK Button. The following

message will be indicated.

17e0042Y

(3) Wait until the Carriage stops moving and bells.

7-2-10. Adjusting the Flushing Interval

Flushing is very important to keep the print quality. The initial setting is decided on the assumption that the printer works under

the environment of 35 % humidity. Use a humidifier to avoid the Print Heads from clogging with dried ink as well as increase

the frequency of Flushing (to shorten the interval of Flushing) in printing. You can lower the frequency (to lengthen the interval

of Flushing) in more humid environment. Confirm the print quality before production.

(1) Press either one of the Up / Down / Back / OK Button to enter the menu.

(2) Select [ Printer Setting ] > [ Flushing Interval ] with the Up / Down Button and press the OK Button. The following message

will be indicated.

10e0035Y

(3) The initial setting is [ normal 40 lines ]. Select [ every 20 lines ] in dry environment and [ every 52 lines ] in humid

environment with the Up / Down Button. Confirm the print quality before production.

11e0036Y

<Note>

Decrease the Flushing Interval (=increase the number of Flushing) with [ Flushing Interval ] menu when the print quality is

not good while printing. On the other hand, increase the Flushing Volume with [ Flushing Volume ] menu when the print

quality is not good at the beginning of the print.

GT-3 Series

7. Troubleshooting

125

7-2-11. Adjusting the Flushing Volume

Flushing is very important to keep the print quality. The initial setting is decided on the assumption that the printer works under

the environment of 35 % humidity. Use a humidifier to avoid the Print Heads from clogging with dried ink as well as increase

the volume of Flushing ink. You can decrease the volume of Flushing ink in more humid environment. Confirm the print quality

before production.

(1) Press either one of the Up / Down / Back / OK Button to enter the menu.

(2) Select [ Printer Setting ] > [ Flushing Volume ] with the Up / Down Button and press the OK Button. The following message

will be indicated.

12e0037Y

(3) The initial setting is [ Standard ]. Select [ Much ] in dry environment and [ Less ] in humid environment with the Up /

Down Button. Confirm the print quality before production.

13e0038Y

<Note>

Increase the Flushing Volume with [ Flushing Volume ] menu when the print quality is not good at the beginning of the

print.

On the other hand decrease the Flushing Interval (=increase the number of Flushing) with [ Flushing Interval ] menu

when the print quality is not good while printing.

GT-3 Series

7. Troubleshooting

126

7-2-12. Adjusting the amount of White Ink in Daily Cleaning White

The function [ Daily Cleaning White ] is very important to print white. The necessary volume of wasting White Ink depends

how the printer is used.

You can save the White Ink when you use GT-3 every day, and you've confirmed that the whiteness of the White Ink is stable

in your production, then decrease the volume. If you find that the White Ink is not white enough, increase the volume so that

you can save the total White Ink rather than execute [ Daily Cleaning White ] twice.

(1) Press either one of the Up / Down / Back / OK Button to enter the Menu.

(2) Select [ Printer Setting ] > [ Daily Cleaning W Setting ] with the Up / Down Button and press the OK Button. The following

message will be indicated.

14e0039Y

(3) The initial setting is [ 100% ]. Select the volume within 50 - 120% with the Up / Down Button. Confirm the print quality

and the whiteness in a few days' operation.

15e0040Y

<Note>

Change the setting when you change the way you use. Change the setting to 100% or more after weekend leave (2-3

days unused).

GT-3 Series

7. Troubleshooting

127

7-2-13. Copy Log file to USB flash drive

You may be asked from the technical support to get the log data of the GT-3 for troubleshooting. Insert the USB flash diver to

save the log data into the file (*.zlg or *.log).

(1) Insert the USB flash drive into the Slot in front of the Operation Panel.

(2) Press either one of the Up / Down / Back / OK Button to enter the menu.

(3) Select [ Maintenance ] > [ Log Copy to USB ] with the Up / Down Button and press the OK Button. The following message

will be indicated.

16e0041Y

(4) The log data is being saved to the USB flash drive while the Print Button is blinking. Wait for a while after the Print Button

stops blinking and the printer bells.

(5) Make a copy of the log file saved in the USB flash drive and send it to the technical service.

<Note>

Do not touch the USB flash drive while the Print Button is flashing; it may destroy the saved data.

GT-3 Series

7. Troubleshooting

128

7-3. Solving Application Problems

See also the pages of each application software in “4. Printing Directly from Applications”.

Problem Cause Solution

The image sent from Adobe Illustrator 10

is printed 90 degree rotated.

The Print

Setup or

Document

Setup is not

appropriate.

In Adobe Illustrator 10 follow the instruction below, and then try

to send the print data again:

(1) Open "Print Setup" in the "File" menu.

(2) Select GT-3 as the printer, and then click “OK”.

(3) Open "Document Setup" on "File" menu.

(4) Check "Use Print Setup".

(5) Confirm the "Orientation", "Width" and "Height".

If they are not appropriate, correct them, and then click

"OK".

The image sent from Adobe Illustrator

CS is printed 90 degree rotated.

The Print

Setup or

Document

Setup is not

appropriate.

With Adobe Illustrator CS, landscape image may not be printed

properly. Correct the setting following the instruction below, and

then try to send the print data again:

(1) Open "Print" in the "File" menu.

(2) Confirm that the Media Size is “Defined by Driver”.

(3) Change the Media Orientation to the portrait.

(4) If you are not changing the Platen size, skip to step (8). If

you want to change the Platen Size, click “Setup…”, and

then click “Continue”.

Print window appears.

(5) Click “Preference”.

(6) Change the Platen Size in the Printer Driver Window, and

then click "OK".

(7) Click “Print” in the Print window.

(8) Confirm the preview, and then click “Print” to send the data

to your printer.

The Platen Size setting changes to

Platen 10 x 12 (this happens especially

when printing the image smaller than 14

x 16 inches).

―― Check the Platen Size in the Printer Driver window before you

send the print data to your printer.

The image sent from Adobe Illustrator

cannot be printed on proper position, or it

cannot be sent and result in errors.

―― See “4-2-4. Setting for Adobe Illustrator”.

There are some Properties windows

shown in Photoshop. When the values

of Printing Preferences in Windows are

set beforehand and you modified the

values from the printer driver Properties

window of Photoshop, mismatching

information appears among different

dialog boxes.

―― The setting in the Properties of the Print window is applied.

The Print Data saved in the file (.ar3) is

extremely large. ―― The print data of 1200 dpi x 1200 dpi is four times larger than

the one of 600 dpi x 600 dpi. Confirm the file size.

In CorelDRAW 12 and 11, sometimes

outlines of warped artwork cannot be

printed.

―― Upgrade CorelDRAW to X3 or higher.

GT-3 Series

7. Troubleshooting

129

7-4. Error Messages

Here is a complete list of error messages that GT-3 shows. Make contact to your dealer or Brother when mark ** is in Solution,

with the information of Error Code No and the message on the Display.

Error

code Message Meaning Solution

1000 (INK LOW Black) Black ink level is too low. Prepare a new Black ink cartridge.

1001 (INK LOW Magenta) Magenta ink level is too low. Prepare a new Magenta ink cartridge.

1002 (INK LOW Cyan) Cyan ink level is too low. Prepare a new Cyan ink cartridge.

1003 (INK LOW Yellow) Yellow ink level is too low. Prepare a new Yellow ink cartridge.

1004 (INK LOW White-1) White-1 ink level is too low.

1005 (INK LOW White-2) White-2 ink level is too low.

1006 (INK LOW White-3) White-3 ink level is too low.

1007 (I INK LOW White-4) White-4 ink level is too low.

Prepare a new White ink cartridge.

1030 K Head Temp Rising Temperature of Black Print Head is

increasing.

1031 M Head Temp Rising Temperature of Magenta Print Head is

increasing.

1032

Head Tem

Rising Temperature of Cyan Print Head is

increasing.

1033

Head Temp Rising Temperature of Yellow Print Head is

increasing.

1034

1 Head Temp Rising Temperature of White-1 Print Head is

increasing.

1035

2 Head Temp Rising Temperature of White-2 Print Head is

increasing.

1036

3 Head Temp Rising Temperature of White-3 Print Head is

increasing.

1037

4 Head Temp Rising Temperature of White-4 Print Head is

increasing.

Wait with the printer unused, to decrease the

temperature. Confirm if the Flat Cable of the Print Head is

connected properly. Make contact to your dealer or

Brother if the issue is not solved.

1051 CR Motor Life The Carriage Motor is worn. **

1060 Temp Low:

The ambient temperature is below the

range that maintains the print quality.

“xxx” is the current temperature.

Raise the room temperature.

1061 Temp High:

The ambient temperature is above the

range that maintains the print quality.

“xxx” is the current temperature.

Drop the room temperature.

1070 Battery Life The battery ran out. **

1080 RTC not Adjusted The internal clock has not been set. **

1100 Pump Tube Life Exchange Pump Tube. **

1111 Clean Tube W1 W1 needs to do Tube Cleaning. Execute Tube Cleaning W1.

1112 Clean Tube W2 W2 needs to do Tube Cleaning. Execute Tube Cleaning W2.

1113 Clean Tube W3 W3 needs to do Tube Cleaning. Execute Tube Cleaning W3.

1114 Clean Tube W4 W4 needs to do Tube Cleaning. Execute Tube Cleaning W4.

GT-3 Series

7. Troubleshooting

130

Error

code Message Meaning Solution

1200 Exchange Maintenance Parts

1201 Exchange Maintenance Parts

Needs to exchange the Maintenance

Parts and to clean the printer.

Exchange the Maintenance Parts and clean the inside of

the printer. See "6-1. Replacing Consumables".

1210 Exhaust Fan Stop The Fan to exhaust ink mist is stopped. **

2000 NO INK Black Black Ink Cartridge is not installed. Install a Black Ink Cartridge.

2001 NO INK Magenta Magenta Ink Cartridge is not installed. Install a Magenta Ink Cartridge.

2002 NO INK Cyan Cyan Ink Cartridge is not installed. Install a Cyan Ink Cartridge.

2003 NO INK Yellow Yellow Ink Cartridge is not installed. Install a Yellow Ink Cartridge.

2004 NO INK White-1 White 1 Ink Cartridge is not installed.

2005 NO INK White-2 White 2 Ink Cartridge is not installed.

2006 NO INK White-3 White 3 Ink Cartridge is not installed.

2007 NO INK White-4 White 4 Ink Cartridge is not installed.

Install a White Ink Cartridge.

2020 EMPTY Black Black Ink Cartridge ran out of ink. Replace to a new Black Cartridge.

2021 EMPTY Magenta Magenta Ink Cartridge ran out of ink. Replace to a new Magenta Cartridge.

2022 EMPTY Cyan Cyan Ink Cartridge ran out of ink. Replace to a new Cyan Cartridge.

2023 EMPTY Yellow Yellow Ink Cartridge ran out of ink. Replace to a new Yellow Cartridge.

2024 EMPTY White-1 White 1 Ink Cartridge ran out of ink.

2025 EMPTY White-2 White 2 Ink Cartridge ran out of ink.

2026 EMPTY White-3 White 3 Ink Cartridge ran out of ink.

2027 EMPTY White-4 White 4 Ink Cartridge ran out of ink.

Replace to a new White Cartridge.

2041 No Wiper Cleaner (CMYK) The Wiper Cleaner for CMYK is not

installed. Install the Wiper Cleaner to the CMYK side.

2042 No Wiper Cleaner (White) The Wiper Cleaner or White is not

installed. Install the Wiper Cleaner to the White side

2050 Temp Low The ambient temperature is under the

operative temperature rage. Raise the room temperature.

2051 Temp High The ambient temperature is over

operative temperature rage. Drop the room temperature.

2070

bstacle on the Platen

The Clearance Sensor detected an

obstacle on the Platen (or the media) in

loading the Platen.

Remove the obstacle, flat the platen surface and then

press OK Button.

2100 USB flash drive Not Ready USB flash drive is not properly

mounted.

Re-mount the USB flash drive. Confirm the spec and

type of the USB flash drive. See " 7-1. Solving Printer

Problems".

2101 Not Enough Area The USB flash drive does not have

enough area for saving.

Check the free space of the USB flash drive with PC.

Mount a USB flash drive with free area available.

2102 USB flash drive Access Error The mounted USB flash drive is out of

support, or USB flash drive is broken.

Check the spec and type of the USB flash drive. See "

7-1. Solving Printer Problems".

2105 No Files No available data in the USB flash

drive. Check the free space of the USB flash drive with PC.

GT-3 Series

7. Troubleshooting

131

Error

code Message Meaning Solution

3000 PC Communication Error GT-3 failed to receive the print data

from the PC.

Check the connection between the PC and GT-3, and

send print data again. If it has no effect, reboot both the

PC and GT-3.

This error occurs when the USB cable is disconnected

during data transmission, or data transmission is

canceled on the PC.

3001 PC Communication Error The PC will not receive the data sent

from GT-3.

Check the connection between the PC and GT-3, and

retry the PC operation with the GT-3 tools. If it has no

effect, reboot both the PC and GT-3.

This error occurs when the USB cable is disconnected

during data transmission, or GT-3 tools are canceled in

sending data to the PC.

3002 PC Data Error GT-3 received the data that is not

supported.

Check the connection between the PC and GT-3, and

send print data again. Or reboot both the PC and GT-3.

3003 PC Data Error No compatibility of version between the

PC driver and the GT-3 firmware.

GT-3 Firmware is old though the Printer Driver is

upgraded. Confirm the versions and upgrade the

firmware.

3004

3005

3010

3013

3014

PC Data Error USB connection error between PC

and GT-3

Confirm the data (AR3 file and firmware programs ) are

correct. Check the connection between the PC and

GT-3, and send print data again. Or reboot both the PC

and GT-3. These errors may occur when GT-3

malfunctions in improper environment. You can print if no

error is indicated.

3100 PC Data Error (with White) GT-341 received the print data with

White print data included.

Confirm that the Machine Mode is GT-341 by Printer

Driver. GT-341 cannot receive the print data with White

print data included.

3101 PC Data Error (381 mode) GT-361 received the print data with 4

White Print Head data included.

Confirm that the Machine Mode is GT-361 by Printer

Driver. GT-361 cannot receive the print data with four

White Print Head data included.

3407 Blank Data

GT-3 received blank data, the print

data with no print data included (e.g.

255 white) was made and sent to

GT-3, the image was larger than the

print area and some blank part was

sent to GT-3.

Confirm the print data with GT-3 File Viewer. Confirm the

print area and paper size with e.g. Photoshop Print

Preview.

3408 PC Data Error (too large) The size of the received print data was

too large. **

3410

3411

3412

PC Data Error USB connection error between PC

and GT-3

Confirm the data (AR3 file and firmware programs ) are

correct. Check the connection between the PC and

GT-3, and send print data again. Or reboot both the PC

and GT-3. These errors may occur when GT-3

malfunctions in improper environment. You can print if no

error is indicated.

GT-3 Series

7. Troubleshooting

132

Error

code Message Meaning Solution

4100 The file cannot be opened.

4101 No file can be created.

4102 The file cannot be closed.

4103 Failure in searching file

4104 Failure in reading file

4105 Failure in writing file

4106 Illegal file data

4107 Illegal file size

4108

USB flash drive Access

Error

Failure to get the file size

Check the contents in the USB flash drive.

Re-mount the USB flash drive and retry the operation.

Or reboot GT-3. See " 7-1. Solving Printer Problems".

4109 Failure in searching file

4110

No Files

No file is found.

Check the contents in the USB flash drive.

Or reboot GT-3. See " 7-1. Solving Printer Problems".

4200

4201

4202

Message data Error Error in selected language data for the

Display.

4300

4301

4302

Font data Error Error in font data for the Display.

4400

4401

4402

Test print data Error Error in the Print Data in the menu for

Test Print Data

Update firmware again from the beginning if you find this

error after you cancel the firmware update.

Contact your dealer or Brother.

5001

5002

5020

5021

Machine Error Communication error inside the

firmware. **

5090 Caps were not open. **

5091

Machine Error

Caps were not closed. **

5092 Wipers were not move (outward). **

5093

Machine Error

Wipers were not move (homeward). **

5094 Platen did not load. **

5095 Platen did not unload. **

5096

Machine Error

Platen did not do LF. **

GT-3 Series

7. Troubleshooting

133

Error

code Message Meaning Solution

5101 Machine Error Illegal print area of the print data **

5102 Machine Error Failure of unfolding print data **

5200

5201

5230

5231

5232

5233

Machine Error Communication error between Main

PCB and Maintenance Unit

Confirm if there is any device around GT-3 that makes

strong noise. Move GT-3 from that device.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5260 Maintenance PCB Ver. Error Illegal version of Maintenance PCB

Firmware

Update firmware again from the beginning if you find this

error after you cancel the firmware update.

Contact your dealer or Brother.

5300

5301

5302

Machine Error Internal error with Maintenance Unit

Control **

5311 W1 Ink Sensor malfunction

5312 W2 Ink Sensor malfunction

5313 W3 Ink Sensor malfunction

5314 W4 Ink Sensor malfunction

5315 Black Ink Sensor malfunction

5316 Magenta Ink Sensor malfunction

5317 Cyan Ink Sensor malfunction

5318

Machine Error

Yellow Ink Sensor malfunction

Confirm if there is any device around GT-3 that makes

strong noise. Move GT-3 from that device.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5401

5402

5403

5404

5405

Machine Error Communication error between Main

PCB and Maintenance Unit

Confirm if there is any device around GT-3 that makes

strong noise. Move GT-3 from that device.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

GT-3 Series

7. Troubleshooting

134

Error

code Message Meaning Solution

5406

5411

5312

5413

5314

Machine Error Communication error between Main

PCB and Maintenance Unit

Confirm if there is any device around GT-3 that makes

strong noise. Move GT-3 from that device.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5421

5422

Machine Error Failure of moving Pump in the

Maintenance Unit

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5431

5432

5433

5434

5435

Machine Error Failure of moving Caps in the

Maintenance Unit

Confirm if the Wiper Cleaners and Wiper Blades are

properly mounted in the Maintenance Unit. Confirm that

something may prevent the Caps moving up and down.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5441

5442

5443

Machine Error Failure of moving Wipers in the

Maintenance Unit

Confirm if the Wiper Cleaners and Wiper Blades are

properly mounted in the Maintenance Unit. Confirm that

something may prevent the Caps and Wipers moving.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5451

5452

5453

Machine Error Internal error of Maintenance Unit

caused by firmware update

5454

5455

5456

5457

Machine Error

Communication error between Main

PCB and the Maintenance Unit caused

by firmware update

5458 Machine Error Internal error of Maintenance Unit

caused by firmware update

Confirm if there is any device around GT-3 that makes

strong noise. Move GT-3 from that device.

Reboot GT-3 and re-upgrade the firmware.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

5471

5472

5473

5474

5475

5476

5477

5478

Machine Error Communication error between

Maintenance Unit and Ink Sensor PCB

Confirm if there is any device around GT-3 that makes

strong noise. Move GT-3 from that device.

Contact your dealer or Brother when the issue was not

solve after you rebooted GT-3.

GT-3 Series

7. Troubleshooting

135

Error

code Message Meaning Solution

5491 Machine Error Internal Error of Maintenance Unit **

6004 Clearance Sensor Failure Malfunction of Clearance Sensor **

6010 Machine Error Failure of writing to EEPROM in Main

PCB **

6011 Machine Error Failure of deleting Flash ROM in Main

PCB **

6012 Machine Error Failure of writing Flash ROM in Main

PCB **

6020 Machine Error Illegal Real Time Clock **

6021 Fail: No Battery Dead Battery of Real Time Clock **

6031 Fail: Panel Button Platen Button may be malfunctioning.

6032 Fail: Panel Button Print Button may be malfunctioning.

6033 Fail: Panel Button Stop Button may be malfunctioning.

6034 Fail: Panel Button Back Button may be malfunctioning.

6035 Fail: Panel Button OK Button may be malfunctioning.

6036 Fail: Panel Button Down Button may be malfunctioning.

6037 Fail: Panel Button Up Button may be malfunctioning.

6038 Fail: Panel Button Head Cleaning Button may be

malfunctioning.

Check it something is on the Control Panel and pushing

the button.

Contact your dealer or Brother.

6040 Machine Error Could not detect Head Memory **

6100

Machine Error

Adjust CR Illegal Carriage Move (Speed Error)

Clean GT-3 by referring ""6-1-7. Cleaning the Encoder

Strip" and "6-1-6. Cleaning the inside of the printer and

restart". Contact your dealer or Brother if the cleaning has

no effect.

6101 Machine Error Carriage move did not complete.

6102

6103

Machine Error

Adjust CR

Failure in stopping the Carriage at the

proper position

Check whether the media is jamming in the Carriage.

Clean GT-3 by referring ""6-1-7. Cleaning the Encoder

Strip" and "6-1-6. Cleaning the inside of the printer and

restart". Contact your dealer or Brother if the cleaning has

no effect.

6104 Machine Error CR time-out of the Carriage during

printing **

6105 Machine Error CR time-out of the Carriage during

flashing **

6106 Machine Error

6107 Machine Error

Malfunction of Origin Sensor in CR

returning to the origin **

6108 Machine Error Illegal termination of CR returning to

the origin **

6109 Machine Error **

6110 Machine Error **

6111 Machine Error **

6112 Machine Error **

6113 Machine Error

Illegal adjustment of CR Speed

GT-3 Series

7. Troubleshooting

136

Error

code Message Meaning Solution

6114 Machine Error Abnormal decrease of CR Speed **

6120 Machine Error Abnormal temperature of Black Print

Head **

6121 Machine Error Abnormal temperature of Magenta

Print Head **

6122 Machine Error Abnormal temperature of Cyan Print

Head **

6123 Machine Error Abnormal temperature of Yellow Print

Head **

6124 Machine Error Abnormal temperature of White-1 Print

Head **

6125 Machine Error Abnormal temperature of White-2Print

Head **

6126 Machine Error Abnormal temperature of White-3 Print

Head **

6127 Machine Error Abnormal temperature of White-4 Print

Head **

6134 Machine Error Abnormal Print Head voltage **

6154 Machine Error Illegal circuit of detecting Print Head

Temperature **

6160 Machine Error Malfunction of Environmental

Temperature Sensor **

7000 Machine Error System Call error **

7013 Machine Error General Program Error **

7014 Print Data not received with no space

in print data buffer **

7015

PC Data Error Print Data nor received because

printing is not complete **

7125 Machine Error Internal Program Error

(Moving error: too close to move) **

Make contact to your dealer or Brother when some error code which is not in the list above is indicated on the Display, or the

solutions indicated on the list have no effort.

GT-3 Series

8. Specifications

137

8. Specifications

8-1. Mechanical Specification

Dimensions 1370 (W) ×1045 (D) × 660 (H) mm (53.9 × 41.1 × 26.0 inch )

Weight

(GT-782 including Platen)

Approx. 111 Kg (245 lb)

Maximum print area 406.4 mm x 457.2 mm (14 x 16 inches)

Print Resolution 1200 dpi x 1200 dpi, 600 dpi x 600 dpi

Power source Single-phase 100-240 V

Power supply frequency 50/60 Hz

Power consumptions 0.4 A (average)

Mechanical noise Lower than 70 dB

For operation: Temperature: 50 °F to 95 °F (10 °C to 35 °C)

Humidity: 35 % to 85 % (no condensation)

For optimum

print result:

Temperature: 64 °F to 86 °F (18 °C to 30 °C)

Humidity: 35 % to 85 % (no condensation)

Temperature and Humidity

For storage: Temperature: 32 °F to 104°F (0 °C to 40 °C)

Humidity: 20 % to 85 % (no condensation)

8-2. Software Specification

Supported OS Latest Windows XP 32bit / Windows Vista (32 bit / 64 bit)

/ Windows 7 (32 bit / 64 bit)

Supported interface USB 2.0, USB flash drive

Minimum system requirements

256 MB RAM (512 MB or more is recommended)

128 MB free disk space (256 MB or more is recommended)

1 GHz CPU

Recommended Applications for precise

output

Adobe Photoshop, Adobe Photoshop Elements,

Adobe Illustrator, CorelDRAW, Paint Shop Photo Pro

INSTRUCTION MANUAL

* Please note that the contents of this manual may differ slightly from the actual product purchased as a result of product improvements.

This is the original instructions.

htt

://www.brother.com

1-5, Kitajizoyama, Noda-cho, Kariya 448-0803, Japan.

GT-3 Series

SB3151-001 E

2012.03. F (2)

Brother Gt 3 Users Manual

Brother Printer GT-381 en-US%5CGarmentPrinters%5CConsumer%5CInstructionManual%5CIM_GT_341_361_381_EN_6637

GT-3 to the manual 282ef157-7993-499b-898f-e2dc6d71888e

Navigation menu

Versions of this User Manual:

Views

Navigation
