Quick Setup Guide MFC-6890CDW

Start Here

Quick Setup Guide

USA/CAN Version 0

MFC-6890CDW

Before you can use the machine, read this Quick Setup Guide for the correct setup and installation.

Unpack the machine and check the components

WARNING

Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

aRemove the protective tape and film covering the machine.

bMake sure you have all components.

WARNING Warnings tell you what to do to prevent possible personal injury.

Important

DO NOT connect the USB cable yet (if you are using a USB

cable).

Ink Cartridges [x4]

Black (LC65HY-BK)

Yellow (LC65HY-Y)

Cyan (LC65HY-C)

Magenta (LC65HY-M)

Quick Setup Guide

User’s Guide CD-ROM

Accessory Order Form

Test Sheet (USA only) Telephone Line Cord

One Touch Labels

Note

• The components included in the box may differ depending on your country.

• Save all packing materials and the box in case for any reason you must ship your machine.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you

want to use (USB or Network).

USB cable

Please make sure you use a USB 2.0 cable (Type A/B) that is no more than 6 feet (2 meters) long.

Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.

Load plain Letter/A4

paper

aPull paper tray#1 (the upper tray) a

completely out of the machine.

bOpen the paper tray cover a.

cWith both hands, gently press and slide the

paper side guides a and then the paper length

guide b to fit the paper size you are loading in

the tray.

Make sure that the triangular marks c on the

paper side guides a and paper length guide b

line up with the mark for the paper size you are

using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

eGently put the paper into paper tray#1 print

side down and top edge first. Check that the

paper is flat in the tray.

fGently adjust the paper side guides to the

paper with both hands. Make sure that the

paper side guides touch the edges of the

paper.

Note

• When you use Legal, A3 or Ledger size paper,

press and hold the universal guide release

button a as you slide out the front of paper

tray#1.

• When you load a different paper size in tray#1

or tray#2, you will need to change the paper

size setting in the machine at the same time.

(See Paper Size and Type in Chapter 3 of the

User’s Guide.)

Important

DO NOT push the paper in too far.

gClose the paper tray cover. Check that the

paper is flat in the tray and below the maximum

paper mark a.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support a until it clicks, and then

unfold the paper support flap b.

Note

For information about tray#2, see Loading paper

in paper tray#2 in Chapter 2 of the User’s Guide.

Connect the power cord

and telephone line

aConnect the power cord.

bConnect the telephone line cord. Connect one

end of the telephone line cord to the jack on the

machine marked LINE and the other end to a

modular wall jack.

Important

DO NOT connect the USB cable yet (if you are

using a USB cable).

Important

The telephone line cord MUST be connected

to the jack on the machine marked LINE.

Note

If you are sharing one telephone line with an

external telephone, connect it as shown below.

Before you connect the external telephone,

remove the protective cap a from the EXT. jack

on the machine.

1Extension telephone

2External telephone

Note

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Before you connect the external telephone

answering machine, remove the protective cap a

from the EXT. jack on the machine.

Set the receive mode to

External TAD

you have an external answering machine. See

Choose the correct Receive Mode on page 8.

For additional details, see Connecting an

external TAD (telephone answering device) in

Chapter 7 of the User’s Guide.

Install the ink cartridges

WARNING

If ink gets in your eyes, wash them out with

water at once, and if irritation occurs consult a

doctor.

aMake sure that the power is turned on.

The LCD shows:

bOpen the ink cartridge cover a.

cRemove the green protective part a.

dUnpack the ink cartridge.

eTurn the green knob on the protective yellow

cap clockwise to release the vacuum seal, then

remove the cap a.

fTake care to match the color of the lever a

with the cartridge color b, as shown in the

diagram below.

gInstall each ink cartridge in the direction of the

arrow on the label.

Note

Do not throw away the green protective part.

You will need it if you transport the machine.

No Cartridge

Install Ink

Black

Cyan

Yellow

Magenta

Gently push the ink cartridge until it clicks. After

all the ink cartridges are installed close the ink

cartridge cover.

Note

The machine will prepare the ink tube system for

printing. This process will take approximately four

minutes. Do not turn off the machine.

Important

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will

not know the quantity of ink left in the

cartridge.

• DO NOT shake the ink cartridges. If ink

stains your skin or clothing, wash with soap

or detergent at once.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of

the cartridge.

• If you mix the colors by installing an ink

cartridge in the wrong position, clean the

print head several times after correcting the

cartridge installation. (See Cleaning the

print head in Appendix B of the User’s

Guide.)

• Once you open an ink cartridge, install it in

the machine and use it up within six months

of installation. Use unopened ink cartridges

by the expiration date written on the

cartridge package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out

of the cartridge.

• Brother strongly recommends that you do

not refill the ink cartridges provided with

your machine. We also strongly recommend

that you continue to use only Genuine

Brother Brand replacement ink cartridges.

Using or attempting to use potentially

incompatible inks and/or cartridges in your

machine may cause damage to the machine

itself and/or it may result in unsatisfactory

print quality. Our warranty coverage does

not apply to any problem that was caused by

the use of unauthorized third party ink

and/or cartridges. To protect your

investment and guarantee your print quality

please continue to replace consumed ink

cartridges with only Genuine Brother

Branded Supplies.

Check the print quality

aWhen the preparation process has finished, the

LCD shows this message

Press Color Start.

bCheck the quality of the four color blocks a on

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press Yes to

finish the quality check.

If you can see missing short lines, press No and

go to d.

dThe LCD asks you if the print quality is OK for

black and color. Press Yes or No.

After pressing Yes or No for both black and

color, the LCD shows:

ePress Color Start, the machine will then start

cleaning the colors.

fAfter cleaning is finished, press Color Start.

The machine starts printing the Print Quality

Check Sheet again. Go back to b.

Choose your language

(If needed)

aPress MENU.

bPress a or b to display Initial Setup.

cPress Initial Setup.

dPress a or b to display Local Language.

ePress Local Language.

fPress your language.

gPress Stop/Exit.

Important

Make sure you put paper in the upper tray for

the initial setup.

OK OK

Poor Poor

Set Paper and Press Start

Black OK?

Yes No

Start Cleaning?

Press Start

Choose the correct Receive Mode

The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail,

Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.

aPress MENU.

bPress a or b to display Initial Setup.

cPress Initial Setup.

dPress Receive Mode.

ePress Fax Only, Fax/Tel, External TAD

or Manual.

fPress Stop/Exit.

Will you be using a Distinctive Ring number for receiving faxes?

Brother uses the term "Distinctive Ring" but telephone companies may have other names for this service such

as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive

Ring in Chapter 7 of the User's Guide for instruction on setting up your machine using this feature.

Will you be using Voicemail on the same telephone line as your Brother machine?

If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that

Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail

in Chapter 7 of the User's Guide for instructions on setting up your machine using this service.

Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?

Your external telephone answering device (TAD) will automatically answer every call. Voice messages are stored on

the external TAD and fax messages are printed. Choose

External TAD

as your receive mode. See the instructions

below.

Will you be using your Brother machine on a dedicated fax line?

Your machine automatically answers every call as a fax. Choose Fax Only as your receive mode. See the

instructions below.

Will you be using your Brother machine on the same line as your telephone?

Do you want to receive voice calls and faxes automatically?

The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same

line. Choose Fax/Tel as your receive mode. See the instructions below.

Important Note: You cannot receive voice messages on either Voice Mail or an answering machine

when choosing the Fax/Tel mode.

Do you expect to receive very few faxes?

Choose Manual as your receive mode. You control the phone line and must answer every call yourself.

See the instructions below.

For details, see Using receive modes in Chapter 6 of the User's Guide.

Set the LCD contrast

(If needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress MENU.

bPress a or b to display General Setup.

cPress General Setup.

dPress a or b to display LCD Settings.

ePress LCD Settings.

fPress LCD Contrast.

gPress Light, Med or Dark.

hPress Stop/Exit.

Set the date and time

The machine displays the time, and if you set up the

station ID the date and time will be added to each fax

you send.

aPress MENU.

bPress a or b to display Initial Setup.

cPress Initial Setup.

dPress Date&Time.

eEnter the last two digits of the year on the

Touchscreen, and then press OK.

(e.g. Enter 0 9 for 2009.)

fEnter the two digits for the month on the

Touchscreen, and then press OK.

(e.g. Enter 0 3 for March.)

gEnter the two digits for the day on the

Touchscreen, and then press OK.

(e.g. Enter 0 1 for the first day of the month.)

Note

You can also adjust the angle of the display by

lifting it.

Year:2009

Year: 2 0 09

Date&Time

Date&Tim e

Month:03

Month:0 3

Date&Time

Date&Tim e

Day:01

Date&Time

Date&Tim e

hEnter the time in 24-hour format on the

Touchscreen, and then press OK.

(e.g. Enter 1 5, 2 5 for 3:25 P.M.)

iPress Stop/Exit.

Set your station ID

You should store your name and fax number to be

printed on all fax pages that you send.

aPress MENU.

bPress a or b to display Initial Setup.

cPress Initial Setup.

dPress Station ID.

eEnter your fax number (up to 20 digits) on the

Touchscreen, and then press OK.

fEnter your name (up to 20 characters) using

the Touchscreen, and then press OK.

To enter numbers or special letters, press

repeatedly until the character you want to enter

appears, then press the character you want to

use.

gPress Stop/Exit.

To confirm the current date and time, print

out the User Settings report. (See Printing

Reports in Chapter 9 of the User's Guide.)

Time:15:25

Time:15: 2 5

Date&Time

Date&Tim e

Note

• If you need to enter a character that is on the

same button as the last character, press c to

move the cursor to the right.

• If you entered a letter incorrectly and want to

change it, press d or c to move the cursor to the

incorrect character, press .

Note

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

For details, see Entering Text in Appendix C

of the User's Guide.

Note

(USA only)

The Telephone Consumer Protection Act of 1991

makes it unlawful for any person to use a

computer or electronic device to send any

message via a telephone fax machine unless

such messages clearly contain, in a margin at the

top or bottom of each transmitted page, or on the

first page of the transmission, the date and time it

is sent and an identification of the business or

other entity or other individual sending the

message and the telephone number of the

sending machines or such business, other entity

or individual.

Fax Transmission Report

Your Brother machine is equipped with a

Transmission Verification Report that can be used as

confirmation that you sent a fax. This report lists the

name or fax number of the receiving party, the date,

time, and duration of the transmission, the number of

pages transmitted, and whether or not the

transmission was successful. If you want to use the

Fax Transmission Report feature, see Printing

Reports in Chapter 9 of the User’s Guide.

Set tone or pulse dialing

mode

Your machine comes set for Tone dialing service. If

you have Pulse dialing service (rotary), you need to

change the dialing mode.

aPress MENU.

bPress a or b to display Initial Setup.

cPress Initial Setup.

dPress a or b to display Tone/Pulse.

ePress Tone/Pulse.

fPress Pulse (or Tone).

gPress Stop/Exit.

Automatic Daylight

Savings Time

You can set the machine to change automatically for

daylight savings time. It will reset itself forward one

hour in the Spring and backward one hour in the Fall.

aPress MENU.

bPress a or b to display General Setup.

cPress General Setup.

dPress a or b to display Auto Daylight.

ePress Auto Daylight.

fPress On (or Off).

gPress Stop/Exit.

Send in the Product

Registration and Test

Sheet (USA only)

You can also register your product online using the

On-Line Registration link from the installation

CD-ROM or visit

http://www.brother.com/registration/.

aFill out the Product Registration and Test

Sheet.

bPut the sheet face up in the ADF (Automatic

Document Feeder) or face down on the

scanner glass.

cMake sure (Fax) is illuminated in Blue.

dEnter the toll-free fax number: 1-877-268-9575.

ePress Black Start.

Note

You will receive a confirmation fax of your Product

Registration.

Windows®Macintosh®Windows®Macintosh®

USB Wired Network Wireless Network

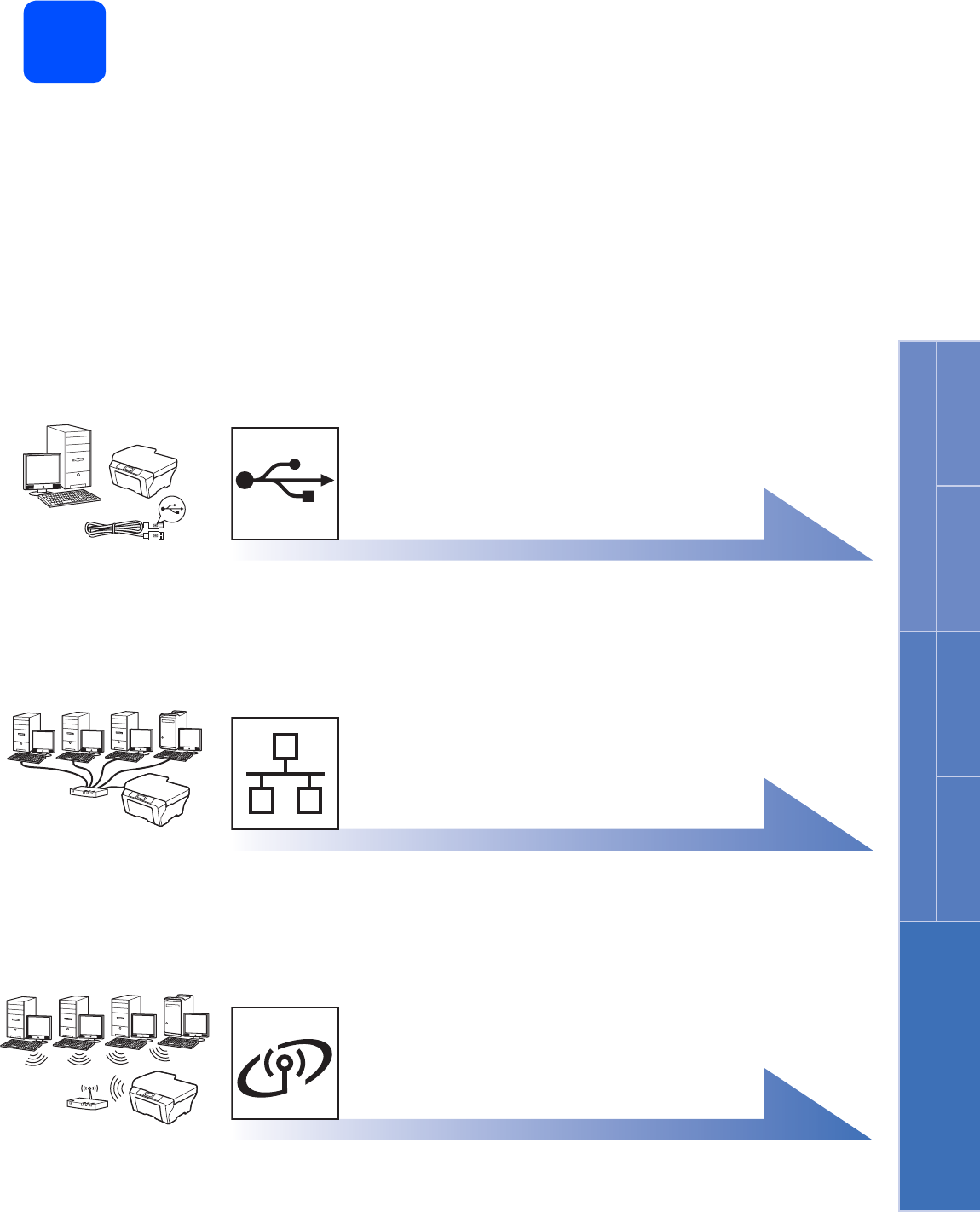

Choose your connection type

For USB interface cable

Windows

, go to page 14

Macintosh

, go to page 18

For Wired Network

Windows

, go to page 21

Macintosh

, go to page 26

For Wireless Network

Windows

and Macintosh

go to page 30

Windows®

USB

For USB Interface Users

(For Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

)

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bUnplug the machine from the AC outlet and

from your computer, if you already connected

an interface cable.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bThe CD-ROM main menu will appear. Click

Initial Installation.

cClick Install MFL-Pro Suite.

Important

• DO NOT connect the USB cable yet.

• If there are any programs running, close

them.

• Make sure there are no memory cards or a

USB Flash memory drive inserted.

• The screens may differ depending on the

operating system.

• The supplied CD-ROM includes ScanSoft™

PaperPort™ 11SE. This software supports

Windows® 2000 (SP4 or greater), XP (SP2 or

greater), XP Professional x64 Edition and

Windows Vista®. Update to the latest

Windows® Service Pack before installing

MFL-Pro Suite.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click start.exe.

Windows®

USB

Windows®Macintosh®

USB

dWhen the ScanSoft™ PaperPort™ 11SE

License Agreement window appears, click

Yes if you agree to the Software License

Agreement.

eThe installation of ScanSoft™ PaperPort™

11SE will automatically start and is followed by

the installation of MFL-Pro Suite.

fWhen the Brother MFL-Pro Suite Software

License Agreement window appears, click

Yes if you agree to the Software License

Agreement.

gChoose Local Connection, and then click

Next. The installation continues.

hWhen this screen appears, go to the next step.

Note

• If this screen appears, click OK and restart

your computer.

• If the installation does not continue

automatically, open the main menu again by

ejecting and then reinserting the CD-ROM or

double-click the start.exe program from the

root folder, and continue from b to install MFL-

Pro Suite.

• For Windows Vista®, when the User Account

Control screen appears, click Allow.

Windows®

USB

Connect the USB cable

a Lift the scanner cover into the open position.

bRemove the USB label.

cConnect the USB cable to the USB socket

marked with a symbol. You will find the

USB socket inside the machine on the right as

shown below.

dCarefully route the USB cable through the

trench and out the back of the machine as

shown below and connect the cable to your

computer.

eGently close the scanner cover using the finger

holds on both sides of it.

WARNING

Be careful not to trap your fingers under the

scanner cover.

Always use the finger holds provided on both

sides of the scanner cover when opening and

closing it.

Important

• DO NOT connect the machine to a USB port

on a keyboard or a non-powered USB hub.

• Connect the machine directly to your

computer.

LAN USB

Important

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

Windows®

USB

Windows®Macintosh®

USB

Connect the power cord

aConnect the power cord.

The installation will continue automatically.

The installation screens appear one after

another.

bWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions. Once you have

completed the registration process, close your

web browser to return to this window.

Then click Next.

Finish and restart

aClick Finish to restart your computer.

After restarting the computer, you must be

logged on with Administrator rights.

Now go to

Proceed to Install Optional Applications on

page 43.

Important

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Note

For Windows Vista®, when this screen appears,

click the check box and click Install to complete

the installation correctly.

Note

If an error message appears during the software

installation, run the Installation Diagnostics

located in Start/All Programs/Brother/

MFC-XXXX (where MFC-XXXX is your model

name).

Finish The installation is now

complete.

Macintosh®

USB

For USB Interface Users (For Mac OS

X 10.2.4 or greater)

Before you install

aMake sure your machine is connected to the

power and your Macintosh® is ON. You must

be logged on with Administrator rights.

Connect the USB cable

a Lift the scanner cover into the open position.

bRemove the USB label.

cConnect the USB cable to the USB socket

marked with a symbol. You will find the

USB socket inside the machine on the right as

shown below.

dCarefully route the USB cable through the

trench and out the back of the machine as

shown below and connect the cable to your

Macintosh®.

Important

• For Mac OS® X 10.2.0 to 10.2.3 users,

upgrade to Mac OS® X 10.2.4 or greater. (For

the latest information for Mac OS® X, visit

http://solutions.brother.com/)

• Make sure there are no memory cards or a

USB Flash memory drive inserted.

Important

• DO NOT connect the machine to a USB port

on a keyboard or a non-powered USB hub.

• Connect the machine directly to your

Macintosh®.

Important

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

LAN USB

Macintosh®

USB

Windows®Macintosh®

USB

eGently close the scanner cover using the finger

holds on both sides of it.

WARNING

Be careful not to trap your fingers under the

scanner cover.

Always use the finger holds provided on both

sides of the scanner cover when opening and

closing it.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive.

bDouble-click the Start Here OSX icon to install.

cChoose Local Connection, and then click

Next. Follow the on-screen instructions.

dThe Brother software will search for the Brother

device. During this time the following screen

will appear.

eWhen this screen appears, click OK.

For Mac OS® X 10.3.x or greater, the

installation of MFL-Pro Suite is now

complete.

Go to step 19 on page 20.

fFor Mac OS® X 10.2.4 to 10.2.8 users,

click Add.

gChoose USB.

Note

Please wait, it will take a few seconds for the

software to install. After the installation, click

Restart to finish installing the software.

Macintosh®

USB

hChoose XXX-XXXX (where XXX-XXXX is your

model name), and then click Add.

iClick Print Center, then Quit Print Center.

The installation of MFL-Pro Suite is now

complete.

Go to step 19 on page 20.

Install

Presto! PageManager

When Presto! PageManager is installed OCR

capability is added to Brother ControlCenter2. You

can easily scan, share and organize photos and

documents using Presto! PageManager.

aDouble-click the Presto! PageManager icon

and follow the on-screen instructions.

For Mac OS® X 10.2.4 to 10.3.8 users,

when this screen appears, click Go to

download the software from the Brother

Solutions Center website.

Finish The installation is now

complete.

Windows®

Wired Network

Windows®Macintosh®

Wired Network

For Wired Network Interface Users

(For Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

)

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bUnplug the machine from the AC outlet.

Connect the network

cable

a Lift the scanner cover into the open position.

bConnect the network cable to the LAN socket

marked with a symbol. You will find the

LAN socket inside the machine on the left as

shown below.

Important

• If there are any programs running, close

them.

• Make sure there are no memory cards or a

USB Flash memory drive inserted.

• The screens may differ depending on the

operating system.

• The supplied CD-ROM includes ScanSoft™

PaperPort™ 11SE. This software supports

Windows® 2000 (SP4 or greater), XP (SP2 or

greater), XP Professional x64 Edition and

Windows Vista®. Update to the latest

Windows® Service Pack before installing

MFL-Pro Suite.

Important

Before installation, if you are

using personal firewall

software (other than Windows®

Firewall), anti-spyware or

antivirus applications,

temporarily disable them.

LAN USB

Windows®

Wired Network

cCarefully route the network cable through the

trench and out the back of the machine. Then,

connect the cable to your network.

dGently close the scanner cover using the finger

holds on both sides of it.

WARNING

Be careful not to trap your fingers under the

scanner cover.

Always use the finger holds provided on both

sides of the scanner cover when opening and

closing it.

Connect the power cord

aConnect the power cord.

Note

If both USB and LAN cables are being used,

guide both cables through the trench with one on

top of the other.

Important

Make sure that the cable does not restrict the

cover from closing, or an error may occur. Important

If you have previously set up your machine for

a wireless network and then want to set it up

on a wired network, you should check that the

machine’s Network I/F is set to Wired LAN.

The wireless network interface will become

inactive with this setting.

On your machine, press MENU.

Press a or b to display Network and press

Network.

Press a or b to display Network I/F.

Press Network I/F.

Press Wired LAN.

Press Stop/Exit.

Windows®

Wired Network

Windows®Macintosh®

Wired Network

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bThe CD-ROM main menu will appear. Click

Initial Installation.

cClick Install MFL-Pro Suite.

dWhen the ScanSoft™ PaperPort™ 11SE

License Agreement window appears, click

Yes if you agree to the Software License

Agreement.

eThe installation of ScanSoft™ PaperPort™

11SE will automatically start and is followed by

the installation of MFL-Pro Suite.

fWhen the Brother MFL-Pro Suite Software

License Agreement window appears, click

Yes if you agree to the Software License

Agreement.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click start.exe.

Note

• If this screen appears, click OK and restart

your computer.

• If the installation does not continue

automatically, open the main menu again by

ejecting and then reinserting the CD-ROM or

double-click the start.exe program from the

root folder, and continue from b to install MFL-

Pro Suite.

• For Windows Vista®, when the User Account

Control screen appears, click Allow.

Windows®

Wired Network

gChoose Wired Network Connection, and

then click Next.

hFor Windows® XP SP2/Windows Vista® users,

when this screen appears, choose Change the

Firewall port settings to enable network

connection and continue with the

installation. (Recommended) and click Next.

If you are using a firewall other than Windows®

Firewall or Windows® Firewall is off, this screen

may appear.

See the instructions provided with your firewall

software for information on how to add the

following network ports.

For network scanning, add UDP port 54925.

For network PC-Fax receiving, add UDP port

54926.

If you still have trouble with your network

connection, add UDP port 137.

iThe installation of the Brother drivers will

automatically start. The installation screens

appear one after another.

Note

• If the machine is configured for your network,

choose the machine from the list, and then click

Next.

This window will not appear if there is only one

machine connected on the network, it will be

chosen automatically.

If your machine shows APIPA in the IP

Address field, click Configure IP Address

and enter an IP address for your machine that

is suitable for your network.

• If the machine is not yet configured for use on

your network, the following screen appears.

Click OK.

The Configure IP Address window will

appear. Enter an IP address for your machine

that is suitable for your network by following the

on-screen instructions.

Important

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Note

For Windows Vista®, when this screen appears,

click the check box and click Install to complete

the installation correctly.

Windows®

Wired Network

Windows®Macintosh®

Wired Network

jWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions. Once you have

completed the registration process, close your

web browser to return to this window.

Then click Next.

Finish and restart

aClick Finish to restart your computer. After

restarting the computer, you must be logged on

with Administrator rights.

Install MFL-Pro Suite on

additional computers

(If needed)

If you want to use your machine with multiple

computers on the network, install MFL-Pro Suite on

each computer. Go to step 19 on page 23.

Also see step 16-a on page 21 before you install.

Now go to

Proceed to Install Optional Applications on

page 43.

Note

If an error message appears during the software

installation, run the Installation Diagnostics

located in Start/All Programs/Brother/

MFC-XXXX (where MFC-XXXX is your model

name).

Note

The MFL-Pro Suite Software License permits

installation on up to 2 network computers. If you

want to install MFL-Pro Suite on additional

computers, you can purchase additional NL-5

(five user) license agreements from your

authorized Brother dealer or contact Brother

customer service.

Finish The installation is now

complete.

Macintosh®

Wired Network

For Wired Network Interface Users (For Mac OS

X 10.2.4 or greater)

Before you install

aMake sure your machine is connected to the

power and your Macintosh® is ON. You must

be logged on with Administrator rights.

Connect the network

cable

a Lift the scanner cover into the open position.

bConnect the network cable to the LAN socket

marked with a symbol. You will find the

LAN socket inside the machine on the left as

shown below.

Important

• For Mac OS® X 10.2.0 to 10.2.3 users,

upgrade to Mac OS® X 10.2.4 or greater. (For

the latest information for Mac OS® X, visit

http://solutions.brother.com/)

• Make sure there are no memory cards or a

USB Flash memory drive inserted.

• If you have previously set up your machine

for a wireless network and then want to set

it up on a wired network, you should check

that the machine’s Network I/F is set to

Wired LAN. The wireless network interface

will be inactive with this setting. On your

machine, press MENU.

Press a or b to display Network and press

Network.

Press Network I/F.

Press Wired LAN.

Press Stop/Exit.

LAN USB

Macintosh®

Wired Network

Windows®Macintosh®

Wired Network

cCarefully route the network cable through the

trench and out the back of the machine. Then,

connect the cable to your network.

dGently close the scanner cover using the finger

holds on both sides of it.

WARNING

Be careful not to trap your fingers under the

scanner cover.

Always use the finger holds provided on both

sides of the scanner cover when opening and

closing it.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive.

bDouble-click the Start Here OSX icon to install.

cChoose Wired Network Connection, and

then click Next. Follow the on-screen

instructions.

dThe Brother software will search for the Brother

device. During this time the following screen

will appear.

Important

Make sure that the cable does not restrict the

cover from closing, or an error may occur.

Note

If both USB and LAN cables are being used,

guide both cables through the trench with one on

top of the other.

Note

Please wait, it will take a few seconds for the

software to install. After the installation, click

Restart to finish installing the software.

Macintosh®

Wired Network

eWhen this screen appears, click OK.

For Mac OS® X 10.3.x or greater, the

installation of MFL-Pro Suite is now

complete.

Go to step 19 on page 29.

fFor Mac OS® X 10.2.4 to 10.2.8 users,

click Add.

gMake the selection shown below.

hChoose XXX-XXXX (where XXX-XXXX is your

model name), and then click Add.

iClick Print Center, then Quit Print Center.

The installation of MFL-Pro Suite is now

complete.

Go to step 19 on page 29.

Note

• If the machine is configured for your network,

choose the machine from the list, and then click

OK. This window will not appear if there is only

one machine connected on the network, it will

be chosen automatically. Go to e.

• If this screen appears click OK.

Enter a name for your Macintosh® in Display

Name up to 15 characters long and click OK.

Go to e.

• If you want to use the machine’s Scan key to

scan over the network you must check the

function on the machine box.

• The name you enter will appear on the

machine’s LCD when you press the Scan key

and choose a scan option. (For more

information, see Network Scanning in the

Software User’s Guide on the CD-ROM.)

Macintosh®

Wired Network

Windows®Macintosh®

Wired Network

Install

Presto! PageManager

When Presto! PageManager is installed OCR

capability is added to Brother ControlCenter2. You

can easily scan, share and organize photos and

documents using Presto! PageManager.

aDouble-click the Presto! PageManager icon

and follow the on-screen instructions.

For Mac OS® X 10.2.4 to 10.3.8 users,

when this screen appears, click Go to

download the software from the Brother

Solutions Center website.

Install MFL-Pro Suite on

additional computers

(If needed)

If you want to use your machine with multiple

computers on the network, install MFL-Pro Suite on

each computer. Go to step 18 on page 27. Also see

step 16-a on page 26 before you install.

Finish The installation is now

complete.

For Wireless Network Users

For Wireless Network Interface Users

Before you begin

First you must configure the wireless network settings of your machine to communicate with your network

router/access point. After the machine is configured to communicate with your router/access point, computers on

your network will have access to the machine. To use the machine from these computers, you will need to install

the drivers and software. The following steps will guide you through the configuration and installation process.

To achieve optimum results with normal everyday document printing, place the Brother machine as close to the

network router/access point as possible with minimal obstructions. Large objects and walls between the two

devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

Due to these factors, wireless may not be the best method of connection for all types of documents and

applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you

may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput speed.

Although the Brother MFC-6890CDW can be used in both a wired and wireless network, only one of the

connection methods can be used at a time.

Infrastructure Mode

aRouter/Access Point

bWireless Network machine (your machine)

cWireless capable computer connected to the access point

dWired computer connected to the access point

Important

If you have previously configured the wireless settings of the machine you must reset the network

(LAN) settings before you can configure the wireless settings again.

On your machine, press MENU. Press a or b to display Network and press Network.

Press a or b to display Factory Reset, and then press Factory Reset.

Press Yes to accept. Hold down Yes for 2 seconds to confirm.

Note

The following instructions are for infrastructure mode.

To set up your machine in any other wireless environment you can find instructions in the Network User's

Guide on the CD-ROM.

You can view the Network User’s Guide by following the instructions below.

1 Turn on your computer. Insert the Brother CD-ROM into your CD-ROM drive.

For Windows®:

2 Choose your model and the language. The CD-ROM main menu will appear.

3 Click Documentation, and then click HTML documents.

For Macintosh®:

2 Double-click Documentation, and then double-click your language folder.

3 Double-click top.html.

For Wireless Network Users

Wireless Network

Confirm your network environment (Infrastructure Mode)

The following instructions will offer two methods for installing your Brother machine in a wireless network

environment. Both methods are for infrastructure mode, using a wireless router/access point that uses DHCP to

assign IP addresses. Choose a configuration method and proceed to the page indicated.

If your wireless router/access point does not support SecureEasySetup™, Wi-Fi Protected Setup™ or

AOSS™,

write down the wireless network settings

of your access point/router in the area below.

Important

If you do not know this information (Network Name (SSID, ESSID), WEP key or WPA

passphrase), you cannot continue the wireless setup. You should see the documentation

provided with your access point or wireless router, consult the router manufacturer, or your

system administrator.

Item Example Record the current wireless network settings

Communication mode: (infrastructure) Infrastructure

Network name: (SSID, ESSID) HELLO

Authentication method:

(Open system, Shared key, WPA-PSK 1,

WPA2-PSK 1)

WPA2-PSK

Encryption mode:

(None, WEP,TKIP, AES) AES

Network key:

(Encryption key, WEP key 2, Passphrase) 12345678

1WPA/WPA2-PSK is a Wi-Fi Protected Access™ Pre-Shared Key, which lets the Brother wireless machine associate with access

points using TKIP or AES encryption (WPA-Personal). WPA/WPA2-PSK (TKIP or AES) uses a Pre-Shared Key (PSK) that is 8

or more characters in length, up to a maximum of 63 characters.

2The WEP key is for 64-bit encrypted networks or 128-bit encrypted networks and can contain both numbers and letters. If you

do not know this information you should see the documentation provided with your access point or wireless router. This key is

a 64-bit or 128-bit value that must be entered in an ASCII or HEXADECIMAL format.

For example:

64-bit ASCII: Uses 5 text characters e.g. “Hello” (this is case sensitive)

64-bit Hexadecimal: Uses 10 digits of hexadecimal data e.g. “71f2234aba”

128-bit ASCII: Uses 13 text characters e.g.

“Wirelesscomms” (this is case sensitive)

128-bit Hexadecimal:

Uses 26 digits of hexadecimal data e.g.

“71f2234ab56cd709e5412aa3ba”

Now go to page 32

bIf your wireless router/access point supports automatic wireless (one-push) setup

(SecureEasySetup™, Wi-Fi Protected Setup™ or AOSS™)

Now go to page 34

For Wireless Network Users

Connecting the Brother machine to the wireless network

Configure the wireless

settings (Typical

Wireless Setup in

infrastructure mode)

aOn your machine, press MENU.

Press a or b to display Network and press

Network.

Press WLAN.

Press Setup Wizard.

When Switch Network interface to

wireless? is displayed, press Yes to accept.

This will start the wireless setup wizard.

To cancel, press No.

bThe machine will search for available SSIDs. If

a list of SSIDs is displayed, press a or b to

choose the SSID you wrote down in step 17 on

page 31. Press the SSID you want to connect

with. Go to f.

If your access point is set to not broadcast the

SSID you will have to manually add the SSID

name. Go to c.

cPress <New SSID>. Go to d.

dEnter the SSID you wrote down in step 17 on

page 31 using the Touchscreen.

You can use the d and c keys to move the

cursor left and right.

The letters appear in this order: lower case and

then upper case.

To enter numbers or special letters, press

repeatedly until the character you want to enter

appears.

(For more information, see Entering Text for

Wireless Settings on page 47.)

Press OK when you have entered all the

characters.

ePress Infrastructure.

fChoose one of the options below: If your

network is configured for Authentication and

Encryption you must match the settings used

for your network.

No Authentication or Encryption:

Press Open System, then press None for

Encryption Type? Then press Yes to

apply your settings. Go to i.

No Authentication with WEP Encryption:

Press Open System, then press WEP for

the Encryption Type? Go to g.

Authentication with WEP Encryption:

Press Shared Key. Go to g.

Authentication with WPA/WPA2-PSK

(TKIP or AES) Encryption:

Press WPA/WPA2-PSK. Go to h.

gChoose the appropriate key number. Enter the

WEP key you wrote down in step 17 on

page 31 on the Touchscreen.

You can use the d and c keys to move the

cursor left and right.

The letters appear in this order: lower case and

then upper case.

To enter numbers or special letters, press

repeatedly until the character you want to enter

appears.

(For more information, see Entering Text for

Wireless Settings on page 47.)

Press OK when you have entered all the

characters, then press Yes to apply your

settings. Go to i.

Important

You must have the wireless setting you wrote

down for your network in step 17 on page 31

before you proceed.

Note

It will take several seconds to display a list of

available SSIDs.

For Wireless Network Users

Wireless Network

hPress TKIP or AES for Encryption Type?

Enter the WPA/WPA2-PSK password you

wrote down in step 17 on page 31 using the

Touchscreen.

You can use the d and c keys to move the

cursor left and right.

The letters appear in this order: lower case and

then upper case.

To enter numbers or special letters, press

repeatedly until the character you want to enter

appears.

(For more information, see Entering Text for

Wireless Settings on page 47.)

Press OK when you have entered all the

characters, then press Yes to apply your

settings. Go to i.

iYour machine will now try to connect to your

wireless network using the information you

have entered. If successful, Connected will

appear on the LCD for approximately 1 minute.

If your machine does not successfully connect

to your network, verify your network settings

collected in step 17 on page 31 then repeat a

to h to make sure you have entered the correct

information.

If your access point does not have DHCP

enabled you will need to manually configure

the IP address, subnet mask and gateway of

the machine to suit your network. See the

Network User’s Guide for details.

Wireless setup is now complete. A four

level indicator at the top of your

machine’s LCD will show the wireless

signal strength of your router/access

point.

To install MFL-Pro Suite, continue to

step 19.

For Windows® Users:

Now go to

Page 36

For Mac OS® Users:

Now go to

Page 40

For Wireless Network Users

Configure the wireless

settings using the

automatic wireless (one-

push) method

aConfirm your wireless router/access point has

the SecureEasySetup™, Wi-Fi Protected

Setup™ or AOSS™ symbol as shown below.

Place the Brother machine within range of a

SecureEasySetup™, Wi-Fi Protected Setup™

or AOSS™ access point/router. The range may

differ depending on your environment. Refer to

the instructions provided with your router/access

point.

cPush the SecureEasySetup™, Wi-Fi Protected

Setup™ or AOSS™ button on your wireless

router/access point

See the user’s guide for your wireless

router/access point for instructions.

dOn your machine, press MENU.

Press a or b to display Network and press

Network.

Press WLAN.

Press SES/WPS/AOSS.

When Switch Network interface to

wireless? is displayed, press Yes to accept.

This will start the wireless setup wizard.

To cancel, press No.

This feature will automatically detect which

mode (SecureEasySetup™, Wi-Fi Protected

Setup™ or AOSS™) your access point uses to

configure your machine.

eIf the LCD shows Connected, the machine

has successfully connected to your

router/access point. You can now use your

machine in a wireless network.

If the LCD shows Setting WLAN,

Connecting SES (Connecting WPS or

Connecting AOSS), then

Connection Failed, the machine has not

successfully connected to your router/access

point. Try starting from c again. If the same

message is indicated again, reset the machine

back to the default factory settings and try

again. For resetting, see Restore the network

settings to factory default on page 47.

If the LCD shows

Setting WLAN

, then

Connection Failed

Incorrect Mode

, a

session overlap or connection failure was

detected (see the table below). The machine has

detected 2 or more router/access points on your

network that have the SecureEasySetup™, Wi-Fi

Protected Setup™ mode or AOSS™ mode

enabled. Make sure that only one router/access

point has the SecureEasySetup™, Wi-Fi

Protected Setup™ mode or AOSS™ mode

enabled and try starting from

again.

Wireless setup is now complete.

Note

If your wireless access point supports Wi-Fi

Protected Setup™ (PIN Method) and you want to

configure your machine using the PIN (Personal

Identification Number) Method, see Using the PIN

Method of Wi-Fi Protected Setup™ in the Network

User’s Guide on the CD-ROM.

LCD messages when using the

SES/WPS/AOSS control panel menu

Setting WLAN Searching or accessing the

access point and downloading

settings from the access point.

Connecting

SES/WPS/AOSS

Connecting to the access

point.

Connection

Failed

Connection failed. If this is

shown after the LCD shows

Connecting

SES/WPS/AOSS, a session

overlap was detected.

Incorrect

Mode

A session overlap was

detected.

Connected The machine has successfully

connected.

Note

If you encounter a problem during setup,

temporarily place your machine closer to the

wireless access point, and go back to c.

For Wireless Network Users

Wireless Network

Wireless setup is now complete. To

install MFL-Pro Suite, continue to

step 19.

For Windows® Users:

Now go to

Page 36

For Mac OS® Users:

Now go to

Page 40

Windows®

Wireless Network

Install the Drivers & Software

(For Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

)

Before you install

MFL-Pro Suite

aMake sure that your computer is ON and you

are logged on with Administrator rights.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bThe CD-ROM main menu will appear. Click

Initial Installation.

cClick Install MFL-Pro Suite.

Important

• If there are any programs running, close

them.

• Make sure there are no memory cards or a

USB Flash memory drive inserted.

• The screens may differ depending on the

operating system.

• The supplied CD-ROM includes ScanSoft™

PaperPort™ 11SE. This software supports

Windows® 2000 (SP4 or greater), XP (SP2 or

greater), XP Professional x64 Edition and

Windows Vista®. Update to the latest

Windows® Service Pack before installing

MFL-Pro Suite.

Important

Before installation, if you are

using personal firewall

software (other than Windows®

Firewall), anti-spyware or

antivirus applications,

temporarily disable them.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click start.exe.

Windows®

Wireless Network

Windows®Macintosh®

Wireless Network

dWhen the ScanSoft™ PaperPort™ 11SE

License Agreement window appears, click

Yes if you agree to the Software License

Agreement.

eThe installation of ScanSoft™ PaperPort™

11SE will automatically start and is followed by

the installation of MFL-Pro Suite.

fWhen the Brother MFL-Pro Suite Software

License Agreement window appears, click

Yes if you agree to the Software License

Agreement.

gChoose Wireless Network Connection, and

then click Next.

hClick on Checked and confirmed check box,

and then click Next.

iFor Windows® XP SP2/Windows Vista® users,

when this screen appears, choose Change the

Firewall port settings to enable network

connection and continue with the

installation. (Recommended) and click Next.

If you are using a firewall other than Windows®

Firewall or Windows® Firewall is off, this screen

may appear.

See the instructions provided with your firewall

software for information on how to add the

following network ports.

For network scanning, add UDP port 54925.

For network PC-Fax receiving, add UDP port

54926.

If you still have trouble with your network

connection, add UDP port 137.

Note

• If this screen appears, click OK and restart

your computer.

• If the installation does not continue

automatically, open the main menu again by

ejecting and then reinserting the CD-ROM or

double-click the start.exe program from the

root folder, and continue from b to install MFL-

Pro Suite.

• For Windows Vista®, when the User Account

Control screen appears, click Allow.

Windows®

Wireless Network

jThe installation of the Brother drivers will

automatically start. The installation screens

appear one after another.

kWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions. Once you have

completed the registration process, close your

web browser to return to this window.

Then click Next.

Note

• If the machine is configured for your network,

choose the machine from the list, and then click

Next.

This window will not appear if there is only one

machine connected on the network, it will be

chosen automatically.

If your machine shows APIPA in the IP

Address field, click Configure IP Address

and enter an IP address for your machine that

is suitable for your network.

• If your wireless settings fail, an error message

will appear during the installation of MFL-Pro

Suite and the installation will be terminated. If

you encounter this failure, go to step 17 on

page 31 and setup the wireless connection

again.

• If you are using WEP and the LCD displayed

‘Connected’ but your machine is not found,

make sure you entered the WEP key correctly.

The WEP key is case sensitive.

• If the machine is not yet configured for use on

your network, the following screen appears.

Click OK.

The Configure IP Address window will

appear. Enter an IP address for your machine

that is suitable for your network by following the

on-screen instructions.

Important

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Note

For Windows Vista®, when this screen appears,

click the check box and click Install to complete

the installation correctly.

Windows®

Wireless Network

Windows®Macintosh®

Wireless Network

Finish and restart

aClick Finish to restart your computer. After

restarting the computer, you must be logged on

with Administrator rights.

Install MFL-Pro Suite on

additional computers

(If needed)

If you want to use your machine with multiple

computers on the network, install MFL-Pro Suite on

each computer. Go to step 19 on page 36.

Now go to

Proceed to Install Optional Applications on

page 43.

Note

If an error message appears during the software

installation, run the Installation Diagnostics

located in Start/All Programs/Brother/

MFC-XXXX (where MFC-XXXX is your model

name).

Note

The MFL-Pro Suite Software License permits

installation on up to 2 network computers. If you

want to install MFL-Pro Suite on additional

computers, you can purchase additional NL-5

(five user) license agreements from your

authorized Brother dealer or contact Brother

customer service.

Finish The installation is now

complete.

Macintosh®

Wireless Network

Install the Drivers & Software

(For Mac OS

X 10.2.4 or greater)

Before you install

MFL-Pro Suite

aMake sure your machine is connected to the

power and your Macintosh® is ON. You must

be logged on with Administrator rights.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive.

bDouble-click the Start Here OSX icon to install.

cChoose Wireless Network Connection, and

then click Next.

dClick on the Checked and confirmed check

box, and then click Next.

Follow the on-screen instructions.

eThe Brother software will search for the Brother

device. During this time the following screen

will appear.

Important

• For Mac OS® X 10.2.0 to 10.2.3 users,

upgrade to Mac OS® X 10.2.4 or greater. (For

the latest information for Mac OS® X, visit

http://solutions.brother.com/)

• Make sure there are no memory cards or a

USB Flash memory drive inserted.

Note

Please wait, it will take a few seconds for the

software to install. After the installation, click

Restart to finish installing the software.

Macintosh®

Wireless Network

Windows®Macintosh®

Wireless Network

fWhen this screen appears, click OK.

For Mac OS® X 10.3.x or greater, the

installation of MFL-Pro Suite is now

complete.

Go to step 21 on page 42.

gFor Mac OS® X 10.2.4 to 10.2.8 users,

click Add.

hMake the selection shown below.

iChoose XXX-XXXX (where XXX-XXXX is your

model name), and then click Add.

jClick Print Center, then Quit Print Center.

The installation of MFL-Pro Suite is now

complete.

Go to step 21 on page 42.

Note

• If the machine is configured for your network,

choose the machine from the list, and then click

OK.

This window will not appear if there is only one

machine connected on the network, it will be

chosen automatically. Go to f.

•

If your machine is not detected, go to step

page 31

and setup the wireless connection

again.

• If you are using WEP and the LCD displayed

‘Connected’ but your machine is not found,

make sure you entered the WEP key correctly.

The WEP key is case sensitive.

• If this screen appears click OK.

Enter a name for your Macintosh® in

Display Name up to 15 characters long and

click OK. Go to f.

• If you want to use the machine’s Scan key to

scan over the network you must check the

function on the machine box.

• The name you enter will appear on the

machine’s LCD when you press the Scan key

and choose a scan option. (For more

information, see Network Scanning in the

Software User’s Guide on the CD-ROM.)

Macintosh®

Wireless Network

Install

Presto! PageManager

When Presto! PageManager is installed OCR

capability is added to Brother ControlCenter2. You

can easily scan, share and organize photos and

documents using Presto! PageManager.

aDouble-click the Presto! PageManager icon

and follow the on-screen instructions.

For Mac OS® X 10.2.4 to 10.3.8 users,

when this screen appears, click Go to

download the software from the Brother

Solutions Center website.

Install MFL-Pro Suite on

additional computers

(If needed)

If you want to use your machine with multiple

computers on the network, install MFL-Pro Suite on

each computer. Go to step 19 on page 40.

Finish The installation is now

complete.

Windows®

Install Optional Applications

Install FaceFilter Studio

supported by

Reallusion, Inc

FaceFilter Studio is an easy-to-use borderless photo

printing application. FaceFilter Studio also lets you

edit your photo data and add photo effects such as

red eye reduction or skin tone enhancement.

aOpen the main menu again by ejecting and

then reinserting the CD-ROM or by double-

clicking the start.exe program from the root

folder.

bThe CD-ROM main menu will appear. Choose

your language and then click Additional

Applications.

cClick the FaceFilter Studio button to install.

Install FaceFilter Studio

Help

To get instructions on how to use FaceFilter Studio,

download and install FaceFilter Studio Help.

aTo run FaceFilter Studio, go to

Start/All Programs/Reallusion/

FaceFilter Studio on your computer.

bClick the button on the upper right corner

of the screen.

cClick Check for updates to go to the

Reallusion update web page.

dClick the Download button and choose a folder

to save the file in.

eClose FaceFilter Studio before you start the

installer for FaceFilter Studio Help.

Double-click the downloaded file from the

folder you specified and follow the on-screen

instructions for installation.

Important

• The machine must be ON and connected to

the computer.

• The computer must be connected to the

Internet.

• Make sure you are logged on with

Administrator rights.

Note

To view the complete FaceFilter Studio Help,

choose Start/All Programs/Reallusion/

FaceFilter Studio/FaceFilter Studio Help on

your computer.

Windows®

Install Optional Applications

Install

BookScan&Whiteboard

Suite supported by

Reallusion, Inc

You can install BookScan&Whiteboard Suite.

The BookScan Enhancer software can correct your

scanned book images automatically. The

Whiteboard Enhancer software cleans up and

enhances text and images from photos taken of your

whiteboard. (Internet access required.)

aOpen the main menu again by ejecting and

then reinserting the CD-ROM or by double-

clicking the start.exe program from the root

folder.

bThe CD-ROM main menu will appear. Choose

your language and then click Additional

Applications.

cClick the BookScan&Whiteboard Suite

button to install.

Important

• The machine must be ON and connected to

the computer.

• The computer must be connected to the

Internet.

For Network Users

BRAdmin Light utility (For Windows

users)

BRAdmin Light is a utility for initial setup of Brother network connected devices. It also can search for Brother

products on your network, view the status and configure basic network settings, such as IP address.

For more information on BRAdmin Light, visit us at http://solutions.brother.com/.

Install the BRAdmin Light

configuration utility

aClick Network Utilities on the menu screen.

bClick BRAdmin Light and follow the on-screen

instructions.

Set your IP address, Subnet Mask

and Gateway using BRAdmin Light

aStart BRAdmin Light. It will search for new

devices automatically.

bDouble-click the unconfigured device.

cChoose STATIC for the Boot Method. Enter

the IP Address, Subnet Mask and Gateway,

and then click OK.

dThe address information will be saved to the

machine.

Note

If you require more advanced printer management, use the latest Brother BRAdmin Professional utility version

that is available as a download from http://solutions.brother.com/.

Note

If you have a DHCP/BOOTP/RARP server in your

network, you don’t have to do the following

operation. The machine will automatically obtain

its own IP address.

Note

The default password for the machine is ‘access’.

You can use BRAdmin Light to change this

password.

For Network Users

BRAdmin Light utility (For Mac OS

X users)

BRAdmin Light is a utility for initial setup of Brother network connected devices. It also can search for Brother

products on your network, view the status and configure basic network settings, such as IP address from a

computer running Mac OS® X 10.2.4 or greater.

The BRAdmin Light software will be installed automatically when you install the printer driver. If you have already

installed the printer driver, you don’t have to install BRAdmin Light again. For more information on BRAdmin Light,

visit us at http://solutions.brother.com/.

Set your IP address, Subnet Mask

and Gateway using BRAdmin Light

aDouble-click the Macintosh HD icon on your

desktop.

bChoose Library, Printers, Brother and then

Utilities.

cDouble-click the file BRAdmin Light.jar and

run the software. BRAdmin Light will then

search for new devices automatically.

dDouble-click the unconfigured device.

eChoose STATIC for the Boot Method. Enter

the IP Address, Subnet Mask and Gateway,

and then click OK.

fThe address information will be saved to the

machine.

Note

• If you have a DHCP/BOOTP/RARP server in

your network, you don’t have to do the

following operation. The machine will

automatically obtain its own IP address.

• Make sure that version 1.4.1_07 or later of

Java™ client software is installed on your

computer.

• The default password for the machine is

‘access’. You can use BRAdmin Light to

change this password.

For Wireless Network Users

Restore the network settings to factory default

To restore all network settings of the internal Print/Scan server to factory default, please follow the steps below.

aMake sure the machine is not operating, then disconnect all the cables from the machine (except the power

cord).

bPress MENU.

cPress a or b to display Network and press Network.

dPress a or b to display Factory Reset and press Factory Reset.

ePress Yes.

fHold down Yes for 2 seconds to confirm.

gThe machine will restart, re-connect cables once this is complete.

Entering Text for Wireless Settings

When you are setting certain menu selections, you may need to enter text into the machine. Press to choose

numbers, characters and special characters. Up to four letters are assigned to each button on the Touchscreen.

By pressing the correct button repeatedly, you can access the character you want.

Inserting spaces

To enter a space, press to choose special characters, then press the space button or .

Making corrections

If you entered an incorrect letter and want to change it, use d or c to move the cursor under the incorrect character.

Then press . Re-enter the correct character. You can also insert letters by moving the cursor and entering a

character.

Repeating letters

If you need to enter a letter that is on the same button as the letter before, press c to move the cursor to the right

before you press the button again.

Note

The characters available may differ depending on your country.

Consumables

Replacement consumables

When the time comes to replace ink cartridges, an error message will be indicated on the LCD. For more

information about the ink cartridges for your machine, visit http://www.brother.com/original/ or contact your local

Brother re-seller.

Ink cartridge

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd.

Brother is a registered trademark of Brother Industries, Ltd.

Multi-Function Link is a registered trademark of Brother International Corporation.

Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.

Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Macintosh and TrueType are registered trademarks of Apple Inc.

Nuance, the Nuance logo, PaperPort and ScanSoft are trademarks or registered trademarks of Nuance Communications, Inc. or its affiliates

in the United States and/or other countries.

PictBridge is a trademark.

FaceFilter Studio is a trademark of Reallusion, Inc.

BROADCOM, SecureEasySetup and the SecureEasySetup logo are trademarks or registered trademarks of Broadcom Corporation in the

United States and/or other countries.

AOSS is a trademark of Buffalo Inc.

Wi-Fi, WPA, WPA2 and Wi-Fi Protected Setup are either trademarks or registered trademarks of Wi-Fi Alliance in the United States and/or

other countries.

Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.

All other brand and product names mentioned in this manual are trademarks or registered trademarks of their

respective companies.

Compilation and Publication

Under the supervision of Brother Industries, Ltd., this manual has been compiled and published, covering the latest product descriptions and

specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for

any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other

errors relating to the publication.

This product includes software developed by the following vendors:

This product includes the “KASAGO TCP/IP” software developed by ELMIC WESCOM, Inc.

Black Yellow Cyan Magenta

LC61BK (Standard)

LC65HY-BK (High Yield)

LC61Y (Standard)

LC65HY-Y (High Yield)

LC61C (Standard)

LC65HY-C (High Yield)

LC61M (Standard)

LC65HY-M (High Yield)

What is Innobella™?

Innobella™ is a range of genuine consumables offered by Brother.

The name "Innobella™" derives from the words "Innovation" and "Bella"

(meaning "Beautiful" in Italian) and is a representation of the "innovative"

technology providing you with "beautiful" and "long lasting" print results.

Brother Mfc 6890Cdw Quick Start Guide

If not then QSG_MFC_6890CDW_EN_1732 Manual: ://www.brother-usa.com/s/Consumer/Quick%20Setup%20Guide/QSG_MFC_6890CDW_EN_1732

Navigation menu

Versions of this User Manual:

Views

Navigation
