BASIC USER’S GUIDE
MFC-7360
MFC-7360N
MFC-7362N
MFC-7460DN
MFC-7470D
MFC-7860DW
Not all models are available in all countries.
Version C
ARL/ASA/NZ
If you need to call Customer Service
Please complete the following information for future
reference:
Model Number:
MFC-7360 / MFC-7360N / MFC-7362N /
MFC-7460DN / MFC-7470D / MFC-7860DW
(Circle your model number)
Serial Number: 1
Date of Purchase:
Place of Purchase:
1The serial number is on the back of the unit. Retain
this User’s Guide with your sales receipt as a
permanent record of your purchase, in the event of
theft, fire or warranty service.
Register your product on-line at
http://www.brother.com/registration/
© 2010 Brother Industries, Ltd.
i
User’s Guides and where do I find it?
Which manual? What’s in it? Where is it?
Safety and Legal Read this Guide first. Please read the Safety
Instructions before you set up your machine.
See this Guide for trademarks and legal
limitations.
Printed / In the Box
Quick Setup Guide Follow the instructions for setting up your
machine and installing the drivers and software
for the operating system and connection type
you are using.
Basic User's Guide Learn the basic Fax, Copy and Scan
operations and how to replace consumables.
See troubleshooting tips.
Advanced User's
Guide
Learn more advanced operations: Fax, Copy,
security features, printing reports, and
performing routine maintenance.
PDF file /
Documentation CD-ROM /
In the Box
Software User’s
Guide
Follow these instructions for Printing,
Scanning, Network Scanning, Remote Setup,
PC-Fax, and using the Brother ControlCenter
utility.
Network Glossary This Guide provides basic information about
advanced network features of Brother
machines along with explanations about
general networking and common terms.
Network User’s
Guide
This Guide provides useful information about
wired and wireless network settings and
security settings using the Brother machine.
You can also find supported protocol
information for your machine and detailed
troubleshooting tips.
ii
Table of Contents
(BASIC USER’S GUIDE)
1 General information 1
Using the documentation.......................................................................................1
Symbols and conventions used in the documentation ....................................1
Accessing the Advanced User's Guide, Software User's Guide
and Network User's Guide..................................................................................2

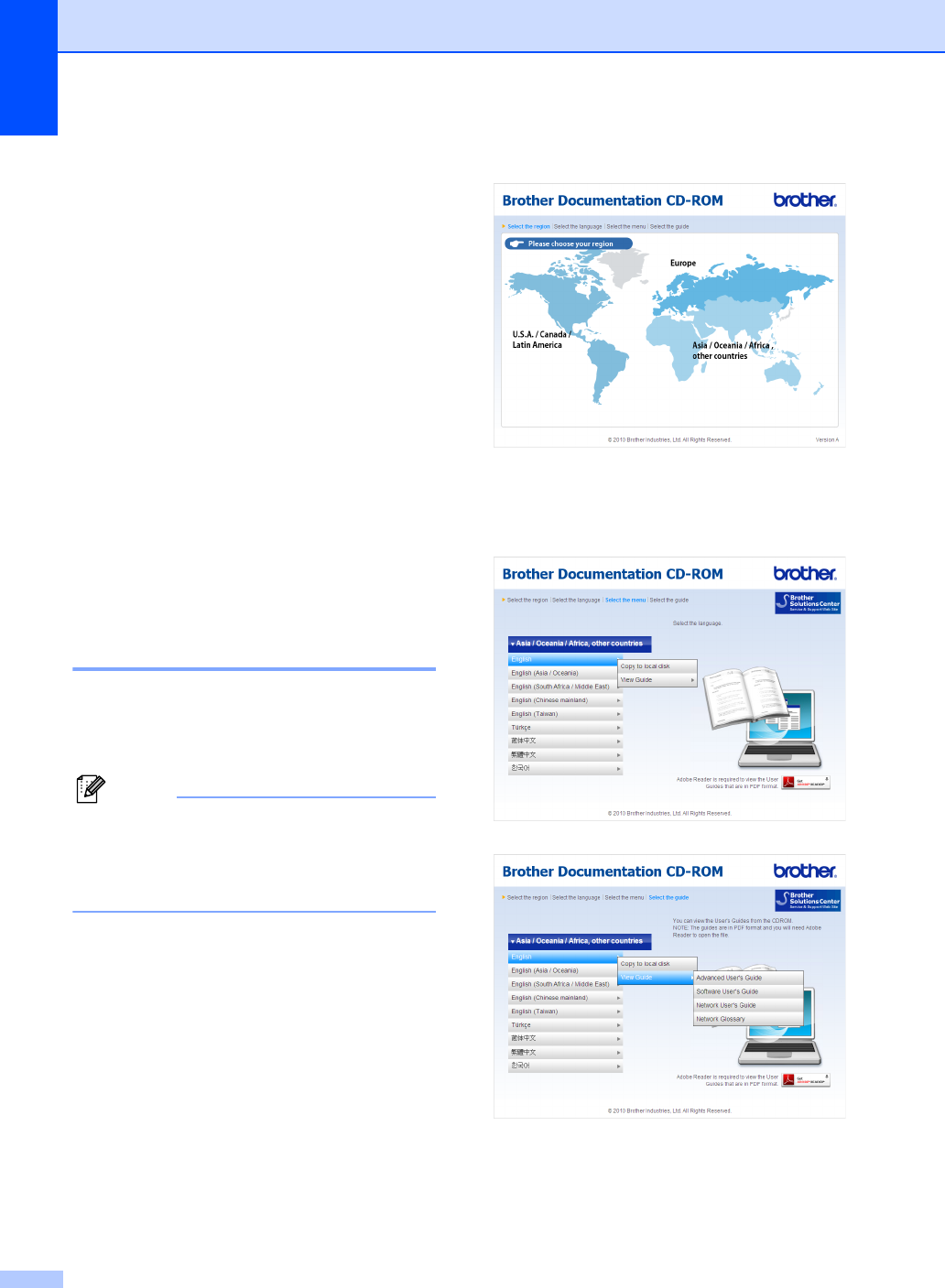

Viewing Documentation...................................................................................2

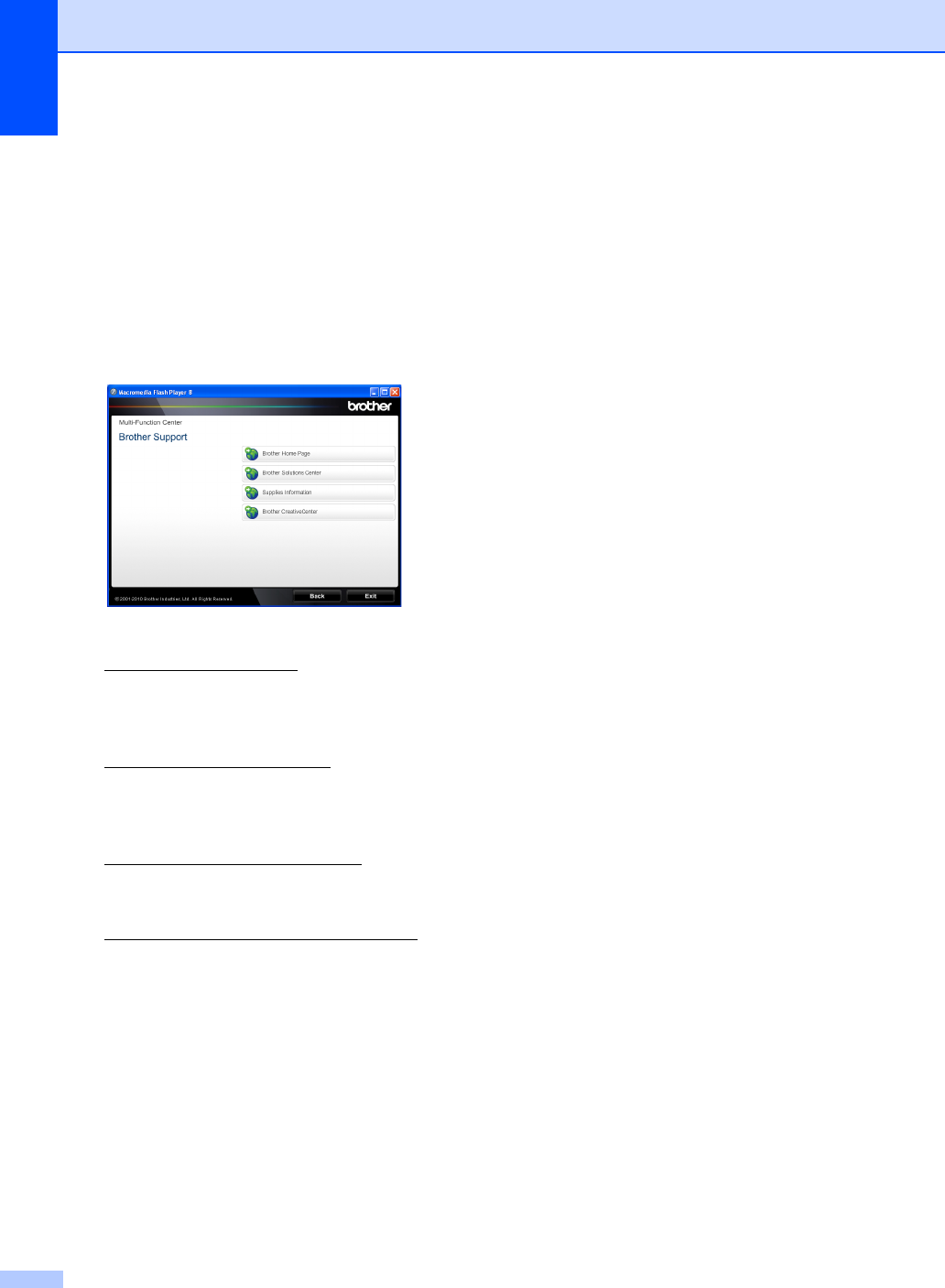

Accessing Brother Support (Windows®)................................................................4
Accessing Brother Support (Macintosh) ................................................................5

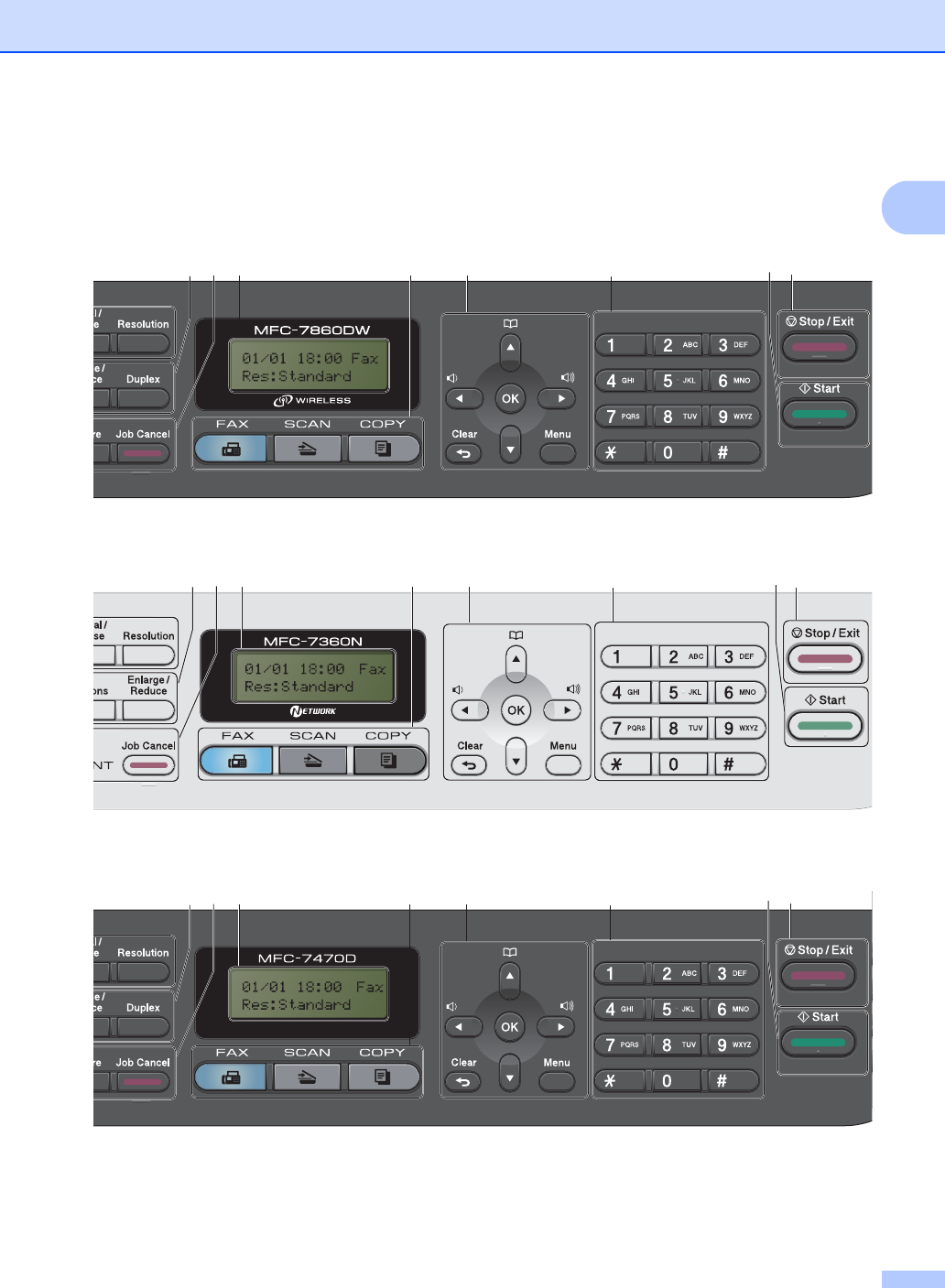

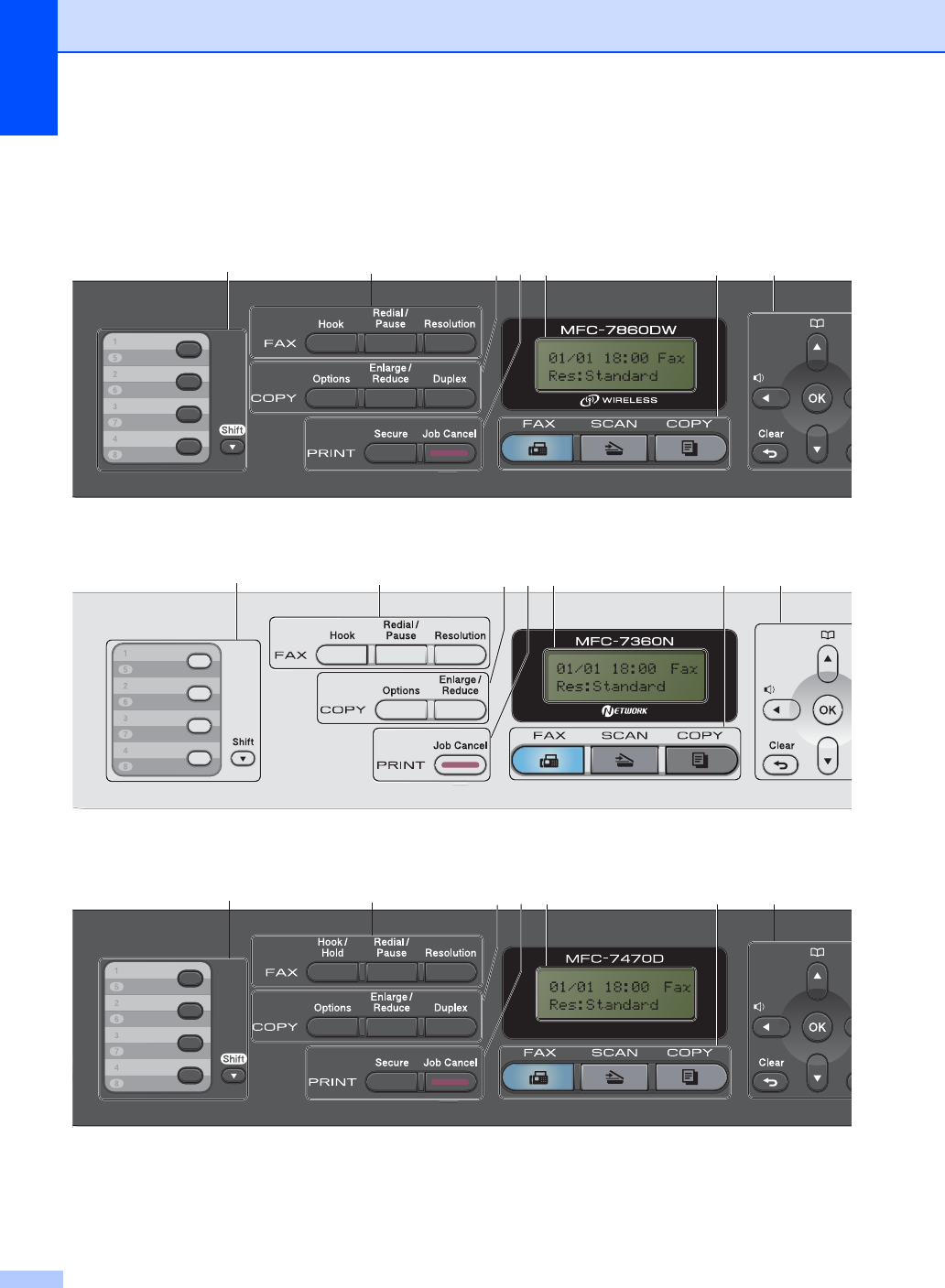

Control panel overview ..........................................................................................6
Volume settings .....................................................................................................9
Ring volume.....................................................................................................9
Beeper volume ................................................................................................9
Speaker volume...............................................................................................9
2 Loading paper 10
Loading paper and print media............................................................................10

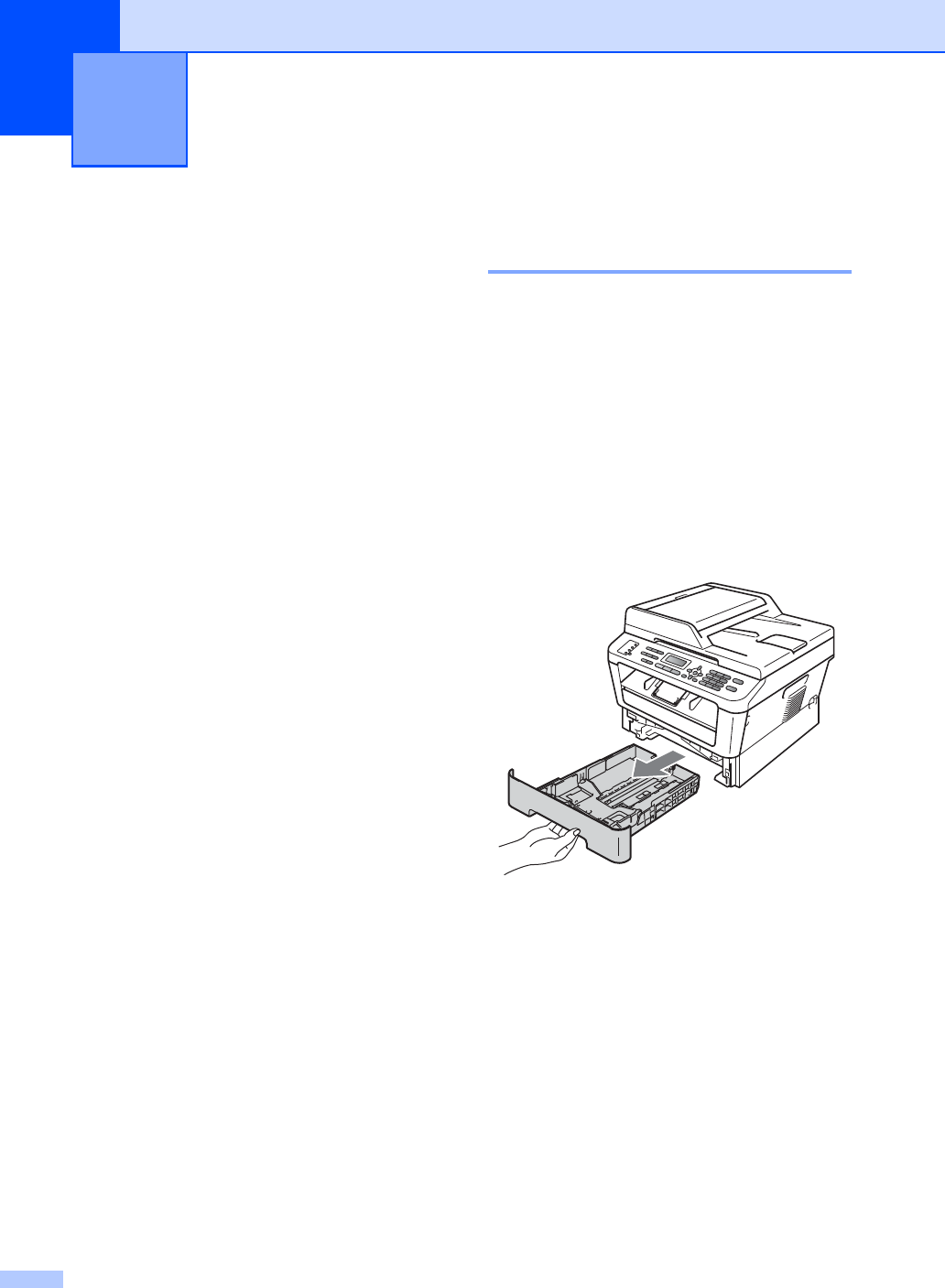

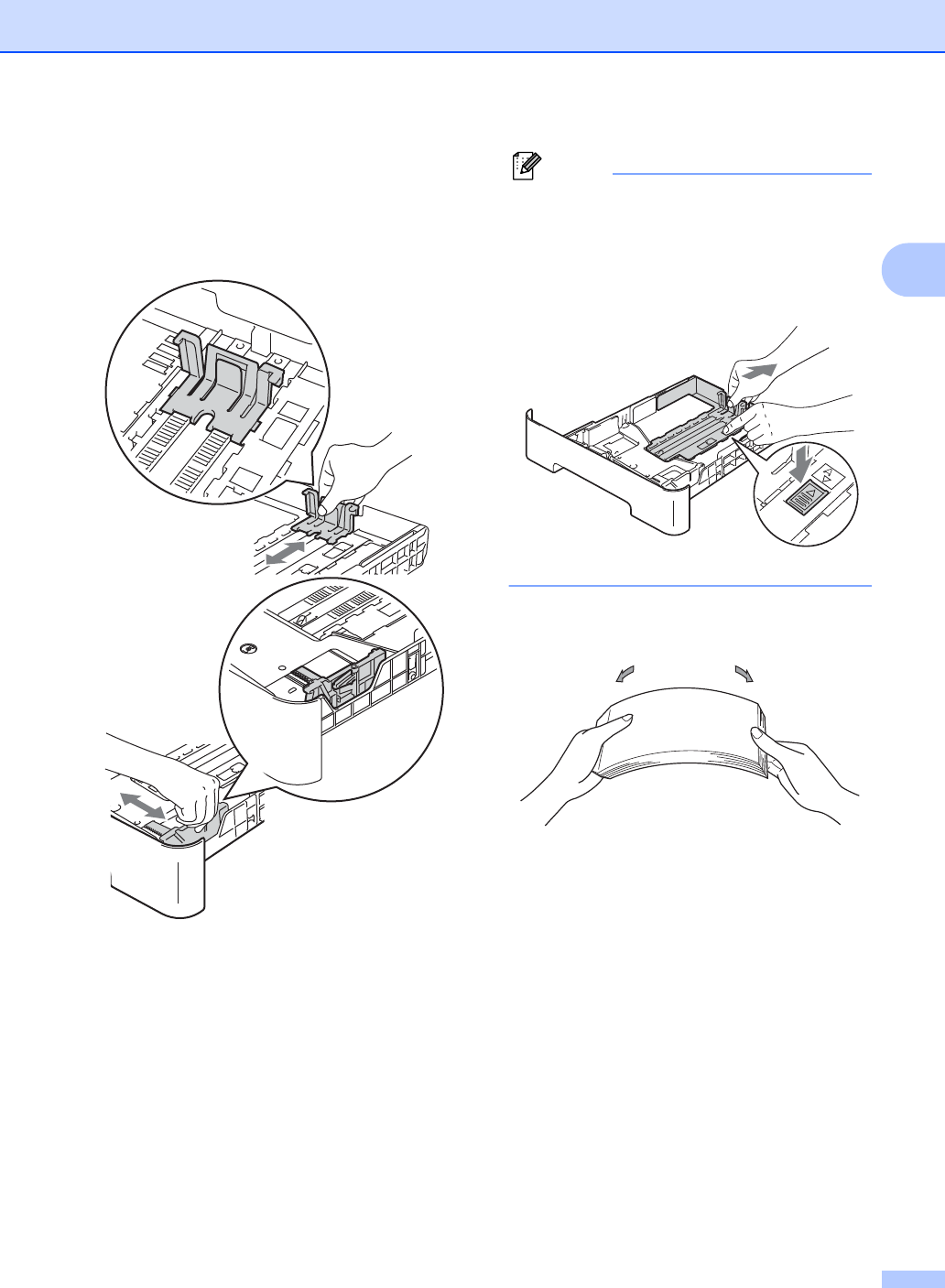

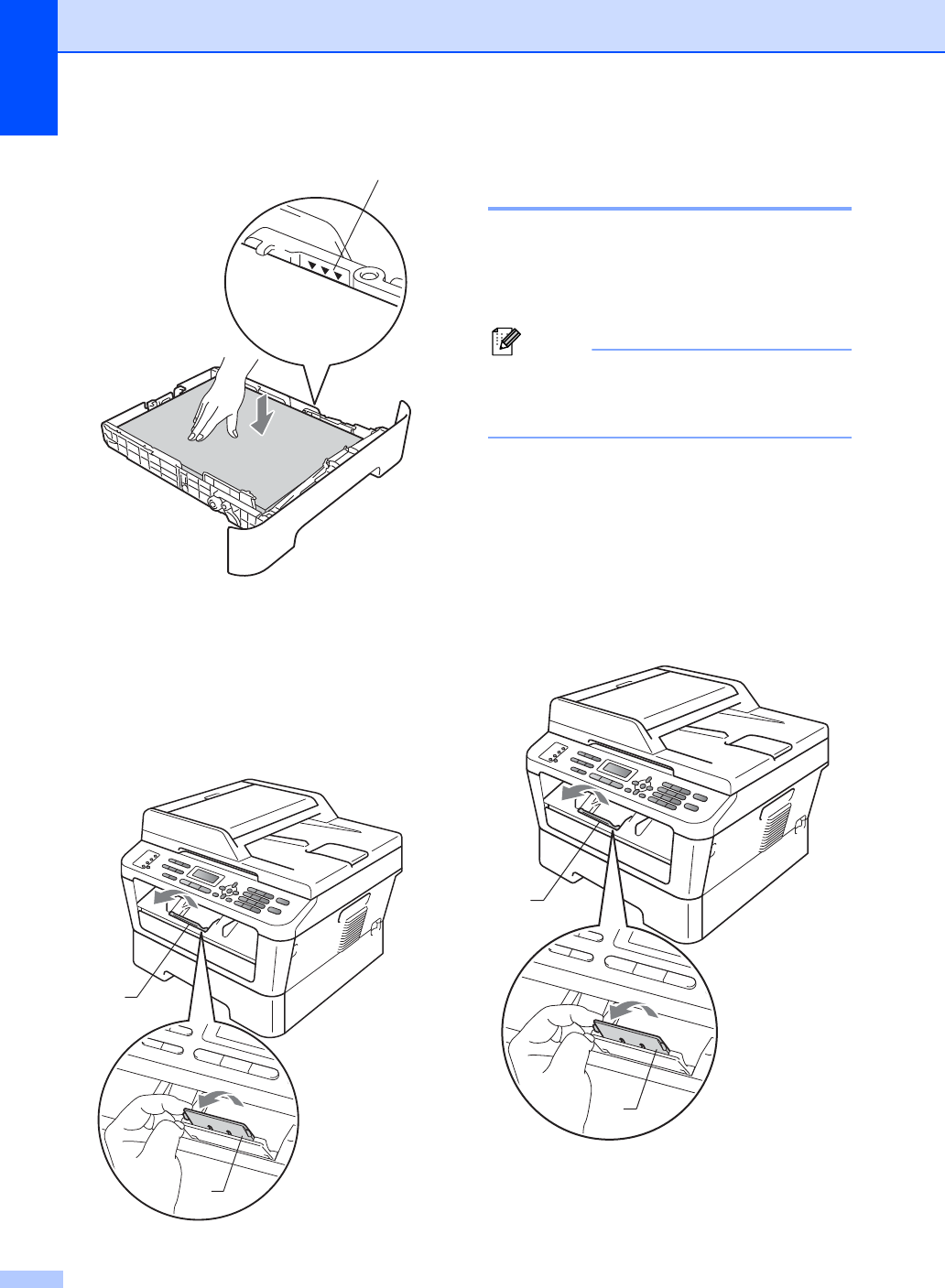

Loading paper in the standard paper tray......................................................10

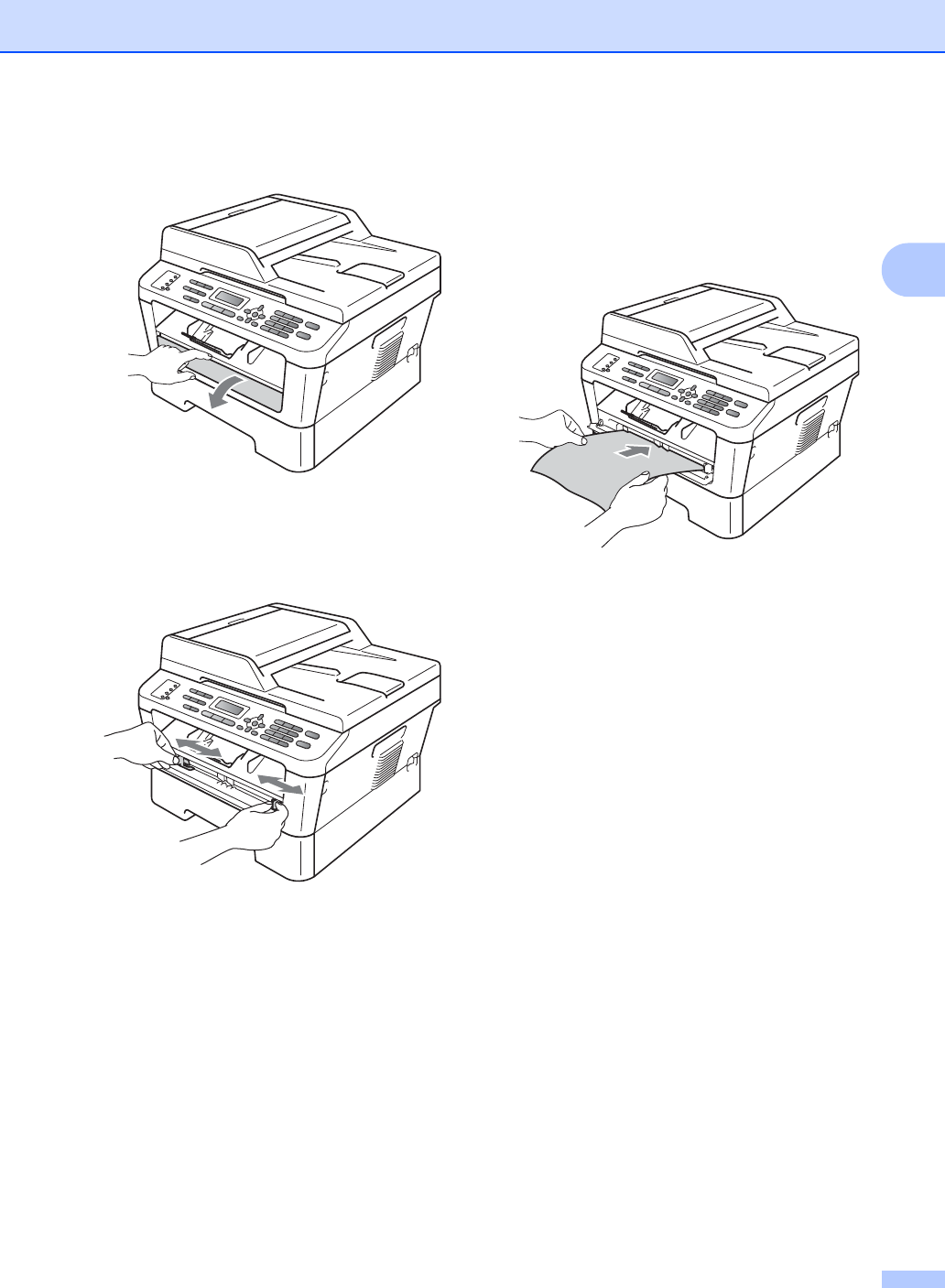

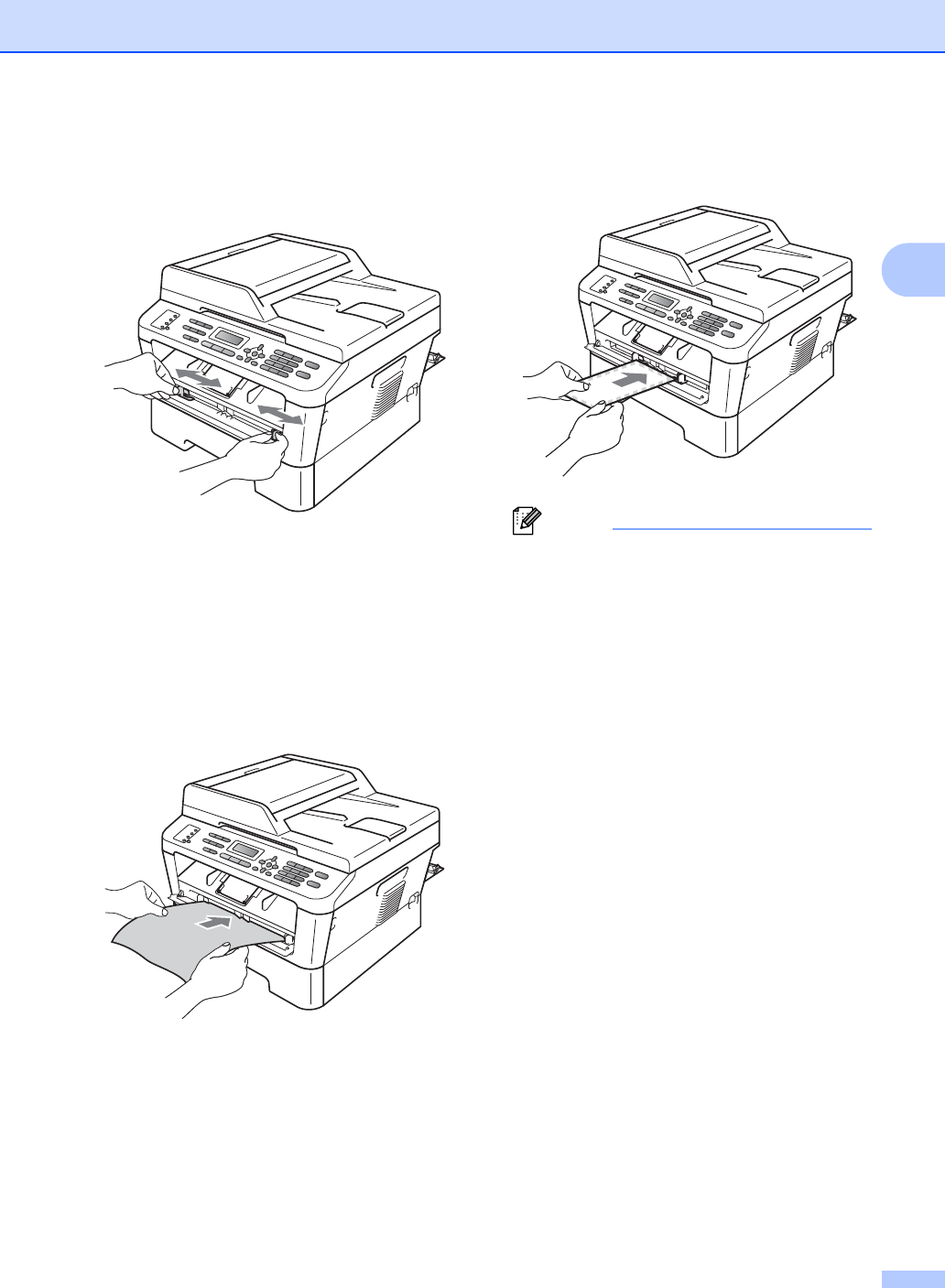

Loading paper in the manual feed slot ..........................................................12

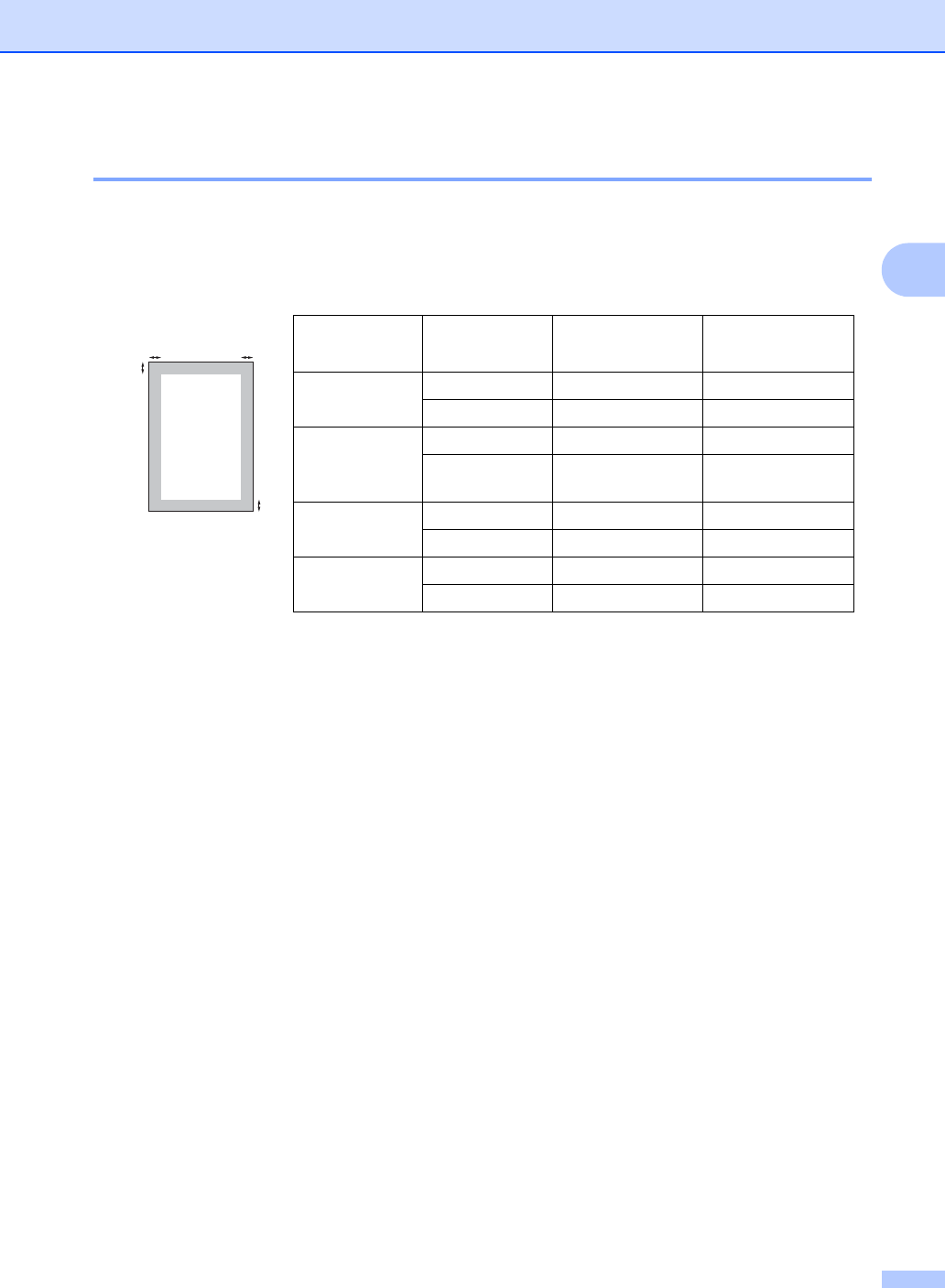

Unscannable and unprintable areas..............................................................17
Paper settings......................................................................................................18
Paper Type....................................................................................................18
Paper Size.....................................................................................................18
Acceptable paper and other print media..............................................................18
Type and size of paper ..................................................................................19

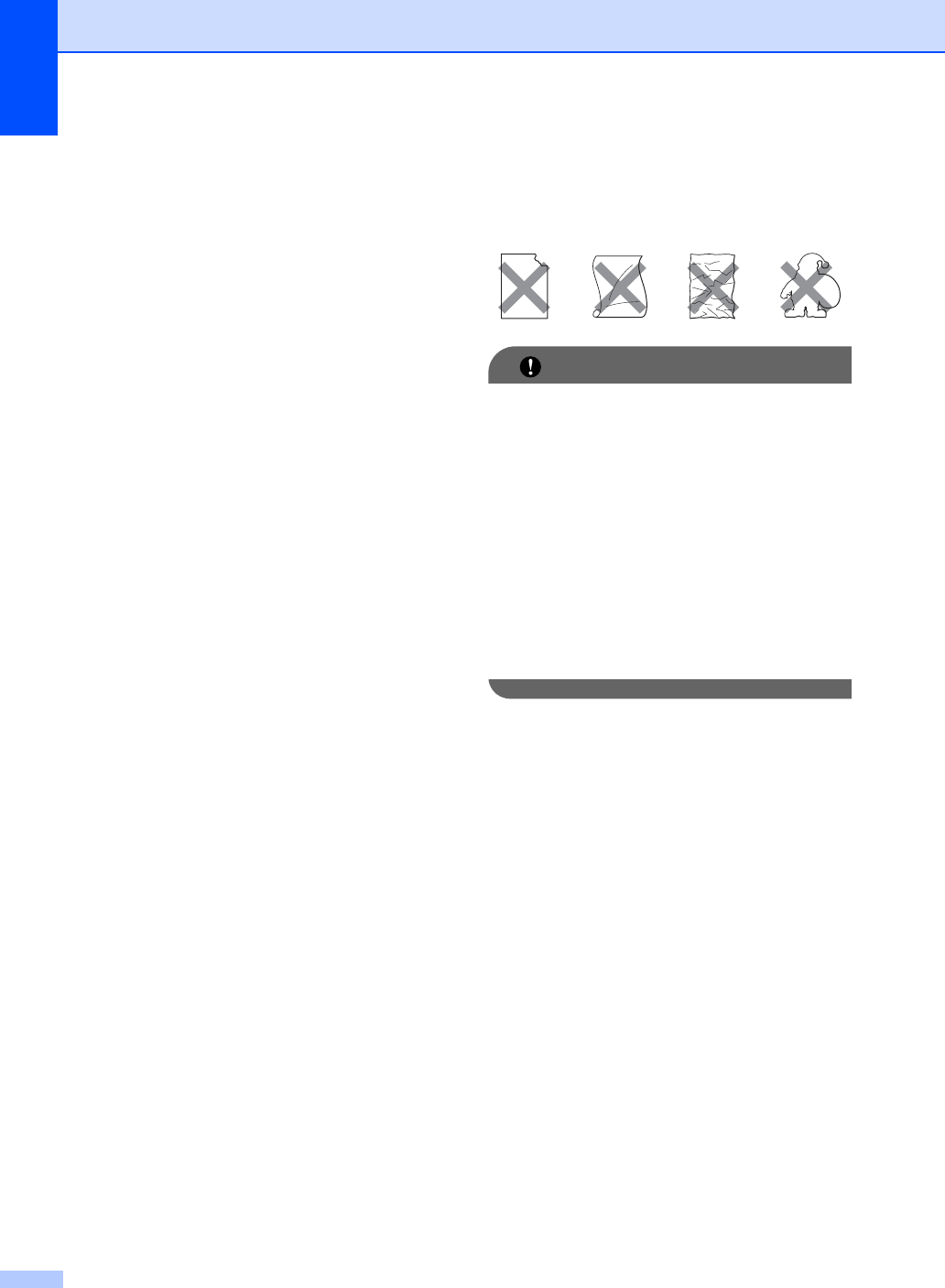

Handling and using special paper .................................................................20
3 Loading documents 23
How to load documents .......................................................................................23

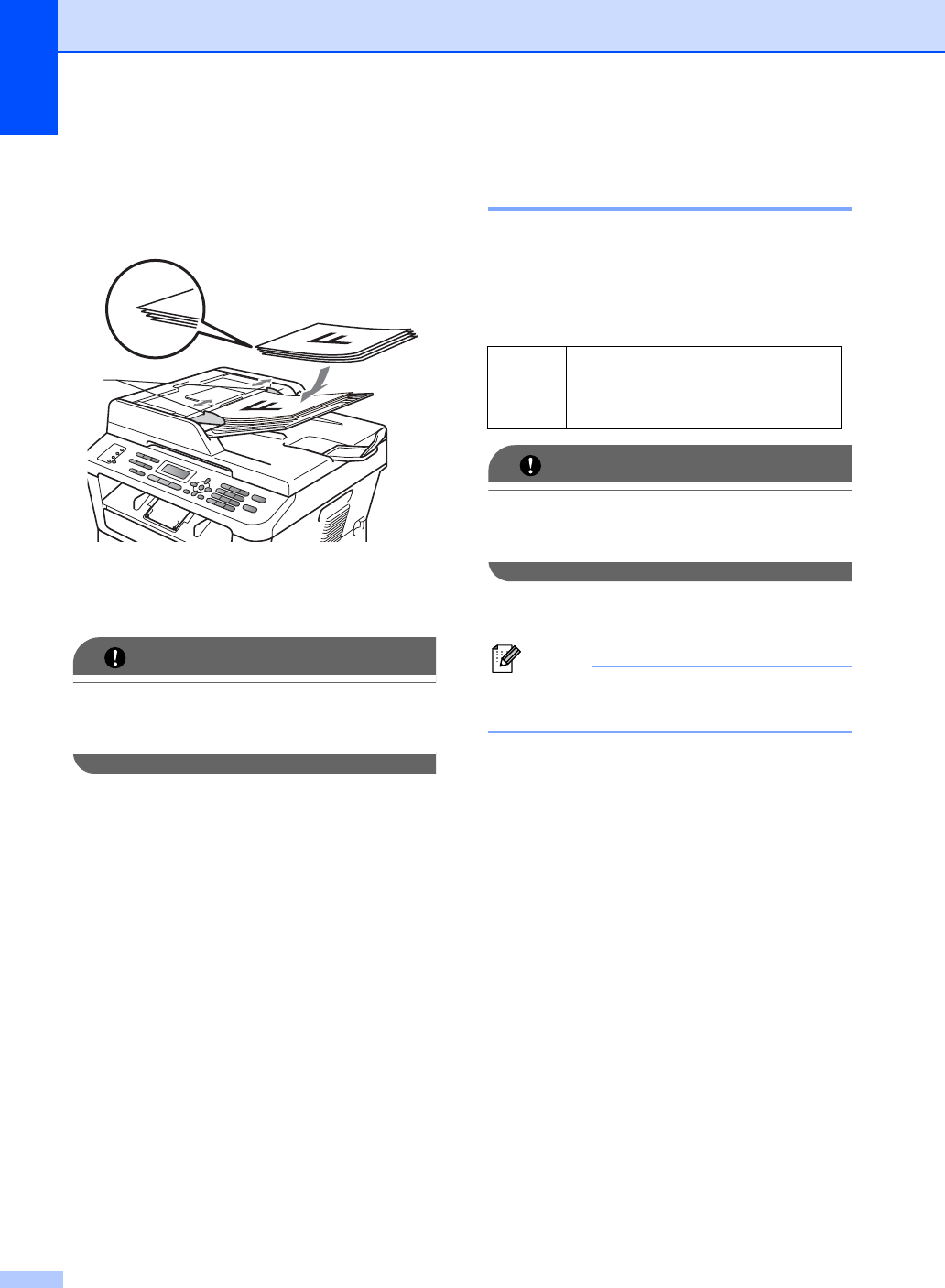

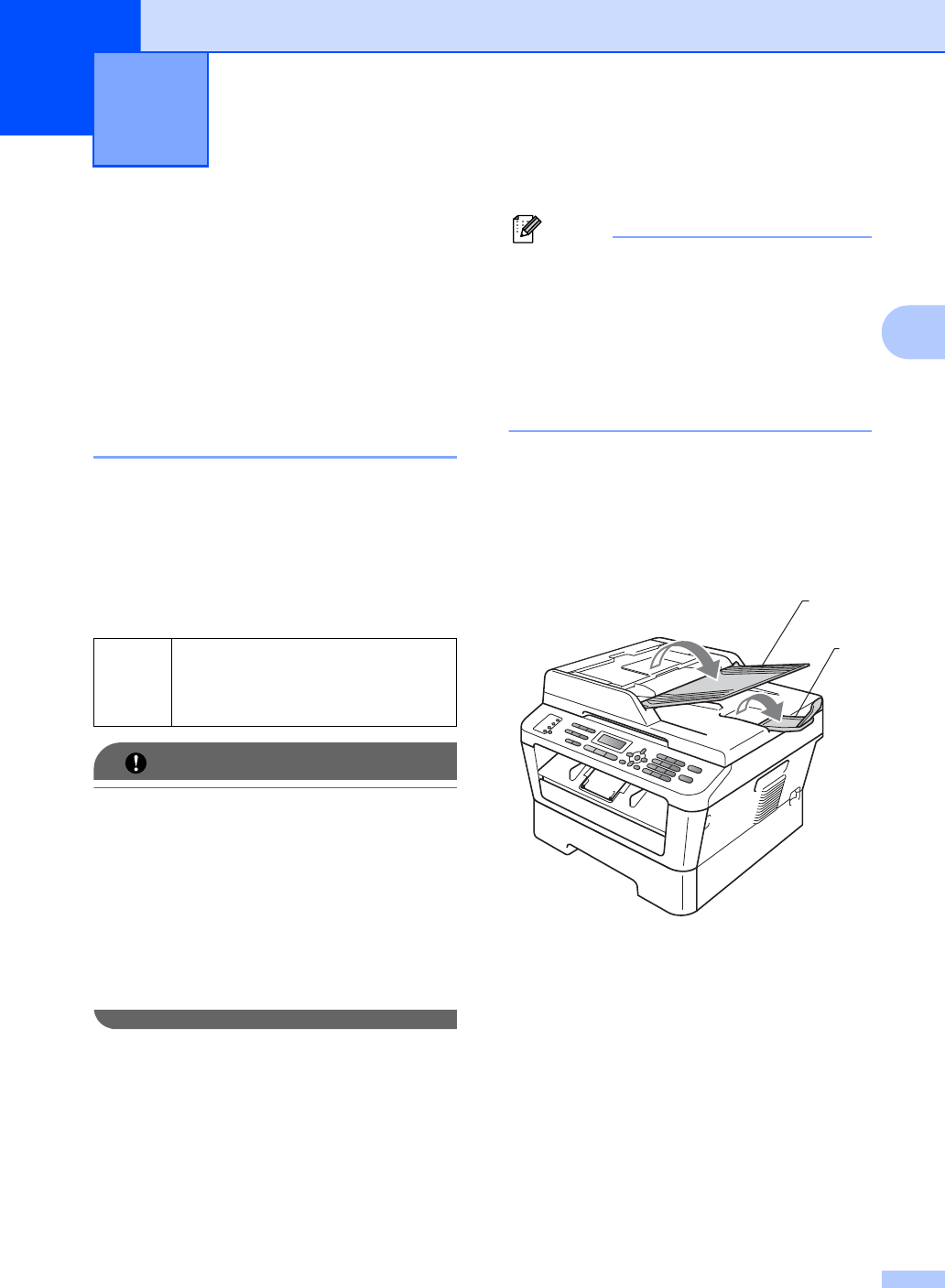

Using the automatic document feeder (ADF) ................................................23

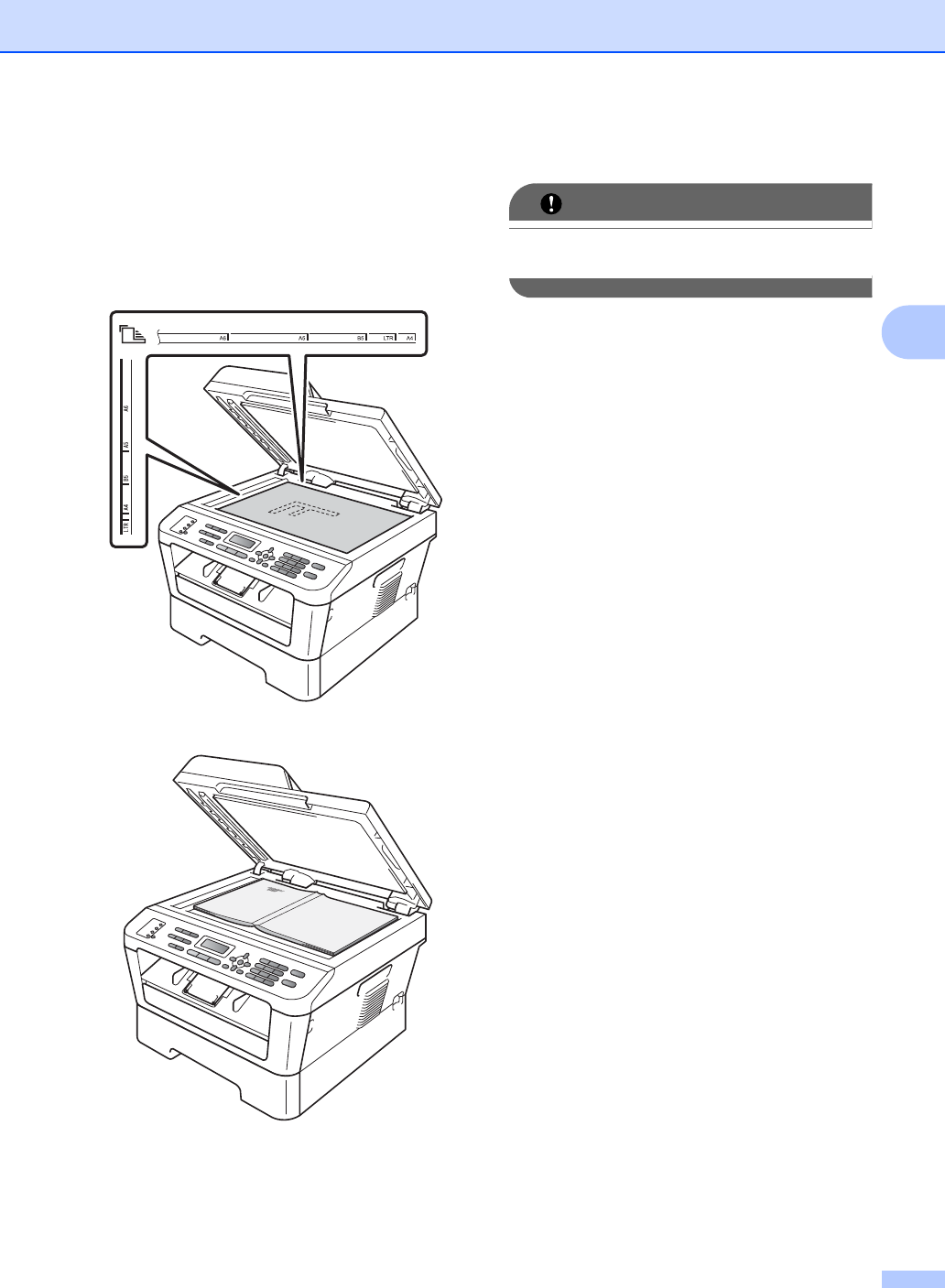

Using the scanner glass (Flatbed).................................................................24
4 Sending a fax 26

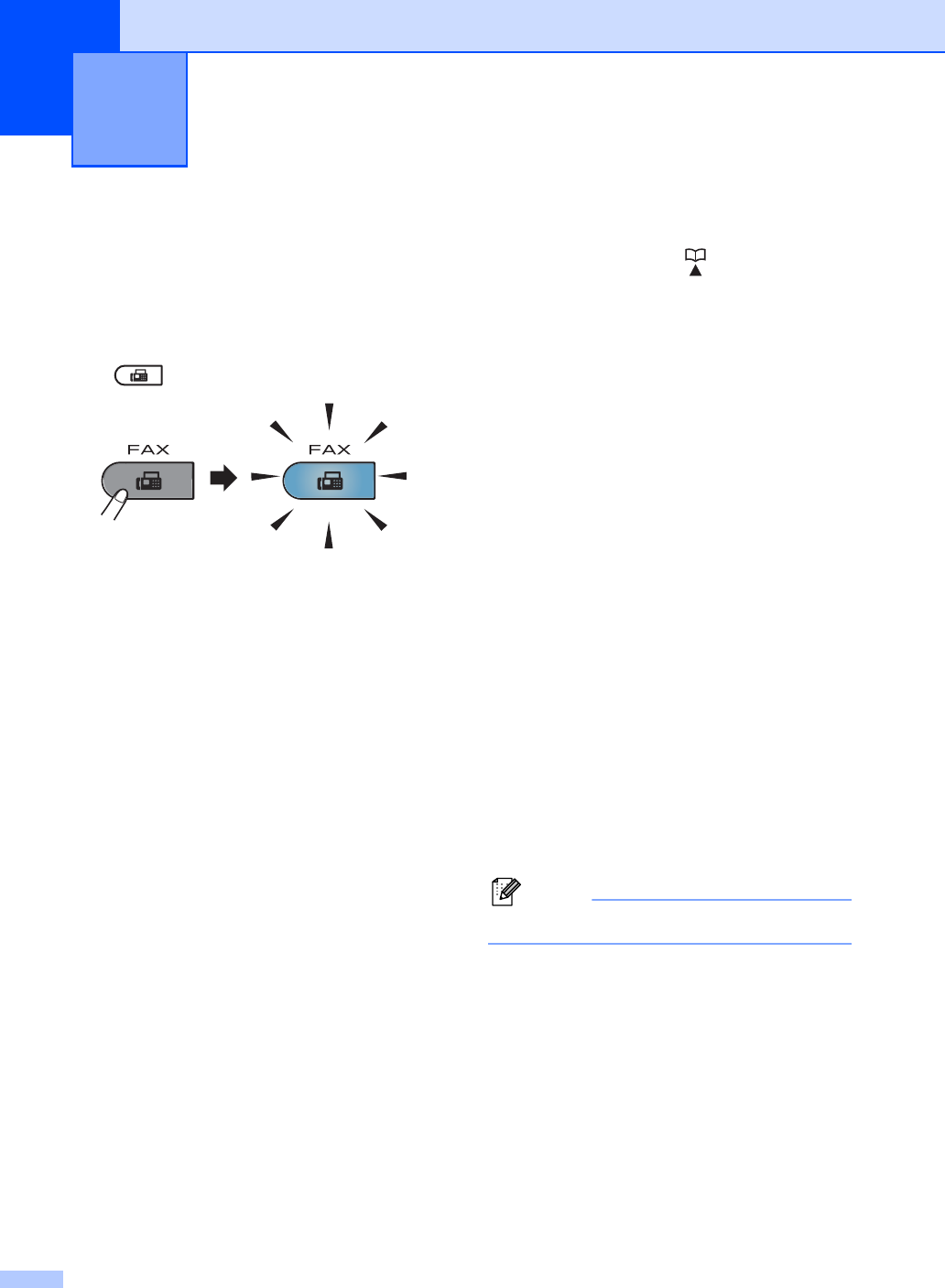

How to send a fax ................................................................................................26
Faxing Letter size documents from the scanner glass ..................................27
Cancelling a fax in progress ..........................................................................27
Transmission verification report.....................................................................27
iii
5 Receiving a fax 28
Receive modes ....................................................................................................28
Choosing the receive mode...........................................................................28
Using receive modes ...........................................................................................29
Fax Only ........................................................................................................29
Fax/Tel...........................................................................................................29
Manual...........................................................................................................29
External TAD .................................................................................................29
Receive Mode settings ........................................................................................30
Ring Delay .....................................................................................................30
F/T Ring Time (Fax/Tel mode only)...............................................................30
Fax Detect .....................................................................................................31
6 Telephone and external devices 32
Voice operations (MFC-7470D only) ...................................................................32
Making a telephone call.................................................................................32
Hold ...............................................................................................................32
Telephone line services .......................................................................................32
Do you have Voice Mail?...............................................................................32
Telephone Service for Australia...........................................................................33
Distinctive Ring..............................................................................................33
Telephone Service for New Zealand ..................................................................34
FaxAbility .......................................................................................................34
Telephone Service for Some Countries...............................................................36
Distinctive Ringing (For Singapore and Hong Kong).....................................36

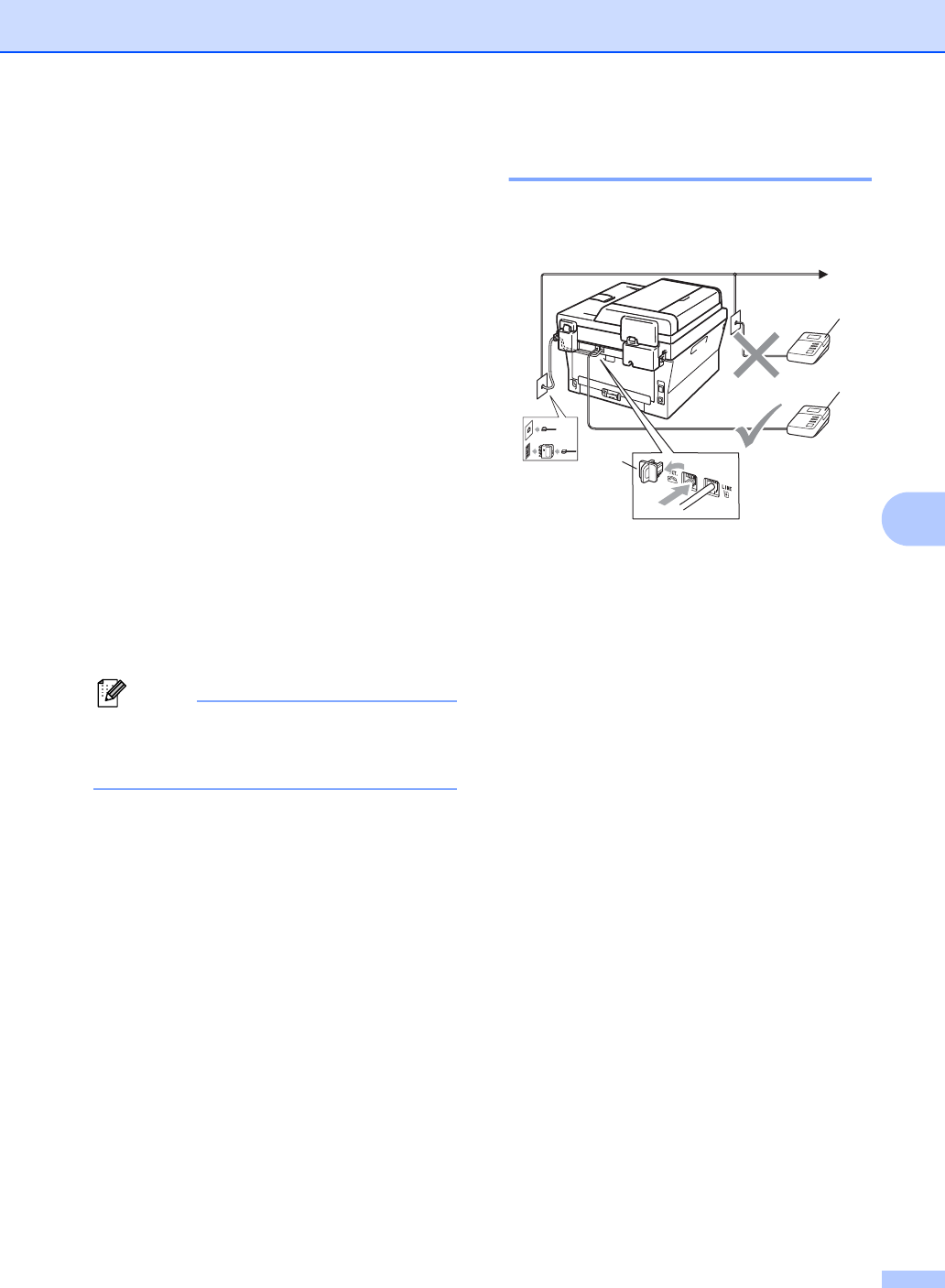

Connecting an external TAD................................................................................37
Connections...................................................................................................37
Recording an outgoing message (OGM).......................................................38
Multi-line connections (PABX) .......................................................................38
External and extension telephones......................................................................39

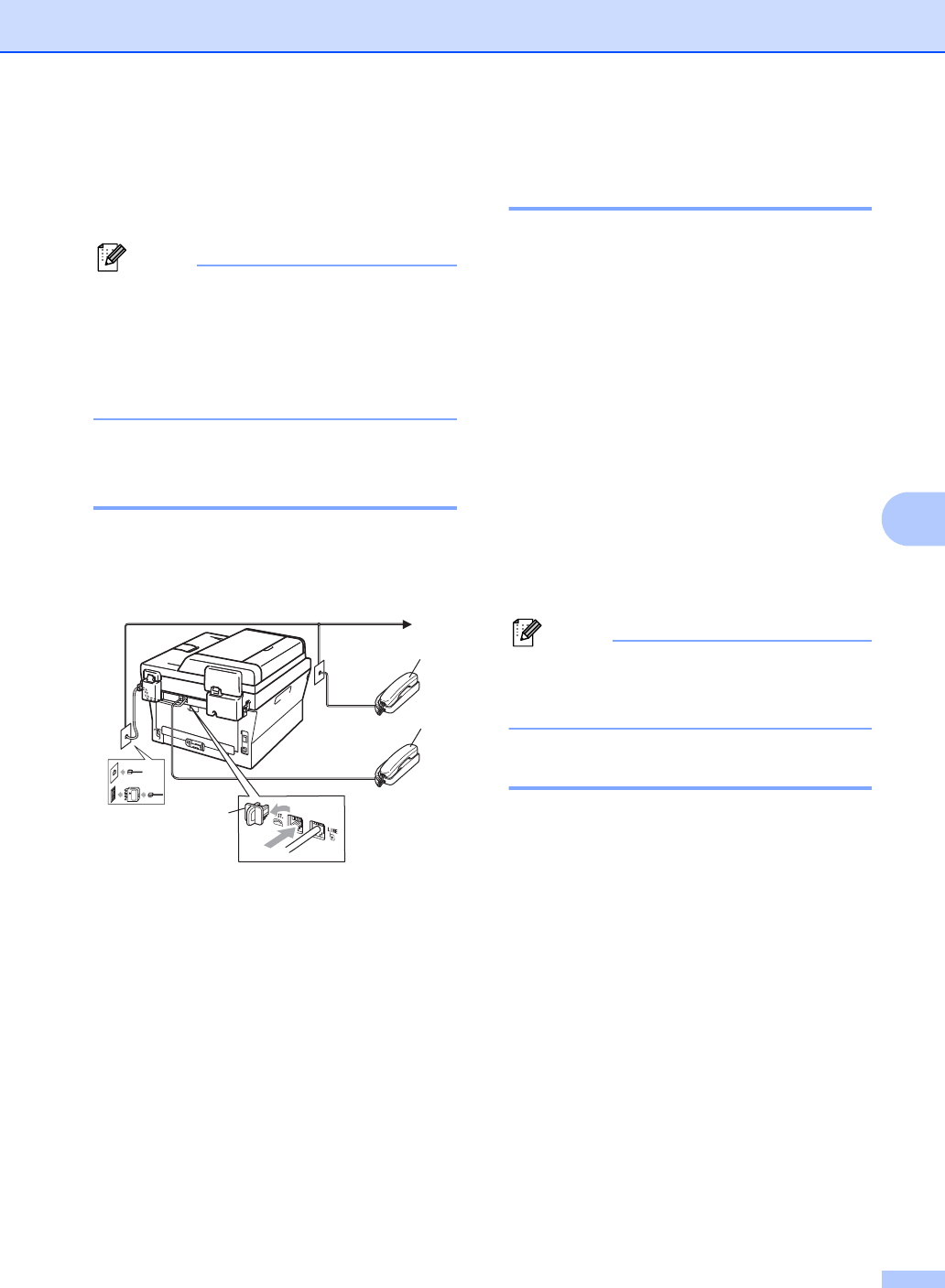

Connecting an external or extension telephone ............................................39
Operation from external or extension telephones..........................................39
For Fax/Tel mode only...................................................................................39
Using a non-Brother cordless external handset ............................................40
Using Remote Codes ....................................................................................40
iv
7 Dialling and storing numbers 42
How to dial...........................................................................................................42
Manual dialling...............................................................................................42
One touch Dialling .........................................................................................42
Speed Dialling ...............................................................................................42
Search ...........................................................................................................43
Fax redial.......................................................................................................43
Storing numbers ..................................................................................................43
One Touch and Speed Dial Options..............................................................44
Storing a pause .............................................................................................45

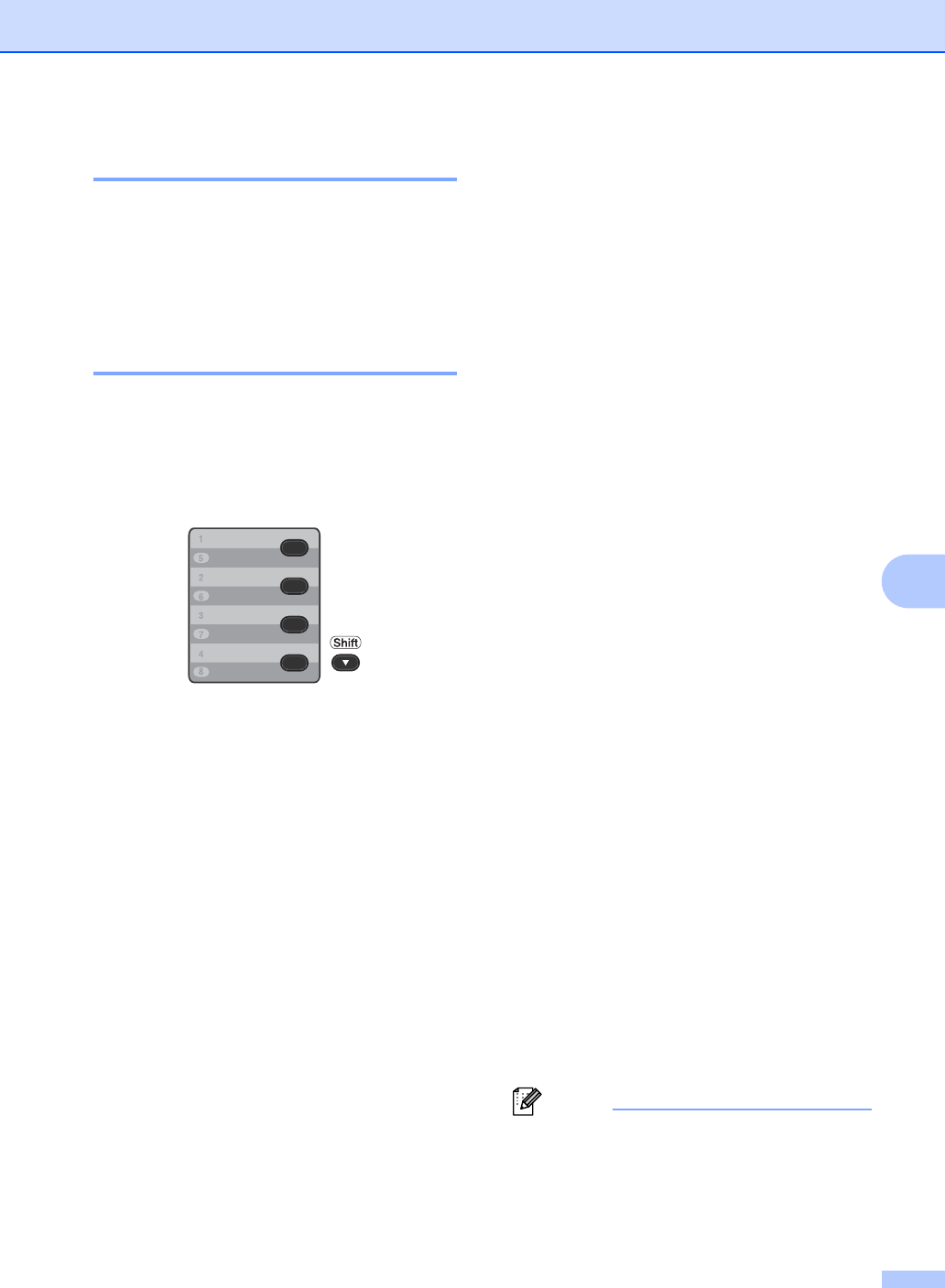

Storing One Touch Dial numbers ..................................................................45
Storing Speed Dial numbers..........................................................................47
Changing One Touch and Speed Dial numbers............................................49
Deleting One Touch and Speed Dial numbers ..............................................50
Tone or Pulse (not available in New Zealand)...............................................51

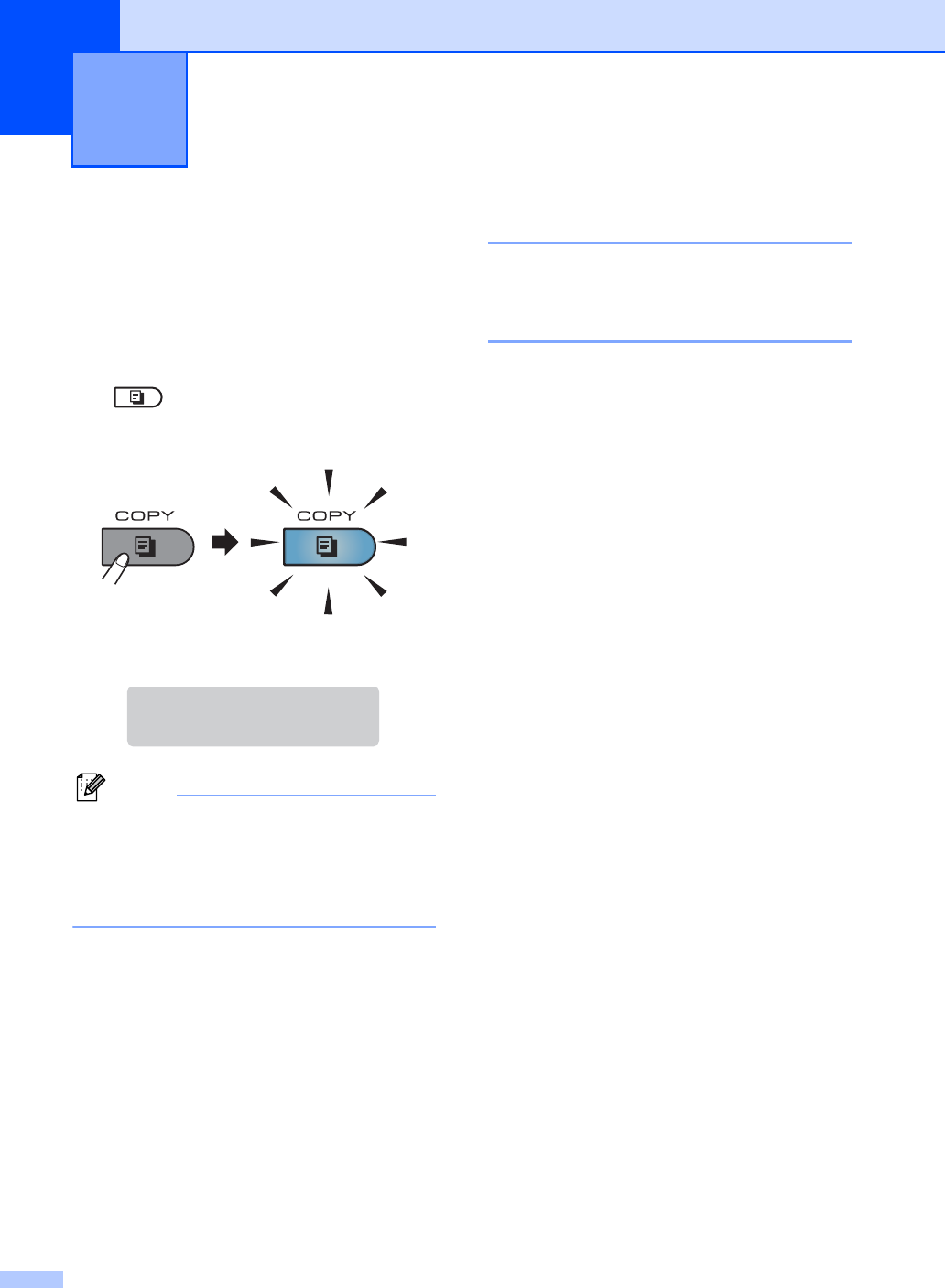

8 Making copies 52
How to copy.........................................................................................................52
Stop copying..................................................................................................52
Copy settings.................................................................................................52
9 How to print from a computer 53
Printing a document.............................................................................................53
10 How to scan to a computer 54

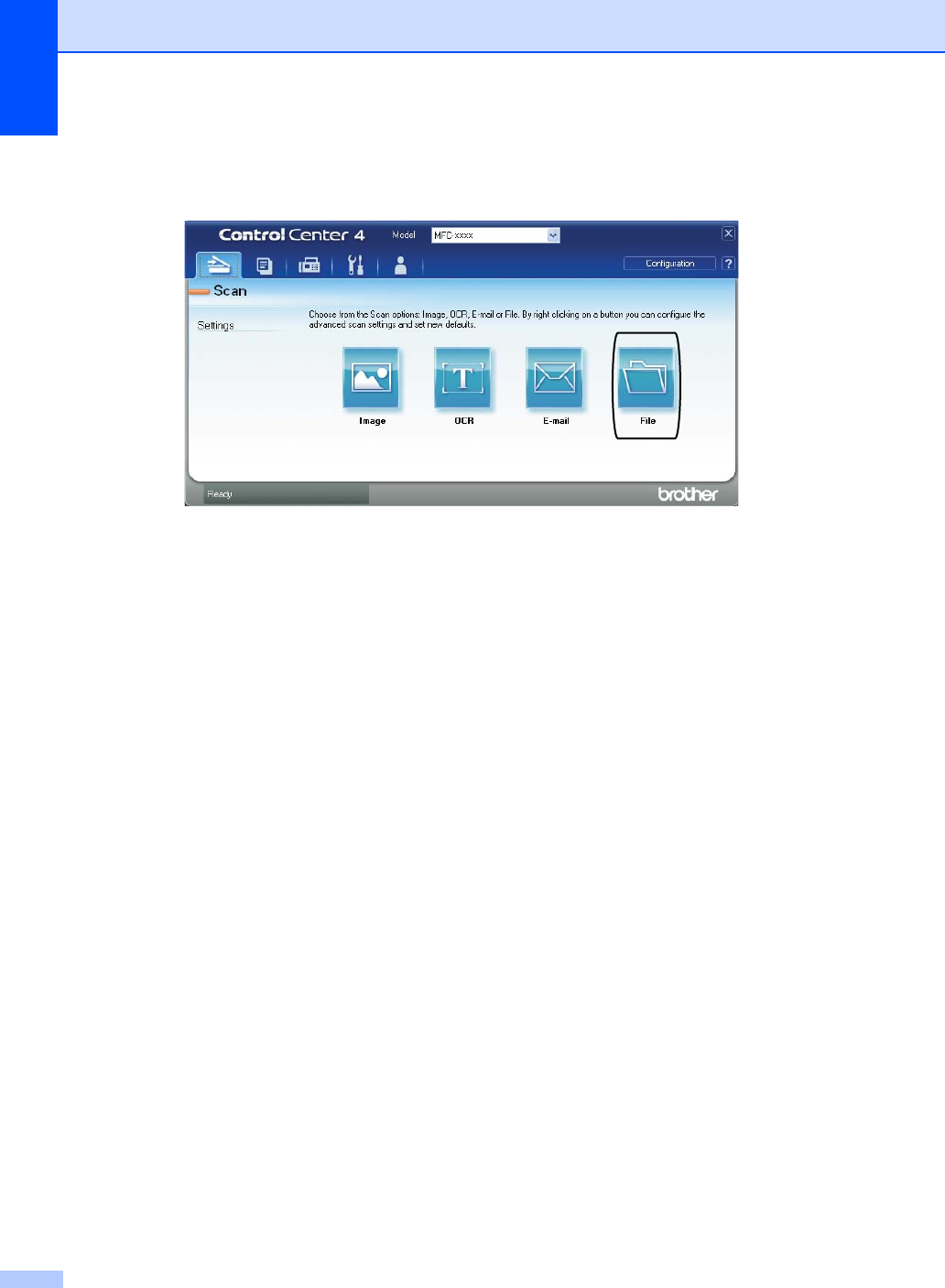

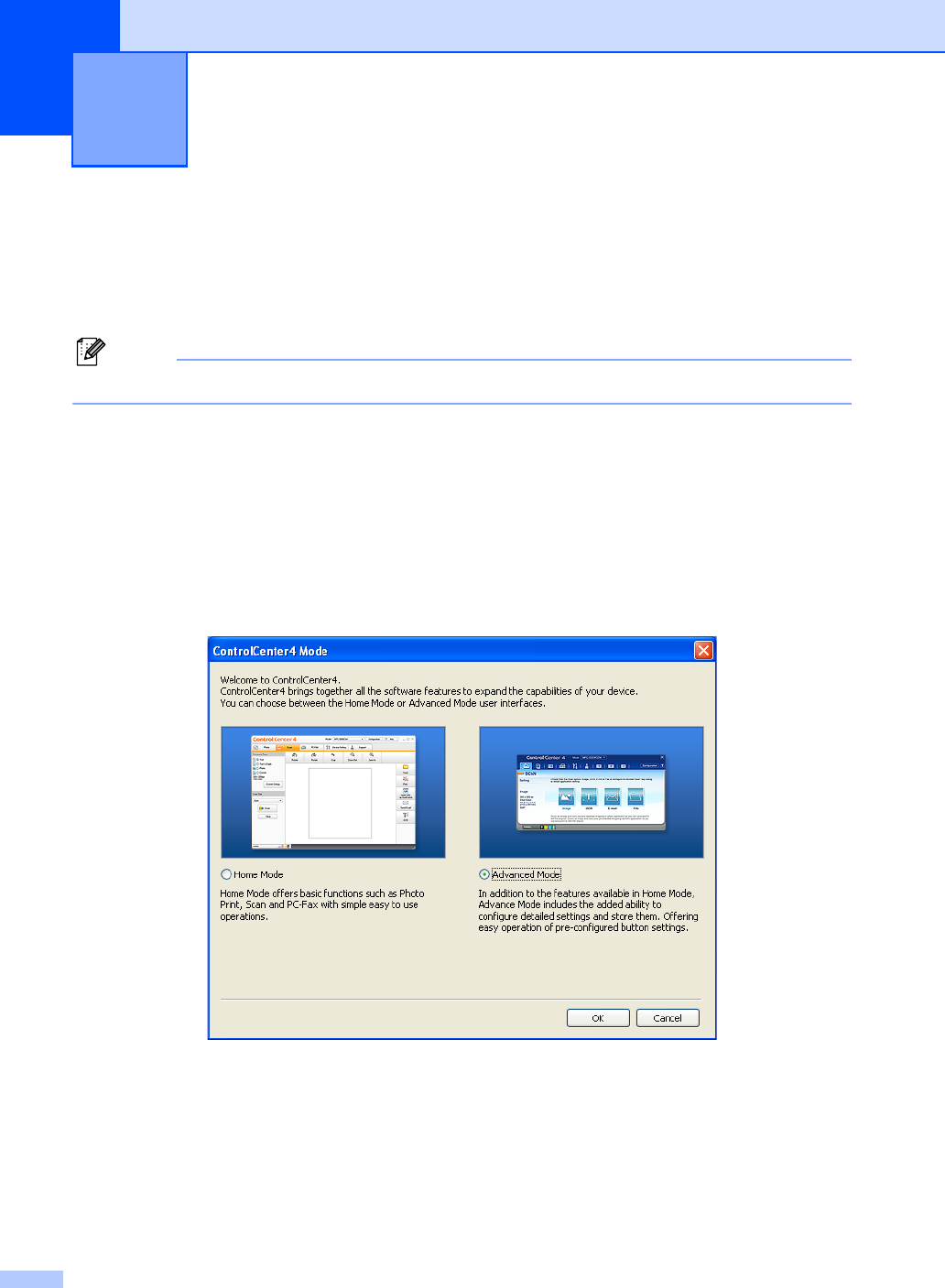

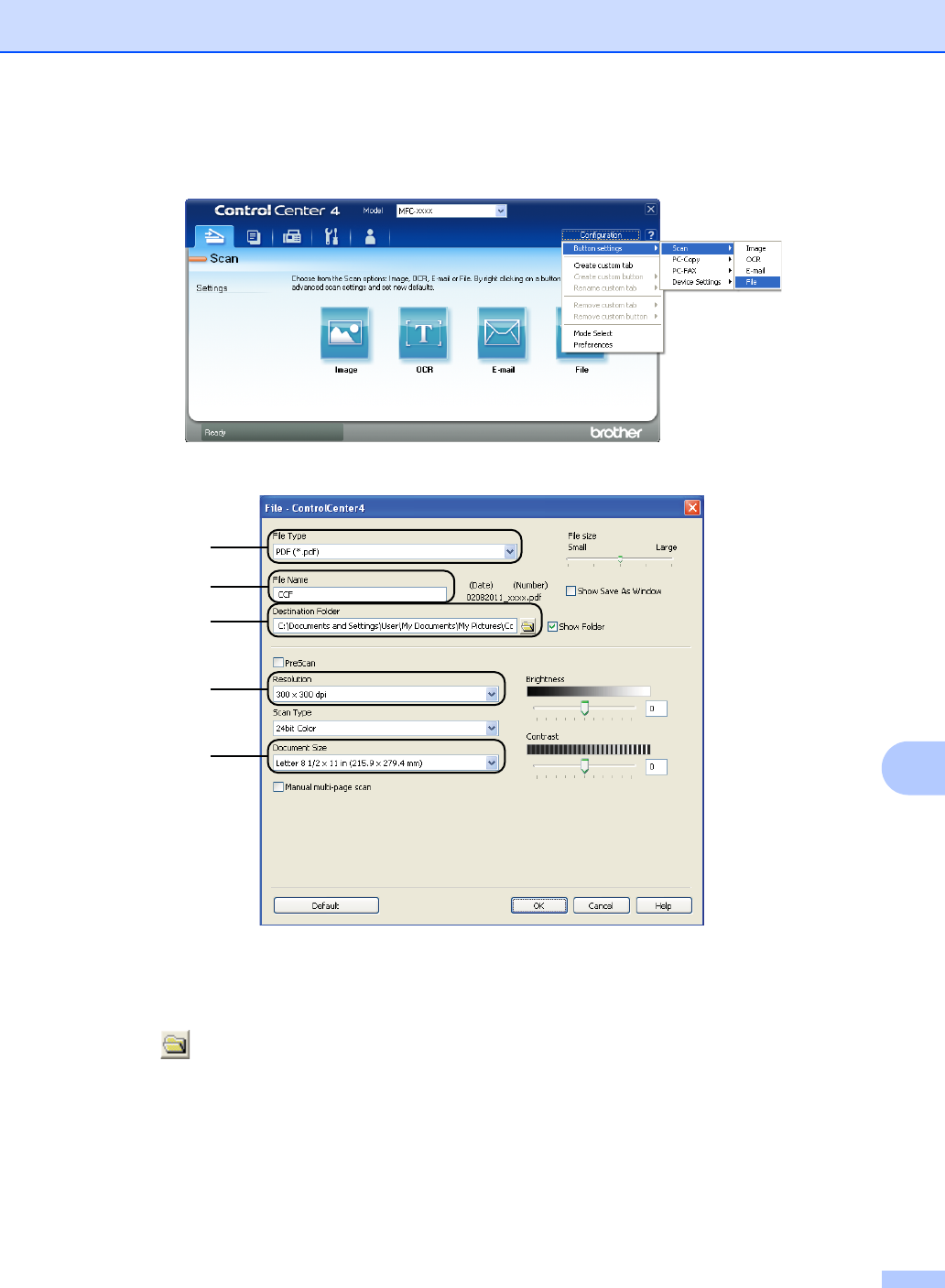

Scanning a document as PDF file using ControlCenter4 (Windows®) ................54
Changing the SCAN key settings ........................................................................57
Before scanning.............................................................................................57
SCAN key settings.........................................................................................57
Scanning using the SCAN key ......................................................................59
A Routine maintenance 60

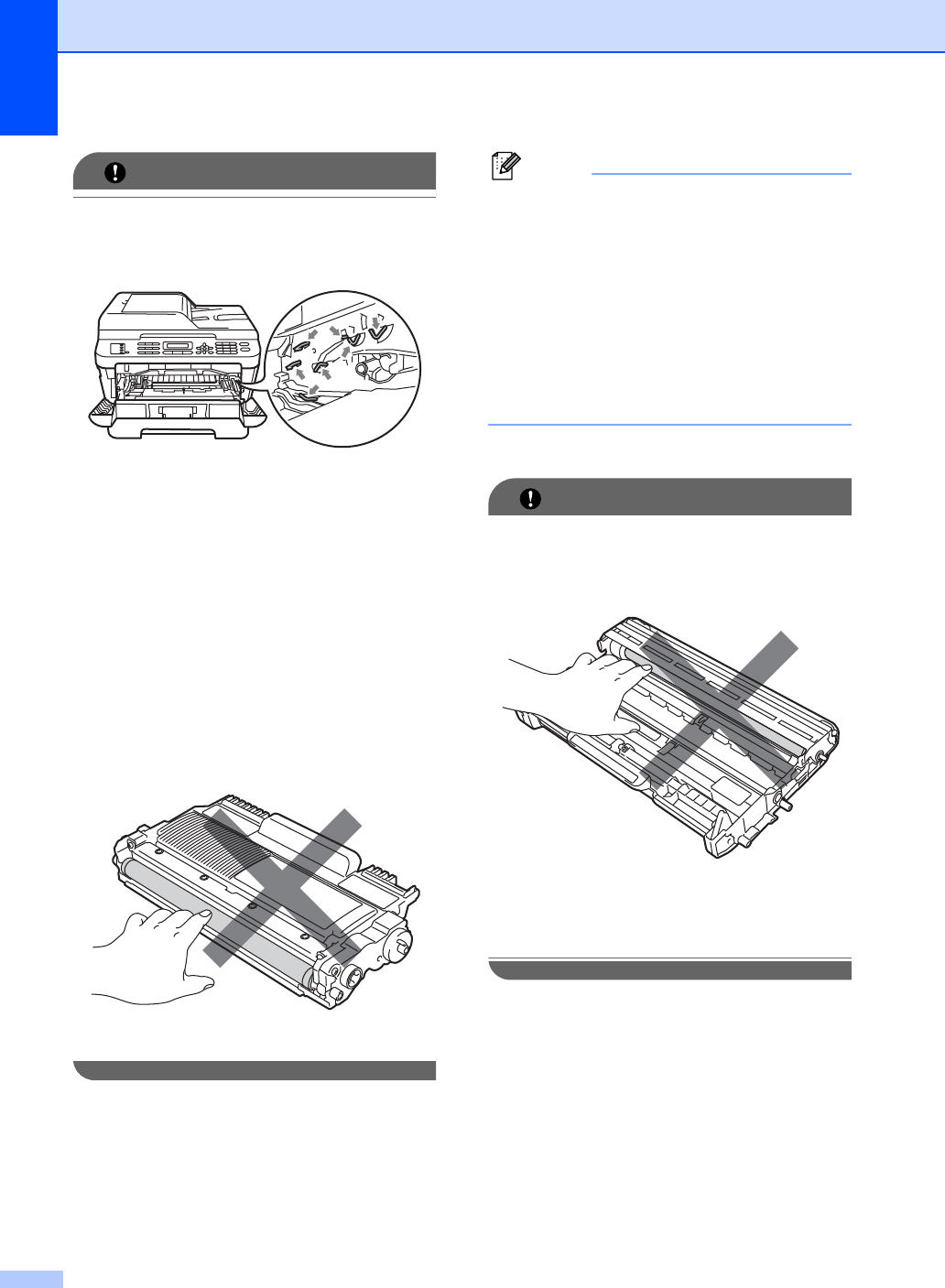

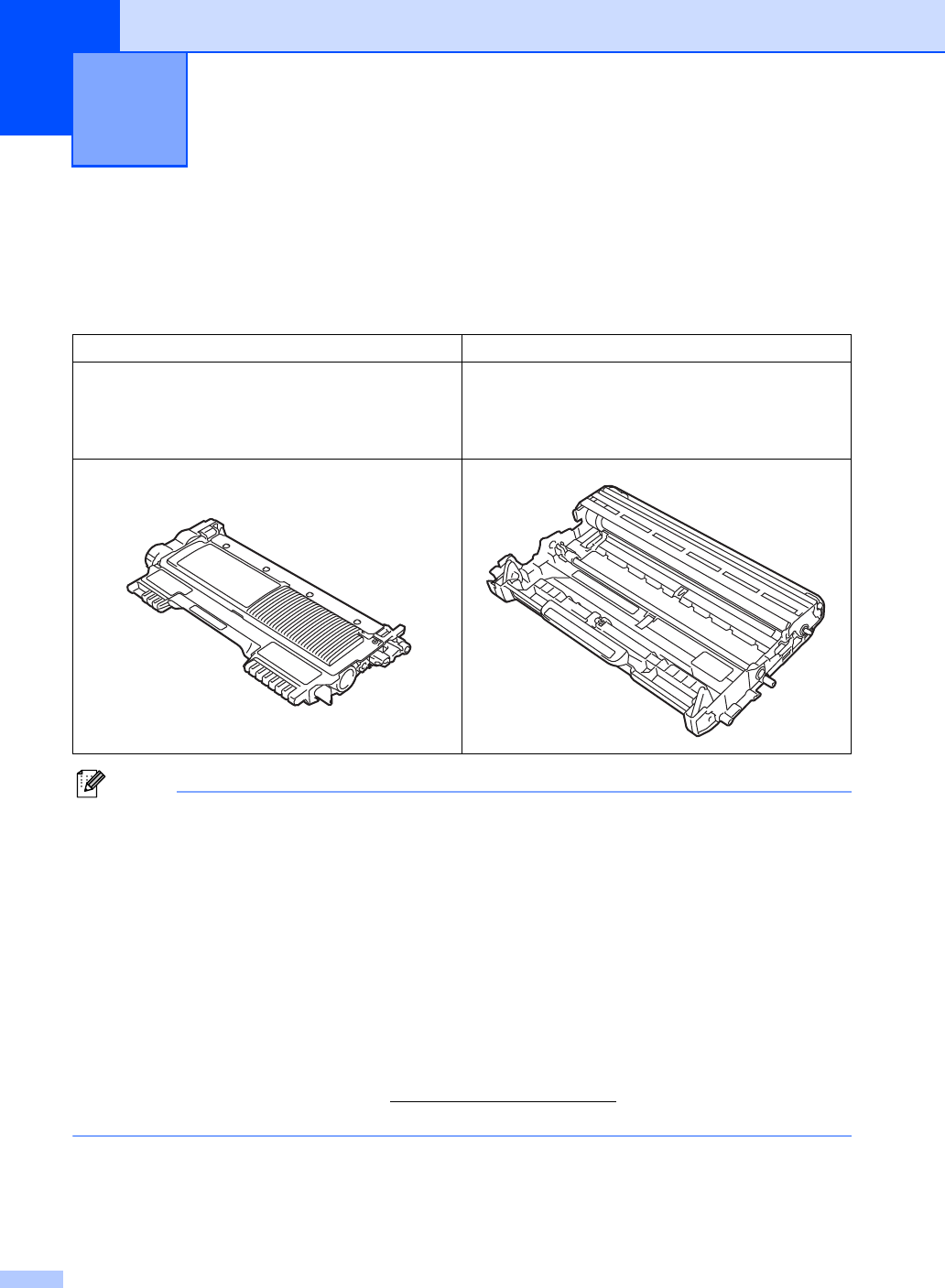

Replacing the consumable items.........................................................................60
Replacing the toner cartridge ........................................................................61

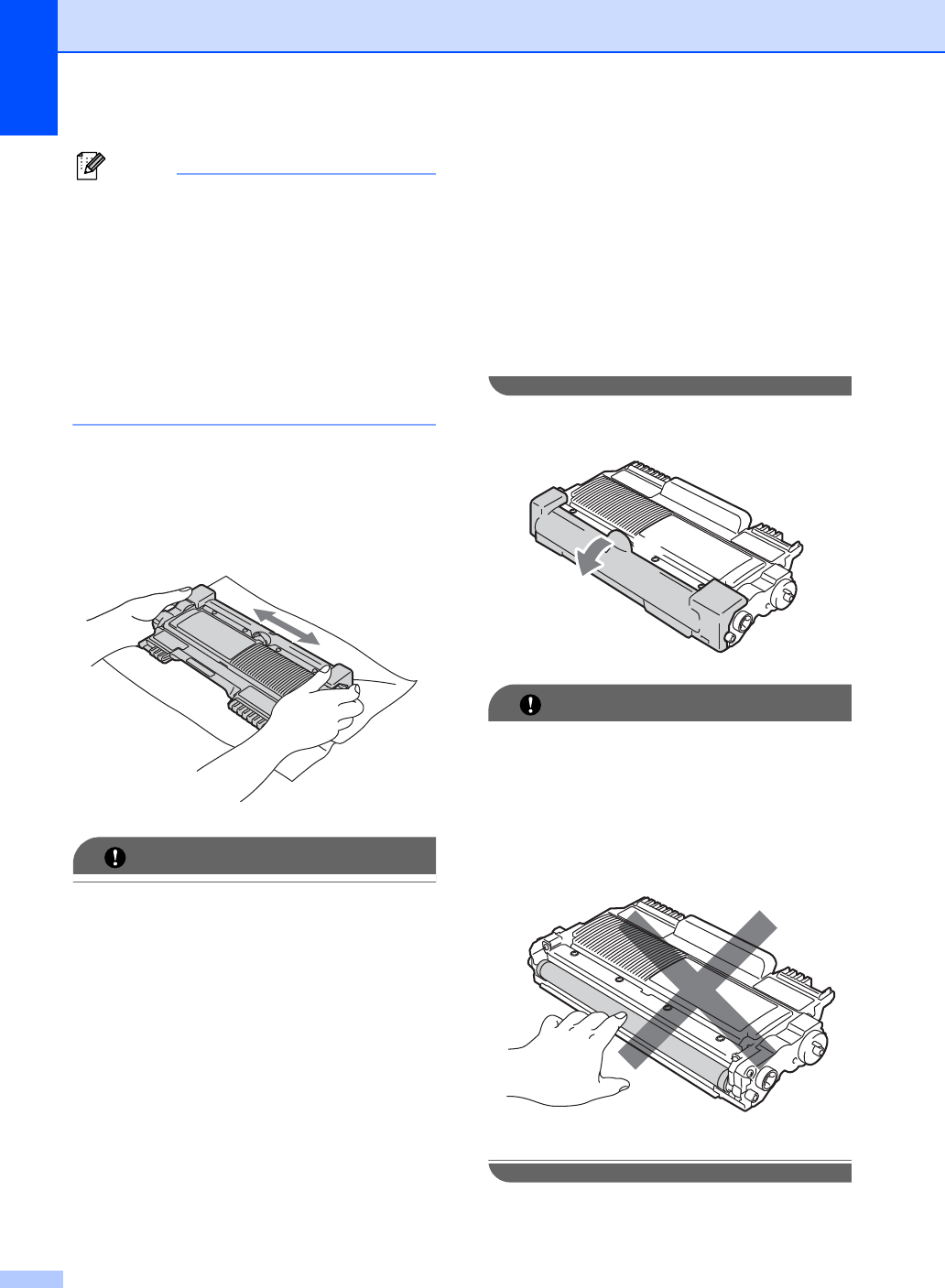

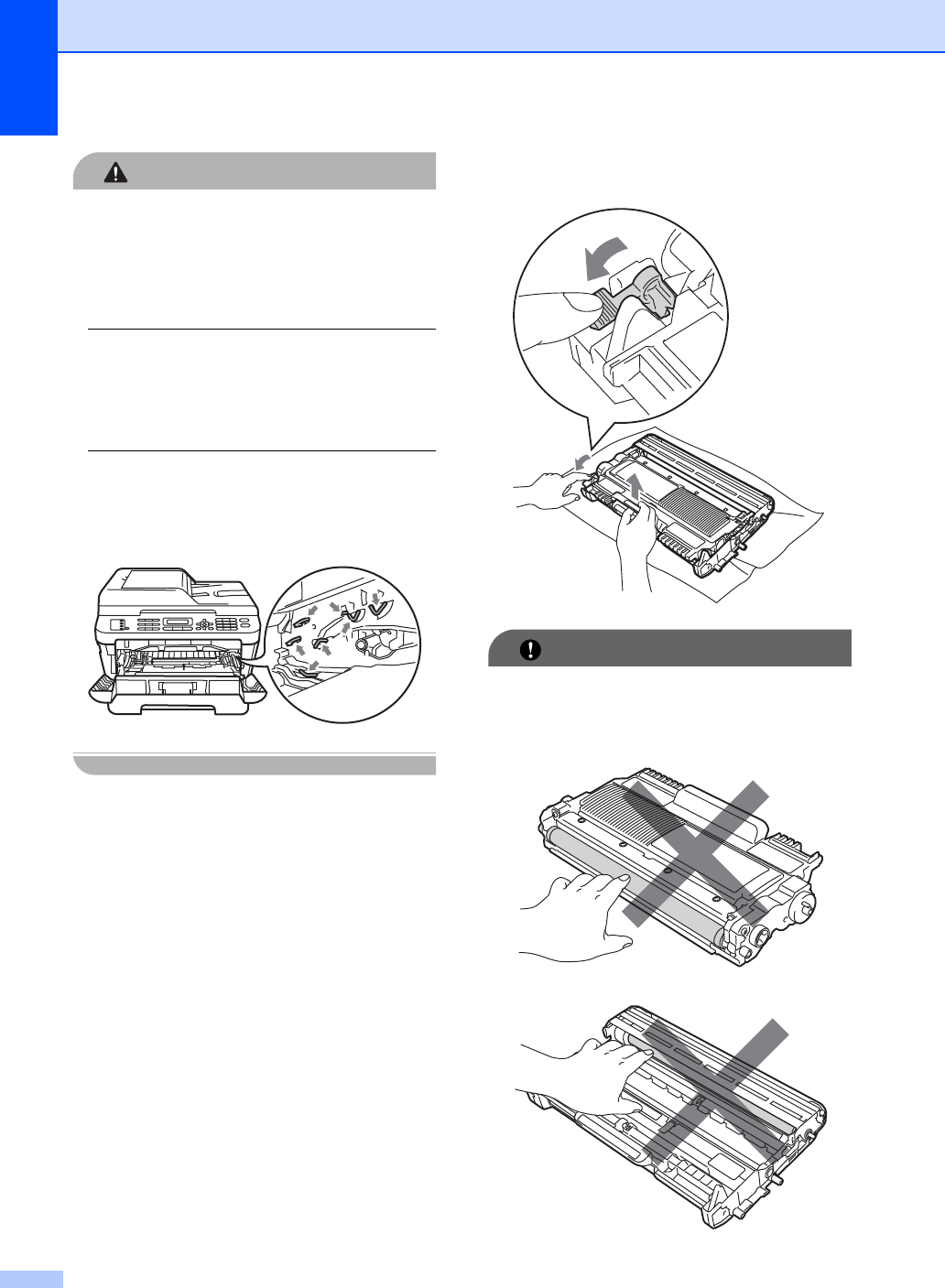

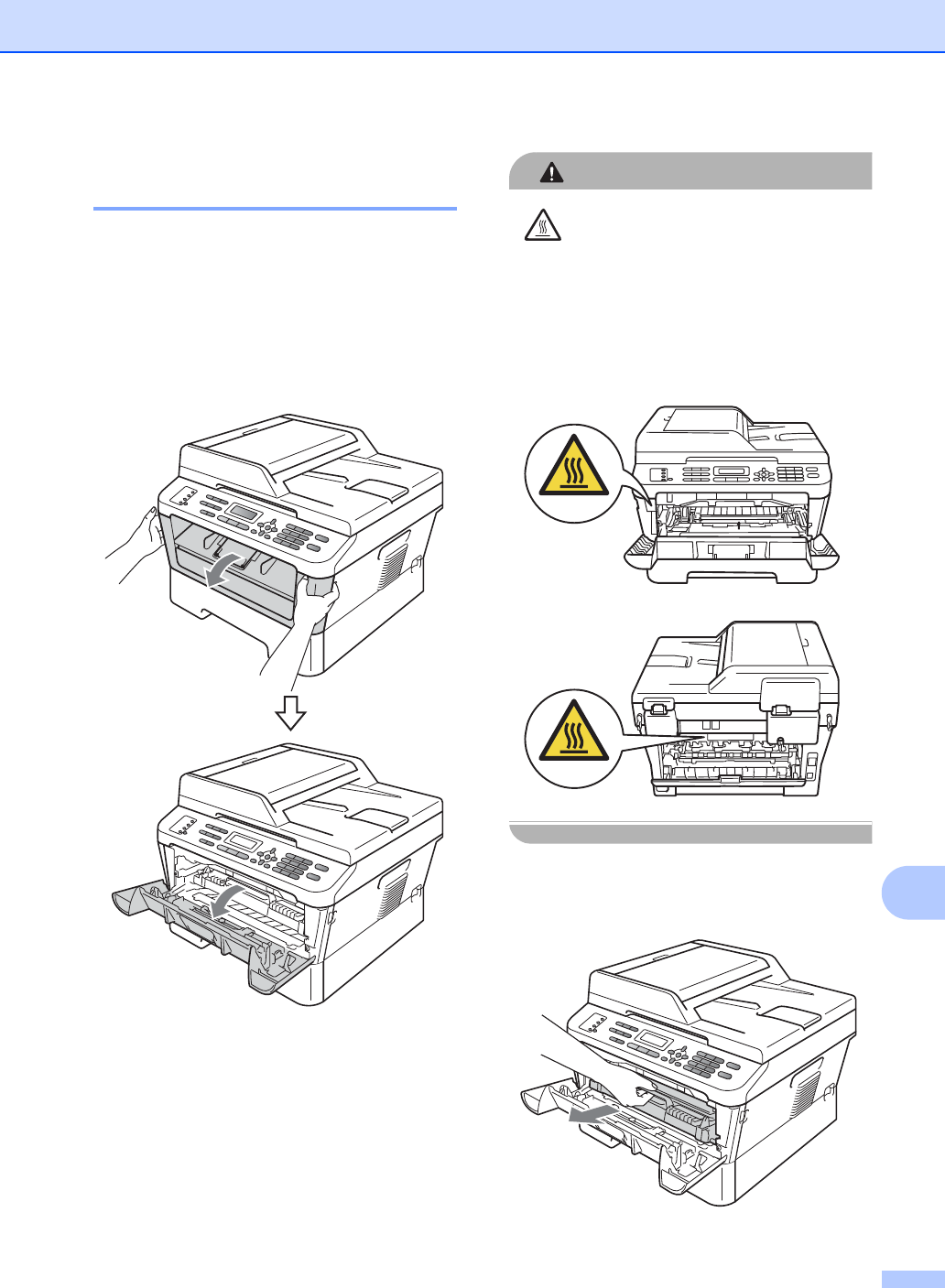

Replacing the drum unit.................................................................................66
Cleaning the machine..........................................................................................70
Cleaning the outside of the machine .............................................................70
Cleaning the scanner glass ...........................................................................71

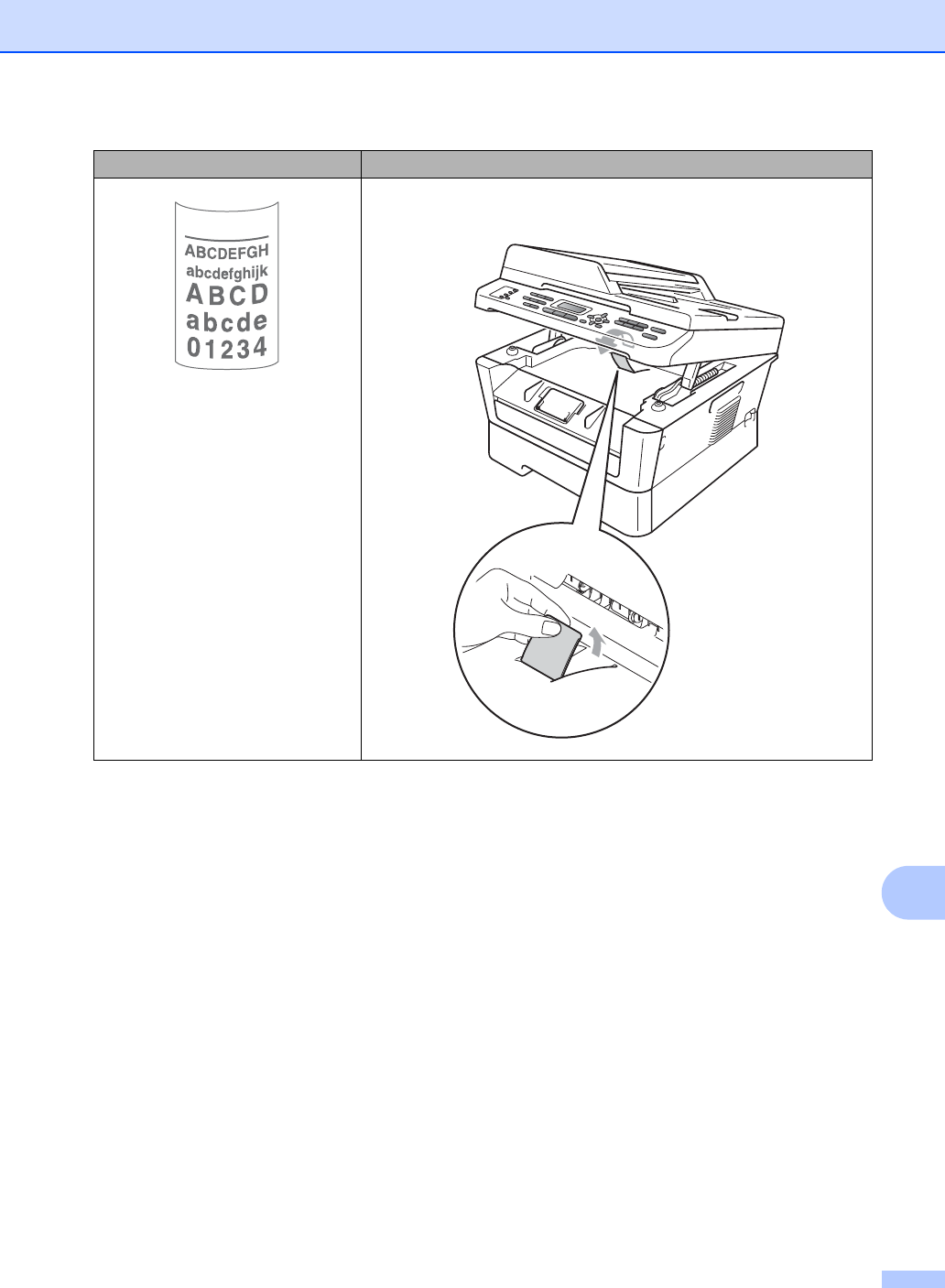

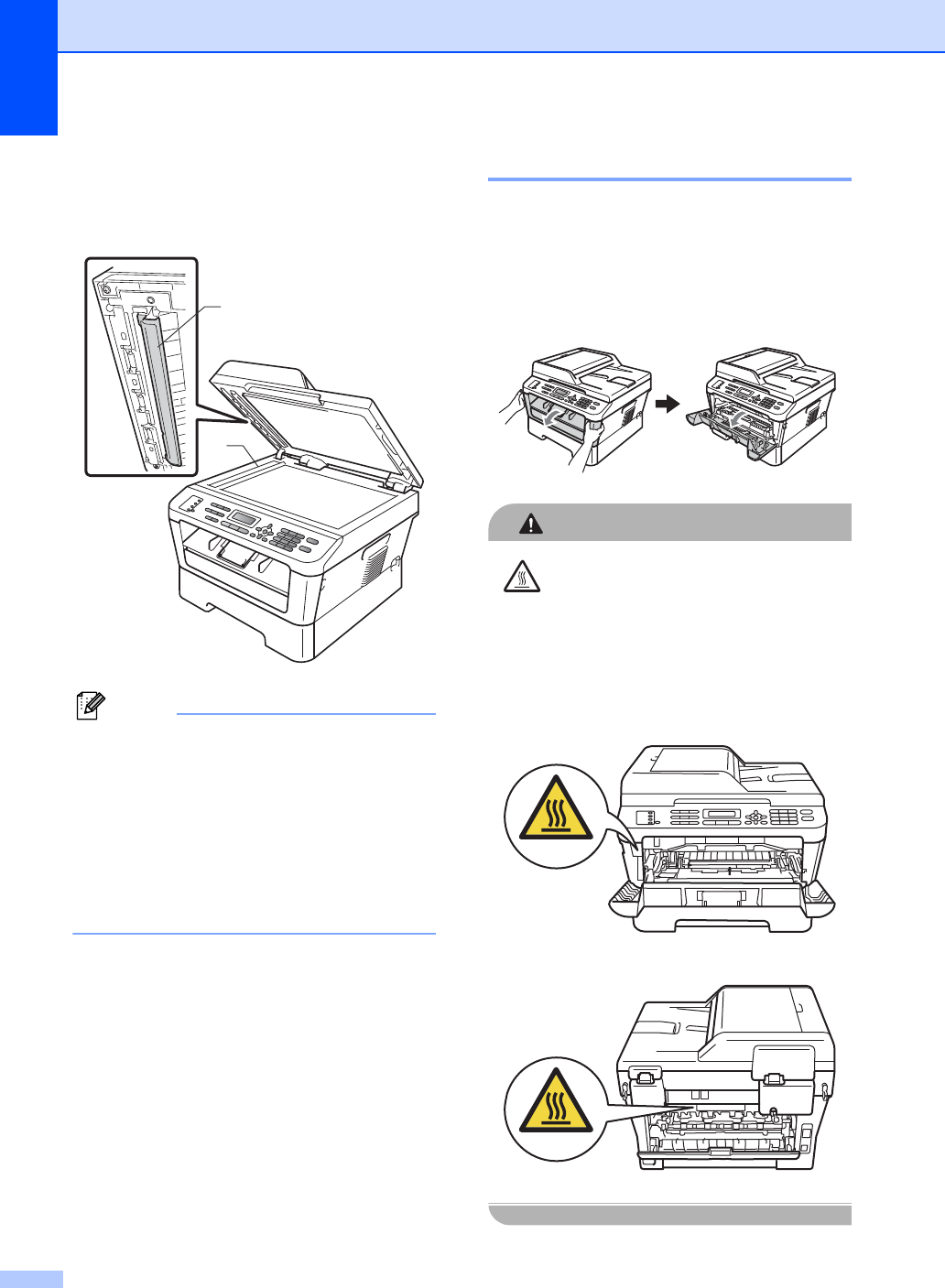

Cleaning the corona wire...............................................................................72

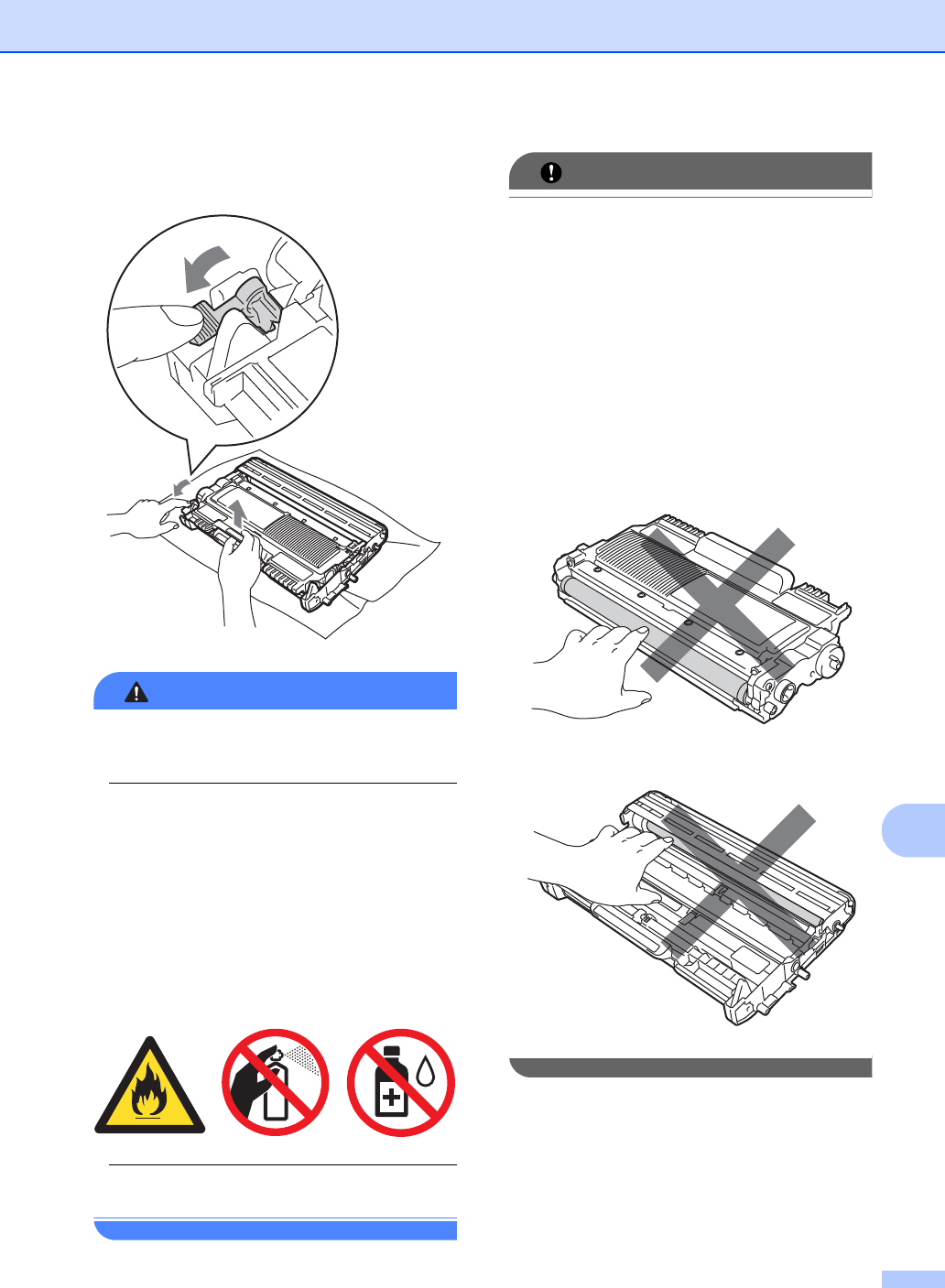

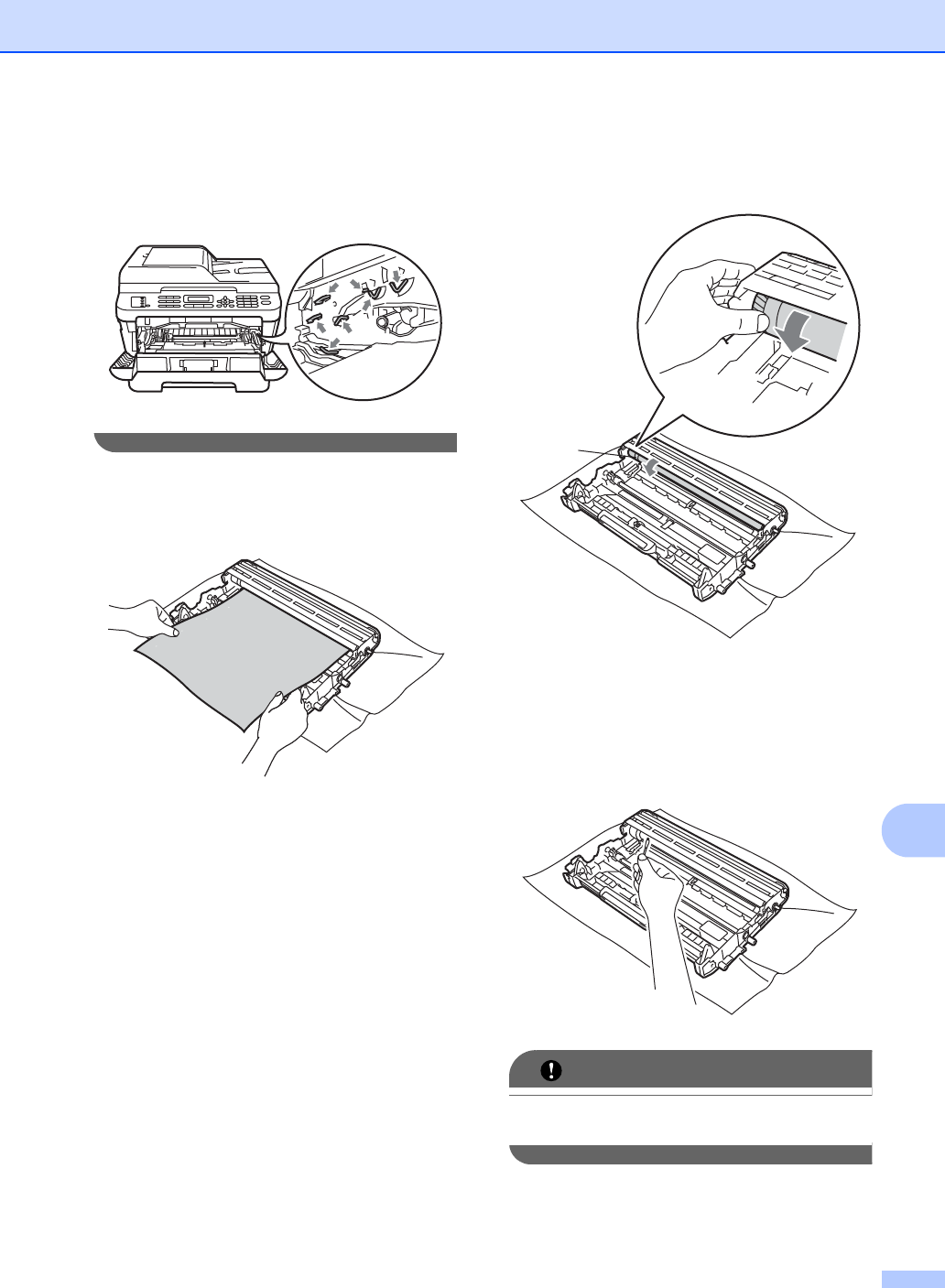

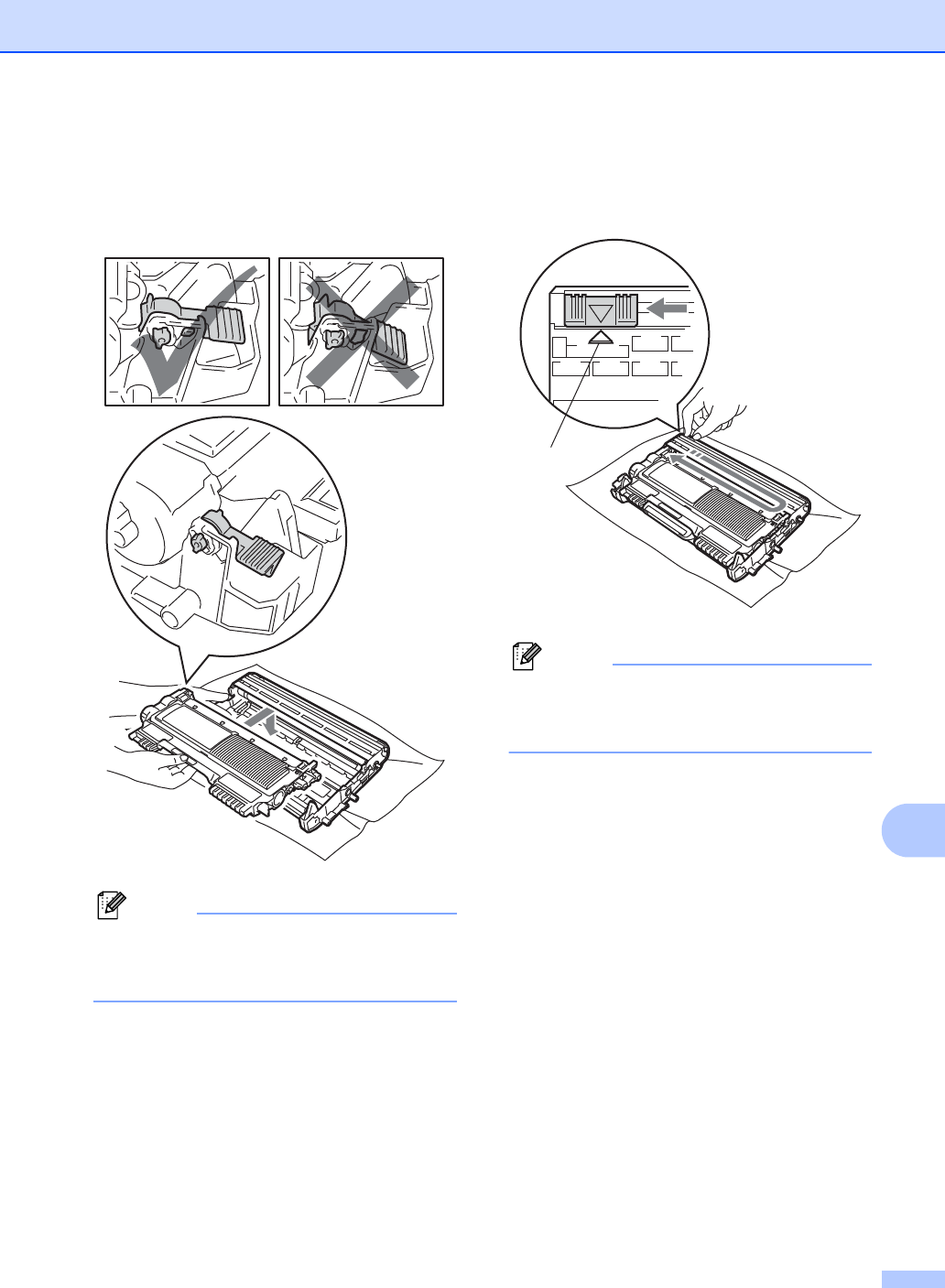

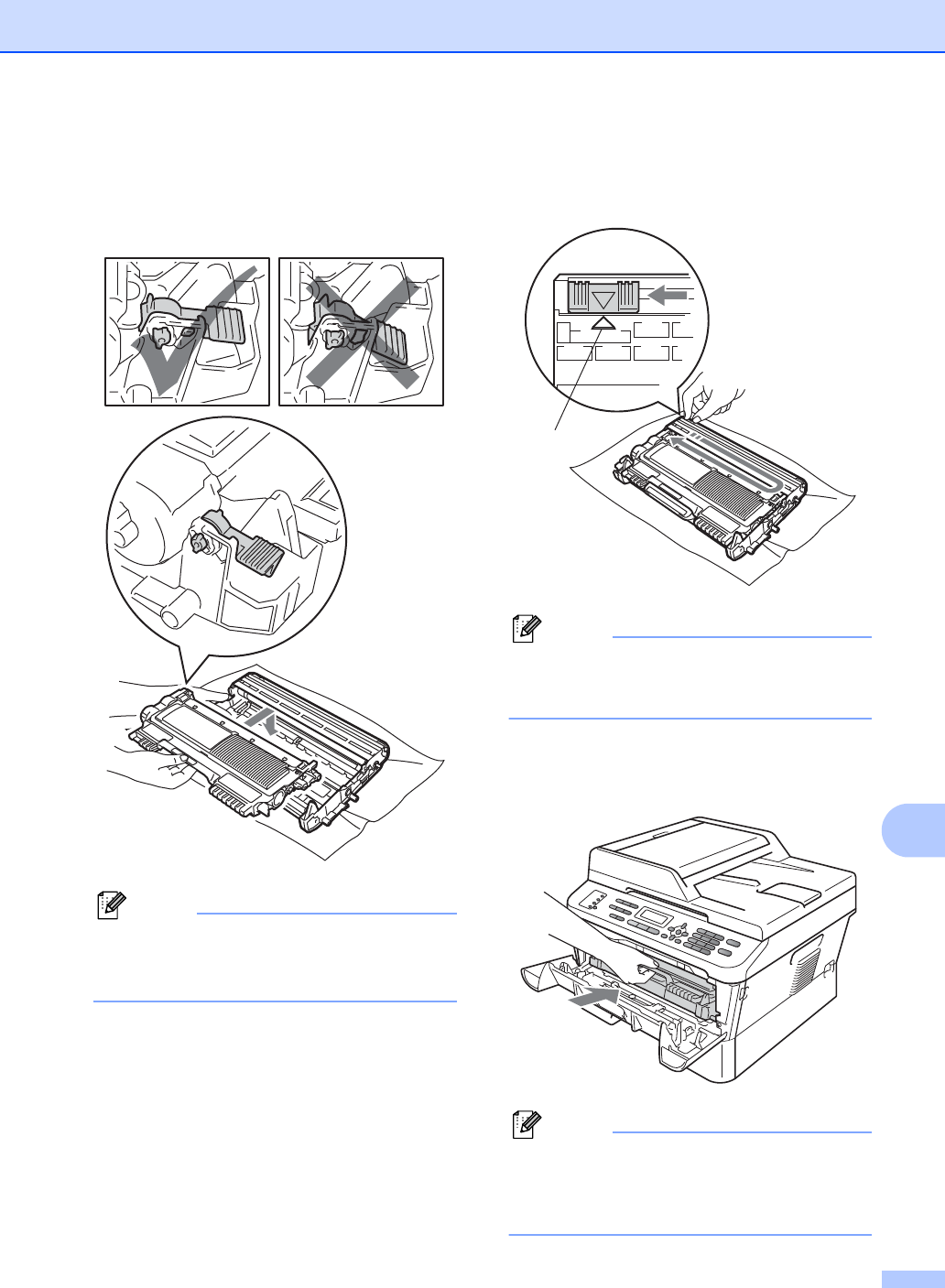

Cleaning the drum unit ..................................................................................74

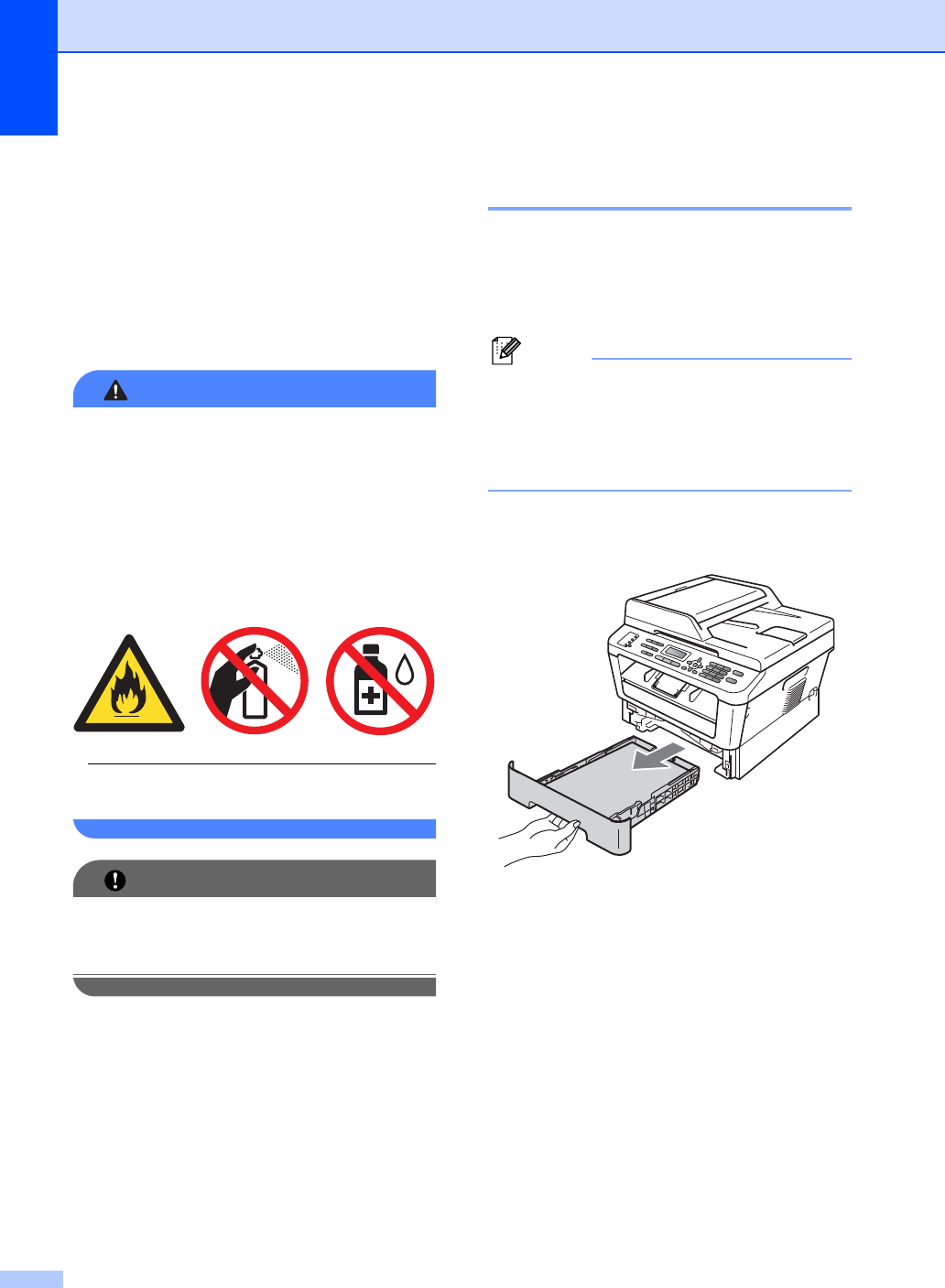

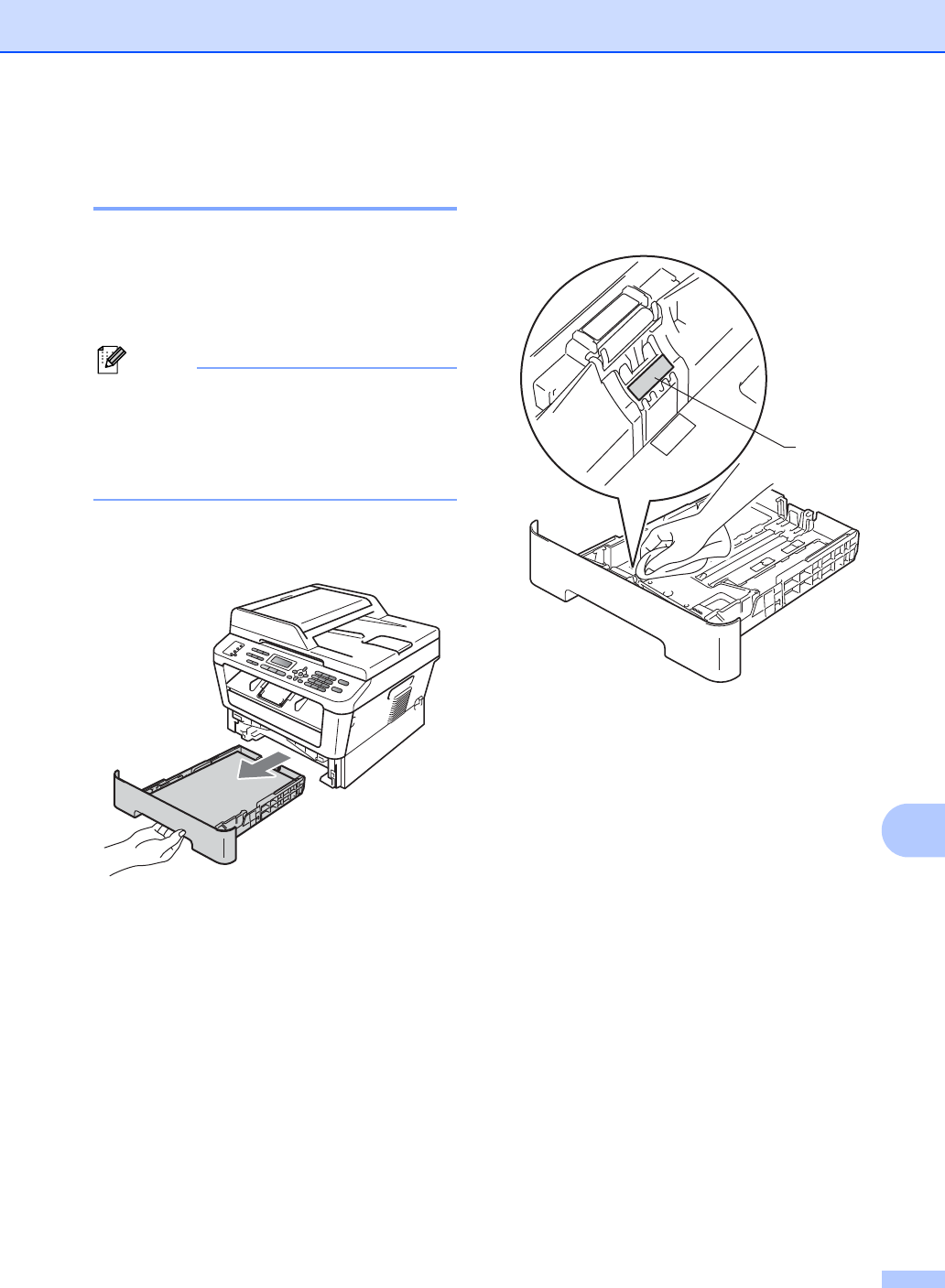

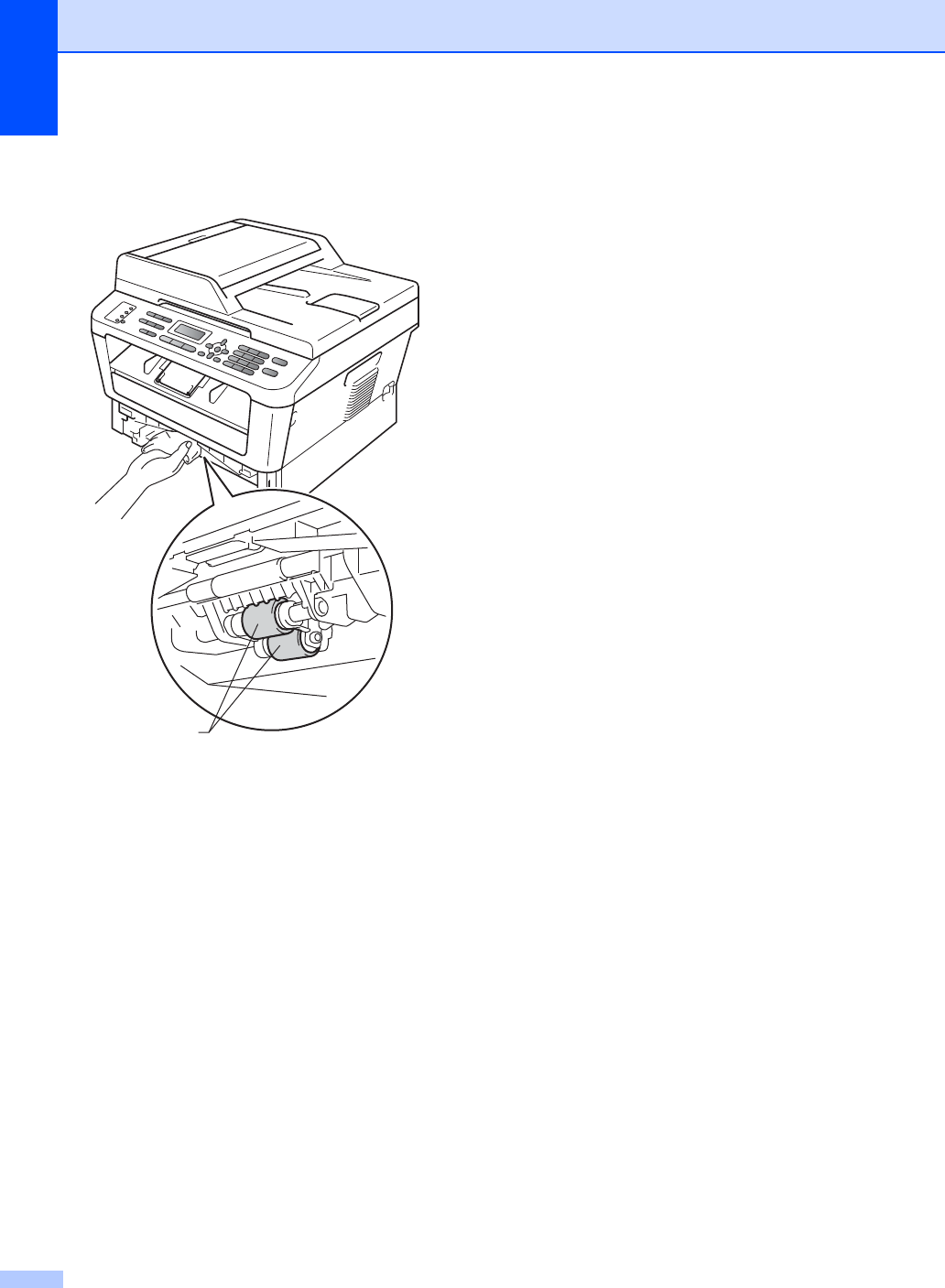

Cleaning the paper pick-up rollers.................................................................79
v
B Troubleshooting 81
Error and maintenance messages.......................................................................81
Transferring your faxes or Fax Journal report ...............................................87
Document Jams...................................................................................................88

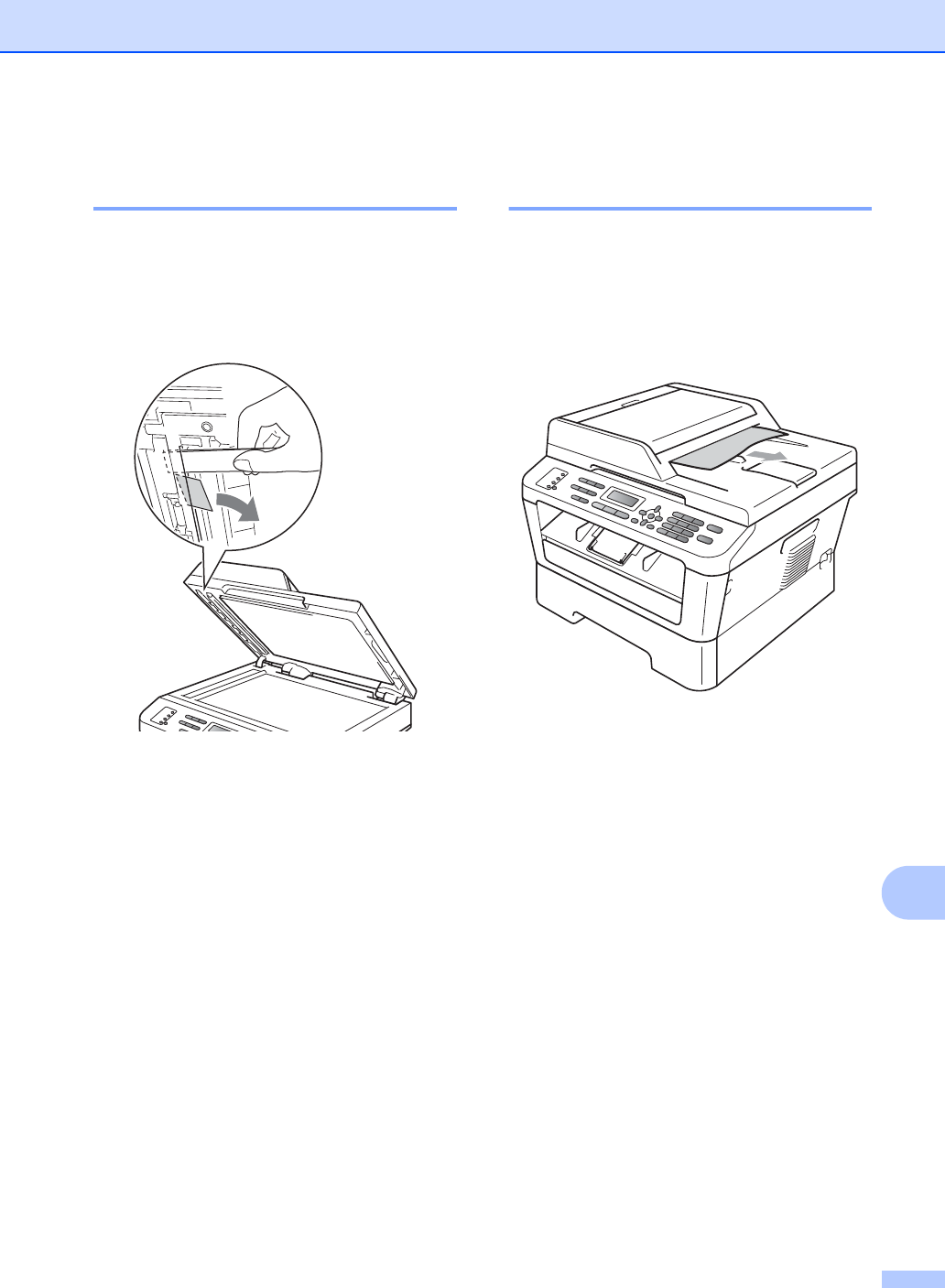

Document is jammed in the top of the ADF unit ............................................88
Document is jammed under the document cover ..........................................88
Removing small documents jammed in the ADF...........................................89
Document is jammed at the output tray.........................................................89

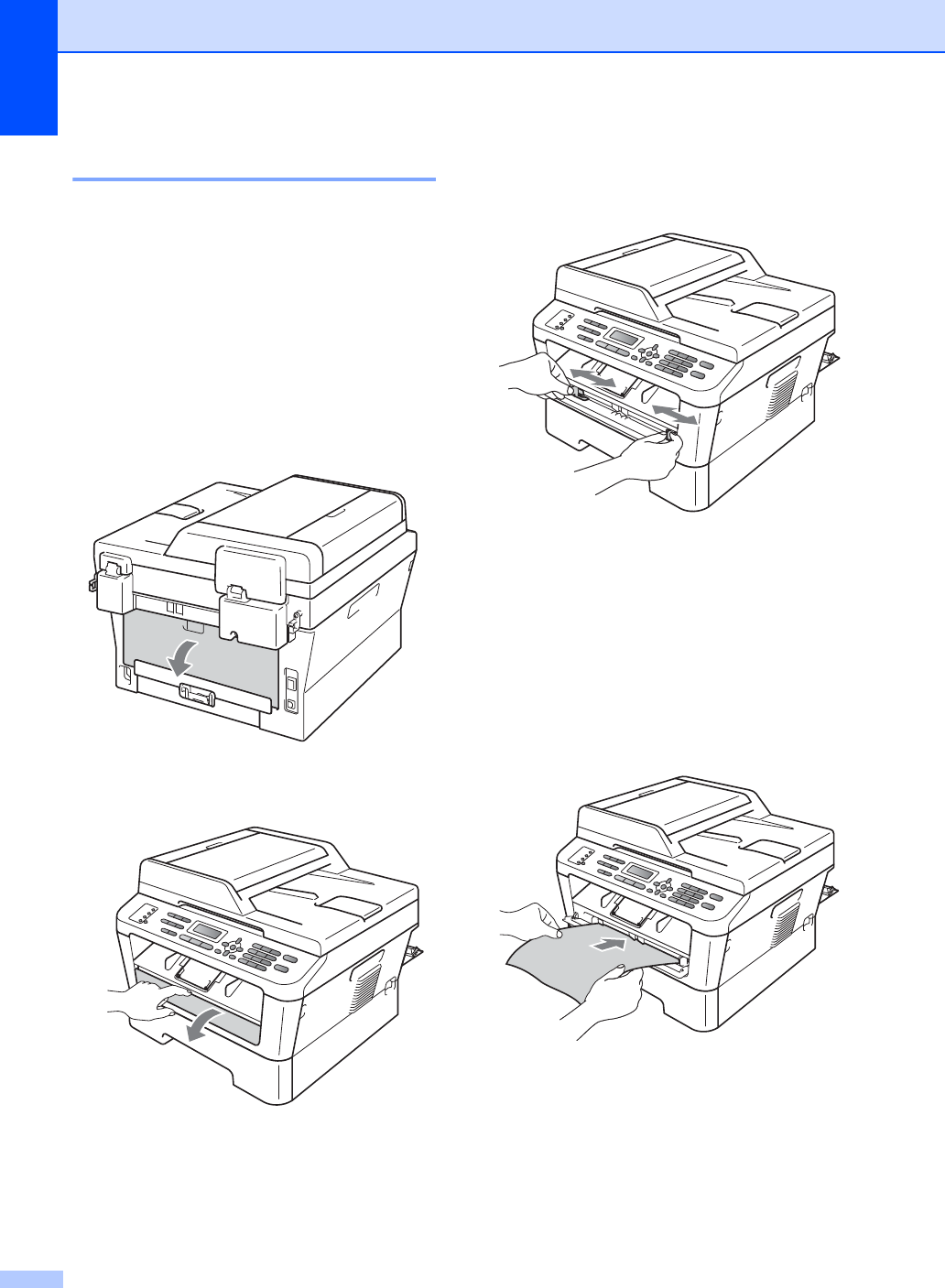

Paper Jams..........................................................................................................90

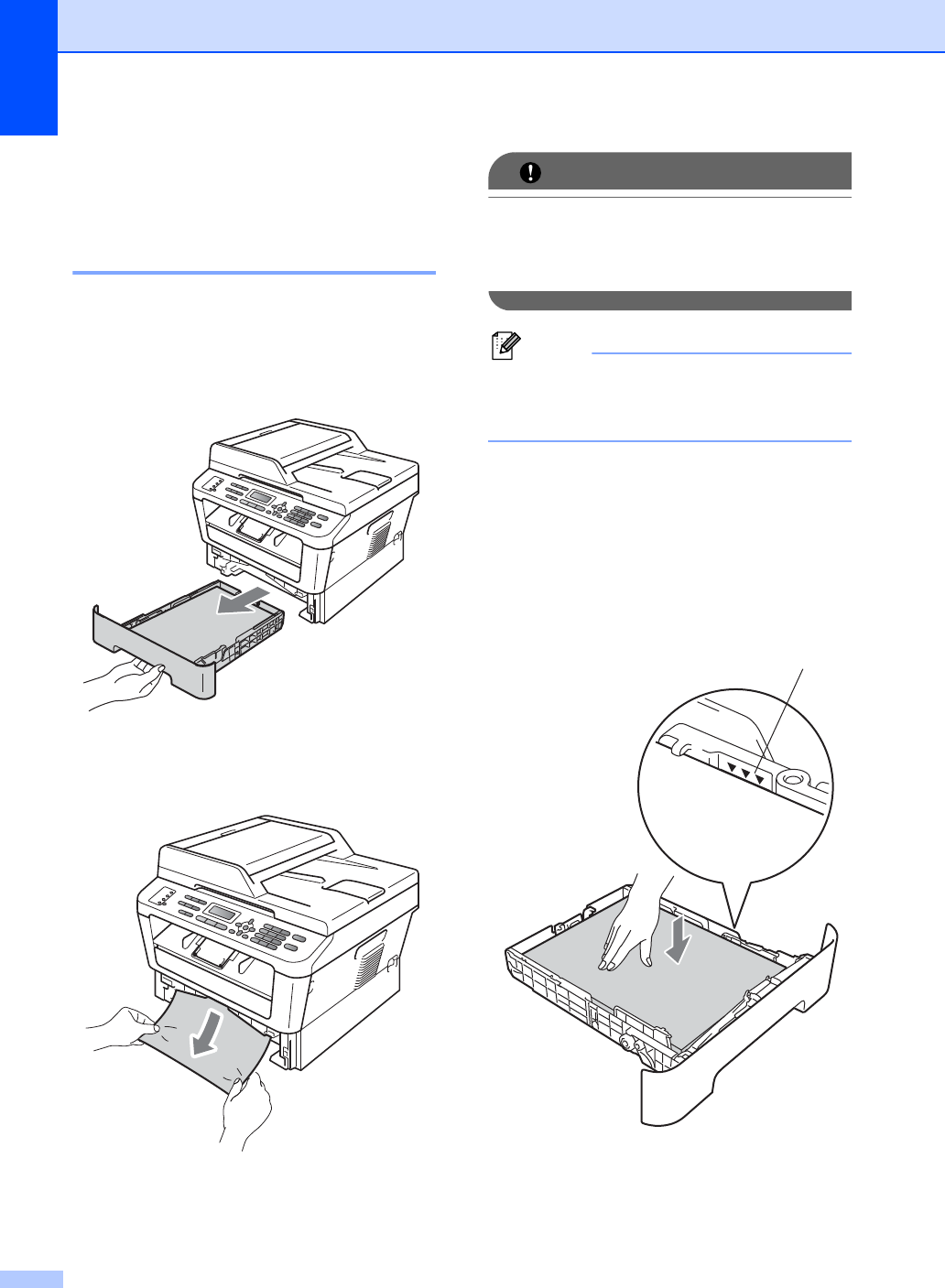

Paper is jammed in the standard paper tray..................................................90

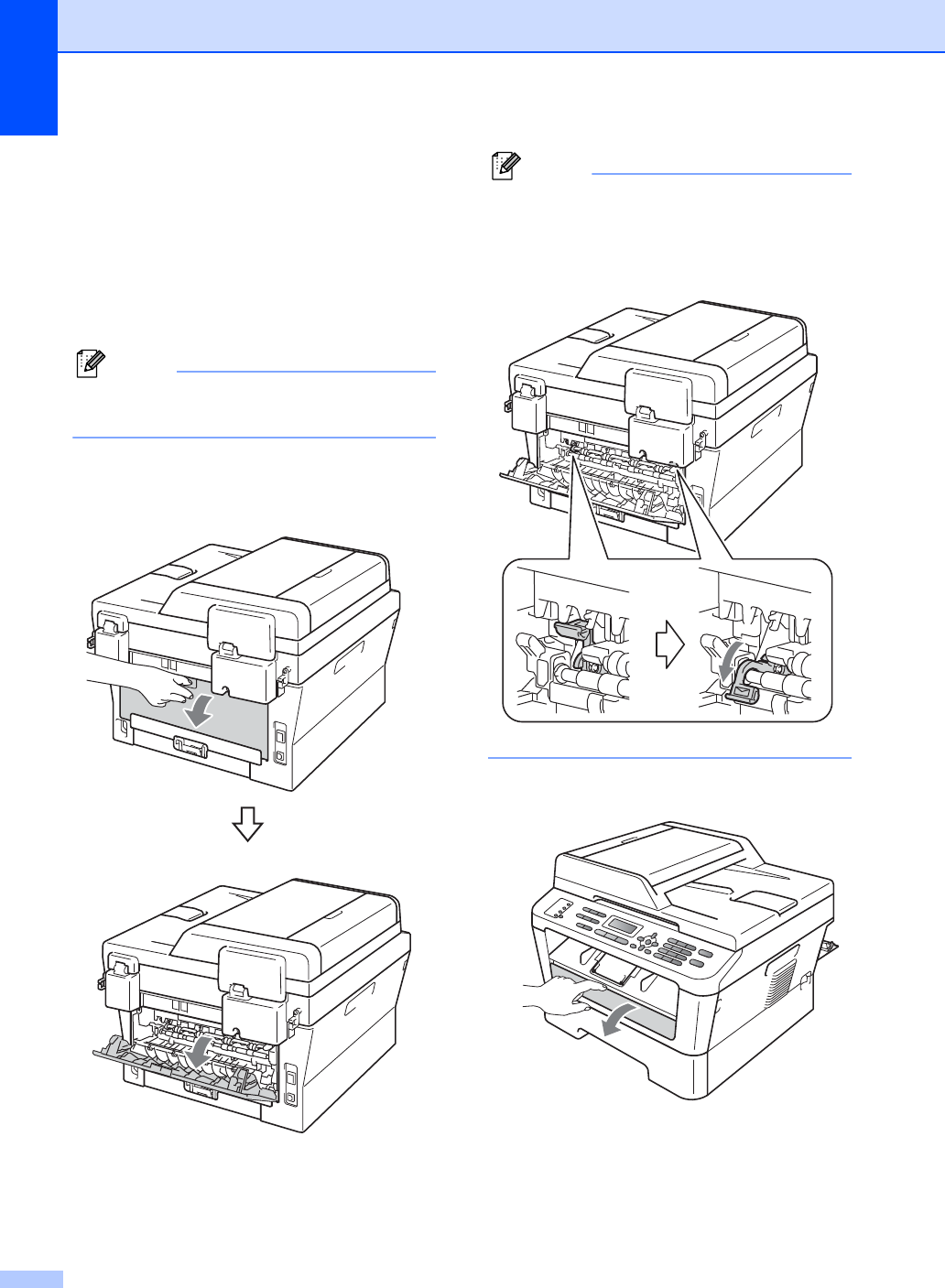

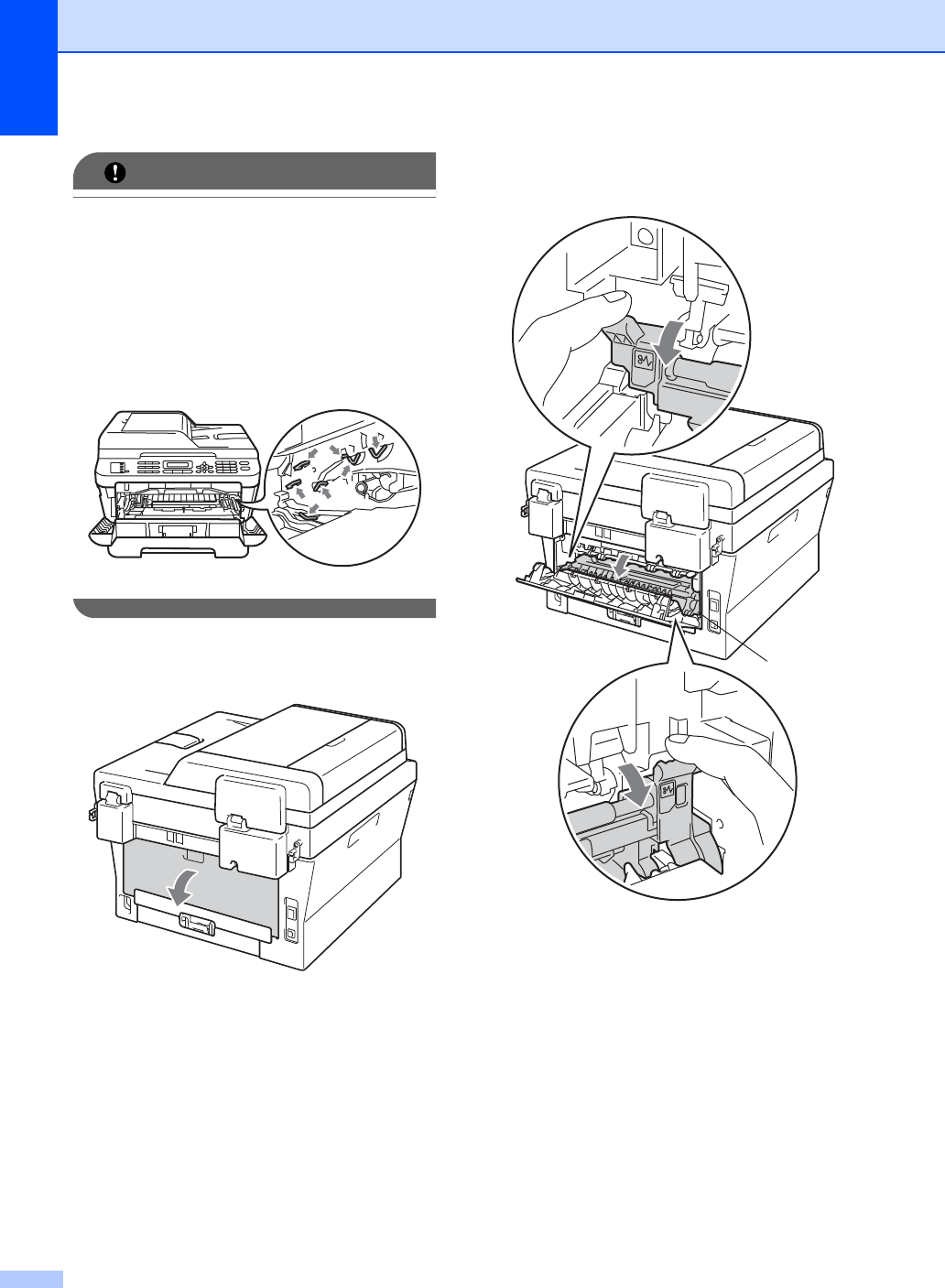

Paper is jammed at the back of the machine ................................................91

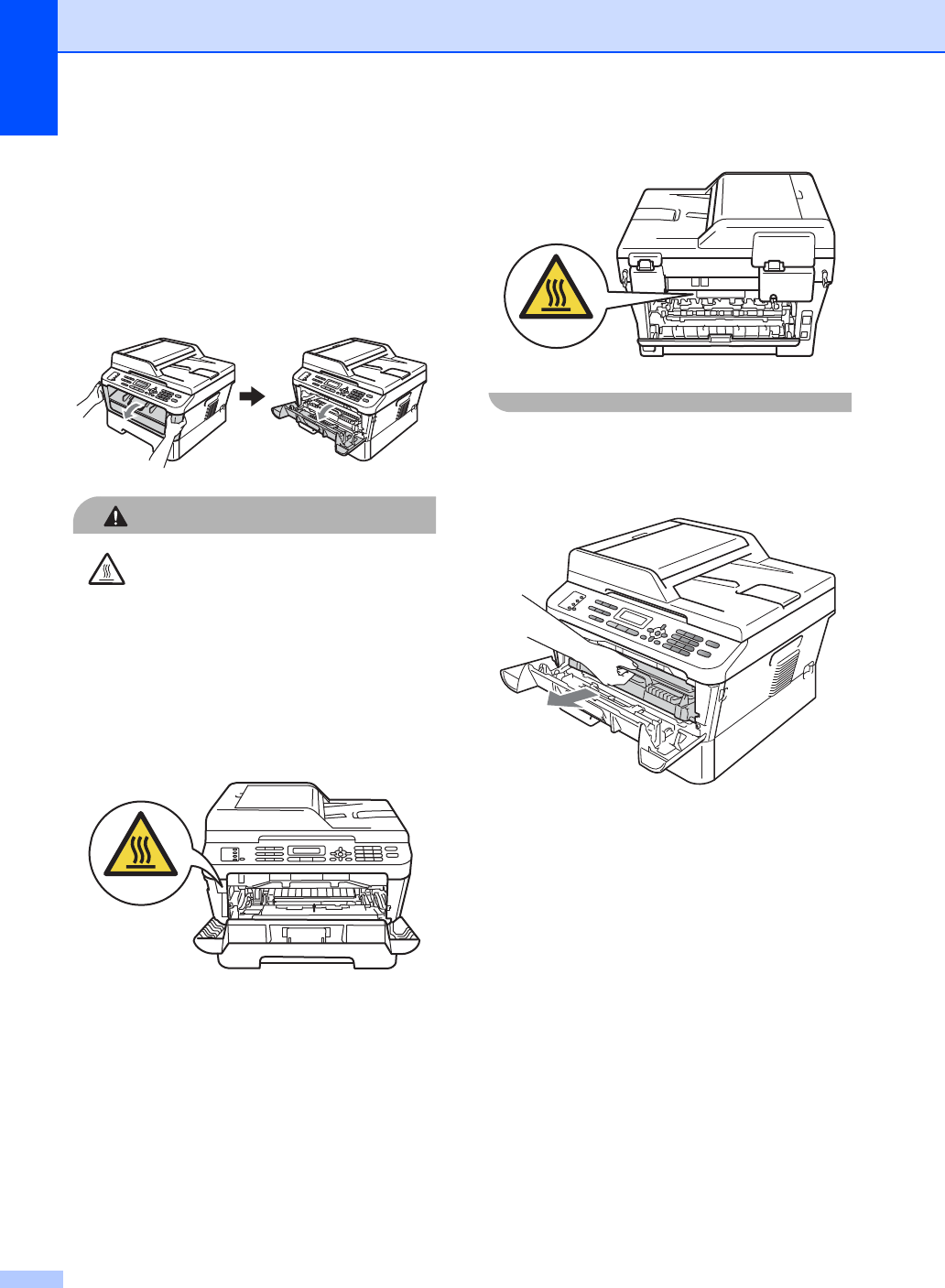

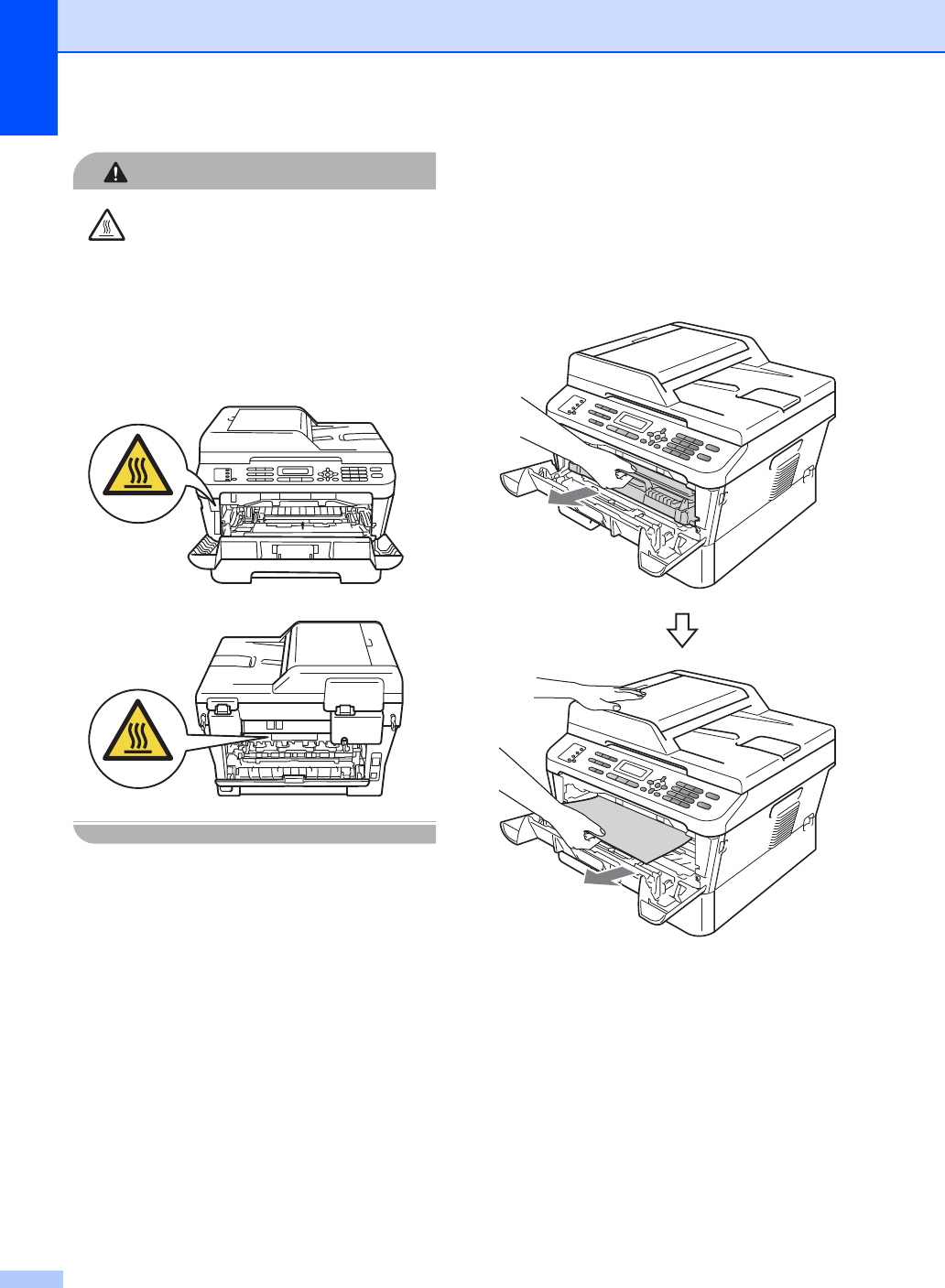

Paper is jammed inside the machine.............................................................93
Paper is jammed in the Duplex Tray (MFC-7460DN / MFC-7470D /
MFC-7860DW) ..........................................................................................98
If you are having difficulty with your machine ....................................................100
Setting Dial Tone detection .........................................................................109
Telephone line interference .........................................................................109

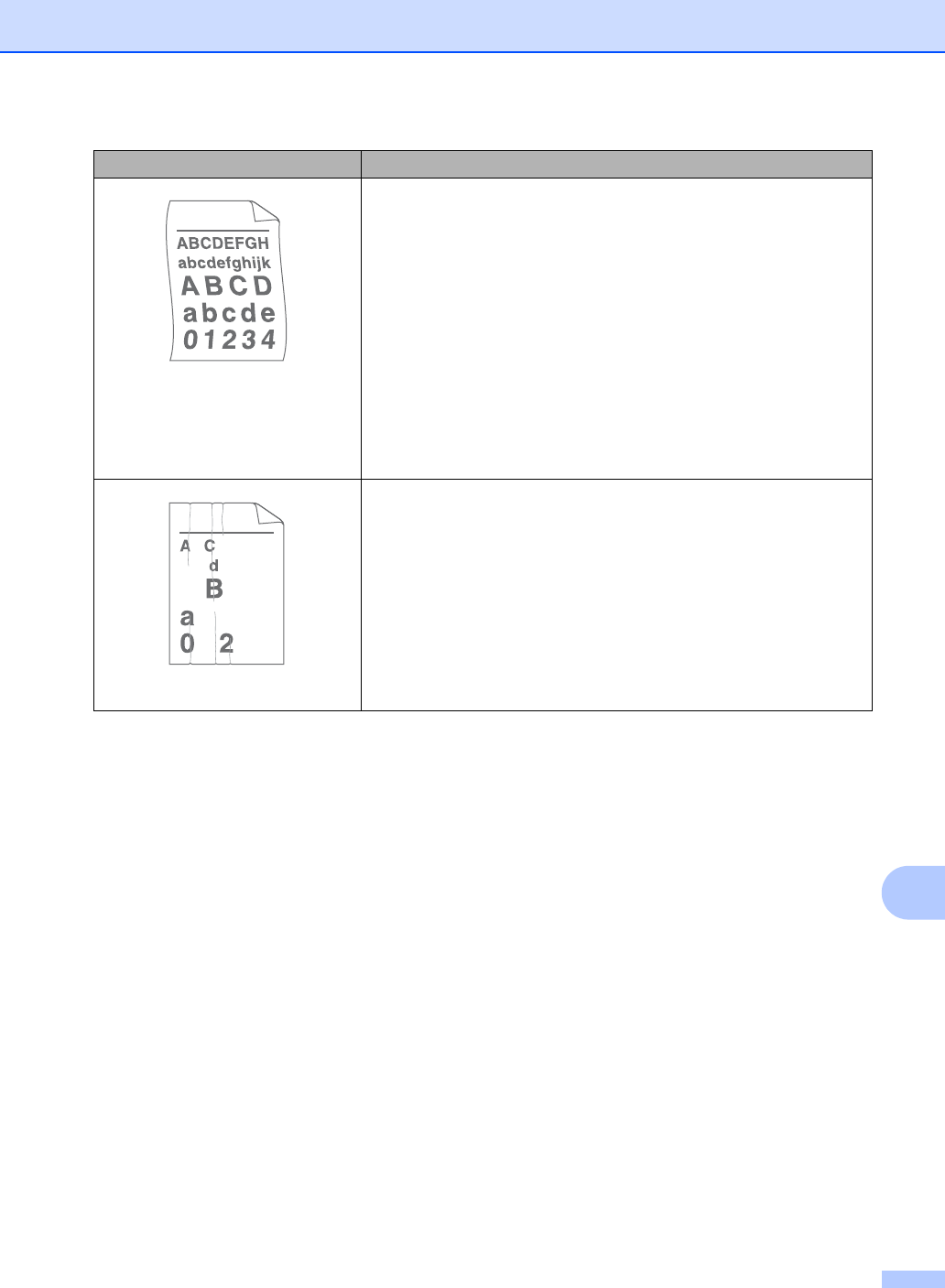

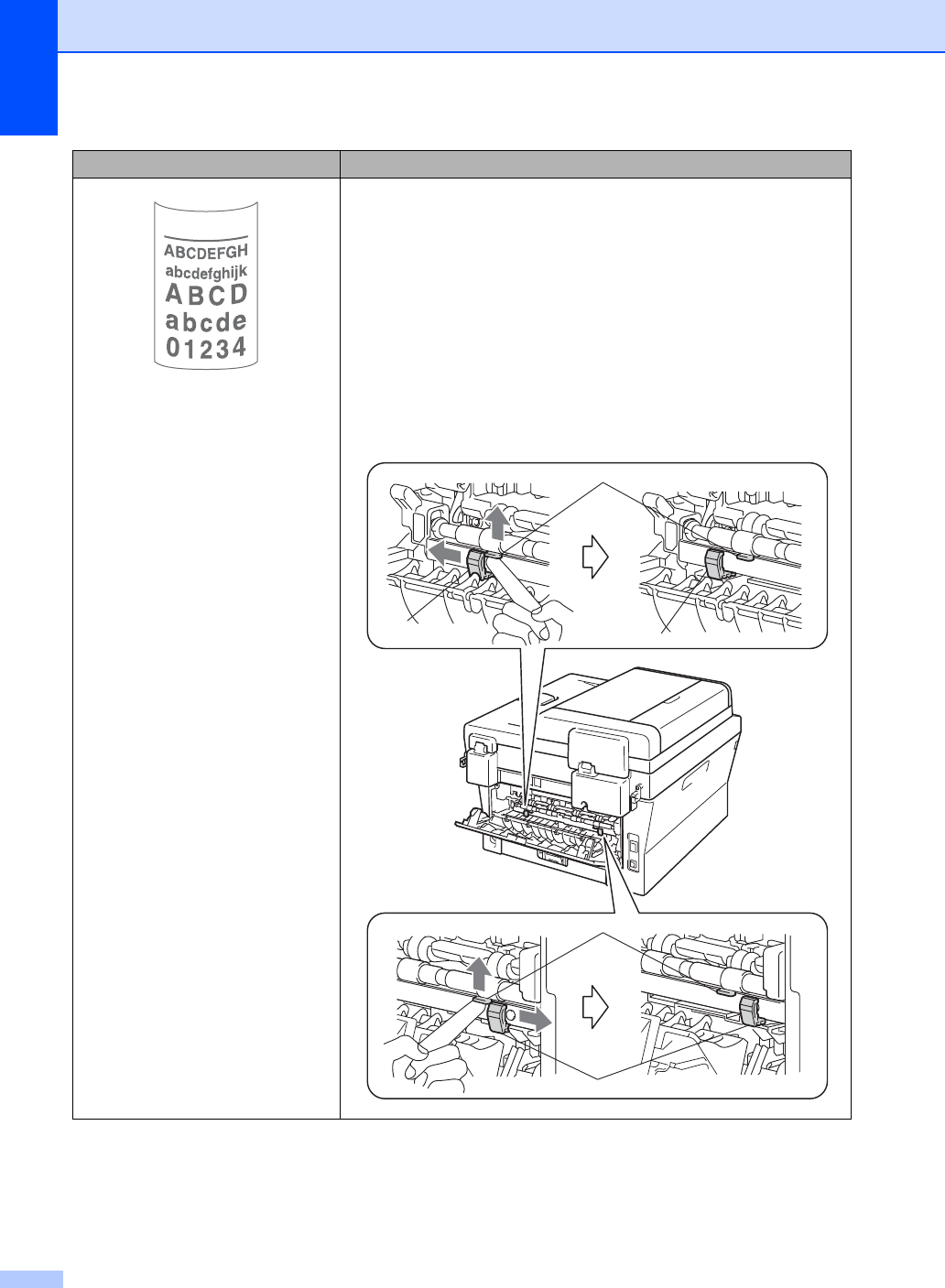

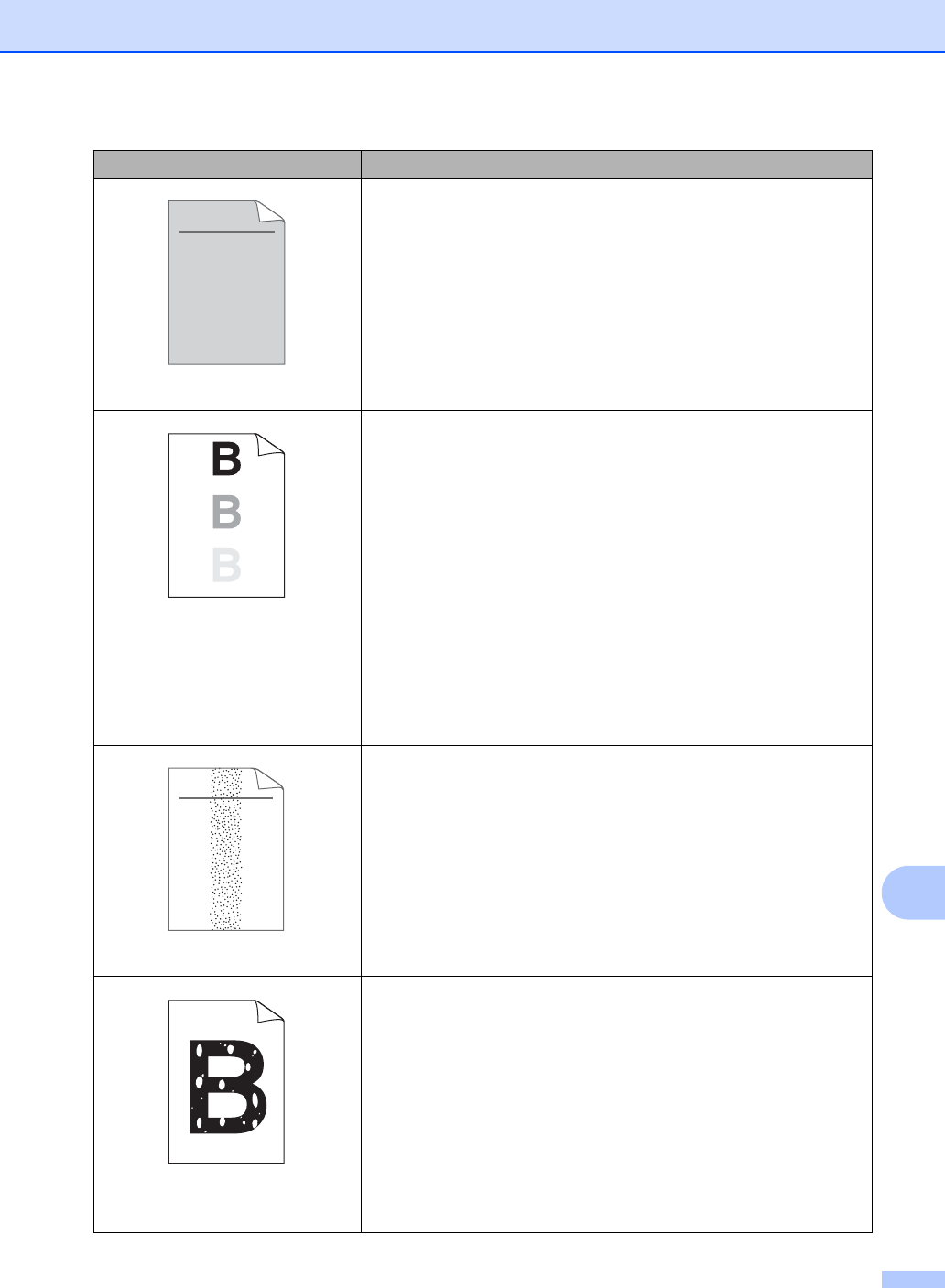

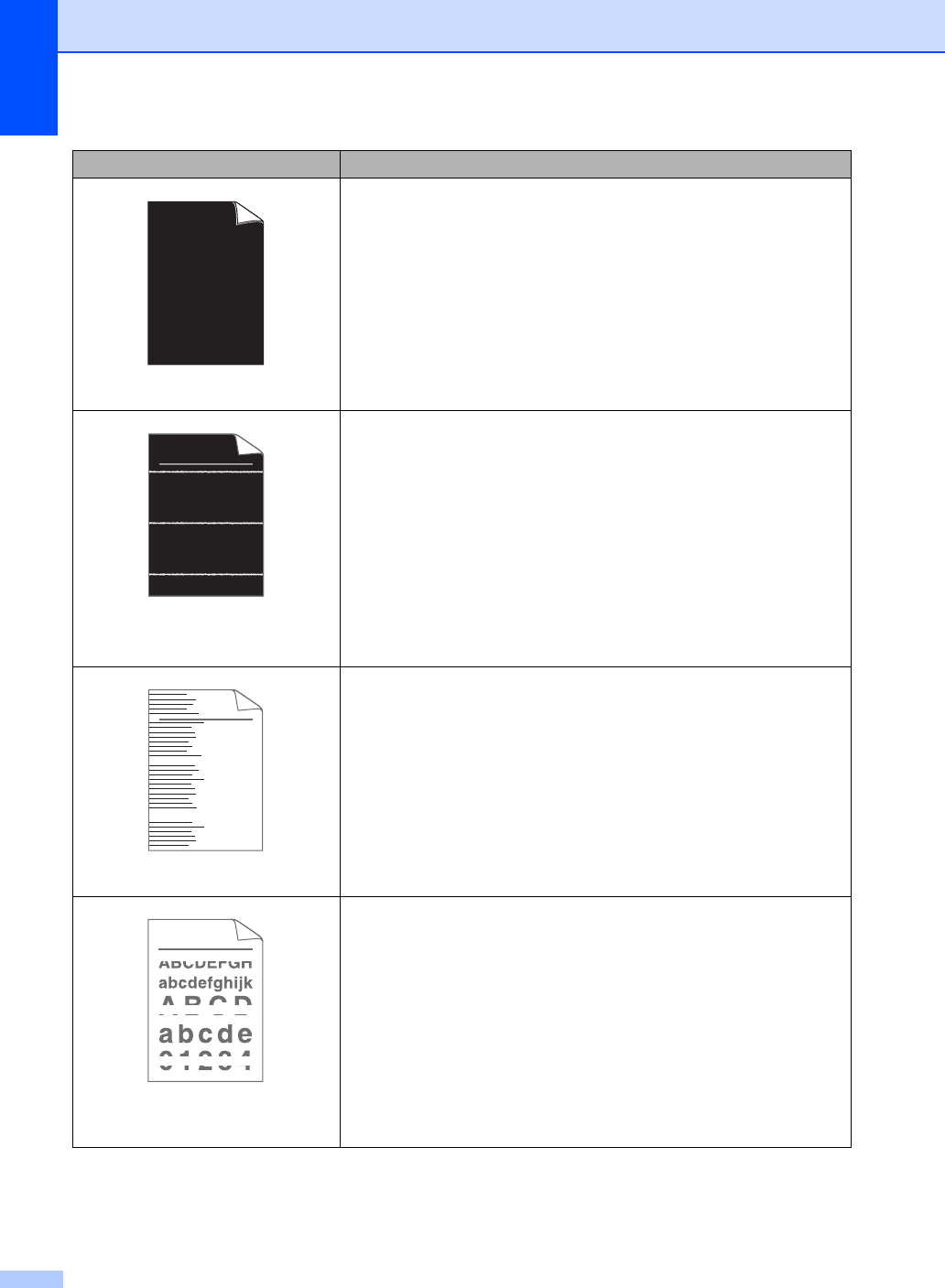

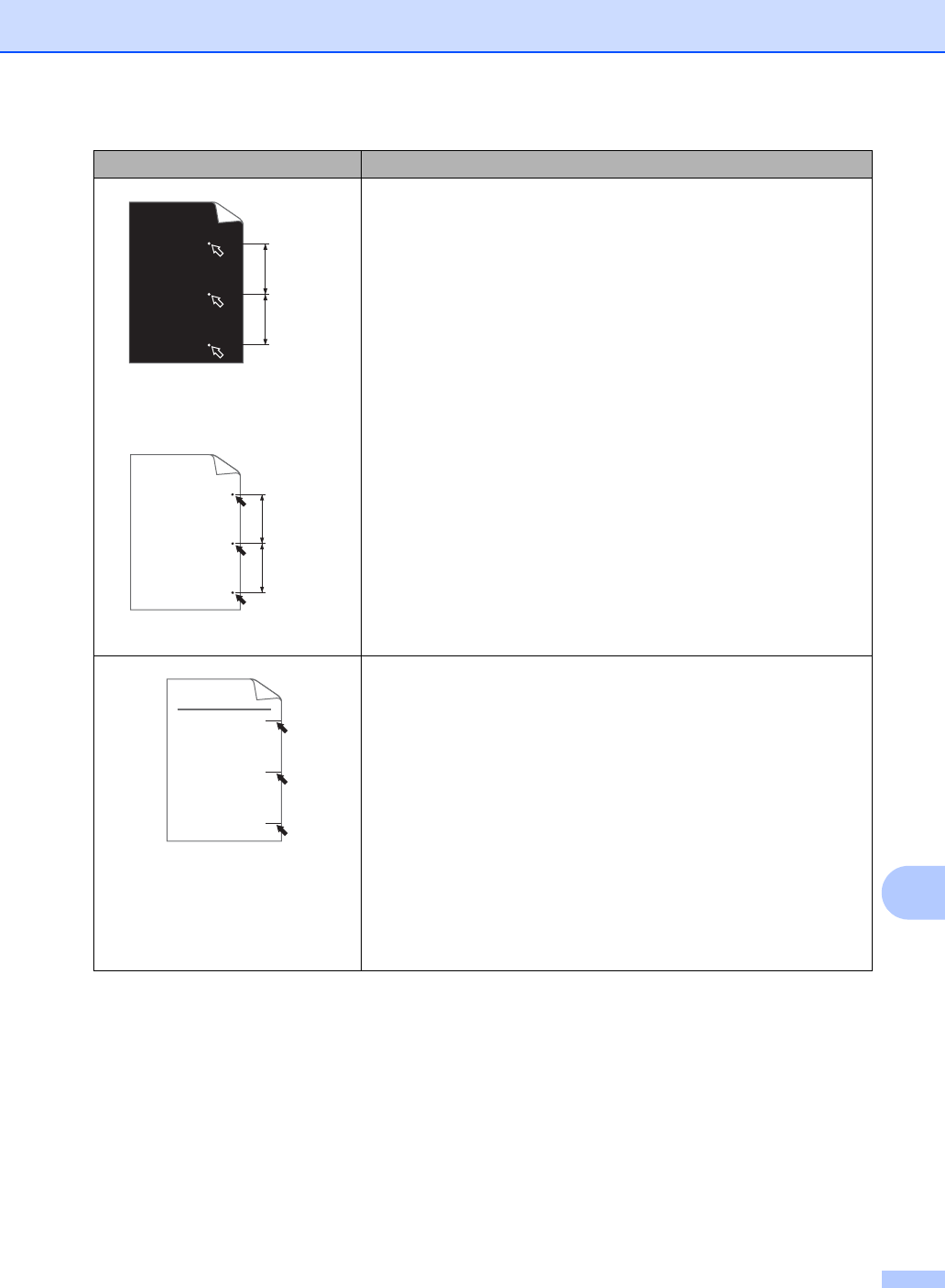

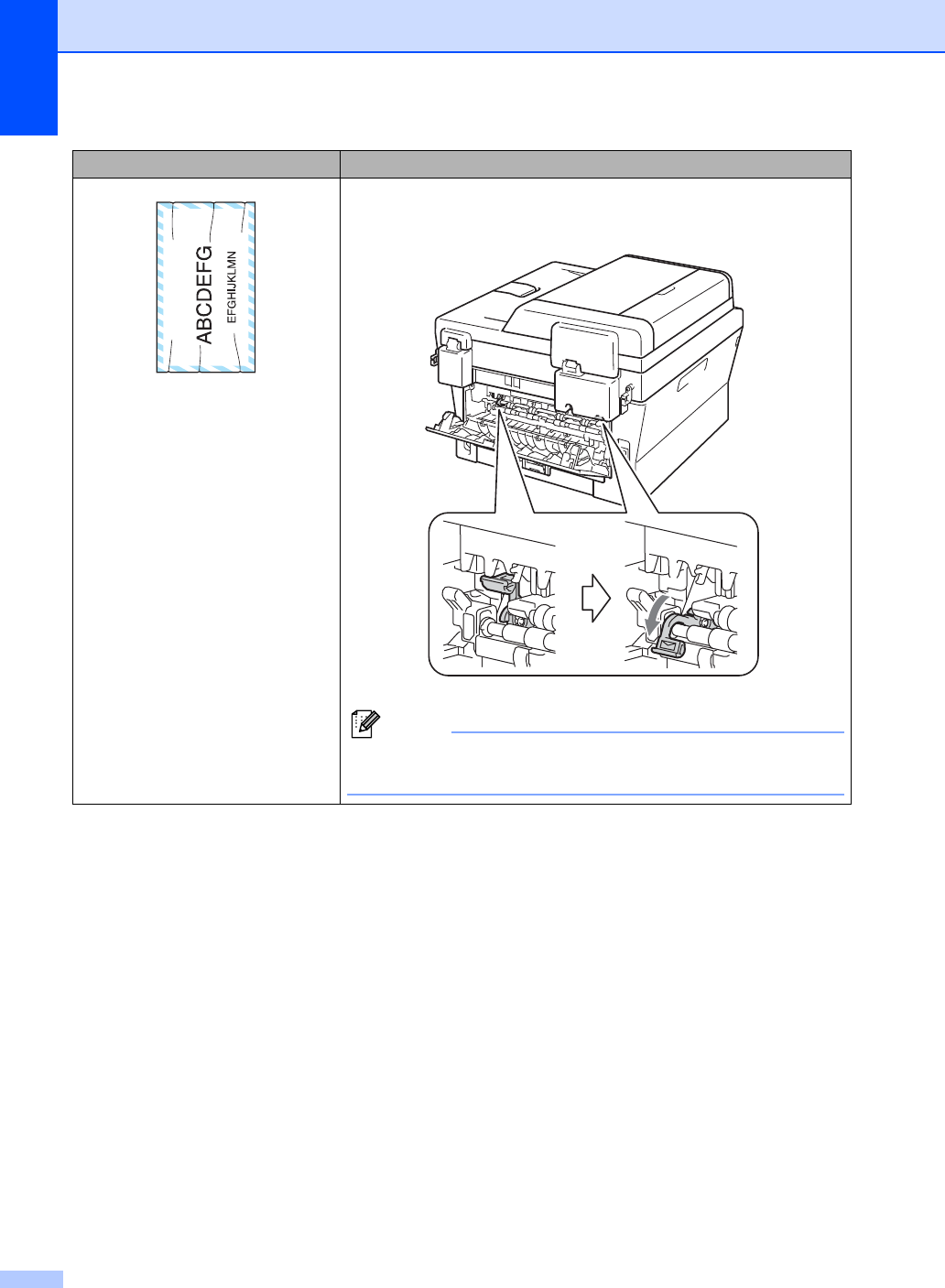

Improving the print quality..................................................................................110
Machine Information ..........................................................................................120
Checking the Serial Number........................................................................120
Reset functions ..................................................................................................120
How to reset the machine............................................................................121
C Menu and features 122
On-screen programming....................................................................................122

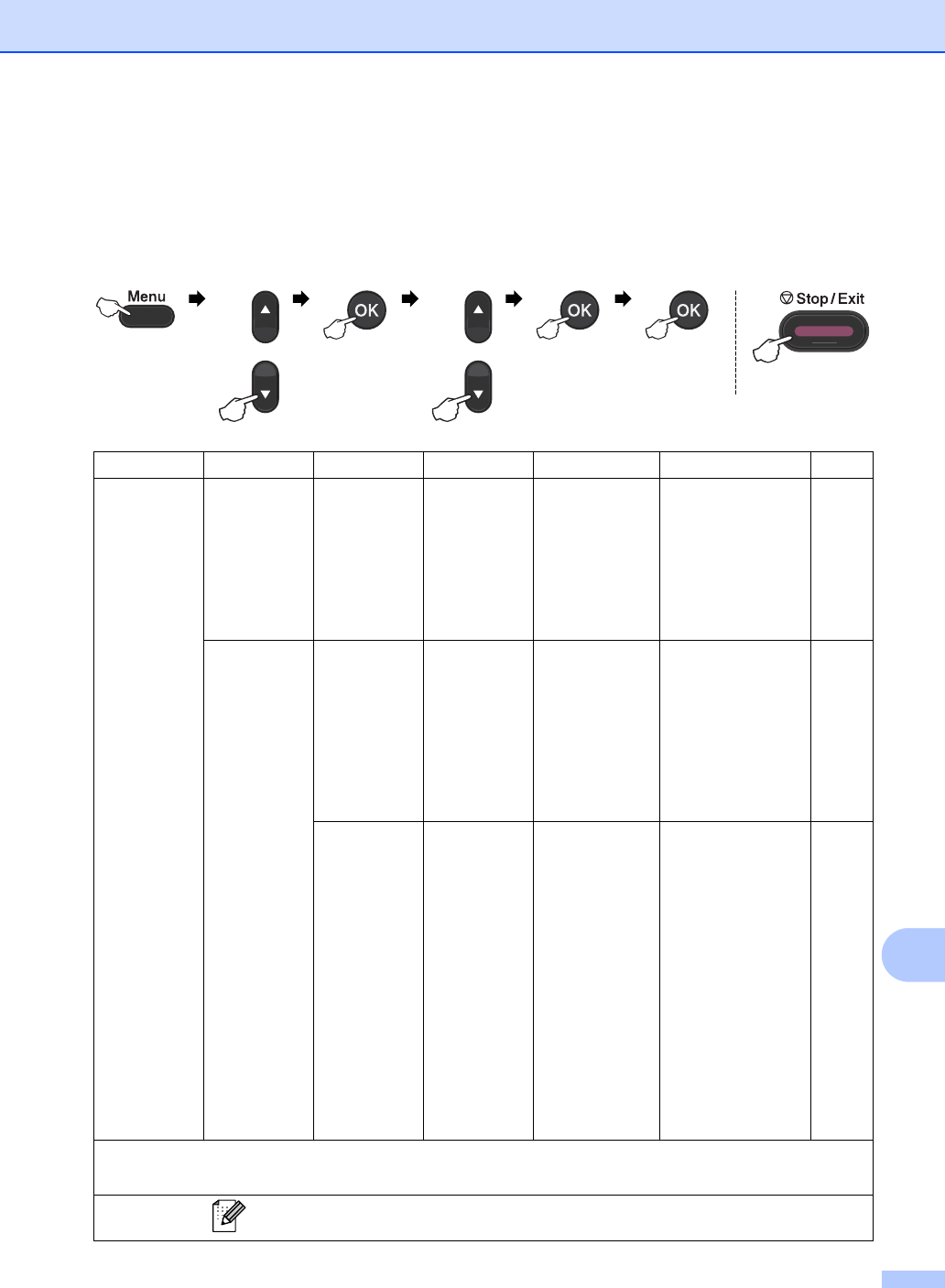

Menu table...................................................................................................122
How to access the menu mode ...................................................................122
Menu table .........................................................................................................123
Entering text.......................................................................................................140

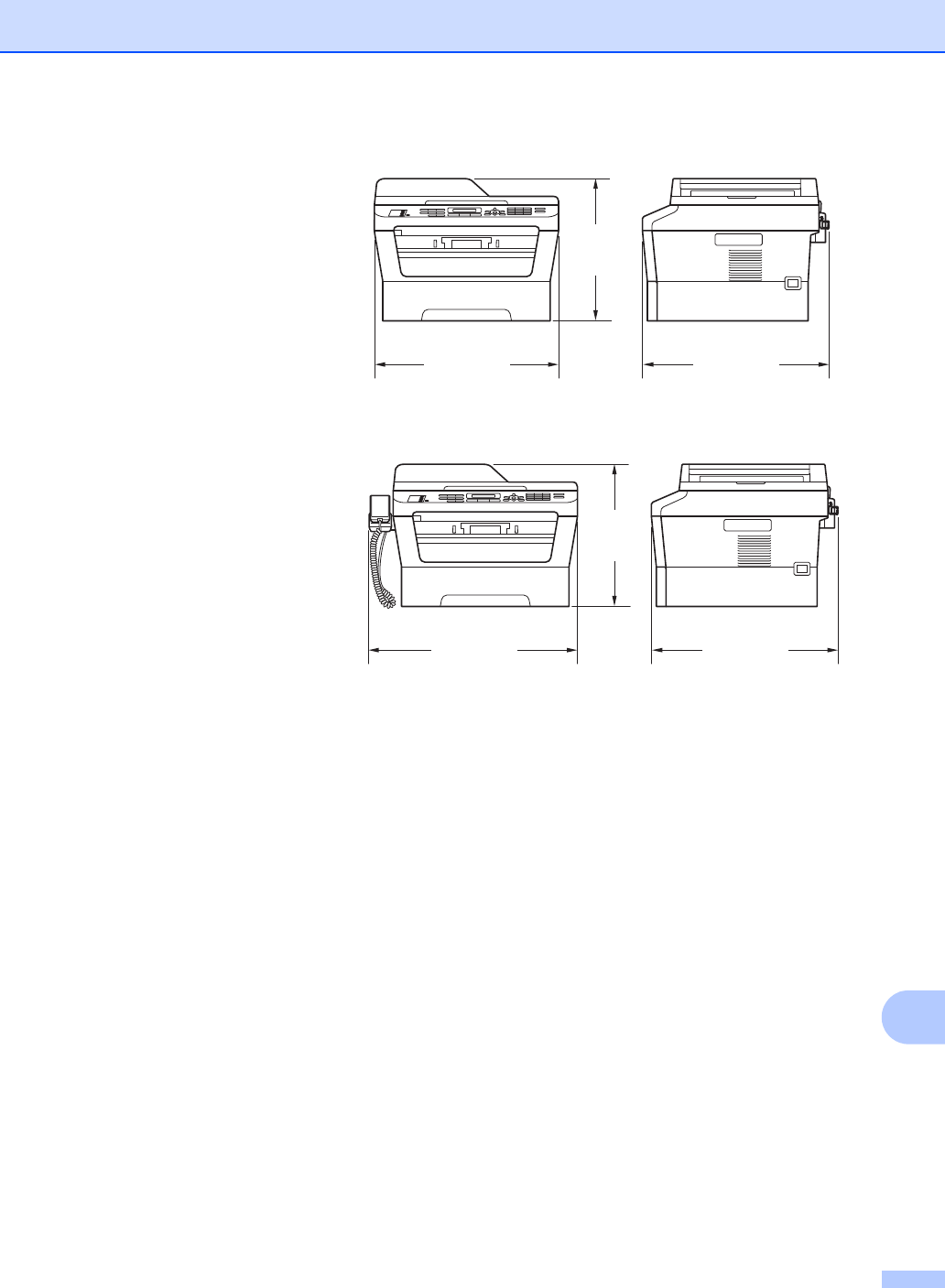

D Specifications 142
General ..............................................................................................................142
Document Size ..................................................................................................145
Print media.........................................................................................................146
Fax.....................................................................................................................147
Copy ..................................................................................................................148
Scanner .............................................................................................................149
Printer ................................................................................................................150
Interfaces ...........................................................................................................151
Computer requirements ....................................................................................152
Consumable items .............................................................................................154
Network (LAN) (Network models only) ..............................................................155
E Index 156
vi
Table of Contents
(ADVANCED USER’S GUIDE)
The Advanced User's Guide explains the following features and operations. You can view the
Advanced User's Guide on the Documentation CD-ROM.
1 General Setup
Memory Storage
Set Daylight Saving Time
Ecology features
Toner Settings
LCD Contrast
Mode Timer
Dial Prefix
2 Security features
Security
3 Sending a fax
Additional sending options
Additional sending operations
Polling overview
4 Receiving a fax
Remote Fax Options
Additional receiving operations
Polling overview
5 Dialling and storing numbers
Telephone line services
Additional dialling operations
Additional ways to store numbers
6 Printing reports
Fax reports
Reports
7 Making copies
Copy settings
Duplex Copying (1-sided to 2-sided)
(MFC-7460DN / MFC-7470D /
MFC-7860DW))
A Routine maintenance
Cleaning the machine
Checking the machine
Packing and shipping the machine
B Glossary
CIndex
vii
1
1
1
Using the
documentation 1
Thank you for buying a Brother machine!
Reading the documentation will help you
make the most of your machine.
Symbols and conventions
used in the documentation 1
The following symbols and conventions are
used throughout the documentation.
General information 1
Bold Bold style identifies keys on the
machine control panel or
computer screen.
Italics Italicized style emphasizes an
important point or refers you to
a related topic.
Courier
New
Courier New font identifies the
messages shown on the LCD
of the machine.
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injuries.
IMPORTANT indicates a potentially
hazardous situation which, if not avoided,
may result in damage to property or loss of
product functionality.
Electrical Hazard icons alert you to a
possible electrical shock.
Hot Surface icons warn you not to
touch machine parts that are hot.
Notes tell you how you should
respond to a situation that may arise
or give tips about how the current
operation works with other features.
WARNING
CAUTION
IMPORTANT
Chapter 1
2
Accessing the
Advanced User's
Guide, Software User's
Guide and Network
User's Guide 1
This Basic User's Guide does not contain all
the information about the machine such as
how to use the advanced features Fax, Copy,
Printer, Scanner, PC-Fax and Network.
When you are ready to learn detailed
information about these operations, read the
Advanced User's Guide, Software User's
Guide, Network Glossary 1, and Network
User's Guide 1 that are on the
Documentation CD-ROM.
1Network models only
Viewing Documentation 1
aTurn on your computer. Insert the
Documentation CD-ROM into your
CD-ROM drive.
Note
(Windows® users) If the screen does not
appear automatically, go to My Computer
(Computer), double-click the CD-ROM
icon, and then double-click index.html.
b(Macintosh users) Double-click the
Documentation CD-ROM icon, and then
double-click index.html.
cClick your country.
dPoint to your language, point to View
Guide, and then click the guide you
want to read.
General information
3
1
Note
• (Windows® users only) Your web browser
may display a yellow bar at the top of the
page that contains a security warning
about Active X controls. For the page to
display correctly you must click on the bar,
click Allow Blocked Content, then click
Yes in the Security Warning dialog box.
• (Windows® users only) 1 For faster
access, you can copy all user
documentation in PDF format to a local
folder on your computer. Point to your
language, then click Copy to local disk.
1Microsoft® Internet Explorer® 6.0 or greater.
How to find Scanning instructions 1
There are several ways you can scan
documents. You can find the instructions as
follows:
Software User's Guide
Scanning
ControlCenter
Network Scanning (Network models only)
ScanSoft™ PaperPort™12SE with OCR
How-to-Guides
(Windows®)
The complete ScanSoft™
PaperPort™12SE with OCR How-to-
Guides can be viewed from the Help
selection in the ScanSoft™
PaperPort™12SE application.
Presto! PageManager User’s Guide
(Macintosh)
Note
Presto! PageManager must be
downloaded and installed before use. See
Accessing Brother Support (Macintosh)
on page 5 for further instructions.
The complete Presto! PageManager
User’s Guide can be viewed from the Help
selection in the Presto! PageManager
application.
How to find Network setup instructions
(Network models only)
Your machine can be connected to a wireless
or wired network. You can find basic setup
instructions in the Quick Setup Guide. If your
wireless access point or router supports Wi-Fi
Protected Setup or AOSS™, you can also
follow the steps in the Quick Setup Guide. For
more information about network setup please
see the Network User's Guide.
Chapter 1
4
Accessing Brother
Support (Windows®)1
You can find all the contacts you will need,
such as Web support (Brother Solutions
Center) on the Installation CD-ROM.
Click Brother Support on the main menu.
The following screen will appear:
To access our website
(http://www.brother.com/), click Brother
Home Page.
For the latest news and product support
information
(http://solutions.brother.com/), click
Brother Solutions Center.
To visit our Website for original genuine
Brother Supplies
(http://www.brother.com/original/), click
Supplies Information.
To access the Brother CreativeCenter
(http://www.brother.com/creativecenter/)
for FREE photo projects and printable
downloads, click Brother
CreativeCenter.
To return to the main page, click Back or
if you have finished, click Exit.
General information
5
1

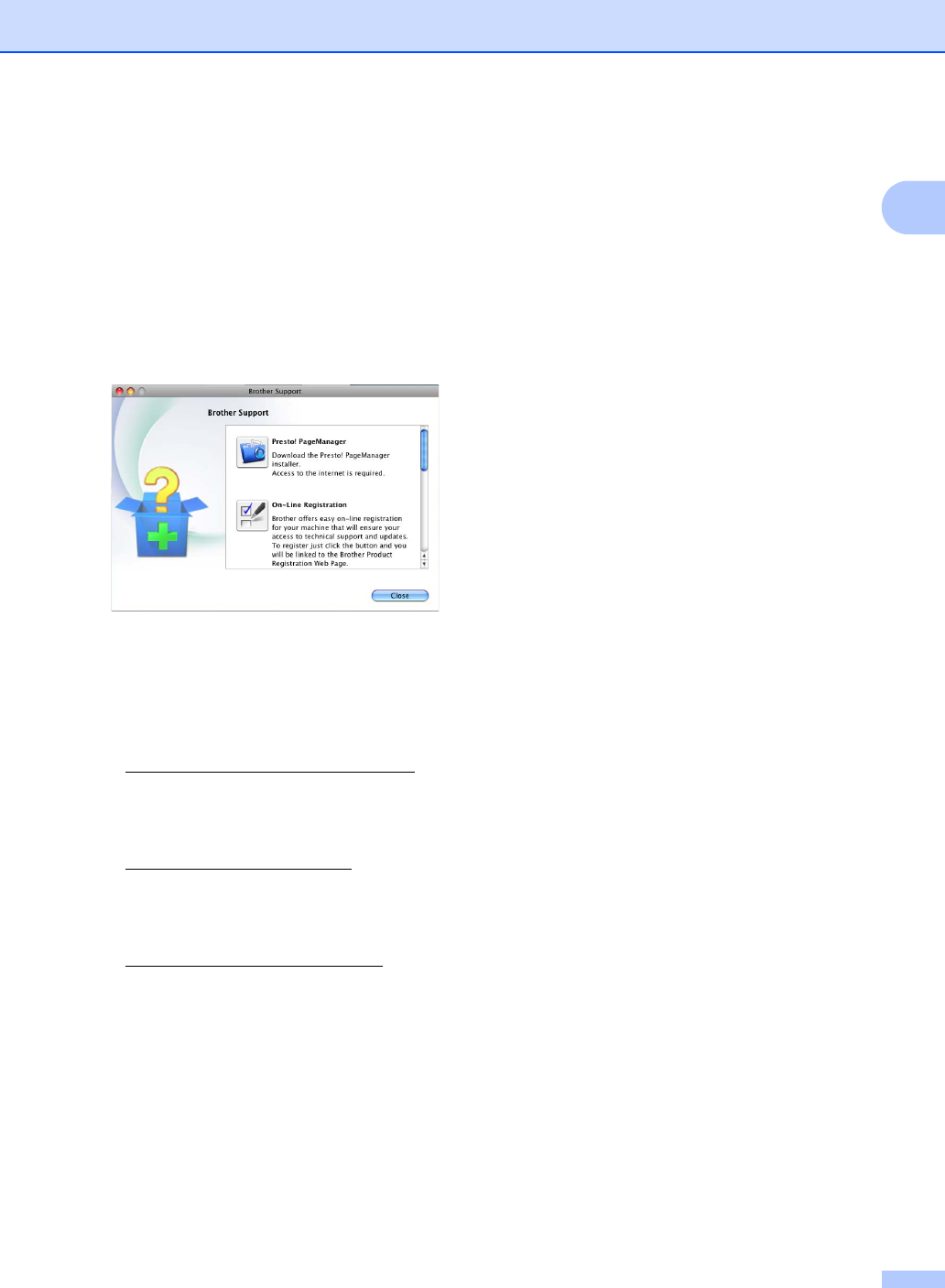

Accessing Brother
Support (Macintosh) 1
You can find all the contacts you will need,
such as Web support (Brother Solutions
Center) on the Installation CD-ROM.
Double-click the Brother Support icon.
The following screen will appear:
To download and install Presto!
PageManager, click Presto!
PageManager.
To register your machine from the Brother
Product Register Page
(http://www.brother.com/registration/),
click On-Line Registration.
For the latest news and product support
information
(http://solutions.brother.com/), click
Brother Solutions Center.
To visit our website for original Brother
Supplies
(http://www.brother.com/original/), click
Supplies Information.
Chapter 1
6
Control panel overview 1
MFC-7460DN and MFC-7860DW have the same keys.
MFC-7360, MFC-7360N and MFC-7362N have the same keys.
MFC-7470D
1236
4 5 7
1236
4 5 7
1236
4 5 7 8
1236
4 5 7
General information
7
1
36
4 5 78910
36
4 5 78910
1236
4 5 7 8
36
4 5 78910
Chapter 1
8
1 One Touch keys
These 4 keys give you instant access to 8
previously stored numbers.
Shift
Lets you access One Touch numbers 5 to 8
when held down.
2 FAX keys:
Hook or Hook/Hold
Press before dialling if you want to make sure a
fax machine will answer, and then press
Start
.
(Not for MFC-7470D)
Also, press this key after you pick up the
handset of an external telephone during the
F/T ring (pseudo double-rings).
(MFC-7470D only)
Lets you place telephone calls on hold.
Redial/Pause
Redials the last number called. It also inserts a
pause when programming quick dial numbers
or when dialling a number manually.
Resolution
Sets the resolution when sending a fax.
3 COPY keys:
Options
You can quickly and easily choose temporary
settings for copying.
Enlarge/Reduce
Reduces or enlarges copies.
Duplex
(For MFC-7460DN, MFC-7470D and MFC-7860DW)
You can choose Duplex to copy on both sides
of the paper.
4 PRINT keys:
Secure
(For MFC-7460DN, MFC-7470D and MFC-7860DW)
You can print data saved in the memory when
you enter your four-digit password. (For details
about using the Secure key, see the Software
User's Guide.)
When using Secure Function Lock, you can
switch restricted users by holding down Shift
as you press Secure. (See Secure Function
Lock 2.0 in Chapter 2 of the Advanced User's
Guide.)
Job Cancel
Cancels a programmed print job and clears it
from the machine’s memory. To cancel
multiple print jobs, hold down this key until the
LCD shows Job Cancel (All).
5LCD
Displays messages to help you set up and use
your machine.
(MFC-7860DW)
In FAX mode and SCAN mode a four level
indicator shows the current wireless signal
strength if you are using a wireless connection.
6 Mode keys:
FAX
Puts the machine in Fax mode.
SCAN
Puts the machine in Scan mode.
COPY
Puts the machine in Copy mode.
7 Menu keys:
Clear
Deletes entered data or lets you cancel the
current setting.
Menu
Lets you access the Menu to program your
settings in this machine.
OK
Lets you store your settings in the machine.
Volume keys:
d or c
Press to scroll backwards or forwards through
menu selections. Press to change the volume
when in fax or standby mode.
a or b
Press to scroll through the menus and options.
Address Book
Let you access speed dial numbers directly.
8Dialpad
Use these keys to dial telephone and fax
numbers and as a keyboard for entering
information into the machine.
The
#
key temporarily switches the dialling mode
from Pulse to Tone during a telephone call
(not
available in New Zealand)
.
9Start
Lets you start sending faxes or making copies.
10 Stop/Exit
Stops an operation or exits from a menu.
0Max
General information
9
1
Volume settings 1
Ring volume 1
You can choose a range of ring volume
levels, from High to Off.
While in Fax mode press or to adjust
the volume level. The LCD will show the
current setting, and each key press will
change the volume to the next level. The
machine will keep the new setting until you
change it.
You can also change the ring volume through
the menu:
aPress Menu, 1, 3, 1.
bPress a or b to choose Off, Low, Med or
High.
Press OK.
cPress Stop/Exit.
Beeper volume 1
When the beeper is on, the machine will beep
when you press a key, make a mistake, or
after you send or receive a fax. You can
choose a range of volume levels, from High
to Off.
aPress Menu, 1, 3, 2.
bPress a or b to choose Off, Low, Med or
High.
Press OK.
cPress Stop/Exit.
Speaker volume 1
You can choose a range of speaker volume
levels, from High to Off.
aPress Menu, 1, 3, 3.
bPress a or b to choose Off, Low, Med or
High.
Press OK.
cPress Stop/Exit.
10
2
Loading paper and
print media 2
The machine can feed paper from the
standard paper tray or manual feed slot.
When you put paper into the paper tray, note
the following:
If your application software supports
paper size selection on the print menu,
you can select it through the software. If
your application software does not
support it, you can set the paper size in
the printer driver or by using the control
panel buttons.
Loading paper in the standard
paper tray 2
You can load up to 250 sheets. Paper can be
loaded up to the maximum paper mark (b b b)
on the sliding paper with guide. (For
recommended paper to use, see Paper
capacity of the paper trays on page 19.)
Printing on plain paper, thin paper or
recycled paper from the standard
paper tray 2
aPull the paper tray completely out of the
machine.
Loading paper 2
Loading paper
11
2
bWhile pressing the green paper-guide
release lever, slide the paper guides to
fit the paper size you are loading in the
tray. Make sure that the guides are
firmly in the slots.
Note
(For Asia) For Legal or Folio size paper,
press the release button in the bottom of
the paper tray and then pull out the back
of the paper tray. (Legal or Folio size
paper is not available in some regions.)
cFan the stack of paper well to avoid
paper jams and misfeeds.
dPut paper in the tray and make sure:
The paper is below the maximum
paper mark (b b b) (1).
Overfilling the paper tray will cause
paper jams.
The side to be printed on must be
face down.
The paper guides touch the sides of
the paper so it will feed properly.
Chapter 2
12
ePut the paper tray firmly back in the
machine. Make sure that it is completely
inserted into the machine.
fUnfold the support flap (1) to prevent
paper from sliding off the face-down
output tray.
Loading paper in the manual
feed slot 2
You can load envelopes and special print
media one at a time into this slot. Use the
manual feed slot to print or copy on labels,
envelopes or thicker paper.
Note
The machine automatically turns on the
Manual Feed mode when you put paper in
the manual feed slot.
Printing on plain paper, thin paper or
recycled paper from the manual feed
slot 2
aUnfold the support flap (1) to prevent
paper from sliding off the face-down
output tray, or remove each page as
soon as it comes out of the machine.
1
1
1
1
1
Loading paper
13
2
bOpen the manual feed slot cover.
cUsing both hands, slide the manual feed
slot paper guides to the width of the
paper that you are going to use.
dUsing both hands, put one sheet of
paper in the manual feed slot until the
front edge of the paper touches the
paper feed roller. When you feel the
machine pull in the paper, let go.
Chapter 2
14
Printing on thick paper, bond paper,
labels and envelopes 2
When the back output tray is pulled down, the
machine has a straight paper path from the
manual feed slot through to the back of the
machine. Use this paper feed and output
method when you want to print on thick
paper, labels or envelopes.
Note
Remove each printed sheet or envelope
immediately to prevent a paper jam.
aOpen the back cover (back output tray).
Note
<For envelopes only>
Pull down the two green levers, one on the
left-hand side and one on the right-hand
side, as shown in the following illustration.
bOpen the manual feed slot cover.
Loading paper
15
2
cUsing both hands, slide the manual feed
slot paper guides to the width of the
paper that you are going to use.
dUsing both hands, put one sheet of
paper or one envelope in the manual
feed slot until the front edge of the paper
or envelope touches the paper feed
roller. When you feel the machine pull in
the paper, let go.
Note
• Put the paper into the manual feed slot
with the side to be printed face up.
• Make sure that the print media is straight
and in the correct position on the manual
feed slot. If it is not, the paper may not be
fed properly, resulting in a skewed printout
or a paper jam.
• Do not put more than one sheet of paper
in the manual feed slot at any one time, as
it may cause a jam.
• If you put any print media in the manual
feed slot before the machine is in Ready
mode, the print media may be ejected
without being printed on.
Chapter 2
16

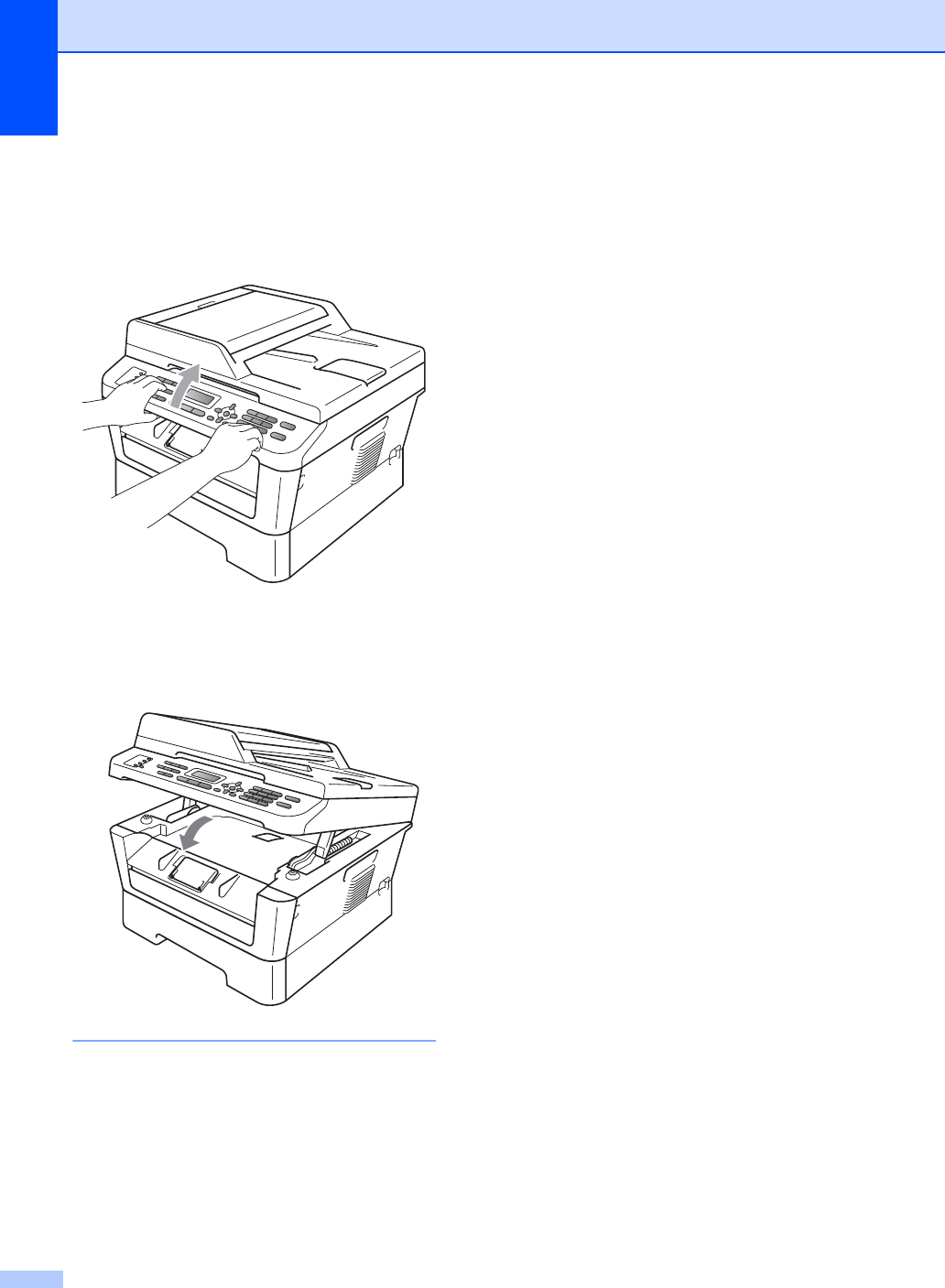

• To easily remove a small printout from the
output tray, lift up the scanner cover by
using both hands as shown in the
illustration.
• You can still use the machine while the
scanner cover is up. To close the scanner
cover, push it down with both hands.
Loading paper
17
2
Unscannable and unprintable areas 2
The figures below show maximum unscannable and unprintable areas. The unscannable and
unprintable areas may vary depending on the paper size or settings in the application you are
using.
Usage Document
Size
Top (1)
Bottom (1)
Left (2)
Right (2)
Fax (Send) Letter 3 mm 4 mm
A4 3 mm 3 mm
Copy Letter 3 mm 4 mm
*a single copy
or a 1 in 1 copy
A4 3 mm 3 mm
Scan Letter 3 mm 3 mm
A4 3 mm 3 mm
Print Letter 4 mm 6.35 mm
A4 4mm 6.35mm
22
1
1
Chapter 2
18
Paper settings 2
Paper Type 2
Set up the machine for the type of paper you
are using. This will give you the best print
quality.
aPress Menu, 1, 2, 1.
bPress a or b to choose Thin, Plain,
Thick, Thicker, Recycled Paper or
Label.
Press OK.
cPress Stop/Exit.
Paper Size 2
(For Oceania)
You can use several different sizes of paper
for printing copies: A4, Letter, Executive, A5,
A5 L, A6, B5, or B6 and for printing faxes: A4,
Letter.
(For Asia)
You can use several different sizes of paper
for printing copies: A4, Letter, Legal,
Executive, A5, A5 L, A6, B5, B6 and Folio and
for printing faxes: A4, Letter, Legal or Folio
(215.9 mm x 330.2 mm).
When you change the size of paper in the
tray, you will also need to change the setting
for paper size at the same time so your
machine can fit the document or an incoming
fax on the page.
aPress Menu, 1, 2, 2.
b(For Oceania)
Press a or b to choose A4, Letter,
Executive, A5, A5 L, A6, B5, or B6.
(For Asia)
Press a or b to choose A4, Letter,
Legal, Executive, A5, A5 L, A6, B5,
B6 or Folio.
Press OK.
cPress Stop/Exit.
Acceptable paper and
other print media 2
Print quality may vary according to the type of
paper you are using.
You can use the following types of print
media: thin paper, plain paper, thick paper,
bond paper, recycled paper, labels or
envelopes.
For best results, follow the instructions below:
DO NOT put different types of paper in the
paper tray at the same time because it
may cause paper jams or misfeeds.
For correct printing, you must choose the
same paper size from your software
application as the paper in the tray.
Avoid touching the printed surface of the
paper immediately after printing.
Before you buy a lot of paper, test a small
quantity to make sure the paper is
suitable.
Loading paper
19
2
Type and size of paper 2
The machine loads paper from the installed
standard paper tray or manual feed slot.
The name for the paper trays in the
printer driver in this Guide are as
follows: 2
Paper capacity of the paper trays 2
1Folio size is 215.9 mm × 330.2 mm.
2Legal or Folio size paper are not available in some regions.
Recommended paper specifications 2
The following paper specifications are suitable for this machine.
Tray and optional unit Name
Standard paper tray Tray 1
Manual feed slot Manual
Paper size Paper types No. of sheets
Paper Tray
(Tray 1)
(For Oceania)
A4, Letter, Executive,
A5, A5 (Long Edge), A6,
B5, B6
(For Asia)
A4, Letter, Legal 2,
Executive, A5, A5 (Long
Edge), A6, B5, B6 and
Folio 12
.
Plain paper, Thin paper
and Recycled paper
up to 250 [80 gsm]
Manual feed slot
(Manual)
Width: 76.2 to 216 mm
Length: 116 to 406.4 mm
Plain paper, Thin paper,
Thick paper,
Bond paper,
Recycled paper,
Envelopes and Labels
Single sheet
[80 gsm]
Basis weight 75-90 gsm
Thickness 80-110 m
Roughness Higher than 20 sec.
Stiffness 90-150 cm3/100
Grain direction Long grain
Volume resistivity 10e9-10e11 ohm
Surface resistivity 10e9-10e12 ohm-cm
Filler CaCO3 (Neutral)
Ash content Below 23 wt%
Brightness Higher than 80%
Opacity Higher than 85%
Chapter 2
20
Use paper made for plain paper copying.
Use paper that is 75 to 90 gsm.
Use long grain paper with a neutral Ph value, and a moisture content of approx. 5%.
This machine can use recycled paper that meets DIN 19309 specifications.
Handling and using special
paper 2
The machine is designed to work well with
most types of xerographic and bond paper.
However, some paper variables may have an
effect on print quality or handling reliability.
Always test samples of paper before
purchasing to ensure desirable performance.
Store paper in its original packaging and keep
it sealed. Keep the paper flat and away from
moisture, direct sunlight and heat.
Some important guidelines when selecting
paper are:
DO NOT use inkjet paper because it may
cause a paper jam or damage your
machine.
Preprinted paper must use ink that can
withstand the temperature of the
machine’s fusing process 392 degrees
Fahrenheit (200 degrees centigrade).
If you use bond paper, paper having a
rough surface or paper that is wrinkled or
creased, the paper may exhibit degraded
performance.

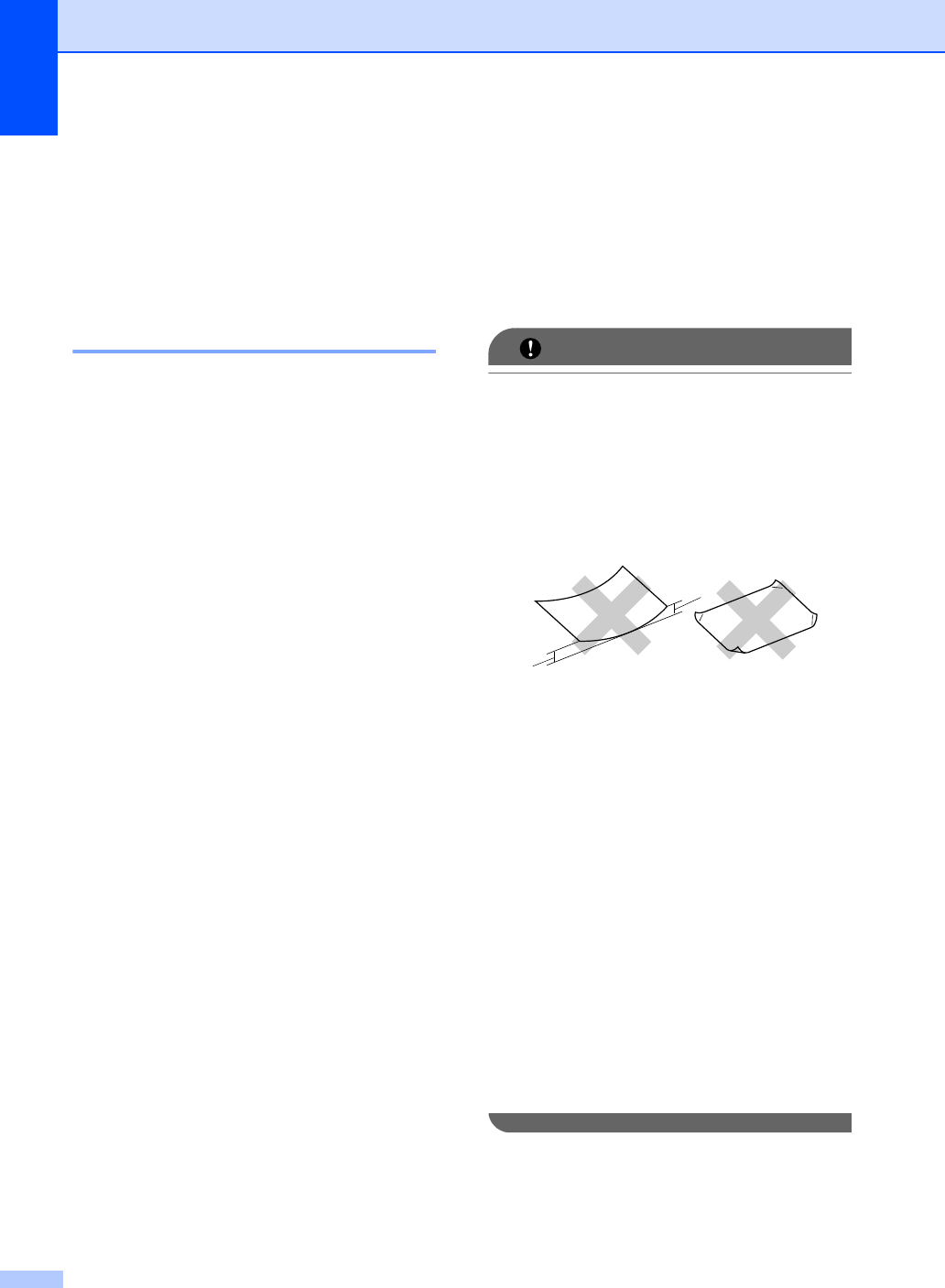

Types of paper to avoid 2
IMPORTANT
Some types of paper may not perform well
or may cause damage to your machine.
DO NOT use paper:
• that is highly textured
• that is extremely smooth or shiny
• that is curled or warped
1 A curl of 2 mm or greater may cause
jams to occur.
• that is coated or has a chemical finish
• that is damaged, creased or folded
• that exceeds the recommended weight
specification in this guide
• with tabs and staples
• with letterheads using low temperature
dyes or thermography
• that is multipart or carbonless
• that is designed for inkjet printing
If you use any of the types of paper listed
, they may damage your machine. This
damage is not covered under any Brother
warranty or service agreement.
Loading paper
21
2

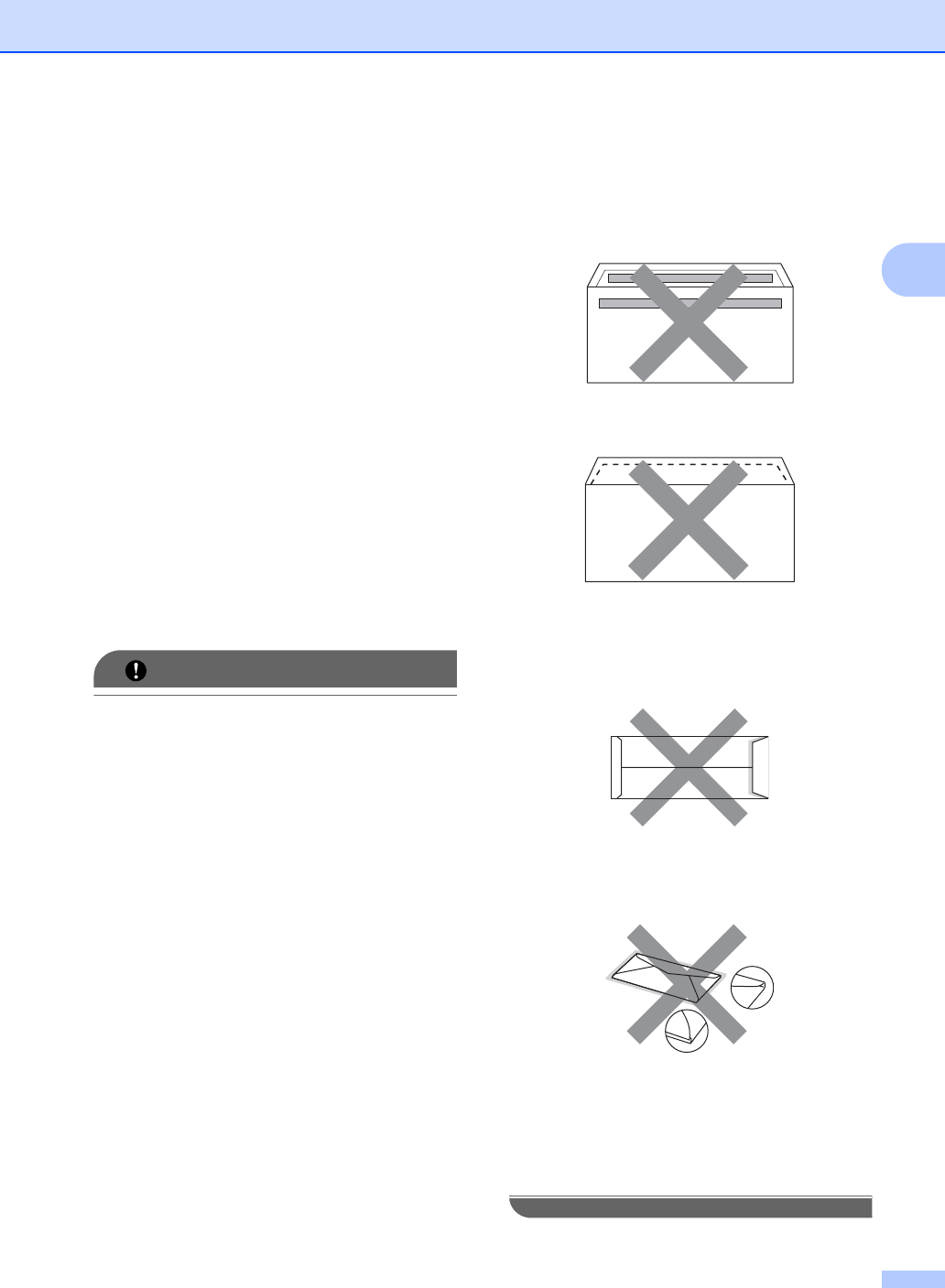

Envelopes 2
Most envelopes designed for laser printers
will be suitable for your machine. However,
some envelopes may have feed and print-
quality problems because of the way they
have been made. A suitable envelope should
have edges with straight, well-creased folds
and the leading edge should not be thicker
than two sheets of paper. The envelope
should lie flat and not be of baggy or flimsy
construction. You should buy quality
envelopes from a supplier who understands
that you will be using the envelopes in a laser
machine.
Envelopes can be fed from the manual feed
slot one at a time. We recommend that you
print a test envelope to make sure the print
results are what you want before you print or
purchase a large quantity of envelopes.
Types of envelopes to avoid 2
IMPORTANT
DO NOT use envelopes:
• that are damaged, curled, wrinkled or
an unusual shape
• that are extremely shiny or textured
• with clasps, staples, snaps or tie
strings
• with self-adhesive closures
• that are of a baggy construction
• that are not sharply creased
• that are embossed (have raised writing
on them)
• that were previously printed by a laser
machine
• that are pre-printed on the inside
• that cannot be arranged neatly when
stacked
• that are made of paper that weighs
more than the paper weight
specifications for the machine
• with edges that are not straight or
consistently square
• with windows, holes, cut-outs or
perforations
• with glue on surface as shown in figure
below
•
with double flaps as shown in figure below
• with sealing flaps that are not folded
down when purchased
•
with sealing flaps as shown in figure below
• with each side folded as shown in
figure below
If you use any of the types of envelopes
listed above, they may damage your
machine. This damage may not be
covered under any Brother warranty or
service agreement.
Chapter 2
22
Labels 2
The machine will print on most types of labels
designed for use with a laser machine. Labels
should have an adhesive that is acrylic-based
since this material is more stable at the high
temperatures in the fuser unit. Adhesives
should not come in contact with any part of
the machine, because the label stock may
stick to the drum unit or rollers and cause
jams and print quality problems. No adhesive
should be exposed between the labels.
Labels should be arranged so that they cover
the entire length and width of the sheet. Using
labels with spaces may result in labels
peeling off and causing serious jams or print
problems.
All labels used in this machine must be able
to withstand a temperature of 392 degrees
Fahrenheit (200 degrees centigrade) for a
period of 0.1 seconds.
Do not feed a label sheet through the
machine more than one time.
Types of labels to avoid 2
Do not use labels that are damaged, curled,
wrinkled or an unusual shape.
IMPORTANT
• DO NOT feed part used label sheets. The
exposed carrier sheet will damage your
machine.
• Label sheets should not exceed the paper
weight specifications described in this
User’s Guide. Labels exceeding this
specification may not feed or print
correctly and may cause damage to your
machine.
• DO NOT reuse or insert labels that have
previously been used or are missing few
labels on the sheet.
23
3
3
How to load
documents 3
You can send a fax, make copies, and scan
from the ADF (Automatic Document Feeder)
and the scanner glass.
Using the automatic
document feeder (ADF) 3
The ADF can hold up to 35 pages and feeds
each sheet individually. Use standard 80 gsm
paper and always fan the pages before
putting them in the ADF.
Document Sizes Supported 3
IMPORTANT
• DO NOT use paper that is curled,
wrinkled, folded, ripped, stapled, paper-
clipped, pasted or taped.
• DO NOT use cardboard, newspaper or
fabric with the ADF. Instead use the
scanner glass.
• To avoid damaging your machine while
using the ADF, DO NOT pull on the
document while it is feeding.
Note
• To scan documents that are not suitable
for the ADF, see Using the scanner glass
(Flatbed) on page 24.
• It is easier to use the ADF if you are
loading a multiple page document.
• Make sure documents with correction fluid
or written with ink are completely dry.
How to load documents 3
aLift up and unfold the ADF document
output support flap (1). Unfold the ADF
document support (2).
bFan the pages well.
Loading documents 3
Length: 147.3 to 355.6 mm
Width: 147.3 to 215.9 mm
Weight: 64 to 90 gsm
(2)
(1)
Chapter 3
24
cStack the pages of your document face
up top edge first, in the ADF until the
LCD display message changes and you
feel it touch the feed rollers.
dAdjust the paper guides (1) to fit the
width of your document.
IMPORTANT
To avoid damaging your machine while
using the ADF, DO NOT pull on the
document while it is feeding.
Using the scanner glass
(Flatbed) 3
You can use the scanner glass to fax, copy or
scan pages of a book one page at a time.
Document Sizes Supported 3
IMPORTANT
DO NOT leave thick documents on the
scanner glass. If you do this, the ADF may
jam.
How to load documents 3
Note
To use the scanner glass, the ADF must
be empty.
1
Length: Up to 297 mm
Width: Up to 215.9 mm
Weight: Up to 2 kg
Loading documents
25
3
aLift the document cover.
bUsing the document guidelines on the
left and top, place the document
face down in the upper left corner of the
scanner glass.
cClose the document cover.
IMPORTANT
If the document is a book or is thick, do not
slam or press on the cover.
26
4
How to send a fax 4
The following steps show how to send a fax.
aWhen you want to send a fax, or change
fax send or receive settings, press the
(FAX) key to illuminate it in blue.
bDo one of the following to load your
document:
Place the document face up in the
ADF. (See Using the automatic
document feeder (ADF) on page 23.)
Load your document face down on
the scanner glass. (See Using the
scanner glass (Flatbed) on page 24.)
cSet the scanner glass size, fax
resolution or contrast if you want to
change them.
For more advanced fax sending
operations and settings, see Sending a
fax in Chapter 3 of the Advanced User's
Guide:
Broadcast
Delayed Fax
Batch TX
Real Time TX
Polled TX
Overseas Mode
Fax Resolution
Contrast
Coverpg Setup
Coverpage Note

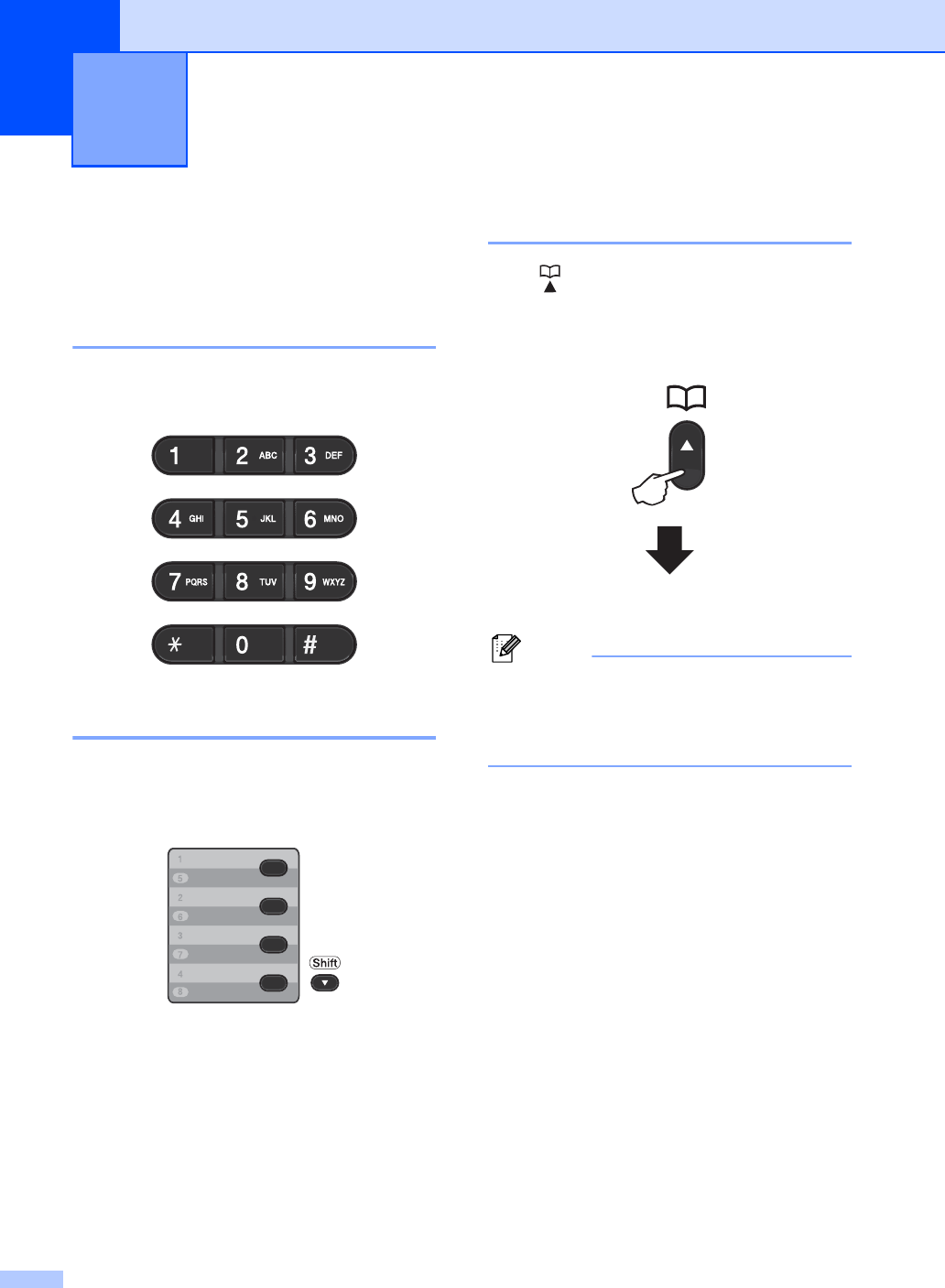

dEnter the fax number using the dial pad,
a One touch key or (Address Book)
and enter three-digit number.
ePress Start.
Faxing from the ADF
The machine starts scanning the
document.
Faxing from the scanner glass
If you press Start, the machine starts
scanning the first page.
Do one of the following:
• To send a single page, press 2 to
choose No(Send) (or press
Start again). The machine starts
sending the document.
• To send more than one page,
press 1 to choose Yes and place
the next page on the scanner
glass. Press OK. The machine
starts scanning the page. (Repeat
this step for each additional
page.)
If you press Start, the machine
starts sending the document.
Note
To cancel, press Stop/Exit.
Sending a fax 4
Sending a fax
27
4
Faxing Letter size documents
from the scanner glass 4
When faxing Letter size documents, you will
need to set the scan glass size to Letter (A4
for Philippines); otherwise, a portion of your
faxes will be missing.
aMake sure you are in Fax mode .
b(MFC-7360 / MFC-7360N / MFC-7362N
/ MFC-7470D)
Press Menu, 1, 7.
(MFC-7460DN / MFC-7860DW)
Press Menu, 1, 7, 1.
cPress a or b to choose Letter (A4 for
Philippines).
Press OK.
dPress Stop/Exit.
Cancelling a fax in progress 4
Press Stop/Exit to cancel the fax. If you
press Stop/Exit while the machine is dialling
or sending, the LCD will show as below:
Dialing #XXX
1.Clear 2.Exit
Sending #XXX PXX
1.Clear 2.Exit
Press 1 to cancel the fax.
Transmission verification
report 4
You can use the Transmission Verification
Report as proof that you sent a fax. This
report lists the receiving party’s name or fax
number, the time and date of transmission,
duration of transmission, number of pages
sent, and whether or not the transmission
was successful.
There are several settings available for the
Transmission Verification Report:
On: Prints a report after every fax you
send.
On+Image: Prints a report after every fax
you send. A portion of the fax’s first page
appears on the report.
Off: Prints a report if your fax is
unsuccessful due to a transmission error.
Off is the default setting.
Off+Image: Prints a report if your fax is
unsuccessful due to a transmission error.
A portion of the fax’s first page appears on
the report.
aPress Menu, 2, 4, 1.
bPress a or b to choose On, On+Image,
Off or Off+Image.
Press OK.
cPress Stop/Exit.
Note
• If you choose On+Image or Off+Image,
the image will only appear on the
Transmission Verification Report if Real
Time Transmission is set to Off. (See
Real Time Transmission in Chapter 3 of
the Advanced User's Guide.)
• If your transmission is successful, OK will
appear next to RESULT on the
Transmission Verification Report. If
transmission is not successful, ERROR will
appear next to RESULT.
28
5
Receive modes 5
You must choose a receive mode depending on the external devices and telephone services you
have on your line.
Choosing the receive mode 5
By default, your machine will automatically receive any faxes that are sent to it. The diagrams
below will help you choose the correct mode. (For more detailed information about the receive
modes, see Using receive modes on page 29.)
To set the receive mode follow the instructions below.
aPress Menu, 0, 1.
bPress a or b to choose the receive mode.
Press OK.
cPress Stop/Exit.
The LCD will display the current receive mode.
Receiving a fax 5
Do you want to use the telephone features of your machine (if available) or
an external telephone or external telephone answering device connected on the
same line as the machine?
Yes
Fax Only
No
No
No
Manual
Yes
External TAD
Fax/Tel
Are you using the voice message function of
an external telephone answering device?
Do you want the machine to answer fax and
telephone calls automatically?
Yes
Receiving a fax
29
5
Using receive modes 5
Some receive modes answer faxes
automatically (Fax Only and Fax/Tel).
You may want to change the Ring Delay
before using these modes. (See Ring Delay
on page 30.)
Fax Only 5
Fax Only mode will automatically answer
every call as a fax.
Fax/Tel 5
Fax/Tel mode helps you automatically
manage incoming calls, by recognising
whether they are fax or voice calls and
dealing with them in one of the following
ways:
Faxes will be automatically received.
Voice calls will start the F/T ring to tell you
to pick up the line. The F/T ring is a fast
double ring made by your machine.
Use this mode if you receive few voice calls.
(Also see Ring Delay on page 30 and F/T
Ring Time (Fax/Tel mode only) on page 30.)
Manual 5
Manual mode turns off all automatic
answering functions unless you are using the
Distinctive Ring 1 feature.
1Fax Ability in New Zealand.
To receive a fax in Manual mode lift the
handset of an external telephone or the
machine (MFC-7470D only) or press Hook or
Hook/Hold. When you hear fax tones (short
repeating beeps), press Start, and then press
2 to receive a fax. You can also use the Fax
Detect feature to receive faxes by lifting a
handset on the same line as the machine.
(Also see Fax Detect on page 31.)
If you use a computer modem on the same
line, Faxing will not operate correctly.
External TAD 5
External TAD mode lets an external
answering device manage your incoming
calls. Incoming calls will be dealt with in the
following ways:
Faxes will be automatically received.
Voice callers can record a message on the
external TAD.
(For more information, see Connecting an
external TAD on page 37.)
Chapter 5
30
Receive Mode settings 5
Ring Delay 5
The Ring Delay setting sets the number of
times the machine rings before it answers in
Fax Only and Fax/Tel modes.
If you have external or extension telephones
on the same line as the machine, choose the
maximum number of rings. (See Operation
from external or extension telephones
on page 39 and Fax Detect on page 31.)
aMake sure you are in Fax mode .
bPress Menu, 2, 1, 1.
cPress a or b to choose how many times
the line rings before the machine
answers (02-10 for Australia, 01-10 for
New Zealand, 00-10 for some
countries).
Press OK.
dPress Stop/Exit.
F/T Ring Time
(Fax/Tel mode only) 5
When somebody calls your machine, you and
your caller will hear the normal telephone ring
sound. The number of rings is set by the Ring
Delay setting.
If the call is a fax, then your machine will
receive it; however, if it is a voice call the
machine will sound the F/T ring (a fast
double-ring) for the time you have set in the
F/T Ring Time setting. If you hear the F/T ring
it means that you have a voice caller on the
line.
Because the F/T ring is made by the machine,
extension and external telephones will not
ring; however, you can still answer the call on
any telephone. (For more information, see
Using Remote Codes on page 40.)
aMake sure you are in Fax mode .
bPress Menu, 2, 1, 2.
cPress a or b to choose how long the
machine will ring to alert you that you
have a voice call (20, 30, 40 or
70 seconds for Australia and some
countries, 20, 30, 40 or 55 seconds for
New Zealand.).
Press OK.
dPress Stop/Exit.
Receiving a fax
31
5
Fax Detect 5
If Fax Detect is On:5
The machine can receive a fax automatically,
even if you answer the call. When you see
Receiving on the LCD or hear a click on the
phone line through the handset you are
using, just replace the handset. Your
machine will do the rest.
(MFC-7470D only)
If Fax Detect is Semi:5
The machine will only receive a fax call
automatically if you answered it using the
machine’s handset.
If you answered at an extension telephone,
press l51 (l91 for New Zealand). (See
Operation from external or extension
telephones on page 39.)
If Fax Detect is Off:5
If you are at the machine and answer a fax
call first by lifting the external handset or the
machine's handset (MFC-7470D only), press
Start and then press 2 to receive.
If you answered at an extension telephone,
press l51 (l91 for New Zealand).
(See Operation from external or extension
telephones on page 39.)
Note
• If this feature is set to On, but your
machine does not connect a fax call when
you lift an extension telephone handset,
press the fax receive code l51 (l91 for
New Zealand).
• If you send faxes from a computer on the
same telephone line and the machine
intercepts them, set Fax Detect to Off.
• We do not recommend having a PC plus
fax machine on the same line.
aMake sure you are in Fax mode .
bPress Menu, 2, 1, 3.
cPress a or b to choose On, (MFC-7470D
only) Semi or Off.
Press OK.
dPress Stop/Exit.
32
6
Voice operations
(MFC-7470D only) 6
Voice calls can be made with the handset by
using the dial pad, One touch key or
(Address Book) and enter three-digit
number.
Making a telephone call 6
aPick up the handset.
bWhen you hear the dial tone, enter a
number using the dial pad, One touch
key or (Address Book) and enter
three-digit number.
cReplace the handset to hang up.
Hold 6
aPress Hook/Hold to put a call on Hold.
You can replace the handset without
disconnecting the call.
bPick up the machine's handset to
release the call from Hold.
Note
You can pick up an extension telephone
and continue speaking without releasing
the call from Hold on the machine.
Telephone line
services 6
Features like Voice Mail, Call Waiting, Call
Waiting/Caller ID, RingMaster, answering
services, alarm systems or other custom
features on one telephone line may create
problems with the operation of your machine.
Do you have Voice Mail? 6
If you have Voice Mail on the telephone line
that you will install your new Machine on,
there is a strong possibility that Voice Mail
and the Machine will conflict with each other
while receiving incoming calls. However, the
Distinctive Ring feature allows you to use
more than one number on your line, so both
Voice Mail and the Machine can work
together without any problems. If each one
has a separate telephone number, neither will
interfere with the other's operations.
If you decide to get the Distinctive Ring
service from the telephone company, you will
need to follow the directions to 'register' the
new Distinctive Ring pattern they give you.
This is so your Machine can recognize its
incoming calls.
Telephone and external devices 6
Telephone and external devices
33
6
Telephone Service for
Australia 6
Distinctive Ring 6
Distinctive Ring 1 is a function of your Brother
machine that allows a person with one line to
receive fax and voice calls through two
different phone numbers on that one line.
Brother uses the term “Distinctive Ring”, but
telephone companies market the service
under a variety of names. This service
establishes a second telephone number on
the same line as your existing telephone
number, and each number has its own ring
pattern. Typically, the original number rings
with the standard ring pattern and is used for
receiving voice calls, and the second number
rings with a different ring pattern and is used
for receiving faxes. Only one call can be
answered (or made) at any one time and
while this call is in progress, incoming calls to
either number will be presented with a busy
tone.
Note
1Contact your Telephone Service Provider to
determine availability and any other related details.
After you have set the Distinctive Ring
feature to On, the receive mode is set to
Manual automatically. Your Distinctive
Ring Number does not allow Voice calls -
only Faxes. You can not change the
receive mode from Manual mode while
the Distinctive Ring is set to on.
How does your telephone company's
“Distinctive Ring” service work? 6
Using “Distinctive Ring” service of your
telephone company is the most efficient way
to receive both fax and telephone calls on the
same line. When the voice call comes in, all
phones (extension and external) and the fax
machine will ring to alert you to pick it up. If a
fax call comes in, the fax machine will answer
automatically without ringing, whereas the
extension and external phones will ring twice
with a Distinctive Ring pattern. It is also a
more efficient way of operating a Fax
machine with an extension phone as you do
not have to use the remote activation codes.
It gives you two independent numbers
without the higher cost of a second line.
What does Brother's “Distinctive
Ring” do? 6
The Brother machine has a Distinctive Ring 1
feature that allows you to use your machine to
take full advantage of the telephone
company's Distinctive Ring service. The new
telephone number on your line can just
receive faxes.

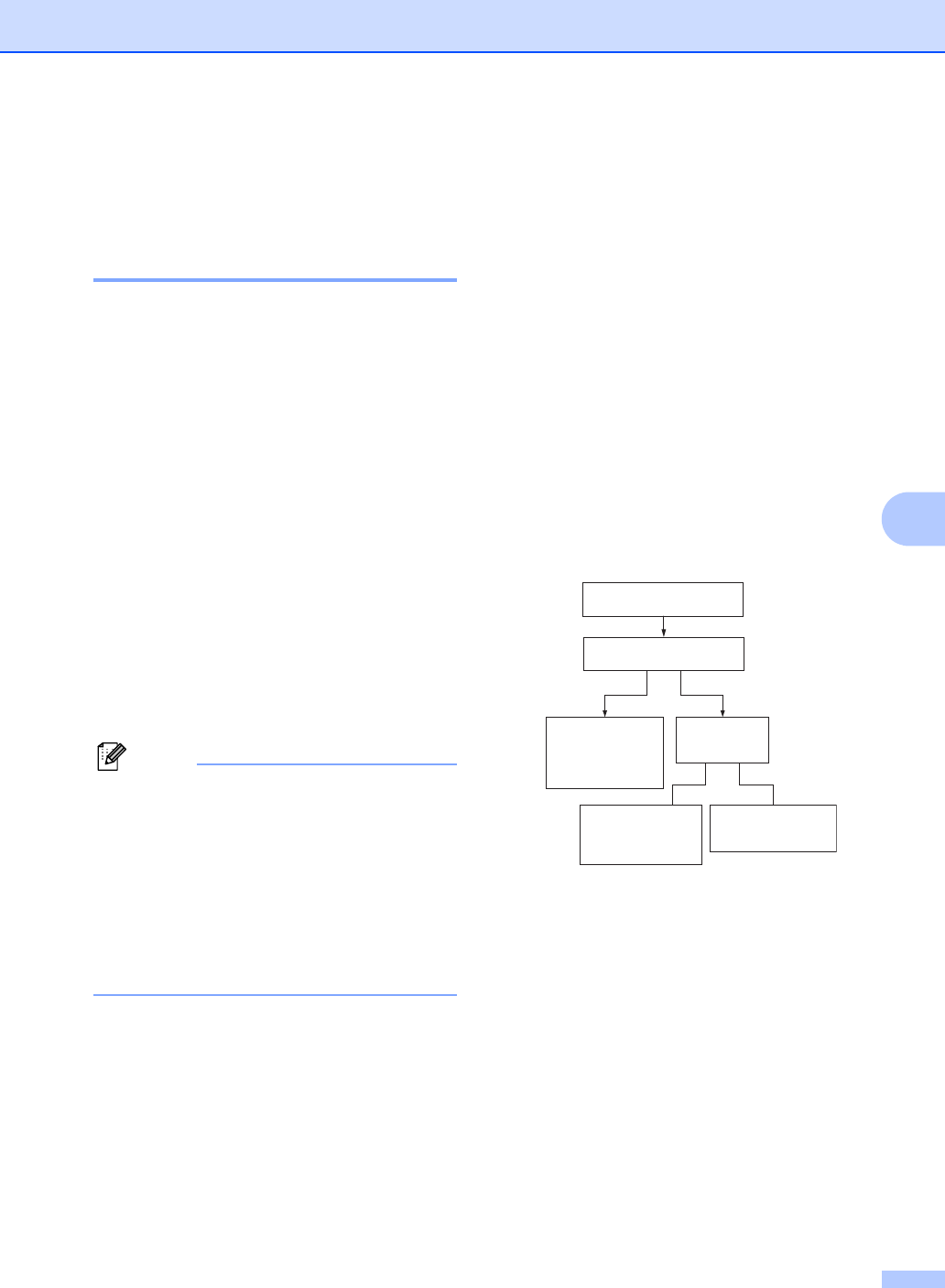

All extension telephones ring
twice, fax machine is silent.
Fax machine
automatically
receives and prints
fax message
without ringing.
Fax machine
begins ringing
on third ring.
Registered
Fax
Number
Main number
(Voice Number)
You answer the call
at an external
telephone or an
extension telephone.
Telephone Answering
Device (TAD)
answers the call.
Incoming Call
(either Voice or Fax)
Flowchart Sequence of Incoming call
Chapter 6
34
Set the Distinctive Ring to ON 6
After you have set the Distinctive Ring feature
to ON, the receive mode is set to Manual
automatically. Your Distinctive Ring Number
does not allow Voice Calls - only Faxes.
You cannot change the receive mode to
another mode while the Distinctive Ring is set
to on.
aPress Menu, 2, 0, 2.
bPress a or b to choose On.
cPress OK.
dPress Stop/Exit. Distinctive Ring is now
set to on.
Turning off Distinctive Ring
aPress Menu, 2, 0, 2.
bPress a or b to choose Off.
c Press OK.
dPress Stop/Exit.
Note
If you turn off Distinctive Ring, the
machine will stay in Manual receive
mode. You will need to set the Receive
Mode again. (See Choosing the receive
mode on page 28.)
Telephone Service for
New Zealand 6
FaxAbility 6
FaxAbility is a service offered by Telecom
that allows you to have an additional number
on one telephone line, with its own distinctive
ring pattern. This way, when you get an
incoming call, you can identify the number
being called by its ring.
How Will the Fax Machine Treat All
Other Numbers? 6
FaxAbility mode ensures that the machine
will answer calls to the FaxAbility (secondary)
number. When a call comes in to your main
number, all the telephones will ring. You can
set an external answering device (TAD) to
answer calls on the other number(s). (See the
chart in the following page.)
What is the Advantage of Using the
FaxAbility Function? 6
Using FaxAbility is the most efficient way to
receive both fax and telephone calls on the
same line. It is much easier for your callers
who dial manually. The fax machine will
answer with receiving tones so they will not
have to press an activation code. And the
people who call to talk on your main number
will not have to talk to your fax machine.
Basically, it gives you two independent
numbers without the higher cost of a second
line.
Telephone and external devices
35
6
How Does FaxAbility Work? 6
Your telephone number will have the
standard ring pattern of long, long tone, while
the new number will have a ring pattern of
long, silence, long, etc. When FaxAbility is
On, you will not hear the first ring of all
incoming calls on the fax machine. Extension
telephones will ring as usual. If the fax
machine recognizes the ring pattern, all
ringing will stop and the fax machine will
answer and automatically receive the fax
message. Otherwise, you will hear the
extension telephones and the fax machine
continue to ring. The fax machine always
listens to the ring pattern before it answers,
so do not pick up the telephone during that
time. You will quickly learn to recognize the
ring pattern for faxes, so you will not be
tempted to answer that number. Either you or
a telephone answering device can answer
the main number(s).
Note
After you have set the FaxAbility feature to
On, the receive mode is set to Manual
automatically. Unless you have a TAD or
Voice Mail set up on the FaxAbility
number, Manual mode means you must
answer all the call yourself. You can not
change the receive mode to the other
mode while the FaxAbility is set to on.
How to Turn FaxAbility OFF or ON 6
The FaxAbility function is designed to
accommodate the FaxAbility service provided
by Telecom. To change the setting, repeat
Steps 1-3; Step 2 is where you can choose
either On or Off.
Call Waiting beeps caused by incoming calls
on your main number can affect fax
transmissions. If you have FaxAbility Service
but don’t have Call Waiting, you need do
nothing at this stage. If you do have Call
Waiting as well as FaxAbility, set the Call
Waiting menu option to On. See below.
aPress Menu, 2, 0, 2.
bPress a or b to set FaxAbility to On or
Off.
If you have FaxAbility service, choose
On.
Press OK.
cPress a or b to set Call Waiting to On or
Off.
If you have Call Waiting service, choose
On to avoid the trouble caused by Call
Waiting.
Press OK.
dPress Stop/Exit.
All extension telephones ring
twice, fax machine is silent.
Fax machine
automatically
receives and prints
fax message
without ringing.
Fax machine
begins ringing
on third ring.
Registered
Fax
Number
Main number
(Voice Number)
You answer the call
at an external
telephone or an
extension telephone.
Telephone Answering
Device (TAD)
answers the call.
Incoming Call
(either Voice or Fax)
Flowchart Sequence of Incoming call
Chapter 6
36
Telephone Service for
Some Countries 6
Distinctive Ringing (For
Singapore and Hong Kong) 6
This machine feature lets you use the
Distinctive Ringing subscriber service offered
by some telephone companies, which allows
you to have several telephone numbers on
one telephone line. Each telephone number
has its own Distinctive Ringing pattern, so
you will know which telephone number is
ringing. This is one way you can have a
separate telephone number for your
machine.
Your machine has a Distinctive Ringing
function, allowing you to dedicate one
telephone number just for receiving faxes.
You will need to set Distinctive Ringing to On.
Note
You can switch it off temporarily, then turn
it back on. When you get a new fax
number, make sure you reset this
function.
• The machine will answer only calls to
the Distinctive Ringing number.
Set the Distinctive Ring to On 6
After you have set the Distinctive Ring feature
to ON, the receive mode is set to Manual
automatically. Unless you have a TAD or
Voice Mail set up on the Distinctive Ring
number, Manual mode means you must
answer all the calls yourself. You can not
change the receive mode to another mode
while the Distinctive Ring is set to on.
aPress Menu, 2, 0, 2.
bPress a or b to choose On.
cPress OK.
dPress Stop/Exit. Distinctive Ring is now
set to on.
Turning off Distinctive Ring
aPress Menu, 2, 0, 2.
bPress a or b to choose Off.
c Press OK.
dPress Stop/Exit.
Note
If you turn off Distinctive Ring, the
machine will stay in Manual receive
mode. You will need to set the Receive
mode again. (Choosing the receive mode
on page 28.)
Telephone and external devices
37
6
Connecting an external
TAD 6
You can connect an external Telephone
Answering Device (TAD) to the same line as
your machine. When the TAD answers a call,
your machine will “listen” for the CNG (fax
calling) tones sent by a sending fax machine.
If it hears them it will take over the call and
receive the fax. If it does not hear them, it will
let your TAD take a voice message and the
display will show Telephone (Ext. Tel in
Use for MFC-7470D).
The external TAD must answer within four
rings (we recommend you set it to two rings).
This is because your machine cannot hear
the CNG tones until the external TAD has
picked up the call. The sending machine will
send CNG tones for only eight to ten seconds
longer. We do not recommend using the toll
saver feature on your external TAD if it needs
more than four rings to activate it.
Note
If you have problems receiving faxes,
reduce the ring delay setting on your
external TAD to one or two rings.
Connections 6
The external TAD must be connected as
shown in the illustration below.
1TAD
2 Protective Cap
aSet your external TAD to one or two
rings. (The machine’s Ring Delay
setting does not apply.)
bRecord the outgoing message on your
external TAD.
cSet the TAD to answer calls.
dSet the Receive Mode to External
TAD. (See Choosing the receive mode
on page 28.)
2
1
1
(Example
for
Australia)
Chapter 6
38
Recording an outgoing
message (OGM) 6
aRecord 5 seconds of silence at the
beginning of your message. This allows
your machine time to listen for fax tones.
bLimit your speaking to 20 seconds.
cEnd your 20-second message by giving
your Remote Activation code for people
sending manual faxes. For example:
“After the beep, leave a message or
press l51 (l91 for New Zealand) and
Start to send a fax.”
Note
• You need to turn the Remote Codes
setting to on to use the Fax Activation
Code l51 (l91 for New Zealand). (See
Using Remote Codes on page 40.)
• We recommend beginning your OGM with
an initial 5 second silence because the
machine cannot hear fax tones over a loud
voice. You may try leaving out this pause,
but if your machine has trouble receiving
faxes, then you should re-record the OGM
to include it.
Multi-line connections (PABX)6
Most offices use a central telephone system.
Brother recommends that all our Fax/MFC
machines be connected to a discreet
(dedicated) line. Although a particular PABX
may appear to work with a particular model of
fax machine, we cannot guarantee that the
unit will operate correctly.
While it is often relatively simple to connect a
fax machine to a PABX, (Private Automatic
Branch Exchange), we suggest that you
contact the company that installed your
telephone system and ask them to connect
the fax machine for you.
Brother does not recommend the use of a
PABX line. PABX limitations in general can
cause some functions of the fax machine not
to work correctly.
Telephone and external devices
39
6
External and extension
telephones 6
Note
You need to turn the Remote Codes
setting to on to use the Remote Activation
Code l51 (l91 for New Zealand) and
Remote Deactivation Code #51 (#91 for
New Zealand). (See Using Remote Codes
on page 40.)
Connecting an external or
extension telephone 6
You can connect a separate telephone
directly to your machine as shown in the
diagram below.
1 Extension telephone
2 External telephone
3 Protective Cap
When you are using an external telephone,
the LCD shows Telephone (Ext. Tel in
Use for MFC-7470D).
Operation from external or
extension telephones 6
If you answer a fax call on an extension
telephone, or an external telephone that is
correctly connected to the machine through
the T-piece connection, you can make your
machine take the call by using the Remote
Activation code. When you press the Remote
Activation code l51 (l91 for New Zealand)
the machine starts to receive the fax.
If you answer a call and no one is on
the line: 6
You should assume that you’re receiving a
manual fax.
Press l51 (l91 for New Zealand) and wait for
the chirp or until the LCD shows Receiving,
and then hang up.
Note
You can also use the Fax Detect feature to
make your machine tactically take the call.
(See Fax Detect on page 31.)
For Fax/Tel mode only 6
When the machine is in Fax/Tel mode, it will
use the F/T Ring Time (fast double-ringing) to
alert you to pick up a voice call.
(Not for MFC-7470D)
Lift the external telephone’s handset, and
then press Hook to answer.
(MFC-7470D only)
If you are at the machine, you can lift the
machine's handset to answer.
If you are at an extension telephone, you will
need to lift the handset during the F/T Ring
Time and then press #51 (#91 for New
Zealand) between the fast double rings. If no
one is on the line, or if someone wants to
send you a fax, send the call back to the
machine by pressing l51 (l91 for New
Zealand).
3
1
2
(Example
for
Australia)
Chapter 6
40
Using a non-Brother cordless
external handset 6
If your non-Brother cordless telephone is
connected to the telephone line cord (see
Connecting an external or extension
telephone on page 39) and you typically carry
the cordless handset elsewhere, it is easier to
answer calls during the Ring Delay.
(Not for MFC-7470D)
If you let the machine answer first, you will
have to go to the machine so you can press
Hook to transfer the call to the cordless
handset.
Note
• If you are always disconnected when
accessing your external TAD remotely, try
changing the Remote Activation Code and
Remote Deactivation Code to another
three-digit code using the numbers 0-9, l,
#.
• Remote Codes might not work with some
telephone systems.
• Not all brands of cordless telephones are
compatible for use with your machine.
Using Remote Codes 6
Remote Activation Code 6
If you answer a fax call on an external or
extension telephone, you can tell your
machine to receive it by pressing the Remote
Activation Code l51 (l91 for New Zealand).
Wait for the chirping sounds then replace the
handset. (See Fax Detect on page 31.) Your
caller will have to press start to send the fax.
If you answer a fax call at the external
telephone (not for MFC-7470D) or the
machine (MFC-7470D only), you can make
the machine receive the fax by pressing
Start.
Remote Deactivation Code 6
If you receive a voice call and the machine is
in F/T mode, it will start to sound the F/T (fast
double-ring) after the initial ring delay. If you
pick up the call on an extension telephone
you can turn the F/T ring off by pressing #51
(#91 for New Zealand) (make sure you press
this between the rings).
If the machine answers a voice call and fast
double-rings for you to take over;
(Not for MFC-7470D)
You can take the call at the external
telephone by pressing Hook.
(MFC-7470D only)
You can take the call at the machine by lifting
the machine's handset.
Telephone and external devices
41
6
Turning on the Remote Codes 6
You need to turn the Remote Codes setting to
on to use the Fax Receive Code and
Telephone Answer Code.
aMake sure you are in Fax mode .
bPress Menu 2, 1, 4.
cPress a or b to choose On.
Press OK.
dIf you do not want to change the Remote
Activation Code, press OK.
eIf you do not want to change the Remote
Deactivation Code, press OK.
fPress Stop/Exit.
Changing the Remote Codes 6
The preset Remote Activation Code is l51
(l91 for New Zealand). The preset Remote
Deactivation Code is #51 (#91 for New
Zealand). If you are always disconnected
when accessing your External TAD, try
changing the three-digit remote codes, for
example ### and 555.
aMake sure you are in Fax mode .
bPress Menu, 2, 1, 4.
cPress a or b to choose On or Off.
Press OK.
dIf you chose On in step c, enter the new
Remote Activation Code.
Press OK.
eEnter the new Remote Deactivation
Code.
Press OK.
fPress Stop/Exit.
42
7
How to dial 7
You can dial in any of the following ways.
Manual dialling 7
Use the dial pad to enter all the digits of the
telephone or fax number.
One touch Dialling 7
Press the One Touch key that stores the
number you want to call. (See Storing
One Touch Dial numbers on page 45.)
To dial One Touch numbers 5 to 8, hold down
Shift as you press the One Touch key.
Speed Dialling 7
Press (Address Book) and enter the
three digit Speed Dial number. (See Storing
Speed Dial numbers on page 47.)
Note
If the LCD shows Register Now? when
you enter a One Touch or a Speed Dial
number, it means that a number is not
stored there.
Dialling and storing numbers 7
Three-digit number
Dialling and storing numbers
43
7
Search 7
You can search alphabetically for names you
have stored in the One Touch and Speed Dial
memories. (See Storing One Touch Dial
numbers on page 45 and Storing Speed Dial
numbers on page 47.)
aPress (Address Book) twice.
bPress the dial pad key for the first few
letters of the name. (Use the chart on
Entering text on page 140 to help you
enter letters.)
Press OK.
cPress a or b to scroll until you find the
name you are looking for.
Press OK.
dPress Start.
Note
• If you do not enter a letter and press OK in
step b, all registered names will appear.
Press a or b to scroll until you find the
name you are looking for.
• If the LCD shows No Contact Found
when you enter the first few letters of the
name, it means that a name for the letter
is not stored.
Fax redial 7
If you are sending a fax automatically and the
line is busy, the machine will automatically
redial up to three times at five minute
intervals.
If you are sending a fax manually and the line
is busy, press Redial/Pause and try it again.
You can call the last number dialled by
pressing Redial/Pause.
Redial/Pause only works if you dialled from
the control panel.
Storing numbers 7
You can set up your machine to do the
following types of easy dialling: One Touch,
Speed Dial and Groups for Broadcasting
faxes. You can also specify the default
resolution for each One Touch and Speed
Dial number. When you dial a quick dial
number, the LCD shows the name, if you
stored it, or the number. A scan profile can
also be stored along with the fax number.
If you lose electrical power, the quick dial
numbers stored in the memory will not be lost
because they are stored permanently.
A scan profile is the resolution and other scan
settings that you choose when you store a
number. For example, you will be asked to
select Standard, Fine, or Photo if you have
selected the I-FAX option. Or, you will be
asked to select B&W TIFF, B&W PDF, Gray
JPG, Gray PDF, Gray XPS, Color JPG, Color
PDF or Color XPS if you selected the E-Mail
option. (I-FAX and E-mail options are
available as a download for MFC-7460DN
and MFC-7860DW only.)
Chapter 7
44
One Touch and Speed Dial Options 7
The following chart shows the options for storing One Touch or Speed Dial numbers after you
download the IFAX and E-mail options for MFC-7460DN and MFC-7860DW.
Step 1
Enter
One Touch
or
Speed Dial
Location
Step 2
Select
Registration Type
Step 3
Enter Number
or E-mail
Address
Step 4
Enter Name
Step 5
Select
Resolution
Step 6
Select File
Type
One Touch
or
Speed Dial
Fax/Tel Fax Number
or
Tel Number
(Name)
Press OK.
Std, Fine,
S.Fine,
—
IFAX E-mail Address Std, Fine,
—
Email Color
PDF
100dpi,
200dpi,
300dpi,
600dpi
PDF, SPDF
Email Color
JPG
100dpi,
200dpi,
300dpi,
600dpi
—
Email Color
XPS
100dpi,
200dpi,
300dpi,
600dpi
—
Email Gray PDF 100dpi,
200dpi,
300dpi
PDF, SPDF
Email Gray JPG 100dpi,
200dpi,
300dpi
—
Email Gray XPS 100dpi,
200dpi,
300dpi
—
Email B&W PDF 200dpi,
200x100dpi
PDF, SPDF
Email B&W TIFF 200dpi,
200x100dpi
—
Dialling and storing numbers
45
7
Storing a pause 7
Press Redial/Pause to insert a 3.5-second
pause between numbers. You can press
Redial/Pause as many times as needed to
increase the length of the pause.
Storing One Touch Dial
numbers 7
Your machine has 4 One Touch keys where
you can store 8 fax or telephone numbers for
automatic dialling. To access numbers 5 to 8,
hold down Shift as you press the One Touch
key.
aPress the One Touch key where you
want to store the number.
If a number is not stored there, the LCD
shows Register Now? Press 1 to
choose Yes.
bEnter the telephone or fax number (up to
20 characters).
Press OK.
cChoose one of the following:
Enter the name using the dial pad
(up to 15 characters). Use the chart
on Entering text on page 140 to help
you enter letters.
Press OK.
Press OK to store the number
without a name.
d(For MFC-7460DN / MFC-7470D /
MFC-7860DW)
If you want to save a fax resolution along
with the number, choose one of the
following:
To store the fax resolution, press aor
b to select Std, Fine, S.Fine or
Photo.
Press OK.
Press OK if you do not want to
change the default resolution.
If you downloaded I-FAX and E-mail
options
(For MFC-7460DN and MFC-7860DW)
aPress the One Touch key where you
want to store the number.
If a number is not stored there, the LCD
shows Register Now?.
Press 1 to choose Yes.
bPress aor b to select one of the
following:
Fax/Tel
IFAX
Email Color PDF
Email Color JPG
Email Color XPS
Email Gray PDF
Email Gray JPG
Email Gray XPS
Email B&W PDF
Email B&W TIFF
Press OK.
cEnter the telephone, fax number (up to
20 characters) or E-mail address (up to
60 characters each). Use the chart on
Entering text on page 140 to help you
enter letters.
Press OK.
Note
• If you selected an E-Mail Registration
Type in step b and save the E-mail
address, you can only use the E-mail
address when you are in Scan mode.
Chapter 7
46
• If you selected the IFAX Registration Type
in step b and save the E-mail address,
you can only use the E-mail address when
you are in Fax mode.
dDo one of the following:
Enter the name using the dial pad
(up to 15 characters).
Press OK.
Press OK to store the number
without a name.
eDo one of the following:
If you want to save a fax/scan
resolution along with the number, go
to the appropriate step as shown in
the following table:
If you do not want to change the
default resolution, press OK, then go
to step l.
Note
• When you do a broadcast and you have
saved a scan profile along with the
number or E-mail address, the scan profile
of the One Touch, Speed Dial or Group
number you choose first will be applied to
the broadcast.
• You can also store the number by
pressing Menu, 2, 3, 1.
• For details about the file format, see the
Software User’s Guide.
fPress aor b to select Std, Fine,
S.Fine or Photo.
Press OK and go to step l.
gPress aor b to select Std, Fine or
Photo.
Press OK and go to step l.
hPress aor b to select 100dpi, 200dpi,
300dpi or 600dpi.
Press OK.
If you chose Email Color PDF, go
to step k.
If you chose Email Color JPG or
Email Color XPS, go to step l.
iPress aor b to select 100dpi, 200dpi
or 300dpi.
Press OK.
If you chose Email Gray PDF, go
to step k.
If you chose Email Gray JPG or
Email Gray XPS, go to step l.
jPress aor b to select 200x100dpi or
200dpi.
Press OK.
If you chose Email B&W PDF, go to
step k.
If you chose Email B&W TIFF, go
to step l.
kSelect the PDF type from PDF or SPDF
(Secure PDF) that will be used to send
to your PC.
Press OK and then go to step l.
lPress Stop/Exit.
Option selected in
step b
Go to step
Fax/Tel f
IFAX g
Email Color PDF h
Email Color JPG
Email Color XPS
Email Gray PDF i
Email Gray JPG
Email Gray XPS
Email B&W PDF j
Email B&W TIFF
Dialling and storing numbers
47
7
Storing Speed Dial numbers 7
You can store your frequently used numbers
as Speed Dial numbers, so that when you dial
you will only have to press a few keys
( (Address Book), the three-digit number
and Start). The machine can store 200
Speed Dial numbers (001 - 200).
aPress (Address Book) and enter a
three-digit Speed Dial location number
(001-200). If a number is not stored
there, the LCD shows Register Now?
Press 1 to choose Yes.
bEnter the telephone or fax number (up to
20 characters). Use the chart on
Entering text on page 140 to help you
enter letters.
Press OK.
cDo one of the following:
Enter the name using the dial pad
(up to 15 characters).
Press OK.
Press OK to store the number
without a name.
d(For MFC-7460DN / MFC-7470D /
MFC-7860DW)
If you want to save a fax resolution along
with the number, do one of the following:
To store the fax resolution, press a or
b to select Std, Fine, S.Fine or
Photo.
Press OK.
Press OK if you do not want to
change the default resolution.
If you downloaded IFAX and E-mail
options
(For MFC-7460DN and MFC-7860DW)
aPress (Address Book) and enter a
three-digit Speed Dial location number
(001-200).
If a number is not stored there, the LCD
shows Register Now?
Press 1 to choose Yes.
bPress aor b to select one of the
following:
Fax/Tel
IFAX
Email Color PDF
Email Color JPG
Email Color XPS
Email Gray PDF
Email Gray JPG
Email Gray XPS
Email B&W PDF
Email B&W TIFF
Press OK.
cEnter the telephone, fax number (up to
20 characters each) or E-mail address
(up to 60 characters each). Use the
chart on Entering text on page 140 to
help you enter letters.
Press OK.
Note
• If you selected an E-Mail Registration
Type in step b and save the E-mail
address, you can only use the E-mail
address when you are in Scan mode.
• If you selected the IFAX Registration Type
in step b and save the E-mail address,
you can only use the E-mail address when
you are in Fax mode.
dDo one of the following:
Enter the name using the dial pad
(up to 15 characters).
Press OK.
Chapter 7
48
Press OK to store the number
without a name.
eDo one of the following:
If you want to save a fax/scan
resolution along with the number, go
to the appropriate step as shown in
the following table:
If you do not want to change the
default resolution, press OK, then go
to step l.
Note
• When you do a broadcast and you have
saved a scan profile along with the
number or E-mail address, the scan profile
of the One Touch, Speed Dial or Group
number you choose first will be applied to
the broadcast.
• You can also store the number by
pressing Menu, 2, 3, 2.
• For details about the file format, see the
Software User’s Guide.
fPress aor b to select Std, Fine,
S.Fine or Photo.
Press OK and go to step l.
gPress aor b to select Std, Fine or
Photo.
Press OK and go to step l.
hPress aor b to select 100dpi, 200dpi,
300dpi or 600dpi.
Press OK.
If you chose Email Color PDF, go
to step k.
If you chose Email Color JPG or
Email Color XPS, go to step l.
iPress aor b to select 100dpi, 200dpi
or 300dpi.
Press OK.
If you chose Email Gray PDF, go
to step k.
If you chose Email Gray JPG or
Email Gray XPS, go to step l.
jPress aor b to select 200x100dpi or
200dpi.
Press OK.
If you chose Email B&W PDF, go to
step k.
If you chose Email B&W TIFF, go
to step l.
kSelect the PDF type from PDF or SPDF
(Secure PDF) that will be used to send
to your PC.
Press OK and then go to step l.
lPress Stop/Exit.
Option selected in
step b
Go to step
Fax/Tel f
IFAX g
Email Color PDF h
Email Color JPG
Email Color XPS
Email Gray PDF i
Email Gray JPG
Email Gray XPS
Email B&W PDF j
Email B&W TIFF
Dialling and storing numbers
49
7
Changing One Touch and
Speed Dial numbers 7
If you try to change an existing One Touch or
Speed Dial number, the LCD will show the
name or number already stored there. If the
existing One Touch or Speed Dial number
you are trying to change has a scheduled job
or has been set to a fax forwarding number,
the LCD will ask you if you want to change the
name or number.
aDo one of the following:
To change a stored One Touch
number, press Menu, 2, 3, 1.
Address Book
1.One Touch Dial
Press the One Touch key number
you want to change.
To change a stored Speed Dial
number, press Menu, 2, 3, 2.
Address Book
2.Speed Dial
Enter the Speed Dial number you
want to change then press OK.
bDo one of the following:
To change the stored data, press 1.
Go to step c.
To exit without making a change,
press Stop/Exit.
#005:MIKE
1.Change 2.Clear
cEdit the number and name by the
following the instruction. When you are
finished editing, press OK.
To edit the stored name or number,
press d or c to position the cursor
under the character you want to
change and press Clear. Then enter
the correct character.
d(For MFC-7460DN / MFC-7470D /
MFC-7860DW)
If you want to save a fax resolution along
with the number, do one of the following:
To store the fax resolution, press a or
b to select Std, Fine, S.Fine or
Photo.
Press OK.
Press OK if you do not want to
change the default resolution.
ePress Stop/Exit.
If you downloaded I-FAX and E-mail
options
(For MFC-7460DN and MFC-7860DW) 7
aDo one of the following:
To change a stored One Touch
number, press Menu, 2, 3, 1.
Press the One Touch key number
you want to change.
To change a stored Speed Dial
number, press Menu, 2, 3, 2.
Speed Dial
Speed Dial? #
Enter the Speed Dial number you
want to change then press OK.
bDo one of the following:
To change the stored number, press
1
.
To exit without making a change,
press Stop/Exit.
#005:MIKE
1.Change 2.Clear
Chapter 7
50
cPress aor b to select one of the
following:
Fax/Tel
IFAX
Email Color PDF
Email Color JPG
Email Color XPS
Email Gray PDF
Email Gray JPG
Email Gray XPS
Email B&W PDF
Email B&W TIFF
Press OK.
dPress d or c to position the cursor under
the character you want to change, and
then press Clear to delete it. Repeat for
each character you want to delete.
Enter a new number or character.
Press OK.
eFollow the directions beginning in step
d in Storing One-Touch dial numbers
and Storing Speed-Dial numbers. (See
Storing One Touch Dial numbers
on page 45 and Storing Speed Dial
numbers on page 47.)
fPress Stop/Exit.
Deleting One Touch and
Speed Dial numbers 7
If you try to delete an existing One Touch or
Speed Dial number, the LCD will show the
name or number already stored there. If the
existing One Touch or Speed Dial number
you are trying to change has a scheduled job
or has been set to a fax forwarding number,
the LCD will ask you if you want to change the
name or number.
aDo one of the following:
To delete a stored One Touch
number, press Menu, 2, 3, 1.
Address Book
1.One Touch Dial
Press the One Touch key number
you want to delete.
To delete a stored Speed Dial
number, press Menu, 2, 3, 2.
Address Book
2.Speed Dial
Enter the Speed Dial number you
want to delete then press OK.
bTo delete the stored data, press 2.
#005:MIKE
1.Change 2.Clear
cDo one of the following:
To delete the stored data, press 1.
To exit without deleting the stored
data, press 2.
Erase This Data?
1.Yes 2.No
dPress Stop/Exit.
Dialling and storing numbers
51
7
Tone or Pulse (not available in
New Zealand) 7
If you have a Pulse dialling service, but need
to send Tone signals (for example, for
telephone banking), follow the instructions
below. If you have Touch Tone service, you
will not need this feature to send tone signals.
aPress Hook or Hook/Hold or pick up the
handset (MFC-7470D only).
bPress # on the machine’s control panel.
Any digits dialled after this will send tone
signals.
When you hang up, the machine will
return to the Pulse dialling service.
52
8
How to copy 8
The following steps show the basic copy
operation. For details about each option, see
the Advanced User's Guide on the CD-ROM.
aWhen you want to make a copy, press
(COPY) to illuminate it in blue.
Make sure you are in Copy mode.
The LCD shows:
Note
The default setting is Fax mode. You can
change the amount of time that the
machine stays in Copy mode after the last
copy operation. (See Mode Timer in
Chapter 1 of the Advanced User's Guide.)
bDo one of the following to load your
document:
Place the document face up in the
ADF. (See Using the automatic
document feeder (ADF) on page 23.)
Load your document face down on
the scanner glass. (See Using the
scanner glass (Flatbed) on page 24.)
cPress Start.
Stop copying 8
To stop copying, press Stop/Exit.
Copy settings 8
Press the temporary COPY keys. You can
use Options, Enlarge/Reduce or Duplex 1.
For details about changing the copy settings,
see Copy settings in Chapter 7 of the
Advanced User's Guide.
You can change the following copy settings:
Enlarge/Reduce
Quality
Stack/Sort
Brightness
Contrast
Page Layout
Duplex 1
1Duplex Copying (1-sided to 2-sided) for
MFC-7460DN / MFC-7470D / MFC-7860DW
Making copies 8
Stack Copies:01
100%
□□■□□
Auto
53
9
9
Printing a document 9
The machine can receive data from your
computer and print it. To print from a
computer, install the printer driver. (See
Printing for Windows® or Printing and Faxing
for Macintosh in Software User’s Guide for
the details about the print settings.)
aInstall the Brother printer driver on the
Installation CD-ROM. (See the Quick
Setup Guide.)
bFrom your application, choose the Print
command.
cChoose the name of your machine in the
Print dialog box and click Properties.
dChoose the settings you want in the
Properties dialog box.
Paper Size
Orientation
Copies
Media Type
Resolution
Print Settings
Multiple Page
Duplex / Booklet
Paper Source
eClick OK to begin printing.
How to print from a computer 9
54
10
Scanning a document as PDF file using
ControlCenter4 (Windows®)10
(For Macintosh users) See Scanning in the Software User's Guide.
Note
The screens on your PC may vary depending on your model.
ControlCenter4 is a software utility that lets you quickly and easily access the applications you use
most often. Using ControlCenter4 eliminates the need to manually launch specific applications.
You can use ControlCenter4 on your computer.
aLoad your document. (See How to load documents on page 23.)
bOpen ControlCenter4 by clicking start/All Programs/Brother/XXX-XXXX (where
XXX-XXXX is your model name)/ControlCenter4. The ControlCenter4 application will open.
cChoose Home Mode or Advanced Mode before you use ControlCenter4.
dMake sure the machine you want to use is selected from the Model pull-down list.
How to scan to a computer 10
How to scan to a computer
55
10
eSet the file type for saving to a folder. By default, the scanned data is saved as JPEG (*.jpg).
Click Configuration, and then select Button settings, Scan and File.
The configuration dialog box appears. You can change the default settings.
1 Choose PDF (*.pdf) from the File Type pull-down list.
2 You can enter the file name you want to use for the document.
3 You can save the file to the default folder, or choose your preferred folder by clicking the
Browse button.
4 You can choose a scanning resolution from the Resolution pull-down list.
5 You can choose the document size from the pull-down list.
fClick OK.
1
2
4
5
3
Chapter 10
56
gClick File.
The machine starts the scanning process. The folder where the scanned data is saved will
open automatically.
How to scan to a computer
57
10
Changing the SCAN key settings 10
Before scanning 10
To use the machine as a scanner, install a scanner driver. If the machine is on a network,
configure it with a TCP/IP address.
Install the scanner drivers on the Installation CD-ROM. (See the Quick Setup Guide.)
Configure the machine with a TCP/IP address if network scanning does not work. (See
Configuring Network Scanning in the Software User's Guide.)
SCAN key settings 10
You can change your machine’s SCAN key settings using ControlCenter4.
aOpen ControlCenter4 by clicking start/All Programs/Brother/XXX-XXXX (where
XXX-XXXX is your model name)/ControlCenter4. The ControlCenter4 application will open.
bMake sure the machine you want to use is selected from the Model pull-down list.
cClick the Device Settings tab.
dClick Device Scan Settings.
Chapter 10
58
eChoose the File tab. You can change the default settings.
1 You can choose the file type from the pull-down list.
2 You can enter the file name you want to use for the document.
3 You can save the file to the default folder, or choose your preferred folder by clicking the
Browse button.
4 You can choose a scanning resolution from the Resolution pull-down list.
5 You can choose the document size from the pull-down list.
fClick OK.
1
2
4
5
3
How to scan to a computer
59
10
Scanning using the SCAN key 10
aLoad your document. (See How to load documents on page 23.)
bPress (SCAN).
cPress a or b to choose Scan to PC.
Press OK.
dPress a or b to choose File.
Press OK.
e(For Network users)
Press a or b to choose the destination computer you want to send to.
Press OK.
If the LCD prompts you to enter a PIN number, enter the 4-digit PIN number for the
destination computer using the dial pad on the control panel.
Press OK.
fPress Start.
The machine starts the scanning process.
Note
Choose the scan mode you want.
Scan to:
•FTP 1
•E-mail (Scan to PC)
•Image (Scan to PC)
•OCR (Scan to PC)
•File (Scan to PC)
1For MFC-7460DN and MFC-7860DW
60
A
Replacing the consumable items A
The machine will indicate when it is time to replace the consumable items. (See Replacing the
toner cartridge on page 61 and Replacing the drum unit on page 66.)
Note
• Discard used consumable items according to local regulations, keeping it separate from
domestic waste. If you have questions, call your local waste disposal office. Be sure to reseal
the consumable items tightly so that the material inside does not spill.
• We recommend placing used consumable items on a piece of paper to prevent accidentally
spilling or scattering the material inside.
• If you use paper that is not a direct equivalent for the recommended paper, the life of
consumable items and machine parts may be reduced.
• The projected life of the toner cartridges is based on ISO/IEC 19752. Frequency of
replacement will vary depending on the complexity of printed pages, percentage of coverage
and type of media used.
• Availability of toner cartridges differs from one country to another.
Visit the Brother Solutions Center at http://solutions.brother.com/ or contact your local Brother
office for further details.
Routine maintenance A
Toner cartridge Drum unit
See Replacing the toner cartridge on page 61.
Model Name:
(For Asia) TN-2260, TN-2280
(For Oceania) TN-2230, TN-2250
See Replacing the drum unit on page 66.
Model Name:
(For Asia) DR-2255
(For Oceania) DR-2225
Routine maintenance
61
A
Replacing the toner cartridge A
Model name:
(For Asia) TN-2260, TN-2280
(For Oceania) TN-2230, TN-2250
The Standard toner cartridge can print
approximately 1,200 pages 1. The High Yield
toner cartridge can print approximately 2,600
pages 1. Actual page count will vary
depending on your average type of
document. When a toner cartridge is running
low, the LCD shows Toner Low.
The toner cartridge that comes supplied with
the machine is;
(For MFC-7360N / MFC-7362N /
MFC-7460DN / MFC-7860DW*(*For
Oceania))
Starter toner cartridge that will need to be
replaced after approximately 700 pages 1.
(For MFC-7360 / MFC-7470D /
MFC-7860DW*(*For Asia))
Standard toner cartridge.
1Approx. cartridge yield is declared in accordance
with ISO/IEC 19752.
Note
• It is a good idea to keep a new toner
cartridge ready for use when you see the
Toner Low warning.
• To ensure high quality printing, we
recommend that you use only Brother
Original toner cartridges. When you want
to buy toner cartridges, please call your
Brother dealer.
• We recommend that you clean the
machine when you replace the toner
cartridge. See Cleaning the machine
on page 70.
• If you change the print density setting for
lighter or darker printing, the amount of
toner used will change.
• Wait to unpack the toner cartridge until
immediately before you put it into the
machine.
Toner Low A
Toner Low
If the LCD shows Toner Low, buy a new
toner cartridge and have it ready before you
get a Replace Toner message.
Replace Toner A
When the following message appears on the
LCD, you need to replace the toner cartridge:
Replace Toner
The machine will stop printing until you
replace the toner cartridge. A new and
unused original Brother toner cartridge will
reset the Replace Toner mode.
Note
To force the machine to continue printing
after the LCD shows Replace Toner,
set the machine to Continue mode (Menu,
1, 8, and choose Continue). The
machine will continue printing until the
LCD shows Toner Ended. (For details
about the Toner settings, see Toner
Settings in Chapter 1 of the Advanced
User's Guide.)
Toner Ended A
Toner Ended
The machine stops printing until you replace
the toner cartridge with a new one. (See
Replacing the toner cartridge on page 62.)
62
Replacing the toner cartridge A

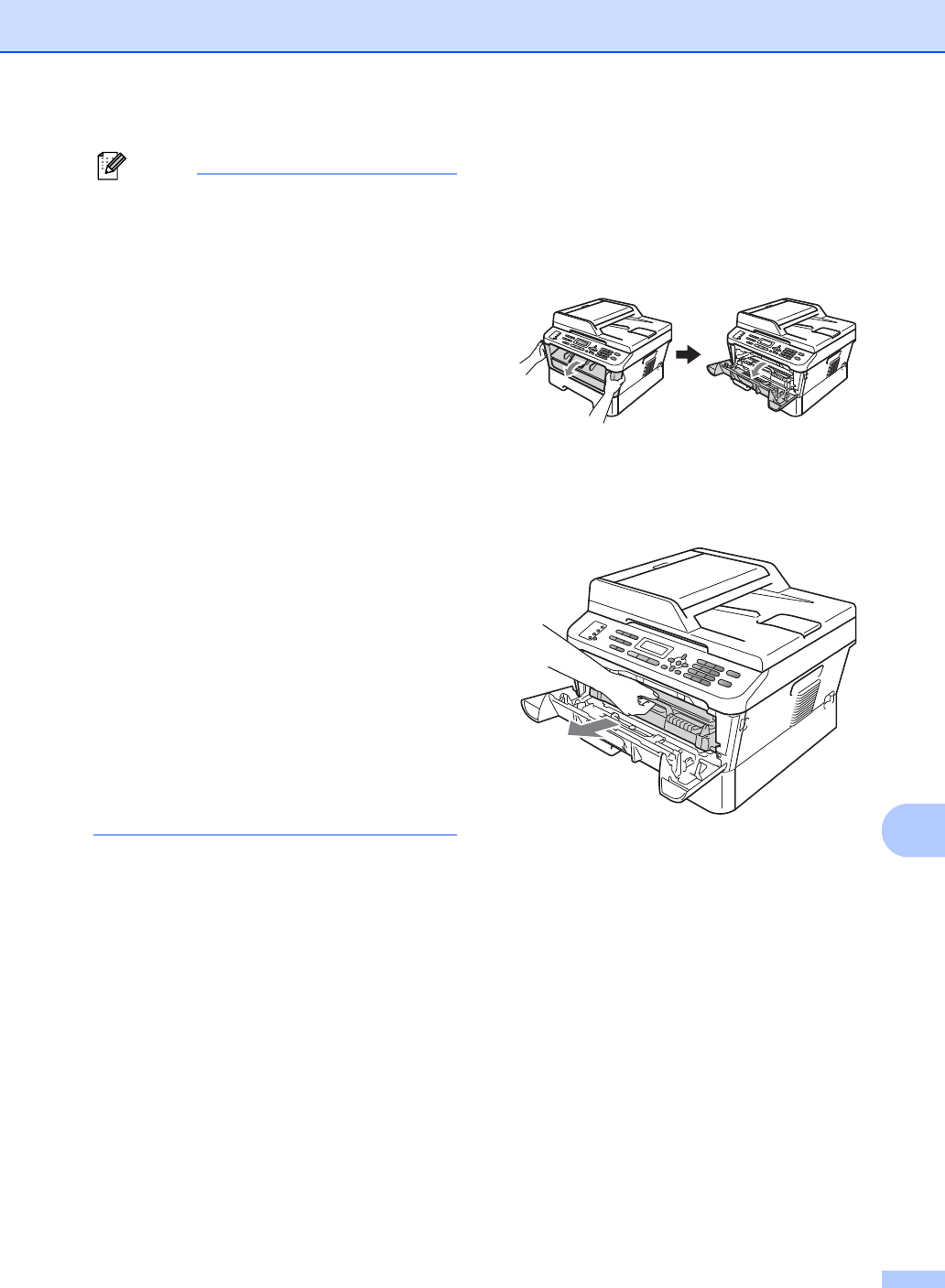

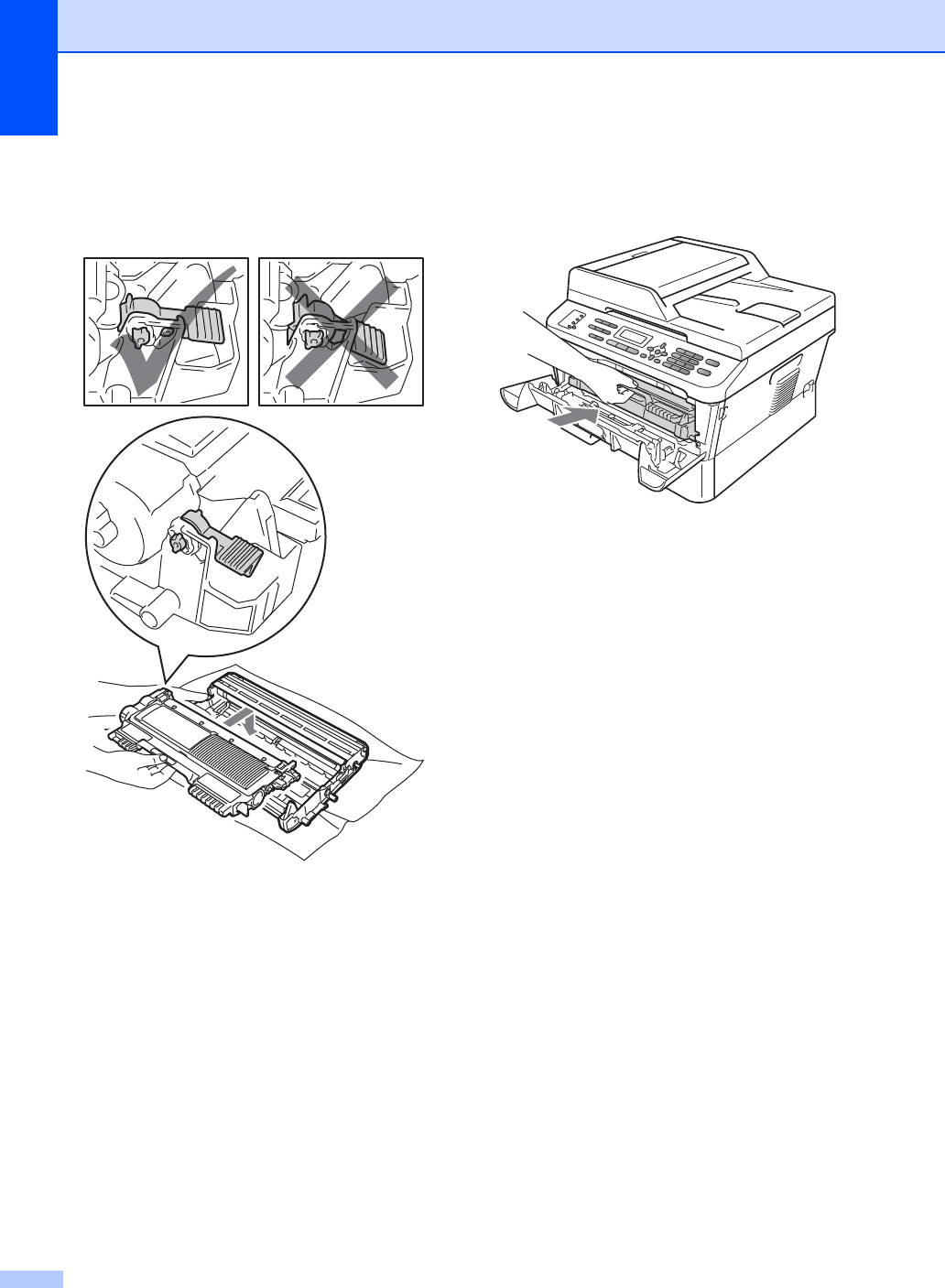

aMake sure that the machine is turned
on.
bOpen the front cover and leave the
machine turned on for 10 minutes to
cool down.

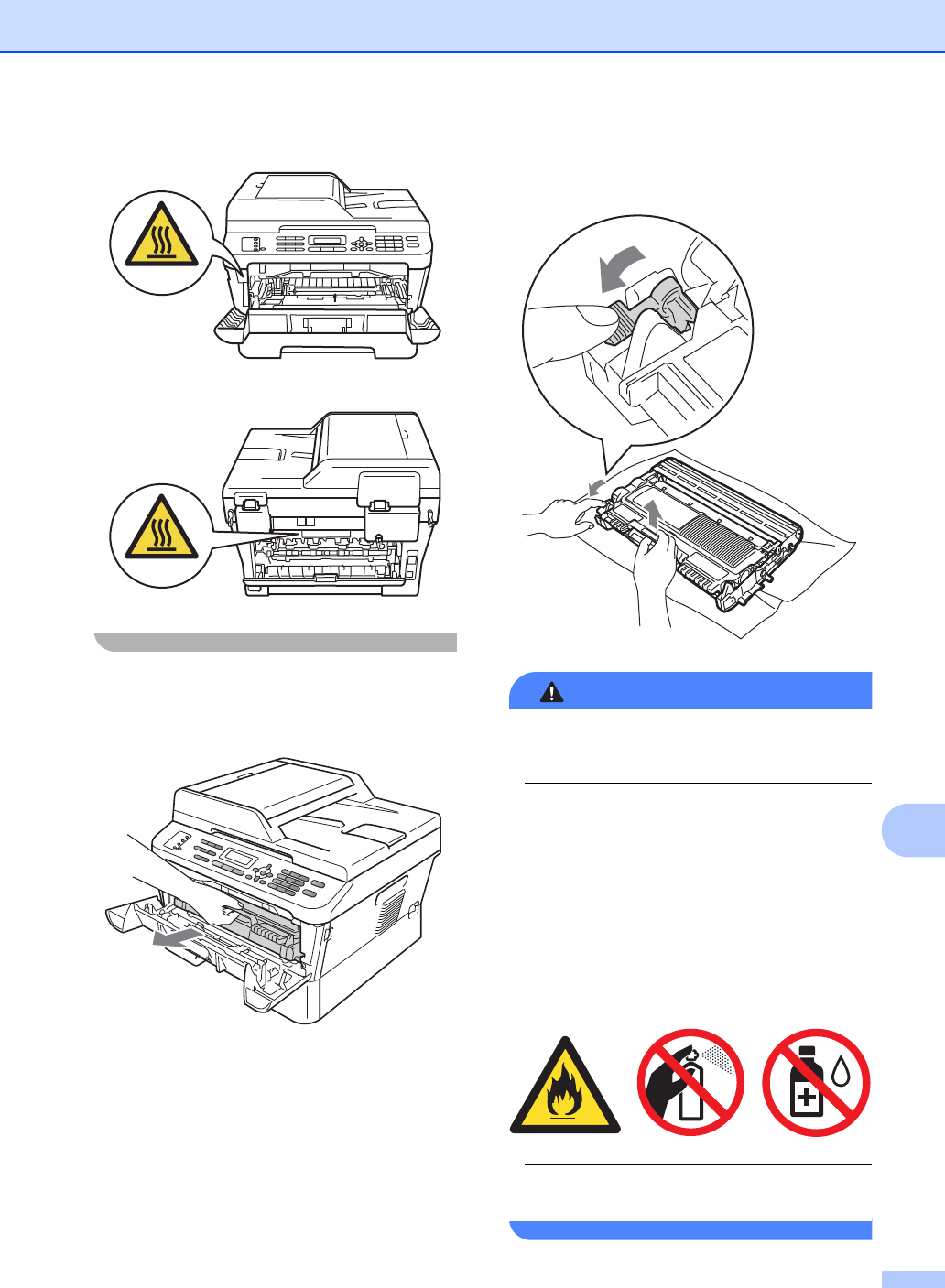

CAUTION
HOT SURFACE
After you have just used the machine, some
internal parts of the machine will be
extremely hot. When you open the front or
back cover (back output tray) of the
machine, DO NOT touch the shaded parts
shown in the illustration. If you do this, you
may get burned.
cTake out the drum unit and toner
cartridge assembly.
Routine maintenance
63
A

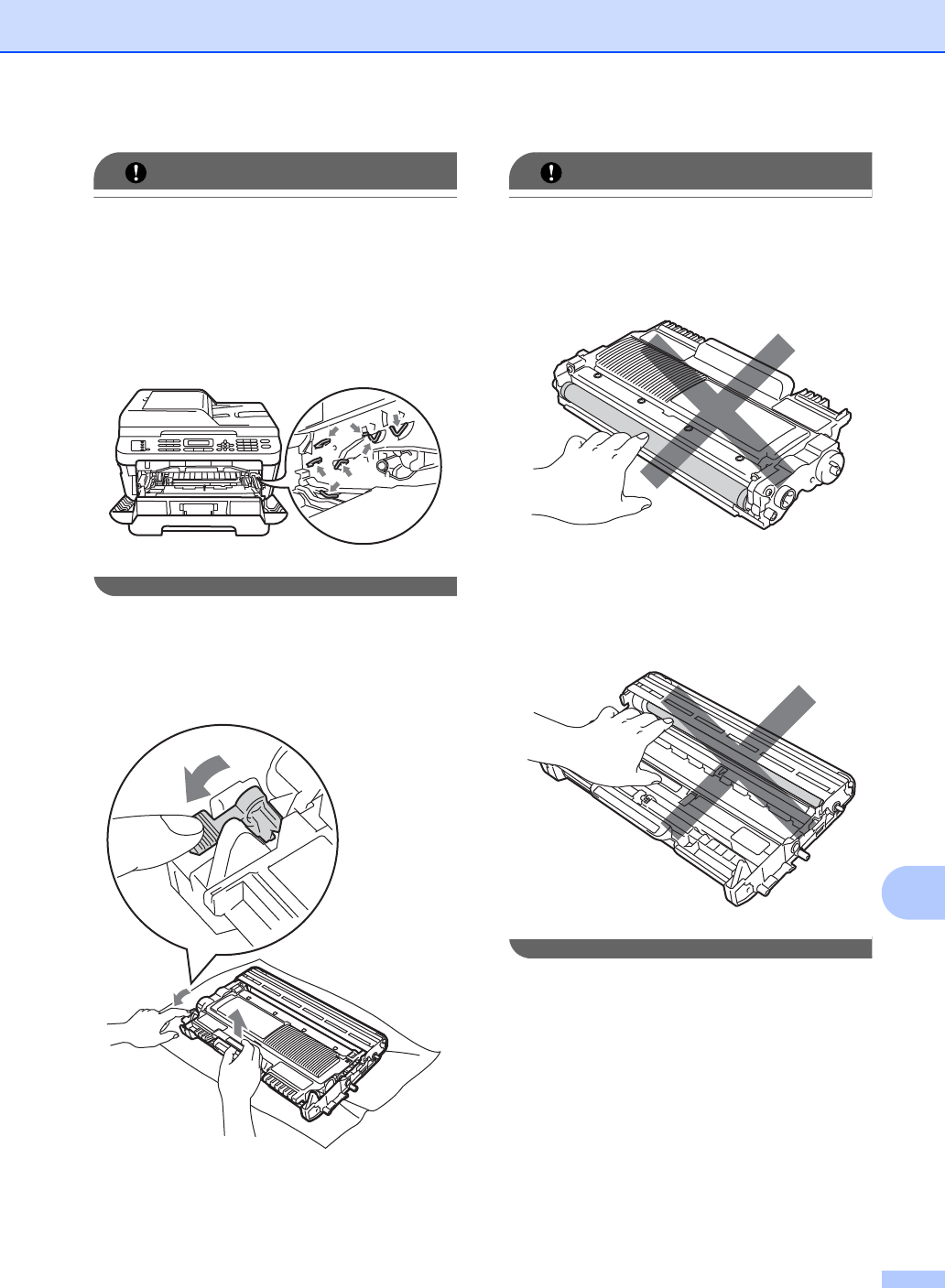

dPush down the green lock lever and take
the toner cartridge out of the drum unit.
WARNING
DO NOT put a toner cartridge into a fire. It
could explode, resulting in injuries.
DO NOT use cleaning materials that
contain ammonia, alcohol, any type of
spray or any type of flammable substance
to clean the inside or outside of the
machine. Doing this may cause a fire or
electrical shock.
See To use the product safely in the Safety
and Legal booklet for how to clean the
machine.
Be careful not to inhale toner.
IMPORTANT
• We recommend that you place the drum
unit and/or the toner cartridge on a clean,
flat, level, stable surface with a sheet of
disposable paper or cloth underneath it in
case you accidentally spill or scatter toner.
• Handle the toner cartridge carefully. If
toner scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
• To avoid print quality problems, DO NOT
touch the shaded parts shown in the
illustration.
64
Note
• Be sure to seal up the toner cartridge
tightly in a suitable bag so that toner
powder does not spill out of the cartridge.
• Discard used consumable according to
local regulations, keeping it separate from
domestic waste. If you have questions,
call your local waste disposal office. Be
sure to reseal the consumable items
tightly so that the material inside does not
spill.
eUnpack the new toner cartridge. Hold
the cartridge level with both hands and
gently shake it from side to side several
times to spread the toner evenly inside
the cartridge.
IMPORTANT
• Unpack the toner cartridge just before you
put it in the machine. If a toner cartridge is
left unpacked for a long time, the toner life
will be shortened.
• Brother machines are designed to work
with toner of a particular specification and
will work to a level of optimum
performance when used with genuine
Brother Original toner cartridges. Brother
cannot guarantee this optimum
performance if toner or toner cartridges of
other specifications are used. Brother
does not therefore recommend the use of
cartridges other than genuine Brother
Original cartridges with this machine, or
the refilling of empty cartridges with toner
from other sources. If damage is caused
to the drum unit or other part of this
machine as a result of the use of toner or
toner cartridges other than genuine
Brother Original products due to the
incompatibility or lack of suitability of those
products with this machine, any repairs
required as a result may not be covered by
the warranty.
fPull off the protective cover.
IMPORTANT
Put the toner cartridge in the drum unit
immediately after you have removed the
protective cover. To prevent any
degradation to the print quality, DO NOT
touch the shaded parts shown in the
illustrations.
Routine maintenance
65
A

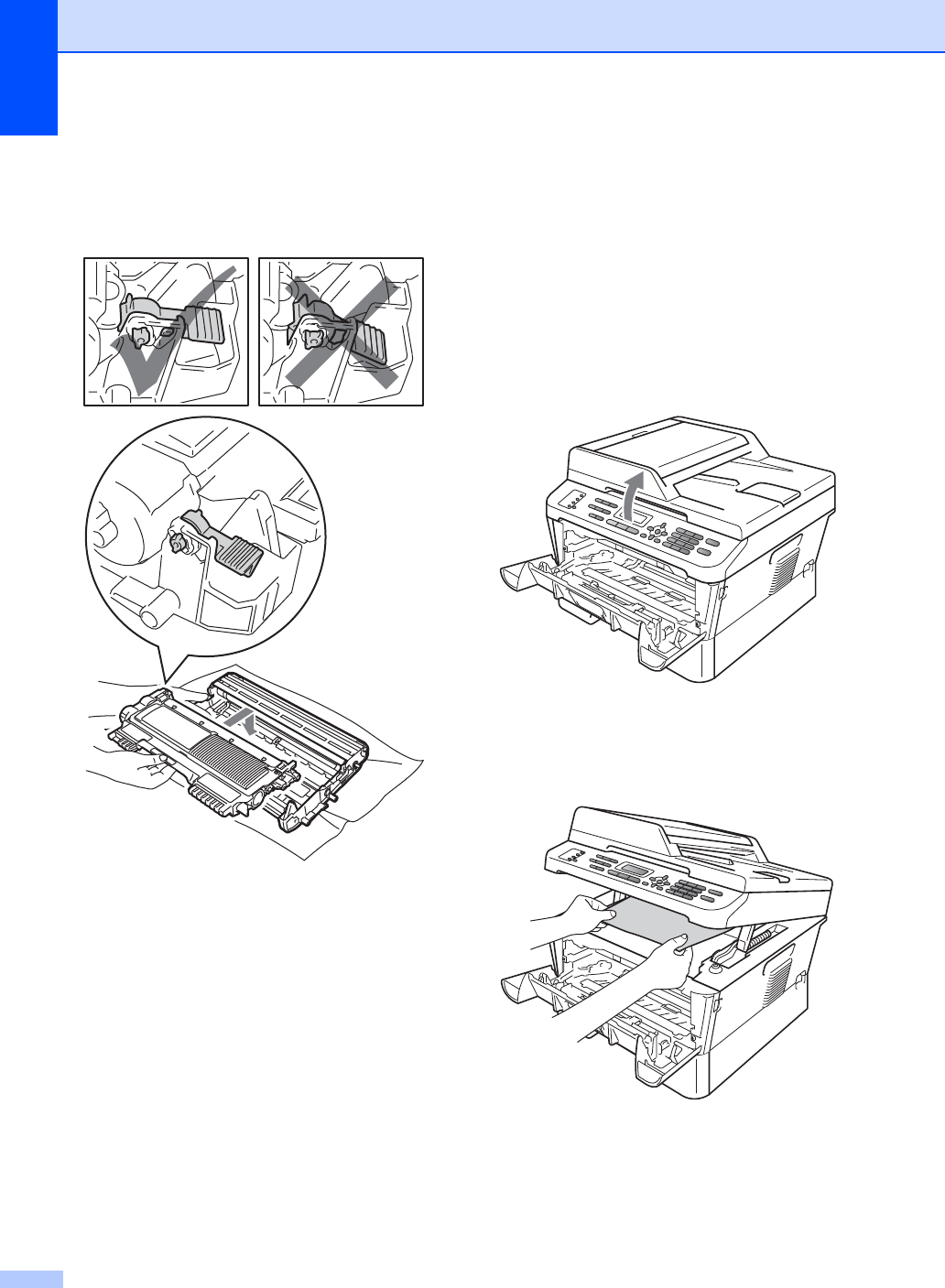

gPut the new toner cartridge firmly into
the drum unit until you hear it lock into
place. If you put it in properly, the green
lock lever will lift automatically.
Note
Make sure that you put in the toner
cartridge properly or it may separate from
the drum unit.

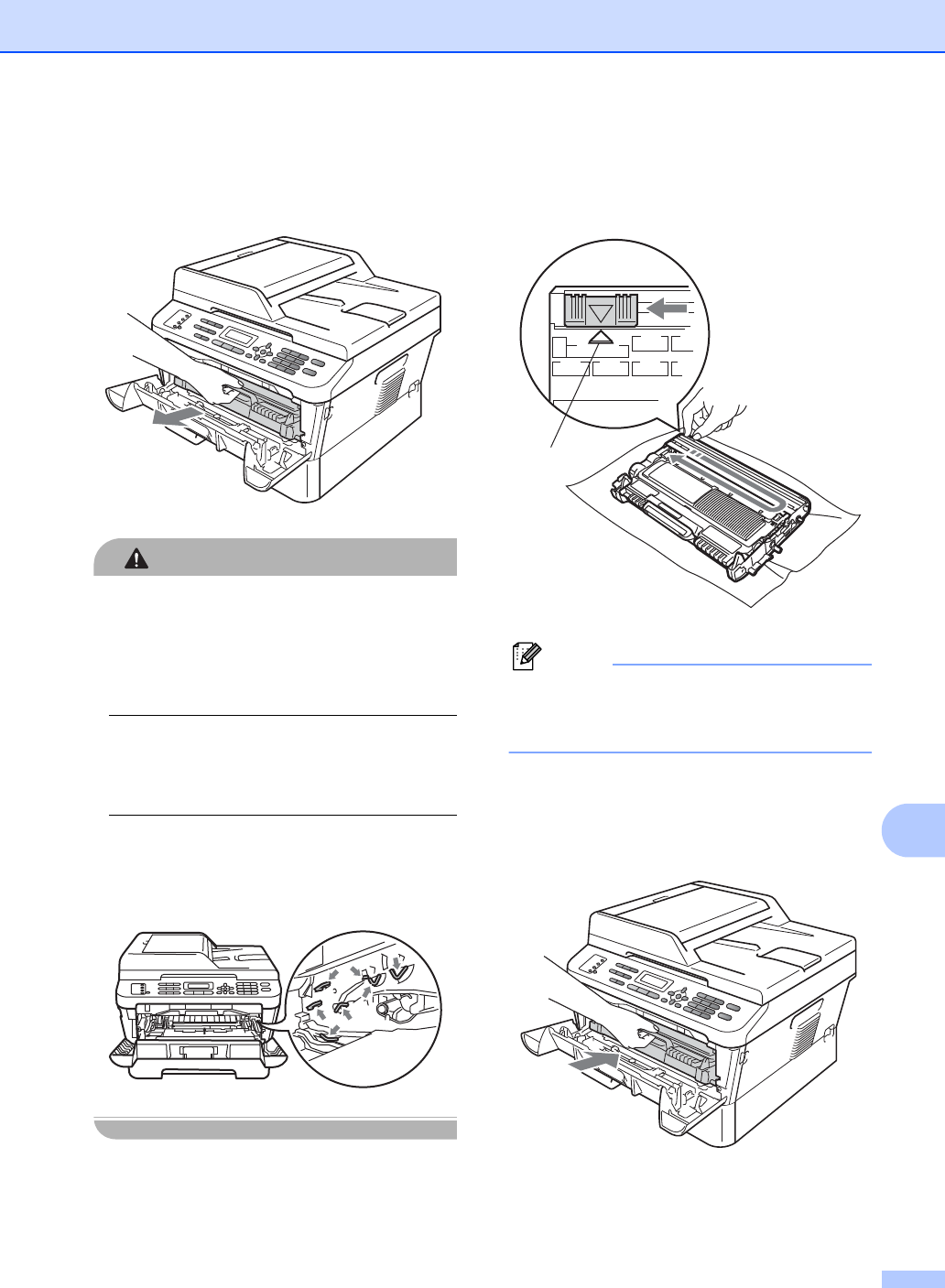

hClean the corona wire inside the drum
unit by gently sliding the green tab from
left to right and right to left several times.
Note
Be sure to return the tab to the home
position (a) (1). If you do not, printed
pages may have a vertical stripe.
iPut the drum unit and toner cartridge
assembly back into the machine. Close
the front cover.
Note
After replacing the toner cartridge, DO NOT
turn off the machine's power switch or open the
front cover until the LCD clears the
Please
Wait
message and returns to Ready mode.
1
66
Replacing the drum unit A
Model name:
(For Asia) DR-2255
(For Oceania) DR-2225
A new drum unit can print approximately
12,000 A4 or Letter size single-sided pages.
IMPORTANT
For best performance, use only a genuine
Brother Original drum unit and genuine
Brother Original toner units. Printing with a
third-party drum unit or toner unit may
reduce not only the print quality but also
the quality and life of the machine itself.
Warranty coverage may not apply to
problems caused by the use of a
third-party drum or toner unit.
Drum Error A
Drum Error
The corona wire has become dirty. Clean the
corona wire in the drum unit. (See Cleaning
the corona wire on page 72.)
If you cleaned the corona wire and Drum
Error was not cleared, replace the drum unit
with a new one.
Replace Drum A
Replace Drum
Please replace the drum unit with a new one.
We recommend a genuine Brother Original
drum unit be installed at this time.
After replacement, reset the drum counter by
following the instructions included with the
new drum unit.
Drum Stop A
Drum Stop
We cannot guarantee the print quality. Please
replace the drum unit with a new one. We
recommend a genuine Brother Original drum
unit be installed at this time.
After replacement, reset the drum counter by
following the instructions included with the
new drum unit.

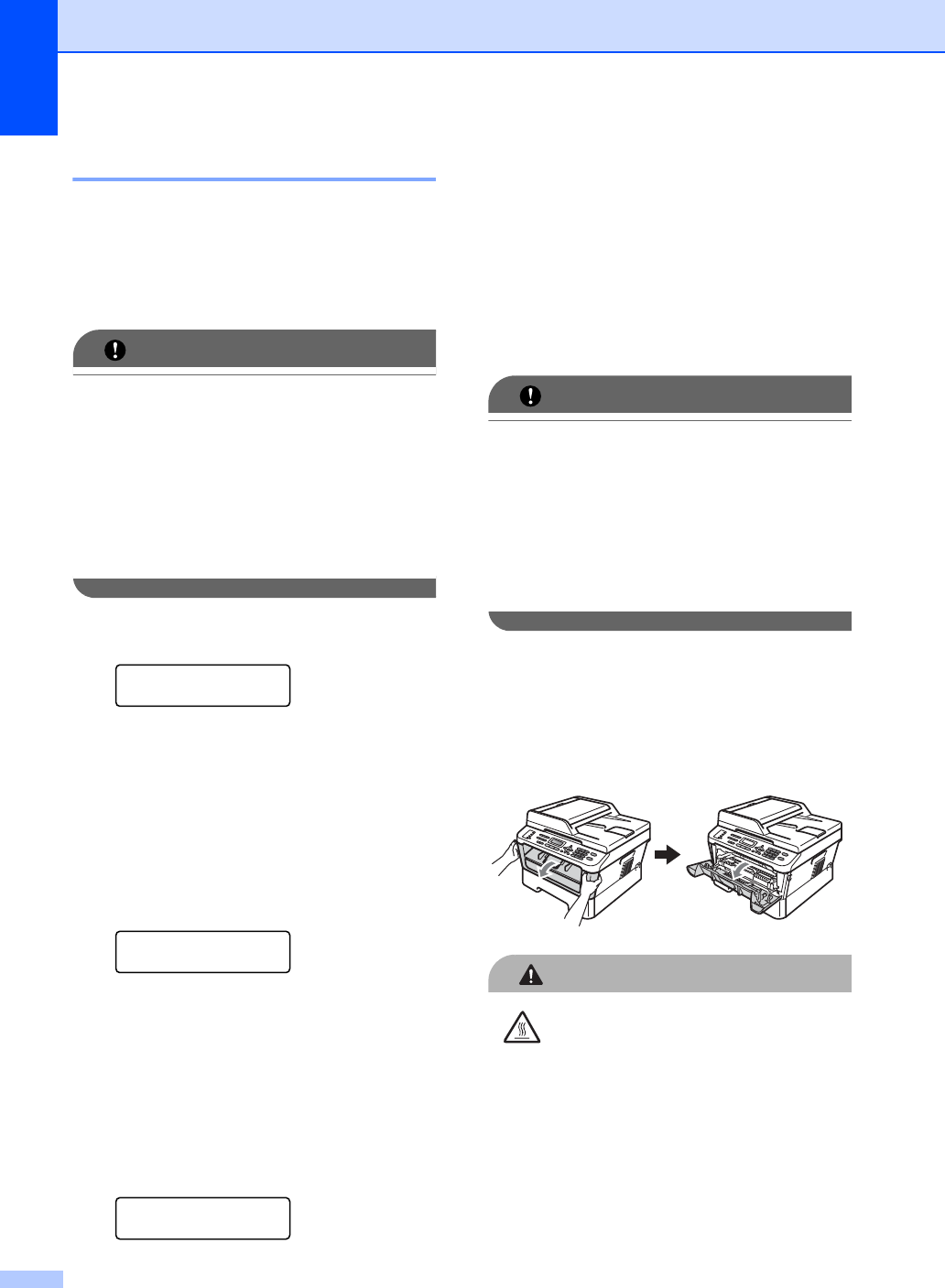

Replacing the drum unit A
IMPORTANT
• While removing the drum unit, handle it
carefully because it may contain toner. If
toner scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
• Every time you replace the drum unit,
clean the inside of the machine. (See
Cleaning the machine on page 70.)
aMake sure that the machine is turned
on.
bOpen the front cover and leave the
machine turned on for 10 minutes to
cool down.
CAUTION
HOT SURFACE
After you have just used the machine, some
internal parts of the machine will be
extremely hot. When you open the front or
back cover (back output tray) of the
machine, DO NOT touch the shaded parts
shown in the illustration. If you do this, you
may get burned.
Routine maintenance
67
A
cTake out the drum unit and toner
cartridge assembly.
dPush down the green lock lever and take
the toner cartridge out of the drum unit.
WARNING
DO NOT put a toner cartridge into a fire. It
could explode, resulting in injuries.
DO NOT use cleaning materials that
contain ammonia, alcohol, any type of
spray, or any type of flammable substance
to clean the outside or inside of the
machine. Doing this may cause a fire or
electrical shock.
See To use the product safely in the Safety
and Legal booklet for how to clean the
machine.
Be careful not to inhale toner.
68
IMPORTANT
• To prevent damage to the machine from
static electricity, DO NOT touch the
electrodes shown in the illustration.
• Handle the toner cartridge carefully. If
toner scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
• We recommend that you place the drum
unit and/or the toner cartridge on a clean,
flat surface with a sheet of disposable
paper or cloth underneath it in case you
accidentally spill or scatter toner.
• To avoid print quality problems, DO NOT
touch the shaded parts shown in the
illustrations.
Note
• Be sure to seal up the used drum unit
tightly in a bag so that toner powder does
not spill out of the unit.
• Discard used consumable according to
local regulations, keeping it separate from
domestic waste. If you have questions,
call your local waste disposal office. Be
sure to reseal the consumable items
tightly so that the material inside does not
spill.
eUnpack the new drum unit.
IMPORTANT
• To avoid print quality problems, DO NOT
touch the shaded parts shown in the
illustrations.
• Unpack the drum unit just before you put it
in the machine. Exposure to direct sunlight
or room light may damage the drum unit.
Routine maintenance
69
A
fPut the toner cartridge firmly into the
new drum unit until it locks into place. If
you put the cartridge in properly, the
green lock lever will lift automatically.
Note
Make sure that you put in the toner
cartridge correctly or it may separate from
the drum unit.
gClean the corona wire of the drum unit
by gently sliding the green tab from left
to right and right to left several times.
Note
Be sure to return the green tab to the
home position (a) (1). If you do not, printed
pages may have a vertical stripe.
hPut the new drum unit and toner
cartridge assembly in the machine.
Resetting the drum counter A
When you replace the drum unit with a new
one, you need to reset the drum counter by
completing the following steps:
aPress Clear.
To confirm you are installing a new drum
unit, press 1.
bWhen the LCD shows Accepted, close
the front cover.
1
70
Cleaning the machine A
Clean the outside and inside of the machine
regularly with a dry, lint-free cloth. When you
replace the toner cartridge or the drum unit,
make sure that you clean the inside of the
machine. If printed pages are stained with
toner, clean the inside of the machine with a
dry, lint-free cloth.
WARNING
DO NOT use any flammable substances,
spray or organic solvent/liquids containing
alcohol/ammonia to clean the outside or
inside of the machine. Doing this may
cause a fire or electrical shock.
See To use the product safely in the Safety
and Legal booklet for how to clean the
machine.
Be careful not to inhale toner.
IMPORTANT
Use neutral detergents. Cleaning with
volatile liquids such as thinner or benzine
will damage the surface of the machine.
Cleaning the outside of the
machine A
aTurn off the machine. Unplug the
telephone line cord first, disconnect all
cables, and then unplug the power cord
from the electrical socket.
Note
(For MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN) To prevent
you from losing any important messages,
see Transferring your faxes or Fax Journal
report on page 87.
bPull the paper tray completely out of the
machine.
Routine maintenance
71
A

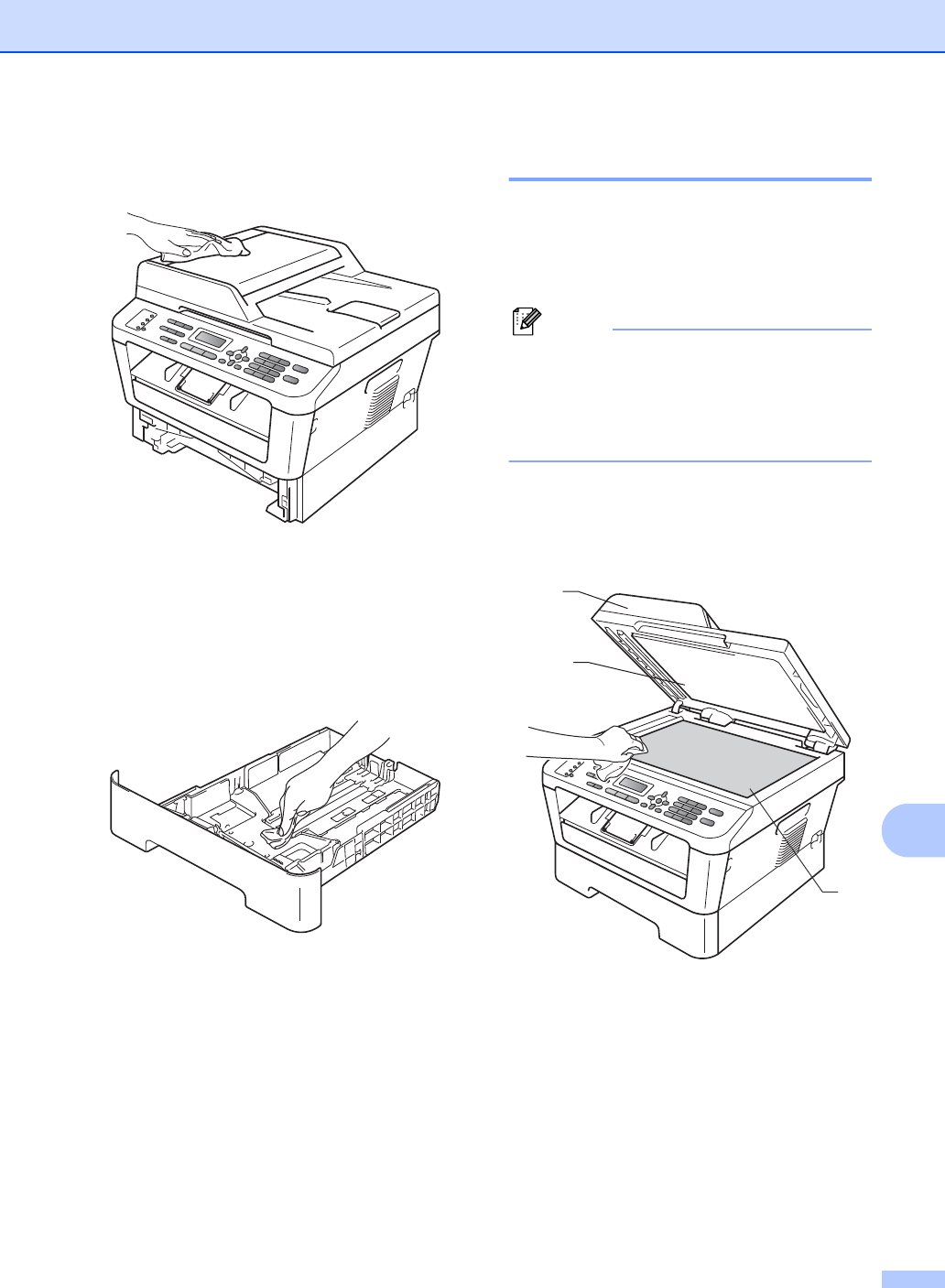

cWipe the outside of the machine with a
dry, lint-free soft cloth to remove dust.
dRemove any paper that is in the paper
tray.
eWipe the inside and the outside of the
paper tray with a dry, lint-free soft cloth
to remove dust.
fRe-load the paper and put the paper tray
firmly back in the machine.
gPlug the machine’s power cord back into
the electrical socket first, connect all
cables, and then plug in the telephone
line cord. Turn on the machine.
Cleaning the scanner glass A
aTurn off the machine. Unplug the
telephone line cord first, disconnect all
cables, and then unplug the power cord
from the electrical socket.
Note
(For MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN) To prevent
you from losing any important messages,
see Transferring your faxes or Fax Journal
report on page 87.
bLift the document cover (1).
Clean the white plastic surface (2) and
scanner glass (3) underneath it with a
soft lint-free cloth moistened with water.
1
2
3
72
cIn the ADF unit, clean the white bar (1)
and the scanner glass strip (2)
underneath it with a soft lint-free cloth
moistened with water.
Note
In addition to cleaning the scanner glass
and glass strip with a soft lint-free cloth
moistened with water, run your finger tip
over the glass to see if you can feel
anything on it. If you feel dirt or debris,
clean the glass again concentrating on
that area. You may need to repeat the
cleaning process three or four times. To
test, make a copy after each cleaning.
dPlug the machine’s power cord back into
the electrical socket first, connect all
cables, and then plug in the telephone
line cord. Turn on the machine.
Cleaning the corona wire A
If you have print quality problems, clean the
corona wire as follows:
aOpen the front cover and leave the
machine turned on for 10 minutes to
cool down.
CAUTION
HOT SURFACE
After you have just used the machine, some
internal parts of the machine will be
extremely hot. Wait for the machine to cool
down before you touch the internal parts of
the machine.
2
1
Routine maintenance
73
A
bSlowly take out the drum unit and toner
cartridge assembly.
CAUTION
We recommend that you place the drum
unit and toner cartridge assembly on a
clean, flat surface with a sheet of
disposable paper or cloth underneath it in
case you accidentally spill or scatter toner.
Handle the toner cartridge carefully. If toner
scatters on your hands or clothes, wipe or
wash it off with cold water at once.
To prevent damage to the machine caused
by static electricity, DO NOT touch the
electrodes shown in the illustration.
cClean the corona wire inside the drum
unit by gently sliding the green tab from
right to left and left to right several times.
Note
Be sure to return the tab to the home
position (a) (1). If you do not, printed
pages may have a vertical stripe.
dPut the drum unit and toner cartridge
assembly back into the machine. Close
the front cover.
1
74
Cleaning the drum unit A
If you have print quality problems, the drum
may have foreign material, such as glue from
a label stuck on the drum surface. Follow the
steps below to solve the problem.
aPrepare blank A4 or Letter size paper.
bMake sure the machine is in Ready
mode.
cOpen the back cover (face-up output
tray).
dOpen the manual feed slot cover.
ePress Clear and Menu at the same
time. The Drum Cleaning message
will appear on the LCD.
fUsing both hands, slide the manual feed
paper guides to the width of the paper
that you are going to use.
gUsing both hands, put one piece of A4 or
Letter size paper in the manual feed slot
until the top edge of the paper touches
the paper feed roller. When you feel the
machine pull in the paper, let go. The
machine will start the Drum Cleaning
process.
Routine maintenance
75
A
Note
• The machine makes a mechanical noise
during the Drum Cleaning process
because the machine rotates the OPC
drum in reverse. This noise is not due to a
malfunction of the machine.
• DO NOT put more than one sheet of paper
in the manual feed slot at any one time, as
it may cause a jam.
• If the paper in the manual feed slot is other
than A4 or Letter size, the machine will
stop the Drum Cleaning process and eject
the paper.
• Make sure that the paper is straight and in
the proper position in the manual feed slot.
If it is not, it may not be fed properly,
resulting in a skewed printout or a paper
jam.
• DO NOT close the back cover (face-up
output tray) during the Drum Cleaning
process. The machine will stop the Drum
Cleaning process and eject the paper. It
may cause a jam.
• If the machine receives a print job before
you put the sheet of paper in the manual
feed slot, the machine will finish the Drum
Cleaning process first, and then print the
print job.
hWhen the machine has finished
cleaning, the machine returns to Ready
mode.
iRepeat steps e to h two more times
using a new blank sheet of paper each
time. Upon completion please discard
the used paper.
If the problem is not solved yet, follow the
steps below:
aOpen the front cover and leave the
machine turned on for 10 minutes to
cool down.
bSlowly take out the drum unit and toner
cartridge assembly.
76
CAUTION
We recommend that you put the drum unit
and toner cartridge assembly on a clean,
flat surface with a sheet of disposable
paper or cloth underneath it in case you
accidentally spill or scatter toner.
Handle the toner cartridge carefully. If toner
scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
To prevent damage to the machine caused
by static electricity, DO NOT touch the
electrodes shown in the illustration.
cPush down the green lock lever and take
the toner cartridge out of the drum unit.
IMPORTANT
• To avoid print quality problems, DO NOT
touch the shaded parts shown in the
illustrations below.
Routine maintenance
77
A
• To prevent damage to the machine from
static electricity, DO NOT touch the
electrodes shown in the illustration.
dPut the print sample in front of the drum
unit, and find the exact position of the
poor print.
e
Turn the drum unit gear by hand while
looking at the surface of the OPC drum (1).
fWhen you have found the mark on the
drum that matches the print sample,
wipe the surface of the OPC drum with a
dry cotton swab until the dust or glue on
the surface comes off.
IMPORTANT
DO NOT clean the surface of the
photosensitive drum with a sharp object.
1
78
gPut the toner cartridge back into the
drum unit until it locks into place. If you
put the cartridge in properly, the green
lock lever will lift automatically.
hPut the drum unit and toner cartridge
assembly back in the machine.
iClose the front cover.
Routine maintenance
79
A
Cleaning the paper pick-up
rollers A
If you have paper feed problems, clean the
pick-up rollers as follows:
aTurn off the machine. Unplug the power
cord from the electrical socket.
Note
(For MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN) To prevent
you from losing any important messages,
see Transferring your faxes or Fax Journal
report on page 87.
bPull the paper tray completely out of the
machine.
cTightly wring out a lint-free cloth soaked
in lukewarm water, and then wipe the
separator pad (1) of the paper tray with
it to remove dust.
1
80
dWipe the two pick-up rollers (1) inside of
the machine to remove dust.
ePut the paper tray back in the machine.
fPlug the machine’s power cord back into
the electrical socket. Turn on the
machine.
1
81
B
B
Error and maintenance messages B
As with any sophisticated office product, errors may occur and consumable items may need to be
replaced. If this happens, your machine identifies the error or required routine maintenance and
shows the appropriate message. The most common error and maintenance messages are shown
below.
You can clear most errors and perform routine maintenance messages by yourself. If you need
more help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips:
Visit us at http://solutions.brother.com/.
Troubleshooting B
Error Message Cause Action
Access Denied
The function you want to use is
restricted by Secure Function Lock.
Contact your administrator to check your
Secure Function Lock Settings.
Cartridge Error The toner cartridge is not installed
correctly.
Pull out the drum unit and remove the toner
cartridge, then re-install the toner cartridge
in the drum unit.
Comm.Error Poor telephone line quality
caused a communication error.
Try sending the fax again or try connecting the
machine to another telephone line. If the
problem continues, call the telephone company
and ask them to check your telephone line.
Connection Fail You tried to poll a fax machine
that is not in Polled Waiting mode.
Check the other fax machine’s polling setup.
Cooling Down
Wait for a while
The temperature of the drum unit
or toner cartridge is too hot. The
machine will pause its current
print job and go into cooling down
mode. During the cooling down
mode, you will hear the cooling
fan running while the LCD shows
Cooling Down, and Wait for
a while.
Make sure that you can hear the fan in the
machine spinning and that the exhaust
outlet is not blocked by something.
If the fan is spinning, remove any obstacles
that surround the exhaust outlet, and then
leave the machine turned on but do not use
it for several minutes.
If the fan is not spinning do one of the
following:
(For MFC-7360 / MFC-7360N / MFC-7362N
/ MFC-7460DN)
See Transferring your faxes or Fax Journal
report on page 87 before disconnecting the
machine so you will not lose any important
messages.
Then, disconnect the machine from the
power for several minutes and then
reconnect it.
(For MFC-7470D, MFC-7860DW)
Disconnect the machine from the power for
several minutes, then reconnect it.
Cover is Open The front cover is not completely
closed.
Close the front cover of the machine.
82
Cover is Open The ADF cover is not completely
closed.
Close the ADF cover of the machine.
The ADF is open while loading a
document.
Close the ADF cover of the machine, then
press Stop/Exit.
Cover is Open The fuser cover is not completely
closed or paper was jammed in
the back of the machine when
you turned on the power.
Close the fuser cover of the machine.
Make sure paper is not jammed inside
the back of the machine, and then close
the fuser cover and press Start.
Disconnected The other person or other
person’s fax machine stopped the
call.
Try to send or receive again.
Document Jam The document was not inserted
or fed correctly, or the document
scanned from the ADF was too
long.

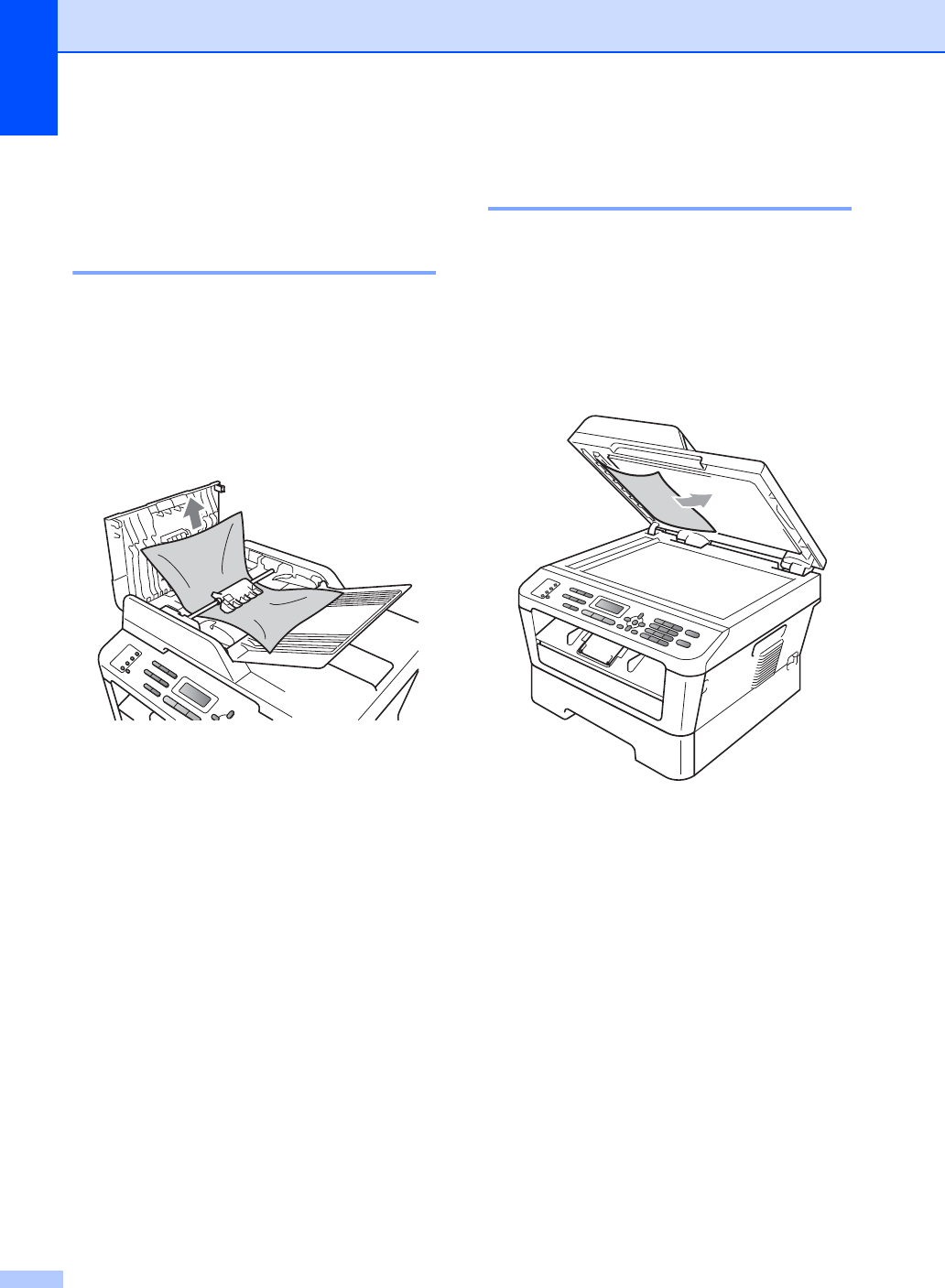

See Document is jammed in the top of the
ADF unit on page 88 or Using the automatic
document feeder (ADF) on page 23.
Drum Error The corona wire on the drum unit
needs to be cleaned.
Clean the corona wire on the drum unit.
(See Cleaning the corona wire on page 72.)
Drum Stop It is time to replace the drum unit. Replace the drum unit. (See Replacing the
drum unit on page 66.)
DR Mode in Use
(except New Zealand)
The machine is set to Distinctive
Ring mode. You can not change
the Receive Mode from Manual to
another mode.
Set Distinctive Ring to Off.
For Australia, see Telephone Service for
Australia on page 33.
For Other countries, see Distinctive Ringing
(For Singapore and Hong Kong)
on page 36.
Duplex Disabled The duplex tray is removed or is
not properly installed.
Carefully put the duplex tray into the
machine until it clicks into place.
The back of the machine is not
closed completely.
Close the back cover of the machine.
EL Error The machine has a mechanical
problem.
Open the front cover and close it again.
Faxability On
(for New Zealand)
The machine is set to Faxability
mode. You can not change the
Recieve Mode from Manual to
another mode.
Set Faxability to Off.
See FaxAbility on page 34.
Error Message Cause Action
Troubleshooting
83
B
Fuser Error The temperature of the fuser unit
does not rise to a specified
temperature within the specified
time.
(For MFC-7360 / MFC-7360N / MFC-7362N
/ MFC-7460DN)
Received fax messages still in memory will
be lost when the machine is turned off. See
Transferring your faxes or Fax Journal
report on page 87 before disconnecting the
machine so you will not lose any important
messages. Then, turn the power switch off,
wait a few seconds, and then turn it on
again. Leave the machine for 15 minutes
with the power on.
(For MFC-7470D, MFC-7860DW)
Turn the power switch off, wait a few
seconds, and then turn it on again. Leave
the machine for 15 minutes with the power
on.
The fuser unit is too hot.
Init Unable XX
(XX = Error Code)
The machine has a mechanical
problem.
(For MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN) Received
fax messages still in memory will be lost
when the machine is turned off. See
Transferring your faxes or Fax Journal
report on page 87 before disconnecting
the machine so you will not lose any
important messages.
Then, disconnect the machine from the
power for several minutes and then
reconnect it.
(For MFC-7470D, MFC-7860DW)
Disconnect the machine from the power
for several minutes, then reconnect it.
If the problem continues, call your
Brother dealer.
Jam Duplex The paper is jammed in the
duplex tray at the back of the
machine.
(See Paper is jammed in the Duplex Tray
(MFC-7460DN / MFC-7470D /
MFC-7860DW) on page 98.)
Jam Inside The paper is jammed inside the
machine.
(See Paper is jammed inside the machine
on page 93.)
Jam Rear The paper is jammed in the back
of the machine.
(See Paper is jammed at the back of the
machine on page 91.)
Jam Tray The paper is jammed in the paper
tray of the machine.
(See Paper is jammed in the standard paper
tray on page 90.)
Limit Exceeded The Page Limit set in Secure
Function Lock 2.0 for your ID was
reached.
Contact your administrator to check your
Secure Function Lock Settings.
Manual Feed Manual Feed was selected as
the paper source when there was
no paper in the manual feed slot.
Place a sheet of paper in the manual feed
slot. (See Loading paper in the manual feed
slot on page 12.)
Error Message Cause Action
84
No Paper The machine is out of paper or
paper is not correctly loaded in
the paper tray.
Do one of the following:
Refill the paper in the paper tray and
press Start.
Remove the paper and load it again.
Then press Start.
If the problem is not resolved, the paper
pick-up roller may need to be cleaned.
Clean the paper pick-up roller. (See
Cleaning the paper pick-up rollers
on page 79.)
No Response/Busy The number you dialled does not
answer or is busy.
Verify the number and try again.
No Toner The toner cartridge is not installed
correctly.
Pull out the drum unit. Take out the toner
cartridge and then put it back into the drum
unit.
Not Available This function is not permitted to
all IDs by Secure Function Lock
2.0.
Contact your administrator to check your
Secure Function Lock Settings.
Out of Memory The machine’s memory is full. Fax sending or copy operation in
progress
Do one of the following:
Press Start to send or copy the scanned
pages.
Press Stop/Exit and wait until the other
operations in progress finish, and then
try again.
Clear the faxes from the memory.
Print the faxes that are stored in the
memory to restore the memory to 100%.
Then turn off Fax Storage to avoid
storing more faxes in the memory. (See
Printing a fax from the memory in
Chapter 4 of the Advanced User's Guide
and Fax Storage in Chapter 4 of the
Advanced User's Guide.)
Print operation in process
Do one of the following:
Reduce the print resolution. (See Basic
tab in the Software User’s Guide.)
Clear the faxes from the memory. (See
the above explanation.)
Error Message Cause Action
Troubleshooting
85
B
Print Unable XX
(XX = Error Code)
The machine has a mechanical
problem.
Do one of the following:
(For MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN)
Transferring your faxes or Fax Journal
report on page 87 before disconnecting
the machine so you will not lose any
important messages. Then, disconnect
the machine from the power for several
minutes and then reconnect it.
(For MFC-7470D, MFC-7860DW)
Disconnect the machine from the power
for several minutes, then reconnect it.
If the problem continues, call your
Brother dealer.
Replace Drum It is time to replace the drum unit. Replace the drum unit.
(See Replacing the drum unit on page 66.)
The drum unit counter was not
reset when a new drum was
installed.
Reset the drum unit counter.
(See Replacing the drum unit on page 66.)
Replace Toner The machine will stop printing
until you replace the toner
cartridge.
If you have set the Toner setting to Stop,
replace the toner cartridge with a new and
unused original Brother toner cartridge. This
will reset the Replace Toner mode. (See
Replacing the toner cartridge on page 61.)
If you have set the Toner setting to
Continue, the machine will continue to
print data until the LCD shows Toner
Ended. For how to operate the machine in
Continue mode, see Toner Settings in
Chapter 1 of the Advanced User's Guide.
Scan Unable XX
(XX = Error Code)
The machine has a mechanical
problem.
(For MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN)
See Transferring your faxes or Fax
Journal report on page 87 before
disconnecting the machine so you will
not lose any important messages. Then,
disconnect the machine from the power
for several minutes and then reconnect
it.
(For MFC-7470D, MFC-7860DW)
Disconnect the machine from the power
for several minutes, then reconnect it.
If the problem continues, call your
Brother dealer.
Size Error DX The paper in the tray is not a
suitable size for automatic duplex
printing.
Load A4 paper for automatic duplex printing,
and then press Start. (See Print media
on page 146.)
Error Message Cause Action
86
Size mismatch The paper in the tray is not a
correct size.
Load an appropriate size of paper in the
tray, and re-set the “Paper Size” (Menu, 1,
2, 2). (See Paper Size on page 18.)
Toner Ended It is time to replace the toner
cartridge.
Replace the toner cartridge with a new one.
(See Replacing the toner cartridge
on page 61.)
Toner Low The toner is low. Buy a new toner cartridge before you get a
Replace Toner message.
Error Message Cause Action
Troubleshooting
87
B
Transferring your faxes or Fax
Journal report B
If the LCD shows:
Init Unable XX
Print Unable XX
Scan Unable XX
(MFC-7360 / MFC-7360N / MFC-7362N /
MFC-7460DN)
If it is necessary to disconnect the machine
from the AC power outlet, we recommend
transferring your faxes to another fax
machine or to your PC before you unplug the
machine. (See Transferring faxes to another
fax machine on page 87 or Transferring faxes
to your PC on page 87.)
You can also transfer the Fax Journal report
to see if there are any faxes you need to
transfer. (See Transferring Fax Journal report
to another fax machine on page 87.)
Note
If there is an error message on the
machine’s LCD, after the faxes have been
transferred, disconnect the machine from
the power source for several minutes, and
then reconnect it.
Transferring faxes to another fax
machine B
If you have not set up your Station ID, you
cannot enter fax transfer mode. (See Enter
personal information (station ID) in the Quick
Setup Guide.)
aPress Menu, 9, 0, 1.
bDo one of the following:
If the LCD shows No Data, there are
no faxes left in the machine’s
memory. Press Stop/Exit.
Enter the fax number to which faxes
will be forwarded. Press Start.
Transferring faxes to your PC B
You can transfer the faxes from your
machine’s memory to your PC.
aMake sure that you have installed MFL-
Pro Suite on your PC, and then turn on
PC-Fax Receiving on the PC. (For
details about PC-Fax Receive, see
PC-FAX receiving in the Software
User’s Guide.)
bMake sure that you have set PC Fax
Receive on the machine. (See PC-Fax
Receive in Chapter 4 of the Advanced
User's Guide.)
If faxes are in the machine’s memory
when you set up PC-Fax Receive, the
LCD will ask if you want to transfer the
faxes to your PC.
cDo one of the following:
To transfer all faxes to your PC,
press 1. You will be asked if you want
a backup print.
To exit and leave the faxes in the
memory, press 2.
dPress Stop/Exit.
Transferring Fax Journal report to
another fax machine B
If you have not set up your Station ID, you
cannot enter fax transfer mode. (See Enter
personal information (station ID) in the Quick
Setup Guide.)
aPress Menu, 9, 0, 2.
bEnter the fax number to which the Fax
Journal report will be forwarded.
cPress Start.
88
Document Jams B
Document is jammed in the
top of the ADF unit B
aTake out any paper from the ADF that is
not jammed.
bOpen the ADF cover.
cPull the jammed document out to the
left.
dClose the ADF cover.
ePress Stop/Exit.
Document is jammed under
the document cover B
aTake out any paper from the ADF that is
not jammed.
bLift the document cover.
cPull the jammed document out to the
right.
dClose the document cover.
ePress Stop/Exit.
Troubleshooting
89
B
Removing small documents
jammed in the ADF B
aLift the document cover.
bInsert a piece of stiff paper, such as
cardstock, into the ADF to push any
small paper scraps through.
cClose the document cover.
dPress Stop/Exit.
Document is jammed at the
output tray B
aTake out any paper from the ADF that is
not jammed.
bPull the jammed document out to the
right.
cPress Stop/Exit.
90
Paper Jams B
Paper is jammed in the
standard paper tray B
If the LCD shows Jam Tray, follow these
steps:
aPull the paper tray completely out of the
machine.
bUse both hands to slowly pull out the
jammed paper.
IMPORTANT
If the paper cannot easily be removed in
this direction, stop and follow the
instructions for Paper is jammed inside the
machine on page 93.
Note
Pulling out the jammed paper downwards
allows you to remove the paper more
easily.
cMake sure the paper is below the
maximum paper mark (b b b) (1) of the
paper tray. While pressing the green
paper-guide release lever, slide the
paper guides to fit the paper size. Make
sure that the guides are firmly in the
slots. (See Loading paper in the
standard paper tray on page 10.)
dPut the paper tray firmly back in the
machine.
1
Troubleshooting
91
B
Paper is jammed at the back
of the machine B
If the LCD shows Jam Rear, a paper jam
occurred behind the back cover. Follow these
steps:
aOpen the front cover. Leave the
machine turned on for 10 minutes to
cool down.
CAUTION
HOT SURFACE
After you have just used the machine, some
internal parts of the machine will be extremely
hot. When you open the front or back cover
(back output tray) of the machine, DO NOT
touch the shaded parts shown in the
illustration. If you do this, you may get burned.
bSlowly take out the drum unit and toner
cartridge assembly.
92
IMPORTANT
• We recommend that you place the drum
unit and the toner cartridge on a clean, flat
surface with a sheet of disposable paper
or cloth underneath it in case you
accidentally spill or scatter toner.
• To prevent damage to the machine
caused by static electricity, DO NOT touch
the electrodes shown in the illustration.
cOpen the back cover (face-up output
tray).
dPull down the tabs at the left and right
hand sides to open the fuser cover (1).
1
Troubleshooting
93
B
eUsing both hands, gently pull the
jammed paper out of the fuser unit.
fClose the fuser cover and the back
cover (face-up output tray).
gPut the drum unit and toner cartridge
assembly back into the machine.
hClose the front cover. If the machine
does not start printing automatically,
press Start.
Paper is jammed inside the
machine B
If the LCD shows Jam Inside, follow these
steps:
aOpen the front cover. Leave the
machine turned on for 10 minutes to
cool down.
94
CAUTION
HOT SURFACE
After you have just used the machine, some
internal parts of the machine will be extremely
hot. When you open the front or back cover
(back output tray) of the machine, DO NOT
touch the shaded parts shown in the
illustration. If you do this, you may get burned.
bSlowly take out the drum unit and toner
cartridge assembly. The jammed paper
may be pulled out with the drum unit and
toner cartridge assembly, or this may
release the paper so you can pull it out
inside of the machine.
Troubleshooting
95
B
IMPORTANT
• We recommend that you put the drum unit
and toner cartridge assembly on a piece of
disposable paper or cloth in case you
accidentally spill or scatter toner.
• To prevent damage to the machine from
static electricity, DO NOT touch the
electrodes shown in the illustration.
cPush down the green lock lever and take
the toner cartridge out of the drum unit.
Clear the jammed paper if there is any
inside the drum unit.
IMPORTANT
• Handle the toner cartridge carefully. If
toner scatters on your hands or clothes,
immediately wipe or wash it off with cold
water.
• To avoid print quality problems, DO NOT
touch the shaded parts shown in the
illustrations.
96
dPut the toner cartridge back into the
drum unit until it locks into place. If you
put the cartridge in correctly, the green
lock lever will lift automatically.
eDo one of the following:
If you were able to remove the drum
unit and toner cartridge assembly
and the jammed paper, then go to
step j.
If you cannot remove the drum unit
and toner cartridge assembly easily,
do not use extra force. Instead, lift
the scanner cover.
Use both hands to carefully pull the
jammed paper up and out of the output
tray opening.
fClose the scanner cover.
Troubleshooting
97
B
gIf you could not pull the jammed paper
out of the inside of the machine as
shown in the step e, take the paper tray
completely out of the machine.
hPull the jammed paper out of the paper
tray opening.
iPut the paper tray back in the machine.
jPut the drum unit and toner cartridge
assembly back in the machine.
kClose the front cover of the machine. If
the machine does not start printing
automatically, press Start.
Note
If you turn off the machine while the LCD
shows Jam Inside, the machine will
print incomplete data from your computer.
98
Paper is jammed in the Duplex
Tray (MFC-7460DN /
MFC-7470D / MFC-7860DW) B
If the LCD shows Jam Duplex, follow these
steps:
aLeave the machine turned on for 10
minutes to cool down.
CAUTION
HOT SURFACE
After you have just used the machine, some
internal parts of the machine will be
extremely hot. When you open the front or
back cover (back output tray) of the
machine, DO NOT touch the shaded parts
shown in the illustration. If you do this, you
may get burned.
bPull the duplex tray completely out of the
machine.
cPull the jammed paper out of the
machine or the duplex tray.
Troubleshooting
99
B
dMake sure that no paper remains under
the machine.
ePut the duplex tray back in the machine.
100
If you are having difficulty with your machine B
If you think there is a problem with your machine, check the chart below and follow the
troubleshooting tips.
Most problems can be easily resolved by yourself. If you need additional help, the Brother
Solutions Center offers the latest FAQs and troubleshooting tips.
Visit us at http://solutions.brother.com/.
If you think there is a problem with the way your faxes look, make a copy first. If the copy looks
good, the problem may not be your machine. Check the chart below and follow the troubleshooting
tips.
Printing or printing received faxes
Difficulties Suggestions
Condensed print
Horizontal streaks
Top and bottom sentences are
cut off
Missing lines
Usually this is caused by a poor telephone connection. If your copy looks good,
you probably had a bad connection, with static or interference on the telephone
line. Ask the other party to send the fax again.
Poor print quality See Improving the print quality on page 110.
Vertical black lines when receiving The corona wire for printing may be dirty. Clean the corona wire on the drum unit.
(See Cleaning the corona wire on page 72.)
The sender’s scanner may be dirty. Ask the sender to make a copy to see if the
problem is with the sending machine. Try receiving from another fax machine.
If the problem continues, call your dealer for service.
Received faxes appear as split or
blank pages.
If the received faxes are divided and printed on two pages or if you get an extra
blank page, your paper size setting may not be correct for the paper you are using.
(See Paper Size on page 18.)
Turn on Auto Reduction. (See Printing a reduced incoming fax in Chapter 4 of the
Advanced User's Guide.)
Telephone line or connections
Difficulties Suggestions
Dialling does not work. Check for a dial tone.
(Not available in New Zealand) Change Tone/Pulse setting. (See the Quick
Setup Guide.)
Check all line cord connections.
Check that the machine is plugged in and switched on.
Send a fax manually and wait to hear fax receiving tones before pressing Start.
The machine does not answer
when called.
Make sure the machine is in the correct receive mode for your setup. (See
Receive Mode settings on page 30.) Check for a dial tone. If possible, call your
machine to hear it answer. If there is still no answer, check the telephone line cord
connection. If you do not hear ringing when you call your machine, ask your
telephone company to check the line.
Troubleshooting
101
B
Receiving Faxes
Difficulties Suggestions
Cannot receive a fax. Make sure your machine has a dial tone by pressing the Hook or Hook/Hold key.
If you hear static or interference on your fax line, please contact your local
telephone company.
Check all line cord connections. Make sure the telephone line cord is plugged into
the telephone wall socket and the LINE socket of the machine. If you subscribe to
DSL or VoIP services, please contact your service provider for connection
instructions.
Make sure the machine is in the correct Receive Mode. This is determined by the
external devices and telephone subscriber services you have on the same line as
the Brother machine. (See Receive Mode settings on page 30.)
If you have a dedicated fax line and want your Brother machine to automatically
answer all incoming faxes, you should select Fax Only mode.
If your Brother machine shares a line with an external answering machine, you
should select the External TAD mode. In External TAD mode, your Brother
machine will automatically receive incoming faxes and voice callers will be able to
leave a message on your answering machine.
If your Brother machine shares a line with other telephones and you want it to
automatically answer all incoming faxes, you should select the Fax/Tel mode. In
Fax/Tel mode, your Brother machine will automatically receive faxes and
produce a fast double-ring to alert you to answer voice calls.
If you do not want your Brother machine to automatically answer any incoming
faxes, you should select the Manual mode. In Manual mode, you must answer
every incoming call and activate the machine to receive faxes.
Another device or service at your location may be answering the call before your
Brother machine answers. To test this, lower the ring delay setting:
If the answer mode is set to Fax Only or Fax/Tel, reduce the ring delay to
2 rings. (See Ring Delay on page 30.)
If the answer mode is set to External TAD, reduce the number of rings
programmed on your answering machine to 2.
If the answer mode is set to Manual, DO NOT adjust the ring delay setting.
Have someone send you a test fax:
If you received the test fax successfully, your machine is operating properly.
Remember to reset your ring delay or answering machine setting back to your
original setting. If receiving problems recur after resetting the ring delay, then
a person, device, or subscriber service is answering the fax call before the
machine has a chance to answer.
If you were not able to receive the fax, then another device or subscriber
service may be interfering with your fax reception or there may be a problem
with your fax line.
102
Cannot receive a fax.
(continued)
If you are using a telephone answering machine (External TAD mode) on the
same line as the Brother machine, make sure your answering machine is set up
correctly. (See Connecting an external TAD on page 37.)
1 Connect the external TAD as shown in the illustration on page 37.
2 Set your answering machine to answer in one or two rings.
3 Record the outgoing message on your answering machine.
Record five seconds of silence at the beginning of your outgoing
message.
Limit your speaking to 20 seconds.
End your outgoing message with your Remote Activation Code for people
sending manual faxes. For example: “After the beep, leave a message or
press l51(l91 for New Zealand) and Start to send a fax.”
4 Set your answering machine to answer calls.
5 Set your Brother machine’s Receive Mode to External TAD. (See Receive
Mode settings on page 30.)
Make sure your Brother machine's Fax Detect feature is turned On. Fax Detect is
a feature that allows you to receive a fax even if you have answered the call on an
external or extension telephone. (See Fax Detect on page 31.)
If you often get transmission errors due to possible interference on the telephone
line, try changing the Compatibility setting to Basic(for VoIP). (See
Telephone line interference on page 109.)
(For MFC-7860DW)
Contact your administrator to check your Secure Function Lock Settings.
Sending faxes
Difficulties Suggestions
Poor sending quality. Try changing your resolution to Fine or S.Fine. Make a copy to check your
machine’s scanner operation. If the copy quality is not good, clean the scanner.
(See Cleaning the scanner glass on page 71.)
Transmission Verification Report
says RESULT:ERROR.
There is probably temporary noise or static on the line. Try sending the fax again.
If you are sending a PC-Fax message and get RESULT:ERROR on the
Transmission Verification Report, your machine may be out of memory. To free up
extra memory, you can turn off fax storage (see Changing Remote Fax Options in
Chapter 4 of the Advanced User's Guide), print fax messages in memory (see
Printing a fax from the memory in Chapter 4 of the Advanced User's Guide) or
cancel a delayed fax or polling job (see Checking and cancelling waiting jobs in
Chapter 3 of the Advanced User's Guide). If the problem continues, ask the
telephone company to check your telephone line.
If you often get transmission errors due to possible interference on the telephone
line, try changing the Compatibility setting to Basic(for VoIP). (See
Telephone line interference on page 109.)
Sent faxes are blank. Make sure you are loading the document properly. (See Loading documents
on page 23.)
Vertical black lines when sending. Black vertical lines on faxes you send are typically caused by dirt or correction fluid
on the glass strip. (See Cleaning the scanner glass on page 71.)
Cannot send a fax. (For MFC-7860DW)
Contact your administrator to check your Secure Function Lock Settings.
Receiving Faxes (continued)
Difficulties Suggestions
Troubleshooting
103
B
Handling incoming calls
Difficulties Suggestions
The machine ‘hears’ a voice as a
CNG tone.
If Fax Detect is set to On, your machine is more sensitive to sounds. It may
mistakenly interpret certain voices or music on the line as a fax machine calling
and respond with fax receiving tones. Deactivate the machine by pressing
Stop/Exit. Try avoiding this problem by turning Fax Detect to Off. (See Fax Detect
on page 31.)
Sending a fax call to the machine. If you answered on an external or extension telephone, press your Remote
Activation code (default setting is l51 (l91 for New Zealand)). When your
machine answers, hang up.
Custom features on a single line. If you have Call Waiting, Call Waiting/Caller ID, Caller ID, Voice Mail, an
answering machine, an alarm system or other custom feature on a single
telephone line with your machine, it may create a problem sending or receiving
faxes.
For Example: If you subscribe to Call Waiting or some other custom service and
its signal comes through the line while your machine is sending or receiving a fax,
the signal can temporarily interrupt or disrupt the faxes. Brother’s ECM feature
should help overcome this problem. This condition is related to the telephone
system industry and is common to all devices that send and receive information
on a single, shared line with custom features. If avoiding a slight interruption is
crucial to your business, a separate line with no custom features is recommended.
Menu access difficulties
Difficulties Suggestions
The machine beeps when you try to
access the Setup Receive and
Setup Send menus.
If FAX is not illuminated, press it to turn on Fax mode. The Setup Receive
settings (Menu, 2, 1) and Setup Send settings (Menu, 2, 2) are available only
when the machine is in Fax mode.
Copy difficulties
Difficulties Suggestions
Cannot make a copy. Make sure that COPY is illuminated. (See How to copy on page 52.)
(For MFC-7860DW)
Contact your administrator to check your Secure Function Lock Settings.
Vertical black line appears in
copies.
Black vertical lines on copies are typically caused by dirt or correction fluid on the
glass strip, or the corona wire is dirty. (See Cleaning the scanner glass on page 71
and Cleaning the corona wire on page 72.)
Copies are blank. Make sure you are loading the document properly. (See Using the automatic
document feeder (ADF) on page 23 or Using the scanner glass (Flatbed)
on page 24.)
104
Printing difficulties
Difficulties Suggestions
No printout. Check that the machine is plugged in and the power switch is turned on.
Check that the toner cartridge and drum unit are installed correctly. (See
Replacing the drum unit on page 66.)
Check the interface cable connection on both the machine and your computer.
(See the Quick Setup Guide.)
Check that the correct printer driver has been installed and chosen.
Check to see if the LCD is showing an error message. (See Error and
maintenance messages on page 81.)
Check the machine is online:
(Windows®7 and Windows Server®2008 R2) Click the Start button and
Devices and Printers. Right-click Brother MFC-XXXX Printer. Make sure
that Use Printer Offline is unchecked.
(Windows Vista®) Click the Start button, Control Panel, Hardware and
Sound, and then Printers. Right-click Brother MFC-XXXX Printer. Make
sure that Use Printer Offline is unchecked.
(Windows®XP and Windows Server®2003/2008) Click the Start button and
choose Printers and Faxes. Right-click Brother MFC-XXXX Printer. Make
sure that Use Printer Offline is unchecked.
(Windows®2000) Click the Start button and choose Settings and then
Printers. Right-click Brother MFC-XXXX Printer. Make sure that Use
Printer Offline is unchecked.
(For MFC-7860DW)
Contact your administrator to check your Secure Function Lock settings.
The machine prints unexpectedly
or it prints garbage.
Press Job Cancel to cancel print jobs.
Check the settings in your application to make sure it is set up to work with
your machine.
Pull out the paper tray and wait until the machine stops printing. Then turn off
the machine’s power switch and disconnect from the power for several
minutes.
(For MFC-7360 / MFC-7360N / MFC-7362N / MFC-7460DN)
The faxes stored in the machine memory will be deleted. See Transferring
your faxes or Fax Journal report on page 87 before disconnecting the
machine so you will not lose any important messages.
The machine prints the first couple
of pages correctly, then some
pages have text missing.
Check the settings in your application to make sure that it is set up to work with
your machine.
Your computer is not recognising the machine’s input buffer’s full signal. Make
sure that you connected the interface cable correctly. (See the Quick Setup
Guide.)
The headers or footers appear
when the document displays on the
screen but they do not show up
when it is printed.
There is an unprintable area on the top and bottom of the page. Adjust the top and
bottom margins in your document to allow for this. (See Unscannable and
unprintable areas on page 17.)
The machine does not print on both
sides of the paper even though the
printer driver setting is Duplex.
Check the paper size setting in the printer driver. You need to choose A4 [60 to
105 gsm].
Troubleshooting
105
B
The machine is not printing or has
stopped printing.
Press Job Cancel.
As the machine cancels the job and clears it from the memory it may produce an
incomplete printout.
Scanning difficulties
Difficulties Suggestions
TWAIN errors appear while
scanning.
Make sure that the Brother TWAIN driver is chosen as the primary source. In
PaperPort™ 12SE, click File, Scan or Get Photo and choose the Brother TWAIN
driver.
OCR does not work. Try increasing the scanning resolution.
(Macintosh users)
Presto! PageManager must be downloaded and installed before use. See
Accessing Brother Support (Macintosh) on page 5 for further instructions.
Network scanning does not work. See Network difficulties (Network models only) on page 106.
Cannot scan. (For MFC-7860DW)
Contact your administrator to check your Secure Function Lock Settings.
Software difficulties
Difficulties Suggestions
Cannot install software or print. (Windows® only)
Run the Repair MFL-Pro Suite program on the installation CD-ROM. This
program will repair and reinstall the software.
Cannot perform ‘2 in 1’ or ‘4 in 1’
printing.
Check that the paper size setting in the application and in the printer driver are the
same.
The machine does not print from
Adobe® Illustrator®.
Try to reduce the print resolution. (See Basic tab in the Software User’s Guide.)
Paper handling difficulties
Difficulties Suggestions
The machine does not feed paper.
The LCD shows No Paper or a
Paper Jam message.
If there is no paper, load a new stack of paper into the paper tray.
If there is paper in the paper tray, make sure it is straight. If the paper is curled,
you should straighten it. Sometimes it is helpful to remove the paper, turn the
stack over and put it back into the paper tray.
Reduce the amount of paper in the paper tray, and then try again.
Make sure that manual feed mode is not chosen in the printer driver.
Clean the paper pick-up roller. See Routine maintenance on page 60.
If the LCD shows the Paper Jam message and you still have a problem, see
Error and maintenance messages on page 81.
How do I print on envelopes? You can load envelopes from the manual feed slot. Your application must be set
up to print the envelope size you are using. This is usually done in the Page Setup
or Document Setup menu of your application.
Printing difficulties (continued)
Difficulties Suggestions
106
What paper can I use? You can use thin paper, plain paper, bond paper, recycled paper, envelopes and
labels that are made for laser machines. (For details, see Acceptable paper and
other print media on page 18.)
You can load envelopes from the manual feed slot.
There is a paper jam. Clear the jammed paper. (See Paper Jams on page 90.)
Print quality difficulties
Difficulties Suggestions
Printed pages are curled. Low quality thin or thick paper or not printing on the recommended side of the
paper could cause this problem. Try turning over the stack of paper in the
paper tray.
Make sure that you choose the Paper Type that suits the print media type you
are using. (See Acceptable paper and other print media on page 18.)
Printed pages are smeared. The Paper Type setting may be incorrect for the type of print media you are using,
or the print media may be too thick or have a rough surface. (See Acceptable
paper and other print media on page 18 and Basic tab in the Software User’s
Guide.)
Printouts are too light. If this problem occurs when making copies or printing received faxes, set
Toner Save mode to Off in the machine menu settings. (See Toner Save in
Chapter 1 of the Advanced User's Guide.)
Set Toner Save mode to Off in the Advanced tab in the printer driver. (See
Advanced tab in the Software User’s Guide.)
Network difficulties (Network models only)
Difficulties Suggestions
Cannot print over a wired network. If you are having network problems see the Network User's Guide for more
information.
Make sure your machine is powered on and is on-line and in Ready mode. Print
the Network Configuration list to see your current network settings. (See Reports
in Chapter 6 of the Advanced User's Guide.) Reconnect the LAN cable to the hub
to verify that the cable and network connections are good. If possible, try
connecting the machine to a different port on your hub using a different cable.
You can check the current wired network status from the Network control panel
menu.
Paper handling difficulties (continued)
Difficulties Suggestions
Troubleshooting
107
B
The network scanning feature
does not work. (Windows®)
It is necessary to set the third-party Security/Firewall Software to allow Network
scanning. To add port 54925 for Network scanning, enter the information below:
In Name: Enter any description, for example Brother NetScan.
In Port number: Enter 54925.
In Protocol: UDP is selected.
Please refer to the instruction manual that came with your third-party
Security/Firewall Software or contact the software manufacturer.
For more details, you can read FAQs and troubleshooting suggestions at
http://solutions.brother.com/.
(Macintosh)
The network scanning feature may not work due to the firewall settings.
Change or disable the firewall settings. If you are using a third-party personal
Firewall software, see the User's Guide for your software or contact the
software manufacturer.
Re-select your machine in the Device Selector application located in
Macintosh HD/Library/Printers/Brother/Utilities/Device Selector or from
the model list in ControlCenter2.
The network PC-Fax Receive
feature does not work. (Windows® only)
It is necessary to set the third-party Security/Firewall Software to allow PC-FAX
Rx. To add port 54926 for Network PC-FAX Rx, enter the information below:
In Name: Enter any description, for example Brother PC-FAX Rx.
In Port number: Enter 54926.
In Protocol: UDP is selected.
Please refer to the instruction manual that came with your third-party
Security/Firewall Software or contact the software manufacturer.
For more details, you can read FAQs and troubleshooting suggestions at
http://solutions.brother.com/.
Your computer cannot find your
machine. (Windows®)
The firewall setting on your PC may be rejecting the necessary network
connection. (For details, see the instructions above.)
(Macintosh)
The computer may be unable to detect the machine due to the firewall
settings. Change or disable the firewall settings. If you are using a third-party
personal Firewall software, see the User's Guide for your software or contact
the software manufacturer.
Re-select your machine in the Device Selector application located in
Macintosh HD/Library/Printers/Brother/Utilities/Device Selector or from
the model list in ControlCenter2.
Cannot connect to wireless
network. (MFC-7860DW)
Investigate the problem using the WLAN Report. Press Menu, 5, 8. and then
press Start. For more details, see the Quick Setup Guide.
Network difficulties (Network models only) (continued)
Difficulties Suggestions
108
Other
Difficulties Suggestions
The machine will not turn on. Adverse conditions on the power connection (such as lightning or a power surge)
may have triggered the machine’s internal safety mechanisms. Turn the machine
off and unplug the power cord. Wait for ten minutes, then plug in the power cord
and turn the machine on.
If the problem is not solved, turn off the machine. Plug the power cord into a
different known working outlet and turn on the machine.
Troubleshooting
109
B
Setting Dial Tone detection B
When you send a fax automatically, by
default your machine will wait for a fixed
amount of time before it starts to dial the
number. By changing the Dial Tone setting to
Detection you can make your machine dial
as soon as it detects a dial tone. This setting
can save a small amount of time when
sending a fax to many different numbers. If
you change the setting and start having
problems with dialling you should change
back to the default No Detection setting.
aPress Menu, 0, 5.
Press Menu, 0, 4 (for New Zealand).
bPress a or b to choose Detection or
No Detection.
Press OK.
cPress Stop/Exit.
Telephone line interference B
If you are having difficulty sending or
receiving a fax due to possible interference
on the telephone line, we recommend that
you adjust the Equalization for compatibility
to reduce the modem speed for fax
operations.
aPress Menu, 2, 0, 1.
b
Press
a
or
b
to choose
Basic(for
VoIP)
,
Normal
or
High
(MFC-7470D,
MFC-7860DW
)
.
Basic(for VoIP) cuts the modem
speed to 9600 bps and turns the
error correction mode (ECM) off.
For a standard telephone line: If you
regularly experience interference on
your standard telephone line try this
setting.
If you are using VoIP: VoIP service
providers offer fax support using
various standards. If you regularly
experience fax transmission errors
try this setting.
Normal
sets the modem speed at
14400 bps.
High
sets the modem speed at
33600 bps
(MFC-7470D,
MFC-7860DW)
.
Press OK.
cPress Stop/Exit.
Note
When you change the Compatibility to
Basic(for VoIP), the ECM feature is
only available for fax sending.
110
Improving the print quality B
If you have a print quality problem, print a test page first (Menu, 4, 2, 3). If the printout looks good,
the problem is probably not the machine. Check the interface cable connections or try printing a
different document. If the printout or test page printed from the machine has a quality problem,
check the following steps first. And then, if you still have a print quality problem, check the chart
below and follow the recommendations.
Note
Brother does not recommend the use of cartridges other than genuine Brother Original
cartridges or the refilling of used cartridges with toner from other sources.
aTo get the best print quality, we suggest using the recommended paper. Check that you use
paper that meets our specifications. (See Acceptable paper and other print media
on page 18.)
bCheck that the drum unit and toner cartridge are installed properly.
Examples of poor print quality Recommendation
Faint
Take out the drum unit and toner cartridge assembly. Hold the
assembly level with both hands and gently shake it from side to
side several times to spread the toner evenly inside the cartridge.
Check if the Toner Settings of Replace Toner is Continue
(Continue mode) by pressing Menu, 1, 8. (See Toner settings in
Chapter 1 of the Advanced User's Guide.)
Check the machine’s environment. Conditions such as humidity,
high temperatures, and so on, may cause this print fault. (See the
Safety and Legal booklet.)
If the whole page is too light, Toner Save mode may be on. Turn
off Toner Save mode in the machine menu settings or Toner
Save mode in the printer Properties of the driver. (See Toner
save in Chapter 1 of the Advanced User's Guide or Advanced tab
in the Software User’s Guide.)
Clean the corona wire of the drum unit. (See Cleaning the corona
wire on page 72.)
Put in a new toner cartridge. (See Replacing the toner cartridge
on page 61.)
Put in a new drum unit. (See Replacing the drum unit on page 66.)
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
C
DE
F
d
ef
g
BC
b
c
d
2
3
Troubleshooting
111
B
Grey background
Make sure that you use paper that meets our specifications. (See
Acceptable paper and other print media on page 18.)
Check the machine’s environment. Conditions such as high
temperatures and high humidity can increase the amount of
background shading. (See the Safety and Legal booklet.)
Put in a new toner cartridge. (See Replacing the toner cartridge
on page 61.)
Put in a new drum unit. (See Replacing the drum unit on page 66.)
Ghost
Make sure that you use paper that meets our specifications.
Rough-surfaced paper or thick print media may cause this
problem. (See Acceptable paper and other print media
on page 18.)
Make sure that you choose the proper media type in the printer
driver or in the machine’s Paper Type menu setting. (See
Acceptable paper and other print media on page 18 and Basic tab
in the Software User’s Guide.)
Choose Reduce Ghosting mode in the printer driver. (See Ghost
Reduction Setting in the Software User’s Guide.)
Put in a new toner cartridge. (See Replacing the toner cartridge
on page 61.)
Put in a new drum unit. (See Replacing the drum unit on page 66.)
The fuser unit may be contaminated. Call your Brother dealer.
Toner specks
Make sure that you use paper that meets our specifications.
Rough-surfaced paper may cause the problem. (See Acceptable
paper and other print media on page 18.)
Clean the corona wire and the drum unit. (See Cleaning the
corona wire on page 72 and Cleaning the drum unit on page 74.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
The fuser unit may be contaminated. Call your Brother dealer.
Hollow print
Make sure that you use paper that meets our specifications. (See
Acceptable paper and other print media on page 18.)
Choose Thick Paper mode in the printer driver, choose Thick in
the machine’s Paper Type menu setting or use thinner paper than
you are currently using. (See Paper Type on page 18 and Basic
tab in the Software User’s Guide.)
Check the machine’s environment. Conditions such as high
humidity can cause hollow print. (See the Safety and Legal
booklet.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
Examples of poor print quality Recommendation
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
112
All black
Clean the corona wire inside the drum unit by sliding the green
tab. Be sure to return the green tab to the home position (a). (See
Cleaning the corona wire on page 72.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
The fuser unit may be contaminated. Call your Brother dealer.
White lines across the page
Make sure that you use paper that meets our specifications. A
rough surfaced paper or thick print media can cause problems.
Make sure that you choose the appropriate media type in the
printer driver or in the machine’s Paper Type menu setting. (See
Acceptable paper and other print media on page 18 and Basic tab
in the Software User’s Guide.)
The problem may disappear by itself. Print multiple pages to clear
this problem, especially if the machine has not been used for a
long time.
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
Lines across the page
Clean the corona wire of the drum unit. (See Cleaning the corona
wire on page 72.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
White lines, bands or ribbing
across the page
Check the machine's environment. Conditions such as high
humidity and high temperatures may cause this print quality
problem.
If the problem is not solved after printing a few pages, put in a new
drum unit. (See Replacing the drum unit on page 66.)
Examples of poor print quality Recommendation
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
Troubleshooting
113
B
White Spots on black text and
graphics at 94 mm intervals
Black Spots at 94 mm intervals
Make ten copies of a blank, white sheet of paper. (See How to
copy on page 52.) If the problem is not solved, the drum unit may
have glue from a label stuck on the OPC drum surface. Clean the
drum unit. (See Cleaning the drum unit on page 74.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
Black toner marks across the
page
If you use label sheets for laser printers, the glue from the sheets
may sometimes stick to the OPC drum surface. Clean the drum
unit. (See Cleaning the drum unit on page 74.)
Make sure that you use paper that meets our specifications. (See
Acceptable paper and other print media on page 18.)
Do not use paper that has clips or staples because they will
scratch the surface of the drum.
If the unpacked drum unit is in direct sunlight or room light, the unit
may be damaged.
The toner cartridge may be damaged. Put in a new toner
cartridge. (See Replacing the toner cartridge on page 61.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
Examples of poor print quality Recommendation
94 mm
94 mm
94 mm
94 mm
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
114

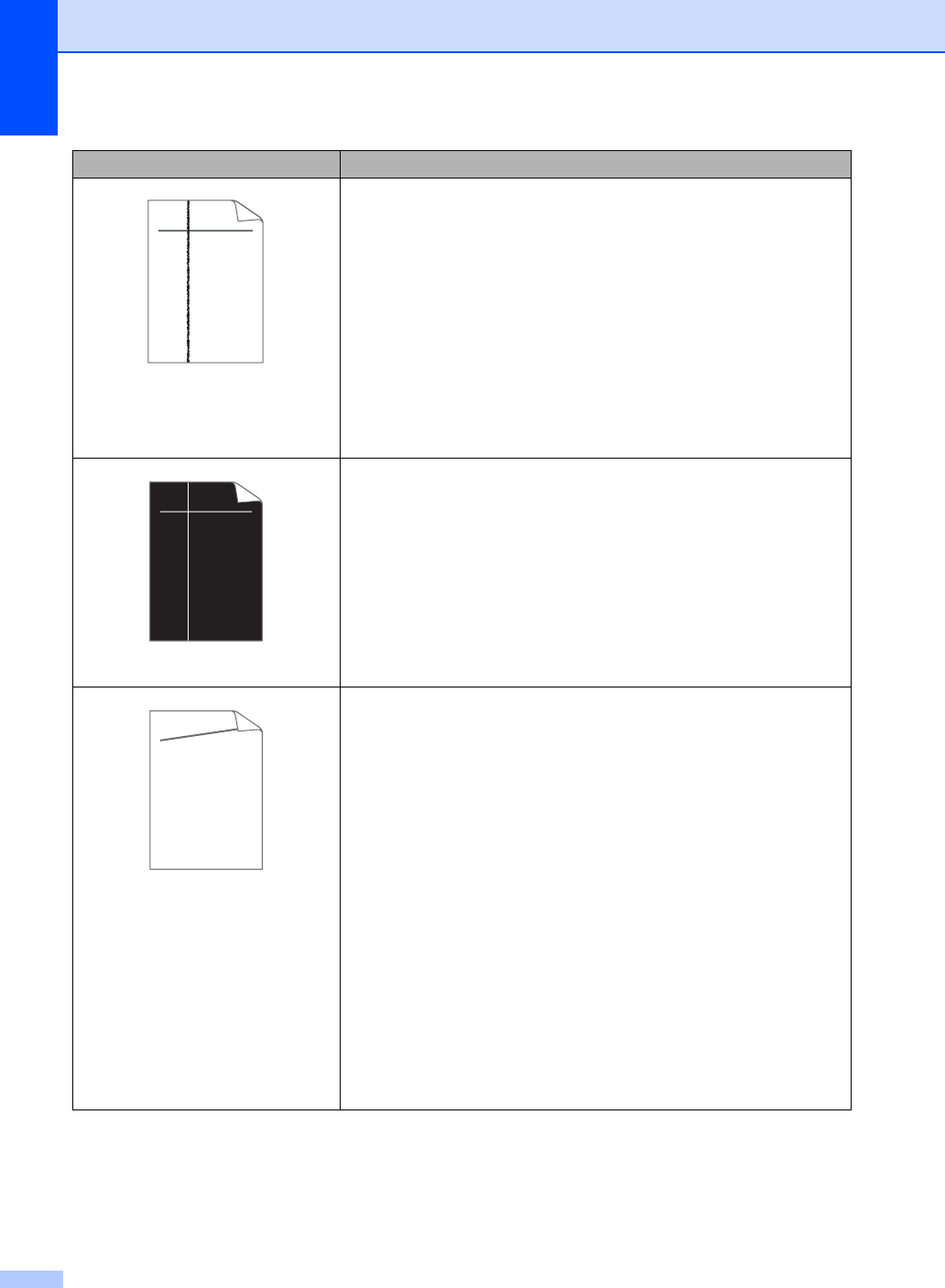

Black lines down the page
Printed pages have toner stains
down the page.
Clean the corona wire inside the drum unit by sliding the green
tab. (See Cleaning the corona wire on page 72.)
Make sure the green tab of the corona wire is at the home position
(a).
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
The toner cartridge may be damaged. Put in a new toner
cartridge. (See Replacing the toner cartridge on page 61.)
The fuser unit may be contaminated. Call your Brother dealer.
White lines down the page
The toner cartridge may be damaged. Put in a new toner
cartridge. (See Replacing the toner cartridge on page 61.)
The drum unit may be damaged. Put in a new drum unit. (See
Replacing the drum unit on page 66.)
Check if the Toner Settings of Replace Toner is Continue
(Continue mode), by pressing Menu, 1, 8. (See Toner settings in
Chapter 1 of the Advanced User's Guide.)
Make sure that a torn piece of paper is not stuck inside the
machine blocking the scanner.
Page skewed
Make sure that the paper or other print media is loaded properly
in the paper tray and that the guides are not too tight or too loose
against the paper stack.
Set the paper guides correctly. (See Loading paper on page 10.)
If you are using the manual feed slot, see Loading paper in the
manual feed slot on page 12.
The paper tray may be too full. (See Loading paper on page 10.)
Check the paper type and quality. (See Acceptable paper and
other print media on page 18.)
Check for loose objects such as torn paper inside the machine.
Verify that the two green envelope levers inside the back cover
are set to the same position.
Verify that the two grey Anti-Curl Levers inside the back cover are
set to the same position.
If the problem only occurs during duplex printing, check for torn
paper in the duplex tray, verify that the duplex tray is inserted
completely and verify that the back cover is closed completely.
Examples of poor print quality Recommendation
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
ABCDEFGH
abcdefghijk
ABCD
abcde
01234
Troubleshooting
115
B
Curled or wavy
Check the paper type and quality. High temperatures and high
humidity will cause paper to curl. (See Acceptable paper and
other print media on page 18.)
If you do not use the machine often, the paper may have been in
the paper tray too long. Turn over the stack of paper in the paper
tray. Also, fan the paper stack and then rotate the paper 180 in
the paper tray.
Open the back cover (face-up output tray) for the machine to eject
printed pages onto the face-up output tray.
Choose Reduce Paper Curl mode in the printer driver when you
do not use our recommended paper. (See Other Print Options (for
Windows®) or Print Settings (For Macintosh) in the Software
User’s Guide.)
Wrinkles or creases
Make sure that the paper is loaded properly. (See Loading paper
on page 10.)
Check the paper type and quality. (See Acceptable paper and
other print media on page 18.)
Turn over the stack of paper in the tray or try rotating the paper
180 in the input tray.
Examples of poor print quality Recommendation
B DEFGH
abc efghijk
ACD
bcde
134
116
Envelope creases
Make sure that the two green envelope levers inside the back
cover are pulled down when you print the envelope.
Note
When you have finished printing, open the back cover and reset
the two green levers back to their original position.
Examples of poor print quality Recommendation
Troubleshooting
117
B

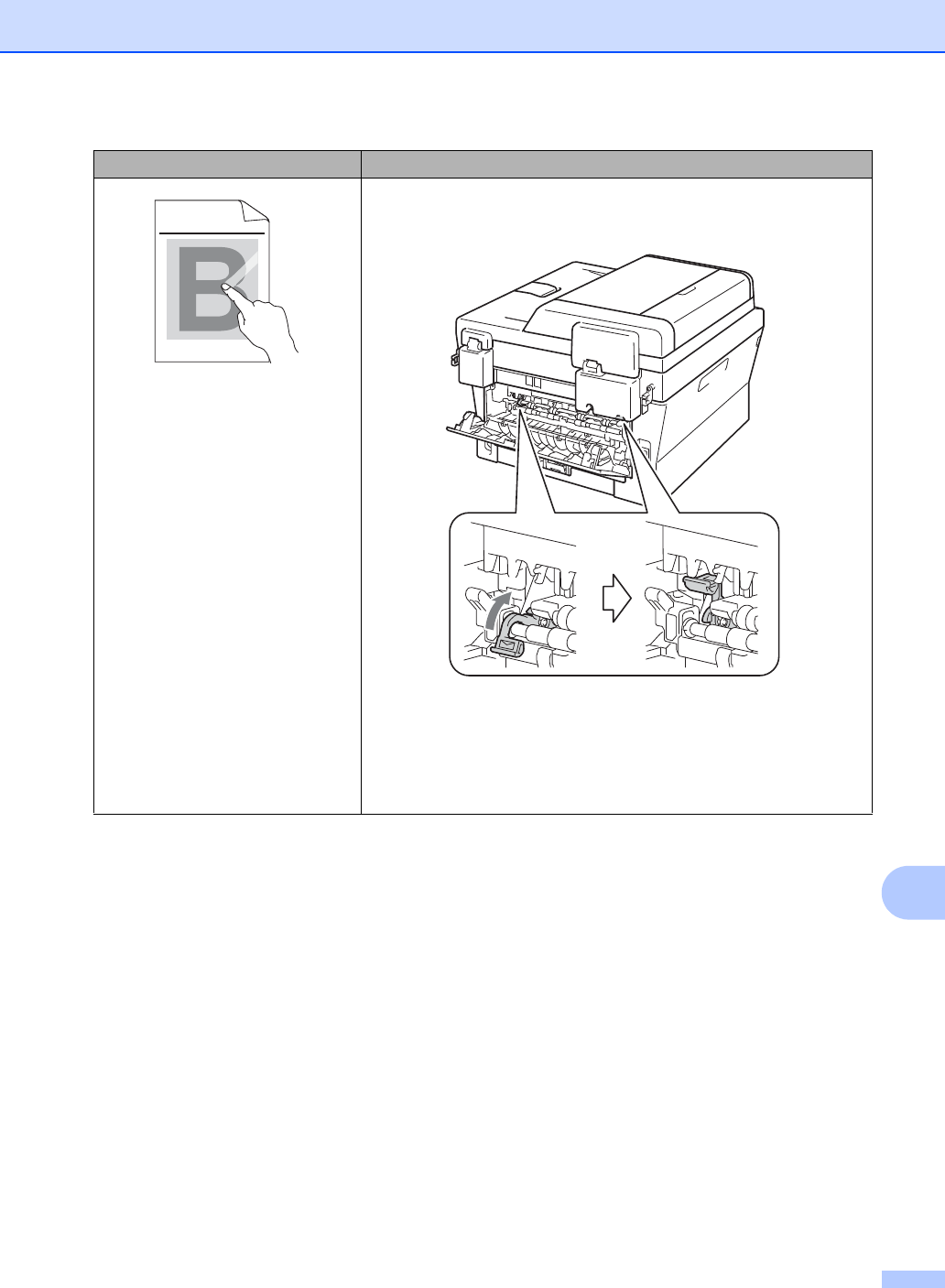

Poor fixing
Open the back cover and make sure that the two green envelope
levers on the left and right hand sides are in the up position.
Choose Improve Toner Fixing mode in the printer driver. (See
Other Print Options (for Windows®) or Print Settings (For
Macintosh) in the Software User’s Guide.)
If this selection does not provide enough improvement, select
Thicker Paper in Media Type settings.
Examples of poor print quality Recommendation
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
ABCDEFGHIJKLMNOPQRSTUVWXYZ. 0123456789. abcdefghijklmnopqrstuvwxyz.
118
Curled
Choose Reduce Paper Curl mode in the printer driver when you
do not use our recommended paper. (See Other Print Options (for
Windows®) or Print Settings (For Macintosh) in the Software
User’s Guide.)
Turn the paper over in the paper tray, and print again. (Excluding
letterhead paper) If the problems remains, switch the Anti-Curl
Levers as follows:
aOpen the back cover.
bLift the lever (1) and slide the two grey levers (2) in the
direction of the arrow.
Examples of poor print quality Recommendation
1
2
2
1
2
Troubleshooting
119
B
Curled
Lift up the output tray support flap.
Examples of poor print quality Recommendation
120
Machine Information B
Checking the Serial Number B
You can see the machine’s Serial Number on
the LCD.
aFor MFC-7360, press Menu, 5, 1.
For MFC-7360N / MFC-7362N /
MFC-7460DN / MFC-7470D, press
Menu, 6, 1.
For MFC-7860DW, press Menu, 7, 1.
bThe machine will display the machine’s
Serial Number on the LCD.
cPress Stop/Exit.
Reset functions B
The following reset functions are available:
1 (Network models only) Network
You can reset the internal print server
back to its default factory settings such as
the password and IP address information.
2Address & Fax
Address & Fax resets the following
settings:
Address Book
(One Touch Dial/Speed Dial/Setup
Groups)
Programmed fax jobs in the memory
(Polled TX, Delayed Fax)
Station ID
(name and number)
Coverpage Msg
(comments)
Remote Fax Options
(Remote Access Code, Fax Storage,
Fax Forwarding and PC-Fax)
Report settings
(Transmission Verification Report/
Tel Index List/Fax Journal)
Setting Lock password
3All Settings
You can reset all the machine settings
back to the settings that were set at the
factory.
Brother strongly recommends you
perform this operation when you dispose
of the machine.
Note
Unplug the interface cable before you
choose Network or All Settings.
Troubleshooting
121
B
How to reset the machine B
aPress Menu, 0.
bPress a or b to display Reset.
Press OK.
cPress a or b to choose the reset function
you want to use.
Press OK.
dDo one of the following:
To reset the settings, press 1 and go
to step e.
To exit without making changes,
press 2 and go to step f.
eYou will be asked to reboot the machine.
Do one of the following:
To reboot the machine press 1. The
machine will begin the reset.
To exit without rebooting the
machine, press 2. Go to step f.
fPress Stop/Exit.
Note
You can also reset the Network settings
(Network model only).
• For MFC-7360N / MFC-7362N /
MFC-7460DN, press Menu, 5, 0.
• For MFC-7860DW, press Menu, 6, 0.
122
C
On-screen
programming C
Your machine has been designed to be easy
to use. The LCD provides on-screen
programming using the menu keys.
We have created step by step on-screen
instructions to help you program your
machine. Simply follow the steps as they
guide you through the menu selections and
programming options.
Menu table C
You can program your machine by using the
Menu table on page 123. These pages list
the menu selections and options. Press
Menu followed by the menu numbers to
program your machine. For example, to set
Beeper volume to Low:
aPress Menu, 1, 3, 2.
bPress a or b to choose Low.
cPress OK.
dPress Stop/Exit.
How to access the menu
mode C
aPress Menu.
bChoose an option.
Press 1 for General Setup menu.
Press 2 for Fax menu.
Press 3 for Copy menu.
(MFC-7860DW)
Press 4 for Printer menu.
Press 5 for Print Reports menu.
Press 6 for Network menu.
Press 7 for Machine Info. menu.
(MFC-7470D)
Press 4 for Printer menu.
Press 5 for Print Reports menu.
Press 6 for Machine Info. menu.
(MFC-7360N, MFC-7362N and
MFC-7460DN)
Press 4 for Print Reports menu.
Press 5 for Network menu.
Press 6 for Machine Info. menu.
(MFC-7360)
Press 4 for Print Reports menu.
Press 5 for Machine Info. menu.
Press 9 for Service menu. 1
Press 0 for Initial Setup menu.
1This will appear only when the LCD shows an
error message.
You can also scroll through each menu
level by pressing a or b for the direction
you want.
cPress OK when the option you want
appears on the LCD.
The LCD will then show the next menu
level.
dPress a or b to scroll to your next menu
selection.
ePress OK.
When you have finished setting an
option, the LCD will show Accepted.
fPress Stop/Exit to exit Menu mode.
Menu and features C
Menu and features
123
C
Menu table C
The factory settings are shown in Bold with an asterisk.
Choose & OK Choose & OK to accept to exit
Level 1 Level 2 Level 3 Level 4 Options Descriptions Page
1.General
Setup
1.Mode
Timer
——0 Sec
30 Secs
1 Min
2 Mins*
5 Mins
Off
Sets the time to
return to Fax mode
and the time the
machine will change
from individual user
to Public user mode
when using Secure
Function Lock.
See 1.
2.Paper 1.Paper
Type
—Thin
Plain*
Thick
Thicker
Recycled
Paper
Label
Sets the type of
paper in the paper
tray.
18
2.Paper
Size
—A4*
Letter
(Letter* for
Philippines)
Legal (for Asia)
Executive
A5
A5 L
A6
B5
B6
Folio (for Asia)
Sets the size of the
paper in the paper
tray.
18
1See Advanced User's Guide.
2See Software User’s Guide.
The factory settings are shown in Bold with an asterisk.
124
1.General
Setup
(Continued)
3.Volume 1.Ring —Off
Low
Med*
High
Adjusts the ring
volume.
9
2.Beeper —Off
Low
Med*
High
Adjusts the volume
level of the beeper.
9
3.Speaker —Off
Low
Med*
High
Adjusts the speaker
volume.
9
4.Ecology 1.Toner
Save
—On
Off*
Increases the page
yield of the toner
cartridge.
See 1.
2.Sleep
Time
— Range varies
depending on
models.
003Min*
Conserves power.
5.LCD
Contrast
——-nnnno+
-nnnon+
-nnonn+*
-nonnn+
-onnnn+
Adjusts the contrast
of the LCD.
6.Security 1.TX Lock
(MFC-7360/
MFC-7360N/
MFC-7362N/
MFC-7460DN)
— — Prohibits most
operations except
receiving faxes.
1.Mem
Security
(MFC-7470D)
— — Stops unauthorized
users from most
operations except
receiving faxes into
the memory.
1.Function
Lock
(MFC-7860DW)
——
Can restrict selected
machine operation for up
to 25 individual users
and all other non-
authorized Public users.
2.Setting
Lock
— — Stops unauthorized
users from changing
the machine’s
current settings.
Level 1 Level 2 Level 3 Level 4 Options Descriptions Page
1See Advanced User's Guide.
2See Software User’s Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
125
C
1.General
Setup
(Continued)
7.Glass
ScanSize
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7470D)
——A4*
Letter
(Letter* for
Philippines)
Adjusts the scan
area of the scanner
glass to the size of
the document.
27
7.Document
Scan
(MFC-7460DN /
MFC-7860DW)
1.Glass
ScanSize
—A4*
Letter
(Letter* for
Philippines)
Adjusts the scan
area of the scanner
glass to the size of
the document.
27
2.File Size 1.Color Small
Middle*
Large
You can set your own
default settings of the
data compression
rate.
See 2.
2.Gray Small
Middle*
Large
8.Replace
Toner
——Continue
Stop*
The machine will stop
printing until you replace
the toner cartridge.
See 1.
Level 1 Level 2 Level 3 Options Descriptions Page
2.Fax 1.Setup
Receive
(In Fax mode only)
1.Ring Delay (02 - 10)
02*
(Example for Australia)
Sets the number of rings
before the machine
answers in Fax Only or
Fax/Tel mode.
30
2.F/T Ring
Time
20 Secs
30 Secs*
40 Secs
70 Secs
(For New Zealand)
20 Secs
30 Secs*
40 Secs
55 Secs
Sets the fast/double-
ring time in Fax/Tel
mode.
30
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
Level 1 Level 2 Level 3 Level 4 Options Descriptions Page
1See Advanced User's Guide.
2See Software User’s Guide.
The factory settings are shown in Bold with an asterisk.
126
2.Fax
(Continued)
1.Setup
Receive
(In Fax mode only)
(Continued)
3.Fax Detect On*
Semi (MFC-7470D
only)
Off
Receives fax
messages without
pressing Start.
31
4.Remote Codes On (l51, #51)
Off*
(l91, #91 for New
Zealand)
Allows you to answer all
calls at extension
telephones and use
codes to turn the machine
on or off. You can
personalize these codes.
40
5.Auto
Reduction
On*
Off
Cuts the size of
incoming faxes. See 1.
6.Memory
Receive
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7460DN)
On*
Off
Automatically stores
any incoming faxes in
its memory if it runs
out of paper.
6.Print
Density
(MFC-7470D /
MFC-7860DW)
7.Print
Density
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7460DN)
-nnnno+
-nnnon+
-nnonn+*
-nonnn+
-onnnn+
Makes printouts
darker or lighter.
7.Polling RX
(MFC-7470D /
MFC-7860DW)
8.Polling RX
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7460DN)
Standard*
Secure
Timer
Sets up your machine
to poll another fax
machine.
8.Fax Rx Stamp
(MFC-7470D /
MFC-7860DW)
9.Fax Rx Stamp
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7460DN)
On
Off*
Prints the received
time and date on the
top of the received
faxes.
9.Duplex
(MFC-7470D /
MFC-7860DW)
0.Duplex
(MFC-7460DN)
On
Off*
Prints receive faxes
on both sides of the
paper.
Level 1 Level 2 Level 3 Options Descriptions Page
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
127
C
2.Fax
(Continued)
2.Setup Send
(In Fax mode only)
1.Contrast Auto*
Light
Dark
Changes the
lightness or darkness
of faxes you send.
See 1.
2.Fax
Resolution
Standard*
Fine
S.Fine
Sets the default
resolution for
outgoing faxes.
3.Delayed Fax Set Time=00:00 Sets the time of day in
24 hour format that
the delayed faxes will
be sent.
4.Batch TX On
Off*
Combines delayed
faxes going to the
same fax number at
the same time of day
into one transmission.
5.Real Time TX Next Fax:On
Next Fax:Off
On
Off*
Sends a fax without
using the memory.
6.Polled TX Standard*
Secure
Sets up your machine
with a document to be
retrieved by another
fax machine.
7.Coverpg
Setup
Next Fax:On
Next Fax:Off
On
Off*
Print Sample
Automatically sends a
cover page you have
programmed.
8.Coverpage
Note
— Sets up your own
comments for the fax
cover page.
9.Overseas
Mode
On
Off*
If you are having
difficulty sending
faxes overseas, set
this to On.
Level 1 Level 2 Level 3 Options Descriptions Page
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
128
2.Fax
(Continued)
3.Address Book 1.One Touch
Dial
— Stores up to 8 One
Touch Dial numbers,
so you can dial by
pressing one key
(and Start.)
45
2.Speed Dial — Stores up to 200
Speed Dial numbers,
so you can dial by
pressing only a few
keys (and Start.)
47
3.Setup Groups — Sets up to 8 Group
numbers for
Broadcasting.
See 1.
4.Report
Setting
1.Transmission On
On+Image
Off*
Off+Image
Sets initial setup for
Transmission
Verification Report.
27
2.Journal
Period
Off
Every 50 Faxes*
Every 6 Hours
Every 12 Hours
Every 24 Hours
Every 2 Days
Every 7 Days
Sets the interval for
automatic printing of
the Fax Journal.
See 1.
5.Remote Fax
Opt
1.Forward/Store
Off*
Fax Forward
Fax Storage
PC Fax Receive
Sets the machine to
forward fax
messages, to store
incoming faxes in the
memory (so you can
retrieve them while
you are away from
your machine), or to
send faxes to your
PC.
(Backup Print) If you choose Fax
Forward or PC-Fax
Receive, you can turn
on the safety feature
Backup Print.
2.Remote
Access
---lSets your own code
for Remote Retrieval.
3.Print
Document
— Prints incoming faxes
stored in the memory.
Level 1 Level 2 Level 3 Options Descriptions Page
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
129
C
2.Fax
(Continued)
6.Dial
Restrict.
1.Dial Pad Off*
Enter # twice
On
You can set the
machine to restrict
dialling when using
the dial pad.
See 1.
2.One Touch
Dial
Off*
Enter # twice
On
You can set the
machine to restrict
the dialling of
One Touch numbers.
3.Speed Dial Off*
Enter # twice
On
You can set the
machine to restrict
the dialling of Speed
Dial numbers.
7.Remaining
Jobs
— — You can check which
jobs are in the
memory and lets you
cancel scheduled
jobs.
0.Miscellaneous 1.Compatibility
Normal*
Basic(for VoIP)
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7460DN)
High*
Normal
Basic(for VoIP)
(MFC-7470D /
MFC-7860DW)
Adjusts the
equalization for
transmission
difficulties.
VoIP service
providers offer fax
support using various
standards. If you
regularly experience
fax transmission
errors, choose
Basic(for VoIP).
109
2.Distinctive
(Not available in
New Zealand)
On
Off*
Use with telephone
company distinctive
ringing service allows
you to have a voice
number and fax
number on the one
telephone line.
33
36
2.Faxability
(For New Zealand
only)
On
Off*
If you have FaxAbility
from Telecom, you
can use this function
to store the ringing
pattern of your fax
number. And if you set
in to ON, you should
use the registered
number only.
34
3.Caller ID Display#
Print Report
View or print a list of
the last 30 Caller IDs
stored in the memory.
See 1.
Level 1 Level 2 Level 3 Options Descriptions Page
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
130
Level 1 Level 2 Level 3 Options Descriptions Page
3.Copy 1.Quality —Auto*
Text
Graph
You can choose the
Copy resolution for
your type of
document.
See 1.
2.Brightness —-nnnno+
-nnnon+
-nnonn+*
-nonnn+
-onnnn+
Adjust the brightness
for copies.
3.Contrast —-nnnno+
-nnnon+
-nnonn+*
-nonnn+
-onnnn+
Adjusts the contrast
for copies.
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
Level 1 Level 2 Level 3 Options Descriptions Page
4.Printer
(MFC-7470D /
MFC-7860DW)
1.Emulation —Auto*
HP LaserJet
BR-Script 3
Chooses the
emulation mode. See 1.
2.Print
Options
1.Internal
Font
1.HP LaserJet
2.BR-Script 3
Prints a list of the
machine’s internal
fonts.
2.Configuration
— Prints a list of the
machine’s printer
settings.
3.Test Print — Prints a test page.
3.Duplex —Off*
On(Long Edge)
On(Short Edge)
Enables or disables
duplex printing. You
can also choose long
edge or short edge
duplex printing.
4.Reset
Printer
—1.Reset
2.Exit
Restores the printer
settings to the original
factory default
settings.
1See Software User’s Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
131
C
Level 1 Level 2 Level 3 Options Descriptions Page
4.Print
Reports
(MFC-7360 /
MFC-7360N /
MFC-7362N /
MFC-7460DN)
5.Print
Reports
(MFC-7470D /
MFC-7860DW)
1.XMIT Verify 1.View on LCD — Prints a Report for
your last
transmission.
See 1.
2.Print Report —
2.Help List — — Prints the Help List so
you can see at-a-
glance how to quickly
program your
machine.
3.Tel Index
List
1.Numeric — Lists names and
numbers stored in the
One Touch and
Speed Dial memory,
in numerical or
alphabetical order.
2.Alphabetic —
4.Fax Journal — — Lists information
about your last 200
incoming and
outgoing faxes. (TX
means Transmit. RX
means Receive.)
5.User
Settings
— — Lists your settings.
6.Network
Config
(MFC-7360N /
MFC-7362N /
MFC-7460DN /
MFC-7860DW)
— — Lists your Network
settings.
6.Order Form
(MFC-7360 /
MFC-7470D)
7.Order Form
(MFC-7360N /
MFC-7362N /
MFC-7460DN /
MFC-7860DW)
— — You can print an
accessories order
form to fill out and
send to you Brother
dealer.
8.WLAN Report
(MFC-7860DW)
— — Prints the result of
wireless LAN
connectivity
diagnosis.
See 2.
1See Advanced User's Guide.
2See Quick Setup Guide.
The factory settings are shown in Bold with an asterisk.
132
Level 1 Level 2 Level 3 Level 4 Options Descriptions
5.Network
(MFC-7360N /
MFC-7362N /
MFC-7460DN)
1.TCP/IP 1.Boot
Method
—Auto*
Static
RARP
BOOTP
DHCP
Chooses the Boot
method that best
suits your needs.
2.IP Address — [000-255]. [000-255].
[000-255]. [000-255]
Enter the IP address.
3.Subnet
Mask
— [000-255]. [000-255].
[000-255]. [000-255]
Enter the Subnet
mask.
4.Gateway — [000-255]. [000-255].
[000-255]. [000-255]
Enter the Gateway
address.
5.Node Name —BRNXXXXXXXXXXXX Enter the Node
name.
6.WINS
Config
—Auto*
Static
Chooses the WINS
configuration mode.
7.WINS
Server
—Primary
[000-255]. [000-255].
[000-255]. [000-255]
Secondary
[000-255]. [000-255].
[000-255]. [000-255]
Specifies the IP
address of the
primary or secondary
WINS server.
8.DNS Server —Primary
[000-255]. [000-255].
[000-255]. [000-255]
Secondary
[000-255]. [000-255].
[000-255]. [000-255]
Specifies the IP
address of the
primary or secondary
DNS server.
9.APIPA —On*
Off
Automatically
allocates the IP
address from the
link-local address
range.
0.IPv6 —On
Off*
Enable or Disable the
IPv6 protocol. If you
want to use the IPv6
protocol, visit
http://solutions.
brother.com/ for
more information.
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
133
C
5.Network
(MFC-7360N /
MFC-7362N /
MFC-7460DN)
(Continued)
2.Ethernet ——Auto*
100B-FD
100B-HD
10B-FD
10B-HD
Chooses the
Ethernet link mode.
3.Status ——Active 100B-FD
Active 100B-HD
Active 10B-FD
Active 10B-HD
Inactive
Wired OFF
Shows the Ethernet
link status.
4.MAC
Address
— — — Shows the MAC
address of the
machine.
5.Scan To
FTP
(MFC-7460DN)
——Color 100 dpi*
Color 200 dpi
Color 300 dpi
Color 600 dpi
Gray 100 dpi
Gray 200 dpi
Gray 300 dpi
B&W 200 dpi
B&W 200x100 dpi
Chooses the file
format to send the
scanned data via
FTP.
0.Network
Reset
——1.Reset
2.Exit
Restore all network
settings to factory
default.
Level 1 Level 2 Level 3 Level 4 Options Descriptions
6.Network
(MFC-7860DW)
1.Wired LAN 1.TCP/IP 1.Boot
Method
Auto*
Static
RARP
BOOTP
DHCP
Chooses the Boot
method that best
suits your needs.
2.IP Address [000-255]. [000-255].
[000-255]. [000-255]
Enter the IP address.
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
Level 1 Level 2 Level 3 Level 4 Options Descriptions
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
134
6.Network
(MFC-7860DW)
(Continued)
1.Wired LAN
(Continued)
1.TCP/IP
(Continued)
3.Subnet
Mask
[000-255]. [000-255].
[000-255]. [000-255]
Enter the Subnet
mask.
4.Gateway [000-255]. [000-255].
[000-255]. [000-255]
Enter the Gateway
address.
5.Node Name BRNXXXXXXXXXXXX Enter the Node
name.
6.WINS
Config
Auto*
Static
Chooses the WINS
configuration mode.
7.WINS
Server
Primary
[000-255]. [000-255].
[000-255]. [000-255]
Secondary
[000-255]. [000-255].
[000-255]. [000-255]
Specifies the IP
address of the
primary or secondary
WINS server.
8.DNS Server Primary
[000-255]. [000-255].
[000-255]. [000-255]
Secondary
[000-255]. [000-255].
[000-255]. [000-255]
Specifies the IP
address of the
primary or secondary
DNS server.
9.APIPA On*
Off
Automatically
allocates the IP
address from the
link-local address
range.
0.IPv6 On
Off*
Enable or Disable the
IPv6 protocol. If you
want to use the IPv6
protocol, visit
http://solutions.
brother.com/ for
more information.
2.Ethernet —Auto*
100B-FD
100B-HD
10B-FD
10B-HD
Chooses the
Ethernet link mode.
Level 1 Level 2 Level 3 Level 4 Options Descriptions
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
135
C
6.Network
(MFC-7860DW)
(Continued)
1.Wired LAN
(Continued)
3.Wired
Status
—Active 100B-FD
Active 100B-HD
Active 10B-FD
Active 10B-HD
Inactive
Wired OFF
You can see the
current wired status.
4.MAC
Address
— — Shows the MAC
address of the
machine.
5.Set to
Default
—1.Reset
2.Exit
Restore the wired
network setting to
factory default.
6.Wired
Enable
—On*
Off
Enable or Disable the
Wired LAN manually.
2.WLAN 1.TCP/IP 1.Boot
Method
Auto*
Static
RARP
BOOTP
DHCP
Chooses the BOOT
method that best
suits your needs.
2.IP Address [000-255]. [000-255].
[000-255]. [000-255]
Enter the IP address.
3.Subnet
Mask
[000-255]. [000-255].
[000-255]. [000-255]
Enter the Subnet
mask.
4.Gateway [000-255]. [000-255].
[000-255]. [000-255]
Enter the Gateway
address.
5.Node Name BRWXXXXXXXXXXXX Enter the Node
name.
6.WINS
Config
Auto*
Static
Chooses the WINS
configuration mode.
Level 1 Level 2 Level 3 Level 4 Options Descriptions
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
136
6.Network
(MFC-7860DW)
(Continued)
2.WLAN
(Continued)
1.TCP/IP
(Continued)
7.WINS
Server
Primary
[000-255]. [000-255].
[000-255]. [000-255]
Secondary
[000-255]. [000-255].
[000-255]. [000-255]
Specifies the IP
address of the
primary or secondary
WINS server.
8.DNS Server Primary
[000-255]. [000-255].
[000-255]. [000-255]
Secondary
[000-255]. [000-255].
[000-255]. [000-255]
Specifies the IP
address of the
primary or secondary
DNS server.
9.APIPA On*
Off
Automatically
allocates the IP
address from the
link-local address
range.
0.IPv6 On
Off*
Enable or Disable the
IPv6 protocol. If you
want to use the IPv6
protocol, visit
http://solutions.
brother.com/ for
more information.
2.Setup
Wizard
— — You can configure
your print server.
3.WPS/AOSS — — You can easily
configure your
wireless network
settings using the
one-button push
method.
4.WPS w/PIN
Code
— — You can easily
configure your
wireless network
settings using WPS
with a PIN code.
Level 1 Level 2 Level 3 Level 4 Options Descriptions
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
137
C
6.Network
(MFC-7860DW)
(Continued)
2.WLAN
(Continued)
5.WLAN
Status
1.Status Active(11b)
Active(11g)
Wired LAN
Active
WLAN OFF
AOSS Active
Connection Fail
You can see the
current wireless
network status.
2.Signal Strong
Medium
Weak
None
You can see the
current wireless
network signal
strength.
3.SSID — You can see the
current SSID.
4.Comm. Mode Ad-hoc
Infrastructure
You can see the
current
Communication
Mode.
6.MAC
Address
— — Shows the MAC
address of the
machine.
7.Set to
Default
—1.Reset
2.Exit
Restore the wireless
network settings to
factory default.
8.WLAN
Enable
—On
Off*
Enable or disable the
wireless LAN
manually.
3.Scan To
FTP
——Color 100 dpi*
Color 200 dpi
Color 300 dpi
Color 600 dpi
Gray 100 dpi
Gray 200 dpi
Gray 300 dpi
B&W 200 dpi
B&W 200x100 dpi
Chooses the file
format to send the
scanned data via
FTP.
0.Network
Reset
——1.Reset
2.Exit
Restores all network
settings to factory
default.
Level 1 Level 2 Level 3 Level 4 Options Descriptions
See Network User’s Guide.
The factory settings are shown in Bold with an asterisk.
138
Level 1 Level 2 Level 3 Options Descriptions Page
5.Machine
Info.
(MFC-7360)
6.Machine
Info.
(MFC-7360N /
MFC-7362N /
MFC-7460DN /
MFC-7470D)
1.Serial No. — — You can check the
serial number of your
machine.
120
7.Machine
Info.
(MFC-7860DW)
2.Page Counter —Total
Fax/List
Copy
Print
You can check the
number of total
pages the machine
has printed during its
life.
See 1.
3.Drum Life — — You can check the
percentage of a
Drum life that
remains available.
1See Advanced User's Guide.
The factory settings are shown in Bold with an asterisk.
Level 1 Level 2 Level 3 Options Descriptions Page
0.Initial
Setup
1.Receive Mode —Fax Only*
Fax/Tel
External TAD
Manual
Chooses the receive
mode that best suits
your needs.
28
2.Date&Time 1.Date&Time — Puts the date and
time on the LCD and
in headings of faxes
you send.
See 2.
2.Daylight
Save
On
Off
Changes for Daylight
Savings Time
manually.
See 1.
3.Time Zone
(MFC-7460DN
and
MFC-7860DW)
UTCXX:XX You can set the time
zone for your country
after you download
IFAX.
See 2.
1See Advanced User's Guide.
2See Quick Setup Guide.
The factory settings are shown in Bold with an asterisk.
Menu and features
139
C
0.Initial
Setup
(Continued)
3.Station ID —Fax:
Tel:
Name:
Sets your name and
fax number to appear
on each page you
fax.
See 2.
4.Tone/Pulse
(not available in New
Zealand)
—Tone*
Pulse
Chooses the dialling
mode.
4.Dial Tone
(for New Zealand)
5.Dial Tone
—Detection
No Detection*
You can shorten the
dial tone detect
pause.
109
5.Dial Prefix
(for New Zealand)
6.Dial Prefix
— — Sets a prefix number
that will always be
added before the fax
number every time
you dial.
See 1.
6.Reset
(for New Zealand)
7.Reset
1.Network
(MFC-7360N/
MFC-7362N/
MFC-7460DN/
MFC-7860DW)
1.Reset
2.Exit
Restores all network
settings to factory
default.
120
1.Address &
Fax
(MFC-7360/
MFC-7470D)
2.Address &
Fax
(MFC-7360N/
MFC-7362N/
MFC-7460DN/
MFC-7860DW)
1.Reset
2.Exit
Restores all stored
phone numbers and
fax settings.
2.All
Settings
(MFC-7360/
MFC-7470D)
3.All
Settings
(MFC-7360N/
MFC-7362N/
MFC-7460DN/
MFC-7860DW)
1.Reset
2.Exit
Restores all the
machine settings to
factory default.
Level 1 Level 2 Level 3 Options Descriptions Page
1See Advanced User's Guide.
2See Quick Setup Guide.
The factory settings are shown in Bold with an asterisk.
140
Entering text C
When setting certain menu selections, such as the Station ID, you will need to type text
characters. The dial pad keys have letters printed on them. The keys: 0, # and l do not have
printed letters because they are used for special characters.
Press the appropriate dial pad key the number of times shown in this reference table to access
the character you want.
For menu selections that do not allow lower case character selection, please use this reference
table.
Inserting spaces
To enter a space in a fax number, press c once between numbers. To enter a space in a name,
press c twice between characters.
Making corrections
If you entered a letter incorrectly and want to change it, press d or c to move the cursor to the
incorrect character, and then press Clear.
Repeating letters
To enter a character on the same key as the previous character, press c to move the cursor right
before pressing the key again.
Press
Key
one
time
two
times
three
times
four
times
five
times
six
times
seven
times
eight
times
nine
times
1@. / 1@. / 1@
2abcABC2ab
3de fDEF3de
4gh iGHI 4gh
5jklJKL5jk
6mn oMNO6mn
7pqr sPQRS7
8tuvTUV8tu
9wxyzWXYZ9
Press Key one time two times three times four times five times
2ABC2A
3DEF3D
4GH I 4G
5JKL5J
6MNO6M
7PQRS7
8TUV8T
9WXYZ9
Menu and features
141
C
Special characters and symbols
Press l, # or 0, then press d or c to move the cursor to the symbol or character you want. Press
OK to choose it. The symbols and characters below will appear depending on your menu
selection.
Press lfor (space) ! " # $ % & ’ ( ) l + , - . / m
Press #for : ; < = > ? @ [ ] ^ _ \ ~ ‘ | { }
Press 0for Ä Ë Ö Ü À Ç È É 0
142
D
General D
Note
This chapter provides a summary of the machines’ specifications. For additional specifications
visit http://www.brother.com/ for details.
Specifications D
Printer Type Laser
Print Method Electrophotography by semiconductor laser beam scanning
Memory Capacity 32 MB
(MFC-7360) 16 MB
LCD (liquid crystal
display)
16 characters 2 lines
Power Source 220 - 240 V AC 50/60Hz
Power Consumption 1Peak: 1080 W
Copying: 2Approx. 445 W at 25 C
Ready: Approx. 55 W at 25 C
For Wireless models
(WLAN: On) Sleep: Approx. 3.9 W
(WLAN: Off) Deep Sleep Approx. 1.7 W
For non-Wireless models
Deep Sleep: Approx. 1.5 W
Note
All figures stated above (except Peak) are average figures.
1USB connection to PC
2When making a copy from one sheet
Specifications
143
D
Dimensions
(MFC-7470D)
Weight With Consumables: (MFC-7360) 11.3 kg
(MFC-7360N / MFC-7362N) 11.4 kg
(MFC-7460DN / MFC-7860DW)
11.6 kg
(MFC-7470D) 11.9 kg
Noise level Sound power 1
Operating (Copying): (MFC-7360 / MFC-7360N /
MFC-7362N) LWAd = 6.74 B (A)
(MFC-7470D) LWAd = 6.81 B (A)
(MFC-7460DN / MFC-7860DW)
LWAd = 6.4 B (A)
Standby: (MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7470D) LWAd =
4.30 B (A)
(MFC-7460DN / MFC-7860DW)
LWAd = 4.22 B (A)
Sound pressure
Operating (Printing): LPAm = 53 dB (A)
Standby: LPAm = 30 dB (A)
1Measured in accordance with ISO 9296.
405 mm 398.5 mm
316 mm
477 mm 398.5 mm
316 mm
144
Temperature Operating: 10 to 32.5C
Storage: 0 to 40C
Humidity Operating: 20 to 80% (without condensation)
Storage: 10 to 90% (without condensation)
ADF (automatic document
feeder)
Up to 35 pages (Staggered) [80 gsm]
Specifications
145
D
Document Size D
Document Size
(Single-sided)
ADF Width: 147.3 to 215.9 mm
ADF Length: 147.3 to 355.6 mm
Scanner Glass
Width:
Max. 215.9 mm
Scanner Glass
Length:
Max. 297 mm
146
Print media D
1Legal or Folio size paper is not available in some regions.
2For labels, we recommend removing printed pages from the output paper tray immediately after they exit the machine
to avoid the possibility of smudging.
360 to 105 gsm for duplex print.
Paper Input Paper Tray
Paper Type: Plain paper, Thin paper or Recycled paper
Paper Size: Letter, A4, B5 (ISO/JIS), A5,
A5 (Long Edge), B6 (ISO), A6, Executive
(Legal 1 and Folio 1 for Asia)
Paper Weight: 60 to 105 gsm
Maximum Paper Tray
Capacity:
Up to 250 sheets of 80 gsm
Plain paper
Manual Feed Slot (Manual)
Paper Type: Envelope, Labels 2, Thin paper, Thick
paper, Recycled paper, Bond paper or
Plain paper
Paper Size: Width: 76.2 to 216 mm
Length: 116 to 406.4 mm
Paper Weight: 60 to 163 gsm 3
Maximum Paper Tray
Capacity:
One sheet at a time 80 gsm
Plain paper
Paper Output Face-Down Output Tray Up to 100 sheets (face down print delivery
to the output paper tray)
Face-Up Output Tray One sheet (face up print delivery to the
Face up output tray)
Duplex
Printing
(MFC-7460DN /
MFC-7470D /
MFC-7860DW)
Paper Size
(Automatic Duplex):
A4
Paper Weight
(Automatic Duplex): 60 to 105 gsm
Paper Type
(Automatic Duplex):
Plain paper or Recycled paper
Specifications
147
D
Fax D
1‘Pages’ refers to the ‘ITU-T Test Chart #1’ (a typical business letter, Standard resolution, MMR code). Specifications
and printed materials are subject to change without prior notice.
2‘Pages’ refers to the ‘ITU-T Test Chart #1’ (a typical business letter, Standard resolution, JBIG code). Specifications
and printed materials are subject to change without prior notice.
3Black & White only
Compatibility (MFC-7360 / MFC-7360N / MFC-7362N / MFC-7460DN)
Group 3
(MFC-7470D / MFC-7860DW)
Super Group 3
Modem Speed Automatic Fallback: (MFC-7360 / MFC-7360N /
MFC-7362N / MFC-7460DN)
14,400 bps
(MFC-7470D / MFC-7860DW)
33,600 bps
2-sided (Duplex) Print
Receiving
(MFC-7460DN / MFC-7470D /
MFC-7860DW)
Yes
Scanning Width Max. 208 mm
Printing Width Max. 208 mm
Greyscale 8 bit/256 levels
Resolution Horizontal: 8 dot/mm
Vertical
Standard: 3.85 line/mm
Fine: 7.7 line/mm
Photo: 7.7 line/mm
Superfine: 15.4 line/mm
One Touch Dial 8 (4 2)
Speed Dial 200 stations
Groups Up to 8
Broadcasting 258 stations
Automatic Redial 3 times at 5 minute intervals
Memory Transmission (MFC-7360 / MFC-7360N / MFC-7362N / MFC-7460DN)
Up to 400 1 pages 3
(MFC-7470D / MFC-7860DW) Up to 500 2 pages 3
Out of Paper Reception (MFC-7360 / MFC-7360N / MFC-7362N / MFC-7460DN)
Up to 400 1 pages 3
(MFC-7470D / MFC-7860DW) Up to 500 2 pages 3
148
Copy D
Color/Monochrome Monochrome
Copy Width Max. 204 mm
Multiple Copies Stacks or Sorts up to 99 pages
Reduce/Enlarge 25% to 400% (in increments of 1%)
Resolution Up to 600 600 dpi
First Copy Out Time Less than 11 seconds (from the READY mode and standard
tray)
Specifications
149
D
Scanner D
1For the latest driver updates for the Mac OS X you are using, visit us at http://solutions.brother.com/.
2Maximum 1200 1200 dpi scanning with the WIA driver in Windows® XP, Windows Vista® and Windows® 7
(resolution up to 19200 19200 dpi can be chosen by using the scanner utility)
Colour/Black Yes/Yes
TWAIN Compliant Yes (Windows®2000 Professional/Windows®XP/
Windows®XP Professional x64 Edition/Windows Vista®/
Windows®7)
Mac OS X 10.4.11, 10.5.x, 10.6.x 1
WIA Compliant Yes (Windows® XP/Windows Vista®/Windows®7)
Colour Depth 48 bit internal / 24 bit external colour
Resolution Up to 19200 19200 dpi (interpolated) 2
Up to Max 600 2400 dpi (optical) 2 (from Scanner Glass)
Up to Max 600 600 dpi (optical) 2 (from ADF)
Scanning Width Max. 204 mm
Greyscale 256 levels
150
Printer D
1The print speed may vary depending on the type of document you print.
Automatic 2-sided
(Duplex) Print
(MFC-7460DN /
MFC-7470D /
MFC-7860DW)
Yes
Emulations
(MFC-7470D /
MFC-7860DW)
PCL6, BR-Script3 (PostScript® 3™ compatible)
Resolution 600 dpi 600 dpi, HQ1200 (2400 600 dpi) quality
Print Speed
(Duplex)
(MFC-7460DN /
MFC-7470D /
MFC-7860DW)
Up to 5 pages/minute (A4 size) 1
Print Speed (MFC-7360 / MFC-7360N / MFC-7362N)
Up to 24 pages/minute (A4 size) 1
(MFC-7460DN / MFC-7470D / MFC-7860DW)
Up to 26 pages/minute (A4 size) 1
First Print Out Time Less than 8.5 seconds (from the READY mode and standard tray)
Specifications
151
D
Interfaces D
1Your machine has a Hi-Speed USB 2.0 interface. The machine can also be connected to a computer that has a
USB 1.1 interface.
2Third-party USB ports are not supported.
3See Network (LAN) (Network models only) on page 155 and the Network User's Guide for detailed network
specifications.
USB We recommend use a USB cable (Type A/B) that is no more than 2
metres long. 12
Ethernet 3Use an Ethernet UTP cable category 5 or greater.
Wireless LAN
(MFC-7860DW)
IEEE 802.11 b/g (Infrastructure / Ad-hoc Mode)
152
Computer requirements D
Minimum System Requirements and Supported PC Software Functions
Computer Platform &
Operating System
Version
Processor
Minimum
Speed
Minimum
RAM
Recommended
RAM
Hard Disk Space
to install
Supported
PC
Software
Functions
Supported
PC
Interface
3
For
Drivers
For
Applications
Windows®
Operating
System
1
Windows®
2000
Professional
5
Intel®
Pentium® II
or equivalent
64 MB 256 MB 150 MB 500 MB Printing,
PC-Fax 4,
Scanning
USB,
10/100
Base Tx
(Ethernet),
Wireless
802.11 b/g
Windows®
XP
Home
26
Windows®
XP
Professional
26
128 MB
Windows®
XP
Professional
x64
Edition
26
64-bit
(Intel®64 or
AMD64)
supported
CPU
256 MB 512 MB
Windows
Vista®
26 Intel®
Pentium® 4
or equivalent
64-bit
(Intel®64 or
AMD64)
supported
CPU
512 MB 1 GB 500 MB 1.2 GB
Windows®
7
26
Intel®
Pentium® 4
or equivalent
64-bit
(Intel®64 or
AMD64)
supported
CPU
1 GB
(32-bit)
2 GB
(64-bit)
1 GB
(32-bit)
2 GB
(64-bit)
650 MB
Specifications
153
D
1Internet Explorer® 6.0 or greater.
2For WIA, 1200 x 1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi.
3Third-party USB ports are not supported.
4PC-Fax supports black and white only.
5PaperPort™ 11SE supports Microsoft® SP4 or higher for Windows® 2000.
6PaperPort™ 12SE supports Microsoft® SP3 or higher for Windows® XP and SP2 or higher for Windows Vista® and
Windows® 7.
For the latest driver updates, visit http://solutions.brother.com/.
All trademarks, brand and product names are property of their respective companies.
Windows®
Operating
System
1
Windows
Server
®
2003 (print
only via
network)
Intel®
Pentium® III
or equivalent
256 MB 512 MB 50 MB N/A Printing
10/100
Base Tx
(Ethernet),
Wireless
802.11 b/g
Windows
Server
®
2003 x64
Edition
(print only
via
network)
64-bit
(Intel®64 or
AMD64)
supported
CPU
Windows
Server
®
2008 (print
only via
network)
Intel®
Pentium® 4
or equivalent
64-bit
(Intel®64 or
AMD64)
supported
CPU
512 MB 2 GB
Windows
Server
®
2008 R2
(print only
via
network)
64-bit
(Intel®64 or
AMD64)
supported
CPU
Macintosh
Operating
System
Mac OS X
10.4.11
10.5.x
PowerPC
G4/G5
Intel® Core™
Processor
512 MB 1 GB 80 MB 400 MB Printing,
PC-Fax
Send 4,
Scanning
USB,
10/100
Base Tx
(Ethernet),
Wireless
802.11 b/g
Mac OS X
10.6.x Intel® Core™
Processor
1 GB 2 GB
Minimum System Requirements and Supported PC Software Functions
Computer Platform &
Operating System
Version
Processor
Minimum
Speed
Minimum
RAM
Recommended
RAM
Hard Disk Space
to install
Supported
PC
Software
Functions
Supported
PC
Interface
3
For
Drivers
For
Applications
154
Consumable items D
1Approx. cartridge yield is declared in accordance with ISO/IEC 19752.
2Drum yield is approximate, and may vary by type of use.
Note
• Brother does not recommend the use of consumables other than genuine Brother
consumables.
• Your machine warranty may not cover any damage arising from the use of non genuine Brother
consumables.
Toner Cartridge Starter Toner Cartridge:
(For Oceania) Approx. 700 pages (A4) 1
Standard Toner Cartridge:
TN-2230 (For Oceania)
TN-2260 (For Asia) Approx. 1,200 pages (A4) 1
High-Yield Toner Cartridge:
TN-2250 (For Oceania)
TN-2280 (For Asia) Approx. 2,600 pages (A4) 1
Drum Unit DR-2225 (For Oceania)
DR-2255 (For Asia) Approx. 12,000 pages (A4) 2
Specifications
155
D
Network (LAN) (Network models only) D
Note
For details about the full Network specifications, see the Network User's Guide.
1See Computer requirements on page 152.
2BRAdmin Professional and Web BRAdmin are available as a download from http://solutions.brother.com/.
LAN You can connect your machine to a network for Network Printing,
Network Scanning, PC-Fax Send, PC-Fax Receive (Windows® only)
and Remote Setup 1. Also included is Brother BRAdmin Light 2
Network Management software.
Security Protocols
Wired APOP, POP before SMTP, SMTP-AUTH
Wireless APOP, POP before SMTP, SMTP-AUTH
Wireless Network
Security
(MFC-7860DW)
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wireless Network
Setup Support Utility
(MFC-7860DW)
AOSS™ Yes
WPS Yes
Index
156
E
A
Address Book .............................................8
ADF (automatic document feeder)
using .....................................................23
Answering machine (TAD)
connecting .............................................37
Automatic
fax receive ...................................... 29, 31
Fax Detect ..........................................31
fax redial ...............................................43
C
Cleaning
corona wire ...........................................72
drum unit ...............................................74
scanner .................................................71
Connecting
external TAD (answering machine) .......37
external telephone ................................39
Consumable items ...................................60
Control panel overview ..............................6
Copy .........................................................52
keys .........................................................8
Cordless telephone (non-Brother) ............40
D
Dialling
a pause .................................................45
automatic fax redial ...............................43
manual ..................................................42
one touch ..............................................42
speed dial ..............................................42
using the Address Book key .................43
Document
how to load ..................................... 23, 24
Drum unit
cleaning .......................................... 72, 74
replacing ...............................................66
Duplex
printing ................................................146
E
Envelopes ....................................14, 19, 21
Equalization ........................................... 109
Error messages on LCD .......................... 81
Comm. Error ......................................... 81
Drum Error ............................................ 66
Drum Stop ............................................ 66
Init Unable XX ...................................... 83
No Paper .............................................. 84
Out of Memory ...................................... 84
Print Unable XX .................................... 85
Replace Drum ...................................... 66
Replace Toner ...................................... 61
Scan Unable XX ................................... 85
Toner Ended ......................................... 61
Toner Low ............................................ 61
Extension telephone, using ..................... 40
External telephone, connecting ............... 39
F
Fax codes
changing ............................................... 41
fax receive code ................................... 40
telephone answer code ........................ 40
Fax, stand-alone
receiving ............................................... 31
from extension telephone ............39, 40
ring delay, setting .............................. 30
telephone line interference .............. 109
sending ................................................. 26
telephone line interference .............. 109
Fax/Tel mode
answering at extension telephones ...... 40
F/T ring time (double-ring) .................... 30
fax receive code ................................... 40
receiving faxes ..................................... 39
ring delay .............................................. 30
telephone answer code ........................ 40
Folio ......................................................... 18
157
E
G
Greyscale ...................................... 147, 149
H
HELP
LCD messages ...................................122
Menu Table .........................................123
Hook key ........................................... 39, 40
Hook/Hold key ..........................................39
L
Labels .........................................12, 19, 22
LCD (liquid crystal display) ............... 8, 122
M
Machine information
how to reset the machine ....................121
reset functions ....................................120
serial number ......................................120
Maintenance, routine ...............................70
replacing
drum unit ............................................66
toner cartridge ....................................61
Manual
Dialling ..................................................42
receive ..................................................29
Menu Table ............................................123
Mode, entering
copy ......................................................52
fax .........................................................26
scan ........................................................8
Multi-line connections (PABX) .................38
O
One touch
changing ...............................................49
setting up ..............................................45
using .....................................................42
OPC drum ..............................................113
Out of Memory message ..........................84
P
Paper ............................................... 18, 146
how to load ........................................... 10
in multi-purpose tray .......................... 12
in paper tray ...................................... 10
recommended ...................................... 19
size ....................................................... 19
tray capacity ......................................... 19
type ...................................................... 19
Print
difficulties ...................................100, 104
emulation ............................................ 150
quality ................................................. 106
resolution ............................................ 150
specifications ...................................... 150
Print quality ............................................ 110
Programming your machine .................. 122
Q
Quality
printing ............................................... 106
Quick dial ................................................. 45
group dial
changing ............................................ 49
one touch dial
changing ............................................ 49
custom scan profile ........................... 45
setting up ........................................... 45
using .................................................. 42
Search .................................................. 43
speed dial
changing ............................................ 49
custom scan profile ........................... 47
setting up ........................................... 47
using .................................................. 42
158
R
Redial/Pause key .............................. 43, 45
Replacing
drum unit ...............................................66
toner cartridge .......................................61
Reports
Transmission Verification ......................27
Resolution
copy ....................................................148
fax (standard, fine, superfine, photo) ..147
print .....................................................150
scan ....................................................149
Resolution key ...........................................8
Ring delay, setting ...................................30
S
Safety Instructions ......................................i
Scanner glass
using .....................................................24
Secure key .................................................8
Serial number
how to find...............See inside front cover
Speed dial
changing ...............................................49
setting up ..............................................47
using .....................................................42
T
TAD (telephone answering device),
external .................................................... 29
connecting ............................................ 37
recording OGM ..................................... 38
Telephone line
connections .......................................... 37
difficulties ............................................ 100
interference ........................................ 109
multi-line (PABX) .................................. 38
Text, entering ........................................ 140
Toner cartridge
replacing ............................................... 61
Troubleshooting ....................................... 81
document jam .................................88, 89
error messages on LCD ....................... 81
if you are having difficulty
copy quality ..................................... 103
incoming calls .................................. 103
network ............................................ 106
paper handling ................................ 105
print quality ...................................... 106
printing ....................................100, 104
receiving faxes ................................ 101
scanning .......................................... 105
sending faxes .................................. 102
software ........................................... 105
telephone line .................................. 109
maintenance messages on LCD .......... 81
paper jam .......................... 90, 91, 93, 98
V
VoIP ....................................................... 109
Volume, setting
beeper .................................................... 9
ring ......................................................... 9
speaker ................................................... 9
For Australia Only:
Support – For technical support of your Brother Product other than what you can resolve through
the User's Guide, please visit our Web Site or Solutions Web Site (see below) to find an answer
to FAQs/Troubleshooting, locating Drivers & Software.
Alternatively, please contact the Product Support Centre for any customer care/technical support
enquiry.
To contact Brother International (Aust) Pty Ltd for support on a Brother product please see
the details listed below:
Our Technical Support Consultants are available 5 days a week by phone during the hours of
8.30am to 5.00pm (EST/EDST) Monday to Friday.
For New Zealand Only:
To contact Brother International (NZ) Limited for support with a Brother product please use the
following methods.
Our Technical Support Consultants are available 7 days a week by phone during the hours of
8.30am to 5pm Monday to Friday and 9am to 5pm Saturday and Sunday.
Outside of these hours you can find assistance from our Auto Attendant Self Help and our Website
www.brother.co.nz under Online Help.
Product Support Centre: Australia
Brother International (Aust) Pty Ltd
Phone: 02 8875 6000
Fax: 02 9870 7223
Solutions Site: http://solutions.brother.com/
Web Site: www.brother.com.au
Email: To submit an e-mail enquiry, visit www.brother.com.au
go to Service and Support area and follow the prompts.
Phone:
Premium End User Assistance 0900 552 152
Auto Attendant Self Help 0800 652 152
Brother Recycle Assistance 0800 632 467
Fax Assistance 0800 837 822
Email Assistance Please visit www.brother.co.nz and submit a helpdesk enquiry from
Online Help
Web Assistance Please visit www.brother.co.nz under Online Help for Frequently
Asked Questions, Driver downloads, Warranty information and
Service Centres
These machines are approved for use in the country of purchase only. Local Brother companies
or their dealers will only support machines purchased in their own countries.
