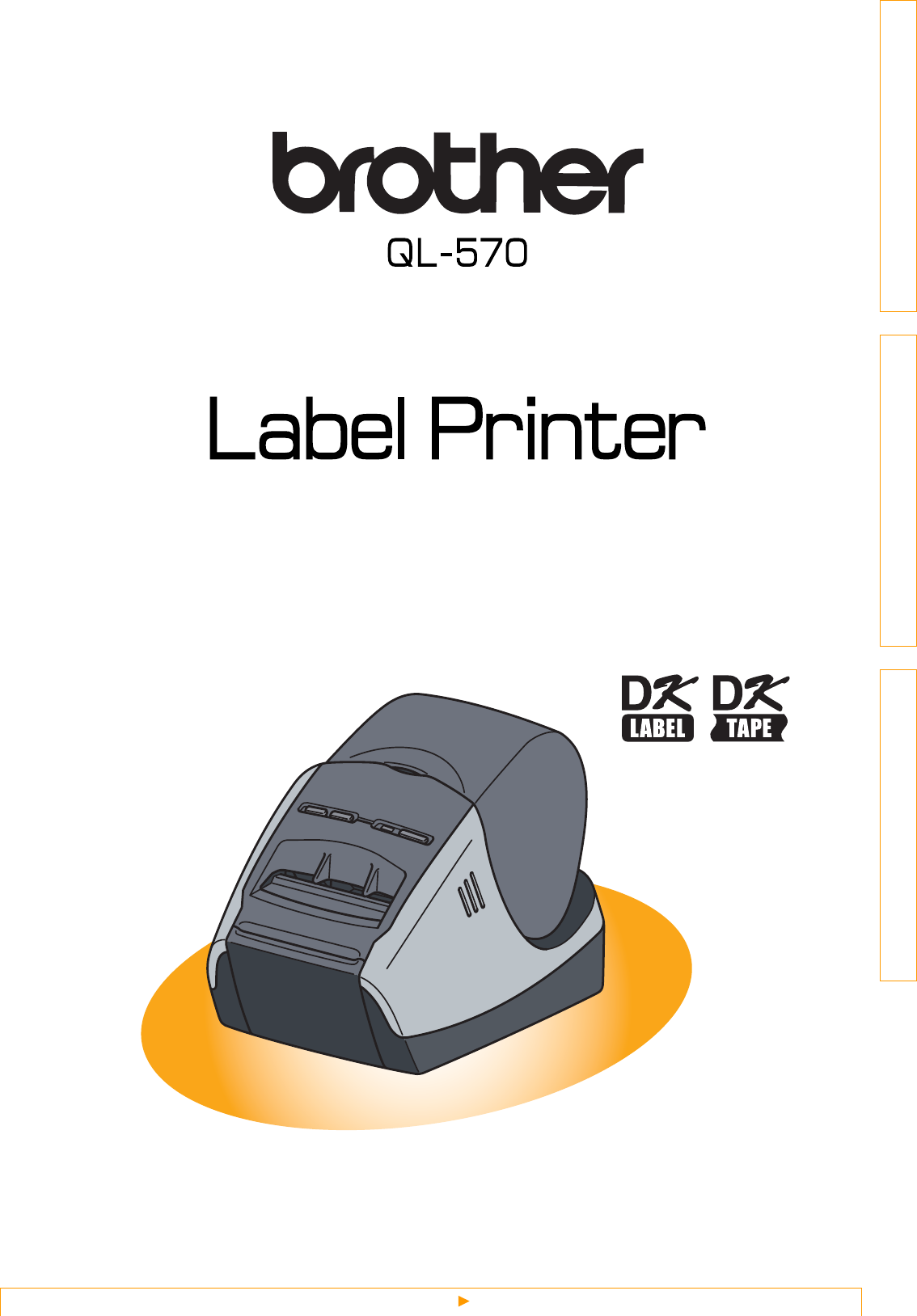

Brother P Touch Ql 570 Users Manual
QL-570 to the manual 2dba5590-d171-4ff5-a39c-73e11f433089
2015-01-25
: Brother Brother-P-Touch-Ql-570-Users-Manual-212985 brother-p-touch-ql-570-users-manual-212985 brother pdf
Open the PDF directly: View PDF
.
Page Count: 35
Creating LabelsAppendix
2
Introduction
Contents
About This Guide ........................................................................................................... 3
Manual Structure ........................................................................................................... 3
Symbols Used in this Guide .......................................................................................... 3
Label Creation Overview ................................................................................................... 4
From Label Creation to Printing ..................................................................................... 4
How to use the P-touch® Editor for Windows® ................................................................. 6
Starting P-touch® Editor ................................................................................................ 6
Start P-touch® Editor Help ........................................................................................... 10
Creating Labels with Other Applications ...................................................................... 12
How to Use the P-touch® Address Book ........................................................................ 18
Starting the P-touch® Address Book ........................................................................... 18
Creating a New Contact .............................................................................................. 20
How to Use P-touch® Library .......................................................................................... 21
Starting up the P-touch® Library .................................................................................. 21
Searching labels .......................................................................................................... 22
How to use the P-touch® Editor for Mac® ....................................................................... 23
Starting the P-touch® Editor ........................................................................................ 23
Start P-touch® Editor Help ........................................................................................... 25
Printing Directly from Other Applications ........................................................................ 26
Setting the Printer Driver ............................................................................................. 26
Printing from Other Applications .................................................................................. 28
Uninstalling Software ...................................................................................................... 29
For Windows® ............................................................................................................. 29
For Mac® ..................................................................................................................... 30
LED Lamp .......................................................................................................................32
Maintenance ................................................................................................................... 33
Print head maintenance ............................................................................................... 33
Roller maintenance ...................................................................................................... 33
Label outlet maintenance ............................................................................................ 34
Troubleshooting .............................................................................................................. 35
Potential types of problems ......................................................................................... 35
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Creating Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
IntroductionCreating LabelsAppendix
About This Guide
3
Introduction
The Brother QL-570 label printer (hereafter referred to as "the machine") enables you to quickly and easily
print custom labels created with the label software, P-touch® Editor.
About This Guide
This guide (PDF) is included on the CD-ROM.
Manual Structure
The following guides are provided to help you use the machine correctly, and understand all features.
Make sure to read and understand them before using the machine.
Setup & Operation Guide
• Read the Setup and Operations Guide before reading this User's Guide.
• The guide includes information you should read before using the machine, such as general precautions for
use, installation and setting up of the main unit, and how to create.
• Also included is information describing how to install the accompanying software to connect the machine to
a computer.
User's Guide (this guide)
This guide describes how to create labels using the P-touch® Editor software that has been installed on a
computer connected to the machine.
Symbols Used in this Guide
The symbols used throughout this guide are as follows:
In this guide, when the mouse pointer changes to you can just click to jump to the corresponding
pages.
For the basic functions of Adobe® Reader®, see the Adobe® Reader® Help files.
• If you use a Windows®, this guide can be viewed from the P-touch® Setup application when it is run
from the CD-ROM.
After installing this guide on the computer, you can also view it from the Start menu.
• If you use a Mac®, see the PDF files in the [Manuals] folder on the CD-ROM.
This symbol shows information or directions that should be followed. Ignoring them may result in injury,
damage, or failed operations.
This symbol shows information or directions that can help you better understand and use the machine
more efficiently.
IntroductionCreating LabelsAppendix
From Label Creation to Printing
4
Creating Labels
This section describes the general procedure for creating labels using the machine.
For details on step-by-step instructions, see Help files.
From Label Creation to Printing
1Choose the type of label you want to create. There is a variety to choose from.
2Prepare the appropriate DK Roll for the label you want to create.
The machine is supplied with one or more sample rolls. (Other rolls can be purchased separately.)
Label Creation Overview
Label examples
Choose the appropriate DK Roll for the type
of label you will create.
Install the DK Roll.
ÎSetup & Operation Guide ÎSetup & Operation Guide
From Label Creation to Printing
5
IntroductionCreating LabelsAppendix
3Create and print the label.
Windows®
Create a label
Using P-touch® Editor
Using an application from another publisher (Windows® only)
Using P-touch® Address Book (Windows® only)
Enter the text Edit the label
Enter the text
Print the label
Windows®
Express Mode
Professional Mode
Snap Mode
Windows/Mac®
Express Mode
Professional Mode
The result may differ.
Microsoft® Word/Excel/Outlook
• Add-In functions
• Import the text
• Screen capture
• Print text
• Drag and drop
Enter/Import the text
Edit the label
Edit the label
Enter the text Edit the label
Mac®
Standard Mode
Standard Mode
Starting P-touch® Editor
6
IntroductionCreating LabelsAppendix
This section explains the procedure for starting P-touch® Editor. With P-touch® Editor, you can create various
kinds of labels.
See the P-touch® Editor Help for samples of various kinds of labels and details on creating, printing, and
saving the labels. The following is the example for Windows Vista®.
Starting P-touch® Editor
1Click [Start]-[All Programs (Programs)]-
[Brother P-touch]-[P-touch Editor 5.0].
When P-touch® Editor is launched, the [New/Open] dialog box appears, allowing you to choose
whether you want to create a new label layout or open an existing label.
2Choose an option in the [New/Open] dialog
box and click .
• You can choose the label printer and media size.
• When you choose [Open File], the [Open] dialog
box appears. You can choose and open the file you
have created and stored previously.
• When you choose [View History], the [History]
dialog appears. You can choose from recently
created labels.
• When you choose [New], choose either vertical
writing style or horizontal writing style.
• When you choose [Select by Use], you can choose
by label applications.
• When you choose [Help-How To], the P-touch®
Editor Help appears.
The Help files allow you to learn step by step how
to create a label layout.
• When you choose [Check for Updates] with a
computer connected to the Internet, you will be
taken to the Brother Solutions Center. Use this
Brother Solutions Center to check for the latest
software downloads and FAQs.
How to use the P-touch
®
Editor for Windows
®
You can also start P-touch® Editor using
the following methods (only if you created
the shortcut during installation):
• Double-click the shortcut icon on the
desktop.
• Click the shortcut icon on the Quick
Launch bar.
To specify how the P-touch® Editor works when it starts, click [Tools]-[Options] to display the
[Options] dialog box. In the [General] tab, you can choose the setting in the [Operations] list box
in the [Startup Settings]. Normally, choose [Display Startup Dialog Box].
Starting P-touch® Editor
7
IntroductionCreating LabelsAppendix
Layout window
Express Mode
This mode provides easy label creation with texts and images.
The layout window consists of the following sections:
Menu bar
Commands are categorized under each menu (File, Edit, View, and Insert, etc.) by function.
Command bar
The command bar contains the New/Open, Paper, Text, Frame, Image, etc.
Draw/Edit toolbar
Provides tools for choosing an object, entering text, drawing graphics, etc.
Property bar
You can easily insert and format text, image, etc.
Layout window
The layout window is used to display and edit objects.
Database window
Displays a database.
• The [View] menu allows you to show/hide the toolbars, Property pallet, and windows.
• See the P-touch® Editor Help for details.
5
2
1
4
3
6
1
2
3
4
5
6
Starting P-touch® Editor
8
IntroductionCreating LabelsAppendix
Professional Mode
This mode provides full-scale label creation from creating the templates.
The layout window consists of the following sections:
Menu bar
Commands are categorized under each menu (File, Edit, View, and Insert, etc.) by function.
Standard toolbar
A group of frequently used commands (New Layout, Open, Save, Print, etc.) are provided in this toolbar.
Property pallet
The property pallet contains the Print, Paper, Text, Layout, and property boxes. Click on the left side of
each pallet to show/hide the box.
Draw/Edit toolbar
Provides tools for choosing an object, entering text, drawing graphics, etc.
Layout window
The layout window is used to display and edit objects.
Database window
Displays a database.
Side bar
Selecting the tab, you can easily insert and format text, barcodes, frames, tables, figures, sort, the objects,
etc.
• The [View] menu allows you to show/hide the toolbars, pallet, and windows.
• See the P-touch® Editor Help for details.
5
2
1
4
6
7
3
1
2
3
4
5
6
7
Starting P-touch® Editor
9
IntroductionCreating LabelsAppendix
Snap Mode
With this mode, you can capture the screen, print it as image, and save it for future use. To start the snap
mode, follow the steps below.
1When you click [Snap Mode], the
description of the snap mode dialog
appears. Click .
2The snap mode appears.
If you put a checkmark on the [Do Not Display
This Dialog Again], you can go to the snap
mode directly from next time.
See the P-touch® Editor Help for details.
Start P-touch® Editor Help
10
IntroductionCreating LabelsAppendix
Start P-touch® Editor Help
This section explains how to start P-touch® Editor Help for Windows®. The following is the example for
Windows Vista®.
Start from Start button
1To start P-touch® Editor Help, click the
Start button on the task bar, point to All
Programs (or Programs). Click Brother
P-touch and P-touch Editor 5.0.
2
In the New/Open dialog, click Help-How To.
Start from P-touch® Editor
Click Help menu and choose P-touch® Editor Help.
Professional Mode
Express Mode
Start P-touch® Editor Help
11
IntroductionCreating LabelsAppendix
Printing the Help description
The information given in P-touch® Editor Help can be printed. Use your normal printer to print the P-touch®
Editor Help information.
1In the [Contents] tab, choose any topic you want to print.
2Click on the Toolbar.
3Choose the range of topics to be printed,
and click .
4Specify the [Printer] item and click .
Choose a normal printer that supports general paper sizes, such as Letter.
Creating Labels with Other Applications
12
IntroductionCreating LabelsAppendix
Creating Labels with Other Applications
When installing the software, if you choose the Add-In function, a P-touch® icon will be automatically added
onto the Microsoft® Word, Excel, and Outlook® toolbar. (Only if Microsoft® Word, Excel, Outlook® are already
installed on your computer.) The Add-In function is valid for Windows® only.
In each application, by choosing the text you want to print and clicking on the P-touch® icon, you can create
and print labels quickly and easily.
Depending on the setting, the character string that is downloaded by using Add-In function will be registered to
Label List. Label List is a database for exclusively P-touch
®
Editor. To display Label List, click [File]-
[Database]-[Label List].
For details or installation information, see the P-touch® Editor Help.
Registering and canceling the Add-In function
1Click [Start]-[All
Programs(Programs)]-[Brother
P-touch]-[P-touch Tools]-[P-touch
Editor 5.0 Add-Ins Utility].
The [Brother P-touch Add-In Settings]
dialog box appears.
2
Click on the checkboxes for the Microsoft
®
application where you would like the
P-touch
®
Editor add-in function button to be
installed.
Now for each Microsoft
®
application you must
select which version of the label creation software
you would like to open when the P-touch
®
Editor
button on the tool bar is clicked.
• Express Mode : Starts Express Mode.
• Professional Mode : Starts Professional mode.
• Print Immediately : Prints the label.
• The Add-In function supports the following applications:
Microsoft® Word 2000/2002/2003/2007, Microsoft® Excel 2000/2002/2003/2007, and Microsoft®
Outlook® 2000/2002/2003/2007
• After the Add-In function is installed into Microsoft® Word,
Excel, or Outlook®, the [Security Options] dialog box may
appear when starting these applications, depending on the
application's security settings. If this dialog box appears,
select [Trust all documants from this publisher], and click
[OK]. For details on security settings, see the Help files for
the application.
• For Microsoft® Word 2003 etc., check the [Always trust
macros from this source] checkbox, and click on [Enable
Macros].
Before running this program, close the Word, Excel and Outlook® programs.
Creating Labels with Other Applications
13
IntroductionCreating LabelsAppendix
Microsoft® Word
With the Add-In function, you can directly copy the text in Microsoft® Word to a label layout.
Creating labels using Microsoft® Word
1Open a Microsoft® Word document and
select the text you want included in the label
from your word document.
2On the Microsoft® Word ribbon/standard toolbar, click .
How to add Microsoft® Word text to the Label list shown in the database Window
Example of label list data being stored in the database window in P-touch® editor screen
If you click No in the message "Record data in the Label List?" is displayed and want to register, go to [Tools]-
[Options], and check "Automatically Record Data Imported With Add-In." in the [Label List] tab.
If Microsoft® Outlook® is running and Microsoft® Word is chosen as the standard editor, you won't
be able to use the Add-In function in Microsoft® Word. Exit Microsoft® Outlook® and restart
Microsoft® Word.
For details on how to automatically add the text to a Label List, see "How to add the Microsoft®
Word text to a Label List" described below.
For first time use, the message "Record data in the Label List?" is displayed. If you click Yes, new
records are automatically created in the Label List and the text is added to each field shown below
from next time you register the text: Each time you add new information into your label list it also
records the following information for your reference.
The text Added field
Date of creation Date field
The first line Title field
All lines including the first line Body field
Detected ZIP/Postal code Code field
Creating Labels with Other Applications
14
IntroductionCreating LabelsAppendix
Microsoft® Excel
With the Add-In function, you can directly copy text in Microsoft® Excel to a label layout.
Creating labels using Microsoft® Excel
1Open a Microsoft® Excel worksheet and
select the cells of text you want included in
the label from your Excel spreadsheet.
2On the Microsoft® Excel standard toolbar, click .
The [Brother P-touch Import Setup] dialog box appears.
3In [Label Layout], make adjustments to the
line feed in the cells and click .
3
[Label Layout] enables you to change the
way your text is displayed/printed.
When you choose any listed item in the
[Fields] box and click , a new field is
added to the [Label Layout] box.
You can enter spaces, line feeds, commas,
and characters for each cell and print them
on a label. You can also remove fields in
this screen by highlighting the field and
pressing the delete key on your keyboard.
• For details on how to automatically add the text to a Label List, see "How to add text from
Microsoft® Excel® to a Label List" described on the page 15.
• If you want to include the data into the Code field of the Label List, choose [Text Imported Into
the "Code" Field of the Label List] in the [Brother P-touch Import Setup] dialog box.
Creating Labels with Other Applications
15
IntroductionCreating LabelsAppendix
How to add text from Microsoft® Excel® to a Label List
If you clicked No when the message "Record data in the Label List?" is displayed, but want to register, go to
[Tools]-[Options], and check "Automatically Record Data Imported With Add-in."
For first time use, the message "Record data in the Label List?" is displayed. If you click Yes, new
records are automatically created in the Label List and the text is added to each field shown below
from next time you register the text: Each time you add new information into your label list it also
records the following information for your reference.
The text Added field
Date of creation Date field
The first line in the text that is specified in the Label
Layout Title field
All lines including the first line in text specified in the
Label Layout Body field
Content of cell specified in [Text Imported Into the
"code" Field of the Label List] Code field
Creating Labels with Other Applications
16
IntroductionCreating LabelsAppendix
Microsoft® Outlook
With the Add-In function, you can directly copy the text in Microsoft® Outlook® to a label layout.
Items you can import are: Contacts, Calendar items, Deleted Items, Drafts, Inbox, Journal, Notes (text in the
Notes dialog box is not available), Outbox, Sent Items and Tasks windows.
Creating labels using the Contacts data in Microsoft® Outlook
1Open Microsoft® Outlook® Contacts and
highlight the contact information you
want to include.
2On the Microsoft® Outlook® standard toolbar, click .
3In [Label Layout], make adjustments to the
line feed in the cells and click .
3
In Microsoft® Outlook®, you can include not
only the Contact data but also the text in a
message, as you can do in Microsoft®
Word.
For details on how to automatically add the text to the Label List, see "How to add text from
Microsoft® Outlook® to a Label List" described on the page 17.
[Label Layout] enables you to change the
way your text is displayed/printed.
When you choose any listed item in the
[Fields] box and click , a new field is
added to the [Label Layout] box.
You can enter spaces, line feeds, commas,
and characters for each cell and print them
on a label. You can also remove fields in
this screen by highlighting the field and
pressing the delete key on your keyboard.
• For details on how to automatically add the text to a Label List, see "How to add text from
Microsoft® Outlook® to a Label List" described on the page 17.
• If you want to include the data into the Code field of the Label List, choose [Text Imported Into
the "Code" Field of the Label List] in the [Brother P-touch Import Setup] dialog box.
Creating Labels with Other Applications
17
IntroductionCreating LabelsAppendix
How to add text from Microsoft® Outlook® to a Label List
If you clicked No when the message "Record data in the Label List?" is displayed, but want to register, go to
[Tools]-[Options], and check "Automatically Record Data Imported With Add-in."
For first time use, the message "Record data in the Label List?" is displayed. If you click Yes, new
records are automatically created in the Label List and the text is added to each field shown below
from next time you register the text: Each time you add new information into your label list it also
records the following information for your reference.
The text Added field
Date of creation Date field
The first line in the text that is specified in the Label
Layout Title field
All lines including the first line in text specified in the
Label Layout Body field
Content of cell specified in [Text Imported Into the
"code" Field of the Label List] Code field
Starting the P-touch® Address Book
18
IntroductionCreating LabelsAppendix
This section describes the procedure for creating labels from contacts efficiently using the P-touch® Address
Book. The P-touch® Address Book is valid for Windows® only. The following is the example for Windows
XP®, except for step 1.
Starting the P-touch® Address Book
1Click [Start]-[All Programs(Programs)]-
[Brother P-touch]-[P-touch Address Book
1.1] .
When the P-touch® Address Book is launched, the [Startup] dialog box appears, letting you make
settings to create new contacts, import CSV format data or Outlook® contacts, and so on.
2In the [Startup] dialog box, specify how
the P-touch® Address Book works and
click .
• When [Create a New Contact] is chosen, the
layout window appears.
• When [Import Contacts from a CSV File] or
[Import Contacts from Outlook] is chosen, you
can import contacts in other formats.
• Click to open the P-touch® Address
Book Help files.
The P-touch® Address Book Help offers detailed
information on available features and explains
how to use the P-touch® Address Book.
How to Use the P-touch® Address Book
You can also start the P-touch® Address
Book using the following methods: (Only if
you created the shortcut during installation)
• Double-click the shortcut icon on the
desktop.
• Click the shortcut icon on the Quick
Launch bar.
Starting the P-touch® Address Book
19
IntroductionCreating LabelsAppendix
Layout window
The layout window consists of the following eight sections:
Menu bar
Commands are categorized under each menu (File, Edit, View, and Insert, etc.) by function.
Standard toolbar
A group of frequently used commands (such as New Contact, Edit Contact, Find, Print, etc.) are provided
in this toolbar.
Text toolbar
Used to adjust text attributes such as font size and alignment for text formatting.
Layout style selection view
Displays layout styles stored in the folder.
Layout work area
This area is used to display or edit a layout that uses the layout style in the layout style selection view.
Contact list combo box
Displays the contact list that is currently specified. You can choose from [Personal], [Business], [Other1],
[Other2] and [Other3].
Index tab
You can search within the field in Record View. Click [Tools]-[Sort] to open the [Sort] dialog box, and
specify the field to be searched using [Key1].
Record View
The Contact data is displayed in each field. The data can also be edited (added to, deleted or modified).
7
5
2
3
8
1
4
6
1
2
3
4
5
6
7
8
Creating a New Contact
20
IntroductionCreating LabelsAppendix
Creating a New Contact
This section explains how to create a new contact.
1Click [File]-[New Contact]. Or, click .
The [New Contact] dialog box appears.
2Enter data for each item.
New Contact form toolbar
The following commands are categorized in the menu:
Contact form
Used to enter each item such as name, address, phone number, company information, and E-mail
address for the new contact.
3When you finish entering the data, click to store.
Icon Button name Function
Previous Displays the previous contact.
Next Displays the next contact.
New Contact Displays the New Contact form window for a new contact.
Delete Contact Deletes the contact that is currently chosen.
Allows you to insert an image for a contact from a file or a
camera currently connected to the computer.
The following file types are supported:
• Bitmap (*.bmp, *.dib)
• JPEG file (*.jpg, *.jpeg)
• TIFF file (uncompressed) (*.tif )
• GIF file (*.gif )
• Icon (*.ico)
•Windows
® Meta File (*.wmf, *.emf) (*Image adjustment is
not allowed.)
• PNG file (*.png)
Save and Close Saves the contact and closes the [New Contact] dialog box.
2
1
1
2
Starting up the P-touch® Library
21
IntroductionCreating LabelsAppendix
P-touch® Library: This application allows you to manage P-touch® label templates and other data on the
computer. You can print a label from the P-touch® Library using the machine.
Starting up the P-touch® Library
You can start up the P-touch® Library and edit and print labels.
1Click the [Start] button, then choose [All programs (Programs)] - [Brother P-touch] -
[P-touch Tools] - [P-touch Library 2.1].
The P-touch® Library starts up.
Opening and editing data
1Choose the data you want to edit, then
click .
The application associated with the data is
opened and you can edit the data.
Printing labels
1Choose the label templates you want to print,
then click .
The label is printed by the connected printer.
How to Use P-touch® Library
The application that starts up depends on
the data. For example, for a P-touch®
template, P-touch® Editor starts up.
Searching labels
22
IntroductionCreating LabelsAppendix
Searching labels
You can search label templates registered in the P-touch® Library.
1Click .
The [Search] dialog box is displayed.
2Check the items to be used as search conditions and set the search items.
The search items that can be set are as follows.
3Click [Search Results].
The search is started and the search results are
displayed.
Settings Details
Multiple Parameters
This sets the method for combining multiple search items. If you choose AND, files
are searched for that satisfy all the conditions. If you choose OR, files are searched
for that satisfy any one of the conditions.
Name Inputs the data name to search for.
Type Chooses the data type to search for.
Size Sets the data size to search for.
Date Sets the date and time at which the data to search for was last modified.
• The search results can be checked in the Search Results folder view.
• You can register the data in the P-touch® Library by dragging and dropping to the All contents
folder or its list view. To have label templates created with P-touch® Editor automatically
registered in the P-touch® Library, use the following method.
1. From the P-touch® Editor menu, choose [Tools] - [Options].
2. In the [Options] dialog box [General] tab, click [Registration Settings].
3. Choose the timing for registering label templates created with P-touch® Editor, then click
[OK].
Starting the P-touch® Editor
23
IntroductionCreating LabelsAppendix
Starting the P-touch® Editor
1Double click the [Applications] and then
[P-touch Editor 5.0].
The Layout Window is displayed.
How to use the P-touch® Editor for Mac®
This section gives an overview of P-touch® Editor. See the P-touch® Editor Help for details.
If an Alias has been created, double-click the
Alias.
Starting the P-touch® Editor
24
IntroductionCreating LabelsAppendix
Layout Window
Standard Mode
This mode provides easy label creation with texts and images.
The layout window consists of the following sections:
Command bar
The command bar contains the New/Open, Paper, Text, Frame, Image, etc.
Draw/Edit toolbar
Provides tools for choosing an object, entering text, drawing graphics, etc.
Inspector
You can easily insert and format text, image, etc.
Layout window
The layout window is used to display and edit objects.
Database window
Displays a database.
• The [View] menu allows you to show/hide the toolbars and windows.
• See the P-touch® Editor Help for details.
5
2
1
4
3
1
2
3
4
5
Start P-touch® Editor Help
25
IntroductionCreating LabelsAppendix
Snap Mode
With this mode, you can capture the screen, print it as image, and save it for future use. To start the snap
mode, follow the steps below.
1When you click [Snap Mode], the
description of the snap mode dialog
appears. Click .
2The snap mode appears.
Start P-touch® Editor Help
This section explains how to start P-touch® Editor Help for Mac®. The following is the example for Mac OS®
X 10.4.9.
Start from New/Open dialog
In the New/Open dialog, click Help-How To.
Start from P-touch® Editor
To start the P-touch® Editor Help, click Help and choose P-touch® Editor Help.
If you put a checkmark on the [Do Not Display
This Dialog Again], you can go to the snap
mode directly from next time.
See the P-touch® Editor Help for details.
IntroductionCreating LabelsAppendix
Setting the Printer Driver
26
Appendix
You can use this machine to print directly from most Windows® applications, by installing the printer driver.
Setting the Printer Driver
1From [Control Panel], go to [Hardware and Internet] and open [Printers].
2Choose "Brother QL-570", and click
[Select printing preferences].
The [Brother QL-570 printing preferences]
dialog box appears.
3Choose each item and click .
• [Paper] Tab
This tab is used to set the Format and Width.
You can change the Label Format or create a
new Label Format from the [Label Format
definitions] dialog box which appears by clicking
.
Set the format name ("Name") and size
("Width", "Length", and "Feed"), and click
.
Printing Directly from Other Applications
Because the paper size for this machine is different from other regular printers, you may not be able to
print even after installing the driver and application software, unless the application software allows the
correct label size to be set.
For details, see Windows® Help.
Appendix
Setting the Printer Driver
27
IntroductionCreating Labels
• [Graphics] Tab
You can set "Halftone", "Brightness", and
"Contrast" in this tab.
• [Option] Tab
You can set "Auto cut" with number of labels
between cuts, "Mirror Printing", "Cut at end",
and "Unit" in this tab.
4Close the [Printers] window.
The cutting options will vary according to the
model.
Appendix
Printing from Other Applications
28
IntroductionCreating Labels
Printing from Other Applications
We will use Microsoft® Word as an example.
1Click and .
The [Print] dialog box appears.
2Choose "Brother QL-570".
You can change the settings of the Printer Driver
from the [Properties] dialog box which appears by
clicking .
3Click , and close the [Print] dialog box.
4Click [Page Layout] and a mark on the right bottom of the Page Setup.
The [Page Setup] dialog box appears.
5Click the [Paper] tab, and choose the
paper size that you want to print.
You can also choose the Label Format that you
have added in ÎPage 26.
Set page margins in the [Margins] tab as well.
6Click .
The size of the Microsoft® Word window is adjusted to the paper size that you have just chosen. Edit
the document as needed.
7Click .
The specified labels are printed.
Appendix
For Windows®
29
IntroductionCreating Labels
This section describes how to uninstall the software and printer driver.
For Windows®
Uninstalling P-touch® Editor
1From [Control Panel], go to [Programs] and open [Uninstall a program].
The [Uninstall or change a program] dialog appears.
2Choose "Brother P-touch Editor 5.0", and
click .
The [Programs and Features] dialog box appears.
3Click .
The uninstall operation starts. After the software
and printer driver are removed from your
computer, the [Maintenance Complete] dialog
box appears.
4Close the [Programs and Features] dialog.
P-touch® Editor has been uninstalled.
Uninstalling Software
The P-touch® Address Book, and Software User's Guide (PDF) can also be uninstalled by
following the same procedure.
Appendix
For Mac®
30
IntroductionCreating Labels
Uninstalling the Printer Driver
1Turn off the Brother QL-570.
2From [Control Panel], go to [Hardware and Sound] and open [Printers].
3Choose "Brother QL-570", and click
[Delete this printer].
4Close the [Printers] window.
The printer driver has been uninstalled.
For Mac®
Uninstalling P-touch® Editor
1
On the drive where P-touch
®
Editor is installed, double-click the [Applications]
folder-[P-touch Editor 5.0] folder-[Uninstall P-touch] folder-[UninstallPtEditor.command].
[Terminal] window appears, and then uninstall
operation starts.
For details, see Windows® Help.
Administrator rights is required for the
uninstall operation.
In case [Terminal] window doesn't appear by
double-clicking the [UninstallPtEditor.command],
right click (or control key + click) the
[UninstallPtEditor.command], the context menu
appears. Open with the [terminal] window from
the context menu.
Appendix
For Mac®
31
IntroductionCreating Labels
2Click .
3Delete [Applications]-[P-touch Editor 5.0] folder.
P-touch® Editor has been uninstalled.
Uninstalling the Printer Driver
1Turn off the Brother QL-570.
2Double-click the drive where Mac OS® X is installed, and double-click [Applications]-
[Utilities]-[Printer Setup Utility].
The [Printer List] dialog box appears.
3Choose "QL-570", and click (Delete).
4Close the [Printer List] dialog box.
The printer driver has been uninstalled.
Before you delete the [P-touch Editor 5.0] folder, please check if any necessary files are saved in it.
Appendix
For Mac®
32
IntroductionCreating Labels
LED lamp on the QL-570 indicates the current operating condition.
LED Lamp
Lamp Condition
Not lighting
Power is OFF.
Green lamp is lighting
Power is ON.
Orange lamp is lighting
The roll cover is opening. Close the roll cover properly.
Orange lamp is flashing Cooling
(Waiting for temperature of print head to lower)
Red lamp is flashing
Indicates one of the following errors.
• Label sensor error
(End of DK Roll or label jam)
• Incorrect DK Roll installed
• Transmission error
Appendix
Print head maintenance
33
IntroductionCreating Labels
Maintenance of the machine must be done as needed. However, some environments require that maintenance
must be done more frequently (e.g. in dusty conditions).
Print head maintenance
The DK Roll (thermal recording paper type) used with the machine is designed to clean the print head
automatically. When the DK Roll passes the print head during printing and label feeding, the print head is
cleaned.
Roller maintenance
Clean the roller using the cleaning sheet (separately available).
The machine contains only one cleaning sheet. To purchase additional cleaning sheets, refer to Î
"Accessories" in page 20 of Setup & Operation Guide as needed.
1Turn the Brother QL-570 off.
2Hold the DK Roll compartment cover at the front of the
Brother QL-570 and firmly lift up to open the cover.
3Pull up the roll release lever and remove the DK Roll.
Maintenance
When doing maintenance on the roller, be sure to use the cleaning sheet exclusive for this machine
only.
If using other cleaning sheet, the surface of roller may be scratched or it may cause a malfunction.
• Make sure that the spool arms are inserted firmly in the
spool guides on the left and right.
• Insert the spool with the DK Roll located on the right
hand side of the Brother QL-570.
Appendix
Label outlet maintenance
34
IntroductionCreating Labels
4Remove the backing paper and insert the edge of cleaning sheet into the printing
unit until the area pointed with arrow in the diagram below.
5Close the DK Roll compartment cover and press the ON/OFF button ( ) to turn the
Brother QL-570 on.
6Press the Feed button for more than one second.
The roller spins by 4" (10 cm).
The adhesive face of cleaning sheet removes the stain or
dust on the roller.
Label outlet maintenance
When the glue is attached on the label outlet and the machine jam a
label, pull out the power plug from the outlet and clean it up with cloth
dipped into ethanol or isopropyl alcohol.
• Insert the sheet without removing the part of sheet.
• Check that the printing surface of cleaning sheet is upward.
•
If not pressing the Feed button for more than one second,
the roller spins only 1/3" (8 mm).
• Dispose the cleaning sheet after use.
Feed button
Label outlet
Appendix
Potential types of problems
35
IntroductionCreating Labels
If the problems occur while using this machine, the following may help you to solve the problems.
Potential types of problems
Troubleshooting
Problem Solution
• The QL-570 does not
print, or a printing error is
received.
• Is the USB cable loose?
Check that the USB cable is connected correctly.
• Is the DK Roll installed correctly?
If not, remove the DK Rolls and reinstall.
• Is there enough roll remaining?
Check that there is enough roll remaining.
• Is the DK Roll compartment cover open?
Check that the DK Roll compartment cover is closed.
• Is print error or transmission error occurred?
Turn off the Brother QL-570 and on again. If the problem is still occurred,
contact Brother Customer Service.
• The power button does
not light up.
• Is the power cord plugged correctly?
Check that the power cord is plugged. If plugged correctly, try plugging it to
another electrical outlet.
* If the power button still does not light up, contact Brother Customer Service.
• The printed label
contains streaks or poor
quality characters, or the
label is not fed correctly.
• Is the print head or roller dirty?
While the print head generally remains clean under normal use, lint or dirt from
the roller may become stuck on the printer head. If this occurs, clean the roller.
See Î"Roller maintenance" in page 33.
• A data transmission error
appears on the personal
computer.
• Is the correct port chosen?
Check that the correct port is chosen from the “Print to the following port” list in
the Printer Properties dialog box.
• Is the QL-570 in cooling mode (the LED lamp is flashing in orange)?
Wait until the LED lamp stops flashing and then try printing again.
• Labels are jammed in the
cutter or are not ejected
correctly after printing.
• Is there dirt or lint on the roller preventing it from rolling freely?
Use a Cleaning Sheet to clean the roller. For details, see Î"Roller
maintenance" in page 33.
• Layout style is not
updated when Add-in is
still activated and a new
label roll is installed.
• Is new label roll installed before activating the P-touch® Add-In (The P-touch®
function is added to your standard Microsoft® toolbar)?
Exit the P-touch® Add-In, load the 2nd label roll type, reactivate the P-touch®
Add-in, choose "Select Layout", and then verify the layout.
• The icon of P-touch®
Add-In is not displayed
on Microsoft® Word.
• Is Microsoft® Outlook® started up?
• Is Microsoft® Word chosen for the editor usually used for Microsoft® Outlook®?
Due to limitation of the program, the Add-In of Microsoft® Word is unable to use
with above settings. Quit Microsoft® Outlook®, and restart Microsoft® Word.
•
The DK Roll compartment
cover does not close.
• Is the DK Roll installed properly?
• Is the link lever removed? Set the
link lever properly.
• Link lever is removed. • Set the link lever properly.
Link lever
