Form No. PDS 552A.18.3
DELUXE 12 SEER
AIR CONDITIONER
WITH PURON
®
REFRIGERANT
552A (60 Hz)
Sizes 018 thru 060
Bryant’s Quantum Plus 552A with Puron® refrigerant provides
features which cannot be matched by any other family of equip-
ment. The 552A is a Quantum Plus air conditioning system uti-
lizing Bryant’s unique Puron refrigerant. The environmentally
sound refrigerant allows you to make a responsible decision in
the protection of the earth’s ozone layer. Bryant’s Quantum Plus
systems meet the Energy Star
®
guidelines for energy efficiency.
FEATURES
Puron® Environmentally Sound Refrigerant
—Is Bryant’s
unique refrigerant designed to help protect the environment.
Puron is an HFC refrigerant which does not contain chlorine that
can harm the ozone layer. The most important advantage of
Puron refrigerant is that it has not been banned in future air con-
ditioning systems as the traditional refrigerant R-22 has been.
Puron refrigerant is in service in thousands of systems proving
highly reliable, environmentally sound performance.
Heavy Duty Inlet Grille
—The DuraGuard™ coil protector,
made of a coated steel wire grid with vertical 3/8 in. spacing, is
designed to help protect the coil from inclement weather, van-
dalism, and incidental damage. It provides protection while not
restricting airflow and maintaining ease of coil inspection and
cleaning.
High Efficiency Performance
—Is delivered through a combina-
tion of features including Bryant’s Puron refrigerant, unique scroll
compressor, and advanced heat transfer surfaces. Efficiency rat-
ings are 12 SEER (Seasonal Energy Efficiency Ratio) with
enhanced ratings of up to 14 SEER. Sophisticated heat transfer
surfaces utilized in Bryant’s 552A design allow heat to easily be
transferred to the outdoor air and require less energy. The unique
scroll compressor found in the 552A design performs quietly and
adds to the overall efficiency of the system. For improved service-
ability, all models are equipped with a compressor terminal plug.
Finally, Bryant’s unique Puron refrigerant operates more effi-
ciently than ordinary R-22 refrigerant found in other systems. The
efficiency levels provided by the 552A provide end users with
lower costs of operation than traditional air conditioning systems.
Assured Future Service
—By utilizing the environmentally
sound refrigerant, Puron, 552A models will remain serviceable
well into the future. The Clean Air Act of 1990 has placed a cap
on production of most other refrigerants which has scheduled
reductions beginning in 2004. The resulting cap in production
ultimately results in a complete ban on many other refrigerants
in new equipment by the year 2010. These changes, required by
federal law, mean the supply of other refrigerants may be limited
in the near future making Puron the correct choice when consid-
ering long term serviceability.
Highly Reliable Performance
—Is delivered through the supe-
rior design of the system and componentry. The reliability of
the existing Quantum Plus models has been proven to provide
the lowest incidence of warranty service of any product in the
Bryant family in the past few years of service. Long term reli-
ability is assured through the use of both high and low pres-
sure switches which will not allow the system to operate in the
event of a significant change in operating pressure. In doing
this, the system is protected from damage if an unusual condi-
tion arises. Finally, Bryant includes a special liquid line filter
drier designed to trap moisture and contaminants which could
otherwise shorten the life of the system.
Bryant’s AeroQuiet System
—Extremely low operating sound is
the result of special attention to the air moving through the outdoor
unit, and a specially designed sound enclosure surrounding the
compressor to eliminate sound transmission to the rest of the sys-
tems.
Application Versatility
—Bryant’s systems utilizing Puron
refrigerant have the same application guidelines as other sys-
tems. Applications which include long line sets (50 to 175 ft) or
applications which require the system to operate at low outdoor
temperatures (below 55°F) are approved under Bryant’s stan-
dard guidelines.
Bryant Coils and Fan Coils to Complete the System
—Bryant
specially designs both the outdoor product and indoor coil prod-
ucts to operate with assured reliability and performance. A wide
range of indoor coil options are listed in the ratings section of
this publication.
Special Protective Devices
—High and low pressure switches
and internal protection in the compressor including temperature
and current sensing overloads prevent operation under poten-
tially damaging circumstances. A special liquid line filter drier
designed to trap nearly four times the volume of contaminants of
standard driers provides superior protection from moisture
trapped in the system.
Electrical Range
—208/230v, single phase.
Wide Range of Sizes
—Available in seven sizes; 1-1/2, 2, 2-1/2,
3, 3-1/2, 4, and 5 tons.
Reliant Cabinet
—Galvanized steel is coated with powder paint
to provide a superior, long lasting appearance.
Totally Enclosed Fan Motor
—Protected from adverse weather
conditions.
Unit Design
—Enhanced copper and aluminum heat transfer
surfaces with vertical air discharge to direct air up and away
from the area.
External Service Valves
—Both service valves are back seating
type valves which are externally located. These unique valves
allow service technicians to evacuate or charge the system in
less time than standard service valves.
Easy Serviceability
—One access panel provides access to
electrical controls and compressor. Removal of wire dome gives
access to fan motor and removal of the top gives access to the
coil.
Agency Approvals
—552A models are listed with UL (U.S. and
Canada), ARI, and CEC. Special endorsements have also been
awarded these products by Energy Star® which recognizes
energy efficient products.
Limited Warranty
—A standard five year warranty on parts with a
10 year warranty on the compressor. Optional warranties are
available through your Bryant distributor.
—2—

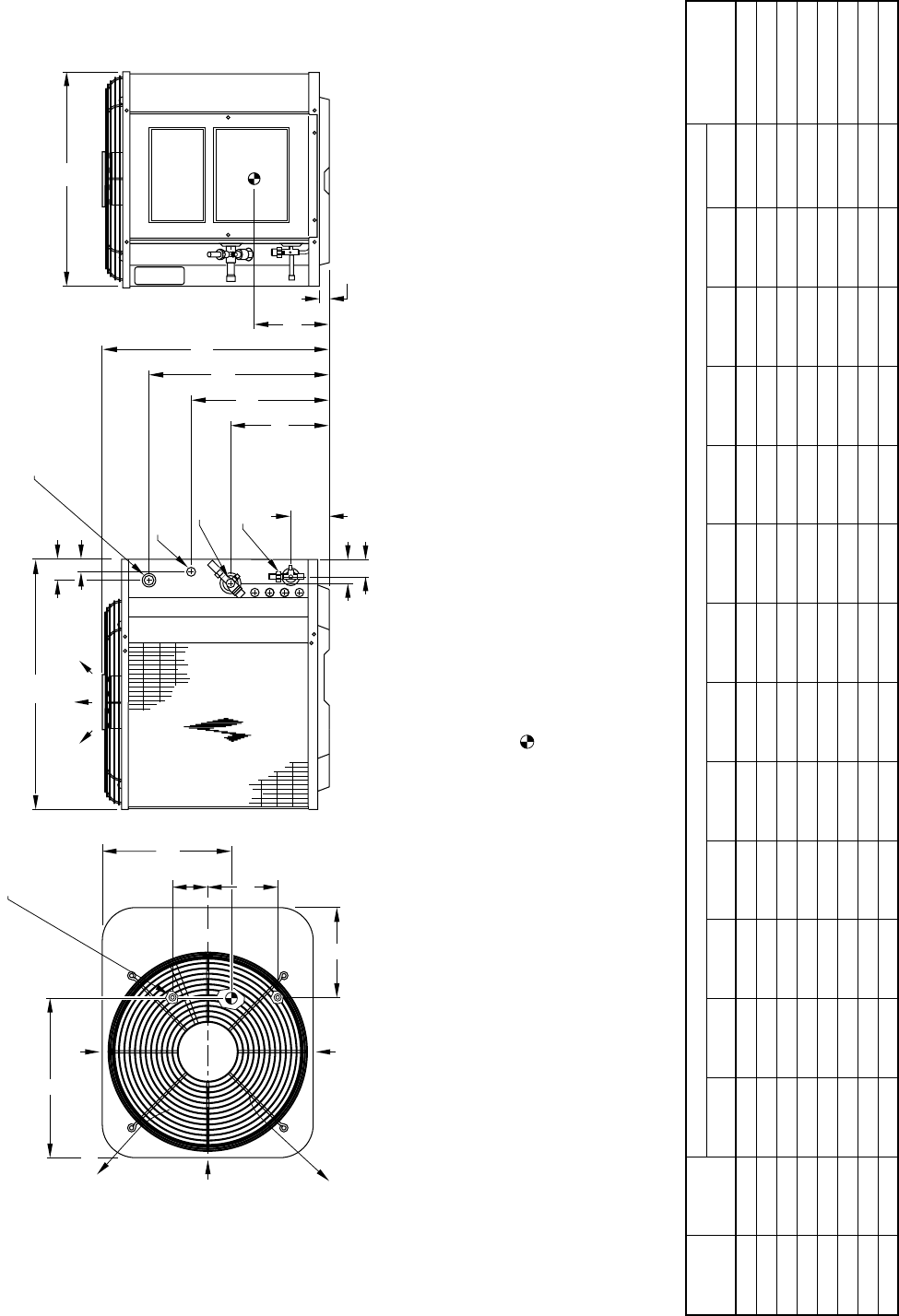

DIMENSIONS
AIR DISCHARGE
AIR DISCHARGE
AIR IN
AIR IN
AIR IN
3/8" DIA. TIEDOWN KNOCKOUTS
(2) PLACES
L
K
J
E
D
C
L
NOTES:
1. ALLOW 30" CLEARANCE TO SERVICE SIDE OF UNIT, 48" ABOVE UNIT, 6" ON ONE
SIDE, 12" ON REMAINING SIDE, AND 24" BETWEEN UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55°F,
(UNLESS LOW AMBIENT CONTROL IS USED) MAX. 125°F.
3. SERIES DESIGNATION IS THE 14TH POSITION OF THE UNIT MODEL NUMBER.
4. CENTER OF GRAVITY .
ACCESS
PANEL
1 1/4"
2 1
/2"
AIR DISCHARGE
1 3/4"
4 3/16"
3/8" DIA. LIQUID
LINE CONN.
H DIA. VAPOR
LINE CONN.
7/8" DIA. HOLE
FIELD POWER SUPPLY CONN. 7/8" DIA.
HOLE WITH 1 1/8" DIA. KNOCKOUT
AND 1 3/8" DIA. KNOCKOUT
10 1/2"
FIELD CONTROL
SUPPLY CONN
1 9/16"
C
F
N
G
A
B
M
A99067
DIMENSIONS (IN.)
UNIT
SIZE SERIES
UNIT DIMENSIONS MINIMUM
MOUNTING
PAD DIMENSIONSABCDEFGHJKLMN
018 F 33-13/16 22-1/2 27-1/2 4-1/8 7-1/8 21-15/16 28-3/8 5/8 8-3/16 12-1/2 14 15-1/2 2-3/8 20 x 27
024 F 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 5/8 8-3/16 18-1/2 19-3/4 13 2-15/16 26 x 32
024 G 33-13/16 22-1/2 27-1/2 2-13/16 6-15/16 21-1/2 27-7/8 5/8 8-3/16 12-1/2 14 15-1/2 2-3/8 20 x 27
030 F 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 3/4 8-3/16 18-1/2 19-3/4 13 2-15/16 26 x 32
036 F, G 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 3/4 8-3/16 18-1/2 19-3/4 13 2-15/16 26 x 32
042 F 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 7/8 8-3/16 18-1/2 19-3/4 13 2-15/16 26 x 32
048 F 27-13/16 30 33 5-1/16 9-11/16 15-15/16 22-3/8 7/8 8-3/16 18-1/2 19-3/4 13 2-15/16 26 x 32
060 F 39-13/16 30 33 5-1/16 9-11/16 27-15/16 34-3/8 7/8 8-3/16 17-3/4 19 17-3/4 2-15/16 26 x 32
—3—
RECOMMENDED TUBE DIAMETERS
* For tube sets greater than 50 ft and/or 20 ft vertical differential, consult Application Guideline and Service Manual—Air Conditioners and Heat Pumps Using
Puron® Refrigerant.
CHECK-FLO-RATER® PISTON
* Piston listed is for any approved non-capillary tube coil combina-
tion. Piston is shipped with outdoor unit and must be installed in
an approved indoor coil.
UNIT
SIZE
Liquid Tube Diameter (In.) Vapor Tube Diameter (In.)
0 to 50 Ft
Tube Length Long-Line Applications*
0 to 50 Ft
Tube Length
Long-Line Applications*
(Maximum Diameter)
018
3/8 3/8
5/8 3/4
024 5/8 3/4
030, 036 3/4 7/8
042, 048 7/8 1-1/8
060 1-1/8 1-1/8
UNIT SIZE–SERIES
PISTON*
IDENTIFICATION NO.
018 F 49
024-F/G 61/55
030-F 63
036-F, G 67
042-F 76
048-F 80
060-F 90
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
2
1
0
U
N
I
T
A
R
Y
A
I
R
C
O
N
D
I
T
I
O
N
I
N
G
E
Q
U
I
P
M
E
N
T
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE SYSTEM
IS LISTED WITH ARI.
REGISTERED QUALITY SYSTEM
As an ENERGY STAR
®
partner, Bryant Heating &
Cooling Systems has
determined that this prod-
uct meets the ENERGY
STAR
®
guidelines for
energy efficiency.
*
Refer to the combination ratings in the Product Data Sheet for system combinations that meet Energy Star® efficiency standards.
*
CHARGING SUBCOOLING (TXV-TYPE
EXPANSION DEVICE*)
* Must be a Puron® approved hard shutoff TXV.
UNIT SIZE–SERIES REQUIRED SUBCOOLING (°F)
018 F 10
024-F/G 8/10
030-F 11
036-F, G 11
042-F 9
048-F 10
060-F 11
MODEL NUMBER NOMENCLATURE
552A N X 018
Model Number
12 SEER Split-System
Air Conditioner
N/A
Electrical Supply
N
– 208/230-1-60
Nominal Cooling Capacity
018 –
1.5 ton
042
– 3.5 ton
024
– 2 ton
048
– 4 ton
030
– 2.5 ton
060
– 5 ton
036
– 3 ton
000 A A AA
Standard Unit
Series A
– Original Series
Series B
– Second Series, etc.
Common Unit
– U.S.A. Only
Heating Size
—4—
SPECIFICATIONS
See notes on page 5.
UNIT SIZE-SERIES 018-F 024-F/G 030-F 036-F/G
Operating Weight (Lb) 168 209 209 212
ELECTRICAL
Unit Volts—Hertz—Phase 208/230—60—1
Operating Voltage Range* 187—253
Compressor—Rated Load Amps 10.3 13.5/12.8 14.7 16.7/15.4
Locked Rotor Amps 51.0 61.0/60.0 72.5 87.5/83.0
Condenser Fan Motor—Full Load Amps 0.50 0.50/0.80 0.80 0.8
Min Unit Ampacity for Wire Sizing 13.4 17.4/16.8 19.2 21.7/20.1
Min Wire Size (60°C Copper) AWG†14 14 14 12
Min Wire Size (75°C Copper) AWG†14 14 14 12
Max Wire Length (Ft) (60°C Copper)‡61 45/46 41 57/62
Max Wire Length (Ft) (75°C Copper)‡58 43/44 39 54/59
Max Branch Circuit Fuse or
Circuit Breaker Size (Amps) 20 25 30 30
COMPRESSOR & REFRIGERANT
Compressor—Type Scroll
Temperature & Current Protection Internal Line Break
Refrigerant—Type Puron® (R-410A)
Amount (Lb) 5.22 5.31/5.20 5.19 5.43
CONDENSER COIL & FAN
Coil Face Area (Sq Ft) 10.9 12.2/10.9 12.2 12.2
Fins per In.—Rows—Circuits 25—1—225—1—225—1—225—1—2
Fan Motor—HP (PSC) & RPM 1/12 & 1100 1/15 & 825/1/10 & 1100 1/8 & 825 1/8 & 825
Volts—Hertz—Phase 208/230—60—1
Condenser Airflow (CFM) 1700 1800/2000 2400 2400
OPTIONAL EQUIPMENT
Support Feet KSASF0101AAA
Coastal Filter KAACF0701SML
KAACF0801MED/
KAACF0701SML KAACF0801MED
Time Delay Relay KAATD0101TDR
Cycle Protector KSACY0101AAA
Crankcase Heater KAACH1201AAA
Start Assist—Capacitor/Relay Type KSAHS1501AAA
Start Assist—PTC Type KAACS0201PTC
TXV (Hard Shutoff) KSATX0201PUR KSATX0301PUR
Piston Body KSAPX0101PIS
Filter Drier (Suction Line) KH45LG140 (RCD)
Evaporator Freeze Thermostat†† KAAFT0101AAA
Liquid-Line Solenoid Valve KAALS0201LLS
Winter Start Control†† KAAWS0101AAA
Low-Ambient Pressure Switch KSALA0301410
MotorMaster® Control** 32LT660004 (RCD)
Ball Bearing Fan Motor HC34GE232 HC38GE231/HC34GE232 HC38GE231 (RCD)
Thermostat—Auto Changeover,
Non-Programmable, °F/°C,
1-Stage Heat, 1-Stage Cool TSTATBBNAC01-B
Thermostat—Auto Changeover,
7-Day Programmable, °F/°C,
1-Stage Heat, 1-Stage Cool TSTATBBPAC01-B
Thermidistat™ Control—
Programmable Thermostat with Humidity Control TSTATBBPRH01-B
Builder’s Thermostat—Manual Changeover,
Non-Programmable, °F/°C,
1-Stage Heat, 1-Stage Cool TSTATBBBAC01-B
Outdoor Air Temperature Sensor TSTATXXSEN01-B
Backplate for Non-Programmable Thermostat TSTATXXNBP01
Backplate for Programmable Thermostat TSTATXXPBP01
Backplate for Builder’s Thermostat TSTATXXBBP01
Thermostat Conversion Kit (4 to 5 wire)—10 Pack TSTATXXCNV10
—5—
SPECIFICATIONS Continued
* Permissible limits of the voltage range at which the unit will operate satisfactorily. Operation outside these limits may result in unit failure.
†If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).
The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If
other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is
used, consult applicable tables of the NEC (ANSI/NFPA 70).
‡Length shown is as measured 1 way along wire path between unit and service panel for a voltage drop not to exceed 2%.
** Fan motor with ball bearings required.
†† See low-ambient controller Installation Instructions for application.
N/A — Not Applicable.
NOTE:
Copper wire must be used from service disconnect to unit. All motors/compressors contain internal overload protection.
UNIT SIZE-SERIES 042-F 048-F 060-F
Operating Weight (Lb) 213 215 278
ELECTRICAL
Unit Volts—Hertz—Phase 208/230—60—1
Operating Voltage Range* 187—253
Compressor—Rated Load Amps 18.6 20.5 27.6
Locked Rotor Amps 105.0 109.0 158.0
Condenser Fan Motor—Full Load Amps 1.1 1.1 1.4
Min Unit Ampacity for Wire Sizing 24.4 26.7 35.9
Min Wire Size (60°C Copper) AWG†10 10 8
Min Wire Size (75°C Copper) AWG†10 10 8
Max Wire Length (Ft) (60°C Copper)‡81 74 86
Max Wire Length (Ft) (75°C Copper)‡77 71 82
Max Branch Circuit Fuse or
Circuit Breaker Size (Amps) 40 40 60
COMPRESSOR & REFRIGERANT
Compressor—Type Scroll
Temperature & Current Protection Internal Line Break
Refrigerant—Type Puron® (R-410A)
Amount (Lb) 5.43 5.75 8.00
CONDENSER COIL & FAN
Coil Face Area (Sq Ft) 12.2 12.2 18.2
Fins per In.—Rows—Circuits 25—1—225—1—225—1—3
Fan Motor—HP (PSC) & RPM 1/5 & 825 1/5 & 1100 1/4 & 1100
Volts—Hertz—Phase 208/230—60—1
Condenser Airflow (CFM) 2800 2800 3300
OPTIONAL EQUIPMENT
Support Feet KSASF0101AAA
Coastal Filter KAACF0801MED
Time Delay Relay KAATD0101TDR
Cycle Protector KSACY0101AAA
Crankcase Heater KAACH1201AAA
Start Assist—Capacitor/Relay Type KSAHS1501AAA KSAHS1601AAA
Start Assist—PTC Type KAACS0201PTC
TXV (Hard Shutoff) KSATX0301PUR KSATX0401PUR KSATX0501PUR
Piston Body KSAPX0101PIS
Filter Drier (Suction Line) KH45LG141 (RCD)
Evaporator Freeze Thermostat†† KAAFT0101AAA
Liquid-Line Solenoid Valve KAALS0201LLS
Winter Start Control†† KAAWS0101AAA
Low-Ambient Pressure Switch KSALA0301410
MotorMaster® Control** 32LT660004 (RCD)
Ball Bearing Fan Motor HC38GE231 (RCD) HC40GE232 (RCD)
Thermostat—Auto Changeover,
Non-Programmable, °F/°C,
1-Stage Heat, 1-Stage Cool TSTATBBNAC01-B
Thermostat—Auto Changeover,
7-Day Programmable, °F/°C,
1-Stage Heat, 1-Stage Cool TSTATBBPAC01-B
Thermidistat™ Control—
Programmable Thermostat with Humidity Control TSTATBBPRH01-B
Builder’s Thermostat—Manual Changeover,
Non-Programmable, °F/°C,
1-Stage Heat, 1-Stage Cool TSTATBBBAC01-B
Outdoor Air Temperature Sensor TSTATXXSEN01-B
Backplate for Non-Programmable Thermostat TSTATXXNBP01
Backplate for Programmable Thermostat TSTATXXPBP01
Backplate for Builder’s Thermostat TSTATXXBBP01
Thermostat Conversion Kit (4 to 5 wire)—10 Pack TSTATXXCNV10
—6—
ACCESSORY USAGE GUIDELINE
* For tubing line sets greater than 50 ft and/or 20 ft vertical differential, refer to Application Guideline and Service Manual—Air Conditioning and
Heat Pumps Using Puron®
Refrigerant.
†Only when low-pressure switch is used.
‡Required for low-ambient controller (full modulation feature) and MotorMaster® Control only.
ACCESSORY DESCRIPTION AND USAGE (Listed Alphabetically)
1.
Ball Bearing Fan Motor
A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.
SUGGESTED USE: Required on all units where Low-Ambient Controller (full modulation feature) or MotorMaster® Control has been added.
2.
Coastal Filter
A mesh screen inserted under the top cover and inside base pan to protect the condenser coil from corrosive atmosphere without restricting airflow.
SUGGESTED USE: In geographic areas where salt damage could occur.
In areas with high pollution levels.
3.
Compressor Start Assist—Capacitor/Relay Type
Start capacitor and start relay which gives a hard” boost to compressor motor at each start-up.
SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.
Installations where outdoor design temperature exceeds 105°F (40.6°C).
Installations where low voltage or brown-out conditions may occur.
4.
Compressor Start Assist—PTC Type
Solid-state electrical device which gives a soft” boost to compressor motor at each start-up.
SUGGESTED USE: Installations with marginal power supply.
5.
Crankcase Heater
An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication
on restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.
SUGGESTED USE: When interconnecting tube length exceeds 50 ft.
When unit will be operated below 55°F (12.8°C) outdoor air temperature. Use with Low-Ambient Controller.
All commercial installations.
6.
Cycle Protector
Solid state timing device which prevents compressor rapid recycling. Control provides an approximate 5-minute delay after power to the compressor has
been interrupted for any reason, including normal room thermostat cycling.
SUGGESTED USE: Installations in areas where power interruptions are frequent.
Where user is likely to play” with the room thermostat.
All commercial installations.
Installations where interconnecting tube length exceeds 50 ft.
High-rise applications.
7.
Evaporator Freeze Thermostat
An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.
SUGGESTED USE: All units where Winter Start Control has been added.
8.
Filter Drier (Suction Line)
A device for removing contaminants from refrigerant circulating in an air conditioner: one direction flow.
SUGGESTED USE: All split-system air conditioners.
9.
Liquid-Line Solenoid Valve (LSV)
An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing configuration) and which stops and starts refrigerant
liquid flow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.
SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
In certain long-line applications. Refer to Residential Split System Long-Line Application Guideline and Service Manual.
ACCESSORY
REQUIRED FOR
LOW-AMBIENT
APPLICATIONS
(Below 55°F)
REQUIRED FOR
LONG-LINE
APPLICATIONS*
(Over 50 Ft)
REQUIRED FOR
SEA COAST
APPLICATIONS
(Within 2 Miles)
Crankcase Heater Yes Yes No
Evaporator Freeze Thermostat Yes No No
Winter Start Control Yes†No No
Accumulator No No No
Compressor Start Assist
Capacitor and Relay Yes Yes No
MotorMaster® Control
or
Low-Ambient Pressure Switch
Ye s N o N o
Wind Baffle See Low-Ambient Instructions No No
Coastal Filter No No Yes
Support Feet Recommended No Recommended
Liquid-Line Solenoid Valve
or
Hard Shutoff TXV
No
See Long-Line
Application
Guideline
No
Ball Bearing Fan Motor Yes‡No No
—7—
ACCESSORY DESCRIPTION AND USAGE (Listed Alphabetically) Continued
10.
Low-Ambient Pressure Switch
A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure
within normal operating limits (approximately 200 psig to 365 psig). The control will maintain working head pressure at low-ambient temperatures down to
0°F (–17.8°C) when properly installed.
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
11.
MotorMaster® Control
A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing
temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at
100°F ± 10°F (37.8°C ± 5.6°C).
SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).
All commercial installations.
12.
Outdoor Air Temperature Sensor
A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.
SUGGESTED USE: All Bryant programmable thermostats.
13.
Piston Body
This piston body is to be used as a replacement for the FK4C Fan Coil R-22 thermostatic expansion valve when used with Puron® (R-410A) air conditioner
units. Use piston and piston ring shipped with outdoor unit for installations under 50 ft.
SUGGESTED USE: All Puron® air conditioner installations matched with FK4C Fan Coils.
14.
Support Feet
Four stick-on plastic feet which raise the unit 4 in. above the mounting pad. This allows sand, dirt, and other debris to be flushed from the unit base,
minimizing corrosion.
SUGGESTED USE: For improved sound ratings.
Coastal installations.
Windy areas or where debris is normally circulating.
Rooftop installations.
15.
Thermostatic Expansion Valve (TXV)
A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the
evaporator. Kit includes valve and adapter tubes.
SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
Required for use on all zoning systems.
16.
Time-Delay Relay
An SPST delay relay which briefly continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.
SUGGESTED USE: For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.
Required for use on all zoning systems.
17.
Winter Start Control
An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load
conditions.
SUGGESTED USE: All air conditioners where Low-Ambient Controller has been added.
SOUND POWER (A-wtd., non-pure tone corrected.)
NOTE:
Tested in accordance with ARI Standard 270.95. (Not listed with ARI.)
UNIT
SIZE-SERIES
SOUND
LEVEL
(dBA)
OCTAVE BAND CENTER FREQUENCY (Hz)
125 250 500 1000 2000 4000 8000
018-F 72 67.0 69.0 69.0 67.0 63.0 55.5 49.5
024-F 69 54.0 60.5 63.5 63.0 59.0 55.5 48.5
024-G 74 57.0 66.0 68.0 67.0 65.0 62.0 51.5
030-F 70 57.0 61.5 64.5 65.0 63.0 59.5 53.0
036-F, G 73 60.0 64.0 66.5 68.5 66.0 62.0 53.5
042-F 73 57.5 63.5 67.0 68.0 65.5 62.0 55.0
048-F 76 63.0 66.0 67.0 70.5 67.0 62.5 55.0
060-F 78 63.0 67.5 69.5 72.5 68.5 64.5 58.5
—8—
COMBINATION RATINGS
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
018-F
*CK5A/CK5BA024 17,500 NONE —12.00 12.00 10.80
CC5A/CD5AA018 17,200 NONE —11.50 11.50 10.45
CC5A/CD5AA024 17,500 NONE —12.00 12.00 10.70
CC5A/CD5AW024 17,500 NONE —12.00 12.00 10.70
CE3AA024 17,500 NONE —12.00 12.00 10.75
CF5AA024 17,500 NONE —12.00 12.00 10.75
CK3BA024 17,500 NONE —12.00 12.00 10.80
CK5A/CK5BA018 17,200 NONE —11.50 11.50 10.60
CK5A/CK5BW024 17,500 NONE —12.00 12.00 10.80
CK5PA018 17,200 TXV —11.50 —10.60
CK5PA024 17,500 TXV —12.00 —10.80
CK5PW024 17,500 TXV —12.00 —10.80
F(A,B)4(A,B)N(F,C)018 17,200 TDR 11.70 —11.70 10.60
F(A,B)4(A,B)N(F,C)024 17,500 TDR 12.00 —12.00 10.90
FC4(B,C)NF024 17,600 TDR&TXV 12.00 ——10.90
FF1DNA018 17,200 TDR 12.00 —12.00 10.90
FF1DNA024 17,500 TDR 12.00 —12.00 10.75
FG3AAA024 17,500 NONE —11.70 11.70 10.60
FK4(C,D)NF001 17,600 TDR&TXV 13.00 ——12.20
FK4(C,D)NF002 18,000 TDR&TXV 13.50 ——12.25
FV4(A,B)NF002 18,000 TDR&TXV 13.50 ——12.25
FX4(A,B)NF018 17,600 TDR&TXV 12.00 ——10.90
COILS + 315(A,J)AV036070 VARIABLE-SPEED FURNACE
CC5A/CD5AA018 17,200 TDR 12.50 —12.50 11.60
CC5A/CD5AA024 17,500 TDR 13.00 —13.00 11.85
CC5A/CD5AW024 17,500 TDR 13.00 —13.00 11.85
CE3AA024 17,500 TDR 13.00 —13.00 11.85
CK3BA024 17,500 TDR 13.00 —13.00 12.00
CK5A/CK5BA018 17,200 TDR 13.00 —13.00 11.75
CK5A/CK5BA024 17,500 TDR 13.00 —13.00 12.00
CK5A/CK5BW024 17,500 TDR 13.00 —13.00 12.00
CK5PA018 17,200 TDR&TXV 13.00 ——11.55
CK5PA024 17,500 TDR&TXV 13.00 ——11.90
CK5PW024 17,500 TDR&TXV 13.00 ——11.90
COILS + 355MAV042060 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 17,500 TDR 13.00 —13.00 11.75
CE3AA024 17,500 TDR 13.00 —13.00 11.80
CK5A/CK5BW024 17,500 TDR 13.00 —13.00 11.90
CK5PW024 17,500 TDR&TXV 13.00 ——11.90
024-F
*CK5A/CK5BA030 23,200 NONE —12.00 12.00 10.30
CC5A/CD5AA024 23,000 NONE —11.70 11.70 10.15
CC5A/CD5AA030 23,200 NONE —12.00 12.00 10.20
CC5A/CD5AW024 23,000 NONE —11.70 11.70 10.15
CC5A/CD5AW030 23,200 NONE —12.00 12.00 10.20
CE3AA024 23,000 NONE —12.00 12.00 10.25
CE3AA030 23,200 NONE —12.00 12.00 10.35
CF5AA024 23,000 NONE —11.70 11.70 10.20
CK3BA024 23,000 NONE —11.70 11.70 10.30
CK3BA030 23,200 NONE —12.00 12.00 10.30
CK5A/CK5BA024 23,000 NONE —11.70 11.70 10.30
CK5A/CK5BW024 23,000 NONE —11.70 11.70 10.30
CK5A/CK5BW030 23,200 NONE —12.00 12.00 10.30
CK5PA024 23,000 TXV —11.70 —10.30
CK5PA030 23,200 TXV —12.00 —10.30
CK5PW024 23,000 TXV —11.70 —10.30
CK5PW030 23,200 TXV —12.00 —10.30
F(A,B)4(A,B)N(F,C)024 23,200 TDR 12.00 —12.00 10.35
F(A,B)4(A,B)N(F,C)030 23,600 TDR 12.20 —12.20 10.50
FC4(B,C)NF024 23,200 TDR&TXV 12.00 ——10.30
FC4(B,C)NF030 23,600 TDR&TXV 12.20 ——10.40
FF1DNA024 23,000 TDR 11.70 —11.70 10.20
FF1DNA030 23,600 TDR 12.00 —12.00 10.35
FG3AAA024 22,800 NONE —11.70 11.70 10.05
FK4(C,D)NF001 23,400 TDR&TXV 13.00 ——11.35
FK4(C,D)NF002 23,600 TDR&TXV 13.50 ——11.45
FK4(C,D)NF003 23,600 TDR&TXV 13.50 ——11.65
FV4(A,B)NF002 23,600 TDR&TXV 13.50 ——11.45
FV4(A,B)NF003 23,600 TDR&TXV 13.70 ——11.65
FX4(A,B)NF030 23,600 TDR&TXV 12.20 ——10.55
COILS + 315(A,J)AV036070 VARIABLE-SPEED FURNACE
CC5A/CD5AA024 23,000 TDR 12.50 —12.50 10.90
CC5A/CD5AA030 23,200 TDR 13.00 —13.00 11.15
CC5A/CD5AW024 23,000 TDR 12.50 —12.50 10.90
CC5A/CD5AW030 23,200 TDR 13.00 —13.00 11.15
CE3AA024 23,000 TDR 12.50 —12.50 11.00
CE3AA030 23,200 TDR 13.00 —13.00 11.15
CK3BA024 23,000 TDR 12.50 —12.50 11.10
CK3BA030 23,200 TDR 13.00 —13.00 11.20
CK5A/CK5BA024 23,000 TDR 12.50 —12.50 11.10
CK5A/CK5BA030 23,200 TDR 13.00 —13.00 11.20
CK5A/CK5BW024 23,000 TDR 12.50 —12.50 11.10
See notes on page 19.
—9—
024-F
CK5A/CK5BW030 23,200 TDR 13.00 —13.00 11.20
CK5PA024 23,000 TDR&TXV 12.50 ——11.10
CK5PA030 23,200 TDR&TXV 13.00 ——11.20
CK5PW024 23,000 TDR&TXV 12.50 ——11.10
CK5PW030 23,200 TDR&TXV 13.00 ——11.20
COILS + 355MAV042040 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 23,200 TDR 13.00 —13.00 11.05
CK5A/CK5BW030 23,200 TDR 13.00 —13.00 11.10
CK5PW030 23,200 TDR&TXV 13.00 ——11.10
COILS + 355MAV042060 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 23,000 TDR 12.50 —12.50 10.85
CC5A/CD5AW030 23,200 TDR 13.00 —13.00 11.00
CK3BA024 23,000 TDR 12.50 —12.50 11.00
CK3BA030 23,200 TDR 13.00 —13.00 11.10
CK5A/CK5BW024 23,000 TDR 12.50 —12.50 11.00
CK5A/CK5BW030 23,200 TDR 13.00 —13.00 11.10
CK5PW024 23,000 TDR&TXV 12.50 ——11.00
CK5PW030 23,200 TDR&TXV 13.00 ——11.10
COILS + 355MAV042080 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 23,000 TDR 12.50 —12.50 11.10
CC5A/CD5AW030 23,200 TDR 13.00 —13.00 11.20
CK5A/CK5BW024 23,000 TDR 12.50 —12.50 11.25
CK5A/CK5BW030 23,200 TDR 13.00 —13.00 11.30
CK5PW024 23,000 TDR&TXV 12.50 ——11.25
CK5PW030 23,200 TDR&TXV 13.00 ——11.30
024-G
*CK5A/CK5BA030 23,000 NONE —12.00 12.00 10.70
CC5A/CD5AA024 22,800 NONE —12.00 12.00 10.50
CC5A/CD5AA030 23,000 NONE —12.00 12.00 10.60
CC5A/CD5AW024 22,800 NONE —12.00 12.00 10.50
CC5A/CD5AW030 23,000 NONE —12.00 12.00 10.60
CE3AA024 22,800 NONE —12.00 12.00 10.60
CE3AA030 23,000 NONE —12.00 12.00 10.70
CF5AA024 22,800 NONE —12.00 12.00 10.50
CK3BA024 22,800 NONE —12.00 12.00 10.65
CK3BA030 23,000 NONE —12.00 12.00 10.70
CK5A/CK5BA024 22,800 NONE —12.00 12.00 10.65
CK5A/CK5BW024 22,800 NONE —12.00 12.00 10.65
CK5A/CK5BW030 23,000 NONE —12.00 12.00 10.70
CK5PA024 22,800 TXV —12.00 —10.65
CK5PA030 23,000 TXV —12.00 —10.70
CK5PW024 22,800 TXV —12.00 —10.65
CK5PW030 23,000 TXV —12.00 —10.70
F(A,B)4BN(F,C)024 23,000 TDR 12.00 —12.00 10.75
F(A,B)4BN(F,C)030 23,400 TDR 12.00 —12.00 10.85
FC4CNF024 23,000 TDR&TXV 12.00 ——10.75
FC4CNF030 23,400 TDR&TXV 12.00 ——10.85
FF1DNA024 23,000 TDR 12.00 —12.00 10.55
FF1DNA030 23,400 TDR 12.00 —12.00 10.70
FF1DNE024 23,000 TDR&TXV 12.00 ——10.55
FF1DNE030 23,400 TDR&TXV 12.00 ——10.70
FG3AAA024 22,000 NONE —11.50 11.50 10.35
FK4DNF001 23,000 TDR&TXV 13.50 ——11.90
FK4DNF002 23,200 TDR&TXV 13.50 ——12.05
FK4DNF003 23,600 TDR&TXV 14.00 ——12.25
FV4BNF002 23,200 TDR&TXV 13.50 ——12.05
FV4BNF003 23,600 TDR&TXV 14.00 ——12.25
FX4BNF030 23,400 TDR&TXV 12.00 ——10.95
COILS + 315(A,J)AV036070 VARIABLE-SPEED FURNACE
CC5A/CD5AA024 22,200 TDR 13.00 —13.00 11.40
CC5A/CD5AA030 22,600 TDR 13.00 —13.00 11.65
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.65
CE3AA024 22,200 TDR 13.00 —13.00 11.50
CE3AA030 22,600 TDR 13.00 —13.00 11.70
CK3BA024 22,200 TDR 13.00 —13.00 11.75
CK3BA030 22,600 TDR 13.00 —13.00 11.80
CK5A/CK5BA024 22,200 TDR 13.00 —13.00 11.60
CK5A/CK5BA030 22,600 TDR 13.00 —13.00 11.70
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.60
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.75
CK5PA024 22,200 TDR&TXV 13.00 ——11.55
CK5PA030 22,600 TDR&TXV 13.00 ——11.65
CK5PW024 22,200 TDR&TXV 13.00 ——11.60
CK5PW030 22,600 TDR&TXV 13.00 ——11.70
COILS + 315(A,J)AV048090 VARIABLE-SPEED FURNACE
CC5A/CD5AA024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AA030 22,600 TDR 13.00 —13.00 11.75
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.60
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.75
CE3AA024 22,200 TDR 13.00 —13.00 11.60
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—10—
024-G
CE3AA030 22,600 TDR 13.00 —13.00 11.80
CK3BA024 22,200 TDR 13.00 —13.00 11.85
CK3BA030 22,600 TDR 13.00 —13.00 11.90
CK5A/CK5BA024 22,200 TDR 13.00 —13.00 11.70
CK5A/CK5BA030 22,600 TDR 13.00 —13.00 11.80
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.75
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.85
CK5PA024 22,200 TDR&TXV 13.00 ——11.70
CK5PA030 22,600 TDR&TXV 13.00 ——11.80
CK5PW024 22,200 TDR&TXV 13.00 ——11.70
CK5PW030 22,600 TDR&TXV 13.00 ——11.85
COILS + 315(A,J)AV060110 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.70
CE3AA024 22,200 TDR 13.00 —13.00 11.50
CE3AA030 22,600 TDR 13.00 —13.00 11.75
CK3BA024 22,200 TDR 13.00 —13.00 11.80
CK3BA030 22,600 TDR 13.00 —13.00 11.85
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.65
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.80
CK5PW024 22,200 TDR&TXV 13.00 ——11.60
CK5PW030 22,600 TDR&TXV 13.00 ——11.75
COILS + 315(A,J)AV066135 VARIABLE-SPEED FURNACE
CE3AA024 22,200 TDR 13.00 —13.00 11.50
CE3AA030 22,600 TDR 13.00 —13.00 11.75
COILS + 315(A,J)AV066155 VARIABLE-SPEED FURNACE
CE3AA024 22,200 TDR 13.00 —13.00 11.55
CE3AA030 22,600 TDR 13.00 —13.00 11.80
COILS + 355MAV042040 VARIABLE-SPEED FURNACE
CE3AA024 22,200 TDR 13.00 —13.00 11.45
CE3AA030 22,600 TDR 13.00 —13.00 11.70
COILS + 355MAV042060 VARIABLE-SPEED FURNACE
CC5A/CD5AA024 22,200 TDR 13.00 —13.00 11.45
CC5A/CD5AA030 22,600 TDR 13.00 —13.00 11.65
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.65
CE3AA024 22,200 TDR 13.00 —13.00 11.55
CE3AA030 22,600 TDR 13.00 —13.00 11.75
CK3BA024 22,200 TDR 13.00 —13.00 11.80
CK3BA030 22,600 TDR 13.00 —13.00 11.85
CK5A/CK5BA024 22,200 TDR 13.00 —13.00 11.65
CK5A/CK5BA030 22,600 TDR 13.00 —13.00 11.75
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.65
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.80
CK5PA024 22,200 TDR&TXV 13.00 ——11.60
CK5PA030 22,600 TDR&TXV 13.00 ——11.70
CK5PW024 22,200 TDR&TXV 13.00 ——11.65
CK5PW030 22,600 TDR&TXV 13.00 ——11.75
COILS + 355MAV042080 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.65
CE3AA024 22,200 TDR 13.00 —13.00 11.50
CE3AA030 22,600 TDR 13.00 —13.00 11.70
CK3BA024 22,200 TDR 13.00 —13.00 11.75
CK3BA030 22,600 TDR 13.00 —13.00 11.80
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.60
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.75
CK5PW024 22,200 TDR&TXV 13.00 ——11.60
CK5PW030 23,200 TDR&TXV 13.00 ——11.70
COILS + 355MAV060080 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.65
CE3AA024 22,200 TDR 13.00 —13.00 11.50
CE3AA030 22,600 TDR 13.00 —13.00 11.75
CK3BA024 22,200 TDR 13.00 —13.00 11.80
CK3BA030 22,600 TDR 13.00 —13.00 11.80
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.65
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.75
CK5PW024 22,200 TDR&TXV 13.00 ——11.60
CK5PW030 22,600 TDR&TXV 13.00 ——11.75
COILS + 315(A,J)AV060100 VARIABLE-SPEED FURNACE
CC5A/CD5AW024 22,200 TDR 13.00 —13.00 11.50
CC5A/CD5AW030 22,600 TDR 13.00 —13.00 11.65
CE3AA024 22,200 TDR 13.00 —13.00 11.55
CE3AA030 22,600 TDR 13.00 —13.00 11.75
CK3BA024 22,200 TDR 13.00 —13.00 11.80
CK3BA030 22,600 TDR 13.00 —13.00 11.85
CK5A/CK5BW024 22,200 TDR 13.00 —13.00 11.65
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—11—
024-G
CK5A/CK5BW030 22,600 TDR 13.00 —13.00 11.80
CK5PW024 22,200 TDR&TXV 13.00 ——11.65
CK5PW030 22,600 TDR&TXV 13.00 ——11.75
COILS + 315(A,J)AV060120 VARIABLE-SPEED FURNACE
CE3AA024 22,200 TDR 13.00 —13.00 11.45
CE3AA030 22,600 TDR 13.00 —13.00 11.70
030-F
*CK5A/CK5BA036 29,000 NONE —12.00 12.00 10.65
CC5A/CD5AA030 28,000 NONE —11.70 11.70 10.30
CC5A/CD5AA036 29,000 NONE —12.00 12.00 10.60
CC5A/CD5AW030 28,000 NONE —11.70 11.70 10.30
CC5A/CD5AW036 29,000 NONE —12.00 12.00 10.60
CE3AA030 28,000 NONE —11.70 11.70 10.45
CE3AA036 28,200 NONE —12.00 12.00 10.50
CF5AA036 28,800 NONE —12.00 12.00 10.55
CK3BA030 28,000 NONE —11.70 11.70 10.35
CK3BA036 29,000 NONE —12.00 12.00 10.65
CK5A/CK5BA030 28,000 NONE —11.70 11.70 10.35
CK5A/CK5BT036 29,000 NONE —12.00 12.00 10.65
CK5A/CK5BW030 28,000 NONE —11.70 11.70 10.35
CK5A/CK5BW036 29,000 NONE —12.00 12.00 10.65
CK5PA030 28,000 TXV —11.70 —10.35
CK5PA036 29,000 TXV —12.00 —10.65
CK5PT036 29,000 TXV —12.00 —10.65
CK5PW030 28,000 TXV —11.70 —10.35
CK5PW036 29,000 TXV —12.00 —10.65
F(A,B)4(A,B)N(F,C)030 28,200 TDR 12.00 —12.00 10.50
F(A,B)4(A,B)N(F,C)036 28,400 TDR 12.00 —12.00 10.35
FC4(B,C)NF030 27,800 TDR&TXV 11.70 ——10.45
FC4(B,C)NF036 28,000 TDR&TXV 12.00 ——10.30
FF1DNA030 28,400 TDR 12.00 —12.00 10.45
FG3AAA036 28,200 NONE —12.00 12.00 10.45
FK4(C,D)NF001 28,000 TDR&TXV 13.00 11.40
FK4(C,D)NF002 28,400 TDR&TXV 13.00 ——11.45
FK4(C,D)NF003 28,400 TDR&TXV 13.50 ——11.80
FK4(C,D)NF005 29,200 TDR&TXV 14.00 ——12.15
FV4(A,B)NF002 28,400 TDR&TXV 13.20 ——11.45
FV4(A,B)NF003 28,800 TDR&TXV 13.70 ——11.80
FV4(A,B)NF005 29,200 TDR&TXV 14.00 ——12.15
FX4(A,B)NF030 27,800 TDR&TXV 12.00 ——10.60
FX4(A,B)NF036 28,000 TDR&TXV 12.00 ——10.40
COILS + 315(A,J)AV036070 VARIABLE-SPEED FURNACE
CC5A/CD5AA030 27,800 TDR 12.50 —12.50 11.10
CC5A/CD5AA036 28,800 TDR 13.00 —13.00 11.45
CC5A/CD5AW030 27,800 TDR 12.50 —12.50 11.10
CE3AA030 28,200 TDR 12.50 —12.50 11.20
CE3AA036 28,000 TDR 12.50 —12.50 11.30
CK3BA030 27,800 TDR 12.50 —12.50 11.15
CK3BA036 28,800 TDR 13.00 —13.00 11.50
CK5A/CK5BA030 27,800 TDR 12.50 —12.50 11.15
CK5A/CK5BA036 28,800 TDR 13.00 —13.00 11.50
CK5A/CK5BT036 28,800 TDR 13.00 —13.00 11.50
CK5A/CK5BW030 27,800 TDR 12.50 —12.50 11.15
CK5PA030 28,000 TDR&TXV 12.50 ——11.10
CK5PA036 28,800 TDR&TXV 13.00 ——11.50
CK5PT036 28,800 TDR&TXV 13.00 ——11.50
CK5PW030 28,000 TDR&TXV 12.50 ——11.10
COILS + 315(A,J)AV048090 VARIABLE-SPEED FURNACE
CC5A/CD5AA030 27,800 TDR 12.50 —12.50 11.25
CC5A/CD5AA036 28,800 TDR 13.00 —13.00 11.60
CC5A/CD5AW030 27,800 TDR 12.50 —12.50 11.25
CC5A/CD5AW036 28,800 TDR 13.00 —13.00 11.60
CE3AA030 28,200 TDR 12.50 —12.50 11.35
CE3AA036 28,600 TDR 13.00 —13.00 11.50
CK3BA030 27,800 TDR 12.50 —12.50 11.30
CK3BA036 29,000 TDR 13.00 —13.00 11.65
CK5A/CK5BA030 27,800 TDR 12.50 —12.50 11.30
CK5A/CK5BA036 29,000 TDR 13.00 —13.00 11.65
CK5A/CK5BW030 27,800 TDR 12.50 —12.50 11.30
CK5A/CK5BW036 29,000 TDR 13.00 —13.00 11.65
CK5PA030 28,200 TDR&TXV 12.50 ——11.25
CK5PA036 29,000 TDR&TXV 13.00 ——11.65
CK5PT036 29,000 TDR&TXV 13.00 ——11.65
CK5PW030 28,200 TDR&TXV 12.50 ——11.25
CK5PW036 29,000 TDR&TXV 13.00 ——11.65
COILS + 355MAV042040 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 28,000 TDR 12.50 —12.50 10.80
CC5A/CD5AW036 29,000 TDR 13.00 —13.00 11.30
CK5A/CK5BW030 28,000 TDR 12.50 —12.50 11.20
CK5A/CK5BW036 29,000 TDR 13.00 —13.00 11.60
CK5PW030 28,000 TDR&TXV 12.50 ——11.20
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—12—
030-F
CK5PW036 29,000 TDR&TXV 13.00 ——11.60
COILS + 355MAV042060 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 29,000 TDR 13.00 —13.00 11.25
CC5A/CD5AW030 28,000 TDR 12.50 —12.50 10.80
CK3BA030 28,000 TDR 12.50 —12.50 10.85
CK3BA036 29,000 TDR 13.00 —13.00 11.30
CK5A/CK5BA036 29,000 TDR 13.00 —13.00 11.30
CK5A/CK5BW030 28,000 TDR 12.50 —12.50 11.20
CK5PA036 29,000 TDR&TXV 13.00 ——11.30
CK5PW030 28,000 TDR&TXV 12.50 ——11.20
COILS + 355MAV042080 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 28,000 TDR 12.50 —12.50 10.75
CC5A/CD5AW036 29,000 TDR 13.00 —13.00 11.40
CK5A/CK5BW030 28,000 TDR 12.50 —12.50 11.20
CK5A/CK5BW036 29,000 TDR 13.00 —13.00 11.60
CK5PW030 28,000 TDR&TXV 12.50 ——11.20
CK5PW036 29,000 TDR&TXV 13.00 ——11.60
COILS + 355MAV060080 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 28,000 TDR 12.50 —12.50 10.75
CC5A/CD5AW036 29,000 TDR 13.00 —13.00 11.25
CK5A/CK5BW030 28,000 TDR 12.50 —12.50 11.20
CK5A/CK5BW036 29,000 TDR 13.00 —13.00 11.60
CK5PW030 28,000 TDR&TXV 12.50 ——11.20
CK5PW036 29,000 TDR&TXV 13.00 ——11.60
COILS + 355MAV060100 VARIABLE-SPEED FURNACE
CC5A/CD5AW030 28,000 TDR 12.50 —12.50 11.15
CC5A/CD5AW036 29,000 TDR 13.50 —13.50 11.60
CK5A/CK5BW030 28,000 TDR 12.50 —12.50 11.20
CK5A/CK5BW036 29,000 TDR 13.00 —13.00 11.60
CK5PW030 28,000 TDR&TXV 12.50 ——11.20
CK5PW036 29,000 TDR&TXV 13.00 ——11.60
COILS + 355MAV060120 VARIABLE-SPEED FURNACE
CC5A/CD5AW036 29,000 TDR 13.00 —13.00 11.55
CK5A/CK5BW036 29,000 TDR 13.00 —13.00 11.60
CK5PW036 29,000 TDR&TXV 13.00 ——11.60
036-F, G
*CK5A/CK5BA042 35,000 NONE —12.00 12.00 10.55
CC5A/CD5AA036 35,000 NONE —12.00 12.00 10.55
CC5A/CD5AA042 35,000 NONE —12.00 12.00 10.55
CC5A/CD5AW036 35,000 NONE —12.00 12.00 10.55
CC5A/CD5AW042 34,800 NONE —12.00 12.00 10.45
CE3AA036 34,600 NONE —11.70 11.70 10.45
CE3AA042 35,000 NONE —12.00 12.00 10.60
CF5AA036 34,800 NONE —12.00 12.00 10.50
CK3BA036 35,000 NONE —12.00 12.00 10.55
CK3BA042 35,000 NONE —12.00 12.00 10.55
CK5A/CK5BA036 35,000 NONE —12.00 12.00 10.55
CK5A/CK5BT036 35,000 NONE —12.00 12.00 10.55
CK5A/CK5BT042 35,000 NONE —12.00 12.00 10.55
CK5A/CK5BW036 35,000 NONE —12.00 12.00 10.55
CK5PA036 35,000 TXV —12.00 —10.55
CK5PA042 35,000 TXV —12.00 —10.55
CK5PT036 35,000 TXV —12.00 —10.55
CK5PT042 35,000 TXV —12.00 —10.55
CK5PW036 35,000 TXV —12.00 —10.55
F(A,B)4(A,B)N(F,B,C)042 35,000 TDR 12.00 —12.00 10.50
F(A,B)4(A,B)N(F,C)036 34,000 TDR 11.50 —11.50 10.25
FC4(B,C)N(F,B)042 34,000 TDR&TXV 12.00 ——10.45
FC4(B,C)NB054 35,000 TDR&TXV 12.50 ——11.10
FC4(B,C)NF036 33,600 TDR&TXV 11.50 ——10.15
FG3AAA036 34,000 NONE —11.50 11.50 10.35
FK4(C,D)NB006 35,400 TDR&TXV 14.00 ——12.25
FK4(C,D)NF001 33,800 TDR&TXV 12.50 ——10.95
FK4(C,D)NF002 34,000 TDR&TXV 12.50 ——11.05
FK4(C,D)NF003 34,200 TDR&TXV 13.00 ——11.50
FK4(C,D)NF005 35,000 TDR&TXV 13.50 ——11.95
FV4(A,B)NB006 35,800 TDR&TXV 14.00 ——12.25
FV4(A,B)NF002 34,000 TDR&TXV 12.60 ——11.00
FV4(A,B)NF003 34,200 TDR&TXV 13.00 ——11.50
FV4(A,B)NF005 35,000 TDR&TXV 13.70 ——11.95
FX4(A,B)NF036 34,000 TDR&TXV 11.60 ——10.30
FX4(A,B)NF042 34,000 TDR&TXV 12.10 ——10.60
COILS + 315(A,J)AV036070 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 34,600 TDR 12.50 —12.50 11.10
CE3AA036 34,200 TDR 12.50 —12.50 11.00
CE3AA042 34,600 TDR 12.50 —12.50 11.25
CK3BA036 34,600 TDR 12.50 —12.50 11.15
CK5A/CK5BA036 34,600 TDR 12.50 —12.50 11.15
CK5A/CK5BE042 34,600 TDR 12.50 —12.50 11.30
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—13—
036-F, G
CK5A/CK5BT036 34,600 TDR 12.50 —12.50 11.15
CK5PA036 34,600 TDR&TXV 12.50 ——11.15
CK5PE042 34,600 TDR&TXV 12.50 ——11.25
CK5PT036 34,600 TDR&TXV 12.50 ——11.15
COILS + 315(A,J)AV048090 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 34,600 TDR 12.50 —12.50 11.30
CC5A/CD5AA042 34,600 TDR 13.00 —13.00 11.40
CC5A/CD5AW036 34,600 TDR 12.50 —12.50 11.30
CE3AA036 34,200 TDR 12.50 —12.50 11.20
CE3AA042 34,600 TDR 13.00 —13.00 11.40
CK3BA036 34,600 TDR 12.50 —12.50 11.35
CK3BA042 34,600 TDR 13.00 —13.00 11.40
CK5A/CK5BA036 34,600 TDR 12.50 —12.50 11.35
CK5A/CK5BA042 34,600 TDR 13.00 —13.00 11.40
CK5A/CK5BE042 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BT036 34,600 TDR 12.50 —12.50 11.35
CK5A/CK5BT042 34,600 TDR 13.00 —13.00 11.40
CK5A/CK5BW036 34,600 TDR 12.50 —12.50 11.35
CK5PA036 34,600 TDR&TXV 12.50 ——11.30
CK5PA042 34,600 TDR&TXV 13.00 ——11.35
CK5PE042 34,600 TDR&TXV 13.00 ——11.45
CK5PT036 34,600 TDR&TXV 12.50 ——11.30
CK5PT042 34,600 TDR&TXV 13.00 ——11.35
CK5PW036 34,600 TDR&TXV 12.50 ——11.30
COILS + 315(A,J)AV066110 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 34,600 TDR 13.00 —13.00 11.35
CC5A/CD5AA042 34,600 TDR 13.00 —13.00 11.50
CC5A/CD5AW036 34,600 TDR 13.00 —13.00 11.35
CC5A/CD5AW042 34,400 TDR 13.00 —13.00 11.45
CE3AA036 34,200 TDR 12.50 —12.50 11.30
CE3AA042 34,600 TDR 13.00 —13.00 11.50
CK3BA036 34,600 TDR 13.00 —13.00 11.45
CK3BA042 34,600 TDR 13.00 —13.00 11.50
CK5A/CK5BA036 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BA042 34,600 TDR 13.00 —13.00 11.50
CK5A/CK5BT036 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BT042 34,600 TDR 13.00 —13.00 11.50
CK5A/CK5BW036 34,600 TDR 13.00 —13.00 11.45
CK5PA036 34,600 TDR&TXV 13.00 ——11.40
CK5PA042 34,600 TDR&TXV 13.00 ——11.45
CK5PT036 34,600 TDR&TXV 13.00 ——11.40
CK5PT042 34,600 TDR&TXV 13.00 ——11.45
CK5PW036 34,600 TDR&TXV 13.00 ——11.40
COILS + 315(A,J)AV066135 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 13.00 —13.00 11.45
CC5A/CD5AW036 34,600 TDR 13.00 —13.00 11.30
CC5A/CD5AW042 34,400 TDR 13.00 —13.00 11.40
CE3AA036 34,200 TDR 12.50 —12.50 11.20
CE3AA042 34,600 TDR 13.00 —13.00 11.45
CK3BA042 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BA042 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BT042 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BW036 34,600 TDR 13.00 —13.00 11.35
CK5PA042 34,600 TDR&TXV 13.00 ——11.40
CK5PT042 34,600 TDR&TXV 13.00 ——11.40
CK5PW036 34,600 TDR&TXV 13.00 ——11.35
COILS + 315(A,J)AV066155 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 13.00 —13.00 11.55
CC5A/CD5AW036 34,600 TDR 13.00 —13.00 11.35
CC5A/CD5AW042 34,400 TDR 13.00 —13.00 11.50
CE3AA036 34,200 TDR 12.50 —12.50 11.25
CE3AA042 34,600 TDR 13.00 —13.00 11.55
CK3BA042 34,600 TDR 13.00 —13.00 11.55
CK5A/CK5BA042 34,600 TDR 13.00 —13.00 11.55
CK5A/CK5BT042 34,600 TDR 13.00 —13.00 11.55
CK5A/CK5BW036 34,600 TDR 13.00 —13.00 11.40
CK5PA042 34,600 TDR&TXV 13.00 ——11.50
CK5PT042 34,600 TDR&TXV 13.00 ——11.50
CK5PW036 34,600 TDR&TXV 13.00 ——11.40
COILS + 355MAV042040 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 12.50 —12.50 11.20
CC5A/CD5AW036 34,600 TDR 12.50 —12.50 11.10
CK5A/CK5BA042 34,600 TDR 12.50 —12.50 11.25
CK5A/CK5BW036 34,600 TDR 12.50 —12.50 11.15
CK5PA042 34,600 TDR&TXV 12.50 ——11.25
CK5PW036 34,600 TDR&TXV 12.50 ——11.15
COILS + 355MAV042060 VARIABLE-SPEED FURNACE
CC5A/CD5AA036 34,600 TDR 12.50 —12.50 11.10
CK3BA036 34,600 TDR 12.50 —12.50 11.15
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—14—
036-F, G
CK3BA042 34,600 TDR 12.50 —12.50 11.20
CK5A/CK5BA036 34,600 TDR 12.50 —12.50 11.15
CK5PA036 34,600 TDR&TXV 12.50 ——11.15
COILS + 355MAV042080 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 12.50 —12.50 11.25
CC5A/CD5AW036 34,600 TDR 12.50 —12.50 11.20
CK3BA042 34,600 TDR 12.50 —12.50 11.25
CK5A/CK5BA042 34,600 TDR 12.50 —12.50 11.30
CK5A/CK5BW036 34,600 TDR 12.50 —12.50 11.25
CK5PA042 34,600 TDR&TXV 12.50 ——11.30
CK5PW036 34,600 TDR&TXV 12.50 ——11.25
COILS + 355MAV060080 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 12.50 —12.50 11.15
CC5A/CD5AW036 34,600 TDR 12.50 —12.50 11.10
CK3BA042 34,600 TDR 12.50 —12.50 11.20
CK5A/CK5BA042 34,600 TDR 12.50 —12.50 11.20
CK5A/CK5BW036 34,600 TDR 12.50 —12.50 11.15
CK5PA042 34,600 TDR&TXV 12.50 ——11.20
CK5PW036 34,600 TDR&TXV 12.50 ——11.15
COILS + 355MAV060100 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 13.00 —13.00 11.40
CC5A/CD5AW036 34,600 TDR 13.00 —13.00 11.40
CK3BA042 34,600 TDR 13.00 —13.00 11.40
CK5A/CK5BA042 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BW036 34,600 TDR 13.00 —13.00 11.40
CK5PA042 34,600 TDR&TXV 13.00 ——11.45
CK5PW036 34,600 TDR&TXV 13.00 ——11.40
COILS + 355MAV060120 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 34,600 TDR 13.00 —13.00 11.40
CC5A/CD5AW036 34,600 TDR 13.00 —13.00 11.35
CK5A/CK5BA042 34,600 TDR 13.00 —13.00 11.45
CK5A/CK5BW036 34,600 TDR 13.00 —13.00 11.35
CK5PA042 34,600 TDR&TXV 13.00 ——11.45
CK5PW036 34,600 TDR&TXV 13.00 ——11.35
042-F
*CK5A/CK5BA048 40,000 NONE —12.00 12.00 10.25
CC5A/CD5AC048 39,500 NONE —11.70 11.70 10.10
CC5A/CD5AW042 39,500 NONE —11.70 11.70 10.10
CC5A/CD5AW048 40,000 NONE —12.00 12.00 10.20
CD5AA048 40,000 NONE —12.00 12.00 10.25
CE3AA042 39,500 NONE —12.00 12.00 10.25
CE3AA048 40,000 NONE —12.00 12.00 10.30
CF5AA048 39,500 NONE —12.00 12.00 10.25
CK3BA042 39,500 NONE —11.70 11.70 10.20
CK3BA048 40,000 NONE —12.00 12.00 10.25
CK5A/CK5BA042 39,500 NONE —11.70 11.70 10.20
CK5A/CK5BT042 39,500 NONE —11.70 11.70 10.20
CK5A/CK5BT048 40,000 NONE —12.00 12.00 10.25
CK5A/CK5BW048 40,000 NONE —12.00 12.00 10.25
CK5PA042 39,500 TXV —11.70 —10.20
CK5PA048 40,000 TXV —12.00 —10.25
CK5PT042 39,500 TXV —11.70 —10.20
CK5PT048 40,000 TXV —12.00 —10.25
CK5PW048 40,000 TXV —12.00 —10.25
F(A,B)4(A,B)N(F,B,C)042 39,500 TDR 11.70 —11.70 10.05
F(A,B)4(A,B)N(F,B,C)048 40,000 TDR 12.00 —12.00 10.25
FC4(B,C)N(F,B)042 38,500 TDR&TXV 11.50 ——9.90
FC4(B,C)N(F,B)048 39,500 TDR&TXV 11.70 ——10.05
FC4(B,C)NB054 40,500 TDR&TXV 12.20 ——10.65
FG3AAA048 40,000 NONE —11.70 11.70 10.20
FK4(C,D)NB006 40,500 TDR&TXV 13.50 ——11.60
FK4(C,D)NF003 38,500 TDR&TXV 12.50 ——10.85
FK4(C,D)NF005 40,000 TDR&TXV 13.00 ——11.30
FV4(A,B)NB006 40,500 TDR&TXV 13.70 ——11.60
FV4(A,B)NF003 38,500 TDR&TXV 12.70 ——10.85
FV4(A,B)NF005 40,500 TDR&TXV 13.20 ——11.30
FX4(A,B)NF042 38,500 TDR&TXV 11.70 ——10.05
FX4(A,B)NF048 39,500 TDR&TXV 12.00 ——10.20
COILS + 315(A,J)AV048090 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 10.85
CC5A/CD5AC048 39,000 TDR 12.50 —12.50 10.85
CD5AA048 39,500 TDR 12.50 —12.50 11.00
CE3AA042 39,000 TDR 12.20 —12.20 10.90
CE3AA048 39,500 TDR 12.50 —12.50 10.95
CK3BA042 39,000 TDR 12.50 —12.50 10.85
CK3BA048 39,500 TDR 12.50 —12.50 10.95
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 10.85
CK5A/CK5BA048 39,500 TDR 12.50 —12.50 10.95
CK5A/CK5BE042 39,500 TDR 12.50 —12.50 10.90
CK5A/CK5BT042 39,000 TDR 12.50 —12.50 10.85
CK5A/CK5BT048 39,500 TDR 12.50 —12.50 10.95
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—15—
042-F
CK5PA042 39,000 TDR&TXV 12.50 ——10.85
CK5PA048 39,500 TDR&TXV 12.50 ——10.95
CK5PE042 39,500 TDR&TXV 12.50 ——10.90
CK5PT042 39,000 TDR&TXV 12.50 ——10.85
CK5PT048 39,500 TDR&TXV 12.50 ——10.95
COILS + 315(A,J)AV066110 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 10.95
CC5A/CD5AC048 39,000 TDR 12.50 —12.50 11.00
CC5A/CD5AW042 39,000 TDR 12.50 —12.50 10.85
CC5A/CD5AW048 39,500 TDR 13.00 —13.00 11.10
CD5AA048 39,500 TDR 12.50 —12.50 11.10
CE3AA042 39,000 TDR 12.50 —12.50 11.00
CE3AA048 39,500 TDR 12.50 —12.50 11.05
CK3BA042 39,000 TDR 12.50 —12.50 10.95
CK3BA048 39,500 TDR 12.50 —12.50 11.10
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 10.95
CK5A/CK5BA048 39,500 TDR 12.50 —12.50 11.10
CK5A/CK5BT042 39,000 TDR 12.50 —12.50 10.95
CK5A/CK5BT048 39,500 TDR 12.50 —12.50 11.10
CK5A/CK5BW048 39,500 TDR 13.00 —13.00 11.10
CK5PA042 39,000 TDR&TXV 12.50 ——11.00
CK5PA048 39,500 TDR&TXV 12.50 ——11.10
CK5PT042 39,000 TDR&TXV 12.50 ——11.00
CK5PT048 39,500 TDR&TXV 12.50 ——11.10
CK5PW048 39,500 TDR&TXV 13.00 ——11.10
COILS + 315(A,J)AV066135 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 10.95
CC5A/CD5AC048 39,000 TDR 12.50 —12.50 11.00
CC5A/CD5AW042 39,000 TDR 12.50 —12.50 10.85
CC5A/CD5AW048 39,500 TDR 13.00 —13.00 11.10
CD5AA048 39,500 TDR 12.50 —12.50 11.10
CE3AA042 39,000 TDR 12.50 —12.50 11.00
CE3AA048 39,500 TDR 12.50 —12.50 11.05
CK3BA042 39,000 TDR 12.50 —12.50 10.95
CK3BA048 39,500 TDR 12.50 —12.50 11.10
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 10.95
CK5A/CK5BA048 39,500 TDR 12.50 —12.50 11.10
CK5A/CK5BT042 39,000 TDR 12.50 —12.50 10.95
CK5A/CK5BT048 39,500 TDR 12.50 —12.50 11.10
CK5A/CK5BW048 39,500 TDR 13.00 —13.00 11.10
CK5PA042 39,000 TDR&TXV 12.50 ——11.00
CK5PA048 39,500 TDR&TXV 12.50 ——11.10
CK5PT042 39,000 TDR&TXV 12.50 ——11.00
CK5PT048 39,500 TDR&TXV 12.50 ——11.10
CK5PW048 39,500 TDR&TXV 13.00 ——11.10
COILS + 315(A,J)AV066155 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 11.00
CC5A/CD5AC048 39,000 TDR 12.50 —12.50 11.05
CC5A/CD5AW042 39,000 TDR 12.50 —12.50 10.90
CC5A/CD5AW048 39,500 TDR 13.00 —13.00 11.15
CD5AA048 39,500 TDR 12.50 —12.50 11.15
CE3AA042 39,000 TDR 12.50 —12.50 11.05
CE3AA048 39,500 TDR 12.50 —12.50 11.10
CK3BA042 39,000 TDR 12.50 —12.50 11.00
CK3BA048 39,500 TDR 12.50 —12.50 11.15
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 11.00
CK5A/CK5BA048 39,500 TDR 12.50 —12.50 11.15
CK5A/CK5BT042 39,000 TDR 12.50 —12.50 11.00
CK5A/CK5BT048 39,500 TDR 12.50 —12.50 11.15
CK5A/CK5BW048 39,500 TDR 13.00 —13.00 11.15
CK5PA042 39,000 TDR&TXV 12.50 ——11.00
CK5PA048 39,500 TDR&TXV 12.50 ——11.15
CK5PT042 39,000 TDR&TXV 12.50 ——11.00
CK5PT048 39,500 TDR&TXV 12.50 ——11.15
CK5PW048 39,500 TDR&TXV 13.00 ——11.15
COILS + 355MAV042040 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.20 —12.20 10.60
CC5A/CD5AW048 39,500 TDR 12.50 —12.50 10.65
CK5A/CK5BA042 39,000 TDR 12.20 —12.20 10.60
CK5A/CK5BW048 39,500 TDR 12.50 —12.50 10.75
CK5PA042 39,000 TDR&TXV 12.20 ——10.60
CK5PW048 39,500 TDR&TXV 12.50 ——10.75
COILS + 355MAV042060 VARIABLE-SPEED FURNACE
CK3BA042 39,000 TDR 12.50 —12.50 10.60
CK5A/CK5BE042 39,500 TDR 12.45 —12.45 10.55
CK5PE042 39,500 TDR&TXV 12.45 ——10.55
COILS + 355MAV042080 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 10.70
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—16—
042-F
CC5A/CD5AC048 39,000 TDR 12.50 —12.50 10.65
CD5AA048 39,500 TDR 12.50 —12.50 10.80
CK3BA042 39,000 TDR 12.50 —12.50 10.75
CK3BA048 39,500 TDR 12.50 —12.50 10.85
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 10.75
CK5A/CK5BA048 39,500 TDR 12.50 —12.50 10.85
CK5PA042 39,000 TDR&TXV 12.50 ——10.75
CK5PA048 39,500 TDR&TXV 12.50 ——10.85
COILS + 355MAV060080 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.20 —12.20 10.60
CC5A/CD5AC048 39,000 TDR 12.20 —12.20 10.50
CD5AA048 39,500 TDR 12.50 —12.50 10.65
CK3BA042 39,000 TDR 12.20 —12.20 10.60
CK3BA048 39,500 TDR 12.50 —12.50 10.75
CK5A/CK5BA042 39,000 TDR 12.20 —12.20 10.60
CK5A/CK5BA048 39,500 TDR 12.50 —12.50 10.75
CK5PA042 39,000 TDR&TXV 12.20 ——10.60
CK5PA048 39,500 TDR&TXV 12.50 ——10.75
COILS + 355MAV060100 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 10.90
CC5A/CD5AC048 39,000 TDR 12.50 —12.50 10.80
CD5AA048 39,500 TDR 12.50 —12.50 10.95
CK3BA042 39,000 TDR 12.50 —12.50 10.90
CK3BA048 39,500 TDR 12.50 —12.50 11.05
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 10.90
CK5A/CK5BA048 39,500 TDR 13.00 —13.00 11.05
CK5PA042 39,000 TDR&TXV 12.50 ——10.90
CK5PA048 39,500 TDR&TXV 13.00 ——11.05
COILS + 355MAV060120 VARIABLE-SPEED FURNACE
CC5A/CD5AA042 39,000 TDR 12.50 —12.50 10.90
CC5A/CD5AW048 39,500 TDR 12.50 —12.50 11.00
CK5A/CK5BA042 39,000 TDR 12.50 —12.50 10.90
CK5A/CK5BW048 39,500 TDR 12.50 —12.50 11.00
CK5PA042 39,000 TDR&TXV 12.50 ——10.90
CK5PW048 39,500 TDR&TXV 12.50 ——11.00
048-F
*CK5A/CK5BA060 46,000 NONE —12.00 12.00 10.40
CC5A/CD5AA060 45,000 NONE —11.70 11.70 10.15
CC5A/CD5AC048 44,000 NONE —11.70 11.70 10.05
CC5A/CD5AW048 45,000 NONE —11.70 11.70 10.15
CC5A/CD5AW060 46,500 NONE —12.00 12.00 10.35
CD5AA048 45,000 NONE —11.70 11.70 10.15
CE3AA048 45,000 NONE —11.70 11.70 10.25
CE3AA060 46,000 NONE —12.00 12.00 10.40
CF5AA048 44,000 NONE —11.70 11.70 10.20
CK3BA048 45,000 NONE —11.70 11.70 10.20
CK3BA060 46,000 NONE —12.00 12.00 10.40
CK5A/CK5BA048 45,000 NONE —11.70 11.70 10.20
CK5A/CK5BT048 45,000 NONE —11.70 11.70 10.20
CK5A/CK5BT060 46,000 NONE —12.00 12.00 10.40
CK5A/CK5BW048 45,000 NONE —11.70 11.70 10.20
CK5A/CK5BX060 46,500 NONE —12.00 12.00 10.50
CK5PA048 45,000 TXV —11.70 —10.20
CK5PA060 46,000 TXV —12.00 —10.40
CK5PT048 45,000 TXV —11.70 —10.20
CK5PT060 46,000 TXV —12.00 —10.40
CK5PW048 45,000 TXV —11.70 —10.20
CK5PX060 46,500 TXV —12.00 —10.50
F(A,B)4(A,B)N(F,B,C)048 45,000 TDR 11.70 —11.70 10.10
F(A,B)4(A,B)N(F,B,C)060 46,000 TDR 11.70 —11.70 10.10
FB4(A,B)NB070 46,500 TDR 12.00 —12.00 10.45
FC4(B,C)N(F,B)048 44,500 TDR&TXV 11.50 ——10.00
FC4(B,C)N(F,B)060 45,000 TDR&TXV 11.50 ——9.95
FC4(B,C)NB054 45,000 TDR&TXV 12.00 ——10.35
FC4(B,C)NB070 46,000 TDR&TXV 12.00 ——10.30
FG3AAA048 44,000 NONE —11.50 11.50 10.15
FG3AAA060 45,000 NONE —11.70 11.70 10.30
FK4(C,D)NB006 46,000 TDR&TXV 13.00 ——11.35
FK4(C,D)NF005 45,000 TDR&TXV 12.50 ——11.05
FV4(A,B)NB006 46,000 TDR&TXV 13.20 ——11.35
FV4(A,B)NF005 45,000 TDR&TXV 12.70 ——11.00
FX4(A,B)NB060 45,500 TDR&TXV 12.00 ——10.30
FX4(A,B)NF048 45,000 TDR&TXV 11.70 ——10.15
COILS + 315(A,J)AV048090 VARIABLE-SPEED FURNACE
CC5A/CD5AC048 43,500 TDR 12.00 —12.00 10.50
CD5AA048 44,500 TDR 12.00 —12.00 10.60
CE3AA048 44,500 TDR 12.00 —12.00 10.60
CE3AA060 45,000 TDR 12.50 —12.50 10.90
CK3BA048 44,500 TDR 12.00 —12.00 10.60
CK5A/CK5BA048 44,500 TDR 12.00 —12.00 10.60
CK5A/CK5BT048 44,500 TDR 12.00 —12.00 10.60
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—17—
048-F
CK5PA048 44,500 TDR&TXV 12.00 ——10.60
CK5PT048 44,500 TDR&TXV 12.00 ——10.60
COILS + 315(A,J)AV066110 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 45,000 TDR 12.50 —12.50 10.85
CC5A/CD5AC048 44,000 TDR 12.00 —12.00 10.70
CC5A/CD5AW048 44,500 TDR 12.50 —12.50 10.80
CD5AA048 44,500 TDR 12.00 —12.00 10.80
CD5PX060 45,500 TDR&TXV 13.00 ——11.15
CE3AA048 44,500 TDR 12.00 —12.00 10.80
CE3AA060 45,000 TDR 12.50 —12.50 11.10
CK3BA048 44,500 TDR 12.50 —12.50 10.80
CK3BA060 45,000 TDR 12.50 —12.50 11.10
CK5A/CK5BA048 44,500 TDR 12.50 —12.50 10.80
CK5A/CK5BA060 45,000 TDR 12.50 —12.50 11.10
CK5A/CK5BT048 44,500 TDR 12.50 —12.50 10.80
CK5A/CK5BT060 45,000 TDR 12.50 —12.50 11.10
CK5A/CK5BW048 44,500 TDR 12.50 —12.50 10.80
CK5A/CK5BX060 45,500 TDR 13.00 —13.00 11.30
CK5PA048 44,500 TDR&TXV 12.50 ——10.85
CK5PA060 45,000 TDR&TXV 12.50 ——11.10
CK5PT048 44,500 TDR&TXV 12.50 ——10.85
CK5PT060 45,000 TDR&TXV 12.50 ——11.10
CK5PW048 44,500 TDR&TXV 12.50 ——10.85
CK5PX060 45,500 TDR&TXV 13.00 ——11.30
COILS + 315(A,J)AV066135 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 44,500 TDR 12.50 —12.50 10.80
CC5A/CD5AC048 44,000 TDR 12.00 —12.00 10.65
CC5A/CD5AW048 44,500 TDR 12.50 —12.50 10.75
CC5A/CD5AW060 45,500 TDR 12.50 —12.50 11.05
CD5AA048 44,500 TDR 12.00 —12.00 10.80
CE3AA048 44,500 TDR 12.00 —12.00 10.75
CE3AA060 45,000 TDR 12.50 —12.50 11.05
CK3BA048 44,500 TDR 12.00 —12.00 10.75
CK3BA060 45,000 TDR 12.50 —12.50 11.05
CK5A/CK5BA048 44,500 TDR 12.00 —12.00 10.75
CK5A/CK5BA060 45,000 TDR 12.50 —12.50 11.05
CK5A/CK5BT048 44,500 TDR 12.00 —12.00 10.75
CK5A/CK5BT060 45,000 TDR 12.50 —12.50 11.05
CK5A/CK5BW048 44,500 TDR 12.00 —12.00 10.75
CK5A/CK5BX060 45,500 TDR 12.50 —12.50 11.25
CK5PA048 44,500 TDR&TXV 12.00 ——10.80
CK5PA060 45,000 TDR&TXV 12.50 ——11.05
CK5PT048 44,500 TDR&TXV 12.00 ——10.80
CK5PT060 45,000 TDR&TXV 12.50 ——11.05
CK5PW048 44,500 TDR&TXV 12.00 ——10.80
CK5PX060 45,500 TDR&TXV 12.50 ——11.25
COILS + 315(A,J)AV066155 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 45,000 TDR 12.50 —12.50 10.90
CC5A/CD5AC048 44,000 TDR 12.50 —12.50 10.75
CC5A/CD5AW048 44,500 TDR 12.50 —12.50 10.90
CC5A/CD5AW060 45,500 TDR 13.00 —13.00 11.15
CD5AA048 44,500 TDR 12.50 —12.50 10.90
CE3AA048 44,500 TDR 12.00 —12.00 10.85
CE3AA060 45,000 TDR 12.50 —12.50 11.15
CK3BA048 44,500 TDR 12.00 —12.00 10.85
CK3BA060 45,000 TDR 12.50 —12.50 11.15
CK5A/CK5BA048 44,500 TDR 12.00 —12.00 10.85
CK5A/CK5BA060 45,000 TDR 12.50 —12.50 11.15
CK5A/CK5BT048 44,500 TDR 12.00 —12.00 10.85
CK5A/CK5BT060 45,000 TDR 12.50 —12.50 11.15
CK5A/CK5BW048 44,500 TDR 12.00 —12.00 10.85
CK5A/CK5BX060 45,500 TDR 13.00 —13.00 11.30
CK5PA048 44,500 TDR&TXV 12.00 ——10.85
CK5PA060 45,000 TDR&TXV 12.50 ——11.15
CK5PT048 44,500 TDR&TXV 12.00 ——10.85
CK5PT060 45,000 TDR&TXV 12.50 ——11.15
CK5PW048 44,500 TDR&TXV 12.00 ——10.85
CK5PX060 45,500 TDR&TXV 13.00 ——11.30
COILS + 355MAV042080 VARIABLE-SPEED FURNACE
CD5AA048 44,500 TDR 12.00 —12.00 10.40
CK3BA048 44,500 TDR 12.00 —12.00 10.40
CK5A/CK5BA048 44,500 TDR 12.00 —12.00 10.40
CK5PA048 44,500 TDR&TXV 12.00 ——10.40
COILS + 355MAV060080 VARIABLE-SPEED FURNACE
CC5A/CD5AW060 45,500 TDR 12.00 —12.00 10.55
CK3BA048 44,500 TDR 12.00 —12.00 10.30
CK3BA060 45,000 TDR 12.00 —12.00 10.50
CK5A/CK5BA060 45,000 TDR 12.00 —12.00 10.50
CK5A/CK5BX060 46,000 TDR 12.00 —12.00 10.70
CK5PA060 45,000 TDR&TXV 12.00 ——10.50
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—18—
048-F
CK5PX060 46,000 TDR&TXV 12.00 ——10.70
COILS + 355MAV060100 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 44,500 TDR 12.00 —12.00 10.55
CC5A/CD5AC048 44,000 TDR 12.00 —12.00 10.40
CC5A/CD5AW060 45,500 TDR 12.50 —12.50 10.85
CD5AA048 44,500 TDR 12.00 —12.00 10.55
CK3BA048 44,500 TDR 12.00 —12.00 10.60
CK3BA060 45,000 TDR 12.00 —12.00 10.45
CK5A/CK5BA048 44,500 TDR 12.00 —12.00 10.60
CK5A/CK5BA060 45,000 TDR 12.00 —12.00 10.80
CK5A/CK5BX060 46,000 TDR 12.50 —12.50 11.00
CK5PA048 44,500 TDR&TXV 12.00 ——10.60
CK5PA060 45,000 TDR&TXV 12.00 ——10.80
CK5PX060 46,000 TDR&TXV 12.50 ——11.00
COILS + 355MAV060120 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 44,500 TDR 12.00 —12.00 10.60
CC5A/CD5AW048 45,000 TDR 12.00 —12.00 10.60
CC5A/CD5AW060 45,500 TDR 12.50 —12.50 10.90
CK3BA060 45,000 TDR 12.00 —12.00 10.55
CK5A/CK5BA060 45,000 TDR 12.00 —12.00 10.85
CK5A/CK5BW048 44,500 TDR 12.00 —12.00 10.65
CK5A/CK5BX060 46,000 TDR 12.50 —12.50 11.05
CK5PA060 45,000 TDR&TXV 12.00 ——10.85
CK5PW048 44,500 TDR&TXV 12.00 ——10.65
CK5PX060 46,000 TDR&TXV 12.50 ——11.05
060-F
*CK5A/CK5BA060 57,000 NONE —12.00 12.00 10.20
CC5A/CD5AA060 55,000 NONE —11.50 11.50 9.95
CC5A/CD5AW060 58,000 NONE —11.70 11.70 10.20
CD5PX060 58,500 TXV —12.00 —10.30
CE3AA060 57,000 NONE —12.00 12.00 10.25
CK3BA060 57,000 NONE —12.00 12.00 10.20
CK5A/CK5BT060 57,000 NONE —12.00 12.00 10.20
CK5A/CK5BX060 58,000 NONE —12.00 12.00 10.35
CK5PA060 57,000 TXV —12.00 —10.20
CK5PT060 57,000 TXV —12.00 —10.20
CK5PX060 58,000 TXV —12.00 —10.35
F(A,B)4(A,B)N(F,B,C)060 57,000 TDR 11.50 —11.50 9.95
FB4(A,B)NB070 58,000 TDR 12.00 —12.00 10.30
FC4(B,C)N(F,B)060 57,000 TDR&TXV 11.50 ——9.85
FC4(B,C)NB070 58,000 TDR&TXV 12.00 ——10.15
FG3AAA060 56,000 NONE —11.50 11.50 10.10
FK4(C,D)NB006 58,000 TDR&TXV 12.50 —12.50 10.75
FV4(A,B)NB006 58,000 TDR&TXV 12.50 ——10.75
FX4(A,B)NB060 56,000 TDR&TXV 12.00 ——10.15
COILS + 315(A,J)AV066110 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 56,000 TDR 12.00 —12.00 10.25
CD5PX060 58,500 TDR&TXV 12.00 ——10.55
CE3AA060 58,000 TDR 12.00 —12.00 10.60
CK3BA060 58,000 TDR 12.00 —12.00 10.50
CK5A/CK5BA060 58,000 TDR 12.00 —12.00 10.50
CK5A/CK5BT060 58,000 TDR 12.00 —12.00 10.50
CK5A/CK5BX060 58,000 TDR 12.50 —12.50 10.70
CK5PA060 58,000 TDR&TXV 12.00 ——10.50
CK5PT060 58,000 TDR&TXV 12.00 ——10.50
CK5PX060 58,000 TDR&TXV 12.50 ——10.70
COILS + 315(A,J)AV066135 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 56,000 TDR 12.00 —12.00 10.20
CC5A/CD5AW060 58,000 TDR 12.00 —12.00 10.50
CE3AA060 58,000 TDR 12.00 —12.00 10.55
CK3BA060 58,000 TDR 12.00 —12.00 10.45
CK5A/CK5BA060 58,000 TDR 12.00 —12.00 10.45
CK5A/CK5BT060 58,000 TDR 12.00 —12.00 10.45
CK5A/CK5BX060 58,000 TDR 12.50 —12.50 10.70
CK5PA060 58,000 TDR&TXV 12.00 ——10.45
CK5PT060 58,000 TDR&TXV 12.00 ——10.45
CK5PX060 58,000 TDR&TXV 12.50 ——10.70
COILS + 315(A,J)AV066155 VARIABLE-SPEED FURNACE
CC5A/CD5AA060 56,000 TDR 12.00 —12.00 10.30
CC5A/CD5AW060 57,000 TDR 12.00 —12.00 10.50
CD5PX060 58,500 TDR&TXV 12.50 ——10.65
CE3AA060 58,000 TDR 12.00 —12.00 10.65
CK3BA060 58,000 TDR 12.00 —12.00 10.55
CK5A/CK5BA060 58,000 TDR 12.00 —12.00 10.55
CK5A/CK5BT060 58,000 TDR 12.00 —12.00 10.55
CK5A/CK5BX060 58,000 TDR 12.50 —12.50 10.75
CK5PA060 58,000 TDR&TXV 12.00 ——10.55
CK5PT060 58,000 TDR&TXV 12.00 ——10.55
CK5PX060 58,000 TDR&TXV 12.50 ——10.75
UNIT
SIZE-SERIES
INDOOR
UNIT
TOT.
CAP.
BTUH
FACTORY-
SUPPLIED
ENHANCE-
MENT
SEER
EER
Standard
Rating
Bryant Gas
Furnace or
Accessory
TDR†
Accessory
Puron TXV‡
COMBINATION RATINGS Continued
See notes on page 19.
—19—
* Tested combination.
†In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use
either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Bryant furnaces are equipped with TDR.
‡TXV must be Puron® compatible and hard shutoff type.
EER — Energy Efficiency Ratio
SEER — Seasonal Energy Efficiency Ratio
TDR — Time-Delay Relay
TXV — Puron® Thermostatic Expansion Valve
NOTES: 1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.
2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for electric air conditioners. Ratings for other com-
binations are determined under DOE computer simulation procedures.
3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.
4. Do not apply with capillary tube coils as performance and reliability are significantly affected.
—20—
DETAILED COOLING CAPACITIES*
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN018-F Outdoor Section With CK5A/CK5BA024 Indoor Section
525
72 19.79 10.21 1.30 19.80 10.35 1.46 19.29 10.26 1.63 18.30 9.92 1.82 17.10 9.48 2.02 15.88 9.03 2.25
67 19.16 13.22 1.29 18.44 13.04 1.44 17.33 12.60 1.62 16.22 12.14 1.80 15.10 11.69 1.99 13.95 11.23 2.19
63†† 17.89 12.98 1.28 16.79 12.50 1.43 15.82 12.06 1.59 14.77 11.60 1.76 13.73 11.15 1.95 12.57 10.66 2.15
62 17.51 15.79 1.27 16.45 15.32 1.43 15.53 14.88 1.59 14.56 14.41 1.76 13.74 13.74 1.95 12.86 12.86 2.16
57 16.83 16.83 1.27 16.08 16.08 1.42 15.34 15.34 1.58 14.54 14.54 1.76 13.74 13.74 1.95 12.86 12.86 2.16
600
72 19.81 10.35 1.34 19.84 10.60 1.49 19.50 10.65 1.66 18.61 10.40 1.85 17.43 10.00 2.05 16.18 9.55 2.28
67 19.29 13.73 1.32 18.81 13.81 1.47 17.74 13.46 1.64 16.54 12.99 1.84 15.41 12.54 2.03 14.24 12.08 2.23
63†† 18.26 13.69 1.31 17.24 13.32 1.46 16.16 12.85 1.63 15.11 12.41 1.80 14.02 11.94 1.98 12.84 11.45 2.19
62 18.03 16.94 1.30 16.97 16.50 1.46 16.03 16.03 1.62 15.24 15.24 1.80 14.38 14.38 2.00 13.45 13.45 2.21
57 17.74 17.74 1.30 16.87 16.87 1.46 16.05 16.05 1.63 15.24 15.24 1.80 14.37 14.37 2.00 13.45 13.45 2.21
675
72 19.82 10.51 1.36 19.79 10.76 1.52 19.60 10.97 1.69 18.81 10.83 1.88 17.66 10.48 2.08 16.38 10.04 2.30
67 19.30 14.10 1.35 19.01 14.46 1.50 18.03 14.23 1.67 16.84 13.82 1.87 15.67 13.36 2.06 14.45 12.88 2.27
63†† 18.47 14.29 1.34 17.56 14.08 1.49 16.44 13.62 1.66 15.36 13.17 1.83 14.23 12.70 2.02 13.04 12.19 2.23
62 18.40 17.89 1.34 17.56 17.56 1.49 16.67 16.67 1.67 15.80 15.80 1.85 14.90 14.90 2.04 13.97 13.97 2.26
57 18.34 18.34 1.33 17.56 17.56 1.49 16.67 16.67 1.67 15.80 15.80 1.85 14.90 14.90 2.04 13.97 13.97 2.26
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 018 0.98 1.02 FV4(A,B)NF 002 1.03 0.91
024 1.00 1.01 018 1.01 1.00
CC5A/CD5AW 024 1.00 1.01 COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE
CE3AA 024 1.00 1.00 CC5A/CD5AA 018 0.98 0.92
CF5AA 024 1.00 1.00 024 1.00 0.91
CK3BA 024 1.00 1.00 CC5A/CD5AW 024 1.00 0.91
CK5A/CK5BA 018 0.98 1.00 CE3AA 024 1.00 0.91
024 1.00 1.00 CK3BA 024 1.00 0.90
CK5A/CK5BW 024 1.00 1.00 CK5A/CK5BA 018 0.98 0.90
CK5PA 018 0.98 1.00 024 1.00 0.90
024 1.00 1.00 CK5A/CK5BW 024 1.00 0.90
CK5PW 024 1.00 1.00 CK5PA 018 0.98 0.92
F(A,B)4(A,B)N(F,C) 018 0.98 1.00 024 1.00 0.91
024 1.00 0.99 CK5PW 024 1.00 0.91
FC4(B,C)NF 024 1.01 1.00 COILS + 355MAV042060 VARIABLE SPEED FURNACE
FF1DNA 018 0.98 0.97 CC5A/CD5AW 024 1.00 0.92
FF1DNA 024 1.00 1.00 CE3AA 024 1.00 0.92
FG3AAA 024 1.00 1.02 CK5A/CK5BW 024 1.00 0.91
FK4(C,D)NF 001 1.01 0.89 CK5PW 024 1.00 0.91
002 1.03 0.91 —— —
—21—
DETAILED COOLING CAPACITIES* continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN024-F Outdoor Section With CK5A/CK5BA030 Indoor Section
650
72 27.0 12.9 1.79 25.7 12.4 2.00 24.6 12.0 2.24 23.3 11.6 2.49 21.9 11.1 2.77 20.4 10.6 3.08
67 25.2 16.4 1.78 24.0 15.9 1.99 22.8 15.4 2.22 21.5 14.8 2.47 19.9 14.2 2.73 17.4 13.2 3.00
63†† 22.3 15.4 1.75 20.7 14.7 1.94 19.1 14.0 2.16 18.2 13.6 2.41 17.1 13.2 2.67 15.1 12.3 2.95
62 21.7 18.9 1.74 20.2 18.2 1.94 18.7 17.5 2.15 17.2 16.8 2.39 16.4 16.4 2.66 15.6 15.6 2.96
57 20.2 20.2 1.72 18.9 18.9 1.92 18.2 18.2 2.15 17.4 17.4 2.39 16.5 16.5 2.66 15.5 15.5 2.96
750
72 27.0 13.2 1.83 26.1 12.9 2.04 24.9 12.5 2.28 23.7 12.1 2.53 22.3 11.6 2.81 20.7 11.1 3.13
67 25.6 17.2 1.82 24.5 16.9 2.03 23.2 16.3 2.26 21.8 15.8 2.51 20.4 15.3 2.78 17.8 14.3 3.05
63†† 22.9 16.5 1.79 21.3 15.7 1.99 19.8 15.1 2.20 18.8 14.7 2.45 17.7 14.2 2.72 15.7 13.4 3.00
62 22.4 20.4 1.78 20.8 19.7 1.98 19.4 19.0 2.20 18.8 18.6 2.45 18.0 18.0 2.73 16.5 16.5 3.02
57 21.2 21.2 1.77 20.5 20.5 1.98 19.7 19.7 2.20 18.9 18.9 2.46 18.0 18.0 2.73 16.4 16.4 3.02
850
72 27.3 13.6 1.86 26.3 13.3 2.08 25.2 12.9 2.31 23.9 12.5 2.57 22.4 12.1 2.85 20.9 11.6 3.17
67 25.8 18.0 1.85 24.8 17.7 2.07 23.4 17.1 2.29 22.1 16.7 2.55 20.7 16.2 2.82 18.3 15.3 3.10
63†† 23.5 17.5 1.83 22.5 17.0 2.04 21.1 16.5 2.26 19.4 15.7 2.50 18.2 15.3 2.77 16.2 14.4 3.05
62 23.1 21.9 1.83 22.2 21.4 2.03 20.9 20.8 2.26 20.2 20.2 2.51 18.9 18.9 2.79 17.2 17.2 3.08
57 22.6 22.6 1.82 21.8 21.8 2.03 21.0 21.0 2.26 20.2 20.2 2.52 19.1 19.1 2.79 17.1 17.1 3.07
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 024 0.99 1.01 CC5A/CD5AW 024 0.99 0.94
030 1.00 1.01 030 1.00 0.92
CC5A/CD5AW 024 0.99 1.01 CE3AA 024 0.99 0.93
030 1.00 1.01 030 1.00 0.92
CE3AA 024 0.99 1.00 CK3BA 024 0.99 0.92
030 1.00 1.00 030 1.00 0.92
CF5AA 024 0.99 1.00 CK5A/CK5BA 024 0.99 0.92
CK3BA 024 0.99 0.99 030 1.00 0.92
030 1.00 1.00 CK5A/CK5BW 024 0.99 0.92
CK5A/CK5BA 024 0.99 0.99 030 1.00 0.92
030 1.00 1.00 CK5PA 024 0.99 0.92
CK5A/CK5BW 024 0.99 0.99 030 1.00 0.92
030 1.00 1.00 CK5PW 024 0.99 0.92
CK5PA 024 0.99 0.99 030 1.00 0.92
030 1.00 1.00 COILS + 355MAV042040 VARIABLE SPEED FURNACE
CK5PW 024 0.99 0.99 CC5A/CD5AW 030 1.00 0.93
030 1.00 1.00 CK5A/CK5BW 030 1.00 0.93
F(A,B)4(A,B)N(F,C) 024 1.00 1.00 CK5PW 030 1.00 0.93
030 1.02 1.00 COILS + 355MAV042060 VARIABLE SPEED FURNACE
FC4(B,C)NF 024 1.00 1.00 CC5A/CD5AW 024 0.99 0.94
030 1.02 1.01 030 1.00 0.94
FF1DNA 024 0.99 1.00 CK3BA 024 0.99 0.93
030 1.02 1.01 030 1.00 0.93
FG3AAA 024 0.98 1.01 CK5A/CK5BW 024 0.99 0.93
FK4(C,D)NF 001 1.01 0.92 030 1.00 0.93
002 1.02 0.92 CK5PW 024 0.99 0.93
003 1.02 0.90 030 1.00 0.93
FV4(A,B)NF 002 1.02 0.92 COILS + 355MAV042080 VARIABLE SPEED FURNACE
003 1.02 0.90 CC5A/CD5AW 024 0.99 0.92
FX4(A,B)NF 030 1.02 0.99 030 1.00 0.92
COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE CK5A/CK5BW 024 0.99 0.91
CC5A/CD5AA 024 0.99 0.94 030 1.00 0.91
030 1.00 0.92 CK5PW 024 0.99 0.91
—— — 030 1.00 0.91
—22—
DETAILED COOLING CAPACITIES* continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN024-G Outdoor Section With CK5A/CK5BA030 Indoor Section
700
57 22.07 22.07 1.63 21.10 21.10 1.84 20.07 20.07 2.08 18.98 18.98 2.33 17.84 17.84 2.61 16.57 16.57 2.91
62 22.81 20.78 1.63 21.49 20.17 1.85 20.24 19.57 2.08 18.95 18.95 2.33 17.84 17.84 2.61 16.57 16.57 2.91
67 25.23 17.55 1.64 23.98 17.11 1.86 22.53 16.54 2.11 21.03 15.93 2.38 19.47 15.30 2.66 17.81 14.65 2.95
72 26.57 13.74 1.66 26.09 13.70 1.88 24.99 13.36 2.13 23.58 12.86 2.40 22.00 12.28 2.68 20.25 11.66 2.99
800
57 23.21 23.21 1.66 22.07 22.07 1.89 20.97 20.97 2.13 19.88 19.88 2.40 18.65 18.65 2.67 17.33 17.33 2.98
62 23.51 22.30 1.67 22.14 21.70 1.89 20.97 20.97 2.13 19.88 19.88 2.40 18.64 18.64 2.67 17.35 17.35 2.98
67 25.61 18.42 1.68 24.47 18.13 1.90 23.00 17.62 2.15 21.48 17.04 2.42 19.84 16.41 2.71 18.19 15.76 3.01
72 26.62 14.00 1.70 26.29 14.12 1.92 25.29 13.88 2.17 23.88 13.42 2.44 22.29 12.88 2.72 20.51 12.27 3.03
900
57 24.04 24.04 1.70 22.93 22.93 1.93 21.80 21.80 2.19 20.58 20.58 2.45 19.32 19.32 2.73 17.99 17.99 3.05
62 24.08 23.62 1.71 22.93 22.93 1.93 21.79 21.79 2.19 20.57 20.57 2.46 19.32 19.32 2.73 17.99 17.99 3.05
67 25.80 19.11 1.72 24.77 19.02 1.94 23.33 18.61 2.19 21.81 18.07 2.45 20.21 17.48 2.75 18.46 16.79 3.05
72 26.66 14.25 1.73 26.38 14.46 1.96 25.42 14.30 2.21 24.05 13.90 2.48 22.47 13.40 2.76 20.68 12.80 3.07
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 024 0.99 1.01 CK5A/CK5BA 024 0.97 0.89
030 1.00 1.01 030 0.98 0.90
CC5A/CD5AW 024 0.99 1.01 CK5A/CK5BW 024 0.97 0.89
030 1.00 1.01 030 0.98 0.89
CE3AA 024 0.99 1.00 CK5PA 024 0.97 0.89
030 1.00 1.00 030 0.98 0.90
CF5AA 024 0.99 1.01 CK5PW 024 0.97 0.89
CK3BA 024 0.99 1.00 030 0.98 0.90
030 1.00 1.00 COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE
CK5A/CK5BA 024 0.99 1.00 CC5A/CD5AA 024 0.97 0.90
030 1.00 1.00 030 0.98 0.89
CK5A/CK5BW 024 0.99 1.00 CC5A/CD5AW 024 0.97 0.89
030 1.00 1.00 030 0.98 0.89
CK5PA 024 0.99 1.00 CE3AA 024 0.97 0.89
030 1.00 1.00 030 0.98 0.89
CK5PW 024 0.99 1.00 CK3BA 024 0.97 0.87
030 1.00 1.00 030 0.98 0.88
F(A,B)4BN(F,C) 024 1.00 1.00 CK5A/CK5BA 024 0.97 0.88
030 1.02 1.00 030 0.98 0.89
FC4CNF 024 1.00 1.00 CK5A/CK5BW 024 0.97 0.88
030 1.02 1.00 030 0.98 0.89
FF1DNA 024 1.00 1.01 CK5PA 024 0.97 0.88
030 1.02 1.02 030 0.98 0.89
FF1DNE 024 1.00 1.01 CK5PW 024 0.97 0.88
030 1.02 1.02 030 0.98 0.89
FG3AAA 024 0.96 0.99 COILS + 315(A,J)AV060110 VARIABLE SPEED FURNACE
FK4DNF 001 1.00 0.90 CC5A/CD5AW 024 0.97 0.90
002 1.01 0.90 030 0.98 0.90
003 1.03 0.90 CE3AA 024 0.97 0.90
FV4BNF 002 1.01 0.90 030 0.98 0.89
003 1.03 0.90 CK3BA 024 0.97 0.88
FX4BNF 030 1.02 0.99 030 0.98 0.89
COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE CK5A/CK5BW 024 0.97 0.89
CC5A/CD5AA 024 0.97 0.91 030 0.98 0.89
030 0.98 0.90 CK5PW 024 0.97 0.89
CC5A/CD5AW 024 0.97 0.90 030 0.98 0.89
030 0.98 0.90 COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE
CE3AA 024 0.97 0.90 CE3AA 024 0.97 0.90
030 0.98 0.90 030 0.98 0.89
CK3BA 024 0.97 0.88 COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE
030 0.98 0.89 CE3AA 024 0.97 0.89
—— — 030 0.98 0.89
—23—
DETAILED COOLING CAPACITIES* continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN024-G Outdoor Section With CK5A/CK5BA030 Indoor Section continued
700
57 22.07 22.07 1.63 21.10 21.10 1.84 20.07 20.07 2.08 18.98 18.98 2.33 17.84 17.84 2.61 16.57 16.57 2.91
62 22.81 20.78 1.63 21.49 20.17 1.85 20.24 19.57 2.08 18.95 18.95 2.33 17.84 17.84 2.61 16.57 16.57 2.91
67 25.23 17.55 1.64 23.98 17.11 1.86 22.53 16.54 2.11 21.03 15.93 2.38 19.47 15.30 2.66 17.81 14.65 2.95
72 26.57 13.74 1.66 26.09 13.70 1.88 24.99 13.36 2.13 23.58 12.86 2.40 22.00 12.28 2.68 20.25 11.66 2.99
800
57 23.21 23.21 1.66 22.07 22.07 1.89 20.97 20.97 2.13 19.88 19.88 2.40 18.65 18.65 2.67 17.33 17.33 2.98
62 23.51 22.30 1.67 22.14 21.70 1.89 20.97 20.97 2.13 19.88 19.88 2.40 18.64 18.64 2.67 17.35 17.35 2.98
67 25.61 18.42 1.68 24.47 18.13 1.90 23.00 17.62 2.15 21.48 17.04 2.42 19.84 16.41 2.71 18.19 15.76 3.01
72 26.62 14.00 1.70 26.29 14.12 1.92 25.29 13.88 2.17 23.88 13.42 2.44 22.29 12.88 2.72 20.51 12.27 3.03
900
57 24.04 24.04 1.70 22.93 22.93 1.93 21.80 21.80 2.19 20.58 20.58 2.45 19.32 19.32 2.73 17.99 17.99 3.05
62 24.08 23.62 1.71 22.93 22.93 1.93 21.79 21.79 2.19 20.57 20.57 2.46 19.32 19.32 2.73 17.99 17.99 3.05
67 25.80 19.11 1.72 24.77 19.02 1.94 23.33 18.61 2.19 21.81 18.07 2.45 20.21 17.48 2.75 18.46 16.79 3.05
72 26.66 14.25 1.73 26.38 14.46 1.96 25.42 14.30 2.21 24.05 13.90 2.48 22.47 13.40 2.76 20.68 12.80 3.07
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
COILS + 355MAV042040 VARIABLE SPEED FURNACE CK5PW 024 0.97 0.89
CE3AA 024 0.97 0.90 030 1.01 0.92
030 0.98 0.90 COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 355MAV042060 VARIABLE SPEED FURNACE CC5A/CD5AW 024 0.97 0.90
CC5A/CD5AA 024 0.97 0.90 030 0.98 0.90
030 0.98 0.90 CE3AA 024 0.97 0.90
CC5A/CD5AW 024 0.97 0.90 030 0.98 0.89
030 0.98 0.90 CK3BA 024 0.97 0.88
CE3AA 024 0.97 0.89 030 0.98 0.89
030 0.98 0.89 CK5A/CK5BW 024 0.97 0.89
CK3BA 024 0.97 0.88 030 0.98 0.89
030 0.98 0.89 CK5PW 024 0.97 0.89
CK5A/CK5BA 024 0.97 0.89 030 0.98 0.89
030 0.98 0.89 COILS + 355MAV060100 VARIABLE SPEED FURNACE
CK5A/CK5BW 024 0.97 0.89 CC5A/CD5AW 024 0.97 0.90
030 0.98 0.89 030 0.98 0.90
CK5PA 024 0.97 0.89 CE3AA 024 0.97 0.89
030 0.98 0.90 030 0.98 0.89
CK5PW 024 0.97 0.89 CK3BA 024 0.97 0.88
030 0.98 0.89 030 0.98 0.89
COILS + 355MAV042080 VARIABLE SPEED FURNACE CK5A/CK5BW 024 0.97 0.89
CC5A/CD5AW 024 0.97 0.90 030 0.98 0.89
030 0.98 0.90 CK5PW 024 0.97 0.89
CE3AA 024 0.97 0.90 030 0.98 0.89
030 0.98 0.90 COILS + 355MAV060120 VARIABLE SPEED FURNACE
CK3BA 024 0.97 0.88 CE3AA 024 0.97 0.90
030 0.98 0.89 030 0.98 0.90
CK5A/CK5BW 024 0.97 0.89 —— —
030 0.98 0.89
—24—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN030-F Outdoor Section With CK5A/CK5BA036 Indoor Section
1875
72 33.5 16.6 2.19 32.4 16.3 2.43 31.0 15.8 2.69 29.5 15.3 2.99 27.7 14.7 3.32 25.7 14.0 3.69
67 31.4 21.7 2.17 30.1 21.2 2.41 28.6 20.6 2.67 26.9 19.9 2.95 24.5 19.0 3.26 21.7 17.9 3.61
63†† 28.8 20.9 2.15 26.6 20.0 2.37 24.4 19.0 2.61 22.0 18.0 2.88 20.5 17.4 3.19 18.8 16.7 3.54
62 28.2 26.0 2.14 26.1 25.0 2.36 24.0 23.9 2.61 22.8 22.8 2.89 21.4 21.4 3.21 19.9 19.9 3.57
57 26.7 26.7 2.13 25.1 25.1 2.35 23.6 23.6 2.60 22.8 22.8 2.89 21.9 21.9 3.22 20.0 20.0 3.57
1000
72 33.6 17.0 2.24 32.6 16.8 2.48 31.3 16.5 2.74 29.8 16.0 3.04 28.0 15.4 3.37 26.0 14.8 3.75
67 31.8 22.8 2.22 30.4 22.4 2.46 29.0 21.9 2.72 27.4 21.3 3.01 24.8 20.3 3.32 22.0 19.3 3.66
63†† 29.9 22.5 2.21 27.7 21.6 2.43 25.4 20.6 2.67 22.9 19.5 2.94 21.4 18.9 3.26 19.5 18.1 3.61
62 29.6 28.3 2.21 27.5 27.2 2.43 25.6 25.6 2.68 24.3 24.3 2.96 22.9 22.9 3.29 21.4 21.4 3.65
57 28.6 28.6 2.20 26.9 26.9 2.42 25.4 25.4 2.67 24.5 24.5 2.97 23.4 23.4 3.29 21.4 21.4 3.65
1125
72 34.1 17.8 2.30 33.1 17.6 2.54 31.4 17.0 2.79 29.9 16.6 3.09 28.1 16.1 3.42 26.2 15.6 3.81
67 32.1 23.9 2.28 30.6 23.4 2.50 29.3 23.2 2.77 27.6 22.6 3.06 25.3 21.8 3.38 22.2 20.6 3.72
63†† 30.3 23.8 2.27 28.6 23.0 2.49 26.2 22.0 2.73 23.7 21.0 3.00 22.2 20.4 3.32 20.1 19.4 3.67
62 30.3 30.0 2.26 29.0 29.0 2.49 27.0 27.0 2.74 25.7 25.7 3.03 24.3 24.3 3.36 21.9 21.9 3.71
57 30.2 30.2 2.26 28.6 28.6 2.49 27.0 27.0 2.74 26.1 26.1 3.04 24.6 24.6 3.36 21.9 21.9 3.71
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 030 0.97 1.00 CK3BA 030 0.96 0.92
036 1.00 1.00 036 0.99 0.92
CC5A/CD5AW 030 0.97 1.00 CK5A/CK5BA 030 0.96 0.92
036 1.00 1.00 036 0.99 0.92
CE3AA 030 0.97 0.98 CK5A/CK5BT 036 0.99 0.92
036 0.97 0.99 CK5A/CK5BW 030 0.96 0.92
CF5AA 036 0.99 1.00 CK5PA 030 0.97 0.93
CK3BA 030 0.97 0.99 036 0.99 0.92
036 1.00 1.00 CK5PT 036 0.99 0.92
CK5A/CK5BA 030 0.97 0.99 CK5PW 030 0.97 0.93
036 1.00 1.00 COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE
CK5A/CK5BT 036 1.00 1.00 CC5A/CD5AA 030 0.96 0.91
CK5A/CK5BW 030 0.97 0.99 036 0.99 0.91
036 1.00 1.00 CC5A/CD5AW 030 0.96 0.91
CK5PA 030 0.97 0.99 036 0.99 0.91
036 1.00 1.00 CE3AA 030 0.97 0.91
CK5PT 036 1.00 1.00 036 0.99 0.91
CK5PW 030 0.97 0.99 CK3BA 030 0.96 0.90
036 1.00 1.00 036 1.00 0.91
F(A,B)4(A,B)N(F,C) 030 0.97 0.99 CK5A/CK5BA 030 0.96 0.90
036 0.98 1.01 036 1.00 0.91
FC4(B,C)NF 030 0.96 0.98 CK5A/CK5BW 030 0.96 0.90
036 0.97 1.00 036 1.00 0.91
FF1DNA 030 0.98 1.00 CK5PA 030 0.97 0.92
FG3AAA 036 0.97 0.99 036 1.00 0.91
FK4(C,D)NF 001 0.97 0.90 CK5PT 036 1.00 0.91
002 0.98 0.91 CK5PW 030 0.97 0.92
003 0.98 0.88 036 1.00 0.91
005 1.01 0.88 COILS + 355MAV042040 VARIABLE SPEED FURNACE
FV4(A,B)NF 002 0.98 0.91 CC5A/CD5AW 030 0.97 0.95
003 0.99 0.90 036 1.00 0.94
005 1.01 0.88 CK5A/CK5BW 030 0.97 0.92
FX4(A,B)NF 030 0.96 0.96 036 1.00 0.92
036 0.97 0.99 CK5PW 030 0.97 0.92
COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE 036 1.00 0.92
CC5A/CD5AA 030 0.96 0.92 COILS + 355MAV042060 VARIABLE SPEED FURNACE
036 0.99 0.92 CC5A/CD5AA 036 1.00 0.95
CC5A/CD5AW 030 0.96 0.92 CC5A/CD5AW 030 0.97 0.95
CE3AA 030 0.97 0.92 CK3BA 030 0.97 0.95
036 0.97 0.91 036 1.00 0.94
—25—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN030-F Outdoor Section With CK5A/CK5BA036 Indoor Section continued
1875
72 33.5 16.6 2.19 32.4 16.3 2.43 31.0 15.8 2.69 29.5 15.3 2.99 27.7 14.7 3.32 25.7 14.0 3.69
67 31.4 21.7 2.17 30.1 21.2 2.41 28.6 20.6 2.67 26.9 19.9 2.95 24.5 19.0 3.26 21.7 17.9 3.61
63†† 28.8 20.9 2.15 26.6 20.0 2.37 24.4 19.0 2.61 22.0 18.0 2.88 20.5 17.4 3.19 18.8 16.7 3.54
62 28.2 26.0 2.14 26.1 25.0 2.36 24.0 23.9 2.61 22.8 22.8 2.89 21.4 21.4 3.21 19.9 19.9 3.57
57 26.7 26.7 2.13 25.1 25.1 2.35 23.6 23.6 2.60 22.8 22.8 2.89 21.9 21.9 3.22 20.0 20.0 3.57
1000
72 33.6 17.0 2.24 32.6 16.8 2.48 31.3 16.5 2.74 29.8 16.0 3.04 28.0 15.4 3.37 26.0 14.8 3.75
67 31.8 22.8 2.22 30.4 22.4 2.46 29.0 21.9 2.72 27.4 21.3 3.01 24.8 20.3 3.32 22.0 19.3 3.66
63†† 29.9 22.5 2.21 27.7 21.6 2.43 25.4 20.6 2.67 22.9 19.5 2.94 21.4 18.9 3.26 19.5 18.1 3.61
62 29.6 28.3 2.21 27.5 27.2 2.43 25.6 25.6 2.68 24.3 24.3 2.96 22.9 22.9 3.29 21.4 21.4 3.65
57 28.6 28.6 2.20 26.9 26.9 2.42 25.4 25.4 2.67 24.5 24.5 2.97 23.4 23.4 3.29 21.4 21.4 3.65
1125
72 34.1 17.8 2.30 33.1 17.6 2.54 31.4 17.0 2.79 29.9 16.6 3.09 28.1 16.1 3.42 26.2 15.6 3.81
67 32.1 23.9 2.28 30.6 23.4 2.50 29.3 23.2 2.77 27.6 22.6 3.06 25.3 21.8 3.38 22.2 20.6 3.72
63†† 30.3 23.8 2.27 28.6 23.0 2.49 26.2 22.0 2.73 23.7 21.0 3.00 22.2 20.4 3.32 20.1 19.4 3.67
62 30.3 30.0 2.26 29.0 29.0 2.49 27.0 27.0 2.74 25.7 25.7 3.03 24.3 24.3 3.36 21.9 21.9 3.71
57 30.2 30.2 2.26 28.6 28.6 2.49 27.0 27.0 2.74 26.1 26.1 3.04 24.6 24.6 3.36 21.9 21.9 3.71
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CK5A/CK5BA 036 1.00 0.94 CK5A/CK5BW 030 0.97 0.92
CK5A/CK5BW 030 0.97 0.92 036 1.00 0.92
CK5PA 036 1.00 0.94 CK5PW 030 0.97 0.92
CK5PW 030 0.97 0.92 036 1.00 0.92
COILS + 355MAV042080 VARIABLE SPEED FURNACE COILS + 355MAV060100 VARIABLE SPEED FURNACE
CC5A/CD5AW 030 0.97 0.96 CC5A/CD5AW 030 0.97 0.92
036 1.00 0.93 036 1.00 0.92
CK5A/CK5BW 030 0.97 0.92 CK5A/CK5BW 030 0.97 0.92
036 1.00 0.92 036 1.00 0.92
CK5PW 030 0.97 0.92 CK5PW 030 0.97 0.92
036 1.00 0.92 036 1.00 0.92
COILS + 355MAV060080 VARIABLE SPEED FURNACE COILS + 355MAV060120 VARIABLE SPEED FURNACE
CC5A/CD5AW 030 0.97 0.96 CC5A/CD5AW 036 1.00 0.92
036 1.00 0.95 CK5A/CK5BW 036 1.00 0.92
—— — CK5PW 036 1.00 0.92
—26—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN036-F/G Outdoor Section With CK5A/CK5BA042 Indoor Section
1050
72 40.4 19.9 2.65 39.0 19.5 2.96 37.3 18.9 3.29 35.3 18.2 3.66 33.3 17.6 4.08 30.8 16.8 4.53
67 38.2 26.0 2.63 36.3 25.3 2.93 34.5 24.6 3.25 32.5 23.9 3.62 30.4 23.1 4.01 26.5 21.6 4.41
63†† 35.9 25.7 2.62 34.1 24.9 2.91 32.0 23.9 3.23 29.7 23.0 3.57 26.9 21.8 3.94 23.7 20.4 4.33
62 35.4 31.9 2.61 33.4 30.9 2.90 31.4 30.0 3.22 29.2 28.9 3.56 27.2 27.2 3.94 24.7 24.7 4.36
57 33.5 33.5 2.59 31.6 31.6 2.87 29.7 29.7 3.19 28.7 28.7 3.55 27.2 27.2 3.94 24.6 24.6 4.35
1200
72 41.0 20.6 2.72 39.5 20.2 3.02 37.8 19.7 3.36 35.8 19.1 3.73 33.7 18.5 4.15 31.1 17.7 4.61
67 38.6 27.4 2.69 36.7 26.6 2.98 35.0 26.1 3.32 33.0 25.5 3.69 30.8 24.7 4.09 26.8 23.2 4.48
63†† 36.5 27.1 2.68 34.7 26.4 2.98 32.5 25.5 3.29 30.2 24.5 3.64 27.3 23.3 4.00 24.0 21.9 4.40
62 36.2 34.2 2.68 34.2 33.2 2.97 32.2 32.1 3.29 30.3 30.3 3.64 28.1 28.1 4.02 25.5 25.5 4.44
57 35.7 35.7 2.67 33.7 33.7 2.96 31.8 31.8 3.28 30.7 30.7 3.65 28.4 28.4 4.03 25.6 25.6 4.44
1350
72 41.3 21.2 2.78 39.8 20.9 3.08 38.1 20.4 3.42 36.1 19.8 3.79 34.0 19.3 4.21 31.4 18.6 4.68
67 38.8 28.4 2.75 37.1 27.9 3.05 35.4 27.6 3.38 33.5 27.1 3.75 31.2 26.3 4.15 27.1 24.7 4.55
63†† 36.9 28.5 2.74 35.2 27.9 3.04 32.9 26.9 3.35 30.5 25.9 3.70 27.6 24.7 4.07 24.3 23.3 4.47
62 36.7 35.9 2.73 35.0 34.9 3.03 33.6 33.6 3.37 31.8 31.8 3.73 29.6 29.6 4.11 26.4 26.4 4.53
57 36.6 36.6 2.73 35.2 35.2 3.03 33.6 33.6 3.37 31.8 31.8 3.73 29.4 29.4 4.11 26.4 26.4 4.53
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 036 1.00 1.00 CK5A/CK5BT 036 0.99 0.94
042 1.00 1.00 CK5PA 036 0.99 0.94
CC5A/CD5AW 036 1.00 1.00 CK5PE 042 0.99 0.93
042 0.99 1.00 CK5PT 036 0.99 0.94
CE3AA 036 0.99 1.00 COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE
042 1.00 1.00 CC5A/CD5AA 036 0.99 0.92
CF5AA 036 0.99 1.00 042 0.99 0.91
CK3BA 036 1.00 1.00 CC5A/CD5AW 036 0.99 0.92
042 1.00 1.00 CE3AA 036 0.98 0.92
CK5A/CK5BA 036 1.00 1.00 042 0.99 0.91
042 1.00 1.00 CK3BA 036 0.99 0.92
CK5A/CK5BT 036 1.00 1.00 042 0.99 0.91
042 1.00 1.00 CK5A/CK5BA 036 0.99 0.92
CK5A/CK5BW 036 1.00 1.00 042 0.99 0.91
CK5PA 036 1.00 1.00 CK5A/CK5BE 042 0.99 0.91
042 1.00 1.00 CK5A/CK5BT 036 0.99 0.92
CK5PT 036 1.00 1.00 042 0.99 0.91
042 1.00 1.00 CK5A/CK5BW 036 0.99 0.92
CK5PW 036 1.00 1.00 CK5PA 036 0.99 0.92
F(A,B)4(A,B)N(F,B,C) 042 1.00 1.00 042 0.99 0.92
F(A,B)4(A,B)N(F,C) 036 0.97 1.00 CK5PE 042 0.99 0.91
FC4(B,C)N(F,B) 042 0.97 0.98 CK5PT 036 0.99 0.92
FC4(B,C)NB 054 1.00 0.95 042 0.99 0.92
FC4(B,C)NF 036 0.96 1.00 CK5PW 036 0.99 0.92
FG3AAA 036 0.97 0.99 COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE
FK4(C,D)NB 006 1.01 0.87 CC5A/CD5AA 036 0.99 0.92
FK4(C,D)NF 001 0.97 0.93 042 0.99 0.91
002 0.97 0.93 CC5A/CD5AW 036 0.99 0.92
003 0.98 0.90 042 0.98 0.91
005 1.00 0.88 CE3AA 036 0.98 0.91
FV4(A,B)NB 006 1.02 0.88 042 0.99 0.91
FV4(A,B)NF 002 0.97 0.93 CK3BA 036 0.99 0.91
003 0.98 0.90 042 0.99 0.91
005 1.00 0.88 CK5A/CK5BA 036 0.99 0.91
FX4(A,B)NF 036 0.97 1.00 042 0.99 0.91
042 0.97 0.97 CK5A/CK5BT 036 0.99 0.91
COILS + 315(A,J)AV036070 VARIABLE SPEED FURNACE 042 0.99 0.91
CC5A/CD5AA 036 0.99 0.94 CK5A/CK5BW 036 0.99 0.91
CE3AA 036 0.98 0.94 CK5PA 036 0.99 0.91
042 0.99 0.93 042 0.99 0.91
CK3BA 036 0.99 0.94 CK5PT 036 0.99 0.91
CK5A/CK5BA 036 0.99 0.94 042 0.99 0.91
CK5A/CK5BE 042 0.99 0.92 CK5PW 036 0.99 0.91
—27—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN036-F/G Outdoor Section With CK5A/CK5BA042 Indoor Section continued
1050
72 40.4 19.9 2.65 39.0 19.5 2.96 37.3 18.9 3.29 35.3 18.2 3.66 33.3 17.6 4.08 30.8 16.8 4.53
67 38.2 26.0 2.63 36.3 25.3 2.93 34.5 24.6 3.25 32.5 23.9 3.62 30.4 23.1 4.01 26.5 21.6 4.41
63†† 35.9 25.7 2.62 34.1 24.9 2.91 32.0 23.9 3.23 29.7 23.0 3.57 26.9 21.8 3.94 23.7 20.4 4.33
62 35.4 31.9 2.61 33.4 30.9 2.90 31.4 30.0 3.22 29.2 28.9 3.56 27.2 27.2 3.94 24.7 24.7 4.36
57 33.5 33.5 2.59 31.6 31.6 2.87 29.7 29.7 3.19 28.7 28.7 3.55 27.2 27.2 3.94 24.6 24.6 4.35
1200
72 41.0 20.6 2.72 39.5 20.2 3.02 37.8 19.7 3.36 35.8 19.1 3.73 33.7 18.5 4.15 31.1 17.7 4.61
67 38.6 27.4 2.69 36.7 26.6 2.98 35.0 26.1 3.32 33.0 25.5 3.69 30.8 24.7 4.09 26.8 23.2 4.48
63†† 36.5 27.1 2.68 34.7 26.4 2.98 32.5 25.5 3.29 30.2 24.5 3.64 27.3 23.3 4.00 24.0 21.9 4.40
62 36.2 34.2 2.68 34.2 33.2 2.97 32.2 32.1 3.29 30.3 30.3 3.64 28.1 28.1 4.02 25.5 25.5 4.44
57 35.7 35.7 2.67 33.7 33.7 2.96 31.8 31.8 3.28 30.7 30.7 3.65 28.4 28.4 4.03 25.6 25.6 4.44
1350
72 41.3 21.2 2.78 39.8 20.9 3.08 38.1 20.4 3.42 36.1 19.8 3.79 34.0 19.3 4.21 31.4 18.6 4.68
67 38.8 28.4 2.75 37.1 27.9 3.05 35.4 27.6 3.38 33.5 27.1 3.75 31.2 26.3 4.15 27.1 24.7 4.55
63†† 36.9 28.5 2.74 35.2 27.9 3.04 32.9 26.9 3.35 30.5 25.9 3.70 27.6 24.7 4.07 24.3 23.3 4.47
62 36.7 35.9 2.73 35.0 34.9 3.03 33.6 33.6 3.37 31.8 31.8 3.73 29.6 29.6 4.11 26.4 26.4 4.53
57 36.6 36.6 2.73 35.2 35.2 3.03 33.6 33.6 3.37 31.8 31.8 3.73 29.4 29.4 4.11 26.4 26.4 4.53
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE CK3BA 036 0.99 0.94
CC5A/CD5AA 042 0.99 0.91 042 0.99 0.93
CC5A/CD5AW 036 0.99 0.92 CK5A/CK5BA 036 0.99 0.94
042 0.98 0.91 CK5PA 036 0.99 0.94
CE3AA 036 0.98 0.92 COILS + 355MAV042080 VARIABLE SPEED FURNACE
042 0.99 0.91 CC5A/CD5AA 042 0.99 0.93
CK3BA 042 0.99 0.91 CC5A/CD5AW 036 0.99 0.93
CK5A/CK5BA 042 0.99 0.91 CK3BA 042 0.99 0.93
CK5A/CK5BT 042 0.99 0.91 CK5A/CK5BA 042 0.99 0.92
CK5A/CK5BW 036 0.99 0.92 CK5A/CK5BW 036 0.99 0.93
CK5PA 042 0.99 0.91 CK5PA 042 0.99 0.92
CK5PT 042 0.99 0.91 CK5PW 036 0.99 0.93
CK5PW 036 0.99 0.92 COILS + 355MAV060080 VARIABLE SPEED FURNACE
COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE CC5A/CD5AA 042 0.99 0.94
CC5A/CD5AA 042 0.99 0.90 CC5A/CD5AW 036 0.99 0.94
CC5A/CD5AW 036 0.99 0.92 CK3BA 042 0.99 0.93
042 0.98 0.90 CK5A/CK5BA 042 0.99 0.93
CE3AA 036 0.98 0.92 CK5A/CK5BW 036 0.99 0.94
042 0.99 0.90 CK5PA 042 0.99 0.93
CK3BA 042 0.99 0.90 CK5PW 036 0.99 0.94
CK5A/CK5BA 042 0.99 0.90 COILS + 355MAV060100 VARIABLE SPEED FURNACE
CK5A/CK5BT 042 0.99 0.90 CC5A/CD5AA 042 0.99 0.91
CK5A/CK5BW 036 0.99 0.91 CC5A/CD5AW 036 0.99 0.91
CK5PA 042 0.99 0.91 CK3BA 042 0.99 0.91
CK5PT 042 0.99 0.91 CK5A/CK5BA 042 0.99 0.91
CK5PW 036 0.99 0.91 CK5A/CK5BW 036 0.99 0.91
COILS + 355MAV042040 VARIABLE SPEED FURNACE CK5PA 042 0.99 0.91
CC5A/CD5AA 042 0.99 0.93 CK5PW 036 0.99 0.91
CC5A/CD5AW 036 0.99 0.94 COILS + 355MAV060120 VARIABLE SPEED FURNACE
CK5A/CK5BA 042 0.99 0.93 CC5A/CD5AA 042 0.99 0.91
CK5A/CK5BW 036 0.99 0.94 CC5A/CD5AW 036 0.99 0.92
CK5PA 042 0.99 0.93 CK5A/CK5BA 042 0.99 0.91
CK5PW 036 0.99 0.94 CK5A/CK5BW 036 0.99 0.92
COILS + 355MAV042060 VARIABLE SPEED FURNACE CK5PA 042 0.99 0.91
CC5A/CD5AA 036 0.99 0.94 CK5PW 036 0.99 0.92
—28—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN042-F Outdoor Section With CK5A/CK5BA048 Indoor Section
1225
72 46.2 22.9 3.13 44.9 22.5 3.49 42.8 21.8 3.88 40.4 21.0 4.31 37.9 20.2 4.78 35.1 19.3 5.33
67 43.8 30.2 3.10 41.7 29.4 3.44 39.5 28.5 3.82 37.1 27.6 4.24 33.5 26.1 4.68 29.4 24.6 5.17
63†† 38.4 28.3 3.03 35.6 27.1 3.34 32.7 25.9 3.70 31.0 25.2 4.11 29.2 24.4 4.58 25.6 23.0 5.06
62 37.9 35.5 3.02 35.2 34.2 3.34 32.7 32.7 3.69 31.3 31.3 4.12 29.8 29.8 4.59 27.7 27.7 5.12
57 37.1 37.1 3.00 34.9 34.9 3.33 32.7 32.7 3.70 31.7 31.7 4.13 30.4 30.4 4.61 27.7 27.7 5.12
1400
72 46.8 23.7 3.21 45.0 23.2 3.56 43.0 22.5 3.95 40.7 21.8 4.38 38.3 21.2 4.87 35.4 20.3 5.41
67 44.3 31.8 3.18 42.1 30.8 3.51 40.0 30.2 3.90 37.6 29.4 4.33 33.9 27.9 4.77 29.8 26.4 5.26
63†† 39.6 30.3 3.11 36.7 29.1 3.43 34.0 27.9 3.79 32.3 27.2 4.21 30.4 26.5 4.68 26.8 24.9 5.16
62 39.0 38.1 3.10 36.7 36.7 3.43 35.4 35.4 3.81 34.0 34.0 4.25 32.1 32.1 4.72 28.9 28.9 5.22
57 38.6 38.6 3.10 37.4 37.4 3.44 35.2 35.2 3.81 34.1 34.1 4.25 31.9 31.9 4.72 29.1 29.1 5.23
1575
72 47.3 24.5 3.29 45.6 24.1 3.64 43.5 23.5 4.03 41.1 22.8 4.46 38.6 22.2 4.96 35.7 21.3 5.50
67 44.7 33.2 3.25 42.2 32.1 3.58 40.2 31.7 3.97 38.0 31.0 4.40 34.6 29.8 4.85 30.4 28.2 5.35
63†† 41.8 32.7 3.21 37.9 31.1 3.52 35.1 29.9 3.88 33.4 29.2 4.30 31.1 28.2 4.77 27.0 26.4 5.24
62 41.3 41.1 3.20 39.3 39.3 3.54 37.8 37.8 3.93 36.3 36.3 4.36 33.2 33.2 4.82 29.9 29.9 5.33
57 41.1 41.1 3.20 39.6 39.6 3.55 37.4 37.4 3.92 36.2 36.2 4.36 33.1 33.1 4.82 30.3 30.3 5.34
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AC 048 0.99 1.00 CK3BA 042 0.98 0.92
CC5A/CD5AW 042 0.99 1.00 048 0.99 0.92
048 1.00 1.00 CK5A/CK5BA 042 0.98 0.92
CD5AA 048 1.00 1.00 048 0.99 0.92
CE3AA 042 0.99 0.99 CK5A/CK5BE 042 0.99 0.93
048 1.00 1.00 CK5A/CK5BT 042 0.98 0.92
CF5AA 048 0.99 0.99 048 0.99 0.92
CK3BA 042 0.99 0.99 CK5PA 042 0.98 0.92
048 1.00 1.00 048 0.99 0.92
CK5A/CK5BA 042 0.99 0.99 CK5PE 042 0.99 0.93
048 1.00 1.00 CK5PT 042 0.98 0.92
CK5A/CK5BT 042 0.99 0.99 048 0.99 0.92
048 1.00 1.00 COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE
CK5A/CK5BW 048 1.00 1.00 CC5A/CD5AA 042 0.98 0.91
CK5PA 042 0.99 0.99 CC5A/CD5AC 048 0.98 0.91
048 1.00 1.00 CC5A/CD5AW 042 0.98 0.92
CK5PT 042 0.99 0.99 048 0.99 0.91
048 1.00 1.00 CD5AA 048 0.99 0.91
CK5PW 048 1.00 1.00 CE3AA 042 0.98 0.91
F(A,B)4(A,B)N(F,B,C) 042 0.99 1.01 048 0.99 0.92
048 1.00 1.00 CK3BA 042 0.98 0.91
FC4(B,C)N(F,B) 042 0.96 1.00 048 0.99 0.91
048 0.99 1.01 CK5A/CK5BA 042 0.98 0.91
FC4(B,C)NB 054 1.01 0.97 048 0.99 0.91
FG3AAA 048 1.00 1.00 CK5A/CK5BT 042 0.98 0.91
FK4(C,D)NB 006 1.01 0.89 048 0.99 0.91
FK4(C,D)NF 003 0.96 0.91 CK5A/CK5BW 048 0.99 0.91
005 1.00 0.91 CK5PA 042 0.98 0.91
FV4(A,B)NB 006 1.01 0.89 048 0.99 0.91
FV4(A,B)NF 003 0.96 0.91 CK5PT 042 0.98 0.91
005 1.01 0.92 048 0.99 0.91
FX4(A,B)NF 042 0.96 0.98 CK5PW 048 0.99 0.91
048 0.99 0.99 COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE
COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE CC5A/CD5AA 042 0.98 0.91
CC5A/CD5AA 042 0.98 0.92 CC5A/CD5AC 048 0.98 0.91
CC5A/CD5AC 048 0.98 0.92 CC5A/CD5AW 042 0.98 0.92
CD5AA 048 0.99 0.92 048 0.99 0.91
CE3AA 042 0.98 0.92 CD5AA 048 0.99 0.91
048 0.99 0.92 —— —
—29—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN042-F Outdoor Section With CK5A/CK5BA048 Indoor Section continued
1225
72 46.2 22.9 3.13 44.9 22.5 3.49 42.8 21.8 3.88 40.4 21.0 4.31 37.9 20.2 4.78 35.1 19.3 5.33
67 43.8 30.2 3.10 41.7 29.4 3.44 39.5 28.5 3.82 37.1 27.6 4.24 33.5 26.1 4.68 29.4 24.6 5.17
63†† 38.4 28.3 3.03 35.6 27.1 3.34 32.7 25.9 3.70 31.0 25.2 4.11 29.2 24.4 4.58 25.6 23.0 5.06
62 37.9 35.5 3.02 35.2 34.2 3.34 32.7 32.7 3.69 31.3 31.3 4.12 29.8 29.8 4.59 27.7 27.7 5.12
57 37.1 37.1 3.00 34.9 34.9 3.33 32.7 32.7 3.70 31.7 31.7 4.13 30.4 30.4 4.61 27.7 27.7 5.12
1400
72 46.8 23.7 3.21 45.0 23.2 3.56 43.0 22.5 3.95 40.7 21.8 4.38 38.3 21.2 4.87 35.4 20.3 5.41
67 44.3 31.8 3.18 42.1 30.8 3.51 40.0 30.2 3.90 37.6 29.4 4.33 33.9 27.9 4.77 29.8 26.4 5.26
63†† 39.6 30.3 3.11 36.7 29.1 3.43 34.0 27.9 3.79 32.3 27.2 4.21 30.4 26.5 4.68 26.8 24.9 5.16
62 39.0 38.1 3.10 36.7 36.7 3.43 35.4 35.4 3.81 34.0 34.0 4.25 32.1 32.1 4.72 28.9 28.9 5.22
57 38.6 38.6 3.10 37.4 37.4 3.44 35.2 35.2 3.81 34.1 34.1 4.25 31.9 31.9 4.72 29.1 29.1 5.23
1575
72 47.3 24.5 3.29 45.6 24.1 3.64 43.5 23.5 4.03 41.1 22.8 4.46 38.6 22.2 4.96 35.7 21.3 5.50
67 44.7 33.2 3.25 42.2 32.1 3.58 40.2 31.7 3.97 38.0 31.0 4.40 34.6 29.8 4.85 30.4 28.2 5.35
63†† 41.8 32.7 3.21 37.9 31.1 3.52 35.1 29.9 3.88 33.4 29.2 4.30 31.1 28.2 4.77 27.0 26.4 5.24
62 41.3 41.1 3.20 39.3 39.3 3.54 37.8 37.8 3.93 36.3 36.3 4.36 33.2 33.2 4.82 29.9 29.9 5.33
57 41.1 41.1 3.20 39.6 39.6 3.55 37.4 37.4 3.92 36.2 36.2 4.36 33.1 33.1 4.82 30.3 30.3 5.34
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CE3AA 042 0.98 0.91 COILS + 355MAV042060 VARIABLE SPEED FURNACE
048 0.99 0.92 CK3BA 042 0.98 0.94
CK3BA 042 0.98 0.91 CK5A/CK5BE 042 0.99 0.96
048 0.99 0.91 CK5PE 042 0.99 0.96
CK5A/CK5BA 042 0.98 0.91 COILS + 355MAV042080 VARIABLE SPEED FURNACE
048 0.99 0.91 CC5A/CD5AA 042 0.98 0.93
CK5A/CK5BT 042 0.98 0.91 CC5A/CD5AC 048 0.98 0.94
048 0.99 0.91 CD5AA 048 0.99 0.94
CK5A/CK5BW 048 0.99 0.91 CK3BA 042 0.98 0.93
CK5PA 042 0.98 0.91 048 0.99 0.93
048 0.99 0.91 CK5A/CK5BA 042 0.98 0.93
CK5PT 042 0.98 0.91 048 0.99 0.93
048 0.99 0.91 CK5PA 042 0.98 0.93
CK5PW 048 0.99 0.91 048 0.99 0.93
COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE COILS + 355MAV060080 VARIABLE SPEED FURNACE
CC5A/CD5AA 042 0.98 0.91 CC5A/CD5AA 042 0.98 0.94
CC5A/CD5AC 048 0.98 0.90 CC5A/CD5AC 048 0.98 0.95
CC5A/CD5AW 042 0.98 0.92 CD5AA 048 0.99 0.95
048 0.99 0.91 CK3BA 042 0.98 0.94
CD5AA 048 0.99 0.91 048 0.99 0.94
CE3AA 042 0.98 0.90 CK5A/CK5BA 042 0.98 0.94
048 0.99 0.91 048 0.99 0.94
CK3BA 042 0.98 0.91 CK5PA 042 0.98 0.94
048 0.99 0.91 048 0.99 0.94
CK5A/CK5BA 042 0.98 0.91 COILS + 355MAV060100 VARIABLE SPEED FURNACE
048 0.99 0.91 CC5A/CD5AA 042 0.98 0.92
CK5A/CK5BT 042 0.98 0.91 CC5A/CD5AC 048 0.98 0.93
048 0.99 0.91 CD5AA 048 0.99 0.92
CK5A/CK5BW 048 0.99 0.91 CK3BA 042 0.98 0.92
CK5PA 042 0.98 0.91 048 0.99 0.92
048 0.99 0.91 CK5A/CK5BA 042 0.98 0.92
CK5PT 042 0.98 0.91 048 0.99 0.92
048 0.99 0.91 CK5PA 042 0.98 0.92
CK5PW 048 0.99 0.91 048 0.99 0.92
COILS + 355MAV042040 VARIABLE SPEED FURNACE COILS + 355MAV060120 VARIABLE SPEED FURNACE
CC5A/CD5AA 042 0.98 0.94 CC5A/CD5AA 042 0.98 0.92
CC5A/CD5AW 048 0.99 0.95 CC5A/CD5AW 048 0.99 0.92
CK5A/CK5BA 042 0.98 0.94 CK5A/CK5BA 042 0.98 0.92
CK5A/CK5BW 048 0.99 0.94 CK5A/CK5BW 048 0.99 0.92
CK5PA 042 0.98 0.94 CK5PA 042 0.98 0.92
CK5PW 048 0.99 0.94 CK5PW 048 0.99 0.92
—30—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN048-F Outdoor Section With CK5A/CK5BA060 Indoor Section
1400
72 53.9 26.9 3.58 51.7 26.2 3.98 49.2 25.4 4.42 46.4 24.5 4.90 43.6 23.6 5.45 40.3 22.5 6.07
67 50.4 35.1 3.52 48.0 34.2 3.90 45.4 33.2 4.34 42.8 32.3 4.82 39.5 31.1 5.35 34.7 29.2 5.90
63†† 47.3 34.5 3.48 44.9 33.5 3.85 42.4 32.4 4.28 38.8 30.9 4.73 34.8 29.2 5.22 30.0 27.2 5.75
62 46.7 43.1 3.46 44.4 42.0 3.84 41.7 40.7 4.26 39.0 39.0 4.73 36.0 36.0 5.25 32.3 32.3 5.82
57 45.4 45.4 3.44 42.8 42.8 3.82 40.1 40.1 4.23 38.4 38.4 4.72 35.5 35.5 5.24 32.3 32.3 5.83
1600
72 54.1 27.7 3.66 52.0 27.0 4.06 49.6 26.4 4.50 47.1 25.7 5.01 44.2 24.9 5.56 40.6 23.8 6.18
67 50.8 36.8 3.60 48.6 36.2 3.99 46.0 35.4 4.43 43.4 34.5 4.92 40.1 33.4 5.45 35.2 31.5 6.01
63†† 47.9 36.4 3.55 45.7 35.6 3.95 43.1 34.5 4.37 39.3 33.0 4.82 35.2 31.3 5.31 30.3 29.2 5.84
62 47.7 46.2 3.56 45.4 45.0 3.94 43.0 43.0 4.37 40.4 40.4 4.85 37.2 37.2 5.37 33.3 33.3 5.95
57 47.4 47.4 3.55 44.9 44.9 3.93 43.3 43.3 4.38 41.0 41.0 4.86 37.8 37.8 5.38 34.1 34.1 5.96
1800
72 54.7 28.7 3.75 52.6 28.1 4.15 50.3 27.7 4.60 47.4 26.8 5.09 44.4 26.1 5.64 40.9 25.0 6.28
67 51.3 38.6 3.69 49.1 38.2 4.08 46.5 37.4 4.51 43.8 36.6 5.00 40.6 35.5 5.55 35.7 33.7 6.11
63†† 48.4 38.2 3.64 46.2 37.6 4.03 43.6 36.6 4.46 40.1 35.1 4.92 35.6 33.2 5.40 30.8 30.8 5.94
62 48.7 48.6 3.65 46.4 46.4 4.03 44.4 44.4 4.47 42.2 42.2 4.97 38.5 38.5 5.49 34.4 34.4 6.07
57 48.5 48.5 3.64 46.4 46.4 4.03 44.3 44.3 4.47 42.2 42.2 4.97 39.6 39.6 5.51 35.2 35.2 6.09
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 060 0.98 1.00 CE3AA 048 0.97 0.95
CC5A/CD5AC 048 0.96 0.99 060 0.98 0.93
CC5A/CD5AW 048 0.98 1.00 CK3BA 048 0.97 0.95
060 1.01 1.02 CK5A/CK5BA 048 0.97 0.95
CD5AA 048 0.98 1.00 CK5A/CK5BT 048 0.97 0.95
CE3AA 048 0.98 0.99 CK5PA 048 0.97 0.95
060 1.00 1.00 CK5PT 048 0.97 0.95
CF5AA 048 0.96 0.98 COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE
CK3BA 048 0.98 1.00 CC5A/CD5AA 060 0.98 0.94
060 1.00 1.00 CC5A/CD5AC 048 0.96 0.93
CK5A/CK5BA 048 0.98 1.00 CC5A/CD5AW 048 0.97 0.93
060 1.00 1.00 CD5AA 048 0.97 0.93
CK5A/CK5BT 048 0.98 1.00 CD5PX 060 0.99 0.92
060 1.00 1.00 CE3AA 048 0.97 0.93
CK5A/CK5BW 048 0.98 1.00 060 0.98 0.92
CK5A/CK5BX 060 1.01 1.00 CK3BA 048 0.97 0.93
CK5PA 048 0.98 1.00 060 0.98 0.92
060 1.00 1.00 CK5A/CK5BA 048 0.97 0.93
CK5PT 048 0.98 1.00 060 0.98 0.92
060 1.00 1.00 CK5A/CK5BT 048 0.97 0.93
CK5PW 048 0.98 1.00 060 0.98 0.92
CK5PX 060 1.01 1.00 CK5A/CK5BW 0.48 0.97 0.93
F(A,B)4(A,B)N(F,B,C) 048 0.98 1.01 CK5A/CK5BX 060 0.99 0.91
060 1.00 1.03 CK5PA 048 0.97 0.93
FB4(A,B)NB 070 1.01 1.01 060 0.98 0.92
FC4(B,C)N(F,B) 048 0.97 1.01 CK5PT 048 0.97 0.93
060 0.98 1.02 060 0.98 0.92
FC4(B,C)NB 054 0.98 0.98 CK5PW 048 0.97 0.93
070 1.00 1.01 CK5PX 060 0.99 0.91
FG3AAA 048 0.96 0.98 COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE
060 0.98 0.99 CC5A/CD5AA 060 0.97 0.93
FK4(C,D)NB 006 1.00 0.92 CC5A/CD5AC 048 0.96 0.93
FK4(C,D)NF 005 0.98 0.92 CC5A/CD5AW 048 0.97 0.94
FV4(A,B)NB 006 1.00 0.92 060 0.99 0.93
FV4(A,B)NF 005 0.98 0.92 CD5AA 048 0.97 0.93
FX4(A,B)NB 060 0.99 1.00 CE3AA 048 0.97 0.94
FX4(A,B)NF 048 0.98 1.00 060 0.98 0.92
COILS + 315(A,J)AV048090 VARIABLE SPEED FURNACE CK3BA 048 0.97 0.94
CC5A/CD5AC 048 0.95 0.94 060 0.98 0.92
CD5AA 048 0.97 0.95 CK5A/CK5BA 048 0.97 0.94
—— — 060 0.98 0.92
—31—
DETAILED COOLING CAPACITIES* Continued
See notes on page 32.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN048-F Outdoor Section With CK5A/CK5BA060 Indoor Section continued
1400
72 53.9 26.9 3.58 51.7 26.2 3.98 49.2 25.4 4.42 46.4 24.5 4.90 43.6 23.6 5.45 40.3 22.5 6.07
67 50.4 35.1 3.52 48.0 34.2 3.90 45.4 33.2 4.34 42.8 32.3 4.82 39.5 31.1 5.35 34.7 29.2 5.90
63†† 47.3 34.5 3.48 44.9 33.5 3.85 42.4 32.4 4.28 38.8 30.9 4.73 34.8 29.2 5.22 30.0 27.2 5.75
62 46.7 43.1 3.46 44.4 42.0 3.84 41.7 40.7 4.26 39.0 39.0 4.73 36.0 36.0 5.25 32.3 32.3 5.82
57 45.4 45.4 3.44 42.8 42.8 3.82 40.1 40.1 4.23 38.4 38.4 4.72 35.5 35.5 5.24 32.3 32.3 5.83
1600
72 54.1 27.7 3.66 52.0 27.0 4.06 49.6 26.4 4.50 47.1 25.7 5.01 44.2 24.9 5.56 40.6 23.8 6.18
67 50.8 36.8 3.60 48.6 36.2 3.99 46.0 35.4 4.43 43.4 34.5 4.92 40.1 33.4 5.45 35.2 31.5 6.01
63†† 47.9 36.4 3.55 45.7 35.6 3.95 43.1 34.5 4.37 39.3 33.0 4.82 35.2 31.3 5.31 30.3 29.2 5.84
62 47.7 46.2 3.56 45.4 45.0 3.94 43.0 43.0 4.37 40.4 40.4 4.85 37.2 37.2 5.37 33.3 33.3 5.95
57 47.4 47.4 3.55 44.9 44.9 3.93 43.3 43.3 4.38 41.0 41.0 4.86 37.8 37.8 5.38 34.1 34.1 5.96
1800
72 54.7 28.7 3.75 52.6 28.1 4.15 50.3 27.7 4.60 47.4 26.8 5.09 44.4 26.1 5.64 40.9 25.0 6.28
67 51.3 38.6 3.69 49.1 38.2 4.08 46.5 37.4 4.51 43.8 36.6 5.00 40.6 35.5 5.55 35.7 33.7 6.11
63†† 48.4 38.2 3.64 46.2 37.6 4.03 43.6 36.6 4.46 40.1 35.1 4.92 35.6 33.2 5.40 30.8 30.8 5.94
62 48.7 48.6 3.65 46.4 46.4 4.03 44.4 44.4 4.47 42.2 42.2 4.97 38.5 38.5 5.49 34.4 34.4 6.07
57 48.5 48.5 3.64 46.4 46.4 4.03 44.3 44.3 4.47 42.2 42.2 4.97 39.6 39.6 5.51 35.2 35.2 6.09
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CK5A/CK5BT 048 0.97 0.94 CK5A/CK5BA 048 0.97 0.97
060 0.98 0.92 CK5PA 048 0.97 0.97
CK5A/CK5BW 048 0.97 0.94 COILS + 355MAV060080 VARIABLE SPEED FURNACE
CK5A/CK5BX 060 0.99 0.91 CC5A/CD5AW 060 0.99 0.98
CK5PA 048 0.97 0.93 CK3BA 048 0.97 0.98
060 0.98 0.92 060 0.98 0.97
CK5PT 048 0.97 0.93 CK5A/CK5BA 060 0.98 0.97
060 0.98 0.92 CK5A/CK5BX 060 1.00 0.97
CK5PW 048 0.97 0.93 CK5PA 060 0.98 0.97
CK5PX 060 0.99 0.91 CK5PX 060 1.00 0.97
COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE COILS + 355MAV060100 VARIABLE SPEED FURNACE
CC5A/CD5AA 060 0.98 0.93 CC5A/CD5AA 060 0.97 0.95
CC5A/CD5AC 048 0.96 0.93 CC5A/CD5AC 048 0.96 0.96
CC5A/CD5AW 048 0.97 0.92 CC5A/CD5AW 060 0.99 0.95
060 0.99 0.92 CD5AA 048 0.97 0.95
CD5AA 048 0.97 0.92 CK3BA 048 0.97 0.95
CE3AA 048 0.97 0.93 060 0.98 0.97
060 0.98 0.91 CK5A/CK5BA 048 0.97 0.95
CK3BA 048 0.97 0.93 060 0.98 0.94
060 0.98 0.91 CK5A/CK5BX 060 1.00 0.95
CK5A/CK5BA 048 0.97 0.93 CK5PA 048 0.97 0.95
060 0.98 0.91 060 0.98 0.94
CK5A/CK5BT 048 0.97 0.93 CK5PX 060 1.00 0.95
060 0.98 0.91 COILS + 355MAV060120 VARIABLE SPEED FURNACE
CK5A/CK5BW 048 0.97 0.93 CC5A/CD5AA 060 0.97 0.95
CK5A/CK5BX 060 0.99 0.91 CC5A/CD5AW 048 0.98 0.96
CK5PA 048 0.97 0.93 060 0.99 0.94
060 0.98 0.91 CK3BA 060 0.98 0.96
CK5PT 048 0.97 0.93 CK5A/CK5BA 060 0.98 0.94
060 0.98 0.91 CK5A/CK5BW 048 0.97 0.94
CK5PW 048 0.97 0.93 CK5A/CK5BX 060 1.00 0.94
CK5PX 060 0.99 0.91 CK5PA 060 0.98 0.94
COILS + 355MAV042080 VARIABLE SPEED FURNACE CK5PW 048 0.97 0.94
CD5AA 048 0.97 0.97 CK5PX 060 1.00 0.94
CK3BA 048 0.97 0.97 —— —
—32—
DETAILED COOLING CAPACITIES* Continued
NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.
* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length and/or
indoor unit is located above outdoor unit, a slight variation in capacity may occur.
†Total and sensible capacities are net capacities. Blower motor heat has been subtracted.
‡Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835 Btuh
(245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air
per degree above 80°F (27°C).
** Total unit kW is total of indoor and outdoor unit kilowatts.
†† At TVA rating indoor condition (75°F edb/63°F ewb). All other indoor air temperatures are at 80°F edb.
EVAP
AIR
CONDENSER ENTERING AIR TEMPERATURES °F
75 85 95 105 115 125
CFM EWB
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**
Capacity
MBtuh†Total
Sys
kW**Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡Total Sens‡
552AN060-F Outdoor Section With CK5A/CK5BA060 Indoor Section
1600
72 66.5 32.5 4.51 64.0 31.7 5.03 61.2 30.7 5.60 57.9 29.6 6.25 54.3 28.3 6.97 50.2 27.0 7.76
67 62.4 41.9 4.44 59.6 40.8 4.95 56.4 39.5 5.50 53.0 38.2 6.13 49.5 36.9 6.83 43.3 34.5 7.53
63†† 55.7 39.9 4.33 52.2 38.3 4.81 48.5 36.7 5.34 46.5 35.9 5.97 43.7 34.7 6.66 38.4 32.5 7.35
62 54.4 49.4 4.31 51.0 47.8 4.79 47.5 46.1 5.32 45.7 45.1 5.95 43.7 43.7 6.66 39.9 39.9 7.41
57 51.3 51.3 4.25 48.4 48.4 4.74 47.0 47.0 5.30 45.4 45.4 5.94 43.4 43.4 6.65 39.6 39.6 7.40
1800
72 67.2 33.5 4.60 64.8 32.7 5.12 61.9 31.8 5.70 58.6 30.8 6.35 54.6 29.4 7.03 50.5 28.1 7.82
67 62.9 43.6 4.52 60.1 42.6 5.02 57.0 41.5 5.59 53.7 40.3 6.22 50.1 39.1 6.92 44.0 36.7 7.64
63†† 58.6 42.9 4.46 55.0 41.3 4.94 51.2 39.7 5.47 49.2 38.8 6.11 44.4 36.8 6.76 39.2 34.7 7.47
62 57.5 53.4 4.44 54.0 51.7 4.92 50.6 50.0 5.46 48.8 48.8 6.10 45.6 45.6 6.79 41.6 41.6 7.55
57 54.7 54.7 4.39 51.8 51.8 4.88 50.2 50.2 5.45 48.5 48.5 6.10 45.6 45.6 6.79 41.6 41.6 7.55
2000
72 67.6 34.3 4.68 65.3 33.7 5.21 62.4 32.9 5.79 58.6 31.6 6.42 55.0 30.5 7.13 50.9 29.2 7.92
67 63.6 45.4 4.61 60.7 44.5 5.12 57.6 43.5 5.68 54.3 42.4 6.32 50.7 41.2 7.02 44.4 38.8 7.74
63†† 60.3 45.2 4.56 57.2 43.9 5.06 53.8 42.5 5.60 50.5 41.1 6.23 45.1 38.9 6.86 39.9 36.7 7.57
62 59.7 57.0 4.55 56.7 55.4 5.05 53.4 53.4 5.60 51.2 51.2 6.24 47.2 47.2 6.92 43.1 43.1 7.69
57 57.8 57.8 4.52 55.1 55.1 5.02 53.2 53.2 5.59 51.2 51.2 6.24 47.4 47.4 6.92 43.3 43.3 7.69
Multipliers for Determining the Performance With Other Indoor Sections
Indoor
Section Size
Cooling Indoor
Section Size
Cooling
Capacity Power Capacity Power
CC5A/CD5AA 060 0.96 0.99 CK5PA 060 1.02 0.99
CC5A/CD5AW 060 1.02 1.02 CK5PT 060 1.02 0.99
CD5PX 060 1.03 1.02 CK5PX 060 1.02 0.97
CE3AA 060 1.00 1.00 COILS + 315(A,J)AV066135 VARIABLE SPEED FURNACE
CK3BA 060 1.00 1.00 CC5A/CD5AA 060 0.98 0.98
CK5A/CK5BA 060 1.00 1.00 CC5A/CD5AW 060 1.02 0.99
CK5A/CK5BT 060 1.00 1.00 CE3AA 060 1.02 0.98
CK5A/CK5BX 060 1.02 1.00 CK3BA 060 1.02 0.99
CK5PA 060 1.00 1.00 CK5A/CK5BA 060 1.02 0.99
CK5PT 060 1.00 1.00 CK5A/CK5BT 060 1.02 0.99
CK5PX 060 1.02 1.00 CK5A/CK5BX 060 1.02 0.97
F(A,B)4(A,B)N(F,B,C) 060 1.00 1.03 CK5PA 060 1.02 0.99
FB4(A,B)NB 070 1.02 1.01 CK5PT 060 1.02 0.99
FC4(B,C)N(F,B) 060 1.00 1.04 CK5PX 060 1.02 0.97
FC4(B,C)NB 070 1.02 1.02 COILS + 315(A,J)AV066155 VARIABLE SPEED FURNACE
FG3AAA 060 0.98 0.99 CC5A/CD5AA 060 0.98 0.97
FK4(C,D)NB 006 1.02 0.97 CC5A/CD5AW 060 1.00
FV4(A,B)NB 006 1.02 0.97 CD5PX 060 1.03 0.98
FX4(A,B)NB 060 0.98 0.99 CE3AA 060 1.02 0.97
COILS + 315(A,J)AV066110 VARIABLE SPEED FURNACE CK3BA 060 1.02 0.98
CC5A/CD5AA 060 0.98 0.98 CK5A/CK5BA 060 1.02 0.98
CD5PX 060 1.03 0.99 CK5A/CK5BT 060 1.02 0.98
CE3AA 060 1.02 0.98 CK5A/CK5BX 060 1.02 0.97
CK3BA 060 1.02 0.99 CK5PA 060 1.02 0.98
CK5A/CK5BA 060 1.02 0.99 CK5PT 060 1.02 0.98
CK5A/CK5BT 060 1.02 0.99 CK5PX 060 1.02 0.97
CK5A/CK5BX 060 1.02 0.97 —— —
—33—
CONDENSER ONLY RATINGS*
See notes on page 35.
SST
°F
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
552AN018-F
30
TCG 16.0 15.1 14.3 13.4 12.4 11.5 10.5 9.50
SDT 67.7 77.4 87.0 96.7 106.4 116.1 125.8 135.2
KW 0.80 0.92 1.06 1.21 1.38 1.56 1.76 1.97
35
TCG 17.6 16.6 15.7 14.8 13.8 12.8 11.7 10.6
SDT 68.7 78.3 88.0 97.6 107.2 116.8 126.4 135.8
KW 0.81 0.92 1.06 1.22 1.39 1.57 1.77 1.99
40
TCG 19.3 18.3 17.3 16.2 15.2 14.1 13.0 11.8
SDT 69.8 79.4 89.0 98.6 108.1 117.7 127.2 136.6
KW 0.82 0.93 1.07 1.23 1.40 1.58 1.79 2.00
45
TCG 21.1 20.0 18.9 17.8 16.70 15.5 14.3 13.0
SDT 71.0 80.6 90.1 99.7 109.2 118.6 128.1 137.4
KW 0.83 0.95 1.08 1.24 1.41 1.59 1.80 2.02
50
TCG 23.0 21.8 20.6 19.5 18.3 17.0 15.7 14.3
SDT 72.3 81.8 91.3 100.8 110.3 119.7 129.1 138.3
KW 0.84 0.96 1.09 1.25 1.42 1.61 1.81 2.03
55
TCG 25.0 23.8 22.5 21.2 19.9 18.6 17.2 15.7
SDT 73.7 83.1 92.6 102.0 111.4 120.8 130.1 139.3
KW 0.85 0.97 1.11 1.26 1.44 1.62 1.83 2.05
552AN024-F
30
TCG
SDT
KW
23.5
74.0
1.17
22.2
83.8
1.33
20.9
93.5
1.52
19.6
103.
1.72
18.3
113.
1.93
17.0
123.
2.16
15.6
132.
2.40
14.2
142.
2.67
35
TCG
SDT
KW
25.8
75.5
1.17
24.4
85.2
1.34
23.0
94.9
1.53
21.5
105.
1.73
20.1
114.
1.95
18.6
124.
2.18
17.2
133.
2.43
15.6
143.
2.69
40
TCG
SDT
KW
28.2
77.1
1.18
26.7
86.7
1.35
25.1
96.3
1.54
23.6
106.
1.74
22.0
116.
1.97
20.4
125.
2.21
18.8
135.
2.46
17.0
144.
2.72
45
TCG
SDT
KW
30.8
78.7
1.18
29.1
88.2
1.36
27.4
97.8
1.55
25.8
107.
1.76
24.1
117.
1.98
22.3
127.
2.23
20.5
136.
2.49
18.6
145.
2.75
50
TCG
SDT
KW
33.5
80.5
1.18
31.7
89.9
1.36
29.9
99.4
1.56
28.1
109.
1.77
26.2
118.
2.00
24.3
128.
2.25
22.3
137.
2.51
20.2
146.
2.78
55
TCG
SDT
KW
36.4
82.3
1.19
34.4
91.7
1.37
32.5
101.
1.57
30.5
111.
1.79
28.5
120.
2.02
26.4
129.
2.27
24.2
139.
2.54
22.0
148.
2.81
552AN024-G
30
TCG 21.6 20.0 18.4 16.7 14.8 12.7 10.4 7.8
SDT 71.0 80.3 89.5 98.8 107.9 117.0 126.0 134.8
KW 0.96 1.12 1.29 1.48 1.68 1.88 2.08 2.27
35
TCG 24.0 22.4 20.7 18.9 17.0 14.9 12.6 10.1
SDT 72.7 81.9 91.1 100.4 109.6 118.6 127.6 136.4
KW 0.99 1.14 1.32 1.52 1.73 1.94 2.15 2.37
40
TCG 29.5 24.9 23.2 21.3 19.4 17.3 15.0 12.4
SDT 74.5 83.7 92.8 102.0 111.2 120.4 129.3 138.2
KW 1.00 1.18 1.36 1.55 1.77 2.00 2.23 2.46
45
TCG 32.3 29.0 26.0 23.9 22.0 19.9 17.6 15.0
SDT 76.1 85.3 94.5 103.7 112.9 121.9 130.8 139.6
KW 1.02 1.20 1.39 1.60 1.82 2.05 2.29 2.54
50
TCG 37.7 35.9 30.0 27.2 24.8 22.6 20.3 17.9
SDT 77.7 86.7 95.9 105.1 114.2 123.2 132.1 140.8
KW 1.03 1.21 1.41 1.62 1.87 2.12 2.37 2.63
55
TCG 45.2 38.8 34.9 31.2 28.4 25.9 23.4 20.8
SDT 79.1 88.4 97.5 106.5 115.5 124.5 133.3 142.0
KW 1.04 1.23 1.43 1.64 1.89 2.14 2.42 2.71
—34—
CONDENSER ONLY RATINGS* Continued
See notes on page 35.
SST
°F
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
552AN030-F
30
TCG
SDT
KW
26.7
71.2
1.41
25.3
80.9
1.59
23.8
90.6
1.80
22.4
100.
2.04
21.0
110.
2.30
19.5
120.
2.59
18.0
129.
2.91
16.4
139.
3.26
35
TCG
SDT
KW
29.3
72.5
1.42
27.8
82.1
1.60
26.2
91.8
1.81
24.6
101.
2.05
23.0
111.
2.31
21.4
121.
2.60
19.8
130.
2.92
18.0
140.
3.27
40
TCG
SDT
KW
32.1
73.9
1.43
30.4
83.4
1.62
28.7
93.0
1.83
27.0
103.
2.06
25.2
112.
2.32
23.5
122.
2.61
21.7
131.
2.93
19.8
141.
3.28
45
TCG
SDT
KW
35.0
75.4
1.45
33.2
84.8
1.63
31.4
94.4
1.84
29.5
104.
2.08
27.6
114.
2.34
25.7
123.
2.63
23.7
133.
2.94
21.6
142.
3.29
50
TCG
SDT
KW
38.2
77.0
1.47
36.2
86.4
1.65
34.2
95.8
1.86
32.2
105.
2.09
30.1
115.
2.36
28.0
124.
2.65
25.9
134.
2.96
23.6
143.
3.31
55
TCG
SDT
KW
41.5
78.7
1.49
39.3
88.0
1.67
37.2
97.3
1.88
35.0
107.
2.11
32.8
116.
2.38
30.5
126.
2.67
28.1
135.
2.98
25.6
144.
3.33
552AN036-F/G
30
TCG
SDT
KW
32.6
74.9
1.69
30.9
84.4
1.93
29.0
94.1
2.19
27.1
104.
2.48
25.2
113.
2.78
23.1
122.
3.10
21.0
132.
3.43
18.7
141.
3.76
35
TCG
SDT
KW
35.7
76.4
1.70
33.8
85.9
1.94
31.9
95.5
2.20
29.8
105.
2.50
27.7
115.
2.81
25.6
124.
3.13
23.3
133.
3.48
20.8
142.
3.83
40
TCG
SDT
KW
39.0
78.1
1.71
37.0
87.5
1.95
34.9
97.1
2.22
32.7
107.
2.51
30.5
116.
2.83
28.1
125.
3.17
25.7
134.
3.52
23.0
143.
3.89
45
TCG
SDT
KW
42.5
79.9
1.72
40.3
89.3
1.96
38.1
98.7
2.23
35.8
108.
2.53
33.3
118.
2.86
30.8
127.
3.20
28.2
136.
3.57
25.4
145.
3.94
50
TCG
SDT
KW
46.1
81.8
1.73
43.8
91.1
1.97
41.4
100.
2.25
39.0
110.
2.55
36.4
119.
2.88
33.7
128.
3.24
30.8
137.
3.61
27.8
146.
3.99
55
TCG
SDT
KW
50.0
83.8
1.74
47.5
93.0
1.99
45.0
102.
2.27
42.3
112.
2.57
39.6
121.
2.91
36.6
130.
3.27
33.6
139.
3.64
30.3
148.
4.04
552AN042-F
30
TCG
SDT
KW
37.4
74.9
1.94
35.4
84.4
2.21
33.3
94.0
2.51
31.3
104.
2.84
29.2
113.
3.22
27.1
123.
3.63
25.0
132.
4.08
22.6
141.
4.58
35
TCG
SDT
KW
41.0
76.6
1.98
38.8
86.0
2.24
36.6
95.5
2.54
34.3
105.
2.88
32.1
115.
3.25
29.8
124.
3.66
27.4
133.
4.11
24.8
142.
4.61
40
TCG
SDT
KW
44.7
78.4
2.01
42.3
87.7
2.28
39.9
97.0
2.58
37.5
107.
2.92
35.0
116.
3.29
32.5
125.
3.70
29.9
134.
4.15
27.1
144.
4.65
45
TCG
SDT
KW
48.7
80.3
2.06
46.1
89.4
2.32
43.6
98.7
2.62
40.9
108.
2.96
38.2
118.
3.34
35.5
127.
3.75
32.6
136.
4.20
29.5
145.
4.69
50
TCG
SDT
KW
52.9
82.3
2.11
50.2
91.3
2.37
47.4
101.
2.67
44.5
110.
3.01
41.6
119.
3.39
38.6
128.
3.80
35.5
137.
4.25
32.1
146.
4.73
55
TCG
SDT
KW
57.3
84.4
2.16
54.4
93.4
2.43
51.4
102.
2.73
48.3
112.
3.06
45.2
121.
3.44
41.8
130.
3.86
38.4
139.
4.30
34.7
147.
4.78
—35—
SYSTEM DESIGN SUMMARY
1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.
2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).
3. Maximum outdoor operating air temperature is 125°F (51.7°C).
4. For reliable operation, unit should be level in all horizontal planes.
5. Maximum elevation of indoor coil above or below base of outdoor unit without additional consideration is: Indoor coil above = 20 ft,
indoor coil below = 20 ft. Consult Application Guidelines and Service Manual—Air Conditioners and Heat Pumps Using Puron®
Refrigerant prior to application if elevations are exceeded.
6. For interconnecting refrigerant tube lengths greater than 50 ft and/or 20 ft vertical differential, consult the Application Guideline and
Service Manual—Air Conditioners and Heat Pumps Using Puron® Refrigerant Application Guideline and Service Manual—Air Con-
ditioners and Heat Pumps Using Puron® Refrigerant available from equipment distributor.
7. If any refrigerant tubing is buried, provide a 6 in. vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36
in. may be buried without further consideration. Do not bury lines over 36 in.
8. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector
provided.
9. Do not apply capillary tube indoor coils to these units.
10. Factory-supplied filter drier must be installed. This must be replaced each time the refrigeration system is opened for service.
11. Do not deviate from factory specified TXV’s and Liquid Line Solenoids.
CONDENSER ONLY RATINGS* Continued
* ARI listing applies only to systems shown in Ratings and Performance table.
kW — Outdoor Unit Kilowatts only.
SDT — Saturated Temperature Leaving Compressor (°F)
SST — Saturated Temperature Entering Compressor (°F)
TCG — Gross Cooling Capacity (1000 Btuh).
SST
°F
CONDENSER ENTERING AIR TEMPERATURES °F
55 65 75 85 95 105 115 125
552AN048-F
30
TCG
SDT
KW
43.2
77.6
2.18
40.8
87.0
2.48
38.5
96.5
2.82
36.2
106.
3.20
33.8
115.
3.61
31.4
125.
4.08
28.9
134.
4.58
26.2
143.
5.14
35
TCG
SDT
KW
47.2
79.4
2.23
44.7
88.7
2.53
42.2
98.2
2.86
39.6
108.
3.25
37.0
117.
3.66
34.4
126.
4.12
31.6
136.
4.63
28.7
145.
5.19
40
TCG
SDT
KW
51.5
81.4
2.28
48.8
90.6
2.58
46.0
99.9
2.92
43.3
109.
3.30
40.4
119.
3.72
37.6
128.
4.18
34.5
137.
4.68
31.3
146.
5.23
45
TCG
SDT
KW
56.0
83.5
2.34
53.1
92.6
2.64
50.1
102.
2.97
47.1
111.
3.35
44.0
120.
3.78
40.9
130.
4.24
37.6
139.
4.74
34.0
147.
5.29
50
TCG
SDT
KW
60.8
85.7
2.40
57.7
94.7
2.70
54.4
104.
3.04
51.2
113.
3.42
47.8
122.
3.84
44.4
131.
4.30
40.8
140.
4.80
36.9
149.
5.34
55
TCG
SDT
KW
65.8
88.1
2.47
62.5
96.9
2.77
59.1
106.
3.11
55.5
115.
3.49
51.8
124.
3.91
48.0
133.
4.38
44.2
142.
4.87
39.9
150.
5.40
552AN060-F
30
TCG
SDT
KW
53.4
77.9
2.79
50.5
87.5
3.18
47.6
97.1
3.61
44.7
107.
4.10
41.8
116.
4.64
38.8
126.
5.23
35.7
135.
5.88
32.5
144.
6.60
35
TCG
SDT
KW
58.4
79.8
2.85
55.2
89.2
3.24
52.1
98.8
3.67
48.9
108.
4.16
45.7
118.
4.71
42.5
127.
5.30
39.1
137.
5.95
35.5
146.
6.66
40
TCG
SDT
KW
63.7
81.8
2.92
60.3
91.1
3.30
56.9
101.
3.74
53.4
110.
4.23
49.9
120.
4.78
46.4
129.
5.37
42.7
138.
6.02
38.7
147.
6.72
45
TCG
SDT
KW
69.3
83.9
2.99
65.6
93.1
3.37
62.0
102.
3.81
58.2
112.
4.30
54.4
121.
4.85
50.5
131.
5.45
46.4
140.
6.10
42.1
149.
6.80
50
TCG
SDT
KW
75.2
86.1
3.06
71.3
95.3
3.45
67.3
105.
3.89
63.3
114.
4.38
59.1
123.
4.93
54.8
132.
5.54
50.4
141.
6.18
45.6
150.
6.88
55
TCG
SDT
KW
81.4
88.5
3.15
77.2
97.5
3.54
72.9
107.
3.98
68.5
116.
4.47
64.0
125.
5.02
59.3
134.
5.63
54.5
143.
6.28
49.2
152.
6.96
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
UNIT MUST BE INSTALLED IN ACCORDANCE
WITH INSTALLATION INSTRUCTIONS
Cancels: PDS 552A.18.2
New: PDS 552A.18.3
© 2003 Bryant Heating & Cooling Systems, 7310 W. Morris St. Indpls, IN 46231 —36—PRINTED IN U.S.A. Catalog No. 5255-206 10-03
GUIDE SPECIFICATIONS
GENERAL
System Description
Outdoor-mounted, air-cooled, split-system air conditioner unit
suitable for ground or rooftop installation. Unit consists of a her-
metic compressor, an air-cooled coil, propeller-type condenser
fan, and a control box. Unit will discharge supply air upward as
shown on contract drawings. Unit will be used in a refrigeration
circuit to match up to a packaged fan coil or coil unit.
Quality Assurance
Unit will be rated in accordance with the latest edition of ARI
Standard 210.
Unit will be certified for capacity and efficiency, and listed in the
lastest ARI directory.
Unit construction will comply with latest edition of ANSI/
ASHRAE and with NEC.
Unit will be constructed in accordance with UL standards and
will carry the UL label of approval. Unit will have c-UL approval.
Unit cabinet will be capable of withstanding Federal Test Method
Standard No. 141 (Method 6061) 500-hr salt spray test.
Air-cooled condenser coils will be leak tested at 150 psig and
pressure tested at 450 psig.
Unit constructed in ISO9001 approved facility.
Delivery, Storage, and Handling
Unit will be shipped as single package only and is stored and
handled per unit manufacturer’s recommendations.
Warranty (for inclusion by specifying engineer)
U.S. and Canada only.
PRODUCTS
Equipment
Factory assembled, single piece, air-cooled air conditioner unit.
Contained within the unit enclosure is all factory wiring, piping,
controls, compressor, refrigerant charge Puron® (R-410A), and
special features required prior to field start-up.
Refrigerant
Refrigerant will be Puron (R-410A) HFC Refrigerant with zero
ozone depletion potential. R-410A is approved under the EPA’s
Significant New Alternatives Program (SNAP).
Unit Cabinet
Unit cabinet will be constructed of galvanized steel, bonderized,
and coated with a powder coat paint.
Fans
Condenser fan will be direct-drive propeller type, discharging air
upward.
Air-Cooled, Split-System
Air Conditioner
552A
1-1/2 to 5 Tons Nominal
Fans
Condenser fan will be direct-drive propeller type, discharging air
upward.
Condenser fan motors will be totally enclosed, 1-phase type
with class B insulation and permanently lubricated bearings.
Shafts will be corrosion resistant.
Fan blades will be statically and dynamically balanced.
Condenser fan openings will be equipped with PVC-coated
steel wire safety guards.
Compressor
Compressor will be hermetically sealed.
Compressor will be mounted on rubber vibration isolators.
Condenser Coil
Condenser coil will be air cooled.
Coil will be constructed of aluminum fins mechanically bonded
to copper tubes which are then cleaned, dehydrated, and
sealed.
Refrigeration Components
Refrigeration circuit components will include liquid-line shutoff
valve with sweat connections, vapor-line shutoff valve with
sweat connections, system charge of Puron® (R-410A)
refrigerant, and compressor oil.
Operating Characteristics
The capacity of the unit will meet or exceed _____ Btuh at a
suction temperature of _____ °F. The power consumption at full
load will not exceed _____ kW.
Combination of the unit and the evaporator or fan coil unit will
have a total net cooling capacity of _____ Btuh or greater at
conditions of _____ CFM entering air temperature at the
evaporator at _____ °F wet bulb and _____ °F dry bulb, and air
entering the unit at _____ °F.
The system will have an SEER of _____ Btuh/watt or greater at
DOE conditions.
Electrical Requirements
Nominal unit electrical characteristics will be _____ v, single
phase, 60 hz. The unit will be capable of satisfactory operation
within voltage limits of _____ v to _____ v.
Unit electrical power will be single point connection.
Control circuit will be 24v.
Special Features
Refer to section of this literature identifying accessories and
descriptions for specific features and available enhancements.

Navigation menu
