Bryton orporation CA1803 GPS enabled cycling computer User Manual Rider 15 QSG EN
Bryton Incorporation GPS enabled cycling computer Rider 15 QSG EN
Users Manual
A01
Quick Start Guide
Bryton
www.brytonsport.com
Download
Bryton Mobile App
2
2MENU( )
Press to enter/exit menu mode.•
Press to be back to main menu.•
Long press to clear notication icons.•
1Power/OK ( / )
•
•
In free cycling, press to start recording.•
• When recording, press to stop recording.
1
3
3Backlight/Page ( / )
In Menu, press to move down to scroll
through menu options.
Press to turn the device on.
•
•
•
In Meter mode, press to switch meter
screen page.
Please charge your device for at least 4 hours before the first use.
To begin 1. Press to turn on the device. 2. Press / to select the unit and press to confirm the
selection. 3. Device will automatically search for satellite signals. 4. After GPS signal is fixed *,( → ) just ride
on and enjoy your workout in free cycling mode. To record, press to start recording.
*To get GPS acquisition, please take the device to an open sky outdoor environment.
Getting Started
Key Functions
PC
At least 4 Hours
Sync Data to / from Bryton App
It is required to pair your device with Bryton App before syncing data for the first time.
1.Turn on your device.
2.After Bryton App is installed, please sign up a new account or sign in with your Bryton account.
3.Tap "BT Sync” ,and select the device you would like to pair , and tap “+”.
4.Tap “Yes” after checking if UUID shown on app is the same as your device’s.
5.Your device is successfully paired with Bryton App.
6.It would start uploading tracks from paired device.
After pairing with Bryton app and simple setup, you can receive phone call, text and email notifications,
customize data grid, calibrate altitude and manage other settings.
Icon Description
Reboot Device
Press( / ) at the same time to reboot the device.
For firmware update, please go to www.brytonsport.com> (Menu) > Support > Download.
For video instructions, please go to www.brytonsport.com> (Menu) > Support > Tutorial.
For User Manual, Please go to www.brytonsport.com> (Menu) > Support > Download > Manual > User Manuals.
Note:
2
1
Weak GPS Signal
Strong GPS Signal
Bike 1/ Bike 2 Text Notification
Daylight Saving Time
Afternoon
12hr or 24 hr
Gradient
Altitude Gain
Altitude Loss
Distance 1
Distance 2
Ride Time
Power Status
Call Notification
Email Notification
Backlight
Trip Time
Maximum
Average
Cadence Value
Heart Rate Value
Odometer
Distance
Heart Rate Sensor
Speed Sensor
Cadence Sensor
Bluetooth Active
Recording
No GPS Signal
(Not fixed)
Item Description
Display 2" Segment Type HTN LCD
Physical Size 71 x 46.2 x 16.5 mm
Weight 52g
Operating
Temperature
-10°C ~ 50°C
Battery Charging
Temperature
0°C ~ 40°C
Battery Li polymer rechargeable battery
Battery Life 16 hours with open sky
GPS Integrated high-sensitivity GPS receiver with embedded antenna
BLE Smart Bluetooth smart wireless technology with embedded antenna
Water Resistant Water resistant to a depth of 1 meter for up to 30 minutes.
Barometer Equipped with barometer
3

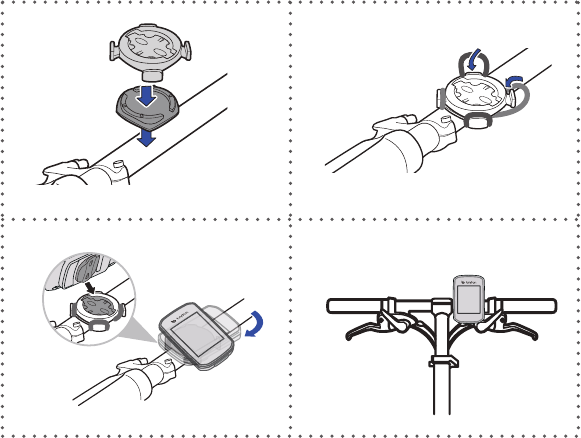

Install Rider 15
Use Bike Mount to Mount Rider
1 2
4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
Industry Canada Statement
This device complies with Industry Canada RSS-247 standard. Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limit set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 0.5 cm between the radiator and your body.
Cet équipement est conforme aux CNR-102 d'Industrie Canada. Cet équipement
doit êtreinstallé et utilisé avec une distance minimale de 0.5centimètres entre le
radiateur et votrecorps. Cet émetteur ne doit pas être co-localisées ou opérant en
conjonction avec autreantenne ou émetteur. Les antennes utilisées pour cet
émetteur doivent être installés etfournir une distance de séparation d'au moins 0.5
centimètre de toute personne et doit pas être co-située ni fonctionner en conjonction
avec une autre antenne ou émetteur.
