Bryton orporation DA1605 Bryton Smart Speed/Cadence sensor User Manual QSG SPD
Bryton Incorporation Bryton Smart Speed/Cadence sensor QSG SPD
Users Manual
The Smart Speed sensor
contains a user-replaceable
CR2032 battery.
Remove battery tab before use
Rider one
Rider 10
Rider 100
Rider 200/210
Rider 310
Rider 330
Rider 520
Rider 530
Amis S430
Amis S630
Smart
Speed Sensor
Designed by Bryton Inc.
Copyright 2017 Bryton Inc. All rights reserved.

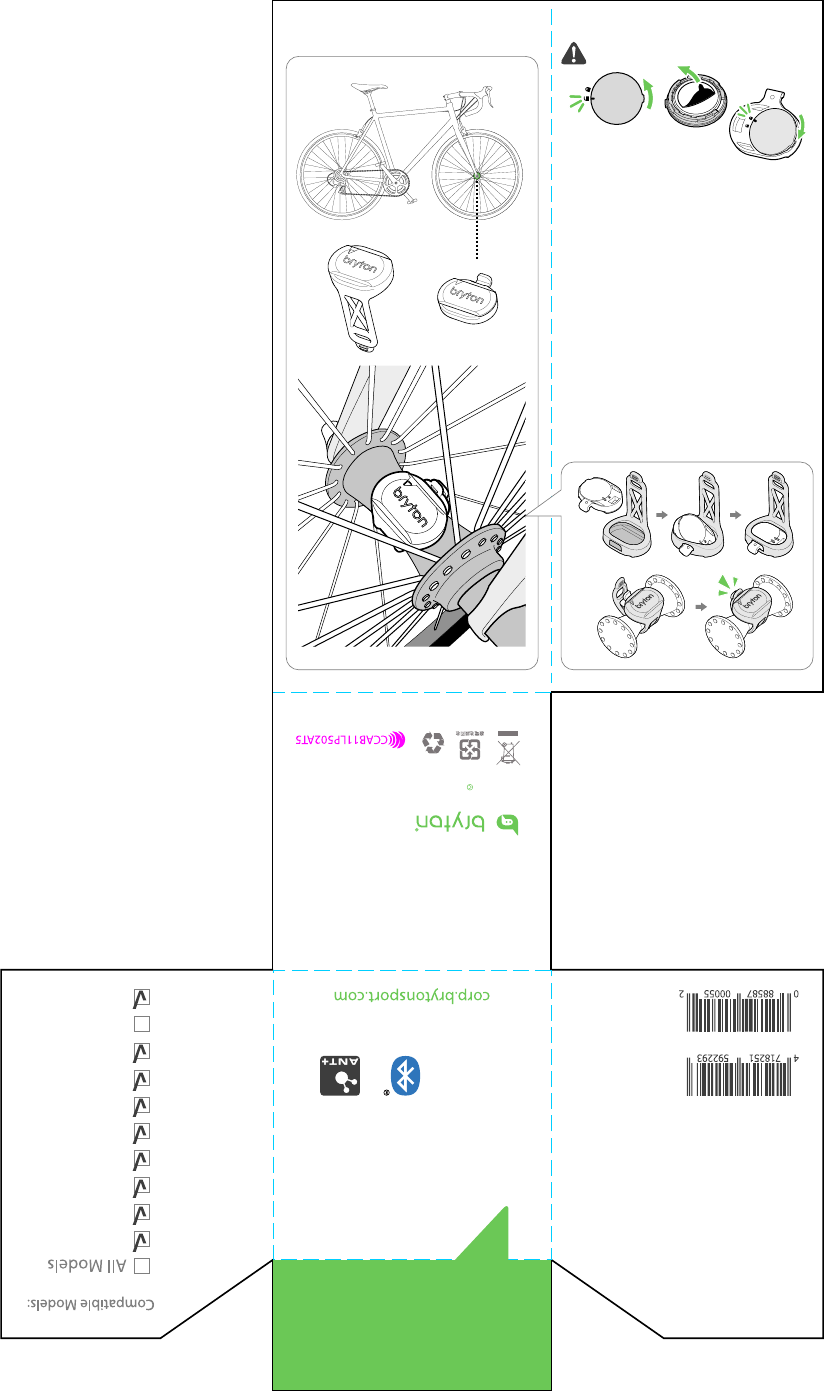

Bryton Smart Speed Sensor
+
Pairing Bryton Smart Speed Sensor with Your
ANT+/ BLE Devices
After installing Bryton Smart Speed Sensor, rotate
wheel a few times to wake Bryton Smart Speed
Sensor up. The sensor can only be paired when it
is awake, or it would go back to sleep to preserve
power.
Note:
1. The pairing steps dier from each Bryton
device. Please check its own user manual.
2. Please keep away from other ANT+ or BLE
sensors while pairing.
Connecting to Your ANT+/ BLE Devices
After pairing, your Bryton devices automatically
connect to Bryton Smart Speed Sensor each time
when the sensor is awake.
Made in China
Bryton products and accessories are not medical devices and its
readings are for reference only. Bryton is not responsibile for the
consequences of any erroneous readings. Always consult your
physician before beginning any training program or using a heart
rate monitor. Please do not operate the product during any
activities, because lack of proper attention may cause injury, death
or material damage. When using or installing this product, please
comply with all applicable local laws and regulation. We and our
manufactuers and licensors shall not assume any responsibility for
damages arising from using this product during activities, misuse,
improper installation, act of God,any violation of traffic or safety
regulations, or software or map data product therein. This product
is not guaranteed to be free of errors or deficiencies, and is not
guaranteed to be applicable for any defined purpose.
FCC Regulations:
§ 15.19 (a)(3)
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
§ 15.21
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
§ 15.105 (b)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
FCC RF Exposure Compliance
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission for an uncontrolled
environment.
Industry Canada Compliance
IC Regulations:
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
IMPORTANT: Please Read This Notice before Using This Product
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
This Category II radiocommunication device complies with
Industry Canada Standard RSS-310. Ce dispositif de
radiocommunication de catégorie II respecte la norme CNR-310
d’Industrie Canada.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits
set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between
the radiator & your body. This device and its antenna(s) must not
be co-located or operating in conjunction with any other antenna
or transmitter.
CE Marking Warning
This is a Class B product, in a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
Australian Consumer Law
Our goods come with guarantees that can not be excluded under
the New Zealand and Australian Consumer Laws. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
低功率電波輻射電機管理宣告
本產品僅遵循中華民國國家通訊傳播委員會所頒佈低功率電波輻射性
電機管理辦法規範，並經驗證通過合格，請使用者遵循相關電信法規
以避免違反規定受罰。若使用者欲攜帶本機至其它國家應用，也請遵
循該地區或國家之相關法令限制。根據交通部低功率電波輻射性電機
管理辦法規定：
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者
均不得擅自變更頻率，加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前功合
法通信，依電信法規定作業之無線電通信。低功率射頻電機須忍受合
法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Limited Warranty
Bryton Inc. warrants its products to be free from defects in
materials or workmanship for one year from the date of purchase.
Bryton Inc. will repair or replace any component that fails in normal
use within this limited warranty period at no charge to the
customer for parts or labor.
This warranty does not apply to,
1) Damage caused by misuse, accident, abuse, fire, or other
external causes or acts of nature
2) Physical damage to the surface, such as scratches and dents;
3) Consumable parts, such as batteries, heart rate belt, unless
product damage has occurred due to a defect in materials or
workmanship
4) Damage caused by anyone who is not an authorized service
provider of Bryton Inc.
Physical size
Weight
Water Resistance
Transmission range
Battery life
Operating temperature
Radio frequency /
Protocol
36.9 x 34.8 x 8.1 mm
6 g
Incidental exposure to water of
up to 1 meter for up to 30 minutes
3 m
Up to 1 year
-10 oC ~ 60 oC
2.4GHZ / Bluetooth 4.0 and ANT+
Designed by Bryton Inc.
Copyright 2017 Bryton Inc. All rights reserved.
Made in China
Rider one
Rider 10
Rider 100
Rider 200/210
Rider 310
Rider 330
Rider 520
Rider 530
Amis S430
Amis S630
Smart
Cadence Sensor
Pairing Bryton Smart Cadence Sensor with
Your ANT+/ BLE Devices
After installing Bryton Smart Cadence Sensor,
rotate crank a few times to wake Bryton Smart
Cadence Sensor up. The sensor can only be
paired when it is awake, or it would go back to
sleep to preserve power.
Note:
1. The pairing steps dier from each Bryton
device. Please check its own user manual.
2. Please keep away from other ANT+ or BLE
sensors while pairing.
Connecting to Your ANT+/ BLE Devices
After pairing, your Bryton devices automatically
connect to Bryton Smart Cadence Sensor each
time when the sensor is awake.
The Smart Cadence sensor
contains a user-replaceable
CR2032 battery.
Bryton Smart Cadence Sensor
+ +
Remove battery tab before use
Bryton products and accessories are not medical devices and its
readings are for reference only. Bryton is not responsibile for the
consequences of any erroneous readings. Always consult your
physician before beginning any training program or using a heart
rate monitor. Please do not operate the product during any
activities, because lack of proper attention may cause injury, death
or material damage. When using or installing this product, please
comply with all applicable local laws and regulation. We and our
manufactuers and licensors shall not assume any responsibility for
damages arising from using this product during activities, misuse,
improper installation, act of God,any violation of traffic or safety
regulations, or software or map data product therein. This product
is not guaranteed to be free of errors or deficiencies, and is not
guaranteed to be applicable for any defined purpose.
FCC Regulations:
§ 15.19 (a)(3)
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
§ 15.21
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to
operate the equipment.
§ 15.105 (b)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
FCC RF Exposure Compliance
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission for an uncontrolled
environment.
Industry Canada Compliance
IC Regulations:
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
IMPORTANT: Please Read This Notice before Using This Product
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
This Category II radiocommunication device complies with
Industry Canada Standard RSS-310. Ce dispositif de
radiocommunication de catégorie II respecte la norme CNR-310
d’Industrie Canada.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits
set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between
the radiator & your body. This device and its antenna(s) must not
be co-located or operating in conjunction with any other antenna
or transmitter.
CE Marking Warning
This is a Class B product, in a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
Australian Consumer Law
Our goods come with guarantees that can not be excluded under
the New Zealand and Australian Consumer Laws. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
低功率電波輻射電機管理宣告
本產品僅遵循中華民國國家通訊傳播委員會所頒佈低功率電波輻射性
電機管理辦法規範，並經驗證通過合格，請使用者遵循相關電信法規
以避免違反規定受罰。若使用者欲攜帶本機至其它國家應用，也請遵
循該地區或國家之相關法令限制。根據交通部低功率電波輻射性電機
管理辦法規定：
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者
均不得擅自變更頻率，加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前功合
法通信，依電信法規定作業之無線電通信。低功率射頻電機須忍受合
法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Limited Warranty
Bryton Inc. warrants its products to be free from defects in
materials or workmanship for one year from the date of purchase.
Bryton Inc. will repair or replace any component that fails in normal
use within this limited warranty period at no charge to the
customer for parts or labor.
This warranty does not apply to,
1) Damage caused by misuse, accident, abuse, fire, or other
external causes or acts of nature
2) Physical damage to the surface, such as scratches and dents;
3) Consumable parts, such as batteries, heart rate belt, unless
product damage has occurred due to a defect in materials or
workmanship
4) Damage caused by anyone who is not an authorized service
provider of Bryton Inc.
Physical size
Weight
Water Resistance
Transmission range
Battery life
Operating temperature
Radio frequency /
Protocol
36.9 x 31.6 x 8.1 mm
6 g
Incidental exposure to water of
up to 1 meter for up to 30 minutes
3 m
Up to 1 year
-10 oC ~ 60 oC
2.4GHZ / Bluetooth 4.0 and ANT+
