Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Diverse 4010 Classic

Digital Cordless Telephone

User

Guide

*YOU MUST

SUBSCRIBE TO A

CALLER DISPLAY AND

CALL WAITING SERVICE

BEFORE YOUR DIVERSE 4010

CLASSIC WILL DISPLAY THIS

INFORMATION. A QUARTERLY

FEE IS PAYABLE.

This equipment is not designed for making emergency telephone calls when the power fails.

Alternative arrangements should be made for access to emergency services.

This product is intended for connection to analogue public switched telephone networks

and private switchboards in the United Kingdom.

The Art of Communication

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

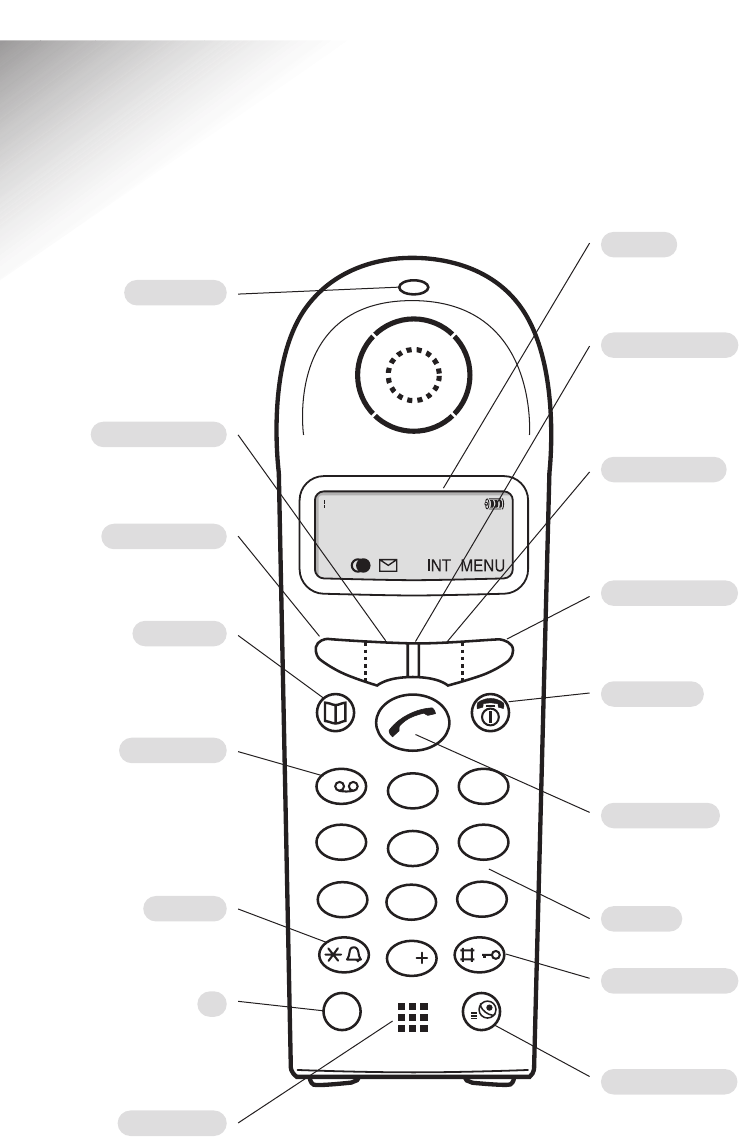

Please open this page for an ‘At a glance’

guide to your Diverse 4010 Classic.

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

At a glance

Option buttons

Lets you select from

the menu options shown

on the display.

Green phone

For making and

answering calls.

One button

Apart from being the

number one button,

hold down to access

your Voice Mail service

or answering machine.

In use light

Lights up to indicate an

incoming call, an alarm

call or when the handset

is in use.

Star/Bell

Switches the handset

ringer on and off.

Hash/Keyguard

Switches the keypad

guard on and off.

For use with

switchboards and certain

Network Services.

Keypad

Microphone

Display

Displays the status of

your handset.

Extra Directory

Used to store

10 additional names

and numbers.

Red phone

To end a call, return to

idle and turn the power

off and on.

Directory

Used to store and

dial numbers in the

directory.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Right hand side

Takes you into

the calls list.

Left hand side

Takes you into

the redial list. Right hand side

Takes you into the

menu options.

Left hand side

To access list of internal

handsets registered to

the base

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

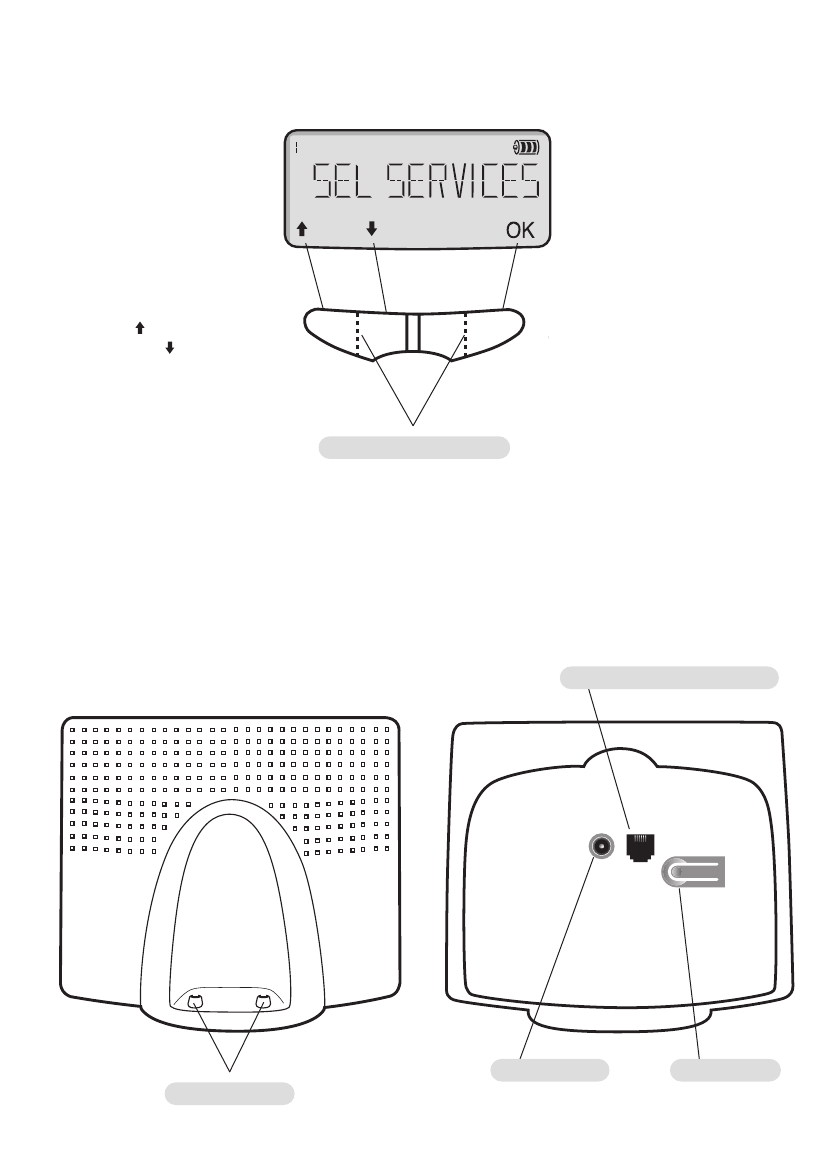

Base

Contact points

Display option buttons

The OPTION buttons allow

you to select options within

each menu that are shown

on the display.

INT MENU-> ->

Press the right side of the

button to confirm (OK)

menu selection.

Press the left side of the

button for and right side of

the button for when going

through the menu options.

Handset display

When in MENU mode

Base underside

Power socket Page button

Telephone line cord socket

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

In this guide

At a glance 1

Menu structure 4

Quick guide 6

Quick guide to handset

display icons 7

Introduction 8

Unpacking your Diverse 4010 Classic 8

For your records 8

Safety information 9

Setting up 10

Registering and charging

the handset 11

Using the telephone 15

Making and ending calls 15

Call timer 16

Name and number directory 16

Extra directory 18

Redial 19

Secrecy 20

Paging and Internal calls 20

Alarm clock 22

Caller Display and

other Select Services 24

Caller Display 24

Calls list 24

Call Waiting 27

Call Divert 28

Withhold number 28

Ring Back 29

Voice Mail 29

Handset settings 31

Keyguard 33

Base station settings 34

Base Station PIN (Personal

Identification Number) 34

Using additional handsets

and bases 36

Registering additional handsets 36

Help 39

General information 41

Guarantee 41

Technical information 42

Switchboard compatibility 42

Setting pauses 44

Index 45

Hints and tips boxes

In this user guide, we’ve included

helpful tips and important notes.

They are shown in boxes like this.

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Menu Structure

Sel Services Withhold No.

Call Waiting

Ringback Off

Call Divert

Alarm Clock Enter alarm call time

Audio Set H/Set Vol set

Ringer set

Melody set

Base Set Audio Set up Ringer Vol set

Melody set

Date/Time Date Set

Clock Set

Clock Mode 24H

12H

System PIN enter

Base Reset default

Add Features Dial Mode Tone

Pulse

DTMF-EARTH

tbr 100 MS

120 MS

180 MS

250 MS

300 MS

600 MS

Repeater Sure? on/off

Barge In on/off

Voice Mail Set key 1 Mailbox Input No.

Please note

If your handset is registered to a Diverse 4016 answering machine base, you will

have additional menu’s in No.6 Voice Mail. Please refer to your Diverse 4016 guide

to see what further menus are now available.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

IMPORTANT

If you make a mistake, you can return to the previous menu by pressing the RED

PHONE button. If you keep pressing the RED PHONE button you will return to the

idle screen.

Menu structure for message handling

Ans M 01 / 02 (If handset is registered to an answering machine base)

Press to open list

Mailbox Takes you into your network messaging service

Press to open list e.g Call Minder (requires subscription)

Calls 02 / 06 Delete delete entry

Press to open list Copy To Dir copy no. to directory

Time display date/time

Status indicate new/old

Delete List

List Mode Missed

All



Menu structure for directory, redial list, extra directory

Opens directory

Edit entry

Opens extra directory New entry

Show entry

Delete

Redial list Edit entry

Copy to dir.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

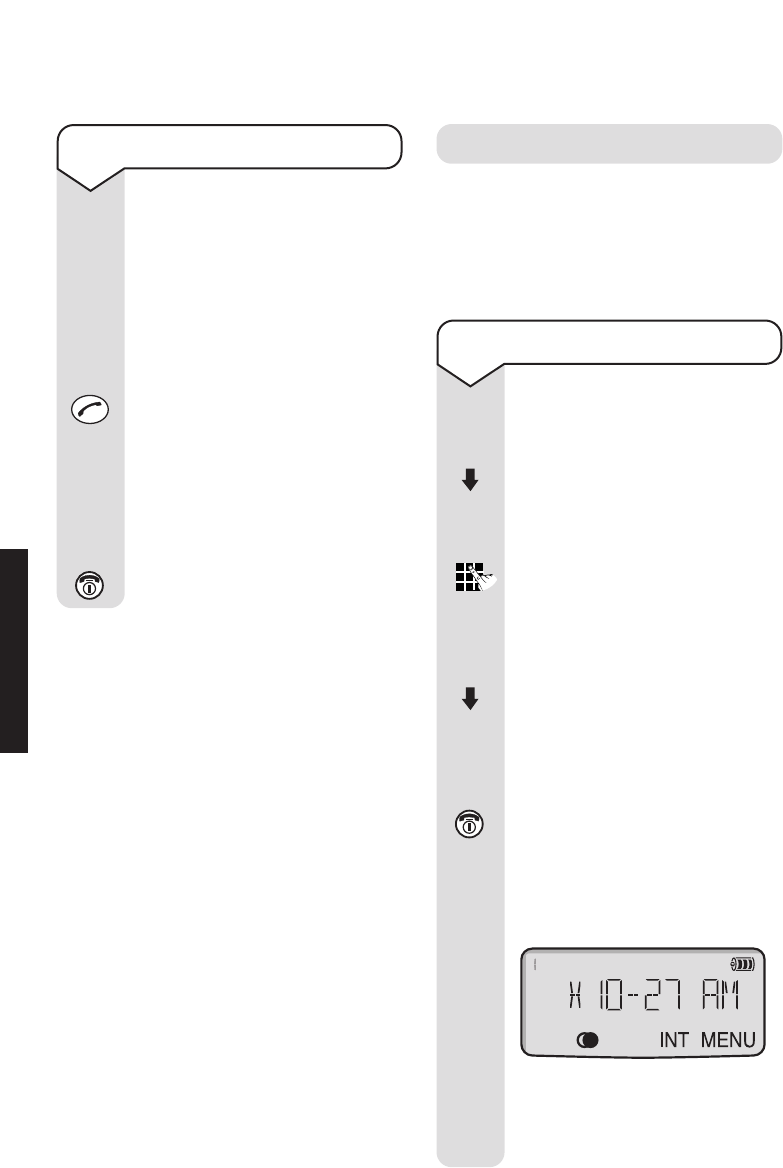

Quick guide

Commonly used handset functions and settings

Hold down

Select one of last 5 numbers

Enter number

Enter name

Call all or

Handset no. (e.g. 2)

Enter the date

Enter time

Enter the alarm time

To select AM/PM

ALARM CLOCK

OKOK

ALARM CLOCK

OKAM/PMOKOKCLOCK SETOK

DATE/TIMEOKBASE SETMENU

OKDATE SET

OKDATE/TIMEOKBASE SETMENU

INT

SAVEDOKOKH/SET VOLOKAUDIO SETMENU

OKCALLS

SAVEDOK

OKOKNEW ENTRYMENU

Switch handset on/off

Switch keyguard on/off

Switch handset

ringer on/off

Make an external call

To end a call

Redial a number

To store a name and

number in the directory

Dial from the directory

Dial from the Calls list

Handset earpiece volume

Make internal call

Transfer call to handset

Set date

Set time

Set the alarm

Cancel the alarm

Page

no.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Quick guide to handset

display icons

Redial, lists up to the last 5 dialled number.

Flashes to indicate new messages (if a mailbox service is used) or missed calls.

For calling other handsets.

Opens the menu.

Shows the status of the handset battery.

Scroll through the menu.

Confirms the function displayed.

Scroll left and right when entering numbers or messages.

Deletes numbers/characters (from left to right).

Do not disturb/Ringer off.

Handset locked.

Displayed when the Alarm clock is set.

Shows the number of the handset and is displayed in top left hand corner.

eg.

Helpline

If you experience any difficulties with your Diverse 4010 Classic, please call the

BT Diverse Helpline on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Introduction

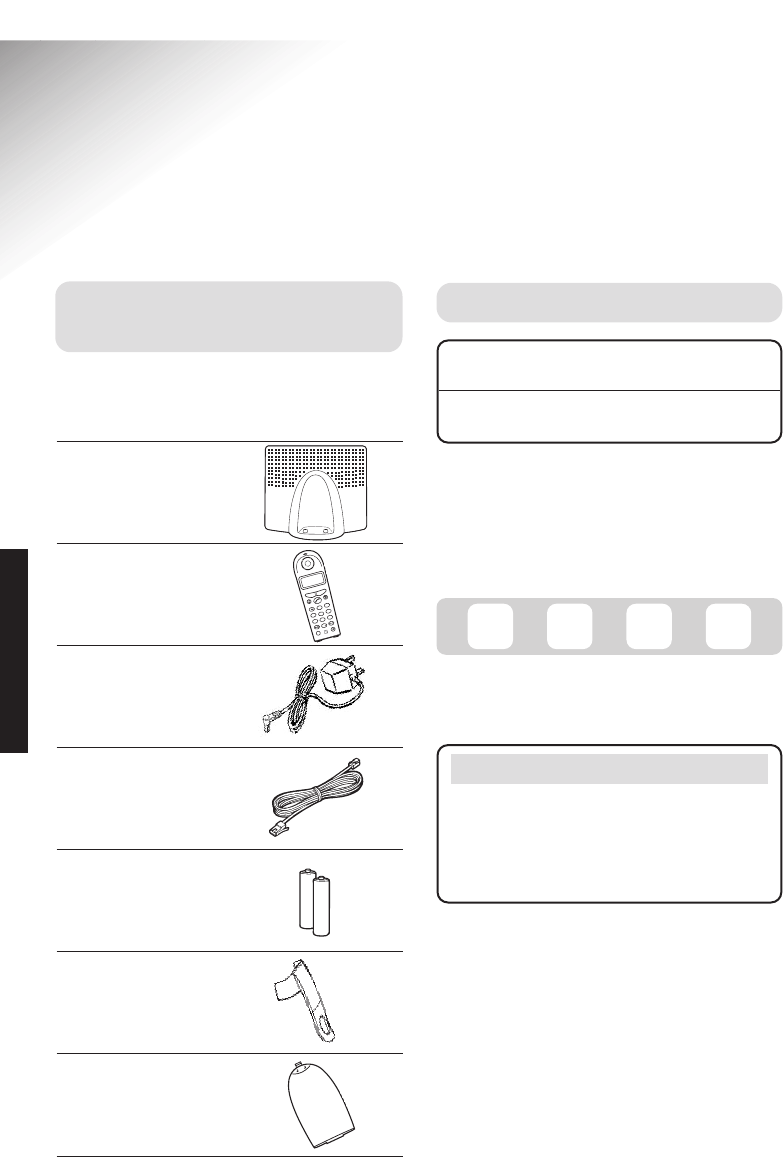

Unpacking your

Diverse 4010 Classic

If anything is missing, please contact

your place of purchase immediately.

One Diverse 4010

Classic base station

One Diverse 4000

Classic handset

One power supply

for the base station

One telephone

line cord

Two AA rechargeable

batteries

One belt clip

Battery

compartment cover

For guarantee purposes proof of

purchase is required so please keep

your receipt.

Enter your base station PIN code here:

For more information on your base PIN

codes see page 34.

For your records

Date of purchase:

Place of purchase:

INTRODUCTION

WXYZ

PQRS

TUV

GHI

DEF

JKL

ABC

MNO



Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Safety information

General

Only use the power supply included

with the product. Using an

unauthorised power supply will

invalidate your guarantee and may

damage the telephone. Power supply

number is M-GA35-095130F.

For the handset use only approved

nickel-cadmium (NiCad) rechargeable

batteries. Never use other batteries or

conventional alkaline batteries. They

could lead to a short circuit or destroy

the battery casing. Recommended

batteries should have a power rating

of at least 600mAh 1.2V. Please see

page 40 for a list of approved batteries.

Batteries are available from the Diverse

Helpline 08457 908070.

If the Keyguard is switched on, it is

NOT possible to make calls, including

emergency numbers (999/112).

Do not open the base station or handset

(other than to change batteries). This

could expose you to high voltages or

other risks.

Radio signals transmitted between the

handset and base may cause interference

to hearing aids.

This product should not be used near

emergency/intensive care medical

equipment and should not be used by

people with pacemakers.

Never dispose of batteries in a fire. There

is a serious risk of explosion and/or the

release of highly toxic chemicals.

Cleaning

Simply clean the handset and base

station with a damp (not wet) cloth, or

an anti-static wipe. Never use household

polish as this will damage the product.

Never use a dry cloth as this may cause

a static shock.

Environmental

Do not expose to direct sunlight.

The product may heat up when the

batteries are being recharged. This is

normal. However, we recommend that

you do not place the product on

antique/veneered wood to avoid damage.

Do not stand your product on carpets or

other surfaces which generate fibres, or

place it in locations preventing the free

flow of air over its surfaces.

Do not submerge any part of your

product in water and do not use it in

damp or humid conditions, such as

bathrooms.

Do not expose your product to fire,

explosive or other hazardous conditions.

There is a slight chance that your phone

could be damaged by an electrical storm.

We recommend that you unplug the

power and telephone line cord during an

electrical storm.

SAFETY INSTRUCTIONS

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

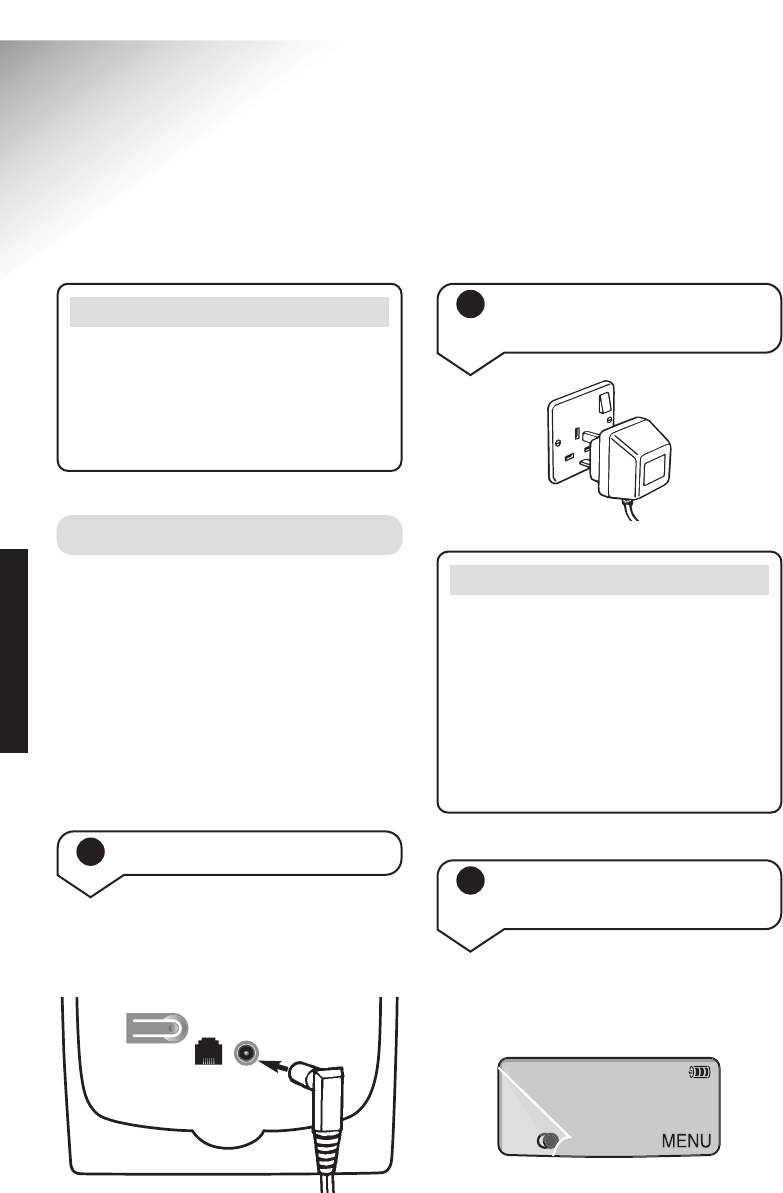

Plan the location

Situate your product close enough to

the telephone and mains power sockets

so that the cables will reach.

Make sure it is at least 1 metre away

from other electrical products to avoid

interference.

Do not situate the product in the

bathroom or other humid areas.

WARNING

Do not connect the telephone line cord

to the phone socket until your handset

is fully charged. This will prevent the

risk of the phone being answered

before the battery is charged.

Answering the phone before the battery

is fully charged may prevent it from

reaching its optimum capacity.

IMPORTANT

Please note that your handset is NOT

registered to the base station. The

Diverse 4010 handset will be easily

registered once you complete the steps

1 to 3 below.

2Plug the power supply unit

into the wall socket

Setting up

1Connect the base station

Plug the power supply cable into the

power socket on the underside of

your base.

SETTING UP

3Registering and charging

the handset

The display is protected by a plastic

film. You can remove this protective

plastic film from the display.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

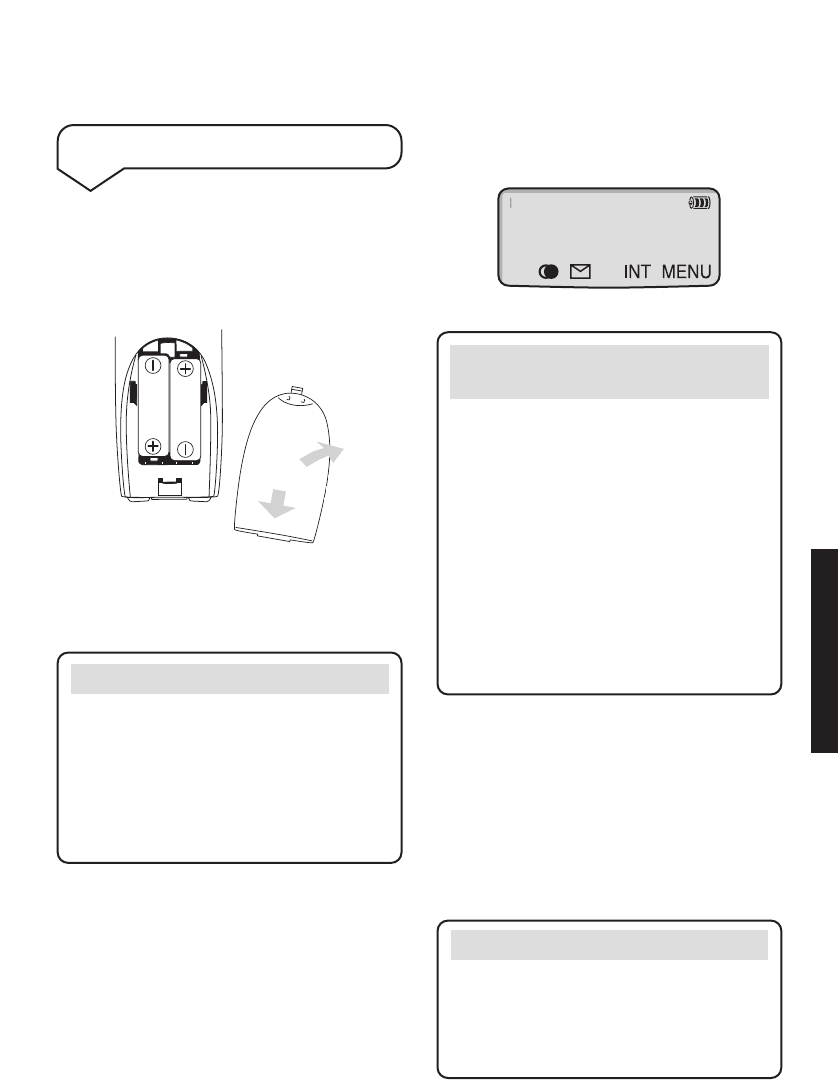

Insert the two batteries supplied, as

indicated inside the battery

compartment and slide the battery

compartment cover shut.

Insert the batteries

SETTING UP

When the handset is registered the

display will show:

If the icons on the display

flash continuously...

It means that the handset is not

registered with the base station.

Ensure you have correctly carried out

step 3 above. If the product has still

not registered, please see “Registering

manually” on page 37.

All additional handsets you purchase

will need to be individually registered

with the base station before they will

work with the Diverse 4010 Classic.

Leave the handset for approx. 16 hours

in the base station to charge the

batteries, as they are not charged in the

factory. The battery status icon flashes

on the handset to indicate that the

batteries are being charged.

The battery cover may be found in the

packaging with the batteries.

To register your handset, place it in the

base station with the display facing

upward. After approx. one minute, the

handset's internal number is displayed

(e.g. INT 1). Successful registration is

signalled by a confirmation tone.

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

WARNING

Under no circumstances should

non-rechargeable batteries be used.

Only use the approved batteries, please

see page 40. Using unapproved

batteries will invalidate your guarantee

and may damage the telephone.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

SETTING UP

Battery performance

After charging your handset batteries

for the first time, subsequent charging

time is approximately 4–5 hours.

Batteries and case may become warm

during charging. This is normal.

Under ideal conditions, the handset

batteries should give about 10 hours

talktime or 200 hours standby time on

a single charge. However, new NiCad

batteries do not reach their full

capacity until they have been in

normal use for several days.

Fully discharging the batteries at least

once a week will help them last as

long as possible. However, the charge

capacity of rechargeable batteries will

reduce with time as they wear out, so

reducing the talk/standby time of the

handset. Eventually they will need to

be replaced. New batteries can be

obtained from any BT shop or from

the Diverse Helpline 08457 908070.

If you replace the handset batteries

with ones that have been fully

charged, the battery indicator will not

show full until the next charge cycle

has been completed. Charge the

handset until the batteries register full

again. From then on the display will

be correct.

Out of range?

If you go out of range of a base station

for a long time while your handset is

switched ON, it may take more than

20 minutes to ‘find’ the base station

again when you come back within

range. However, by simply switching

the handset OFF for a moment, then

ON again, it will find the base station

within a few seconds.

Battery level icons

When the batteries are almost flat a

beep sounds and the display shows the

empty battery icon. You will need to

recharge your handset before you can

use it. The various states of charge are

shown below:

Batteries fully charged

Batteries at 66%

Batteries at 33%

Batteries empty

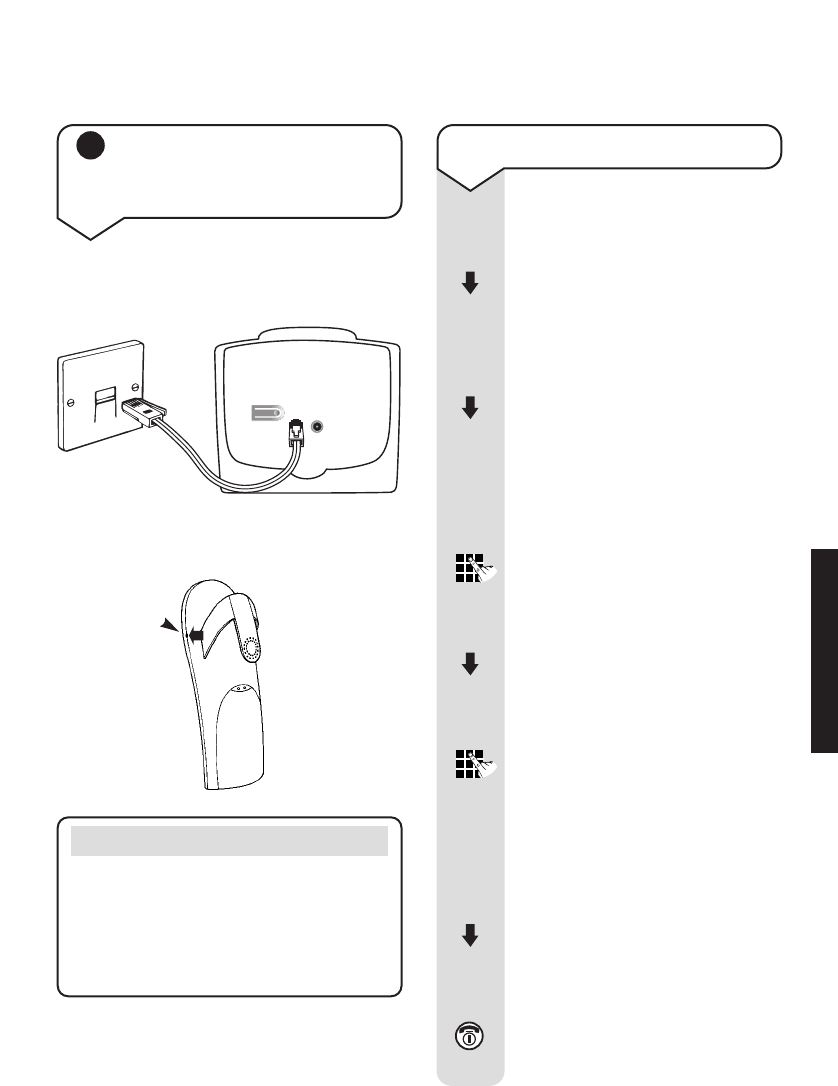

4Connect the telephone line

cord to the base and plug

into the wall socket

Ensure that each end of the line cord is

fitted into the correct socket.

Fit the belt clip onto the back of

the handset.

Setting the date and time

Press the MENU options

button.

Press the DOWN button until

the display shows

BASE SET

Press the OK button. The

display will show

AUDIO SET UP

Press the DOWN button until

the display shows

DATE/TIME

Press the OK button.

The display will show

DATE SET.

Press the OK button.

Use the keypad to enter the

date (DD/MM/YY).

Press the OK button.

Press the DOWN button until

the display shows

CLOCK SET

Press the OK button.

Use the keypad to enter the

time in 12-hour clock format

(HH/MM).

After entering the time in the

12-hour clock format, press

the OK button.

Press the DOWN button to

choose

Press the OK button.

Press the RED PHONE button

until you return to the idle

screen.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Slot

SETTING UP

Helpline

Your Diverse 4010 Classic is now

ready for use. However, If you

experience any difficulties

please call the BT Diverse Helpline

on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Please note

If you subscribe to a Caller Display

Service the time and date will be set

with the first incoming call. However,

the year setting will have to be

changed manually, see page 13.

To set the time mode

(12 or 24-hour clock)

The handset’s default setting is

12-hour clock. To change the

clock to the 24-hour setting:

Press the MENU options

button.

Press the DOWN button until

the display shows

BASE SET

Press the OK button.

Press the DOWN button until

the display shows

DATE/TIME

Press the OK button.

Press the DOWN button until

the display shows

CLOCK MODE

Press the OK button.

Press the DOWN button to

switch between

24 H

and

12 H

settings.

Press the OK button to

confirm the setting you want.

Press the RED PHONE button

until you reach the idle screen.

SETTING UP

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Using the telephone

To switch the handset power

on and off

Press and hold the RED

PHONE button to switch the

handset off.

Press and hold the RED

PHONE button to switch the

handset on again.

Your Diverse 4010 Classic has a menu

driven display. The OPTION buttons

below the display allow you to select

options within each menu and make

adjustments to their settings. When the

phone is in idle mode, press the MENU

button to enter the main menu. During

a call, if you press the MENU button

it will open the menu for that particular

situation.

Note

To quit a menu at any time, press the

RED PHONE button. This will take

you back one step. Keep pressing the

RED PHONE button to get back to the

idle screen.

Making and ending calls

To make an external call

Ensure the handset is

switched ON.

Press the GREEN PHONE

button. You will hear the dial

tone.

Dial the number.

Preparatory dialling

Enter the phone number first.

If you make a mistake press

the DELETE button to remove

any incorrect digits.

Press the GREEN PHONE

button to dial the number.

To end a call

Press the RED PHONE button.

USING

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To receive an external call

When the phone rings, the In

use light on top of the handset

will flash.

Press the GREEN PHONE

button to answer the call.

If the handset is on the base,

simply lift it up and speak.

You do not need to press the

GREEN PHONE button.

This is called auto-talk. You

can switch autotalk off so you

always have to press the

GREEN PHONE button to

answer a call, see page 32.

Call timer

Your handset automatically times the

duration of all external calls, showing it

on the display during your call and for

a few seconds after it is finished.

Name and number directory

You can store up to 20 of your most

frequently used names (up to 12 letters)

and numbers (up to 22 digits long).

To store a name and number in

the directory

Press the DIRECTORY button.

Press the MENU options button.

Press the DOWN button until

the display shows

NEW ENTRY

Press OK to confirm.

Enter the telephone number

you want to store.

Press OK to confirm.

Entering names

Enter the name using the

letters on the keypad.

(See ‘Character map’ on the

following page for how to

enter special characters).

For example, to enter the

name TOM:

Press the 8button until

appears on the display.

Press the 6button until the

display shows

Then press 6until the display

shows

Press OK to confirm.

The display will show

SAVED

and

TOM

USING

8TUV

6MNO

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To dial a number from the

directory

Press the DIRECTORY button.

Use the keypad to enter the

first letter of the name.

Use the DOWN button to find

the entry you want.

Press the MENU options button.

Press the DOWN button to

display

DELETE

Press the OK button to confirm.

The number is deleted.

Press the RED PHONE button

until you reach the idle screen.

Note

To cancel any procedure, press the

RED PHONE button until the display

returns to the idle screen.

A B C

To store names and numbers in

the Extra directory

Press the EXTRA DIRECTORY

button.

Press the MENU button.

The structure for this directory

menu is the same as the main

name and number directory.

You can follow the instructions

starting on page 16 for storing,

dialling, editing and deleting

numbers in this directory.

Extra directory

This is an additional directory where

you are able to store up to 10 names

and numbers. It can be used for special

numbers, i.e. Doctor, Dentist, takeaway

numbers etc.



Note

This Extra directory does not ‘name

and number match’ when used with

Caller Display.

USING

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Redial

Your handset automatically saves the

last five telephone numbers dialled into

a redial list.

To dial a number in the

redial list

Press the REDIAL options

button. The last number

dialled will be displayed.

Press the DOWN button to

scroll through the redial list.

Press the GREEN PHONE

button to dial the number.

To copy numbers shown in the

redial list to the directory

Press the REDIAL options

button.

Press the DOWN button until

the number you want is

displayed.

Press the MENU button.

Press the DOWN button until

the display shows

COPY TO DIR

Press the OK button.

The number is shown on the

display.

Press OK to confirm.

NAME

is displayed.

Note

To cancel any procedure, press the

RED PHONE button until the display

returns to the idle screen.

Enter the name to the number

you want to copy into the

directory.

Press OK to confirm.

The display will show

SAVED

and the name of the entry.

You can dial this number by

pressing the GREEN PHONE

button or return to the idle

screen by pressing the RED

PHONE button.

To delete the redial list

Press the REDIAL options

button.

Press the MENU options

button. Display shows

EDIT

ENTRY

Press the 6button. Display

shows

DELETE?

Press OK to confirm

deletion of the list. You hear

a confirmation tone.

Press the RED PHONE button

until you reach the idle screen.

6MNO

USING

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Secrecy

When on a call you can talk to someone

in the same room, without your caller

hearing.

To switch secrecy on/off

During a call:

Press the INT options button.

The call is put on hold and

your caller will hear music.

To resume the call:

Press the MENU options

button. Display shows

BACK

Press OK to confirm. You can

now speak to your caller again.

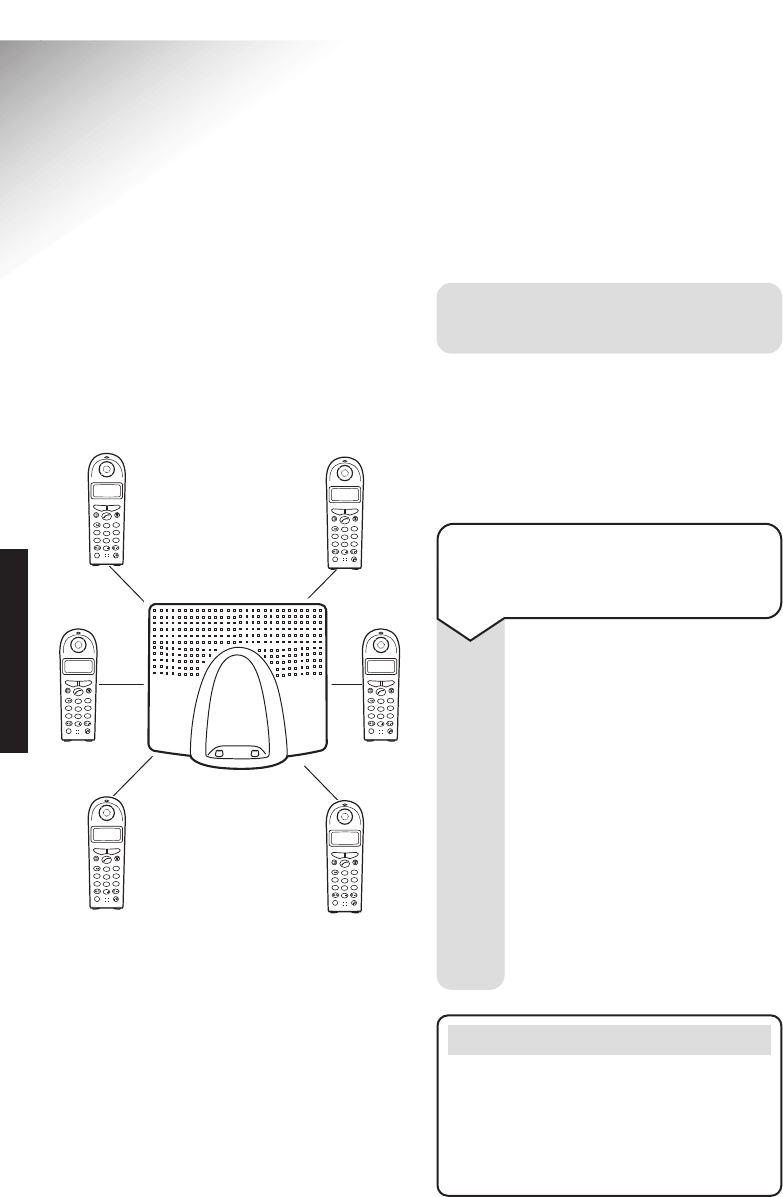

Paging and internal calls

You can alert handset users that they

are wanted, or locate a missing handset.

If you have multiple handsets registered

to the base you can make internal calls

between handsets.

Press the INT button.

Use the DOWN ARROW on

the options button to find the

handset number you want to

page or call.

Press the GREEN PHONE

button to call the handset.

If you want to page all the

handsets registered to the

base, highlight

CALL ALL

the display and press the

GREEN PHONE button.

INT

USING

INT

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

To transfer an external call

between handsets

You can transfer an external call

to another handset registered

to the base.

Press the INT options button.

Enter the number of the handset

to which you wish to transfer the

call. When the other handset

answers you can tell them you

are transferring the call and

press the RED PHONE button.

The call is transferred and the

original handset shows

LINE IN

USE

on the display.

INT

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To return to an external call

if the internal call is not

transferred

To speak to your external caller

again:

Press the MENU options

button. Display shows

GO BACK

Press the OK options button.

Press the RED PHONE button

to transfer your call to the other

handset.

USING

To switch 3-way conversation

function on/off

You can allow your Diverse

4010 to hold 3-way calls between

handsets.

Press the MENU options

button.

Press the DOWN options

button until the display shows

BASE SET

Press the OK options button.

Press the DOWN options

button until the display shows

ADD FEATURES

Press the OK options button.

Press the DOWN options

button until the display shows

BARGE IN

Press the OK options button to

switch the function on.

SAVED

is displayed

BARGE IN

then displayed with a tick next

to it.

Press the OK options button

again to switch off, tick is

deleted.

Press the RED PHONE button

until you reach the idle screen.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To hold a 3-way conversation

You can talk to one external

caller and another internal caller

at the same time on your Diverse

4010 Classic handset.

While another handset user is

talking to an external caller

the display shows

LINE IN USE

Press the GREEN PHONE

button to join the conversation.

Display shows

LISTENING IN

A tone is heard by all three

parties when one party enters

or leaves the call.

Press the RED PHONE button

to end your call.

USING

Alarm clock

You can use your handset as an alarm

clock. You must set the date and time

before the alarm will work. The alarm will

ring daily until the setting is turned off.

To set the alarm

Press the MENU options

button.

Press the DOWN button to

display

ALARM CLOCK

Press the OK button.

Enter the time you want the

alarm to go off at, e.g. 0535.

(12 hour clock).

Press the OK button

Select

using DOWN

button.

Press the OK button to

confirm.

Press the RED PHONE button

to return to the idle screen.

An asterisk appears in front of

the time to indicate that the

alarm has been set.

When the alarm goes off, the

In use light will flash. To stop

the alarm ringing, press any

button on the keypad.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To cancel the alarm setting

Press the MENU button.

Press the DOWN button to

highlight

ALARM CLOCK

Press the OK button to confirm.

The alarm is switched off and

the asterisk disappears from

the display.

Press the RED PHONE button

to return to the idle screen.

USING

To stop the alarm ringing

When the alarm goes off it

sounds like an incoming call

and lasts for about 30 seconds.

Press any button to switch the

alarm off.

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Caller Display and other

Select Services

IMPORTANT

To use Caller Display and Call

Waiting you must first subscribe to the

Services from your Network Provider.

For more information on

BT’s Select Services call BT free

on 0800 800 150.

Please note

Calls that are ‘withheld’, ‘unavailable’

or ‘international’ are not stored in the

Calls list, as there is no telephone

number sent via the network.

Please note

If you have a new call in your Calls

list, the icon and In use light

will flash.

If you subscribe to a Caller Display

Service you can see who is calling you

on your handset display, as well as the

date and time of their call (unless the

number has been withheld).

If you have stored a name to go with

the number in your handset directory,

the name will be displayed instead.

Please ensure that you have stored the

full telephone number, including the area

code, otherwise the name will not match

the number stored in the directory.

If the caller has withheld their number,

the display will show

WITHHELD

If you call from another handset, the

display shows the handset number

and

INT

Calls list

The Calls list contains the telephone

numbers of your last 30 callers.

Whether you take a call or not, the

caller’s details are stored in the Calls

list. You can display, scroll through and

dial numbers in the list and copy them

into the directory.

If a call is received when the Calls list is

full then the oldest entry will be

deleted automatically.

CALLER DISPLAY

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To view the Calls list

Press the ENVELOPE options

button. A flashing envelope

indicates new calls. New calls

are displayed immediately.

If there are no new entries,

continue to open the Calls list.

Press the DOWN button to

highlight

CALLS

The display will show the type

of calls you have received in

your Calls list, e.g.

CALLS

02/06

means you have

received 2 new calls and have

6 old calls.

Press the OK button to display

the most recent number to call

you.

Press the UP and DOWN

buttons to scroll backwards and

forwards through the Calls list.

When you have found the

entry you want, you have the

options to:

Call a number from the

Calls list:

When the number you wish to

call is displayed, press the

GREEN PHONE button.

The number will be dialled

automatically.

Display the time of the call:

Press the MENU options

button.

Press the DOWN button to

highlight

TIME.

Press the OK options button.

The date and time of the call

are displayed.

To return to the beginning

of the calls list, press the RED

PHONE button repeatedly

until it is displayed.

Display the status of the call:

Press the MENU options

button.

Press the DOWN button to

highlight

STATUS

Press the OK button.

NEW

= New call.

OLD

= Previously viewed.

ANSWERED

= The call was

answered.

Press the RED PHONE button

until you reach the idle screen.

Remember

If you have missed a call the

icon will flash on the display.

CALLER DISPLAY

Press the DOWN button to

highlight

DELETE LIST

Press the OK button.

The display shows

NO CALLS

Press the RED PHONE button

until you reach the idle screen.

Store a number from the Calls

list into the directory:

When the number you want to

store is displayed:

Press the MENU options

button.

Press the DOWN button to

highlight

COPY TO DIR

Press the OK button. The

number is displayed.

Press the OK button again.

Enter a name if you wish, see

page 16 for instructions.

Press the OK button.

The display shows

SAVED

. You

can either copy another entry

from the Calls list or press the

RED PHONE button until you

reach the idle screen.

Delete a number from the

Calls list.

When the number you want to

delete is displayed.

Press the MENU options

button.

DELETE

is displayed.

Press the OK button to

confirm. The display shows

DELETED

Delete the whole Calls list:

When any number is displayed,

press the OK button.

Press the MENU options

button.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To set the Calls list to contain

all calls or missed calls only

Press the ENVELOPE options

button.

Use the DOWN button to

highlight

CALLS

Press the OK button.

Press the MENU options button.

Press the DOWN button to

highlight

LIST MODE

Press the OK button.

Press the DOWN button to

highlight either

MISSED

ALL

Press the OK button to confirm.

The display shows

SAVED

Press the RED PHONE button

until you reach the idle screen.

CALLER DISPLAY

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Call Waiting

If you also subscribe to a Call Waiting

Service, when you are on a call and

another person tries to call you, the

second caller’s number will appear on

the handset display and you will hear an

intermittent beep through the handset.

This is to alert you to the other caller

waiting to speak to you.

To accept a waiting call

During a call when you hear

the Call Waiting beeps:

The number (or name if stored

in the directory) of the second

caller will flash on the display.

Press the MENU options

button. Display shows

Press the OK options button.

Your current call is put on hold

and you are connected to the

second caller.

Press the RECALL button to

toggle between callers.

SELECT SERVICES

To switch Call Waiting on/off

You can choose whether to have your

Call Waiting service switched on or off

depending on what you are doing i.e. if

you are using the Internet via your PC

and do not want Call Waiting to

interrupt you.

Press the MENU options button,

SEL SERVICES

is displayed.

Press the OK options button.

Press the DOWN until the

display shows

CALL WAITING

Press the OK options button.

Use the UP or DOWN button

to select whether you want the

service on or off.

Press the OK options button.

Listen to your handset for the

service announcement

confirmation.

Press the RED PHONE button

until you reach the idle display.

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

Call Divert

You can divert all incoming calls to

another number where you can be

reached.

Please note

Call Divert requires subscription from

your Network provider. You may be

charged a subscription fee.

To divert calls

Press the MENU options

button,

SEL SERVICES

highlighted.

Press the OK options button.

Use the DOWN arrow on the

options button until

CALL

DIVERT

is highlighted.

Press the OK options button.

You now have a choice of

when you want calls to be

diverted:

AUTOMATIC

– calls are put

straight through to the

number you have set.

NO ANSWER

– calls are diverted

if your phone is not answered.

F BUSY

– calls are forwarded

if your phone is engaged.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

SELECT SERVICES

Select your required option

and press the OK options

button,

is displayed.

Press the OK options button

again.

Enter the phone number

where you want the calls to be

diverted to.

Press the OK options button.

You will hear a Network

message confirming your

divert request.

Press the RED PHONE button

until you reach the idle

display.

Withhold number

Your number appears on the display of

the person you call if they subscribe to

a Caller Display service. You are able to

withhold your telephone number from

the next call you make if you wish.

To withhold your number from

being sent

Press the MENU options

button,

SEL SERVICES

displayed.

Press the OK options button,

WITHHOLD NO

is displayed.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

SELECT SERVICES

Ring Back

If you want to make a call and the

number is engaged you can set your

telephone to ring you back when the

caller has finished their call. To switch

this service off before your call is

returned i.e. if you have to go out

before your caller has returned your

call.

To switch Ring Back off if set

Press the MENU options

button,

SEL SERVICES

highlighted.

Press the OK options button.

Use the DOWN arrow on the

options buttton until

RINGBACK

OFF

is highlighted.

Press the OK options button.

This will cancel your ringback

call.

Listen to your handset for the

service announcement

confirmation.

Press the RED PHONE button

until you reach the idle

display.

Voice Mail

If you have a Voice Mail message

service ie. Call Minder or Meridian

Mail on your telephone line you can set

the 1 button to access your messages

directly via one button.

To set up quick access to your

Voice Mail service

Press the MENU options

button.

Press the DOWN options

button. Display shows

VOICE

MAIL

Press OK.

Display shows

SET KEY 1

Press OK.

Display shows

MAILBOX

Press the OK button.

Enter the telephone number

of your messaging service.

For example, 1571 to access

‘BT Answer’ voice mail service.

Press OK.

The display shows

SAVED

Press the RED PHONE button

until you reach the idle screen.

Press the OK options button.

Enter the telephone number

you want to call.

Press the OK options button,

the number will be dialled but

your number will not be sent

to your caller.

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

SELECT SERVICES

Please note

If you store your security PIN as part

of the quick access number, anyone

with access to the handset will be able

to retrieve your messages.

To retrieve messages from

your Voice Mail service

Press and hold down the

1button.

When set up as opposite this

will take you into your

message service. If during the

set up you entered your

security PIN as well as the

telephone number you will be

taken quickly into your

messages. If the security PIN

was not included you will have

to enter this number now.

Press the OK button.

You will be taken into your

messages.

Please note

If your handset is registered to an

answering machine base i.e. Diverse

4016 you will be given the choice of

accessing your answering machine

messages or Network Messaging

Service. See your Diverse 4016 user

guide for further information.

To set up quick access to your

Voice Mail service when

behind a switchboard eg.

Meridian Mail.

Follow the steps on the

previous page, but when you

come to enter the telephone

number of your messaging

service, you will need to follow

the example below:

eg.

7000

Enter the access number for

your messaging service.

Press and hold the RECALL

button to enter a pause in the

dialling sequence.

eg.

1234 #

Enter your extension number,

followed by a hash.

Press and hold the RECALL

button to enter a another

pause in the dialling sequence.

eg.

000000 #

Enter your PIN followed by a

hash.

The entire number should

look like this:

7000P1234nP000000n

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To adjust the handset

ringer volume

You can choose from 5 levels

(1–5), a ‘crescendo’ ring (6)

that increases in volume, or

you can switch the ringer off

altogether (0).

Press the MENU options button.

Use the DOWN button to

highlight

AUDIO SET

Press the OK button.

Press the DOWN button to

highlight

RINGER

Press the OK button.

You hear the current volume

level and the level is shown on

the display.

Press the UP/DOWN button to

select the level you want.

Press the OK button to confirm.

SAVED

is displayed.

Press the RED PHONE button

until you reach the idle screen.

Handset settings

To adjust the handset ringer

melody

There are 10 melodies to

choose from (1–10).

Press the MENU options button.

Press the DOWN button to

highlight

AUDIO SET

Press the OK button.

Press the DOWN button to

highlight

MELODY

Press the OK button.

You hear the current melody

and its number is shown on

the display.

Press the DOWN button to

select the melody you want.

Press the OK button.

Shortcut button

If you want to switch the handset

ringer off quickly you can also press

and hold the button. The

icon is displayed. To turn the handset

ringer back on press and hold down

the button again and the symbol

will disappear.

HANDSET SETTINGS

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To switch autotalk on and off

If autotalk is switched on you

do not need to press the

GREEN PHONE button to

answer a call you can simply

pick the handset up from the

base station.

If you switch autotalk off you

always have to press the

GREEN PHONE button to

answer a call.

The default setting for autotalk

is on.

Press the MENU options button.

To adjust the earpiece volume

There are 3 volume levels to

choose from and you can even

adjust the volume during a call.

Press the MENU options button.

Press the DOWN button to

highlight

AUDIO SET

Press OK to confirm. The

display show

H/SET VOL

Press OK to confirm.

You hear the current volume

and the level is displayed.

Select the required level.

Press OK to confirm.

SAVED

displayed.

Press the RED PHONE button

until you reach the idle screen.

To switch autotalk on:

Press the 9button.

Press the 1button.

Press the 1button again.

To switch autotalk off:

Press the 9button.

Press the 1button.

Press the 0button.

WXYZ

HANDSET SETTINGS

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To reset your handset to the

original settings

Press the MENU options button.

Press the 9button.

Press the 3button.

The display shows

RESET?

Press OK to confirm.

This will reset:

Earpiece volume 1

Ringer volume 3

Ringer melody 1

Autotalk ON

Battery low beep ON

Redial list DELETED

This will not delete the

directory or Calls list.

This will not reset:

Handset PIN

Registration to the base station.

WXYZ

3DEF

HANDSET SETTINGS

Keyguard

You can lock the keypad so that it cannot

be used accidentally while carrying it

around.

To switch keyguard on

Press and hold the

button to

switch keyguard on. You hear

a confirmation tone.

The keypad is now locked and

you cannot dial out. You can

answer calls as normal by

pressing the GREEN PHONE

button.

To switch keyguard off, press

and hold the

button again.

You hear a confirmation

tone and the handset is now

unlocked.

IMPORTANT

If the keyguard is active, the

emergency numbers 999 and 112 can

NOT be dialled.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Base station PIN (Personal

Identification Number)

Your base station PIN has a default

setting of

0000

but you may want to

change this to prevent unauthorised

use of your handset(s).

If you change your PIN keep a record

of the new number by writing it in the

space provided on page 8.

To change the base station PIN

Press the MENU options button.

Press the DOWN button to

highlight

BASE SET

Press the OK button.

Press the DOWN button to

highlight

SYSTEM PIN

Press the OK button.

Enter current PIN (original

setting

0000

Press the OK button. Display

shows

NEW PIN

Enter your new 4 digit PIN.

Press the OK button. Display

shows

REP PIN.

Enter your new 4 digit PIN

again.

Press the OK button to

confirm. Display shows

SAVED

Press the RED PHONE button

to return to the idle screen.

Base station settings

To adjust the base ringer volume

There are 5 levels to choose

from (1–5), a ‘crescendo’ ring

(6) that increases in volume,

or you can switch the ringer

off altogether (0).

Press the MENU options button.

Press the DOWN button to

highlight

BASE SET

Press the OK button.

Display shows

AUDIO SET UP

Press the OK button.

Display shows

RINGER VOL

Press the OK button. You hear

the current volume and the

level is shown on the display.

Press the DOWN button to

select the required level.

Press the OK button to confirm.

Press the RED PHONE button

until you reach the idle screen.

BASE STATION SETTINGS

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To adjust the base ringer

melody

There are 10 melodies to

choose from (1–10).

Press the MENU options button.

Press the DOWN button to

highlight

BASE SET

Press the OK button. Display

shows

AUDIO SET UP

Press the OK button.

Press the DOWN button to

highlight

MELODY

Press the OK button. You hear

the current melody and the

display shows the current

setting.

Press the DOWN button to

select the required melody.

Press the OK button to confirm.

SAVED

is displayed.

Press the RED PHONE button

until you reach the idle screen.

To reset your base station to

its original settings

Press the MENU options button.

Press the DOWN button to

highlight

BASE SET

Press the OK button.

Press the DOWN button to

highlight

BASE RESET

Press the OK button.

Enter your 4-digit PIN

(original setting

0000

Press the OK button.

Display shows

RESET?

Press the OK button to confirm.

RESET

is displayed.

This will reset:

Alarm clock OFF

Dialling mode DTMF

Pause after picking

up line/dial-out

code 3 seconds

It will delete the Calls list.

It will not reset:

The base station PIN.

Handset registration settings.

BASE STATION SETTINGS

Helpline

If you experience any difficulties

with your Diverse 4010 Classic,

please call the BT Diverse Helpline

on 08457 908 070.

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Up to six handsets can be registered

and operated from the Diverse 4010

Classic base station. This allows you to

make internal calls between two

handsets while a third is making an

external call.

Using additional

handsets and bases

WXYZ

PQRS

8TUV

GHI

3DEF

5JKL

2ABC

6MNO

R

ADDITIONAL

Registering additional

handsets

If you purchase new handsets to use

with your current Diverse 4010 Classic,

they will not be pre-registered to a base

station. You will need to do this before

you can use them.

To register a new Diverse 4000

handset to a Diverse 4010

base station

For this method of registration

your handset must be in the

Diverse 4000 range.

Place your handset on the base.

Ensure that the handset is

switched on.

After about 1 minute, the

handset’s internal number will

be displayed, e.g.

INT2

The next available internal

number (2–6) will be auto-

matically assigned to the handset.

Note

If all internal numbers have been

assigned then the internal number 6

will be re-assigned. You can change

the internal handset number if you

wish, see page 38.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Please note

Diverse 2000 and 3000 handsets

and other makes of handset must be

registered manually. Handsets must

be GAP compatible.

To register Diverse 2000/

3000 series handsets and

other makes

Providing your handset is GAP

(Generic Access Profile)

compliant, you can register it

to your Diverse 4010 base.

according to the instructions

in its user guide.

When the handset is in

registration mode, you will

need to press the PAGE button

located on the underside of

your Diverse 4010 base

station, for approximately one

second. You will hear a

confirmation tone and after a

short period of time the

handset will be registered.

The Diverse 4010 will allocate

the next available handset

number. You will hear a

confirmation tone.

Note

If the base you are registering to is a

Diverse 4010/4016 SMS you will not

hear a confirmation tone when the

PAGE button is pressed.

If the base is not a 4010 or

4016 you will need to follow

the user guide for the base

station you are registering the

Diverse 4000 handset to.

ADDITIONAL

To manually register a Diverse

4000 Classic handset to

another base station

If you want to register your

handset to another base

station you will need to

manually register it.

On the handset to be registered:

Press the MENU options button.

Press the DOWN button until

the display shows

Press the OK button. Display

show

PIN ****

Enter your 4-digit Pin (original

setting

0000

Press the OK button. Display

flashes

If the base station is a Diverse

4010 or 4016 base press the

PAGE button located

underneath the base station

for approximately one second.

After approximately one

minute the handset will display

its internal number. The

handset is now registered and

the handset display will return

to the idle screen.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To change the name of a

handset

You can personalise the name

of a handset. For example,

you can change handset 1 to

ANNE or OFFICE.

Press the INT button.

Press the UP and DOWN

button to display the handset

number you want.

Press the MENU option button.

Press the DOWN button until

the display shows

EDIT NAME

INT

Please note

On the classic handset the name is

not displayed, only the internal

number. However, the name is sent

and displayed on internal calls.

To change the internal number

of a handset

Press the INT button.

Press the MENU option

button.

RE-ASSIGN NO.

is displayed.

Press the OK button.

Press the DOWN button to

display the handset number

you want.

Enter an available number

(1–6).

Press the OK button to confirm.

SAVED

is displayed.

Press the RED PHONE button

until you reach the idle screen.

INT

ADDITIONAL

To de-register a handset

Press the INT options button.

Press the UP or DOWN button

to select the handset to be

de-registered (1-6).

Press the MENU options button.

Press the DOWN button until

the display shows

DE-REG H/SET

Press the OK button. Display

will show

PIN ****

Enter your 4-digit PIN

(original setting

0000

Press the OK button. Display

shows

DE-REGISTER?

Press the OK button to confirm.

SAVED

is displayed.

Press the RED PHONE button

until you reach the idle screen.

INT

Press the OK button.

Enter the name you want.

Press the OK button to confirm.

Press the RED PHONE button

until you reach the idle screen.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Help

Problem

Handset not registering.

You have forgotten your base

station PIN number.

No display

When you press a button, nothing

happens.

No radio signal to the base – all

displays flashing.

Handset in base doesn’t charge.

Handset/base does not ring.

Your caller cannot hear you.

Caller’s number is not displayed even

though you have subscribed to Caller

Display.

The error beep – a descending tone –

is played.

Possible cause

The base is not powered.

There are no batteries in the

handset.

You have changed the PIN.

Handset not switched on.

Batteries exhausted.

Keyguard may be switched on.

Handset out of range.

Handset not registered.

Base not switched on.

Line is being used by another handset

for a long period.

Base is not connected to the power

supply.

Ringer is switched off.

The INT button has been,pressed,

muting the microphone.

The number has been withheld.

You have pressed the wrong button.

Solution

Make sure that the power supply is

plugged in at the base and switched

on. Make sure that the rechargeable

batteries (included) are fitted in

the handset correctly. Switch the

handset off and then back on

again, place the handset on to the

base again and leave for approx. 1

minute to try registering again.

Try entering the default PIN (0000).

If you have changed the PIN and

cannot remember the number you will

need to contact the BT Diverse Helpline

on 08457 908070.

Hold down the RED PHONE button for

1 second.

Charge or replace batteries.

Hold down the

button for 1 second.

Move closer to the base.

Check the base is connected properly

(see page 10).

Maximum charging power is only

available when no calls are being made.

Wait until the call is finished. Make

sure that the power supply is in at the

base and the power source is switched

on. Check that the batteries are fitted

correctly.

Switch ringer back on, see page 31 and

page 34.

Select GO BACK option via the

button to switch the

microphone back on.

Callers can stop their number being

sent over the network.

Retry. If necessary, check the

instructions.

HELP

Helpline

If you experience any difficulties with your Diverse 4010 Classic, please call

the BT Diverse Helpline on 08457 908 070.

Compatibility

The tables below give you a quick reference guide to compatibility when

registering different handsets to bases within the Diverse 3000 and 4000 range.

It is possible for Diverse 4000 SMS and Diverse 3000 Executive Handsets to

transfer directory entries.

*With the Diverse 3016, although you will hear the beeps when a call is waiting, the number or name of the waiting

caller will not be shown on the handset display.

Approved rechargeable batteries

The list below details the approved rechargeable batteries that can be used in your

Diverse 4010 Classic handset. Only use the approved batteries.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

HELP

4000 Classic handset 4010/4016 SMS 3010 Executive

Caller Display/Call Waiting Yes Yes

Time displayed in idle mode Yes No

Language selection No No

SMS No No

Loudspeaker via the base No Yes

Room monitor No No

Walk and Talk mode No No

4000 SMS handset 4010/4016 Classic 3010/3016 Classic

Caller Display/Call Waiting Yes Yes*

Time/date displayed in idle mode Yes Yes

Language selection No No

SMS No No

Loudspeaker via the base Yes Yes

Directory transfer Yes No

Room monitor No No

Walk and Talk mode No No

Call Barring No Yes

Nickel-Cadmium (NiCd) Nickel-Metal Hydride (NiMH)

Sanyo N-3U Sanyo H-3U

GP GP60 AA KC GP GP130 AA HC

Varta 751RS GP GP150 AA HC

Mobile Power 700 Varta VH 1101

Panasonic 600 DT Panasonic HHR-110 AA

Friwo NiMH

Toshiba TH-1200 AARE

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

General information

Within the 12-month guarantee period:

If you experience difficulty using the

product, prior to returning your

product, please read the Help section

beginning on page 39, or contact the

Diverse Helpline on 08457 908070 for

assistance.

In the unlikely event of a defect

occurring, please follow the Helpline’s

instructions for replacement or repair.

Outside the 12-month guarantee period:

If your product needs repair after the

guarantee period has ended, the repair

must meet the approval requirements

for connection to the telephone

network. We recommend that you call

the Helpline on 08457 908070 and

ask for details of our recommended

repair agents.

Guarantee

Your Diverse 4010 Classic is

guaranteed for a period of 12 months

from the date of purchase.

Subject to the terms listed below the

guarantee will provide for the repair of,

or at BT’s or its agent’s discretion the

option to replace the Diverse 4010

Classic, or any component thereof,

(other than batteries), which is

identified as faulty or below standard,

or as a result of inferior workmanship

or materials. Products over 28 days old

from the date of purchase may be

replaced with a refurbished product.

The conditions of this guarantee are:

• The guarantee shall only apply to

defects that occur within the 12 month

guarantee period.

• Proof of purchase is provided.

• The equipment is returned to point

of purchase.

• This guarantee does not cover any

faults or defects caused by accidents,

misuse, fair wear and tear, neglect,

tampering with the equipment, or

any attempt at adjustment or repair

other than through approved agents.

• This guarantee does not affect your

statutory rights.

GENERAL INFORMATION

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Technical information

How many telephones can you have?

All items of telephone equipment have

a Ringer Equivalence Number (REN),

which is used to calculate the number

of items that may be connected to any

one telephone line. The Diverse 4010

Classic has a REN of 1. Any other

instrument provided by BT may be

assumed to have a REN of 1 unless

stated otherwise. A total REN of 4 is

allowed. (For example: if Diverse 4010

Classic is used in conjunction with

three extension telephones, each with a

REN of 1, the total REN is 4.)

Only use approved power supply item

code: C39 280-Z4-C478.

R&TTE

This product is intended for use within

the UK for connection to the public

telephone network and compatible

switchboards.

This equipment complies with the

essential requirements for the Radio

Equipment and Telecommunications

Terminal Equipment Directive

(1999/5/EC). In demonstration with

the Essential Requirement for the

efficient use of the radio spectrum, the

product complies with TBR6.

If you would like a copy of the

Declaration of Conformity please

contact the BT Diverse Helpline.

Switchboard compatibility

Generally this telephone may be

connected to switchboards which

support tone signalling and timed

break recall. In the event of any

difficulties please consult your

switchboard service provider.

To set the dialling mode

You need only adjust this setting if your

switchboard does not operate with the

pre-set tone dialling. You can change

the dial mode to pulse dialling.

Press the MENU button.

Press the DOWN button until

the display shows

BASE SET

Press the OK button.

Press the DOWN button until

display shows

ADD FEATURES

Press the OK button.

Display shows

DIAL MODE

Press the OK button.

Press the DOWN button to

select:

– tone (with TBR)

– pulse (with Earth Recall)

– DTMF-Earth (tone with

Earth loop recall)

Press the OK button to confirm.

The display shows

SAVED

Press the RED PHONE button

until you reach the idle screen.

Helpline

If you are experiencing difficulty,

please call the BT Diverse Helpline

on 08457 908070.

GENERAL INFORMATION

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To set the recall time

You need only adjust this setting if your

switchboard requires a different recall

time to the pre-set recall time of

100 MS.

Press the MENU button.

Press the DOWN button until

the display shows

BASE SET

Press the OK button.

Press the DOWN button until

display shows

ADD FEATURES

Press the OK button.

Press the DOWN button until

display shows

TBR

Press the OK button.

Press the DOWN button to

select the flash time

100

120

180

250

300

, or

600ms

Press the OK button to confirm.

The display shows

SAVED

Press the RED PHONE button

until you reach the idle screen.

To switch temporarily from

pulse to tone dialling

If you are using pulse dialling with your

switchboard but need tone dialling to

use certain functions on your Diverse

4010 you can switch to tone dialling

during the call.

During the call:

Press the MENU button.

Press the DOWN button until

the display shows

TEMP TONE

Press the OK button. Tone

dialling is now active.

Please note

This setting is only for the duration of

the call.

Please note

100 MS is the standard setting for

most UK switchboards.

GENERAL INFORMATION

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

To set a pause after pressing

Recall

You can set the length of a

pause that is inserted after

pressing the RECALL button.

Press the MENU button.

Press the 8button.

Press the 9button.

Press the 1button.

Press the 2button.

Enter the pause length:

1= None

2= 800ms

3= 1600ms

4= 32ms

Press the OK options button.

SAVED

is displayed.

Press the RED PHONE button

until you reach the idle screen.

8TUV

WXYZ

2ABC

To set a pause before dialling

You can insert a pause to allow your

switchboard time to get a line before

your Diverse 4010 dials the number.

Press the MENU button.

Press the 8button.

Press the 9button.

Press the 1button.

Press the 6button.

Enter the pause length:

1= 1 second

2= 3 seconds

3= 7 seconds

4= 2.5 seconds

Press the OK options button.

SAVED

is displayed.

Press the RED PHONE button

until you reach the idle screen.

Setting pauses

8TUV

WXYZ

6MNO

GENERAL INFORMATION

Please note

If you want to insert a pause into a

telephone number you are storing in

your directory, start storing the number

(see page 16) and where a pause is

needed, press and hold the button.

A‘

’ will appear in the number.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

Index

Additional handset and bases 36

Alarm 22

Autotalk on/off 32

Base station reset 35

Base station PIN 34

Base station options

ringer melody 35

ringer volume 34

Batteries

charging 11

installing 11

performance 12

replacing 11

warning beeps 12

Belt clip 13

Call divert 28

Call timer 16

Call Waiting 27

Caller Display 24

Calls list 24

delete 26

dialling a number 25

display status of call 25

display time of call 25

settings 26

store number to directory 26

Calls

end 15

external 15

holding 21

internal 20

making 15

on hold 21

receiving 16

redial 19

secrecy 20

three-way 21, 22

transferring 21

Character map 17

Date set 13

Delete

all directory entries 18

calls list 26

directory entry 18

redial list 19

De-register handset 38

Dialling mode 42

temporary setting 43

Directory 16

delete an entry 18

delete all entries 18

dial a number 17

edit an entry 17

extra directory 18

store name and number 16

Display icons 7

Earpiece volume 32

Ending calls 15

External calls 15

Extra directory 18

Guarantee 41

Handset

change internal number 38

INDEX

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

display 7

on/off 15

naming 38

reset 33

ringer melody 31

ringer volume 31

Handset quick guide 6-7

Help 39

Holding calls 21

Internal calls 20

Keyguard 33

Making calls 15

Melody

base 35

handset 31

Menu structure 4-5

On/off

alarm 22

auto talk 32

handset power 15

keyguard 33

secrecy 20

Page a handset 20

Pause 44

Phone socket 13

PIN 34

Power connection 10

Preparatory dialling 15

Pulse dialling 42

Quick guide

display 7

handset 6

Range warning 12

Recall time 43

Receiving calls 16

Redial 19

copy to directory 19

delete 19

dial number in redial list 19

Registering additional handsets 36

Registration 11

manual 37

REN, how many phones can I have? 42

Reset

base settings 35

handset settings 33

Ring back 29

Ringers on/off 31/34

Safety information 9

Secrecy 20

Select Services 24

Caller Display 24

Call Divert 28

Calls List 24

Calls Waiting 27

Ring Back 29

withhold number 28

Voice Mail 29

Setting up 10

Switchboard compatibility 42

Technical information 42

Telephone line cord 13

Three-way conversation 21, 22

Time set 13-14

Tone dialling 42

Transferring calls 21

Voice Mail 29

Volume

base station ringer 34

earpiece 32

handset ringer 31

Withhold number 28

INDEX

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413

CE compliant to R&TTE Directive (1999/5/EC)

0682

Offices worldwide

The telecommunications services described in this publication

are subject to availability and may be modified from time to time.

Services and equipment are provided subject to British

Telecommunications plc’s respective standard conditions of contract.

Nothing in this publication forms any part of any contract.

Registered Office: 81 Newgate Street, London EC1A 7AJ.

Registered in England No. 1800000.

Diverse 4010 Classic Issue 2 (02/02) 6

Siemens number: A31008- G4010-P101-5-7619

Bt 4010 Classic Users Manual Diverse User Guide

4010 Classic Diverse4010c

diverse4010classicdigitalcordles 6bc0ff0c-8bd2-4a42-a4a0-58b73d1ce0ea BT Cordless Telephone 4010 Classic User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
