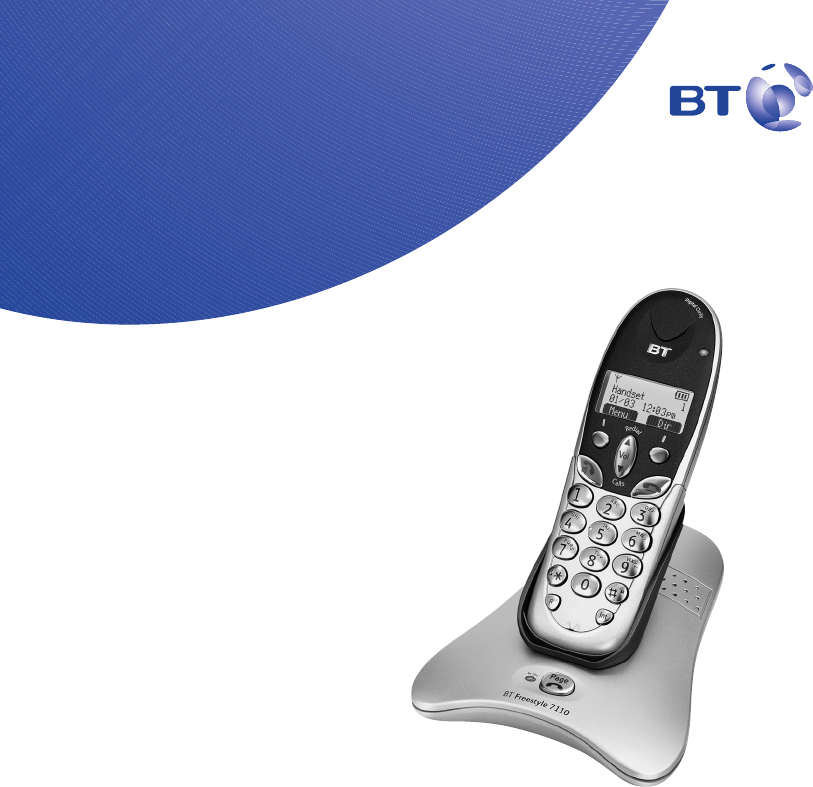

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

User Guide

BT FREESTYLE 7110

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

■Directory lets you store up to 50 names and numbers for

easy dialling.

■Send and receive SMS text messages.

■Caller Display lets you see who’s calling and your phone

stores details of the last 30 callers in a Calls list. Caller

Display requires subscription.

■Expandable system. You can have up to 5 GAP

compatible handsets registered to your BT Freestyle 7110

base. Make internal calls between two handsets while a

third is on an external call.

■Digital call clarity with up to 300m range outdoors and

up to 50m indoors (in ideal conditions).

Welcome…

to your BT Freestyle 7110 digital

cordless telephone

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

This User Guide provides you with all

the information you need to get the

most from your phone.

You must first set up your phone

before you can use it. This doesn’t

take long as it is easy to do. Just

follow the simple instructions on the

next few pages.

■Need help?

If you have any problems setting up or using your

BT Freestyle 7110, contact the Helpline on 0870 240

3962 or email bt.helpdesk@vtecheurope.com

Alternatively, you may find the answer in ‘Help’ at the

back of this guide.

■Hearing aid?

Please note that the BT Freestyle 7110 works by sending

radio signals between the base and handset. These

signals may interfere with some hearing aids, causing a

humming noise.

Got everything?

■BT Diverse 7100

handset

■BT Freestyle 7110 base

■Mains power adaptor

■Telephone line cord

■Belt clip

■2 x AAA rechargeable

batteries

If you have purchased

a BT Freestyle 7110

multiple pack you will

also have the following

for each additional

handset:

■BT Diverse 7100 charger

■2 x AAA NiMH

rechargeable batteries

■Mains power adaptor for

the charger

Getting started

Location . . . . . . . . . . . . . . . . . . . . . . .7

Setting up . . . . . . . . . . . . . . . . . . . . . .7

Battery low warning . . . . . . . . . . . . . . .8

Getting to know your phone

Handset buttons . . . . . . . . . . . . . . . . .11

Main display icons . . . . . . . . . . . . . . . .12

Base . . . . . . . . . . . . . . . . . . . . . . . . . .12

Navigating the menus . . . . . . . . . . . . .13

Menu map . . . . . . . . . . . . . . . . . . . . . .15

Using the phone

Dialling numbers . . . . . . . . . . . . . . . . .16

Call timer . . . . . . . . . . . . . . . . . . . . . .16

Auto-answer . . . . . . . . . . . . . . . . . . . .16

Backlit display . . . . . . . . . . . . . . . . . . .16

Switch handset on/off . . . . . . . . . . . . .17

Handset ringer on/off . . . . . . . . . . . . .17

Make an external call . . . . . . . . . . . . . .17

Preparatory dialling . . . . . . . . . . . . . . .17

End a call . . . . . . . . . . . . . . . . . . . . . .17

Receiving calls . . . . . . . . . . . . . . . . . . .18

Handsfree . . . . . . . . . . . . . . . . . . . . . .18

Earpiece and handsfree volume . . . . . .19

Secrecy . . . . . . . . . . . . . . . . . . . . . . . .19

Redial . . . . . . . . . . . . . . . . . . . . . . . . .20

Paging . . . . . . . . . . . . . . . . . . . . . . . . .21

Keypad lock . . . . . . . . . . . . . . . . . . . . .22

Internal calls . . . . . . . . . . . . . . . . . . . .22

Directory

Open the directory . . . . . . . . . . . . . . .23

Entering names . . . . . . . . . . . . . . . . . .23

Character map . . . . . . . . . . . . . . . . . .24

Add a new directory entry . . . . . . . . . .25

Dial from the directory . . . . . . . . . . . .25

View an entry . . . . . . . . . . . . . . . . . . .26

Edit an entry . . . . . . . . . . . . . . . . . . . .26

Delete entries . . . . . . . . . . . . . . . . . . .26

Copying directory entries . . . . . . . . . . .27

Copy to another handset . . . . . . . . . . .27

Set groups . . . . . . . . . . . . . . . . . . . . . .29

Name and set melody for

a group . . . . . . . . . . . . . . . . . . . . . . . .30

Caller Display

Caller information not available . . . . . .31

Using Caller Display . . . . . . . . . . . . . . .31

View / dial a number from the

Calls list . . . . . . . . . . . . . . . . . . . . . . . .32

Save a number to the directory . . . . . .33

Delete an entry in the Calls list . . . . . .33

Delete the entire Calls list . . . . . . . . . .33

In this guide

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

In this guide

SMS texting

To subscribe to the SMS text

messaging service . . . . . . . . . . . . . . . .34

Cost of the fixed line service . . . . . . . .34

Send an SMS text message . . . . . . . . .35

Entering text . . . . . . . . . . . . . . . . . . . .36

Special characters . . . . . . . . . . . . . . . .37

Writing tips . . . . . . . . . . . . . . . . . . . . .37

SMS template messages . . . . . . . . . . .38

Edit SMS templates . . . . . . . . . . . . . . .38

Delete SMS templates . . . . . . . . . . . . .39

Read, edit and send draft SMS

text messages . . . . . . . . . . . . . . . . . . .39

Read, edit and send messages

from your outbox . . . . . . . . . . . . . . . . .40

Incoming call . . . . . . . . . . . . . . . . . . . .41

Reading SMS texts . . . . . . . . . . . . . . . .42

Delete an SMS text message . . . . . . . .43

Delete all SMS text messages . . . . . . .43

Switch SMS text alert on/off . . . . . . . . .44

SMS Service Centre numbers . . . . . . . .44

Adding or changing a

Send Service number . . . . . . . . . . . . . .44

Adding or changing a

Receive Service number . . . . . . . . . . . .45

Selecting a Send Service

number . . . . . . . . . . . . . . . . . . . . . . . .46

Additional handset settings

Day, date and time . . . . . . . . . . . . . . .47

Ringer melody . . . . . . . . . . . . . . . . . . .48

Ringer volume . . . . . . . . . . . . . . . . . . .48

Handset name . . . . . . . . . . . . . . . . . . .48

Adjust contrast . . . . . . . . . . . . . . . . . .49

Backlight on/off . . . . . . . . . . . . . . . . . .49

Auto answer . . . . . . . . . . . . . . . . . . . .50

Key beeps on/off . . . . . . . . . . . . . . . . .50

Alarm . . . . . . . . . . . . . . . . . . . . . . . . .51

Handset default settings . . . . . . . . . . .52

Base settings

Ringer melody . . . . . . . . . . . . . . . . . . .53

Ringer volume . . . . . . . . . . . . . . . . . . .53

Handset priority . . . . . . . . . . . . . . . . .53

Dial mode . . . . . . . . . . . . . . . . . . . . . .54

Recall mode . . . . . . . . . . . . . . . . . . . .55

Base PIN . . . . . . . . . . . . . . . . . . . . . . .55

Base setting defaults . . . . . . . . . . . . . .56

Additional handsets and bases

Registering new handsets . . . . . . . . . .57

De-registering a handset . . . . . . . . . . .58

Transferring a call . . . . . . . . . . . . . . . .58

3-Way calls . . . . . . . . . . . . . . . . . . . . .59

Using additional bases . . . . . . . . . . . . .60

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Help

Replacing handset batteries . . . . . . . . .61

Helpline . . . . . . . . . . . . . . . . . . . . . . .66

General information

Safety . . . . . . . . . . . . . . . . . . . . . . . . .67

Cleaning . . . . . . . . . . . . . . . . . . . . . . .68

Environmental . . . . . . . . . . . . . . . . . . .68

Technical information . . . . . . . . . . . . .69

Connecting to a switchboard . . . . . . . .70

Access code . . . . . . . . . . . . . . . . . . . . .70

Insert a pause . . . . . . . . . . . . . . . . . . .70

Guarantee . . . . . . . . . . . . . . . . . . . . . .71

For your records . . . . . . . . . . . . . . . . .72

Additional replacement items . . . . . . .73

R&TTE . . . . . . . . . . . . . . . . . . . . . . . .73

In this guide

WARNING

Do not place your BT Freestyle 7110

base in the bathroom or other

humid areas.

Handset range

The BT Freestyle 7110 has a range

of 300 metres outdoors when there

is a clear line of sight between the

base and the handset. When there

is no clear line of sight between the

base and the handset, e.g. base

indoors and handset either indoors

or outdoors, the range could be

reduced to 50 metres. Thick stone

walls can severely affect the range.

Signal strength

The symbol on your handset

screen indicates when you are in

range. When you are out of range,

it flashes and the screen displays

OUT OF RANGE and there is a beep.

IMPORTANT

Do not connect the telephone line

until at least one of the handsets is

fully charged.

The base station must be plugged

into the mains power at all times.

Which socket?

Power socket

Telephone line socket

Getting started

Location

You need to place your BT Freestyle 7110 base station

close enough to a mains power and telephone socket so

that the cables will reach.

Make sure it is at least 1 metre away from other

electrical appliances to avoid interference.

Your BT Freestyle 7110 works by sending radio signals

between the handset and base. The strength of the

signal depends on where you site the base. Putting it as

high as possible ensures the best signal.

Setting up

1. Plug the mains power adaptor into the power socket on

the underside of the base. Plug the other end into the

mains socket. The Power/In Use and message indicator

lights up.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Power adaptor cable

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

2. Batteries will come inserted in the battery compartment.

Pull the plastic tag as instructed to activate the batteries.

3. Charge the handset batteries for at least 16 hours by

placing the handset on the base. The screen shows the

battery icon filling up.

4. Connect the telephone line cord to the base and plug the

other end into the wall socket.

Your BT Freestyle 7110 is ready for use.

Getting started

Battery low warning

When the batteries need

recharging, the handset beeps and

the display shows .

Battery level

The battery symbol shows the

current level

Battery performance

To keep your batteries in the best

condition, leave the handset off

the base for a few hours at a time

(after the initial 16 hour charge).

Running the batteries right down

at least once a week will help them

last as long as possible.

On a full charge, your BT Freestyle

7110 handset gives up to 12 hours

talk time or up to 120 hours

standby.

The charge capacity of

rechargeable batteries will reduce

with time as they wear out, giving

the handset less talk/standby time.

Eventually they will need to be

replaced.

Batteries and handset may

become warm during charging.

This is normal.

Telephone line cord

Providing you have subscribed to your network’s Caller

Display service, the day and time is automatically set

when you receive your first incoming call.

However, you can also set the day and time manually,

see page 47.

BT Freestyle 7110 multiple pack

owners only

Location

You need to place your BT Freestyle 7100 charger close

enough to a mains power socket so that the cable will

reach.

Setting up the charger

1. Plug the power adaptor cable into the underside of the

charger.

Getting started 9

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Under no circumstances use non-

rechargeable batteries. Only use

NiMH rechargeable batteries with

a recommended capacity of

750mAh. Using inappropriate

batteries will invalidate your

guarantee and may damage the

telephone.

Helpline

If you are having any difficulties

setting up or using your BT Freestyle

7110, please call the BT Freestyle

Helpline on 0870 240 3962 or email

bt.helpdesk@vtecheurope.com

Power adaptor cable

2. Plug the power adaptor into the mains wall socket and

switch the power on.

3. Batteries will come inserted in the battery compartment.

Pull the plastic tag as instructed to activate the batteries.

4. Place the handset in the charger and charge the handset

for at least 16 hours.

Follow instructions on page 57 for registering additional

handsets to the BT Freestyle 7110 base.

10 Getting started

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

RInt

Vol

Getting to know your phone

Navigation

Up/Down/Volume/Redial/Calls list

Lets you scroll through menu

options.

During a call, adjusts the earpiece

and handsfree volume, page 19.

Up also displays the Redial list

page 20.

Down also opens the Calls list

page 32.

Menu (in standby mode)

Press to open the on-screen Menu

and select the displayed option

page 13.

Talk/Handsfree

Press to make and receive calls,

(page 17), lets you switch to

Handsfree (page 18) and also

switches the handset on (page 17).

Star

Mutes the handset ringer.

Recall

Used with some BT Calling

Features.

Incoming call light

Flashes when the handset is

ringing.

Directory (in standby mode)

Press to open the Directory and

select from up to 50 names and

numbers you can program into the

handset, page 23.

End call

Press to end a call, page 17.

Press and hold to switch the

handset off, page 17.

Keypad lock

Prevents accidentally dialling

numbers when carrying the

handset around, page 22.

Int

Lets you make internal calls

between handsets, page 22.

Handset buttons

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

BT Freestyle 7110

Page

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

12 Getting to know your phone

Main display icons

Base

Power/In Use

indicator

On when the

power

is connected.

Flashes when line

is in use.

Page

Rings all registered

handsets, so you

can find them.

Used to register

additional

handsets.

Handset 1

01 / 03 12:03pm

Menu Dir

In range. Flashes when

you are out of range.

Keypad lock on.

Shows current battery level.

Handset ringer off.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Navigating the menus…

Your BT Freestyle 7110 has a menu system which is easy

to use. Each menu leads to a list of options. Have a look

at the menu map on page 15.

Press MENU to open the main menu and use the

navigation button to scroll up or down to the menu you

want. Press the OK option button to access the features

in the menu.

… and selecting menu options

Once the menu list you want is open, use the navigation

button to scroll up or down through the options, then

press OK to select the option you want. For example, to

adjust the handset ringer melody for external calls:

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

and

press OK. Display shows

RINGER MELODY

2. Press OK. Display highlights

EXTERNAL

Scroll UP or DOWN to choose either

EXTERNAL

INTERNAL

and press OK. The current melody is displayed

and played.

3. Scroll UP or DOWN to the melody you want and press

SAVE.

Getting to know your phone

As you get deeper into the menu

you will find that multiple options

are shown in the handset display.

The highlighted option will be

selected when you press OK.

Navigation button

Vol

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Go back one level

You can go back to the previous menu level by

pressing BACK.

Exit menu

If you want to exit a menu or the phone book, press

BACK. If you want to go straight to the standby screen

press the button.

Press the MENU button to access menus or the DIR

button to open the directory.

Scroll to display menu options. Then press OK to select.

Getting to know your phone

Handset 1

01 / 03 12:03pm

Menu Dir

15Getting to know your phone

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

SMS Text Messaging

Write Message

Inbox

Drafts

Outbox

Templates

SMS Settings

Handset Settings

Ringer Melody

Ringer Volume

Name Handset

Call Groups

Key Beeps On/Off

Auto Talk On/Off

Display Contrast

Backlight On/Off

Select Base

Base Settings

Ringer Melody

Ringer Volume

Handset Priority

Dial Mode

Recall Mode

Change System PIN

Time & Date

Settings

Set Date & Time

Set Day

Alarm

Registration

De-Register Handset

Menu map

Dialling numbers quickly

Numbers can be dialled direct from the Directory (page

23), the Calls list (page 31) or the redial list (page 20)

Call timer

Your handset automatically times the duration of every

call. The time is shown during the call and for a few

seconds after the call has ended.

Auto-answer

You can answer a call just by lifting the handset off the

base. If you would rather press to receive a call

when the handset is on the base, you need to switch

Auto-answer off, page 50.

Backlit display

When you press any button or receive a call/message, the

display lights up. If no button is pressed for 10 seconds,

the light is switched off.

You can disable the backlight if you

wish, see page 49.

Using the phone

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Switch handset on/off

1. Press and hold to switch handset off.

2. Press and hold to switch it on.

Handset ringer on/off

1. Press and hold to switch the handset ringer off.

Display shows

2. Press and hold again to switch it back on.

Make an external call

Press , listen for the dial tone then dial the number.

Preparatory dialling

Enter the number first. If you make a mistake press

CLEAR to delete. Press to dial.

End a call

Press or place the handset back on the base.

Using the phone

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Receiving calls

When the telephone rings the display may show the

number or name of the calling party.

Or show

External Call

if Caller Display is not subscribed to.

Handset X

if it is an internal call where

is the number

of the handset calling.

The handset icon will also flash.

Press to answer the call, or if the handset is on the

base or charger, simply lift it up to speak.

If you have subscribed to a Caller Display Service your

caller’s number (and name if stored in the Directory) will

be shown. See page 31 for more information.

Handsfree

Handsfree lets you talk to your caller without holding

the handset. It also enables other people in the room to

listen to both sides of your conversation.

Switch to handsfree before a call.

1. Press . Display shows press again.

Display shows and you can hear the dial tone over

the handset speaker.

2. Press to switch handsfree off.

Using the phone

Switch to handsfree during a call.

Press . To switch handsfree off, press again.

Earpiece and handsfree volume

You can adjust the earpiece and the handsfree

loudspeaker volume.

There are 5 levels to choose from.

During a call:

Use the navigation button to select volume 1-5.

The current setting is shown. When you end the call the

setting will remain at the last selected level.

Secrecy

During a call, you can talk to someone nearby without

your caller hearing you.

1. During the call press SECRECY. Display flashes

Secrecy

. Your caller cannot hear you.

2. Press OFF to return to your caller.

Using the phone 19

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Earpiece and handsfree volume are

independent of each other but

instructions for adjusting are the

same for both.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Using the phone

If the number is already in the

directory the SAVE option will not

be shown.

Redial

You can redial up to 5 of the last numbers called.

If you have stored a name in the Directory to go with the

number, the name will be displayed instead, see page 23.

Redial the last number

Press to open the Redial list. The last number dialled

is highlighted. Press to dial the number.

Redial a number from the list

Press to open the Redial list, the last number called is

highlighted. Press UP or DOWN on the navigation

button to scroll through the list. When the number you

want is highlighted, press ,

Empty

If there are no numbers in the Redial list, the display shows

Redial List Empty

Copy a number from the redial list

You can copy a number from the redial list into the

directory. The redial list holds up to 5 of your most

recently dialled numbers.

1. Press to open the redial list. Scroll UP or DOWN to

the number you want and press OPTION.

2. Scroll DOWN to highlight

SAVE NUMBER

. Press OK.

3. Display shows

ENTER NAME

. Use the keypad to enter a

name (see page 23 for entering text) and press SAVE.

Display shows

EDIT NUMBER

If necessary, use the keypad to change the number, then

press SAVE to confirm.

Deleting a redial entry

Press to open the redial list. Scroll to the entry you

want. Press OPTION.

DELETE ENTRY

is highlighted.

Press OK.

Delete entire redial list

Press to open the redial list. Press OPTION.

DELETE

ENTRY

is highlighted. Press DOWN to highlight

DELETE

ALL

. Press OK,

DELETE ALL ENTRIES?

is displayed. Press

DELETE to confirm or SAVE to cancel.

Page

You can alert handset users that they are wanted or

locate a missing handset by paging the handsets,

(paging calls cannot be answered by a handset).

Using the phone 21

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Press on the base. The handsets ring. Display

flashes

PAGING CALL

. Press again to stop the

handsets ringing or press on the handset.

Keypad lock

You can lock the keypad so that numbers are not dialled

accidentally whilst carrying the handset around.

1. Press and hold . Display confirms

KEYPAD LOCKED

and then reverts to the standby screen and displays .

2. Press UNLOCK, then press whilst

Press

Unlock Keys

is shown in the display.

While the keypad is locked you can still answer incoming

calls and make 999 or 112 calls to the emergency

service. But you cannot call other numbers or use the

menus.

Internal calls

You can call the other handsets registered to your

BT Freestyle 7110 base.

1. Press . The other handset numbers are displayed.

Press the navigation button to highlight the handset

number you want, then press OK.

2. To end the call, press .

Int

Page

Using the phone

If you are making an internal call,

and you receive an external call,

any handset not in use will ring.

The handsets that are being used

will beep in the earpiece. To take

the call, press to finish the

internal call, then press TALK to

take the new call.

Pressing will stop that

handset only or pressing will

stop all handsets ringing.

Directory

When there are no entries in

the directory the display shows

NEW ENTRY.

# button

When entering text, if you press

the button the following

characters are available: (space),

(.), (,), (#) and (✱).

You can store up to 50 names and numbers in the

directory of each handset. Each entry contains a name

and phone number. Names can be up to 15 characters

long and numbers up to 24 digits.

Open the directory

1. Press DIR. Stored entries are displayed alphabetically.

Entering names

1. Use the keypad letters to enter names, e.g. to store

TOM:

2. Press once to enter

3. Press three times to enter

4. Press once to enter

Writing tips

1. If you make a mistake, press CLEAR to delete the last

character or digit.

2. Press once to insert a space.

Available characters are displayed at the bottom of the

screen. Keep pressing the button to scroll through the

characters.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

The cursor automatically moves to the next space after

a couple of seconds.

When entering names you can select upper case, lower

case or numerics by pressing .

will appear in the display to indicate the

current selection.

Character map

Directory

Button Upper case Lower case

Space 0 + & _ $ £ € ¥ < > = # * Space 0 + & _ $ £ € ¥ < > = # *

. , ’ ? ! ” 1 - ( ) @ / : ; . , ’ ? ! ” 1 - ( ) @ / : ;

A B C 2 a b c 2

D E F 3 d e f 3

G H I 4 g h i 4

J K L 5 j k l 5

M N O 6 m n o 6

P Q R S 7 p q r s 7

T U V 8 t u v 8

W X Y Z 9 w y x z 9

Abc ➔ABC / ABC ➔abc / abc ➔Abc Abc ➔ABC / ABC ➔abc / abc ➔Abc

Space . , # *

Add a new directory entry

When the phone is in standby:

1. Press DIR. Any entries are displayed in alphabetical

order. Press OPTION. Display highlights

NEW ENTRY

Press OK. Display shows

ENTER NAME

2. Use the keypad to enter a name, then press SAVE.

Display shows

ENTER NUMBER

3. Enter the number you want and press SAVE. Display

shows

ENTRY SAVED

. You can now add another entry.

Or press BACK to go back to the previous menu level.

Dial from the directory

1. Press DIR. Entries are displayed in alphabetical order.

2. Either scroll UP or DOWN through the directory to

highlight the entry you want, then press . The

number is displayed and dialled.

Or you can search alphabetically by pressing the relevant

button, e.g. to find

TOM

press and scroll through

entries under

, then press to dial.

Directory 25

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

View an entry

You can display a name and number together.

Press DIR. Scroll UP or DOWN to highlight the entry you

want, then press OPTION. Scroll DOWN to

SHOW NUMBER

and press OK.

Edit an entry

2. Press DIR. Scroll UP or DOWN to highlight the entry you

want, then press OPTION. Scroll DOWN to

EDIT ENTRY

and press OK.

3. Display shows the name and

EDIT NAME

. Use CLEAR

and the keypad to change the name, then press SAVE.

4. Display shows

EDIT NUMBER

. Use CLEAR and the keypad

to change the number and press SAVE to confirm.

Delete entries

You can delete individual entries or the entire directory.

1. Press DIR. Scroll UP or DOWN to highlight the entry you

want, then press OPTION. Scroll DOWN to

DELETE

ENTRY

DELETE ALL

and press OK.

2. Display asks you to confirm. Press DELETE to confirm or

SAVE to cancel.

Directory

Copying directory entries

Save time adding entries by copying from one handset

to another. So you only have to enter names and

numbers once!

Whilst copying entries between two handsets if you press

the button copying will be stopped.

When the whole directory is copied, it will overwrite any

existing entries on the other handset.

If the directory on the handset you are copying to

becomes full, the receiving handset displays

Directory

If the other handset is in use

If any handset is in use you cannot use the copy function.

Your handset’s display shows

NOT AVAILABLE

when you

select a copy option, before returning to standby.

Set groups

You can create ringing groups by selecting entries from

your directory. For example, you can create a group for

family members and assign a ringer melody to that

group. When one of that family group calls you will be

able to identify which group from the ringer melody.

You can create up to 3 groups.

1. Press DIR. Scroll UP or DOWN to highlight the entry you

want to store in a group. Press OPTION.

2. Scroll DOWN to

SET CALL GROUP

and press OK.

Scroll DOWN to highlight the group you want.

Press OK. The display shows

ADDED TO GROUP X

Select

NO GROUP

to remove a name from a group.

Directory 29

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Name and set melody for a group

You can rename a group and change the melody.

1. Press MENU, then DOWN to display

HANDSET SETTINGS

Press OK.

2. Scroll DOWN to

CALL GROUPS

and press OK.

Press UP or DOWN to highlight the group you want and

press OK.

3. If required, use UP or DOWN to select

SET MELODY

(see

page 48 for selecting melody options) or

EDIT GROUP

NAME

. Press OK.

4. Press CLEAR to delete the existing name, then enter the

new name and press SAVE.

5. Press to return to standby.

Directory

Caller Display

Caller information not available

With some incoming calls, the telephone number of the

caller is not available and cannot therefore be displayed.

In this case your BT Freestyle 7110 provides you with

some explanatory information:

UNAVAILABLE

– The number is unavailable.

WITHHELD

– The caller has withheld their number.

RINGBACK

– Ringback call.

OPERATOR

– The call has been made via the operator.

PAYPHONE

– The caller is ringing from a payphone.

INTERNATIONAL

– International call.

Using Caller Display

If you subscribe to a Caller Display service, you can see

your caller’s number (provided it is not withheld) on your

handset display before you answer the call.

When a call is received your caller’s telephone number

will be stored in a Calls list. The Calls list holds up to 30

calls. When the Calls list is full, the oldest call will be

replaced by a new call, but the latest call will always be

at the top of the list.

IMPORTANT

To use Caller Display you must first

subscribe to your network provider’s

Caller Display service. A quarterly

fee is payable.

For more information on BT’s

Calling Features, call BT free on

0800 800 150.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Each call is numbered:

= the oldest call in the Calls list. So in a full Calls list,

30 would be the most recent call.

Ringback calls will display the number dialled when you

requested the ringback service.

Sample Calls list screen

Missed = call information has not been viewed before

Caller’s number (if available)

To view / dial a number from the Calls list

1. Press to open the Calls list. Details of your most

recent call are displayed.

2. Scroll UP or DOWN through the list. Press to dial

the number displayed.

Caller Display

If you have any unanswered calls in

the list a icon will be shown on

the handset display.

The icon will disappear when you

have viewed the missed calls in the

Calls list.

03/10 02:14pm

012346789

Missed 05/08

Back Option

Date and

time of call

Calling number

(or Directory

name if it

matches a

stored number)

Call number 5

of 8 (the higher

the number the

newer the call)

Save a Calls list number to the directory

1. Press . If necessary, scroll UP or DOWN to the entry

you want.

2. Press OPTION. Display highlights

SAVE NUMBER

Press OK.

3. Use the keypad to enter a name. Press SAVE.

If necessary, use the keypad to change the number.

Press SAVE. Display shows

ENTRY SAVED

Delete an entry in the Calls list

1. Press . If necessary, scroll UP or DOWN to the entry

you want.

2. Press OPTION. Display highlights

DELETE CALL

Press OK.

Delete the entire Calls list

1. Press . Press OPTION. Scroll DOWN to highlight

DELETE ALL

. Press OK.

2. Press DELETE to confirm or SAVE to cancel.

Caller Display 33

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Welcome to the BT Text Service on your BT Freestyle 7110.

The SMS Service is provided by BT.

Your BT Freestyle 7110 can send and receive messages

to any mobile phone from participating mobile networks

and compatible landline telephones in the UK.

The fixed line SMS service is provided under BT’s terms

and conditions for telephone service. These can be found

by visiting the BT.com website at:

http://www.bt.com/terms/tor.htm

To subscribe to the SMS text messaging service

When you send your first SMS text message from your

BT Freestyle 7110 you will automatically be registered

for the service.

On receipt of your first SMS through the service, the

system will send you a welcome SMS message back.

You may also register by sending the word Register to 00000

upon which you will receive a confirmation message.

Cost of the fixed line service

There is no subscription charge (other than the

subscription to Caller Display). Visit the BT.com website

(www.bt.com) to find out how much it costs to send a

text message (depends upon your call package).

SMS texting

SMS stands for Short Messaging

Service.

IMPORTANT

You must subscribe to your

Network Provider’s Caller Display

Service so that you can use SMS

text messaging. A quarterly fee

may be payable. Please contact

your network provider for more

details.

When you are using SMS text

messaging you must not withhold

your telephone number or the

service will not allow you to

connect.

You may also send messages to

landline phones that are NOT SMS

compatible. Messages to non-

compatible lines will be connected

to voice text and delivered in

spoken words to the telephone as

a call. Please note that the

conversion can translate common

abbreviations and smileys etc, but

to ensure maximum clarity of

message delivery, abbreviations

etc should be used sparingly.

Some other network provider lines

may not be compatible with this

SMS service.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

SMS texting

Send an SMS text message

1. Press MENU, then OK twice.

2. Use the keypad to write your message then press

OPTION.

3. You can now scroll UP or DOWN to chose between:

SEND TO

– press OK and either enter the number you

want or press SEARCH to display your Directory, then

scroll to the entry you want. Now press SEND.

SAVE

– you can save a text in the Draft Messages box for

sending later. Press OK to save.

USE TEMPLATE

– these are pre-stored messages.

Press OK and scroll to the message you want and press

OK. The template message is added to your text at the

cursor. When ready, press OPTION. These three choices

are displayed again.

4. When sending a message, the display briefly shows

TRANSFERRING SMS

before returning to standby.

If there is a problem, the display shows

MESSAGE FAILED

and the message is stored in the outbox. Press CLEAR to

return to the standby display or press READ to open the

message and send again.

You can send and receive SMS text

messages of up to 160 characters.

If your BT Freestyle 7110 is

connected to a switchboard, you

may not be able to use text message

services.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

SMS texting

Sent messages are stored in the Outbox

Your BT Freestyle 7110’s outbox is like a redial list.

It holds a copy of the last 5 messages sent. If your

message did not get through, a copy is stored in the

outbox so you can send it later. The newest messages

replace the oldest messages in the outbox.

When the outbox is full the newest messages replace the

oldest messages in the outbox.

Saved messages are stored in the Drafts folder

If you want to save a message to complete and/or send

later you can store it in the drafts folder. Your BT

Freestyle 7110’s drafts folder can store up to 5 messages.

Received messages are stored in the Inbox

Your BT Freestyle 7110 can store up to 30 messages.

Entering text

1. Use the keypad letters to write, e.g. to write TOM:

2. Press once to enter

3. Press three times to enter

4. Press once to enter

All handsets use the same inbox,

outbox and drafts folder.

Special characters

When writing texts the and button let you

add punctuation.

.,'?!"1–()@/:;

space 0+&_$£€¥<>=# *

space . , # ✱

Writing tips

If you make a mistake, press CLEAR to delete the last

character or digit to the left of the cursor.

1. Press to insert a space.

2. Press UP to move the cursor left.

3. Press DOWN to move the cursor right.

4. Press to change between upper, lower case and

numeric characters.

Available characters are displayed at the bottom of the

screen, keep pressing the button to scroll through the

characters.

The cursor automatically moves to the next space after

a couple of seconds.

SMS texting 37

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

SMS template messages

Use a template to add pre-set statements to make your

texts easier to write.

The templates are:

Please call

I’ll be back at

Happy Birthday

There is one spare template shown as

EMPTY

for you to

write your own message. You can also change or delete

the pre-set ones.

Edit SMS templates

You can overwrite the existing templates with your own

messages.

1. Press MENU,

SMS TEXT MESSAGING

is highlighted. Press

OK and scroll DOWN to

TEMPLATE

and press OK. The

available templates are displayed. Scroll to the template

you want and press OK.

2. Display highlights

EDIT TEMPLATE

. Press OK and write

your own template. Use CLEAR to delete any existing

text you don’t want, then press SAVE. You can now

insert the new template into any text message.

SMS texting

Delete SMS templates

1. Press MENU,

SMS TEXT MESSAGING

is highlighted. Press

OK and scroll DOWN to

TEMPLATES

and press OK. The

available templates are displayed. Scroll to the template

you want and press OK.

2. Press DOWN to highlight

DELETE TEMPLATE

and press OK.

DELETE TEMPLATE?

is highlighted. Press DELETE to confirm

or SAVE to cancel.

Read, edit and send draft SMS text messages

If you have saved a message you have written for

sending later, you can view, edit and send it from the

Draft Messages box.

1. Press MENU,

SMS TEXT MESSAGING

is highlighted. Press

OK. Scroll DOWN to

DRAFTS

and press OK. The date and

time of the latest draft message is displayed. Press READ.

2. The message is displayed. Press OPTION.

3. You can now scroll UP or DOWN to choose between:

SEND TO

– press OK and either enter the number you

want or press SEARCH to display your Directory, then

scroll to the entry you want. Now press SEND.

SAVE

– you can save it again to send later.

Press OK to save.

SMS texting

When you delete a template it is

shown in the display as EMPTY.

If you are editing a message which

has already been assigned a number

you will be asked if you want to

edit the number already entered.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

USE TEMPLATE

– these are pre-stored messages.

Press OK, scroll to the message you want and press OK.

The template message is added to your text. When

ready, press OPTION. These three choices are displayed

again.

DELETE

– deletes current message.

DELETE ALL

– deletes all messages in the Draft

messages box.

Read, edit and send messages from your outbox

You can check on the last 5 messages you have sent.

Your outbox will also store messages that did not get sent,

giving you a chance to send them again later. The oldest

stored message is automatically replaced with the newest.

1. Press MENU,

SMS TEXT MESSAGING

is highlighted. Press

OK. Scroll DOWN to

OUTBOX

and press OK. The display

indicates messages

NOT SENT

if the message previously

failed or

SENT

if the message was sent successfully.

2. Scroll UP or DOWN to the message you want and press

READ. Press OPTION.

3. You can now scroll UP or DOWN to choose between:

SEND TO

– press OK and either enter the number you

want or press SEARCH to display your Directory, then

scroll to the entry you want. Now press SEND.

SMS texting

SAVE

– you can save a text in the Draft Messages box for

sending later. Press OK to save.

USE TEMPLATE

– these are pre-stored messages.

Press OK, scroll to the message you want and press OK.

The template message is added to your text. When

ready, press OPTION. These six choices are displayed

again.

SEND TO

– press OK and either enter the number you

want or press SEARCH to display your directory, then

scroll to the entry you want. Now press SEND.

SAVE

– you can save it again to send later. Press OK to

save.

USE TEMPLATE

– these are pre-stored messages.

USE NUMBER

– ring the sender’s number.

DELETE

– deletes current message.

DELETE ALL

– deletes all messages in the Outbox.

Incoming call

If you are writing a text message and receive a call, your

handset will let you answer the call. When your

conversation is finished, the display shows

CONTINUE

WRITING SMS MESSAGE?

. Press YES to continue where

you left off or NO to delete your message.

SMS texting 41

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Reading SMS texts

When you receive a new text message, the display shows

NEW SMS MESSAGE

. To read it later, press CLEAR. The

display returns to standby and shows instead of the

date and time.

1. Press MENU. Display shows

SMS TEXT MESSAGING

Press OK.

2. Scroll DOWN to

INBOX

, then press OK. Now scroll UP or

DOWN to the message you want. Press READ.

3. Scroll UP or DOWN to read through the message.

If you have no messages in your text inbox, the handset

display shows

NO MESSAGES

You can now press OPTION and scroll to:

DELETE

– deletes current message.

– write a reply to the message.

FORWARD

– forward the message to another number.

USE NUMBER

– press the button to ring the sender’s

number.

SAVE NUMBER

– save number to the directory (if the

number is already stored, this is not displayed).

DELETE ALL

– delete all messages in the Inbox.

SMS texting

You will not be able to receive text

messages until you have first sent

a message. The first sent message

registers you with the text service.

4. Follow the on screen prompts to save, write, send or

delete the messages. Or press BACK to go back to the

previous menu level.

Received messages are stored in the Inbox

Your BT Freestyle 7110’s inbox can store up to 40 text

messages. The oldest message is listed as 01. 40 would

be the most recent message. The inbox is in the base not

the handset.

Delete an SMS text message

1. Press MENU,

SMS TEXT MESSAGING

is highlighted.

Press OK. Scroll to either

INBOX

DRAFTS

OUTBOX

and

press OK.

2. If necessary, scroll to the message you want, then press

READ to display the message, then OPTION. Scroll

DOWN to DELETE and press OK. Confirm by pressing

DELETE.

Delete all SMS text messages in a box

1. Press MENU,

SMS TEXT MESSAGING

is highlighted.

Press OK. Scroll to either

INBOX

DRAFTS

OUTBOX

and

press OK.

SMS texting

All handsets use the same inbox,

outbox and drafts folder.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

2. Press READ then OPTION. Scroll DOWN to

DELETE ALL

and press OK. Confirm by pressing DELETE.

Switch SMS text alert on/off

1. Press MENU,

SMS TEXT MESSAGING

is highlighted. Press

OK. Scroll DOWN to

SMS

settings and press OK.

2. Scroll DOWN to

SMS ALERT ON/OFF

and press OK.

A ✔indicates the current setting. Press UP or DOWN to

highlight

OFF

, then press OK.

SMS Service Centre numbers

To send and receive SMS text messages you need the

telephone number of your Network’s SMS Centre.

If you accidentally delete the

SEND

RECEIVE

SMS

Service Centre numbers you will need to re-enter them

in order for your SMS Service to work.

The SEND SMS Service number is: 1470P17094009.

The RECEIVE SMS Service number is: 0800587529.

Adding or changing a Send Service number

1. Press MENU,

SMS TEXT MESSAGING

is highlighted. Press

OK. Scroll DOWN to

SMS SETTINGS

and press OK.

Display shows

SELECT SMS SEND SERVICE CENTRE

SMS texting

When you enter a new number it

must be prefixed by 1470P

(P=Pause, press and hold the

button to enter a pause).

2. Either press UP or DOWN to display

SMS SENDING

SERVICE CENTRES

. Press OK.

3. Scroll UP or DOWN to highlight the option you want and

press OK. The pre-set number (1470P17094009) is

stored under

Send 1

4. You can now enter a new number or edit an existing

number. Press SAVE.

Adding or changing a Receive Service number

You can store up to 3 numbers of SMS Service Centres

that you receive messages from. You need to have these

numbers stored in your BT Freestyle 7110 so that it can

recognise that an incoming call is a text message

(otherwise it will ring and the message will not be

received). SMS Receive 1 is pre-set to the BT number

(0800587529). You can add two others and edit all

numbers.

1. Press MENU,

SMS TEXT MESSAGING

is highlighted.

Press OK. Scroll DOWN to

SMS SETTINGS

and press OK.

Display shows

SELECT SMS SEND SERVICE CENTRE

2. Either press UP or DOWN to display

SMS RECEIVING

SERVICE CENTRES

. Press OK.

SMS texting 45

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Example, if the new number is

0123456789, then you should

enter 1470P0123456789.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

3. The pre-set number is stored under

SMS Receive 1

Scroll UP or DOWN to highlight the option you want and

press OK.

4. You can now enter a new number or edit an existing

number. Press SAVE.

In some cases the numbers for the provider’s SMS

transmission and reception centre will be the same.

Selecting a Send Service number

If you have two Service Centre numbers stored you can

choose which one you use to send a message.

Your BT Freestyle 7110 is pre-set to send using Send 1.

1. Press MENU,

SMS TEXT MESSAGING

is highlighted.

Press OK. Scroll DOWN to

SMS SETTINGS

and press OK.

Display shows

SELECT SMS SEND SERVICE CENTRE

2. Press OK. A ✔indicates the current provider.

3. Scroll UP or DOWN to highlight the provider you want

and press SAVE.

4. Any messages sent will go via the selected provider.

SMS texting

Time and date do not show on

the display when there are missed

calls/messages.

Day, date and time

If you subscribe to your network’s Caller Display service,

the date and time are set automatically on all handsets

when your BT Freestyle 7110 receives its first call. If new

handsets are then registered to the base, they will also

receive the current date and time. The day has to be set

manually using a handset. The date and time can also be

set manually using a handset. If the mains power to the

base is cut, the day, date and time are lost and will need

to be reset.

Setting day, date and time using a handset

1. Press MENU. Scroll DOWN to

TIME & DATE SETTINGS

and

press OK. Display shows

SET DATE & TIME

. Press OK.

2. Use the keypad to enter the date, e.g. =

3rd June. Press SAVE.

3. Enter the time e.g. = 3.30pm.

Press SAVE.

4. Press DOWN, display shows

SET DAY

. Press OK.

5. Scroll DOWN until the current day is highlighted then

press SAVE.

The new time will not appear on the other handsets until

they go on line or a call is received.

Additional handset settings

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Ringer melody

You can set your handset to different ringer melodies

for External and Internal calls. Choose from 10 ringer

melodies.

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

Press OK. Display shows

RINGER MELODY

2. Press OK. If required scroll UP or DOWN to select

INTERNAL

EXTERNAL

. Press OK. The current melody is

displayed and played.

3. Scroll UP or DOWN to the melody you want and press

SAVE.

Ringer volume

You can choose between 5 volume levels and Off.

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

Press OK. Scroll DOWN to

RINGER VOLUME

2. Press OK. Scroll UP or DOWN to select the volume level,

which is played. Press SAVE.

Handset name

You can give each handset a name up to a maximum of

12 characters, for example “kitchen”. It will still display

its handset number.

Additional handset settings

If you use the CLEAR button to

delete a handset name then press

SAVE the handset will return to its

original name, e.g. Handset 1.

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

Press OK. Scroll DOWN to

NAME HANDSET

2. Press OK. Use CLEAR and the keypad to enter the name

you want, then press SAVE.

Adjust contrast

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

and

press OK

2. Scroll DOWN to

DISPLAY CONTRAST

and press OK.

3. Select the contrast setting by scrolling UP or DOWN

through the 8 levels displayed. Press SAVE to select the

setting you want.

Switch backlight on or off

You can choose whether you want the backlighting on

or off.

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

and

press OK.

2. Scroll DOWN to

BACKLIGHT ON/OFF

and press OK.

3. The current setting is indicated by a ✔. Press UP or DOWN

to highlight the setting you want and press SAVE.

Additional handset settings 49

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

An indication of text or number

mode will show at the bottom of

the screen between CLEAR and

SAVE.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Auto Answer

When you receive a call, you can answer it by lifting the

handset off the base station. This is called auto answer.

When you switch auto answer off, all calls must be

answered by pressing .

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

Press OK. Scroll DOWN to

AUTO TALK ON/OFF

2. Press OK. Press UP or DOWN to select

OFF

then

press OK.

Key beeps on/off

1. Press MENU. Scroll DOWN to

HANDSET SETTINGS

Press OK. Scroll UP to

KEY BEEPS ON/OFF

2. Press OK. Press UP or DOWN to select

OFF

, then

press OK.

Additional handset settings

If the key beeps are set to ON, the

handset will emit a beep whenever

a button is pressed.

Alarm

You can set a BT Freestyle 7110 handset to give an

alarm ring.

Switch alarm on or off

1. Press MENU. Scroll DOWN to

TIME & DATE SETTINGS

and press OK.

2. Scroll DOWN to

ALARM

and press OK. Display shows

ALARM ON/OFF

. Press OK.

3. The current setting is indicated by a ✔. Press UP or

DOWN to highlight the setting you want and press OK.

4. If you press ON, you can now enter the time at which

you want your phone to ring using the 24 hour clock e.g.

for 7.30pm and press SAVE.

When the alarm is set a bell icon is shown on the handset

display. To silence the alarm press any key. The alarm

will sound daily until you switch it off via the Time

Settings menu.

Additional handset settings

Alarm setting will only affect the

handset it was set on.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Additional handset settings

Setting melody for the alarm

1. Press MENU. Scroll DOWN to

TIME & DATE SETTINGS

and press OK.

2. Scroll DOWN to

ALARM

and press OK. Display shows

ALARM ON/OFF

3. Scroll DOWN to

SET MELODY

and press OK. The current

melody is displayed and played.

4. Scroll UP or DOWN to the melody you want and press

SAVE.

The default melody for the alarm

is Beeps.

Settings Options Default setting

Ringer melodies 10 ringtones

External Melody 1

Internal Melody 2

Handset ringer

volume (both) 5 levels and off 5

Earpiece volume 5 levels 3

Auto answer On/Off On

Display contrast 8 levels 5

Backlight On/Off On

Key Beeps On/Off On

Handset default settings

Base settings

Ringer melody

You can set your base to play one of 5 different ringer

melodies.

1. Press MENU. Scroll DOWN to

BASE SETTINGS

Press OK. Display shows

RINGER MELODY

2. Press OK. Scroll UP or DOWN to the melody you want

and press SAVE.

Ringer volume

You can choose between 5 volume levels and Off.

1. Press MENU. Scroll DOWN to

BASE SETTINGS

Press OK. Scroll DOWN to

RINGER VOLUME

2. Press OK. Scroll UP or DOWN to select the volume level

which is played. Press SAVE.

Handset priority

Your BT Freestyle 7110 is preset so that when you

receive an incoming call, all handsets will ring. You can

change this so that one handset will ring 2, 4, 6, or 8

times before the others.

1. Press MENU. Scroll DOWN to display

BASE SETTINGS

and press OK.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

It is possible to switch from pulse

to tone by pressing .

2. Scroll DOWN to

HANDSET PRIORITY

and press OK.

Use UP or DOWN to select between:

ALL HANDSETS

– all handsets ring together.

Press OK to confirm.

SELECTED HANDSET

– one handset rings before the

others. Display shows

SELECT HANDSET

and the handset

numbers. Use UP or DOWN to select the handset that

you want to ring before the others. Press OK. Display

shows

RING DELAY

. Press UP or DOWN to choose 2, 4,

6, or 8 rings before the other handsets ring, then press

OK to confirm.

Dial mode

Your BT Freestyle 7110 is pre-set to Tone dialling.

You can switch to Pulse dialling which may be necessary

if you are using your BT Freestyle 7110 with an older

style switchboard.

1. Press MENU. Scroll DOWN to display

BASE SETTINGS

and press OK.

2. Scroll DOWN to

DIAL MODE

and press OK. The current

setting is indicated with a ✔. Press UP or DOWN to

highlight

TONE

PULSE

and press OK to confirm.

Base settings

Recall mode

Recall is used with some switchboard features and some

BT Calling Features.

It is pre-set to Timed Break which is correct for direct

exchange lines and most switchboards. For some

switchboards you may need to select Earth (consult your

switchboard supplier). When pulse dialling is chosen only

earth break recall is available.

To change the recall type

1. Press MENU. Scroll DOWN to display

BASE SETTINGS

and press OK.

2. Scroll DOWN to

RECALL MODE

and press OK.

The current setting is indicated with a ✔. Press UP or

DOWN to highlight

TIMED BREAK

EARTH

and press OK

to confirm.

Base PIN

Your base uses a 4-digit PIN as a security code when

registering and de-registering new handsets. The original

setting is 0000.

Base settings 55

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Base settings

To change the PIN

1. Press MENU. Scroll DOWN to display

BASE SETTINGS

and press OK. Scroll DOWN to

CHANGE SYSTEM PIN

and

press OK.

2. Enter the current PIN and press OK.

3. Display shows

ENTER NEW PIN

. (Original setting 0000).

Enter your new 4-digit PIN and press SAVE.

4. Enter the new PIN again to confirm and press SAVE.

Display shows

SYSTEM PIN CHANGED

Base setting defaults

Setting Options Default

Base ringer melody 5 melodies 1

Base ringer volume 5 levels and off 5

Dial mode Pulse and Tone Tone

System PIN 0000

Recall mode Timed Break and Earth Time Break

Handset priority All handsets or an All handsets

individual handset

If Registration fails, try again.

If you still cannot get your handset

to register, call the BT Diverse

Helpline on 0870 240 3962.

Registering new handsets

You can register up to 5 handsets to your BT Freestyle

7110 base.

If you have purchased a Twin, Trio or Quad the

handsets in these packs are already pre-registered to

the main base.

However, if you purchase additional Freestyle 7100

handsets separately you will need to register them to the

base for them to work.

1. When you switch on a new Freestyle 7100 handset,

the display shows

Press OK.

Display shows

SELECT BASE

2. Press UP or DOWN to select the base number and press

OK. If the handset is new, then choose

Base 1

. If it has

been registered to other bases, choose the first number

not marked with a

3. Enter the base PIN (original setting 0000) and press OK.

4. Press and hold the button on the base for around

10 seconds. When the base beeps, release the

button. The handset is automatically assigned the next

available handset number. The handset will beep when

registration has taken place.

Page

Additional handsets and bases

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

De-registering a handset

You can de-register any handset from a base using any

handset registered to an in range base.

1. Press MENU. Scroll DOWN to

REGISTRATION

and press

OK. Display shows

Press DOWN to display

DE-REGISTER HANDSET

and

press OK.

2. Enter the 4 digit base PIN (original setting 0000) and

press OK. Press UP or DOWN to select the handset you

want to de-register.

3. Press OK. Display asks you to confirm de-registration.

Press OK. Display confirms de-registration.

Transferring calls

When you are on a call you can transfer it to another

BT Freestyle 7110 handset. You can also bring another

handset in on the call to have a 3-way call.

Transferring a call

When you are on a call:–

1. Press , the display shows

CALL HANDSET

and the other

handset numbers.

Int

Additional handsets and bases

Customer Helpline

If you experience any difficulties

please call the Helpline on

0870 240 3962 or email

bt.helpdesk@vtecheurope.com

You can’t use the button

until the caller timer is shown in

the display.

Int

2. Use the UP or DOWN buttons to select the handset you

want to transfer the call to, then press OK. Alternatively,

just press the number of the handset you want, e.g. to

call handset 2 press . The external party is put on

hold and the called handset rings.

3. When the second handset answers you will be able to

speak to them without the external party hearing. To

transfer the call just hang up on the originating handset.

3-Way calls

When you are on a call:–

1. Press , the display shows

CALL HANDSET

and the other

handset numbers.

2. Use the UP or DOWN buttons to select the handset you

want to bring in on the call, then press OK. Alternatively,

just press the number of the handset you want, e.g. to

call handset 2 press . The external party is put on

hold and the called handset rings.

3. When the second handset answers you will be able to

speak to them without the external party hearing.

4. You can now speak to either party individually, pressing

Switch to alternate between the two, or press Join to

bring all three parties together. Either handset can leave

the call at any time just by hanging up.

Int

Additional handsets and bases

If the other handset doesn’t

answer you can stop the ringing

and retrieve the original call by

pressing Switch.

If the other handset doesn’t

answer you can stop the ringing

and retrieve the original call by

pressing Switch.

You can’t use the button

until the caller timer is shown in

the display.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Using additional bases

Selecting another base.

You can use your handsets with up to 4 different bases.

When you have registered a handset to more than one

base, you can switch between bases.

1. Press MENU. Press DOWN to scroll to

HANDSET

SETTINGS

. Press OK, then scroll DOWN to

SELECT BASE

and press OK. All bases your handset is registered with

are displayed. The current base is ticked.

2. Scroll DOWN to the base you want to use and press OK.

Additional handsets and bases

Replacing the handset batteries

After a time, you may find that the handset batteries are running out of charge more

quickly. This is a standard sign of wear and the batteries will need replacing.

For spare AAA NiMH rechargeable batteries please contact the BT Diverse Helpline 0870

240 3962.

Slide off the battery compartment cover. Install the batteries as shown.

Slide the battery compartment cover back into place.

Do not immerse the batteries in water, throw them onto a fire, or dispose of them with

ordinary domestic refuse.

Never use non-rechargeable batteries. Only fit rechargeable Nickel Metal Hydride (NiMH)

AAA. Using the wrong type of batteries will invalidate your guarantee and may damage

the phone.

BT accepts no responsibility for damage caused to your BT Freestyle 7110 by using any

other type of battery.

Help

–

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Help

No display appears

■The handset may be switched off.

■Press and release the button to switch the handset on.

■The batteries may be flat, dead or incorrectly inserted. Recharge, replace or renew the

batteries.

No dial tone

■Make sure your handset is registered to the base and within range of the base.

■Is the telephone cord of the base plugged into the phone socket?

■Check that the base station is connected to the mains power and switched on.

You cannot link up with the base station

■Does the display show Out of Range? If so, you are out of range of the base the

handset is registered to or power is off at the base.

■Batteries could be low or flat.

■If using more than one base station, check that you have the correct base selected.

Handset does not ring

■The ringer volume may be switched off (if it is there will be a icon on the display).

Press and hold to switch it off and on. To adjust the ringer volume on the handset, see

page 48.

Help

■Check that the base station is plugged into the phone socket and mains power and

switched on.

Buzzing noise on my radio, TV, computer

■Sometimes your BT Freestyle 7110 can interfere with other electrical equipment if it is

placed too close.

■It is recommended that you place your BT Freestyle 7100 handset at least one metre

away from such appliances to avoid any risk of interference.

Possible problems with SMS

SMS messages cannot be sent and screen displays UNABLE TO SEND.

■The base station power supply or telephone line cord might not be properly connected.

Check that the base station power supply is plugged into the mains socket and switched

on and that the telephone is plugged into the telephone wall socket.

■There might be a fault on the line. Check your telephone line is working properly.

■You might have deleted the server number in error. Refer to pages 44-45 for instructions

on how to enter the number.

■Your SMS memory might be full. Delete unwanted text messages, see page 43.

■More than one SMS product plugged into the line. Remove other products.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Help

Cannot send text

■Check service centre number is correct including 1470 prefix.

■Check call barring (option 4) is not activated on your line if you have the call barring

service rented from BT.

Cannot receive text

■Check service centre number is correct.

■Ensure you have subscribed to a Caller Display service and that it is active. You can

check this by noting if your phone displays data regarding your caller’s number when you

receive an incoming call.

Handset is registered to the SMS service and text has been previously sent and

received but you are now only receiving incoming messages as voice text

■This may be due to your handset being de-registered. All you need to do is type Register

and send it to 00000. You will receive a confirmation message back. This assumes that

your Caller Display service is active and working on your line.

■Note: Messages sent to 00000 are not charged for.

Help 65

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Further help and advice for SMS related queries on BT lines:

■BT Residential customers – call 151, choose option 2, when prompted by the Fault

Management Service select option 2, input your phone number on the handset and wait

to speak to a customer adviser.

■BT Business customers – call 154, choose option 2, when prompted by the Fault

Management Service select option 2, input your phone number on the handset and wait

to speak to a customer adviser.

■For other telephone service providers, please contact their customer services.

General sales enquiries:

■BT Residential lines – call 150. BT Business lines – call 152.

■For other telephone service providers, please contact their customer services.

Billing enquiries:

■Refer to the telephone number shown on your telephone bill.

Other functions and services available from the SMS service

■By sending the following commands to the BT text self administration facility you can

control functions and capabilities in your SMS phone and the way messages are handled.

■Press MENU,

SMS TEXT MESSAGING

is highlighted. Press OK twice. Type in the following

commands (depending upon what you wish to do) and send to 00000.

■This will enable you to opt out from receiving voice text messages.

■Turns off the opt out option.

■Turns on permanent voice text message delivery to your phone. This means all

incoming text is delivered as voice text.

■Turns off permanent voice text message delivery.

If you are sending a message from a fixed line phone to another fixed line phone

■Forces a message sent to be delivered as voice text even though the recipient

may have an SMS enabled phone and usually receives written text.

■This command is inserted at the start of the message and applies only to that message,

e.g. “Hello I will be home late”.

If you are sending a message from a fixed line phone and require a status report.

■Will allow a status report to be sent back to you when you have sent a message

to confirm delivery. Place at the start of your text message. Write the message

and send it. You will receive a reply text back to your phone giving the status report for

that message.

Customer Helpline

If you experience any difficulties please call the BT Freestyle Helpline on 0870 240 3962

or email bt.helpdesk@vtecheurope.com

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Help

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

You must subscribe to your network provider’s caller display service before some of the

features on your BT Freestyle 7110 will work. A quarterly fee is payable.

IMPORTANT

This equipment is not designed for making emergency telephone calls when the power

fails. Alternative arrangements should be made for access to emergency services.

This product is intended for connection to analogue public switched telephone networks

and private switchboards in the United Kingdom.

Safety

General

Only use the power supply suitable for the BT Freestyle 7110 base or chargers. Using an

unauthorised power supply will invalidate your guarantee and may damage the telephone.

Use only the approved rechargeable batteries supplied. Spare rechargeable batteries are

available from the Diverse Helpline 0870 240 3962.

If the keypad is locked, it is still possible to make emergency calls to 999 and 112

numbers.

Radio signals transmitted between the handset and base may cause interference to

hearing aids.

It is recommended that advice from a qualified expert is sought before using this product

in the vicinity of emergency/intensive care medical equipment.

General information

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

General information

It is recommended that if you have a pacemaker fitted you check with a medical expert

before using this product.

Never dispose of batteries in a fire. There is a serious risk of explosion and/or the release

of highly toxic chemicals.

Cleaning

Simply clean the handset and base with a damp (not wet) cloth, or an anti-static wipe.

Never use household polish as this will damage the product. Never use a dry cloth as this

may cause a static shock.

Environmental

Do not expose to direct sunlight.

The product may heat up when the batteries are being recharged or during prolonged

periods of use. This is normal. However, we recommend that to avoid damage you do not

place the product on antique/veneered wood.

Do not submerge any part of your product in water and do not use it in damp or humid

conditions, such as bathrooms.

Do not expose your product to fire, explosive or other hazardous conditions.

There is a slight chance your phone could be damaged by an electrical storm.

We recommend that you unplug the power and telephone line cord from the base for the

duration of the storm.

General information

Technical information

How many telephones can you have?

All items of telephone equipment have a Ringer Equivalence Number (REN), which is used

to calculate the number of items which may be connected to any other telephone line.

Your BT Freestyle 7110 has a REN of 1. A total REN of 4 is allowed. If the total REN of 4

is exceeded, the telephone may not ring.

With different telephone types there is no guarantee of ringing, even when the REN is

less than 4.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

General information

Connecting to a switchboard

Switchboard compatibility

This product is intended for use within the UK for connection to the public telephone

network and compatible switchboards, which support tone dialling, timed break recall or

earth recall. If in doubt please consult your service provider.

Switchboard external line access code

You may need to enter an access code (e.g. 9) in order to get an outside line. So that the

switchboard has time to pick up an outside line, you may also need to add a ‘pause’ after

the access code.

Insert a ‘pause’ in a stored number

If you need to add a pause in the dialling sequence, follow the example given below:

9 P 0870 240 3962

Switchboard code for Pause inserted in Rest of number

an outside line dialling sequence

When storing a number, at the point you want to insert a pause, press and hold 0 until P

is displayed. You can enter as many pauses as required.

General information

Guarantee

Your BT Freestyle 7110 is guaranteed for a period of 12 months from the date of purchase.

Subject to the terms listed below, the guarantee will provide for the repair of, or at

BT’s or its agent’s discretion the option to replace the BT Freestyle 7110, or any

component thereof, (other than batteries), which is identified as faulty or below standard,

or as a result of inferior workmanship of materials. Products over 28 days old from the

date of purchase may be replaced with a refurbished or repaired product.

The conditions of this guarantee are:

The guarantee shall only apply to defects that occur within the 12 month guarantee period.

Proof of purchase is required.

The equipment is returned to BT or its agent as instructed.

This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear

and tear, neglect, tampering with the equipment, or any attempt at adjustment or repair

other than through approved agents.

This guarantee does not affect your statutory rights.

Within the 12 month guarantee period:

If you experience difficulty using the product, prior to returning your product, please read

the Help section beginning on page 61 or contact the BT Freestyle Helpdesk for assistance

on 0870 240 3962 or email bt.helpdesk@vtecheurope.com. The helpline is open from

9.00am-5.30pm Mon-Fri and 9.30am-2.30pm Saturdays.

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

General information

In the unlikely event of a defect occurring, please follow the Helplines’ instructions for

replacement or repair.

Outside of the 12 month guarantee period:

If your product needs repair after the guarantee period has ended, the repair must meet the

approval requirements for connection to the telephone network. We suggest that you call

our recommended repair agents on 08702 405029.

Enter your base PIN here:

[ ///]

(see page 55 for more information)

For your records

Date of purchase:

Place of purchase:

Serial number:

For guarantee purposes, proof

of purchase is required, so please

keep your receipt.

Additional/Replacement Items

For a full range of items, including additional handsets for either the BT Freestyle 2000,

4000 and 7000 or Diverse 6000 range, please call 0870 240 3962.

R&TTE

This product is intended for use within the UK for connection to the public telephone

network and compatible switchboards.

This equipment complies with the essential requirements for the Radio Equipment and

Telecommunications Terminal Equipment Directive (1999/5/EC). In demonstration with the

Essential Requirement for efficient use of the radio spectrum, the product complies with

EN301 406. For a copy of the Declaration of Conformity please contact the BT Freestyle

Helpline on 0870 240 3962 or email bt.helpdesk@vtecheurope.com

73General information

BT Freestyle 7110 ~ Issue 02 ~ Edition 01 ~ 19.04.05 ~ 6819

Ofﬁces worldwide

The telecommunications services described in this publication

are subject to availability and may be modiﬁed from time to time.

Services and equipment are provided subject to British

Telecommunications plc’s respective standard conditions of

contract. Nothing in this publication forms any part of any contract.

Registered Ofﬁce: 81 Newgate Street, London EC1A 7AJ.

Registered in England No. 1800000.

BT Freestyle 7110 Issue 2 (04/05) 1

Designed and produced by The Art & Design Partnership Ltd.

Printed in China

Visit us at www.bt.com

Bt Freestyle 7110 Users Manual 6819 [1]

FREESTYLE 7110 freestyle_7110_ug

FREESTYLE 7110 to the manual 9f101ab7-a2a1-4714-8923-d070c5a350cc

Navigation menu

Versions of this User Manual:

Views

Navigation
