User manual
Copyright © 2018 by BTECH; https://baofengtech.com
All rights reserved. No part of this publication may be reproduced, distributed, or
transmitted in any form or by any means, including photocopying, recording, or
other electronic or mechanical methods, without the prior written permission of the
publisher, except in the case of brief quotations embodied in critical reviews and
certain other noncommercial uses permitted by copyright law. For permission
requests, write to the publisher.
Contributions taken from: Miklor.com Resource Site, and Jim Unroe, KC9HI. Used by
permission. All rights reserved.
THANK YOU FOR YOUR PURCHASE OF THE BTECH GMRS-50X1.
THIS MULTI-BAND RADIO WILL DELIVER INSTANT RELIABLE
COMMUNICATION.
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE
i
Table of Contents
Part I. Getting started 1
Chapter 1. – Getting Started 2
Unpacking and Inspecting 4
5
GMRS-50X1: Overview of the Front Panel 6
GMRS-50X1: Overview of the Rear Ports 8
Hand Held Mic Keys and Description 10
Color Display and Icon Descriptions 11
Antenna Basics 12
Grounding Plane: 14
Antenna Requirements 15
NOAA Weather Channels 16
Add a NOAA Channel 17
Chapter 2. - GMRS Information and FCC Declaration 18
ii
GMRS-50X1
GMRS Repeaters 18

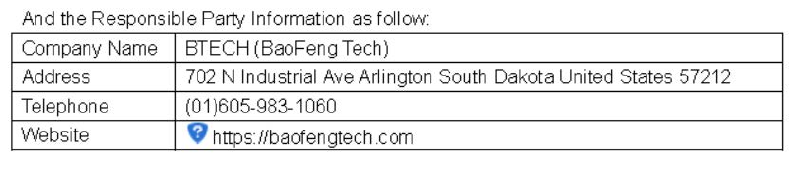

FCC NOTICE AND DECLARATION 18
FCC LICENSE REQUIRED FOR GMRS OPERATION 19
GMRS Frequency Chart, Channel Guide 20
Chapter 3. – Basic Shortcuts and Use 21
Pound # Key 21
Star * Key 21
Turning the unit on 22
Turning the unit off 22
Adjusting the volume 22
Making a call 23
Channel selection 23
Frequency (VFO) mode 23
Channel (MR) mode 24
Monitor Both VFO & MR Modes 25
Chapter 4. – Menu Quick Review 26
Quick Menu Settings 26
iii
Chapter 5. – Programming 34
Frequency Mode vs. Channel Mode 34
Ex. Programming a Simplex Scanner Channel with CTCSS tone 35
Chapter 6. – Other Settings 36
Toggle from High to Low Power 36
Storing an FM Radio Station and Scanning 36
Keypad Lock-out 36
PTT ID Setting 37
DTMF RX Settings 37
DTMF TX Settings 37
Remote Stun 39
Remote Kill 39
Remote Revive 40
Read More About Remote Commands 40
DTMF Receive Settings, Transmit Setting (Call Key) 41
2TONE Receive Settings, Transmit Setting (Call Key) 41
5Tone Receive Settings, Transmit Setting (Call Key) 41
Scanning modes 43
Time operation 43
iv
GMRS-50X1
Carrier operation 43
Search operation 43
SKIP Scanning Channels 44
Scanning a Frequency Range (VFO Mode) 44
Tone Scanning 45
Scanning for CTCSS and DCS Tones/Codes 45
Dual, Tri, and Quad Watch (TMR) 48
Chapter 7. - Selective calling 50
CTCSS 51
DCS 52
1000Hz, 1450Hz, 1750Hz, 2100Hz Tone-burst 54
Part III. How-to and setup guides. 55
Chapter 8. - Repeaters 56
Chapter 9. - Customization 59
Display 59
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
1
Part I. Getting started
Part one covers the basic setup and use of your mobile two-way transceiver.
CHAPTER 1. - GETTING STARTED
CHAPTER 2. - GMRS INFORMATION AND FCC DECLARATION
CHAPTER 3. - BASIC USE
CHAPTER 4. – MENU QUICK REVIEW
CHAPTER 5. – PROGRAMMING
CHAPTER 6. – OTHER SETTINGS
CHAPTER 7. - SELECTIVE CALLING
2
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 1. – Getting Started
BEFORE PROCEEDING INSURE:
• Qualified technicians shall service this equipment only. Do not modify the radio for any reason.
• Use only BTECH supplied or approved accessories.
• Turn off your radio prior to entering any area with explosive and flammable materials. Do
NOT USE your transceiver at a gas/fuel station
• For vehicles with an air bag, do not mount your radio in the area over an air bag or in the air bag
deployment area.
• Do not expose the radio to direct sunlight over a long time, nor place it close to a heating
source.
• If the unit emits smoke or an odor, you should immediately cut off the power supply. Then send
the radio to the nearest service center or dealer
• Do not operate the mobile transceiver on high power unless it is necessary. Do not transmit for
long periods of time, as it may overheat the transceiver.
• Keep the unit away from dusty, damp and wet environments
• Use the correct power supply (~13.8V); do not use incorrect or higher voltage (e.g. 24V)
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
3
Exposure To Radio Frequency Energy
Your BTECH radio is designed to comply with the following national and international standards and guidelines regarding
exposure of human being to radio frequency electromagnetic energy:
- United States Federal Communications Commission, Code of Federal Regulations: 47 CFR part 2 sub-part J
- American National Standards Institute (ANSI)/Institute of Electrical & Electronic Engineers (IEEE) C95. 1-1992
- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition
- National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
- International Commission on Non-lonizing Radiation Protection (ICNIRP) 1998
To control your exposure and ensure compliance with the general population or uncontrolled environment exposure limits,
transmit no more than 50% of the time. The radio generates measurable RF energy exposure only when transmitting.
4
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Unpacking and Inspecting
• Please check the packaging of your radio for any signs of damage.
• Carefully open the box, and confirm your received the items listed below.
• If you find the radio or the included accessories are damaged or lost, immediately contact your
dealer.

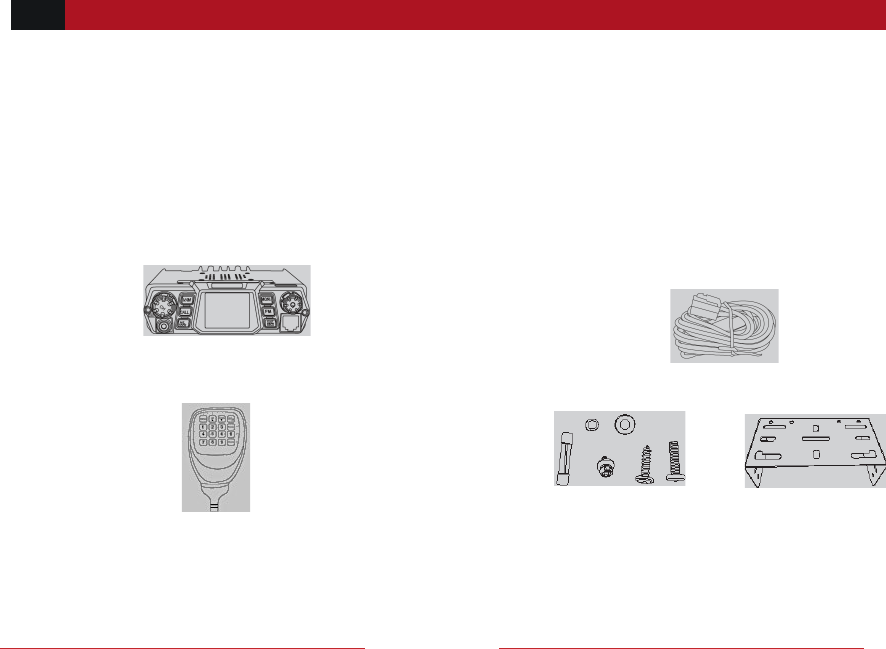

What’s in the Box
GMRS-50X1
Mobile Radio
Microphone
Power Cable (Direct Connect)
Mounting Screws Mounting Bracket
and Fuse
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
5
6
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1

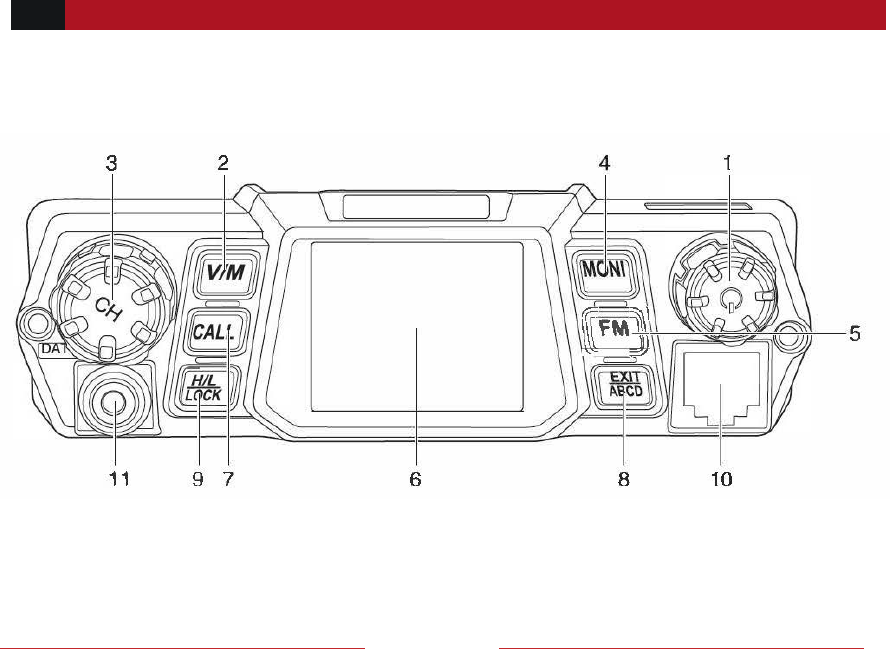

GMRS-50X1: Overview of the Front Panel
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
7
1. Power, On/Off Press + Volume Knob
2. V/M Mode Switch (Channel/Frequency)
3. Confirm Key Press +Main Selector
(Menu Knob)
4. Monitor function
5. FM radio function key
6. Display screen
7. Call key
8. Exit Menu + A/B/C/D signal switching +
alarm function
9. High / Lower Power Switch + Lock
10. Microphone Connector
11. DATA, Programming Jack: PC-04
Programming Cable Jack

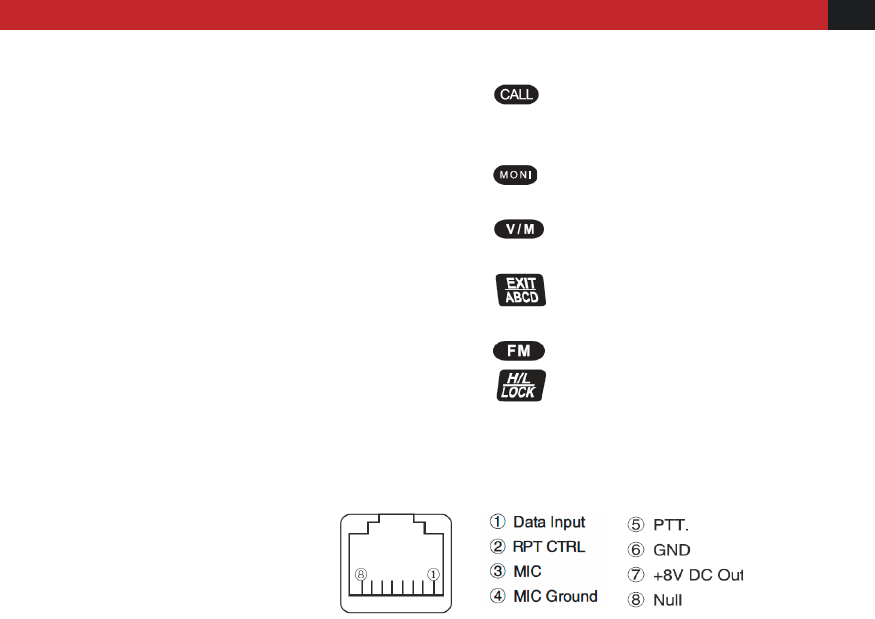

: when in standby, press to send caller ID
(ANI) in the selected signaling mode; while
transmitting, press to send activate signaling.
: press to turn on the squelch, repeat to
turn off the squelch.
: press to switch between channel mode
and frequency mode.
: press to choose between A,B,C, or D
frequencies --- Or exit function mode.
: press to enter and exit FM radio
: press to toggle high/lower power ; hold
to key-lock/or key-unlock
RJ45 Connector:
8
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1

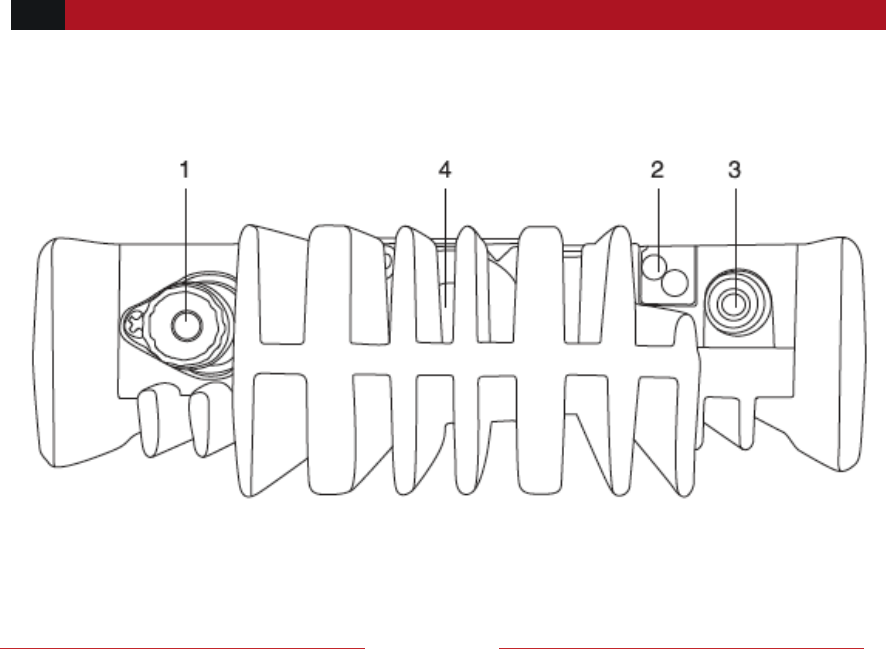

GMRS-50X1: Overview of the Rear Ports
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
9
1. SO-239 RF Antenna Connector:
Connects to PL-259 Antennas
2. DC Power Input (13.8V – 20A Peak)
3. TS Line Out: Includes Audio-out/GND
4. Cooling Fan

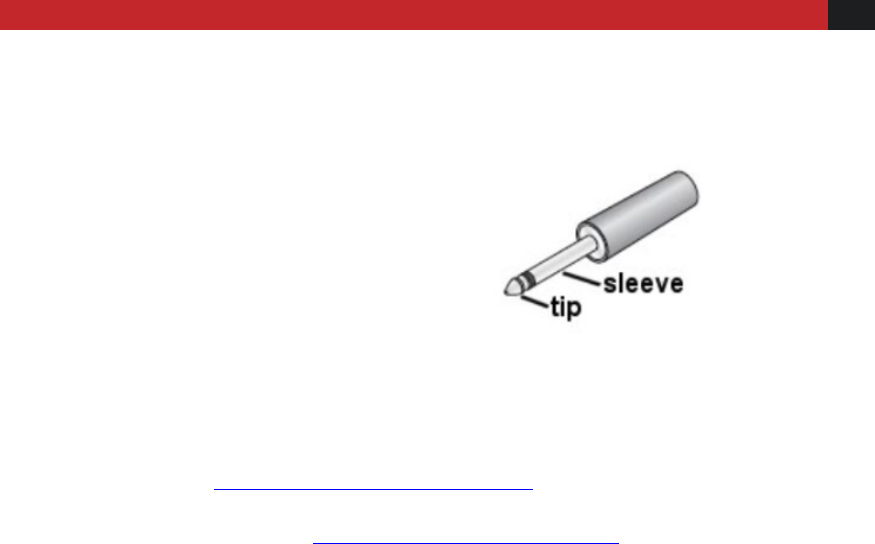

TS Line-Out Connector: The GMRS-50X1 uses a
TS MONO Speaker out in the rear – it is
compatible with TS Mono Speakers
Programming Cable:
PC-04 Cable available at: www.baofengtech.com/accessories
Programming software available at: www.baofengtech.com/download
10
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1

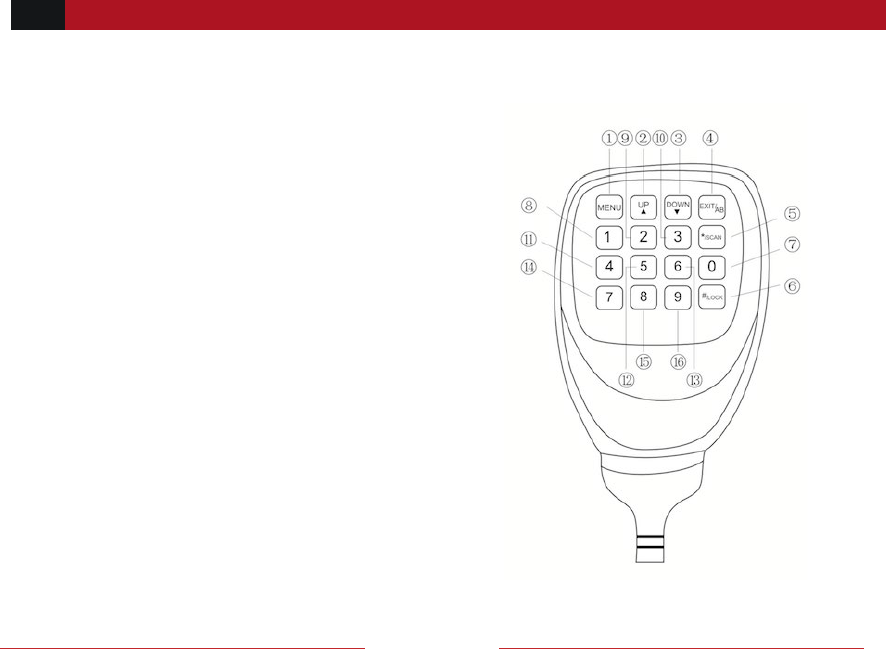

Hand Held Mic Keys and Description
1 “MENU”: Function key
VFO/MR Toggle (Long Press)
2 “UP”: Higher frequency
3 “DOWN”: Lower frequency
4 “EXIT”: Exit the AB channel switch, alarm
function
Alarm Activate (Long Press)
5 “*/SCAN”: Scanning function
6 “#/LOCK”: High / Low Power Toggle
Keyboard Lock (Long Press)
7 “0”: Number 0
8 “1”: Number 1
9 “2”: Number 2
10 “3”: Number 3
11 “4”: Number 4
12 “5”: Number 5
13 “6”: Number 6
14 “7”: Number 7
15 “8”: Number 7
16 “9”: Number 9
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
11

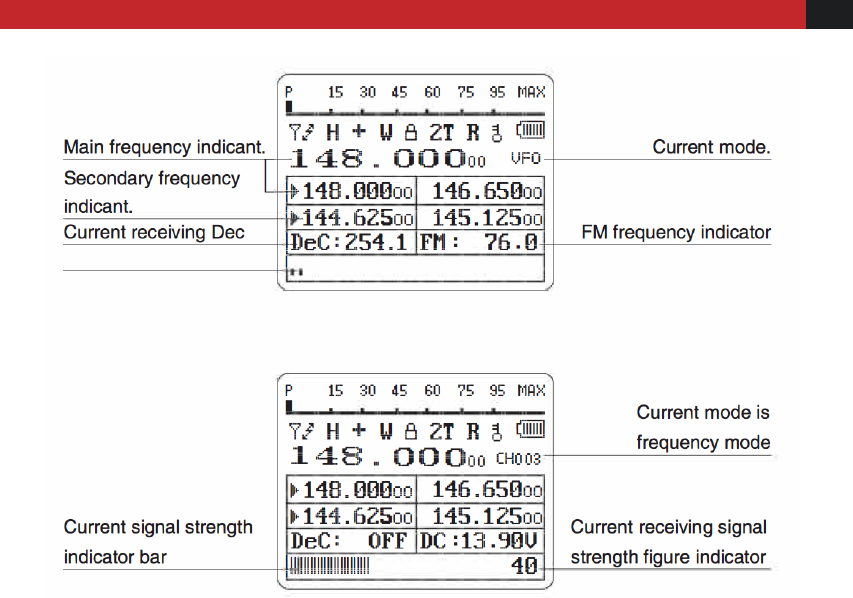

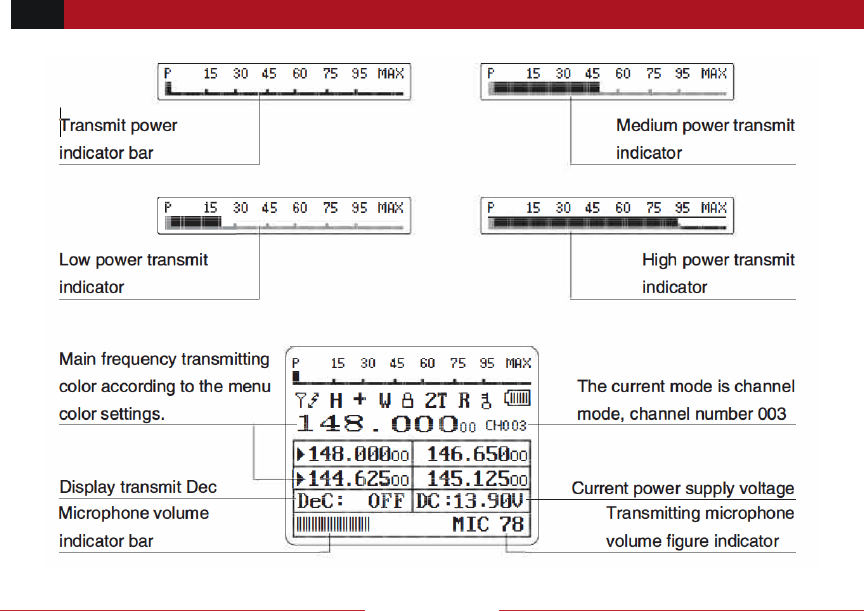

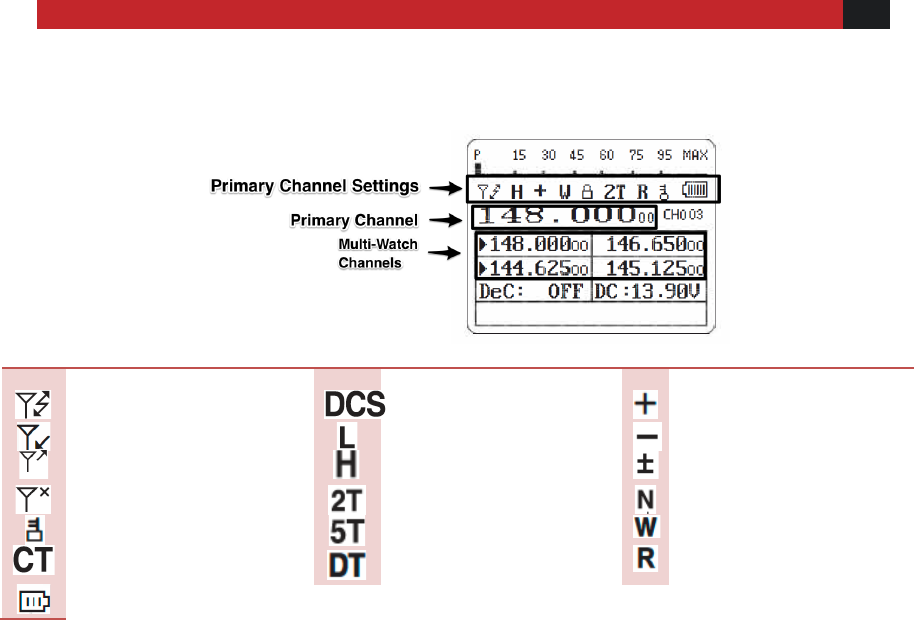

Color Display and Icon Descriptions
The Top Line on the LCD will show the current selected channel’s settings at a glimpse:
Icon
Description
Icon
Description
Ico
Description
Channel allowed to TX and RX
DCS Enabled (TX,RX or Both)
Positive Offset (Freq. Mode)
Channel allowed to RX Only
Transmit Power: Low
Negative Offset (Freq. Mode)
Channel allowed to TX Only
Transmit Power: High
Offset Enabled (Chan. Mode)
Channel disabled to TX or RX
2Tone Calling Enabled
Channel set to Narrowband
Keypad is Locked
5Tone Calling Enabled
Channel set to Wideband
CTCSS Enabled (TX,RX or Both)
DTMF Calling Enabled
Channel Reverse Enabled
Battery Strength (Weak Battery Indicator)
12
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
13
14
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Antenna Basics
Your Mobile Radio Kit does not include an Antenna. It is VERY Important to NOT transmit
without a antenna or dummy load attached to the mobile radio. Doing so, will cause harm to the
internal components of your radio.
You will want to choose a suitable antenna for the bands you plan on transmitting and receiving
on. If you plan on transmitting on 145MHz you will want to ensure you have picked an antenna
that states it is capable of working with 145MHz. If an antenna is not properly tuned for the
frequency you transmit on – it can cause damage with the reflected power going back into the
radio.
Pick an antenna with SWR of less than 1.5:1 to safely transmit.
Grounding Plane:
Antennas require an appropriate grounding plane to properly work:
Magnetically Mounted Antennas:
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
15
These antennas must be grounded to a metal surface, such as a vehicle body. Magnetic base
antennas do not properly operate unless they are fully magnetically grounded first.
NMO or PL-259 Base Antennas:
These antennas will normally require a base or mobile hardware kit. These kits are grounded
either through: drill or clamp inserts on vehicles, magnetically mounted, or available as
stationary base hardware kits. Some antennas may include a base station grounding plane kit.
Antenna Requirements
Antenna SWR Rating: 1.5:1 or less (on the radio frequencies in use.)
Antenna Impedance: 50 ohm (use 50 ohm rated coax and coax connectors)
Antenna Grounding: Ensure the antenna is mounted with a grounding plane
Visually Inspect Coax/Connectors for any Slits or Damage – moisture should not be allowed to
penetrate fittings or your coax
To maximize the life of your radio, it is important to understand antenna basics before
transmitting on your radio, transmitting without an antenna, or with high SWR (Standing Wave
Ration) – can void warranty support.
16
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
An Active SWR Meter is a great tool to have when selecting an antenna for your needs. You can
monitor and confirm that your SWR is within safe levels when setting up your radio for the first
time (periodically checking SWR and your antenna set-up is advised)

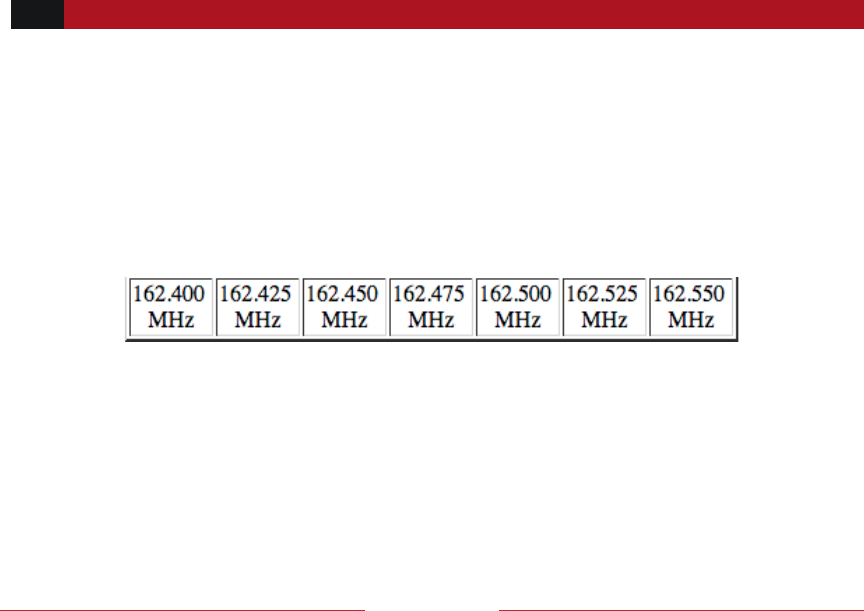

NOAA Weather Channels
To add your local NOAA Weather channel a new scanning channel, start by switching your radio
to Frequency (VFO). Select your desired NOAA frequency (above) using the numerical keypad.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
17
Add a NOAA Channel
The following steps assume that you're in Frequency (VFO) mode and that you've entered the
NOAA frequency to store to memory.
1. Press the key to enter the menu.
2. Enter “44” on the numerical keypad to get to MEM-CH.
3. Press to select.
4. Use the and keys to select an empty memory channel, or enter it directly on
the numerical keypad.
5. Press the key to confirm.
a. NOTE: If the station is actively receiving it will not store. To save an active
receiving channel – remove the antenna to prevent the channel from receiving
and store to memory.
6. Press the key to exit the menu.
Switch your radio to Memory (MR) to test your newly added NOAA channel.
18
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 2. - GMRS Information and
FCC Declaration
THE BTECH GMRS-50X1 IS FCC PART 95A CERTIFIED FOR GMRS USAGE
THE GMRS-50X1 REQUIRES A GMRS LICENSE TO TRANSMIT
GMRS Repeaters
The channels that are labeled "REPT" run through repeaters that are set up for GMRS usage. Use
these channels if you have permission from those that run your local repeater for GMRS
channels.
FCC NOTICE AND DECLARATION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
19
The scanning receiver in this equipment is incapable of tuning, or readily altered, by the user to
operate within the frequency bands allocated to the Domestic public Cellular
Telecommunications Service in Part 22
FCC LICENSE REQUIRED FOR GMRS OPERATION
The GMRS-50X1 operates on GMRS (General Mobile Radio Service) frequencies, which require
an FCC (Federal Communications Commission) license. You must be licensed prior to
transmitting on all channels, which comprise of GMRS channels. Serious penalties could result
for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the
Communications Act's Sections 501 and 502 (amended).
You will be issued a call sign by the FCC, which should be used for station identification when
operating the radio on GMRS channels. You should also cooperate by engaging in permissible
transmissions only, avoiding channel interference with other GMRS users, and being prudent
with the length of your transmission time.
To obtain a license or ask questions about the license application, contact the FCC at 1-888-CALL
FCC or go to the FCC's website: http://www.fcc.gov and request form 605.
Or you can apply online direct for a GMRS license (http://wireless.fcc.gov/uls/ )– a guide for this
can be found at: http://alcornema.com/gmrslisenceinfo.htm
20
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
GMRS Frequency Chart, Channel Guide
GMRS FREQUENCY CHART
CH: Name Ch. Freq CH: Name Ch. Freq CH: Name Ch. Freq Offset
01: GMRS01 462.56250 15: GMRS15 462.5500 23: REPT15 462.5500 +5MHz
02: GMRS02 462.58750 16: GMRS16 462.5750 24: REPT16 462.5750 +5MHz
03: GMRS03 462.61250 17: GMRS17 462.6000 25: REPT17 462.6000 +5MHz
04: GMRS04 462.63750 18: GMRS18 462.6250 26: REPT18 462.6250 +5MHz
05: GMRS05 462.66250 19: GMRS19 462.6500 27: REPT19 462.6500 +5MHz
06: GMRS06 462.68750 20: GMRS20 462.6750 28: REPT20 462.6750 +5MHz
07: GMRS07 462.71250 21: GMRS21 462.7000 29: REPT21 462.7000 +5MHz
22: GMRS22 462.7250 30: REPT22 462.7250 +5MHz
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
21
Chapter 3. – Basic Shortcuts and Use
Pound # Key
Keypad Lock
To enable or disable the keypad lock, press and hold the key for about two seconds.
A quick toggle of the # will alternate power levels from High power to Low power
The keypad lock will lock both the main radio buttons itself and also the handheld keypad.
The PTT/MONI/and Power Buttons will not be locked when enabled.
Star * Key
A short momentary press of the key enables the reverse function (reverses the TX/RX settings
according to Offset settings)
When listening to broadcast FM a momentary press will start the scanning. Scanning in
broadcast FM will stop as soon as an active station is found
To enable scanning, press and hold the key for about two seconds
22
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Turning the unit on
To turn the unit on, simply push and hold the volume knob until it turns on. If your radio powers
on correctly there should be an audible tone after about one second and the display will show a
message or flash the LCD depending on settings
Turning the unit off
To turn the unit off, simply push and hold the volume knob until it turns off. The unit is now off.
Adjusting the volume
To turn up the volume, turn the volume knob clock-wise.
To turn the volume down, turn the volume/power knob counter-clock-wise.
By using the monitor function (MONI button), you can more easily adjust your volume by
adjusting it to the un-squelched static.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
23
Making a call
Press and hold the PTT button on the side of the handheld mic to transmit. While transmitting,
speak approximately 3-5cm (1-2 inches) from the microphone. When you release the PTT your
transceiver will go back to its receive mode.
Channel selection
There are two modes of operation: Frequency (VFO) mode, and Channel or Memory (MR)
mode.
For everyday use, Channel (MR) mode is going to be a whole lot more practical than Frequency
(VFO) mode. However, Frequency (VFO) mode is very handy for experimentation out in the field.
Frequency (VFO) mode is also used for programming channels into memory. For details on how
to program your transceiver see Chapter 4, Programming.
Ultimately which mode you end up using will depend entirely on your use case.
Frequency (VFO) mode
In Frequency (VFO) mode you can navigate up and down the band by using the and
keys (or rotating the selector knob). Each press (or rotation click) will increment or decrement
24
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
your frequency according to the frequency step you've set your transceiver to (Menu Item 1:
Step)
You can also input frequencies directly on your numeric keypad with kilohertz accuracy. However,
the radio will floor to the nearest frequency that corresponds to your frequency step, in other
words, when you input frequencies with greater than 1kHz resolution (such as 145.6875 MHz in
the example below), always round your input up.
Just because you can program in a channel does not mean you're automatically
authorized to use that frequency.
Transmitting on frequencies you're not authorized to operate on is illegal, and in most
jurisdictions a serious offence. If you get caught transmitting without a license you can
and will get fined, and in worst case sent to jail.
However, it is legal in most jurisdictions to listen. Contact your local regulatory body for
further information on what laws, rules and regulations apply to your area.
Channel (MR) mode
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
25
The use of Channel (MR) mode is dependent on actually having programmed in some channels
to use. To find out more on how to program channels see Chapter 4, Programming.
Once you have channels programmed and ready, you can use the and keys to navigate
between channels (or Rotate the Selector Knob)
If you have channels programmed with Transmit power set to Low, you can use the
key to momentarily switch over to high power if you're having trouble getting through.
Monitor Both VFO & MR Modes
You can toggle from VFO and MR (Memory Recall) mode by either pressing the V/M button on
the front of your radio, or you can toggle modes from the Handheld Mic by a long press of the
‘Menu’ button.
The VFO/MR mode will only toggle on the current selected A/B/C/D line – while the other
channel lines will remain on channel or memory mode as they were selected.
This allows you to monitor channel and frequency mode simultaneously
26
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 4. – Menu Quick Review
Quick Menu Settings
(Full Definitions in Appendix A)
To set the Menu options from the Mobile body use the M Press the selector knob
on the radio body (or the Menu Key on the microphone) to select and confirm the
changes, while rotating the selector knob (or using the microphone arrow keys)
will change your settings.
0. [Enter Menu]+ [0] : TMR – This mode selects what displays are monitored in the
background besides the primary selected channel. You can mix and match between all
or partial channels to allow dual, tri, or quad watch
1. [Enter Menu]+ [1] : STEP – set the frequency increments step in VFO mode: 2.5kHz,
5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz selectable.
2. [Enter Menu]+ [2] : SQL – Sets the receiver squelch level: 0 is OFF, 1 is the lowest setting
through 9 which is the highest setting.
3. [Enter Menu]+ [3] : TXP – Sets the transmit power setting from HIGH to LOW.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
27
4. [Enter Menu]+ [4] : AUTOLK – Keypad auto-lock setting. This activates the keypad auto-
lock feature, which lock the keypad after 8 seconds of no use; pressing the # key for 2
seconds will release the auto lock.
5. [Enter Menu]+ [5] : TOT - transmission time-out timer. Sets the maximum transmit time
from 15 to 600 seconds (15 second steps).
6. [Enter Menu]+ [6] : APO – Auto Power Off powers off the radio after a predetermined
time with no receiver activity. (30 > 300 minutes)
7. [Enter Menu]+ [7] : WN - WIDE or NARROW band width settings (12.5/25khz).
8. [Enter Menu]+ [8] : ABR – Unused Setting
9. [Enter Menu]+ [9] : BEEP - turns key beeps OFF or ON.
10. [Enter Menu]+ [1] + [0] : R-DCS - DCS receive/squelch settings. Options include the
D023N-D754N positive sequence and the D023I- D754I reversed sequence.
11. [Enter Menu]+ [1] + [1] : R-CTCS - CTCSS receive/squelch settings. Selectable from
67.0HZ-254.1HZ. you can use the keypad to quickly enter in the desired setting
12. [Enter Menu]+ [1] + [2] : T-DCS - DCS transmit settings. Options include the D023N-
D754N positive sequence and the D023I- D754I reversed sequence.
13. [Enter Menu]+ [1] + [3] : T-CTCS CTCSS transmit settings. Selectable from 67.0HZ-
254.1HZ. you can use the keypad to quickly enter in the desired setting
14. [Enter Menu]+ [1] + [4] : DTMFST – DTMF transmit tone settings.
OFF: No tones heard through the speaker when transmitting. KEY: Only manually
keyed DTMF codes are heard. ANI: Only automatically keyed DTMF codes are heard.
BOTH: All DTMF codes are heard.
28
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
15. [Enter Menu]+ [1] + [5] : BCL - busy channel lock- out. If you have this turned on the
transmitter will not transmit if a channel is receiving at the time
16. [Enter Menu]+ [1] + [6] : SC-ADD - scan settings. OFF: This removes the channel from
the scan list. ON: This adds the channel to scanning list.
17. [Enter Menu]+ [1] + [7] : SC-REV – Scanning settings. TO: time out scan, after the
stopping on an active signal, scanning will resume after a few seconds. CO: Scanning will
stop on a carrier channel and will resume after the carrier channel stops receiving SE:
Scanning will stop once an active carrier channel is found.
18. [Enter Menu]+ [1] + [8] : OPTSIG – Turn on the optional signaling. OFF the channel or
mode will not use optional signaling DTMF: DTMF signaling required. 2TONE: 2 tone
signaling required. 5TONE: 5 tone signaling required. (PC programming is required to
specify the DTMF, 2Tone, and 5Tone settings)
19. [Enter Menu]+ [1] + [9] : SPMUTE – Squelch settings when combining standard and
optional tones. QT: The squelch will open for just a CTCSS or DCS Receive tone. AND:
This requires both the optional tone settings (Menu 20) and CTCSS/DCS settings to be
received. OR: If a either the DCS/CTCSS or optional signaling is received the squelch will
open
20. [Enter Menu]+ [2] + [0] : PTT-ID - PTT-ID transmit setting. OFF: no ID code sent when
transmitting. BOT: send ID code at Beginning of Transmit. EOT: send ID code at End of
Transmit. BOTH: send ID code at both beginning and end of transmit. (PTTID code
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
29
information can only be set by the PC software)
21. [Enter Menu]+ [2] + [1] : PTT-LT - PTT-ID transmit delay setting. (Delay Time range is 0-
30 seconds.). This is the delay time before transmitting the PTTID
22. [Enter Menu]+ [2] + [2] : S-INFO - Signal information and automatic dialing memory. 1-
15 group signal code/decode memory. The memory list is programmed through
software.
23. [Enter Menu]+ [2] + [3] : EMC-TP - alarm mode settings. ALARM: turns on the alarm
sound on the device itself. ANI: Sends the Alarm and PTTID through the Transmitter.
BOTH: combines both of the options above. OFF: Disables alarm
24. [Enter Menu]+ [2] + [4] : EMC-CH - alarm channel setting. This is the channel that the
alarm will transmit the PTTID and Alarm sound on
25. [Enter Menu]+ [2] + [5] : SIG-BP – Pager Ring at Reception of Matching
2Tone/5Tone/DTMF (on/off)
26. [Enter Menu]+ [2] + [6] : CHNAME - channel name edit.
27. [Enter Menu]+ [2] + [7] : CA-MDF - Display Mode (Display A) - FREQ: displays Frequency.
CH: displays channel number. NAME: displays assigned channel name.
28. [Enter Menu]+ [2] + [8] : CB-MDF - Display Mode (Display B) - FREQ: displays Frequency.
CH: displays channel number. NAME: displays assigned channel name.
29. [Enter Menu]+ [2] + [9] : CC-MDF - Display Mode (Display C) - FREQ: displays Frequency.
CH: displays channel number. NAME: displays assigned channel name.
30. [Enter Menu]+ [3] + [0] : CD-MDF - Display Mode (Display D) - FREQ: displays Frequency.
CH: displays channel number. NAME: displays assigned channel name.
30
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
31. [Enter Menu]+ [3] + [1] : LANGUA – Language Display Mode (English or Chinese)
32. [Enter Menu]+ [3] + [2] : SYNC – With this 2 Channel lines can be synched together
(A+B, C+D, A+B and C+D) (use in conjunction with Menu 27 through 30 to display the
channel name and frequency simultaneously)
33. [Enter Menu]+ [3] + [3] : MAINFC – Main LCD Display Foreground, Text Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
34. [Enter Menu]+ [3] + [4] : MAINBC Main LCD Display Background Color: Color options are
BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
35. [Enter Menu]+ [3] + [5] : MENUFC - Menu LCD Display Foreground, Text Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY.
36. [Enter Menu]+ [3] + [6] : MENUBC - Menu LCD Display Background Color: Color options
are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
37. [Enter Menu]+ [3] + [7] : STA-FC – Status Bar LCD Display Foreground, Text Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
38. [Enter Menu]+ [3] + [8] : STA-BC - Status Bar LCD Display Background Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
39. [Enter Menu]+ [3] + [9] : SIG-FC – Signal Bar LCD Display Foreground, Text Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
40. [Enter Menu]+ [4] + [0] : SIG-BC - Signal Bar LCD Display Background Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
31
41. [Enter Menu]+ [4] + [1] : RX-FC Receive Active Channel Foreground, Text Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
42. [Enter Menu]+ [4] + [3] : TX-FC - Transmit Active Channel Foreground, Text Color: Color
options are BLACK, WHITE, RED, BLUE, GREEN, YELLOW, INDIGO, PURPLE, GRAY
43. [Enter Menu]+ [4] + [3] : Transmit Display – Status Bar Numerical Display Options
(Power Level or Mic Level)
44. [Enter Menu]+ [4] + [4] : MEM-CH - saves the selected channel.
45. [F Key} + [4] + [5] : DEL-CH - deletes the selected channel
46. [Enter Menu]+ [4] + [6] : SFT-D - Frequency difference direction setting. OFF: no
frequency difference. (+): Transmit offset amount will be a positive offset (higher than
the receive frequency). (-): Transmit offset will be a negative offset (amount will be
lower than the receive frequency).
47. [Enter Menu]+ [4] + [7] : OFFSET - difference between the transmit and receive
frequency.
48. [Enter Menu]+ [4] + [8] : ANI – Displays the radio ID code. Code only can set by PC
software.
49. [Enter Menu]+ [4] + [9] : ANI-L - ID code length. Length = 3, 4, 5.
50. [Enter Menu]+ [5] + [0] : REP-S – Tone burst repeater settings. Pressing CALL will send a
predetermined tone. Options are 1000 Hz, 1450 Hz, 1750 Hz, 2100 Hz.
51. [Enter Menu]+ [5] + [1] : REP-M - repeater forwarding mode setting. Used in
conjunction with two radios connected as a repeater. OFF: turned off. CARRI: forwards
32
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
after it receives a carrier call. CTDCS: forwards after it receives correct CT/DCS tone
TONE: forwards after it receives the correct 2Tone or 5Tone. DTMF: forwards after it
receives the assigned DTMF code.
52. [Enter Menu]+ [5] + [2] : TMR-MR – Transmit Delay Return time. Delay time before
returning to the primary channel after the secondary signal is clear. (PTT Return Time)
53. [Enter Menu]+ [5] + [3] : STE - Squelch Tail Elimination at the end of a received signal.
Requires both transmitting radios to have the option ON.
54. [Enter Menu]+ [5] + [4] : RP-STE - Repeater Squelch Tail Elimination requires a repeater
with this function ON. (Reverses the CT/DCS settings at the end of a transmission to
quickly turn of the squelch)
55. [Enter Menu]+ [5] + [5] : RPT-DL – Repeater Squelch Tail Eliminator Delay time. (use
with Menu 46)
56. [Enter Menu]+ [5] + [6] : DTMF-G – Adjust the gain of the DTMF tones. Selectable from
0-60. 0 being the quietest level and 60 being the loudest modulated DTMF tones.
57. [Enter Menu]+ [5] + [7] : M-GAIN – Adjust the gain the the Microphone. Selectable from
0-127. 0 being the quietest level and 127 being the loudest modulated microphone
audio.
58. [Enter Menu]+ [5] + [8] : SKIPTX – Quad Frequency Operation: Randomize transmitting
channels - with another corresponding mobile on the same 4 channels transmissions
can be spread apart on the four channels in 2 modes. [Off, Skip 1 (Randomizes in
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
33
between after both transmitting and receiving), Skip 2 (Each PTT Press will
systematically go to the next channel (PTT (A), PTT (B), PTT (C), PTT (D), PTT(A), et.)
59. [Enter Menu]+ [5] + [9] : SC-MOD – Automatic Scan Resume Method: Off (Scan cancels
with key press, or reboot), PTT-SC (Scanning will resume after transmitting (or other
Menu Operations), MEM-SC (Scan Memory during Radio Reboot: If scanning was
active when the radio was powered down, the radio wil resume scanning on restart.
(Scanning also resumes after transmitting or other Menu Operations), PON-SC
(Power On Scan: The radio will start scanning upon turning on - no matter what
state it was in when powering down. Also the radio will scan after Menu operations
or Transmitting)
60. [Enter Menu]+ [6] + [0] : RESET – Reset all VFO settings or ALL settings (channels
deleted and VFO settings cleared)
34
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 5. – Programming
Frequency Mode vs. Channel Mode
Switch between Modes by Using the V/M Front Panel Button
These two modes have different functions and are often confused.
Frequency Mode (VFO) - Used for a temporary frequency assignment, such as a test frequency
or quick field programming if permitted.
Channel Mode (MR) - Used for selecting preprogrammed channels.
ALL PROGRAMMING MUST BE INITIALLY DONE IN THE FREQUENCY MODE (VFO) ONLY. FROM THERE YOU HAVE
THE OPTION OF ASSIGNING THE ENTERED DATA TO A SPECIFIC CHANNEL FOR ACCESS IN THE CHANNEL MODE
CALL TONES, TX/RX TONES, SQUELCH, AND POWER SETTINGS ARE ADJUSTABLE ON SAVED CHANNELS IN
CHANNEL MODE
PROGRAMMING CHANNELS ARE DIFFERENT FROM THE VFO SETTINGS; THE OFFSET SETTINGS ARE NOT STORED,
INSTEAD YOU ENTER A TX FREQUENCY DIRECTLY (E.G. 145.000 RX WITH AN OFFSET OF (+) .600 WOULD BE A TX
FREQUENCY OF 145.600).
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
35
Ex. Programming a Simplex Scanner Channel with
CTCSS tone
EXAMPLE New memory in Channel 99:
RX = 446.000 MHz
TX CTCSS tone 123.0
1. Change from Menu to Menu by pressing the [EXIT/AB] button.
2. Set radio to VFO Mode by pressing [V/M]
Channel number at the right will disappear.
3. Menu 45 [M] 9 9 [M] [EXIT] Delete Prior Data in channel (Ex. 99)
4. Menu 13 [M] 123.0 [M] [EXIT] Select desired TX encode tone (Ex 123
CTCSS)
Use [A/B] to select Upper display -> Enter RX frequency (Ex. 446000)
5. Menu 44 [M] 9 9 [M] Enter the desired channel (Ex 99)
[EXIT] Channel has been added
6. [V/M] Return to MR Mode. Channel number will re-appear.
36
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 6. – Other Settings
Toggle from High to Low Power
A quick press of the Microphone ‘#’ will alternate power levels from High power to Low power
Storing an FM Radio Station and Scanning
Use PC software to store FM radio channels names, you can name the FM channel and instead
of display the frequency your FM station will display the name. (software FM option (FM
channels are not stored, only the channel names are)) Press the microphone [*] Key to scan the
FM radio.
Keypad Lock-out
Hold the microphone [# key] for 2 seconds at standby to turn on/off the keypad lock-out
function. (The Lock icon appears, when the radio is locked out)
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
37
PTT ID Setting
1. Use PC software to change PTT-ID code.
2. Set the Menu 18 settings on the radio to select the PTTID signal mode (2Tone, 5Tone, or
DTMF),
3. Set the Menu 20 settings to select when the PTTID is transmitted.
4. Set the Menu 21 settings to program the PTTID transmit delay time.
5.When all the settings are set, when you transmit (Press the PTT) The radio will transmit the
PTTID.
DTMF RX Settings
This radio has DTMF coding and decoding. Use the PC software to set the DTMF signal settings
first.
DTMF TX Settings
In two-way radio systems, DTMF is most commonly used for automation systems and remote
control. A common example would be in amateur radio repeaters where some repeaters are
activated by sending out a DTMF sequence (usually a simple single-digit sequence).
38
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Table 7.1. DTMF frequencies and corresponding codes
1209 Hz
1336 Hz
1477 Hz
1633 Hz
697 Hz
1
2
3
A -
770 Hz
4
5
6
B -
852 Hz
7
8
9
C -
941 Hz
*
0
#
D -
The BTECH UV-25X2/UV-25X4 / GMRS-50X1 has a full implementation of DTMF, including the
A, B, C and D codes. The numerical keys, as well as the , and , keys correspond to the
matching DTMF codes as you would expect. The A, B, C and D codes are located in the , ,
and keys respectively (†).
Manually TX DTMF Tones: To manually send DTMF codes, press the key(s) while holding down
the PTT key.
Automatically TX DTMF Tones:
Save it to Memory and Transmit: You can also program a DTMF tone to the saved calling list
(requires the PC software) to the one of the 15 Memory call banks in the radio. To transmit
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
39
select the Pre-set DTMF saved setting on Menu 22 and then press the call key to send the saved
DTMF TX tone.
Remote Stun
First set the DTMF Remote Stun Tone and Master Control ID in Software: When your radio
receives the DTMF Remote Stun Tone Sequence (Set by software) (Requires Menu 18 and 19 to
accept DTMF signaling) it will command the radio to disable transmitting abilities. The Master ID
station must first identify and send the PTTID (set in software as “Master ID”) – once the Master
Station identifies itself, the radio is set to receive command tones, if the Monitor Remote Stun
tone is received - the radio will no longer be able to transmit. Both the master ID station and
remote stun signal must be set up in software.
Remote Kill
First set the DTMF Remote Kill Tone and Master Control ID in Software: When your radio
receives the DTMF Remote Kill Tone Sequence (Set by software) (Requires Menu 18 and 19 to
accept DTMF signaling) it will command the radio to disable transmitting and receiving. The
Master ID station must first identify and send the PTTID (set in software as “Master ID”) – once
the Master Station identifies itself, the radio is set to receive command tones, if the Monitor
40
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Remote Kill tone is received - the radio will no longer be able to transmit or receive. Both the
master ID station and remote stun signal must be set up in software.
Remote Revive
First set the DTMF Remote Revive Tone and Master Control ID in Software: When your radio
receives the DTMF Remote Revive Tone Sequence (Set by software) (Requires Menu 18 and 19
to accept DTMF signaling) it will reactivate the radio after it has been remotely stunned or killed.
The Master ID station must first identify and send the PTTID (set in software as “Master ID”) –
once the Master Station identifies itself, the radio is set to receive command tones, if the
Monitor Remote Kill tone is received - the radio will revived from a stun/kill command. Both the
master ID station and remote stun signal must be set up in software.
Read More About Remote Commands
A In-Depth downloadable PDF is available at: www.baofengtech.com/support which details
Remote commands and how to use them. This Document Explains with examples on how DTMF
remote commands are used
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
41
DTMF Receive Settings, Transmit Setting (Call Key)
1. Press [MENU] Key select 18 OPTSIG, press [F] Key select DTMF function.
2. Press [MENU] Key select 22 S-INFO, press [F] Key select pre-code signal group (1-15).
(The DTMF Signal must be saved first in the PC software setting under DTMF settings.
3. If properly set up (on Menu 18 and 19), your radio will open the squelch when it
receives the required DTMG signal.
4. Press [Call] Key to send the same DTMF you have selected in Menu 22.
2TONE Receive Settings, Transmit Setting (Call Key)
1. Press [MENU] Key select 18 OPTSIG, press [F] Key select 2TONE function.
2. Press [MENU] Key select 22 S-INFO, press [F] Key select pre-code signal group (1-15).
(The 2Tone Signal must be saved first in the PC software setting under 2TONE settings)
3. If properly set up (on Menu 18 and 19), your radio will open the squelch when it
receives the required 2TONE signal.
4. Press [Call] Key to send the same 2TONE you have selected in Menu 22.
5Tone Receive Settings, Transmit Setting (Call Key)
1. Press [MENU] Key select 18 OPTSIG, press [F] Key select 5TONE function.
42
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
2. Press [MENU] Key select 22 S-INFO, press [F] Key select pre-code signal group (1-15).
(The 5Tone Signal must be saved first in the PC software setting under 5TONE settings)
3. If properly set up (on Menu 18, and 19), your radio will open the squelch when it
receives the required 5TONE signal.
4. Press [Call] Key to send the same 5TONE you have selected in Menu 22.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
43
Scanning modes
The scanner is configurable to one of three ways of operation: Time, carrier or search, each of
which is explained in further details in their respective section below.
Procedure 5.1. Setting scanner mode
1. Press the key to enter the menu.
2. Enter “17” on your numeric keypad to come to scanner mode.
3. Press the key to select.
4. Use the and keys to select scanning mode.
5. Press the key to confirm and save.
6. Press the key to exit the menu.
Time operation
In Time Operation (TO) mode, the scanner stops when it detects a signal, and after a factory pre-
set time out, it resumes scanning.
Carrier operation
In Carrier Operation (CO) mode, the scanner stops when it detects a signal, and after a factory
preset time with no signal it resumes scanning.
Search operation
44
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
In Search Operation (SE) mode, the scanner stops when it detects a signal.
To resume scanning you must press and hold the key again.
SKIP Scanning Channels
You can configure channels to be added or removed from the scanning list on the fly.
1. Press the key to enter the menu.
2. Enter Menu Item 16 on your numeric keypad to come to scanning add mode.
3. Press the key to select.
4. Use the and keys to select if the channel will be added or removed from the
scanning list. The change will apply to the current channel selected
5. Press the key to confirm and save.
6. Press the key to exit the menu.
Scanning a Frequency Range (VFO Mode)
The GMRS-50X1 can scan a user selected frequency range
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
45
1. Press and Hold for about 2 seconds
2. The Display will show: RANGE ---:---
3. Enter the Frequency Range (In MHz) Desired
4. Example: 144:145
5. The Radio will scan the frequency range from 144.000MHz-145.9975MHz According To
Your Frequency Step (See Menu 1 Description)
Tone Scanning
Scanning for CTCSS and DCS Tones/Codes
Scanning for a CTCSS tone or DCS code can be done while Frequency Mode (VFO) or
Channel Mode (MR) is selected. Only when VFO mode is selected, can the detected
tone/code be saved to menu 11/10.
CTCSS tone and DCS code scanning mode can be accessed with or without a signal being
present. The scanning process itself only occurs while a signal is being received.
Not all repeaters requiring a CTCSS tone or DCS code for access will transmit one back. In
that case, the transmitter of a station that can access the repeater would need to be
46
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
scanned. In other words: this would be done by listening to stations on the repeater's
input frequency.
Scanning for CTCSS Tone
(ACTIVE SIGNAL REQUIRED)
1. Press the key to enter the menu.
2. Enter on your numeric keypad to come to Menu 11: R-CTCS
3. Press the key to select. Insure you have a tone activated (and it is not off)
4. Press the to begin CTCSS scanning
A flashing "CT" will be in the left status display to indicate the radio is in CTCSS scanning mode.
In this mode, whenever the radio is receiving an RF signal on the selected MR channel or VFO
frequency, the lower display will cycle through the CTCSS tones as they are being tested. Once
the frequency of the received CTCSS tone is determined, the "CT" indicator will stop flashing.
Press the key to save the scanned tone into memory (VFO Mode Only) then press the
key to exit the menu.
Don't forget to set VFO menu 11 back to OFF when the CTCSS tone is no longer
required.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
47
Scanning for a DCS tone
(ACTIVE SIGNAL REQUIRED)
1. Press the key to enter the menu.
2. Enter on your numeric keypad to come to Menu 10: R-DCS
3. Press the key to select. Insure you have a tone activated (and it is not off)
4. Press the to begin DCS scanning
A flashing "DCS" will be in the left status display to indicate the radio is in DCS scanning mode. In
this mode, whenever the radio is receiving an RF signal on the selected MR channel or VFO
frequency, the lower display will cycle through the DCS codes as they are being tested. Once the
bits of the received DCS code are determined, the "DCS" indicator will stop flashing.
Press the key to save the scanned tone into memory (VFO Mode Only) then press the
key to exit the menu.
Don't forget to set VFO menu 10 back to OFF when the DCS tone is no longer required.
48
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Dual, Tri, and Quad Watch (TMR)
In certain situations, the ability to monitor two, three or even four channels at once can be a
valuable asset.
The BTECH UV-25X2, UV-25X4, and GMRS-50X1 features Dual, Tri, and Quad Watch functionality
with the ability scan between two-four frequencies at a fixed intervals and to lock the transmit
frequency to one of the four channels it monitors
1. Press the key to enter the menu.
2. Enter “0” on the numeric keypad to get to the TMR Watch Settings
3. Press to select which channels are monitored (See Appendix A).
4. Use the and keys to enable or disable.
5. Press the key to confirm.
6. Press the key to exit the menu.
Due to the way the BTECH UV-25X2 / UV-25X4 / GMRS-50X1 are constructed, whenever one of the
A, B, C, or D Frequencies (VFO/MR) goes active, it will default to transmit on that channel for
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
49
the time you have selected on Menu 52 – this can be turned off and explained below:
Locking the Default transmit channel
1. Press the key to enter the menu.
2. Enter 52 on the numeric keypad to get to TMR-AB.
3. Press to select.
4. Select off, to turn off the TMR switching time.
5. Press the key to confirm.
6. Press the key to exit the menu.
7. The radio will now only transmit on the Main channel selected (The Main Frequency
indicator arrow will be pointing at the display set as primary)
50
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 7. - Selective calling
Some times when you're working with larger groups of people using the same channel, things
can get very crowded, very fast. To minimize this problem, several methods of blocking out
unwanted transmissions on your frequency have developed. In general, there are two forms of
selective calling in two-way radio systems: Group calling, and individual calling.
Group calling, as the name suggest, is a one-to-many form of communication. Every radio in
your working group is configured the same way and any radio will make contact with every other
radio in the group.
Individual calling, some times also known as paging, is a one-to-one form of communication.
Every radio is programmed with a unique ID code. And only by sending out a matching code
can you get that radio to open up to your transmissions.
The BTECH X-SERIES MOBILES features three additional ways of group calling
(2TONE, 5TONE, AND DTMF CALLING ARE FOUND IN CHAPTER 5):
• CTCSS
• DCS
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
51
• Tone-burst (1000Hz, 1450Hz, 1750Hz, 2100Hz)
Using these features does NOT mean that others won't be able to listen in on your
transmissions.
They only provide a method to filter out unwanted incoming transmissions. Any
communications made while using these features will still be heard by anyone not
employing filtering options of their own.
You can change the CTCSS or DCS settings while in memory (MR) mode.
CTCSS and 1750Hz tone-burst are also popular methods among amateur radio operators to open
up repeaters.
CTCSS
CTCSS is set with menus 11 R-CTCS and 13 T-CTCS.
Procedure 8.1. CTCSS setup how-to
1. Press the key to enter the menu.
52
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
2. Enter on the numeric keypad to get to receiver CTCSS.
3. Press to select.
4. Enter desired CTCSS sub-tone frequency in hertz on the numeric keypad.
5. Press to confirm and save.
6. Enter on the numeric keypad to go to transmitter CTCSS.
7. Press to select.
8. Enter desired CTCSS sub-tone frequency in hertz on the numeric keypad. Make sure
it's the same frequency as that you entered for receiver CTCSS.
9. Press to confirm and save.
10. Press to exit the menu system.
To turn CTCSS off, follow the same procedure but set it to off with the key instead of
selecting a CTCSS sub-tone frequency.
For more information see the section called “11 R-CTCS - Receiver CTCSS” and the section called
“13 T-CTCS - Transmitter CTCSS” in Appendix B, Menu definitions.
DCS
DCS is set with menus 10 R-DCS and 12 T-DCS.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
53
For a complete list of available DCS codes, see Table C.1, “DCS Codes” in Appendix C,
Technical specifications.
Procedure 8.2. DCS setup how-to
1. Press the key to enter the menu.
2. Enter on the numeric keypad to get to receiver DCS.
3. Press to select.
4. Scroll to the desired DCS code on the numeric keypad.
5. Press to confirm and save.
6. Enter on the numeric keypad to go to transmitter DCS.
7. Press to select.
8. Scroll to the desired DCS code on the numeric keypad. Make sure it's the same code as
that you entered for receiver DCS.
9. Press to confirm and save.
10. Press to exit the menu system.
To turn DCS off, follow the same procedure but set it to off with the key instead of
selecting a DCS code.
For more information see the section called “10 R-DCS - Receiver DCS” and the section called “12
T-DCS - Transmitter DCS” in Appendix B, Menu definitions.
54
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
1000Hz, 1450Hz, 1750Hz, 2100Hz Tone-
burst
To send out a tone-burst; you simultaneously will press the PTT key while holding down the Call
button.
To configure which Tone Burst is transmitted select the Tone Burst desired from Menu Item 50
(REP-S)
PTT + = Selected Tone Burst (Selectable in Menu 50: REP-S)
56
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Chapter 8. - Repeaters
A radio repeater is an automated transceiver in a fixed location. Usually mounted high up on
hilltops or on tall buildings, but sometimes they operate within buildings for internal use. A
repeater takes one signal and relays it, usually after amplifying it by orders of magnitude.
Whether you're a commercial (business or government) user or an amateur radio operator,
chances are you'll be dealing with a repeater system sooner or later. To find out what settings to
use to use your local repeater, ask your employer or someone at your local amateur radio
organization for details.
A common type of repeater is the duplex repeater. In a duplex repeater system, the repeater
transmits and receives simultaneously, but on different frequencies. To utilize this type of
repeater, your radio has to be capable of transmitting and receiving on different frequencies
on the same memory channel. How you use this kind of repeater is by setting the receive
frequency of your radio to the output frequency of the repeater, and the transmit frequency of
your radio to the input frequency of the repeater. Often times, the transmit frequency to use
isn't explicitly stated, but rather an offset relative your receive frequency is specified. This is
conveniently by specifying offset rather than transmit frequency. (Example 145.000MHz Receive
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
57
with .600MHz transmit is a transmit Channel of 145.600MHz)
SFT-D and OFFSET only function in VFO mode.
MR mode uses and stores the RX frequency and the TX frequency directly (see Chapter 4)
The following instructions assume that you know what transmit and receive frequencies your
repeater employs, and that you're authorized to use it.
1. Set the radio to Frequency (VFO) mode with the key.
2. Enter the repeater’s output (your receiving) frequency by either using the and
keys, or by entering it directly on the numerical keypad.
3. Press the key to enter the menu.
4. Enter Menu 47 to get to frequency offset.
5. Press key to select.
6. Use the and keys and the numerical keypad to enter the specified frequency
offset. See the section called “26 OFFSET - Frequency shift amount” for details.
7. Press to confirm and save.
8. Enter Menu 46 on the numeric keypad to get to offset direction.
9. Use the and keys to select + (positive) or - (negative) offset.
58
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
10. Press to confirm and save.
11. Optional:
a. Save to memory, see Chapter 4 for details.
b. Set up CTCSS; see the section called “CTCSS” for details.
12. Press to exit the menu.
If everything went well, you should be able to make a test call through the repeater. If you're
experiencing problems making a connection to the repeater, check your settings and/or go
through the procedure again.
If you're still unable to make a connection, contact the person in charge of the radio system
with your employer or your local amateur radio club, as the case may be.
If you for some reason want to listen to the repeater's input frequency instead, press
momentarily and you'll reverse your transmit and receive frequencies.
This is indicated in the LCD on the radio with an R in the top row, next to the + and - for
the offset direction.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
59
Chapter 9. - Customization
Display
The LCD on the BTECH Mobiles are backlit multi-color LEDs, the color of which can be pre-set
from the menu system into a variety of colors.
To change the colors, follow these steps:
1. Press the key to enter the menu.
2. Enter one of the following on your numeric keypad:
a. 33 to change the main LCD text color.
b. 34 to change the main LCD background color.
c. 35 to change the menu LCD text color.
d. 36 to change the menu LCD background color.
e. 37 to change the status bar icon’s color.
f. 38 to change the status bar (top bar) background color.
g. 39 to change the signal bar icon’s color.
h. 40 to change the signal bar (bottom bar) background color.
i. 41 to change the receiving channel text color.
j. 42 to change the transmitting channel text color.
60
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
3. Press key to select.
4. Use the and keys to pick the desired color.
5. Press to confirm and save.
6. Press to exit the menu.
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
61
Sync Display Channels
To sync channels on the display (simultaneously display channel name and frequency), follow
these steps:
1. Press the key to enter the menu.
2. Enter 32 on your numeric keypad to come to the Sync Menu
3. Press key to select.
4. Use the and keys to select:
a. AB –To sync A/B Displays
b. CD – To sync C/D Displays
c. AB+CD – To sync both A/B and C/D Displays
5. Press to confirm and save.
6. Press to exit the menu.
Use SYNC in Conjunction with Menus 27,28,29 & 30 to coordinate what is displayed on each line
(Name, Frequency, or Channel Number) –See Appendix B Menu definitions
62
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Appendix A. - Menu definitions
0
TMR
Transmit Multi Receive
M+A
This mode selects what displays are monitored in
the background besides the primary selected
channel. You can mix and match between all or
partial channels to
allow dual, tri, and quad watch
Selected Memory + Displays (A,B,C,D)
M = Selected Memory
A = Display A
B = Display B
C = Display C
D = Display D
M+B
M+C
M+D
M+A+B
M+A+C
M+A+D
M+B+C
M+B+D
M+C+D
M+A+B+C
M+A+B+D
M+A+C+D
M+B+C+D
A+B+C+D
1
STEP
Frequency Step Size Setup
2.5 to 25. kHz
2.5, 5, 6.25, 10, 12.5, 25 kHz
2
SQL
Squelch Level
00 > 09
10 squelch levels
00 = minimum / normally open
3
TXP
Transmit Power
High
Full Power
Low
Reduced Power
4
AUTOLK
Auto Keypad Lock
ON
Keypad Auto Lock Enabled
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
63
OFF
Keypad Auto Lock Disabled
5
TOT
TX Time Out Timer
15 > 600 secs
15 second steps
6
APO
Auto Power Off
30, 60 > 300
Time Set that radio will Power Off after last signal
received.
minutes
OFF
Turn off APO Option
7
WN
Bandwidth
Wideband
25.0 kHz
Narrowband
12.5 kHz
8
ABR
Unused Setting
9
BEEP
Keypad Voice Prompt
ON / OFF
Turn ON / OFF keypad voice prompt
10
R-DCS
Receive - Digital Coded
Squelch
D023N > D754I
Squelch opens when proper DCS code is detected
OFF
No DCS code required
11
R-CTCS
Receive - Analog Tone Squelch
67.0 > 254.1 Hz
Squelch opens when proper CTCSS tone detected
OFF
No CTCSS tone required
12
T-DCS
Transmit - DCS Code
D023N > D754I
Transmits specified code
OFF
No DCS code transmitted
13
T-CTCS
Transmit - CTCSS Code
67.0 > 254.1 Hz
Transmits specified tone
OFF
No CTCSS tone transmitted
64
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
14
DTMFST
Determines when DTMF codes
are heard through
speaker
OFF
No DTMF tone heard
DS-ST
Only manually keyed DTMF codes are heard
ANI-ST
Only automatically keyed DTMF codes are heard
DT-ANI
All DTMF codes are heard
15
BCL
Busy Channel Lockout
ON
Prevents transmit if active signal on the channel
OFF
No lockout
16
SC-ADD
Add Scan Channel
ON
Add channel to scan list
OFF
Remove channel from scan list
17
SC-REV
Scan Resume Method
TO
(Time Operation) Scan stops when signal detected.
The scan resumes after approximately 5 seconds
(even if the channel is still active).
CO
(Carrier Operation) Scan stops when signal
detected. Scan resumes when signal disappears.
SE
(Search Operation) Scan stops when signal
detected. Scanning will not resume.
18
OPTSIG
Optional Signaling
OFF
No optional signaling
DTMF
DTMF signaling selected
2TONE
2TONE signaling selected
5TONE
5TONE signaling selected
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
65
19
SPMUTE
Speaker Mute Settings
QT
Squelch opens for CTCSS/DCS tones only.
AND
Squelch opens when CTCSS/DCS tone is
recognized along with the optional signaling.
OR
Squelch opens when either the CTCSS/DCS tone
OR the optional signaling is recognized.
20
PTT-ID
PTT ID - When to send
OFF
Do not send
BOT
Send at Beginning of Transmission
EOT
Send at the End of Transmission
BOTH
Send at both Beginning and End
21
PTT-LT
PTT ID - Transmit Delay
0 > 30
Set Delay Time before transmitting PTT-ID
22
S-INFO
Auto Group Dialing
Group Signal Code
Memory
1 > 15
Can only be set with software
23
EMC-TP
Alarm Mode
ALARM
Turn on Alarm sound
ANI
Send Alarm code and ID code
BOTH
Both of the above
OFF
Alarm Mode Completely Disabled
24
EMC-CH
Alarm Channel
000 > 199
Specified Alarm Channel
25
SIG-BP
Signal Beep
ON
Pager Ring at Reception of Matching
2Tone/5Tone/DTMF
OFF
Tone OFF
26
CHNAME
Channel Name Edit
In Channel Mode, edit the Current Name
27
CA-MDF
Channel A
FREQ
In Channel Mode, display the selected format in
66
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Display Mode
CH
display A
NAME
28
CB-MDF
Channel B
FREQ
In Channel Mode, display the selected format in
display B
Display Mode
CH
NAME
29
CC-MDF
Channel C
FREQ
In Channel Mode, display the selected format in
display C
Display Mode
CH
NAME
30
CD-MDF
Channel D
FREQ
In Channel Mode, display the selected format in
display D
Display Mode
CH
NAME
31
LANGUA
Language
English
Screen Prompts Display
Chinese
32
SYNC
Display Sync
OFF
Separate A/B/C/D channel display.
AB
Synchronizes display AB, CD, or AB+CD
CD
This allows the upper display to show channel
name while the lower shows the frequency. You
can sync the top 2, bottom 2, or both sections
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
67
AB + CD
simultaneously
33
MAINFC
MAIN LCD Display
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Foreground Color (Text)
34
MAINBC
MAIN LCD Display
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Background Color
35
MENUFC
On Screen Menu
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Foreground Color (Text)
36
MENUBC
On Screen Menu
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Background Color
37
STA-FC
Status (Top) Bar Display
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Foreground Color (Text)
38
STA-BC
Status (Top) Bar Display
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Background Color
39
SIG-FC
Bottom Bar Display
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Foreground Color (Text)
40
SIG-BC
Bottom Bar Display
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Background Color
41
RX-FC
Main LCD Receiving Color
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Foreground Color (Text)
42
TX-FC
Main LCD TX Color
Select Color
BLACK, WHITE, RED, BLUE, GREEN, YELLOW,
INDIGO, PURPLE, GRAY
Foreground Color (Text)
68
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
43
TXDISP
Transmit Display
POWER
Display Power Level on Bottom Graph
MIC-V
Display Mic Audio Level on Bottom Graph
44
MEM-CH
Memorize Channel
000 > 199
Indicates channel number to be stored.
45
DEL-CH
Delete Channel
000 > 199
Indicates channel number to be deleted.
46
SFT-D
Frequency Shift Direction
OFF
No Offset (simplex)
UNUSED SETTING in GMRS-50X1
+
Plus frequency shift
-
Minus frequency shift
47
OFFSET
Frequency Shift Offset Amount
00.00 > 69.99
UNUSED SETTING in GMRS-50X1
48
ANI
ANI ID Code
Can only be set with software
49
ANI-L
ANI Length
3, 4, 5
Length of ANI ID code
50
REP-S
Repeater Activation Tone
1000Hz 1450Hz 1
750Hz
2100Hz
Audible tone for repeater activation
51
REP-M
Repeater Forwarding Mode (X-
Band Repeater with 2 BTECH
Mobiles)
–
See Detailed PDF Guide at:
OFF
Function OFF
CARRI
Forward after receiving Carrier
CTDCS
Forward after receiving correct CTDCS
TONE
Forward after receiving correct mono audio
(Menu 42)
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
69
baofengtech.com/support
DTMF
Forward after receiving assigned DTMF code (ANI)
52
TMR-MR
TMR - Return Time Delay to
Primary Channel; Sets the PTT
to the last received
transmission channel. Time
delay selectable
OFF
Function OFF - Transmits always on Primary
Channel
1 > 50 seconds
This is the delay time before returning to the
primary channel after secondary signal is clear.
53
STE
Squelch Tail Elimination
OFF
Function OFF
Requires both radios have
function ON.
ON
Eliminates squelch tail at end of transmission.
54
RP-STE
Repeater Squelch Tail
Elimination
OFF
Function OFF
Requires a repeater using this
function.
1 > 10
Delay Time
55
RPT-DL
Repeater squelch tail delay.
OFF
Function OFF
1 > 10
Delay Time
56
DTMF-G
DTMF Gain /
0 > 60
0 = Lowest Audio Gain
Audio Level
60 = Highest Gain
57
MIC-G
Microphone Gain /
0 > 127
0 = Lowest Audio Gain
Audio Level
127 = Highest Gain
58
SKIPTX
Quad Frequency Operation:
Randomize transmitting
channels
- with another
corresponding mobile on the
same 4 channels transmissions
OFF
SKIP1
Randomizes in between after both transmitting
and receiving, Requires both a received and a
transmission before going to another random
frequency
70
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
can be spread apart on the
four channels in 2 modes.
SKIP2
Alternates transmitting on A,B,C,D - each PTT
Press the radio will transmit on the next channel in
order of their display (A-B-C-D-Repeat)
59
SC-MOD
Automatic Scan Resume
Method
OFF
Scan is disabled with a Radio Reboot, or by
Pressing a Menu Key / PTT
PTT-SC
Scanning will resume after transmitting (or other
Menu Operations)
MEM-SC
Scan Memory during Radio Reboot: If scanning
was active when the radio was powered down,
the radio wil resume scanning on restart.
(Scanning also resumes after transmitting or other
Menu Operations)
PON-SC
Power On Scan: The radio will start scanning upon
turning on
- no matter what state it was in when
powering down. Also the radio will scan after
Menu operations or Transmitting
60
RESET
Initialize to Factory Defaults
VFO
Menu Initialization
ALL
Menu and Channel Initialization
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
71
FCC Notice
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
72 VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
(2) this device must accept any interference received, including interference that may cause
undesired operation.
SIGNALS IS PROHIBIITED UNDER FCC RULES AND FEDERRAL LAW.
The user can only select the power and bandwidth options already in the software,
and can set or select CTCSS, DCS, DTMF, 2TONE, PTT ID, etc.
Users cannot extend the allowed frequency range and cannot modify the frequency
and bandwidth of GMRS.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE
NOTE:
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP 73
Appendix B. - Technical specifications
General
Specification Value
Frequency Range (MHz) 87.1 -108 (Rx only)
136-174 (Rx)
400-520 (Rx)
GMRS Channels (Rx/Tx) (Channels 001-007, 015-030)
Memory channels 200
Frequency stability 2.5ppm
Frequency step (kHz) 2.5K/5.0K/6.25K/10.0K/12.5K/25.0K
Squelch Setup CARRIER / CTCSS / DCS / 5Tone / 2TONE / DTMF
Antenna impedance 50 Ohm
Operating temperature -10°C to +40°C
Supply voltage 13.8V DC±15%:
20A Peak GMRS-50X1 --- 7A Peak UV-25X2, UV-25X4
Dimension
GMRS-50X1: 5.7(W) x 1.85 (H) x 7.5 (D)in; 2.2lb
Operating Temperature -5°F - +140°F
74 VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP
GMRS-50X1
Receiver
Receiver specifications
Broadband
Narrow band
Sensitivity
≤
0.25µV
≤
0.35µV
Channel choice
≥70dB ≥60dB
Intermodulation ≥:65dB ≥60dB
Spurious Rejection ≥70dB ≥70dB
Audio response
+
1~-3dB (0.3-3KHz)
+
1~-3dB (0.3~2.55KHz)
Signal to noise ratio
≥45dB ≥40dB
Audio Distortion ≤
5%
Audio output power ≥2W@10%
Transmit
Broadband
Narrow band
Output power
50W/ 5W - GMRS-50X1
Modulation Mode 16K F3E 11K F3E
Channel Power ≥70dB ≥60B
Signal to noise ratio
≥40dB ≥36dB
Parasitic harmonic ≥60dB ≥60dB
Audio response
+
1--3dB (0.3-3KHz)
+
1--3dB (0.3-2.55KHz)
Audio distortion ≤
5%
VISIT BAOFENGTECH.COM AND MIKLOR.COM FOR DOWNLOADS AND HELP 75
Antenna Gain: 0dBi
keeping at least 104.7 cm separation distance and the prohibition of operating to a person.
Some general rules for antenna location that can aid radio performance.
1. Metalsurfacescoveredbyberglassorvinylmayaectradiorange. Avoid these locations.
2. Mount the antenna as high on the vehicle as possible. The higher the better.
3. If possible, mount the antenna in the center of whatever surface you choose.
4. Be sure the mounting location will allow for connection of the cable to the radio.
5. Be sure the mounting location is clean and dry before installing the antenna.
6. Route the antenna cable through an accessible entry point, such as a rear door or trunk opening.
7. When routing the antenna cable inside the vehicle, keep the cable
as the ignition system, gauges, etc.
8. Exercise care to prevent cable damage. Make use of existing gaskets,
stripping to protect the cable along its route.
away from noise sources, such
grommets and weather
9. The consumer must maintain a minimum safe separation distance of 104.7cm from the antenna
when transmitting.
