1. Introduction
This document is intended to be the source reference material for using the RF Beacon
product, with the exception of electronic configuration (including set-up and interaction
with the Smart Tag and on-line monitoring portal). The emphasis here is upon describing
the physical features, power source, and correct installation or removal etc.

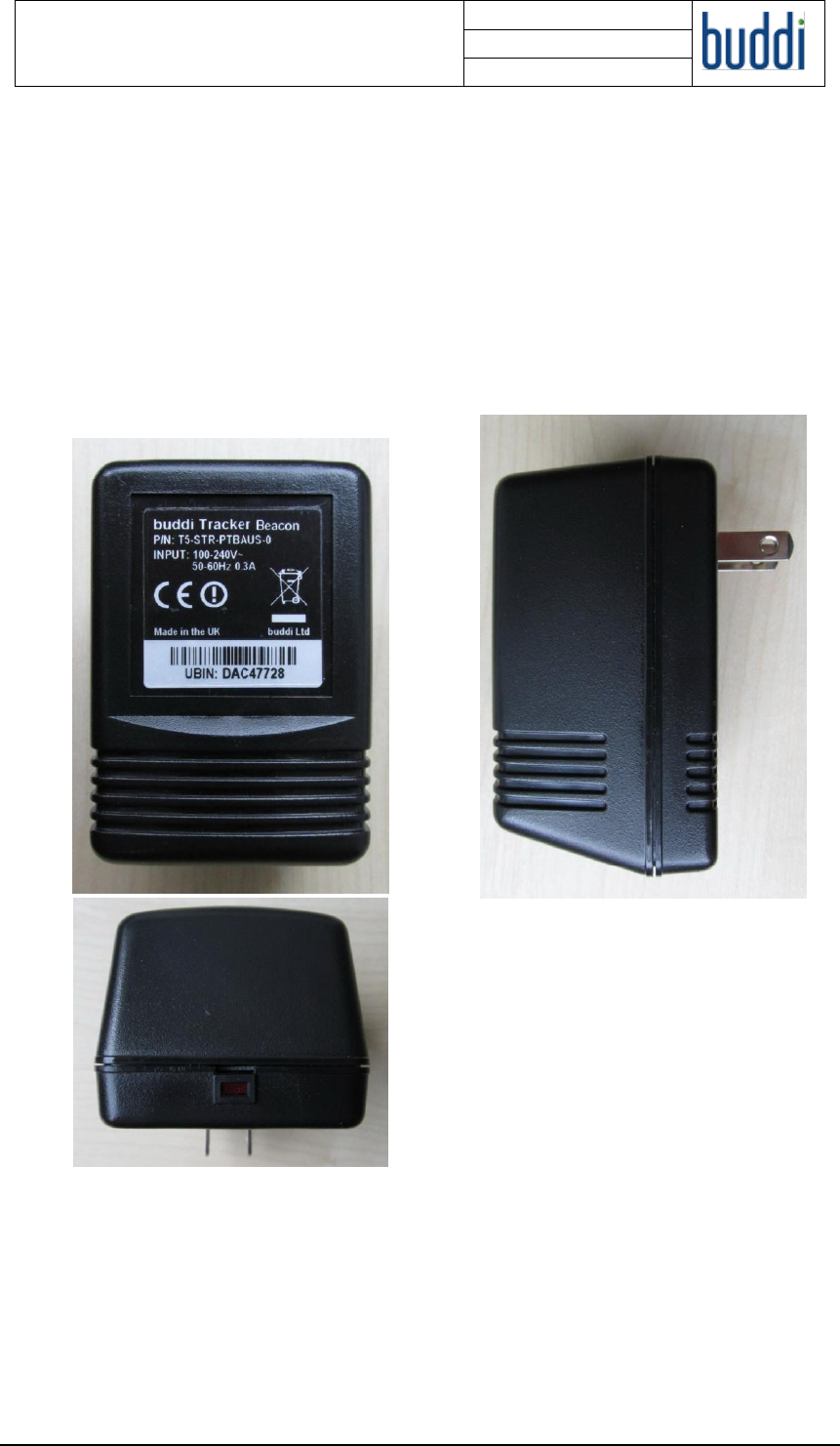

2. Equipment Description
The RF Beacon is a plug based device that is inserted into a fixed mains socket, to provide
a location reference for the Smart Tag equipment. The device is available in different pin
configurations to allow for direct connection to mains supply in the country of use,
without the need for an adaptor.
User Manual-RF Beacon
Version:
1.1
Date:
30-05-14
Page:
5 of 6
© buddi Ltd 2012
Talbot House, 17 Church Street, Rickmansworth, Hertfordshire WD3 1DE.
COMMERCIAL IN CONFIDENCE
3. RF Beacon Installation
The RF Beacon should be plugged into a fixed power socket in the home of the wearer.
A red light on the end of the device will indicate that the unit is powered and working.
The device will not require any servicing, control, adjustment or maintenance during the
period of installation. Once installed it should remain in place for the duration of the
wearer’s time with the Smart Tag.
The RF Beacon should not be installed this equipment in a place where it will be exposed
to high temperatures, such as near an open flame or heat-emitting equipment.
To avoid interference to nearby appliances, do not place the Dock or Communications
Clip on or near a TV, microwave oven, or VCR. If this RF Beacon does cause harmful
interference to radio or television reception, increase the separation between the RF
Beacon and receiver.
4. RF Beacon Operation
The Smart Tag makes a wireless connection to an RF Beacon when it is detected in
proximity to the Smart Tag. Each RF Beacon has its own unique ID, and the location of
the subject residence is associated to that unique RF Beacon, as the RF Beacon is not a
GPS receiver in its own right. In this way the monitoring authority can be assured that
the subject is at the home location at all times the Smart Tag is in range of the RF Beacon.
When the subject is at home the Smart Tag would continue to seek GPS locations at the
intervals set by the monitoring authority, the use of the RF Beacon is intended to reduce
the need for repeated GPS fixes while the subject is known to be at home, resulting in
significantly less demand on battery power.
The RF Beacon does not have a battery back-up, therefore in cases of power interruption
or deliberate disconnection location fixes by GPS will continue from the Smart Tag when
it cannot see the RF Beacon.
User Manual-RF Beacon
Version:
1.1
Date:
30-05-14
Page:
6 of 6
© buddi Ltd 2012
Talbot House, 17 Church Street, Rickmansworth, Hertfordshire WD3 1DE.
COMMERCIAL IN CONFIDENCE
5. RF Beacon Collection / Inspection / Cleaning
5.1. Collection
When collecting an RF Beacon from a subject protective gloves should be worn.
Note any obvious sign of damage.
Return the RF Beacon to the vehicle for inspection and cleaning.
5.2. Inspection
The RF Beacon should be inspected for signs of damage, units with damage should be
dealt with in accordance with local protocols. Damage includes any significant surface
marking which may be indicative of the unit being exposed to high impacts or tampering.
Special care should be taken to inspect the following areas;
Any seams between plastics, check for loose fits or evidence of attack by
screwdriver or similar.
Pins for insertion into the mains electrical socket are undamaged.
5.3. Cleaning
If there is any heavy soiling or biological matter on the unit that is unlikely to be easily
removed by a sanitising wipe, then the unit should be cleaned thoroughly in line with
local protocol. It should be noted that the RF Beacon is only a splash proof product and
therefore it is important not to fully immerse the unit in any liquid.
To sanitise an RF Beacon in the field the following process should be followed;
Wear gloves.
Rub the unit vigorously with an approved sanitising wipe, ensuring all surfaces
receive a good covering of alcohol.
Allow to dry in a well-ventilated area.
The unit can then be returned to stock for re-use.
6. FCC warning statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
