Building 36 Technologies B36S10RA Temperature sensor User Manual Temperature Sensor Product Manual REV 1
Building 36 Technologies, LLC Temperature sensor Temperature Sensor Product Manual REV 1
Temperature Sensor Product-Manual REV 1
Temperature Sensor
Product Manual
Installation
For optimal performance install the Sensor
approximately 5 feet above the oor of an
interior wall. Avoid installing the Sensor on an
exterior wall, in areas that are close to heating
or cooling vents, and areas that are exposed to
direct sunlight. The Sensor is designed for indoor
use only.
1. Remove the battery tab from the Sensor.
2. Mount the Sensor on the wall using the
nail or double-sided adhesive tape
provided.
Including the Sensor (adding it to the network)
TIP: For best results, we recommend having the Hub in
the same room as the device you are Including.
1. Press the Pairing button on the Hub once
to put the Hub in Inclusion mode. The
light on the Hub will start ashing Green.
• NOTE: If you are pairing this to the
Hub36 the color of the ashing light will
be Yellow.
2. Press the Pairing button on the Sensor to
Include the Sensor to the network.
• When the light on the Sensor turns
solid White and the light on the Hub
turns solid Green, the Sensor has been
successfully Included.
• NOTE: If you are pairing this to the
Hub36 the color of the solid light will be
Yellow.

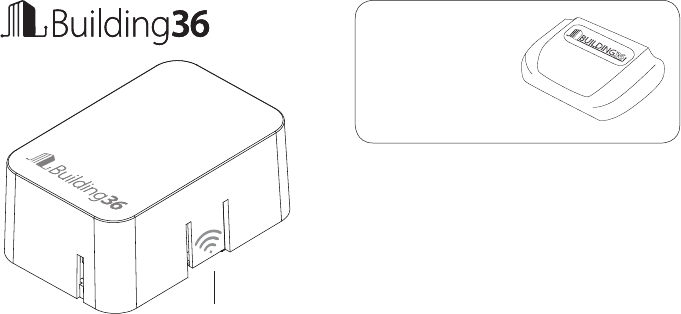

If you are using the
rst version of the Hub
(Hub 36), see the notes
below each instruction.
Hub36
pairing button
Box Contents:
Temperature Sensor
CR123 Battery
Nail
Double-sided Adhesive Tape
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
ii) IC NOTICE:
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved
for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the
antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful
communication.
Conformément à la réglementation d’Industrie
Canada, le présent émetteur radio peut
fonctionner avec une antenne d’un type et
d’un gain maximal (ou inférieur) approuvé pour
l’émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique
à l’intention des autres utilisateurs, il faut
choisir le type d’antenne et son gain de sorte
que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l’intensité nécessaire
à l’établissement d’une communication
satisfaisante.
Troubleshooting
If the Sensor is not communicating with the Hub
1. Try Excluding it from the network (see
below) and Include it again.
2. If step 1 does not solve the issue, we
recommend installing a Z-Wave Repeater
nearby.
• TIP: Any wall powered Z-Wave device will
act as a Repeater and improve the range
between the Hub and the Z-Wave device
you are installing.
Excluding the Sensor (removing it from the
network)
TIP: For best results, we recommend having the Hub
in the same room as the device you are Excluding.
1. On the Hub, press and hold the Pairing
button for 5 seconds until the light
ashes Orange to put the Hub in
Exclusion mode. While you’re holding
Pairing button, the light will be ashing
Green before it turns Orange.
• NOTE: If you are using the Hub36 the
color of the ashing light will be Red.
2. Press the Pairing button on the Sensor to
Exclude it from the network.
• The light on the Sensor will start
ashing and the ashing Orange light
on the Hub will turn solid to indicate
the device has been successfully
Excluded.
• NOTE: If you are using the Hub36 the
color of the solid light will be Red.
Notices:
i) FCC NOTICE:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
–AND–
2. This device must accept any interference
received, including Interference that may cause
undesired operation.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
www.Building36.com
Copyright © 2015 Building 36
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre
le fonctionnement.
Caution: The user is cautioned that changes or modifications
not expressly approved by the party responsible
for compliance could void the user's authority
to operate the equipment.
