User Manual
Cat® S40 Smartphone
User manual
Please Read Before Proceeding
Safety Precautions
Please read the safety precautions carefully to ensure the correct use of your mobile
phone.
Despite the nature of this rugged device, avoid hitting, throwing, dropping, crushing,
bending and puncturing, your mobile phone.
Avoid using your mobile phone in a damp environment, such as the bathroom.
Prevent your mobile phone from being intentionally soaked or washed in liquid.
Do not switch on your mobile phone when it is prohibited to use phones or when the
phone may cause interference or danger.
Do not use your mobile phone while driving.
Follow any rules or regulations in hospitals and health care facilities. Switch off your
mobile phone near medical apparatus.
Switch off your mobile phone in aircraft. The phone may cause interference to control
equipment of the aircraft.
Switch off your mobile phone near high-precision electronic devices. The phone may
affect the performance of these devices.
Do not attempt to disassemble your mobile phone or its accessories. Only qualied
personnel are allowed to service or repair the phone.
Do not place your mobile phone or its accessories in containers with a strong
electromagnetic eld.
Do not place magnetic storage media near your mobile phone. Radiation from the
phone may erase the information stored on them.
Do not put your mobile phone in a high-temperature place or use it in a place with
ammable gas such as a gas station.
Keep your mobile phone and its accessories away from young children. Do not allow
children to use your mobile phone without guidance.
Use only approved batteries and chargers to avoid the risk of explosions.
Observe any laws or regulations on the use of wireless devices. Respect others’
privacy and legal rights when using your wireless device.
Do not use the mobile phone in airplanes, hospital, gas stations, or professional
garages.
For medical implants patient (heart, insuline, etc), keep the mobile phone 15cm
away from the implant and, while calling, keep the phone on the opposite side of the
implant.
Strictly follow the relevant instructions of this manual while using the USB cable.
Otherwise your mobile phone or PC may be damaged.
Legal Notice
© 2015 Caterpillar. All Rights Reserved.
CAT, CATERPILLAR, BUILT FOR IT, their respective logos, “Caterpillar Yellow,” the
“Power Edge” trade dress as well as corporate and product identity used herein, are
trademarks of Caterpillar and may not be used without permission.
Bullitt Mobile Ltd is a licensee of Caterpillar Inc.
Bullitt Mobile Ltd.’s and third-party trademarks are the property of their respective
owners.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Caterpillar Inc.
The product described in this manual may include copyrighted software and
possible licensors. Customers shall not in any manner reproduce, distribute,
modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or
sublicense the said software or hardware, unless such restrictions are prohibited by
applicable laws or such actions are approved by respective copyright holders under
licenses.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and may not be activated or may be
limited by local network operators or network service providers. Thus the descriptions
herein may not exactly match the product or its accessories you purchase.
The manufacturer reserves the right to change or modify any information or
specications contained in this manual without prior notice or obligation.
The manufacturer is not responsible for the legitimacy and quality of any products that
you upload or download through this mobile phone, including but not limited to the
text, pictures, music, movies, and non-built-in software with copyright protection. Any
consequences arising from the installation or usage of the preceding products on this
mobile phone shall be borne by yourself.
NO WARRANTY
The contents of this manual are provided “as is”. Except as required by applicable
laws, no warranties of any kind, either express or implied, including but not limited
to, the implied warranties of merchantability and tness for a particular purpose, are
made in relation to the accuracy, reliability or contents of this manual.
To the maximum extent permitted by applicable law, in no case shall the manufacturer
be liable for any special, incidental, indirect, or consequential damages, or lost prots,
business, revenue, data, goodwill or anticipated savings.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations
and will obtain all necessary governmental permits and licenses in order to export,
re-export or import the product mentioned in this manual including the software and
technical data therein.
Contents
Welcome to the Cat® S40 Smartphone ............................................................. 1
Getting to Know Your Mobile Phone .............................................................................. 1
Key Functions at Your Fingertips ..................................................................................... 1
Getting Started with Your Mobile Phone ........................................................................ 2
Powering On or Off Your Mobile Phone ......................................................................... 4
Getting to Know the Home Screen ................................................................................. 4
Using the Touchscreen .................................................................................................... 4
Locking and Unlocking the Screen ................................................................................. 5
Display .............................................................................................................. 6
Display layout ................................................................................................................... 6
Notification Panel ............................................................................................................ 7
Shortcut Icons ................................................................................................................... 7
Folders ............................................................................................................................... 8
Wallpapers ........................................................................................................................ 8
Transferring Media to and from Your Mobile Phone ..................................................... 8
Using the Airplane Mode (Aeroplane) ............................................................................ 9
Phone ................................................................................................................ 9
Making a Call .................................................................................................................... 9
Answering and Rejecting a Call .....................................................................................10
Other Operations During a Call ......................................................................................10
Using Call log ................................................................................................................... 11
Contacts ......................................................................................................... 12
Communicating with Your Contacts ...............................................................................13
Using the On-screen Keyboard ......................................................................................14
Messaging ....................................................................................................... 14
SMS and MMS .................................................................................................................14
Email .................................................................................................................................16
Wi-Fi ................................................................................................................ 18
Bluetooth ........................................................................................................ 18
Entertainment ................................................................................................. 20
Taking Photos and Recording Videos ............................................................................ 20
Enjoying Music ............................................................................................................... 22
Listening to FM Radio .................................................................................................... 23
Google Services .............................................................................................. 24
Using Maps ..................................................................................................... 26
Using YouTube™ ............................................................................................. 27
Using Play Store ............................................................................................. 27
Synchronizing Information ............................................................................. 29
Managing Your Accounts ............................................................................................... 29
Customizing Your Account Synchronization ................................................................. 30
Using Other Applications ............................................................................... 30
Using the Calendar ......................................................................................................... 30
Using the Alarm .............................................................................................................. 31
Calculator ........................................................................................................................ 32
Managing Your Mobile Phone ......................................................................... 32
Setting the Date and Time .............................................................................................. 32
Setting the Display ......................................................................................................... 33
Setting Phone Ringtone ................................................................................................. 33
Configuring the Programmable Button ........................................................................ 34
Setting Phone Services .................................................................................................. 34
Protecting Your Mobile Phone ....................................................................................... 34
Using NFC ....................................................................................................................... 35
Managing Applications .................................................................................................. 35
Ways to Free Up Your Mobile Phone Memory ............................................................. 36
Resetting Your Mobile Phone ......................................................................................... 36
Hardware Reset Of Your Device ..................................................................................... 36
Viewing E-label ............................................................................................................... 37
Specifications ................................................................................................. 38
Appendix ......................................................................................................... 39
Warnings and Precautions ............................................................................................. 39
Accessories ..................................................................................................................... 40
Cleaning and Maintenance ............................................................................................ 41
Hearing Aid Compatibility (HAC) ................................................................................... 42
Emergency Call ............................................................................................................... 42
FCC Statement ................................................................................................................ 42
Industry Canada Statement ........................................................................................... 43
RF Exposure Information (SAR) .................................................................................... 44
Prevention of Hearing Loss .......................................................................................... 45
Declaration of Conformity ............................................................................................. 45
CE SAR Compliance ....................................................................................................... 46
Disposal and Recycling Information ............................................................................. 46
Cat® S40 Smartphone User Manual 1
Welcome to the Cat® S40 Smartphone
The S40 4G smartphone is designed for the outdoors, with features to cope with challenging
environments. It’s certied to the highest industry standard for ruggedness, IP68, so it’s
waterproof and the screen can even be used with wet ngers. It has excellent scratch-resistant
glass, is dustproof and can withstand being dropped from a height of 1.8m. It also has a
quad core (1.1Ghz) processor running the latest version of Android 5.1, Lollipop with access
to Google Play™ meaning there is no compromise between performance and protection.
Complementing the durable design features, the S40 boasts performance enhancing
applications enabling you to enjoy web browsing, messaging, music and more with its high
capacity battery and expandable memory of up to 64GB.
Getting to Know Your Mobile Phone

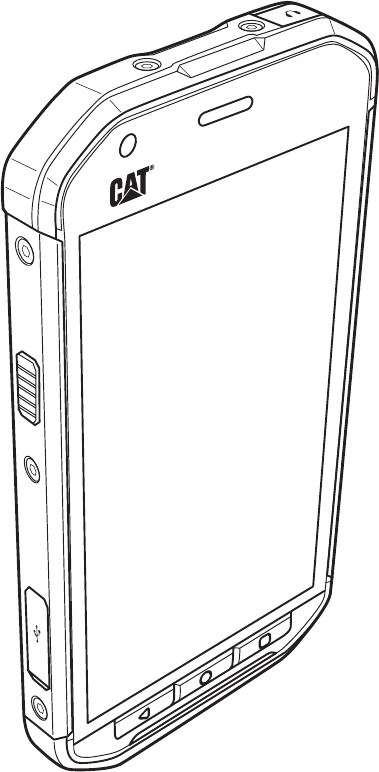

Phone at a Glance
Key Functions at Your Fingertips
Power button Press to turn on your mobile phone.
•
Press and hold to open the Phone options menu. •
Press to lock or wake the screen when your mobile phone is on.•
Home button Press at any time to display the Home screen.
•
A long press of the Home button will display the Google™ icon. Touch the •
icon on the display to launch Google search or Google Now™.
Recent Apps button Press to list the recent applications used.
Back button Press
• to display the previous screen you were working in.
Use to • close onscreen keyboard.
Volume/ Camera
buttons
When in the camera app, press the Volume/ Camera buttons to instantly
take your pictures. The Volume/ Camera buttons also have other
functionalities when the camera app is not in use.
Volume – Press the
• Volume up button ( ) to increase the volume, or the
Volume down button ( ) to decrease the volulme.
Screenshot – Press both • Power + Volume down buttons ( + ) simultaneously.
1. Front camera
2. Earpiece
3. Headphone port
4. LED ash
5. Rear camera
6. Microphone
7. MicroSD card slot
8. SIM card slot
9. Volume / Camera buttons
10. Power button
11. Microphone/ Speaker
12. Recent Apps button
13. Home button
14. Back button
15. USB port
16. Programmable button
FRONT VIEW REAR VIEW
8
10
9
54 6
7
16
15
3
2
1
13
12
11
14
Cat® S40 Smartphone User Manual
2
Getting Started with Your Mobile Phone
Installing a Memory Card
1. Open the side door.
Side door
2. Insert a microSD card as shown.
Note:
Insert the microSD card with the gold contacts facing up, push the memory card all the way until ∙
you hear a locking sound.
To remove the microSD card, press against the edge of the memory card and release it. ∙
Do not force the microSD card as this could damage the memory card or slot. ∙
Installing a nano SIM card(s)
1. Pull out the SIM tray.
2. Put the nano SIM card(s) in the SIM tray as indicated on the tray guide.
3. Insert the SIM tray into the SIM card slot.
Note:
Put the nano SIM card(s) on the tray, cards’ gold contacts facing up, push the tray all the way until ∙
you hear a locking sound.
To remove the nano SIM card(s), press the tray inwards and release quickly and pull the tray out to ∙
remove. Then remove the nano SIM card(s).
Cat® S40 Smartphone User Manual 3
Charging the Battery
The S40 has an embedded battery, to charge the battery do the following:
1. Connect the USB cable that came with your mobile phone to the charger.
Note:
Use only Cat® approved chargers and cables. Unapproved equipment may cause damage to the
device or cause batteries to explode.
2. Open the USB port cover. Connect the USB cable to the USB port of your phone.
Note:
Be careful not to use excessive force when plugging the USB cable.
Be aware of the correct orientation of the plug. Damage can be caused by attempting to insert the
connector the wrong way which is not covered by the warranty.
3. Insert the other end of the cable into the wall charger and insert into an electrical socket.
4. When charging is complete, remove the connector from the device and then remove the wall
charger.
Note:
If the battery is completely discharged, it may take a few minutes before the charging icon appears.
Important Information About the Battery
If the battery has not been used for a long period of time, you may not be able to power on
your mobile phone immediately after you begin charging the battery. Allow the battery to
charge for a few minutes with the phone powered off before attempting to power on the
phone. The on-screen charge animation may not be displayed during this period.
The time required to charge the battery depends on the environmental temperature and the
age of the battery.
When the battery power level is low, the phone plays an alert and displays a prompt. When the
battery power is almost exhausted, your phone will power off automatically.
Cat® S40 Smartphone User Manual
4
Powering On or Off Your Mobile Phone
Powering On Your Mobile Phone
Press the Power button ( ).
The rst time you power on your phone, you will see a Welcome screen. Select your preferred
language and touch the Start icon to continue with the set up process.
Note:
If personal identification number (PIN) protection is enabled on your SIM Card, you will be asked to
enter your PIN before the Welcome screen. A Wi-Fi or Data connection is needed to complete the set
up process.
You will now be prompted to sign in with your existing Google account, or set up a new
account and complete the set up process.
Note:
You can skip the account set up process to complete at another time. A Google account is required to
use some of the Google services on offer through your device.
Powering Off Your Mobile Phone
1. Press and hold the Power button to open the Phone options menu.
2. Touch Power off.
Getting to Know the Home Screen
After you sign in, or when you power on the phone, the Home Screen opens. The Home Screen
is your starting point to access all the features on your phone. It displays application icons,
widgets, shortcuts and other features. You can customize the Home Screen with different
wallpaper and display the items you want.
The Home Screen has the Launcher icon ( ). Touch this to view and launch installed
applications (apps).
Note:
A long press on an empty space on the Home Screen will launch the shortcut to Wallpapers, Widgets
and Settings.
Using the Touchscreen
Touchscreen Actions
Touch: Touch using your ngertip to select an item, conrm a selection, or start an application.
Touch and hold: Touch an item with your ngertip and continue to press down until your
mobile phone responds. For example, to open the options menu for the active screen, touch
the screen and hold down until the menu appears.
Swipe: Move your nger across the screen either vertically or horizontally. For example, swipe
left or right to switch between pictures.
Drag: Touch and hold the desired item with your nger. Drag the item to any part of the screen.
You can drag an icon to move or delete it.
Cat® S40 Smartphone User Manual 5
Rotating Your Mobile Phone Display
The orientation of most screens will rotate with the phone as you turn it from upright to
sideways and back again. See page 33.
Locking and Unlocking the Screen
Locking the Screen
When your mobile phone is on, press the Power button to lock the screen. When the screen is
locked, you can still receive messages and calls.
If you leave your mobile phone undisturbed for a while, the screen will lock automatically.
Unlocking the Screen
Press the Power key to wake up the screen. Then drag the lock icon ( ) to the middle of the
screen to unlock the screen.
To use the Camera function directly from the locked screen, drag the camera icon ( ) to the
left will launch the Camera app.
To use the Phone function directly from the locked screen, drag the phone icon ( ) to the right
will launch the Phone app.
Note:
If you have set up a screen lock, you will be prompted to unlock the screen. For details, refer to
“Protecting Your Mobile Phone with a Screen Lock“ on page 34-35.
Cat® S40 Smartphone User Manual
6
Display
Display layout
Notifications and Status Information
The Status bar appears at the top of every screen. It displays notications icons, such as
missed call or received messages (on the left) and phone status icons, such as battery status
(on the right), along with the current time.
Notication icon Status icons
Status Icons
Connected to 3G mobile network Vibrate mode
Connected to GPRS mobile network Location is found
Connected to EDGE mobile network Battery is very low
Connected to HSDPA mobile network Battery is low
Connected to HSPA+ mobile network Battery is partially drained
Connected to 4G mobile network Battery is full
Roaming Battery is charging
Mobile network signal strength FM Radio is turned on
No signal Airplane mode
Connected to a Wi-Fi network Connected to a Bluetooth device
Notification Icons
New email message Missed call
New multimedia message Speakerphone is activated
Alarm is set Phone microphone is muted
Upcoming event Downloading data
Data is syncing Phone is connected via USB cable
Problem with sign-in or sync New text message
A screenshot is captured
Cat® S40 Smartphone User Manual 7
Notification Panel
Your mobile phone will notify you when you receive a new message or there is an incoming
event. The notication panel also informs you about alarms and settings — for example,
when an alarm is activated. Open the notication panel to see who the wireless network
operator is or to view a message, reminder, or event notication.
Opening the Notification Panel
1. When a new notication icon appears on the notication bar, touch the notication bar, and
then drag down to open the notication panel.
2. Touch a notication to open the related application.
Closing the Notification Panel
To directly close a notication (without viewing), simply touch and hold the notication and
drag it to the left/right of the screen.
To close the notication panel, slide the bottom of the panel upwards to close the notications
panel.
Shortcut Icons
Adding a New Screen Item
1. From the Home screen, touch to display all the applications.
2. To add an item, drag the application icon to a specic Home screen.
Moving a Screen Item
1. Touch and hold an application icon on the Home screen until the icon enlarges.
2. Without lifting your nger, drag the icon to the desired position on the screen, and then
release it.
Note:
There must be enough space for the icon to fit on the current Home screen panel.
Removing a Screen Item
1. Touch and hold an application icon on the Home screen until the icon enlarges.
2. Without lifting your nger, drag the item to Remove.
3. When the item turns red, release your nger to remove it from the Home screen.
Cat® S40 Smartphone User Manual
8
Widgets
A widget lets you preview or use an application. You can place widgets on your Home screen
as icons or preview windows. Several widgets are installed on your phone by default. More
widgets can be downloaded from Google Play Store. To add a widget to one of the screens:
1. From the Home screen, touch and hold the Home screen.
2. Touch WIDGETS to display the available widgets.
3. To add an item, drag your desired widget to a specic Home screen.
Folders
Creating a Folder
Drag the application icon or shortcut and drop it on top of similar applications.
Renaming a Folder
1. Touch a folder to open it.
2. On the title bar of the folder, enter the new folder name.
3. When complete, touch the Back key.
Wallpapers
Changing the Wallpaper
1. From the Home screen, touch and hold the Home screen.
2. Touch WALLPAPERS.
3. Scroll through the available options to set a wallpaper of your choice.
4. Touch Set wallpaper to set the desired wallpaper as the Home screen wallpaper.
Transferring Media to and from Your Mobile Phone
Transfer all your favorite music and pictures between your mobile phone and PC in Media
Device MTP mode.
1. Connect your mobile phone to your PC with the USB cable and MTP mode will be activated.
2. Your phone should be displayed as a removable device displaying phone Internal storage
and if a memory card is inserted, SD card will also be visible.
Note:
If using a MAC you will need to download drivers from: http://www.android.com/filetransfer/
Cat® S40 Smartphone User Manual 9
Using the Airplane Mode (Aeroplane)
Some locations may require you to turn off your phone’s wireless connections. Rather than
powering off your phone, you can set it to Airplane mode.
1. Press and hold the Power button.
2. Touch Airplane mode in the options menu.
Or using the Settings application, access the Wireless & Networks menu and selecting the
Airplane mode.
Phone
There are several ways to place a phone call. You can dial a number, select a number in your
contacts list, on a Web page, or from a document that contains a phone number. When you are
on a call, you can either answer incoming calls or send them to your voicemail box. You can
also set up conference calls with several participants.
Note:
Contact your network operator to learn whether it supports conference calls and how many
participants you can add.
Making a Call
To make a call, you can use the Phone application, or select a number from Contacts or Call
Log.
When you are on a call, you can touch the Home key to return to the Home screen and use
other functions. To return to the calling screen, drag the notication bar down and touch
Current call.
Making a Call with the Dialer
1. From the Home screen, touch . Then touch to display the dialer.
Note:
You can also access Phone application by touching and then Phone ( ).
2. Touch the appropriate numeric keys to enter the phone number.
Tip: Your mobile phone supports the SmartDial function, that is, when you touch numbers on the
dialer, the phone automatically searches among your contacts and lists the matching results based
on the accuracy. Close the keypad to view more possible matches.
3. After entering the number, or selecting the contact, touch .
Cat® S40 Smartphone User Manual
10
Making a Call from Contacts
1. From the Home screen, touch to display the contact list. If you are already within the
Dialer, touch All contacts to display the contact list.
Note:
You can also access Contacts application by touching and then Contacts ( ).
2. In the list, touch the contact you want to call.
3. Touch the phone number to call the contact.
Making a Call from Call log
1. Touch > Phone ( ). Swipe the screen to access RECENTS tab. You will see the list of
latest calls. If you cannot nd the desired contact, tap View full call history to display all call
history.
2. Touch the contact in the list and tap CALL BACK to make the call.
Answering and Rejecting a Call
Answering or Rejecting an Incoming Call
When you receive a phone call, the incoming call screen opens with the caller ID and any
additional information about the caller that you have entered in Contacts.
• To answer a call, touch and drag it to the right ( ).
• To reject the call, touch and drag it to the left ( ).
• To reject and send a message directly to the caller, touch and drag it to upwards ( ) and
select one of the available template message options or touch Write your own... to compose
your message.
Note:
When you touch , it disappears from the screen.
Ending a Call
During a call, touch to hang up.
Other Operations During a Call
Making a Conference Call
If you receive a new call while you are already on a call, you can connect the second call
to the call you are on. This feature is known as conference calling. You can also set up a
conference call with multiple callers.
Note:
Contact your network operator to learn whether it supports conference calls and how many
participants you can add.
Cat® S40 Smartphone User Manual 11
1. To initiate a conference call, dial the number of the rst person to be on the call. While you
are on that call, touch .
2. Touch Add call and enter the phone number of the person you want to join the conversation.
3. Touch , or select someone from your Call Log or Contacts. The rst call is automatically
placed on hold.
4. Once the additional call has been connected, touch and tap Merge calls.
5. To add more people, touch and repeat steps 2 to 4.
6. To end the conference call and disconnect everyone, touch .
Switching Between Calls
If you receive a new call while you are already on a call, you can switch between the two
calls.
1. While you are on two calls, touch on the lower left corner of the display the contact’s name
or phone number.
2. The current call is placed on hold and you are connected to the other call.
Using Call log
The Call log contains a list of calls that you have dialed, received, or missed. You can use
the call log to quickly nd a recently called number or add an incoming number to your
contact list.
Saving an entry to Contacts
1. Touch on the Home screen, then touch .
2. Touch Call History.
3. Touch the icon of the entry you want to add. For example, .
4. Touch .
5. Either add to existing contact or touch Create new contact ( ).
Removing an entry from the list
1. Touch on the Home screen, then touch .
2. Touch Call History.
3. Touch the icon of the entry you want to delete. For example, .
4. Touch .
5. Touch Delete.
6. Touch OK to conrm that you want to delete the contact.
Cat® S40 Smartphone User Manual
12
Clearing the call log
1. Touch on the Home screen, then touch .
2. Touch Call History.
3. Touch > Clear call log.
Contacts
The Contacts application enables you to save and manage information such as phone numbers
and addresses of your contacts. After you save the contact information on your mobile phone,
it gives you easy access to people with whom you want to communicate.
Opening the Contacts Application
If you have a new mobile phone and have not yet added any contacts, Contacts displays a
message with hints on how to start adding contacts to your mobile phone.
To open the application, do one of the following:
Touch • on the Home screen.
Touch • and then Contacts ( ). Swipe the screen to the left to access ALL CONTACTS
tab.
Touch • on the Home screen, then swipe the screen to the left to access ALL CONTACTS
tab.
All of your contacts are displayed alphabetically in a scrolling list.
Copying Contacts
You can copy contacts from the SIM card or internal storage.
1. In the contacts list, touch > Import/export.
2. Do one of the following:
To import contacts from the SIM card:•
Touch Import from SIM card and decide if you want to create contacts under phone
account or Google account. Then select contacts to import.
To import contacts from the internal storage:•
Touch Import from storage and decide if you want to create contacts under phone account
or Google account. Then select vCard le selection type > select vCard le to import > OK.
Backing Up Contacts
You can copy contacts to the SIM card or internal storage.
1. In the contacts list, touch > Import/export.
2. Do one of the following:
To export contacts to the SIM card:•
Touch Export to SIM card. Select contacts to export. When the selection is done, touch .
Note:
To select all contacts, touch and check All option.
Cat® S40 Smartphone User Manual 13
To export contacts to the internal storage:•
Touch Export to storage. Select contacts to export. When the selection is done, touch . A
conrmation message pops up, touch OK to proceed.
Note:
To select all contacts, touch and check All option.
Adding a Contact
1. In the contacts list, touch to add a new contact.
2. Enter the contact’s name, and then add any detailed information such as phone number or
address.
3. When you are nished, touch Add new contact to save the contact information.
Adding a Contact to Your Favorites
1. Touch the contact you want to add to Favorites.
2. Touch beside the name and the icon turns white ( ).
Searching for a Contact
1. In the contacts list, touch to search for a contact.
2. Enter the name of the contact for which you are searching. As you type, contacts with
matching names appear below the search box.
Editing a Contact
You can always make changes to the information you have stored for a contact.
1. In the contacts list, touch the contact whose details you want to edit.
2. Touch .
3. Make the desired changes to the contact information, and then touch Edit Contact. To cancel
all changes you have made to the contact information, touch the Back button.
Communicating with Your Contacts
From the All Contacts or Favorites tab, you can quickly call or send a text (SMS) or multimedia
message (MMS) to a contact’s default phone number. You can also open details to view a
list of all the ways you can communicate with that contact. This section describes how to
communicate with a contact when you view your contacts list.
Communicating with a Contact
1. In the contacts list, touch the contact that you want to communicate.
2. In the contact’s details screen, you can do one of the following:
Touch the phone number to make a call.•
Touch • to send message.
Cat® S40 Smartphone User Manual
14
Deleting a Contact
1. In the contacts list, touch the contact that you want to delete.
2. Touch > Delete.
3. Touch OK to conrm that you want to delete the contact.
Using the On-screen Keyboard
Displaying the Keyboard Panel
To enter text, use the on-screen keyboard. Some applications open the keyboard automatically.
In others, touch a text eld to open the keyboard.
To open the keyboard, touch the space where you want to write the text. Touch the • Back
key to hide the keyboard.
Using the Landscape Keyboard
If you nd the keyboard inconvenient or difcult to use, turn your mobile phone sideways. The
screen will display the keyboard in landscape orientation, providing you with a wider keyboard
layout.
Customizing Keyboard Settings
1. Touch > Settings ( ) > Language & input.
2. Do any of the following:
Touch • Google Keyboard options to customize the Google keyboard settings.
Touch • SwiftKey Keyboard and follow the on-screen instructions to congure the SwiftKey
keyboard settings next-word prediction, autocorrect, type with a swipe, and other features.
Messaging
The Messaging application allows you to exchange text messages (SMS) and multimedia
messages (MMS) with anyone using an SMS or MMS-capable phone. With the Email
application you can read and send emails.
SMS and MMS
Opening Messaging
To open the application, do one of the following:
Touch • on the Home screen.
Touch • > Messaging ( ).
Cat® S40 Smartphone User Manual 15
Creating and Sending a Text Message
The Messaging window opens, where you can create a new message or open an ongoing
message thread.
1. Touch to start a new text or multimedia message or touch an existing message thread to
open it.
2. Enter a phone number in the To eld. As you enter the phone number, matching contacts
appear. You can touch a suggested recipient or continue entering the phone number.
3. Touch the composition text box to start entering your message.
If you touch the Back key while composing a message, it is saved as a draft in your message
list. Touch the message to resume composing it.
4. Once you are done, touch .
Note:
Responses appear in the window. As you view and send additional messages, a message thread is
created.
Creating and Sending a Multimedia Message
1. On the messaging screen, touch .
2. Enter a phone number in the To eld or touch to add a phone number from the
CONTACTS list.
3. Touch the composition text box to start entering your message.
4. Touch > Add subject to add the message subject.
5. Enter a subject.
Your mobile phone is now in multimedia message mode.
6. Touch and select the type of media le to attach to the message.
7. Once you are done, touch .
Opening and Viewing a Multimedia Message
1. In the message list, touch the message thread to open it.
2. Touch the multimedia message to view the message.
3. Flick up or down to view the previous or next slide.
Replying to a Message
1. In the message list, touch a text or multimedia message thread to open it.
2. Touch the text box to compose your message.
3. Touch .
Customizing the Message Settings
In the message list, touch > Settings to customize the message settings.
Cat® S40 Smartphone User Manual
16
Email
Your mobile phone puts email at your ngertips, too. Using your Email application, you can
congure it for most popular email services. These types of email accounts are known as
POP3, IMAP, or Exchange.
Opening Email
To open the application, touch > Email ( ).
Adding an Email Account
When using the Email application for the rst time, you must congure your email account.
The Email setup wizard helps you set up your account for many popular email systems, so you
can read and work with the same email that you do on a computer in a web browser, or with
another email application.
1. Launch Email application. See “Opening Email”.
2. Enter your Email address and touch NEXT.
3. Enter your Password and touch NEXT.
The device will automatically retrieve the email settings.
4. Set the Inbox checking frequency settings and touch NEXT.
5. Modify the account name and display name if necessary.
Note:
The display name (Your name) is shown on all outgoing messages.
To manually set up the email, touch Manual setup.
Note:
If you touch Manual setup, contact your email service provider for the parameters required for
your account if you don’t know what they are.
6. Select an email connection protocol which best suits your needs. Follow the on-screen
instructions and enter all the server information, Username, Password, Server, Port, Security
Type and other related information. Touch NEXT to continue.
Note:
Your account settings may vary, depending on the kind of email service for the account. For setup
parameter details, please check with your service provider.
7. Set the Inbox checking frequency settings and touch NEXT.
8. Modify the account name and display name if necessary.
Note:
The display name (Your name) is shown on all outgoing messages.
9. Touch NEXT.
After the initial setup, your email application opens to display the contents of your Inbox.
Cat® S40 Smartphone User Manual 17
Adding Other Email Accounts
1. After creating your initial email account, touch > Settings.
2. Touch Add account to create another email account.
3. Repeat steps 2~9 on “Adding an Email Account”.
Viewing an Email Message
1. On the Inbox screen, touch an email to open it.
2. To access a folder(s) on an email account, touch the account selection box at the top left of
the screen, the folder(s) for the selected account will be displayed under All folders.
Creating and Sending an Email Message
1. On the Inbox screen, touch .
Note:
To switch to another email account, touch the account selection box at the top left of the screen,
then touch the account that you want to view.
2. In the To eld, enter the recipient’s email address.
3. Enter the subject and compose your email.
4. To send an attachment with the message, touch > Attach file and then select the le you
want to attach.
5. When you are nished, touch .
If you touch the Back key while composing a message, it save the current message as a
draft.
Replying to an Email Message
1. Touch the email message you want to view and reply to.
2. Touch or touch > Reply all to reply to the email message.
Deleting an Email Account
1. Touch the Home key to take you back to the Home screen. Touch > Settings ( ).
2. Touch Accounts and choose the Account type containing Email account to be deleted.
3. Touch > Remove account. A conrmation message appears, touch Remove account to
proceed.
Changing Email Account Settings
You can change a number of settings for an account, including how often you check for emails,
how you are notied of a new mail, and details about the servers the account uses to send and
receive mails.
1. On the Inbox screen, touch > Settings to customize the message settings.
2. Touch on “General Settings” or “the email account” to customize the message settings.
Cat® S40 Smartphone User Manual
18
3. Touch an option and change the necessary settings.
Note:
Your account’s incoming and outgoing settings depend on the kind of email service for your account:
POP3, IMAP, or Exchange. You can enter the necessary details manually, although you will typically
need to contact your email service provider to determine the right settings for the account.
Wi-Fi
Wi-Fi gives you wireless access to broadband Internet access. To use Wi-Fi on your mobile
phone, you need to have access to wireless access points (hotspots). Obstacles that block the
Wi-Fi signal will reduce its strength.
Turning On Wi-Fi
1. Touch > Settings ( ).
2. In Wireless & networks, touch Wi-Fi and set it to ON.
Connecting to a Wireless Network
1. Once turned on, touch Wi-Fi.
2. A list of detected Wi-Fi networks will be displayed. Touch a W-Fi network to connect to it.
3. If you select an open network, you will be automatically connected to the network. If you
select a network that is secured and connect to it for the rst time, enter the password, and
then touch Connect.
Note:
If you connect to a secured wireless network that you have already used, you will not be prompted
to enter the password again unless you reset your mobile phone to its default settings.
Tip: On the Wi-Fi settings screen, touch > Add network to add a new Wi-Fi network.
Bluetooth
Your mobile phone has Bluetooth, which allows you to create a wireless connection with
other Bluetooth devices so you can share les with your friends, talk hands-free with a
Bluetooth headset, or even transfer photos on your phone to your PC.
If you are using Bluetooth, remember to stay within 10 meters (33 feet) of other Bluetooth
devices. Be aware that obstacles like walls or other electronic equipment may interfere with
your Bluetooth connection.
Turning On Bluetooth
1. Touch > Settings ( ).
2. In Wireless & networks, touch Bluetooth and set it to ON.
When Bluetooth is turned on, the Bluetooth icon appears in the notication bar.
Cat® S40 Smartphone User Manual 19
Pairing and Connecting a Bluetooth Device
Your mobile Bluetooth lets you do the following:
Hands Free Prole (HFP): allows you to use a hands-free Bluetooth device.•
Headset Prole (HSP): allows you to use a mono Bluetooth headset.•
Object Push Prole (OPP): allows you to transfer les through Bluetooth.•
Advanced Audio Distribution Prole (A2DP): allows you to use a stereo Bluetooth headset.•
A/V Remote Control Prole (AVRCP): allows you to control what plays through the •
Bluetooth headset remotely.
Before you use Bluetooth, you need to pair your mobile phone with another Bluetooth device
as follows:
1. Ensure that the Bluetooth function on your mobile phone is enabled.
2. Your mobile phone will then search for Bluetooth devices in range (or touch > Refresh).
3. Touch the device you want to pair with your mobile phone.
4. Enter the pairing password to complete the connection.
Note:
Once a partnership has been created, connecting to that Bluetooth device again will no longer require
entering the password.
Sending Files via Bluetooth
With Bluetooth, you can share pictures, videos, or music les with your family and friends.
To send les via Bluetooth, do as follows:
1. Touch the le to be sent.
2. Touch > Bluetooth, and then select a paired device.
Disconnecting or Unpairing a Bluetooth Device
1. Touch > Settings ( ).
2. In Wireless & networks, touch Bluetooth.
3. On the connected device option, touch and then touch Forget to conrm the
disconnection.
Cat® S40 Smartphone User Manual
20
Entertainment
In addition to being a communication device and personal assistant, your mobile phone
also provides you with a multitude of entertainment possibilities. You can take photos,
create videos and audio clips, and download and listen to music.
Taking Photos and Recording Videos
The camera is a combination of camera and camcorder that you can use to shoot and share
pictures and videos.
Opening Your Camera
To open the application, do one of the following:
Touch • on the Home screen.
Touch • > Camera ( ).
Touch the Back key or the Home key to close the camera.
Taking a Photo
1. Touch > Camera ( ).
By default, it is in Camera mode. Otherwise, touch to switch to Camera mode.
Note:
To switch between front and rear camera, touch and respectively.
2. Compose your photo within the photo capture screen.
Touch the screen to focus the specic area on the screen.•
Pinch to zoom in/out on the subject.•
Touch • to change the camera settings. The preview changes as you change the settings.
3. Touch to take your photo.
Note:
When in the Camera app, you can press the Volume up ( ) and Volume down ( ) buttons to
take your photos too.
Viewing Your Photos
To view your photos, you can do one of the following:
When in the Camera view, touch the thumbnail of the latest captured photo next to the •
key.
Note:
To go back to Camera view press the Back button.
Touch • > Photos ( ), to view all photos and videos.
Touch • > Gallery ( ), to view all the photos and videos.
Cat® S40 Smartphone User Manual 21
Edit and Share Your Photos
As you browse through your photos, the following options become available:
Edit: Touch • and edit your photos with the wide range of options available.
Share: Touch • and share your photos through various applications available on your
device.
Delete: Touch • > Delete to delete photos no longer required.
Shooting a Video
1. Touch > Camera ( ).
2. Touch and select from the menu to switch to the Video mode.
Note:
To switch between front and rear camera, touch and respectively.
3. Touch to start recording.
4. While recording, do one of the following:
Pinch to zoom in/out on the subject.•
5. Touch to stop shooting.
Viewing Your Videos
After recording a video, touch the thumbnail of the latest recorded video next to the key.
Touch to play the video.
Taking a Panorama Photo
1. Touch and select to switch to the Panorama mode.
2. Touch to start capturing the panorama photo.
3. Follow the on-screen instructions to complete capturing the panorama photo.
Using the Gallery
Your Gallery application can automatically search for pictures and videos saved to Phone or
SD storage. Select the album/folder and play as a slideshow or select items to share with other
applications.
Opening the Gallery
Touch > Gallery ( ) to open the application. The Gallery application categorizes your
pictures and videos by storage location and stores these les in folders. Touch a folder to view
the pictures or videos inside.
Cat® S40 Smartphone User Manual
22
Viewing a Picture
1. In the Gallery, touch the folder that contains the pictures you want to view.
2. Touch the picture to view it in full-screen mode. When viewing a picture in full-screen mode,
ick the picture left or right to view the previous or next picture.
3. To zoom in on the image, move your two ngers apart from each other at the location of the
screen where you want to zoom in. In zoom mode, swipe your nger up or down and left or
right.
Tip: The picture viewer supports the automatic rotation function. When you rotate your mobile phone,
the picture adjusts itself to the rotation.
Cropping a Picture in Gallery
1. When viewing a picture, touch > Crop.
2. Use the cropping tool to select the portion of the picture to crop.
Drag from the inside of the cropping tool to move it.•
Drag an edge or a corner of the cropping tool to resize the image.•
3. Touch SAVE to save the cropped picture. Touch the Back key to discard the changes.
Enjoying Music
You can transfer music les from your PC to your microSD card so you can listen to music on
your mobile phone.
Copying Music to the microSD Card
1. Connect the phone to your computer with a USB cable and mount the microSD card.
2. On the PC, navigate to the USB drive and open it.
3. Create a folder in the root directory of the microSD card (for example, Music).
4. Copy the music from your computer to the folder you have created.
5. After copying music, unmount or eject the drive as required by your PC’s operating system
to safely remove the mobile phone from the PC.
Opening the Media Library
To display the media library, touch > Play Music ( ) > touch the music category selection
box at the top left of the screen > My Library. It contains ve tabs: PLAYLISTS, GENRES,
ARTISTS, ALBUMS, and SONGS.
Cat® S40 Smartphone User Manual 23
Playing Music
1. Touch a category on the music library screen.
2. Touch the song you want to play.
Tip: When you are listening to music, touch the Back button to use another application. Your music
continues to play. To return to the music controls, open the notification panel and then touch the song.
Adding Music to a Playlist
1. Touch a category on the music library screen.
2. Touch next to the song that you want to add to a playlist. Then touch Add to playlist in the
options menu.
3. Select a playlist or touch New playlist to add the song to an existing playlist.
Playing a Playlist
1. Touch the music category selection box at the top left of the screen. Then touch Playlists.
2. Touch and hold the playlist you want to play.
3. Touch the song you want to play.
Listening to FM Radio
FM Radio lets you listen to FM radio stations on your mobile phone. Connect your headset rst
to the audio jack of your phone before opening the application.
Touch > FM Radio ( ) to launch the application.
Tuning the FM Radio
Note:
To pick up all your favorite stations you will need to ensure that your Local Regional Band is set
correctly. To change the region, touch > Settings > Regional Band and scroll through the list and
select your Region.
Do any of the following:
To select the radio station to listen to, touch • or .
To manually tune to a frequency, scroll the tuning wheel to select the radio station.•
To add the current radio station to the Favorite list, touch and hold • (at the bottom of the
screen). The current radio station will appear on the Favorite list bar.
To mute the FM, touch • .
To scan f• or all available channels, touch > Scan > All Stations. When scanning
completes, touch > All Channels.
To turn off the radio, touch • , and touch the Back button to exit out of application.
Cat® S40 Smartphone User Manual
24
Recording the FM Radio
To record the radio, do the following:
To start recording, touch • or touch > Start Recording.
To stop recording, touch • or touch > Stop Recording. The recorded le will be
automatically saved.
Google Services
You must sign in to a Google account to use Gmail™, Google Calendar™, and other Google
Apps™. To download applications from Play Store, you will also be prompted to sign in to your
Google account.
Note:
If your phone does not have a SIM card installed, you cannot connect to mobile networks for voice
and data services, but you can connect to a Wi-Fi network to sign in to your Google Account and to
use all the features of your phone, except making a phone call.
If you start an Android phone the first time without a SIM card, you will be asked to touch Connect
to Wi-Fi to connect to a Wi-Fi network (instead of to a mobile network) to set up your phone. If you
already have a Google account, touch Sign in and enter your username and password.
Creating a Google Account
If you do not have a Google account, you can create one:
1. Touch > Settings ( ).
2. In Accounts, touch Add account.
3. Touch Google to create a Google account.
4. Sign in to your existing Google account or touch Or create a new account to create a new
account.
5. Enter your rst name, last name and touch NEXT.
6. Enter the username (email address for Gmail) and touch NEXT.
The mobile phone will connect to the Google server to check whether the username is
available. If the username you entered is already in use, you will be prompted to choose
another one.
7. Enter and conrm your Google account password. Then touch NEXT to continue.
8. Set the recovery information (i.e. phone number) and touch NEXT.
9. Read the agreement and touch I AGREE to complete the account setup.
10. Touch NEXT.
11. Check Keep me up to date if you want to receive news and offers from Google Play and
touch NEXT.
12. Enter your billing information to enable purchases from Google Play Store, and then touch
NEXT. Or, touch Remind me later to skip this step and touch NEXT.
Cat® S40 Smartphone User Manual 25
Using Gmail
Gmail is web-based email service. When you rst set up your phone, you may
have congured it to use an existing Gmail account or create a new account. The rst time
you open the Gmail application on your phone, your Inbox will contain the messages from
your Gmail account on the web.
Opening Gmail
Touch > Gmail ( ). The Inbox mail list appears. Any emails you decide to keep on your
mobile phone will go to your Inbox folder.
Switching Between Accounts
To switch to another email account, touch the account selection box at the top left of the
screen, then touch the account that you want to view.
Creating and Sending an Email
1. On the Inbox screen, touch .
2. Enter the message recipient’s email address in the To eld.
If you are sending the email to several recipients, separate the email addresses with •
commas.
If you want to send a copy (Cc) or a blind copy (Bcc) of the email to other recipients, touch •
> Add Cc/Bcc.
3. Enter the email subject and compose your message.
If you want to add a picture attachment, touch to select the picture you want to attach.
4. After composing your email, touch .
Replying To or Forwarding an Email
1. On the Inbox screen, touch the email that you want to reply to or forward.
2. Touch Reply( ), Reply all ( > Reply all), or Forward ( > Forward).
3. Do one of the following:
If you select Reply or Reply all, enter your message.•
If you select Forward, specify the message recipients and add any additional text you want •
to include with the forwarded message.
4. Touch .
Searching for an Email
1. On the Inbox screen, touch .
2. Enter the search keywords in the box, and then touch .
Customizing Your Gmail Settings
1. On the folder category screen, touch > Settings to customize the message settings.
2. Choose General settings or an email account.
3. Touch an option and change the necessary settings.
Cat® S40 Smartphone User Manual
26
Using Maps
Maps lets you nd your current location, view real-time trafc conditions (depending on
availability in your location), and get detailed directions to various destinations on a satellite,
trafc, or other kind of map.
Enabling Location
Before you open Maps to nd your location or search for places of interest, you must enable
Location and set Location mode.
1. Touch > Settings ( ).
2. Touch Location.
3. Set Location setting to ON.
4. Touch Mode and choose the relevant option.
Note:
To use the navigation feature the Mode function will have to be set to High Accuracy or Device
only.
Opening Maps
Touch > Maps ( ) to open the application.
Note:
When opening the application for the first time, a Welcome screen appears on the screen. Touch
Accept & continue to continue and follow the on-screen instructions to configure initial settings.
Searching for Places of Interest
1. While viewing a map, enter the place you want to search for in the white search box with on
top of the display , and then touch .
Note:
You can also select one option from the suggestions list.
2. Your search results will then be displayed. Touch the marker ( ) and it displays the location
name.
3. Touch the on-screen buttons to view the location on the map, get directions, and more.
Getting Directions
1. While viewing a map, touch .
2. Touch the icon for car, public transit, or walking directions.
3. The application displays automatically the shortest distance from your current location to the
destination location.
Note:
If you want to enter manually the current location and/or the destination locaiton, touch Your location
or the destination location and enter the relevant information.
Cat® S40 Smartphone User Manual 27
4. Touch START NAVIGATION.
Note:
Touch on the bottom of the display to mute/unmute the voice guidance, view information on traffic,
and/or satellite image of the map.
Using YouTube™
YouTube is Google’s free online video streaming service for viewing, searching for, and
uploading videos.
Opening YouTube
Touch > YouTube ( ). The videos are grouped into categories, such as What to Watch, My
Subscriptions, Uploads, History, Watch Later, and more.
Searching for a Video
1. On the YouTube screen, touch .
2. Enter a search keyword, and then touch .
3. Scroll through the results and touch a video to watch it.
TIP: You also have the option to view results of recently posted videos. Touch All time, and then
select one of the available options.
Sharing a Video
1. While viewing a video, touch the playback screen and then touch .
2. Touch an application for sharing the video link from the available options.
Adding a Video to Playlist
1. While viewing a video, touch the playback screen and then touch .
2. Touch Create new playlist to add the video to the playlist.
TIP: You can also set to watch the video later or add to favorites by touching Watch Later or Favorites
respectively.
Using Play Store
Play Store provides direct access to applications and games, which you can download and
install on your phone.
Opening Market
1. Touch > Play Store ( ).
2. When you open Play Store for the rst time, the Terms of Service window will appear. Touch
Accept to continue.
Cat® S40 Smartphone User Manual
28
Searching for Applications
There are a few different ways to nd applications on the Play Store home screen, including:
List of applications by category: Touch the desired category and scroll down to view more.•
Search function: Touch • .
To view the installed applications, touch the main category selection box at the top left of the
screen, and then touch My apps.
Installing an Application
Note:
If you want to install a non-Market application, touch Settings ( ) > Security, and enable the
Unknown sources to allow installation of the non-Market application.
1. Touch > Play Store ( ).
2. Touch a category, and then touch the item you want to download.
On the item details screen, read more about the application, including overall rating,
and user comments. If you scroll down to the Developer Info section, you can see other
applications from the same developer, or link to the developer’s website.
3. To install the item, touch INSTALL, then the screen changes to show requested permissions,
then touch ACCEPT.
Note:
To check the progress of a download, open the notification panel. The installation duration will depend
on the size of the application and your data connection speed.
Uninstalling an Application
1. On the Play Store screen, touch the main category selection box at the top left of the screen,
and then touch My apps.
2. Touch the application you want to uninstall, and then touch UNINSTALL.
3. When prompted, touch OK to remove the application from your mobile phone.
Note:
Applications can also be managed by touching Settings ( ) > Apps.
Cat® S40 Smartphone User Manual 29
Synchronizing Information
Some applications (for example, Gmail) on your mobile phone give you access to the same
personal information that you can add, view, and edit on your computer. If you add, change, or
delete your information in any of these applications on the web, the updated information also
appears on your mobile phone.
This is made possible through over-the-air data synchronization. The process occurs in the
background and does not interfere with the use of your mobile phone. When your phone is
synchronizing, a data synchronization icon will be shown in the notication bar.
Managing Your Accounts
You can synchronize contacts, email, and other information on your mobile phone with
multiple Google accounts or other kinds of accounts, depending on the applications installed
on your mobile phone.
For example, you can start by adding your personal Google account, so your personal email,
contacts, and calendar are always available. You could then add a work account, so your work-
related emails, contacts and calendar entries are also handy.
Adding an Account
1. Touch > Settings ( ).
2. In Personal > Accounts, touch Add account. The screen displays your current synchronization
settings and a list of your current accounts.
Note:
In some cases, you may need to obtain account details from network administrator support. For
example, you may need to know the account’s domain or server address.
3. Touch the account type to add.
4. Follow the onscreen steps to enter the required and optional information about the account.
Most accounts require a username and password, but the details depend on the kind of
account and the conguration of the service to which you are connecting.
5. Congure the account. Depending on the kind of account, you may be asked to congure
what kind of data you want to sync to the mobile phone, to name the account, and for other
details. When you are nished, the account is added to the list in the Accounts settings
screen.
Removing an Account
You can remove an account and all information associated with it from your mobile phone,
including email, contacts, settings, and so on. You cannot, however, remove some accounts,
such as the rst account you signed into on the mobile phone. If you attempt to remove certain
accounts, be aware that all personal information associated with it will be deleted.
1. On the Accounts settings screen, touch the account type.
2. Touch the account to delete.
3. Touch > Remove account.
4. Touch Remove account to conrm that you want to remove the account.
Cat® S40 Smartphone User Manual
30
Customizing Your Account Synchronization
You can congure background data use and synchronization options for all the applications on
your phone. You can also congure what kind of data you synchronize for each account. Some
applications, such as Contacts and Gmail, can synchronize data from multiple applications.
Others, such as Calendar, synchronize data only from the rst Google account you signed into
on your phone, or from an account associated specically with that application. For some
accounts, synchronizing is two-directional; changes that you make to the information on your
mobile phone are made to the copy of that information on the web. Some accounts support
only one-way synchronization; the information on your mobile phone is read-only.
Changing an Account’s Synchronization Settings
1. On the Accounts settings screen, touch the account type.
2. Touch the account whose synchronization settings you want to change. The data and
synchronization screen opens, displaying a list of the kinds of information the account can
synchronize.
3. Select or clear the check box of information you want to synchronize to the mobile phone.
Using Other Applications
Using the Calendar
Use Calendar to create and manage events, meetings, and appointments. Depending on
your synchronization settings, the calendar on your phone stays in synchronization with your
calendar on the web.
Opening the Calendar
Touch > Calendar ( ) to open the application. Touch to display various view and
settings options.
Note:
If you are using the Calendar function for the first time, swipe the screen to the left repeatedly to
scroll through the features of this function. On the last page of the overview (“Events from Gmail”)
touch GOT IT.
Creating an Event
1. On any calendar view, touch to start adding an event.
2. Enter the name and location of the event.
If there is a time frame for the event, touch the beginning and end date and time lines to •
select the respective dates and duration of the event.
If it is a special occasion such as a birthday or a day-long event, enable the • All-day option.
3. Select the appropriate time zone.
4. Enter email addresses and the description to invite guests to the event.
Cat® S40 Smartphone User Manual 31
5. Specify the repetition of the event.
6. Set the time of your event reminder, invite people, set color, and add any notes or
attachments.
7. After all settings are complete, touch SAVE.
Setting an Event Reminder
1. On any calendar view, touch an event to view its details or event summary.
2. Touch to start editing the event.
3. Touch the reminder section ( ) to set the reminder time before the event when you want to
be reminded. When the time comes, you will receive a notication about the event. Or touch
No notification to delete the reminder.
Note:
Touch the No notification to delete the reminder for that event.
4. Touch SAVE to save the modications.
Customizing the Calendar Settings
On any calendar view, touch > Settings > General settings. Choose from:
Start of the week: Choose the rst day of the week.•
Use device time zone: Choose to enable or disable the device to use the mobile phone’s •
default time zone.
Show week number: Choose to show or hide the number of week.•
Show declined events: Choose to hide or show the events that you have declined.•
Default event duration: Select the default event duration.•
Notify on this device: Choose to receive the event notications on this device.•
Tone: Select the ringtone to sound when you receive an event reminder.•
Vibrate: Choose to let the device to vibrate when you receive an event notication.•
Quick responses: Edit the default responses when emailing event information to the •
respective guests.
Using the Alarm
You can set a new alarm or modify an existing alarm.
Opening the Alarm
Touch > Clock ( ) > to use your mobile phone alarm. Here you will see a list of current
alarm details.
Adding an Alarm
1. On the alarm list screen, touch to add an alarm.
2. To set the alarm, do the following:
Set the hour and minutes by selecting the respective eld and moving the pointer up or •
down. When the time is set, touch OK.
To add an alarm label, touch • Label. Enter the label, then touch OK.
Cat® S40 Smartphone User Manual
32
To set repeat mode, touch • Repeat. Touch one or more options.
To set the ringtone, touch • . Touch an option, then touch OK.
To vibrate when the alarm sounds, touch • Vibrate check box.
Note:
By default, the alarm is automatically activated.
Calculator
Use the calculator to solve simple arithmetic problems or use its advanced operators to solve
more complex equations.
Opening the Calculator
Touch > Calculator ( ) to open the application.
Managing Your Mobile Phone
To congure your mobile phone, touch > Settings ( ).
Setting the Date and Time
When you rst start the phone, you are asked if you want the time and date to update
automatically using the time provided by the network.
Note:
When the time provided by the network is automatically used, you cannot set the date, time, and time
zone.
1. On the Settings screen, touch System > Date & time.
2. Disable the Automatic date & time option.
3. Disable the Automatic time zone option.
4. Touch Set date. On the set date screen, touch the desired date and touch OK when the
conguration is complete.
5. Touch Set time. On the set time screen, touch the hour or minute eld and move the pointer
up or down to set the time. Touch OK when the conguration is complete.
6. Touch Select time zone, and then select the desired time zone from the list. Scroll the list to
view more time zones.
7. Enable or disable the Use 24-hour format to switch between 24-hour format and 12-hour
format.
8. Touch Choose date format to select how you want the date to display on your mobile phone.
Cat® S40 Smartphone User Manual 33
Setting the Display
Adjusting the Screen Brightness
1. On the Settings screen, touch Device > Display > Brightness.
2. Drag the slider left to make the screen darker, or right to make it brighter.
3. Once you lift your nger off the slider, this will save your setting automatically.
Note:
Enable Adaptive Brightness to enable the device to automatically adjust the brightness of the screen
depending on the surrounding light.
Auto-rotate screen
Touch the When device is rotated eld to enable the display to rotate when you turn the phone
between landscape and portrait.
Adjusting the Time Before the Screen Turns Off
If your mobile phone is idle for several minutes, it will turn off the screen to save battery
power. To set a longer or shorter idle time, do the following:
1. On the Settings screen, touch Device > Display > Sleep.
2. Select the duration you want the screen to be illuminated.
Setting Phone Ringtone
Turning On Silent Mode
1. Press and hold the Power button.
2. Touch to enable the silent mode. Then all sounds except media and alarms are silenced.
Adjusting the Ringtone Volume
You can adjust the ringer volume when you are on the Home screen or any application screens
(except during a call or when playing music or videos). Press the Volume buttons to adjust
the ringer volume to your desired level. You can also adjust the ringer volume on the settings
screen.
1. On the Settings screen, touch Device > Sound and notification.
2. In Sound > Ring volume, drag the slider to adjust the volume level..
Changing the Phone Ringtone
1. On the Settings screen, touch Device > Sound and notification.
2. Touch Phone ringtone.
3. Touch where you want to use the ringtone, for example SIM 1.
4. Touch Phone ringtone and touch the ringtone you want to use.
5. Touch OK. The ringtone plays when selected.
Cat® S40 Smartphone User Manual
34
Setting Your Phone to Vibrate for Incoming Calls
On the Settings screen, select Device > Sound and notification, and enable the Also vibrate for
calls option to enable your phone to vibrate for incoming calls.
Configuring the Programmable Button
You can assign the Programmable button to perform various functions when you press the
button. See page 1.
1. On the Settings screen, touch Device > Programmable Key.
2. Touch the action from the list to assign to the Programmable button.
3. Touch OK.
Setting Phone Services
Turning on Data Roaming
1. In Wireless & networks, select More... > Mobile networks > select the SIM card where you
want to apply the data roaming feature. For example, CARD 2.
2. Check the Data roaming check box to enable Data roaming.
Note:
Accessing data services while roaming may incur considerable additional charges. Ask your network
service provider about data roaming fees.
Disable Data Service
In WIRELESS & NETWORKS, select More... > Mobile networks > clear the Data enabled check
box.
Protecting Your Mobile Phone
Enable Your SIM Card PIN
1. On the Settings screen, touch Personal > Security > Set up SIM card lock.
2. Select the SIM card where you want to apply the PIN lock feature. For example, CARD 2.
3. Check the Lock SIM card check box.
4. Enter the SIM card PIN, and then touch OK.
To change the SIM card PIN at any time, touch Change SIM PIN.
Note:
You can dial emergency numbers any time from your mobile phone.
Cat® S40 Smartphone User Manual 35
Protecting Your Mobile Phone with a Screen Lock
To keep your data more secure, lock the screen and/or require a screen unlock pattern every
time your mobile phone is turned on or wakes up from sleep mode.
1. On the Settings screen, touch Personal > Security > Screen lock.
2. Select the one of the available options.
Swipe: Swipe to lock icon to unlock the phone.•
Pattern: Trace the correct unlock pattern on the screen to unlock the phone.•
PIN: Enter a PIN number to unlock the phone.•
Password: Enter a password to unlock the phone.•
3. Follow instructions for the chosen method to complete the settings.
Using NFC
NFC allows exchange of data between 2 NFC enabled devices, when
both devices are either touching or no more than a few centimetre’s
apart.
Activating NFC Function
1. From the Home screen, touch > Settings ( ).
2. In Wireless & networks, select More... and enable the NFC feature.
The Android Beam function will also automatically turn on.
Beaming Content via NFC
1. Enable the NFC and Android Beam functions.
2. Open the content to be shared. You can share website content,
YouTube videos, contacts and much more.
3. Place both devices’ backs against each other, and then touch your
screen. The application determines what gets beamed.
Managing Applications
Viewing an Installed Application
1. From the Home screen, touch > Settings ( ).
2. On the Settings screen, touch Apps.
3. In the applications list, do any of the following:
Touch • > Sort by size. Then touch an application to view its details.
Select • DOWNLOADED, RUNNING, or ALL tab at the top of the screen. Then touch an
application to view its details.
Touch an application to view its details directly.•
Cat® S40 Smartphone User Manual
36
Removing an Installed Application
1. On the Settings screen, touch Device > Apps.
2. Touch an application, and then touch UNINSTALL > OK to remove the application from your
mobile phone.
Note:
Pre-installed applications can not be deleted.
Ways to Free Up Your Mobile Phone Memory
Add downloaded Apps •
Move les and email attachments to the microSD card.•
Uninstall the downloaded programs that you no longer use.•
Reset your mobile phone.•
Note:
Please back up all your important data before performing a Factory reset.
Resetting Your Mobile Phone
Backing Up My Settings
You can back up your mobile phone’s settings to Google servers, with your Google account. If
you replace your mobile phone, the settings you have backed up are stored on the new mobile
phone the rst time you sign in with your Google account.
1. On the Settings screen, touch Personal > Backup & reset.
2. Enable the Back up my data.
Restoring Factory Data
If you reset your phone to the settings that were congured at the factory, all of your personal
data from internal phone storage, including information about your Google Account, any other
accounts, your system and application settings, and any downloaded applications will be
erased. Resetting the phone does not erase any system software updates you’ve downloaded
or any les on your microSD card, such as music or photos.
1. On the Settings screen, touch Personal > Backup & reset > Factory data reset.
2. When prompted, touch Reset phone, and then touch ERASE EVERYTHING. The mobile
phone resets the settings to the original factory settings, and then restarts.
Hardware Reset Of Your Device
This device has an internal battery and therefore the hardware cannot be reset by the removal
of the battery. If you should need to reset the hardware, please follow the steps listed below.
Please note that this action may be required if you do not see that your device is charging even
after being connected to the charger from your wall outlet.
Press the Volume Up button and Power button for 10 seconds powers the phone off but a
Cat® S40 Smartphone User Manual 37
power on is required to reset the phone.
Viewing E-label
To view the regulatory information on your mobile phone, do the following:
1. From the Home screen, touch > Settings ( ).
2. On the Settings screen, touch System > About phone > Regulatory information.
Cat® S40 Smartphone User Manual
38
Specifications
Item Specifications
Operating System Android 5.1, Lollipop
Platform Qualcomm MSM8909-4 Quad-core 1.1GHz
Memory 8GB (option) or 16GB (baseline) eMMC / 1GB RAM LPDDR3 (eMCP)
Band EU
LTE Band 1/3/7/8/20/28 w/ diversity
HSDPA/WCDMA Band 850/900/2100
GSM/GPRS/EDGE Quad-Band 850/900/1800/1900
Band NA
LTE Band 2/4/5/7/12/17 w/ diversity
HSDPA/WCDMA Band 850/1900/AWS
GSM/GPRS/EDGE Quad-Band 850/900/1800/1900
Display
LCM : 4.7” qHD, IPS type, sunlight readable (min. 500 nits)
TP : Capacitive touch (5pts), Wet nger, Glove touch, GFF, Gorilla 3,
air bonding
Camera Main 8M AF with Flash LED + Front 2M FF
Sensor P + L Sensor, G-Sensor, E-compass
Connectivity GPS/aGPS/Glonass, BT4.1, 802.11 b/g/n (2.4 only), NFC, OTG
Battery 3000mAh (typ. 3.8V, soft-pack, non-removable)
Others HAC/TTY support, IP68, 1.8M drop , MIL-STD-810G, QC 1.0 + gas gauge
Dimensions 144.9 x 73.5 x 11.5 mm
Weight 185 g
HAC Rating M3/T3
* Design and specications are subject to change without prior notice.
39
Cat® S40 Smartphone User Manual
Appendix
Warnings and Precautions
This section contains important information pertaining to the operating instructions of your
device. It also contains information about how to use the device safely. Read this information
carefully before using your device.
Waterproof Casing
USB and Headphone Port covers must be securely in place, and the rear cover properly tted
and locked to ensure the device will meet this level of protection.
Electronic Device
Power off your device if using the device is prohibited. Do not use the device when using the
device causes danger or interference with electronic devices.
Medical Device
Follow rules and regulations set forth by hospitals and health care facilities. Do not use your
device when using the device is prohibited.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained
between a device and a pacemaker to prevent potential interference with the pacemaker. If you
are using a pacemaker, use the device on the opposite side of the pacemaker and do not carry
the device in your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive atmosphere, and comply with
all signs and instructions. Areas that may have potentially explosive atmospheres include
the areas where you would normally be advised to turn off your vehicle engine. Triggering
of sparks in such areas could cause an explosion or a re, resulting in bodily injuries or even
deaths. Do not power on your device at refueling points such as service stations. Comply
with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas,
and chemical plants. In addition, adhere to restrictions in areas where blasting operations
are in progress. Before using the device, watch out for areas that have potentially explosive
atmospheres that are often, but not always, clearly marked. Such locations include areas below
the deck on boats, chemical transfer or storage facilities, and areas where the air contains
chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles
using liqueed petroleum gas (such as propane or butane) whether this device can be safely
used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. In addition, if using the device while
driving a vehicle, comply with the following guidelines:
Concentrate on driving. Your rst responsibility is to drive safely.
Do not talk on the device while driving. Use hands-free accessories.
When you have to make or answer a call, park the vehicle at the road side before using your
device.
RF signals may affect electronic systems of motor vehicles. For more information, consult the
vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag or in the air bag deployment area.
Otherwise, the device may hurt you owing to the strong force when the air bag inates.
Do not use your device while ying in an aircraft. Power off your device before boarding an
aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft
and disrupt the wireless telephone network. It may also be considered illegal.
40 Cat® S40 Smartphone User Manual
Operating Environment
Do not use or charge the device in dusty, damp, and dirty places or places with magnetic elds.
Otherwise, it may result in a malfunction of the circuit.
The device complies with the RF specications when the device is used near your ear or at a
distance of 1.5 cm from your body. Ensure that the device accessories such as a device case
and a device holster are not composed of metal components. Keep your device 1.5 cm away
from your body to meet the requirement earlier mentioned.
On a stormy day with thunder, do not use your device when it is being charged, to prevent any
danger caused by lightning.
When you are on a call, do not touch the antenna. Touching the antenna affects the call quality
and results in increase in power consumption. As a result, the talk time and the standby time
are reduced.
While using the device, observe the local laws and regulations, and respect others’ privacy and
legal rights.
Keep the ambient temperature between 0°C and 40°C while the device is being charged. Keep
the ambient temperature between –10°C to 55°C for using the device powered by a battery.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To reduce the risk of damage to
hearing, lower the headset volume to a safe and comfortable level.
Safety of Children
Comply with all precautions with regard to children’s safety. Letting a child play with your
device or its accessories, which may include parts that can be detached from the device, may
be dangerous, as it may present a choking hazard. Ensure that small children are kept away
from the device and accessories.
Accessories
Choose only batteries, chargers, and accessories approved for use with this model by the
device manufacturer. The use of any other type of charger or accessory may invalidate any
warranty for the device, may be in violation of local rules or laws, and may be dangerous.
Please contact your dealer for information about the availability of approved batteries,
chargers, and accessories in your area.
Battery and Charger
Unplug the charger from the electrical plug and the device when not in use.
The battery can be charged and discharged hundreds of times before it eventually wears out.
Use the AC power supply dened in the specications of the charger. An improper power
voltage may cause a re or a malfunction of the charger.
If battery electrolyte leaks out, ensure that the electrolyte does not touch your skin and eyes.
When the electrolyte touches your skin or splashes into your eyes, wash your eyes with clean
water immediately and consult a doctor.
If there is a case of battery deformation, color change, or abnormal heating while you charge,
stop using the device immediately. Otherwise, it may lead to battery leakage, overheating,
explosion, or re.
41
Cat® S40 Smartphone User Manual
If the power cable is damaged (for example, the cord is exposed or broken), or the plug
loosens, stop using the cable at once. Otherwise, it may lead to an electric shock, a short circuit
of the charger, or a re.
Do not dispose of device in re as they may explode. Batteries may also explode if damaged.
Do not modify or remanufacture, attempt to insert foreign objects into the device, immerse or
expose to water or other liquids, expose to re, explosion or other hazard.
Avoid dropping the device. If the device is dropped, especially on a hard surface, and the user
suspects damage, take it to a qualied service center for inspection.
Improper use may result in a re, explosion or other hazard.
Promptly dispose of used devices in accordance with local regulations.
The device should only be connected to products that bear the USB-IF logo or have completed
the USB-IF compliance program.
Output rating of charger DC 5V 1A.
CAUTION – RISK OF EXPLOSION IF BATERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTRIES ACCORDING TO THE INSTRUCTIONS.
Cleaning and Maintenance
The charger is not water-resistant. Keep it dry. Protect the charger from water or vapour. Do not
touch the charger with wet hands, otherwise it may lead to a short circuit, a malfunction of the
device and an electric shock to the user.
Do not place your device and charger in places where they can get damaged because of
collision. Otherwise, it may lead to battery leakage, device malfunction, overheating, re, or
explosion.
Do not place magnetic storage media such as magnetic cards and oppy disks near the device.
Radiation from the device may erase the information stored on them.
Do not leave your device and charger in a place with an extreme high or low temperature.
Otherwise, they may not function properly and may lead to a re or an explosion. When the
temperature is lower than 0°C, performance of the battery is affected.
Do not place sharp metal objects such as pins near the earpiece. The earpiece may attract these
objects and hurt you when you are using the device.
Before you clean or maintain the device, power off the device and disconnect it from the
charger.
Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and
benzene) to clean the device and the charger. Otherwise, parts of the device may be damaged
or a re can be caused. You can clean the device with soft antistatic cloth.
Do not dismantle the device or accessories. Otherwise, the warranty on the device and
accessories is invalid and the manufacturer is not liable to pay for the damage.
If the device screen is broken by colliding with hard objects, do not touch or try to remove the
broken part. In this case, stop using the device immediately, and then contact an authorized
service center.
42 Cat® S40 Smartphone User Manual
Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices
This phone has been tested and rated for use with hearing aids for some of the wireless
technologies that it uses. However, there may be some newer wireless technologies used in
this phone that have not been tested yet for use with hearing aids. It is important to try the
different features of this phone thoroughly and in different locations, using your hearing aid or
cochlear implant, to determine if you hear any interfering noise. Consult your service provider
or the manufacturer of this phone for information on hearing aid compatibility. If you have
questions about return or exchange policies, consult your service provider or phone retailer.
The U.S. Federal Communications Commission (FCC) has established requirements for digital
wireless mobile devices to be compatible with hearing aids and other hearing assistive
devices.
The wireless telephone industry has developed a rating system for wireless mobile devices
to assist hearing device users nd mobile devices that may be compatible with their hearing
devices.
The ratings are not guarantees. Results will vary depending on the user’s hearing device and
hearing loss. If your hearing devices happens to be vulnerable to interference, you may not be
able to use a rated phone successfully. Trying out the mobile device with your hearing device is
the best way to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less
interference to hearing devices than phones that are not labeled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with
a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note not all hearing devices have telecoils in them.)
The tested M-Rating and T-Rating for this device (FCC ID: ZL5S40), M3 and T3.
Emergency Call
You can use your device for emergency calls in the service area. The connection, however,
cannot be guaranteed in all conditions. You should not rely solely on the device for essential
communications.
FCC Statement
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to all US
model. Per FCC regulation, all WiFi product marketed in US must xed to US operation
channels only.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
43
Cat® S40 Smartphone User Manual
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian CAN ICES-3(B)/NMB-3(B).
This device complies with RSS-310 of Industry Canada. Operation is subject to the condition
that this device does not cause harmful interference.
Cet appareil est conforme à la norme RSS-310 d’Industrie Canada. L’opération est soumise à la
condition que cet appareil ne provoque aucune interférence nuisible.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the user
body or set the device to lower output power if such function is available.
Déclaration d’exposition aux radiations:
Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-
Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du
corps de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une
telle fonction est disponible.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter, except tested built-in radios. The County Code Selection feature is
disabled for products marketed in the US/ Canada.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une
autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été testées.
La fonction de sélection de l’indicatif du pays est désactivée pour les produits commercialisés
aux États-Unis et au Canada.
44 Cat® S40 Smartphone User Manual
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government.
For body worn operation, this device has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and positions the handset a
minimum of 1 cm from the body. Use of other accessories may not ensure compliance with
FCC RF exposure guidelines.
The SAR limit set by the FCC is 1.6W/kg.
US SKU:
The highest reported SAR values under the FCC regulatory for the phone are list below:
Head SAR: 0.96 W/kg
Body SAR: 1.33 W/kg
To reduce the level of exposure to radiations, please do the following:
(i) use the mobile phone in good reception conditions,
(ii) use a hand free kit,
(iii) for pregnant women, please hold the mobile phone far from hers stomach,
(iv) use a mobile phone far from genital parts.
For the device which tests in accordance to EN60950-1:2006, it is mandatory to perform audio
tests for EN50332.
This device has been tested to comply with the Sound Pressure Level requirement laid down
in the applicable EN 50332-1and/or EN 50332-2 standards. Permanent hearing loss may occur if
earphones or headphones are used at high volume for prolonged periods of time.
45
Cat® S40 Smartphone User Manual
Prevention of Hearing Loss
Warning statement requirement under EN 60950-1:A12.
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
Note: For France, headphones/earphones for this device are compliant with the sound
pressure level requirment laid down in the applicable EN 50332-1: 2000 and/or
EN50332-2: 2003 standard as required by Franch Article L.5232-1.
Declaration of Conformity
Complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used for
its intended use and that the following standards have been applied:
1. Health (Article 3.1(a) of the R&TTE Directive)
EN 62311: 2008, EN 50360:2001/A1:2012, EN 50566:2013/AC:2014•
EN 62209-1:2006, EN 62209-2:2010•
EN 62479:2010•
2. Safety (Article 3.1(a) of the R&TTE Directive)
EN 60950-1:2006/A11:2009+A1:2010+A12:2011•
EN 50332-1:2013, 50332-2:2013•
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1•
EN 301 489-7 V1.3.1, EN 301 489-17 V2.2.1, EN 301 489-24 V1.5.1•
EN 55022:2010/AC:2011 Class B, EN55024:2010•
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
EN 301 511 V9.0.2, EN 301 908-1 V7.1.1•
EN 301 908-2 V6.2.1, EN 301 908-13 V6.2.1•
EN 300 328 V1.9.1•
EN 300 440-1 V1.6.1, EN 300 440-2 V1.4.1•
EN 302 291-1 V1.1.1, EN 302 291-2 V1.1.1•
EN 300 330-1 V1.8.1, EN 300 330-2 V1.6.1•
5. RoHS Directive (2011/65/EU)
EN 50581: 2012•
46 Cat® S40 Smartphone User Manual
CE SAR Compliance
This device meets the EU requirements (1999/5/EC) on the limitation of exposure of the general
public to electromagnetic elds by way of health protection.
The limits are part of extensive recommendations for the protection of the general public.
These recommendations have been developed and checked by independent scientic
organizations through regular and thorough evaluations of scientic studies. The unit of
measurement for the European Council’s recommended limit for mobile devices is the
“Specic Absorption Rate” (SAR), and the SAR limit is 2.0 W/ kg averaged over 10 gram of
tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation
Protection (ICNIRP).
For body worn operation, this device has been tested and meets the ICNIRP exposure
guidelines and the European Standard EN 62311 and EN 62209-2, for use with dedicated
accessories. Use of other accessories which contain metals may not ensure compliance with
ICNIRP exposure guidelines.
SAR is measured with the device at a separation of 1.5 cm to the body, while transmitting at the
highest certied output power level in all frequency bands of the mobile device.
The distance of 1.5cm which shall be kept between body and device.
The highest reported SAR values under the CE regulatory for the phone are list below:
Head SAR: 0.609 W/kg
Body SAR: 0.429 W/kg
Disposal and Recycling Information
This symbol on the device (and any included batteries) indicates that they should not be
disposed of as normal household garbage. Do not dispose of your device or batteries as
unsorted municipal waste. The device (and any batteries) should be handed over to a certied
collection point for recycling or proper disposal at the end of their life.
For more detailed information about the recycling of the device or batteries, contact your local
city ofce, the household waste disposal service, or the retail store where you purchased this
device.
The disposal of this device is subject to the Waste from Electrical and Electronic Equipment
(WEEE) directive of the European Union. The reason for separating WEEE and batteries from
other waste is to minimize the potential environmental impacts on human health of any
hazardous substances that may be present.
Reduction of Hazardous Substances
This device is compliant with the EU Registration, Evaluation, Authorization and Restriction of
Chemicals (REACH) Regulation (Regulation No 1907/2006/EC of the European Parliament and
of the Council) and the EU Restriction of Hazardous Substances (RoHS) Directive (Directive
2011/65/EU of the European Parliament and of the Council). For more information about the
REACH compliance of the device, visit the Web site www.catphones.com/certication. You are
recommended to visit the Web site regularly for up-to-date information.
47
Cat® S40 Smartphone User Manual
EU Regulatory Conformance
Hereby, the manufacturer declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the Web site www.catphones.com/certication.
0678
Note: Observe the national local regulations in the location where the device is to be used. This device
may be restricted for use in some or all member states of the European Union (EU).
Note: This device may be operated in all member states of the EU.
France: Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz. Italy: For
private use, a general authorization is required if WAS/RLAN’s are used outside own premises.
For public use, a general authorization is required. Luxembourg: General authorization required
for network and service supply.
Norway: This subsection does not apply for the geographical area within a radius of 20 km
from the centre of Ny-Ålesund.
V100R001B03_01
Google legal attribution
Google, Android and other marks are trademarks of Google Inc.
