Cat® S41 Smartphone
User manual
![](/img.php?id=3538723&img=bg2.png)
Please Read Before Proceeding
Safety Precautions
Please read the safety precautions carefully to ensure the correct use of your mobile
phone.
Despite the nature of this rugged device, avoid hitting, throwing, dropping, crushing,
bending and puncturing, your mobile phone.
Avoid using your mobile phone in a damp environment, such as the bathroom.
Prevent your mobile phone from being intentionally soaked or washed in liquid.
Do not switch on your mobile phone when it is prohibited to use phones or when the
phone may cause interference or danger.
Do not use your mobile phone while driving.
Follow any rules or regulations in hospitals and health care facilities. Switch off your
mobile phone near medical apparatus.
Switch off your mobile phone in aircraft. The phone may cause interference to control
equipment of the aircraft.
Switch off your mobile phone near high-precision electronic devices. The phone may
affect the performance of these devices.
Do not attempt to disassemble your mobile phone or its accessories. Only qualied
personnel are allowed to service or repair the phone.
Do not place your mobile phone or its accessories in containers with a strong
electromagnetic eld.
Do not place magnetic storage media near your mobile phone. Radiation from the
phone may erase the information stored on them.
Do not put your mobile phone in a high-temperature place or use it in a place with
ammable gas such as a gas station.
Keep your mobile phone and its accessories away from young children. Do not allow
children to use your mobile phone without guidance.
Use only approved batteries and chargers to avoid the risk of explosions.
Observe any laws or regulations on the use of wireless devices. Respect others’
privacy and legal rights when using your wireless device.
Do not use the mobile phone in airplanes, hospital, gas stations, or professional
garages.
For medical implants patient (heart, insuline, etc), keep the mobile phone 15cm
away from the implant and, while calling, keep the phone on the opposite side of the
implant.
Strictly follow the relevant instructions of this manual while using the USB cable.
Otherwise your mobile phone or PC may be damaged.
Legal Notice
© 2017 Caterpillar. All Rights Reserved.
CAT, CATERPILLAR, BUILT FOR IT, their respective logos, “Caterpillar Yellow,” the
“Power Edge” trade dress as well as corporate and product identity used herein, are
trademarks of Caterpillar and may not be used without permission.
Bullitt Mobile Ltd is a licensee of Caterpillar Inc.
Bullitt Mobile Ltd.’s and third-party trademarks are the property of their respective
owners.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Caterpillar Inc.
The product described in this manual may include copyrighted software and
possible licensors. Customers shall not in any manner reproduce, distribute,
modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or
sublicense the said software or hardware, unless such restrictions are prohibited by
applicable laws or such actions are approved by respective copyright holders under
licenses.
The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Bullitt Group is under license. All
other third-party trademarks and trade names are those of their respective owners.
Wi-Fi®is a registered trademark of Wi-Fi Alliance®.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and may not be activated or may be
limited by local network operators or network service providers. Thus the descriptions
herein may not exactly match the product or its accessories you purchase.
The manufacturer reserves the right to change or modify any information or
specications contained in this manual without prior notice or obligation.
The manufacturer is not responsible for the legitimacy and quality of any products that
you upload or download through this mobile phone, including but not limited to the
text, pictures, music, movies, and non-built-in software with copyright protection. Any
consequences arising from the installation or usage of the preceding products on this
mobile phone shall be borne by yourself.
NO WARRANTY
The contents of this manual are provided “as is”. Except as required by applicable
laws, no warranties of any kind, either express or implied, including but not limited
to, the implied warranties of merchantability and tness for a particular purpose, are
made in relation to the accuracy, reliability or contents of this manual.
To the maximum extent permitted by applicable law, in no case shall the manufacturer
be liable for any special, incidental, indirect, or consequential damages, or lost prots,
business, revenue, data, goodwill or anticipated savings.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will obtain
all necessary governmental permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and technical data therein.
Contents
Welcome to the Cat® S41 Smartphone ............................................................. 1
Basic functions .................................................................................................................. 1
Key functions .................................................................................................................... 1
Getting started .................................................................................................................. 2
Powering on your mobile phone ................................................................................... 4
Touchscreen ..................................................................................................................... 4
Home screen ..................................................................................................................... 4
Locking and unlocking the screen ................................................................................... 5
Display .............................................................................................................. 6
Display layout ................................................................................................................... 6
Notification panel ............................................................................................................ 7
Shortcut icons ................................................................................................................... 7
Widgets ............................................................................................................................. 8
Folders ............................................................................................................................... 8
Wallpapers ........................................................................................................................ 8
Transferring media to and from your mobile phone ..................................................... 9
Using the Airplane mode ................................................................................................. 9
Phone .............................................................................................................. 10
Making a call ....................................................................................................................10
Answering and rejecting a call .......................................................................................11
Other operations during a call ........................................................................................ 11
Contacts ......................................................................................................... 12
Communicating with your contacts ...............................................................................13
Using the on-screen keyboard .......................................................................................14
Wi-Fi® .................................................................................................................................................................................................14
SMS and MMS ................................................................................................ 15
Bluetooth® ....................................................................................................................................................................................17
Taking photos and recording videos .............................................................. 18
Enjoying music ............................................................................................................... 21
Listening to FM radio ..................................................................................................... 22
Google™ Services ........................................................................................... 23
Google Maps ................................................................................................... 25
Using Google Play Store ................................................................................. 26
Synchronizing information ............................................................................. 27
Managing your accounts ............................................................................................... 27
Customizing your account synchronization ................................................................. 28
Using other applications ................................................................................ 28
Using the calendar ......................................................................................................... 28
Using the alarm .............................................................................................................. 29
Calculator ........................................................................................................................ 29
Managing your mobile phone ......................................................................... 30
Setting the date and time............................................................................................... 30
Setting the display .......................................................................................................... 30
Setting phone ringtone .................................................................................................. 31
Configuring the programmable key.............................................................................. 32
Setting phone services ................................................................................................... 32
Protecting your mobile phone ....................................................................................... 33
Using NFC ....................................................................................................................... 33
Managing applications ................................................................................................... 34
Resetting your mobile phone ........................................................................................ 34
Hardware reset of your device ...................................................................................... 35
Viewing E-label ............................................................................................................... 35
Appendix ......................................................................................................... 36
Warnings and Precautions ............................................................................................. 36
Accessories ..................................................................................................................... 37
Cleaning and maintenance ............................................................................................ 38
Hearing Aid Compatibility (HAC) ................................................................................... 39
Emergency call ............................................................................................................... 39
FCC statement ................................................................................................................. 39
Industry Canada Statement ........................................................................................... 40
RF exposure information (SAR) .................................................................................... 41
Prevention of hearing loss ............................................................................................ 41
CE SAR Compliance ....................................................................................................... 42
Disposal and recycling information .............................................................................. 42
S41 specification ............................................................................................................. 45
![](/img.php?id=3538723&img=bg7.png)
Cat® S41 Smartphone User Manual 1
Welcome to the Cat® S41 Smartphone
The S41 smartphone is designed for the outdoors, with features to cope with challenging
environments. It is certied to the highest industry standard for ruggedness, IP68, so
it can survive depths of up to 2 meters for 60 minutes and it can also take underwater
photographs and video. It also supports glove and wet-nger compatible touchscreen. It
has a scratch-resistant glass, is dustproof and can withstand being dropped from a height of
1.8m Complementing the durable design features, the S41 boasts performance enhancing
applications enabling you to enjoy web browsing, messaging, music and more with its high
capacity battery and expandable memory of up to 128GB.
Basic functions
Phone at a glance
FRONT VIEW REAR VIEW
15
12
10
9
4
1
13
8
11
6
1. Headset jack
2. Front camera
3. Earpiece
4. Microphones
5. Recent Apps button
6. Speaker
7. Home button
8. Back button
9. Programmable key
10. SIM card slot
11. MicroSD card slot
12. 13MP camera
13. Flash
14. USB port
15. Volume up/down key
16. Power key
7
Key functions
Power key Press to turn on your mobile phone. •
Press and hold to open the Phone options menu. •
Press to lock or wake the screen when mobile phone is asleep.•
Home button Press at any time to display the Home screen.•
A long press of the Home button will display the Google icon. Touch the •
icon on the display to launch Google search or Google Now.
Recent Apps button Press to list the recent applications used.
Back button Press• to display the previous screen you were working in.
Use to • close the on-screen keyboard.
Volume up/down
key
Volume – Press the • Volume up key to increase the volume, or the
Volume down key to decrease the volume.
Screenshot – Press both • Power and Volume down keys simultaneously.
When in the camera app, press the • Volume up/down key to instantly
take your pictures.
2 3
5
16
14
![](/img.php?id=3538723&img=bg8.png)
Cat® S41 Smartphone User Manual
2
Getting started

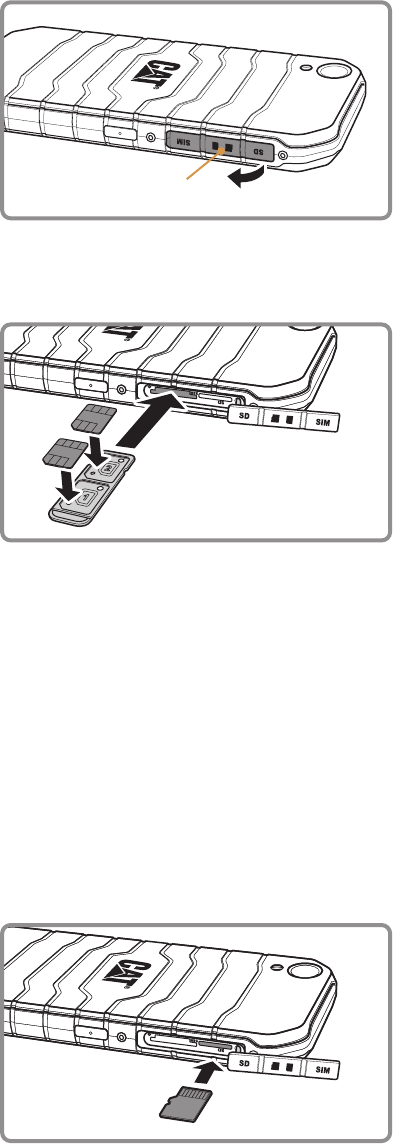

Installing nano SIM card(s)
1. Place your phone on a at surface with the display facing down. Then open the side door.
Side door
2. Use your ngertip to pull out the SIM tray.
3. Put the nano SIM card(s) in the SIM tray as indicated on the tray guide.
4. Insert the SIM tray into the SIM card slot.
Note:
Put the nano SIM card(s) in the SIM tray, with the card(s) gold contacts facing up, push the tray all ∙
the way until until it is fully seated in the slot.
To remove the nano SIM card(s), use your fingertip to pull the tray out. Then remove the nano SIM ∙
card(s).
Installing a memory card
1. Place your phone on a at surface with the display facing down. Then open the side door.
2. Insert a microSD card into the memory card slot with gold contacts facing up.
Note:
Insert the microSD card with the gold contacts facing up, push the memory card all the way until ∙
you hear a locking sound.
To remove the microSD card, press against the edge of the memory card and release it. ∙
Do not force the microSD card as this could damage the memory card or slot. ∙
![](/img.php?id=3538723&img=bg9.png)
Cat® S41 Smartphone User Manual 3
Charging the battery
The S41 has an embedded battery, to charge the battery:
1. Connect the USB cable that came with your mobile phone to the charger.
Note:
Use only Cat® approved chargers and cables. Unapproved equipment may cause damage to the
device or cause batteries to explode.
2. Open the USB port cover. Connect the USB cable to the USB port of your phone.
Note:
Be careful not to use excessive force when plugging the USB cable.
Be aware of the correct orientation of the plug. Damage can be caused by attempting to insert the
connector incorrectly, this is not covered by the warranty.
3. Connect the USB to the appropriate AC mains plug and connect safely to the mains power
supply.
4. When charging is complete, remove the connector from the device and then remove the wall
charger.
Important information about the battery
If the battery is discharged, you may not be able to power on your mobile phone immediately
after you begin charging the battery. Allow the battery to charge for a few minutes with the
phone powered off before attempting to power on the phone. The on-screen charge animation
may not be displayed during this period.
The time required to charge the battery depends on the environmental temperature and the
age of the battery.
When the battery power level is low, the phone plays an alert and displays a prompt. When the
battery power is almost exhausted, your phone will power off automatically.
![](/img.php?id=3538723&img=bga.png)
Cat® S41 Smartphone User Manual
4
Powering on your mobile phone
Powering on your mobile phone
Press the Power key ( ).
The rst time you power on your phone, you will see a Welcome screen. Select your preferred
language and touch GET STARTED to continue with the set up process.
Note:
If personal identification number (PIN) protection is enabled on your SIM Card, you will be asked to
enter your PIN before the Welcome screen. A Wi-Fi or Data connection is needed to complete the set
up process.
You will now be prompted to sign in with your existing Google account, or set up a new
account and complete the set up process.
Note:
You can skip the account set up process to complete at another time. A Google account is required to
use some of the Google services on offer through your device.
Powering off your mobile phone
1. Press and hold the Power key to open the Phone options menu.
2. Touch Power off.
Touchscreen
Touchscreen actions
Touch: Touch using your ngertip to select an item, conrm a selection, or start an application.
Touch and hold: Touch an item with your ngertip and continue to press down until your
mobile phone responds. For example, to open the options menu for the active screen, touch
the screen and hold down until the menu appears.
Swipe: Move your nger across the screen either vertically or horizontally. For example, swipe
left or right to switch between pictures.
Drag: Touch and hold the desired item with your nger. Drag the item to any part of the screen.
You can drag an icon to move or delete it.
Home screen
After you sign in, or when you power on the phone, the Home Screen opens. The Home Screen
is your starting point to access all the features on your phone. This displays application icons,
widgets, shortcuts and other features. You can customize the Home Screen with different
wallpaper and display the items you want.
The Home Screen has the Launcher icon ( ). Touch this to view and launch installed
applications (apps).
Note:
A long press on an empty space on the Home Screen will launch the shortcut to WALLPAPERS,
WIDGETS, and SETTINGS.
![](/img.php?id=3538723&img=bgb.png)
Cat® S41 Smartphone User Manual 5
Locking and unlocking the screen
Locking the screen
When your mobile phone is on, press the Power key to lock the screen. When the screen is
locked, you can still receive messages and calls.
If you leave your mobile phone undisturbed for a while, the screen will lock automatically.
Unlocking the screen
Press the Power key to wake up the screen. Then drag the lock icon ( ) upwards to unlock the
screen. Enter pattern or PIN code if required.
To use the Camera function directly from the locked screen, drag the camera icon ( ) upwards
to launch the Camera App.
To use the Google Voice Search function directly from the locked screen, drag the voice search
icon ( ) upwards to launch the Google Voice Search App.
Note:
You can also wake up the screen by double tapping the screen or pressing the ∙Home button twice.
For details, refer to “Using the double tap wake function“ on page 31.
If you have set up a screen lock, you will be prompted to unlock the screen. For details, refer to ∙
“Protecting your mobile phone with a screen lock“ on page 33.
![](/img.php?id=3538723&img=bgc.png)
Cat® S41 Smartphone User Manual
6
Display
Display layout
Notifications and status information
The Status bar appears at the top of every screen. This displays notication icons, such as
missed call or received messages (on the left) and phone status icons, such as battery status
(on the right), along with the current time.
Notication icons Status icons
Status icons
Connected to 4G mobile network No signal
Connected to LTE mobile network Vibrate mode
Connected to 3G mobile network Location is found
Connected to GPRS mobile network Battery is full
Connected to EDGE mobile network Battery is charging
Connected to HSDPA mobile network FM Radio is turned on
Connected to HSPA+ mobile network Airplane mode
Roaming Connected to a Wi-Fi network
Mobile network signal strength Connected to a Bluetooth device
Notification icons
New email message Missed call
New text message Speakerphone is activated
Upcoming event Phone microphone is muted
Alarm is set Downloading data
Data is syncing Headphones are connected
Problem with sign-in or sync A screenshot is captured
![](/img.php?id=3538723&img=bgd.png)
Cat® S41 Smartphone User Manual 7
Notification panel
Your mobile phone will notify you when you receive a new message or there is an incoming
event. The notication panel also informs you about alarms and settings. Open the
notication panel to see the wireless network operator or to view a message, reminder, or
event notication.
Opening the notification panel
1. When a new notication icon appears on the notication bar, touch the notication bar, and
then drag down to open the notication panel.
2. Touch a notication to open the related application.
Closing the notification panel
To directly close a notication (without viewing), simply touch and hold the notication and
drag it to the left/right of the screen.
To close the notication panel, slide the bottom of the panel upwards to close the notications
panel.
Shortcut icons
Adding a new screen item
1. From the Home screen, touch to display all the applications.
2. To add an item, drag the application icon to a specic Home screen.
Moving a screen item
1. Touch and hold an application icon on the Home screen until the icon enlarges.
2. Without lifting your nger, drag the icon to the desired position on the screen, and then
release it.
Note:
There must be enough space for the icon to fit on the current Home screen panel.
Removing a screen item
1. Touch and hold an application icon on the Home screen until the icon enlarges.
2. Without lifting your nger, drag the item to Remove. Then release your nger to remove it
from the Home screen.
3. You can also uninstall applications by following steps 1 and 2 and dragging the application
to the Uninstall at the top of the screen.
Cat® S41 Smartphone User Manual
8
Widgets
A widget lets you preview or use an application. You can place widgets on your Home screen
as icons or preview windows. Several widgets are installed on your phone by default. More
widgets can be downloaded on Google Play.
Adding a widget
1. From the Home screen, touch and hold the Home screen.
2. Touch WIDGETS to display the available widgets.
3. To add an item, drag your desired widget to a specic Home screen.
Removing a widget
1. Touch and hold the widget icon on the Home screen until the icon enlarges.
2. Without lifting your nger, drag the item to Remove. Then release your nger to remove it
from the Home screen.
Folders
Creating a folder
Drag the application icon or shortcut and drop it on top of other applications.
Renaming a folder
1. Touch a folder to open it.
2. On the title bar of the folder, enter the new folder name.
3. When complete, press the Back button.
Wallpapers
Changing the wallpaper
1. From the Home screen, touch and hold the Home screen.
2. Touch WALLPAPERS.
3. Scroll through the available options to set a wallpaper of your choice.
4. Touch Set wallpaper > Home screen to set the desired image as the Home screen wallpaper.
![](/img.php?id=3538723&img=bgf.png)
Cat® S41 Smartphone User Manual 9
Transferring media to and from your mobile phone
Transfer all your favourite music and pictures between your mobile phone and PC in Media
Device MTP mode.
1. Connect your mobile phone to your PC with the USB cable.
2. Drag down to open the notication panel and the USB connection options appears. Then
touch Transfer files to activate the MTP mode.
3. Your phone should be displayed as a removable device displaying the phone’s Internal
storage and if a memory card is inserted, microSD card will also be visible. Copy the desired
les to your phone.
Note:
If using a MAC you will need to download drivers from: http://www.android.com/filetransfer/
Using the Airplane mode
Some locations may require you to turn off your phone’s wireless connections. Rather than
powering off your phone, you can set it to Airplane mode.
1. Press and hold the Power key.
2. Touch Airplane mode in the options menu.
Or using the Settings application, access the More menu and slide the Airplane mode switch to
the right ( ) to enable the function.
From the home screen pulling down the notication panel also gives access to Airplane mode.
![](/img.php?id=3538723&img=bg10.png)
Cat® S41 Smartphone User Manual
10
Phone
There are several ways to place a phone call. You can dial a number, select a number in your
contacts list, on a Web page, or from a document that contains a phone number. When you are
on a call, you can either answer incoming calls or send them to your voicemail box. You can
also set up conference calls with several participants.
Note:
Contact your network operator to learn whether your subscription supports conference calls and how
many participants you can add.
Making a call
To make a call, you can use the Phone application, or select a number from Contacts or Call
Log.
When you are on a call, you can press the Home button to return to the Home screen and
use other functions. To return to the calling screen, drag the notication bar down and touch
Current call.
Making a call with the dialler
1. From the Home screen, touch . Then touch to display the dialler.
2. Touch the appropriate numeric keys to enter the phone number.
Tip: Your mobile phone supports the SmartDial function, that is, when you touch numbers on the
dialler, the phone automatically searches among your contacts and lists the matching results based
on the accuracy. Close the keypad to view more possible matches.
3. After entering the number, or selecting the contact, touch .
Making a call from contacts
1. From the Home screen, touch > Contacts ( ) to display the contact list. If you are
already within the dialler, touch the tab to display the contact list.
2. In the list, touch the contact you want to call.
3. Touch the phone number to call the contact.
Making a call from call log
1. Touch > Phone ( ) > tab. You will see the list of latest calls. If you cannot nd the
desired contact, touch > Call History to display all call history.
2. Touch the contact in the list and touch to make the call.
![](/img.php?id=3538723&img=bg11.png)
Cat® S41 Smartphone User Manual 11
Answering and rejecting a call
When you receive a phone call, the incoming call screen opens with the caller ID and any
additional information about the caller that you have entered in Contacts.
• To answer a call, touch and drag it to the right ( ).
• To reject the call, touch and drag it to the left ( ).
• To reject and send a message directly to the caller, touch and drag it to upwards ( ) and
select one of the available template message options or touch Write your own... to compose
your message.
Note:
When you touch , it disappears from the screen.
Ending a call
During a call, touch to hang up.
Other operations during a call
Making a conference call
If you receive a new call while you are already on a call, you can connect the second call
to the call you are on. This feature is known as conference calling. You can also set up a
conference call with multiple callers.
Note:
Contact your network operator to learn whether your subscription supports conference calls and how
many participants you can add.
1. To initiate a conference call, dial the number of the rst person to be on the call and touch
to make the call.
2. While you are on that call, touch > Add call and enter the phone number of the person you
want to join the conversation.
3. Touch , or select someone from your Call Log or Contacts. The rst call is automatically
placed on hold.
4. Once the additional call has been connected, touch > Merge calls.
5. To add more people, touch and repeat steps 2 to 4.
6. To end the conference call and disconnect everyone, touch .
Switching Between Calls
If you receive a new call while you are already on a call, you can switch between the two calls.
1. While you are on two calls, touch on the lower left corner of the display the contact’s name
or phone number.
2. The current call is placed on hold and you are connected to the other call.
![](/img.php?id=3538723&img=bg12.png)
Cat® S41 Smartphone User Manual
12
Contacts
The Contacts application enables you to save and manage information such as phone numbers
and addresses of your contacts. After you save the contact information on your mobile phone,
this gives you easy access to people with whom you want to communicate.
Opening the contacts application
If you have a new mobile phone and have not yet added any contacts, Contacts displays a
message with hints on how to start adding contacts to your mobile phone.
To open the application, do one of the following:
Touch • and then Contacts ( ). Touch the ALL CONTACTS tab to display the contact list.
Touch • on the Home screen, then touch the tab to display the contact list.
All of your contacts are displayed alphabetically in a scrolling list.
Copying contacts
You can copy contacts saved in your google accounts or from the SIM card, internal storage, or
memory card.
1. In the contacts list, touch > Import/export.
2. Do one of the following:
To import contacts saved in your google accounts:•
Select your account and touch NEXT. Specify where to import the contacts and touch
NEXT. Then select the desired contact(s) and touch OK.
To import contacts from the SIM card:•
Touch USIM. Specify where to import the contacts and touch NEXT. Then select the
desired contact(s) and touch OK.
To import contacts from the internal storage or memory card:•
Touch Internal shared storage or SD card. Specify where to import the contacts and touch
NEXT. If there is more than one vCard le, you will have options either to import one
vCard le, multiple vCard les, or all vCard les.
Note:
If there is more than one vCard file stored in the internal storage or memory card, you will have
options either to import one vCard file, multiple vCard files, or all vCard files.
Backing up contacts
You can copy contacts to the SIM card, internal storage, or memory card.
1. In the contacts list, touch > Import/export.
2. Do one of the following:
To export contacts to the SIM card:•
Select your account or touch Phone contact. Touch NEXT > USIM. Then select the desired
contact(s) and touch OK.
To export contacts to the internal storage or memory card:•
Select your account or touch Phone contact. Touch Internal shared storage or SD card >
NEXT. Then select the desired contact(s) and touch OK. A conrmation message appears,
touch OK to conrm the selection.
![](/img.php?id=3538723&img=bg13.png)
Cat® S41 Smartphone User Manual 13
Adding a contact
1. In the contacts list, touch to add a new contact.
2. Specify where to store the contact. Then enter the contact’s name, and then add any detailed
information such as phone number or address.
3. When you are nished, touch to save the contact information.
Adding a contact to your favourites
1. Touch the contact you want to add to Favourites.
2. Touch beside the name and the icon turns white ( ).
Searching for a contact
1. In the contacts list, touch to search for a contact.
2. Enter the name of the contact for which you are searching. As you type, contacts with
matching names appear below the search box.
Editing a contact
You can always make changes to the information you have stored for a contact.
1. In the contacts list, touch the contact whose details you want to edit.
2. Touch .
3. Make the desired changes to the contact information, and then touch . To cancel all
changes you have made to the contact information, press the Back button.
Communicating with your contacts
From the All Contacts or Favourites tab, you can quickly call or send a text (SMS) or multimedia
message (MMS) to a contact’s default phone number. You can also open details to view a
list of all the ways you can communicate with that contact. This section describes how to
communicate with a contact when you view your contacts list.
Communicating with a contact
1. In the contacts list, touch the contact that you want to communicate.
2. In the contact’s details screen, you can do one of the following:
Touch the phone number to make a call.•
Touch • to send message.
Deleting a contact
1. In the contacts list, touch the contact that you want to delete.
2. Touch > Delete.
3. Touch DELETE to conrm that you want to delete the contact.
![](/img.php?id=3538723&img=bg14.png)
Cat® S41 Smartphone User Manual
14
Using the on-screen keyboard
Displaying the keyboard panel
To enter text, use the on-screen keyboard. Some applications open the keyboard automatically.
In others, touch a text eld to open the keyboard.
To open the keyboard, touch the space where you want to write the text. Press the Back button
to hide the keyboard.
Using the landscape keyboard
If you nd the keyboard inconvenient or difcult to use, turn your mobile phone sideways. The
screen will display the keyboard in landscape orientation, providing you with a wider keyboard
layout.
Customizing keyboard settings
1. Touch > Settings ( ) > Languages & input.
2. Do any of the following:
Touch • Virtual keyboard to congure the keyboard settings.
Touch • Physical keyboard to let the virtual keyboard appears on the screen and display
available shortcuts.
Wi-Fi®
To use Wi-Fi on your mobile phone, you need to have access to wireless access points
(hotspots). Obstacles that block the Wi-Fi signal will reduce its strength.
Turning on Wi-Fi and connecting to a wireless network
1. Touch > Settings ( ).
2. In Wireless & networks, touch Wi-Fi and slide the switch to the right ( ) to enable the
function.
3. A list of detected Wi-Fi networks will be displayed. Choose Wi-Fi network to connect.
4. If you select an open network, you will be automatically connected to the network. If you
select a network that is secured and connect to it for the rst time, enter the password, and
then touch CONNECT.
Note:
If you connect to a secured wireless network that you have already used, you will not be prompted
to enter the password again unless you reset your mobile phone to its default settings or the Wi-Fi
password was changed.
Tip: On the Wi-Fi settings screen, touch Add network to add a new Wi-Fi network.
![](/img.php?id=3538723&img=bg15.png)
Cat® S41 Smartphone User Manual 15
SMS and MMS
Opening messaging
To open the application, do one of the following:
Touch • on the Home screen.
Touch • > Messaging ( ).
Creating and sending a text message
The window opens, where you can create a new message or open an ongoing
message thread.
1. Touch to start a new text or multimedia message or touch an existing message thread to
open it.
2. Enter a phone number in the Type name or number eld. As you enter the phone number,
matching contacts appear. You can touch a suggested recipient or continue entering the
phone number.
3. Touch the text box to start entering your message.
If you press the Back button while composing a message, it is saved as a draft in your
message list. Touch the message to resume composing it.
4. Once you are done, touch .
Note:
Responses appear in the window. As you view and send additional messages, a message thread is
created.
Creating and sending a multimedia message
1. On the messaging screen, touch .
2. Enter a phone number in the Type name or number eld or touch to add a phone number
from the CONTACTS list.
3. Touch the text box to start entering your message.
4. Touch > Add subject to add the message subject.
5. Enter a subject.
Your mobile phone is now in multimedia message mode.
6. Touch and select the type of media le to attach to the message.
7. Once you are done, touch .
![](/img.php?id=3538723&img=bg16.png)
Cat® S41 Smartphone User Manual
16
Opening and replying to a message
1. In the message list, touch a text or multimedia message thread to open it.
2. Touch the text box to compose your message.
3. Touch .
Customizing the message settings
In the message list, touch > Settings to customize the message settings. Choose from:
SMS Enabled: Specify the default SMS application.•
Text Message(SMS): Congure the text message settings.•
- Request delivery report: Check the check box to request a delivery report for each message
you sent.
- Manage SIM card messages: Manage the SIM card messages.
- Edit quick text: Edit the message template.
- SMS Service Center: Specify the phone number of the SMS Service Center.
- SMS storage location: Specify where to store the text message.
Multimedia Message(MMS): Congure the multimedia message settings.•
- Group messaging: Check the check box to use MMS to send a single message when there
are multiple recipients.
- Request delivery report: Check the check box to request a delivery report for each message
you sent.
- Request read reports: Check the check box to request a read report for each message you
sent.
- Send read reports: Check the check box to send a read report if requested bt the MMS
sender.
- Auto-retrieve: Check the check box to automatically retrieve messages.
- Roaming auto-retrieve: Check the check box to automatically retrieve messages while
roaming.
- Size Limit: Set the MMS maximum limit per conversation.
Notications: Congure the notication settings.•
- Message notications: Check the check box to display a new message notication on the
status bar.
- Mute: Temporarily block the SMS or MMS.
- Sound: Set a ringtone for new messages.
- Vibrate: Check the check box to let the device to vibrate for new messages.
- Popup notication: Check the check box to display popup for push notications.
General: Congure the general message settings.•
- Message font size: Specify the message font size.
- Delete old messages: Check the check box to delete the old messages as limits are reached.
- Text message limit: Set the text message maximum limit per conversation.
- Multimedio message limit: Set the MMS maximum limit per conversation.
- Cell broadcast: Set the MMS maximum limit per conversation.
- Enable WAP PUSH: Check the check box to enable to receive service message.
![](/img.php?id=3538723&img=bg17.png)
Cat® S41 Smartphone User Manual 17
Bluetooth®
Your mobile phone has Bluetooth, which allows you to create a wireless connection with
other Bluetooth devices so you can share les with your friends, talk hands-free with a
Bluetooth headset, or even transfer photos on your phone to your PC.
If you are using Bluetooth, remember to stay within 10 meters of other Bluetooth
devices. Be aware that obstacles like walls or other electronic equipment may interfere with
your Bluetooth connection.
Turning on Bluetooth
1. Touch > Settings ( ).
2. In Wireless & networks, touch Bluetooth and slide the switch to the right ( ) to enable the
function.
When Bluetooth is turned on, the Bluetooth icon appears in the notication bar.
Pairing and connecting a Bluetooth device
Bluetooth lets you do the following:
Use a hands-free Bluetooth device.•
Use a mono or stereo Bluetooth headset.•
Control what plays through the Bluetooth headset remotely.•
Before you use Bluetooth, you need to pair your mobile phone with another Bluetooth device
as follows:
1. Ensure that the Bluetooth function on your mobile phone is enabled.
2. Your mobile phone will then search for Bluetooth devices in range (or touch > Refresh).
3. Touch the device you want to pair with your mobile phone.
4. Follow the on-screen instructions to complete the connection.
Note:
Once a partnership has been created, connecting to that Bluetooth device again will no longer require
entering the password.
Sending files via Bluetooth
With Bluetooth, you can share pictures, videos, or music les with your family and friends.
To send les via Bluetooth, do as follows:
1. Touch the le to be sent.
2. Touch > Bluetooth, and then select a paired device.
![](/img.php?id=3538723&img=bg18.png)
Cat® S41 Smartphone User Manual
18
Disconnecting or unpairing a Bluetooth device
1. Touch > Settings ( ).
2. In Wireless & networks, touch Bluetooth.
3. On the connected device option, touch and then touch FORGET to conrm the
disconnection.
Taking photos and recording videos
The camera is a combination of camera and camcorder that you can use to shoot and share
pictures and videos.
Opening your camera
To open the application, do one of the following:
Touch • on the Home screen.
Touch • > Camera ( ).
Press the Back or Home button to close the camera.
Taking a photo
1. Touch > Camera ( ).
By default, it is in Camera mode. Otherwise, slide the screen to the right until the Camera •
shutter icon ( ) appears on the bottom of the screen.
Note:
Touch to switch between front and 13MP camera.
If you want to include yourself in the photo, • touch and select PIP to activate both
cameras function simultaneously.
2. Compose your photo within the photo capture screen.
Touch the screen to focus the specic area on the screen.•
Pinch to zoom in/out on the subject.•
Touch • to change the camera settings.
Touch • to apply a background effect.
3. Touch to take your photo.
Note:
When in the Camera app, you can press the Volume up and Volume down keys to take your
photos too.
![](/img.php?id=3538723&img=bg19.png)
Cat® S41 Smartphone User Manual 19
Viewing your photos
To view your photos, you can do one of the following:
When in the Camera view, touch the thumbnail of the latest captured photo next to • .
Note:
To go back to Camera view, press the Back button or swipe to the right until the capture screen
appears again.
Touch • > Photos ( ) to view all photos and videos.
Edit and share your photos
As you browse through your photos, the following options become available:
Edit: Touch • and edit your photos with the wide range of options available.
Share: Touch • and share your photos through various applications available on your
device.
Delete: Touch • to delete photos no longer required.
View Information: Touch • to view the photo information.
Shooting a video
1. Touch > Camera ( ).
2. Slide the screen to the left until the Video shutter icon ( ) appears on the bottom of the
screen.
Note:
Touch ∙ to switch between front and 13MP camera.
Touch ∙ to apply a background effect.
3. Touch to start recording.
4. While recording, do one of the following:
Pinch to zoom in/out on the subject.•
Touch• to pause the recording. To resume, touch .
Touch• to take a photo.
5. Touch to stop shooting.
Viewing your videos
After recording a video, touch the thumbnail of the latest recorded video next to . Touch
to play the video.
![](/img.php?id=3538723&img=bg1a.png)
Cat® S41 Smartphone User Manual
20
Taking a panoramic photo
1. Touch > Camera ( ).
2. Touch the orange icon ( or ) on the top left of the screen and select Panorama to switch
to the Panorama mode.
3. Touch to start taking the shot.
4. Determine the direction. Then slowly move the device towards the desired direction.
5. When the shooting guide reaches the end point, the shooting ends. To manually stop taking
the shot, touch .
Tip: To cancel the shooting, simply touch .
Using photos
Your Photos application can automatically search for pictures and videos saved to your or
memory card. Select the album/folder and play as a slideshow or select items to share with
other applications.
Opening photos
Touch > Photos ( ) to open the application. The Photos application categorizes your
pictures and videos by storage location and stores these les in folders. Touch a folder to view
the pictures or videos inside.
Viewing a photo
1. In Photos, touch the folder that contains the pictures you want to view.
2. Touch the picture to view it in full-screen mode. When viewing a picture in full-screen mode,
ick the picture left or right to view the previous or next picture.
3. To zoom in on the image, move your two ngers apart from each other at the location of the
screen where you want to zoom in. In zoom mode, swipe your nger up or down and left or
right.
Tip: The picture viewer supports the automatic rotation function. When you rotate your mobile phone,
the picture adjusts itself to the rotation.
Cropping a picture in photos
1. When viewing a picture, touch > .
2. Touch Crop and use the cropping tool to select the portion of the picture to crop.
Drag from the inside of the cropping tool to move it.•
Drag an edge or a corner of the cropping tool to resize the image.•
3. Touch DONE > SAVE to save the cropped picture.
To discard the changes, touch • > DISCARD.
![](/img.php?id=3538723&img=bg1b.png)
Cat® S41 Smartphone User Manual 21
Enjoying music
You can transfer music les from your PC to your microSD card or to the phone memory so
you can listen to music on your mobile phone.
Copying music to the microSD card
1. Connect the phone to your computer with a USB cable and mount the microSD card.
2. On the PC, navigate to the USB drive and open it.
3. Create a folder in the root directory of the microSD card (for example, Music).
4. Copy the music from your computer to the folder you have created.
5. After copying music, unmount or eject the drive as required by your PC’s operating system
to safely remove the mobile phone from the PC.
Opening Google Play music
To display the media library, touch > Google Play Music ( ) > touch the music category
selection box at the top left of the screen > Music library. It contains ve tabs: PLAYLISTS,
ARTISTS, ALBUMS, SONGS, and GENRES.
Playing music
1. Touch a category on the music library screen.
2. Touch the song you want to play.
Tip: When you are listening to music, press the Back button to use another application. Your music
continues to play. To return to the music controls, open the notification panel and then touch the song.
Adding music to a playlist
1. Touch a category on the music library screen.
2. Touch next to the song that you want to add to a playlist. Then touch Add to playlist in the
options menu.
3. Select a playlist or touch NEW PLAYLIST to add the song to an existing playlist.
Playing a playlist
1. In the music library screen, touch playlists.
2. Touch the playlist you want to access.
3. Touch the song you want to play.
![](/img.php?id=3538723&img=bg1c.png)
Cat® S41 Smartphone User Manual
22
Listening to FM radio
FM Radio lets you listen to FM radio stations on your mobile phone. Connect your headset rst
to the audio jack of your phone before opening the application.
Touch > FM Radio ( ) to launch the application.
Tuning the FM radio
Choose from the following options:
To start listening to FM radio station, touch • .
To select the radio station to listen to, touch • or .
To manually tune to a frequency, touch • or to select the radio station.
To add the current radio station to the Favourite list, touch • . The current radio station will
appear on the Favourites list.
To mute the FM, touch • . Then touch to resume.
To enable the speaker, touch • > Speaker.
To scan f• or all available channels, touch > > Refresh.
To turn off the radio, simply disconnect your headset. •
Recording the FM radio
To record the radio, do the following:
To start recording, touch • > Start recording.
To stop recording, touch • STOP RECORDING. Then enter the le name and touch SAVE to
save recorded le.
![](/img.php?id=3538723&img=bg1d.png)
Cat® S41 Smartphone User Manual 23
Google Services
You must sign in to a Google account to use Gmail, Google Calendar, and other Google Apps.
To download applications on Google Play, you will also be prompted to sign in to your Google
account.
Creating a Google account
If you did not choose to create a Google account during set up, you can create one:
1. Touch > Settings ( ).
2. Touch Accounts > Add account.
3. Touch Google to create a Google account and then follow the onscreen instructions.
Using Gmail
When you rst set up your phone, you may have congured it to use an existing Gmail account
or create a new account. The rst time you open the Gmail application on your phone, your
Inbox will contain the messages from your Gmail account on the web.
Opening Gmail
Touch > Gmail ( ). The Inbox mail list appears. Any emails you decide to keep on your
mobile phone will go to your Inbox folder.
Switching between accounts
To switch to another email account, touch the account selection box at the top left of the
screen, then touch the account that you want to view.
Creating and sending an Email
1. On the Inbox screen, touch .
2. Enter the message recipient’s email address in the To eld.
If you are sending the email to several recipients, separate the email addresses with •
commas.
If you want to send CC or BCC other recipients, touch • to display the Add Cc/Bcc elds.
3. Enter the email subject and compose your message.
If you want to add a picture attachment, touch to select the picture you want to attach.
4. After composing your email, touch .
![](/img.php?id=3538723&img=bg1e.png)
Cat® S41 Smartphone User Manual
24
Replying or forwarding Email
1. On the Inbox screen, touch the email that you want to reply to or forward.
2. Touch Reply( ), Reply all ( > Reply all), or Forward ( > Forward).
3. Do one of the following:
If you select Reply or Reply all, enter your message.•
If you select Forward, specify the message recipients and add any additional text you want •
to include with the forwarded message.
4. Touch .
Searching Email
1. On the Inbox screen, touch .
2. Enter the search keywords in the box, and then touch .
Customizing your Gmail settings
1. On the folder category screen, touch > Settings to customize the message settings.
2. Choose General settings or an email account.
3. Touch an option and change the necessary settings.
![](/img.php?id=3538723&img=bg1f.png)
Cat® S41 Smartphone User Manual 25
Google Maps
Google Maps lets you nd your current location, view real-time trafc conditions (depending on
availability in your location), and get detailed directions to various destinations on a satellite,
trafc, or other kind of map.
Enabling location
Before you open Maps to nd your location or search for places of interest, you must enable
Location and set Location mode.
1. Touch > Settings ( ).
2. Touch Location.
3. Slide the Location switch to the right ( ) to enable the function.
4. Touch Mode and choose the relevant option.
Note:
To use the navigation feature, the Mode function will have to be set to High accuracy.
Opening Maps
Touch > Maps ( ) to open the application.
Note:
You can also access the application by opening the Google folder and select Maps ( ).
Searching for places of interest
1. While viewing a map, enter the place you want to search for, in the search box at the top of
the display, and then touch .
Note:
You can also select one option from the suggestions list.
2. Your search results will then be displayed. Touch the marker ( ) and it displays the location
name.
3. Touch to view your current location on the map.
Getting directions
1. While viewing a map, touch DIRECTIONS.
2. Touch the icon for car, public transit, or walking directions.
3. The application displays automatically the shortest distance from your current location to the
destination location.
Note:
If you want to enter manually the current location and/or the destination location, touch Your
location or the destination location and enter the relevant information.
4. Touch START.
Note:
Touch to switch the current and destination locations, add stop, share the route directions, view
information on air traffic, satellite, and/or terrain image of the map, and configure the route options.
![](/img.php?id=3538723&img=bg20.png)
Cat® S41 Smartphone User Manual
26
Using Google Play Store
Play Store provides direct access to applications and games, which you can download and
install on your phone.
Opening Google Play Store
To open the application, do one of the following:
Touch • on the Home screen.
Touch • > Play Store ( ).
Searching for applications
There are a few different ways to nd applications on the Play Store home screen, including:
List of applications by category: Touch the desired category and scroll down to view more.•
Search function: Enter the search keywords in the box, and then touch • .
To view the installed applications, touch > My apps & games.
Installing an application
Note:
If you want to install an application from a source other than Google Play store, touch Settings ( ) >
Security, and slide the Unknown sources switch to the right ( ).
1. Touch > Play Store ( ).
2. Touch a category, and then touch the item you want to download.
Here you can read more about the application, including overall rating, and user comments.
If you scroll down to the Developer Info section, you can see other applications from the
same developer, or link to the developer’s website.
3. Touch INSTALL to install the application.
Note:
To check the progress of a download, open the notification panel. The installation duration will depend
on the size of the application and your data connection speed.
Uninstalling an application
1. On the Play Store home screen, touch > My apps & games.
2. Touch the application you want to uninstall, and then touch UNINSTALL.
3. When prompted, touch OK to remove the application from your mobile phone.
Note:
Applications can also be managed by touching Settings ( ) > Apps or uninstalled directly by holding
your finger on the app and then dragging to the Uninstall option at top of the screen.
![](/img.php?id=3538723&img=bg21.png)
Cat® S41 Smartphone User Manual 27
Synchronizing information
Some applications (for example, Gmail) on your mobile phone give you access to the same
personal information that you can add, view, and edit on your computer. If you add, change, or
delete your information in any of these applications on the web, the updated information also
appears on your mobile phone.
This is made possible through over-the-air data synchronization. The process occurs in the
background and does not interfere with the use of your mobile phone. When your phone is
synchronizing, a data synchronization icon will be shown in the notication bar.
Managing your accounts
You can synchronize contacts, email, and other information on your mobile phone with
multiple Google accounts or other accounts, depending on the applications installed on your
mobile phone.
For example, you can start by adding your personal Google account, so your personal email,
contacts, and calendar are always available. You could then add a work account, so your work-
related emails, contacts and calendar entries are also accessible.
Adding an account
1. Touch > Settings ( ).
2. Touch Accounts > Add account. The screen displays your current synchronization settings
and a list of your current accounts.
Note:
In some cases, you may need to obtain account details from network administrator support. For
example, you may need to know the account’s domain or server address.
3. Touch the account type to add.
4. Follow the on-screen instructions to enter the required and optional information about the
account. Most accounts require a username and password, but the details depend on the
kind of account and the conguration of the service to which you are connecting.
5. Congure the account. Depending on the kind of account, you may be asked to congure
what kind of data you want to sync to the mobile phone, to name the account, and for other
details. When you are nished, the account is added to the list in the Accounts settings
screen.
Removing an account
You can remove an account and all information associated with it from your mobile phone,
including email, contacts, settings, and so on. You cannot, however, remove some accounts,
such as the rst account you signed into on the mobile phone. If you attempt to remove certain
accounts, be aware that all personal information associated with it will be deleted.
1. On the Accounts settings screen, touch the account type.
2. Touch the account to delete.
3. Touch > Remove account.
4. Touch REMOVE ACCOUNT to conrm that you want to remove the account.
![](/img.php?id=3538723&img=bg22.png)
Cat® S41 Smartphone User Manual
28
Customizing your account synchronization
You can congure background data use and synchronization options for all the applications on
your phone. You can also congure what kind of data you synchronize for each account. Some
applications, such as Contacts and Gmail, can synchronize data from multiple applications.
Others, such as Calendar, synchronize data only from the rst Google account you signed into
on your phone, or from an account associated specically with that application. For some
accounts, synchronizing is two-directional; changes that you make to the information on your
mobile phone are made to the copy of that information on the web. Some accounts support
only one-way synchronization; the information on your mobile phone is read-only.
Changing an account’s synchronization settings
1. On the Accounts settings screen, touch the account type.
2. Touch the account whose synchronization settings you want to change. The data and
synchronization screen opens, displaying a list of the kinds of information the account can
synchronize.
3. Enable the items you want to keep synced by sliding the respective data switch to the right
( ). To disable the data to automatically sync, slide the respective data switch to the left
( ).
Using other applications
Using the calendar
Use Calendar to create and manage events, meetings, and appointments. Depending on
your synchronization settings, the calendar on your phone stays in synchronization with your
calendar on the web.
Opening the calendar
Touch > Calendar ( ) to open the application. Touch to display various view and
settings options.
Creating an event
1. On any calendar view, touch > Event to start adding an event.
2. Enter the event title, location, or the contacts.
If there is a time frame for the event, touch the beginning and end date and time lines to •
select the respective dates and duration of the event.
If it is a special occasion such as a birthday or a day-long event, slide the • All-day switch to
the right ( ) to enable the function.
3. Select the appropriate time zone.
4. Specify the repetition of the event.
5. Set the time of your event reminder, invite people, set colour, and add any notes or
attachments.
6. After all settings are complete, touch SAVE.
![](/img.php?id=3538723&img=bg23.png)
Cat® S41 Smartphone User Manual 29
Setting an event reminder
1. On any calendar view, touch an event to view its details or event summary.
2. Touch to start editing the event.
3. Touch the reminder section ( ) to set the reminder time before the event when you want to
be reminded. When the time comes, you will receive a notication about the event.
Note:
Touch No notification to delete the reminder for that event.
4. Touch SAVE to save the modications.
Using the alarm
You can set a new alarm or modify an existing alarm.
Opening the alarm
Touch > Clock ( ) > to use your mobile phone alarm. Here you will see a list of current
alarm details.
Adding an alarm
1. On the alarm list screen, touch to add an alarm.
2. To set the alarm, do the following:
Set the hour and minutes by navigating around the dial and touch • OK.
To set repeat mode, check the • Repeat check box. Touch one or more options.
To set the ringtone, touch • and select an option.
To vibrate when the alarm sounds, touch the • Vibrate check box.
To add an alarm label, touch • Label. Enter the label, then touch OK.
Note:
By default, the alarm is automatically activated.
Calculator
The S41 is equipped with a calculator that has a standard and advanced mode.
Opening the calculator
Touch > Calculator ( ) to open the application.
Turn the phone in to landscape mode to access the advanced calculator mode. Ensure that
Auto-rotate is enabled (see: Setting the display).
![](/img.php?id=3538723&img=bg24.png)
Cat® S41 Smartphone User Manual
30
Managing your mobile phone
To congure your mobile phone, touch > Settings ( ).
Setting the date and time
When you rst start the phone, you are asked if you want the time and date to update
automatically using the time provided by the network.
Note:
When the time provided by the network is automatically used, you cannot set the date, time, and time
zone.
To manually adjust the date and time settings, do the following:
1. On the Settings screen, touch Date & time.
2. Set the Automatic date & time setting to Off to disable the function.
3. Slide the Automatic time zone switch to the left ( ) to disable the function.
4. Touch Set date. On the set date screen, touch the desired date and touch OK when the
conguration is complete.
5. Touch Set time. On the set time screen, touch the hour or minute eld and navigate around
the dial to set the time. Touch OK when the conguration is complete.
6. Touch Select time zone, and then select the desired time zone from the list. Scroll the list to
view more time zones.
7. Enable or disable the Use 24-hour format function to switch between 24-hour format and
12-hour format.
Setting the display
Adjusting the screen brightness
1. On the Settings screen, touch Display > Brightness level.
2. Drag the slider left to make the screen darker, or right to make it brighter.
3. Once you lift your nger off the slider, this will save your setting automatically.
Note:
Slide the Adaptive Brightness switch to the right ( ) to enable the device to automatically adjust
the brightness of the screen depending on the surrounding light.
Auto-rotate screen
Touch When device is rotated and set the setting to Rotate the contents of the screen to enable
the display to rotate when you turn the phone between landscape and portrait.
![](/img.php?id=3538723&img=bg25.png)
Cat® S41 Smartphone User Manual 31
Adjusting the time before the screen turns off
If your mobile phone is idle for a period of time, it will turn off the screen to save battery
power. To set a longer or shorter idle time, do the following:
1. On the Settings screen, touch Display > Sleep.
2. Select the duration you want the screen to be illuminated.
Using the glove mode
Enable the Glove Mode to make the touchscreen respond more accurately when you are
wearing gloves.
1. On the Settings screen, touch Display > Glove Mode.
2. Slide the Glove Mode switch to the right ( ) to enable the function.
Using the double tap wake function
When your phone is asleep, besides using the Power key, you can either press the Home
button twice or double tap the screen to wake up the screen.
1. On the Settings screen, touch Display > Home button or Double Tap Wake.
2. Slide the switch to the right ( ) to enable the function.
Setting phone ringtone
Turning on silent mode
1. Press and hold the Power key.
2. Touch to enable the silent mode. Then all sounds except media and alarms are silenced.
Adjusting the ringtone volume
You can adjust the ringer volume when you are on the Home screen or any application screens
(except during a call or when playing music or videos). Press the Volume up/down key to
adjust the ringer volume to your desired level. You can also adjust the ringer volume on the
settings screen.
1. On the Settings screen, touch Sound.
2. In Ring volume, drag the slider to adjust the volume level.
Changing the phone ringtone
1. On the Settings screen, touch Sound.
2. Touch Phone ringtone.
3. Select the ringtone you want to use. The ringtone plays when selected.
4. Touch OK.
![](/img.php?id=3538723&img=bg26.png)
Cat® S41 Smartphone User Manual
32
Setting your phone to vibrate for incoming calls
On the Settings screen, touch Sound, and slide the Also vibrate for calls switch to the right ( )
to enable your phone to vibrate for incoming calls.
Note:
You can also enable this through the Volume down key.
Configuring the programmable key
You can assign the Programmable key to perform various functions when you press the
button. See page 1.
1. On the Settings screen, touch Programmable key.
2. Select one of the available functions that you want to assign:
Slide the • PTT mode switch to the right ( ) to activate the walkie talkie function by
pressing the Programmable key.
Select the button pressing method (• Short press or Long press). Then select the action
from the list to assign to the Programmable key. Touch OK to conrm.
Slide the • Underwater Mode switch to the right ( ) to switch to the underwater mode by
pressing the Programmable key.
Note:
In Underwater mode, all touch panel functions will be disabled and the incoming calls will not
able to be answered.
Setting phone services
Turning on data roaming
1. On the Settings screen, touch More > Cellular networks.
2. Slide the Data roaming switch to the right ( ) to enable the data roaming function.
Note:
Accessing data services while roaming may incur considerable additional charges. Ask your network
service provider about data roaming fees.
Disable data service
On the Settings screen, touch Data usage and slide the Cellular data switch to the left ( ) to
disable the data service function.
![](/img.php?id=3538723&img=bg27.png)
Cat® S41 Smartphone User Manual 33
Protecting your mobile phone
Enable your SIM card PIN
1. On the Settings screen, touch Security > Set up SIM card lock.
2. Select the SIM card where you want to apply the PIN lock feature.
3. Slide the Lock SIM card switch to the right ( ) to enable the function.
4. Enter the SIM card PIN, and then touch OK.
To change the SIM card PIN at any time, touch Change SIM PIN.
Note:
You can dial emergency numbers any time from your mobile phone.
Protecting your mobile phone with a screen lock
To keep your data more secure, lock the screen and/or require a screen unlock pattern every
time your mobile phone is turned on or wakes up from sleep mode.
1. On the Settings screen, touch Screen lock or touch Security > Screen lock.
2. Select the one of the available options.
Swipe: Swipe to lock icon to unlock the phone.•
Pattern: Trace the correct unlock pattern on the screen to unlock the phone.•
PIN: Enter a PIN number to unlock the phone.•
Password: Enter a password to unlock the phone.•
3. Follow the on-screen instructions for the chosen method to complete the settings.
Using NFC
NFC allows exchange of data between two NFC enabled devices, when both devices are either
touching or no more than a few centimetre’s apart.
Activating NFC function
1. On the Settings screen, touch More.
2. Slide the NFC switch to the right ( ) to enable the function.
The Android Beam function will also automatically turn on.
Beaming content via NFC
1. Enable the NFC and Android Beam functions.
2. Open the content to be shared. You can share website content, YouTube videos, contacts and
much more.
3. Place both devices’ backs against each other, and then touch your screen. The application
determines what gets beamed.
![](/img.php?id=3538723&img=bg28.png)
Cat® S41 Smartphone User Manual
34
Managing applications
Viewing an installed Application
1. On the Settings screen, touch Apps.
2. In the applications list, do any of the following:
Touch • to congure apps settings.
Touch • > Show system to display system apps.
Touch • > Reset app preferences > RESET APPS to reset apps preferences to their default
settings.
Touch an application to view its details directly.•
Removing an installed Application
1. On the Settings screen, touch Apps.
2. Touch an application, and then touch UNINSTALL > OK to remove the application from your
mobile phone.
Note:
Pre-installed applications cannot be deleted.
Resetting your mobile phone
Backing up my settings
You can back up your mobile phone’s settings to Google servers, with your Google account. If
you replace your mobile phone, the settings you have backed up are stored on the new mobile
phone the rst time you sign in with your Google account.
1. On the Settings screen, touch Backup & reset.
2. Touch Back up my data. Then slide the Back up my data switch to the right ( ) to enable
the function.
![](/img.php?id=3538723&img=bg29.png)
Cat® S41 Smartphone User Manual 35
Restoring factory data
If you reset your phone to the settings that were congured at the factory, all of your personal
data from internal phone storage, including information about your Google Account, any other
accounts, your system and application settings, and any downloaded applications will be
erased. Resetting the phone does not erase any system software updates you’ve downloaded
or any les on your microSD card, such as music or photos.
1. On the Settings screen, touch Backup & reset > Factory data reset.
2. When prompted, touch RESET PHONE, and then touch ERASE EVERYTHING. The mobile
phone resets the settings to the original factory settings, and then restarts.
Hardware reset of your device
This device has an internal battery and therefore the hardware cannot be reset by the removal
of the battery. If you should need to reset the hardware, please follow the steps listed below.
Please note that this action may be required if you do not see that your device is charging even
after being connected to the charger from your wall outlet.
Press the Volume up and Power keys until the device powers down. After the device is reset,
it will restart automatically.
Viewing E-label
To view the regulatory information on your mobile phone, do the following:
1. From the Home screen, touch > Settings ( ).
2. On the Settings screen, touch About phone > Regulatory information.
36 Cat® S41 Smartphone User Manual
Appendix
Warnings and Precautions
This section contains important information pertaining to the operating instructions of your
device. It also contains information about how to use the device safely. Read this information
carefully before using your device.
Waterproof casing
USB and Headset jack covers must be securely in place, and the rear cover properly tted and
locked to ensure the device will meet this level of protection.
Electronic device
Power off your device if using the device is prohibited. Do not use the device when using the
device causes danger or interference with electronic devices.
Medical device
Follow rules and regulations set forth by hospitals and health care facilities. Do not use your
device when using the device is prohibited.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained
between a device and a pacemaker to prevent potential interference with the pacemaker. If you
are using a pacemaker, use the device on the opposite side of the pacemaker and do not carry
the device in your front pocket.
Potentially explosive atmosphere
Power off your device in any area with a potentially explosive atmosphere, and comply with
all signs and instructions. Areas that may have potentially explosive atmospheres include
the areas where you would normally be advised to turn off your vehicle engine. Triggering
of sparks in such areas could cause an explosion or a re, resulting in bodily injuries or even
deaths. Do not power on your device at refuelling points such as service stations. Comply
with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas,
and chemical plants. In addition, adhere to restrictions in areas where blasting operations
are in progress. Before using the device, watch out for areas that have potentially explosive
atmospheres that are often, but not always, clearly marked. Such locations include areas below
the deck on boats, chemical transfer or storage facilities, and areas where the air contains
chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles
using liqueed petroleum gas (such as propane or butane) whether this device can be safely
used in their vicinity.
Traffic security
Observe local laws and regulations while using the device. In addition, if using the device while
driving a vehicle, comply with the following guidelines:
Concentrate on driving. Your rst responsibility is to drive safely.
Do not talk on the device while driving. Use hands-free accessories.
When you have to make or answer a call, park the vehicle at the road side before using your
device.
RF signals may affect electronic systems of motor vehicles. For more information, consult the
vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag or in the air bag deployment area.
Otherwise, the device may hurt you owing to the strong force when the air bag inates.
Do not use your device while ying in an aircraft. Power off your device before boarding an
aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft
and disrupt the wireless telephone network. It may also be considered illegal.
37
Cat® S41 Smartphone User Manual
Operating environment
Do not use or charge the device in dusty, damp, and dirty places or places with magnetic elds.
Otherwise, it may result in a malfunction of the circuit.
The device complies with the RF specications when the device is used near your ear or at a
distance of 1.0 cm from your body. Ensure that the device accessories such as a device case
and a device holster are not composed of metal components. Keep your device 1.0 cm away
from your body to meet the requirement earlier mentioned.
On a stormy day with thunder, do not use your device when it is being charged, to prevent any
danger caused by lightning.
When you are on a call, do not touch the antenna. Touching the antenna affects the call quality
and results in increase in power consumption. As a result, the talk time and the standby time
are reduced.
While using the device, observe the local laws and regulations, and respect others’ privacy and
legal rights.
Keep the ambient temperature between 0°C and 40°C while the device is being charged. Keep
the ambient temperature between –25°C to 50°C for using the device powered by a battery.
Prevention of hearing damage
Using a headset at high volume can damage your hearing. To reduce the risk of damage to
hearing, lower the headset volume to a safe and comfortable level.
Safety of children
Comply with all precautions with regard to children’s safety. Letting a child play with your
device or its accessories, which may include parts that can be detached from the device, may
be dangerous, as it may present a choking hazard. Ensure that small children are kept away
from the device and accessories.
Accessories
Choose only batteries, chargers, and accessories approved for use with this model by the
device manufacturer. The use of any other type of charger or accessory may invalidate any
warranty for the device, may be in violation of local rules or laws, and may be dangerous.
Please contact your dealer for information about the availability of approved batteries,
chargers, and accessories in your area.
Battery and charger
Unplug the charger from the electrical plug and the device when not in use.
The battery can be charged and discharged hundreds of times before it eventually wears out.
Use the AC power supply dened in the specications of the charger. An improper power
voltage may cause a re or a malfunction of the charger.
If battery electrolyte leaks out, ensure that the electrolyte does not touch your skin and eyes.
When the electrolyte touches your skin or splashes into your eyes, wash your eyes with clean
water immediately and consult a doctor.
If there is a case of battery deformation, colour change, or abnormal heating while you charge,
stop using the device immediately. Otherwise, it may lead to battery leakage, overheating,
explosion, or re.
If the power cable is damaged (for example, the cord is exposed or broken), or the plug
loosens, stop using the cable at once. Otherwise, it may lead to an electric shock, a short circuit
of the charger, or a re.
38 Cat® S41 Smartphone User Manual
Do not dispose of device in re as they may explode. Batteries may also explode if damaged.
Do not modify or remanufacture, attempt to insert foreign objects into the device, immerse or
expose to water or other liquids, expose to re, explosion or other hazard.
Avoid dropping the device. If the device is dropped, especially on a hard surface, and the user
suspects damage, take it to a qualied service centre for inspection.
Improper use may result in a re, explosion or other hazard.
Promptly dispose of used devices in accordance with local regulations.
The device should only be connected to products that bear the USB-IF logo or have completed
the USB-IF compliance program.
Adapter shall be installed near the equipment and shall be easily accessible. The plug
considered as disconnect device of adapter.
Output rating of charger 5V ~ 8V:2A / 8.5V~10V: 1.7A / 10.5V~12V 1.5A.
CAUTION – RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Cleaning and maintenance
The charger is not water-resistant. Keep it dry. Protect the charger from water or vapour. Do not
touch the charger with wet hands, otherwise it may lead to a short circuit, a malfunction of the
device and an electric shock to the user.
Do not place your device and charger in places where they can get damaged because of
collision. Otherwise, it may lead to battery leakage, device malfunction, overheating, re, or
explosion.
Do not place magnetic storage media such as magnetic cards and oppy disks near the device.
Radiation from the device may erase the information stored on them.
Do not leave your device and charger in a place with an extreme high or low temperature.
Otherwise, they may not function properly and may lead to a re or an explosion. When the
temperature is lower than 0°C, performance of the battery is affected.
Do not place sharp metal objects such as pins near the earpiece. The earpiece may attract these
objects and hurt you when you are using the device.
Before you clean or maintain the device, power off the device and disconnect it from the
charger.
Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and
benzene) to clean the device and the charger. Otherwise, parts of the device may be damaged
or a re can be caused. You can clean the device with soft antistatic cloth.
Do not dismantle the device or accessories. Otherwise, the warranty on the device and
accessories is invalid and the manufacturer is not liable to pay for the damage.
If the device screen is broken by colliding with hard objects, do not touch or try to remove the
broken part. In this case, stop using the device immediately, and then contact an authorized
service centre.
![](/img.php?id=3538723&img=bg2d.png)
39
Cat® S41 Smartphone User Manual
Hearing Aid Compatibility (HAC)
Regulations for wireless devices
This phone has been tested and rated for use with hearing aids for some of the wireless
technologies that it uses. However, there may be some newer wireless technologies used in
this phone that have not been tested yet for use with hearing aids. It is important to try the
different features of this phone thoroughly and in different locations, using your hearing aid or
cochlear implant, to determine if you hear any interfering noise. Consult your service provider
or the manufacturer of this phone for information on hearing aid compatibility. If you have
questions about return or exchange policies, consult your service provider or phone retailer.
The U.S. Federal Communications Commission (FCC) has established requirements for digital
wireless mobile devices to be compatible with hearing aids and other hearing assistive
devices.
The wireless telephone industry has developed a rating system for wireless mobile devices
to assist hearing device users nd mobile devices that may be compatible with their hearing
devices.
The ratings are not guarantees. Results will vary depending on the user’s hearing device and
hearing loss. If your hearing devices happens to be vulnerable to interference, you may not be
able to use a rated phone successfully. Trying out the mobile device with your hearing device is
the best way to evaluate it for your personal needs.
The FCC has adopted HAC rules for digital wireless phones. These rules require certain phone
to be tested and rated under the American National Standard Institute (ANSI) C63.19-2011
hearing aid compatibility standards. The ANSI standard for hearing aid compatibility contains
two types of ratings:
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less
interference to hearing devices than phones that are not labelled. M4 is the better/higher of the
two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with
a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/ higher of the two ratings. (Note not all hearing devices have telecoils in them.)
The tested M-Rating and T-Rating for this device (FCC ID: ZL5S41), M3 and T4.
The tested M-Rating and T-Rating for this device (FCC ID: ZL5S41A), M3 and T4.
Emergency call
You can use your device for emergency calls in the service area. The connection, however,
cannot be guaranteed in all conditions. You should not rely solely on the device for essential
communications.
FCC statement
The device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to all US
model. Per FCC regulation, all WiFi product marketed in US must xed to US operation
channels only.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
40 Cat® S41 Smartphone User Manual
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003; CAN ICES-3(B)/NMB-3(B).
The device could automatically discontinue transmission in case of absence of information
to transmit, or operational failure. Note that this is not intended to prohibit transmission
of control or signaling information or the use of repetitive codes where required by the
technology.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the user
body or set the device to lower output power if such function is available.
For body worn operation, this device has been tested and meets the IC RF exposure guidelines
for use with an accessory that contains no metal and positions the handset a minimum of 1
cm from the body. Use of other accessories may not ensure compliance with IC RF exposure
guidelines.
Déclaration d’exposition aux radiations:
Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-
Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du
corps de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une
telle fonction est disponible.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé.
![](/img.php?id=3538723&img=bg2f.png)
41
Cat® S41 Smartphone User Manual
Cet équipement doit être installé et utilisé avec un minimum de 1.0 cm de distance entre la
source de rayonnement et votre corps.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter, except tested built-in radios. The County Code Selection feature is
disabled for products marketed in the US/ Canada.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une
autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été testées.
La fonction de sélection de l’indicatif du pays est désactivée pour les produits commercialisés
aux États-Unis et au Canada.
RF exposure information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government.
For body worn operation, this device has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and positions the handset a
minimum of 1 cm from the body. Use of other accessories may not ensure compliance with
FCC RF exposure guidelines.
The SAR limit set by the FCC is 1.6W/kg.
US SKU (FCC ID: ZL5S41):
The highest reported SAR values under the FCC regulatory for the phone are listed below:
Head SAR: 1.19 W/kg, Body SAR: 0.97 W/kg, Wireless Router SAR: 0.97 W/kg
APAC SKU (FCC ID: ZL5S41A):
The highest reported SAR values under the FCC regulatory for the phone are listed below:
Head SAR: 0.97 W/kg, Body SAR: 1.11 W/kg, Wireless Router SAR: 1.11 W/kg
To reduce the level of exposure to radiations, please do the following:
(i) use the mobile phone in good reception conditions,
(ii) use a hand free kit,
(iii) for pregnant women, please hold the mobile phone far from the stomach.
(iv) use the mobile phone far from genital parts.
Prevention of hearing loss
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
![](/img.php?id=3538723&img=bg30.png)
42 Cat® S41 Smartphone User Manual
CE SAR Compliance
This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the
general public to electromagnetic elds by way of health protection.
The limits are part of extensive recommendations for the protection of the general public.
These recommendations have been developed and checked by independent scientic
organizations through regular and thorough evaluations of scientic studies. The unit of
measurement for the European Council’s recommended limit for mobile devices is the
“Specic Absorption Rate” (SAR), and the SAR limit is 2.0 W/ kg averaged over 10 gram of
tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation
Protection (ICNIRP).
For body worn operation, this device has been tested and meets the ICNIRP exposure
guidelines and the European Standard EN 62209-2, for use with dedicated accessories. Use
of other accessories which contain metals may not ensure compliance with ICNIRP exposure
guidelines.
SAR is measured with the device at a separation of 5 mm to the body, while transmitting at the
highest certied output power level in all frequency bands of the mobile device.
The highest reported SAR values under the CE regulatory for the phone are list below:
EU SKU
Head SAR: 0.547 W/kg, Body SAR: 1.080 W/kg
APAC SKU
Head SAR: 0.443 W/kg, Body SAR: 1.280 W/kg
To reduce exposure to RF energy, use a hands-free accessory or other similar option to keep
this device away from your head and body. Carry this device at least 5 mm away from your
body to ensure exposure levels remain at or below the as-tested levels. Choose the belt clips,
holsters, or other similar body-worn accessories which do not contain metallic components
to support operation in this manner. Cases with metal parts may change the RF performance
of the device, including its compliance with RF exposure guidelines, in a manner that has not
been tested or certied, and use such accessories should be avoided.
Disposal and recycling information
This symbol on the device (and any included batteries) indicates that they should
not be disposed of as normal household garbage. Do not dispose of your device
or batteries as unsorted municipal waste. The device (and any batteries) should be
handed over to a certied collection point for recycling or proper disposal at the end
of their life.
For more detailed information about the recycling of the device or batteries, contact your local
city ofce, the household waste disposal service, or the retail store where you purchased this
device.
The disposal of this device is subject to the Waste from Electrical and Electronic Equipment
(WEEE) directive of the European Union. The reason for separating WEEE and batteries from
other waste is to minimize the potential environmental impacts on human health of any
hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the EU Registration, Evaluation, Authorization and Restriction of
Chemicals (REACH) Regulation (Regulation No 1907/2006/EC of the European Parliament and
of the Council) and the EU Restriction of Hazardous Substances (RoHS) Directive (Directive
2011/65/EU of the European Parliament and of the Council). For more information about the
REACH compliance of the device, visit the Web site www.catphones.com/certication. You are
recommended to visit the Web site regularly for up-to-date information.
![](/img.php?id=3538723&img=bg31.png)
43
Cat® S41 Smartphone User Manual
EU regulatory conformance
Hereby, the manufacturer declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
For the declaration of conformity, visit the Web site www.catphones.com/support/s41-
smartphone.
Note: Observe the national local regulations in the location where the device is to be used. This device
may be restricted for use in some or all member states of the European Union (EU).
Note: This device may be operated in all member states of the EU.
EU Compliance Statement
This device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency
range.
Restrictions in: Belgium (BE), Bulgaria (BG), Czech Republic (CZ), Denmark (DK), Germany (DE),
Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus
(CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL),
Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI),
Sweden (SE), United Kingdom (UK), Switzerland (CH), Norway (NO), Iceland (IS), Liechtenstein
(LI) and Turkey (TR).
Spectrum and Power (EU SKU)
Spectrum Conducted power (dBm)
GSM 900 33.11
GSM 1800 29.47
WCDMA B1 23
WCDMA B5 22.99
WCDMA B8 23.24
FDD-LTE B1 22.97
FDD-LTE B3 22.79
FDD-LTE B7 22.84
FDD-LTE B8 22.9
FDD-LTE B20 23.16
BT/EDR 7.5
BLE 6.1
WLAN 2.4G 17.1
WLAN 5G 15.68
NFC 13.56MHz -8.86
(dBuA/m at10m)
![](/img.php?id=3538723&img=bg32.png)
44 Cat® S41 Smartphone User Manual
Spectrum and Power (APAC SKU)
Spectrum Conducted power (dBm)
GSM 900 33.13
GSM 1800 29.87
WCDMA B1 22.92
WCDMA B5 23.35
WCDMA B8 24.47
FDD-LTE B1 22.9
FDD-LTE B3 22.81
FDD-LTE B5 23.28
FDD-LTE B7 22.63
FDD-LTE B8 23
FDD-LTE B28 24.43
FDD-LTE B38 22.93
BT/EDR 6.8
BLE 5.1
WLAN 2.4G 16.4
WLAN 5G 13.81
NFC 13.56MHz -12.05
(dBuA/m at10m)
Google legal attribution
Google, Android, Google Play and other marks are trademarks of Google Inc.
![](/img.php?id=3538723&img=bg33.png)
45
Cat® S41 Smartphone User Manual
S41 specification
Item Specifications
Operating System Android™ 7.0
Platform MTK 6757 OctaCore 2.3GHz
Memory
Internal Memory (ROM/FLASH): 32GB eMMCv5.1•
Internal Memory (RAM0: 3GB RAM LPDDR3•
External Memory: SDXC. Class 10/Ultra high speed/128GB•
Cellular Network
2G Band: GSM, GPRS, EDGE (Class 33)•
3G Band: HSPA, R9•
4G Band: LTE Cat6•
Display 5.0”HD with Capacitive 4 points touch
Camera Rear Camera: 13MP AF with LED ash•
Front Camera: 8MP FF•
Sensor Proximity & Light sensor, Accelerometer, E-compass
Connectivity
Bluetooth: BT 4.2•
Wi-Fi: 802.11 a (5GHz), 802.11 b/g (2.4GHz), 802.11 n (2.4G/5G)•
GPS Support: GPS, AGPS, Glonass•
Others: E911, FM RX, WiFi Direct, NFC•
Battery Type: Non-removable•
Size: 5000mAh•
Others Ingress Protection: IP68•
Drop Test: 1.8m•
Dimensions 152 x 75 x 12.85 mm
Weight 218 g
* Design and specications are subject to change without prior notice.
![](/img.php?id=3538723&img=bg34.png)
46 Cat® S41 Smartphone User Manual
