INSTALLATION AND OPERATING MANUAL

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

34446.0002A 09/10 ©2010 Bunn-O-Matic Corporation

DISCONNECT FROM POWER SOURCE

BEFORE REMOVAL OF ANY PANEL OR

REPLACEMENT OF ANY COMPONENT!

WARNING

!

BRW

BrewWISE ®

Recipe Writer

W/Software V1.24

To reduce the risk of electric shock,

do not remove or open cover.

No user-serviceable parts inside.

Authorized service personnel only.

Disconnect power before servicing.

234446.2 051910

Introduction

The BrewWISE® Recipe Writer box connects to a PC by way of a standard serial port or USB port where applicable. PC software is

included that provides a user interface to the Writer box. A unique feature of the BrewWISE® system is the ability to transfer information

to and from the brewer, funnels, and grinder via the funnels or memory cards.

The BrewWISE® Recipe Writer provides a convenient method of transferring information. The system can then be used to configure

the brewer, funnels, and grinder for optimum flavor performance.

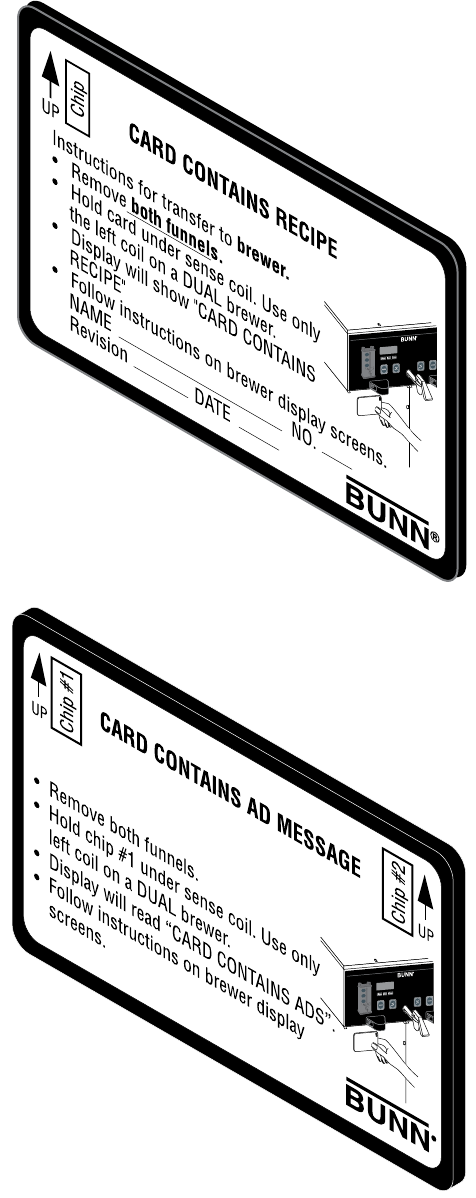

The BrewWISE® Recipe Writer can be used to make:

• Recipecardsforspeciccoffeenames

• RecipecardsforNo-Namecoffee

• Funnelsdedicatedtoonespeciccoffeename

• Cardsforadvertisingmessages

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-MaticCorp.(“BUNN”)warrantsequipmentmanufacturedbyitasfollows:

1)Allequipmentotherthanasspeciedbelow:2yearspartsand1yearlabor.

2)Electroniccircuitand/orcontrolboards:partsandlaborfor3years.

3)Compressorsonrefrigerationequipment:5yearspartsand1yearlabor.

4)Grindingburrsoncoffeegrindingequipmenttogrindcoffeetomeetoriginalfactoryscreensieveanalysis:partsandlaborfor

3 years or 30,000 pounds of coffee, whichever comes first.

ThesewarrantyperiodsrunfromthedateofinstallationBUNNwarrantsthattheequipmentmanufacturedbyitwillbecommercially

free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty

period.Thiswarrantydoesnotapplytoanyequipment,componentorpartthatwasnotmanufacturedbyBUNNorthat,inBUNN’s

judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair,

damageorcasualty.ThiswarrantyisconditionedontheBuyer1)givingBUNNpromptnoticeofanyclaimtobemadeunderthis

warrantybytelephoneat(217)529-6601orbywritingtoPostOfceBox3227,Springeld,Illinois62708-3227;2)ifrequested

byBUNN,shippingthedefectiveequipmentprepaidtoanauthorizedBUNNservicelocation;and3)receivingpriorauthorization

fromBUNNthatthedefectiveequipmentisunderwarranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. Theagents,dealersoremployeesofBUNNarenotauthorizedtomakemodicationstothiswarranty

ortomakeadditionalwarrantiesthatarebindingonBUNN.Accordingly,statementsbysuchindividuals,whetheroralorwritten,

do not constitute warranties and should not be relied upon.

IfBUNNdeterminesinitssolediscretionthattheequipmentdoesnotconformtothewarranty,BUNN,atitsexclusiveoption

whiletheequipmentisunderwarranty,shalleither1)provideatnochargereplacementpartsand/orlabor(duringtheapplicable

partsandlaborwarrantyperiodsspeciedabove)torepairthedefectivecomponents,providedthatthisrepairisdonebyaBUNN

AuthorizedServiceRepresentative;or2)shallreplacetheequipmentorrefundthepurchasepricefortheequipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS

EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS

SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

InnoeventshallBUNNbeliableforanyotherdamageorloss,including,butnotlimitedto,lostprots,lostsales,lossofuseof

equipment,claimsofBuyer’scustomers,costofcapital,costofdowntime,costofsubstituteequipment,facilitiesorservices,

or any other special, incidental or consequential damages.

392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN

FamilyGourmet,BUNNGourmet,BUNNPour-O-Matic,BUNN,BUNNwiththestylizedredline,BUNNlink,Bunn-OMatic,Bunn-

O-Matic,BUNNserve,BUNNSERVEwiththestylizedwrenchdesign,CoolFroth,DBC,Dr.BrewstylizedDr.design,Dual,Easy

Pour,EasyClear,EasyGard,FlavorGard,GourmetIce,GourmetJuice,HighIntensity,iMIX,InfusionSeries,Intellisteam,My

Café,PowerLogic,QualityBeverageEquipmentWorldwide,RespectEarth,RespectEarthwiththestylizedleafandcoffeecherry

design,Safety-Fresh,savemycoffee.com,Scale-Pro,SilverSeries,Single,SmartFunnel,SmartHopper,SmartWAVE,SoftHeat,

SplashGard,TheMarkofQualityinBeverageEquipmentWorldwide,ThermoFresh,APartnerYouCanCountOn,AirBrew,Air

Infusion,BeverageBarCreator,BeverageProtCalculator,Brewbetter,notbitter.,BUNNSource,CoffeeAtItsBest,Cyclonic

HeatingSystem,DigitalBrewerControl,NothingBrewsLikeaBUNN,PouringProts,SignatureSeries,TeaAtItsBest,Phase

Brew,TheHorizontalRedLine,Titan,trifecta,Ultra,VelocityBrewareeithertrademarksorregisteredtrademarksofBunn-O-

Matic Corporation.

3

System Requirements

• PCwith486DX/66MHzorhigherprocessor;Pentiumorhigherprocessorrecommended.

• Microsoft®Windows95,98,2000,NT®, or XP operating systems.

• VGAorhigherresolutionmonitor;SuperVGArecommended.

• Afunctional,availableRS-232serialportsetupasCom1-Com4oraUSBtoSerialadapterCable(Bunn-O-Maticpart#37076.0000)

where applicable.

Installation

If a USB to Serial Adapter was included with your writer, follow the instruction supplied with it for installation.

• ItisrecommendedthatallopenWindowsapplicationsbeclosedbeforeinstallingBrewWISE® Recipe Writer software.

• IfyouareupdatinganexistingversionoftheBrewWISE® Recipe Writer software, the older version MUST first be un-installed

using Windows Control Panel. Simply go to Start-Settings-Control Panel and Double-click Add/Remove Programs. Then find the

Recipe Writer software in the list of installed programs, select, and click the Change/Remove button.

• FromWindowsExplorer,DoubleClickonthesetup.exelelocatedontheinstallationCDoronDisk1oftheinstallationdisks.

Theinstallationprogramwilldisplaya“CopyingFiles”screen.Thisscreencouldbepresentforseveralminutesifinstallingfrom

oppydisks;muchlessifinstallingfromaCD.YouwillbepromptedtoinsertDisk2ifinstallingfromoppydisks.

Double Click

setup.exe

34446.2 092910

4

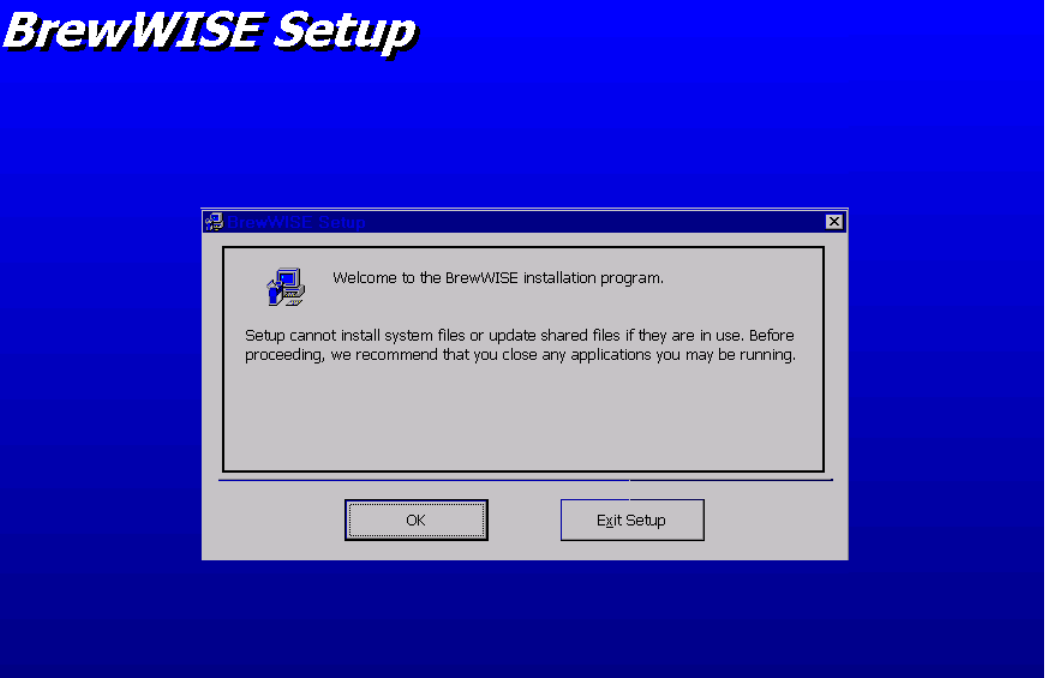

• Afterallthenecessarylesarecopied,theinstallationprogramdisplaysaWelcomescreenthatallowstheusertocontinuewith

installation or exit the setup program. If any Windows applications are running, it is recommended that you close them at this

time.

34446.2 092910

5

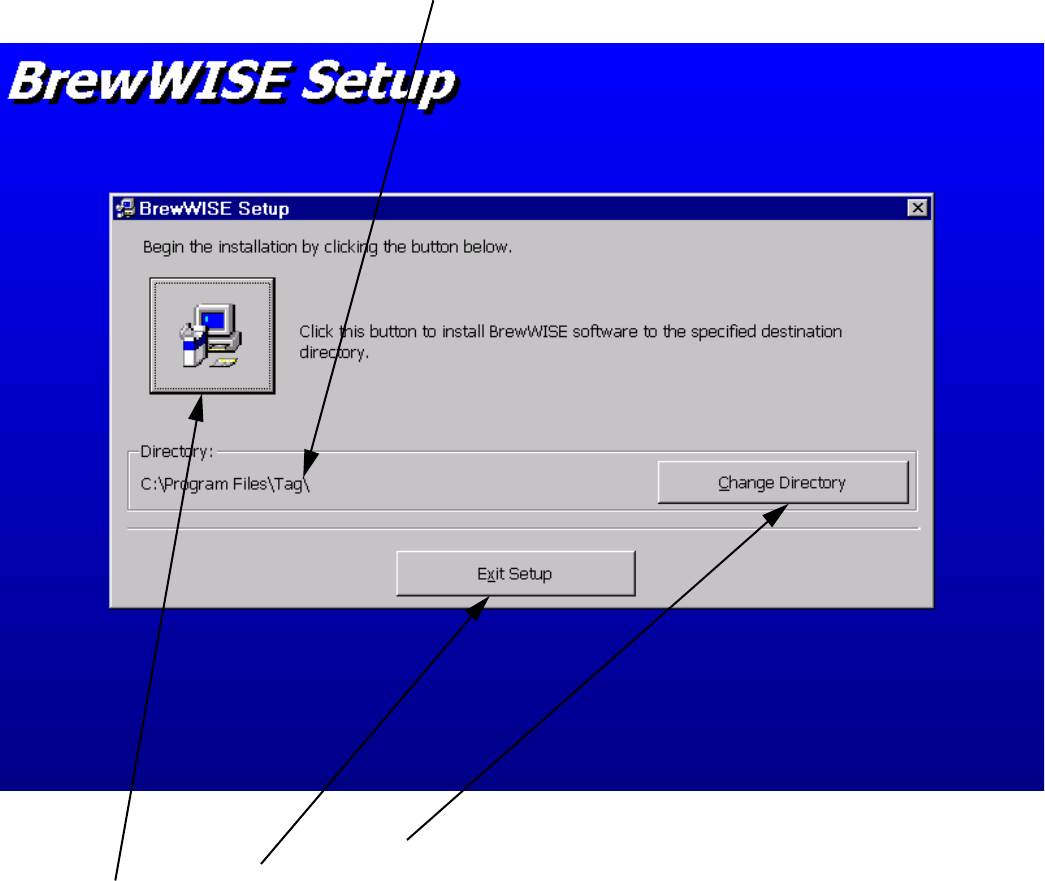

  • Clickthisbuttontochangethedefaultinstallationpath.

  • Clickthisbuttontoexitthesetupprogram.

  • Clickthisbuttontocontinuewiththesoftwareinstallation.

• ThislabelindicatesthedefaultinstallationpathoftheBrewWISE® software.

• Thesetupprogramwillthenprompttheusertochooseaprogramgroup.ItisrecommendedthatthedefaultBrewWISE® group

bechosen.Click“Continue”toacceptthisProgramGroup.

• Oncethe“Continue”buttonisclicked,aprogressbarwilldisplayastheinstallationcompletes.Shortlyafter,amessagebox

indicating that BrewWISE® setup was completed successfully should appear. Clicking OK will complete the setup process.

34446.2 092910

6

Program Operation

• TobeginusingtheBrewWISE® Recipe Writer, plug the serial cable connected to the Recipe Writer Box into the first available serial

port on the host computer. If a USB to Serial Adapter Cable was included with your Recipe Writer, you may connect it between the

attached serial cable on the Recipe Writer box and the USB port on the host computer. Plug in the power supply attached to the

Recipe Writer Box. The green indicator lamp on the Recipe Writer Box should light to indicate that the hardware is ready.

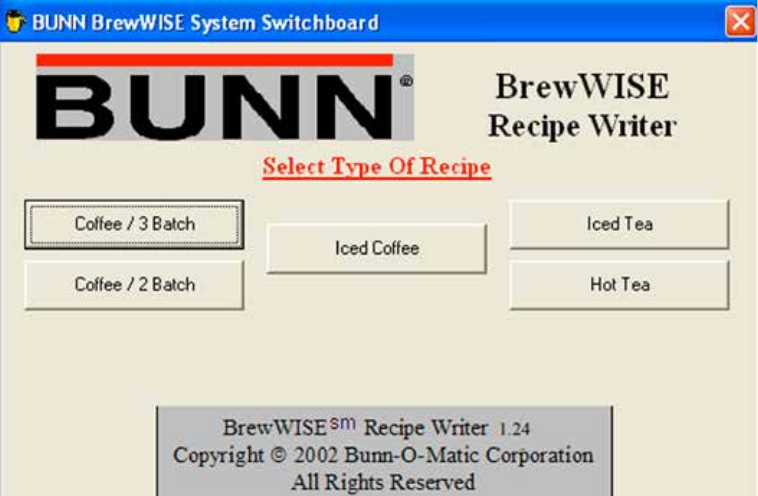

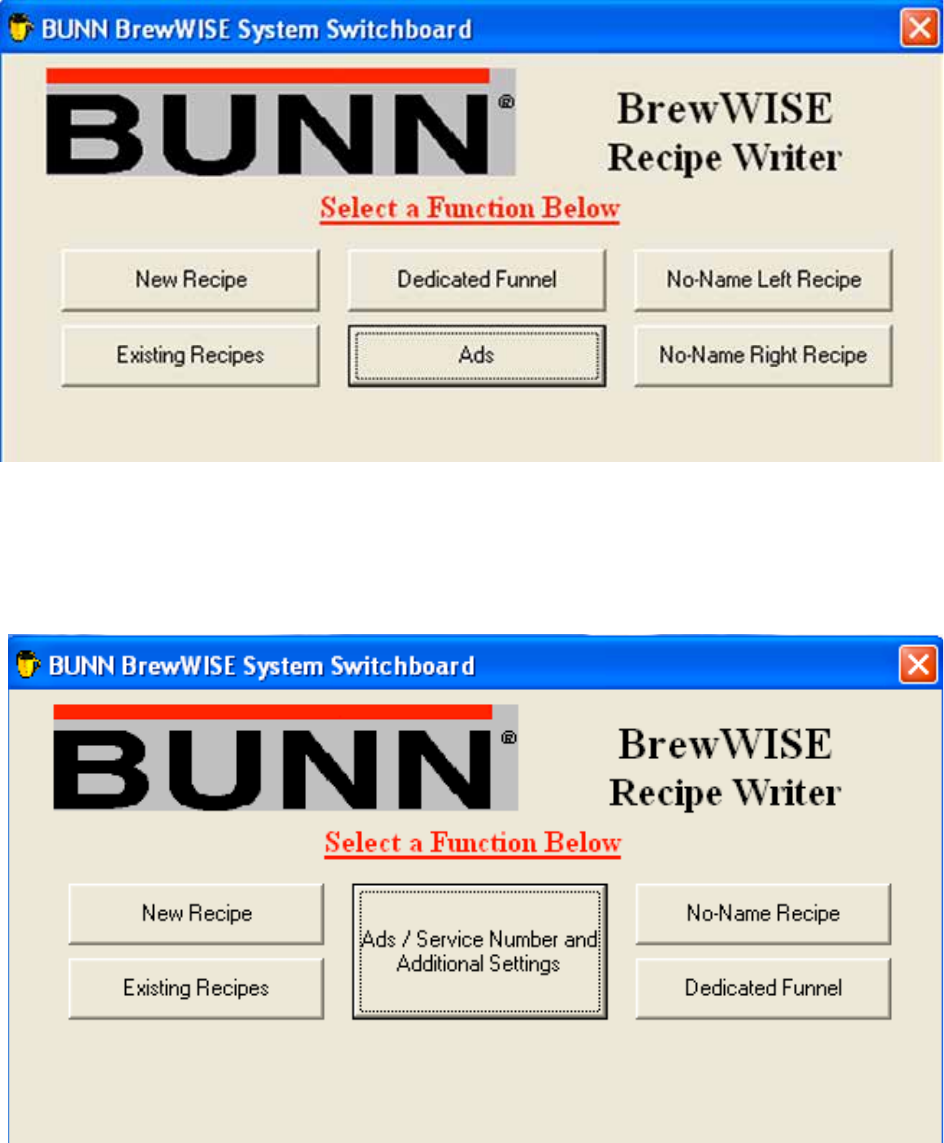

• Fromyourcomputer’sdesktop,click“Programs”->“BrewWISE”->“BrewWISE”.Youshouldthenseetheswitchboardscreenof

the BrewWISE® Recipe Writer. If your writer hardware is connected properly, the program should display “Bunn BrewWISE® Recipe

WriterDetectedonComm1”towardsthebottomoftheswitchboardform.YourCommportnumbermaybedifferentdepending

onindividualcomputercongurations.IftheRecipeWriterHardwareisnotdetected,amessageboxwillappearindicatingso.

Youmayenter,saveandretrieverecipesandadswithouttheRecipeWriterhardwarepresent,butyouwillnotbeallowedtowrite

unless the proper hardware is detected. The switchboard form is pictured below.

34446.2 092910

7

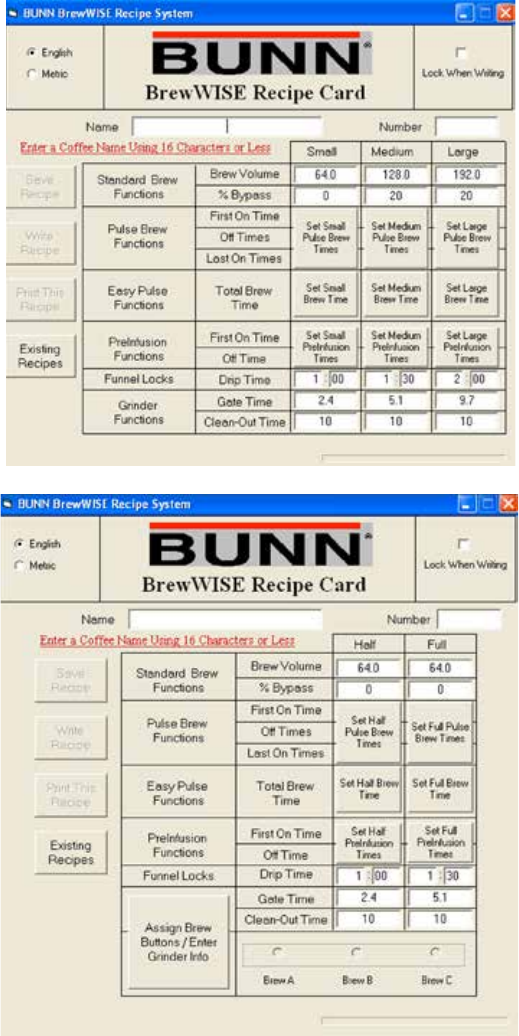

• Clicking"Coffee/3Batch"fromtheSwitchboardscreenbringsupCoffee/3BatchSwitchboardformshownabove.

 Usethisoptionwhenwritingrecipesforbrewershaving3batchsizeselections.Thisincludes SINGLE DBC and DUAL DBC

models.

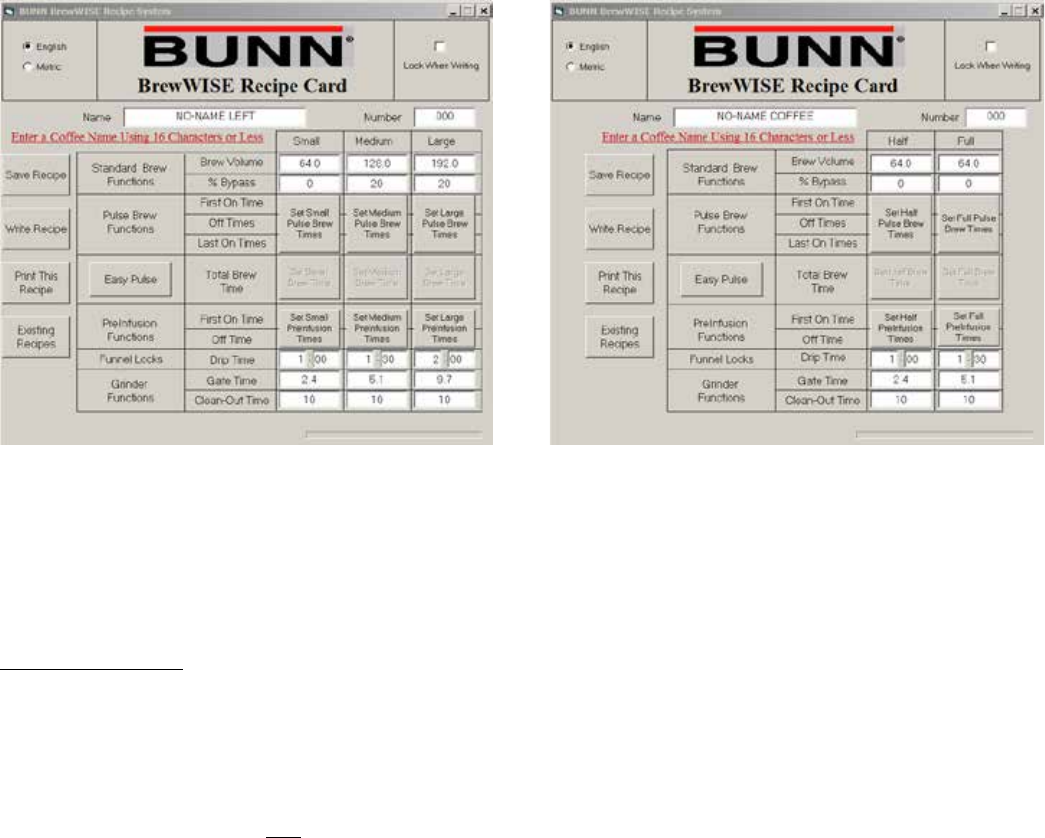

• Clicking"Coffee/2Batch"fromtheSwitchboardscreenbringsupCoffee/2BatchSwitchboardformshownabove.

 Usethisoptionwhenwritingrecipesforbrewershaving2batchsizeselections.ThisincludesiCBandITCBmodels.

Coffee / 3 Batch

Coffee / 2 Batch

34446.2 092910

8

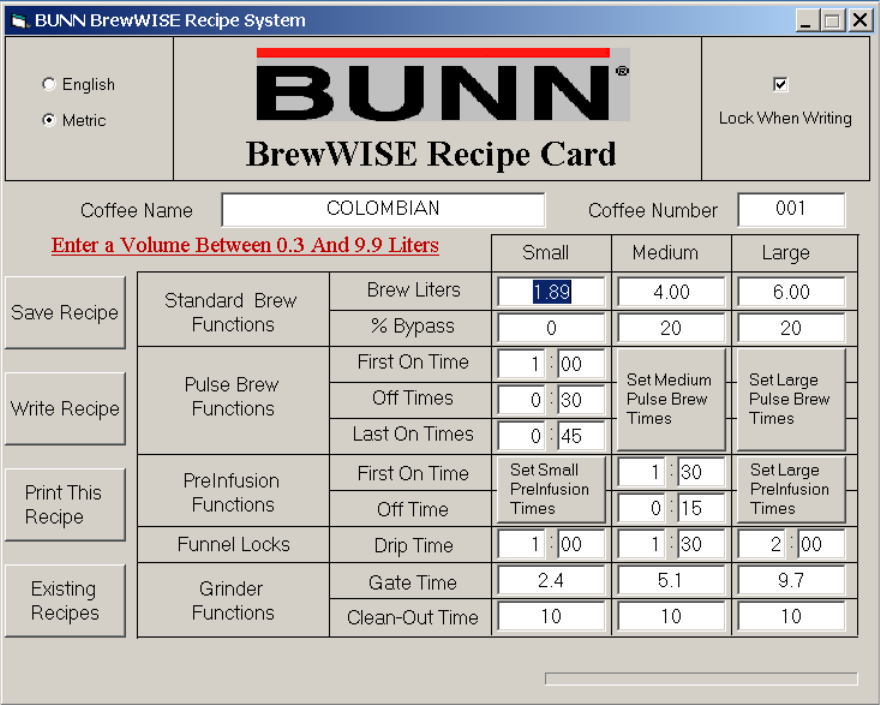

Coffee New Recipe

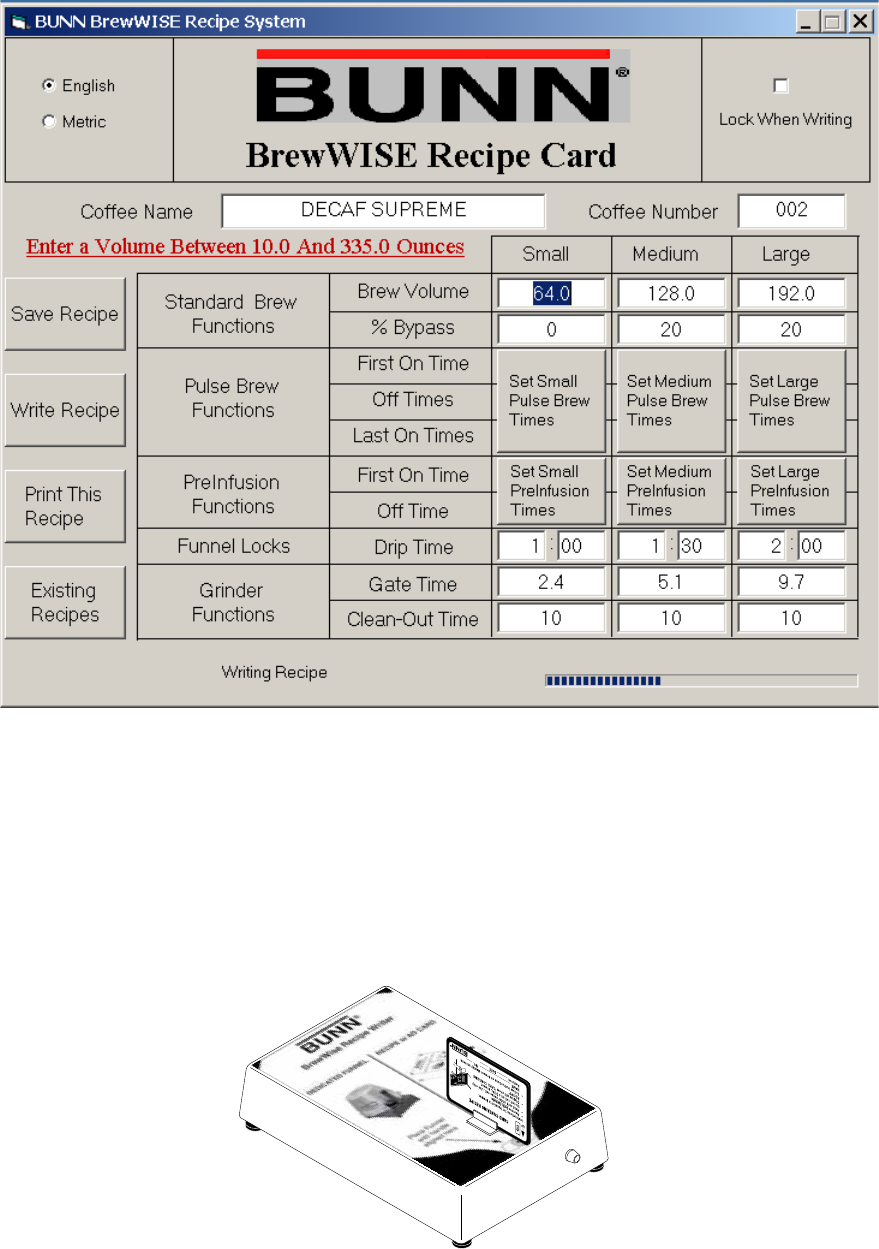

• Clicking“NewRecipe”fromtheCoffeeSwitchboardscreenbringsupthemainRecipeform.AfteraCoffeeNamehasbeentyped

inandthe“Enter”or“Tab”keyispressed,theremainingthreebuttonsontheformwillbecomeactive.Recipevolumeparameters

may be entered or saved in either English or Metric units. Depending on the specific software in your brewer, Recipes may be

writteninMetricunitsandrecognizedbythebrewerassuch.IfyouaremorecomfortablewithMetricunits,butyourbreweronly

recognizesEnglishunits,theRecipemaybeenteredinMetric,thenswitchedtoEnglishbeforewritingtheRecipetothecardor

funnel.

• Theinstructionlabelprovidesinformationsuchashighandlowparameterlimits,dependingonthespecictextboxyouarein.

This label also shows the allowable format for the numerical parameters, such as whether fractional amounts are allowed.

Note:Intextboxesthatallowfractionalvalues(adecimalpoint),wholenumbersmaystillbeusedwithouterror.

• Mostofthetextboxescanbetypeddirectlyinto.The“Tab”,“Shift-Tab”or“Enter”keyscanbeusedtomovethecursorontothe

nexttextbox.InordertosetthePulseBrewandPre-Infusiontimes,theassociatedbuttonsmustbeclickedandthe“OFF”text

boxes must be double-clicked in order to set the times. These steps are present in order to insure that the user is only able to set

Pulse Brew OR Pre-Infusion. Note: Although it is possible to mix Pulse Brew and Pre-Infusion batches on the same recipe,

Pulse Brew and Pre-Infusion cannot be used on the same batch size. 34446.2 092910

9

Existing Recipes

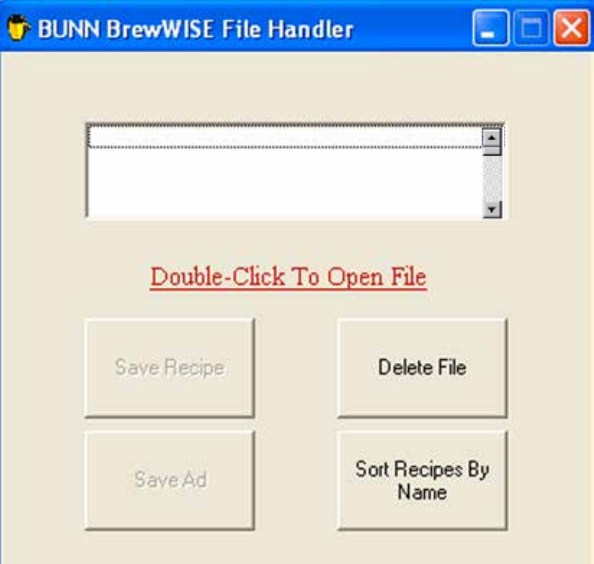

• Clickingthe“ExistingRecipes”buttonfromeithertheSwitchboardformorthemainRecipeformbringsuptheBrewWISE®File

Handlerform.TheFileHandlerformallowstheusertoOpenles,Saveles,Deleteles,orSortlesbynameornumber.Double-

clickingonalenameinthelelistboxbringstheassociatedrecipeintothemainformforwritingorediting.TheFileHandler

also insures that all recipes have a unique name and number. In order for the brewer and grinder to recognize recipes properly,

duplicate recipe names and / or numbers are not allowed.

• TheFileHandlerformwillselectadirectorysetasidefortheparticularrecipetypechosen.

34446.2 092910

001COLOMBIAN

002DECAFSUPREME

003 ARABICA

004FRENCHROAST

005HAZELNUT

10

Ads / Service Number and Additional Settings

34446.2 092910

TheBrewWISEConstantsCardscreen(shownabove)canbeaccessedbyclickingthe"Ads/ServiceNumberandAdditionalSet-

tings"buttonfromtheswitchboardscreen.Machinesettingsmaybemodiedandtransferredtothecard.

After filling in the form for new settings, the constants can be edited and saved, written to a memory

card, or a hard copy of the recipe can be printed to your default Windows printer.

Clicking“SaveSettings”willstorethecurrentdisplayedvalues.Youwillbeaskedifyouwanttooverwritetheexistingrecipe.

Afterthesettingshavebeenlledincompletely,itmaybetransferredtoarecipecardbyclickingthe“Write”button.Makesure

thatthecardisinplaceontheWriterBoxbeforeclickingthe“Write”button.Aprogressbarandamessagelabelwillappearatthe

bottom of the recipe form during the write process in order to keep the user informed as to the status of the write. If the card returns

thecorrectresponsetothePC,theapplicationdisplays“WritingSuccessful”.Ifthetime-outperiodisreachedbeforethememory

cardiswritten,theapplicationdisplays“WriteHasTimedOut”.Generally,thisisduetooneofthreethings;

1 - The memory card has been locked from a previous write,

2 - The memory card is not properly in place on the Writer, Or

3 - TheWriter hardware is not properly connected to the PC.

Clicking“ExistingSettings”willloadthepreviouslysavedsettings.

11

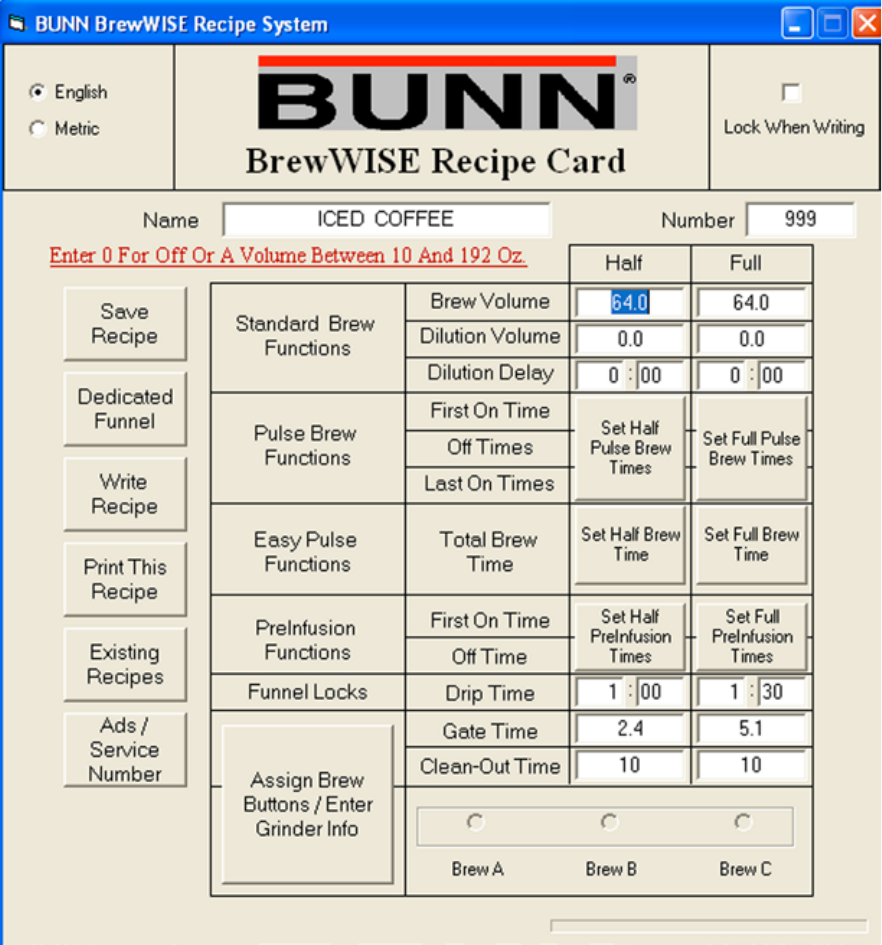

Iced Coffee Recipes

TheIcedCoffeescreen(shownabove)canbeaccessedbyclickingthe"IcedCoffee"buttonfromtheswitchboardscreen.TheName

isxedas"ICEDCOFFEE"andNumberisxedas"999"andcannotbechanged.

•RecipevolumeparametersmaybeenteredorsavedineitherEnglishorMetricunits.Dependingonthespecicsoftwareinyour

brewer,recipesmaybewritteninMetricunitsandrecognizedbythebrewerassuch.IfyouaremorecomfortablewithMetricunits,

butyourbreweronlyrecognizesEnglishunits,theRecipemaybeenteredinMetric,thenswitchedtoEnglishbeforewritingthe

Recipe to the card or funnel.

•Theinstructionlabelprovidesinformationsuchashighandlowparameterlimits,dependingonthespecictextboxyouarein.

This label also shows the allowable format for the numerical parameters, such as whether fractional amounts are allowed. Note: In

textboxesthatallowfractionalvalues(adecimalpoint),wholenumbersmaystillbeusedwithouterror.

•MostofthetextboxescanbetypeddirectlyintoThe"Tab","Shift-Tab"or"Enter"keyscanbeusedtomovethecursorontothenext

textbox.InordertosetthePulseBrew,Pre-Infusion,EasyPulsetimes,theassociatedbuttonsmustbeclickedandthe"OFF"text

boxes must be double-clicked in order to set the times. These steps are present in order to insure that the user is only able to set

Pulse Brew, Pre-Infusion, OR Easy Pulse. Note: Although it is possible to mix Pulse Brew and Pre-Infusion batches on the same

recipe, Pulse Brew and Pre-Infusion cannot be used on the same batch size.

34446.2 092910

12

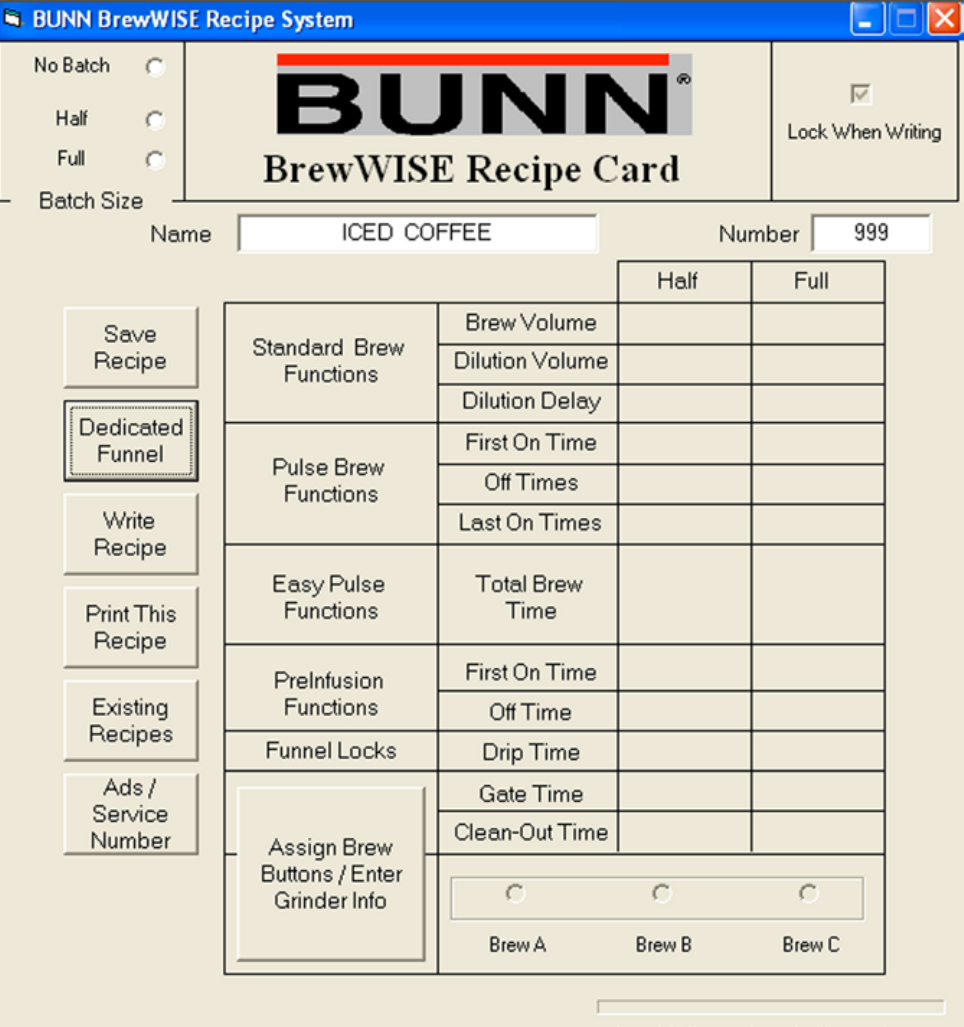

Iced Coffee Dedicated Funnel

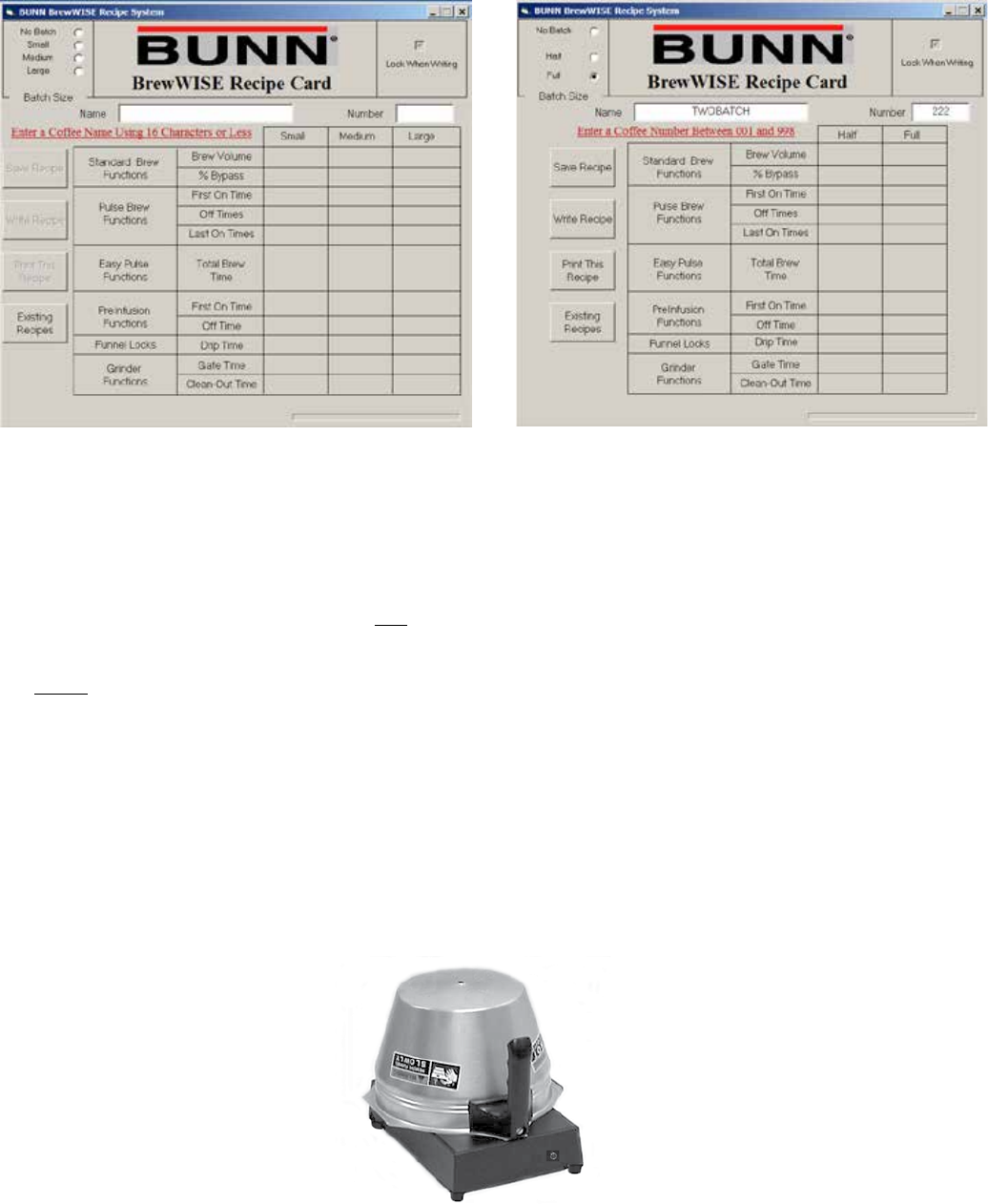

TheIcedCoffeeDedicatedFunnelscreen(shownabove)canbeaccessedbyclickingthe"DedicatedFunnel"buttonfromtheIced

CoffeeRecipescreen.TheNameisxedas"ICEDCOFFEE"andNumberisxedas"999"andcannotbechanged.

NoticethattheDedicatedFunnelscreencontainsnotextboxesforbrewerorgrinderparameters.WhenwritingtoaDedicatedFun-

nel,onlythe"CoffeeName","CoffeeNumber",and"Batch"informationiswrittentothefunnelchip.Brewparametersmustbeentered

manuallyatthebrewerforeachcorrespondingDedicatedFunnelnameoraseparaterecipecardmustbeusedinordertotransfer

the recipes.

Inordertopreventaccidentalerasure,DedicatedFunnelsarealwayswritten"Locked".Theapplicationwillnotallowtheusertoclear

the"Locked"checkboxinthededicatedfunnelscreen.

34446.2 092910

13

Existing Recipes

• Afterllingintheformforanewrecipeorretrievinganexistingrecipe,therecipecanbeeditedandsaved,writtentoamemory

card, or a hard copy of the recipe can be printed to your default Windows printer.

• Clicking“Save”bringsuptheFileHandlerformwheretheusercanscrollthroughtheexistingrecipesinordertomakesurethe

desirednameornumberarenotalreadytaken.If“Save”isclickedontheFileHandlerform,theapplicationcheckstomakesure

that the recipe name and number are unique before saving the recipe. In the event of a conflict, the application will prompt the

user to either overwrite the existing recipe or go back to the main recipe screen in order to make changes.

34446.2 092910

14

Writing Recipes

• Afterarecipehasbeenlledincompletely,itmaybetransferredtoarecipecardbyclickingthe“Write”button.Makesurethatthe

cardisinplaceontheWriterBoxbeforeclickingthe“Write”button.Aprogressbarandamessagelabelwillappearatthebottom

of the recipe form during the write process in order to keep the user informed as to the status of the write. If the card returns the

correctresponsetothePC,theapplicationdisplays“WritingSuccessful”.Ifthetime-outperiodisreachedbeforethememory

cardiswritten,theapplicationdisplays“WriteHasTimedOut”.Generally,thisisduetooneofthreethings;

1 - The memory card has been locked from a previous write, 2 - The memory card is not properly in place on the Writer, Or 3 - The

Writer hardware is not properly connected to the PC.

34446.2 092910

15

Ads

• TheBrewWISE® Recipe Writer can be used to transfer ad messages from the BrewWISE® software into the brewer by using an ad

(advertisement)card.Eachpositioncanholdve16-characterlines,sothatthetotaladstoredinthebrewercanconsistoften

16-character lines. Ads are displayed in screens, each 2-line screen displaying for a few seconds in rotation while the brewer is idle.

Writingisdoneinthesamemanneraswithrecipes,exceptthattwowritecyclesarerequired.Thead(advertisement)cardcontains

twomemorychipslabeled#1and#2.Beforewriting,thecardmustbepositionedontheboxasshownwiththe#1chipabovethe

indicatedalignmenttarget.Aftersuccessfullywritingto#1,theapplicationwillprompttheusertorepositionthecardsothatchip

#2isalignedwiththetarget.If ads already exist in a brewer, writing only the first ad position may provide unexpected results.

For best results, always write both positions when updating existing ads on a brewer, even if the second position consists

only of blank lines. Foramorecompleteexplanationofwritingtocards,seetheprevioussectionentitled“WritingRecipes”.Note:

Although blank lines may be left at the end of an ad, leaving one complete ad screen blank can cause undesired results. The

application will warn the user if unacceptable combinations are encountered.

• Completelyerasingadscanbeaccomplishedbywritingtwopositionsconsistingentirelyofblanklines.

34446.2 092910

16

Coffee Dedicated Funnel

 TheDedicatedFunnelscreen(shownabove)canbeaccessedbyclickingthe“DedicatedFunnel”buttonfromtheswitchboard

screen.TheDedicatedFunnelFunctionisintendedtobeusedwhen:

1. The ground coffee to be used in the funnel is NOT dispensed by a BrewWISE® grinder.

2. The same coffee name is always used in the funnel.

3. There is no plan to change to a different named coffee in the funnel. The dedicated funnel has the name locked into it and can

NEVER be erased.

The main advantage of the dedicated funnel function is that it allows the use of named recipes when the BrewWISE® grinder is not

used;operationisnotlimitedtothetwo“No-Name”recipes.

 NoticethattheDedicatedFunnelscreencontainsnotextboxesforbrewerorgrinderparameters.WhenwritingtoaDedicated

Funnel,onlythe“CoffeeName”,“CoffeeNumber”,and“Batch”informationiswrittentothefunnelchip.Brewparametersmustbe

enteredmanuallyatthebrewerforeachcorrespondingDedicatedFunnelnameoraseparaterecipecardmustbeusedinorderto

transfer the recipes.

 Inordertopreventaccidentalerasure,DedicatedFunnelsarealwayswritten“Locked”.Theapplicationwillnotallowtheuserto

clearthe“Locked”checkboxinthededicatedfunnelscreen.

3 Batch Dedicated Funnel 2 Batch Dedicated Funnel

34446.2 092910

17

Coffee No-Name Recipes

 TheNo-Namerecipescreensareaccessedbyclickingononeofthe“No-NameRecipe”buttonsontheswitchboardscreen.The

“CoffeeName”intheNo-Namerecipescreenislledinautomaticallybytheapplicationandcannotbeedited.The“CoffeeNumber”

foraNo-Namerecipeisalways000andcannotbechanged.

No-NameRecipeNotes

When a brew funnel is inserted in under the sprayhead of the BrewWISE® brewer, the information stored in the funnel handle is

read by the brewer.

If the coffee was ground into the funnel by a BrewWISE®grinder,thentheCoffeeName,theCoffeeNumber,andthebatchsize

information would have been stored in the funnel handle. The brewer reads this information, looks into its memory, and retrieves the

corresponding brewing recipe.

If the coffee in the funnel did NOT come from a BrewWISE® grinder, then there is no information in the handle. When placed into

thebrewer,onlythefactthatthefunnelispresentisdetected.Inthiscase,thebrewerusesthe“No-Name”recipesincethereisno

nametolookupinmemory.OnaDualbrewer,itispossibletohavetwodifferentNo-Namerecipes,onefortheleftbrewingheadand

one for the right.

 AfteraNo-Namerecipehasbeenlledincompletely,itmaybetransferredtoarecipecardbyclickingthe“Write”button.Make

surethatthecardisinplaceontheWriterBoxbeforeclickingthe“Write”button.Aprogressbarandamessagelabelwillappearatthe

bottom of the recipe form during the write process in order to keep the user informed as to the status of the write. If the card returns

thecorrectresponsetothePC,theapplicationdisplays“WritingSuccessful”.Ifthetime-outperiodisreachedbeforethememorycard

iswritten,theapplicationdisplays“WriteHasTimedOut”.Generally,thisisduetooneofthreethings;

1 - The memory card has been locked from a previous write, 2 - The memory card is not properly in place on the Writer, Or 3 - The

Writer hardware is not properly connected to the PC.

3 Batch Dedicated Funnel 2 Batch Dedicated Funnel

34446.2 092910

18

Ads / Service Number

TheBrewWISERecipeWritercanbeusedtotransferAd/ServiceNumberinformationfromtheBrewWISEsoftwareintobrewers

soequipped.The2lineadandtheServiceNumberaredisplayedforafewsecondsinrotationwhilethebrewerisidle.Writingis

done in the same manner as with recipes.

34446.2 092910

19

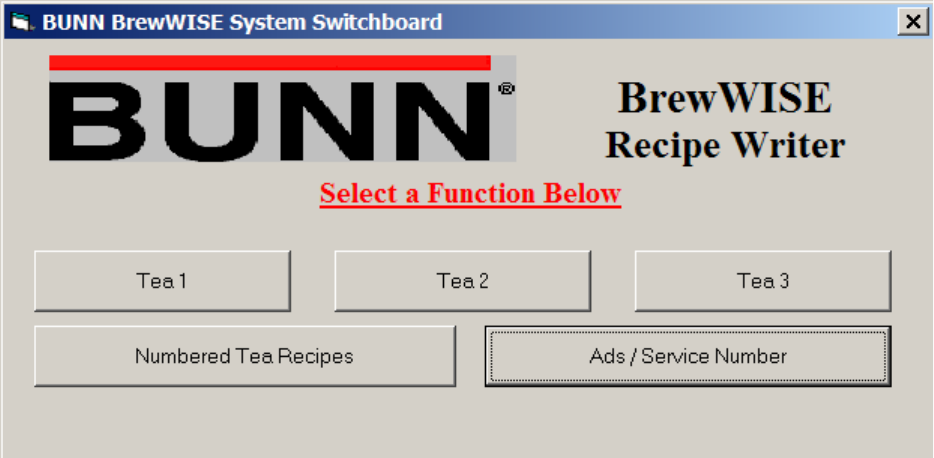

Iced Tea Selector

TheIcedTeaselectorscreen(shownabove)canbeaccessedbyclickingthe"IcedTea"buttonfromtheswitchboardscreen.From

hereyoumayselectoneofthreexedteanames(1,2,or3),aNumberedTeaRecipewhereauniquenameandnumbercanbe

giventoarecipe,oranAds/ServiceNumberscreenwhereyoucanwriteanAdcard.

34446.2 092910

20

Iced Tea Recipe

SelectingTea1,Tea2,Tea3,orNumberedTeaReciperecipesontheIcedTeaSelectorwillbringuptheIcedTeaRecipescreen.If

Tea1,2,or3wereselectedtheNameandnumbercannotbechanged.IfNumberedTeaRecipeswasselectedaNameandNumber

may be assigned to the recipe.

•Theinstructionlabelprovidesinformationsuchashighandlowparameterlimits,dependingonthespecictextboxyouarein.

This label also shows the allowable format for the numerical parameters, such as whether fractional amounts are allowed. Note: In

textboxesthatallowfractionalvalues(adecimalpoint),wholenumbersmaystillbeusedwithouterror.

•MostofthetextboxescanbetypeddirectlyintoThe"Tab","Shift-Tab"or"Enter"keyscanbeusedtomovethecursorontothe

nexttextbox.InordertosetthePulseBrewandPre-Infusiontimes,theassociatedbuttonsmustbeclickedandthe"OFF"textboxes

must be double-clicked in order to set the times. These steps are present in order to insure that the user is only able to set Pulse

Brew OR Pre-Infusion. Note: Although it is possible to mix Pulse Brew and Pre-Infusion batches on the same recipe, Pulse Brew

and Pre-Infusion cannot be used on the same batch size.

34446.2 092910

21

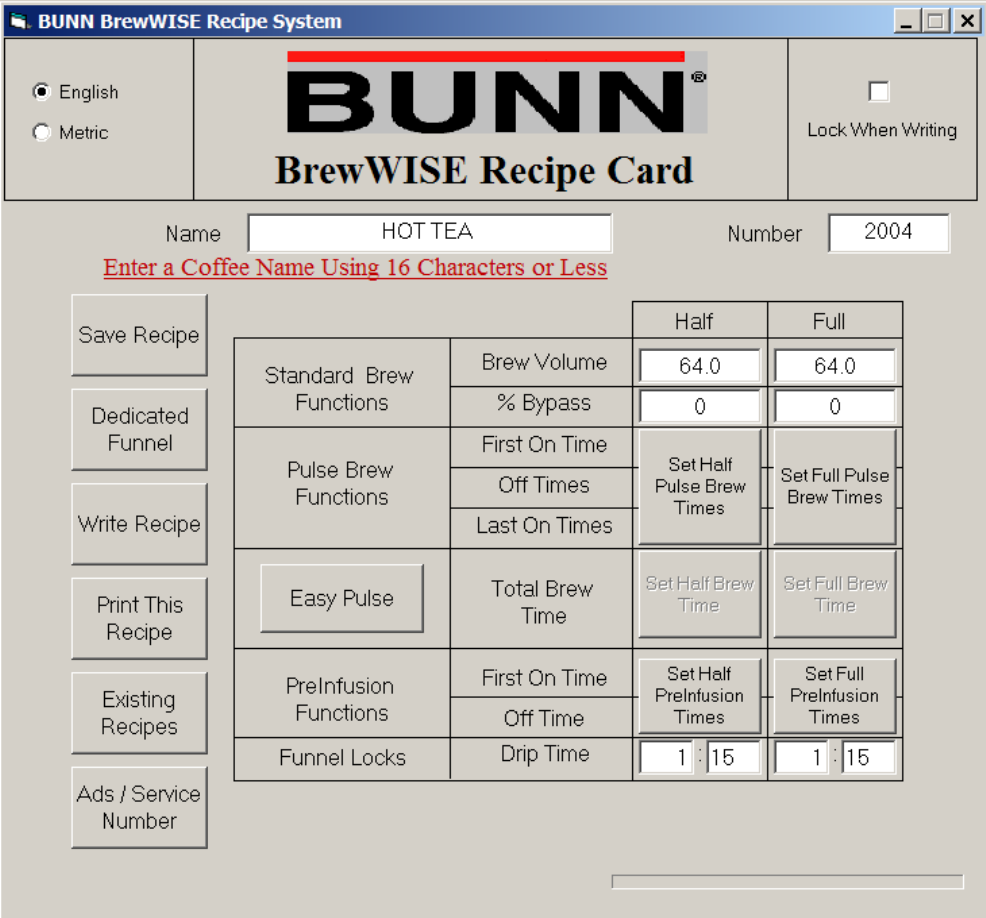

Hot Tea Recipe

TheHotTeascreen(shownabove)byclickingthe"HotTea"buttonfromtheswitchboardscreen.TheNameis

xedas"HOTTEA"andNumberisxedas"2004"andcannotbechanged.

The information is entered, saved and written as in the coffee recipe screen.

34446.2 092910

22

Troubleshooting

1. If you have software for your PDA installed on the computer used to connect to the BrewWISE® Recipe Writer box, it may reserve

the computers serial port as soon as the computer is started up, causing the port to become unavailable to the BrewWISE® Recipe

Writer hardware. In order for the BrewWISE®RecipeWritertowritetoacardorfunnel,thePDA’ssoftwaremayhavetobedisabled

or un-installed before starting the Recipe Writer program.

2. If a valid communication port cannot be found by the Recipe Writer software, yet the hardware for one exists on the host computer,

try disabling any enabled IR ports on the host computer.

3. The BrewWISE® Recipe Writer software was designed and tested to work in the English/U.S. version of Microsoft Windows. Using

this software in other versions of Microsoft Windows may produce unexpected results.

4. The BrewWISE®RecipeWritersoftwarewillnotrundirectlyfromtheCDoroppydisks;itmustbeinstalledusingthesetup.exe

program found on the installation media.

34446.2 092910

23

Replacement Parts

Recipe Card - 34447.0000

AdCard-34448.0000

Replacement cards may be ordered from Bunn-O-Matic using the following part numbers:

37076.0000-USBtoSerialAdapterCable(NotIllustrated)

34446.2 092910
