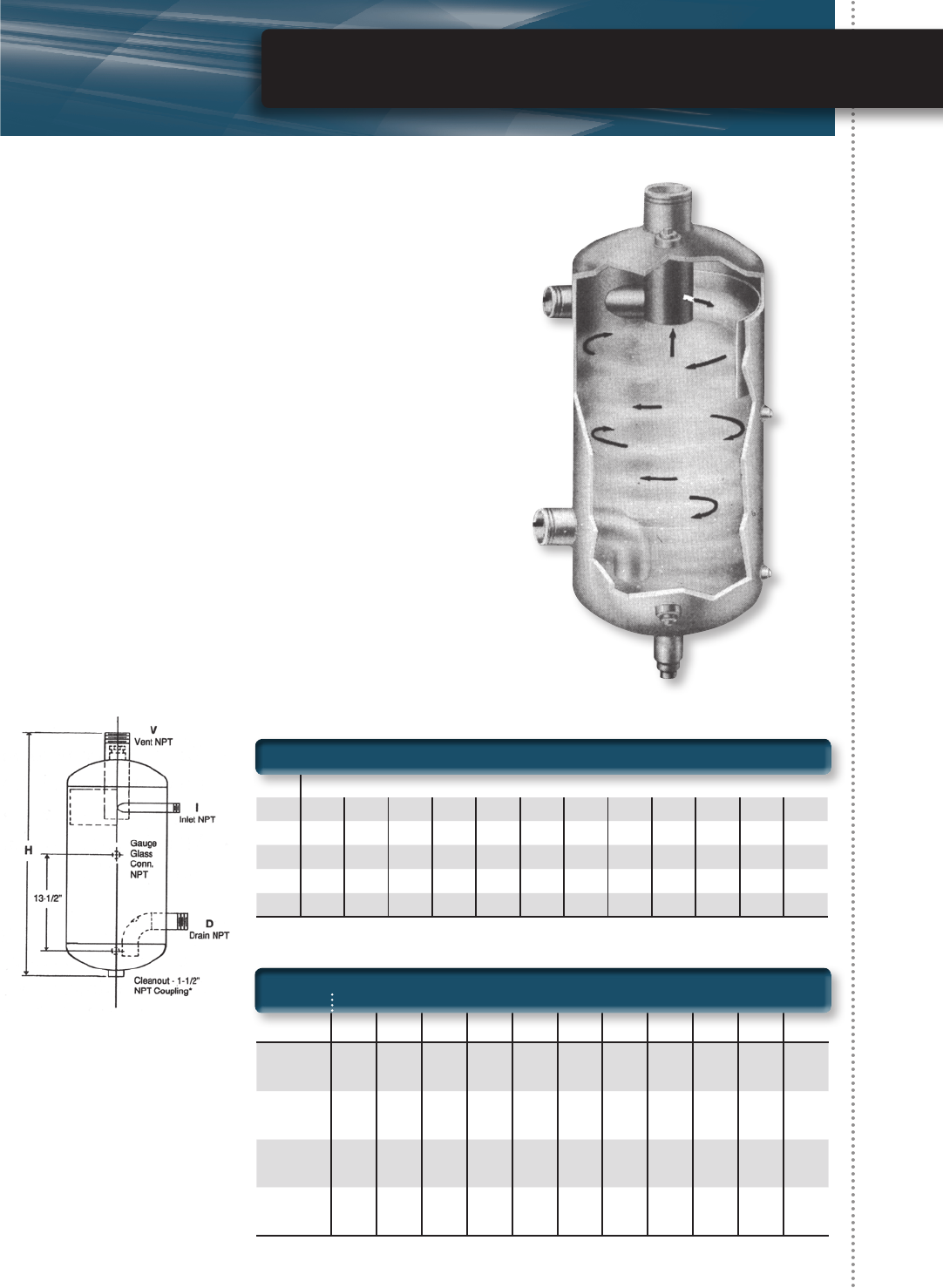

Flash Separator
• Reduces steam pressure or vents process steam
directly to atmosphere.
• Eliminates moisture from process steam (cyclonic
spinning mechanism permits the use of smaller tanks
to completely separate ash steam from condensate).
• ASME Section VIII “UE” stamped separator standard
up to model BFS-16-56.
• ASME Section VIII “U” stamped separator standard for
models BFS-16-56 and above.
• Sized to accommodate a given #/hour ow rate of
steam from a given source psig to a given vent psig.
• Model Range:
6" diameter x 34" high through
36" diameter x 108" high
• Modular conguration to meet customer requirements
include: a ash separator and the following options:
trap, check valve, ball valve, safety relief valve and
gauge glass.
• Can be custom congured to meet customer
requirements.
• Stainless steel striking plate standard.
*Flash Separators over 18" diameter,
cleanout will be 2" NPT coupling.
Follow the “Pressure From...” down vertically on the chart above to the “Pressure To...”.
EXAMPLE: 75 PSIG condensate ashed to low pressure heating system at 15 PSIG gives 7.6% condensate ashed into system.
After determining the percent of ash from
the chart to the right, determine the size of
Flash Separator from the chart on the back.
EXAMPLE: Referring back to the chart to
the right, you have a 7.6% ash, if you have
30,000 #/hour condensate at 75 PSIG,
2,280 #/hour steam (30,000 x .076). Locate
30,000 in the left column of the chart on the
back, go across to 2,280 #/hour ash steam
column (3,000). You would use a 56" high x
18" diameter Flash Separator with a 3" draft
and 5" vent.
IInlet - Specify inlet to match your return line or blowo line
H34 56 72 96 108 – – – – – – –
DIA. 6 8 10 14 16 18 20 24 30 36 – –
D1 1-1/4 1-1/2 2 2-1/2 3 4 5 – – – –
V2 2-1/2 3 4 5 6 8 10 12 14 16 18
PL 5/16 3/8 – – – – – – – – – –
DIMENSION CHART MODEL BFS
Pressure To... 800 700 600 500 400 300 200 100 75 50 25
700
600
500
2.5
5.2
7.9 2.7
5.5 2.9 --------
400
300
200
10.8
14.1
18.0
8.5
11.9
15.8
6.0
9.4
13.5
3.2
6.7
10.9 3.7
7.9 ------
100
50
30
23.1
26.9
29.0
21.0
24.9
27.0
18.8
22.7
24.9
16.3
20.4
22.6
13.5
17.6
19.9
10.2
14.4
16.7
6.0
10.4
12.8 4.6
7.1 2.5
5.1 2.6 -
15
7
0.0
31.1
32.6
34.3
29.2
30.7
32.4
27.1
28.6
30.4
24.8
26.4
28.2
22.2
23.8
25.6
19.0
20.7
22.5
15.2
16.9
18.7
9.6
11.3
13.3
7.6
9.4
11.9
5.2
7.0
9.0
1.8
3.7
5.8
PRESSURE FROM...
Flash Separator
#/Hour Condensate 100 500 700 1,000 2,000 3,000 4,000 8,000 12,000 18,000 21,000 25,000 35,000
100,000
Height
Diameter
Drain
Vent
108
30
5
2
108
30
5
2
108
30
5
2-1/2
108
30
5
3
108
30
5
4
108
30
5
5
108
30
5
6
108
30
5
8
108
30
5
10
108
30
5
12
108
30
5
14
108
36
5
16
108
36
4
18
90,000
Height
Diameter
Drain
Vent
96
30
5
2
96
30
5
2
96
30
5
2-1/2
96
30
5
3
96
30
5
4
96
30
5
5
96
30
5
6
96
30
5
8
96
30
5
10
96
30
5
12
96
30
4
14
96
36
4
16
96
36
4
18
80,000
Height
Diameter
Drain
Vent
96
24
5
2
96
24
5
2
96
24
5
2-1/2
96
24
5
3
96
24
5
4
96
24
5
5
96
24
5
6
96
24
5
8
96
24
4
10
96
24
4
12
96
30
4
14
96
36
4
16
96
36
4
18
70,000
Height
Diameter
Drain
Vent
72
24
4
2
72
24
4
2
72
24
4
2-1/2
72
24
4
3
72
24
4
4
72
24
4
5
72
24
4
6
72
24
4
8
72
24
4
10
72
24
4
12
72
30
4
14
72
36
4
16
72
36
4
18
60,000
Height
Diameter
Drain
Vent
56
24
4
2
56
24
4
2
56
24
4
2-1/2
56
24
4
3
56
24
4
4
56
24
4
5
56
24
4
6
56
24
4
8
56
24
4
10
56
24
4
12
56
30
4
14
56
36
4
16
–
50,000
Height
Diameter
Drain
Vent
72
20
4
2
72
20
4
2
72
20
4
2-1/2
72
20
4
3
72
20
4
4
72
20
4
5
72
20
4
6
72
20
4
8
72
20
4
10
72
24
4
12
72
30
3
14
72
36
3
16
–
40,000
Height
Diameter
Drain
Vent
56
20
4
2
56
20
4
2
56
20
4
2-1/2
56
20
4
3
56
20
4
4
56
20
4
5
56
20
4
6
56
20
4
8
56
20
3
10
56
24
3
12
56
30
3
14
– –
30,000
Height
Diameter
Drain
Vent
56
18
3
2
56
18
3
2
56
18
3
2-1/2
56
18
3
3
56
18
3
4
56
18
3
5
56
18
3
6
56
18
3
8
56
20
3
10
56
24
2-1/2
12
–––
20,000
Height
Diameter
Drain
Vent
56
14
2-1/2
2
56
14
2-1/2
2
56
14
2-1/2
2-1/2
56
16
2-1/2
3
56
16
2-1/2
4
56
16
2-1/2
5
56
16
2-1/2
6
56
16
2-1/2
8
56
20
2
10
– – – –
10,000
Height
Diameter
Drain
Vent
34
14
2
2
34
14
2
2
34
14
2
2-1/2
34
14
2
3
34
14
2
4
34
14
2
5
34
14
2
6
34
16
1-1/2
8
– – – – –
5,000
Height
Diameter
Drain
Vent
34
10
1-1/2
2
34
10
1-1/2
2
34
10
1-1/2
2-1/2
34
10
1-1/2
3
34
14
1-1/2
4
34
14
1-1/2
5
34
14
1-1/4
6
– – – – – –
3,000
Height
Diameter
Drain
Vent
34
10
1-1/4
2
34
10
1-1/4
2
34
10
1-1/4
2-1/2
34
10
1-1/4
3
34
14
1-1/4
4
– – – – – – – –
2,000
Height
Diameter
Drain
Vent
34
8
1-1/4
2
34
8
1-1/4
2
34
8
1
2-1/2
34
10
1
3
– – – – – – – – –
1,000
Height
Diameter
Drain
Vent
34
6
1
2
34
8
1
2
34
8
1
2-1/2
– – – – – – – – – –
500
Height
Diameter
Drain
Vent
34
6
1
2
34
6
1
2
–––––––––––
#/HOUR FLASH STEAM
©2012 Burnham Commercial
P.O. Box 3939 • Lancaster, PA 17604
Phone: 888.791.3790 • Fax: 717.293.5803
www.burnhamcommercial.com Form No. PL81465601009-12/12-1Mc
Printed in the U.S.A.
