Business Machines 20020306A1L IBM Thinkpad G40 Series - 802.11 a/b MINI PCI User Manual

International Business Machines Corporation IBM Thinkpad G40 Series - 802.11 a/b MINI PCI Users Manual

Users Manual

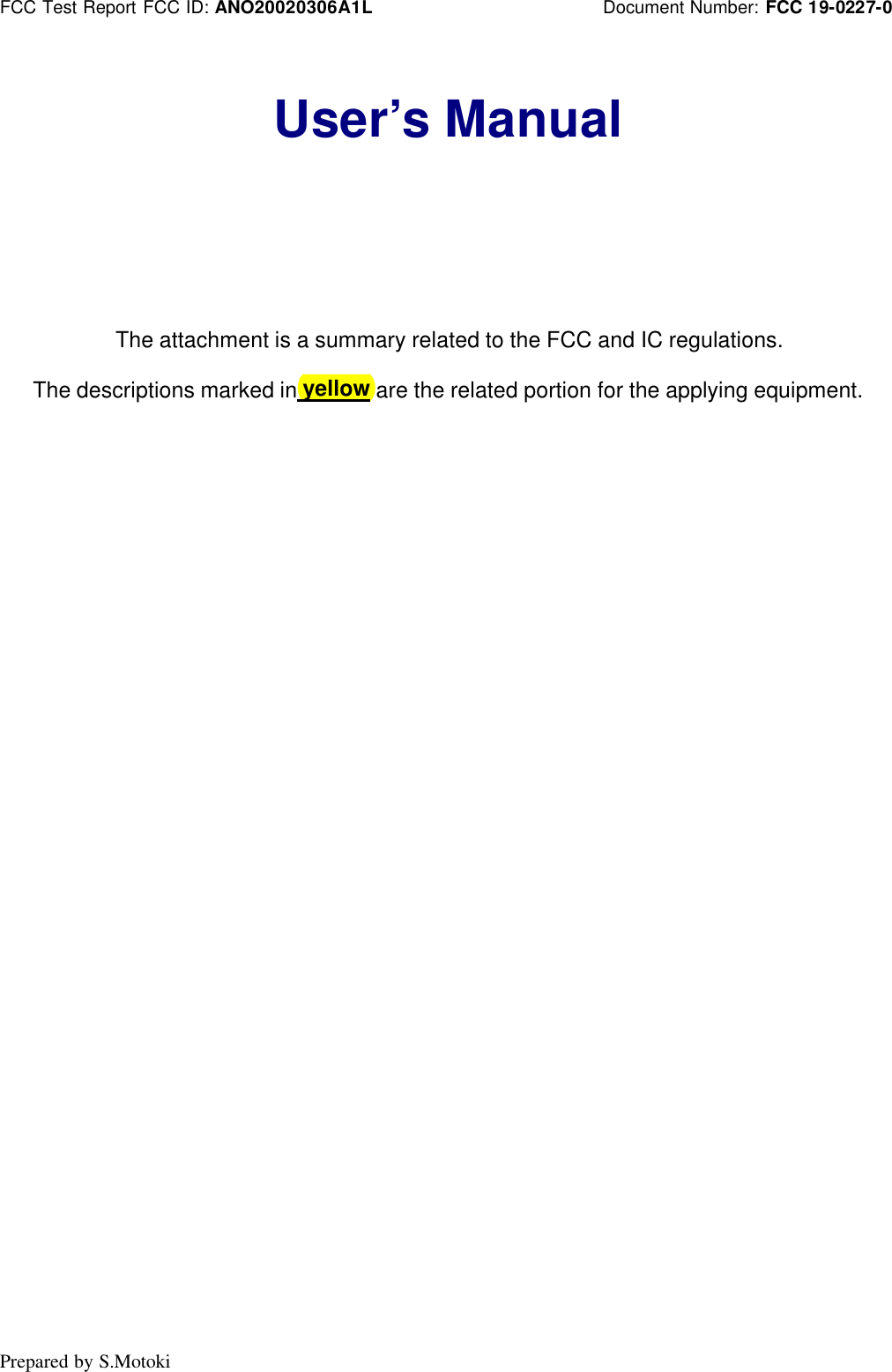

FCC Test Report FCC ID: ANO20020306A1L Document Number: FCC 19-0227-0 Prepared by S.Motoki User’s Manual The attachment is a summary related to the FCC and IC regulations. The descriptions marked in yellow are the related portion for the applying equipment.

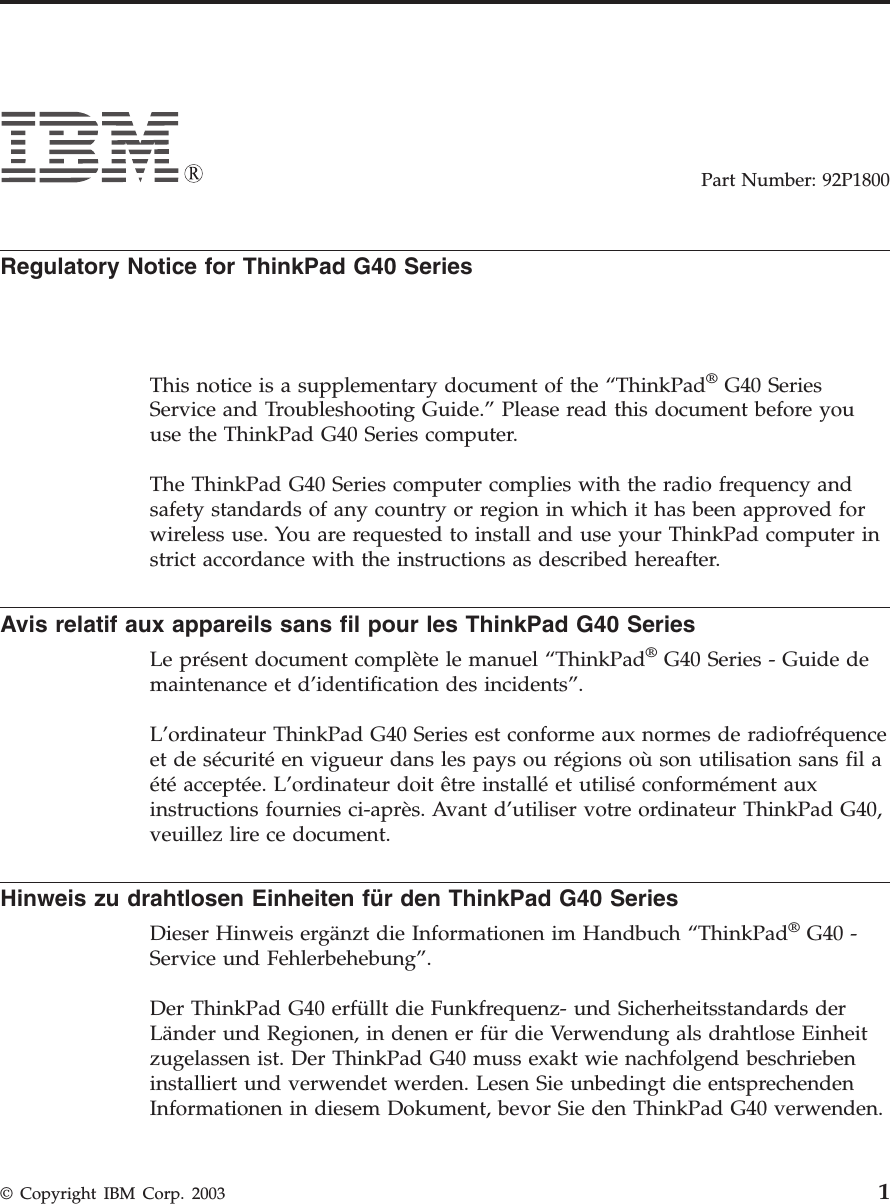

Part Number: 92P1800Regulatory Notice for ThinkPad G40 SeriesThis notice is a supplementary document of the “ThinkPad®G40 SeriesService and Troubleshooting Guide.” Please read this document before youuse the ThinkPad G40 Series computer.The ThinkPad G40 Series computer complies with the radio frequency andsafety standards of any country or region in which it has been approved forwireless use. You are requested to install and use your ThinkPad computer instrict accordance with the instructions as described hereafter.Avis relatif aux appareils sans fil pour les ThinkPad G40 SeriesLe présent document complète le manuel “ThinkPad®G40 Series - Guide demaintenance et d’identification des incidents”.L’ordinateur ThinkPad G40 Series est conforme aux normes de radiofréquenceet de sécurité en vigueur dans les pays ou régions où son utilisation sans fil aété acceptée. L’ordinateur doit être installé et utilisé conformément auxinstructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad G40,veuillez lire ce document.Hinweis zu drahtlosen Einheiten für den ThinkPad G40 SeriesDieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad®G40 -Service und Fehlerbehebung”.Der ThinkPad G40 erfüllt die Funkfrequenz- und Sicherheitsstandards derLänder und Regionen, in denen er für die Verwendung als drahtlose Einheitzugelassen ist. Der ThinkPad G40 muss exakt wie nachfolgend beschriebeninstalliert und verwendet werden. Lesen Sie unbedingt die entsprechendenInformationen in diesem Dokument, bevor Sie den ThinkPad G40 verwenden.© Copyright IBM Corp. 2003 1

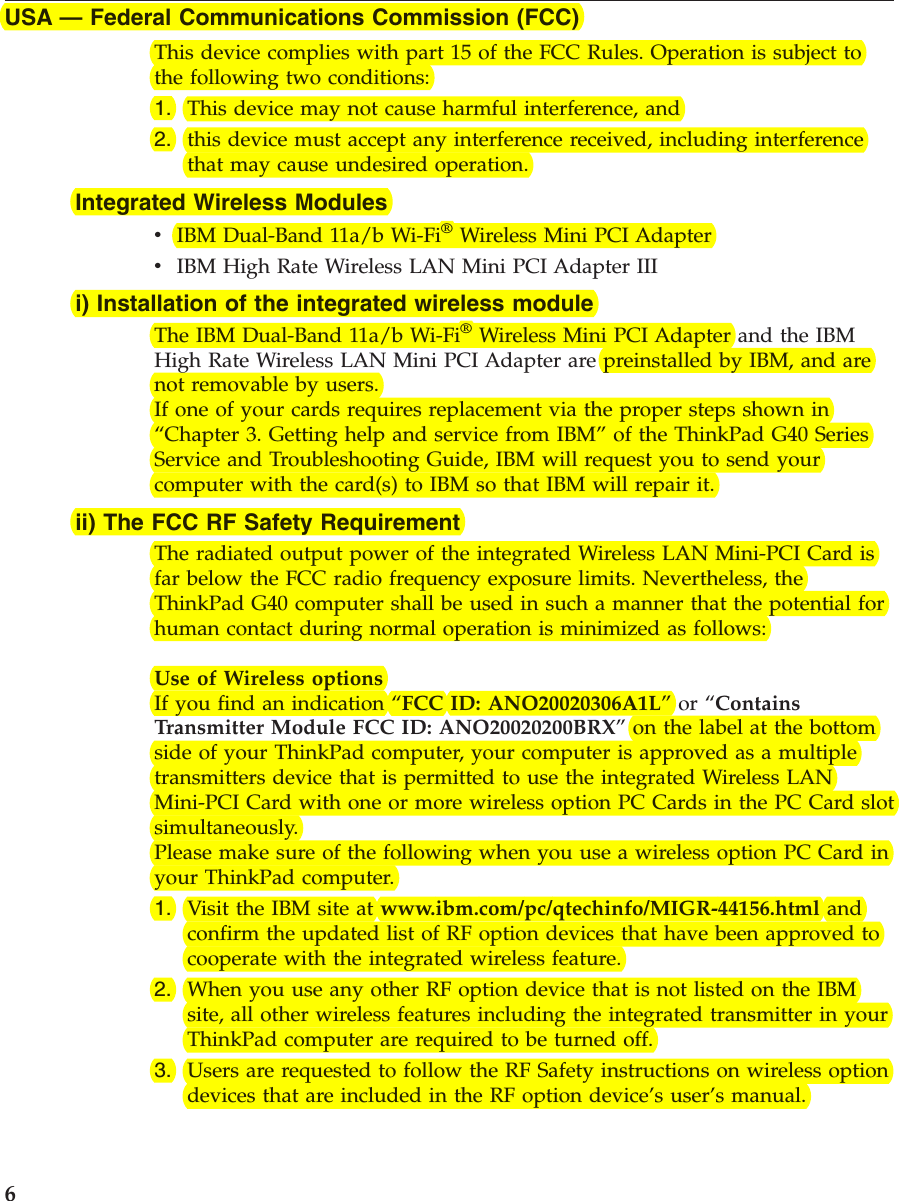

USA —Federal Communications Commission (FCC)This device complies with part 15 of the FCC Rules. Operation is subject tothe following two conditions:1. This device may not cause harmful interference, and2. this device must accept any interference received, including interferencethat may cause undesired operation.Integrated Wireless ModulesvIBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI AdaptervIBM High Rate Wireless LAN Mini PCI Adapter IIIi) Installation of the integrated wireless moduleThe IBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapter and the IBMHigh Rate Wireless LAN Mini PCI Adapter are preinstalled by IBM, and arenot removable by users.If one of your cards requires replacement via the proper steps shown in“Chapter 3. Getting help and service from IBM”of the ThinkPad G40 SeriesService and Troubleshooting Guide, IBM will request you to send yourcomputer with the card(s) to IBM so that IBM will repair it.ii) The FCC RF Safety RequirementThe radiated output power of the integrated Wireless LAN Mini-PCI Card isfar below the FCC radio frequency exposure limits. Nevertheless, theThinkPad G40 computer shall be used in such a manner that the potential forhuman contact during normal operation is minimized as follows:Use of Wireless optionsIf you find an indication “FCC ID: ANO20020306A1L”or “ContainsTransmitter Module FCC ID: ANO20020200BRX”on the label at the bottomside of your ThinkPad computer, your computer is approved as a multipletransmitters device that is permitted to use the integrated Wireless LANMini-PCI Card with one or more wireless option PC Cards in the PC Card slotsimultaneously.Please make sure of the following when you use a wireless option PC Card inyour ThinkPad computer.1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-44156.html andconfirm the updated list of RF option devices that have been approved tocooperate with the integrated wireless feature.2. When you use any other RF option device that is not listed on the IBMsite, all other wireless features including the integrated transmitter in yourThinkPad computer are required to be turned off.3. Users are requested to follow the RF Safety instructions on wireless optiondevices that are included in the RF option device’s user’s manual.6

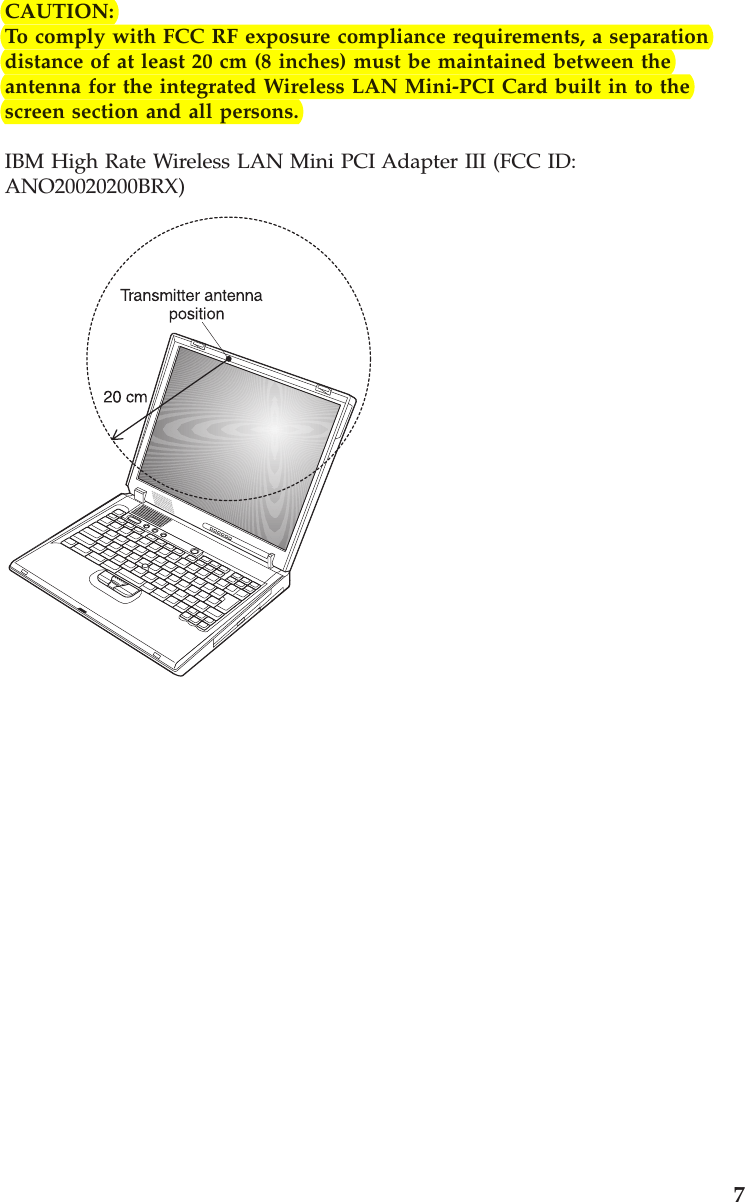

CAUTION:To comply with FCC RF exposure compliance requirements, a separationdistance of at least 20 cm (8 inches) must be maintained between theantenna for the integrated Wireless LAN Mini-PCI Card built in to thescreen section and all persons.IBM High Rate Wireless LAN Mini PCI Adapter III (FCC ID:ANO20020200BRX)7

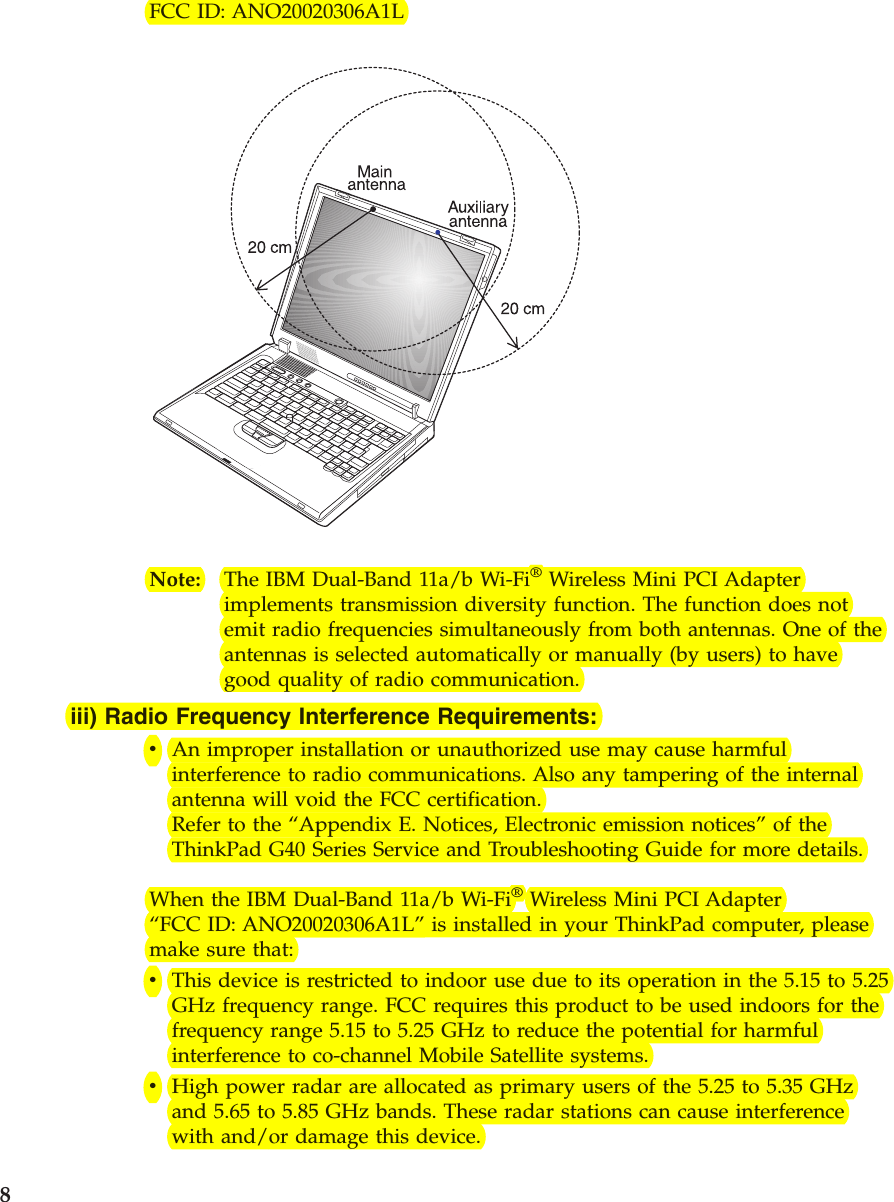

FCC ID: ANO20020306A1LNote: The IBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapterimplements transmission diversity function. The function does notemit radio frequencies simultaneously from both antennas. One of theantennas is selected automatically or manually (by users) to havegood quality of radio communication.iii) Radio Frequency Interference Requirements:vAn improper installation or unauthorized use may cause harmfulinterference to radio communications. Also any tampering of the internalantenna will void the FCC certification.Refer to the “Appendix E. Notices, Electronic emission notices”of theThinkPad G40 Series Service and Troubleshooting Guide for more details.When the IBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapter“FCC ID: ANO20020306A1L”is installed in your ThinkPad computer, pleasemake sure that:vThis device is restricted to indoor use due to its operation in the 5.15 to 5.25GHz frequency range. FCC requires this product to be used indoors for thefrequency range 5.15 to 5.25 GHz to reduce the potential for harmfulinterference to co-channel Mobile Satellite systems.vHigh power radar are allocated as primary users of the 5.25 to 5.35 GHzand 5.65 to 5.85 GHz bands. These radar stations can cause interferencewith and/or damage this device.8

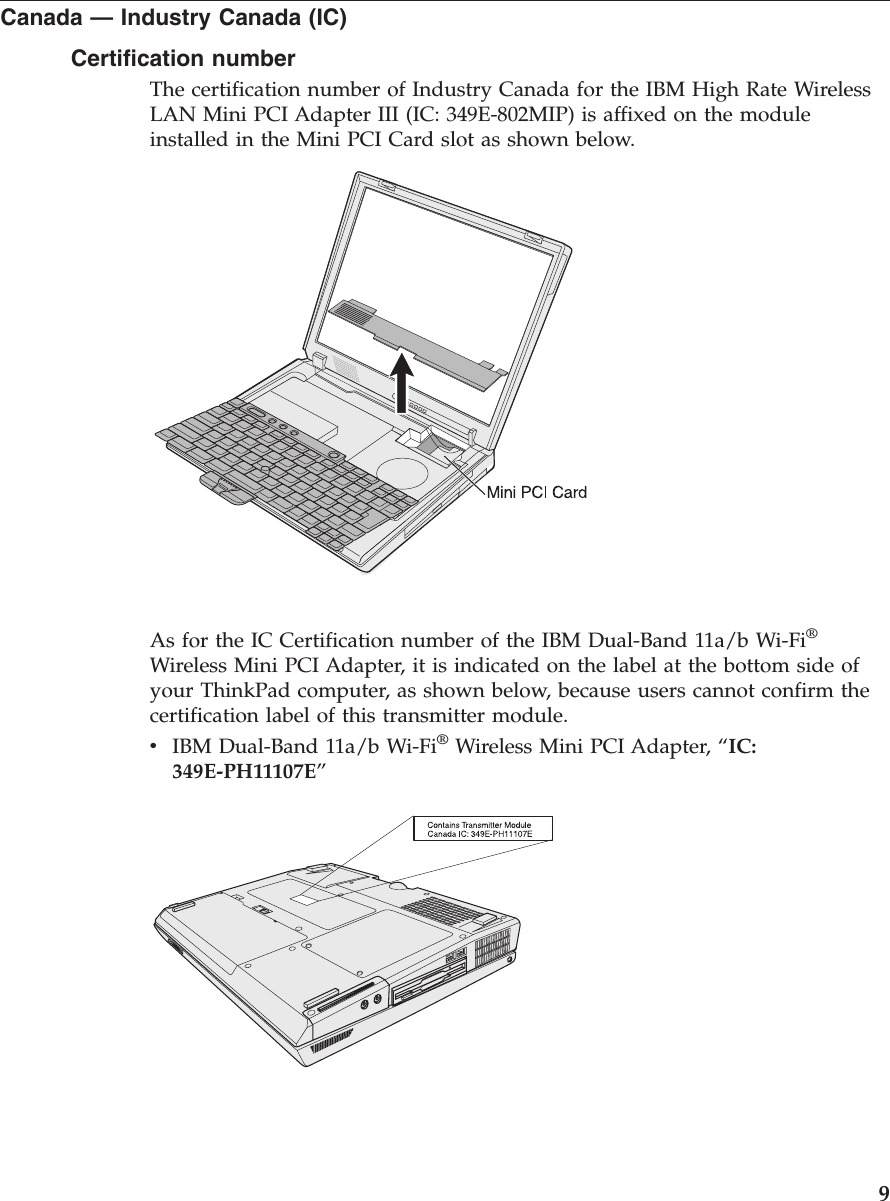

Canada —Industry Canada (IC)Certification numberThe certification number of Industry Canada for the IBM High Rate WirelessLAN Mini PCI Adapter III (IC: 349E-802MIP) is affixed on the moduleinstalled in the Mini PCI Card slot as shown below.As for the IC Certification number of the IBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapter, it is indicated on the label at the bottom side ofyour ThinkPad computer, as shown below, because users cannot confirm thecertification label of this transmitter module.vIBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapter, “IC:349E-PH11107E”9

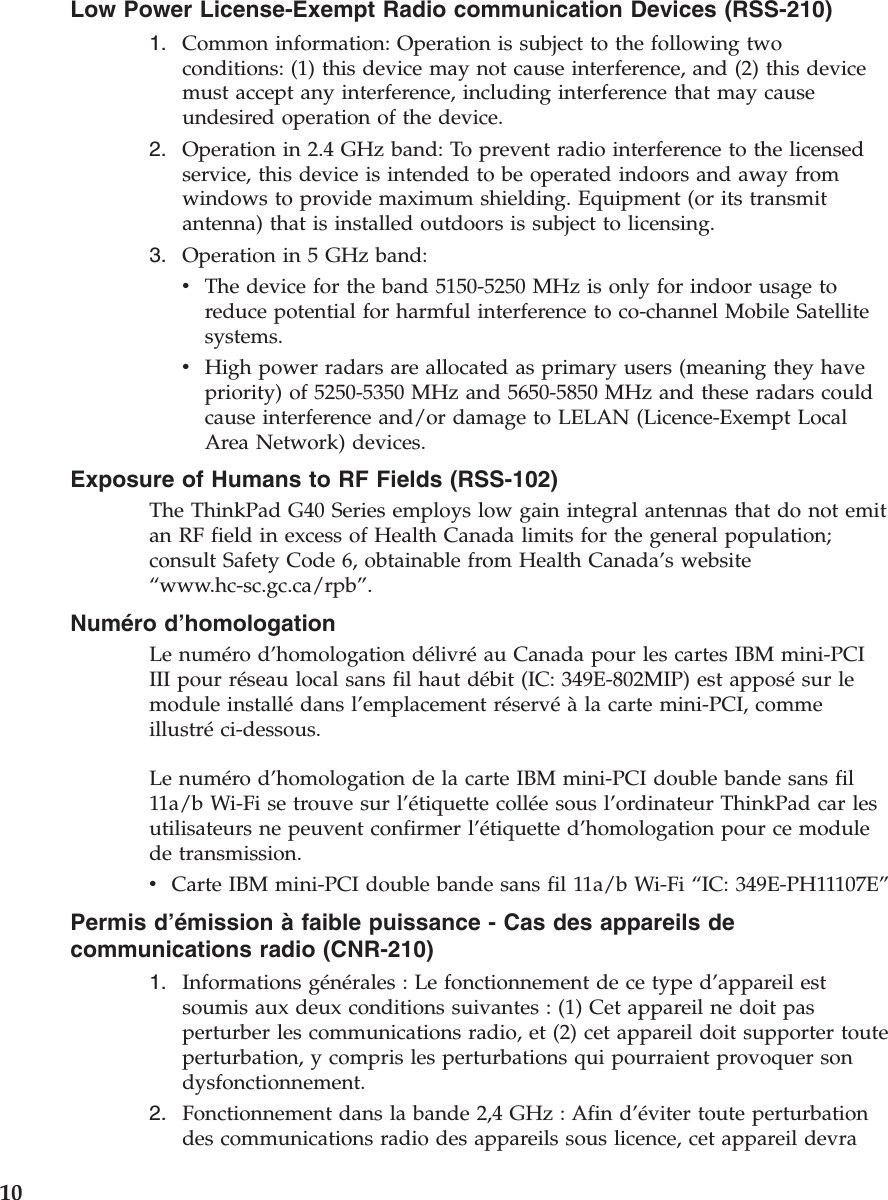

Low Power License-Exempt Radio communication Devices (RSS-210)1. Common information: Operation is subject to the following twoconditions: (1) this device may not cause interference, and (2) this devicemust accept any interference, including interference that may causeundesired operation of the device.2. Operation in 2.4 GHz band: To prevent radio interference to the licensedservice, this device is intended to be operated indoors and away fromwindows to provide maximum shielding. Equipment (or its transmitantenna) that is installed outdoors is subject to licensing.3. Operation in 5 GHz band:vThe device for the band 5150-5250 MHz is only for indoor usage toreduce potential for harmful interference to co-channel Mobile Satellitesystems.vHigh power radars are allocated as primary users (meaning they havepriority) of 5250-5350 MHz and 5650-5850 MHz and these radars couldcause interference and/or damage to LELAN (Licence-Exempt LocalArea Network) devices.Exposure of Humans to RF Fields (RSS-102)The ThinkPad G40 Series employs low gain integral antennas that do not emitan RF field in excess of Health Canada limits for the general population;consult Safety Code 6, obtainable from Health Canada’s website“www.hc-sc.gc.ca/rpb”.Numéro d’homologationLe numéro d’homologation délivréau Canada pour les cartes IBM mini-PCIIII pour réseau local sans fil haut débit (IC: 349E-802MIP) est apposésur lemodule installédans l’emplacement réservéàla carte mini-PCI, commeillustréci-dessous.Le numéro d’homologation de la carte IBM mini-PCI double bande sans fil11a/b Wi-Fi se trouve sur l’étiquette collée sous l’ordinateur ThinkPad car lesutilisateurs ne peuvent confirmer l’étiquette d’homologation pour ce modulede transmission.vCarte IBM mini-PCI double bande sans fil 11a/b Wi-Fi “IC: 349E-PH11107E”Permis d’émission àfaible puissance - Cas des appareils decommunications radio (CNR-210)1. Informations générales : Le fonctionnement de ce type d’appareil estsoumis aux deux conditions suivantes : (1) Cet appareil ne doit pasperturber les communications radio, et (2) cet appareil doit supporter touteperturbation, y compris les perturbations qui pourraient provoquer sondysfonctionnement.2. Fonctionnement dans la bande 2,4 GHz : Afin d’éviter toute perturbationdes communications radio des appareils sous licence, cet appareil devra10

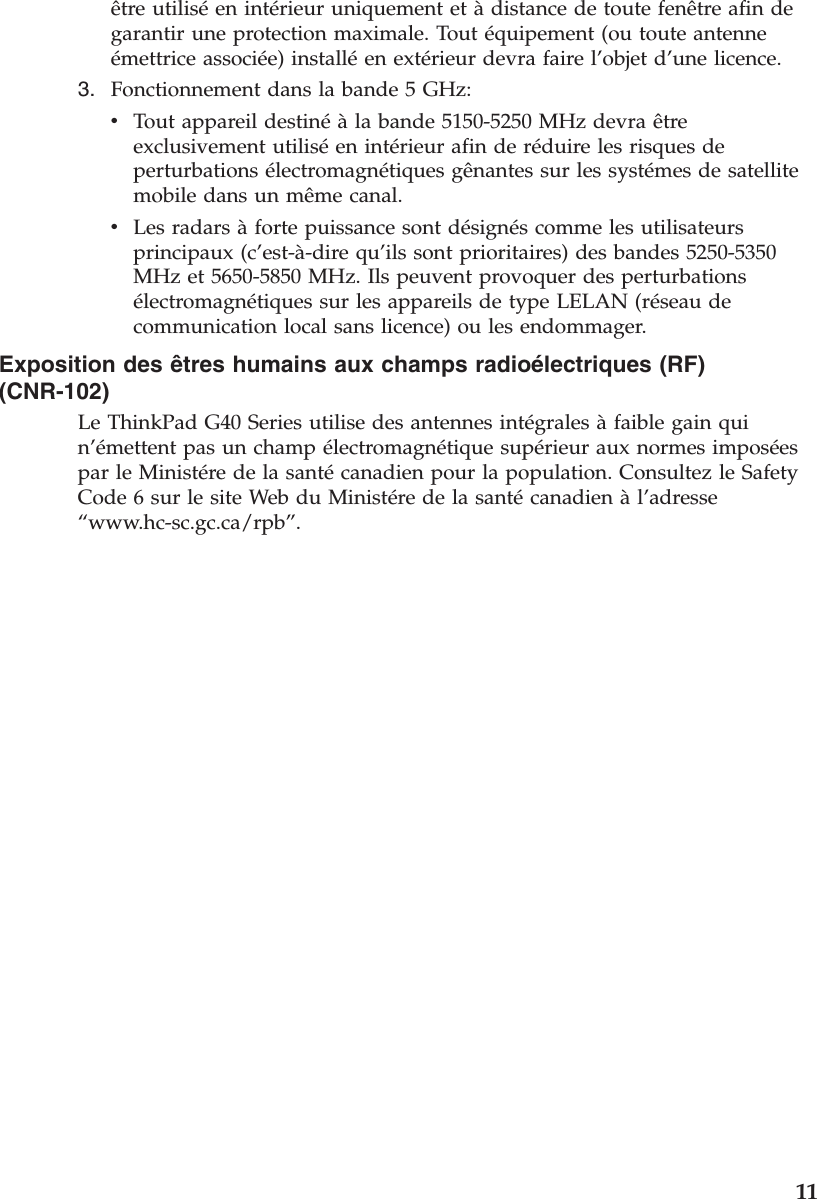

être utiliséen intérieur uniquement et àdistance de toute fenêtre afin degarantir une protection maximale. Tout équipement (ou toute antenneémettrice associée) installéen extérieur devra faire l’objet d’une licence.3. Fonctionnement dans la bande 5 GHz:vTout appareil destinéàla bande 5150-5250 MHz devra êtreexclusivement utiliséen intérieur afin de réduire les risques deperturbations électromagnétiques gênantes sur les systémes de satellitemobile dans un même canal.vLes radars àforte puissance sont désignés comme les utilisateursprincipaux (c’est-à-dire qu’ils sont prioritaires) des bandes 5250-5350MHz et 5650-5850 MHz. Ils peuvent provoquer des perturbationsélectromagnétiques sur les appareils de type LELAN (réseau decommunication local sans licence) ou les endommager.Exposition des êtres humains aux champs radioélectriques (RF)(CNR-102)Le ThinkPad G40 Series utilise des antennes intégrales àfaible gain quin’émettent pas un champ électromagnétique supérieur aux normes imposéespar le Ministére de la santécanadien pour la population. Consultez le SafetyCode 6 sur le site Web du Ministére de la santécanadien àl’adresse“www.hc-sc.gc.ca/rpb”.11
