RF Safety Info

Part Number: XXPXXXX
Wireless Regulatory Notice for ThinkPad T30 Series
This notice is a supplementary document of the “ThinkPad
®
T30 Series
Service and Troubleshooting Guide.”
The ThinkPad T30 Series computer complies with the radio frequency and
safety standards of any country or region in which it has been approved for
wireless use. You are requested to install and use your ThinkPad computer in
strict accordance with the instructions as described hereafter. Before you use
the ThinkPad T30 Series computer, please read this document.
© Copyright IBM Corp. 2002 1
USA — Federal Communications Commission (FCC)
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference
that may cause undesired operation.
i) Installation of the integrated wireless modules
The integrated wireless modules (Wireless LAN Mini-PCI Card and Bluetooth
card) are preinstalled by IBM
®
, and you are not permitted to install nor
replace the integrated modules by yourself.
If your integrated Wireless LAN Mini-PCI Card or Bluetooth card requires
replacement via the proper step shown in “Chapter 3. Getting help and
service from IBM”of the ThinkPad T30 Series Service and Troubleshooting
Guide, IBM will request you to send your computer with the card(s) to IBM
so that IBM will repair it.
ii) The FCC RF Safety Requirement
The radiated output power of Wireless LAN Mini-PCI Card and Bluetooth
card are far below the FCC radio frequency exposure limits. Nevertheless, the
ThinkPad T30 Series computer shall be used in such a manner that the
potential for human contact during normal operation is minimized as follows:
Multiple Transmitters model
If you find the FCC ID "ANOCORN1TASUHOP"or"ANOCORN1SHR"on
the label at the bottom side of your ThinkPad computer, your computer is
approved as a Multiple Transmitters device that is permitted to use the
integrated Wireless LAN Mini-PCI Card and Bluetooth card with two or more
wireless option PC Cards in the PC Card slot simultaneously. Please make
sure of the following conditions on use of option wireless cards.
Use of Wireless options
Please make sure of the following when you use a Bluetooth option or
wireless option PC Card in your ThinkPad computer.
1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and
confirm the updated list of RF option devices that have been approved to
cooperate with the integrated wireless feature.
2. When you use any other RF option device that is not listed on the IBM
site, all other wireless features including the integrated transmitter in your
ThinkPad computer are required to be turned off.
3. Users are requested to follow the RF Safety instructions on wireless option
devices that are included in the RF option device’s user’s manual.
2

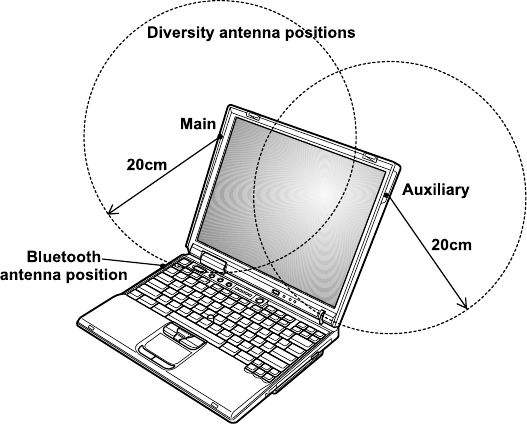

CAUTION:
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm (8 inches) must be maintained between the
antenna for the integrated Wireless LAN Mini-PCI Card built in to the
screen section and all persons.
The Bluetooth antenna is located in the left edge portion of keyboard.
Transmitted energy from the Bluetooth device is very low compared to
other RF devices. Therefore a 20 cm separation from the Bluetooth antenna
is not required.
FCC ID: ANOCORN1TASUHOP
3
FCC ID: ANOCORN1SHR
Note: The Thinkpad of FCC ID: ANOCORN1SHR implements transmission
diversity function. The function does not emit radio frequencies
simultaneously from both antennas. One of the antennas is selected
automatically or manually (by users) to have good quality of
radiocommunication.
iii) Interference Statement
An improper installation or unauthorized use may cause harmful interference
to radio communications. Also any tampering of the internal antenna will
void the FCC certification and your warranty. Refer to the “Appendix D.
Notices, Electronic emission notices”of the ThinkPad T30 Series Service and
Troubleshooting Guide for more detail.
4
Canada —Industry Canada (IC)
Certification number
The term “IC”before the equipment certification number only signifies that
the Industry Canada technical specifications were met. The certification

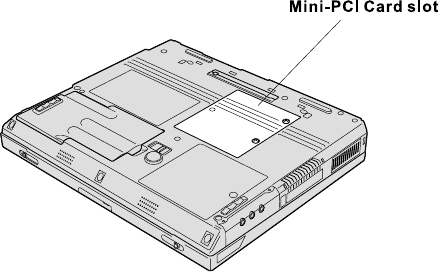

number “IC: 349E-CORN1BDC”on the label at the bottom of the computer is
for the integrated Bluetooth module. The number for the integrated wireless
LAN Mini-PCI Card is affixed on the Card installed in the Mini-PCI Card slot,
as shown below.
Attention: You can install or remove the wireless LAN Mini-PCI Card by
yourself. If you install a wireless LAN Mini-PCI Card that is not authorized
for the ThinkPad T30 Series computer, the computer does not start, but only
displays an error message and emits beeps.
Low Power License-Exempt Radiocommunication Devices (RSS-210)
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
To prevent radio interference to the licensed service, this device is intended to
be operated indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
Numéro d’homologation signifie
Le terme «IC»avant le numéro d’homologation signifie seulement que les
normes d’Industrie Canada ont étérespectées.
Le numéro d’homologation IC: 349E-CORN1BDC qui figure sur l’étiquette
apposée sous l’ordinateur concerne le module Bluetooth intégré.Lenuméro
d’homologation pour la carte mini-PCI pour réseau local sans fil est collésur
la carte installée dans l’emplacement correspondant, comme indiquédans la
figure précédente.
5
Attention : Vous pouvez installer ou retirer la carte mini-PCI pour réseau
local sans fil vous-même. Si vous avez installéune carte de ce type qui n’est
pas homologuée pour l’ordinateur ThinkPad T30 Series, l’ordinateur ne
démarrera pas ; un message d’erreur sera affichéet des bips sonores seront
émis.
Permis d’émission àfaible puissance - Cas des appareils de
communications radio (CNR-210)
Le fonctionnement de ce type d’appareil est soumis aux deux conditions
suivantes: (1) Cet appareil peut perturber les communications radio, et (2) cet
appareil doit supporter toute perturbation, y compris les perturbations qui
pourraient provoquer un dysfonctionnement.
Pour empêcher que cet appareil cause du brouillage au service faisant l’objet
d’une licence, il doit être utiliséàl’intérieur et devrait être placéloin des
fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d’émission) est installéàl’extérieur, il doit faire l’objet d’une licence.

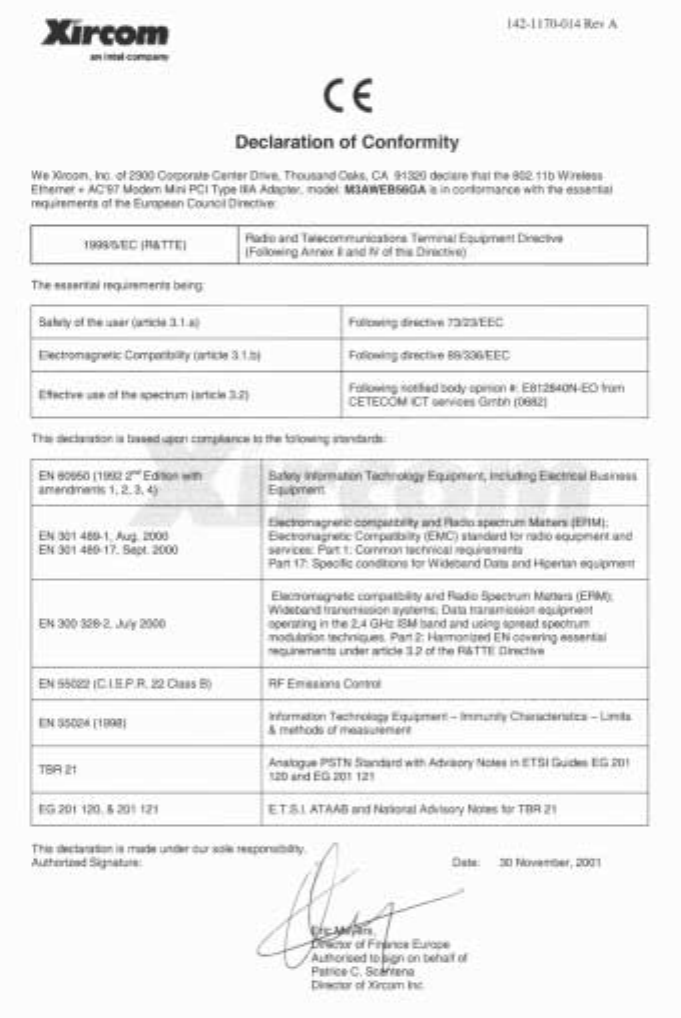

Europe —EU Declaration of Conformity for IBM High rate wireless LAN
mini PCI Adapter with modem II
vHereby, Intel, declares that this IBM High rate wireless LAN mini PCI
Adapter with modem II is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
vIntel vakuuttaa täten ettäIBM High rate wireless LAN mini PCI Adapter
with modem II tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitäkoskevien direktiivin muiden ehtojen mukainen.
vHierbij verklaart Intel dat het toestel IBM High rate wireless LAN mini PCI
Adapter with modem II in overeenstemming is met de essentiële eisen en
de andere relevante bepalingen van richtlijn 1999/5/EG.
vBij deze verklaart Intel dat IBM High rate wireless LAN mini PCI Adapter
with modem II voldoet aan de essentiële eisen en aan de overige relevante
bepalingen van Richtlijn 1999/5/EC.
vPar la présente Intel déclare que l’appareil IBM High rate wireless LAN
mini PCI Adapter with modem II est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE.
vPar la présente, Intel déclare que ce IBM High rate wireless LAN mini PCI
Adapter with modem II est conforme aux exigences essentielles et aux
autres dispositions de la directive 1999/5/CE qui lui sont applicables.
vHärmed intygar Intel att denna IBM High rate wireless LAN mini PCI
Adapter with modem II stårIöverensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
vUndertegnede Intel erklærer herved, at følgende udstyr IBM High rate
wireless LAN mini PCI Adapter with modem II overholder de væsentlige
krav og øvrige relevante krav i direktiv 1999/5/EF.
6
vHiermit erklärt Intel, dass sich dieser/diese/dieses IBM High rate wireless
LAN mini PCI Adapter with modem II in Übereinstimmung mit den
grundlegenden Anforderungen und den anderen relevanten Vorschriften
der Richtlinie 1999/5/EG befindet. (BMWi)
vHiermit erklärt Intel die Übereinstimmung des Gerätes IBM High rate
wireless LAN mini PCI Adapter with modem II mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der Richtlinie
1999/5/EG. (Wien)
vME THN ΠAPOYΣA Intel ∆HΛNEI OTI IBM High rate wireless LAN mini
PCI Adapter with modem II ΣYMMOPΦNETAI ΠPOΣTIΣOYΣI∆EIΣ
AΠAITHΣEIΣKAI TIΣΛOIΠEΣΣXETIKEΣ∆IATAΞEIΣTHΣO∆HΓIAΣ
1999/5/EK.
vCon la presente Intel dichiara che questo IBM High rate wireless LAN mini
PCI Adapter with modem II èconforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
vPor medio de la presente Intel declara que el IBM High rate wireless LAN
mini PCI Adapter with modem II cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
vIntel declara que este IBM High rate wireless LAN mini PCI Adapter with
modem II estáconforme com os requisitos essenciais e outras provisões da
Directiva 1999/5/CE.
7
8
Throughout the European Economic Area, authorization for use is restricted
as follows:
- Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz)
en 11 (2467 MHz).
Voor privé-gebruik buiten gebouw over publieke grond
over afstand kleiner dan 300m geen registratie bij
BIPT/IBPT nodig; voor gebruik over afstand groter dan
300m is wel registratie bij BIPT/IBPT nodig. Voor publiek
gebruik buiten gebouwen is licentie van BIPT/IBPT
verplicht. Voor registratie of licentie kunt u contact
opnemen met BIPT.
- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11
(2467 MHz) is allowed.
For private usage outside buildings across public grounds
over less than 300m no special registration with
IBPT/BIPT is required. Registration to IBPT/BIPT is
required for private usage outside buildings across public
grounds over more than 300m. An IBPT/BIPT licence is
required for public usage outside building. For registration
and license please contact IBPT/BIPT.
- Belgique B L’utilisation en extérieur est autorisésur le canal 10 (2462
MHz) et 11 (2467 MHz).
Dans le cas d’une utilisation privée, àl’extérieur d’un
bâtiment, au-dessus d’un espace public, aucun
enregistrement n’est nécessaire pour une distance de moins
de 300m. Pour une distance supérieure à300m un
enregistrement auprèsdel’IBPT est requise. Pour une
utilisation publique àl’extérieur de bâtiments, une licence
de l’IBPT est requise. Pour les enregistrements et licences,
veuillez contacter l’IBPT.
- France F Bande de fréquence restreinte : seuls les canaux 10 à11
(2457 et 2462 MHz respectivement) doivent être utilisésen
France.
Toute utilisation, qu’elle soit intérieure ou extérieure, est
soumise àautorisation. Vous pouvez contacter l’Autorité
de Régulation des Télécommuniations
(http://www.art-telecom.fr) pour la procédure àsuivre.
- France F Restricted frequency band: only channels 10 and 11 (2457
MHz and 2462 MHz respectively) may be used in France.
License required for every installation, indoor and outdoor
installations. Please contact ART for procedure to follow.
- Deutschland D Anmeldung im Outdoor-Bereich notwending, aber nicht
genehmigungspflichtig. Bitte mit Händler die
Vorgehensweise abstimmen.
- Germany D License required for outdoor installations. Check with
reseller for procedure to follow.
9
- Italia I E’necessaria la concessione ministeriale anche per l’uso
interno. Verificare con i rivenditori la procedura da
seguire. L’uso per installazione in esterni non e’permessa.
- Italy I License required for indoor use. Use with outdoor
installations not allowed.
- the Netherlands NL License required for outdoor installations. Check with
reseller for procedure to follow.
- Nederland NL Licentie verplicht voor gebruik met buitenantennes. Neem
contact op met verkoper voor juiste procedure.
Europe —EU Declaration of Conformity for Bluetooth Daughter Card
Hereby TDK Systems Europe, Ltd. declares that the Bluetooth device
integrated in this product is in conformity with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
IBM cannot accept responsibility for any failure to satisfy the protection
requirements resulting from a non-recommended modification of the product.
TDK Systems Europe, Ltd. déclare par la présente que le dispositif Bluetooth
intégréàce produit est en conformitéavec les prescriptions essentielles et
autres dispositions appropriées de la Directive 1999/5/EC.
IBM décline toute responsabilitéen cas de non-respect de cette directive
résultant d’une modification non recommandée du produit.
TDK Systems Europe, Ltd. erklärt hiermit, dass die in diesem Produkt
integrierte drahtlose Bluetooth-Einheit die Voraussetzungen sowie alle
wichtigen Anforderungen der Richtlinie 1999/5/EC erfüllt.
IBM übernimmt keine Verantwortung für Fehler, die sich aus einer nicht
empfohlenen, unsachgemäßen Modifizierung an diesem Produkt zur
Erfüllung der Sicherheitsanforderungen ergeben.
10
11
European Union
Bluetooth (maximum power < 10 mW)
- France F A l’intérieur des bâtiments, utilisation sans contrainte
géographique avec puissance maximale de 10 mW dans la
totalitéde la bande 2400-2483.5 MHz.
Al’extérieur des bâtiments, utilisation non autorisée.
- France F Indoor, no geographical restriction with a maximum power of
10 mW within the whole band of 2400-2483.5 MHz.
Outdoor, the band is not opened.
- Italia I E’necessaria la concessione ministeriale anche per l’uso.
L’uso per installazione in esterni non e’permessa.
- Italy I License required for indoor use.
Use with outdoor installations not allowed.
Notice for Users in India
The equipment type approval does not imply that the frequencies will be
cleared automatically/operating licence will be granted as these are matters to
be examined on case by case basis on the receipt of the application to WPC.
Notice for Users in Singapore
This equipment is for use only within the confined area of a building.
12

Navigation menu
