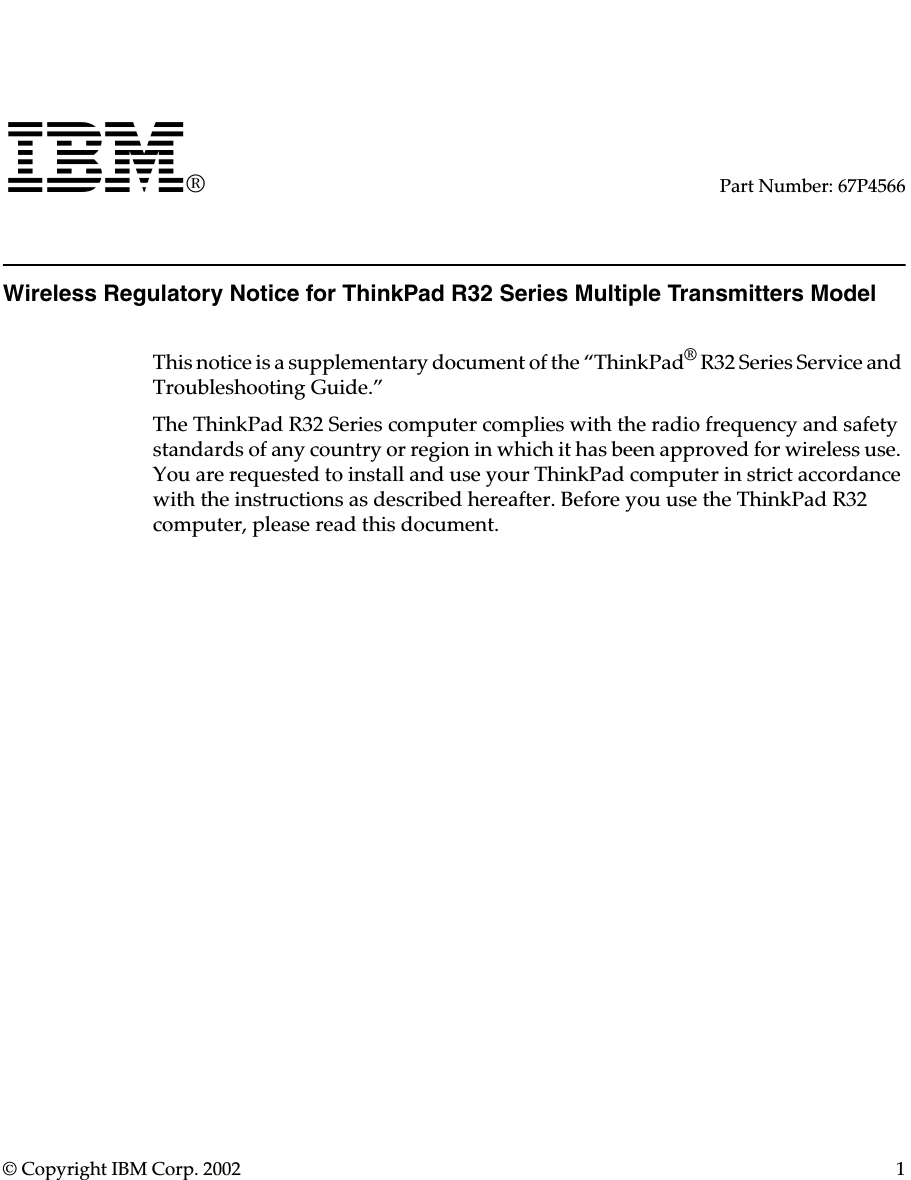

© Copyright IBM Corp. 2002 1IBM®Part Number: 67P4566Wireless Regulatory Notice for ThinkPad R32 Series Multiple Transmitters ModelThis notice is a supplementary document of the “ThinkPad® R32 Series Service and Troubleshooting Guide.”The ThinkPad R32 Series computer complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. You are requested to install and use your ThinkPad computer in strict accordance with the instructions as described hereafter. Before you use the ThinkPad R32 computer, please read this document.

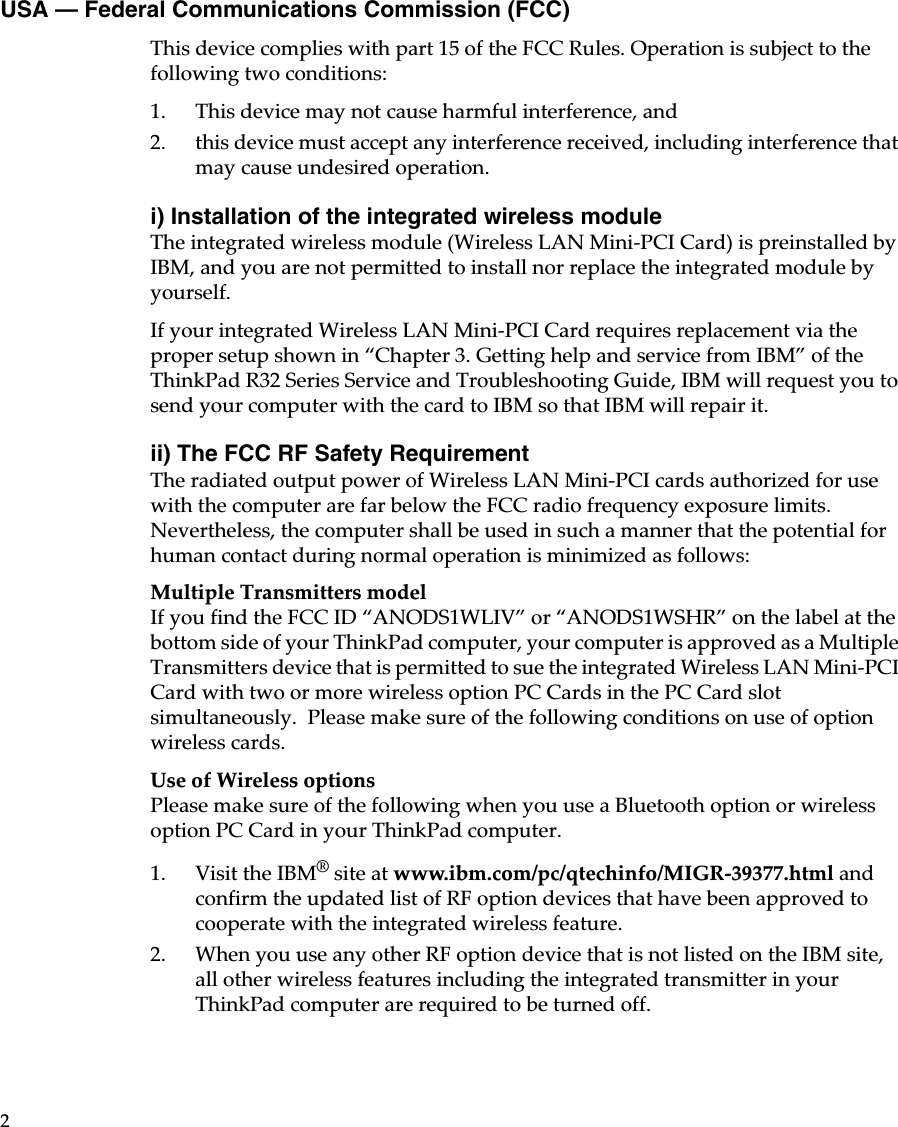

2USA — Federal Communications Commission (FCC)This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. i) Installation of the integrated wireless moduleThe integrated wireless module (Wireless LAN Mini-PCI Card) is preinstalled by IBM, and you are not permitted to install nor replace the integrated module by yourself.If your integrated Wireless LAN Mini-PCI Card requires replacement via the proper setup shown in “Chapter 3. Getting help and service from IBM” of the ThinkPad R32 Series Service and Troubleshooting Guide, IBM will request you to send your computer with the card to IBM so that IBM will repair it.ii) The FCC RF Safety Requirement The radiated output power of Wireless LAN Mini-PCI cards authorized for use with the computer are far below the FCC radio frequency exposure limits. Nevertheless, the computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows: Multiple Transmitters model If you find the FCC ID “ANODS1WLIV” or “ANODS1WSHR” on the label at the bottom side of your ThinkPad computer, your computer is approved as a Multiple Transmitters device that is permitted to sue the integrated Wireless LAN Mini-PCI Card with two or more wireless option PC Cards in the PC Card slot simultaneously.  Please make sure of the following conditions on use of option wireless cards.Use of Wireless optionsPlease make sure of the following when you use a Bluetooth option or wireless option PC Card in your ThinkPad computer.1. Visit the IBM® site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature.2. When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off.

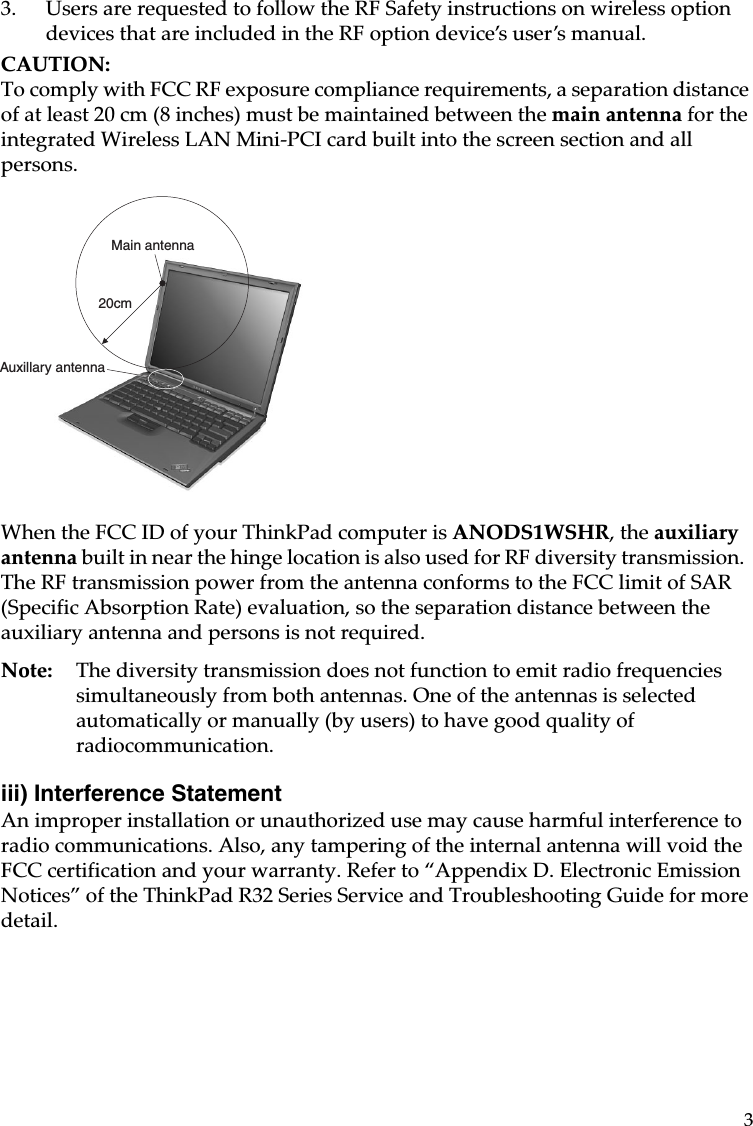

33. Users are requested to follow the RF Safety instructions on wireless option devices that are included in the RF option device’s user’s manual.CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm (8 inches) must be maintained between the main antenna for the integrated Wireless LAN Mini-PCI card built into the screen section and all persons.When the FCC ID of your ThinkPad computer is ANODS1WSHR, the auxiliary antenna built in near the hinge location is also used for RF diversity transmission.  The RF transmission power from the antenna conforms to the FCC limit of SAR (Specific Absorption Rate) evaluation, so the separation distance between the auxiliary antenna and persons is not required.Note: The diversity transmission does not function to emit radio frequencies simultaneously from both antennas. One of the antennas is selected automatically or manually (by users) to have good quality of radiocommunication.iii) Interference Statement An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering of the internal antenna will void the FCC certification and your warranty. Refer to “Appendix D. Electronic Emission Notices” of the ThinkPad R32 Series Service and Troubleshooting Guide for more detail.20cmMain antennaAuxillary antenna

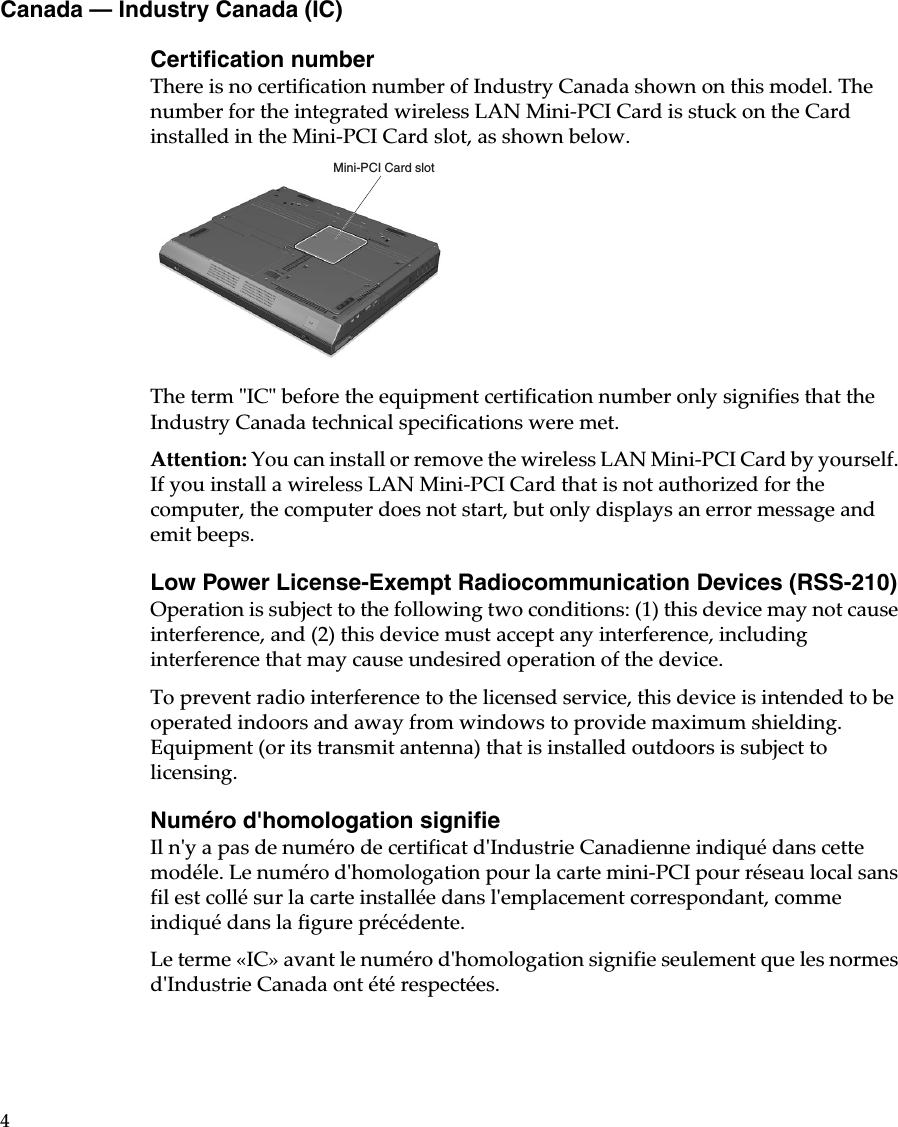

4Canada — Industry Canada (IC)Certification numberThere is no certification number of Industry Canada shown on this model. The number for the integrated wireless LAN Mini-PCI Card is stuck on the Card installed in the Mini-PCI Card slot, as shown below.The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. Attention: You can install or remove the wireless LAN Mini-PCI Card by yourself. If you install a wireless LAN Mini-PCI Card that is not authorized for the computer, the computer does not start, but only displays an error message and emit beeps. Low Power License-Exempt Radiocommunication Devices (RSS-210)Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Numéro d'homologation signifieIl n'y a pas de numéro de certificat d'Industrie Canadienne indiqué dans cette modéle. Le numéro d'homologation pour la carte mini-PCI pour réseau local sans fil est collé sur la carte installée dans l'emplacement correspondant, comme indiqué dans la figure précédente. Le terme «IC» avant le numéro d'homologation signifie seulement que les normes d'Industrie Canada ont été respectées. Mini-PCI Card slot

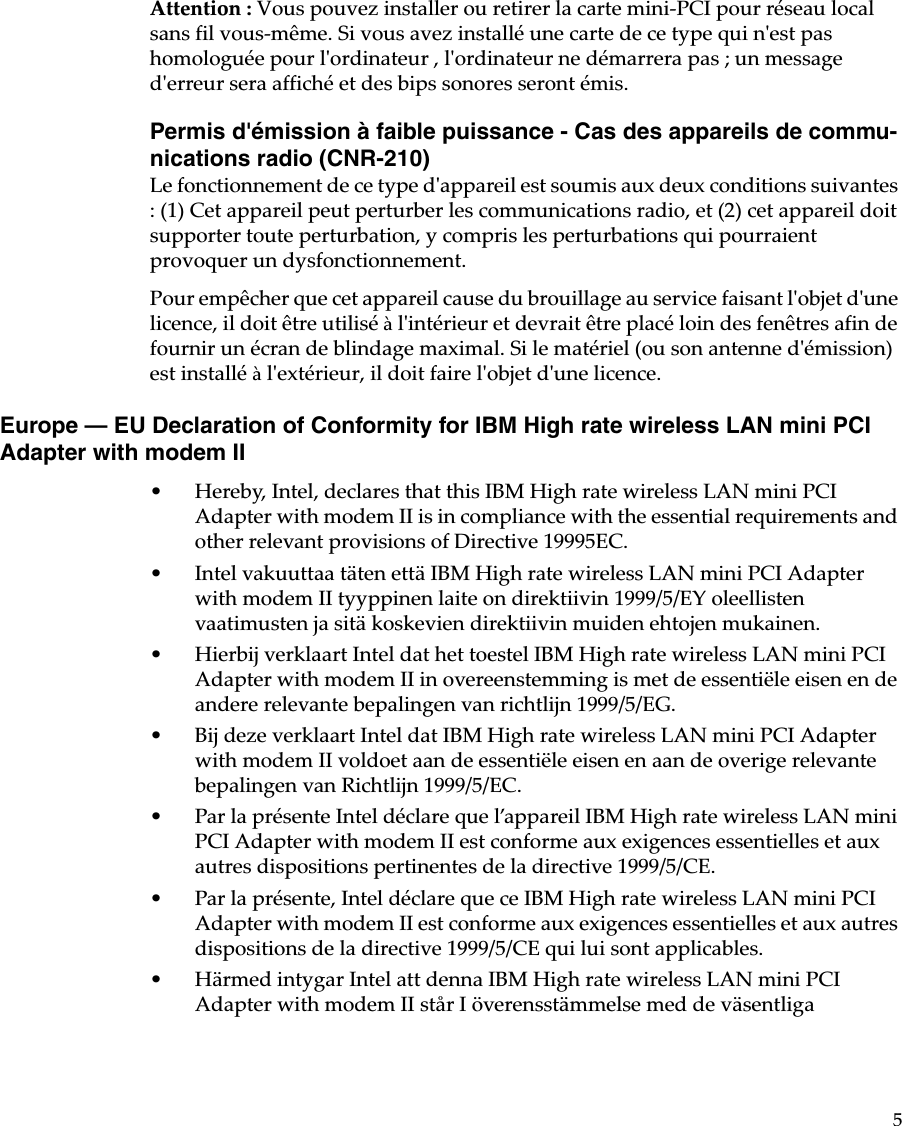

5Attention : Vous pouvez installer ou retirer la carte mini-PCI pour réseau local sans fil vous-même. Si vous avez installé une carte de ce type qui n'est pas homologuée pour l'ordinateur , l'ordinateur ne démarrera pas ; un message d'erreur sera affiché et des bips sonores seront émis. Permis d'émission à faible puissance - Cas des appareils de commu-nications radio (CNR-210)Le fonctionnement de ce type d'appareil est soumis aux deux conditions suivantes : (1) Cet appareil peut perturber les communications radio, et (2) cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient provoquer un dysfonctionnement. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence.Europe — EU Declaration of Conformity for IBM High rate wireless LAN mini PCI Adapter with modem II• Hereby, Intel, declares that this IBM High rate wireless LAN mini PCI Adapter with modem II is in compliance with the essential requirements and other relevant provisions of Directive 19995EC.• Intel vakuuttaa täten että IBM High rate wireless LAN mini PCI Adapter with modem II tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.• Hierbij verklaart Intel dat het toestel IBM High rate wireless LAN mini PCI Adapter with modem II in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.• Bij deze verklaart Intel dat IBM High rate wireless LAN mini PCI Adapter with modem II voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.• Par la présente Intel déclare que l’appareil IBM High rate wireless LAN mini PCI Adapter with modem II est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.• Par la présente, Intel déclare que ce IBM High rate wireless LAN mini PCI Adapter with modem II est conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont applicables.• Härmed intygar Intel att denna IBM High rate wireless LAN mini PCI Adapter with modem II står I överensstämmelse med de väsentliga
6egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.• Undertegnede Intel erklærer herved, at følgende udstyr IBM High rate wireless LAN mini PCI Adapter with modem II overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.• Hiermit erklärt Intel, dass sich dieser/diese/dieses IBM High rate wireless LAN mini PCI Adapter with modem II in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. (BMWi)• Hiermit erklärt Intel die Übereinstimmung des Gerätes IBM High rate wireless LAN mini PCI Adapter with modem II mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)• ME THN ΠAPOYΣA Intel ∆HΛΩNEI OTI IBM High rate wireless LAN mini PCI Adapter with modem II ΣYMMOPΦΩNETAI ΠPOΣ TIΣ OYΣIΩ∆EIΣ AΠAITHΣEIΣ KAI TIΣ ΛOIΠEΣ ΣXETIKEΣ ∆IATAΞEIΣ THΣ O∆HΓIAΣ 1999/5/EK. • Con la presente Intel dichiara che questo IBM High rate wireless LAN mini PCI Adapter with modem II è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.• Por medio de la presente Intel declara que el IBM High rate wireless LAN mini PCI Adapter with modem II cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.• Intel declara que este IBM High rate wireless LAN mini PCI Adapter with modem II está conforme com os requisitos essenciais e outras provisoes da Directiva 1999/5/CE.
7

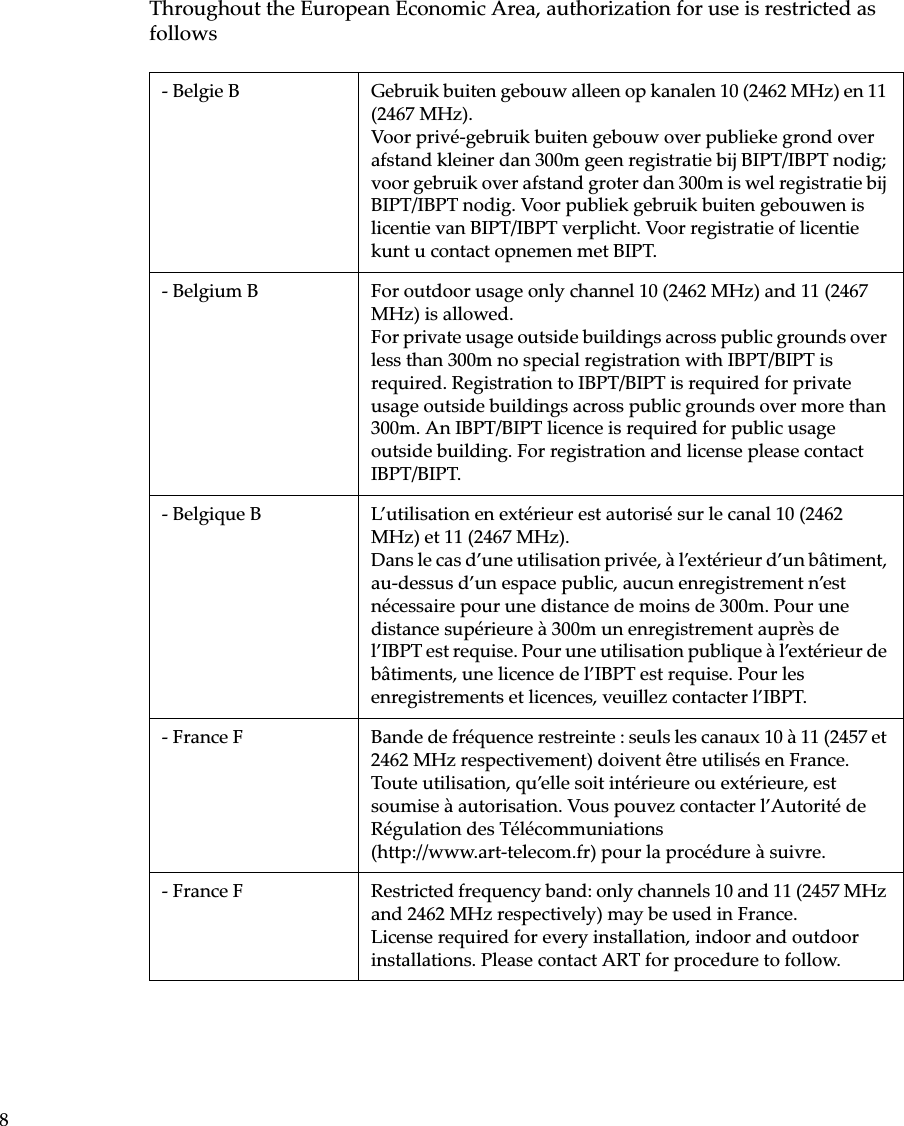

8Throughout the European Economic Area, authorization for use is restricted as follows - Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz) en 11 (2467 MHz).Voor privé-gebruik buiten gebouw over publieke grond over afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT nodig. Voor publiek gebruik buiten gebouwen is licentie van BIPT/IBPT verplicht. Voor registratie of licentie kunt u contact opnemen met BIPT.- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11 (2467 MHz) is allowed.For private usage outside buildings across public grounds over less than 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m. An IBPT/BIPT licence is required for public usage outside building. For registration and license please contact IBPT/BIPT.- Belgique B L’utilisation en extérieur est autorisé sur le canal 10 (2462 MHz) et 11 (2467 MHz).Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.- France F Bande de fréquence restreinte : seuls les canaux 10 à 11 (2457 et 2462 MHz respectivement) doivent être utilisés en France.Toute utilisation, qu’elle soit intérieure ou extérieure, est soumise à autorisation. Vous pouvez contacter l’Autorité de Régulation des Télécommuniations (http://www.art-telecom.fr) pour la procédure à suivre.- France F Restricted frequency band: only channels 10 and 11 (2457 MHz and 2462 MHz respectively) may be used in France.License required for every installation, indoor and outdoor installations. Please contact ART for procedure to follow.

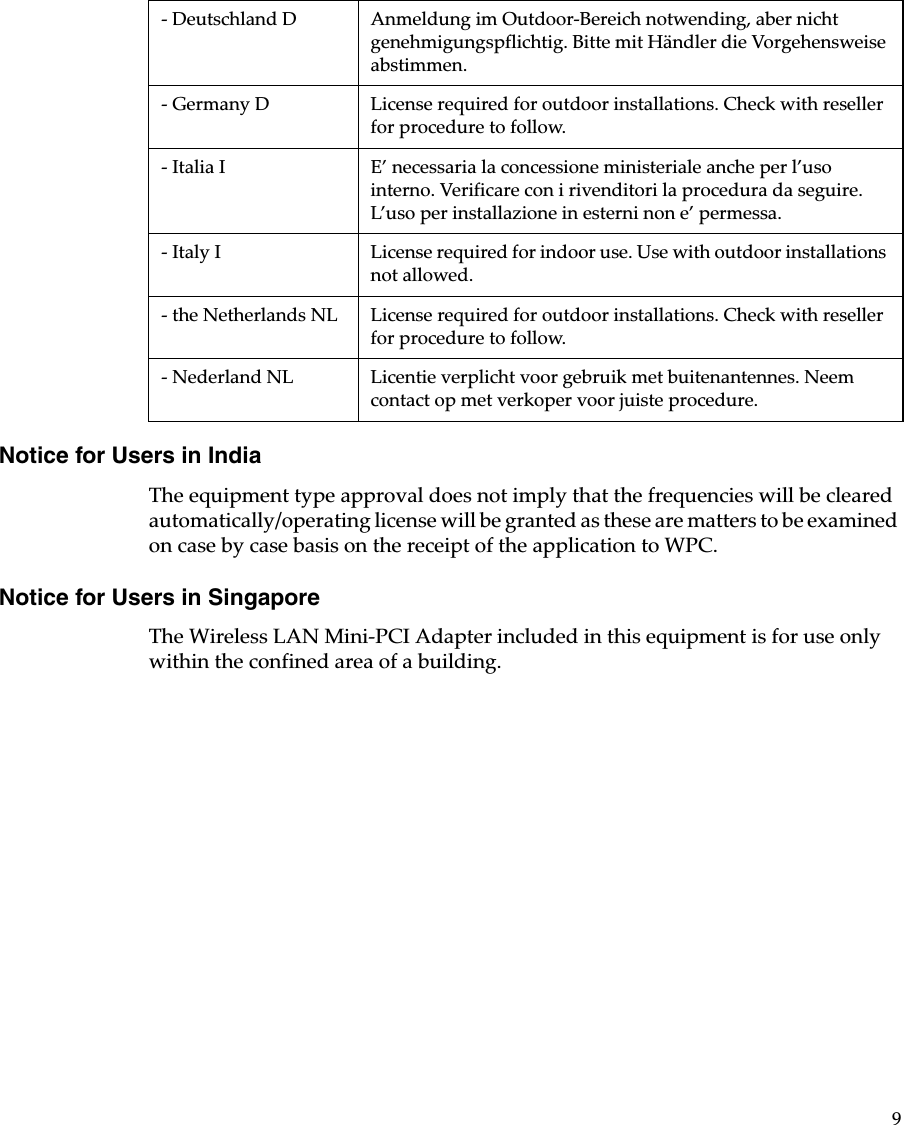

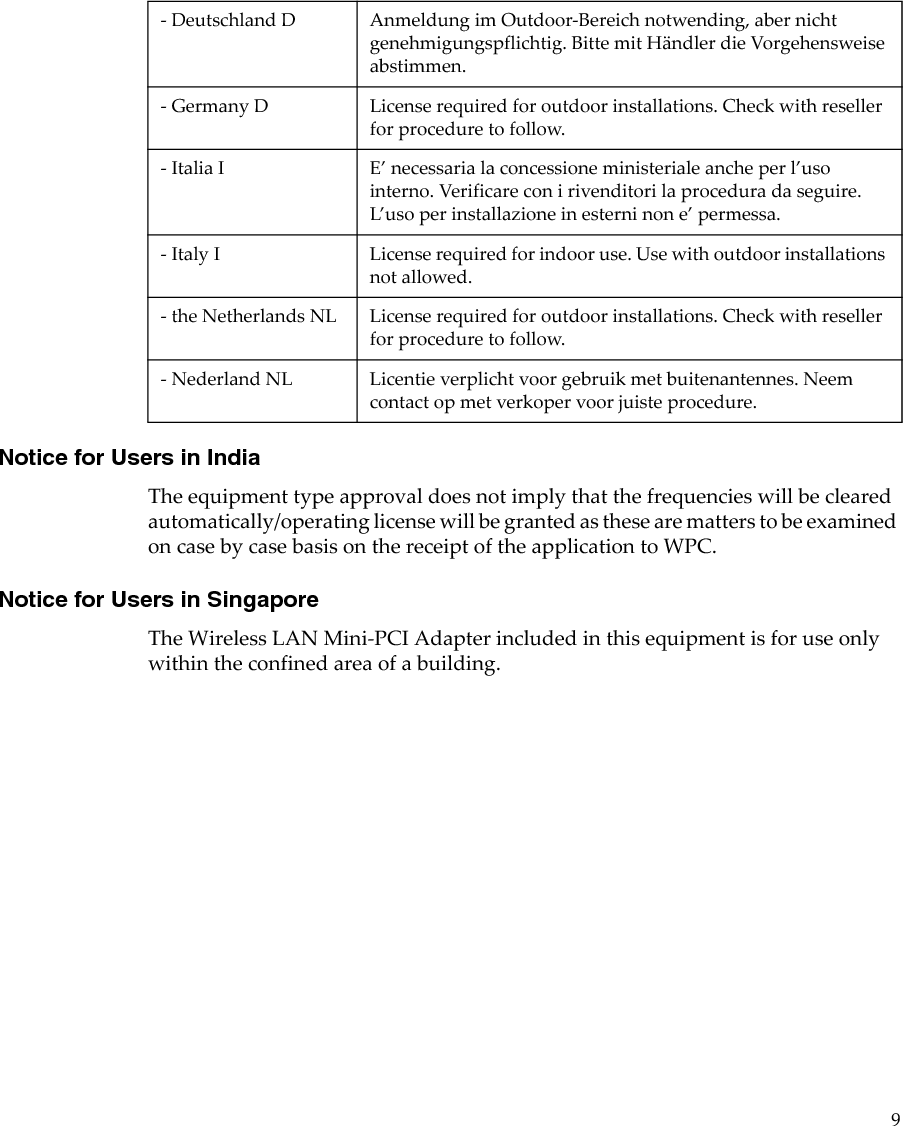

9Notice for Users in IndiaThe equipment type approval does not imply that the frequencies will be cleared automatically/operating license will be granted as these are matters to be examined on case by case basis on the receipt of the application to WPC. Notice for Users in SingaporeThe Wireless LAN Mini-PCI Adapter included in this equipment is for use only within the confined area of a building.- Deutschland D Anmeldung im Outdoor-Bereich notwending, aber nicht genehmigungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.- Germany D License required for outdoor installations. Check with reseller for procedure to follow.- Italia I E’ necessaria la concessione ministeriale anche per l’uso interno. Verificare con i rivenditori la procedura da seguire. L’uso per installazione in esterni non e’ permessa.- Italy I License required for indoor use. Use with outdoor installations not allowed.- the Netherlands NL License required for outdoor installations. Check with reseller for procedure to follow.- Nederland NL Licentie verplicht voor gebruik met buitenantennes. Neem contact op met verkoper voor juiste procedure.
10
