Business Machines M3AWEB56GA 802.11b Wireless LAN mini-PCI Adapter User Manual RF Safety Info X30

International Business Machines Corporation 802.11b Wireless LAN mini-PCI Adapter RF Safety Info X30

RF Safety Info X30

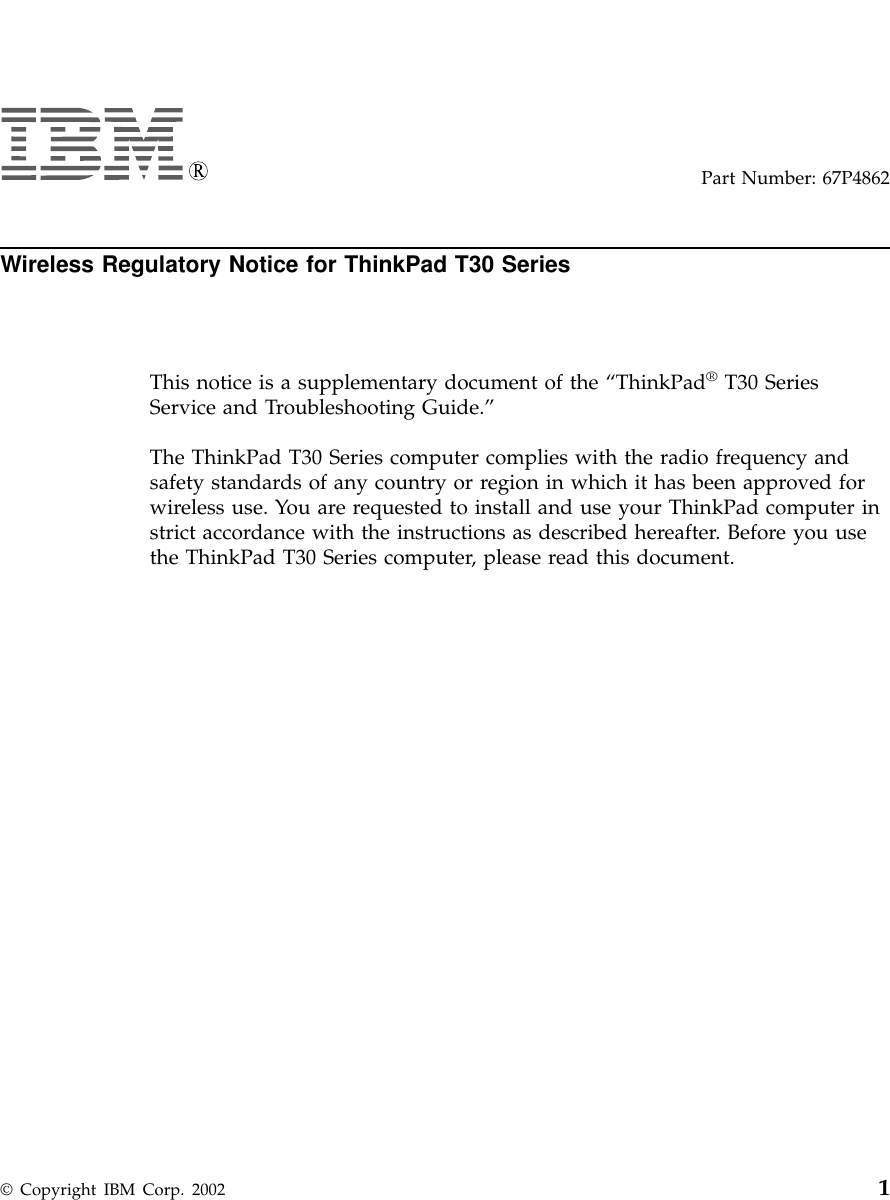

Part Number: 67P4862Wireless Regulatory Notice for ThinkPad T30 SeriesThis notice is a supplementary document of the “ThinkPad®T30 SeriesService and Troubleshooting Guide.”The ThinkPad T30 Series computer complies with the radio frequency andsafety standards of any country or region in which it has been approved forwireless use. You are requested to install and use your ThinkPad computer instrict accordance with the instructions as described hereafter. Before you usethe ThinkPad T30 Series computer, please read this document.© Copyright IBM Corp. 2002 1

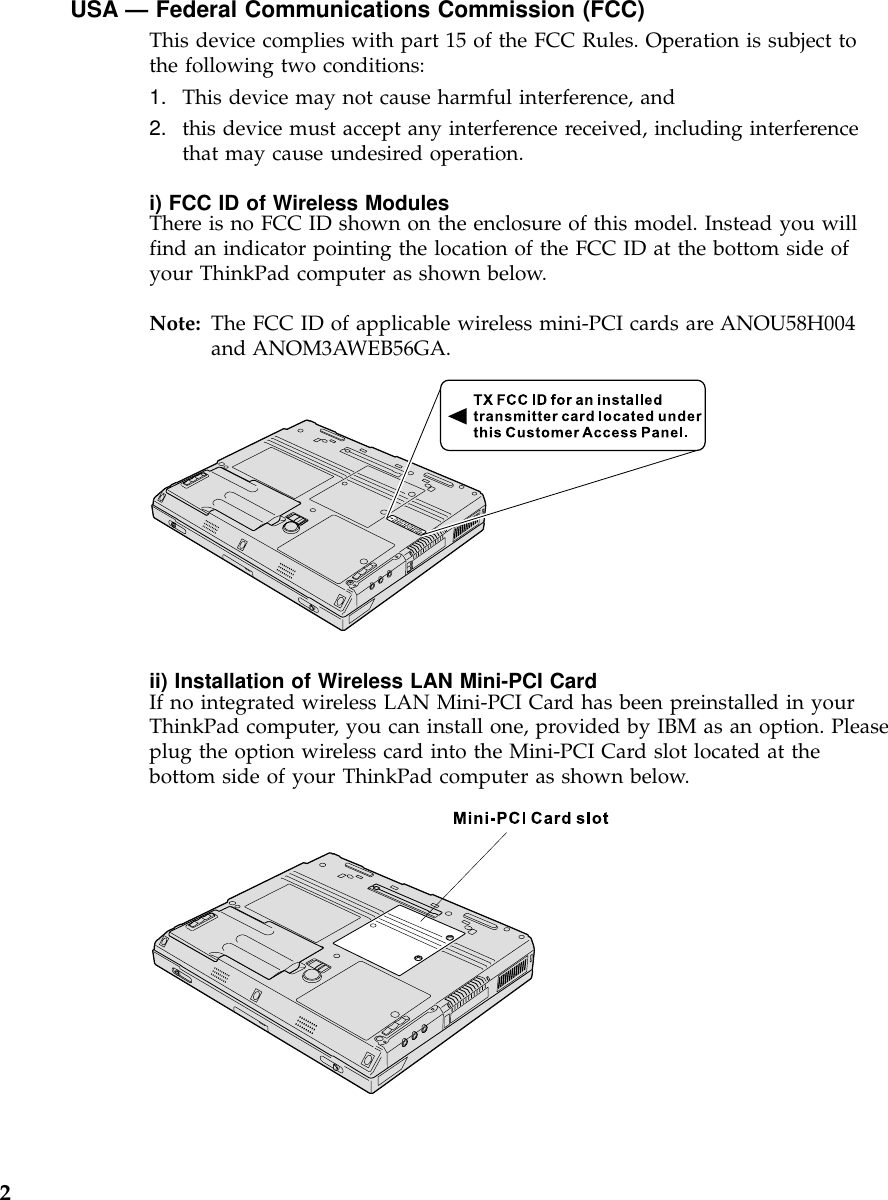

USA — Federal Communications Commission (FCC)This device complies with part 15 of the FCC Rules. Operation is subject tothe following two conditions:1. This device may not cause harmful interference, and2. this device must accept any interference received, including interferencethat may cause undesired operation.i) FCC ID of Wireless ModulesThere is no FCC ID shown on the enclosure of this model. Instead you willfind an indicator pointing the location of the FCC ID at the bottom side ofyour ThinkPad computer as shown below.Note: The FCC ID of applicable wireless mini-PCI cards are ANOU58H004and ANOM3AWEB56GA.ii) Installation of Wireless LAN Mini-PCI CardIf no integrated wireless LAN Mini-PCI Card has been preinstalled in yourThinkPad computer, you can install one, provided by IBM as an option. Pleaseplug the option wireless card into the Mini-PCI Card slot located at thebottom side of your ThinkPad computer as shown below.2

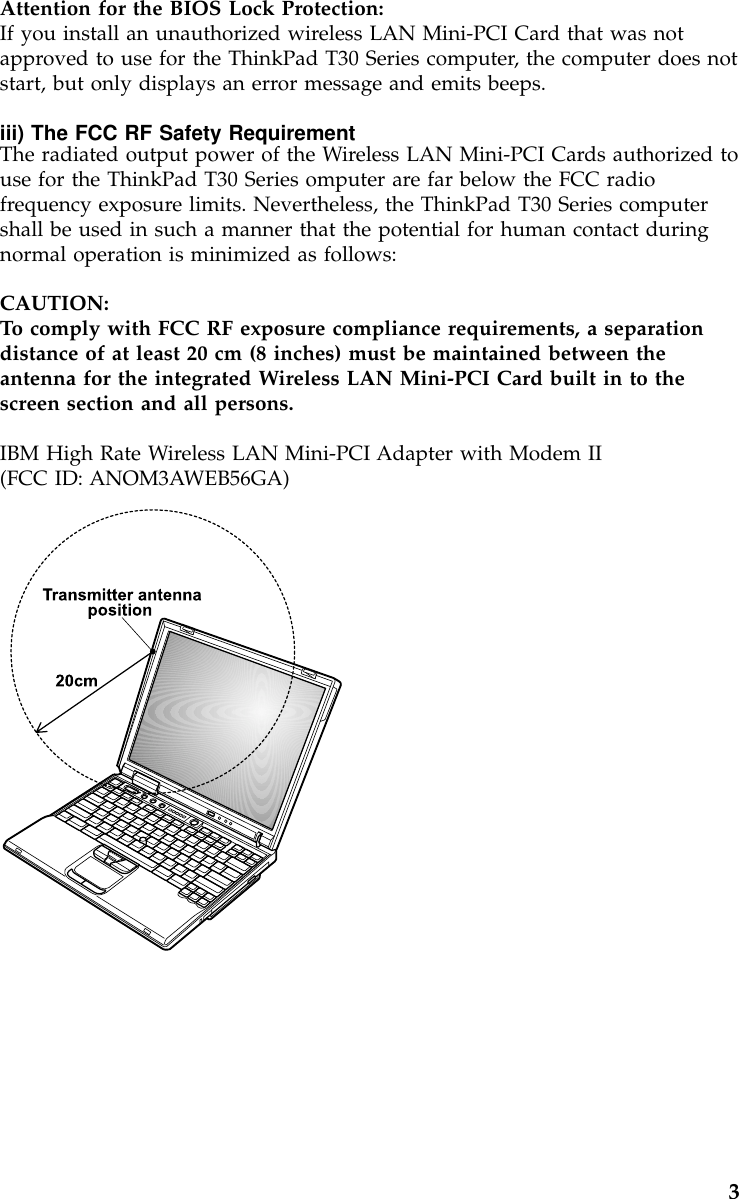

Attention for the BIOS Lock Protection:If you install an unauthorized wireless LAN Mini-PCI Card that was notapproved to use for the ThinkPad T30 Series computer, the computer does notstart, but only displays an error message and emits beeps.iii) The FCC RF Safety RequirementThe radiated output power of the Wireless LAN Mini-PCI Cards authorized touse for the ThinkPad T30 Series omputer are far below the FCC radiofrequency exposure limits. Nevertheless, the ThinkPad T30 Series computershall be used in such a manner that the potential for human contact duringnormal operation is minimized as follows:CAUTION:To comply with FCC RF exposure compliance requirements, a separationdistance of at least 20 cm (8 inches) must be maintained between theantenna for the integrated Wireless LAN Mini-PCI Card built in to thescreen section and all persons.IBM High Rate Wireless LAN Mini-PCI Adapter with Modem II(FCC ID: ANOM3AWEB56GA)3

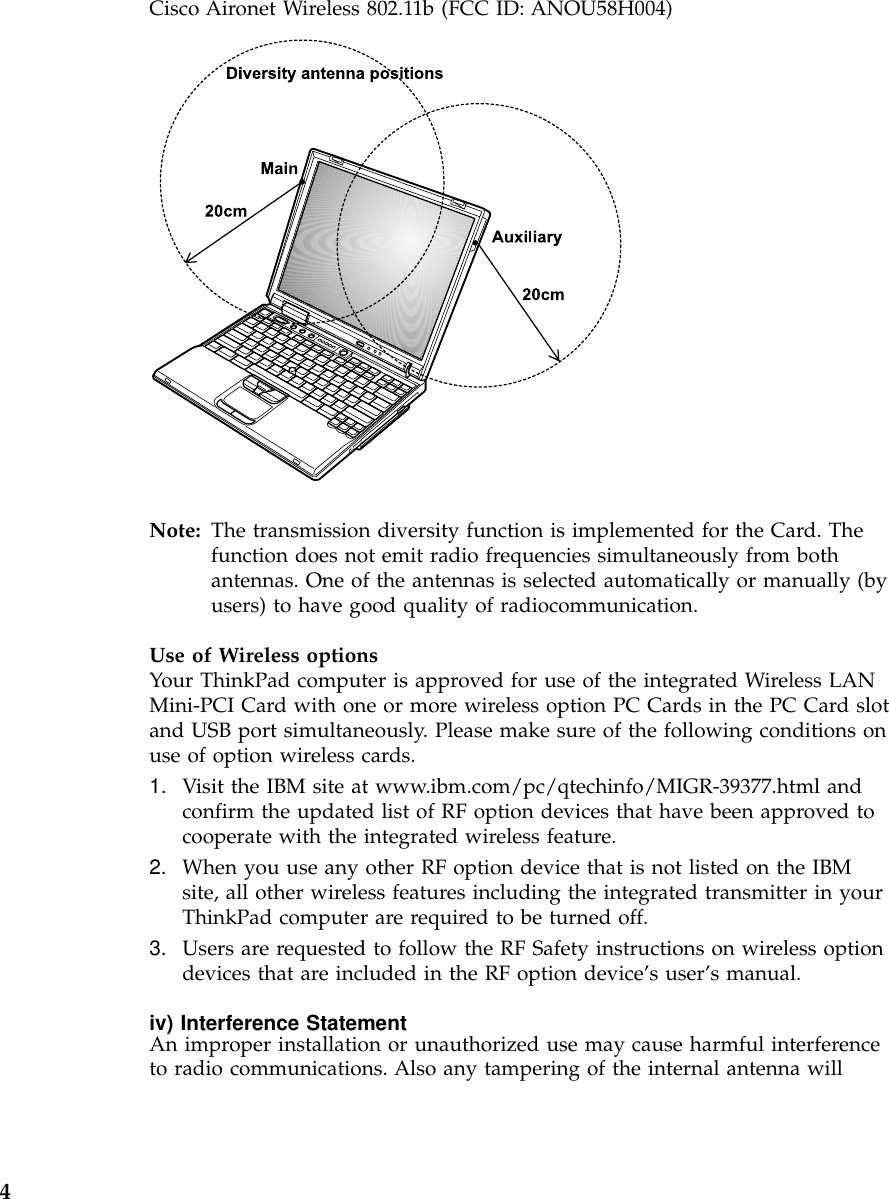

Cisco Aironet Wireless 802.11b (FCC ID: ANOU58H004)Note: The transmission diversity function is implemented for the Card. Thefunction does not emit radio frequencies simultaneously from bothantennas. One of the antennas is selected automatically or manually (byusers) to have good quality of radiocommunication.Use of Wireless optionsYour ThinkPad computer is approved for use of the integrated Wireless LANMini-PCI Card with one or more wireless option PC Cards in the PC Card slotand USB port simultaneously. Please make sure of the following conditions onuse of option wireless cards.1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-39377.html andconfirm the updated list of RF option devices that have been approved tocooperate with the integrated wireless feature.2. When you use any other RF option device that is not listed on the IBMsite, all other wireless features including the integrated transmitter in yourThinkPad computer are required to be turned off.3. Users are requested to follow the RF Safety instructions on wireless optiondevices that are included in the RF option device’s user’s manual.iv) Interference StatementAn improper installation or unauthorized use may cause harmful interferenceto radio communications. Also any tampering of the internal antenna will4

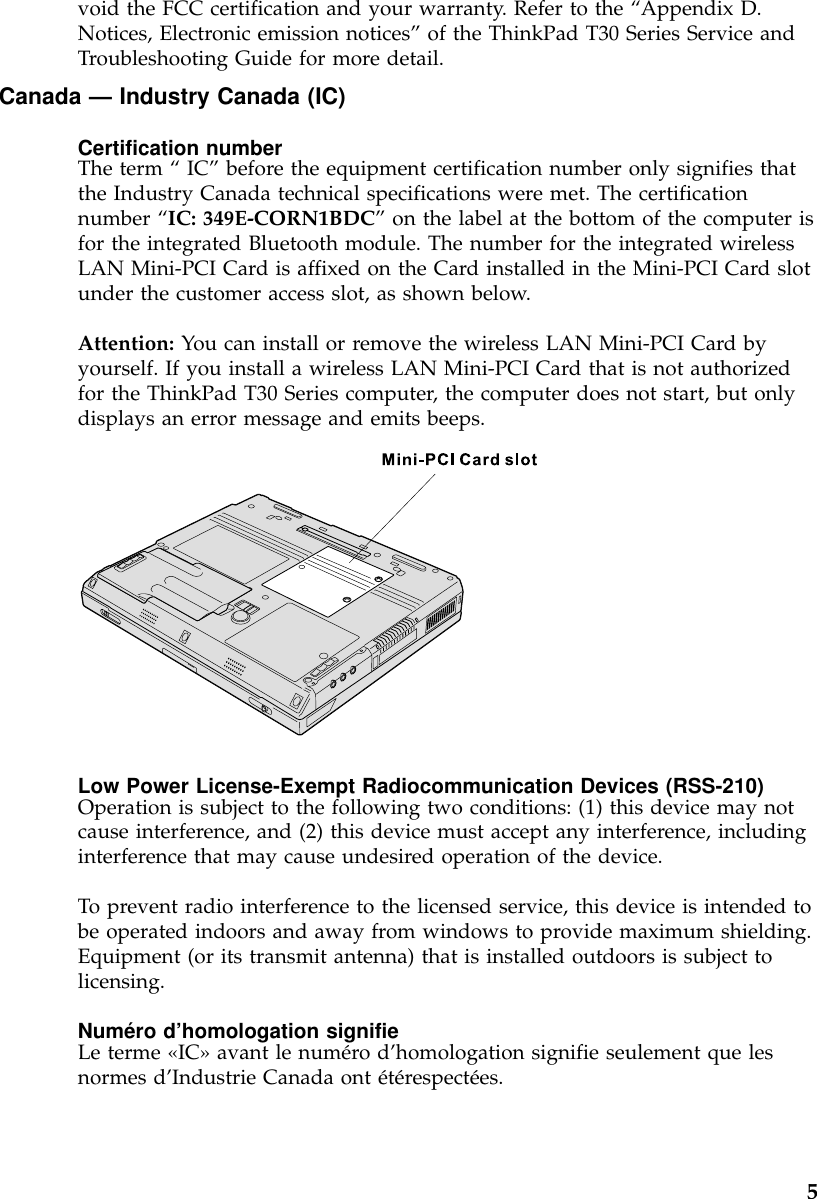

void the FCC certification and your warranty. Refer to the “Appendix D.Notices, Electronic emission notices”of the ThinkPad T30 Series Service andTroubleshooting Guide for more detail.Canada —Industry Canada (IC)Certification numberThe term “IC”before the equipment certification number only signifies thatthe Industry Canada technical specifications were met. The certificationnumber “IC: 349E-CORN1BDC”on the label at the bottom of the computer isfor the integrated Bluetooth module. The number for the integrated wirelessLAN Mini-PCI Card is affixed on the Card installed in the Mini-PCI Card slotunder the customer access slot, as shown below.Attention: You can install or remove the wireless LAN Mini-PCI Card byyourself. If you install a wireless LAN Mini-PCI Card that is not authorizedfor the ThinkPad T30 Series computer, the computer does not start, but onlydisplays an error message and emits beeps.Low Power License-Exempt Radiocommunication Devices (RSS-210)Operation is subject to the following two conditions: (1) this device may notcause interference, and (2) this device must accept any interference, includinginterference that may cause undesired operation of the device.To prevent radio interference to the licensed service, this device is intended tobe operated indoors and away from windows to provide maximum shielding.Equipment (or its transmit antenna) that is installed outdoors is subject tolicensing.Numéro d’homologation signifieLe terme «IC»avant le numéro d’homologation signifie seulement que lesnormes d’Industrie Canada ont étérespectées.5

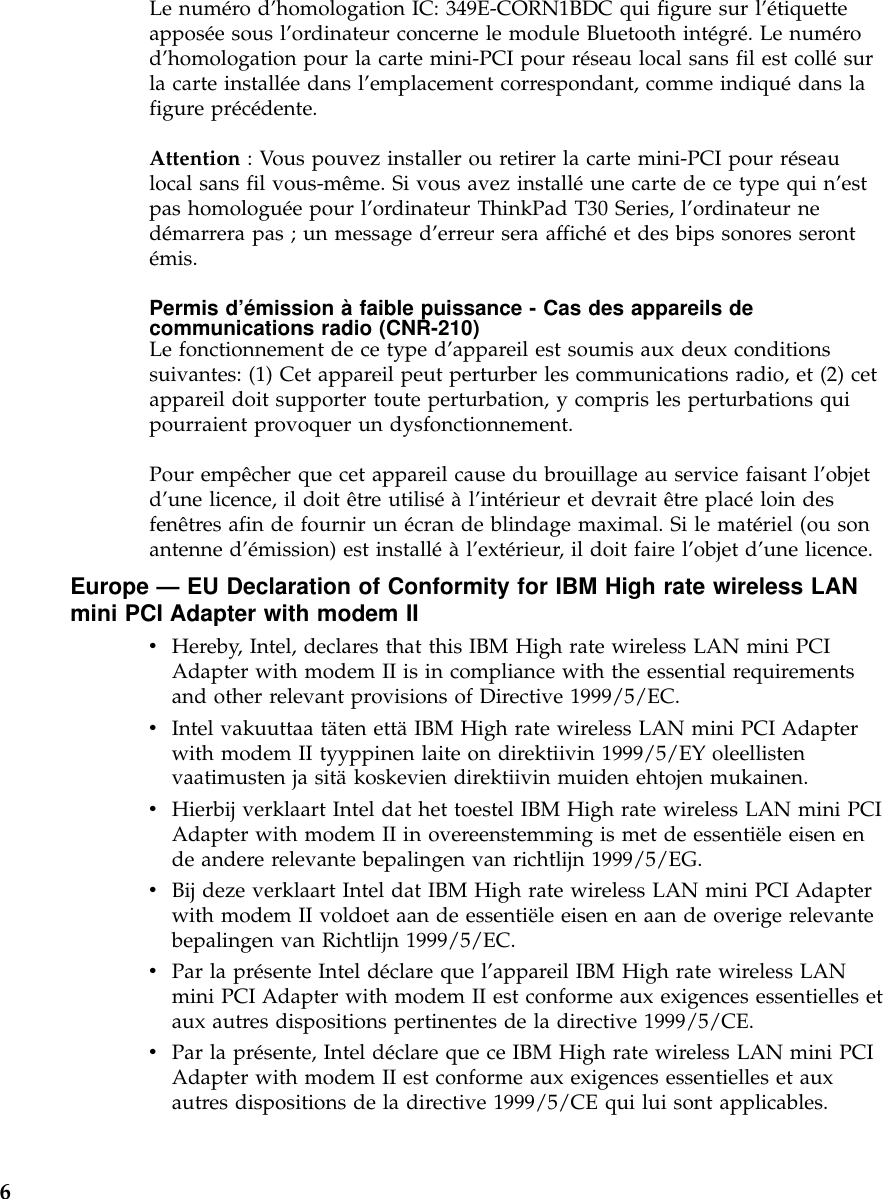

Le numéro d’homologation IC: 349E-CORN1BDC qui figure sur l’étiquetteapposée sous l’ordinateur concerne le module Bluetooth intégré.Lenumérod’homologation pour la carte mini-PCI pour réseau local sans fil est collésurla carte installée dans l’emplacement correspondant, comme indiquédans lafigure précédente.Attention : Vous pouvez installer ou retirer la carte mini-PCI pour réseaulocal sans fil vous-même. Si vous avez installéune carte de ce type qui n’estpas homologuée pour l’ordinateur ThinkPad T30 Series, l’ordinateur nedémarrera pas ; un message d’erreur sera affichéet des bips sonores serontémis.Permis d’émission àfaible puissance - Cas des appareils decommunications radio (CNR-210)Le fonctionnement de ce type d’appareil est soumis aux deux conditionssuivantes: (1) Cet appareil peut perturber les communications radio, et (2) cetappareil doit supporter toute perturbation, y compris les perturbations quipourraient provoquer un dysfonctionnement.Pour empêcher que cet appareil cause du brouillage au service faisant l’objetd’une licence, il doit être utiliséàl’intérieur et devrait être placéloin desfenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou sonantenne d’émission) est installéàl’extérieur, il doit faire l’objet d’une licence.Europe —EU Declaration of Conformity for IBM High rate wireless LANmini PCI Adapter with modem IIvHereby, Intel, declares that this IBM High rate wireless LAN mini PCIAdapter with modem II is in compliance with the essential requirementsand other relevant provisions of Directive 1999/5/EC.vIntel vakuuttaa täten ettäIBM High rate wireless LAN mini PCI Adapterwith modem II tyyppinen laite on direktiivin 1999/5/EY oleellistenvaatimusten ja sitäkoskevien direktiivin muiden ehtojen mukainen.vHierbij verklaart Intel dat het toestel IBM High rate wireless LAN mini PCIAdapter with modem II in overeenstemming is met de essentiële eisen ende andere relevante bepalingen van richtlijn 1999/5/EG.vBij deze verklaart Intel dat IBM High rate wireless LAN mini PCI Adapterwith modem II voldoet aan de essentiële eisen en aan de overige relevantebepalingen van Richtlijn 1999/5/EC.vPar la présente Intel déclare que l’appareil IBM High rate wireless LANmini PCI Adapter with modem II est conforme aux exigences essentielles etaux autres dispositions pertinentes de la directive 1999/5/CE.vPar la présente, Intel déclare que ce IBM High rate wireless LAN mini PCIAdapter with modem II est conforme aux exigences essentielles et auxautres dispositions de la directive 1999/5/CE qui lui sont applicables.6

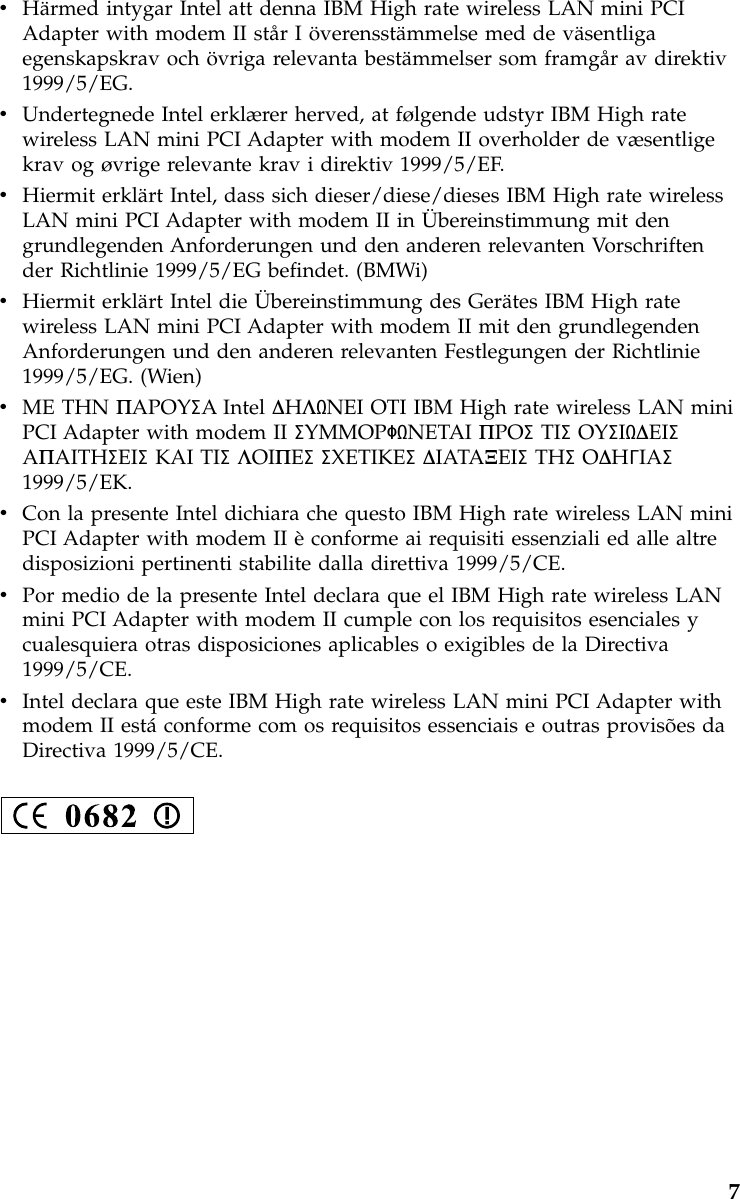

vHärmed intygar Intel att denna IBM High rate wireless LAN mini PCIAdapter with modem II stårIöverensstämmelse med de väsentligaegenskapskrav och övriga relevanta bestämmelser som framgår av direktiv1999/5/EG.vUndertegnede Intel erklærer herved, at følgende udstyr IBM High ratewireless LAN mini PCI Adapter with modem II overholder de væsentligekrav og øvrige relevante krav i direktiv 1999/5/EF.vHiermit erklärt Intel, dass sich dieser/diese/dieses IBM High rate wirelessLAN mini PCI Adapter with modem II in Übereinstimmung mit dengrundlegenden Anforderungen und den anderen relevanten Vorschriftender Richtlinie 1999/5/EG befindet. (BMWi)vHiermit erklärt Intel die Übereinstimmung des Gerätes IBM High ratewireless LAN mini PCI Adapter with modem II mit den grundlegendenAnforderungen und den anderen relevanten Festlegungen der Richtlinie1999/5/EG. (Wien)vME THN ΠAPOYΣA Intel ∆HΛNEI OTI IBM High rate wireless LAN miniPCI Adapter with modem II ΣYMMOPΦNETAI ΠPOΣTIΣOYΣI∆EIΣAΠAITHΣEIΣKAI TIΣΛOIΠEΣΣXETIKEΣ∆IATAΞEIΣTHΣO∆HΓIAΣ1999/5/EK.vCon la presente Intel dichiara che questo IBM High rate wireless LAN miniPCI Adapter with modem II èconforme ai requisiti essenziali ed alle altredisposizioni pertinenti stabilite dalla direttiva 1999/5/CE.vPor medio de la presente Intel declara que el IBM High rate wireless LANmini PCI Adapter with modem II cumple con los requisitos esenciales ycualesquiera otras disposiciones aplicables o exigibles de la Directiva1999/5/CE.vIntel declara que este IBM High rate wireless LAN mini PCI Adapter withmodem II estáconforme com os requisitos essenciais e outras provisões daDirectiva 1999/5/CE.7
8

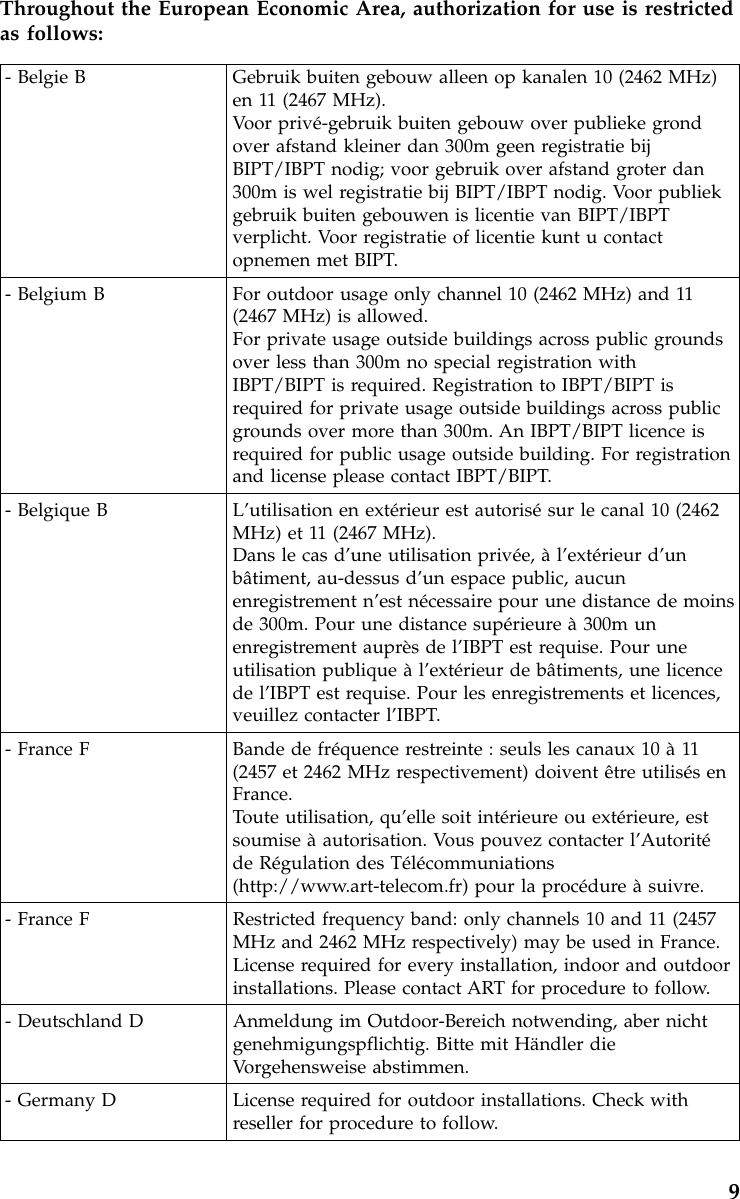

Throughout the European Economic Area, authorization for use is restrictedas follows:- Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz)en 11 (2467 MHz).Voor privé-gebruik buiten gebouw over publieke grondover afstand kleiner dan 300m geen registratie bijBIPT/IBPT nodig; voor gebruik over afstand groter dan300m is wel registratie bij BIPT/IBPT nodig. Voor publiekgebruik buiten gebouwen is licentie van BIPT/IBPTverplicht. Voor registratie of licentie kunt u contactopnemen met BIPT.- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11(2467 MHz) is allowed.For private usage outside buildings across public groundsover less than 300m no special registration withIBPT/BIPT is required. Registration to IBPT/BIPT isrequired for private usage outside buildings across publicgrounds over more than 300m. An IBPT/BIPT licence isrequired for public usage outside building. For registrationand license please contact IBPT/BIPT.- Belgique B L’utilisation en extérieur est autorisésur le canal 10 (2462MHz) et 11 (2467 MHz).Dans le cas d’une utilisation privée, àl’extérieur d’unbâtiment, au-dessus d’un espace public, aucunenregistrement n’est nécessaire pour une distance de moinsde 300m. Pour une distance supérieure à300m unenregistrement auprèsdel’IBPT est requise. Pour uneutilisation publique àl’extérieur de bâtiments, une licencede l’IBPT est requise. Pour les enregistrements et licences,veuillez contacter l’IBPT.- France F Bande de fréquence restreinte : seuls les canaux 10 à11(2457 et 2462 MHz respectivement) doivent être utilisésenFrance.Toute utilisation, qu’elle soit intérieure ou extérieure, estsoumise àautorisation. Vous pouvez contacter l’Autoritéde Régulation des Télécommuniations(http://www.art-telecom.fr) pour la procédure àsuivre.- France F Restricted frequency band: only channels 10 and 11 (2457MHz and 2462 MHz respectively) may be used in France.License required for every installation, indoor and outdoorinstallations. Please contact ART for procedure to follow.- Deutschland D Anmeldung im Outdoor-Bereich notwending, aber nichtgenehmigungspflichtig. Bitte mit Händler dieVorgehensweise abstimmen.- Germany D License required for outdoor installations. Check withreseller for procedure to follow.9

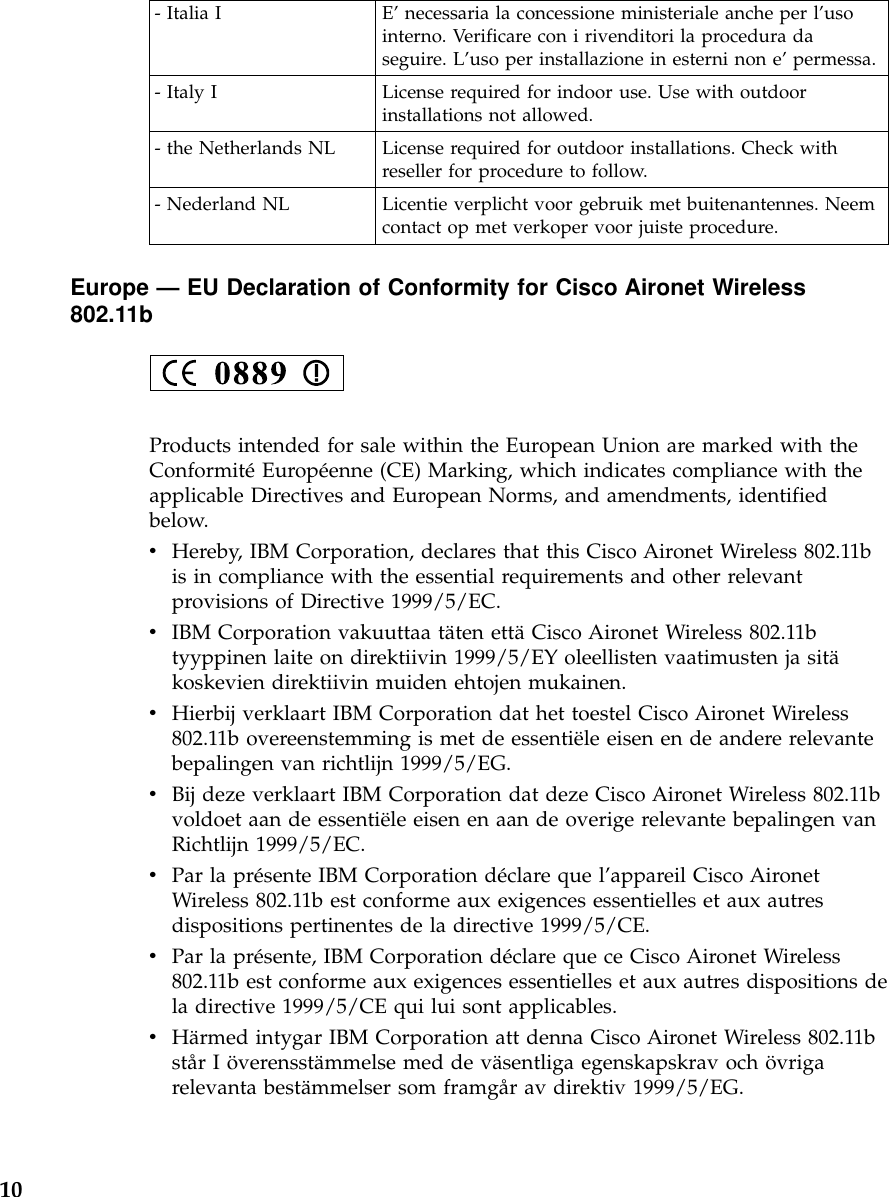

- Italia I E’necessaria la concessione ministeriale anche per l’usointerno. Verificare con i rivenditori la procedura daseguire. L’uso per installazione in esterni non e’permessa.- Italy I License required for indoor use. Use with outdoorinstallations not allowed.- the Netherlands NL License required for outdoor installations. Check withreseller for procedure to follow.- Nederland NL Licentie verplicht voor gebruik met buitenantennes. Neemcontact op met verkoper voor juiste procedure.Europe —EU Declaration of Conformity for Cisco Aironet Wireless802.11bProducts intended for sale within the European Union are marked with theConformitéEuropéenne (CE) Marking, which indicates compliance with theapplicable Directives and European Norms, and amendments, identifiedbelow.vHereby, IBM Corporation, declares that this Cisco Aironet Wireless 802.11bis in compliance with the essential requirements and other relevantprovisions of Directive 1999/5/EC.vIBM Corporation vakuuttaa täten ettäCisco Aironet Wireless 802.11btyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitäkoskevien direktiivin muiden ehtojen mukainen.vHierbij verklaart IBM Corporation dat het toestel Cisco Aironet Wireless802.11b overeenstemming is met de essentiële eisen en de andere relevantebepalingen van richtlijn 1999/5/EG.vBij deze verklaart IBM Corporation dat deze Cisco Aironet Wireless 802.11bvoldoet aan de essentiële eisen en aan de overige relevante bepalingen vanRichtlijn 1999/5/EC.vPar la présente IBM Corporation déclare que l’appareil Cisco AironetWireless 802.11b est conforme aux exigences essentielles et aux autresdispositions pertinentes de la directive 1999/5/CE.vPar la présente, IBM Corporation déclare que ce Cisco Aironet Wireless802.11b est conforme aux exigences essentielles et aux autres dispositions dela directive 1999/5/CE qui lui sont applicables.vHärmed intygar IBM Corporation att denna Cisco Aironet Wireless 802.11bstårIöverensstämmelse med de väsentliga egenskapskrav och övrigarelevanta bestämmelser som framgår av direktiv 1999/5/EG.10

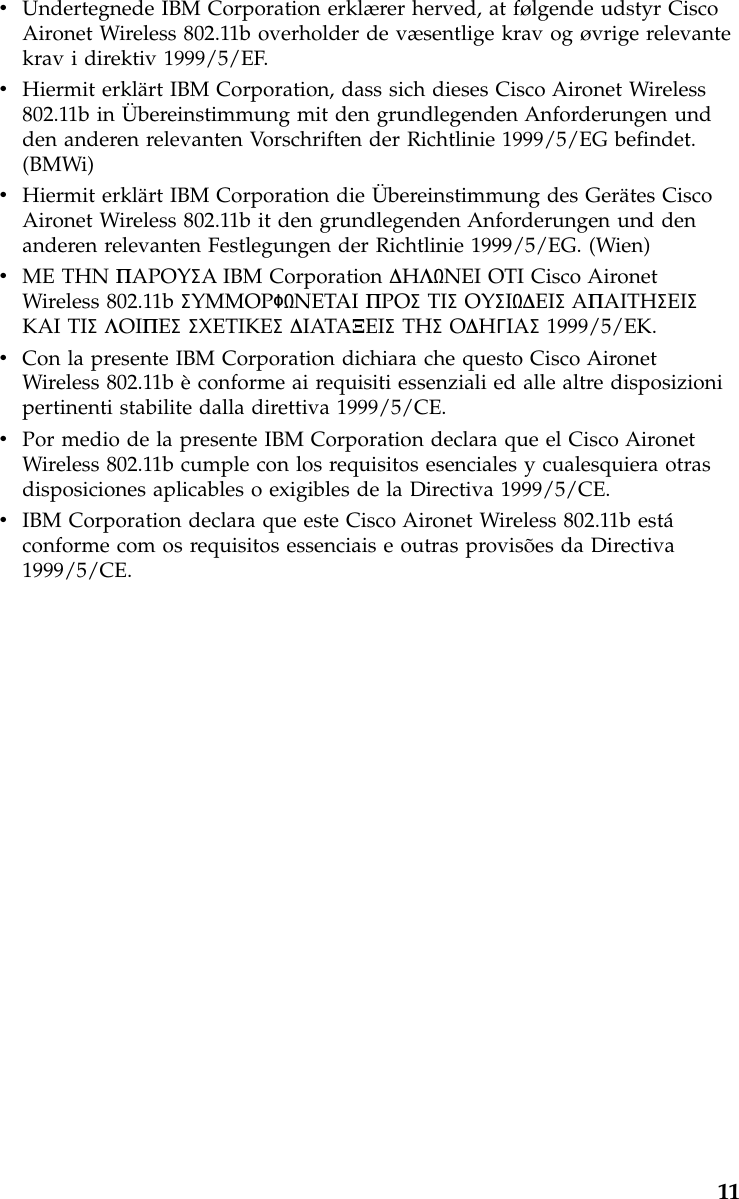

vUndertegnede IBM Corporation erklærer herved, at følgende udstyr CiscoAironet Wireless 802.11b overholder de væsentlige krav og øvrige relevantekrav i direktiv 1999/5/EF.vHiermit erklärt IBM Corporation, dass sich dieses Cisco Aironet Wireless802.11b in Übereinstimmung mit den grundlegenden Anforderungen undden anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet.(BMWi)vHiermit erklärt IBM Corporation die Übereinstimmung des Gerätes CiscoAironet Wireless 802.11b it den grundlegenden Anforderungen und denanderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)vME THN ΠAPOYΣA IBM Corporation ∆HΛNEI OTI Cisco AironetWireless 802.11b ΣYMMOPΦNETAI ΠPOΣTIΣOYΣI∆EIΣAΠAITHΣEIΣKAI TIΣΛOIΠEΣΣXETIKEΣ∆IATAΞEIΣTHΣO∆HΓIAΣ1999/5/EK.vCon la presente IBM Corporation dichiara che questo Cisco AironetWireless 802.11b èconforme ai requisiti essenziali ed alle altre disposizionipertinenti stabilite dalla direttiva 1999/5/CE.vPor medio de la presente IBM Corporation declara que el Cisco AironetWireless 802.11b cumple con los requisitos esenciales y cualesquiera otrasdisposiciones aplicables o exigibles de la Directiva 1999/5/CE.vIBM Corporation declara que este Cisco Aironet Wireless 802.11b estáconforme com os requisitos essenciais e outras provisões da Directiva1999/5/CE.11
12

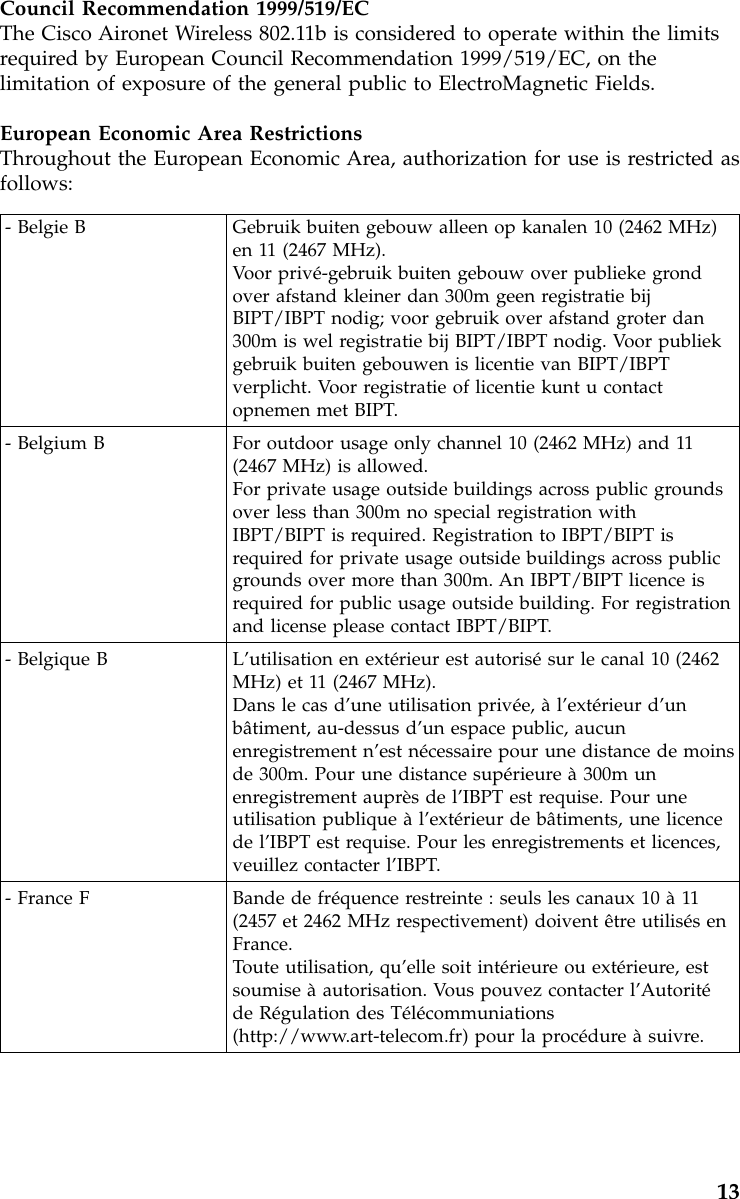

Council Recommendation 1999/519/ECThe Cisco Aironet Wireless 802.11b is considered to operate within the limitsrequired by European Council Recommendation 1999/519/EC, on thelimitation of exposure of the general public to ElectroMagnetic Fields.European Economic Area RestrictionsThroughout the European Economic Area, authorization for use is restricted asfollows:- Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz)en 11 (2467 MHz).Voor privé-gebruik buiten gebouw over publieke grondover afstand kleiner dan 300m geen registratie bijBIPT/IBPT nodig; voor gebruik over afstand groter dan300m is wel registratie bij BIPT/IBPT nodig. Voor publiekgebruik buiten gebouwen is licentie van BIPT/IBPTverplicht. Voor registratie of licentie kunt u contactopnemen met BIPT.- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11(2467 MHz) is allowed.For private usage outside buildings across public groundsover less than 300m no special registration withIBPT/BIPT is required. Registration to IBPT/BIPT isrequired for private usage outside buildings across publicgrounds over more than 300m. An IBPT/BIPT licence isrequired for public usage outside building. For registrationand license please contact IBPT/BIPT.- Belgique B L’utilisation en extérieur est autorisésur le canal 10 (2462MHz) et 11 (2467 MHz).Dans le cas d’une utilisation privée, àl’extérieur d’unbâtiment, au-dessus d’un espace public, aucunenregistrement n’est nécessaire pour une distance de moinsde 300m. Pour une distance supérieure à300m unenregistrement auprèsdel’IBPT est requise. Pour uneutilisation publique àl’extérieur de bâtiments, une licencede l’IBPT est requise. Pour les enregistrements et licences,veuillez contacter l’IBPT.- France F Bande de fréquence restreinte : seuls les canaux 10 à11(2457 et 2462 MHz respectivement) doivent être utilisésenFrance.Toute utilisation, qu’elle soit intérieure ou extérieure, estsoumise àautorisation. Vous pouvez contacter l’Autoritéde Régulation des Télécommuniations(http://www.art-telecom.fr) pour la procédure àsuivre.13

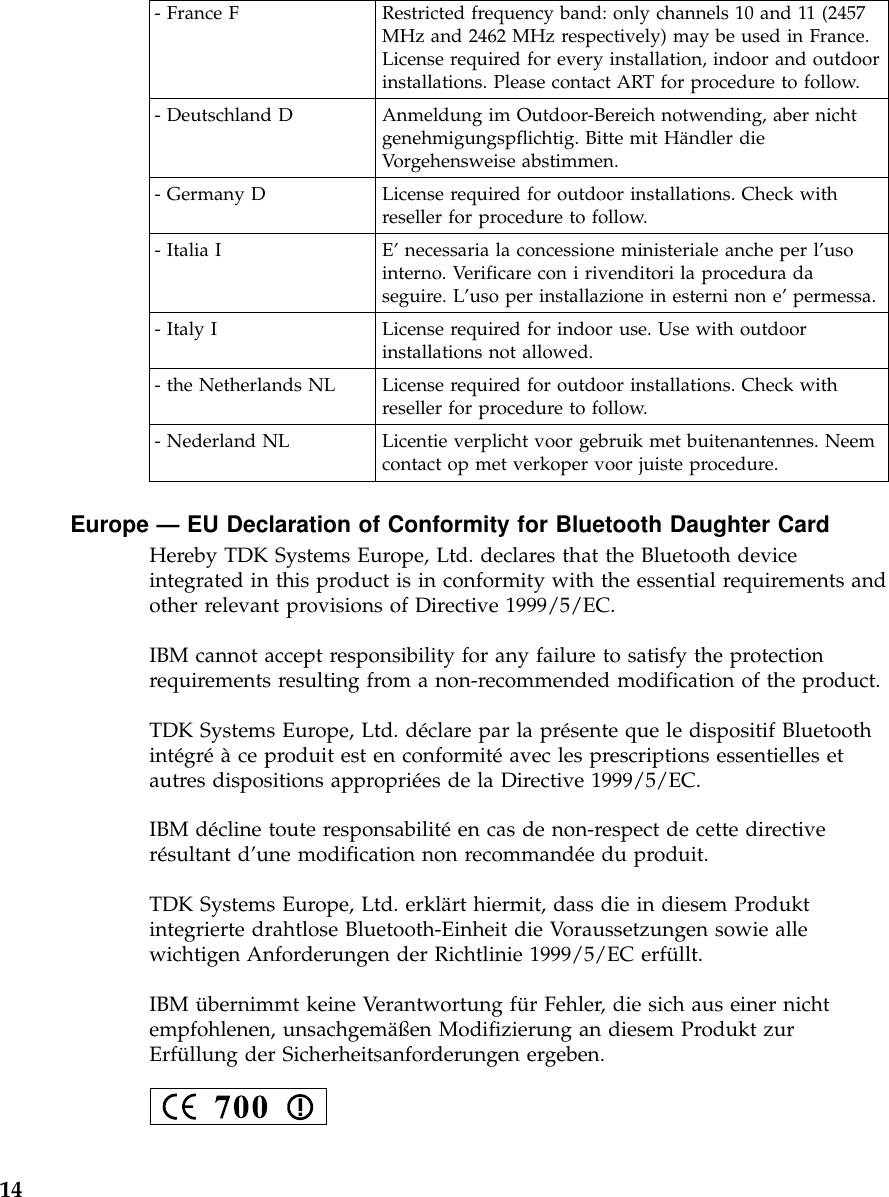

- France F Restricted frequency band: only channels 10 and 11 (2457MHz and 2462 MHz respectively) may be used in France.License required for every installation, indoor and outdoorinstallations. Please contact ART for procedure to follow.- Deutschland D Anmeldung im Outdoor-Bereich notwending, aber nichtgenehmigungspflichtig. Bitte mit Händler dieVorgehensweise abstimmen.- Germany D License required for outdoor installations. Check withreseller for procedure to follow.- Italia I E’necessaria la concessione ministeriale anche per l’usointerno. Verificare con i rivenditori la procedura daseguire. L’uso per installazione in esterni non e’permessa.- Italy I License required for indoor use. Use with outdoorinstallations not allowed.- the Netherlands NL License required for outdoor installations. Check withreseller for procedure to follow.- Nederland NL Licentie verplicht voor gebruik met buitenantennes. Neemcontact op met verkoper voor juiste procedure.Europe —EU Declaration of Conformity for Bluetooth Daughter CardHereby TDK Systems Europe, Ltd. declares that the Bluetooth deviceintegrated in this product is in conformity with the essential requirements andother relevant provisions of Directive 1999/5/EC.IBM cannot accept responsibility for any failure to satisfy the protectionrequirements resulting from a non-recommended modification of the product.TDK Systems Europe, Ltd. déclare par la présente que le dispositif Bluetoothintégréàce produit est en conformitéavec les prescriptions essentielles etautres dispositions appropriées de la Directive 1999/5/EC.IBM décline toute responsabilitéen cas de non-respect de cette directiverésultant d’une modification non recommandée du produit.TDK Systems Europe, Ltd. erklärt hiermit, dass die in diesem Produktintegrierte drahtlose Bluetooth-Einheit die Voraussetzungen sowie allewichtigen Anforderungen der Richtlinie 1999/5/EC erfüllt.IBM übernimmt keine Verantwortung für Fehler, die sich aus einer nichtempfohlenen, unsachgemäßen Modifizierung an diesem Produkt zurErfüllung der Sicherheitsanforderungen ergeben.14
15

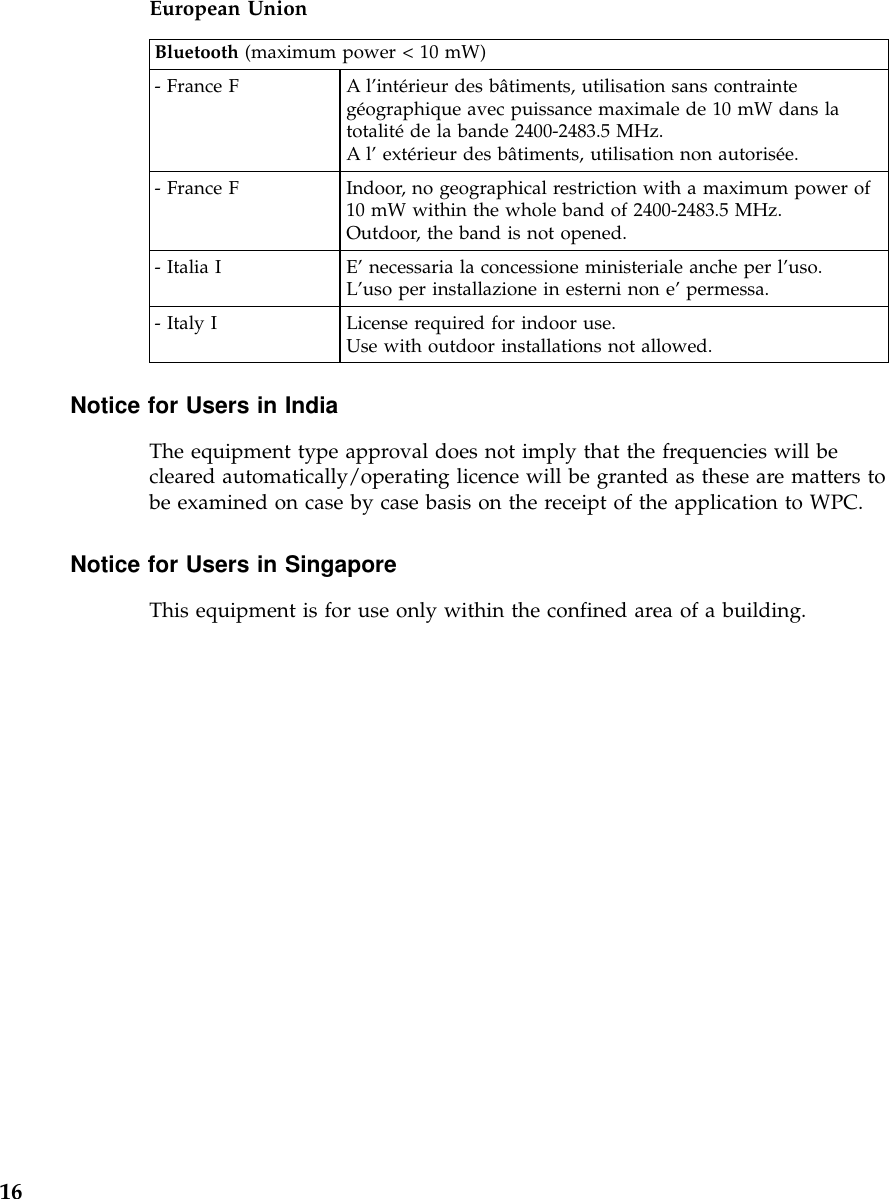

European UnionBluetooth (maximum power < 10 mW)- France F A l’intérieur des bâtiments, utilisation sans contraintegéographique avec puissance maximale de 10 mW dans latotalitéde la bande 2400-2483.5 MHz.Al’extérieur des bâtiments, utilisation non autorisée.- France F Indoor, no geographical restriction with a maximum power of10 mW within the whole band of 2400-2483.5 MHz.Outdoor, the band is not opened.- Italia I E’necessaria la concessione ministeriale anche per l’uso.L’uso per installazione in esterni non e’permessa.- Italy I License required for indoor use.Use with outdoor installations not allowed.Notice for Users in IndiaThe equipment type approval does not imply that the frequencies will becleared automatically/operating licence will be granted as these are matters tobe examined on case by case basis on the receipt of the application to WPC.Notice for Users in SingaporeThis equipment is for use only within the confined area of a building.16
