Read first — regulatory information
Regulatory notice for ThinkPad X41 Tablet Series
This notice is a supplementary document of the ThinkPad
®
X41 Tablet Series Service and Troubleshooting
Guide. Please read this document before you use the ThinkPad X41 Tablet Series computer.
The ThinkPad X41 Tablet Series computer complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. You must install and use your
ThinkPad computer in strict accordance with the instructions as described hereafter.
Avis de réglementation pour les ThinkPad X41 Tablet Series
Le présent avis est un document qui vient compléter le Guide de maintenance et d’identification des incidents
ThinkPad X41 Tablet Series. Veuillez lire ce document avant d’utiliser l’ordinateur ThinkPad X41 Tablet
Series.
L’ordinateur ThinkPad X41 Tablet Series est conforme aux normes de sécurité et de radiofréquence du
pays ou de la région où son utilisation sans fil est agréée. Vous devez installer et utiliser votre
ordinateur ThinkPad en respectant scrupuleusement les instructions décrites ci-après.
© Copyright IBM Corp. 2005 1
2 ThinkPad
®
X41 Tablet Series Regulatory Notice
USA — Federal Communications Commission (FCC)
I) Radio Frequency interference requirements
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
An improper installation or unauthorized use may cause harmful interference to radio communications.
Also, unauthorized changes or modifications could void the user's authority to operate the equipment.
Refer to the “Electronic emission notices” on page 15 for more detail.
i) Radio communication functions
Wireless LAN Mini-PCI Cards marketed in the USA and Canada do not support nor function in the
extended channels (12ch, 13ch).
When you use the models AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter II) or
WM3B2915ABG (Intel Pro/Wireless 2915ABG mini-PCI Adapter):
v This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the
potential for harmful interference to co-channel Mobile Satellite systems.
v High power radar are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with and/or damage this device.
ii) Radio digitizer function in LCD screen
The ThinkPad X41 Tablet Series computers employ a radio digitizer function in LCD screen which is
able to sense the Tablet Digitizer Pen shipped associated with your computer. The digitizer emits extra
low power radio frequency and complies with the FCC Part 15, Subpart C. The FCC ID: ANOX41T is
indicated on the label at the bottom side of your ThinkPad computer.
© Copyright IBM Corp. 2005 3
II) Installation of wireless modules
User installable wireless modules
v Mini-PCI Cards
FCC ID: ANO20040501CX2, Model: WM3B2200BG (Intel PRO/Wireless 2200BG Mini-PCI
Adapter from IBM)
FCC ID: ANO20040601CX2, Model: WM3B2915ABG (Intel Pro/Wireless 2915ABG
mini-PCI Adapter)
FCC ID: ANO20040600BTL, Model: AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI
Adapter II)
v
Communication Daughter Card (CDC)
FCC ID: ANO20040700HER, Model: J07M067 (IBM Integrated Bluetooth IV with 56K
Modem)
i) FCC ID of wireless modules
There is no FCC ID for Mini-PCI Cards shown on the enclosure of your ThinkPad computer. Instead you

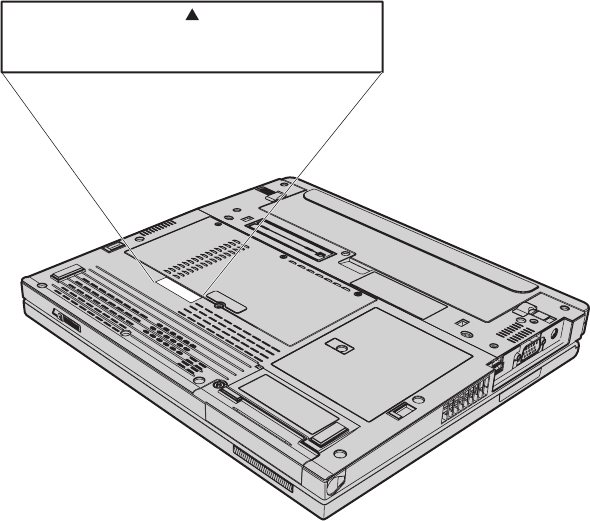

will find an indicator pointing to the location of the FCC ID on the bottom side of your ThinkPad

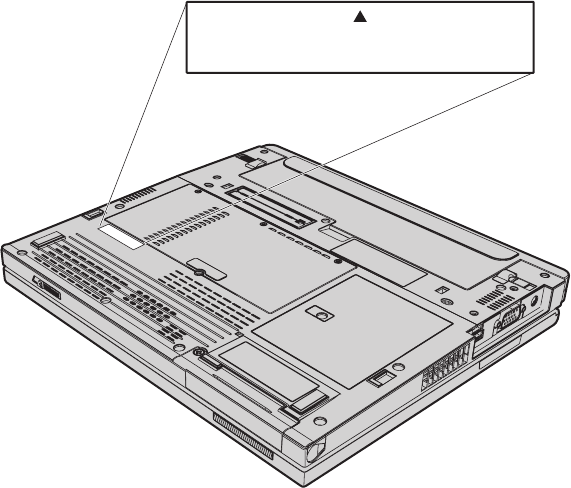

computer as shown in the figure i-1). Also the location of the FCC ID’s indicator for CDC is shown in
the figure i-2). The FCC IDs are affixed on each approved module installed in the Mini-PCI Card slot or
the CDC slot.
i-1) Mini-PCI Cards:
FCC ID: ANO20040501CX2, Model: WM3B2200BG
FCC ID: ANO20040601CX2, Model: WM3B2915ABG
FCC ID: ANO20040600BTL, Model: AR5BMB-44
4 ThinkPad
®
X41 Tablet Series Regulatory Notice
TX FCC ID for an installed transmitter card
located under this Customer Access Panel
i-2) CDC
FCC ID: ANO20040700HER, Model: J07M067
USA — Federal Communications Commission (FCC) 5
TX FCC ID for an installed CDC transmitter
card located under this Customer Access Panel
ii) Installation of approved wireless modules
If no integrated wireless LAN Mini-PCI Card or RF CDC module has been preinstalled in your
ThinkPad computer, you can install one, provided by IBM as an option. Plug the wireless card option

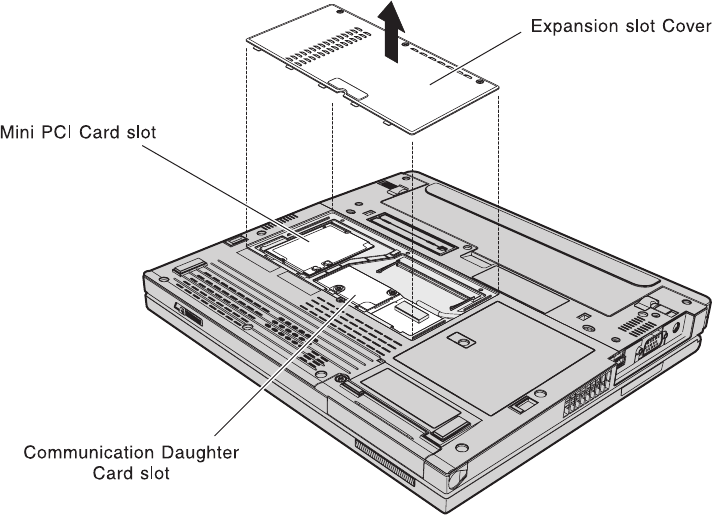

into the Mini-PCI Card slot or CDC slot located under the expansion slot cover of your ThinkPad
computer as shown below.
6 ThinkPad
®
X41 Tablet Series Regulatory Notice
Attention: The ThinkPad X41 Tablet Series computer contains an authentication mechanism
If you install an unauthorized wireless LAN Mini-PCI Card or RF CDC module that is not approved for
use in the ThinkPad X41 Tablet Series computer, the computer will not start, but only displays an error
message and emits beeps.
III) RF safety compliance
The antennas used for wireless LAN adapters in this notebook computer are located at the upper edge
of the LCD screen, and the antenna used for Bluetooth card (Model: J07M067) is located at the left side
lower edge of the LCD screen. The total radiated energy from those antennas connected to one of the
wireless LAN Mini-PCI adapters and Bluetooth card (Model: J07M067) conforms to the FCC limit of SAR
(Specific Absorption Rate) requirement regarding CFR Part 2 section 1093. The maximum SAR values
measured for the ThinkPad X41 Tablet Series computer are 0.697W/Kg for model AR5BMB-44,
0.884W/Kg for model WM3B2915ABG, and 1.01W/Kg for model WM3B2200BG. (The limit is 1.6W/Kg.)
USA — Federal Communications Commission (FCC) 7
IV) Use of wireless options
Your ThinkPad computer is approved for use of one of the granted Wireless LAN Mini-PCI Cards
together with the granted Bluetooth module (FCC ID: ANO20040700HER) in the CDC slot
simultaneously. Make sure of the following conditions on use of these wireless features.
1. When you use any other RF option device than the Mini-PCI or CDC card, you are requested to
confirm that the device conforms to the SAR requirement and is approved to use for ThinkPad X41
Tablet Series computer.
2. All other wireless features including the integrated Wireless LAN Mini-PCI Card and Bluetooth
transmitter in your ThinkPad computer are required to be turned off.
3. Users must follow the RF Safety instructions on wireless option devices that are included in the RF
option device’s user’s manual.
8 ThinkPad
®
X41 Tablet Series Regulatory Notice
Canada — Industry Canada (IC)
I) Installation of wireless modules
User installable wireless modules
v Mini-PCI Cards
IC: 349E-WM3B22BG, Model: WM3B2200BG (Intel PRO/Wireless 2200BG Mini-PCI
Adapter from IBM)
IC: 349E-WM3B29AG, Model: WM3B2915ABG (Intel Pro/Wireless 2915ABG mini-PCI
Adapter)
IC: 349E-AR5BMB44, Model: AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter
II)
v
Communication Daughter Card (CDC)
IC: 349E-J07M067, Model: J07M067 (IBM Integrated Bluetooth IV with 56K Modem)
The certification number of Industry Canada for each approved Mini-PCI wireless card or RF
Communication Daughter Card (CDC) is affixed on each module installed in the Mini-PCI Card slot or
the CDC slot as shown below.
If no integrated wireless LAN Mini-PCI Card or RF CDC module has been preinstalled in your
ThinkPad computer, you can install one, provided by IBM as an option. Plug the wireless card option
into the Mini-PCI Card slot or CDC slot located under the expansion slot cover of your ThinkPad
computer.
Wireless LAN Mini-PCI Cards marketed in the USA and Canada do not support nor function in the
extended channels (12ch, 13ch).
© Copyright IBM Corp. 2005 9
Attention: The ThinkPad X41 Tablet Series computer contains an authentication mechanism
You can install or remove each wireless feature by yourself. If you install an unauthorized wireless
adapter that is not approved for use in the ThinkPad X41 Tablet Series computer, the computer will not
start, but only displays an error message and emits beeps.
II) Low power license-exempt radiocommunication devices (RSS-210)
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation
of the device.
10 ThinkPad
®
X41 Tablet Series Regulatory Notice
i) Radio communication functions
When you use the model AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter II) or
WM3B2915ABG (Intel Pro/Wireless 2915ABG mini-PCI Adapter):
v The device for the band 5150–5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel Mobile Satellite systems.
v High power radars are allocated as primary users (meaning they have priority) of 5250–5350 MHz
and 5650–5850 MHz and these radars could cause interference and/or damage to LELAN
(Licence-Exempt Local Area Network) devices.
ii) Radio digitizer function in LCD screen
The ThinkPad X41 Tablet Series computers employ a radio digitizer function in LCD screen which is
able to sense the Tablet Digitizer Pen shipped associated with your computer. The digitizer emits extra
low power radio frequency and complies with the standard (RSS-210). The IC certification number IC:
349E-X41T is indicated on the label at the bottom side of your ThinkPad computer.
III) Exposure of humans to RF fields (RSS-102)
ThinkPad X41 Tablet Series computers employ low gain integral antennas that do not emit RF field in
excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health
Canada’s Web site at www.hc-sc.gc.ca/rpb
The antennas used for wireless LAN adapters in this notebook computer are located at the upper edge
of the LCD screen, and the antenna used for Bluetooth card (Model: J07M067) is located at the left side
lower edge of the LCD screen. The total radiated energy from those antennas connected to one of the
wireless LAN Mini-PCI adapters and Bluetooth card (Model: J07M067) conforms to the IC limit of SAR
(Specific Absorption Rate) requirement regarding RSS–102 section 3. The maximum SAR values
measured for the ThinkPad X41 Tablet Series computer are 0.697W/Kg for model AR5BMB-44,
0.884W/Kg for model WM3B2915ABG, and 1.01W/Kg for model WM3B2200BG. (The limit is 1.6W/Kg.)
Numéro d’homologation
Canada — Industry Canada (IC) 11
Le numéro d’homologation d’Industrie Canada pour chaque carte Mini-PCI sans fil homologuée ou carte
RF CDC (Communication Daughter Card) est indiqué sur chaque module installé dans l’emplacement
Mini-PCI Card ou CDC comme illustré ci-dessous.
Les cartes sans fil applicables sont les suivantes:
v IC: 349E-WM3B22BG, Model: WM3B2200BG (Intel PRO/Wireless 2200BG Mini-PCI Adapter from
IBM)
v IC: 349E-AR5BMB44, Model: AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter II)
v IC:349E-WM3B29AG, Model: WM3B2915ABG (Intel Pro/Wireless 2915ABG mini-PCI Adapter)
v IC: 349E-J07M067, Model: J07M067 (IBM Integrated Bluetooth IV with 56K Modem)
Les cartes de réseau local sans fil mini-PCI commercialisées aux Etats-Unis et au Canada ne prennent
pas en charge les canaux étendus (12ch, 13ch) et ne fonctionnent donc pas sur de tels canaux.
Attention: L’ordinateur ThinkPad X41 Tablet Series contient un mécanisme d’authentification.
Vous pouvez installer ou désinstaller tout dispositif sans fil. Si vous installez une carte sans fil qui n’est
pas homologuée pour l’ordinateur ThinkPad X41 Tablet Series, l’ordinateur ne démarrera pas; un
message d’erreur sera affiché et des bips sonores seront émis.
12 ThinkPad
®
X41 Tablet Series Regulatory Notice
Remarque relative aux appareils de communication radio de faible puissance sans licence
(CNR-210)
Le fonctionnement de ce type d’appareil est soumis aux deux conditions suivantes:
1. Cet appareil ne doit pas perturber les communications radio, et
2. cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient provoquer
son dysfonctionnement.
Lorsque vous utilisez le modèle AR5BMB-44 (IBM 11a/b/g Wireless LAN Mini PCI Adapter II) ou
WM3B2915ABG (Intel Pro/Wireless 2915ABG mini-PCI Adapter):
v Tout appareil destiné à la bande 5150-5250 MHz devra être exclusivement utilisé en intérieur afin de
réduire les risques de perturbations électromagnétiques gênantes sur les systèmes de satellite mobile
dans un même canal.
v Les radars à forte puissance sont désignés comme les utilisateurs principaux (c’est-à-dire qu’ils sont
prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz. Ils peuvent provoquer des perturbations
électromagnétiques sur les appareils de type LELAN (réseau de communication local sans licence) ou
les endommager.
Exposition des êtres humains aux champs radioélectriques (RF) (CNR-102)
Le ThinkPad X41 Tablet Series utilise des antennes intégrales à faible gain qui n’émettent pas un champ
électromagnétique supérieur aux normes imposées par le Ministére de la santé canadien pour la
population. Consultez le Safety Code 6 sur le site Web du Ministére de la santé canadien à l’adresse
“www.hc-sc.gc.ca/rpb”.
Canada — Industry Canada (IC) 13
14 ThinkPad
®
X41 Tablet Series Regulatory Notice
Electronic emission notices
Federal Communications Commission (FCC) Statement
v Intel PRO/Wireless 2200BG Mini-PCI Adapter from IBM
v Intel Pro/Wireless 2915ABG mini-PCI Adapter
v IBM 11a/b/g Wireless LAN Mini PCI Adapter II
v IBM Integrated Bluetooth IV with 56K Modem
v ThinkPad X41 Tablet Series (Machine Type: 1866, 1867, 1868 and 1869)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
v Reorient or relocate the receiving antenna.
v Increase the separation between the equipment and receiver.
v Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
v Consult an IBM authorized dealer or service representative for help.
Properly shielded and grounded cables and connectors must be used in order
to meet FCC emission limits. Proper cables and connectors are available from
IBM authorized dealers. IBM is not responsible for any radio or television
interference caused by unauthorized changes or modifications to this
equipment. Unauthorized changes or modifications could void the userüfs
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
© Copyright IBM Corp. 2005 15
International Business Machines Corporation
New Orchard Road
Armonk, NY 10504
Telephone 1-919-543-2193
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Industry Canada Class B Emission Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
European Community Directive Conformance Statement
This product is in conformity with the protection requirements of EU Council
Directive 89/336/EEC on the approximation of the laws of the Member States
relating to electro-magnetic compatibility. IBM cannot accept responsibility for
any failure to satisfy the protection requirements resulting from a
non-recommended modification of the product, including the fitting of
non-IBM option cards.
This product satisfies the Class B limits of EN 55022.
16 ThinkPad
®
X41 Tablet Series Regulatory Notice
Telecommunication notices
Federal Communications Commission (FCC) and Telephone Company
Requirements (Part 68 of the FCC Rules)
1. The Telephone Consumer Protection Act of 1991 makes it unlawful for
any person to use a computer or other electronic device to send any
message via a telephone fax machine unless such message clearly
contains in a margin at the top or bottom of each transmitted page or on
the first page of the transmission, the date and time it is sent, and an
identification of the business or other entity, or other individual sending
the message and the telephone number of the sending machine or such
business, other entity, or individual.
In order to program this information into your computer, you should be
sure to follow the installation instructions for your fax software package.
2. This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On this equipment is a label that
contains, among other information, a product identifier in the format
US:AAAEQ##TXXXX. If requested, this number must be provided to the
telephone company.
3. The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of RENs should not exceed five (5.0). To be
certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company. The
REN for this product is part of the product identifier that has the format
US:AAAEQ##TXXXX. The digits represented by ## are the REN without
a decimal point (e.g., 03 is a REN of 0.3).
4. If the built-in modem causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible,
they will notify you in advance. But, if advance notice isn’t practical, you
will be notified as soon as possible. You will be advised of your right to
file a complaint with the FCC.
5. Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper operation of your
equipment. If they do, you will be given advance notice so as to give you
an opportunity to maintain uninterrupted service.
6. If you experience trouble with this built-in modem, contact your IBM
Authorized Seller, or the IBM Corporation, 500 Columbus Avenue,
Thornwood, NY 10594, 1-800-772-2227, for repair/warranty information.
The telephone company may ask you to disconnect this equipment from
© Copyright IBM Corp. 2005 17
the network until the problem has been corrected, or until you are sure
the equipment is not malfunctioning.
7. No customer repairs are possible to the modem. If you experience trouble
with this equipment, contact your Authorized Seller or the IBM
Corporation for information.
8. The modem may not be used on coin service provided by the telephone
company. Connection to party lines is subject to state tariffs. Contact your
state public utility commission or corporation commission for
information.
9. When ordering network interface (NI) service from the Local Exchange
Carrier, specify service arrangement USOC RJ11C.
10. A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A compliant telephone
cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. See
installation instructions for details.
11. If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this Data/Fax Modem does not
disable your alarm equipment. If you have questions about what will
disable alarm equipment, consult your telephone company or a qualified
installer.
12. The software contained in this Data/Fax Modem to allow user access to
the network must be upgraded to recognize newly established network
area codes and exchange codes as they are placed into service.
18 ThinkPad
®
X41 Tablet Series Regulatory Notice
Industry Canada requirements
Notice
This equipment meets the applicable Industry Canada Terminal Equipment
Technical Specifications. This is confirmed by the registration number. The
abbreviation, IC, before the registration number signifies that registration was
performed based on a Declaration of Conformity indicating that Industry
Canada technical specifications were met. It does not imply that Industry
Canada approved the equipment.
Before installing this equipment, users should ensure that it is permissible to
be connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of
communication. In some cases, the company’s inside wiring associated with a
single line individual service may be extended by means of a certified
connector assembly (telephone extension cord). The customer should be aware
that compliance with the above conditions may not prevent degradation of
service in some situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs of alterations
made by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
Caution
Users should not attempt to make such connections themselves, but should
contact the appropriate electric inspection authority, or electrician, as
appropriate.
The Ringer Equivalence Number (REN) for the terminal equipment J07M070
is 0.0. The Ringer Equivalence Number (REN) for the terminal equipment
J07M067 is 0.5. The REN assigned to each terminal equipment provides an
indication of the maximum number of terminals allowed to be connected to a
telephone interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed five.
© Copyright IBM Corp. 2005 19
Avis
Le présent matériel est conforme aux spécifications techniques d’Industrie
Canada applicables au matériel terminal. Cette conformité est confirmée par le
numéro d’enregistrement. Le sigle IC, placé devant le numéro
d’enregistrement, signifie que l’enregistrement s’est effectué conformément à
une déclaration de conformité et indique que les spécifications techniques
d’Industrie Canada ont été respectées. Il n’implique pas qu’Industrie Canada a
approuvé le matériel.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le
raccorder aux installations de l’entreprise locale de télécommunication. Le
matériel doit également être installé en suivant une méthode acceptée de
raccordement. Dans certains cas, les fils intérieurs de l’entreprise utilisés pour
un service individuel à ligne unique peuvent être prolongés au moyen d’un
dispositif homologué de raccordement (cordon prolongateur téléphonique
interne). L’abonné ne doit pas oublier qu’il est possible que la conformité aux
conditions énoncées ci-dessus n’empechent pas la dégradation du service dans
certaines situations. Actuellement, les entreprises de télécommunication ne
permettent pas que l’on raccorde leur matériel à des jacks d’abonné, sauf dans
les cas précis prévus par les tarifs paticuliers de ces entreprises.
Les réparations de matériel homologué doivent être effectuées par un centre
d’entretien canadien autorisé désigné par le fournisseur. La compagnie de
télécommunications peut demander à l’utilisateur de débrancher un appareil à
la suite de réparations ou de modifications effectuées par l’utilisateur ou à
cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise
à la terre de la source d’énergie électrique, des lignes téléphoniques et des
canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette
précaution est particulièrement importante dans les régions rurales.
Avertissement
L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit
avoir recours à un service d’inspection des installations électriques, ou à
électricien, selon le cas.
L’indice d’équivalence de la sonnerie (IES) du présent matériel J07M070 est de
0.0. L’indice d’équivalence de la sonnerie (IES) du présent matériel J07M067
est de 0.5. L’IES assigné à chaque dispositif terminal indique le nombre
maximal de terminaux qui peuvent être raccordés à une interface
téléphonique. La terminaison d’une interface peut consister en une
combinaison quelconque de dispositifs, à la seule condition que la somme
d’indices d’équivalence de la sonnerie de tous les dispositifs n’excède pas 5.
20 ThinkPad
®
X41 Tablet Series Regulatory Notice
Other countries
Notice for users in Australia
For models: J07M070 and J07M067
The following notice applies when using the telephony functions:
Notice for users in Brazil
For models: J07M067, WM3B2200BG
Portuguese Este equipamento opera em caráter secundário, isto é, não
tem direito a proteção contra interferência prejudicial,
mesmo de estações do mesmo tipo, e não pode causar
interferência a sistemas operando em caráter primário
English This equipment is a secondary type device, that is, it is not
protected against harmful interference, even if the
interference is caused by a device of the same type, and it
also cannot cause any interference to primary type devices.
Notice for users in India
For model: J07M067
The equipment type approval does not imply that the frequencies will be
cleared automatically/operating licence will be granted as these are matters to
be examined on case by case basis on the receipt of the application to WPC.
For model: WM3B2200BG
The WM3B2200BG equipment is typed approved in India for use of the IEEE
802.11b mode only in indoor applications. All other types of usages require
specific wireless license from Wireless Planning & Coordination (WPC) Wing
of Ministry of Communications and Information Technology of India
WARNING: FOR SAFETY REASONS, ONLY CONNECT EQUIPMENT WITH A
TELECOMMUNICATIONS COMPLIANCE LABEL. THIS INCLUDES CUSTOMER
EQUIPMENT PREVIOUSLY LABELLED PERMITTED OR CERTIFIED.
© Copyright IBM Corp. 2005 21
Before using the model WM3B2200BG, you must configure the device driver
of your ThinkPad computer for 802.11b only operation. To disable 802.11g.
follow the procedure below:
1. On your desktop, right-click the My Computer icon and select Properties.
2. Click the Hardware tab; then click the Device Manager button.
3. In the device list, expand Network Adapters, and then double-click Intel
PRO/Wireless 2200BG Network Connection.
4. Click the Advanced tab. Then, from the Property list, select Wireless
Mode .
5. Clear Use default value; from the drop-down box, select 802.11b only.
6. Click OK.
Notice for users in Korea
For models: J07M070 and J07M067

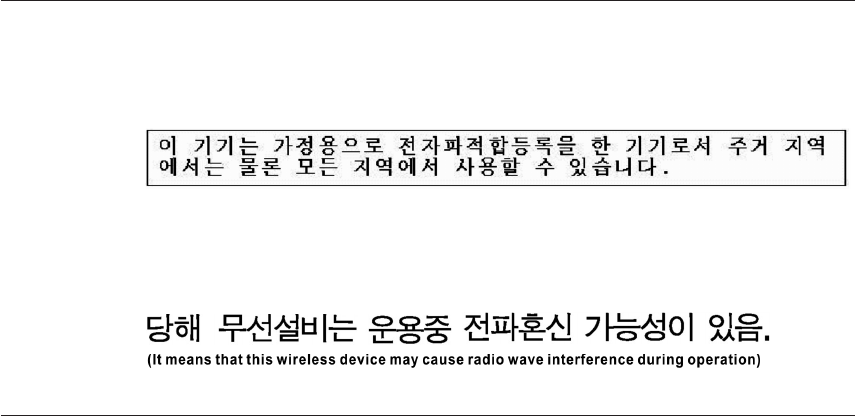

Please note that this device has been certified for residential use and may be
used in any environment.
For models: J07M067, WM3B2200BG, AR5BMB-44
Please note that this device has been certified for residential use and may be
used in any environment.
Notice for users in New Zealand
Ambit J07M070 V.92 Data/Fax Modem: Telepermit No. PTC 211/03/081
The grant of a Telepermit for any item of terminal equipment indicates only
that Telecom has accepted that the item complies with minimum conditions
for connection to its network. It indicates no endorsement of the product by
Telecom, nor does it provide any sort of warranty. Above all, it provides no
assurance that any item will work correctly in all respects with another item
of Telepermitted equipment of a different make or model, nor does it imply
that any product is compatible with all of Telecom’s network services.
This equipment is not capable, under all operating conditions, of correct
operation at the higher speeds for which it is designed. Telecom will accept no
responsibility should difficulties arise in such circumstances. This warning
typically applies to 56 kbit/s modems.
22 ThinkPad
®
X41 Tablet Series Regulatory Notice
This equipment may not provide for the effective hand-over of a call to
another device connected to the same line.
Some parameters required for compliance with Telecom’s Telepermit
requirements are dependent on the equipment (PC) associated with this
device. The associated equipment shall be set to operate within the following
limits for compliance with Telecom’s specifications:
v There shall be no more than 10 call attempts to the same number within
any 30 minute period for any single manual call initiation, and
v The equipment shall go on-hook for a period of not less than 30 seconds
between the end of one attempt and the beginning of the next call attempt,
and
v Automatic calls to different numbers shall be spaced such that there is not
less than 5 seconds between the end of one call attempt and the beginning
of another, and
v Incoming calls shall be answered between 3 and 30 seconds of receipt of
ringing.
This equipment shall not be set up to make automatic calls to Telecom’s 111
Emergency Service.
The availability of the Modem on Hold feature is dependent on whether or
not your Internet Service Provider and the Telecom network are connected to
offer this feature.
Any attempt to make use of ″Modem on Hold″ with this particular type of
modem may work incorrectly due to the unequal sharing of the current fed to
your line by this modem and the telephone you are using. No guarantees can
be given as to the effectiveness of the Modem on Hold feature offered by this
modem. Such problems are NOT a network fault and should not be
reported to Telecom.
Telecom can accept no liability for the mis-operation of the Modem on Hold
facilities with devices of this type. Only modems Telepermitted in the PTC
218-series are recognised as being V.92 Modem on Hold capable.
J07M067 56k Data/Fax Modem: Telepermit No. PTC 211/04/089
The grant of a Telepermit for any item of terminal equipment indicates only
that Telecom has accepted that the item complies with minimum conditions
for connection to its network. It indicates no endorsement of the product by
Telecom, nor does it provide any sort of warranty. Above all, it provides no
assurance that any item will work correctly in all respects with another item
of Telepermitted equipment of a different make or model, nor does it imply
that any product is compatible with all of Telecom’s network services.
Other countries 23
The “Modem on Hold” feature of V.92 modems requires compliance by the
modem, the Public Switched Telephone Network (PSTN) and the Internet
Service Provider (ISP). This modem may not handle Modem on Hold correctly
when connected to the Telecom New Zealand PSTN even when it is loaded
with the correct V.92 software. If problems occur with the operation of
Modem on Hold do not report them to the Telecom Fault Service or a charge
may be imposed on the customer.
This equipment is not capable, under all operating conditions, of correct
operation at the higher speeds for which it is designed. Telecom will accept no
responsibility should difficulties arise in such circumstances. This condition
typically applies to 56 kbit/s modems and facsimile machines operating at
>14.4 Kbit/s.
This equipment may not provide for the effective hand-over of a call to
another device connected to the same line.
Under power failure conditions this appliance may not operate. Please ensure
that a separate telephone, not dependent on local power, is available for
emergency use.
Some parameters required for compliance with Telecom’s Telepermit
requirements are dependent on the equipment (PC) associated with this
device. The associated equipment shall be set to operate within the following
limits for compliance with Telecom’s Specifications:
1. There shall be no more than 10 call attempts to the same number within
any 30 minute period for any single manual call initiation, and
The equipment shall go on-hook for a period of not less than 30 seconds
between the end of one attempt and the beginning of the next call attempt.
2. Automatic calls to different numbers shall be spaced such that there is not
less than 5 seconds between the end of one call attempt and the beginning
of another.
This equipment shall not be set up to make automatic calls to Telecom’s 111
Emergency Service.
In order to operate within the limits of compliance with Telecom’s
specifications, equipment shall be set to ensure that calls are answered within
30 seconds of the receipt of ringing. ‘The facsimile rings to answer setting’
should be configured to a maximum of 10 rings to comply with this
requirement.
24 ThinkPad
®
X41 Tablet Series Regulatory Notice
Notice for users in Singapore
For models: J07M067, WM3B2200BG, AR5BMB-44 and WM3B2915ABG
OPERATING CONDITIONS UNDER WHICH THE
RADIOCOMMUNICATION EQUIPMENT ARE EXEMPTED FROM
LICENSING
To maximize frequency sharing while minimizing radio interference, the
following operating conditions are imposed to confine the propagation of
radio signals within a building or at a localised site:
a) The radiocommunication equipment shall be used for in-building or
localised on-site operations;
b) The radiocommunication equipment shall operate at frequencies or
frequency bands designated by IDA on non-exclusive basis;
c) The radiocommunication equipment shall not operate beyond the
maximum permissible output power designated by IDA to confine the
propagation of radio signals to a small localised area;
d) For an on-site localised operation with little obstruction by the nearby
buildings or terrain, height of any external antenna, if installation approved
by IDA, shall not be more than 10 metres above ground level to limit the
radio wave propagation; and
e) No repeater station shall be used to extend the radio coverage.
Other countries 25
26 ThinkPad
®
X41 Tablet Series Regulatory Notice
Trademarks
The following terms are trademarks of the IBM Corporation in the United
States or other countries or both:
IBM
IBM (logo)
ThinkPad
Intel is a trademark of Intel Corporation in the United States, other countries,
or both.
Other company, product, and service names may be trademarks or service
marks of others.
© Copyright IBM Corp. 2005 27
28 ThinkPad
®
X41 Tablet Series Regulatory Notice
Part Number: 39T2305
Printed in USA
(1P) P/N: 39T2305
