1． Introduction
BW8800 is a wireless module，It support usb2.0 interface，and it is compatible with 802.11
a/b/g/n/ac and BT4.0 spec.
Generic,the wireless module is build in complete machine，it will not be used on PC.
1.1WorkMode
BW8800 support following work mode：
WLAN Client
Wifi Direct / P2P features
Bluetooth
1.2SupportedSystem
BW8800 support linux system up to now,we can provide linux driver and test tools.
1.3Supportedinterface
It support usb2.0,you can connect it to host with usb interface.
2． SOP
The BW8800 assembly is shown in the following steps:

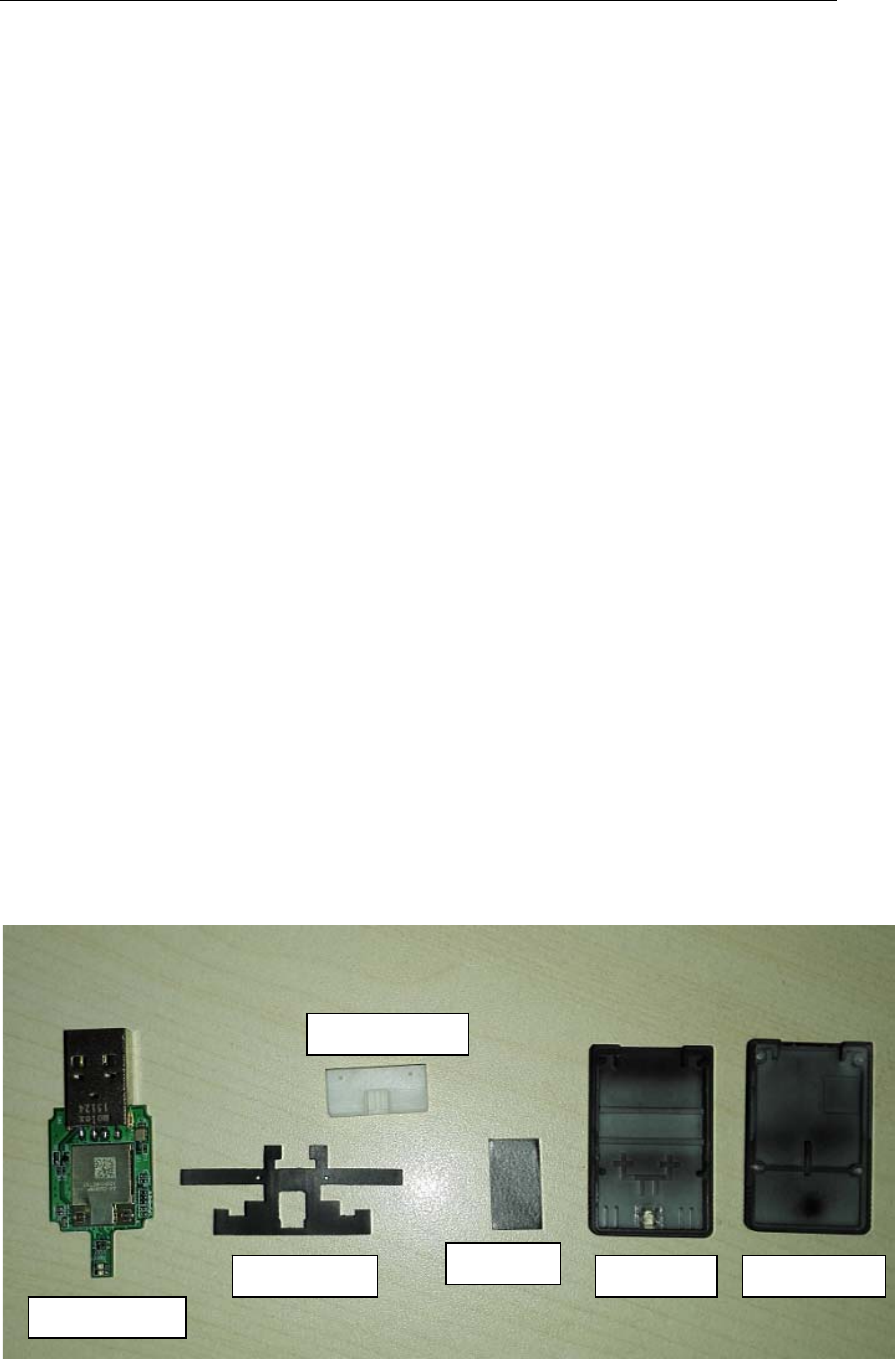

All the assembly components are shown in the picture at below:

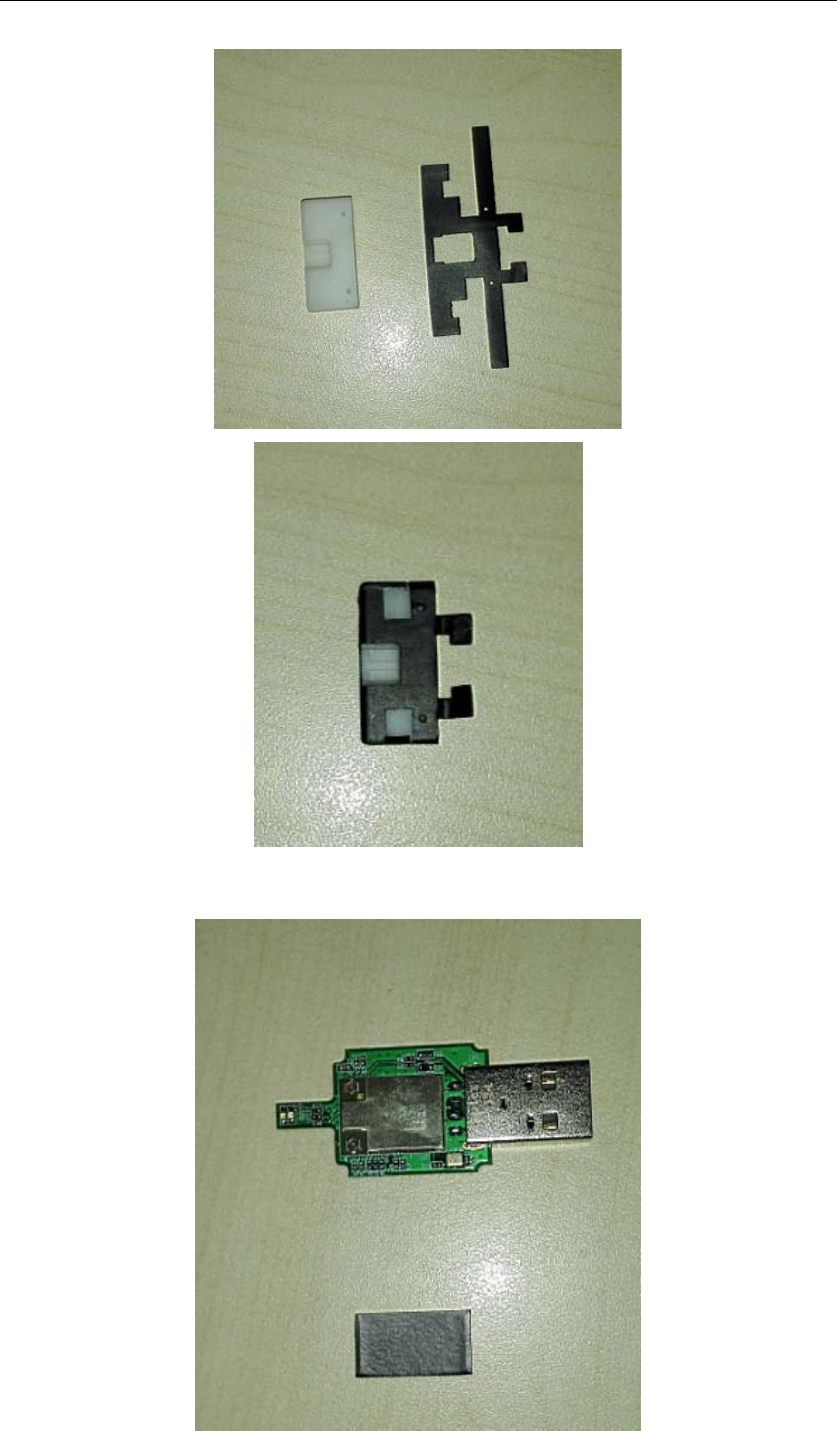

Step 1: Paste FPC antenena to antenna holder to construt the antenta pattern as the picture showns
at below:
Dongle PCBA
FPC Antenna Bottom Case
Heat-sink
Antenna Holder
TOP Case
BW8800 Users Manual
Step 2: Paste the heat-sink from Azurewave module to USB connector as picture shown:
BW8800 Users Manual

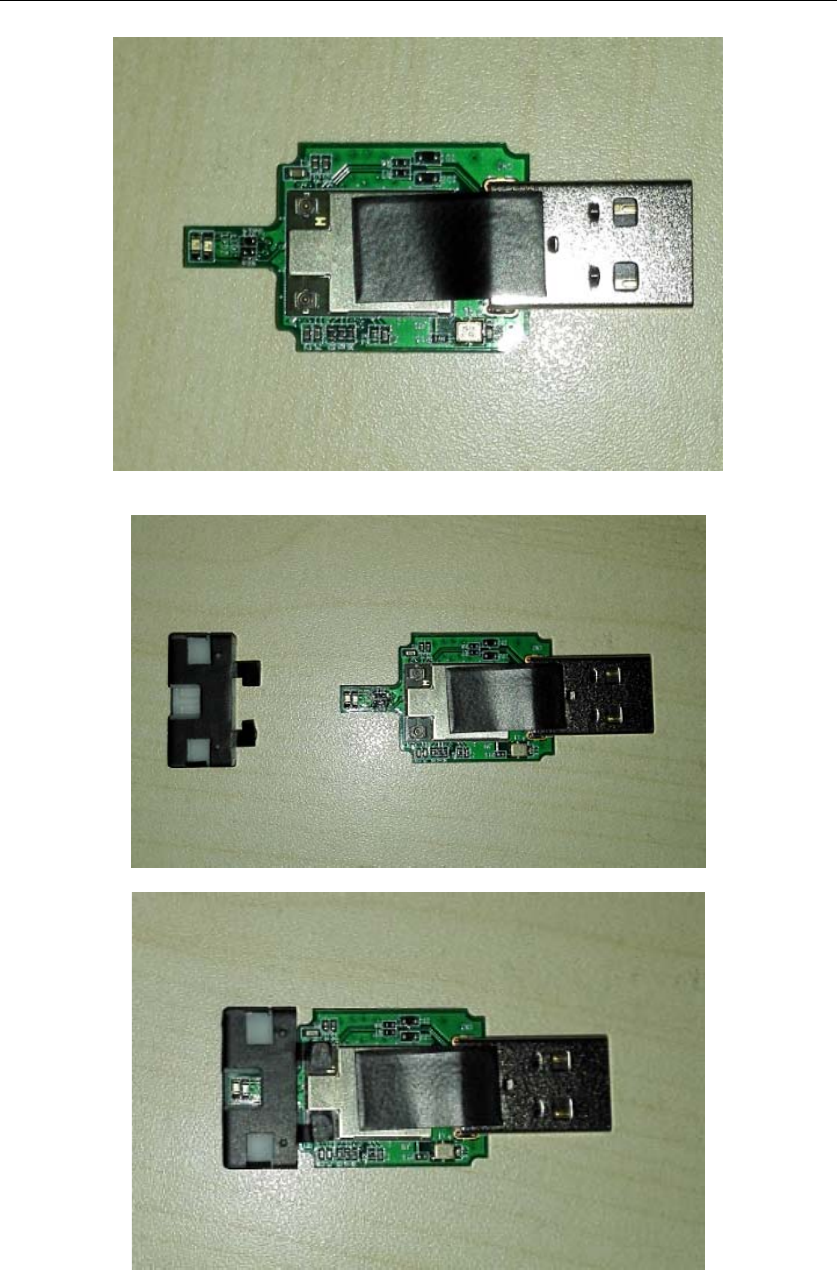

Step 3: assembly the antenna pannen and the dongle module as the following pictures:

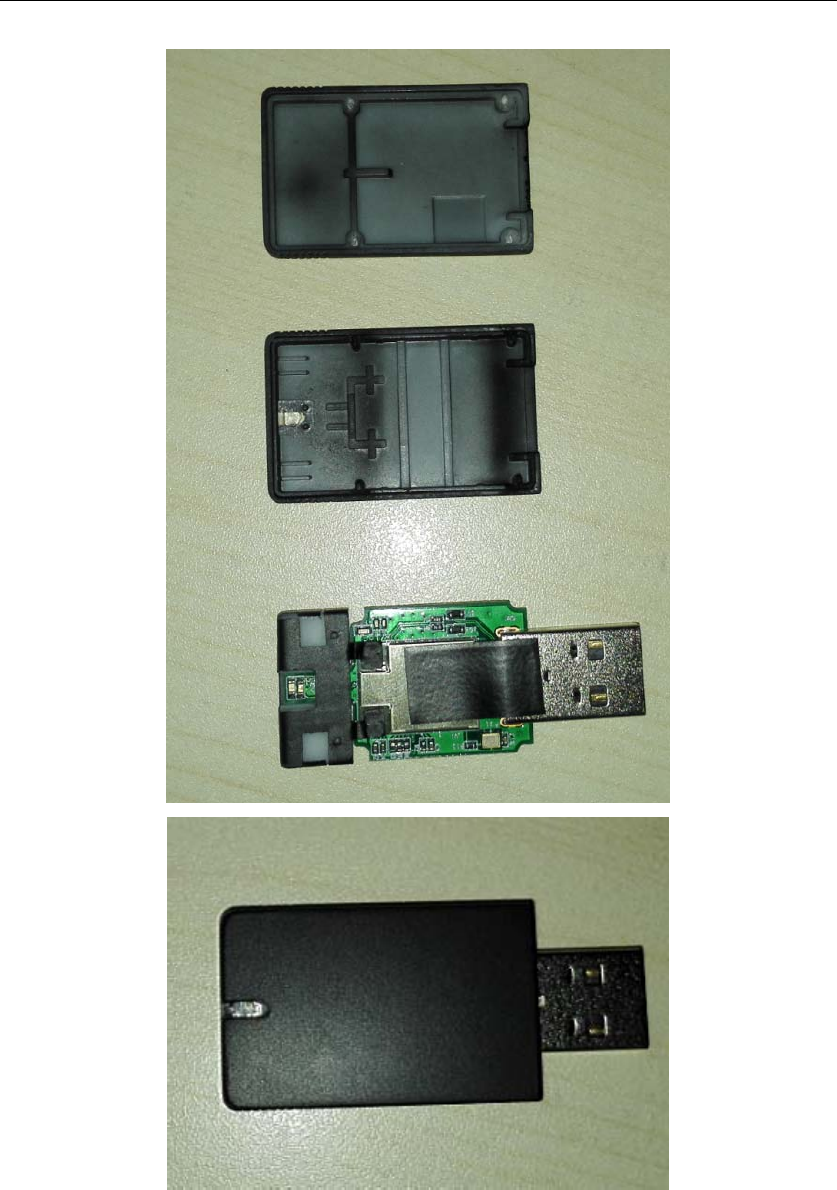

Step 4: install the top and bottom case of dongle
BW8800 Users Manual
BW8800 Users Manual

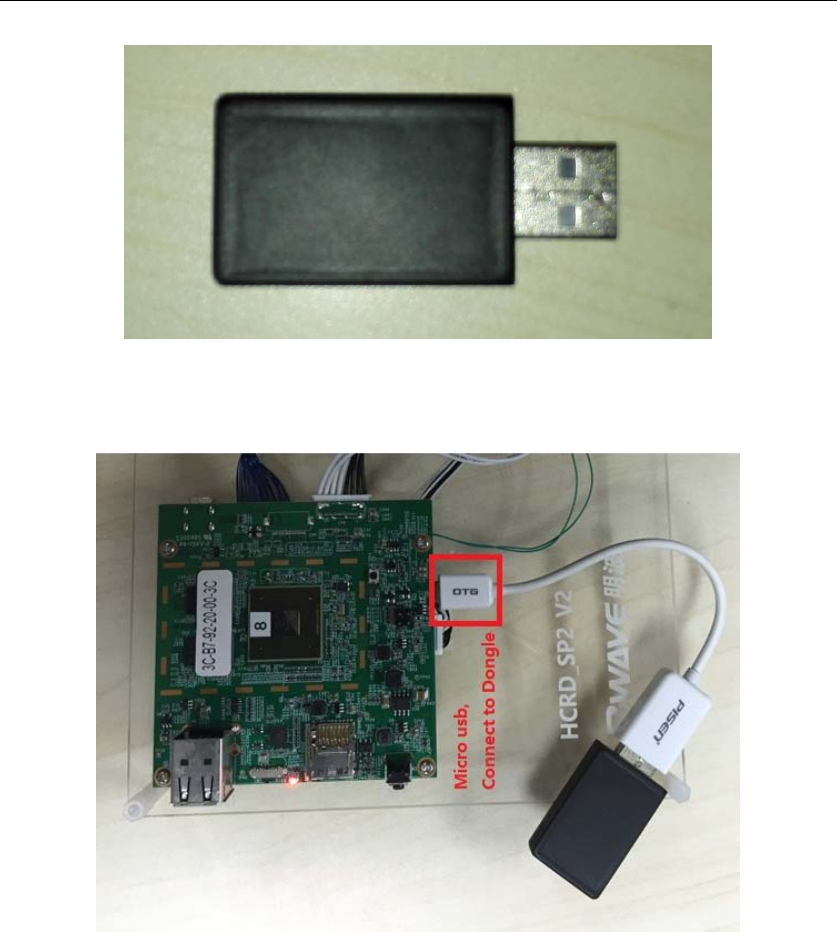

Step 5: Connect to your host main board with usb interface and the main board was setup in the
HITACHI smart projector. BW8800 can not work alone ,it must be working with main board .
Such as:
3． Application
BW8800 is now used to HITACHI smart projector。
4.1Thesmartprojectoroutsideview

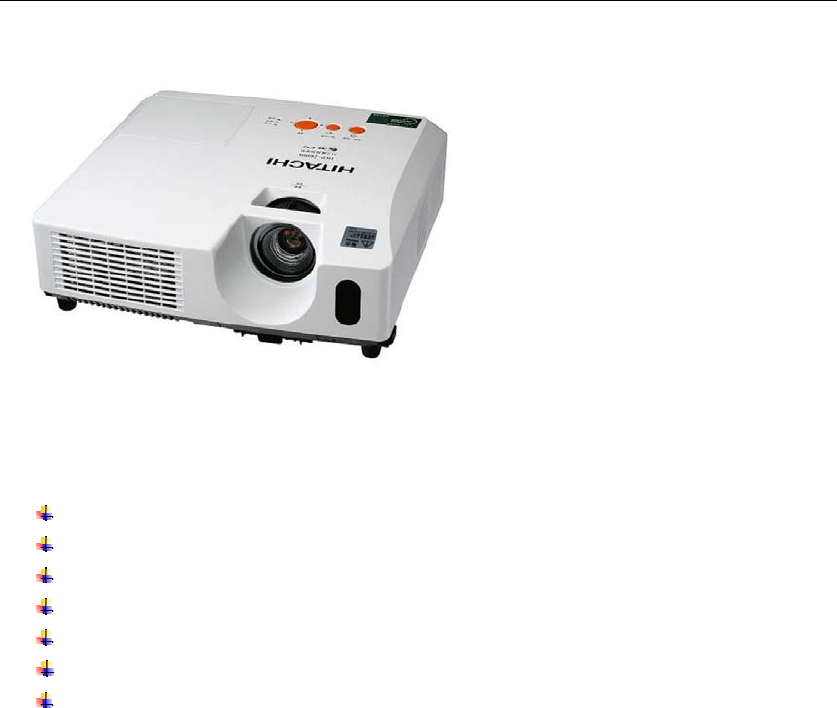

The new smart projector is developing,Its fisrt outside view as below：
BW8800 Users Manual
4.2Thesmartprojectorsupportedfeatures
It may support following features：
connect with AP or other smart device by wifi
connect with smart phone or other smart device by BT
support storage
support multi-screen
It can be controlled with smart phone
Miracast
Support Internet
4.3wificonnect
When BW8800 is work in P2P model in the smart projector，your phone can scan and
connect to it。
Then you can control the smart projector with your phone,or up or download file to/from the
projector.
When BW8800 is work in STA model in the smart projector，it can be connected to AP.Then
it can access Internet.
4.4BTconnect
Open the BW8800 BT and your phone BT function, scan BW8800 and pair with your smart
phone,and connect your phone to BW8800
Then you can control the smart projector with your phone,or up or download file to/from the
projector
5.Warning
Please keep far away from water
Please use the rated power
Please keep ventilation
BW8800 Users Manual
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
