Bytereal Technologies HIBEACON iBeacon Station User Manual Bytereal HiBeacon
Shenzhen Bytereal Technologies Co.,Ltd iBeacon Station Bytereal HiBeacon
User Manual
SHENZHEN BYTEREAL TECHNOLOGIES CO., LTD Nov, 2014
Bytereal HiBeacon
User Manual
●

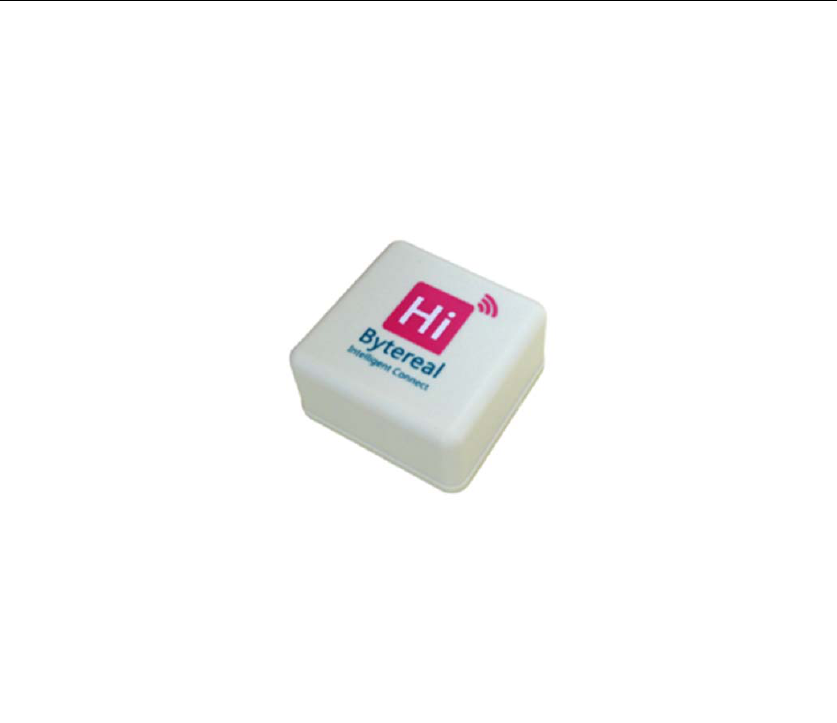

Introduction
The HiBeacon is a small Bluetooth Low Energy device that transmit a unique
signal to native mobile apps. Native mobile apps can then pick up this signal
when a user is nearby and then deliver some content or action on their
smartphone.
● Dimensions
41 x 41 x 20 mm
● Technical Data
◆ Driving Voltage: DC 3V
◆ Power : Active mode 0.5mA
Sleep mode 14uA
◆ Operation temperature: -10~75℃
SHENZHEN BYTEREAL TECHNOLOGIES CO., LTD Nov, 2014

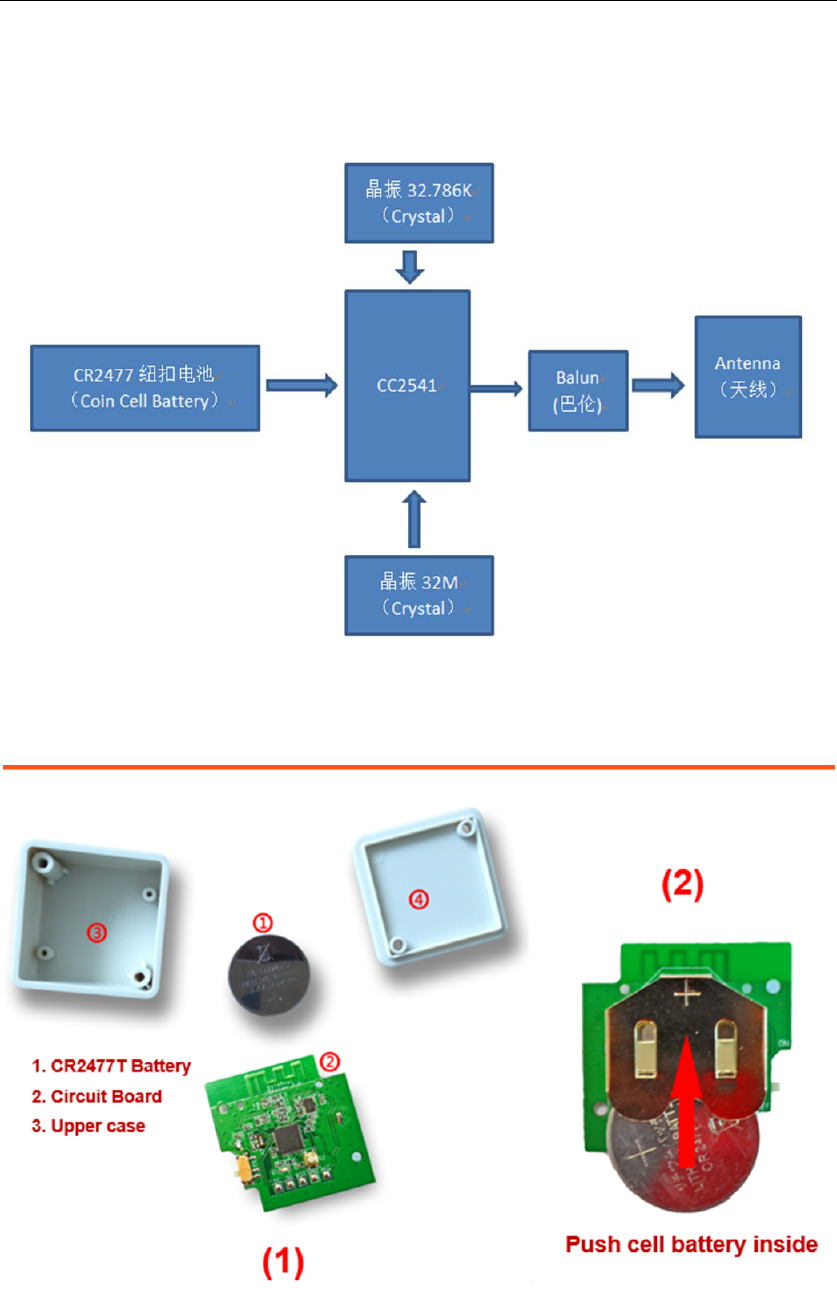

● Block Diagram
Figure1SystemDiagram

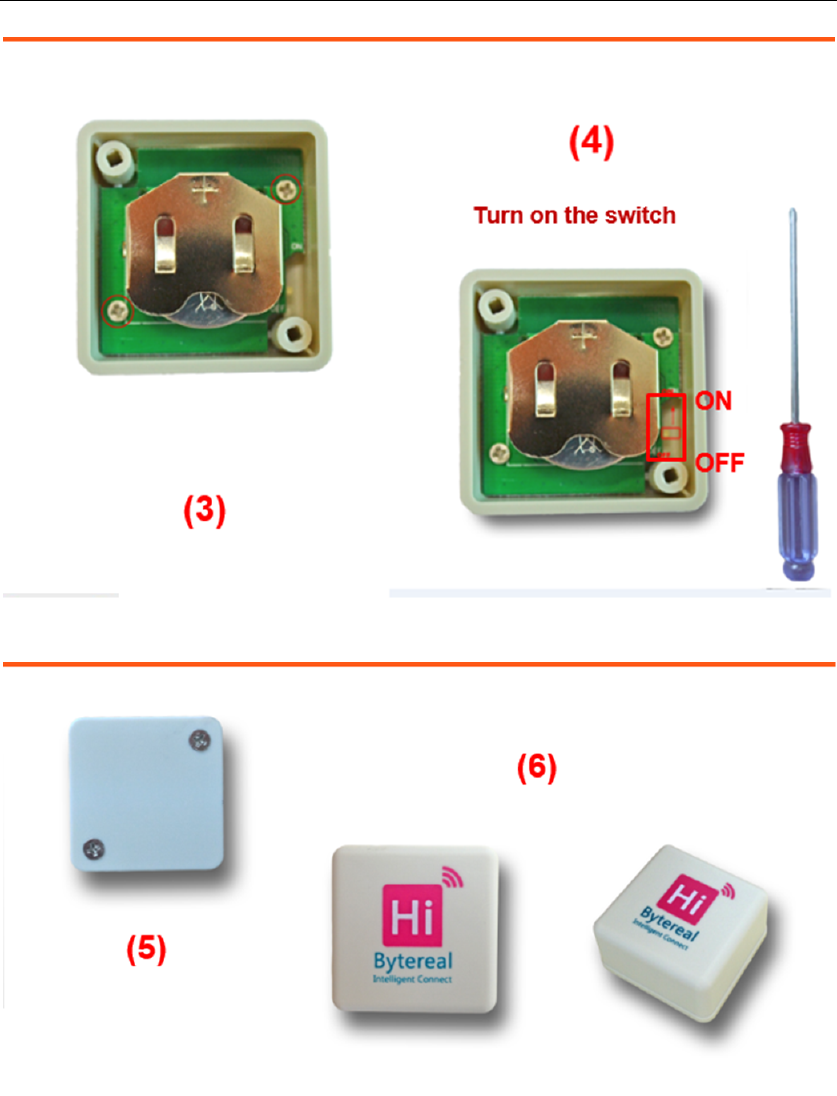

● Operation instruction
SHENZHEN BYTEREAL TECHNOLOGIES CO., LTD Nov, 2014
SHENZHEN BYTEREAL TECHNOLOGIES CO., LTD Nov, 2014
● Maintenance
Inspection can be done regularly, In case of failure, notify the contractor immediately for repair.
FCC NOTE：
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT.
SUCH MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
