Description
The CMM-9301-V3.1S module is a Bluetooth SIG qualified, miniaturised BLE controller module based
on EM Microelectronic's low power fully integrated single-chip Bluetooth Low Energy (BLE) Controller
EM9301. The module is highly optimized for Bluetooth 4.0 Single Mode (Bluetooth Low Energy) link
application requiring ultra low power consumption and short time-to-market. It offers a plug and play
solution for any BLE application up to the link layer, without any additional hardware nor RF layout.
Built in with a folded-dipole PCB antenna, this small sized, low cost module provides an ideal solution
to the new BLE technology.
The EM9301 is designed to act as BLE master or slave according to the Bluetooth 4.0 specification. It
can be controlled by any external microcontroller featuring BLE profile and applications, through the
standard BT HCI interface.
1.1 Features

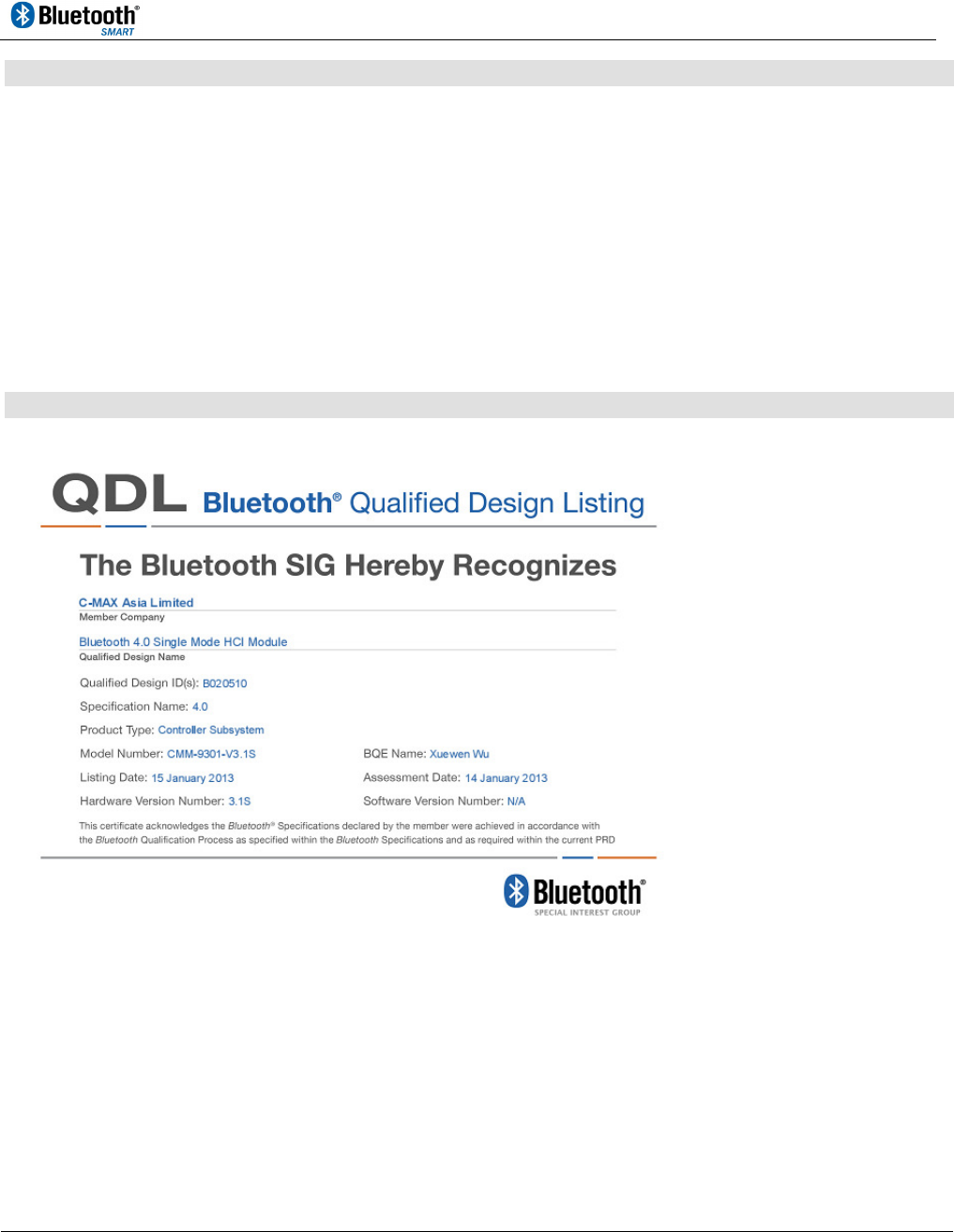

o Bluetooth SIG qualified Controller Subsystem QDID: B020510
o Master and Slave BLE controller compliant to Bluetooth 4.0 specification
o Embedded low-power physical layer, Link Layer with security engine, and a Host Controller
Interface (HCI)
o Low average current consumption
o 1Mbps on-air data rate
o Mini-sized (18.5mm x 14mm)
o Integrated Battery Low Detection
o Programmable RF output level (-18 to +3 dBm) for current consumption optimization.
o No Tuning necessary
o SPI interface as HCI transport layer to micro-controller
CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
2 of 9
C-MAX
1.2 Module Dimension, Pin Assignment and Physical Layout
External External
Top view Top view
(Shielded, (Shielded,
with pin header) without pin header)
Internal Internal
Top view Bottom view
Module Dimensions Module Layout
Connection pin pitch = 1.27mm
Module Thickness (excluding pin header connectors) = 2.4mm max
Pin Number Pin Name Input/Output to
module
Pin Description
1 RST I Reset (controlled via FET by 100ms HI input pulse) /
ON (LO) / OFF (HI)
2 GND GND Ground Connection
3 CS I Chip Select (Active LO)
4 IRQ O Interrupt Output for external host Controller
5 SDO O SPI Data Output
6 SDI I SPI Data Input
7 SCK I SPI Clock Input
8 VCC VCC Power Supply
9 SEL I Interface Selection (0 = UART, 1 = SPI)
CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
3 of 9
C-MAX

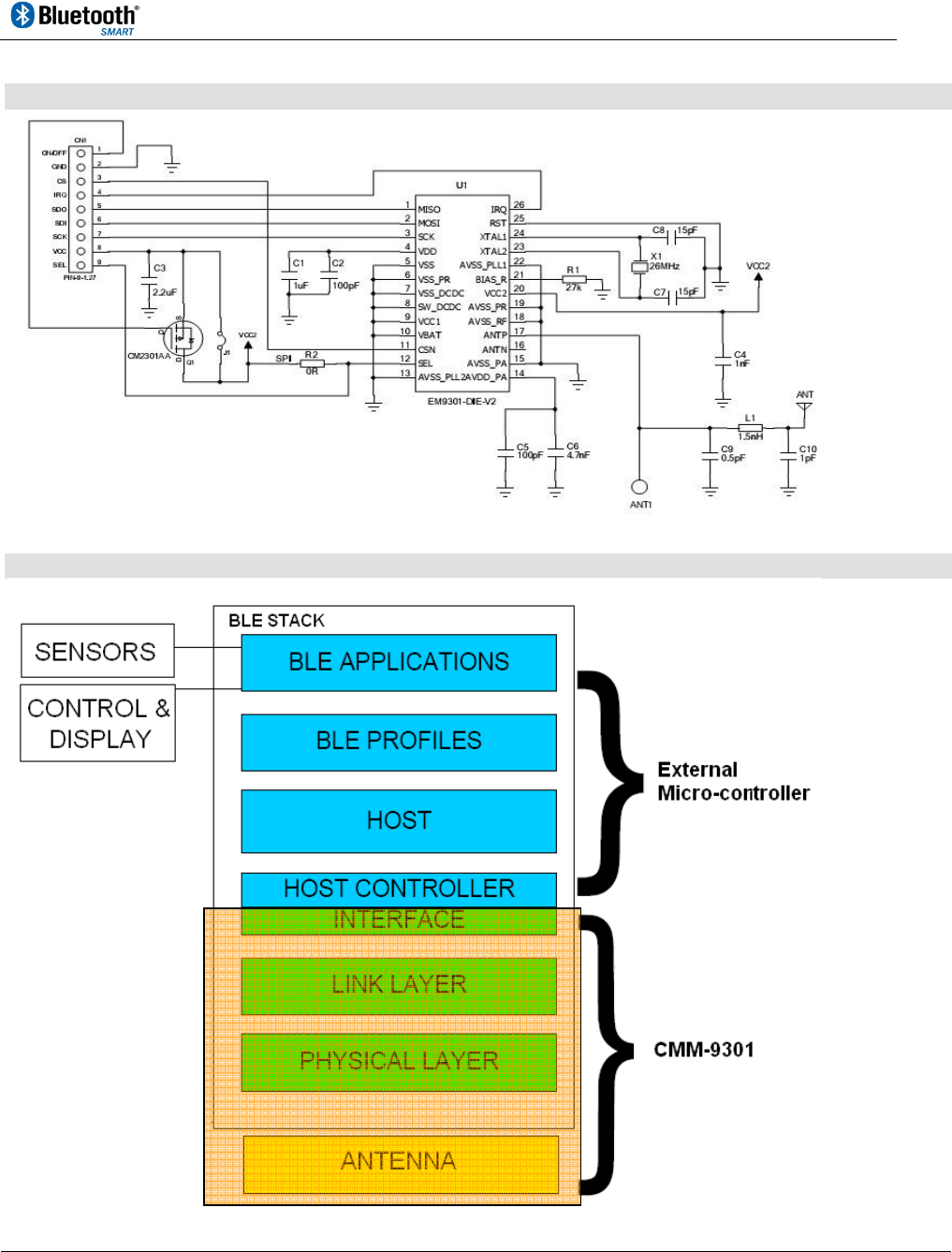

1.3 Module Reference Circuit diagram
1.4 BLE application reference block diagram
CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
4 of 9
C-MAX
1.5 Module Electrical Specifications
Specification
CMM
-
9
3
01
-
V3.1S
Voltage Range 2.3V to 3.6V
Frequency Range 2.400 to 2.484 GHz
Modulation GFSK
On-air data rate 1Mbps
RF channels 40
Current Consumption (Vcc = 2.5V)
- Off mode (RESET = HI) 1 uA typ.
- Active mode (RX) 12.9 mA typ.
- Active mode (TX at 0 dBm) 12.1 mA typ.
Programmable output power -18 dBm to +3 dBm
SPI speed (bit rate) 5000 kbits/s (max)
Note : For more detailed timing and electrical characteristics, please contact C-MAX Asia Ltd for EM9301 updated datasheet.
2. Ordering information
C
-
MAX Module Part Number
Delivery Form
Size
Typical Operating Voltage
CMM-9301-V3.1S Non-shielded, no
pin connectors
18.5 x 14 mm 2.3 ~ 3.6V
CMM-9301-V3.1SP Non-shielded, with
pin connectors
18.5 x 14 mm 2.3 ~ 3.6V
CMM-9301-V3.1SF Shielded, no pin
connectors
18.5 x 14 mm 2.3 ~ 3.6V
CMM-9301-V3.1SX Shielded, with pin
connectors
18.5 x 14 mm 2.3 ~ 3.6V
CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
5 of 9
C-MAX
3. FCC Statement
NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications made to this equipment not expressly approved by CMA Industrial
Development Foundation Limited may void the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help
Radio frequency radiation exposure information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Please see the RF Exposure information. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device should be installed and operated with a minimum distance of 20cm between the antenna
and all persons.
Label requirements:
Contains: FCC ID:
2ABBXCM9301V312013
FCC RF Exposure Requirement:
• At least 20cm separation distance between the antenna and the user’s body must be maintained at
all times. And must not transmit simultaneously with any other antenna or transmitter, except in
accordance with FCC multi transmitter product procedures.
• To comply with FCC regulations limiting both maximum RF output power and human exposure to
RF radiation, the maximum antenna gain including cable loss in a mobile-only exposure condition
must not exceed 0dBi in the 2.4GHz band.
• A user manual with the end product must clearly indicate the operating requirements and conditions

CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
6 of 9
C-MAX
that must be observed to ensure compliance with current FCC RF exposure guidelines.
Note: If this module is intended for use in a portable device, you are responsible for separate approval
to satisfy the SAR requirements of FCC Part 2.1093.
Please be noted that the following information and instructions should be placed in the end-
user’s operating manual.
The CMM-9301-V3.1S Module must be installed in the designated host as specified in this manual.
• Separate approval is required for all other operating configurations, including portable
configurations with respect to 2.1093 and different antenna configurations.
• The CMM-9301-V3.1S Module and its antenna must not be co-located or operating in conjunction
with any other transmitter or antenna within a host device. This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment.
• A label must be affixed to the outside of the end product into which the CMM-9301-V3.1S Module is
incorporated, with a statement similar to the following: For CMM-9301-V3.1S: This device contains
FCC ID: 2ABBXCM9301V312013.
• The module shall be in non-detachable construction protection into the finished products, so that
the end-user has to destroy the module while remove or install it.
• This module is to be installed only in mobile or fixed applications. According to FCC part 2.1091(b)
definition of mobile and fixed devices is:
Mobile device:
A mobile device is defined as a transmitting device designed to be used in other than fixed
locations and to generally be used in such a way that a separation distance of at least 20
centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of
the user or nearby persons. In this context, the term ‘‘fixed location’’ means that the device is
physically secured at one location and is not able to be easily moved to another location.
Portable device:
For purposes of this section, a portable device is defined as a transmitting device designed to be
used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the
user.
• Separate approval is required for all other operating configurations, including portable
configurations with respect to FCC Part 2.1093 and different antenna configurations.
• A certified modular has the option to use a permanently affixed label, or an electronic label. For a
permanently affixed label, the module must be labeled with an FCC ID: 2ABBXCM9301V312013.
The OEM manual must provide clear instructions explaining to the OEM the labeling requirements,
options and OEM user manual instructions that are required.
• For a host using this FCC certified modular with a standard fixed label, if (1) the module’s FCC ID is
not visible when installed in the host, or (2) if the host is marketed so that end users do not have
straightforward commonly used methods for access to remove the module so that the FCC ID of
the module is visible; then an additional permanent label referring to the enclosed module:
“Contains: FCC ID: 2ABBXCM9301V312013” must be used. The host OEM user manual must also
contain clear instructions on how end users can find and/or access the module and the FCC ID.
CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
7 of 9
C-MAX
• Host product is required to comply with all applicable FCC equipment authorizations regulations,
requirements and equipment functions not associated with the transmitter module portion,
compliance must be demonstrated to regulations for other transmitter components within the host
product; to requirements for unintentional radiators (Part 15B). To ensure compliance with all non-
transmitter functions the host manufacturer is responsible for ensuring compliance with the
module(s) installed and fully operational. If a host was previously authorized as an unintentional
radiator under the Declaration of Conformity procedure without a transmitter certified module and a
module is added, the host manufacturer is responsible for ensuring that after the module is installed
and operational the host continues to be compliant with the Part 15B unintentional radiator
requirements. Since this may depend on the details of how the module is integrated with the host,
we suggest the host device to recertify part 15B to ensure complete compliance with FCC
requirement: Part 2, Subpart J, Equipment Authorization Procedures, KDB784748 D01 v07, and
KDB 997198 about importation of radio frequency devices into the United States.
OEM RESPONSIBILITIES TO COMPLY WITH FCC REGULATIONS
The CMM-9301-V3.1S Module has been certified for integration into products only by OEM integrators
under the following conditions: This device is granted for use in Mobile only configurations in which the
antennas used for this transmitter must be installed to provide a separation distance of at least 20
centimeters from all persons and not be co-located with any other transmitters except in accordance
with FCC and Industry Canada multi-transmitter product procedures.
As long as the two conditions above are met, further transmitter testing will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for certain configurations
or co-location with another transmitter), then the FCC and Industry Canada authorizations are
no longer considered valid and the FCC ID and IC Certification Number cannot be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC and Industry Canada
authorization.
OEM LABELING REQUIREMENTS FOR END-PRODUCT
The CMM-9301-V3.1S module is labeled with its own FCC ID Certification Number. The FCC ID
certification numbers are not visible when the module is installed inside another device, as such the
end device into which the module is installed must display a label referring to the enclosed module. The
final end product must be labeled in a visible area with the following: “Contains: FCC ID:
2ABBXCM9301V312013”.
The OEM of the CMM-9301-V3.1S Module must only use the approved antenna(s) listed above, which
have been certified with this module. The device carries FCC authorization and is marked with the FCC
ID Number. Whilst any device into which this authorized module is installed will not normally be
required to obtain FCC authorization, this does not preclude the possibility that some other form of
authorization or testing may be required for the finished device.
CMM-9301-V3.1S
Bluetooth 4.0 Single Mode HCI Module
SPEC No.
CMM-9301-V3.1S
BLE HCI module
Revision
3.4
State
2013-12-13
C-MAX printed
2013-12-13
Version
English
Page
8 of 9
C-MAX
OEM END PRODUCT USER MANUAL STATEMENTS
The OEM integrator should not provide information to the end user regarding how to install or remove
this RF module or change RF related parameters in the user manual of the end product.
If this module is intended for use in a portable device, you are responsible for separate approval to
satisfy the SAR requirements of FCC Part 2.1093.
The user manual for the end product must include the following information in a prominent
location:
This device is granted for use in mobile only configurations in which the antennas used for this
transmitter must be installed to provide a separation distance of at least 20 centimeters from all
persons and not be co-located with any other transmitters except in accordance with FCC and Industry
Canada multi-transmitter product procedures.
The end product with an embedded FCC ID: 2ABBXCM9301V312013 Module may also need to pass
the FCC Part 15 unintentional emission testing requirements and be properly authorized per FCC Part
15.
The labeling instructions of finished products refer to following requirements:
A certified module has the option to use a permanently affixed label, or an electronic label (see
Electronic Labeling below). For a permanently affixed label, the module must be labeled with an FCC
ID - Section 2.926 (see Certification labeling requirements above). The OEM manual must provide
clear instructions explaining to the OEM the labeling requirements, options and OEM user manual
instructions that are required (see next paragraph).
For a host using a certified module with a standard fixed label, if (1) the module’s FCC ID is not visible
when installed in the host, or (2) if the host is marketed so that end users do not have straight forward
commonly used methods for access to remove the module so that the FCC ID of the module is visible;
then an additional permanent label referring to the enclosed module: “Contains FCC ID:
2ABBXCM9301V312013” must be used. The host OEM user manual must also contain clear
instructions on how end users can find and/or access the module and the FCC ID.
Other user manual statements may apply.
