C and D Electronics RF061A REMOTE CONTROL User Manual RF4CE IR Specification 1 09
Shenzhen C&D; Electronics Co.,Ltd REMOTE CONTROL RF4CE IR Specification 1 09
USERS MANUAL
RF061A +IR Functional Specification
UPDATE NOTE
DATE EDITION NOTE UPDATE BY
2012.2.17 V1.07 Added IR button code remark and delete
button code of bin format in
section7,added the remarks about default
code 0281 in section13,added the
Appendix list on the last page
Jin XianYong
2012.2.21 V1.08 Added IR distance spec in section14 Jin XianYong
2012.2.23 V1.09 Change angle of 15 degrees to angle of
30 degrees in section5.2 Jin XianYong
SUMMARY
Keys introduce -------------------------------------------------------------------------- 1

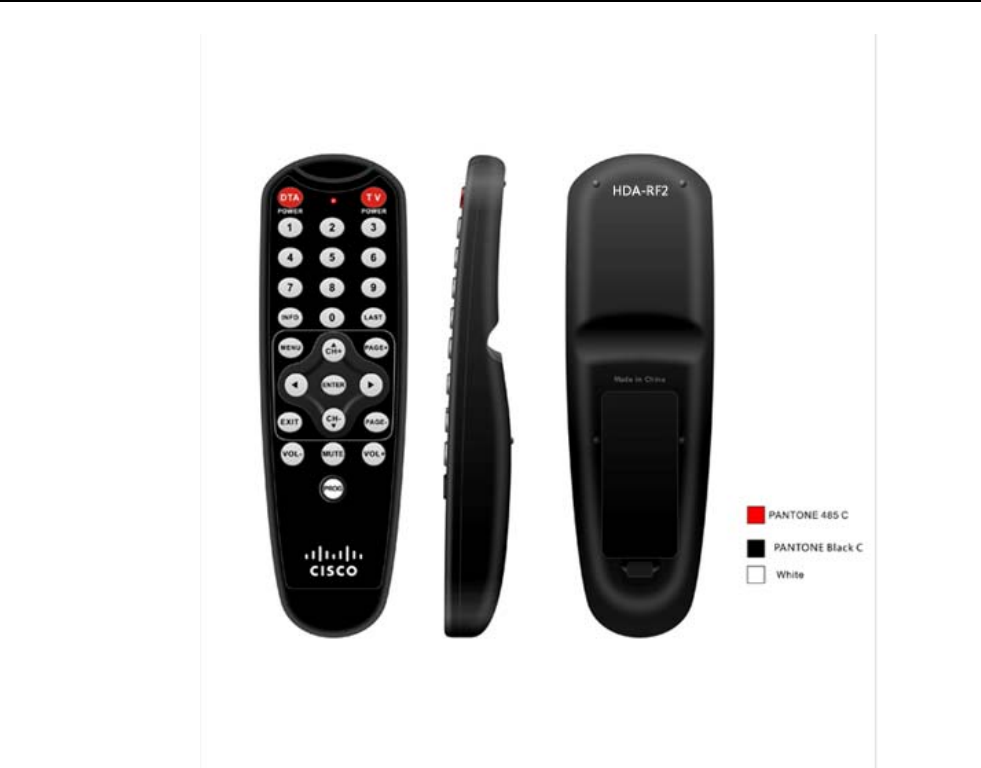

Product external view -------------------------------------------------------------------- 2
Blockdiagram --------------------------------------------------------------------------- 3
RF Range and IR range spec ---------------------------------------------------- 4
TV brand selection proces--------------------------------------------------------- 5&6
Pairing the remote control and target process ------------------------------- 7
IR reset process -------------------------------------------------------------------- 8
Factory reset process -----------------------------------------------------------------9
IR mode switch to RF process ------------------------------------------------------10
RF4CE code list -----------------------------------------------------------------------11
IR distance spec -----------------------------------------------------------------------12
1. Keys: 27 individual keys
1.1 The Keys including:
1. Power,
2. Exit,
3. TV Power,
4. Page+/-,
5. Info,
6. 0-9 Digits,
7. Enter,
8. Volume +/-,
9. Channel +/-,
10. Last,
11. Mute,
12. Right Arrow,
13. Left Arrow,
14. Menu,
15. PROG
1.2 Protocol
a) Infrared from Universal North American Television Library for Volume +/-,
Mute, & Power Toggle
b) Infrared 57kHz Cisco/Scientific Atlanta protocol on DTA
c) RF4CE for RF on DTA
2. Development platform
The product will be developed based on a GP561 based RF Remote Control
which adopts RF4CE protocol and the Universal Library.
GP561 supports :
-.IEEE802.15.4 communication controller with PHY and All RF4CE-required MAC
which provides a packet-level service to the RF4CE Network Layer, and handles
packet transmissions and receptions autonomously.
-. A low power Security Engine works independently from the PHY and MAC.
-. The RF4CE Network layer which implement the RF4CE network functionality.
-. The RF4CE Profile layer implements the ZigBee Remote Control (ZRC) profile,
RF4CE profile 0x01: Consumer Electronics Remote Control (CERC).
-. Application Configuration Data being stored in an external SEEPROM
-. A configurable set of peripherals including GPIO, Keyboard Scanner, IR, ADC, and
TWI.
-.Timing and Control for The GP561 is designed to work in an environment where low
power consumption is very important
3. Blockdiagram
4. Battery
2AAA batteries
5. RF Range and IR range
5.1 RF range
The remote control must support a transmission range of 16 meters in direct
line-of-sight, 10 meters when not line-of-sight.
5.2 IR range
The remote control must support a transmission range of 10 meters in direct
line-of-sight
The remote control must support a transmission range of 8 meters with the
angle of 30 of degrees
6. Programming
6.1 Direct-Code-Entry programming
In this mode, user can program the code number directly. Look up the code in
the code list for your TV brand.
1. Turn on your TV device.
2. Press “PROG” key for three seconds, the LED indicator will turn on, then
press “TV Power” key
3. According to the TV brands, find the device code (four digits).Press to enter
four digits code sequence.
4. If the device code is valid, LED indicator will blink two times quickly and then
the device code will be retained. If this device code is invalid, the LED
indicator will blink three times quickly. The remote control will
retains the previous code. You can go back to the step 2.
6.2 Automatic Code Search
If you can’t find the device code for your brand in the code list, you can try to
search for your device code as follows:
1. Turn on your TV device .
2. Press and hold the “PROG” key for three seconds to enter Setup Sequence.
3. Press “CH+” key to enter the Automatic Code Search mode. The remote
control will transmit the TV power code every 1.5 seconds, the LED indicator will
blink at the same time. When you see the TV device is powered off , it shows that
the remote control has found one valid group device code. Then press the “TV
POWER” key, the device code will be stored and the remote control will exit the
search mod
6.3 Send volume control to IR TV/DTA
Key sequence to invoke the feature:
1. Press and hold “PROG” key for 3 seconds or until the LED turns on.
2. Press the “VOL-” key to assign the volume +,volume – and mute keys to
control DTA.
3. Press the “VOL+” key to assign the volume +,volume – and mute keys to
control TV.
Default state: volume+, Volume – and Mute keys to control DTA.
Remark: DTA Power button and TV Power button only use to power on/off
TV/DTA.
7. Pairing the remote control and target (DTA)
User can adopt IR function to control DTA directly. If user wants to use the
RF4CE function, the remote should be paired with the target (DTA ) as steps
below.
Pairing Scenario 1
1. Turn on your target (DTA) device.
2. Press “PROG” key until LED turns on, then press “Info” key.
3. The LED on the remote control will blink slowly to indicate that it is now in
pairing mode.
4. The remote sends discovery request.
5. The target (DTA) responds after it has received a discovery request command.
6. The remote sends the pairing request.
7. The target (DTA) responds after it has received a pairing request command.
8. The target (DTA) will prompt the user via message on TV screen to enter a
unique four digit number.
9. If enter the four digits are correct, the target (DTA) will prompt the user that
pairing is successful.
10. If enter the four digits are incorrect, the target (DTA) will prompt the user that
pairing failed and try again until correct code is entered.
Un-pairing Scenario
Once paired with a target (DTA), the remote can be unpaired using the following
sequence:
1. Press and hold “PROG” key for 3 seconds or until the LED turns on.
2.Press <9> <8> <7>,LED will blink two times quickly to show procedure is
successful.
8. IR Reset Mode
The configured TV IR codes can be reset to its factory default using the following
sequence:
1. Press and hold “PROG” key for 3 seconds or until the LED turns on.
2.Press <9> <8> <6> , LED will blink two times quickly to show that procedure is
successful.
9. Factory Reset Mode
At any time, the remote can be returned to the factory reset state using the
following sequence:
1. Press and hold “PROG” key for 3 seconds or until the LED turns on.
2.Press <9> <8> <1>, LED will blink two times quickly to show procedure is
successful.
Factory Reset Mode state :
1. The remote is in the IR mode. ;
2. RF founction is invalid;
3. Vol+/Vol- us send to IR DTA
4. The IR codeset is 0281.
10.
RF DTA switches to IR TV(IR TV switches to RF DTA)
10.1 The RC can switch to RF mode, this function will only be successful when
the RC is actually paired with a target ; to switch to RF mode, use the following
steps:
1. Press and hold “PROG” key for 3 seconds or until the LED turns on.
2.Press VOL – key.
10.2 The RC can switch to IR mode, this function will only be successful when
the RC is actually paired with a target; to switch to IR mode, use the following steps:
1. Press and hold “PROG” key for 3 seconds or until the LED turns on.
2.Press VOL + key.
11. SA Protocol IR code
With this protocol the LSB is transmitted first:
KEY CUSTOM CODE(HEX) KEY CODE(HEX)
DTA Power 0x1B 0x07
TV Power n/a n/a
Info 0x1B 0x08
0-Digit 0x1B 0x19
1-Digit 0x1B 0x10
2-Digit 0x1B 0x11
3-Digit 0x1B 0x12
4-Digit 0x1B 0x13
5-Digit 0x1B 0x14
6-Digit 0x1B 0x15
7-Digit 0x1B 0x16
8-Digit 0x1B 0x17
9-Digit 0x1B 0x18
Enter 0x1B 0x0C
Volume + / (TV Vol +) 0x1B 0x20 / n/a
Volume - / (TV Vol -) 0x1B 0x21 / n/a
Arrow right 0x1B 0x04
Arrow left 0x1B 0x03
Channel + / arrow up 0x1B 0x1D
Channel - / arrow down 0x1B 0x1E
Last 0x1B 0x0E
Mute / (TV Mute) 0x1B 0x22 / n/a
Menu 0x1B 0x3E
Exit 0x1B 0x2C
Page+ 0x1B 0x36
Page- 0x1B 0x37
12. RF4CE code
KEY KEY CODE
DTA Power 0x6B
TV Power N/A
Info 0x35
0-Digit 0x20
1-Digit 0x21
2-Digit 0x22
3-Digit 0x23
4-Digit 0x24
5-Digit 0x25
6-Digit 0x26
7-Digit 0x27
8-Digit 0x28
9-Digit 0x29
Enter 0x2B
Volume + / (TV Vol +) 0x41 / N/A
Volume - / (TV Vol -) 0x42 / N/A
Arrow right 0x04
Arrow left 0x03
Channel + / arrow up 0x30
Channel - / arrow down 0x31
Last 0x32
Mute / (TV Mute) 0x43 / N/A
Menu 0x0C
Exit 0x0D
Page+ 0x37
Page- 0x38
13. TV Default code:0281
Device of TV code is 0281,TV brand is Akai. If TV default code is 0281,button code of“POWER”、
“VOL +”、“VOL -”and “Mute”will be the list as below.
Key Custom code Key code
POWER 0x04FB 0x08
VOL + 0x04FB 0x02
VOL - 0x04FB 0x03
MUTE 0x04FB 0x09
14. IR distance spec:
Angles IR
Test Spec. (meter) Spec. (ft)
0° 10 32.8
Right 30° 8 26.2
Left 30° 8 26.2
Right 45° 5 16.4
Left 45° 5 16.4
Right 60° 4 13.1
Left 60° 4 13.1
Top 30° 3 9.8
Top 45° 2 6.6
Bottom 30° 5 16.4
Bottom 45° 3 9.8
Close-in 0° 0.15 (max) 0.49 (max)
TV
888 0471 0701
A。R。 Systems 0061 0601 2881 0661 0751
Accent 0021 0061 2881
Acer 2961 3281
Acoustic arch 2911
Acura 0021
Adcom 1061
Addison 1181 0201
ADL 2181
Admiral 0171 0231 1191 0821 0471
Advent 1901
Adyson 0081 2051
AEA 0061 2881
AEG 2501 1031 1951
Agashi 2051 0471 0081
AGB 1611
Aiko 0021 0061 2881 2051 0641
0041 0711 0121 0311 0291
0471 0081
Aim 0061 0121 0701 2881 1521
0341 1651 1701 1301
Airis 3221
Aiwa 0981 2341 2581 2401
Akai 0021 0311 0341 2881 0061
0641 2741 2431 0711 1481
0291 0041 0351 1241 2641
0121 1521 0231 0701 1421
1351 1611 1341 0991 0911
0771 3121 0081 1091 2051
0471 0281 0651 1031 2001
2581 0761 1151 2421 2271
2601
Akashi 2151 0021
Akiba 0351 0481 0751 0061 2881
Akira 0821
Akito 0061 2881
Akura 0061 0351 0471 2881 1271
0701 0021 0481 1351 2621
Alaron 2051
Alba 0021 0061 2001 2881 0051
1351 0351 0821 1371 0641
1271 0621 2051 0431 0231
0811 2581 0731 2601
Alfide 1241
Alkos 0041
All-Tel 1881
Allorgan 0081
Allstar 0061 2881
Ambassador 0271
Amplivision 0081 1371 0531
Amstrad 0021 0271 0061 1611 0471
0671 0641 0351 0701 0711
2881 2001 1151 2621
Anam 0061 2881 0021 1161 1871
Anam National 0061 2881 1161
Andersson 1951 2041
Anglo 0021 0471
Anitech 0021 0471 0061 2881 0481
0191
Ansonic 1371 0061 2881 0021 1271
0661 0231 0191 0891 0461
0431 2381 1621
AOC 0021 0101 0171 0201 0281
Aolingpike 0471 0701
Apollo 0761
Arc en Ciel 0211
Arcam 2051 0081
Ardem 1221 1351 0061 1101 2881
Aristona 2881 0061
Arthur Martin 0231
ASA 1621 0181 0581 0111
Asambal 2721
Asberg 0061 2881 0191
Asora 0021
Astra 0061 2881
Asuka 0351 0081 2051 0471 0481
ATD 1301
Atlantic 0061 2881 2051 0531 0461
Atori 0021
Auchan 0231
Audiosonic 0021 0061 0661 1721 0211
2881 1351 1341 0081 1371
0561 0471 0351 1221 2191
Audioton 0081 1221 1371 0471
Audioworld 1301
Aumark 0101
Autovox 0081 0431
AVP 2581
AWA 0021 0031 0051 0661 0701
0061 2881 2051 1031 0081
0201 0471 3021
Axxent 0021
Axxon 1351
B&D 2181
Baier 1901
Baihe 0021 0471 0701
Baile 0001 0021 0661 1211
Baird 0211 2651 0301 0121 0131
0081 0341 2091
Bang & Olufsen 0951
BaoHuaShi 0471 0701
Baosheng 0021
Barco 0231
Basic Line 0021 0661 0061 0351 0231
1271 2881 0481 0081 0751
0571 2001
Bastide 0081
Bauer 1701 0021
Baur 0021 0061 0311 0791 0881
0011 2881 0291 2401
Bazin 0081
Beaumark 0281
Beijing 0001 0021 0341 0371 0471
0661 0701 0801 1211 1741
Beko 1371 1351 0041 1221 1341
0061 0821 2001 2881 1031
1821
Belson 2071 2711
Bennett 2881 0061
BenQ 2511
Beon 0061 2881 0821
Berthen 1271
Best 0561 1371
Bestar 0061 2881 1371 0661
Bestar-Daewoo 0661
Binatone 0081
Black Diamond 1001 1721 2001 2881 1741
1521 1951
Black Panther 0191
Black Star 0431
Black Strip 0041
Blackway 0481 0351
Blaupunkt 0011 0291 0881 0551 0401
0331 0751 0261 0051
Blue Sky 0061 0351 2881 1271 1351
2001 0811 1341 2411 0481
0751 2581 2071 1821 2971
Blue Star 0481
Bondstec 0431
Boots 0081 0021
Bosch 0531 0401
BPL 0061 0481 3111 2881 2721
2841 0341 2551 2811 2691
2791 3131 3391 3251 3101
Brandt 0211 1061 0441 0491 2651
0961 2981
Brandt Electrique 0491 0441
Brinkmann 0061 2881 1271 2661 0821
1221
Brionvega 0061 0671 2881
Britannia 2051 0081
Brother 0471
Bruns 1221
BSR 0231 0311
BTC 0351
Bush 0021 1001 0051 2001 0061
1201 3231 0351 1351 0481
1271 0621 0231 0641 0661
2661 1301 1191 0471 0311
0811 0341 0081 2501 2881
2521 2581 1591 2421 2271
2341 3401
Caihong 0021
Caishi 1971
Canton 0351
Capsonic 0471
Carad 1011 0061 2881 1271 2001
Carena 0751 0061 2881
Carrefour 0051 0111 0061 2881
Carver 0261
Cascade 0021 0061 2881
Casio 0061 2881 0231
Cathay 0061 2881
CCE 0061 0081 2881 2641
CE 2721
Celestial 1711 1721 1741 2681
Centrex 1631 1971
Centrum 2001
Centurion 0061 2881
Century 0431
CGE 0141 0251 0431 0821 1371
0231
Changcheng 0001 0021 0471 0661 0701
1211
Changfei 0021 2641 0661
Changfeng 0471 0701 1521
Changhai 0021 2641
Changhong 2681 1721 0021 0471 0871
1741
Chengdu 0021
Ching Tai 0021
Chun Yun 0021
Chunfeng 0021 0471
Chung Hsin 0201 0051
ChungFeng 0701
Chunsun 0021
Cimline 0021 0351
Cinema 1241
Cinex 1151 2501
Citizen 0101
City 0021
Clarivox 0061 0821 2881 0111 0191
Clatronic 0061 0431 1371 0641 1351
0351 0471 2881 0081 0021
0191 0531 1151 1031 1951
Clayton 2001
CMS 2051
CMS hightec 0081
Cobolt 1971
Combitech 2581
Concorde 0021
Condor 0531 0061 1371 2881 2051
0021 0481 0191 0431 0821
0891 0231 0471
Conia 1531 1741 2711 1721
Conrac 1821
Conrad 0061 2881
Conrowa 0021 0471 0701 1301 1521
2031
Contec 0021 2051 0051 0031 0471
0061 2881
Continental Edison 0211 0491 0811
Cosmel 0021 0561 0061 2881
Crosley 0141 0431 0251 0231
Crown 0021 1331 0061 1371 1221
2881 0821 0811 1351 1031
1241 1341 0341 1181 0571
2001
Crown Mustang 1241
CS Electronics 2051 0351 0431
CTC 0431
CTX 2511
Curtis Mathes 0101 0171 0241
Cybertron 0351
Cytronix 2321
D-Vision 0061 2621 2881
Daewoo 1111 1211 0661 2411 0861
0061 2881 0021 2051 0351
0081 1891 0281 0261 2531
2581 1931 0201 2931 3361
1901 1881 1241
Dainichi 0351 2051
Daitsu 2891
Danichi 0351
Dansai 0061 2881 0471 0041 2051
0021 0051 0081 0341
Dansette 0701
Dantax 1371 1221 1351 1031 1341
2581
Datsura 0341
Dawa 0021 0061 2881
Daytek 1301 2101 1651 3021 1241
3011
Dayton 0021 2101 3011
Daytron 0021 0661 0061 2881
Dayu 0661 1211
de Graaf 0341 0071 0911 0231 1191
DEC 1661 2151 1971
Decca 0061 0121 1611 2881 0081
1891 1051 2581
Deitron 0061 2881 0661 0351
Dell 2281
Denko 0471
Denver 0061 2881 1031 2061 1281
DER 0301
Desmet 0531 0061 2881 0021
Diamant 0061 2881
Diamond 0471 1301 0021 1731 2051
0641 2151 1721
Digatron 0061 2881
Digihome 2041
Digiline 0061 2881 0181 1271
DigiLogic 0061 2881
Digitex 1721
Digitor 0061 2881 1941 1871
Digivision 0311
DigiX 1931
DiK 0061 2881
Dixi 0021 0061 2881 0431 0081
DL 1971 1631 0061 1281 1881
DMTECH 3411 2951
Domeos 1271
Domland 0691
Dongda 0021
Donghai 0021
Dream Vision 2481
DSE 1941 1871 2501 1721
DTS 0021
Dual 2661 0081 2651 0061 2881
0461 0601 0691 0231 1891
1091 2041 2001
Dual Tec 0081
Dumont 0111 1621 0191 0081 0121
Dunai 0231
Durabrand 0061 0281 2381 2881
Dux 0061 2881
DVX 1971
Dynatron 0061 2881
e:max 1031
Easy Living 2271 2421
Ecco 1581 1651
ECE 0061 2881
Edison-Minerva 0811
Elbe 0461 0721 0671 1371 0231
0061 2881 0351 0291 0891
1011 0081 1611 0311 2251
Elbe-Sharp 1611
Elcit 0431 1611 0191 0231
Elekta 0021 0061 2881 0471 0481
Elfunk 2121 2001
ELG 0061 2881
Elin 0061 2051 0911 2881 0181
1621 0311 0231 0021
Elite 0351 0061 0531 2881
Elman 0191
Elta 0021 0471 2051
Emco 0431
Emerson 0271 0281 1351 0431 0061
2881 0641 0111 0481 0531
0311 2411 1221 1371 0231
0541 1271
Emperor 0481
Enzer 1521
Erae 2991
Erres 0061 2881
ESC 0061 2881 0081
Estèle 0231
Ether 0021
Etron 0001 0021 0061 2881 0231
1721
Eurofeel 0471 0081
EuroLine 0061
Euroman 2051 0471 0061 2881 0081
1371
Europa 0061 2881
Europhon 0061 1611 0191 0231 0081
2881 0431 2051
Evesham 2271 2421
Excel 0061 2881
Expert 0461 0231
Exquisit 0061 2881 0431
Fagor 0061 2881
FairTec 2071
Family Life 0061 2881
Feilang 0021
Feilu 0021
Feiyan 0471 0701
Feiyue 0021
Fenner 0661 0021
Ferguson 0061 0131 0211 1061 0491
0441 2651 0961 0301 2881
0041 1181 1621 0201 0311
0911 0731 2001 3211 2341
2581
Fidelity 0231 2051 0791 0311 1191
0061 2881 0641 0701 0301
0471 2581
Filsai 0081
Finlandia 0341 0581 0911 0311 0231
1191 0121 0491 2651 0091
Finlux 0061 0181 0111 1621 0121
2881 1351 0581 0891 1611
0081 0231 1341 0191 1091
0841 0771 2501 0761 0821
1031 1051 1821
Firstar 0021
Firstline 0021 0061 2051 2881 0081
0661 0431 1271 0541 1351
0231 2411 0191 0891 0121
0341 0311 2001 2071 1821
2971 1951 2991
Fisher 1621 0081 0051 0341 1371
0941 0091 0311 0231 0121
Flatdisplays 2701
Flint 0061 0751 2881 1011 0121
0351 0471
FNR 0191
Fonda 2831
Force 2041
Forgestone 0301
Formenti 0061 0231 0531 2881 1221
2051
Formenti-Phoenix 2051 0531
Fortress 0171
Fraba 0061 2881 1371
Friac 0021 0061 2881 0191 1371
0861 1171 1011
Frontech 0231 0431 0471 1191 0081
0021
Fujimaro 1881
Fujitsu 1261 0121 0191 1861 0081
0231 0021 0601 0061 2881
0311 0461
Fujitsu General 0021 0081 0231
Fujitsu Siemens 2321 2421 2271 3001 1951
1821
Funai 1271 0471 0701
Furi 0471 0701
Furichi 2151
Futronic 0471 1661 2151
Future 0061 2881
G-Luxon 3221
Galaxi 0191 0061 2881 0311 0231
Galaxis 1371 0821 0061 0191 2881
Galeria 0021
Gateway 2511
GBC 0231 0021 0661 0351 1191
GE 2651 0281 0481 0961 0491
0211 0441 1061
Geant Casino 0231
GEC 0061 0231 0311 0121 0081
1611 2881
Geloso 0021 0431 1191 0231 0661
General 0211 0491
General Electric 2651 0491
General Tehnic 0021
Genesis 0021 0061 2881
Genexxa 0231 0351 0061 2881 0701
0021
Gericom 1881 2321 2771 2181 1931
Gevalt 2991
Giant 0081
Gintai 1391
Goldfunk 1271
Goldhand 2051
Goldline 0561
GoldStar 0001 0061 0021 0281 1371
0651 0081 0431 2881 2051
0231 0311 0211 1191 1031
0071 1351 1341 0751
Gooding 0811
Goodmans 1111 2421 0051 2001 2271
0061 0121 0861 0081 2881
1351 2651 1271 0641 2411
0661 0471 1611 0021 0811
0041 0771 0961 0441 0351
2581 2251 1211 2521 1931
2191 1281 3021
Gorenje 1371
GPM 0351
Gradiente 1181 0261 2731 0061 2881
Graetz 0231 1351 0311 0641 0061
0571 2881 1951
Gran Prix 1151
Granada 0061 0091 0121 2881 0341
0371 0081 0571 1611 0201
0051 0761 0441 0961 0231
1191 0361 2651 0911
Grandin 0061 0481 2881 0021 0231
1011 1351 1341 1271 0661
0531 0351 0751 2001 1881
2071 1931 3011 3031
Gronic 0191 0081 0231
Grundig 0011 0021 0051 0061 0111
0281 0291 0721 0731 0811
0871 0881 2881 1021 1241
1281 1371 1471 1651 2191
2201 2251 2341 2581 2601
2651 2991 3021 3441
Grunkel 1951
H&B 1821
Haaz 1651
Haier 1301 0471 1601
Haihong 0021
Haiyan 0471 0701
Halifax 0471 2051 0081
Hallmark 0281
Hammerstein 0471 0101
Hampton 2051 0081
Hanimex 0351 2581
Hankook 0281
Hanseatic 0061 0531 2881 0311 0861
2661 0231 1211 0481 0691
1111 1371 0021 0081 0651
1351 1821 1221
Hantarex 0021 1611 0061 2881 0191
2951 3141
Hantor 0061 2881
Harsper 1881
Harwa 1581 2091 2301
Harwood 0021 0701 0061 2881 0811
Hauppauge 0061 2881
Havermy 0171
HCM 0021 0481 0701 0061 2881
0081 0351 0821 0471
Hedzon 2881 0061
Hema 0081 0021
Hicon 3191
Hifivox 0211
Higashi 2051
Highline 0471 0061 2881
Hikona 0351
Himitsu 1601
Hinari 0021 0341 0051 0061 2881
0351 0231 0621 0731 0811
0471 2581
Hisawa 0481 0351 0751 1011 2581
1351
HISense 2971 0341 0021 0871 1521
1741 2031 2121 1631 2881
3121
Hitachi 0361 2211 0021 0971 0051
0071 0201 0761 0231 2651
0081 0211 0321 0281 1611
0121 0781 0861 0061 0871
2881 0911 1191 1381 1111
1491 2001 1891 2031 0181
0841 2391 0311 0791 0771
1991 2451 2041 1911
Hitachi Fujian 0201 0361
Hitsu 0021 1011 0751 0351
HMV 0301
Höher 1351 2501 1881 1951
Home Electronics 1031
Hongmei 0021 0171 0471
Hongyan 0471 0701
Hornyphon 0061 2881
Hoshai 0351 0751 0481
Hua Tun 0021
Huafa 0021
Huanghaimei 0021
Huanghe 0021
Huanglong 0021
Huangshan 0021 0471 0701
Huanyu 2051 0661 0471
Huaqiang 0471 0701
Huari 0471 0701
Hugoson 1961 2181
Hygashi 0081 2051
Hyper 0021 2051 0081 0431
Hypersonic 0311
Hypson 0061 0471 2881 0481 1351
1341 0081 0751 2581 2001
1271 1221
Hyundai 0061 1881 3201 2881 1651
2151 1521 2751 2241 1901
3361 2501 3301 3311
Iberia 0061 2881
ICE 0081 0471 0061 0641 0021
2881 0351 2051
Ices 0351 2051
Ict 0061 1891 2881
Igo 2781
IISonic 3021
Iiyama 2181 1961
Imperial 0061 0141 0231 0431 1371
0821 0251 2881 2251 0891
0311
Imperial Crown 0001 0021 0471 0661 0701
1211
Indiana 0061 2881
InFocus 2021 2771
Ingelen 0231 0811 1011 1351 0311
Ingersoll 0021
Inno Hit 0021 0121 1611 0061 2881
0351 0081 0431 0191 0481
1951
Innova 0061
Innovation 2661 0061 2881
Innowert 1881 2321
inotech 1581 1721
Interactive 0061 2881 0791 0401 0231
0311 1371 0211 0891
Interbuy 0021 0061 0471 0431 0791
2881
Interfunk 0061 0231 2881 0431 0311
0791 0401 1371 0211 0551
Internal 0061 2881 0861 0661 2411
International 2051
Intervision 0061 0481 0081 0191 0751
0471 0641 0651 2661 1221
1371 0691 0811 0351 0231
0431 0021 2881
Irradio 0021 0061 2881 0351 0431
0641
IRT 1301
Isukai 0351 0061 2881 0481 0751
ITC 0081 0531
ITS 0061 0641 0351 0481 0471
2051 0021 2881
ITT 0231 0311 0771 0911 0761
0301 0581 0571 0341 1011
ITT Nokia 0311 0911 0231 0761 0771
0581 0341 0571 1031 1011
1091 1191
ITV 0471 0061 2881 0431 0661
JDV 2621
Jean 0051 1391 0021
JEC 0041
Jialicai 0021 0471 0701
Jinfeng 0341 0371
Jinque 0021 0471 0701
Jinta 0021 0471 0701
Jinxing 0021 0471 1301 1741
JMB 0061 0861 1111 0661 2881
0731 2581
JNC 3411 1901
Jocel 1331
Jubilee 2881
Juhua 0471 0701
JVC 0051 0171 0301 0351 0641
0821 0871 1031 1161 1181
1261 1451 2731 3481
Kaige 0021 0471 0701
Kaisui 0021 0351 2051 0481 0061
0081 2881 0751
Kambrook 0651
Kamp 2051
Kanghua 2551
Kangli 0001 0021 0471 0661 1211
Kangyi 0021 0471 0701
Kapsch 0231 0311 0461 1621
Karcher 0061 2881 1371 1011 0231
0481 0191 0471 1591 1351
2501 1031
Kathrein 2881 0061
Kawa 0641
Kawasho 2051
KB Aristocrat 0231
Kendo 0061 1011 0671 2881 0231
2661 0791 1371 0651 1191
0891 0191 0431 1151 2001
2381 1221
Kennedy 0231 0721
Kennex 2001
Kenwood 0181
KIC 0081 2641
Kingsley 2051
Kiota 0001
Kioto 2881 1651
Kiss 1681
Kiton 2881 0061 1271
KLL 0061
Kneissel 0061 0461 1371 1011 0891
0661 0861 2881 0721 0671
2581
Kobra 3191
Kolin 0201 0051
Kolster 0061 2881 0191 0431 0351
Kongque 0021 0471
Konichi 0021
Konka 0061 2881 0641 1351 0821
0351 1121 1281 1531 1601
2711 1661
Kontakt 0811
Korpel 0061 2881
Korting 1371 0531
Kosmos 0061 2881
Kotron 0701 0471
Koyoda 0021
KTV 0081
Kuaile 0021 0471 0701
Kuba 0231
Kuba Electronic 0231
Kulun 0021
Kunlun 0341 0371 0471 0661 1211
Kyoshu 0701 0821 0471
Kyoto 0231 2051 0081
L&S Electronic 1881 1351
LaSAT 1221 1371
Lavis 2001 0061 0231
Leader 0021
Lecson 0061 2881
Legend 0021 0561
Lemair 0891
Lenco 0061 1391 0021 0231 0661
2881 1621 1281 2001
Lenoir 0021
Lesa 0431
Levis Austria 0061 2881
Lexsor 2091
Leyco 0061 0471 0121 2881
LG 0001 0021 0061 0081 0101
0201 0211 0231 0281 0311
0431 0651 2881 1031 1131
1301 1341 1351 1371 1761
1851 2051 2071 2261 2801
2851 2921 3081 3471 3501
3531 3591
Liesenk & Tter 0061 0401 2881
Liesenkotter 0061 0401 0331 2881
Lifetec 0061 0021 2661 0661 1271
0791 1171 2001 1891 2881
0351 0471 1261 2271 2421
1351
Lloyd's 0001 0021
Local Calcutta TV 3171 2831 2841 2721
Local Chennai TV 0641 3171 0471 0991 3261
2831 3051 3091 0021
Local Delhi TV 2741 3231 3171 3261 2831
Lodos 2001 2041
Loewe 0791 1101 1641 0061 2881
1171 1371 0671 1611
Logik 0001 0031 0101 1301 1581
0021 0301 0471 0641 1931
2181 2001
Logix 1271 2661
Longjiang 0471 0701
Luker 2621
Luma 0061 1191 0231 0891 2881
0661 0021 0671 0461
Lumatron 1191 0061 2881 0671 0231
0461 0311 0081 0471 0131
Lux May 0061 0021 2881
Luxor 0321 1951 0311 1191 0771
0841 0341 0911 0231 0581
0761 2001 0081 1091
LXI 0281
Madison 0061 2881
Magnadyne 0191 0431 1611 0231
Magnafon 0191 1611 2051 0131
Magnavox 0061 2881 0051 1651 1631
Magnum 1151 1351 0061 2881 1341
2311
Mandor 0471
Manesth 0061 0081 2881 0471 0531
0041 0231 1191
Manhattan 0061 1901 2881 1271 2001
2891 0231 1591
Marantz 0061 2881 0701 3311
Mark 0061 2881 0081 2051 0661
0021 1351 1341
Master's 0861 0061
Masuda 0351 0641 0021 0471 0061
0081 2881
Matsui 0021 0061 0031 2881 0041
0811 0051 0121 0271 0341
0621 0081 0641 0731 0711
1611 1191 0751 0231 0091
0011 0291 0441 1351 2581
2001 2341
Matsushita 1161
Matsuviama 1281
Maxam 0471
Maxdorf 1581
Maxim 2621 2501
MCE 0021
ME 2721
Mediator 0061 2881
Medion 0061 1271 1351 2001 1821
2661 2881 0791 1891 1301
2581 2381 2521 2271 2421
1931 2311 2341
Megas 1011
Megatron 0281
MEI 2001 0061 2881
Meile 0471 0701
Melectronic 0021 0581 0061 0791 1621
0211 2651 0231 0431 0181
0081 0491 0661 0771 0841
2051 0891 2881 1111 0311
0291 0011 1211 1351 3401
Memorex 0021 0281 2001 1161 0101
Memphis 0561 0121 0021
Mercury 0001 0061 0021 1301 0471
2881 2641
Merritt 0911 0311 0231
Metronic 1061
Metz 0681 0881 0741 1511 0631
1951 0011 0291 0061 2881
1281 1271 2001 3321
MGA 0281 0061 2881 0351 1621
Micromaxx 0061 2881 1271 2001 2251
1821
Microstar 1821
MicroTEK 1721
Mikomi 2041
Minato 0061 2881
Minerva 0111 0811 0881 0011 0291
1611 0201
Minoka 0701 0061 2881
Mirror 2521
Mistral Electronics 0301
Mitsubishi 0201 0171 0791 0061 0281
0051 0301 0881 2881 0341
2001 2371
Mitsuri General 0231
Mivar 2051 1611 1371 1141 0081
Monaco 0021
Morgan's 0061 2881
Motorola 0171
MTC 0101 1371 0791 0231 2051
0311
MTlogic 1351 2191
Mudan 0021 0341 0371 0471 0701
Multibroadcast 0301
Multistandard 0191
Multitec 0061 2881 1221 1271 2001
2501
Multitech 0021 0191 1191 2051 1221
0061 0081 1371 2881 0431
0471
Murphy 1621 2051 0121 0231
Musikland 0061 0351 0431 2881
MyCom 3021 0281
Myryad 2881 0061
NAD 0241 0281 0311 0231
Naiko 0061 2621 1031 2881
Nakimura 0661 0061 2881
Nanbao 0021 0471 0701
Nansheng 0471 0701
Naonis 1191 0231
Narita 2621
NAT 0371
National 0371 0341 0871
NEC 0021 0031 0051 0061 0081
0261 0281 0471 0531 0661
0701 0751 0861 0871 2881
1181 1211 1281 1321 1561
2031 2481 2901 3551
Neckermann 0061 0291 1371 2881 2401
0551 0231 0401 0821 0431
0081 0891 0531 1191 0791
NEI 0061 0561 2881 0641 0231
Neovia 2771 1881 3411 3001 2991
1901 3021 3041 2951
Nesco 0431 2581
Netsat 0061 2881
Network 0561
Neufunk 0061 0021 2881 1011 0351
0481 1351
New Tech 0061 0021 2881 2651 0081
New World 0351
Newave 0021 1391 0281 0171
Nfren 1681
Nicamagic 2051
Nikkai 0121 0041 0351 0061 2881
2051 0081 0471 0561 0021
0051
Nikkei 1351
Nikko 0281
Nippon 2831
Nishi 0801
Nobliko 0191 0111 2051
Nogamatic 0211
Nokia 0311 0231 0761 0771 0911
1031 0841 1091 0571 0341
0661 0581 0531 1011 0211
Nordic 0081
Nordmende 0211 1351 1971 0491 2651
0961 0011 0061 2881 0441
0231 2421 2271
Norfolk 0231
Normerel 0061 2881
Novak 0061 2881
Novatronic 0061 0181 0661 2881
Novita 3041
NU-TEC 0751 1301 1721 0061 2881
Nurnberg 0231 0311
Oceanic 0231 0311 0341 0761 0911
0771
Odeon 0471
Okano 1371 0061 2881 0471 0121
0021
Olidata 3021
Omega 0471
Omni 1631 1971 1301
Onida 2721 0931 2781 2861 1181
Onwa 0641 0991 0351 0711 0191
Opera 0061 2881
Optimus 1161 0241
Optonica 0171
Orbit 0061 2881
ORcom 3071 3291
Orion 0061 0271 0731 0621 2881
2351 1351 0531 1171 0541
0031 1611 0021 0191 0471
0701 2341 2581 1931 2091
Orline 0061 0351 2881
Ormond 1271 2001 0061 2881
Orsowe 1611
Osaki 0121 0351 0081 0471 0701
0061 0661 0621 2881
Osio 0061 2881
Oso 0351
Osume 0121 0051 0351 0061 2881
Otto Versand 0051 2401 0061 0081 0531
2651 0171 0791 0881 2881
0011 0291 0311 0211 0371
0431 0021 0481 1611 2661
Pace 2581
Pacific 0061 2881 1891 1351 2001
0731
Pael 2051
Palladium 1371 0061 0821 1171 0891
2251 1351 1891 0291 2401
0551 2881 0431 0401 0231
2661 0081 1191
Palsonic 0471 0701 1581 0061 1601
0081 0651 0351 1301 2881
0001 0821 2761 1591 2091
2301
Panama 0021 0081 0471 2051 0061
2881 0431
Panashiba 0001
Panasonic 0001 0061 0101 0201 0231
0281 0311 0341 0371 0631
0871 0911 2881 1161 1611
1841 1861 2361 2461 2551
0501
Panavision 0061 0891 2881
Panda 0021 0341 0371 0471 0701
0871 1301 1741
Papouw 0061 2881
Pathe Cinema 0231 2051 0531 1371
Pathe Marconi 0211
Pausa 0021
Peng Sheng 1971
Penney 0101 0281
Perdio 0531 0121 0231 0061 2051
0481 2881
Perfekt 0061 2881
Philco 0251 0141 0821 0431 0061
2881 0231 1371 0281 2661
0781
Philex 0301 0231
Philharmonic 0081
Philips 0021 0061 0151 0551 0201
0281 0291 0301 0311 0331
0391 0661 2881 1021 1081
1391 1571 2511 2651 3271
3451 0921 3541 3571
Phocus 2311 2191 1351
Phoenix 0061 2881 1371 1221 0231
0121 2051 0531
Phonola 0061 2881 0301 2051
Pilot 2881 0061 1331 1651
Pioneer 1551 0031 0241 0061 0211
0261 0231 1251 2881 0491
2871 1371 2651 0311 1221
0791
Pionier 1371 1221
Plantron 0061 2881 0471 0021
Playsonic 1351 0061 0081 0571 1341
3401
Policom 0191 0211 0311 0231 0111
0141 0251 0881
Polytron 0481
Poppy 0021
Portland 0661 2411
Powerpoint 0811 0061 2881 1301 2711
Prandoni-Prince 0431 1611 0311 1191
Precision 0081
Premier 0021 0471
President 2151
Prima 0021 0471 0701 2301
Princess 1301
Prinston 2001
Prinz 0121 0311 0321
Profex 0021 0231 0311 1191
Profi 0021
Proline 0061 0541 2881 1061 1111
2251 0891 0121 1051 3021
Prosonic 0061 2881 1371 0661 0641
1271 1351 2051 0081
Protech 0021 0061 2881 0191 0081
0431 0471 0561 0821 1271
0481 0231 1221 2001
Proton 0001 0281 0021 1131
Provision 0861 0061 2881 2001 1351
PVision 2071 1901
Pye 0061 2881 0661 0701
Pymi 0021
Qingdao 0341 0371 0471 0701
Quadral 0351
Quasar 0431 1161 1881 0021
Quelle 0031 0061 2401 0111 0141
1621 0311 0701 0211 0881
0791 0291 0051 0081 0431
0401 0251 0331 0181 1271
2881 0011 0551 0471 2001
0581 0021
Questa 0051
R-Line 0061 2881 0231
Radialva 0211 0351 0231 0061 2881
0491 0561
Radiola 0061 2881 0081
Radiomarelli 1611 0431 0061 2881
RadioShack 0061 2881 0281
Radiotone 0021 0061 2881 1371 0821
0701 1151 1271 0471 2001
Rank 0111
Rank Arena 0051 0991 1521
RBM 0111
RCA 1061 0101 0171 0281 0961
0441 1041 2651 1251 1521
Realistic 0281
Recor 0061 0821 2881
Rectiligne 0061 2881
Rediffusion 0311 0911 0051 0581
Redstar 0061 2881
Reflex 0061 2881 2001 1271
Relisys 1881 1901 1911 2771 2101
2171 2321
Reoc 1351 1111 2411
Revox 0061 2881 1371
Rex 0231 0461 0471 1191 0891
0431
RFT 1371 0121 0471 0061 2881
1221
Rhapsody 2051
Ricoh 0061 2881
Rinex 1581 0821
Roadstar 0021 2001 0351 0471 0821
0061 2881 1351 1271 0481
2341 2061 2521
Rodex 0061 2881
Rover 0051 1911
Rowa 0061 0471 1301 0021 0081
1331 2051 1281 2881
Royal Lux 1371 0701 0441
Rukopir 2881 0061
Saba 0211 1061 0231 0491 0961
0441 2651 1611 0311 0851
0911 1161 1351
Sagem 1011 0751 0481 1771 1041
3351
Saige 0021
Saisho 0021 0031 1611 0271 0471
0081 0231
Saivod 0061 2621 2881 1951 1271
1331 2001
Sakaï 0231
Sakyno 0751
Salora 0231 0321 0311 0911 1611
1191 0571 0341 0771 1051
Salsa 0441
Sambers 0191 1611
Sampo 0021 0051 0171 0281 1161
1391
Samsung 0021 0061 0081 0101 0121
0171 0231 0281 0341 0371
0471 0801 2881 1041 1061
1131 1281 1371 1741 2051
2111 2221 2641 2661 2671
3241 3341 3371 3771 0411
3601 3631 3661 3691 3721
3831 1231 1501 1751 1801
0901 1311 2291 1691
Sandra 2051 0081
Sanjian 0471 0701
Sansui 0061 1171 1421 2881 1651
0641 1411 3051 1871 2821
0991 0751 1941 1521 2991
Santon 0021
Sanyo 0341 2121 1391 0031 0051
0091 1371 0571 0121 2051
1621 0081 0941 0701 0021
0871 0231 0061 0201 2881
1221 0261 1321
Sanyuan 0021 0171
Save 0061 2881
Saville 2581
SBR 0061 2881 0301
Schaub Lorenz 0311 0911 1351 1031 1221
0661 2071
Schneider 0061 1891 0351 0431 2881
0641 2661 1271 0691 0601
0461 2651 0081 0311 2001
0231 1151 1351 2411 2581
2621 2341 0111
Scotch 0281
Scotland 0231
Scott 2061 0281
Sears 0281
Seaway 1111
Seelver 2881 2001 0061
SEG 0051 0061 0081 2881 0471
2001 1271 2381 0811 0021
0231 1111 0191 0431 0671
2051 1951 0351 2411 1351
SEI 0191 0271 1611 2401 0231
0061 2881
Sei-Sinudyne 0191 1611 2401 0061 2881
Seitech 2181
Seleco 0231 0461 0671 1191 0891
0641 0051 0471 0581 0721
Sencora 0021
Sentra 0041 0351 0021
Serino 1011 0751 2051 0171
Shancha 0471 0701
Shanghai 0021 0341 0371 0471 2641
0701
Sharp 0051 0171 0301 0331 0451
1611 1181 1551 1951 2081
2371 0021 1161 0551 3611
3641
Shen Ying 0021
Shencai 0021 0471 0701
Sheng Chai 0021
Sheng Chia 0021 0171
Shenyang 0021 0471 1521
Sherwood 0021
Shintoshi 0061 2881
Shivaki 0061 2881 0731 0661 0281
Show 0821 0021 0121
Siarem 0191 1611 0231
Siemens 0061 0291 0011 0881 0551
0401 0331 2881 0311
Siera 0061 2881 1281
Siesta 1371
Silva 0061 2881 2051 0311 1151
Silva Schneider 2501
Silver 0051 0061 0751 0311 2881
1341 0231
SilverCrest 2001 0061 2881
Singer 0021 2431 0061 2881 0191
0431 0721 0441 0231
Sinotec 1581
Sinudyne 0191 0271 1611 0231 0311
2401 0061 2881 2581
Sky 0061 0481 1931 0281 2881
3071
Skymaster 0181
Skysonic 1521
Skyworth 0061 2881 0021 0471 1301
1411 1521
Sliding 1881 1931 3011 3031 1681
SLX 1271
Smaragd 0811
Soemtron 1881 2321
Sogera 0531
Solavox 0231 0311 0121 0911 0061
2881
Sonawa 0351
Sonber 0191
Songba 0021
Soniko 0061 2881
Soniq 3191
Sonitron 0341 1371 0571 0081
Sonneclair 0061 2881
Sonoko 0021 0061 2881 0471 0481
0081
Sonolor 0231 0341 2401 0911 0311
0481
Sontec 0061 2881 1371 0021
Sony 0031 0051 0061 0141 0171
0191 0261 0611 2881 1161
1791 1981 2331 2401 2471
3381 3701 3621
Sound & Vision 0191 0351 0661 0061 2881
Soundesign 0281
Soundwave 0061 0821 2881 0531 1341
Sowa 0101 0371 0051 0281
Soyea 1581
Spectra 0021
Ssangyong 0021
Staksonic 0021
Standard 0021 0061 0081 2881 0351
2001 0531 0661
Starlite 0021 0231 0061 2881 0471
0701
Stenway 0481 0351
Stern 0231 0461 1191 0471 0891
0721
Stevison 2621 2501
Strato 0061 2881 0471 0021
Strong 1951 2041 2001 0061 2881
2701
Stylandia 0081
Sunic Line 0061 2881
Sunkai 0541 0621 0751 0351 1011
0061 2881 0811 1881
Sunstar 0641 0061 2881 0021 0471
Sunwatt 0751
Sunwood 0061 2881 0021
Superla 1611 2051 0081
Supersonic 0341 2881 1301 0471 1701
0751
SuperTech 0021 2051 0061 2881 0351
Supra 0281 0661 0021
Susumu 0351 0441 0491
Sutron 0021
SVA 1281 1881
Svasa 1701
Swissline 0431
Swisstec 3071 1931
Sydney 2051 0081
Synco 0051 0101 0171 0281
Sysline 0061 2881
Sytong 2051
T+A 0741
Tacico 0281 0021
Tai Yi 0021
Taishan 0021 0661
Tandberg 0631 0891 0211 0561 0671
0311 0231
Tandy 0351 0121 0171 0081 0231
0431
Targa 2991
Tashiko 0051 1391 0081 1161 0261
2051 0231 1191
Tatung 2501 0021 0051 0061 2881
0121 1611 0101 0081 0031
1051 2581 2511 2991 2421
2271 2071
TCL 1411 2721 0701 1301
TCM 1351 2311 1821
Teac 0021 1301 0061 0791 0471
0481 2381 0701 2001 0821
2881 0751 1331 1271 0081
1651 1391 2411 0281 0261
1351 2041 2491
TEC 0081 0431 0021 0441 0561
0461 0061 2881 0311 0231
Tech Line 0061 2881 1271 2381 1951
Tech Lux 2061
Techica 0351
Technema 0531
Technica 2621
Technics 1161
TechniSat 1171 0061 2881 0231 2891
Technisson 1351 2311
Technosonic 0061 2881 0861
Techwood 1951
Tecnimagen 2881
Teco 0021 0051 0171 0281 0351
0471 1181
Tedelex 0081 1301 1031 1651 0061
0821 0021 2431 0341 1971
1281 2881
Teiron 0021
Tek 1661
Teknika 0101
Tele System 1901
Teleavia 0211 2651 0491
Telecor 0061 2881 0231 0351 0081
0461 0691
Telefunken 1061 0141 0961 0211 1281
0441 1301 2651 1331 0851
1721 2551 1531 3071 1631
0491 1971 0251 0131 0061
2881 1221 1351 2501 0581
1741
Telefusion 0061 2881
Telegazi 0061 0231 0461 0351 0471
2881
Telemeister 0531 0061 2881
Telesonic 0061 2881
Telestar 0021 0061 2881 0701
Teletech 0021 0061 2881 1271 0431
0561 2001
Teleton 0051 0081 0231 0461 1191
Televideon 0531 0231 2051
Teleview 0061 2881
Telexa 0191
Tempest 0021 0061 2881 0471
Tennessee 0061 2881
Tensai 1621 0351 0531 0061 2881
0081 0021 0181 0661 0641
0651 0431 1341 0231 2001
Tenson 0531 0021
Tesla 0061
Tevion 2661 2711 2271 2321 0061
2421 2881 2681 2501 1151
1821 1271 1881 1891 1351
2001 2311
Texet 2051 0081 0351 0661 0021
Texla 1631
Thomson 0061 0211 0441 0491 0531
2881 0961 1061 2051 2651
3651
Thorn 0041 0201 0301 0061 0211
0121 0131 0361 0141 2651
1621 0311 2401 0251 0861
0791 0881 2881 0031 0441
0051 0091 0661 0111
Thorn-Ferguson 1621 0201 2651 0211 0301
0311 0441 0861 0131 0041
Tiane 0171
Tiny 2091 2301
Tiny Digital 1201
TMK 0271 0281
Tobishi 0351
Tobo 0021 0471 0701
Tokai 0121 0061 2881 0561 1271
0231 0081 0661 0021 2001
Tokaido 2001
Tokyo 2051 0041 2641
Tomashi 0481 0351
Tongguang 0471 0701
Tongtel 1631 1281
Topline 2001 1271
Toshiba 0011 0021 0041 0051 0061
0081 0101 0111 0171 0191
0211 0291 0471 0701 0871
1041 1131 1161 1301 1351
1361 1441 1741 1781 1951
2021 2121 2311 2341 2441
2481 2501 2581 2601 2611
2801 3671 3731
Towada 0191 0081
Toyoda 0021 0641 0471
Trakton 0021 0471 0081
Trans Continens 1271 0081 2001 0061 2881
1221
TRANScontinents 1051 3011 3031 1881 2881
Transonic 0061 1301 2881 1331 0751
1281 0791 0471 0821 0021
Transtec 2051
Triad 0061 2881 0351
Trident 1611 0081
Tristar 0471 0351 0301
Triumph 0271 1611 0581 2881 0061
Tsoschi 0481
Tuntex 0021
TVTEXT-95 2881
Uher 0531 0061 2881 0661 0821
1221 1371 0461 0771
Ultravox 0191 0661 0431 2051 0231
0061 2881
Unic Line 0061 2881 0761 0751
United 1351 0061 1341 2881 2341
2581 2001 1281 2621
Universal 1351 0061 2881
Universum 0061 0581 0141 0181 1621
0011 0471 0761 1371 0881
0311 0431 0841 0771 0551
0821 0031 0791 0051 0111
0231 2881 0891 0401 0331
2401 1271 0081 0211 0671
0561 0271 1091 0021 0251
2001 2381 0261 1951 2041
1041
Univox 0061 2881 0561 0231
Utax 0231
V7 Videoseven 2491 0281 1931 3021 2181
Vestel 0061 0231 0081 2881 1271
2001 1951
Vexa 0021 0061 2881
Victor 1181 0051 1161
Videocon 0871 3161 3151 3181 2641
3061 2741 3331
Videologic 0351 2051
Videologique 2051 0351 0081
Videosat 0431
VideoSystem 0061 2881
Videotechnic 2051 0081 0531 0661
Videoton 0231
Vidikron 0191
Vidtech 0051 0281
Viewpia 1901
ViewSonic 2491 2941
Viper 0561
Visiola 2051
Vision 0061 0531 0471 2881 0081
Vistar 0311
Vortec 0061 2881
Voxson 0231 0281 0061 2881 1191
0821
Waltham 0081 0821 0491 0061 2881
1271 0211 2001 0231 0731
Wards 0281
Warumaia 0661 1211
Watson 0061 2001 0531 2271 2421
2881 0231 0021 1271 0351
2661 0691 2581 2381 3021
3291 0401
Watt Radio 0191 0231 2051
Wega 0051 0061 2881
Wegavox 0021 0061 2881
Weipai 0021
Welltech 1351
Weltblick 0061 2881 0531 0081
Weltstar 2001
Weston 0061 2881
Wharfedale 0061 1871 2661 2551 2881
2501
White Westinghouse 0061 0531 2051 2881 0561
2411
Windsor 1271 2001
Windstar 0481 0561
Windy Sam 2881
Wintel 1351
World-of-Vision 1931 1961 1881 2311 2321
1911 2181
Worldview 0751 0091
X-View 2071
Xenius 1111 1211
Xiahua 0021 0471 0701 1301 1581
1601
Xianghai 0021
Xiangyang 0471 0701
Xihu 0471 0701
Xinaghai 0701
Xingfu 0021
Xinghai 0471
Xingyu 0021
Xinsida 2641
Xlogic 1301 2151
Xoro 2091 2181
Xrypton 0061 2881
Yamaha 1161 2451
Yamishi 0481 0751 0351 0061 2881
0081
Yingge 0021
Yokan 0061 2881
Yoko 0061 0081 0471 2881 0351
0021 1371 0571 2051 0431
Yonggu 0021
Yorx 0351
Yousida 0021
Yuhang 0021
Zanussi 1191 0081
Zenith 0281 2411
Zenor 0571
Zhuhai 0021 0661
Zonda 1301 1601
ZX 2581
29
Appendix list :
Item Key Name SA
IR Key
Code
Code Read into
Trident IR
Driver
IR Key Code
Final Translation
by RF4CE/ IR
Driver
(HDDTA170)
C&D
RF4CE
Key Code
1 Power 0x07 0x38 0xB0
0x6B
2 TV Power N/A N/A N/A
n/a
3 Info 0x08 0x4 0xC6
0x35
4 0-Digit 0x19 0x26 0x30
0x20
5 1-Digit 0x10 0x02 0x31
0x21
6 2-Digit 0x11 0x22 0x32
0x22
7 3-Digit 0x12 0x12 0x33
0x23
8 4-Digit 0x13 0x32 0x34
0x24
9 5-Digit 0x14 0x0A 0x35
0x25
10 6-Digit 0x15 0x2A 0x36
0x26
11 7-Digit 0x16 0x1A 0x37
0x27
12 8-Digit 0x17 0x3A 0x38
0x28
13 9-Digit 0x18 0x06 0x39
0x29
14 Enter 0x0C 0x0C 0xB4
0x2B
15 Volume + / (TV Vol +) 0x20/ n/a 0x01 0xC1
0x41 / n/a
16 Volume - / (TV Vol -) 0x21/ n/a 0x21 0xC2
0x42 / n/a
17 Arrow right 0x04 0x08 0xD6
0x04
18 Arrow left 0x03 0x30 0xD5
0x03
19 Channel + / arrow up 0x1D 0x2E 0xC4
0x30
20 Channel - / arrow
down 0x1E 0x1E 0xC5
0x31
21 Last 0x0E 0x1C 0xBE
0x32
22 Mute / (TV Mute) 0x22/ n/a 0x11 0xC3
0x43 / n/a
23 Menu 0x3E 0x1F 0xBA
0x0C
24 Exit 0x2C 0x0D 0xB5
0x0D
25 Page+ 0x36 0x1B 0x8C
0x37
26 Page- 0x37 0x3B 0x8D
0x38
27 Prog
30
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
