C2 Development 90000047 802.11b/g/n (2.4GHz only) Module User Manual 900 00047 Manual
C2 Development, Inc. 802.11b/g/n (2.4GHz only) Module 900 00047 Manual
User Manual
Page 1 of 6
802.11b/g/n Module
Model 900-00047
a. That module is limited to OEM installation ONLY.
b. That module is limited to installation in mobile or fixed applications,
according to Part 2.1091(b).
c.That separate approval is required for all other operating configurations, including portable configurations
instructions to remove or
Version Description Date
1.0 Initial Release 11/22/2014
d.The OEM integrator is responsible for ensuring that the end-user has no manual instructions to remove or install module.
e.The module is limited to installation in mobile or fixed applications install module.
Note: with respect to Part 2.1093 and different antenna configurations.
Page 2 of 6

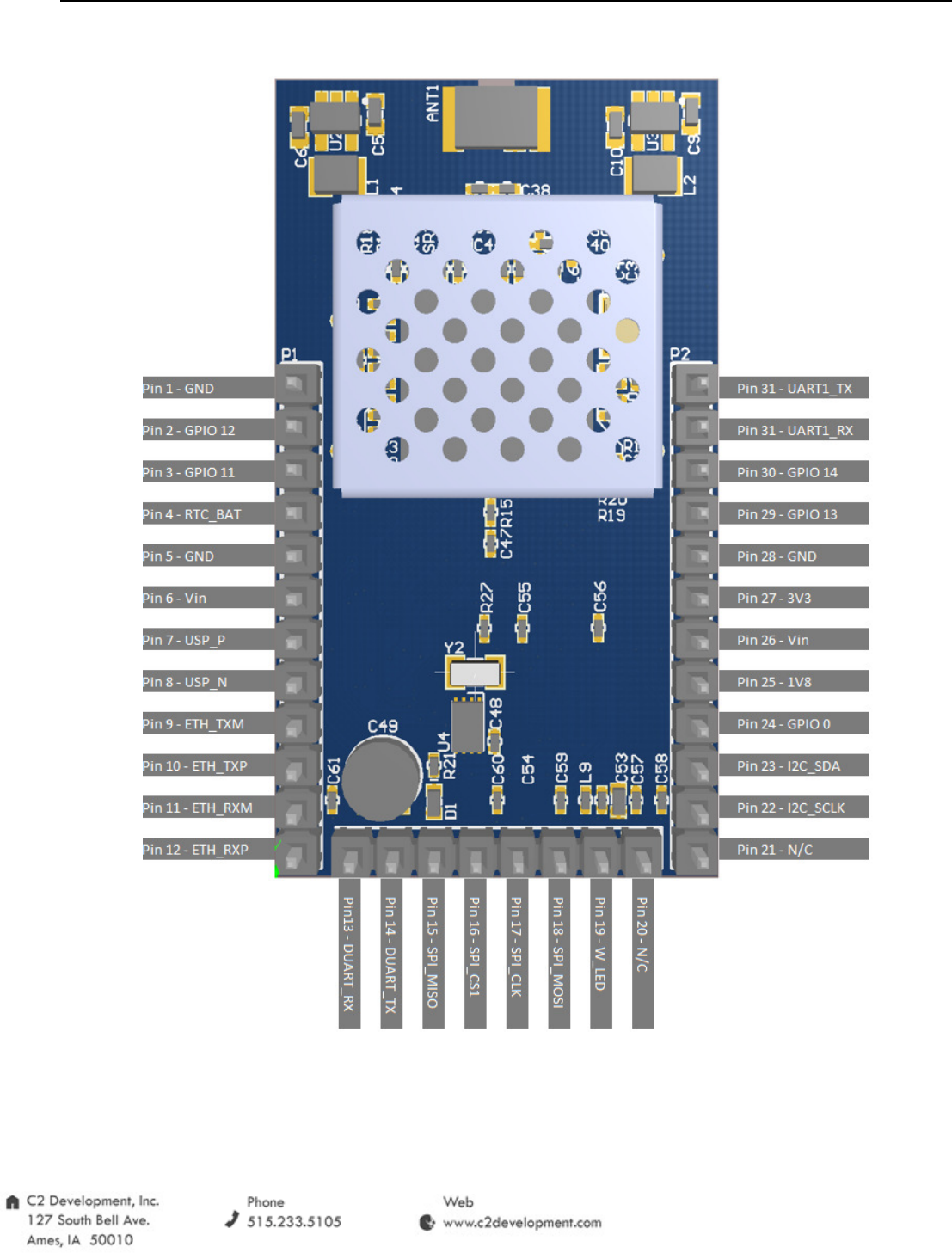

Connection Pin-out
Page 3 of 6

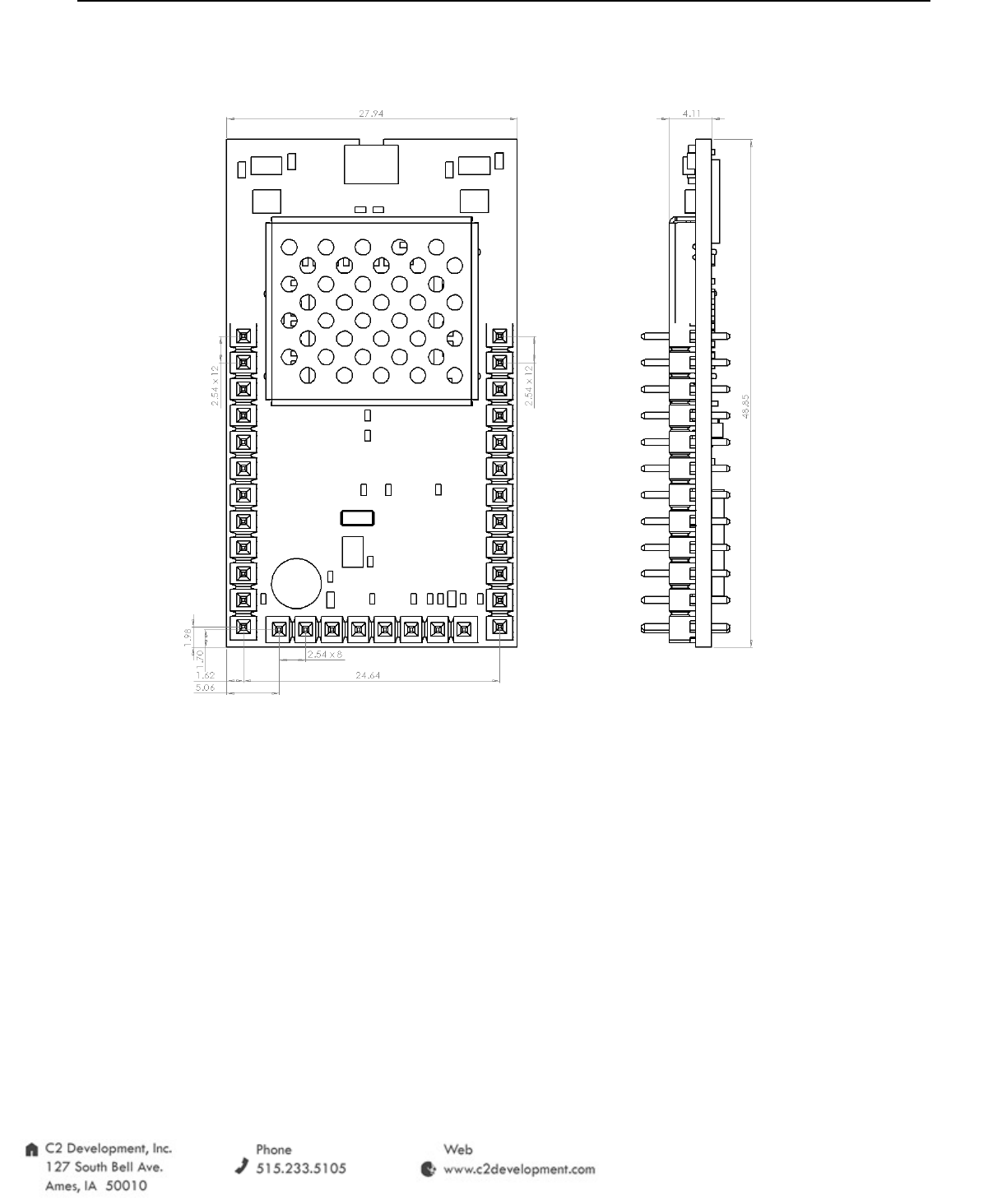

Dimensions
All dimensions in millimetres
Page 4 of 6
Regulatory and Safety Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received including interference that may cause
undesired operation. Any changes or modifications not expressly approved by C2 Development, Inc. could void the user’s
authority to operate the 900-00047 module.
OEM Labeling Requirements
NOTICE: The OEM must make sure that FCC labeling requirements are met. This includes a clearly visible label on the exterior of
the final product housing that displays the contents shown in this label.
MANUFACTURERS NAME
BRAND NAME OR TRADE NAME
Contains FCC ID: ZOM-90000047
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Industry Canada Compliance Statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux
conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y
compris celles pouvant causer un mauvais fonctionnement de l'appareil.
RF Exposure Statement:
The user is cautioned to maintain a 20cm (8 inch) from the product to ensure compliance with RF exposure requirements.
European Union – Disposal Information:
According to local laws and regulations, your product should be disposed of separately from household waste. When this
product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept
products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural
resources and ensure that it is recycled in a manner that protects human health and the environment.
CE Declaration of Conformity:
The equipment complies with the RF Exposure Requirement 1999/5/EEC, Council Recommendation on the limitation of exposure
of the general public to electromagnetic fields (0-300 GHz). This equipment meets the following conformance standards:
EN 300 328, EN 301 489-17, EN 60950
CE Declaration of Conformity in Languages of the European Community:
Česky [Czech]: C2 Development, Inc. tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]: Undertegnede C2 Development, Inc. erklærer herved, at følgende udstyr Enhed overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]: Hiermit erklärt C2 Development, Inc., dass sich das Gerät in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]: Käesolevaga kinnitab C2 Development, Inc. seadme vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
Page 5 of 6
English: Hereby, C2 Development, Inc. declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Español [Spanish]: Por medio de la presente C2 Development, Inc. declara que el dispositivo cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑC2 Development, Inc. ΔΗΛΩΝΕΙ ΟΤΙ συσκευή ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]: Par la présente C2 Development, Inc. déclare que l'appareil est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]: Con la presente C2 Development, Inc. dichiara che questo dispositivo è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]: Ar šo C2 Development, Inc. deklarē, ka ierīce atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių [Lithuanian]: Šiuo C2 Development, Inc. deklaruoja, kad šis prietaisas atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands [Dutch]: Hierbij verklaart C2 Development, Inc. dat het toestel apparaat in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]: Hawnhekk, C2 Development, Inc., jiddikjara li dan apparat jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]: Alulírott, C2 Development, Inc. nyilatkozom, hogy a eszköz megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]: Niniejszym C2 Development, Inc. oświadcza, że urządzenie jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]: C2 Development, Inc. declara que este dispositivo está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]: C2 Development, Inc. izjavlja, da je ta Naprava v skladu z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky [Slovak]: C2 Development, Inc. týmto vyhlasuje, že zariadenie spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]: C2 Development, Inc. vakuuttaa täten että laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish]: Härmed intygar C2 Development, Inc. att denna enhet står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska [Icelandic]: Hér með lýsir C2 Development, Inc. yfir því að tæki er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar
eru í tilskipun 1999/5/EC.
Norsk [Norwegian]: C2 Development, Inc. erklærer herved at utstyret enhet er i samsvar med de grunnleggende krav og øvrige
relevante krav i direktiv 1999/5/EF.
Original Declaration of Conformity Can Be Obtained From:
www.c2development.com/support/docs
European Restrictions For Use of 2.4GHz Frequencies in European Community Countries
only, outdoor installations are not allowed.
binnenshuis,
worden installaties buitenshuis niet toegestaan.
Page 6 of 6
utilisation
en intérieur, les installations extérieures ne sont pas autorisés.
only, outdoor installations are not allowed.
Innenbereich, Outdoor-Installationen sind nicht erlaubt.
only, outdoor installations are not allowed.
utilisation
en intérieur, les installations extérieures ne sont pas autorisés.
only, outdoor installations are not allowed.
uso
interno, installazioni esterne non sono ammessi.
only, outdoor installations are not allowed.
binnenshuis,
worden installaties buitenshuis niet toegestaan.
To remain in conformance with European spectrum usage laws for Wireless LAN operation, the above 2.4GHz channel limitations
apply for outdoor usage. If operation is occurring outdoor, as listed above, the user must contact the applicable national
spectrum regulator to request a license for outdoor operation.
a
C2 Development, Inc.
Model Number: 900-00047
FCC ID: ZOM-90000047
IC: 9795A-90000047
