CABASSE STRMBASE STREAM BASE (Network active audio speaker) User Manual

CABASSE SA STREAM BASE (Network active audio speaker)

User Manual

NOTICE D'INSTALLATION
OWNER'S MANUAL
STREAM
BASE
www.cabasse.com
f r a n c a i s
2
Vous venez d’acheter un Stream BASE et nous vous remercions de votre conance.
Nous recommandons de lire attentivement cette notice pour proter pleinement
de toutes les possibilités de Stream BASE.
Explication des symboles
L’éclair dans un triangle équilatéral aver-
tit de l’existence de tension élevée dan-
gereuse non isolée à l’intérieur du coffret du
produit, d’une valeur sufsante pour présenter
un risque d’électrocution.
Le point d’exclamation dans un triangle
équilatéral avertit de l’existence d’ins-
tructions importantes quant à l’utilisation et la
maintenance dans la documentation jointe à
ce produit.
Nettoyage - Débranchez l’appareil avant
tout nettoyage. N’utilisez pas de solutions net-
toyantes sous forme liquide ou en aérosols.
Employez de préférence un chiffon humide.
Installation sur mobiliers et supports
- Ne placez pas cet appareil sur un support ins-
table, qu’il s’agisse de pieds, trépieds, tables,
étagères, etc. Il pourrait tomber et causer des
blessures sérieuses à un enfant ou un adulte
qui se trouverait à proximité.
Ventilations - L’appareil doit être position-
né de telle sorte qu’il ne gêne pas sa propre
ventilation. Par exemple, il ne doit pas être
installé sur un lit, un canapé, une couverture
ou des surfaces similaires qui pourraient blo-
quer ses orices d’aération. Il ne doit pas non
plus être encastré dans des enceintes connées
comme des étagères étroites ou des meubles
qui pourraient limiter la quantité d’air dispo-
nible aux entrées d’air.
Alimentation - L’appareil ne doit être relié
qu’à une source électrique du type écrit dans
le mode d’emploi ou conforme à la sérigraphie
sur le produit. Si vous n’êtes pas sûr du type de
courant fourni à l’endroit où vous vous trou-
vez, adressez-vous à votre revendeur ou à la
compagnie électrique locale.
Surcharges électriques - Ne surchargez
pas les prises d’alimentation, les prolongateurs
ou les rappels d’alimentation. Il pourrait en
résulter incendies ou électrocutions.
Corps et liquides étrangers - On doit
être attentif à ne jamais laisser entrer d’élé-
ments ou de liquides étrangers dans l’appa-
reil. Ils pourraient occasionner incendies ou
électrocutions. Ne versez jamais aucun liquide
d’aucune sorte sur l’appareil.
Maintenance - Dans les cas suivants, vous
devez impérativement débrancher votre appa-
reil et le faire vérier par un technicien qualié :
l’alimentation ou la prise a été endommagée.
des corps étrangers ou du liquide se sont
introduits dans l’appareil.
l’appareil a été exposé à la pluie ou a été as-
pergé d’eau.
l’appareil ne semble pas marcher correcte-
ment alors que vous l’utilisez dans le cadre
de ses instructions de fonctionnement nor-
mal. Ne manipulez que les contrôles couverts
par le mode d’emploi. Toute autre procédure
pourrait le détériorer et nécessiter l’interven-
tion d’un technicien qualié.
l’appareil est tombé ou bien sa carrosserie est
endommagée.
l’appareil afche des performances nette-
ment modiées.
Dans un environnement secteur perturbé
(orage etc…), le produit peut parfois nécessiter
l’arrêt et la remise en route au moyen de l’inter-
rupteur secteur ON/OFF situé sur le panneau
arrière de l’appareil pour fonctionner correcte-
ment de nouveau.
INSTRUCTIONS DE SECURITE
3
CONSIGNES DE SÉCURITÉ IMPORTANTES !
Pièces détachées - Si la réparation a
nécessité l’utilisation de pièces détachées,
assurez-vous que le technicien a bien utilisé
les références préconisées par le fabricant ou
présentant les mêmes caractéristiques que les
pièces originales. Des pièces non conformes
peuvent provoquer incendies, électrocutions
ou autres.
Vérications - Après toute intervention sur
l’appareil, demandez au technicien d’effectuer
des tests an de garantir que l’appareil fonc-
tionne en toute sécurité.
Sacs plastiques - Ne pas laisser les sacs
plastiques de l’emballage à portée des enfants
an d’éviter tout risque d’étouffement.
1. LIRE ces consignes.
2. CONSERVER ces consignes.
3. RESPECTER tous les avertissements.
4. SUIVRE toutes les consignes.
5. NE PAS utiliser cet appareil à proximité
de l’eau.
6. NETTOYER UNIQUEMENT avec un
chiffon sec.
7. NE PAS OBSTRUER les orices de
ventilation. Installer conformément aux
instructions du constructeur.
8. NE PAS installer à proximité de sources
de chaleur telles que les radiateurs, les
grilles de chauffage, les cuisinières et les
autres appareils (notamment les BASEli-
cateurs) dégageant de la chaleur.
9. NE PAS neutraliser le dispositif de
sécurité que constitue la che polarisée
ou à broche de terre. Une che polarisée
a une lame plus large que l’autre. Une
che à broche de terre est munie de deux
lames et d’une troisième broche pour
la terre. La lame large ou la troisième
broche est prévue pour la sécurité de
l’utilisateur. Si la che fournie ne rentre
pas dans la prise de courant, demander
à un électricien de remplacer cette prise
d’un type trop ancien.
10. PROTÉGER le cordon d’alimentation
en s’assurant qu’il ne risque pas d’être
piétiné ou écrasé, en particulier près
des ches, des blocs multiprises et de
son point de sortie de l’appareil.
11. UTILISER UNIQUEMENT les acces-
soires préconisés par le constructeur.
12. DÉBRANCHER cet appareil en cas
d’orage ou lorsqu’il reste inutilisé pen-
dant une longue durée.
13. CONFIER tout travail de dépannage
à un réparateur professionnel com-
pétent. Faire réparer l’appareil en cas
de dommages, par exemple : che ou
cordon d’alimentation endommagé,
liquide renversé sur l’appareil ou objet
inséré dans l’appareil, appareil exposé
à la pluie ou à l’humidité, mauvais
fonctionnement ou après une chute.
Attention : ne pas ingérer la pile,
risque de brûlure chimique.
f r a n c a i s
44
DÉBALLAGE
Ouvrir largement le carton puis sortez un à un les différents éléments. Si l’un des élé-
ments du carton vous semble endommagé, ne pas l’utiliser, le replacer dans le carton
d’origine et contactez immédiatement votre revendeur.
Conservez votre emballage pour un éventuel transport ultérieur de votre système.
INSTALLATION

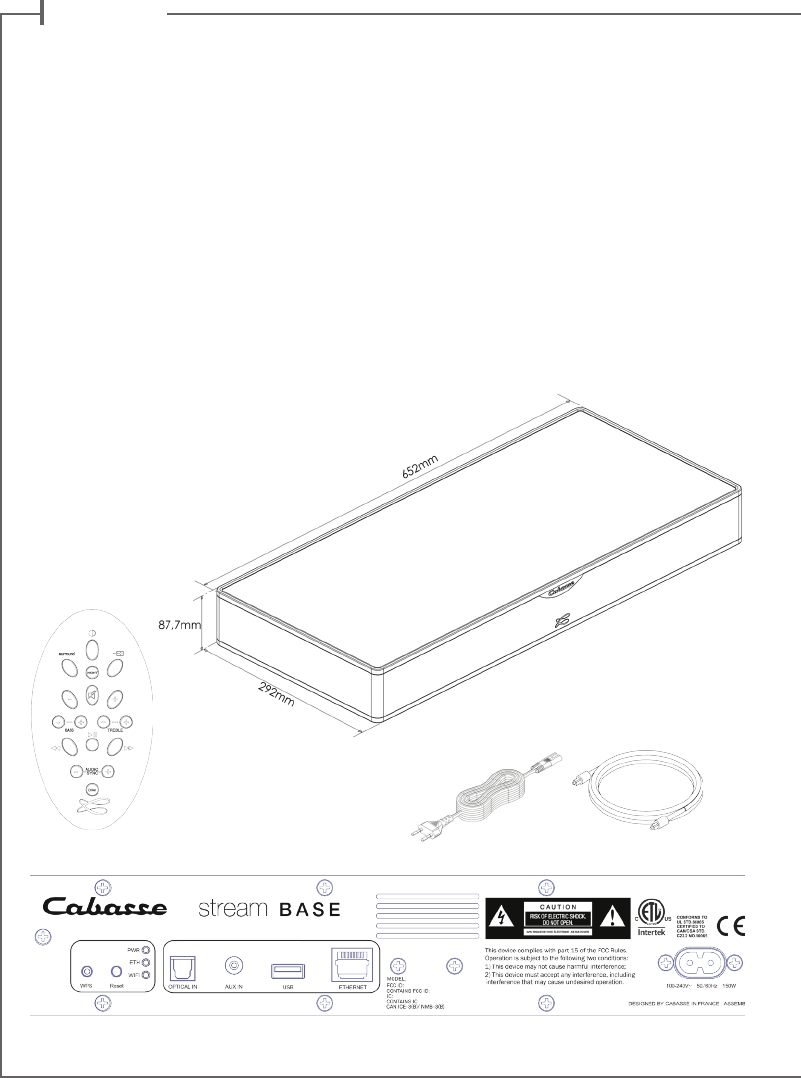

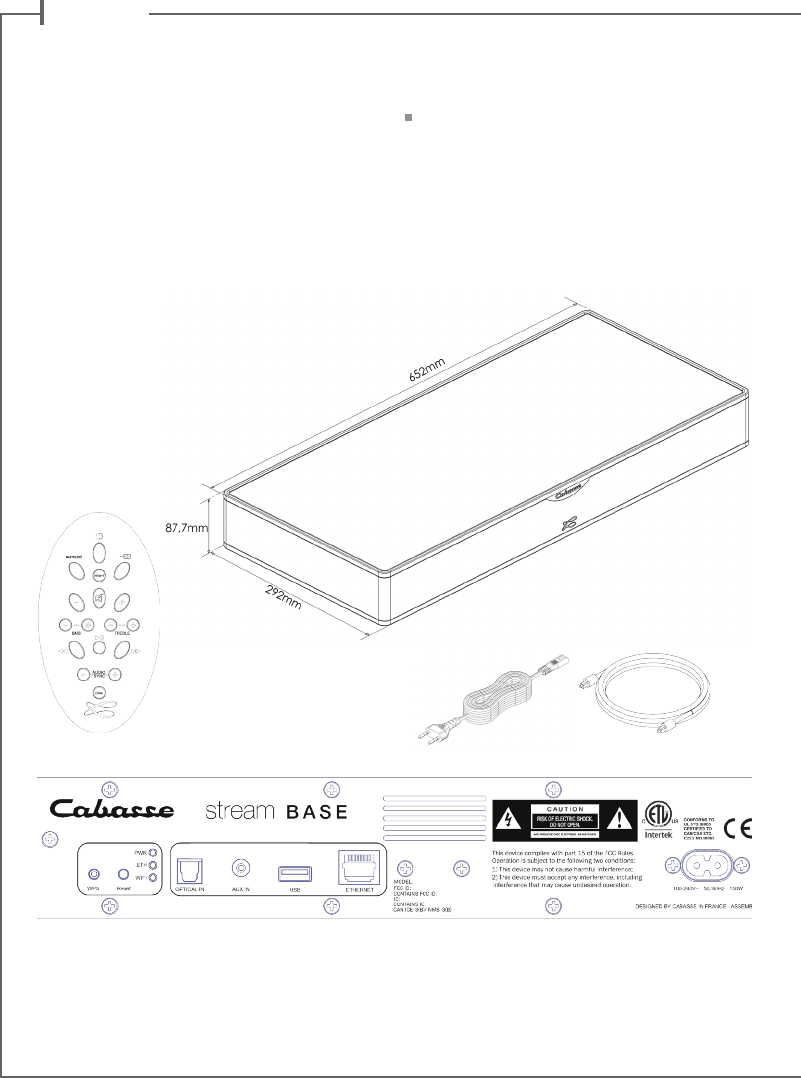

LES COMPOSANTS DE VOTRE SYSTÈME :
1 STREAM BASE, 1 cordon d'alimentation, 1 télécommande, 1 cordon optique, 1 no-
tice et 1 carte de garantie.
5
FONCTIONS
Connexion
Bluetooth
WIFI/ETHERNET
via routeur internet
/ box internet
WIFI direct
smartphone/
tablette
Diffusion audio loss less OUI OUI
Accès à tous les supports audio
depuis le reseau WIFI (ordinateur…) OUI
Multi-room OUI
Diffusion des contenus audio
smartphone/tablette OUI OUI OUI
Diffusion application audio
(youtube…) depuis smartphone/
tablette
OUI
Diffusion à partir de supports USB OUI OUI
Radios et services musicaux web OUI
Fabriqué sous licence de Dolby Laboratories. Dolby et le symbole du
double D sont des marques déposées de Dolby Laboratories.
1
Activer/désactiver le mode ECO
2
Activer/désactiver le mode surround
4
Sélection des sources
3
Activer/désactiver le mode nuit
5
7
Volume + et -
6
Pause
8
9
réglage grave
10
réglage aigu
Titre précédent / suivant
Lecture /Pause
Synchronisation son / image
Intensité afchage
14
13
15 16
17
11

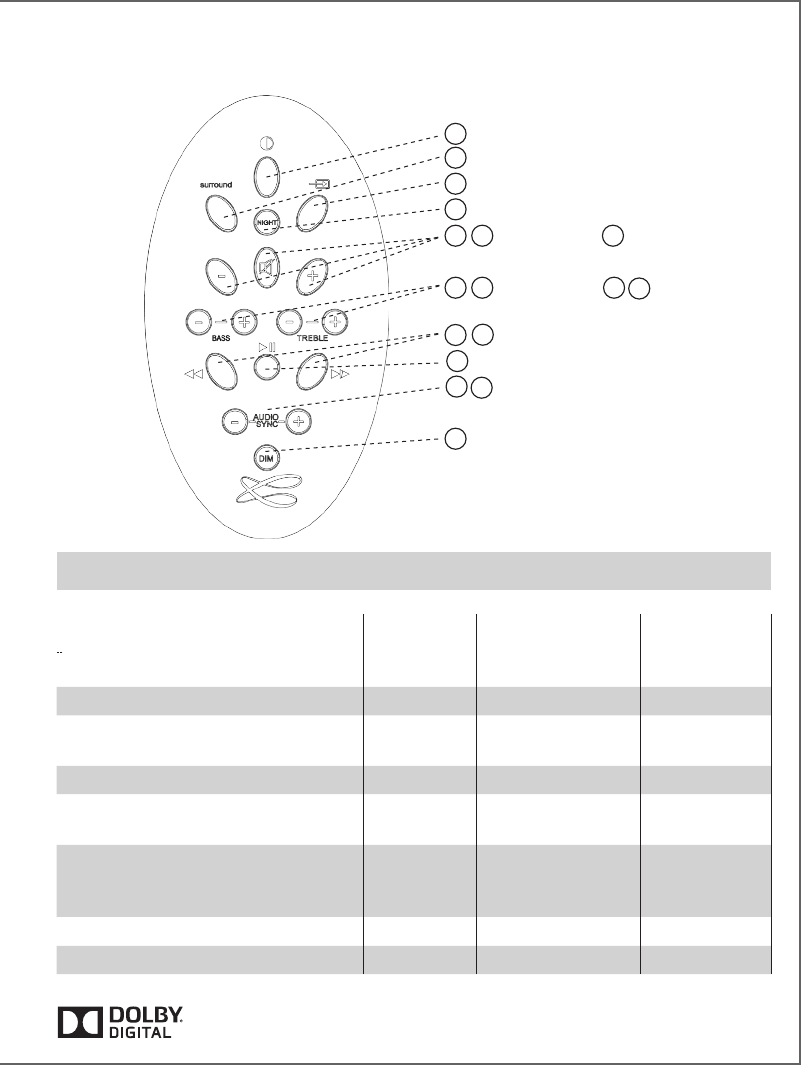

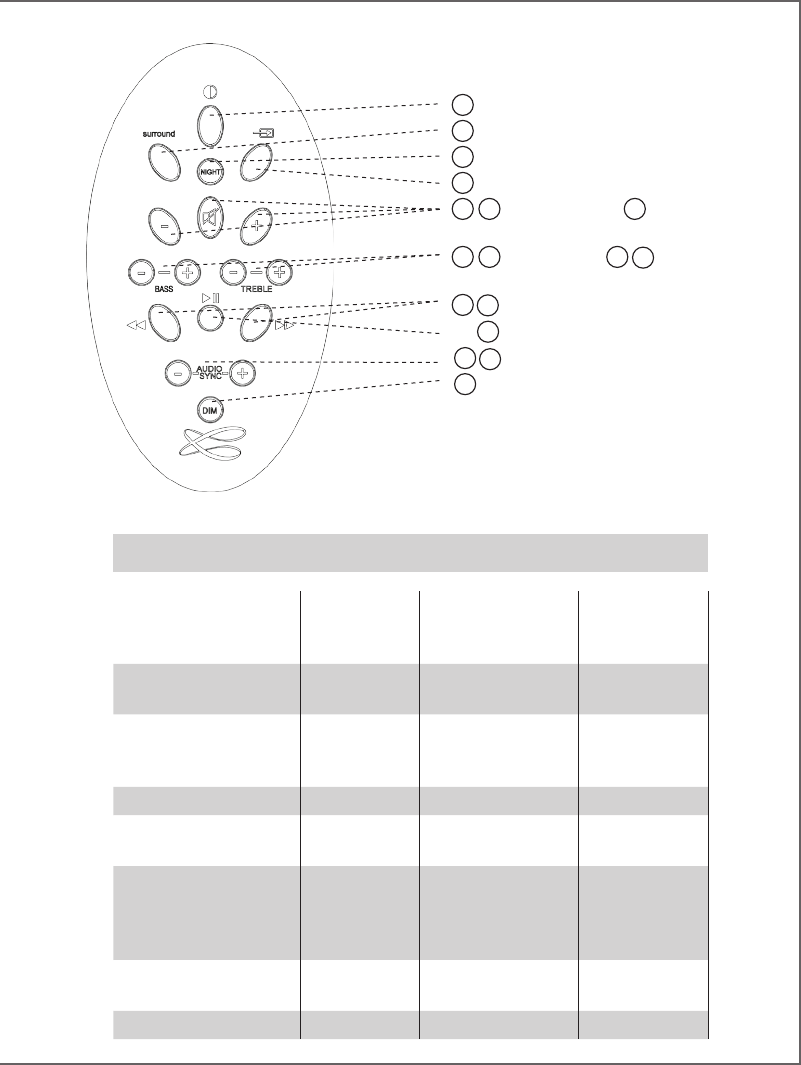

TOUCHES DE LA TELECOMMANDE
12
f r a n c a i s
6
UTILISATION AVEC UN TELEVISEUR
CONFIGURATION
1- Poser le Stream BASE sous le téléviseur, soit sur un support solide et plan capable de supporter
le poids de l’appareil et de votre téléviseur, soit sur une étagère sous le téléviseur. Une fois toutes
les connections réalisées, bien centrer la base du téléviseur sur le Stream Base ou au dessus de lui.
2- Laisser un espace d’au moins 3 centimètres entre le mur arrière et l’appareil. Les ouvertures
d’aération à l’arrière du Stream Base ne doivent pas être masquées et permettre une bonne
ventilation de l’appareil.

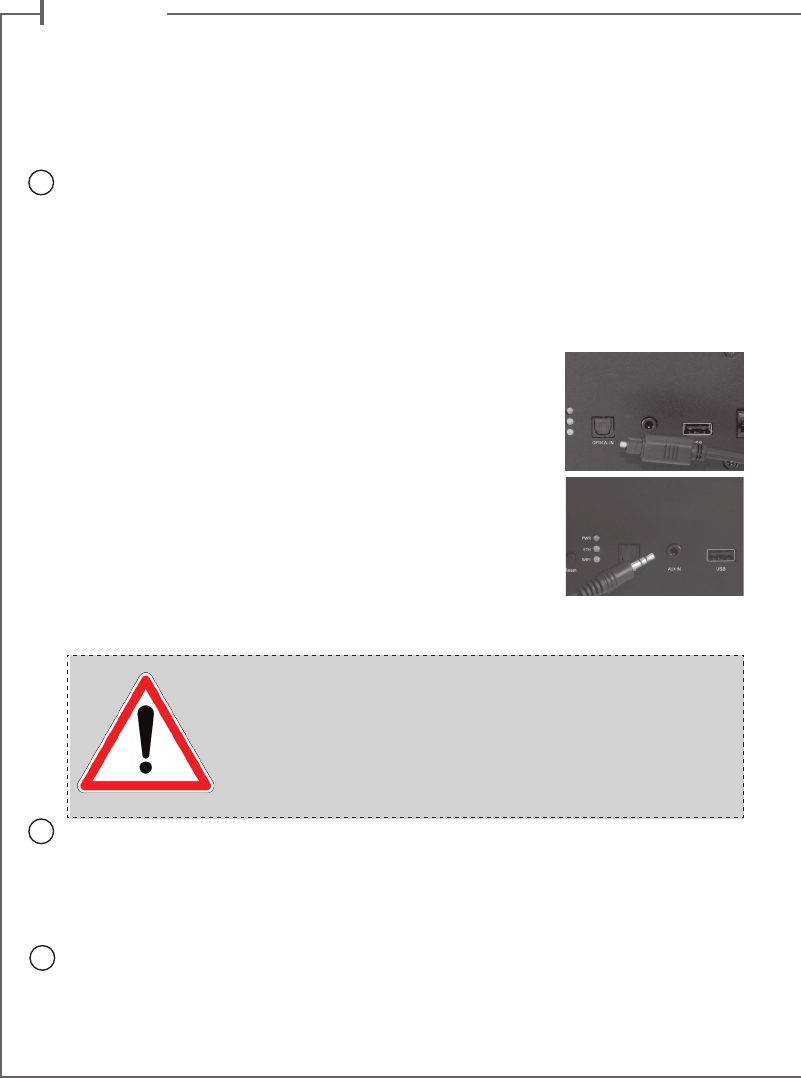

3- Connecter le Stream BASE au téléviseur avec une des 2 entrées disponibles. Privilégier la solution
coaxiale SPDIF :
- Entrée optique SPDIF : connecter l'entrée "OPTICAL IN" à la
sortie TV audio du téléviseur (TV Audio OUT) avec le cable
optique fourni ou un équivalent. Veiller à ce que les bouchons de
protections aux extrémités du câble optique soient bien enlevés.

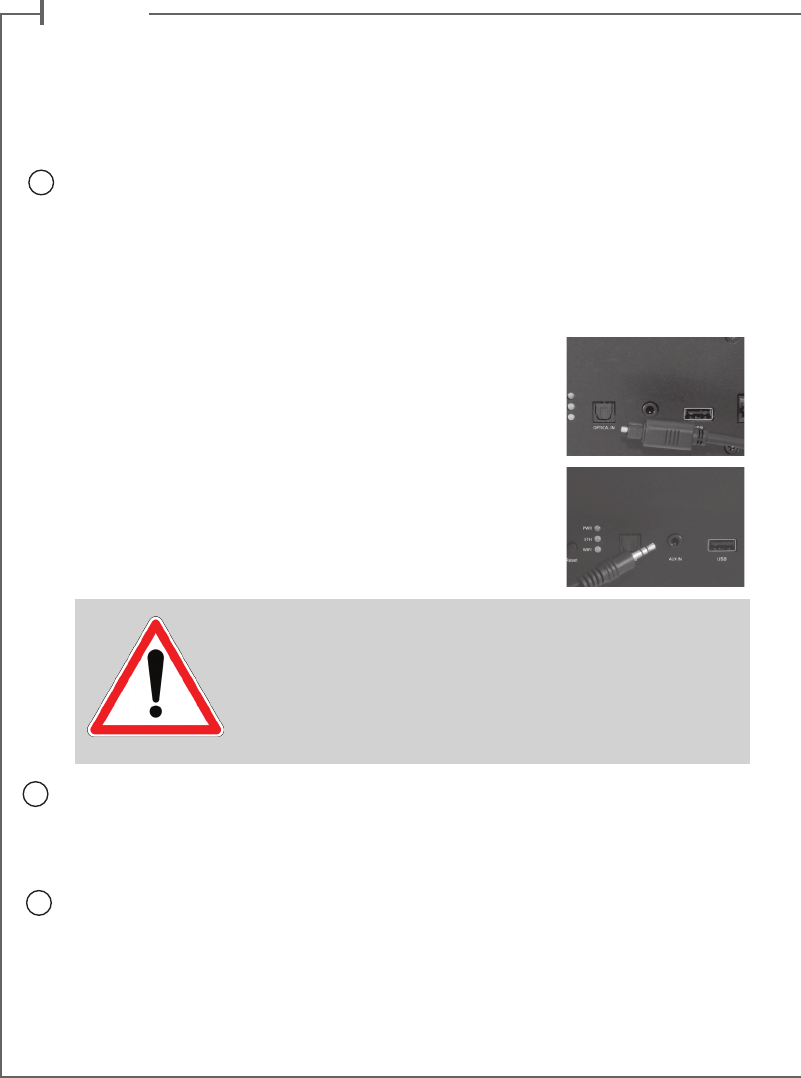

- Entrée analogique Jack 3,5 mm : si le téléviseur ne possède pas
de sortie optique SPDIF, connecter l'entrée "AUX IN" soit à la
sortie stéréo analogique du téléviseur (RCA TV Audio out) avec un
câble RCA-Jack 3,5 mm, soit à la sortie casque du téléviseur avec
un cordon Jack-Jack 3,5 mm (non fournis).
DESACTIVATION DES HAUT-PARLEURS DU TELEVISEUR
Mettre le téléviseur sous tension, ouvrir le menu du téléviseur et rechercher un onglet du type
Audio, Son ou Enceintes. Utiliser la fonction du menu qui permet de désactiver les haut-parleurs
du téléviseur. Cet élément de menu peut par exemple être intitulé "Speaker On/Off" pour haut-
parleurs activés / désactivés. Si cette fonction n'existe pas, amener le volume du son du téléviseur
avec la télécommande du téléviseur au niveau minimum.
ACTIVATION DE LA SORTIE OPTIQUE DU TELEVISEUR
En l'absence de son en phase 5 avec une liaison optique, paramétrer si nécessaire dans le menu du
téléviseur la sortie optique choisie.
2
1
ATTENTION ! le téléviseur posé directement sur Stream
BASE doit présenter un poids maximal de 50 kg, sa base
doit mesurer au maximum 63 cm en largeur, 27 cm en
profondeur.
Ne pas positionner de téléviseur à tube cathodique sur le
Stream BASE.
3
7
4
5

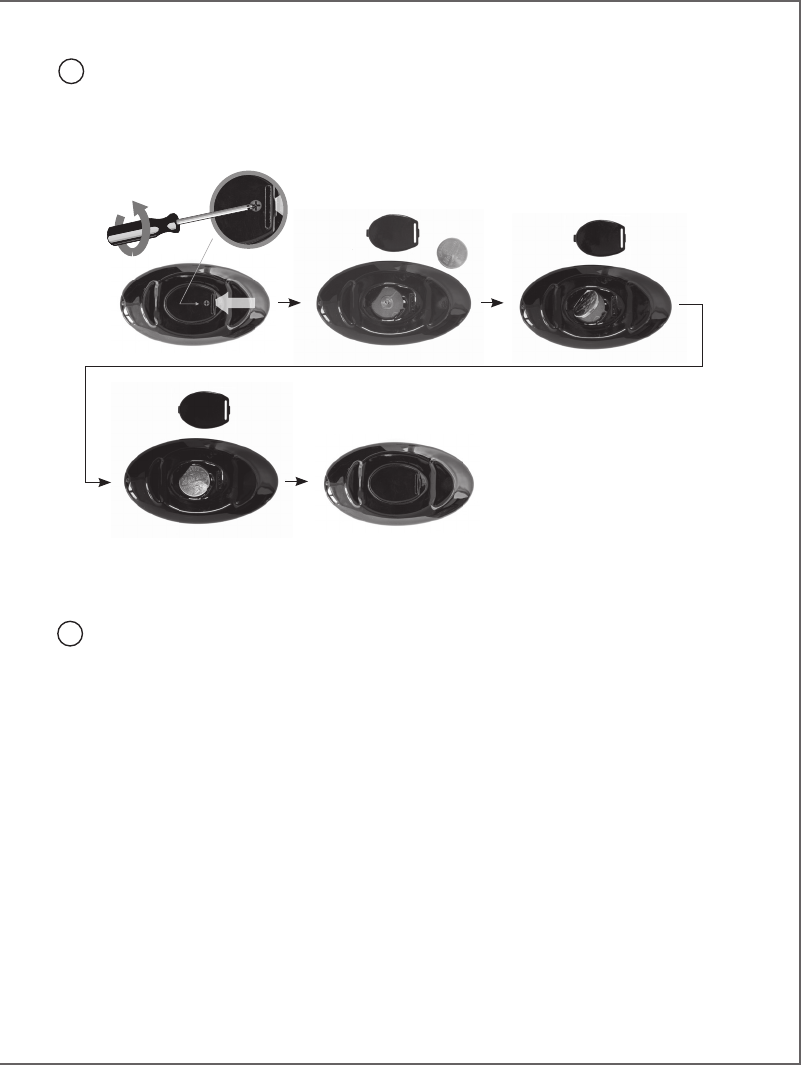

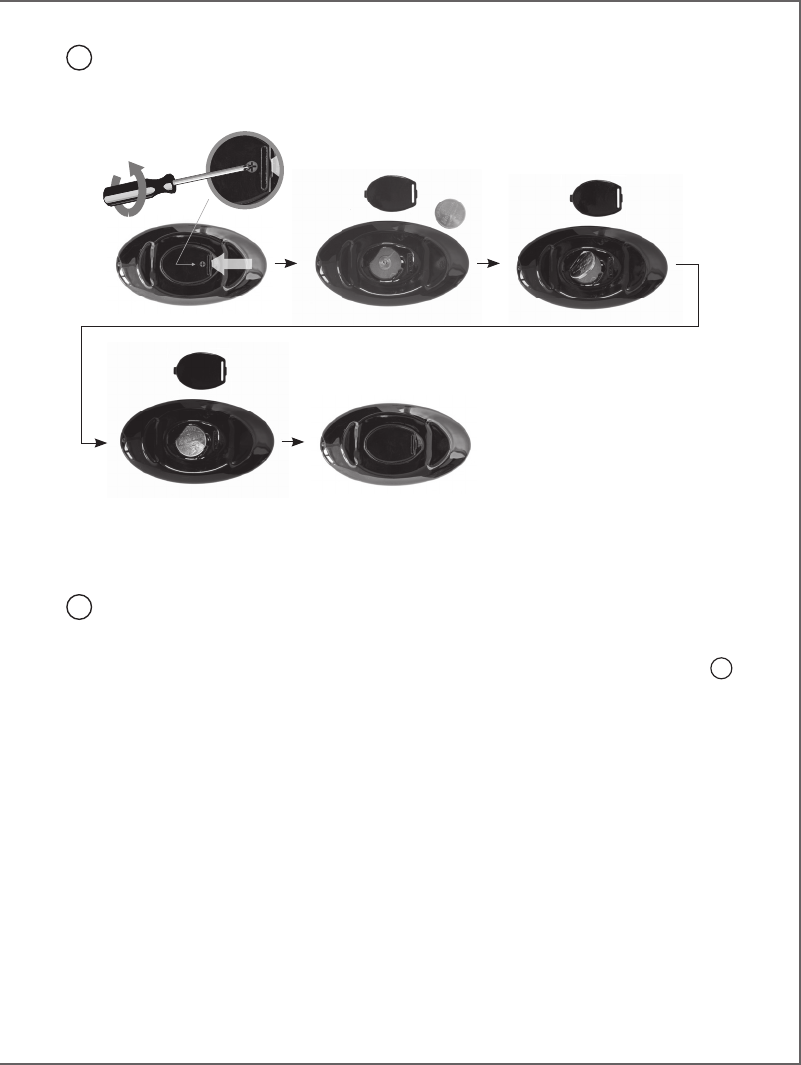

Remplacement de la pile bouton type CR-2025 : retourner la télécommande, dévisser la
vis, enlever le couvercle, enlever la pile usagée, insérer la pile neuve, coté marquée "+" vers
l'extérieur, remettre le couvercle, resserrer la vis.
PREMIERE UTILISATION
Connecter le Stream BASE au secteur avec le cordon d'alimentation aproprié au réseau
électrique. STREAM BASE est opérationnel dès que la diode de l'écran du Stream BASE
s'allume en rouge (mode veille). Passer en mode MARCHE en appuyant sur la touche
1
de la télécommande. La diode de l'écran du Stream BASE s'allume en vert, l'écran afche
"ON" puis la dernière entrée utilisée.

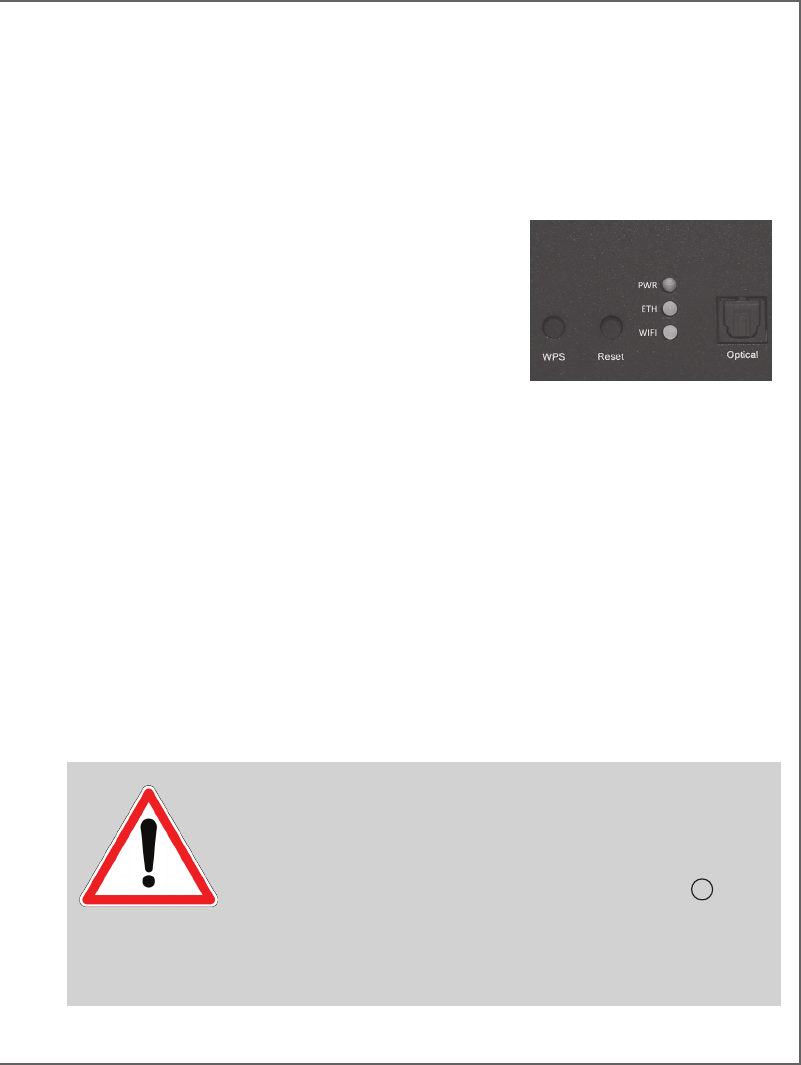

NOTE : la fonction DLNA pour l'utilisation en réseau Wi-Fi / Ethernet de STREAM BASE devient
opérationnelle lorsque la diode PWR (power), à l'arrière du Stream BASE, est passée du rouge au vert,
environ 40 secondes après la mise sous tension.
Téléviseur allumé, sélectionner l'entrée connectée au téléviseur par pressions successives sur
la touche 3 de la télécommande, jusqu'à son afchage à l'écran du Stream BASE :
- "OPT" pour l'entrée optique S/PDIF
- "AUX" pour l'entrée analogique.
VOLUME : Utiliser les touches 5 et 7 de la télécommande Stream pour ajuster le volume
sonore .
ACTIVATION DE LA TELECOMMANDE
Avant la première utilisation, dévisser la vis (tournevis PH00), enlever le couvercle, retirer
la languette de protection, remettre le couvercle et resserrer la vis.
f r a n c a i s
8
Stream BASE n'est pas seulement une base sonore pour téléviseur. Il est équipé pour
pouvoir proter de ses qualités audios en connectant d'autres sources dont des sources
Bluetooth et Wi-/Ethernet.

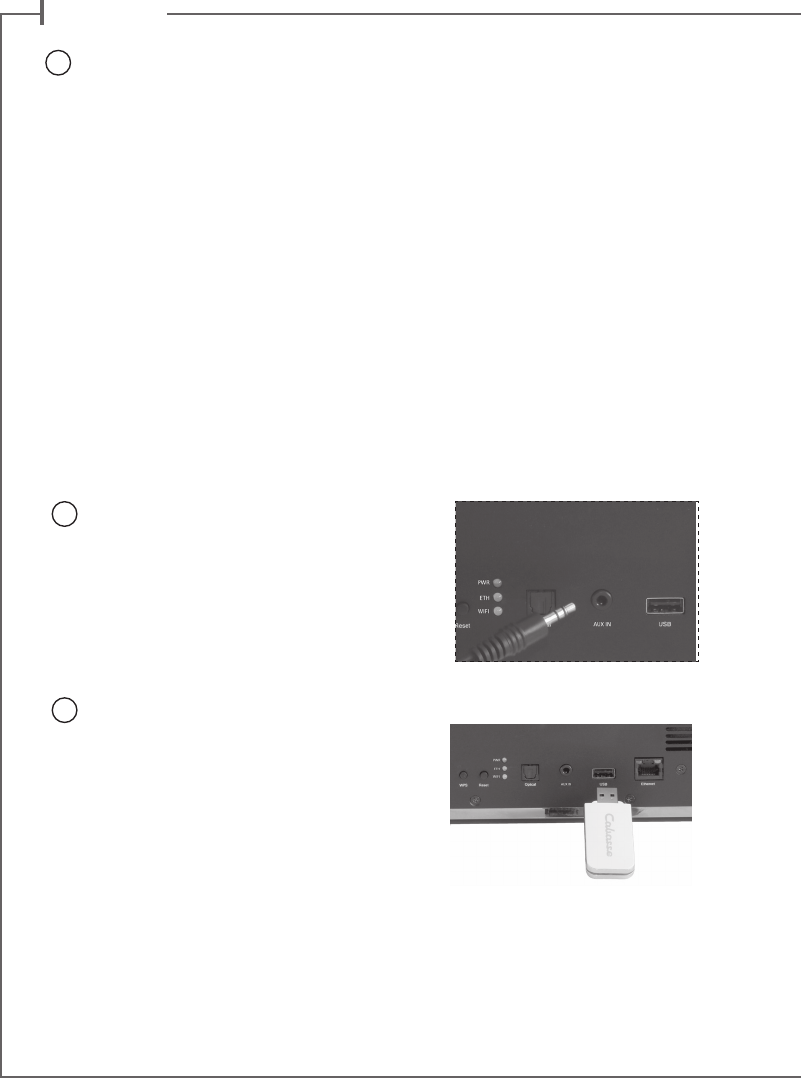

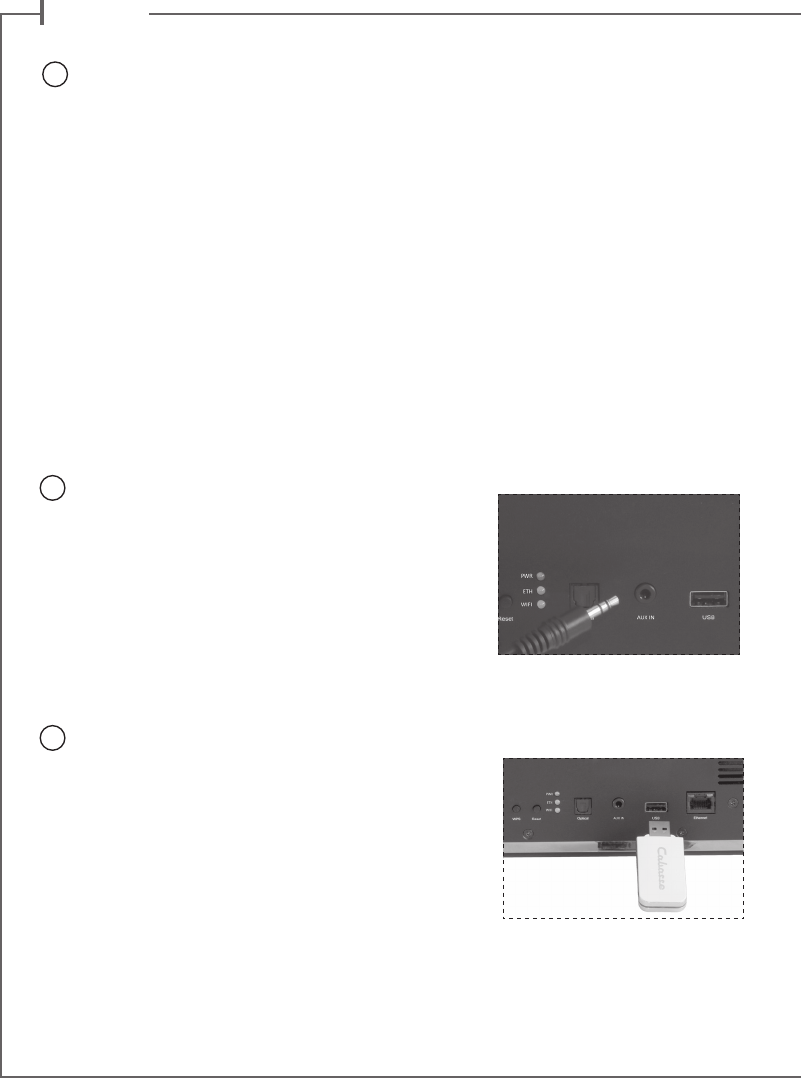

ENTREE ANALOGIQUE AUX IN
Si cette entrée n'est pas utilisée pour le téléviseur, elle
pourra être connectée à une source audio (lecteur
CD, lecteur MP3, smartphone) équipée d'une sortie
analogique type RCA ou mini-jack. Utiliser un cordon
RCA/mini-jack ou un cordon mini-jack/mini-jack
(non fournis)

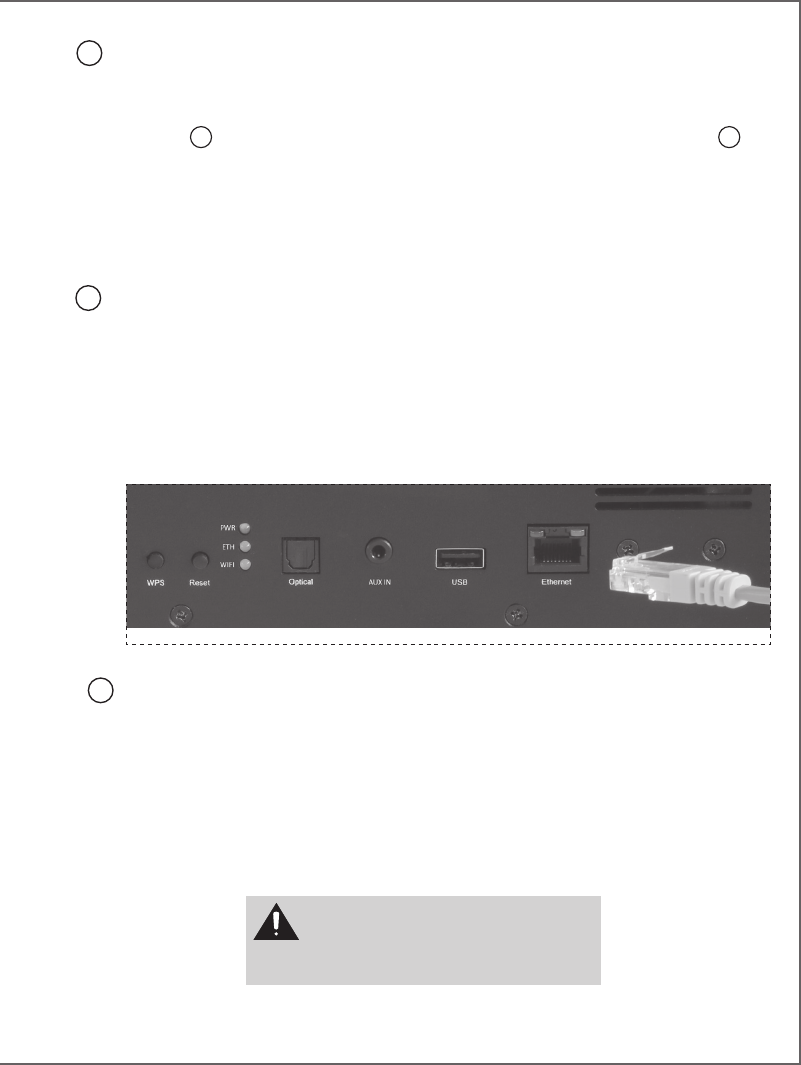

ENTREE USB
Cette entrée n'est utile que pour l'utilisation en
mode Wi-Fi/Ethernet ( paragraphes 4,5,6 ci-après).
Connecter une clé USB ou un disque dur contenant
des chiers audio à cette entrée pour les mettre
automatiquement en réseau. Tous les chiers aux
formats reconnus par le serveur DLNA inclus dans
STREAM BASE sont alors listés dans l'application
Stream Audio Control et peuvent être lus par tous les
lecteurs Cabasse Stream connectés au même réseau.
La prise USB de STREAM BASE est pourvue d'une
alimentation de 1,5 Ampère pour l'utilisation d'un
disque dur nomade sans recours à une alimentation
externe.
1
2
6
OPTIMISATION DE LA RESTITUTION SONORE
Le Stream BASE est équipé de plusieurs fonctions pour obtenir une restiturtion sonore
optimisée et adaptée à chaque situation:
- MODE HI-FI / SURROUND: la touche 2 de la télécommande permet d'activer ou désac-
tiver le mode surround. Le mode Hi-Fi est recommandé pour l'écoute musicale et les
émissions où le dialogue prime, le mode surround pour le cinéma.
- MODE NUIT: le mode "NIGHT" de la touche 3 optimise le système pour une écoute
confortable avec un niveau sonore faible.
- REGLAGES GRAVE / AIGU : ils permettent d'adapter l'équuilibre sonore en fonction de
l'acoustique de la pièce, de la source sonore, de vos préférences
- REGLAGE DE LA SYNCHRONISATION: utiliser les touches "-" et "+" pour caler le son
sur le mouvement des lèvres. Le décalage peut varier suivant les chaines ou les sources.
UTILISATION AUDIO
9
CONNEXION BLUETOOTH
Le STREAM BASE est conguré en mode ouvert pour les connexions Bluetooth. il suft donc,
dans le menu de l'appareil à connecter, de sélectionner "Cabasse STREAM BASE" dans la liste
des appareils Bluetooth disponibles. Sélectionner si nécessaire la source Bluetooth en pressant
le bouton
8
de la télécommande "Stream" ou de Stream BASE jusqu'à ce que la diode
9
BLUETOOTH s'illumine. Si un appareil est déjà connecté en Bluetooth avec STREAM BASE, il
faut interrompre cette liaison avant d'en réaliser une nouvelle avec un autre appareil.
EXEMPLE DE CONNEXION BLUETOOTH AVEC UNE TABLETTE ANDROID : voir la version
française en page 16.
CONNEXION ET UTILISATION AVEC UN ORDINATEUR APPLE: version française en page 17.
3
CONNEXION FILAIRE (LAN) AU RESEAU ETHERNET
La liaison laire Ethernet garantit un débit de transfert optimum et constant dans tout
environnement. Utilisez la si le fonctionnement en mode Wi-Fi présente des coupures ou arrêts
intempestifs de la musique, signes d’un réseau Wi-Fi saturé ou d’une distance routeur-Stream
trop importante.

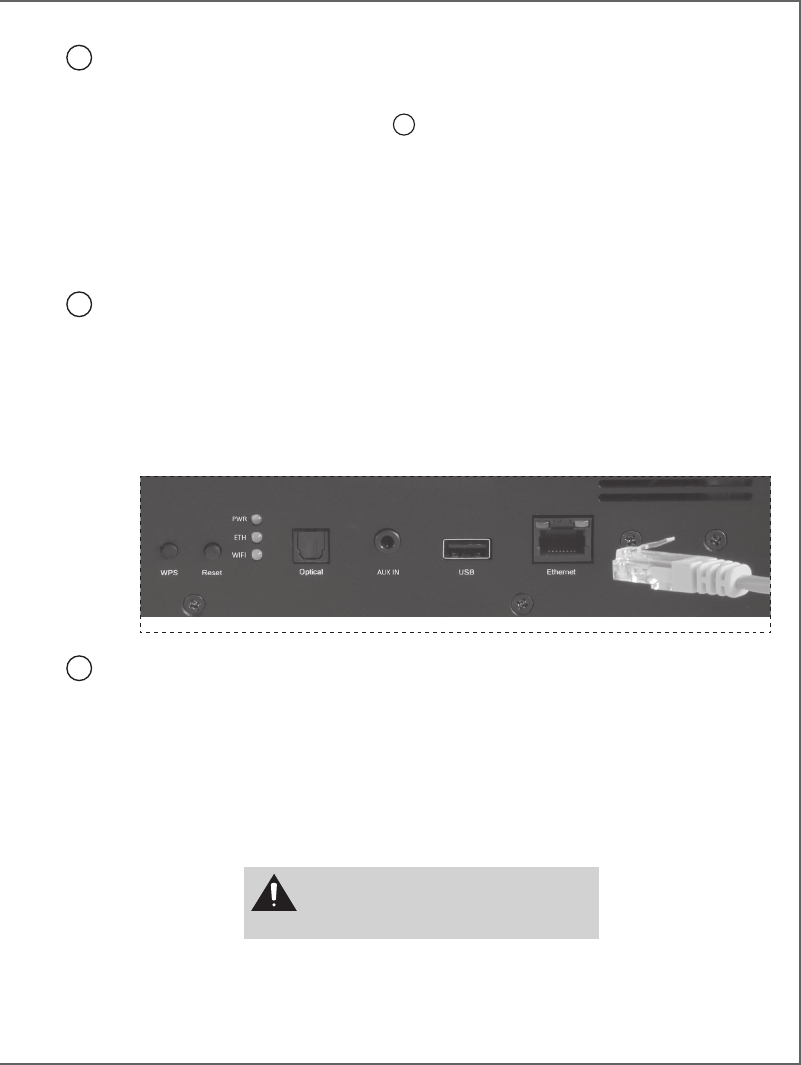

Connectez un câble RJ45 entre le STREAM BASE et votre routeur (ou Box Internet). La
connexion est établie quand la diode M-LAN passe au bleu xe.
ATTENTION : le mode DHCP du routeur doit être activé.
MODE WIFI DIRECT
Ce mode de connexion permet de diffuser en qualité wi les chiers audio présents dans la tablette (ou le
smartphone) et sur le support (disque dur, clé) USB connecté à l'entrée USB de STREAM BASE sans avoir
recours ou besoin d'un réseau Wi-Fi. Il ne donne pas accès aux sources internet (Vtuner, Deezer) ni aux
chiers audio présents dans le réseau domestique et ne permet pas les mises à jour du STREAM BASE.
Une fois l'application StreamCONTROL installée sur la tablette ou le téléphone et le STREAM BASE
activé, ouvrir l'application et choisir "utiliser ce lecteur en mode d'accès direct".
Suivez les instructions et commencez à écouter vos musiques préférées.
4
5
Appuyer sur le bouton "RESET" avant
d'utiliser un nouveau mode de connexion wi
(laire, automatique, semi-auto, manuelle) ou
un nouveau routeur.
f r a n c a i s
10
11
CONNEXION DLNA SANS FIL (WLAN) AU RESEAU WIFI
IL EXISTE 2 SOLUTIONS POUR CONNECTER LE STREAM BASE AU
RESEAU WIFI :
1) CONNEXION WPS AUTOMATIQUE avec l'utilisation des
touches WPS du STREAM BASE et du routeur (ou box Internet)
s'il en est équipé: presser le bouton WPS du routeur pendant au
moins 2 secondes puis presser dans les 2 minutes (ces durées
sont indicatives, à vérier dans le manuel du routeur) qui suivent
presser le bouton WPS du STREAM BASE. La connexion est
effective quand la diode bleue "M-WL" cesse de clignoter et reste
allumée. Continuer avec l'installation de l'application Cabasse.
2) CONNEXION SEMI-AUTOMATIQUE AVEC
L’APPLICATION STREAM CONTROL CABASSE sur un smartphone ou une tablette connecté(e) au
réseau Wi-Fi.
a) Installer l’application Stream CONTROL sur la tablette/smartphone depuis “Play Store” pour un appa-
reil Android ou “App store” pour un produit Apple.
b) Mettre le STREAM BASE sous tension (ou appuyer sur le bouton reset), activer le mode wi dans
l’application “paramètres” du smart phone ou de la tablette.
c) Sélectionner STREAM BASE parmi les appareils disponibles et demander la connexion.
d) Une fois la connexion établie, ouvrir l’application Stream CONTROL et choisir: "congurer le
réseau Wi-Fi pour ce lecteur". Suivre pas à pas les instructions d'installation.
Note : vous pouvez lancer l'application Stream CONTROL dès la n de la phase b), et continuer le
processus de connexion, l'assistant de conguration apparaissant automatiquement pour la pre-
mière utilisation.
e) Vérier que la diode bleue M-WL à l’arrière du STREAM BASE clignote.
f) Après environ 30 secondes la diode Wi bleue est xe : appuyer sur “Fermer la Page”.
STREAM BASE est prêt à lire les chiers audio partagés de votre réseau ou les radios web proposées
par vTuner.
ATTENTION ! Une mise à jour du logiciel du STREAM BASE
peut démarrer automatiquement dès qu'une connexion au réseau
internet est réalisée. L'écran afche "UPDTE" (pour update =
mise à jour) jusqu'à la n de la mise à jour. Le STREAM BASE
n'est pas fonctionnel durant cette phase jusqu'au redémarrage
en mode ECO, diode rouge xe. Appuyer sur la touche
1
pour
passer en mode actif et utiliser STREAM BASE.
Ne pas mettre en veille ou déconnecter le STREAM BASE durant
les mises à jours qui peuvent durer jusqu'à 30 minutes.
f r a n c a i s
12
CONNEXION BLUETOOTH

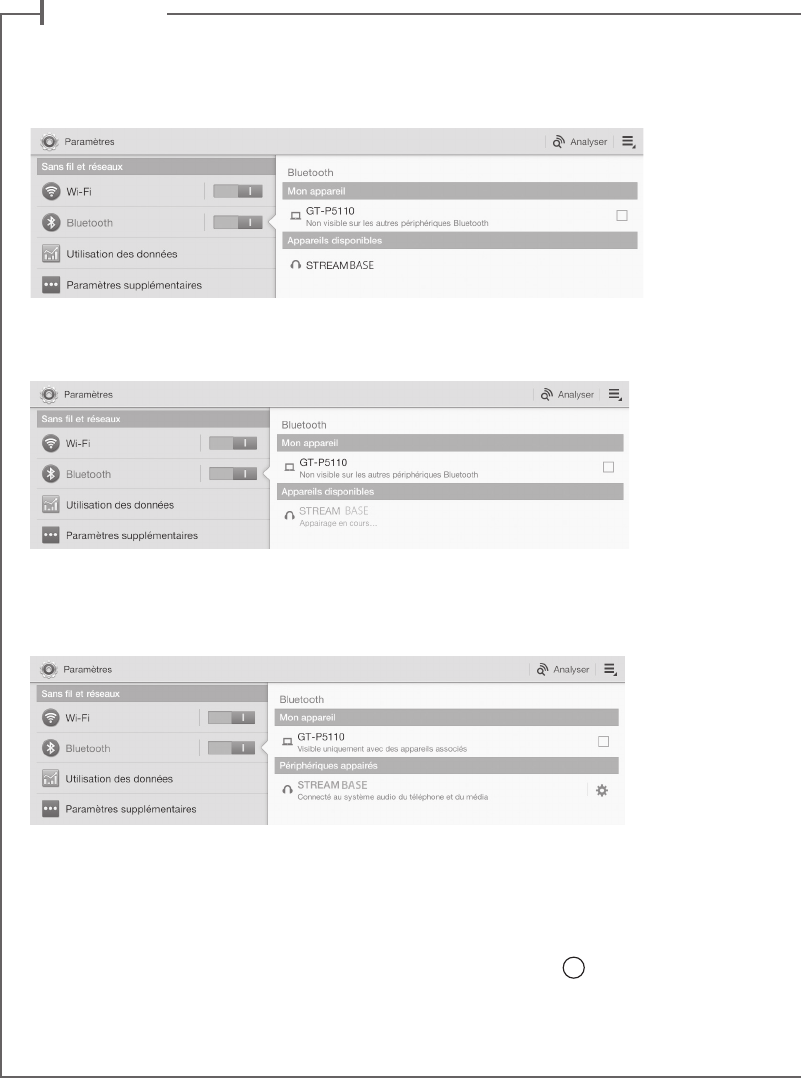

- Activer si ce n’est déjà fait la fonction Bluetooth dans le menu paramètres de la tablette en ap-
puyant sur le pavé OFF-ON
- Dans la liste des appareils disponibles, cliquer sur Cabasse « STREAM BASE ».
Si le STREAM BASE n'est pas connecté en Bluetooth à un autre appareil, la connection à la tablette
suit automatiquement l'appairage.
Si le message «Connexion...» n’apparait pas, vériez qu'un autre appareil n'est pas déjà connecté
au STREAM BASE. Déconnecter cet appareil et appuyer une nouvelle fois sur "Cabasse STREAM
BASE".
Votre STREAM BASE est maintenant connecté.
Pour écouter les chiers audio présents sur la tablette, ouvrir votre application de lecture de
chiers audio et lancer une lecture. Si aucun son, vérier que le contrôle général de volume de la
tablette ou du smartphone n’est pas sur mute ou au minimum, régler le volume dans l’applica-
tion si cette fonction existe, régler le volume de STREAM BASE avec sa télécommande.
Enn si une source wi- est active, changer de source avec la touche
4
de la télécommande
jusqu’à ce que "BT" s'afche à l'écran du Stream BASE.
13
Connecter le STREAM BASE au secteur.
Si le STREAM BASE est déjà sous tension,
interrompre si elle existe toute liaison
Bluetooth active entre le STREAM BASE et un
autre appareil.

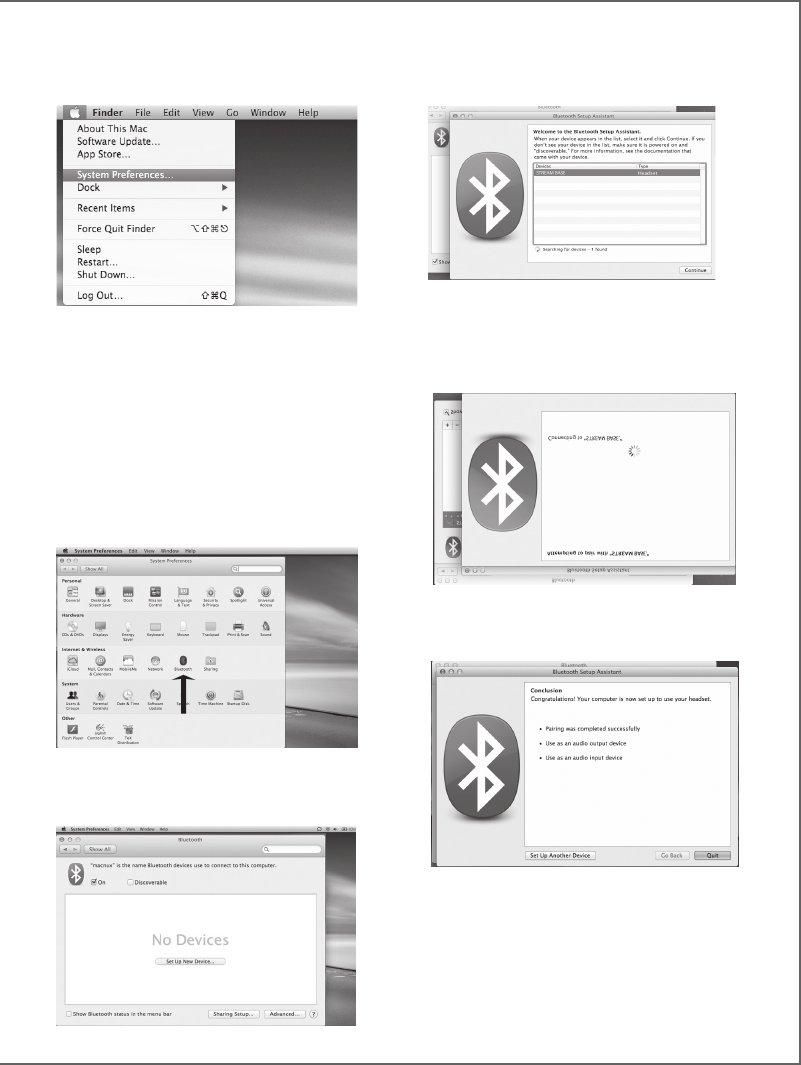

Activer, si ce n’est pas déjà fait, la fonctionnalité
Bluetooth de l’ordinateur en cliquant sur le
menu « pomme » puis « Préférences systèmes ».
Une fois que la fenêtre de préférences
s’afche, Cliquer sur l’icône Bluetooth.
Cliquer sur « Activé » et sur « Congurer un
nouvel appareil »
STREAM BASE apparait dans la liste des
appareils, sélectionner le puis cliquer sur
« Continuer »
Connexion en cours…
Connexion réussie. STREAM BASE est mainte-
nant jumelé avec votre Mac.
CONNECTION BLUETOOTH AVEC UN ORDINATEUR APPLE
1) ACTIVATION DE LA LIAISON BLUETOOTH
f r a n c a i s
14

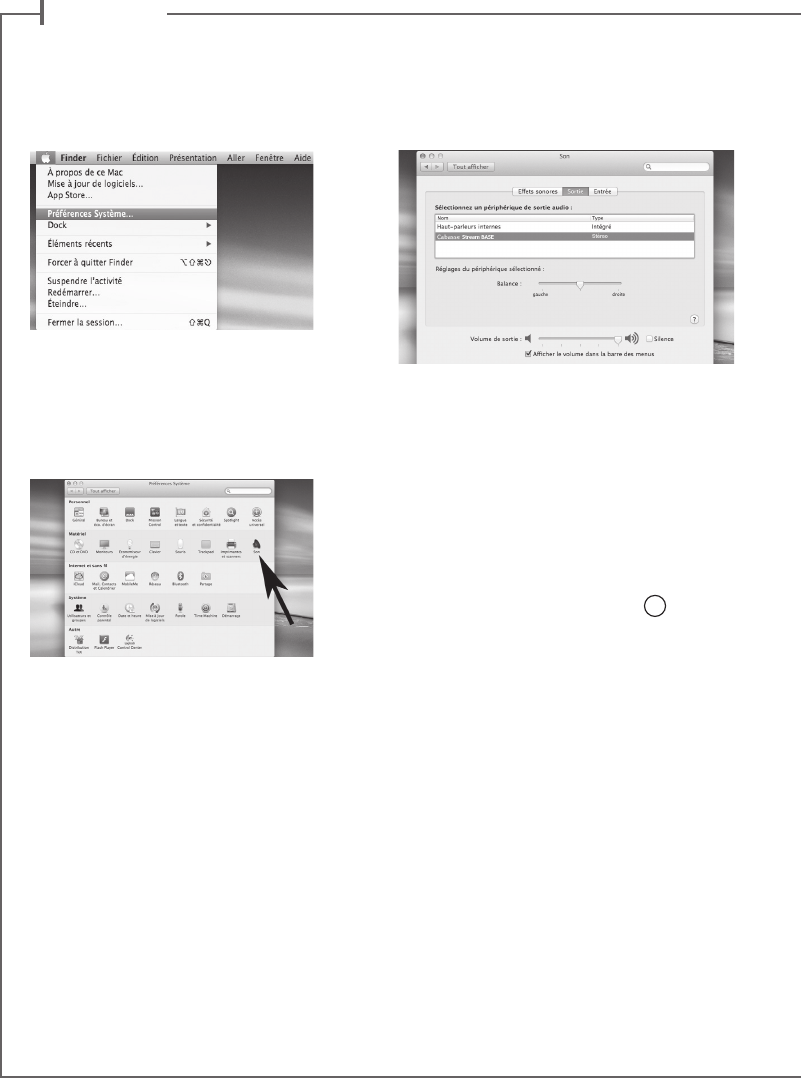

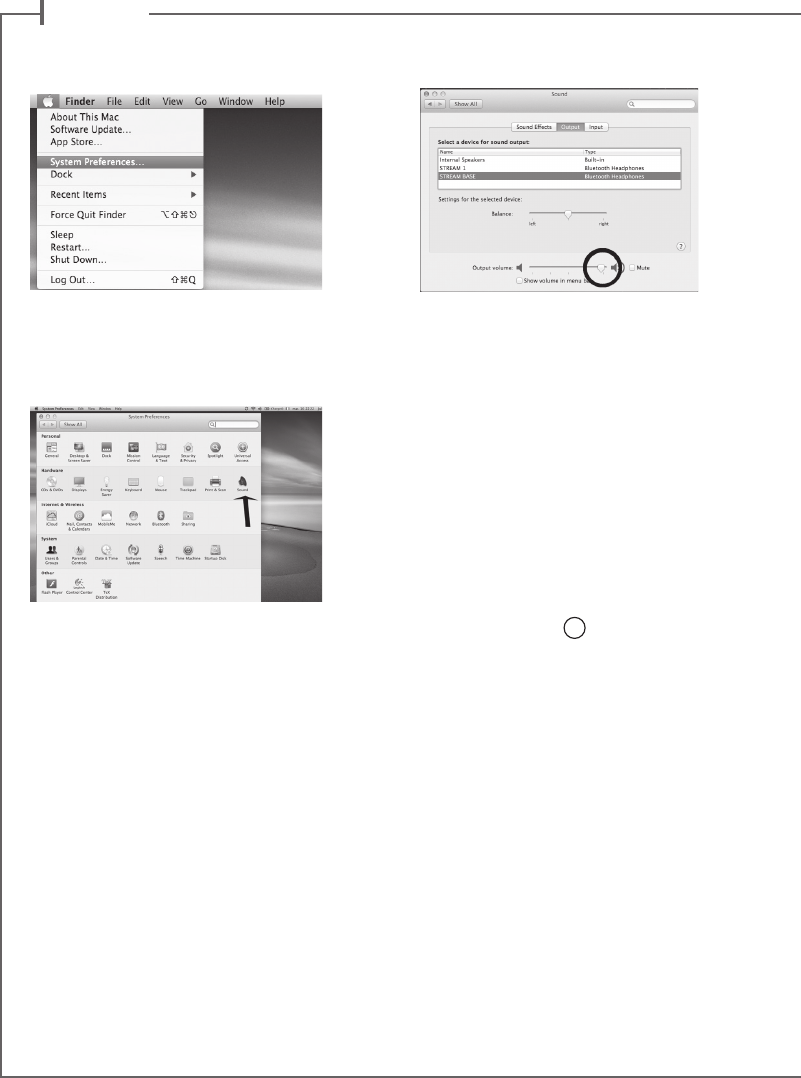

Pour écouter vos musiques avec votre Mac,
vous devrez sélectionner votre STREAM BASE
en tant que périphérique de sortie audio dans
les préférences système.
Sélectionner « Son » dans la ligne « Matériel »
Sélectionner l’onglet "Sortie" puis la ligne
"STREAM BASE stereo". Le lecteur "STREAM
BASE" dans cette fenêtre correspond à la
conguration mains libres pour smartphones,
inappropriée à l'écoute musicale.
Régler le volume de sortie sur la position maxi-
mum. Fermer la fenêtre.
Si le STREAM BASE est actif et connecté à une
source wi- ou analogique, sélectionner la
source Bluetooth avec la touche
8
de la télé-
commande ou du STREAM BASE et ajuster le
volume.
2) SÉLECTION DU PÉRIPHÉRIQUE DE SORTIE AUDIO
15
1 - Connecter le Stream BASE au secteur. Stream BASE est opérationnel dès que la diode
s'allume en rouge (mode ECO). Passer en mode MARCHE en appuyant sur la touche
1
de
la télécommande.
2 - Connecter au réseau wi la tablette ou le smartphone que vous utiliserez avec l’application
StreamCONTROL.
3 - Télécharger gratuitement l'application Cabasse Stream Audio Control sur Playstore pour les
appareils Android, sur l'App Store pour les appareils Apple.
Installer l’application StreamCONTROL sur le smartphone ou la tablette.
Vous pouvez installer librement l’application StreamCONTROL sur plusieurs supports et les
utiliser simultanément avec un STREAM BASE comme avec plusieurs Stream.
4- Lancer l’application en cliquant sur son icône et suivre les instructions pour naliser la
première mise en route d'un appareil Stream.
A l'invite au démarrage, choisir entre le mode Wi direct (cf page 10) et le mode réseau si le
Stream BASE n’est pas déjà connecté au réseau (cf pages 11).
L'utilisation de l'application est intuitive.
Cependant, où que vous soyez dans l'application, appuyer sur "?" vous donnera un accès direct
au mode d'emploi de l'application et aux options offertes pour la page concernée.
Vous pouvez maintenant lire les chiers audio présents dans la tablette ou le smartphone, dans
les disques durs reliés au réseau (NAS, ordinateurs PC et Mac), à une source digitale connectée
à une entrée USB d'un Stream BASE, Stream 1 ou Stream Source, écouter des radios internet et
faire du streaming avec Deezer.
Plusieurs appareils Stream peuvent être contrôlés simultanément par un ou plusieurs smartphones
et tablettes. Des groupes d'appareils connectés de façon identique au réseau (Ethernet ou Wi-Fi)
peuvent être créés pour la diffusion simultanée dans plusieurs pièces.
UTILISATION DU STREAM BASE
AVEC L'APPLICATION StreamCONTROL
f r a n c a i s
16
MARQUAGE DEEE
Traitement des appareils électriques
et électroniques en n de vie (appli-
cable dans les pays de l’Union euro-
péenne).
Ce symbole, représentant une pou-
belle sur roues barrée d’une croix,
apposé sur le produit, indique que ce
produit ne doit pas être traité avec
les déchets ménagers. Il doit être
remis à un point de collecte pour le
traitement des équipements électriques et élec-
troniques en n de vie. En s’assurant que ce
produit est bien mis au rebut de manière appro-
priée, vous aiderez à prévenir les conséquences
négatives potentielles pour l’environnement et
la santé humaine.
Le recyclage des matériaux ai-
dera à conserver les ressources naturelles. Pour
toute information supplémentaire au sujet du
recyclage de ce produit, vous pouvez contacter
votre municipalité, votre déchetterie ou le ma-
gasin où vous avez acheté le produit.
REMPLACEMENT DE LA PILE
DE LA TÉLÉCOMMANDE
Retourner la télécommande, coté face vers le
sol. Enlever la pile usagée et la remplacer par
une autre pile bouton type CR-2025. Mettre la
pile usagée au rebut suivant les informations ci-
dessous.
Informations sur les piles et accumu-
lateurs présents dans l’équipement
(Applicable dans les pays de l’Union
européenne).
Ce symbole, représentant une pou-
belle sur roues barrée d’une croix,
apposée sur une pile ou un accumu-
lateur, indique que cette pile ou ac-
cumulateur ne doit pas être éliminé
comme un déchet ménager non trié mais qu’il
doit être collecté de manière séparée de sorte
d’en faciliter le traitement et le recyclage. Il doit
être remis à un point de collecte pour le traite-
ment des piles et accumulateurs usagés. En s’as-
surant que ce produit est bien mis au rebut de
manière appropriée, vous aiderez à prévenir les
conséquences négatives potentielles pour l’envi-
ronnement et la santé humaine. Le recyclage des
matériaux aidera à conserver les ressources na-
turelles. Pour toute information supplémentaire
au sujet du recyclage de ce produit, vous pouvez
contacter votre municipalité, votre déchetterie
ou le magasin ou vous avez acheté le produit.
ATTENTION au danger d'explosion
si la batterie n'est pas correctement
remplacée : utiliser seulement une
batterie identique ou équivalente. Ne pas exposer
les batteries à une source de chaleur excessive
comme le soleil, un feu ou équivalent.
17
MISE A JOUR AUTOMATIQUE
Les mises à jour du logiciel de STREAM BASE
sont automatiques.
La durée de mise à jour est variable et peut durer
jusqu'à une demi-heure notamment lors de la
première connexion au réseau internet.
La diode
1
passe au rouge et clignote jusqu'à
la n de la mise à jour.
Le STREAM BASE n'est pas fonctionnel durant
cette phase.
Note: la référence de la version du logiciel en
cours est disponible via l'application Cabasse
Stream: onglet "Paramètres" + sous-onglet "lec-
teurs audio"+ STREAM BASE.
NETTOYAGE
le STREAM BASE peut-être nettoyé à l’aide d’un
linge doux, ne pas utiliser de détergent ni de
liquide pouvant couler à l’intérieur de l'appareil.
N’utiliser aucun solvant, produit chimique ou
solution de nettoyage contenant de l’alcool, de
l’ammoniaque ou un abrasif.
FAQ
Consultez nos réponses aux questions souvent
posées sur www.cabasse.com, à la page FAQ
STREAM.
SERVICE APRÈS VENTE
Cabasse dispose d’un réseau de revendeurs
agréés qui est à votre disposition pour assurer le
service après vente de votre matériel.
Pour connaître la liste des revendeurs agréés
Cabasse, contactez-nous ou consultez notre site
Internet www.cabasse.com.
ATTENTION ! Ne pas éteindre ou
déconnecter le STREAM BASE du sec-
teur pendant les phases de mise à jour!
Une mise à jour peut durer jusqu'à environ une
demi-heure.
f r a n c a i s
18
Entrées
digitales
- 1 entrée DLNA : soit laire avec prise RJ45
soit Wi-Fi
- 1 entrée Bluetooth APTX
- 1 entrée optique S/PDIF
- 1 entrée USB
Entrée analogique 1 mini-Jack 3,5 mm stéréo
Alimentation 110-240 V ~60/50 Hz, 2A
Consommation
150W
Consommation en mode Eco
11 W @ 110-240VAC~50/60Hz
Consommation en mode arrêt
0 W @ 110-240VAC~50/60HZ
Température d’utilisation +5°C à +35°C
Température de stockage
-5°C à +40°C
Taux d’humidité en utilisation
40% à 70%
Réseau
10/100Mb Ethernet
MAC & PHY
Wireless LAN 802.11b/g/n
Sécurité WPS 2.0
Lecteur audio digital
(DMR sous DLNA 1.5)
Formats audio
Wi/RJ45
MP3 (jusqu’à 320kbps)
WMA
(WMA9, CBR,CBR, jusqu'à 320kbps)
PCM (16 bits-44.1kHz, 24 bits-44/48/96 kHz,
.wav, .aiff, .aif, aifc les, HTTP streams)
AAC-LC (jusqu’à 320kbps),
ALAC (.m4a), FLAC (16 bits-44.1kHz,
24 bits-44/48/96 kHz)
STREAM BASE
19
Haut-parleurs
Amplication 4-voies active
Taux de distorsion plus
bruit
(THD+N sur la bande
20-20 000 Hz pour une puissance de
100 mW et plus)
2 x tweeter + 4 x bas-medium/medium
1 x grave
2 x 10 W + 2 x 15 W + 2 x 15 W + 40 W
Wi : < 0,1%
Bluetooth : < 0,1%
Analogique : < 0,1%
Optique < 0.1% THD+N
Dimensions
(h x l x p) 86 x 650 x 290 mm
Poids 6,8 kg
STREAM BASE
FONCTIONS
Connexion
Bluetooth
WIFI/ETHER-
NET via routeur
internet / box
internet
WIFI direct
smartphone/
tablette
Diffusion audio loss less OUI OUI
Accès à tous les supports
audio depuis le reseau
WIFI (ordinateur…)
OUI
Multi-room OUI
Diffusion des contenus
audio smartphone/
tablette
OUI OUI OUI
Diffusion application
audio (youtube…) depuis
smartphone/tablette
OUI
Diffusion à partir de
supports USB OUI OUI
Radios et services musi-
caux internet OUI
Fabriqué sous licence de Dolby Laboratories. Dolby et le symbole du
double D sont des marques déposées de Dolby Laboratories.
e n g l i s h
20
Thank you very much for choosing a Cabasse Stream BASE. Please
read these instructions carefully before setting it up.
Explanation of graphical symbols
- The lightning ash with arrowhead
symbol, within an equilateral triangle, is
intended to alert you to the presence of uninsu-
lated “dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert you to the
presence of important operating and
maintenance (servicing) instructions in the lite-
rature accompanying the appliance.
Cleaning - Always take off the power cord
before cleaning the device. Do not use cleaning
solvent, whether liquid or air spray. Using a
soft dBASE cloth is recommended.
Installation on a piece of furniture
and stands - Do not place this device on
an unsteady surface, i.e. a stand, tripod, table,
shelf, etc. It may fall and cause serious injury to
a nearby child or adult.
Ventilation outlets - The device shall not
be placed in a position that restrains the ope-
ration of its fans. Avoid installing the device on
a bed, couch, blanket or other similar surfaces
that may prevent the appropriate air ow. Do
not install the device in a conned space, such
as a book shelf or other piece of furniture, that
could prevent sufcient air from owing freely.
Power - The device shall only be connected
to a source of power compliant to the one des-
cribed in this manual or on relevant printed
labels on the product. If you are not sure of the
type of power available, please contact your
reseller or the local power company.
Easy access to mains plug - To comple-
tely disconnect this product from the mains,
disconnect the plug from the wall socket out-
let. The mains plug is used to completely inter-
rupt the power supply to the unit and must be
within easy access by the user.
Overloads - Avoid overloading the power
plugs, extension cords or power relays. This
could result in re or electric shocks.
Foreign bodies and liquids - Avoid let-
ting foreign materials or liquids enter the de-
vice. They could cause re or electric shocks.
Never spill any liquid on the device.
Troubleshooting - You must unplug your
device from the power supply and have it chec-
ked by a qualied technician if:
The power supply or the plug is damaged.
Foreign bodies or liquid penetrated the de-
vice.
The device was exposed to dripping or
splashing.
The device does not seem to work correctly
under normal operating conditions. Only
operate the controls described in this ma-
nual. Any other operation could damage the
device and require on-site visit of a qualied
technician.
The device has fallen or its housing is da-
maged.
The performances of the device are strongly
altered.
IMPORTANT SAFETY INSTRUCTIONS
21
IMPORTANT SAFETY INSTRUCTIONS
Spare parts - If spare parts are needed to
repair the device, make sure that the techni-
cian followed the manufacturer’s recommen-
dations or that the replacing parts feature
the same specications as the original ones.
Non-compliant parts can result in multiple
damages, including re or electric shocks.
Checks - After any servicing of the device, ask
the technician to perform appropriate testing
to make sure that the device works safely.
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings.
Install in accordance with the manufactu-
rer’s instructions.
8. DO NOT install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including BASEliers) that
produce heat.
9. DO NOT defeat the safety purpose of the
polarized or grounding type plug. A pola-
rized plug has two blades with one wider
than the other. A grounding type plug has
two blades and a third grounding prong.
The wider blade or the third prong are pro-
vided for your safety. If the provided plug
does not t into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10. PROTECT the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. ONLY USE attachments/accessories
specied by the manufacturer.
12. UNPLUG this apparatus during light-
ning storms or when unused for long pe-
riods of time.
13. REFER all servicing to qualied service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is da-
maged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
Warning: don't ingest battery,
chemical burn hazard
The mains plug is used as the disconnect
device, the disconnect device shall remain
readily operable.
e n g l i s h
22
UNPACKING
Open carton aps; remove all the compo-
nents. If the speakers or the subwoofer appear
damaged, do not use them. Repack everything
in the original packing and contact your autho-
rised Cabasse dealer immediately. We suggest
you to retain the packing for future use.
SETTING UP THE COMPONENTS
OF YOUR SYSTEM
1 STREAM BASE, 1 power cord, 1 optical
cable, 1 remote control, 1 manual and one
warranty card.
23
USE OF CONTROL KEYS
1
ECO mode on / off
2
Surround mode on / off
3
Night mode on / off
4
Sources selection
5
7
Volume - and +
6
Mute
8
9
Bass control
10
trebble control
12
Reverse and forward (Wi-Fi)
Play /Pause
Audio/Video sync control
Display light intensity
13
14
11
15 16
17
Bluetooth
connection
WIFI/ETHERNET
via internet router
WIFI direct to
smartphone/
tablet
Loss less audio
playback Yes Yes
Access to any audio
from WLAN network
(desktop...)
Yes
Multi-room Yes
Tracks playback from
smartphone/tablet Yes Yes Yes
Playback smart-
phone/tablet a audio
applications
(youtube…)
Yes
Playback from USB
device Yes Yes
Web radio /DEEZER Yes
FEATURES
e n g l i s h
24
PLUG & PLAY WITH TV
TURNING OFF THE TV SPEAKERS
Turn on the TV, go to the TV menu and select Audio, Sound, or Speaker Settings. Look for the menu
item that allows you to turn off the TV speakers. If there is no setting for turning the TV speakers off,
adjust the TV volume to its lowest setting.
ENABLING DIGITAL AUDIO OUT
If there is no TV sound when on phase 5, look for the menu item that allows to enable the digital
audio output and select the optical setting.
1
SETTING UP
1- Place the Stream BASE under the TV, either on a cabinet or a shelf able to support the weight
of both Stream BASE and TV , or on a shelf under the TV but close to it, for instance if the base of
the TV is too wide to t on top of the Stream BASE. All connections achieved, be sure to center the
base of the TV on tne top of the BASE.
2- Make sure there is a space of at least 1" (2.5 cm) between the wall and the rear of the BASE. The
ventilation openings must remain clear to provide a proper cooling of the system.
3- Connect the Stream BASE with the TV using of the 2 inputs available. We recommend the optical
digital input for best performance:
- OPTICAL IN: use the supplied optical cable to connect it to
the TV Audio OUT . Be sure to remove both the caps on both
ends of the cable. Firmly push the plugs into the connectors
until hearing or feeling a click.
- AUX IN: if the TV is not tted with an optical output, connect
the RCA analog output of the TV with an RCA-mini-jack cable
(not supplied). If there is no RCA output, use the headphone
output and a Jack-mini-jack cable (not supplied).
2
CAUTION! The TV on top of the Stream BASE must
not weight more than 50 kg (110 lbs) and have bases
no wider than 63 cm (25"), and no deeper than 27
cm (10.6").
Do not place a CRT type TV on the Stream BASE
3
25
Replacement of the CR-2025 type battery in the Stream remote control: loosen the screw,
remove the rear lid, remove the old battery and load the new battery properly with the "+" side
on the clasp side, put the rear cover back on, retighten the screw.
CHECKING FOR TV SOUND
Plug one end of the power cord in the POWER connector at the back of the Stream BASE and the
other end into a live AC outlet. Stream BASE is ready to use as soon as the LED of the front display
turns red. Press the ECO on/off key of the remote to power the Stream BASE on. The LED turns
green, the screen displays "ON" followed by the name of the selected input.
Note: the DLNA fonction for Wi-Fi / Ethernet (WLAN/LAN) network use of Stream BASE is activated when
the PWR power LED at the back of Stream BASE has turned from red to green, around 40 seconds after having
powered the Stream BASE on.
TV being on, select the Stream BASE input connected to the TV by pressing the key 3 of the remote
until the screen disppalys tye name of the input connect to the TV:
- "OPT" for the optical input
- "AUX" for the analog input
VOLUME : use keys 5 (-) and 7 (+) to adjust the sound level.
4
POWERING ON THE REMOTE CONTROL
Before rst use, loosen the screw (PH00 screwdriver), remove the back cover, remove the
battery protection tab, replace the cover, retighten the screw.
5
e n g l i s h
26
USB INPUT
Use this input only in WIFI mode ( see next § 4,5,6).
Plug in an USB stick or a hard-drive to this input to
get all the stored audio les available on the domestic
network. All the audio les, under formats compatible
with the built-in DLNA server of STREAM BASE, will
be listed in the Stream Audio Control apps and can be
played by any Cabasse Stream player connected to the
same domestic network. The USB input is tted with a
1 Ampere power output enabling the use of a portable
hard drive with no need of an external power supply.
5
1
SOUND OPTIMIZING FUNCTIONS
Stream BASE is tted with several functions offering smart sound optimizations:
- HI-FI / SURROUND MODE: press key 2 of the remote to change mode. the HI-FI mode
is recommended for pure audio and for TV programs in which dialogs are dominant, the
SURROUND mode is recommended for movies and ctions.
- NIGHT MODE: the key 3 mode optimizes the system for a confortable listening at low
level.
- BASS / TREBLE ADJUSTMENTS: use these settings to adapt the sound balance to room
acoustics, the source, your preference.
- LIPS SYNCHRONIZATION: adjust the sound delay with the "-" and "+" AUDIO SYNC keys
of the remote
PLAYING AUDIO
Stream BASE is not only a high quality sound base. It is tted with wired and wireless
connections enabling to benet from its sound qualities with various sources, including
Bluetooth and LAN/WLAN ones.
AUX ANALOG INPUT
If not connected to the TV, use this input to get
music from an audio source (CD-player, MP3-player,
smartphone) tted with an analog connector, RCA or
mini-jack type. A RCA/mini-Jack or a mini-Jack/mini-
Jack cord will be necessary (not supplied).
2
27
BLUETOOTH CONNECTION
STREAM BASE is set in on open mode for Bluetooth connections.
Select "Cabasse STREAM BASE" in the available Bluetooth devices list.
Select the BLUETOOTH input with
8
key on the Stream remote or on the Stream BASE.
If a Bluetooth source is already connected to STREAM BASE, disconnect this item before
selecting a new one.
BLUETOOTH CONNECTION WITH AN ANDROID TABLET: see the English explanation
on page 38.
CONNECTION AND USE OF STREAM BASE WITH AN APPLE COMPUTER: see the English
version page 39.
LAN WIRE CONNECTION TO THE ETHERNET NETWORK
The LAN (Ethernet) wire connection ensures a constant and optimum transfer rate. Use it
if music reproduction stops or is erratic under Wi-Fi mode, because of a saturated Wi-Fi
bandwidth or the distance between the router and the Stream unit being too long.
Use a RJ45 type cable to connect STREAM BASE to the domestic router.
The connection is running when the blue LED “ETH” stops ashing and remains on.
ATTENTION: set up the router on DHCP mode.
WIFI DIRECT MODE
Wi-Fi direct allows to play with wi quality all the audio tracks available in the tablet or the
smartphone as well as those availble in the hard-disk or USB-stick connect to the USB input
of STREAM BASE, without need of a wi network. Internet sources such as Vtuner, Deezer and
the STREAM BASE rmware updates are not available.
Activate the STREAM BASE, Install and open the StreamCONTROL app on your tablet/
smartphone and select "Use this device in standalone mode" instead of "congure this audio
device". Follow the instructions and start playing your music.
3
3
4
Press "RESET" before starting a new
connection process (wired, auto, easy,
manual) or connecting to a new router.
e n g l i s h
28
29
DLNA (WLAN) WIRELESS CONNECTION TO THE WIFI NETWORK
THERE ARE 2 SOLUTIONS TO CONNECT
STREAM BASE TO THE WIFI NETWORK:
1) WPS CONNECTION: push the WPS button of the wireless
router for 2 seconds or more and push the WPS button of the
STREAM BASE within around 2 minutes (check for precise delays
in the router's manual). The connection is completed when the
blue LED "WIFI CONFIGURATION" is on. Now go to page 41 to
install the Cabasse StreamCONTROL application.
2) EASY WI-FI CONNECTION WITH THE CABASSE STREAMCONTROL APP with a smartphone or
tablet wi- connected to the domestic network.
a) Install the Cabasse Stream App on an Android or Mac tablet or smartphone from “Play Store” or “App
Store”.
b) Switch the STREAM BASE on or press the reset button if already on. Activate the Wi-Fi in the “settings”
application mode of the smartphone or tablet.
c) Select STREAM BASE among the available items and launch the connection.
d) Launch the Cabasse StreamCONTROL app. Once connected to STREAM BASE, select STREAM BASE
in the available wi networks list and follow the set-up instructions.
Note: from step b), you can open the Cabasse StreamCONTROL application and follow the
instructions of the online guide, which is launched automatically when connecting for the rst time.
e) The Wi blue LED on the back of STREAM BASE ashes for around 30 seconds.
f) The Wi blue LED stops ashing and remains on: press on “Close This Window”. STREAM BASE is now
ready to play all the shared audio les in your network as well as all the web radios proposed by vTuner.
CAUTION! An automatic update of the rmware might start as soon as
STREAM BASE is connected to the Web. The screen displays "UPDTE" for
update until the update is fully completed.
Do not try to use STREAM BASE during the update, wait until STREAM
BASE has restarted, when the front LED is steady red. Press
1
to turn the
STREAM BASE on and carry on.
Do not shut down or unplug STREAM BASE during updates.
e n g l i s h
30

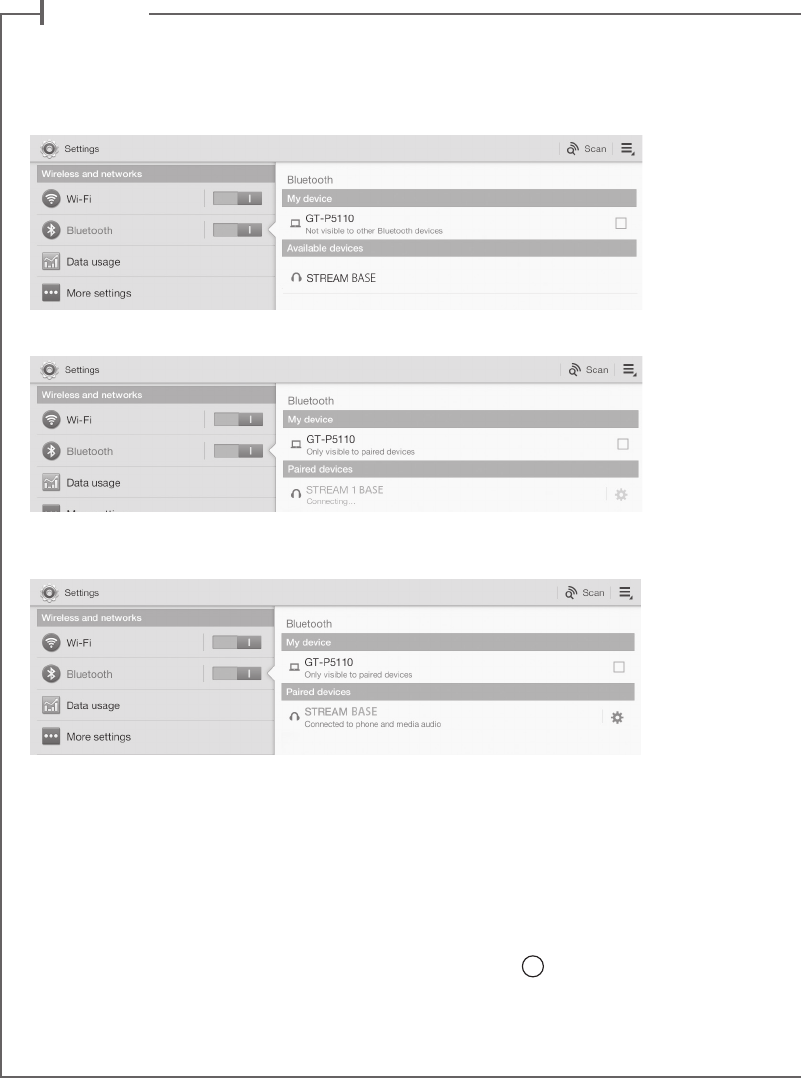

BLUETOOTH CONNECTION TO AN ANDROID TABLET
- If not already done, activate the Bluetooth Function in the « Settings » menu of your tablet by
pressing on the ON-OFF switch.
- Press “Scan for devices” and select « Cabasse STREAM BASE » among the available devices.
STREAM BASE is now paired with the tablet and connected to STREAM BASE is no other Blue-
tooth connection to STREAM BASE is active.
If the message « Connection.. » does not show up, stop the running Bluetooth connection with
another device, either through the set up menu of the device or by switching off and on the
STREAM BASE. Press on « Cabasse STREAM BASE » again.
To play on STREAM BASE the audio les stored in the tablet (or smartphone), open the audio
player application, select a le and press on “play”.
If STREAM BASE remains silent, rst check that the main volume of the tablet (or smartphone)
is not down to zero level and that « mute » is off. Adjust the volume in the player application
and nally raise the volume of the STREAM BASE with the Stream remote. Finally select «
Bluetooth » as the active source on STREAM BASE pressing the
4
key of the Stream remote
until the blue LED ashes.
31
Connect the STREAM BASE to mains to
power it on. If STREAM BASE is already
on, stop any running Bluetooth connec-
tion between STREAM BASE and any
other item.
Activate the Bluetooth function of the
computer: open the « apple » menu and
select « Systems Preferences ».
Select « Bluetooth » in the window for the
« Systems Preferences ».
Select « On » and click on « Set Up New
Device”
Select « STREAM BASE » in the list of items
and click on “Continue”
Connecting…
Connection completed. STREAM BASE is now
paired with your Mac computer.
BLUETOOTH CONNECTION TO AN APPLE COMPUTER
1) BLUETOOTH MODE ACTIVATION
e n g l i s h
32
To enjoy the musics stored on you Mac with
STREAM BASE, set up STREAM BASE as your
audio output device in the “System Prefe-
rences” menu.
Select « Sound » in the « Hardware » section.
Select "STREAM BASE Stereo" in the « Out-
put » tab. The line "STREAM BASE" stands for
the hands free set up to be used only with a
smartphone.
Set the volume control on far right position.
Close the “Sound” window.
If the STREAM BASE is on Eco mode, it will
take around 6 seconds to start playing, the
Bluetooth input being automatically selected.
Use the Stream remote control to adjust the
sound level.
If STREAM BASE is active and connected to
another active source (wi, analog) use the
Stream remote control and select the Blue-
tooth input with the
8
key, then adjust the
sound level.
2) SELECTION OF THE AUDIO OUTPUT DEVICE
33
1 - Switch ON the POWER button on the back of the STREAM BASE. STREAM BASE IS ready to
play when the LED
1
illuminates red (stand-by mode), press key
1
on the front board of
STREAM BASE or on the remote control to get STREAM BASE on.
2 - Connect the smartphone or the tablet to the WLAN network to be used with STREAM BASE.
3 - Download and install the free application names StreamCONTROL on Playstore for Android
or on the App Store for iOS.
4 - Launch the application and follow the instructions from the setup wizard. Choose between
direct Wi-Fi (see page 32) or network mode (see pages 33) upon request.
You can now enjoy Stream, play all the audio les listed in your smartphones or tablets, PC and
Mac computers, NAS hard disks, as well as the HD or USB sticks directly connected to any Stream
BASE, Stream Source or Stream 1 connected to the network, discover thousands of web radios
and stream with Deezer, Spotify, Tidal, Qobuz.
All the Stream players of the same network can be controlled by one or several smartphones and
tablets. Groups of Stream players connected the same way (LAN or WLAN) can be created to play
synchronised music with individual level control.
USE OF STREAM BASE WITH StreamCONTROL APPLICATION
e n g l i s h
34
BATTERY REPLACEMENT
Take the remote control in your hand with
the keyside facing the oor. Lift the locker
and pull out the battery. Remove the dead
battery and replace it with a new CR-2025
battery. Dispose of the old batteries accor-
ding to these instructions.
WEEE MARK
Disposal of Wastes of Electrical &
Electronic Equipment (Applicable in
the European Union)
This symbol on the product,
consisting of the crossed-out
wheeled bin, indicates that this
product shall not be treated as
household waste. Instead it shall be
handed over to the applicable collection point
for the disposal of electrical and electronic
equipment at the end of life. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. The recycling
of materials will help to preserve natural
resources. For more detailed information about
recycling of this product, please contact your
local city ofce, your household waste disposal
service or the shop where you purchased the
product.
AUTO UPDATE
The updates of the rmware for STREAM
BASE are done automatically. The duration of
an update can vary from 5 minutes to half an
hour.
The screen displays "UPDTE" continuously
until the update is fully completed. STREAM
BASE cannot be used during the updates.
CLEANING STREAM BASE
The STREAM BASE may be cleaned with a soft
dBASE cloth. Do not use any sprays near the
system or allow liquids to spill into any ope-
nings. Also, do not use any solvents, chemi-
cals, or cleaning solutions containing alcohol,
ammonia, or abrasives.
FAQ
Looking for more information? Read our de-
tailed answers to the Frequency Asked Question
on www.cabasse.com, page STREAM.
CUSTOMER SUPPORT SERVICE
The Cabasse retailer network is at your disposal
to ensure the after sale service of your product.
To get the list of Cabasse retailers, contact us
or consult our web site www.cabasse.com.
By following the above instructions, your STREAM
BASE system is now properly set up and we hope
you will enjoy your speaker system for many years.
We receive letters every day from customers expres-
sing the ever growing satisfaction and musical emo-
tion they have been getting with our speakers over
the years. These letters are our rst motivation.
CAUTION: there is a danger of explosion
if the battery is incorrectly replaced.
Replace only with the same or equivalent
type. The battery shall not be exposed to excessive
heat such as sunshine, re or the like.
ATTENTION: Do not shut down
STREAM BASE during updates.
35
STREAM BASE
Digital inputs
- 1 DLNA input: either WAN, wired with RJ45 cable
or WLAN - Wi-Fi
- 1 Bluetooth APTX input
- 1S/PDIF optical
- 1 USB input
Analog input 1 stereo 3.5 mm mini-Jack
Voltage 100-240V~60/50 Hz, 2A
Max power consumption
150W
Eco power consumption
11 W @ 100-240VAC~50/60Hz
Stand by consumption
below 0.5 W @ 100-240VAC~50/60Hz
Useable temperature range
+5 °C to +35 °C
Storage temperature
-5 °C to +40 °C
Useable humidity range
40 % to 70 %
Network
10/100Mb Ethernet
MAC & PHY
Wireless LAN 802.11b/g/n
WPS 2.0 security
Digital media renderer
(compliant with DLNA 1.5)
Audio formats
(WiFi/RJ45)
WMA (WMA9, CBR,CBR, up to 320kbps)
WMA (WMA 9, CBR, up to 320 kbps)
PCM (16 bits-44.1kHz, 24 bits-44/48/96 kHz,
.wav, .aiff, .aif, .aifc les, HTTP streams)
AAC-LC (up to 320kbps),
ALAC (.m4a)
FLAC (16 bits-44.1kHz, 24 bits- 44/48/96 kHz)
Drivers
4-Way active amplication
Distortion rate
and noise
(THD+N for the 20-20,000 Hz bandwidth
and for 100 mW power output and more)
2 x tweeters + 4 x low-midrange/midrange + 1 x woofer
2 x 10 W + 2 x 15 W + 2 x 15 W + 40 W
Wi : < 0,1%
Bluetooth : < 0,1%
Analogue : < 0,1%
Optical < 0.1% THD+N
Dimensions (H x W x D) 86 x 650 x 290 mm / 3.4 x 25.6 x 11.4 in
Weight 6.8 kg - 15 lbs
e n g l i s h
36
FEATURES
Bluetooth
connection
WIFI/ETHERNET
via internet router
WIFI direct to
smartphone/
tablet
Loss less audio
playback Yes Yes
Access to any audio
from WLAN network
(desktop...)
Yes
Multi-room Yes
Tracks playback from
smartphone/tablet Yes Yes Yes
Playback smart-
phone/tablet a audio
applications
(youtube…)
Yes
Playback from USB
device Yes Yes
Web radio /DEEZER Yes
Manufactured under licence from Dolby Laboratories.
Dolby and the double D symbol are trademarks of Dolby Laboratories.
37
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions :(1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
CABASSE - NOT0364 - 1506
Cabasse SAS - 210, rue René Descartes - BP 10 - 29280 Plouzané
Tel +33 (0)2 98 05 88 88 - Fax +33 (0)2 98 05 88 99
www.cabasse.com

Navigation menu
